Studying the biology of cytotoxic T lymphocytes in vivo with a fluorescent granzyme B-mTFP knock-in mouse

  1. Praneeth Chitirala
  2. Hsin-Fang Chang
  3. Paloma Martzloff
  4. Christiane Harenberg
  5. Keerthana Ravichandran
  6. Midhat H Abdulreda
  7. Per-Olof Berggren
  8. Elmar Krause
  9. Claudia Schirra
  10. Trese Leinders-Zufall
  11. Fritz Benseler
  12. Nils Brose
  13. Jens Rettig  Is a corresponding author
  1. Cellular Neurophysiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Germany
  2. Department of Molecular Neurobiology, Max-Planck-Institute of Experimental Medicine, Germany
  3. Diabetes Research Institute and Cell Transplant Center, University of Miami Miller School of Medicine, United States
  4. Department of Surgery, University of Miami Miller School of Medicine, United States
  5. Department of Microbiology and Immunology, University of Miami Miller School of Medicine, United States
  6. Department of Ophthalmology, University of Miami Miller School of Medicine, United States
  7. Diabetes Research Institute Federation, United States
  8. The Rolf Luft Research Center for Diabetes and Endocrinology, Karolinska Institutet, Karolinska University Hospital, Sweden
  9. Sensory and Neuroendocrine Physiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Germany
Tools and Resources
  • Cited 0
  • Views 776
  • Annotations
Cite this article as: eLife 2020;9:e58065 doi: 10.7554/eLife.58065

Abstract

Understanding T cell function in vivo is of key importance for basic and translational immunology alike. To study T cells in vivo, we developed a new knock-in mouse line, which expresses a fusion protein of granzyme B, a key component of cytotoxic granules involved in T cell-mediated target cell-killing, and monomeric teal fluorescent protein from the endogenous Gzmb locus. Homozygous knock-ins, which are viable and fertile, have cytotoxic T lymphocytes with endogeneously fluorescent cytotoxic granules but wild-type-like killing capacity. Expression of the fluorescent fusion protein allows quantitative analyses of cytotoxic granule maturation, transport and fusion in vitro with super-resolution imaging techniques, and two-photon microscopy in living knock-ins enables the visualization of tissue rejection through individual target cell-killing events in vivo. Thus, the new mouse line is an ideal tool to study cytotoxic T lymphocyte biology and to optimize personalized immunotherapy in cancer treatment.

eLife digest

Cytotoxic, or killer, T cells are a key part of the immune system. They carry a lethal mixture of toxic chemicals, stored in packages called cytotoxic granules. Killer T cells inject the contents of these granules into infected, cancerous or otherwise foreign cells, forcing them to safely self-destruct. In test tubes, T cells are highly efficient serial killers, moving from one infected cell to the next at high speed. But, inside the body, their killing rate slows down. Researchers think that this has something to do with how killer T cells interact with other immune cells, but the details remain unclear.

To get to grips with how killer T cells work in their natural environment, researchers need a way to follow them inside the body. One approach could be to use genetic engineering to attach a fluorescent tag to a protein found inside killer T cells. That tag then acts as a beacon, lighting the cells up and allowing researchers to track their movements. Tagging a protein inside the cytotoxic granules would allow close monitoring of T cells as they encounter, recognize and kill their targets. But fluorescent tags are bulky, and they can stop certain proteins from working as they should.

To find out whether it is possible to track killer T cells with fluorescent tags, Chitirala, Chang et al. developed a new type of genetically modified mouse. The modification added a teal-colored tag to a protein inside the granules of the killer T cells. Chitirala, Chang et al. then used a combination of microscopy techniques inside and outside of the body to find out if the T cells still worked. This analysis showed that, not only were the tagged T cells able to kill diseased cells as normal, the tags made it possible to watch it happening in real time. Super-resolution microscopy outside of the body allowed Chitirala, Chang et al. to watch the killer T cells release their toxic granule content. It was also possible to follow individual T cells as they moved into, and destroyed, foreign tissue that had been transplanted inside the mice.

These new mice provide a tool to understand how killer T cells really work. They could allow study not only of the cells themselves, but also their interactions with other immune cells inside the body. This could help to answer open questions in T cell research, such as why T cells seem to be so much more efficient at killing in test tubes than they are inside the body. Understanding this better could support the development of new treatments for viruses and cancer.

Introduction

Cytotoxic T lymphocytes (CTLs) are not only essential for the removal of foreign agents such as viruses or bacteria, but also play a key role in modern personalized cancer immunotherapy (Porter et al., 2011; Sharma and Allison, 2015; Watanabe et al., 2018; Minutolo et al., 2019). Accordingly, a detailed mechanistic understanding of the major CTL function, that is the killing of cells through release of cytotoxic substances from cytotoxic granules (CGs) at the immune synapse (IS), is of utmost interest for basic and clinical science alike (Dustin and Long, 2010; Griffiths et al., 2010; Mukherjee et al., 2017; Xiong et al., 2018). The release of perforin and granzymes from CGs has been studied in great detail using cultured primary CTLs (Friedl et al., 2005; Kupfer, 2006; Orange, 2008; Dustin and Long, 2010; Griffiths et al., 2010; Voskoboinik et al., 2015), but corresponding approaches have neglected the fact that CTLs act in concert with other immune cells to perform their function in vivo. In essence, CTL function in isolation differs considerably from CTL function in vivo. However, in vivo studies on CTLs have been scarce due to their technical difficulties and the lack of suitable markers (Mempel et al., 2006; Breart et al., 2008; Germain et al., 2012; Halle et al., 2017; Lodygin and Flügel, 2017; Torcellan et al., 2017; Cazaux et al., 2019; Malo and Hickman, 2019).

We report here the generation of a GzmB-mTFP knock-in (KI) mouse that expresses a fluorescent fusion protein consisting of granzyme B (GzmB), a CG-resident serine protease, and monomeric teal fluorescent protein (mTFP) from the endogenous Gzmb locus. The new GzmB-mTFP-KI allows the observation of individual CTLs and even CGs in living mice at any time point of interest. We show that GzmB-mTFP-KIs are viable, fertile and free of any obvious defects, that their T cell-specific functions are wild-type-identical, and that their CTLs can be imaged with all major super-resolution techniques in vitro and in vivo. We expect that the GzmB-mTFP-KI will be a highly valuable tool to investigate CTL function in vitro and in vivo - in the context of both, basic CTL biology and clinical aspects of CTL function, such as CTL-based personalized cancer immunotherapy.

Results

Generation of a GzmB-mTFP-KI mouse line

To create a specific, endogenous fluorescent label for cytotoxic granules (CG) we chose GzmB (Young et al., 1986; Masson and Tschopp, 1987; Krahenbuhl et al., 1988), which belongs to a family of serine proteases that induce apoptosis of target cells and which is present in CGs of natural killer cells and CD4+ and CD8+ T lymphocytes (Peters et al., 1991). In contrast to perforin, a CG-specific pore-forming protein, GzmB deletion does not lead to a killing defect in CTLs (Simon et al., 1997). Using CRISPR-Cas9 technology and a corresponding HDR fragment, we replaced the Stop codon in exon 5 of the mouse Gzmb gene with a sequence encoding a flexible GGSGGSGGS linker, which has a high probability to be cleaved in the acidic environment of the lysosome (Huang et al., 2014), the coding sequence of monomeric teal fluorescent protein (mTFP), and a Stop codon (Figure 1A and Figure 1—figure supplement 1). We generated homozygous GzmB-mTFP-KIs, which were viable and fertile and showed no obvious phenotypic changes. PCR analyses of CTL lysates derived from wild-type, heterozygous and homozygous GzmB-mTFP-KI mice verified the expected genotypes (Figure 1B). As envisioned by our design, Western blot analyses of lysates of CTLs four and five days after activation showed that the fusion protein is efficiently cleaved into GzmB and mTFP (Figure 1C), ensuring a correct function of GzmB in the killing process. As expected, Western blot (days 0–5; Figure 1D) and FACS analyses (days 0–10; Figure 1E) demonstrated a continuous up-regulation of GzmB expression following CTL activation. The expression levels of the fusion protein varied between different preparations (59.1% (day 4, Figure 1C), 53.6% (day 5, Figure 1C) and 183.9% (day 5, Figure 1D) of wt level for GzmB) as expected, but we always observed a robust fluorescence without the requirement to change the intensity of the excitation lasers for the experiments shown in the following figures.

Figure 1 with 1 supplement see all

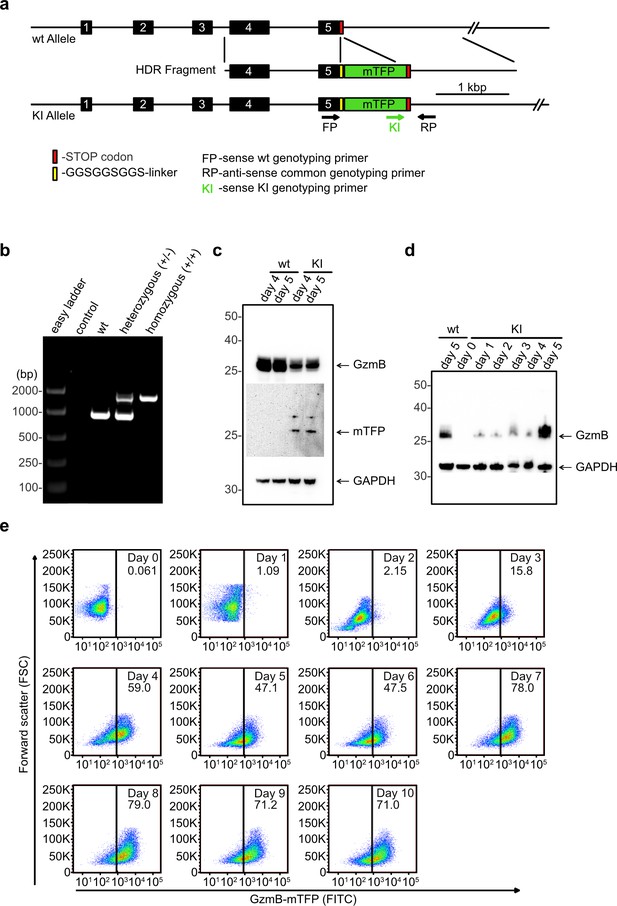

Generation of GzmB-mTFP knock-in mice.

(A) CRISPR-Cas9 strategy to generate the GzmB-mTFP-KI. wt, wild-type; KI, GzmB-mTFP-KI; numbered black boxes, Gzmb exons; red bar, Stop codon; yellow bar, GGSGGSGGS-linker; green box, mTFP coding sequence; rightward black arrow, forward genotyping primer wt; rightward green arrow, forward genotyping primer KI; leftward black arrow, reverse common genotyping primer (primers are not drawn to scale). (B) PCR of CTL lysates derived from wild-type, heterozygous and homozygous GzmB-mTFP-KI mice using oligonucleotides FP, RP and KI. (C) Western blot of lysates derived from wild-type and GzmB-mTFP-KI CTLs 4 and 5 days after activation. Anti-GzmB and anti-mTFP antibodies were used for detection, anti-GAPDH antibody served as loading control. (D) Western blot of lysates derived from naïve GzmB-mTFP-KI CTLs and 1, 2, 3, 4 and 5 days after activation with anti-CD3/anti-CD28 coated beads. Lysates from wild-type CTLs 5 days after activation were used for comparison, anti-GAPDH antibody served as loading control. (E) CTLs from GzmB-mTFP-KI mice were isolated and analyzed by FACS at the indicated days after activation. Non-activated CTLs (day 0) served as negative control.

Endogenous GzmB-mTFP fluorescence co-localizes with CG markers and migrates to the IS

To verify the usefulness of the GzmB-mTFP-KI in vitro and in vivo imaging, we next assessed the correct localization of GzmB and mTFP to CGs. We isolated CTLs from the KI mice and fixed them five days after activation. We then performed immunofuorescence labeling with anti-GzmB and anti-perforin antibodies and detected by structured illumination microscopy (SIM) an excellent co-localization of mTFP, GzmB, and perforin signals (Pearson's coefficient of correlation 0.84 ± 0.02 for GzmB-mTFP vs. GzmB, 0.69 ± 0.03 for GzmB-mTFP vs. perforin, n = 10; Manders' coefficient of correlation 0.79 ± 0.02 for GzmB-mTFP vs. GzmB, 0.80 ± 0.01 for GzmB vs. GzmB-mTFP, 0.70 ± 0.02 for GzmB-mTFP vs. perforin, 0.71 ± 0.03 for perforin vs. GzmB-mTFP, n = 10; Figure 2A–C).

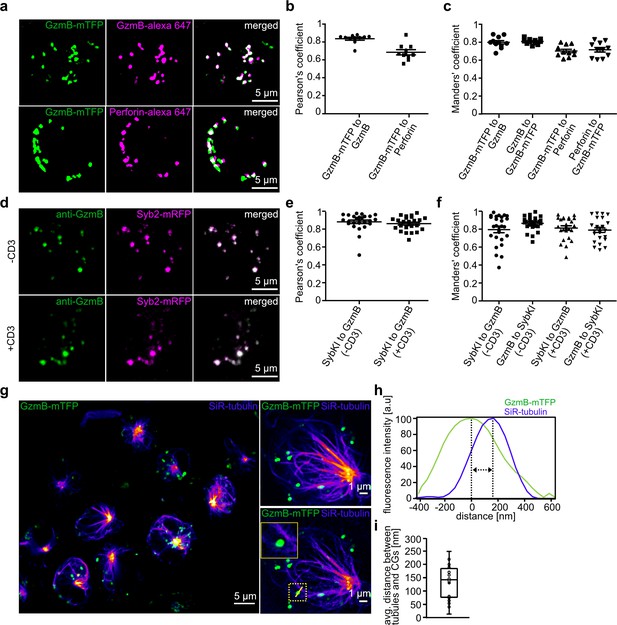

Endogenous GzmB-mTFP fluorescence co-localizes with CG markers and migrates to the IS.

(A) SIM images of primary CTLs from GzmB-mTFP-KI mice on day five after activation. CTLs were fixed and stained with Alexa647 conjugated anti-GzmB antibody (upper panel) or Alexa647 conjugated anti-perforin antibody (lower panel). (B–C) Pearson’s and Manders coefficients of corelation between GzmB-mTFP and the other CG markers. (D) SIM images of primary CTLs from Syb2-mRFP/GzmB-mTFP double KI mice on day five after activation. CTLs were fixed and examined for endogenous fluorescence in the mTFP and mRFP channels. (E–F) Pearson’s and Manders coefficients of correlation between GzmB-mTFP and Syb2-mRFP. Scale bars, 5 µm. (G) Live STED images of primary CTLs from GzmB-mTFP-KI mice labeled with SiR-tubulin and plated onto anti-CD3 coated coverslip. The transport of CG along the microtubules toward the IS is shown in the overview for all CTLs (left; Scale bar, 5 µm) and in more detail in the two exemplary CTLs (right; Scale bar, 1 µm). (H) Distance between CG and microtubule from exemplary image quantified by ImageJ software. (I) Average distance between microtubules and CGs (n = 19).

Further, we cross-bred the GzmB-mTFP-KI with a Synaptobrevin-2 (Syb2)-mRFP-KI. Using the Syb2-mRFP-KI, we had shown previously that Syb2 is almost exclusively localized to CGs in CTLs and acts as the vSNARE in CG fusion with the plasma membrane (Matti et al., 2013). Comparison of endogenous GzmB-mTFP and Syb2-mRFP fluorescence in CTLs on poly-ornithine or anti-CD3 coated coverslips again revealed excellent co-localization (Pearson's coefficient of correlation 0.88 ± 0.10 for poly-ornithine, and 0.86 ± 0.08 for anti-CD3, n = 25; Manders' coefficient of correlation 0.86 ± 0.08 for GzmB-mTFP vs. Syb2-mRFP and 0.79 ± 0.17 for Syb2-mRFP vs. GzmB-mTFP on poly-ornithine, 0.79 ± 0.13 for GzmB-mTFP vs. Syb2-mRFP and 0.81 ± 0.13 for Syb2-mRFP vs. GzmB-mTFP on anti-CD3, n = 25; Figure 2D–F). These data show that the cleavage of GzmB-mTFP we observed (Figure 1C–D) occurs inside CGs, so that the mTFP in the GzmB-mTFP-KI represents an excellent endogenous marker for studies of CG maturation, transport and fusion, without affecting GzmB localization and function. To visualize CG transport along the microtubular network, we incubated primary CTLs from GzmB-mTFP-KIs with silicon rhodamine(SiR)-tubulin, seeded them onto anti-CD3 coated coverslips to induce immune synapse (IS) formation and followed transport of CGs along microtubuli by live stimulated emission depletion (STED) microscopy (Figure 2G). Within five minutes after seeding, microtubules with the characteristic microtubule organizing center (MTOC) had formed and all CGs were being transported toward the IS at the bottom of the cells. During transport, the average distance between CGs and microtubuli was 137.5 ± 19.6 nm (19 cells, 80 granules; Figure 2G–I), comparable to that of wild-type control cells. Thus, CTLs of the GzmB-mTFP-KI mouse are ideally suited to follow maturation and trafficking of endogenously labeled CGs in vitro with super-resolution microscopy.

GzmB-mTFP containing CGs fuse at the immune synapse

We next tested whether CG fusion at the IS can be observed and quantified in real time using the GzmB-mTFP-KI. For this purpose, we seeded primary GzmB-mTFP-KI CTLs on anti-CD3 coated coverslips and performed total internal reflection microscopy (TIRFM). The presence of essential components of pSMAC and cSMAC allows the CTLs to form an IS on the area facing the coverslip. Within two minutes CGs arrived at the IS and frequently fused, as indicated by a sudden drop in fluorescence due to the diffusion of the fluorophore (Figure 3A). Quantification showed that the average number of CTLs showing CG fusion (59.0 ± 2.9% for wild-type control and 57.7 ± 4.6% for KI, N = 3, n = 70; Figure 3B) and the number of CG fusion events per cell (7.09 ± 0.48 for wild-type control and 7.23 ± 0.64 for KI, N = 3, n = 70; Figure 3C) were indistinguishable between wild-type and GzmB-mTFP-KI CTLs, in accordance with our recent findings on fusion kinetics and TCR stimulation (Estl et al., 2020). Furthermore, there was no difference in the kinetics of CG movement into the TIRF field between wild-type and GzmB-mTFP-KI (Figure 3D).

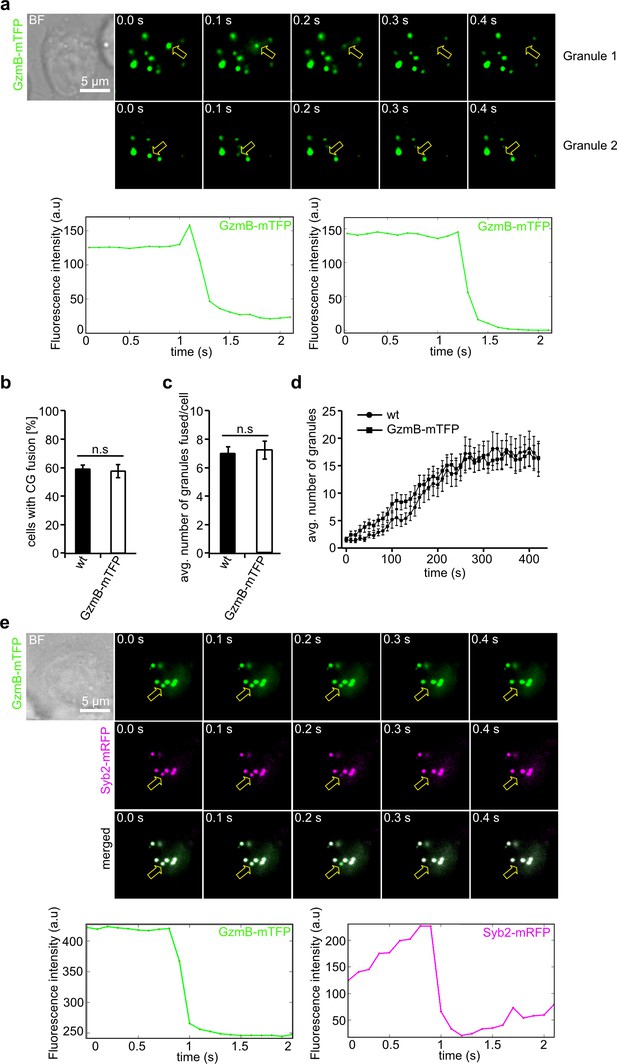

GzmB-mTFP containing cytotoxic granules fuse at the IS.

(A) Selected live-cell TIRF microscopy images of GzmB-mTFP in a CTL in contact with an anti-CD3 coated coverslip. Fusion events are indicated with open arrows (seven consecutive frames per fusion event are shown). Scale bar, 5 µm. (B) Selected live-cell, dual-channel TIRF microscopy images of GzmB-mTFP and Syb2-mRFP in a CTL derived from Syb2-mRFP/GzmB-mTFP double KI mice and in contact with an anti-CD3 coated coverslip. Fusion events are indicated with open arrows (seven consecutive frames per fusion event are shown). (C–D) Comparison between wild-type and GzmB-mTFP-KI CTLs reveals no difference in the percentage of CTLs showing fusion (C) and average number of fused CG per cell (D). (E) Mean average number of CGs appearing in the TIRF plane per cell during 7 min of measurements (N = 3, n = 10 for wt; and N = 3, n = 12 for GzmB-mTFP KI).

We also used CTLs isolated from GzmB-mTFP/Syb2-mRFP double KI mice to assess simultaneous fluorescence signals in mTFP and mRFP channels. Again, we found a perfect co-localization of both fluorophores, with fusion events detected in both channels. Following fusion, the mRFP fluorescence remained visible at the plasma membrane, as expected for a membrane protein like synaptobrevin2 (Figure 3E). Our TIRFM data show that CG fusion events at the IS can be reliably observed with CTLs derived from the GzmB-mTFP-KI mouse, making the new KI an ideal tool to study molecular mechanisms of CG fusion in primary CTLs without the need for transfection of CG markers.

GzmB-mTFP-KI CTLs efficiently kill target cells

To confirm that primary GzmB-mTFP-KI CTLs maintain their ability to kill target cells, we performed two independent killing assays and compared the killing efficiency of CTLs from GzmB-mTFP-KIs to that of wild-type CTLs. First, we stably transfected P815 target cells with Casper3-GR, a FRET based sensor consisting of green and red fluorescent proteins TagGFP and TagRFP connected by a linker containing the caspase-3 cleavage sequence DEVD (Shcherbo et al., 2009). The activation of caspase-3 by GzmB during apoptosis leads to cleavage of the DEVD sequence and elimination of FRET, which can be detected as a decrease in the red emission of TagRFP and a simultaneous increase in green emission of TagGFP. We found that wild-type and GzmB-mTFP-KI CTLs killed with a similar frequency (59.0 ± 2.9% for wild-type and 57.7 ± 4.6% for KI, N = 3, n = 70) and efficiency, as indicated by the same fold ratio change between the green and the red channel (2.40 ± 0.33 for wild-type, n = 8; 2.34 ± 0.22 for KI, n = 7; Figure 4A).

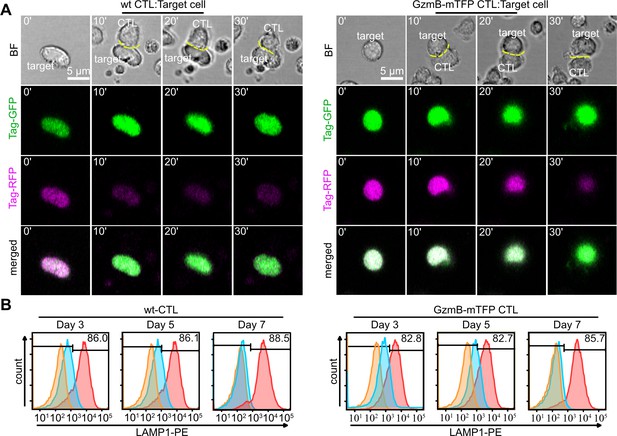

CTLs from GzmB-mTFP-KI mice kill target cells as efficient as wild-type CTLs.

(A) Live cell killing assay showing a wild-type (left) and GzmB-mTFP-KI (right) CTL in contact with P815 target cells stably expressing Casper3-GR (FRET construct containing Tag-GFP and Tag-RFP with a target cleavage site DEVD of Caspase 3 (activated via GzmB). LSM images at indicated time points show a reduction in FRET signal, indicating the killing of the target cell. Scale bars, 5 µm. (B) CTLs isolated from either wt (left) or GzmB-mTFP-KI (right) mice were assessed for degranulation capacity using FACS-based assay on day 3, 5 and 7, respectively. Data shown are representative histograms from three independent experiments. Orange areas show untreated CTLs, blue areas show constitutive secretion and red areas show stimulated secretion.

Second, we performed a flow cytometry-based degranulation assay (Betts et al., 2003). At all three days after activation tested (days 3, 5 and 7 after activation), the degranulation measured by LAMP1 (CD107a) expression on the surface was comparable between wild-type and GzmB-mTFP-KI CTLs [day 3: 84.0 ± 2.5% (wild-type) vs. 82.7 ± 0.3% (KI); day 5: 84.2 ± 2.5% (wild-type) vs. 82.6 ± 0.3% (KI); day 7: 88.3 ± 0.6% (wild-type) vs. 85.4 ± 0.2% (KI), N = 3; Figure 4B). Thus, the killing capacity of GzmB-mTFP-KI CTLs is indistinguishable from that of wild-type CTLs in vitro.

In vivo imaging of allorejection using GzmB-mTFP-KI CTLs

CTLs fight infections and cancer in vivo in concert with other immune cells, like CD4+ T cells and macrophages. Therefore, we tested the ability of GzmB-mTFP-KI CTLs to reject foreign tissue transplanted into the anterior chamber of the eye (ACE) (Speier et al., 2008a; Speier et al., 2008b; Abdulreda et al., 2013). Originally developed to follow insulin secretion from Langerhans islets in Diabetes treatment (Speier et al., 2008a; Rodriguez-Diaz et al., 2012), the ACE model allows longitudinal, non-invasive in vivo imaging of anti-islet immune responses with single-cell resolution in real time (Abdulreda et al., 2013; Abdulreda et al., 2019). We transplanted Langerhans islets from allogenic DBA/2 donor mice into the anterior chamber of the eye of GzmB-mTFP-KIs recipients, which had been bred in the C57BL/6 background (Figure 5A). At post operational day 4 (POD4) following transplantation, we started weekly in vivo observations with a confocal laser scanning or a two-photon microscope. Between POD4 and POD7, transplanted islets became capillarized and blood-perfused, indicating successful engraftment (Figure 5—figure supplement 1A, Video 1). Starting between POD7 and POD14, GzmB-mTFP positive cells invaded the islets, reached a maximum in number within two weeks (26 ± 8.3 cells/100 µm³, N = 4 animals, n = 11 islets) and eventually declined with the disappearance of the island allografts (Figure 5—figure supplement 1B–D). To exclude that the islet shrinking resulted from islet necrosis and/or unspecific rejection, we performed control experiments with transplanted syngenic islets from C57BL/6 donors. As expected, we observed engraftment of the syngenic islets after 4–7 days, but we did not detect any GzmB-mTFP positive cells nor any islet rejection during three months of observation post-transplantation, demonstrating the high specificity of the ACE model.

Figure 5 with 3 supplements see all

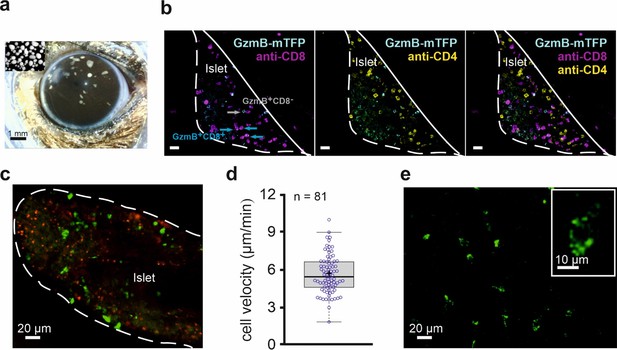

In vivo imaging of allorejection in the anterior chamber of the eye (ACE) visualized by CTLs from GzmB-TFP-KI mice.

(A) Binocular image of a mouse eye with islets of Langerhans from DBA/2 mice transplanted into the anterior chamber of the eye (ACE) 4 days prior to the image. Islets can be identified as small white spots in the range between 100–300 µm diameter located on top of the iris. Inset shows cultured islets before transplantation. (B) Confocal images of a pancreatic islet inside the ACE fixed and sliced at POD14. The outline defines the boundary of the islet of Langerhans localize on the iris. Green cells are cytotoxic T lymphocytes marked by endogenously expressed GzmB-mTFP having infiltrated the islet during the immune response. Antibody staining of CD8+ (blue) and CD4+ (magenta) T cells are shown. (C) In vivo confocal microscopy of an islet during allorejection in the ACE (POD14). White line marks the boundary of pancreatic islet toward the ACE lumen. Faint green (excitation 458 nm wavelength) and red (excitation 561 nm wavelength) signals are autofluorescence. CTLs marked by GzmB-mTFP (green, excitation 488 nm) infiltrated the islet during the immune response. (D) Velocity of 81 migrating CTLs tracked from panel (C) after imaging for >30 min. Mean is shown as a plus symbol, median as a line. See also Figure 5—video 1. (E) Two-photon image of GzmB-mTFP positive cells from the corneal area. Individual vesicles inside the CTL are easily identified (inset). See also Figure 5—video 2.

Video 1
In vivo imaging of the capillary network of a transplanted pancreatic islet.

The pancreatic islet was transplanted into the ACE 14 days prior the experiment. The movie is a maximum intensity projection of 11 planes covering a 40 µm thick stack over 37 min and was acquired with a two-photon microscope tuned to 880 nm for GzmB-mTFP (CTL marker) and 1040 nm for rhodamine-dextran (MW 70 kD; blood vessel marker).

To verify the identity of GzmB-mTFP positive cells inside the anterior chamber, we fixed transplanted eyes at POD14-18, produced histochemical samples and counterstained the tissue with specific antibodies against CD4+ T helper cells and CD8+ CTLs (Figure 5B). We found almost no overlap between GzmB-mTFP positive cells and CD4+ cells, while the majority of CD8+ cells also were GzmB-mTFP positive. These data again demonstrate the high specificity of the GzmB-mTFP-KI as a marker for CTLs. The small number of GzmB-mTFP positive, but CD8 negative cells might represent natural killer (NK) cells.

Next, we used the ACE model for long-term in vivo observations of CTL migration. We imaged islets in 40 µm thick layers (11 planes) and analyzed the migration of invading CTLs in 4D (volume and time) as previously described (Abdulreda et al., 2011). Figure 5C shows a representative, confocal overview of an islet with green spots indicating the positions of single CTLs. Figure 5—video 1 shows the respective long-term observation over 32 min. Analysis of CTL velocity from these data yielded an average migration velocity of 5.52 ± 1.5 µm/min (mean ±s.d.; median 5.34) at POD14 (Figure 5D). At later PODs, the velocity increased due to the advanced tissue clearance (data not shown).

Ultimately, the specific, endogenous labeling of individual granules should enable us to visualize single fusion events of CG in vivo. A prerequisite for this goal is to achieve sufficient resolution and acquisition frequencies to discriminate single vesicles and track them. As shown in Figure 5—videos 1 and 2 and in Figure 5E, we clearly identified individual granules in migrating CTLs. The nominal lateral resolution in the raw data of the videos and the image in Figure 5E was ~0.7 µm (pixel size 340 × 340 nm). The apparent resolution as determined by 'full width at half maximum (FWHM)' analysis was dependent on the recording conditions and the position of the cell within an islet. Typically within the first 40 µm from the islet surface, we reached a resolution of ~1 µm. While using two-photon instead of confocal microscopy (Figure 5E) did not increase the maximal resolution, the signal to noise ratio and the light-penetration depth were substantially increased. New technological developments, like a combination of two-photon microscopy with STED microscopy (Takasaki and Sabatini, 2014) will further improve 3D resolution in in vivo studies and will, in combination with the GzmB-mTFP-KI, allow the observation of individual CG fusion events in vivo.

Discussion

The elimination of infected or malignant cells through CTL-mediated target cell killing is essential to maintain health. While in vitro studies indicated that CTL-mediated target cell killing is highly efficient, two-photon imaging of lymph nodes in living mice demonstrated that CTLs kill on average only 4.5 target cells per day and require the cooperativity of several CTLs acting in concert (Halle et al., 2016; Nolz and Hill, 2016; Halle et al., 2017). This surprising inefficiency in vivo is most likely caused by rate-limiting steps like CTL priming, CTL trafficking, CTL properties and target cell properties (Halle et al., 2017). For the optimization of vaccines and CTL-based immunotherapies it is therefore of utmost importance to study CTL behavior in the physiological setting of a living organism.

We report the generation of a GzmB-mTFP-KI, in which all CGs of T cells are endogenously fluorescent due to an mTFP-tag at the CG-resident enzyme GzmB. We chose the mTFP tag because of its ideal suitability for two-photon imaging in vivo and for Förster resonance energy transfer (FRET) (Day et al., 2008; Drobizhev et al., 2011; Gossa et al., 2015). mTFP is a derivative of cyan fluorescent protein (CFP) from Clavularia coral (Ai et al., 2006), is monomeric (26.9 kDa) unlike the tetrameric CFP, has a high brightness, photostability and quantum yield, is only weakly acid sensitive and has a narrow emission spectrum (Ai et al., 2006; Day et al., 2008). The brightness, photostability and high quantum yield of mTFP are ideally suited for longitudinal, non-invasive imaging over extended time periods. In addition, mTFP is tolerated by the immune system upon adoptive transfer, which favors its use for imaging immune cells in vivo (Gossa et al., 2015).

The biggest concern when using fusion protein tags is that the attached tag might interfere with the expression, localization or function of the tagged protein, in our case GzmB. GzmB is synthesized as a zymogen and cleaved by cathepsin C in lysosomes (Jenne and Tschopp, 1988; Krahenbuhl et al., 1988; Caputo et al., 1993; Perišić Nanut et al., 2014; Voskoboinik et al., 2015), which removes an N-terminal 18-residue signal peptide and the downstream activation dipeptide Gly-Glu (Caputo et al., 1993). To avoid interference with proper GzmB localization we therefore chose the C-terminus for fusion of mTFP. Further, we added a flexible GGSGGSGGS linker between GzmB and mTFP, which is cleaved in CGs (Figure 1CHuang et al., 2014). Our co-localization analyses with perforin and the CG v-SNARE synaptobrevin2 (Figure 2) and TIRF imaging of individual CG fusion events (Figure 3) demonstrate that the mTFP and GzmB in the GzmB-mTFP-KI are correctly and specifically localized to CG, so that GzmB is not functionally compromised (see below) and mTFP can be used as a very faithful CG marker.

Beyond subcellular protein trafficking and localization, tags can affect protein function. Indeed, a recently published GzmB-tdTomato-KI exhibits reductions of 75% in GzmB expression, of 30% in CTL degranulation and of 25% in GzmB protease activity (Mouchacca et al., 2013; Mouchacca et al., 2015). In striking contrast to this, our analyses of GzmB-mTFP-KI CTLs did not reveal any changes in GzmB expression (Figure 1C–D), CG transport (Figure 2G–H), CG fusion efficiency (Figure 3C–D), degranulation capacity (Figure 4B) or killing efficiency (Figure 4A). This may be partly due to the smaller size of mTFP as compared to tdTomato (26.9 vs. 54.2 kDa). More importantly, though, the fact that GzmB-mTFP appears to be efficiently cleaved into GzmB and mTFP in the acidic environment of the CG lumen (Figure 1C–D) contributes substantially to the almost perfect functionality of GzmB in the GzmB-mTFP-KI, so that GzmB can operate in an unperturbed manner while mTFP can still be used to follow CG localization, movement and fusion.

The advantages and potential of the novel GzmB-mTFP-KI are manifold. While many current in vivo studies require the removal of CTLs from lymphatic tissue and their exogenous labeling and re-injection via the tail vein, no manipulations are necessary for confocal or two-photon imaging in the GzmB-mTFP-KI (Figure 5). Further, the subcellular targeting of GzmB-mTFP to CGs allows the investigation of individual CGs without compromising analyses of single CTLs in tissue. In combination with FRET-based apoptosis reporters (Breart et al., 2008; Shcherbo et al., 2009; Garrod et al., 2012; Cazaux et al., 2019) expressed in the islets the GzmB-mTFP-KI might shed new light on the degranulation process in vivo. In conclusion, the new GzmB-mTFP-KI mouse now allows the investigation of rate-limiting processes in CTL function like priming, differentiation, migration and killing in order to optimize vaccines and immunotherapies for virus infections and cancer.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Antibodyanti-GAPDH
(rabbit polyclonal)
Cell Signaling TechnologyCat# 2118L; Clone-14C10WB (1:5000)
Antibodyanti-tRFP
(rabbit polyclonal)
EvrogenCat# ab233WB (1:2000)
Antibodyanti-Granzyme B
(rabbit polyclonal)
Cell Signaling TechnologyCat# 4275SWB (1:2000)
AntibodyAlexa647-coupled anti-Granzyme B
(mouse IgG1, κ)
BioLegendCat# 515405; clone-GB11IF (1:200)
AntibodyAlexa647-coupled anti-perforin
(mouse, IgG2b, κ)
BioLegendCat# 308109; clone-dG9IF (1:200)
AntibodyHamster anti-mouse (CD3ε)BD PharmingenCat# 553058; clone-145–2 C1130 µg/ml
AntibodyRat Brilliant Violet421 anti-mouse CD8a (rat, IgG2a, κ)BioLegendCat# 100737; clone-53–6.7IHC (1:200)
AntibodyRat APC anti-mouse CD4 (rat, IgG2b, κ)BioLegendCat# 100412; clone-GK1.5IHC (1:200)
AntibodyRat anti-mouse CD107a-PE (rat, IgG2a, κ)BioLegendCat# 121611; clone-ID4BFACS (1:200)
Recombinant DNA reagentCasper3-GR
(plasmid)
EvrogenCat# FP971
Recombinant DNA reagentpMAX-Granzyme B-mCherry
(mouse)
This paperFigure 3, Available from the authors upon request
Recombinant DNA reagentpMAX-Casper3-GR (plasmid)This paperFigure 4A; Available from the authors upon request
Biological sample (Mus musculus)Primary CD8+ T lymphocytesThis paperFreshly isolated from spleen of Granzyme B-mTFP knock-in mouse(8–20 weeks old); Mouse available from EMMA mouse depository

Generation of GzmB-mTFP KI mice and other animals used

Request a detailed protocol

GzmB-mTFP-KI mice were generated by CRISPR-Cas9 technology with an HDR fragment designed to replace the endogenous Stop codon of the Gzmb gene by sequences encoding a GGSGGSGGS-linker, mTFP and a Stop codon (Figure 1A, Figure 1—figure supplement 1). Mouse Gzmb gene sequences required for the HDR fragment were PCR amplified from genomic C57BL/6J (Janvier) DNA, subcloned into pMiniT (NEB) and sequence verified, and the sequence encoding GGSGGSGGS-mTFP-Stop was obtained from a previously generated plasmid (pMAX-Synaptobrevin2-mTFP). Using these sequences, the HDR fragment was generated by Gibson assembly (Gibson, 2009). For zygote injections, we used a single sgRNA (5’-GTC CAG GAT TGC TCT AGG AC-3’; PAM, AGG), in vitro transcribed capped Cas9-D10A mRNA ('nickase' version of Cas9 [Gasiunas et al., 2012; Jinek et al., 2012; Cong et al., 2013]), and the purified HDR fragment. The strategy to use a single sgRNA in combination with Cas9-D10A mRNA was chosen to minimize the likelihood of off-target cleavage events. The CRISPR-Cas9 reagents (10 ng/µl sgRNA, 10 ng/µl Cas9-D10A mRNA, 20 ng/µl HDR fragment) were injected into the pronucleus and cytosol of zygotes (C57BL/6J, Janvier), which were then re-implanted into seven recipient mice. We obtained 32 offspring, which were genotyped for the proper insertion of the HDR fragment by PCR, using primer 36016 (ATCAAAGAACAGGAGAAGACCCAG, Exon 3) in combination with primer 33615 (GGTGTTGGTGCCGTCGTAGGG, mTFP) (1433 bp fragment) and primer 19524 (ACCGCATCGAGATCCTGAACC, mTFP) in combination with primer 36017 (AATGGCTAAGCAATCCCATCAGG, downstream of HDR1) (1565 bp fragment). Of the 32 offspring, one carried the desired mutation. This mouse was subsequently bred to C57BL/6J mice (Janvier) to obtain germline transmission of the GzmB-mTFP-KI mutation. Genotyping of later generations was done by short-range PCR (Figure 1A, Figure 1—figure supplement 1). As soon as the paper is published, the GzmB-mTFP-KI mouse line will be deposited at the European Mouse Mutant Archive (EMMA). Until the line is established at EMMA, mice will be provided by the authors upon request. C57BL/6 mice for other experiments were purchased from Charles River Laboratories (Sulzfeld, Germany). Donor mice for islet of Langerhans isolation were DBA/2 mice (12–30 weeks old). All animal experiments were performed according to German law and European directives, and with permission of the Niedersächsisches Landesamt für Verbraucherschutz und Lebensmittelsicherheit (LAVES animal license number 33.9-42502-04-13/1359) and the state of Saarland (Landesamt für Gesundheit und Verbraucherschutz; animal license number 41–2016).

Plasmids and antibodies

Request a detailed protocol

Casper3-GR (FP971; Evrogen) vector was digested with BamH1 and Not1 to remove TagRFP-linker-TagGFP. The same digestion was performed for pMAX vector and both vector and insert were ligated. The following primary antibodies were used: anti-GAPDH (RRID:AB_561053), anti-tRFP (RRID:AB_2571743) and anti-GzmB (RRID:AB_2114432). Secondary antibodies were HRP-conjugated donkey anti-rabbit and Alexa Fluor 647 goat anti-mouse IgG (H+L) (Thermo Fisher Scientific). For structured illumination microscopy (SIM), Alexa647-coupled anti-granzymeB (RRID:AB_2294995) and Alexa647-coupled anti-perforin (RRID:AB_493255) antibodies were used. For total internal reflection fluorescence microscopy (TIRFM) a hamster anti-mouse CD3ε (RRID:AB_394591) antibody was used for coating coverslips and stimulating cells. For FACS, a rat anti-mouse CD107a-PE (LAMP-1-PE) (RRID:AB_1732051) antibody was used.

Cell culture

Request a detailed protocol

Splenocytes were isolated from 8 to 18 week-old C57BL6/N, Syb2-mRFP/GzmB-mTFP double knock-in mice or Granzyme B-mTFP-KI mice, as described before (Chang et al., 2016). Briefly, naive CD8+ T cells were isolated from splenocytes using Dynabeads FlowComp Mouse CD8+ kit (Thermo Fisher Scientific). The isolated naive CD8+ T cells were cultured for up to 12 to 14 d (37°C, 5% CO2) with anti-CD3/anti-CD28 activator beads with 100 U/mL IL2 (1:0.8 ratio) at a density of 1 × 106 cells/mL in AIMV (Thermo Fisher Scientific) containing 10% FCS and 50 µM 2-ME to generate effector CTLs. P815 target cells were cultured in RPMI 1640 medium (Thermo Fisher Scientific) containing 10% FCS, 1% pen/strep, and 10 mM HEPES.

CTL:target cell conjugation

Request a detailed protocol

For functional effector:target cell conjugations P815 target cells were incubated with 10 µg/ml anti-CD3ε antibody for 15–30 min at 37°C and washed with 1xPBS. 0.2 × 106 P815 cells were plated on 12 mm glass coverslips. Carefully, 0.2 × 106 CTLs were added on top of settled P815 target cells and imaged for 45 min to 1 hr.

Structured illumination microscopy (SIM)

Request a detailed protocol

Cells were fixed in ice-cold 4% PFA in Dulbecco’s 1xPBS (Thermo Fisher Scientific) for 20 min. For staining, cells were permeabilized with 0.1% TritonX-100 in Dulbecco’s 1xPBS (permeabilizing solution) for another 20 min followed by 30 min blocking in solution containing 2% BSA prepared in permeabilizing solution. Cells were stained with either Alexa 647 conjugated anti-GzmB or Alexa 647 conjugated anti-perforin antibodies (BD Biosciences) and observed at an Elyra PS.1 microscope (Zeiss, Jena, Germany). Images were acquired with a 63x Plan-Apochromat (NA 1.4) with laser excitation at 488, 561, and 635 nm and then processed to obtain higher resolutions (RRID:SCR_013672). For analysis of co-localization, Pearson’s and Manders’ coefficients of correlation (Pearson, 1909; Manders et al., 1993) were determined using the JACoP plugin of ImageJ v1.46.

Total internal reflection fluorescence (TIRF) microscopy

Request a detailed protocol

The TIRFM setup (Visitron Systems GmbH, Puchheim, Germany) was based on an IX83 (Olympus) equipped with the Olympus autofocus module, a UAPON100XOTIRF NA 1.49 objective (Olympus), a 488 nm 100 mW laser and a solid-state laser 100 mW emitting at 561 nm, the iLAS2 illumination control system (Roper Scientific SAS, France), the evolve-EM 515 camera (Photometrics) and a filter cube containing Semrock (Rochester, NY, USA) FF444/520/590/Di01 dichroic and FF01-465/537/623 emission filter. The setup was controlled by Visiview software (version 4.0.0.11, Visitron GmbH). For TIRFM, day seven bead activated CTLs isolated from GzmB-mTFP-KI or GzmB-mTFP/Syb2-mRFP double knock-in mice were used. 2 hr before experiment, beads were removed from CTLs and roughly (0.2–0.3 × 106 cells) were resuspended in 30 μL of extracellular buffer (2 mM HEPES, 140 mM NaCl, 4.5 mM KCl, and 2 mM MgCl2) containing no Ca2+ and allowed to settle for 1–2 min on anti-CD3ε antibody (30 μg/mL) coated coverslips. Cells were then perfused with extracellular buffer containing 10 mM Ca2+ for visualizing CG fusion. Cells were imaged for 7 min at room temperature at 488 nm or alternating between 488 nm and 561 nm with acquisition frequency of 10 Hz and exposure time of 100 ms. Images and time-lapse series were analyzed using ImageJ (RRID:SCR_003070) or the FIJI package of ImageJ (RRID:SCR_002285). CG fusion analysis was performed using ImageJ with the plugin Time Series Analyzer (RRID:SCR_014269). A sudden drop in GzmB-mTFP or GzmB-mCherry fluorescence occurring within 300 ms (three acquisition frames) was defined as fusion (Ming et al., 2015). The number of vesicles was shown according to the corresponding fluorescence intensity of the vesicles.

Western blot analysis

Request a detailed protocol

Mouse CTLs were homogenized with a syringe in lysis buffer (50 mM Tris (pH 7.4), 1 mM EDTA, 1% Triton X-100, 150 mM NaCl, 1 mM DTT, 1 mM deoxycholate, protease inhibitors, and PhosSTOP; Roche) on ice and insoluble material was removed by centrifugation at 11,300 g for 10 min. The protein concentration was determined using Quick Start Bradford 1x Dye Reagent (5000205; Bio-Rad). Proteins were separated by SDS-PAGE (NuPAGE; Thermo Fisher Scientific), transferred to nitrocellulose membranes (Amersham), and blocked by incubation with 5% skim milk powder in 20 mM Tris, 0.15 M NaCl, pH 7.4, and TBS for 1–2 hr and blotted with specific antibodies. Blots were developed using enhanced chemiluminescence reagents (SuperSignal West Dura Chemoluminescent Substrate; Thermo Fisher Scientific) and scanned.

Degranulation assay

Request a detailed protocol

CTLs isolated from wt and GzmB-mTFP-KI mouse were stimulated with anti-CD3/CD28 beads. Day 3, 5, 7 and 10 activated CTLs from both wt and GzmB-mTFP knock-in mouse were used for degranulation assay. 2 hr before degranulation, anti-CD3/CD28 beads were removed from cells and allowed the cells to rest in the 37°C incubator. 0.2 × 106 CTLs were used for each condition. Cells were plated in duplicates in 96-well plates either coated with or without anti-CD3/CD28 Ab, along with antibiotic Monensin (BD Biosciences) to block endocytosis of CD107a (LAMP1a) from the CTL membrane. Cells were allowed to degranulate for 2 hr at 37°C. Cell were washed and resuspended in isolation buffer (0.1% BSA + 2 mM EDTA in D-PBS, pH 7.4) for acquisition. Degranulation was measured with anti-CD107a conjugated with PE (RRID:AB_1732051). Data were acquired in FACSAria3 (BD Pharmingen). Data were analyzed using FlowJo software (RRID:SCR_008520). Gates were set based on unstained controls.

Live-cell killing assay using Casper3-GR target cells

Request a detailed protocol

Briefly, 0.2 × 104 P815 target cells stably expressing Caspr3-GR (FRET construct containing Tag-GFP and Tag-RFP with a target cleavage site DEVD of Caspase 3 (activated via GzmB) were washed once with PBS and resuspended in 100 µl AIMV medium. P815 cells were incubated with 30 µg/ml anti-CD3 antibody at 37°C for 20 min and plated into 8-well strips (BD Falcon). After 2–3 min, 0.2 × 106 day 5 CTLs from either wild type or granzyme B-mTFP knock-in mouse were added gently to the target cells and imaged for 45 min to 1 hr. The cytotoxicity was calculated from the decrease in Tag-RFP and increase in Tag-GFP fluorescence. Fold ratio change of Tag-GFP/Tag-RFP values were calculated using ImageJ (RRID:SCR_003070) software.

Isolation of islets of Langerhans

Request a detailed protocol

Islets of Langerhans were isolated as described (Stull et al., 2012). In short, mice were killed by cervical dislocation. After opening of the abdominal cavity, the bile duct was ligated by use of surgical suture near to the liver. A cut (0.5 mm) was made into the intestine where the bile duct ended (papilla). Through that cut a 0.40 mm wide blunt cannula was inserted into the bile duct half way toward the ligation. Through that cannula 3 mL of a Ringer solution containing 50 µg Liberase TL (Merck) was slowly injected into the bile duct, and inflated the pancreatic tissue. After injection, the pancreas was removed from the mouse abdomen. For digestion the pancreas was heated up to 37°C in 5 mL of Ringer solution and was gently agitated in a prewarmed water bath for 12 min. Digestion was stopped by adding 25 mL of cold (4°C) Ringer solution. The pancreas then was smashed mechanically. Undigested debris was separated from Islets and exocrine material by filtration through a steel mesh (200 µm mesh size). Finally islets were separated from exocrine material by a density centrifugation (900 g, 18 min) using a Ringer/Histopaque gradient (Histopaque 1077, Merck). Islets are supposed to stay at the Ringer/Histopaque interphase, while exocrine material goes to the pellet. After isolation islets were collected by filtering the supernatant through a 70 µm strainer, washed and resuspended in RPMI 1740 cell culture medium and kept in an incubator (37°C, 5% CO2) for up to 4 days before further use.

Transplantation of islets of Langerhans into the anterior chamber of the eye

Request a detailed protocol

Transplantation was performed as described (Abdulreda et al., 2013). In short, mice (12–20 weeks old) were anesthetized with isoflurane. An opening (500 µm) was cut into the cornea with a sharp injection needle (30 G). Through this opening a blunt cannula (0.4 mm) preloaded with 10–20 islets was inserted. The cannula was connected to a foot panel-steered injector through which the islets were injected into the eye under optical control (binocular microscope). After transplantation mice were kept for 4 days under pain relief medication (Caprofen, 5 mg/kg bodyweight) before any further experimental manipulation.

Microscopy of animals transplanted with intraocular islets

Request a detailed protocol

Imaging was performed as described previously (Abdulreda et al., 2011). In short, transplanted mice were pre-anesthetized with isoflurane in a box. Under anesthetization animals were then mounted to a three point head holder with a respirator mask for continuing anesthesia. The mouse laid on a heating plate and the head was tilted in a way that the corneal surface of the transplanted eye was in perpendicular orientation to an objective of an upright microscope. Two different microscopes (LSM880 confocal microscope, LSM880 two-photon microscope, both Carl Zeiss Jena) were used for live imaging. Both systems were equipped with a 20x Plan-Apochromat water immersion objective (Carl Zeiss Jena, NA 1.0). If not otherwise stated data were acquired as volume (xyz) and time (t) 4D stacks (xyzt; 11 planes over 40 µm, 30–60 s interval) and are displayed as maximum intensity projections. For data acquisition Zen software (RRID:SCR_013672) was used. Data analyses and 3D reconstructions were performed by using Imaris9.3 (RRID:SCR_007370). Deconvolution was done with Autoquant X3 (RRID:SCR_002465).

Immunhistochemistry

Request a detailed protocol

For immunhistochemistry mice were deeply anesthetized by a intraperitoneal injection of a mixture of ketamine (280 mg/kg bodyweight) and xylacine (20 mg/kg body weight). Access to the heart was obtained by removing part of the rips together with the sternum and lung displacement. Subsequently an injection needle connected to a perfusion pump punctured the left ventricle, and the right atrium was opened with small scissors. Perfusion was started immediately by a perfusion pump. Approximately 200 mL of fixative (Ringer solution + 4% paraformaldehyde) was pumped through the vascular network of the mouse.

After perfusion the transplanted eye was isolated and postfixed in the same fixative for another 4 hr. After washing (3x, 2 hr each) the eye was incubated in 30% sucrose solution over night (4°C) before embedding in Tissue-Tek O.C.T. compound (Sakura Finetek Europe B.V.). For embedding the eye was placed in a small beaker and surrounded by Tissue-Tek O.C.T. compound, dipped for 1 min into 2-methylbutane at −80°C and stored at −80°C until cutting. A cryostat (Thermo Scientific HM525) was used to produce 10–20 µm thick eye slices. Slices were collected on Superfrost+ slides (VWR). Staining with primary and secondary antibodies followed standard protocols. Samples were mounted using ProLong Gold Antifade (RRID:SCR_015961) as a mounting medium.

Statistics and image analyses

Request a detailed protocol

Statistical differences in data were calculated with paired or unpaired Student’s t-test. Unless mentioned otherwise, all data are presented as average ± standard average of the mean (s.e.m.). Data were analyzed with ImageJ v1.46 (RRID:SCR_003070) (Schneider et al., 2012), Excel (RRID:SCR_016137), SigmaPlot 13 (RRID:SCR_003210) and Imaris 9.3 (RRID:SCR_007370) and graphed using Affinity Designer Software (RRID:SCR_016952).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Activation of recombinant murine cytotoxic cell proteinase-1 requires deletion of an amino-terminal dipeptide
    1. A Caputo
    2. RS Garner
    3. U Winkler
    4. D Hudig
    5. RC Bleackley
    (1993)
    The Journal of Biological Chemistry 268:17672–17675.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
    Characterization of granzymes A and B isolated from granules of cloned human cytotoxic T lymphocytes
    1. O Krahenbuhl
    2. C Rey
    3. D Jenne
    4. A Lanzavecchia
    5. P Groscurth
    6. S Carrel
    7. J Tschopp
    (1988)
    Journal of Immunology 141:3471–3477.
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59

Decision letter

  1. Michael L Dustin
    Reviewing Editor; University of Oxford, United Kingdom
  2. Satyajit Rath
    Senior Editor; Indian Institute of Science Education and Research (IISER), India
  3. Michael L Dustin
    Reviewer; University of Oxford, United Kingdom
  4. Jennifer L Stow
    Reviewer; The University of Queensland, Australia

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript describes a new and interesting mouse model to study CTL (and probably NK cell) activity in vivo by tracking Granzyme B levels and localisation in real-time. This will be an excellent resource for groups studying a range of T and NK cell functions in many contexts from anti-viral defences to tumour immunotherapy.

Decision letter after peer review:

Thank you for submitting your article "Studying the biology of cytotoxic T lymphocytes in vivo with a fluorescent Granzyme B-mTFP knock-in mouse" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Michael L Dustin as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Satyajit Rath as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Jennifer L Stow (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

Advanced in vivo microscopy offers the ability to track fluorescently tagged cells, organelles and proteins in their native tissue environments providing invaluable insights for physiology and pathophysiology. Moreover, the ability to do so seamlessly, without perturbing endogenous localization or function, is the ultimate goal for such studies. The behaviour of cytotoxic granules (CGs) in T cells has long been a preoccupation of immunologists and others, due to their essential role in cell-cell killing, now a topic of intense interest in cancer immunotherapies.

Your study describes the construction of a fluorescent fusion protein GzmB- mTFP consisting of mTFP, a cleavable linker and the CG enzyme, granzymeB and the generation of a knock-in mouse expressing this probe in CTLs. Elegant imaging is used to show remarkable localization and colocalization of the fusion protein and other markers in CGs. The behaviour of the fusion protein and CGs are carefully measured in ex vivo cells and in mice, to ensure no aberrant features have been introduced. With no impediment to normal function, this CG probe appears to be superior to others available. Finally, the WT and KI mice are subjected to allografts in the eye to provide a very nice demonstration in vivo of cell infiltration and granule formation in CTLs. More sophisticated studies in the future no doubt will allow discrimination of new aspects of CG behaviour in cell-cell killing using further super-resolution microscopy and CLEM.

Revisions for this paper:

You are commended on a rigorously performed study, the KI mouse and its protein GzmB-mTFP cells will be extremely valuable for many investigators and the mice have the hallmarks of becoming iconic models for future CG studies. As such, this study represents a major, enabling contribution to the field. There are some issues that should be addressed. First of all, as this will be a resource for the field, how will you make the mice available to the community?

If the data are available some quantification of granzyme and fusion protein levels in Figures 1 C and D would be helpful since the relative levels in WT and KI mice appear to differ between these panels. It would certainly be interesting in the future to follow the expression of the fusion protein over longer time periods and under different stimulation conditions in the KI mice.

What is the expression of the reporter in NK cells and activated CD4 T cells? A more detailed description of the model would be welcome. In the in vivo experiment, it would be important that the author stained for CD8 T cell and NK cells. A negative result on a CD4 staining is not enough to claim that cells are CD8 T cells. For the in vivo imaging in general it would be important to show controls with T1D and similar/identical imaging conditions in the micro without the knockin. The green fluorescence channel has a lot of autofluorescence and that autofluorescence might appear granular, so it would be helpful to see evidence that this is specific mTFP fluorescence.

Revisions expected in follow-up work:

Do you have a way to look at the kinetics of the cleavage process, perhaps through a pulse-chase experiment or cruder kinetic study of granule formation during CTL maturation.

In this context, could the authors comment on whether they see any evidence for cleavage of the fusion protein before the CG (eg at the level of post-Golgi vesicles) where proteolytic processing is possible? Can cleavage be prevented in the lysosome/granules after dissipating the pH drop, or by incubation of the cells with protease inhibitors that would intersect at the endo-lyosomal comparments? This is not necessary to do immediately but of future interest, but if you have data on this it would strengthen it.

Can you draw new conclusions from the longitudinal analyse of the T1D model? New biology is not needed at this stage, but it should be clear that the tools will be useful for generating quantitative data to address open questions in biology.

https://doi.org/10.7554/eLife.58065.sa1

Author response

Revisions for this paper:

You are commended on a rigorously performed study, the KI mouse and its protein GzmB-mTFP cells will be extremely valuable for many investigators and the mice have the hallmarks of becoming iconic models for future CG studies. As such, this study represents a major, enabling contribution to the field. There are some issues that should be addressed. First of all, as this will be a resource for the field, how will you make the mice available to the community?

As soon as the paper is published, we will deposit the line at the European Mouse Mutant Archive (EMMA). Until the line is established at EMMA, mice will be provided by the authors upon request. We have now stated this in the Materials and methods section of the revised manuscript.

If the data are available some quantification of granzyme and fusion protein levels in Figures 1 C and D would be helpful since the relative levels in WT and KI mice appear to differ between these panels. It would certainly be interesting in the future to follow the expression of the fusion protein over longer time periods and under different stimulation conditions in the KI mice.

It is true that the expression levels of GzmB differ between each preparation, also in WT. We have quantified the levels on the blots shown in Figure 1C and D and give the values in the Results section (paragraph one). We fully agree that the expression kinetics of the fusion protein, also in comparison to the corresponding WT levels, should be done quantitatively in the future. We can state, however, that in the imaging experiments shown in Figures 2-5 we always observed a robust fluorescence without the requirement to change the intensity of the excitation laser(s).

What is the expression of the reporter in NK cells and activated CD4 T cells? A more detailed description of the model would be welcome. In the in vivo experiment, it would be important that the author stained for CD8 T cell and NK cells. A negative result on a CD4 staining is not enough to claim that cells are CD8 T cells. For the in vivo imaging in general it would be important to show controls with T1D and similar/identical imaging conditions in the micro without the knockin. The green fluorescence channel has a lot of autofluorescence and that autofluorescence might appear granular, so it would be helpful to see evidence that this is specific mTFP fluorescence.

We have tested the expression of the reporter in CD4+ and CD8+ T cells by antibody staining in the anterior eye chamber. Based on these stainings there is little to none expression of GzmB in CD4+ T cells infiltrating the islet at POD14. We do find, however, a small fraction of GzmB-mTFP+ cells which are CD4-CD8-. These cells most likely represent NK cells, for which we do not currently have a specific staining. We have revised the Figure 5 and now show the CD4/CD8 stainings in panel B.

Revisions expected in follow-up work:

Do you have a way to look at the kinetics of the cleavage process, perhaps through a pulse-chase experiment or cruder kinetic study of granule formation during CTL maturation.

A pulse-chase experiment does not work in this case as the mutant is not inducible. One could do sub-cellular fractionation, purify different granule/organelle populations and quantify the amount of the GzmB-mTFP fusion protein and the cleavage products GzmB and mTFP. We will initiate these experiments after the lock-down, also in an effort to purify fusogenic granules based on their fluorescence.

In this context, could the authors comment on whether they see any evidence for cleavage of the fusion protein before the CG (eg at the level of post-Golgi vesicles) where proteolytic processing is possible? Can cleavage be prevented in the lysosome/granules after dissipating the pH drop, or by incubation of the cells with protease inhibitors that would intersect at the endo-lyosomal comparments? This is not necessary to do immediately but of future interest, but if you have data on this it would strengthen it.

We agree that it would be useful to know whether proteolytic cleavage of the GzmB-mTFP fusion protein could be prevented at earlier CG maturation steps. We envision the dissipation of the pH drop to be difficult, because we have recently demonstrated that this manipulation leads to a change in diameter, density and microtubular transport of CGs (PMID: 32269094). The treatment with protease inhibitors might be an attractive alternative which could be tested in the future.

Can you draw new conclusions from the longitudinal analyse of the T1D model? New biology is not needed at this stage, but it should be clear that the tools will be useful for generating quantitative data to address open questions in biology.

We indeed developed the GzmB-mTFP knock-in mouse in combination with the ACE to generate quantitative data addressing open questions in biology. Our interest is in the function of immune cells in vivo, which is why the focus will be on immune diseases like FHL rather than on diabetes like in T1D. We have initiated these experiments before the lock-down by crossing the GzmB-mTFP knock-out with perforin knock-out mice, which serves as a model for familial hemophagocytic lymphohistiocytosis (FHL) type 2. As evident from the attached image we confirmed in in vitro experiments that perforin-deficient CTLs have reduced killing capacity. In upcoming in vivo experiments in the ACE we now want to investigate whether these CTLs also have additional deficits (e.g. in migration) and whether the remaining killing ability is mediated by the Fas/FasL pathway. We just started the breeding of the double-transgenic mice again in our animal facility and expect the first offspring in about six months.

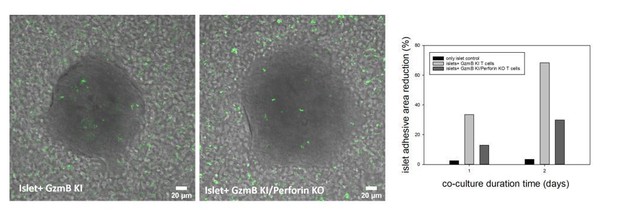

Author response image 1
Islets of Langerhans were incubated with CTLs derived from GzmB-mTFP KI (left) and GzmB-mTFP KI/Perforin KO mice (middle) and imaged by confocal microscopy.

CTLs started to infiltrate the islets and kill them, which resulted in a detachment of islets from the culture dish. Quantification of the detachment at day 1 and day 2 of co-culture (right panel) shows a clear killing deficit in GzmB-mTFP KI/Perforin KO compared to GzmB-mTFP KI alone.

https://doi.org/10.7554/eLife.58065.sa2

Article and author information

Author details

  1. Praneeth Chitirala

    Cellular Neurophysiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Homburg, Germany
    Contribution
    Investigation
    Contributed equally with
    Hsin-Fang Chang
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5540-9300
  2. Hsin-Fang Chang

    Cellular Neurophysiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Homburg, Germany
    Contribution
    Investigation, Methodology
    Contributed equally with
    Praneeth Chitirala
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7691-4090
  3. Paloma Martzloff

    Cellular Neurophysiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Homburg, Germany
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  4. Christiane Harenberg

    Department of Molecular Neurobiology, Max-Planck-Institute of Experimental Medicine, Göttingen, Germany
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  5. Keerthana Ravichandran

    Cellular Neurophysiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Homburg, Germany
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Midhat H Abdulreda

    1. Diabetes Research Institute and Cell Transplant Center, University of Miami Miller School of Medicine, Miami, United States
    2. Department of Surgery, University of Miami Miller School of Medicine, Miami, United States
    3. Department of Microbiology and Immunology, University of Miami Miller School of Medicine, Miami, United States
    4. Department of Ophthalmology, University of Miami Miller School of Medicine, Miami, United States
    Contribution
    Methodology
    Competing interests
    works as a consultant for Biocrine, an unlisted biotech company that is using the ACE technique as a research tool.
  7. Per-Olof Berggren

    1. Diabetes Research Institute and Cell Transplant Center, University of Miami Miller School of Medicine, Miami, United States
    2. Department of Surgery, University of Miami Miller School of Medicine, Miami, United States
    3. Diabetes Research Institute Federation, Hollywood, United States
    4. The Rolf Luft Research Center for Diabetes and Endocrinology, Karolinska Institutet, Karolinska University Hospital, Stockholm, Sweden
    Contribution
    Resources, Methodology
    Competing interests
    is cofounder and CEO of Biocrine, an unlisted biotech company that is using the ACE technique as a research tool.
  8. Elmar Krause

    Cellular Neurophysiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Homburg, Germany
    Contribution
    Data curation, Formal analysis, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0891-2373
  9. Claudia Schirra

    Cellular Neurophysiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Homburg, Germany
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  10. Trese Leinders-Zufall

    Sensory and Neuroendocrine Physiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Homburg, Germany
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0678-362X
  11. Fritz Benseler

    Department of Molecular Neurobiology, Max-Planck-Institute of Experimental Medicine, Göttingen, Germany
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  12. Nils Brose

    Department of Molecular Neurobiology, Max-Planck-Institute of Experimental Medicine, Göttingen, Germany
    Contribution
    Resources, Supervision, Funding acquisition, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    Reviewing editor, eLife
  13. Jens Rettig

    Cellular Neurophysiology, Center for Integrative Physiology and Molecular Medicine (CIPMM), Saarland University, Homburg, Germany
    Contribution
    Conceptualization, Supervision, Funding acquisition, Validation, Writing - original draft, Writing - review and editing
    For correspondence
    jrettig@uks.eu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6160-3954

Funding

Deutsche Forschungsgemeinschaft (SFB894/A10)

  • Jens Rettig

Deutsche Forschungsgemeinschaft (SFB894/P1)

  • Elmar Krause
  • Jens Rettig

Deutsche Forschungsgemeinschaft (IRTG1830)

  • Keerthana Ravichandran
  • Jens Rettig

Deutsche Forschungsgemeinschaft (SFB894/A17)

  • Trese Leinders-Zufall

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by grants from the Deutsche Forschungsgemeinschaft (SFB 894 (TL-Z and JR), INST 256/427–1 FUGB (TL-Z) and IRTG 1830 (JR). We thank Margarete Klose, Anja Bergsträßer, Tamara Brück, Nicole Rothgerber and Katrin Sandmeier for excellent technical assistance, and Ursula Fünfschilling and Monika Schindler of the MPIEM Transgene Facility for mouse embryology and zygote injections.

Ethics

Animal experimentation: All animal experiments were performed according to German law and European directives, and with permission of the Niedersächsisches Landesamt für Verbraucherschutz und Lebensmittelsicherheit (LAVES animal license number 33.9-42502-04-13/1359) and the state of Saarland (Landesamt für Gesundheit und Verbraucherschutz; animal license number 41-2016).

Senior Editor

  1. Satyajit Rath, Indian Institute of Science Education and Research (IISER), India

Reviewing Editor

  1. Michael L Dustin, University of Oxford, United Kingdom

Reviewers

  1. Michael L Dustin, University of Oxford, United Kingdom
  2. Jennifer L Stow, The University of Queensland, Australia

Publication history

  1. Received: April 20, 2020
  2. Accepted: July 1, 2020
  3. Version of Record published: July 22, 2020 (version 1)

Copyright

© 2020, Chitirala et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 776
    Page views
  • 103
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Immunology and Inflammation
    2. Microbiology and Infectious Disease
    Zijun Wang et al.
    Research Article

    A small fraction of HIV-1- infected humans develop broadly neutralizing antibodies (bNAbs) against HIV-1 that protect macaques from simian immunodeficiency HIV chimeric virus (SHIV). Similarly, a small number of macaques infected with SHIVs develop broadly neutralizing serologic activity, but less is known about the nature of simian antibodies. Here, we report on a monoclonal antibody, Ab1485, isolated from a macaque infected with SHIVAD8 that developed broadly neutralizing serologic activity targeting the V3-glycan region of HIV-1 Env. Ab1485 neutralizes 38.1% of HIV-1 isolates in a 42-pseudovirus panel with a geometric mean IC50 of 0.055 µg/mLl and SHIVAD8 with an IC50 of 0.028 µg/mLl. Ab1485 binds the V3-glycan epitope in a glycan-dependent manner. A 3.5 Å cryo-electron microscopy structure of Ab1485 in complex with a native-like SOSIP Env trimer showed conserved contacts with the N332gp120 glycan and gp120 GDIR peptide motif, but in a distinct Env-binding orientation relative to human V3/N332gp120 glycan-targeting bNAbs. Intravenous infusion of Ab1485 protected macaques from a high dose challenge with SHIVAD8. We conclude that macaques can develop bNAbs against the V3-glycan patch that resemble human V3-glycan bNAbs.

    1. Immunology and Inflammation
    2. Microbiology and Infectious Disease
    Patrick S Mitchell et al.
    Research Article

    Bacteria of the genus Shigella cause shigellosis, a severe gastrointestinal disease that is a major cause of diarrhea-associated mortality in humans. Mice are highly resistant to Shigella and the lack of a tractable physiological model of shigellosis has impeded our understanding of this important human disease. Here we propose that the differential susceptibility of mice and humans to Shigella is due to mouse-specific activation of the NAIP–NLRC4 inflammasome. We find that NAIP–NLRC4-deficient mice are highly susceptible to oral Shigella infection and recapitulate the clinical features of human shigellosis. Although inflammasomes are generally thought to promote Shigella pathogenesis, we instead demonstrate that intestinal epithelial cell (IEC)-specific NAIP–NLRC4 activity is sufficient to protect mice from shigellosis. In addition to describing a new mouse model of shigellosis, our results suggest that the lack of an inflammasome response in IECs may help explain the susceptibility of humans to shigellosis.
