Cryo-EM structure of VASH1-SVBP bound to microtubules

  1. Faxiang Li
  2. Yang Li
  3. Xuecheng Ye
  4. Haishan Gao
  5. Zhubing Shi
  6. Xuelian Luo
  7. Luke M Rice  Is a corresponding author
  8. Hongtao Yu  Is a corresponding author
  1. Department of Pharmacology, University of Texas Southwestern Medical Center, United States
  2. Department of Biophysics, University of Texas Southwestern Medical Center, United States
  3. Department of Biochemistry, University of Texas Southwestern Medical Center, United States
  4. Zhejiang Provincial Laboratory of Life Sciences and Biomedicine, School of Life Sciences, Westlake University, China
  5. Institute of Biology, Westlake Institute for Advanced Study, China
Research Article
  • Cited 1
  • Views 1,023
  • Annotations
Cite this article as: eLife 2020;9:e58157 doi: 10.7554/eLife.58157

Abstract

The dynamic tyrosination-detyrosination cycle of α-tubulin regulates microtubule functions. Perturbation of this cycle impairs mitosis, neural physiology, and cardiomyocyte contraction. The carboxypeptidases vasohibins 1 and 2 (VASH1 and VASH2), in complex with the small vasohibin-binding protein (SVBP), mediate α-tubulin detyrosination. These enzymes detyrosinate microtubules more efficiently than soluble αβ-tubulin heterodimers. The structural basis for this substrate preference is not understood. Using cryo-electron microscopy (cryo-EM), we have determined the structure of human VASH1-SVBP bound to microtubules. The acidic C-terminal tail of α-tubulin binds to a positively charged groove near the active site of VASH1. VASH1 forms multiple additional contacts with the globular domain of α-tubulin, including contacts with a second α-tubulin in an adjacent protofilament. Simultaneous engagement of two protofilaments by VASH1 can only occur within the microtubule lattice, but not with free αβ heterodimers. These lattice-specific interactions enable preferential detyrosination of microtubules by VASH1.

Introduction

Microtubules are dynamic cytoskeletal polymers that play pivotal roles in a wide variety of cellular processes in eukaryotes, including maintaining cell shape and polarity, facilitating cargo transport, and guiding chromosome segregation (Dogterom and Koenderink, 2019; Janke and Magiera, 2020). Microtubules are built from αβ-tubulin heterodimers that stack head-to-tail to form protofilaments, which interact laterally to form hollow tubules (Brouhard and Rice, 2018). The human genome encodes multiple α- and β-tubulin isotypes (Gadadhar et al., 2017). Post-translational modifications (PTMs) on various αβ-tubulin heterodimers, such as acetylation, palmitoylation, polyglycylation, polyglutamylation, and tyrosination-detyrosination, further diversify the functional properties of microtubules (Janke and Magiera, 2020; Magiera et al., 2018). The α- and β-tubulin isotypes combined with myriad PTMs constitute a ‘tubulin code’, which tunes the dynamics and partner binding of microtubules for diverse cellular functions (Janke and Magiera, 2020; Magiera et al., 2018).

Detyrosination is one of the first identified PTMs of tubulin (Hallak et al., 1977). The newly translated proteins of all α-tubulin isoforms except TUBA4A contain a tyrosine or phenylalanine at the very C-terminus, which can be cleaved by the recently identified carboxypeptidases, vasohibins 1 and 2 in complex with SVBP (VASH1/2-SVBP) (Aillaud et al., 2017; Nieuwenhuis et al., 2017; Nieuwenhuis and Brummelkamp, 2019). The tubulin tyrosine ligase (TTL) can re-ligate a tyrosine to the detyrosinated α-tubulin (Ersfeld et al., 1993). Detyrosination of α-tubulin regulates the functions of microtubules by altering interactions with microtubule-associated proteins (MAPs) and motors (Badin-Larçon et al., 2004; Barisic et al., 2015; McKenney et al., 2016; Peris et al., 2006; Peris et al., 2009; Sirajuddin et al., 2014). For example, proteins containing the cytoskeleton-associated protein glycine-rich (CAP-Gly) domain, including CLIP-170 and p150Glued, bind more efficiently to tyrosinated microtubules (Badin-Larçon et al., 2004; Peris et al., 2006).

The detyrosination-tyrosination cycle of α-tubulin and its dysregulation have been linked to several cellular, physiological, and pathological processes. For example, detyrosination of α-tubulin inhibits microtubule disassembly by suppressing the activity of depolymerizing motors, including mitotic centromere associated kinesin (MCAK) and KIF2A (Peris et al., 2009; Webster et al., 1987). The plus-end-directed kinetochore motor CENP-E prefers to bind to detyrosinated spindle microtubules, and this preference helps to guide the congression of pole-proximal chromosomes toward the equator during mitosis (Barisic et al., 2015). Finally, proper levels of detyrosinated microtubules in cardiomyocytes provide the necessary mechanical resistance and stiffness for functional contractility (Chen et al., 2018; Robison et al., 2016). Abnormally high levels of detyrosinated microtubules impair the contractility of cardiomyocytes. Dysregulation of the detyrosination-tyrosination cycle can also contribute to cancer and neurodegenerative disorders (Magiera et al., 2018; Mialhe et al., 2001). Loss-of-function mutations of SVBP in humans have been associated with brain abnormalities, including microcephaly, ataxia, and intellectual disability (Iqbal et al., 2019; Pagnamenta et al., 2019).

Tubulin-modifying enzymes often exhibit substrate specificity for free αβ-tubulin heterodimers or polymerized microtubules (Janke and Magiera, 2020). TTL exclusively modifies free αβ-tubulin heterodimers, as its interaction surface on αβ-tubulin is partially blocked in polymerized microtubules (Prota et al., 2013; Szyk et al., 2011). In contrast, VASH1/2-SVBP preferably detyrosinate polymerized microtubules (Li et al., 2019; Nieuwenhuis et al., 2017). The crystal structures of VASH1/2-SVBP have revealed how these enzymes recognize the C-terminal tyrosine (Adamopoulos et al., 2019; Li et al., 2019; Liao et al., 2019; Wang et al., 2019; Zhou et al., 2019), but the structural basis for their substrate specificity towards microtubules is not understood. In particular, it remains to be determined whether VASH1/2-SVBP make additional contacts with the microtubule lattice and whether they can distinguish the α-tubulin conformations in free αβ-tubulin heterodimers and polymerized microtubules.

Using cryo-electron microscopy (cryo-EM), we have determined the structure of GMPCPP-stabilized 14-protofilament human microtubules decorated with catalytically inactive human VASH1-SVBP. The C-terminal tail of α-tubulin engages the catalytic site of VASH1, indicating that the structure represents a productive enzyme-substrate docking complex. Aside from binding the C-terminal tail, VASH1 makes multiple contacts with the globular domain of α-tubulin and a second α-tubulin in an adjacent protofilament. Disruption of these contacts selectively impairs VASH1-mediated detyrosination of microtubules, but not that of αβ-tubulin or the C-terminal tail of α-tubulin. These additional contacts that are specific to the microtubule lattice thus underlie the substrate preference of VASH1/2-SVBP towards polymerized microtubules.

Results

Cryo-EM structure of VASH1-SVBP bound to GMPCPP-stabilized microtubules

We transfected HeLa cells with plasmids encoding Myc-tagged VASH1 and SVBP, and treated these cells for short durations with nocodazole or Taxol, which inhibited or promoted microtubule polymerization, respectively. The detyrosination levels of α-tubulin were greatly decreased by nocodazole but enhanced by Taxol (Figure 1A–C). These data confirmed the substrate preference of VASH1-SVBP for polymerized microtubules.

Figure 1 with 1 supplement see all

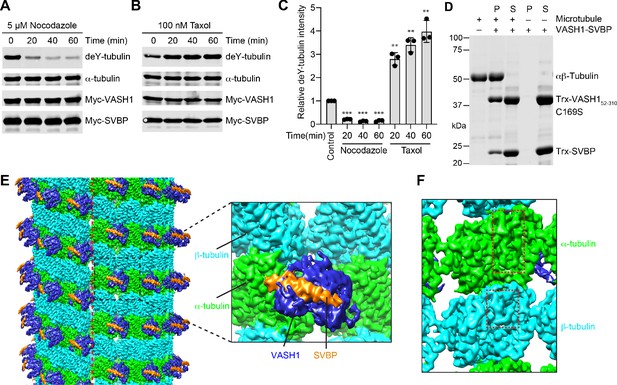

VASH1-SVBP efficiently detyrosinates and binds microtubules.

(A,B) Tubulin detyrosination assays of VASH1-SVBP in human cells. HeLa Tet-On cells were co-transfected with VASH1 and SVBP plasmids, and treated with 5 µM nocodazole (A) or 100 nM Taxol (B) for indicated times at 24 hr post-transfection. The cell lysates were blotted with the indicated antibodies. deY-tubulin, detyrosinated α-tubulin. Experiments were repeated three times with similar results. (C) Quantification of the relative detyrosination levels of α-tubulin in (A) and (B) (mean ± s.d., n = 3 independent experiments). Significance calculated using two-tailed student’s t-test; between control cells and cells treated with nocodazole or Taxol for the indicated time; *p < 0.05, **p < 0.01, ***p < 0.001, and ****p < 0.0001. (D) Microtubule pelleting assays showing the binding of VASH1-SVBP to recombinant human microtubules. S, supernatant; P, pellet. (E) Cryo-EM map of 14-protofilament, GMPCPP-stabilized microtubules decorated by the VASH152-310-SVBP complex. The catalytically inactive C169S mutant of VASH1 was used in the complex. The map is lowpass filtered to 4 Å. The microtubule seam is indicated by a red dashed line. α-tubulin, β-tubulin, VASH1, and SVBP are colored in green, cyan, blue, and orange, respectively. The same color scheme is used for all figures. The inset shows a close-up view of the boxed region. (F) Close-up view of the cryo-EM map in (E), viewed from the lumen. The α- and β-tubulin molecules can be distinguished by the length of the S9-S10 loop (boxed with red dashed lines), with the loop in α-tubulin being longer.

To elucidate the structural basis of this preference, we sought to determine the structure of VASH1-SVBP bound to microtubules using single-particle cryo-EM. Based on in vitro microtubule pelleting assays, the catalytically inactive C169S mutant of the protease domain of VASH1 (residues 52–310) in complex with SVBP interacted with GMPCPP-stabilized human microtubules that were polymerized from recombinant human αβ-tubulin heterodimers (Figure 1D). Raw cryo-EM images showed efficient decoration of microtubules by VASH1-SVBP C169S (Figure 1—figure supplement 1A). During data processing, poorly decorated microtubule particles were removed by several rounds of 2D classification (Figure 1—figure supplement 1B). Subsequent 3D classification revealed that, compared with 13-protofilament (PF) microtubules, 14-PF microtubules were the less populated but more ordered class. After seam search and 3D refinement, we determined the structure of 14-PF microtubules decorated with VASH1-SVBP to overall resolutions of 3.1 Å and 3.8 Å for microtubules and VASH1-SVBP, respectively (Figure 1—figure supplement 1B).

The EM map shows that VASH1-SVBP decorates the surface of 14-PF microtubules (Figure 1E). The seam of microtubules can be easily identified. At the seam, α-tubulin in one protofilament packs against β-tubulin in the protofilament across the seam. The α-tubulin and β-tubulin molecules can be assigned based on the length of the S9-S10 loop: this loop in α-tubulin is much longer than that in β-tubulin (Figure 1F). VASH1 simultaneously contacts two α-tubulin molecules in adjacent protofilaments (Figure 1E). It has no contact with β-tubulin. SVBP does not appear to contribute directly to substrate recognition, because it has no contact with microtubules.

To build the structure of the microtubule-VASH1-SVBP complex, we docked the crystal structure of VASH1-SVBP and the cryo-EM structure of αβ-tubulin heterodimers of GMPCPP-stabilized microtubules into the EM density map as rigid bodies, and then manually adjusted the structures to better fit the density. The resolution of VASH1-SVBP is heterogenous, with the microtubule-binding regions and the core exhibiting higher resolution than the rest of the molecule (Figure 2—figure supplement 1A). With the current map, we could model all secondary structures of αβ-tubulin heterodimers except the C-terminal tails, and most of the side chains of αβ-tubulin and the bound nucleotides (Figure 2A and Figure 2—figure supplement 1B,C). By contrast, due to the relatively lower and heterogeneous resolution of VASH1-SVBP, only the side chains of residues that contact microtubules could be modeled (Figure 2—figure supplement 1C).

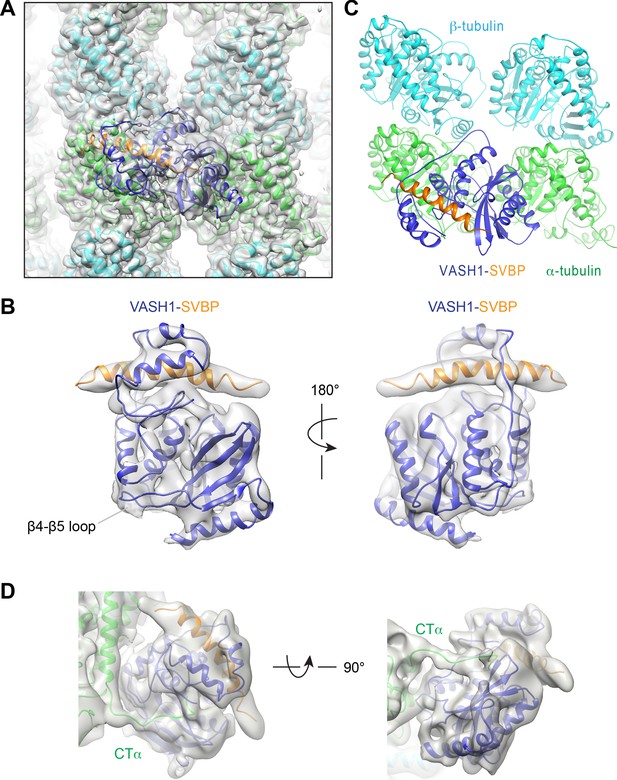

Figure 2 with 2 supplements see all
Cryo-EM structure of VASH1-SVBP bound to GMPCPP-stabilized microtubules.

(A) Models of VASH1-SVBP (VASH1, blue; SVBP, orange) and tubulin (α-tubulin, green; β-tubulin, cyan) were docked into the cryo-EM density (lowpass-filtered to 4 Å) and refined. (B) Cryo-EM density map of VASH1-SVBP lowpass-filtered to 6 Å. (C) Ribbon diagram of the cryo-EM structure of VASH1-SVBP bound to microtubules. (D) Two views of the electron density map (generated by Phenix.auto_sharpen, with local B factor sharpening and resolution cutoff at 7 Å) showing an unfitted, continuous density that belonged to the α-tubulin C-terminal tail (CTα).

In the 6 Å lowpass-filtered EM map, the density of VASH1-SVBP is continuous, with most of the α-helices distinguishable (Figure 2B). The N- and C-terminal regions of SVBP remain disordered. Compared with crystal structures of VASH1-SVBP alone or bound to inhibitors, there are no obvious conformational changes of VASH1-SVBP upon binding to microtubules (Figure 2—figure supplement 2A). VASH1 simultaneously interacts with two α-tubulin molecules in adjacent protofilaments (Figure 2C). This binding mode can explain the substrate preference of VASH1 towards microtubules, because this collection of interactions is only possible within the microtubule lattice.

Recognition of the α-tubulin C-terminal tail by VASH1

How vasohibins recognize the C-terminal tail of α-tubulin (CTα) is unresolved. Based on crystal structures of VASH1/2 bound to substrate-mimicking covalent inhibitors and subsequent mutagenesis data, we and two other groups identified the positively charged groove near the active site as the CTα-binding site (Adamopoulos et al., 2019; Li et al., 2019; Wang et al., 2019). A later study challenged this model, however, and showed that the free CTα peptide did not bind to the positively charged groove of VASH2, but instead bound to a site on the opposite side of the active site, with the backbone of CTα orientated in the opposite direction (Zhou et al., 2019).

Our 7 Å lowpass-filtered EM map shows an unaccounted, continuous density connecting the last modeled C-terminal residue of α-tubulin to the active site of VASH1 through the positively charged groove (Figure 2D). This weak density likely belongs to CTα, but the map quality of this region does not allow us to model the complete CTα. The recombinant human tubulin produced using the insect cell system contains human and insect α-tubulin molecules in roughly 70:30 proportion (Ye et al., 2020). Because the sequence of the C-terminal tail of the insect α-tubulin is different from that of human α-tubulin, it is possible that this heterogeneity contributes to the difficulty to resolve the α-tubulin tail.

The surface view of our microtubule-VASH1-SVBP structure reveals that the portion of the modeled CTα is located at one end of the groove and pointing towards the active site (Figure 2—figure supplement 2B). This binding mode is compatible for the detyrosination of α-tubulin. Thus, the structure captured in our study likely represents the catalysis-competent enzyme-substrate complex. We suspect that, because of its low sequence complexity (i.e. stretches of glutamates), the CTα peptide in isolation (i.e. not anchored to the globular domain of α-tubulin) may interact with VASH1 in purely electrostatic, nonproductive ways. Our results are consistent with the positively charged groove of VASH1/2 being the binding site of CTα, as we had originally proposed (Li et al., 2019).

Interactions between VASH1 and microtubules

VASH1 contacts microtubules through three major interfaces (Figure 3A). Interfaces 1 and 2 are between VASH1 and the globular domain of the α-tubulin molecule that VASH1 would be acting on. Interface 3 is between VASH1 and a second α-tubulin molecule in an adjacent protofilament.

Figure 3 with 1 supplement see all

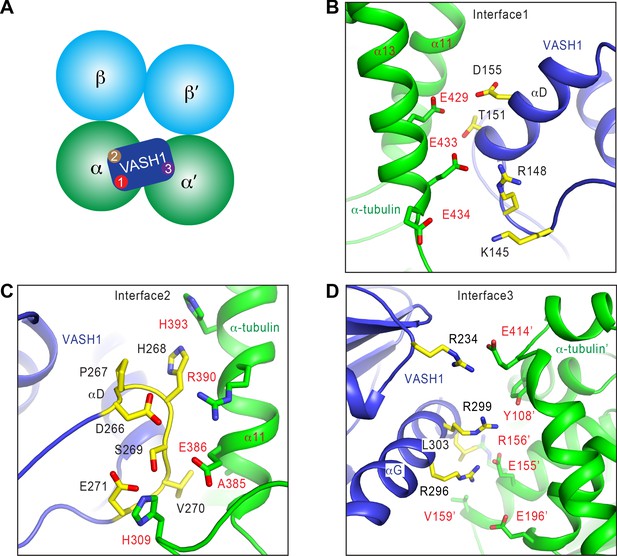

Interactions between VASH1 and microtubules.

(A) Schematic drawing of the VASH1-microtubule complex, with the three main interfaces indicated. (B–D) Close-up views of the VASH1–microtubule interfaces 1 (B), 2 (C), and 3 (D), with interacting residues shown as sticks. VASH1 residues are colored yellow and labeled with black letters while α-tubulin residues are colored green and labeled with red letters.

At interface 1, VASH1 residues on αD and the αC-αD loop form a hydrophilic interaction network with the C-terminal helix (α12) of α-tubulin (Figure 3B). Interface 2 is primarily formed between the β4-β5 loop of VASH1 and α11 of α-tubulin (Figure 3C). The β4-β5 loop of VASH1 is well-ordered, and has clear density in the EM map (Figure 2—figure supplement 1C). Residues in this VASH1 loop form hydrophobic and favorable electrostatic interactions with α-tubulin (Figure 3C).

Interface 3 lies between the last helix (αG) of VASH1 and a second α-tubulin molecule (termed α-tubulin’) from the adjacent protofilament (Figure 3D). The total surface area buried between VASH1 and microtubules is 878 Å2, 39.8% of which is contributed by interface 3. Because the density of VASH1 αG is poor (Figure 2—figure supplement 1C), we cannot definitively assign the precise orientation and conformation of the side chains in this helix. Nevertheless, R234, R296, R299, and L303 of VASH1 αG are located in close proximity to Y108, E155, R156, V159, E196, and E414 from α-tubulin’. These residues are likely to develop favorable electrostatic and hydrophobic interactions. Interface 3 can only be established between VASH1 and microtubules, but cannot exist between VASH1 and free αβ-tubulin heterodimers. Thus, the inter-protofilament interactions by VASH1 underlie the substrate preference of VASH1-SVBP towards microtubules.

Contributions of VASH1-microtubule interactions to tubulin detyrosination

VASH1 residues that lie at the three VASH1-microtubule interfaces are conserved among VASH1 and VASH2 proteins from different species (Figure 3—figure supplement 1A,B), suggesting that they might be functionally important. To test the functional relevance of these interfaces, we introduced mutations into VASH1 to disrupt them, co-transfected these VASH1 mutants with SVBP into HeLa cells (which had low endogenous levels of tubulin detyrosination) (Bulinski et al., 1988), and evaluated their detyrosination activities on α-tubulin.

The single mutation of VASH1 R148 at interface 1 (R148E) greatly decreased α-tubulin detyrosination, and the K145E/R148E double mutation further attenuated the detyrosination activity of VASH1 (Figure 4A and Figure 4—figure supplement 1A). Interestingly, the VASH1 D155R mutant had higher detyrosination activity. D155 might develop unfavorable electrostatic interactions with E429 of α-tubulin (Figure 3B). Mutation of D155 to a positively charged residue, such as arginine, might have alleviated this clash, enhancing detyrosination. VASH1 mutations at interface 1 thus produce results consistent with structure-based predictions, validating its functional importance.

Figure 4 with 1 supplement see all

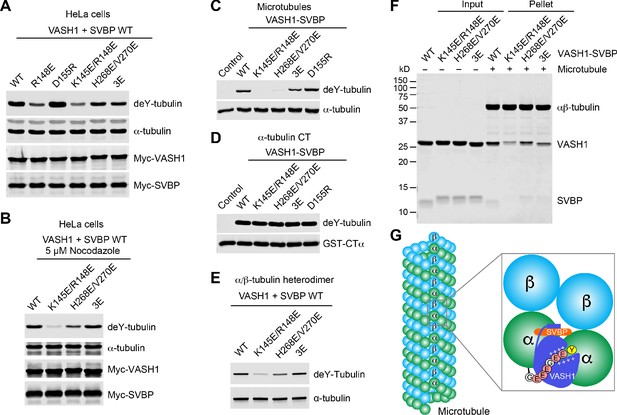

Requirement of VASH1-microtubule interactions in α-tubulin detyrosination.

(A,B) Tubulin detyrosination assays of VASH1-SVBP WT or mutants in human cells. HeLa Tet-On cells were co-transfected with Myc-VASH1 WT or mutants and Myc-SVBP WT plasmids. At 24 hr post-transfection, the cells were treated without (A) or with 5 µM Nocodazole (B) for 1 hr. The cell lysates were blotted with the indicated antibodies. Compared with VASH1 WT, VASH1 mutants with multiple glutamate substitutions had slightly slower mobilities. The mobility shift is likely caused by the introduction of multiple negative charges, akin to protein phosphorylation, which also sometimes retards gel mobility. deY-tubulin, detyrosinated α-tubulin. 3E, R234E/R299E/L303E. Experiments were repeated three times with similar results. (C–E) In vitro detyrosination of GMPCPP-stabilized human microtubules (C), the C-terminal peptide of α-tubulin (CTα) fused to GST (D), or free αβ-tubulin heterodimers (E) by the indicated recombinant VASH1–SVBP WT or mutant complexes. Experiments were repeated at least three times with similar results. (F) Coomassie-stained gel of microtubule pelleting assays of VASH1-SVBP WT and mutant complexes. (G) Model of microtubule lattice binding, substrate recognition, and tubulin detyrosination by VASH1-SVBP. The ‘+’ signs indicate positive charges.

The VASH1 H268E/V270E and R234E/R299E/L303E (3E) mutations that targeted residues at interfaces 2 and 3, respectively, also reduced the detyrosination activity of VASH1 (Figure 4A and Figure 4—figure supplement 1A), consistent with the functional relevance of these interfaces as predicted from the structure. Because interface 3 only exists between VASH1 and microtubules, disrupting interface 3 via the VASH1 3E mutation should impair the detyrosination of microtubules, but not of free αβ tubulin. Consistent with this prediction, in cells treated with nocodazole, wherein microtubules are depolymerized, VASH1 WT and 3E had similar detyrosination activities, whereas mutations that targeted interfaces 1 and 2 still attenuated the detyrosination of free αβ-tubulin as predicted (Figure 4B and Figure 4—figure supplement 1B).

To further support the importance of the three contact sites, we expressed and purified recombinant VASH1 WT and mutants in complex with SVBP and tested their detyrosination activities on GMPCPP-stabilized human microtubules in vitro. Consistent with results in HeLa cells, mutations targeting interfaces 1–3 affected the detyrosination activity of VASH1 towards microtubules to varying degrees in vitro (Figure 4C and Figure 4—figure supplement 1C). Furthermore, these mutations had little effect on the detyrosination activity of VASH1 towards GST-CTα (Figure 4D and Figure 4—figure supplement 1D), ruling out the possibility that these mutations unintentionally affected the folding and structural integrity of VASH1. The VASH1 3E mutation that targets interface 3 had no effect on the detyrosination of free αβ-tubulin heterodimers in vitro (Figure 4E and Figure 4—figure supplement 1E). Finally, microtubule pelleting assays confirmed that the VASH1 mutants, K145E/R148E, H268E/V270E, and 3E, all had decreased binding to microtubules (Figure 4F and Figure 4—figure supplement 1F). Collectively, these results establish the functional importance of the three VASH1-microtubule interfaces in microtubule binding and detyrosination.

Discussion

VASH1/2-SVBP have recently been identified as the carboxypeptidases responsible for the cleavage of the last tyrosine of α-tubulin (Aillaud et al., 2017; Nieuwenhuis et al., 2017). Subsequent studies have demonstrated the structural basis of the recognition of the C-terminal tyrosine by VASH1/2-SVBP (Li et al., 2019; Liao et al., 2019; Wang et al., 2019). VASH1/2-SVBP prefer polymerized microtubules as their substrate (Li et al., 2019; Nieuwenhuis et al., 2017), but the basis for this substrate preference has been unclear. Our study has now provided the structural basis for the substrate preference of VASH1/2-SVBP towards microtubules. VASH1-SVBP binds to the surface of polymerized microtubules and simultaneously engages two adjacent α-tubulin molecules in neighboring protofilaments through multiple interfaces (Figure 4G). We propose that these lattice-specific interactions guide the C-terminal tail of α-tubulin into the positively charged groove of VASH1 and position the C-terminal tyrosine into the active site for cleavage.

Because VASH1/2-SVBP prefer to detyrosinate microtubules and TTL prefers to act on αβ-tubulin heterodimers, the long-lived, stable microtubules in cells contain more detyrosinated α-tubulins, whereas the newly formed, dynamic microtubules have more tyrosinated α-tubulins (Gundersen et al., 1987). Detyrosination of microtubules can alter the binding of MAPs, which indirectly affect microtubule dynamics. As microtubules assembled from tyrosinated and detyrosinated αβ-tubulins have similar intrinsic dynamic properties (Janke and Magiera, 2020), detyrosination per se does not directly stabilize microtubule dynamics, but rather it is a consequence of stable microtubules. On the other hand, VASH1-SVBP decorates the microtubule lattice very efficiently, and it straddles two neighboring protofilaments. It will be interesting to test whether, aside from detyrosination, VASH1/2-SVBP might directly bind to and stabilize microtubules.

In addition to interacting with and modifying microtubules, VASH1/2-SVBP are known to perform other functions. Indeed, VASH1/2-SVBP had been initially identified as secreted proteins that regulate angiogenesis (Watanabe et al., 2004). Recently, VASH1 has been shown to bind directly to the internal ribosome binding site (IRES) of mRNAs of angiogenesis factors and regulate their IRES-mediated translation in cardiomyocytes under hypoxic conditions (Hantelys et al., 2019). Biallelic loss-of-function mutations of SVBP in humans have been linked to brain development defects and intellectual disability (Iqbal et al., 2019; Pagnamenta et al., 2019). Although these patient phenotypes are likely caused by defective tubulin detyrosination and elevated levels of tubulin tyrosination in brain tissues (Pagnamenta et al., 2019), it is also possible that the angiogenesis and RNA-binding functions of VASH1/2-SVBP contribute to the disease phenotypes. In this study, using structure-based mutagenesis, we have identified VASH1 mutants that specifically disrupt microtubule binding and detyrosination. These mutants may prove valuable in future experiments aimed at dissecting the pathophysiological functions of vasohibins.

Materials and methods

Protein expression and purification

Request a detailed protocol

The expression and purification of the wild-type and mutant catalytic domain of human VASH1 (residues 52–310) bound to full-length SVBP and the C-terminal tail of human TUBA1A (residues 441–452) fused to GST (GST-CTα) were performed as previously described (Li et al., 2019). The recombinant human TUBA1B–TUBB3 heterodimer protein was expressed and purified as previously described (Ti et al., 2016; Ye et al., 2020).

Preparation of cryo-EM grids

Request a detailed protocol

The TUBA1B–TUBB3 protein was thawed on ice and filtered through a 0.1 µm centrifugal Filter (EMD Millipore, UFC30VV00) at 4 °C to remove protein aggregates. The filtered protein was diluted to a final concentration of 15 µM in RBR110 buffer (110 mM PIPES pH 6.9, 1 mM MgCl2, 1 mM EGTA) with 10 mM GMPCPP. The GMPCPP-stabilized microtubules were polymerized at 37 °C for 1 hr. The polymerized microtubules (4 µl) were applied to a glow discharged quantifoil holey carbon R1.2/1.3 copper grid (Electron Microscopy Sciences, Q350CR1.3) and allowed to adhere for 30 s in the chamber of a Vitrobot (ThermoFisher, Mark IV) set to 30 °C and 95% relative humidity. The VASH1-SVBP complex consisting of VASH1 C169S and full-length SVBP (2 μl of a 300 μM solution) was then added to the grid containing microtubules and incubated for 30 s. Then, 4 μl of the protein mixture was removed from the grid and another 2 μl of VASH1-SVBP was added. After another 30 s incubation, the grid was blotted for 4 s and plunged into ethane slush.

Cryo-EM data collection

Request a detailed protocol

The dataset of GMPCPP-microtubules decorated with VASH1-SVBP C169S was collected with SerialEM on a 300-keV Titan Krios (FEI) transmission electron microscope. Movies were collected in super-resolution mode on a K3 Summit direct electron detector (Gatan), with a physical pixel size of 0.83 Å (nominal magnification 105,000X). The frame rate was 0.03 s/frame and the total exposure time was 1.2 s, resulting in an accumulated total exposure of ~50 electron/Å2. A defocus range from −0.9 to −2.5 μm was used.

Image processing

Request a detailed protocol

Motion correction for each movie stack was performed with the MotionCor2 program (Zheng et al., 2017). The contrast transfer function parameters were estimated from the motion-corrected micrographs with Gctf (Zhang, 2016). The microtubules were selected manually from the motion-corrected micrographs in Relion (Zivanov et al., 2018). The selected microtubule images were computationally cut into overlapping boxes, with a ∼80 Å non-overlapping region along the microtubule axis between adjacent boxes. 2D classification was performed in Relion to remove bad segments. Two rounds of helical refinement were performed in Relion, with each round of refinement assuming that microtubules all belonged 13- or 14-protofilament, respectively. The two resulting volumes were then used as templates in 3D classification to separate segments that belonged to 13- and 14-protofilament microtubules. Segments belonged to 14-protofilament microtubules were selected for an additional round of helical refinement in Relion to generate a map that did not distinguish α- and β-tubulins. The output map was low-pass filtered and masked to identify the seam and to impose the 1:1 VASH1:αβ-tubulin stoichiometry, and was used as the initial model for the following steps in Frealign (Grigorieff, 2007; Grigorieff, 2016). The segments were first aligned with global search, followed by local search with 14-fold pseudo-helical symmetry. After each iteration, a homemade script was used to crop out the best asymmetric unit and to rebuild the entire volume, which was used as the reference for the next iteration. The final resolution was estimated in Relion with the unfiltered half maps from the last iteration in Frealign.

Model building, refinement and validation

Request a detailed protocol

The crystal structure of human VASH1-SVBP complex (PDB: 6OCG) and the EM structure of GMPCPP-stabilized microtubules (PDB: 6DPU) were fitted as rigid bodies into the cryo-EM map using the ‘Fit in Map’ utility in Chimera (Pettersen et al., 2004). A new αβ-tubulin model was generated in Coot (Emsley and Cowtan, 2004) by mutating residues of the GMPCPP-stabilized microtubules to match human TUBA1B and TUBB3 sequences and manually adjusted according to the density. For refinement, two copies of the αβ-tubulin model were docked into the segmented density from the final 14-protofilament map to form two adjacent tubulin heterodimers. Several rounds of further refinement were then performed using ‘Real_space_refinement’ in Phenix (Adams et al., 2010). The statistics and geometries for the final model were generated with MolProbity (Williams et al., 2018) and summarized in Table 1. The figures were prepared with PyMol (https://pymol.org/) or Chimera.

Table 1
Data collection and refinement statistics.
VASH1-SVBP-microtubule
Data collection and processing
 Magnification105,000
 Voltage (kV)300
 Electron exposure (e-Å−2)50
 Defocus range (μm)−0.9 to −2.5
 Pixel size (Å)0.83
 Symmetry imposedPseudo-Helical
 Initial particle images (no.)156,525
 Final particle images (no.)46,999
 Map resolution (Å)/FSC threshold3.1/0.143
 Map sharpening B factor (Å−2)−60
Refinement
 Initial model usedPDB: 6OCG, 6DPU
 Model resolution (Å)/FSC threshold3.9/0.5
Model composition
 Nonhydrogen atoms18,196
 Protein residues2296
 Ligands4
B factors (Å−2)
 Protein143.68
 Ligands101.97
R.m.s. deviations
 Bond lengths (Å)0.006
 Bond angles (°)0.931
Validation
 MolProbity score1.81
 Clashscore6.2
Poor rotamers (%)0.36
Ramachandran plot
 Favored (%)92.56
 Allowed (%)7.35
 Disallowed (%)0.09

Microtubule pelleting assays

Request a detailed protocol

The polymerized microtubules (with a monomer concentration of 15 µM) were prepared as described above for EM grid preparation. GMPCPP-stabilized microtubules and VASH1-SVBP wild type or mutants were mixed in pre-warmed RBR80 buffer with 5 mM GMPCPP, and incubated at 37 °C for 5 min. The final concentration of microtubules and VASH1-SVBP is 0.6 µM. The reaction mixtures were then centrifuged at 132,000 g for 30 min to pellet the microtubules. After three gentle washes with the warmed RBR80 buffer, the microtubule pellets were resuspended in the SDS sample buffer and analyzed by SDS-PAGE. The gels were stained by Coomassie brilliant blue and scanned with an Odyssey Infrared Imaging System (LI-COR).

In vitro detyrosination assays

Request a detailed protocol

For in vitro detyrosination assays with GST-CTα (the C-terminal tail of α-tubulin) as the substrate, VASH152-310-SVBP wild type or mutants (100 nM) were incubated with 500 nM GST-CTα in the buffer containing 25 mM Tris, pH 7.5, 100 mM NaCl, and 1 mM DTT. The reaction mixtures were incubated at room temperature for 10 min. For in vitro detyrosination assays of microtubules, the polymerized αβ-tubulin proteins were diluted to 0.5 μM with warm BRB80 buffer. VASH152-310-SVBP wild type or mutant proteins (100 nM) were then incubated with 200 nM polymerized microtubules in the BRB80 buffer at room temperature for 5 min. The reactions were stopped by the addition of 2X SDS sample buffer, boiled, and subjected to SDS-PAGE followed by immunoblotting. The blots were scanned with an Odyssey Infrared Imaging System (LI-COR).

Cell culture, transfection, and immunoblotting

Request a detailed protocol

HeLa Tet-On cells (Takara Bio USA, Inc) were used to analyze the detyrosination activities of VASH1-SVBP mutants because of the low endogenous detyrosination levels in these cells. The cell line has been validated to be of HeLa origin by short tandem repeat profiling. The cells are routinely checked for mycoplasma contamination with DAPI staining. The cells were grown in DMEM (Invitrogen) supplemented with 10% fetal bovine serum and 2 mM L-glutamine. All plasmids for mammalian cell expression used in this study were cloned into the modified pCS2 vector that encodes six copies of the Myc tag at the N-terminus. Plasmid transfection was performed using the Lipofectamine 2000 Transfection Reagent (Thermo Fisher Scientific, 11668019) per the manufacturer’s protocols. Cells in each well of a 12-well plate were transfected with a total of 1 µg plasmids (0.5 µg VASH1 and 0.5 µg SVBP) when the cell density reached 70% confluency. The cells were washed once with 1 ml PBS at 24 h post-transfection and collected by directly re-suspending them in 150 µl 1X SDS sample buffer. The samples were boiled at 100 °C for 15 min and subjected to immunoblotting with appropriate antibodies. The primary antibodies were used at a final concentration of 1 μg ml−1 diluted in TBS containing 0.05% Tween 20% and 5% dry milk. Anti-mouse IgG (H+L) (Dylight 680 conjugates) and anti-rabbit IgG (H+L) (Dylight 800 conjugates) (Cell Signaling) were used as secondary antibodies. The blots were scanned with an Odyssey Infrared Imaging System (LI-COR).

Appendix 1

Appendix 1—key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (Escherichia coli)BL21(DE3)NovagenCat.#: 69450competent cells
Cell line
(Homo-sapiens)
HeLa Tet-On cellsTakara BioCat.#: 631183
RRID:CVCL_V353
Cell based detyrosination assay
Transfected construct
(Homo-sapiens)
pCS2-MYC-human VASH1 WTThis paperCell based detyrosination assay
Transfected construct
(Homo-sapiens)
pCS2-MYC-human VASH1 R148EThis paperCell based detyrosination assay
transfected construct
(Homo-sapiens)
pCS2-MYC-human VASH1 D155RThis paperCell based detyrosination assay
Transfected construct
(Homo-sapiens)
pCS2-MYC-human VASH1 K145E/R148EThis paperCell based detyrosination assay
Transfected construct
(Homo-sapiens)
pCS2-MYC-human VASH1 H268E/V270EThis paperCell based detyrosination assay
Transfected construct
(Homo-sapiens)
pCS2-MYC-human VASH1
R234E/R299E/L303E
This paperCell based detyrosination assay
Transfected construct
(Homo-sapiens)
pCS2-MYC-human SVBPThis paperCell based detyrosination assay
Antibodyanti-Myc (Mouse monoclonal)RocheCat.#: 11667203001, RRID:AB_390911WB (1:5000)
Antibodyanti-α-tubulin (Mouse monoclonal)Sigma-AldrichCat.#: T6199, RRID:AB_477583WB (1:2000)
Antibodyanti-detyrosinated tubulin
(rabbit Polyclonal)
EMD MilliporeCat.#: AB320,
RRID:AB_177350
WB (1:2000)
Antibodyanti-GST (Mouse monoclonal)Sigma-AldrichCat.#: SAB4200237,
RRID:AB_2858197
WB (1:2000)
Antibodyanti-rabbit IgG (H+L)
(Dylight 800 conjugates)
Cell signalingCat.#:5151
RRID:AB_10697505
WB (1:5000)
Antibodyanti-mouse IgG (H+L)
(Dylight 680 conjugates)
Cell signalingCat.#: 5470
RRID:AB_10696895
WB (1:5000)
Recombinant DNA reagentpRSF-32M-3C-VASH152–310 WTThis paperSee Materials and methods, Section: Protein expression and purification
Recombinant DNA reagentpRSF-32M-3C-VASH152–310 C169SThis paperSee Materials and methods, Section: Protein expression and purification
Recombinant DNA reagentpRSF-32M-3C-VASH152–310K145E/R148EThis paperSee Materials and methods, Section: Protein expression and purification
Recombinant DNA reagentpRSF-32M-3C-VASH152–310H268E/V270EThis paperSee Materials and
methods, Section: Protein expression and purification
Recombinant DNA reagentpRSF-32M-3C-VASH152–310R234E/R299E/L303EThis paperSee Materials and methods, Section: Protein expression and purification
Recombinant DNA reagentpRSF-32M-3C-VASH152–310 D155RThis paperSee Materials and methods, Section: Protein expression and purification
Recombinant DNA reagentpET-32M-3C-SVBPThis paperSee Materials and methods, Section: Protein expression and purification
Recombinant DNA reagentpET-21b-SVBPThis paperSee Materials and methods, Section: Protein expression and purification purification
Sequence-based reagentVASH1_1up Fse1 senseThis paperPCR primersGGAGGCCGGCCAATGCCAGGGGGGAAGAAG
Sequence-based reagentVASH1_52 up Fse1 senseThis paperPCR primersCGAGGCCGGCCAGACCTGCGAGACGGAGGC
Sequence-based reagentVASH1_310 down Asc1 anti-enseThis paperPCR primersCCAGGCGCGCCCTAGACCCGGATCTGGTACCC
Sequence-based reagentVASH1_365 down Asc1 anti-enseThis PaperPCR primersCCAGGCGCGCCCTAGACCCGGATCTGGTACCC
Sequence-based reagentSVBP_1up Fse1 senseThis PaperPCR primersTGCGGCCGGCCAATGGATCCACCTGCACGT
Sequence-based reagentSVBP_66 down Asc1 anti-senseThis PaperPCR primersCGTGGCGCGCCTCATTCTCCAGGAGGCTGC
Sequence-based reagentVASH1_C169S anti-senseThis PaperPCR primersTTTGATTGGCAGGGCCTCT
Sequence-based reagentVASH1_C169S senseThis PaperPCR primersAGCCTGGAAGCCGTGATCC
Sequence-based reagentVASH1 K145E anti-senseThis PaperPCR primersAATTTCAAAGAACTGTGTCCCTGT
Sequence-based reagentVASH1 K145E senseThis PaperPCR primersGAGAAGAGCAGACCTCTGACAGG
Sequence-based reagentVASH1 R148E anti-senseThis PaperPCR primersGCTCTTCTTAATTTCAAAGAACTGT
Sequence-based reagentVASH1 R148E sense also used for K145E/R148E mutationThis PaperPCR primersGAACCTCTGACAGGGCTGATG
Sequence-based reagentVASH1 K145E/R148E anti-senseThis PaperPCR primersGCTCTTCTCAATTTCAAAGAACTGT
Sequence-based reagentVASH1_D155R senseThis PaperPCR primersAGGGCTGATGCGCCTGGCCAAGG
Sequence-based reagentVASH1_D155R anti-senseThis PaperPCR primersGTCAGAGGTCTGCTCTTC
Sequence-based reagentVASH1_R234E senseThis PaperPCR primersGCCCGCCTTCGAGACGCTCAGCG
Sequence-based reagentVSH1_R234E anti-senseThis PaperPCR primersGGCTTGTACATCAGGTCC
Sequence-based reagentVASH1_268/270E senseThis PaperPCR primersCGAGGAGCAGATCGAGTGGAAGCAC
Sequence-based reagentVASH1_268/270E anti-senseThis PaperPCR primersCTCTCCGGGTCGTGTGACACGCT
Sequence-based reagentVASH1_R299E senseThis PaperPCR primersGCGCCACGCCGAGGACATGCGGC
Sequence-based reagentVASH1_R299E anti-senseThis PaperPCR primersTCCAGCTCCTTGCGGAAG
Sequence-based reagentVASH1_L303E senseThis PaperPCR primersCGACATGCGGGAGAAGATTGGCAAAGGGACGGGC
Sequence-based reagentVASH1_L303E anti-senseThis PaperPCR primersCGGGCGTGGCGCTCCAGC
Peptide, recombinant proteinVASH152-310 WT in complex with SVBPThis paperIn vitro detyrosination and pelleting assay
Peptide, recombinant proteinVASH152-310 D155R in complex with SVBPThis paperIn vitro detyrosination
Peptide, recombinant proteinVASH152-310 K145E/R148E in complex with SVBPThis paperIn vitro detyrosination and pelleting assay
Peptide, recombinant proteinVASH152-310 H268E/V270E in complex with SVBPThis paperIn vitro detyrosination and pelleting assay
Peptide, recombinant proteinVASH152-310 R234E/R299E/L303E in complex with SVBPThis paperIn vitro detyrosination and pelleting assay
chemical compound, drugGMPCPPJena BioscienceCat.#: NC0641143
chemical compound, drugTaxolCytoskeletonCat.#: TXD01
chemical compound, drugNocodazoleSigma-AldrichCat. #: M1404
chemical compound, drugIsopropyl-beta-D-thiogalactoside (IPTG)Gold BiotechnologyCat. #: 12481C100Induce protein expression
Software, algorithmUCSF ChimeraPettersen et al., 2004RRID:SCR_004097https://www.cgl.ucsf.edu/chimera/
Software, algorithmMotionCorr2Zheng et al., 2017RRID:SCR_016499http://msg.ucsf.edu/em/software/motioncor2.html
Software, algorithmGCTFZhang, 2016RRID:SCR_016500https://www.mrc-lmb.cam.ac.uk/kzhang/Gctf/
Software, algorithmRELION3Zivanov et al., 2018RRID:SCR_016274https://www3.mrc-lmb.cam.ac.uk/relion/index.php/Download_%26_install
Software, algorithmCootEmsley and Cowtan, 2004RRID:SCR_014222https://www2.mrc-lmb.cam.ac.uk/personal/pemsley/coot/
Software, algorithmPhenix.refineAdams et al., 2010RRID:SCR_014224https://www.phenix-online.org/documentation/reference/refinement.html
Software, algorithmGraphpad prism 8.30GraphpadRRID:SCR_002798https://www.graphpad.com/scientific-software/prism/
Software, algorithmFrealignGrigorieff, 2016RRID:SCR_016733https://grigoriefflab.umassmed.edu/frealign
OtherNi-NTA AgaroseQiagenCat. #: 30230Recombinant protein purification
OtherLipofectamine 2000Thermo Fisher ScientificCat. #: 11668019Mammalia cell transfection

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    Coot: model-building tools for molecular graphics
    1. P Emsley
    2. K Cowtan
    (2004)
    Acta Crystallographica. Section D, Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Tubulin detyrosination is a frequent occurrence in breast cancers of poor prognosis
    1. A Mialhe
    2. L Lafanechère
    3. I Treilleux
    4. N Peloux
    5. C Dumontet
    6. A Brémond
    7. MH Panh
    8. R Payan
    9. J Wehland
    10. RL Margolis
    11. D Job
    (2001)
    Cancer Research 61:5024–5027.
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44

Decision letter

  1. Thomas Surrey
    Reviewing Editor; Centre for Genomic Regulation (CRG), Spain
  2. Vivek Malhotra
    Senior Editor; The Barcelona Institute of Science and Technology, Spain

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript presents a cryo-EM structure of the tubulin tyrosine carboxypeptidase VASH1-SVBP bound to a microtubule, providing an explanation for its substrate specificity (microtubule vs soluble tubulin). Structure-guided mutagenesis combined with activity assays performed both in vitro and in cells confirm predictions made by the structure. This study provides new insight into the mechanism of substrate recognition by an important microtubule modifying enzyme.

Decision letter after peer review:

Thank you for submitting your article "Cryo-EM structure of VASH1-SVBP bound to microtubules" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Vivek Malhotra as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This manuscript presents a cryo-EM structure of VASH1-SVBP bound to 14-protofilament microtubule. The overall resolution is 3.1 A, but the resolution of VASH1-SVBP complex is lower. Nevertheless, the authors were able to dock in a previous crystal structure of VASH1-SVBP. Their structure revealed that VASH1-SVBP binds two adjacent α-tubulins in a microtubule, providing an explanation for its substrate specificity (microtubule vs soluble tubulin). The authors complement their structural observations with structure-guided mutagenesis combined with activity assays performed both in vitro and in cells. The study focuses on an important molecular player that is of interest to many in the microtubule field and addresses the important question of how the VASH1 enzyme recognizes its microtubule substrate. However, the quality of the study needs improvement, both technically as well as from a scholarship point of view. This will require additional evaluation/clarification of the EM data, a limited set of additional experiments and textual changes to be clearer about limitations, to cite references more appropriately, and to provide more detail for Materials and methods.

Essential revisions:

1) The majority of the figures showing interactions do not seem to match the structure that was included with the manuscript. The figures should all be redone with the final structure (or, conversely, the final structure should be submitted with the manuscript if the figures were generated later). As a consequence of this mismatch between the figures and the structure provided, some of the proposed contacts are too far away to be considered electrostatic interactions or hydrogen bonds. It is therefore not possible to evaluate the proposed interfaces without the appropriate structure.

a) List of interactions in question: K145 and E434 are 9A away in the structure. H268 and R390 are 6A apart. S269 and E386 are 4.4A apart, which is too far for a hydrogen bond as suggested. There's only 2 electrostatic interactions that are at 3A or less (R148 and E433; E271 and H309), while the rest are in a 4.5-5A range.

b) Additionally, the manuscript mentions that V270 is in contact with H309, E386, and E433, but in reality, only E386 is within contact range.

2) Given that the resolution of cryo-EM map is not uniform, the paper should include a local resolution plot/map, particularly given the lower resolution of the VASH1-SVBP density, which is the most important part of the structure (~6A vs 3.1A for the microtubule). Along the same lines, the current FSC calculation description was confusing and seemed to suggest that only the tubulin heterodimer was used for the calculation rather than also including the VASH1-SVBP. Was this the case? Clarity of this description should be improved.

3) "To build the structure of the microtubule-VASH1-SVBP complex, we docked the crystal structure of VASH1-SVBP and the cryo-EM structure of αβ-tubulin heterodimers of GMPCPP-stabilized microtubules into the EM density map as rigid bodies." PDB IDs for the X-ray structures and citations need to be provided.

4) Given that the major thrust of the manuscript is to provide a structural explanation for the substrate specificity of VASH1-SVBP, the proposed role of interface 3 should be strengthened by performing detyrosination assays with α/β tubulin dimers. Showing that the 3E mutant has no effect on detyrosination of tubulin dimers would be far more convincing than the lack of effect on the C-terminal tail peptide.

5) The section on the interaction between the C-term tail and VASH1-SVBP seems rather speculative given the low resolution of the map there and the data presented in the paper. This would be easier to judge if the authors included a locally-filtered map. Unless more convincing data/figures can be presented, it is recommend to move this section to the Discussion section. New figures with a clearer view of what is "unaccounted" density would be quite helpful in making this section less speculative. As the data is presented at the moment the reviewers conclude that the α tail is not really visible in the structure.

6) Figure 3C was considered unconvincing. Although the authors state in the text that "…. at interface 2, including R390 and H393, are not properly positioned for VASH1 binding", the differences in the figure seem small enough that minor adjustments of the side chain rotamers may restore those interactions. If the map is not good enough to see side chains in this region, the authors should limit themselves to showing a sphere at the position where the C α is. The conclusion drawn here should be either toned down/removed or more compelling evidence to support it should be provided, for example by testing whether mutating H393 and R390 on α-tubulin affects detyrosination of MTs but not of the dimer. That would provide more solid support for the idea proposed in Figure 3C.

7) Quantification: Functional assays (Figure 4) need to be quantified. Data shown in Figure 1C and Figure 4—figure supplement 1 should have statistical analysis.

8) The tubulin purification protocol that the authors employed (Ti et al., 2016) describes tubulin purification with an affinity tag on only β-tubulin. Using this procedure, results in a mixture of human and insect α-tubulin – can the authors clarify here how pure their tubulin is (the SDS gel will not resolve this). They might want to discuss whether tubulin heterogeneity might have contributed to the lower resolution of the enzyme and the difficulties to resolve the α-tubulin tail.

9) The microtubule reconstruction procedure should be described in more detail in the Materials and methods section.

10) Scholarship: The authors should please make sure that they cite the relevant literature correctly. Some guidance:

a) The authors state "The conformation of free αβ-tubulin heterodimers is different from that of αβ-tubulin in microtubules, with the latter being more compact and straight (Brouhard and Rice, 2018). There are also subtle differences between the conformations of α-tubulin in free αβ-tubulin heterodimers and microtubules." The authors should cite original studies on the topic (including work of one of the authors).

b) The authors state "We superimposed the N-terminal domain (residues 1-140) of α-tubulin in the free αβ-tubulin heterodimer onto the EM structure of the microtubule-VASH1-SVBP complex". It appears appropriate to cite Weinert et al., 2017 here, as the authors used their X-ray structure for comparison.

c) "…co-transfected theseVASH1 mutants with SVBP into HeLa cells (which had low endogenous levels of tubulin detyrosination)". A citation showing low levels of detyrosination in this cell line should be provided.

d) Figure 3C legend "Superimposition of the structure of α-tubulin from free αβ tubulin heterodimers (PDB:5nqu)" also lacks the citation.

e) The authors tend to cite only very recent literature. Key original papers should also be cited. Some of the citations are placed inappropriately. For example, in the Introduction paragraph two when citing the discovery of detyrosination, the appropriate reference is Hallak et al., 1977 only. The same applies for the discovery of TTL. When discussing MAPs that respond to the detyrosination/tyrosination, original studies should be cited and not only reviews (one of the reviews cited hardly even covers this). In paragraph four when discussing what TTL recognizes, does the Alushin et al. study really belong here? Also, the authors should cite the original Frealign paper in their Materials and methods.

https://doi.org/10.7554/eLife.58157.sa1

Author response

Essential revisions:

1) The majority of the figures showing interactions do not seem to match the structure that was included with the manuscript. The figures should all be redone with the final structure (or, conversely, the final structure should be submitted with the manuscript if the figures were generated later). As a consequence of this mismatch between the figures and the structure provided, some of the proposed contacts are too far away to be considered electrostatic interactions or hydrogen bonds. It is therefore not possible to evaluate the proposed interfaces without the appropriate structure.

a) List of interactions in question: K145 and E434 are 9A away in the structure. H268 and R390 are 6A apart. S269 and E386 are 4.4A apart, which is too far for a hydrogen bond as suggested. There's only 2 electrostatic interactions that are at 3A or less (R148 and E433; E271 and H309), while the rest are in a 4.5-5A range.

b) Additionally, the manuscript mentions that V270 is in contact with H309, E386, and E433, but in reality, only E386 is within contact range.

We thank the reviewer for catching this oversight. The figures were indeed made based on an earlier version of the structure, not the final version. We have now remade all figures based on the latest refined structures in the revised manuscript. More importantly, because of the lack of clear sidechain density for many key residues at the VASH1-microtubule interface, we have deleted all dashed lines that had indicated salt bridges and hydrogen bonds and rephrased the text to avoid making specific references to sidechains.

2) Given that the resolution of cryo-EM map is not uniform, the paper should include a local resolution plot/map, particularly given the lower resolution of the VASH1-SVBP density, which is the most important part of the structure (~6A vs 3.1A for the microtubule). Along the same lines, the current FSC calculation description was confusing and seemed to suggest that only the tubulin heterodimer was used for the calculation rather than also including the VASH1-SVBP. Was this the case? Clarity of this description should be improved.

We have added the local resolution map in Figure 2—figure supplement 1A in the revised manuscript. The original FSC calculation was indeed only for the tubulin heterodimer. Because the resolution of VASH1-SVBP is lower than that of tubulin heterodimer, we have calculated the FSC separately and have now included the FSC calculation of VASH1-SVBP in Figure 1—figure supplement 1C of the revised manuscript.

3) "To build the structure of the microtubule-VASH1-SVBP complex, we docked the crystal structure of VASH1-SVBP and the cryo-EM structure of αβ-tubulin heterodimers of GMPCPP-stabilized microtubules into the EM density map as rigid bodies." PDB IDs for the X-ray structures and citations need to be provided.

The PDB IDs for the structures of VASH1-SVBP and αβ-tubulin are 6OCG and 6DPU, respectively. This information, along with citations, has been provided in the revised manuscript.

4) Given that the major thrust of the manuscript is to provide a structural explanation for the substrate specificity of VASH1-SVBP, the proposed role of interface 3 should be strengthened by performing detyrosination assays with α/β tubulin dimers. Showing that the 3E mutant has no effect on detyrosination of tubulin dimers would be far more convincing than the lack of effect on the C-terminal tail peptide.

This is a great suggestion. We have performed the in vitro detyrosination assay on free αβ-tubulin heterodimers. The 3E mutation of VASH1 indeed has no effect on the detyrosination of αβ-tubulin heterodimers. These data are included in Figure 4C and Figure 4—figure supplement 1C of the revised manuscript.

5) The section on the interaction between the C-term tail and VASH1-SVBP seems rather speculative given the low resolution of the map there and the data presented in the paper. This would be easier to judge if the authors included a locally-filtered map. Unless more convincing data/figures can be presented, it is recommend to move this section to the Discussion section. New figures with a clearer view of what is "unaccounted" density would be quite helpful in making this section less speculative. As the data is presented at the moment the reviewers conclude that the α tail is not really visible in the structure.

We have postprocessed the EM density map with different programs by performing global or local B factor sharpening, with and without low-pass filtering. This extended C-terminal density is clear and continuous only when the map is low-pass filtered to 7 Å, indicating that this density is weak. In the revised version, we provide two different views of this density generated by Phenix.auto_sharpen, with local B factor sharpening and resolution cutoff at 7 Å in Figure 2D. Because this density is extremely weak, we have toned down our conclusions.

6) Figure 3C was considered unconvincing. Although the authors state in the text that "…. at interface 2, including R390 and H393, are not properly positioned for VASH1 binding", the differences in the figure seem small enough that minor adjustments of the side chain rotamers may restore those interactions. If the map is not good enough to see side chains in this region, the authors should limit themselves to showing a sphere at the position where the C α is. The conclusion drawn here should be either toned down/removed or more compelling evidence to support it should be provided, for example by testing whether mutating H393 and R390 on α-tubulin affects detyrosination of MTs but not of the dimer. That would provide more solid support for the idea proposed in Figure 3C.

We agree with the reviewer on this point. We have removed the original Figure 3C and the corresponding description in the revised manuscript.

7) Quantification: Functional assays (Figure 4) need to be quantified. Data shown in Figure 1C and Figure 4—figure supplement 1 should have statistical analysis.

We have added statistical analysis to Figure 1C and Figure 4—figure supplement 1 according to the reviewers’ suggestion. The p-values between WT and mutants were calculated using two-tailed student’s t-test.

8) The tubulin purification protocol that the authors employed (Ti et al., 2016) describes tubulin purification with an affinity tag on only β-tubulin. Using this procedure, results in a mixture of human and insect α-tubulin – can the authors clarify here how pure their tubulin is (the SDS gel will not resolve this). They might want to discuss whether tubulin heterogeneity might have contributed to the lower resolution of the enzyme and the difficulties to resolve the α-tubulin tail.

We (the Rice group) have previously shown that the recombinant human tubulin produced using the insect cell system contains human and insect α-tubulin molecules in roughly 70:30 proportion (see Figure 1D in PMID: 32077153). The Nogales and Kapoor labs have determined the structure of recombinant human microtubules bound to the motor domain of kinesin-1, and reported that there were no significant differences with the bovine brain microtubule structures at comparable resolutions. Thus, we do not believe that the lower resolution of VASH1 was caused by the heterogeneity of α-tubulin molecules. On the other hand, because the sequence of the C-terminal tail of the insect α-tubulin is different from that of human α-tubulin, it is possible that this heterogeneity contributes to the difficulty to resolve the α-tubulin tail. We have discussed this possibility in the revised manuscript.

9) The microtubule reconstruction procedure should be described in more detail in the Materials and methods section.

We have now described the microtubule reconstruction procedure in more detail in the revised manuscript.

10) Scholarship: The authors should please make sure that they cite the relevant literature correctly. Some guidance:

a) The authors state "The conformation of free αβ-tubulin heterodimers is different from that of αβ-tubulin in microtubules, with the latter being more compact and straight (Brouhard and Rice, 2018). There are also subtle differences between the conformations of α-tubulin in free αβ-tubulin heterodimers and microtubules." The authors should cite original studies on the topic (including work of one of the authors).

b) The authors state "We superimposed the N-terminal domain (residues 1-140) of α-tubulin in the free αβ-tubulin heterodimer onto the EM structure of the microtubule-VASH1-SVBP complex". It appears appropriate to cite Weinert et al., 2017 here, as the authors used their X-ray structure for comparison.

We apologize for not citing the original research articles in this section. Because this section and Figure 3C have been deemed to be too speculative (see comment 6 above), we have decided to remove this section from the revised manuscript. Therefore, it is no longer necessary to cite the references alluded to by the reviewers. We will, however, pay more attention to proper literature citing in future studies.

c) "…co-transfected theseVASH1 mutants with SVBP into HeLa cells (which had low endogenous levels of tubulin detyrosination)". A citation showing low levels of detyrosination in this cell line should be provided.

We have cited the original reference.

d) Figure 3C legend "Superimposition of the structure of α-tubulin from free αβ tubulin heterodimers (PDB:5nqu)" also lacks the citation.

Again, we have removed this figure panel in the revised manuscript. The citation is no longer necessary.

e) The authors tend to cite only very recent literature. Key original papers should also be cited. Some of the citations are placed inappropriately. For example, in the Introduction paragraph two when citing the discovery of detyrosination, the appropriate reference is Hallak et al., 1977 only. The same applies for the discovery of TTL. When discussing MAPs that respond to the detyrosination/tyrosination, original studies should be cited and not only reviews (one of the reviews cited hardly even covers this). In paragraph four when discussing what TTL recognizes, does the Alushin et al. study really belong here? Also, the authors should cite the original Frealign paper in their Materials and methods.

As suggested, we have only cited the original studies when referring to the discoveries of detyrosination and TTL. We have cited original studies when discussing MAPs that respond to detyrosination/tyrosination. We have removed the Alushin et al. citation when discussing TTL recognition of tubulin. We have also cited the original Frealign paper in the Materials and methods.

https://doi.org/10.7554/eLife.58157.sa2

Article and author information

Author details

  1. Faxiang Li

    Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft
    Contributed equally with
    Yang Li
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6442-9063
  2. Yang Li

    Department of Biophysics, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft
    Contributed equally with
    Faxiang Li
    Competing interests
    No competing interests declared
  3. Xuecheng Ye

    1. Department of Biophysics, University of Texas Southwestern Medical Center, Dallas, United States
    2. Department of Biochemistry, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Resources, Investigation
    Competing interests
    No competing interests declared
  4. Haishan Gao

    Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4954-8793
  5. Zhubing Shi

    Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9624-4960
  6. Xuelian Luo

    1. Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, United States
    2. Department of Biophysics, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5058-4695
  7. Luke M Rice

    1. Department of Biophysics, University of Texas Southwestern Medical Center, Dallas, United States
    2. Department of Biochemistry, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Methodology, Writing - review and editing
    For correspondence
    Luke.Rice@UTSouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6551-3307
  8. Hongtao Yu

    1. Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, United States
    2. Zhejiang Provincial Laboratory of Life Sciences and Biomedicine, School of Life Sciences, Westlake University, Hangzhou, China
    3. Institute of Biology, Westlake Institute for Advanced Study, Hangzhou, China
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    yuhongtao@westlake.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8861-049X

Funding

National Institutes of Health (GM107415)

  • Xuelian Luo

National Institutes of Health (GM098543)

  • Luke M Rice

Cancer Prevention and Research Institute of Texas (RP160255)

  • Xuelian Luo

Cancer Prevention and Research Institute of Texas (RP160667-P2)

  • Hongtao Yu

Welch Foundation (I-1932)

  • Xuelian Luo

Welch Foundation (I-1908)

  • Luke M Rice

Welch Foundation (I-1441)

  • Hongtao Yu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank D Nicastro and D Stoddard for cryo-EM facility access and data acquisition. Single particle cryo-EM data were collected at University of Texas Southwestern Medical Center (UTSW) Cryo-Electron Microscopy Facility, which is funded by a Cancer Prevention and Research Institute of Texas (CPRIT) Core Facility Support Award (Grant no. RP170644). This study is supported by grants from the National Institutes of Health (Grant nos. GM107415 to XL and GM098543 to LMR), Cancer Prevention and Research Institute of Texas (Grant nos. RP160255 to XL and RP160667-P2 to HY) and the Welch Foundation (Grant nos. I-1932 to XL, I-1908 to LMR, and I-1441 to HY).

Senior Editor

  1. Vivek Malhotra, The Barcelona Institute of Science and Technology, Spain

Reviewing Editor

  1. Thomas Surrey, Centre for Genomic Regulation (CRG), Spain

Publication history

  1. Received: April 22, 2020
  2. Accepted: August 7, 2020
  3. Accepted Manuscript published: August 10, 2020 (version 1)
  4. Version of Record published: August 26, 2020 (version 2)

Copyright

© 2020, Li et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,023
    Page views
  • 261
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Lin Mei et al.
    Research Article

    The actin cytoskeleton mediates mechanical coupling between cells and their tissue microenvironments. The architecture and composition of actin networks are modulated by force, but it is unclear how interactions between actin filaments (F-actin) and associated proteins are mechanically regulated. Here, we employ both optical trapping and biochemical reconstitution with myosin motor proteins to show single piconewton forces applied solely to F-actin enhance binding by the human version of the essential cell-cell adhesion protein αE-catenin, but not its homolog vinculin. Cryo-electron microscopy structures of both proteins bound to F-actin reveal unique rearrangements that facilitate their flexible C-termini refolding to engage distinct interfaces. Truncating α-catenin's C-terminus eliminates force-activated F-actin binding, and addition of this motif to vinculin confers force-activated binding, demonstrating that α-catenin's C-terminus is a modular detector of F-actin tension. Our studies establish that piconewton force on F-actin can enhance partner binding, which we propose mechanically regulates cellular adhesion through a-catenin.

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Clarissa L Durie et al.
    Research Article Updated

    Legionella pneumophila is an opportunistic pathogen that causes the potentially fatal pneumonia Legionnaires’ Disease. This infection and subsequent pathology require the Dot/Icm Type IV Secretion System (T4SS) to deliver effector proteins into host cells. Compared to prototypical T4SSs, the Dot/Icm assembly is much larger, containing ~27 different components including a core complex reported to be composed of five proteins: DotC, DotD, DotF, DotG, and DotH. Using single particle cryo-electron microscopy (cryo-EM), we report reconstructions of the core complex of the Dot/Icm T4SS that includes a symmetry mismatch between distinct structural features of the outer membrane cap (OMC) and periplasmic ring (PR). We present models of known core complex proteins, DotC, DotD, and DotH, and two structurally similar proteins within the core complex, DotK and Lpg0657. This analysis reveals the stoichiometry and contact interfaces between the key proteins of the Dot/Icm T4SS core complex and provides a framework for understanding a complex molecular machine.
