Molecular rationale for antibody-mediated targeting of the hantavirus fusion glycoprotein

  1. Ilona Rissanen  Is a corresponding author
  2. Robert Stass
  3. Stefanie A Krumm
  4. Jeffrey Seow
  5. Ruben JG Hulswit
  6. Guido C Paesen
  7. Jussi Hepojoki
  8. Olli Vapalahti
  9. Åke Lundkvist
  10. Olivier Reynard
  11. Viktor Volchkov
  12. Katie J Doores
  13. Juha T Huiskonen
  14. Thomas A Bowden  Is a corresponding author
  1. Division of Structural Biology, Wellcome Centre for Human Genetics, University of Oxford, United Kingdom
  2. Helsinki Institute of Life Science HiLIFE, University of Helsinki, Finland
  3. Molecular and Integrative Biosciences Research Programme, The Faculty of Biological and Environmental Sciences, University of Helsinki, Finland
  4. Department of Infectious Diseases, King's College London, Guy's Hospital, United Kingdom
  5. Institute of Veterinary Pathology, Vetsuisse Faculty, University of Zürich, Switzerland
  6. Department of Virology, Medicum, Faculty of Medicine, University of Helsinki, Finland
  7. Departments of Virology and Veterinary Biosciences, University of Helsinki and HUSLAB, Helsinki University Hospital, Finland
  8. Zoonosis Science Center, Department of Medical Biochemistry and Microbiology, Uppsala University, Sweden
  9. CIRI, Centre International de Recherche en Infectiologie, INSERM U1111, CNRS UMR5308, Université Lyon, France
Research Article
  • Cited 5
  • Views 973
  • Annotations
Cite this article as: eLife 2020;9:e58242 doi: 10.7554/eLife.58242

Abstract

The intricate lattice of Gn and Gc glycoprotein spike complexes on the hantavirus envelope facilitates host-cell entry and is the primary target of the neutralizing antibody-mediated immune response. Through study of a neutralizing monoclonal antibody termed mAb P-4G2, which neutralizes the zoonotic pathogen Puumala virus (PUUV), we provide a molecular-level basis for antibody-mediated targeting of the hantaviral glycoprotein lattice. Crystallographic analysis demonstrates that P-4G2 binds to a multi-domain site on PUUV Gc and may preclude fusogenic rearrangements of the glycoprotein that are required for host-cell entry. Furthermore, cryo-electron microscopy of PUUV-like particles in the presence of P-4G2 reveals a lattice-independent configuration of the Gc, demonstrating that P-4G2 perturbs the (Gn-Gc)4 lattice. This work provides a structure-based blueprint for rationalizing antibody-mediated targeting of hantaviruses.

Introduction

Rodent-borne hantaviruses (genus Orthohantavirus, family Hantaviridae) are enveloped, negative-sense RNA viruses found worldwide in small mammals (Jonsson et al., 2010; Watson et al., 2014). Cross-species transmission into humans typically results from inhalation of aerosolized excreta from chronically infected rodents and has two primary clinical outcomes. Hantaviral species native to Europe and Asia cause hemorrhagic fever with renal syndrome (HFRS), while those in the Americas cause hantavirus cardiopulmonary syndrome (HCPS) (Lee and van der Groen, 1989; Watson et al., 2014; Zaki et al., 1995). The case mortality rate may exceed 30% for HCPS and ranges from <1% to 15% for HFRS (Alonso et al., 2019; Heyman et al., 2011; Jonsson et al., 2010). Despite variable clinical characteristics, both syndromes arise from excessive proinflammatory and cellular immune responses to infection (Maes et al., 2004; Terajima and Ennis, 2011). Due to their potential to cause severe disease and to be transmitted by aerosols, hantaviruses have been identified as potential bioterrorism agents by the Centers for Disease Control and Prevention (Moran, 2002).

Entry of a hantavirus into a host cell is negotiated by two membrane-anchored glycoproteins, Gn and Gc, which form a lattice decorating the lipid bilayer envelope of the mature virion (Battisti et al., 2011; Hepojoki et al., 2010; Huiskonen et al., 2010). Gn and Gc are translated as a single polypeptide and cleaved at a ‘WAASA’ signal sequence during protein folding and assembly (Löber et al., 2001; Schmaljohn et al., 1987). Recent studies have reported crystal structures of both Gn (Li et al., 2016; Rissanen et al., 2017) and Gc (Guardado-Calvo et al., 2016; Willensky et al., 2016) ectodomains, and their higher-order, tetrameric organization has been postulated based on biochemical characterization (Hepojoki et al., 2010) and cryo-electron microscopy reconstructions of purified virions (Battisti et al., 2011; Huiskonen et al., 2010; Li et al., 2016). The N-terminal region of the Gn ectodomain exhibits a mixed α/β fold, which locates to the membrane-distal region of the tetrameric spike and is linked to the virion envelope by a C-terminal stalk region (Huiskonen et al., 2010; Li et al., 2016; Rissanen et al., 2017). The Gc adopts a three-domain (domains I−III) class II fusion protein architecture and is postulated to associate closely with the Gn, linking adjacent Gn tetramers (Guardado-Calvo et al., 2016; Hepojoki et al., 2010; Li et al., 2016; Willensky et al., 2016). The Gn has been shown to shield the fusion loop resident in domain II of the Gc, in a manner similar to that proposed in phleboviruses and alphaviruses (Allen et al., 2018; Guardado-Calvo et al., 2016; Guardado-Calvo and Rey, 2017; Halldorsson et al., 2018; Li et al., 2016; Serris et al., 2020; Voss et al., 2010). Following host cell binding and endocytotic uptake of the virus, acidification in endosomal compartments results in at least partial dissolution of the Gn−Gc lattice (Acuña et al., 2015; Hepojoki et al., 2010; Rissanen et al., 2017). Endosomal escape is mediated by the Gc in a process that involves engagement of the target membrane by the Gc-encoded fusion loop, followed by upward ‘zippering action’ conformational rearrangements of the transmembrane-anchored Gc domain III, which bring together host and viral membranes (Guardado-Calvo et al., 2016; Willensky et al., 2016).

In contrast to the chronic, asymptomatic infection observed in the native rodent reservoir of a given hantaviral species, human infections are often acute and characterized by a strong immune response (Schönrich et al., 2008). Indeed, the generation of robust antibody-mediated immune response against Gn and Gc has been shown to be key in limiting disease progression in humans, where high titers of neutralizing antibodies (nAbs) in the acute phase correlate with a more benign course of disease (Bharadwaj et al., 2000; Dantas et al., 1986; Pettersson et al., 2014). Furthermore, a neutralizing humoral immune response also conveys long-lasting immunity against human hantaviral infection (Lundkvist et al., 1993b; Schmaljohn et al., 1990; Settergren et al., 1991).

Although elicitation of a productive nAb response constitutes an essential component of the host immune response to hantavirus infection (Arikawa et al., 1989; Heiskanen et al., 1999; Levanov et al., 2019; Lundkvist and Niklasson, 1992), there is a paucity of information with regard to the molecular determinants of antibody-mediated neutralization. Here we structurally characterize the epitope of mAb P-4G2, a potently neutralizing antibody derived following experimental infection of bank voles with Puumala virus (PUUV), a hantavirus responsible for one of the most frequently occurring hantaviral diseases, a mild form of HFRS known as nephropathia epidemica (NE) (Heyman et al., 2011; Linderholm and Elgh, 2001). Through a combined crystallographic and electron cryo-tomography (cryo-ET) analysis, we report the structure of mAb P-4G2 in complex with PUUV Gc and define the P-4G2 epitope on the Gc subcomponent of the mature Gn−Gc spike. This work provides the first molecular-level insights into antibody-mediated targeting of the antigenic hantaviral surface.

Results

Recombinantly derived and Gc-specific bank vole mAb P-4G2 potently neutralizes PUUV

The hybridoma cell line producing the Gc-specific neutralizing mAb P-4G2 was reported in 1992 following experimental infection of the natural reservoir species, bank voles (Myodes glareolus), with PUUV (Lundkvist and Niklasson, 1992). While mAb P-4G2 has been shown to be potently neutralizing against PUUV, with a mAb concentration of ~4 nM (0.6 µg/ml) (Lundkvist and Niklasson, 1992) resulting in 80% inhibition of PUUV infection in focus reduction neutralization tests (Heiskanen et al., 1997; Lundkvist and Niklasson, 1992; Lundkvist et al., 1993c), there has been a paucity of information with regard to the structural basis for neutralization by this or any other Gc-specific antibody. We rescued the sequence of the P-4G2 variable heavy (VH) and kappa (VK) chain regions (see Figure 1—figure supplement 1) from hybridoma cells by PCR with gene-specific primers originally designed for mouse VH and VK chains (von Boehmer et al., 2016). The resulting recombinantly produced mAb P-4G2 comprised bank vole variable and mouse constant regions and, consistent with previously reported in vitro studies of hybridoma-derived mAb P-4G2 (Hepojoki et al., 2010; Lundkvist and Niklasson, 1992), potently neutralizes PUUV in a hantavirus-pseudotyped VSV-ΔG RFP (Red Fluorescent Protein) neutralization assay at an IC50 value of 0.088 μg/ml (Figure 1).

Figure 1 with 1 supplement see all

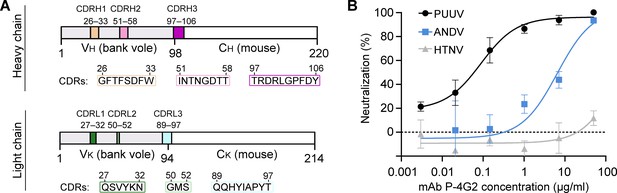

Composition and neutralization potency of recombinantly-derived bank vole mAb P-4G2.

(A) Composition of the complementarity-determining regions (CDRs) of the mAb P-4G2 antigen-binding fragment (Fab) heavy (VH) and kappa (VK) chains. For the full sequence of Fab P-4G2 variable regions, please see Figure 1—figure supplement 1. (B) A hantavirus-pseudotyped VSV-ΔG RFP neutralization assay shows that recombinantly produced mAb P-4G2 neutralizes Puumala virus- and Andes virus-pseudotyped VSV (black and blue traces, respectively), but not Hantaan virus-pseudotyped VSV (gray trace). Each neutralization assay was carried out three times in duplicate. A representative experiment is shown. Error bars represent the range of the value for the experiment performed in duplicate.

Crystal structure of the Fab P-4G2 in complex with PUUV Gc reveals the P-4G2 epitope on pre-fusion Gc

To ascertain the molecular basis for P-4G2-mediated recognition of PUUV, we determined the crystal structure of the PUUV Gc ectodomain in complex with the antigen-binding fragment (Fab) of P-4G2 to 3.50 Å resolution (Figure 2, Figure 2—figure supplement 1, and Supplementary file 1). Consistent with previous studies of hantaviral Gc glycoproteins (Guardado-Calvo et al., 2016; Willensky et al., 2016), PUUV Gc assumes a class II fusion glycoprotein architecture composed of three domains (domains I−III), with domain I and domain II forming an elongated structure and domain III forming inter-domain contacts at the side of domain I. Fab P-4G2 recognizes a protein-specific epitope at the junction of domain I and domain II of PUUV Gc, distal from the hydrophobic fusion loop at the tip of domain II (Figure 2). The epitope comprises ~830 Å2 of buried surface area and all complementarity-determining region (CDR) loops participate in the interaction (Figure 2—figure supplement 2). Arg100 (CDRH3) is the most centrally located paratope residue, and is predicted to form multiple hydrogen bonds and a putative salt bridge with Gc residue Glu725 and across the antibody−antigen interface (Figure 2B and Figure 2—figure supplement 2; interacting residues were identified using the PDBePISA server [Krissinel and Henrick, 2007]). Site-directed mutagenesis of Arg100 to Ala considerably reduced the potency of P-4G2 to neutralize PUUV (Figure 2C). One Fab P-4G2−PUUV Gc complex was observed in the crystallographic asymmetric unit, and there was no evidence for the formation of higher-order Gc dimers or trimers, such as those observed in pre- and post-fusion class II fusion glycoprotein structures (Modis, 2013).

Figure 2 with 3 supplements see all

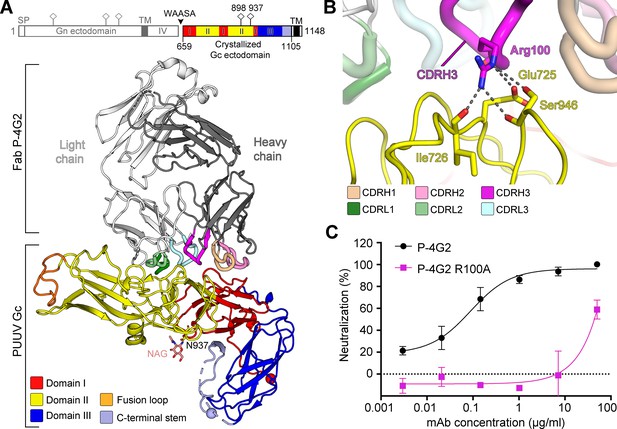

Crystal structure of neutralizing antibody P-4G2 in complex with Puumala virus (PUUV) Gc.

(A) Crystal structure of Fab P-4G2−PUUV Gc complex at 3.5 Å resolution. PUUV Gc, a class II fusion protein, comprises domains I−III (colored red, yellow, and blue, respectively), a Gc C-terminal tail (light blue) and the viral fusion loop at Ser771–Thr785 (orange). Fab P-4G2, comprised of a heavy chain (dark gray) and a light chain (white), is observed bound at the junction of domains I and II on PUUV Gc. A domain schematic of the PUUV glycoprotein precursor with the signal peptide (SP), transmembrane domains (TM), intra-virion domain (IV), and WAASA signal peptidase cleavage site is shown alongside the construct used in crystallization (schematic was produced using the DOG software [Ren et al., 2009]). N-linked glycosylation sequons are shown in the domain schematic as pins and the N-linked glycan observed at Asn937 is rendered as sticks. There was no evidence of glycosylation at Asn898. (B) A close-up view of the central portion of the Fab P-4G2-PUUV Gc interface around paratope residue Arg100 of the Fab P-4G2 CDRH3. Residues contributing to a putative hydrogen bonding network (indicated by dashed lines) are rendered as sticks and were identified using the PDBePISA server (Krissinel and Henrick, 2007). (C) Site-directed mutagenesis of Arg100 to Ala reduces the neutralizing potency of mAb P-4G2, confirming the importance of this residue in the interaction interface. We compared the neutralization potency of mAb P-4G2 R100A mutant (magenta trace) to that of the wild-type mAb P-4G2 (black trace) against PUUV pseudovirus in a hantavirus-pseudotyped VSV-ΔG RFP neutralization assay. The virus neutralization assay presented in panel C was conducted as a part of the same experiment as the neutralization assay presented in Figure 1B. Each neutralization assay was carried out three times in duplicate. A representative experiment is shown. Error bars represent the range of the value for the experiment performed in duplicate.

Consistent with the hypothesis that mAb P-4G2 targets a pre-fusion conformation of PUUV Gc representative of that displayed on the native virion surface, structure overlay analysis reveals that PUUV Gc from the Gc–P-4G2 complex (PUUV GcGc–P-4G2) is highly similar to the recently reported pre-fusion state of Andes virus (ANDV) Gc (Serris et al., 2020), and is distinct from the known PUUV Gc post-fusion structure (Willensky et al., 2016; Figure 3 and Figure 3—figure supplement 1). Notably, the conformations of domain III from both the recently determined ANDV Gc (Serris et al., 2020) and our PUUV Gc contrast those observed across hantavirus Gc structures (Figure 3—figure supplement 1), suggesting that this region is likely flexible in the absence of the stabilizing environment of the glycoprotein lattice or crystal environments. Additionally, the conformation of PUUV GcGc–P-4G2 closely resembles class II fusion protein pre-fusion states, such as those observed for RVFV Gc (PDB 4HJ1) and ZIKV E (PDB 5IRE) (Figure 3—figure supplement 1).

Figure 3 with 1 supplement see all

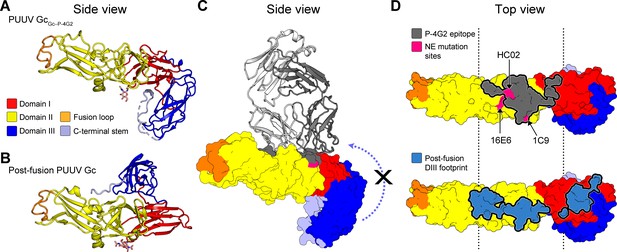

The epitope of antibody P-4G2 denotes a key antigenic site at the hantaviral surface.

(A) Puumala virus (PUUV) Gc from the Gc-4G2 complex displays a domain III conformation distinct from that observed in (B) post-fusion PUUV Gc (Willensky et al., 2016). (C) Fab P-4G2 binding precludes the rearrangement of domain III (blue arrow) to the post-fusion conformation. PUUV Gc is represented as a surface, with the epitope of Fab P-4G2 outlined dark gray. Fab P-4G2 is shown in ribbon representation, with heavy and light chains colored gray and white, respectively. (D) Top view of the P-4G2 epitope shows that it overlaps with the neutralization evasion mutation sites reported for PUUV-neutralizing human antibody 1C9 (Hörling and Lundkvist, 1997; Lundkvist et al., 1993a) and HTNV-neutralizing mouse antibodies HC02 and 16E6 (Arikawa et al., 1989; Wang et al., 1993). Furthermore, the epitope overlaps with the binding site of domain III in the post-fusion conformation (medium blue). Interfacing residues were identified using the PDBePISA server (Krissinel and Henrick, 2007).

Investigation into the residues that comprise the P-4G2 epitope revealed that many of these residues are buried in the post-fusion trimeric Gc (Figure 3D), indicating that mAb P-4G2 is specific to the pre-fusion state of PUUV Gc. This observation is consistent with previous experimental findings, which demonstrated that mAb P-4G2 did not recognize PUUV under low pH conditions but remained bound to the virus and protected the epitope if introduced prior to low-pH exposure (Hepojoki et al., 2010). Taken together, these results support a model whereby P-4G2 specifically targets pre-fusion Gc and may sterically preclude the formation of a fusogenic configuration of the Gc.

The epitope of P-4G2 is targeted for neutralization across hantaviral species

Hantaviruses are often divided into two groups, termed Old World and New World hantaviruses (Jonsson et al., 2010), reflecting their distribution and pathobiological features. Interestingly, while PUUV is an Old World hantavirus prevalent in Northeastern Europe, the residues comprising the P-4G2 epitope on PUUV Gc exhibit a relatively high level of sequence conservation with Gc proteins from New World hantaviruses, such as ANDV (72% sequence identity across the P-4G2 epitope), and a lower level of conservation with Hantaan virus (HTNV), an Old World hantavirus (38% sequence identity across the epitope) (Figure 2—figure supplement 3). The epitope-based sequence analysis provides a rational basis for understanding the cross-reactivity of P-4G2 with ANDV but not HTNV, where we identify a greater level of sequence variation on HTNV Gc at the epitope and fewer sequence differences on ANDV Gc (Figure 2—figure supplement 3). The observed similarity at the epitope between PUUV and New World hantaviruses is in line with the evolutionary history of these viruses and their hosts (Plyusnin and Sironen, 2014), and provides a structural basis for the ability of P-4G2 to neutralize ANDV, albeit at a lower IC50 value (6.48 μg/ml) (Figure 1B). Furthermore, despite the sequence variation at the P-4G2 epitope between the two Old World hantaviruses PUUV and HTNV (Figure 2—figure supplement 3), and the lack of HTNV cross-neutralization (Figure 1B), we note that the observed P-4G2 binding site overlaps with the putatively assigned binding sites of HTNV-neutralizing mAbs HCO2 and 16E6 (Arikawa et al., 1989; Wang et al., 1993; Figure 3), indicating that this region of the Gc is likely to be immunologically accessible across hantaviral species.

Mab P-4G2 is specific to a lattice-free state of virion-displayed PUUV Gc

Previous investigations of the non-pathogenic viral orthologue, Tula virus (TULV), have revealed the ultrastructure of Gn−Gc assemblies, as displayed on the hantaviral envelope (Huiskonen et al., 2010; Li et al., 2016). These studies indicate that the Gc forms elongated structures that extend from the virion membrane and are shielded by the cognate Gn (Li et al., 2016).

To ascertain the position of the P-4G2 epitope in the context of the hantaviral envelope, we generated PUUV virus-like particles (VLPs) by transient expression of the PUUV genomic M-segment in mammalian cells (Acuña et al., 2014). Cryo-ET of purified PUUV VLPs, in tandem with sub-tomogram averaging, revealed that the VLP surface displays the expected Gn−Gc spike architecture that can form locally ordered lattices, as observed in native hantavirions (Figure 4—figure supplement 1). Consistent with previous studies of hantavirus ultrastructure and Gc oligomerization (Bignon et al., 2019; Li et al., 2016), breakpoints exist in the (Gn−Gc)4 lattices (Huiskonen et al., 2010; Li et al., 2016; Serris et al., 2020). Previous studies have suggested that contacts between (Gn−Gc)4 spikes are mediated by Gc homo-dimers (Bignon et al., 2019; Huiskonen et al., 2010; Li et al., 2016), while lattice breaks are expected to display Gc (‘lattice-free Gc’) molecules that are not integrated within the lattice assembly through Gc homo-dimer interactions.

Following the validation that PUUV VLP presents a glycoprotein architecture that accurately resembles the native virion, we applied an identical cryo-ET approach to VLPs treated with Fab P-4G2. The data were split in two sets: (i) spikes that were part of a lattice, and (ii) spikes in regions of incomplete lattice. The former yielded a reconstruction similar to the VLP sample prepared without the Fab (Figure 4A and Figure 4—figure supplement 1), while the reconstruction focused on lattice-free spikes yielded a discrete (Gn−Gc)4 spike with additional density (Figure 4B). These results suggest that mAb P-4G2 binding is incompatible with glycoprotein lattice formation, and further, that Fab P-4G2 binding may affect the higher order lattice assembly. To test this hypothesis, we quantified the number of neighbors for each spike on VLPs both in the presence and absence of Fab P-4G2. The frequency of lattice-free spikes (with zero neighbors) was higher in the presence of Fab P-4G2, while the frequency of lattice-bound spikes (with four or more neighbors) was higher in the particles not treated with Fab P-4G2 (Figure 4C and D and Figure 4—figure supplement 2). We note that treatment with Fab P-4G2 had a heterogeneous effect on the lattice of different VLPs, as can be observed in Figure 4—figure supplement 2. These results suggest that Fab P-4G2 influences the presentation of the Gn−Gc lattice by dislodging the (Gn−Gc)4 spikes from each other.

Figure 4 with 2 supplements see all

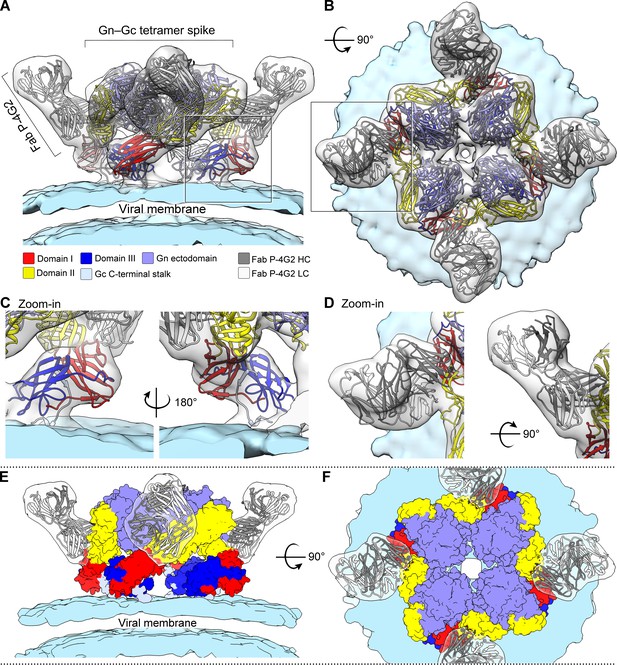

Treatment of Puumala virus (PUUV) virus-like particles (VLPs) with Fab P-4G2 results in additional density and is associated with loss of continuous lattice at the VLP surface.

Cryo-ET reconstructions of the Fab P-4G2-treated PUUV VLP surface, derived from (A) regions of continuous lattice (14.3 Å) and (B) regions of incomplete lattice (13.4 Å). While both reconstructions show the canonical Gn−Gc architecture (density colored white) and the viral lipid bilayer (light blue), additional density is observed in the latter reconstruction (dark gray). (C) The hantaviral surface carries tetragonal (Gn−Gc)4 spikes that can organize in patches of ordered lattice. (D) A box plot describing the frequency of (Gn−Gc)4 spikes that have a given number of lattice compatible neighbors, from zero to a maximum of eight, shows that treatment with Fab P-4G2 alters the presentation of the (Gn−Gc)4 spike assemblies at the VLP surface.

Fitting of the crystal structure of Fab P-4G2−PUUV Gc complex and PUUV Gn (Li et al., 2016) into the reconstruction of the Fab-treated (Gn−Gc)4 spike confirms that the additional density is comprised of Fab P-4G2 (Figure 5). PUUV GcGc−P-4G2 fits well within the cryo-ET reconstruction, where the crystallographically observed conformation of domain III accurately matches a feature of the glycoprotein spike (Figure 5C), further supporting that PUUV Gc has crystallized in the pre-fusion conformation presented on the mature virion. Additionally, this fitting confirms the location of Gc in the density spanning from the membrane-distal globular lobes to the viral membrane, as we and others have proposed previously (Li et al., 2016; Serris et al., 2020). The fitting locates domain III of the Gc adjacent to the membrane, allowing the transmembrane region of the C-terminus to be linked to the virion envelope (Figures 5A and 2A), and places the fusion loop from Gc domain II into membrane-distal lobe density in close contact with Gn (Figure 5A and B), in a manner similar to that observed for other class II fusion proteins and their cognate accessory proteins (Halldorsson et al., 2018; Voss et al., 2010).

Fitting of the Fab P-4G2−Puumala virus (PUUV) Gc crystal structure into the cryo-ET reconstruction confirms the P-4G2 epitope in the context of the viral surface and supports the hypothesis that the observed Gc conformation constitutes a pre-fusion state.

(A) Side view and (B) top view of the Fab P-4G2-treated PUUV virus-like particle (VLP) spike at 13.4 Å resolution. Crystal structures of Fab P-4G2−PUUV, along with PUUV Gn (PDB id 5FXU), were fitted in the cryo-ET reconstruction as rigid bodies and display excellent conformity with the cryo-ET derived envelope. (C) A zoom-in of the fit of domain III of Gc into the cryo-ET reconstruction presented from two points of view, which are related by a 180° rotation. The goodness of fit supports the hypothesis that domain III has crystallized in a conformation that closely resembles the pre-fusion state presented in the mature hantaviral spike. (D) A close-up of Fab P-4G2 similarly presents a high-correlation fit. A simplified look at the composition of the hantaviral spike, where fitted Gc and Gn are represented as surfaces, is shown from side view (E) and top view (F).

Drawing upon the fitting generated above, we used a 13.9 Å cryo-ET reconstruction of the lattice-incorporated (non-Fab P-4G2 treated) PUUV VLP surface to create a model of the higher-order (GnGc)4 spike lattice. While the overall assembly of (Gn−Gc)4 spikes remain similar to that obtained from fitting into the cryo-ET reconstruction of an individual, Fab-treated glycoprotein spike (Figure 5) fitting into the latticed reconstruction provides a structural basis for the formation of PUUV Gc homo-dimers at contact points between neighboring spikes (Figure 6), which closely resemble a crystallographically observed homo-dimer interface reported previously for HTNV Gc (Bignon et al., 2019; Guardado-Calvo et al., 2016; Figure 6—figure supplement 1). Furthermore, modeling of Fab P-4G2 binding onto the Gc homodimer demonstrates that neighboring epitopes are not mutually accessible for Fab binding in their lattice-integrated form, providing clues to how Fab P-4G2 recognition may be accompanied by dissociation of the Gc homodimer assembly (Figure 6—figure supplement 2). Altogether, our combined crystallographic and cryo-EM investigation reveals, in molecular detail, that P-4G2 is specific to the lattice-free, pre-fusion state of PUUV Gc presented on the mature viral envelope.

Figure 6 with 2 supplements see all

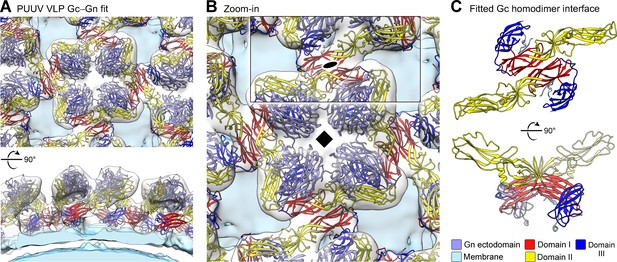

Fitting of Puumala virus (PUUV) Gn and Gc into the cryo-ET-derived reconstruction of PUUV virus-like particles (VLPs) shows that lattice formation is mediated by Gc homo-dimers.

(A) Top- and side views of the PUUV lattice. Crystal structures of PUUV Gc from the Fab P-4G2 complex, and PUUV Gn (PDB id: 5FXU) are shown fitted into a cryo-ET reconstruction of the PUUV VLP surface at 13.9 Å resolution. PUUV Gn and Gc are shown in cartoon representation and colored as presented at the bottom of panel C. (B) A zoom-in of an individual spike reveals that contacts between spikes are mediated by Gc. (C) The fitting identifies the topology of Gc dimers formed between neighboring spikes. Gc domain I is indicated to be involved in the formation of the dimer interface, corroborating the model reported by Bignon et al. (Bignon et al., 2019) based on a crystallographically observed HTNV Gc homo-dimer (Guardado-Calvo et al., 2016).

Discussion

Despite the importance of neutralizing antibodies in mitigating the progression of hantaviral disease (Bharadwaj et al., 2000; Dantas et al., 1986; Pettersson et al., 2014) and conveying long-lasting protection against infection (Settergren et al., 1991; Valdivieso et al., 2006; Ye et al., 2004), little is known about how they target virion-displayed glycoproteins, Gn and Gc. Here we provide a molecular-level description of the epitope targeted by mAb P-4G2, a host-derived antibody that potently neutralizes PUUV, a zoonotic hantavirus prevalent in Northern Europe and Russia. We find that mAb P-4G2 targets an epitope at the junction of domains I and II of PUUV Gc (Figure 2). When combined with a cryo-ET reconstruction of Fab P-4G2 complexed with PUUV (Gn−Gc)4 spike, our analysis reveals that mAb P-4G2 targets a pre-fusion, lattice-free conformation of PUUV Gc.

Our structural data provides several molecular-level insights into hantavirus Gc functionality and antibody-mediated neutralization. First, comparison of our PUUV Gc pre-fusion state with that of the previously reported PUUV Gc post-fusion state clarifies the conformational changes that PUUV Gc undergoes to facilitate membrane fusion (Figure 3 and Figure 3—figure supplement 1). Our observed PUUV Gc conformation matches that of the Gc in a recently reported ANDV Gn–Gc pre-fusion complex (Serris et al., 2020; Figure 3—figure supplement 1), further supporting the hypothesis that our PUUV Gc forms a pre-fusion conformation. Interestingly, domain III from a previously reported structure of HTNV Gc adopts a conformation that is intermediate between pre- and post-fusion conformations of PUUV Gc (Guardado-Calvo et al., 2016; Figure 3—figure supplement 1). Similar structural intermediates have been identified in previous structural studies of related phlebovirus Gc glycoproteins, alone (Dessau and Modis, 2013) and in the context of the virion (Halldorsson et al., 2018), which is consistent with domain III flexibility being an intrinsic feature required for Gc glycoprotein functionality.

Second, examination of the antibody−antigen interface provides a structure-based model for understanding the mechanism of P-4G2-mediated neutralization, where overlay analysis reveals that Fab P-4G2 binding is incompatible with the pH-dependent conformational transitions of PUUV Gc required to negotiate fusion of the viral and cellular membranes. While it is also possible that mAb P-4G2 interferes with other steps of the host-cell entry pathway (e.g. receptor recognition), our modeling indicates that the antibody targets residues crucial for the formation of a post-fusion Gc configuration (Figure 3). Indeed, binding to this site likely impedes the upward-occurring ‘zippering action’ of domain III during Gc-mediated viral fusion (Guardado-Calvo et al., 2016; Willensky et al., 2016). This proposed structure-based mechanism of neutralization is supported by previously reported in vitro studies, which demonstrate that mAb P-4G2 protects the epitope upon low-pH exposure (Hepojoki et al., 2010). Further support for this hypothesis can be gleaned from previous reports, which have shown that hindering such movements of domain III, via either mutagenesis or the introduction of competing peptides (Barriga et al., 2016), drastically reduces viral infectivity. Given that small molecule ligands have also been shown to prevent fusogenic rearrangements on the analogous DI−DII interface region of flavivirus E glycoproteins (Chao et al., 2018; Modis et al., 2003), which also bear a class II fusion architecture, it will be interesting to assess whether small molecule inhibitor development may be similarly successful against this region on the hantavirus Gc.

In line with the hypothesis that the identified epitope on Gc domains I and II may constitute a site of vulnerability across hantaviruses, more generally, structure-based mapping revealed that the P-4G2 binding site overlaps with epitopes putatively targeted by neutralizing antibodies specific to HTNV and PUUV. These antibodies, derived following hantaviral infection, include mouse mAbs HC02 and 16E6 (Arikawa et al., 1989; Wang et al., 1993) that neutralize HTNV, and human mAb 1C9 (Hörling and Lundkvist, 1997; Lundkvist et al., 1993a), which neutralizes PUUV (Figure 3). Thus, while our identified epitope appears to be a common target of the neutralizing antibody response, future investigations into the molecular basis of immune recognition will undoubtedly be required to fully define the antigenic topography of Gn and Gc. Such investigations will also likely clarify whether the neutralizing epitope defined here is similarly targeted upon immunization, and whether the Ab-immune response is differentially focused against Gn and Gc between reservoir species (e.g. bank vole) and accidental (i.e. humans) hosts.

Lattice integrated and lattice-free Gc are expected to transiently exist on the hantavirus envelope: contacts between (Gn−Gc)4 spikes are mediated by Gc homo-dimers, while lattice breaks display Gc that is not engaged in discernible homotypic interactions (Bignon et al., 2019; Huiskonen et al., 2010; Li et al., 2016). In our cryo-ET reconstruction, Fab P-4G2 was found to bind PUUV Gc only in the lattice-free state, and the frequency of lattice-free spikes was higher in the presence of Fab P-4G2. This observation demonstrates that P-4G2 reduces the frequency of Gc-mediated lattice formation. While the bivalent binding mode of full-length mAb P-4G2, with respect to the structurally characterized Fab P-4G2, may result in a different extent of lattice deformation, it is likely that both the mAb and Fab function by either active destabilization of Gc–Gc interfaces through competition with adjacent epitopes (Figure 6—figure supplement 2), or by sequestration of naturally occurring free spikes in a process that drives the equilibrium between homo-dimeric and lattice-free Gc toward the lattice-free state.

Characterization of the Fab P-4G2 epitope has important implications for rational therapeutic design efforts and indicates that lattice-free conformation of the Gc can be targeted by the antibody-mediated immune response that arises during infection. Indeed, although the development of recombinant immunogens that recreate the higher-order hantaviral (Gn−Gc)4 lattice is desirable and would likely elicit a robust immune response, our data also indicate that a reverse vaccinology approach (Burton, 2017) focusing on recombinant and more minimal (monomeric) hantaviral Gn or Gc may also elicit anti-hantaviral nAbs. Indeed, such an approach has been successful in eliciting neutralizing antibodies against the glycoproteins of other bunyaviruses, including Rift Valley fever virus (phlebovirus) (Allen et al., 2018) and Schmallenberg virus (orthobunyavirus) (Hellert et al., 2019).

At present, treatment and prevention options for hantaviral disease remain extremely limited due to the absence of approved therapeutics. However, strides are being made toward the development of efficacious treatments, as shown by the recent development of novel mAbs against ANDV (Duehr et al., 2020; Garrido et al., 2018), and a polyclonal antibody treatment against HTNV (Hooper et al., 2014), both of which demonstrate efficacy in animal models. In toto, our integrated structural and functional analysis provides a first structure-based blueprint for targeting the glycoprotein surface of this group of important emerging pathogens.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Gene (Puumala orthohantavirus)Glycoprotein precursor (GPC); used in recombinant Gc productionGenBankCAB43026.1Synthetic cDNA was produced by GeneArt, Life Technologies
Gene (Puumala orthohantavirus)Glycoprotein precursor (GPC); used in PUUV VLP productionGenBankCCH22848.1Synthetic cDNA was produced by GeneArt, Life Technologies
Gene (Hantaan orthohantavirus)Glycoprotein precursor (GPC)GenBankAIL25321.1Synthetic cDNA was produced by GeneArt, Life Technologies
Gene (Andes orthohantavirus)Glycoprotein precursor (GPC)GenBankAAO86638.1Synthetic cDNA was produced by GeneArt, Life Technologies
Strain, strain background (Escherichia coli)Subcloning Efficiency DH5α Competent CellsThermo Fisher ScientificCat#:
18265017
Competent cells
Cell line (Homo-sapiens)Human embryonic kidney HEK 293TATCCCRL-3216
Cell line (Homo-sapiens)Human embryonic kidney HEK293FThermo Fisher ScientificCat#:
R79007
Biological sample (Myodes Glareolus, Mus musculus)Bank vole-mouse heterohybridoma producing mAb P-4G2Lundkvist and Niklasson, 1992
Biological sample (Indiana vesiculovirus)VSV-ΔG RFPReynard and Volchkov, 2015
Recombinant DNA reagentpHLsec plasmidAricescu et al., 2006
Recombinant DNA reagentpHLsec-8H-SUMO-1D4 plasmidChang et al., 2015
Recombinant DNA reagentpgk-φC31/pCB92
plasmid
Chen et al., 2011
Recombinant DNA reagentpURD plasmidZhao et al., 2014
Recombinant DNA reagentTim1/pCAGGs plasmidWatt et al., 2014
Recombinant DNA reagentpCAGGS plasmidNiwa et al., 1991
Recombinant DNA reagentMouse IgG1 plasmidvon Boehmer et al., 2016
Recombinant DNA reagentMouse IgK plasmidvon Boehmer et al., 2016
Recombinant DNA reagentFab P-4G2 light chain synthetic DNA fragmentThis studySynthetic cDNA was produced by GeneArt, Life Technologies
Recombinant DNA reagentFab P-4G2 heavy chain synthetic DNA fragmentThis studySynthetic cDNA was produced by GeneArt, Life Technologies
Sequence-based reagentMouse IgG sequencing primersvon Boehmer et al., 2016List of primer sequences is provided in the referenced study
Sequence-based reagentPUUV Gc ectodomain cloning primer, forwardThis studyCGCACCGGTGAGACACAGAACCTGAACAGCGGC
Sequence-based reagentPUUV Gc ectodomain cloning primer, reverseThis studyGCGGTACCCTCGCCGGACTTGGTGAACC
Sequence-based reagentFab P-4G2 HC R100A mutagenesis primer, forwardThis studyGTATTACTGTACAAGAGATGCATTAGGCCCTTTTGA
Sequence-based reagentFab P-4G2 HC R100A mutagenesis primer, reverseThis studyTCAAAAGGGCCTAATGCATCTCTTGTACAGTAATAC
Commercial assay or kitPhusion High-Fidelity PCR Master Mix with HF BufferNew England BiolabsCat#:
M0531S
Commercial assay or kitSuperScript III reverse transcriptaseThermo Fisher ScientificCat#:
18080093
Commercial assay or kitQuick Ligation kitNew England BiolabsCat#:
M2200S
Chemical compound, drugPEI Max 40KPolysciences, IncCat#:
24765–1
Chemical compound, drugPEIPolysciences, IncCat#:
23966–1
Chemical compound, drugLipofectamine 2000 Transfection reagentThermo Fisher ScientificCat#:
11668027
Chemical compound, drugKifunensineCayman ChemicalCat#:
10009437
Software, algorithmXIA2Winter, 2010
Software, algorithmCCP4Potterton et al., 2003
Software, algorithmSWISS-MODELWaterhouse et al., 2018
Software, algorithmCootEmsley and Cowtan, 2004
Software, algorithmREFMACMurshudov et al., 1997
Software,
algorithm
PHENIXAdams et al., 2002
Software, algorithmMolprobityDavis et al., 2007
Software, algorithmIMGT/V-QUEST serverBrochet et al., 2008
Software, algorithmGraphPad PrismGraphPad Software, San Diego, CA, USA
Software, algorithmPDBePISA serverKrissinel and Henrick, 2007
Software, algorithmPyMOLThe PyMOL Molecular Graphics System, Schrödinger, LLC
Software, algorithmUCSF ChimeraPettersen et al., 2004
Software, algorithmLigPlot+ softwareLaskowski and Swindells, 2011
Software, algorithmMotioncor2Zheng et al., 2017
Software, algorithmCTFFIND4Rohou and Grigorieff, 2015
Software, algorithmtomo_preprocess scriptThis study
Software, algorithmIMODMastronarde and Held, 2017
Software, algorithmDynamoCastaño-Díez et al., 2012
Software, algorithmPatchFinder scriptThis study
OtherChromatography column, Superdex 200 10/300 IncreaseCytivaCat#:
28990944
OtherChromatography column, HisTrap FF Crude 5 mlCytivaCat#:
17528601
Other1-MDa cut-off dialysis membraneSpectrum Chemical
OtherHoley carbon grids, 2 μm hole diameterProtochips

Sequencing mAb P-4G2 variable regions from hybridoma cell line

Request a detailed protocol

RNA from the P-4G2 hybridoma cell line was converted into cDNA (SuperScript III reverse transcriptase, Life Technologies) using random hexamers following the manufacturer’s protocol. The bank vole antibody variable regions of heavy and kappa chains were PCR amplified using previously described mouse primers and PCR conditions (von Boehmer et al., 2016). PCR products were purified and cloned into mouse IgG expression plasmids (von Boehmer et al., 2016) using sequence and ligation independent cloning (SLIC) under ampicillin selection. Antibody variable regions were sequenced by Sanger sequencing, and CDRs were determined from the sequences with IMGT/V-QUEST (Brochet et al., 2008) server using Mus musculus as comparison group.

Antibody heavy and light plasmids were co-transfected at a 1:1 ratio into HEK 293F cells (Thermo Fisher Scientific) using PEI Max 40K (linear polyethylenimine hydrochloride, Polysciences, Inc), as previously described (Zeltina et al., 2017). Antibody supernatants were harvested 7 days following transfection and purified using protein G affinity chromatography following the manufacturer’s protocol (GE healthcare). In order to validate the functional relevance of Arg100, the R100A mutation was introduced into the P-4G2 heavy chain plasmid using site directed mutagenesis (forward primer: GTATTACTGTACAAGAGATGCATTAGGCCCTTTTGA, reverse primer: TCAAAAGG GCCTAATGCATCTCTTGTACAGTAATAC) and the mutation was verified using Sanger sequencing. Mab P-4G2 R100A mutant was expressed and purified as described above for WT mAb P-4G2.

Generation of hantavirus-pseudotyped VSV-ΔG RFP

Request a detailed protocol

8 × 106 HEK 293T (ATCC CRL-3216) cells were transfected with a plasmid encoding PUUV GPC (35 μg in pCAGGS vector) and Tim-1 (3 μg) using PEI (3:1 PEI:DNA, Polysciences, Inc). After 24 hr, cells were infected with a VSV-G pseudotyped VSV-ΔG RFP stock (40 μl). Infection was monitored using RFP expression and virus (first stock) was harvested when cells showed rounding and began to detach (typically 24–48 hr).

Two additional rounds of transfection and virus production were carried out. 15 × 106 HEK 293T cells were transfected with a plasmid encoding PUUV GPC, ANDV GPC, or HTNV GPC (100 μg, in pCAGGS vector) and Tim-1 (6 μg) using PEI (3:1 PEI: DNA, Polysciences, Inc). After 24 hr, cells were infected with 400 μl of ‘first stock’ virus. Infection was monitored using RFP expression and virus was harvested (second stock) when cells showed rounding and began to detach (48–72 hr). This process was repeated to generate ‘third stock’ virus which was used in subsequent neutralization assays.

Hantavirus-pseudotyped VSV neutralization assay

Request a detailed protocol

Neutralizing activity was assessed using a single-round replication pseudovirus assay with HEK 293T target cells. Briefly, the antibody was serially diluted in a 96-well black, flat-bottom plate and preincubated with virus for 1 hr at 37°C. Cells at a concentration of 30,000/well were added to the virus–antibody mixture, and RFP quantified 72 hr following infection (Envision plate reader, Perkin Elmer). Dose–response curves were fitted using nonlinear regression (GraphPad Prism) to determine 50% inhibitory concentration (IC50).

Recombinant protein expression and purification

Request a detailed protocol

Codon-optimized synthetic cDNA (GeneArt, Life Technologies) coding for Fab P-4G2 light chain and Fab P-4G2 heavy chain were individually cloned into the pHLsec mammalian expression vector and co-transfected into HEK 293T cells (ATCC CRL-3216) for transient expression, as previously described (Avanzato et al., 2019). Fab P-4G2-containing supernatant was collected, clarified by centrifugation, and diafiltrated using the ÄKTA Flux tangential flow filtration system. Diafiltrated cell supernatant was purified by immobilized nickel affinity chromatography (5 ml fast flow crude column and ÄKTA fast protein liquid chromatography [FPLC] system; GE Healthcare) at room temperature, using 250 mM imidazole for elution. Finally, the sample was purified by size exclusion chromatography (SEC) using a Superdex 200 10/300 Increase column (GE Healthcare), in 10 mM Tris (pH 8.0)–150 mM NaCl buffer.

In order to produce PUUV Gc, a HEK 293T cell line stably expressing the protein was generated. PUUV Gc residues 659–1105 (GenBank accession no. CAB43026.1), modified to contain a 3C protease cleavable SUMO tag and hexahistidine tag at the N-terminus and a 1D4 tag in the C-terminus (Chang et al., 2015), were cloned into the pURD vector (Zhao et al., 2014). The stable cell line was generated following the method published by Seiradake et al., 2015; in short, HEK 293T cells were transfected with the pURD vector containing the Gc insert, along with an integrase expression vector (pgk-φC31/pCB92) (Chen et al., 2011), followed by consecutive rounds of cultivation under puromycin selection. For crystallization, PUUV Gc-producing cells were cultivated in the presence of kifunensine (Chang et al., 2007), and purification was performed via successive diafiltration, nickel affinity, and SEC, as described above for Fab P-4G2. Oligomannose glycans derived from expression in the presence of kifunensine were retained in the purified Gc sample.

Prior to crystallization, the N-terminal SUMO and hexahistidine tags were cleaved from the PUUV Gc (1:10 molar ratio of protein to 3C protease added to purified sample, followed by incubation at 21°C for 12 hr). PUUV Gc sample was then mixed with pure Fab P-4G2 in 1:1.2 molar ratio, and the complex was purified by SEC using a Superdex 200 10/300 Increase column (GE Healthcare), in 10 mM Tris (pH 8.0)–150 mM NaCl buffer.

Crystallization and structure determination

Request a detailed protocol

A solution containing a complex of PUUV Gc ectodomain and Fab P-4G2 was crystallized by sitting drop vapor diffusion using 100 nl protein (1.3 mg/ml) with 100 nl precipitant (20% vol/vol PEG 6000, 0.1 M MES pH 6, and 1 M lithium chloride) and 100 nl additive (6% 2-methyl-2,4-pentanediol) at room temperature. Crystals formed over 2 weeks and were flash frozen by immersion into a cryo-protectant containing 25% (vol/vol) glycerol followed by rapid transfer into liquid nitrogen. X-ray diffraction data were recorded at beamline I24 (λ = 0.9686 Å), Diamond Light Source, United Kingdom.

Data were indexed and integrated with XIA2/XDS (Winter, 2010) and scaled using CCP4/SCALEPACK2MTZ. Processing statistics are presented in Supplementary file 1. The structure of Fab P-4G2−PUUV Gc was solved by molecular replacement in Phenix-MR (Adams et al., 2002) using PUUV Gc (PDB 5J81) and a homology model of the Fab P-4G2, generated using the SWISS-MODEL server (Waterhouse et al., 2018) with PDB 6BPB as the template structure, as search models. Structure refinement was performed by iterative refinement using REFMAC and Phenix (Adams et al., 2002). Coot (Emsley and Cowtan, 2004) was used for manual rebuilding and MolProbity (Davis et al., 2007) was used to validate the model.

Cell lines

Request a detailed protocol

Authenticated cell lines were obtained from ATCC (HEK 293T cells) or, in the case of FreeStyle 293F cell line, from the manufacturer Thermo Fisher, and were tested for mycoplasma contamination and found negative.

Molecular graphics and protein interface analysis

Request a detailed protocol

Molecular graphics images were generated using PyMOL (The PyMOL Molecular Graphics System, Version 1.7.0.3, Schrödinger, LLC) and UCSF Chimera (Pettersen et al., 2004). Interfacing and interacting residues were identified using the PDBePISA server (Krissinel and Henrick, 2007) run with default parameters, where the maximum allowable distance between the heavy atoms of a hydrogen bond donor and acceptor was limited to 3.89 Å, and the angle between acceptor-hydrogen-donor atoms was limited to between 90 and 270°. The maximal allowable distance between heavy atoms of a salt bridge was 4.0 Å. LigpPlot+ (Laskowski and Swindells, 2011) was used to visualize the Fab P-4G2−Gc interface (Figure 2—figure supplement 2).

Preparation of PUUV VLPs

Request a detailed protocol

PUUV VLPs were produced by transient expression of the complete PUUV M-segment (GenBank CCH22848.1) cloned into the pHLsec vector (Aricescu et al., 2006) in HEK 293T cells. Six five-layer 875 cm² flasks (Falcon) were used to produce 750 ml of VLP-containing media that was clarified at 3000 × g for 20 min to remove cell debris and filtered through a 0.45 μm filter. The virus containing medium was concentrated down to approximately 30 ml using a pump-powered filter (100 kDa cut-off; Vivaflow, Sartorius) and then dialyzed into an excess of buffer (10 mM Tris pH 8.0–150 mM NaCl) through a 1-MDa cut-off dialysis membrane (Biotech CE Tubing, Spectrum Chemical) for a few days. The media was further concentrated to ~3 ml with a 100 kDa cut-off centrifugal concentrator filter (Amicon Ultra, Merck Millipore) and layered onto a 20–60% w/v sucrose density gradient in PBS buffer. The gradient was prepared using a Gradient Master (BioComp Instruments, Canada) in a SW32 Beckman tube, and the VLP banded by ultracentrifugation at 4°C for 4 hr at 25,000 rpm. The diffuse band (volume of ~3–4 ml) was collected manually, diluted to 20 ml with PBS and pelleted through a cushion of 10% sucrose in PBS to further clean and concentrate the sample (SW32 Beckman centrifuge tube at 25,000 rpm at 4°C for 2 hr). Finally, the pellet was resuspended in 60 μl of PBS and stored at 4°C.

Cryo-EM grid preparation, data acquisition, and data processing

Request a detailed protocol

A 3 μl aliquot of VLP sample supplemented with 3 μl of 6 nm gold fiducial markers (Aurion) was applied on a holey carbon grid (2 μm hole diameter, C-flat, Protochips) that had been glow discharged in a plasma cleaner (Harrick) for 15 s. The grids were blotted for 3–4 s and plunged into an ethane/propane mixture using a vitrification apparatus (Vitrobot, Thermo Fisher Scientific). For Fab P-4G2-treated VLP EM sample preparation, a suspension of purified VLPs was incubated with 2.71 μM Fab P-4G2 for 1 hr at room temperature prior to grid preparation.

Data were collected using a Titan Krios transmission electron microscope (Thermo Fisher Scientific) operated at 300 kV and at liquid nitrogen temperature. Tomo4 software was used to acquire tomographic tilt data on a direct electron detector (K2 Summit; Gatan) mounted behind an energy filter (0–20 eV; QIF Quantum LS, Gatan). Tilt series were collected from –30 to 60° in 3° increments with a dose of 4.5 e⁻/Ų per tilt and six frames in each movie (Supplementary file 1).

Movie frames were aligned and averaged using Motioncor2 to correct for beam induced motion (Zheng et al., 2017). Contrast transfer function (CTF) parameters were estimated using CTFFIND4 (Rohou and Grigorieff, 2015) and a dose-weighting filter was applied to the images according to their accumulated electron dose as described previously (Grant and Grigorieff, 2015). These pre-processing steps were carried out using a custom script named tomo_preprocess (Stass, 2020; available at https://github.com/OPIC-Oxford/TomoPreprocess). Tilt images were then aligned using the fiducial markers, corrected for the effects of CTF by phase flipping and used to reconstruct 3D tomograms in IMOD (Mastronarde and Held, 2017). The amplitudes of the subvolumes cropped from the tomograms were weighted to correct for the low-pass filtering function resulting from dose-weighting of the original images using a custom script (available at https://github.com/OPIC-Oxford/TomoPreprocess).

Subvolume averaging was performed in Dynamo following previously established procedures (Huiskonen et al., 2014; Li et al., 2016). Briefly, initial particle locations (‘seeds’) were created by modeling the VLP membrane surface using the Dynamo’s tomoview program. Subvolumes extracted from these locations were iteratively refined against their rotational average, calculated around the membrane model surface normal at each position, to accurately align their locations onto the membrane. Subsequent refinements were carried out using a map of the TULV GP spike (EMDB-4867) as an initial template. The template was low-pass filtered to 50 Å frequency to avoid model bias. Overlapping particles were removed based on a distance filter (106 Å) and cross-correlation threshold after each iteration.

A custom script (Stass, 2020; available at https://github.com/OPIC-Oxford/PatchFinder) was used to divide the spikes into those that were part of a lattice and those that were not. The script locates the eight closest spikes for each particle and iterates through each with two checks. First, the position of the neighbor must be within a given distance (49 Å) of the ideal values determined from the positions of neighbors in the previously reported hantaviral reconstruction (EMD code; EMD-4867) and the orientation of the neighbor must match the parent particle within a set tolerance (25°). Spikes were defined as being part of a lattice if they had at least three interacting neighbors. This classification approach allowed reconstructing the structure of the lattice-bound spike for both VLP datasets (with and without Fab P-4G2) in addition to a lattice-free, P-4G2-bound spike in the case of the Fab P-4G2 sample (Supplementary file 1). In the latter case, the refinement was repeated using P-4G2-bound spike as a starting model and by excluding weakly correlating particles (below 0.15). This led to a reconstruction with a lattice-free spike fully decorated with Fab P-4G2 around its perimeter (Supplementary file 1). The final maps were filtered to the resolution determined by FSC (0.143 threshold) and rendered as isosurfaces. The surface threshold value was determined according to the molecular weight of the viral ectodomain proteins (and additional Fab) assuming an average protein density of 0.81 Da/ų.

Quantification of the frequency of lattice formation on VLP surface in the presence and absence of Fab P-4G2

Request a detailed protocol

The positions of each spike and the number of interacting neighbors were analyzed in PUUV VLPs in the presence and absence of Fab P-4G2 from eight VLPs from each cryo-ET dataset. To facilitate the analysis, only VLPs displaying good glycoprotein coverage and roughly spherical morphology were included. Both datasets were processed using the workflow described above, and the PatchFinder script was applied to locate those spikes that were part of a lattice. The particles on the top and bottom of the virus were then removed from further analysis by restricting the second Euler angle (tilt) to 45–135°. This was done in order to exclude those spikes that are facing the air–water interface, which can in itself result in a loss of visible lattice due to its denaturing effect. The number of neighbors for each spike was quantified and the 3D locations of the spikes were plotted in 2D using Mercator projections (Figure 4—figure supplement 2).

Fitting of the crystal structure into the cryo-EM map

Request a detailed protocol

The crystal structure of Fab P-4G2−PUUV Gc was docked into the reconstruction of the Fab-decorated PUUV Gn–Gc spike using the fitmap function in Chimera (Pettersen et al., 2004). A map was simulated for the crystal structure to the resolution of 13.4 Å, to match the resolution of the spike reconstruction, and fitting was performed using an initial global search followed by a local fitting that accounts for the C4 symmetry of the spike. The top solution (presented in Figure 5) yielded a local map-to-map correlation score of 0.91 (Supplementary file 1). In order to complete our model of the hantaviral spike, we then added PUUV Gn to the fit based on the recently reported ANDV Gn−Gc complex crystal structure (PDB 6Y5F) that describes the native Gn−Gc assembly. In short, MatchMaker function in Chimera was used to superpose ANDV Gn−Gc crystal structure on the docked Fab P-4G2−PUUV Gc structure, and PUUV Gn (PDB 5FXU) was then similarly superposed on the ANDV Gn−Gc structure. Models of PUUV Gc (docked) and PUUV Gn (placed according to the known Gn−Gc assembly from PDB 6Y5F) were then combined in order to generate a Gn−Gc model that could be reliably fitted into a reconstruction of lattice-incorporated PUUV VLP surface, where no Fab P-4G2 density is present. Local fitting of this PUUV Gn−PUUV Gc assembly into a reconstruction of lattice-incorporated PUUV VLP surface, using the fitmap function in Chimera, yielded a correlation score of 0.89 (PUUV VLP without Fab; map for structure simulated to 13.9 Å resolution). C4 symmetry was then applied to generate (Gn–Gc)4 spike assemblies, which were docked to the densities of the central spike and the neighboring spikes in Chimera. Finally, clashes at spike interfaces were resolved by sequential fitting of the interfacing components. The resulting model of the Gn–Gc assemblies that comprise the hantaviral lattice is presented in Figure 6.

Accession codes

Request a detailed protocol

Atomic coordinates and structure factors of the PUUV Gc−Fab P-4G2 complex have been deposited in the PDB (accession code 6Z06). Cryo-EM reconstructions of the PUUV VLP surface alone and in the presence of Fab P-4G2 from areas of continuous and discontinuous lattice have been deposited in the EMDB at the EBI under accession codes EMD-11966, EMD-11965, and EMD-11964, respectively. Coordinates of protein structures fitted into these cryo-EM reconstructions have been deposited in the PDB database (accession code 7B09 for the Fab P-4G2-PUUV Gc and PUUV Gn fitted into EMD-11964, and accession code 7B0A for PUUV Gc and PUUV Gn fitted into EMD-11966, respectively).

Data availability

Atomic coordinates and structure factors of the PUUV Gc-Fab P-4G2 complex crystal structure have been deposited in the PDB under accession code 6Z06. Cryo-EM reconstructions of the PUUV VLP surface alone and in the presence of Fab P-4G2 from areas of continuous and discontinuous lattice have been deposited in the EMDB at the EBI under accession codes EMD-11966, EMD-11965 and EMD-11964, respectively. Coordinates of protein structures fitted into these cryo-EM reconstructions have been deposited in the PDB database (accession code 7B09 for the Fab P-4G2-PUUV Gc and PUUV Gn fitted into EMD-11964, and accession code 7B0A for PUUV Gc and PUUV Gn fitted into EMD-11966, respectively). The following authors authored the data deposited to PDB and EMDB, as described above.

The following data sets were generated
    1. Rissanen IR
    2. Stass R
    3. Huiskonen JT
    4. Bowden TA
    (2020) RCSB Protein Data Bank
    ID 7B09. Puumala virus glycoprotein (Gc) in complex with fab fragment P-4G2.
    1. Rissanen IR
    2. Stass R
    3. Huiskonen JT
    4. Bowden TA
    (2020) RCSB Protein Data Bank
    ID 7B0A. Puumala virus-like particle glycoprotein spike and lattice contacts model.
    1. Rissanen IR
    2. Stass R
    3. Huiskonen JT
    4. Bowden TA
    (2020) Electron Microscopy Data Bank
    ID EMD-11966. Puumala virus-like particle glycoprotein lattice.
    1. Rissanen IR
    2. Stass R
    3. Huiskonen JT
    4. Bowden TA
    (2020) Electron Microscopy Data Bank
    ID EMD-11965. A reconstruction of Puumala virus-like particle glycoprotein spike lattice in the presence of fab 4G2 which is absent from the reconstruction.
    1. Rissanen IR
    2. Stass R
    3. Huiskonen JT
    4. Bowden TA
    (2020) Electron Microscopy Data Bank
    ID EMD-11964. Puumala virus-like particle glycoprotein spike in complex with fab fragment P-4G2.

References

    1. Emsley P
    2. Cowtan K
    (2004) Coot: model-building tools for molecular graphics
    Acta Crystallographica. Section D, Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158
    1. Lee HW
    2. van der Groen G
    (1989)
    Hemorrhagic fever with renal syndrome
    Progress in Virol 36:62–102.
    1. Modis Y
    (2013) Class II fusion proteins
    Advances in Experimental Medicine and Biology 790:150–166.
    https://doi.org/10.1007/978-1-4614-7651-1_8
    1. Zaki SR
    2. Greer PW
    3. Coffield LM
    4. Goldsmith CS
    5. Nolte KB
    6. Foucar K
    7. Feddersen RM
    8. Zumwalt RE
    9. Miller GL
    10. Khan AS
    (1995)
    Hantavirus pulmonary syndrome pathogenesis of an emerging infectious disease
    The American Journal of Pathology 146:552–579.

Decision letter

  1. Pamela J Bjorkman
    Reviewing Editor; California Institute of Technology, United States
  2. José D Faraldo-Gómez
    Senior Editor; National Heart, Lung and Blood Institute, National Institutes of Health, United States
  3. Yorgo Modis
    Reviewer; University of Cambridge, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "A fusion glycoprotein-targeting neutralizing antibody reveals the dynamic landscape of the hantavirus surface" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by José Faraldo-Gómez as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Yorgo Modis (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

In this study, Rissanen et al. cloned the variable heavy and kappa (VH and VK) chains of a previously-described neutralizing monoclonal antibody against Puumala virus (PUUV), antibody 4G2 from the bank vole. The VH and VK chains were fused with mouse constant regions and recombinant chimeric Fab fragments were expressed and purified. The authors show that the 4G2 Fab fragment potently neutralizes PUUV in a hantavirus-pseudotyped VSV-ΔG RFP neutralization assay. Lower levels of neutralization against a virus pseudotyped with Andes virus (ANDV) Gc were also observed. A crystal structure of the Fab bound to PUUV Gc was determined. PUUUV Gc was found to be in a pre-fusion-like conformation. The 4G2 epitope – at the interface between domains I and II – included residues that are buried in the post-fusion trimeric Gc. The authors conclude that mAb 4G2 is specific to the pre-fusion state and that binding of the antibody is likely to sterically preclude the formation of a fusogenic configuration. The authors went on to generate PUUV virus-like particles (VLPs) and determine a cryoEM tomography image reconstruction with subtomogram averaging of Gc spikes on purified VLPs. Free hetero-octameric Gn-Gc spikes were found to have 4G2 Fabs bound (one on each Gc protomer), whereas spikes that were part of a spike lattice lacked density for the antibody fragment. Moreover, the frequency of free spikes was higher in the presence of Fab 4G2. The crystal structure of the Gc-Fab complex could be fitted into the cryoEM reconstruction, revealing the position of Gc within the cryoEM density for the spike.

This study identifies the epitope of neutralizing antibody 4G2, establishes a method for production of recombinant 4G2 Fab fragments, and identifies the mechanism of neutralization by 4G2 as inhibition of the fusogenic conformational change. Combination of the Fab-Gc crystal structure and the cryoEM reconstruction of PUUV VLPs allows the atomic model of the Gc-Fab complex to be fitted into the cryoEM density, revealing the position of Gc within the Gn-Gc spike density.

If accurate, this will contribute substantially to the molecular understanding of the structural organization of PUUV Gc protein. Overall, the study is interesting and generally sound, and with some revisions, would be appropriate to publish in eLife.

Essential revisions:

1) Title. There are no measurements of dynamics in this paper. While the authors discuss the possibility of dynamics, there is no evidence that the Fab captures dissociating surface protein or that Fab binding causes the dissociation, nor is there direct evidence of dynamics on an intact PUUV virus. Therefore changing the title from "…reveals the dynamic landscape" to something along the lines of "…reveals the conformational landscape" may be more appropriate.

2) It is not clear what structures have already been solved with regards to Fab/Gc complexes for hantaviruses and what novel value this particular crystal structure has in relation to published structures. Is this the first example of an antibody bound to a PUUV surface protein? Is this the first example of a host antibody bound to any hantavirus Gc? If so, the authors should explicitly state these things in their paper.

3) In the Introduction, it is unclear when the authors are talking about humans vs. other animals. Generalizations of human and vole immune responses as being the same may not be correct. The authors do a good job of not generalizing in their Discussion, but they don't make this distinction in the Introduction. This paragraph in the Introduction would benefit from being rewritten to be clearer.

4) It is hard to understand the interaction between the Fab and Gc protein in the crystal structure in Figure 2. In the zoomed-in panels in Figure 2B, there are unlabeled side chains shown and a surface rendering for the Gc protein, so it's impossible to see what the pointed-out side chain residues might be interacting with or which residues are which. A clearer figure depicting interaction and with labeled side chains is needed.

The authors include Figure 2—figure supplement 1 showing a 2Fo-Fc electron density map of part of the interaction region. A 2Fo-Fc simulated annealing omit map of the density for the interaction interface should be shown to eliminate the possibility of phase bias. The electron density looks as though it might benefit from (additional) map sharpening, as is often the case for lower-resolution crystal structures. The authors should try different B-factor sharpening corrections and show the density with the most informative correction, stating the correction factor applied.

In addition, what parameters do the authors use to define interactions for side chains (i.e., H-bonds, salt bridges, etc.)? The authors should give actual values of cut-offs for distances and angles being used in these definitions and not just say they used PDBePISA.

5) The authors conclude from their overlay analysis shown in Figure 3—figure supplement 1 that the crystal structure of PUUV Gc they solved is in the pre-fusion conformation. The orientation of domain III in the PUUV prefusion Gc structure reported here is very different from previously reported HTNV prefusion Gc structure (Figure 3—figure supplement 1). This means that domain III is likely to undergo a much bigger structural translocation to transition into the postfusion form than what was previously imagined. The flexibility of domain III should be added to the Discussion.

In addition, the hantavirus Gn-Gc proteins are expected to be tetramers on the surface of cells, but the authors state that their crystal structure of Gc is in monomeric form and that none of the structures they overlay were solved in a tetrameric form, reflecting what is proposed later in this study. The loop connecting Domain III to the rest of the Gc protein looks like it would be flexible. All of the structures they overlay with theirs in Figure 3—figure supplement 1 have crystal contacts between Domain III and neighboring molecules. Without a higher order interaction or the presence of Gn (where applicable), it could also be possible that Domain III has a larger range of motion in all of these crystal structures than in vivo due to the lack of other subunits and may be positioned in a non-biologically-relevant orientation as a consequence of crystal packing.

From the authors' crystal structure, is there evidence of crystal contacts with Domain III? If so, how do the authors rule out that their Gc-Fab crystal structure's Domain III position is not an artifact of crystal packing and is instead the biologically relevant pre-fusion orientation? Again, it's hard to conclude from their docked structure in Figure 5A if the Domain III actually fits or doesn't fit into their density because they only show a side view.

6) I find it hard to understand how neighbors were defined for surface proteins in the lattice analysis (Figure 4 and Figure 4—figure supplement 2). Can the authors clarify for an average reader what was done and what parameters were used?

7) The fitting of Gc atomic model in the cryoEM density (subsection “Mab 4G2 is specific to a monomeric state of virion-displayed PUUV Gc” and Figure 5) is an important result that is underplayed in this manuscript. Specifically, the fit presented in Figure 5 could easily be used to model the inter-spike Gc-Gc dimer interface, i.e. the lattice interface. This has been suggested to be an important interface (see for example Bignon et al., 2019), and the authors also propose that 4G2 binding breaks up the interface so it would be important to show a molecular model combining available cryoEM STA data for in-lattice spike and the fit in Figure 5, excluding the Fab fragments.

8) Top views of the sub-volume average of the single Gn-Gc surface protein are not shown (see Figure 4 and Figure 5). Why? A top-down orientation view would improve the reader's understanding of the organization of the structure and would allow for visual assessment of the quality of the fitting, which is not possible with only a side view.

9) For the lattice structure, how many neighbors did individual spikes have in the data used to make the lattice reconstruction in Figure 4B? Also, please comment on why the error bars are so large for the +4G2 spikes with 0, 1, or 2 neighbors in your chart in Figure 4B. This chart shows that there were examples in the data of spikes with less than 8 neighbors. Are the authors able to make reconstructions of spikes with less than 8 neighbors using subsets of the data? What would those look like? How many surface proteins in their VLPs are bound with Fab? How did the authors pick the concentrations for making their Fab/VLP samples?

10) Overall, the paper is missing some numbers that are necessary sanity checks for structures as well as the proposed mechanisms.

a) How big are PUUV virions? How big are the VLPs?

b) What is their total surface area of the VLPs? How many surface particles are on the VLPs?

c) How much space is left on the surface of the virion for particles to dissociate? In other words, does the 3D space on the VLP surface make sense for the spreading out of the proteins with the Fabs bound? Figure 4—figure supplement 2 looks like the surface is very saturated on the VLP alone examples (left), especially in the tomographic slice.

d) Why do the non-Fab VLPs look like they have more surface protein (Figure 4—figure supplement 2, left panels) than the Fab-bound VLPs (Figure 4—figure supplement 2, right panels)?

e) How big is the reconstructed patch of lattice vs. the total surface area available for the virus? What portion of the viral surface do they predict to be occupied by the surface proteins in a lattice organization?

11) It will be unclear to most readers what the "metastable homodimerization interface" is and how it fits into the virus lifecycle. This needs further context in the Introduction, or earlier in the Results (similar to the statement in the fourth paragraph of the Discussion). Related to this, the authors to clarify in the text that single spikes consist of (Gn-Gc)4 hetero-octamers. Related to point above, "Gc only in the monomeric state", and references to the monomeric state elsewhere in the text, are confusing because Gc is part of a heterooctameric Gn-Gc spike. Clarification is required to distinguish between Gc-dimerizing lattice interactions and intra-spike interactions.

On a similar note, in the Discussion, the authors say "The identification of the Gc oligomerization-specific epitope…" This wording is potentially misleading. Calling it “the Gc…” makes it sound like this is the only possible epitope for an antibody that would disrupt oligomerization. This may not be true. In addition, the phrase "oligomerization-specific epitope" makes it sound like this is the endogenous interaction site for the oligomerization between trimers to form a lattice, which the authors don't have any proof for because they don't dock structures into the oligomer lattice map that would potentially show the interfaces between trimers, nor do they make any mutations to disrupt the interaction to show that the lattice goes away on a VLP without the antibody present. Rephrasing to something like “The identification of an epitope that disrupts trimer oligomerization…” might be more appropriate.

12) There is a discrepancy in the phrasing between the Abstract and the main text as follows. In the Abstract, authors say, "analysis demonstrates that 4G2 binds to a multi-domain site on the PUUV Gc and precludes fusogenic rearrangements…" In the main text, the authors say "may sterically preclude the formation of a fusogenic configuration…" I find that their data does not concretely determine that the fab binding does preclude rearrangements, so the phrasing may preclude from their main text is most appropriate. The Abstract should be rewritten to match the phrasing in the main text.

https://doi.org/10.7554/eLife.58242.sa1

Author response

Essential revisions:

1) Title. There are no measurements of dynamics in this paper. While the authors discuss the possibility of dynamics, there is no evidence that the Fab captures dissociating surface protein or that Fab binding causes the dissociation, nor is there direct evidence of dynamics on an intact PUUV virus. Therefore changing the title from "…reveals the dynamic landscape" to something along the lines of "…reveals the conformational landscape" may be more appropriate.

We thank the reviewers for this helpful comment and agree that our manuscript does not provide direct evidence for dynamics on the hantavirus surface. In line with this comment, we have updated the title of our manuscript to:“Molecular rationale for antibody-mediated targeting of the hantavirus fusion glycoprotein”. Furthermore, we have removed reference to our manuscript defining the dynamic landscape of the hantavirus surface in the Abstract and Introduction section of our manuscript. We hope that the reviewers agree that this modified title and modification to the Introduction better reflects the main findings of our investigation.

2) It is not clear what structures have already been solved with regards to Fab/Gc complexes for hantaviruses and what novel value this particular crystal structure has in relation to published structures. Is this the first example of an antibody bound to a PUUV surface protein? Is this the first example of a host antibody bound to any hantavirus Gc? If so, the authors should explicitly state these things in their paper.

We thank the reviewer for the opportunity to clarify this point. While a non-neutralizing antibody has been used to facilitate crystallization of Hantaan virus (HTNV) Gc glycoprotein (Guardado-Calvo et al., 2016), our study is the first to report the structure of a hantavirus-neutralizing antibody. As recommended, we have revised our manuscript text to better highlight the novelty of the structure and results:

“Although elicitation of a productive nAb response constitutes an essential component of the host immune response to hantavirus infection (Arikawa et al., 1989; Heiskanen et al., 1999; Levanov et al., 2019; Lundkvist and Niklasson, 1992), there is a paucity of information with regards to the molecular basis of immune recognition.”

And

“This work provides first molecular-level insights into antibody-mediated neutralization of the hantavirus Gc and provides a rational basis for understanding immune-mediated targeting of the antigenic hantaviral surface.”

And

“In toto, our integrated structural and functional analysis provides a first structure-based blueprint for targeting the glycoprotein surface of this group of important emerging pathogens.”

3) In the Introduction, it is unclear when the authors are talking about humans vs. other animals. Generalizations of human and vole immune responses as being the same may not be correct. The authors do a good job of not generalizing in their Discussion, but they don't make this distinction in the Introduction. This paragraph in the Introduction would benefit from being rewritten to be clearer.

We thank the reviewer for the opportunity to clarify this point. While a non-neutralizing antibody has been used to facilitate crystallization of Hantaan virus (HTNV) Gc glycoprotein (Guardado-Calvo et al., 2016), our study is the first to report the structure of a hantavirus-neutralizing antibody. As recommended, we have revised our manuscript text to better highlight the novelty of the structure and results:

“Although elicitation of a productive nAb response constitutes an essential component of the host immune response to hantavirus infection (Arikawa et al., 1989; Heiskanen et al., 1999; Levanov et al., 2019; Lundkvist and Niklasson, 1992), there is a paucity of information with regards to the molecular basis of immune recognition.”

And

“This work provides first molecular-level insights into antibody-mediated neutralization of the hantavirus Gc and provides a rational basis for understanding immune-mediated targeting of the antigenic hantaviral surface.”

And

“In toto, our integrated structural and functional analysis provides a first structure-based blueprint for targeting the glycoprotein surface of this group of important emerging pathogens.”

4) It is hard to understand the interaction between the Fab and Gc protein in the crystal structure in Figure 2. In the zoomed-in panels in Figure 2B, there are unlabeled side chains shown and a surface rendering for the Gc protein, so it's impossible to see what the pointed-out side chain residues might be interacting with or which residues are which. A clearer figure depicting interaction and with labeled side chains is needed.

We are grateful for the opportunity to improve our depiction of the Fab 4G2−Gc interface. As requested, we have updated Figure 2B, to provide a more detailed view of the interaction at Arg100. Additionally, please note that we have also added our pseudovirus neutralization data demonstrating that Arg100 is functionally a key site on the antibody-antigen interface (panel C).

Furthermore, we have added an additional figure supplement, Figure 2—figure supplement 2, that provides greater detail for the interacting residues across the entire antibody−antigen interface. Furthermore, regarding supplementary materials, we would like to note that in agreement with eLife editorial policy, all supplementary figures have been re-titled figure supplements and linked to their relevant main figure item.

These new Figure 2 elements are referred to in revised Results section:

“Arg100 (CDRH3) is the most centrally located paratope residue, and is predicted to form multiple hydrogen bonds and a putative salt bridge with Gc Glu725 and across the antibody−antigen interface (Figure 2B and Figure 2—figure supplement 2; interacting residues were identified using the PDBePISA server (Krissinel and Henrick, 2007)). Indeed, site-directed mutagenesis of Arg100 to Ala considerably reduced the potency of P-4G2 to neutralize PUUV (Figure 2C).”

The authors include Figure 2—figure supplement 1 showing a 2Fo-Fc electron density map of part of the interaction region. A 2Fo-Fc simulated annealing omit map of the density for the interaction interface should be shown to eliminate the possibility of phase bias. The electron density looks as though it might benefit from (additional) map sharpening, as is often the case for lower-resolution crystal structures. The authors should try different B-factor sharpening corrections and show the density with the most informative correction, stating the correction factor applied.

We thank the reviewers for this helpful comment. As requested, we have calculated a simulated annealing composite omit map, which is now represented in revised Figure 2—figure supplement 1. We also note that we attempted map sharpening, however this did not produce visible improvement in the map.

In addition, what parameters do the authors use to define interactions for side chains (i.e., H-bonds, salt bridges, etc.)? The authors should give actual values of cut-offs for distances and angles being used in these definitions and not just say they used PDBePISA.

As requested, we have provided details for the prediction of hydrogen bonds and salt bridges by PDBePISA (as defined: https://www.ebi.ac.uk/msd-srv/prot_int/pi_tips.html), which were calculated using default parameters. The maximum allowable distance between the heavy atoms of a hydrogen bond donor and acceptor was 3.89 Å and the angle between acceptor-hydrogen-donor atoms was limited to between 90 and 270 degrees. Similarly, the distance between heavy atoms of a salt bridge for a salt bridge was 4.0 Å. These details have been added to the Materials and methods section, as follows:

“Molecular graphics and protein interface analysis. Molecular graphics images were generated using PyMOL (The PyMOL Molecular Graphics System, Version 1.7.0.3, Schrödinger, LLC) and UCSF Chimera (Pettersen et al., 2004). […] The maximal allowable distance between heavy atoms of a salt bridge was 4.0 Å. Ligplot+ (Laskowski and Swindells, 2011) was used to visualize the Fab P-4G2−Gc interface (Figure 2—figure supplement 2).”

5) The authors conclude from their overlay analysis shown in Figure 3—figure supplement 1 that the crystal structure of PUUV Gc they solved is in the pre-fusion conformation. The orientation of domain III in the PUUV prefusion Gc structure reported here is very different from previously reported HTNV prefusion Gc structure (Figure 3—figure supplement 1). This means that domain III is likely to undergo a much bigger structural translocation to transition into the postfusion form than what was previously imagined. The flexibility of domain III should be added to the Discussion.

The reviewers are correct that the translocation of domain III between pre and post-conformational states, as visualized in revised Figure 3 and Figure 3—figure supplement 1), is likely to be larger than originally appreciated in earlier structural studies of the hantavirus Gc (Guardado-Calvo et al., 2016; Willensky et al., 2016). We have revised Figure 3 to highlight the mobility of domain III in our structural analysis. Additionally, to further support that our observed conformation is in the prefusion state, we draw upon a recently reported Andes virus Gn-Gc crystal structure in the prefusion state (Serris et al., 2020), which presents a conformation of domain III that is highly similar to that observed in our own crystal structure. To reflect these observations, we have updated Figure 3—figure supplement 1 and added the following text to reflect this point in the Discussion section of the text:

“Our structural data provides several molecular-level insights into hantavirus Gc functionality and antibody-mediated neutralization. […] Similar structural intermediates have been identified in previous structural studies of related phlebovirus Gc glycoproteins, alone (Dessau and Modis, 2013) and in the context of the virion (Halldorsson et al., 2018), which is consistent with domain III flexibility being an intrinsic feature required for Gc glycoprotein functionality.”

In addition, the hantavirus Gn-Gc proteins are expected to be tetramers on the surface of cells, but the authors state that their crystal structure of Gc is in monomeric form and that none of the structures they overlay were solved in a tetrameric form, reflecting what is proposed later in this study. The loop connecting Domain III to the rest of the Gc protein looks like it would be flexible. All of the structures they overlay with theirs in Figure 3—figure supplement 1 have crystal contacts between Domain III and neighboring molecules. Without a higher order interaction or the presence of Gn (where applicable), it could also be possible that Domain III has a larger range of motion in all of these crystal structures than in vivo due to the lack of other subunits and may be positioned in a non-biologically-relevant orientation as a consequence of crystal packing.

From the authors' crystal structure, is there evidence of crystal contacts with Domain III? If so, how do the authors rule out that their Gc-Fab crystal structure's Domain III position is not an artifact of crystal packing and is instead the biologically relevant pre-fusion orientation? Again, it's hard to conclude from their docked structure in Figure 5A if the Domain III actually fits or doesn't fit into their density because they only show a side view.

The reviewers brings up an excellent point that domain III flexibility appears to be an inherent feature of recombinantly produced class-II fusion glycoproteins, where the crystallographically observed conformations of domain III can likely be attributed to differential packing environments. Indeed, while our observed PUUV Gc domain III is also stabilized by crystal contacts, our confidence that the observed conformation closely corresponds to a pre-fusion state arises from the goodness of fit into the cryo-ET reconstruction of PUUV VLPs as well as the close structural correspondence between our PUUV Gc and the Gc of ANDV, in the Gn-Gc prefusion state (Serris et al., 2020). Additionally, we apologize for not better representing the fit of domain III in our original submission and have added panels to revised Figure 5C, which present close-up views of our fitting of this region into the reconstruction. We hope the reviewer’s agree that our observed conformation of domain III fits well into the membrane-proximal density of the VLP surface, and that the overall agreement of the crystallographic and cryoET data provides evidence that our PUUV Gc closely resembles a pre-fusion conformation.

To reflect the goodness of fit of PUUV domain III into the reconstruction, we have also added the following text to the Results section of the manuscript:

“PUUV GcGc−P-4G2 fits well within the cryo-ET reconstruction, where the crystallographically observed conformation of domain III accurately matches a feature of the glycoprotein spike (Figure 5C), further supporting that PUUV Gc has crystallized in the pre-fusion conformation presented on the mature virion.”

6) I find it hard to understand how neighbors were defined for surface proteins in the lattice analysis (Figure 4 and Figure 4—figure supplement 2). Can the authors clarify for an average reader what was done and what parameters were used?

We thank the reviewer for the opportunity to clarify this point. The refinement of pleomorphic virus glycoprotein lattices begins with a template matching procedure, which inevitably results in many false-positive “bad” particles that contribute noise within the dataset. The rationale for our so-called “PatchFinder” approach is to identify the “good” particles by checking that the position and orientation of the particles that surround a “parent” particle makes sense based on prior knowledge of the lattice. The script first identifies the 8 nearest particles for each parent particle, and then iterates through each neighbor with two checks. Firstly, PatchFinder checks that the position of a neighbor is within a list of possible positions in space. These positions are defined according to the observed positions of neighbors in a previously reported hantavirus reconstruction (EMD code; EMD-4867). A generous tolerance is allowed (49-Å) to account for both the flexibility of the lattice and for alignment inaccuracies. Secondly, Patchfinder checks whether the orientation of the neighboring particle, with respect to the parent particle, is within a defined angular tolerance (25-degrees). If at least three out of eight neighboring particles satisfy these conditions, the parent particle is accepted. Three is chosen as it would keep a parent particle that is located, for example, on the corner of a square patch of lattice and is ultimately a trade-off between eliminating enough bad particles, while keeping as many good particles as possible.

In our revision, we have clarified this decision-making process in the Materials and methods section of our revision as follows:

“The script locates the eight closest spikes for each particle, and iterates through each with two checks. Firstly, the position of the neighbour must be within a given distance (49-Å) of the ideal values determined from the positions of neighbours in the previously reported hantaviral reconstruction (EMD code; EMD-4867) and the orientation of the neighbour must match the parent particle within a set tolerance (25-degree).”

7) The fitting of Gc atomic model in the cryoEM density (subsection “Mab 4G2 is specific to a monomeric state of virion-displayed PUUV Gc” and Figure 5) is an important result that is underplayed in this manuscript. Specifically, the fit presented in Figure 5 could easily be used to model the inter-spike Gc-Gc dimer interface, i.e. the lattice interface. This has been suggested to be an important interface (see for example Bignon et al., 2019), and the authors also propose that 4G2 binding breaks up the interface so it would be important to show a molecular model combining available cryoEM STA data for in-lattice spike and the fit in Figure 5, excluding the Fab fragments.

We thank the reviewers for this opportunity to expand our structural analysis of the hantaviral surface. As requested, we have modelled the composition of the hantaviral glycoprotein lattice using our pre-fusion PUUV Gc structure (excluding Fab P-4G2) fitted into our 13.9- Å cryo-ET reconstruction of PUUV VLP surface. These results are presented in new Figure 6 and its figure supplements (Figure 6—figure supplements 1 and 2), and by the following addition to Results section of the manuscript:

“Drawing upon the fitting generated above, we used a 13.9-Å cryo-ET reconstruction of the lattice-incorporated PUUV VLP surface to create a model of the higher-order (GnGc)4 spike lattice. […] Furthermore, modeling of Fab P-4G2 binding onto the Gc homodimer demonstrates that neighboring epitopes are not mutually accessible for Fab binding in their lattice-integrated form, providing clues to how Fab P-4G2 recognition may be accompanied by dissociation of the Gc homodimer assembly (Figure 6—figure supplement 2).”

Furthermore, we have updated the Materials and methods section to include the details of this extended fitting approach that included the placement of the Gn as follows:

“In order to complete our model of the hantaviral spike, we then added PUUV Gn to the fit based on the recently reported ANDV Gn−Gc complex crystal structure (PDB 6Y5F) that describes the native Gn−Gc assembly. […] The resulting model of the Gn-Gc assemblies that comprise the hantaviral lattice is presented in Figure 6.”

8) Top views of the sub-volume average of the single Gn-Gc surface protein are not shown (see Figure 4 and Figure 5). Why? A top-down orientation view would improve the reader's understanding of the organization of the structure and would allow for visual assessment of the quality of the fitting, which is not possible with only a side view.

We thank the reviewers for this helpful comment. We have now included a top view in revised Figure 5, which greatly improves visualization of the Gn-Gc glycoprotein organization with respect to the epitope. Furthermore, in response to this comment and comment 7, we have generated a new Figure 6, which presents both side-and top views of a PUUV VLP reconstruction displaying the continuous lattice formed from Gn4−Gc4 spikes. Furthermore, we have included the previously published crystal structure of PUUV Gn (PDB id: 5FXU) into our fitting, and present the Gn structure as part of the spike assembly in both revised Figure 5 and new Figure 6.

9) For the lattice structure, how many neighbors did individual spikes have in the data used to make the lattice reconstruction in Figure 4B?

In order to maximize the number of spikes that could be incorporated in our reconstruction, we included spikes with at least three neighbors, as determined by the PatchFinder script. This information is provided in the section entitled “Cryo-EM grid preparation, data acquisition and data processing” section of the Materials and methods.

Also, please comment on why the error bars are so large for the +4G2 spikes with 0, 1, or 2 neighbors in your chart in Figure 4B. This chart shows that there were examples in the data of spikes with less than 8 neighbors.

The large error bars (more accurately, the minimum and maximum values, as these are box and whisker plots) reflect the heterogeneity in lattice presentation on different VLPs that results from 4G2 treatment. Indeed, as can be observed in Figure 4—figure supplement 2, we observe that the Fab has a differential effect upon the spike presentation for the different VLPs tested. We can only speculate that this may be due to the intrinsic pleomorphic nature of hantaviral lattice assemblies, and the local environment of the spikes therein. As revealed by in Figure 4D, even in the absence of 4G2 we would expect there to be many spikes that have less than the full complement of neighbors (8) due to the pleomorphic nature of hantaviral virions.

To clarify this observation, we have added the following text to the Results section of the manuscript:

“The frequency of lattice-free spikes (with zero neighbors) was higher in the presence of Fab P-4G2, while the frequency of lattice-bound spikes (with four or more neighbors) was higher in the particles not treated with Fab P-4G2 (Figure 4C-D and Figure 4—figure supplement 2). We note that treatment with Fab P-4G2 has had a heterogeneous effect on the lattice of different VLPs as can be observed in Figure 4—figure supplement 2.”

These spikes were aligned to derive the map shown in Author response image 1.

Author response image 1
A representative example of a hantaviral lattice “break point” displayed as a Mercator projection.

Points colored blue represent points that were manually picked and aligned to generate the map in Author response image 2. This figure is adapted from Figure 4—figure supplement 2.

Author response image 2
A reconstruction of a hantaviral spike using particles manually picked from “break points” in the lattice.

The resulting map displays an empty patch of membrane where an 8th neighbour would normally be expected as indicated with a dashed circle. Additional density that likely corresponds to fab P-4G2 is indicated with an asterisk. This reconstruction is generated from 160 manually picked and aligned particles and displayed at a resolution of 50 Å for clarity.

In the map shown in Author response image 2, it is possible to identify five neighboring spikes with two additional less well defined neighbors in the top right and left corners. These neighbors are less well defined as their position varies slightly depending on the geometry of the breakpoint. In the final position, where the eighth neighbor would be expected, there is a blank space of exposed membrane. Interestingly, we also see a small blob of density, which may correspond to the Fab 4G2 bound to an exposed Gc. While this reconstruction results in potentially interesting features, it arises from only 160 particles (and even fewer for all other datasets and types of lattice breaks) and is of relatively poor quality and resolution (22 Å). Given the limitations of this analysis, and that it is not central to our results or conclusions, we respectfully request not to include it in our revised manuscript.

Are the authors able to make reconstructions of spikes with less than 8 neighbors using subsets of the data? What would those look like?

In line with this comment, we have performed a reconstruction that specifically includes spikes with less than 8 neighbors. These spikes were manually picked from “break points” in the lattice:

How many surface proteins in their VLPs are bound with Fab?

From the spikes that were detected and used in our reconstructions, 1,721 (~46%) out of 3,719 4G2-treated VLP spikes were bound to the Fab. We have included this information in Table S2 within Supplementary File 1 of our revised manuscript.

How did the authors pick the concentrations for making their Fab/VLP samples?

The concentration of PUUV 4G2 Fab used (~2.7 μM, 0.12 mg/ml) for preparing our Fab−VLP complex was selected in attempt to as the highest concentrations possible without overcrowding the images acquired by cryo-EM. This concentration is higher than the upper plateau observed in the neutralization curve displayed in Figure 1B.

10) Overall, the paper is missing some numbers that are necessary sanity checks for structures as well as the proposed mechanisms.

We would like to thank for the opportunity to clarify why many of the metrics the reviewers would like to see in the paper have not been included. As we explain in more detail below, low signal-to-noise ratio in cryo-ET impedes counting the absolute number of spikes per VLP. For the same reason, we cannot quantify the unoccupied areas. Furthermore, measuring the membrane area itself is technically complicated as particles are often not spherical or even ellipsoidal but rather pleomorphic in their shape. Despite these limitations, we are confident however that it is accurate to compare relative differences in spike numbers (or number of neighbors) as we have done to propose the mechanism for how 4G2 sequesters spikes from the lattice. Please see below for answers to more detailed points.

a) How big are PUUV virions? How big are the VLPs?

To the best of our knowledge, the diameter of PUUV virions has not been reported. For hantaviruses in general, previous analyses have demonstrated that those virions that exhibit a spherical morphology have an average diameter of approximately 75–160 nm (Huiskonen et al., 2010; Martin et al., Arch. Virol., 1985; Parvate et al., Viruses, 2019). PUUV VLPs had a median diameter of ~92-nm, as observed in the frequency plot shown in Figure 4—figure supplement 1. Additionally, we have added scale-bars to each of the tomographic slices presented in Figure 4—figure supplement 2.

b) What is their total surface area of the VLPs?

As presented in the histogram plot added to Figure 4—figure supplement 1, the maximum dimension in our VLPs is approximately 50-150 nm (median approximately 95 nm). Assuming perfectly spherical shape of the VLPs, this would correspond to a range in surface area of approximately 7,900 nm2 to 71,000 nm2, however the particles are not always spherical. As the membrane is not visible in the tomographic reconstructions in the upper and lower Z-slices due to the missing wedge, accurate modelling of the entire surface to measure the total surface area is difficult.

How many surface particles are on the VLPs?

In general, the number of particles assigned as spikes was up to approximately 200 per VLP but this is an underestimate as the areas on the poles of the particle were excluded from the analysis. Furthermore, due to low signal-to-noise ratio, which is an inherent limitation of the cryo-ET method, it is not possible to report the absolute number of spikes on a given VLP with any reasonable level of confidence. We would like to stress that this is true for any cryo-EM particle picking exercise, whether 2D or 3D, where the goal is to “pick” the correct particles of interest, and the number of “picks” depends on the selection criteria used, such as the cross correlation coefficient cutoff used to label a “pick” as a true positive (use of less stringent criteria result in more “picks” and more false positives). Here, we are only able to report the number of particles that were assigned as spikes by template matching using the set of criteria provided in the Materials and methods, and then used in the reconstructions.

c) How much space is left on the surface of the virion for particles to dissociate? In other words, does the 3D space on the VLP surface make sense for the spreading out of the proteins with the Fabs bound? Figure 4—figure supplement 2 looks like the surface is very saturated on the VLP alone examples (left), especially in the tomographic slice.

We cannot reliably quantify the free space on the membrane surface, as we cannot quantify the absolute number of spikes accurately due to noise inherent in tomograms (see our response to 10b). Also measuring the accurate surface area of the VLPs is difficult due to noise and also the missing wedge, which is present in all tomograms generated from slab-shaped samples (any sample vitrified on a cryo-EM grid). It is clear however that the surface of the VLP cannot be fully saturated, as square-shaped spikes cannot geometrically cover a closed surface. This is visible in the tomographic slices that do reveal gaps between the spike lattice patches, as well based in our earlier work (Huiskonen et al., 2010). It is not clear how much, if at all, the spikes would need to spread out to accommodate the Fab though our interpretation is that these gaps create sufficient empty space to allow enough spreading of the Fab-bound spikes (which represent only a fraction of all spikes).

d) Why do the non-Fab VLPs look like they have more surface protein (Figure 4—figure supplement 2, left panels) than the Fab-bound VLPs (Figure 4—figure supplement 2, right panels)?

This impression may rise due to the difficulty in visualizing these surface proteins in tomographic slices and the differences in the appearance of an ordered spike lattices vs. free spikes. To better demonstrate that the coverage of surface protein between non-Fab VLPs and Fab-bound VLPs are broadly indistinguishable, we have improved the contrast of our tomographic slice representations in Figure 4—figure supplement 2, in our revised manuscript.

e) How big is the reconstructed patch of lattice vs. the total surface area available for the virus?

A reconstructed patch of lattice, which corresponds to a total of nine tetrameric spike complexes, would occupy approximately 1,500 nm2 of total surface area (the area occupied by one spike is ~163 nm2). This compares to an approximate total surface area range of 7,900 nm2 to 71,000 nm2 (as described in point 10b above). However this simple calculation assumes spherical shape which is not accurate.

What portion of the viral surface do they predict to be occupied by the surface proteins in a lattice organization?

As iterated above there is inherent uncertainty in giving absolute numbers due to low signal-to-noise ratio in the data. We maintain however our position that it is valid to compare the numbers of spikes between two samples (with and without 4G2) i.e. compare the relative trend in the numbers of neighboring spikes as we have done in Figure 4, as we have used the same criteria for both datasets, and as these datasets themselves have been acquired the same way.

11) It will be unclear to most readers what the "metastable homodimerization interface" is and how it fits into the virus lifecycle. This needs further context in the Introduction, or earlier in the Results (similar to the statement in the fourth paragraph of the Discussion). Related to this, the authors to clarify in the text that single spikes consist of (Gn-Gc)4 hetero-octamers. Related to point above, "Gc only in the monomeric state", and references to the monomeric state elsewhere in the text, are confusing because Gc is part of a heterooctameric Gn-Gc spike. Clarification is required to distinguish between Gc-dimerizing lattice interactions and intra-spike interactions.

We thank the reviewers for this opportunity to clarify the terminology used to describe the hantaviral Gn-Gc assembly, and have rephrased the instances of “monomeric Gc” as “lattice-free Gc”, which is defined in the text as “Gc molecules that are not integrated within the lattice assembly by Gc homo-dimer interactions.” This revision is included in the following, revised Results section:

“Previous studies have suggested that contacts between (Gn−Gc)4 spikes are mediated by Gc homo-dimers (Bignon et al., 2019; Huiskonen et al., 2010; Li et al., 2016), while lattice breaks are expected to display Gc (“lattice-free Gc”) molecules that are not integrated within the lattice assembly by Gc homo-dimer interactions.”

On a similar note, in the Discussion, the authors say "The identification of the Gc oligomerization-specific epitope…" This wording is potentially misleading. Calling it “the Gc…” makes it sound like this is the only possible epitope for an antibody that would disrupt oligomerization. This may not be true. In addition, the phrase "oligomerization-specific epitope" makes it sound like this is the endogenous interaction site for the oligomerization between trimers to form a lattice, which the authors don't have any proof for because they don't dock structures into the oligomer lattice map that would potentially show the interfaces between trimers, nor do they make any mutations to disrupt the interaction to show that the lattice goes away on a VLP without the antibody present. Rephrasing to something like “The identification of an epitope that disrupts trimer oligomerization…” might be more appropriate.

We thank the reviewers for this helpful suggestion. As suggested, we have clarified this text as follows:

“Characterization of the Fab P-4G2 epitope has important implications for rational therapeutic design efforts and indicates that a lattice-free conformation of the Gc can be targeted by the antibody-mediated immune response that arises during infection.”

Furthermore, as described above in response to comment 7, we have docked PUUV Gc and Gn structures to our lattice-incorporated PUUV VLP surface reconstruction (new Figure 6), and the implications with regards to the P-4G2 epitope are presented in new Figure 6—figure supplement 2.

12) There is a discrepancy in the phrasing between the Abstract and the main text as follows. In the Abstract, authors say, "analysis demonstrates that 4G2 binds to a multi-domain site on the PUUV Gc and precludes fusogenic rearrangements…" In the main text, the authors say "may sterically preclude the formation of a fusogenic configuration…" I find that their data does not concretely determine that the fab binding does preclude rearrangements, so the phrasing may preclude from their main text is most appropriate. The Abstract should be rewritten to match the phrasing in the main text.

In line with this comment, we have rephrased the Abstract as follows:

“Crystallographic analysis demonstrates that PUUV-4G2 binds to a multi-domain site on PUUV Gc and may preclude fusogenic rearrangements of the glycoprotein that are required for host-cell entry.”

https://doi.org/10.7554/eLife.58242.sa2

Article and author information

Author details

  1. Ilona Rissanen

    1. Division of Structural Biology, Wellcome Centre for Human Genetics, University of Oxford, Oxford, United Kingdom
    2. Helsinki Institute of Life Science HiLIFE, University of Helsinki, Helsinki, Finland
    3. Molecular and Integrative Biosciences Research Programme, The Faculty of Biological and Environmental Sciences, University of Helsinki, Helsinki, Finland
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Robert Stass
    For correspondence
    ilona.rissanen@helsinki.fi
    Competing interests
    No competing interests declared
  2. Robert Stass

    Division of Structural Biology, Wellcome Centre for Human Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    Investigation, Writing - original draft, Writing - review and editing
    Contributed equally with
    Ilona Rissanen
    Competing interests
    No competing interests declared
  3. Stefanie A Krumm

    Department of Infectious Diseases, King's College London, Guy's Hospital, London, United Kingdom
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Jeffrey Seow

    Department of Infectious Diseases, King's College London, Guy's Hospital, London, United Kingdom
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Ruben JG Hulswit

    Division of Structural Biology, Wellcome Centre for Human Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Guido C Paesen

    Division of Structural Biology, Wellcome Centre for Human Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Jussi Hepojoki

    1. Institute of Veterinary Pathology, Vetsuisse Faculty, University of Zürich, Zürich, Switzerland
    2. Department of Virology, Medicum, Faculty of Medicine, University of Helsinki, Helsinki, Finland
    Contribution
    Resources, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Olli Vapalahti

    Departments of Virology and Veterinary Biosciences, University of Helsinki and HUSLAB, Helsinki University Hospital, Helsinki, Finland
    Contribution
    Writing - review and editing
    Competing interests
    No competing interests declared
  9. Åke Lundkvist

    Zoonosis Science Center, Department of Medical Biochemistry and Microbiology, Uppsala University, Uppsala, Sweden
    Contribution
    Resources, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Olivier Reynard

    CIRI, Centre International de Recherche en Infectiologie, INSERM U1111, CNRS UMR5308, Université Lyon, Lyon, France
    Contribution
    Resources, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  11. Viktor Volchkov

    CIRI, Centre International de Recherche en Infectiologie, INSERM U1111, CNRS UMR5308, Université Lyon, Lyon, France
    Contribution
    Resources, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Katie J Doores

    Department of Infectious Diseases, King's College London, Guy's Hospital, London, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  13. Juha T Huiskonen

    1. Division of Structural Biology, Wellcome Centre for Human Genetics, University of Oxford, Oxford, United Kingdom
    2. Helsinki Institute of Life Science HiLIFE, University of Helsinki, Helsinki, Finland
    3. Molecular and Integrative Biosciences Research Programme, The Faculty of Biological and Environmental Sciences, University of Helsinki, Helsinki, Finland
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0348-7323
  14. Thomas A Bowden

    Division of Structural Biology, Wellcome Centre for Human Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing - original draft, Writing - review and editing
    For correspondence
    thomas.bowden@strubi.ox.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8066-8785

Funding

Medical Research Council (MR/L009528/1)

  • Thomas A Bowden

Medical Research Council (MR/S007555/1)

  • Thomas A Bowden

Medical Research Council (MR/N002091/1)

  • Thomas A Bowden
  • Katie J Doores

Medical Research Council (MR/K024426/1)

  • Katie J Doores

Academy of Finland (309605)

  • Ilona Rissanen

H2020 European Research Council (649053)

  • Juha T Huiskonen

Wellcome Trust (203141/Z/16Z)

  • Robert Stass
  • Ruben JG Hulswit
  • Guido C Paesen
  • Juha T Huiskonen
  • Thomas A Bowden

Wellcome Trust (060208/Z/00/Z)

  • Robert Stass
  • Ruben JG Hulswit
  • Guido C Paesen
  • Juha T Huiskonen
  • Thomas A Bowden

Wellcome Trust (093305/Z/10/Z)

  • Robert Stass
  • Ruben JG Hulswit
  • Guido C Paesen
  • Juha T Huiskonen
  • Thomas A Bowden

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Diamond Light Source for beamtime (proposal MX19946) and the staff of beamline I24 at Diamond Light Source for assistance with data collection. We thank the MRC (MR/L009528/1 and MR/S007555/1 to TAB; MR/N002091/1 to KJD and TAB; MR/K024426/1 to KJD), Academy of Finland (309605 to IR), and European Research Council under the European Union’s Horizon 2020 research and innovation programme (649053 to JTH). The Wellcome Centre for Human Genetics is supported by Wellcome Centre grant 203141/Z/16Z. We thank Dimple Karia, Bilal Qureshi, and Adam Costin for electron microscopy support. The Oxford Particle Imaging Centre was founded by a Wellcome Trust JIF award (060208/Z/00/Z) and is supported by equipment grants from WT (093305/Z/10/Z) and MRC. We acknowledge the use of Central Oxford Structural Molecular Imaging Centre (COSMIC) facilities and CSC – IT Center for Science, Finland, for computational resources. Computation also used the Oxford Biomedical Research Computing (BMRC) facility, a joint development between the Wellcome Centre for Human Genetics and the Big Data Institute supported by Health Data Research UK and the NIHR Oxford Biomedical Research Centre. The views expressed are those of the author(s) and not necessarily those of the NHS, the NIHR, or the Department of Health.

Senior Editor

  1. José D Faraldo-Gómez, National Heart, Lung and Blood Institute, National Institutes of Health, United States

Reviewing Editor

  1. Pamela J Bjorkman, California Institute of Technology, United States

Reviewer

  1. Yorgo Modis, University of Cambridge, United Kingdom

Publication history

  1. Received: April 24, 2020
  2. Accepted: November 26, 2020
  3. Version of Record published: December 22, 2020 (version 1)

Copyright

© 2020, Rissanen et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 973
    Page views
  • 95
    Downloads
  • 5
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Medicine
    2. Microbiology and Infectious Disease
    Alexander O Pasternak et al.
    Research Article Updated

    Background:

    It remains unclear whether combination antiretroviral therapy (ART) regimens differ in their ability to fully suppress human immunodeficiency virus (HIV) replication. Here, we report the results of two cross-sectional studies that compared levels of cell-associated (CA) HIV markers between individuals receiving suppressive ART containing either a non-nucleoside reverse transcriptase inhibitor (NNRTI) or a protease inhibitor (PI).

    Methods:

    CA HIV unspliced RNA and total HIV DNA were quantified in two cohorts (n = 100, n = 124) of individuals treated with triple ART regimens consisting of two nucleoside reverse transcriptase inhibitors (NRTIs) plus either an NNRTI or a PI. To compare CA HIV RNA and DNA levels between the regimens, we built multivariable models adjusting for age, gender, current and nadir CD4+ count, plasma viral load zenith, duration of virological suppression, NRTI backbone composition, low-level plasma HIV RNA detectability, and electronically measured adherence to ART.

    Results:

    In both cohorts, levels of CA HIV RNA and DNA strongly correlated (rho = 0.70 and rho = 0.54) and both markers were lower in NNRTI-treated than in PI-treated individuals. In the multivariable analysis, CA RNA in both cohorts remained significantly reduced in NNRTI-treated individuals (padj = 0.02 in both cohorts), with a similar but weaker association between the ART regimen and total HIV DNA (padj = 0.048 and padj = 0.10). No differences in CA HIV RNA or DNA levels were observed between individual NNRTIs or individual PIs, but CA HIV RNA was lower in individuals treated with either nevirapine or efavirenz, compared to PI-treated individuals.

    Conclusions:

    All current classes of antiretroviral drugs only prevent infection of new cells but do not inhibit HIV RNA transcription in long-lived reservoir cells. Therefore, these differences in CA HIV RNA and DNA levels by treatment regimen suggest that NNRTIs are more potent in suppressing HIV residual replication than PIs, which may result in a smaller viral reservoir size.

    Funding:

    This work was supported by ZonMw (09120011910035) and FP7 Health (305522).

    1. Evolutionary Biology
    2. Microbiology and Infectious Disease
    Emily R Ebel et al.
    Research Article

    The replication of Plasmodium falciparum parasites within red blood cells (RBCs) causes severe disease in humans, especially in Africa. Deleterious alleles like hemoglobin S are well-known to confer strong resistance to malaria, but the effects of common RBC variation are largely undetermined. Here we collected fresh blood samples from 121 healthy donors, most with African ancestry, and performed exome sequencing, detailed RBC phenotyping, and parasite fitness assays. Over one third of healthy donors unknowingly carried alleles for G6PD deficiency or hemoglobinopathies, which were associated with characteristic RBC phenotypes. Among non-carriers alone, variation in RBC hydration, membrane deformability, and volume was strongly associated with P. falciparum growth rate. Common genetic variants in PIEZO1, SPTA1/SPTB, and several P. falciparum invasion receptors were also associated with parasite growth rate. Interestingly, we observed little or negative evidence for divergent selection on non-pathogenic RBC variation between Africans and Europeans. These findings suggest a model in which globally widespread variation in a moderate number of genes and phenotypes modulates P. falciparum fitness in RBCs.
