Crosstalk between nitric oxide and retinoic acid pathways is essential for amphioxus pharynx development

  1. Filomena Caccavale
  2. Giovanni Annona
  3. Lucie Subirana
  4. Hector Escriva
  5. Stephanie Bertrand
  6. Salvatore D'Aniello  Is a corresponding author
  1. Department of Biology and Evolution of Marine Organisms (BEOM), Stazione Zoologica Anton Dohrn Napoli, Italy
  2. Sorbonne Université CNRS, Biologie Intégrative des Organismes Marins (BIOM), Observatoire Océanologique, France
Research Article
  • Cited 0
  • Views 428
  • Annotations
Cite this article as: eLife 2021;10:e58295 doi: 10.7554/eLife.58295

Abstract

During animal ontogenesis, body axis patterning is finely regulated by complex interactions among several signaling pathways. Nitric oxide (NO) and retinoic acid (RA) are potent morphogens that play a pivotal role in vertebrate development. Their involvement in axial patterning of the head and pharynx shows conserved features in the chordate phylum. Indeed, in the cephalochordate amphioxus, NO and RA are crucial for the correct development of pharyngeal structures. Here, we demonstrate the functional cooperation between NO and RA that occurs during amphioxus embryogenesis. During neurulation, NO modulates RA production through the transcriptional regulation of Aldh1a.2 that irreversibly converts retinaldehyde into RA. On the other hand, RA directly or indirectly regulates the transcription of Nos genes. This reciprocal regulation of NO and RA pathways is essential for the normal pharyngeal development in amphioxus and it could be conserved in vertebrates.

Introduction

The ontogenesis of the vertebrate head is a complex developmental process in which both neural crest and non-neural crest cells participate. The craniofacial development and the correct antero-posterior patterning of head structures are driven by complex interactions among several signaling pathways and epigenetic mechanisms (Haworth et al., 2007; Jacox et al., 2014; Kong et al., 2014; Francis-West and Crespo-Enriquez, 2016). In this context nitric oxide (NO) is a potent morphogen playing crucial roles in head structures development. Loss-of-function of neuronal nitric oxide synthase (Nos1) in Xenopus and zebrafish induces mouth opening arrest, smaller eyes, and substantial aberrations in cartilage and bone formation (Jacox et al., 2014). Moreover, inhibition of NO production is responsible for severe defects in pharyngeal arch patterning, consistent with the observation of alterations in the Hox code (Kong et al., 2014).

The development, as well as the antero-posterior and dorso-ventral patterning, of the head and pharynx shows conserved features within the chordate phylum. In amphioxus, which belongs to the cephalochordate subphylum, the pharynx is characterized by a marked left-right asymmetry which is controlled by the Nodal signaling pathway, namely by the Cerberus-Nodal-Lefty-Pitx cascade (Bertrand et al., 2015; Soukup et al., 2015; Li et al., 2017). The antero-posterior patterning and development of amphioxus pharyngeal slits are driven by a conserved set of transcription factor genes, among which Hox1, Pax2/5/8, Pitx, and Tbx1/10, that are also involved in vertebrate pharyngeal arches formation (Schubert et al., 2005; Bertrand et al., 2015; Wang et al., 2019).

In amphioxus, NO is enzymatically produced by synthases encoded by three distinct genes – NosA, NosB, and NosC – that are derived from cephalochordate-specific gene duplications and show a complementary expression pattern during development (Annona et al., 2017; Marlétaz et al., 2018). During amphioxus embryogenesis, as a consequence of pharmacological inhibition of endogenous NO production, the opening of the mouth is prevented as well as the correct development of other important pharyngeal structures, such as the endostyle and the club-shaped gland (Annona et al., 2017). Moreover, the treated larvae show a posteriorized phenotype, resembling the well-described phenotype induced by exogenous retinoic acid (RA) administration during amphioxus embryogenesis (Escriva et al., 2002; Schubert et al., 2005; Koop et al., 2014). This experimental evidence prompted us to analyze the molecular effects of NO synthesis inhibition in detail by using a differential transcriptomic approach in the cephalochordate Branchiostoma lanceolatum. Our results show that the pharyngeal phenotype observed after reduction of endogenous NO production derives from an alteration of the RA signaling pathway. Moreover, we highlight the existence of a crosstalk between these pathways and propose that it is crucial to fine-tune the NO/RA balance that is required for proper pharyngeal development.

Results

NO controls pharyngeal development during early neurulation in amphioxus

Previous studies, using pharmacological inhibition approaches, have highlighted the involvement of NO in the specification of amphioxus pharyngeal structures during neurulation (Annona et al., 2017). To better characterize the key role of NO during embryonic development, we narrowed down the time window of pharmacological treatment by defining the exact timing during which an inhibition of endogenous NO production affects the development of the pharynx. Therefore, we performed short-term in vivo treatments with the Nos activity inhibitor 1-[2-(trifluoromethyl)phenyl]−1H-imidazole (TRIM) during B. lanceolatum development testing different drug exposure times between the early neurula stage (N2 stage, 24 hr post fertilization [hpf] at 18°C) and the pre-mouth larva stage (transition stage T1, 48 hpf at 18°C) (Figure 1A). During the selected time window, the endogenous NO mainly derives from the activity of NosC, whose gene expression is observed from the N2 stage until the larval stage (L1, 72 hpf at 18°C) (Figure 1—figure supplement 1; Annona et al., 2017). We cannot exclude a contribution to the NO production by NosB, whose gene is expressed from gastrula (G3 stage, 10 hpf at 18°C) to neurula (N2) (Annona et al., 2017), although we think it should be minimal because its mRNA synthesis runs out at 24 hpf. On the other hand, NosA is expressed in the adult and not during embryonic development.

Figure 1 with 5 supplements see all
Characterization of in vivo 1-[2-(trifluoromethyl)phenyl]−1H-imidazole (TRIM) treatment during early amphioxus embryogenesis.

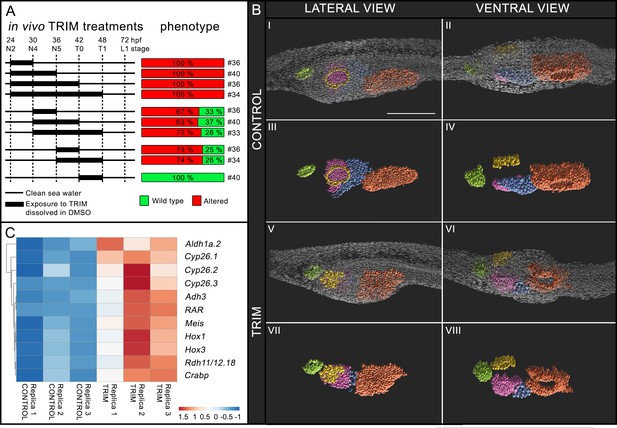

(A) Schematic representation of time intervals during which embryos were grown in presence of TRIM and the resulting phenotype. (B) 3D reconstruction of control and TRIM-treated larvae showing anatomical alterations in pharyngeal region (panels I, II, V, VI). Only internal anatomical structures are highlighted in panels III, IV, VII, VIII. Larvae orientation: anterior to the left, dorsal to the top. Scale bar: 50 μm. Color code: green = pre-oral pit, violet = endostyle, yellow = mouth, blue = club-shaped gland, orange = gill slit. (C) Gene expression heatmap, for selected genes, of the differential transcriptomic analysis (control versus TRIM).

Figure 1—source data 1

DESeq2 output for TRIM treated versus control condition.

https://cdn.elifesciences.org/articles/58295/elife-58295-fig1-data1-v1.xlsx

The phenotype resulting from the different treatments was scored at the open-mouth L1 stage. The morphological alterations included: (i) a mean reduction of 31% of the pharynx length being overall unchanged the body length (Figure 1B and Figure 1—figure supplement 2A,B), (ii) the complete or partial absence of mouth opening on the left side of the pharynx (Figure 1B, panels I, III and V, VII), and (iii) the incomplete formation of the club-shaped gland and of the endostyle (Figure 1B, panels I, III and V, VII), the latter being positioned more ventrally than in controls (Figure 1B, panels II, IV and VI, VIII).

The inhibition of NO production during the 24–30 hpf time window at 18°C was the shortest treatment inducing a significant effect by producing 100% of abnormal larvae. Delayed treatments starting at 30 or 36 hpf, for 6, 12, or 18 hr, resulted in approximately 70% of affected larvae (Figure 1A). Moreover, the endogenous NO concentration was measured at the endpoints of TRIM incubation intervals (24–30, 24–36, and 24–42 hpf) and in comparison to controls it decreased by 66%, 57%, and 55%, respectively, demonstrating the efficiency of the treatments (Figure 1—figure supplement 2C). Conversely, when TRIM treatment was performed later, between 42 and 48 hpf, the larvae were not affected (Figure 1A). These results suggest that pharyngeal development is, at least in part, under the control of NO during neurulation (24–42 hpf) and we observed that the minimal time window of TRIM treatment that induces pharynx malformations corresponds to the first 6 hr (24–30 hpf).

The results presented here are slightly different from those previously published by our group (Annona et al., 2017). In our preceding study, we suggested that the developmental time window of Nos action was between 36 and 48 hpf because the treatment between 24 and 36 hpf was inefficient in inducing a phenotype. However, in the present work we show that a treatment between 24 and 30 hpf is fully penetrant. In Annona et al., 2017, the inhibition of NO synthesis was achieved by using the L-NAME (Nω-nitro-L-arginine methyl ester), which is an L-arginine analog and is able to slow down the Nos activity. On the other hand, here we used TRIM, a molecule that is able to interfere with the binding of Nos enzymes with its substrate L-arginine and co-factor tetrahydrobiopterin. Thus, the dissimilarity in the time window of inhibition between the two treatments can be explained by the significant difference in Nos inhibition efficiency between the two molecules. Indeed, TRIM is effective at much lower concentrations than L-NAME (Annona et al., 2017), which probably justifies why a shorter treatment duration leads to the pharyngeal defect phenotype when we used TRIM, and hence the apparent discrepancy with previous data.

Based on the experimental evidence obtained in the present work, we performed a differential transcriptomic analysis comparing TRIM-treated N4 embryos (continuous treatment from 24 to 30 hpf) with wild-type embryos in order to define the genes acting downstream of NO signaling during pharyngeal development in amphioxus (Figure 1C, and Figure 1—figure supplement 3).

Inhibition of NO synthesis in vivo induces up-regulation and ectopic expression of RA pathway genes

The differential RNA-seq analysis revealed the up-regulation of 392 genes and the down-regulation of 50 genes upon TRIM treatment (Figure 1C, and Figure 1—figure supplement 3). Interestingly, several differentially up-regulated genes are implicated in RA metabolism and signaling pathways (synthesis and storage, catabolism and known direct RA target genes): Adh3, Rdh11/12.18, Aldh1a.2, Crabp, Cyp26.1, Cyp26.2, Cyp26.3, RAR, Hox1, Hox3, Meis (Figure 1C and Figure 1—figure supplement 4). In order to confirm this finding, we additionally validated RNA-seq data by quantitative RT-PCR (qRT-PCR) analyses of up-regulated, down-regulated, and unaffected genes. The results showed a consistent expression trend with the RNA-seq data (Figure 1—figure supplement 5A–C’). Moreover, the expression pattern of RA target genes Hox1, Hox3, Meis, and that of Cyp26 genes was further investigated by whole-mount in situ hybridization in both control and TRIM-treated embryos at the neurula N5 (36 hpf at 18°C) and pre-mouth T1 (48 hpf at 18°C) developmental stages. Such analyses showed that endogenous NO reduction produced an effect not only on the expression level of RA metabolism and signaling pathway genes, but also on the expression territories of most of them. The Hox1, Hox3, and Meis anterior limit of expression was shifted anteriorly in TRIM-treated embryos in comparison to controls, indicative of the embryo’s body posteriorization (Figure 2A). The RA catabolism enzyme genes that are duplicated in amphioxus, Cyp26.1, Cyp26.2, and Cyp26.3, showed a heterogeneous behavior: Cyp26.2 was slightly up-regulated and its expression pattern did not change after TRIM treatment, whereas Cyp26.1 and Cyp26.3 were strongly up-regulated and showed an ectopic expression (Figure 2A,D). In particular, after inhibition of NO production, Cyp26.1 expression was shifted anteriorly, while Cyp26.3 expression was shifted posteriorly. Moreover, Cyp26.3 showed an additional domain of expression in the tailbud, mainly in T1 stage embryos (Figure 2A). As a negative control we tested the expression pattern of Pitx, Six1/2, IrxC, and Cdx, whose expression levels were not affected after TRIM treatment in the RNA-seq data. Likewise, we observed no modification of their expression pattern after treatment (Figure 1—figure supplement 5D).

Figure 2 with 1 supplement see all
Analysis of gene expression.

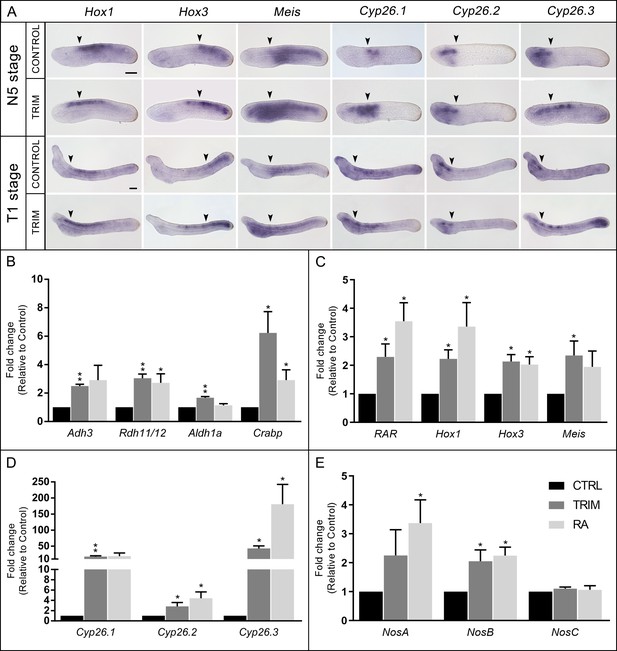

(A) Gene expression pattern by in situ hybridization of Hox1, Hox3, Meis, Cyp26.1, Cyp26.2, and Cyp26.3 in 1-[2-(trifluoromethyl)phenyl]−1H-imidazole (TRIM)-treated and control embryos at N5 and T1 stage. The anterior (Hox1, Hox3, Meis, Cyp26.1) and posterior (Cyp26.2 and Cyp26.3) limits of gene expression territories in wild-type embryos are indicated with arrowheads in both control and TRIM-treated conditions. Fifteen embryos were used for each probe and all showed the pattern presented here. Embryos orientation: anterior to the left, dorsal to the top. Scale bar: 50 µm. (B–E) Quantitative RT-PCR (qRT-PCR) on N4 stage embryos showing expression level changes after 6 hr of pharmacological TRIM or retinoic acid (RA) treatments (24–30 hpf) of: (B) genes encoding enzymes for RA synthesis: Adh3, Rdh11/12.18, Aldh1a.2, and binding protein for storage: Crabp; (C) RA direct target genes: RAR, Hox1, Hox3, Meis; (D) genes encoding RA degradation enzymes: Cyp26.1, Cyp26.2, Cyp26.3; (E) Nos genes: NosA, NosB, NosC. The statistical significance indicated is: * = p-value < 0.05; ** = p-value < 0.01.

Aldh1a.2 expression is specifically regulated by NO

The above-mentioned gene expression results (Figure 2A,C,D) suggested that the abnormal pharyngeal development of TRIM-treated embryos could be the result of an overactivation of the RA signaling pathway based on previous studies (Escriva et al., 2002; Schubert et al., 2006; Koop et al., 2014; Carvalho et al., 2017b). In order to test this hypothesis, we performed two in vivo experiments in parallel in which neurula stage embryos were incubated for 6 hr, from 24 to 30 hpf, in the presence of either TRIM or RA. Then, we analyzed the relative expression of three groups of genes by qRT-PCR, which we previously found to be up-regulated in the RNA-seq analysis: (i) genes involved in the synthesis and storage of RA (Adh3, Rdh11/12.18, Aldh1a.2, and Crabp); (ii) genes that mediate RA effects (RAR, Hox1, Hox3, and Meis); and (iii) genes involved in RA degradation (Cyp26.1, Cyp26.2, and Cyp26.3). All analyzed genes were up-regulated after both TRIM and RA treatment, with the exception of Aldh1a.2 which was exclusively up-regulated after TRIM treatment (Figure 2B,C,D).

NosA and NosB respond to exogenous RA during development

The expression analysis of the three amphioxus Nos genes after TRIM treatment revealed transcriptional up-regulation for two of them, NosA and NosB, while NosC, remained insensitive to the pharmacological treatment (Figure 2E).

In order to check if NosA and NosB up-regulation could be due to an indirect effect of the intracellular increase of RA caused by the TRIM treatment, we tested their expression levels after the addition of exogenous RA (Figure 2E). Similarly to the TRIM treatment, we observed that NosA and NosB expression were significantly up-regulated as a consequence of RA administration (Figure 2E). Moreover, exogenous RA induced up-regulation of NosA expression up to 36 hpf (N5) and of NosB expression up to 48 hpf (T1) (Figure 2—figure supplement 1).

These results suggest a transcriptional control of RA on Nos genes expression during embryogenesis in amphioxus, but whether it is direct or indirect remains to be investigated.

A RALDH inhibitor and a RAR antagonist are able to rescue the normal phenotype after inhibition of NO synthesis

To confirm that the up-regulation of Aldh1a.2, which could result in an endogenous RA increase, was the key event underlying pharyngeal alterations in TRIM-treated larvae, we performed two independent phenotypic rescue experiments using the retinaldehyde dehydrogenases (RALDH) inhibitor DEAB (N,N-diethylaminobenzaldehyde) and the RA antagonist BMS009. Both DEAB and BMS009 were applied in combination with TRIM to embryos at 24 hpf and removed at 30 hpf. As a control, the TRIM treatment was performed in parallel on another batch of embryos. The combined treatment with TRIM and DEAB resulted in a wild-type phenotype in 76% of the total observed larvae (‘rescue’ in Figure 3A,B panels I and II). On the other hand, 14% of the larvae showed an intermediate phenotype with normal pharynx length and organization in comparison to wild-type larvae, although the mouth was smaller and the club-shaped gland had an abnormal morphology (‘partial rescue’ in Figure 3A,B panels III and IV). The remaining larvae showed an affected phenotype as described above for the TRIM treatment (‘altered’ in Figure 3A,B panels V and VI). Similarly, the phenotype rescue experiment performed using the combination of TRIM and BMS009 led to 54% of wild-type larval morphology and 21% of larvae with a smaller mouth (Figure 3A). Moreover, the morphological rescue obtained by TRIM+DEAB treatment was associated with the rescued expression pattern of RA catabolism (Cyp26.1 and Cyp26.3) and RA target genes (Hox1, Hox3, and Meis) (Figure 3C) at the N5 neurula stage. Therefore, by using two independent experiments, we demonstrated that the reduction of RA pathway activity in TRIM-treated embryos rescued the wild-type phenotype, suggesting that the observed effects of the inhibition of NO synthesis are produced by an increase in RA signaling.

Phenotypic rescue effect of N,N-diethylaminobenzaldehyde (DEAB) and BMS009 on 1-[2-(trifluoromethyl)phenyl]−1H-imidazole (TRIM)-treated embryos.

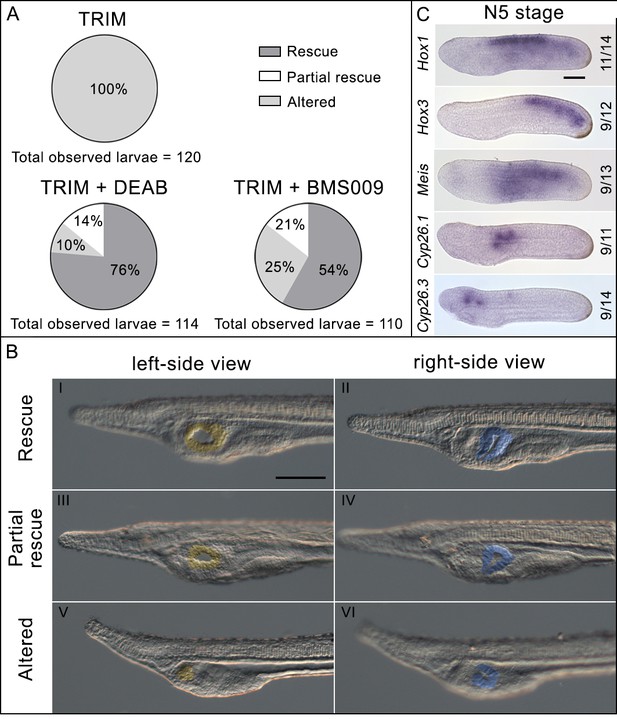

(A) Pie charts of the phenotypes observed after TRIM treatment and the combinatorial pharmacological treatments TRIM (100 µM) + DEAB (25 µM) or TRIM (100 µM) + BMS009 (10−6 M). The percentages of each observed phenotype are reported in the respective portions of the graphs. For each treatment, the total number of observed larvae is indicated below the chart. (B) Pictures of the pharyngeal region of larvae presenting the three different classes of phenotype observed in the rescue experiments: rescue, partial rescue, and altered. The mouth is highlighted in yellow and the club-shaped gland in blue. Larvae orientation: anterior to the left, dorsal to the top. Scale bar: 50 µm. (C) Expression pattern by in situ hybridization of Hox1, Hox3, Meis, Cyp26.1, and Cyp26.3 after rescue assay with DEAB showing the restoration of wild-type expression territories. Numbers indicate the ratio between embryos showing a restored expression pattern and the total number of embryos analyzed. Embryo orientation: anterior to the left, dorsal to the top. Scale bar: 50 µm.

Discussion

NO controls the RA concentration

The inhibition of NO production during amphioxus neurulation affects the normal formation and patterning of pharyngeal structures at the larva stage, including the length of the pharynx. From a molecular point of view, the differential RNA-seq approach revealed a clear up-regulation of different RA pathway players after Nos activity inhibition, suggesting that such de-regulation is responsible for the observed phenotype. The role of RA in pharyngeal morphogenesis has been extensively described in the literature; RA acts through Hox1 in establishing the posterior limit of amphioxus pharynx. Hox1 is co-expressed with the RA receptor (RAR) in the midgut endoderm and, in turn, represses the expression of pharyngeal endoderm markers, such as Pax1/9 and Otx (Schubert et al., 2005). Nevertheless, the formation of pharyngeal slits requires low levels of RA. This condition is guaranteed: (i) by the activity of RA degradation enzymes (Cyp26), (ii) by the expression of TR2/4, a transcriptional repressor which binds to Retinoic Acid Response Elements (RARE) and decreases RA signaling in the anterior part of the animal, and (iii) by the fact that the central region of the embryo producing RA moves posteriorly as the embryo elongates (Escriva et al., 2002; Koop et al., 2014). In the present work, as a result of the inhibition of Nos activity, we observed the up-regulation of RA target genes, Hox1, Hox3 and Meis, and that their anterior limit of expression shifted anteriorly. Furthermore, the RA degrading enzyme genes, Cyp26.1 and Cyp26.3, were also sensitive to the inhibition of endogenous NO production showing an increased and ectopic expression. Cyp26 are required for RA degradation in the endoderm and ectoderm and have a key role in the establishment and maintenance of the antero-posterior RA concentration gradient in amphioxus (Carvalho et al., 2017a). The up-regulation of Cyp26 genes is a known consequence of RA excess, which is responsible for the posteriorization of larval body structures and for the pharynx loss (Escriva et al., 2002; Schubert et al., 2005; Schubert et al., 2006; Minoux and Rijli, 2010; Koop et al., 2010; Koop et al., 2014; Bertrand et al., 2015; Carvalho et al., 2017b). Altogether, these results suggest that the observed phenotype in TRIM-treated amphioxus embryos could be due to an increase in RA production. In previous studies, it has been shown that exogenous RA administration disrupts its endogenous gradient and causes the whole body posteriorization (Escriva et al., 2002; Koop et al., 2014; Osborne et al., 2009), highlighted for example by the anterior shift of Cdx expression. Here, instead, we show that the TRIM treatment only partially phenocopies exogenous RA application, resulting in a local posteriorization mainly restricted to the anterior part of the body including the pharynx area, while the posterior region is unaffected as demonstrated by the unaltered Cdx expression (Figure 1—figure supplement 5D). Therefore, this suggests the occurrence of an NO-mediated regulation of the RA pathway in anterior tissues versus an NO-independent mechanism in the posterior tissues.

Intracellular RA is synthesized by the reversible oxidation of retinol into retinaldehyde by either alcohol dehydrogenases (ADH) or retinol dehydrogenases (RDH). Subsequently, retinaldehyde is irreversibly oxidized to RA by RALDH, mainly by ALDH1A (Gallego et al., 2006; Duester, 2008). In our experiments we observed a transcriptional up-regulation of Adh3, Rdh11/12.18, and Aldh1a.2 after TRIM treatment. While a unique ortholog of vertebrate Adh genes, Adh3, has been identified in amphioxus (Cañestro et al., 2002); 22 Rdh11/12 genes, derived from a lineage-specific expansion, were identified. These Rdh11/12 genes are related to human Rdh11, Rdh12, Rdh13, and Rdh14, that together with Rdh10 correspond to retinaldehyde reductases predominantly involved in retinoid metabolism and homeostasis (Albalat et al., 2011; D'Aniello et al., 2015Figure 1—figure supplement 4B). For Aldh1, a total of six genes were identified in amphioxus, orthologs of human Aldh1A1-3, which are major players in the oxidation of RA (Cañestro et al., 2006Figure 1—figure supplement 4A). In our study, Adh3 and Rdh11/12.18 genes were also up-regulated after administration of exogenous RA, suggesting a feedback regulation of RA synthesis, at least on reversible enzymatic steps. On the other hand, Aldh1a.2 was insensitive to exogenous RA administration. Based on these results, we hypothesize that, under physiological conditions, NO transcriptionally regulates Aldh1a.2 and, as a consequence, controls the production of endogenous RA. Further evidence to support our hypothesis is provided by the two independent rescue experiments. Technically, in association with TRIM, we used two drugs that specifically act on the most crucial steps of RA signaling pathway: an inhibitor of the RALDH enzymes activity that would compensate the excess of Aldh1a.2 protein, and an RA antagonist, which is able to compensate the RA over-production through its binding to RAR. In both experiments we observed a wild-type phenotype at the larva stage as a consequence of the recovery of the normal development, further supported by the restoration of the proper expression pattern of both RA-target and RA-degrading enzyme genes.

Based on our results, we propose that NO plays a key role in the regulation of RA level during neurulation in amphioxus by fine-tuning the expression of Aldh1a.2, keeping RA concentration within the optimal range. This precise balance between intracellular concentrations of NO and RA guarantees the correct expression level and localization of all RA downstream target genes. When NO is removed from the system, the RA metabolism machinery malfunctions, resulting in a cascade of events leading to the up-regulation of the entire RA signaling pathway.

The missing piece of the puzzle, therefore, seems to be an unknown molecular link, which is able to explain the control of Aldh1a.2 transcription by NO. In other chordates, it has been demonstrated that the mechanisms by which NO regulates transcription of target genes are: (i) the control of the extracellular-regulated kinase (ERK) and the Mitogen-activated protein kinase (MAPK) phosphatases activity and, as a result, the modulation of phosphorylation or dephosphorylation of target transcription factors (Castellano et al., 2014), and (ii) the direct modulation of target proteins, like transcription factors, histone acetyltransferases, and deacetylases or DNA methyltranserases, through S-nitrosylation of specific cysteine residues (Bogdan, 2001; Nott et al., 2008; Sha and Marshall, 2012).

Thus, NO could control Aldh1a.2 expression by modulating the phosphorylation or S-nitrosylation of a specific transcription factor/chromatin remodeling protein, the nature of which still requires further research to be discovered.

It would be important to improve this knowledge since very little information, restricted to vertebrates, is reported on the control of RA metabolism by NO. Some cytochrome P450 enzymes, involved in RA metabolism, were identified as putative NO-regulated proteins, but no evidence about putative transcriptional regulation has been reported so far (Lee et al., 2014; Lee et al., 2017).

Crosstalk between NO and RA signaling pathways

The exogenous administration of RA induces the expression of amphioxus NosA and NosB that are normally not expressed during the developmental time window investigated in this study (Annona et al., 2017). Moreover, such transcriptional regulation is maintained throughout the critical time period during which NO is necessary for pharyngeal development (i.e. 24–42 hpf, Figure 2—figure supplement 1). Conversely, NosC was not affected by the increase of RA level. A possible explanation could be that while in normal conditions RA does not regulate NosA and NosB expression, it directly or indirectly regulates such gene expression in the case of an NO/RA imbalance as a way to restore the correct NO/RA ratio. Additionally, it could be that RA is able to force the regulatory mechanism normally used at another developmental stage or in the adult.

In vertebrates, the role of NO and RA in the correct development of the pharynx and craniofacial structures has already been described (Abe et al., 2008; Liu et al., 2013; Jacox et al., 2014; Chawla et al., 2018). However, the existence of a possible crosstalk between NO and RA pathways has not yet been revealed. As mentioned above, there are few published data on the regulatory effect of NO on RA pathways, while the control of RA on NO production in vertebrates is more documented. For instance, the inhibitory or activator effect of RA on NO production through the activation of inducible and endothelial Nos, at both the protein and transcript levels, has been demonstrated in human cell lines (Sirsjö et al., 2000; Achan et al., 2002; Hattori et al., 2002; Behairi et al., 2015; Moon, 2019).

To summarize the regulatory loop between NO and RA signaling pathways in amphioxus, we formulated the NO:RA hypothesis, shown in Figure 4, arguing that their in vivo crosstalk is critical to maintain NO and RA concentrations in a correct ratio for normal pharyngeal development. During embryogenesis (Figure 4A), the balance of these two signaling molecules guarantees a physiological RA concentration necessary for a correct pharynx development. A reduction of NO (Figure 4B), as shown by our results albeit indirectly, induces an excess of RA, through the overexpression of Aldh1a.2. We propose that in the developing embryo an excess of RA compared to NO level induces both the expression of genes that contribute to RA level reduction, and to the overexpression of Nos genes resulting in NO production increase (Figure 4C) which in turn contributes to the decrease in RA concentration through an unknown mechanism. Thus, this regulatory loop would allow a reestablishment of the normal NO/RA ratio (Figure 4C) and would contribute to a correct development of the amphioxus pharynx.

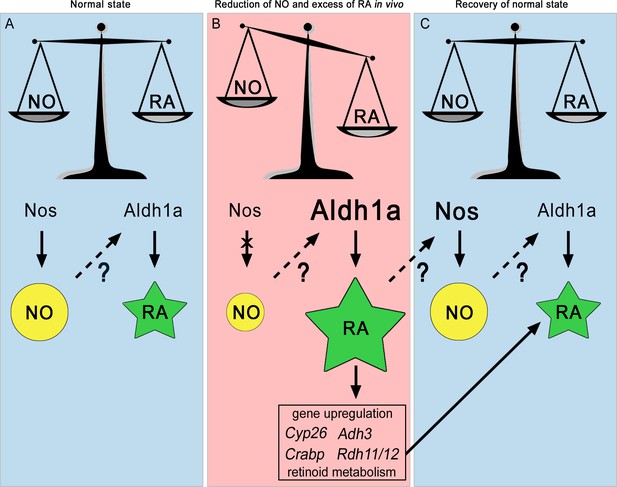

The NO:RA hypothesis.

Schematic representation of the possible crosstalk occurring between Nitric Oxide (NO) and Retinoic Acid (RA) during chordate development. NO is represented by a yellow circle, RA by a green star, the ratio between NO and RA by a scale symbol. The decrease of NO and the increase of RA, Aldh1a and Nos, are indicated by different sizes of symbols relative to the normal state. Arrows represent enzymatic processes, while discontinuous arrows correspond to transcriptional regulation. Question marks indicate that it is not known exactly how NO regulates Aldh1a.2 transcription and RA regulates Nos transcription. The cross over the arrow between Nos and NO illustrates the inactivation of Nos.

Conclusions

Our results show the existence of a functional crosstalk between NO and RA signals in the pharyngeal region of the cephalochordate amphioxus during neurulation. This opens new questions about the evolutionary conservation of this regulatory loop in vertebrates.

The role of RA, as well as that of NO, in amphioxus development and antero-posterior patterning of the pharynx has been described in several studies. Our results suggest the occurrence of a regulatory crosstalk between these two ancient and essential signaling pathways that has previously been neglected. Our results allow us to propose that, during amphioxus development, a precise NO/RA balance is necessary for the correct antero-posterior patterning of the pharynx. This endogenous intracellular balance is preserved by the reciprocal regulation of NO and RA pathways. Taking into account the role that these two signaling pathways and their crosstalk have for the correct development of the amphioxus pharynx, as well as the known role that, separately, has been demonstrated for these two pathways in vertebrates, we hypothesize that the functional and regulatory crosstalk between NO and RA pathways could be a conserved feature in vertebrates.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background, (Branchiostoma lanceolatum)Wild typeCollected in Argelès-sur-mer, FranceNCBI Taxon: 7740
Chemical compound, drug2,3-Diaminonaphthalene (DAN)Sigma-AldrichD2757
Chemical compound, drugNitrate reductase (NAD[P]H) from Aspergillus nigerSigma-AldrichN7265
Chemical compound, drugFlavin adenine dinucleotide disodium salt hydrate (FAD)Sigma-AldrichF6625
Chemical compound, drugβ-Nicotinamide adenine dinucleotide 2′-phosphate reduced tetrasodium salt hydrate (NADPH)Sigma-AldrichN7505
Chemical compound, drug1-[2-(Trifluoromethyl)phenyl]-1H-imidazole (TRIM)Cayman chemical81310
Chemical compound, drugall-trans-Retinoic acid (RA)Sigma-AldrichR2625
Chemical compound, drugN,N-diethylaminobenzaldehyde (DEAB)Sigma-AldrichD86256

Amphioxus embryos collection

Request a detailed protocol

Ripe adult European amphioxus (B. lanceolatum) were collected in Argelès-sur-mer (France) with a specific permission delivered by the Prefect des Pyrénées-Orientales. B. lanceolatum is not a protected species. Spawning was induced during late spring and beginning of summer by employing a thermal shock as described by Fuentes et al., 2007. After in vitro fertilization, embryos were cultured in 0.22 μm filtered seawater at 18°C in plastic Petri dishes. According to the recent amphioxus ontology and staging (Bertrand et al., 2021; Carvalho et al., 2021) at 18°C, 24 hpf corresponds to neurula two stage (N2), 30 hpf to neurula four stage (N4), 36 hpf to neurula five stage (N5), 42 hpf to transition 0 stage (T0), 48 hpf to transition one stage (T1), and 72 hpf to larva 1 (L1). Embryos at desired developmental stages were incubated in the presence of specific pharmacological drugs, frozen in liquid nitrogen and kept at −80°C for subsequent RNA extraction or fixed with 4% paraformaldehyde in MOPS buffer overnight at 4°C and then stored in 70% ethanol at −20°C until use.

Pharmacological treatments

Request a detailed protocol

Amphioxus embryos were treated at different developmental stages with the Nos inhibitor 1-[2-(trifluoromethyl)phenyl]−1H-imidazole (TRIM), with the RALDH inhibitor N,N-diethylaminobenzaldehyde (DEAB), with the RA antagonist BMS009 and with all-trans RA. All the drugs were dissolved in dimethyl sulfoxide (DMSO), and control embryo groups for each treatment were prepared adding an equal amount of DMSO. For TRIM treatments, a final concentration of 100 µM was used. For RA treatments, a final concentration of 10−6 M was used. All the treatments were performed in biological triplicates.

For rescue experiments, embryos at 24 hpf were treated simultaneously with a combination of 100 µM TRIM and 25 µM DEAB, or 100 µM TRIM and 10−6 M BMS009. At 30 hpf they were rinsed in filtered seawater and allowed to develop until the 72 hpf stage when the phenotype was observed. The experiment was performed in biological duplicates.

Imaging

Request a detailed protocol

Control and TRIM-treated larvae at 72 hpf were stained with DAPI. A high-resolution Z-stack was acquired using a Zeiss confocal microscopy LSM 800, and a medium speed fast interactive deconvolution was applied. The 3D reconstruction was made employing Imaris 9.3.1 software; different larval body structures have been stained using the following five color blindness-friendly colors: #A6D854 green; #E78AC3 violet; #FFD92F yellow; #8DA0CB blue; #FC8D62 orange. Pharynx and body length measurements were performed on 72 hpf larvae captured with Axio Imager.Z2 microscope using a 10× objective, and employing the Ruler tool in Photoshop CS5 with a digital zoom of 50%. The pharynx was measured from the most anterior part of the pre-oral pit to the most posterior part of the first pharyngeal slit. An unpaired t-test was applied for the statistical analysis.

Fluorimetric determination of endogenous NO concentration

Request a detailed protocol

Control and TRIM-treated frozen embryos at different developmental stages (from 24 hpf to 30, 36, and 42 hpf) were homogenized in PBS, sonicated (3 cycles of 1 min) and centrifuged at 20,000 g for 30 min at 4°C. The supernatants were collected for NO level analysis; 80 μl of each sample was incubated for 1 hr at room temperature in the presence of the nitrate reductase (0.06 U/ml), 2.5 μM FAD, and 100 μM NADPH. Then, 10 μl of 2,3-diaminonaphthalene (DAN) (0.05 mg/ml in 0.62 M HCl) were added and the samples were incubated for 15 min in the dark. The fluorescent product was stabilized in 1 N sodium hydroxide. Fluorescence was measured using the spectrofluorometer (Tecan) with excitation and emission at 365 and 425 nm, respectively, adding water up to a final volume of 200 µl. The results were normalized on the protein content. Total protein concentration was determined by the Bradford assay using a Bio-Rad Protein Assay Reagent (Bio-Rad) and bovine serum albumin as a standard.

RNA-seq analysis

Request a detailed protocol

Total RNA was extracted from embryos using the RNeasy Plus Mini Kit (Qiagen) after sample homogenization using the TissueLyser (Qiagen). The RNA integrity number (RIN) was assessed by using TapeStatio4200 while RNA concentration and purity were estimated using a Nanodrop spectrophotometer. Indexed libraries were prepared from 1 μg/ea purified RNA with TruSeq Stranded Total RNA Library Prep Kit. Libraries were quantified using the Agilent 2100 Bioanalyzer (Agilent Technologies) and pooled so that each index-tagged sample was present in equimolar amounts, with a final concentration of 2 nM. The pooled samples at a final concentration of 10 pM were subjected to cluster generation and sequencing using an Illumina NextSeq500 System in a 1×75 single read format (30 million reads). The raw sequence files generated (fastq files) underwent quality control analysis using FastQC. Transcriptome sequences were deposited in the NCBI Sequence Read Archive (SRA) database with the accession number: PRJNA630453.

Reads were mapped on the B. lanceolatum transcriptome (Oulion et al., 2012) using the aligner Bowtie2 with default parameters (Langmead and Salzberg, 2012). The read counts were obtained using IdxStats (Li et al., 2009; Cock et al., 2013) and the differential expression analysis between treated and wild-type embryos was performed using the R package DESeq2 (Love et al., 2014). Mapping and read counting were performed on the Roscoff ABiMS Galaxy platform.

Phylogenetic analysis

Request a detailed protocol

Protein alignments were generated with ClustalX program using the sequence database reported in Handberg-Thorsager et al., 2018. Phylogenetic trees were reconstructed using maximum likelihood inferences calculated with PhyML v3.0 (Guindon et al., 2010).

Gene expression analysis by whole-mount in situ hybridization and immunostaining

Request a detailed protocol

Hox1, Hox3, Meis, Cyp26.1, Cyp26.2, Cyp26.3, Pitx, Six1/2, IrxC, Cdx, and NosC were cloned in pGEM-T vector (Promega) using primers listed in Supplementary file 1. Antisense labeled riboprobes were synthesized and in situ hybridizations were performed as previously described (Annona et al., 2017; Carvalho et al., 2021). Whole-mount immunostaining of acetylated tubulin using monoclonal antibody produced in mouse (6-11B-1, Sigma) was performed as previously described in Coppola et al., 2018. Embryos were mounted in 80% glycerol in PBS and photographed using an Axio Imager.Z2 or a confocal microscope Zeiss LSM700.

Gene expression analysis by qRT-PCR

Request a detailed protocol

Total RNA was extracted from embryos at different developmental stages: 30, 36, 42, 48, and 72 hpf using the RNeasy Plus Mini Kit (Qiagen); 350–1000 ng of total RNA were retrotranscribed in cDNA which was used undiluted (only for Nos genes) or diluted 1:10 for the qRT-PCR. Each reaction contained a final concentration of 0.7 μM of each primer and Fast SYBR Green Master mix with ROX (Applied Biosystems) in 10 μl total volume. qRT-PCR were run in a ViiA 7 Real-Time PCR System (Applied Biosystems). The cycling conditions were: 95°C for 20 s, 40 cycles with 95°C for 1 s, 60°C for 20 s, 95°C for 15 s, 60°C 1 min, followed by a dissociation curve analysis using a gradient from 60°C to 95°C with a continuous detection at 0.015°C/s increment for 15 min. The results were analyzed using the ViiA 7 Software and exported into Microsoft Excel for further analysis. Each sample was processed in biological triplicates. The 2ΔΔCt method was used to calculate the relative gene expression. Ribosomal protein L32 (Rpl32), expressed at a constant level during development, was used as a reference gene for the normalization of each gene expression level (Annona et al., 2017). Primers used are listed in Supplementary file 1. For the statistical analysis, we used the GraphPad Prism software employing the paired t-test. Statistical significance cut-off criteria was set at p < 0.05.

Data availability

Sequencing data have been deposited in NCBI SRA under accession code PRJNA630453. All data generated or analysed in this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1 and 2.

The following data sets were generated
    1. Caccavale F
    2. Annona G
    3. Subirana L
    4. Escriva H
    5. Bertrand S
    6. D'Aniello S
    (2020) NCBI Sequence Read Archive
    ID PRJNA630453. Crosstalk between Nitric Oxide and Retinoic Acid pathways is essential for amphioxus pharynx development.

References

Decision letter

  1. Kristin Tessmar-Raible
    Reviewing Editor; University of Vienna, Austria
  2. Marianne E Bronner
    Senior Editor; California Institute of Technology, United States
  3. David Ferrier
    Reviewer; University of St Andrews, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper will be of interest to developmental scientists, particularly those interested in the evolution of developmental mechanisms, as well as signalling mechanisms. Through functional and quantitative studies, it reveals a new link between two signalling molecules, nitric oxide (NO) and retinoic acid (RA), in the development of the lancelet pharynx.

Decision letter after peer review:

Thank you for submitting your article "Crosstalk between Nitric Oxide and Retinoic Acid pathways is essential for amphioxus pharynx development" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: David Ferrier (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

All three reviewers agree that the research question under study, the requirement of the cross-talk between two important developmental signaling pathways- retinoic acid and the NO – for amphioxus pharynx development, is in principle interesting and could be suitable for publication in eLife.

However, at present there are major open concerns especially on the lack of statistical analyses, quality of data presentation and inconsistencies with previously published work, that need to be addressed.

Although it is the current policy of eLife to avoid additional experiments in revisions as much as possible, this is unfortunately likely impossible to fulfill with the current manuscript in order to bring it to a level that matches the standards of eLife. However, we think that in many cases an improvement of analyses and data presentation will likely already significantly improve the manuscript.

1) The presented study is a follow-up on a previous paper by the same lab (Annona et al., 2017; DOI:10.1038/s41598-017-08157-w). When comparing the work of this previous study with the current manuscript two major discrepancies are apparent:

– In Annona et al. the two drugs were used to inhibit NOS production: L-NAME and TRIM, while only one inhibitor was used in the present study. Furthermore, there appear to be discrepancies concerning the developmental time windows during which chemical disruption of NO signaling is effective described in the two publications. This needs to be clarified.

– The timing of NosA,B,C expression, the suggested regulation of NosA and B by retinoic acid (RA) and the detected presumptive RARE regulatory elements in the genome don't match. More specifically, NosA,B,C expression at 24 hours (or around this time point) was investigated by Annona et al., 2017. Based on these data, NosA is not expressed during development, whereas NosB and NosC are expressed. In the submitted manuscript, the authors show that NosA and NosB are upregulated upon RA treatment, whereas NosC shows no changes in expression. They therefore suggest that RA regulates NosA and NosB transcription. Since only NosB is expressed during the relevant timepoints at early development, the transcription of this gene could be under the regulation of RA. However, when the authors look into the retinoic acid response elements (RARE) in the genomic region of NosB, they only find a DR3, which is not the typical RARE. They find DR1 and DR5 (apart from DR3's), which are more typical RARE's, in the genomic region of NosA, but as mentioned this gene is not expressed during development. This makes the hypothesis of a direct regulation of NosA and NosB by RA during normal development unconvincing.

Can the author dissolve these apparent discrepancies?

2) The authors study the open chomatin structure at 8, 15, 36 and 60 hours, thus time points, which do not overlap with the drug treatment period (24-30 hours). They need to analyze the genome architecture at this time period.

3) The previous work by Annona et al. 2017 et al., shows that a major peak at NO levels occurs later than the chosen treatment window. How do NO levels during the time window of the experiment compare with other studies, i.e. is there evidence these are relevant levels? This is particularly noteworthy, as there is no control experiment showing that TRIM incubation affects NO levels or NO signaling during the incubation period (e.g. DAF-FM-DA staining or by NO quantification). It is therefore not possible to estimate the specificity of the resulting phenotypes.

We thus request from the authors to provide ISH patterns of all the Nos genes, as well as NO localisation from at least 2 timepoints (e.g. start and end of window) of the TRIM application window.

4) One overarching critique is that the general description of the figures and hence also the phenotypes are of poor quality. An improvement of this point will already majorly improve the entire manuscript.

– Figure 1A: Indicate developmental stages (N2, N4, T1, T2, T3, L0) together with the hours-post-fertilization (hpf) to facilitate the understanding of the treatment period with respect to the development of amphioxus.

– Figure 1B: Outline pharyngeal region e.g. with thin, dashed white lines in longitudinal and cross-sections and indicate relevant anatomical structures (club-shaped gland, endostyle, gill slits) e.g. with an arrow. Is the endostyle positioned more ventrally in TRIM treated larva?

Figure 1C: why are Cyp26.3, Rdh11/12.18 and Crabp shown in triplicates?

– Figure 1B: The 'digital sectioning' method using confocal imaging and reconstruction of nuclear stainings is not suited to characterize the phenotype. Due to the loss of signal in deeper regions, morphological structures (e.g. differences in pharyngeal and gill slit morphology, endostyl, club-shaped glands) are impossible to recognize.

– Figure 3B: the heads of these amphioxus should be annotated to indicate key structures for non-amphioxus specialists. Ideally the images should be higher magnification and resolution as well, as the morphology is currently not very clear.

– Figure 3A and B: Furthermore, the morphological differences between 'altered', 'partially recovered' and 'recovered' is unclear. Figure 3B does not help understanding changes as the pictures are too small to recognize any morphological details without staining, and no structures are indicated. It is also unclear how animals scored as 'altered', 'partially recovered' and 'recovered' differ in their morphological structures. And does 'recovered' mean that these embryos show an initial phenotype that then 'recovers' during development, or do they show a completely normal development?

5) Missing statistics/statistical information:

– Lines 85-89 (Figure 1): Where is the evidence that there is reduction in pharynx length? Where is the evidence for a smaller first gill slit? Measurements with a decent sample size and a basic statistical test must be provided.

– The description of ISH pictures in Figure 2A lacks any quantification and thus any information on the penetrance of the respective phenotypes are (as in Figure 3C). The lack of any 'negative control genes' (the large set of genes that, based on the RNASeq dataset, should not be affected) make it difficult to judge how specific changes in AP axis and RA pathway genes are.

– How did the authors obtain the qRT-PCR calculations? They need to clarify how they obtained the Fold changes shown in the histograms.e.g. by showing the maths behind the result when marking the cells in the excel sheet. The raw data for rpl32 is missing for Crabp in Figure 2B. The qPCR results in Figure 2B-E lack significance tests.

6) The RNA-Seq study needs improvements:

– The PCA (Figure S1C) shows no concordance among control samples or treated samples. Also, the histogram shows a clustering of replicates, and NOT of 'treated' and 'control' samples. This casts doubts on the quality and validity of the RNASeq dataset. These doubts are not removed by the current validation experiments, as these experiments tested only significantly upregulated genes by RNA-Seq, while downregulated and non-significant genes as 'controls' are missing. These additional controls are necessary to assess the validity of the RNA-Seq data.

7) More information about the details of the ATACseq and ChIPseq data used, as well as the general RA responsive elements prediction is required.

– For example, in what amphioxus samples (and treatments if any) are these ATACseq and ChIPseq signals seen? There is some detail provided in the Methods section, but something is odd here and perhaps needs some further explanation. Since the two relevant Nos genes are supposedly not active during development then why do they have ATACseq and ChIPseq signals from embryo and larval samples? Why should these two Nos genes have apparently active regulatory elements focused on RAREs when the genes are not normally expressed under the control of RA, but only become active when exogenous RA is applied? We may well have missed something in the logic here, but this merely shows that the current level of explanation is insufficient.

– The analysis of RA responsive elements lacks statistical analysis and depth. It is left unclear how many RAREs would be expected by chance on a 52kb resp. 25kb locus. In addition, the authors include all ATAC-Seq peaks from stages ranging between 8h and 60hpf, while the window of RA responsiveness has been tightly restricted to the 24h-30hpf window. Also, as NosC expression levels stay constant upon RA incubation, it would be crucial to know if the NosC locus lacks any open RARE sites (as would be expected).

– The authors use NHR-SCAN tool to predict putative direct repeats binding sites in the genomic sequence of NosA and NosB. Which consensus sequence does the program follow? It appears that it does not follow the consensus sequence for typical RARE ((A/G)G(G/T)TCA), since the sequence for DR1 deviate from this sequence?

DR1, DR2 and DR5 are the commonly described binding RARE's for the RAR/RXR heterodimers. Further, DR8 has been described as retinoic acid dependent regulation of gene transcription through RAR/RXR (Moutier et al., 2012). The authors need to provide clarification which are the most commonly used RARE's of the DR's detected.

– Please also mention if RAREs fall within an intron in the genomic regions of the Nos genes, since the transcriptional regulation through RARE is often associated to introns.

8) Information on the concentration dependency of compounds used in the rescue experiment is lacking. Please explain why the BMS009 concentration used here (10exp-6 M) is 10x higher than the highest concentration used in the original publication on amphioxus pharynx development (Escriva et al., Development 2002).

9) There are multiple cases of incorrect labels/statements, which give the impression of a lack of vigorous cross-checking of the manuscript. This must be improved:

– Figure 1A: Red/green labels are swapped for wildtype phenotype (green) vs altered phenotype (red).

– Figure 1A: Line 92: 24 hours should be 18 hours.

– Line 96: the critical time for NO action, judging from the TRIM treatments, is from 24-42 hpf, as 6-hour treatment windows spread throughout this period give a high level of altered phenotypes. The statement on line 96 is thus not correct.

The white bar in Figure 2D looks like an attempt to show that y-axis values between 5 and some other non-indicated value have been omitted. Clarify what it is exactly supposed to show and do not draw it over the error bars.

– Line 254:

Correct to "important to improve"

– Figure 1 figure legend: in vivo in italic.

– Line 100: remove dot after Figure

– Line 105: remove space after Figure 1

– Line 135: write iii. instead of iii)

– Figure legend Figure supplement 1:

C. should be C)

Blu should be Blue

– Figure 2A:

To be consistent with the remaining figures, please indicate arrowheads at the posterior position of Cyp26.2 – even though no change in AP expression is observed.

Figure legend for Figure 2:

For clarity, I would suggest to define the drug treatment window for B-E: "…after 6 hours of pharmacological TRIM or RA treatments (24-30hpf) of:…"

pvalue should be p-value.

– figure supplement 3:

Panel B:

Write NosA in italic

Figure legend to Figure supplement 3:

pvalue should be p-value

– Line 201:

Dot is underlined. Remove underline.

– Line 306-307 and line 358-359:

Correct link to references.

– Line: 319-320:

Indicate which retinoic acid isoform was used for the study.

– Line 391-392:

Indicate type of t-test and data entry format.

10) A summary drawing of the regulatory loop between NO and RA would be informative, also indicating the known target genes (from this study).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Crosstalk between Nitric Oxide and Retinoic Acid pathways is essential for amphioxus pharynx development" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Mette Handberg-Thorsager (Reviewer #1); David Ferrier (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

All three reviewers agreed that the revisions have substantially improved the manuscript. The extent of additional experiments, even including the establishment of a new technique for NO measurements in amphioxus (DAN measurements) is very positively remarkable. Furthermore, the rescue experiments in which the authors reduced RA signaling alongside inhibiting NO signaling provides a very important confirmation of the NO-RA signaling pathways crosstalk.

However, there is still some disagreement among the reviewers, if all comments were sufficiently addressed. It might be that the remaining concerns are simply due to insufficient explanations. Thus, we agreed that no additional experiments are required, but we ask the authors to very carefully and in detail address the remaining concerns raised below and where necessary adjust the manuscript accordingly:

Essential revisions:

1) The authors contradict themselves in the expression of the NosB gene. They state in the present author response letter: "Nevertheless, we confirmed that NosA and NosB are not expressed at these stages…." This is a direct contradiction to Figure 2 of Annona, G et al., 2017.

The reviewers and RE are aware that further research into a topic can lead to the realization that previously published data (even if acquired with all best practice and controls) are incomplete or even incorrect. However, if this happens then this needs to be transparently clarified in the following work.

2) Depending on what now really is the case with the expression of NosB, a further discussion by the authors on how the chosen TRIM drug treatment period (24-30 hpf) makes biological sense is required.

– Under normal conditions, NosA is not expressed during the developmental period shown to be affected by an inactivation of the NOS protein by TRIM incubation. NosB is also not expressed or only very weakly. This suggests either that low levels of the NOS protein are sufficient to produce the right amount of NO at 24 hpf or that the turnover of the NOS protein is slow and still present at 24 hpf (although translated at earlier stages, where NosB expression is higher (shown for 10 hpf in Annona et al., 2017)). NO itself is probably not stable enough to stay in the tissue. The authors should discuss this point.

– NosA and -B expression increases after RA incubation at developmental stages, where the genes are normally not expressed or only lowly expressed. Does this mean that a possible regulation, direct or indirect, of Nos expression by RA is not occurring under normal developmental conditions? Could it indicate that this part of the regulatory loop potentially could be used at other developmental stages? – e.g. regulating NosB expression during blastula/early neurula stages or regulating NosA expression in adults (according to the expression levels published in Annona et al., 2017)? Or is this part of the regulatory loop only activated when an NO/RA unbalance occurs? NosC genomic region has many RARE's, but is not regulated by RA at the developmental time, which the authors have analyses. Maybe NosC could be regulated by RA earlier or later in development? Again, the authors should discuss this point.

3) Related to the point 2 above- In answer to the discrepancy between the previous Annona paper and the current manuscript with regards to the differing developmental windows that are sensitive to TRIM treatments, the authors have explained in their response why this is, but not clearly described this in the revised manuscript. It is important to make it clear to readers that the currently reported windows are the correct ones. Without such an explicit statement that the previous Annona work is incorrect in this regard, these important details will be confusing to readers who are trying to follow the work from this lab. It has clearly confused the referees.

4) RAREs: The authors state that "Moreover, we searched in a number of genomic fragments (50 kb long) randomly chosen and found a comparable number of putative RAREs to Nos genes loci. »

This makes it very clear that there is no significant enrichment of RAREs in the Nos genes and hence the data must not be presented as support for a regulation by RA. So if the authors choose to still include this observation, it has to be presented as it is: as non-significant. For this reason, a statement such as 'RA regulates the transcription of Nos genes, probably through RA Response Elements found in their regulatory regions' (abstract) has to be removed and the according sections in the main text re-written or removed.

5) Figure 1 —figure supplement 1A (+ lines 90-91):

– Here, the effect of TRIM is evaluated by measuring the pharyngeal length. Optimally, the total body length should also be taken into account, so the comparison would be of the pharyngeal length/the total body length. What if the larvae are overall shorter, then maybe there is no difference in the pharyngeal length with respect to the total body length in the TRIM treated larvae (but yes in the morphology and position of the pharyngeal structures).

6) In Figure 1-Supplement 1B: Clearly indicate at which time point the CTRL was taken. Furthermore, the most appropriate way to perform this experiment would be to take a control sample at the beginning and the end of each the different time windows of treatment. Ideally you could add this. If not, please carefully explain why this was not done and why the data are nevertheless meaningful.

7) Figure 1B: is the scale of these reconstructions the same between panels? It looks as though it is not, and that the TRIM-treated images might have been slightly enlarged relative to the controls. If this is the case, the authors need to change this so that everything is at the same scale. As currently presented, it is difficult for readers to appreciate the shortening of the pharynx region in TRIM-treated larvae (it certainly does not look like 40% shortening in Figure 1B).

8) Line 105-106: The authors claim that the 'critical time of its [NO] action is restricted approximately to the first six hours (24-30hpf)'. Given that incubations starting at 36h still result in 75% defective embryos, this claim is factually wrong.

9) Figure 1-supplement 4: is it correct that the authors compared Cdx, Six1/2 and IrxC in the RNAseq and RT-PCR panel, but then Cdx, Six1/2, Pitx in the ISH panel, or should this be the same three genes in both panels?

10) With the new inclusion of genes that are supposedly not regulated by NO/RA in the stages of development examined in this revised manuscript, something striking has become apparent. Is NO inhibition with TRIM supposed to be posteriorizing the embryos as a whole, or in a more restricted fashion (either in space or time)? If it were a general posteriorization, why then do Cdx, Pitx and Six1/2 not shift? Particularly since amphioxus Cdx is a gene that has previously been shown to be sensitive to changes in RA levels (Osborne et al., 2009, Developmental Biology 327: 252-262). Is this simply due to not enough time elapsing between the TRIM treatments performed here, the response of the first suite of genes involved in RA signaling, but then not the next tranche of responsive genes downstream of RA? This, however, does not seem to be the entire (or even likely) explanation, as the authors RA manipulations supposedly phenocopy the TRIM treatments.

Instead, do the different effects of manipulating RA levels in the current study relative to previous studies reflect the different developmental times that RA levels are altered between studies, thus producing shifts in A-P regionalised genes to different extents or in different regions between different studies? Perhaps this relates to the temporal shifting of the RA production centre as amphioxus development proceeds, this shifting process already being briefly mentioned by the authors, and this could act in conjunction with the NO signaling centre not shifting but remaining in the pharyngeal region (if this is the case)?

In this context, the comment on line 225 about "posteriorization of the larval body plan" is misleading if the shift is not actually in the entire body plan but only in the pharyngeal region.

These observations warrant a brief discussion of A-P patterning in amphioxus to clarify more precisely how the authors think the phenotypes they observe are generated in the context of amphioxus development more widely, and why their phenotype seems to be restricted to the pharynx region when RA-linked phenotypes are much more widespread in amphioxus.

Further suggestions for improvement:

Figure 4B:

A modification of the summary figure (Figure 4) would facilitate the reading of this figure. Now a decrease or an increase of a molecule (NO, RA) or a gene product is indicated in many ways: thickness of the arrows between two components, the size of the molecule or gene product and the addition of red or green arrows to show a decrease or an increase, respectively. The authors need to make this figure clearer e.g. through 1) showing all connecting arrows in one size and 2) use only one type of arrows, so no arrows with dashed lines (or explain better in the figure legend). A distinction in arrows could be based on the process (enzymatic process (Nos -> NO and Aldh1a -> RA) vs transcriptional regulation (NO -> Aldh1a, RA -> Nos and RA -> genes of the RA machinery)). 3) Choose either to show a decrease or an increase by the size of the molecules and gene products OR by adding the green (increase) and red (decrease) arrows, but not both. It's to much information. 4) Remove the thick arrow between Figure 4B and 4C.

– The authors need to indicate what causes the decrease in NO levels in Figure 4B e.g. by placing a cross over the arrow between Nos and NO to illustrate an inactivation of Nos.

– add a question marker to the arrow between NO and Aldh1a to indicate that it is not known exactly how this regulation takes place.

– instead of "RA levels reduction" maybe write "retinoid metabolism". That RA levels are reduced is indicated with the arrow.

– For consistency, the authors could write "Normal state" over Figure 4C as for Figure 4A, or "Recovery of normal state".

line 87:

– regarding the treatment window from N2 to T2. Shouldn't this be N2 to T3?

line 90-94:

– revise here all references to the figure e.g. in line 92 and 93, the reference should be Figure 1B panel I-II and V-VI (and not Figure 1B, panel I-II and III-IV). References to part of the figure 1B are missing in the text (Figure 1B III, IV, VIII). The authors should include these e.g. referring to the other matching panels, thus refer to panel I-III, II-IV, V-VII and V-VIII together, respectively.

line 99:

– add figure reference to Figure 1A after "…70% affected larvae" to facilitate reading.

line 101:

The authors write that 'NO levels ….dropped to 40% in comparison to controls'. As the '40%' is based on comparing average concentrations, the authors should report a range rather than an exact number.

line 135:

(Figure 2A, D) and not "(Figure 2A, B)".

line 194:

correct to "described"

line 322-324:

– Add "shown indirectly" to be clear: "A reduction of NO (Figure 4B), as shown by our results, induces an excess of RA, shown indirectly through the overexpression of Aldh1a."

line 346 Key Resources Table:

– remove the column "additional information" if there are no additional information.

line 660: write Cyp26.2 in italic

Figure 1 —figure supplement 1A.

– length not "lenght" on the y-axis

There is still some further editing and proofing of the written English required. There are a handful of odd word choices (e.g. change sensible/insensible to sensitive/insensitive) and slightly awkward sentence constructions.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Crosstalk between Nitric Oxide and Retinoic Acid pathways is essential for amphioxus pharynx development" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Mette Handberg-Thorsager (Reviewer #1); David Ferrier (Reviewer #2).

All reviewers agree that the authors have sufficiently addressed their major concerns and that no further full cycle of revisions is necessary. However, reviewers 1 and 3 very constructively point out several aspects that we would ask the authors to carefully consider for implementation when preparing the final version of their manuscript.

Reviewer #1:

Recommendations for the authors on the revised manuscript:

The manuscript reads very well now, but I think some of their main suggestions and discussions have to be revised to support the main message of the manuscript. Here I'm referring to the following observations and statements by the authors:

1. NosC is responsible for the production of NO from N2 to L1 larval stage (line 101-103).

2. RA and TRIM treatment experiments cause an increase in NosA and NosB expression, but not in NosC (line 194-205, Figure 2E) – why they conclude:

"A possible explanation could be that while in normal conditions RA does not regulate NosA and NosB expression, it directly or indirectly regulates such gene expression in the case of a NO/RA inbalance as a way to restore the correct NO/RA ratio."(line 343-345)

Based on these conclusions, the title of the manuscript "Crosstalk between Nitric Oxide and Retinoic Acid pathways is essential for amphioxus pharynx development" is not physiological relevant. According to the authors, the crosstalk only occurs when an NO/RA unbalance takes place. To me, this is a problem.

I think the authors are missing to include another plausible possibility, which would give biological meaning to the work and which they actually do discuss in the Response to Review Comments: NosB could also contribute to NO production during normal pharynx development (this could still be together with NosC). The results from Annona et al. 2017 supports this: Expression levels validated by ddPCR of NosA, NosB and NosC are shown in Figure 2h-h'. When expressed, both NosA and NosB show ~20x higher expression levels than NosC – also when comparing expression levels between NosB and NosC at 24 hpf, which is when they initiated the 6 hours TRIM treatment. Now of course, it would be interesting to have the in situ hybridisation for NosB at 24 hpf. In Annona et al., 2017 they show the expression pattern until mid-gastrula stage and not during the Nerula period (TRIM treatment starts at N2). In the Response to Review Comments, the authors declare that they did the in situ hybridisation for NosB at 24 hpf and didn't detect any pattern. They argue that this could be because of a broader weaker expression. This makes sense. I think they should mention this in the manuscript. And also that the NosB expression during mid-gastrula was a broad expression in the ectoderm, next to the endoderm (where I guess the pharyngeal tissues develop from). Including the possibility that NosB could contribute to NO production during pharynx development would give a biological meaning to the conclusion that there is a crosstalk between NO and RA pathways during amphioxus pharynx development. And not that the crosstalk only takes place during a NO/RA inbalance relying on the activity of NosA and NosB, which are normally not expressed during pharynx development (as stated in the current version of the manuscript, but only partially true as mentioned above).

In this regard, maybe a short discussion on NO production site (based on NosB and NosC expression) vs NO target tissues (Aldh1a expression) could help clarify the above concern.

Reviewer #2:

I am happy to now endorse publication of this manuscript. The authors have addressed the previous queries that I had, and I thank them for their engagement with this process.

Reviewer #3:

The authors have addressed several key weaknesses of the manuscript:

- The confusion and discrepancies between the Annona et al. 2017 paper and the current manuscript have been satisfactorily addressed.

- The authors have removed a non-significant in silico prediction of potential RARE binding sites from the abstract, results and discussion.

- They have also clarified the discrepancies between different NO inhibitors between the Annona et al. 2017 paper and the current manuscript.

https://doi.org/10.7554/eLife.58295.sa1

Author response

1) The presented study is a follow-up on a previous paper by the same lab (Annona et al. 2017 ; DOI:10.1038/s41598-017-08157-w). When comparing the work of this previous study with the current manuscript two major discrepancies are apparent:

– In Annona et al. the two drugs were used to inhibit NOS production: L-NAME and TRIM, while only one inhibitor was used in the present study. Furthermore, there appear to be discrepancies concerning the developmental time windows during which chemical disruption of NO signaling is effective described in the two publications. This needs to be clarified.

We thank the reviewers to raise this point and will try to clarify it.

1. In our previous publication, Annona et al., (2017), we tested the efficiency and toxicity of two different inhibitors of NOS activity: L-NAME (an analog of arginine that is a NOS substrate) at 1 mM (best concentration) gave poor consistent results, while TRIM at 100 μm (best concentration) gave a higher rate of reproducible phenotypes. We observed this during several amphioxus spawning seasons, and therefore decided to invest our efforts on TRIM treatments in order to uncover the characterization of the developmental mechanism downstream of NO.

2. Our previous conclusion about the putative temporal window in which NO acts (Annona et al., 2017) was based on preliminary experiments that where not reported in Results section, but in a single sentence in the discussion. During the following amphioxus spawning seasons the short-term TRIM treatments were performed in a systematically manner on several batch of embryos and using different stocks of the drug. This allowed us to be more confident about the obtained results to which we dedicated more work and on which we decided to build the RNAseq experiments and analysis.

– The timing of NosA,B,C expression, the suggested regulation of NosA and B by retinoic acid (RA) and the detected presumptive RARE regulatory elements in the genome don't match. More specifically, NosA,B,C expression at 24 hours (or around this time point) was investigated by Annona et al., 2017. Based on these data, NosA is not expressed during development, whereas NosB and NosC are expressed. In the submitted manuscript, the authors show that NosA and NosB are upregulated upon RA treatment, whereas NosC shows no changes in expression. They therefore suggest that RA regulates NosA and NosB transcription. Since only NosB is expressed during the relevant timepoints at early development, the transcription of this gene could be under the regulation of RA. However, when the authors look into the retinoic acid response elements (RARE) in the genomic region of NosB, they only find a DR3, which is not the typical RARE. They find DR1 and DR5 (apart from DR3's), which are more typical RARE's, in the genomic region of NosA, but as mentioned this gene is not expressed during development. This make the

hypothesis of a direct regulation of NosA and NosB by RA during normal development unconvincing.

Can the author dissolve these apparent discrepancies?

We agree that this part was not clear enough and we improved it according to the reviewer’s recommendations. First, regarding the atypical RAREs found in the previous version, we realized that several RAREs were indicated in reverse strand, therefore not recognizable at first sight, while others were of unconventional types, although possibly real RAREs. To improve this and to be on the safe side, we now show exclusively typical DR RAREs, predicted with NHscan using a DR state of 0,005.

Moreover, we now also include the analysis of NosC locus that we intentionally did not include previously because the level of expression of this gene was unchanged after RA treatment. The output is that we also found several RAREs in the NosC locus that are now presented in Figure 2—figure supplement 1B. Despite this, functional experiments with RA addition show that, unlike the other two genes, NosC is not regulated by RA.

In addition, the message of this study is that RA and NO signals are finely tuned to each other. In other words, the fact that a gene (i.e. NosA) is not expressed under normal conditions during development does not mean that in extraordinary situations where an excess of RA may generate a lethal phenotype, this gene cannot be over-expressed to compensate for the excess of RA. On the contrary, the presence of RAREs that putatively control the expression of the Nos genes (whether they are expressed or not in normal conditions), goes in this direction of strengthening the cross regulation of these two signals so that the level of them is the right level and that the phenotype of the larva is viable

Our decision to include DR3 as a RARE is supported by previous work, as for example: “Retinoic acid response element in HOXA-7 regulatory region affects the rate, not the formation of anterior boundary expression. Kim MH et al., Int J Dev Biol. 2002 May;46(3):325-8. PMID: 12068955.”

2) The authors study the open chomatin structure at 8, 15, 36 and 60 hours, thus time points, which do not overlap with the drug treatment period (24-30 hours). They need to analyze the genome architecture at this time period.

We understand that it might have been unclear why we used ATAC-seq data. Our aim by looking at ATAC-seq and ChIP-seq data was to define open chromatin regions during development in the vicinity of Nos genes in order to reduce the search for RARE to putative enhancer regions. Even if the data available do not correspond to the developmental stages studied in detail in our work, they cover the main developmental stages and hence give us the opportunity to define at a large-scale open chromatin regions. If we would have undertaken new ATAC-seq experiments, which is out of the scope of this study, we would have looked not only at Nos genes locus but would have undertaken a whole genomic analysis which was not our objective here. However, we agree that such experiment would be extremely interesting and could be the focus of future studies.

3) The previous work by Annona et al. 2017 et al., shows that a major peak at NO levels occurs later than the chosen treatment window. How do NO levels during the time window of the experiment compare with other studies, i.e. is there evidence these are relevant levels? This is particularly noteworthy, as there is no control experiment showing that TRIM incubation affects NO levels or NO signaling during the incubation period (e.g. DAF-FM-DA staining or by NO quantification). It is therefore not possible to estimate the specificity of the resulting phenotypes.

We thus request from the authors to provide ISH patterns of all the Nos genes, as well as NO localisation from at least 2 timepoints (e.g. start and end of window) of the TRIM application window.

The fact that the pick of NO level was previously observed in larva does not mean that NO only acts at this stage. Indeed, it is well documented that NO acts at low concentrations. However, we thank the reviewers for this comment and we undertook new experiments in order to demonstrate that TRIM affects NO levels. We used DAN assay for NO quantification in control and TRIM-treated embryos. DAN assay is more sensitive than the Griess assay previously used by us and other authors. Data analysis from TRIM treatments at 24-30 hpf, 24-36 hpf, and 24-42 hpf highlighted that TRIM-treated embryos have a 60% reduction of endogenous NO compared to controls.

We included the paragraph:

“Fluorimetric determination of endogenous NO concentration” in the methods section and added it in the first paragraph of Results as follow: “Endogenous NO levels tested after TRIM incubation in following intervals 24 to 30 hpf, 24 to 36 hpf and 24 to 42 hpf, dropped to 40% in comparison to controls (Figure 1—figure supplement 1B).”

Moreover, as request we performed ISH of Nos genes at the two time points (24 and 42 hpf). Nevertheless, we confirmed that NosA and NosB are not expressed at these stages and the increase of expression after TRIM treatment was not sufficient to be appreciated by ISH, since it is not a quantitative technique. For NosC expression pattern we did not appreciate any difference in controls and TRIM-treated embryos, and in conclusion the pattern is identical to the one previously published (Annona et al., 2017). For this reason we do not think necessary to show these findings in a new figure of the manuscript.

4) One overarching critique is that the general description of the figures and hence also the phenotypes are of poor quality. An improvement of this point will already majorly improve the entire manuscript.

We have greatly improved the figures presenting the phenotypes. In Figure 1, we now show the different pharyngeal structures of larva after 3D reconstruction from confocal nuclei imaging and we have highlighted the pharyngeal structures in colour in Figure 3. We hope that now the phenotypes can be clearly visualized even for non-specialists of the amphioxus animal model.

– Figure 1A: Indicate developmental stages (N2, N4, T1, T2, T3, L0) together with the hours-post-fertilization (hpf) to facilitate the understanding of the treatment period with respect to the development of amphioxus.

We agree and improved the figures by using a modern nomenclature stage system that was recently published:

“An updated staging system for cephalochordate development: one table suits them all by Carvalho et al., bioRxiv 2020.05.26.112193”.

We also added the following reference to the Materials and methods section.

– Figure 1B: Outline pharyngeal region e.g. with thin, dashed white lines in longitudinal and cross-sections and indicate relevant anatomical structures (club-shaped gland, endostyle, gill slits) e.g. with an arrow. Is the endostyle positioned more ventrally in TRIM treated larva?

We now indicate relevant anatomical structures with different colours in the 3D reconstruction: purple = pre-oral pit, red = mouth, light blue = endostyle, yellow = club-shaped gland, green = gill slit.

We noticed thanks to these reconstructions that, as suggested by the reviewer, the endostyle is more ventral in TRIM-treated larva than in controls. We hence included this point in the description of the phenotype in the Results paragraph “NO controls pharyngeal development during early neurulation in amphioxus”, as follows: “…iii. an incomplete formation of the club-shaped gland and of the endostyle, the latter being positioned more ventrally than in controls (Figure 1B)”.

Figure 1C: why are Cyp26.3, Rdh11/12.18 and Crabp shown in triplicates?

We would like to thank the reviewer for this comment. It was indeed a mistake that has been corrected in this version.

– Figure 1B: The 'digital sectioning' method using confocal imaging and reconstruction of nuclear stainings is not suited to characterize the phenotype. Due to the loss of signal in deeper regions, morphological structures (e.g. differences in pharyngeal and gill slit morphology, endostyl, club-shaped glands) are impossible to recognize.

Taking advantage of the previous Z-stack confocal acquisitions, we performed a 3D reconstruction in which we highlighted the different anatomical structures of interest using a colour code. We agree that the present representation is better suited to characterize the phenotype of TRIM-treated larvae. We modified this point in the text, methods and figure 1 legend, accordingly.

– Figure 3B: the heads of these amphioxus should be annotated to indicate key structures for non-amphioxus specialists. Ideally the images should be higher magnification and resolution as well, as the morphology is currently not very clear.

We improved substantially Figure 3B, as suggested.

– Figure 3A and B: Furthermore, the morphological differences between 'altered', 'partially recovered' and 'recovered' is unclear. Figure 3B does not help understanding changes as the pictures are too small to recognize any morphological details without staining, and no structures are indicated. It is also unclear how animals scored as 'altered', 'partially recovered' and 'recovered' differ in their morphological structures. And does 'recovered' mean that these embryos show an initial phenotype that then 'recovers' during development, or do they show a completely normal development?

As stated above, we improved the figure presentation and now indicate key anatomical structures. Moreover, we hope we made the phenotype classification clearer by describing in the text the phenotypes associated with each category: “rescue”, observation of wild type phenotype; “partial rescue”, observation of an intermediate phenotype with a length and structure organization of the pharynx similar to control, but with a smaller mouth compared to wild-type larva; “altered”, having an affected phenotype as descried in TRIM-treated larva.

Regarding the recovery of the development, we observed a recovery of the normal morphology at the larva stage as a consequence of the fact that embryos follow a completely normal development as demonstrated by the in situ hybridization of Figure 3C.

5) Missing statistics/statistical information:

– Lines 85-89 (Figure 1): Where is the evidence that there is reduction in pharynx length? Where is the evidence for a smaller first gill slit? Measurements with a decent sample size and a basic statistical test must be provided.

We systematically measured the length of the pharynx in 20 wild type larvae and 20 TRIM-treated larvae. As shown in Figure 1—figure supplement 1A we observed a reduction of the pharynx length of about 40%, significantly supported by the paired t-test statistical analysis. These data are now included in the text in the first paragraph of the Results section. We described how measurements were carried out at the end of the Pharmacological treatment paragraph in the Materials and methods section.

Moreover, thanks to the 3D reconstruction we realized that the first gill slit is not smaller in TRIM treated larvae as we declared, so we eliminate this from the description of the phenotype in the first paragraph of the Results.

– The description of ISH pictures in Figure 2A lacks any quantification and thus any information on the penetrance of the respective phenotypes are (as in Figure 3C). The lack of any 'negative control genes' (the large set of genes that, based on the RNASeq dataset, should not be affected) make it difficult to judge how specific changes in AP axis and RA pathway genes are.

We added the request information in the Figure 2A legend. The penetrance of the signal is of 100%. We used 15 embryos/larvae for each probes, all of them presenting the same pattern. Although it is not common to test the expression of “negative control genes” in the context of validation of RNA-seq data, we included as asked by the reviewer the ISH of three negative control genes: Six1/2, Cdx, Pitx in Figure 1—figure supplement 4D.

– How did the authors obtain the qRT-PCR calculations? They need to clarify how they obtained the Fold changes shown in the histograms.e.g. by showing the maths behind the result when marking the cells in the excel sheet. The raw data for rpl32 is missing for Crabp in Figure 2B. The qPCR results in Figure 2B-E lack significance tests.

For the qRT-PCR calculations we used the 2ΔΔCt method. We added this information in the Materials and methods section. Moreover, we converted the Source data 2 file in a calculation sheet (exel).

We added the Rpl32 row data for Crabp in Source data 2 file (relative to Figure 2B).

For the qRT-PCR results we added the information on statistical significance in Figure 2B-E and in the legend: The statistical significance is indicated: * = p-value<0,05; ** = p-value<0,01; **** = p-value<0,0001.

6) The RNA-Seq study needs improvements:

– The PCA (Figure S1C) shows no concordance among control samples or treated samples. Also, the histogram shows a clustering of replicates, and NOT of 'treated' and 'control' samples. This casts doubts on the quality and validity of the RNASeq dataset. These doubts are not removed by the current validation experiments, as these experiments tested only significantly upregulated genes by RNA-Seq, while downregulated and non-significant genes as 'controls' are missing. These additional controls are necessary to assess the validity of the RNA-Seq data.

The PCA (Figure 1—figure supplement 2C) shows a discrimination between "control" samples (in red) and "treated" samples (in green) along the abscissa: red dots are on the left (negative values), and green dots on the right (positive values). This means that the treatment condition is the main principal component (PC1), explaining 47% of the variance between all samples.

We agree with the reviewer that the heatmap (Figure 1C, and Figure 1—figure supplement 2B) shows a clustering by replicate (i.e. eggs from a same female) and not by treatment condition. This is due to the particularity of our model: females are directly collected from the field and display a strong genomic variability. Our experiment has been designed to avoid any batch effect: for each biological replicate, the two treatment conditions were applied. DEseq2 takes into account such design when calculating adjusted p-values with Benjamini-Hochberg false discovery correction (Love et al. 2014). In addition, we underlie that, when comparing biological replicates: for a given sample, the samples of the same treatment condition are closer than the samples from the other treatment condition.

Thus, we argue that the validity of our RNAseq dataset is not debatable on this aspect.

*Love, Michael I., Wolfgang Huber, and Simon Anders. "Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2." Genome Biology 15.12 (2014): 550.

However, in order to further validate the RNAseq data, we included the following additional controls: 1. qRT-PCR of downregulated genes: FoxE, RunX, Dmrt and Pdgfr, and 2. qRT-PCR of non affected genes: IrxC, Six1/2 and Cdx. We reported these additional results in Figure 1—figure supplement 4B and C.

7) More information about the details of the ATACseq and ChIPseq data used, as well as the general RA responsive elements prediction is required.

– For example, in what amphioxus samples (and treatments if any) are these ATACseq and ChIPseq signals seen? There is some detail provided in the Methods section, but something is odd here and perhaps needs some further explanation. Since the two relevant Nos genes are supposedly not active during development then why do they have ATACseq and ChIPseq signals from embryo and larval samples? Why should these two Nos genes have apparently active regulatory elements focused on RAREs when the genes are not normally expressed under the control of RA, but only become active when exogenous RA is applied? We may well have missed something in the logic here, but this merely shows that the current level of explanation is insufficient.

We now included in M and M information useful to data access:

“We used ATAC-seq and ChIP-seq data already published by Marlétaz et al., 2018 (available in http://amphiencode.github.io/).”

Moreover, it should be noted here that ATAC-seq peaks, are usually seen as “active regions”, using the term "active" as a region that positively regulates the expression of the nearby gene. However, gene expression regulation depends on a complete regulatory landscape, containing from few to many different interactions between the enhancers and the promoter (see Bolt CC, Duboule D. The regulatory landscapes of developmental genes. Development. 2020;147(3):dev171736. doi: 10.1242/dev.171736.).

The identification of “active” chromatin regions (both positive or negative in the control of gene expression) is extremely difficult and the pleiotropic effect of the different enhancers on a given promoter can be as unique as the many genes present in a given genome. For example, we showed recently that in a counterintuitive way, the restriction of an expression pattern of a paralogue after a gene duplication, is produced mainly through an increase and not a decrease of the number of enhancers controlling this expression (Marlétaz et al., 2018 Nature). In other words, the presence of ATAC-seq peaks, and therefore of putative regulatory regions, in the proximity of the Nos genes, which are not expressed during development, suggests that the regulation (lack of expression) of these genes is very important for the correct development of the embryo. In addition, the presence of RAREs in these putative regulatory zones, may mean, as we have explained before, that these genes must be finely regulated against a potentially lethal increase in RA. Of course, this explanation is purely speculative and its demonstration requires an in-depth study of each enhancer and the possible epistatic effects among them for each of the Nos genes. This study, although extremely interesting, is evidently outside the scope of this manuscript.

– The analysis of RA responsive elements lacks statistical analysis and depth. It is left unclear how many RAREs would be expected by chance on a 52kb resp. 25kb locus. In addition, the authors include all ATAC-Seq peaks from stages ranging between 8h and 60hpf, while the window of RA responsiveness has been tightly restricted to the 24h-30hpf window. Also, as NosC expression levels stay constant upon RA incubation, it would be crucial to know if the NosC locus lacks any open RARE sites (as would be expected).

As stated in the answer to previous comment, the analysis of RAREs in the NosC locus is now included.

Regarding the time window of ATAC peaks, as clarified in the comment 2, they cover the main developmental stages and hence give us the opportunity to define at a large-scale open chromatin regions.

Moreover, we searched in a number of genomic fragments (50 kb long) randomly chosen and found a comparable number of putative RAREs to Nos genes loci. Nevertheless, although speculative, we think that RAREs highlighted in NosA and NosB loci are potentially functional because supported by our experimental evidences.

– The authors use NHR-SCAN tool to predict putative direct repeats binding sites in the genomic sequence of NosA and NosB. Which consensus sequence does the program follow? It appears that it does not follow the consensus sequence for typical RARE ((A/G)G(G/T)TCA), since the sequence for DR1 deviate from this sequence?

DR1, DR2 and DR5 are the commonly described binding RARE's for the RAR/RXR heterodimers. Further, DR8 has been described as retinoic acid dependent regulation of gene transcription through RAR/RXR (Moutier et al., 2012). The authors need to provide clarification which are the most commonly used RARE's of the DR's detected.

We used NHR-SCAN that follow ((A/G)G(G/T)TCA) consensus sequence and, as said above, some of DR sequences were reported in the first version of the manuscript in the opposite direction. We corrected this now.

We agree that the commonly described binding RARE's for the RAR/RXR heterodimers are DR1, DR2, DR3, DR5 and DR8, and therefore we decided to show those exclusively, since experimental proofs for the other DRs is poor.

– Please also mention if RAREs fall within an intron in the genomic regions of the Nos genes, since the transcriptional regulation through RARE is often associated to introns.

We now include the information regarding the exact position of each RARE element (see Figure 2—figure supplement 4B).

8) Information on the concentration dependency of compounds used in the rescue experiment is lacking. Please explain why the BMS009 concentration used here (10exp-6 M) is 10x higher than the highest concentration used in the original publication on amphioxus pharynx development (Escriva et al., Development 2002).

In Escriva et al., (Development, 2002) different concentrations of BMS009 were used (from 10-7 to 10-5 M) with a dose response result. Here, we used 10-6M BSM009 since this was the lowest concentration showing the highest phenotype penetrance.

9) There are multiple cases of incorrect labels/statements, which give the impression of a lack of vigorous cross-checking of the manuscript. This must be improved:

We have checked the whole manuscript and we hope we have now corrected all the mistakes.

– Figure 1A: Red/green labels are swapped for wildtype phenotype (green) vs altered phenotype (red).

We changed this as appropriate.

– Figure 1A: Line 92: 24 hours should be 18 hours.

Done.

– Line 96: the critical time for NO action, judging from the TRIM treatments, is from 24-42 hpf, as 6-hour treatment windows spread throughout this period give a high level of altered phenotypes. The statement on line 96 is thus not correct.

vThe white bar in Figure 2D looks like an attempt to show that y-axis values between 5 and some other non-indicated value have been omitted. Clarify what it is exactly supposed to show and do not draw it over the error bars.

– Line 254:

Correct to "important to improve"

Done.

– Figure 1 figure legend: in vivo in italic.

Done.

– Line 100: remove dot after Figure

Done.

– Line 105: remove space after Figure 1

Done.

– Line 135: write iii. instead of iii)

Done.

– Figure legend Figure supplement 1:

C. should be C)

Blu should be Blue

Done.

– Figure 2A:

To be consistent with the remaining figures, please indicate arrowheads at the posterior position of Cyp26.2 – even though no change in AP expression is observed.

Done.

Figure legend for Figure 2:

For clarity, I would suggest to define the drug treatment window for B-E: "…after 6 hours of pharmacological TRIM or RA treatments (24-30hpf) of:…"

pvalue should be p-value.

Done.

—figure supplement 3:

Panel B:

Write NosA in italic

The panel in this figure changed in the new version, anyway we followed the suggestion.

Figure legend to Figure supplement 3:

pvalue should be p-value

Done.

– Line 201:

Dot is underlined. Remove underline.

Done.

– Line 306-307 and line 358-359:

Correct link to references.

Done.

– Line: 319-320:

Indicate which retinoic acid isoform was used for the study.

We employed the “all-trans Retinoic Acid”, and added this information in Materials and methods.

– Line 391-392:

Indicate type of t-test and data entry format.

We employed the paired t-test for all our analysis: on measurements for the pharynx length, on fold changes for qPCR data, and on the % of Fluorescent Unit / μg of Proteins for the DAN assay.

10.) A summary drawing of the regulatory loop between NO and RA would be informative, also indicating the known target genes (from this study).

We completely agree that a summary drawing is needed, so we included it in this version of the manuscript as Figure 4. We accordingly modified the text in the discussions.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

1) The authors contradict themselves in the expression of the NosB gene. They state in the present author response letter: "Nevertheless, we confirmed that NosA and NosB are not expressed at these stages…." This is a direct contradiction to Figure 2 of Annona, G et al., 2017.

The reviewers and RE are aware that further research into a topic can lead to the realization that previously published data (even if acquired with all best practice and controls) are incomplete or even incorrect. However, if this happens then this needs to be transparently clarified in the following work.

We agree with the reviewer’s team that a detailed clarification is needed on this point.

In the Annona et al., (2017) we studied NosB expression using two approaches: ddPCR and WISH. We observed expression of NosB by ddPCR at gastrula 10 hpf (higher expression) and neurula 24 hpf (lower) stages. Nevertheless, we did not find any specific NosB signal by WISH at neurula 24 hpf stage, probably due to a widespread low level expression in many cells.

In our previous author response letter we have erroneously declared that NosB is not expressed in neurula at 24 hpf; in fact, we meant that we did not detect any specific NosB signal by WISH at that stage in both control and TRIM conditions.

2) Depending on what now really is the case with the expression of NosB, a further discussion by the authors on how the chosen TRIM drug treatment period (24-30 hpf) makes biological sense is required.

– Under normal conditions, NosA is not expressed during the developmental period shown to be affected by an inactivation of the NOS protein by TRIM incubation. NosB is also not expressed or only very weakly. This suggests either that low levels of the NOS protein are sufficient to produce the right amount of NO at 24 hpf or that the turnover of the NOS protein is slow and still present at 24 hpf (although translated at earlier stages, where NosB expression is higher (shown for 10 hpf in Annona et al., 2017)). NO itself is probably not stable enough to stay in the tissue. The authors should discuss this point.

We are sorry for the misunderstanding on this point. NosA is not expressed during development; while NosB is expressed at gastrula stage (10 hpf, G0) and very weakly at neurula stage (24 hpf, N2) (not detectable by in situ hybridization). NosC expression starts at neurula stage (N2) until larval stage (72 hpf, L1). We realized that, regarding the NosC expression, in the result section of the Annona et al., (2017) there is a wrong sentence “NosC expression starts at pre-mouth larval stage (48 hpf). “, although in the rest of the manuscript the description of the expression pattern is correct.

With the aim to clarify this point and to avoid confusion in the interpretation of the results presented in this work, we here show the expression pattern of NosC by fluorescent in situ hybridization [24 hpf (N2), 30 hpf (N4), 36 hpf (N5), 42 hpf (T0), 48 hpf (T1), see Figure 1—figure supplement 1]. Therefore, taking this into consideration we think that the TRIM drug treatment period we choose has a biological sense because it should suppress the NO production by NosC.

We added the NosC expression pattern in (Figure 1—figure supplement 1) and clarified the expression pattern of the three genes in the first paragraph of Results.

Of course, the presence of a stable protein, produced during an earlier developmental period but still functional in 24 hpf embryos, as proposed by the reviewer, is also conceivable.

– NosA and -B expression increases after RA incubation at developmental stages, where the genes are normally not expressed or only lowly expressed. Does this mean that a possible regulation, direct or indirect, of Nos expression by RA is not occurring under normal developmental conditions? Could it indicate that this part of the regulatory loop potentially could be used at other developmental stages? – e.g. regulating NosB expression during blastula/early neurula stages or regulating NosA expression in adults (according to the expression levels published in Annona et al., 2017)? Or is this part of the regulatory loop only activated when an NO/RA unbalance occurs?

We agree that this point is crucial and need clarification. We now discuss this point in our revised manuscript and we propose that NosA and NosB expression activation by RA is not occurring under normal developmental conditions, and that, possibly, it is a mechanism protecting the anterior part of the amphioxus body against an unbalanced NO/RA ratio. However, we cannot exclude that RA treatment forces the normal gene regulation and shows up what happens in other developmental stages or in the adult. We, therefore, modified the text in the Discussion section.

NosC genomic region has many RARE's, but is not regulated by RA at the developmental time, which the authors have analyses. Maybe NosC could be regulated by RA earlier or later in development? Again, the authors should discuss this point.

Functional experiments would be necessary to answer this point. Nevertheless, following the comment “4.)”, we decided to eliminate from the text the in silico results concerning the presence of RAREs in all three Nos loci.

3) Related to the point 2 above- In answer to the discrepancy between the previous Annona paper and the current manuscript with regards to the differing developmental windows that are sensitive to TRIM treatments, the authors have explained in their response why this is, but not clearly described this in the revised manuscript. It is important to make it clear to readers that the currently reported windows are the correct ones. Without such an explicit statement that the previous Annona work is incorrect in this regard, these important details will be confusing to readers who are trying to follow the work from this lab. It has clearly confused the referees.

We agree and addressed this point in the text in the Results section “NO controls pharyngeal development during early neurulation in amphioxus“. The discrepancy between our previous Annona et al., (2017) paper and the current manuscript resides in the fact that the developmental window in the former was studied upon administration of the L-NAME, that is an L-Arginine analog, while in the present work we preferred to study the developmental window using the Nos enzyme inhibitor TRIM. Thus, the dissimilarity in the time window of active inhibition between the two treatments can be explained by the significant difference in Nos inhibition efficiency between the two molecules. Indeed, TRIM is a more potent Nos inhibitor and is effective at much lower concentrations than L-NAME, which probably justifies why a shorter treatment duration leads to the pharyngeal defect phenotype when we use TRIM, and hence the apparent discrepancy with previous data.

We agree this could be misleading for the reader and we now clearly give the explanation in our revised manuscript.

4) RAREs: The authors state that "Moreover, we searched in a number of genomic fragments (50 kb long) randomly chosen and found a comparable number of putative RAREs to Nos genes loci. »

This makes it very clear that there is no significant enrichment of RAREs in the Nos genes and hence the data must not be presented as support for a regulation by RA. So if the authors choose to still include this observation, it has to be presented as it is: as non-significant. For this reason, a statement such as 'RA regulates the transcription of Nos genes, probably through RA Response Elements found in their regulatory regions' (abstract) has to be removed and the according sections in the main text re-written or removed.

We agree that it is still preliminary and experimental data would be needed to support our proposition. We therefore decided to eliminate this observation from the text (results, discussion and methods). We also eliminated the “Figure 2—figure supplement 1B” and the reference Sandelin and Wasserman, 2005.

5) Figure 1 —figure supplement 1A (+ lines 90-91):

– Here, the effect of TRIM is evaluated by measuring the pharyngeal length. Optimally, the total body length should also be taken into account, so the comparison would be of the pharyngeal length/the total body length. What if the larvae are overall shorter, then maybe there is no difference in the pharyngeal length with respect to the total body length in the TRIM treated larvae (but yes in the morphology and position of the pharyngeal structures).

Following the reviewer’s comment we measured the pharynx length in comparison to the total body length, and it results that, although the total body length was unaffected after treatment, the pharynx was actually shorter in TRIM-treated larvae. Specifically, the ratio between the pharyngeal length/the total body length in TRIM condition came out to be reduced by 32% in average compared to controls (min 14% – max 50%). We have now included the pharynx/body ratio in Figure 1 —figure supplement 2A, and modified the text and the corresponding figure legend accordingly.

6) In Figure 1-Supplement 1B: Clearly indicate at which time point the CTRL was taken. Furthermore, the most appropriate way to perform this experiment would be to take a control sample at the beginning and the end of each the different time windows of treatment. Ideally you could add this. If not, please carefully explain why this was not done and why the data are nevertheless meaningful.

We now clearly show that the control was taken for each time point (30 hpf, 36 hpf and 42 hpf) and we modified the Figure 1—figure supplement 2B and its legend accordingly.

The same batch of embryos at 24 hpf was divided in two: the control half was incubated with DMSO while the other half in TRIM. In this way, the NO level at the starting point of the experiment in the two samples was identical.

We agree that this experiment could have been done in the way reported by the reviewers, being more informative about the trend of NO reduction; nevertheless, by recording the NO level at specific (end) time points, after 6, 12, and 18 hours of TRIM incubation in controls and treated embryos, we have been able to demonstrate the efficiency of the treatment.

We modified the manuscript in the first paragraph of the Results.

7) Figure 1B: is the scale of these reconstructions the same between panels? It looks as though it is not, and that the TRIM-treated images might have been slightly enlarged relative to the controls. If this is the case, the authors need to change this so that everything is at the same scale. As currently presented, it is difficult for readers to appreciate the shortening of the pharynx region in TRIM-treated larvae (it certainly does not look like 40% shortening in Figure 1B).

The picture scale is identical in all panels of the Figure 1B. As said in our answer to point ”5.)” the reduction of the ratio pharynx length/body length in TRIM-treated larvae versus controls is of 32% on average, with a minimum value measured of 14% and a maximum value of 50%. The larva showed in Figure 1 lay within the frame of the measured samples.

8) Line 105-106: The authors claim that the 'critical time of its [NO] action is restricted approximately to the first six hours (24-30hpf)'. Given that incubations starting at 36h still result in 75% defective embryos, this claim is factually wrong.

We agree and improved the sentence accordingly. The NO action time on pharynx development is indeed comprised between 24 (N2) and 42 hpf (T0), but we meant to say that 24-30 hour (N2-N4) is the minimal time window of NO signaling disruption that we have identified causing pharynx malformations.

Therefore, we modified the text in the first paragraph of Results.

9) Figure 1-supplement 4: is it correct that the authors compared Cdx, Six1/2 and IrxC in the RNAseq and RT-PCR panel, but then Cdx, Six1/2, Pitx in the ISH panel, or should this be the same three genes in both panels?

To be more consistent we decided to show the same genes in the RNA-seq and qRT-PCR panel and in the WISH panel. So we included Pitx, Six1/2, IrxC, and Cdx in Figure1—figure supplement 5 (C-C’ and D). Accordingly, we added in Supplementary File 1 the primers of Pitx for the qRT-PCR and of IrxC for the preparation of the RNA probe for WISH experiments.

10) With the new inclusion of genes that are supposedly not regulated by NO/RA in the stages of development examined in this revised manuscript, something striking has become apparent. Is NO inhibition with TRIM supposed to be posteriorizing the embryos as a whole, or in a more restricted fashion (either in space or time)? If it were a general posteriorization, why then do Cdx, Pitx and Six1/2 not shift? Particularly since amphioxus Cdx is a gene that has previously been shown to be sensitive to changes in RA levels (Osborne et al., 2009, Developmental Biology 327: 252-262). Is this simply due to not enough time elapsing between the TRIM treatments performed here, the response of the first suite of genes involved in RA signaling, but then not the next tranche of responsive genes downstream of RA? This, however, does not seem to be the entire (or even likely) explanation, as the authors RA manipulations supposedly phenocopy the TRIM treatments.

Instead, do the different effects of manipulating RA levels in the current study relative to previous studies reflect the different developmental times that RA levels are altered between studies, thus producing shifts in A-P regionalised genes to different extents or in different regions between different studies? Perhaps this relates to the temporal shifting of the RA production centre as amphioxus development proceeds, this shifting process already being briefly mentioned by the authors, and this could act in conjunction with the NO signaling centre not shifting but remaining in the pharyngeal region (if this is the case)?

We agree that it might appear that there are discrepancies between the effect of treatments between our study and others. However, in the present study we are not analyzing the effect of RA treatment at the phenotypical level. We only used RA treatment to test for its effect on expression of genes for which expression is also affected by TRIM. What we show is that TRIM treatment partially phenocopies the RA treatment with similar effects at the level of pharyngeal development and at the level of RA pathway genes expression. However, TRIM treatment indeed does not lead to a similar effect as RA treatment concerning the whole body posteriorization.

In this context, the comment on line 225 about "posteriorization of the larval body plan" is misleading if the shift is not actually in the entire body plan but only in the pharyngeal region.

At this point of the manuscript we were talking about the shift of the anterior limit of Hox1 and Hox3 known to indicate the posteriorization of the body plan.

However, as said before, we agree that the observed phenotype is a posteriorization of the pharyngeal region and we have modified the text in the appropriate places.

These observations warrant a brief discussion of A-P patterning in amphioxus to clarify more precisely how the authors think the phenotypes they observe are generated in the context of amphioxus development more widely, and why their phenotype seems to be restricted to the pharynx region when RA-linked phenotypes are much more widespread in amphioxus.

We improved the text regarding the A-P patterning in amphioxus and effects of RA and TRIM treatments.

Further suggestions for improvement:

Figure 4B:

A modification of the summary figure (Figure 4) would facilitate the reading of this figure. Now a decrease or an increase of a molecule (NO, RA) or a gene product is indicated in many ways: thickness of the arrows between two components, the size of the molecule or gene product and the addition of red or green arrows to show a decrease or an increase, respectively. The authors need to make this figure clearer e.g. through 1) showing all connecting arrows in one size and 2) use only one type of arrows, so no arrows with dashed lines (or explain better in the figure legend). A distinction in arrows could be based on the process (enzymatic process (Nos -> NO and Aldh1a -> RA) vs transcriptional regulation (NO -> Aldh1a, RA -> Nos and RA -> genes of the RA machinery)). 3) Choose either to show a decrease or an increase by the size of the molecules and gene products OR by adding the green (increase) and red (decrease) arrows, but not both. It's to much information. 4) Remove the thick arrow between Figure 4B and 4C.

– The authors need to indicate what causes the decrease in NO levels in Figure 4B e.g. by placing a cross over the arrow between Nos and NO to illustrate an inactivation of Nos.

– add a question marker to the arrow between NO and Aldh1a to indicate that it is not known exactly how this regulation takes place.

– instead of "RA levels reduction" maybe write "retinoid metabolism". That RA levels are reduced is indicated with the arrow.

– For consistency, the authors could write "Normal state" over Figure 4C as for Figure 4A, or "Recovery of normal state".

We agree that the summary scheme of Figure 4 needed a simplification. Therefore, we adopted all the suggestions indicated and modified the figure legend accordingly.

line 87:

– regarding the treatment window from N2 to T2. Shouldn't this be N2 to T3?

The treatment was performed up to 48 hpf (T1). We followed the recently published staging system by Carvalho et al., (2021) and therefore considered the following correspondences of hpf and developmental stages used in our experiments (18°C): 24 hpf = N2, 30 hpf = N4, 36 hpf = N5, 42 hpf = T0, 48 hpf = T1, 72 hpf = L1.

line 90-94:

– revise here all references to the figure e.g. in line 92 and 93, the reference should be Figure 1B panel I-II and V-VI (and not Figure 1B, panel I-II and III-IV). References to part of the figure 1B are missing in the text (Figure 1B III, IV, VIII). The authors should include these e.g. referring to the other matching panels, thus refer to panel I-III, II-IV, V-VII and V-VIII together, respectively.

Sorry for this, we corrected the figure citations appropriately.

line 99:

– add figure reference to Figure 1A after "…70% affected larvae" to facilitate reading.

Done.

line 101:

The authors write that 'NO levels ….dropped to 40% in comparison to controls'. As the '40%' is based on comparing average concentrations, the authors should report a range rather than an exact number.

Right. We give more information in the revised version saying that NO concentration decreased to 40% in average (in a range between 58,5% and 18%).

line 135:

(Figure 2A, D) and not "(Figure 2A, B)".

Done.

line 194:

correct to "described"

Done.

line 322-324:

– Add "shown indirectly" to be clear: "A reduction of NO (Figure 4B), as shown by our results, induces an excess of RA, shown indirectly through the overexpression of Aldh1a."

Done.

line 346 Key Resources Table:

– remove the column "additional information" if there are no additional information.

Done.

line 660: write Cyp26.2 in italic

Done.

Figure 1 —figure supplement 1A.

– length not "lenght" on the y-axis

Done.

There is still some further editing and proofing of the written English required. There are a handful of odd word choices (e.g. change sensible/insensible to sensitive/insensitive) and slightly awkward sentence constructions.

A native English speaker has carefully edited the manuscript.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Recommendations for the authors on the revised manuscript:

The manuscript reads very well now, but I think some of their main suggestions and discussions have to be revised to support the main message of the manuscript. Here I'm referring to the following observations and statements by the authors:

1. NosC is responsible for the production of NO from N2 to L1 larval stage (line 101-103).

2. RA and TRIM treatment experiments cause an increase in NosA and NosB expression, but not in NosC (line 194-205, Figure 2E) – why they conclude:

"A possible explanation could be that while in normal conditions RA does not regulate NosA and NosB expression, it directly or indirectly regulates such gene expression in the case of a NO/RA inbalance as a way to restore the correct NO/RA ratio."(line 343-345)

Based on these conclusions, the title of the manuscript "Crosstalk between Nitric Oxide and Retinoic Acid pathways is essential for amphioxus pharynx development" is not physiological relevant. According to the authors, the crosstalk only occurs when an NO/RA unbalance takes place. To me, this is a problem.

We do not agree with the reviewer on this point. We think that the NO/RA crosstalk occurs in vivo during development, and indeed the NO/RA imbalance falls within a possible physiological scenario taking into account that during development natural mutations in the RA machinery (synthesis or catabolism) could alter the correct endogenous RA content or gradient. Therefore the default state is that NO controls RA pathway, while the RA regulation of NO synthases plays as a natural mechanism of compensation in case of NO/RA imbalance. This kind of mechanism, usually only revealed by artificial signaling pathway modifications, provides robustness to developmental processes, and is hence essential for correct embryogenesis.

I think the authors are missing to include another plausible possibility, which would give biological meaning to the work and which they actually do discuss in the Response to Review Comments: NosB could also contribute to NO production during normal pharynx development (this could still be together with NosC). The results from Annona et al. 2017 supports this: Expression levels validated by ddPCR of NosA, NosB and NosC are shown in Figure 2h-h'. When expressed, both NosA and NosB show ~20x higher expression levels than NosC – also when comparing expression levels between NosB and NosC at 24 hpf, which is when they initiated the 6 hours TRIM treatment. Now of course, it would be interesting to have the in situ hybridisation for NosB at 24 hpf. In Annona et al., 2017 they show the expression pattern until mid-gastrula stage and not during the Nerula period (TRIM treatment starts at N2). In the Response to Review Comments, the authors declare that they did the in situ hybridisation for NosB at 24 hpf and didn't detect any pattern. They argue that this could be because of a broader weaker expression. This makes sense. I think they should mention this in the manuscript. And also that the NosB expression during mid-gastrula was a broad expression in the ectoderm, next to the endoderm (where I guess the pharyngeal tissues develop from). Including the possibility that NosB could contribute to NO production during pharynx development would give a biological meaning to the conclusion that there is a crosstalk between NO and RA pathways during amphioxus pharynx development. And not that the crosstalk only takes place during a NO/RA inbalance relying on the activity of NosA and NosB, which are normally not expressed during pharynx development (as stated in the current version of the manuscript, but only partially true as mentioned above).

We included in the Results paragraph the concept of the possible contribution by NosB to the NO production in the selected time window. Nevertheless, we decided not to go deeper into NosB expression pattern discussion because it goes beyond the scope of this work. NO signal may be necessary during gastrulation for the specification of the pharynx; nevertheless, in absence of dedicated experimental proofs, it is highly speculative at this stage. Therefore we decided not to add any discussion about this point.

In this regard, maybe a short discussion on NO production site (based on NosB and NosC expression) vs NO target tissues (Aldh1a expression) could help clarify the above concern.

We think this is a very interesting point as well although to address this issue it is necessary to perform ad hoc experiments, as for example to perform a double fluorescent in situ hybridization of NosC and Aldh1a. For this reason we will certainly deepen this topic in our next work.

https://doi.org/10.7554/eLife.58295.sa2

Article and author information

Author details

  1. Filomena Caccavale

    Department of Biology and Evolution of Marine Organisms (BEOM), Stazione Zoologica Anton Dohrn Napoli, Napoli, Italy
    Contribution
    Conceptualization, Data curation, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Giovanni Annona

    Department of Biology and Evolution of Marine Organisms (BEOM), Stazione Zoologica Anton Dohrn Napoli, Napoli, Italy
    Contribution
    Data curation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7806-6761
  3. Lucie Subirana

    Sorbonne Université CNRS, Biologie Intégrative des Organismes Marins (BIOM), Observatoire Océanologique, Banyuls-sur-Mer, France
    Contribution
    Data curation, Formal analysis, Methodology
    Competing interests
    No competing interests declared
  4. Hector Escriva

    Sorbonne Université CNRS, Biologie Intégrative des Organismes Marins (BIOM), Observatoire Océanologique, Banyuls-sur-Mer, France
    Contribution
    Conceptualization, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Stephanie Bertrand

    Sorbonne Université CNRS, Biologie Intégrative des Organismes Marins (BIOM), Observatoire Océanologique, Banyuls-sur-Mer, France
    Contribution
    Conceptualization, Data curation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Salvatore D'Aniello

    Department of Biology and Evolution of Marine Organisms (BEOM), Stazione Zoologica Anton Dohrn Napoli, Napoli, Italy
    Contribution
    Conceptualization, Supervision, Investigation
    For correspondence
    salvatore.daniello@szn.it
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7294-1465

Funding

European Commission (BA010618 and 360BA0619)

  • Salvatore D'Aniello

Company of Biologists (DEVTF-170211)

  • Filomena Caccavale

Agence Nationale de la Recherche (ANR-16-CE12-0008-01 and ANR-19-CE13-0011)

  • Hector Escriva

European Commission (H2020-INFRAIA-1-2016–2017 n. 730984)

  • Hector Escriva

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Rebecca Adikes and Hannah Rosenblatt, course assistants at the MBL Embryology Course 2019 in Woods Hole (USA), and Periklis Paganos for their help with imaging. We are also grateful to Enrico D’Aniello, Ricard Albalat, Marion Picard, and Haley Flom for their critical reading of the manuscript. We thank Ángel R de Lera for providing the RA antagonist BMS009, and Carola Murano and Anna Palumbo for their help with the NO quantification (DAN assay). We are grateful to the Institut Français de Bioinformatique and the Roscoff Bioinformatics platform ABiMS for providing computing and storage resources for the RNA-seq analysis, and the BIO2MAR platform (EMBRC-France) supported by ANR grant no. ANR-10-INBS-02 for giving us access to analytical material. SD and FC acknowledge the Assemble Plus project (contract numbers BA010618 and 360BA0619) and The Company of Biologists (grant number DEVTF-170211; sponsoring journal: Development) for supporting research visits to the Observatoire Océanologique of Banyuls-sur-Mer (France). FC was supported by an OU-SZN PhD fellowship. SB is supported by the Institut Universitaire de France (IUF). HE is supported by the Centre national de la recherche scientifique and Agence Nationale de la Recherche (ANR) grants number ANR-16-CE12-0008-01 and ANR-19-CE13-0011. HE is supported by the European Commission ASSEMBLE Plus network (H2020-INFRAIA-1-2016–2017; grant number 730984).

Senior Editor

  1. Marianne E Bronner, California Institute of Technology, United States

Reviewing Editor

  1. Kristin Tessmar-Raible, University of Vienna, Austria

Reviewer

  1. David Ferrier, University of St Andrews, United Kingdom

Publication history

  1. Received: April 26, 2020
  2. Preprint posted: June 23, 2020 (view preprint)
  3. Accepted: July 31, 2021
  4. Version of Record published: August 25, 2021 (version 1)

Copyright

© 2021, Caccavale et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 428
    Page views
  • 44
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    Alessandro Bonfini et al.
    Research Article

    The gut is the primary interface between an animal and food, but how it adapts to qualitative dietary variation is poorly defined. We find that the Drosophila midgut plastically resizes following changes in dietary composition. A panel of nutrients collectively promote gut growth, which sugar opposes. Diet influences absolute and relative levels of enterocyte loss and stem cell proliferation, which together determine cell numbers. Diet also influences enterocyte size. A high sugar diet inhibits translation and uncouples ISC proliferation from expression of niche-derived signals but, surprisingly, rescuing these effects genetically was not sufficient to modify diet's impact on midgut size. However, when stem cell proliferation was deficient, diet's impact on enterocyte size was enhanced, and reducing enterocyte-autonomous TOR signaling was sufficient to attenuate diet-dependent midgut resizing. These data clarify the complex relationships between nutrition, epithelial dynamics, and cell size, and reveal a new mode of plastic, diet-dependent organ resizing.

    1. Developmental Biology
    2. Physics of Living Systems
    Yonghyun Song, Changbong Hyeon
    Research Article Updated

    Spatial boundaries formed during animal development originate from the pre-patterning of tissues by signaling molecules, called morphogens. The accuracy of boundary location is limited by the fluctuations of morphogen concentration that thresholds the expression level of target gene. Producing more morphogen molecules, which gives rise to smaller relative fluctuations, would better serve to shape more precise target boundaries; however, it incurs more thermodynamic cost. In the classical diffusion-depletion model of morphogen profile formation, the morphogen molecules synthesized from a local source display an exponentially decaying concentration profile with a characteristic length λ. Our theory suggests that in order to attain a precise profile with the minimal cost, λ should be roughly half the distance to the target boundary position from the source. Remarkably, we find that the profiles of morphogens that pattern the Drosophila embryo and wing imaginal disk are formed with nearly optimal λ. Our finding underscores the cost-effectiveness of precise morphogen profile formation in Drosophila development.
