Collagen-rich omentum is a premetastatic niche for integrin α2-mediated peritoneal metastasis

  1. Yen-Lin Huang
  2. Ching-Yeu Liang
  3. Danilo Ritz
  4. Ricardo Coelho
  5. Dedy Septiadi
  6. Manuela Estermann
  7. Cécile Cumin
  8. Natalie Rimmer
  9. Andreas Schötzau
  10. Mónica Núñez López
  11. André Fedier
  12. Martina Konantz
  13. Tatjana Vlajnic
  14. Diego Calabrese
  15. Claudia Lengerke
  16. Leonor David
  17. Barbara Rothen-Rutishauser
  18. Francis Jacob  Is a corresponding author
  19. Viola Heinzelmann-Schwarz  Is a corresponding author
  1. Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Switzerland
  2. Proteomics core facility, Biozentrum, University of Basel, Switzerland
  3. Differentiation and Cancer group, Institute for Research and Innovation in Health (i3S), University of Porto, Portugal
  4. Institute of Molecular Pathology and Immunology of the University of Porto (IPATIMUP), Portugal
  5. Faculty of Medicine, University of Porto, Portugal
  6. Adolphe Merkle Institute, University of Fribourg, Switzerland
  7. Stem Cells and Hematopoiesis, Department of Biomedicine, University Hospital Basel, University of Basel, Switzerland
  8. Institute of Pathology, University Hospital Basel, Switzerland
  9. Histology Core Facility, Department of Biomedicine, University Hospital Basel and University of Basel, Switzerland
  10. Department of Internal Medicine, Internal Medicine II, Hematology, Oncology, Clinical Immunology and Rheumatology, University Hospital Tübingen, Germany
  11. Gynecological Cancer Center, University Hospital Basel, Switzerland
Research Article
  • Cited 0
  • Views 459
  • Annotations
Cite this article as: eLife 2020;9:e59442 doi: 10.7554/eLife.59442

Abstract

The extracellular matrix (ECM) plays critical roles in tumor progression and metastasis. However, the contribution of ECM proteins to early metastatic onset in the peritoneal cavity remains unexplored. Here, we suggest a new route of metastasis through the interaction of integrin alpha 2 (ITGA2) with collagens enriched in the tumor coinciding with poor outcome in patients with ovarian cancer. Using multiple gene-edited cell lines and patient-derived samples, we demonstrate that ITGA2 triggers cancer cell adhesion to collagen, promotes cell migration, anoikis resistance, mesothelial clearance, and peritoneal metastasis in vitro and in vivo. Mechanistically, phosphoproteomics identify an ITGA2-dependent phosphorylation of focal adhesion kinase and mitogen-activated protein kinase pathway leading to enhanced oncogenic properties. Consequently, specific inhibition of ITGA2-mediated cancer cell-collagen interaction or targeting focal adhesion signaling may present an opportunity for therapeutic intervention of metastatic spread in ovarian cancer.

Introduction

Peritoneal metastasis is the leading cause of mortality in epithelial ovarian cancer (EOC) and results in a 17–39% 5 year survival rate due to the majority of patients being diagnosed at advanced stage of disease (>75%, FIGO stage III/IV) (Halkia et al., 2012; Vaughan et al., 2011). The accompanying development of massive ascites, a transudate predominantly seen in EOC, fosters the rapid spread of tumor cells through transcoelomic mechanisms in the peritoneal cavity including the omentum as a preferred site (Naora and Montell, 2005). Ascites-derived tumor cells (ATCs) contribute to an invasive and chemo-resistant cell population with high potential to form metastasis (Kipps et al., 2013; Lawrenson et al., 2011; Sodek et al., 2009). Emerging studies highlight the dynamic interplay between malignant, stromal and immune cells in the premetastatic niche promoting cancer cell adhesion, invasion, and progression leading to peritoneal metastasis. The peritoneal tumor microenvironment consists of mesothelial cells (Kenny et al., 2014; Li et al., 2019), adipocytes (Nieman et al., 2011) cancer-associated fibroblasts (Gao et al., 2019; Lau et al., 2017), macrophages (Etzerodt et al., 2020), as well as non-cellular components such as growth factors and the extracellular matrix (ECM) (Cho et al., 2015; Gilkes et al., 2014) which provide critical cues for sustained tumor growth and metastasis. Collagens are major components of the ECM and account for ~90% of the total ECM, not only providing structural integrity but also regulating diverse cellular functions (Gilkes et al., 2014). Dysregulation of collagens positively correlate with poor outcome in EOC patients (Cheon et al., 2014). Moreover, altered collagen organization also influences tissue mechanics and compromises drug delivery (Loeffler et al., 2006) thus contributes to the poor response to chemotherapy in EOC patients (Jazaeri et al., 2005). Despite solid evidence on the role of collagens in the already established tumor microenvironment, their contribution at the metastatic niche of early peritoneal dissemination remains largely unexplored.

Functional integrins act as heterodimeric cell-surface receptors that mediate cell adhesion to the ECM in tumor progression. Altered integrin expression not only supports oncogenic growth factor signaling, but also facilitates anoikis resistance of tumor cells in various malignancies (Desgrosellier and Cheresh, 2010; Lu et al., 2008). A subset of integrins, namely α1, α2, α10, and α11 exhibiting high collagen-binding affinity, are responsible for transducing biochemical or mechanical cues to regulate a variety of cellular functions such as cell proliferation, adhesion, migration, and hemostasis (Adorno-Cruz and Liu, 2019). Recent studies highlight the critical role of integrin α5 (ITGA5) in mediating cancer cell interaction to fibronectin during peritoneal metastasis through an c-Met/FAK/Src-dependent signaling (Gao et al., 2019; Iwanicki et al., 2011; Kenny et al., 2014). However, considering the high abundance and dysregulation of collagens in the tumor microenvironment, there is a need for understanding the molecular mechanism of how collagens and collagen-binding integrins regulate tumor progression and metastasis.

In this study, we demonstrate that the collagen-binding integrin α2 (ITGA2) on EOC cells is required for direct and selective cell adhesion to various collagens which are enriched in the omentum. Using multiple cell lines and patient-derived samples, we provide functional evidence that ITGA2 promotes cancer cell adhesion, anoikis resistance, and tumor spheroid-mediated mesothelial clearance in vitro as well as peritoneal metastasis in vivo. (Phospho-)proteomics reveal that ITGA2-dependent signaling is transduced by phosphorylation of focal adhesion kinase and mitogen-activated protein kinase (MAPK) signaling pathway. Furthermore, functional blockade targeting ITGA2-collagen mediated cell adhesion or inhibiting downstream focal adhesion kinase activity provides the basis of the promising therapeutic potential for intervening with peritoneal metastasis.

Results

Collagen-rich omentum is a metastatic niche for ITGA2-mediated cancer cell adhesion

To investigate the ECM composition of the omentum, representing the preferred metastatic site of EOC, we performed proteomic analysis of normal omentum from benign diseases and omental metastases from advanced EOC. We identified total 1298 proteins significantly upregulated in omental metastases including several ECM-related proteins dominant by collagens (e.g. COL1A1, COL3A1, and COL5A1), collagen-modifying hydroxylase (PLOD1 and PLOD2), and collagen-degrading matrix metalloproteinase (MMP2 and MMP9) (Figure 1A and Supplementary file 1a). Importantly, COL1A1, COL3A1, and COL5A1 have been correlated with disease progression (Gilkes et al., 2014) and are predictors of overall survival for EOC patients as shown in the pooled hazard ratio model obtained from CuratedOvarianData (HR 1.16–1.20, n = 2970) (Figure 1B). In line with a previous study showing that extensive collagen deposition is recognized as a pathological characteristic resulting in increasing tumor stiffness and promoting metastasis of EOC (Pearce et al., 2018). Although collagens have been widely accepted to elicit biochemical or biophysical signaling in tumor progression in the established tumor microenvironment (Xu et al., 2019), the interplay between collagens and tumor cells in the premetastatic niche remains unclear. Here, we identified that collagen-encoding genes share a similar mRNA expression profile among normal omentum, ovary and fallopian tube using the Gene Set Variation Analysis (GSVA) of the Genotype-Tissue Expression (GTEx) dataset (n = 17,382) (Figure 1C). In particular, type I collagen (encoded by COL1A1 and COL1A2) shows the highest collagen gene expression in normal ovary and omentum as well as in the omental metastases (Figure 1—figure supplement 1A–B). It is also noticed that the origins of high COL1A1, COL1A2, and COL3A1 expression positively correlate with fibroblast-specific markers (FAP) and smooth muscle actin (ACTA2) (Figure 1—figure supplement 1C), whereas COL4A1, COL4A2, and COL18A1 seem to be predominantly expressed in ovarian cancer cells (Figure 1—figure supplement 2). Together, this finding prompted us to investigate the role of collagen as a potential chemotactic matrix protein and to elucidate the interplay between collagen and associated receptors (integrins) in initial cancer cell adhesion to the omentum.

Figure 1 with 3 supplements see all

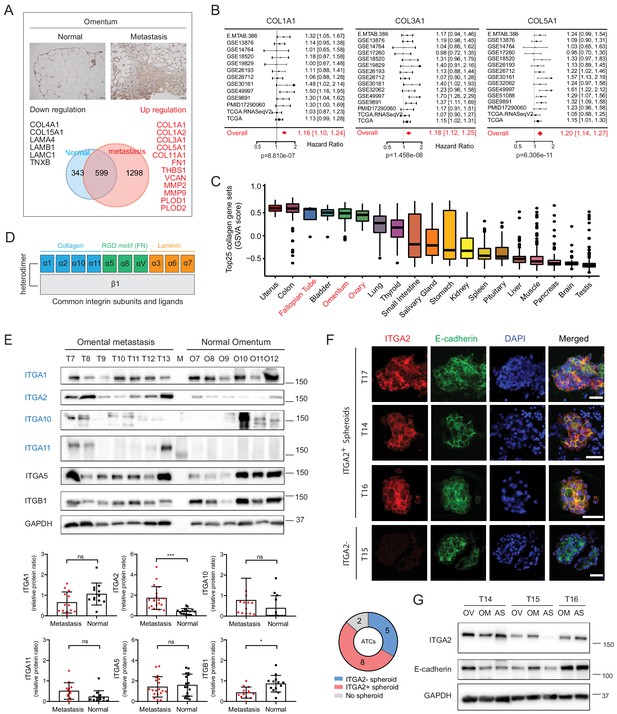

Altered collagen expression predicts poor outcome in EOC patients coinciding with ITGA2 expression.

(A) Proteomic analysis identifies up- and downregulated ECM-associated proteins in omental metastasis versus normal omentum tissue (n = 8). Representative immunohistochemical staining of normal and metastatic omentum for COL1A1. Scale bar 50 μm. (B) Forest plots of the expression of collagens (COL1A1, COL3A1, and COL5A1) as univariate predictors of overall survival, using the curatedOvarianData (n = 2970) applicable expression and survival information. Hazard ratio (HR) significantly larger than one indicates positive correlation to poor outcome in EOC patients. (C) Box-whisker plots of top 25 collagens gene set variation analysis (GSVA) in 20 non-diseased tissues from GTEx RNA-seq dataset. (D) A schematic figure of integrin receptors and their corresponding ECM ligands. (E) Representative western blot shows the expression of collagen-binding integrins α1, α2, α10, α11, as well as integrin α5 and β1 in omental metastasis and normal omentum. Bar charts with relative integrin expression as mean ± SD (**p<0.05, ***p<0.001; n = 13–19). (F) Representative immunofluorescence images with membranous E-cadherin (green) and ITGA2 (red) staining in ATCs. Pie chart summarizes percentage of ITGA2+ tumor spheroids from EOC patients (n = 15). Scale bar 50 μm. (G) Western blot analysis of ITGA2 and E-cadherin expression in matched EOC patient samples, ascites (AS), primary (OV) and omental metastasis (OM).

By assessing the tissue expression of major collagen-binding integrins (ITGA1, ITGA2, ITGA10, and ITGA11, Figure 1D), ITGA10 and ITGA11 revealed limited expression whereas ITGA1 showed a ubiquitous expression pattern in both, normal tissues and omental metastases (Figure 1E, Figure 1—figure supplement 3A–B). Of note, among the investigated integrin subunits, only ITGA2 is significantly upregulated in omental metastases (Figure 1E). Moreover, elevated ITGA2 expression positively correlates with the defined collagen gene set in The Cancer Genome Atlas (TCGA) (R = 0.32, p=1.2e-10) (Figure 1—figure supplement 3C–D) and GTEx (R = 0.34, p=1.9e-09) dataset (Figure 1—figure supplement 3E) suggesting a potential interaction between ITGA2+ tumor cells and enriched collagens in the premetastatic niche. Detachment of EOC cells from primary tumor and the accumulation of ascites is widely accepted as a common route of peritoneal metastasis (Yeung et al., 2015). Therefore, we examined whether ascites-derived tumor cells (ATCs) as well as matched primary (OV) and metastatic tissues (OM) express ITGA2, and identified that 61.5% of patients-derived ATCs are E-cadherin and ITGA2 positive. This finding suggests a potential advantage of elevated ITGA2+ tumor cells in promoting peritoneal dissemination to collagen-rich omentum (Figure 1F-G).

Establishment and characterization of an ΔITGA2 ovarian cancer cell line model

To study the specific collagen-binding integrins in cancer cell dissemination, we analyzed the transcriptome of the Cancer Cell Line Encyclopedia (CCLE) dataset (Barretina et al., 2012). Here, ITGA2 is the most prominent collagen-binding integrin expressed among the 47 reported EOC cell lines independent of their histological subtypes and TP53 status (Figure 2A). The protein expression of collagen-binding integrins in eleven EOC cell lines coincided with the transcriptomic analysis in CCLE dataset (Figure 2B). Although high-grade serous ovarian cancer is the most common and lethal histotype accounting for 60–70% of EOC death (Vaughan et al., 2011), ITGA2 mRNA expression of the EOC cell lines showed no significant correlation (R = −0.0012, p=0.99) to the suitability scores of serous histotype (Domcke et al., 2013; Figure 2C). This is in line with the EOC transcriptomic dataset (GSE51088) (Karlan et al., 2014; Figure 2—figure supplement 1A) and our tissue microarray data. We observed an overall high percentage of positive ITGA2 cytoplasmic (72.5%) and membranous staining (66%) of tumor cells (total n = 200 EOC patients) without differences for histological grade, FIGO stage, and subtypes (Figure 2—figure supplement 1B–E). However, an inconsistent pattern in this regards was observed for three additional transcriptomic datasets investigated (GSE73614; n = 107) (Winterhoff et al., 2016) GSE2109 (n = 204) and GSE9891 (n = 285) (Tothill et al., 2008; Figure 2—figure supplement 2A). We also confirmed that the mutational status of TP53 does not correlate with ITGA2 expression in patient-derived samples (Figure 2—figure supplement 2B–C). Taken together, having investigated five independent transcriptomic data sets on ITGA2 gene and protein expression without revealing a consistent pattern throughout the majority of the studies suggested that collagen-ITGA2 interaction may act as universal phenomenon for peritoneal metastasis independent of EOC histotypes or genomic mutation of TP53. Therefore, we selected five representative EOC cell lines based on different histological subtypes as well as their endogenous ITGA2 expression levels (ITGA2high to ITGA2low: IGROV1, ES2, OVCAR3, SKOV3, and OAW42) for this study. We applied a paired-sgRNA-based CRISPR-Cas9 strategy targeting the open reading frame of ITGA2 transmembrane domain (exon 29–30) at chromosome 5q11.2. The clonal selection of ΔITGA2 cells harboring a 743–747 bp homozygous deletion at the desired genomic locus was confirmed by genotyping PCR and Sanger DNA sequencing (Figure 2D). Loss of total ITGA2 expression in ΔITGA2 cells was verified by western blot (Figure 2E) and its associated receptor integrin β1 (ITGB1) was unaltered in all the ΔITGA2 cells. Moreover, loss of membranous ITGA2 expression in 2D cell culture was confirmed by flow cytometry (Figure 2F) and immunofluorescence for 3D culture of multicellular spheroids (Figure 2G).

Figure 2 with 2 supplements see all

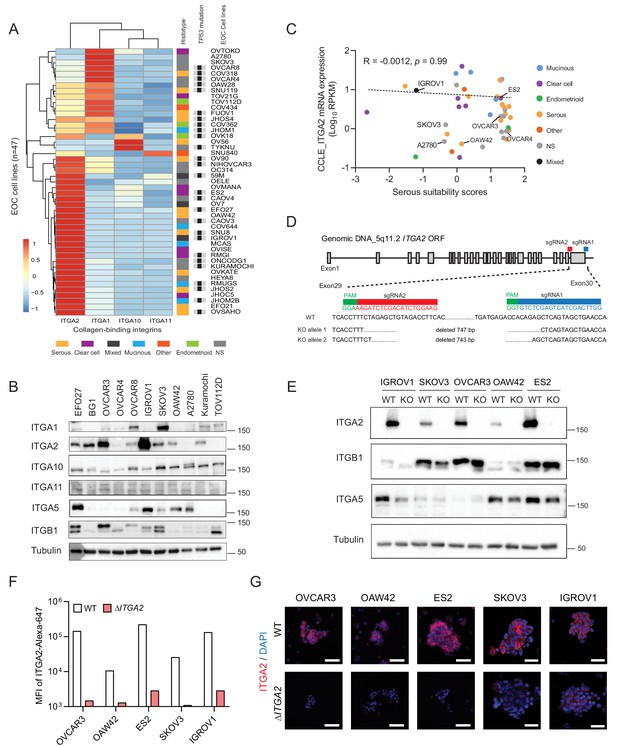

Distribution of collagen-binding integrin expression and generation of ΔITGA2 in EOC cell lines using CRISPR-Cas9.

(A) Hierarchical cluster analysis and heat map visualization of known collagen-binding integrin-encoding genes among EOC cell lines using the Cancer Cell Line Encyclopedia (CCLE). The original histological subtypes and TP53 genomic mutation status were annotated as previously described (Domcke et al., 2013). (B) Representative western blot showing expression of collagen-binding integrins among eleven EOC cell lines. (C) ITGA2 expression (Spearman correlation R = −0.0012, p=0.99) is independent of histological subtypes and previously described serous suitability scores (Domcke et al., 2013). Representative EOC cell lines used in this study are annotated. (D) CRISPR-Cas9 mediated deletion of ITGA2 targeting exon 29–30, resulting in a 743 and 747 bp genomic deletion. (E) Immunoblot confirms loss of ITGA2 expression in five of ΔITGA2 (KO) cell lines while the binding partner ITGB1 was not altered. (F) Bar chart showed the median fluorescence intensity of ITGA2 expression in WT and ΔITGA2 cells by flow cytometry. (G) Representative fluorescence images with membranous ITGA2 expression in WT and ΔITGA2 cancer spheroids collected from ultra-low attachment plate. Scale bar 100 μm.

ITGA2 promotes cancer cell migration, anoikis resistance, and extravasation in vitro and in zebrafish embryo tumor xenograft

We next investigated the phenotypic changes between wildtype (WT) and ΔITGA2 cells to evaluate the biological functions of ITGA2. Of note, significantly reduced cell proliferation was observed in ∆ITGA2 cells only on collagen-coated plates. In contrast, neither classical plastic nor fibronectin-coated plates showed such a difference (Figure 3A–B and Figure 3—figure supplement 1). Moreover, chemotaxis-induced cell motility was significantly reduced in ΔITGA2 cells (Figure 3C). Further investigation of cell detachment-induced anoikis, a critical step of tumor cells with enhanced mesenchymal features or undergoing malignant transformation, showed a significant increase of apoptotic (Annexin V+) and dead (DAPI+) cells in OVCAR3, SKOV3, and IGROV1 ΔITGA2 cells (*p<0.05; Figure 3D). The enhanced apoptosis in ΔITGA2 cells under non-adherent spheroid condition coincided with elevated levels of cleaved PARP, (Figure 3E) suggesting that ITGA2 promotes anoikis resistance in EOC cells. Similarly, we observed an increased expression of ITGA2 in spheroid as compared to adherent condition likely to respond the stress induced by ECM disengagement. Overall, the phenotypic changes of ΔITGA2 led us to study the anoikis resistance and early cell extravasation events in more detail. Thus, we transplanted CM-Dil-labeled WT and ΔITGA2 cells into transgenic Tg(kdrl:eGFP) zebrafish and analyzed survival and extravasated cancer cells 3 days post-injection as described previously (Figure 3F; Jacob et al., 2018). The percentage of in vivo survival of ΔITGA2 cells was significantly decreased compared to WT in all the tested EOC cells (Figure 3G), which is in line with the increased apoptosis of ΔITGA2 cells in the detachment-induced anoikis condition. Interestingly, we observed reduced tumor cell cluster formation in ΔITGA2 of IGROV1 and SKOV3 compared to WT cells (Figure 3H-I). The absence of tumor cell clusters and low number of extravasated cells in OVCAR3 xenograft might be explained by the generally low migratory phenotype of OVCAR3 and its distinct epithelial feature which is in concordance with the in vitro migration assay. Nevertheless, there is a similar trend of decreased extravasated single cells in the zebrafish ΔITGA2 xenograft, suggesting that ITGA2 promotes anoikis resistance and extravasation of EOC cells in vivo (Figure 3J).

Figure 3 with 1 supplement see all

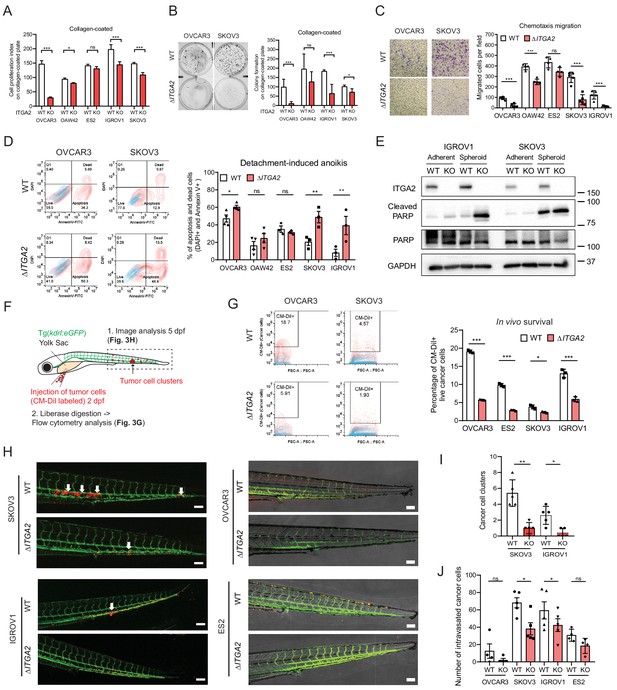

ITGA2 promotes EOC cell migration, anoikis resistance, and extravasation in vitro and in vivo.

(A) Cell proliferation index of WT and ΔITGA2 cells in collagen-coated plate. (B) Anchorage-dependent colony formation assay for WT and ΔITGA2 cells on collagen-coated plate after 7 days incubation. Bar chart represents the mean ± SD of total colony counts. (C) Chemotaxis cell migration assay and quantification of cell migration (24 hr). Scale bar 200 μm. (D) Cell detachment-induced apoptosis (anoikis) assay. WT and ΔITGA2 cells stained with Annexin V-FITC and DAPI after 3–5 days of cultivation in ultra-low attachment plate to identify apoptotic dead cells (FITC+/DAPI+). Mean ± SD (*p<0.05) from two independent experiments. (E) Western blot shows increased cleaved PARP in the KO compared to WT cells under non-adherent spheroid condition. (F) Scheme of tumor cells transplant model in Tg(kdrl:eGFP) zebrafish. CM-Dil labeled cancer cells were transplanted into zebrafish at two dpf (days post fertilization). (G) At five dpf, fish were enzymatically dissociated to single cells and analyzed in vivo survival of cancer cells by flow cytometry. Representative counter plot shows the percentage of CM-Dil+ cancer cells. Bar chart summarizes data from n = 5 fish per group. (H) Representative confocal images of transplanted fish (n = 5 per group) showing the tumor cluster formation in proximity of the circulatory loop (white arrow) at five dpf. Scale bar 100 μm. (I) Numbers of cluster formation and (J) single cells in tail vein were counted and represented as mean ± SD (unpaired Student’s t-test, *p<0.05).

ITGA2 promotes cancer cell adhesion to collagen

In order to establish peritoneal metastasis, disseminated tumor cells require initial adhesion to the peritoneum and omentum, followed by invasion into the mesothelial monolayer and its underlying ECM network (Kenny et al., 2014). Here, we hypothesized that ITGA2+ EOC cells disseminate and adhere to the omentum more efficiently than ITGA2- cells through cell-ECM interaction. Thus, we performed in vitro ECM adhesion assay by seeding suspended WT and ΔITGA2 cells on top of different ECM-coated (collagen type I, III, IV, laminin, and fibronectin) plate. Notably, the consistently strong cell adhesion efficiency to collagen type I, III, and IV in parental cell lines significantly diminished upon ITGA2 deletion. However, cell adhesion to laminin and fibronectin appeared in a cell line-dependent manner in ΔITGA2 cell lines which may be due to the redundancy of multiple integrin subunits. (Figure 4A-B). Vice versa, constitutive overexpression of ITGA2 in ITGA2low cancer cell line (n = 4) significantly enhanced cell adhesion to collagen I and IV (p<0.001; Figure 4C and Figure 4—figure supplement 1A–C) indicating a cell line-independent binding specificity of ITGA2 to collagen I, III, and IV. The increased spheroid formation in the ITGA2-OE cell lines and decreased spheroid formation in ΔITGA2 cells further supports our finding that ITGA2 promotes anchorage-independent growth (Figure 4—figure supplement 1D–F). Next, to characterize the dynamics of cell-collagen adhesion, we traced single cell movement, migration velocity, and focal adhesion by monitoring RFP-expressing WT and ΔITGA2 cancer cells on established bioprinted 3D-collagen slides. The single cell adhesion process was monitored by measuring the average surface area ratio (i.e. cells area at tn/t0) for up to 6 hr using time-lapse fluorescence confocal microscopy. We observed that ΔITGA2 cells failed to establish stable adhesion on collagen I as the surface area ratio remained <1 over time (Figure 4D). Likewise, ITGA2low A2780 cells were not able to adhere to collagen while ITGA2 overexpressing cells enhanced adhesion to collagen (Figure 4D). Cell-surface focal adhesion and expansion subcellular structure on bioprinted collagen was also visualized in WT cells but not in ΔITGA2 cells by scanning electron microscopy (SEM) analysis. (Figure 4E). The overall cell migration path on collagen was also significantly elevated in ITGA2+ cells (Figure 4F), indicating that ITGA2 facilitates the dynamic interplay between cell-to-collagen adhesion and movement which may accelerate the passive dissemination in EOC metastasis.

Figure 4 with 1 supplement see all

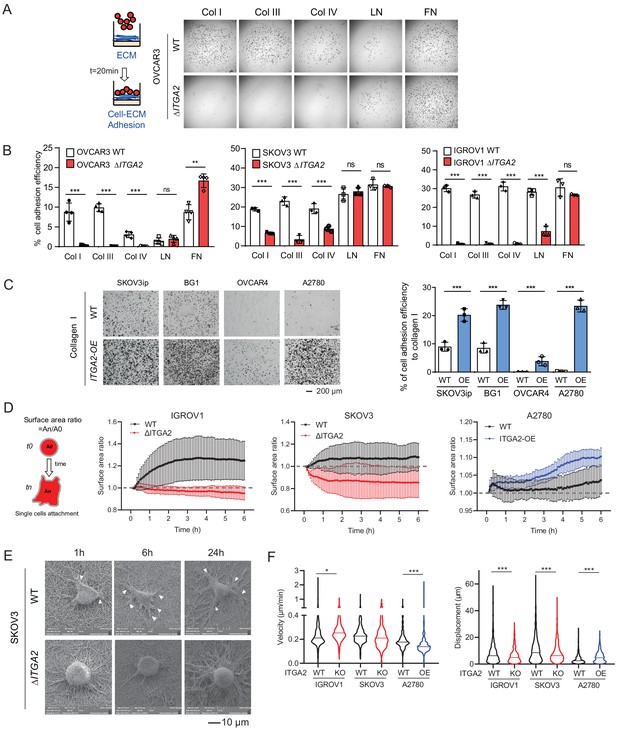

ITGA2 promotes cancer cell adhesion to collagen.

(A) Static cancer cell-ECM adhesion assay. Representative images showing OVCAR3 WT and ΔITGA2 cell adhesion to different ECM proteins, including collagen type I, III, IV, laminin, and fibronectin. (B) Bar charts with mean ± SD of the percentage of cell adhesion efficiency of OVCAR3, SKOV3, and IGORV1 cells from three independent experiments. (unpaired Student’s t-test, ***p<0.001) (C) Representative images and bar charts showing the cell adhesion to collagen I in four ITGA2-overexpressed EOC cell lines (unpaired Student’s t-test, ***p<0.001). Scale bar 200 μm. (D) Single cell adhesion on bioprinted collagen was monitored by time-lapse microscopy. Data represent the surface area ratio as mean ± SD (n > 300 single cells were analyzed per group). (E) Representative scanning electron microscope (SEM) images showing the SKOV3 WT and ΔITGA2 cellular adherence on bioprinted collagen at 1, 6, and 24 hr. White arrow indicates the polarized filopodia structure. Scale bar 10 μm. (F) Velocity and displacement of single cells on collagen-coated slides were measured (n > 300 per group from three independent experiments. Unpaired Student’s t-test, *p<0.05, ***p<0.001).

TC-I-15 treatment blocks patients-derived ATCs adhesion to collagens

To evaluate whether ITGA2high ATCs also show enhanced adherence capacity, we collected the ATCs from EOC patients (n = 20) and assessed the expression of ITGA2 and ITGA5 by flow cytometry (Figure 5A). The ATCs displayed a distinct expression pattern of ITGA2 and ITGA5, likely resulted in a different cell adhesion affinity to collagen or fibronectin. Notably, there is no significant correlation between ITGA2 and ITGA5 expression in CCLE dataset (Figure 5—figure supplement 1). The ECM ligand-receptor specificity was supported by a positive correlation between the percentage of ITGA2+ ATCs and the adhesion efficiency to type I collagen (R = 0.6858, p=0.0288) but not to fibronectin (R = −0.04, p=0.902) (Figure 5B). Vice versa, our ΔITGA5 generated cell lines showed reduced cell to fibronectin adhesion with only marginal change for collagen binding (Figure 5—figure supplement 2). Furthermore, by treating EOC cell lines and patients-derived ATCs cells with the selective integrin α2β1 inhibitor TC-I-15. The inhibitor specifically blocked ITGA2 interaction to collagen with marginal difference to fibronectin (Figure 5C-E). This inhibitory effect was not due to cytotoxicity of the drug itself since a long-term treatment (10 days) with the TC-I-15 inhibitor showed no significant impact on cell proliferation and spheroid formation (Figure 5F). Taken together, our findings suggest that ITGA2 is essential in mediating the initial cancer cell-collagen adhesion, a key step for peritoneal dissemination. TC-I-15 specifically blocks ITGA2-collagen interaction may therefore impede cancer cells dissemination to the collagen-rich omentum.

Figure 5 with 2 supplements see all

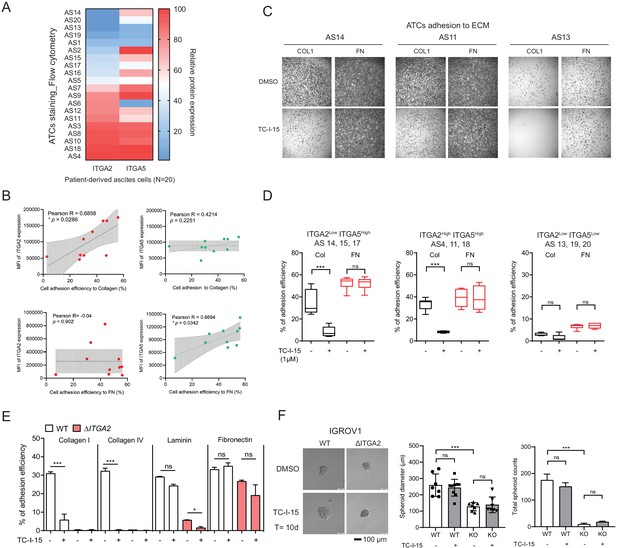

ITGA2 inhibitor selectively blocks ATCs and cancer cell adhesion to collagen.

(A) Flow cytometry analysis of ITGA2 and ITGA5 expression from patient-derived ATCs. (B) Pearson’s correlation of ITGA2 or ITGA5 expression and cell-to-collagen/fibronectin adhesion efficiency (n = 10). (C) ATC adhesion to collagen and fibronectin was performed after 20 mins pretreatment of 1 μM TC-I-15 or DMSO as control. Representative images show that TC-I-15 inhibits primary ATCs adhesion to collagen I but not fibronectin. (D) Box-whisker plots show the percentage of ATCs adhesion efficiency to collagen and fibronectin, respectively. (unpaired Student’s t-test, ***p<0.001). (E) Percentage of IGROV1 cell-ECM adhesion with (+) or without (-) 20 mins pretreatment of TC-I-15. (F) Anchorage-independent cell growth in the presence or absence of TC-I-15 inhibitor for 10 days (TC-I-15 containing medium was refreshed every 2 days). Bar chart shows the mean ± SD of spheroid diameters and spheroid number counts (***p<0.001) in IGROV1 WT and ΔITGA2 cells. Scale bar 100 μm.

ITGA2 promotes mesothelial clearance and peritoneal metastasis in vivo

After an initial tumor cell-collagen adhesion, a subsequent cell–cell adhesion and invasion through the mesothelial monolayer is a prerequisite to establish tumor implants in the omentum or peritoneum. Earlier studies suggest that ovarian cancer spheroids use fibronectin-binding integrin α5- and talin-dependent traction force to displace mesothelial cells and gain access to the underlying ECM (Davidowitz et al., 2014; Iwanicki et al., 2011). To identify whether ITGA2 facilitates cancer cell adhesion to mesothelial cells, we performed a co-culture in vitro competition adhesion assay. Equal numbers of fluorescence-labelled WT and ΔITGA2 cells were seeded onto a confluent mesothelial monolayer, adhesion was allowed for different times and then harvested for subsequent flow cytometry analysis. The ratio of cancer cell adhesion to mesothelial cells was significantly increased for 12 and 24 hr incubation (1.92- to 2.59-fold; WT/ ΔITGA2 cells) (Figure 6A), supporting the role of ITGA2 in facilitating mesothelial cell adhesion. In addition to single cell-mediated adhesion, we also evaluated the invasiveness of cancer spheroids to mesothelial cells following the dynamics of mesothelial clearance. Constitutively EGFP-expressing mesothelial cells (MeT-5A) were cultured on different ECM components and allowed to form a confluent monolayer before co-culture with RFP-expressing ovarian cancer spheroids. Among the different types of ECM components, collagen markedly enhanced cancer spheroid invasion through the mesothelial monolayer (Figure 6B) which further supports the premetastatic role of collagen in cancer cell dissemination. Furthermore, we evaluated cancer spheroid-mediated mesothelial clearance activity of different cell lines including WT, ΔITGA2 (n = 4), and ITGA2-OE cells (n = 4). The mesothelial clearance ratio of ΔITGA2 spheroids was significantly reduced compared to WT cells in IGROV1, OAW42, and ES2 cells (Figure 6C-D) and vice versa markedly increased in ITGA2-OE spheroids in SKOV3ip cells (Figure 6E). However, ITGA2-OE marginally promoted mesothelial clearance in BG1, OVCAR4, and A2780 cells. Such observation might be explained by ITGA2-independent mechanism involved in mediated mesothelial clearance.

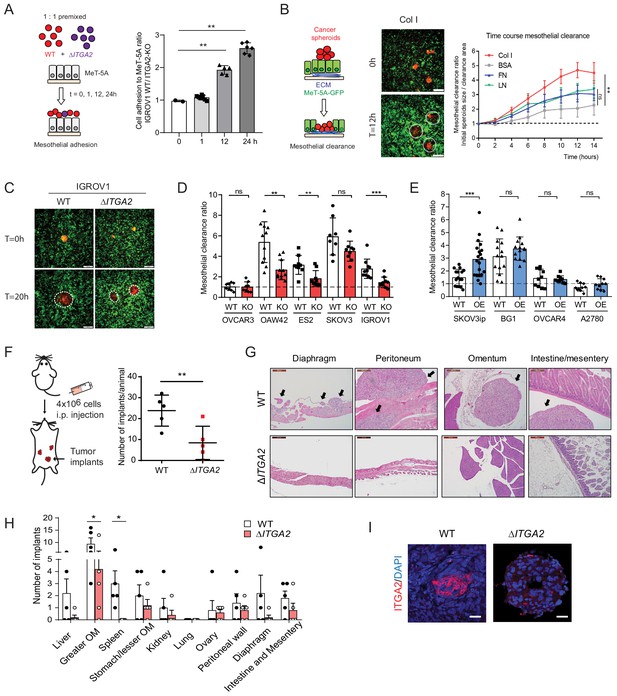

ITGA2 promotes mesothelial clearance and metastasis to the omentum in vivo.

(A) Cancer cell-mesothelial adhesion assay was performed by seeding equal numbers of fluorophore-labeled WT and ΔITGA2 single cancer cells on a confluent monolayer of MeT-5A cells. Bar chart shows the adhesion ratio of WT vs ΔITGA2 to MeT-5A cells at different time points. (B) Stable RFP-expressing cancer cell spheroids were seeded on top of a GFP-expressing MeT-5A mesothelial monolayer pre-coated with different ECM substrates. Mesothelial clearance activity was measured over time by time-lapse microscopy. Clearance ratio >1 suggests active enhanced clearance activity. Scale bar 200 μm. Line chart summarizes mesothelial clearance activity on different ECM substrates over time. (C) Representative images of mesothelial clearance assay of SKOV3 WT and ΔITGA2 cancer cell line at time point 0 and 20 hr. Scale bar 200 μm. (D) Bar chart shows mesothelial clearance ratio for WT versus ΔITGA2 (n = 5) and (E) WT versus ITGA2-overexpressed (OE) (n = 4) EOC cell lines with mean ± SD (unpaired Student’s t-test, ***p<0.001), each dot represents single spheroid clearance activity. (F) Dot plot shows the total number of tumor implants per animal after 8 weeks intraperitoneal injection of 4 × 106 SKOV3 WT and ΔITGA2 cells in NIH(S)II: nu/nu mice. (G) Representative H and E staining of the xenografts and metastases. Black arrows indicate the tumor metastases. Scale bar 200 μm. (H) Bar chart summarized the number of tumor foci in different organs. Mean ± SD (One-way Anova, *p<0.05). (I) Representative immunofluorescence staining of ITGA2 expression in the omental tumor xenograft.

To determine whether ITGA2 promotes cancer cells to selectively metastasize to the peritoneum and omentum, SKOV3 WT and ΔITGA2 cells were injected intraperitoneally into NIH(S)II: nu/nu mice. Histological examination of peritoneal organs after 8 weeks revealed a significant reduction of total tumor implants in ΔITGA2 xenografts compared to WT xenografts (Figure 6F). Moreover, a systematic microscopic examination revealed that the omentum harbors the highest number of metastatic foci compared to other organs in the peritoneal cavity reflecting the clinical observation that omentum is the most frequent site of metastasis (Figure 6G and H). The significant reduction of metastatic foci in the omentum of ΔITGA2 xenografts further supported the role of ITGA2 in promoting peritoneal dissemination and invasion into collagen-rich omentum (Figure 6H and I). Collectively, our data revealed that ITGA2 may contribute to the early onset of peritoneal metastasis by triggering single cells and spheroids adhesion to collagen, mesothelial layer and subsequent mesothelial invasion.

Identification of ITGA2-dependent signaling pathway using phosphoproteomics

In order to understand the molecular mechanism underlying ITGA2-dependent signaling, we analyzed the total proteome and phosphoproteome of ΔITGA2 and WT EOC cell lines (n = 3) (Figure 7—source data 1) in the presence of collagen. We identified 69 downregulated phosphoproteins shared across all three ∆ITGA2 cell lines (Figure 7A, Supplementary file 1b). Next, by applying the gene ontological (GO) analysis, we classified that the enriched cell components in the biological process were related to cell organization, polarity, and GTPase activity (Figure 7B). Such observation was further supported by Gene Set Enrichment Analysis (GSEA) and Reactome pathway analysis showing that MAPK1/3 activation and cell junction organization are significantly regulated through the ITGA2 axis (Figure 7C–D). Moreover, IGROV1 ΔITGA2 and WT cell was further analyzed because of the highest phosphoproteins detection in the mass spectrometry with a total of 18,471 phosphopeptides belonging to 3928 phosphoproteins. A total of 1061 phosphoproteins were significantly downregulated in ΔITGA2 (Figure 7E, and Supplementary file 1c). Unsupervised hierarchal clustering of the significantly altered phosphoproteins showed 20 downregulated proteins involved in the KEGG focal adhesion pathway (hsa04510) (Figure 7F). The KEGG pathview package (Luo and Brouwer, 2013) allowed us to visualize the differential expression of phosphoproteins in the focal adhesion signaling (e.g. downregulation of Src-FAK-sos-Raf-ERK1/2 cascades in ΔITGA2 cells) (Figure 7—figure supplement 1A). In addition, transcriptomic analysis of the TCGA-ovarian cancer dataset revealed a positive correlation of ITGA2 expression to COL1A2, COL3A1, and COL5A1 involved in focal adhesion pathway (Figure 7—figure supplement 1B). In line with a previous finding showing that ITGA2 positively regulates the transcription of fibrillary collagens (Ivaska et al., 1999), the ITGA2-collagen axis would likely constitute a positive feed-back loop between tumor cells and stromal cells in the metastatic niche.

Figure 7 with 3 supplements see all

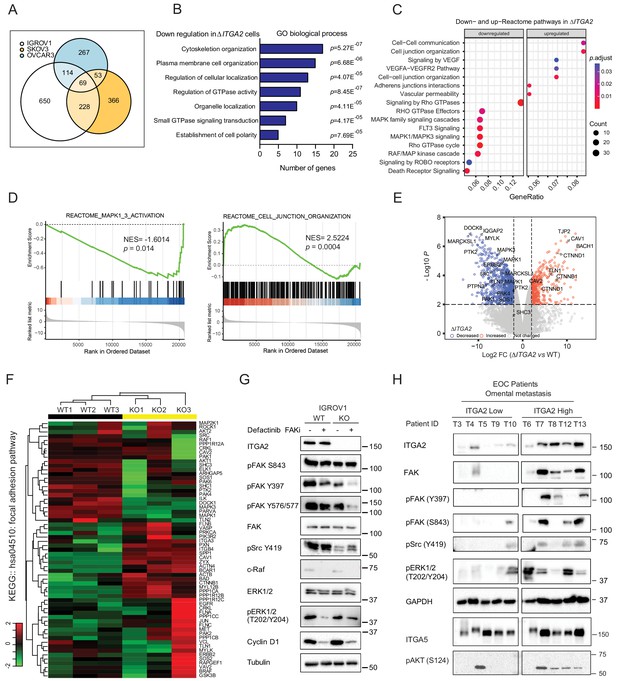

Identification of ITGA2-dependent activation of FAK and MAPK signaling axis using phosphoproteomics.

(A) Venn-diagram highlights the number of significantly downregulated phosphoproteins shared among three ΔITGA2 ovarian cancer cell lines. (B) Top seven gene ontology (GO) biological process terms with highest statistical significance. The horizontal axis displays the number of genes in the intersection group of three ΔITGA2 ovarian cancer cell lines. (C) GSEA analysis identified up- or downregulated pathways in ΔITGA2 cells. The Cluster Profiler dot plot visualization shows enriched terms as dots. The highest ranking of the significantly enriched pathway is displayed. (D) Reactome pathway analysis of MAPK and cell junction organization pathway comparing ΔITGA2 with WT cells. NES = normalized enrichment score. Nominal p-value calculated by the permutation test in GSEA analysis. (E) Volcano plot shows differentially expressed phosphoproteins between WT and ΔITGA2 cells. y-axis defines the statistical significance -Log10p<2 and x-axis defines the magnitude of Log2-fold change >2 or < −2. Colored circle defines significantly decreased (blue) or increased (red) phosphopeptides in ΔITGA2 cells. (F) Heatmap analysis of KEGG hsa04510:focal adhesion pathway phosphoproteins. Data were analyzed based on three biological replicates of IGROV1 WT and ΔITGA2 cells. (G) Western blot analysis shows major change of phosphoproteins in the focal adhesion signaling upon treatment of 5 μM Defactinib for 24 hr. (H) Western blot analysis shows induced activation and phosphorylation of FAK/Src/MAPK signaling in patient-derived ITGA2high compared to ITGA2low omental tumor (n = 10).

On the other hand, a significant enrichment of cell junction organization and cell–cell communication pathways was upregulated in ΔITGA2 cells (Figure 7D) suggesting a downregulation of epithelial-mesenchymal transition (EMT) upon genetic disruption of ITGA2. Consistent with proteomic profiling and western blot analysis, we confirmed that cell junction adhesion proteins including E-cadherin and EpCAM were significantly upregulated in the ΔITGA2 EOC cells (Figure 7—figure supplement 1C). Such enhanced expression of epithelial-associated proteins and cell–cell interaction may also explain the reduction of cell migration and invasion properties of the ΔITGA2 cells which is also support by recent studies showing that silencing ITGA2 restored E-cadherin expression and downregulated mesenchymal marker in chemo-resistant gastric cancer cells (Wang et al., 2020) as well as exosome-mediated transfer of ITGA2 in prostate cancer cells (Gaballa et al., 2020).

Multiple differential phosphorylation sites with relevant functional biological consequences were also identified in our analysis. In line with the phenotypic change of ΔITGA2 cells, significantly decreased phosphorylation of MAPK3Y204 and MAPK1T185/Y187, previously showing to inhibit its nuclear translocation and transactivation of cell proliferation signaling were identified in ΔITGA2 condition (Figure 7G, Figure 7—figure supplements 1D and 2). The phosphorylation of AKTS124 and AKTS129 are also significantly reduced in the ΔITGA2 cells (Figure 7—figure supplement 1D). Both phosphorylation sites are reported in enhancing catalytic activity of AKT and promotes cell survival, suggesting a crosstalk between AKT and ITGA2-dependent signaling (Di Maira et al., 2005). The phosphorylation of the proto-oncogene tyrosine kinase p-SrcY419 as well as FAK at site Y397, Y577, S722, and S843 were also significantly downregulated in ΔITGA2 condition (Figure 7G). The oncogenic role for FAK has been shown to sustain tumor spheroid proliferation and chemo-resistance in ovarian cancer (Diaz Osterman et al., 2019). FAKY397 autophosphorylation is a hallmark of FAK activity (Kleinschmidt and Schlaepfer, 2017) and collaborates with Src-dependent phosphorylation at FAKY576/Y577 leads to enhance adhesion-induced FAK activation. In order to evaluate whether inhibiting FAK phosphorylation would counteract with ITGA2-dependent spheroid formation and anoikis resistance, we tested FAK inhibitor in various in vitro assays. The FAK specific inhibitor Defactinib, previously showing initial signs of activity in relapsed EOC patients in combination with paclitaxel in a clinical phase I/Ib trial (Patel et al., 2014) was tested in this study. Here, Defactinib treatment in EOC cells showed no impact on inhibiting the upstream p-Src419 but resulted in a significant reduction of p-FAKY397, p-FAKY576/577, and the downstream c-Raf, G1/S phase transition cyclin D1 expression (Figure 7G, Figure 7—figure supplement 2). The inhibition of FAK phosphorylation by Defactinib led to a dramatic decrease in cell survival, anoikis resistance, and spheroid formation (Figure 7—figure supplement 3A–D). Blockade of either FAK or MAPK signaling axis showed no direct impact of cell-collagen adhesion but significantly reduced mesothelial clearance activity of EOC cells, supporting the functional involvement of ITGA2, and FAK/MAPK axis in ovarian cancer metastasis model (Figure 7—figure supplement 3E–F). It is reasonable that the FAK/MAPK-dependent cell survival is downstream of integrin receptor signaling, therefore ITGA2-mediated initial cell adhesion is marginally affected. In line with phosphoproteomics and in vitro inhibition models, the EOC patients’ samples also revealed a remarkable upregulation of phosphorylated FAKY397,S843, and ERK1/2 T202/Y204 in ITGA2High omental metastases (Figure 7H). Taken together, our data suggest that the ITGA2-collagen axis triggers activation of FAK and MAPK signaling and supports cell survival, anoikis resistance, cell adhesion.

Discussion

Given the significance of collagens comprising the major component of the ECM in the omentum, we investigated the role of collagen-binding integrins in the early onset of omental metastasis. There have been four collagen-binding integrin complexes (α1β1, α2β1, α10β1, and α11β1) implicated in a variety of malignancies with promoting activity in cancer cell dissemination (Zeltz and Gullberg, 2016). The transcriptomic analysis from CCLE database suggested that ITGA1 and ITGA2 are the major collagen-binding integrins in EOC cell lines (Figure 2A). Analysis of protein expression shows only ITGA2 is significantly elevated in omental metastases compared to the normal omentum, suggesting its potential role in mediating metastatic events. High expression of ITGA2 has been reported to exacerbate experimental metastasis in melanoma, gastric, and colon cancer (Baronas-Lowell et al., 2004; Bartolomé et al., 2014; Matsuoka et al., 2000). Additional studies revealed a ligand-mediated dynamic function of ITGA2 in promoting hepatic metastasis through binding to collagen IV in liver (Yoshimura et al., 2009) as well as driving collagen-rich bone metastasis in a prostate tumor xenograft model (Hall et al., 2006). However, Ramirez et al. demonstrated that ITGA2 acts as a metastasis suppressor by increasing tumor cell intravasation in Itga2 deficient mice (Ramirez et al., 2011).

In regards to ovarian cancer, a recent study demonstrated that ovarian cancer cells with elevated ITGA2 led to poor prognosis and survival. Overexpression of ITGA2 promoted in vitro cancer cell aggressiveness and in vivo tumor growth through regulation of the phosphorylation of forkhead box O1 (FoxO1) and AKT phosphorylation, which provided the mechanism for ITGA2-mediated paclitaxel-resistance in ovarian cancer (Ma et al., 2020). However, it remains uncertain how ITGA2 regulates AKT/Foxo1 axis and how ITGA2 is regulated in the ovarian cancer cells. Another study by Shield et al., 2007 showed that enhanced cellular expression of integrin α2β1 influence spheroid disaggregation and proteolysis responsible for the peritoneal metastases. Functional blockade with monoclonal antibodies binding to α2, β1, and α2β1 integrin inhibited disaggregation and activation of MMP2/MMP9 in cancer spheroids. Although the participation of specific integrins in spheroid formation is not fully characterized, it is reasonable that in a spheroid scenario is more related to cell–cell rather than cell-ECM interaction that will influence integrin expression profile. Taken together, a comprehensive understanding of integrin-ECM interaction, a crucial step of cancer cell dissemination, is uncertain but of immense importance in order to prevent peritoneal metastasis.

In this study, we report a high abundance of ITGA2 in more than 60% of patients investigated present in primary, ATCs, and omental metastases of the investigated cancer samples, suggesting a selective potential of tumor cell adherence to the collagen-rich omentum. We propose that ITGA2 facilitates early events of peritoneal metastasis by enhancing anchorage-independent cell growth, cell adhesion to collagen, and displacement of mesothelial layer leading to peritoneal metastasis both in vivo and in vitro and by using several ITGA2 knockout (n = 5) and overexpressed (n = 4) cell lines representing various histological histotype of EOC. Additionally, upregulation of multiple ECM proteins including COL1A1, COL1A2, COL3A1, COL5A1, COL11A1, FN1, and VCAN was also observed in omental metastases. ECM proteins have been associated with cancer progression and poor prognosis as shown by multilevel evidences from transcriptomics, proteomics, digital histopathology data (Pearce et al., 2018), as well as in a pooled hazard ratio model (Figure 1—figure supplement 1D). For example, COL1A1 promotes primary ovarian cancer cell adhesion and initiates tumor growth (Burleson et al., 2004; Moser et al., 1996). Hypoxia stimulates collagen remodeling by mesothelial cells and can be pharmacologically inhibited to reduce tumor burden in murine omental metastases (Natarajan et al., 2019). Furthermore, the enhanced expression of COL5A1, COL11A1, and VCAN through regulation of TGF-β1 signaling was identified in ovarian cancer metastasis. Consistently, elevated COL11A1 expression is also a predictor for poor survival in patients with serous ovarian cancer (Cheon et al., 2014; Jia et al., 2016).

In the present study, the origin of high COL1A1, COL1A2, COL3A1 expression identified in the normal omentum and omental metastases positively correlates with fibroblast activation protein-1α (FAP) and α-smooth muscle actin (ACTA2) (Figure 1—figure supplement 1C). Considering that fibroblasts possess very high contractile ability, promote angiogenesis, and stimulate epithelial tumor growth via secretion of growth factors and a variety of ECM, this might explain the correlation with poor prognosis of patients with elevated cancer-associated fibroblasts and collagens (Gao et al., 2019; Pearce et al., 2018). Intriguingly, the matrix metalloproteinases (e.g. MMP2, 9, and 14) capable of degrading collagens and proteoglycans were also found to be upregulated in omental metastases (Figure 1A, and Supplementary file 1a), consistent with the idea that ECM degradation and remodeling are essential steps for cancer cell invasion (Shield et al., 2007). On the other hand, downregulation of the matrix proteins in omental metastases including LAMA4, LAMB1, LAMC1, TNXB, and COL15A1 (Figure 1A) is associated with the integrity of mesothelial basement membrane and tissue homeostasis (Pearce et al., 2018). Peritoneal metastasis is common in patients with adenocarcinomas of ovarian, tubal, and peritoneal origin and underlying biological mechanisms have been mainly focusing on an integrin α5β1-fibronectin interaction. Kenny et al. has demonstrated that the interaction of integrin α5β1-fibronectin between cancer cells and mesothelial cells can be blocked by a monoclonal antibody, resulting in lesser peritoneal metastasis (Kenny et al., 2014). Furthermore, a recent study highlighted the role of fibroblast-secreting EGF in promoting ITGA5high spheroid-mediated peritoneal dissemination (Gao et al., 2019). However, a recent phase II trial using the anti-α5β1 integrin antibody, Volociximab, showed no clinical improvement in patients with advanced ovarian cancer, and 75% of the patients experienced study-related adverse events (Bell-McGuinn et al., 2011; Ricart et al., 2008). Here, the redundancy of overlapping ligand specificities between integrins may be a possible escape mechanism of tumor cells. Therefore, our finding provides an alternative therapeutic potential of blocking ITGA2-mediated collagen adhesion using a selective α2β1 integrin antagonist, TC-I-15. Considering that cancer cell dissemination is the initial event of peritoneal metastasis, it is reasoned that the proposed integrin blockade may not be effective when metastasis has already taken place. As a result, a maintenance therapy after cytoreductive surgery might be more favorable to delay tumor recurrence.

Mechanistically, we have identified that ITGA2-collagen interaction fosters cancer cell survival, cell migration, and anoikis resistance through the FAK/MAPK signaling axis. As a result, targeting integrin-dependent downstream effectors may also provide a similar inhibitory effect as integrin inhibition to prevent cancer cell dissemination. Increased expression of FAK signaling proteins has been identified in omental metastases, which is linked to poor prognosis in EOC (Nolasco-Quiroga et al., 2019; Sood et al., 2004). In agreement with previous findings that depletion of FAK also inhibits local invasion and metastasis in vivo (Provenzano et al., 2008), we could demonstrate that FAK inhibitor Defactinib dramatically reduces cancer cell proliferation, spheroid formation, and mesothelial clearance. Moreover, the growth factor family receptors (e.g. EGFR, VEGFR) can also induce the FAK/Src/MAPK activation in an integrin-independent manner (Bromann et al., 2004), suggesting that targeting FAK may provide an ancillary effect to inhibit the growth of tumor cells.

Overall, we describe the critical contribution of collagens elevated in the premetastatic niche and the mechanism of how ITGA2-mediated cancer cell dissemination during peritoneal metastasis. The ITGA2-dependent phosphorylation of FAK and ERK1/2 triggers focal adhesion and MAPK signaling, leading to increased anoikis resistance and mesothelial invasion of cancer cells (Figure 8). The herein provided in vitro, in vivo, and ex vivo evidence suggests that selectively blocking cancer cell-to-collagen interaction or targeting FAK/MAPK-mediated signaling may present another opportunity for therapeutic intervention of peritoneal metastasis.

Schematic representation of the ITGA2-collagen dependent signaling axis in ovarian cancer metastasis.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
antibodyanti-human COL1A1 antibody (rabbit polyclonal)Sigma-AldrichCat# HPA011795, RRID:AB_1847088IHC (1:100)
antibodyIntegrin β1 (rabbit monoclonal)Cell Signaling TechnologyCat# 9699, RRID:AB_11178800WB (1:1000)
antibodyIntegrin β1 antibody [12G10] (mouse monoclonal)AbcamCat# ab30394, RRID:AB_775726WB (1:1000)
antibodyIntegrin β1 (CD29)-BV510 (mouse monoclonal)BD BiosciencesCat# 747747 RRID:AB_2868388FACS (1:100)
antibodyAlexa Fluor 647 anti-human CD49a (mouse monoclonal)BioLegendCat# 328310, RRID:AB_2129242FACS (1:100)
antibodyAnti-human Integrin α1/CD49a (mouse monoclonal)R & D SystemsCat# MAB5676, RRID:AB_10719143WB (1:500)
antibodyAnti-human Integrin α2 (rabbit monoclonal)AbcamCat# ab181548, RRID:AB_2847852WB (1:5000)
antibodyFITC anti-human CD49b, Integrin α2 (mouse monoclonal)BD BiosciencesCat# 555498, RRID:AB_395888FACS (1:100)
antibodyAlexa Fluor 647 anti-human CD49b, Integrin α2 (mouse monoclonal)BD BiosciencesCat# 564314, RRID:AB_2738739FACS (1:100)
antibodyanti-human Integrin α5 [C9] (mouse monoclonal)Santa Cruz BiotechnologyCat# sc-376199, RRID:AB_10987904WB (1:200)
antibodyAlexa Fluor 647 anti-human CD49e Integrin α5 (mouse monoclonal)BD BiosciencesCat# 563578, RRID:AB_2738289FACS (1:100)
antibodyanti-integrin α10 (rabbit polyclonal)MilliporeCat# AB6030, RRID:AB_10806096WB (1:1000)
antibodyanti-human Integrin α11 (goat polyclonal)R & D SystemsCat# AF4235, RRID:AB_10644168WB (1:1000)
antibodyp44/42 MAPK (Erk1/2) Antibody (rabbit polyclonal)Cell signaling TechnologyCat# 9102, RRID:AB_330744WB (1:1000)
antibodyPhospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (rabbit monoclonal)Cell signaling TechnologyCat# 4370, RRID:AB_2315112WB (1:1000)
antibodyPhospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (Mouse monoclonal)Cell signaling TechnologyCat# 9106, RRID:AB_331768WB (1:1000)
antibodyFAK (D5O7U) XP (rabbit monoclonal)Cell signaling TechnologyCat# 71433, RRID:AB_2799801WB (1:1000)
antibodyPhospho-FAK (Tyr397) (D20B1) (rabbit monoclonal)Cell signaling TechnologyCat# 8556, RRID:AB_10891442WB (1:1000)
antibodyPhospho-FAK (Tyr576/577) (rabbit polyclonal)Cell signaling TechnologyCat# 3281, RRID:AB_331079WB (1:1000)
antibodyPhospho-FAK (S843) (Clone 743101) (mouse monoclonal)R & D SystemsCat# MAB7298, RRID:AB_10994616WB (1:1000)
antibodyPhospho-Src (Y419) (rabbit polyclonal)R & D SystemsCat# AF2685, RRID:AB_442167WB (1:500)
antibodyVimentin (V9) (mouse monoclonal)Thermo Fisher ScientificCat# MA5-11883, RRID:AB_10985392WB (1:1000)
antibodyE-Cadherin (24E10) (rabbit monoclonal)Cell signaling Technologycat# 3195, RRID:AB_2291471WB 1:1000
antibodyRabbit Anti-HA-Tag (clone C29F4) (rabbit monoclonal)Cell signaling TechnologyCat# 3724, RRID:AB_1549585WB 1:1000
antibodyanti-c-Raf (rabbit polyclonal)Cell signaling TechnologyCat# 9422, RRID:AB_390808WB 1:1000
antibodyalpha/beta-Tubulin (rabbit polyclonal)Cell signaling TechnologyCat# 2148, RRID:AB_2288042WB 1:1000
antibodyGAPDH (0411) (mouse monoclonal)Santa Cruz Biotechnologysc-47724, RRID:AB_627678WB 1:2000
antibodyCyclin D1 (92G2) (rabbit monoclonal)Cell signaling TechnologyCat# 2978, RRID:AB_2259616WB 1:1000
antibodyPARP (rabbit polyclonal)Cell signaling TechnologyCat# 9542, RRID:AB_2160739WB 1:1000
antibodyCleaved PARP (Asp214) (rabbit polyclonal)Cell signaling TechnologyCat# 9541, RRID:AB_331426WB 1:1000
antibodyβ-Catenin (D10A8) XP (rabbit monoclonal)Cell signaling TechnologyCat# 8480, RRID:AB_11127855WB 1:1000
antibodyEpCAM (VU1D9) (mouse monoclonal)Cell signaling TechnologyCat# 2929, RRID:AB_2098657WB 1:1000
antibodyCD56 (NCAM) (mouse monoclonal)Cell signaling TechnologyCat# 3576, RRID:AB_2149540WB 1:1000
antibodyanti-β-Actin (mouse monoclonal)Sigma-AldrichCat# A5441, RRID:AB_476744WB 1:1000
antibodyanti-GFP (Rabbit Polyclonal)GeneTexCat# GTX113617, RRID:AB_1950371WB 1:1000
chemical compound, drugCollagen type I (from Human placenta)Sigma-AldrichC777410 μg/well
chemical compound, drugCollagen type III (From human placenta)Advanced BioMatrix501910 μg/well
chemical compound, drugCollagen type IV (From Human Cell)Sigma-AldrichC752110 μg/well
chemical compound, drugFibronectin from Human PlasmaMilliporeFC0102 μg/well
chemical compound, drugLaminin (From EHS murine sacroma)Sigma-AldrichL202010 μg/well
chemical compound, drugTC-I 15 (ITGA2 inhibitor)TOCRIS45271–10 μM
chemical compound, drugATN-161 (ITGA5 inhibitor)TOCRIS60581–10 μM
chemical compound, drugDefactinib (VS-6063) (FAK inhibitor)SelleckchemS765410 μM
chemical compound, drugFR180204 (ERK inhibitor)Sigma-AldrichSML-032010 μM
chemical compound, drugLiberaseRoche5401054001
commercial assay or kitFITC-Annexin V Apoptosis Detection Kit IBD Biosciences556547FACS (5 uL per test)
commercial assay or kitAnnexinV-FITCBiolegend640906FACS (5 uL per test)
commercial assay or kitCellTracker CM-DiI DyeThermoFisher ScientificC7000
commercial assay or kitCellTrace Violet DyeThermoFisher ScientificC34571
commercial assay or kitCellTrace FarRed DyeThermoFisher ScientificC34572
chemical compound, drugProLong Gold antifade reagentCell signaling Technology9071
chemical compound, drugRadioimmunprecipitation assay buffer (RIPA)Cell signaling Technology9806
chemical compound, drugThiazolyl Blue Tetrazolium Bromide (MTT)Sigma-AldrichM2128
chemical compound, drugAgarose, low gelling temperatureSigma-AldrichA9414
chemical compound, drugBovine serum albuminSigma-AldrichA9418
chemical compound, drugPhosphatase Inhibitor Cocktail 2Sigma-AldrichP5726
chemical compound, drugPhosphatase Inhibitor Cocktail 3Sigma-AldrichP0044
chemical compound, drugPoteinase Inhibitor CocktailsSigma-AldrichP8340
chemical compound, drugCell-dissociation solution non-enzymaticSigma-AldrichC5914
commercial assay or kitpGEM-T Easy Vector SystemPromegaA1360
chemical compound, drugSequencing-grade modified trypsinPromegaV5111
Recombinant DNA reagentpUltraAddgeneRRID:Addgene_24129
recombinant DNA reagentpUltra-ChiliAddgeneRRID:Addgene_48687
recombinant DNA reagentpCMVR8.74AddgeneRRID:Addgene_22036
recombinant DNA reagentpMD2.GAddgeneRRID:Addgene_12259
recombinant DNA reagentmCherry-Integrin-Alpha2-N-18AddgeneRRID:Addgene_55063
recombinant DNA reagentpSpCas9(BB)−2A-GFPAddgeneRRID:Addgene_48138
recombinant DNA reagentpSpCas9(BB)−2A-puroAddgeneRRID:Addgene_48139
recombinant DNA reagentlentiCRISPRv2AddgeneRRID:Addgene_52961
recombinant DNA reagentpCMV3-ITGA2-HASino BiologicalHG13024-CY
recombinant DNA reagentpUltra-Chili-ITGA2-HAthis paperITGA2 overexpression
recombinant DNA reagentpUltra-ITGA2-HAthis paperITGA2 overexpression
recombinant DNA reagentlentiCRISPRv2-ITGA2this paperΔITGA2
recombinant DNA reagentpSpCas9(BB)−2A-GFP _ITGA2-sgRNA1this paperΔITGA2GGTTCAGCTACTGAGCTCTG
recombinant DNA reagentpSpCas9(BB)−2A-GFP _ITGA2-sgRNA2this paperΔITGA2GAAGGTCTACAGCTCTAGAA
recombinant DNA reagentpSpCas9(BB)−2A-GFP _ITGA5-sgRNA1this paperΔITGA5GTCCCGAGGAAGCAGAGCTG
recombinant DNA reagentpSpCas9(BB)−2A-GFP _ITGA5-sgRNA3this paperΔITGA5GCTAGGATGATGATCCACAG
sequence-based reagentITGA2-gt-forthis paperPCR primersACGCCATCATGAGCAAGTCT
sequence-based reagentITGA2-gt-revthis paperPCR primersGCAGCCGTGGTCTAAAAGGA
cell line (Homo sapiens)IGROV-1ATCCRRID:CVCL_1304Ovarian cancer cell lines
cell line (H. sapiens)ES-2ATCCRRID:CVCL_CZ94Ovarian cancer cell lines
cell line (H. sapiens)OVCAR-3ATCCRRID:CVCL_0465Ovarian cancer cell lines
cell line (H. sapiens)OVCAR-4Charles River LaboratoriesRRID:CVCL_1627Ovarian cancer cell lines
cell line (H. sapiens)OVCAR-5Charles River LaboratoriesRRID:CVCL_1628Ovarian cancer cell lines
cell line (H. sapiens)OVCAR-8Charles River LaboratoriesRRID:CVCL_1629Ovarian cancer cell lines
cell line (H. sapiens)BG1Charles River LaboratoriesRRID:CVCL_6570Ovarian cancer cell lines
cell line (H. sapiens)OAW42ECACCRRID:CVCL_1615Ovarian cancer cell lines
cell line (H. sapiens)KuramochiJCRBRRID:CVCL_1345Ovarian cancer ell lines
cell line (H. sapiens)SK-OV-3ATCCRRID:CVCL_0532Ovarian cancer cell lines
cell line (H. sapiens)A2780ATCCRRID:CVCL_0134Ovarian cancer cell lines
cell line (H. sapiens)TOV-112DATCCRRID:CVCL_3612Ovarian cancer cell lines
cell line (H. sapiens)MeT-5AATCCCat# CRL-9444 RRID:CVCL_3749Human mesothelial cell line

Chemicals, reagents, and antibodies

Request a detailed protocol

The detailed list of primary antibodies, chemicals, and reagents using in biochemical or functional analyses are summarized in Key Resource Table.

Cell culture

Request a detailed protocol

A total number of twelve different ovarian cancer cell lines were purchased via ATCC and Oncotest GmbH (now Charles River LaboratoriesInc) maintained in-house in RPMI-1640 supplemented with 10% fetal bovine serum (Sigma-Aldrich), 100 U/mL penicillin, and 0.1 mg/mL streptomycin unless stated differently (Key Resource Table). All the cell lines were regularly tested for mycoplasma contamination and authenticated using short tandem repeat STR profiling (Microsynth, Switzerland). The human mesothelial cell line MeT-5A was purchased from ATCC #CRL-9444 and cultured in Medium 199 supplemented with trace elements and additional growth factors (3.3 nM epidermal growth factor, 400 nM hydrocortisone (Sigma-Aldrich), 870 nM bovine insulin (Sigma-Aldrich) and 20 nM HEPES). All cell lines were cultured at 37°C in a 95% humidified atmosphere containing 5% CO2. Patient ascites-derived tumor cells (ATCs) were cultured in DMEM/F-12 supplemented with 20% FBS, 100 U/mL penicillin, 0.1 mg/mL streptomycin, and 0.25 μg/mL amphotericin B.

CRISPR-Cas9 sgRNA design and construction

Request a detailed protocol

Single guided RNAs (sgRNA) targeting exons 29–30 of ITGA2 were designed using the web tool of UCSC Genome browser (https://genome.ucsc.edu/) (2). sgRNA1: GGTTCAGCTACTGAGCTCTG and sgRNA2: GAAGGTCTACAGCTCTAGAA respectively, were selected for gene editing of the transmembrane domain of ITGA2. Single guided RNAs (sgRNA) targeting exons 26–29 of ITGA5 were sgRNA1: GTCCCGAGGAAGCAGAGCTG and sgRNA3: GCTAGGATGATGATCCACAG. Oligo pairs encoding 20nt targeted sequences with overhangs (both 5’ and 3’) from BbsI restriction site were annealed and cloned into either pSpCas9(BB)−2A-GFP (addgene, #PX458) or pSpCas9(BB)−2A-puro (addgene, #PX459). Constructs were transformed into DH5alpha E. coli strains and confirmed by Sanger DNA sequencing using U6-F primer. Additionally, the same ITGA2 oligos were cloned into lentiCRISPR v2 (addgene #52961).

Generation of ΔITGA2 cell lines

Request a detailed protocol

EOC cell lines (IGROV1 and SKOV3) were grown in 6-well plates (5 × 105 cells/well) for 24 hr and transiently transfected using TransIT-X2 transfection reagent (Mirus-Bio, Madison USA) with 3 μg of pair sgRNAs containing donor plasmids to generate homozygous ITGA2 deletions. 72 hr after transfection, single cell sorting was performed on a BD FACS Aria Cell Sorter (BD Bioscience) sorting for single DAPI- and GFP+ cells into 96-well flat-bottom plates with pre-warmed RPMI containing 10% FBS. Single cell clones were isolated and characterized by genotyping PCR, DNA sequencing, and immunoblotting. For generation of ΔITGA2 cell lines (OVCAR3, OAW42, and ES2), parental cells were transduced by lentiCRISPR v2-ITGA2 virus containing medium and selection by 2 μg/mL of puromycin for 2 weeks. The expression of ITGA2 was confirmed by western blot, flow cytometry, and immunofluorescence.

Genotyping and DNA sequencing

Request a detailed protocol

Selected clones were characterized to identify homozygous knockout by using two independent PCR primer pairs ITGA2-gt-F: ACGCCATCATGAGCAAGTCT, ITGA2-gt-R: GCAGCCGTGGTCTAAAAGGA. PCR was performed using MyTaq (Bioline), 300 nM primer, and 50 ng genomic DNA. PCR conditions were 95°C for three mins, then 35 cycles of 95°C for 15 s, 58°C for 20 s, 72°C for 70 s, finished with 1 cycle at 72°C for five mins. Amplicons were visualized on a 1.5% agarose gel. PCR products corresponding to the ITGA2 genomic deletion regions were purified and cloned into the pGEM-T Easy Vector System (Promega) according to the manufacturer’s instruction and sequenced using T7 and SP6 primer by Sanger DNA sequencing (Microsynth, Switzerland).

Generation of ITGA2 overexpression construct and lentiviral transduction

Request a detailed protocol

The ITGA2 open reading frame was amplified using 2U of Pfu DNA polymerase (Promega), 1x Pfu polymerase buffer, 300 nM primers (ITGA2-XbaI_F: gaatctagaATGGGGCCAGAACGGACA and ITGA2-Nhe_R: caagctagcGCTACTGAGCTCTGTGGT), 30 ng cDNA template (Integrin α2-N-18; #addgene 55063), 200 μM dNTPs under following conditions: 95°C for 1 min followed by 30 cycles of 95°C for 30 s, 55°C for 30 s, 72°C for eight mins, and finished with 1 cycle at 72°C for five mins. Amplicons were visualized on 1% agarose gel and purified by Wizard SV gel and PCR Clean-Up System (Promega) and cloning into C-terminal HA tagged pUltra (addgene#24129) or pUltra-Chili (addgene #48687) bicistronic expression vectors via XbaI/NheI cloning. The ligation products were transformed into Stbl3 E. coli competent cells, and the plasmids were purified and further verified by Sanger DNA sequencing (Microsynth, Switzerland). For preparation of lentiviral particles, HEK293T cells were seeded at around 50% confluency in a T75 flask one day before transfection. 4 μg of plasmid pUltra-ITGA2-HA (or pUltra-Chili-ITGA2-HA) and 2 μg of pMD2.G (Addgene #12259) and 2 μg of pCMVR8.74 (Addgene #22036) were co-transfected using 24 μL of jetPEI reagent in 1 mL of 150 mM NaCl solution (Polyplus-transfection, Chemie Brunschwig AG, Switzerland). Medium was changed 24 hr after transfection. Virus supernatant was collected 48 hr later and filtered with a 0.45 μm polyvinylidene fluoride filter (Millipore). 3 mL of lentivirus-containing medium was used to transduce low-ITGA2 expression cells in a T25 flask and sorted after three passages by GFP+ or dTomato+ population.

Cell proliferation (proliferation index)

Request a detailed protocol

To identify the proliferation rate cells were seeded at a density of 10000 cells per well in 96-well standard cell culture plates, 2 μg/well fibronectin or 10 μg/well collagen-coated NuncUNC-Maxisorp plate. Cells were incubated for up to 96 hr. At each time point MTT dye (Sigma-Aldrich) was added at a final concentration of 500 μg/mL and incubated for 3 hr. After removal of supernatant, 200 μL of DMSO was added to dissolve the crystals. The optical density (OD, absorbance at 540 nm) was measured with a Synergy H1 Hybrid Reader (Biotek, Basel, Switzerland). Proliferation index was calculated as OD 540 nm at day four divided by day 2.

Colony formation assay

Request a detailed protocol

Single cells were harvested and 1000 cells seeded per well of a 6-well tissue culture plate or pre-coated with collagen I 100 μg/mL at 4°C overnight. The standard culture medium was replaced every 3 days. 7 days after seeding, cells were fixed with 4% paraformaldehyde for 15 mins at room temperature and stained using 0.1% crystal violet. Images were acquired with Gel Doc XR+ and analyzed using ImageJ software.

Soft agar spheroid formation assay

Request a detailed protocol

104 single cells were harvested and grown in culture medium containing 0.6% low gelling temperature base agarose (Sigma-Aldrich A9414) and 0.4% top agarose. Culture medium was added every 2–3 days. After 10–14 days of culture, colonies were fixed, stained and images acquired with Olympus IX81 microscopy.

Cell migration assay

Request a detailed protocol

Cells were grown in serum-free medium for 24 hr and ~1×105 cells were seeded into the upper chamber of a 12-well hanging inserts with a pore size of 8 μm (Millicell, Millipore). Cells were incubated at 37°C for 18 hr allowing cells to migrate toward the chemo-attractant (RPMI medium containing 10% FBS). After incubation, medium in the interior part of the insert was removed and the insert immersed in 0.1% crystal violet/4% paraformaldehyde solution for 20 mins. The insert was intensively washed and non-migrated cell were removed from the interior of the insert using a cotton-tip swab. Images were acquired with Olympus IX81 and the number of migrated cells were counted.

Anoikis assay

Request a detailed protocol

To evaluate anchorage-independent cell growth, cells were grown in a 96-well ultra-low attachment plate (Corning Costar) for 3–5 days. Cells were then harvested, washed, and gently dissociated with 0.1% trypsin and stained with a FITC-Annexin V Apoptosis Detection kit (BD Biosciences) according to the manufacturer’s instructions. The percentage of DAPI and FITC positive cells was analyzed by flow cytometry using CytoFLEX (Beckman Coulter).

Cell adhesion assay

Request a detailed protocol

To evaluate the adhesion properties of cancer cells to ECM proteins, a 96-well Nunc Maxisorp flat-bottom plate (Invitrogen) were coated overnight at 4°C using 10 μg/well human type I, III, IV collagen, fibronectin, and Engelbreth-Holm-Swarm tumor (EHS)-derived laminin, which were prepared according to manufacturer’s instructions. The plates were first washed with serum-free RPMI-1640 medium and 0.1% (w/v) BSA to remove unbound proteins, then blocked with serum-free RPMI-1640 medium and 0.5% (w/v) BSA for 45 mins at 37°C. EOC cell lines and ascites-derived tumor cells (under passage 0 to 1) were collected and resuspended in serum-free medium. A total of 5 × 104 cells were seeded in each well in triplicates and incubated for 20 mins at 37°C for adhesion. Non-adherent cells were removed by washing twice with serum-free medium with 0.1% (w/v) BSA. Adherent cells were fixed with 4% paraformaldehyde solution for 15 min, and stained with 0.05% (w/v) crystal violet for 15 mins. Images were acquired using by widefield microscope Olympus IX81, and the number of adherent cells was analyzed using ImageJ software.

Flow cytometry

Request a detailed protocol

Cell-surface integrin expression was analyzed by flow cytometry (CytoFLEX, Beckman Coulter) after antibody labeling. Sub-confluent cancer cell lines or primary ATCs were harvested, washed, and dissociated using 1X non-enzymatic dissociation buffer (Sigma-Aldrich). Cells were incubated with the following fluorescence-labeled antibodies: Alexa Fluor647 mouse anti-human ITGA2/CD49b (BD Bioscience, 1:100), FITC-mouse anti-human ITGA2/CD49b (1:100), Alexa Fluor647 mouse anti-human ITGA5/CD49e (1:100), BV510-mouse anti-human ITGB1/CD29(1:100) at 4°C for 1 hr. Matching isotype monoclonal antibodies conjugated to FITC or Alexa Fluor647 were used as controls (BD Bioscience). All investigated cell lines were gated individually to exclude debris, doublets, or DAPI-staining (BD Bioscience 0.1 μg/mL) to exclude dead cells. Data analysis was performed using FlowJo v10 BD (Becton Dickinson).

Immunohistochemistry

Request a detailed protocol

Formalin-fixed, paraffin-embedded tissue samples were sectioned with a standard microtome at 3- to 5 µm thickness. After deparaffinization and rehydration, heat-induced (98°C) antigen retrieval was performed in 10 mM sodium citrate buffer (pH 6.0) at a sub-boiling temperature for 10 mins. The slides were incubated with hydrogen peroxide 3% (v/v) for 10 min, washed and blocked with 5% FBS in TBST for 1 hr at room temperature. Next, slides were incubated with primary antibodies anti-COL1A1 (1:100) (Sigma-Aldrich) and anti-ITGA2 (1:500) (Abcam) at 4°C overnight. Primary antibodies were detected using a SignalStain Boost IHC anti-rabbit HRP Reagent (Cell signaling Technology). The signal was visualized using a diaminobenzidine substrate kit (DAB, Thermo Fisher Scientific) according to the manufacturer's instructions and nuclei were counterstained with hematoxylin. Immunostaining was scored by the weighted average score (intensity: 0–3, coloring: 0–100% of ITGA2 expression) by two trained scientists independently and discrepancies were resolved by consensus.

Immunofluorescence staining

Request a detailed protocol

Ovarian cancer cells were grown on an 8-well tissue culture chamber slides (Sarstedt, Switzerland), fixed with 4% paraformaldehyde, permeabilized with 0.3% Triton X100, and blocked with 5% (w/v) FBS (Sigma-Aldrich), 1% bovine serum albumin (BSA) fraction V, and 0.1% TritonX-100 containing PBS for 1 hr at room temperature. Cells were then stained with anti-integrin α2, anti-integrin β1, or anti-E-cadherin antibodies for overnight at 4°C. Following extensive washing, corresponding secondary antibodies were added to each chamber and incubated for 2 hr. Cells were washed with PBS containing 0.1% Tween 20 and incubated and counterstained with ProLong Gold antifade reagent with DAPI (Cell Signaling Technology). Fluorescence images were taken by a Zeiss LSM 710 confocal microscope (Zeiss, Feldbach, Switzerland). For patient-derived primary cells, 100–200 μL ascites cell suspension was collected using cytospin for 5 min at 400 g on a glass slide. Cells were then fixed with 4% paraformaldehyde, permeabilized, blocked, and stained as mentioned above.

Immunoblotting

Request a detailed protocol

Cells were lysed in 1X radioimmunprecipitation assay buffer (RIPA, Cell Signaling Technology) containing proteinase inhibitor cocktails (Sigma-Aldrich). Lysates were clarified by centrifugation at 18,000 g for 15 min at 4°C. Clarified lysates were boiled in 1x sample buffer (50 mM Tris-HCl, 1% SDS, 100 mM DTT and 10% glycerol) at 95°C for 5 min and resolved by SDS-PAGE. Proteins were then transferred to a polyvinylidene difluoride (PVDF) membrane (BioRad) and blocked with 5% (w/v) bovine serum albumin in TBST (20 mM Tris-Base, 150 mM NaCl, pH 7.8, 0.1% Tween 20) for 1 hr at room temperature. The membrane was incubated with one of the listed primary antibodies diluted in 5% (w/v) BSA in TBST overnight at 4°C. After extensive washing in TBST, the membrane was incubated with corresponding HRP-conjugated secondary antibodies (1:10000, Cell Signaling Technology) for 3 hr at room temperature. Finally, the membrane was developed using the Super Signal West Dura Extended Duration Substrate (Thermo Fisher Scientific) for detection of HRP. western blot results were visualized by Gel Doc XR+ (BioRad) and analyzed by Image Lab software (BioRad).

Cancer cell to mesothelial adhesion assay

Request a detailed protocol

A 24-well plate was coated with 5 μg/mL collagen I and mesothelial cells MeT-5A were cultured until full confluency was reached. WT cancer cells were labeled with CellTrace (Thermo Fisher Scientific) Far Red (Ex/Em 630/661 nm) and ΔITGA2 cancer cells with CellTrace Violet dye (Ex/Em 405/450 nm) for 20 mins at 37°C according to the manufacturer’s instruction. WT and ΔITGA2 cells were equally mixed and added on top of the mesothelial cell layer. The adhesion of cancer cells was measured over time by washing the plate twice with PBS followed by detachment of all the adherent cells using trypsin for subsequent flow cytometry analysis using CytoFLEX (Beckman Coulter). The cell adhesion ratio was calculated by dividing the percentage of WT cells to the ΔITGA2 cells.

Mesothelial clearance assay

Request a detailed protocol

The mesothelial clearance assay was modified from Iwanicki et al., 2011. In brief, 100–200 EOC cells which stably expressed red fluorescent dTomato protein were cultured in a 96-well ultra-low attachment plate for 1–2 days in order to generate multicellular spheroids. GFP-expressing mesothelial cells (MeT-5A) were seeded in a 6-well plate at 37°C overnight to allow the mesothelial cells to form a confluent monolayer. The cancer cell spheroids (10–20/per well) were collected and gently added on top of the mesothelial monolayer. To monitor the intercalation process in a real-time quantitative manner, we performed the time-lapse imaging by installing a 12-well cell culture plate on a motorized stage capable of imaging multiple positions. GFP, RFP, and bright field images were acquired every 30 mins for 24 hr using the widefield fluorescence microscope Olympus IX81 with a custom built-in incubation chamber with temperature (37°C) and CO2 control. To quantify mesothelial clearance, the non-fluorescent area (black hole) in the GFP mesothelial monolayer was measured over time and divided by the initial area of the cancer spheroid (at time zero). At least 10 spheroids were quantified for each cell line and all experiments were performed in triplicates.

Zebrafish xenograft model

Request a detailed protocol

All zebrafish experiments and husbandry were in compliance with the Swiss Animal Protection Ordinance and approved by the Kantonales Veterinaeramt Basel-Stadt. The xenotransplantation experiments were performed as described previously (Jacob et al., 2018). In brief, WT and ΔITGA2 cancer cells were labeled with the fluorescent CellTracker CM-Dil (Life Technologies). Zebrafish embryos were anesthetized in 0.4% tricaine (Sigma-Aldrich) at 2 day post fertilization (dpf) and 100–150 human EOC cells were microinjected into the vessel free area of the yolk or the zebrafish common cardinal vein (Duct of Cuvier) of a transgenic Tg(kdrl:eGFP) line, respectively. Fish harboring red cells were incubated at 35°C. Five days after transplantation, embryos were screened microscopically for tumor cell cluster formation and extravasation using a Leica TCS SP5 confocal microscope. Fish were furthermore dissociated into single cells as described elsewhere (Jacob et al., 2018), and cells were analyzed on a CytoFELX for DAPI negative and CM-DiI-positive cells. For each experiment at least five fish for each condition were analyzed in multiple biological replicates.

Intraperitoneal xenograft model

Request a detailed protocol

All animal experiments were performed in accordance with the European Guidelines for the Care and Use of Laboratory Animals, Directive 2010/63/UE, Portuguese National Regulation published in 2013 (Decreto-Lei n.8 113/2013 de seven de Agosto) and approved by the local Ethics Committee of the Institute for Research and Innovation in Health (i3S) (Porto, Portugal). Project identification code (0421/000/000/2017, date (24/05/17)). The authors involved in these experiments have an accreditation for animal research given from the Portuguese Veterinary Board (ministerial Directive 1005/92). NIH(S) II: nu/nu mice were generated under IPATIMUP supervision. To generate intraperitoneal xenografts, 4 × 106 of WT and ΔITGA2 SKOV3 cells were resuspended in 200 µL of PBS and intraperitoneally injected, using 25 gauge needles, in female NIH(S) II: nu/nu mice with 6–8 weeks of age. Eight weeks after injection, mice were humanely euthanized (with anesthesia followed by cervical dislocation) and peritoneal and pleural cavities were carefully inspected. Animal organs were harvested for histological processing. H & E staining from all tissue blocks were examined under the microscope to evaluate tumor localization, growth, and invasion. Six mice per group were used in a total of two independent experiments.

Time-lapse imaging and cell tracking of cancer cell on collagen

Request a detailed protocol

WT and ΔITGA2 or ITGA2-overexpressed (OE) cancer cells were detached from a T-75 flask by incubating with 2 mL of cell-dissociation reagent (Sigma-Aldrich) for 10–15 mins followed by addition of 3 mL of fresh medium. 125,000 cells in 1.2 mL of fresh medium were added onto a collagen type I coated 4-well Lab-Tek II Chamber Slide using bioprinting technique (3D Discovery, regenHU Ltd. Switzerland). Cells were allowed to adhere for 30 mins at 37°C and 5% CO2 prior to live cell imaging. Next, cells in each well (two positions) were monitored using the time-lapse imaging option available on a Zeiss LSM 710 fluorescence confocal microscope (Zeiss, Germany) equipped with the live chamber module. The samples were excited using a 561 nm laser in z-stack mode (2 µm slice thickness, 20x magnification) for every five mins for a total duration of 6 hr. Images were preprocessed using the maximum intensity projection tool available in Zen 2011 software (Zeiss, Germany). Surface area calculation was determined by using image processing in Matlab (MathWorks, US) consisting of: (1) intensity thresholding, (2) binarization, and (3) pixel area calculation. Surface area ratio was obtained by comparing the obtained value with the initial cell area at t = 0 hr. Cell velocity and displacement were measured by using the TrackMate plugin available in Fiji (NIH, US) (Tinevez et al., 2017). A minimum of 300 cells of each sample was subjected to the surface area and cell tracking analysis. All experiments were performed in triplicates.

Scanning Electron Microscope

Request a detailed protocol

Sterile glass cover slips were coated with collagen type I using bioprinting technology and 2 × 104 SKOV3 WT and ΔITGA2 cells were added. Cells were allowed to adhere for 1, 6, and 24 hr and then fixed overnight at 4°C using 2.5% glutaraldehyde in 0.03 M K2HPO4/KH2PO4 buffer and 2% paraformaldehyde in PBS. Samples were washed with PBS, dehydrated using series of ethanol dilutions (20–100%; five mins per dilution), and dried with hexamethyldisilazane for 15 mins. Samples were sputtered-coated with 3 nm gold and analyzed using a scanning electron microscopy (Tescan Mira3 LM FE, USA). All experiments were performed in duplicates.

Proteomic analysis of omental metastasis and normal omentum

Request a detailed protocol

Each fresh piece of omentum tissue (approximately 50 mg, n = 5) was immediately grinded by a tissue homogenizer with lysis buffer containing protease inhibitor cocktails (Sigma-Aldrich), 0.1M ammonium bicarbonate buffer and 8M urea on ice. Tissue extracts were then sonicated using Bioruptor (Diagenode, Belgium) with the standard program (30 s on, 30 s off for 10 cycles) followed by incubation at 37°C for 60 mins at 1400 rpm. Protein concentration was measured by standard BCA assays according to the manufacturer’s instruction (Thermo Fisher Scientific). 50 μg of total protein was reduced with 5 mM TCEP for 60 mins at 37°C, alkylated with 10 mM chloroacetamide for 30 mins at 37°C, and digested with sequencing-grade modified trypsin (1/50, w/w; Promega, Madison, Wisconsin) overnight at 37°C. Digested peptides were cleaned up using iST cartridges (PreOmics, Munich) according to the manufacturer’s instruction. Samples were resuspended in 0.1% formic acid by sonication and subjected to LC–MS/MS analysis using an Orbitrap Fusion Lumos Tribrid Mass Spectrometer fitted with an EASY-nLC 1200 (Thermo Fisher Scientific). Peptides were resolved using a RP-HPLC column (75 μm × 36 cm) packed in-house with C18 resin (ReproSil-Pur C18–AQ, 1.9 μm resin; Dr. Maisch GmbH) at a flow rate of 200 nL/min using solvent A (0.1% formic acid in water) and solvent B (0.1% formic acid in 80% of LC–MS grade acetonitrile) as mobile phases.

The mass spectrometer was operated in a data-dependent analysis (DDA) mode with a cycle time of 3 s between MS1 scans. Each MS1 scan was acquired in the Orbitrap at a resolution of 120,000 FWHM (at 200 m/z) and a scan range from 375 to 1600 m/z followed by MS2 scans of the most intense precursors in the linear ion trap at ‘Rapid’ scan rate with isolation with of the quadrupole set to 1.4 m/z. Maximum ion injection time was set to 50 ms (MS1) and 35 ms (MS2) with an AGC target of 1e6 and 1e4, respectively. Only peptides with charge state 2–5 were included in the analysis. Monoisotopic precursor selection (MIPS) was set to peptide, and the Intensity Threshold was set to 5e3. Peptides were fragmented by HCD (Higher-energy collisional dissociation, normalized collision energy 35%). The acquired raw-files were converted to mgf format using MS Convert and searched using MASCOT for a human database from Uniprot on 20190129. Mass tolerance of 10 ppm (precursor) and 0.6 Da (fragments). The database search results were filtered using the ion score to set the false discovery rate (FDR) to 1% on both peptide and protein levels with Scaffold 4.0 proteomics software.

Phosphoproteomics and data analysis

Request a detailed protocol

WT and ΔITGA2 cancer cells (IGROV1, SKOV3, and OVCAR3) were starved in medium without FBS for 6 hr and stimulated with 10% FBS for 30 min. After mechanically detached, cells were washed and lysed in 8M Urea, 0.1M ammonium bicarbonate in presence of phosphatase inhibitors (Sigma-Aldrich) using ultra-sonication (Bioruptor, Diagenode, Belgium, 10 cycles, 30 s on/off). Proteins were reduced, alkylated, and digested as mentioned above. After acidification using 5% TFA, peptides were desalted on C18 reversed-phase spin columns according to the manufacturer’s instructions (Macrospin, Harvard Apparatus), dried under vacuum and stored at −20°C until further use. Peptide samples were enriched for phosphorylated peptides using Fe(III)-IMAC cartridges on an AssayMAP Bravo platform. Chromatographic separation of peptides was carried out using an EASY nano-LC 1200 system (Thermo Fisher Scientific), equipped with a heated RP-HPLC column (75 μm x 36 cm) packed in-house with 1.9 μm C18 resin (ReproSil-Pur C18–AQ, 1.9 μm resin; Dr. Maisch GmbH). Aliquots of 0.75 μg total peptides were analyzed per LC-MS/MS run at a flow rate of 200 nL/min. Mass spectrometry analysis was performed using an Orbitrap Fusion Lumos Tribrid Mass Spectrometer equipped with a nanoelectrospray ion source (Thermo Fisher Scientific). The acquired raw-files were imported into the Progenesis QI software (v2.0, Nonlinear Dynamics Limited). Quantitative analysis results from label-free quantification were processed using the SafeQuant R package v.2.3.2. (https://github.com/eahrne/SafeQuant/) to obtain peptide relative abundances. This analysis included global data normalization by equalizing the total peak/reporter areas across all LC-MS runs, data imputation using the knn algorithm, summation of peak areas followed by calculation of peptide abundance ratios. Only isoform-specific peptide ion signals were considered for quantification. The summarized peptide expression values were used for statistical testing of differentially abundant peptides. Here, empirical Bayes moderated t-Tests were applied using limma package (http://bioconductor.org/packages/release/bioc/html/limma.html). Heatmap analysis of KEGG hsa04510:focal adhesion pathway phosphoproteins between and the KEGG pathview package were analyzed using Pathview: An R/Bioconductor package for pathway-based data integration and visualization (Luo and Brouwer, 2013; Figure 7F and Figure 7—figure supplement 1A).

Access and bioinformatics analysis of publicly available datasets

Request a detailed protocol

Publicly available transcriptomic datasets of curatedOvarianData were downloaded from Gene Expression Omnibus (http://www.ncbi.nlm.nih.gov/geo/). The curatedOvarianData package provides a comprehensive resource of curated gene expression and clinical data for the development and validation of ovarian cancer prognostic models (Ganzfried et al., 2013). Statistical analysis of hazard ratio in the forest plot (Figure 1B and Figure 1—figure supplement 1D) were obtained through the use of the software R version 3.5.3 (www.R-project.org) and instruction from curatedOvarianData package (Ganzfried et al., 2013). p-values were calculate accordingly using fixed-effects model. Gene expression data for the Cancer Cell Line Encyclopedia (CCLE) were accessed through the cBioPortal using R (www.cbioportal.org) and cgdsr for querying the Cancer Genomics Data Server as described (Barretina et al., 2012; Figure 2A and C, Figure 1—figure supplement 2, and Figure 5—figure supplement 1C).

Gene set variation analysis (GSVA) for collagen gene set

Request a detailed protocol

The RNA-seq data of normal tissues in GTEx (the Genotype-Tissue Expression Project, (dbGaP Accession phs000424.v8.p2) on 26/08/2019) and ovarian cancers in TCGA (The Cancer Genome Atlas) were downloaded from UCSC Xena Cancer Genomics Browser (https://xena.ucsc.edu/). To analyze the enrichment of common collagen genes in normal tissues and ovarian cancer tissues, the GSVA method (Hänzelmann et al., 2013) were performed to acquire the GSVA enrichment score of collagen gene set from each patient. Using a nonparametric approach, GSVA transforms a gene by sample matrix into a gene set by sample matrix, facilitating the identification of various functional related collagen genes. The box plot represented enrichment scores in selected normal tissues from GTEx RNA-seq dataset (Figure 1C). The scatter plots represented the correlation between ITGA2 expressions and collagen GSVA enrichment scores were generated using ggplot2 and ggpubr package in R (Figure 1—figure supplement 3D–E). Pearson linear correlation was used to calculate the correlation coefficient of ITGA2 expression and collagen enrichment score.

Reactome pathway enrichment analysis

Request a detailed protocol

Phosphoproteomics identified proteins (FDR < 1%) with at least one hypo-phosphorylated site (log2FC > 2 and p-value<0.01) or with at least one hyper-phosphorylated site (log2FC < −2 and p-value<0.01) in IGROV1 ΔITGA2 cells were selected for the pathway enrichment analysis. The ReactomePA (Yu and He, 2016) and clusterProfiler (Yu et al., 2012) R packages were applied to calculate the Reactome pathway enrichment and visualize the enrichment results as shown in (Figure 7C and D).

Statistical analysis

Request a detailed protocol

All data including error bars are presented as mean ± SD in triplicates unless otherwise stated. Statistical calculations were performed using GraphPad Prism 8.0. Two experimental groups were compared by using unpaired Student’s t-tests. Where more than two groups were compared, a one-way ANOVA with Bonferroni’s correction was used. p-values < 0.05 were considered statistically significant (***, p<0.001, **p<0.01, *p<0.05).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63

Decision letter

  1. Erica A Golemis
    Reviewing Editor; Fox Chase Cancer Center, United States
  2. Eduardo Franco
    Senior Editor; McGill University, Canada

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This article provides convincing evidence supporting an important role of interactions between collagens and integrin α 2 (ITGA2) in the seeding of ovarian cancer cells to the omentum during metastasis of ovarian cancers. The study integrates the analysis of clinical specimens with extensive functional assessment of the importance of ITGA2 versus other integrins in directing adhesion, and suggests potential directions for future therapeutic development.

Decision letter after peer review:

Thank you for submitting your article "Collagen-rich omentum is a premetastatic niche for integrin α2 mediated peritoneal metastasis" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The reviewers have opted to remain anonymous.

As is customary in eLife, the reviewers have discussed their critiques with one another. What follows below is the Reviewing Editor's compilation of the essential and ancillary points provided by reviewers in their critiques and in their interaction post-review. Please aim to submit a revised version that addresses these concerns directly. Although we expect that you will address these comments in your response letter we also need to see the corresponding revision in the text of the manuscript. Some of the reviewers' comments may seem to be simple queries or challenges that do not prompt revisions to the text. Please keep in mind, however, that readers may have the same perspective as the reviewers. Therefore, it is essential that you attempt to amend or expand the text to clarify the narrative accordingly.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

In this paper, Huang et al. address the role of interactions between collagens and integrin α 2 (ITGA2) in the seeding of ovarian cancer cells to the omentum. Strengths of the study include the use of a lot of clinical samples, and the first demonstration of a dependence on integrin α 2 (ITGA2) for cell adhesion and migration in ovarian cancer. There is an enormous amount of carefully performed work, and a lot of comprehensive profiling. However, the study has some weaknesses that need to be addressed.

In this study, the authors begin by using proteomics to assess the expression of proteins in the normal omentum, versus omentum with an embedded metastatic ovarian cancer. This identified upregulation of a number of collagens, fibronectin, and matrix metalloproteases, among others. They found that a number of integrins were expressed similarly in both normal omentum and omentum bearing a metastasis, whereas, ITGA2 was expressed at higher levels in the metastatic setting. They showed that ITGA2 and CDH1 are expressed in more than half of spheroids among ascites tumor cells (ATCs). ITGA2 was knocked out in 5 distinct ovarian cancer cell lines of various cell types. This did not affect proliferation, but did reduce chemotaxis (10% FBS)-induced cell motility and tumor cluster formation, and increase anoikis, implying defects in attachment.

The authors directly demonstrate that knockdown of ITGA2 reduces adhesion to collagen but not fibronectin, and reduced cell spreading and formation of focal adhesions, and overexpression of ITGA2 increases adhesion. Analyzing patient samples, they show distinct paterns of expression of ITGA2 and ITGA5. They show that the ITGA2 inhibitor TC-I-15 blocks collagen adhesion even in ovarian cancer cells overexpressing both ITGA2 and ITGA5. They demonstrate that cell lines lacking ITGA2 have reduced adhesion to mesothelial cells, are less capable of mesothelial clearance, and form fewer tumors following IP injection. Finally, the authors perform proteomic and phosphoproteomic profiling of ITGA2 wt and mutant cells grown in the presence of collagen. They find loss of ITGA2 causes cells to acquire more epithelial features, and to downregulate the focal adhesion signaling cascade. They then show that treatment with a focal adhesion kinase (FAK) inhibitor defactinib reduces EOC growth, and identify a correlation with high ITGA2 expression and high activation of FAK and associated proteins (SRC, ERK) in omental metastases.

The manuscript contains some interesting data. Further understanding of the functional role of ITGA2 in OC is important, as the role of this protein has not been extensively explored, with only a few previous publications. Overall, the work employed appropriate methods to interrogate the effects of genetic loss, pharmacologic inhibition or overexpression of ITGA2 in OC cells, including use of multiple cell lines and human OC tumor/ascites specimens and generally rigorous analyses. The clinical correlation in Figures 1-2 are a nice clinically relevant start for the manuscript.

However, some parts of the manuscript seem more like a collection of phenotypic/descriptive data rather than experiments aimed and investigating the big question – the role of ITGA2-col axis in EOC metastasis. Findings are sometimes generalized across all cell lines when the data for individual cell lines show key significant differences. While the phosphoproteomic analysis is interesting, it only one cell line was subjected to analysis. FAK/MAPK signaling may play a major role in collagen-ITGA2 mediated signaling, but phosphoproteomic survey alone is insufficient to definitively demonstrate this is the primary mechanism, particularly if a single cell line was used.

The major limitation of the study is that there is little mechanistic insight. The authors could increase the impact by investigating at least some of the potential lead further: how does ITGA2 contributes to anoikis resistance in a ligand independent manner (as the a2 inhibitor had no effect on spheroid formation), why does loss of a2 induce epithelial features – is a2 contributing to anchorage independence and metastasis triggering loss through regulation of EMT/stemness features? What is the role of a2-collagen feed-forward signaling (Figure 7) to supporting a collagen rich metastatic niche? Suggestions are offered below to strengthen the data presented and further support the conclusions of the study.

Essential revisions:

1) Although ITGA5 is listed as non-significantly elevated in patient samples, it looks as if very few normal specimens were profiled for this integrin, compared to the others, for some reason. This is a particularly important issue to evaluate carefully, given several publications that have noted a specific and critical role for ITGA5 in promoting ovarian cancer metastasis (among others, PMID: 30710055, PMID: 23499550, PMID: 18381440), given the images provided in Figure 1E suggest the expression of this protein is particularly heterogeneous among tumors, and given the authors' data in Figure 5A actually suggests it is abundant. They also exclude ITGA5 from important subsequent analysis (e.g., database and direct cell line evaluation in Figure 2, 4, etc). This eliminates a critical benchmark; for example, the authors demonstrate using three cell lines in which ITGA5 is knocked out that binding to collagen is lost. If these three lines happen to be rare ones lacking ITGA5 expression, this could explain the dramatic phenotype. Information about ITGA5 should be added consistently.

2) In a survey of cell models, ITGA2 expression did not correlate with histotype or TP53 mutation status. This is curious, since serous ovarian cancers are the most aggressive and metastatic; one might expect to see higher levels in this cancer type. What is the author's explanation for this?

3) In Figure 5, the PIs use the ITGA2-specific inhibitor in cell lines overexpressing both ITGA2 and ITGA5 to demonstrate that inhibition of ITGA2 is sufficient to disrupt binding to collagen. However, they use this inhibitor at 40 μM. From the Tocris web page, "Potent α2β1 integrin inhibitor (IC50 values for the inhibition of human platelet adhesion to type I collagen are 12 and 715 nM for platelets under static conditions and under flow, respectively). Displays selectivity for α2β1 over αvβ3, α5β1, α6β1 and αIIbβ3 at concentrations exceeding 1000 nM." 40 μM is far in excess of these concentrations. The assay should be performed at appropriate concentrations; for instance, 1 μM. In addition, Tocris sells an α5 inhibitor, ATN161; this should be used in parallel assays, with the expectation it would not have an effect at concentrations where it is active for ITGA5 but not ITGA2.

4) Interestingly, from the data in Figure 5A show a partial although incomplete overlap between ITGA2 and ITGA5 expression. In Figure 5B, the authors show "a strong positive correlation between the percentage of ITGA2+ ATCs and the adhesion efficiency to collagen". A similar analysis should be done for ITGA5.

5) The importance of FAK signaling in EOC is well-established, and targeting of FAK is already being explored clinically in these cancers (for instance, PMID: 31478830), reducing the novelty of the last part of the study. Hence, bolstering conviction of an activity specific for ITGA2 is important. FAK is activated by multiple integrins, and its activation in response to ITGA5 is well-established. It would be important to benchmark ITGA2 and ITGA5 in some of the experiments in Figure 7. For instance, do the cell lines analyzed by phosphoproteomic analysis express or not express ITGA5? Do the metastatic cells in the omentum with high ITGA2 also have ITGA5? Are there examples with high ITGA2 but not ITGA5? These seemed to be relatively rare based on data shown in Figure 5A. These data are extremely important for assessing the specificity of the signaling, and in understanding the relevant clinical populations likely to respond to FAK inhibitors.

6) It is actually interesting that expression of ITGA2 and ITGA5 seem to correlate (based on data provided). Do the authors have any thoughts as to whether this correlation is real, and if so, what is causing it?

7) The data in Figure 5-7 are the most exciting. Are the metastatic foci rich in collagen? Does FAK inhibition have an effect on this? FAK is a key regulator of anoikis but also functions downstream of integrin to regulate adhesion turnover etc. Is the FAKi effect (Figure 7G-H) limited only to inhibiting sphere growth or does it also influence the mesothelium clearance/collagen interaction? The authors should clarify their description and interpretation of the elevated expression of collagens in omentum bearing metastases. Certainly, the fact that the omentum changes expression of collagens over time is well known, as is the relationship of this to onset of aging-related pathologies (one recent review – PMID: 29996539). Some of these changes may "prime the soil" for seeding by ovarian cancers expressing cognate integrins. However, the analysis of phosphoproteomic and TCGA data at the end of the paper seems to suggest the collagens are being produced by the tumor cells themselves – which would lead to a different model.

8) Although ITGA2 has not been as heavily investigated as other integrins for a role in EOC, one study found it to be upregulated in ovarian cancer (PMID: 31443152), and a more recent one showed it contributed to paclitaxel resistance in ovarian cancer by activating AKT/paclitaxel (PMID: 32202508). The discussion should discuss these works in greater detail; in particular, it would be useful to place the current work in the context of AKT pathway activation, given this is a major regulator of anoikis, and engages in cross-talk with FAK, SRC, and ERK.

9) Authors state that ΔITG2A cells "maintained adhesion to laminin and fibronectin (Figure 4, A-B)", but the data showed variability across cell lines, suggesting this was not generalizable. While true for SKOV3 cells, other cell lines showed significant differences in one or the other substrate. This variability in effect on FN or LN binding is also observed in experiments utilizing the ITGA2 inhibitor TC-I-15 (shown in Figure 5). The text describing the findings in the context of FN and LN should be modified.

10) Although the authors tested the effects of TC-I-15 on AS20 cells and showed no significant change, use of these cells only does not fully address the specificity of TC-I-15 for ITGA2 as ITGA5 protein levels in these cells are mid-range. Testing of cells that exhibit ITGA2 low ITGA5 high would further support the selectivity of drug effect for ITGA2.

11) The finding that TC-I-15 has no effect on spheroid formation seems at odds with the prediction that ITGA2 is a key contributor to – if not essential for – sphere formation and escape from detachment-induced anoikis as shown in Figure 3D and E. The authors show OE of ITGA2 results in increased anchorage independent colony formation. Was the effect of deletion of ITGA2 on anchorage independent colony size and number tested (WT vs ΔITG2A cells)?

12) in vivo analysis of SKOV3 WT and ΔITGA2 cells injected in nude mice showed significant reduction of total tumor implants in the ΔITGA2 xenografts. In Figure 3D, the authors show that SKOV3 ΔITGA2 cells grown on non-adherent plates exhibited a high degree of cell death (46.6%) as compared to SKOV3 control cells (12.9%). Was the potential difference in viability of the injected cells addressed to exclude the possibility that the reduction in tumor growth was due to significantly reduced viability of ΔITGA2 resulting in fewer cells to capable of growth? This is an essential point to clarify before one can conclude that ITGA2 is promoting dissemination and invasion of collagen rich omentum.

13) Phosphoproteomic analysis led the authors to conclude that ITGA2-collagen interaction fosters cancer cell survival, cell migration and anoikis resistance through the FAK/MAPK signaling axis. The only cell line mentioned in this analysis is IGROV-1. The implications of the findings would be substantially strengthened by analysis of additional cell lines with comparative analysis across lines to substantiate key findings. Functional assays would lend further support to the conclusion that FAK/MAPK signaling axis is the primary mechanism.

14) The findings of this study should include deeper discussion in the context of prior work investigating the role of ITGA2 in OC. For example, Shield et al., 2007, showing a prominent role for ITGA2 in spheroid formation and disaggregation and proteolysis required for OC dissemination, and that function blocking antibodies abrogate these effects. In addition, a recent paper by Ma et al., 2020, focused on the role of ITGA2 in OC asking similar questions to those in this submission, with some notable similarities and differences in key findings.

15) The data in Figure 3 lack relevance to collagen (unless the cells secrete abundant collagen, which has not been investigated). Why are the proliferation and colony growth assays performed on plastic rather than in on collagen?

https://doi.org/10.7554/eLife.59442.sa1

Author response

Essential revisions:

1) Although ITGA5 is listed as non-significantly elevated in patient samples, it looks as if very few normal specimens were profiled for this integrin, compared to the others, for some reason.

We are not completely sure which figure should refer to this question, however, the total number of normal human omentum specimens profiled for ITGA5 is identical as ITGA2 as shown and described in the Figure 1E (n=19).

This is a particularly important issue to evaluate carefully, given several publications that have noted a specific and critical role for ITGA5 in promoting ovarian cancer metastasis (among others, PMID: 30710055, PMID: 23499550, PMID: 18381440), given the images provided in Figure 1E suggest the expression of this protein is particularly heterogeneous among tumors, and given the authors' data in Figure 5A actually suggests it is abundant. They also exclude ITGA5 from important subsequent analysis (e.g., database and direct cell line evaluation in Figure 2, 4, etc). This eliminates a critical benchmark; for example, the authors demonstrate using three cell lines in which ITGA5 is knocked out that binding to collagen is lost. If these three lines happen to be rare ones lacking ITGA5 expression, this could explain the dramatic phenotype. Information about ITGA5 should be added consistently.

We appreciate the important role of the fibronectin binder ITGA5 in ovarian cancer metastasis. It is well described in the current literature as pointed out by the reviewers. The original manuscript has already mentioned the involvement of ITGA5 in mediating cancer cell interaction to fibronectin as one possible disseminating process in peritoneal metastasis through an c-Met/FAK/Src dependent signaling (Gao et al., 2019; Iwanicki et al., 2011; Kenny et al., 2014) which can be found in the Introduction and Discussion. However, we do see the point raised by the reviewer and aimed to incorporate the ITGA5 more prominent in the context of our newly suggested ITGA2-collagen driven mechanism promoting ovarian cancer metastasis to the omentum. Accordingly, we evaluated the expression of ITGA5 consistently in the revised manuscript.

We agree with the reviewer on the heterogeneous and abundant expression of ITGA5 among tumor samples as seen in Figure 1E and 5A, respectively. We explain the difference noticed by the reviewer with the different experimental methodology applied as well as human specimens investigated. The Western blot analysis in bulk tumor tissue whole cell protein lysates (Figure 1E) shows the expression of ITGA5 independent of composition and cell types (e.g. stromal, immune, endothelial, and tumor cells). In contrast, the flow cytometry analysis in Figure 5A reflects the cell surface protein expression in the tumor spheroid isolated from patient-derived ascites. The high abundance of ITGA5 in those samples is also consistent with a previous finding demonstrating elevated ITGA5 expression in ovarian cancer spheroids as compared to the primary tumor for promoting cell adhesion and peritoneal metastasis (Gao et al., 2019). Upon request and to further strengthen our data, we have consistently added supplementary data for ITGA5 expression to the CCLE dataset as well as our cell line panel used throughout the manuscript (Figure 2B, Figure 2E, Figure 5—figure supplement 1C, and Figure 7H). The generated data support our initial findings that altered ITGA5 expression unlikely associated with ITGA2-mediated cancer cell-collagen binding.

Refer to the last question, the three ΔITGA2 cell lines (SKOV3, OVCAR3, and IGROV1) used for cell-ECM binding assay showing completely lost of collagen binding is independent of ITGA5 expression.

2) In a survey of cell models, ITGA2 expression did not correlate with histotype or TP53 mutation status. This is curious, since serous ovarian cancers are the most aggressive and metastatic; one might expect to see higher levels in this cancer type. What is the author's explanation for this?

We thank the reviewer for pointing out that there is no correlation between ITGA2 expression and serous histotype/ TP53 mutational status in the CCLE dataset (Figure 2A and 2C). In consistency with the cell line survey mentioned by the reviewer, already provided ovarian cancer transcriptomic data GSE51088 (n=172) (Karlan et al., 2014) as well as our own cohort (n=200) on ITGA2 protein expression suggest an histotype-independent ITGA2 expression considering TP53 mutation as dominating genetic alteration in serous ovarian cancer. An inconsistent pattern in this regards was observed for three additional publicly available datasets showing a significant upregulation of ITGA2 expression in endometrioid and clear cell ovarian cancer in both (GSE73614; n=107) (Winterhoff et al., 2016) and GSE2109 (n=204). In contrast, no significant difference was observed for GSE9891 (n=285) (Tothill et al., 2008) (Figure 2—figure supplement 2A). The discrepancy among datasets may likely due to the different methodology applied, the biological heterogeneity of the ovarian tumor samples investigated, or the overall insufficient numbers of non-serous histotypes of ovarian cancer. Additionally, we also confirmed that the mutational status of TP53 does not correlate with ITGA2 expression (Figure 2—figure supplement 2B-C). Taken together, having investigated five independent transcriptomic data sets on ITGA2 gene and protein expression without revealing a consistent pattern throughout the majority of the studies further support our initial data that ITGA2 cannot clearly be linked to current clinicopathological parameters or mutational status.

3) In Figure 5, the PIs use the ITGA2-specific inhibitor in cell lines overexpressing both ITGA2 and ITGA5 to demonstrate that inhibition of ITGA2 is sufficient to disrupt binding to collagen. However, they use this inhibitor at 40 μM. From the Tocris web page, "Potent α2β1 integrin inhibitor (IC50 values for the inhibition of human platelet adhesion to type I collagen are 12 and 715 nM for platelets under static conditions and under flow, respectively). Displays selectivity for α2β1 over αvβ3, α5β1, α6β1 and αIIbβ3 at concentrations exceeding 1000 nM." 40 μM is far in excess of these concentrations. The assay should be performed at appropriate concentrations; for instance, 1 μM. In addition, Tocris sells an α5 inhibitor, ATN161; this should be used in parallel assays, with the expectation it would not have an effect at concentrations where it is active for ITGA5 but not ITGA2.

We thank the reviewer for this valuable comment. As requested, we have tested a newly manufactured batch of α2β1 integrin inhibitor and repeated all inhibition assays using 1μM (Figure 5D-E). In brief, the inhibitor specifically blocks ITGA2-collagen interaction in a lower range of 0.2-1μM and is in line with data initially reported for 40 μM.

Additionally, we tested the suggested ITGA5 inhibitor ATN161, a noncompetitive inhibitor of the fibronectin PHSRN sequence. However, we could not observe any reduction in cell-adhesion to fibronectin even up to 100 μM treatment using experimental conditions as applied for ITGA2. This is consistent to previous studies showing that ATN-161 does not block integrin-dependent adhesion to ECM (fibronectin), but may inhibit integrin-dependent signaling as part of its mechanism of action (Plunkett and Mazar, 2002)

In order to demonstrate the ligand specificity of both ITGA2 and ITGA5, we additionally generated ITGA5-KO cells using CRISPR-Cas9 in the IGROV1 and SKOV3 cell line (detailed information provided in the Materials and methods). Genetic loss of ITGA5 was confirmed by flow cytometry and Western blot analysis (Figure 5—figure supplement 2). The cell-ECM adhesion of ΔITGA5 revealed the expected reduction to its well-known ligand, fibronectin, but only marginal change for binding to collagen. These results indicate that the potential cross-reactivity of cell surface ITGA5 to collagen is marginal and are in line with our response to reviewer’s comment 1 above.

4) Interestingly, from the data in Figure 5A show a partial although incomplete overlap between ITGA2 and ITGA5 expression. In Figure 5B, the authors show "a strong positive correlation between the percentage of ITGA2+ ATCs and the adhesion efficiency to collagen". A similar analysis should be done for ITGA5.

We re-analyzed the correlation of ITGA2 and ITGA5 expression with regards to cell-ECM adhesion efficiency for collagen I and fibronectin (Figure 5B). In brief, cell surface ITGA2 levels positively correlate with cancer cell adhesion to collagen I (R=0.6858, *p=0.0286) but not correlate to fibronectin (R=-0.04, p=0.902). Vice versa, cell surface ITGA5 levels positively correlate only with fibronectin (R=0.6694, *p=0.0342) but not collagen I. Taken together, we provide further evidence that ΔITGA5 marginally impacts cell-collagen binding (please see response 3), and that ITGA2 and ITGA5 show independent receptor-ligands specificity.

5) The importance of FAK signaling in EOC is well-established, and targeting of FAK is already being explored clinically in these cancers (for instance, PMID: 31478830), reducing the novelty of the last part of the study. Hence, bolstering conviction of an activity specific for ITGA2 is important. FAK is activated by multiple integrins, and its activation in response to ITGA5 is well-established. It would be important to benchmark ITGA2 and ITGA5 in some of the experiments in Figure 7. For instance, do the cell lines analyzed by phosphoproteomic analysis express or not express ITGA5? Do the metastatic cells in the omentum with high ITGA2 also have ITGA5? Are there examples with high ITGA2 but not ITGA5? These seemed to be relatively rare based on data shown in Figure 5A. These data are extremely important for assessing the specificity of the signaling, and in understanding the relevant clinical populations likely to respond to FAK inhibitors.

We agree with the reviewer’s statement as it is indeed well known that multiple integrins triggered the activation of FAK signaling including ITGA5 (Harburger and Calderwood, 2009), and the oncogenic role for FAK activation has been shown to sustain tumor sphere proliferation and chemo-resistance in ovarian cancer (Diaz Osterman et al., 2019). Here, we could not exclude the involvement of ITGA5-dependent activation of FAK signaling. However, the selection of five ovarian cancer cell lines for gene editing represents the heterogeneity of ovarian cancer displaying differential expression of both integrins as shown in Figure 2E (see also comment 1). As suggested, we investigated additional cell lines (ΔITGA2 in SKOV3 and OVCAR3) expressing low levels of endogenous ITGA5 using phosphoproteomic analysis (Please see further details in comment 13).

To further support our finding in addition to phosphoproteomic analysis, we also analyzed omental metastasis samples shown in Figure 7H of the original submission, here demonstrating that ITGA5 expression is abundant in almost every sample but less likely linked to activate FAK-dependent signaling. As a result, the significant fold change of identified phosphoproteins under collagen stimulation condition is most likely the causality of ITGA2 deletion.

6) It is actually interesting that expression of ITGA2 and ITGA5 seem to correlate (based on data provided). Do the authors have any thoughts as to whether this correlation is real, and if so, what is causing it?

We apologize that our statement is not clear that although the expression pattern of ITGA2 and ITGA5 in our ascites samples (N=20) seems partly overlap, but there is no significant correlation between the integrins with regards to expression in our cohort. Of note, it is widely known that to sustain the anchorage-independent growth and anoikis resistance, ascites-derived tumor spheroids undergoing epithelial-mesenchymal transition (EMT) and upregulated integrin expression to facilitate cell-ECM adhesion and subsequent tumor implantation (Ma et al., 2020). Such a unique ascites microenvironment may explain the positive upregulation of both integrins on tumor spheroids, however, the molecular signatures of ascites-derived tumor cells and their primary and metastatic tumor counterpart likely being significantly different (Gao et al., 2019). We also examined the correlation of the collagen binder ITGA2 to fibronectin binder ITGA5 in the CCLE dataset. We now include the correlation scatter plot in Figure 5—figure supplement 1 and show that there is no significant correlation between ITGA2 and ITGA5 expression in CCLE (ovarian cells p=0.46, all cancer cells p=0.057) dataset.

7) The data in Figure 5-7 are the most exciting. Are the metastatic foci rich in collagen? Does FAK inhibition have an effect on this? FAK is a key regulator of anoikis but also functions downstream of integrin to regulate adhesion turnover etc. Is the FAKi effect (Figure 7G-H) limited only to inhibiting sphere growth or does it also influence the mesothelium clearance/collagen interaction? The authors should clarify their description and interpretation of the elevated expression of collagens in omentum bearing metastases. Certainly, the fact that the omentum changes expression of collagens over time is well known, as is the relationship of this to onset of aging-related pathologies (one recent review – PMID: 29996539). Some of these changes may "prime the soil" for seeding by ovarian cancers expressing cognate integrins. However, the analysis of phosphoproteomic and TCGA data at the end of the paper seems to suggest the collagens are being produced by the tumor cells themselves – which would lead to a different model.

We thank the reviewer for this very positive and enthusiastic feedback. The initial thought of our study was based on the assumption that the ECM composition in the omentum contributes to early onset of metastasis and thus, serves as pre-metastatic niche. Beside the established ITGA5-fibronectin interaction in ovarian cancer, we noticed that the normal omentum is rich in collagen (Figure 1C) and particularly type I collagen (triple helix of COL1A1 and COL1A2; (Figure 1—figure supplement 1A). Therefore, we have analyzed the collagen expression in normal and metastatic omentum by immunohistochemistry and found that the metastatic foci is also rich in collagen (Figure 1—figure supplement 1B). In line with the proteomic analysis already shown in Figure 1A, that COL1A1 is significantly upregulated in omental metastasis samples. A recent study has well-described that the upregulation of COL1A1, COL11A1, VCAN, FN1, COMP, and CTSB, is associated with cancer progression, poor prognosis, and malignant cell invasion in ovarian cancer (Pearce et al., 2018). Interestingly, the authors also reported that normal omental ECM stained highly positive and evenly distributed COL1A1, but malignant omentum showing strong but uneven staining likely due to the expression of matrix remodeling proteases.

In regard to the last question, the analysis of phosphoproteomic and TCGA data in Figure 7—figure supplement 1B is mainly to provide evidence that ITGA2 expression positively correlates and various ECM proteins including collagens. Of note, we should be aware that the transcriptomic analysis of tumor is based on bulk RNA-sequencing and therefore not necessary being produce by tumor cells itself. Additionally, to address this interesting thought on the potential impact of self-secreted collagen by cancer cells, we analyzed the mRNA expression of collagens in the CCLE ovarian cancer cell lines dataset. Ovarian cancer cell lines express predominantly COL4A1, COL4A2, and COL18A1 whereas human fibroblasts are well-known to produce high abundant of COL1A1 and COL1A2 give rise to type I collagen (Figure 1—figure supplement 2). The origin of high COL1A1, COL1A2, COL3A1 expression identified in the normal omentum and omental metastases positively correlate with fibroblast-specific markers including fibroblast activation protein 1α (FAP), and α-smooth muscle actin (ACTA2) described in Figure 1—figure supplement 1C of the original manuscript. Although we could not completely exclude the impact of self-secreted collagens by ovarian cancer cells, our in vitro colony formation and proliferation assay (please see our response to comment 15 for more details) revealed that cancer cell-secreted COL4 and COL18 may not be the primary ligands for ITGA2-dependent cell growth.

8) Although ITGA2 has not been as heavily investigated as other integrins for a role in EOC, one study found it to be upregulated in ovarian cancer (PMID: 31443152), and a more recent one showed it contributed to paclitaxel resistance in ovarian cancer by activating AKT/paclitaxel (PMID: 32202508). The discussion should discuss these works in greater detail; in particular, it would be useful to place the current work in the context of AKT pathway activation, given this is a major regulator of anoikis, and engages in cross-talk with FAK, SRC, and ERK.

We have now addressed the recent critical work about ITGA2 in ovarian cancer in the discussion according to the reviewer’s suggestion (please see response to comment 14). Briefly, Ma et al., demonstrated the AKT/Foxo1 signaling axis confer paclitaxel resistance and cell survival in three ovarian cancer cell lines (OVCAR3, A2780, and SKOV3) in vitro and xenograft model. They showed that phosphorylation of AKT S473 is increased in an ITGA2-dependent manner. Although we did not identify the downregulation of pS473 in ITGA2 knockout cells using a phosphoproteomic discovery approach, the phosphorylation of AKT S124 and S129 are significantly reduced in the ITGA2-collagen signaling axis in both EOC cell lines (Figure 7—figure supplement 1D) and patient samples (Figure 7H). Both phosphorylation sites were required for elevated AKT1 activity (Di Maira et al., 2005), suggesting that AKT activation is also engaging in cross-talk with ITGA2-dependent FAK signaling.

9) Authors state that ΔITG2A cells "maintained adhesion to laminin and fibronectin (Figure 4, A-B)", but the data showed variability across cell lines, suggesting this was not generalizable. While true for SKOV3 cells, other cell lines showed significant differences in one or the other substrate. This variability in effect on FN or LN binding is also observed in experiments utilizing the ITGA2 inhibitor TC-I-15 (shown in Figure 5). The text describing the findings in the context of FN and LN should be modified.

We apologize for the insufficient description of the data obtained for cell binding assays to FN and LN. We made the correction to the corresponding text in Figure 4A-B.

“Notably, the consistently strong cell adhesion efficiency to collagen type I, III, and IV in parental cell lines significantly diminished upon ITGA2 deletion. However, cell adhesion to laminin and fibronectin appeared in a cell line-dependent manner in ΔITGA2 cell lines which may be due to the redundancy of multiple integrin subunits. (Figure 4, A-B).”

10) Although the authors tested the effects of TC-I-15 on AS20 cells and showed no significant change, use of these cells only does not fully address the specificity of TC-I-15 for ITGA2 as ITGA5 protein levels in these cells are mid-range. Testing of cells that exhibit ITGA2 low ITGA5 high would further support the selectivity of drug effect for ITGA2.

As requested, we selected three independent group of ATCs that exhibits ITGA2low/ITGA5high (AS14, AS15, AS17), ITGA2high/ITGA5 high (AS4, AS11, AS18) and ITGA2low/ITGA5low (AS13, AS19, AS20) for subsequent cell-ECM adhesion analysis in the presence of TC-I-15. Related data are shown in Figure 5. In line with our previous finding, re-analysis of ATCs (n=9) adhesion suggested that TC-I-15 treatment can specifically block ITGA2 interaction to collagen with marginal difference to fibronectin and importantly, independent of ITGA5 expression (Figure 5D). However, whether the discrepancy of cell-collagen adhesion efficiency between ITGA2low/ITGA5high and ITGA2low/ITGA5low is due to the redundancy of other collagen-binding integrins or not (e.g. ITGA1, ITGA10 or ITGA11), requires further investigation. Furthermore, the ligand-binding specificity is also supported by our newly established ΔITGA5 cells showing decreased adhesion to fibronectin but not to the collagens as discussed above (see response 3, Figure 5—figure supplement 2).

11) The finding that TC-I-15 has no effect on spheroid formation seems at odds with the prediction that ITGA2 is a key contributor to – if not essential for – sphere formation and escape from detachment-induced anoikis as shown in Figure 3 D and E. The authors show OE of ITGA2 results in increased anchorage independent colony formation. Was the effect of deletion of ITGA2 on anchorage independent colony size and number tested (WT vs ΔITG2A cells)?

We are also aware of the reviewer’s concern about the cancer sphere formation. The initially submitted manuscript showed that overexpression of ITGA2 increased colony forming ability in BG1 and A2780 cells (Figure 4—figure supplement 1E). However, other cell lines (SKOV3, OVCAR3, OAW42, and ES2) did not form rigorous spheroids using the anchorage-independent soft agar assay. Thus, we could not generalize the effect of deletion of ITGA2 for those cell lines. Nevertheless, we additionally performed the anchorage-independent spheroid formation for IGROV1 cells in the ITGA2 knockout background in order to acknowledge reviewers comment. In line with previous findings, we found significantly reduced colony formation in ΔITGA2 cells (both diameter and number of spheroids) as compared to the parental IGROV1 cells. Data obtained have been added to Figure 4—figure supplement 1F.

In regard to the effect of TC-I-15 on spheroid formation, the inhibitor itself does not involve in reducing transcriptional and translational activity of ITGA2 expression, however acting as an allosteric inhibitor blocking collagen-ITGA2 engagement site and subsequent signaling (Miller et al., 2009). Therefore, other ITGA2 binding ligands may remain actively involved in ITGA2-mediated signaling in spheroid formation. Besides canonical integrin signaling, ligand-independent integrin signaling has also been reported through the anchoring receptor-mediated cell adhesion to transmit a mechanical stimulus to the integrin that signals independently of ECM binding (Ferraris et al., 2014)

12) in vivo analysis of SKOV3 WT and ΔITGA2 cells injected in nude mice showed significant reduction of total tumor implants in the ΔITGA2 xenografts. In Figure 3D, the authors show that SKOV3 ΔITGA2 cells grown on non-adherent plates exhibited a high degree of cell death (46.6%) as compared to SKOV3 control cells (12.9%). Was the potential difference in viability of the injected cells addressed to exclude the possibility that the reduction in tumor growth was due to significantly reduced viability of ΔITGA2 resulting in fewer cells to capable of growth? This is an essential point to clarify before one can conclude that ITGA2 is promoting dissemination and invasion of collagen rich omentum.

We fully agree with the reviewer and appreciate for pointing this out. Indeed, the ΔITGA2 cells showed significantly increased anoikis compared to parental cells 3 days after cultivation in non-adherent condition (Figure 3D). We performed additional experiments in reply to comment 15 below and observed a significant cell proliferation benefit on collagen-coated plates in parental cell lines as compared to ΔITGA2 cells (Figure 3A-B). These results suggest that ITGA2-mediated adhesion of ovarian cancer cells to the ECM is critical for cell survival. The elevated cell death only occurs while cells cultivated in a non-adherent condition, however, this is unlikely to be in the case of mouse abdominal cavity in which the peritoneum or omentum are covered by a mono-layer of mesothelium and richness of extracellular matrix proteins. This is also supported by a recent study shown by Gao et al. demonstrating that intraperitoneal injection of SKOV3 cells and cancer-associated fibroblast (CAFs) were able to instantly adhere to the metastatic tropism of omentum, peritoneum, and mesentery 4 hour after initial injection of tumor cells. Further spreading and development of tumor nodules was also pronounced in 1-2 weeks. Additionally, we did not identify a significant reduction of the ΔITGA2-derived tumor implants in organ such as peritoneum, intestine, kidney, stomach and lung (Figure 6H). Overall, we are confident the reduction of tumor growth in the omentum is not primarily due to the reduced viability in ΔITGA2 cells.

13) Phosphoproteomic analysis led the authors to conclude that ITGA2-collagen interaction fosters cancer cell survival, cell migration and anoikis resistance through the FAK/MAPK signaling axis. The only cell line mentioned in this analysis is IGROV-1. The implications of the findings would be substantially strengthened by analysis of additional cell lines with comparative analysis across lines to substantiate key findings. Functional assays would lend further support to the conclusion that FAK/MAPK signaling axis is the primary mechanism.

We agree with the reviewer’s statement that the implication would be substantially strengthened by analyzing additional cell lines. We performed phosphoproteomic analysis in two additional cell lines which are both ITGA2+ but ITGA5Low (SKOV3 and OVCAR3, please also refer to comment 8). Despite less phosphoproteins identified in those two additional cell lines, we identified 69 down-regulated phosphoproteins shared across all three ∆ITGA2 cell lines (Figure 7A-B, and Supplementary file 1B). Next, we applied the gene ontological (GO) analysis to classify the biological process regulated by ITGA2-collagen signaling using Gene Ontology Database (DOI: 10.5281/zenodo.3954044 Released 2020-07-16). We found that the top 7 cell components enriched in the genes regulated by ITGA2, were related to cell organization, polarity and GTPase activity, which was further supported by GSEA analysis revealing that MAPK1/3 activation and cell junction organization being significantly regulated by ITGA2 axis (Figure 7C-D). Importantly, down-regulation of the T204 phosphorylation on MAPK3 and Y577, T700, S843 phosphorylation on FAK were also present in the additional two cell lines (Figure 7—figure supplement 1C) as well as in omental metastasis tissues (Figure 7H). Data of phosphoproteomic analysis were provided in Figure 7—source data 1.

To further address reviewer’s concern about supporting FAK and MAPK as the primary mediators of the ITGA2-collagen dependent signaling, we performed cell adhesion and mesothelial clearance assay in the presence of ITGA2, FAK and MAPK(ERK1/2) inhibitors, respectively. Interestingly, only TC-I-15 treatment blocks cell adhesion to collagen (Figure 7—figure supplement 3E). Blockade of either FAK or MAPK signaling axis showed no direct impact of cell-adhesion to collagen I in vitro. It is reasonable that the FAK/MAPK-dependent cell survival is the downstream of integrin receptor signaling, therefore ITGA2-mediated initial cell adhesion is marginally affected. On the other hand, blocking ITGA2 or downstream FAK/MAPK signaling pathway significantly reduced mesothelial clearance activity of ovarian cancer cells, supporting the functional involvement of ITGA2 and FAK/MAPK axis in ovarian cancer metastasis model (Figure 7—figure supplement 3F). Furthermore, in line with our previous finding showing that Defactinib treatment inhibiting p-FAKY397, p-FAKY576/577 and the downstream effector cyclin D1 expression (Figure 7F), two cell lines share also a similar trend with supporting the oncogenic role of FAK/MAPK signaling involved in cell survival, anoikis resistance and ITGA2-dependent cancer metastasis (Figure 7—figure supplement 2).

14) The findings of this study should include deeper discussion in the context of prior work investigating the role of ITGA2 in OC. For example, Shield et al., 2007, showing a prominent role for ITGA2 in spheroid formation and disaggregation and proteolysis required for OC dissemination, and that function blocking antibodies abrogate these effects. In addition, a recent paper by Ma et al., 2020, focused on the role of ITGA2 in OC asking similar questions to those in this submission, with some notable similarities and differences in key findings.

In order to acknowledge the reviewers’ comment on an extended discussion about recent research published by Shield et al., and Ma et al. focusing on the role of ITGA2 in ovarian cancer, as well as different types of cancers, we have modified the Discussion accordingly as shown below:

“The role of ITGA2 remains controversial in different cancer types with elevated ITGA2 expression reported to exacerbate experimental metastasis in melanoma, gastric, and colon cancer (Baronas-Lowell et al., 2004; Bartolome et al., 2014; Matsuoka et al., 2000){Yoshimura, 2009 #1}.{Yoshimura, 2009 #1}{Yoshimura, 2009 #1}{Yoshimura, 2009 #1} […] As a result, a comprehensive understanding of integrin-ECM interaction, a crucial step for cancer cell dissemination, is uncertain but of immense importance for development of potential therapeutics targeting peritoneal metastasis.”

15) The data in Figure 3 lack relevance to collagen (unless the cells secrete abundant collagen, which has not been investigated). Why are the proliferation and colony growth assays performed on plastic rather than in on collagen?

We are thankful to reviewer’s great suggestion. Intrigued by the comment we have analyzed the cell proliferation in the presence of either collagen or fibronectin in our entire cell line panel. In brief, the cell proliferation was examined in the presence of type I collagen and fibronectin using MTT and colony formation assay. As the reviewer’s might expect, significantly reduced cell proliferation was observed in ∆ITGA2 cells only on collagen coated wells. In contrast, neither classical plastic nor fibronectin coated plates showed such a difference (Figure 3A-B and Figure 3—figure supplement 1). Besides providing further evidence on the specificity of ITGA2-mediated binding to collagen, these results also support that the collagen-ITGA2 dependent axis might be an important mechanism in ovarian cancer cell proliferation and tumorigenicity.

https://doi.org/10.7554/eLife.59442.sa2

Article and author information

Author details

  1. Yen-Lin Huang

    Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3678-3815
  2. Ching-Yeu Liang

    Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    Contribution
    Data curation, Software, Formal analysis, Investigation, Methodology, Assisted with bioinformatic analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9027-1853
  3. Danilo Ritz

    Proteomics core facility, Biozentrum, University of Basel, Basel, Switzerland
    Contribution
    Data curation, Investigation, Methodology, Assisted with proteomics and phosphoproteomic analysis
    Competing interests
    No competing interests declared
  4. Ricardo Coelho

    1. Differentiation and Cancer group, Institute for Research and Innovation in Health (i3S), University of Porto, Porto, Portugal
    2. Institute of Molecular Pathology and Immunology of the University of Porto (IPATIMUP), Porto, Portugal
    3. Faculty of Medicine, University of Porto, Porto, Portugal
    Contribution
    Data curation, Investigation, Methodology, Assisted with animal experiments
    Competing interests
    No competing interests declared
  5. Dedy Septiadi

    Adolphe Merkle Institute, University of Fribourg, Fribourg, Switzerland
    Contribution
    Data curation, Investigation, Assisted with Time-lapse imaging and Scanning Electron Microscopy
    Competing interests
    No competing interests declared
  6. Manuela Estermann

    Adolphe Merkle Institute, University of Fribourg, Fribourg, Switzerland
    Contribution
    Data curation, Investigation, Assisted with Time-lapse imaging and Scanning Electron Microscopy
    Competing interests
    No competing interests declared
  7. Cécile Cumin

    Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Natalie Rimmer

    Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    Contribution
    Investigation, Writing - review and editing, Assisted with animal experiments
    Competing interests
    No competing interests declared
  9. Andreas Schötzau

    Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    Contribution
    Data curation, Software, Assisted with bioinformatic coding
    Competing interests
    No competing interests declared
  10. Mónica Núñez López

    Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  11. André Fedier

    Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    Contribution
    Investigation, Project administration
    Competing interests
    No competing interests declared
  12. Martina Konantz

    Stem Cells and Hematopoiesis, Department of Biomedicine, University Hospital Basel, University of Basel, Basel, Switzerland
    Contribution
    Methodology, Assisted with animal experiments
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4319-3119
  13. Tatjana Vlajnic

    Institute of Pathology, University Hospital Basel, Basel, Switzerland
    Contribution
    Resources, Investigation
    Competing interests
    No competing interests declared
  14. Diego Calabrese

    Histology Core Facility, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  15. Claudia Lengerke

    1. Stem Cells and Hematopoiesis, Department of Biomedicine, University Hospital Basel, University of Basel, Basel, Switzerland
    2. Department of Internal Medicine, Internal Medicine II, Hematology, Oncology, Clinical Immunology and Rheumatology, University Hospital Tübingen, Tübingen, Germany
    Contribution
    Supervision
    Competing interests
    No competing interests declared
  16. Leonor David

    1. Differentiation and Cancer group, Institute for Research and Innovation in Health (i3S), University of Porto, Porto, Portugal
    2. Institute of Molecular Pathology and Immunology of the University of Porto (IPATIMUP), Porto, Portugal
    3. Faculty of Medicine, University of Porto, Porto, Portugal
    Contribution
    Conceptualization, Supervision
    Competing interests
    No competing interests declared
  17. Barbara Rothen-Rutishauser

    Adolphe Merkle Institute, University of Fribourg, Fribourg, Switzerland
    Contribution
    Conceptualization, Supervision
    Competing interests
    No competing interests declared
  18. Francis Jacob

    Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    Contribution
    Conceptualization, Data curation, Supervision, Investigation, Methodology, Writing - review and editing
    For correspondence
    francis.jacob@unibas.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0446-1942
  19. Viola Heinzelmann-Schwarz

    1. Ovarian Cancer Research, Department of Biomedicine, University Hospital Basel and University of Basel, Basel, Switzerland
    2. Gynecological Cancer Center, University Hospital Basel, Basel, Switzerland
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing - review and editing
    For correspondence
    viola.heinzelmann@usb.ch
    Competing interests
    No competing interests declared

Funding

Swiss National Science Foundation (Sinergia 171037)

  • Barbara Rothen-Rutishauser
  • Viola Heinzelmann-Schwarz

University of Basel (DMM2051)

  • Yen-Lin Huang

FreeNovation (FreeNovation 2016)

  • Francis Jacob

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the Swiss National Foundation (Sinergia 171037 to V Heinzelmann-Schwarz and B Rothen-Rutishauser). Nachwuchsförderung Klinische Forschung was provided by the University of Basel (DMM2051) to YL Huang. FreeNovation 2016 was provided by Novartis to F Jacob. We are grateful to the Department of Biomedicine and Biozentrum, University of Basel for providing all the necessary support and for allowing us to work in the Flow Cytometry Facility (Emmanuel Traunecker, Lorenzo Raeli, and Telma Lopes), the Microscopy Facility (Michael Abanto and Beat Erne), and the Proteomics Core Facility (Thomas Klaus Christian Bock and Alexander Schmidt). We would also like to acknowledge Nicki Packer for her critical review of the manuscript. We thank Christian Beisel and Ulrike Menzel from the Genomics Facility Basel and Franziska Singer from NEXUS Clinical Bioinformatics at ETH Zurich for their support.

Ethics

Human subjects: The study was approved by the respective medical ethics committees: The Swiss Medical Ethical Committee (EKNZ 2015-436) and the Hunter New England Human Research Ethics Committee (HNEHREC 16/04/20/5.06). The application of patient-derived materials is summarized in Table S3.

Animal experimentation: All mice experiments were performed in accordance with the European Guidelines for the Care and Use of Laboratory Animals, Directive 2010/63/UE, Portuguese National Regulation published in 2013 (Decreto-Lei n.8 113/2013 de 7 de Agosto) and approved by the local Ethics Committee of the Institute for Research and Innovation in Health (i3S) (Porto, Portugal). Project identification code (0421/000/000/2017, date (24/05/17)). The authors involved in these experiments have an accreditation for animal research given from the Portuguese Veterinary Board (ministerial Directive 1005/92).

Senior Editor

  1. Eduardo Franco, McGill University, Canada

Reviewing Editor

  1. Erica A Golemis, Fox Chase Cancer Center, United States

Publication history

  1. Received: May 28, 2020
  2. Accepted: September 15, 2020
  3. Version of Record published: October 7, 2020 (version 1)

Copyright

© 2020, Huang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 459
    Page views
  • 64
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    Nataša Pavlović et al.
    Research Article

    Hepatocellular carcinoma (HCC) is a liver tumor that usually arises in patients with cirrhosis. Hepatic stellate cells are key players in the progression of HCC, as they create a fibrotic micro-environment and produce growth factors and cytokines that enhance tumor cell proliferation and migration. We assessed the role of endoplasmic reticulum (ER) stress in the cross-talk between stellate cells and HCC-cells. Mice with a fibrotic HCC were treated with the IRE1α-inhibitor 4μ8C, which reduced tumor burden and collagen deposition. By co-culturing HCC-cells with stellate cells, we found that HCC-cells activate IREα in stellate cells, thereby contributing to their activation. Inhibiting IRE1α blocked stellate cell activation, which then decreased proliferation and migration of tumor cells in different in vitro 2D and 3D co-cultures. In addition, we also observed cell-line specific direct effects of inhibiting IRE1α in tumor cells.

    1. Cancer Biology
    2. Immunology and Inflammation
    Helene Rundqvist et al.
    Research Article

    Exercise has a wide range of systemic effects. In animal models, repeated exertion reduces malignant tumor progression, and clinically, exercise can improve outcome for cancer patients. The etiology of the effects of exercise on tumor progression are unclear, as are the cellular actors involved. We show here that in mice, exercise-induced reduction in tumor growth is dependent on CD8+ T cells, and that metabolites produced in skeletal muscle and excreted into plasma at high levels during exertion in both mice and humans enhance the effector profile of CD8+ T-cells. We found that activated murine CD8+ T cells alter their central carbon metabolism in response to exertion in vivo, and that immune cells from trained mice are more potent antitumor effector cells when transferred into tumor-bearing untrained animals. These data demonstrate that CD8+ T cells are metabolically altered by exercise in a manner that acts to improve their antitumoral efficacy.
