Robustness of the microtubule network self-organization in epithelia

  1. Aleksandra Z Płochocka
  2. Miguel Ramirez Moreno
  3. Alexander M Davie
  4. Natalia A Bulgakova  Is a corresponding author
  5. Lyubov Chumakova  Is a corresponding author
  1. Center for Computational Biology, Flatiron Institute, United States
  2. Department of Biomedical Science, The University of Sheffield, United Kingdom
  3. Maxwell Institute for Mathematical Sciences, School of Mathematics, Edinburgh University, United Kingdom
Research Article
  • Cited 0
  • Views 732
  • Annotations
Cite this article as: eLife 2021;10:e59529 doi: 10.7554/eLife.59529

Abstract

Robustness of biological systems is crucial for their survival, however, for many systems its origin is an open question. Here, we analyze one subcellular level system, the microtubule cytoskeleton. Microtubules self-organize into a network, along which cellular components are delivered to their biologically relevant locations. While the dynamics of individual microtubules is sensitive to the organism’s environment and genetics, a similar sensitivity of the overall network would result in pathologies. Our large-scale stochastic simulations show that the self-organization of microtubule networks is robust in a wide parameter range in individual cells. We confirm this robustness in vivo on the tissue-scale using genetic manipulations of Drosophila epithelial cells. Finally, our minimal mathematical model shows that the origin of robustness is the separation of time-scales in microtubule dynamics rates. Altogether, we demonstrate that the tissue-scale self-organization of a microtubule network depends only on cell geometry and the distribution of the microtubule minus-ends.

Introduction

The correct positioning of intracellular components such as proteins and organelles is critical for correct cellular function (St Johnston and Ahringer, 2010; Ryder and Lerit, 2018). These components are transported to their biologically relevant locations by motor proteins moving along the cytoskeleton (Gagnon and Mowry, 2011; Kapitein and Hoogenraad, 2011; Franker and Hoogenraad, 2013), or through active diffusion often dependent on these motors (Drechsler et al., 2017; Colin et al., 2020). Therefore, the direction of cytoskeleton filaments guides the direction and efficiency of intracellular transport. One common type of cytoskeleton used for transport is microtubules (Franker and Hoogenraad, 2013). These are highly dynamic unstable polymers that switch between periods of growth and shrinkage. During the growth phase, GTP-tubulin dimers are added to the microtubule plus-end forming a GTP-cap. GTP-tubulin stochastically hydrolyzes into GDP-tubulin, and the loss of the GTP-cap results in a catastrophe: a switch to depolymerization (Bowne-Anderson et al., 2013). Microtubule dynamical properties are influenced by a wide range of both internal and environmental factors. For example, the dynamics and number of individual microtubules in a cell depend on the expression of particular plus- and minus-end binding proteins (Akhmanova and Steinmetz, 2015), the interaction between microtubules is affected by the presence of crosslinking and motor proteins (Kapitein and Hoogenraad, 2015), and the stability of the microtubule network is affected by external factors, e.g. temperature, which changes microtubule rigidity (Kawaguchi and Yamaguchi, 2010).

Animal cells take multiple shapes and forms depending on their function, ranging from neuronal cells with meter-long projections, to epithelial cells, to migrating ameboidal leukocytes. Therefore, it is not surprising that microtubule systems similarly acquire a multitude of organizations. In undifferentiated cells, microtubules form a radial array with minus-ends at a microtubule organizing center at a centrosome. Upon cell differentiation, microtubules are reorganized into non-centrosomal arrays of varying geometry, ranging from unidirectional bundles (e.g. axons), to bidirectional microtubule systems (e.g. subapical microtubules or microtubules in dendrites; Muroyama and Lechler, 2017). Microtubule self-organization in unidirectional or radial microtubule systems has been extensively studied (e.g. Surrey et al., 2001; Nédélec et al., 2003; Dehmelt, 2014; Kapitein and Hoogenraad, 2015). Directionality and alignment of these networks depend on several interconnected factors. These include the localization of microtubule minus-ends, which could be concentrated at a single location (microtubule organizing center), distributed uniformly at the cell surface, or targeted to specific locations, for example, to the sites of cell-cell contacts (Muroyama and Lechler, 2017). The other two factors affecting microtubule network organization are the geometrical constraints of a cell, for example, in a long and thin axon or dendrite, microtubules can only grow in specific directions; and the presence of crosslinking and motor proteins, which promote assembly and orient microtubule bundles (Zemel and Mogilner, 2008; Zemel and Mogilner, 2009). Bidirectional microtubule networks have an additional level of complexity, as several other factors independently contribute to their organization: the dynamics of individual microtubules, their interactions, and the often dispersed distribution of minus-ends.

In this paper, we explore the self-organization of bidirectional microtubule networks, which are particularly common in differentiated epithelial cells – one of the four fundamental tissue types found in all animals (Gilbert et al., 1991; Bulgakova et al., 2013; Muroyama and Lechler, 2017; Tateishi et al., 2017). Here, our focus is the mixed-orientation microtubules just under the apical surface of epithelial cells that are seeded from sites of cell-cell adhesion at the cell periphery (Toya and Takeichi, 2016), and not unidirectional apical-basal microtubules. The advantage of this system is that it is physically constrained in space, which allows us to model it as quasi-2d (Gomez et al., 2016). We define microtubule self-organization as the degree of alignment of individual microtubule filaments with each other, which we quantify using a length-weighted microtubule angle distribution. Hence, more peaked (or flat) microtubule angle distributions correspond to more aligned (or disordered) microtubule networks. In this work, the microtubule angle distribution describes long-term steady state of the system. In particular, in both the stochastic simulations and analytical model, it was computed as a long time average, and in vivo it was computed using averaging cells of the same eccentricity within a tissue. Using other metrics, for example, the 2d nematic order parameter S2, which is a quantitative measure of the orientational ordering (de Gennes and Prost, 1993), was prohibitive, since the microtubule density was too low in both our stochastic simulations and experimental images. In contrast, using microtubule angle distribution allowed for accurate comparison between simulations, analytical, and experimental results. Furthermore, it was not possible to perform a systematic analysis of microtubule self-organization dependence on many parameters of microtubule dynamics in vivo. This was due to, first, extremely large number of combinations of individual dependencies, which goes beyond the microtubule network itself; and second, altering the microtubule network has profound consequences on processes relying on microtubules, and thus, on cellular functions. We, therefore, analyzed our system via mathematical modeling and validated the model predictions in vivo.

Various modeling approaches have been used for describing microtubule self-organization. However, many of them are specific to a particular tissue. In plants, it was shown that microtubule zipping strongly affects their self-organization (Tindemans et al., 2010), and that tension can have a non-negligible effect on stabilizing microtubules (Hamant et al., 2019). In larger cells, such as Drosophila oocytes, microtubule nucleation at the cortex was shown to be important (Khuc Trong et al., 2015). Models that include the hydrodynamic effect of the cytoplasm and molecular motors’ effect on microtubule self-organization are summarized in Shelley, 2016 and Belmonte et al., 2017. Our published stochastic model successfully recapitulates the organization of microtubule networks in various epithelial cells (Gomez et al., 2016). It is a minimal in silico 2d-model, in which the microtubules are seeded on the cell periphery, grow stochastically to capture the dynamic instability (as in Peskin, 1998), and follow geometric interaction rules.

Here, we use this stochastic model for simulations exploring the typical parameter space of microtubule dynamics, discovering that the average microtubule self-organization is robust. We confirm the robustness in vivo using genetic manipulations of epithelial cells in the model organism Drosophila. Finally, we build a minimal probabilistic model, which accurately predicts the experimental results and reveals that the reason for robustness is the separation of time-scales in microtubule dynamics. This model shows that the details of microtubule dynamic instability are irrelevant for microtubule self-organization within their biologically relevant ranges and that the only biological quantity beyond cell shape that affects microtubule alignment is the minus-end distribution. Therefore, we demonstrate the extreme robustness of bidirectional quasi-2d microtubule self-organization, which can be explained by simple mathematical rules. This suggests the general applicability of our findings to quasi-2d microtubule networks, and provides a foundation for future studies.

Results

A conceptual geometric model accurately predicts in vivo alignment

Cells of the Drosophila epidermis elongate during stages 12–15 of embryonic development, changing their eccentricity from 0.7 to 0.98 (Figure 1A and Gomez et al., 2016). As cells elongate, initially randomly oriented microtubules become gradually aligned (Gomez et al., 2016). The simplest thought experiment to visualize how cell elongation translates into microtubule alignment is the following. Imagine a ‘hairy’ unit-circle on the (x,y) plane, where ‘hairs’ are microtubules. Turn it inside out (Figure 1B). The microtubules are randomly pointing inside the ball, representing the absence of microtubule alignment in non-elongated cells; at each microtubule minus-end on the cell boundary, the mean microtubule direction is normal to the cell boundary. We now deform both the cell and the filament directions by stretching the cell uniformly from its center in the y-direction by a factor b. This results in an ellipse with eccentricity e(b)=1-b-2, where the minus-end positions move proportionally to deformation, the filament directions point towards the cell center and their lengths remain unaltered. Mathematically, the distribution ρ(θ) of microtubule angles θ[0,180] changes from uniform, ρ(θ)=1/180, to the angle distribution we call hairyball distribution, ρHB(ϕ), which is the inverse Jacobian of the stretching mapping F:θϕ, where θ,ϕ[0,180], given by tan(ϕ(θ))=btan(θ),

(1) ρHB(ϕ)=1M1sin2ϕ+b2cos2ϕ,ϕ[0,180],

where M=180/b is the normalization constant. This result gives a surprisingly good agreement with the experiment (Figure 1C), especially considering that this model does not take into account the underlying biological processes, for example, microtubule dynamics. Therefore, while a detailed mathematical model is required to understand how various biological processes control microtubule alignment, the hairyball angle distribution formula in Equation 1 provides a valuable shortcut for the analysis of biological data and parameterizations of microtubule angle distribution, where it can be used to fit data with one parameter – the ‘effective aspect ratio’ b, and, therefore, eccentricity.

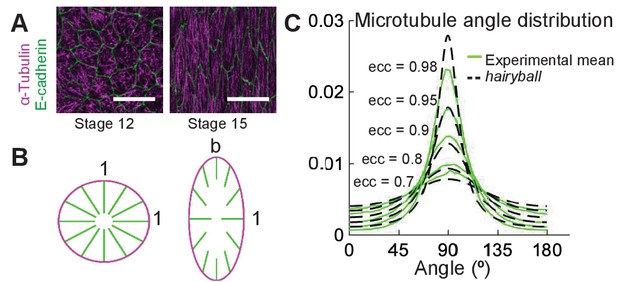

A conceptual geometric model of microtubule self-organization.

(A) Drosophila epidermal cells elongate between stages 12 and 15 of embryonic development, during which the microtubules become more aligned. The scale bar is 10 µm. (B) Stretching a circular cell of radius 1 by a factor b>1 deforms the initially uniform microtubule angle distribution into the hairyball distribution, Equation 1. (C) The experimental microtubule angle distribution (green) from stage 12–15 Drosophila epidermal cells and the hairyball (dashed black) are in good agreement up to eccentricity 0.95 . For each eccentricity, the displayed experimental distribution is the mean distribution averaged across cells with the set eccentricity (±0.025 for ecc=0.7-0.95 and ±0.005 for ecc=0.98), and is produced as described in the Materials and methods. The number of cells per eccentricity ranged from 348 to 2748.

Stochastic simulations demonstrate robustness of microtubule self-organization for a wide range of parameter values

We now explore how microtubule self-organization depends on dynamics and interactions of individual microtubules in silico. To this end, we use the same model set-up as previously published (Gomez et al., 2016), as this stochastic model recapitulated microtubule self-organization observed in vivo. To focus the study on the role of microtubule dynamic instability and interactions and reduce the number of free parameters, we kept the density of the microtubule minus-ends on the cell boundary uniform. We ran the simulations on cells with fixed shapes, since in vivo the cell shape evolves on a longer time-scale (hours) as compared to the time required for the microtubule network to stabilize (several minutes) (Gomez et al., 2016). We chose the cell shape to be an ellipse since we demonstrate below that the averaged experimental cell shape is an ellipse as well. Finally, the cell eccentricity range in the simulations, 0.7 – 0.98, mimicked the experimental one.

To capture the dynamic instability, we model microtubules as follows (Figure 2A). Since the microtubule width (24 nm) is much smaller than the typical cell size (2–10 µm) (Bulgakova et al., 2013), we model microtubules as 1d filaments. They are composed of equal length segments, representing microtubule dimers, whose dynamics is governed by a continuous time Markov chain (Figure 2A; Peskin, 1998; Gomez et al., 2016). The microtubule grows (polymerizes) at the rate α, and shrinks (depolymerizes) at the rate β>α; it switches from the polymerizing to depolymerizing state at the catastrophe rate β; and undergoes the reverse switch at the rescue rate α. These dynamic instability rates (apart from β) depend on the concentration of free tubulin dimers in cytoplasm (Walker et al., 1988), which is reported to vary between 30 and 75% of the total tubulin in cells in vivo (Pipeleers et al., 1977; Reaven et al., 1977; Zhai and Borisy, 1994). However, after the microtubule network stabilizes, the total amount of tubulin in microtubules, and, therefore, in the cytoplasm, remains approximately constant, leading to approximately constant dynamic instability rates. Since we investigate the statistics of the microtubule network in steady state (see Materials and methods), we use constant microtubule dynamic instability rates throughout the simulation, and set the same rescue rate for a completely depolymerized microtubule as for any non-zero length microtubule. To account for potentially different microtubule network organizations due to the initial tubulin concentration, we investigate a broad range of parameters. As discussed below, we find that the microtubule angle distribution of stabilized microtubule networks is not sensitive to the parameters of the dynamic instability.

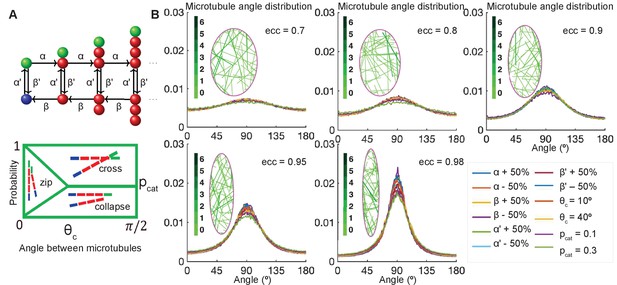

Stochastic simulations demonstrate robustness of microtubule self-organization.

(A, top) Markov chain: each microtubule grows from the minus-end (blue) at the rescue rate α, polymerizes at the rate α if it is stable with a T. GTP cap (green), undergoes catastrophe losing the T.GTP cap at the rate β, depolymerizes at the rate β, and regains the T.GTP cap with the rescue rate α. (A, bottom) Parameterization of the effect of crosslinking proteins on microtubule-microtubule interactions, where the probability of an interaction scenario depends on the angle between microtubules. Here θc is the critical angle of zipping, and pcat is the probability of catastrophe. (B) Sensitivity analysis of the microtubule angle distribution. Left: Snapshots of zipping simulations in cells (magenta) of different eccentricities; for the base-level parameters (α,β,α,β)=(1000,3500,4,1), θc=30 and pcat=0.01. Interacting microtubules form bundles, the colorbar indicates the number of microtubules in a bundle. Right: The microtubule angle distributions do not vary significantly in a wide parameter range, suggesting robustness of the microtubule self-organization. The distributions are shown for the variations of (α,β,α,β) as compared to (1000,3500,4,1), variable critical zipping angle θc and probability of catastrophe pcat

To include microtubule interactions with other microtubules and cell boundaries in the model, we parameterize them using the known parameterization in plants (Dixit and Cyr, 2004Tindemans et al., 2010) and Drosophila cells (Figure 2A; Gomez et al., 2016), which relies on two parameters – the critical angle, θc, and the probability of catastrophe, pcat – as follows. Upon encountering another microtubule at an angle θ, if θθc, the growing microtubule either undergoes a catastrophe with probability pcat or crosses the microtubule otherwise. If θθc, it collapses with probability p(θ)=θθcpcat, crosses with probability p(θ)=θθc(1-pcat), and bends to change its direction and continues to grow parallel to the existing microtubule otherwise (the microtubule is said to zip). Upon reaching a cell boundary at an angle θθc, the microtubule zips along it with probability p(θ)=1-θθc, and depolymerizes otherwise (Gomez et al., 2016). These rules for microtubule interactions were originally inspired by the well-established induction of catastrophe when a microtubule grows against a barrier (Janson et al., 2003). The role of cell borders as barriers for microtubule growth in epithelial cells is supported by the observations that microtubules buckle at the cell cortex (Singh et al., 2018) and that the microtubule catastrophes at the cell boundaries are angle-dependent in vivo (Gomez et al., 2016). We envision that the exact critical angle, θc, and the probability of catastrophe, pcat, depend on the presence of specific crosslinking and motor proteins that promote microtubule bundling and stability (Yan et al., 2013; Takács et al., 2017). Finally, we did not include in the model the effect of microtubules sliding along each other promoted by crosslinking proteins. Sliding has a profound effect on microtubule self-organization in diverse other systems ranging from oocytes to neurons (Zemel and Mogilner, 2008; Lu et al., 2016; Winding et al., 2016). However, we assume this effect to be secondary in our system, since microtubule minus-ends being anchored at the cell boundary (as opposed to being free) prevents sliding. Instead, the leading cause of microtubule self-organization in our system is that microtubule plus-ends are dynamic (as opposed to stabilized). This allows microtubules to 'sense’ the scale of the cell: when a microtubule grows toward a cell boundary, upon reaching it, the microtubule either continues growing parallel to it or undergoes a catastrophe.

This setup allows us to investigate a broad range of biologically relevant microtubule dynamics scenarios: in an organism, the dynamic instability parameters are linked to the expression of plus- and minus-end binding proteins and severing factors, while the interaction parameters θc and pcat are linked to the presence of crosslinking and motor proteins, as described above, and temperature-dependent microtubule rigidity (Kawaguchi and Yamaguchi, 2010). The relation of the model parameter values to their dimensional equivalents is as follows. The typical observed microtubule growth speed is 0.15 µm/s (Gomez et al., 2016). Expressing it as α×d×R, where α=1000 is the non-dimensional base growth rate, d=8.2 nm is the height of one dimer, and R is the dimensionality coefficient, we find R to be 0.0183 s-1. Therefore, the dimensional rates are: the microtubule growth speed αdim,speed=0.15 µm/s; shrinking speed βdim,speed=0.52 µm/s; rescue rate αdim=0.07316 s-1; and catastrophe rate βdim=0.01829 s-1.

We varied (α,β,α,β) independently, each from 0.5 to 1.5 times the base-line value (α,β,α,β)=(1000,3500,4,1). We, therefore, tested the following range of dimensional rates: the microtubule growth speed αdim,speed=0.0750.225 µm/s; shrinking speed βdim,speed=0.260.78 µm/s; rescue rate αdim=0.03660.1097 s-1; and catastrophe rate βdim=0.00910.0274 s-1. These are in the biologically relevant range, since in vivo the parameters of microtubule dynamics depend widely on the cell type, with the reported ranges of growth being 0.05–0.5 µm/s; shrinking 0.13–0.6 µm/s; rescue 0.01–0.17 s-1; and catastrophe 0.003–0.08 s-1 (Rogers et al., 2002Komarova et al., 2005Bulgakova et al., 2013). We further varied θc between 0° and 40° and pcat between 0.01 and 0.3, where θc=10,40 and pcat=0.1,0.3 are reported in Figure 2B. As the strength of microtubule interaction increases with θc, the case θc=0 corresponds to non-interacting microtubules, which would occur, for example, in the absence of crosslinkers.

The simulations gave an unexpected result (Figure 2B) that the microtubule angle distribution varied only slightly, suggesting that in this model microtubule self-organization is robust in individual cells. In particular, it does not depend on the details of dynamic instability and the strength of microtubule interaction, which could range from strong (at θc=40) to non-existent (at θc=0). Despite the robustness of microtubule self-organization measured via the microtubule angle distribution, we found that some features of the microtubule network varied spatially inside cells (Figure 3). In the absence of zipping (at θc=0), the microtubule density per unit area was the highest near the longer cell sides, and these peaks shifted toward the cell center with increasing zipping (higher θc). Altogether, our model suggests that the microtubule angle distribution for any given cell is robust, while other microtubule network characteristics could vary spatially inside it.

Time-averaged microtubule density depends on the strength of zipping.

The cell eccentricity was ecc=0.98; the other parameters were kept at their base-level values.

In vivo manipulations of microtubule dynamics and stability alter microtubule density but not alignment

To test in vivo the robustness of microtubule self-organization predicted by the stochastic simulations, we examined how changes in microtubule dynamics and stability affect the organization of subapical microtubules in cells of the Drosophila embryonic epidermis, where microtubules are constrained to the thin 1 µm apical layer of the cell and grow in the plane of the adhesion belt (Gomez et al., 2016). Using genetic manipulations, we could either increase the catastrophe rate β, simultaneously increase the catastrophe rate β and shrinkage rate β, or reduce the number of minus-ends, therefore reducing the density of the network and thus encounters and zipping between microtubules. In particular, we increased β by overexpressing a dominant-negative variant of End Binding protein 1 (EB1-DN), a form which increases the number of catastrophes without changing other parameters of microtubule dynamics (Bulgakova et al., 2013; Komarova et al., 2005) or increased both β and β by overexpressing the protein Spastin, which severs and disassembles microtubules (Bulgakova et al., 2013; Roll-Mecak and Vale, 2005; Komarova et al., 2005). These proteins were overexpressed using the UAS-Gal4 system, in which the Gal4 protein expressed from a tissue-specific promoter induces overexpression of the protein of interest by binding the Upstream Activating Sequence (UAS) (Brand and Perrimon, 1993). Specifically, we used engrailed::Gal4, which drives expression in stripes along the dorso-ventral axis of embryos, which correspond to posterior halves of each segment (Figure 4A). In this instance, we avoided abolishing all microtubules by using mild Spastin overexpression (Figure 4B). Overexpression of a CD8-Cherry protein, which does not alter microtubules, was used as a control. We also reduced the number of minus-ends using a null mutation of the minus-end capping protein Patronin (Nashchekin et al., 2016), one of the best characterized proteins that protects microtubule minus-ends (Goodwin and Vale, 2010). We used zygotic mutants - embryos carrying two mutant alleles of Patronin but produced by heterozygous mothers with one wild type allele. Therefore, some Patronin protein is present in homozygous mutant embryos due to maternal contribution - the protein supplied by mothers into eggs, leading to subapical microtubules being reduced but not abolished. Finally, we altered microtubule interactions by manipulating the motor protein Kinesin-1 and the microtubule-actin crosslinker Shortstop (Shot). Kinesin-1 crosslinks microtubules (Yan et al., 2013), thus its downregulation simulates reduced microtubule zipping. In contrast, Shot stabilizes microtubules and crosslinks them with actin cytoskeleton (Takács et al., 2017). We used the same engrailed::Gal4 to knockdown the Kinesin-1 using the expression of interfering RNA (RNAi) against its heavy chain (Khc-RNAi), and complemented this knockdown by using zygotic mutants for Khc and shot.

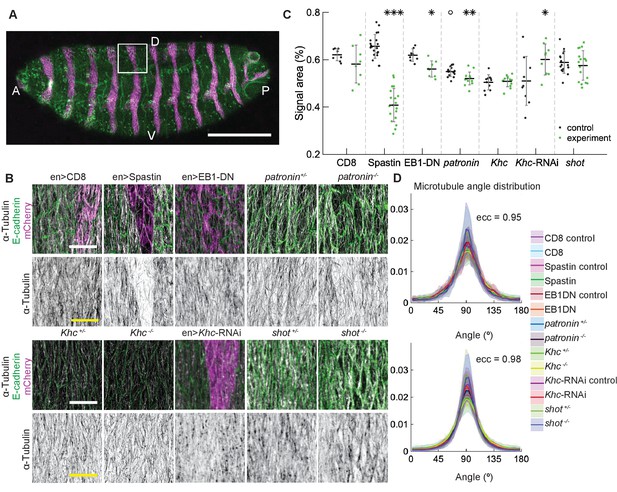

Changes to microtubule dynamics and stability do not affect their alignment in the Drosophila embryonic epidermis in vivo.

(A) An overview image of a Drosophila embryo at stage 15 of embryonic development with cell outlines visualized with E-cadherin (green), and engrailed-expressing stripes are visualized by direct fluorescence of mCherry (magenta). The white square demonstrates the area used for analysis on microtubule organization as shown in (B). Anterior (A), posterior (P), dorsal (D), and ventral (V) sides of embryos are labeled. Scale bar - 100 µm. (B) Apical view of epidermis from control embryos and with altered microtubules. Top, left-to-right: embryos with CD8-Cherry (control), Spastin (Spas), and EB1-DN expressed using engrailed::Gal4, heterozygous Patronin +/-, and homozygous Patronin -/- embryos. Bottom, left-to-right: heterozygous Khc +/- and homozygous Khc -/- embryos, embryos expressing Khc-RNAi, and heterozygous shot +/- and homozygous shot -/- embryos. Cells expressing CD8-Cherry and EB1-DN are visualized by direct fluorescence of mCherry fused to respective proteins, whereas cells expressing Spastin and Khc-RNAi are visualized by coexpression of CD8-Cherry (magenta). Cell outlines were visualized by immunostaining against E-cadherin or native fluorescence of E-cadherin-GFP for Khc-RNAi (green, top row), and microtubules by immunostaining against α-Tubulin (white, top row; black, bottom row). Scale bar - 10 µm. (C) Quantification of microtubule density in each genotype. Internal controls (cells not expressing engrailed::Gal4) were used for CD8-Cherry, Spastin, EB1-DN, and Khc-RNAi. For Patronin, Khc and shot, heterozygous and homozygous embryos were compared. *** - p<0.0001, ** - p<0.001, * - p0.01 in comparison to respective control; ° - p<0.01 in comparison to CD8-Cherry control. (D) The microtubule angle distributions for each eccentricity (±0.025 for ecc=0.95 and ±0.005 for ecc=0.98) do not differ between all genotypes and relative to controls. The distributions – mean (solid line) with standard deviation (shading) – are produced by binning cells in each genotype by eccentricity with the number of binned cells from 32 to 833.

We quantified how the above manipulations altered the organization of the microtubule network in cells by obtaining images of microtubules stained with an antibody recognizing α-Tubulin, and analyzing them on a cell-by-cell basis. From these images, we obtained two types of information about microtubule organization (see Materials and methods). First, we determined how the manipulations altered the amount of microtubules in cells by quantifying the percent of the cell area covered by α-Tubulin signal. This measure is a good proxy for the number of microtubules in cells, but it is also sensitive to local arrangements of microtubules – for example, less clustered microtubules due to reduced crosslinking produce a larger area of α-Tubulin signal, as shown below. Therefore, the interpretation of changes in α-Tubulin signal area is done in relation to the known effects of each modification. Second, we determined if the genetic manipulations altered the microtubule alignment. To do this, we determined the direction and magnitude of change of the α-Tubulin signal at each position within the cell (see Materials and methods and Gomez et al., 2016), and produced the microtubule direction distributions.

We focused on a late stage of Drosophila embryo development (stage 15), as the amounts of protein expressed using UAS-Gal4 system increases, whereas amounts of protein supplied from mothers into zygotic mutants (the maternal contribution) decrease with the progress of embryonic development. The overexpression of both Spastin and EB1-DN reduced the area of α-Tubulin signal in cells (p-values p<0.0001 and p=0.003, respectively, Figure 4B–C), consistent with their functions. Similarly, the area of α-Tubulin signal was reduced in heterozygous Patronin+/- embryos in comparison to wild-type controls (p-value p=0.02, Figure 4A–B), and even further reduced in homozygous Patronin -/- embryos (p-values p=0.0003 and p=0.002 in comparison to wild-type control and heterozygous siblings, respectively, Figure 4B–C). This result is consistent with the dose-dependent protection of the microtubule minus-ends by Patronin. In contrast, zygotic loss of Kinesin-1 did not alter the area of α-Tubulin signal as compared to heterozygous siblings (Figure 4B–C). In cells both hetero- and homozygous for the Kinesin-1 mutation, this area was the same and significantly smaller than that in controls presented above. The same signal area was measured in two independent experimental repeats (Appendix 1—figure 1), which highlights both the reproducibility of our approach and variability of this measure in response to genetic background, unlike the microtubule angle distribution. In contrast, the Khc-RNAi led to a slightly elevated signal area (p=0.01, Figure 4B–C), which is in agreement with both the presence of less clustered microtubules and the role of this motor protein in crosslinking. We therefore suggest that the absence of detectable difference in α-Tubulin signal area between cells hetero- and homozygous for the Kinesin-1 mutation is either due to rescue by maternally supplied protein or the use of internal controls allowing for more sensitive detection of differences. Finally, although the average α-Tubulin signal area was not affected in shot mutant cells (Figure 4B–C), we observed that microtubules seemed more likely to be in close proximity of cell boundaries, similar to the organization reported before (Takács et al., 2017). Such organization is predicted to result from reducing the zipping strength in our stochastic simulations (Figure 3) and is consistent with the role of the Shot protein in microtubule crosslinking with actin. Despite the observed changes in area and subcellular distribution of α-Tubulin signal, and differences between controls, the microtubule angle distributions did not differ between all genotypes and relative to controls in all cases (Figure 4D). Altogether, these results support the robustness of microtubule self-organization despite variable microtubule dynamics and amounts.

To capture a wide range of eccentricities, we used the embryos at different stages of development during which the epidermal cells progressively elongate from eccentricities around 0.7 to 0.98 (stages 12 through 15). To this end, we focused on the genotypes with the strongest effects at stage 15 (Spastin, EB1-DN, and CD8-Cherry, as a control) and used paired::Gal4, which although leading to milder overexpression than engrailed::Gal4, is expressed in broader stripes along the dorso-ventral axis of embryos. Overexpression of Spastin reduced α-Tubulin signal area in comparison to both neighboring cells, which did not express paired::Gal4, and control cells expressing CD8-Cherry (both p-values p<0.0001, Appendix 1—figure 2A-B). Similarly, the α-Tubulin signal area was reduced in embryos homozygous for Patronin -/- in comparison to heterozygous siblings (p-value, p=0.04, Appendix 1—figure 2A-B). We suggest that the lack of a difference between heterozygous Patronin +/- and the wild-type control observed here might be due to measurements being taken over a broader developmental time, which makes it more difficult to detect changes. Overexpression of EB1-DN did not change the area covered by the α-Tubulin signal per cell (p-value, p=0.98, Appendix 1—figure 2A-B). This can be explained by either weaker expression of paired::Gal4 in comparison to engrailed::Gal4, or lower amounts of Gal4 at earlier developmental stages. The microtubule angle distributions for each eccentricity (binned at a particular eccentricity ±0.025) did not significantly differ between all genotypes and relative to controls (Appendix 1—figure 2C). Although only two of the above manipulations affected microtubule density, these results further support that microtubule self-organization is indeed robust in vivo.

Having found robustness in the embryonic epidermis, we sought to test that the same is true in another epithelial tissue – pupal wing. These cells are elongated to a lesser degree than average epidermis cells in the apical plane, but display similar subapical microtubule networks that align along cells’ major axes (Gomez et al., 2016). We examined the effects of overexpressing EB1-DN and Spastin in pupal wings, as these had the largest effects on α-Tubulin signal area in embryos, and used CD8-Cherry as a control. We have compared cells in engrailed::Gal4-expressing posterior compartments of pupal wings with anterior compartments, which do not express engrailed::Gal4 but are otherwise genetically identical. Expression of EB1-DN reduced the area of α-Tubulin signal, although to a lesser extent than in embryos (p=0.07, Figure 5A–B). This reduction was not reflected in any change in the microtubule angle distribution (Figure 5C). The expression of Spastin in pupal wings did not produce a consistent phenotype – some wings looked as in control, whereas in others microtubules were clearly severed (Figure 5A), which lead to no apparent change in the bulk α-Tubulin signal area (p=0.36, Figure 5B). To determine if the microtubule angle distribution was altered in cells with severed microtubules in comparison to non-severed ones, we compared cells with signal areas of α-Tubulin lower than 0.45 with cells where it was greater than 0.45. We found no differences between these two groups of cells (Figure 5C). The distributions did not differ from those in cells from anterior compartments, which did not express Spastin, and from cells expressing CD8-Cherry as a control. Altogether, our findings demonstrate that microtubule angle distribution is robust to perturbations in dynamics of individual microtubules, microtubule interaction, and the number of microtubules, in two independent epithelial tissues in vivo. As the microtubule angle distributions were produced by averaging cells of the same eccentricity within a tissue, we term this robustness on the tissue scale.

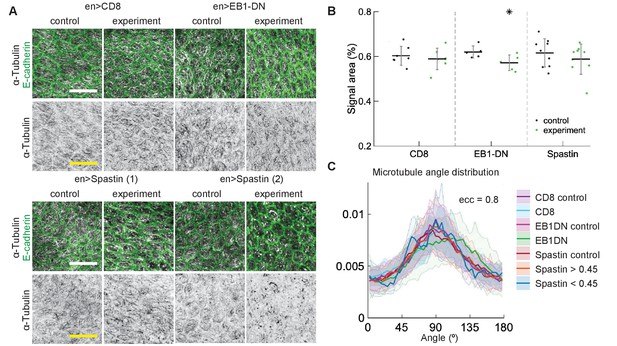

Changes to microtubule dynamics and stability do not affect their alignment in Drosophila pupal wings in vivo.

(A) Apical view of epithelial cells from pupal wings in control anterior and experimental posterior compartments. Top: pupal wings expressing CD8-Cherry (control) and EB1-DN; bottom: examples of wings expressing Spastin, which leads to a variable phenotype ranging from severed (left) to appearing non-severed (right) microtubules. In all cases, engrailed::Gal4 was used. Cells expressing CD8-Cherry and EB1-DN are visualized by direct fluorescence of mCherry directly fused to respective proteins, whereas cells expressing Spastin are visualized by coexpression of CD8-Cherry (not shown). Cell outlines were visualized by native fluorescence of E-cad-GFP (green, top rows), and microtubules by immunostaining against α-Tubulin (white, top rows; black, bottom rows). Scale bar - 10 µm. (B) Quantification of microtubule density in each genotype. Internal controls (cells not expressing engrailed::Gal4) were used for comparison. * - p=0.07 . (C) The microtubule angle distributions for ecc=0.80 do not differ between all genotypes and relative to controls. The distributions – mean (solid line) with standard deviation (shading) – are produced by binning cells in each genotype by eccentricity. Distributions in cells with α-Tubulin signal areas less and greater than 0.45 are shown separately for Spastin. The number of binned cells ranged from 7 to 48.

An analytical model shows that microtubule self-organization depends on the cell geometry and minus-end distribution

Given that the microtubule angle distribution both in silico and in vivo only weakly depends on microtubule interactions, we propose a minimal mathematical model with non-interacting microtubules, which is analytically tractable. Here, independent microtubules cross upon reaching one another and fully depolymerize upon reaching a cell boundary. Their averaged behavior is the average of 1d behaviors of individual microtubules growing from different positions on the cell boundary. While we expect the microtubules to have an overall alignment along the major cell axis due to the high build-in catastrophe rate at cell boundaries, our goal is to obtain the full microtubule angle distribution.

Our model setup is as follows (Figure 6A). Consider a convex 2d cell with the boundary parameterized by the arclength-coordinate ζ increasing in a counter-clockwise direction. From microtubule minus-ends distributed with density ρ(ζ) on the cell boundary, the microtubules grow into the cell interior at an angle θ to the cell boundary and at an angle φ with respect to the horizontal. Note that the cell shape is fully determined by the function a(ζ,θ) – the length of a cross-section that starts at ζ at an angle θ with respect to the boundary. When a(ζ,θ) is considered as a function of (ζ,φ), we denote it by a~(ζ,φ) to avoid confusion. Microtubules undergo dynamic instability by switching between the states of growth, shrinking, catastrophe, and rescue at the rates α, β, β, and α, respectively. After fully depolymerizing, they regenerate at the rate α from the same minus-end but in a new direction at an angle θ taken from a uniform distribution on [0,180]. Thus, over a large fixed time interval t[0,T], a microtubule undergoes a large number N of growth and shrinkage lifetimes, which are separated by periods of average duration 1/α when the microtubule has zero length.

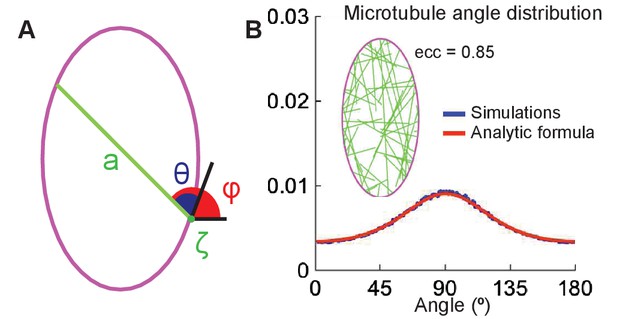

The analytical model of microtubule self-organization.

(A) Analytical model setup: cell shape is parameterized by the arclength, ζ, along the cell boundary (magenta). At the minus-end, ζ, a straight microtubule (green) grows at an angle θ (or φ) with respect to the cell boundary (or horizontal); its maximum length is the cross-section, a, of the cell. (B) Left: snapshot of the simulations with non-interacting microtubules for cells of eccentricity 0.85. Right: the agreement between the microtubule angle distributions given by Equation 9 (red) and the stochastic simulations (blue).

The first quantity of interest is the microtubule mean survival time. Since both in vivo and in silico, the microtubule angle distribution is length-weighted, we include the general case of weighting the mean survival time by a function γ(x) of microtubule length x. Then the mean survival times, f(x) and g(x), of polymerizing and depolymerizing microtubules of length x satisfy

(2) f(x)=(1βdt)f(x+αdt)+βdtg(x)+γ(x)dt,
(3) g(x)=(1αdt)g(xβdt)+αdtf(x)+γ(x)dt,

where the terms on the right-hand side are the contributions from growing (and shrinking in the g case), switching, and the time increment weighted by γ(x), which we specify below. Here, dt is a small time-increment. Expanding Equation 2-3 in Taylor series and neglecting terms of the second and higher order in dt, we obtain that f(x) and g(x) are governed by

(4) df(x)/dx=β/α(f(x)g(x))γ(x)/α,
(5) dg(x)/dx=α/β(f(x)g(x))+γ(x)/β.
h(x)=f(x)-g(x)
(6) dh(x)/dx=ph(x)-qγ(x),

where p=βα-αβ and q=1α+1β. We assume that g(a)=0, that is, once the microtubule reaches the cell boundary at the length a(ζ,θ), it quickly depolymerizes. Finally, for a zero-length microtubule g(0)=0, and hence h(0)=f(0). Note that the only quantity of interest is f(0)=h(0), since it is the lifetime of a microtubule when it starts in a growing state with zero length.

The two choices γ(x)=1 and γ(x)=x give the solutions for the not-weighted and the length-weighted mean survival times, denoted fnw(x) and fw(x), respectively

(7) fnw(0)=qp(1epa),fw(0)=qp2(1epa(1+pa)).

For each microtubule minus-end location, ζ, the average time between any two re-growths of a microtubule is the sum of the averaged waiting time 1/α and the average of the non-weighted lifetime over all the growth angles θ

(8) TNTave=1α+0πfnw(0)𝑑θ.

Then the average number of lifetimes with direction (φ,φ+δφ) with respect to the horizontal is Nδφ/π, and their contributions to the length-integral is fw(0)Nδφ/π=(fw(0)/Tave)T/πδφ. Integrating it over the cell boundary weighted by the density of minus-ends ρm(ζ) and using Equation 8, we obtain the length-weighted microtubule angle distribution

(9) ρ(φ)=1M1ea~(ζ,φ)p(1+a~(ζ,φ)p)1+qαπ0π1ea(ζ,θ)ppdθρm(ζ)dζ,

where M is the normalization constant. The cell cross-section is denoted by either a(ζ,θ) or a~(ζ,φ) depending on its arguments. This analytical prediction matches the stochastic simulations (Figure 6B).

The dependency of the resulting microtubule angle distribution on the biological rates reduces to two parameters

(10) p=βα-αβ,qαπ=απ(1α+1β).

If both of them are small, |p|1 and απ(1α+1β)1, as is always observed in biological systems (see above), the microtubule angle distribution formula can be significantly simplified. In particular, for small p, the distribution in Equation 9 reduces to

(11) ρ(φ)=1Ma~2(ζ,φ)1+qαπ0πa(ζ,θ)dθρm(ζ)dζ

to leading order, and to

(12) ρ(φ)=1Ma~2(ζ,φ)ρm(ζ)dζ,

when, in addition, qαπ1/0πa(ζ,θ)𝑑ζ. This becomes exact in the limit of deterministic microtubules (β=, β=0). Note that while p is required to be non-negative in models of microtubules on an infinite line (Peskin, 1998), our setup does not have this restriction, as the microtubule lifetimes fw(0) and fnw(0) are positive even for negative p. Furthermore, the analytical microtubule angle distribution, Equation 9, is independent of the multiplicative change in the minus-end density, ρm(ζ), which would be absorbed into the normalization constant M. Only non-trivial changes to the density of minus-ends that vary along the cell boundary affect the microtubule angle distribution.

It is required that αα and αβ for the second parameter in Equation 10 to be small, and βα for the first parameter to be small as well. This separation of time-scales in microtubule dynamics is observed in vivo, as described above, where the rates of polymerization and depolymerization are much higher than those of catastrophe and rescue. Therefore, the microtubule angle distribution depends only on the cell geometry and the minus-end distribution, and the underlying reason for that is the separation of time-scales in microtubule dynamics.

The analytical model accurately predicts microtubule self-organization given both the experimental cell shape and distribution of microtubule minus-ends

To validate our analytical model’s predictions, we sought to compute the analytical microtubule angle distributions in Equation 9 using experimental cell shape and minus-end density. Note that Equation 9 predicts that the microtubule angle distributions is robust in each individual cell, where each distribution is determined by the cell geometry and the distribution of minus ends. For example, a cell corner at multicellular junctions (where three or more cells contact) leads to ‘corners’ in microtubule angle distributions. However, cell shapes in tissue are highly variable, even when they have the same eccentricities. We, therefore, sought to perform comparison between the model and experiment using the averaged values of the microtubule minus end locations and cell shape.

First, we determined the localization of microtubule minus-ends. Since Patronin localizes at the microtubule minus-ends, we analyzed its distribution in epithelial cells in the Drosophila embryonic epidermis using Patronin-YFP (Nashchekin et al., 2016). As expected, Patronin-YFP is mostly localized at the cell boundaries with few speckles inside cells (Figure 7A). We quantified the distribution of Patronin-YFP at the cell boundaries by measuring its asymmetry, namely the ratio of Patronin-YFP average intensity at dorso-ventral borders to that of anterior-posterior borders (see Materials and methods, Figure 7B, and Bulgakova and Brown, 2016). The asymmetry of Patronin distribution was a linear function of the cell eccentricity (Figure 7C), suggesting that Patronin becomes enriched at the dorso-ventral boundaries as the embryo develops and cells elongate. Additionally, when comparing boundaries in cells with similar eccentricities (Stage 15 embryos only), the intensity of Patronin-YFP was decreasing with the border angle relative to the anterior-posterior axis of the embryo (Figure 7D). Several lines of evidence support that the observed enrichment of Patronin-YFP at the dorso-ventral boundaries is due to the asymmetry of cell-cell adhesion in these cells. Indeed, microtubule minus-ends were shown to be tethered by cell-cell adhesion in some epithelial cells (Meng et al., 2008). Concurrently, E-cadherin, the key component of cell-cell adhesion in Drosophila embryonic epidermis, is asymmetrically distributed in stage 15 embryos (Bulgakova et al., 2013), with enrichment at the dorsal-ventral borders similar to that of Patronin. Finally, asymmetries of both Patronin and E-cadherin progressively increase from stage 12 to stage 15 of Drosophila embryonic development (Figure 7C and N.A.B. personal communication).

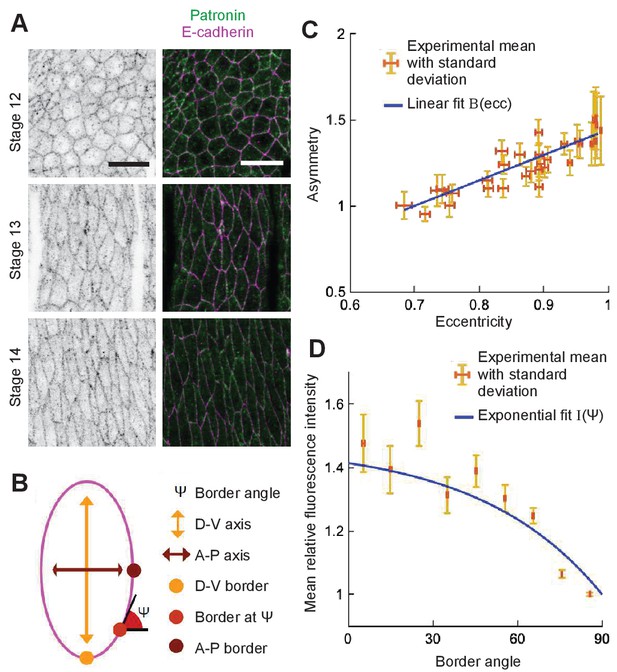

Localization of Patronin-YFP in the Drosophila embryonic epidermis.

(A) Apical view of embryonic epidermis at stage 12 (top), 13 (middle), and 15 (bottom), visualized with Patronin-YFP (gray, left; green, right), and E-cadherin immuno-staining (magenta, right). Scale bar - 10 μm. (B) Schematic of a cell. (C) Asymmetry of Patronin-YFP localization increases linearly with eccentricity. Each dot represents the average values of Patronin-YFP asymmetry and cell eccentricity in a single embryo. Error bars are SD. Solid line visualizes the linear fit of the form B(ecc)=1+C1(ecc-0.7)/(0.98-0.7), C1=0.4144. (D) Mean relative amounts of Patronin-YFP as a function of the border angle ψ in stage 15 (eccentricity 0.98) Drosophila embryonic epidermis, normalized by its value at the vertical long sides (0-10°). Borders were binned at 10° intervals relative to the embryonic anterior-posterior axis, and intensity was averaged for each bin (mean ± SD). The solid line represents the exponential fit for the intensity as I(ψ)=1+(B(0.98)-1)(1-e-C2(90-ψ))/(1-e-90C2), C2=0.0231.

To use this in our analytical model, we used least-squares to simultaneously fit the asymmetry data with a linear function of eccentricity, and the normalized intensity of Patronin-YFP with an exponential function of the cell border angle. We imposed a constraint that the asymmetry value at eccentricity 0.98 (Stage 15) is the same as the normalized intensity of Patronin-YFP at the dorso-ventral border (border angle 0o). The resulting formula used in the analytical model is

(13) A(ecc,ψ)=1+C1ecc0.70.980.7(1eC2(ψ90)1e90C2),

where ψ is the cell border angle with respect to the horizontal, C1=0.4144 and C2=0.0231.

Next, we determined the average cell shape. In tissue, each cell has a unique shape, and cells with the same eccentricities may differ significantly in their geometry. Therefore, to test and validate the analytical solution of microtubule self-organization we have generated masks of epithelial cells in the Drosophila embryonic epidermis, which provided us with coordinates of cell boundaries (see Materials and methods). Dividing all cell shapes into groups by eccentricity, we computed the average cell shape for each group as follows. First, the cells were re-centered to have their centers of mass at the origin. We then rotated them so that they are elongated along the vertical axis (the direction of elongation is the first singular vector, see Materials and methods). Finally, we rescaled all the cells to have unit area. The average of the distance from the center of mass in a particular direction to the cell boundary traced the boundary of the averaged cell. Surprisingly, we found that the average cell shape for a given cell eccentricity is an ellipse (Figure 8A).

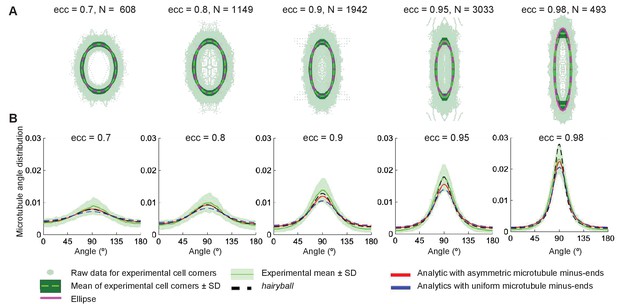

Agreement between the analytical and experimental microtubule self-organization on averaged cell-shape.

(A) Experimental cell shapes for eccentricities 0.7—0.98. The experimental cell boundary data points (light green points), its standard deviation (darker green envelope) around the radial mean (dark green line). The ellipse (dashed magenta) closely approximates the experimental mean shape. The graphs show the corresponding microtubule angle distributions. (B) The analytical distribution with asymmetric minus-ends (red) has better agreement with the experimental mean (dark green line) (± SD is the light-green envelope), comparing to the uniform minus-end density (blue); the hairyball has good agreement up to eccentricity 0.95 with the experimental mean.

The analytical microtubule angle distribution, Equation 9, computed on an averaged cell shape using the experimental minus-end density, Equation 13, gives surprising agreement with experimental in vivo data (Figure 8B). This agreement is better for the case of asymmetric minus-end distribution, comparing to the uniform one, which supports our prediction that the minus-end distribution does indeed influence the microtubule self-organization.

Discussion

Here, we present several novel findings that describe the fundamental rules underlying self-organization of microtubule networks in epithelial cells. Firstly, we have shown robustness of microtubule self-organization both in silico and in vivo; secondly, in addition to the known importance of cell shape for microtubule organization (Gomez et al., 2016), our minimal analytical model predicted the importance of the asymmetric minus-end distribution as the only other impactful parameter, which we then confirmed in vivo in Drosophila epidermal cells; and finally, we have shown that this robustness originates from the intrinsic separation of time-scales of microtubule dynamic instability.

Robustness on the tissue scale

Biologically, the discovered robustness of microtubule organization makes perfect sense, given the fundamental importance of microtubule functions in a cell. Most intracellular trafficking events require microtubules for the delivery of various cellular components to their relevant biological locations by motor proteins (Hamm-Alvarez, 1998; Apodaca, 2001). This process must be reliable, as mislocalization of cellular components leads to cell death or disease (Levy et al., 2006; Lopes et al., 2010; Baek et al., 2018). However, this delivery mechanism is highly stochastic, given the microtubule dynamic instability and the dynamics of molecular motors (Kolomeisky and Fisher, 2007; Brouhard, 2015; Goodson and Jonasson, 2018). We suggest that it is the average microtubule angle distribution, which is likely to guide the net outcome of intracellular trafficking and focus on this distribution in this work.

We have shown that going from the subcellular to the tissue scale, the microtubule organization becomes more and more robust. On the subcellular level, some features of microtubule networks are variable, for example, the time-averaged microtubule density per unit area in our stochastic simulations depends on the strength of microtubule interactions. In particular, in systems with strong microtubule interactions, the microtubule density plateaued at the cell center, while in the absence of microtubule interactions, the microtubule density was higher near the cell boundaries, which we also observed experimentally in vivo in shot mutant cells. Moving to the scale of individual cells, our stochastic simulations and the analytical model showed that the averaged microtubule angle distribution is already robust. This is because the average microtubule self-organization depends to leading order only on the slowly evolving parameters, such as the cell shape and the density of the minus-ends on the cell boundary. However, microtubule self-organization is distinct in individual cells, where individual cell-shape features such as cell-corners at the multicellular junctions are reflected in the microtubule angle distribution, since the latter is proportional to the integral over the cell boundary of the squared cross-section of the cell. Finally, on the multicellular level, the microtubule self-organization is robust on the tissue-scale, since the effect of individual cell shape variability averages out. In particular, while most of the cells of a given eccentricity in biological tissues are polygons, we found that the average cell shape of a particular eccentricity is an ellipse.

One of the findings of our analytical model is that the robustness of microtubule self-organization exists only as long as the microtubule dynamics exhibits a separation of time-scales, α,βα,β, a rule which is observed in all published data about microtubule dynamic parameters (Shelden and Wadsworth, 1993; Rogers et al., 2002; Komarova et al., 2002; Komarova et al., 2009; Dhonukshe and Gadella, 2003; Zilberman et al., 2009; Zhang et al., 2011; Bulgakova et al., 2013; Shaebani et al., 2016). Our mathematical model shows that if this rule is not observed, the microtubule organization becomes sensitive to changes in these rates. As these rates depend on multiple internal and external factors, such as changes in gene expression and temperature, the microtubule organization would be unpredictable in a cell in a biological tissue. Therefore, breaking this rule will impair cellular function over time, which suggests that any mutations that led to such change were likely to cause cell lethality and did not fix in evolution.

Hairyball distribution

We demonstrated that the microtubule angle distribution is accurately predicted by the hairyball distribution. The reason for this excellent agreement with the experimental data remains an open question, as we were unable to show that hairyball, which is a result of a conceptual 0-th order model, has any relation to our analytical distribution, neither as an approximation nor as a limiting case. As presented, the hairyball distribution does not include the effect of non-uniform microtubule minus-end distribution. We found that including it (as a multiplicative factor in Equation 1) does not significantly change the agreement with the experimental data. We suggest that the best use of the hairyball distribution is as a simple ad-hoc formula to parameterize the microtubule angle distribution in cells up to eccentricity 0.95 using the single ‘effective aspect ratio’ parameter. This could prove useful in investigating, for example, correlations and interdependencies between the microtubule network organization (e.g. their overall direction and spread) and dynamic intracellular processes (e.g. signaling and transport).

The importance of microtubule interactions

While we show that microtubule self-organization does not depend on microtubule interaction, we admit that this is true for the measure of self-organization being the time-averaged microtubule angle distribution. Here, such effects of microtubule interactions as zipping and bundling disappear due to time-averaging of the dynamics. However, from the biological point of view, what matters for an organism is the long-term behavior, because most of the processes such as microtubule-based transport occur on much longer time-scales than microtubule network rearrangements (Jankovics and Brunner, 2006; Bulgakova et al., 2013; Iyer et al., 2019). Therefore, we hypothesize that it is the microtubule angle distribution that affects tissue behavior on long time-scales. We further hypothesize that such effects as bundling and zipping will affect short-term intracellular transport. For example, the presence of Spastin, the microtubule severing protein, leads to a change in the delivery of the E-cadherin, the protein responsible for the cell-cell adhesion delivered along the microtubule network (Bulgakova et al., 2013). A more detailed modeling approach that includes the effect of microtubule-microtubule interaction on intracellular transport is outside the scope of this article and will be considered in a separate publication.

Our in vivo experiments show that microtubule-microtubule and microtubule-actin crosslinkers such as Kinesin-1 and Shot, which are known to alter microtubule dynamics and local organization (Figure 2; Jolly et al., 2010; Takács et al., 2017; Drechsler et al., 2020), do not alter robustness of average microtubule self-organization. We have recently discovered that molecules localized inhomogeneously in the plane of microtubules (e.g. actin stress fibers) can alter microtubule angle distribution by reorienting the microtubule angle distribution away from the cell’s major axis (Delon and Brown, 2009; Płochocka et al., 2019). However, the average microtubule self-organization in homogeneous environments remains robust in all tested cases.

Our system is a particular but generalizable scenario

We suggest that our findings are applicable beyond apical microtubules in the Drosophila embryonic epidermis, the dynamics of which is quasi-2d. Previously, we demonstrated that a similar relationship between microtubule organization and cell shape is observed in other Drosophila epithelia, including cells in pupal wings and ovaries (Gomez et al., 2016). Here, we conducted in vivo experiments in multiple different genotypes in two tissues: embryonic epidermis and pupal wings. Since the tissue and genetics were varied in these scenarios, the microtubule growth and interaction parameters were altered as well. While this led to noticeable differences in such network properties as microtubule density in different controls and local microtubule organization, the average microtubule self-organization reflected by the microtubule angle distribution remained robust on the tissue scale. There are multiple other instances in which maturing and differentiating epithelial cells develop an apical microtubule meshwork, including cells of mammalian airways and even cells in culture (Gilbert et al., 1991; Herawati et al., 2016; Takeda et al., 2018). Our findings are likely to hold true in these systems as long as in them the microtubules are anchored, the plus-ends are dynamic, and the separation of time-scales holds. Furthermore, these rules are likely to apply to squamous cells, which, despite having specialized apical microtubules, have such a small cell depth that microtubules are constrained within a thin plane similar to that in our experimental model (Gomez et al., 2012; Pope and Harris, 2008). The validation of our findings in other cell types and other evolutionary divergent organisms, as well as how the discovered robustness of microtubule self-organization ensures the reliability of intracellular transport, are important questions for future research.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Genetic reagent
(Drosophila melanogaster)
paired::Gal4Bloomington Drosophila
Stock Center
RRID:BDSC_1947
Genetic reagent
(Drosophila melanogaster)
engrailed::Gal4Bloomington Drosophila
Stock Center
RRID:BDSC_30564
Genetic reagent
(Drosophila melanogaster)
UAS::CD8-CherryBloomington Drosophila
Stock Center
RRID:BDSC_27392
Genetic reagent
(Drosophila melanogaster)
UAS::Khc-RNAiBloomington Drosophila
Stock Center
RRID:BDSC_35770
Genetic reagent
(Drosophila melanogaster)
Khc8Bloomington Drosophila
Stock Center
RRID:BDSC_1607
Genetic reagent
(Drosophila melanogaster)
shot3Bloomington Drosophila
Stock Center
RRID:BDSC_5141Dr Katja Röper
Genetic reagent
(Drosophila melanogaster)
patronin05252PMID:2740359Prof Daniel St Johnston
Genetic reagent
(Drosophila melanogaster)
Patronin-YFPPMID:2740359Prof Daniel St Johnston
Genetic reagent
(Drosophila melanogaster)
UAS::EB1-GFPPMID:23751496
Genetic reagent
(Drosophila melanogaster)
Ubi-p63E::E-cad-GFPKyoto Stock Center (DGGR)RRID:DGGR_109007
AntibodyMonoclonal mouse
anti-α-Tubulin
Sigma-AldrichCat# sc-32293,
RRID:AB_628412
1:1000
AntibodyMonoclonal rat
anti-E-cadherin
Developmental Studies
Hybridoma Bank
Cat# DCAD2,
RRID:AB_528120
1:200
AntibodyAlexa Fluor
488 AffiniPure Donkey
Anti-Rat IgG (H+L)
Jackson
ImmunoResearch
Cat# 712-545-1531:300
AntibodyAlexa Fluor
594 AffiniPure Donkey
Anti-Mouse IgG (H+L)
Jackson ImmunoResearchCat# 715-585-1511:300
AntibodyAlexa Fluor
647 AffiniPure Donkey
Anti-Mouse IgG (H+L)
Jackson ImmunoResearchCat# 715-605-1511:300
Software, algorithmTissue AnalyserPMID:20813263
Software, algorithmMicrotubule organisation analysisPMID:27779189

Computing the eccentricity of a cell

Request a detailed protocol

We uniformly distributed points inside the experimental cell boundary data and used the singular value decomposition on the resulting dataset. The eccentricity then is ecc=(1-(a/b)2)1/2, where a<b are the singular values.

Derivation of the hairyball distribution

Request a detailed protocol

Upon stretching a circular cell by a factor of b>1 in the vertical into an ellipse with eccentricity ecc=(1-1/b2)1/2, the angles θ with uniform distribution R(θ)=1/180 are mapped into the angles ψ with the distribution ρ(ψ) such that R(θ)=Jρ(ψ), where J is the Jacobian of the stretching map. Since R(θ)=const, ρ(ψ)J-1=(sin2(ψ)+b2cos2(ψ))-1.

Parameters of stochastic simulations

Request a detailed protocol

We discretized the cell boundary with 180 points, and uniformly placed 200 microtubule minus-ends along the boundary. The short axis of the cell was kept constant at 60 numerical dimer lengths. The critical angle, θc, was varied in the range (0, 10, 20, 30, 40) degrees, and the probability of catastrophe, pcat, was varied in the range (0.01, 0.1, 0.2, 0.3). The microtubules zipping along cell boundaries were imposed to undergo catastrophe upon reaching the tip of the ellipse or or a sharp cell corner. This mirrors the scenario in vivo that due to the high stiffness (Gittes et al., 1993), microtubules undergo catastrophe upon reaching an acute cell corner (Figure 1A). All the microtubule angle distributions were computed as a time-averaged microtubule dimer angle histograms. For each parameter set, 500 simulations were run to the non-dimensional time T=10, which corresponds to 550 s. At the start of each experiment, all the microtubule lengths were set to zero. During the simulation, the angles with respect to the horizontal of all the dimers of non-zero length microtubules were saved at regular time intervals. We binned these angles into 180 one-degree bins, and then averaged the resulting histograms over the last 2.5 non-dimensional time-units of the simulation, which corresponds to 250 time-points. The in silico model is available from the authors upon request.

Fly stocks

Request a detailed protocol

paired::Gal4, engrailed::Gal4, UAS::CD8-Cherry, UAS::Khc-RNAi, Khc8, (Bloomington stocks 1947, 30564, 27392, 35770, and 1607, respectively), UAS::EB1-DN (Bulgakova et al., 2013), UAS::Spastin (Sherwood et al., 2004), shot3 (gift from K.Röper), Patronin05252, Patronin-YFP (Nashchekin et al., 2016), and Ubi-p63E::E-cad-GFP (Kyoto DGGR stock 109007). patronin, Khc, and shot mutants are depicted by - in the text. The flies, embryos, and pupae were kept at 18°C.

Embryo fixation, pupal wing dissection, and antibody staining

Request a detailed protocol

The embryos were fixed as described in Gomez et al., 2016. In brief, the staged embryos were dechorionated in 50% bleach for 4 min, and then fixed in 1:1 10% formaldehyde (methanol free, #18814, Polysciences Inc) in PBS:heptane for 20 min at room temperature (RT) and post-fixed/devitellinized for 45 s in 1:1 ice-cold methanol:heptane. Finally, embryos were washed three times in ice-cold methanol, kept in methanol between 6 and 24 hr at −20°C, rehydrated in 1:1 PBS with 0.3% Triton X-100 (T9284, Sigma):methanol, and washed one time in PBS with 0.3% Triton X-100. Rehydrated embryos were blocked for 2 hr in 5% Normal Goat Serum (ab7481, Abcam) in PBS with 0.3% Triton X-100.

Prepupa individuals were collected and aged for 24 hr at 25°C. Pupae were fixed in 10% paraformaldehyde (PFA, #R1026, Agar Scientific) after external cuticle removal for 50 min at room temperature. Then, wings were removed from the carcass, released for their cuticles and post-fixed in fresh 10% PFA for 10 min. Wings were then blocked for 1 hr at room temperature in 10% Native Goat Serum in PBS with 0.3% Triton X-100.

Primary antibody incubations were carried out overnight at 4°C. Primary antibodies used were mouse anti-α-Tubulin 1:1000 (T6199, Sigma), and rat anti-E-cadherin 1:200 (DCAD2, Developmental Studies Hybridoma Bank). In embryos expressing Khc-RNAi and all pupal wings, cell boundaries were labelled by native fluorescence of E-cad-GFP instead of antibody. Incubation with secondary antibody was performed for 2 hr at 25°C. Alexa Fluor fluorophore Alexa Fluor 488-, 594- and 647-coupled secondary antibodies (Jackson ImmunoResearch) were used in 1:300. Finally, embryos and wings were mounted in Vectashield (Vector Laboratories).

Image acquisition

Request a detailed protocol

All images were acquired at RT (20-22°C). For quantification of microtubule self-organization, we acquired 16-bit depth images on the Zeiss AiryScan microscope, using a 60x objective lens. For embryos, z-stacks of seven sections with 23.5 px/μm in XY resolution and 0.38 µm distance between z-sections were taken. For pupal wings, z-stacks consisted of five sections with 23.5 px/μm in XY resolution and 0.185 µm distance between steps. All processing was done at 6.5 power in the ZEN software. For an analysis of Patronin-YFP distribution, an upright confocal microscope (FV1000; Olympus) using 60 x 1.42 NA oil PlanApoN objective lens was used. 16-bit depth images were taken at a magnification of 12.8 px/μm with 0.38 µm between z-sections using Olympus Fluoview FV-ASW.

The sub-apical domain of the cell was determined using the E-cadherin junctional signal as a reference for its basal limit, and the absence of α-Tubulin signal as a reference for its apical limit. All imaging was done on dorso-lateral epidermal cells, which excluded the leading edge (first row) cells, given its different identity to the rest of the dorso-lateral epidermal cells. Pupal wings were imaged in their anterior and posterior compartments, the latter detected by expression of mCherry protein. Average projections were made using Fiji (http://www.fiji.sc) for measuring signal area and Patronin-YFP distribution. Figures were assembled using Adobe CS3 Photoshop and Illustrator (http://www.adobe.com). The processing of images shown in figures involved adjusting gamma settings.

Image analysis to quantify microtubule organization

Request a detailed protocol

We used the same workflow as described in the Gomez et al., 2016. In short, the E-cadherin signal from a max intensity projection was used to obtain cell outlines using Packing Analyser V 2.0 software (Aigouy et al., 2010). These cell outlines were used to identify each cell as an individual object and fit it to an ellipse to calculate eccentricity and the direction of the ellipse major axis using a script in MATLAB R2017b (Mathworks, http://www.mathworks.co.uk). The α-Tubulin signal within each cell was filtered using the cell outline as a mask, and the magnitude of the signal according to its direction analyzed by convolving the filtered α-Tubulin signal with two 5×5 Sobel operators (Gomez et al., 2016). The resulting magnitude gradient and direction gradient were integrated into a matrix to assign each pixel a direction and magnitude of change in the intensity of α-Tubulin signal. To reduce the noise, the pixels with a magnitude less than 22% of the maximum change were discarded. The remaining pixels were binned with respect to their direction gradient (bin size =4 degrees). The resulting histogram was normalized. The script is available at https://github.com/nbul/Cytoskeleton; Płochocka, 2021; copy archived at swh:1:rev:f94200246cc2389e3c165b5c55bb1ed87ebf8d25.

To calculate the area of α-Tubulin signal within each cell, a custom-made MATLAB script was used. The average projected images were adjusted such that 0.5% of the data with the lowest intensities were set to black and the 0.5% of the data with the highest intensities were set to white in order to compare datasets across genotypes and compensate for potential variability of antibody staining and laser power. The threshold was then calculated using Otsu’s method, and a binary image was created using the calculated threshold multiplied by 0.7. This multiplication parameter was determined empirically by testing images from different experiments. Finally, the percent of pixels above the threshold was calculated for each cell. The script is available at https://github.com/nbul/Cytoskeleton.

Image analysis to quantify Patronin-YFP distribution

Request a detailed protocol

The average projection of each z-stack was done using Fiji software, and segmented using Packing Analyzer v2.0. The resulting binary images with coordinates of cell-cell borders and vertices were used together with unprocessed average projection by custom-made MATLAB scripts to extract the following values: apical cell area, cell eccentricity, average cell orientation within the image, the orientation of individual cell-cell borders relative to average cell orientation, and mean intensity of each individual border. Only the cells that were completely within the image were taken for quantification. Bristle cells were excluded by their size. Only the borders that are between two cells that were completely within the image were quantified, and the borders adjacent to bristle cells were excluded. The background signal was determined by binarizing images with an adaptive threshold, which uses local first-order image statistics around each pixel and is very efficient in detecting puncta. The mean background signal of cells that were completely within the image was subtracted from the mean intensities of cell-cell borders. The values for each type of border within single embryos were averaged, and the average intensity of borders with 40–90° orientation was divided by the average intensity of borders with 0–10° orientation to produce a single value of asymmetry for each embryo. Finally, to produce distribution of signal intensity by angle, borders of all embryos at stage 15 of development were pulled and binned using 10° bins. The script is available at https://github.com/nbul/Intensity; Bulgakova and Brown, 2016.

Statistical analysis

Request a detailed protocol

All data was analyzed using Graphpad Prism 6.0c (http://www.graphpad.com). Samples from independent experiments corresponding to each genotype were pooled and tested for normality with the Shapiro-Wilk test. The α-Tubulin signal area was analyzed using ANOVA with a post-hoc t-test.

Appendix 1

Appendix 1—figure 1

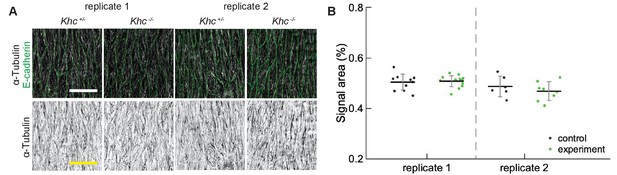

Reproducibility of α-Tubulin signal area.

(A) Apical view of epidermis from heterozygous Khc-/+ and homozygous Khc-/- embryos from two independently repeated experiments (replicates 1 and 2). Cell outlines were visualized by immunostaining against E-cadherin (green, top row), and microtubules by immunostaining against α-Tubulin (white, top row; black, bottom row). Scale bar - 10 µm. (B) Quantification of microtubule density in each genotype.

Appendix 1—figure 2

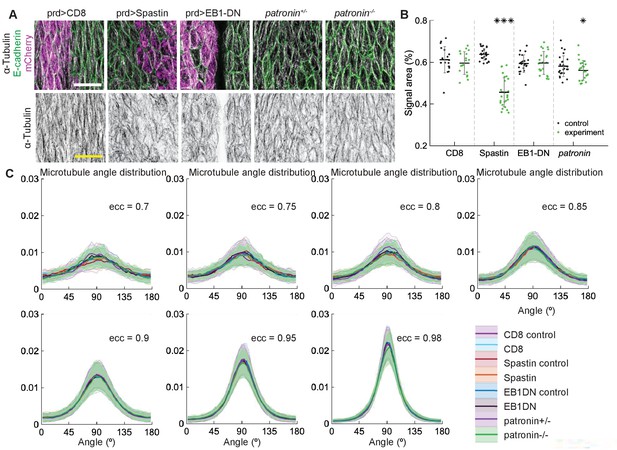

Changes to microtubule dynamics and stability do not affect their alignment.

(A) Apical view of epidermis from control embryos and with altered microtubules. Left-to-right: embryos with CD8-Cherry (control), Spastin (Spas), and EB1-DN expressed using paired::Gal4, heterozygous Patronin-/+, and homozygous Patronin-/- embryos. Cells expressing CD8-Cherry and EB1-DN are visualized by direct fluorescence of mCherry directly fused to respective proteins, whereas cells expressing Spastin are visualized by coexpression of CD8-Cherry (magenta, top row). Cell outlines were visualized by immunostaining against E-cadherin (green, top row), and microtubules by immunostaining against α-Tubulin (white, top row; black, bottom row). Embryos were imaged across all developmental stages between stages 12 and 15. Scale bar - 10 µm. The area with no microtubules in the example of EB1-DN expression corresponds to a segmental groove, where the cells are out of imaging focus. (B) Quantification of microtubule density in each genotype. Internal controls (cells not expressing paired::Gal4) were used for CD8-Cherry, Spastin, and EB1-DN overexpression. For Patronin, heterozygous and homozygous embryos were compared. *** - p<0.0001, * - p<0.05 in comparison to respective control. (C) The microtubule angle distributions for each eccentricity (±0.025) do not significantly differ between all genotypes and relative to controls. The distributions are shown as mean (solid line) with standard deviation (shading). For each eccentricity, the displayed experimental distribution is the mean distribution averaged across cells with the set eccentricity (±0.0025 for ecc=0.70.95 and ±0.005 for ecc=0.98). The number of cells per eccentricity per genotype ranged from 24 to 515.

References

    1. Brand AH
    2. Perrimon N
    (1993)
    Targeted gene expression as a means of altering cell fates and generating dominant phenotypes
    Development 118:401–415.
    1. Peskin C
    (1998)
    Optimal dynamic instability of microtubules
    Documenta Mathematica, Extra Volume ICM 3:633–642.
    1. Zhai Y
    2. Borisy GG
    (1994)
    Quantitative determination of the proportion of microtubule polymer present during the mitosis-interphase transition
    Journal of Cell Science 107 ( Pt 4:881–890.

Decision letter

  1. Raymond E Goldstein
    Reviewing Editor; University of Cambridge, United Kingdom
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Through a combination of experiments, theory, and computation, this paper uncovers several general rules that determine the relationship between cell shape and microtubule orientational order. It exploits the separation of time scales between fast microtubule dynamics (e.g. dynamic instability) and the much slower processes involved in cell shape changes to develop a minimal model that captures a wide range of experimental observations.

Decision letter after peer review:

Thank you for sending your article entitled "Robustness of bidirectional microtubule network self-organization" for peer review at eLife. Your article is being evaluated by Anna Akhmanova as the Senior Editor, a Reviewing Editor, and three reviewers.

Summary:

Plochocka et al., present a paper that deals with the affect of microtubule polymerization/depolymerization kinetics on the orientation of filaments in large arrays inside a closed cellular geometry. The authors find that the distribution of MT orientations is dependent on cell shape but independent of the kinetic parameters using both experiments and a geometric model of the MT array. Because of this independence, the authors write that this is an archetypal example of robustness in a complex biological system.

Essential revisions:

1) The authors use a purely geometric model of MT growth and the effects on MT kinetics. We are concerned that this is a step too far. First, crosslinking proteins and molecular motors play a huge part in the assemble of MT arrays and these are not considered at all in this work. E.g., does the orientation distribution change if motors are inhibited in the experiments? For the role of motors, see for example:

Zemel, Assaf and Mogilner, (2008).

Zemel, Assaf and Mogilner, (2009).

2) The authors' model treats the MTs as non-interacting which seems incorrect. In addition, it seems that the model is essentially guaranteed to give an alignment along the long axis of an elliptical enclosure because the catastrophe rate is governed by the contact angle between the MT and boundary. The particular form of that rate needs to be explained and justified better. The authors state that the simulation results are insensitive to the alphas and betas, but what about thetaC? What about proteins that lie on the cell surface and potentially affect MT kinetics in a spatial manner?

3) The authors analyze the MT organization only using the angular distribution across the whole cell. But in the cell, and in the more detailed simulation model, they could look at the local nematic order, and plot its spatial distribution. Surely this will reveal more details, which the detailed simulation should recover better than the "hairyball" model. Similarly, the spatial distribution of the zipped MTs, of the locations of catastrophes etc., as function of eccentricity.

4) The cells are approximated as ellipses, similar to the "spherical cow" simplification. However, cells are usually treated as polygons: do the multi-cell Y-junctions, play a role in the MT organization?

5) The assumption in the "hairyball" model that the MTs remain pointing to the ellipse center is not clear and not explained. is this an effective way to introduce the MT-MT interactions that are missing from this model?

6) In Figure 6 the multiple lines for the cell-shape/ellipse are difficult to discern. We suggest to plot them separately.

Except for the highest eccentricity, the simplest "hairyball" model fits best the experiments. Why? and does it include the non-uniform nucleation of MTs along the membrane?

7) We are concerned that the case for robustness is overstated. The authors should provide justification for the claims that their results (given the caveats above) would be generalizable to other kinds of MT array geometries (as claimed in the discussion). And it is important to emphasize what is being analyzed. The quantities of interest are the AVERAGED distributions, which by definition are taken on time scales long compared to the underlying microscopic dynamics.

As a general principle it is clear that once there is a separation of time scales

then the slow degrees of freedom dominate, and if reorientations occur at the boundary the law of reflection used will dictate the results. That there should be a strong dependence on the cell geometry (i.e. eccentricity) was already implicated in the work of Khuc Trong et al., (where it was MTs emanating from the boundary) and would follow from the dominance of the wall collisions.

In that sense, the present results are reminscent of much older work on wave pattern formation in the Faraday instability Gluckman et al., (1993) in which time averaging of the chaotic patterns revealed mean values that reflected the geometry of confinement. The work also reminds us of that of Dumais et al., on the relationship between cell geometry and cell division planes in plant cells, where microtubule orientations also play a role (Besson and Dumais, (2011)). But it seems to us that a claim of generality must be made after having demonstrated that the issues neglected above do not change the results.

https://doi.org/10.7554/eLife.59529.sa1

Author response

Essential revisions:

1) The authors use a purely geometric model of MT growth and the effects on MT kinetics. We are concerned that this is a step too far. First, crosslinking proteins and molecular motors play a huge part in the assemble of MT arrays and these are not considered at all in this work. E.g., does the orientation distribution change if motors are inhibited in the experiments? For the role of motors, see for example:

Zemel, Assaf and Mogilner, (2008).

Zemel, Assaf and Mogilner, (2009).

We thank the reviewers for raising this important point. Indeed, we are aware of the role of molecular motors and crosslinkers in MT organization. While the model we use in stochastic simulations is purely geometrical, it includes the effect of crosslinking proteins via a large-scale parameterization of MT-MT interactions. It is done by introducing the probability of a polymerizing MT zipping along the MT it encounters, which depends on the angle between these MTs. Here, the concentration and the nature of the crosslinking proteins affect thetac and pcat. We show in Figure 2 that varying these two parameters does not affect the average MT angle distribution, although it affects the distribution of MT density per unit area inside individual cells (see the new Figure 3). The case of thetac=0 corresponds to non-interacting MTs and could be interpreted as a model of an experiment in the absence of crosslinkers.

We expect that in the studies mentioned in the question, the effect of the crosslinkers is much stronger than in our system. In these papers, due to the fact that the MTs are free (as opposed to anchored) and stabilized (as opposed to dynamic) with either free or periodic boundary conditions, the crosslinkers play a dominant role in the MT organization. However, in our system, the MT minus-ends are anchored on the cell boundary, while the MT plus-ends are dynamic. Anchoring inhibits MTs sliding along each other in bundles, and dynamic plus-ends allow MTs to “sense” the scale of the cell by growing towards another cell boundary and, upon reaching it, either growing parallel to it or collapsing. Due to these two effects, the role of crosslinkers in our system is secondary, which we now support by in vivo experiments. For this reason, we did not directly include sliding as an additional degree of freedom in our mathematical model. We now mention the roles of crosslinkers and molecular motors in the Introduction; the clarifications of how actions of motors and crosslinkers are indirectly incorporated into the model; and the aforementioned interpretation of the results with thetac=0 in subsection “Stochastic simulations demonstrate robustness of microtubule self-organization for a wide range of parameter values”.

Supporting robustness of MT self-organization and in agreement with our model, we show now that in vivo the loss of zygotic kinesin-1 and its knockdown with RNAi -- the motor protein known to “bundle” MTs (e.g., Yan et al., 2013) -- did not affect MT angle distribution in our experimental system. Although testing all possible candidates is outside of the scope of this paper, we also demonstrated that the loss of zygotic MT-actin crosslinker Shortstop -- a protein known to regulate MTs in the Drosophila epidermis (Takacs et al., 2017) -- similarly did not affect MT angle distribution, further substantiating our findings. These new results are included in subsection “in vivo manipulations of microtubule dynamics and stability alter microtubule density but not alignment”, in the new Figure 4, and in the Discussion section.

(2.1) The authors' model treats the MTs as non-interacting which seems incorrect.

We would like to highlight that the detailed stochastic simulations were performed with the interacting MTs, where the parameterization of the MT-MT interaction was inspired by that used in plants (Tindemans et al., 2010; Allard et al., 2010). Furthermore, the simplified analytical model with non-interacting MTs was only proposed after we discovered that the MT angle distribution is independent of the MT-MT interactions in the detailed simulations and confirmed this in vivo.

(2.2) In addition, it seems that the model is essentially guaranteed to give an alignment along the long axis of an elliptical enclosure because the catastrophe rate is governed by the contact angle between the MT and boundary.

We agree with the reviewer that the angle-dependence of the MT catastrophe rate at the boundary ensures alignment with the long axis of an elliptical enclosure. However, it does not explain how well individual MTs are aligned with each other -- the full MT angle distribution -- or how it depends on the cell geometry in non-elliptical enclosures. We have previously shown that cell geometry guides MT selforganization in epithelia in vivo (Gomez et al., 2016), and hence made understanding the nature of the full MT angle distribution the focus of this paper. We highlighted this point subsection “An analytical model shows that microtubule self-organization depends on the cell geometry and minus-end distribution”. We found the analytical form of the MT angle distribution, how it depends to leading order on cell geometry and weakly depends on the MT dynamic instability rates. This analytical result further predicted that the density of the MT minus-ends and the average cell-shape are required to obtain a quantitative agreement with the in vivo experimental results. We would add here that the alignment with the cell major axis is indeed guaranteed, and it contributes to the robustness phenomenon. This is one of the main points of our work, highlighting the independence of the average MT organization of most of the details, such as the dynamics of individual MTs.

Finally, we would like to mention that after receiving the reviews, we appreciate that the title could be misleading. We renamed the paper so that the title reflects the findings more precisely as "Robustness of the microtubule network self-organization in epithelia”.

(2.3) The particular form of that rate needs to be explained and justified better.

This form of the rate was originally inspired by the well-established induction of catastrophe when a MT grows against a barrier (Janson et al., 2003). The role of cell borders as barriers in epithelial cells is supported by an observation that MTs buckle at the cell cortex (Singh et al., 2018). Finally, in our previous work, we discovered experimentally that the MT catastrophe rate at the cell boundary in vivo is angle-dependent (see Figure 5 in Gomez et al., 2016). Altogether, we are confident that the use of this particular form of MT-border interaction is well-justified and closely reflect this interaction in vivo. We thank the reviewers for this comment and have included additional justification in subsection “Stochastic simulations demonstrate robustness of microtubule self-organization for a wide range of parameter values”.

(2.4) The authors state that the simulation results are insensitive to the alphas and betas, but what about thetaC?

Since MTs are stiff filaments, we only tested the cases of thetac between 0 to 40 degrees (at 0, 10, 20, 30, and 40 degrees) to remain within the biologically relevant regime (Dixit and Cyr, 2004). We reported our results in Figure 2, where we chose to only plot them for the smallest non-zero and the largest values of thetac (10 and 40 degrees) because there was no significant difference in the MT angle distribution curves. The case of thetac=0 is the case of non-interacting MTs, for which the MT angle distribution is given by the analytical model presented later in the paper. We clarified this in subsection “Stochastic simulations demonstrate robustness of microtubule self-organization for a wide range of parameter values”. We also included a new Figure 3, where we show how local microtubule density depends on thetac, in contrast to the statistics captured by the MT angle distribution, which is insensitive to the strength of MT-MT interaction.

(2.5) What about proteins that lie on the cell surface and potentially affect MT kinetics in a spatial manner?

Here we interpret “the cell surface in the question to refer to the apical membrane. Although we do not know which particular proteins the reviewers refer to, we tested effects of shotstop loss and did not see any changes of average MT alignment although the local organization appears altered – as expected, MTs are more likely to run along cell boundaries. We included a description of this finding in subsection “in vivo manipulations of microtubule dynamics and stability alter microtubule density but not alignment”. The discovery of other proteins “that lie on the cell surface and potentially affect MT kinetics in a spatial manner” is a subject of future studies and is outside of the scope of this paper.

At the same time, we have recently discovered that molecules localized in the plane of MTs (e.g.actin cables) alter the MT self-organization (Płochocka et al., 2019). The main effect of actin cables was to shift the mean of the MT angle distribution towards their direction. We included a more extensive discussion about the effects of spatially distributed regulators and crosslinkers on the MT self-organization and robustness in subsection “The importance of microtubule interactions”.

3) The authors analyze the MT organization only using the angular distribution across the whole cell. But in the cell, and in the more detailed simulation model, they could look at the local nematic order, and plot its spatial distribution. Surely this will reveal more details, which the detailed simulation should recover better than the "hairyball" model. Similarly, the spatial distribution of the zipped MTs, of the locations of catastrophes etc., as function of eccentricity.

We appreciate the reviewer’s question. Our main reason for focussing on the averaged qualifiers of the MT network was to enable comparison of our computational and analytical results with in vivo data. Since it is noisy, we could only perform comparisons of the averaged quantities. At first, we attempted to use the nematic order parameter S2 to quantify the degree of alignment in the detailed simulations, but the density of MTs in the simulations was too low to produce promising results. This was due to the fact that in our system the rescue rate at the MT minus-ends on the cell boundary is low, since it mimics the situation in vivo, where the rescue rate is the same on the boundary as in the cell interior. We, therefore, returned to working with the averaged MT angle distribution to quantify the MT alignment. We have included this clarification the Introduction.

As per reviewer’s request, we have included additional results of the stochastic simulations. In particular, we have included how local MT density is affected by MT zipping in a new Figure 3. We showed how MT density changes for a cell of a given eccentricity with increasing thetac for a fixed value of pcat, since we found that the degree of MT zipping increases with increasing thetac and is not significantly altered by changing pcat in the range used in our simulations. We have added the description of these results in subsection “Stochastic simulations demonstrate robustness of microtubule self-organization for a wide range of parameter values”. Our experimental results further show that in vivo zipping varies (Figure 4), and that loss of the crosslinker shot seems to lead to more zipping near cell boundaries consistently with a reduced thetac. We have added a discussion of these findings in subsection “Robustness on the tissue scale”, and in subsection “The importance of microtubule interactions”.

Finally, we did not include the spatial map of averaged zipping in the detailed simulations since it was not very insightful - zipping increases with thetac, and on average more zipping happens closer to the cell center. We also did not include the map of catastrophes since they mostly occur at the cell boundary.

4) The cells are approximated as ellipses, similar to the "spherical cow" simplification. However, cells are usually treated as polygons: do the multi-cell Y-junctions, play a role in the MT organization?

We agree with the reviewers that the cells are polygons. As the analytical MT angle distribution in Equation 11 shows, the time-averaged MT angle distributions are robust but differ between cells, as they depend on the geometry of the cell boundary. When we computed the MT angle distributions in cells with corners, the MT angle distribution had peaks corresponding to the corners. This is due to the fact that to leading order, the MT angle distribution is proportional to the square of the cell crossection integrated over the cell boundary. However, in vivo, this effect averages out for the tissue-averaged MT angle distribution. We hypothesize that the Y-junction geometry matters for local processes that rely on the MT dynamics, particularly on the MT plus ends, and indeed we observed local irregularities in their organization. However, this was not the focus of this manuscript. We elaborated on this point in subsection “The analytical model accurately predicts microtubule-self organization given both the experimental cell shape and distribution of microtubule minus-ends”, and in subsection “The importance of microtubule interactions”.

5) The assumption in the "hairyball" model that the MTs remain pointing to the ellipse center is not clear and not explained. is this an effective way to introduce the MT-MT interactions that are missing from this model?

We thank the reviewers for the comment. We would like to emphasize that the hairyball model is a 0-th order conceptual model that cannot include MT-MT interactions. The primary purpose of considering this model was to address the question we were often asked: “Would stretching the cell give you the experimental result?”. The answer was surprising -- it would for eccentricity up to 0.95. However, this model's assumptions are not physical: the MTs are not dynamic, and their average directions pointing to the center of the cell after the cell stretching is a byproduct of stretching both the cell and the MT angle distribution in the same manner. We now clarify this in subsection “A conceptual geometric model accurately predicts in vivo alignment”.

It is an interesting suggestion that perhaps “MTs remain pointing to the ellipse center” is a “way to introduce the MT-MT interactions”. However, in the stochastic simulations, the MT angle distribution does not depend on the parameterization of MT-MT interactions; therefore, it is probably not why the distribution is a good fit for the experimental data.

The main benefit of including this conceptual model in the paper is that it provides the cell biology community with a simple formula to fit the MT angle distribution in epithelial cells with only one-parameter - the “effective aspect ratio”. This fit works much better than other widely used distributions such as von Mises distribution. Additionally, the fact the hairyball distribution does not depend on the MT dynamic instability parameters supports the robustness conclusion, further highlighting that geometry is one of the most significant determining factors of the MT self-organization.

Reading the reviews, we realize that perhaps it would improve the paper if we emphasized that the model is conceptual in the subsection title. Hence, we changed the corresponding subsection's title to “A conceptual geometric model accurately predicts in vivo alignment” and highlighted the model’s usefulness to the community of biologists both in subsection “A conceptual geometric model accurately predicts in vivo alignment”and in the Discussion.

(6.1) In Figure 6 the multiple lines for the cell-shape/ellipse are difficult to discern. We suggest to plot them separately.

As we state in the manuscript, it is not known why the hairyball model fits the experiments up to ecc=0.95. We tried to find if the resulting distribution asymptotically matches the analytical formula or has underlying physical significance, and we did not find such connections.

As stated in the manuscript, the results of the hairyball model do not include non-uniform nucleation of MTs along the membrane. However, the non-uniform minus-end density could be easily included as a multiplicative factor. We tested it, and it did not change the agreement with the experimental data. We noted this in the Discussion. That said, we would prefer not to include in detail the case of non-uniform nucleation since this geometric model is already purely conceptual and excludes the MT dynamics.

We would also like to add that we tried other conceptual models but did not succeed. In particular, we tested if the length-averaged angle distribution of random “sticks” placed inside an ellipse explains the in vivo MT angle distribution. This tests the hypothesis that it is possible to have the experimental MT angle distribution in the absence of internal MT alignment and only due to elongated cell geometry. This did not work, and hence there is something about the stretching deformation used in the hairyball distribution that captures the fact that the MTs “sense” the cell geometry due to the fact that they are dynamic and anchored at the cell boundary. We decided not to include other conceptual models in the manuscript as they did not produce meaningful results.

(6.2) Except for the highest eccentricity, the simplest "hairyball" model fits best the experiments. Why? and does it include the non-uniform nucleation of MTs along the membrane?

We altered this figure as suggested, which is now the new Figure 8.

7) We are concerned that the case for robustness is overstated. The authors should provide justification for the claims that their results (given the caveats above) would be generalizable to other kinds of MT array geometries (as claimed in the discussion). And it is important to emphasize what is being analyzed. The quantities of interest are the AVERAGED distributions, which by definition are taken on time scales long compared to the underlying microscopic dynamics.

As a general principle it is clear that once there is a separation of time scales

then the slow degrees of freedom dominate, and if reorientations occur at the boundary the law of reflection used will dictate the results. That there should be a strong dependence on the cell geometry (i.e. eccentricity) was already implicated in the work of Khuc Trong et al., (where it was MTs emanating from the boundary) and would follow from the dominance of the wall collisions.

In that sense, the present results are reminscent of much older work on wave pattern formation in the Faraday instability Gluckman et al., (1993) in which time averaging of the chaotic patterns revealed mean values that reflected the geometry of confinement. The work also reminds us of that of Dumais et al., on the relationship between cell geometry and cell division planes in plant cells, where microtubule orientations also play a role (Besson and Dumais, (2011) ). But it seems to us that a claim of generality must be made after having demonstrated that the issues neglected above do not change the results.

We agree with the reviewer that “the quantities of interest are the AVERAGED distributions” and reemphasized it in Introduction; in the text in subsection “Stochastic simulations demonstrate robustness of microtubule self-organization for a wide range of parameter value”, subsection “in vivo manipulations of microtubule dynamics and stability alter microtubule density but not alignment”, subsection “The analytical model accurately predicts microtubule-self organization given both the experimental cell shape and distribution of microtubule minus-ends”; and in Discussion.

We also appreciate the discussion of similarities between the results in different fields where the average of fast small-scale dynamics strongly depends on the slow degrees of freedom, which is the cell geometry in epithelia. We expect that since the systems discussed in subsection “Our system is a particular but generalizable scenario” are similar to the one we have considered, the robustness result holds, because in all of them the MTs are dynamic and anchored, while the separation of time-scales is also valid. We clarified this further in the manuscript in subsection “Our system is a particular but generalizable scenario”.

Since it is impossible to test the results in all the possible MT array geometries, the authors meant the mentioned conclusion of the paper to be a suggestion (not a claim). However, we now support the findings of this paper with experiments in an additional tissue – pupal wings – subsection “in vivo manipulations of microtubule dynamics and stability alter microtubule density but not alignment”, and new Figure 5. Therefore, while we tuned down this statement, we are confident about the generality of our result.

https://doi.org/10.7554/eLife.59529.sa2

Article and author information

Author details

  1. Aleksandra Z Płochocka

    Center for Computational Biology, Flatiron Institute, New York, United States
    Contribution
    Software, Formal analysis, Validation, Investigation, Visualization, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4739-1320
  2. Miguel Ramirez Moreno

    Department of Biomedical Science, The University of Sheffield, Sheffield, United Kingdom
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1559-8976
  3. Alexander M Davie

    Maxwell Institute for Mathematical Sciences, School of Mathematics, Edinburgh University, Edinburgh, United Kingdom
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  4. Natalia A Bulgakova

    Department of Biomedical Science, The University of Sheffield, Sheffield, United Kingdom
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Lyubov Chumakova
    For correspondence
    n.bulgakova@sheffield.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3780-8164
  5. Lyubov Chumakova

    Maxwell Institute for Mathematical Sciences, School of Mathematics, Edinburgh University, Edinburgh, United Kingdom
    Contribution
    Conceptualization, Resources, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Natalia A Bulgakova
    For correspondence
    lchumakova@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2551-3905

Funding

Engineering and Physical Sciences Research Council (EP/L016508/01)

  • Aleksandra Z Płochocka

Royal Society of Edinburgh (Royal Society of Edinburgh and the Scottish Government Personal Research Fellowship)

  • Lyubov Chumakova

Scottish Government (Royal Society of Edinburgh and the Scottish Government Personal Research Fellowship)

  • Lyubov Chumakova

Biotechnology and Biological Sciences Research Council (BB/P007503/1)

  • Natalia A Bulgakova

Leverhulme Trust (RPG-2017-249)

  • Natalia A Bulgakova
  • Lyubov Chumakova

Scottish Funding Council

  • Aleksandra Z Plochocka

Heriot-Watt University

  • Aleksandra Z Plochocka

University of Edinburgh

  • Aleksandra Z Plochocka

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the technical staff of the Wolfson Light Microscopy Facility (LMF) and the Drosophila Facility at the University of Sheffield for the support with in vivo experiments and Prof David Strutt, University of Sheffield, for critical reading of the manuscript. This research was supported by The Maxwell Institute Graduate School in Analysis and its Applications, a Centre for Doctoral Training funded by the UK Engineering and Physical Sciences Research Council grant EP/L016508/01, the Scottish Funding Council, Heriot-Watt University and the University of Edinburgh (AZP); BBSRC BB/P007503/1 (NAB); Royal Society of Edinburgh and the Scottish Government Personal Research Fellowship (LC). Additional support was provided by the Leverhulme Trust grant RPG-2017–249 (to LC and NAB).

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Raymond E Goldstein, University of Cambridge, United Kingdom

Publication history

  1. Received: June 1, 2020
  2. Accepted: January 26, 2021
  3. Accepted Manuscript published: February 1, 2021 (version 1)
  4. Version of Record published: March 1, 2021 (version 2)

Copyright

© 2021, Płochocka et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 732
    Page views
  • 156
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Neuroscience
    Friederike Elisabeth Kohrs et al.
    Tools and Resources

    Rab GTPases are molecular switches that regulate membrane trafficking in all cells. Neurons have particular demands on membrane trafficking and express numerous Rab GTPases of unknown function. Here we report the generation and characterization of molecularly defined null mutants for all 26 rab genes in Drosophila. In flies, all rab genes are expressed in the nervous system where at least half exhibit particularly high levels compared to other tissues. Surprisingly, loss of any of these 13 nervous system-enriched Rabs yielded viable and fertile flies without obvious morphological defects. However, all 13 mutants differentially affected development when challenged with different temperatures, or neuronal function when challenged with continuous stimulation. We identified a synaptic maintenance defect following continuous stimulation for six mutants, including an autophagy-independent role of rab26. The complete mutant collection generated in this study provides a basis for further comprehensive studies of Rab GTPases during development and function in vivo.

    1. Cell Biology
    Luca Minati et al.
    Tools and Resources Updated

    A vast portion of the mammalian genome is transcribed as long non-coding RNAs (lncRNAs) acting in the cytoplasm with largely unknown functions. Surprisingly, lncRNAs have been shown to interact with ribosomes, encode peptides, or act as ribosome sponges. These functions still remain mostly undetected and understudied owing to the lack of efficient tools for genome-wide simultaneous identification of ribosome-associated and peptide-producing lncRNAs. Here, we present AHA-mediated RIBOsome isolation (AHARIBO), a method for the detection of lncRNAs either untranslated, but associated with ribosomes, or encoding small peptides. Using AHARIBO in mouse embryonic stem cells during neuronal differentiation, we isolated ribosome-protected RNA fragments, translated RNAs, and corresponding de novo synthesized peptides. Besides identifying mRNAs under active translation and associated ribosomes, we found and distinguished lncRNAs acting as ribosome sponges or encoding micropeptides, laying the ground for a better functional understanding of hundreds of lncRNAs.
