Limited inhibition of multiple nodes in a driver network blocks metastasis

  1. Ali Ekrem Yesilkanal
  2. Dongbo Yang
  3. Andrea Valdespino
  4. Payal Tiwari
  5. Alan U Sabino
  6. Long Chi Nguyen
  7. Jiyoung Lee
  8. Xiao-He Xie
  9. Siqi Sun
  10. Christopher Dann
  11. Lydia Robinson-Mailman
  12. Ethan Steinberg
  13. Timothy Stuhlmiller
  14. Casey Frankenberger
  15. Elizabeth Goldsmith
  16. Gary L Johnson
  17. Alexandre F Ramos  Is a corresponding author
  18. Marsha R Rosner  Is a corresponding author
  1. Ben May Department for Cancer Research, University of Chicago, United States
  2. Instituto do Câncer do Estado de São Paulo, Faculdade de Medicina and Escola de Artes, Ciências e Humanidades; University of São Paulo, Brazil
  3. Department of Pharmacology, University of North Carolina at Chapel Hill, United States
  4. UT Southwestern, United States
Research Article
  • Cited 0
  • Views 1,098
  • Annotations
Cite this article as: eLife 2021;10:e59696 doi: 10.7554/eLife.59696

Abstract

Metastasis suppression by high-dose, multi-drug targeting is unsuccessful due to network heterogeneity and compensatory network activation. Here, we show that targeting driver network signaling capacity by limited inhibition of core pathways is a more effective anti-metastatic strategy. This principle underlies the action of a physiological metastasis suppressor, Raf Kinase Inhibitory Protein (RKIP), that moderately decreases stress-regulated MAP kinase network activity, reducing output to transcription factors such as pro-metastastic BACH1 and motility-related target genes. We developed a low-dose four-drug mimic that blocks metastatic colonization in mouse breast cancer models and increases survival. Experiments and network flow modeling show limited inhibition of multiple pathways is required to overcome variation in MAPK network topology and suppress signaling output across heterogeneous tumor cells. Restricting inhibition of individual kinases dissipates surplus signal, preventing threshold activation of compensatory kinase networks. This low-dose multi-drug approach to decrease signaling capacity of driver networks represents a transformative, clinically relevant strategy for anti-metastatic treatment.

Introduction

Cancer is a complex disease marked by heterogeneity. For solid tumors, metastatic dissemination of sub-populations of tumor cells throughout the body is primarily responsible for lethality (Weigelt et al., 2005). Metastasis is characterized by many distinct biological processes such as tumor cell invasion, transport in vessels, and colonization at distant sites that involve significant cellular stress. Metastatic progression is further complicated by dynamic changes in tumors that undergo evolutionary change in response to cells and stresses within the microenvironment.

Previous approaches to treating metastatic disease have largely been ineffective at preventing resistance or recurrence due to cellular heterogeneity and robust compensatory mechanisms. Targeting individual metastatic pathways at maximum tolerated doses using single or multiple anticancer agents can activate compensatory pathways that eventually overcome treatment (Gallaher et al., 2018; Duncan et al., 2012; Wong et al., 2019). Even high dose combination therapies that target single kinases across multiple networks can be toxic and are insufficient to enable long-term survival (Westin et al., 2019; Liu et al., 2019; Robert et al., 2019). The commonality between signaling pathways in both normal and tumor cells has also limited the efficacy of most therapeutic strategies. Therefore, novel strategies for suppressing metastasis are needed, particularly for cancers such as triple negative breast cancer (ER-, PR-, HER2low; TNBC) that lack effective targeted therapy.

An alternative approach to suppressing metastasis employs a phenomenological framework built upon understanding the action of physiological metastasis regulators. Biological metastasis suppressors are proteins that inhibit various steps of metastasis and are lost or silenced in metastatic tumors (Zhao et al., 2015). To date, approximately 100 metastasis suppressors have been identified, many of which also inhibit tumor growth (Zhao et al., 2015). Interestingly, several of these metastasis suppressors are kinases or proteins that modify signaling cascades and provide insight into metastatic signaling mechanisms. One of these, Raf Kinase Inhibitory Protein (RKIP; PEBP1), is a regulator of Raf kinase activity that is deleted or lost in virtually all metastatic solid tumors (reviewed by Yesilkanal and Rosner, 2018). Reintroducing RKIP to metastatic TNBC cells blocks invasion of cells in vitro and inhibits intravasation and metastasis of tumor cells in vivo (Dangi-Garimella et al., 2009). Numerous studies have shown that loss of RKIP protein expression is associated with poor outcome in a variety of tumors including breast, prostate, and melanoma (Lamiman et al., 2014). Furthermore, expression of RKIP in preclinical models enhances the response to chemotherapy as well as radiation suggesting that RKIP can potentiate therapeutic efficacy (Bonavida et al., 2008; Chatterjee et al., 2004; Woods Ignatoski et al., 2008). Therefore, RKIP provides a powerful model system for developing new anti-metastatic therapies based on the mechanism by which RKIP modulates signaling network dynamics and prevents metastatic transformation.

In the present study, we utilized the action of RKIP as a conceptual framework for a new strategy to target metastasis. Metastatic suppression is achieved by restricting but not eliminating the activities of multiple kinases in a driver signaling network, stress MAP kinases (MAPKs). One molecular output of the network, the transcription factor BACH1, drives clinically relevant metastatic motility genes. We developed a four-drug mimic of RKIP used at sub-therapeutic doses that inhibits network output, reduces metastasis, and improves survival in vivo. Modeling of different MAPK network topologies provides a rationale for this multi-drug anti-metastatic strategy that reduces signaling flow at multiple rather than single nodes and prevents activation of compensatory signaling pathways. These findings challenge the current approaches to drug treatment and suggest an alternative strategy for controlling metastatic disease in breast and potentially other cancers.

Results

RKIP regulates a clinically relevant set of motility-related genes driven by the pro-metastatic transcription factor BACH1

To characterize the mechanism by which RKIP suppresses metastasis, we first analyzed gene expression data from breast cancer patient samples in The Cancer Genome Atlas (TCGA) study. Our analysis revealed that RKIP (PEBP1) expression negatively correlated with genes involved in cell motility (cell leading edge, cell migration, focal adhesion) and kinase-mediated signaling (regulation of GTPase activity, phosphotransferase activity) (Figure 1A). Among the genes most inversely correlated with RKIP was BACH1 (BTB and CNC homology 1), a pro-metastatic, basic leucine zipper transcription factor that is post-translationally inhibited by RKIP via let-7 (Figure 1ADangi-Garimella et al., 2009; Yun et al., 2011). To test direct regulation of these motility genes by RKIP, we performed RNA sequencing (RNA-seq) of transcripts in control versus RKIP-expressing xenograft tumors of BM1, a bone-tropic, Ras/B-Raf mutant TNBC cell line derived from MDA-MB-231 (Figure 1—figure supplement 1A,B; Kang et al., 2003). Over 70 of the motility genes as well as BACH1 that inversely correlate with RKIP in patients were also downregulated by RKIP in xenograft tumors, suggesting these genes are transcriptionally regulated by RKIP in TNBC (Figure 1B,C and Figure 1—figure supplement 1C). We validated the differential expression of 15 motility genes previously implicated in metastasis (Qin et al., 2014; Flockhart et al., 2009; Yoeli-Lerner et al., 2005; Amano et al., 2010; Gadea and Blangy, 2014; Riento and Ridley, 2003; Zhang et al., 2017; Yu et al., 2015; Kobayashi et al., 2014) using BM1 xenograft tumors expressing a more robust version of RKIP (S153E mutant) in an independent in vivo study (Figure 1—figure supplement 1D; Dangi-Garimella et al., 2009).

Figure 1 with 2 supplements see all
RKIP regulates a clinically relevant set of motility-related genes driven by the pro-metastatic transcription factor BACH1.

(A) Left panel: Top 10 genes negatively correlated with RKIP (PEBP1) gene expression in TCGA BRCA samples (provisional, n = 1100), ranked by Spearman correlation coefficient. Right panel: Gene sets enriched in genes negatively correlated with RKIP in TCGA BRCA set. (B) Gene sets commonly enriched in genes negatively correlated with RKIP in TCGA BRCA set and genes downregulated by RKIP in the RNA-seq study. (C) A set of differentially expressed motility genes and BACH1 gene expression in control (n = 7) vs. RKIP-expressing (n = 5) BM1 tumors. (D) qRT-PCR analysis of control (n = 3) and shBACH1-expressing (n = 3) BM1 tumors, demonstrating downregulation of motility gene expression when BACH1 levels are reduced. Student’s t-test, two-tailed. (E) Chromatin immuno-precipitation analysis of BACH1 binding in the promoter regions of the motility genes in BM1 cells. Mean ± s.e.m of three independent experiments. Student’s t-test, one-tailed. NRS, normal rabbit serum (F) Summary diagram showing regulation of BACH1 and motility gene expression by RKIP. For the source data, see Figure 1—source data 1.

The RNA-seq analysis also revealed upregulation of genes related to mitochondrial metabolism and oxidative phosphorylation in RKIP-expressing BM1 tumors (Figure 1—figure supplement 1C). Moreover, the mitochondrial gene targets of RKIP positively correlated with RKIP, while negatively correlating with BACH1 gene expression in breast cancer patients (Figure 1—figure supplement 1E and Figure 1—figure supplement 2A). Our previous work similarly showed that reducing BACH1 expression in TNBC increased oxidative phosphorylation in mitochondria, mirroring the RKIP phenotype (Lee et al., 2019). This prompted us to investigate whether BACH1 is in part responsible for regulating motility-related gene targets of RKIP as well. Indeed, BACH1 gene expression positively correlates with RKIP-inhibited motility genes in both patient samples and xenograft TNBC tumors (Figure 1—figure supplement 2A). ENCODE and ChIP-seq analysis in BM1 cells shows BACH1 binding to the promoter regions of several motility genes (Figure 1—figure supplement 2B,C; Landt et al., 2012). To confirm that BACH1 transcriptionally regulates metastatic motility-related genes in TNBC cells, we performed qRT-PCR using BM1 xenograft tumors expressing shRNAs against BACH1 in two independent mouse experiments (Figure 1DFigure 1—figure supplement 2D, Figure 1—source data 1) and ChIP assays in BM1 cells to demonstrate direct BACH1 binding to motility gene promoters (Figure 1E, Figure 1—source data 1). These findings establish BACH1-controlled motility genes as pro-metastatic targets of RKIP and illustrate the clinical relevance of this regulatory system to TNBC patients (Figure 1F).

RKIP targets multiple kinases in the stress MAPK network

RKIP inhibits the activity of Raf and other kinases in cultured cells (reviewed in Yesilkanal and Rosner, 2018). To identify kinases targeted by RKIP in TNBC tumors, we analyzed changes in kinase expression and activity by MIB-MS analysis (Duncan et al., 2012). To capture and quantify functional kinases in tumors, tumor lysates were exposed to kinase inhibitors covalently linked to Sepharose beads (MIBs) followed by mass spectrometry. Of the 248 captured kinases that were present in both control and RKIP-expressing BM1 tumors from mouse xenografts, RKIP significantly altered the functional capture of 30 kinases (Figure 2A, Figure 2—source data 1). Consistent with its role as a kinase suppressor, RKIP inhibited most of these kinases (23) including the previously identified RKIP target ERK2 (Yeung et al., 1999). The kinases targeted by RKIP were distributed across multiple branches of the kinome tree and not limited to a specific kinase class (Figure 2B).

RKIP reprograms tumors by reducing signaling capacity of a network instead of targeting a single node.

(A) Multiplexed inhibitor beads – mass spectrometry (MIB-MS) analysis of n = 5 control and n = 6 RKIP-expressing BM1 tumors, showing 23 kinases with reduced activity and seven kinases with enhanced activity by exogenous RKIP expression. Student’s t-test, p<0.05. (B) Kinome tree displaying the distribution of kinases targeted by RKIP across different families of kinases. Blue: activity reduced by RKIP (n = 23), Red: activity enhanced by RKIP (n = 7). (C) Gene set enrichment analysis of the 23 negatively regulated kinases by Metascape. Stress-induced mitogen activated protein kinase (MAPK) related gene sets are highlighted in red. (D), Ingenuity Pathway Analysis (IPA) of the RKIP target kinases centered around MAPKs p38, JNK, and ERK. (E) Direct protein-protein interaction network and community analysis showing the core of the RKIP kinase network. (F) Diagram summarizing the interactions within the RKIP-regulated stress MAPK network in anisomycin-induced BM1 cells. Kinase interactions are determined by using small molecule inhibitors or siRNAs against the kinases in the network in three or more independent dose-response experiments with similar results (also see Figure 2—source data 2). The TAOK-p38 interaction is observed in cells treated with a cocktail of siRNAs against all three TAOKs (siCombo), whereas TAOK-JNK and TAOK-ERK interactions were observed by siRNAs against TAOK1 and TAOK2, respectively. For the source data, see Figure 2—source data 1.

Figure 2—source data 1

Source data for the MIB-MS analysis of RKIP-expressing BM1 xenograft tumors.

https://cdn.elifesciences.org/articles/59696/elife-59696-fig2-data1-v2.xlsx
Figure 2—source data 2

RKIP-regulated MAPK network displays extensive cross-talk and feedback.

(A) Western blots from three independent experiments showing the effect of p38i, JNKi, and MEKi on the phosphorylation of known direct targets of p38, JNK, and MEK, respectively. To monitor the substrate phosphorylation of p38, JNK, and MEK under treatment, we chose their known substrates MAPKAPK2, c-Jun, and ERK1/2, respectively. Statistical test was performed by student’s t-test for each dose of the inhibitors with respect to the non-treated control sample. (B) Western blots from three or more independent experiments showing the crosstalk and feedbacks that exist within the BM1 stress-kinase MAPK network. The diagrams on the far left show the specific direct/indirect interaction between two kinase nodes of the network, determined by inhibition of one of the kinases with a small molecule inhibitor or siRNAs and monitoring the activity of the other kinase. For this analysis, we used canonical phosphorylation sites of each kinase that correlate with their activity based on literature. The results of these experiments were used to build the network topology for BM1 cells depicted in Figure 2F.

https://cdn.elifesciences.org/articles/59696/elife-59696-fig2-data2-v2.pdf

Functional analysis of the downregulated kinases using Metascape (Tripathi et al., 2015) showed enrichment for stress kinase signaling (Figure 2C). Ingenuity pathway analysis indicated that most of these kinases are functionally related, and the stress MAP kinases (JNK, p38) as well as ERK comprise the core of the network (Figure 2D). Community analysis identified three main protein-protein interaction subnetworks within the extended MAPK family including kinases upstream of p38 (TAOK2, MKK3, MKK6), kinases upstream of JNK (MLK1, MLK3, MKK4); and p70/p90 kinases downstream of MAPKs (MSK1, RSK2, and p70/85 S6K1) (Figure 2E). These results indicate that the three MAPKs (JNK, p38, and ERK) as well as their upstream regulators and downstream effectors comprise the core RKIP-regulated network that drives metastasis in TNBCs.

To understand how RKIP targets the MAPK signaling network, we identified upstream regulators of MAPKs inhibited by RKIP in tumors. MIB data from BM1 xenografts revealed three members of the MAP3K family reported to activate both p38 and JNK signaling: TAOK2, MLK1 and MLK3 (Chen et al., 1999; Dhillon et al., 2007; Zhou et al., 2004Figure 2A). Treatment of TNBC cells with selective inhibitors or siRNAs against these MAPKKKs confirmed their ability to inhibit downstream MAPKs. Specifically, TAOKs primarily regulate p38 but may also activate JNK in TNBC cells, and MLK1,3 primarily activate JNK in TNBC cells but can also activate p38 (Figure 2—source data 2). MLKs and TAOKs as well as p38 and JNK have been previously shown to regulate cell motility and invasion (Cronan et al., 2012; Iizuka et al., 2021; Koul et al., 2013; Sun et al., 2019). These data suggest that RKIP inhibits the upstream TAOKs and MLKs in addition to Raf in TNBC tumors, thereby preventing activation of the pro-invasive stress MAPKs p38 and JNK in TNBC cells.

To determine the crosstalk between different MAPKs in the RKIP network, we inhibited p38, JNK, or MEK individually using small molecule inhibitors. We initially validated the efficacy of the p38 inhibitor SB203580, the JNK inhibitor SP600125, and the MEK inhibitor Trametinib using endogenous cellular targets MAPKAPK2, c-Jun, and ERK, respectively (Figure 2—source data 2A). Our analysis confirmed extensive crosstalk between different MAPK axes in BM1 cells (summarized in Figure 2F, also see Figure 2—source data 2B). The crosstalk involved both positive and negative feedback (e.g. the JNK-ERK axis and p38-ERK axis) suggesting that the stress kinase network regulated by RKIP is a complex network, and targeting individual MAPKs may be insufficient to mimic RKIP pharmaceutically. These results indicate that, in contrast to the common therapeutic practice of fully inhibiting individual kinases at the maximum-tolerated dose, RKIP functions like a low-dose, non-toxic drug combination that reduces the activity of several key kinases within a driver network to inhibit metastasis (Figure 2F).

A low-dose four-drug combination reduces MAPK network signaling capacity and suppresses tumor cell invasion without altering growth

Three aspects of RKIP regulation provide strategic guidance for anti-metastatic therapy. First, as noted above, RKIP suppresses the signaling capacity of multiple kinases within a key driver network, the stress MAPK network. Second, the kinases that are linked to metastasis ranged from high to low functional capture, indicating that the degree of kinase activity does not correlate with metastatic potential (Figure 3A, Figure 3—source data 1). Finally, the effective decrease in kinase capture for RKIP targets was generally less than 30% (Figure 3B, Figure 3—source data 1). We then determined whether we could mimic the action of RKIP using drugs to inhibit MAPK network signaling.

Figure 3 with 1 supplement see all

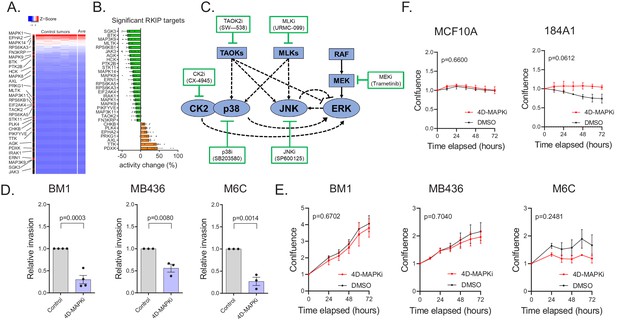

A low-dose four-drug combination reduces MAPK network signaling capacity and suppresses tumor cell invasion without altering growth.

(A) Heatmap demonstrating the distribution of kinases targeted by RKIP in an activity ranked list of all 248 kinases captured. Top-to-bottom represents high-to-low ranking of MIB-captured kinases in the control cases (n = 7). (B) Percent change in kinase activity induced by RKIP in RKIP-expressing BM1 tumors with respect to the average kinase activity in the control samples. The kinases shown are the same kinases significantly regulated by RKIP according to the MIB-MS data in Figure 2A. (C) Diagram of the network used for modeling and the small molecule inhibitors used in the high-throughput invasion assays for potential drug combinations. (D,) Chemotactic invasion assay showing that the four-drug MAPK inhibitor combination (4D-MAPKi) blocks invasion of human and mouse TNBC cells lines. Graphs represent results from three or more independent experiments as mean ± s.e.m. Two-tailed student’s t-test was used for statistical analysis. (E) 3D proliferation assay showing that 4D-MAPKi does not significantly affect the growth of TNBC cell lines. Growth curves from at least three independent experiments are represented as fold change in confluence with respect to the confluence of the cells at the time of plating, which is set to "1.0" for each experiment. For the statistical test, GraphPad Prism 9.1.0 Software’s mixed effects model (equivalent of two-way repeated measures ANOVA that allows for missing values) was used. (F) 2D proliferation assays showing that 4D-MAPKi is not toxic to immortalized human mammary epithelial cell lines, MCF10A and 184A1. Data depicted as a summary of three independent experiments. Two-way ANOVA test was used for statistical analysis. For the source data, see Figure 3—source data 1 and Figure 3—source data 3.

Figure 3—source data 1

Source data for Figure 3A,B,D,E,F.

https://cdn.elifesciences.org/articles/59696/elife-59696-fig3-data1-v2.xlsx
Figure 3—source data 2

High-throughput invasion assays identify a low-dose four-drug MAPK inhibitor combination (4D-MAPKi).

Details of individual assays performed to identify potentially effective anti-invasion MAPK inhibitor combinations. Each assay corresponds to an independent 96-well plate designed to test a different set of combinations. Each assay included its own negative (no chemoattractant, no inhibitor) and positive controls (EGF as chemoattractant, no inhibitor). In each graph, the positive control is colored black, the negative control is colored gray, the combination tested is colored purple, and the individual components of the combination alone are colored blue and orange. Statistical significance was determined by a two-way ANOVA test in a pair-wise fashion between each treatment condition and the no-treatment control.

https://cdn.elifesciences.org/articles/59696/elife-59696-fig3-data2-v2.pdf
Figure 3—source data 3

Source data for the high-throughput IncuCyte chemotaxis invasion assays.

https://cdn.elifesciences.org/articles/59696/elife-59696-fig3-data3-v2.xlsx

We sought a drug combination that, like RKIP, reduces invasion but not cell growth. We initially assessed combinations of 6 kinase inhibitors that target different nodes in the MAPK signaling network using BM1 cells (Figure 3C). In addition to the MEK, JNK, and p38 inhibitors used above, we also tested the MLK inhibitor URMC-099, the inhibitor CX-4945 (Silmitasertib) that blocks Casein Kinase 2 upstream of p38 and ERK signaling (Isaeva and Mitev, 2011; Sayed et al., 2000; Zhou et al., 2016), and the more broad-based inhibitor SW-538 that blocks kinases in the MAPK network such as TAOK2, Raf1, JNK1, HGK, and GSK3b (Piala et al., 2016). We monitored invasion as well as growth of cancer cells in 3D culture using a high-throughput invasion assay of nuclear-labeled BM1 cells (BM1-NucLight Red). For four drugs (p38i SB203580, JNKi SP600125, MEKi Trametinib, MLKi URMC-099), there was a minimal dose at which the proliferation rates were unaffected while the invasive capabilities of the cells were at least partially blocked (Figure 3—source data 2). We then tested the drugs at these minimal dosages for their combinatorial effect on invasion. Out of all the dual combinations tested, two combinations demonstrated a robust effect on invasion without a significant effect on proliferation: p38i + JNKi and MEKi +MLKi (Figure 3—source data 2, Figure 3—source data 3). Addition of a third inhibitor to these dual combinations did not improve the anti-invasive efficacy, demonstrating that the combined effect of multiple MAPK inhibitors is not necessarily additive (Figure 3—source data 2, Figure 3—source data 3).

A four-drug combination consisting of p38i, JNKi, MEKi, and MLKi (from here on referred to as 4D-MAPKi) was also successful in our initial screen at inhibiting cell invasion across multiple cell lines and stimuli without inhibiting proliferation (Figure 3D,E, Figure 3—source data 2, Figure 3—source data 1,3). 4D-MAPKi consistently inhibited MAPK signaling (p38,JNK,ERK) across three different TNBC cell lines, while the effect of the p38i + JNKi and MEKi +MLKi dual combinations was cell line-dependent (Figure 3—figure supplement 1) Notably, 4D-MAPKi was not toxic to normal human mammary epithelial cell lines MCF10A and 184A1 (Figure 3F, Figure 3—source data 1). These findings suggest that the 4D-MAPKi combination is an effective, well-tolerated anti-invasive therapy that mimics the strategy by which RKIP inhibits the MAPK network.

The four-drug combination suppresses metastasis, inhibits expression of pro-metastatic motility genes, and increases survival

We then determined whether 4D-MAPKi blocks metastasis of TNBC tumors in vivo. Using mouse LMB cells in a syngeneic TNBC model, we performed dose-response studies with individual drugs to determine the highest dose at which growth of the primary tumor is unaffected (Figure 4—figure supplement 1A). Based on this analysis, we chose a 4D-MAPKi combination of 10 mg/kg for p38i, JNKi, MLKi, and 0.5 mg/kg for MEKi (1X) for in vivo studies. At the 1X dose, the 4D-MAPKi combination significantly inhibited primary tumor growth in both syngeneic LMB tumors (Figure 4A) and xenograft BM1 tumors (Figure 4B) in a dose-dependent manner without obvious toxicity as all mice retained the same body weight (Figure 4—figure supplement 1B). To mitigate the confounding effect of primary tumor growth on metastasis and maximize metastatic burden, we employed tail-vein or intracardiac injection models of experimental metastasis. Both undiluted (1X) and 50% diluted (0.5X) 4D-MAPKi suppressed metastatic lung colonization in syngeneic LMB tumors in a dose-dependent manner (Figure 4C,D). Treatment of mice with 4D-MAPKi for only 2 days following tumor cell injection still caused significant reduction in the overall metastatic burden ~5 weeks later, suggesting that the inhibitor combination suppresses early steps of metastasis related to invasion and extravasation (Figure 4E). Human BM1 tumors responded better to the 4D-MAPKi treatment than LMB tumors, as even the half dose (0.5X) potently inhibited bone metastasis, the major site of metastasis following cardiac injection of these cells (Yun et al., 2011; Kang et al., 2003; Figure 4F,G). The 4D-MAPKi combination also improved survival of metastatic BM1-bearing mice following a 3-week treatment (Figure 4H). 4D-MAPKi, like RKIP, blocked induction of a significant fraction of both Bach1 and motility genes in syngeneic LMB tumors (Figure 4I). These findings indicate that the low-dose drug combination, 4D-MAPKi, suppresses TNBC metastasis by reducing the signaling capacity of the stress MAPK network that transcriptionally activates metastatic genes, thereby increasing survival.

Figure 4 with 1 supplement see all

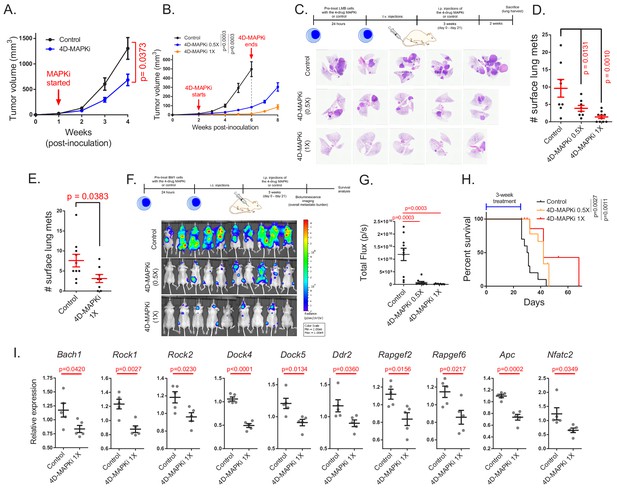

The four-drug combination suppresses metastasis, increases survival and inhibits expression of pro-metastatic motility genes.

(A), Effect of MAPKi treatment on the primary LMB tumor growth. Mean ± s.e.m. of n = 5 biological replicates per experimental group. Two-way ANOVA test. (B) Primary BM1 tumor growth in mice treated with 4D-MAPKi combination for 4 weeks. Mean ± s.e.m of n = 8 control tumors, n = 8 4D-MAPKi(0.5X) treated tumors, and n = 6 4D-MAPKi(1X) treated tumors. Two-way ANOVA test at week 6. (C) 4D-MAPKi combination reduces metastatic tumor burden in the lungs of LMB syngeneic mouse model of TNBC. H&E staining demonstrates the metastatic lesions in cross-sections of the lungs in mice treated with 1X (undiluted, n = 10 biological replicates) 4D-MAPKi, 0.5X (diluted, n = 8) 4D-MAPKi, or the control (vehicle, n = 8). (D) Quantification of the visible metastatic lesions on the lung surface. Mean ± s.e.m, one-way ANOVA test with Dunnett’s correction for multiple testing. (E) Tumor burden in the lungs of LMB syngeneic mice after 2 days (2 doses over 48 hr, on day 0 and day 1) of 4D-MAPKi treatment. Mean ± s.e.m. of n = 10 control tumors and n = 8 MAPKi(1X) treated tumors. Unpaired two-tailed student’s t-test. (F) BM1 metastatic tumor burden in the bones of athymic nude mice treated with 4D-MAPKi at 0.5X and 1X, or control. (G) Quantification of the metastatic burden in (F). Mean ± s.e.m. of n = 10 control, n = 10 diluted 0.5 × 4 D-MAPKi, and n = 9 undiluted 1 × 4 D-MAPKi. Two-tailed student’s t-test. (H) Overall survival of xenograft mice injected with BM1 cells via the intracardiac route after 3 weeks of 4D-MAPKi treatment. Log-rank (Mantel-Cox) test. (I) Expression of Bach1 and motility genes in LMB tumors treated with 4D-MAPKi. Mean ± s.e.m. of n = 5 biological replicates per experimental group. Two-tailed student’s t-test.

Multi-drug combination inhibits different MAPK network topologies

To understand why the four-drug combination is so effective, we performed further experiments as well as phenomenological (observation-based) modeling of the MAPK network. Characterization of the cross-talk between different MAPKs in the RKIP-regulated network revealed that each of three human or mouse TNBC cell lines has a unique MAPK network topology (compare Figure 2F to Figure 5—figure supplement 1A,B,D). Here, we define topology as interactions between different nodes within the network that could be positive, negative, direct, or indirect. Although these network analyses are not exhaustive, our results illustrate differences in the cellular network topologies. To determine whether environmental stimulus also makes a difference in MAPK network topology, we treated BM1 cells with either anisomycin or serum, and then probed cellular response to the JNK inhibitor (JNKi). JNKi treatment did not significantly inhibit p38 in anisomycin-treated cells, whereas it actually activated p38 under serum conditions (Figure 2F and Figure 5—figure supplement 1C ). These results suggest that MAPK network topology can differ between cell lines, or even within in the same cell line based on stimulus and highlight the importance of considering network topology in determining treatment efficacy.

To understand the effect of low-dose, multi-drug treatment of metastatic cancer, we constructed a simple steady state model of the core MAPK network. Since a description based on dynamical systems theory is beyond the scope of the present work, we utilized a network flow approach (Azeloglu and Iyengar, 2015). Our goal was to determine the effect of introducing crosstalk into a system where a stress signal flows through three spigots (TAOK/p38, MLK/JNK and RAF/ERK pathways) and funnels into a combined output measured as BACH1 transcription. The maximal flow through the network is defined by the condition when no drugs have been administered. A node represents a kinase whose activity determines its capacity to absorb the inflow signal, and this capacity can be reduced by drug treatment. In this analysis, we assume the linear limit in which the inflow signal equals the outflow signal (Heinrich et al., 2002) with the kinases being in a sufficiently high concentration. A lumped representation of the signaling pathways can be built at this regime (Beguerisse-Díaz et al., 2016) enabling one to represent the functional networks using minimal length signaling cascades in which participants are the targetable nodes. We also assume that BACH1 expression level measurements occur when the network flow has already reached a steady state regime (Heinrich and Rapoport, 1974; Kacser and Burns, 1995). Here, we are neglecting signal amplification (Chaves et al., 2004) by considering that the kinase amounts are beyond the ultrasensitivity threshold (Huang and Ferrell, 1996), a limit that also ensures the effectiveness of noise filtering properties (Brandman et al., 2005). Additionally, we assume that the cancer cells have a sufficient regular shape, and the kinases have a fast enough diffusion speed to enable us to neglect spatial effects on the signal transmission (Friedmann, 2015).

We utilized the anisomycin-stimulated MAPK network in BM1 cells as the basis for our model (Figure 5A, Network 1). If we modeled the network from other cell lines, the detailed topology would be different but the same general principles apply. We illustrate this point by generating another related MAPK network based on Network one but lacking the positive crosstalk (Figure 5B, Network 2). Comparison of treatment with single MAPK inhibitors (p38i, JNKi or MEKi) to 4D-MAPKi (dose restricted to ≤30% inhibition for each kinase targeted) reveals at least 60% BACH1 suppression for 4D-MAPKi and p38i in Network 1; by contrast, BACH1 levels following JNKi or MEKi treatment were only minimally reduced (Figure 5C). A similar result is obtained for Network 2, although in this case JNKi has no significant effect on BACH1 levels (Figure 5D). These results from our models suggest that, while response to individual inhibitors may vary because of differences in network topology, 4D-MAPKi is more robust in inhibiting network output across different topologies.

Figure 5 with 2 supplements see all

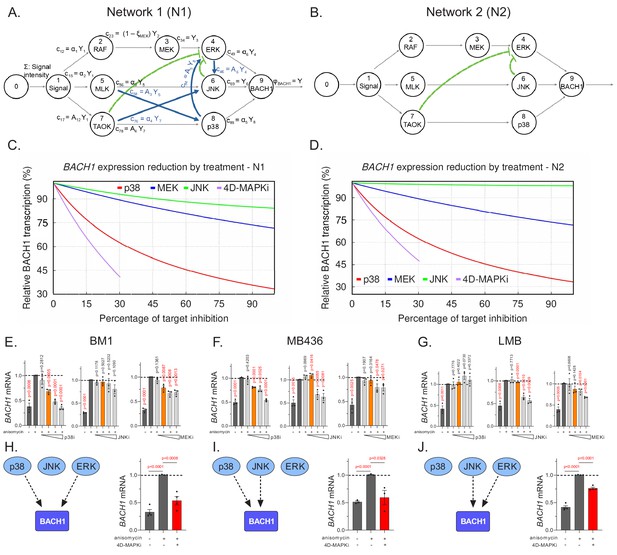

Multi-drug combination inhibits different MAPK network topologies.

(A), The topology of the stress response of the core MAPK driver network activating BACH1 gene transcription, as output, in BM1 cells. This network topology, termed N1, is composed of multiple kinase signaling pathways responsible for activating BACH1. The nodes of the signaling network, represented by circles, are kinases within the network. The arrows directed toward nodes indicate the inflow from a signal or an active kinase at the upstream node. The product of a node, resulting from the interaction between the upstream signal and downstream kinases, is denoted by arrows leaving the node. The pathways are indicated by black arrows while the crosstalk between different pathways is denoted by blue and green arrows. The non-linear repression of one node by another is represented by the green lines with bars directed toward the repressed component. (B) A hypothetical BACH1 stress response driver network, denoted as N2, that has no crosstalk between its individual pathways. The interpretation of its symbols is the same as in A. (C) Graph depicting predicted downregulation of BACH1 following cell treatment with specific inhibitors relative to maximal stress-induced BACH1 gene transcription in cells with N1. The y axis shows the percentage of maximal BACH1 gene transcription, and the x axis denotes the percent inhibition of each kinase targeted by a drug or drug combo relative to the maximal inhibitor dose (set at 100% inhibition). Relative BACH1 gene transcription in response to p38i, MEKi, JNKi, or the 4D-MAPKi drug combo is indicated in red, blue, green, or purple. (D) Graph depicting predicted downregulation of BACH1 following cell treatment with specific inhibitors relative to maximal stress-induced BACH1 gene transcription in cells with N2. The y axis shows the percentage of maximal BACH1 gene transcription, and the x axis denotes the percent inhibition of each kinase targeted by a drug or drug combo relative to the maximal inhibitor dose (set at 100% inhibition). Relative BACH1 transcription in response to p38i, MEKi, JNKi, or the 4D-MAPKi drug combo is indicated in red, blue, green, or purple. (E–G) Single agent dose-response experiments demonstrating that BACH1 expression is activated by different MAPKs in different cell lines. Orange bars indicate the final dosage of an individual inhibitor used in 4D-MAPKi. (H–J) The network-targeting 4D-MAPKi is able to decrease BACH1 expression across all three cell lines even though BACH1 is regulated by a different set of MAPKs in each cell line. Left panels: Diagrams summarizing BACH1 regulation by MAPKs in each TNBC cell line. Right panels: 4D-MAPKi blocks BACH1 mRNA expression in anisomycin-induced cells. For E-J, the bar-graphs represent three or more independent experiments performed in each cell line, where the BACH1 expression in drug-treated cells is measured with respect to aniso-induced non-treated positive control group. Statistical significance for each dose was determined by student’s t-test with respect to the positive control group. For the source data, see Figure 5—source data 1.

To test this prediction, we assessed BACH1 gene expression as a measure of network output in the three TNBC cell types with different network topologies. Dose-response studies with individual MAPK inhibitors showed that BACH1 expression can be regulated by either ERK, JNK or p38 in at least one TNBC cell line (Figure 5E–G, Figure 5—source data 1). However, as our model predicted, no single MAPK inhibitor even at maximum dose effectively reduced BACH1 expression across the three cell lines (Figure 5H–J, left panels and Figure 5—source data 1). By contrast, the low-dose 4D-MAPKi combination attenuated BACH1 gene expression in all human and mouse cell lines tested (Figure 5H–J right panels, Figure 5—figure supplement 2A , Figure 5—source data 1). Consistent with the in vitro data for the mouse LMB cell line (Figure 5G,J), both 4D-MAPKi and MEKi treatment significantly reduced metastatic burden in the lungs of mice with orthotopic LMB tumors, while p38i showed no effect (Figure 5—figure supplement 2B). These data indicate that 4D-MAPKi more effectively regulates BACH1 expression across cells with different MAPK network topologies than single high-dose inhibitors.

Limiting the extent of kinase inhibition at multiple nodes reduces network output and prevents compensatory network activation

Maximum tolerated dose regimens can yield promising responses in certain patients. (Gallaher et al., 2018; Duncan et al., 2012; Wong et al., 2019) In terms of our mathematical model, when all pathways are independent and operating at their maximal capacity, reducing or eliminating any one of them restricts the output flow. In this scenario, a single target therapy can potentially be effective at reducing output. However, if flow from the single node is eliminated, then excess flow from the initial functional network could end up activating a different functional network, leading to a compensatory increase in overall output (Seton-Rogers, 2014) (see CKN, compensatory kinase network in Figure 6A). Even a small reduction in the activity of multiple nodes of a given pathway, although insufficient for eliminating the activity of the functional network, would reduce the overall surplus, and hence, the chances for compensatory activation.

Figure 6 with 1 supplement see all

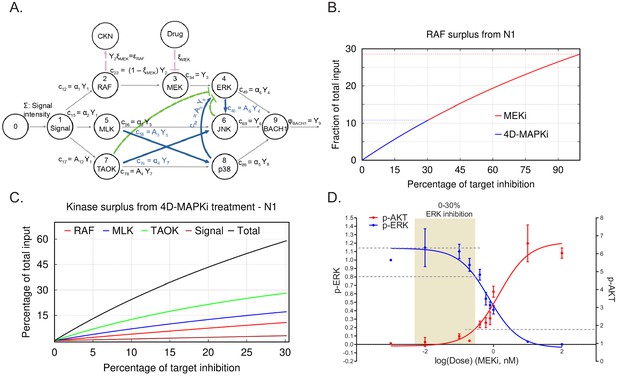

Limiting kinase inhibition at multiple nodes reduces network output and prevents compensatory network activation.

(A) N1 illustrating the case of a treatment (MEKi) targeting node 3 (MEK) and activation of a compensatory kinase network (CKN) linked to upstream node 2 (RAF) (red circle). A comparable diagram can be generated for each upstream node to describe surplus signal activating a distinctive CKN. The percentage of reduction on the activity at a target node because of a treatment dose x is indicated by ξ. This inhibition causes reduction in the flow of product to node 3, denoted by c23=(1−ξMEK)Y2 (see A). (B) Graph depicting surplus signal from RAF as a fraction of the total input signal Σ following treatment by MEKi or 4D-MAPKi of cells with N1. The x axis denotes the percent inhibition of each kinase targeted by inhibitors relative to the maximal inhibitor dose (set at 100% inhibition). The y axis is the fraction of surplus RAF signal generated following drug treatment of cells relative to total input signal. MEKi, red; 4D-MAPKi, blue. (C) Graph depicting surplus kinase signal as a fraction of the total input Σ following treatment by 4D-MAPKi of cells with N1. The surplus is a consequence of the congestion of each direct pathway causing an insufficient absorption of the stress input by the driver network and its redirection toward a compensatory network. The x axis denotes the percent inhibition of each kinase targeted by 4D-MAPKi relative to the maximal inhibitor dose (set at 100% inhibition). The y axis is the fraction of surplus kinase signal generated following 4D-MAPKi treatment of cells relative to total input signal. RAF (surplus from MEKi), red; MLK (surplus from JNKi), blue; TAOK (surplus from p38i), green; and Signal (surplus from MLKi), brown; Total (sum of all surplus signals), black. (D) Dose-response curves showing activation of the compensatory PI3K network, monitored by p-AKT levels, when EGF-induced BM1 cells are treated with increasing doses of MEKi. Mean ± s.e.m. of n = 3 independent experiments. For the source data, see Figure 6—source data 1.

To address the role of surplus signal flow following inhibitor treatment, we determined whether different degrees of inhibition of MEK would yield different outcomes with respect to activation of compensatory driver networks. As a model system, we analyzed induction of an epidermal growth factor (EGF) receptor-PI3K feedback loop in response to MEK inhibition of EGF-stimulated BM1 cells. Activation of this compensatory PI3K pathway was previously reported to restrict the efficacy of MEK inhibitors in basal subtypes of breast cancer (Mirzoeva et al., 2009). Following maximal inhibition of MEK in our model, the surplus flow from Raf approaches 30% of the initial input signal that can be funneled to a compensatory kinase network such as PI3K/AKT (Figure 6B). When we modeled 4D-MAPKi, on the other hand, it only diverted ~10% of the incoming stress signal to a compensatory kinase network (CKN) because we restricted MEK/ERK inhibition to less than 30%. This type of analysis, carried out for each of the kinases in the MAPK network, shows that the combined surplus of kinase signal following 4D-MAPKi inhibition approaches 60% (Figure 6C). However, this signal is dissipated among multiple kinases such that the resulting surplus from each kinase is insufficient to activate compensatory networks.

To test these predictions experimentally, we generated dose response curves to assess the relationship between degree of MEK inhibition (assessed by p-ERK) and induction of PI3K (assessed by p-AKT). The results show that, under controlled in vitro conditions, AKT activation has a threshold effect with minimal change in activity until ERK is inhibited by ~30% (Figure 6D, Figure 6—source data 1). Consistent with this finding, when we tested 4D-MAPKi in EGF-stimulated cells, ERK signaling was robustly inhibited (~75%) and AKT was maximally activated (Figure 6—figure supplement 1A; Figure 6—figure supplement 1B). By contrast, in serum-stimulated cells, 4D-MAPKi inhibited ERK by only ~40% and AKT activity was actually reduced (Figure 6—figure supplement 1A; Figure 6—figure supplement 1B, Figure 6—source data 1). We also checked the activation of p-AKT(Ser473) in the syngeneic LMB primary tumors treated with either the vehicle control or the 4D-MAPKi regimen. We observed no significant activation of p-AKT signaling in the primary tumors treated with 4D-MAPKi (Figure 6—figure supplement 1C), indicating that the compensatory pathway activation is not triggered. Taken together, these results show that targeting multiple kinases in a network or limiting kinase inhibition, as RKIP does, is an effective mechanism to avoid compensatory AKT activation above background.

These experimental and mathematical analyses suggest that effective inhibition can be accomplished by targeting several nodes belonging to different pathways within the same driver network. This will reduce the flow through multiple pathways of the network and its resulting output, decreasing the efficacy of the driver network. Reduction of overall output, however, creates a surplus signal that cannot be accommodated by other kinases within the network and, instead, is directed toward compensatory driver networks. Thus, it is important to keep the overall surplus dissipated among multiple nodes, and the surplus signal from each kinase below the threshold for activation of its compensatory network. Of note, since our goal is to suppress metastasis, this partial inhibition which leaves the growth network largely intact is still effective. Together, these studies suggest that (1) multi-kinase targeting is more effective than single kinase inhibition across different cells and environmental stimuli; and (2) low inhibitor doses are less likely than high inhibitor doses to trigger feedback activation of compensatory networks.

The BACH1/motility gene axis, targeted by RKIP and 4D-MAPKi, is associated with multiple cancers and metastasis suppressors

To understand the clinical significance of the MAPK network suppressor (RKIP) and the MAPK network output (BACH1 and motility-related genes), we looked at their relative gene expression in the TCGA database. Remarkably, stratifying breast cancer patients by high RKIP (PEBP1) and low BACH1 expression or vice versa reveals a striking inverse association of RKIP with BACH1 and the motility-related genes in ~60% of patients (Figure 7A). These data suggest that the RKIP/BACH1/motility gene axis identifies breast cancer patients who would be therapeutic candidates for 4D-MAPKi treatment. Enrichment of the motility-related target genes identified in the present study extended beyond breast cancer. The same gene families were also inversely correlated with RKIP in other solid TCGA cancer types (Figure 7B,C) including pancreatic, ovarian, lung, head and neck, and colorectal. Of note, in cancers where no correlation to these specific motility-related genes was observed, we noticed a strong correlation to other members of the same gene families (Figure 7C). Finally, expression of other experimentally validated metastasis suppressors (BRMS1, ARGHDIA, NME1, and DRG1) (Zhao et al., 2015) also negatively correlated with motility-related gene sets (Figure 7D,E). These clinical analyses suggest that BACH1-regulated motility-related machinery is a hallmark of metastasis that is targeted by multiple physiological suppressors such as RKIP.

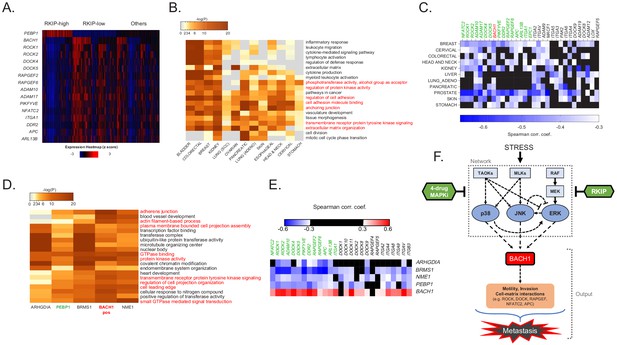

The BACH1/motility gene axis, targeted by RKIP and 4D-MAPKi, is associated with multiple cancers and metastasis suppressors.

(A) Expression of RKIP (PEBP1), BACH1, and the downstream motility genes in each TCGA BRCA patient (n = 1100), grouped by RKIP status. RKIP-high: z-score > 0.5 (n = 274), RKIP-low: z-score < −0.5 (n = 414), Others: −0.5 < z score<0.5 (n = 412). (B) Gene sets enriched with genes negatively correlated with RKIP across multiple TCGA cancer types. (C) Spearman correlation coefficients for BACH1 or motility genes relative to RKIP in TCGA cancers. Coefficient cutoff of −0.3 (coefficients between −0.3 and 0 were colored black). (D) Motility-related gene sets enriched for genes that negatively correlate with the indicated metastasis suppressors, but positively correlate with BACH1 in the TCGA BRCA set. (E) Spearman correlation coefficients for BACH1 or motility genes relative to RKIP (PEBP1) or other metastasis suppressors in TCGA BRCA. Coefficient cutoff of 0.3 in both positive and negative side. Coefficients between −0.3 and 0.3 were colored black. (F) Diagram summarizing the stress MAPK kinase N1 network that regulates metastasis in breast cancer. Stress activates a network of MAPKs that interact via crosstalk. RKIP and the RKIP-mimicking drug combo 4D-MAPKi reduce the signaling capacity of the entire network by targeting multiple nodes. This allows for effective reduction of the metastatic output of the network, measured by the expression of pro-metastatic BACH1 and its target motility genes.

Taken together, our results show that stress as an input activates the core MAPK network, leading to induction of BACH1 expression as an output which in turn activates motility-related genes required for invasion and metastasis (Figure 7F). Inhibition of this network by metastasis suppressors such as RKIP or a low-dose four-drug combination effectively restricts expression of invasive genes and reduces the metastatic phenotype.

Discussion

Here, we propose a new approach for therapeutic targeting of metastatic disease based upon the action of physiological metastasis suppressors such as RKIP. In this study, we focus on the underlying general principles of suppressor action that enable stable metastatic inhibition without triggering activation of compensatory driver networks. Instead of completely inhibiting specific nodes, suppressors reduce the signaling capacity of a driver network by partially targeting multiple kinases within the network, thereby restricting the output that promotes invasion and metastasis. We experimentally validate this approach using a four-drug combination that acts on the core MAPK network to inhibit metastasis and promote survival in mouse TNBC models. This approach even works for different driver network topologies associated with diverse cells within tumors, conferring a higher degree of robustness to our therapeutic strategy.

Mathematical modeling using a simple steady state model illustrates the underlying concept. The model suggests that multidrug combinations are more effective at suppressing signaling across cells with different MAPK network topologies. In addition, minimizing the inhibition of each kinase enables dissipation of excess signal so that compensatory networks are not activated. Indeed, our experimental findings support these general principles, demonstrating that different TNBC cells have different MAPK network topologies and respond in diverse ways to MAPK inhibitors. Our data demonstrate that recurrence through activation of p-AKT after treatment of cells with MEK inhibitor is a threshold effect, and p-AKT is not induced by the four-drug combination in mice, further supporting the relevance of our proposal and opening a new avenue of investigation aimed at finding the range of topologies within a single driver network and their relationship to multiple compensatory driver networks.

Despite the relevance of inferring the uncertainty of a topology of a functional network, such a quantification is beyond the scope of the current manuscript. That would demand a focused investigation based on Bayesian inference (Gelman et al., 2013). This is a non-trivial task, however, as even Bayesian inference of the kinetic constants of the law of mass action used on determination of the minimal set of participants of a given signaling pathway is an active research field (Vanlier et al., 2013; Liepe et al., 2010; Liepe et al., 2014; Vyshemirsky and Girolami, 2008; Xu, 2010). Here, we aim to develop a framework for inferring the topology of functional networks composed of multiple pathways. The experimental determination of kinetic constants of multiple pathways or their estimation based on Monte Carlo simulations are challenging tasks (Miskovic et al., 2019) that will require the development of more efficient computational and theoretical techniques.

Effects on primary tumor growth can be confounding when monitoring spontaneous metastasis. Therefore, we utilized two different models to illustrate the effect of the four-drug combination on metastasis. When using the spontaneous metastasis model where metastasis is derived from the primary tumor, it is difficult to distinguish inhibitory effects on metastasis alone from inhibitory effects on primary tumor growth. All cells that grow at either primary or metastatic sites have a survival component, so we are assuming here that survival at the metastatic site is an aspect of metastasis. We successfully distinguished growth from invasion in vitro and, using a similar strategy, identified drug concentrations that individually did not inhibit growth in vivo. However, since drug effects are usually not additive, it is challenging to precisely titrate the four drugs so that we suppress metastasis but do not affect primary tumor growth in vivo. Therefore, as an alternative assay that we and others have used in the past to monitor metastasis alone (e.g. Yun et al., 2011), we utilized the tail-vein or cardiac injection model that focuses on extravasation and metastatic colonization using comparable numbers of tumor cells. These assays clearly show a robust inhibition by the four-drug combination when the same number of cells are present in the circulation. Even a limited 2-day treatment with drug after tail vein injection suppressed metastatic growth, suggesting that 4D-MAPKi primarily affects the early steps of metastatic seeding such as extravasation, invasion, or colonization. Ultimately, our goal is to suppress metastasis as well as growth of the primary tumor. The 4D-MAPKi we identified can act as a rheostat, mimicking a metastasis suppressor at low dose but also inhibiting growth if higher doses are used.

Using databases such as TCGA combined with preclinical studies enables identification of metastasis suppressor-regulated genes that can be used as biomarkers both for development of drug combinations and identification of patients who would benefit from those therapies. Similar correlations between expression of other metastasis suppressors and motility-related genes in other tumor types suggest that this approach can have wide application to pharmaceutical treatment of metastatic disease states in multiple tissues. In particular, our findings suggest that 4D-MAPKi would be an effective treatment for metastatic breast tumors that express the motility-related genes but lack suppressors that inhibit them. We anticipate that, in addition to identifying 4D-MAPKi, this approach can be utilized to discover other multi-drug combinations that are effective.

In at least one tumor model, our data shows that the MEK inhibitor is as efficacious at suppressing metastasis in vivo as the four-drug combination. Our studies suggest, however, that the four-drug regimen is more likely to have efficacy across different cellular networks and different environmental conditions and therefore work better when treating heterogeneous tumors. We explored this concept by comparing in vivo efficacy for single agent MEK or the other inhibitors (p38, JNK, MLK) to the four-drug regimen using the syngeneic LMB mouse model. When we tested the drugs on LMB cells in culture, the MEK and JNK inhibitors and the four-drug combination were effective at suppressing MAPK network output (assessed by the pro-metastatic gene BACH1) whereas the other inhibitors were not. Like the cell culture studies, both MEK and four-drug regimens reduced metastatic burden in the lungs of the mice but p38 inhibitors did not. The fact that JNK inhibitors inhibited BACH1 gene expression in vitro but did not suppress metastasis in vivo could be due to a number of factors including drug accessibility, different outputs, or microenvironmental interactions. Taken together, these results support our rationale for utilizing multi-drug combinations. In addition, it should be noted that, while MEK inhibitors as single agents can be very effective in blocking tumor growth and metastasis in preclinical settings, they rarely work long term in clinical settings because of the compensatory activation of resistance pathways such as PI3K/AKT signaling. Drugs such as these, when used as single agents, have not given durable responses thereby necessitating multi-drug approaches (Menzies and Long, 2014). Our studies suggest that 4D-MAPKi may exhibit similar or better efficacy to MEK inhibitors without activating these compensatory pathways.

4D-MAPKi, which targets MEK, p38, JNK, and MLK, is a novel and clinically feasible multi-drug combination (Messoussi et al., 2014; Okada et al., 2017; Mora Vidal et al., 2018; Cicenas et al., 2017). Data already available from MEK inhibitor Phase 1 trials (Infante et al., 2012) should enable an estimate of drug doses that would reduce MEK activity by less than 30%, and similar analyses can be carried out for the other kinase inhibitors. Effective treatment based on inducing functional RKIP in tumors has not been possible since RKIP regulation is complex and occurs at multiple levels including transcriptional, translational, and post-translational (Yesilkanal and Rosner, 2018). By significantly expanding our knowledge of RKIP function as a tumor metastasis suppressor, this study identifies additional therapeutic targets. MLKs and TAOKs, as regulators of p38 and JNK, have not previously been implicated as a part of the RKIP-network. BACH1, which we recently identified as an inhibitor of mitochondrial metabolism that can be targeted independently in ~30% of breast tumors (Lee et al., 2019), is shown here to be a transcriptionally-regulated and pro-invasive mediator of the stress MAPK network.

While the utility of multi-drug combinations for therapeutic treatment is widely acknowledged, the strategy proposed here differs significantly in several respects. First, we focus on reducing signaling capacity in one driver network rather than fully inhibiting single nodes belonging to one pathway. Second, our findings argue that targeting multiple nodes associated with distinct pathways within the same network is more likely to improve response and prevent compensatory signaling across a heterogeneous tumor cell population than targeting several single nodes distributed among different cellular networks (reviewed in Smith and Wellbrock, 2016). Third, by restricting the extent of inhibition at each single node, we dissipate excess signal flow to avoid activation of compensatory networks that promote resistance and recurrence. The common strategy of maximal inhibition at multiple nodes is more likely to lead to resistance since the surplus may cross the activation threshold of a compensatory driver network. Finally, our goal here is to suppress metastasis, the process responsible for cancer lethality, rather than primary tumor growth.

During revision of this manuscript, low-dose kinase inhibitor combinations targeting the EGFR-RAS-RAF-MEK-ERK pathway have been shown in pancreatic cancer and NSCLC to be effective at inhibiting primary tumor growth and inducing apoptosis (Fernandes Neto et al., 2020; Ozkan-Dagliyan et al., 2020), similar to our findings that targeting p38-JNK-ERK MAPKs with low-dose treatments will suppress metastasis and, in some cases, tumor growth. While these additional studies support our argument for using low-dose multi-drug combinations, our approach of targeting a functional driver network differs from the vertical inhibition of the linear EGFR-RAS-RAF-MEK-ERK pathway, as it is less vulnerable to mutational resistance within a single pathway as well as compensatory signaling mechanisms. Although small decreases in the activity of multiple nodes within a given pathway would not eliminate the activity of the functional network, they should reduce the overall surplus and the likelihood of compensatory activation.

By first inhibiting metastasis and associated cellular heterogeneity, we anticipate that subsequent treatment with even traditional cytotoxic agents as radio-, chemo-, or immunotherapy will be more effective. Metastatic progression is a dynamic and highly drug-resistant process. While early metastatic seeding can take place before the primary tumor is clinically detectable, the primary tumor continuously sheds metastatic cells into the circulation that can form metastases at other sites (Quinn et al., 2021; Kim et al., 2009; Gupta and Massagué, 2006). Therefore, an anti-metastatic treatment that slows down this dynamic spread would have therapeutic benefit even at a late stage of disease. In addition, evidence also suggests that metastatic cells are more resistant to systemic treatments due to their more mesenchymal phenotype, and low proliferation rates (Boston Change Process Study Group, 2005). If an anti-metastatic therapy such as 4D-MAPKi can revert metastatic cancer cells back to a less metastatic, more epithelial-like state, it can sensitize these cells to certain systemic and metabolic treatments as we have previously shown (Lee et al., 2019). Therefore, we suggest a two-part strategy to convert metastatic cells to a non-metastatic state prior to treatment with agents that will kill proliferating cells. As such, this strategy represents a paradigm shift in how we address treatment of metastatic disease in cancer.

Materials and methods

Cell lines

Request a detailed protocol

In our studies, we used the human TNBC cell lines BM1 (also known as MDA-MB-231-BM1, BoM1, 1833) and MB436 (also known as MDA-MB-436), the mouse TNBC cell lines LMB (also known as E0771-LMB) and M6C, the immortalized normal mammary epithelial cell lines MCF10A and 184A1, and the human embryonic kidney epithelial cell line 293T. MB436, MCF10A, 184A1, and 293 T cells were received from American Type Culture Collection (ATCC). E0771-LMB (LMB) cells were generated by Robin Anderson (Johnstone et al., 2015). M6C cells were generated by Jeffrey Green (Holzer et al., 2003). BM1 cells were generated by Massagué and colleagues (Kang et al., 2003). BM1, MB436, LMB, and M6C cells were cultured in DMEM media with 10% fetal bovine serum (FBS), penicillin (50 U/ml), and streptomycin (50 µg/ml). MCF10A and 184A1 cells were grown in DMEM/F-12 (50/50) with 10% FBS and penicillin-streptomycin. All cell lines were authenticated by short tandem repeat analysis and used within 15 passages after their arrival in the laboratory. Mycoplasma detection was routinely performed to ensure cells were not infected with mycoplasma using MycoAlert Detection kit (Lonza, LT07-218).

Small molecule inhibitors

Request a detailed protocol

For in vitro and in vivo studies, JNK inhibitor SP600125, MEK inhibitor Trametinib (GSK1120212), MLK inhibitor URMC-099, and CK2 inhibitor CX-4945 (Silmitasertib) were purchased from APExBIO (A4604, A3018, B4877, A833010, respectively). p38 inhibitor SB203580 was purchased from Selleckchem (Cat No S1076) for the in vitro experiments. For in vivo studies, water soluble SB203580 hydrochloride was purchased from APExBIO (B1285). SW-538 (SW034538) was provided by Elizabeth J. Goldsmith et al.

Signaling studies in vitro

Request a detailed protocol

In order to study the changes in stress kinase signaling upon stress in the presence of RKIP, or small molecule inhibitors of the MAPKs, cells were plated at sub-confluence. Once they reach roughly 70% confluence, they were starved overnight (16–24 hr) in serum-free media, and then induced with anisomycin (Sigma-Aldrich, Cat No A9789) at 25 ng/ml final concentration or 10% serum for 30 min to activate MAPK pathways. In studies with small molecule inhibitors of the MAPK pathway, all inhibitors were re-suspended in DMSO and used at indicated concentrations. The cells were pre-treated with the inhibitors in serum-free media for 30 min after overnight serum starvation, immediately before induction with anisomycin or serum for 30 min. In this case, the inducing agent was directly added to the pre-treatment media that already had the inhibitors, or the pre-treatment mediate was replaced by fresh media containing the inducer and the inhibitors. This is to ensure the inhibitors are present during induction of the MAPK pathways. Upon induction for 30 min, the cells were washed three time with cold PBS and immediately lysed in RIPA buffer for protein collection.

Protein isolation and western blots

Request a detailed protocol

Cultured cells were washed with cold PBS and lysed in RIPA buffer with protease inhibitors (Millipore Sigma, 539134) and phosphatase inhibitors (GoldBio, GB-450). Tumor samples were snap-frozen in liquid nitrogen, pulverized, and lysed in RIPA buffer with protease and phosphatase inhibitors. All samples were sonicated three times for 10 s at 35% power and centrifuged at max speed for 15 min at 4°C. Supernatant was collected and the protein concentration was measured using the Bradford assay. All samples were boiled in 6X Laemmli buffer immediately after protein concentration measurement.

For western blots, equal amounts of protein, ranging from 10 µg to 50 µg, across all samples were used. Blots were blocked for 1 hr at ambient temperature with either Odyssey Blocking Buffer (LI-COR Biosciences, 927–40010, diluted 1:1 with PBS) or with 5% FBS in Tris Buffer Saline (TBS) with 0.1% Tween20. Then, blots were incubated with primary antibodies at 4°C over-night, and with secondary antibodies at ambient temperature for 1 hr. Finally, blots were treated with ECL reagent (Pierce ECL Western Blotting Substrate, Thermo Scientific, 32106) when HRP-conjugated secondary antibodies were used and developed under the Chemiluminescence channel of the LI-COR Fc Imaging System. Blots with fluorescent secondary antibodies were imaged under 700 nm or 800 nm channels of LI-COR Fc. Signal intensity was quantified using Image Studio Lite (LI-COR) software.

Primary antibodies used

Request a detailed protocol
  • Phospho-TAOK3 (Ser177) +Phospho TAOK2 (Ser181) +Phospho-TAOK1 (Ser181) (Abcam, ab124841)

  • Phopsho-p44/42 MAPK (ERK1/2)(Thr202/Tyr204) (Cell Signaling, 9101)

  • Phospho-SAPK/JNK (Thr183/Tyr185) (Cell Signaling, 9251)

  • Phospho-p38 MAPK (Thr180/Tyr182) (Cell Signaling, 4511)

  • Phospho-AKT1 (S473) (Cell Signaling, 4060) alpha-Tubulin (Santa Cruz, sc-8035) alpha-Tubulin (Invitrogen, MA1-19401)

  • GAPDH (Santa Cruz, sc-32233)

  • BACH1 (Santa Cruz, sc-271211)

Secondary antibodies used

Request a detailed protocol
  • Goat anti-Mouse IgG (LI-COR, IRDye 800CW, 926–32210)

  • Goat anti-Mouse IgM (LI-COR, IRDye 800CW, 926–32280)

  • Goat anti-Rabbit IgG (LI-COR, IRDye 680RD, 926–68071)

  • Goat anti-Rabbit IgG, HRP conjugate (EMD Millipore, AP187P)

  • Goat anti-Mouse IgM, HRP conjugate (Invitrogen, 31440)

  • Goat anti-Mouse IgG, HRP conjugate (Sigma Aldrich, A4416)

Transient transfection

Request a detailed protocol

Prior to transfection, the cells were plated in six-well plates and grown to ~70% confluence. siRNA vectors were used at a final concentration of 50 nM per well of cells. The vectors were incubated with 10 µl of Lipofectamine 3000 (Invitrogen, L3000-015) in OPTI-MEM media (Gibco, 31985062) for 15–30 min. The DNA-lipid complex was then added onto the cells in a drop-wise fashion. Cells were incubated with the siRNAs for at least 24 hr before harvesting for experimental use. All experiments were performed 24–72 hr post-transfection. All siRNA constructs were purchased from Dharmacon:

  • Individual siGENOME human TAOK1 siRNA, Dharmacon, (D-004846-02-0005)

  • Individual siGENOME human TAOK2 siRNA, Dharmacon, (D-004171-13-0005)

  • Individual siGENOME human TAOK3 siRNA, Dharmacon, (D-004844-02-0005) siGENOME Non-Targeting siRNA Pool #1, Dharmacon, (D-001206-13-05)

Stable Lenti-viral cell line generation

Request a detailed protocol

293 T cells were plated in T-75 plates and were grown to ~70% confluence prior to transfection. 1 hr prior to transfection, the media was replaced with fresh media. Lentiviral vectors were incubated with third-generation viral packaging vectors (pCMV-VSV-G, pMDLg/pRRE, pRSV-Rev) and LT-1 (Mirus, MIR-2305) in OPTI-MEM media for 30 min as described by the provider's instructions. This transfection mix was then added onto the 293 T cells in a drop-wise fashion. Virus containing media was collected 24–48 hr after transfection. Cellular content and debris were removed by centrifugation, and the supernatant was filtered through 0.45 µm PES syringe (Millex, SLHP033RS) to remove any remaining cells in the media. Polybrene was added to the media at the final concentration of 8 ng/ml to facilitate viral transduction of the target cell line. The target cell lines were transduced with the virus-containing media for 24–48 hr. At the end of the transduction period, cells were washed, trypsinized, and re-plated for selection. Transduced cells were exposed to high concentration antibiotic selection (3 µg/ml puromycin) up to 2 weeks (approximately three passages). All lentiviral procedures were carried out following Biosafety Level 3 (BSL3) practices in BSL2 tissue culture hoods according to institutional biosafety rules.

Boyden chamber invasion assay

Request a detailed protocol

Each Boyden chamber membrane (Fisher Scientific, 353097) was coated with a thin layer of BME (200 µl of 0.25 mg/ml stock, or total of 50 µg of BME per membrane) and incubated at 37°C for 1 hr. Cells were trypsinized and centrifuged at 500 x g for 5 min followed by two rounds of PBS washes to remove remaining serum-containing media. Then, the cells were resuspended in serum-free media and diluted to the desired concentration for plating onto the Boyden chambers. Each Boyden chamber received 20,000–100,000 cells in 300 μl serum-free media, depending on the cell line. 10% serum was used as the chemoattractant for these assays. For the experiments testing the effect of MAPK inhibitors on invasion, the cells were resuspended in drug-containing serum-free media immediately. After 16–24 hr, the membranes were stained with Calcein AM (Fisher Scientific, 354217) for 1 hr at 37°C in the dark to stain for live cells. Cells that are in the top chamber were removed from the membrane with a wet cotton swab. Cells in the bottom chamber were dissociated from the membrane by incubating in cell dissociation buffer (Trevigen, Cultrex 3455-096-05) in a shaker at 37°C for 1 hr. Calcein AM signal was measured in Perkin Elmer Victor X3 plate reader as a read-out of invaded cells.

High-throughput chemotactic invasion assays

Request a detailed protocol

For testing anti-invasive drug combinations, IncuCyte ClearView 96-Well Chemotaxis plates (Essen BioScience) were used. A total of 2000 cells per well were embedded in 2 mg/ml BME and plated onto the chemotaxis plate following the manufacturer's instructions. Media containing 2% FBS was used in both top and bottom chambers to maintain cell viability over 72 hr or more. 200 ng/ml human EGF (Bio-Techne, 236-EG-01M) was used as the chemotactic agent in the bottom chamber, and the control wells only had the vehicle for the chemotactic agent.

This assay is more accurate when nuclear-labeled cells are used. Therefore, we generated BM1-mKate2 (nuclear red) cells using IncuCyte NucLight Red Lentivirus Reagent (Essen BioScience, 4478) following the manufacturer's instructions. After transduction, cells with the highest nuclear red signal intensity (top 25%) were sorted by FACS.

The chemotaxis module in IncuCyte can accurately count the number of cells in the top chamber and the bottom chamber of the ClearView plates separately. Invasive capability of the cells in the presence of various small molecule inhibitors (SB203580, SP600125, Trametinib, URMC-099, CX-4945, SW-538) was measured as the percentage of cells that moved to the bottom chamber over the period of 72 hr. The formula used for this calculation is (number of cells in the bottom chamber)/(number of cells in the bottom chamber +number of cells in the top chamber) x 100. The total number of cells in the top and bottom chambers is used as a readout of proliferation, which was important for determining drug combinations that blocked invasion without affecting growth properties of the cells.

Proliferation assays

Request a detailed protocol

For proliferation assays, 1000–20,000 cells (depending on the cell line) were plated in 96-well plates and quantified over 3 days in IncuCyte by measuring confluence in Phase-Contrast images taken every 4 hr. For experiments testing the effect of MAPK inhibitors on proliferation, the cells were plated in 100 µl per well and allowed to adhere overnight. Then, 100 μl growth media containing 2X drug was added directly on top of the initial media.

3D cultures

Request a detailed protocol

For 3D proliferation experiments, we used Cultrex 3D Basement Membrane Matrix, Reduced Growth Factor (Trevigen, 3445-005-01, Lot No 37353J16, Lot concentration: 15.51 mg/ml, referred to as BME). For all experiments, the cells in growth media (2% FBS) were mixed with BME at a final concentration of 2 mg/ml. For 3D proliferation assays, 100 μl of the cell/BME mixture was dispensed into each well of a 96-well plate. Upon solidification of BME, 100 μl of growth media was added on top of the solidified gel. For experiments where the cells were treated with inhibitors, the inhibitors were prepared in the growth media at 2X of their desired final concentration and added after the gel is solidified to assure 1X final concentration. The growth of the cells was monitored in IncuCyte Zoom or S3 models for the indicated duration of time.

RNA isolation and qRT-PCR

Request a detailed protocol

Cells were washed with cold PBS twice and lysed in TRI Reagent (Zymo Research, R2050-1-200). RNA was isolated using Direct-zol RNA MiniPrep (Zymo Research, R2052). 4 µg of total RNA from each sample was converted to cDNA using High-Capacity cDNA Reverse Transcription Kit (Applied Biosystems, 4368813). Primer pairs used for this study are listed below.

List of Human primers used in this study:

  • PEBP1 Forward: GCTCTACACCTTGGTCCTGACA

  • Reverse: AATCGGAGAGGACTGTGCCACT

  • BACH1 Forward: CACCGAAGGAGACAGTGAATCC

  • Reverse: GCTGTTCTGGAGTAAGCTTGTGC

  • NFATC2 Forward: GATAGTGGGCAACACCAAAGTCC

  • Reverse: TCTCGCCTTTCCGCAGCTCAAT

  • ROCK1 Forward: GAAACAGTGTTCCATGCTAGACG

  • Reverse: GCCGCTTATTTGATTCCTGCTCC

  • ROCK2 Forward: TGCGGTCACAACTCCAAGCCTT

  • Reverse: CGTACAGGCAATGAAAGCCATCC

  • ADAM10 Forward: GAGGAGTGTACGTGTGCCAGTT

  • Reverse: GACCACTGAAGTGCCTACTCCA

  • ADAM17 Forward: AACAGCGACTGCACGTTGAAGG

  • Reverse: CTGTGCAGTAGGACACGCCTTT

  • EPC1 Forward: CCAGACATGCAGTACCTCTACG

  • Reverse: GCTGTTTCTGCATGAGTGCCAG

  • PIKFYVE Forward: CTGAGTGATGCTGTGTGGTCAAC

  • Reverse: CAAGGACTGACACAGGCACTAG

  • DOCK4 Forward: GCATGTGGATGATTCCCTGCAG

  • Reverse: GGAGGTGATGTAACACGACAGG

  • DOCK5 Forward: GCTTCTGAGCAACATCCTGGAG

  • Reverse: TCCTTCTCAGCAGCCGTTCCAT

  • ARL13B Forward: GAACCAGTGGTCTGGCTGAGTT

  • Reverse: GTTTCAGGTGGCAGCCATCACT

  • DDR2 Forward: AACGAGAGTGCCACCAATGGCT

  • Reverse: ACTCACTGGCTTCAGAGCGGAA

  • ITGA1 Forward: CCGAAGAGGTACTTGTTGCAGC

  • Reverse: GGCTTCCGTGAATGCCTCCTTT

  • RAPGEF2 Forward: CTCGGATCAGTATCTTGCCACAG

  • Reverse: AGGTTCCACTGACAGGCAATGC

  • RAPGEF6 Forward: AGACAGATGAGGAGAAGTTCCAG

  • Reverse: GACCTCATAGGCACTGGAGACA

  • APC Forward: AGGCTGCATGAGAGCACTTGTG

  • Reverse: CACACTTCCAACTTCTCGCAACG

List of Mouse primers used in this study:

  • Pebp1 Forward: ACTCTACACCCTGGTCCTCACA

  • Reverse: TGAGAGGACAGTGCCACTGCTA

  • Bach1 Forward: CCATGACATCCGCAGAAGGAGT

  • Reverse: GCGTTGACAGAATGTGGTCTCG

  • Nfatc2 Forward: ACTTCACAGCGGAGTCCAAGGT

  • Reverse: GGATGTGCTTGTTCCGATACTCG

  • Rock1 Forward: CACGCCTAACTGACAAGCACCA

  • Reverse: CAGGTCAACATCTAGCATGGAAC

  • Rock2 Forward: GTGACCTCAAACAGTCTCAGCAG

  • Reverse: GACAACGCTTCTGAGTTTCCTGC

  • Adam10 Forward: TGCACCTGTGCCAGCTCTGATG

  • Reverse: GATAGTCCGACCACTGAACTGC

  • Adam17 Forward: TGTGAGCGGTGACCACGAGAAT

  • Reverse: TTCATCCACCCTGGAGTTGCCA

  • Epc1 Forward: CTGCCAGGCTTCAGTGCTAAAG

  • Reverse: ACTGACAGCCTGCTTTCCTACG

  • Pikfyve Forward: TCTTCTGCCCAGTCCAGCAATG

  • Reverse: ACAGAACATGCTCGGACACTGG

  • Dock4 Forward: GATAGGAGAGGTGGATGGCAAG

  • Reverse: CGCCTTGAGATGCAGATCGTAG

  • Dock5 Forward: GAGCCGACAGTCTCCTCACATT

  • Reverse: CTGCCTGGTTTTGAAGGTGCTG

  • Arl13b Forward:ACCAGTGGTCTGGCTGAGATTG Reverse: CATCACTGTCCTTCTCCACGGT

  • Ddr2 Forward: TCATCCTGTGGAGGCAGTTCTG

  • Reverse: CTGTTCACTTGGTGATGAGGAGC

  • Itga1 Forward: GGCAGTGGCAAGACCATAAGGA

  • Reverse: CATCTCTCCGTGGATAGACTGG

  • Rapgef2 Forward: GCCGAATGGCATCAGTCAACATG

  • Reverse: CAACATCCAGCACTGTGGCGTT

  • Rapgef6 Forward: ACAGAGTGAGCCAGGTGCTTCA

  • Reverse: CACTCACTTCCTCAGTTGGTCC

  • Apc Forward: GTGGACTGTGAGATGTATGGGC

  • Reverse: CACAAGTGCTCTCATGCAGCCT

Chromatin immunoprecipitation (ChIP)

Request a detailed protocol

BM1 cells were crosslinked with 1% formaldehyde for 10 min at 37°C and quenched with 125 mM glycine for 1 min. Cells were sheared in buffer including 0.1% SDS, 50 mM Tris-HCl (pH 7.6), I mM EDTA (pH8.0), 0.002% Triton X-100, supplemented with PMSF and protease inhibitor. Lysates were sonicated using Bioruptor in total four cycles (30 s on/30 s off each cycle). Sonicated chromatin was incubated with antibody (rabbit polyclonal anti-Bach1 (A1-6)) or normal rabbit serum conjugated with Dynabeads protein A/G for 150 mins at 4°C. Beads were washed twice for five mins each time with RIPA buffer (10 mM Tris-HCl pH7.6, 1 mM EDTA, 0.1% SDS, 0.1% NaDOC, 1% Triton X-100); RIPA buffer supplemented with 0.3M NaCl, LiCl buffer (0.21 M LiCl, 0.5% NP-40, 0.5% NaDOC) and TE buffer plus 0.2% Triton X-100. Next, beads were washed once with TE buffer for five mins. Beads were eluted in buffer including 0.003% SDS, 10 mM Tris-HCl (pH8.0) and 1 mM EDTA (pH 8.0), 0.1 mg/ml Proteinase K for 4 hr at 65°C. ChIP-DNA was purified by AMPure XP. To prepare for ChIP-seq, sonication step was optimized to 30 cycles and confirmed size chromatin fragments between 150 and 300 bp. ChIP-DNA samples were used to prepare DNA library and sequence as described (Sato et al., 2020). ChIP-DNA samples were used to prepare DNA library and sequence as described (Sato et al., 2020).

List of Human primers used for the ChIP assay quantitative RT-PCR:

  • HMOX1 (positive cont.) Forward: AGTCGCGATTTCCTCATCCC

  • Reverse: TTCCCTTTGTTTCCGCGAGT

  • ITGA1 Forward: GGTCTGAGTAACCCCACTTCC

  • Reverse: AGCACACCACAAAAGCCAAG

  • DOCK4 Forward: ATTGTTGTGAAGGCCAACCC

  • Reverse: AGAAGGAGTGCAGTCTGGTTT

  • RAPGEF2 Forward: GGGTGCTCCAATTGTATGTACTGAT

  • Reverse: TGATTCAGCTTTGGGGAGTGA

  • PIKFYVE Forward: CTGGACTCCTTCTGCCTGAG

  • Reverse: AAGACTCCGCCCTCTGTTTT

  • ROCK2 Forward: GCATAGGAAGCGAGTACCCAT

  • Reverse: GACTCCTTTAGGCCCCGTCA

  • RAPGEF6 Forward: CGCCACAGTTCATTCACACT

  • Reverse: GCGAAGGGTTGTTTGCTAGA

  • Negative cont. Forward: ATTTGCCTGGAGTGGAAGTG

  • Reverse: CTGTATCCAGGGGGATGATG

Mouse studies

Request a detailed protocol

Mice were procured and housed by the Animal Resources Center and handled according to the Institutional Animal Care and Use Committee at the University of Chicago. Athymic nude mice were purchased from Harlan Sprague Dawley and C57Bl/6 mice were purchased from the Jackson Laboratories.

For primary tumor growth experiments, 2 × 106 BM1 cells or 5 × 105 LMB cells were injected orthotopically near the mammary fat pad of athymic nude or C57Bl/6 mice, respectively. Tumor growth was monitored over time by caliper measurements of the width and length of tumors. Tumor volumes were calculated with the formula:

volume=π6×width2×length

The mice were sacrificed when the tumors reached approximately 1 cm3.

For metastasis assays, 1 × 105 luciferase-expressing BM1 cells (BM1-luc) were injected into the left ventricle of the heart to allow for systemic distribution of the bone-tropic tumor cells. 5 × 105 LMB cells were injected into the tail vein. Mice were monitored for 3–6 weeks (depending on the model) for tumor development. At the earliest sign of respiratory problems or paralysis of the limbs, the experiment was ended, and the mice were euthanized. Tumor burden was measured at the end of the study via Xenogen IVIS 200 Imaging System (PerkinElmer) for BM1-luc tumors. For LMB tumors, tumor burden was measured by counting overt surface metastases in the lungs after perfusion and formalin fixation, as well as counting tumors in cross-sections of the lungs after H and E staining (described below).

For the in vivo studies involving MAPK inhibitors and the four-drug MAPKi combination treatment, small molecule inhibitors were resuspended under sterile conditions. Since not all of the inhibitors were water-soluble, all inhibitors were initially resuspended in DMSO at the volumes that will result in less than 5% final DMSO concentration. p38 inhibitor SB203580 and MLK inhibitor URMC-099 were further diluted to the desired concentration with 50 %PEG-400 (Sigma, 91893)+50 %saline. JNK inhibitor SP600125 and MEK inhibitor Trametinib were diluted in corn oil (Sigma, C8267). For the four-drug combinatorial treatment, all inhibitors were dissolved in their own solvent at 4X higher concentration then the desired final concentration. Then, SB203580 and URMC-099 were mixed at a 1:1 ratio, reducing the concentration for each drug down to 2X. Similarly, SP600125 and Trametinib were mixed at a 1:1 ratio. These dual combination solutions were then filtered through 0.22 μm PES filter syringes to assure sterility. Each mouse received 50 µl of each dual combination on the same day, resulting in a total of 100 µl of drug mix (two injections per mouse) with each drug at their desired 1X final concentration. Final concentration for SB203580, URMC-099, SP600125, or Trametinib in the four-drug MAPKi combination was 10 mg/kg/day, 10 mg/kg/day, 10 mg/kg/day, or 0.5 mg/kg/day, respectively. All injections were intraperitoneal.

For the tumor growth experiments with the MAPK inhibitors, tumors were allowed to reach the size 50–100 mm3 size before the MAPKi treatment began. Then, the mice were treated with the respective MAPKi treatment (or the control) for up to 3 weeks. Tumor size was monitored twice a week with a caliper. For the metastasis assays, the tumor cells were treated with the four-drug MAPKi combination at the in vitro doses for 24 hr prior to injections to allow for anti-metastatic reprogramming of the cells. Homing to metastatic tissues upon intracardiac or tail vein injections can take up to 48 hr. To ensure that the reprogrammed tumor cells do not revert back to their untreated state in the circulation, we pre-treated the mice with the MAPKi combination 2–6 hr before tumor cell inoculation as well. After the inoculation, the mice were treated with the inhibitors daily for up to 3 weeks until the experimental endpoints discussed above were reached.

Histology

Request a detailed protocol

Tumor tissues were fixed in 10% formalin upon dissection for 72 hr and then transferred into 70% Ethanol for long-term storage. Mouse lungs were perfused with PBS before formalin fixation step to allow for tissue expansion and high-quality histological analysis. Fixed tissues were embedded in paraffin and sliced into 5 µm sections prior to hematoxylin and eosin (H and E) staining. All tissue processing and staining for this body of work was performed by the University of Chicago Human Tissue Resource Center. For the detection of tissue morphology as well as tumor populations within the lung, lung sections were deparaffinized, immersed in hematoxylin, rinsed in warm distilled water, and treated with eosin. Stained slides were scanned at 10X on a Nikon Eclipse Ti2 Inverted Microscope System.

MIB-MS analysis

Request a detailed protocol

Multiplexed inhibitor beads – mass spectrometry analysis on BM1-VC and BM1-RKIP tumors was conducted as previously described (Duncan et al., 2012). Tumors were grown in athymic nude mice as described previously. Once the tumors reached the size of ~300 mm3 they were isolated, flash-frozen in liquid nitrogen, and shipped to the Johnson Laboratories in Chapel Hill. Preparation of the lysate for the MIB-MS analysis, and the mass spectrometry were all performed as described by Duncan et al.

RNA-sequencing

Request a detailed protocol

To compare the transcriptomes of metastatic BM1-VC and non-metastatic BM1-RKIP tumors, 1 × 106 cells were injected orthotopically. When tumors reached approximately 200 mm3 size (about 3 weeks post inoculation), we harvested the tumors and flash-froze them in liquid nitrogen. Tumor samples were pulverized immediately, and lysed in TRI Reagent (Zymo Research, R2050-1-200). RNA was extracted using the Direct-zol RNA MiniPrep Kit (Zymo Research, R2052) following the manufacturer's instructions under RNAse-free conditions. In order to prevent contamination of the RNA samples by genomic DNA, the samples were treated with DNAse-I (Zymo Research, E1011-A) for 15 min at ambient temperature on the RNA extraction column. Total RNA was eluted in RNAse/DNAse-free water (Zymo Research, W1001-30) and submitted to the University of Chicago Genomics Facility for further analysis.

RNA quality assessment, library preparation, and sequencing of the tumor RNA samples were all performed by the Genomics Facility staff following the facility's standardized protocols. Quality of the samples were assessed using a Bioanalyzer, and the samples were determined to be of high quality with an average RNA integrity number (RIN) of 8.6. For the RNA-seq analysis, we had seven control tumors and five RKIP-overexpressing tumors, so we chose to generate an individual oligo dT selected, mRNA directional library for each tumor sample without any pooling scheme. All 12 samples were run on the same lane in HiSEQ4000 to generate 50 base-pair long single-end reads.

Bioinformatic analysis of the RNA-seq results were all carried out using the web-based bioinformatics platform Galaxy (usegalaxy.org). Raw ‘*.fastq’ files were uploaded to the Galaxy servers via a file transfer protocol (FTP) software. The reads were analyzed for GC content using ‘FastQC’ and trimmed to remove adaptor sequences using ‘Trim Galore!”. The reads were mapped to the human genome (hg19) using RNA STAR. In all samples, 70–75% of the reads were uniquely mapped. The resulting ‘*.bam’ files were used to count reads per gene with ‘featureCounts’. Finally, read counts were normalized and analyzed for differential expression between Control and RKIP-overexpressing samples using ‘DESeq2’. Principle component analysis on the normalized read counts demonstrated two distinct clusters of samples, separated by the RKIP status.

The raw and processed sequence data are deposited to Gene Expression Omnibus (GEO) with the series accession number GSE128983.

The Cancer Genome Atlas (TCGA) analysis

Request a detailed protocol

For the analysis of patient data, normalized RNA-seq results were accessed through the cBioportal data base (http://www.cbioportal.org/) (Gao et al., 2013). For every TCGA cancer type, the provisional data sets were used for analysis (tagged ‘TCGA, Provisional’ on cBioportal). Lists of genes that correlate with RKIP (PEBP1) and BACH1 were also downloaded directly from cBioportal, as the data base already has these correlation matrices generated for each TCGA cancer type. Oncotype and expression heatmap plots were directly generated by cBioportal. Prior to generation of these plots, z-score threshold of 0.5 was arbitrarily chosen to classify patients into high versus low expressors for a particular gene of interest. For example, if a patient's tumor sample has an RKIP expression level that has a z-score higher than 0.5, then the sample was deemed ‘RKIP-high’, and if the z-score was below −0.5, the sample was deemed ‘RKIP-low’. If the z-score falls within −0.5 and 0.5, then the sample was considered as ‘Intermediate’, or ‘Other’. Both Pearson and Spearman correlations were used in determining gene-gene correlations and a coefficient cut-off of 0.3 was chosen arbitrarily for both correlation metrics.

Gene set enrichment analyses

Request a detailed protocol

Functional gene set enrichment analysis of the differentially expressed genes in the RNA-seq data as well as the genes that correlate with RKIP (PEBP1) and BACH1 was performed using the web-based interface of the Metascape software (metascape.org) (Tripathi et al., 2015). For the identification of pathways and processes enriched in the input gene lists, both ‘Gene Ontology’ (GO) and ‘Kyoto Encyclopedia of Genes and Genomes’ (KEGG) categories were considered. A minimum overlap of five genes and an enrichment score of 1.5 were chosen as the enrichment parameters. An adjusted p-value cut-off of 0.05 was chosen as the significance threshold.

Network model

Model description

Request a detailed protocol

We propose a coarse-grained framework for devising a new cancer treatment strategy based on cellular reprogramming. The networks governing the cell dynamics involve a plethora of components interacting in a non-linear fashion, and its quantitative description would require, in principle, the construction of a large system of coupled differential equations. That approach is unfeasible because of a lack of detailed knowledge of the parameters and chemical reactions that they govern. Hence, an alternative approach was used to describe the signal flow within the network which drives the transcription of BACH1 by MAPKs under stress assuming a steady state regime.

We consider that a cancer cell has a multiplicity of hierarchically structured driver networks responsible for activation of the stress response genes that promote metastasis. The BACH1 driver network is a primary absorber of the stress signal that, when compromised, may generate a surplus of kinase signal(s) to activate secondary compensatory networks, enabling redundancy of stress processing and response. Our data indicate that the BACH1 driver network is fully operational in all cell lines and that the stress signal strength can induce saturation of the activity of all components of the network.

We model the driver network considering the stress signal as a steady state flow through the network pathways and the kinase nodes. The nodes of the network are labeled accordingly with the kinase that we posit they represent. The inflow of a node i indicates the arrival of the kinase signal(s) into it. The inflow interacts with the kinase node, and the outflow indicates the product of this interaction. Each node has an activity that regulates the inflow of kinase signal(s), and at each node the outflow of products is equal to the inflow of the signal.

The treatment targeting a specific node of the network will reduce its activity and, hence, its capacity for consuming the products (signal) from its upstream node. The surplus of products from the upstream nodes may be either redirected within the network or, in the case of saturation of the crosstalk links, be redirected to activate a secondary compensatory network. In the case of the surplus being greater than the threshold of activation of the compensatory network, an alternative system (driver network) will be turned on and the stress response will still be functional and capable of promoting metastasis.

Signal flow description

Request a detailed protocol

Figure 5A shows a phenomenological representation of the BACH1 transcription driver network N1 for the BM1 cell line. The nodes containing a kinase are labeled by an index i=2,,8 while node 1 indicates the splitting of the stress signal and node 9 denotes the induction of BACH1 transcription as generated by the inflow of upstream kinase signals. The inflow of the i -th node is denoted by Υi while its outflow is Ωi. Since we are considering a conservative network, we have Ωi=Υi, for i=1,,9. The flow capacity of arrow connecting node i to j is indicated by cij which is a fraction of Υi when the node has more than one outgoing pathway. Hence, a coefficient αi or Ai besides a pathway denotes the fraction of the inflow going through it such that α1+α2+A12=1, and αk+Ak=1 where k=3,,6. The absence of those coefficients indicate that the outflow equals the inflow. The intensity of the stress signal is denoted by Σ and the degree of activation of transcription of BACH1 caused by this signal is indicated by ϕBACH1. For the case of maximal stress signaling, we have ϕBACH1=Σ. The treatment generates a surplus of products of the functional network denoted by E such that the degree of activation of transcription of BACH1 under treatment is ϕBACH1=ΣE. The degree of activation of transcription of BACH1 can be rewritten as a fraction of maximal stress; ϕBACH1=1ϵ. For simplicity we only represent treatment targeting MEK and its effect on generating RAF surplus.

Let us write the formulae for the input flows in fractions of the stress signal Σ.

We have an input signal being split at node 1 such that Υ1=1 and, since node 1 has three outgoing pathways, we have Ω1=Υ1=α1+α2+A12=1 which implies on:Υ2=α1;Υ5=α2;Υ7=A12.

Node 2 has one outgoing pathway and generates an outflow Ω2=Υ2 that fully inflows node 3, hence Υ3=Ω2=Ω3. Node 5 has two outgoing pathways, hence Ω5=Υ5=α3Υ5+A3Υ5=α2α3+α2A3 and, similarly, node 7 outflow obeys Ω7=Υ7=A12α4+A12A4.

The inflow of node 8 is Υ8=A3Ω5+A4Ω7 such that Ω8=Υ8; the inflow of node 4 becomes Υ4=A5Ω8+Ω3 such that Ω4=Υ4; and the inflow of node 6 is Υ6=A6Ω4+α3Ω5+α4Ω7 such that Ω6=Υ6 ; Ω3, Ω5, and Ω7 are defined above.

The inflow arriving at node 9 is written as Υ9=α6Ω4+α5Ω8+Ω6 such that in the absence of treatment, ϕBACH1=Υ9=1 as it can be verified by direct substitution. Indeed, let us consider Ω8=A3Ω5+A4Ω7, Ω4=A5Ω8+Ω3, and Ω6=A6Ω4+α3Ω5+α4Ω7, such that Υ9 becomes Υ9=α6+A6Ω3+α6A5+A6A5A3+α5A3+α3Ω5+α6A5+A6A5A4+α5A4+α4Ω7. Since αk+Ak=1 for k=3,,6, we obtain Υ9=Ω3+Ω5+Ω7=Υ2+Υ3+Υ7=1.

The parameters governing the flow of information through the network were chosen based upon experimental results, such that the values of the parameters αk indicate the strength of absorption of the kinase from the upstream node by the current one. For N1, we have:

α1=0.2

and the complementary flow parameters are A12=1-α1-α2 and Ak=1-αk for k=3,,6.

For N2, we eliminate the crosstalk and the parameters become:

  • α3=1
  • so that A4=1 and A3=A5=A6=0.

BACH1 transcription after treatment

We test our approach by analyzing four treatment scenarios using (1) p38i, (2) MEKi, (3) JNKi, and (4) 4D-MAPKi. The reduction in target kinase activity caused by those drugs will be proportional to a function of the drug activity reduction denoted as ξp38, ξMEK, ξJNK, and ξ4D-MAPK=ξp38+ξMEK+ξJNK+ξMLK. That reduction will cause a surplus of kinase signals from the upstream nodes that is proportional to the reduction in the activity of the target node. Hence, the inflow of the target node will be given by 1-ξp38Υ8, 1-ξMEKΥ3, 1-ξJNKΥ6, and 1-ξp38Υ8+ξMEKΥ3+ξJNKΥ6+ξMLKΥ6, where Υi is the inflow to the target without treatment. The total surplus generated by each single drug treatment is ξp38Υ8, ξMEKΥ3, ξJNKΥ6, while for the 4D-MAPKi we assume additive effect as a first approximation which results in ξp38Υ8+ξMEKΥ3+ξJNKΥ6+ξMLKΥ6.

We will indicate the fraction of inhibition caused by a given treatment dose by x, since the drug dosage may vary with its specific function. For the drugs targeting nodes p38, MEK, and MLK, we can represent the reduction in BACH1 transcription effectively as a function of a dose x targeting the i-th node:

ϕBACH1x=11+Kix,

where Ki is a constant set according to the effect of treatment on reducing BACH1 transcription. The latter is assumed to be equal to the inflow Υ9. Then, BACH1 relative transcription after reduction of the activity of node i by a fraction ξiΥi can be written as:

ϕBACH1x=1-ξiΥi,

where i denotes the node or its corresponding kinase. Hence, we can write the function for the reduction of the node activity as a consequence of drug action as:

ξix=Δix1+Kix,

where Δi=Ki/Υi, and Υi is the inflow at node i without treatment.

Treatment with p38i

Request a detailed protocol

BACH1 transcription after this treatment can be approximated for K1=2, such that:

ϕBACH1p38ix=11+K1x.

Treatment with MEKi

Request a detailed protocol

BACH1 transcription after this treatment can be approximated for K2=0.4, such that:

ϕBACH1MEKix=11+K2x.

Treatment with MLKi

Request a detailed protocol

BACH1 transcription after this treatment can be approximated for K4=0.1, such that:

ϕBACH1MEKix=11+K4x.

Treatment with JNKi

Request a detailed protocol

The output of BACH1 after this treatment is obtained using a different model because JNK is repressing node 4 and has a compensatory crosstalk with node 8. Hence the activity of those nodes will increase because of reduction of activity of node 6. Let us describe the reduction of the activity of node 4 as

Υ4'=Υ41+41+γ1Υ7411+γ2Υ6'4,

where the primed symbols indicate the inflows under treatment. Since node 4 is also repressed by node 7, and the network is operating under maximal stress, we assume that node 7 represses node 4 maximally such that node 4 activity remains almost constant even under reduction of the activity of node 6. This is based on assuming that the capacity of the pathways connecting nodes 3 and 8 to node 4 will not be affected by a reduction in activity of node 6, and, hence:Υ4'=Υ4=c34+c84=Ω3+A5Ω8.

However, the activity of node 8 will be affected by treatment inactivation of JNK redirecting the flow from nodes 5 and 7. Let us assume that the inflow of node 8 coming from nodes 5 and 7 is, respectively, determined by the activity of node 6 accordingly with

A3=11+γ3Υ6x4,andA4=11+γ4Υ6x4,

where γ3 and γ4 are two arbitrary constants and the activity of node 6 can be written as a function of the drug dosage x targeting it. The treatment targeting node 6 reduces its activity and induces a compensatory flow to pass through node 8 which is assumed to be capable of absorbing only two thirds of the surplus of kinase signals coming from nodes 5 and 7. Therefore, the other one-third of surplus will be redirected toward two compensatory networks, each of them receiving the surplus of one of the kinase signals. Then, the surplus is the difference between the absorption by node 8 without and with treatment, and BACH1 transcription becomes

ϕBACH1=1+1311+γ3Υ6x4+11+γ4Υ6x4-11+γ3Υ604-11+γ4Υ604,

where the factor 13 occurs because we are assuming that node 8 absorbs only two-thirds of the surplus generated by treatment. The inactivation of node 6 by treatment can be described by a function

Υ6x=Υ601+K3x,

where K3=0.475628 is an arbitrary constant. We also set the values of the constants γ3=1.520908 and γ4=1.435780 arbitrarily. Our choice enables us to estimate the node activity under treatment as a fraction of its activity without treatment and to obtain a qualitative description of experimental data based on the reduction of BACH1 transcription following treatment. The analysis of BACH1 transcription after treatment is shown in for N1 and N2, respectively.

Surplus analysis

The surplus for each treatment scenario can be evaluated using the output functions after treatment considering that the reduction of activity of a given kinase generates a surplus that comprises the non-absorbed quantities of kinase signal produced at the upstream nodes.

Surplus of treatment with MEKi

Request a detailed protocol

The total surplus of RAF generated by this treatment can be computed from the transcription of BACH1. The surplus of RAF as function of the treatment is denoted by ϵRAFx, such that ϵRAFx=ξMEKxΥ3. Since ξMEKx=Δ2x1+K2x, and Δ2=K2Υ3=K2α1, the surplus of RAF is:

ϵRAFx=K2x1+K2x.

The RAF surplus from MEKi is depicted in Graph 6B, and the function describing it is the same for the 4D-MAPKi treatment. The validity of the formula for both treatment scenarios is because we are assuming that the nodes of the network are operating at their maximal capacity and the surplus is not redirected within the network unless there is a repressive interaction.

Surplus of treatment with MLKi

Request a detailed protocol

This treatment generates a surplus of stress signal which we assume not being redirected within the driver network. Therefore, this signal will be redirected to a compensatory network and its amount is denoted by ϵSIGx, such that ϵSIGx=ξMLKxΥ5. Since ξMLKx=Δ4x1+K4x, and Δ4=K4Υ5=K4α2, the surplus of stress signal is given by:

ϵSIGx=K4x1+K4x.

The signal surplus is shown in Graph 6C for the 4D-MAPKi treatment.

Surplus of treatment with JNKi and p38i

Request a detailed protocol

We compute the surplus generated at nodes 5 and 7 by treatments with JNKi and p38i based on the total surplus that they generate.

Total surplus of treatment with JNKi

Request a detailed protocol

The surplus generated by this treatment is given by one third of the difference between the flow toward node 8 without and with treatment as previously considered when evaluating BACH1 transcription under this treatment. We denote the surplus generated by treatment targeting node 6 as ϵ6x which becomes

ϵ6=1311+γ3Υ6x4+11+γ4Υ6x4-11+γ3Υ604-11+γ4Υ604.

Note, however, that the outflow from node 5 is also affected by treatment by means of its inactivation by drug MLKi. Hence, we have α2α2/1+K4x and the inflow of node 6 becomes

Υ6x=11+K3xα21+K4xα3+A12α4+α1+α21+K4xA3+A12A4A5A6,

where we are rebalancing the inflow of node 6 without treatment, indicated within curly brackets, by its inactivation because of treatment, which is denoted by the term outside the curly brackets. The term within the curly brackets also has the node 5 outflow reduction because of treatment.

Total surplus with treatment with p38i

Request a detailed protocol

The surplus generated by this treatment is given by the sum of the inflow toward node 8 without treatment plus the redirected flow from node 6 balanced by the reduction of activity of nodes 5 and 8 because of treatment. We can denote the surplus generated by treatment targeting node 8 by ϵ8x such that

ϵ8x=K1x1+K1x,

where this surplus is the result of the combination of the surplus signals generated by treatment targeting node 6 and node 8 itself.

The surplus from node 5 can be computed from the sum of the fraction of surplus generated by treatment targeting nodes 6 and 8 where those fractions are proportional to the absorption capacity of each pathway coming from node 5 to nodes 6 or 8. We denote the surplus of node 5 by ϵMLK such that:

ϵMLK=ϵ6xΓ3x+α4ϵ8x, where,

Γ3x=11+γ3Υ6x4.

We proceed analogously to compute the surplus of node 7, denoted by ϵTAOK, and obtain:

ϵTAOK=ϵ6x1-Γ3x+A4ϵ8x.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional
information
cell line (Homo sapien)BM1 (triple negative breast cancer)Kang et al., 2003RRID:CVCL_DP48Derived from MDA-MB-231 cell line
cell line (Homo sapien)MB436 (triple negative breast cancer)ATCCATCC Cat# HTB-130, RRID:CVCL_0623
cell line (Homo sapien)MCF10A; 184A1 (normal mammary epithelial)ATCCATCC Cat# CRL-10317, RRID:CVCL_0598; ATCC Cat# CRL-8798, RRID:CVCL_3040
cell line (Homo sapien)293T (embryonic kidney)ATCCATCC Cat# CRL-3216, RRID:CVCL_0063
cell line (M. musculus)LMB (mouse triple negative breast cancer)Johnstone et al., 2015
cell line (M. musculus)M6C (mouse triple negative breast cancer)Holzer et al., 2003RRID:CVCL_A4AV
chemical compound, drugSP600125APExBIOA4604JNK inhibitor
chemical compound, drugTrametinib (GSK1120212)APExBIOA3018MEK inhibitor
chemical compound, drugURMC-099APExBIOB4877MLK inhibitor
chemical compound, drugSB203580; SB203580-HClSelleckchem; APExBIOS1076; B1285p38 inhibitor; water soluble p38 inhibitor
chemical compound, drugCX-4945 (Silmitasertib)APExBIOA833010CK2 inhibitor
chemical compound, drugSW-538 (SW034538)Piala et al., 2016TAOK inhibitor
chemical compound, druganisomycinSigma-AldrichA9789
otherOdyssey Blocking BufferLI-COR Biosciences927–40010diluted 1:1 with PBS
software, algorithmImage Studio LiteLI-COR BiosciencesRRID:SCR_013715
otherPierce ECL Western Blotting SubstrateThermo Scientific32106
antibodyAnti-Phospho-TAOK3 (Ser177) + Phospho TAOK2 (Ser181) + Phospho-TAOK1 (Ser181) (Rabbit monoclonal)AbcamAbcam Cat# ab124841, RRID:AB_10974224WB (1:1000)
antibodyAnti-Phopsho-p44/42 MAPK(ERK1/2)
(Thr202/Tyr204) (Rabbit polyclonal)
Cell SignalingCell Signaling Technology Cat# 9101, RRID:AB_331646WB (1:2000)
antibodyAnti-Phospho-SAPK/JNK (Thr183/Tyr185) (Rabbit polyclonal)Cell SignalingCell Signaling Technology Cat# 9251, RRID:AB_331659WB (1:1000)
antibodyAnti-Phospho-p38 MAPK (Thr180/Tyr182) (Rabbit monoclonal)Cell SignalingCell Signaling Technology Cat# 4511, RRID:AB_2139682WB (1:1000)
antibodyAnti-Phospho-AKT1 (S473) (Rabbit monoclonal)Cell SignalingCell Signaling Technology Cat# 4060, RRID:AB_2315049WB (1:1000)
antibodyAnti-alpha-Tubulin (mouse monoclonal, IgM)Santa CruzSanta Cruz Biotechnology Cat# sc-8035, RRID:AB_628408WB (1:1000-1:8000)
antibodyAnti-alpha-Tubulin (mouse monoclonal, IgM)InvitrogenThermo Fisher Scientific Cat# MA1-19401, RRID:AB_2210198WB (1:4000)
antibodyAnti-GAPDHSanta CruzSanta Cruz Biotechnology Cat# sc-32233, RRID:AB_627679WB (1:4000)
antibodyAnti-BACH1Santa CruzSanta Cruz Biotechnology Cat# sc-271211, RRID:AB_10608972WB (1:1000)
transfected construct (human)si-TAOK1 (Individual siGENOME human TAOK1 siRNA)DharmaconD-004846-02-0005
transfected construct (human)si-TAOK2 (Individual siGENOME human TAOK2 siRNA)DharmaconD-004171-13-0005
transfected construct (human)si-TAOK3
(Individual siGENOME human TAOK3 siRNA)
DharmaconD-004844-02-0005
sequence-based reagentsi-NT (siGENOME Non-Targeting siRNA Pool #1)DharmaconD-001206-13-05
recombinant DNA reagentpCDH-EF1 (plasmid)AddgeneRRID:Addgene_72266Lentiviral empty vector control
recombinant DNA reagentpCDH-EF1-RKIP (plasmid)Dangi-Garimella et al., 2009Lentiviral vector overexpressing RKIP
otherCalcein AMFisher Scientific354217Live cell marker
otherIncuCyte ClearView 96-Well Chemotaxis platesEssen Biosciences4582High-throughput invasion assay platform
recombinant DNA reagentIncuCyte NucLight Red Lentivirus ReagentEssen Biosciences4478Lentiviral vectror containing mKate2 nuclear dye
otherBME
(3-D Culture Matrix Reduced Growth Factor Basement Membrane Extract, PathClear)
Trevigen3445-005-01Lot No 37353J16, lot concentration: 15.51 mg/ml
peptide, recombinant proteinEGF (human)Bio-Techne236-EG-01M
software, algorithmChemotaxis module for IncuCyte Zoom or S3Essen BiosciencesEssen Incucyte Incucyte, RRID:SCR_019874; IncuCyte Chemotaxis Software, RRID:SCR_017316Special software module to analyse high-throughput invasion assays
sequence-based reagentHs_PEBP1 forward (Homo sapiens)This paperqRT-PCR primersGCTCTACACCTTGGTCCTGACA
sequence-based reagentHs_PEBP1 reverse (Homo sapiens)This paperqRT-PCR primersAATCGGAGAGGACTGTGCCACT
sequence-based reagentHs_BACH1 forward (Homo sapiens)This paperqRT-PCR primersCACCGAAGGAGACAGTGAATCC
sequence-based reagentHs_BACH1 reverse (Homo sapiens)This paperqRT-PCR primersGCTGTTCTGGAGTAAGCTTGTGC
sequence-based reagentHs_NFATC2 forward (Homo sapiens)This paperqRT-PCR primersGATAGTGGGCAACACCAAAGTCC
sequence-based reagentHs_NFATC2 reverse (Homo sapiens)This paperqRT-PCR primersTCTCGCCTTTCCGCAGCTCAAT
sequence-based reagentHs_ROCK1 forward (Homo sapiens)This paperqRT-PCR primersGAAACAGTGTTCCATGCTAGACG
sequence-based reagentHs_ROCK1 reverse (Homo sapiens)This paperqRT-PCR primersGCCGCTTATTTGATTCCTGCTCC
sequence-based reagentHs_ROCK2 forward (Homo sapiens)This paperqRT-PCR primersTGCGGTCACAACTCCAAGCCTT
sequence-based reagentHs_ROCK2 reverse (Homo sapiens)This paperqRT-PCR primersCGTACAGGCAATGAAAGCCATCC
sequence-based reagentHs_ADAM10 forward (Homo sapiens)This paperqRT-PCR primersGAGGAGTGTACGTGTGCCAGTT
sequence-based reagentHs_ADAM10 reverse (Homo sapiens)This paperqRT-PCR primersGACCACTGAAGTGCCTACTCCA
sequence-based reagentHs_ADAM17forward (Homo sapiens)This paperqRT-PCR primersAACAGCGACTGCACGTTGAAGG
sequence-based reagentHs_ADAM17 reverse (Homo sapiens)This paperqRT-PCR primersCTGTGCAGTAGGACACGCCTTT
sequence-based reagentHs_EPC1 forward (Homo sapiens)This paperqRT-PCR primersCCAGACATGCAGTACCTCTACG
sequence-based reagentHs_EPC1 reverse (Homo sapiens)This paperqRT-PCR primersGCTGTTTCTGCATGAGTGCCAG
sequence-based reagentHs_PIKFYVE forward (Homo sapiens)This paperqRT-PCR primersCTGAGTGATGCTGTGTGGTCAAC
sequence-based reagentHs_PIKFYVE reverse (Homo sapiens)This paperqRT-PCR primersCAAGGACTGACACAGGCACTAG
sequence-based reagentHs_DOCK4 forward (Homo sapiens)This paperqRT-PCR primersGCATGTGGATGATTCCCTGCAG
sequence-based reagentHs_DOCK4 reverse (Homo sapiens)This paperqRT-PCR primersGGAGGTGATGTAACACGACAGG
sequence-based reagentHs_DOCK5 forward (Homo sapiens)This paperqRT-PCR primersGCTTCTGAGCAACATCCTGGAG
sequence-based reagentHs_DOCK5 reverse (Homo sapiens)This paperqRT-PCR primersTCCTTCTCAGCAGCCGTTCCAT
sequence-based reagentHs_ARL13B forward (Homo sapiens)This paperqRT-PCR primersGAACCAGTGGTCTGGCTGAGTT
sequence-based reagentHs_ARL13B reverse (Homo sapiens)This paperqRT-PCR primersGTTTCAGGTGGCAGCCATCACT
sequence-based reagentHs_DDR2 forward (Homo sapiens)This paperqRT-PCR primersAACGAGAGTGCCACCAATGGCT
sequence-based reagentHs_DDR2 reverse (Homo sapiens)This paperqRT-PCR primersACTCACTGGCTTCAGAGCGGAA
sequence-based reagentHs_ITGA1 forward (Homo sapiens)This paperqRT-PCR primersCCGAAGAGGTACTTGTTGCAGC
sequence-based reagentHs_ITGA1 reverse (Homo sapiens)This paperqRT-PCR primersGGCTTCCGTGAATGCCTCCTTT
sequence-based reagentHs_RAPGEF2 forward (Homo sapiens)This paperqRT-PCR primersCTCGGATCAGTATCTTGCCACAG
sequence-based reagentHs_RAPGEF2 reverse (Homo sapiens)This paperqRT-PCR primersAGGTTCCACTGACAGGCAATGC
sequence-based reagentHs_RAPGEF6 forward (Homo sapiens)This paperqRT-PCR primersAGACAGATGAGGAGAAGTTCCAG
sequence-based reagentHs_RAPGEF6 reverse (Homo sapiens)This paperqRT-PCR primersGACCTCATAGGCACTGGAGACA
sequence-based reagentHs_APC forward (Homo sapiens)This paperqRT-PCR primersAGGCTGCATGAGAGCACTTGTG
sequence-based reagentHs_APC reverse (Homo sapiens)This paperqRT-PCR primersCACACTTCCAACTTCTCGCAACG
sequence-based reagentMm_PEBP1 forward (Mus musculus)This paperqRT-PCR primersACTCTACACCCTGGTCCTCACA
sequence-based reagentMm_PEBP1 reverse (Mus musculus)This paperqRT-PCR primersTGAGAGGACAGTGCCACTGCTA
sequence-based reagentMm_BACH1 forward (Mus musculus)This paperqRT-PCR primersCCATGACATCCGCAGAAGGAGT
sequence-based reagentMm_BACH1 reverse (Mus musculus)This paperqRT-PCR primersGCGTTGACAGAATGTGGTCTCG
sequence-based reagentMm_NFATC2 forward (Mus musculus)This paperqRT-PCR primersACTTCACAGCGGAGTCCAAGGT
sequence-based reagentMm_NFATC2 reverse (Mus musculus)This paperqRT-PCR primersGGATGTGCTTGTTCCGATACTCG
sequence-based reagentMm_ROCK1 forward (Mus musculus)This paperqRT-PCR primersCACGCCTAACTGACAAGCACCA
sequence-based reagentMm_ROCK1 reverse (Mus musculus)This paperqRT-PCR primersCAGGTCAACATCTAGCATGGAAC
sequence-based reagentMm_ROCK2 forward (Mus musculus)This paperqRT-PCR primersGTGACCTCAAACAGTCTCAGCAG
sequence-based reagentMm_ROCK2 reverse (Mus musculus)This paperqRT-PCR primersGACAACGCTTCTGAGTTTCCTGC
sequence-based reagentMm_ADAM10 forward (Mus musculus)This paperqRT-PCR primersTGCACCTGTGCCAGCTCTGATG
sequence-based reagentMm_ADAM10 reverse (Mus musculus)This paperqRT-PCR primersGATAGTCCGACCACTGAACTGC
sequence-based reagentMm_ADAM17 forward (Mus musculus)This paperqRT-PCR primersTGTGAGCGGTGACCACGAGAAT
sequence-based reagentMm_ADAM17 reverse (Mus musculus)This paperqRT-PCR primersTTCATCCACCCTGGAGTTGCCA
sequence-based reagentMm_EPC1 forward (Mus musculus)This paperqRT-PCR primersCTGCCAGGCTTCAGTGCTAAAG
sequence-based reagentMm_EPC1 reverse (Mus musculus)This paperqRT-PCR primersACTGACAGCCTGCTTTCCTACG
sequence-based reagentMm_PIKFYVE forward (Mus musculus)This paperqRT-PCR primersTCTTCTGCCCAGTCCAGCAATG
sequence-based reagentMm_PIKFYVE reverse (Mus musculus)This paperqRT-PCR primersACAGAACATGCTCGGACACTGG
sequence-based reagentMm_DOCK4 forward (Mus musculus)This paperqRT-PCR primersGATAGGAGAGGTGGATGGCAAG
sequence-based reagentMm_DOCK4 reverse (Mus musculus)This paperqRT-PCR primersCGCCTTGAGATGCAGATCGTAG
sequence-based reagentMm_DOCK5 forward (Mus musculus)This paperqRT-PCR primersGAGCCGACAGTCTCCTCACATT
sequence-based reagentMm_DOCK5 reverse (Mus musculus)This paperqRT-PCR primersCTGCCTGGTTTTGAAGGTGCTG
sequence-based reagentMm_ARL13B forward (Mus musculus)This paperqRT-PCR primersACCAGTGGTCTGGCTGAGATTG
sequence-based reagentMm_ARL13B reverse (Mus musculus)This paperqRT-PCR primersCATCACTGTCCTTCTCCACGGT
sequence-based reagentMm_DDR2 forward (Mus musculus)This paperqRT-PCR primersTCATCCTGTGGAGGCAGTTCTG
sequence-based reagentMm_DDR2 reverse (Mus musculus)This paperqRT-PCR primersCTGTTCACTTGGTGATGAGGAGC
sequence-based reagentMm_ITGA1 forward (Mus musculus)This paperqRT-PCR primersGGCAGTGGCAAGACCATAAGGA
sequence-based reagentMm_ITGA1 reverse (Mus musculus)This paperqRT-PCR primersCATCTCTCCGTGGATAGACTGG
sequence-based reagentMm_RAPGEF2 forward (Mus musculus)This paperqRT-PCR primersGCCGAATGGCATCAGTCAACATG
sequence-based reagentMm_RAPGEF2 reverse (Mus musculus)This paperqRT-PCR primersCAACATCCAGCACTGTGGCGTT
sequence-based reagentMm_RAPGEF6 forward (Mus musculus)This paperqRT-PCR primersACAGAGTGAGCCAGGTGCTTCA
sequence-based reagentMm_RAPGEF6 reverse (Mus musculus)This paperqRT-PCR primersCACTCACTTCCTCAGTTGGTCC
sequence-based reagentMm_APC forward (Mus musculus)This paperqRT-PCR primersGTGGACTGTGAGATGTATGGGC
sequence-based reagentMm_APC reverse (Mus musculus)This paperqRT-PCR primersCACAAGTGCTCTCATGCAGCCT
sequence-based reagentHs_HMOX1 forward (Homo sapiens)This paperqRT-PCR primers (ChIP)AGTCGCGATTTCCTCATCCC
sequence-based reagentHs_HMOX1 reverse (Homo sapiens)This paperqRT-PCR primers (ChIP)TTCCCTTTGTTTCCGCGAGT
sequence-based reagentHs_ITGA1 forward (Homo sapiens)This paperqRT-PCR primers (ChIP)GGTCTGAGTAACCCCACTTCC
sequence-based reagentHs_ITGA1 reverse (Homo sapiens)This paperqRT-PCR primers (ChIP)AGCACACCACAAAAGCCAAG
sequence-based reagentHs_DOCK4 forward (Homo sapiens)This paperqRT-PCR primers (ChIP)ATTGTTGTGAAGGCCAACCC
sequence-based reagentHs_DOCK4 reverse (Homo sapiens)This paperqRT-PCR primers (ChIP)AGAAGGAGTGCAGTCTGGTTT
sequence-based reagentHs_RAPGEF2 forward (Homo sapiens)This paperqRT-PCR primers (ChIP)GGGTGCTCCAATTGTATGTACTGAT
sequence-based reagentHs_RAPGEF2 reverse (Homo sapiens)This paperqRT-PCR primers (ChIP)TGATTCAGCTTTGGGGAGTGA
sequence-based reagentHs_PIKFYVE forward (Homo sapiens)This paperqRT-PCR primers (ChIP)CTGGACTCCTTCTGCCTGAG
sequence-based reagentHs_PIKFYVE reverse (Homo sapiens)This paperqRT-PCR primers (ChIP)AAGACTCCGCCCTCTGTTTT
sequence-based reagentHs_ROCK2 forward (Homo sapiens)This paperqRT-PCR primers (ChIP)GCATAGGAAGCGAGTACCCAT
sequence-based reagentHs_ROCK2 reverse (Homo sapiens)This paperqRT-PCR primers (ChIP)GACTCCTTTAGGCCCCGTCA
sequence-based reagentHs_RAPGEF6 forward (Homo sapiens)This paperqRT-PCR primers (ChIP)CGCCACAGTTCATTCACACT
sequence-based reagentHs_RAPGEF6 reverse (Homo sapiens)This paperqRT-PCR primers (ChIP)GCGAAGGGTTGTTTGCTAGA
sequence-based reagentRandom genomic region, forward (Homo sapiens)This paperqRT-PCR primers (ChIP)ATTTGCCTGGAGTGGAAGTG
sequence-based reagentRandom genomic region, reverse (Homo sapiens)This paperqRT-PCR primers (ChIP)CTGTATCCAGGGGGATGATG

Data availability

RNA sequencing data have been deposited in GEO under the accession code GSE128983.

The following data sets were generated
    1. Yesilkanal AE
    2. Rosner M
    (2019) NCBI Gene Expression Omnibus
    ID GSE128983. Gene expression data from BM1 (1833) tumors that are wild type or overexpressing RKIP in a xenograft mouse model.
The following previously published data sets were used

References

  1. Book
    1. Gelman A
    2. Carlin JB
    3. Stern HS
    (2013)
    Baysian Data Analysis
    Chapman and Hall/CRC.
    1. Kacser H
    2. Burns JA
    (1995) The control of flux
    Biochemical Society Transactions 23:341–366.
    https://doi.org/10.1042/bst0230341

Decision letter

  1. Maureen E Murphy
    Senior and Reviewing Editor; The Wistar Institute, United States
  2. Rebecca Riggins
    Reviewer; Georgetown, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The manuscript by Rosner and colleagues describes an interesting approach to therapy for metastasis, which is the predominant cause of death in most solid tumors. This group proposes and tests the intriguing concept that combined, low dose inhibition of multiple kinase signaling networks simultaneously is a more effective strategy overall to inhibit metastasis in models of breast cancer. This work models and establishes a pharmacological means to phenocopy the actions of RKIP, a metastasis suppressor that targets multiple stress kinase signaling networks. Overall, this is a new and interesting idea that has promise and merit. It runs counter to current combination therapy ideas and therefore has promise to be quite impactful.

Decision letter after peer review:

Thank you for submitting your article "Limited inhibition of multiple nodes in a driver network blocks metastasis" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Maureen Murphy as the Senior and Reviewing Editor. The following individual involved in review of your submission has agreed to reveal their identity: Rebecca Riggins (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

The manuscript by Rosner and colleagues describes an interesting approach to therapy for metastasis, which is the predominant cause of death in most solid tumors. This group proposes and tests the intriguing concept that combined, low dose inhibition of multiple kinase signaling networks simultaneously is a more effective strategy overall to inhibit metastasis in models of breast cancer. This work models and establishes a pharmacological means to phenocopy the actions of RKIP, a metastasis suppressor that targets multiple stress kinase signaling networks. Overall, this is a new and interesting idea that has promise and merit. It runs counter to current combination therapy ideas and should be evaluated more broadly. There is potential for this interesting contribution to be quite impactful, provided that major concerns are addressed.

Essential revisions:

1. A key issue brought up by all three reviewers is with the number and types of replicates of the experiments. In particular, many of the experiments appear to be performed with technical replicates, e.g., measuring the same sample three times, rather than biological replicates e.g. with different cells on different days. Technical replicates are not representative of biological variation, so this is not acceptable practice. A few examples:

a. Figure 2F. Representative of 2 independent experiments? A third replicate needs to be performed, and quantitative data for all three, with error bars, should be shown.

b. Figure 2G. No error bars – apparently each experiment was performed once. This is not considered acceptable.

c. Figure 3D: Data represents 3 technical replicates? These need to be biological replicates, and preferably performed on different days, and on different plates.

d. Figure 5 E-G. "n=3 technical replicates". Running the same sample 3 times is not acceptable. Biological replicates (wherein different batches of cells are treated and then measured independently) are required.

e. Figure 5 H-J: 'bar graphs are representative of 2 independent experiments' – again, this is not acceptable.

f. Supp. 5F – Technical replicates are not sufficient. Biological replicates (at least n=3) need to be performed. Also why are different concentrations shown for different lines? Were other concentrations tested? If so, this data should be shown.

Additional details in the main and supplementary figure legends would be helpful to readers. These include consistent reporting of the number of biological and technical replicates for every figure.

2. A second major issue is more conceptual. While experimentally this is a very comprehensive and elegant study, "prevention" or "blocking" of metastasis has key fundamental downfalls as a therapeutic strategy. Metastatic sites are very often already seeded by the time the primary breast tumor is diagnosed (e.g. PubMed IDs 27931250 and 28810143). Recent modeling suggests that this can occur as much as four (4) years prior to detection of the primary lesion (PubMed IDs 31209394 and 32424352). A 4-drug regimen selected for its capacity to block invasion, but not impair proliferation, is therefore unlikely to be a viable strategy in this context. As a proof-of-concept for how multi-kinase inhibition can be achieved without compensatory activation of parallel networks, this study is outstanding. As a roadmap for how to meaningfully address metastatic disease as it presents clinically, this study is limited. Because the authors take such a strong stance on the promise of their approach, I would like to see a more thorough and thoughtful discussion of this major limitation in a revised manuscript.

3. A notable achievement of this study is identification of a 4-drug regimen that inhibits stress MAPK signaling without driving a compensatory increase in PI3K activation, as measured by Akt phosphorylation in in vitro studies (Figure 6D, Supplementary Figure 7D). Does this also translate to the in vivo setting, i.e. in the lung metastases shown in Figure 4E or the primary tumors shown in Figure 4I, are pAkt levels unchanged or even moderately reduced? Inclusion of these data would markedly strengthen one of the key conclusions of the work.

4. Lines 187-207. The goal of these experiments appears to be to show that the 4D combination affects metastasis. Yet at both of the concentrations tested there is a significant impact on tumor proliferation, thus confounding the analysis of metastatic burden. By only using 2 concentrations, both of which have a strong effect on proliferation, the authors have failed to show that this is a 'metastasis effect' versus a tumor cell survival and proliferation effect.

5. There is some in vivo data for single agent MEK inhibitors, but it seems it was not reported how such single agent treatments inhibit metastasis compared to the 4D regimen. This would be important to establish the increased efficacy of the 4D treatment compared to single agents-the central premise of the paper.

https://doi.org/10.7554/eLife.59696.sa1

Author response

Essential revisions:

1. A key issue brought up by all three reviewers is with the number and types of replicates of the experiments. In particular, many of the experiments appear to be performed with technical replicates, e.g., measuring the same sample three times, rather than biological replicates e.g. with different cells on different days. Technical replicates are not representative of biological variation, so this is not acceptable practice. A few examples:

a. Figure 2F. Representative of 2 independent experiments? A third replicate needs to be performed, and quantitative data for all three, with error bars, should be shown.

b. Figure 2G. No error bars – apparently each experiment was performed once. This is not considered acceptable.

c. Figure 3D: Data represents 3 technical replicates? These need to be biological replicates, and preferably performed on different days, and on different plates.

d. Figure 5 E-G. "n=3 technical replicates". Running the same sample 3 times is not acceptable. Biological replicates (wherein different batches of cells are treated and then measured independently) are required.

e. Figure 5 H-J: 'bar graphs are representative of 2 independent experiments' – again, this is not acceptable.

f. Supp. 5F – Technical replicates are not sufficient. Biological replicates (at least n=3) need to be performed. Also why are different concentrations shown for different lines? Were other concentrations tested? If so, this data should be shown.

Additional details in the main and supplementary figure legends would be helpful to readers. These include consistent reporting of the number of biological and technical replicates for every figure.

We have now ensured that all figures included in the manuscript represent at least 3 biological replicates. Thus, we have repeated all key experiments in the entire paper to make sure there are at least 3 independent replicates in at least two different cell lines. This information is now in the figure legends, and graphs are plotted to include the results of at least 3 independent experiments with appropriate statistics.

Specific figures that have been updated and other changes in manuscript figures are as follows:

1. We updated the ChIP data in Figure 1E with more targets and added ChIP-seq data supporting our findings in the revised Figure 1—figure supplement 2C.

2. We removed Figure 2F and Supplementary Figure 3A from the original manuscript, an in vitro validation of the mass spectrometry tumor analysis, since this technique has been extensively validated 1-4, in vitro kinase activities with RKIP are not as robust as in tumors, and an in vitro analysis of RKIP effects on multiple kinases was just an additional control that is not relevant to the multi-drug focus of the paper.

3. We limited the content of the original Figure 2G to the specific responses to the MAPK inhibitors that differ between the three TNBC cell lines and moved this figure to Figure 5—figure supplement 1A-D.

4. We added individual data points and error bars to the graph in Figure 3B as requested by the reviewers.

5. We repeated the invasion and proliferation assays originally in Figure 3D,E to represent three independent experiments in each cell line. We also moved the data from additional cell lines from the Supplementary to the main figure (now Figure 3D-F)

6. We updated the network topology used in mathematical modeling in Figure 5A-D and Figure 6A-C with interactions that we validated experimentally in at least three independent experiments. We removed only one interaction (node 6 JNK – node 8 p38) from the network and re-performed the modeling analysis. The conclusions from the modeling remained the same.

7. We repeated all the BACH1 qRT-PCR analyses depicted in Figure E-J in at least three independent experiments and updated the graphs accordingly. The conclusions from the experiments remained unchanged.

8. For the original Supplementary Figure 1D, we replaced in vitro data with in vivo data from xenograft tumors expressing RKIP as it is more relevant to the study (now Figure 1—figure supplement 1D)

9. For the original Supplementary Figure 2C and D, we substituted in vivo data using BACH1-depleted tumors for in vitro data as it is more relevant to the study (now Figure 1—figure supplement 2D)

10. We removed invasion assays for MLK, TAOKs and other inhibitors (originally Supplementary Figure 3B-D) and just put in references to the literature instead since these findings have already been published previously.

11. We have added the results from each independent experiment that led us to the BM1 MAPK network topology (currently Figure 2F) as a separate figure supplement (Figure 2—figure supplement 1B). In the same figure, we also added dose-response studies demonstrating downregulation of phosphorylation on direct substrates of p38, JNK, and MEK when these kinases are blocked by the specific inhibitors used in this study. (Figure 2—figure supplement 1A)

12. We divided the original Supplementary Figure 5 into two figures. The new Figure 3—figure supplement 1 shows the results from individual high-throughput invasion assays that lead us to 4D-MAPKi as a candidate treatment. The new Figure 3—figure supplement 2 summarizes the updated results from three independent experiments in three different cell lines originally depicted in Supplementary Figure 5E.

13. We dedicated the new Figure 5—figure supplement 1A-D to clearly demonstrating the differences in network topology among different cell lines or even under different stimuli (each with at least three independent experiments). These figures and graphs show the differences with respect to the reference BM1 network topology (Figure 2F, Figure 2—figure supplement 1)

14. We have added a summary graph from three independent experiments showing BACH1 protein downregulation by 4D-MAPKi in Figure 5—figure supplement 1E (originally Supplementary Figure 7B).

15. We added a new mouse experiment comparing lung metastases in the syngeneic LMB mouse model under 4D-MAPKi regimen vs. the individual drugs, as requested by the reviewers (Figure 5—figure supplement 1F).

16. We added new p-AKT western blot analysis from syngeneic LMB tumors treated with 4D-MAPKi to show that 4D-MAPKi treatment does not activate the compensatory AKT signaling in vivo as requested by the reviewers (Figure 6—figure supplement 1C).

17. Author list, Methods, Acknowledgments, Author Contributions and Declaration of Interest sections have been updated with the relevant information.

2. A second major issue is more conceptual. While experimentally this is a very comprehensive and elegant study, "prevention" or "blocking" of metastasis has key fundamental downfalls as a therapeutic strategy. Metastatic sites are very often already seeded by the time the primary breast tumor is diagnosed (e.g. PubMed IDs 27931250 and 28810143). Recent modeling suggests that this can occur as much as four (4) years prior to detection of the primary lesion (PubMed IDs 31209394 and 32424352). A 4-drug regimen selected for its capacity to block invasion, but not impair proliferation, is therefore unlikely to be a viable strategy in this context. As a proof-of-concept for how multi-kinase inhibition can be achieved without compensatory activation of parallel networks, this study is outstanding. As a roadmap for how to meaningfully address metastatic disease as it presents clinically, this study is limited. Because the authors take such a strong stance on the promise of their approach, I would like to see a more thorough and thoughtful discussion of this major limitation in a revised manuscript.

We appreciate the point raised by this reviewer and agree that it is important and requires clarification. We have now discussed this issue more extensively in the Discussion section of the paper. Briefly, our point is that, in addition to using cytotoxic agents such as radio-, chemo- or immunotherapy to kill the main tumor, one must address metastatic progression since this is a dynamic and highly drug-resistant process. While early metastatic seeding can take place before the primary tumor is clinically detectable, the primary tumor continuously sheds metastatic cells into the circulation that can form metastases at other sites5, 6,7. Therefore, an anti-metastatic treatment that slows down this dynamic spread would have therapeutic benefit even at the late stage of disease. In addition, evidence also suggests that metastatic cells are more resistant to systemic treatments due to their more mesenchymal phenotype, and low proliferation rates8. If an anti-metastatic therapy such as 4D-MAPKi can revert metastatic cancer cells back to a less metastatic, more epithelial-like state, it can sensitize these cells to certain systemic and metabolic treatments as we have previously shown9. Therefore, we are suggesting a 2-part strategy to convert metastatic cells to a non-metastatic state prior to treatment with agents that will suppress proliferating cells.

3. A notable achievement of this study is identification of a 4-drug regimen that inhibits stress MAPK signaling without driving a compensatory increase in PI3K activation, as measured by Akt phosphorylation in in vitro studies (Figure 6D, Supplementary Figure 7D). Does this also translate to the in vivo setting, i.e. in the lung metastases shown in Figure 4E or the primary tumors shown in Figure 4I, are pAkt levels unchanged or even moderately reduced? Inclusion of these data would markedly strengthen one of the key conclusions of the work.

We agree and have now included this experiment. We checked the activation of p-AKT(Ser473) in the syngeneic LMB primary tumors treated with either the vehicle control or the 4D-MAPKi regimen. In this study, we observed no significant activation of the compensatory p-AKT signaling in the primary tumors treated with the 4D-MAPKi regimen, consistent with our predictions (see Figure 6—figure supplement 1C in the revised manuscript).

4. Lines 187-207. The goal of these experiments appears to be to show that the 4D combination affects metastasis. Yet at both of the concentrations tested there is a significant impact on tumor proliferation, thus confounding the analysis of metastatic burden. By only using 2 concentrations, both of which have a strong effect on proliferation, the authors have failed to show that this is a 'metastasis effect' versus a tumor cell survival and proliferation effect.

We thank the reviewer for raising this important point and appreciate the opportunity to clarify our conclusions. We used two different models to illustrate the effect on metastasis. When using the spontaneous metastasis model where metastasis is derived from the primary tumor, as noted by the reviewer, it is difficult to distinguish inhibitory effects on metastasis alone from inhibitory effects on primary tumor growth. (All cells that grow at either primary or metastatic sites have a survival component, so we are assuming here that survival at the metastatic site is an aspect of metastasis.) We successfully distinguished growth from invasion in vitro and, using a similar strategy, identified drug concentrations that individually did not inhibit growth in vivo. However, since drug effects are usually not additive, it is challenging to precisely titrate the 4 drugs so that we suppress metastasis but don’t affect primary tumor growth in vivo. Therefore, as an alternative assay that we and others have used in the past to monitor metastasis alone (e.g. 15), we utilized the tail-vein or cardiac injection model that focuses on extravasation and metastatic colonization using comparable numbers of tumor cells. These assays clearly show a robust inhibition by the 4-drug combination when the same number of cells are present in the circulation. Even a limited 2-day treatment with drug after tail vein injection suppressed metastatic growth, suggesting that 4D-MAPKi primarily affects the early steps of metastatic seeding such as extravasation, invasion, or colonization. Ultimately, as noted above, our goal is to suppress metastasis as well as growth of the primary tumor. As the reviewer points out, this 4-drug combination has the potential to do both. This point will now also be included in the paper.

5. There is some in vivo data for single agent MEK inhibitors, but it seems it was not reported how such single agent treatments inhibit metastasis compared to the 4D regimen. This would be important to establish the increased efficacy of the 4D treatment compared to single agents-the central premise of the paper.

We appreciate the potential concern as well as the opportunity to clarify the premise of our study. We realize that, in certain tumor models, single agents such as the MEK inhibitor suppress metastasis. Our studies suggest, however, that the 4D regimen is more likely to have efficacy across different cellular networks and different environmental conditions and therefore work better when treating heterogeneous tumors. We have now done the experiment requested by the reviewer to compare in vivo efficacy for single agent MEK or the other inhibitors (p38, JNK, MLK) versus the 4D regimen using the syngeneic LMB mouse model. When we tested the drugs on LMB cells in culture, the MEK and JNK inhibitors and the 4D combination were effective at suppressing MAPK network output (assessed by the pro-metastatic gene BACH1) whereas the other inhibitors were not. Similar to these cell culture studies, both MEK and 4D drug regimens reduced metastatic burden in the lungs of the mice but p38 inhibitors did not (Figure 5—figure supplement 1F). The fact that JNK inhibitors inhibited BACH1 expression in vitro but did not suppress metastasis in vivo maybe due to a number of factors including drug accessibility, different outputs, or microenvironmental interactions. These results are consistent with our original findings and still support the rationale for utilizing multi-drug combinations.

In addition, it should be noted that, while MEK inhibitors as single agents can be very effective in blocking tumor growth and metastasis in preclinical settings, they rarely work long term in clinical settings because of the compensatory activation of resistance pathways such as PI3K/AKT signaling. Our studies suggest that 4D-MAPKi may exhibit similar or better efficacy to MEK inhibitors without activating these compensatory pathways (as discussed in Essential Revisions 3 above). These points are now discussed in the Discussion section of the paper.References:

1. Duncan, J.S. et al. Dynamic reprogramming of the kinome in response to targeted MEK inhibition in triple-negative breast cancer. Cell 149, 307-321 (2012).2. Zawistowski, J.S. et al. Enhancer Remodeling during Adaptive Bypass to MEK Inhibition Is Attenuated by Pharmacologic Targeting of the P-TEFb Complex. Cancer Discov 7, 302-321 (2017).3. Stuhlmiller, T.J. et al. Inhibition of Lapatinib-Induced Kinome Reprogramming in ERBB2-Positive Breast Cancer by Targeting BET Family Bromodomains. Cell reports 11, 390-404 (2015).4. Cooper, M.J. et al. Application of multiplexed kinase inhibitor beads to study kinome adaptations in drug-resistant leukemia. PLoS One 8, e66755 (2013).5. Quinn, J.J. et al. Single-cell lineages reveal the rates, routes, and drivers of metastasis in cancer xenografts. Science 371 (2021).6. Kim, M.Y. et al. Tumor self-seeding by circulating cancer cells. Cell 139, 1315-1326 (2009).7. Gupta, G.P. and Massague, J. Cancer metastasis: building a framework. Cell 127, 679-695 (2006).8. The "something more" than interpretation revisited: sloppiness and co-creativity in the psychoanalytic encounter. J Am Psychoanal Assoc 53, 693-729; discussion 761-699 (2005).9. Lee, J. et al. Effective breast cancer combination therapy targeting BACH1 and mitochondrial metabolism. Nature 568, 254-258 (2019).10. Heinrich, R., Neel, B. and Rapoport, T. Mathematical models of protein kinase signal transduction. Molecular cell 9, 957-970 (2002).11. Beguerisse-Diaz, M., Desikan, R. and Barahona, M. Linear models of activation cascades: analytical solutions and coarse-graining of delayed signal transduction. J R Soc Interface 13 (2016).12. Heinrich, R. and Rapoport, T.A. A linear steady-state treatment of enzymatic chains. General properties, control and effector strength. Eur J Biochem 42, 89-95 (1974).13. Kacser, H. and Burns, J.A. The control of flux. Biochem Soc Trans 23, 341-366 (1995).14. Chaves, M., Sontag, E.D. and Dinerstein, R.J. Optimal length and signal amplification in weakly activated signal transduction cascades. J. Phys. Chem. B 108, 15311–15315 (2004).15. Huang, C. and Ferrell, J. Ultrasensitivity in the mitogen-activated protein kinase cascade. Proceedings of the National Academy of Sciences of the United States of America 93, 10078-10083 (1996).16. Brandman, O., Ferrell, J.E., Jr., Li, R. and Meyer, T. Interlinked fast and slow positive feedback loops drive reliable cell decisions. Science 310, 496-498 (2005).17. Friedmann, E. PDE/ODE modeling and simulation to determine the role of diffusion in long-term and -range cellular signaling. BMC Biophys 8, 10 (2015).

https://doi.org/10.7554/eLife.59696.sa2
