DMT alters cortical travelling waves

  1. Andrea Alamia  Is a corresponding author
  2. Christopher Timmermann  Is a corresponding author
  3. David J Nutt
  4. Rufin VanRullen
  5. Robin L Carhart-Harris
  1. Cerco, CNRS Université de Toulouse, France
  2. Computational, Cognitive and Clinical Neuroscience Laboratory (C3NL), Faculty of Medicine, Imperial College, United Kingdom
  3. Centre for Psychedelic Research, Division of Psychiatry, Department of Brain Sciences, Imperial College London, United Kingdom
  4. Artificial and Natural Intelligence Toulouse Institute (ANITI), France
Research Article
  • Cited 0
  • Views 6,195
  • Annotations
Cite this article as: eLife 2020;9:e59784 doi: 10.7554/eLife.59784

Abstract

Psychedelic drugs are potent modulators of conscious states and therefore powerful tools for investigating their neurobiology. N,N, Dimethyltryptamine (DMT) can rapidly induce an extremely immersive state of consciousness characterized by vivid and elaborate visual imagery. Here, we investigated the electrophysiological correlates of the DMT-induced altered state from a pool of participants receiving DMT and (separately) placebo (saline) while instructed to keep their eyes closed. Consistent with our hypotheses, results revealed a spatio-temporal pattern of cortical activation (i.e. travelling waves) similar to that elicited by visual stimulation. Moreover, the typical top-down alpha-band rhythms of closed-eyes rest were significantly decreased, while the bottom-up forward wave was significantly increased. These results support a recent model proposing that psychedelics reduce the ‘precision-weighting of priors’, thus altering the balance of top-down versus bottom-up information passing. The robust hypothesis-confirming nature of these findings imply the discovery of an important mechanistic principle underpinning psychedelic-induced altered states.

Introduction

N,N, Dimethyltryptamine (DMT) is a mixed serotonin receptor agonist that occurs endogenously in several organisms (Christian et al., 1977; Nichols, 2016) including humans (Smythies et al., 1979), albeit in trace concentrations. DMT, which is a classic psychedelic drug, is also taken exogenously by humans to alter the quality of their consciousness. For example, synthesized compound is smoked or injected but it has also been used more traditionally in ceremonial contexts (e.g. in Amerindian rituals). When ingested orally, DMT is metabolized in the gastrointestinal (GI) system before reaching the brain. Its consumption has most traditionally occurred via drinking ‘Ayahuasca’, a brew composed of plant-based DMT and β –carbolines (monoamine oxidize inhibitors), which inhibit the GI breakdown of the DMT (Buckholtz and Boggan, 1977). Modern scientific research has mostly focused on intravenously injected DMT. Administered in this way, DMT’s subjective effects have a rapid onset, reaching peak intensity after about 2–5 min and subsiding thereafter, with negligible effects felt after about 30 min (Strassman, 2001; Strassman, 1995a; Timmermann et al., 2019).

Previous electrophysiological studies investigating changes in spontaneous (resting state) brain function elicited by ayahuasca have reported consistent broadband decreases in oscillatory power (Riba et al., 2002; Timmermann et al., 2019), while others have noted that the most marked decreases occur in α-band oscillations (8–12 Hz) (Schenberg et al., 2015). Alpha decreases correlated inversely with the intensity of ayahuasca-induced visual hallucinations (Valle et al., 2016) and are arguably the most reliable neurophysiological signature of the psychedelic state identified to-date (Muthukumaraswamy et al., 2013) – with increased signal diversity or entropy being another particularly reliable biomarker (Schartner et al., 2017). In the first EEG study of the effects of pure DMT on on-going brain activity, marked decrease in the α and β (13–30 Hz) band power was observed as well as increase in signal diversity (Timmermann et al., 2019). Increase in lower frequency band power (δ = 0.5–4 Hz and θ = 4–7 Hz) also became evident when the signal was decomposed into its oscillatory component. Decreased alpha power and increased signal diversity correlated most strongly with DMT’s subjective effects – consolidating the view that these are principal signatures of the DMT state, if not the psychedelic state more broadly.

Focusing attention onto normal brain function, outside of the context of psychoactive drugs, electrophysiological recordings in cortical regions reveal distinct spatio-temporal dynamics during visual perception, which differ considerably from those observed during closed-eyes restfulness. It is possible to describe these dynamics as oscillatory ‘travelling waves’, i.e. fronts of rhythmic activity which propagate across regions in the cortical visual hierarchy (Lozano-Soldevilla and VanRullen, 2019; Muller et al., 2014; Sato et al., 2012). Recent results showed that travelling waves can spread from occipital to frontal regions during visual perception, reflecting the forward bottom-up flow of information from lower to higher regions. Conversely, top-down propagation from higher to lower regions appears to predominate during quiet restfulness (Alamia and VanRullen, 2019; Halgren et al., 2019; Pang et al., 2020).

Taken together these results compel us to ask how travelling waves may be affected by DMT, particularly given their association with predictive coding (Alamia and VanRullen, 2019; Friston, 2019) and a recent predictive coding inspired hypothesis on the action of psychedelics (‘REBUS’) – which posits decreased top-down processing and increased bottom-up signal passing under these compounds (Carhart-Harris and Friston, 2019). Moreover, DMT lends itself particularly well to the testing of this hypothesis as its visual effects are so pronounced. Given that visual perception is associated with an increasing in forward travelling waves and eyes-closed visual imagery under DMT can feel as if one is ‘seeing with eyes shut’ (de Araujo et al., 2012) – does a consistent increase in forward travelling waves under DMT account for this phenomenon?

Here we sought to address these questions by quantifying the amount and direction of travelling waves in a sample of healthy participants who received DMT intravenously, during eyes-closed conditions. We hypothesized that DMT acts by disrupting the normal physiological balance between top-down and bottom-up information flow, in favour of the latter (Carhart-Harris and Friston, 2019). Moreover, we ask: does this effect correlate with the vivid ‘visionary’ component of the DMT experience? Providing evidence in favour of this hypothesis would indicate that forward travelling waves do play a crucial role in conscious visual experience, irrespective of the presence of actual photic stimulation.

Results

Quantifying travelling waves

As demonstrated by both theoretical and experimental evidence (Nunez, 2000; Nunez and Srinivasan, 2014; Nunez and Srinivasan, 2009), in most systems, including the human brain, travelling waves occur in groups (or packets) over some range of spatial wavelengths having multiple spatial and temporal frequencies. Given any configurations of electrodes, only parts of these packets can be successfully detected, i.e. waves shorter than the spatial extent of the array, and waves longer than twice the electrode separation distance (Nyquist criterion in space). In scalp recordings, the shorter waves may be mostly removed by volume conduction. As a consequence, waves recorded directly from the cortex emphasize shorter waves than the scalp recorded waves. Specifically, in the case of small cortical arrays, the overlap between cortical and scalp data may be minimal, and the estimated wave properties (including propagation direction) may differ. Additionally, it is important to consider that when waves are travelling in multiple directions at nearly the same time in ‘closed’ systems (e.g. the cortical/white matter), waves either damp out or interfere with each other to form standing waves (e.g. alpha waves travelling both forward and backward). It is reasonable to assume that the behaviour of these properties will relate to global brain and mind states, and be sensitive to state-altering psychoactive drugs (Nunez, 2000; Nunez and Srinivasan, 2014; Nunez and Srinivasan, 2009).

Practically, we measure the waves’ amount and direction with a method devised in our previous studies (Alamia and VanRullen, 2019; Pang et al., 2020). We slide a one-second time-window over the EEG signals (with 0.5 s overlap). For each time-window, we generate a 2D map (time/electrodes) by stacking the signals from five central mid-line electrodes (Oz to FCz, see Figure 1). For each map, we then compute a 2D-FFT, in which the upper- and lower-left quadrant represent the power of forward (FW) and backward (BW) travelling waves, respectively (since the 2D-FFT is symmetrical around the origin, the lower- and upper-right quadrants contain the same information). From both quadrants we extracted the maximum values, representing the raw amount of FW and BW waves in that time-window. Next, we performed the same procedure after having shuffled the electrodes’ order, thereby disrupting spatial information (including the waves’ directionality) while retaining the same overall spectral power. In other words, the surrogate measures reflect the amount of waves expected solely due to the temporal fluctuations of the signal. After having computed the maximum values for the FW and BW waves of the surrogate 2D-FFT spectra one hundred times (and averaging the 100 values), we compute the net amount of FW and BW waves in decibel (dB), by applying the following formula:

WdB= 10*log10WWss

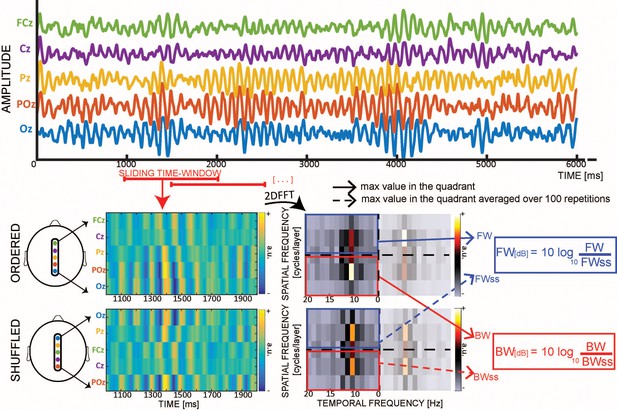

Quantifying cortical waves.

From each 1 s EEG epoch we extract a 2D-map, obtained by stacking signals from five midline electrodes. For each map we compute a 2D-FFT in which the maximum values in the upper- and lower-left quadrants represent respectively the amount of forward (FW – in blue) and backward (BW – in red) waves. For each map, we also compute surrogate values by shuffling the electrodes’ order 100 times, so as to retain temporal fluctuations while disrupting the spatial structure of the signals (including any travelling waves). Eventually, we compute the wave strength in decibel (dB) by combining the real and the surrogate values.

where W represents the maximum value extracted for each quadrant (i.e. forward FW or backward BW), and Wss the respective surrogate value. Importantly, this value – expressed in decibel – represents the net amount of waves against the null distribution. In other words, it is informative to compare this value to zero, to assess the significance of waves. On the other hand, a direct comparison between FW and BW waves in each time-bin is not readily interpretable, as it is possible to simultaneously record waves propagating in both directions—as observed during visual stimulation epochs (see below). In addition, it’s important to note that our waves’ analysis focuses on the sensor level, as source projections presents a number of important limitations, such as impairing long-range connections, as well as smearing of signals due to scalp interference (Alexander et al., 2019; Freeman and Barrie, 2000; Nunez, 1974).

Does DMT influence travelling waves?

After defining our measure of the waves’ amount and direction, we investigated whether the intake of DMT alters the cortical pattern of travelling waves. Participants underwent two sessions in which they were injected with either placebo or DMT (see Materials and methods for details). Importantly, during all of the experiments, participants rested in a semi-supine position, with their eyes closed. EEG recordings were collected 5 min prior to drug administration and up to 20 min after. The left column of Figure 2A shows the amount of BW and FW waves in the 5 min preceding and following drug injection (either placebo or DMT). Consistent with previous observations on independent data (Alamia and VanRullen, 2019), during quiet closed-eyes restfulness a significant amount of BW waves spread from higher to lower regions (as confirmed by a Bayesian t-test against zero for both DMT and Placebo conditions, BFs10 >>100, error <0.01%, 95% Credible Intervals (CI) DMT: [0.221, 0.637], Placebo: [0.273, 0.666]), whereas no significant waves propagate in the opposite FW direction (Bayesian t-test against zero: BFs10 <0.15, error <0.01%; 95% CI DMT: [−0.424, 0.088], Placebo: [−0.372, 0.110]). However, after DMT injection, the cortical pattern changed drastically: the amount of BW waves decreased (but remaining significantly above zero – BFs10 = 12.6, 95% CI: [0.057, 0.322]), whereas the amount of FW waves increased significantly above zero (BF10 = 5.4 95% CI: [0.027, 0.336]). These results, obtained by comparing the amount of waves before and after injection (pre-post factor) of Placebo or DMT (drug factor), were confirmed by two Bayesian ANOVA performed separately on BW and FW waves (all factors including interactions reported BFs10 >>100, error <2%), and were not confounded by differences in dosage (see Materials and methods and Figure 2—figure supplement 1). A power analysis comparing DMT and Placebo conditions after infusion for both FW and BW direction revealed values above 90% (FW case: μDMT=0.19, μPLACEBO = -0.20 and σ = 0.29 yields to power equals to 0.9168; BW case: μDMT = 0.18, μPLACEBO = 0.51 and σ = 0.25 gives power equals to 0.9205; in both cases, we considered a type I error rate of 5%).

Figure 2 with 2 supplements see all

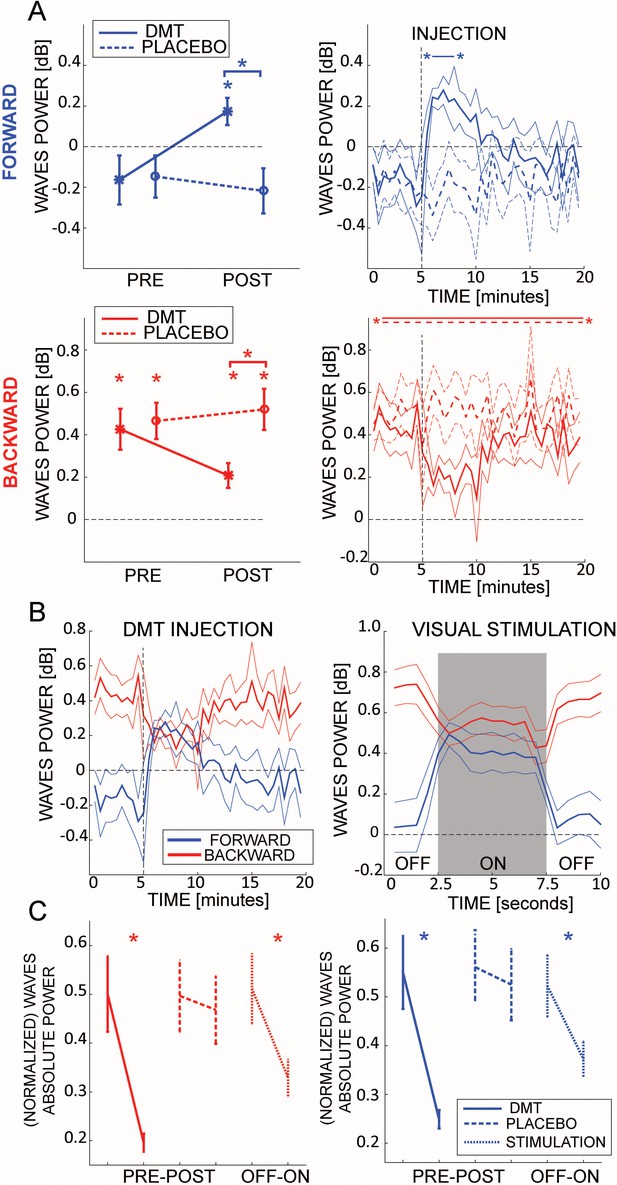

DMT influences cortical travelling waves.

(A) In the left panels the net amount of FW (blue, upper panel) and BW (red, lower panel) waves is represented pre- and post-DMT infusion. While BW waves are always present, FW waves only rise significantly above zero after DMT injection, despite participants having closed eyes. Asterisks denote values significantly different than zero, or between conditions. The panels to the right describe the minute-by-minute changes in the net amount of waves. Asterisks denote FDR-corrected p-values for amount of waves significantly different than zero. (B) Comparison between the waves’ temporal evolution after DMT injection (left panel) and with or without visual stimulation (right panel, from a different experiment in which participants, with open eyes, either watched a visual stimulus or a blank screen Pang et al., 2020). Remarkably, the waves’ temporal profiles are very similar in the two conditions, for both FW and BW. (C) Comparison between changes in absolute power (as extracted from the 2D-FFT, that is FW and BW in Figure 1) due to DMT, placebo and visual stimulation. Remarkably, true photic visual stimulation and eyes-closed DMT induce comparably large reductions in absolute power. In fact, the effect with DMT appears to be even more pronounced (formal contrast not appropriate). Note that in the previous panels the changes in the net amount of waves were reported in dB, and occurred irrespective of the global power changes measured in panel C.

In order to explore different propagation axes than the midline, we ran the same analysis on one array of electrodes running from posterior right to anterior left regions, and one from posterior left to anterior right ones: in both cases we obtained similar results as for the midline electrodes, i.e. an increase and a decrease of FW and BW waves, respectively, following DMT infusion (see Figure 2—figure supplement 2). This suggests that the dominant natural propagation spread of travelling waves is along the axis that connects the furthest posterior and frontal recording channels. As a control, we additionally demonstrated that waves propagating from leftward to rightward regions (and vice versa), were not affected by DMT (see Figure 2—figure supplement 2). Besides, in-line with previous work on travelling waves (Alexander et al., 2013; Alexander et al., 2006), an additional analysis based on relative phases of the alpha band-pass signals over all channels, confirmed the same results, with DMT indeed disrupting the typical top-down propagation of alpha-band waves. Furthermore, we ran a more temporally precise analysis, on a minute-by-minute scale, testing the amount of FW and BW waves in the two conditions, as shown in the right panels of Figure 2A. in-line with previous studies (Strassman, 1995a; Strassman, 1994; Timmermann et al., 2019), the changes in cortical dynamics appeared rapidly after intravenous DMT injection, and began to fade after about 10 min. Confirming our previous analysis, we observed an increase in FW waves (asterisks in the upper-right panel of Figure 2A show FDR-corrected significant p-values when testing against zero) and a decrease in BW waves, which, nonetheless, remained above zero (all FDR-corrected p-values<0.05). To our initial surprise, the dynamics elicited by DMT injection were remarkably reminiscent of those observed in another study, in which healthy participants alternated visual stimulation with periods of blank screen, without any drug manipulation (Pang et al., 2020). Although a direct comparison is not statistically possible (because the two studies involved distinct subject groups and different EEG recording setups), we indirectly investigated the similarities between these two scenarios.

Comparison with perceptual stimulation

We recently showed that FW travelling waves increase during visual stimulation, whereas BW waves decrease, in-line with their putative functional role in information transmission (Pang et al., 2020). In Figure 2B, for the sake of comparison, we contrast the cortical dynamics induced by DMT (left panel) with the results of our previous study (right panel Pang et al., 2020), in which participants perceived a visual stimulus (label ‘ON’) or stared at a dark screen (label ‘OFF’). Remarkably, mutatis mutandis, both FW and BW waves share a similar profile across the two conditions, increasing and decreasing respectively following DMT injection or visual stimulation. If we consider the absolute (maximum) power values derived from the 2D-FFT of each map (i.e. before estimating the surrogates and the waves’ net amount in decibel) as an estimate of spectral power, we can read the results reported in Figure 2C as an overall decrease in oscillatory power following DMT injection, more specifically in the frequency band with the highest power values (i.e. alpha band, but see next paragraph) (Muthukumaraswamy et al., 2013; Riba et al., 2002; Schenberg et al., 2015; Timmermann et al., 2019). Such decrease in oscillatory power is also matched by a similar decrease induced by visual stimulation (all Bayesian t-test BFs10 >>100). These results demonstrate that, despite participants having their eyes-closed throughout, DMT produces spatio-temporal dynamics similar to those elicited by true visual stimulation. These results therefore shed light on the neural mechanisms involved in DMT-induced visionary phenomena.

Does DMT influence the frequency of travelling waves?

Previous studies showed that DMT alters specific frequency bands (e.g. alpha-band Schenberg et al., 2015), mostly by decreasing overall oscillatory power (Riba et al., 2002; Timmermann et al., 2019). Here, we investigated whether DMT influences not only the waves’ direction but also their frequency spectrum. We compared the frequencies of the maximum peaks extracted from the 2D-FFT (see Figure 1) before and after DMT or Placebo injection. Before infusion, both FW and BW waves had a strong alpha-range oscillatory rhythm (Figure 3A, labeled ‘PRE’). Remarkably, following DMT injection, the waves’ spectrum changed drastically, with a significant reduction in the alpha-band, coupled with an increase in the delta and theta bands, for both FW (δ-band: BF10 = 391.16, θ-band: BF10 = 19.23, α-band: BF10 = 16.04, β-band: BF10 = 0.64; all errors < 0.001%) and BW waves (δ-band: BF10 = 82.56, θ-band: BF10 = 30.58, α-band: BF10 = 549.54, β-band: BF10 = 1.43; all errors < 0.005%). This result corroborates a previous analysis performed on EEG recordings from the same dataset (Timmermann et al., 2019) as well as independent data pertaining to O-Phosphoryl-4-hydroxy-N,N-DMT (psilocybin), a related compound (Muthukumaraswamy et al., 2013). Moreover, we investigated how DMT influences the amount of waves at each frequency.

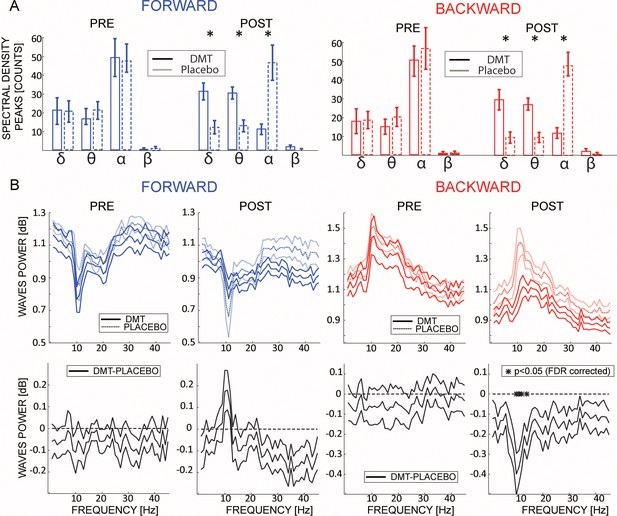

DMT influences the frequency of the travelling waves.

(A) Left and right panels show the waves’ frequencies computed from the maximum value from each quadrant in the 2D-FFT map for FW and BW waves, pre- and post-infusion. The histogram reflects the average between participants of the number of 1 s time-windows having a wave peak at the corresponding frequency. Notably, DMT significantly reduces α and β band oscillations, while enhancing δ and θ. Asterisks denote significant differences between DMT and Placebo conditions. (B) The upper panels show the amount of waves computed at each frequency of the 2D-FFT (i.e. not considering the maximum power per quadrant as in (A), but considering it for each frequency), for FW and BW waves, pre- and post-infusion. As shown in previous analysis, DMT induces an overall decrease of spectral power, especially in the alpha band BW waves, with the notable exception of an increase in FW waves in the alpha range.

As shown in Figure 3B, and in agreement with previous analyses, DMT induces an overall reduction in the amount of waves at each frequency, specifically in the alpha-band BW waves, but with the notable exception in the FW alpha band, in which DMT induces an increase in the waves’ direction.

What’s the relationship between FW and BW waves?

From the left panel of Figure 2B, it seems that during the first minutes after DMT injection, both FW and BW waves are simultaneously present in the brain. In an attempt to understand the overall relationship between FW and BW waves, we focused on the minutes when both BW and FW waves were significantly larger than 0 (minutes 2 to 5 after DMT injection, see Figure 2A). On these data we performed a moment-by-moment correlation between their respective net amount (as measured in decibel – see Figure 1). We found a clear and significant negative relationship (Bayesian t-test against zero, pre-DMT BF10 = 393.1, error <0.0001%, 95% CI: [−0.448,–0.212]; Post-DMT BF10 = 381.9, error <0.0001%, 95% CI: [−0.479,–0.226]), very consistent across participants and irrespective of DMT injection (difference between pre- and post-, Bayesian t-test BF10 = 0.225; error<0.02% Figure 4, first panel). This result demonstrates that, in general, FW waves tend to be weaker whenever BW waves are stronger, and vice versa. In other words, FW and BW remain present after drug injection, sum to a consistent total amount, and remain inversely related; it is only the ratio of contribution from each that changes after DMT (i.e. less BW, more FW waves).

Travelling waves directions.

There is a negative correlation between the net amount of FW and BW waves, which is not influenced by the ingestion of DMT (left panel). The middle and the right panel show the relationship for a typical subject pre- and post-DMT injection.

Is there a correlation between waves and subjective reports?

We investigated whether changes in travelling waves under DMT correlated with the subjective effects of the drug. Specifically, for 20 min after DMT injection participants provided an intensity rating every minute and, when subjective effects faded, participants filled various questionnaires that addressed different aspects of the experience (see Timmermann et al., 2019 for details). First, we found a robust correlation between minute-by-minute intensity rates and the amplitude of the waves, as shown in the first panel of Figure 5. This result reveals that the developing intensity of the drug’s subjective effects and changes in the amplitude of waves correlate positively (FW) or negatively (BW) across time, both peaking a few minutes after drug injection. Second, treating each time point independently, we again correlated intensity ratings with the amount of each wave type, across subjects. The middle panel of Figure 5 shows a clear trend for the correlation coefficients over time. Despite the limited number of data-points (n = 12), the correlation coefficients reach high values (~0.4), implying that, around the moment where the drug had its maximal effect (2–5 min after injection), those subjects who reported the most intense effects were also those who had the strongest travelling waves in the FW direction, and the weakest waves in the BW direction. Finally, we correlated the amount of FW and BW waves with ratings focused specifically on visual imagery: remarkably, ratings of all of the relevant questionnaire items correlated strongly with the increased amount of FW waves under DMT. As the same relationship was not apparent for the BW waves, this consolidates the view that visionary experiences under DMT correspond to higher amounts of FW waves in particular. Taken together with previous results from visual stimulation experiments independent of DMT (Pang et al., 2020), these data strongly support the principle that cortical travelling waves (and increased FW waves in particular) correlate with the conscious visual experiences, whether induced exogenously (via direct visual stimulation) or endogenously (visionary or hallucinatory experiences).

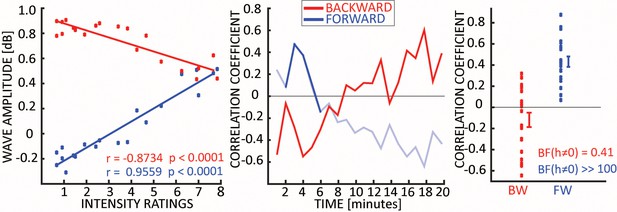

Travelling waves vs subjective ratings.

The first panel shows the correlation between intensity rate and waves amplitude across time-points. Each dot represents a one-minute time-bin from DMT injection, the x-axis reflects the average intensity rating across subjects, and the y-axis indicates the average strength of BW or FW waves across subjects (both correlations p<0.0001). The middle panel shows the correlation coefficients across participants, obtained by correlating the intensity ratings and the waves’ amount separately for each time point. Solid lines show when the amount of waves is significantly larger than zero (always for BW waves, few minutes after DMT injections for FW waves – see Figure 2A). However, given the limited statistical power (N = 12), and proper correction for multiple testing, correlations did not reach significance at any time point. The last panel shows the correlation coefficients between the visual imagery specific ratings provided at the end of the experiment (i.e. Visual Analogue Scale, see methods) and the net amount of waves (measured when both BW and FW were significantly different than zero, i.e. from minutes 2 to 5): for all 20 items in the questionnaire there was a positive trend between the amount of FW waves and the intensity of visual imagery, as confirmed by a Bayesian t-test against zero (BF for FW waves >> 100). We did not observe this effect in the BW waves (BF = 0.41).

Discussion

In this study we investigated the effects of the classic serotonergic psychedelic drug DMT on cortical spatio-temporal dynamics typically described as travelling waves (Muller et al., 2018). We analysed EEG signals recorded from 13 participants who kept their eyes closed while receiving drug. Results revealed that, compared with consistent eyes-closed conditions under placebo, eyes-closed DMT is associated with striking changes in cortical dynamics, which are remarkably similar to those observed during actual eyes-open visual stimulation (Alamia and VanRullen, 2019; Pang et al., 2020). Specifically, we observed a reduction in BW waves, and increase in FW ones, as well as an overall decrease in α band (8–12 Hz) oscillatory frequencies (Timmermann et al., 2019). Moreover, increases in the amount of FW waves correlated positively with real-time ratings of the subjective intensity of the drug experience as well as post-hoc ratings of visual imagery, suggesting a clear relationship between travelling waves and a distinct and novel type of conscious experience.

Relation to previous findings

Initiated by the discovery of mescaline, and catalysed by the discovery of LSD, Western medicine has explored the scientific value and therapeutic potential of psychedelic compounds for over a century (Carhart-Harris, 2018; Schoen, 1964; Strassman, 1995b). DMT has been evoking particular interest in recent decades, with new studies into its basic pharmacology (Dean et al., 2019), endogenous function (Barker et al., 2012) and effects on cortical activity in rats (Artigas et al., 2016; Riga et al., 2014) and humans (Daumann et al., 2010; de Araujo et al., 2012; Valle et al., 2016). There has been a surprising dearth of resting-state human neuroimaging studies involving pure DMT (Palhano-Fontes et al., 2015; Timmermann et al., 2019) which, given its profound and basic effects on conscious awareness, could be viewed as a scientific oversight.

Previous work involving ayahuasca and BOLD fMRI found increased visual cortex BOLD signal under the drug vs placebo while participants engaged in an eyes-closed imagery task – a result that was interpreted as consistent with the ‘visionary’ effects of ayahuasca (de Araujo et al., 2012). Despite some initial debate (Bartolomeo, 2008), it is now generally accepted that occipital cortex becomes activated during visual imagery (Fulford et al., 2018; Pearson, 2019). Placing these findings into the context of previous work demonstrating increased FW travelling waves during direct visual perception (Alamia and VanRullen, 2019; Pang et al., 2020), our present findings of increased FW waves under DMT correlating with visionary experiences lend significant support to the notion that DMT/ayahuasca – and perhaps other psychedelics – engage the visual apparatus in a fashion that is consistent with actual exogenously driven visual perception. Future work could extend this principle to other apparently endogenous generated visionary experiences such as dream visions and other hallucinatory states. We would hypothesize a consistent favouring of FW waves during these states. If consistent mechanisms were also found to underpin hallucinatory experiences in other sensory modalities – such as the auditory one, a basic principle underlying sensory hallucinations might be established.

Pharmacological considerations

As a classic serotonergic psychedelic drug, DMT’s signature psychological effects are likely mediated by stimulation of the serotonin 2A (5-HT2A) receptor subtype. As with all other classic psychedelics (Nichols, 2016) the 5-HT2A receptor has been found to be essential for the full signature psychological and brain effects of Ayahuasca (Valle et al., 2016). In addition to its role in mediating altered perceptual experiences under psychedelics, the 5-HT2A receptor has also been linked to visual hallucinations in neurological disorders, with a 5-HT2A receptor inverse agonist having been licensed for hallucinations and delusions in Parkinson’s disease with additional evidence for its efficacy in reducing consistent symptoms in Alzheimer’s disease (Ballard et al., 2018). Until recently, a systems level mechanistic account of the role of 5-HT2A receptor agonism in visionary or hallucinatory experiences has, however, been lacking.

Predictive coding and psychedelics

There is a wealth of evidence that Bayesian or predictive mechanisms play a fundamental role in cognitive and perceptual processing (den Ouden et al., 2012; Kok and De Lange, 2015) and our understanding of the functional architecture underlying such processing is continually being updated (Alamia and VanRullen, 2019; Friston, 2018). According to predictive coding (Huang and Rao, 2011), the brain strives to be a model of its environment. More specifically, based on the assumption that the cortex is a hierarchical system – message passing from higher cortical levels is proposed to encode predictions about the activity of lower levels. This mechanism is interrupted when predictions are contradicted by the lower-level activity (‘prediction error’) – in which case, information passes up the cortical hierarchy where it can update predictions. Predictive coding has recently served as a guiding framework for explaining the psychological and functional brain effects of psychedelic compounds (Carhart-Harris and Friston, 2019; Pink-Hashkes et al., 2017). According to one model (Carhart-Harris and Friston, 2019), psychedelics decrease the precision- weighting of top-down priors, thereby liberating bottom-up information flow. Various aspects of the multi-level action of psychedelics are consistent with this model, such as the induction of asynchronous neuronal discharge rates in cortical layer 5 (Celada et al., 2008), reduced alpha oscillations (Carhart-Harris et al., 2016; Muthukumaraswamy et al., 2013) increased signal complexity (Schartner et al., 2017; Timmermann et al., 2019) and the breakdown of large-scale intrinsic networks (Carhart-Harris et al., 2016).

Recent empirically supported modelling work has lent support to assumptions that top-down predictions and bottom-up prediction-errors are encoded in the direction of propagating cortical travelling waves (Alamia and VanRullen, 2019). Specifically, these simulations demonstrated that a minimal predictive coding model implementing biologically plausible constraints (i.e. temporal delays in the communication between regions and time constants) generates alpha-band travelling waves, which propagate from frontal to occipital regions and vice versa, depending on the ‘cognitive states’ of the model (input-driven vs. prior-driven), as confirmed by EEG data in healthy participants (in that case, processing visual stimuli vs. closed-eyes resting state).

The view that predictive coding could be the underlying principle explaining both the propagation of alpha-band travelling waves and the neural changes induced by psychedelics opened-up a tantalizing opportunity for testing assumptions both about the nature of travelling waves and how they should be modulated by psychedelics (Carhart-Harris and Friston, 2019). Although we are restricted to speculation by the lack of direct experimental manipulation of top-down and bottom-up sensory inputs, our prior assumptions were so emphatically endorsed by the data, including how propagation-shifts related to subjective experience, that, in-line with prior hypotheses and motivations for the analyses, we were persuaded to infer about both the functional relevance of cortical travelling waves and brain action of psychedelics. Additional studies manipulating bottom-up and top-down analysis of sensory inputs with alternative perceptual designs will be required to confirm the relation between predictive coding, alpha-band oscillatory travelling waves and psychedelics states. Moreover, future studies can now be envisioned to examine how these assumptions translate to other phenomena such as non-drug induced visionary and hallucinatory states.

Conclusion

The present analyses were applied to the first EEG data on the effects of DMT on human resting- state brain activity. In-line with a specific prior hypothesis, clear evidence was found of a shift in cortical travelling waves away from the normal basal predominance of backward waves and towards the predominance of forward waves – remarkably similar to what has been observed during eyes-open visual stimulation. Moreover, the increases in forward waves correlated positively with both the general intensity of DMT’s subjective effects, as well as its more specific effects on eyes-closed visual imagery. These findings have specific and broad implications: for the brain mechanisms underlying the DMT/psychedelic state as well as conscious visual perception more fundamentally.

Materials and methods

Participants and experimental procedure

Request a detailed protocol

In this study we analysed a dataset presented in a previous publication (Timmermann et al., 2019), to address a very different scientific question using another analytical approach. Consequently, the information reported in this and the next paragraphs overlaps with the previous study (to which we refer the reader for additional details). Thirteen participants took part in this study (six females, age 34.4 ± 9.1 SD), sample size was chosen based on prior EEG and MEG studies and effect sizes with similar compounds. All participants provided written informed consent, and the study was approved by the National Research Ethics (NRES) Committee London – Brent and the Health Research Authority. The study was conducted in-line with the Declaration of Helsinki and the National Health Service Research Governance Framework.

Participants were carefully screened before joining the experiments. A medical doctor conducted physical examination, electrocardiogram, blood pressure and routine blood tests. A successful psychiatric interview was necessary to join the experiment. Other exclusion criteria were (1) under 18 years of age, (2) having no previous experience with psychedelic drugs, (3) history of diagnosed psychiatric illnesses, (4) excessive use of alcohol (more than 40 units per week). The day before the experiment a urine and pregnancy test (when applicable) were performed, together with a breathalyzer test.

Participants attended two sessions, in the first one, they received placebo, while DMT was administered in the second session. We employed a fixed-order, single blind design considering that psychedelics have been shown to induce lasting psychological changes (Maclean et al., 2011), which could have led to confounding effects on the following session if DMT had been administered in the first session. Additionally, we aimed at ensuring familiarity with the research environment and the study team before providing the psychedelics compound. Given the lack of human data with DMT, progressively increasing doses were provided to different participants (four different doses were used: 7, 14, 18 and 20 mg, to 3, 4, 1, and 5 successive participants, respectively). EEG signals were recorded before and up to 20 min after drug delivery. Participants rested in a semi-supine position with their eyes closed during the duration of the whole experiment. The eyes-closed instruction was confirmed by visual inspection of the participants during dosing. At each minute, participants provided an intensity rating, while blood samples were taken at given time-points (the same for placebo and DMT conditions) via a cannula inserted in the participants’ arm. One day after the DMT session, participants reported their subjective experience completing an interview composed of several questionnaires (see Timmermann et al., 2019 for details). In this study we focused on the Visual Analogue Scale values.

EEG preprocessing

Request a detailed protocol

EEG signals were recorded using a 32-channels Brainproduct EEG system sampling at 1000 Hz. A high-pass filter at 0.1 Hz and an anti-aliasing low-pass filter at 450 Hz were applied before applying a band-pass filter at 1–45 Hz. Epochs with artifacts were manually removed upon visual inspection. Independent-component analysis (ICA) was performed and components corresponding to eye-movement and cardiac-related artifacts were removed from the EEG signal. The data were re-referenced to the average of all electrodes. All the preprocessing was carried out using the Fieldtrip toolbox (Oostenveld et al., 2011), while the following analysis were run using custom scripts in MATLAB.

Waves quantification

Request a detailed protocol

We epoched the preprocessed EEG signals in 1 s windows, sliding with a step of 500 ms (see Figure 1). For each time-window, we then arranged a 2D time-electrode map composed of five electrodes (i.e. Oz, POz, Pz, Cz, FCz). From each map we computed the 2D Fast Fourier Transform (2DFFT – Figure 1), from which we extracted the maximum value in the upper and lower quadrants, representing respectively the power of forward (FW) and backward (BW) waves. We also performed the same procedure 100 times after having randomised the electrodes’ order: the surrogate 2D-FFT spectrum has the same temporal frequency content overall, but the spatial information is disrupted, and the information about the wave directionality is lost. In such a manner we obtained the null or surrogate measures, namely FWss and BWss, whose values are the average over the 100 repetitions (see Figure 1). Eventually, we computed the actual amount of waves in decibel (dB), considering the log-ratio between the actual and the surrogate values:

FWdb= 10log10FWFWss          BWdb= 10log10BWBWss

It is worth noting that this value represents the amount of significant waves against the null distribution, that is against the hypothesis of having no FW or BW waves.

Statistical analysis

Request a detailed protocol

All the analyses regarding the EEG signals were performed in MATLAB. Bayesian analyses were run in JASP (Team, 2018). We ran separate Bayesian ANOVA for FW and BW conditions, and we considered as factors the time of injection (pre-post, see Figure 2A) and drug condition (DMT vs Placebo). Subjects were considered to account for random factors. Regarding the minute-by-minute analysis (Figure 2A, right panels), we performed a t-test at each time-bin against zero, and we corrected all the p-values according to the False Discovery Rate (Benjamini and Yekutieli, 2005). All data and code to perform the analysis are available at https://osf.io/wujgp/.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
    Predictive coding
    1. Y Huang
    2. RPN Rao
    (2011)
    Wiley Interdisciplinary Reviews: Cognitive Science 2:580–593.
    https://doi.org/10.1002/wcs.142
  26. 26
    Predictive coding in sensory cortex
    1. P Kok
    2. FP De Lange
    (2015)
    In: B Forstmann, E. J Wagenmakers, editors. An Introduction to Model-Based Cognitive Neuroscience. Springer. pp. 221–244.
    https://doi.org/10.1007/978-1-4939-2236-9_11
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
    Perception is in the details: a predictive coding account of the psychedelic phenomenon
    1. S Pink-Hashkes
    2. van Rooij
    3. J Kwisthout
    (2017)
    CogSci Annual Conference of the Cognitive Science Society. pp. 2907–2912.
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
    Identification of dimethyltryptamine and O-methylbufotenin in human cerebrospinal fluid by combined gas chromatography/mass spectrometry
    1. JR Smythies
    2. RD Morin
    3. GB Brown
    (1979)
    Biological Psychiatry 14:549–556.
  49. 49
  50. 50
  51. 51
  52. 52
    DMT: The Spirit Molecule
    1. R Strassman
    (2001)
    Park Street Press.
  53. 53
    JASP, version 0.8.6.0
    1. J Team
    (2018)
    Computer software.
  54. 54
  55. 55

Decision letter

  1. Virginie van Wassenhove
    Reviewing Editor; CEA, DRF/I2BM, NeuroSpin; INSERM, U992, Cognitive Neuroimaging Unit, France
  2. Timothy E Behrens
    Senior Editor; University of Oxford, United Kingdom
  3. David Murray Alexander
    Reviewer; KU Leuven, Belgium

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In this study, Alamia and colleagues describe the effect of N,N, Dimethyltryptamine DMT on the resting-state dynamics of α traveling waves. DMT is a serotonergic psychedelic drug that elicits vivid hallucinations. The authors tested whether DMT provoke a relative change in strength of forward- and backward- α traveling waves recorded with non-invasive electroencephalography. Specifically, the hypothesis was that traveling waves under DMT may show features of visual perception in the absence of photic stimulation. Indeed, following DMT consumption and during eyes-closed resting state, the authors report an increase of forward-traveling waves, an α power increase (comparable to photic stimulation) and of low-frequency components in the low-range spectrum. The implication of traveling waves are discussed in relation to predictive coding.

Decision letter after peer review:

Thank you for submitting your article "DMT alters cortical travelling waves" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Timothy Behrens as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: David Murray Alexander (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

Alamia and colleagues describe the effect of N,N, Dimethyltryptamine DMT on human resting-state dynamics recorded with non-invasive EEG. DMT is a serotonergic psychedelic drug that elicits vivid hallucinations. The authors propose that DMT provokes a relative change in strength of forward- and backward- α [~10 Hz] traveling waves, indicative of bottom-up and top-down propagations of information. In three main analyses of EEG recordings following the administration of DMT, the authors report an increase of forward-traveling waves, α power (comparable to photic stimulation) and low-frequency components in the low-range spectrum.

Revisions for this paper:

I highlight three main issues that need to be addressed in a revised paper.

1) All three reviewers highlight specific points re. the limitations of the current analysis (e.g. a prior choice of electrodes) and the choice for quantifications of the traveling waves. The authors should clarify their rationale underlying their analytical choices. As suggested by reviewer 3, a section dedicated to "Quantifying travelling waves" may be helpful.

2) All three reviewers raised substantial concerns about the interpretability of scalp level recordings in relation to the generators of the signals as well as the inference that can be made on the traveling pattern. Reviewer 1 raised concerns about the full spectral changes that can be seen and reviewer 3 suggested the possibility of interference patterns.

3) Reviewers 1 and 2 consider the predictive coding hypothesis a far-stretched inference of current results, and thus needs to be refined.

Reviewer #1:

In this study, Alamia and colleagues describe the effect of N,N, Dimethyltryptamine DMT on the resting-state dynamics of α traveling waves. DMT is a serotonergic psychedelic drug that elicits vivid hallucinations. The authors herein propose that DMT provokes a relative change in strength of forward- and backward- α traveling waves recorded with non-invasive EEG. The authors hypothesized that traveling waves under DMT may show features of visual perception, namely an increase of forward going (occipital to frontal) traveling waves during eyes-closed resting-state thus independently of photic inputs. With three main analyses, the authors observe that following DMT, forward-traveling waves increase, α power increase (comparable to photic stimulation) and an overall increase of low-frequency components in the low-range spectrum.

I have several major concerns regarding the reliability of the analysis and subsequent interpretations. One is that while the authors quantified traveling waves, they also report a radical change in the overall spectral fingerprinting of the EEG (Figure 3) and clearly showing that α is largely suppressed following DMT thus largely diminishing the reliability and pertinence of focusing on α traveling wave while low-frequency are largely boosted. Second, the authors report consistent inverse relationships between FW and BW waves, which may simply result from moving dipoles that generate the signals; in light of this, the inverse relation in Figure 5 between FW/BW is not surprising. Finally, would a simpler measure of decrease in α power and increase of low spectral power reveal similar correlations to behavior?

Reviewer #2:

The authors present a sensor level analysis of traveling waves in the EEG, during dosage with DMT or saline. The work is a strong contribution to the study of cortical traveling waves (TWs) due to the pharmacological manipulation, which helps our understanding of the causal role of TWs. This contribution is bolstered by being able to draw parallels with the effects of visual stimulation (or not) during rest, reported in a contemporaneous manuscript. The manuscript will be of general interest to readers of eLife. The manuscript is crisply written.

The conclusions follow from the analysis.

Concerns:

1) The quantitative methods to analyse TWs are rather week, being focussed on direction of travel along the anterior-posterior axis. While these methods are sufficient to support the main conclusions, more could be teased from the experiment by following recent developments in TW quantification.

For example, using peak tracing along the lines of Massimini et al., 2004, would enable the detailed paths of the waves to be traced over the whole recording array, and velocity to be estimated.

Methods exist to estimate the spatial frequency of the waves on the scalp, as well as the proportion of traveling vs. standing waves (Alexander et al., 2016). Likewise, other directional components of the wave trajectory can be assessed by using PCA to create a spatial basis for the waves (Alexander et al., 2006, 2009, 2013).

It seems possible that important features of the data have been missed by limiting the analysis to electrodes FCz to Oz. For example, what if DMT influence and visual stimulation share a common primary direction, as is found, but DMT waves are more left posterior to right anterior and visual stimulation is more right posterior to left anterior (or vice versa)?

2) The sections on predictive coding are only tenuously supported by the data. In particular, I can see no discussion on how directional differences in the α band may be significant in this regard. What about situations where anterior-posterior differences are found in the δ band (Alexander et al., 2006; 2009)? Or if directional results were in another band? Because of the lack of specificity to this discussion, and the lack of explicit tests of this theoretical framework, I suggest these concepts be given a more appropriate weighting (less).

3) An obvious objection to the analysis is that it is sensor level. The authors need to address their reasons for doing this e.g. that source projections destroy real long-range correlations as well as blurring by the scalp and other tissues. See Nunez, 1974; Nunez et al., 1997; Freeman et al., 2000; 2003 and Alexander et al., 2019, for a summary of these issues.

Reviewer #3:

This study of the effects of the drug DMT on the direction and occurrence of EEG traveling waves seems generally plausible to me, although some important aspects are not discussed. I don't have major criticisms. However, as one who has studied EEG traveling and standing waves for many years, I worry that those unfamiliar with EEG wave phenomena may misinterpret some of these results given their partial dependence on the specific experimental methods employed. While I have not read previous papers by these authors that may fill in some of the important gaps, I list below some ideas that any reader interested in EEG waves and their neuro-scientific interpretation must be aware of. A summary paragraph in the section "Quantifying travelling waves" is recommended concerning the following basic concepts that must be understood if the results are to be interpreted correctly.

1) In all but the simplest systems, traveling waves occur in groups (packets) over some range of spatial wavelengths (multiple spatial frequencies, k). This is to be expected in brains, based on both theory and experiment (see Nunez and Srinivasan, 2006; 2014; Nunez, 2000).

2) Any experimental electrode array will be sensitive to only parts of these wave packets, e.g. only waves shorter than the spatial extent of the array and waves longer than twice the electrode separation distance (Nyquist criterion in space) can be resolved. In scalp recordings, the shorter waves may be mostly removed by volume conduction.

3) As a consequence of #2, waves recorded directly from the cortex (as indicated in several recent studies) will emphasize shorter waves than the scalp recorded waves. In the case of small cortical arrays, the ECoG overlap with scalp data may be minimal. Thus, the different estimated wave properties (including propagation direction) need not agree.

4) When waves are traveling in multiple directions at nearly the same time in "closed" systems (e.g., the cortical/white matter), there are only two possible results. Either the waves must damp out or they combine (interfere) to form standing waves (e.g. α waves traveling both forward and backward). One expects that the actual behavior depends on brain state, including the influence of drugs (see Nunez and Srinivasan, 2006; 2014; Nunez, 2000).

https://doi.org/10.7554/eLife.59784.sa1

Author response

Revisions for this paper:

I highlight three main issues that need to be addressed in a revised paper.

1) All three reviewers highlight specific points re. the limitations of the current analysis (e.g. a prior choice of electrodes) and the choice for quantifications of the traveling waves. The authors should clarify their rationale underlying their analytical choices. As suggested by reviewer 3, a section dedicated to "Quantifying travelling waves" may be helpful.

We have now acknowledged the limitations of the current analyses, and we performed several additional steps to improve on our previous approach. As explained in detail in what follows (and in the revised manuscript) we included a new analysis considering different lines of electrodes, spanning from posterior to anterior, but also left to right brain regions. We also performed an additional complementary analysis based on the suggestions of reviewer 2, showing similar results as our original analysis. Finally, as suggested by reviewer 3, we integrated the current “Quantifying travelling waves” paragraph with his generous suggestions, improving the readability of the manuscript to a non-specialized audience. We believe that these modifications will satisfy both the editor and all the reviewers.

2) All three reviewers raised substantial concerns about the interpretability of scalp level recordings in relation to the generators of the signals as well as the inference that can be made on the traveling pattern. Reviewer 1 raised concerns about the full spectral changes that can be seen and reviewer 3 suggested the possibility of interference patterns.

We agree with the concerns raised by both reviewers, and we have included an additional analysis (now Figure 3B in the revised manuscript) that addresses specifically these concerns. Regarding the spectral changes, our new analysis avoids choosing a priori a single frequency band (i.e. the one corresponding to the global maximum in the 2D-FFT) but instead analyze the changes in all the spectrum. This novel approach, besides confirming our previous results, provides a fuller view of the overall changes in the spectral pattern induced by DMT. Concerning the source generators of the travelling waves pattern, we discuss this point in the revised manuscript, arguing that a sensor analysis is more appropriate in this case because it circumvents some limitations related specifically to source analysis (e.g. source projections impair long-range connections). Finally, as shown in Figure 4, backward and forward waves were negatively correlated on a trial by trial basis, which will tend to limit the possibility suggested by reviewer 3 of having interference patterns (resulting in standing waves).

3) Reviewers 1 and 2 consider the predictive coding hypothesis a far-stretched inference of current results, and thus needs to be refined.

We addressed carefully this point by giving overall less weight to the Predictive Coding hypothesis in the Discussion, as suggested by both reviewers. Additionally, as suggested specifically by reviewer 2, we clarify in the revised Discussion the link between Predictive Coding, α oscillations and travelling waves, and the motivation behind our original hypothesis and the relationship with the present results. More precisely, we previously demonstrated how a model based on Predictive Coding principles and implementing biologically plausible constraints gives rise to α-band travelling waves, whose direction of propagation depends on the “cognitive” state of the model/subject (FW during visual stimulation, BW during closed-eyes resting state). Then, starting from the premise that psychedelics disrupt prior distributions encoded in hierarchically high-level properties of brain function (Carhart-Harris and Friston, 2019), we formulated the specific hypothesis that DMT could specifically disrupt α-band travelling waves, enhancing their feed-forward propagation while decreasing the feed-back direction. All in all, we found it remarkable that such a specific hypothesis received such clear support in the data. However, we understand that interpretations can always be queried and more work is needed to scrutinize the one we offer based on our specific prior hypothesis. We have now rephrased our interpretation substantially in the revised version of the manuscript, to soften our conclusions and emphasize the need for more research.

Reviewer #1:

In this study, Alamia and colleagues describe the effect of N,N, Dimethyltryptamine DMT on the resting-state dynamics of α traveling waves. DMT is a serotonergic psychedelic drug that elicits vivid hallucinations. The authors herein propose that DMT provokes a relative change in strength of forward- and backward- α traveling waves recorded with non-invasive EEG. The authors hypothesized that traveling waves under DMT may show features of visual perception, namely an increase of forward going (occipital to frontal) traveling waves during eyes-closed resting-state thus independently of photic inputs. With three main analyses, the authors observe that following DMT, forward-traveling waves increase, α power increase (comparable to photic stimulation) and an overall increase of low-frequency components in the low-range spectrum.

I have several major concerns regarding the reliability of the analysis and subsequent interpretations. One is that while the authors quantified traveling waves, they also report a radical change in the overall spectral fingerprinting of the EEG (Figure 3) and clearly showing that α is largely suppressed following DMT thus largely diminishing the reliability and pertinence of focusing on α traveling wave while low-frequency are largely boosted. Second, the authors report consistent inverse relationships between FW and BW waves, which may simply result from moving dipoles that generate the signals; in light of this, the inverse relation in Figure 5 between FW/BW is not surprising. Finally, would a simpler measure of decrease in α power and increase of low spectral power reveal similar correlations to behavior?

We thank the reviewer for raising these important considerations. Regarding the relationship between the spectral changes in the EEG and the changes in the amount of waves, we performed an additional analysis quantifying these changes as a function of each frequency (i.e. extracting in the 2D-FFT the maximum value separately for each frequency). The first row of Author response image 1 (integrated in the revised version of the manuscript as figure 3B) shows the amount of FW and BW waves (in dB –as compared to the surrogate distribution) before and after DMT or Placebo infusion (i.e. Pre and Post). The second row shows the difference in the amount of waves between DMT and Placebo for each frequency. Interestingly the largest changes occur in the α band frequency for both forward and backward waves, even though after correcting for multiple comparison we found a significant reduction only in the BW α band. This analysis shows that, as suggested by the reviewer, the changes in the spectral fingerprint of the EEG do influence the waves’ propagation in several frequencies, but the largest changes systematically occur in the α band. This additional analysis has been introduced in the Results section (paragraph: “Does DMT influence the frequency of travelling waves?”)

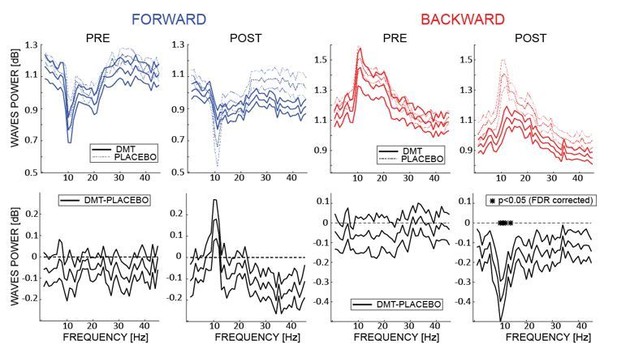

Author response image 1
The upper panels show the amount of waves computed at each frequency of the 2D-FFT (i.e. not considering the maximum power per quadrant as in A, but considering it separately for each frequency), for FW and BW waves, pre- and post- infusion.

The lower panels show the difference between DMT- and placebo-induced waves for each condition. As shown in the previous analysis, DMT induces an overall decrease of the waves’ amplitude, especially pronounced (and significant) in the α band BW waves, with the notable exception of FW waves in the α range, where an DMT-induced increase is observed.

Regarding the relationship between FW and BW waves, our analysis –shown in Figure 4 of the manuscript- suggests that after DMT –or during photic visual stimulation- FW and BW waves do not co-occur simultaneously, but tend to alternate temporally, as revealed by the negative correlation. We agree with the reviewer that moving dipoles could be responsible for the generation of these signals, as reported in an in-depth analysis of a previous paper investigating the source localization of similar waves patterns (Lozano-Soldevilla and VanRullen, 2019). In line with a similar comment from reviewer 2, we added in the manuscript a reference to source vs sensors analysis (“In addition, it is important to note that our waves’ analysis focuses on the sensor level, as source projections present a number of important limitations, such as impairing long-range connections, as well as smearing of signals due to scalp interference (Alexander et al., 2019; Freeman and Barrie, 2000; Nunez, 1974)”). Lastly, a previous analysis on the same dataset (Timmermann et al., 2019) identified a correlation between theta- and δ-band spectral power changes and subjective behavior, but not for changes in the α range. This suggests that the correlation reported in Figure 5 is not a direct consequence of changes in the EEG spectral power.

Reviewer #2:

The authors present a sensor level analysis of traveling waves in the EEG, during dosage with DMT or saline. The work is a strong contribution to the study of cortical traveling waves (TWs) due to the pharmacological manipulation, which helps our understanding of the causal role of TWs. This contribution is bolstered by being able to draw parallels with the effects of visual stimulation (or not) during rest, reported in a contemporaneous manuscript. The manuscript will be of general interest to readers of eLife. The manuscript is crisply written.

The conclusions follow from the analysis.

Concerns:

1) The quantitative methods to analyse TWs are rather week, being focussed on direction of travel along the anterior-posterior axis. While these methods are sufficient to support the main conclusions, more could be teased from the experiment by following recent developments in TW quantification.

For example, using peak tracing along the lines of Massimini et al., 2004, would enable the detailed paths of the waves to be traced over the whole recording array, and velocity to be estimated.

Methods exist to estimate the spatial frequency of the waves on the scalp, as well as the proportion of traveling vs. standing waves (Alexander et al., 2016). Likewise, other directional components of the wave trajectory can be assessed by using PCA to create a spatial basis for the waves (Alexander et al., 2006, 2009, 2013).

We thank the reviewer for his useful suggestions. As correctly noticed, our current method to detect travelling waves focuses exclusively on the Anterior-Posterior axis, in line with our previous studies (Alamia and VanRullen, 2019; Lozano-Soldevilla and VanRullen, 2019; Pang et al., 2020). However, we agree that more can be inferred from the data from other electrodes (see next point and comment to reviewer 1 for waves’ quantification on other axes). We applied a method similar to Alexander et al., 2006, 2009 and 2016, thus considering the phase of the signal over the entire array of electrodes. Specifically, we computed the phase of the α band-pass filtered signals pre- and post- DMT infusion, and referenced it to the central electrode Cz. The relative phase thus describes the propagation of the wave as compared to this electrodes: positive lags (in yellow in the Author response image 2) characterize earlier components, whereas negative lags (in blue) are associated with signals lagging behind. Author response image 2 summarizes the results in all conditions.

Author response image 2
Relative phase obtained by computing the difference between the phases of the α band-pass filtered signal of each channel and Cz.

Reassuringly, the pattern of results confirms the disruption of the top-down flow, counterbalanced by a bottom-up component, specifically after the infusion of DMT, in line with our original analysis.

Interestingly, we observed that after placebo, the typical top-down propagation of α-band waves remains unaltered, whereas after DMT, waves propagate both FW and BW, as revealed by an overall phase distribution around zero. Overall these results confirmed the one obtained with the 2D-FFT approach. We opted for keeping the latter for consistency with our previous studies (but we mentioned this result in the revised manuscript along with the references)

“Besides, in line with previous work on travelling waves (Alexander et al., 2013, 2006), an additional analysis based on relative phases of the α band-pass signals over all channels confirmed the same results, with DMT disrupting the typical top-down propagation of α-band waves (not shown).”

We agree with the reviewer that the approach used by (Massimini et al., 2004), would allow to identify the detailed path of the waves, and potentially their velocity. However, in their work, Massimini and colleagues targeted slow 1Hz waves (the signal was actually low-pass filtered at 4Hz); for each cycle waves were tracked based on the localization of the main (negative) peak whose voltage was below a threshold of -80 V. This approach, which provides reliable results for low-frequency waves, may present some non-trivial additional limitations when applied to higher frequencies. Specifically, the identification of each peak/cycle may not be straightforward for higher frequencies (e.g. α band); in Massimini et al. the time window used to identify the peak spanned between +/-800ms to the earliest peak, but such a window should be proportionally much shorter to isolate single peaks in the α range, and thus be increasingly more sensitive to jittered noise. We therefore favored the 2D-FFT approach, which –despite its own limitations- seemed more suitable to describe waves with higher temporal frequencies. Finally, regarding the waves speed, it is possible to estimate their velocity from the 2D-FFT, considering both spatial and temporal frequencies as shown in our previous study (Alamia and VanRullen, 2019). The reported results are consistent with the speed recorded for cortical waves (macroscopic scale, speed ~1.5 – 2.0 m/s (Muller et al., 2018)).

It seems possible that important features of the data have been missed by limiting the analysis to electrodes FCz to Oz. For example, what if DMT influence and visual stimulation share a common primary direction, as is found, but DMT waves are more left posterior to right anterior and visual stimulation is more right posterior to left anterior (or vice versa)?

We agree with the reviewer that the choice of the midline electrodes supports the main conclusion but prevents a broader view on the waves’ dynamic at the cortical level. Accordingly, and in line with the concerns of reviewer 1, we explored different lines of electrodes, to identify other axes of propagation. As shown in Figure 2—figure supplement 2, comparing PRE and POST DMT infusion reveals an increase of waves propagating from posterior to anterior regions considering an array of electrodes arranged from right posterior to left anterior (diag1 in Figure 2—figure supplement 2, Bayesian t-test BF=4.059, error=0.002%) and from left posterior to right anterior (diag2 in Figure 2—figure supplement 2, Bayesian t-test BF=4.848, error=0.0001%), similarly to the results obtained considering the main posterior-anterior axis (Bayesian t-test BF=5.4, error=0.001%). Additionally, we revealed a significant amount of waves (larger than 0 dB) propagating along the coronal line of electrodes (i.e. leftward and rightward), but those waves were not influenced by DMT infusion (for both leftward and rightward waves BF<0.4, error~0.02%). We included these analyses in the Results section and as Figure 2—figure supplement 2.

“In order to explore different propagation axes than the midline, we ran the same analysis on one array of electrodes running from posterior right to anterior left regions, and one from posterior left to anterior right ones: in both cases we obtained similar results as for the midline electrodes, that is, an increase and a decrease of FW and BW waves respectively following DMT infusion (see Figure 2—figure supplement 2).This suggests that the waves’ propagation spread to most posterior and frontal recording channels As a control, we additionally demonstrated that waves propagating from leftward to rightward regions (and vice versa) were not affected by DMT, as predicted by our hypothesis (see Figure 2—figure supplement 2).”

2) The sections on predictive coding are only tenuously supported by the data. In particular, I can see no discussion on how directional differences in the α band may be significant in this regard. What about situations where anterior-posterior differences are found in the δ band (Alexander et al., 2006; 2009)? Or if directional results were in another band? Because of the lack of specificity to this discussion, and the lack of explicit tests of this theoretical framework, I suggest these concepts be given a more appropriate weighting (less).

We agree and thank the reviewer for pointing out this shortcoming in the Discussion. The focus on the α-band originates from our previous study (Alamia and VanRullen, 2019) in which we demonstrated how a minimal Predictive Coding model implementing biologically plausible constraints (i.e. temporal delays in the communication between regions and time constants) generates α-band travelling waves whose direction of propagation is matched by experimental data. This result was the starting hypothesis that motivated the investigation of α-band travelling waves after DMT-infusion, under the hypothesis of the REBUS model (psychedelics disrupt prior distributions in higher brain regions- Carhart-Harris and Friston, 2019). In the revised version of the manuscript, we clarify the link between Predictive Coding, α oscillations and travelling waves. However, we agree with this reviewer (and reviewer 1 and the editor) that the Predictive Coding interpretation may not be directly but only indirectly supported by the current data, and so we have rephrased the relevant section and substantially softened it in the revised version of the manuscript, in accordance with this valid point.

“Specifically, these simulations demonstrated that a minimal Predictive Coding model implementing biologically plausible constraints (i.e. temporal delays in the communication between regions and time constants) generates α-band travelling waves, which propagate from frontal to occipital regions and vice versa, depending on the “cognitive states” of the model (input-driven vs prior-driven), as confirmed by EEG data in healthy participants (in that case, processing visual stimuli vs. closed-eyes resting state). The view that Predictive Coding could be the underlying principle explaining both the propagation of α-band travelling waves, and the neural changes induced by psychedelics opened-up a tantalizing opportunity for testing assumptions both about the nature of travelling waves and how they should be modulated by psychedelics (Carhart-Harris and Friston, 2019). Although we are restricted to speculation by the lack of direct experimental manipulation of top-down and bottom-up sensory inputs, our prior assumptions were so emphatically endorsed by the data, including how propagation-shifts related to subjective experience, that, in-line with prior hypotheses and motivations for the analyses, we were persuaded to infer about both the functional relevance of cortical travelling waves and brain action of psychedelics. Additional studies manipulating bottom-up and top-down analysis of sensory inputs with alternative perceptual designs will be required in order to confirm the relation between Predictive Coding, α-band oscillatory travelling waves and psychedelics states. Moreover, future studies can now be envisioned to examine how these assumptions translate to other phenomena such as non-drug induced visionary and hallucinatory states.”

3) An obvious objection to the analysis is that it is sensor level. The authors need to address their reasons for doing this e.g. that source projections destroy real long-range correlations as well as blurring by the scalp and other tissues. See Nunez, 1974; Nunez et al., 1997; Freeman et al., 2000; 2003 and Alexander et al., 2019, for a summary of these issues.

We thank the reviewer for the useful reminder. We included in the “Quantifying the waves” paragraph of the revised manuscript a few sentence addressing this issue:

“In addition, it’s important to note that our waves’ analysis focuses at the sensor level, as source projections presents few important limitations such as impairing long-range connections, as well as smearing the signals due to the scalp inference (Alexander et al., 2019; Freeman and Barrie, 2000; Nunez, 1974)”

Reviewer #3:

This study of the effects of the drug DMT on the direction and occurrence of EEG traveling waves seems generally plausible to me, although some important aspects are not discussed. I don't have major criticisms. However, as one who has studied EEG traveling and standing waves for many years, I worry that those unfamiliar with EEG wave phenomena may misinterpret some of these results given their partial dependence on the specific experimental methods employed. While I have not read previous papers by these authors that may fill in some of the important gaps, I list below some ideas that any reader interested in EEG waves and their neuro-scientific interpretation must be aware of. A summary paragraph in the section "Quantifying travelling waves" is recommended concerning the following basic concepts that must be understood if the results are to be interpreted correctly.

1) In all but the simplest systems, traveling waves occur in groups (packets) over some range of spatial wavelengths (multiple spatial frequencies, k). This is to be expected in brains, based on both theory and experiment (see Nunez and Srinivasan, 2006; 2014; Nunez, 2000).

2) Any experimental electrode array will be sensitive to only parts of these wave packets, e.g. only waves shorter than the spatial extent of the array and waves longer than twice the electrode separation distance (Nyquist criterion in space) can be resolved. In scalp recordings, the shorter waves may be mostly removed by volume conduction.

3) As a consequence of #2, waves recorded directly from the cortex (as indicated in several recent studies) will emphasize shorter waves than the scalp recorded waves. In the case of small cortical arrays, the ECoG overlap with scalp data may be minimal. Thus, the different estimated wave properties (including propagation direction) need not agree.

4) When waves are traveling in multiple directions at nearly the same time in "closed" systems (e.g., the cortical/white matter), there are only two possible results. Either the waves must damp out or they combine (interfere) to form standing waves (e.g. α waves traveling both forward and backward). One expects that the actual behavior depends on brain state, including the influence of drugs (see Nunez and Srinivasan, 2006; 2014; Nunez, 2000).

We are very grateful to the reviewer for her/his overall positive opinion on our work, and her/his useful suggestions. As recommended, we integrated in the “Quantifying travelling waves” paragraph all the points listed above, with the corresponding references. We believe such changes improved the readability of the paper for those unfamiliar with EEG analysis, and hopefully will be satisfying and adequate for the reviewer.

“As demonstrated by both theoretical and experimental evidence (Nunez, 2000; Nunez and Srinivasan, 2014, 2009), in most systems, including the human brain, traveling waves occur in groups (or packets) over some range of spatial wavelengths having multiple spatial and temporal frequencies. Given any configurations of electrodes, only parts of these packets can be successfully detected, i.e. waves shorter than the spatial extent of the array, and waves longer than twice the electrode separation distance (Nyquist criterion in space). In scalp recordings, the shorter waves may be mostly removed by volume conduction. As a consequence, waves recorded directly from the cortex emphasize shorter waves than the scalp recorded waves. Specifically, in the case of small cortical arrays, the overlap between cortical and scalp data may be minimal, and the estimated wave properties (including propagation direction) may differ. Additionally, it is important to consider that when waves are traveling in multiple directions at nearly the same time in "closed" systems (e.g., the cortical/white matter), waves either damp out or interfere with each other to form standing waves (e.g. α waves traveling both forward and backward). It is reasonable to assume that the behavior of these properties will relate to global brain and mind states, and be sensitive to state-altering psychoactive drugs (Nunez, 2000; Nunez and Srinivasan, 2014, 2009).”

Reference:

Massimini M, Huber R, Ferrarelli F, Hill S, Tononi G. 2004. The sleep slow oscillation as a traveling wave. J Neurosci24:6862–6870. doi:10.1523/JNEUROSCI.1318-04.2004

https://doi.org/10.7554/eLife.59784.sa2

Article and author information

Author details

  1. Andrea Alamia

    Cerco, CNRS Université de Toulouse, Toulouse, France
    Contribution
    Software, Formal analysis, Visualization, Methodology, Writing - original draft
    Contributed equally with
    Christopher Timmermann
    For correspondence
    andrea.alamia@cnrs.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9826-2161
  2. Christopher Timmermann

    1. Computational, Cognitive and Clinical Neuroscience Laboratory (C3NL), Faculty of Medicine, Imperial College, London, United Kingdom
    2. Centre for Psychedelic Research, Division of Psychiatry, Department of Brain Sciences, Imperial College London, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Methodology, Writing - review and editing
    Contributed equally with
    Andrea Alamia
    For correspondence
    c.timmermann-slater15@imperial.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2281-377X
  3. David J Nutt

    Centre for Psychedelic Research, Division of Psychiatry, Department of Brain Sciences, Imperial College London, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
  4. Rufin VanRullen

    1. Cerco, CNRS Université de Toulouse, Toulouse, France
    2. Artificial and Natural Intelligence Toulouse Institute (ANITI), Toulouse, France
    Contribution
    Formal analysis, Supervision, Funding acquisition, Methodology, Writing - review and editing
    Contributed equally with
    Robin L Carhart-Harris
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3611-7716
  5. Robin L Carhart-Harris

    Centre for Psychedelic Research, Division of Psychiatry, Department of Brain Sciences, Imperial College London, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition, Project administration, Writing - review and editing
    Contributed equally with
    Rufin VanRullen
    Competing interests
    No competing interests declared

Funding

Alexander Mosley Charitable Trust

  • Robin L Carhart-Harris

Ad Astra Chandaria Foundation

  • Robin L Carhart-Harris

CRCNS ANR-NSF (ANR-19-NEUC-0004)

  • Rufin VanRullen

ANITI (Artificial and Natural Intelligence Toulouse Institute) Research Chair (ANR-19-PI3A-0004)

  • Rufin VanRullen

Comision Nacional de Investigacion Cientifica y Tecnologica de Chile

  • Christopher Timmermann

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We dedicate this paper to the memory of Jordi Riba, a gracious man and pioneering psychedelic researcher.

Ethics

Human subjects: All participants provided written informed consent, and the study was approved by the National Research Ethics (NRES) Committee London - Brent and the Health Research Authority (16/LO/0897). The study was conducted in line with the Declaration of Helsinki and the National Health Service Research Governance Framework.

Senior Editor

  1. Timothy E Behrens, University of Oxford, United Kingdom

Reviewing Editor

  1. Virginie van Wassenhove, CEA, DRF/I2BM, NeuroSpin; INSERM, U992, Cognitive Neuroimaging Unit, France

Reviewer

  1. David Murray Alexander, KU Leuven, Belgium

Publication history

  1. Received: June 8, 2020
  2. Accepted: October 11, 2020
  3. Accepted Manuscript published: October 12, 2020 (version 1)
  4. Version of Record published: October 21, 2020 (version 2)
  5. Version of Record updated: November 9, 2020 (version 3)

Copyright

© 2020, Alamia et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 6,195
    Page views
  • 246
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Hiromi Tamada et al.
    Research Advance

    Previously we showed that cryo fixation of adult mouse brain tissue gave a truer representation of brain ultrastructure in comparison with a standard chemical fixation method (Korogod et al 2005). Extracellular space matched physiological measurements, there were larger numbers of docked vesicles and less glial coverage of synapses and blood capillaries. Here, using the same preservation approaches we compared the morphology of dendritic spines. We show that the length of the spine and the volume of its head is unchanged, however, the spine neck width is thinner by more than 30 % after cryo fixation. In addition, the weak correlation between spine neck width and head volume seen after chemical fixation was not present in cryo-fixed spines. Our data suggest that spine neck geometry is independent of the spine head volume, with cryo fixation showing enhanced spine head compartmentalization and a higher predicted electrical resistance between spine head and parent dendrite.
