A lung-on-chip model of early Mycobacterium tuberculosis infection reveals an essential role for alveolar epithelial cells in controlling bacterial growth

  1. Vivek V Thacker  Is a corresponding author
  2. Neeraj Dhar
  3. Kunal Sharma
  4. Riccardo Barrile
  5. Katia Karalis
  6. John D McKinney  Is a corresponding author
  1. School of Life Sciences, Swiss Federal Institute of Technology Lausanne (EPFL), Switzerland
  2. Emulate Inc, United States
Tools and Resources
  • Cited 15
  • Views 3,458
  • Annotations
Cite this article as: eLife 2020;9:e59961 doi: 10.7554/eLife.59961

Abstract

We establish a murine lung-on-chip infection model and use time-lapse imaging to reveal the dynamics of host-Mycobacterium tuberculosis interactions at an air-liquid interface with a spatiotemporal resolution unattainable in animal models and to probe the direct role of pulmonary surfactant in early infection. Surfactant deficiency results in rapid and uncontrolled bacterial growth in both macrophages and alveolar epithelial cells. In contrast, under normal surfactant levels, a significant fraction of intracellular bacteria are non-growing. The surfactant-deficient phenotype is rescued by exogenous addition of surfactant replacement formulations, which have no effect on bacterial viability in the absence of host cells. Surfactant partially removes virulence-associated lipids and proteins from the bacterial cell surface. Consistent with this mechanism, the attenuation of bacteria lacking the ESX-1 secretion system is independent of surfactant levels. These findings may partly explain why smokers and elderly persons with compromised surfactant function are at increased risk of developing active tuberculosis.

eLife digest

Tuberculosis is a contagious respiratory disease caused by the bacterium Mycobacterium tuberculosis. Droplets in the air carry these bacteria deep into the lungs, where they cling onto and infect lung cells. Only small droplets, holding one or two bacteria, can reach the right cells, which means that just a couple of bacterial cells can trigger an infection. But people respond differently to the bacteria: some develop active and fatal forms of tuberculosis, while many show no signs of infection. With no effective tuberculosis vaccine for adults, understanding why individuals respond differently to Mycobacterium tuberculosis may help develop treatments.

Different responses to Mycobacterium tuberculosis may stem from the earliest stages of infection, but these stages are difficult to study. For one thing, tracking the movements of the few bacterial cells that initiate infection is tricky. For another, studying the molecules, called ‘surfactants’, that the lungs produce to protect themselves from tuberculosis can prove difficult because these molecules are necessary for the lungs to inflate and deflate normally. Normally, the role of a molecule can be studied by genetically modifying an animal so it does not produce the molecule in question, which provides information as to its potential roles. Unfortunately, due to the role of surfactants in normal breathing, animals lacking them die. Therefore, to reveal the role of some of surfactants in tuberculosis, Thacker et al. used ‘lung-on-chip’ technology. The ‘chip’ (a transparent device made of a polymer compatible with biological tissues) is coated with layers of cells and has channels to simulate air and blood flow.

To see what effects surfactants have on M. tuberculosis bacteria, Thacker et al. altered the levels of surfactants produced by the cells on the lung-on-chip device. Two types of mouse cells were grown on the chip: lung cells and immune cells. When cells lacked surfactants, bacteria grew rapidly on both lung and immune cells, but when surfactants were present bacteria grew much slower on both cell types, or did not grow at all. Further probing showed that the surfactants pulled out proteins and fats on the surface of M. tuberculosis that help the bacteria to infect their host, highlighting the protective role of surfactants in tuberculosis.

These findings lay the foundations for a system to study respiratory infections without using animals. This will allow scientists to study the early stages of Mycobacterium tuberculosis infection, which is crucial for finding ways to manage tuberculosis.

Introduction

Early tuberculosis (TB), a respiratory infection caused by Mycobacterium tuberculosis (Mtb) is strongly influenced by host physiology; due to the small diameter of respiratory bronchioles only the smallest aerosol droplets containing one to two bacilli are successfully transported to the alveolar space (Ma and Darquenne, 2011), and the ‘first contact’ with a naive host is by default a single-cell interaction between an Mtb bacillus and a host cell. There is some evidence that pulmonary surfactant plays host-protective role in these early interactions (Torrelles and Schlesinger, 2017), but a complete understanding of the role of surfactant is difficult to obtain from animal infection models owing to the lethality of surfactant deficiency. In addition, experiments in animal models (Collins and Orme, 1994) cannot provide information about the dynamics of host-Mtb interactions at this early stage with sufficient spatiotemporal resolution (Westphalen et al., 2014; Looney et al., 2011). A commonly used in vitro model, infection of macrophages with Mtb (Lerner et al., 2017), has been used to probe the role of certain surfactant components (Arcos et al., 2011), but these studies cannot address the role of native surfactant secreted by alveolar epithelial cells (ATs) at an air-liquid interface (ALI), a condition that has been reported to alter Mtb physiology (Ojha et al., 2008).

Organ-on-chip systems recreate tissue-level complexity in a modular fashion, allowing the number of cellular components, their identity, and environmental complexity to be tailored to mimic key aspects of the relevant physiology, such as an ALI in a lung-on-chip (LoC) (Huh et al., 2010). These systems have emerged as crucial tools for the replacement of animal models in drug development, toxicity testing, and personalized medicine (Ghaemmaghami et al., 2012; Ronaldson-Bouchard and Vunjak-Novakovic, 2018). A far less-explored line of enquiry has been to use them as models to study the dynamics of host-pathogen interactions in a realistic physiological setting (Grassart et al., 2019), where they can combine key advantages of both simpler in vitro models and animal models (Torrelles and Schlesinger, 2017). Here, we develop an LoC model of early TB infection and use time-lapse microscopy to study the infection dynamics for ATs and macrophages as independent sites of first contact, and the impact of surfactant on infection of ATs and macrophages under ALI conditions that mimic the alveolar environment in vivo.

Results

LoC model of early Mtb infection

Freshly isolated mouse ATs comprise a mix of type I cells (Figure 1A) and type II cells that produce normal surfactant (NS) levels (Figure 1B). Prolonged in vitro passage causes ATs to adopt a phenotype with deficient surfactant (DS) levels (Figure 1C). DS cells had reduced expression of type II markers such as Abca3 (required for surfactant export [Beers and Mulugeta, 2017; Besnard et al., 2010]) and all four surfactant proteins Sftpa, Sftpb, Sftpc, and Sftpd (Figure 1—figure supplement 1A) as measured by RT-PCR. These cells also showed reduced expression of some type I markers such as the membrane proteins Aquaporin (Aqp5) and Podoplanin (Pdpn) but had elevated expression of other type I markers such as Caveolin-1 (Cav1) and Insulin Growth Factor Binding Protein 2 (Igfbp2). These observations are consistent with a majority of the cells in this populations having a terminal type I phenotype (Wang et al., 2018). DS ATs also have fewer and smaller lamellar bodies (Figure 1—figure supplement 1B,C).

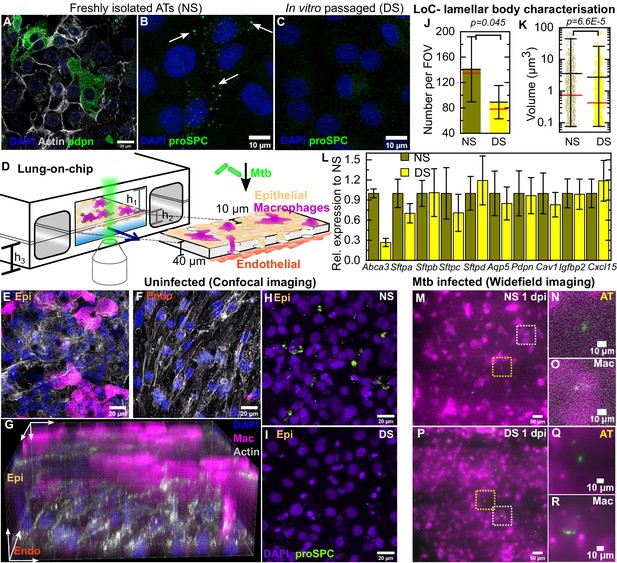

Figure 1 with 3 supplements see all
Direct observation of the role of pulmonary surfactant in a lung-on-chip (LoC) model for tuberculosis.

Freshly isolated murine alveolar epithelial cells (ATs) are a mixture of (A) type I Pdpn-immunostained cells and (B) type II pro-SPC-immunostained cells containing lamellar bodies (white arrows). (C) In vitro passaged ATs have fewer and smaller lamellar bodies. (D) Schematic of the LoC model of early tuberculosis. Confluent layers of ATs and endothelial cells populate the top and bottom faces of the porous membrane that separates the air-filled 'alveolar' (upper) and liquid-filled 'vascular' (lower) compartments, creating an air-liquid interface. GFP-expressing macrophages (magenta) are added to the alveolar compartment to mimic the natural route of infection. h1 = 1 mm, h2 = 250 µm, h3 = 800 µm. (E-F) Confocal microscope images of an uninfected LoC stained to visualize nuclei (blue), actin (gray), and surfactant (green, anti-pro-SPC antibody) verifies that confluency of epithelial (E) and endothelial (F) layers is maintained at the air-liquid interface over 7 days. 3D imaging reveals occupancy of some pores by macrophages (G). Maximum intensity projection of a Z stack from representative field of view on an LoC reconstituted with normal surfactant (NS) (H) or deficient surfactant (DS) (I) ATs shows that these phenotypes are maintained at the air-liquid interface. Data from independent 155 × 155 μm2 fields of view from NS and DS LoCs (n=5 for NS and n=6 for DS) show that DS LoCs have fewer (J) and smaller (K) lamellar bodies. Mean and median values are represented by black and red bars, respectively. Whiskers represent the standard deviation in (J) and the 1–99 percentile interval in (K), (p = 0.045 and 6.6E-5, respectively). DS LoCs also have reduced expression of type II AT markers relative to NS LoCs (L), error bars represent the standard deviation for two technical repeats. (M-R) Widefield microscope images of LoCs reconstituted with NS (M-O) or DS (P-R) ATs and infected with a low dose of Mtb expressing td-Tomato (green). Images taken at 1 day post-infection (dpi) show that ATs (yellow boxes (M, P) and zooms (N, Q)) as well as macrophages (white boxes (M, P) and zooms (O, R)) can be sites of first contact. p-Values were calculated using the Kruskal-Wallis one-way ANOVA test.

We reconstituted LoC (schematic in Figure 1D) with confluent monolayers of NS or DS ATs (Figure 1E) and endothelial cells (Figure 1F) on opposite faces of a porous membrane (Figure 1G) and an ALI mimicking the alveolar environment. Macrophages added to the epithelial face may remain there or transmigrate across the membrane to the endothelial face (Figure 1E–G). Typical numbers of ATs, endothelial cells, and macrophages are given in Table 1, the low macrophage: AT ratio is consistent with alveolar physiology (Weibel, 2015). The macrophages are obtained from a mouse line that constitutively expresses GFP (false-colored magenta in all Figures unless otherwise specified) to enable unambiguous identification of these cells during live-cell microscopy. A maximum intensity projection of a field of view on the epithelial face of an LoC reconstituted with NS ATs (Figure 1H, additional examples in Figure 1—figure supplement 2A–C) and maintained for 24 hr at the ALI shows more intense pro-SPC signal than a corresponding maximum intensity projection for an LoC reconstituted with DS ATs (Figure 1I, additional examples in Figure 1—figure supplement 2D–F). LoCs reconstituted with DS ATs retain deficient surfactant expression on-chip at the ALI with fewer (Figure 1J) and smaller (Figure 1K) lamellar bodies detected across multiple fields of view. This phenotype is also reflected in the reduced expression of some type II markers, notably Abca3, in DS LoCs as compared to NS LoCs (Figure 1L, Figure 1—figure supplement 2G). In contrast, expression of type I markers including Aqp5 and Pdpn as well as the lung chemokine Cxcl15 was not significantly different between NS and DS LoCs at the ALI (Figure 1L, Figure 1—figure supplement 2H). This established LoCs reconstituted with DS ATs as a tool for the direct study of the role of AT-secreted pulmonary surfactant in early infection without significantly altering other aspects of AT biology. DS LoCs retained surfactant deficiency for up to 6 days at the ALI (Figure 1—figure supplement 2I,J vs. Figure 1—figure supplement 2K,L).

Table 1
Characterization of AT, endothelial cell, and macrophage densities in deficient surfactant (DS) and normal surfactant (NS) LoCs.
SurfactantCell typeCell density×104/ mm2
DSAT23.5±3.9
NSAT26.4±6
DSMacrophage3.3±1.5
NSMacrophage3.2±1.5
n/aEndothelial13.6±3.7

Inoculation of the LoC with between 200 and 800 Mtb bacilli led to infection of both macrophages (white boxes in Figure 1M,P, zooms in Figure 1O,R) and ATs (yellow boxes in Figure 1M,P, zooms in Figure 1N,Q) under both NS (Figure 1M–O) and DS (Figure 1P–R) conditions. The current paradigm in TB focuses on macrophages as sites of first infection; we therefore examined all the Mtb-infected cells isolated from the lungs of a mouse at 8 days post-infection (dpi) in an unbiased manner to ascertain if ATs also served as a site of first contact. This revealed that 7.3% of infected cells (n = 163) were CD45- pro-SPC+ type II ATs (Figure 1—figure supplement 3A–F, Video 1). We did not find instances of type I AT infection, but this likely reflects the challenges in isolating this cell type. Thus, the LoC model faithfully reproduces AT infection that also occurs in vivo (Figure 1—figure supplement 3G) albeit at a higher frequency (Figure 1—figure supplement 3H). This in turn enables us to study the infection dynamics in ATs and macrophages simultaneously.

Video 1
3D rotation along the Y-axis of a Z-stack highlighting the intracellular localization of Mtb within a type II AT.

The field of view is 81.98 x 81.98 x 15.12 µm3. Colors: pro-SPC is labeled with the Amber LUT, Mtb is labeled with the Spring Green LUT, and CD45 is labeled with the Azure LUT.

Surfactant deficiency leads to uncontrolled intracellular growth of Mtb

We used time-lapse microscopy to quantify the intracellular growth of Mtb in the host cells of first contact by measuring the total fluorescence intensity of bacteria within single infected cells over time (Figure 2). The refractive index differences at the ALI significantly degrades axial resolution and signal-to-noise ratios; nonetheless, we are able to identify and track individual infected cells over time. Between 3 and 5 dpi under NS (Figure 2, A-D, Figure 2—video 1) or DS (Figure 2, E-H, Figure 2—video 2) conditions, intracellular growth of Mtb is highly variable in both ATs (Figure 2I,K) and macrophages (Figure 2J,L). We used high-resolution confocal imaging of the epithelial face of an infected LoC fixed at 4 dpi to obtain direct verification that growth in both ATs and macrophages is intracellular (Figure 2—figure supplement 1 and Videos 2 and 3). Plots of the logarithm of total bacterial fluorescence intensity within individual infected cells (representing the spread in growth rates) indicate that bacterial growth is exponential in ATs (Figure 2I,K) and macrophages (Figure 2J,L). However, under NS conditions, we identified substantial fraction of bacteria that show very slow growth (doubling time >168 hr) or even a decrease in fluorescence intensity over time. In the absence of a reliable live/dead marker for Mtb, we identify this as a ‘non-growing fraction’ (NGF). Intracellular bacterial growth is slower in macrophages compared to ATs under NS conditions but growth rates in both cell types are equivalent under DS conditions (Figure 2M). Compared to bacterial growth in axenic 7H9 cultures, growth in both cell types is slower under NS conditions (Figure 2—figure supplement 2A) but significantly faster under DS conditions (Figure 2—figure supplement 2B). We also found that Mtb grows very poorly when cultured axenically in the ALI medium (Figure 2—figure supplement 3 vs Figure 2—figure supplement 4B), which provides indirect evidence that Mtb growth on-chip is likely to be intracellular. Interestingly, there is a much larger spread in growth rates and a small fraction of bacteria continue to grow rapidly even under NS conditions. We observed no spatial pattern of intracellular Mtb growth rates within the LoC in both NS and DS conditions, confirming that the observed distributions of growth rates are not due to spatial heterogeneity within the device (Figure 2—figure supplement 5A,B). Taken together, these results suggest that surfactant deficiency shifts the host-pathogen equilibrium in favor of Mtb, resulting in uncontrolled bacterial growth even in macrophages.

Figure 2 with 7 supplements see all
Surfactant deficiency results in uncontrolled intracellular growth of Mtb.

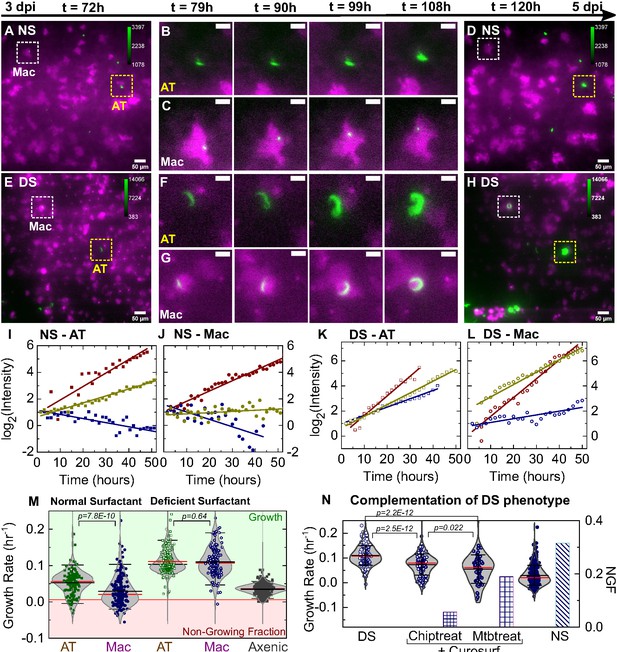

Snapshots from live-cell imaging at 1.5–2.0 hr intervals between 3 and 5 days post-infection (dpi) in normal surfactant (NS) (A-D) and deficient surfactant (DS) (E-H) lung-on-chip (LoCs). Macrophages are false-colored magenta; Mtb is false-colored green. The calibration bar (inset in A, D, E, H) indicates the absolute intensities in the Mtb channel, the scales were chosen to achieve a similar saturation level in the images across surfactant conditions. Representative examples of infected AT (yellow boxes) and macrophage (white boxes) are highlighted, and zooms (B, C, F, G) reveal growth in both cell types over this period. Scale bar, 10 µm. (I, J) Plots of the logarithm of total fluorescence intensity over time confirm exponential Mtb growth for representative infections in ATs (I, K) and macrophages (J, L) under NS and DS conditions, respectively. In each case, an intracellular microcolony with growth rate close to the population maximum (red), median (yellow), and minimum (blue) is shown. The growth rate is the gradient of the linear fit. (M) Scatter plots of Mtb growth rates in ATs (n=122 for NS, n=219 for DS) and macrophages (n=185 for NS, n=122 for DS). Growth is significantly slower in macrophages than ATs in NS conditions (p = 7.8E-8) but not in DS conditions (p = 0.64), and is more heterogenous in both conditions compared to single-cell Mtb growth rate data from axenic microfluidic cultures. The green- and red-shaded regions indicate the growing bacteria and the non-growing fraction (NGF), respectively. (N) Uncontrolled growth in DS conditions can be rescued by exogenous administration of Curosurf. Scatter plots represent Mtb growth rates in macrophages in a DS LoC treated with Curosurf (‘Chiptreat’) or infected with Mtb preincubated with Curosurf (‘Mtbtreat’). Data from DS and NS LoC infections (no Curosurf) are included for comparison. Growth attenuation for both treatments is significant relative to DS conditions as reflected by the average growth rate and the size of the NGF (n = 122 for DS and n = 121 for Chiptreat; p = 2.5E-12 and n = 63 for Mtbtreat; p = 2.2E-12 and n = 122 for DS). p-Values were calculated using the Kruskal-Wallis one-way ANOVA test.

Video 2
3D rotation along the Y-axis of a Z-stack highlighting the intracellular localization of Mtb within an infected AT on an LoC at 4 days post-infection.

The field of view is 40.30 × 40.30 × 23.40 µm3. Colors: Actin is labeled with the Amber LUT , Mtb with the Spring Green LUT, macrophages (identified via GFP expression are labeled with the Azure LUT), and nuclei stained by DAPI is labeled with the Electric Indigo LUT.

Video 3
Dynamic animation of the Z-stack highlighting the intracellular localization of Mtb within an infected AT on an LoC at 4 days post-infection.

The field of view is 40.30 × 40.30 × 23.40 µm3. Colors: Actin is labeled with the Amber LUT, Mtb with the Spring Green LUT, macrophages (identified via GFP expression are labeled with the Azure LUT), and nuclei stained by DAPI is labeled with the Electric Indigo LUT.

Mtb growth rates are in good agreement with data from the mouse model obtained with a replication clock plasmid

We compared the growth rate measurements from the LoC with those obtained from Gill et al., 2009 which uses of a plasmid-loss assay in the mouse model of infection and represents the state-of-the-art in quantitative measurements of Mtb growth in vivo. Table 1 (Gill et al., 2009) in lists a mean growth rate r = 0.78 and a mean death rate δ = 0.41 for Mtb replication for the period of days 1–14 post-infection in the mouse model of infection. Thus, the net growth rate equals r-δ=0.37, which corresponds to a doubling time (or generation time) of td=ln(2)r-δ24  hr = 45 hr. In the notation of the current manuscript, this converts to a growth rate (h−1) of 0.022, which is in good agreement with the mean or median growth rate that we report for macrophage infections with wild-type Mtb in NS conditions (Table 2). Notably, the LoC model provides the entire population distribution of growth rates with an approximately 200-fold higher temporal resolution.

Table 2
Data for mean and median growth rates and total number of microcolonies (n) analyzed in the different experimental conditions outlined in Figures 2 and 3.
StrainInfectionSurfactantMean(h-1)Median (h-1)n
WTATNS0.0530.056122
WTMacNS0.0300.021185
WTATDS0.1110.103219
WTMacDS0.1090.107122
esx-1ATNS0.0540.06261
esx-1MacNS0.0270.03293
esx-1ATDS0.0730.08125
esx-1MacDS0.0450.04755
WTMacDS-chiptreat0.0730.079121
WTMacDS-Mtbtreat0.0550.06163

Exogenous addition of surfactant restores control of Mtb growth

Although reduced surfactant secretion in DS LoCs correlates with increased Mtb replication, this shift could reflect other physiological changes that occur during in vitro passage of ATs. We therefore asked whether uncontrolled intracellular replication of Mtb in LoCs reconstituted with DS ATs could be rescued by exogenous addition of surfactant. A 1% solution of Curosurf, a pulmonary surfactant formulation comprising dipalmitoylphospatidylcholine (DPPC) and the hydrophobic surfactant proteins SP-B and SP-C, was used to treat either the Mtb or the DS LoC prior to infection. Both procedures attenuated intracellular Mtb growth and generated a non-growing fraction similar in magnitude to infected NS LoCs (Figure 2N, Table 2). Curosurf treatment affects neither Mtb viability (Figure 2—figure supplement 4A) nor replication in vitro in the absence of host cells (Figure 2—figure supplement 4B) suggesting that surfactant protects by altering the interaction of Mtb with host cells rather than by any direct effect on bacterial physiology. We conclude that uncontrolled intracellular growth of Mtb in DS LoCs is largely attributable to reduced surfactant secretion.

Attenuation of an ESX-1-deficient strain of Mtb is independent of surfactant

We examined whether Mtb mutants that were previously shown to be attenuated in the mouse model of TB are also attenuated in the LoC model and whether surfactant plays a role in attenuation. Mtb lacking both the isocitrate lyase genes icl1 and icl2 grows normally under standard conditions in vitro but is incapable of growth in the lungs of mice and is rapidly cleared (Muñoz-Elías and McKinney, 2005). In the LoC model, we found that the Δicl1Δicl2 strain is unable to grow in either ATs or macrophages even under the more-permissive DS conditions (Figure 3C vs. A, Figure 3—figure supplement 1A–C for widefield images and Figure 3—figure supplement 1C–F for confocal images), indicating that attenuation of this mutant is similar in the LoC and mouse models and independent of surfactant secretion. These results once again are suggestive of intracellular Mtb growth in the LoC model because the Δicl1Δicl2 strain has a growth defect relative to wild-type only when intracellular in a host cell due to the accumulation of metabolic intermediates (Upton and McKinney, 2007), whereas there are no differences in growth between the axenic cultures of Δicl1Δicl2 and wild-type strains in 7H9 medium (Muñoz-Elías and McKinney, 2005) or in the ALI media used in the LoC experiments (Figure 2—figure supplement 3).

Figure 3 with 2 supplements see all

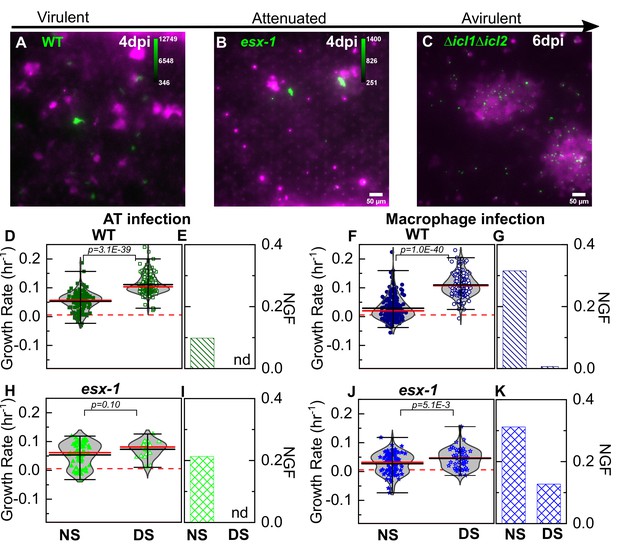

Attenuation of ESX-1-deficient strain is surfactant independent.

Snapshots from live-cell imaging in deficient surfactant (DS) conditions at 4 days post-infection for (A) wild-type Mtb, (B) an attenuated ESX-1-deficient strain (esx-1), and (C) at 6 days post-infection for the avirulent Δicl1Δicl2 strain infected at a higher inoculum. The calibration bar (inset in A-C) indicates the corresponding absolute intensities in the Mtb channel for a direct comparison across strains. Growth of the ESX-1-deficient strain is attenuated relative to wild-type Mtb (~10-fold decrease in intensity) and the Δicl1Δicl2 strain is unable to grow. Scatter plots indicate Mtb growth rate in individual ATs (D, H) and macrophages (F, J) and bar graphs indicate the non-growing fraction (NGF) of bacteria for infected ATs (E, I) and macrophages (G, K) in normal surfactant (NS) and DS conditions for wild-type and ESX-1-deficient strains. ‘nd’, not detected. Each dataset was fitted with a non-parametric kernel density estimation characterized by the mean (black) and median (red) values and whiskers represent the 1-99 percentile interval. For wild-type Mtb, DS conditions significantly increase growth rates and lower the NGF in both ATs (D, E) (n=122 for NS, n=219 for DS, p=3.1E-39) and macrophages (F, G) (n=185 for NS, n=122 for DS, p=1.0E-40). For the ESX-1-deficient strain, differences between NS and DS conditions are not significant in ATs (E) (n=61 for NS, n=25 for DS, p=0.10); for macrophage infection, differences are statistically significant (J) (n=93 for NS, n=55 for DS, p=5.1E-3), but a significant number of bacteria remain non-growing in DS conditions (K).

The activity of the ESX-1 Type VII secretion system, a major Mtb virulence factor that is required for escape from the phagosome into the cytosol (van der Wel et al., 2007), is upregulated during AT infection (Ryndak et al., 2015). In comparison to wild-type Mtb, whose intracellular growth rate is strongly dependent on surfactant levels (Figure 3D–G), intracellular growth of the 5’Tn::pe35 strain (Chen et al., 2013) that is deficient in ESX-1 secretion but retains PDIM secretion (Figure 4—figure supplement 1) is largely independent of surfactant levels (Figure 3H–K). Under NS conditions, a greater fraction of ESX-1-deficient bacteria are ‘non-growing’ in ATs (Figure 3I). Under DS conditions, the ESX-1-deficient strain is unable to grow as rapidly as wild-type in both macrophages and ATs (Figure 4B,D) and a fraction (ca. 12%) of ESX-1-deficient bacteria are non-growing in macrophages (Figure 3K). This attenuation in DS conditions is evident by visual inspection at 6 dpi (Figure 3B vs 3A). Macrophages are less permissive than ATs for intracellular growth of ESX-1-deficient Mtb under both NS and DS conditions (Figure 3—figure supplement 2C,D). In contrast, wild-type Mtb, grows more slowly in macrophages than in ATs only under NS but not DS conditions (Figure 3—figure supplement 2A,B). Overall, attenuation of ESX-1-deficient bacteria relative to wild-type is not rescued by surfactant deficiency. This demonstrates that ESX-1 secretion is necessary for rapid intracellular growth in the absence of surfactant, consistent with the hypothesis that surfactant may attenuate Mtb growth by depleting ESX-1 components on the bacterial cell surface (Raffetseder et al., 2019).

Figure 4 with 1 supplement see all
LoC model under normal surfactant (NS) conditions accurately reflects in vivo dynamics.

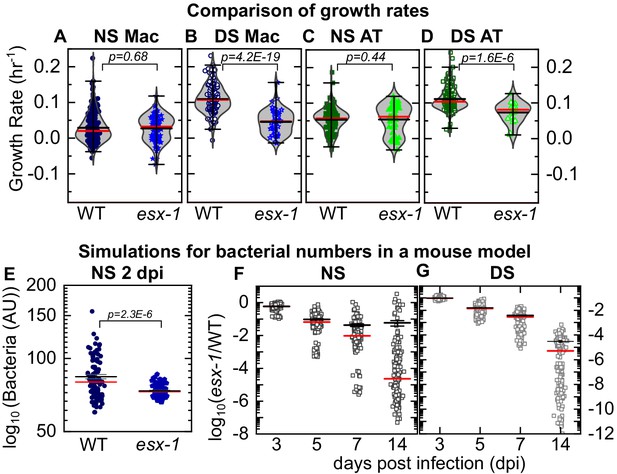

Experimental data: Scatter plots of growth rates of intracellular bacteria from Figure 3 compared between infected macrophages (A, B) and ATs (C,D) under NS conditions (A, C) and deficient surfactant (DS) conditions (B, D) for wild-type and ESX-1-deficient strains (esx-1) of Mtb. The number of samples for each bacterial strain and LoC condition is given in Table 2. Mean and median values are indicated by black and red lines, respectively, and whiskers indicate the 1–99 percentile interval. p-Values were calculated using the Kruskal-Wallis one-way ANOVA test. Simulations: Simulations of independent low-dose aerosol infections with 50 WT or esx-1 bacteria. Simulated bacteria grow at rates randomly chosen from the kernel density estimations for the respective populations in Figure 3F and J, respectively. (E) In NS conditions, mean bacterial numbers for wild-type Mtb are significantly higher (p = 2.3E-6, n = 100) than for ESX-1-deficient Mtb. (F, G) Plots of the logarithm of ESX-1-deficient population size relative to WT (esx-1/WT) at the indicated timepoints for NS (F) and DS (G) conditions. Each datapoint represents the mean (esx-1/WT) ratio from five mice bootstrapped from the larger population (n=1000) for each strain. The attenuation of the ESX-1-deficient strain initially increases but then levels off with a spread of (esx-1/WT) ratios by 14 days post-infection. Mean (black) and median (red) values are indicated, and whiskers indicate the standard error of the mean.

LoC model in NS conditions accurately reflects in vivo Mtb growth dynamics

Although median values of growth rate per hour are similar for wild-type and strains of Mtb under NS conditions (Figure 4A,C vs. Figure 4B,D), subtle differences in the probability density functions for each distribution (reflected in the 1–99 percentile interval in Figure 4A,C) could nevertheless generate significant differences in population sizes over a few days. This is particularly true for TB where growth is exponential in early infection, and bacterial numbers are enumerated over weeks or months of infection in the mouse model. To determine if this could account for the attenuation of the esx-1 strain observed in vivo, we simulated the progression of a low-dose mouse infection (infectious dose = 50 CFU at 1 dpi) using intracellular bacterial growth rates randomly chosen from the growth rate distributions of each strain in macrophages in the LoC model (Figure 3F,J). At 2 dpi, population sizes for the ESX-1-deficient strains (Figure 4E, n = 100, p=2.3×10−6) are already significantly smaller than for wild-type Mtb. The levels of attenuation predicted by this simple model using values from NS (Figure 4F) but not DS (Figure 4G) LoC conditions are in good agreement with the experimental data for both mutants from the mouse model in the acute phase of infection (Chen et al., 2013; Rao et al., 2005). These results provide a strong validation that surfactant secretion by freshly isolated ATs in NS conditions in the LoC model provide a better mimic of the native lung environment than DS conditions and serve to benchmark the LoC model.

Curosurf binds to the Mtb cell surface and removes virulence-associated lipids

Although attenuation of the ESX-1-deficient strain is completely independent of surfactant in ATs (Figure 3H,I), surfactant still has a small but significant impact on growth of ESX-1-deficient Mtb in macrophages (Figure 3J,K). We therefore hypothesized that an additional mechanism of surfactant-dependent protection could be the removal of virulence-associated lipids from the Mtb cell surface. Consistent with this idea, microscopic examination of Mtb exposed to fluorescently labeled Curosurf with a fluorescent analogue of DPPC (Figure 5—figure supplement 1A) revealed that surfactant readily coated the bacteria (Figure 5A,B, Figure 5—figure supplement 1B–E), albeit heterogeneously (compare Figure 5—figure supplement 1B,C with Figure 5—figure supplement 1D,E). We also examined the effect of surfactant on the composition of the Mtb cell surface by comparing the total cell-associated lipids and the free (released) lipids prepared from untreated and Curosurf-treated Mtb. We found that Curosurf partially strips the Mtb cell surface of sulfoglycolipids (SGL) (Figure 5C,E) and trehalose dimycolate (TDM) (Figure 5D,E), but not phthiocerol dimycocerosates (PDIM) (Figure 5—figure supplement 2). The surfactant-mediated removal of these virulence-associated lipids (Dulberger et al., 2020) suggests an additional mechanism for the attenuation of intracellular growth of Mtb in macrophages.

Figure 5 with 2 supplements see all

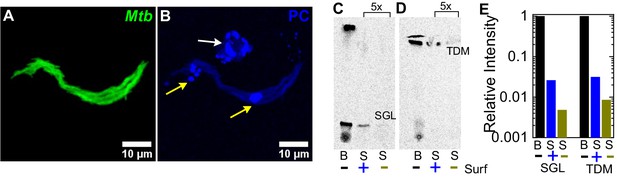

Surfactant depletes virulence factors on the bacterial cell surface.

(A, B) Maximum intensity projections of an aggregate of fluorescent Mtb (false-colored green, (A)) after incubation with a 1% solution of Curosurf labeled with 10% v/v TopFluor-Phosphatidylcholine (PC) (false-colored blue, (B)). PC is incorporated into surfactant micelles (indicated by arrows in (B)), which also associate with and coat the bacteria (yellow arrows). (C, D) Thin-layer chromatography of total free lipid extracted from wild-type Mtb (B) or bacterial culture supernatants (S) with (+) or without (-) Curosurf pre-treatment. The latter two samples were spotted 5x in excess. Running solvents are (C) 90:10:1 chloroform: methanol: water to identify sulfoglycolipids (SGL), and (D) 80:20:2 chloroform: methanol: ammonium hydroxide to identify trehalose dimycolate (TDM). (E) Intensities of the SGL and TDM bands for the three samples in (C, D) are plotted relative to that for the bacterial sample without surfactant treatment (labeled ‘B’). p-Values were calculated using the Kruskal-Wallis one-way ANOVA test.

Discussion

ATs are the major cellular component of the distal lung, yet despite sporadic reports of AT infection in human TB (Barrios-Payán et al., 2012; Hernández-Pando et al., 2000), the role of ATs remains controversial. Previous work has revealed the specific roles of hydrophilic SP-A and SP-D proteins (Ferguson et al., 2006; Pasula et al., 1997) in altering the uptake and intracellular processing of Mtb in macrophages. Surfactant hydrolase enzymes within the alveolar lining fluid Arcos et al., 2011; Scordo et al., 2017 have also been shown to release Mtb cell wall fragments as well as alter Mtb growth in ATs. Together, these studies show that, for the most part, specific components of surfactant can suppress intracellular Mtb growth. However, surfactant lipids have also been reported to upregulate Mtb growth via increased expression of CD36 (Dodd et al., 2016), and the alveolar lining fluid from some patients has also been shown to increase intracellular replication in epithelial cells and exacerbate infection (Scordo et al., 2019). However, all these studies focused on the role of specific components of surfactant and none of these studies probed the role of endogenous surfactant expression in co-cultures maintained at the ALI. In contrast, in the LoC model of early TB presented here, secretion of native surfactant by ATs at an ALI can be modulated. This physiological perturbation, which cannot be achieved in animal models due to the lethality of surfactant deficiency, provides a comprehensive view of the role of ATs in early TB and is an important advance over previous co-culture models for TB (Bermudez et al., 2002; Bielecka et al., 2017; Parasa et al., 2014). The unexpectedly rapid and uncontrolled intracellular growth of Mtb at the ALI in the absence of surfactant has not been reported previously in simpler in vitro models of host cell infection. Under NS conditions, we identified a substantial non-growing fraction of intracellular Mtb in both ATs and macrophages, which may be equivalent to the ‘non-growing but metabolically active’ (NGMA) populations previously observed in the lungs of mice (Manina et al., 2015). These examples underscore some of the advantages of the LoC model, which provides a more faithful mimesis of the complex in vivo environment compared to conventional in vitro models.

Taken together, our findings indicate that pulmonary surfactant plays an important role in host innate immunity during early Mtb infection, which may partly explain why individuals with defective surfactant function (Finley and Ladman, 1972; Subramaniam et al., 1995; Moliva et al., 2019) also show an increased risk of developing active TB. We also report that ATs are more permissive to Mtb growth than macrophages under NS (but not DS) conditions. Infection of ATs is not an artefact of the LoC model, as we also identified infected ATs in the lungs of aerosol-infected mice using a sensitive microscopy-based approach, which might be more discriminating than FACS-based approaches used previously (Cohen et al., 2018). Alveolar macrophages in the lung have been shown to be sessile (Westphalen et al., 2014), and so the higher incidence of AT infection in the LoC model is probably due to differences in the method of Mtb inoculation. This in turn suggests a deeper link between the airway and alveolar geometries that determine aerosol deposition in the lungs (which are not captured in the LoC model but could be addressed with 3D bioprinted models [Grigoryan et al., 2019]) and resident lung immunity. Given the very low inoculum size in human Mtb (most infected individuals harbor just one primary lesion originating from a single bacillus Mckinney et al., 1998), we speculate that first contact with an AT, albeit much rarer in vivo could potentially lead to a more aggressive infection. This could provide one explanation for the observation that the proportion of exposed individuals who develop clinical TB is low.

Time-lapse imaging at an ALI in the LoC infection model directly quantifies bacterial growth rates with a spatiotemporal resolution that is unachievable using indirect measurements of bacterial growth rates in mouse models of TB (e.g. plating tissue homogenates to measure colony-forming units [CFU]). The deliberate choice to use murine over human cells allows us to add macrophages to the chip from a mouse line that constitutively expresses GFP, and provides unambiguous identification of these cells over multiple days which would not be possible with CellTracker and other fluorescent dyes. It also enables us to benchmark the model with previous reports from the mouse model for TB. For example, average growth rates for wild-type Mtb under NS conditions are in good agreement with net Mtb growth rates measured using a plasmid-loss assay in mice (Gill et al., 2009). However, our microscopy-based approach also reveals the population distribution of growth rates, which highlights that even under NS conditions, a small proportion of cells show robust intracellular Mtb growth, and that robust and attenuated Mtb growth can occur in close proximity to each other on-chip. These observations reinforce an important role for cell-to-cell heterogeneity in host-Mtb outcomes (Lin et al., 2014). The growth characteristics of ESX-1-deficient Mtb in our LoC model are also in agreement with experiments from animal models, further validating the LoC model.

Exogenous addition of Curosurf, a surfactant replacement formulation of phospholipids and hydrophobic proteins, rescues the effects of surfactant deficiency on mycobacterial growth to a large extent. Phospholipids are the main component of native surfactant, and lipid recycling is a key function of type II ATs and alveolar macrophages (Olmeda et al., 2017). The two-way interaction of surfactant with the bacterial cell surface (surfactant removes virulence-associated Mtb surface lipids and proteins, and surfactant lipids coat the Mtb surface) may alter how host cells take up these bacteria, or how they are processed after uptake. More generally, surfactant phospholipids have been shown to have antiviral properties and can serve as a potent adjuvant for antiviral vaccines either on their own (Kimoto et al., 2013) or as a medium for delivery of immune-stimulating molecules to ATs (Wang et al., 2020). Our findings suggest a potential role for pulmonary surfactant replacement formulations in host-directed therapies against TB. These insights were made possible by use of an organ-on-chip system that reproduces host physiology in a modular and tuneable fashion, which is frequently impossible to achieve in vivo.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Biological sample (Mus musculus)C57BL/6 primary alveolar epithelial cellsCell BiologicsCat#: C57-6053
Biological sample (Mus musculus)C57BL/6 primary lung microvascular endothelial cellsCell BiologicsCat#: C57-6011
OtherEpithelial cell culture medium with kitCell BiologicsCat#: M6621
OtherEndothelial cell culture medium with kitCell BiologicsCat#: M1168
Strain, strain background (Mus musculus, C57BL6)Tg(act-EGFP) 131Osb/LeySopJJackson LaboratoryCat#: 006567; RRID:IMSR_JAX:006567Female, 6–8 weeks old
Peptide, recombinant proteinMurine recombinant M-CSFThermoFisherScientificCat#: PMC2044
Commercial assay or kitSuperscript IV First Strand Synthesis SystemThermo Fisher ScientificCat#: 18091050
Commercial assay or kitSybr Green PCR Master MixThermo Fisher ScientificCat#: 4334973
AntibodyAnti-mouse proSPC (Rabbit polyclonal)AbcamCat#: ab40879; RRID:AB_777473IF(1:100)
AntibodyAnti-mouse Podoplanin-488 (Syrian Hamster monoclonal)Thermo Fisher ScientificCat#: 53-5381-82; RRID:AB_1106990IF(1:100)
AntibodyAnti-mouse CD45-647 (Rat monoclonal)BioLegendCat#: 103124; RRID:AB_493533IF (1:100)
Commercial assay or kitLung dissociation kit - mouseMiltenyi BiotecCat#: 130-095-927
Peptide, recombinant proteinFibronectin from human plasmaSigma-AldrichCat#: F1056
Peptide recombinant proteinNative Collagen, Bovine dermisAteloCellCat#: IAC-505 mg/ml
Software, algorithmFIJIRRID:SCR_002285
Software, algorithmMATLABRRID:SCR_001622

Cell culture

Request a detailed protocol

Primary C57BL/6 alveolar epithelial cells (ATs) and lung microvascular endothelial cells were obtained from Cell Biologics, USA, and were certified mycoplasma negative by the supplier. Each vial of ATs consisted of a mix of Type I and Type II ATs, which was verified by both immunostaining and qRT-PCR for type I and type II markers (Figure 1A–C, Figure 1—figure supplement 1). Both cell types were cultured in vitro in complete medium comprising base medium and supplements (Cell Biologics, USA) in 5% CO2 at 37°C. NS ATs were seeded directly on the LoC (see below), without prior in vitro culture. DS ATs were passaged 6–11 times before use and were verified to be free of mycoplasma contamination prior to use.

Bone marrow isolation and culture

Request a detailed protocol

Bone marrow was obtained from 6- to 8-week-old Tg(CAG-EGFP)131Osb/LeySopJ (also known as Tg(act-EGFP) Y01Osb) mice (Jackson Laboratories, USA, Stock Number 006567) and cryopreserved. This transgenic line constitutively expresses enhanced GFP under the control of the chicken beta-actin promoter and the cytomegalovirus enhancer. Mice were housed in a specific pathogen-free facility. Animal protocols were reviewed and approved by EPFL's Chief Veterinarian, by the Service de la Consommation et des Affaires Vétérinaires of the Canton of Vaud, and by the Swiss Office Vétérinaire Fédéral. Bone marrow was cultured in Dulbecco’s Modified Eagle Medium (DMEM) (Gibco) supplemented with 10% fetal bovine serum (FBS, Gibco) and differentiated for 7 days with 20 ng/ml recombinant murine Macrophage-Colony Stimulating Factor protein (M-CSF) (Thermo Fisher Scientific). Bone marrow was cultured in plastic petri dishes without pre-sterilization (Greiner Bio-one) so that differentiated macrophages could be detached. No antibiotics were used in the cell culture media for all cell types to avoid activation of macrophages or inhibition of Mtb growth, and the frozen marrow was verified to be free of mycoplasma contamination prior to use.

RNA isolation from NS or DS ATs and cells from NS or DS LoCs

Request a detailed protocol

Freshly isolated ATs (NS) were grown overnight in cell-culture microdishes (Ibidi) or T-25 cell culture flask (TPP, Switzerland). Passaged ATs (DS) were grown to confluency in a T-75 cell culture flask (TPP). Growth media was removed from the flask, and the cells were incubated with the appropriate volume of TRIzol (Ambion) as per the manufacturer’s instruction. TRIzol-treated cell lysates were stored at −20°C before further processing. RNA was precipitated with isopropanol, washed in 75% ethanol, resuspended in 50 μl of DEPC-treated water, treated with Turbo DNase (Ambion), and stored at −80°C until use. DNase-treated RNA was used to generate cDNA using the SuperScriptII First-Strand Synthesis System with random hexamers (Invitrogen), and was stored at −20°C.

For RNA isolation from LoCs, one NS or DS LoC each were established as per the protocols described and maintained for 24 hr at the ALI. RNA from the apical and vascular channels was isolated separately in approximately 350 μl of the RLT Plus buffer of the Qiagen Micro Plus RNA Isolation Kit, and subsequently processed as per the manufacturer’s instructions.

cDNA was generated using the SuperScript IV First-Strand Synthesis System with random hexamers (Invitrogen), and subsequently stored at −20°C.

Quantitative real-time PCR (qRT-PCR)

Request a detailed protocol

Specific primers used are listed in Table 3. Sequences for the primers for Pdpn, Cav1, and Igfbp2 were obtained from Wang et al., 2018 and the sequences for the remaining primers were obtained from Origene and primers were obtained from a commercial supplier (Microsynth, Switzerland). qRT-PCR reactions were prepared with SYBRGreen PCR Master Mix (Applied Biosystems) with 1 μM primers, and 1 or 2 μl cDNA. Reactions were run as absolute quantification on ABI PRISM7900HT Sequence Detection System (Applied Biosystems). Amplicon specificity was confirmed by melting-curve analysis.

Table 3
Primers used for qPCR characterization of gene expression of the NS and DS AT cells in Figure 1Figure 1—figure supplement 1, .
qPCR primer list
5′- CATCACTGCCACCCAGAAGACTG-3′ Gapdh forward
5′- ATGCCAGTGAGCTTCCCGTTCAG-3′ Gapdh reverse
5′- ACCTGGATGAGGAGCTTCAGAC-3′ Sftpa forward
5′- CTGACTGCCCATTGGTGGAAAAG-3′ Sftpa reverse
5′- TGTCCTCCGATGTTCCACTGAG-3′ Sftpb forward
5′- AGCCTGTTCACTGGTGTTCCAG-3′ Sftpb reverse
5′- GTCCTCGTTGTCGTGGTGATTG-3′ Sftpc forward
5′- AAGGTAGCGATGGTGTCTGCTC-3′ Sftpc reverse
5′- AGGTCCAGTTGGACCCAAAGGA-3′ Sftpd forward
5′- CTGGTTTGCCTTGAGGTCCTATG-3′ Sftpd reverse
5′- CTTCATGGACGAAGCTGACCTG-3′Abca3 forward
5′- GTGCGGTTCTTTTACCAGCGTC-3′ Abca3 reverse
5′-TCCATGAACCCAGCCCGATCTT-3′; Aqp5 forward
5′-GAAGTAGAGGATTGCAGCCAGG-3′; Aqp5 reverse
5′- CAAGAAAACAAGTCACCCCAATAG-3′; Pdpn forward
5′- AACAATGAAGATCCCTCCGAC-3′; Pdpn reverse
5′-CGAGGTGACTGAGAAGCAAG-3′; Cav1 forward
5′-TCCCTTCTGGTTCTGCAATC-3′; Cav1 reverse
5′-TGCCAAACACCTCAGTCTG-3′; Igfbp2 forward
5′-AGGGAGTAGAGATGTTCCAGG-3′; Igfbp2 reverse
5′-GGTGATATTCGAGACCATTTACTG-3′; Cxcl15 forward
5′-GCCAACAGTAGCCTTCACCCAT-3′; Cxcl15 reverse

AT characterization via immunofluorescence

Request a detailed protocol

Freshly isolated ATs (NS) or passaged ATs (DS) were grown overnight in 35-mm cell-culture microdishes (Ibidi GmbH, Germany). The confluent layer of cells was subsequently fixed with 2% paraformaldehyde (Thermo Fisher Scientific) in phosphate-buffered saline (PBS, Gibco) at room temperature for 30 min, washed with PBS, and incubated with a blocking solution of 2% bovine serum albumin (BSA) in PBS for 1 hr at room temperature. The blocking solution was removed, and the cells were incubated with the primary antibody (1:100 dilution in 2% BSA solution in PBS) overnight at 4°C. Antibodies used were anti-Podoplanin Monoclonal Antibody (eBio8.1.1 (8.1.1)), Alexa Fluor 488, eBioscience (ThermoFisher Scientific), and anti-pro-SPC antibody (ab40879, Abcam). The cell-culture microdishes were washed 3x in PBS, incubated with a fluorescent secondary antibody (Donkey anti-rabbit Alexa Fluor 568 (A10042 Thermo Fisher)) in a solution of 2% BSA in PBS for 1 hr at room temperature, then thoroughly washed with PBS and incubated with Hoechst 33342 nuclear staining dye (1:1000 dilution, Thermo Fisher Scientific) for 15–20 min for nuclear staining. Confocal images were obtained on a Leica SP8 microscope in the inverted optical configuration at the EPFL BIOP core facility.

Bacterial culture

Request a detailed protocol

All bacterial strains were derived from Mtb strain Erdman and cultured at 37°C. Liquid medium: Middlebrook 7H9 (Difco) supplemented with 0.5% albumin, 0.2% glucose, 0.085% NaCl, 0.5% glycerol, and 0.02% Tyloxapol. Solid medium: Middlebrook 7H11 (Difco) supplemented with 10% OADC enrichment (Becton Dickinson) and 0.5% glycerol. Aliquots were stored in 15% glycerol at −80°C and used once. All strains were transformed with a plasmid integrated at the chromosomal attB site to allow constitutive expression of the fluorescent protein tdTomato under the control of the hsp60 promoter. Wild-type (WT) refers to the Erdman strain constitutively expressing tdTomato. The 5’Tn::pe35 (ESX-1 deficient) strain was generated using transposon mutagenesis (Chen et al., 2013).

Infection of mice with Mtb

Request a detailed protocol

Female C57BL/6 mice (Charles River Laboratories) were housed in a specific pathogen-free facility. Animal protocols were reviewed and approved by EPFL's Chief Veterinarian, by the Service de la Consommation et des Affaires Vétérinaires of the Canton of Vaud, and by the Swiss Office Vétérinaire Fédéral. Mice were infected by the aerosol route using a custom-built aerosol machine, as described (MacMicking et al., 2003). Bacteria were grown to exponential phase, corresponding to an optical density at 600 nm (OD600) of 0.5, collected by centrifugation at 2850 g for 10 min, and resuspended in PBS supplemented with 0.05% Tween 80 (PBS-T). The bacterial suspension was subjected to low-speed centrifugation (700 g) for 5 min to remove bacterial aggregates. The cell suspension was adjusted to OD600 0.1 with PBS-T in a final volume of 20 ml, which was used to infect mice by aerosol. At 1 dpi, a group of four mice were euthanized by CO2 overdose; the lungs were removed aseptically and homogenized in 3 ml of 7H9 medium. Serial dilutions were plated on 7H11 plates containing 100 μg/ml cycloheximide (Sigma), and colonies were counted after 4–5 weeks of incubation at 37°C. The aerosol infection corresponded to a bacterial load of between 60 and 100 CFU per mouse at 1 dpi.

Extraction and characterization of a single-cell suspension of lung cells from Mtb-infected mice

Request a detailed protocol

At 8 dpi, a group of five mice were euthanized by an overdose of ketamine/xylazine anesthetic, and the lungs were washed with PBS delivered via injection through the right ventricle of the heart to remove excess red blood cells. Lungs from each mouse were removed aseptically, minced into small pieces with scissors, and added to 2.5 ml of lung dissociation media reconstituted as per the manufacturer’s instructions (Lung Dissociation Kit – Mouse, Miltenyi Biotec). The lungs were then dissociated using a gentleMACS Octo Dissociator (Miltenyi Biotec). The resulting homogenate was filtered through a 40-μm cell filter, centrifuged for 10 min at 300 g, and resuspended in alveolar epithelial cell media supplemented with 10% FBS. The homogenate was then plated in 50-mm glass-bottom cell-culture dishes (Ibidi) and incubated for 36–48 hr to allow for epithelial cell attachment. Additional medium was added to each cell-culture dish at 24 hr.

Quantification of Mtb-infected ATs within the adherent cell fraction

Request a detailed protocol

Adherent cells from the single-cell suspension were subsequently fixed with paraformaldehyde and stained for immunofluorescence as already described. Antibodies: anti-Podoplanin Monoclonal Antibody (eBio8.1.1 (8.1.1)), Alexa Fluor 488, eBioscience (ThermoFisher Scientific) to label Type I ATs, anti-pro-SPC antibody (ab40879, Abcam) followed by secondary antibody staining (Donkey anti rabbit Alexa Fluor 488 (A21206 Thermo Fisher)) to label Type II ATs, and Alexa 647 anti-CD45 antibody (103124, BioLegend) to label immune cells.

Murine LoC model

Request a detailed protocol

LoCs made of polydimethylsiloxane (PDMS) were obtained from Emulate (Boston, USA). Extracellular matrix (ECM) coating was performed as per the manufacturer’s instructions. Chips were activated using ER-1 solution (Emulate) dissolved in ER-2 solution at 0.5 mg/ml (Emulate) and exposed for 20 min under UV light. The chip was then rinsed with coating solution and exposed again to UV light for a further 20 min. Chips were then washed thoroughly with PBS before incubating with an ECM solution of 150 μg/ml bovine collagen type I (AteloCell, Japan) and 30 μg/ml fibronectin from human plasma (Sigma-Aldrich) in PBS buffered with 15 mM HEPES solution (Gibco) for 1–2 hr at 37°C. If not used directly, coated chips were stored at 4°C and pre-activated before use by incubation for 30 min with the same ECM solution at 37°C. Endothelial cells were cultured overnight at 37°C and 5% CO2 in T-75 cell culture flasks, detached with 0.05% Trypsin, concentrated to 5–10 million cells/ml, and seeded on the bottom face of the PDMS membrane. The chip was then incubated for a short period at 37°C to allow the endothelial cells to spread and subsequently seeded with ATs. Freshly isolated ATs were seeded directly from cryopreserved vials received from the supplier, whereas DS LoCs were seeded from cells cultured overnight at 37°C and 5% CO2, in both cases at a concentration of 1–2 million cells/ml. The chip was incubated overnight with complete epithelial and endothelial media in the epithelial and endothelial channels, respectively, under static conditions. The next day, the chip was washed and a reduced medium for the ALI was flowed through the vascular channel using syringe pumps (Aladdin-220, Word Precision Instruments) at 60 μl/hr as described (Hassell et al., 2017). The composition of the ALI media used was as described in Hassell et al., 2017 but with an FBS concentration of 5%. The epithelial face was incubated with epithelial base medium with 200 nM dexamethasone (Sigma Aldrich) without FBS supplementation to promote tight junction formation and surfactant expression as reported in previous LoC studies (Huh et al., 2010; Hassell et al., 2017). Flow was maintained over 2–3 days with daily replacement of the medium on the epithelial face (with dexamethasone supplementation). At the end of this period, GFP-expressing macrophages differentiated for 7 days in M-CSF (described above) were detached from the petri dish using 2 mM ethylenediaminetetraacetic acid (EDTA, Sigma Aldrich) in PBS at 4°C, centrifuged at 300 g for 5 min, and resuspended in a small volume of epithelial cell media without dexamethasone. This solution containing macrophages was introduced onto the epithelial face and incubated for 30 min at 37°C and 5% CO2 to allow macrophages to attach to the epithelial cells. Medium on the epithelial face was then removed and the chip was maintained overnight at the ALI. Chips that successfully maintained the ALI overnight were transferred to the biosafety level 3 (BSL-3) facility for Mtb infection. No antibiotics were used in any of the cell culture media for setting up the LoC model.

Immunostaining of uninfected LoCs

Request a detailed protocol

Uninfected LoCs were maintained at an ALI for up to 7 days after addition of macrophages, during which time ALI medium was flowed through the endothelial channel at 60 μl/hr. After 7 days at the ALI, the chip was fixed for immunostaining as described above; a permeabilization step with a solution containing 2% w/v saponin (Sigma Aldrich) and 0.1% Triton X-100 (Sigma Aldrich) was performed before incubation with the secondary antibody. F-actin on both the epithelial and endothelial face was stained using Sir-Actin dye (Spherochrome) at 1 μM for 30 min concurrently with Hoechst staining, as described above. Confocal images were obtained on a Leica SP8 microscope in the inverted optical configuration at the EPFL BIOP core facility.

Infection of the LoC with Mtb

Request a detailed protocol

The chip was assembled into a stage top incubator (Okolab, Italy) prior to infection and flow of medium through the vascular channel was maintained throughout the course of the experiment by use of a syringe pump. A 1 ml aliquot of a culture of Mtb grown to exponential phase (OD6000.3–0.5) was centrifuged at 5000 g for 5 min at room temperature, the supernatant was removed, and the cell pellet was resuspended in 200 μl of epithelial cell media without FBS. A single-cell suspension was generated via filtration through a 5-μm syringe filter (Millipore). The single-cell suspension was diluted 100-fold in epithelial media and 30 μl was added to the epithelial channel of the LoC. The infectious dose was measured by plating serial dilutions of the single-cell suspension on 7H11 plates and counting CFU after 3–4 weeks of incubation at 37°C and varied between 200 and 800 Mtb bacilli. The chip was incubated for 2–3 hr at 37°C and 5% CO2 to allow Mtb infection of cells on the epithelial face, after which the solution on the epithelial face was withdrawn. The proportion of bacteria that remained on the chip was estimated by plating serial dilutions of the withdrawn solution on 7H11 plates and counting CFU after 3–4 weeks of incubation at 37°C. The epithelial face was returned to ALI and the inlets of the infected chip were sealed with solid pins as a safety precaution for time-lapse microscopy imaging in the BSL-3 facility.

Time-lapse microscopy of the Mtb-infected LoC

Request a detailed protocol

The LoC was placed in a microscope stage-top incubator and mounted on the stage of a widefield Nikon Ti-2 microscope. The stage-top incubator was connected to a gas mixer (Okolab) to maintain 5% CO2 throughout the imaging period. Flow of medium through the vascular channel was maintained throughout this period via the use of a syringe pump. The chip was imaged using a long working distance 20x phase-contrast objective (NA = 0.75, Ph2, Nikon) at 1.5 hr or 2 hr imaging intervals. The epithelial face of the chip (where the refractive index differences were highest due to the ALI) was maintained in focus using the Nikon Perfect Focus System. At each timepoint, a Z-stack of 9–10 images with an axial spacing of 10 μm was taken series for a series of fields of view along the length of the chip to account for the dynamic 3D movement of macrophages between both faces, as well as drift in focus over time. Each field of view was ~660 × 600 μm2. Using a Sola SE II light source (Lumencor, USA), macrophages and Mtb were identified through fluorescence emission in the green (macrophages) and red (Mtb) channels using GFPHQ and mcherryHQ 32 mm dichroic filters, respectively. Phase-contrast images were also captured; the poor quality of these images due to the refractive index differences at the ALI serves as a continuous verification that ALI is maintained. All images were captured with an EMCCD camera (iXON Ultra 888, Andor) cooled to −65°C, with an EM gain setting of 300 to allow the sample to be illuminated with a low intensity of incident light in all fluorescent channels with reduced photodamage. Co-localization of the green and red fluorescence signals over a time course was identified as consistent with macrophage infection. Bacteria that did not co-localize with macrophages over time were assumed to infect ATs, which was verified by subsequent immunostaining.

Data analysis of intracellular Mtb growth

Request a detailed protocol

Images were visualized using FIJI. Macrophage and AT infections from each field of view were visually curated by assessing the co-localization of fluorescent signals over time. Smaller stacks of one to two microcolonies were assembled. Custom-written software in MATLAB was used to measure the total fluorescence intensity of each intracellular bacterial microcolony which used the nestedSortStruct algorithm for MATLAB (Hughley, 2018https://github.com/hugheylab/nestedSortStruct) written by the Hughey lab. Briefly, at each timepoint, the Z-stack with the highest intensity in the fluorescence channel was identified; this image was then segmented to identify the bacterial microcolony; total fluorescence was measured by summing the intensity of all the pixels in this region after subtracting a value for each pixel that represented the average background fluorescence. We chose to measure the total fluorescence intensity because it accounts for both bacterial growth and dilution of the fluorescent protein due to growth (which is slow in a slow-growing bacterium like Mtb). We were unable to measure microcolony volumes accurately using widefield imaging due to poor axial resolution caused by large refractive index differences at the ALI; therefore, we obtained this value from only the Z stack with the highest intensity. Statistical analysis was performed using Origin 9.2 (OriginLabs), and p-values were calculated using the Kruskal-Wallis one-way ANOVA test, with the null hypothesis that the medians of each population were equal.

Visualization of confocal images

Request a detailed protocol

Z-stacks from confocal images were visualized using ImageJ, 3D projection views and Videos 1, 2 and 3 were made using the ClearVolume plugin in ImageJ (Royer et al., 2015).

Analysis of lamellar body volume

Request a detailed protocol

Custom written software in MATLAB was used to segment lamellar bodies in each slice of the Z-stack, measure area and intensity, and collate the mean intensity and volume over multiple slices, along the lines of the analysis of intracellular bacterial growth described above.

Simulations of in vivo infections

Request a detailed protocol

Growth rate datasets for wild-type and ESX-1-deficient strains of Mtb in NS and DS LoC conditions were fitted with a non-parametric Kernel Smoothed distribution. We simulated a low-dose aerosol infection of 50 bacteria in the alveolar space of n = 100 or n = 1000 mice, and conservatively assumed that every bacterium interacted with a macrophage upon first contact. Each bacterium was assigned a growth rate picked at random from the Kernel Smoothed distributions and assumed to grow exponentially with these growth rates to generate an intracellular microcolony. The total bacterial numbers in each mouse at 2, 3, 5, 7, and 14 dpi were obtained by summing the bacterial counts from each microcolony for each mouse and are shown in Figure 4E–G. Total bacterial numbers for n = 100 mice of WT and ESX-1-deficient strains are shown in Figure 4.

Curosurf treatment of DS LoCs

Request a detailed protocol

Curosurf (Chiesi Pharmaceuticals, Italy) was used as a 1% solution in epithelial medium for all LoC experiments. In the case where Curosurf was added to a DS LoC, a 1% solution was introduced to the epithelial face after the macrophages were added but before ALI was introduced for 2 min, and then removed. The following morning, this procedure was repeated just prior to the addition of the single-cell suspension of Mtb in the manner described above. Alternatively, a 1 ml aliquot of Mtb in exponential phase in 7H9 media was centrifuged at 5000 g for 5 min, resuspended in 1 ml of cell culture media containing 1% Curosurf, and incubated for 10–15 min at room temperature. This solution was then centrifuged again at 5000 g for 5 min and a single-cell suspension of Mtb was generated as described above. Fluorescent labeling of surfactant was achieved by adding TopFluor phosphatidylcholine (10% v/v, Avanti Polar Lipids) to Curosurf before dilution in cell culture medium.

Total free lipid extraction and thin-liquid chromatography (TLC)

Request a detailed protocol

Mtb cultures (10 ml each) were grown to stationary phase in 7H9 with 10 μCi of 14C-propionate added during exponential phase. Total free lipid extraction from the bacterial pellet, supernatant, and supernatant from bacteria pre-treated with 3% Curosurf for 15 min at 37°C were extracted as described (Parish and Roberts, 2015). Extracted free lipids were air-dried, resuspended in 2:1 v/v solution of chloroform: methanol, and aliquots were spotted on 5 × 10 cm TLC silica gel 60 F254 (Merck). Running solvent was 90:10:1 chloroform: methanol: water for the analysis of sulfoglycolipids (SGL), 80:20:2 chloroform: methanol: ammonium hydroxide for the analysis of TDM, and 9:1 petroleum ether: diethyl ether for the analysis of pthiocerol dimycocerosates (PDIM) and triacyclglycerols (TAG). The developed TLC plate was exposed to an Amersham Hyperfilm ECl (GE Healthcare) for phosphorescence imaging and visualized with a Typhoon scanner (GE Healthsciences). Intensities of the bands observed were quantified using ImageJ.

For characterization of PDIM secretion by the WT and ESX-1-deficient strains, lipid extraction was performed via a protocol optimized for extraction of apolar lipids as described (Ojha et al., 2008). Extracted lipids were subsequently processed as described above.

Data availability

Figures in the main text include all the data for bacterial growth rates within the scatter plots, and all the data for qRT-PCR measurements and quantification of lamellar body size, number, and volume. A summary of the code used to calculate growth rates is included in the Materials and Methods. Annotated code written in Matlabused for data analysis for growth rates and for simulations of in vivo infections , raw data for bacterial fluorescence intensity over time that was used to calculate growth rates, and image stacks related to Fig. 1, Fig. 1 - figure supplement 3 and Fig. 2 - figure supplement 1 are available on Zenodo under https://doi.org/10.5281/zenodo.4266198.

The following data sets were generated
    1. Thacker VV
    2. Dhar N
    3. Sharma K
    4. Barrile R
    5. Karalis K
    6. McKinney JD
    (2020) Zenodo
    A lung-on-chip model reveals an essential role for alveolar epithelial cells in controlling bacterial growth during early M. tuberculosis infection.
    https://doi.org/10.5281/zenodo.4266198

References

  1. Book
    1. Collins FM
    2. Orme IM
    (1994) Mouse Model of Tuberculosis
    In: Bloom B. R, editors. Tuberculosis. American Society of Microbiology. pp. 113–134.
    https://doi.org/10.1128/9781555818357.ch8

Decision letter

  1. Christina L Stallings
    Reviewing Editor; Washington University School of Medicine, United States
  2. Wendy S Garrett
    Senior Editor; Harvard T.H. Chan School of Public Health, United States
  3. Michael U Shiloh
    Reviewer; University of Texas Southwestern Medical School, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This article by Thacker and colleagues presents an organ-on-chip model to investigate the role of alveolar epithelial cells in controlling Mycobacterium tuberculosis infection via the production of surfactant. The authors found that the presence of surfactant is associated with a non-growing M. tuberculosis population within macrophages, whereas, there is more bacterial growth in the surfactant deficient condition. These are important findings to contribute to our understanding of early events during infection with this globally relevant pathogen as well as an interesting model to expand on in future studies.

Decision letter after peer review:

Thank you for submitting your article "A lung-on-chip model reveals an essential role for alveolar epithelial cells in controlling bacterial growth in early TB" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Wendy Garrett as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Michael U Shiloh (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This paper by Thacker et al. describes the use of lung-on-a-chip microfluidic devices to study early interactions during M. tuberculosis infection under conditions meant to mimic the alveolar environment in vivo. The authors use time-lapse microscopy to study host cell-Mtb interactions in macrophages and alveolar epithelial cells and the impact of surfactant on Mtb infection. This study suggests that organ-on-a-chip systems might be able to reproduce elements of host-microbe physiology during infection, which is difficult to reproduce ex vivo using single cells, air-liquid interface, organoids or organ explants.

This is an exciting approach which has the potential to expand the ability to study host-pathogen interactions. However, the reviewers all agree that the manuscript requires a major revision and additional data. Specifically, the manuscript requires improvement in the cell identification/classification, co-localization of Mtb with epithelial cells and macrophages, and distinction between intracellular and extracellular growth in order for the authors to provide convincing data to support their interpretations and conclusions.

While the reviewers recognize that it is challenging to use live cell imaging in this system, much of the data of the paper, such as comparisons between infection of AECs and macrophages, rests on the ability to determine the precise localization of bacteria. However, neither AECs nor macrophages are specifically identified with high enough resolution to give confidence that the Mtb are associated with those cells specifically, and more importantly, that the bacteria are growing intracellularly rather than extracellularly. Many of the images are of such low resolution that only tiny dots of bacteria are observed.

In addition, the findings of attenuated growth of Mtb after exposure to surfactant in macrophages and alveolar epithelial cells, changes in the Mtb cell wall after exposure to surfactant, and the finding that exposure to surfactant does not alter the extracellular viability of M. tuberculosis have been reported by others using other in vitro models and should be discussed in manuscript.

Essential revisions:

1) Controls for the Model: What quality control is done for each experiment to determine the ratio of type I and type II AECs in each chip set up for each experiment? This is of particular importance because the authors do not show any images where they stain for both type I and type II AECs in the same chip. Do the authors have images stained for both type of cells to illustrate the composition of each chip? After Figure 1, what staining is done to confirm the DS cells decrease proSPC expression for each experiment? As this is a new model, better images showing well-defined cells and quantification of the number of alveolar epithelial cells type I and II, number of macrophages, numbers of endothelial cells, bacteria per cell, etc. would be helpful to evaluate the model. This applies particularly to Figures 1, 2 and Figure 3 supplement.

2) Cell Identification: The authors focus on the difference in surfactant gene expression in the newly isolated AECs (NS) versus in vitro passaged AECs (DS), but they also observe that aqp5 is downregulated. In fact, the data support that the cells are de-differentiating during passage in culture, which will have multiple effects on the cells, not just surfactant production. This needs to be further studied in detail to ensure that this cell is not an artifact produced by multi-passaging in vitro. After loss of those markers, how do the authors confirm they still have type I and type II AECs in their cultures? Is there microscopy data with other markers that are retained in the AECs? The authors should use several AT-IIs and AT-Is markers to be certain that the DS cell monolayers indeed still are AECs. Surfactant protein C, although used as a marker for AT-IIs, is a soluble protein that has been shown to interact with many cells within a cellular system. A correlation between SPTPC and AQP5 expression over time is also necessary as points out the differentiation of AT-IIs to AT-Is, a key feature of the role of AT-IIs as progenitors of AT-Is.

3) Analysis of Mtb Infection and Intracellular versus Extracellular Infection: The authors never stain for type I or type II AECs after infection and make the conclusion that the bacteria are within type II cells based on the absence of macrophage staining. However, the bacteria may not even be inside a cell, or the AECs could be dying during infection. On a related note, there are no data presented that show that type I cells are not infected in the lung on chip system with Mtb. Thus, higher resolution images, with clear colocalization and z-stacks, would increase the confidence in the results. The images and analysis provided do not distinguish between extracellular and intracellular growth. Mtb can form micro-colonies on the cell surface of alveolar epithelial cells and thus, the intracellular growth that they are reporting could be extracellular growth. The authors could treat the system with an antibiotic to kill extracellular Mtb attached to the alveolar epithelial cell surface. Also, can the authors discern between Mtb that are not growing vs. Mtb that are dead?

4) Studies with the Mtb Mutants: The data arguing for attenuation of Esx-1 mutant Mtb in AECs and macrophages are not strong, and the authors do not actually make a direct statistical comparison between appropriate groups (i.e. AEC NS WT vs Esx-1, or Mac NS WT vs Esx-1). For example, it appears that the mean/median growth rate of WT Mtb in macrophages is ~0.25hr-1, which appears roughly the same for Esx-1 mutant Mtb in the same cells. There may be a difference under DS conditions, but since the comparisons are not made directly it is impossible to know. The authors state that their data with the Esx1 mutant "demonstrates that ESX-1 secretion is necessary for rapid intracellular growth in the absence of surfactant, consistent with the hypothesis that surfactant may attenuate Mtb growth by depleting ESX-1 components on the bacterial cell surface". This seems like quite a jump in interpretation of the data since the Esx1 mutant is likely attenuated for many reasons, and this attenuation is dominant to any effect that surfactant is having. The authors also show that PDIM levels are not different in the presence or absence of surfactant, and this is an Esx1 dependent lipid.

What is the purpose for including the icl1/icl2 mutant? This experiment is also not included in the data quantification.

5) Discussion of Previously Published Data: Similar alterations on the M. tuberculosis cell wall and release of cell wall components to the milieu when exposed to physiological concentrations of human lung surfactant have been already described. The same is applicable to the slower replication rate in ATs (an intracellular killing in macrophages) after M. tuberculosis exposure to human lung surfactant. Although two different systems, authors need to contrast their findings with these reported ones in their discussion. In addition, it is not clear how many times this was performed. Statistics are mentioned on the figure legends, but there are not stats in the figure.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "A lung-on-chip model reveals an essential role for alveolar epithelial cells in controlling bacterial growth in early TB" for further consideration by eLife. Your revised article has been evaluated by Wendy Garrett (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed with text edits before acceptance, as outlined below:

1) Similar to the changes made in the Results section, the authors should change the title from “early tuberculosis” to “early Mycobacterium tuberculosis infection”.

2) The authors repeatedly refer to bacteria as intracellular, including statements like "which provides strong indirect evidence that Mtb growth on-chip must be intracellular". While a few confocal images are provided to highlight some intracellular bacteria, it is mostly an assumption that the bacteria are intracellular, and it would be more appropriate to be conservative in the interpretation and wording used in the manuscript.

3) The attenuation of the Esx-1 mutant is overstated. Specifically, the authors write "Macrophages are less permissive than ATs for intracellular growth of ESX-1 deficient Mtb under both NS and DS conditions". However, Figure 4A, which compares WT and Esx-1 deficient Mtb in NS macrophages demonstrates no difference in growth rates. Thus, the Results and Discussion should be revised to reflect this observation.

4) In Figure 1N, Q: Labeling shows AEC, but should it be AT?

5) In Figure 2—figure supplement 1: Please explain colors in the figure legends.

https://doi.org/10.7554/eLife.59961.sa1

Author response

Essential revisions:

1) Controls for the Model: What quality control is done for each experiment to determine the ratio of type I and type II AECs in each chip set up for each experiment? This is of particular importance because the authors do not show any images where they stain for both type I and type II AECs in the same chip. Do the authors have images stained for both type of cells to illustrate the composition of each chip? After Figure 1, what staining is done to confirm the DS cells decrease proSPC expression for each experiment? As this is a new model, better images showing well-defined cells and quantification of the number of alveolar epithelial cells type I and II, number of macrophages, numbers of endothelial cells, bacteria per cell, etc. would be helpful to evaluate the model. This applies particularly to Figures 1, 2 and Figure 3 supplement.

We acknowledge the concern of the reviewers regarding a careful characterization of the cell types to ensure reproducible results. We cannot characterize ATII and ATI for each live-imaging experiment for Mtb infections because the throughput for such a complex model is low and setting up multiple LoCs to a consistent standard requires extensive work. However, we have expanded the characterization of the DS and NS populations in vitro in liquid culture as well as in situ on-chip to be confident that this phenotype is reproducible.

Characterization of NS and DS ATs: In the revised manuscript, we expanded the list of Type II AT markers in the qRT-PCR characterization to include all surfactant proteins (Sftpa, Sftpb, Sftpc, Sftpd). We also included additional type I markers such as Podoplanin (Pdpn), and other markers such as Calveolin-1 (Cav1) and Insulin Growth Factor Binding Protein 2 (Igfbp2) that have been reported in the literature to be type I AT markers. These data are shown in a new Figure 1—figure supplement 1. Interestingly, we observed that the DS population had reduced expression of type I AT markers that could be linked to function at the air-liquid interface (such as Aqp5 and Pdpn) in comparison to NS cells, but had increased expression of other type I AT markers (Cav1 and Ifgbp2), consistent with an increase in terminally differentiated type I AT cells in the DS population.

In situ characterization of NS and DS LoCs: In the revised manuscript, we have also expanded the in situ characterization of the epithelial layer of the LoCs. Since both Pdpn and Aqp5 are membrane proteins, we were unable to visualize them on the same LoC that had been permeabilized for immunostaining for pro-SPC. We therefore imaged multiple, large fields of view via confocal microscopy to quantify the size and volume of lamellar bodies. Z projections are shown in a new panels H and I in Figure 1 and in Figure 1—figure supplement 2. We quantified the number and volume of pro-SPC+ lamellar bodies in an LoC reconstituted with NS and DS ATs, and these new data are included in new panels J and K in Figure 1. We also show that these differences in pro-SPC intensity are retained for 6 days at the air-liquid interface in Figure 1—figure supplement 2. Lastly, we also extracted the RNA from the apical channel of one NS and DS LoC and characterized the epithelial cell population via qRT-PCR. (new Figure 1L). This analysis confirmed that the DS LoCs have decreased expression of Abca3 and some surfactant protein genes. We did not observe differences in expression of type I AT markers or cxcl15, a chemokine expressed exclusively by lung epithelial cells. Our results suggest that the primary difference between the NS and DS LoCs is primarily restricted to changes in surfactant production and levels.

Characterization of cell numbers: In the revised manuscript, we have provided a quantification of cell densities of ATs, endothelial cells, and macrophages on a typical LoC. These new data are included in a new Table 1.

The description of Figure 1 in the text has been changed in numerous places to account for the additional data in Figure 1—figure supplements 1 and 2, as well as Figure 1I-L, as discussed above.

2) Cell Identification: The authors focus on the difference in surfactant gene expression in the newly isolated AECs (NS) versus in vitro passaged AECs (DS), but they also observe that aqp5 is downregulated. In fact, the data support that the cells are de-differentiating during passage in culture, which will have multiple effects on the cells, not just surfactant production. This needs to be further studied in detail to ensure that this cell is not an artifact produced by multi-passaging in vitro. After loss of those markers, how do the authors confirm they still have type I and type II AECs in their cultures? Is there microscopy data with other markers that are retained in the AECs? The authors should use several AT-IIs and AT-Is markers to be certain that the DS cell monolayers indeed still are AECs. Surfactant protein C, although used as a marker for AT-IIs, is a soluble protein that has been shown to interact with many cells within a cellular system. A correlation between SPTPC and AQP5 expression over time is also necessary as points out the differentiation of AT-IIs to AT-Is, a key feature of the role of AT-IIs as progenitors of AT-Is.

Our response to Essential Revisions point 1 above already covers a substantial amount of the ground for this point. In the revised manuscript, we have characterized both freshly isolated ATs obtained directly from Cell Biologics and the in vitro passaged ATs with an expanded panel of type II and type I AT markers via qRT-PCR. The new data for this are included in new Figure 1—figure supplement 1A. This shows that passage lowers expression of type II markers linked to surfactant production and secretion as well as type I AT membrane proteins, but increases expression of genes such as Cav1 and Igfbp2 that are reported to be expressed in terminally differentiated type I ATs. We therefore believe that these results are consistent with the in vitro type II to type I differentiation and subsequent proliferation of type I ATs. In contrast, on-chip at the air-liquid interface, expression of type I AT markers was not different between the NS and DS LoCs, whereas the expression of type II AT markers such as Abca3, Sftpa, and Sftpc remained lower (Figure 1L). This correlated well with immunostaining for pro-SPC+ lamellar bodies (Figure 1J-K). We also show that the differences in pro-SPC+ lamellar body size and intensity are maintained for up to 6 days at the air-liquid interface (Figure 1—figure supplement 2).

3) Analysis of Mtb Infection and Intracellular versus Extracellular Infection: The authors never stain for type I or type II AECs after infection and make the conclusion that the bacteria are within type II cells based on the absence of macrophage staining. However, the bacteria may not even be inside a cell, or the AECs could be dying during infection. On a related note, there are no data presented that show that type I cells are not infected in the lung on chip system with Mtb. Thus, higher resolution images, with clear colocalization and z-stacks, would increase the confidence in the results. The images and analysis provided do not distinguish between extracellular and intracellular growth. Mtb can form micro-colonies on the cell surface of alveolar epithelial cells and thus, the intracellular growth that they are reporting could be extracellular growth. The authors could treat the system with an antibiotic to kill extracellular Mtb attached to the alveolar epithelial cell surface. Also, can the authors discern between Mtb that are not growing vs. Mtb that are dead?

We believe the reviewers might have misconstrued our claims from the paper. On-chip we only claim that ATs can be infected; we do not distinguish between infection of Type I or Type II cells because we do not have markers for cell-type characterization during live-cell imaging.

Intracellular vs extracellular growth and identifying macrophage infections: The use of fluorescently labelled macrophages allowed us to unambiguously identify bacteria that co-localise with macrophages over many hours on-chip. We think it is a fair assumption that these bacteria are internalized by the macrophages as one would expect from phagocytic cells, and in many cases we can see the shape of the bacterial structures change due to corresponding changes in macrophage cell shape. This assumption has also been born out in numerous examples of macrophage infection from confocal imaging of fixed samples. We highlight one example in the new Figure 2—figure supplement 1 and additional examples are also shown in Figure 3—figure supplement 1D-G.

Verification of infection of AT cells: First, images from confocal microscopy characterization of both uninfected and infected LoCs shows clearly the presence of a confluent layer of epithelial cells on the LoC (Figure 1E-I and Figure 1—figure supplement 2, Figure 2—figure supplement 1). In the case of the infected LoCs, this confluent layer is retained for at least the first four days post infection (Figure 2—figure supplement 3) (and in many cases even later) which corresponds to the period of analysis of growth on chip. Further, the confocal images also demonstrate two clear examples of a intracellular growth in ATs. The first shows small number of bacteria, and the second shows a larger cord that forms intracellularly (Figure 2—figure supplement 1, Video 4, 5). This substantially strengthens the argument for our assumption that Mtb that do not co-localise with macrophages are growing intracellularly in ATs.

Measures taken to avoid analysis of growth of bacteria on cell debris: It is indeed likely that Mtb might grow on cell debris at later timepoints subsequent to host cell death and the formation of Mtb clumps. We therefore begin infection with a single cell suspension, and we have been careful to analyse growth rates only in first contact host cells between 2-4 days post-infection. We have clarified this point in the Results.

In summary, although we cannot unambiguously rule out the occurrence of extracellular Mtb growth between 2-4 dpi for each datapoint in Figures 2-4, a scan of multiple infected cells via confocal microscopy at 4 dpi revealed only isolated examples where there could be some doubt as to the intracellular nature of growth, and certainly not at a level that would bias the results. We additionally show in Figure 2—figure supplement 3 that axenic Mtb growth in the ALI media (the presumed source of nutrients for extracellular bacteria) is very slow, and certainly could not support the rapid growth we observe in the absence of surfactant. We have included sentences in the text to mention this point. Data for the Δicl1Δicl2 mutant (discussed in detail under Essential Revisions point 5) further corroborates this.

Administration of antibiotics: We do not see how we could administer antibiotics to bacteria growing extracellularly on top of the epithelial cells without disrupting the air-liquid interface, a key feature of the model.

Classification of non-growing vs dead Mtb: We are not able to clearly distinguish Mtb that are dead in the absence of a reliable live/dead marker; hence, we have restricted ourselves to calling this population “non-growing”. We have added a sentence in the text to make this clear.

4) Studies with the Mtb Mutants: The data arguing for attenuation of Esx-1 mutant Mtb in AECs and macrophages are not strong, and the authors do not actually make a direct statistical comparison between appropriate groups (i.e. AEC NS WT vs Esx-1, or Mac NS WT vs Esx-1). For example, it appears that the mean/median growth rate of WT Mtb in macrophages is ~0.25hr-1, which appears roughly the same for Esx-1 mutant Mtb in the same cells. There may be a difference under DS conditions, but since the comparisons are not made directly it is impossible to know. The authors state that their data with the Esx1 mutant "demonstrates that ESX-1 secretion is necessary for rapid intracellular growth in the absence of surfactant, consistent with the hypothesis that surfactant may attenuate Mtb growth by depleting ESX-1 components on the bacterial cell surface". This seems like quite a jump in interpretation of the data since the Esx1 mutant is likely attenuated for many reasons, and this attenuation is dominant to any effect that surfactant is having. The authors also show that PDIM levels are not different in the presence or absence of surfactant, and this is an Esx1 dependent lipid.

The data for the direct statistical comparison between the WT and ESX-1 deficient mutant are shown in Figure 4A-D and demonstrates that the ESX-1 deficient mutant does not grow as rapidly as the WT in the absence of surfactant. We therefore believe that our assertion in the text regarding the need for ESX-1 secretion for rapid intracellular growth in the absence of surfactant is supported by the data. Although ESX-1 secretion and PDIM secretion share transcriptional regulators such as EspR (Blasco et al., PMID: 22479184), ESX-1 secretion has been shown to be independent of PDIM secretion (Quigley et al. PMID: 28270579) and PDIM secretion is possible in ESX-1 deficient strains (Augenstreich et al., PMID: 28095608). We have also verified that the ESX-1 strain does produce and secrete PDIM (Figure 4—figure supplement 1) and have added text to clarify this. Our data in Figure 5–figure supplement 2 shows that Curosurf treatment does not appear to remove PDIM from the cell surface from WT Mtb. In our view, this reinforces the point that a key reason for the reduced growth potential of the ESX-1 deficient mutant relative to WT Mtb in DS LoCs but not the NS LoCs is due the depletion of ESX-1 components by surfactant.

What is the purpose for including the icl1/icl2 mutant? This experiment is also not included in the data quantification.

The Δicl1Δicl2 mutant serves two purposes. First it serves as a validation of the model; the Δicl1Δicl2 mutant has a severely attenuated phenotype in vivo but is not attenuated for axenic growth in vitro so this is a clear benchmark that our model must meet. We have provided additional images taken with a confocal microscopy at 6 days post infection (Figure 3—figure supplement 1D-G), which show that the bacteria are intracellular, and remain as single bacteria and have not grown into clumps or cords. Second, this mutant has been shown not to grow intracellularly, but we show that it grows just as rapidly as WT Mtb in the ALI media that is perfused through the vascular channel of the chips (Figure 2—figure supplement 3), and which presumably would be the source of nutrients to these bacteria were they to grow extracellularly. The lack of growth provides another validation, albeit indirectly, that the bacterial growth in the LoC model occurs intracellularly. We have included sentences in the text to make this point.

We do not observe on-chip growth for the Δicl1Δicl2 strain and show that these bacteria remain as single cells for a period of up to 6 days. The low fluorescence intensities of single Mtb bacteria during live-cell imaging made it difficult to obtain statistics to calculate the growth rate for this mutant. We therefore did not include it in the data quantification.

5) Discussion of Previously Published Data: Similar alterations on the M. tuberculosis cell wall and release of cell wall components to the milieu when exposed to physiological concentrations of human lung surfactant have been already described. The same is applicable to the slower replication rate in ATs (an intracellular killing in macrophages) after M. tuberculosis exposure to human lung surfactant. Although two different systems, authors need to contrast their findings with these reported ones in their discussion. In addition, it is not clear how many times this was performed. Statistics are mentioned on the figure legends, but there are not stats in the figure.

We thank the reviewers for comprehensively summarizing the various interactions of surfactant with Mtb that have already been reported. While we believe we cited these studies already in the previous draft, it is true that we did not discuss these observations in sufficient detail. We have therefore added sentences in the text to address this.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed with text edits before acceptance, as outlined below:

1) Similar to the changes made in the Results section, the authors should change the title from “early tuberculosis” to “early Mycobacterium tuberculosis infection”.

If possible, we would like to retain the title as it currently stands (“early tuberculosis”) so that citations for the preprint on biorxiv are appropriately attributed to this manuscript. In addition, even the use of “early tuberculosis” put the title over the 150 character limit of the eLife format, and the title suggested by the reviewers will go considerably over this limit. However, we have incorporated the change in the revised manuscript, although this will not be reflected in the title section of the online submission as the system does not allow a title longer than the character limit.

2) The authors repeatedly refer to bacteria as intracellular, including statements like "which provides strong indirect evidence that Mtb growth on-chip must be intracellular". While a few confocal images are provided to highlight some intracellular bacteria, it is mostly an assumption that the bacteria are intracellular, and it would be more appropriate to be conservative in the interpretation and wording used in the manuscript.

We have toned down the claims in the manuscript.

3) The attenuation of the Esx-1 mutant is overstated. Specifically, the authors write "Macrophages are less permissive than ATs for intracellular growth of ESX-1 deficient Mtb under both NS and DS conditions". However, Figure 4A, which compares WT and Esx-1 deficient Mtb in NS macrophages demonstrates no difference in growth rates. Thus, the Results and Discussion should be revised to reflect this observation.

The reviewers have raised a complex point, and we respectfully disagree with their interpretation. There are three variables in this system for which comparisons are made: bacterial strain, host cell type, and the surfactant conditions. The comparison across surfactant conditions (keeping host cell type and bacterial strain constant) is shown in Figure 3. The reviewers have referred to the first half of a sentence that compares growth of the WT or the ESX-1 deficient strain in macrophages relative to ATs under different surfactant conditions (a comparison across host cell types keeping bacterial strain and surfactant conditions constant) but cited data from Figure 4A. The data that is relevant to the sentence referred to by the reviewers is in Figure 3—figure supplement 2, where for both strains, growth is slower in macrophages vs. ATs (sub-panel A for WT and sub-panel C for ESX-1 deficient Mtb). However, ESX-1 deficient bacteria show these cell-type specific differences even in DS conditions (sub-panel D) whereas WT do not (sub-panel B). It is these differences that we sought to capture in the sentence quoted by the reviewers. Finally, the comparison across bacterial strains (keeping surfactant conditions and host cell constant) are shown in Figure 4A-D. We agree with the reviewers that Figure 4A does show that there is no additional attenuation of the ESX-1 relative to the WT in NS macrophages. Rather, ESX-1 deficient bacteria are unable to capitalize on the surfactant deficiency and grow as fast as their WT counterparts as we show in Figure 4B and 4D.

As it appears that the current phrasing of the sentence highlighted by the reviewer and the subsequent sentences cause confusion, we have rewritten them to elaborate on the points stated above. We hope the revised text which follows the order of comparison across surfactant conditions, followed by bacterial strains, and then by host cell-type is clearer.

Results

“ In comparison to wild-type Mtb, whose intracellular growth rate is strongly dependent on surfactant levels (Figure 3D-G), intracellular growth of the 5’Tn::pe35 strain 22 that is deficient in ESX-1 secretion but retains PDIM secretion (Figure 4—figure supplement 1) is largely independent of surfactant levels (Figure 3H-K). Under NS conditions, a greater fraction of ESX-1 deficient bacteria are “non-growing” in ATs (Figure 3I). Under DS conditions, the ESX-1 deficient strain is unable to grow as rapidly as wild-type in both macrophages and ATs (Figure 4B, D) and a fraction (ca. 12%) of ESX-1 deficient bacteria are non-growing in macrophages (Figure 3K). This attenuation in DS conditions is evident by visual inspection at 6 days post infection (Figure 3B vs 3A). Macrophages are less permissive than ATs for intracellular growth of ESX-1 deficient Mtb under both NS and DS conditions (Figure 3—figure supplement 2 C, D). In contrast, wild-type Mtb, grows more slowly in macrophages than in ATs only under NS but not DS conditions (Figure 3—figure supplement 2 A,B). Overall, attenuation of ESX-1 deficient bacteria relative to WT is not rescued by surfactant deficiency.”

Discussion

We have toned down the text by removing the adjective “good” in the sentence to describe the agreement between the LoC model and in vivo experiments in relation to the ESX-1 deficient strain.

4) In Figure 1N, Q: Labeling shows AEC, but should it be AT?

We apologise for the inadvertent error, this has been corrected.

5) In Figure 2-Figure 1 Supplement: Please explain colors in the figure legends.

The information for the colors has been incorporated in the figure legend for Figure 2—figure supplement 1, as well as in Figure 1—figure supplement 2.

https://doi.org/10.7554/eLife.59961.sa2

Article and author information

Author details

  1. Vivek V Thacker

    School of Life Sciences, Swiss Federal Institute of Technology Lausanne (EPFL), Lausanne, Switzerland
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    For correspondence
    vivekvthacker@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1681-627X
  2. Neeraj Dhar

    School of Life Sciences, Swiss Federal Institute of Technology Lausanne (EPFL), Lausanne, Switzerland
    Contribution
    Conceptualization, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5887-8137
  3. Kunal Sharma

    School of Life Sciences, Swiss Federal Institute of Technology Lausanne (EPFL), Lausanne, Switzerland
    Contribution
    Resources, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8086-3436
  4. Riccardo Barrile

    Emulate Inc, Boston, United States
    Present address
    University of Cincinnati, Cincinnati, United States
    Contribution
    Resources, Methodology
    Competing interests
    Riccardo Barrile was affiliated with Emulate Inc for a portion of the duration of this study. The author has no financial interests to declare.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7301-3959
  5. Katia Karalis

    Emulate Inc, Boston, United States
    Contribution
    Resources, Methodology
    Competing interests
    Katia Karalis is affiliated with Emulate Inc,. The author has no financial interests to declare.
  6. John D McKinney

    School of Life Sciences, Swiss Federal Institute of Technology Lausanne (EPFL), Lausanne, Switzerland
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    john.mckinney@epfl.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0557-3479

Funding

Human Frontier Science Program (LT000231/2016-L)

  • Vivek V Thacker

European Molecular Biology Organization (921-2015)

  • Vivek V Thacker

Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (310030B_176397)

  • John D McKinney

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Ethics

Animal experimentation: Animal protocols were reviewed and approved by EPFL's Chief Veterinarian, by the Service de la Consommation et des Affaires Vétérinaires of the Canton of Vaud, and by the Swiss Office Vétérinaire Fédéral (License Number VD 3434 for experiments involving organ collection and License Number VD 3472 for experiments involving infection with Mycobacterium tuberculosis).

Senior Editor

  1. Wendy S Garrett, Harvard T.H. Chan School of Public Health, United States

Reviewing Editor

  1. Christina L Stallings, Washington University School of Medicine, United States

Reviewer

  1. Michael U Shiloh, University of Texas Southwestern Medical School, United States

Publication history

  1. Received: June 12, 2020
  2. Accepted: November 10, 2020
  3. Accepted Manuscript published: November 24, 2020 (version 1)
  4. Accepted Manuscript updated: November 27, 2020 (version 2)
  5. Version of Record published: December 14, 2020 (version 3)

Copyright

© 2020, Thacker et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,458
    Page views
  • 459
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Microbiology and Infectious Disease
    Shida Shangguan et al.
    Research Article Updated

    A gene signature was previously found to be correlated with mosaic adenovirus 26 vaccine protection in simian immunodeficiency virus and simian-human immunodeficiency virus challenge models in non-human primates. In this report, we investigated the presence of this signature as a correlate of reduced risk in human clinical trials and potential mechanisms of protection. The absence of this gene signature in the DNA/rAd5 human vaccine trial, which did not show efficacy, strengthens our hypothesis that this signature is only enriched in studies that demonstrated protection. This gene signature was enriched in the partially effective RV144 human trial that administered the ALVAC/protein vaccine, and we find that the signature associates with both decreased risk of HIV-1 acquisition and increased vaccine efficacy (VE). Total RNA-seq in a clinical trial that used the same vaccine regimen as the RV144 HIV vaccine implicated antibody-dependent cellular phagocytosis (ADCP) as a potential mechanism of vaccine protection. CITE-seq profiling of 53 surface markers and transcriptomes of 53,777 single cells from the same trial showed that genes in this signature were primarily expressed in cells belonging to the myeloid lineage, including monocytes, which are major effector cells for ADCP. The consistent association of this transcriptome signature with VE represents a tool both to identify potential mechanisms, as with ADCP here, and to screen novel approaches to accelerate the development of new vaccine candidates.

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Daniel A Phillips et al.
    Research Article

    Bin/Amphiphysin/RVS (BAR) domain proteins belong to a superfamily of coiled-coil proteins influencing membrane curvature in eukaryotes and are associated with vesicle biogenesis, vesicle-mediated protein trafficking, and intracellular signaling. Here we report a bacterial protein with BAR domain-like activity, BdpA, from Shewanella oneidensis MR-1, known to produce redox-active membrane vesicles and micrometer-scale outer membrane extensions (OMEs). BdpA is required for uniform size distribution of membrane vesicles and influences scaffolding of OMEs into a consistent diameter and curvature. Cryogenic transmission electron microscopy reveals a strain lacking BdpA produces lobed, disordered OMEs rather than membrane tubules or narrow chains produced by the wild type strain. Overexpression of BdpA promotes OME formation during planktonic growth of S. oneidensis where they are not typically observed. Heterologous expression results in OME production in Marinobacter atlanticus and Escherichia coli. Based on the ability of BdpA to alter membrane architecture in vivo, we propose that BdpA and its homologs comprise a newly identified class of bacterial BAR domain-like proteins.
