Neural effects of propofol-induced unconsciousness and its reversal using thalamic stimulation

  1. André M Bastos
  2. Jacob A Donoghue
  3. Scott L Brincat
  4. Meredith Mahnke
  5. Jorge Yanar
  6. Josefina Correa
  7. Ayan S Waite
  8. Mikael Lundqvist
  9. Jefferson Roy
  10. Emery N Brown
  11. Earl K Miller  Is a corresponding author
  1. The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, United States
  2. The Department of Anesthesia, Critical Care and Pain Medicine, Massachusetts General Hospital/Harvard Medical School, United States
  3. The Institute for Medical Engineering and Science, Massachusetts Institute of Technology, United States
Research Article
  • Cited 2
  • Views 5,700
  • Annotations
Cite this article as: eLife 2021;10:e60824 doi: 10.7554/eLife.60824

Abstract

The specific circuit mechanisms through which anesthetics induce unconsciousness have not been completely characterized. We recorded neural activity from the frontal, parietal, and temporal cortices and thalamus while maintaining unconsciousness in non-human primates (NHPs) with the anesthetic propofol. Unconsciousness was marked by slow frequency (~1 Hz) oscillations in local field potentials, entrainment of local spiking to Up states alternating with Down states of little or no spiking activity, and decreased coherence in frequencies above 4 Hz. Thalamic stimulation ‘awakened’ anesthetized NHPs and reversed the electrophysiologic features of unconsciousness. Unconsciousness is linked to cortical and thalamic slow frequency synchrony coupled with decreased spiking, and loss of higher-frequency dynamics. This may disrupt cortical communication/integration.

Introduction

Propofol – the most widely used anesthetic – acts by enhancing GABAergic inhibition throughout the brain and central nervous system (Bai et al., 1999; Hapfelmeier et al., 2001; Hemmings et al., 2019; Hemmings et al., 2005). In humans, propofol produces dose-dependent changes in arousal level that are associated with spatiotemporal neurophysiological signatures across the cortex. At low doses, propofol produces a sedative state associated with beta oscillations (13–25 Hz) (McCarthy et al., 2008; Purdon et al., 2015). At higher doses that maintain unconsciousness for surgery, slow-delta oscillations (0.1–4 Hz) (Lewis et al., 2012; McCarley, 2007) appear across the entire scalp and are decoupled between cortical regions (Lewis et al., 2012). Concomitantly, coherent alpha oscillations (8–12 Hz) concentrate across the frontal area of the scalp, a process known as anteriorization (Cimenser et al., 2011; Purdon et al., 2013). In profound states of propofol-induced unconsciousness, the phase of the slow-delta oscillations strongly modulates the amplitude of the alpha oscillations (Purdon et al., 2013).

The broad range of dynamics observed in response to propofol administration suggests that propofol-induced unconsciousness is a multifactorial process. One factor is that unconsciousness is caused by the phase-locking of neuronal spiking with the slow-delta oscillation. This greatly reduces cortical spiking and limits cortical activity to brief Up-states of spiking followed by longer duration Down-states of little or no spiking (Lewis et al., 2012). Another factor is that the slow-delta oscillations ‘fragment’ the cortex (Lewis et al., 2012). Local spiking becomes limited to the narrow window of slow-delta oscillation phases, which being decoupled across cortical areas, impede long-range cortical communication. A third factor, supported by modeling and experimental studies, suggests that the coherent frontal alpha oscillations represent hypersynchronous communication between the thalamus and prefrontal cortex (Ching et al., 2010; Flores et al., 2017Palva and Palva, 2007). A fourth factor links unconsciousness to loss of frontal-parietal connectivity (Lee et al., 2013). Finally, the neuroanatomy of the brainstem suggests that direct action of propofol at GABAergic inhibitory synapses onto the arousal center nuclei is also an important contributor to propofol-induced unconsciousness (Brown et al., 2010).

Details of propofol-induced unconsciousness remain to be clarified because its dynamics have been investigated mostly using extracranial measures such as electroencephalography (EEG) with limited spatial specificity and fMRI with limited temporal specificity (but see Redinbaugh et al., 2020). Microelectrode recordings in patients have highly precise temporal resolution but limited spatial coverage (Lewis et al., 2012). Studies conducted simultaneously at high spatial and temporal resolution are needed. With one exception (Flores et al., 2017), previous studies have not included the thalamus, a critical nexus that regulates cortical activity (Saalmann and Kastner, 2015; Sherman, 2016). The thalamus is highly interconnected with the cortex and receives important inputs from the brainstem arousal centers (Jones, 2007). Furthermore, both thalamo-cortical and cortico-thalamic connectivity are highly layer specific, giving rise to specific hypotheses that propose either deep (layers 5/6) or superficial (layer 2/3) may be more specifically linked to loss of consciousness (Aru et al., 2019; Dehaene and Changeux, 2011). Dehaene and Changeux, 2011 and others link consciousness more to frontal vs. posterior cortex (Boly et al., 2017). Central thalamic stimulation can result in a partial restoration of consciousness (Schiff et al., 2007). Some theories suggest consciousness is formed when oscillations in thalamo-cortical loops integrate cortical information (Llinás, 2003). There is mounting evidence that the thalamus regulates cortical communication (especially top-down) via oscillatory dynamics (Halassa and Sherman, 2019; Saalmann and Kastner, 2015).

To study the effects of propofol on cortex and thalamus, we administered propofol to four macaque monkeys via vascular access ports or implanted catheters using computer-controlled infusions. We continuously recorded neural activity as the animals transitioned from the pre-propofol awake state, through loss of consciousness (LOC), to unconsciousness and recovery of consciousness (ROC) (Figure 1A).

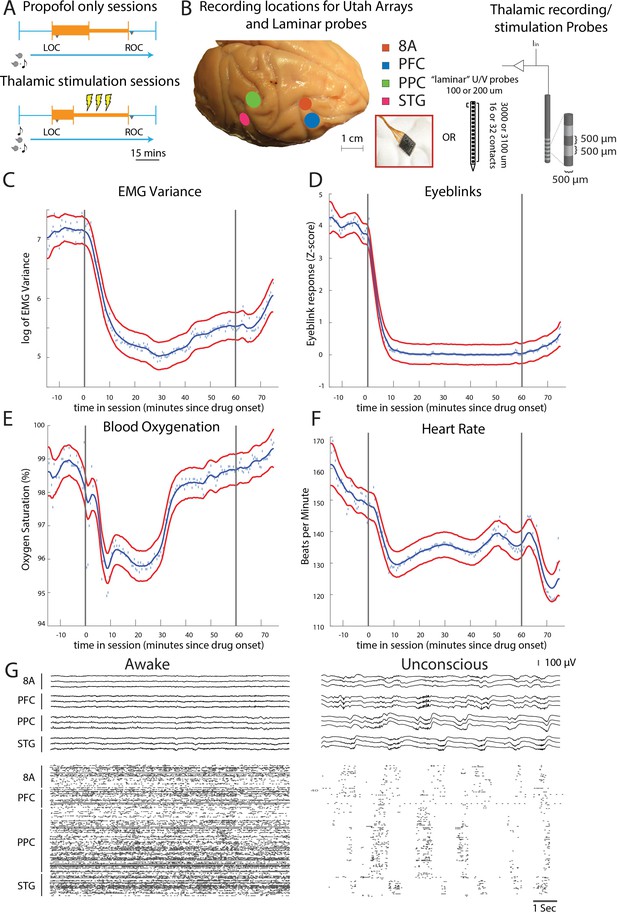

Propofol anesthesia paradigm and physiological indices of LOC.

(A) Session paradigm. Two sets of sessions were performed. For propofol-only sessions (upper subplot), there was an initial 30 min infusion (fast rate, thick orange bar) covering Awake (pre-LOC) and Unconscious states, before switching to a halved rate propofol infusion for the maintenance phase of experiment (narrow orange bar). For the thalamic stimulation sessions (N = 22), the initial infusion was for 20 min, followed by a halved rate propofol infusion for the rest of the session. Periodically, 28.5 s trials with electrical stimulation in the thalamus (yellow bolts) occur during lower-dosed maintenance phase of propofol infusion. LOC: loss of consciousness, ROC: recovery of consciousness. (B) (left) Cortical recording locations of each 64-channel chronic recording arrays or 16/32 channel acutely inserted laminar probe. PFC: ventrolateral prefrontal cortex; 8A: caudal lateral PFC; PPC: posterior parietal cortex area 7A/7B; STG: superior temporal gyrus; (right) ‘Laminar’ probes and thalamic electrical stimulation/LFP (Local Field Potential) recording leads. (C-F) Physiological measurements characterizing the Awake state relative to propofol administration (starting at time zero). Blue dots indicate individual time points with measurements averaged across sessions. Blue curve is a smoothed estimate and the red curves are the approximate 95% confidence intervals (see 'Methods'). (G) (upper panel) Example LFP traces from all cortical Utah arrays during the Awake (left) and Unconscious states with clear slow-frequency waves (right). (lower panel) Example spike raster over 10 s of data. Spike times are indicated with dots.

Results

Experimental design, recordings, and physiological responses to propofol

We started by administering a high-infusion rate of propofol (280–580 mcg/kg/min, adjusted per individual animal) for 20 min to induce LOC (defined as the moment the eyes closed and remained closed for the remainder of the infusion). LOC was associated with simultaneous changes in several physiological variables. We assessed the significance of the change in each physiological variable as the posterior probability that its values were greater during the Awake state than they were 10–60 min after initiating the propofol infusion (Smith et al., 2005). We considered a change to be significant if the posterior probability was greater than 0.99.

Relative to the Awake state, we observed a significant decrease in muscle tone (from 4.5 to 75 min, Figure 1C), cessation of airpuff-evoked eyeblinks (from 1 to 75 min, Figure 1D), a decline in blood oxygenation (from 4.5 to 34 min, Figure 1E), and a decrease in heart rate (from 4.5 to 75 min, Figure 1F). All times were measured relative to the start of the propofol infusion. After LOC, we decreased the infusion to an animal-specific maintenance rate (140–230 mcg/kg/min) for an additional 30–45 min. Once the infusion was ceased, ROC occurred in ~7 min. ROC was behaviorally defined as the moment the eyes opened and remained open continuously. We will refer to the pre-propofol awake state as the Awake state and the period from LOC to ROC as the Unconscious state.

We performed the neurophysiological recordings in three sets of experiments. In the first set of experiments, we recorded neuronal spiking activity and local field potentials (LFPs) from a series of chronically implanted 64-channel ‘Utah’ arrays in prefrontal (8A and PFC), posterior parietal area 7A/B (PPC), and auditory/temporal (STG) cortex. These initial sessions (10 in monkey 1, 11 in monkey 2) served to establish the neurophysiological properties defining the Awake and Unconscious states. In the second set of experiments, we implanted multiple-contact stimulating electrodes (two in each hemisphere of the same monkeys) in frontal thalamic nuclei (intralaminar nuclei, ILN, and mediodorsal nuclei, MD, with a few sites in neighboring thalamic nucleus VPL) to record from and electrically stimulate the thalamus and cortex during the Unconscious state (a total of 22 additional sessions: 11 in monkey 1, 11 in monkey 2). In the third set of experiments conducted in two additional monkeys (a total of eight sessions: two in monkey 3 and six in monkey 4), we performed acute laminar recordings from the same areas using multi-contact arrays positioned approximately perpendicular to cortex (as in Bastos et al., 2018, see 'Methods'). Data from monkeys 3 and 4 were used only for the analyses involving cortical layers (Figure 5). Data from monkeys 1 and 2 were used for all other analyses. All main results are presented as averages across monkeys 3 and 4 (Figure 5) or 1 and 2 (all other figures).

An example session of cortical recordings during the Awake and Unconscious states (Figure 1G) showed a profound reduction in spiking, an increase in both slow-frequency (SF, 0.1-2Hz) local field potential (LFP) amplitude (Flores et al., 2017) and slow-frequency modulation of spiking activity.

Changes in LFP power with the Unconscious state

We first characterized the changes in LFP power during the Awake state (Figure 2) to every time point after drug administration until 10 min post-ROC (non-parametric cluster-based randomizations, corrected for multiple comparisons; all effects p<0.01; Maris and Oostenveld, 2007). We compared LFP power increases/decreases from the Awake state, time locked either to LOC or ROC. First, approximately 3–7 min before LOC, there was an increase in beta power in all areas (~15–30 Hz). In frontal areas PFC and 8A, this power change shifted to a lower frequency (~14–20 Hz) during the maintenance phase (Figure 2A and B, left subplots). Power in this frequency range remained higher than Awake throughout the Unconscious state. By contrast, in posterior areas PPC and STG after LOC (dotted black lines at time point 0 in Figure 2, left subplots) beta power was reduced relative to Awake (Figure 2C and D, left subplots). In all areas, shortly before LOC there was a sustained reduction in gamma power (>35 Hz).

Figure 2 with 2 supplements see all

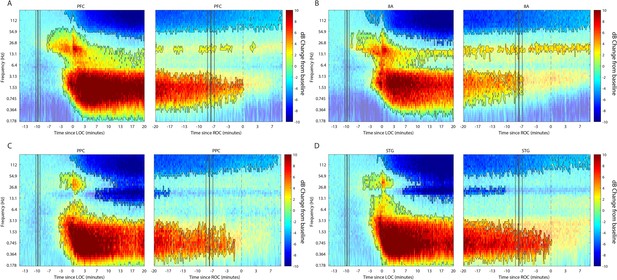

Changes in cortical power during the Unconscious state.

(A-D) dB change in power for each area is shown with respect to Awake. Increases in power are shown in red, decreases in blue. Significant modulation of power is shown in opaque colors and outlined in black (p<0.01, non-parametric cluster-based randomizations, corrected for multiple comparisons). Left subpanels are time locked to loss of consciousness (LOC), defined behaviorally as the moment the eyes closed and remained closed. Start of drug infusion is shown as a vertical black bar at −10 min from LOC, ± 1 SEM over sessions. Right subpanels are time locked to return of consciousness (ROC), defined behaviorally as the moment the eyes first opened. Cessation of drug infusion is shown as a vertical black bar at −8 min from ROC, ± SEM over sessions.

All areas also showed a significant increase in slow-frequency power around LOC (Figure 2, non-parametric cluster-based randomizations, corrected for multiple comparisons; all effects p<0.01). We quantified the effect size by comparing power in the slow frequency band (0.1–2 Hz) while Awake to power while Unconscious (Figure 2—figure supplement 1A, blue and orange bars, respectively). We measured the effect size in dB units (10*log10[power Awake/power Unconscious]) across areas. The order of areas from strongest to weakest change was organized from posterior to anterior. The strongest increase in SF power was seen in STG, then PPC/PFC, then 8A (Figure 2—figure supplement 1B, significant differences in effect sizes were observed between STG and PFC and STG and 8A, p<0.01, non-parametric randomization test).

The thalamus showed similar power modulation results as cortex. There was an increase in slow frequency oscillations locked to LOC and a decrease in this same band locked to ROC (Figure 2—figure supplement 2, p<0.01, non-parametric randomization test). In the beta frequency range, thalamic power modulation looked like a mixture between anterior and posterior cortex. There was an initial increase in beta power compared to Awake starting at LOC. This was followed by a decrease relative to Awake from ~5–14 min post-LOC. Subsequently (from 15 min post-LOC to ROC), there was neither a significant increase nor decrease in beta power relative to Awake (Figure 2—figure supplement 2, p>0.01 non-parametric randomization test).

Anteriorization of alpha-beta power and differences in slow frequencies across areas during the Unconscious state

‘Alpha anteriorization’ is the decrease in alpha-beta power in posterior cortex and its increase in frontal cortex during the Unconscious state (Cimenser et al., 2011; Tinker et al., 1977). We plotted the effect size (10*log10[power Awake/power Unconscious]) as a function of frequency (Figure 3A). This revealed differences between posterior and anterior areas in the alpha-low beta range. In particular, area 8A showed a clear peak at 15 Hz during unconsciousness (Figure 3A, red line). At the same frequency and above, posterior brain regions were strongly depressed in power (Figure 3A, green and magenta lines). We directly compared the absolute power in all areas between the Awake and the Unconscious states. We found that in the Awake state, alpha-beta (8–25 Hz) power in posterior areas, PPC and STG, was greater than in anterior areas, PFC and 8A (Figure 3B, sign test for anterior vs. posterior alpha-beta power across sessions, p<1E-3 for all comparisons). During the Unconscious state this relationship flipped. Alpha-beta power in frontal areas PFC and 8A was greater than in the posterior areas (Figure 3C, sign test for anterior vs. posterior alpha-beta power across sessions, p<1E-5 for all comparisons). These observations suggest the presence of anteriorization.

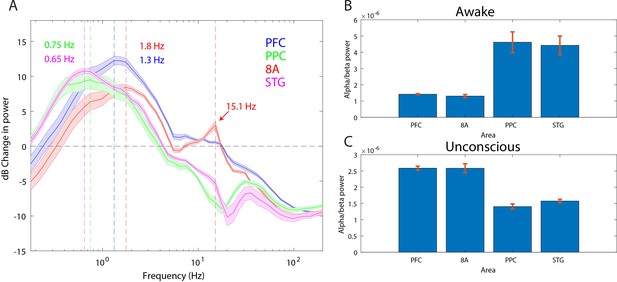

Power asymmetries between areas.

(A) dB change in power of Unconscious vs. Awake. Positive values indicate power Unconscious > Awake. For each area, the mean power difference is shown 1 SEM. Peak power modulation in the slow frequency range is highlighted for each area, and a secondary peak in the beta range (15.1 Hz) is present in area 8A. (B) Power in the beta frequency range (8–25 Hz) during the Awake state. (C) Same as B, but during the Unconscious state. Mean ±/- 1 SEM. PFC: ventrolateral prefrontal cortex; 8A: caudal lateral PFC; PPC: posterior parietal cortex area 7A/7B; STG: superior temporal gyrus.

This analysis revealed differences in which frequencies the slow frequency band changed the most between Awake and Unconscious states. In anterior areas, PFC and 8A, the peak change was in higher frequencies (Figure 3A, 1.3 and 1.8 Hz, respectively) than posterior areas, PPC and STG (Figure 3A, 0.75 and 0.65 Hz, respectively, sign test for frequency difference, all anterior vs. posterior comparisons, p<1E-5).

LFP power changes from unconscious to ROC

ROC occurred ~8 min after the cessation of the propofol infusions. In all areas, at ROC, power in the slow-frequency range was no longer significantly different from the Awake state (Figure 2A–D, right subpanels). In contrast, significant reductions in gamma power were still present in PFC, 8A, and STG even 10 min post-ROC. Beta power changes from Awake were also not reliable indicators of ROC. In frontal area 8A, beta power remained elevated above Awake levels 10 min post-ROC (Figure 2B, right subpanel). In posterior areas, beta power reductions from Awake were no longer significant at 10–17 min pre-ROC.

Differences in spiking between Awake vs. Unconscious

We next examined differences in spike rates between the Awake and Unconscious states (Figure 4A). We eliminated periods with airpuffs or auditory tones in order to not induce differences across areas due to differences in sensory processing. In the Awake state, average spike rates were between 6 and 8 spikes per second across all areas. During the Unconscious state, average spike rates across areas fell to 0.2–0.5 spike/s during the initial infusion (first 30 min of propofol). They increased to 1–2 spikes/s during the maintenance infusion. After cessation of propofol, spike rates gradually approached the levels seen in the Awake state (Figure 4B).

Figure 4 with 1 supplement see all

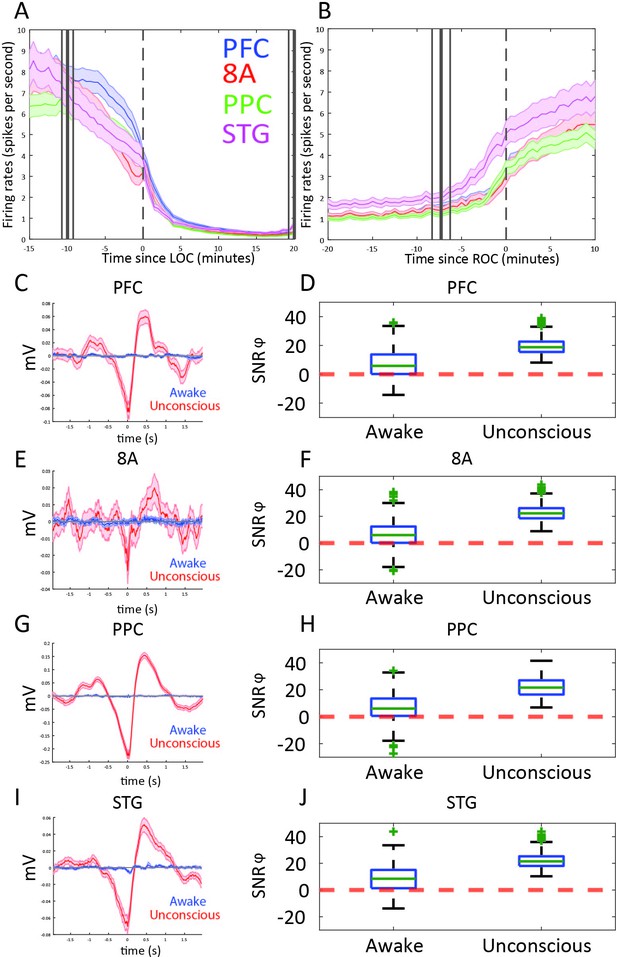

Changes in mean firing rate and spike-phase modulation during Awake vs. Unconscious states.

(A) Spike rate for all recorded areas averaged across all propofol-only recording sessions locked to loss of consciousness (LOC). (B) Same as A, but for recovery of consciousness (ROC). Mean and 99 percent confidence interval. (C/E/G/I) The spike-triggered average for all well-isolated units in a given area with respect to that area’s unfiltered LFP. Red is the Unconscious state, blue is the Awake state. (D/F/H/J) Boxplots of SNRɸ values in decibels (dB) (reflecting SF modulation of spiking, see 'Methods') for all units during the Awake and Unconscious states. PFC: prefrontal cortex; PPC: posterior parietal cortex 7A/7B; 8A: caudal lateral PFC; STG: superior temporal gyrus.

At LOC, spike rates were approximately half of their Awake rates (Figure 4A, mean firing rates at LOC: 4.0, 3.2, 3.4, 3.8 spikes/s for PFC, 8A, PPC, STG, respectively). Spike rates continued to fall and then stabilized ~15 min post-LOC to an average of 0.25 spikes/s. During the maintenance infusion, average spike rates across all areas increased to 1–1.7 spikes/s.

At ROC, spiking activity increased to 3.3, 3.0, 3.4, and 5.0 spikes/s (for PFC, 8A, PPC, STG, respectively), approximately the same spike rate as at LOC (Figure 4B). The exception was area STG, which recovered faster than the other areas. Neurons in STG had an average of 5.0 spikes/s at ROC, significantly greater than the other areas (p<0.01, non-parametric randomization test for all area comparisons to STG).

We quantified the effect size by comparing spike rates during the Awake to the Unconscious state (Figure 4—figure supplement 1A). We measured the effect size in dB units (10*log10[firing rate Awake/spike rate Unconscious]) across areas. The order of areas from highest to lowest spike rate change showed an anterior to posterior organization. The strongest effects were in PFC/8A, then PPC, then STG (Figure 4—figure supplement 1B, all comparisons, p<0.01, non-parametric randomization test).

During the Unconscious state, spike timing was phase-coupled to the slow frequencies. This appeared as Up and Down states of high vs. minimal to no spiking, respectively (e.g., Figure 1G). Spike-triggered averages of the LFP signal indicated that spikes entrained to the depolarized phases (troughs) of slow frequency oscillations (Figure 4C/E/G/I) in all areas. We further estimated the contribution of phase to predicting spiking using a generalized linear model (GLM) framework (see Methods). Figure 4D/F/H/J shows boxplots of the contribution of phase to predicting spiking in each area during the Awake and Unconscious states measured in dB as the signal-to-noise ratio of slow-frequency phase. We defined an increase in phase-modulation during the Unconscious state relative to the Awake state as a log-fold change in the SNRɸ (termed ΔSNRɸ) greater than zero. We computed the posterior probability of an increased phase modulation (Unconscious > Awake) across the population of neurons recorded in each area using the beta-binomial model (DeGroot and Schervish, 2012). The posterior probability of an increase in phase modulation was 0.99 for PFC, PPC, and 8A, and 0.98 for STG.

Laminar changes in spiking and LFP power during the Unconscious state

In two additional animals (monkeys 3 and 4) we used multi-laminar probes to examine differences between cell layers (Figure 5). We pooled data from PFC, 8A, PPC, and STG at the slow frequency and gamma bands because these frequencies behaved consistently across areas. Laminar position zero was based on the relative power profile of gamma vs. beta (see Methods). This was previously shown to map onto the location of layer 4 (Bastos et al., 2018). As before, we calculated the dB change from the Awake to the Unconscious state. The laminar profile of change in spiking, gamma, and slow frequencies are shown in Figure 5A/C/E. Spiking and gamma reduction were more pronounced in superficial layers compared to deep layers (Figure 5B and D, non-parametric randomization test comparing the effect size of superficial vs. deep, p<1E-7 for spiking, p<1E-7 for gamma; Manly, 2018). The enhancement of slow frequency power was higher in deep compared to superficial layers (Figure 5F, non-parametric randomization test comparing the effect size of superficial vs. deep, p<1E-5 for SF).

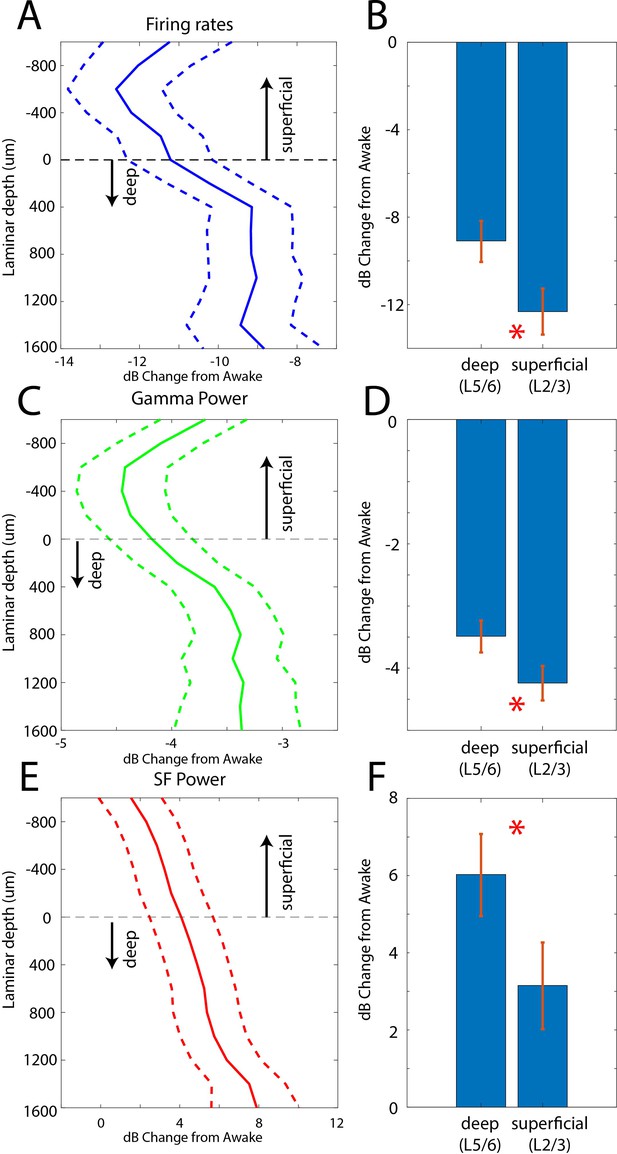

Laminar changes in spiking, gamma, and SF power during Awake vs. Unconscious states.

(A) Firing rate change from Awake to Unconscious states as a function of cortical layer. Negative values indicate less spiking during the Unconscious state. Layer 0 is the approximate location of cortical layer 4 (see 'Methods'). The horizontal dotted line at zero separates superficial layers 2/3 from deep layers 5/6. Mean and 99 percent confidence interval of the effect size across all neurons per indicated depth. (B) Mean and 99 percentconfidence interval of the effect size across all superficial (N = 287) and deep (N = 337) neurons. (C, D) Same as A, B, but for LFP power at gamma (100–200 Hz). (E, F) Same as A, B, but for SF power (0.2–1.1 Hz). Positive values indicate more power during the Unconscious state. N = 330 LFPs for superficial layers, N = 393 LFPs for deep layers. Mean and 99 confidence interval across all available LFPs in each layer.

Changes in cortico-cortical and thalamo-cortical phase synchronization during the Unconscious state

We next analyzed whether slow-frequency LFP oscillations were also phase synchronized. We used a sliding window approach to quantify the pairwise phase consistency (Vinck et al., 2010; see 'Methods') continuously from 15 min pre-LOC to 10 min post-ROC. There were strong increases in slow frequency cortico-cortical phase synchronization between all cortical areas (p<0.01, cluster-based non-parametric randomization test, Figure 6) during the Unconscious state. In a subset of area pairs (Figure 6B/E/F), there were reductions in cortico-cortical theta and beta phase synchronization, although the effect size at these frequencies was smaller than at slow frequencies (Figure 6—figure supplement 1). Unique to phase synchronization between frontal areas PFC and 8A, we observed a sustained increase in alpha (7–15 Hz) frequency range phase synchronization during the Unconscious state (p<0.01, cluster-based non-parametric randomization test, Figure 6A).

Figure 6 with 1 supplement see all

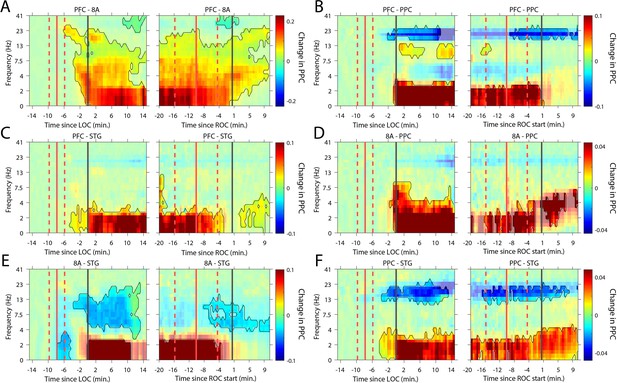

Changes in cortico-cortical LFP phase synchronization during Awake vs. Unconscious states.

(A-F) (left subpanels) Change in the pairwise phase consistency (PPC) for all time points relative to loss of consciousness (LOC) compared to the Awake state (−15 to −10 min pre-LOC). The red vertical lines indicate the average ±/- 1 standard deviation time of propofol onset. The black vertical line indicates time zero (LOC). Significant increases or decreases (p<0.01, corrected for multiple comparisons) from Awake are opaque colors and are highlighted. (right subpanels) Same as left subpanels but for recovery of consciousness (ROC). The red vertical lines indicate the average ±/- standard deviation time of propofol offset. The black vertical line indicates time zero (ROC). Significant increases or decreases from Awake are opaque colors and are highlighted.

Recent evidence suggests that the thalamus helps foster synchrony between cortical areas (Saalmann and Kastner, 2015). During the Unconscious state, all cortical areas show increased slow frequency phase synchronization with the thalamus (p<0.01, cluster-based non-parametric randomization test, Figure 7). There were also reductions in synchrony while Unconscious in the theta/beta frequency ranges, but as with cortico-cortical phase synchronization, these effects were smaller (Figure 7—figure supplement 1). Uniquely to phase synchronization between thalamus and PFC, we observed a sustained increase in alpha (7–15 Hz) frequency range phase synchrony while Unconscious (p<0.01, cluster-based non-parametric randomization test, Figure 7A).

Figure 7 with 1 supplement see all

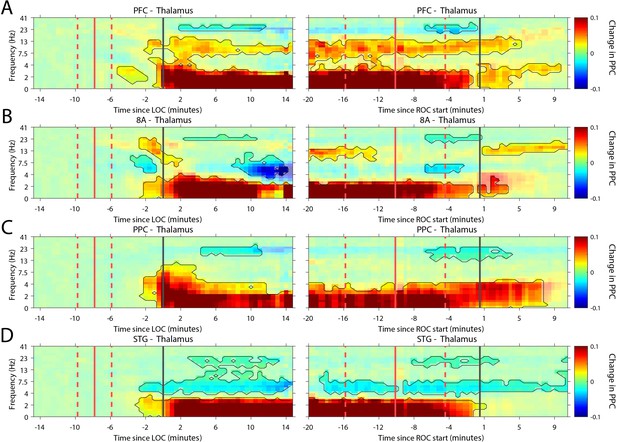

Changes in thalamo-cortical phase synchronization during Awake vs. Unconscious states.

(A-D) (Left subpanels) Change in the pairwise phase consistency (PPC) for all time points relative to loss of consciousness (LOC) compared to Awake (−15 to −10 min pre-LOC). The red vertical lines indicate the average ± 1 standard deviation time of propofol onset. The black vertical line indicates time zero (LOC). Significant increases or decreases (p<0.01, corrected for multiple comparisons) from Awake are marked with opaque colors and are highlighted. (Right subpanels) Same as left subpanels but time-locked to recovery of consciousness (ROC). The red vertical lines indicate the average ± 1 standard deviation time of propofol offset. The black vertical line indicates time zero (ROC). Significant increases or decreases from Awake are opaque colors and are highlighted. PFC: ventrolateral prefrontal cortex; 8A: caudal lateral PFC; PPC: posterior parietal cortex area 7A/7B; STG: superior temporal gyrus.

Thalamic stimulation arouses unconscious monkeys and causes a partial reversal of neurophysiological signs of the Unconscious state

The thalamus is a major route by which ascending excitatory projections from the brainstem reach the cortex. We tested whether we could induce arousal and restore awake-like neurophysiological markers by electrically stimulating the thalamus. During the Unconscious state, we applied 180 Hz, bipolar stimulation targeting the central thalamus, including the mediodorsal nucleus and intralaminar nuclei (Figure 8B, see 'Methods', a minority of sites were in neighboring thalamic nucleus VPL). We applied either high or low current, titrating it for each individual animal (Figure 8A) based on the change in arousal that it evoked. We measured arousal with a ‘wakeup score’ (see 'Methods'). It assessed whether the eyes opened and whether there was an increase in limb movements and puff-evoked eyeblinks (see 'Methods'). A wakeup score of zero indicated none of these happened. A value of 6 indicated that they all occurred. All three sub-scores contributed to the wakeup score. There was a larger contribution from eye-opening and puff-evoked eyeblinks (Figure 8—figure supplement 1). During the Unconscious state without electrical stimulation, we did not observe these events (e.g., Figure 1D shows that on average there were no air puff-evoked eyeblinks while Unconscious). Analysis of the electromyography (EMG), blood oxygenation, eyeblinks to airpuffs, and heart rate during thalamic electrical stimulation corroborated this wakeup score: Electrical stimulation of the thalamus increased muscle tone (non-parametric randomization test, p<0.01, Figure 8C), eyeblinks to airpuffs (non-parametric randomization test, p<0.01, Figure 8D), blood oxygen saturation (non-parametric randomization test, p<0.01, Figure 8E), and heart rate (non-parametric randomization test, p<0.01, Figure 8F). These changes were all greater for high relative to low-current (Figure 8C–F, non-parametric randomization test for significant differences between high- vs. low-current stimulation, p<0.01 are indicated with black stars) and outlasted the electrical stimulation period itself, achieving significance during the time window from 0 to 30 s post stimulation offset (post-stim one in Figure 8C–F) and sometimes the 30–60 s (post-stim 2) or 60–90 s (post-stim 3) post stimulation offset periods.

Figure 8 with 2 supplements see all

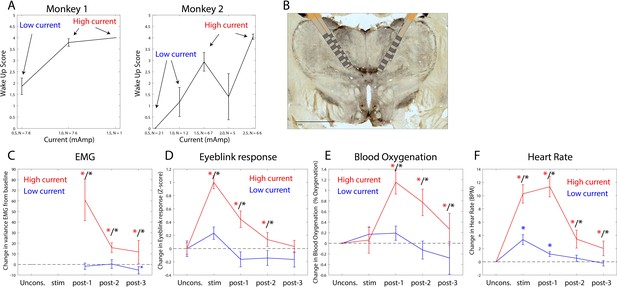

Thalamic electrical stimulation in central thalamus arouses monkeys.

(A) Behavioral wake-up score as a function of thalamic current for monkey 1 (left subplot) and monkey 2 (right subplot). Mean ±+ 1 SEM. A high-current and low-current condition was individually titrated per monkey for producing scores on average above or below a wake-up score of 2. (B) A histological image from monkey 1 showing the thalamic leads in the central thalamus. (C) Change in EMG from the pre-stimulation Unconscious baseline for high-current (red) vs. low-current (blue) conditions. Change in the physiological signal was tested for difference from Unconscious during the stimulation period (0–28.5 s with respect to electrical stimulation onset), post-1 (0–30 s with respect to electrical stimulation offset), post-2 (30–60 s with respect to electrical stimulation offset), and post-3 (60–90 s with respect to electrical stimulation offset). Significant differences from zero are indicated with red (for high current) or blue (for low current) stars. Significant differences between high vs. low current are indicated with black stars. Mean ± 1 SEM. (D) Same as C, but for eyeblink response to air puffs. (E) Same as C, but for blood oxygenation. (F) Same as C but for the heart rate response.

We quantified behavioral and neurophysiological effects relative to the Awake state using a Return To Wakefulness score (RTW – see 'Methods' and Table 1). An RTW score of 0% denotes no change and RTW of −100% denotes full return to the Awake state. High-current thalamic stimulation induced an average heart rate increase of 6–8 beats/min above Awake levels and increased eyeblinks to airpuffs and blood oxygenation (RTW of −36% and −69%, respectively) and did not change EMG responses (Figure 8—figure supplement 2, Table 1).

Table 1
Return to Wakefulness (RTW) scores for effects of high-current thalamic stimulation on physiological measures of arousal, firing rates, and cortical power.
MeasureAwakePre-stim unconsciousStimPost-stim1Post-stim2Post-stim3
EMG variance−100%0%−2% (ns)0% (ns)0% (ns)0% (ns)
Eyeblinks−100%0%−36% (*)−32% (*)−7% (ns)−2% (ns)
Blood oxygenation−100%0%−1% (ns)−69% (*)−48% (*)−19% (ns)
Heart rate−100%0%−328% (*)−362% (*)−109% (ns)−64% (ns)
Firing rate
(PFC)
−100%0%−6% (ns)−16% (*)−9% (ns)−4% (ns)
Firing rate
(8A)
−100%0%−10% (ns)−13% (ns)−8% (ns)−4% (ns)
Firing rate
(PPC)
−100%0%−33% (*)−18% (*)−11% (ns)−6% (ns)
Firing rate
(STG)
−100%0%−26% (*)−15% (ns)−6% (ns)−3% (ns)
Slow frequency power (PFC)−100%0%−45% (*)−19% (*)−11% (ns)−6% (ns)
Slow frequency power(8A)−100%0%−65% (*)−31% (*)−18% (*)−10% (*)
Slow frequency power (PPC)−100%0%−44% (*)−7% (*)−1% (ns)−1% (ns)
Slow frequency power (STG)−100%0%−89% (*)−8% (ns)2% (ns)1% (ns)
Beta power
(PFC)
−100%0%400% (*)1071% (*)799% (*)449% (*)
Beta power
(8A)
−100%0%−265% (*)−228% (*)−153% (*)−88% (*)
Beta power
(PPC)
−100%0%−27% (*)−29% (*)−23% (*)−17% (*)
Beta power
(STG)
−100%0%−24% (*)−44% (*)−31% (*)−16% (*)
Gamma power
(PFC)
−100%0%−47% (*)−48% (*)−26% (*)−12% (*)
Gamma power
(8A)
−100%0%−59% (*)−40% (*)−22% (*)−11% (*)
Gamma power
(PPC)
−100%0%−71% (*)−45% (*)−27% (*)−15% (*)
Gamma power
(STG)
−100%0%−77% (*)−43% (*)−19% (*)−6% (ns)
  1. Asterisks denote significant (p<0.01) changes from the Unconscious state.

    PFC: prefrontal cortex; PPC: posterior parietal cortex 7A/7B; 8A: caudal lateral PFC; STG: superior temporal gyrus.

Stimulation produced an awake-like cortical state by increasing spiking rates and decreasing slow-frequency power and synchronization. An example raster plot of well-isolated single neurons from a single stimulation trial is shown in Figure 9A. To see how we removed spurious threshold crossings due to the electrical stimulation itself, see Methods. High-current stimulation increased the spike rate (Figure 9B and Figure 9C, upper subpanel) from ~1 to ~2.5 spikes/s. In all areas, there was a significant increase in spiking during the stimulation interval compared to the pre-stimulation Unconscious state (Figure 9C, orange bars in upper subpanel, red stars indicate significant differences, p<0.01, non-parametric randomization test). In area STG, this increase brought the average spike rate to the same level as that seen during natural ROC (horizontal dotted lines in Figure 9C, upper subpanel). In all areas, the increased spike rate persisted for at least 30 s (and as long as 90 s) post-stimulation (Figure 9C, red stars indicate significant differences, p<0.01, non-parametric randomization test). With low-current stimulation, mean spikes rates were unchanged from pre-stimulation baseline (Figure 9C, lower subpanel, all p>0.01). Measured relative to the Awake state, high-current thalamic stimulation increased firing rates, with RTW between −17% and −33% (Figure 9—figure supplement 1 and Table 1).

Figure 9 with 8 supplements see all

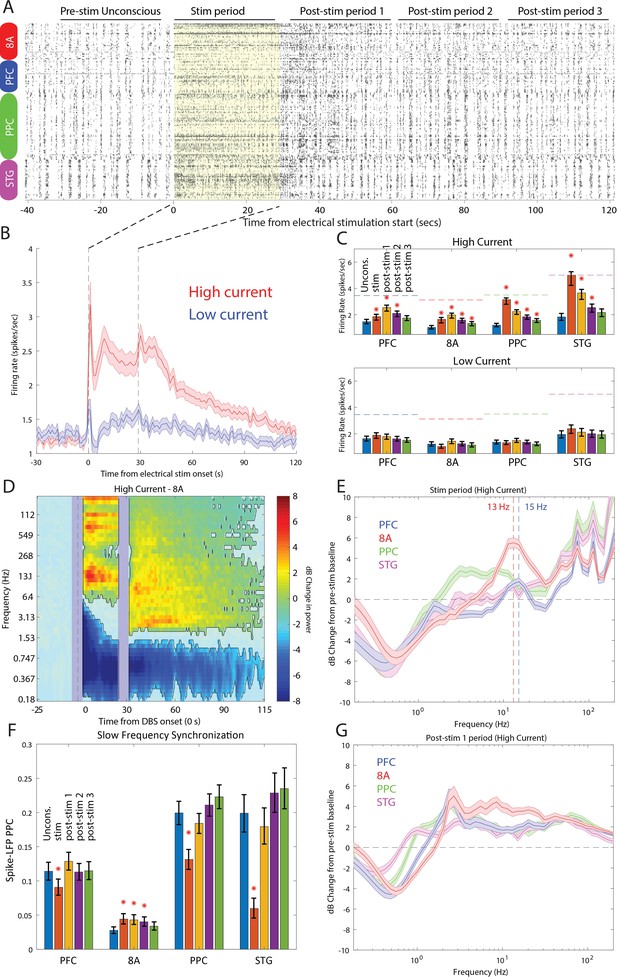

Effects of thalamic electrical stimulation on cortical state.

(A) An example trial. Well-isolated single units are shown before, during, and after electrical stimulation for a trial that produced a maximal wake-up score (eyes opened, muscle movement, response to air puffs). (B) The average effect on all well-isolated single units across all areas. Mean firing rates with respect to electrical stimulation onset (at time zero) and offset (28.5 s) for high (red) vs. low (blue) current. (C) (Upper panel) Mean firing rates for all single units in each area as a function of time in the trial during high-current stimulation (blue bars: pre-stim Unconscious baseline; orange bars: electrical stimulation; yellow bars: 0–30 s after electrical stimulation offset; purple bars: 30–60 s after electrical stimulation offset; green bars: 60–90 s after electrical stimulation offset). (Lower panel) Same as upper subplot, but for low-current stimulation. Mean ± the bootstrap 99 percent confidence interval of the mean across neurons. (D) Mean dB change in power as a function of time since electrical stimulation for all high-current trials in area 8A. (E) Same as D, but highlighting spectral modulation during the period of electrical stimulation (0–28.5 s). Mean ± 1 SEM. The vertical dotted lines indicate the peak frequencies of beta power modulation in PFC and 8A. (F) Mean pairwise phase consistency (PPC) between spikes and fields within each cortical area. Significant changes relative to the pre-stimulation Unconscious state are indicated with asterisks (p<0.01, non-parametric randomization test). Mean and the bootstrap 99 percent confidence interval of the mean across neurons. (G) Same as D, but highlighting spectral modulation during the post-1 period of electrical stimulation (0–30 s post electrical stimulation offset). Mean ±/- 1 SEM. PFC: prefrontal cortex; PPC: posterior parietal cortex 7A/7B; 8A: caudal lateral PFC; STG: superior temporal gyrus.

LFP power/synchronization was modulated by electrical stimulation (shown for area 8A in Figure 9D and for the other areas in Figure 9—figure supplement 2). High-current, but not low-current, stimulation significantly reduced slow-frequency power for up to 85 s post electrical stimulation onset relative to pre-stimulation baseline (Figure 9D and Figure 9—figure supplement 2, p<0.01, cluster-based non-parametric randomization test). In addition, high-current stimulation decreased within-area spike-LFP (in three of four cortical areas, Figure 9F) as well as cortico-cortical and thalamo-cortical LFP-LFP slow-frequency synchronization (Figure 9—figure supplements 3 and 4). High-current stimulation also significantly increased higher-frequency power during and after stimulation (Figure 9D and Figure 9—figure supplement 2, p<0.01, cluster-based non-parametric randomization test). During stimulation, the enhancement had a well-defined peak in the alpha-beta band in area 8A and PFC (vertical dotted lines in Figure 9E indicate peaks at 13 Hz in 8A and 15 Hz in PFC). They were absent in the 0–30 s post-stimulation offset interval (Figure 9G). The reduction in slow frequency power persisted for 85 s post-stimulation. All of the effects were weak or absent for low-current stimulation (Figure 9—figure supplement 2). Measured relative to the Awake state, high-current thalamic stimulation decreased slow-frequency power (RTW: −44 to −89%, Figure 9—figure supplement 5, Table 1), within-area spike-LFP synchronization (RTW: −24%, −35%, −113%, area 8A showed opposite results, a slight increase in spike-LFP synchronization, Figure 9—figure supplement 6, Table 2), thalamo-cortical (RTW: −71 to −77%, Figure 9—figure supplement 4, Table 2) and cortico-cortical synchronization (RTW: −29 to −63%%, Figure 9—figure supplement 3, Table 2). Beta and gamma power also increased relative to the Awake state. Beta power enhanced beyond that seen in the Awake state in frontal areas (Figure 9—figure supplement 7, Table 1) and gamma power reached RTW values between −47% and −77% (Figure 9—figure supplement 8, Table 1).

Table 2
Return to Wakefulness (RTW) scores for effects of high-current thalamic stimulation on LFP-LFP and spike-LFP slow-frequency phase synchronization.
MeasureAwakePre-stim unconsciousStimPost-stim1Post-stim2Post-stim3
Spike-LFP (PFC)−100%0%−24% (*)15% (ns)−1% (ns)1% (ns)
Spike-LFP
(8A)
−100%0%103% (*)96% (*)79% (*)38% (ns)
Spike-LFP (PPC)−100%0%−35% (*)−8% (ns)6% (ns)12% (*)
Spike-LFP (STG)−100%0%−113% (*)−16% (ns)24% (ns)29% (ns)
LFP-LFP
(PFC-thalamus)
−100%0%−77% (*)−58% (*)−7% (ns)8% (ns)
LFP-LFP
(8A-thalamus)
−100%0%−77% (*)−71% (*)−16% (ns)−4% (ns)
LFP-LFP
(PPC-thalamus)
−100%0%−10% (ns)−19% (ns)30% (ns)15% (ns)
LFP-LFP
(STG-thalamus)
−100%0%−71% (*)−68% (*)−27% (*)−12% (ns)
LFP-LFP (PFC-8A)−100%0%−40% (*)−25% (*)−6% (ns)3% (ns)
LFP-LFP (PFC-PPC)−100%0%−60% (*)3% (ns)17% (ns)1% (ns)
LFP-LFP (PFC-STG)−100%0%−45% (*)−11% (ns)6% (ns)36% (*)
LFP-LFP (8A-PPC)−100%0%−29% (*)−13% (ns)−7% (ns)8% (ns)
LFP-LFP (8A-STG)−100%0%−63% (*)−41% (*)−8% (ns)11% (ns)
LFP-LFP (PPC-STG)−100%0%29% (*)5% (ns)9% (ns)4% (ns)
  1. Asterisks denote significant (p<0.01) changes from the Unconscious state.

    PFC: prefrontal cortex; PPC: posterior parietal cortex 7A/7B; 8A: caudal lateral PFC; STG: superior temporal gyrus; LFP: local field potentials.

Discussion

Our study provides new details on the neurophysiological effects of propofol-induced unconsciousness. Just prior to the Unconscious state, there was an increase in alpha-beta power in frontal cortex. By contrast, alpha-beta power in posterior cortex transiently increased and then decreased relative to the awake state. During the Unconscious state, there was a widespread decrease in high-frequency (greater than 50 Hz) power and an increase in slow-frequency (~1 Hz and lower) power. Spike rates decreased and spiking became coupled to the slow-frequency oscillations. There was an increase in slow-frequency cortico-cortical and thalamo-cortical phase synchronization. In frontal cortex alone, there was an increase in alpha-beta (~8–30 Hz) power and cortico-cortical and cortico-thalamic synchronization. These effects were distributed differently across cortical layers. In superficial layers (2/3), there was a stronger suppression of gamma and spiking during the Unconscious state. Deep layers (5/6) showed a stronger increase in slow-frequency power.

Our results agree with results in humans that have related slow-frequency oscillations with propofol-induced unconsciousness. We also observed a profound decrease in cortical spiking and an increase of its phase-locking with slow-frequency oscillations. We also saw anteriorization of the alpha-beta oscillations. Any or all of this may cause unconsciousness by disrupting cortical communication, especially in the theta, beta, and gamma ranges associated with cognition and consciousness (Bastos et al., 2015; Brown et al., 2010; Buschman and Miller, 2007; Cimenser et al., 2011; Fiebelkorn and Kastner, 2019; Lakatos et al., 2008; Lewis et al., 2012; Miller et al., 2018; Vijayan et al., 2013). The evidence that propofol fragmented cortex is less well supported. We also found different effects across layers that support other theories. Dehaene and Changeux, 2011 proposed that the conscious state relies on ‘broadcasting’ of cortical activity throughout cortex via long-range superficial connections. Aru et al., 2019 suggested that consciousness relies on cortico-thalamic broadcasting which depends on integrity of sub-cortical projection neurons in deep layers.

The thalamus is known to contribute to cortical dynamics in the Awake state (Fiebelkorn et al., 2019; Fiebelkorn and Kastner, 2019). The ILN of the central thalamic nucleus has diffuse cortical connections posited to mediate the global binding needed for consciousness (Llinás et al., 1998). Thalamic stimulation has improved behavioral performance of a minimally conscious patient (Schiff et al., 2007). Correspondingly, we found that stimulation of the central thalamus caused monkeys to regain arousal, similar to a recent report (Redinbaugh et al., 2020). The stimulation increased cortical spike rates, diminished slow-frequency power and synchronization, and reinstated higher-frequency power.

Our results are consistent with rodent studies of recovery from anesthesia induced by stimulation. This includes intravenous administration of stimulants (Chemali et al., 2012; Kenny et al., 2015; Kenny et al., 2015; Solt et al., 2011; Taylor et al., 2013), site-specific electrical stimulation (Muindi et al., 2016; Pillay et al., 2014; Solt et al., 2014), and site-specific optogenetic stimulation (Taylor et al., 2016).

During loss of consciousness, alpha-beta (~8–30 Hz) power increased in frontal areas and decreased in posterior areas. Thalamic stimulation also resulted in an increase in alpha-beta power that was particularly pronounced in frontal areas. Previous studies have documented that synchronization between cortex and thalamus is prominent in the alpha-beta frequency range (Bastos et al., 2014; Fiebelkorn et al., 2019; Saalmann et al., 2012). We propose that alpha-beta is this circuit’s natural resonance frequency. We enhanced it by driving the thalamo-cortical loop via thalamic stimulation. Because frontal alpha-beta power was already enhanced during unconsciousness relative to the pre-drug Awake state, we do not suppose that the enhanced beta was contributing to the increased arousal we observed.

Here, we focused on propofol’s actions on cortex and thalamus. The mechanisms we suggest are likely relevant for other anesthetics that target GABA receptors (e.g., sevoflurane, isoflurane, desflurane, barbiturates, and etomidate). Future studies will be needed to investigate the extent to which propofol’s GABA-ergic targets in the brainstem contribute to unconsciousness (Brown et al., 2018; Brown et al., 2011; Brown et al., 2010). Anesthetics that target NMDA antagonists such as ketamine and nitrous oxide have different dynamics and mechanisms (Akeju et al., 2016; Pavone et al., 2016; Purdon et al., 2015). We have interpreted the neurophysiological changes as the cause of unconsciousness. It is important to note that there were other factors, including oxygen saturation, blood pressure, and ventilation, which differed between the Awake and Unconscious states in our study that may also be contributory. We were not able to separate these factors vs. the observed changes in neurophysiology to producing states of unconsciousness.

A recent study (Redinbaugh et al., 2020) also found that propofol reduced alpha and gamma cortical synchrony and that thalamic stimulation aroused the NHPs and increased alpha-gamma synchrony. But there were some differences between their study and ours. Redinbaugh et al., 2020 found less of a contribution of slow frequencies to the unconscious state and less slow-frequency modulation due to thalamic stimulation. They found decreases in spike rates only in deep cortical layers. We found a stronger contribution of slow frequencies and decreases in spiking in all layers (with a stronger decrease in superficial layers). Redinbaugh et al., 2020 administered ketamine before propofol whereas we administered propofol alone. They compared Awake to Unconscious in separate sessions. We studied the transition in and out of consciousness within a session. There were also differences in thalamic stimulation. They used a single stimulating linear array centered in the ILN and found that 50 Hz was most effective at inducing arousal from the unconscious state. By contrast, we used larger stimulating electrode arrays in pairs targeting both ILN and MD, higher currents, and 180 Hz. We did so to approximate stimulation parameters that were effective in increasing arousal in a minimally conscious human (Schiff et al., 2007).

In sum, a mechanism through which propofol likely renders unconsciousness is by disrupting intracortical and thalamo-cortical communication through decreased spiking and enhanced slow-frequency power/synchrony. This leads to low-spiking Down-states and loss of the higher-frequency coherence thought to integrate cortical information (Baars et al., 2013; Cimenser et al., 2011; Crick and Koch, 1990; Dehaene and Changeux, 2011; Dehaene, 2001; Demertzi et al., 2019; Engel et al., 1999; Lee et al., 2013; Purdon et al., 2013; Tononi et al., 2016).

Materials and methods

Experimental subjects and vascular access port

Request a detailed protocol

Four rhesus macaques (Macaca mulatta) aged 14 years (monkey 1, male,~13.0 kg), 8 years (monkey 2, female,~6.6 kg), 7 years (monkey 3, female,~5.0 kg), and 18 years (monkey 4, female,~11,9 kg) participated in these experiments. All animals were pair-housed on 12 hr day/night cycles and maintained in a temperature-controlled environment (80 °F). Monkeys 1 and 2 were surgically implanted with a subcutaneous vascular access port (Model CP-6, Norfolk Access Technologies, Skokie, IL) at the cervicothoracic junction of the neck with the catheter tip reaching the termination of the superior vena cava via the external jugular vein. Monkeys 3 and 4 were acutely implanted with a catheter to a vein in the ear after applying lidocaine to the overlying skin. The catheter was removed and reapplied prior to each session.

Neural recordings in cortex

Request a detailed protocol

Neurophysiology with chronic Utah arrays: For recordings in cortex, monkeys 1 and 2 were chronically implanted with four 8 × 8 iridium-oxide contact microelectrode arrays (‘Utah arrays’, MultiPort: 1.0 mm shank length, 400 µm spacing, Blackrock Microsystems, Salt Lake City, UT), for a total of 256 electrodes. Arrays were implanted in the prefrontal (area 46 ventral and 8A), posterior parietal (area 7A/7B), and temporal-auditory (caudal parabelt area STG [superior temporal gyrus]) cortices. Specific anatomical targeting utilized structural MRIs of each animal and a macaque reference atlas, as well as visualization of key landmarks on surgical implantation (McLaren et al., 2009). For Utah array recordings, area 8A and PFC were ground and referenced to a common subdural site. Area STG and PPC also shared a common ground/reference channel which was also subdural. LFPs were recorded at 30 kHz and filtered online via a lowpass 250 Hz software filter and downsampled to 1 kHz. Spiking activity was recorded by sampling the raw analog signal at 30 kHz, bandpass filtered from 250 Hz to 5 kHz, and manually thresholding. Blackrock Cereplex E headstages were utilized for digital recording via 2–3 synchronized Blackrock Cerebus Digital Acquisition systems. Single units were sorted manually offline using principal component analysis with commercially available software (Offline Sorter v4, Plexon Inc, Dallas, TX). All other pre-processing and analyses were performed with Matlab (The Mathworks, Inc, Natick, MA).

To ensure signals recorded on the multiple data acquisition systems remained synchronized with zero offset, a synchronization test signal with locally unique temporal structure was recorded simultaneously on one auxiliary analog channel of each system. The relative timing of this test signal between each system’s recorded datafile was measured offline at regular intervals throughout the entire recording session. Any measured timing offsets between datafiles were corrected by appropriately shifting spike and event code timestamps in time, and by linearly interpolating analog signals to a common time base.

Neurophysiology with acute laminar probes: For recordings in monkeys 3 and 4, the monkeys were first implanted with a custom-machined Carbon PEEK chamber system with three recording wells placed over visual/temporal, parietal, and frontal cortex (Mulliken et al., 2015). We acutely introduced 16 or 32 contact ‘multi-laminar’ probes (U/V probes, Plexon, Dallas, TX) into the same cortical areas we recorded with chronic Utah arrays: areas STG, 7A/7B, 8A, and VLPFC. Between 1 and 2 probes were used per recording chamber and a total of 4–6 probes were used per session. The total channel count ranged between 96 and 128 electrodes per session. Electrode contacts on these probes were spaced 100 μm apart for the 32 channel probes or 200 μm apart for the 16 channel probes. This gave a total linear sampling of 3.0–3.1 mm on each probe. The recording reference was the reinforcement tube, which made metallic contact with the entire length of the probe (total probe length from connector to tip was 70 mm). With MRI guidance, we introduced the probes to be perpendicular to cortex and to span all cortical layers, as previously described (Bastos et al., 2020). As a marker for layer 4, we used the relative power profiles calculated in the pre-propofol Awake state. The cross-over between the relative power of the gamma and alpha-beta bands was used to estimate the location of layer 4. This cross-over point between gamma and alpha-beta relative power profiles was previously shown to correspond to the location of the first current source density sink (within 100–200 μm), another marker for layer 4 (Bastos et al., 2018).

Neural recordings and electrode targeting in thalamus

Request a detailed protocol

After 10–20 sessions of cortex only recordings, monkeys were chronically implanted with four 6–8 channel recording/stimulating electrodes (0.5 mm contacts with 0.5 mm intercontact spacing, NuMed Inc, Hopkington, NY) bilaterally targeting the intralaminar nuclei of the central thalamus. Thalamic recordings were referenced to the monkey’s titanium headpost. Thalamic sites were re-referenced to a bipolar montage prior to phase synchronization analysis. LFPs were recorded via a separate analog front-end amplifier and an additional identical digital acquisition system, synchronized to the digital acquisition systems utilized for cortical recordings. LFPs were similarly recorded at 30 kHz and filtered online via a lowpass 250 Hz software filter and downsampled to 1 kHz.

A specialized anatomical localization and insertion protocol utilizing serial intraoperative MRIs was developed in order to allow for precise subcortical targeting of the electrodes along the long axis of the central lateral nucleus and extending ventrally to the centromedian and parafasicular nuclei. Custom-made carbon PEEK recording chambers were affixed to the skull with acrylic and ceramic screws stereotaxically determined to target the central thalamus. Recording chamber grids with 1 mm grid holes were inserted into the chambers, filled with sterile saline, and the monkeys were imaged by 3T MRI. After confirmation of the appropriate grid holes targeting the thalamic structures of interest, monkeys were generally anesthetized and brought to the operating facility where a small-bore craniotomy (<2 mm) was performed at the appropriate grid holes. The grid was replaced in the chamber and the monkeys were transferred to the imaging facility under general anesthesia. They were then administered a gadofosveset trisodium contrast agent to highlight vasculature obstructing the trajectory to thalamus (e.g., thalamostriate vein). In the MRI suite, a stylette cannulae was inserted into the relevant grid holes and lowered several millimeters into cortex and one set of 0.5 mm resolution images was obtained. Upon confirmation of correct trajectory on MRI, the stylette-cannulae were lowered to their final position, with the tip approximating the thalamus. The stylettes were then removed, and electrodes of marked length lowered to the depth of the cannulae. Following another MRI-based measurement (scan 2) with the electrodes still in the cannulae, the electrodes were lowered to their final positions within the thalamus and reimaged (scan 3). Upon final assessment of correct localization, the probes were fixed in place and the chamber sealed with acrylic. Histological staining with acetylcholinesterase was used to confirm exact electrode contact locations within and outside the central thalamus of both monkeys. Thalamic leads used for recording/stimulating were centered on the ILN (consisting of nuclei CL, Cm, and Pf) and the MD nucleus of the thalamus. A minority of the leads also encompassed neighboring thalamic area VPL.

Experimental procedures

Request a detailed protocol

On a given experimental session, monkeys were head-fixed via a titanium headpost and placed in noise isolation chambers with masking white noise (50 dB). We ran two sets of experimental sessions. The first set of sessions consisted of neurophysiological recordings from cortex only. We refer to these as ‘propofol cortex sessions.’ A total of 21 sessions (N = 11 from monkey 1, N = 10 from monkey 2) were used. These sessions proceeded as follows: first, a period of 15–90 min of awake baseline electrophysiological recordings were recorded. Next, propofol was intravenously infused via a computer-controlled syringe pump (PHD ULTRA 4400, Harvard Apparatus, Holliston, MA). The infusion protocol was stepped such that unconsciousness was induced via a higher rate infusion (285 µg/kg/min for monkey 1; 580 µg/kg/min for monkey 2) for 20 min before dropping to a maintenance dose (142.5 µg/kg/min for monkey 1; 320 µg/kg/min for monkey 2) for an additional 40 min.

The second set of experimental sessions occurred after we implanted the thalamic recording/stimulation electrodes (deep brain stimulating electrodes [DBS]). We refer to these as the ‘thalamus wakeup sessions.’ After the initial 20 min of propofol infusion, DBS stimulation trials began. A total of 22 sessions (N = 11 from monkey 1, N = 11 from monkey 2) were analyzed with thalamic stimulation.

Heart rate and oxygen saturation were monitored continuously and recorded throughout all phases of experiments using clinical-grade pulse oximetry (Model 7500, Nonin Medical, Inc, Plymouth, MN). SpO2 values were maintained at values above 93% for each of the recording sessions.

Infrared monitoring tracked facial movements and pupil size (Eyelink 1000 Plus, SR-Research, Ontario, CA) throughout the course of the experiments. Loss of consciousness (LOC) was deemed by the timestamp of the moment of eyes-closing that persisted for the remainder of the infusion. ROC was classified as the timestamp of the first to occur between eyes reopening or regaining of motor activity following drug infusion cessation. Animals regained consciousness after the maintenance infusion was terminated and were monitored for an additional period before being returned to their home cage. To ensure propofol clearance from tissues and physiological recovery, experiments were never repeated on subsequent days. All procedures followed the guidelines of the MIT Animal Care and Use Committee (protocol number 0619-035-22) and the US National Institutes of Health.

Thalamic stimulation procedure

Request a detailed protocol

For electrical stimulation of thalamic electrodes, we adapted electrical stimulation parameters previously shown to cause behavioral improvements in coma patients and awake, behaving monkeys (Baker et al., 2016; Schiff et al., 2007). We unilaterally delivered 180 Hz bipolar, biphasic, square wave pulses (0.5–2.5 milliAmps) between 6 and 8 contacts on monkey 1 and 6 contacts on monkey 2. Stimulation montages were used that included two thalamic probes on the same side. Five minutes into the maintenance anesthesia dose (20 min from infusion start), 28.5 s ‘trials’ of electrical stimulation were delivered as the propofol infusion continued. DBS trials were separated by 2 min intervals, except the 4th and 5th stimulation runs, which were separated by a 5 min inter-trial interval. These DBS washout periods sufficiently allowed for reestablishment of the behaviorally judged unconscious state (e.g., loss of puff responses). We delivered between 0.5 and 2.5 mAmp of current. In early pilot experiments, different currents, frequencies, waveform shapes, and electrode combinations were screened for eliciting arousal. We chose a set of parameters that was effective at eliciting arousal, but minimal in current and number of stimulated electrodes, for the final experiments reported here.

Wakeup score

Request a detailed protocol

One of the authors (MM) who was present during all DBS sessions performed a behavioral score for each DBS trial for the degree to which the electrical stimulation induced changes in arousal. This numerical ‘wakeup score’ is loosely inspired by the Glasgow coma scale. Like the Glasgow coma scale, it separately scores each of the behavioral components, then sums them into a single overall score for each DBS trial. The components are: (1) spontaneous eye opening (0–2): 0 = eyes closed, 1 = one or both eyes slightly open, 2 = one or both eyes fully open; (2) responses to external stimuli (airpuffs directed at eye/face; 0–2): 0 = no response, 1 = occasional blinking not necessarily in response to puffs, 2 = clear response to airpuffs; (3) face/body movements (0–2): 0 = none, 1 = some mouth/jaw movement, 2 = arm/full-body movement. The final waking score for each trial is simply the sum of these three components. Note that the actual Glasgow scale combines components 1 and two into a single ‘eye opening’ score, but empirically in this data,​ spontaneous eye opening and blink responses to airpuffs seem to occur somewhat independently rather than on a single continuum.

Histology

Request a detailed protocol

At the end of the recording sessions, the animals were euthanized for histological confirmation of thalamic sites, as previously described (Wu and Kaas, 1999). Briefly, monkeys were given a lethal dose of sodium pentobarbital. When they became areflexive, they were perfused transcardially with PBS, followed first by a cold solution of 4% paraformaldehyde and next by a mixed solution of 4% paraformaldehyde and 10% sucrose. Blocks of brain and spinal cord were removed and stored overnight in 30% sucrose at 5°C before cutting. Sections were processed for acetylcholinesterase. Anatomical localization of electrodes was determined by histological examination of brain tissue. It was not necessary to create electrolytic lesions prior to histology, because the thalamic electrodes were wide enough (0.5 mm diameter) to be unambiguously identified in the anatomical sections.

Data preprocessing, general

Request a detailed protocol

Single units were sorted manually offline using principal component analysis with commercially available software (Offline Sorter v4, Plexon Inc, Dallas, TX). All other pre-processing and analyses were performed with Matlab (The Mathworks, Inc, Natick, MA).

Data preprocessing, electrical stimulation LFP

Request a detailed protocol

Electrical stimulation generally produced artifacts that were highly correlated across channels in a stereotyped manner. We removed these using zero-phase component analysis (ZCA) whitening (Eldar and Oppenheim, 2003). ZCA whitening is the linear whitening transformation that minimizes the mean squared error between the original and whitened signals. Intuitively, it estimates the across-channel correlations induced by DBS stimulation, and removes them from the data. First, we extracted the spiking band from the raw 30 kHz analog signals by band-pass filtering at 300–4500 Hz with a zero-phase fourth-order Butterworth filter. Next, we estimated the cross-channel covariance matrix Σ from the filtered signals during the DBS stimulation periods (from a subset of 100,000 randomly sampled time points, for computational efficiency). From the estimated covariance, we computed the ‘whitening matrix’: W=Σ1/2. We then normalized each column of W by its diagonal (variance) value, so that the resulting matrix will remove DBS-induced correlations, but not change the amplitude of individual channels. We removed the DBS stimulation artifacts by multiplying the full matrix of filtered signals by the modified whitening matrix. Finally, we computed the mean and standard deviation of each denoised channel, thresholded each at –4.5 SD, and extracted spike timestamps and waveforms around each threshold crossing. Extracted spikes were sorted into units using principal component analysis in commercially available software (Offline Sorter v4, Plexon Inc, Dallas, TX). Only spikes whose average waveform during electrical stimulation matched the waveform outside periods of electrical stimulation (Pearson correlation coefficient greater than or equal to 0.99) were included for analysis.

Methods, LFP spectral analysis, and statistics

Request a detailed protocol

LFPs were analyzed using the Fieldtrip toolbox (http://www.fieldtriptoolbox.org/) (Oostenveld et al., 2011). We tested whether specific oscillations in different areas relative to drug onset (or electrical stimulation onset) were modulated in power. For each channel on each array or thalamic probe, we computed a time-frequency decomposition. For propofol-only sessions, we calculated power in sliding windows of duration 10 s with a hanning taper, to deliver 0.1 Hz Spectra resolution. We calculated power across logarithmically spaced frequencies 0.178–200 Hz.

We calculated the change in power between Unconscious and Awake baseline in decibel (dB) units. In other words, we applied the following transformation to the raw power values:

10log10(powerUnconsciouspowerAwake)

For cortex power modulation with thalamic electrical stimulation, we calculated power using a sliding window approach time locked to the onset of electrical stimulation. Power was calculated from 25 s pre-stimulation to 150 s post-stimulation with 0.5 s intervals, and with 5 s analysis windows. We calculated change in power relative to pre-stimulation baseline, which was the average power from 25 s to 3 s prior to stimulation.

Methods, Pairwise Phase Consistency

Request a detailed protocol

To quantify phase synchronization between cortico-cortical and thalamo-cortical LFPs, and between spike-field LFP pairs, we used the pairwise phase consistency (PPC) (Vinck et al., 2010). The PPC metric is a metric of phase synchronization that is unbiased by the number of observations. Prior to calculating PPC, we first re-referenced data to a local bipolar montage at 1600 μm distance. We then calculated PPC between inter-areal bipolar sites using the multitaper method with 1 Hz spectral smoothing to estimate power in 0.5 Hz intervals from 0 to 200 Hz using 2 s windows with 75% overlap. For thalamo-cortical PPC analysis, we re-referenced cortical recordings as stated above, and we re-referenced thalamus data to a local bipolar montage at 1500 μm distance. For spike-LFP analysis, we average LFPs across each cortical array (STG/PPC/8A/PFC) and computed PPC between these array-averaged LFPs and each well-isolated single neuron in each area.

Statistics

We determined whether there were differences from baseline in power and coherence by using a non-parametric cluster-based randomization test (Oostenveld et al., 2011). For each session, we realized the null hypothesis that power in the baseline and power in the drug period were the same. To this end, we randomly exchanged baseline-transformed time-frequency power estimates between the baseline and drug windows. We extracted the largest cluster (continuous tiles in time-frequency space) to pass a first level significance threshold, by applying a t-test and thresholding all significant bins p<0.01, uncorrected. We performed this randomization 1000 times. The empirically observed clusters were compared to this randomization distribution to assess significance at p=0.01, adjusted for multiple comparisons across sessions.

To calculate the effect of electrical thalamic stimulation on cortical power, we applied a similar transformation, only this time the baseline was the 30 s of data immediately preceding each trial of stimulation:

10log10(powerstimulationpowerprestimulationUnconsciousbaseline)

We then repeated the same test outlined above, only now randomizing bins before/during/after stimulation onset to create the null hypothesis. There were stimulation onset and offset artifacts. We removed the times around onset/offset ± 3 s prior to performing this randomization test. As a result, these artifact times are omitted from the analysis and figure.

Return to wakefulness metric

Request a detailed protocol

We quantified how much thalamic stimulation changed physiological and neural variables using a simple metric, called the return to wakefulness (RTW) metric. We first normalized each physiological or neural variable with respect to the pre-drug Awake state by dB change (for power) or subtraction. On this normalized signal we then computed the percent change from the pre-stimulation to the stimulation, post-stim1, post-stim2, and post-stim3 periods. Therefore, RTW of 0% indicates no change and RTW of −100% denotes return to that signal’s level observed during the pre-drug Awake state. Note that a positive RTW value would mean that particular measure moved further away from the levels seen in the Awake state, and that thalamic stimulation moved the measure further in the direction observed in the Unconscious state.

Methods, state-space modeling of physiological signals

Request a detailed protocol

To characterize physiologically the transition from consciousness to unconsciousness, we measured heart rates, muscle tone with EMG, and blood oxygenation. These signals were pre-processed in the following manner. Heart rates and blood oxygenation (SPO2) signals were averaged using non-overlapping windows of 1 s. The EMG signals were z-scored by subtracting its mean and dividing by its session-wide standard deviation. Its variance was computed using one second, non-overlapping windows. From EMG signals measured from two electrodes adjacent to the eyes, we extracted evoked puff responses (eyeblinks) using the following procedure. We computed the average of the EMG signal within a 50–150 millisecond time window, following an air-puff stimulus, for each individual session. We subtracted the mean and divided this time-series by its session-wide standard deviation. Then, we computed a moving average over a 30 s window to obtain a continuous estimate of this response.

To quantify the change in these physiological signals with the administration of propofol, we used a state-space model analysis (Shumway and Stoffer, 1982). We assumed that the temporal structure in the log of the EMG variance, the blood oxygen saturation levels, the eyeblinks and the heart rate can be represented as a linear Gaussian state-space model of the form:

ObservationEquation
ytj=zt+εtj
StateEquation
zt=zt1+vt,

where ytj is the physiological signal at time t for session j=1,,Jzt is the state at time t, εtj is independent Gaussian noise with zero mean and variance σε2, and vt is independent Gaussian noise with zero mean and variance σv2 for t=1,,Tj. Here, J is the total number of sessions and Tj is the total number of samples reorded during the jth session. The state-space model was fit to each physiological signal time series using the Expectation-Maximization algorithm (Shumway and Stoffer, 1982Dempster et al., 1977).

To compare these physiological measurements across different time points, we computed the probability that a measurement at time t was lower than measurements at all previous time points. We performed this comparison since these measurements seem to decrease after the first propofol infusion. We computed this probability for all time points using a Monte Carlo algorithm detailed in Smith et al., 2005. We considered a result to be statistically significant if the posterior probability was greater than 0.99.

Testing whether spikes become coupled to the LFP slow-delta oscillation phase

Request a detailed protocol

Using a point process generalized linear model (PPGLM), we modeled spike trains of individual neurons as a function of the LFP phase of the slow-delta oscillation (0.3-3Hz) and the neuron's spike history using a logistic link function. (McCullagh and Nelder, 1989; Truccolo et al., 2005). That is, we represented λ(t|ϕt,Ht), the conditional intensity function (instantaneous spike rate function), as

log[λ(t|ϕt,Ht)1λ(t|ϕt,Ht)]=j=1Jβhjηtj+k=1KβϕkIϕtϕk,

where j=1JβHjηtj defines Ht, the spike history going back J time bins, where ηt is a 1 if there is a spike in time bin t and is 0 otherwise. We define the effect of the slow-delta oscillation phase as k=1KβϕjIϕtϕk, where Iϕtϕk is an indicator function which is 1 if ϕt, the slow-delta phase at time t equals ϕk and is 0 otherwise. The ϕk's are K evenly spaced phases of the slow-delta oscillation between (π,π). Phase bins were computed using the following procedure. First, we band-passed the LFP in the slow-frequency/delta band (0.3–3 Hz). We then computed the Hilbert transform to extract a measure of the continuous analytic phase. Finally, we binned these phase estimates into 10 linearly spaced bins ranging from π to π

History bins were defined as [ 1,2,, 10, 1115, 1620, 2130, , 91100, 101150, , 451500 ] millisecond (ms) bins. The rationale was that immediate history bins (1–10 ms) reflect the neuron’s short timescale biophysics, such as its absolute and relative refractory periods and that longer-range history terms reflect network-wide dynamics (Czanner et al., 2008). For this reason, immediate history bins increase by 1 ms and longer-range history bins (>100 ms) increase by 50 ms. The number of history terms for each model was chosen using Akaike’s Information Criterion (Akaike, 1974). The model was fit to the spike train of each neuron using custom software for performing regression with Truncated Regularized Iteratively Reweighted Least Squares (Komarek and Moore, 2005). Goodness of fit was assessed using Kolmogorov-Smirnov (K-S) test based on the time-rescaling theorem (Brown et al., 2002).

Testing whether there is an increase in phase-modulation during the unconscious state

Request a detailed protocol

We fit GLMs to 10 min of data during the pre-drug awake state and to 10 min of data after LOC. Neurons that did not spike during either periods were not included. To quantify the contribution of phase to predicting the spiking propensity, we computed the SNR with respect to phase (SNRϕ) for each condition (Czanner et al., 2015)

SNRϕ=Dev(n,βH)Dev(n,β)dim(βH)+dim(β)Dev(n,β)dim(β),

where Dev(n,β^) denotes the deviance of the PPGLM model with phase and history, Dev(n,β^H) is the deviance of the fit of the PPGLM model with the history terms, dim(β) is the dimension of the parameters in the phase and history PPGLM model and dim(βH) is the dimension of the parameters in the history only PPGLM model. . We next computed the logarithm to the base 10 of the difference between the SNR for phase of unconsciousness and the SNR for phase of the awake state defined as

ΔSNRϕ=10log10(SNRϕunconsciousSNRϕawake).

We considered a neuron to exhibit an increased phase modulation during the unconscious state if its ΔSNRϕ was positive. Using 1320 neurons for PFC, 754 for 8A, 1058 for PPC, and 573 for STG across 10 sessions for NHP 2 and 11 sessions for NHP 1, we counted the number of neurons with an increased phase modulation for each region. We then computed the posterior probability of an increase in phase-modulation using the beta-binomial model and 10,000 Monte Carlo samples (DeGroot and Schervish, 2012; Solt et al., 2011). We assumed a binomial model as the likelihood function for the proportion of phase-modulated neurons. We used a uniform prior on the interval (0, 1) as the prior density, and a beta posterior density due to conjugacy. We considered a result to be statistically significant based on the posterior probability if this value was greater than 0.99.

Data availability

The pre-processed data are available on a public server at: https://github.com/ABastos/Propofol-unconscious-NHP (copy archived at https://archive.softwareheritage.org/swh:1:rev:0f758828628e961707b60c7d7da6849f25c1e708/).

References

    1. Crick F
    2. Koch C
    (1990)
    Towards a neurobiological theory of consciousness
    Seminars in the Neurosciences 2:263–275.
  1. Book
    1. DeGroot MH
    2. Schervish MJ
    (2012)
    Probability and Statistics (Fourth Edition)
    Boston: Addison-Wesley.
  2. Book
    1. Jones EG
    (2007)
    The Thalamus (Second Edition)
    New York: Cambridge University Press.
  3. Conference
    1. Komarek P
    2. Moore AW
    (2005)
    Making logistic regression a core data mining tool with TR-IRLSFifth IEEE international conference on data mining (ICDM’05)
    Presented at the Fifth IEEE International Conference on Data Mining (ICDM’05).
    1. Llinás R
    2. Ribary U
    3. Contreras D
    4. Pedroarena C
    (1998) The neuronal basis for consciousness
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 353:1841–1849.
    https://doi.org/10.1098/rstb.1998.0336
  4. Conference
    1. Llinás R
    (2003)
    Consciousness and the thalamocortical loop
    International Congress Series. pp. 409–416.
  5. Book
    1. Manly BFJ
    (2018)
    Randomization, Bootstrap and Monte Carlo Methods in Biology
    Chapman and Hall/CRC.
  6. Book
    1. McCullagh P
    2. Nelder J
    (1989)
    Generalized Linear Models (Second Edition)
    Boca Raton: Chapman & Hall/CRC.
    1. Wu CW
    2. Kaas JH
    (1999)
    Reorganization in primary motor cortex of primates with Long-Standing therapeutic amputations
    The Journal of Neuroscience 19:7679–7697.

Decision letter

  1. Eunji Cheong
    Reviewing Editor; Yonsei University, Republic of Korea
  2. Laura L Colgin
    Senior Editor; University of Texas at Austin, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The authors reported that propofol caused a reduction in higher frequencies and increase in lower frequencies following loss of consciousness. The manuscript also displayed that thalamic stimulation greatly reduced slow frequency dynamics. This manuscript suggested that this state of unconsciousness is correlated with the degree of coupling between thalamus and cortex.

Decision letter after peer review:

Thank you for submitting your article "Neural effects of propofol-induced unconsciousness and its reversal using thalamic stimulation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Laura Colgin as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Reviewer #1:

In the manuscript by Bastos et al., the authors investigated the physiological and neural characteristics of propofol-induced unconscious state in the non-human primates, and the effects of the electrical stimulation in the central thalamus during unconsciousness. The authors described that during unconscious states, slow frequency (0.1-3Hz) and coherence between the cortex and thalamus increase, and spike firing rates decrease stronger in superficial layers 2/3 than deep layers 5/6. High-current thalamic stimulation during loss of consciousness alters physiological signals similar to those in the wake state, and decreases in slow frequency power but increases high frequency (>4Hz) oscillations and spike firing rates in all cortices.

This is a mostly phenomenal, but carefully conducted study.

The authors propose that the synchronization of slow frequency oscillations and entrained low spike activity with Down-states in the intracortical and thalamocortical circuits are important characteristics in unconscious state induced by propofol anesthesia and that the high current thalamic stimulation reverses such characteristics and awakens the non-human primate from unconsciousness. This argument is supported by the analysis of frequency power and coherence of local field potentials (LPFs) and spikes and in the multiple cortical areas and the thalamus throughout the manuscript. However, the author's argument would be stronger if the coherence of frequency power and spike-LFP coupling was reversed in the analysis of the effects of thalamic electrical stimulation.

1. As the authors mentioned in the manuscript, Redinbaugh et al. (2020) has reported the neural correlates of consciousness using propofol anesthesia and the central thalamic electrical stimulation in macaques in the similar manner with this study. It would be necessary to clarify the meaning of this study by comparing the methods and the findings from Redinbaugh et al. (2020) in the introduction and Discussion section more in detail.

2. The anteriorization of alpha frequency oscillation is known as the key feature of propofol-induced general anesthesia in humans. In Figure 4, alpha/beta frequency power in the anterior areas (PFC and 8A) increased during unconscious state compared to those in the posterior regions (PPC and STG). However, it seems confusing that high-current thalamic stimulation also increased alpha/beta frequency power in the 8A and PFC in Figure 9E, which the authors argued to awaken the NHP. The authors need to interpret this finding.

3. The authors argued that thalamic stimulation reverse electrophysiological features of unconsciousness which include slow oscillations, the entrainment of little spiking to Down-state, and decreased coherence in frequencies above 4 Hz. However, to assess the effect of electrical stimulation in the central thalamus the authors compare the change in firing rate and frequency power in each cortical region in Figure 9 and Supple Figure 4. It would be necessary to compare the coherence of frequency power and the coupling between spike and LFP as presented in Figure 4 and Figure 6 in order to support the authors' argument.

Reviewer #2:

The authors show that propofol-induced anesthesia is accompanied by a widespread increase in power in the slow frequency bands (< 4 Hz) in the cortex and coherence in these bands across both the cortex and thalamus. Local cortical spiking is strongly coupled to the Up states of these slow frequency oscillations, and there is a general reduction in firing rate across the cortex. Power in higher-frequency bands (> 40 Hz) was markedly reduced in the cortex, and there was a modest decrease in coherence between some regions in some higher-frequency bands. They then show that thalamic stimulation can modestly reverse some of these electrophysiological signatures of unconscious.

In general, the experimental methodology is solid and the data is consistent with many previous studies examining the neurobiological signatures of anesthesia and unconsciousness. With that said, the manuscript itself does not do much to advance knowledge within the field. Most of the cortical electrophysiological features reported here have been previously reported, and although this study benefits from the ability to analyze spiking in single-units (although see Major Critique 1 as clarification is needed for this study), that local spiking is entrained to Up states necessarily follows from the relationship between the LFP and spiking activity, and is a widely-documented characteristic of slow oscillations. Thalamic activity itself was not characterized (see Major Critique 3), only that there is coherence between it and the cortex in slow frequency bands.

Regarding the effects of thalamic stimulation, these need to be analyzed relative to an awake baseline state in addition to an unconscious baseline (see Critique 2) to claim that it induces an "awake-like cortical state". Finally, the concluding remark that "propofol likely renders unconsciousness by disrupting intracortical and thalamocortical communication through decrease spiking and enhanced slow-frequency power/synchrony", is simply a descriptive characterization of the induced state rather than a mechanistic hypothesis as it is presented.

1. Figure 4 (C,F,I,L). The text describing Figure 4 states "During unconsciousness, spike timing was phase-coupled to the slow frequencies. This appeared as Up and Down states of high vs minimal/no spiking (e.g., Figure 1G) respectively. Spike-triggered averages of the local LFP signal indicated that spikes entrained to the depolarized phases (troughs) of slow frequency oscillations (Figure 4C/F/I/L) in all areas." However, both the figure legend and caption appear to depict that spikes are entrained to slow frequency oscillations to a greater extent during the awake state relative to the unconscious state. Presumably this was a mislabeling of the figures. If not, the author's interpretation of the data is completely unclear and requires explanation.

2. Thalamic stimulation arouses unconscious monkeys and causes a partial reversal of neurophysiological signs of unconsciousness. This section describes that "Stimulation produced an awake-like cortical state", however, all comparisons in the figures are made relative to an unconscious state baseline (with the exception of Figure 9C which depicts the average firing rate at ROC – which is still notably lower than the awake state used as a baseline in previous analyses). All that can be said from this analysis is that stimulation significantly changed activity relative to the unconscious state. If the authors want to make the claim as stated, analysis in Figures 8C-F and 9C-G must be done using relative to an awake state baseline as well. Preferably this would be the pre-drug baseline rather than the ROC, as the ROC is a temporary state which doesn't appear to show any stable phenomena (Figures 1, 2 and 4B).

3. Propofol-induced changed in thalamic activity. Given the focus on the effects of stimulating the thalamus during propofol-induced anesthesia, the authors should at minimum provide a spectrogram of thalamic activity similar to as was done for the cortical regions (see Figure 2), particularly as they speculate that direct inhibition of the thalamus may be partially responsible for the resulting slow-frequency oscillations.

Reviewer #3:

Anesthetic-induced loss-of-consciousness (LoC) remains one, if not the, most pressing unanswered questions in the field of anesthetic mechanisms research. The answer to this question will almost certainly have relevance to our global understanding of phase shifts between consciousness and unconsciousness in more general terms, and is, therefore, of broad interest to a large, and diverse, group of readers. Here, the authors use a non-human primate model (adult macaque monkey) to examine anesthetic (propofol)-induced loss-of-consciousness while recording neuronal spiking activity and local field potentials (LFPs) from a series of chronically implanted 64-channel "Utah" arrays in frontal cortex (8A, PFC), posterior parietal (PPC, 7A/B), and auditory/temporal (superior temporal gyrus, STG) cortex. These initial sessions (ten in monkey 1, 11 in monkey 2) served to establish the neurophysiological properties defining the awake state and the state of unconsciousness. In the second set of experiments, they implanted multiple-contact stimulating electrodes (two in each hemisphere of the same monkeys) in frontal thalamic nuclei (intralaminar nuclei, ILN, and mediodorsal nuclei, MD) to record from and electrically stimulate the thalamus and cortex during propofol-induced unconsciousness (a total of 22 additional sessions, 11 in monkey 1, 11 in monkey 2). In the third set of experiments, in two additional monkeys (a total of eight sessions, two in monkey 3 and six in monkey 4), they performed acute laminar recordings from the same areas using multi-contact arrays positioned approximately perpendicular to cortex.

The experiments were precisely performed and the data rigorously analyzed. The manuscript is clearly written. There are a number of important points that should be addressed:

1. In the Introduction, the paragraph on theories of LoC is by necessity brief, but its brevity presents an incomplete picture of what may be taking place. A useful reference here is the 2019 review by Hemmings et al., which nicely summarizes many of these issues. It is up to the authors if they want to cite the original references therein or rely on the review if space/reference limitations come into play.

2. While the data are clearly informative with regards to propofol-induced LoC (as noted in the Cover Letter), the degree/extent to which the observed patterns of activity and changes in coherence are relevant to other anesthetics is unclear; this is most notably relevant to ketamine and nitrous oxide, both of which are primarily, but not exclusively NMDA receptor antagonists, and at concentrations associated with LoC lead to profound EEG activation. This should be addressed in the Discussion.

3. Results – the cortical recording tracings shown in Figure 1 G (right panel, unconscious) appear to show that the animal is in burst suppression, which occurs at a level of sedation well beyond that required for simple LoC. Where all the subsequent recordings and associated analyses performed at this level of sedation? Was it possible to obtain recordings at a level of sedation that did not produce burst suppression?

4. Confounding variables – As shown in Figure 1F, there is a ~20% decrease in heart rate, which, given the dependency on cardiac output for maintenance of blood pressure, would presumably lead to a corresponding decrease in mean arterial pressure, and therefore cerebral perfusion pressure. Similarly, there is no indication that minute ventilation was controlled via mechanical ventilation. At steady-state levels of infusion in humans propofol produces a 20-50% decrease in minute ventilation (see, for example, Allsop, P., et al. (1988). "Ventilatory effects of a propofol infusion using a method to rapidly achieve steady-state equilibrium." Eur J Anaesthesiol 5(5): 293-303; Goodman, N. W., et al. (1987). "Some ventilatory effects of propofol as sole anaesthetic agent." Br J Anaesth 59(12): 1497-1503). These changes will at the minimum increase PaCO2 by 1 kPa (~ 8 torr), and this too will have an impact on cerebral perfusion. Please explain why these factors do not interfere with the results presented or the interpretation thereof. Simply measuring peripheral capillary oxygen saturation is not the same as knowing what it is in cortical and/or thalamic tissue beds.

https://doi.org/10.7554/eLife.60824.sa1

Author response

Reviewer #1:

[…] The authors propose that the synchronization of slow frequency oscillations and entrained low spike activity with Down-states in the intracortical and thalamocortical circuits are important characteristics in unconscious state induced by propofol anesthesia and that the high current thalamic stimulation reverses such characteristics and awakens the non-human primate from unconsciousness. This argument is supported by the analysis of frequency power and coherence of local field potentials (LPFs) and spikes and in the multiple cortical areas and the thalamus throughout the manuscript. However, the author's argument would be stronger if the coherence of frequency power and spike-LFP coupling was reversed in the analysis of the effects of thalamic electrical stimulation.

1. As the authors mentioned in the manuscript, Redinbaugh et al. (2020) has reported the neural correlates of consciousness using propofol anesthesia and the central thalamic electrical stimulation in macaques in the similar manner with this study. It would be necessary to clarify the meaning of this study by comparing the methods and the findings from Redinbaugh et al. (2020) in the introduction and Discussion section more in detail.

We agree with this. Both papers would benefit from this discussion. First, we should point out our papers are in general agreement and that replication is important to science. But there are some noteworthy differences in some methods and results.

1. Redinbaugh et al. used different neural physiological recordings sessions for the awake vs unconscious states.

By contrast, our study used single sessions. We recorded the same neural activity as animals transitioned from awake to unconscious and back again. Thus, we were able to capture neural changes during the transition between states.

2. In the Redinbaugh study, there were several differences between the awake and unconscious recording sessions that could have contributed to some differences in results between our studies.

Redinbaugh administered ketamine two hours before the propofol sessions (but not the awake sessions). Thus, lingering effects of ketamine, and/or its interaction with propofol, could have influenced their results. Plus, in the Redinbaugh study, awake-state recordings were conducted with the animals sitting up in a primate chair while the during the propofol recordings the animals were prone and intubated.

By contrast, we did not use ketamine or any additional drug. We recorded both awake and unconscious states within the same session with no difference between states other than the administration of propofol. Thus, our results can be attributed to propofol alone.

3. The details of the thalamic stimulation differed. Redinbaugh used a single stimulating electrode and found that 50 Hz was most effective at inducing arousal from the unconscious state.

By contrast, we used larger stimulating electrodes in pairs, higher currents, and 180 Hz. We did so because we aimed to match the stimulation parameters of studies showing that thalamic stimulation was effective eliciting responses from minimally conscious humans (Schiff et al., 2007).

Our study and Redinbaugh’s study report similar main results and conclusions. We both report a reduction in higher frequencies and increase in lower frequencies following loss of consciousness from propofol. But they do differ in some details. Redinbaugh report less of a role for slow frequencies (~1 Hz). Likewise, they report that thalamic stimulation increases power/coherence in gamma and alpha (as we do) but found little effect on slow frequencies. We found similar results in gamma and alpha but, by contrast, found that propofol also caused large increases in slow frequency dynamics. Correspondingly, we found that thalamic stimulation greatly reduced slow frequency dynamics.

Any of the differences between studies listed above could explain this somewhat different neural results. It is worth noting that other work from our lab shows that ketamine has a very different effects from propofol, it increases higher-frequency power.

We have added additional text of these points in the Discussion section of our paper. We thank the reviewer for bringing this up, as it is important to contextualize our findings with other recent work.

2. The anteriorization of alpha frequency oscillation is known as the key feature of propofol-induced general anesthesia in humans. In Figure 4, alpha/beta frequency power in the anterior areas (PFC and 8A) increased during unconscious state compared to those in the posterior regions (PPC and STG). However, it seems confusing that high-current thalamic stimulation also increased alpha/beta frequency power in the 8A and PFC in Figure 9E, which the authors argued to awaken the NHP. The authors need to interpret this finding.

We agree that an interpretation of this result would enhance the manuscript. We now provide it in the revised manuscript.

Previous studies have documented that synchronization between cortex and thalamus is prominent in the alpha/beta frequency range (Bastos et al., 2014; Fiebelkorn et al., 2019; Saalmann et al., 2012). Therefore, we propose that by driving the thalamocortical loop via thalamic stimulation, we have enhanced this circuit’s natural resonance frequency. We have added this hypothesis to the revised Discussion.

3. The authors argued that thalamic stimulation reverse electrophysiological features of unconsciousness which include slow oscillations, the entrainment of little spiking to Down-state, and decreased coherence in frequencies above 4 Hz. However, to assess the effect of electrical stimulation in the central thalamus the authors compare the change in firing rate and frequency power in each cortical region in Figure 9 and Supple Figure 4. It would be necessary to compare the coherence of frequency power and the coupling between spike and LFP as presented in Figure 4 and Figure 6 in order to support the authors' argument.

This is an excellent suggestion. It will add value to show how cortico-cortical synchronization changes as a function of thalamic electrical stimulation. Per the reviewer’s suggestion, we have added these analyses.

For all cortico-cortical as well as thalamo-cortical pairs, we analyzed LFP phase synchronization during the high-current thalamic stimulation that induced robust behavioral wakeup. It was compared to LFP synchronization during the prepropofol awake state and to intervals following thalamic stimulation. We used the slow frequency range (0.1-2Hz) where we found strong effects of propofol (and its reversal following thalamic stimulation). Note that by focusing on the reduction of slow frequencies resulting from stimulation, we can rule out any increases in synchrony due to stimulation per se.

We found that 5 of 6 cortico-cortical area pairs and 3 of 4 thalamo-cortical area pairs, thalamic stimulation significantly reduced the magnitude of slow frequency phase synchronization. Amongst these areas there was a 71-77% reduction in thalamocortical slow frequency synchronization and a 29-63% reduction between cortical areas (100% reduction would have been a full return to awake state). We have included this as Figure 9 —figure supplement 3 and 4 as well as accompanying text. We thank the reviewer for this valuable suggestion.

We also analyzed changes in spike-LFP synchrony. We analyzed how spikes in each area changed in their entrainment to the slow oscillation LFP during thalamic stimulation. We found that during thalamic stimulation, slow frequency LFP coupling to spikes was significantly reduced in three out of the 4 areas relative to pre-stimulation unconsciousness. This is now reported in the main text and in Figure 9 —figure supplement 6.

Reviewer #2:

[…] In general, the experimental methodology is solid and the data is consistent with many previous studies examining the neurobiological signatures of anesthesia and unconsciousness. With that said, the manuscript itself does not do much to advance knowledge within the field. Most of the cortical electrophysiological features reported here have been previously reported, and although this study benefits from the ability to analyze spiking in single-units (although see Major Critique 1 as clarification is needed for this study), that local spiking is entrained to Up states necessarily follows from the relationship between the LFP and spiking activity, and is a widely-documented characteristic of slow oscillations. Thalamic activity itself was not characterized (see Major Critique 3), only that there is coherence between it and the cortex in slow frequency bands.

Regarding the effects of thalamic stimulation, these need to be analyzed relative to an awake baseline state in addition to an unconscious baseline (see Major Critique 2) to claim that it induces an "awake-like cortical state". Finally, the concluding remark that "propofol likely renders unconsciousness by disrupting intracortical and thalamocortical communication through decrease spiking and enhanced slow-frequency power/synchrony", is simply a descriptive characterization of the induced state rather than a mechanistic hypothesis as it is presented.

1. Figure 4 (C,F,I,L). The text describing Figure 4 states "During unconsciousness, spike timing was phase-coupled to the slow frequencies. This appeared as Up and Down states of high vs minimal/no spiking (e.g., Figure 1G) respectively. Spike-triggered averages of the local LFP signal indicated that spikes entrained to the depolarized phases (troughs) of slow frequency oscillations (Figure 4C/F/I/L) in all areas." However, both the figure legend and caption appear to depict that spikes are entrained to slow frequency oscillations to a greater extent during the awake state relative to the unconscious state. Presumably this was a mislabeling of the figures. If not, the author's interpretation of the data is completely unclear and requires explanation.

We apologize, this was a mislabeled plot. The slow wave showing strong spike entrainment to negative (depolarized) phases was indeed the unconscious state as the reviewer suspected. This has been corrected and we thank the reviewer for noting it.

2. Thalamic stimulation arouses unconscious monkeys and causes a partial reversal of neurophysiological signs of unconsciousness. This section describes that "Stimulation produced an awake-like cortical state", however, all comparisons in the figures are made relative to an unconscious state baseline (with the exception of Figure 9C which depicts the average firing rate at ROC – which is still notably lower than the awake state used as a baseline in previous analyses). All that can be said from this analysis is that stimulation significantly changed activity relative to the unconscious state. If the authors want to make the claim as stated, analysis in Figures 8C-F and 9C-G must be done using relative to an awake state baseline as well. Preferably this would be the pre-drug baseline rather than the ROC, as the ROC is a temporary state which doesn't appear to show any stable phenomena (Figures 1, 2 and 4B).

We agree. We showed stimulation-induced recovery from the unconscious state but it would also be meaningful to show it relative to the awake state. Per the reviewer’s suggestion, we now do.

We quantified the Return To Wakefulness (RTW) metric as follows: neurophysiological and behavioral measures during pre-drug wakefulness were subtracted from their levels before, during, and after high-current thalamic stimulation. They were then normalized by the level observed during prestimulation baseline. A RTW score of -100% would denote a return to wakefulness levels. A 0% change in the RTW metric would denote no change due to thalamic stimulation. Below, we list the results of thalamic stimulation, also listed in Tables 1 and 2 in the revised manuscript. They indicate a partial return to wakefulness in neural activity and a corresponding partial return in behavioral measures.

Thalamic stimulation had the following effects.

Slow frequencies:

-44 to -89% RTW (return to the awake state) for cortical power, depending on area.

-29 to -63% RTW for cortico-cortical LFP synchrony.

-71 to -77% RTW for thalamo-cortical synchrony.

Beta:

-29% and -44% RTW in power in posterior cortex.

Thalamic stimulation resulted in greater beta power than that seen during the awake state

Gamma:

A -47 to -77% RTW in cortical power.

Spiking (average firing rates): -16% for PFC, -13% for 8A, -33% for PPC, and -26% for STG.

Spike coupling to slow frequency LFP: -24% for PFC, a slight increase for 8A

(stimulation increased spike coupling to SF slightly), -35% for PPC, and -113% for

STG

Behavior: Behavioral measures showed a corresponding partial return to awake state with thalamic stimulation. Evoked eyeblinks: -35% RTW

Blood oxygenation: -69% RTW

Heart rate: slightly higher than awake state by 7-8 beats per minute EMG: No change (but values were highly variable to begin; monkeys bounce between bouts of quiet relaxation and fidgeting when awake).

We have included these analyses as new supplemental figures (Figure 8—figure supplement 2 and Figure 9—figure supplement 1 and 3-8) and we refer to them in the main text. We thank the reviewer for this important suggestion. It has helped us to gain confidence in the interpretation of our central finding, that thalamic stimulation induces a partial return to the pre-drug, awake state.

3. Propofol-induced changed in thalamic activity. Given the focus on the effects of stimulating the thalamus during propofol-induced anesthesia, the authors should at minimum provide a spectrogram of thalamic activity similar to as was done for the cortical regions (see Figure 2), particularly as they speculate that direct inhibition of the thalamus may be partially responsible for the resulting slow-frequency oscillations.

This makes perfect sense and we agree. It is now included

We now provide a spectrogram of the thalamus, per the reviewer’s suggestion. The thalamus showed similar results to the cortex. There was an increase in slow frequency oscillations locked to LOC and a decrease in this same band locked to ROC. In the beta frequency range, thalamic power modulation looked like a mixture between anterior and posterior cortex. There was an initial increase in beta power compared to pre-propofol wakefulness starting at LOC. This was followed by a decrease relative to pre-propofol wakefulness from ~5-14 min post-LOC. Subsequently (from 15 minutes post-LOC to ROC) there was neither an increase nor decrease in beta power relative to pre-propofol wakefulness.

In the gamma frequency range, there were sustained decreases in power between LOC and a few minutes after ROC, similar to all cortical regions. We note that comparing between thalamus and cortex power modulation is slightly complicated by the fact that thalamic electrodes (0.5mm thick stimulating electrodes with low impedance) were different than cortical leads (Utah arrays, very thin silicon contacts with high impedance). We have added these results to Figure 2—figure supplement 2 along with a description of these results in the main text.

Reviewer #3:

[…] The experiments were precisely performed and the data rigorously analyzed. The manuscript is clearly written. There are a number of important points that should be addressed:

1. In the Introduction, the paragraph on theories of LoC is by necessity brief, but its brevity presents an incomplete picture of what may be taking place. A useful reference here is the 2019 review by Hemmings et al., which nicely summarizes many of these issues. It is up to the authors if they want to cite the original references therein or rely on the review if space/reference limitations come into play.

We have referenced Hemmings review in the revised sections of the introduction.

2. While the data are clearly informative with regards to propofol-induced LoC (as noted in the Cover Letter), the degree/extent to which the observed patterns of activity and changes in coherence are relevant to other anesthetics is unclear; this is most notably relevant to ketamine and nitrous oxide, both of which are primarily, but not exclusively NMDA receptor antagonists, and at concentrations associated with LoC lead to profound EEG activation. This should be addressed in the Discussion.

The reviewer makes a good point. The work we have presented is relevant to the propofol-induced unconsciousness. Propofol’s principal target is GABA-A receptors. Although not tested here, the findings here likely offer insights into the mechanism of unconsciousness induced by other GABAergic anesthetics including the inhaled ethers (sevoflurane, isoflurane desflurane), the barbiturates and etomidate. The current work does not offer insights into the dynamics of NMDA antagonists such as ketamine and nitrous oxide. The agents have noticeably different dynamics at both lower and higher frequencies (Akeju et al., 2016; Pavone et al., 2016; Purdon et al., 2015). We have studied ketamine using our non-human primate model. We have provided a preliminary reports of these results (Garwood et al., 2020). A manuscript on this work is under preparation. We clarify these points in the Discussion.

3. Results – the cortical recording tracings shown in Figure 1 G (right panel, unconscious) appear to show that the animal is in burst suppression, which occurs at a level of sedation well beyond that required for simple LoC. Where all the subsequent recordings and associated analyses performed at this level of sedation? Was it possible to obtain recordings at a level of sedation that did not produce burst suppression?

The analyses were performed at a level of slow-delta oscillations, slow-delta oscillations mixed with burst suppression and burst suppression. The data shown in Figure 1 G (right panel, unconscious) is a mixture of slow-delta oscillations with burst suppressions. We did obtain recordings with a predominance of slow delta oscillations. The mixture of alpha oscillations and slow-delta oscillations that are so prominent in propofol-induced unconsciousness are less apparent in the nonhuman primate. After a brief period of beta oscillations, propofol-induced unconsciousness in the non-human primate transitions to slow-delta oscillations and then into burst suppression. We did trial runs of our sedation protocol in each animal to determine a range of infusions that would produce unconsciousness with the least some amount of burst suppression. The longer the animals were in burst suppression the greater the likelihood that the animal would become apneic and require stimulation or respiratory assistance. For all of the sessions reported here, the animals did not have a period of apnea.

4. Confounding variables – As shown in Figure 1F, there is a ~20% decrease in heart rate, which, given the dependency on cardiac output for maintenance of blood pressure, would presumably lead to a corresponding decrease in mean arterial pressure, and therefore cerebral perfusion pressure. Similarly, there is no indication that minute ventilation was controlled via mechanical ventilation. At steady-state levels of infusion in humans propofol produces a 20-50% decrease in minute ventilation (see, for example, Allsop, P., et al. (1988). "Ventilatory effects of a propofol infusion using a method to rapidly achieve steady-state equilibrium." Eur J Anaesthesiol 5(5): 293-303; Goodman, N. W., et al. (1987). "Some ventilatory effects of propofol as sole anaesthetic agent." Br J Anaesth 59(12): 1497-1503). These changes will at the minimum increase PaCO2 by 1 kPa (~ 8 torr), and this too will have an impact on cerebral perfusion. Please explain why these factors do not interfere with the results presented or the interpretation thereof. Simply measuring peripheral capillary oxygen saturation is not the same as knowing what it is in cortical and/or thalamic tissue beds.

The reviewer makes good point. Because we did not use pressors to maintain blood pressure and mechanical ventilation to oxygenation and ventilation, we readily acknowledge that some component of the observed neurophysiological effects could be due to these metabolic factors. We state this in the revised Discussion.

References:

Akeju O, Song AH, Hamilos AE, Pavone KJ, Flores FJ, Brown EN, Purdon PL. 2016.

Electroencephalogram signatures of ketamine anesthesia-induced unconsciousness.

Clinical Neurophysiology 127:2414–2422. doi:10.1016/j.clinph.2016.03.005

Bastos AM, Briggs F, Alitto HJ, Mangun GR, Usrey WM. 2014. Simultaneous recordings from the primary visual cortex and lateral geniculate nucleus reveal rhythmic interactions and a cortical source for γ-band oscillations. J Neurosci 34:7639–7644.

doi:10.1523/JNEUROSCI.4216-13.2014

Chemali JJ, Van Dort CJ, Brown EN, Solt K. 2012. Active Emergence from Propofol General Anesthesia Is Induced by Methylphenidate. Anesthesiology 116:998–1005.

doi:10.1097/ALN.0b013e3182518bfc

Fiebelkorn IC, Pinsk MA, Kastner S. 2019. The mediodorsal pulvinar coordinates the macaque fronto-parietal network during rhythmic spatial attention. Nat Commun 10:1–15. doi:10.1038/s41467-018-08151-4

Garwood IC, Chakravarty S, Donoghue J, Kahali P, Chamadia S, Akeju O, Miller EK, Brown EN. 2020. A hidden Markov model reliably characterizes ketamine-induced spectral dynamics in macaque LFP and human EEG (preprint). Anesthesia.

doi:10.1101/2020.11.12.20221366

Kenny JD, Taylor NE, Brown EN, Solt K. 2015. Dextroamphetamine (but Not Atomoxetine) Induces Reanimation from General Anesthesia: Implications for the Roles of Dopamine and Norepinephrine in Active Emergence. PLoS ONE 10:e0131914.

doi:10.1371/journal.pone.0131914

Muindi F, Kenny JD, Taylor NE, Solt K, Wilson MA, Brown EN, Van Dort CJ. 2016. Electrical stimulation of the parabrachial nucleus induces reanimation from isoflurane general anesthesia. Behav Brain Res 306:20–25. doi:10.1016/j.bbr.2016.03.021

Pavone KJ, Akeju O, Sampson AL, Ling K, Purdon PL, Brown EN. 2016. Nitrous oxide-induced slow and δ oscillations. Clinical Neurophysiology 127:556–564.

doi:10.1016/j.clinph.2015.06.001

Pillay S, Liu X, Baracskay P, Hudetz AG. 2014. Brainstem stimulation increases functional connectivity of basal forebrain-paralimbic network in isoflurane-anesthetized rats. Brain Connect 4:523–534. doi:10.1089/brain.2014.0254

Purdon PL, Sampson A, Pavone KJ, Brown EN. 2015. Clinical Electroencephalography for Anesthesiologists. Anesthesiology 123:937–960. doi:10.1097/ALN.0000000000000841

Saalmann YB, Pinsk MA, Wang L, Li X, Kastner S. 2012. The Pulvinar Regulates Information Transmission Between Cortical Areas Based on Attention Demands. Science 337:753– 756. doi:10.1126/science.1223082

Schiff ND, Giacino JT, Kalmar K, Victor JD, Baker K, Gerber M, Fritz B, Eisenberg B, Biondi T, O’Connor J, Kobylarz EJ, Farris S, Machado A, McCagg C, Plum F, Fins JJ, Rezai AR. 2007. Behavioural improvements with thalamic stimulation after severe traumatic brain injury. Nature 448:600–603. doi:10.1038/nature06041

Solt K, Cotten JF, Cimenser A, Wong KFK, Chemali JJ, Brown EN. 2011. Methylphenidate Actively Induces Emergence from General Anesthesia. Anesthesiology 115:791–803.

doi:10.1097/ALN.0b013e31822e92e5

Solt K, Van Dort CJ, Chemali JJ, Taylor NE, Kenny JD, Brown EN. 2014. Electrical stimulation of the ventral tegmental area induces reanimation from general anesthesia.

Anesthesiology 121:311–319. doi:10.1097/ALN.0000000000000117

Taylor NE, Chemali JJ, Brown EN, Solt K. 2013. Activation of D1 Dopamine Receptors Induces Emergence from Isoflurane General Anesthesia. Anesthesiology 118:30–39.

doi:10.1097/ALN.0b013e318278c896

Taylor NE, Van Dort CJ, Kenny JD, Pei J, Guidera JA, Vlasov KY, Lee JT, Boyden ES, Brown EN, Solt K. 2016. Optogenetic activation of dopamine neurons in the ventral tegmental area induces reanimation from general anesthesia. Proc Natl Acad Sci USA 113:12826–12831. doi:10.1073/pnas.1614340113

https://doi.org/10.7554/eLife.60824.sa2

Article and author information

Author details

  1. André M Bastos

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Present address
    Department of Psychology and Vanderbilt Brain Institute, Vanderbilt University, Nashville, United States
    Contribution
    Formal analysis, Investigation, Writing - original draft, Writing - review and editing
    Contributed equally with
    Jacob A Donoghue
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1804-4418
  2. Jacob A Donoghue

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Formal analysis, Investigation, Writing - original draft
    Contributed equally with
    André M Bastos
    Competing interests
    No competing interests declared
  3. Scott L Brincat

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Formal analysis, Methodology
    Competing interests
    No competing interests declared
  4. Meredith Mahnke

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Jorge Yanar

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  6. Josefina Correa

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5721-5024
  7. Ayan S Waite

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  8. Mikael Lundqvist

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Jefferson Roy

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Emery N Brown

    1. The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    2. The Department of Anesthesia, Critical Care and Pain Medicine, Massachusetts General Hospital/Harvard Medical School, Boston, United States
    3. The Institute for Medical Engineering and Science, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Funding acquisition, Formal analysis, Supervision, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Earl K Miller
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2668-7819
  11. Earl K Miller

    The Picower Institute for Learning and Memory and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Emery N Brown
    For correspondence
    ekmiller@mit.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0582-6958

Funding

National Institute of Mental Health (R01MH11559)

  • Earl K Miller
  • Emery N Brown

National Institute of General Medical Sciences (P01GM118269)

  • Emery N Brown
  • Earl K Miller

The JPB Foundation

  • Earl K Miller
  • Emery N Brown

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Simon Kornblith for help with data analysis. These studies were supported by NIMH R01MH11559, NIGMS P01GM118269, and The JPB Foundation.

Ethics

Animal experimentation: The animals were handled in accord with National Institutes of Health guidelines and approved by the Massachusetts Institute of Technology Committee on Animal Care (protovcol number: 0619-035-22). MIT veterinary staff continuously assessed the welfare of the animals prior to, during, and after the experiment.

Senior Editor

  1. Laura L Colgin, University of Texas at Austin, United States

Reviewing Editor

  1. Eunji Cheong, Yonsei University, Republic of Korea

Publication history

  1. Received: July 9, 2020
  2. Accepted: March 28, 2021
  3. Version of Record published: April 27, 2021 (version 1)

Copyright

© 2021, Bastos et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 5,700
    Page views
  • 575
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    2. Stem Cells and Regenerative Medicine
    Stephen Johnston et al.
    Research Article Updated

    Recombinant adeno-associated virus (rAAV) has been widely used as a viral vector across mammalian biology and has been shown to be safe and effective in human gene therapy. We demonstrate that neural progenitor cells (NPCs) and immature dentate granule cells (DGCs) within the adult murine hippocampus are particularly sensitive to rAAV-induced cell death. Cell loss is dose dependent and nearly complete at experimentally relevant viral titers. rAAV-induced cell death is rapid and persistent, with loss of BrdU-labeled cells within 18 hr post-injection and no evidence of recovery of adult neurogenesis at 3 months post-injection. The remaining mature DGCs appear hyperactive 4 weeks post-injection based on immediate early gene expression, consistent with previous studies investigating the effects of attenuating adult neurogenesis. In vitro application of AAV or electroporation of AAV2 inverted terminal repeats (ITRs) is sufficient to induce cell death. Efficient transduction of the dentategyrus (DG)– without ablating adult neurogenesis– can be achieved by injection of rAAV2-retro serotyped virus into CA3. rAAV2-retro results in efficient retrograde labeling of mature DGCs and permits in vivo two-photon calcium imaging of dentate activity while leaving adult neurogenesis intact. These findings expand on recent reports implicating rAAV-linked toxicity in stem cells and other cell types and suggest that future work using rAAV as an experimental tool in the DG and as a gene therapy for diseases of the central nervous system should be carefully evaluated.

    1. Neuroscience
    Steven R Sando et al.
    Research Article Updated

    Neural control of muscle function is fundamental to animal behavior. Many muscles can generate multiple distinct behaviors. Nonetheless, individual muscle cells are generally regarded as the smallest units of motor control. We report that muscle cells can alter behavior by contracting subcellularly. We previously discovered that noxious tastes reverse the net flow of particles through the C. elegans pharynx, a neuromuscular pump, resulting in spitting. We now show that spitting results from the subcellular contraction of the anterior region of the pm3 muscle cell. Subcellularly localized calcium increases accompany this contraction. Spitting is controlled by an ‘hourglass’ circuit motif: parallel neural pathways converge onto a single motor neuron that differentially controls multiple muscles and the critical subcellular muscle compartment. We conclude that subcellular muscle units enable modulatory motor control and propose that subcellular muscle contraction is a fundamental mechanism by which neurons can reshape behavior.
