GABAA presynaptic inhibition regulates the gain and kinetics of retinal output neurons

  1. Jenna Nagy
  2. Briana Ebbinghaus
  3. Mrinalini Hoon
  4. Raunak Sinha  Is a corresponding author
  1. Department of Neuroscience, University of Wisconsin, United States
  2. McPherson Eye Research Institute, University of Wisconsin, United States
  3. Cellular and Molecular Pathology Training Program, University of Wisconsin, United States
  4. Department of Ophthalmology and Visual Sciences, University of Wisconsin, United States
  5. Neuroscience Training Program, University of Wisconsin, United States
Research Article
  • Cited 0
  • Views 712
  • Annotations
Cite this article as: eLife 2021;10:e60994 doi: 10.7554/eLife.60994

Abstract

Output signals of neural circuits, including the retina, are shaped by a combination of excitatory and inhibitory signals. Inhibitory signals can act presynaptically on axon terminals to control neurotransmitter release and regulate circuit function. However, it has been difficult to study the role of presynaptic inhibition in most neural circuits due to lack of cell type-specific and receptor type-specific perturbations. In this study, we used a transgenic approach to selectively eliminate GABAA inhibitory receptors from select types of second-order neurons – bipolar cells – in mouse retina and examined how this affects the light response properties of the well-characterized ON alpha ganglion cell retinal circuit. Selective loss of GABAA receptor-mediated presynaptic inhibition causes an enhanced sensitivity and slower kinetics of light-evoked responses from ON alpha ganglion cells thus highlighting the role of presynaptic inhibition in gain control and temporal filtering of sensory signals in a key neural circuit in the mammalian retina.

Introduction

A common motif by which inhibition acts in neural circuits is at the axon terminals of presynaptic neurons where it regulates synaptic release and controls the input-output relationship of a neural circuit (Fink et al., 2014; MacDermott et al., 1999). This motif of inhibition called presynaptic inhibition is widely used in the retina and is mediated by inhibitory retinal interneurons called amacrine cells (ACs) (Diamond and Lukasiewicz, 2012; Eggers and Lukasiewicz, 2011; Eggers et al., 2007; Jadzinsky and Baccus, 2013). ACs make synaptic contacts on the axon terminals of glutamatergic second-order neurons called bipolar cells (BCs) which relay rod and cone photoreceptor signals to retinal output neurons called retinal ganglion cells (RGCs) (Demb and Singer, 2015). Axon terminals of ‘ON’ BCs – that depolarize in response to a light increment – and ‘OFF’ BCs – that hyperpolarize in response to a light increment – each stratify at different retinal laminae (Demb and Singer, 2015; Hoon et al., 2014). Of note, different BC types are also used to route dim light (rod bipolar; ON type) and day light (cone bipolar; ON and OFF types) visual signals (Euler et al., 2014). In this study, we explored the role of retinal presynaptic inhibition in regulating the output of one of the most well-characterized retinal circuits that use the ON sustained alpha GC (ONα GC) (Grimes et al., 2014b; Murphy and Rieke, 2006; Schwartz et al., 2012; van Wyk et al., 2009). ONα GCs depolarize and respond with an increase in action potential firing to light increments (Grimes et al., 2014b; Murphy and Rieke, 2006; van Wyk et al., 2009). This ONα GC pathway is not only the most sensitive dim light retinal pathway (Smeds et al., 2019): rod photoreceptors -> rod bipolar cells (RBCs) -> AII amacrine -> ON cone bipolar cell (CBC) -> ONα GC; but also one that routes visual signals directly from cone photoreceptors via ON CBCs for mediating day light vision (Demb and Singer, 2015; Grimes et al., 2014b; Schmidt et al., 2014; Figure 1A).

Figure 1 with 1 supplement see all

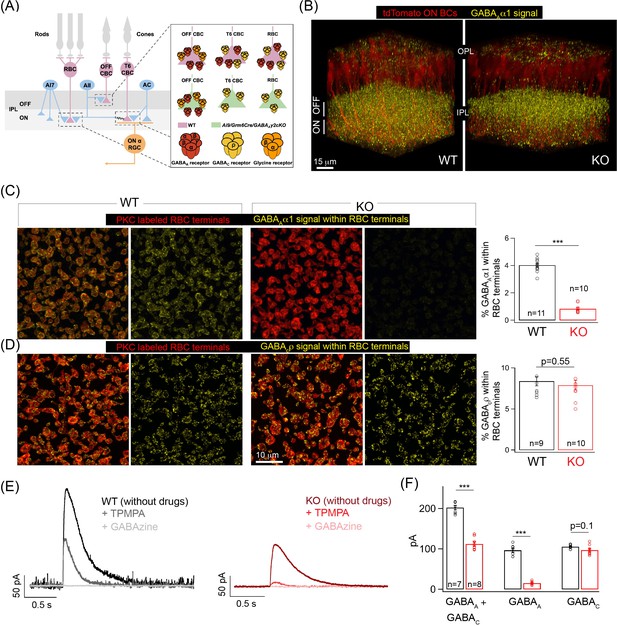

Specific elimination of GABAA receptors from ON bipolar cell (BC) terminals in the Ai9/Grm6Cre/Gabrg2 conditional knockout (KO) mouse.

(A) Schematic illustrating the receptor composition of presynaptic inhibition across rod (RBC) and cone bipolar cell (CBC) axon terminals in wildtype adult littermate control (WT) and KO retina; T6 CBC refers to Type 6 ON CBC (B) α1-subunit-containing GABAA receptor (GABAA α1) immunolabeling (yellow) and ON BC labeling (tdTomato; red) in outer and inner plexiform layers (OPL and IPL respectively) of WT retina and Ai9/Grm6Cre/Gabrg2 (KO) retina. In the KO, GABAAα1 immunofluorescence is present in the OFF lamina of the IPL but not in the ON lamina. (C) (Left) GABAAα1 receptor (yellow; signal within terminals) and protein kinase C (PKC; red) immunolabeling of RBC terminals in WT retina. The merged panel consists of the PKC signal and the receptor signal within PKC positive RBC terminals. (Right) Image of KO retina shows reduced GABAAα1 receptor immunofluorescence within RBC terminals. (Far right) Quantifications of receptor expression confirmed a significant reduction of GABAAα1 expression in the KO (mean ± sem = 0.8 ± 0.1) retina relative to WT (mean ± sem = 4 ± 0.1). (D) (Left) Immunolabeling of RBC terminals (PKC;red) in WT retina with antibodies against the ρ-subunit-containing GABAC receptor (GABACρ; yellow – signal within RBC terminals). (Right) Image shows GABACρ immunoreactivity within RBC terminals in the KO retina. (Far right) Quantification of RBC terminal GABACρ receptor expression in KO (mean ± sem = 7.9 ± 0.6) retina relative to WT (mean ± sem = 8.4 ± 0.6). (E) Exemplar traces of evoked responses of an RBC after GABA puff application at its axon terminal. WT (Left, black trace); KO (Right, red traces). TPMPA (GABAC receptor antagonist) and GABAzine (GABAA receptor antagonist) were used to pharmacologically isolate GABAA and GABAC receptor-mediated components of the evoked responses. The GABAA component is revealed after application of TPMPA (labeled +TPMPA) and is eliminated upon the addition of GABAzine (TPMPA + GABAzine; labeled +GABAzine). Note the reduction of the GABAA receptor-mediated component in the KO relative to the WT. (F) Bar graph quantifying the GABAA and GABAC-mediated component of RBC evoked responses in WT (black) and KO (red) retina. The mean ± sem peak amplitudes of GABAA + GABAC currents were 202.5 ± 5.5 pA in WT retina and 112.3 ± 5.6 pA in KO retina. The mean ± sem peak amplitudes of GABAA currents were 96.8 ± 5.2 pA in WT retina and 15.2 ± 1.5 pA in KO retina. The mean ± sem peak amplitudes of GABAC currents were 105.8 ± 1.8 pA in WT retina and 97 ± 4.3 pA in KO retina. Note that the significant reduction in the total response (GABAA + GABAC) in the KO can be attributed to the reduction in the GABAA-mediated component. In all figures, error bars indicate sem and ‘n’ refers to the number of cells analyzed except 1C, 1D, and Figure 1—figure supplement 1E occupancy quantifications where ‘n’ refers to the number of retinas analyzed.

Previous studies have extensively characterized the molecular composition and expression of GABA/Glycine receptors mediating presynaptic inhibition at axon terminals of ON and OFF BCs (Eggers and Lukasiewicz, 2006; Fletcher et al., 1998; Hoon et al., 2014; Hoon et al., 2015; Lukasiewicz et al., 2004; Matthews et al., 1994; Wässle et al., 1998). RBCs and ON CBCs predominantly express GABAA and GABAC receptors at their axon terminals, whereas OFF CBCs predominantly express GABAA and glycine receptors (GlyR) at their axon terminals (Eggers and Lukasiewicz, 2006; Fletcher et al., 1998; Hoon et al., 2015; Lukasiewicz et al., 2004; Wässle et al., 1998). In the primary rod (dim-light) pathway, presynaptic inhibition has been particularly well characterized where a specialized AC type, the A17 AC, makes GABAergic feedback synapses on RBC axon terminals (Grimes et al., 2014a; Grimes et al., 2010; Grimes et al., 2015). This A17-mediated feedback inhibition has been proposed to improve the signal-to-noise ratio of the feedforward excitatory output from RBC to AII amacrine cell near visual threshold, extend the luminance range over which RBC-AII synapses compute contrast gain, and mediate center-surround inhibition (Grimes et al., 2015; Oesch and Diamond, 2019; Völgyi et al., 2002). In addition, a few studies have shown that perturbing GABAC receptor-mediated presynaptic inhibition alters the dynamic range of the light-evoked responses of RGCs for both rod and cone-mediated signaling (Oesch and Diamond, 2019; Pan et al., 2016; Sagdullaev et al., 2006).

Our understanding of how presynaptic inhibition shapes signaling at the BC output synapse largely comes from pharmacological manipulations or transgenic mutant mice globally lacking inhibitory receptor types (Eggers and Lukasiewicz, 2006; Eggers and Lukasiewicz, 2011; Oesch and Diamond, 2019; Pan et al., 2016; Sagdullaev et al., 2006). These approaches affect the entire retinal circuitry and thus lack the resolution required to perturb presynaptic inhibition in a cell type-specific and circuit-specific manner. In addition, such methods make it difficult to parse out the role of GABAA receptor-mediated presynaptic inhibition because, besides BCs, GABAA receptors are also expressed on ACs that can participate in serial inhibitory circuits between ACs that in turn contact BC terminals (Eggers and Lukasiewicz, 2011; Wässle et al., 1998). In fact, immunolabeling against the dominant subunit of GABAA receptors shows a dense expression, not specific to a single cell class but localized throughout the retinal synaptic layer that makes it particularly difficult to determine the specific contribution of GABAA receptors in shaping the synaptic output of individual retinal cell types (Hoon et al., 2015; Wässle et al., 1998; Figure 1B). Due to these limitations, most studies investigating the role of GABAergic presynaptic inhibition in shaping the light sensitivity of ON BC synapses have largely been restricted to evaluating GABAC receptor-mediated inhibition that is specifically localized to BCs (Oesch and Diamond, 2019; Pan et al., 2016; Sagdullaev et al., 2006). This motivated us to use genetic manipulations that selectively eliminate GABAA receptors from ON BC axon terminals to study the role of GABAA receptor-mediated presynaptic inhibition in regulating light evoked function in the tractable retinal circuit of the ONα GC with known cell types and a well-established pathway for dim light and day light signals.

Results

Selective removal of GABAA receptors from the axon terminals of rod and ON CBCs

In this study, we focused on GABAA receptor-mediated inhibition at axon terminals of ON BCs. GABAA receptors expressed in the axon terminals of ON BCs contain α1 and γ2 subunits (Hoon et al., 2015). To specifically eliminate GABAA receptors from ON BCs we used a Gabrg2 (GABAA receptor, subunit gamma 2) floxed mutant mice (Schweizer et al., 2003) crossed to an ON BC specific Cre line (Grm6-Cre) and a fluorescent reporter line (Ai9/tdTomato) (Hoon et al., 2015). This triple transgenic mouse line – Ai9/Grm6Cre/Gabrg2 cKO (henceforth referred to as KO) – has previously been used to study the subunit composition of GABAA receptors in axon and dendrites of ON CBCs after Gabrg2 deletion (Hoon et al., 2015). Here we determined the GABAA and GABAC receptor expression across axon terminals of RBCs which belong to the ON BC class after Gabrg2 deletion (Figure 1B–D). Immunolabeling with GABAAα1 receptor subunit specific antibody clearly showed the selective reduction in GABAAα1 expression from the ON sub-lamina of the inner plexiform layer (IPL) in the KO mice (Figure 1B), whereas the GABAAα1 expression in the OFF sub-lamina remained unperturbed (Figure 1—figure supplement 1A). Co-labeling of GABAAα1 with the RBC marker, protein kinase C (PKC), revealed near-complete absence of GABAAα1 receptor subunit expression from RBC boutons in the KO retina (Figure 1C). This dramatic reduction in GABAAα1 receptor expression in the KO retina was quantified by estimating the receptor percentage volume occupancy relative to the volume of the RBC axon terminal (see 'Materials and methods'). Despite the loss of GABAA receptors in KO RBC terminals, GABAC receptor expression was unchanged in KO RBC terminals (Figure 1D; quantifications of percentage GABAC volume occupancy). We confirmed the loss of GABAA receptors from KO ON BC axon terminals by measuring GABA-evoked currents from RBCs (Figure 1E). Puffing GABA on the axon terminals of RBCs elicited smaller currents in the KO retina. Upon application of a selective GABAC receptor blocker, TPMPA, we found that this decrease in total GABA-evoked current is due to a drastic reduction of the GABAA receptor-mediated current with unaltered GABAC currents in KO RBC terminals (Figure 1F). To confirm that GABAA receptors remain unaltered in the OFF sublamina, we performed whole-cell voltage clamp recordings of light evoked excitatory currents from OFF alpha transient GCs (a measure of the OFF BC output) which showed no differences (Figure 1—figure supplement 1B) in amplitude between KO and wildtype adult littermate control (WT) retina. This together with the unperturbed GABAAα1 expression in the OFF sub-laminas confirms that GABAergic presynaptic inhibition across OFF BCs is not altered in the KO retina.

To eliminate the possibility of decreased GABAA receptor expression in AC and GC processes in the KO retina, we next determined expression of GABAA receptors across AC and GC processes that laminate in the same ON plexus of the retinal IPL as ON BC terminals (Figure 1—figure supplement 1D–E). We labeled AC and GC processes by labeling for the calcium binding protein calbindin that is specific to AC and GC processes in the IPL (Haverkamp and Wässle, 2000). To label all GABAA receptors across AC and GC processes we labeled for GABAAβ2/3 receptor subunits which are ubiquitously expressed across BC, AC, and GC processes in the IPL (Greferath et al., 1995). We could not label for specific GABAAα receptor subunits in AC and GC processes as the composition of the GABAAα receptor types across different AC and GC processes remains unknown and because our previous work has shown that GABAAα1-containing receptors are enriched at BC processes (Hoon et al., 2015) but not GC processes (Sawant et al., 2021). Upon quantification of the percentage occupancy of GABAAβ2/3 receptors across ON-laminating AC and GC processes we observed comparable receptor amounts across genotypes (Figure 1—figure supplement 1E) confirming that expression of GABAA receptors is not impacted across AC and GC processes in the KO retina. Together, our findings demonstrate the targeted deletion of GABAA receptors only from the terminals of ON BCs in the KO retina.

Increased sensitivity of ONα GCs to dim light stimuli in the KO retina

We chose the ONα GC retinal circuit as a means to explore the role of presynaptic inhibition in shaping retinal output across luminance (i) due to its well-characterized glutamatergic excitatory pathway – via RBC and Type 6 (T6) ON CBCs (Grimes et al., 2014b; Schwartz et al., 2012) – and (ii) because previous studies have shown that ON BCs, primarily RBC and T6 CBC, express Grm6 in the Grm6-tdTomato transgenic mice (Hoon et al., 2015; Kerschensteiner et al., 2009) and are thus specifically targeted in our triple transgenic mouse line (Ai9/Grm6Cre/Gabrg2 cKO). This means that in the KO retina, the majority of the GABAA receptors lost from the IPL are from RBC and T6 CBC terminals (Figure 1; and see Hoon et al., 2015), thus providing a unique opportunity to study how GABAA receptor-mediated presynaptic inhibition alters the function of a specific retinal circuit, i.e. the ONα GC circuit (Figure 1A). We first probed the dim light sensitivity of ONα GC spike output using a full-field light stimulus that mostly activates the rods (Figure 2). The characteristic response of an ONα GC to a light step (0.5 s duration) has two distinct kinetic components – a fast transient phase and steady-state sustained phase – which results in action potential firing throughout the duration of the light stimulus (Figure 2B). Such a biphasic response to a sustained dim light step has previously been observed in the excitatory currents of the AII amacrine cell and reflects the intrinsic synaptic properties of the RBC to AII amacrine cell ribbon synapse (Oesch and Diamond, 2011, Oesch and Diamond, 2019). Furthermore, the transient component has been attributed to encode contrast whereas the sustained component has been shown to encode the absolute luminance (Oesch and Diamond, 2011Oesch and Diamond, 2019). In the KO retina, there is a sizeable increase in the spike response of ONα GCs for both its transient and sustained component (Figure 2C and D; see 'Materials and methods' for details). In addition to response amplitude, presynaptic inhibition is known to shape the kinetics of neuronal responses across diverse neural circuits (Isaacson and Scanziani, 2011; Jadzinsky and Baccus, 2013; Ohliger-Frerking et al., 2003). We analyzed the time course of the spike responses of the ONα GCs to the dim light step by estimating the time to peak of the response. There was no significant difference in the kinetics of the ONα GC spike responses between KO and WT retina under dim light conditions (Figure 2E).

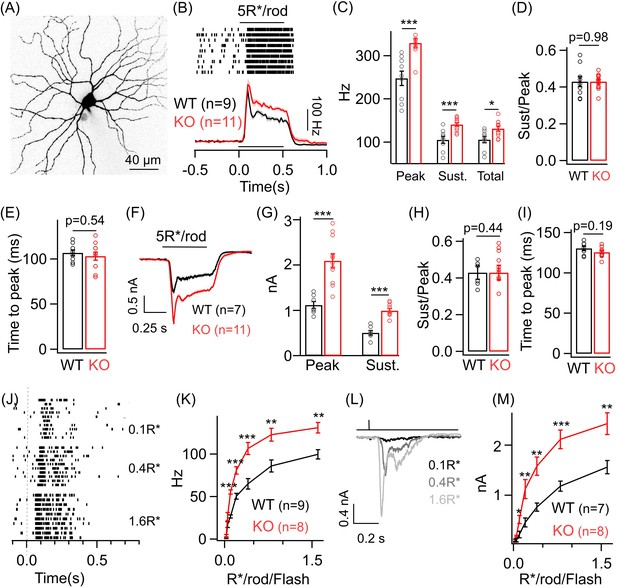

Dim light sensitivity of ONα ganglion cells (GCs) is perturbed without GABAA presynaptic inhibition.

(A) Exemplar image of an ONα GC filled with dye post-recording. (B) Raster plot showing an ONα GC spike response to a 0.5 s light step (that leads to five opsin photoisomerizations (R*) per rod photoreceptor) from darkness. Bottom panel shows average peri-stimulus time histograms (PSTH; binwidth of 20 ms) of the spike response from several ONα GCs in WT and KO mouse retina. Error bars (sem) shown in shaded colors henceforth for all average traces. The sample size for each experiment henceforth is mentioned next to the average traces and is the same for the following quantification represented in bar plots. (C) Bar plot comparing the peak (mean ± sem = 247.7 ± 16.8 Hz in WT and 329.7 ± 9.7 Hz in KO retina), sustained (mean ± sem = 105.4 ± 8.1 Hz in WT and 140.8 ± 4.4 Hz in KO retina) and total firing rate (mean ± sem = 105.6 ± 7.4 Hz in WT and 131.5 ± 5.7 Hz in KO retina) across ONα GCs as shown in (B) between WT and KO retina. (D) Bar plot comparing the ratio of sustained to peak firing rate of individual ONα GCs in WT (mean ± sem = 0.43 ± 0.03) and KO (mean ± sem = 0.43 ± 0.01) retina in response to light stimulus shown in (B). (E) Bar graph comparing the time to peak of spike PSTH (with a binwidth of 2 ms) across ONα GCs in WT (mean ± sem = 106.9 ± 3.2 ms) and KO (mean ± sem = 103.3 ± 4.5 ms) retina for the same data shown in (B). (F) Average excitatory synaptic currents measured across WT and KO ONα GCs elicited by the light stimulus described in (B). (G, H) Bar plot showing the light-evoked peak (mean ± sem = 1120.5 ± 78.8 pA in WT and 2096.2 ± 155.6 pA in KO retina) and sustained responses (mean ± sem = 505.2 ± 51.9 pA in WT and 993.7 ± 45.5 pA in KO retina) and their ratio (mean ± sem = 0.45 ± 0.04 in WT and 0.49 ± 0.04 in KO retina) analyzed from individual ONα GCs. (I) Bar graph comparing the time to peak of the excitatory current response across ONα GCs in WT (mean ± sem = 130.5 ± 3 ms) and KO (mean ± sem = 125.8 ± 1.9 ms) retina for the same data shown in (F). (J) Spike trains from an exemplar ONα GC showing the response to brief (30 ms duration) light flashes that elicit 0.1, 0.4 and 1.6 R*/rod. (K) Peak spike rates of ONα GC in response to increasing flash strengths at dim light levels in WT and KO retinas. (L) Excitatory synaptic currents measured from an exemplar WT ONα GC elicited by light flashes shown in (J). (M) Peak excitatory current response of ONα GCs in response to increasing flash strengths at dim light levels in WT and KO retinas.

To determine if the changes in the spike output are present in the excitatory synaptic inputs to the ONα GCs, we performed whole-cell voltage clamp recordings from the ONα GC and measured the excitatory synaptic current evoked by the above dim light stimuli (Figure 2F). The heightened response to the dim light stimuli is in fact more prominent in the excitatory synaptic currents of ONα GCs in the KO retina with nearly a twofold increase in the amplitude of the response in the KO retinas compared to that in the WT retinas (Figure 2G). Both the sustained and transient response components for the ONα GC are equally affected in the KO retina and hence the ratio of sustained to transient response remained unchanged between the WT and the KO retina for light evoked excitatory synaptic currents as well as for spike output (Figure 2D and H). We next estimated the kinetics of the ONα GC dim light evoked excitatory synaptic currents and found that the time to peak of the current response remained unchanged between the WT and the KO retina similar to that for the spike output (Figure 2I; see Figure 2E). To probe if the response differences in ONα GC between KO and WT retina are present across a broad range of dim light levels, we measured responses to brief light flashes (30 ms duration) of increasing intensity under dim light conditions (Figure 2J–M). Both the ONα GC spike output and the excitatory synaptic currents in the KO retina showed a marked increase over a considerable range of dim light flash intensities (Figure 2K and M). This indicates that light-triggered output from the RBC terminals is increased in absence of GABAA receptors across a wide range of dim light levels albeit not for the dimmest flashes. Moreover, enhancement of both the transient and sustained component of the ONα GC response to a sustained dim light stimulus indicates that perhaps both contrast and luminance encoding are altered at the dim light levels. Although the amplitude of the dim light evoked responses is perturbed, response kinetics remain unaltered in absence of GABAA receptor-mediated presynaptic inhibition. These results show that GABAA receptors at the RBC terminal play a key role in regulating the strength of dim light signals received by the ONα GCs presumably by controlling synaptic release from the RBC terminal. We cannot rule out a contribution of loss of GABAA receptors at the T6 ON CBC towards altered ONα GC sensitivity at dim light levels since rod-driven signals are routed from the AII amacrine via gap junctions to the ON CBC terminals and then onto the ONα GC.

ONα GCs in the KO retina exhibit changes in amplitude and kinetics of responses to light stimuli that preferentially excite the cone photoreceptors

Given the increase in dim light sensitivity of ONα GCs in the KO retina, we wanted to test if this persists even for brighter light levels that primarily activate the cone pathway. To do so, we adapted the retina to a background luminance of ~1000 R*/cone/s, which mostly saturates the rods (Grimes et al., 2018) and allows us to preferentially probe the cone-mediated ONα GC responses. We first measured the spike response of ONα GCs to a full-field 100% contrast increment (Figure 3A). The ONα GC response at these cone-dominated light levels also shows two kinetic phases, i.e. a transient and sustained phase (Figure 3B), similar to the responses at dim light levels shown in Figure 2. We observed a nearly twofold increase in the peak firing rate of the ONα GC in the KO retina compared to that in the WT retina. However, we did not see a systematic difference in the sustained phase of the spike response of ONα GCs between WT and KO retina (Figure 3—figure supplement 1B). Next, we compared the kinetics of the spike responses of the ONα GCs between KO and WT retina (Figure 3D). Interestingly, the time to peak of the ONα GC spike responses in the KO retina were significantly slower than in the WT retina in contrast to our earlier observations under dim light conditions (Figure 3D). To determine if the changes in the amplitude and kinetics of the cone-mediated spike responses are reflected in the excitatory inputs, we performed whole-cell voltage clamp recordings from ONα GCs in KO and WT retina in response to the above stimuli (Figure 3E). Both the transient and sustained phase of the light-evoked excitatory synaptic current were ~2-fold larger in the KO retina compared to that in the WT retina (Figure 3F). The ratio of the sustained-to-transient phase of the ONα GC response remained unchanged between KO and WT retina (Figure 3G). Upon comparing the response kinetics of ONα GC excitatory currents between KO and WT retina, we observed that the time to peak was higher in the KO retina than in the WT retina similar to the effects on the spike output seen earlier (Figure 3H). We further quantified the time of onset of the sustained phase of the light-evoked excitatory currents in ONα GC but did not observe any significant changes between KO and WT retina (Figure 3—figure supplement 1D,E). The increase in response amplitude and slower time course of the ONα GC excitatory synaptic currents in the KO retina was also evident when we presented a briefer light flash of 10 ms duration (Figure 3I–L). In addition to the longer time taken to reach peak response (Figure 3K), we also found that the decay time of the flash-evoked ONα GC excitatory synaptic currents (from the peak to the baseline) was significantly longer in KO compared to WT retina (Figure 3L). This suggests that GABAA receptor-mediated presynaptic inhibition regulates both the activation and recovery of the cone-mediated signals at the BC to ONα GC synapse. Given that the size of the flash-evoked ONα GC excitatory currents is ~2-fold larger in KO retina, we wanted to further probe the response recovery, particularly the overshoot after the flash response reaches the baseline (Figure 3M). We estimated the amplitude of the response overshoot from the baseline and observed no difference between ONα GCs in KO and WT retina (Figure 3M).

Figure 3 with 2 supplements see all

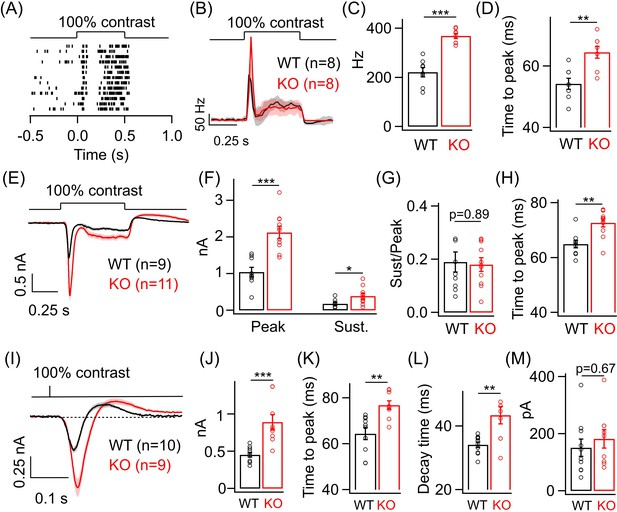

Lack of GABAA presynaptic inhibition alters ONα ganglion cell (GC) light responses at cone light levels.

(A) Exemplar spike raster from an ONα GC in WT retina in response to a 100% contrast step from a background luminance of ~1000R*/S cone/s, where cones dominate retinal responses. (B) Average PSTH (binwidth of 20 ms) of spike response to the light step in A across several ONα GCs with spike rate expressed in Hz (spikes/s). (C) Bar plot showing quantification of the peak firing rates across ONα GCs in WT (mean ± sem = 221.2 ± 18.9 Hz) and KO retina (mean ± sem = 368.5 ± 10.2 Hz). (D) Bar graph comparing the time to peak of spike PSTH (with a binwidth of 2 ms) across ONα GCs in WT (mean ± sem = 54.3 ± 1.8 ms) and KO (mean ± sem = 64.5 ± 1.9 ms) retina for the same data shown in (B). (E) Average excitatory synaptic current elicited in response to a 100% contrast step across ONα GCs in WT and KO retina. (F) Quantification of peak and sustained current amplitudes in response to the 100% contrast step in E. The mean ± sem peak amplitudes were 1042.3 ± 127.9 pA in WT retina and 2126 ± 169.5 pA in KO retina. The mean ± sem amplitudes of the sustained phase were 176.7 ± 36.2 pA in WT retina and 386.9 ± 75.5 pA in KO retina. (G) Quantification of ratio of sustained to peak amplitude in F. The mean ± sem ratios were 0.19 ± 0.04 in WT retina and 0.18 ± 0.03 in KO retina. (H) Bar graph comparing the time to peak of the excitatory current response across ONα GCs in WT (mean ± sem = 64.9 ± 1.4 ms) and KO (mean ± sem = 72.7 ± 1.5 ms) retina for the same data shown in (E-G). (I) Average excitatory synaptic currents in response to 10 ms flash of 100% contrast across ONα GCs in WT and KO retina. (J) Quantification of peak current amplitude in response to the 10 ms flash of 100% contrast step in WT (mean ± sem = 451.6 ± 32.2 pA) and KO (mean ± sem = 890.9 ± 100.8 pA) retina as shown in I. (K) Bar graph comparing the time to peak of the excitatory current response across ONα GCs in WT (mean ± sem = 64.4 ± 2.6 ms) and KO (mean ± sem = 76.8 ± 1.9 ms) retina for the same data shown in (I). (L) Quantification of decay time of the excitatory current response, i.e. time for the response in (I) to return from the peak to the baseline shown in dotted line, across ONα GCs in WT (mean ± sem = 34.1 ± 0.9 ms) and KO (mean ± sem = 43.4 ± 2.8 ms) retina for the same data shown in (I). (M) Quantification of the rebound amplitude of the excitatory current response across ONα GCs in WT (mean ± sem = 151 ± 30.4 pA) and KO (mean ± sem = 182.4 ± 32.2 pA) retina for the same data shown in (I).

To ensure that postsynaptic inhibition acting directly on the ONα GC is not significantly perturbed in the KO retina and the differences we see at the level of spike output are due to changes in the excitatory input, we compared light-evoked inhibitory currents from ONα GC to a 100% contrast increment step (Figure 3—figure supplement 2A). There was no change in light-evoked postsynaptic inhibition in ONα GC in the KO retina compared to that in the WT retina indicating that increase in the excitatory inputs most likely cause the increase in the spike output of ONα GC light responses in the KO retina (Figure 3—figure supplement 2B).

These results suggest that loss of GABAA receptor-mediated presynaptic inhibition alters the amplitude of both rod- and cone-driven signals but only the time course of cone-driven signals received by the ONα GCs.

Temporal sensitivity and contrast encoding of ONα GCs are altered in the KO retina

To compare the temporal filtering and contrast sensitivity of the ONα GCs in WT and KO retina, we used a random time-varying stimulus consisting of a range of temporal frequencies and contrasts (Figure 4A; see 'Materials and methods'). To characterize the responses, we used a linear-nonlinear (LN) model that provides a relatively simple description of how light inputs are transformed into neuronal responses and provides an effective way of determining contrast-dependent changes in the amplitude and kinetics of the light response of retinal neurons (Beaudoin et al., 2007; Kim and Rieke, 2001; Sinha et al., 2017). The model has two components – a linear filter that describes the time course of the neuronal response and a time-invariant or ‘static’ nonlinearity that transforms the filtered stimulus into neuronal responses (Beaudoin et al., 2007; Kim and Rieke, 2001; Rieke, 2001). We focused on excitatory synaptic currents since the loss of GABAA receptors at ON BC terminal in the KO retina will directly impact the ON BC output and hence the glutamatergic synaptic input onto the ONα GCs. We measured ONα GC excitatory synaptic currents in response to the time-varying stimuli that were modulated at two background light levels – one that preferentially activate rods and the other that selectively excites the cone photoreceptors (Figure 4A,H). At cone light levels, linear filters show that the time course of the ONα GC excitatory current response in the KO retina is considerably slower than in the WT retina (Figure 4B). Both the time to peak and the decay time of the linear filters were significantly longer for ONα GC in KO retina compared to WT retina (Figure 4C) similar to the above results from the responses to brief light flashes (Figure 3K,L). This suggests that lack of GABAA receptor-mediated presynaptic inhibition alters the temporal filtering of the T6 CBC output and hence the excitatory inputs in the ONα GCs by likely attenuating higher frequencies more and lower frequencies less. We next compared the static nonlinearity of the ONα GCs in WT and KO retina (Figure 4E). We first quantified the response range which we defined as the absolute difference between the maximum and the minimum value of the measured current response to the chosen contrast range (Figure 4F). This response range, i.e. dynamic range of the excitatory currents for the given range of contrasts, was ~2-fold larger for the ONα GCs in the KO retina in comparison to their counterparts in the WT retina (Figure 4F). This is consistent with our above results of the ONα GC responses to light flash/step of fixed intensity (Figure 3). Given the sizeable change in the response amplitude and the response range, we assessed if the contrast gain is altered in the ONα GCs in KO retina compared to that in WT retina. This can be estimated from the slope of the nonlinearity or the height of the linear filter since both the linear filter and the static nonlinearity share contrast-dependent changes in the amplitude of the neuronal response (Kim and Rieke, 2001; Rieke, 2001). To unambiguously measure contrast gain, we normalized the linear filter and then compared the slope of the nonlinearity between ONα GC responses in KO and WT retina (see 'Materials and methods'). The nonlinearities of the ONα GC response in KO retina had a steeper slope and upon quantification the slope differed by a factor of ~2 compared to the ONα GC nonlinearities in WT retina (Figure 4G). These results suggest that GABAA presynaptic inhibition tightly regulates contrast sensitivity of the ONα GC excitatory inputs and restricts the response size used for encoding over a range of contrast.

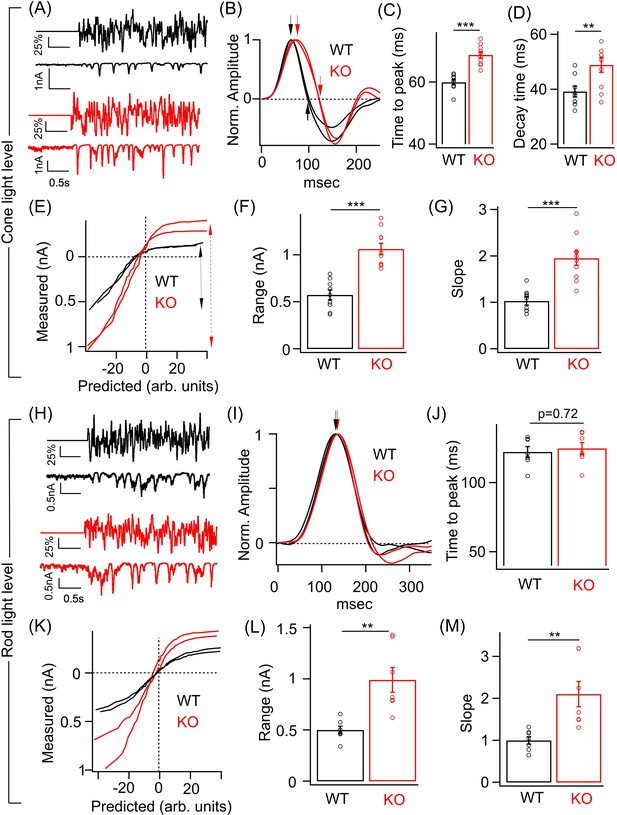

Perturbed ONα ganglion cell (GC) responses to time-varying light stimuli in absence of GABAA presynaptic inhibition.

(A) (Top) Excerpt of the time-varying random white noise stimulus presented at a background luminance of 1000 R*/S cone/s. (Bottom) The resulting excitatory synaptic response used to derive the linear filter and static nonlinearity that relate the stimulus to the response. (B) Exemplar time-reversed linear filters for the responses to noise stimuli for two ONα GCs from WT and KO retina. The black and red arrows point to the time to peak and the time point of decay to the baseline. Quantification of the time to peak (C) and the decay time (D) in linear filters for responses to stimuli (cone light levels) across ONα GCs in WT (n = 9 cells) and KO (n = 10 cells) retina. The mean ± sem peak times to peak of the linear filters were 59.9 ± 0.9 ms in WT retina and 68.5 ± 0.9 ms in KO retina. The mean ± sem decay times of the linear filters were 39.2 ± 2 ms in WT retina and 48.9 ± 2.7 ms in KO retina. (E) Exemplar static nonlinearities of two ONα GCs from KO and WT retina for the noise stimuli. (F) Quantification of the response range (denoted by the dotted black and red arrows) in (E) across ONα GCs in WT (n = 9 cells; mean ± sem = 573.3 ± 52 pA) and KO (n = 10 cells; mean ± sem = 1063.5 ± 61.4 pA) retina. (G) Quantification of the nonlinearity slope (see 'Materials and methods') across ONα GCs in WT (n = 9 cells; mean ± sem = 1 ± 0.1) and KO (n = 10 cells; mean ± sem = 2 ± 0.2) retina. (H) (Top) Excerpt of the time-varying stimulus presented at a dim background luminance of 10 R*/rod/s. (Bottom) The resulting excitatory synaptic response used to derive the linear filter and static nonlinearity that relate the stimulus to the response. (I) Exemplar time-reversed linear filters for the responses to noise stimuli (under rod light levels) for two ONα GCs from WT and KO retina. The black and red arrows point to the time to peak. (J) Quantification of the time to peak in linear filters for responses to noise stimuli (rod light levels) across ONα GCs in WT (n = 7 cells; mean ± sem = 122.2 ± 3.9 ms) and KO (n = 7 cells; mean ± sem = 124.8 ± 4.3 ms) retina. (K) Exemplar static nonlinearities of ONα GC responses for the noise stimuli from WT and KO retina. (L) Quantification of the response range across ONα GCs in WT (n = 7 cells; mean ± sem = 500.6 ± 37.1 pA) and KO (n = 7 cells; mean ± sem = 990 ± 121.9 pA) retina. (M) Quantification of the nonlinearity slope (see 'Materials and methods') across ONα GCs in WT (n = 7 cells; mean ± sem = 1 ± 0.1) and KO (n = 7 cells; mean ± sem = 2.1 ± 0.3) retina.

We repeated the above experiments on ONα GCs in WT and KO retina under a dim light background (Figure 4H–M). The nonlinearity of the ONα GC in the KO retina also had a bigger response range than in WT retina similar to that observed under cone-driven light levels (Figure 4K,L). The slope of the nonlinearity, i.e. contrast gain was also ~2-fold higher for the ONα GC in the KO retina than that in the WT retina (Figure 4M). However, no significant difference in the kinetics of the linear filters between the genotypes was observed (Figure 4J). Our findings of alterations in response size and time course using randomly flickering stimuli are consistent with the results obtained above (Figures 2 and 3) using fixed intensity stimuli. Thus, loss of GABAA receptor-mediated presynaptic inhibition at the RBC and T6 CBC terminal alters the contrast sensitivity and kinetics of the ONα GC excitatory inputs. Importantly the changes in response amplitude and kinetics observed at the level of ONα GC excitatory inputs in the KO retina are reflected in the spike output which highlights the importance of GABAA presynaptic inhibition as a mechanism in shaping visual signals being transmitted out of the retina.

Discussion

Presynaptic inhibition is an important mechanism for regulating a neuron’s input-output relationship. However, it has been difficult to isolate its precise contribution in most retinal circuits due to lack of receptor type-, cell type-, and circuit-specific perturbations. Here we have taken advantage of a previously used (Hoon et al., 2015) transgenic manipulation in mouse retina that selectively eliminates a specific population of inhibitory receptors – GABAA receptors – from the axon terminals of defined types of presynaptic neurons – RBC and T6 CBCs – and determined its impact on the light-evoked response properties of one of the well characterized downstream retinal output neuron – the ONα GC. We show that GABAA receptor-mediated presynaptic inhibition is crucial for regulating the amplitude and contrast sensitivity of both rod and cone-driven signals routed to the ONα GCs. Interestingly, GABAA presynaptic inhibition shapes the kinetics of only cone-driven signals but not rod-driven signals reaching the ONα GCs. We show that the impact on the gain and kinetics of visual signals as observed in the excitatory synaptic inputs received by the ONα GCs, is propagated to its spike output. Thus, GABAA presynaptic inhibition is a key mechanism of gain control and temporal filtering for the ONα GC retinal circuit.

GABAA presynaptic inhibition shapes rod and cone signaling in the ONα GC retinal circuit

Several studies including our current study have shown that GABAA and GABAC receptors in ON BC terminals contribute to nearly equal amplitudes of GABA-evoked currents (Hoon et al., 2015; Sinha et al., 2020). However, most of what we know about the role of presynaptic inhibition in shaping the retinal RBC (Pan et al., 2016) and ON CBC synaptic output has been attributed to GABAC receptor-mediated inhibition (Oesch and Diamond, 2019; Sagdullaev et al., 2006). In the current study, we show that GABAA receptor-mediated presynaptic inhibition plays an equally important role in regulating the dynamic range and contrast sensitivity as GABAC receptor-mediated presynaptic inhibition for both the RBC output under dim light conditions as well as for cone-mediated signals via the ON CBC synapse. GABAA receptor-mediated presynaptic inhibition restricts the response range and contrast gain of ONα GC responses which could allow the ONα GC retinal circuit to encode over a wider range of contrast and luminance without being saturated. This is a common feature of light adaptation whereby retinal neurons match their neural gain to the prevailing visual inputs such that they can continue to efficiently signal over a broad range of light inputs (Rieke and Rudd, 2009). Thus, our results together with previous findings (Oesch and Diamond, 2019; Sagdullaev et al., 2006) suggest that both GABAA and GABAC presynaptic inhibition play a key role in regulating response amplitude and contrast encoding under rod- and cone-dominant lighting conditions.

A central role of presynaptic inhibition that has not been extensively explored in the retina is how it shapes the temporal sensitivity of rod- and cone-driven signals routed via specific neural circuits (Asari and Meister, 2012). Temporal processing is crucial to encode dynamic features of visual signals such as motion (Jadzinsky and Baccus, 2013). Temporal filtering, i.e. sensitivity to certain temporal patterns, is different across RGC types, and synaptic inhibition is a common mechanism that is known to shape temporal filtering in most neural circuits (Baden et al., 2016). Presynaptic inhibition is well positioned to decrease synapse output and attenuate steady inputs thus temporally filtering signals received by RGCs. Signals originating in rod vs. cone photoreceptors are known to exhibit remarkably distinct temporal characteristics with rod signals being substantially slower compared to cone signals (Cangiano et al., 2012; Ingram et al., 2016). This difference is reflected in our results from both fixed intensity and randomly modulating stimuli where the time course of rod signals was nearly 2-fold slower than the cone-mediated signals in WT retina measured at the level of ONα GCs (Figure 2E and I vs. Figure 3D,H and K; Figure 4C vs J). Our findings show that GABAA presynaptic inhibition speeds up the time course of cone-mediated signals but not rod-driven signals in the ONα GC retinal circuit. This could be because under dim light conditions where photons are sparse, a longer integration time of the rod signals by the downstream circuit may benefit signal detection (Field et al., 2005). In this case, temporal filtering by mechanisms such as presynaptic inhibition could be detrimental to the detection of sparse signals such as single photons. In fact, recent studies have shown that ONα GCs are one of the most sensitive GC types in the mouse retina under dim light conditions and comprise the major conduit for relaying single photon signals out of the retina (Smeds et al., 2019). Hence, minimizing temporal filtering by GABAA presynaptic inhibition may help prolong the duration of signal integration and may improve sensitivity of the ONα GCs for single photon signaling in near complete darkness.

Besides signaling efficiently at absolute threshold in darkness, the ONα GC retinal circuit also integrates cone-driven signals and can operate under high luminance conditions (Grimes et al., 2014b; Schwartz et al., 2012; Sonoda et al., 2018). Our results show that GABAA presynaptic inhibition limits the response size and contrast gain while speeding up cone-driven signals reaching the ONα GCs. This can have two potential advantages. First, encoding contrast with a smaller response amplitude might allow to effectively signal over a broader dynamic range of contrasts without being saturated. As the contrast range explored in our experiments represent a small fraction of the contrast distribution present in natural scenes, such a gain control mechanism would help match the contrast sensitivity of the ONα GC retinal circuit to the statistics of the prevailing light inputs. Second, being able to signal fast changes in light inputs might aid the ONα GC retinal circuit in the efficient encoding of dynamic features such as during motion.

Our findings that GABAA presynaptic inhibition regulates the gain and kinetics of visual signals in the ONα GC retinal circuit is consistent with previous studies in other neural circuits, besides the retina, where presynaptic inhibition has been shown to play a central role in gain control and temporal filtering of neural signals (Baden and Hedwig, 2010; Chen and Regehr, 2003; Fink et al., 2014; Frerking and Ohliger-Frerking, 2006). For instance, presynaptic inhibition mediated by GABAergic interneurons contributes to motor behavior in the spinal cord, where it controls the gain of sensory afferents and mediates smooth muscle movement (Fink et al., 2014). In the olfactory system, GABAergic presynaptic inhibition of the olfactory sensory axon terminals serves as a primary gain control mechanism to maintain odor sensitivity over a wide range of inputs (Olsen and Wilson, 2008; Root et al., 2008). Additionally, presynaptic inhibition mediated by GABA receptors controls temporal contrast enhancement and modifies odor-guided navigation in Drosophila melanogaster (Raccuglia et al., 2016).

Presynaptic inhibition regulates neurotransmitter release and synapse arrangement

The role of presynaptic inhibition is particularly important for the ONα GC pathway. Previous studies have shown that excitatory synaptic inputs dictate the spike output of the ONα GCs (Murphy and Rieke, 2006), and we show that GABAA presynaptic inhibition is a key mechanism well-poised to shape the ONα GC excitatory synaptic inputs. Both GABAA and GABAC receptors are localized at axon terminals of ON BCs, but they have been shown to be present at spatially distinct sites at RBC terminals relative to the site of synaptic release, i.e. ribbon (Grimes et al., 2015). Pharmacological blockade and genetic deletion of GABAC receptors have shown that GABAC receptor-mediated presynaptic inhibition regulates the extent of multivesicular glutamate release at the bipolar ribbon-type synapses (Oesch and Diamond, 2019; Sagdullaev et al., 2006). Particularly in the ON CBC synapse, loss of GABAC receptors results in activation of the perisynaptic NMDA receptors on RGC dendrites by glutamate spillover from the synapse thus enhancing synaptic output (Sagdullaev et al., 2006). This could be a potential underlying mechanism for the enhanced light-evoked response we observe in ONα GCs in absence of GABAA receptors on the ON CBC terminals.

In RBCs, luminance and contrast are encoded via dynamic release and replenishment of the readily releasable pool (RRP) of synaptic vesicles located at the ribbon (Oesch and Diamond, 2011; Oesch and Diamond, 2019). A step increase in luminance results in contrast encoding via a transient bout of vesicle release from the RRP, which corresponds to a transient peak in the AII AC excitatory current. The size of the remaining vesicle pool is used to encode luminance and corresponds to the sustained component of the excitatory postsynaptic current. A17 AC-mediated feedback inhibition on RBCs acting via GABAC receptors has been implicated in regulating the extent of RRP depletion and synaptic output from RBCs which in turn shapes luminance and contrast encoding across a range of dim light levels (Oesch and Diamond, 2019). Our results show that lack of GABAA receptors in the RBC and T6 CBC terminals affects both the transient and sustained components of RBC and T6 CBC output as measured from the impact on the ONα GC excitatory inputs under rod- and cone-dominant light conditions. This indicates that both contrast and luminance encoding in the RBC and T6 CBC pathway might be shaped by GABAA receptor-mediated presynaptic inhibition. However, we cannot distinguish between the contribution of ‘feedback’ vs. ‘lateral’ GABAA receptor-mediated presynaptic inhibition at RBC and T6 CBC terminal on ONα GC function. Feedback presynaptic inhibition on BC terminals is mediated by an AC that is activated by the same BC it provides inhibition onto, and lateral presynaptic inhibition is mediated by ACs activated by other BCs (Asari and Meister, 2012; Grimes et al., 2015).

It is well established that for most synapses the input-output relationship of membrane voltage vs. transmitter release is nonlinear and has a sigmoidal shape (Neher and Sakaba, 2008). Previous studies have in fact proposed that this synaptic transfer function of the ON CBC terminals has a sigmoidal relationship between membrane voltage and glutamate release with a steep nonlinear foot (Grimes et al., 2014b). The ON CBC or presynaptic membrane potential can be influenced by gap junctional coupling from the AII amacrine cell processes which can alter synapse output by changing its location on the voltage-release curve. This form of regulating synaptic output has been shown to play a critical role in shaping ONα GC function (Grimes et al., 2014b). GABAA receptor-mediated presynaptic inhibition could also regulate the presynaptic membrane voltage of the ON CBC, thereby controlling the set point of the synapse input-output curve and hence the ONα GC excitatory inputs.

ON BC synapses are specialized ribbon synapses that often have defined postsynaptic partners. One such example is the RBC output synapse onto AII and A17 AC processes (Grimes et al., 2015). Our recent study showed that presynaptic inhibition plays a key role in the precise assembly of the ribbon synapse at the RBC terminal and organization with correct postsynaptic partners (Sinha et al., 2020). Interestingly, under conditions where expression of both GABAA and GABAC receptors in the RBC terminals are downregulated, such as during lack of global inhibitory transmitter release or loss of specific synaptic adhesion molecules, ultrastructural analysis revealed that the RBC ribbon synapse is misorganised and makes erroneous connections with postsynaptic partners (Sinha et al., 2020). Therefore, despite the downregulation of both GABAA and GABAC receptors at the RBC terminal in this situation, there is decreased dim light sensitivity of the ONα GC output (Sinha et al., 2020) probably due to a reduced feedforward excitatory drive as a result of synaptic mis-arrangements at the RBC terminal. In the KO mice used in the current study, there is a drastic reduction of GABAA receptor expression but unaltered GABAC receptor expression in the RBC terminals. Given that dim light sensitivity is increased in the KO retina, it will be interesting in the future to use ultrastructural techniques in the KO retina to determine if the selective reduction of GABAA receptors results in any organizational deficits of RBC output (ribbon) synapse assembly.

In conclusion, our study provides the first characterization of how selective perturbation of GABAA receptor-mediated inhibition at ON BC terminals impacts visual signaling of a well-characterized GC circuit. Future studies will be needed to explore how presynaptic inhibition regulates functional properties of other ganglion cell pathways as well as its contribution to shaping the receptive field organization of ganglion cell types.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional
information
Genetic reagent (Mus musculus)Gabrg2Jackson LaboratoryJAX Stock# 016830 RRID:IMSR_JAX:016830Transgenic mouse; floxed mice with loxP sites flanking Gabrg2
Genetic reagent (Mus musculus)Ai9Jackson LaboratoryJAX Stock# 007909
RRID:IMSR_JAX:00790
Transgenic mouse; cre-dependent tdTomato expression
Genetic reagent (Mus musculus)Grm6-CreRachel Wong (Hoon et al., 2015)N/ATransgenic mouse; cre-driver line
AntibodyAnti-PKC clone MC5 (mouse monoclonal)SigmaCatalog # P5704; RRID:AB_477375(1:1000)
AntibodyAnti-GABAAα1 (guinea pig polyclonal)Fritschy and Mohler, 1995Generated in Jean-Marc Fritschy’s Lab(1:5000)
AntibodyAnti-GABAC(rabbit polyclonal)Enz et al., 1996Generated in Heinz Wässle and Joachim Bormann’s Lab.(1:500)
AntibodyAnti-Dsred (rabbit polyclonal)Clontech(1:1000)
AntibodyAnti-synaptotagmin2 (mouse monoclonal)Zebrafish International Resource centerCat# znp-1; RRID:AB_10013783(1:1000)
AntibodyAnti-calbindin (rabbit polyclonal)Swant Inc.Swant Cat# CB38; RRID:AB_10000340(1:1000)
AntibodyAnti-GABAAβ2/3, (mouse monoclonal)MilliporeSigmaCat# MAB341;(1:500)
Chemical compound, drugAmesSigmaA1420
Chemical compound, drugAlexa 594ThermofisherA10442
Chemical compound, drugVectashieldVector LabsCat# H-1000, RRID:AB_2336789
Chemical compound, drugGABAzine (SR-95531)SigmaS106
Chemical compound, drugGABASigmaA2129
Chemical compound, drugTPMPATocris1040
Software, algorithmSymphonyhttps://github.com/symphony-das
Software, algorithmScanImagehttp://scanimage.vidriotechnologies.com/
PMID:12801419
RRID:SCR_014307
Software, algorithmMATLABhttp://www.mathworks.com/products/matlab/RRID:SCR_001622
Software, algorithmIGOR Prohttps://www.wavemetrics.com/RRID:SCR_000325
Software, algorithmAmirahttps://www.thermofisher.com/global/en/home/industrial/electron-microscopy/electron-microscopy-instruments-workflow-solutions/3d-visualization-analysis-software/amira-life-sciences-biomedical.htmlRRID:SCR_007353
Software, algorithmImageJhttps://ImageJ.netRRID:SCR_003070

Animal handling and ethic statement

Request a detailed protocol

All experiments and animal care were conducted in accordance with the Institutional Animal Care and Use Committee (IACUC) of the University of Wisconsin-Madison and the National Institutes of Health. Animals were housed in a 12 hr light/dark cycle. Ai9/Grm6Cre/Gabrg2 cKO and littermate control adult (2–4 months) mice of both sexes were used in this study. The Ai9/Grm6Cre/Gabrg2 triple transgenic mouse line was chosen because it allowed for selective perturbation of inhibitory receptor GABAA expression specifically in ON (RBC and T6 CBCs) BCs by genetic deletion of Gabrg2 (GABAA receptor, subunit gamma 2) in these cells (Hoon et al., 2015). Loss of Gabrg2 causes reduced presence of axonal but not dendritic GABAAα1 receptors in T6 CBCs (Hoon et al., 2015). The triple transgenic was created by crossing Gabrg2 floxed mutant mice (Jackson Laboratory, RRID:IMSR_JAX:016830) (Schweizer et al., 2003) with a transgenic mouse line Grm6–Cre in which Cre-recombinase is expressed by ON BCs shortly after their differentiation (Hoon et al., 2015; Kerschensteiner et al., 2009; Morgan et al., 2006). In order to label Cre-expressing cells with the red fluorescent protein tdTomato, the Gabrg2 floxed/Grm6-Cre mice were further crossed into the Ai9 reporter line (Jackson Laboratory, RRID:IMSR_JAX:00790).

Immunohistochemical labeling

Request a detailed protocol

Retinas were isolated in cold oxygenated mouse artificial cerebrospinal fluid (mACSF, pH 7.4, 119 mM NaCl, 2.5 mM KCl, 2.5 mM CaCl2, 1.3 mM MgCl2, 1 mM NaH2PO4, 11 mM glucose, and 20 mM HEPES). Retinas were flattened onto filter paper (Millipore, HABP013) and fixed for 15 mins in 4% (wt/vol) paraformaldehyde prepared in mACSF. Retinas were rinsed in phosphate buffer (PBS) and then incubated in a blocking solution (5% donkey serum and 0.5% Triton X-100). The retinas were next incubated with primary antibody over 3 nights at 4°C. Primary antibodies used were anti-PKC (1:1000, mouse, Sigma; RRID:AB_477375), anti-Dsred (rabbit 1:1000, Clontech), anti-synaptotagmin 2 (1:1000, mouse, Znp-1 Zebrafish International Resource center; RRID:AB_10013783), anti-calbindin antibody (rabbit, 1:1000, Swant Inc; RRID:AB_10000340), anti-GABAAβ2/3 (mouse, 1:500 MilliporeSigma) anti-GABAAα1 receptor subunit (polyclonal guinea-pig, 1:5000, kindly provided by J.M. Fritschy), and anti-GABACρ receptor subunit (1:500, rabbit, kindly provided by R. Enz, H. Wassle, and S. Haverkamp). Retinas were thereafter incubated in secondary antibody solution using anti-isotypic Alexa Fluor (1:1000, Invitrogen) conjugates. Retinas were finally mounted on slides with Vectashield antifade mounting medium (Vector Labs; RRID:AB_2336789).

Electrophysiology

Request a detailed protocol

Electrophysiology experiments were performed on whole-mounted retinal preparations made from dark-adapted KO and WT mice. Mice were sacrificed via cervical dislocation and enucleation was subsequently performed. Retinas were isolated in oxygenated (95% O2/5% CO2) Ames medium (Sigma-Aldrich) at 32–34°C, mounted flat in a recording chamber and perfused with oxygenated Ames medium at a flow rate of ~8 mL/min during recordings. Retinas were mounted ganglion cell side up (Sinha et al., 2016; Sinha et al., 2020) for recordings. The retinas were embedded in agarose and sliced as previously described (Hoon et al., 2015; Sinha et al., 2020) for RBC recordings. Retinal neurons were visualized for patch-clamp recordings using infrared light (>900 nm). All recordings were obtained from the ventral retina. Voltage-clamp recordings from RBCs and ONα GCs were made with pipettes (~10 MΩ for RBCs and 3–4 MΩ for ONα GCs) filled with an intracellular solution containing (in mM) 105 Cs methanesulfonate, 10 tetraethylammonium chloride, 20 HEPES, 10 EGTA, 2 QX-314, 5 Mg-ATP, 0.5 Tris-GTP (∼280 mOsm, pH ∼7.2 with KOH). For all voltage-clamp recordings, cells were held at estimated inhibitory and excitatory reversal potentials ~−60 mV and ~0 mV respectively in order to measure excitatory or inhibitory synaptic inputs. Absolute voltages were corrected for liquid junction potentials. For puff recordings of RBCs, GABA was applied with a Picospritzer II (General Valve) connected to a patch pipette with a resistance of ~5–7 MΩ. GABA (200 μM) was prepared in HEPES-buffered Ames medium with 0.1 mM Alexa 488 hydrazide. Puffing duration (50 ms) and direction were chosen such that the axon terminal of the RBC was completely covered by the puff. For the quantification of GABA-evoked currents, peak amplitude relative to the baseline current before stimulus/drug application was determined and averaged across cells. (1,2,5,6- Tetrahydropyridin-4-yl) methylphosphinic acid (TPMPA, 50 μM; Tocris, Bristol, United Kingdom) and GABAzine (20 μM; Tocris, Bristol, United Kingdom) were added to the perfusion solution for RBC recordings as indicated. Alexa 594 dye (100–200 µM) was added to the intracellular solution for the following image acquisition of the exemplar ONα GC shown in Figure 2A using the software ScanImage (RRID:SCR_014307) and analysed using the software ImageJ (RRID:SCR_003070). Light responses were recorded from ONα GCs using whole-cell and cell-attached recordings. LED light sources with peak spectral output at 360 or 405 nm respectively were used to deliver full-field light stimuli that were 500 μm in diameter and focused on the photoreceptor layer through the optics of the microscope. Photon densities were calibrated using estimations of opsin photoisomerisations per photoreceptor, assuming a rod collecting area of 0.5 μm2 (Field and Rieke, 2002) and a cone collecting area of 0.2 µm2 (Nikonov et al., 2006). Recordings were made in darkness or background light levels at which rods dominate retinal responses and light levels at which cones dominate (~1000 R*/S cone/s).

Electrophysiology data acquisition and analysis

Request a detailed protocol

All electrophysiology data was low pass-filtered at 3 kHz, digitized at 10 kHz, and acquired using a Multiclamp 700B amplifier. The data was acquired using Symphony Data Acquisition Software, an open-source, MATLAB-based electrophysiology software (https://github.com/symphony-das). Subsequent data analysis was performed using self-written code in MATLAB (Mathworks; RRID:SCR_001622) and Igor Pro (WaveMetrics; RRID:SCR_000325). Peak response amplitudes of ONα GC were quantified by taking the peak spike rate or current during the stimulus presentation. The sustained component of ONα GC response to the 0.5 s light step was estimated by taking the average spike rate or excitatory current over a 200 ms time window (from 0.3 to 0.5 s) from the time of stimulus. The total spike response in Figure 2C was estimated as the average spike rate over the duration of the 0.5 s light step. Time to peak was estimated as the time taken for the response to reach from the stimulus onset to the peak amplitude. Decay time was estimated as the time taken for the response to recover from the peak amplitude to a value equal to the pre-stimulus baseline. The time of onset for the sustained phase in Figure 3—figure supplement 1C–E was estimated using two approaches – (i) on a per trace basis as the time after the stimulus onset to when the response reached a fit line with zero slope and (ii) by fitting an exponential function to the response (average traces across trials from each cell) from the end of the transient phase (~175 ms from the time of stimulus onset) to the end of the stimulus and defining the onset time as the time at which the exponential fit decays to 20% of its initial value. Both analysis approaches yielded similar results (Figure 3—figure supplement 1D,E). Rebound amplitude for flash responses in Figure 3M was estimated as the amplitude of the peak of the overshoot from the baseline.

LN models (Figure 4) were derived from ONα GC responses to randomly varying light stimuli (Gaussian distribution of light intensities with standard deviation = 50% of mean intensity; 0–60 Hz bandwidth) as previously described (Kim and Rieke, 2001; Rieke, 2001; Sinha et al., 2017; Sinha et al., 2016). The linear temporal filter and the static nonlinearity were estimated using previously described methods (Kim and Rieke, 2001). Contrast-dependent changes are shared by the y-axis of the linear filter and the x-axis of the static nonlinearity. Therefore, to estimate the contrast gain unambiguously we needed to scale the linear filter in amplitude such that the variance of the filtered stimulus was equal to the variance of the stimulus. By scaling the filter in this way, differences in the contrast gain of the model would be reflected in changes in the slope of the static nonlinearity. The slope of the static nonlinearity was estimated as the average slope within the linear region of a quintic polynomial fit to each response in KO and WT retina. The slopes estimated from fits with a cumulative density function yielded similar values (data not shown).

Confocal microscopy and image analysis

Request a detailed protocol

A Leica SP8 confocal microscope and a 1.4 NA 63× oil immersion objective at a voxel size of around 0.05–0.05–0.3 μm (x–y–z) was used to acquire the images in this study. The image stacks acquired were further processed in Amira (Thermo Fisher Scientific; RRID:SCR_007353) software. BC processes were masked in 3D using the LabelField function of Amira. Following masking, the receptor signal within the BC process was isolated using the Amira Arithmetic tool. A threshold was subsequently applied in order to eliminate background receptor signals and the volume of receptor pixels was expressed as a percent occupancy relative to the volume of the BC processes (for details see Hoon et al., 2015Hoon et al., 2017). A similar procedure was carried out to isolate the GABAAβ2/3 receptor signal within calbindin positive AC and GC processes and ascertain percentage volume occupancy of this receptor signal.

Statistical analysis

Request a detailed protocol

We used the unpaired two-tailed t-test for all the statistical analysis. Error bars indicate SEM. The significance threshold was placed at α = 0.05 (n.s., p>0.05; ∗p<0.05; ∗∗p<0.01; ∗∗∗p<0.001). In all figures, ‘n’ refers to the number of cells analyzed except in Figure 1C and D and Figure 1—figure supplement 1E where ‘n’ refers to number of retinas analyzed.

Data availability

All source data shown in the figures including some raw data are available in the data repository, Dryad, accessible via this link https://doi.org/10.5061/dryad.bg79cnpb4. Raw datasets are quite large in size and will be made available upon request by the corresponding author.

The following data sets were generated
    1. Nagy J
    2. Ebbinghaus B
    3. Hoon M
    4. Sinha R
    (2021) Dryad Digital Repository
    GABAA presynaptic inhibition regulates the gain and kinetics of retinal output neurons.
    https://doi.org/10.5061/dryad.bg79cnpb4

References

    1. Enz R
    2. Brandstätter JH
    3. Wässle H
    4. Bormann J
    (1996)
    Immunocytochemical localization of the GABAc receptor rho subunits in the mammalian retina
     J Neurosci  16:4479–4490.

Decision letter

  1. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States
  2. Marla B Feller
    Reviewing Editor; University of California, Berkeley, United States
  3. Katrin Francke
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

All three reviewers were impressed by the additional experiments, analysis and revisions to the text. As a result the manuscript is much improved. This is now a more definitive study on how GABA-A receptor mediated presynaptic inhibition impacts many features of light encoding.

Decision letter after peer review:

Thank you for submitting your article "GABAA presynaptic inhibition regulates the gain and kinetics of retinal output neurons" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Richard Aldrich as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Katrin Francke.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Below is a synthesis of comments from all three reviewers. Note some of the comments are addressing the same point (namely interpretation of Figures 3 and 4). I thought it would be of benefit that you read the reviewers comments as they were written.

Summary:

The authors use targeted knockout approach to investigate the role of GABAA receptor mediated presynaptic inhibition at the bipolar cell (BC) axon terminal on the output of a specific retinal ganglion cell (RGC) type. Using a Grm6-Cre mouse line crossed with a floxxed gamma2 subunit of the GABA-A receptor, they generated mice which eliminated GABA-A receptors from ON-cone bipolar cells and rod bipolar cells. This strategy was used previously (Hoon et al., PNAS, 2015) to eliminate of GABA-A receptors on cone bipolar cell terminals while maintaining GABA-A receptors in the bipolar cell dendrites. They confirm the KO of GABA-A receptors at terminal by immunohistochemistry and functional recordings. Then, they focus on how a lack of GABAA receptor mediated presynaptic inhibition modulates the output of On α RGCs – a well-described circuit of the inner retina. They find that this selective loss of GABAA receptors enhances sensitivity for both dim and bright light conditions and that it affects the kinetic and contrast response of light-evoked, cone-driven responses of On α RGCs – thereby demonstrating that presynaptic inhibition shapes the output of a distinct retinal circuit.

Essential revisions:

All three reviewers felt the experiments were well executed and the results were presented clearly. However all noted that the implications of the data should be analyzed and discussed more thoroughly. Moreover, a few addition experiments were requested so that authors can be more confident that there was no impact on GABA-A receptors in amacrine cells or RGCs. All felt these issues must be addressed in order to increase the impact of the study.

1. The authors need to test more rigorously whether the KO has impacted GABA-A receptors on RGCs and ACs. The authors show a dramatic decrease in GABA-A receptors in targeted KOs in the ON sublamina (Figure 1). However, there should still be GABA-A receptors on ACs and RGCs. Perhaps they are at a lower density and difficult to see but the other possibility is that there has been a development downregulation of postsynaptic GABA-A receptors in these KOs. Hoon et al. has shown that reduction of GABA-A transmission can impact maturation of GABA-A receptor in bipolar cell terminals so this might also happen in RGC or AC dendrites. These are important control to make sure that their results are indeed due to loss of presynaptic inhibition at the BC synapse and not due to loss of serial inhibition at amacrine cell processes or loss of inhibition on RGCs.

2. The authors make the claim that the increases in firing rate observed in KO mice is due to increases in excitatory currents and therefore due entirely to loss of presynaptic inhibition on bipolar cell terminals. To confirm this conclusion, they should assay the impact of inhibition in KO. They present what feels like a thin data set addressing this issue in Figure 2 – supplement 1 – with one example cell and no summary data. This data set needs to be expanded to make this conclusion.

3. The authors demonstrate that eliminating GABAA mediated presynaptic inhibition at the On BC synapse increases the gain and sensitivity of excitatory inputs to On α RGCs (Figures 2, 3) – which is likely not surprising given previous studies, but corresponds to a reasonable proof-of-concept result. However, when they continue to further investigate the functional relevance of the reduced presynaptic inhibition on On α RGC signaling, the interpretation of the results is incomplete (see next two points 3.1, 3.2). Here, a more detailed interpretation and added context is critical for the impact of the study – especially since the results about increased sensitivity are rather expected and in general the authors use a relatively simple stimulus set.

3.1. In Figure 3F, the authors show the mean excitatory synaptic current to a brief flash for WT and KO mice and quantify the change in response amplitude (Figure 3G). However, not only the amplitude but also the response shape looks significantly different, with the KO trace showing a rebound that is not present in the WT trace. This is an interesting finding that the authors do not comment on. The rebound could be due to a decrease in spontaneous activity of BCs, which would be visible in single trial responses. Is this what the authors observed? This effect is also present in traces shown in Figure 3C and might be related to the delayed onset of the sustained response component in Figure 3B and Figure 3C. I suggest the authors quantify the rebound and the onset of the delayed response component and comment and discuss this finding – what might be the underlying mechanism and the functional relevance?

3.2. In Figure 4, the authors find that in KO animals, temporal kernels estimated from a full-field, white noise stimulus exhibit a slower kinetic and that contrast changes are encoded by a larger current range. However, I do not follow their conclusion: "This means that the ONα GCs in the KO retina are sensitive to a larger (~two-fold) range of contrasts than the ONα GC in the WT retina". Instead, I think that their results show that the same range of contrasts is encoded by a larger current range, suggesting that in KO animals ONα GCs have a larger dynamic range which likely allows better discrimination of contrast levels. Also, the authors do not speculate about the functional implications of their finding. Their results suggest that GABAA receptor mediated inhibition at On BC axon terminals speeds up ONα GC responses, however, at the cost of discriminating different contrast levels. Therefore, one could speculate that this circuit prioritizes fast changes over contrast discrimination – would the authors agree with this interpretation? For which visual tasks might this be useful?

4. Figures 2-3 The authors have interesting data here that should be investigated more thoroughly. It makes sense that removing GABAA receptor mediated inhibition from ON bipolar cells would increase the amplitude of responses in the ONαGCs, as is shown here. However, as the authors discuss later, removing inhibition also likely affects the timing of responses. The authors have data on the spike and currents responses to a brief flash of light that should give interesting information about kinetics, but this is not analyzed. Previous data (Eggers and Lukasiewicz, J Neuroscience 2006) suggests that removing GABAA specifically in ON bipolar cells would affect the timing of the peak more than the decay/half-width. Does that happen here?

5. Figure 4. The temporal differences in the linear filter are interesting. It appears that both the time to peak and the half-width of the filter are changed in the examples shown. Was this true generally? Also, did the change in the temporal filter correlate with a change in the time to peak and decay time/half width of the responses to brief light stimuli? This should be similar to what is being estimated by the linear filters. This could be an interesting point in the paper because often the brief flash response and linear filters are not measured in the same paper, in the same types of cells. Also, please show the similar data in Figure 4A, B, D for the rod activated responses. Rod vs. cone activation is an interesting comparison, especially as GABAA receptors may have a larger role in ON cone bipolar cells than in rod bipolar cells.

6. The authors need to clarify their stats. They use SEM to represent the variance in their data , implying normal distributions. However, they use rank sum tests for significance, implying non-normal data. The authors need to clarify whether their data follows a normal distribution and if so, then they should use more powerful t-tests rather than rank tests. If their data does not follow a normal distribution, then they need to use SD to represent variance or confidence intervals to represent significance.

https://doi.org/10.7554/eLife.60994.sa1

Author response

Essential revisions:

All three reviewers felt the experiments were well executed and the results were presented clearly. However all noted that the implications of the data should be analyzed and discussed more thoroughly. Moreover, a few addition experiments were requested so that authors can be more confident that there was no impact on GABA-A receptors in amacrine cells or RGCs. All felt these issues must be addressed in order to increase the impact of the study.

1. The authors need to test more rigorously whether the KO has impacted GABA-A receptors on RGCs and ACs. The authors show a dramatic decrease in GABA-A receptors in targeted KOs in the ON sublamina (Figure 1). However, there should still be GABA-A receptors on ACs and RGCs. Perhaps they are at a lower density and difficult to see but the other possibility is that there has been a development downregulation of postsynaptic GABA-A receptors in these KOs. Hoon et al. has shown that reduction of GABA-A transmission can impact maturation of GABA-A receptor in bipolar cell terminals so this might also happen in RGC or AC dendrites. These are important control to make sure that their results are indeed due to loss of presynaptic inhibition at the BC synapse and not due to loss of serial inhibition at amacrine cell processes or loss of inhibition on RGCs.

The reviewer has raised an excellent point about the specificity of the GABAA receptor deletion in the conditional knockout (KO) mice. We have addressed this concern by performing additional control experiments. We have assessed if expression of GABAA receptors in ACs and RGCs processes in the KO retina is changed compared to that in the WT retina through new immunohistochemistry experiments that are now included in Figure 1—figure supplement 1D,E. By performing co-labeling for calbindin, a marker for AC and GC processes in the inner plexiform layer (IPL), and for specific GABAA receptor subunits, we found that the expression of GABAA receptors in the AC and GC processes in the ON sublamina of the IPL remains unchanged in the KO retina (Figure 1—figure supplement 1D,E). We have in addition tested if postsynaptic inhibition on ONa GCs is altered in the KO retina (Figure 3—figure supplement 2). We find no difference in the amplitude of the light-evoked inhibitory current recorded from ONa GCs in KO and WT retina.

2. The authors make the claim that the increases in firing rate observed in KO mice is due to increases in excitatory currents and therefore due entirely to loss of presynaptic inhibition on bipolar cell terminals. To confirm this conclusion, they should assay the impact of inhibition in KO. They present what feels like a thin data set addressing this issue in Figure 2 – supplement 1 – with one example cell and no summary data. This data set needs to be expanded to make this conclusion.

We have increased the sample size and added a bar plot with quantification of the peak amplitude of the light-evoked inhibitory current for ONa GCs in KO and WT retina (Figure 3—figure supplement 2). This revised dataset shows that post-synaptic inhibition received by the ONa GCs remains unchanged in the KO retina.

3. The authors demonstrate that eliminating GABAA mediated presynaptic inhibition at the On BC synapse increases the gain and sensitivity of excitatory inputs to On α RGCs (Figures 2, 3) – which is likely not surprising given previous studies, but corresponds to a reasonable proof-of-concept result. However, when they continue to further investigate the functional relevance of the reduced presynaptic inhibition on On α RGC signaling, the interpretation of the results is incomplete (see next two points -- 3.1, 3.2). Here, a more detailed interpretation and added context is critical for the impact of the study – especially since the results about increased sensitivity are rather expected and in general the authors use a relatively simple stimulus set.

We thank the reviewer for raising this concern about interpretation of results and added context. We have now included several new analyses, as the reviewers suggested (see below), which have bolstered the results and the impact of the study. We have also expanded the Discussion section substantially to provide better context for how our current findings advance the understanding of presynaptic inhibition and its role in retinal function.

3.1. In Figure 3F, the authors show the mean excitatory synaptic current to a brief flash for WT and KO mice and quantify the change in response amplitude (Figure 3G). However, not only the amplitude but also the response shape looks significantly different, with the KO trace showing a rebound that is not present in the WT trace. This is an interesting finding that the authors do not comment on. The rebound could be due to a decrease in spontaneous activity of BCs, which would be visible in single trial responses. Is this what the authors observed? This effect is also present in traces shown in Figure 3C and might be related to the delayed onset of the sustained response component in Figure 3B and Figure 3C. I suggest the authors quantify the rebound and the onset of the delayed response component and comment and discuss this finding – what might be the underlying mechanism and the functional relevance?

The reviewer raises an interesting point about the response rebound and its underlying implications. As per reviewers’ suggestion, we quantified both the rebound amplitude for the response to brief 10 ms light flashes as well as the time of onset of the sustained phase for the responses to a light step (0.5s duration) in Figure 3. We have added the new analysis in Figure 3 (Figure 3M and Figure 3—figure supplement 1D). We do not see a significant difference for either of those parameters across ONa GCs between KO and WT retina (Figure 3M and Figure 3—figure supplement 1D,E). To better represent the data, we have replaced exemplar traces in all figures with average responses (across cells). A previous study has shown that lack of GABAC receptor mediated inhibition enhances glutamate release from bipolar cells which leads to spillover activation of perisynaptic NMDA receptors on ON GCs and thus extends their dynamic range (Sagdullaev et al., 2006). We agree with the reviewer that it will be interesting to determine if a similar synaptic mechanism is at play in absence of presynaptic GABAA receptors for enhancing output to ONa GCs. This will be a subject of future investigation using detailed pharmacology and recordings of AMPA and NMDA receptor mediated spontaneous/evoked excitatory postsynaptic currents. We have added this potential mechanism of regulating synaptic output in the revised discussion (lines 367-373).

3.2. In Figure 4, the authors find that in KO animals, temporal kernels estimated from a full-field, white noise stimulus exhibit a slower kinetic and that contrast changes are encoded by a larger current range. However, I do not follow their conclusion: "This means that the ONα GCs in the KO retina are sensitive to a larger (~two-fold) range of contrasts than the ONα GC in the WT retina". Instead, I think that their results show that the same range of contrasts is encoded by a larger current range, suggesting that in KO animals ONα GCs have a larger dynamic range which likely allows better discrimination of contrast levels. Also, the authors do not speculate about the functional implications of their finding. Their results suggest that GABAA receptor mediated inhibition at On BC axon terminals speeds up ONα GC responses, however, at the cost of discriminating different contrast levels. Therefore, one could speculate that this circuit prioritizes fast changes over contrast discrimination – would the authors agree with this interpretation? For which visual tasks might this be useful?

We thank the reviewer for pointing this out. We have corrected this and discussed the interpretation and functional relevance at length in the expanded/revised Discussion section. We have dedicated one part of the discussion on the role of presynaptic inhibition in contrast encoding and temporal filtering for the ONa GC circuit. To better estimate the contrast sensitivity from the white noise stimuli, we have re-analyzed the nonlinearity after scaling the linear filter (see methods) since contrast-dependent changes are shared by both the y-axis of the linear filter and the x-axis of the nonlinearity. After scaling the filters, the slope of the nonlinearity can be used as a measure of contrast gain (Figure 4E, G, K, M). This clearly shows that ONα GC contrast sensitivity is increased in the KO retina under both rod and cone activated light conditions (Figure 4G, M). Our results thus suggest that GABAA presynaptic inhibition limits the size of the ONα GC current response to contrasts to perhaps allow for encoding over a broader range of contrast without saturation. We are a bit hesitant to speculate that the ONα GC circuit prioritizes fast changes over contrast discrimination. What if, perhaps, the variance in light encountered at this given light background in the real world was such that the animal needed to discriminate over a wide range of contrasts. Then, having the lower contrast sensitivity is actually a benefit, since it is matched to the statistics of the inputs.

4. Figures 2-3 The authors have interesting data here that should be investigated more thoroughly. It makes sense that removing GABAA receptor mediated inhibition from ON bipolar cells would increase the amplitude of responses in the ONαGCs, as is shown here. However, as the authors discuss later, removing inhibition also likely affects the timing of responses. The authors have data on the spike and currents responses to a brief flash of light that should give interesting information about kinetics, but this is not analyzed. Previous data (Eggers and Lukasiewicz, J Neuroscience 2006) suggests that removing GABAA specifically in ON bipolar cells would affect the timing of the peak more than the decay/half-width. Does that happen here?

We thank the reviewer for making this excellent suggestion. We have now analyzed the kinetics of the light-evoked spike and excitatory current to a brief light flash and a light step (0.5s duration). We have further quantified the decay times of the excitatory current responses to light flash in Figure 3. We have added bar plots for each of the above kinetic analysis in Figures 2E,I and 3D,H,K and L. The results we observed for the linear filters are consistent with that for the responses to light flashes/steps. The differences in the kinetics of excitatory inputs of ONα GCs for cone-driven signals between KO and WT retina and the similarities in the kinetics of excitatory inputs of ONα GCs for rod-driven signals between KO and WT retina is reflected in the ONα GC spike output (Figure 2E and 3D). We see similar increase (~10 ms) in time to peak and decay time in the light-evoked excitatory inputs of ONα GCs in the KO retina compared to that in the WT retina (Figure 4C vs Figure 4D; Figure 3K vs 3L).

5. Figure 4. The temporal differences in the linear filter are interesting. It appears that both the time to peak and the half-width of the filter are changed in the examples shown. Was this true generally? Also, did the change in the temporal filter correlate with a change in the time to peak and decay time/half width of the responses to brief light stimuli? This should be similar to what is being estimated by the linear filters. This could be an interesting point in the paper because often the brief flash response and linear filters are not measured in the same paper, in the same types of cells. Also, please show the similar data in Figure 4A, B, D for the rod activated responses. Rod vs. cone activation is an interesting comparison, especially as GABAA receptors may have a larger role in ON cone bipolar cells than in rod bipolar cells.

This is an excellent point raised by the reviewer. See response to reviewer comment 4. The results we observed for the linear filters are consistent with that for the responses to brief light flashes. We have revised Figure 4 and added similar data for rod-mediated responses.We have included in the Discussion section a paragraph about this difference in temporal filtering between rod and cone-mediated signals and why GABAA presynaptic inhibition does not seem to play a role in shaping the time-course of rod-mediated signals in the ONα GC circuit (lines 322-352).

6. The authors need to clarify their stats. They use SEM to represent the variance in their data , implying normal distributions. However, they use rank sum tests for significance, implying non-normal data. The authors need to clarify whether their data follows a normal distribution and if so, then they should use more powerful t-tests rather than rank tests. If their data does not follow a normal distribution, then they need to use SD to represent variance or confidence intervals to represent significance.

We thank the reviewer for pointing this out. We have redone all the statistical analysis using an unpaired two-tailed t-test. We have revised the text in the methods accordingly. We have shown all data points for sample size of n<10.

https://doi.org/10.7554/eLife.60994.sa2
