EKLF/KLF1 expression defines a unique macrophage subset during mouse erythropoiesis

  1. Kaustav Mukherjee
  2. Li Xue
  3. Antanas Planutis
  4. Merlin Nithya Gnanapragasam
  5. Andrew Chess
  6. James J Bieker  Is a corresponding author
  1. Department of Cell, Developmental, and Regenerative Biology, Mount Sinai School of Medicine, United States
  2. Black Family Stem Cell Institute, United States
  3. Tisch Cancer Institute, United States
  4. Mindich Child Health and Development Institute, Mount Sinai School of Medicine, United States
Research Article
  • Cited 0
  • Views 479
  • Annotations
Cite this article as: eLife 2021;10:e61070 doi: 10.7554/eLife.61070

Abstract

Erythroblastic islands are a specialized niche that contain a central macrophage surrounded by erythroid cells at various stages of maturation. However, identifying the precise genetic and transcriptional control mechanisms in the island macrophage remains difficult due to macrophage heterogeneity. Using unbiased global sequencing and directed genetic approaches focused on early mammalian development, we find that fetal liver macrophages exhibit a unique expression signature that differentiates them from erythroid and adult macrophage cells. The importance of erythroid Krüppel-like factor (EKLF)/KLF1 in this identity is shown by expression analyses in EKLF-/- and in EKLF-marked macrophage cells. Single-cell sequence analysis simplifies heterogeneity and identifies clusters of genes important for EKLF-dependent macrophage function and novel cell surface biomarkers. Remarkably, this singular set of macrophage island cells appears transiently during embryogenesis. Together, these studies provide a detailed perspective on the importance of EKLF in the establishment of the dynamic gene expression network within erythroblastic islands in the developing embryo and provide the means for their efficient isolation.

Introduction

Maturation of red blood cells in vivo occurs within specialized niches called ‘erythroblastic islands’ that consist of a central macrophage surrounded by erythroid cells at various stages of differentiation (Chasis and Mohandas, 2008; Hom et al., 2015; Klei et al., 2017; Manwani and Bieker, 2008; Yeo et al., 2019). Macrophages aid in providing cytokines for erythroid growth and differentiation, iron for the demands of hemoglobinization, and ultimately phagocytic and DNase functions that consume the extruded, condensed red cell nuclei during enucleation. The island is held together by specifically paired erythroid/macrophage cell surface protein interactions that, in some cases, are cell-type specific (Chasis and Mohandas, 2008; de Back et al., 2014; Hampton-O'Neil et al., 2020; Manwani and Bieker, 2008; Seu et al., 2017). The ultimate result is a highly effective and efficient means of reticulocyte formation and release.

Recovery from erythropoietic stress is impaired when macrophages are defective (Chow et al., 2013; Jacobsen et al., 2015; Liao et al., 2018; May and Forrester, 2020; Ramos et al., 2013; Sadahira et al., 2000), supporting a physiological role for island macrophages in erythroid biology. Altered islands are associated with poor prognosis of myelodysplastic patients (Buesche et al., 2016). Although studies suggest that even an 80% decrease in mouse resident macrophage levels still enables a normal recovery from stress (Ulyanova et al., 2016), this response is effectively aided by differentiation of monocytes to macrophages after recruitment to the splenic red pulp (Liao et al., 2018). As steady-state erythropoiesis appears normal in mice with impaired macrophages, the precise role of macrophage in all aspects of erythropoiesis is not fully resolved (Korolnek and Hamza, 2015).

Erythroid Krüppel-like factor (EKLF; KLF1 [Miller and Bieker, 1993]) is a zinc finger hematopoietic transcription factor that plays a global role in the activation of genes critical for genetic control within the erythroid lineage (reviewed in Gnanapragasam and Bieker, 2017; Siatecka and Bieker, 2011; Tallack and Perkins, 2010; Yien and Bieker, 2013). Genetic ablation studies in the mouse show that EKLF is absolutely required for completion of the erythroid program as EKLF-/- embryos are embryonic lethal at E15 due to a profound ß-thalassemia and the low to virtually nonexistent expression of erythroid genes of all categories. At E13.5, they are anemic and their pale fetal liver (FL) is already distinct in EKLF-/- compared to their EKLF+/+ and EKLF+/- littermates. However, EKLF also plays a crucial role in a subset of macrophage cell function, particularly within the erythroblastic island (Porcu et al., 2011; Xue et al., 2014). Within the island progeny, it directly activates Icam4 in the erythroid compartment and activates Vcam1 in the macrophage compartment (Xue et al., 2014). Together, Icam4 and Vcam1 enable a two-pronged adhesive intercellular interaction to occur with their respective integrin partners on the opposite cell type. In the absence of EKLF, these interactions decrease and the integrity of the island is compromised, contributing to the abundance of nucleated, unprocessed cells seen in circulation (Gnanapragasam et al., 2016). In addition, loss of Dnase2 expression in the macrophage yields a cell engorged with undigested nuclei that triggers IFNß induction (Kawane et al., 2001; Manchinu et al., 2018; Nagata, 2007; Porcu et al., 2011; Yoshida et al., 2005).

Independent evidence for EKLF expression in erythroblastic island macrophage has been attained recently by two sets of studies. One study analyzed EpoR+F4/80+ macrophage, which are present in erythroblastic islands and are negative for Ter119, showing that these cells are highly enriched for EKLF (Li et al., 2019). In the second study, a pure population of macrophages (Lopez-Yrigoyen et al., 2018) derived from a human induced pluripotent stem cell (iPSC) line carrying an inducible KLF1-ERT2 transgene (Yang et al., 2017) was used to demonstrate that activation of KLF1 in these macrophages altered them to an island-like phenotype as assessed by an increase in expression of erythroblastic island-associated genes and cell surface markers, an increase in phagocytic activity, and an increase in ability to support the maturation and enucleation of umbilical cord blood-derived cells (Lopez-Yrigoyen et al., 2019).

The strongest evidence for a specific macrophage subtype in the erythroblastic island comes from the mouse, where F4/80 antigen and Forssman glycosphingolipid expression, but not Mac1 expression, are enriched in these cells (reviewed in Manwani and Bieker, 2008). Island macrophages are also larger than peritoneal macrophages and exhibit a high level of phagocytic activity. Although molecular expression differences between macrophage subsets have been observed (Ginhoux et al., 2016; Hom et al., 2015; Lavin et al., 2014; Seu et al., 2017), this has not been addressed in the context of early erythroblastic island development in the FL. Given the compelling observations implicating EKLF in island macrophage biology, we characterized the molecular expression of the F4/80+ island macrophages in the developing mouse FL, determined the EKLF-dependent gene expression program in island macrophages using two independent approaches, and then established its role in specifying a unique cellular identity for this cell type by a single-cell analysis approach.

Results

Global gene expression in E13.5 FL macrophages reflects both erythroid and macrophage properties

We dissected E13.5 FLs and fluorescence activated cell (FACS)-sorted F4/80+ cells to obtain a pure population of FL macrophages (Figure 1—figure supplement 1). Approximately 9% of the total cells in a wild-type FL are F4/80+ (Figure 1—figure supplement 1A). The sorted singlets were monitored after cytospin to determine whether they were free of contaminating erythroid cells (Figure 1—figure supplement 1B). We found that >95% of the sorted F4/80+ population are single cells and free of any attached or engulfed erythroid cells or nuclei (Figure 1—figure supplement 1C). We then used this pure population of F4/80+ FL macrophages to determine their global gene expression profile using RNA-Seq of biological triplicates.

We compared the global gene expression of E13.5 FL F4/80+ macrophages with two sets of gene expression data. One was from primary long-term cultures of extensively self-renewing erythroblasts (ESREs) isolated from FL that can be differentiated to form mature erythroid cells (England et al., 2011; Gnanapragasam et al., 2016). The second was from adult spleen F4/80+ macrophage (Lavin et al., 2014), which is also an in vivo site of erythroblastic islands (Chow et al., 2013; Jacobsen et al., 2015; Ramos et al., 2013). Hierarchical clustering of the gene expression profile from these cell types shows that the FL macrophages cluster closer to differentiating ESREs than to splenic red pulp macrophages (Figure 1A), suggesting that the FL macrophages have an early erythroid-like gene expression profile rather than a mature macrophage-like profile. Yet at the same time we find using principal component analysis (PCA) that these cell types cluster separately, indicating that each has a unique identity (Figure 1B). Further, we find that for a list of macrophage and erythroid markers (Figure 1—source data 1, Murray and Wynn, 2011; Ng and Wood, 2014), FL macrophages have intermediate expression of both sets of markers compared to ESREs or spleen macrophages (Figure 1C). Together, these data suggest that FL F4/80+ macrophages essentially have dual characteristics of erythroid and macrophage-like cell populations in terms of marker expression but still form their own unique subset.

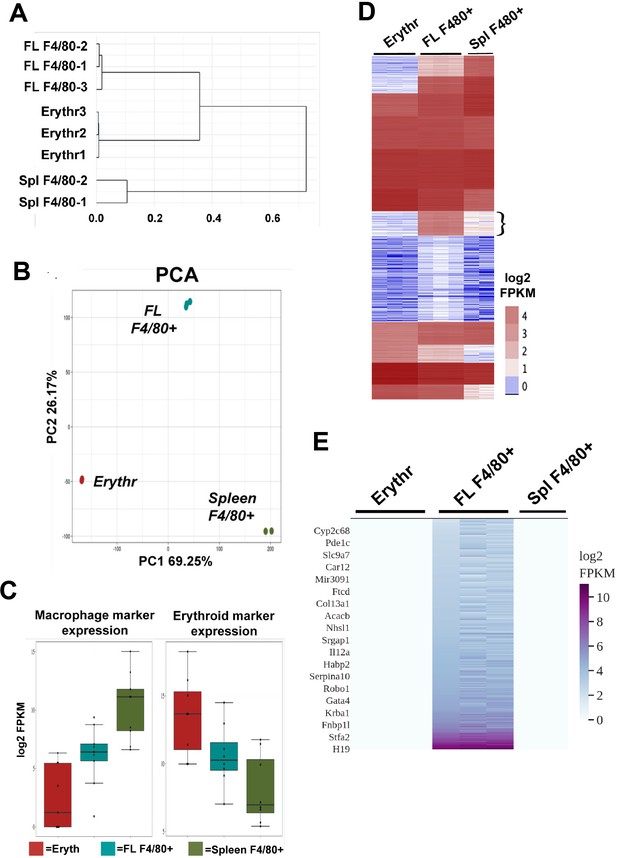

Figure 1 with 1 supplement see all
Gene expression comparison of fetal liver (FL) F4/80+ macrophages with extensively self-renewing erythroblasts (ESREs; Erythr) and adult spleen (Spl) F4/80+ macrophages showing unique gene expression in F4/80+ FL macrophages.

(A) Hierarchical clustering dendrogram using scaled Z-scores based on the expression of the top 10,000 highly expressed genes is shown for individual RNA-Seq biological replicates from each cell type (source data: Figure 1—source data 1). (B) Principal component analysis of the cell types is plotted showing principal components 1 and 2 for each biological replicate (source data: Figure 1—source data 1). (C) Macrophage-specific or erythroid-specific marker expression in the cell types is shown, with replicates averaged together (source data: Figure 1—source data 3). (D) k-means clustering of individual RNA-Seq biological replicates of the different cell types (ESREs, Erythr; fetal liver, FL; spleen, Spl) by log2 FPKM displayed as a heatmap (source data: Figure 1—source data 4). Flower bracket indicates the gene cluster with enriched expression in F4/80+ FL macrophages. (E) Heatmap of only the uniquely expressed genes in F4/80+ FL macrophages that define the signature genes of this cell type (source data: Figure 1—source data 2). A few representative signature gene names are displayed.

Figure 1—source data 1

Scaled Z-scores of FPKM values of the top 10,000 highly expressed genes in each cell type shown in Figure 1.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig1-data1-v2.csv.zip
Figure 1—source data 2

Expression of signature genes of fetal liver F4/80+ macrophages in each cell type.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig1-data2-v2.xlsx
Figure 1—source data 3

List of macrophage and erythroid markers and their expression levels in each cell type.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig1-data3-v2.xlsx
Figure 1—source data 4

Log2 FPKM values of all expressed genes in the cell types shown in Figure 1.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig1-data4-v2.csv.zip

Cell-type-specific expression of a subset of genes in FL macrophages provides them with a distinct cellular identity

Since our PCA analysis showed that FL macrophages have unique characteristics compared to ESREs and spleen macrophages, we performed k-means clustering of the RNA-Seq datasets of the three cell types (Figure 1D). We find a cluster that contains a set of 1291 genes that are almost exclusively expressed in FL macrophages (Figure 1D – indicated by flower bracket). Neither ESREs nor spleen macrophages have a similar set of cell-type-specific gene expression as evident from the lack of clusters showing genes only expressed in these cell types (Figure 1D). This again suggests that FL macrophages may have a distinct cellular identity and likely possess unique functions compared to other macrophage types. We selected a set of 304 genes that were only expressed in FL macrophages and not in ESREs or spleen macrophages, and refer to them as ‘signature genes’ (Figure 1E, Figure 1—source data 2).

To determine whether signature genes are a random subset of genes or whether they indeed have biological significance with respect to FL macrophage function, we performed gene ontology (GO) analysis and filtered the results down to the unique GO terms using REVIGO (Supek et al., 2011Supplementary file 1). We find that the signature genes are involved in four major biological processes: circulatory system development, tube development (vasculature development), locomotion and motility, negative regulation of blood coagulation, and cell adhesion (Supplementary file 1). Of these, cell adhesion between erythroblast island macrophages and developing erythroblasts during erythropoiesis is known to be an important function of a subset of FL macrophages (Xue et al., 2014). The additional GO categories point to novel biological or developmental roles for FL macrophages.

Loss of EKLF leads to significantly altered gene expression in F4/80+ FL macrophages

As a prelude to analyzing the effects of EKLF on F4/80+ macrophage, we directly verified EKLF protein expression and find that it is expressed in the F4/80+ macrophage as judged by immunofluorescence (Figure 2A). Consistent with our previous data, not all F4/80+ cells are EKLF+, and vice versa (Figure 2A, B). Additional support for macrophage specificity of EKLF expression comes from a published RNA-Seq analyses of an extensive series of staged, sorted cells in the FL (Mass et al., 2016). Mature macrophage cells (ckit-/CD45+/F480+/AA4.1-/CD11b+) do not exhibit EKLF expression in FL at E10.25; however, EKLF expression 6 hr later in the FL is apparent (E10.5) and robust by E12.5, where it remains high until E18.5, dropping off considerably until it is not detectable at postnatal stages in the liver (Figure 2C). As a positive control, Adgre1 (F4/80) is expressed in all samples (Figure 2D). As a negative control, EKLF is not expressed in any other tissue macrophage cell in the same study (all samples from skin, brain, kidney, and lung; Mass et al., 2016).

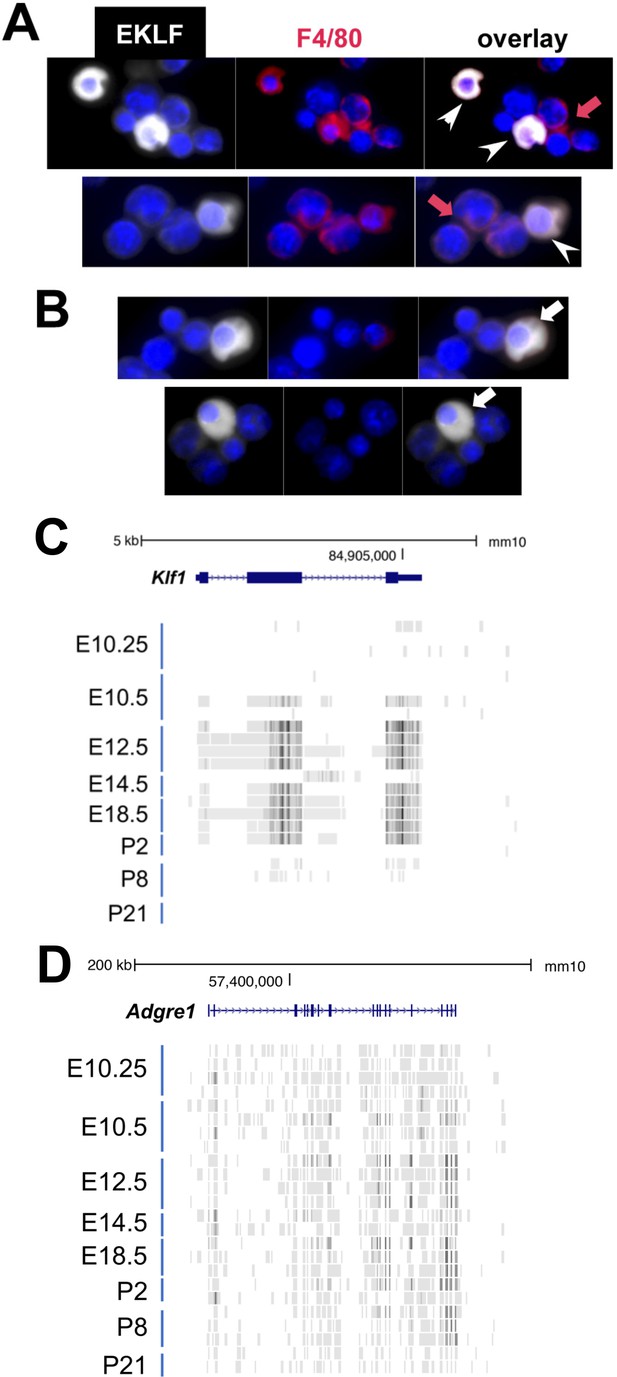

EKLF/Klf1 is expressed in fetal liver macrophages during development.

(A) Immunofluorescence tests with anti-EKLF (white), 4′,6-diamidino-2-phenylindole (DAPI) (blue), and anti-F4/80 (red) antibodies in E13.5 fetal liver cells. (A) White arrowheads show coexpression of EKLF and F4/80 proteins in single cells (representative of over 20 EKLF+/F4/80+ cells in this field of 300 cells); red arrow shows that not all F4/80+ cells are EKLF+. (B) White arrow shows that not all EKLF+ cells are F4/80+ , as expected from the FACS data (cytoplasmic EKLF signal is expected [Quadrini et al., 2008; Schoenfelder et al., 2010]). (C) Collated RNA-Seq data (Mass et al., 2016) of sorted macrophage cells from multiple staged embryonic (E) day 10.25–16.5 fetal livers or postnatal (P) day 2–21 livers (ckit-/CD45+/F480+/AA4.1-/CD11b+; n = 24 samples) show transient and abundant Klf1 reads (UCSC Genome Browser). (D) Same analysis as (C) showing RNA-Seq reads of the gene encoding F4/80 (Adgre1) as a positive control across all samples.

As a result, we used FACS-sorted F4/80+ FL macrophage from an EKLF-/- mouse and compared its gene expression with wild-type (WT) FL F4/80+ macrophage by RNA-Seq to determine which genes are affected by the loss of EKLF. We observe that there are about half as many F4/80+ FL macrophages in EKLF-/- FL as in WT, suggesting a vital role for EKLF in FL macrophage development (Figure 3A; compare to Figure 1—figure supplement 1A). Using k-means clustering of the RNA-Seq data, we find the predominant effect is that genes are downregulated in the EKLF-/- FL macrophages (Figure 3B). This is consistent with the role of EKLF as a transcriptional activator (Miller and Bieker, 1993). We performed differential gene expression analysis using DESeq2 and found that a set of 1210 genes are significantly downregulated in the EKLF-/- FL macrophages (Figure 3C, Supplementary file 2). Using REVIGO analysis, we find that among others many of the downregulated genes are involved in cell–cell adhesion (Table 1).

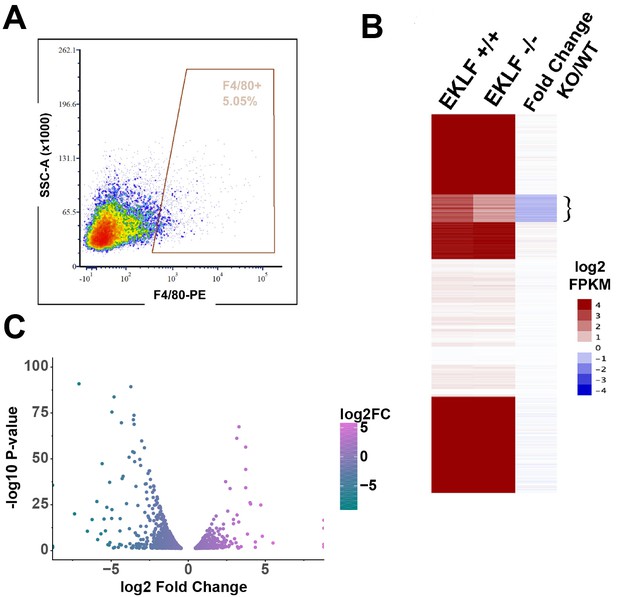

EKLF-dependent gene expression in fetal liver (FL) macrophages.

(A) A representative yield of cells from EKLF-/- FL sorted by F4/80 expression, used for RNA-Seq analysis, is shown (compare to WT yield in Figure 1—figure supplement 1A). (B) k-means clustering of absolute log2 FPKM of F4/80+ EKLF+/+ and F4/80+ EKLF-/-, and log2 FKPM ratio EKLF-/-(KO)/WT is displayed as a heatmap. Flower bracket indicates downregulated genes. (C) Differentially expressed genes in EKLF-/- (KO) compared to WT shown as a volcano plot (source data: Figure 3—source data 1).

Figure 3—source data 1

Differential expression test results obtained from DESeq2 using the RNA-Seq data from EKLF+/+ and EKLF-/- fetal liver F4/80+ macrophages.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig3-data1-v2.csv.zip
Table 1
Summary of significant GO terms for the subset of genes significantly downregulated in EKLF-/- vs WT.
Term_IDDescriptionFrequency (%)log10 p-value
GO:0006464Cellular protein modification process16.80−6.8427
GO:0032502Developmental process27.72−6.6535
GO:0051179Localization26.83−5.5895
GO:0030097Hemopoiesis3.96−5.5005
GO:0048518Positive regulation of biological process24.84−4.1355
GO:0044699Single-organism process65.98−3.6956
GO:0022610Biological adhesion6.66−3.5792
GO:0016043Cellular component organization27.23−3.3699
GO:0008152Metabolic process51.22−3.3045
GO:0071840Cellular component organization or biogenesis27.98−3.2058
GO:0065007Biological regulation57.48−3.1341
GO:0065008Regulation of biological quality15.62−2.4455
GO:0044763Single-organism cellular process47.39−2.4259
GO:0007169Transmembrane receptor protein tyrosine kinase signaling pathway2.62−2.028
GO:0009791Post-embryonic development0.60−1.8994
GO:0098609Cell–cell adhesion4.30−1.7231
GO:0008219Cell death8.78−1.5167
GO:0002376Immune system process11.16−1.4235
GO:0009987Cellular process75.10−1.408

EKLF-expressing F4/80+ FL cells are a functionally distinct population from EKLF- F4/80+ cells based on their gene expression program

In our previous study, we had used a mouse strain derived from embryonic stem cells that contain a single copy of the EKLF promoter directly upstream of a green fluorescent protein (GFP) reporter (pEKLF/GFP) to address whether EKLF might be expressed in both the erythroid cell and macrophage (Lohmann and Bieker, 2008). This promoter/enhancer construct is sufficient to generate tissue-specific and developmentally correct expression in vitro and in vivo (Chen et al., 1998; Lohmann et al., 2015; Xue et al., 2004; Zhou et al., 2010); thus GFP onset faithfully mirrors EKLF onset (Lohmann and Bieker, 2008). Using this surrogate marker, we had found that ~36% of F4/80+ macrophage singlet cells express EKLF (Xue et al., 2014).

Presently, we used FACS to isolate both F4/80+GFP+ (EKLF+) and F4/80+GFP- (EKLF-) subsets and assayed gene expression using RNA-Seq. PCA (Figure 4A) and correlation analysis (Figure 4—figure supplement 1A) show that the two populations have widely distinct gene expression profiles. Differential expression analysis shows that 2330 genes are enriched in F4/80+EKLF/GFP+ (Figure 4—figure supplement 1B, Supplementary file 3), with EKLF and Vcam1 among the enriched mRNAs consistent with prior work (Xue et al., 2014Figure 4B, C). In addition, we find that Epor mRNA is also enriched in F4/80+EKLF/GFP+ (Figure 4B, D). Since Epor+/F4/80+ macrophages form erythroblast islands in bone marrow (Li et al., 2019), our data indicates that the same is true for EKLF+ F4/80+ FL macrophages. When we analyze the functional categories of genes significantly enriched in each of the subsets (Figure 4—figure supplement 1B), we find that the EKLF/GFP+F4/80+ subset is enriched for genes involved in heme synthesis, iron transport and homeostasis, and myeloid/erythroid differentiation (Table 2), functions consistent with those performed by erythroblast island macrophages. In contrast, the genes enriched in EKLF- F4/80+ macrophages are mostly involved in innate and cellular immune responses (Table 3), indicating that these are inherently distinct from the EKLF-expressing macrophages in mouse FL.

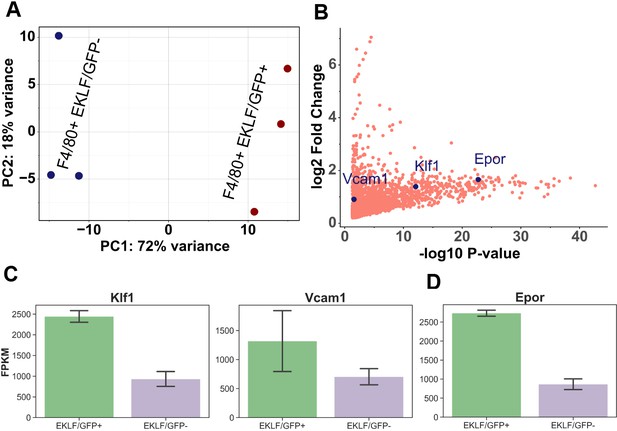

Figure 4 with 1 supplement see all
Comparison of gene expression in F4/80+ EKLF/GFP+ and F4/80+ EKLF/GFP- fetal liver macrophages.

(A) Principal component analysis using scaled Z-score based on the expression level of the top 10,000 highly expressed genes from RNA-Seq replicates of F4/80+ EKLF/GFP+ and F4/80+ EKLF/GFP- is plotted with each axis depicting the two major principal components (source data: Figure 4—source data 1). (B) Scatterplot showing the significantly enriched genes in the F4/80+ EKLF/GFP+ population compared to F4/80+ EKLF/GFP-. Vcam1, Klf1, and Epor are highlighted in blue (source data: Figure 4—source data 2). Fragments per kilobase million (FPKM) values of (C) EKLF/Klf1 and Vcam1 and (D) Epor in the two populations.

Figure 4—source data 1

Coordinates of principal components 1 and 2 corresponding to each replicate of EKLF/GFP+ and EKLF/GFP- RNA-Seq data.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig4-data1-v2.csv.zip
Figure 4—source data 2

Differential gene expression results obtained using DESeq2 from the EKLF/GFP RNA-Seq dataset.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig4-data2-v2.csv.zip
Table 2
Summary of GO terms for genes significantly enriched in EKLF/GFP+ F4/80+ fetal liver macrophages.
Term_IDDescriptionFrequency (%)log10 p-valueueUniqueness
GO:0006778Porphyrin-containing compound metabolic process0.18−12.84840.777
GO:0051186Cofactor metabolic process1.60−12.21110.915
GO:0033013Tetrapyrrole metabolic process0.20−11.15380.869
GO:0051179Localization26.83−8.87280.994
GO:0034101Erythrocyte homeostasis0.58−8.30270.786
GO:0006810Transport20.74−8.09860.952
GO:0051234Establishment of localization21.48−7.68310.957
GO:0065008Regulation of biological quality15.62−6.81150.959
GO:0055085Transmembrane transport5.98−6.49750.945
GO:0042592Homeostatic process7.64−6.18260.886
GO:0061515Myeloid cell development0.32−5.69970.83
GO:0048731System development21.00−5.44230.93
GO:1901564Organonitrogen compound metabolic process9.12−5.14380.923
GO:0042744Hydrogen peroxide catabolic process0.07−5.00010.868
GO:0006811Ion transport7.05−4.94420.946
GO:0048513Animal organ development15.85−4.73310.926
GO:0008152Metabolic process51.22−4.37560.997
GO:0044237Cellular metabolic process45.64−4.31620.937
GO:0055076Transition metal ion homeostasis0.58−4.29230.831
GO:0007275Multicellular organism development23.55−4.1610.933
GO:0032502Developmental process27.72−4.10780.994
GO:0048872Homeostasis of number of cells1.37−4.03860.845
GO:0008643Carbohydrate transport0.71−3.98260.911
GO:0048878Chemical homeostasis4.85−3.83720.85
GO:0006796Phosphate-containing compound metabolic process13.70−3.72120.925
GO:0006793Phosphorus metabolic process14.00−3.53640.925
GO:0055072Iron ion homeostasis0.38−3.50320.829
GO:0030099Myeloid cell differentiation1.70−3.39380.848
GO:0042440Pigment metabolic process0.30−3.20460.893
GO:0050801Ion homeostasis3.30−3.13720.843
GO:0048856Anatomical structure development25.70−2.95980.947
GO:0006820Anion transport2.43−2.84030.941
GO:0017001Antibiotic catabolic process0.52−2.69120.876
GO:0098771Inorganic ion homeostasis3.02−2.65730.839
GO:0019755One-carbon compound transport0.06−2.44160.9
GO:0019725Cellular homeostasis3.80−2.11480.81
GO:0071704Organic substance metabolic process49.01−2.00660.945
Table 3
Summary of GO terms for genes significantly enriched in EKLF/GFP- F4/80+ fetal liver macrophages.
Term_IDDescriptionFrequency (%)log10 p-valueueUniqueness
GO:0002376Immune system process11.16−90.87850.492
GO:0001775Cell activation4.73−58.59490.502
GO:0045321Leukocyte activation4.17−57.32760.435
GO:0001816Cytokine production2.93−56.18980.522
GO:0040011Locomotion7.21−51.14150.515
GO:0001817Regulation of cytokine production2.62−48.80350.477
GO:0006928Movement of cell or subcellular component7.93−47.60960.474
GO:0006954Inflammatory response2.89−45.49180.524
GO:0022610Biological adhesion6.66−45.40190.519
GO:0030334Regulation of cell migration3.21−37.86610.468
GO:0051707Response to other organism4.45−34.35090.498
GO:0009607Response to biotic stimulus4.67−34.27130.514
GO:0030155Regulation of cell adhesion2.92−34.14830.502
GO:0022603Regulation of anatomical structure morphogenesis4.20−33.77190.47
GO:0008283Cell proliferation8.83−29.25390.482
GO:0030036Actin cytoskeleton organization2.80−28.02140.516
GO:0030029Actin filament-based process3.14−27.38930.523
GO:0035295Tube development3.20−25.19160.507
GO:0008219Cell death8.78−24.58970.468
GO:0070661Leukocyte proliferation1.41−23.56230.563
GO:0072358Cardiovascular system development3.13−23.09940.498
GO:0006793Phosphorus metabolic process14.00−22.23850.449
GO:0044093Positive regulation of molecular function7.70−22.18550.47
GO:0006897Endocytosis3.19−19.7250.532
GO:0098657Import into cell0.29−19.19130.625
GO:0050764Regulation of phagocytosis0.36−18.95050.578
GO:1902533Positive regulation of intracellular signal transduction4.07−18.41090.439
GO:0051704Multiorganism process6.53−17.90650.52
GO:0034097Response to cytokine3.34−17.03370.525
GO:0032940secretion by cell4.11−16.22490.486
GO:0002699Positive regulation of immune effector process0.86−14.24440.51
GO:0007167Enzyme-linked receptor protein signaling pathway4.02−14.19060.48
GO:0001774Microglial cell activation0.07−12.17130.623
GO:0010942Positive regulation of cell death2.72−11.16170.486
GO:0097435Supramolecular fiber organization2.73−11.11080.525
GO:0042592Homeostatic process7.64−10.95530.477
GO:0035456Response to interferon-beta0.22−10.23020.627
GO:0008360Regulation of cell shape0.65−10.14630.547
GO:0042107Cytokine metabolic process0.55−9.760.605
GO:0050777Negative regulation of immune response0.61−9.71840.523
GO:0002444Myeloid leukocyte-mediated immunity0.38−9.70990.588
GO:0090130Tissue migration1.14−9.66760.563
GO:0051129Negative regulation of cellular component organization2.94−9.02790.504

EKLF specifies expression of a substantial number of genes including important transcription factors in FL macrophages

Both the above datasets provide us with unique information. The first dataset (Figure 3) identifies EKLF-dependent macrophage genes but does not distinguish between EKLF-expressing and EKLF-deficient macrophages in a genetically unaltered state. The second dataset (Figure 4) identifies genes with enriched expression in F4/80+ cells where EKLF is also expressed but does not identify EKLF-dependent genes. By comparing the datasets, we can determine which genes have enriched expression in EKLF-expressing macrophages and are also significantly downregulated in EKLF-/-, and therefore truly EKLF-dependent (Figure 5A, red box). Overlapping these two independent datasets is an extremely powerful way to parse down the potential direct/indirect genes whose expression is dependent on the presence of EKLF. We find that 504 genes are EKLF-dependent in F4/80+EKLF+ macrophages, a highly significant number given the size of the datasets (Figure 5B, Figure 5—figure supplement 1A).

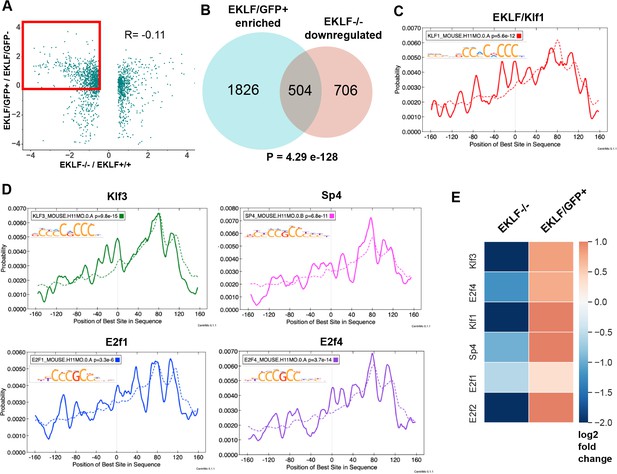

Figure 5 with 2 supplements see all
EKLF specifies lineage and cell-cycle transcription factors in F4/80+ fetal liver (FL) island macrophages.

(A) Scatterplot of log2-fold changes in EKLF/GFP+ plotted against EKLF-/-. Red box shows the genes that are common and of interest from both datasets, that is, enriched in EKLF/GFP+ and downregulated in EKLF-/- F4/80+ FL macrophages (source data: Figure 5—source data 1). (B) Venn diagram showing the number of genes in each category from (A). Centrimo analysis of promoters of EKLF-dependent genes showing differential motif enrichment of (C) EKLF/Klf1 and (D) Klf3, Sp4, E2f1, and E2f4 motifs (source data: Figure 5—source data 2, 3). Dotted line depicts the expected probability of occurrence of the respective motif in the background dataset (see 'Materials and methods'). (E) Heatmap showing log2-fold change of expression in EKLF-/- and EKLF/GFP+ of the above EKLF-dependent transcription factors in F4/80+ FL macrophages.

Figure 5—source data 1

Expression values of differentially expressed genes in EKLF-/- cells vs WT cells compared with their expression in the EKLF/GFP+ dataset.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig5-data1-v2.csv.zip
Figure 5—source data 2

FASTA sequences of the promoters of EKLF-dependent genes.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig5-data2-v2.fa.zip
Figure 5—source data 3

FASTA sequences of the promoters of all genes not included in the EKLF-dependent gene set.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig5-data3-v2.fa.zip

To determine whether these genes may be under EKLF transcription control, we used Centrimo (MEME suite) to analyze the promoters of these 504 genes for TF motifs that are differentially enriched over a background set comprising promoter sequences of the rest of the transcriptome (Supplementary file 4). Indeed, we find that Klf1 motifs are overrepresented in these promoters, consistent with the idea that they are EKLF-dependent (Figure 5C). In addition, we find that the motifs of transcription factors Klf3, E2f1, E2f4, and Sp4 are significantly enriched (Figure 5D) and these TFs are also among the 504 EKLF-dependent genes (Figure 5E). This strongly suggests that EKLF, together with Klf3, E2f1, E2f4, and Sp4, may constitute a transcriptional network regulating the distinct gene expression program of FL island macrophages. E2f2 is also EKLF-dependent in F4/80+ macrophages (Figure 5E), but its motif is not significantly enriched (Figure 5—figure supplement 1B, E-value=0.17), suggesting that E2f2 may not be a critical part of the EKLF transcription network in island macrophages.

The overlap of the datasets (Figure 5A, B) suggests that EKLF may regulate the expression of a significant number of other transcription factors in FL macrophages, including Foxo3, Ikzf1, MafK, Nr3c1; cell-cycle E2f factors; and other members of the Klf family (Figure 5—figure supplement 1C). This will ultimately be verified by a search of consensus target sequences in putative target genes and by EKLF ChIP. Thus, along with the known transcriptional role of EKLF in erythroid cells, our data is consistent with a global regulatory role for EKLF in the proliferation and development of FL island macrophages.

Novel EKLF-dependent markers of EKLF+ F4/80+ FL macrophages

Our data has shown that FL macrophages have a distinct cellular identity, with a unique gene expression signature, and that the EKLF+ subset is functionally distinct. We next wished to develop a strategy to isolate the EKLF+ macrophages by finding a novel specific cell surface marker for sorting these cells. We find that of the 304 F4/80+ signature genes (Figure 1E), 16 are enriched in F4/80+EKLF/GFP+ macrophages (Figure 5—figure supplement 2A) and 32 are downregulated in F4/80+ EKLF-/- macrophages (Figure 5—figure supplement 2B). Among these, Adra2b codes for a cell surface adrenergic receptor α2B (Weinshank et al., 1990), is highly enriched in F4/80+EKLF/GFP+, and significantly downregulated approximately eightfold in F4/80+EKLF-/- (Figure 5—figure supplement 2A, B). We reasoned that Adra2b, along with F4/80+, could be used as an additional marker for EKLF+F4/80+ macrophages. Thus, we determined the proportion of Adra2b and F4/80 expressing cells in E13.5 FLs from EKLF+/+ and EKLF-/- mice using flow cytometry.

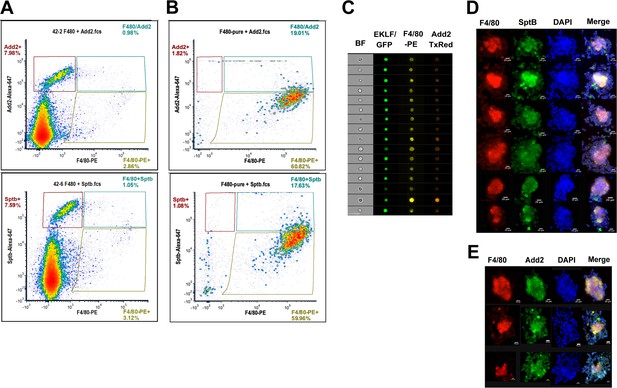

Using antibodies against Adra2b and F4/80, we find that whereas only a fraction of Adra2b+ cells are also F4/80+, most F4/80+ FL cells are Adra2b+; however, we also note that the Adra2b+F4/80+ population has a F4/80-hi subpopulation (Figure 5—figure supplement 2C, top). This F4/80-hi/Adra2b+ subset is significantly smaller in EKLF-/- (Figure 5—figure supplement 2C, bottom), consistent with our RNA-Seq observations. This data demonstrates that the F4/80-hi/Adra2b+ population in the FL correlates with EKLF expression in F4/80+ FL cells, suggesting that EKLF+ FL macrophages could be isolated using this strategy.

We used immunofluorescence to directly demonstrate that Adra2b protein is expressed in erythroblastic islands (Figure 5—figure supplement 2D). The localization of Adra2b at the surface of the central macrophage cell readily distinguishes it from the more diffuse staining exhibited by F4/80.

Resolving the cellular heterogeneity in F4/80+ FL macrophages

One critical issue is that FL macrophages are a heterogeneous population of cells, a notion readily apparent from the published literature (Lee et al., 2018; Seu et al., 2017) and from our own observation that not all F4/80+ cells express EKLF (Figure 4). To segregate FL F4/80+ subpopulations and illuminate the role of EKLF in this process, we performed single-cell RNA-Seq on purified F4/80+ FL cells. We used a magnetic bead purification strategy in the presence of Icam4/αv inhibitor peptide (Xue et al., 2014) to isolate and maintain healthy F4/80+ cells for single-cell barcoding and library preparation using the Chromium V3 platform (see 'Materials and methods'). Using flow cytometry, we find that about 83% of our purified population is F4/80+ after two rounds of selection (Figure 6—figure supplement 1).

Single-cell RNA-Seq confirmed the cellular heterogeneity in the F4/80+ population, with 13 separate clusters of cells after unsupervised dimensionality reduction using the Seurat package (Butler et al., 2018; Stuart et al., 2019Figure 6A). F4/80+ mRNA (encoded by the Adgre1 gene) is present in all the clusters, although some clusters have higher levels (Figure 6B). Additional macrophage markers such as Marco and Vcam1 mRNAs are also present in all clusters, whereas the macrophage transcription factor PU.1 (encoded by Spic) is enriched in clusters 0, 1, 2, and 8 (Figure 6C). Differential enrichment analysis reveals the mRNAs that are enriched in each cluster (Figure 6D, Figure 6—source data 1), and we find certain genes with almost exclusive expression in a particular cluster that serve as markers for that cluster (Figure 6—figure supplement 2).

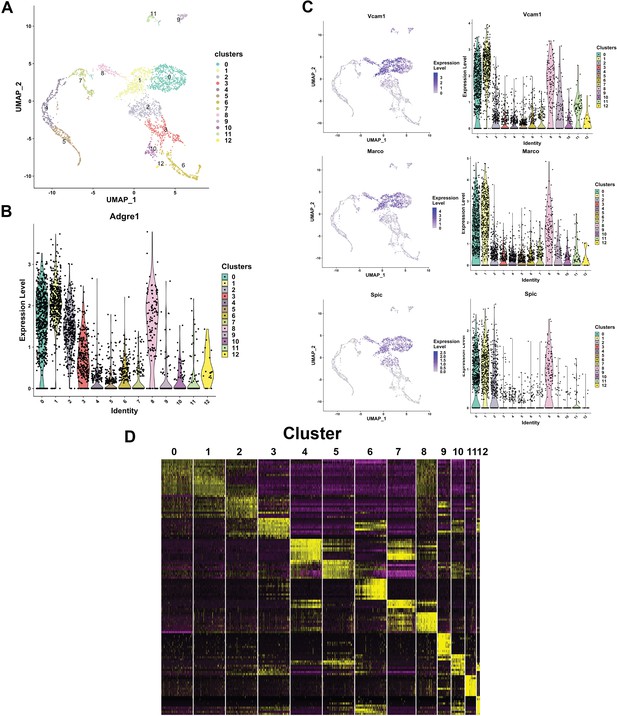

Figure 6 with 3 supplements see all
Resolving the cellular heterogeneity of E13.5 fetal liver (FL) macrophages using single-cell RNA-Seq.

(A) Unsupervised clustering using principal component analysis and subsequent U-MAP projections computed and plotted using the R Seurat package for single-cell RNA-Seq of purified E13.5 FL F4/80+ cells. Cluster numbers are indicated on the clusters. (B) Violin plot showing the distribution of F4/80 (Adgre1) mRNA expression in the clusters identified in (A). (C) Feature plots (left panel) showing individual cellular expression superimposed on the cluster, and Violin plots (right) showing the distribution of expression in each cluster of macrophage markers Vcam1 and Marco, and the macrophage-specific transcription factor PU.1 (Spic). (D) Differential mRNA enrichment in each cluster plotted as a heatmap, showing putative unique markers of each cluster (source data: Figure 6—source data 1). Relative expression levels are indicated by color: yellow=high, black=mid, and purple=low.

Figure 6—source data 1

Differentially expressed genes associated with each cluster of the single-cell RNA-Seq dataset.

https://cdn.elifesciences.org/articles/61070/elife-61070-fig6-data1-v2.csv.zip

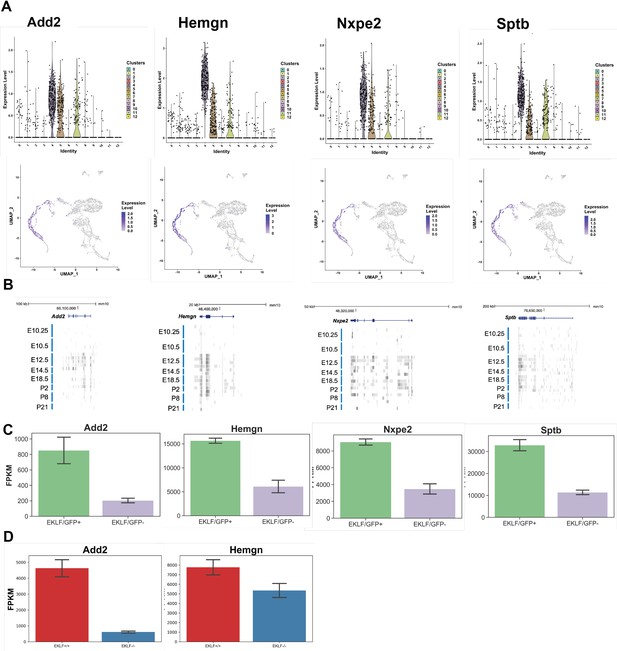

It is apparent from these analyses that clusters 0 and 1 have a high overlap in cluster markers (Figure 6D), and due to the high expression of macrophage-specific genes (Figure 6B, C), these clusters likely are comprised of macrophages. This is also confirmed by GO analysis of the top 100 markers for these clusters (Supplementary file 5). Further, GO analysis of markers for clusters 2 and 3 yields terms compatible with activated macrophage functions (Supplementary file 5), and indeed these clusters express genes correlated with activated macrophages such as Csf1r, Dnase2a, and Il4ra (Figure 6—figure supplement 3A). In contrast, GO analysis of the top enriched genes for clusters 4, 5, 7, and 8 relate to erythro-myeloid characteristics and heme metabolism (Supplementary file 6), with highly enriched markers for these clusters being glycophorin A, α-synuclein, and α-spectrin (Figure 6—figure supplement 3B). A search for the terminal erythroid marker Ter119 (Ly76) yields no results in our single-cell sequencing dataset, indicating that perhaps its mRNA is undetectable and that our F4/80+ purification is largely devoid of terminally differentiating erythroid cells. To further support the heterogeneity of expression in these populations, in contrast we find that the mRNA for the constitutively active gene, Gapdh, is uniformly highly expressed in all clusters (Figure 6—figure supplement 3C), whereas CD71 (Tfrc) mRNA was expressed at moderate levels in most clusters (Figure 6—figure supplement 3D).

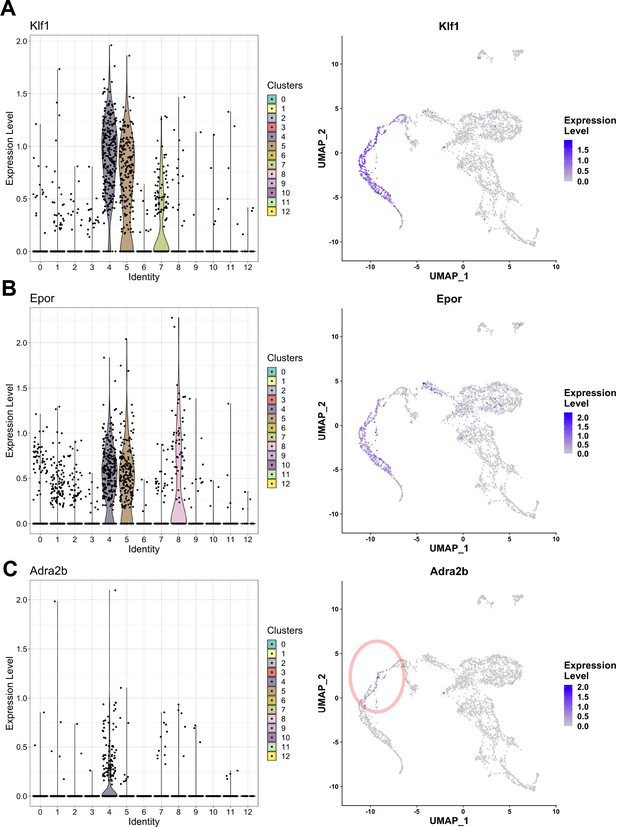

Cellular heterogeneity in EKLF+ F4/80+ FL macrophages and an improved strategy to isolate this population

Our earlier observations from the pEKLF/GFP mice indicated that about 36% of the F4/80+ FL cells express EKLF (Xue et al., 2014). EKLF+ expression is detected exclusively in clusters 4, 5, and 7 (Figure 7A), and these clusters comprise about 23% of the cells in our dataset. We also find that most of the EKLF+ cells express Epor (Figure 7B), consistent with our earlier observations as well as others (Li et al., 2019). To further test our previous observations that Adra2b expression correlates with EKLF expression and is found in erythroblast island macrophages (Figure 5—figure supplement 2D), we looked for Adra2b expression in single cells. We find specific Adra2b enrichment in cluster 4, thus correlating with some EKLF+ as well as Epor+ cells, albeit the remaining EKLF-expressing clusters 5 and 7 have little Adra2b expression (Figure 7C). This indicates high amounts of heterogeneity even within EKLF+F4/80+ macrophages and suggests that Adra2b alone as a marker is not sufficient to enable efficient isolation of EKLF+F4/80+ cells.

EKLF/Klf1-expressing clusters in F4/80+ fetal liver macrophages.

Violin plots showing distribution (left) and feature plots (right) showing individual cellular mRNA expression of (A) Klf1, (B) Epor, and (C) Adra2b superimposed on the clusters.

This led us to devise an improved strategy to isolate EKLF+F4/80+ FL cells based on cell surface marker expression by searching for mRNAs enriched in EKLF+ clusters 4, 5, and 7 taken together. We find that Add2 (adducin2), Hemgn (hemogen), Nxpe2 (neurexophilin and PC-esterase domain family, member 2), and Sptb (spectrinβ) are specifically enriched in the EKLF+ clusters (Figure 8A). Of these, Add2, Nxpe2, and Sptb encode membrane-associated proteins, which would be preferred for antibody-based isolation strategies such as FACS or magnetic bead separation, and thus are attractive candidates for marker-based separation of EKLF+ F4/80+ cells. Although Add2 and Sptb are known to be highly expressed in erythroid cells (Chen et al., 2009; Franco and Low, 2010; Gardner and Bennett, 1987), RNA-Seq data of ckit-/CD45+/F480+/AA4.1-/CD11b+ macrophages derived from staged mice embryos (Mass et al., 2016) shows that Add2 and Sptb mRNAs are indeed expressed in mice FL macrophages from E12.5–E18.5 (Figure 8B), with a similar developmental onset to that of EKLF (Figure 2C). Additionally, when we search for their expression in our F4/80+ EKLF/GFP+ bulk RNA-Seq dataset, all four markers are significantly enriched in F4/80+ EKLF/GFP+ (Figure 8C), thus confirming that their mRNA expression correlates with EKLF mRNA expression in F4/80+ macrophages. Finally, optimal levels of Add2 and Hemgn expression are also EKLF-dependent since we find that they are significantly downregulated in F4/80+ EKLF-/- cells (Figure 8D).

Identification of novel markers for F4/80+/EKLF+ fetal liver macrophages from single-cell sequencing.

Using differential enrichment analysis of EKLF clusters 4, 5, and 7 compared with the rest of the cells, putative markers for F4/80+ EKLF+ cells were identified. (A) Violin and feature plots for the identified markers Add2 (adducinβ), Hemgn (hemogen), Nxpe2 (neurexophilin and PC-esterase domain family, member2), and Sptb (spectrinβ). (B) Data (as in Figure 2C, Mass et al., 2016) showing RNA-Seq reads of F4/80+ EKLF+ cell markers from staged and sorted fetal or postnatal liver macrophages. (C) FPKM expression levels of EKLF markers in F4/80+ EKLF/GFP+ and F4/80+ EKLF/GFP- fetal liver macrophage. (D) FPKM expression levels of EKLF markers Add2 and Hemgn in F4/80+ EKLF+/+ and F4/80+ EKLF-/- fetal liver macrophage.

Upon staining E13.5 FL cells with both F4/80 and adducin2, or F4/80 and spectrinβ antibodies, we find that the majority (~88%) of the Add2+ or Sptb+ cells are F4/80- (and presumably erythroid). However, about 25% of all F4/80+ cells are Add2+ or Sptb+ in each case (Figure 9A), aligning with our single-cell RNA-Seq observations (Figure 8A). We repeated the F4/80+ purification and stained the purified F4/80+ cells for Add2 or Sptb to find that in each case about 24% of the F4/80+ cells are Add2+ or Sptb+ (Figure 9B), a proportion resembling the 23% of cells in clusters 4, 5, and 7 where these mRNAs are expressed. To test the possibility that any Add2 and Sptb expression seen in F4/80+ cells was due to residual erythroid contamination in our F4/80+ population, we performed Imagestream analysis. Using the pEKLF/GFP mouse, we stained for F4/80 and Add2, and we find single cells expressing F4/80 and Add2 that are also EKLF/GFP+ (Figure 9C). This not only confirms that the Add2 signal is coming from single cells, it also demonstrates visually that Add2 expression in a subset of F4/80+ macrophages correlates with EKLF expression in those macrophages.

An improved strategy for antibody-based isolation of F4/80+/EKLF+ cells using novel markers identified from single-cell sequencing.

(A) Flow cytometry analysis of E13.5 fetal liver cells stained with anti-F4/80-PE and anti-adducinβ (top) or anti-spectrinβ (below) antibodies conjugated to AlexaFluor 647. Gates are drawn based on unstained and single-color compensation controls for PE and AlexaFluor 647. Population percentages within each gate are indicated. (B) F4/80+ cells purified from E13.5 fetal livers using magnetic bead selection stained for anti-adducinβ (top) or anti-spectrinβ (below). Gates are the same as (A) and population percentages are indicated. (C) Imaging flow cytometry analysis of E13.5 fetal liver cells from the pEKLF/GFP mouse stained for F4/80-PE and Add2-TxRed. Single cells positive for F4/80, Add2, and GFP are shown. (D, E) Isolated erythroblast islands stained for DAPI, F4/80-PE, and (D) Sptb-Alexa647 or (E) Add2-Alexa647 and examined by fluorescent microscopy. Scale bars are indicated.

Finally, since earlier studies from our group (Xue et al., 2014; Li et al., 2019) showed that EKLF expression is enriched in macrophages forming erythroblast islands, we isolated erythroblast islands and tested for Add2 and Sptb protein expression by immunofluorescence. We find high Sptb and Add2 staining in the central macrophage as well as few surrounding erythroid cells (Figure 9D, E), indicating that these markers are expressed in erythroblast island macrophages. Thus, Add2 or Sptb can be used as reliable markers to isolate F4/80+ EKLF+ FL island macrophage population for further characterization of their unique properties.

Discussion

Identification of a novel cell type in FL macrophage

Although there is overlap among the cell populations, we have shown that E13.5 murine FL F4/80+ macrophages exhibit a distinct expression pattern when compared to adult spleen F4/80+ macrophage, one that is also divergent from that of FL erythroid cells, thus providing them with a discrete cellular identity. Our data suggests the existence of a unique macrophage cell type with novel markers that defines erythroblastic island-associated macrophage. This is perhaps not surprising as there is extensive macrophage heterogeneity (Lee et al., 2018; Paulson, 2019; Seu et al., 2017), and it has been long noted that island macrophage may have a distinctive surface marker expression (Manwani and Bieker, 2008).

The unique expression signature exhibited by these cells includes over 300 genes that are functionally involved in positive regulation of developmental processes, particularly cell movement, localization, and adhesion. Our data suggests that establishing a macrophage cell dedicated to maintaining such a unique expression profile makes developmental sense given its role in efficiently aiding the huge demand for red blood cells during early development, specifically within the expanding FL site (Chasis and Mohandas, 2008; Hom et al., 2015; Klei et al., 2017; Manwani and Bieker, 2008; Yeo et al., 2019).

Transient nature of a singular, EKLF-dependent FL macrophage population that coincides with the onset of definitive erythropoiesis during mouse embryonic development

The idea of a dedicated island macrophage cell is further supported by the overlap in the single-cell seq and the developmental RNA-Seq expression datasets. These show there is a specific onset of many of the markers of interest that coincide with the peak of EKLF expression in macrophage at E12.5, at the same time as definitive erythropoiesis is occurring in the mouse FL. Strikingly, expression of many of these also dissipates coordinately at later embryonic stages. This may follow from either transient EKLF expression in the macrophage or the transient presence of a population of EKLF-expressing macrophage. Such dynamic regulation has been observed with IL7Rα (Leung et al., 2019), but the remarkable coherence of the erythroblastic island macrophage subset in clusters 4, 5, and 7 suggests the existence of a cross-regulatory mechanism that leads to the establishment of a network of genes critical for proper island niche function. Consistent with this, KLF binding motifs are enriched in active macrophage genes (Gosselin et al., 2014; Lavin et al., 2014) and correlate with binding by other macrophage factors such as CJUN and P65 (Link et al., 2018). Our comparative analysis of EKLF-/- and EKLF/GFP+ strongly supports the idea, postulated previously from other studies (Li et al., 2019; Porcu et al., 2011; Xue et al., 2014), that EKLF is a central player in establishing this network at the right time and place in development. Given our studies, the cause of the embryonic lethality in the absence of EKLF could be a combination of impaired erythropoiesis due to the loss of EKLF in developing erythroid progenitors as well as impaired island macrophage function supporting definitive erythropoiesis.

EKLF regulation of island macrophage signature genes

By combining both EKLF-/- and EKLF/GFP+ RNA-Seq data, and then further parsed by the single-cell seq data, we find that loss of EKLF expression alters expression of many macrophage genes. We also find that the EKLF-expressing macrophages are functionally different from those not expressing EKLF, with high enrichment of genes performing functions consistent with erythroblast islands. Thus, the subset that are specific to the F4/80+ macrophage and whose expression is EKLF-dependent provides a novel expression signature that identifies targets that may be unique to the erythroblastic island. We have identified three in particular, Adra2b, Add2, and Sptb, that are enriched in EKLF WT macrophage and in the erythroblastic island. As a result, we suggest that these are additional novel markers that, in conjunction with F4/80, provide a further specification to island-associated macrophage identity. Heterogeneity remains an issue; however, from our single-cell seq data, it is likely that combining select markers, in particular F4/80+, Add2+, and Sptb+, will distinguish a discrete subpopulation that is highly enriched for island-associated macrophage. We are in the process of establishing such a protocol based on the robust cell surface expression of these three markers and will include Nxpe2 in the mix if a suitable selection antibody becomes available.

Identification and molecular knowledge of unique island macrophage expression and receptors may be functionally relevant to studies that utilize these cells to help expand in vitro erythropoiesis more efficiently (Hom et al., 2015; Rhodes et al., 2008). These could be used in combination with cytokines known to enhance island macrophage such as erythropoietin (Li et al., 2019), dexamethasone (Falchi et al., 2015; Heideveld et al., 2018), or the KLF1-stimulated combo of ANGPTL7/IL33/SERPINB2 (Lopez-Yrigoyen et al., 2019). Efficient growth and maintenance become important when designing strategies to improve macrophage responses in the context of myelodysplastic syndromes (Buesche et al., 2016) or in the anemia of inflammation (Hom et al., 2015).

Resolution of macrophage heterogeneity

Not surprisingly, we find that the FL F480+ population is heterogeneous, with our single-cell analysis suggesting 13 different clusters. Within this mixture we discovered a subset of clusters that express EKLF and its network of genes important for island macrophage. It is of interest that this subset does not express CD11b (Itgam), consistent with studies suggesting it is not an island macrophage marker (Seu et al., 2017; Tay et al., 2020; Ulyanova et al., 2016). Of additional interest, the granulocyte Ly6G marker did not appear in any of our clusters, consistent with an efficient removal of granulocytes during our enrichment procedure.

In this context, it is perhaps surprising that other markers historically suggested to be critical for island function such as Vcam1 are expressed at lower levels in the EKLF clusters than in others. Three explanations can be suggested. (1) EKLF+/Vcam1+ cells may be the relevant functional subset of total Vcam1-expressing cells, a different subset of which may have a separate, non-EKLF-dependent function (e.g., homing [(Li et al., 2018)]). (2) We are not suggesting that EKLF-expressing clusters are the sole source of macrophage islands; there may be others that arise following pathological conditions (e.g., ß-thalassemia or polycythemia vera [Chow et al., 2013; Ramos et al., 2013]), or when comparing steady-state versus stress/anemia (Paulson et al., 2020). (3) Erythroblastic islands are also found in bone marrow and spleen, and these arise within a significantly different niche than what we have focused on here during prenatal development. Such directive effects of the environment on macrophage identity have been noted before (Gosselin et al., 2014; Lavin et al., 2014). With respect to our present observations, given the importance of neural signaling in the bone marrow (Méndez-Ferrer et al., 2020), it is possible that a molecule such as Adra2b may be more highly expressed and play a more important role in bone marrow macrophage than in FL macrophage.

Human island macrophage

Collectively, our study shows that EKLF plays a critical role within the specific subset of unique macrophage cells that are transiently required for proper establishment of erythroblastic islands in the developing embryo. Of relevance to human biology (May and Forrester, 2020), although the positive effects of EKLF expression on island macrophage function have been previously noted (Lopez-Yrigoyen et al., 2019), it is also relevant that a recent single-cell analysis of human FL hematopoiesis shows that EKLF and many of its target genes identified in the present study are also expressed in the ‘Vcam1+ erythroblastic island macrophage’ cluster (Popescu et al., 2019).

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Genetic reagent (Mus musculus)Klf-/- (Klf1tm1Sho)10.1038/375318a0MGI:1857162EKLF-null mouse in 129S4/SvJae background
Genetic reagent (Mus musculus)pEKLF/GFP10.1242/dev.018200Peklf-GFPeGFP expressed from the EKLF promoter
AntibodyAnti-F4/80-PE (rabbit polyclonal)eBiosciences#12-4801-80(1:100)
AntibodyAnti-Adra2b (rabbit polyclonal)Alomone Labs#AAR-021(1:100)
AntibodyAnti-adducinβ
(mouse monoclonal)
Santa Cruz Biotechnologies# sc-376063(1:100)
AntibodyAnti-spectrinβ1 (mouse monoclonal)Santa Cruz Biotechnologies# sc-374309(1:100)
AntibodyDonkey anti-rabbit IgG – AlexaFluor 647
(donkey polyclonal)
Invitrogen# A-31573(1:200)
Peptide, recombinant proteinFWV peptide (GenScript custom)10.1242/dev.103960# SC18482 mM
Commercial assay or kitEasySep mouse PE positive selection kitCell Signaling Technologies# 17656
Commercial assay or kitZip AlexaFluor 647 antibody labeling kitInvitrogen# Z11235
Commercial assay or kitLightning link Texas red conjugation kitAbcam# ab195225
Commercial assay or kitRNA Nanoprep kitAgilent#400753
Commercial assay or kitChromium Single Cell 3ʹ Library Kit v310X Genomics# PN-1000095
Chemical compoundTRIzol reagentInvitrogen#15596026
Software, algorithmSTAR10.1093/bioinformatics/bts635RRID:SCR_015899
Software, algorithmSalmon10.1038/nmeth.4197RRID:SCR_017036
Software, algorithmHTSeq10.1093/bioinformatics/btu638RRID:SCR_005514
Software, algorithmtximporthttps://github.com/mikelove/tximportRRID:SCR_016752
Software, algorithmDESeq210.1186/s13059-014-0550-8RRID:SCR_015687
Software, algorithmAlevin10.1186/s13059-019-1670-yhttps://salmon.readthedocs.io
Software, algorithmSeurathttps://doi.org/10.1038/nbt.4096http://satijalab.org/seurat/
Software, algorithmggplot2https://github.com/tidyverse/ggplot2RRID:SCR_014601
Software, algorithmPandashttps://pandas.pydata.orgRRID:SCR_018214
Software, algorithmScikit-learnhttp://scikit-learn.org/RRID:SCR_002577
Software, algorithmPython Seabornhttps://seaborn.pydata.org/RRID:SCR_018132
Software, algorithmJava Treeview10.1093/bioinformatics/bth349RRID:SCR_016916
Software, algorithmCluster 3.010.1093/bioinformatics/bth078RRID:SCR_013505
Software, algorithmREViGOhttp://revigo.irb.hr/RRID:SCR_005825
Software, algorithmGeneric GO Term Finder10.1093/bioinformatics/bth456RRID:SCR_008870
Software, algorithmMEME-suitehttp://meme-suite.org/RRID:SCR_001783
Software, algorithmFCS Express 7https://www.denovosoftware.comRRID:SCR_016431

Cell isolation

Request a detailed protocol

FLs were dissected from embryonic day E13.5 embryos and mechanically dispersed into single cells for fluorescence activated cell sorting (FACS) or RNA isolation. The heterozygous EKLF mouse strain was as described (Perkins et al., 1995). Photos were taken with a Nikon Microphot-FX fluorescence microscope equipped with a Q-Imaging camera or with a Zeiss Axio Observer Z1 equipped with a Hamamatsu C11440 camera. For single-cell sequencing, wild-type E13.5 FL cells were isolated from two littermate embryos from one donor mother, stained with anti-F4/80-PE antibody (eBiosciences #12-4801-80) and isolated using an EasySep mouse PE positive selection kit that uses a magnetic bead-based purification strategy (Cell Signaling Technologies #17656) and in the presence of 2 mM Icam4/αv inhibitor peptide (Xue et al., 2014) to eliminate macrophage–erythroid interactions. The cells were selected by repeating the magnetic bead binding step to increase purity. For immunofluorescence, erythroblastic island clusters were enriched from dispersed E13.5 FLs using a serum gradient as previously described (Xue et al., 2014).

Flow cytometry

Request a detailed protocol

Suspended cells from FLs were stained for FACS with the following antibodies: anti-mouse F4/80-PE (eBiosciences #12-4801-80), anti-Adra2b (Alomone Labs #AAR-021), anti-adducinβ (Santa Cruz # sc-376063), and anti-spectrinβ1 (Santa Cruz # sc-374309). For anti-Adra2b staining, we used an Alexa 647 conjugated Donkey anti-rabbit secondary antibody (Life Technologies). For adducinβ and spectrinβ1 staining, primary unconjugated antibodies were conjugated to AlexaFluor 647 using a primary antibody conjugation kit (Invitrogen # Z11235). Flow cytometry data was analyzed by FCS Express software, and gates were drawn based on unstained and single-color compensation controls from the same samples, using the same dyes and within the same experiment.

Imagestream analysis

Request a detailed protocol

Cells from intact E13.5 FLs were isolated from the pEKLF/GFP mouse and stained with the same antibodies for F4/80 and adducinβ as above, except the primary unconjugated antibody was labeled with a Texas Red labeling kit (Abcam #ab195225). Data was acquired using a Luminex Amnis Imagestream MkII Imaging Flow Cytometer and analyzed using the Amnis Ideas Software.

Immunofluorescence

Request a detailed protocol

Erythroblastic island clusters were stained for F4/80 along with Add2 and Sptb using antibodies labeled as described above for flow cytometry. Photography was performed with a Nikon Microphot-FX fluorescence microscope equipped with a Q-Imaging camera.

RNA isolation and RNA-Seq

Request a detailed protocol

FACS sorted cells were directly suspended in Trizol, and total RNA was extracted (Rio et al., 2010). RIN values for all EKLF+/+ and EKLF-/- samples were between 9.1 and 9.8. Poly-A library preparations of biological triplicate samples were analyzed by 100 nt single reads on an Illumina HiSeq 2500 or Illumina Novaseq, 60–90 million reads per sample. For F4/80+ EKLF/GFP+ population, the low cell numbers led us to use an Agilent RNA Nanoprep kit (#400753) for isolating reasonably good-quality RNA (RIN ~7). RNA-Seq data has been submitted to the Gene Expression Omnibus.

Single-cell RNA-Seq

Request a detailed protocol

Libraries were generated from purified F4/80-PE+ using Chromium Single Cell 3′ Reagent Kit V3 (10X Genomics) to generate cDNA and barcoded indexes for 25,000 individual cells. Paired-end sequencing was performed using a Novaseq instrument.

Bioinformatics and computational analysis

Request a detailed protocol

RNA-Seq reads were aligned using STAR (Dobin et al., 2013) to the mouse genome (mm10) or mapped using Salmon (Patro et al., 2017) to the mouse transcriptome (Ensembl GRCm38). Htseq-count (Anders et al., 2015) was used to generate gene-specific raw counts from the STAR-aligned reads. Raw counts from these programs were imported using tximport package, and count normalization and differential gene expression analysis was performed using DESeq2 (Love et al., 2014). Hierarchical clustering and PCA (Figure 1A, B) were performed using R (http://www.R-project.org/) or Python Pandas (https://pandas.pydata.org) and Scikit-learn (https://scikit-learn.org, Figure 3D). All plots were generated using either R ggplot2 (https://ggplot2.tidyverse.org) or Python Seaborn (https://seaborn.pydata.org) and Plotnine (https://plotnine.readthedocs.io) libraries. k-means clustering was performed using Cluster 3.0 software (de Hoon et al., 2004), and heatmaps were generated using Java Treeview (Saldanha, 2004Figures 1D and 3B) and Python Seaborn (all others). R and Python code used in the analysis is deposited in github (https://github.com/mkaustav84/biekerlab-f480_macrophage; copy archived at swh:1:rev:907b15e74d998c5dd2a3106bce30af812c2b60b4.

Single-cell sequencing reads were aligned to the mouse transcriptome build GRCm38.p6vM24 using the software Alevin (Srivastava et al., 2019), and subsequent analysis was performed using the Seurat package (R-based) with built-in functions for plotting, clustering, PCA, and U-MAP analysis. After filtering, 3066 cells were retained, and for each cell 4000 variable genes were considered for analysis.

Motif analysis was performed using the Centrimo program (http://www.meme-suite.org/). Promoter sequences from −300 to +100 were extracted using a specific Perl script of Homer for the target EKLF-dependent gene set, and the promoters of the rest of the coding genes in the genome were used as background. GO analysis (go.princeton.edu) was performed using GO::TermFinder (Boyle et al., 2004), and GO terms were distilled using REVIGO (Jiang and Conrad similarity).

Data availability

Data were deposited in GEO, accession number: GSE156153. Source data are included for Figures 1,3,4,5,6. R and Python code is deposited in https://github.com/mkaustav84/biekerlab-f480_macrophage; copy archived at https://archive.softwareheritage.org/swh:1:rev:907b15e74d998c5dd2a3106bce30af812c2b60b4/.

The following data sets were generated
    1. Mukherjee K
    2. Planutis A
    3. Xue L
    4. Bieker JJ
    (2021) NCBI Gene Expression Omnibus
    ID GSE156153. EKLF/Klf1 expression specifies a unique macrophage subset during mouse erythropoiesis.
The following previously published data sets were used
    1. Lavin Y
    2. Winter D
    3. Blecher-Gonen R
    4. David E
    5. Keren-Shaul H
    6. Merad M
    7. Jung S
    8. Amit I
    (2014) NCBI Gene Expression Omnibus
    ID GSE63340. Tissue-resident macrophage enhancer landscapes are shaped by the local microenvironment.

References

    1. Weinshank RL
    2. Zgombick JM
    3. Macchi M
    4. Adham N
    5. Lichtblau H
    6. Branchek TA
    7. Hartig PR
    (1990)
    Cloning, expression, and pharmacological characterization of a human alpha 2B-adrenergic receptor
    Molecular Pharmacology 38:681–688.

Decision letter

  1. Florent Ginhoux
    Reviewing Editor; Agency for Science Technology and Research, Singapore
  2. Carla V Rothlin
    Senior Editor; Yale School of Medicine, United States
  3. Christian Schulz
    Reviewer; University Hospital Munich, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Your study characterised thru single cell RNA-sequencing the various murine macrophages population present in the fetal liver. Importantly, this study identified and characterised thoroughly a new population of EKLF expressing / KLF1 dependent macrophages associated with erythroid islands. This work is important in the field and should aid future studies on macrophage development and identity, as well as erythropoiesis.

Decision letter after peer review:

Thank you for submitting your article "EKLF/KLF1 expression defines a unique macrophage subset during mouse erythropoiesis" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Carla Rothlin as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Christian Schulz (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

The authors use scRNA-seq to identify distinct macrophage populations in mouse E13.5 fetal liver. They focus on the description of a small subset of macrophages associated with erythroid islands that expresses EKLF. They further determined EKLF-dependent gene expression programs using mice deficient of this transcription factor and provided new surface markers that can be used to isolate these cells via flow cytometry. This work is important in the field and should aid future studies on macrophage development, identity and erythropoiesis.

Essential revisions:

Although interesting, some conclusions drawn from the data should be further supported experimentally and further validation should be provided on 4 points:

1) The RNAseq performed on EKLF-/- and WT FL macrophages is analyzed and interpreted in a way that macrophages, despite reduced numbers, are still just one population of cells, although the authors indicate beforehand that only 36% express EKLF. The differential expression of genes observed here could be simply due to the fact that EKLF+ macrophages don't survive, and instead Vcam1+ and Epor+ macrophages (or other macrophage subpopulations) relatively increase in numbers. A possible further heterogeneity should be considered before the interpretation of "EKLF-dependent genes" is valid (see also point 4). Thus, statements such as “Critically, EKLF regulates the expression of a significant number of other transcription factors in FL

macrophages including Foxo3, Ikzf1, MafK, Nr3c1; cell-cycle E2f factors; and other members of the Klf family (Figure 5—figure supplement 1C). Thus, along with the known critical transcriptional role of EKLF in erythroid cells, our data suggest a crucial global regulatory role for EKLF in proliferation and development of FL island macrophages.” are highly speculative, particularly if genes do not possess an EKLF binding site in their enhancer. Similarly, genes in EKLF-/- cells may be downregulated simply due to the absence of these cells (data shown in Figure 6B).

2) Validation of RNA-seq (and observed heterogeneity) on protein level in the intact FL tissue (not isolated cells only):

– Heterogeneity of scRNA-seq analysis has to be confirmed in a protein level, with a panel consisting of at least F4/80, EKLF(-GFP), Adra2b, Add2, Sptb2, Vcam1. Analysis should be performed in an unbiased manner (similar to scRNA-seq using UMAP)

– EKLF expression is shown for fetal liver cells (Figure 2A, B). The authors should perform IF analyses on cryosections so that the reader can appreciate the co-localization with central macrophages and EKLF expression in situ.

– Along these lines, an IF should be performed on cryosections to show that EKLF+ macrophages are indeed also Vcam1 and/or Epor. The scRNA-seq data indicates that "most EKLF+ cells express Epor", but Epor is expressed by various other clusters. Quantification of these markers in situ would allow to address whether these cells are really the same or whether a further heterogeneity exists.

– to make sure that erythroid markers (Add2, Sptb) are indeed not contaminants, imagestream should be performed. Similar to CD31 "expression" in the adult liver where they are just contaminated with endothelial cell parts (Lynch et al., 2018), macrophages may be just attached to membrane parts of erythroblasts that are being stained.

– Only a very minor fraction of cluster 4 expresses Adra2b. What does that mean for conclusion in Figure 6D? Are all the other macrophages (e.g. cluster 0/1) not erythroblastic islands during normal hematopoiesis in the FL? “Second, we are not suggesting that EKLF-expressing clusters are the sole source of macrophage islands…” suggest exactly this; however, data are lacking to confirm this statement (e.g. IF staining of Vcam1/Marco + Ter119).

3) Function of EKLF macrophage by better describing the knock-out phenotype:

What is the phenotype of EKLF-/- embryos?

Showing data as % (Figure 6 C) does not allow a conclusion of how the populations change in the KO. These numbers have to be quantified as cells per liver or per gram of tissue. Why are not other marker used for this analysis that would allow enrichment of FL macrophages?

Figure 3 A does not show differences in F4/80 macrophages between wildtype and EKLF-/- FL. Further, the gating for macrophages should not be done solely on F4/80 expression, at least CD45 and CD11b should be added to the gating strategy.

Are EKLF-expressing F4/80+ FL macrophages functionally different to EKLF-negative macs?

4) As mentioned and demonstrated by the authors, FL macrophages are heterogenous. One factor contributing to this heterogeneity is the developmental origin of macrophages, since both AGM and yolk sac provide hematopoietic cells accumulate in the fetal liver. While this paper focused on FL macrophages, authors should check whether key markers are expressed in YS erythroblastic islands. This would increase our understanding regarding FL-specificity of their findings.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "EKLF/KLF1 expression defines a unique macrophage subset during mouse erythropoiesis" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Carla Rothlin as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Christian Schulz (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

The authors used scRNA-seq to identify distinct macrophage populations in the E13.5 FL. Using previously published data in combination with newly performed RNA-seq analysis, they focus on the description of a small subset of macrophages that expresses EKLF. The authors present data of EKLF KO mice, indicating EKLF target genes and new surface markers that can be used to isolate these cells via flow cytometry.

Essential revisions:

To consider the manuscript for publication, the authors need to include a clear validation of heterogeneity on the protein level either by flow cytometry or 4-color immunofluorescence of the intact fetal liver.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "EKLF/KLF1 expression defines a unique macrophage subset during mouse erythropoiesis" for further consideration by eLife. Your revised article has been evaluated by Carla Rothlin (Senior Editor), a Reviewing Editor and the reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

We all concur on the important contributions of your manuscript to the field. We are also in agreement that this work will inspire and enable future studies on macrophage heterogeneity and function during development. Establishing a protocol to isolate these cells based on cell surface markers will strengthen the findings. The stainings included in response to our request have not been extensively confirmed and therefore weaken what is otherwise an important contribution.

Since these data are not sufficiently validated, we request not to include them in the final paper. However, the community should learn from your efforts in establishing this protocol and the fact that we all consider this to be of great importance.

As such, we request that:

– While it would be ideal to have had established a protocol for cell isolation, the stainings included in the revision have not been extensively validated and should not be included in the manuscript.

– The authors should also discuss their efforts in establishing a protocol to isolate these cells based on the cell surface expression of Add2, Nxpe2 and Sptb without adequate success and that future efforts are warranted to establish a solid method for the isolation of this population.

– We expect that the authors will continue their efforts in establishing this approach and that they report them as a preprint on bioRxiv or if appropriate as a Research Advance in eLife, either of which would be linked to the original paper.

https://doi.org/10.7554/eLife.61070.sa1

Author response

Essential revisions:

Although interesting, some conclusions drawn from the data should be further supported experimentally and further validation should be provided on 4 points:

1) The RNAseq performed on EKLF-/- and WT FL macrophages is analyzed and interpreted in a way that macrophages, despite reduced numbers, are still just one population of cells, although the authors indicate beforehand that only 36% express EKLF.

We are not considering macrophage as one population of cells; rather, we are focusing on the F480+ subpopulation based on prior knowledge of the subset that plays a role in erythroblastic islands. These are further subdivided to focus on the 1/3 that expresses EKLF. A major point of the paper is acknowledgement of macrophage heterogeneity, culminating in our single cell seq analysis that indicates an extensive range of genotypes even within the F480+ population.

The differential expression of genes observed here could be simply due to the fact that EKLF+ macrophages don't survive, and instead Vcam1+ and Epor+ macrophages (or other macrophage subpopulations) relatively increase in numbers.

The fact that there are EKLF+ and F480+ double positive macrophage by two criteria (Figures 2 and 4) makes it clear that survival is not affected by presence/absence of EKLF. Hence, we do not believe that EKLF+ macrophage don’t survive.

A possible further heterogeneity should be considered before the interpretation of "EKLF-dependent genes" is valid (see also point 4). Thus, statements such as “Critically, EKLF regulates the expression of a significant number of other transcription factors in FL

macrophages including Foxo3, Ikzf1, MafK, Nr3c1; cell-cycle E2f factors; and other members of the Klf family (Figure 5—figure supplement 1C). Thus, along with the known critical transcriptional role of EKLF in erythroid cells, our data suggest a crucial global regulatory role for EKLF in proliferation and development of FL island macrophages.” are highly speculative, particularly if genes do not possess an EKLF binding site in their enhancer.

We have modified the statement in question that suggest EKLF targets by the dual-RNA seq criteria by stating that these can be verified by a search of consensus target and ultimately by ChIP. The best way to directly address EKLF-dependent genes would be first comparing single cell RNA-Seq data of WT and EKLF-/- macrophages followed by EKLF ChIP-seq or Cut&Run in F4/80+ EKLF+ macrophages isolated using the Add2/Sptb method.

However, it appears we have not been clear about our methodology. Our statements/conclusions are based on two different experiments, one comparing RNA seq from EKLF WT vs null, and the other comparing RNA seq in WT cells segregated into those that do or do not express EKLF/GFP. Overlapping these two independent datasets is an extremely powerful way to parse down the potential direct/indirect genes whose expression are dependent on the presence of EKLF. We have clarified this point in the revision.

Similarly, genes in EKLF-/- cells may be downregulated simply due to the absence of these cells (data shown in Figure 6B).

As a corollary to our earlier statement, the fact that by two criteria (Figures 2 and 4) there are F480+ macrophage that are EKLF- makes it clear that survival is not affected by presence/absence of EKLF. Hence, we do not believe that EKLF-/- cells are absent. Examination of the data suggests the following. First, in Figure 5A we would expect the vast majority of genes enriched in EKLF/GFP+ (co-expressed in EKLF+ macrophages) to be downregulated in EKLF-/- i.e. the vast majority of data points would lie in the top left quadrant, with a high overall correlation between EKLF/GFP+ enrichment and EKLF-/- downregulation. However, we see a fairly high number of genes in the top right quadrant and these are genes enriched in EKLF/GFP+ but also upregulated in EKLF-/-. Further, the overall correlation in the two datasets is only a modest -0.11. Second, our data shows that about 25-35% of F4/80+ cells on average maybe EKLF+ (Xue et al., 2014, Figure 7A). Thus, we would expect the reduction of F4/80+ cells in EKLF-/- to be around the same percentage if they do not survive in EKLF-/-. However, although our data shows a 50% reduction in F4/80+ macrophages in EKLF-/- (Figure 3A) compared to WT (Figure 1—figure supplement 1A).

For the future, to investigate the cause of the reduced survival of F4/80+ cells in the EKLF-/- fetal liver, we are establishing a conditional knockout model where EKLF is knocked out only in EKLF-expressing F4/80+ macrophages in order to delineate the erythroid and macrophage roles of EKLF.

2) Validation of RNA-seq (and observed heterogeneity) on protein level in the intact FL tissue (not isolated cells only):

– Heterogeneity of scRNA-seq analysis has to be confirmed in a protein level, with a panel consisting of at least F4/80, EKLF(-GFP), Adra2b, Add2, Sptb2, Vcam1. Analysis should be performed in an unbiased manner (similar to scRNA-seq using UMAP)

This is an interesting suggestion, so we attempted these studies using a mix of antibodies. We used total (ie, unsorted) E13.5 FL cells from EKLF/GFP mouse and stained for F4/80, Add2, Sptb, Vcam1, Adra2b using primary conjugated antibodies with nonoverlapping fluors. Unfortunately, we ran into problems/ limitations. Even in single antibody stained compensation controls, very few Adra2b stained cells were observed after conjugating with an Alexa Fluor 700 labeling kit from Abcam (ab269824) and the anti Vcam1AlexaFluor405 antibody (SCBT) did not work (ie, no Vcam1+ cells were detected – highly unlikely from intact fetal liver). Further, the conjugation of the primary Add2 antibody with a Texas-red labeling kit from Abcam led to greatly diminished signals than was observed with a different labeling kit in Figure 9A,B. Nonetheless, analysis of of 4 markers using tSNE show significant segregation and thus heterogeneity consistent with the RNA seq data. Even though we have two independent data sets that support this idea, we hesitate to include these data in the manuscript, as we consider it incomplete. Thus, it is still a work in progress that will require optimization and rigorous testing of various antibodies and labeling kits. Though we agree that this data would enhance our conclusions, the lack of this data does not detract from our original findings. Therefore, we request that the editor and reviewers take this into consideration and excuse our inability to perform this experiment at this time. We recognize the importance of correlating the observed heterogeneity in single cell RNA-Seq to protein expression, and we are currently endeavoring to investigate this.

– EKLF expression is shown for fetal liver cells (Figure 2A, B). The authors should perform IF analyses on cryosections so that the reader can appreciate the co-localization with central macrophages and EKLF expression in situ.

– Along these lines, an IF should be performed on cryosections to show that EKLF+ macrophages are indeed also Vcam1 and/or Epor. The scRNA-seq data indicates that "most EKLF+ cells express Epor", but Epor is expressed by various other clusters. Quantification of these markers in situ would allow to address whether these cells are really the same or whether a further heterogeneity exists.

We had performed cryosection analyses before submission of the original manuscript, but felt them uninformative for two reasons. One, the (beautiful) structure of the island macrophage (ie, F4/80+) spilled into adjacent sections, making it difficult to ascertain differences between WT vs EKLF-null fetal livers. Two, unlike our FACS studies, the EKLF/GFP signal was weak in the cryosections and did not provide a suitable way to distinguish/quantify its presence in the clusters of cells. We feel the single cell IF analysis of Figure 2 is the most appropriate way to directly address EKLF protein presence in the F480+ macrophage. Complementing this, our new data of Figure 9D,E show the colocalization of F480+ cells with SptB or Add2 in isolated islands, and image stream analyses (new Figure 9C) show overlap of EKLF/GFP, F480+ and Add2 in single cells. Specifically, we isolated erythroblastic islands using E13.5 fetal livers using a serum gradient and stained for F4/80 along with Add2 and Sptb. We have added the relevant descriptions of our results in the revised manuscript.

– To make sure that erythroid markers (Add2, Sptb) are indeed not contaminants, imagestream should be performed. Similar to CD31 "expression" in the adult liver where they are just contaminated with endothelial cell parts (Lynch et al., 2018), macrophages may be just attached to membrane parts of erythroblasts that are being stained.

We performed Imagestream analysis on E13.5 fetal liver cells isolated from the EKLF/GFP mouse and stained with primary conjugated antibodies for F4/80 and Add2. The results are shown in Figure 9C and relevant text descriptions are added in the revised manuscript. We are not sure if the reviewer means that the Sptb/Add2 staining is coming from erythroid membranes attached to macrophages (interaction disrupted but membrane fragments remain attached) or erythroid cells attached to macrophages. Our Imagestream result clearly rules out the latter, but the former is also unlikely since we also observe the Add2/Sptb mRNA in single cell RNA-Seq of macrophages.

– Only a very minor fraction of cluster 4 expresses Adra2b. What does that mean for conclusion in Figure 6D? Are all the other macrophages (e.g. cluster 0/1) not erythroblastic islands during normal hematopoiesis in the FL? “Second, we are not suggesting that EKLF-expressing clusters are the sole source of macrophage islands…” suggest exactly this; however, data are lacking to confirm this statement (e.g. IF staining of Vcam1/Marco + Ter119).

Our interpretation is that the few Adra2b+ macrophages in Cluster4 are island macrophages, but that does not suggest that there are no other clusters of island macrophages. We have tried to focus on the role of EKLF in fetal liver macrophages, and to that end found Adra2b as a possible marker for a small subset of them. Directly observing that this marker is also expressed in island macrophages suggest that at least this subset of EKLF expressing macrophages are associated with erythroblastic islands. Our data with Add2 and Sptb is more robust than Adra2b, as these stain 26% of F480+ cells and are present in island macrophages.

3) Function of EKLF macrophage by better describing the knock-out phenotype:

What is the phenotype of EKLF-/- embryos?

We inadvertently left out this critical information. EKLF-/- embryos are embryonic lethal at E15. At E13.5 they are severely anemic and their pale fetal liver is already distinct compared to their EKLF+/+ and EKLF+/- littermates. Given our studies, the cause of the anemia could be a combination of impaired erythropoiesis due to the loss of EKLF in developing erythroid progenitors as well as impaired island macrophage function supporting definitive erythropoiesis. This information has been added to the Introduction and to the Discussion.

Showing data as % (Figure 6 C) does not allow a conclusion of how the populations change in the KO. These numbers have to be quantified as cells per liver or per gram of tissue. Why are not other marker used for this analysis that would allow enrichment of FL macrophages?

In Figure 6C, we have used F4/80 as a marker which specifically shows the fetal liver macrophage population. The percentages indicated already accounting for the total cells per liver since intact E13.5 fetal livers were used for this analysis. Other markers are not used since it has been shown previously that F4/80 is specifically expressed on fetal liver macrophages, unlike Mac1 or Cd11b for example; hence, we focused on a positively-associated marker for our studies.

Figure 3 A does not show differences in F4/80 macrophages between wildtype and EKLF-/- FL. Further, the gating for macrophages should not be done solely on F4/80 expression, at least CD45 and CD11b should be added to the gating strategy.

The population of F4/80+ cells in WT and KO are shown in Figure 1—figure supplement 1A and Figure 3A respectively. About 10% of E13.5 fetal liver cells in WT are F4/80+ (Figure 1—figure supplement 1A) and that is reduced to 5% in EKLF-/- (Figure 3A). CD11b is not expressed in fetal liver island macrophages so it was not included. Further, the data from (Mass et al., 2016) already includes CD45 in their gating strategy and we find that EKLF is expressed in the FL F4/80+ CD45+ macrophages in their dataset (Figure 2C).

Are EKLF-expressing F4/80+ FL macrophages functionally different to EKLF-negative macs?

Yes. When we perform GO analysis on the genes enriched in F4/80+ EKLF/GFP+ macrophages we find that these genes are mostly involved in erythroid and myeloid development, heme biosynthesis, and iron transport. In contrast the genes enriched in F4/80+ EKLF/GFP- macrophages are involved in immune system processes such as leukocyte and lymphocyte activation, and innate immunity.

We apologize for excluding this analysis from our initial submission – we recognize the importance of this data in emphasizing the unique nature of EKLF+ macrophages, which is the core idea our study is trying to convey, and hence this has been added to Table 2 and Table 3, and described in the revised manuscript. Additionally, we have also included a summary of significant GO terms associated with genes downregulated in EKLF-/- macrophages in Table 1 and described in the revised manuscript.

4) As mentioned and demonstrated by the authors, FL macrophages are heterogenous. One factor contributing to this heterogeneity is the developmental origin of macrophages, since both AGM and yolk sac provide hematopoietic cells accumulate in the fetal liver. While this paper focused on FL macrophages, authors should check whether key markers are expressed in YS erythroblastic islands. This would increase our understanding regarding FL-specificity of their findings.

The yolk sac does not have erythroblastic islands. Perhaps there is a confusion of terminology, as yolk sacs have ‘blood islands’, which are not the same, as these are morphologically-defined bulges in the vascular system that are filled with erythroid cells. Phenotypically, the yolk sac is home to the first two waves of hematopoiesis, with the first yielding primitive erythroid cells (starting at E7.25), and the second yielding erythro-myeloid progenitors (EMPs) that arise at E8.25, which can be defined as CD45-/ckit+/F480-. Our previous study showed that EKLF is expressed in these EMPs, and in the CD45+/ckit-/F480+progeny, observations also seen in the Mass et al. study. Single cell analysis of these cells would be of high interest, but is not within the scope of this study. A second study to address the subsequent fate of the EKLF+ EMP cell would be lineage tracing; unfortunately, that requires an EKLF-CRE/ER mouse, a line not yet available.

However, the AGM would be quite interesting to analyze in the context of developmental origins, as pointed out by the reviewer. Currently, we are attempting to establish lineage tracing mouse models to answer such questions.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Essential revisions:

To consider the manuscript for publication, the authors need to include a clear validation of heterogeneity on the protein level either by flow cytometry or 4-color immunofluorescence of the intact fetal liver.

We used total (ie, unsorted) E13.5 FL cells from EKLF/GFP mouse and stained for F4/80, Add2, and Sptb, using primary conjugated antibodies with nonoverlapping fluors, and have included two independent data sets. Analysis of these 4 fluorescent markers using tSNE shows significant segregation and thus validate heterogeneity consistent with the RNA seq data, and super-positioning of these single-cell graphs demonstrate both distinct and overlapping expression clusters (described in the text and included in Figure 9).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

We all concur on the important contributions of your manuscript to the field. We are also in agreement that this work will inspire and enable future studies on macrophage heterogeneity and function during development. Establishing a protocol to isolate these cells based on cell surface markers will strengthen the findings. The stainings included in response to our request have not been extensively confirmed and therefore weaken what is otherwise an important contribution.

Since these data are not sufficiently validated, we request not to include them in the final paper. However, the community should learn from your efforts in establishing this protocol and the fact that we all consider this to be of great importance.

As such, we request that:

– While it would be ideal to have had established a protocol for cell isolation, the stainings included in the revision have not been extensively validated and should not be included in the manuscript.

– The authors should also discuss their efforts in establishing a protocol to isolate these cells based on the cell surface expression of Add2, Nxpe2 and Sptb without adequate success and that future efforts are warranted to establish a solid method for the isolation of this population.

– We expect that the authors will continue their efforts in establishing this approach and that they report them as a preprint on bioRxiv or if appropriate as a Research Advance in eLife, either of which would be linked to the original paper.

Thank you for the positive comments on the importance of the manuscript. As requested, we have removed the recently added data, and have indicated that we are establishing/optimizing robust protocols using F4/80, Add2, Sptb, and Nxpe2 to isolate erythroblastic island populations. We will update the research community as soon as we are successful.

https://doi.org/10.7554/eLife.61070.sa2

Article and author information

Author details

  1. Kaustav Mukherjee

    1. Department of Cell, Developmental, and Regenerative Biology, Mount Sinai School of Medicine, New York, NY, United States
    2. Black Family Stem Cell Institute, New York, NY, United States
    Contribution
    Data curation, Formal analysis, Investigation, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7057-0880
  2. Li Xue

    Department of Cell, Developmental, and Regenerative Biology, Mount Sinai School of Medicine, New York, NY, United States
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Antanas Planutis

    Department of Cell, Developmental, and Regenerative Biology, Mount Sinai School of Medicine, New York, NY, United States
    Contribution
    Data curation, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Merlin Nithya Gnanapragasam

    Department of Cell, Developmental, and Regenerative Biology, Mount Sinai School of Medicine, New York, NY, United States
    Present address
    Department of Biological, Geological, and Environmental Sciences, Cleveland State University, Cleveland, OH, United States
    Contribution
    Data curation, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Andrew Chess

    Department of Cell, Developmental, and Regenerative Biology, Mount Sinai School of Medicine, New York, NY, United States
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  6. James J Bieker

    1. Department of Cell, Developmental, and Regenerative Biology, Mount Sinai School of Medicine, New York, NY, United States
    2. Black Family Stem Cell Institute, New York, NY, United States
    3. Tisch Cancer Institute, New York, NY, United States
    4. Mindich Child Health and Development Institute, Mount Sinai School of Medicine, New York, NY, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    james.bieker@mssm.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5128-7476

Funding

National Institute of Diabetes and Digestive and Kidney Diseases (R01 DK102260)

  • James J Bieker

National Institute of Diabetes and Digestive and Kidney Diseases (R01 DK121671)

  • James J Bieker

National Institute of Diabetes and Digestive and Kidney Diseases (K01 DK115686)

  • Merlin Nithya Gnanapragasam

Black Family Stem Cell Institute (Postdoctoral award)

  • Kaustav Mukherjee

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Chen-Yeh Ke and Ayan Ray (Soriano Lab) for advice on microscopy and the Sinai Genomics Technology Core for library preparation and deep sequencing of sorted RNA-Seq samples and single-cell sequencing. We thank Kristin Beaumont and Robert Sebra (Sinai Genomics Technology Core) for advice on single-cell sequencing analysis. Flow cytometry was performed at the Sinai Flow Cytometry Core. This work was supported by NIH grants R01 DK102260 and DK121671 to JJB, K01 DK115686 to MNG, and by a Black Family Stem Cell Institute Pilot Grant to KM.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#18-1911) of the Mount Sinai School of Medicine.

Senior Editor

  1. Carla V Rothlin, Yale School of Medicine, United States

Reviewing Editor

  1. Florent Ginhoux, Agency for Science Technology and Research, Singapore

Reviewer

  1. Christian Schulz, University Hospital Munich, Germany

Publication history

  1. Received: July 14, 2020
  2. Accepted: February 10, 2021
  3. Accepted Manuscript published: February 11, 2021 (version 1)
  4. Version of Record published: March 4, 2021 (version 2)

Copyright

© 2021, Mukherjee et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 479
    Page views
  • 81
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Neuroscience
    Eljo Van Battum et al.
    Research Article Updated

    Plexin-B2 deletion leads to aberrant lamination of cerebellar granule neurons (CGNs) and Purkinje cells. Although in the cerebellum Plexin-B2 is only expressed by proliferating CGN precursors in the outer external granule layer (oEGL), its function in CGN development is still elusive. Here, we used 3D imaging, in vivo electroporation and live-imaging techniques to study CGN development in novel cerebellum-specific Plxnb2 conditional knockout mice. We show that proliferating CGNs in Plxnb2 mutants not only escape the oEGL and mix with newborn postmitotic CGNs. Furthermore, motility of mitotic precursors and early postmitotic CGNs is altered. Together, this leads to the formation of ectopic patches of CGNs at the cerebellar surface and an intermingling of normally time-stamped parallel fibers in the molecular layer (ML), and aberrant arborization of Purkinje cell dendrites. There results suggest that Plexin-B2 restricts CGN motility and might have a function in cytokinesis.

    1. Cell Biology
    2. Developmental Biology
    Maria Danielle Sallee et al.
    Research Article

    Sustained polarity and adhesion of epithelial cells is essential for the protection of our organs and bodies, and this epithelial integrity emerges during organ development amidst numerous programmed morphogenetic assaults. Using the developing C. elegans intestine as an in vivo model, we investigated how epithelia maintain their integrity through cell division and elongation to build a functional tube. Live-imaging revealed that apical PAR complex proteins PAR-6/Par6 and PKC-3/aPkc remained apical during mitosis while apical microtubules and microtubule-organizing center (MTOC) proteins were transiently removed. Intestine-specific depletion of PAR-6, PKC-3, and the aPkc regulator CDC-42/Cdc42 caused persistent gaps in the apical MTOC as well as in other apical and junctional proteins after cell division and in non-dividing cells that elongated. Upon hatching, gaps coincided with luminal constrictions that blocked food, and larvae arrested and died. Thus, the apical PAR complex maintains apical and junctional continuity to construct a functional intestinal tube.
