A feedback loop between the androgen receptor and 6-phosphogluoconate dehydrogenase (6PGD) drives prostate cancer growth

  1. Joanna L Gillis
  2. Josephine A Hinneh
  3. Natalie K Ryan
  4. Swati Irani
  5. Max Moldovan
  6. Lake-Ee Quek
  7. Raj K Shrestha
  8. Adrienne R Hanson
  9. Jianling Xie
  10. Andrew J Hoy
  11. Jeff Holst
  12. Margaret M Centenera
  13. Ian G Mills
  14. David J Lynn
  15. Luke A Selth  Is a corresponding author
  16. Lisa M Butler  Is a corresponding author
  1. Adelaide Medical School, University of Adelaide, Australia
  2. South Australian Health and Medical Research Institute, Australia
  3. Department of Urology, Nagoya University Graduate School of Medicine, Japan
  4. School of Mathematics and Statistics, Charles Perkins Centre, Faculty of Science, The University of Sydney, Australia
  5. Flinders Health and Medical Research Institute, Flinders University, College of Medicine and Public Health, Australia
  6. Dame Roma Mitchell Cancer Research Laboratories, University of Adelaide, Australia
  7. Freemasons Centre for Male Health and Wellbeing, University of Adelaide, Australia
  8. School of Medical Sciences, Charles Perkins Centre, Faculty of Medicine and Health, The University of Sydney, Australia
  9. School of Medical Sciences and Prince of Wales Clinical School, University of New South Wales, Australia
  10. Centre for Cancer Research and Cell Biology, Queen's University Belfast, United Kingdom
  11. Nuffield Department of Surgical Sciences, University of Oxford, United Kingdom
Research Article
  • Cited 0
  • Views 785
  • Annotations
Cite this article as: eLife 2021;10:e62592 doi: 10.7554/eLife.62592

Abstract

Alterations to the androgen receptor (AR) signalling axis and cellular metabolism are hallmarks of prostate cancer. This study provides insight into both hallmarks by uncovering a novel link between AR and the pentose phosphate pathway (PPP). Specifically, we identify 6-phosphogluoconate dehydrogenase (6PGD) as an androgen-regulated gene that is upregulated in prostate cancer. AR increased the expression of 6PGD indirectly via activation of sterol regulatory element binding protein 1 (SREBP1). Accordingly, loss of 6PGD, AR or SREBP1 resulted in suppression of PPP activity as revealed by 1,2-13C2 glucose metabolic flux analysis. Knockdown of 6PGD also impaired growth and elicited death of prostate cancer cells, at least in part due to increased oxidative stress. We investigated the therapeutic potential of targeting 6PGD using two specific inhibitors, physcion and S3, and observed substantial anti-cancer activity in multiple models of prostate cancer, including aggressive, therapy-resistant models of castration-resistant disease as well as prospectively collected patient-derived tumour explants. Targeting of 6PGD was associated with two important tumour-suppressive mechanisms: first, increased activity of the AMP-activated protein kinase (AMPK), which repressed anabolic growth-promoting pathways regulated by acetyl-CoA carboxylase 1 (ACC1) and mammalian target of rapamycin complex 1 (mTORC1); and second, enhanced AR ubiquitylation, associated with a reduction in AR protein levels and activity. Supporting the biological relevance of positive feedback between AR and 6PGD, pharmacological co-targeting of both factors was more effective in suppressing the growth of prostate cancer cells than single-agent therapies. Collectively, this work provides new insight into the dysregulated metabolism of prostate cancer and provides impetus for further investigation of co-targeting AR and the PPP as a novel therapeutic strategy.

Introduction

Altered cellular metabolism is a hallmark of cancer. Perhaps the best characterised metabolic transformation in malignant cells is the so-called Warburg effect, in which cancer cells favour metabolism via glycolysis rather than the more efficient oxidative phosphorylation (Vander Heiden et al., 2009). While Warburg-like metabolism plays a key role in many malignancies, more recent work has demonstrated the diversity of cancer metabolism and revealed that tissue of origin is likely to be the critical determinant of malignant metabolic reprogramming (Bader and McGuire, 2020). One tissue that exhibits a unique metabolic profile is the prostate (Lin et al., 2019). Normal prostate epithelial cells exhibit a truncated tricarboxylic acid (TCA) cycle to enable production of citrate, a key component of prostatic fluid, resulting in high rates of glycolysis (Bader and McGuire, 2020). By contrast, malignant transformation switches metabolism of prostate cells to a more energetically favourable phenotype by re-establishing an intact TCA cycle, whereby citrate is utilised for oxidative phosphorylation and biosynthetic processes such as lipogenesis (Flavin et al., 2011).

A major regulator of the unique metabolism of the normal and malignant prostate is the androgen receptor (AR) (Butler et al., 2016). AR is a hormone (androgen)-activated transcription factor that regulates expression of a large suite of genes involved in various aspects of metabolism, either directly or indirectly through activation of other master regulators such as sterol regulatory element-binding protein-1 (SREBP1) (Gonthier et al., 2019; Heemers et al., 2003). Given its integral metabolic functions, it is unsurprising that AR is the primary oncogenic driver of prostate cancer (PCa) and the major therapeutic target in advanced and metastatic disease. While suppression of AR activity by androgen receptor pathway inhibitors (ARPIs) is initially effective in almost all men, prostate tumours inevitably develop resistance and progress to a lethal disease state known as castration-resistant prostate cancer (CRPC). One key feature of CRPC is the maintenance or reactivation of the AR signalling axis, as revealed by the therapeutic benefit of second-generation ARPIs, such as the AR antagonist enzalutamide, in CRPC (Beer et al., 2014). Unfortunately, the overall survival benefits of these newer ARPIs in men with CRPC are in the order of months (Recine and Sternberg, 2015), despite many tumours retaining dependence on AR (Robinson et al., 2015). Collectively, these clinical observations highlight the ongoing dependence of CRPC on AR signalling and the intractable problems associated with therapies that inhibit this pathway.

Direct alterations to AR – including mutation, amplification, alternative splicing, and altered ligand availability – have been well characterised as mechanisms of resistance in CRPC (Coutinho et al., 2016). However, the extent to which AR-mediated metabolic reprogramming is involved in therapy resistance in CRPC is less well understood. Herein, using an unbiased approach to discover potential PCa survival factors, we identify 6-phosphogluoconate dehydrogenase (6PGD) as a novel AR-regulated factor. 6PGD is a key enzyme in the pentose phosphate pathway (PPP) (also referred to as the phosphogluconate pathway or the hexose monophosphate shunt), an alternative metabolic pathway for glucose breakdown. The PPP comprises two phases: an irreversible oxidative phase that generates NADPH and ribulose 5-phosphate (Ru5P); and a subsequent reversible non-oxidative phase in which Ru5P is converted to ribose 5-phosphate (R5P), a sugar precursor for generation of nucleotides (Jin and Zhou, 2019; Ge et al., 2020). NADPH produced by the PPP is used for many anabolic reactions, including fatty acid synthesis, as well as an electron donor to generate reduced glutathione, the major endogenous antioxidant (Ge et al., 2020). Thus, the PPP is a major regulator of both redox homeostasis as well as anabolic reactions, depending on cellular requirements. We demonstrate that 6PGD plays a key role in PCa growth and survival, at least in part through moderating oxidative stress, and uncover a novel feedback mechanism linking 6PGD and the AR signalling axis that provides impetus for further investigation of co-targeting AR and the PPP as a novel therapeutic strategy.

Results

6PGD is an androgen-regulated gene in PCa

The current clinical ARPIs, such as enzalutamide, do not target the entire repertoire of genes regulated by the AR in prostate tumour cells (Asangani et al., 2014). We hypothesised that ablation of AR expression would be the most appropriate ‘therapeutic benchmark’ to identify the key regulators of tumour cell survival regulated by AR. To qualitatively and quantitatively compare downstream responses to AR ablation and AR antagonism, LNCaP cells were treated with AR siRNA (siAR; i.e. AR ablation) or enzalutamide (Enz; AR antagonism) and subsequently evaluated by RNA-seq. The experimental conditions were optimised to achieve comparable suppression of the canonical AR target, prostate specific antigen (PSA), which is encoded by the KLK3 gene (Figure 1A). Genes affected by siAR were highly concordant with an independent dataset (He et al., 2014; Figure 1—figure supplement 1A). As expected, most (78%) genes altered by enzalutamide (compared to vehicle control) were also similarly dysregulated by siAR (compared to a control siRNA [siCon]) (Figure 1B, Figure 1—source data 1). An additional 2574 genes were altered in their expression by siAR but not enzalutamide (Figure 1B; q < 0.05). On closer examination, many of these genes were altered in their expression by enzalutamide but not sufficiently for them to be identified as statistically significant differentially expressed genes. A further direct statistical comparison of gene expression between the two treatment groups identified that there were 581 genes that were differentially expressed in the siAR-treated cells compared to those treated with enzalutamide including, as expected, AR itself (Figure 1B,C, Figure 1—source data 1; q < 0.05). These results provide further evidence for the hypothesis that AR ablation is more effective at suppressing the AR-regulated transcriptome compared with AR antagonism, at least in this experimental system.

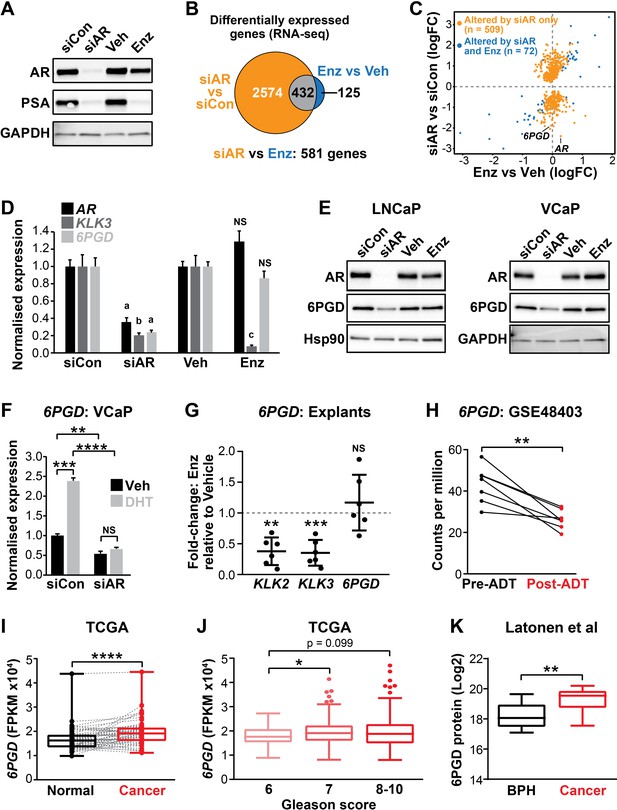

Figure 1 with 2 supplements see all
6PGD is an androgen receptor (AR)-regulated gene and is elevated in prostate cancer.

(A) Effect of siAR and enzalutamide (Enz) on the AR target, PSA. LNCaP cells were transfected with AR (siAR; 12.5 nM) or control (siCon) siRNA for 48 hr or treated with Enz (1 µM) or vehicle (Veh) for 24 hr, after which AR and PSA proteins were evaluated by immunoblotting. GAPDH was used as loading control. (B) Numbers of genes differentially expressed (false discovery rate [FDR] < 0.05) by siAR (versus siCon) or Enz (vs. Veh) are shown in the Venn diagram (at top). Below: an alternative analysis identified 581 genes differentially expressed (FDR < 0.05) by siAR versus Enz. (C) Scatterplot of genes affected by siAR and Enz. The 581 genes differentially expressed by siAR versus Enz are shown in blue (n = 72, genes differentially expressed by siAR versus siCon and Enz versus Veh) and yellow (n = 509), genes differentially expressed by siAR versus siCon but not by Enz versus Veh. (D) Validation of 6PGD expression in response to siAR and Enz by RT-qPCR. Gene expression was normalised to GUSB and L19 and represents the mean ± standard error of the mean (SEM) of three biological replicates; siCon and Veh were set to 1. Differential expression was evaluated using unpaired t tests (a, p<0.01; b, p<0.001; c, p<0.0001; NS, not significant). (E) 6PGD protein levels in response to siAR and Enz treatments were measured by immunoblotting in LNCaP (left) and VCaP (right) cells. HSP90 and GAPDH were used as loading controls. (F) RT-qPCR of 6PGD expression in response to DHT and siAR in VCaP cells. Cells were transfected with siRNAs for 24 hr, and then treated with 1 nM DHT for another 24 hr. Gene expression was normalised and graphed as in (D). Differential expression was evaluated by t tests (**p < 0.01; ***p < 0.001; ****p < 0.0001). (G) RT-qPCR of KLK2, KLK3, and 6PGD expression in response to Enz treatment (1 µM, 72 hr) in patient-derived explants. Gene expression was normalised to GAPDH, PPIA, and TUBA1B and is represented as fold-change relative to vehicle. Differential expression was evaluated by one-sample t tests (**p<0.01; ***p<0.001). (H) 6PGD mRNA expression in prostate tumours pre- and post-androgen deprivation therapy (ADT; GSE48403). A Wilcoxon matched-pairs signed-rank test was used to compare expression in the groups. (I) 6PGD expression is elevated in primary prostate cancer. The TCGA dataset comprises 52 patient-matched normal and cancer samples. Boxes show minimum and maximum (bottom and top lines, respectively) and mean (line within the boxes) values. A paired t test was used to compare expression in normal versus cancer. FPKM: fragments per kilobase of exon per million mapped reads. (J) 6PGD expression by Gleason grade in the TCGA cohort. Boxes show minimum and maximum (bottom and top lines, respectively) and mean (line within the boxes) values. Unpaired t tests were used to compare expression between the groups. (K) 6PGD protein expression in clinical prostate samples (benign prostatic hyperplasia [BPH] and tumours) was measured mass spectrometry. Boxes show minimum and maximum (bottom and top lines, respectively) and mean (line within the boxes) values. An unpaired t test was used to compare expression between the groups.

Figure 1—source data 1

Differentially-expressed genes in LNCaP prostate cancer cells treated with siAR or Enz.

https://cdn.elifesciences.org/articles/62592/elife-62592-fig1-data1-v2.xlsx

The gene most significantly associated with AR ablation and not AR antagonism was 6PGD (Figure 1C, Figure 1—source data 1), which encodes an enzyme in the PPP. We confirmed that 6PGD expression was downregulated by AR knockdown but not by acute AR antagonism in multiple PCa cell lines (LNCaP and VCaP) at both the mRNA and protein level (Figure 1D,E; Figure 1—figure supplement 1B–D). Downregulation of 6PGD was also seen with a second AR siRNA, validating 6PGD as a bona fide target of AR (Figure 1—figure supplement 1B–D). In further support of differential regulation by siAR versus AR antagonism, neither of the newest clinically approved AR antagonists (apalutamide and darolutamide) altered 6PGD protein or mRNA expression (Figure 1—figure supplement 1E,F). Conversely, AR activation with the androgen 5α-dihydrotestosterone (DHT) stimulated 6PGD expression, and this effect was abolished by co-treatment with siAR (Figure 1F). To determine whether AR inhibition affects 6PGD in more biologically relevant systems, we utilised our patient-derived explant (PDE) model (Centenera et al., 2018). Similar to two-dimensional PCa cell line culture, we did not observe enzalutamide-mediated changes to 6PGD mRNA expression in the PDE model over a time frame of 48 hr under conditions that caused significant repression of the well-characterised AR target genes KLK2 and KLK3 (Figure 1G). By contrast, longer-term (~14 weeks) androgen deprivation therapy in patients caused a significant decrease in 6PGD mRNA levels (Figure 1H). Collectively, these findings reveal 6PGD as a novel AR-regulated factor in both PCa cell lines and clinical samples.

As an initial assessment of the relevance of 6PGD in clinical PCa, we examined its expression in a clinical transcriptomic dataset (Cancer Genome Atlas Research Network, 2015) and found that 6PGD mRNA expression was significantly elevated in cancer compared to patient-matched normal tissue and also showed an association with increasing Gleason grade (Figure 1I,J), although it was not associated with biochemical recurrence (data not shown). An association with malignancy was recapitulated at the protein level (Figure 1K) in a distinct set of patient samples for which proteomes were profiled using mass spectrometry (Latonen et al., 2018). We further examined 6PGD protein expression in prostate tumours by immunohistochemistry (IHC). 6PGD was detected in all tissues that were examined and was predominantly localised to the cytoplasm and perinuclear regions of epithelial cells (Figure 1—figure supplement 2). Moreover, we observed a trend towards increasing protein levels in the more aggressive tumours (Figure 1—figure supplement 2). In summary, 6PGD is highly expressed in prostate tumours, suggesting that the PPP may play an important metabolic role in this cancer type.

SREBP1 mediates induction of 6PGD downstream of the AR

AR binds to gene enhancers or promoters to directly regulate transcription (Wang et al., 2007). However, we found no clear evidence of AR binding sites proximal to the 6PGD transcriptional start site in genome-wide DNA binding (ChIP-seq) datasets from tissues and cell lines (Figure 2A and data not shown), suggesting that the AR pathway may indirectly regulate 6PGD expression via another downstream pathway(s) or factor(s). One credible intermediary between AR and 6PGD is SREBP1, a master transcriptional regulator of genes involved in lipid and cholesterol production (Heemers et al., 2006). AR enhances SREBP1 expression and activity in a multifaceted manner, most notably by upregulating the SREBP1 activator SCAP (Heemers et al., 2006) and by activating the mTOR pathway, which in turn leads to elevated SREBP1 expression (Duvel et al., 2010). Additionally, SREBP1 has been proposed to directly regulate 6PGD in mouse adipocytes by direct binding to its promoter (Rho et al., 2005). We mined ENCODE SREBP1 ChIP-seq data and identified an SREBP1 binding site at the 6PGD promoter in two cancer cell lines, HEPG2 (liver) and MCF7 (breast) (Figure 2B). Regulation of 6PGD by SREBP1 in PCa cells was confirmed by siRNA-mediated knockdown of SREBP1 (Figure 2C). To test whether SREBP1 acts downstream of AR to increase 6PGD expression, we treated LNCaP cells with siSREBP1 or a pharmacological inhibitor of SREBP1 (fatostatin) and then evaluated 6PGD expression in the presence or absence of DHT. Supporting our hypothesis, either knockdown (Figure 2D) or inhibition of SREBP1 antagonised androgen-mediated induction of 6PGD (Figure 2E). We validated this effect in an independent AR-responsive cell line, VCaP (Figure 2D). Collectively, these results reveal the presence of a functional AR-SREBP1-6PGD circuit in PCa cells and implicate SREBP1 as a key mediator of PPP activation by AR.

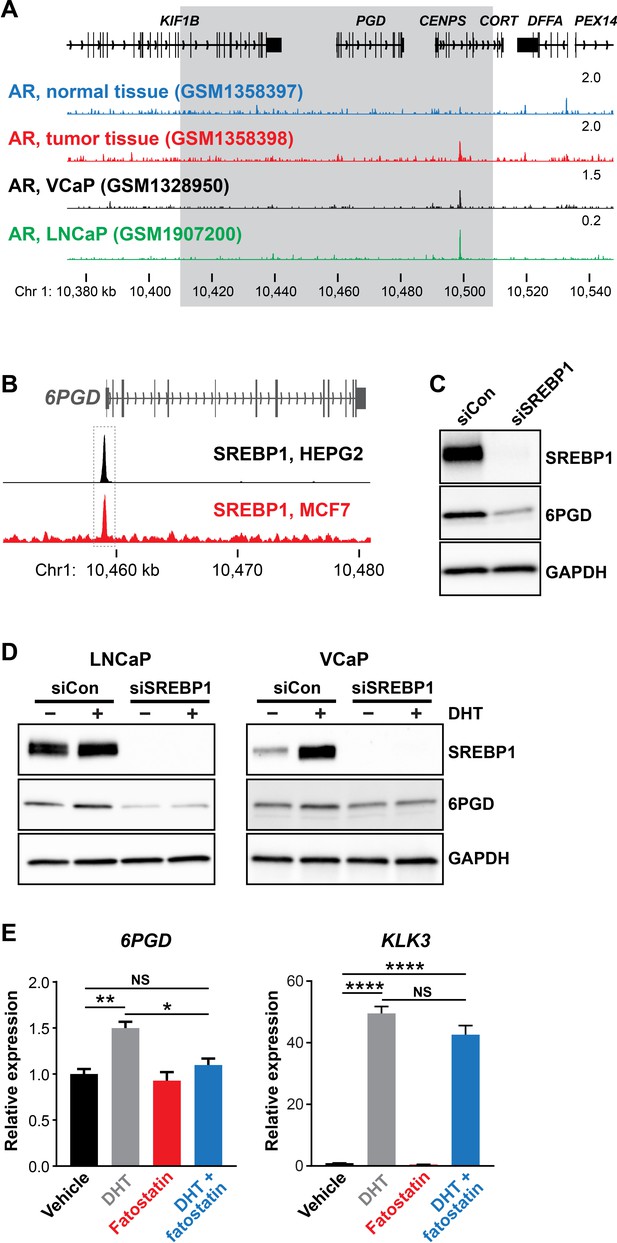

SREBP1 mediates induction of 6PGD downstream of the androgen receptor (AR).

(A) ChIP-seq data showing AR DNA binding near the 6PGD gene in non-malignant and prostate tumour samples (Pomerantz et al., 2015) and the LNCaP (Barfeld et al., 2017) and VCaP (Asangani et al., 2014) cell line models. The grey box indicates a region ±50 kb of the 6PGD transcriptional start site. (B) ChIP-seq data showing SREBP1 DNA binding at the 6PGD promoter in HEPG2 and MCF7 cells. Data is from ENCODE (ENCODE Project Consortium, 2012; HEPG2: ENCFF000XXR; MCF7: ENCFF911YFI). (C) Effect of siSREBP1 on 6PGD protein. LNCaP cells were transfected with siRNA (siSREBP1; 12.5 nM) or control (siCon) for 72 hr after which SREBP1 and 6PGD protein levels were evaluated by immunoblotting. GAPDH was used as loading control. (D) Effect of siSREBP1 on 6PGD induction by DHT. LNCaP (left) or VCaP (right) cells were transfected with siRNA (siSREBP1; 12.5 nM) or control (siCon) in charcoal-stripped FBS media for 72 hr and then treated with 10 nM DHT for another 24 hr. SREBP1 and 6PGD protein levels were evaluated by immunoblotting. GAPDH was used as loading control. (E) RT-qPCR of 6PGD expression in response to DHT and fatostatin in LNCaP cells. Cells were serum starved in charcoal-stripped FBS media for 72 hr and then treated with Veh or 10 nM DHT ±10 µM fatostatin for another 24 hr. Gene expression was normalised to GUSB and L19 and represents the mean + SEM of three biological replicates. Treatment effects were evaluated using ANOVA and Dunnett’s multiple comparison tests (*p<0.05; **p<0.01; ****p<0.0001; NS, not significant).

An AR-SREBP1-6PGD axis influences PCa cell growth and activity of the pentose phosphate pathway

Regulation of 6PGD by the AR signalling axis supports other recent reports linking the PPP to PCa (Tsouko et al., 2014; Ros et al., 2012); and although the role of the PPP in this malignancy is not fully elucidated, it could serve to fuel cell growth and protect against oxidative stress. In support of this, knockdown of 6PGD with two highly effective siRNAs (Figure 3—figure supplement 1) significantly decreased viability (Figure 3A) and increased death (Figure 3B) of LNCaP and VCaP cells. These findings were recapitulated in cell line models of CRPC (V16D) and enzalutamide-resistant CRPC (MR49F) (Figure 3A,B). In addition to these phenotypic effects, mass spectrometry revealed accumulation of 6PGD’s substrate, 6-phosphogluconate (6-PG) (Figure 3C), in LNCaP cells transfected with siRNA, confirming specificity of the knockdown.

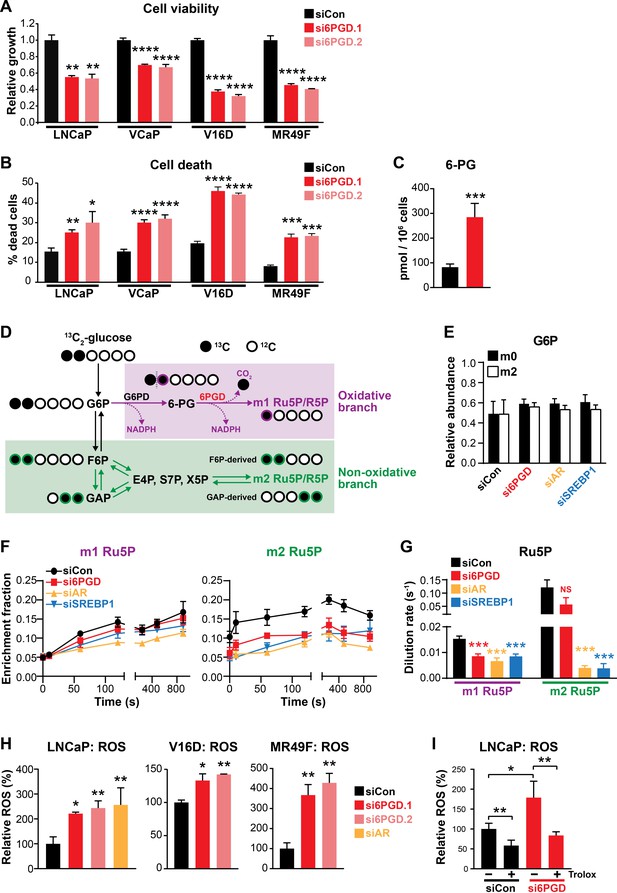

Figure 3 with 1 supplement see all
An AR-SREBP1-6PGD axis influences prostate cancer cell growth and activity of the pentose phosphate pathway.

(A, B) Knockdown of 6PGD with two distinct siRNAs (si6PGD.1 and si6PGD.2) reduced viability (A) and increased cell death (B) of four prostate cancer cell lines, as assessed using Trypan blue exclusion assays. LNCaP and VCaP cells were evaluated 3 days post-transfection; V16D and MR49F cells were evaluated 5 days post-transfection. Error bars are standard error of the mean (SEM) of triplicate samples and are representative of three independent experiments. Treatment effects were evaluated using ANOVA and Dunnett’s multiple comparison tests (*p<0.05; **p<0.01; ***p<0.001; ****p<0.0001). (C) Knockdown of 6PGD causes accumulation of intracellular 6PG in LNCaP cells, as determined by mass spectrometry. Results are representative of two independent experiments. Error bars are SEM of triplicate samples. Treatment effect was evaluated using an unpaired t test (p<0.001). Colour key is as in (A). (D) Schematic demonstrating flux of 1,2-13C2 glucose through the PPP and incorporation into Ru5P and R5P. Unlabelled 12C carbon is shown as open circles, whereas 13C is shown as filled circles. The oxidative and non-oxidative branches of the PPP are indicated in purple and green, respectively. 6PG: 6-phosphogluconate; E4P: erythrose 4-phosphate; F6P: fructose 6-phosphate; G6P: glucose 6-phosphate; GAP: glyceraldehyde 3-phosphate; R5P: ribose 5-phosphate; Ru5P: ribulose 5-phosphate; S7P: sedoheptulose 7-phosphate; X5P: xylulose 5-phosphate. (E) Isotopic steady-state G6P enrichments of LNCaP cells fed with 1,2-13C2 glucose and natural glucose at 1:1 ratio show control and treatments cells were labelled to a similar extent. Error bars are standard deviation (SD). (F) Accumulation of singly (left, m1) and doubly (right, m2) labelled Ru5P produced via the oxidative and non-oxidative branches, respectively, of the PPP. Error bars are SD. (G) Dilution rate (turnover rate) calculated from the accumulation of singly and doubly labelled Ru5P (data from E) using the continuous stirred-tank reactor (CSTR) equation. For statistical analysis of treatment effects, refer to Materials and methods (***p<0.001; NS, not significant). Error bars are SD. (H) Knockdown of 6PGD and androgen receptor (AR) causes increased levels of reactive oxygen species (ROS) in LNCaP, V16D, and MR49F cells. Data was normalised to siCon, which was set to 100%. Error bars are SEM of triplicate samples. Treatment effects were evaluated using ANOVA and Dunnett’s multiple comparison tests (*p<0.05; **p<0.01). (I) ROS production in LNCaP cells in response to si6PGD is reversed by the antioxidant. Trolox data was normalised to siCon in the absence of Trolox, which was set to 100%. Error bars are SEM of triplicate samples. Treatment effects were evaluated using ANOVA and Tukey’s multiple comparison tests (*p<0.05; **p<0.01). Colour key is as in (A).

To more directly investigate the involvement of 6PGD, AR, and SREBP1 in the PPP, we conducted mass spectrometry tracing experiments with 1,2-13C2 glucose. After 48 hr of siRNA transfection, 1,2-13C2 glucose was spiked in to growth media at a ratio of 1:1 with natural glucose and PPP flux was estimated over a period of 15 min by measuring the incorporation of 13C into the immediate product of 6PGD’s catalytic activity, ribulose 5-phosphate (Ru5P). A schematic detailing the differential incorporation of 13C isotope into Ru5P by both the oxidative (irreversible; m1 Ru5P) and non-oxidative (reversible; m2 Ru5P) branches of the PPP is shown in Figure 3D. Isotopic steady-state enrichments of glucose 6-phosphate (G6P) confirmed that approximately 1:1 ratio labelling was achieved consistently between treatment groups (Figure 3E), demonstrating that PPP flux could be inferred from labelled Ru5P without correcting for enrichment bias between treatments. Next, we used the accumulation profiles of m1 (singly labelled) Ru5P (Figure 3F) to estimate the rate of Ru5P production via 6PGD from exogenous glucose (i.e. dilution rate; Figure 3G). These analyses revealed that flux through the oxidative PPP was significantly decreased with knockdown of 6PGD, AR, and SREBP1 (Figure 3F,G). Interestingly, knockdown of AR and SREBP1 (but not 6PGD) also had a significant impact on flux through the non-oxidative phase of the PPP, as determined by evaluating m2 (doubly labelled) Ru5P production via F6P/GAP (Figure 3F,G). Collectively, these glucose tracing data show that targeting 6PGD significantly suppresses PPP activity through the oxidative pathway, an effect that is also evident when targeting the upstream signalling factors AR and SREBP1.

Since a key role of the PPP is to regulate intracellular redox state (Ge et al., 2020), we also measured reactive oxygen species (ROS) using a flow cytometric-based assay. Knockdown of 6PGD (and AR) significantly increased levels of intracellular ROS in both androgen-sensitive and CRPC cell line models (Figure 3G). This phenotype could be rescued by the antioxidant Trolox (Figure 3H), verifying the specificity of the assay.

Pharmacological inhibition of 6PGD suppresses PCa growth and increases ROS

Having established that 6PGD is required for efficient activity of the PPP, optimal PCa cell growth and protection against oxidative stress, we evaluated pharmacological targeting of this enzyme as a potential therapeutic strategy. Physcion, a plant-derived anthraquinone, was recently identified as an inhibitor of 6PGD using an in vitro screening assay (Lin et al., 2015). Treatment of LNCaP cells with physcion dose-dependently inhibited growth and elicited death (Figure 4—figure supplement 1A,B). However, low solubility limits the preclinical and clinical utility of this compound. Therefore, we focused our efforts on a derivative of physcion, S3, which has substantially improved solubility (~50-fold: 1 mM physcion c.f. 50 mM S3 in DMSO; Lin et al., 2015). Similarly to physcion, S3 reduced LNCaP cell viability and caused cell death (Figure 4A,B). Cell kill was at least partly mediated via apoptosis, as demonstrated by a flow cytometric-based Annexin/7-AAD assay (Figure 4C). Importantly, S3 increased levels of cellular ROS in a dose-dependent manner (Figure 4D), strengthening the link between the PPP and control of redox homeostasis. S3 was active in a range of PCa models, including VCaP and models of CRPC (V16D and MR49F; Figure 4E,F). The efficacy of S3 in MR49F cells was particularly notable since this aggressive LNCaP-derived line is resistant to the second-generation AR antagonist Enz (Kuruma et al., 2013). S3 was also growth inhibitory in AR-negative PC3 cells, although this line was less sensitive than AR-driven models (Figure 4—figure supplement 1C). To assess the potential of targeting 6PGD with S3 in a more clinically relevant setting, we exploited the PDE model (Centenera et al., 2018). Notably, S3 reduced proliferation, as measured by IHC for Ki67, in all tumours (n = 9) that were evaluated (Figure 4G).

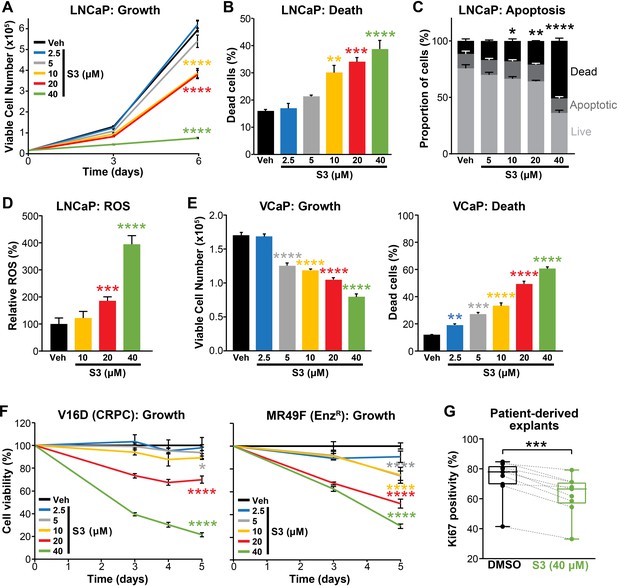

Figure 4 with 1 supplement see all
Pharmacological inhibition of 6PGD suppresses prostate cancer growth and increases reactive oxygen species (ROS).

(A, B) The 6PGD inhibitor, S3, dose-dependently decreased viability (A) and increased death (B) of LNCaP cells, as determined by Trypan blue exclusion assays. Dead cells were counted at day 6. Data represent the mean of triplicate samples and are representative of three independent experiments. Error bars are SEM. Growth (day 6) and death for each dose was compared to vehicle using ANOVA and Dunnett’s multiple comparison tests (****p<0.0001). Veh: vehicle. (C) S3 causes apoptosis of LNCaP cells, as determined using flow cytometry-based Annexin V/7-AAD assays. Cells were assessed 72 hr after treatment. Data represent the mean ± SE of triplicate samples and are representative of four independent experiments. Dead cell proportions were compared to vehicle using ANOVA and Dunnett’s multiple comparison tests (*p<0.05; **p<0.01; ****p<0.0001). (D) S3 causes increased levels of ROS in LNCaP cells. Data was normalised to Veh, which was set to 100%. Effects were evaluated using ANOVA and Dunnett’s multiple comparison tests (***p<0.001; ****p<0.0001). (E) S3 dose-dependently decreased viability (left) and increased death (right) of VCaP cells, as determined by Trypan blue exclusion assays. Live and dead cells were counted 4 days after treatment. Data represent the mean ± SE of triplicate samples and are representative of three independent experiments. Effects were evaluated using ANOVA and Dunnett’s multiple comparison tests (**p<0.01; ***p<0.001; ****p<0.0001). (F) S3 suppresses the growth of castration-resistant prostate cancer (CRPC) cells (V16D) and enzalutamide-resistant CRPC cells (MR49F), as determined using CyQuant Direct Cell Proliferation Assay. Fluorescence from day 0 was set to 100%. Data represent the mean ± SEM of triplicate samples and are representative of two independent experiments. Effects (at day 5) were evaluated using ANOVA and Dunnett’s multiple comparison tests (*p<0.05; ****p<0.0001). (G) S3 inhibits the proliferation of prospectively collected human tumours grown as patient-derived explants (PDEs). PDEs (from n = 9 patients) were treated for 72 hr. Ki67 positivity, a marker of proliferation, was determined using immunohistochemistry. Boxes show minimum and maximum (bottom and top lines, respectively) and mean (line within the boxes) values. A paired t test was used to compare Ki67 positivity in treated versus vehicle-treated control samples (***p<0.001).

In addition to directly promoting cell growth and survival via anabolism and limiting oxidative stress, the PPP has been reported to suppress AMPK activity by inhibiting its phosphorylation (Gao et al., 2019), thereby activating key anabolic pathways mediated by acetyl-CoA carboxylase 1 (ACC1) and mammalian target of rapamycin complex 1 (mTORC1) (Figure 5A). Accordingly, we examined whether these pathways are altered in PCa cells in response to 6PGD inhibition. S3 treatment activated AMPK and repressed ACC1 and mTOR pathways in a dose-dependent manner in multiple PCa cell lines, as revealed by increased levels of phospho-AMPK (pAMPK) and phospho-ACC1 (pACC1) and decreased levels of phospho-S6K (pS6K)/phospho-S6 (pS6) (Figure 5B,C). Knockdown of 6PGD also repressed ACC1 and mTOR signalling (Figure 5—figure supplement 1), verifying that the effects we observed with the inhibitor were on target. More importantly, we recapitulated the impact of S3 on mTOR signalling in our tumour PDE system (Figure 5C). Collectively, these results reveal that PPP is an upstream regulator of AMPK, ACC1, and mTOR in PCa; therefore, targeting 6PGD could impede multiple cancer-promoting metabolic pathways.

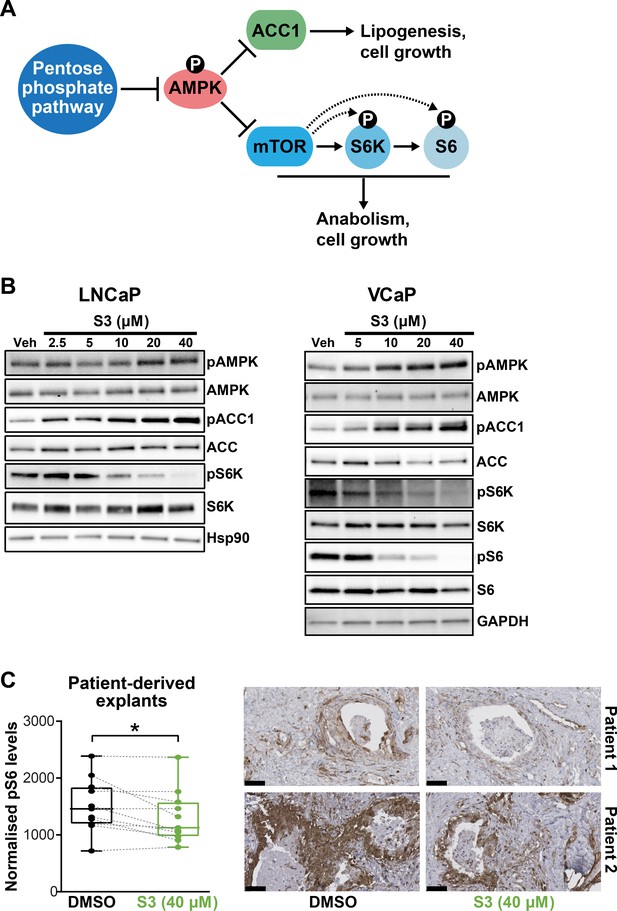

Figure 5 with 1 supplement see all
Targeting 6PGD activates AMPK and represses ACC1 and mTOR pathways.

(A) Schematic showing key metabolic pathways downstream of the pentose phosphate pathway (PPP). By suppressing AMPK signalling, the PPP can enhance the activity of ACC1 and mTOR and subsequently various growth-promoting anabolic processes. (B) S3 activates AMPK and inhibits ACC1 and mTOR signalling. LNCaP (left) and VCaP (right) cells were treated for 24 hr with the indicated doses of S3 prior to analysis of indicated proteins by immunoblotting. (C) S3 inhibits mTOR signalling, as indicated by reduced pS6, in patient-derived explants (PDEs). PDEs (from n = 11 patients) were treated for 72 hr. The levels of pS6 were measured using immunohistochemistry (IHC). Boxes (graph on left) show minimum and maximum (bottom and top lines, respectively) and mean (line within the boxes) values. A paired t test was used to compare Ki67 positivity in treated versus vehicle-treated control samples (***p<0.001). Representative IHC images are shown on the right (scale bars represent 50 µm).

A feedback loop between AR and 6PGD supports combinatorial targeting of these factors

During our investigations into the mode of action of S3 and physcion, we noted that both agents reduced steady-state levels of AR protein in models of castration-sensitive and castration-resistant PCa (Figure 6A, Figure 6—figure supplement 1A). This observation suggested that targeting 6PGD would inhibit the AR signalling axis. We validated this hypothesis by demonstrating that S3 and physcion dose-dependently reduced the expression of AR and its target genes in multiple cell line models (Figure 6A,B, Figure 6—figure supplement 1B–D) and, importantly, in our clinical PDE tissues (Figure 6C). Although 6PGD inhibitors significantly decreased AR protein, they did not alter AR transcript levels (Figure 6B, Figure 6—figure supplement 1B–D), indicative of a post-transcriptional mechanism. Since the ubiquitin-proteasome system (UPS) plays an integral role in AR protein stability (Wen et al., 2020), we hypothesised that 6PGD inhibition could enhance AR ubiquitylation and turnover. To test this idea, LNCaP cells were treated with a combination of S3 and the proteasome inhibitor MG132, after which the levels of total and ubiquitylated AR were measured by western blotting. In the presence of MG132, accumulation of ubiquitylated AR as well as the total cellular ubiquitylated protein pool was evident in S3-treated cells (Figure 6D). Moreover, in the presence of MG132, S3 did not reduce total AR protein levels beyond that caused by MG132 alone (Figure 6D). Collectively, these findings indicate that inhibition of 6PGD by S3 enhances turnover of AR by the UPS.

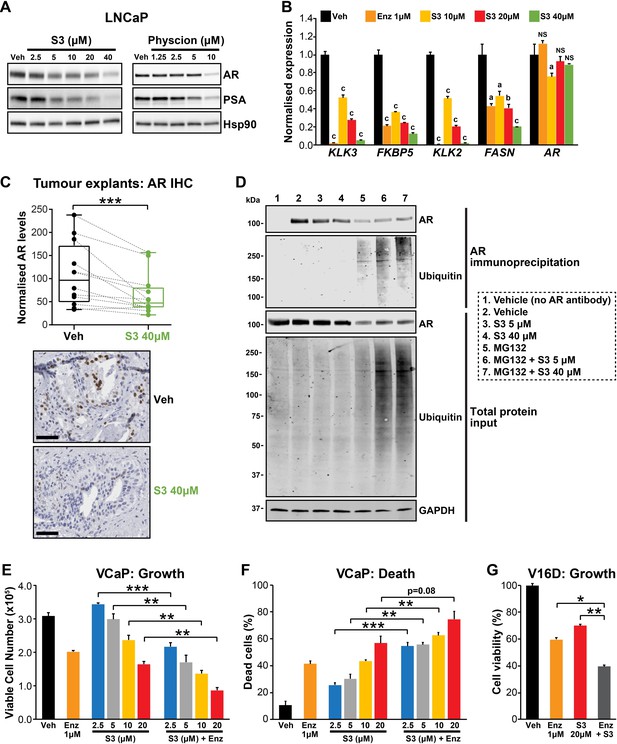

Figure 6 with 1 supplement see all
Targeting the androgen receptor (AR)/PGD feedback loop in prostate cancer.

(A) Protein levels of AR and its target PSA in response to S3 (24 hr of treatment) and physcion (48 hr of treatment) in LNCaP cells, as determined by immunoblotting. HSP90 was used as a loading control. (B) AR target gene expression in response to S3 treatment in LNCaP cells, as determined by RT-qPCR. Gene expression was normalised to GUSB and L19 and represents the mean + SEM of three biological replicates; Veh was set to 1. Differential expression was evaluated using ANOVA and Dunnett’s multiple comparison tests (a, p<0.01; b, p<0.001; c, p<0.0001; NS, not significant). (C) S3 reduces AR protein levels in patient-derived explants (PDEs). AR levels in tumours from 14 patients were measured by immunohistochemistry (IHC; left). Boxes show minimum and maximum (bottom and top lines, respectively) and mean (line within the boxes) values. A paired t test was used to compare AR levels in treated versus control samples (***p<0.001). Representative IHC images are shown on the right (scale bars represent 50 µm). (D) S3 enhances AR ubiquitylation. LNCaP cells were treated with indicated concentrations of S3 ±10 µM MG132, or 10 µM MG132 alone, for 24 hr prior to AR immunoprecipitation. Both immunoprecipitates and total protein inputs (1/30 of immunoprecipitates) were subjected to immunoblotting analysis for the indicated proteins. (E, F) Anti-cancer effects of combined Enz and S3 treatment in VCaP cells. Live (E) and dead (F) cells were measured by Trypan blue exclusion assays 4 days after treatment. Data represent the mean + SEM of triplicate samples and are representative of three independent experiments. (G) Anti-cancer effects of combined Enz and S3 treatment in V16D cells. Live cells (F) were measured as in (D) after 3 days of treatment; data are representative of three independent experiments.

Our results demonstrated that AR induces 6PGD gene expression (via SREBP1) and that 6PGD can enhance the stability of AR protein, collectively revealing a positive feedback loop between androgen signalling and the PPP. The co-dependency of these pathways led us to speculate that a combinatorial targeting approach could be an effective PCa therapy. In support of this hypothesis, enzalutamide and S3 exhibited an additive effect in androgen-sensitive (VCaP) and CRPC (V16D) cell lines (Figure 6E–G). Collectively, these findings highlight the complex interplay between AR and 6PGD in PCa cells and identify a potential new combinatorial therapy.

Discussion

PCa possesses a unique androgen-regulated metabolic profile, characterised by high rates of lipogenesis and oxidative phosphorylation compared to the normal state. More recently, altered glucose metabolism has emerged as another feature of this common malignancy (Lin et al., 2019). In this study, we identified 6PGD as an AR-regulated gene that may not be effectively suppressed in tumour cells by current ARPIs such as Enz. 6PGD is the third enzyme in a critically important glucose metabolic pathway, the PPP. Our data reveal that a positive feedback loop between AR and 6PGD enhances growth and survival of tumour cells. This work not only expands our knowledge of the interplay between hormones and glucose metabolism in PCa but also exposes a new therapeutic vulnerability.

Our identification of 6PGD as an androgen-regulated PPP enzyme lends further support to this pathway being a key metabolic target of androgens in PCa. Frigo and colleagues recently demonstrated that G6PD, the rate-limiting enzyme of this pathway, is also transcriptionally and post-transcriptionally regulated by AR signalling (Tsouko et al., 2014). Moreover, an enzyme that regulates the non-oxidative phase of the PPP, transketolase-like protein 1 (TKTL1), increases in expression during PCa progression, being highest in metastatic tumours (da Costa et al., 2018). Such multi-level control of a single pathway emphasises the relevance of increased PPP flux in PCa. It is notable that the androgen-regulated enzymes of this pathway, 6PGD and G6PD, both catalyse steps in the NADPH-generating oxidative phase of the PPP; this represents another mechanism underlying hormonal protection against oxidative stress in the prostate.

Despite its role as a key downstream effector of androgen-regulated cellular metabolism, our data do not support a direct mode of transcriptional regulation of 6PGD by AR. Rather, AR harnesses another key metabolic transcription factor, SREBP1, to drive expression of 6PGD and hence activity of the PPP. SREBP1, a transcription factor that regulates genes involved in fatty acid and cholesterol biosynthesis and homeostasis that is activated and upregulated by AR signalling (Heemers et al., 2006; Duvel et al., 2010), is itself a therapeutic target in PCa (Galbraith et al., 2018). Some metabolic genes appear to be directly co-regulated by AR and SREBP1 based on the binding of both factors to cis-regulatory elements (e.g. FASN, Chan et al., 2015; Choi et al., 2008). However, our observation that siRNA or pharmacological targeting of SREBP1 blocks androgen-mediated induction of 6PGD suggests that SREBP1 transcriptionally activates this gene downstream of AR. Further supporting the relevance of a closely interlinked AR/SREBP1/6PGD pathway in PCa was our observation that targeting any one of these three factors had a pronounced impact on glucose flux through the oxidative branch of the PPP. Interestingly, knockdown of AR and SREBP1 also had a profound impact on the non-oxidative branch of the PPP. Although the precise mechanism(s) underlying this observation are not known, given their expansive and diverse roles in PCa cell metabolism, it is plausible that AR and SREBP1 regulate other metabolic factors that stimulate the non-oxidative PPP. Importantly, regulation of the PPP by AR-SREBP1-6PGD has a broader clinical implication; therapeutic strategies that effectively suppress this pathway would impinge on the activity of three important oncogenic drivers with multifaceted cancer-promoting activities.

We propose that AR-mediated activation of the PPP in PCa would yield additional advantages beyond the generation of key substrates for nucleic acid anabolism and the antioxidant NADPH. Most notably, PPP suppression of AMPK, itself a hub for cellular metabolic and growth control, results in augmentation of ACC1 and mTOR activity (Zadra et al., 2014). The importance of both ACC1 and mTOR in enabling PCa cells to meet their energy demands is increasingly well recognised; indeed, both of these factors are key mediators of de novo lipogenesis, high levels of which are a hallmark of prostate tumours (Mah et al., 2019). Mechanistically, it has been reported that 6PGD-mediated production of Ru5P inhibits AMPK by disrupting the LKB1 complex, leading to activation of ACC1 and lipogenesis (Lin et al., 2015). Thus, in addition to its more direct impact on lipogenesis by regulation of lipid metabolic genes (Mah et al., 2019), our data reveal that AR also supports this metabolic process by activation of 6PGD and the PPP.

In addition to regulation of 6PGD by the androgen signalling axis, our work also revealed that 6PGD can act in a reciprocal manner to maintain AR protein levels and activity. Indeed, S3 was as effective as Enz at inhibiting the expression of some AR target genes, albeit at higher doses. We propose that this positive feedback would serve as an effective circuit to fuel PCa growth and enhance survival. Mechanistically, we demonstrated that targeting of 6PGD results in increased ubiquitylation of AR, explaining why it is decreased at the protein level. Precisely how 6PGD inhibition regulates processing of AR by the UPS is unclear. However, we note that S3 treatment increased ROS levels and activated AMPK signalling, both of which have been shown to promote AR degradation/turnover (Wu et al., 2018; Shen et al., 2014). Thus, we propose that 6PGD regulation of AR protein ubiquitylation, and hence stability, likely occurs at multiple levels. More broadly, unravelling the complexity of the AR/6PGD feedback loop will be important to effectively harness co-targeting strategies.

Given the important role of the PPP in PCa growth and survival, established by this study in addition to earlier work (Tsouko et al., 2014; Ros et al., 2012), targeting this pathway as a possible therapeutic strategy has merit. We investigated this concept using two inhibitors of 6PGD, physcion (1,8-dihydroxy-3-methoxy-6-methyl-anthraquinone; emodin-3-methyl ether) and S3 (1-hydroxy-8-methoxy-anthraquinone). Physcion (also known as parietin; PubChem CID 10639) was the most active inhibitor of 6PGD activity in an in vitro assay amongst a library of ~2000 small molecules (Lin et al., 2015). A plant-derived anthraquinone, physcion was initially investigated for its anti-microbial and anti-inflammatory activities (XunLi et al., 2019). More recently, there has been significant interest in its repurposing as an oncology agent since it has been reported to possess broad anti-cancer activity (i.e. suppression of growth and migration, induction of apoptosis) in leukaemia, colorectal, cervical, and breast cancer cells, amongst others (Lin et al., 2015; Hong et al., 2014; Chen et al., 2015; Elf et al., 2017; Pan et al., 2018). However, while physcion has achieved impressive anti-cancer results in some preclinical studies, its poor pharmacological attributes, including low solubility, may impede efforts to progress it to the clinic (XunLi et al., 2019). Therefore, we also tested the physcion derivative compound S3, which has been reported to possess improved pharmacological attributes (Lin et al., 2015). Our results represent the first evaluation of physcion and S3 in PCa and collectively highlight the potential of therapeutically targeting 6PGD in this disease. Indeed, our data suggest that S3/physcion would possess multi-pronged anti-tumour activity in PCa by inhibiting oncogenic metabolism, including lipogenesis (i.e. activation of AMPK and suppression of ACC1 and mTOR); increasing levels of ROS, resulting in oxidative stress and lipid peroxidation; and finally, suppressing the levels and activity of AR, the primary oncogenic driver of this disease. Importantly, a Phase I trial reported that physcion was well tolerated with low toxicity (Tzeng et al., 2011), supporting its future clinical application.

Since AR-targeted therapies are not curative, there is intense interest in identifying combination therapies that would improve patient outcomes. Our work provides a solid rationale for co-targeting of AR and 6PGD; indeed, we observed synergistic effects of Enz and S3 in PCa models. Moreover, the existence of an AR:6PGD feedback loop enhances the appeal of such a combinatorial strategy. Although we acknowledge that physcion and S3 may not be useful clinical agents due to pharmacological issues, we expect that the future development of therapies that effectively suppress activity of 6PGD, or other components of the PPP, could have a major impact on PCa patients.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Cell line (Homo-sapiens)LNCaPATCCATCC CRL-1740 (RRID:CVCL_1379)
Cell line (Homo-sapiens)VCaPATCCATCC CRL-2876 (RRID:CVCL_2235)
Cell line (Homo-sapiens)PC3ATCCATCC CRL-7934 (RRID:CVCL_0035)
Cell line (Homo-sapiens)22RV1ATCCATCC CRL-2505 (RRID:CVCL_1045)
Cell line (Homo-sapiens)V16DPMID:27046225Kind gift from Prof. Amina Zoubeidi
Cell line (Homo-sapiens)MR49FPMID:27046225Kind gift from Prof. Amina Zoubeidi
Transfected construct (Homo sapiens)Negative control siRNAAmbion; Thermo Fisher ScientificAM4637
Transfected construct (Homo sapiens)siARThermo Fisher ScientificSilencer Select 4390824
Transfected construct (Homo sapiens)siARThermo Fisher ScientificSilencer Select 4390825
Transfected construct (Homo sapiens)siARThermo Fisher ScientificCustom 4399665
Transfected construct (Homo sapiens)si6PGDThermo Fisher Scientific4427038
Tansfected construct (Homo sapiens)siSREBP1DharmaconON-TARGETplus 6720
AntibodyACC-1 [C83B10] (rabbit monoclonal)Cell Signaling Technology, Inc3676 (RRID:AB_2219397)Western blot: (1:1000)
AntibodypACC-1 [Ser79] (rabbit polyclonal)Cell Signaling Technology, Inc3661 (RRID:AB_330337)Western blot: (1:1000)
Antibodyβ-Actin (AC-15) (mouse monoclonal)Sigma AldrichA5441 (RRID:AB_476744)Western blot: (1:1000)
AntibodyAR-N20 (rabbit polyclonal)Santa Cruz Biotechnology Incsc-816 (RRID:AB_1563391)Western blot: (1:1000)
AntibodyAR (rabbit monoclonal)Abcamab108341 (RRID:AB_10865716)Immunohistochemistry: (1:200)
AntibodyAR (mouse monoclonal)Santa Cruz Biotechnology Incsc-7305 (RRID:AB_626671)Immunoprecipitation: (0.2 µg)
AntibodyAMPKα (rabbit polyclonal)Cell Signaling Technology, Inc2532 (RRID:AB_330331)Western blot: (1:1000)
AntibodypAMPKα [Thr172] 40H9 (rabbit monoclonal)Cell Signaling Technology, Inc2535 (RRID:AB_331250)Western blot: (1:1000)
AntibodyGAPDH (HuCAL recombinant)BioRad12004168Western blot: (1:1000)
AntibodyHsp90 (rabbit polyclonal)Cell Signaling Technology, Inc4874 (RRID:AB_2121214)Western blot: (1:1000)
AntibodyKi67 (mouse monoclonal)Agilent TechnologiesM724001-2 (RRID:AB_2631211)Immunohistochemistry: (1:200)
AntibodyP70 S6 Kinase (49D7) (rabbit monoclonal)Cell Signaling Technology, Inc2708 (RRID:AB_390722)Western blot: (1:1000)
AntibodypP70 S6 Kinase [Thr389] (rabbit polyclonal)Cell Signaling Technology, Inc9205S (RRID:AB_330944)Western blot: (1:2000)
Antibody6PGD (rabbit polyclonal)ThermoFisher ScientificPA5-21376 (RRID:AB_11153623)Western blot: (1:1000)
Antibody6PGD (rabbit polyclonal)Sigma AldrichHPA031314 (RRID:AB_10610278)Immunohistochemistry: (1:800)
AntibodyPSA (rabbit polyclonal)ProteinTech Group10679-1-AP (RRID:AB_2134244)Western blot: (1:1000)
AntibodyS6 (5G10) (rabbit monoclonal)Cell Signaling Technology, Inc2217 (RRID:AB_331355)Western blot: (1:1000)
AntibodypS6 [Ser235/236] (rabbit polyclonal)Cell Signaling Technology, Inc2211 (RRID:AB_331679)Western blot: (1:1000) Immunohistochemistry: (1:200)
AntibodyUbiquitin (mouse monoclonal)Genesearch3936Western blot: (1:1000)
AntibodyGoat Anti-Rabbit (Biotinylated)Agilent TechnologiesE043201-8Immunohistochemistry: (1:400)
Sequence-based reagentAR ForThis paperqRT-PCR primersCAACTCCTTCAGCAACAGCA
Sequenced-based reagentAR RevThis paperqRT-PCR primersTCGAAGTGCCCCCTAAGTAA
Sequence-based reagentFKBP5 ForThis paperqRT-PCR primersAAAAGGCCAAGGAGCACAAC
Sequenced-based reagentFKBP5 RevThis paperqRT-PCR primersTTGAGGAGGGGCCGAGTTC
sSquence-based reagentGAPDH ForThis paperqRT-PCR primersTGCACCACCAACTGCTTAGC
Sequenced-based reagentGAPDH RevThis paperqRT-PCR primersGGCATGGACTGTGGTCATGAG
Sequence-based reagentGUSB ForThis paperqRT-PCR primersCGTCCCACCTAGAATCTGCT
sSquenced-based reagentGUSB RevThis paperqRT-PCR primersTTGCTCACAAAGGTCACAGG
Sequence-based reagentKLK2 ForThis paperqRT-PCR primersGGTGGCTGTGTACAGTCATGGAT
Sequenced-based reagentKLK2 RevThis paperqRT-PCR primersTGTCTTCAGGCTCAAACAGGTTG
Sequence-based reagentKLK3 ForThis paperqRT-PCR primersACCAGAGGAGTTCTTGACCCCAAA
Sequenced-based reagentKLK3 RevThis paperqRT-PCR primersCCCCAGAATCACCCGAGCAG
Sequence-based reagentL19 ForThis paperqRT-PCR primersTGCCAGTGGAAAAATCAGCCA
Sequenced-based reagentL19 RevThis paperqRT-PCR primersCAAAGCAAATCTCGACACCTTG
Sequenced-based reagentPGD ForThis paperqRT-PCR primersCACAGCAGGGTTCTCCAGTT
Sequenced-based reagentPGD RevThis paperqRT-PCR primersGTCAGTGGTGGAGAGGAAGG
Sequenced-based reagentPPIA ForThis paperqRT-PCR primersGCATACGGGTCCTGGCAT
Sequenced-based reagentPPIA RevThis paperqRT-PCR primersACATGCTTGCCATCCAACC
Sequenced-based reagentTMPRSS2 ForThis paperqRT-PCR primersGACCAAGAACAATGACATTGCG
Sequenced-based reagentTMPRSS2 RevThis paperqRT-PCR primersGTTCTGGCTGCAGCATCATG
Sequenced-based reagentTUBA1B ForThis paperqRT-PCR primersCCTTCGCCTCCTAATCCCTA
Sequenced-based reagentTUBA1B RevThis paperqRT-PCR primersCCGTGTTCCAGGCAGTAGA
Chemical compound, drugDihydrotestosteroneSigma AldrichCas#: 521-18-6
Chemical compound, drugEnzalutamideSelleck ChemicalsCat#: S1250
Chemical compound, drugApalutamideSelleck ChemicalsCat#: S2840
Chemical compound, drugDarolutamideSelleck ChemicalsCat#: S7559
Chemical compound, drugS3Sigma AldrichCat#: R164046
Chemical compound, drugPhyscionSigma AldrichCat#: 93893
Chemical compound, drugTroloxSelleck ChemicalsCat#: S3665
Chemical compound, drug1,2-13C2 glucoseSigma AldrichCat#: 453188
Commercial assay or kitRNeasy Mini extraction kitQiagenCat#: 74104
Commercial assay or kitiScript­TM cDNA Synthesis kitBio-RadCat#: 1708890
Commercial assay or kitNEXTflex Rapid Illumina Directional RNA-Seq Library Prep KitsPerkin-ElmerCat#: NOVA-5138
Commercial assay or kitCyQuant Assay Cell Proliferation AssaysThermo Fisher ScientificCat#: C7026
Commercial assay or kitCellROX Orange Flow Cytometry Assay KitsLife TechnologiesCat#: C10493
OtherLipofectamine RNAiMAX transfection reagentThermo Fisher Scientific13778075
Software, algorithmGraphPad PrismGraphPad Software, Inc.Prism V7 RRID:SCR_002798
Software, algorithmRR Core Team (2019)R version 3.6.2 RRID:SCR_001905
Software, algorithmImageJ analysis softwareNIHImageJ RRID:SCR_003070
Software, algorithmTraceFinder v5.0Thermo Fisher ScientificOPTON-30688

Reagents

Chemicals, solvents, and solutions, including physcion (C16H12O5; 1,8-dihydroxy-3-methoxy-6-methyl-anthraquinone; emodin-3-methyl ether) and S3 (C15H10O4; 1-hydroxy-8-methoxy-anthraquinone), were obtained from Sigma-Aldrich (St Louis, MO, USA), except for enzalutamide (Selleck Chemicals; Houston, TX, USA); apalutamide (ARN-509), darolutamide (ODM-201), and Trolox (Sapphire Bioscience; Redfern, NSW, Australia). All chemicals/reagents were dissolved in dimethyl sulfoxide (DMSO) except dihydrotestosterone (DHT), which was dissolved in ethanol.

Cell line models

Request a detailed protocol

LNCaP (RRID:CVCL_1379), VCaP (RRID:CVCL_2235), PC3 (RRID:CVCL_0035), and 22Rv1 (RRID:CVCL_1045) human prostate carcinoma cells were obtained from the American Type Culture Collection (ATCC, MD, USA). Dr. Amina Zoubeidi (Vancouver Prostate Centre, Vancouver, Canada) kindly provided LNCaP-V16D (castration-resistant, enzalutamide-sensitive) and LNCaP-MR49F (castration-resistant, enzalutamide-resistant) human PCa cells (Kuruma et al., 2013). LNCaP, 22Rv1, V16D, and MR49F cells were maintained in RPMI-1640 containing 10% FBS; the media for growth of MR49F cells was additionally supplemented with 10 µM Enz. VCaP cells were maintained in Dulbecco’s Modified Eagle’s Medium containing 10% FBS, 1% sodium pyruvate, 1% MEM non-essential amino acids, and 0.1 nM 5α-dihydrotestosterone (DHT). PC3 cells were maintained in RPMI-1640 containing 5% FBS. All cell lines were authenticated using short tandem repeat profiling in 2018/2019 by ATCC or CellBank Australia, and undergo regular testing for mycoplasma contamination.

Transfection of PCa cell lines

Request a detailed protocol

Gene-specific knockdown was achieved by reverse-transfection of PCa cell suspensions (total 5 × 105 cells) with 12.5 nM siRNA in six-well plates using RNAiMAX transfection reagent (Life Technologies; Thermo Fisher Scientific, Scornsby, VIC, Australia), according to the manufacturer’s instructions. The siRNAs used in this study were AR (Silencer Select #4390824/5; s1538, s1539 and custom #4399665; s551824 (sense: GAACUUCGAAUGAACUACAtt, antisense: UGUAGUUCAUUCGAAGUUCat)), 6PGD (Silencer Select #4427038; s10394 and 10395; Thermo Fisher Scientific), SREBP1 (ON-TARGETplus 6720; Dharmacon), and Negative Control 2 #AM4637 (Ambion; Thermo Fisher Scientific).

Quantitative real-time PCR

Request a detailed protocol

Reverse transcription of (1  μg) and qPCR was done as described previously (Gillis et al., 2013). GeNorm (Vandesompele et al., 2002) was used to identify suitable reference genes: gene expression in cell lines is presented relative to L19 and GUSB, and gene expression in prostate tumour explants is presented relative to GAPDH, PPIA and TUBAIB. Primer sequences are provided in Supplementary file 1.

Immunoblotting

Request a detailed protocol

Whole-cell lysates were prepared using RIPA buffer containing cOmplete ULTRA protease and phosphatase inhibitor (Cell Signaling Technology [CST], Danvers, MA, USA) and Western blotting was performed as described previously (Armstrong et al., 2018). A list of primary and secondary antibodies used in the study is provided in Supplementary file 2.

RNA sequencing (RNA-seq)

Request a detailed protocol

LNCaP cells were seeded at density 5 × 105 cells in six-well dishes (Corning) and treated with 1 µM Enz (or 0.1% DMSO control) or transfected with 12.5 nM AR siRNA (or scrambled siRNA control). Each treatment comprised four replicates. After 24 hr, the cells were collected in Trizol (four replicates, for RNA analysis) or RIPA buffer + protease inhibitors (two replicates, for protein analysis). RNA extractions were completed using RNeasy Mini spin columns (Qiagen, Chadstone, VIC, Australia), according to the manufacturer’s instructions. RNA was eluted in 40 µl RNase-free H2O. RT-qPCR and western blotting were performed to verify the expected response of known AR-regulated proteins and genes, PSA/KLK3 and FKBP51/FKBP5. Subsequently, libraries were generated using 800 ng of RNA and NEXTflex Rapid Illumina Directional RNA-Seq Library Prep Kits (Bio-Scientific, Kirrawee, NSW, Australia), according to the manufacturer’s instructions. Sequencing was carried out at the South Australian Health and Medical Research Institute Genomics Facility using an Illumina NextSeq 500 (single read 75 bp v2 sequencing chemistry). The quality and number of reads for each sample were assessed with FastQC v0.11.3 (Andrews, 2010). Adaptors were trimmed from reads, and low-quality bases, with Phred scores < 28, were trimmed from ends of reads, using Trimgalore v0.4.4 (Krueger, 2012). Trimmed reads of <20 nucleotides were discarded. Reads passing all quality control steps were aligned to the hg38 assembly of the human genome using TopHat v2.1.1 (Kim et al., 2013) allowing for up to two mismatches. Reads not uniquely aligned to the genome were discarded. HTSeq-count v0.6.1 (Anders et al., 2015) was used with the union model to assign uniquely aligned reads to Ensembl Hg38.86-annotated genes. Data were normalised across libraries by the trimmed mean of M-values (TMM) normalisation method, implemented in the R v3.5.0, using Bioconductor v3.6 EdgeR v3.20.9 package (Robinson et al., 2010). Only genes expressed at count-per-million value greater than 10 in at least two samples per group were retained for further analysis. Differentially expressed genes were selected based on the robust version of the quasi-likelihood negative binomial generalised log-linear model (Lun et al., 2016), with false discovery rate (FDR) set at 0.05. RNA-seq data are available through NCBI’s Gene Expression Omnibus (GSE152254).

Cell growth and apoptosis assays

Request a detailed protocol

Cell growth curves were done using Trypan blue exclusion and manual counting of cells, as described previously (Centenera et al., 2015). Cell viability was also determined by CyQuant Assay Cell Proliferation Assays (Thermo Fisher Scientific), according to the manufacturer’s instructions. Apoptosis was measured by collecting cells in FACS binding buffer (47 ml of HANKS buffered saline, 500 µl of Herpes solution, and 2.5 ml of 100 mM CaCl2), staining with Annexin V PE BD Pharmingen (BD Biosciences, CA, USA) and 1 mM 7-aminoactiomycin D (Thermo Fisher Scientific) and analysis by Flow Cytometry using a BD LSRFortessa X20.

Metabolomics

Request a detailed protocol

To measure 6PG abundance (Figure 3C), LNCaP cells were seeded at a density of 5 × 105 cells per well into Nunclon D multi-dishes with poly-lysine coating (Thermo Fisher Scientific), with or without transfection with siPGD (Silencer Select s10394). At time of collection, cells were washed twice with 0.9% w/v NaCl, scraped in MeOH:H2O (1:1). Chloroform was added prior to vortexing, centrifuging, and collecting the aqueous layer. The aqueous layer was dried in a Savant SpeedVac (Thermo Fisher Scientific) without heat. Dried samples were resuspended in 60 µl LC-MS H2O, centrifuged at 15,000 × g at 4°C for 10 min, and supernatant transferred into HPLC vials for LCMS analysis. Samples were kept at 4°C on the autosampler tray. Glycolytic and pentose-phosphate pathway metabolites were measured using 1260 Infinity (Agilent)-QTRAP5500 (AB Sciex) LC-MS/MS system. Analyte separation was achieved using a Synergi 2.5 µm Hydro-RP 100A LC Column (100 × 2 mm) (Phenomenex) at ambient temperature. The pair of buffers used were 95:5 (v/v) water:acetonitrile containing 10 mM tributylamine and 15 mM acetic acid (Buffer A) and 100% acetonitrile (Buffer B) flowed at 200 µl/min; injection volume was 5 µl. Scheduled MRM acquisition was performed in negative mode (350°C, –4500 V). Raw data was extracted using MSConvert (Chambers et al., 2012) and in-house MATLAB scripts.

Metabolic flux analysis

Request a detailed protocol

LNCaP cells were seeded at a density of 7.5 × 105 cells per well into Nunclon D multi-dishes with poly-lysine coating (Thermo Fisher Scientific), with or without transfection of siRNAs (siAR, Silencer Select s1539; siPGD, Silencer Select s10394; siSREBF1, ON-TARGETplus 6720). For the 13C-labelled glucose time-course experiment, cells were cultured for 46 hr before adding fresh media for a further 2 hr and then spiking in 1,2-13C2 glucose at a final concentration of 11 mM (1:1 with natural glucose). Incorporation of the labelled glucose was allowed to proceed for 0, 10, 60, 120, 240, 480, or 900 s. This spike-in strategy (as opposed to media exchange) enabled a rapid time course with minimal disruption to glycolytic fluxes. Experiments were stopped by quenching the cells with ice-cold methanol:H2O (1:1) and placing plates at –20°C (prior to cell scraping). After completion of the time course, cell slurries in methanol:H2O were collected by scraping and transferred into microfuge tubes. Samples were identically processed and assayed as described for metabolomics samples, with the exception that MRMs were configured to quantify mass isotopologues of glycolytic and PPP intermediates. Fluxes through the oxidative and non-oxidative branches of PP pathway were estimated using the accumulation/dilution rate of m1 and m2 isotopologues of Ru5P. Assuming steady-state metabolism, the dilution rate (D) of Ru5P was calculated using the continuous stirred-tank reactor (CSTR) equation mt=mmaximum1-e-Dt+minitial , with m representing Ru5P mass isotopologues m1 and m2 datapoints generated from the time-course experiment. D was estimated using a least-squares Monte Carlo fitting script in MATLAB. Since a Monte Carlo procedure was used to simulate dilution rates, empirical p-values were calculated using the equation: p=(r + 1)/(n + 1) (Davison and Hinkley, 1997), where r is the number of instances the null hypothesis (H0: D - DsiCON ≥0) is true and n is the number of simulated replicates (n = 1000).

ROS assays

Request a detailed protocol

Cellular ROS levels were measured using CellROX Orange Flow Cytometry Assay Kits (Life Technologies). Briefly, 24 hr post-seeding (5 × 105 cells per well, six-well plate), the cells were treated with or without antioxidant (0.5 mM Trolox) and left to incubate for the indicated time (siRNA, 48 hr; S3, 72 hr). Cells were stained with CellROX Orange and SYTOX Red Stain and analysed by Flow Cytometry (10–30,000 cells/sample) using a BD LSRFortessa X20.

Ex vivo culture of human prostate tumours

Request a detailed protocol

PCa tissue was obtained with informed written consent through the Australian Prostate Cancer BioResource from men undergoing radical prostatectomy at St Andrew’s Hospital (Adelaide, Australia). Ethical approval for the use of human prostate tumours was obtained from the Ethics Committees of the University of Adelaide (Adelaide, Australia; approval H-2012-016) and St Andrew’s Hospital (Adelaide, Australia). All experiments were performed in accordance with the guidelines of the National Health and Medical Research Council (Australia). The 8 mm core of tissue was dissected and prepared for ex vivo culturing as described previously (Centenera et al., 2012). Tissues were treated with 10 µM Enz or 40 µM S3 for 72 hr. At the time of collection, the tissues were preserved in RNAlater (Invitrogen; Thermo Fisher Scientific) or formalin-fixed then paraffin-embedded.

Evaluation of AR ubiquitylation

Request a detailed protocol

LNCaP cells (1.5 × 106 cells per 6 cm plate) were treated with indicated concentrations of S3 ±10 µM MG132, or 10 µM MG132 alone, for 24 hr. Cells were lysed in RIPA lysis buffer. After centrifugation for 10 min at 16,000 g, supernatants were incubated with 0.2 µg anti-AR antibody (Santa Cruz Biotechnology, sc-7305; RRID:AB_626671) for 16 hr at 4°C with constant rotation, followed by incubation with 20 µl protein G Sepharose beads (Thermo Fisher) for a further period of 2 hr at 4°C with constant rotation. Beads were washed twice with RIPA lysis buffer and then resuspended in 2× Laemmli sample buffer before samples were assessed by Western blotting.

Immunohistochemistry

Request a detailed protocol

PDE tissue sections were evaluated for target antigens 6PGD, Ki67, and pS6 (Ser235/236) by IHC as described previously (Centenera et al., 2012). The antibodies used are shown in Supplementary file 2. An automated staining protocol (U OptiView DAB IHC v6 [v1.00.0136]) using the Ventana BenchMark ULTRA IHC/ISH Staining Module (F Hoffmann-La Roche Ltd, Switzerland) was used for the detection of AR. Quantitative image analysis for AR and pS6 (Ser235/236) was completed using FIJI software (ImageJ; http://fiji.sc/Fiji; version 1.52 p). Briefly, images (obtained from NDP viewer version 2.7.52; Hamamatsu Photonics K.K, Hamamatsu City, Japan) were imported and converted into three panels using the Colour Deconvolution plug-in and vector haematoxylin and DAB staining (HDAB) commands. The Adjust Threshold plug-in was used on the DAB-only images to measure % area (positivity) and reciprocal intensity (RI). The final DAB intensity values were calculated by subtracting RI from maximal intensity (255) and multiplying by % area (positivity). Values from 20 to 70 images per treatment were measured and RI was kept constant for each patient.

Statistical analysis

Request a detailed protocol

Data are displayed as the mean; error bars are standard error. Differences between groups were determined using GraphPad Prism with t tests or one-way ANOVA (with Tukey or Dunnett’s post hoc tests), as indicated in the figure legends. A p-value ≤ 0.05 was considered statistically significant.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figure 1. Sequencing data have been deposited in GEO under accession code GSE152254.

The following data sets were generated
    1. Gillis JL
    2. Hinneh JA
    3. Ryan NK
    4. Irani S
    5. Moldovan M
    6. Quek LE
    7. Hoy AJ
    8. Holst J
    9. Centenera MM
    10. Mills IG
    11. Lynn DJ
    12. Selth LA
    13. Butler LM
    (2020) NCBI Gene Expression Omnibus
    ID GSE152254. A feedback loop between the androgen receptor and 6-phosphogluoconate dehydrogenase (6PGD) drives prostate cancer growth.
The following previously published data sets were used
    1. Array
    (2015) National Cancer Institute
    ID TCGA-PRAD. The Cancer Genome Atlas Prostate Adenocarcinoma (TCGA-PRAD).
    1. Rajan P
    2. Sudbery IM
    3. Villasevil ME
    4. Mui E
    5. Fleming J
    6. Davis M
    7. Ahmad I
    8. Edwards J
    9. Sansom OJ
    10. Sims D
    11. Ponting CP
    12. Heger A
    13. McMenemin RM
    14. Pedley ID
    15. Leung HY
    (2013) NCBI Gene Expression Omnibus
    ID GSE48403. The Wnt/β-catenin-signaling pathway is modulated by androgen ablation therapy for advanced clinical prostate cancer and contributes to androgen independent cell growth.
    1. Pomerantz MM
    2. Li F
    3. Takeda D
    4. Chonkar A
    5. Chabot M
    6. Li Q
    7. Cejas P
    8. Vazquez F
    9. Shivdasani RA
    10. Seo J
    11. Bowden M
    12. Lis R
    13. Hahn WC
    14. Kantoff PW
    15. Brown M
    16. Loda M
    17. Long HW
    18. Freedman ML
    (2015) NCBI Gene Expression Omnibus
    ID GSE56288(GSM1358397). Androgen receptor programming in human tissue implicates HOXB13 in prostate pathogenesis [ChIP-Seq].
    1. Barfeld SJ
    2. Urbanucci A
    3. Fazli L
    4. Rennie PS
    5. Yegnasubramanian V
    6. de Marzo AM
    7. Thiede B
    8. Harri IM
    9. Hicks JL
    10. Mills IG
    (2017) NCBI Gene Expression Omnibus
    ID GSE73994(GSM1907200). Overexpression of c-Myc antagonises transcriptional output of the androgen receptor in prostate cancer [ChIP-Seq].
    1. ENCODE Project Consortium
    (2011) NCBI Gene Expression Omnibus
    ID GSE31477(GSM935627;ENCFF000XXR). SREBF1 ChIP-seq on human HepG2 treated with insulin.
    1. Latonen L
    2. Afyounian E
    3. Aapola U
    4. Annala M
    5. Kivinummi KK
    6. Tammela TTL
    7. Beuerman RW
    8. Uusitalo H
    9. Nykter M
    10. Visakorpi T
    (2018) Peptide Atlas repository
    ID PASS01126. Prostate cancer study. Study has three groups, bening prostate cancer (BPH), prostate cancer (PC) and castration resistant prostate cancer (CRPC). Analyzed samples were frozen tissuen cut samples.

References

    1. Tzeng TB
    2. Chang WK
    3. Huang TY
    4. P-T W
    5. Huang WC
    6. Lee C
    (2011)
    Safety and Tolerability of Physcion in Healthy Volunteers in a Phase I Dose Escalating Clinical Pharmacology Study
    Gastroenterology 140:S-572.

Decision letter

  1. Ivan Topisirovic
    Reviewing Editor; Jewish General Hospital, Canada
  2. Erica A Golemis
    Senior Editor; Fox Chase Cancer Center, United States
  3. Ivan Topisirovic
    Reviewer; Jewish General Hospital, Canada
  4. Luke Gaughan
    Reviewer; Newcastle University, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This article reports on the regulatory loop between androgen receptor and 6-phosphogluconate dehydrogenase which is a rate-limiting enzyme in the pentose phosphate pathway. Evidence is provided that modulation of 6-phosphogluconate dehydrogenase by androgen receptor is mediated by sterol regulatory element binding protein 1. Moreover, 6-phosphogluconate dehydrogenase appears to be essential for the survival of prostate cancer cells while its expression is elevated in prostate cancer patient specimens. Overall, it was thought that this study is of broad interest inasmuch as it highlights previously unappreciated role of androgen receptor in metabolic reprogramming in neoplasia of the prostate, thus suggesting potentially targetable metabolic vulnerabilities.

Decision letter after peer review:

Thank you for submitting your article "A feedback loop between the androgen receptor and 6-phosphogluoconate dehydrogenase (6PGD) drives prostate cancer growth" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Ivan Topisirovic as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Erica Golemis as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Luke Gaughan (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

In this article, Gillis et al. provide evidence suggesting that androgen receptor (AR) targets 6-phosphogluconate dehydrogenase (6PGD), a key enzyme in the pentose phosphate pathway (PPP). In prostate cancer cells, 6PGD levels decrease upon AR depletion but not after enzalutamide treatment. The authors further show that this AR-mediated control of 6PGD levels is regulated by SREBP1. 6PGD depletion or pharmacologic inhibition induce prostate cancer cell death, likely by increasing ROS. Moreover, the authors report that pharmacological inhibition of 6PGD coincides with AR downregulation, thus suggesting an AR/SREBP1/6PGD feedforward loop. 6PGD inhibition also appears to induce AMPK, thereby suppressing mTOR signaling and acetyl-CoA carboxylase (ACC1). Finally, the authors provide evidence that the combination of 6PGD inhibitors with AR antagonists may provide a stronger anti-neoplastic response, thereby highlighting the PPP as a potentially targetable metabolic vulnerability in prostate cancer. This is further corroborated by the findings that 6PGD is upregulated in prostate cancer patient samples. Indeed, the authors demonstrate that 6PGD inhibition impacts cell proliferation, mTOR signaling and AR in patient derived explants (PDEs). Overall, the reviewers agreed the article was of broad interest, inasmuch as it provides a hitherto unappreciated link between AR and potentially targetable metabolic reprogramming in prostate cancer. Nonetheless, several issues pertaining to insufficient understanding of the mechanistic underpinnings of observed phenomena were noted.

Essential revisions:

1. Although previous literature show this in breast and liver cancer cell lines, the authors should conduct ChIP-qPCR in the cell lines they are studying (LNCaP and VCaP) to confirm that SREBP1 is associated with the 6PGD promoter in prostate cancer. If SREBP1 binding to this promoter is observed, does it increase as a result of AR induction and/or decrease with AR inhibition?

2. More mechanistic evidence regarding how AR controls 6PGD levels and subsequently, how 6PGD impacts on AR abundance would improve the study. The authors show that an SREBP inhibitor affects 6PGD levels, but considering potential issues with specificity of inhibitors, SREBP depletion by CRISPR or siRNA should be tested for the ability to attenuate DHT-induced 6PGD expression. Similarly, the experiments using 6PGD inhibitors (Figures 4 and 5) should be complemented by orthogonal genetic approaches.

3. It is not clear how and at which level 6PGD may affect AR levels. Experiments using transcriptional, translational and proteasome inhibitors to address the level at which 6PGD regulates AR are required to strengthen this part of the study. As a related point, the authors should investigate whether overexpression of 6PCG lead to an increase in AR levels.

4. It remains unclear whether the effects of AR on cell survival are dependent on 6PGD. Would enforced expression of 6PCG in the context of AR depletion improve cell viability through engagement of the PPP?

5. A deeper investigation of the effects on PPP is warranted. Although the levels of 6-PG (the substrate of the reaction) have been measured (Figure 3C), levels of the PPP intermediates/products (ribulose-5-phosphate or NADPH) or a final product of the pathway (e.g. ribose-5-phosphate) should be included. Isotopic tracing of 13-C glucose through the PPP following modulation of AR/SEBP1/6PGD would provide more direct evidence that PPP is indeed being affected.

https://doi.org/10.7554/eLife.62592.sa1

Author response

Essential revisions:

1. Although previous literature show this in breast and liver cancer cell lines, the authors should conduct ChIP-qPCR in the cell lines they are studying (LNCaP and VCaP) to confirm that SREBP1 is associated with the 6PGD promoter in prostate cancer. If SREBP1 binding to this promoter is observed, does it increase as a result of AR induction and/or decrease with AR inhibition?

We have spent some time attempting to perform SREBP1 ChIP but have faced a number of challenges outside of our control. Most notably, the validated ChIP antibody for SREBP1 from Santa Cruz Biotechnology (sc-8984), which was used in the ENCODE ChIP-seq studies mentioned by the Reviewers, is no longer commercially available. This led us to try an alternative antibody (Santa Cruz monoclonal anti-SREBP1 2A4). However, despite optimising our experimental conditions to ensure that we selected timepoints for DHT treatment that robustly activated SREBP1 (Author response image 1A), we could not demonstrate robust binding of SREBP1 to known target sites at the SCD and LDLR genes that we used as positive controls (Author response image 1B).

Author response image 1
SREBP1 activation and ChIP PCR analysis for AR/SREBP1 in prostate cancer cells.

(A) LNCaP cells were cultured in the absence or presence of DHT (10nM) for varying timepoints up to 48 hours. Nuclear and cytoplasmic protein extracts were evaluated for the active (cleaved) form of SREBP1. (B) DHT-induced recruitment of AR or SREBP1 to canonical AR/SREBP1 binding sites after 4 or 16 hrs culture.

This could not be explained by a problem with the DHT or our ChIP-qPCR protocol, as we showed the expected 40-60-fold recruitment of AR to the KLK3 enhancer in the same experiment. Collectively these results are consistent with the SREBP antibody being unsuitable for ChIP and, as mentioned, the ChIP-validated antibody is unfortunately no longer available.

2. More mechanistic evidence regarding how AR controls 6PGD levels and subsequently, how 6PGD impacts on AR abundance would improve the study. The authors show that an SREBP inhibitor affects 6PGD levels, but considering potential issues with specificity of inhibitors, SREBP depletion by CRISPR or siRNA should be tested for the ability to attenuate DHT-induced 6PGD expression.

The Reviewers raise an important point about inhibitor specificity, and we now show that siRNA-mediated SREBP1 knockdown also attenuates the DHT-induced protein levels of 6PGD. These new data further strengthen the association between SREBP1 and PGD expression and have been incorporated into the revised manuscript (new Figure 2D).

Similarly, the experiments using 6PGD inhibitors (Figures 4 and 5) should be complemented by orthogonal genetic approaches.

In response to the Reviewers’ suggestion, we have repeated key functional experiments from Figures 4 and 5 using genetic knockdown via siPGD to block 6PGD signalling, instead of the S3 and Physcion inhibitors. Specifically, we have now performed growth, death and ROS assays in the absence or presence of siPGD in 2 additional cell lines (V16D and MR49F), and shown very similar effects to our results using the inhibitors; namely, reduced cell growth and induction of cell death and ROS production. These new data strengthen our conclusions and have been incorporated into the revised manuscript (new Figures 3A, 3B and 3G). We also now include new Western blot data showing that, as we observed using S3, siPGD leads to inhibition of ACC1 and mTOR signalling (new Figure 5—figure supplement 1.).

3. It is not clear how and at which level 6PGD may affect AR levels. Experiments using transcriptional, translational and proteasome inhibitors to address the level at which 6PGD regulates AR are required to strengthen this part of the study. As a related point, the authors should investigate whether overexpression of 6PCG lead to an increase in AR levels.

As suggested by the Reviewers, we exploited transcriptional (actinomycin D), translational (cycloheximide) and proteasome (MG132) inhibitors in our experiments with the 6PGD inhibitor, S3, and assessed the effects on AR RNA (for actinomycin D) or protein (for cycloheximide and MG132) levels. Actinomycin D and cycloheximide did not influence the effect of S3 on AR. Conversely, our experiments with MG132 provide strong evidence that S3 leads to enhanced turnover of AR by the ubiquitin proteasome system. Specifically, we immunoprecipitated AR from LNCaP cells cultured with S3 in the absence and presence of MG132. Importantly, in the presence of MG132, ubiquitinylated AR accumulated in a dose-responsive manner with S3. Accordingly, we can now confidently conclude that S3 is affecting AR at the level of protein turnover, and these new data have been incorporated into the revised manuscript (new Figure 6D).

To address whether overexpression of 6PGD influences AR protein levels, we generated a LNCaP cell line stably overexpressing 6PGD via lentiviral transduction. Over multiple passages in culture, the 6PGD overexpressing line maintained similar AR levels to the control vector-transduced line (Author response image 2). This finding provides further evidence that 6PGD is affecting AR protein stability rather than its protein synthesis.

Author response image 2
Influence of ectopic 6PGD overexpression on AR protein levels in stably transduced LNCaP cells at passages 6/9.

4. It remains unclear whether the effects of AR on cell survival are dependent on 6PGD. Would enforced expression of 6PCG in the context of AR depletion improve cell viability through engagement of the PPP?

Thank you for this suggestion; to address the dependency of AR depletion on 6PGD, we used the LNCaP cell line stably overexpressing 6PGD (Author response image 2) and compared its sensitivity to siAR knockdown with that of the control (empty vector-transduced) line. Author response image 3 shows that both the control and the 6PGD-overexpressing lines were equally sensitive to siAR, indicating that 6PGD alone is not responsible for the growth-inhibitory effects of AR depletion. It is, however, likely that while inhibition or knockdown of 6PGD can block the PPP to influence cell viability, selective overexpression of a single member of the PPP may not sufficiently activate this pathway in a setting where one or more other pathway factors may be limiting. Additionally, AR has many functions in prostate cancer growth beyond regulation of the PPP, and it is therefore not surprising that over-expression of 6PGD alone could not rescue loss of AR.

Author response image 3
Effect of 6PGD overexpression on response of LNCaP prostate cancer cells to siAR treatment.

Cells stably transduced with control or 6PGD-overexpressing vectors were transfected with siCon or siAR and viable cell number measured after 6 days in culture. **** P<0.001 c.f. siCon.

5. A deeper investigation of the effects on PPP is warranted. Although the levels of 6-PG (the substrate of the reaction) have been measured (Figure 3C), levels of the PPP intermediates/products (ribulose-5-phosphate or NADPH) or a final product of the pathway (e.g. ribose-5-phosphate) should be included. Isotopic tracing of 13-C glucose through the PPP following modulation of AR/SEBP1/6PGD would provide more direct evidence that PPP is indeed being affected.

We agree with the need to more directly relate our effects on PGD modulation to PPP activity in prostate cancer cells. Accordingly, we have followed the suggestion to perform isotopic tracing with 1,2-13C glucose after knockdown of AR/SREBP1/6PGD. PPP flux was estimated over a period of 15 minutes by measuring the incorporation of 13C into the immediate product of 6PGD catalytic activity, ribulose-5-phosphate (Ru-5-P). Our new data conclusively show that flux through the oxidative (irreversible) branch of the PPP (i.e. through 6PGD) significantly decreased with knockdown of 6PGD, AR or SREBP1 (included in the revised manuscript as Figures 3D-G, and Figure 3—figure supplement 2C). Interestingly, knockdown of AR and SREBP1 (but not 6PGD) also had a significant impact on flux through the non-oxidative (reversible) branch of the PPP, as determined by evaluating m2 (doubly labelled) Ru5P production via F6P/GAP (Figures 3F-G). Collectively, these glucose tracing data show that targeting 6PGD significantly suppresses PPP activity through the oxidative pathway, an effect that is also evident when targeting the upstream signalling factors AR and SREBP1. We thank the Reviewers for this suggestion, which has markedly strengthened our manuscript’s conclusions.

https://doi.org/10.7554/eLife.62592.sa2

Article and author information

Author details

  1. Joanna L Gillis

    1. Adelaide Medical School, University of Adelaide, Adelaide, Australia
    2. South Australian Health and Medical Research Institute, Adelaide, Australia
    Contribution
    Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    None
  2. Josephine A Hinneh

    1. Adelaide Medical School, University of Adelaide, Adelaide, Australia
    2. South Australian Health and Medical Research Institute, Adelaide, Australia
    3. Department of Urology, Nagoya University Graduate School of Medicine, Nagoya, Japan
    Contribution
    Conceptualization, Data curation, Investigation, Methodology, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    None
  3. Natalie K Ryan

    1. Adelaide Medical School, University of Adelaide, Adelaide, Australia
    2. South Australian Health and Medical Research Institute, Adelaide, Australia
    Contribution
    Investigation, Methodology, Validation, Writing – review and editing
    Competing interests
    None
  4. Swati Irani

    1. Adelaide Medical School, University of Adelaide, Adelaide, Australia
    2. South Australian Health and Medical Research Institute, Adelaide, Australia
    Contribution
    Data curation, Investigation, Methodology, Writing – review and editing
    Competing interests
    none
  5. Max Moldovan

    South Australian Health and Medical Research Institute, Adelaide, Australia
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Visualization, Writing – review and editing
    Competing interests
    None
  6. Lake-Ee Quek

    School of Mathematics and Statistics, Charles Perkins Centre, Faculty of Science, The University of Sydney, Camperdown, Australia
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – review and editing
    Competing interests
    None
  7. Raj K Shrestha

    1. Adelaide Medical School, University of Adelaide, Adelaide, Australia
    2. Flinders Health and Medical Research Institute, Flinders University, College of Medicine and Public Health, Bedford Park, Australia
    3. Dame Roma Mitchell Cancer Research Laboratories, University of Adelaide, Adelaide, Australia
    4. Freemasons Centre for Male Health and Wellbeing, University of Adelaide, Adelaide, Australia
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – review and editing
    Competing interests
    None
  8. Adrienne R Hanson

    Flinders Health and Medical Research Institute, Flinders University, College of Medicine and Public Health, Bedford Park, Australia
    Contribution
    Investigation, Methodology, Validation, Writing – review and editing
    Competing interests
    None
  9. Jianling Xie

    Flinders Health and Medical Research Institute, Flinders University, College of Medicine and Public Health, Bedford Park, Australia
    Contribution
    Investigation, Methodology, Validation, Writing – review and editing
    Competing interests
    None
  10. Andrew J Hoy

    School of Medical Sciences, Charles Perkins Centre, Faculty of Medicine and Health, The University of Sydney, Camperdown, Australia
    Contribution
    Funding acquisition, Investigation, Methodology, Supervision, Validation, Writing – review and editing
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3922-1137
  11. Jeff Holst

    School of Medical Sciences and Prince of Wales Clinical School, University of New South Wales, Sydney, Australia
    Contribution
    Funding acquisition, Investigation, Methodology, Supervision, Validation, Writing – review and editing
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0377-9318
  12. Margaret M Centenera

    1. Adelaide Medical School, University of Adelaide, Adelaide, Australia
    2. South Australian Health and Medical Research Institute, Adelaide, Australia
    3. Freemasons Centre for Male Health and Wellbeing, University of Adelaide, Adelaide, Australia
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Supervision, Visualization, Writing – review and editing
    Competing interests
    None
  13. Ian G Mills

    1. Centre for Cancer Research and Cell Biology, Queen's University Belfast, Northern Ireland, United Kingdom
    2. Nuffield Department of Surgical Sciences, University of Oxford, Oxford, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Supervision, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    None
  14. David J Lynn

    1. South Australian Health and Medical Research Institute, Adelaide, Australia
    2. Flinders Health and Medical Research Institute, Flinders University, College of Medicine and Public Health, Bedford Park, Australia
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    None
  15. Luke A Selth

    1. Adelaide Medical School, University of Adelaide, Adelaide, Australia
    2. Flinders Health and Medical Research Institute, Flinders University, College of Medicine and Public Health, Bedford Park, Australia
    3. Dame Roma Mitchell Cancer Research Laboratories, University of Adelaide, Adelaide, Australia
    4. Freemasons Centre for Male Health and Wellbeing, University of Adelaide, Adelaide, Australia
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Supervision, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    luke.selth@flinders.edu.au
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4686-1418
  16. Lisa M Butler

    1. Adelaide Medical School, University of Adelaide, Adelaide, Australia
    2. South Australian Health and Medical Research Institute, Adelaide, Australia
    3. Freemasons Centre for Male Health and Wellbeing, University of Adelaide, Adelaide, Australia
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    lisa.butler@adelaide.edu.au
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2698-3220

Funding

Cancer Australia (1138766)

  • Margaret M Centenera
  • Ian G Mills
  • David J Lynn
  • Lisa M Butler

Movember Foundation (MRTA3)

  • Andrew J Hoy
  • Margaret M Centenera
  • Luke A Selth
  • Lisa M Butler

Prostate Cancer Foundation of Australia (MRTA3)

  • Andrew J Hoy
  • Margaret M Centenera
  • Luke A Selth
  • Lisa M Butler

Cancer Council South Australia (Principal Cancer Research Fellowships)

  • Luke A Selth
  • Lisa M Butler

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We acknowledge expert assistance from Deanna Miller, Kayla Bremert, Madison Helm, Samira Khabbazi, Scott Townley, Zeyad Nassar, Elizabeth Nguyen, Shadrack M Mutuku, Courtney Moore, Mark Van der Hoek, Randall Grose, Bianca Varney, and Michelle van Geldermalsen. RNA-seq was performed at the South Australian Health and Medical Research Institute (SAHMRI) Genomics Facility. Flow cytometry analysis was performed at SAHMRI in the ACRF Cellular Imaging and Cytometry Core Facility, which is generously supported by the Australian Cancer Research Foundation, Detmold Hoopman Group and Australian Government through the Zero Childhood Cancer Program. Metabolomics was facilitated by access to Sydney Mass Spectrometry, a core research facility at the University of Sydney. LNCaP-V16D and LNCaP-MR49F cells were a kind gift from Dr. Amina Zoubeidi (Vancouver Prostate Centre, Vancouver, Canada). We are grateful to the study participants, as well as the urologists, nurses, and histopathologists who assisted in the recruitment and collection of patient information and pathology reports through the Australian Prostate Cancer BioResource.

This work was supported by a grant from Cancer Australia (ID 1138766 to LMB, DJL, MMC, IGM). The research programmes of LMB and LAS are supported by the Movember Foundation and the Prostate Cancer Foundation of Australia through a Movember Revolutionary Team Award. LMB and LAS are supported by Principal Cancer Research Fellowships awarded by Cancer Council’s Beat Cancer project on behalf of its donors, the State Government through the Department of Health and the Australian Government through the Medical Research Future Fund (PRF1117 and PRF2919).

Ethics

Human subjects: Prostate cancer tissue was obtained with informed written consent through the Australian Prostate Cancer BioResource from men undergoing radical prostatectomy at St Andrew's Hospital (Adelaide, Australia). Ethical approval for the use of human prostate tumours was obtained from the Ethics Committees of the University of Adelaide (Adelaide, Australia) and St Andrew's Hospital (Adelaide, Australia). All experiments were performed in accordance with the guidelines of the National Health and Medical Research Council (Australia).

Senior Editor

  1. Erica A Golemis, Fox Chase Cancer Center, United States

Reviewing Editor

  1. Ivan Topisirovic, Jewish General Hospital, Canada

Reviewers

  1. Ivan Topisirovic, Jewish General Hospital, Canada
  2. Luke Gaughan, Newcastle University, United Kingdom

Publication history

  1. Received: August 29, 2020
  2. Preprint posted: September 3, 2020 (view preprint)
  3. Accepted: August 11, 2021
  4. Accepted Manuscript published: August 12, 2021 (version 1)
  5. Version of Record published: September 3, 2021 (version 2)

Copyright

© 2021, Gillis et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 785
    Page views
  • 148
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Neuroscience
    Susu Pan et al.
    Research Article

    Emerging evidence suggests that the nervous system is involved in tumor development in the periphery, however, the role of central nervous system remains largely unknown. Here, by combining genetic, chemogenetic, pharmacological and electrophysiological approaches, we show that hypothalamic oxytocin (Oxt)-producing neurons modulate colitis-associated cancer (CAC) progression in mice. Depletion or activation of Oxt neurons could augment or suppress CAC progression. Importantly, brain treatment with celastrol, a pentacyclic triterpenoid, excites Oxt neurons and inhibits CAC progression, and this anti-tumor effect was significantly attenuated in Oxt neuron-lesioned mice. Furthermore, brain treatment with celastrol suppresses sympathetic neuronal activity in the celiac-superior mesenteric ganglion (CG-SMG), and activation of β2 adrenergic receptor abolishes the anti-tumor effect of Oxt neuron activation or centrally administered celastrol. Taken together, these findings demonstrate that hypothalamic Oxt neurons regulate CAC progression by modulating the neuronal activity in the CG-SMG. Stimulation of Oxt neurons using chemicals, eg. celastrol, might be a novel strategy for colorectal cancer treatment.

    1. Cancer Biology
    2. Cell Biology
    Lauren K Williams et al.
    Research Article Updated

    The abscission checkpoint regulates the ESCRT membrane fission machinery and thereby delays cytokinetic abscission to protect genomic integrity in response to residual mitotic errors. The checkpoint is maintained by Aurora B kinase, which phosphorylates multiple targets, including CHMP4C, a regulatory ESCRT-III subunit necessary for this checkpoint. We now report the discovery that cytoplasmic abscission checkpoint bodies (ACBs) containing phospho-Aurora B and tri-phospho-CHMP4C develop during an active checkpoint. ACBs are derived from mitotic interchromatin granules, transient mitotic structures whose components are housed in splicing-related nuclear speckles during interphase. ACB formation requires CHMP4C, and the ESCRT factor ALIX also contributes. ACB formation is conserved across cell types and under multiple circumstances that activate the checkpoint. Finally, ACBs retain a population of ALIX, and their presence correlates with delayed abscission and delayed recruitment of ALIX to the midbody where it would normally promote abscission. Thus, a cytoplasmic mechanism helps regulate midbody machinery to delay abscission.
