An in vitro stem cell model of human epiblast and yolk sac interaction

  1. Kirsty ML Mackinlay
  2. Bailey AT Weatherbee
  3. Viviane Souza Rosa
  4. Charlotte E Handford
  5. George Hudson
  6. Tim Coorens
  7. Lygia V Pereira
  8. Sam Behjati
  9. Ludovic Vallier
  10. Marta N Shahbazi  Is a corresponding author
  11. Magdalena Zernicka-Goetz  Is a corresponding author
  1. Mammalian Embryo and Stem Cell Group, University of Cambridge, Department of Physiology, Development and Neuroscience, United Kingdom
  2. National Laboratory for Embryonic Stem Cells (LaNCE), Department of Genetics and Evolutionary Biology, Institute of Biosciences, University of São Paulo, Brazil
  3. MRC Laboratory of Molecular Biology, Cambridge Biomedical Campus, United Kingdom
  4. Centre for Trophoblast Research, University of Cambridge, United Kingdom
  5. Wellcome Sanger Institute, United Kingdom
  6. Wellcome – MRC Cambridge Stem Cell Institute, Cambridge Biomedical Campus, United Kingdom
  7. Synthetic Mouse and Human Embryology Group, California Institute of Technology (Caltech), Division of Biology and Biological Engineering, United States
https://doi.org/10.7554/eLife.63930
Share this article
Cite this article
  1. Kirsty ML Mackinlay
  2. Bailey AT Weatherbee
  3. Viviane Souza Rosa
  4. Charlotte E Handford
  5. George Hudson
  6. Tim Coorens
  7. Lygia V Pereira
  8. Sam Behjati
  9. Ludovic Vallier
  10. Marta N Shahbazi
  11. Magdalena Zernicka-Goetz
(2021)
An in vitro stem cell model of human epiblast and yolk sac interaction
eLife 10:e63930.
https://doi.org/10.7554/eLife.63930
  2. Download BibTeX
  3. Download .RIS

Abstract

Human embryogenesis entails complex signalling interactions between embryonic and extra-embryonic cells. However, how extra-embryonic cells direct morphogenesis within the human embryo remains largely unknown due to a lack of relevant stem cell models. Here, we have established conditions to differentiate human pluripotent stem cells (hPSCs) into yolk sac-like cells (YSLCs) that resemble the post-implantation human hypoblast molecularly and functionally. YSLCs induce the expression of pluripotency and anterior ectoderm markers in human embryonic stem cells (hESCs) at the expense of mesoderm and endoderm markers. This activity is mediated by the release of BMP and WNT signalling pathway inhibitors, and, therefore, resembles the functioning of the anterior visceral endoderm signalling centre of the mouse embryo, which establishes the anterior-posterior axis. Our results implicate the yolk sac in epiblast cell fate specification in the human embryo and propose YSLCs as a tool for studying post-implantation human embryo development in vitro.

Introduction

Over the first 5 days of human development, the fertilised zygote undergoes a series of cleavage divisions and morphogenetic events that give rise to a blastocyst, which comprises an inner cell mass (ICM) and a fluid-filled cavity surrounded by the trophoblast, the extra-embryonic tissue that forms the placenta (Edwards et al., 1970; Steptoe et al., 1971). As the blastocyst matures, the ICM undergoes a morphological sorting process which leads to the specification of the epiblast, progenitor of the embryo proper, and the hypoblast (extra-embryonic endoderm), the precursor tissue of the yolk sac (Wamaitha and Niakan, 2018).

Once the hypoblast, epiblast, and trophoblast have been specified, the human blastocyst is ready to implant into the uterine wall of the mother on embryonic day 6–7 (E6–7) post-fertilisation (Steptoe et al., 1971). In vivo and in vitro studies of human and non-human primates (Deglincerti et al., 2016; Luckett, 1975; Ma et al., 2019; Niu et al., 2019; Shahbazi et al., 2016) have shown that upon implantation, epiblast cells polarise and undergo lumenogenesis to form the amniotic cavity. Epiblast cells located in close proximity to the hypoblast become a columnar epiblast disc, in contact with the amniotic cavity. The hypoblast proliferates, giving rise to the primary yolk sac on day 10. Around day 14, the primitive streak forms posteriorly in the epiblast, triggering the onset of gastrulation (Sasaki et al., 2016; Shahbazi, 2020).

The signalling pathways that govern early post-implantation morphogenesis in the human embryo are not fully understood. In the mouse embryo, a group of asymmetrically localised cells, collectively known as the anterior visceral endoderm (AVE), is established at E5.5, which secrete NODAL, WNT, and BMP antagonists (e.g. Lefty, Dkk1, Cer1, Noggin), leading to the formation of a gradient of signalling activity across the anterior-posterior axis of the embryo (Beddington and Robertson, 1999; Rivera-Pérez and Magnuson, 2005). Interestingly, AVE-like cells have also been identified in the cynomolgus monkey yolk sac in vivo (Sasaki et al., 2016), and in human embryos cultured in vitro (Molè et al., 2021; Xiang et al., 2020). However, the functional relevance of these descriptive findings is not yet known.

Culture conditions now support the development of human embryos in vitro up until the internationally accepted limit of 14 days (Deglincerti et al., 2016; Shahbazi et al., 2016; Xiang et al., 2020; Zhou et al., 2019). Nonetheless, the reliance on surplus in vitro fertilised (IVF) embryos, combined with the ethical considerations associated with the genetic manipulation of human embryos, means that there are currently barriers to the study of post-implantation human development. Accordingly, there is a need to create stem cell models of post-implantation embryogenesis, thereby producing a system that is amenable to genetic and molecular manipulation. Such research has already begun, with human embryonic stem cells (hESCs) being used to model early embryogenesis (Etoc et al., 2016; Moris et al., 2020; Shahbazi et al., 2017; Simunovic et al., 2019; Warmflash et al., 2014). However, the current systems lack the inclusion of extra-embryonic tissues, which are likely key regulators of human epiblast patterning. Thus, to determine how intercellular communication drives post-implantation human embryogenesis, it is important to establish an in vitro model that encompasses both embryonic and extra-embryonic lineages.

Here, we aimed to build an in vitro model that would allow us to study the interactions between the yolk sac and epiblast of the post-implantation human embryo. To do this, we first generated yolk sac-like cells (YSLCs) by simultaneously stimulating ACTIVIN-A, WNT, and JAK/STAT signalling in peri-implantation-like human pluripotent stem cells (hPSCs) (Gafni et al., 2013). We then modelled the interaction between these YSLCs and hESCs, which revealed that YSLCs induce the expression of pluripotency and anterior ectoderm markers at the expense of mesoderm and endoderm markers in hESCs by inhibiting BMP and WNT signalling pathways. Our results indicate that these YSLCs can be used as a tool for studying how the interaction between human embryonic and extra-embryonic cells regulates human embryo development.

Results

ACTIVIN-A, WNT, and JAK/STAT pathway activation induces an endodermal fate in hPSCs

To model epiblast-yolk sac crosstalk, we sought in vitro counterparts of each of these tissues. Conventionally, hESCs have been used as a reliable model of the human epiblast, harbouring a post-implantation, ‘primed’ pluripotent state (Nakamura et al., 2016; Shao et al., 2017a; Simunovic et al., 2019; Warmflash et al., 2014; Zheng et al., 2019). To derive a YSLC, we intended to use a starting cell line with extra-embryonic competency. We hypothesised that human extended pluripotent stem cells (hEPSCs) were an appropriate candidate as they were shown to have extra-embryonic potential when incorporated into mouse embryos (Yang et al., 2017).

We first conducted a screen by adding pairs of signalling pathway activators that have been implicated in murine primitive endoderm (hypoblast) development to hEPSC medium (LCDM medium, see Materials and methods) (Figure 1—figure supplement 1A). hEPSCs were derived from the RUES2-GLR reporter line which reports for expression of SOX2 (pluripotent epiblast), SOX17 (endoderm), and BRACHYURY (mesoderm) (Martyn et al., 2018). By analysing SOX17 and SOX2 reporter fluorescence intensity, we discerned that the combination of WNT (via the GSK3 activator CHIR 99021) and ACTIVIN-A pathway activation led to the greatest upregulation of SOX17 at the expense of SOX2 after 6 days (Figure 1—figure supplement 1B,C). This result is in line with ACTIVIN-A and WNT signalling being involved in the specification of mouse, monkey, and human primitive endoderm in vitro and in vivo (Anderson et al., 2017; Blakeley et al., 2015; Boroviak et al., 2015; Linneberg-Agerholm et al., 2019). We further optimised the medium by increasing the concentrations of both CHIR 99021 and ACTIVIN-A (Figure 1—figure supplement 1D,E), and removing the other cytokines from the LCDM medium apart from human leukemia inhibitory factor (LIF), which we found to be necessary for proliferation during the conversion (Figure 1—figure supplement 1F). Henceforth, the medium consisting of N2B27 supplemented with 100 ng ml−1 human ACTIVIN-A, 3 μM CHIR99021, and 10 ng ml−1 recombinant human LIF is referred to as ‘ACL’.

To further assess the effect of ACL treatment on hEPSCs after 6 days of culture, we analysed the expression levels of SOX17 and SOX2 using reporter fluorescence at the single cell level. This revealed a strong shift from an originally SOX2 high, SOX17 low population of cells, to the converse (Figure 1A–C). Furthermore, gene expression analysis showed that pan-endodermal markers SOX17, GATA6, and EOMES were all upregulated following ACL treatment (Figure 1D, and Figure 1—figure supplement 2A). Despite observed downregulation of SOX2 expression, the expression of OCT4 and NANOG increased (Figure 1D and Figure 1—figure supplement 2A), which has previously been observed in hESCs overexpressing SOX17 (Séguin et al., 2008). The inability of ACL to fully downregulate pluripotency markers in hPSCs may indicate that cells may still preserve some features of pluripotent cells.

Figure 1 with 5 supplements see all
Download asset Open asset

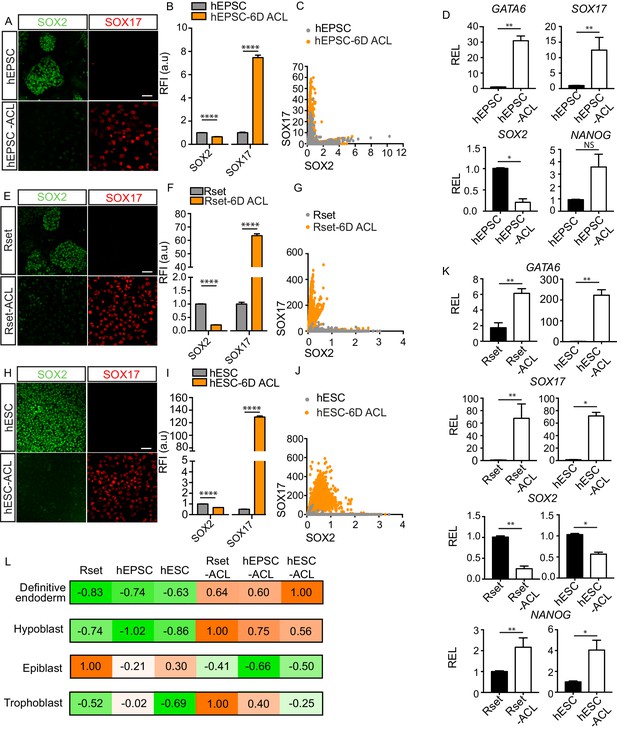

Endoderm conversion of RUES2-GLR human pluripotent stem cells (hPSCs) in response to ACL treatment.

(A, E, and H) Immunofluorescence images of SOX2 (green) and SOX17 (red) in human extended pluripotent stem cells (hEPSCs), Rset human pluripotent stem cells (hPSCs), and human embryonic stem cells (hESCs) after 6 days (6D) of ACL treatment (scale bar = 50 μm). (B, F, and I) Bar chart of elative fluorescence intensity (RFI arbitrary units [a.u.]) of SOX17 and SOX2 (± SEM) before and after 6D of ACL treatment in hPSCs as measured via reporter protein immunostaining. Mann–Whitney U-test; ****p < 0.0001 (number of cells analysed: hEPSC control n=2736, hEPSC + 6D ACL n=2270, Rset control n=2749, Rset + 6D ACL n=3146, hESC control n=1939, hESC + 6D ACL n=2538, three independent experiments each with one sample). (C, G, and J) Quantification of SOX2 and SOX17 protein levels at the single cell level in hEPSC, Rset hPSC, and hESC 6D ACL-treated cells based on relative reporter fluorescence intensity. Each dot represents an individual cell. (D) Relative expression levels (REL) (± SEM) of GATA6, SOX17, NANOG (n=6 samples, three independent experiments) and SOX2 (n=4 samples, two independent experiments) in hEPSC before and after 6D ACL treatment, normalised to their respective control. Mann–Whitney U-test *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. (K) Relative expression levels (REL) (± SEM) of GATA6, SOX17, SOX2, and NANOG in Rset hPSCs (n=6 samples, three independent experiments), or hESCs (n=4 samples, two independent experiments) after 6D ACL treatment, normalised to their respective control . Mann–Whitney U-test *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. (L) Transcriptomic-signature score (gene set variation analysis ([GSVA]) positive marker score) when comparing ACL-treated cells to either the human hypoblast, trophoblast, or epiblast within the human embryo (E6–14), or to human definitive endoderm using sc-RNA-seq expression data (embryo and definitive endoderm) and bulk RNA-seq expression data (cell lines). The higher the value (orange), the more relatively similar to each lineage.

Figure 1—source data 1

Fluorescence intensity and qPCR analysis of endoderm and pluripotency markers in RUES2 human pluripotent stem cells (hPSCs) in response to ACL.

https://cdn.elifesciences.org/articles/63930/elife-63930-fig1-data1-v1.xlsx

To determine whether ACL could also induce endodermal fate in other hPSCs, we treated both RUES2-GLR Rset hPSCs, which harbour a pluripotent state that is intermediate between pre-implantation ‘ground-state’ naïve pluripotency and post-implantation lineage-biased primed pluripotency (Gafni et al., 2013; Kilens et al., 2018), and conventional primed RUES2-GLR hESCs, that are similar to the post-implantation human epiblast (Molè et al., 2021; Nakamura et al., 2016). After 6 days of treatment, endodermal markers were upregulated and SOX2 was downregulated in both Rset hPSCs and hESCs (Figure 1E–K). This expression pattern was also observed after 1 month of culture (Figure 1—figure supplement 3). We also observed the requirement of LIF for continued proliferation for both of these treated hPSC populations (Figure 1—figure supplement 1F). To evaluate whether these results were cell line specific, we repeated ACL treatment using H9-derived and SHEF6-derived hEPSCs, Rset hPSCs, and hESCs. This revealed a similar result, in that SOX17, GATA6, and EOMES were upregulated after 6 days in all three populations for all cell lines at the protein and RNA level (Figure 1—figure supplement 2B–K and Figure 1—figure supplement 4). SOX2 protein levels were also downregulated upon ACL treatment in all three hPSCs for all cell lines (Figure 1—figure supplement 2B–J and Figure 1—figure supplement 4). However, SOX2 was upregulated at the mRNA level in treated H9 hEPSC cells (Figure 1—figure supplement 2K). Single-cell fluorescence intensity analysis revealed this was likely due to a subpopulation of cells that were GATA6 low but expressed high SOX2 levels (Figure 1—figure supplement 2D), rather than GATA6 high cells co-expressing high levels of SOX2. This suggests that there is a heterogeneous response to ACL treatment within H9 hEPSCs.

Given that all three hPSC ACL-treated populations upregulated expression of selected endodermal markers, we sought to determine whether ACL treatment led to global gene expression shifts from an epiblast to an endodermal fate – either towards the human hypoblast or the embryonic endoderm lineage, the definitive endoderm. Accordingly, we compared the transcriptome of sorted SOX17::H2B-tdTomato+ converted populations (Figure 1—figure supplement 5), along with Rset hPSCs, primed hESCs (Linneberg-Agerholm et al., 2019), and hEPSCs (Yang et al., 2017), to the lineages of the early human embryo and to human definitive endoderm. To do this, we first identified genes that were differentially expressed between epiblast, trophoblast, and hypoblast throughout pre- or early post-implantation development (E6–14), and in vitro-derived definitive endoderm (Supplementary file 1; Cuomo et al., 2020; Molè et al., 2021; Xiang et al., 2020; Zhou et al., 2019). Markers were identified in a pairwise manner, where lineages were individually compared, and gene signatures for each lineage were defined as those positive markers which were common across all pairwise comparisons. These gene signatures were then incorporated into a gene set-enrichment-based gene set variation analysis (GSVA) that is particularly robust in extrapolating cell type labels from single-cell datasets to bulk RNA-seq datasets (Diaz-Mejia et al., 2019; Hänzelmann et al., 2013). Coefficients were calculated across each lineage and normalized to 1. Importantly, given that different gene sets are used for each lineage within this analysis, comparisons in coefficients are only made across cell lines. This analysis revealed that all three cell populations bore a greater similarity to the hypoblast following ACL treatment, while their similarity to the epiblast decreased, suggesting a shift towards an endodermal fate (Figure 1L). Interestingly, Rset-ACL bore the greatest similarity of the three ACL-treated cell lines with the human hypoblast, while hESC-ACL was the most similar of the three to the definitive endoderm (Figure 1L).

Pluripotent state determines the endodermal fate specified in hPSCs in response to ACL

EOMES, GATA6, and SOX17 are pan-endodermal markers, which are expressed in both extra-embryonic endoderm and embryonic definitive endoderm across mammalian models (Stern and Downs, 2012). To date, no putative markers for in vivo human extra-embryonic endoderm vs. definitive endoderm have been designated. We, therefore, sought to identify reliable human extra-embryonic endoderm markers that would allow the specific endodermal identity of the ACL-treated hPSCs to be determined. Previous studies have proposed markers for both human definitive and extra-embryonic endoderm based on the differentiation of hPSC towards extra-endodermal lineages (Linneberg-Agerholm et al., 2019) or have relied on putative mouse markers (Murakami et al., 2004; Wang et al., 2012). Contrastingly, we determined all of the differentially expressed genes between human extra-embryonic and definitive endoderm using published datasets of human embryos cultured in vitro (Xiang et al., 2020; Zhou et al., 2019; Molè et al., 2021) and hESC-derived definitive endoderm (Cuomo et al., 2020). This revealed that 24,894 of the 26,510 genes analysed were shared by both endodermal lineages, demonstrating considerable similarity between embryonic and extra-embryonic endoderm (Figure 2A). Nonetheless, 366 and 1250 genes were found to be differentially upregulated in the definitive endoderm and extra-embryonic endoderm, respectively (Figure 2A and Supplementary file 2). Extra-embryonic endoderm markers included APOA1, APOA2, APOE, and APOC1 (Figure 2B and Supplementary file 2) in agreement with the function of the yolk sac as the primary site of apolipoprotein synthesis during early primate, chick and mouse development (Baardman et al., 2013; Cindrova-Davies et al., 2017). Similarly, PDGFRα, NID2, FN1, HNF1β, HNF4a, COL4A1, PITX2, and PODXL were also identified as human extra-embryonic endoderm markers (Figure 2B and Supplementary file 2), in line with the mouse extra-embryonic endoderm expression profile at various stages of development (Ghatpande et al., 2002; Johansson et al., 1997; Kwon et al., 2008; Rodriguez et al., 2005; Shahbazi et al., 2017).

Figure 2
Download asset Open asset

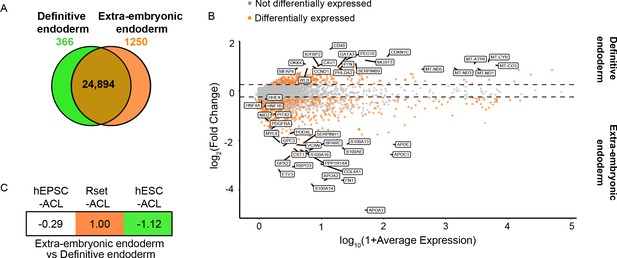

Transcriptional profiling of ACL-treated human pluripotent stem cells (hPSCs) relative to extra-embryonic endoderm and definitive endoderm expression signatures.

(A) Venn diagram depicting the number of shared genes between human extra-embryonic endoderm (E6–14) and human embryonic stem cell (hESC)-derived definitive endoderm (brown), of extra-embryonic endoderm differentially expressed genes (orange), and of definitive endoderm differentially expressed genes (green). (B) MA plot representing the differentially expressed genes between human definitive endoderm and extra-embryonic endoderm. Top 20 differentially expressed genes are labelled, along with key extra-embryonic endoderm markers NID2, PDGFRa, HNF4a, HNF1β, PITX2, PODXL, and HHEX (>10% of cell type of interest, log2FC>0.25, p<0.05). (C) Transcriptomic-signature comparison score of human extra-embryonic endoderm vs. definitive endoderm within ACL-treated hPSCs (gene set variation analysis ([GSVA]) score for negative markers subtracted from GVSA score for positive markers and values normalised to 1). A negative value represents definitive endoderm similarity and a positive value represents an extra-embryonic endoderm similarity. hEPSC-ACL: n=2 technical replicates, Rset-ACL: n=3 technical replicates, hESC-ACL: n=2 technical replicates. Sc-RNA-seq expression data (extra-embryonic endoderm and definitive endoderm) and bulk RNA-seq expression data (cell lines) were used for all relevant panels.

Using the makers identified above, we subjected ACL-treated hEPSC, Rset, and hESC populations to GSVA. Given that these marker sets are related – the negative markers for the extra-embryonic endoderm are the positive markers for the definitive endoderm – we then subtracted the GVSA marker score for the definitive endoderm from the GVSA marker score for extra-embryonic endoderm and normalised the highest score to 1. This allowed us to obtain a relative view of how similar each ACL cell type is to the extra-embryonic endoderm vs. the definitive endoderm. This revealed hESC-ACL to be the most similar to human definitive endoderm of the three populations, and Rset-ACL the most similar to extra-embryonic endoderm (Figure 2C). hEPSC-ACL were also more similar to definitive endoderm than extra-embryonic endoderm (Figure 2C).

Collectively, this transcriptional profiling of ACL-treated hPSCs indicates that the initial pluripotent state determines the endodermal fate that ACL treatment induces in hPSC populations. The fact that primed hESCs give rise to the most definitive endoderm-like population of the three is in line with previous findings (Linneberg-Agerholm et al., 2019). Although hEPSC-ACL are more similar to the definitive endoderm relative to extra-embryonic endoderm, they are not as similar to the definitive endoderm as hESC-ACL are, perhaps due to hEPSC-ACL representing a highly heterogenous population of cells. Rset-ACL were the most similar to the extra-embryonic endoderm, making them a potential candidate for modelling the human yolk sac.

Developmental characterisation of ACL-treated hPSCs

We next wished to determine the dynamics of conversion from a pluripotent to an endoderm fate. Commitment to a definitive endoderm fate follows an initial intermediate mesendoderm fate (Kimelman and Griffin, 2000), whereas extra-embryonic endoderm derives directly from the ICM without this intermediate state (Niakan et al., 2012). To determine whether a mesendoderm fate is induced during ACL treatment in hEPSCs, Rset hPSCs, or hESCs, we monitored the dynamics of SOX2, SOX17, and BRACHYURY during the 6 days of ACL treatment (Figure 3A & B). This revealed a trend of increase in BRACHYURY expression in hESC-ACL and hEPSC-ACL populations around day 2 of treatment, which then diminished by day 4 in both cases. However, in Rset hPSCs, this trend of BRACHYURY levels was not observed. This shows that of the three cell types, the specification dynamics of Rset hPSCs in response to ACL was the most similar to that expected of extra-embryonic endoderm specification.

Figure 3 with 3 supplements see all
Download asset Open asset

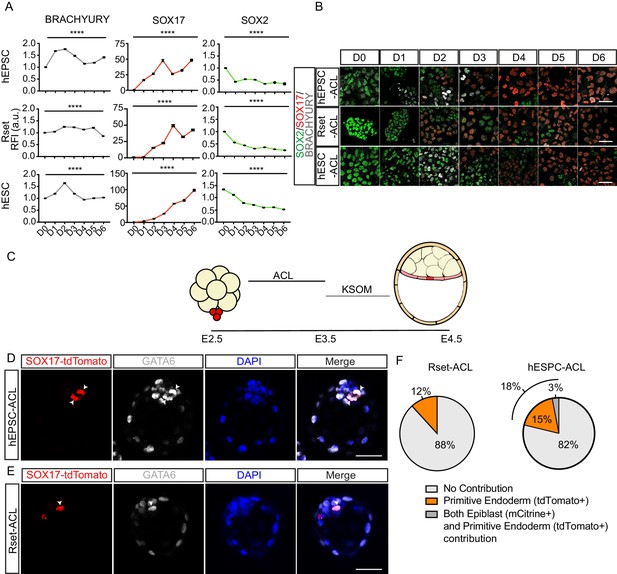

Functional characterisation of ACL-treated human pluripotent stem cells (hPSCs).

(A) Line graph (± SEM) plotting the relative fluorescence intensity (RFI arbitrary units [a.u.]) of SOX2, SOX17, and BRACHYURY in ACL-treated population. Kruskal–Wallis test, ****p < 0.0001 (number of cells analysed SOX17: human extended pluripotent stem cell (hEPSC): D0 n=2774, D1 n=3258, D2 n = 2932, D3 n=3292, D4 n=2459, D5 n=2293, D6 n=1883, Rset: D0 n=2108, D1 n=3580, D2 n=2738, D3 n=2586, D4 n=2149, D5 n=2698, D6 n = 2441, human embryonic stem cell (hESC): D0 n=1426, D1 n=1924, D2 n=1943, D3 n=2817, D4 n=2248, D5 n=1148, D6 n=1957 (n=2 independent experiments); SOX2: hEPSC: D0 n = 2774, D1 n=3258, D2 n=2932, D3 n=3292, D4 n=2459, D5 n=2293, D6 n=1883, Rset: D0 n=2342, D1 n=3634, D2 n=2794, D3 n=2671, D4 n=2068, D5 n=2293, D6 n=2918, hESC: D0 n=2353, D1 n=3082, D2 n=3129, D3 n=4174, D4 n=2989, D5 n=1787, D6 n=3114; BRACHYURY: hEPSC: D0 n = 3452, D1 n=4090, D2 n=3435, D3 n=4223, D4 n=2881, D5 n=2837, D6 n=2218, Rset: D0 n=2317, D1 n = 3739, D2 n=3141, D3 n=2881, D4 n=2467, D5 n=2951, D6 n=4400, hESC: D0 n=2685, D1 n=3433, D2 n=3997, D3 n=5325, D4 n=3490, D5 n=2155, D6 n = 3258. n = 3 independent experiments). (B) Immunofluorescence images of SOX2 (green), SOX17 (red), and BRACHYURY (grey) in hEPSCs, Rset hPSCs, and hESCs during 6 days of ACL treatment (scale bar = 50 μm). (C) Schematic of human-mouse chimera protocol using ACL-treated cells. Clumps of three to six SOX-17::H2B-tdTomato+ treated cells were aggregated with E2.5 mouse embryos and cultured for 24 hr in ACL. After this, embryos were moved into KSOM and cultured for another 24 hr. (D) Immunofluorescence images of SOX17::H2B-tdTomato (red), GATA6 (grey), and DAPI (blue) in E4.5 mouse blastocysts. hEPSC-ACL cells contribution denoted by SOX17::H2B-tdTomato+ (red) cells (white arrowheads) (scale bar = 50 μm). (E) Immunofluorescence images of SOX17::H2B-tdTomato (red), GATA6 (grey), and DAPI (blue) in E4.5 mouse blastocysts. Rset-ACL cells contribution denoted by SOX17::H2B-tdTomato+ (red) cells (white arrowheads). (F) Pie charts showing percentage of human cell contribution to the primitive endoderm, epiblast, or both. Rset (N = 67 embryos, n=3 independent experiments), hEPSC (N = 39 embryos, n=3 independent experiments).

Figure 3—source data 1

Fluorescence intensity analysis of ACL-treated human pluripotent stem cells (hPSCs) and analysis of mouse-human pre-implantation chimeras.

https://cdn.elifesciences.org/articles/63930/elife-63930-fig3-data1-v1.xlsx

To further profile ACL-treated cells, we generated human-mouse embryo chimeras. We aggregated eight-cell stage mouse embryos with small groups (three to six cells) of SOX17::H2B-tdTomato+ ACL-treated hEPSCs, Rset hPSCs, or hESCs. To ensure viability of ACL-treated cells throughout the chimeric process, embryos were cultured in ACL for 24 hr, before being transferred to mouse embryo medium (KSOM) for the remaining 24 hr until late blastocyst stage (Figure 3C). As a control we cultured eight-cell stage mouse embryos in ACL for 24 hr, before transferring them into KSOM and confirmed this had no effect on lineage specification and blastocyst formation (Figure 3—figure supplement 1). We observed that both hEPSC-ACL and Rset-ACL were able to contribute to the primitive endoderm of mouse embryos (Figure 3D–F). This was confirmed by the presence of reporter fluorescence within the ICM, and also by the co-expression of GATA6 with SOX17::H2B-tdTomato. hEPSC-ACLs and Rset-ACLs contributed to the mouse primitive endoderm in 18% and 12% of chimeras, respectively, with hEPSC-ACL contributing to both the epiblast and the primitive endoderm 3% of the time, suggesting a degree of fate plasticity (Figure 3F). This contribution profile of hEPSC-ACL and Rset-ACL contrasts that of hEPSCs and Rset hPSCs which both almost solely contribute to the epiblast compartment within human-mouse chimeric blastocysts: hEPSCs and Rset hPSCs contribute to the epiblast in 44% and 81% of embryos, and to both the epiblast and primitive endoderm 6% and 4% of the time, respectively (Figure 3—figure supplement 2). Primed hESCs treated with ACL could not contribute to mouse primitive endoderm (Figure 3—figure supplement 3).

Collectively, based on the transcriptional and functional evidence, we concluded that Rset-ACL are the most similar to human extra-embryonic endoderm relative to the other two cell lines. Despite hEPSC-ACL being able to contribute to the murine primitive endoderm, and thereby sharing some functional properties with the extra-embryonic endoderm, they also share significant similarities to the definitive endoderm, both in terms of their developmental pathway and transcriptional profile. This is likely due to the high degree of heterogeneity present in hEPSC-ACL cultures. hESC-ACL are more similar to definitive endoderm, functionally, transcriptionally, and in terms of their developmental trajectory. Based on these findings we concluded that Rset-ACL were the most promising candidate for modelling the human yolk sac.

Pluripotent state determines the developmental state of extra-embryonic endoderm specified in hPSCs in response to ACL

To model the yolk sac-epiblast crosstalk, we sought to use an extra-embryonic endoderm cell type that resembles the post-implantation hypoblast-derived yolk sac. Therefore, we next ascertained whether Rset-ACL were more similar to pre- or post-implantation extra-embryonic endoderm. However, to date no markers have been defined that distinguish the two human extra-embryonic endoderm states. Following comparison between the transcriptional profile of pre-implantation extra-embryonic endoderm (primitive endoderm) (E6–7) (Xiang et al., 2020; Zhou et al., 2019) and post-implantation extra-embryonic endoderm (yolk sac) (E10–14) (Molè et al., 2021; Xiang et al., 2020; Zhou et al., 2019), we identified differentially expressed genes between the two states. Of the 26,510 genes examined, 25,496 were shared, with 397 and 617 genes being differentially upregulated in the pre- or post-implantation state, respectively (Figure 4A) (Supplementary file 3). Interestingly, AXL, a visceral endoderm marker in the mouse (McDonald et al., 2014), was among the identified markers of post-implantation yolk sac (Figure 4B and Supplementary file 3). The presence of APOA2 and APOB in the top differentially expressed post-implantation genes once again alludes to the yolk sac as the primary site of apolipoprotein synthesis in the early embryo.

Figure 4
Download asset Open asset

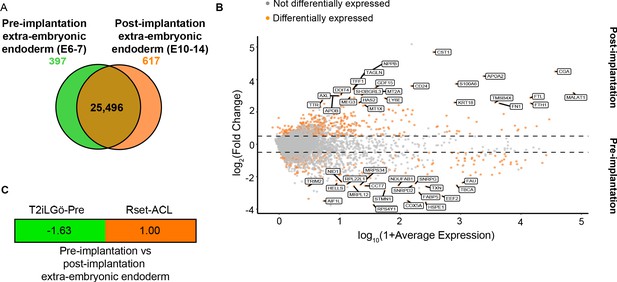

Transcriptional profiling of T2iLGö-PrE and Rset-ACL relative to human pre- and post-implantation extra-embryonic endoderm expression signatures.

(A) Venn diagram depicting the number of shared genes between pre-implantation extra-embryonic endoderm (E6–7) and post-implantation extra-embryonic endoderm (E10–14) (brown), of pre-implantation extra-embryonic endoderm differentially expressed genes (green) and of post-implantation extra-embryonic endoderm differentially expressed genes (orange). (B) MA plot representing the differentially expressed genes between human pre-implantation and post-implantation extra-embryonic endoderm. Top 20 differentially expressed genes are labelled (>10% of cell type of interest, log2FC>0.25, p<0.05). (C) Transcriptomic-signature comparison score of pre-implantation extra-embryonic endoderm vs. post-implantation extra-embryonic endoderm for T2iLGö-Pre and Rset-ACL (gene set variation analysis [GSVA] score for pre-implantation extra-embryonic endoderm subtracted from GSVA score for post-implantation extra-embryonic endoderm and values normalised to 1). A negative value (green) represents pre-implantation extra-embryonic endoderm similarity and a positive value (orange) represents post-implantation extra-embryonic endoderm. T2iLGö-Pre: n=2 technical replicates (from published dataset), Rset-ACL: n=3 technical replicates. Sc-RNA-seq expression data (pre- and post-implantation extra-embryonic endoderm) and bulk RNA-seq expression data (cell lines) were used for all relevant panels.

We then analysed the expression of the pre- and post-implantation markers in Rset-ACL, and also the only previously reported hPSC-derived extra-embryonic endoderm progenitor cell line called T2iLGö-PrE (Linneberg-Agerholm et al., 2019) derived from T2iLGö hPSCs which harbour a pluripotent state comparable to the pre-implantation naïve human epiblast (Guo et al., 2017). We postulated that given T2iLGö-PrE were derived from an hPSC representing an earlier developmental epiblast state than Rset hPSCs, they may be more similar to the pre-implantation extra-embryonic endoderm (primitive endoderm), whereas Rset-ACL may be more comparable to the post-implantation yolk sac.

Similar to the process described above, we performed a differential gene expression analysis between the pre-implantation (E6–7) (Xiang et al., 2020; Zhou et al., 2019) and post-implantation (E10–14) (Molè et al., 2021; Xiang et al., 2020; Zhou et al., 2019) extra-embryonic markers on the two cell lines to determine which was more similar to the post-implantation yolk sac. Given that these marker sets are related – the negative markers for the post-implantation extra-embryonic are the positive markers for the pre-implantation extra-embryonic endoderm – we then subtracted the GSVA marker score for the pre-implantation markers from the GSVSA marker score for post-implantation markers and normalised the highest score to 1. This analysis revealed Rset-ACL to be the most similar to the post-implantation extra-embryonic endoderm, while T2iLGö-PrE were more similar to the pre-implantation extra-embryonic endoderm (Figure 4C). These results indicate that Rset-ACL is the best candidate for modelling yolk sac-epiblast interactions. Accordingly, these cells will be referred to as YSLCs.

YSLCs antagonise WNT and BMP signalling in hESCs

The yolk sac of the mouse embryo harbours an asymmetrically localised subpopulation of cells called the AVE. These cells secrete inhibitors of BMP, WNT, and NODAL signalling, thereby creating a signalling gradient across the post-implantation epiblast. This gradient in turn determines the positioning of the primitive streak and, therefore, the anterior-posterior axis of the embryo (Arnold and Robertson, 2009). The post-implantation hypoblast of both the cynomolgus monkey and human embryo also expresses DKK1, CER1, and NOG (Molè et al., 2021; Nakamura et al., 2016; Sasaki et al., 2016) and studies of human embryos cultured to post-implantation stages in vitro have suggested that an anterior subpopulation of cells within the human hypoblast may influence BMP signalling within the adjacent epiblast (Molè et al., 2021). This implies that the human yolk sac may harbour AVE-like cells. We, therefore, analysed the expression of these pathway inhibitors within the hypoblast of the pre- and post-implantation human embryo using published datasets (Molè et al., 2021; Xiang et al., 2020; Zhou et al., 2019) and found that DKK1, CER1, LEFTY2, and SFRP1 are expressed at greater levels in post-implantation relative to pre-implantation hypoblast, while NOG is expressed at higher levels in the pre-implantation hypoblast (Figure 5A).

Figure 5 with 1 supplement see all
Download asset Open asset

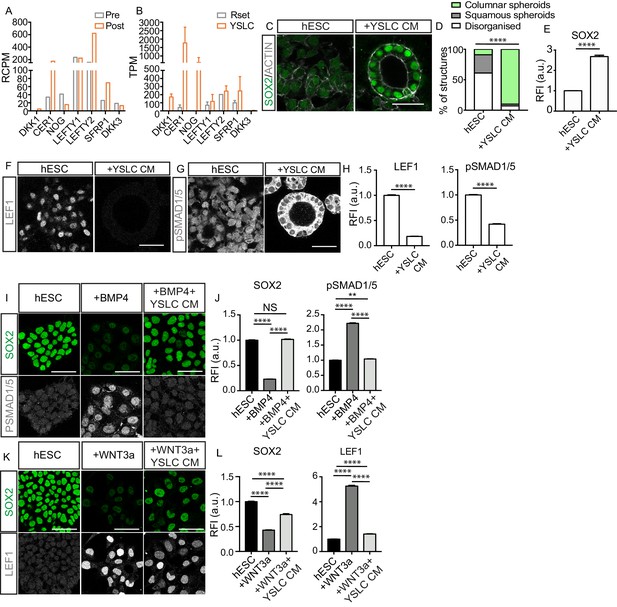

Yolk sac-like cells (YSLCs) antagonise BMP and WNT signalling in human embryonic stem cells (hESCs).

(A) Bar chart plotting average expression levels of WNT, NODAL, and BMP inhibitors in pre-implantation (Pre, E6–7) and post-implantation human hypoblast (Post, E10–14) denoted as relative counts per million (RCPM) using published sc-RNA-seq data. (B) Bar chart (± SEM) plotting expression levels of BMP, NODAL, and WNT inhibitors in Rset hPSCs and YSLCs denoted as transcripts per million (TPM) using bulk RNA-seq data (YSLCs: n=3 technical replicates, Rset: n=2 technical replicates [from published dataset]). (C) Immunofluorescence images of SOX2 (green) and ACTIN (grey) in hESCs cultured in 3D Geltrex in either mTeSR (hESC) or mTeSR conditioned on YSLCs (+YSLC CM) (scale bar = 50 μm). (D) Percentage of structures that are columnar, squamous, or disorganised based on cell aspect ratio calculations in cells from panel C using ACTIN stainings. Chi-squared test. ****p < 0.0001 (number of structures analysed: control n=33, +YSLC CM n=30, n=3 independent experiments each with one sample). (E) Bar chart (± SEM) depicting SOX2 levels as inferred from relative fluorescence intensity (RFI arbitrary units [a.u.]) in cells from panel C. Mann–Whitney U-test; ****p < 0.0001 (number of cells analysed: SOX2: hESC n=2346, +YSLC CM n=596, n=3 independent experiments each with one sample). (F) Immunofluorescence of pSMAD1/5 (grey) in hESCs cultured in mTeSR (hESC) or mTeSR conditioned on YSLCs (+YSLC CM) in 3D Geltrex (scale bar = 50 μm). (G) Immunofluorescence of LEF1 (grey) in hESCs cultured in mTeSR (hESC) or mTeSR conditioned on YSLCs (+YSLC CM) in 3D Geltrex (scale bar = 50 μm). (H) Bar chart (± SEM) depicting the levels of pSMAD1/5 (nuclear) and LEF1 in hESCs cultured in mTeSR (hESC) or mTeSR conditioned on YSLCs (+YSLC CM) as inferred from RFI in cells from panels F and G, respectively. Mann–Whitney U-test, ****p <0.0001 (number of cells analysed: pSMAD1/5: hESC n=2563, +YSLC CM n=1660; LEF1: hESC n=1984, +YSLC CM n=1041. n=3 independent experiments each with one sample). (I) Immunofluorescence of SOX2 (green) and pSMAD1/5 (grey) in hESCs cultured in mTeSR (hESC), treated with BMP4 (+BMP4) or treated with BMP4 and YSLC conditioned media (+BMP4+YSLC CM) (scale bar = 50 μm). (J) Bar charts (± SEM) depicting the levels of SOX2 and pSMAD1/5 RFI in samples from panel I. Kruskal–Wallis test with Dunn’s multiple comparisons test, ****p<0.0001 (number of cells analysed: hESC n=1549, +BMP4 n = 1063, +BMP4+YSLC CM n=1544, n=3 independent experiments each with one sample). (K) Immunofluorescence of SOX2 (green) and LEF1 (grey) in hESCs cultured in mTeSR (hESC), treated with WNT3a (+WNT3a) or treated with WNT3a and YSLC conditioned media (+WNT3a+YSLC CM) (scale bar = 50 μm). (L) Bar chart (± SEM) depicting the levels of SOX2 and LEF1 RFI in samples from panel K. Kruskal–Wallis test with Dunn’s multiple comparisons test, ****p<0.0001 (number of cells analysed: hESC n=1604, +WNT3a n=1682, +WNT3a+YSLC CM n=1376, n=3 independent experiments each with one sample).

Figure 5—source data 1

Analysis of BMP/WNT/NODAL inhibitors in the human embryo and yolk sac-like cells (YSLCs) and analysis of human embryonic stem cell (hESC) response to YSLCs.

https://cdn.elifesciences.org/articles/63930/elife-63930-fig5-data1-v1.xlsx

Given that YSLCs share transcriptional similarity to the post-implantation extra-embryonic endoderm, we examined the expression of WNT and BMP inhibitors in YSLCs and observed that all of the analysed inhibitors were upregulated in YSLCs (Figure 5B and Figure 5—figure supplement 1A and B). In human stem cell models, DKK1 and NOG act as WNT and BMP inhibitors, respectively (Martyn et al., 2019; Simunovic et al., 2019), whereas CER1 antagonises both NODAL and BMP signalling in other systems (Aykul and Martinez-Hackert, 2016). We, therefore, postulated that YSLCs may share functional characteristics with the mouse AVE and the human anterior hypoblast in their ability to govern cell fate via BMP and WNT inhibition.

To test this, we first sought to determine whether YSLCs can influence hESC fate. hESCs have been shown to lose their pluripotent character in a BMP-dependent manner when cultured in a 3D ‘sandwich’ matrix of Geltrex, in which cells are plated on top of a base layer of Geltrex before being covered by mTESR1 containing 5% Geltrex (Shao et al., 2017b). Confirming these previous findings, we found that at a density of 60,000 cells per cm2 hESCs lost SOX2 expression and either formed squamous spheroids or lost structural integrity (Figure 5—figure supplement 1C). Similarly, we found that inhibiting WNT signalling using either IWR1 (10 ng ml−1) or XAV (10 ng ml−1) in hESCs cultured in 3D Geltrex prevented downregulation of SOX2 (Figure 5—figure supplement 1C and D). Collectively, this indicates that hESCs lose SOX2 in 3D Geltrex in response to BMP and WNT signalling pathway activation. To test whether YSLCs could antagonise this signalling, YSLCs were cultured at a 1:1 ratio with hESCs for 72 hr in mTeSR1 PLUS, revealing SOX2 levels to be higher in co-culture conditions relative to control hESCs. We also noted a slight (but not significant) increase in the number of epithelial spheroids (squamous and columnar) relative to disorganised structures in co-culture conditions (Figure 5—figure supplement 1E–G). This demonstrates an ability of YSLCs to inhibit the loss of SOX2 in hESCs that would otherwise occur in 3D Geltrex.

To test whether the reduced loss of SOX2 expression was controlled by a soluble factor, we conditioned mTeSR1 PLUS medium for 24 hr on confluent YSLCs. This experimental setting also removed any effects of suboptimal YSLC viability within the co-culture conditions. hESCs were then cultured in this conditioned medium for 72 hr in 3D Geltrex. mTeSR1 PLUS conditioned on YSLCs blocked the downregulation of SOX2 within hESCs relative to control conditions and also significantly supported a columnar epithelial morphology (Figure 5C–E). These results show that YSLCs are able to prevent SOX2 downregulation and support columnar spheroid formation in hESCs in 3D Geltrex via secreted components, but that the potency of this effect is limited when they are physically co-cultured with hESCs, likely due to a reduced viability of YSLCs in 3D Geltrex conditions.

To understand whether YSLC conditioned medium was inhibiting BMP and WNT signalling within the 3D hESC spheroids, we analysed the levels of the downstream WNT and BMP effectors LEF1 and pSMAD1/5, respectively, in hESCs cultured in 3D Geltrex in either mTeSR1 PLUS or mTeSR1 PLUS conditioned on YSLCs. This revealed that both pathways were active in mTeSR1 PLUS control conditions, but their activity decreased in the presence of YSLC conditioned medium (Figure 5F–H).

To more precisely control the signalling pathways inducing SOX2 loss in hESCs, we added either BMP4 or WNT3a to hESCs cultured in 2D. Addition of 1 ng ml−1 of BMP4 to mTeSR1 PLUS led to a marked decrease in SOX2 expression concomitant with an increase in the levels of nuclear pSMAD1/5 (Figure 5I,J). Strikingly, when hESCs were exposed to BMP4 in the presence of YSLC conditioned medium, SOX2 expression did not significantly decrease and levels of nuclear pSMAD1/5 remained low (Figure 5I,J). Similarly, when hESCs were cultured in the presence of 1 μg ml−1 WNT3A they lost SOX2 expression and upregulated LEF1 (Figure 5K,L). However, when hESCs were cultured in the presence of 1 μg ml−1 WNT3a and YSLC conditioned medium, the downregulation of SOX2 and upregulation of LEF1 was significantly counteracted (Figure 5K–L). A similar trend was observed for NANOG levels in hESCs that were exposed to either BMP4 or WNT3a in the presence of YSLC conditioned medium (Figure 5—figure supplement 1H–K). Together, our results demonstrate that YSLCs block loss of pluripotent gene expression by antagonising WNT and BMP signalling via secreted factors and can thereby influence hESC fate.

YSLCs inhibit posterior epiblast fate specification in hESCs

Within the mouse embryo, the AVE acts to induce anterior fate and repress the formation of the primitive streak in the epiblast cells adjacent to it (Rivera-Pérez and Hadjantonakis, 2015). A similar function has been recently proposed for the human anterior hypoblast (Molè et al., 2021). Given the ability of YSLCs to influence hESC fate via WNT and BMP inhibition, we hypothesised that YSLCs may bear similarity to both the mouse AVE and the human anterior hypoblast, and may, therefore, be able to prevent hESCs from differentiating into posterior epiblast fates. Consequently, we analysed the expression of the posterior markers BRACHYURY and GATA6 in hESCs cultured in 3D Geltrex. In control conditions, BRACHYURY was not induced, while GATA6 was upregulated, and this upregulation was blocked in the presence of YSLC conditioned medium (Figure 6A–C). Next, to test whether YSLCs can block mesoderm specification, we employed a 2D mesoderm induction protocol involving the supplementation of 10 ng µl−1 BMP4 to hESCs for 3 days (Richter et al., 2014). Strikingly, immunofluorescence analyses revealed that YSLC conditioned medium suppressed the upregulation of BRACHYURY while also preventing the loss of SOX2 in hESCs cultured in mesoderm induction medium (Figure 6D–F). GATA6 was also upregulated in hESCs after BMP4 treatment and this was also countered by YSLC conditioned medium. Similarly, YSLC conditioned medium suppressed the upregulation of the posterior markers EOMES, SOX17, MIXL1, FOXA2, and GSC at the RNA level (Figure 6G). These results, therefore, demonstrate that YSLCs are able to inhibit posterior epiblast marker expression in hESCs.

Figure 6
Download asset Open asset

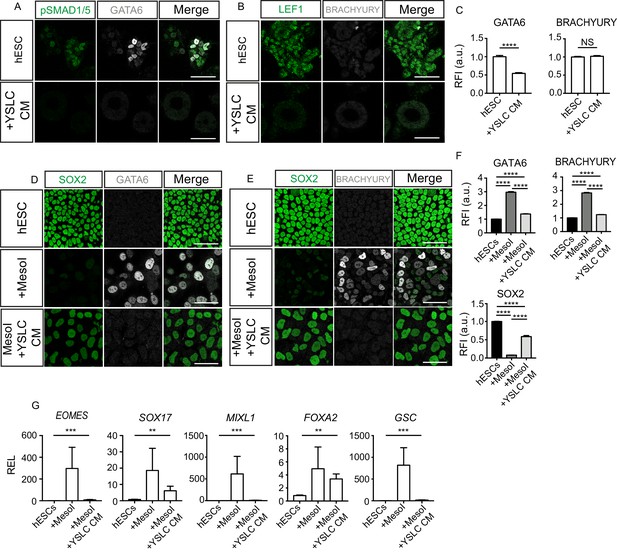

Yolk sac-like cells (YSLCs) inhibit mesoderm and endoderm specification in human embryonic stem cells (hESCs) in 3D and 2D.

(A) Immunofluorescence of pSMAD1/5 (green) and GATA6 (grey), and a merge of the two, in hESCs cultured in 3D Geltrex in mTeSR (hESC) or YSLC conditioned media (+YSLC CM) (scale bar = 50 μm). (B) Immunofluorescence of LEF1 (green) and BRACHYURY (grey), and a merge of the two, in hESCs cultured in 3D Geltrex in mTeSR (hESC) or YSLC conditioned media (+YSLC CM) (scale bar = 50 μm). (C) Bar charts (± SEM) depicting the levels of GATA6 and BRACHYURY in hESCs cultured in 3D Geltrex in mTeSR (hESC) or YSLC conditioned media (+YSLC CM) as inferred from relative fluorescence intensity (RFI) arbitrary units [a.u.] in cells from panels A and B, respectively (number of cells analysed: GATA6: hESC n=2336, YSLC CM n=1074, BRACHURY: hESC n=2112, YSLC CM n=1261, n=3 independent experiments each with one sample) Mann–Whitney U-test; *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. (D) Immunofluorescence of SOX2 (green) and GATA6 (grey), and a merge of the two in hESCs, hESCs in MesoI (mesoderm induction medium), or MesoI + YSLC CM (scale bar = 50 μm). (E) Immunofluorescence of SOX2 (green) and BRACHYURY (grey), and a merge of the two, in hESCs, hESCs in mesoderm induction medium (MesoI), or MesoI conditioned on YSLCs (MesoI + YSLC CM) (scale bar = 50 μm). (F) Bar chart (± SEM) depicting the levels of GATA6, BRACHYURY and SOX2 in hESCs cultured in basal medium (hESC), hESCs in mesoderm induction medium (MesoI), or MesoI + YSLC CM as measured by RFI. Kruskal–Wallis test with Dunn’s multiple comparisons test. ****p <0.0001 (number of cells analysed: GATA6: hESC n = 5583, +MesoI n=2554, +MesoI+YSLC CM n=2383, BRACHYURY: hESC n = 6859, +MesoI n=6741, +MesoI+YSLC CM n=2072; SOX2: hESC n=6859, +MesoI n=6741, +MesoI+ YSLC CM n=2072. n=3 independent experiments each with one sample). (G) Relative expression levels (REL) (± SEM) of EOMES, SOX17, MIXL1, FOXA2, and GSC in hESCs cultured in basal medium (hESC), hESCs in mesoderm induction medium (MesoI), or MesoI + YSLC CM as measured by RFI, normalised to their hESC control (n=4 samples, two independent experiments). Kruskal–Wallis test; *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001.

Figure 6—source data 1

Fluorescence intensity and qPCR analysis of mesoderm and endoderm markers in human embryonic stem cells (hESCs) in the presence of yolk sac-like cell (YSLC) conditioned medium (CM).

https://cdn.elifesciences.org/articles/63930/elife-63930-fig6-data1-v1.xlsx

YSLCs upregulate pluripotency and anterior ectoderm markers in hESCs

SOX2 is a pluripotency marker but is also expressed in the anterior ectoderm. Given that YSLCs are able to prevent SOX2 downregulation in 3D Geltrex, we investigated the levels of the pluripotency markers OCT4 and NANOG, and the anterior ectoderm markers SOX1 and OTX2 in hESC cultured in YSLC conditioned medium in 3D Geltrex over a 5-day period. This revealed that expression of both OCT4 and NANOG was higher in hESCs cultured in YSLC conditioned medium at all timepoints relative to control mTeSR conditions, while SOX2 levels were significantly different from day 3 of culture (Figure 7A and B). SOX1 levels steadily increased relative to controls over the 5-day culture period but were downregulated after 7 days (Figure 7C and D, Figure 7—figure supplement 1A and B). Conversely, OTX2 expression did not increase until day 3, and peaked at day 4, before decreasing again (Figure 7C and D). Interestingly, in the presence of conditioned medium, pluripotency markers and anterior ectoderm markers were co-expressed (Figure 7—figure supplement 1C). Overall, these results demonstrate that YSLCs can upregulate pluripotency and anterior ectoderm markers in hESCs in 3D.

Figure 7 with 1 supplement see all
Download asset Open asset

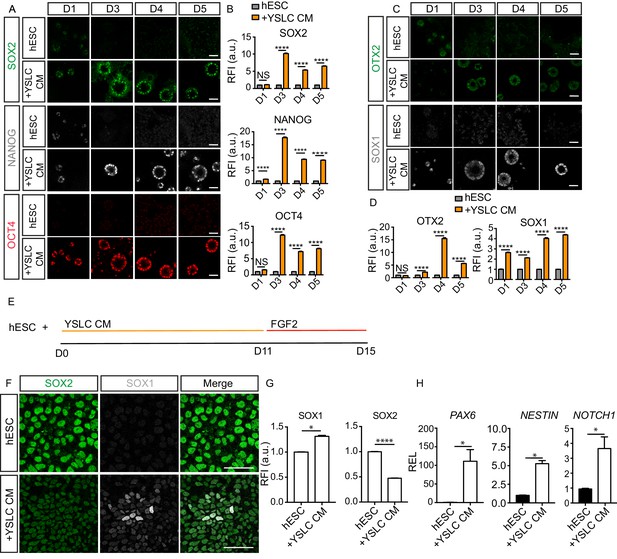

Yolk sac-like cells (YSLCs) induce the co-expression of anterior ectoderm markers and pluripotency markers in human embryonic stem cell (hESC) in 3D and 2D.

(A) Immunofluorescence of SOX2 (green), NANOG (grey), and OCT4 (red) in hESCs after 1, 3, 4, or 5 days cultured in mTeSR (hESC) or in YSLC conditioned media (+YSLC CM) in 3D Geltrex (scale bar = 50 μm). (B) Bar charts (± SEM) depicting relative fluorescence intensity (RFI arbitrary units [a.u.]) of SOX2, NANOG, and OCT4 in hESCs cultured in YSLC CM (+YSLC CM) relative to hESCs cultured in mTeSR (hESCs) in 3D Geltrex for 1, 3, 4, and 5 days. Two-way ANOVA with Sidak’s multiple comparisons test comparing hESC vs. +YSLC CM for each day. ****p<0.0001, ** <0.01, NS p>0.05 (number of cells analysed: SOX2: day 1: hESC n=567, +YSLC CM n=662, day 3: hESC n=2318, +YSLC CM n=1870, day 4: hESC n=3755, +YSLC CM n=1249, day 5: hESC n=4946, +YSLC CM n=1897, OCT4: day 1: hESC n=450, +YSLC CM n=601, day 3: hESC=1929, +YSLC CM n=1902, day 4: hESC=3472, +YSLC CM n=1314, day 5: hESC n=4946, +YSLC CM n=1897, NANOG: day 1: hESC n=450, +YSLC CM n=601, day 3: hESC n=1929, +YSLC CM n=1902, day 4: hESC n=3472, +YSLC CM n=1314, day 5: hESC n=4946, +YSLC CM n=1897, n = 3 independent experiments each with one sample). (C) Immunofluorescence of OTX2 (green) and SOX1 (grey) in hESCs after 1, 3, 4, or 5 days cultured in mTeSR (hESC) or YSLC conditioned media (+YSLC CM) in 3D Geltrex (scale bar = 50 μm). (D) Bar charts (± SEM) depicting RFI of OTX2 and SOX1 in hESCs cultured in YSLC CM (+YSLC CM) relative to hESCs cultured in mTeSR (hESC) in 3D Geltrex for 1, 3, 4, and 5 days. Two-way ANOVA with Sidak’s multiple comparisons test comparing hESC vs. +YSLC CM for each day. ****p<0.0001 NS, p>0.05 (number of cells analysed: OTX2: day 1: hESC n=456, YSLC CM n=914, day 3: hESC n=4278, +YSLC CM n=2036, day 4: hESC n=2432, +YSLC CM n=1123, day 5: hESC n=3858, +YSLC CM n=3243, SOX1: day 1: hESC n=503, +YSLC CM n=735, day 3: hESC n=2933, +YSLC CM n=3023, day 4: hESC n=3426, +YSLC CM n=2507, day 5: hESC n=3764, +YSLC CM n=2620, n = 3 independent experiments each with one sample). (E) Diagram depicting the modified neural specification protocol in which YSLC conditioned media is used to replace the SB431542+NOGGIN treatment in the conventional protocol for 11 days, before culturing hESCs in the presence of just FGF2 for 4 days. (F) Immunofluorescence of SOX2 (green), SOX1 (grey), and a merge of both in hESCs cultured in mTeSR (hESC) and hESCs cultured in YSLC conditioned media (+YSLC CM) for the first 11 days of the neural protocol before being placed in FGF2 as outlined in panel E (scale bar = 50 μm). (G) Bar charts (± SEM) depicting RFI of SOX1 and SOX2 in cells from panel F. Mann–Whitney U-test; *p<0.05, ****p<0.0001 (number of cells analysed: SOX1: hESC n = 4949, +YSLC CM n=4736, SOX2: hESC n = 4947, +YSLC CM n=4736, n=3 independent experiments). (H) Relative expression levels (REL) (± SEM) of PAX6, NESTIN, and NOTCH1 in hESCs cultured as outlined in panel E normalised to hESC control. Mann-Whitney U-test ; *p < 0.05 (n=4 samples, two independent experiments).

Figure 7—source data 1

Fluorescence intensity and qPCR analysis of anterior ectoderm and pluripotency markers in human embryonic stem cells (hESCs) in the presence of yolk sac-like cell (YSLC) conditioned medium (CM) in 2D and 3D.

https://cdn.elifesciences.org/articles/63930/elife-63930-fig7-data1-v1.xlsx

To further assess the ability of YSLCs to induce anterior ectoderm markers in hESCs, we determined whether YSLC conditioned medium could upregulate neural markers in 2D. In neural progenitor differentiation protocols, dual small molecule targeting of SMAD signalling is widely used (Chambers et al., 2009; Shi et al., 2012). Given that YSLC conditioned medium was able to inhibit SMAD activity in hESCs in 2D and 3D, we analysed the ability of YSLC conditioned medium to replace small molecule SMAD inhibitors within a 2D neural differentiation protocol. Accordingly, hESCs were cultured in YSLC conditioned medium, rather than SB431542 and NOGGIN, for 11 days, before being cultured in FGF2 for 4 days (Shi et al., 2012; Figure 7E). After the completion of the 15-day protocol, the anterior ectoderm markers SOX1, PAX6, NESTIN, and NOTCH1 were all significantly upregulated in hESCs (Figure 7F–H). SOX2 was downregulated relative from controls, but was still present, as has been observed during the early stages of neural specification (Zhang et al., 2018). Interestingly, YSLC conditioned medium induced the upregulation of anterior ectoderm markers to intermediate levels relative to hESCs cultured in dual SMAD conditions and control hESCs (Figure 7—figure supplement 1D). This was also the case for levels of pluripotency markers (Figure 7—figure supplement 1D). Overall these results demonstrate that YSLCs support anterior ectoderm marker expression in combination with pluripotency markers and, therefore, share functional similarities with the mammalian AVE.

Discussion

The signalling pathways that govern lineage specification and morphogenesis within the implanting human embryo remain poorly understood due to technical and ethical constraints. Here, we have created an in vitro system to explore the signalling interactions between the epiblast and yolk sac of the post-implantation human embryo.

We first sought to derive an in vitro stem cell line representative of the post-implantation human yolk sac. Following a screen of developmentally relevant signalling pathway activators, we identified concurrent ACTIVIN-A, WNT, and JAK-STAT pathway activation in hEPSCs, Rset hPSCs, and hESCs leads to an upregulation of pan-endodermal markers. This is in line with recent studies implicating these pathways in extra-embryonic endoderm specification (Anderson et al., 2017; Linneberg-Agerholm et al., 2019). Studies in human embryos have shown that inhibition of ACTIVIN-A signalling leads to a decrease in the number of epiblast and hypoblast cells (Blakeley et al., 2015), whereas studies in marmoset embryos demonstrated a role for the WNT pathway in hypoblast specification (Boroviak et al., 2015), indicating these signalling pathways are involved in hypoblast specification in vivo. Whether the JAK-STAT pathway is equally involved in hypoblast specification/maintenance in human and non-human primate embryos remains to be determined.

Our data shows that the pluripotent state of hPSCs determines their propensity to adopt an extra-embryonic endoderm- or definitive endoderm-like fate in response to ACL: Rset hPSCs, which harbour a pluripotent state that is an intermediate between naïve and primed (Gafni et al., 2013; Kilens et al., 2018), demonstrate extra-embryonic endoderm potential, whereas conventional hESCs, which are similar to the primed post-implantation epiblast (Molè et al., 2021; Nakamura et al., 2016), are more predisposed to definitive endoderm differentiation. This phenomena is also observed in mouse extra-embryonic endoderm specification; mouse ESCs are able to differentiate into extra-embryonic endoderm progenitors cells (XEN cells), whereas post-implantation primed EpiSCs are not (Cho et al., 2012). The observation that Rset hPSCs, which are transcriptionally similar to the implanting human epiblast, are still competent to form extra-embryonic endoderm is in line with the specification of human hypoblast progenitors at the time of implantation (Niakan and Eggan, 2013). Nonetheless, following ACL treatment, hEPSC, Rset hPSCs, and hESCs still maintained OCT4 and NANOG expression, suggesting the cells still harbour some pluripotency features.

Interestingly, hEPSC treated with ACL give rise to a population of cells that harbour similarities to both the definitive endoderm and extra-embryonic endoderm. Overall hEPSC-ACL transcriptionally bear a greater similarity to definitive rather than extra-embryonic endoderm, and also harbour a large subpopulation of cells that undergo a mesendodermal intermediate state during endodermal specification, thereby resembling definitive endoderm specification. However, hEPSC-ACL are not as transcriptionally similar to the definitive endoderm as hESC-ACL are, and also demonstrate a propensity to contribute to the mouse primitive endoderm within interspecies chimeras. Collectively, this suggests that hEPSC-ACL may harbour a heterogenous population of endodermal cells that have varying degrees of similarity to either the definitive or extra-embryonic endoderm. This suggests that the starting hEPSC population may contain subpopulations with largely contrasting pluripotent states that span from naïve to primed. This is mirrored during human trophoblast stem cell induction wherein hEPSCs respond heterogeneously (Castel et al., 2020).

Pluripotent state also appeared to influence the developmental state of the extra-embryonic endoderm that hPSCs adopt in response to ACL treatment. Previously, T2iLGö-hPSCs, hPSCs similar to the pre-implantation human epiblast, have been shown to adopt an endodermal fate following treatment with ACTIVIN-A, the WNT activator Chiron, and LIF to give rise to ‘T2iLGö-PrE’ cells (Linneberg-Agerholm et al., 2019). By comparing pre- vs. post-implantation extra-embryonic endoderm gene expression signatures to Rset-ACL and T2iLGö-PrE, we found that T2iLGö-PrE were relatively more similar to the pre-implantation extra-embryonic endoderm, whereas Rset-ACL were more similar to the post-implantation extra-embryonic endoderm (yolk sac). T2iLGö hPSCs represent an earlier developmental pluripotent state than Rset hPSCs and may, therefore, be more predisposed to adopt an early extra-embryonic endoderm fate in response to ACL. However, Rset hPSCs represent a later, intermediate pluripotent state (Kilens et al., 2018) and may consequently adopt a more post-implantation extra-embryonic endoderm fate. Future investigations are needed to determine whether YSLCs can contribute to the yolk sac in human embryos.

To model the epiblast-yolk sac interactions in vitro, we used hESCs for the epiblast component of the model, as when cultured in 3D they are able to recapitulate key hallmarks of early post-implantation human embryos (Moris et al., 2020; Shahbazi et al., 2017; Shao et al., 2017a; Simunovic et al., 2019; Taniguchi et al., 2015; Zheng et al., 2019). We then determined YSLC’s ability to influence cell fate in hESCs by analysing levels of anterior and posterior epiblast markers in hESCs in the presence of YSLCs or YSLC conditioned medium in both 2D and 3D contexts. This revealed that YSLCs inhibit WNT and BMP signalling in hESCs, thereby blocking posterior epiblast marker expression, while promoting the co-expression of pluripotency and anterior ectoderm markers.

Within mouse development, the AVE acts to antagonise signals from the trophoblast, leading to the establishment of the anterior-posterior axis across the epiblast (Rivera-Pérez and Hadjantonakis, 2015). Similarly, in vitro cultured human embryos harbour a subpopulation of anterior hypoblast cells that express BMP, WNT, and NODAL inhibitors and may, therefore, represent the human equivalent of an AVE signalling centre (Molè et al., 2021). YSLC’s ability to influence hESC fate, promoting anterior ectoderm and pluripotency marker expression at the expense of posterior epiblast markers, via WNT and BMP pathway antagonism suggests a functionality similar to a mammalian AVE signalling centre.

Studies in the mouse embryo have shown that when the extra-embryonic ectoderm is removed such that only the epiblast and the visceral endoderm, including the AVE, remain, posterior epiblast fate is lost, with SOX1 and OCT4 being co-expressed within the epiblast (Rodriguez et al., 2005). Therefore, it is likely that this state is being mimicked when hESCs are cultured with YSLCs or in YSLC conditioned medium, as human trophoblast stem cells are missing from this model. The role that the human trophoblast plays in anterior-posterior patterning is not yet understood. Similarly, it is unclear whether primitive streak derivatives are required for complete anterior fate specification in the epiblast, as has been shown to be the case in the mouse (Camus et al., 2000). To assess whether the trophoblast is required for complete anterior ectoderm specification and, if so, whether it acts directly, via its secreted signals, or indirectly, via primitive streak specification, co-culture conditions supportive of the survival of YSLCs, hESCs, and human trophoblast stem cells need to be optimised. A model that incorporates the three cell types would be invaluable for dissecting anterior-posterior patterning in the human embryo.

Additionally, without more detailed transcriptional characterisation of the human AVE, it remains unclear whether YSLCs resemble human AVE specifically, or human post-implantation yolk sac generally. Given that in the primate post-implantation hypoblast, BMP and WNT inhibitors are initially expressed broadly before being restricted anteriorly (Molè et al., 2021; Sasaki et al., 2016), future in-depth transcriptional comparison and profiling of the peri-implantation human hypoblast should help to refine the positioning of YSLCs developmentally. Similarly, LEFTY1 and LEFTY2 are both upregulated in the human post-implantation hypoblast and in YSLCs, and so the role that NODAL signalling plays within anterior-posterior patterning remains to be explored.

In summary, our results implicate the human yolk sac in early human embryo morphogenesis and propose YSLCs as a useful tool for modelling the interaction between the post-implantation yolk sac and epiblast, providing a platform to dissect the mechanisms of human embryogenesis.

Materials and methods

Key resources table
Reagent type
(species) or resource		DesignationSource or referenceIdentifiersAdditional information
Cell line
(Homo sapiens)		RUES2-GLRBrivanlou Lab (Rockefeller Institute, New York City, NY)Human embryonic stem cell line
Cell line
(Homo sapiens)		H9Vallier Lab (Stem Cell Institute, Cambridge, UK) under agreement with WiCell(RRID:CVCL_1240)Human embryonic stem cell line
Cell line (Homo sapiens)SHEF6Shef-6 (UK Stem Cell Bank, NIBSC)Human embryonic stem cell line
Peptide, recombinant proteinRecombinant human ACTIVIN-AStem Cell Institute, Cambridge, UK100 ng ml−1
Peptide, recombinant proteinRecombinant human LIFStem Cell Institute, Cambridge, UK10 ng ml−1
Peptide, recombinant proteinRecombinant human WNT3aR and D Systems5036-WN-0101 μg ml−1
Peptide, recombinant proteinRecombinant human BMP4Peprotech120–05
Chemical compound, drugCHIR99021Stem Cell Institute, Cambridge, UK3 μM
AntibodyNANOG
(goat polyclonal)		R and D SystemsAF1997 (RRID:AB_355097)(1:200)
AntibodySOX1 (goat polyclonal)R and D SystemsAF3369-SP (RRID:AB_2239879)(1:200)
AntibodySOX2
(rabbit polyclonal)		AbcamAb59776 (RRID:AB_945584)(1:200)
AntibodyT (goat polyclonal)R and D SystemsAF2085 (RRID:AB_2200235)(1:200)
AntibodyGATA6 (goat polyclonal)R and D SystemsAF1700 (RRID:AB_2108901)(1:200)
AntibodyLEF1 (rabbit monoclonal)Cell Signaling Technology2230S (RRID:AB_823558)(1:200)
AntibodypSMAD1/5/9 (rabbit monoclonal)Cell Signaling Technology13820S (RRID:AB_2493181)(1:200)
Software, algorithmImageJ softwareImageJ (http://imagej.nih.gov/ij/)RRID:SCR_003070
Software, algorithmGraphPad Prism softwareGraphPad Prism (https://graphpad.com)RRID:SCR_015807
Other8-well µ-plates ibiTreatIbidi80826
OtherRset (2-component)StemCell Technologies05978
OthermTeSR1 PLUSStemCell Technologies05825
OtherGeltrex LDEV-free growth factor reducedThermo Fisher ScientificA1413302
OtherMatrigelBD Biosciences356230

Human embryonic stem cell culture

Request a detailed protocol

The UK Stem Cell Bank Steering Committee approved all hESC experiments. All experiments comply with the UK Code of Practice for the Use of Human Stem Cell Lines. The following hESC lines were used: RUES2-GLR (kindly provided by Ali Brivanlou, The Rockefeller University, New York City, NY), H9 (kindly provided by Ludovic Vallier, Stem Cell Institute, UK, under agreement with WiCell), and SHEF6 (kindly provided by the UK Stem Cell Bank, National Institute for Biological Standards and Control (NIBSC)). All hESC lines were maintained in a humidified incubator set at 37°C, 21% O2, 5% CO2. H9, SHEF6, and RUES2-GLR cell lines have been authenticated by STR profiling. All cell lines were tested for mycoplasma every 2 weeks and were all negative.

Conventional hESCs were either cultured on growth factor-reduced Matrigel-coated (Corning, 353046) dishes or on irradiated CF-1 mouse embryonic fibroblasts (MEFs) (ASF-1201, AMS Biotechnology). For Matrigel coating, a 1.6% Matrigel solution in DMEM/F12 was incubated for 2 hr at room temperature (RT). When on Matrigel, hESCs were cultured in mTeSR1 (85850, StemCell Technologies), with medium changed every 24 hr. When cultured on MEFs, hESCs were cultured in ‘Primed medium’, consisting of DMEM F12 (21331–020, Thermo Fisher Scientific) supplemented with 100 μM β-mercaptoethanol (31350–010, Thermo Fisher Scientific), penicillin–streptomycin (15140122, Thermo Fisher Scientific), GlutaMAX (35050061, Thermo Fisher Scientific), MEM non-essential amino acids (11140035, Thermo Fisher Scientific), and 20% v/v KnockOut Serum Replacement (10828010, Thermo Fisher Scientific). This was supplemented with 12 ng ml−1 bFGF2 (Stem Cell Institute) before use.

To convert hESCs to each of the states of pluripotency, cells were first plated from Matrigel onto MEFs in Primed Medium for 24 hr. To convert hESCs into ‘extended pluripotent stem cells’, hESCs were cultured in ‘LCDM’ medium as outlined in the initial publication (Yang et al., 2017) until domed colonies appeared. Briefly, LCDM consists of a basal N2B27 medium supplemented with 10 ng ml−1 recombinant human LIF (Stem Cell Institute, Cambridge, UK), 1 μM CHIR 99021 (Stem Cell Institute, Cambridge, UK), 2 μM dimethindene maleate (1425, Tocris), 2 μM minocycline hydrochloride (sc-203339, Santa Cruz Biotechnology), 0.5 μM IWR-endo-1 (S7086, Selleckchem), and 2 μM Y27632 (72302, STEMCELL Technologies). N2B27 contains a 1:1 mix of DMEM F12 (21331–020, Thermo Fisher Scientific) and Neurobasal A (10888–022, Thermo Fisher Scientific) supplemented with 100 μM β-mercaptoethanol (31350–010, Thermo Fisher Scientific), penicillin–streptomycin (15140122, Thermo Fisher Scientific), GlutaMAX (35050061, Thermo Fisher Scientific), MEM non-essential amino acids (11140035, Thermo Fisher Scientific), 5% v/v KnockOut Serum Replacement (10828010, Thermo Fisher Scientific), 1% v/v B27 (10889–038, Thermo Fisher Scientific), and 0.5% of in-house produced N2, which consists of DMEM F12 medium (21331–020, Thermo Fisher Scientific), 2.5 mg ml−1 insulin (I9287, Sigma-Aldrich), 10 mg ml−1 Apo-transferrin (T1147, Sigma-Aldrich), 0.75% bovine albumin fraction V (15260037, Thermo Fisher Scientific), 20 μg ml−1 progesterone (p8783, Sigma-Aldrich), 1.6 mg ml−1 putrescine dihydrochloride (P5780, Sigma-Aldrich), and 6 μg ml−1 sodium selenite (S5261, Sigma-Aldrich). Cells were passaged every 4–5 days, and medium was changed daily.

To convert to Rset hPSCs (05978, StemCell Technologies), hESCs were cultured in the commercially available medium as per the manufacturer’s instructions. Cells were passaged once domed colonies had formed, and subsequently every 4–5 days, and medium was changed daily.

All cell lines were passaged using StemPro Accutase (A1110501, ThermoFisher Scientific), which was added for 3 min at 37°C, before being diluted in DMEM/F12 and centrifuged. Cells were then plated in their appropriate medium supplemented with 10 μM ROCK inhibitor Y-27632 (72304, STEMCELL Technologies). ROCK inhibitor was removed after 24 hr.

Screen procedure and ACL conversion protocol

Request a detailed protocol

The initial chemical screen was carried out using RUES2-GLR hESCs. Inactivated MEFs were plated onto 96-well µ-plates ibiTreat (89626, Ibidi). The following day hEPSCs were plated in LCDM medium. After 24 hr, medium was replaced with LCDM medium supplemented with each of the variations of pathway activators listed in Figure 1—figure supplement 1B. Retinoic acid (R2625, Sigma-Aldrich) was used at varying concentrations (0.1, 1, 10 μM) along with the following concentrations for the other cytokines: 100 ng ml−1 PDGF-AB (78096, StemCell Technologies), 20 ng ml−1 human ACTIVIN-A (Stem Cell Institute, Cambridge, UK), 1 μM CHIR 99021 (Stem Cell Institute, Cambridge, UK), and 12 ng ml−1 bFGF2 (Stem Cell Institute, Cambridge, UK). Medium was changed every 24 hr. After 6 days, each well was fixed in 4% paraformaldehyde (11586711, Electron Microscopy Sciences) at RT for 20 min and subsequently washed twice with 0.1% Tween-PBS in preparation for immunostaining. As a control, hEPSCs were cultured for 6 days in LCDM medium.

For the second screen, which sought to determine the effect of changing the basal medium, 8-well µ-plates ibiTreat were used (80826, Ibidi). hEPSCs were plated on MEFs in LCDM medium for 24 hr, before being replaced with each of the medium being screened for (conditions outlined in Figure 1—figure supplement 1D). Medium was changed every 24 hr and after 6 days cells were fixed as outlined above.

For proliferation experiments, hPSCs (Rset hPSCs, hESPCs, or hESCs) were plated on MEFs at density of 10,000 cells/well in a 24-well plate. Rset hPSCs, hEPSCs, and hESCs were plated in their respective medium. After 24 hr, this was replaced with either ACL medium + DMSO or ACi medium (ACTIVIN-A + Chiron + 10 mM Jak inhibitor) (420097, Merck Millipore). After 24 hr of the addition of ACL+DMSO or ACi, the first proliferation timepoint was taken. This day was considered day 1 of hypoblast conversion. Cell number was counted using a haemocytometer every day during conversion with media change every day.

For hPSC ACL treatment, 250,000 of the respective cell lines were plated onto MEFs in 12 multi-well dishes (Corning, 353046) in their respective pluripotency medium. After 24 hr, medium was replaced with ACL. ACL consists of N2B27 basal medium supplemented with 100 ng ml−1 human ACTIVIN-A (Stem Cell Institute, Cambridge, UK), 10 ng ml−1 recombinant human LIF (Stem Cell Institute, Cambridge, UK), and 3 μM CHIR99021 (Stem Cell Institute, Cambridge, UK). Cells were passaged using Dispase (07923, StemCell Technologies) at a ratio of approximately 1:2–1:3 every 3–5 days.

3D cultures of hESCs and YSLCs

Request a detailed protocol

Geltrex LDEV-free growth factor reduced (A1413302, Thermo Fisher Scientific) and growth factor reduced Matrigel (356230, BD Biosciences) were thawed on ice and dispensed using ice-cold tips.

For co-cultures, 80 μl of Geltrex was added to 8-well µ-plates ibiTreat (80826, Ibidi) and incubated at 37°C for 4 min. Having been passaged using StemPro Accutase, 30,000 YSLCs and 30,000 hESCs were mixed in DMEM/F12 and plated on top of the Geltrex bed for 12 min at 37°C to allow the cells to attach to the matrix. Proceeding this, the DMEM/F12 was replaced with mTeSR1 supplemented with 5% Geltrex. Medium was changed every 24 hr with just mTeSR1. As a control 60,000 hESCs were plated in 3D Geltrex in mTeSR1, with medium changed daily. After 72 hr, the wells were fixed as outlined above.

mTeSR conditioned medium experiments

Request a detailed protocol

To prepare YSLC conditioned medium , YSLCs were cultured until confluent in ACL. Medium was then changed to mTeSR1 PLUS (05825, StemCell Technologies) for 24 hr before being collected and filtered using syringe filters with a pore size of 0.45 μm (10109180, Thermo Fischer Scientific) and stored at 4°C for a maximum of a week. YSLC conditioned medium was used in two different sets of experiments:

  • 3D culture: 80 μl of Geltrex was added to 8-well µ-plates ibiTreat (80826, Ibidi) and incubated at 37°C for 4 min; 30,000 hESCs resuspended in DMEM/F12 were then plated on top of the Geltrex bed for 12 min at 37°C. The DMEM/F12 was subsequently replaced with YSLC-conditioned medium supplemented with 5% Geltrex. Medium was changed every 24 hr with just YSLC conditioned medium. As a control 30,000 hESCs were plated in 3D Geltrex in mTeSR Plus, with medium being changed every 24 hr. After the determined length of culture, wells were fixed as outlined above.

  • 2D culture: 30,000 hESCs were plated on Matrigel-coated 8-well µ-plates ibiTreat (as outlined in the section ‘Human embryonic stem cell culture’) in either YSLC conditioned medium, YSLC conditioned medium supplemented with 1 ng ml−1 recombinant human BMP4 (120–05, Peprotech) or 1 μg ml−1 WNT3a (5036-WN-010, R&D Systems), or MesoI YSLC conditioned medium. Medium was changed every 24 hr with supplemented agonist, and cells were fixed after 48 hr. Samples were fixed as outlined above.

Mesoderm induction conditioned medium experiments: hESCs were plated on Matrigel-coated 8-well µ-plates ibiTreat (see section ‘Human embryonic stem cell culture’) and cultured in mesoderm induction medium (MesoI) which was composed of N2B27 (as outlined above) supplemented with 10 ng ml−1 of recombinant human BMP4 (120–05, Peprotech) for 3 days before being fixed. Alternatively, N2B27 was conditioned on confluent YSLCs for 24 hr before being supplemented with BMP4 and added to hESCs for 3 days before being fixed.

Neural differentiation conditioned medium experiments: hESCs were cultured in N2B27 that had been conditioned on confluent YSLCs for 24 hr on Matrigel-coated 8-well µ-plates ibiTreat (see section ‘Human embryonic stem cell culture’) for 11 days, before being passaged 1:2 and maintained in N2B27 supplemented with 20 ng ml−1 bFGF2 (Stem Cell Institute, Cambridge, UK) for 4 days.

The neural differentiation protocol outlined in Shi et al., 2012 was carried out as a positive control. Briefly, hESCs were cultured in N2B27 supplemented with 10 μM SB431542 (72232, Stem Cell Technologies) and 500 ng ml−1 of NOGGIN (1967-NG, R&D Systems) on Matrigel-coated 8-well µ-plates ibiTreat (see section ‘Human embryonic stem cell culture’) for 11 days, before being passaged 1:2 and maintained in N2B27 supplemented with 20 ng ml−1 bFGF2 (Stem Cell Institute, Cambridge, UK) for 4 days.

Chimera experiments

Request a detailed protocol

All national and international guidelines were followed for mouse upkeep. Experiments were approved by the home office,reviewed by the University of Cambridge Animal Welfare and Ethical Review Body (AWERB), and were regulated by the Animals (Scientific Procedures) Act 1986 Amendment Regulations 2012. Animals were inspected daily and those that showed health concerns were culled by cervical dislocation. F1 (C57BI6xCBA) females were superovulated by injection of 5 IU of pregnant mares’ serum gonadotropin (PMSG, Intervet), followed by injection of 5 IU of human chorionic gonadotropin (hCG, Intervet) and mating with F1 males. Animals were culled by cervical dislocation.

For human cell-mouse embryo chimera experiments, eight-cell stage mouse embryos were recovered at embryonic day E2.5 prior to compaction by flushing the oviducts with M2. Zona pellucida was then removed by brief treatment with Acidic Tyrode’s solution (T1788, Sigma-Aldrich). Concurrently, clumps consisting of three to six SOX17-tdTomato+ ACL-treated cells were manually picked. To create small clumps of cells, ACL-treated cells were dissociated in StemPro Accutase (07920, StemCell Technologies) for 1 min at 37°C, before being diluted in DMEM/F12 (11320033, Thermo Fischer Scientific), pipetted gently, centrifuged, and resuspended in ACL medium. The resulting clumps were then aggregated with the eight-cell stage mouse embryos in 100% ACL medium for 24 hr before being transferred into KSOM until E4.5. Embryos were then fixed as outlined above. For hEPSC and Rset hPSC controls, the same protocol was used, only ACL was replaced with the cell line’s respective medium were relevant.

For all mouse embryo experiments, sample size was based on our own previous experience and relevant publications.

Cell sorting

Request a detailed protocol

To isolate successfully converted hPSC-ACL cell populations for RNA-seq analysis, hESCs, Rset hPSCs, and hEPSCs were treated with ACL for 6 days. Cells were then dissociated using Accutase and filtered using syringe filters with a pore size of 0.45 μm before being resuspended in PBS supplemented with 5% fetal bovine serum (Stem Cell Institute, Cambridge, UK). The tdTomato+ population was then selected for by carrying out cell sorting using an AriaIII instrument, before being pelleted for RNA extraction.

Library preparation/RNA-seq

Request a detailed protocol

The sequencing was performed on the Illumina HiSeq 4000 platform. Reads were aligned using the STAR algorithm (Dobin et al., 2013) and read counts of genes were quantified using the HTSeq algorithm (Anders et al., 2015) to calculate transcripts per million (TPM).

RNA-seq analysis

Request a detailed protocol

Data from single-cell human hypoblast were obtained from Zhou et al., 2019, Molè et al., 2021 and Xiang et al., 2020. Stem cell-derived definitive endoderm single-cell data was obtained from day 3 converted cells from Cuomo et al., 2020. Read one raw data from Zhou et al., 2019 was trimmed using cutadapt and the adapter sequence was specified using ‘-g TGGTATCAACGCAGAGTACATGGG’. Raw data from Cuomo et al. were trimmed using TrimGalore! with default settings. Raw data from Xiang et al. was not trimmed. Reads were then aligned to the GRCh38 human reference transcriptome using kallisto in batch mode for smart-seq2 data (Xiang et al., 2020; Cuomo et al., 2020), and for Zhou et al., 2019 kb-python was used with a custom whitelist for each set of fastq files and with custom technology specified as ‘-x 1,0,8:1,8,16,0,0,0’. Smart-seq2 transcript level counts were then collapsed into gene level counts as described elsewhere (Booeshaghi et al., 2020). Count tables were then filtered to include cells used in their respective publications. T2iLGö-PrE was obtained from Linneberg-Agerholm et al., 2019 and processed to TPM. Data from (Molé et al., 2021) was processed an analysed as previously described.

Single-cell datasets were intersected based on common features. They were then integrated using Seurat v3 (Stuart et al., 2019) based on 10,000 variable features in 30 dimensions using 50,000 anchors to generate a merged Seurat object with batch-corrected counts in the ‘integrated’ assay. Cell identities were assigned based on single-cell metadata files provided by respective publications. The Seurat object was then subset based on identities of interest (epiblast vs. hypoblast vs. trophoblast vs. definitive endoderm; hypoblast vs. definitive endoderm-like cells, pre-implantation vs. post-implantation hypoblast). Markers to distinguish the identities were identified using the FindMarkers function on the subset objects, using a Wilcoxon ranked test on integrated counts with a log fold change minimum of 0.25 and a minimum of 10% of cells in a given identity expressing each positive marker. Genes with a p-value<0.05 were used for downstream analysis as transcriptome signatures. Using the average TPM of bulk RNA-seq cell-line data, GSVA was used to determine cell type similarity using marker gene sets (Hänzelmann et al., 2013). MA plots were created using ggplot2.

RNA extraction

Request a detailed protocol

RNA was extracted with TRIzol reagent (15596010, Thermo Fisher Scientific). Briefly, snap-frozen cell pellets were suspended in 500 μL TRIzol, followed by a 5 min incubation at RT and addition of 0.1 mL chloroform. The samples were vortexed for 15 s, or until homogeneity in colour. After a 3 min incubation at RT, samples were centrifuged at 14,000 rpm for 15 min at 4°C to allow phase separation. The top aqueous RNA-containing layer was transferred to fresh tubes; 1 μL RNAse-free glycogen (AM9510, Thermo Fisher Scientific) and 250 μL isopropanol (I91516, Sigma) were added. Samples were mixed by inverting three to four times and incubated for 10 min at RT. A 30 min centrifugation at 14,000 rpm at 4°C was performed to pellet the RNA, which was subsequently washed with 250 μL of 75% ethanol. The supernatant was removed, and the pellet air-dried before suspending in 50 μL nuclease-free water. The samples were vortexed for 15 s and then incubated at 55°C for 10 min to completely dissolve the RNA. The samples were stored at −80°C.

Retrotranscription and RT-PCR analysis

Request a detailed protocol

To make sample cDNA, 1 μg of RNA was used to perform a reverse transcriptase reaction in the presence of random primers (C1181, Promega), dNTPs (N0447S, New England BioLabs), RNase inhibitor (M0314L, New England BioLabs), and M-MuLV reverse transcriptase (M0253L, New England BioLabs).

RT-PCR reactions were carried out using Power SYBR Green PCR Master Mix (4368708, Thermo Fisher Scientific) on a Step One Plus Real-Time PCR machine (Applied Biosystems). The following programme was used: 10 min at 95°C and 40 cycles of 15 s at 95°C and 1 min at 60°C. qPCR data was normalised against expression levels of hypoxanthine guanine phosphoribosyltransferase (HPRT), which should be consistent across samples. Error bars represent variability (SEM) across multiple independent experiments. A complete list of primers used is shown in Table S4.

Immunostaining and imaging

Request a detailed protocol

Permeabilisation was performed using PBS with 0.1 M glycine, 0.3% Triton X-100 for 30 min at RT. Primary antibodies were incubated overnight at 4°C. All primary antibodies were diluted in blocking buffer (1% BSA, 0.1% Tween in PBS) at 1:200. Cells were then washed three times with 0.1% Tween-PBS before being incubated with fluorescently conjugated Alexa Fluor secondary antibodies diluted 1:500 in 0.1% Tween-PBS for 2 hr at room temperature. Where indicated Alexa Fluor 647 Phalloidin (1:100; A22287, Thermo Fisher Scientific) and DAPI (1:1000; D3571 Thermo Fisher Scientific) were added concomitantly with the secondary antibodies. Primary and secondary antibody lists can be found in Supplementary file 4.

Imaging took place on an inverted SP5 confocal microscope (Leica Microsystems) using a Leica HC PL FLUOTAR 0.5 NA 20.0× dry objective and a Leica HC PL APO 1.4 NA 63× oil objective, or on an inverted SP8 confocal microscope (Leica Microsystems) with a Leica HC PL APO CS2 1.4 NA 63× oil objective and a Leica Fluotar VISIR 0.95 NA 25× water objective. Within each independent experiment, laser power and detector gain were maintained constant.

Image analysis

All microscopy analysis was carried out using FIJI software (http://fiji.sc) (Schindelin et al., 2012). For all quantifications, laser power and detector gain were maintained constant to quantitatively compare different experimental conditions within a single experiment. A single representative Z-plane was chosen for all quantifications. When calculating protein levels within a cell population, 10 microscopic fields of view were randomly captured for each independent experiment to obtain representative coverage of the cell population within each experiment.

Quantification of nuclear fluorescence intensity

Request a detailed protocol

Nuclear shape was conferred from DAPI staining, images of which were binarised to produce a mask to segment the nuclei in 2D. The watershed function on FIJI was then used to separate nuclei that were closely positioned. Each nuclear outline was then saved as a region of interest (ROI) and the fluorescence intensity within each ROI was then analysed. Within each experiment, the experimental fluorescence intensity values were normalised to the control expression level for each protein being analysed.

Classification of spheroid morphology

Request a detailed protocol

Within co-culture and conditioned medium experiments, each structure was classified as disorganised, squamous epithelial or columnar epithelial. ‘Disorganised structures’ were those which contain no discernible epithelial structures and were mostly a 2D ‘carpet’ of cells. Squamous epithelial spheroids were mainly composed of cells with an aspect ratio (height/width) of <1. Columnar epithelial spheroids were mainly composed of cells with an aspect ratio >1.

Statistical analyses

Request a detailed protocol

All statistical analysis other than that involved in sequencing data analysis was carried out using GraphPad Prism software. Qualitative data are presented as a contingency table and were analysed with a χ2 test. Quantitative data are presented as mean ± SEM. Data with a Gaussian distribution were analysed using a two-tailed unpaired Student’s t-test when comparing two groups or ANOVA with a Tukey’s or Sidak's multiple comparison test when comparing multiple. If there were significant differences in the variance, a Welch’s correction was used. If the data did not have a Gaussian distribution, a Mann–Whitney U-test was used when comparing two groups or a Kruskal–Wallis test with a Dunn’s multiple comparison test was used when comparing multiple groups. Independent experiments are defined as biological replicates. Technical replicates were undertaken simultaneously.

Data availability

Raw data is available on EGA at accession number: EGAD00001006056 under the study number EGAS00001003571.

The following data sets were generated
    1. Mackinlay K
    2. Rosa VS
    3. Weatherbee B
    4. Hudson G
    5. Coorens TT
    6. Pereira LV
    7. Behjati S
    8. Vallier LL
    9. Shahbazi M
    10. Zernicka-Goetz M
    (2020) EGA,European Genome-phenome Archive
    ID EGAD00001006056. Understanding Self-Organising Capacity of Stem Cells during Implantation and Early Post-implantation Development in vitro and in vivo: Implications for Human Development (2020-04-20).
    https://ega-archive.org/datasets/EGAD00001006056?fbclid=IwAR3G8UAMWC-2XCkvM9rVh6H1NhTw40PX4UF78E0yP4YmJQy4l8sEhCDLtn8
The following previously published data sets were used
    1. Zhou F
    2. Wang R
    3. Yuan P
    4. Ren Y
    5. Mao Y
    6. Li R
    7. Tang F
    (2019) NCBI Gene Expression Omnibus
    ID GSE109555. Reconstituting the transcriptome and DNA methylome landscapes of human implantation.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE109555
    1. Xiang L
    2. Yin Y
    3. Zheng Y
    4. Ma Y
    5. Li Y
    6. Zhao Z
    7. Li T
    (2019) NCBI Gene Expression Omnibus
    ID GSE136447. A developmental landscape of 3D-cultured human pre-gastrulation embryos.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE136447
    1. Cuomo ASE
    2. Seaton DD
    3. McCarthy DJ
    4. Martinez I
    5. Bonder MJ
    6. Garcia-Bernardo J
    7. Consortium H
    (2020) ENA
    ID ERP016000. Single_Cell_RNAseq_at_various_stages_of_HiPSCs_differentiating_toward_definitive_endoderm_and_endoderm_derived_lineages.
    https://www.ebi.ac.uk/ena/browser/view/PRJEB14362
    1. Linneberg-Agerholm M
    2. Wong YF
    3. Herrera JAR
    4. Monteiro RGV
    5. Anderson K
    6. MBrickman J
    (2019) NCBI Gene Expression Omnibus
    ID GSE138012. Naïve human pluripotency stem cells respond to Wnt, Nodal and LIF signalling to produce expandable naïve extra-embryonic endoderm.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE138012
    1. Yang Y
    2. Liu B
    3. Xu J
    4. Wang J
    5. Wu J
    6. Shi
    7. C
    8. Deng H
    (2017) NCBI Gene Expression Omnibus
    ID GSE89303. Global transcriptional analysis and genome-wide analysis of chromatin state in extended pluripotent stem cells, primed pluripotent stem cells, and naïve pluripotent stem cells.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE89303

References

Decision letter

  1. Kathryn Song Eng Cheah
    Senior Editor; The University of Hong Kong, Hong Kong
  2. Lilianna Solnica-Krezel
    Reviewing Editor; Washington University School of Medicine, United States
  3. Jacob H Hanna
    Reviewer; Weizmann Institute of Science, Israel

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In this work, Mackinlay et al. established a protocol to differentiate from human embryonic stem cells (ESCs) an extraembryonic cell type that resembles post-implantation hypoblast. They further demonstrate that these yolk sac-like cells induce in human ESCs expression of pluripotency and anterior ectoderm markers while repressing mesoderm and endoderm markers, by releasing BMP and WNT signaling pathway inhibitors. The human yolk sac-like cells generated here provide a new tool for in vitro investigations of human embryogenesis.

Decision letter after peer review:

Thank you for submitting your article "An in vitro stem cell model of human epiblast and yolk sac interaction" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Kathryn Cheah as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Jacob H. Hanna (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this work, Mackinlay et al., developed an in vitro model for human early embryogenesis by establishing a protocol to differentiate from hESCs an extraembryonic cell type that resembles post-implantation yolk sac cells. They subsequently employed conditioned media from these yolk sac-like cells in combination with hESCs to analyze signaling interactions between humans ESCs and hypoblast cells. The authors present evidence to support the induction of extraembryonic endoderm features, which are dependent of the initial cell pluripotency state. Based on transcriptomic data, they argue that the hypoblast cells derived using the Rset media resemble those cells found in the human post-implantation hypoblast. Finally, the authors employed these human hypoblast-like cells to dissect the role of Wnt and BMP signaling pathways in yolk sac and hESC cells co-cultures, and identify the induction of an anterior ectoderm identity in hESCs by the yolk sac cells. The manuscript provides an advance in generation of extra-embryonic endoderm from hPSCs and in investigating in vitro interactions between embryonic and extraembryonic tissues during early human development.

Essential revisions:

There was consensus among the reviewers and editor that this model of human yolk sac cells represents a highly valuable system for examining the human hypoblast, especially given the difficulties to obtain post-implantation human embryos. In addition, the hPSCs co-culture protocol established herein provides novel functional evidence of an AVE-like role of human hypoblast. However, the reviewers also expressed several concerns about the data and their presentation and agreed that the current data do not fully support the authors' conclusions.

In particular, the key conclusion on line 358-359 "We will refer to Rset-ACL cells as to yolk sac cells" as well as other such conclusions in the manuscript are not fully supported by the data in the current manuscript. Either additional experimental analyses are needed, or this conclusion needs to be toned down throughout the manuscript. Referring to these cells as "yolk sac-like cells" would be more aligned with the current data and appropriate. In the revised manuscript, the authors are encouraged to highlight the caveats of their model and state that further improvements are needed with details.

– Identified markers that distinguish DE and PE using published data comparing data from wildly different sources. How were the different sources dealt with? What specific statistical cut-offs? The authors conclude that one cell culture product is more like PE than the other two. Does this make it PE? Overall correlation pretty weak (0.2). Similarly, in chimera experiments, the contribution was observed only 15% of the time, and only 1 or 2 cells at a time. Does this make it PE? As stated above, these concerns would need to be addressed or the relevant conclusions on the derivation of yolk sac cells should be toned down.

– Evidence of AVE-like character is too indirect: conditioned medium prevents BMP-directed hESC differentiation as measured by SOX2 alone (single marker, not a robust assay) and pSMAD and same for WNT-directed hESC differentiation (and reduced LEF1 levels). The comparison to the AVE also warrants more discussion, as the murine AVE represents a subset of extra-embryonic endoderm, what explains asymmetry establishment in the epiblast. Hence, the yolk sac-like cells the authors describe are unlikely to represent the entire hypoblast of post-implantation human embryo, or how such yolk sac cells could break asymmetry in the epiblast is not clear.

– Figure 1 panel K: Nanog expression levels are increase after ACL treatment, when Nanog is generally considered a marker of the epiblast. Could the authors explain this discrepancy?

– Figure 2 panel D: Rset-ACL cells have a gene expression signature more similar to hypoblast, while hEPSC-ACL seem to be similar to both extraembryonic and definitive endoderm. Nevertheless, as mentioned before (line 164-165), hEPSCs-ACL are segregated into different subpopulations expressing different levels of Gata6/Sox2. Did the authors consider these differences in the population when performing bulk RNA-seq? Is it possible that eliminating the Gata6low/Sox2high subpopulation improves the induction to extraembryonic endoderm from EPSCs?

– Figure 3 panel A-B: In the quantification of Brachyury+ cells during ACL treatment (panel A), in the case of hESCs at day 2 there is about 30% of Brachyury+ cells, however in the immunofluorescence show in panel B for hESCs at day 2 the percentage of Brachyury+ cells seems to be much higher than 30%. Could the authors explain this discrepancy? Maybe a quantification of the relative fluorescence intensity as done in Figure 1 will be helpful to clarify this point, since it might be difficult to discern between positive and negative cells as there is a gradient of signal intensity.

–Figure 6 panel E and H. The authors showed that culturing hESCs with yolk sac cell-conditioned media in 3D Geltrex settings prevents Sox2 downregulation and promotes a columnar spheroid morphology (line 387 in the text). In figure 6, they tested whether secretion of BMP and Wnt antagonist by yolk sac cells are responsible for preventing pluripotency exit in 3D (line 415 in the text), by treating hESCs with BMP4/Wnt3a and yolk sac-conditioned media in 2D cultures, nevertheless, the author do not comment about what is the effect of these conditions in the 3D context, given that the formation of columnar epithelial spheroids is also promoted with yolk sac-conditioned media. Do the cells form predominantly columnar/squamous spheroids or do they lose their integrity? Also, Sox2 is a known marker for ectodermal differentiation, did the authors test what is the effect of adding BMP4/Wnt3a and yolk sac-conditioned media in other pluripotency markers like Oct4 or Nanog?

– Figure 7. The dynamics of ectodermal and pluripotency markers seem insufficient to support the idea of stable induction of anterior ectoderm. Sox1 is high since day 1 and Otx2 goes down at day 5. Is it possible that these markers get stabilized after more than 5 culture days? The authors should analyze the expression of mesodermal and endodermal markers to show that these markers are not induced.

Revisions expected in follow-up work:

Additional experimental data in support of the identify of Rec-ACL cells as genuine post implantation yolk sac cells, and discerning their activity as equivalent to the murine AVE.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "An in vitro stem cell model of human epiblast and yolk sac interaction" for further consideration by eLife. We apologize that the review process took longer than we strive for at eLife.

Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Kathryn Cheah as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Jacob H. Hanna (Reviewer #1).

The manuscript has been improved and the authors toned down their conclusions about generating Yolk Sac Cells referring to them Yolk Sac Like Cells (YSLC). However, there are some remaining significant issues that need to be addressed, as outlined below:

1. The revised manuscript did not fully convince the reviewers that the ACL protocol represents a novel way to produce human extraembryonic endoderm.

Lines 192-194: "This revealed that all three cell populations bore a greater similarity to the hypoblast following ACL-treatment, while their similarity to the epiblast decreased, suggesting a shift towards an endodermal fate (Figure 1L)."

One is concerned the data simply show that sorting SOX17-positive cells from a mixed population of differentiating stem cells can enrich the endodermal transcriptional signature. Why is it surprising that the SOX17-positive subpopulation of differentiated stem cell lines bears similarity to endoderm, when SOX17 is known to be both necessary and sufficient for endodermal differentiation? In other words, does the novel ACL treatment protocol enhance the endodermal qualities of SOX17-positive cells that can be produced from stem cell lines by any other differentiation protocol? Given that the goal here is to establish a protocol for generating hypoblast-like cells from hESCs and the current methods direct hESCs towards definitive endoderm fate, it would be important to include in Figure 1L also definitive endoderm for comparison.

2. The conclusion that pluripotent state dictates response to the ACL treatment is underdeveloped, owing to flaws in experimental design.

In fact, the authors observe major differences between biological replicate hEPSC lines in terms of their response to ACL treatment (compare Figure 1D, top Gata6, Sox17 and Figure 1 Supp 2 K, top Gata6 and Sox17. Additionally, Figure 1 Supp 2 D shows very poor resolution of Sox2 and Gata6 expressing populations after ACL treatment of this cell line). To their credit, the authors note on Line 173: "This suggests that there is a heterogeneous response to ACL-treatment within hEPSCs." Yet they then drop this cell line and exclude it from subsequent analyses.

Therefore, how can the authors be confident that the reported transcriptional differences captured in Figure 1L (among ACL-treated stem cell lines) is meaningful when they haven't really captured variation among biological replicate hEPSC cell lines?

In other words, the data shown in Figure 1L are cherry-picked because they exclude the cell line that did not perform as desired (and shown in Supp. 2).

3. The evidence that the authors have identified a cell type that, on the basis of transcriptome analysis, is a good model for extraembryonic endoderm is also cherry-picked because the authors focus on merely 40 genes to evaluate transcriptional phenotypes. Admittedly, selection of these 40 genes was conducted by rationale that is logical and justified. But the subsequent use of these 40 genes to compare treatments merely ranks the cell lines to each other. The analysis does not produce insight into whether these treatments are wholistically producing extraembryonic endoderm.

Moreover, even if we take the authors' word, Line 244 states:

"Rset-ACL the most relatively similar to extra-embryonic endoderm (Figure. 2C)." Similarly, Line 245 states, "hEPSC-ACL were more similar to extra-embryonic endoderm than to definitive endoderm."

Yet examination of Figure 2B does not strongly support these statements. For example, from 20 extra-embryonic endoderm genes only 6 appear to be upregulated, and from 20 definitive endoderm genes 2 are downregulated for Rset-ACL. As the differences in the number of upregulated and down regulated extra embryonic or definitive endoderm genes do not clearly identify a cell type fully aligned with hypoblast, this raises further concerns that the ACL treated cell populations are likely heterogenous rather than representing one YCLC cell type.

4. Chimera experiments are lacking controls.

What is the degree chimerism when Rset and hEPSC are not cultured in ACL? Given the very minor degree chimerism (3D and 3G) and the evidence of incomplete population-level differentiation of Rset and hEPSC in ACL (see above), the possibility remains that the authors are simply testing the already-proved hypothesis that Rset and hEPSC can chimerise extraembryonic endoderm in mouse embryos (Gafni et al., 2013; Yang et al., 2017). Moreover, in Figure 3, the number of chimera embryos analyzed nor the number of experiments are not provided.

5. Which cell line is the most similar to postimplantation hypoblast? Still unclear.

A transcriptional comparison was performed in Figure 4. However, the same weaknesses detailed in Point 3 above also apply here. In short, the transcriptional differences shown do not compellingly support the authors' conclusions.

A functional analysis was performed in Figure 4 Supp. 2 in postimplantation chimeras. However, only a single cell line was evaluated (only the cell line they claim to be the most postimplantation). Therefore, this experiment lacks appropriate controls. Additionally, it is unclear why the authors chose to mimic mouse postimplantation ex vivo, when the standard is to transfer the chimeras to recipient mice to observe actual postimplantation stages.

6. Evaluation of "cell fate" in Figure 5 and 6 is superficial.

Only a single pluripotency marker (SOX2) and a single mesendoderm marker (T) are analysed. Therefore, the results are still preliminary and conclusions weaker than they should be.

In these experiments, gene expression is analyzed primarily at the protein level by relative fluorescence intensity (RFI). As DAPI (or other nuclear marker) images are not shown, is RFI relative to DNA label? This should be clarified.

7. It is not clear how stable over time are YSLC when cultured in ACL?

The Discussion should more clearly articulate the limitations of the YSLC model and that hEPSCs gave rise to a population of cells that bears a similarity to the extra-embryonic endoderm but may also contain a definitive endoderm- like subpopulation.

https://doi.org/10.7554/eLife.63930.sa1

Author response

Essential revisions:

There was consensus among the reviewers and editor that this model of human yolk sac cells represents a highly valuable system for examining the human hypoblast, especially given the difficulties to obtain post-implantation human embryos. In addition, the hPSCs co-culture protocol established herein provides novel functional evidence of an AVE-like role of human hypoblast. However, the reviewers also expressed several concerns about the data and their presentation and agreed that the current data do not fully support the authors' conclusions.

In particular, the key conclusion on line 358-359 "We will refer to Rset-ACL cells as to yolk sac cells" as well as other such conclusions in the manuscript are not fully supported by the data in the current manuscript. Either additional experimental analyses are needed, or this conclusion needs to be toned down throughout the manuscript. Referring to these cells as "yolk sac-like cells" would be more aligned with the current data and appropriate. In the revised manuscript, the authors are encouraged to highlight the caveats of their model and state that further improvements are needed with details.

We thank the reviewers for their appreciation of the value of our work and for their insightful comments, which have allowed us to greatly improve our manuscript. We agree that referring to our cells as “Yolk-sac like cells” (YSLCs) is more appropriate and so we have adjusted this throughout the manuscript. The reviewers’ comments provided us with an opportunity to further characterise the interaction between YSLCs and hESCs and as such further analyse the functional similarities between YSLCs and the AVE has been carried out. In our revised manuscript we provide:

– Evidence that YSLCs can contribute to the extra-embryonic endoderm compartment post-implantation mouse/human interspecies chimeras (new Figure 4—figure supplement 2).

– Analysis of the levels of LEF1 and pSMAD1/5 in hESCs cultured in 3D in the presence of YSLC conditioned medium, revealing that YSLC conditioned medium is able to inhibit both WNT and BMP signalling activation in hESCs, respectively (new Figure 5F-H).

– Analysis of the levels of NANOG in hESCs cultured in the presence of either BMP4, and BMP4+YSLC conditioned medium, or WNT3A, and WNT3A+YSLC conditioned medium, revealing that YSLC conditioned medium is able to inhibit the effect of both signalling pathway activators (new Figure 5—figure supplement 1H-K).

– Analysis of the ability of YSLCs to inhibit endoderm and mesoderm specification in hESCs in both a 2D and 3D context, revealing that YSLCs are able to inhibit the upregulation of both mesoderm and endoderm markers in hESCs (new Figure 6).

– Evidence that YSLCs are able to induce the upregulation of anterior ectoderm markers in hESCs in 2D (new Figure 7F-H).

– In addition, in the revised discussion we acknowledge the limitations of our model and which future improvements will be needed.

– Identified markers that distinguish DE and PE using published data comparing data from wildly different sources. How were the different sources dealt with? What specific statistical cut-offs?

We thank the reviewers from bringing this to our attention. In the original version of our manuscript we did not realign the datasets to a common reference genome. Instead, datasets were integrated using Seurat (Stuart et al., 2019). Gene abundances were then converted to relative abundances per million (RPCM) for downstream analysis and visualization. However, we have now taken raw data from the three different datasets (Cuomo et al., 2020; Xiang et al., 2019; Zhou et al., 2019), removing Stirparo et al. (2018), and realigned each of them using kallisto/kb-python to the GRCh38 reference transcriptome. The UMI counts/estimated counts were then integrated using Seurat v3 based on 10,000 variable features in 30 dimensions using 50,000 anchors to generate a merged Seurat object with batch corrected counts in the "integrated" assay.

As a result of this reanalysis, the differentially expressed genes identified for definitive endoderm, extra-embryonic endoderm, primitive endoderm and post-implantation hypoblast have changed (new Figure 2 A, B and Figure 4 A, B). This has also adjusted the values for the Z-score-based transcriptional analysis (new Figure 2C and Figure 4C) but has not impacted the overall conclusions drawn from this analysis. The process of realignment has strengthened the reliability of our analysis as it made the datasets more comparable.

The authors conclude that one cell culture product is more like PE than the other two. Does this make it PE? Overall correlation pretty weak (0.2).

Our Z-score-based transcriptional profiling involves placing the analysed samples within a relative scale of similarity, whereby definitive endoderm exists at one end, and extra-embryonic endoderm exists at the other. This analysis allows us to determine the relative similarity across the three cell types being analysed, telling us which, relative to the other cell types rather than in absolute terms, was the most transcriptionally similar to the extra-embryonic endoderm of the three. A positive value indicates a relative similarity to extra-embryonic endoderm, while a negative value suggests a relative similarity to definitive endoderm. For simplicity, we have normalised the scale to -1 and 1. The new values of similarity for Rset-ACL and hEPSC-ACL are 0.48 and 0.41, respectively (Figure 2C). While hESC-ACL had a similarity value of -0.89 (Figure 2C). Given that the analysis is relative, Rset-ACL is the most extra-embryonic endoderm-like relative to the other two cells types, whereas hESC-ACL is the most similar to definitive endoderm of the three cell types. This is also the case when using Z-score-based transcriptional analysis for determining similarity to primitive endoderm vs post-implantation hypoblast. For this reason, we agree with the reviewers’ that we cannot claim we have generated yolk sac cells in absolute terms. Instead, we now refer to Rset-ACL cells as yolk sac-like cells.

Similarly, in chimera experiments, the contribution was observed only 15% of the time, and only 1 or 2 cells at a time. Does this make it PE? As stated above, these concerns would need to be addressed or the relevant conclusions on the derivation of yolk sac cells should be toned down.

Interspecies chimeras yield relatively low contribution relative to same-species chimeras. Previous mouse-human chimera attempts using human pluripotent stem cells that do not involve inhibiting the apoptotic pathway have yielded blastocyst contribution between 0-15% (Huang et al., 2018; James et al., 2006; Masaki et al., 2015; Yang et al., 2017). Therefore, the level of contribution of hEPSC-ACL and Rset-ACL is comparable to previously observed levels of human-mouse chimeras. We agree that contribution to the primitive endoderm compartment alone is not evidence of an extraembryonic fate. However, it suggests that the cell types possess characteristics that are similar to extra-embryonic endoderm in order for them to survive and incorporate to the primitive endoderm compartment within the embryo.

Given that Rset-ACL were the most similar to the post-implantation hypoblast, we cultured the chimeric embryos to post-implantation stages in vitro. This revealed that 3 days after chimeric blastocysts were transferred to a post-implantation culture method (Ma et al., 2019), 9% of all viable embryos contained HuNu+/GATA6+ cells (new Figure 4—figure supplement 2A, B), suggesting that YSLCs are able to integrate into the post-implantation extra-embryonic endoderm compartment of the mouse embryo, further demonstrating that YSLCs harbour a yolk sac-like phenotype. These experiment were carried out, stained and imaged with the support of Charlotte E. Handford and so her name has been added to the author list. The other authors have agreed to this addition.

– Evidence of AVE-like character is too indirect: conditioned medium prevents BMP-directed hESC differentiation as measured by Sox2 alone (single marker, not a robust assay) and pSMAD and same for WNT-directed hESC differentiation (and reduced LEF1 levels). The comparison to the AVE also warrants more discussion, as the murine AVE represents a subset of extra-embryonic endoderm, what explains asymmetry establishment in the epiblast. Hence, the yolk sac-like cells the authors describe are unlikely to represent the entire hypoblast of post-implantation human embryo, or how such yolk sac cells could break asymmetry in the epiblast is not clear.

We agree with the reviewers’ comments that analysing SOX2 alone in response to YSLC conditioned medium is not sufficient. Analysing SOX2 dynamics in response to YSLCs acted as an initial indicator of whether YSLCs could influence hESC specification and, if so, whether this was orchestrated by WNT and BMP inhibition. We have adjusted Figure 5 so that this is clearer by first addressing the levels of SOX2 within hESCs in response to YSLCs in 3D, before analysing the role of WNT and BMP in mediating this response. This involved combining data from the old Figure 5 and old Figure 6. We have also added a new experimental data (new Figure 6 and new Figure 7) in which we analyse the levels of endoderm, mesoderm and ectoderm markers in hESCs cultured in 2D in the presence of YSLC conditioned medium as described below in more detail.

Within the mouse embryo, the AVE acts to induce anterior fate, and repress the formation of the primitive streak in the epiblast cells adjacent to it (Rivera-Pérez and Hadjantonakis, 2015). To further determine whether YSLCs possess an AVE-like character, we analysed the ability of YSLCs to inhibit mesoderm and endoderm markers in hESCs in both 2D and 3D. In 3D, hESCs upregulate GATA6 within control conditions (new Figure 6A, B). However, this upregulation is blocked in the presence of YSLC conditioned medium (new Figure 6A, B). As T, a mesoderm marker, was not upregulated in hESCs in control 3D conditions (new Figure 6C, D), we cultured hESCs in a mesoderm differentiation medium (Richter et al., 2014) as a control and also in mesoderm differentiation medium that had been conditioned on YSLCs. This revealed that YSLC conditioned medium was also able to inhibit mesoderm marker upregulation in hESCs (new Figure 6E, F).

Similarly, to further analyse the ability of YSLCs to induce expression of anterior ectoderm markers in hESCs we considered a 2D neural progenitor differentiation protocol. This protocol normally involves dual small molecule targeting of SMAD signalling in hESCs (Chambers et al., 2009; Shi et al., 2012). Given that YSLC conditioned medium was able to inhibit SMAD activity in hESCs, we analysed the ability of YSLC conditioned medium to replace small molecule SMAD inhibitors within this 2D neural differentiation protocol. Accordingly, hESCs were cultured in YSLC conditioned medium, rather than SB431542 and NOGGIN, for 11 days, before being cultured in FGF2 for 4 days (new Figure 7E). After the completion of the 15-day protocol, the anterior ectoderm markers SOX1, PAX6, NESTIN, and NOTCH were all significantly upregulated (new Figure 7F-H).

Overall, these experiments provide further evidence that YSLCs share functional attributes with the mouse AVE in their ability to induce anterior ectoderm markers at the expense of mesoderm and endoderm markers in hESCs. However, we agree that it is not yet clear whether YSLCs resemble a subset of the human yolk sac, or the yolk sac generally. Indeed, the post-implantation yolk sac of the Cynomolgus monkey has been shown to initially express CER1 in almost every cell, before CER1 becomes anteriorly restricted (potentially representing the primate AVE) (Sasaki et al., 2016). Without transcriptional characterisation of the human AVE, it remains unclear whether YSLCs precisely resemble human AVE specifically, or human post-implantation yolk sac generally. Given that the mammalian AVE has been implicated in symmetry breaking along the anterior-posterior axis of the epiblast, future work should focus on how these YSLCs can be used to recapitulate this process using hPSCs in vitro and we have outlined this as a suggestion for future directions in the discussion of the paper.

– Figure 1 panel K: Nanog expression levels are increase after ACL treatment, when Nanog is generally considered a marker of the epiblast. Could the authors explain this discrepancy?

Although ACL treatment of hPSCs leads to the upregulation of endoderm markers, the reviewers are correct that NANOG continues to be co-expressed within treated cells. The inability of ACL to fully downregulate pluripotency markers in hPSCs may indicate that cells are not completely committed the to an endodermal fate, and instead still preserve some features of pluripotent cells. We have now ensured we draw attention to this fact in the result and Discussion sections of the paper and highlight it as an area for future optimisation.

– Figure 2 panel D: Rset-ACL cells have a gene expression signature more similar to hypoblast, while hEPSC-ACL seem to be similar to both extraembryonic and definitive endoderm. Nevertheless, as mentioned before (line 164-165), hEPSCs-ACL are segregated into different subpopulations expressing different levels of Gata6/Sox2. Did the authors consider these differences in the population when performing bulk RNA-seq? Is it possible that eliminating the Gata6low/Sox2high subpopulation improves the induction to extraembryonic endoderm from EPSCs?

As shown in Figure 1 —figure supplement 3, before bulk RNAseq we sorted hESC-ACL, Rset-ACL and hEPSC-ACL populations so that only the SOX17::H2B-tdTomato+ population from each were sequenced.

– Figure 3 panel A-B: In the quantification of Brachyury+ cells during ACL treatment (panel A), in the case of hESCs at day 2 there is about 30% of Brachyury+ cells, however in the immunofluorescence show in panel B for hESCs at day 2 the percentage of Brachyury+ cells seems to be much higher than 30%. Could the authors explain this discrepancy? Maybe a quantification of the relative fluorescence intensity as done in Figure 1 will be helpful to clarify this point, since it might be difficult to discern between positive and negative cells as there is a gradient of signal intensity.

We agree that the image chosen was not representative of the overall result. We observed that T+ cells tend to appear in clusters, meaning some areas have no T+ cells and others have many. This is why in the figure there appears to be more T+ cells than what the quantification shows. Accordingly, we have changed the image so that it is more representative (new Figure 3B). We also provide a quantification of fluorescence intensity as suggested by the reviewer (new Figure 3A).

–Figure 6 panel E and H. The authors showed that culturing hESCs with yolk sac cell-conditioned media in 3D Geltrex settings prevents Sox2 downregulation and promotes a columnar spheroid morphology (line 387 in the text). In figure 6, they tested whether secretion of BMP and Wnt antagonist by yolk sac cells are responsible for preventing pluripotency exit in 3D (line 415 in the text), by treating hESCs with BMP4/Wnt3a and yolk sac-conditioned media in 2D cultures, nevertheless, the author do not comment about what is the effect of these conditions in the 3D context, given that the formation of columnar epithelial spheroids is also promoted with yolk sac-conditioned media. Do the cells form predominantly columnar/squamous spheroids or do they lose their integrity? Also, Sox2 is a known marker for ectodermal differentiation, did the authors test what is the effect of adding BMP4/Wnt3a and yolk sac-conditioned media in other pluripotency markers like Oct4 or Nanog?

We agree with the reviewers that it is important to understand whether BMP and WNT signalling is being perturbed by YSLCs in 3D Geltrex. To answer this question, we have stained for pSMAD1/5 and LEF1 hESCs in 3D Geltrex under control conditions and in the presence of YSLC conditioned medium (new Figure 5F- H). This revealed that both pSMAD1/5 and LEF1 are downregulated in hESCs in 3D Geltrex when cultured in the presence of YSLC conditioned medium relative to control conditions, demonstrating that YSLCs are able to inhibit signalling WNT and BMP signalling pathway activation in hESCs in 3D. We had initially considered adding BMP4/WNT3a to hESCs in 3D Geltrex and determining whether YSLC conditioned medium could block their effects. However, this would not demonstrate whether under control conditions BMP/WNT were the differentiation-inducing factor within Geltrex, only that YSLC conditioned medium could inhibit the BMP/WNT signal that was being exogenously applied. We feel that applying BMP4/WNT3a in hESCs in 2D is a more effective way of determining whether YSLC conditioned medium can prevent BMP/WNT signalling as the differentiation-inducing pathway is previously controlled.

We have now also analysed the effect of BMP4 and WNT3a supplementation in the presence of YSLC conditioned medium on NANOG levels in hESCs (new Figure 5—figure supplement 1H-K). The demonstrated that YSLC conditioned medium could prevent WNT3a-/BMP4- induced downregulation of NANOG, as it does for SOX2.

– Figure 7. The dynamics of ectodermal and pluripotency markers seem insufficient to support the idea of stable induction of anterior ectoderm. Sox1 is high since day 1 and Otx2 goes down at day 5. Is it possible that these markers get stabilized after more than 5 culture days? The authors should analyze the expression of mesodermal and endodermal markers to show that these markers are not induced.

We agree with the reviewers’ comment that claiming YSLCs are able to induce a stable anterior ectoderm fate in hESCs is too strong as a statement. Accordingly, we have altered the language in the paper to clarify that YSLCs are able to induce the upregulation of anterior ectoderm markers in hESCs, rather than a complete anterior ectoderm fate. Without transcriptional data describing human anterior ectoderm, it is not possible to claim that YSLCs can induce it. We also observe that the pluripotency markers OCT4 and NANOG are co-expressed with SOX1 and OTX2 in hESCs cultured in 3D Geltrex in YSLC conditioned medium (new Figure 7A-D and Figure 7—figure supplement 1C). Within mouse development, the AVE acts to antagonise signals from the trophectoderm (Rivera-Pérez and Hadjantonakis, 2015). Therefore, we hypothesize that the addition of trophoblast stem cell may be necessary to downregulate pluripotency markers in the presence of YSLCs. This is an interesting line of future research and we have drawn attention to this in the revised discussion of the paper.

We also analysed the expression of SOX1 after 6 and 7 days in hESCs cultured in 3D Geltrex in the presence of YSLC conditioned medium. This revealed that SOX1 levels are eventually downregulated relative to controls (Figure 7—figure supplement 1A, B). Therefore, YSLCs are not able to induce a full anterior ectoderm fate in hESCs. This again suggests that the addition of trophoblast stem cells may be needed to consolidate an anterior ectoderm fate.

Revisions expected in follow-up work:

Additional experimental data in support of the identify of Rec-ACL cells as genuine post implantation yolk sac cells, and discerning their activity as equivalent to the murine AVE.

Overall, we hope that our additional experimental data revealing that YSLCs are able to inhibit the upregulation of mesoderm and endoderm markers, while supporting the expression of ectoderm and pluripotency markers, in hESCs via WNT and BMP signalling pathway inhibition, bolsters our suggestions that YSLCs are yolk-sac like and harbour AVE-like functionality.

References:

Chambers, S. M., Fasano, C. A., Papapetrou, E. P., Tomishima, M., Sadelain, M., and Studer, L. (2009). Highly efficient neural conversion of human ES and iPS cells by dual inhibition of SMAD signaling. Nature Biotechnology, 27(3), 275–280. https://doi.org/10.1038/nbt.1529

Cuomo, A. S. E., Seaton, D. D., McCarthy, D. J., Martinez, I., Bonder, M. J., Garcia-Bernardo, J., … Consortium, H. (2020). Single-cell RNA-sequencing of differentiating iPS cells reveals dynamic genetic effects on gene expression. Nature Communications, 11(1), 810. https://doi.org/10.1038/s41467-020-14457-z

Huang, K., Zhu, Y., Ma, Y., Zhao, B., Fan, N., Li, Y., … Pan, G. (2018). BMI1 enables interspecies chimerism with human pluripotent stem cells. Nature Communications, 9(1), 4649. https://doi.org/10.1038/s41467-018-07098-w

James, D., Noggle, S. A., Swigut, T., and Brivanlou, A. H. (2006). Contribution of human embryonic stem cells to mouse blastocysts. Developmental Biology, 295(1), 90–102. https://doi.org/https://doi.org/10.1016/j.ydbio.2006.03.026

Masaki, H., Kato-Itoh, M., Umino, A., Sato, H., Hamanaka, S., Kobayashi, T., … Nakauchi, H. (2015). Interspecific in vitro assay for the chimera-forming ability of human pluripotent stem cells. Development, 142(18), 3222 LP – 3230. https://doi.org/10.1242/dev.124016

Richter, A., Valdimarsdottir, L., Hrafnkelsdottir, H. E., Runarsson, J. F., Omarsdottir, A. R., Ward-van Oostwaard, D., … Valdimarsdottir, G. (2014). BMP4 promotes EMT and mesodermal commitment in human embryonic stem cells via SLUG and MSX2. Stem Cells (Dayton, Ohio), 32(3), 636–648. https://doi.org/10.1002/stem.1592

Rivera-Pérez, J. A., and Hadjantonakis, A.-K. (n.d.). The Dynamics of Morphogenesis in the Early Mouse Embryo. Cold Spring Harbor Perspectives in Biology, 7(11), a015867. https://doi.org/10.1101/cshperspect.a015867

Sasaki, K., Nakamura, T., Okamoto, I., Yabuta, Y., Iwatani, C., Tsuchiya, H., … Saitou, M. (2016). The Germ Cell Fate of Cynomolgus Monkeys Is Specified in the Nascent Amnion. Developmental Cell, 39(2), 169–185. https://doi.org/10.1016/j.devcel.2016.09.007

Shi, Y., Kirwan, P., and Livesey, F. J. (2012). Directed differentiation of human pluripotent stem cells to cerebral cortex neurons and neural networks. Nature Protocols, 7(10), 1836–1846. https://doi.org/10.1038/nprot.2012.116

Stirparo, G. G., Boroviak, T., Guo, G., Nichols, J., Smith, A., and Bertone, P. (2018). Integrated analysis of single-cell embryo data yields a unified transcriptome signature for the human pre-implantation epiblast. Development, 145(3), dev158501. https://doi.org/10.1242/dev.158501

Stuart, T., Butler, A., Hoffman, P., Hafemeister, C., Papalexi, E., Mauck, W. M. 3rd, … Satija, R. (2019). Comprehensive Integration of Single-Cell Data. Cell, 177(7), 1888-1902.e21. https://doi.org/10.1016/j.cell.2019.05.031

Xiang, L., Yin, Y., Zheng, Y., Ma, Y., Li, Y., Zhao, Z., … Li, T. (2019). A developmental landscape of 3D-cultured human pre-gastrulation embryos. Nature. https://doi.org/10.1038/s41586-019-1875-y

Yang, Y., Liu, B., Xu, J., Wang, J., Wu, J., Shi, C., … Deng, H. (2017). Derivation of Pluripotent Stem Cells with in vivo Embryonic and Extraembryonic Potency. Cell, 169(2), 243-257.e25. https://doi.org/10.1016/j.cell.2017.02.005

Zhou, F., Wang, R., Yuan, P., Ren, Y., Mao, Y., Li, R., … Tang, F. (2019). Reconstituting the transcriptome and DNA methylome landscapes of human implantation. Nature, 572(7771), 660–664. https://doi.org/10.1038/s41586-019-1500-0

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

1. The revised manuscript did not fully convince the reviewers that the ACL protocol represents a novel way to produce human extraembryonic endoderm.

Lines 192-194: "This revealed that all three cell populations bore a greater similarity to the hypoblast following ACL-treatment, while their similarity to the epiblast decreased, suggesting a shift towards an endodermal fate (Figure 1L)."

One is concerned the data simply show that sorting SOX17-positive cells from a mixed population of differentiating stem cells can enrich the endodermal transcriptional signature. Why is it surprising that the SOX17-positive subpopulation of differentiated stem cell lines bears similarity to endoderm, when SOX17 is known to be both necessary and sufficient for endodermal differentiation? In other words, does the novel ACL treatment protocol enhance the endodermal qualities of SOX17-positive cells that can be produced from stem cell lines by any other differentiation protocol? Given that the goal here is to establish a protocol for generating hypoblast-like cells from hESCs and the current methods direct hESCs towards definitive endoderm fate, it would be important to include in Figure 1L also definitive endoderm for comparison.

In response to this reviewer’s comment, we have added in definitive endoderm into New Figure 1L. New Figure 1L uses single cell data from the three human embryo lineages and from an in vitro definitive endoderm derivation protocol. We have replaced the previous Z-score based analysis with the previously published Gene Set Variation Analysis (GSVA) which has been shown to provide robust cell type extrapolations of bulk RNA-sequencing samples based on single-cell RNA sequencing-derived markers (Diaz-Mejia et al., 2019; Hänzelmann, Castelo, and Guinney, 2013). We have also added in a third human hypoblast dataset (Molè et al., 2021) which has been published since our last submission, further strengthening our marker analysis. This demonstrated that hESC-ACL were the most similar to definitive endoderm. Contrastingly, hEPSC-ACL and Rset-ACL were comparatively less similar to this endodermal state. Conversely, the same analysis was carried out comparing the cell lines to the human hypoblast, revealing Rset-ACL to be the most similar to the human hypoblast and hESC-ACL the least similar.

GSVA analysis requires the definition of gene signatures for each lineage used. To do this, we performed pairwise differential gene expression analysis for each lineage of interest compared to each of the others (e.g. Epiblast versus Hypoblast; Epiblast versus Trophoblast, etc.), and selected only those common markers for each of the individual gene signatures, resulting in rigorous marker selection criteria. Since different gene signatures were used for each lineage, the table presented in New Figure 1L can only be read across cell lines, not across lineages, to compare scores. To try and emphasize this, scores were normalized across rows and breaks were placed between them, and this point was emphasized in the text. Therefore, while New Figure 1L clearly shows that ACL treated cell populations show increased similarity to endodermal populations, and that hESC-ACL is more similar to definitive endoderm while Rset-ACL is more similar to hypoblast, it does not answer the question of how cell populations compare across lineages. To answer this question, we performed a direct comparison in New Figure 2 with the updated GSVA protocol (further detail provided in point 3). This revealed that hESC-ACL was more similar to in vitro definitive endoderm. Contrastingly, Rset-ACL was found to be more similar to human extra-embryonic endoderm. Collectively, the analyses in both New Figure 1L and New Figure 2 demonstrate that Rset hPSCs respond to ACL to derive an endodermal lineage that is not similar to the endodermal lineage derived using previously published protocols (definitive endoderm). The converse is true for hESCs, that respond to ACL to derive an endodermal lineage that is very much similar to previously published definitive endoderm derivation protocols.

We found hEPSC-ACL to be overall more similar to in vitro definitive endoderm than to extra-embryonic endoderm, but to an extent that is less extreme than hESC-ACL. This is likely due to the population being heterogenous as is addressed in more detail later in this response.

Please note: owing to her substantial contribution to the resubmitted manuscript in her reanalysing of the RNAseq data, Bailey Weatherbee is now listed as second author and Viviane Souza Rosa is now third. This was agreed upon by the manuscript’s authors.

2. The conclusion that pluripotent state dictates response to the ACL treatment is underdeveloped, owing to flaws in experimental design.

In fact, the authors observe major differences between biological replicate hEPSC lines in terms of their response to ACL treatment (compare Figure 1D, top Gata6, Sox17 and Figure 1 Supp 2 K, top Gata6 and Sox17. Additionally, Figure 1 Supp 2 D shows very poor resolution of Sox2 and Gata6 expressing populations after ACL treatment of this cell line). To their credit, the authors note on Line 173: "This suggests that there is a heterogeneous response to ACL-treatment within hEPSCs." Yet they then drop this cell line and exclude it from subsequent analyses.

Therefore, how can the authors be confident that the reported transcriptional differences captured in Figure 1L (among ACL-treated stem cell lines) is meaningful when they haven't really captured variation among biological replicate hEPSC cell lines?

In other words, the data shown in Figure 1L are cherry-picked because they exclude the cell line that did not perform as desired (and shown in Supp. 2).

We find this comment surprising because even if there is heterogeneity in the response to ACL treatment between cell lines, they all upregulate endodermal markers at the RNA and protein level and downregulate the pluripotency marker SOX2, in all pluripotent states other than H9 hEPSC (Figure 1 and Old Figure 1—figure supplement 2). We did not sequence H9-ACL treated cells because, as stated, RUES2-GLR contain a SOX17 reporter that allowed us to sort for SOX17+ cells in order to sequence this population. We would have liked to also do the same for H9 where it not for the lack of an endodermal reporter within this cell line.

Nonetheless, to demonstrate that we are not cherry picking our cell lines, and that, indeed, ACL has a universal effect on hPSCs, regardless of the cell line, we have repeated ACL treated on SHEF6-derived hEPSCs, hESCs and Rset hPSCs. As expected, this revealed that endodermal markers were significantly upregulated in all cases both at the RNA and protein level and that SOX2 was significantly downregulated in all cases too (New Figure 1—figure supplement 4).

3. The evidence that the authors have identified a cell type that, on the basis of transcriptome analysis, is a good model for extraembryonic endoderm is also cherry-picked because the authors focus on merely 40 genes to evaluate transcriptional phenotypes. Admittedly, selection of these 40 genes was conducted by rationale that is logical and justified. But the subsequent use of these 40 genes to compare treatments merely ranks the cell lines to each other. The analysis does not produce insight into whether these treatments are wholistically producing extraembryonic endoderm.

Moreover, even if we take the authors' word, Line 244 states: "Rset-ACL the most relatively

similar to extra-embryonic endoderm (Figure. 2C)." Similarly, Line 245 states, "hEPSC-ACL were more similar to extra-embryonic endoderm than to definitive endoderm."

Yet examination of Figure 2B does not strongly support these statements. For example, from 20 extra-embryonic endoderm genes only 6 appear to be upregulated, and from 20 definitive endoderm genes 2 are downregulated for Rset-ACL. As the differences in the number of upregulated and down regulated extra embryonic or definitive endoderm genes do not clearly identify a cell type fully aligned with hypoblast, this raises further concerns that the ACL treated cell populations are likely heterogenous rather than representing one YCLC cell type.

Although we included a list of the top 20 markers for both definitive endoderm and extraembryonic endoderm within Old Figure 2, our RNAseq analysis was not confined to just these 40 genes. As outlined within the figure legend and the main text, all differentially expressed genes for both fates were analysed and used within our analysis. This was, therefore, not an example of cherry-picking genes for our analysis.

We agree that the heatmaps provided in Old Figure 2 were misleading and not representative of the RNAseq conclusions and so we have removed them from New Figure 2. Given that the new GVSA RNAseq analysis approach (as outlined above and below) does not use Z-score-based analysis and the highlighting of top 20 markers may mislead readers into thinking these are the only genes analysed, as it confused the reviewers, we have removed both the heatmaps and list of top 20 genes from the figure. Instead, all differentially expressed genes for both human definitive endoderm and human hypoblast can be found in New Supplementary File 2.

For our revised manuscript, we have employed a new method of analysing the relative similarity of ACL-treated cell lines to either hypoblast or definitive endoderm. As outlined above in response to point 1, we used Gene Set Variation Analysis (GSVA), as this methodology can reliably be used to assign cell type labels from single cell RNA-sequencing data to bulk RNA-sequencing data (Hänzelmann et al., 2013; Diaz-Mejia et al., 2019). Once scores were calculated for both gene sets, since the gene sets are inverses of each other (i.e. positive definitive endoderm markers are negative hypoblast markers and vice versa), we subtracted the definitive endoderm score from the hypoblast score and normalized to 1 in order to place the cell populations across a relative scale. Given how similar these two endodermal populations are, placing these populations across a relative scale based on markers is helpful as more wholistic correlative analyses are unlikely to identify the few differences between them, and as well may bias towards the definitive endoderm population provided here given that the definitive endoderm is an in vitro derived cell line, while the hypoblast is embryo-derived. Therefore, we believe this newly provided GSVA analysis provides a robust, published and unbiased approach to address the cell type label transfer between the single-cell data and bulk RNA sequencing data provided here.

We have also added in a third human hypoblast dataset (Molè et al., 2021) which has been published since our last submission, further strengthening our marker analysis. This identified 366 and 1251 markers for the definitive endoderm and the extra-embryonic endoderm, respectively. All of these markers were then used to determine which of the three cell types was the most similar to human extra-embryonic endoderm relative to human definitive endoderm. This revealed that, in harmony with the results from the previous method of analysing, hESC-ACL is the most similar to human definitive endoderm and the least similar to the human hypoblast (New Figure 2C). hEPSC-ACL were found to be overall more similar to the definitive endoderm than the hypoblast, but to a smaller extent that hESC-ACL (New Figure 2C). Once again, Rset-ACL was found to be the most similar to the human extra-embryonic endoderm and the least similar to the definitive endoderm (New Figure 2C). Combined with our pairwise analysis in New Figure 1L. We feel this strongly supports Rset-ACL as the most transcriptionally similar of the three cell types to the human hypoblast.

However, not only do we look at transcriptional similarity, we also look at the dynamics of cell fate specification of these cell types in Figure 3A and B. These results demonstrate that both hEPSC-ACL and hESC-ACL upregulate the mesendoderm marker BRACHYURY, along with SOX17, during ACL treatment, a sequence of expression that is in line with the mesendoderm differentiation that occurs prior to definitive endoderm differentiation of hESCs. Contrastingly, Rset-ACL do not go through this intermediate state, and instead directly convert to an endodermal lineage. This once again demonstrates Rset-ACL to differentiate in a way that is most similar to human hypoblast.

Finally, we also analyse the functional ability of the three cell lineages to contribute to the mouse primitive endoderm. This demonstrated that both Rset-ACL and hEPSC-ACL were able to contribute (Figure 3C-E). However, hESC-ACL were not. Taking into account all of the presented transcriptional, developmental and functional evidence, we can confidently conclude that Rset-ACL is the most similar to the human hypoblast and that hESC-ACL is the most similar to human definitive endoderm, both relatively and in absolute terms. For this reason, only Rset-ACL was taken forward for further analysis within the manuscript.

hEPSC-ACL demonstrate a blend of similarity to both definitive endoderm and hypoblast and likely represent a very heterogenous population. This suggests that the starting hEPSC population may contain subpopulations with largely contrasting pluripotent states that span from naïve to primed. This is mirrored during human trophoblast stem cell induction wherein hEPSCs respond heterogeneously (Castel et al., 2020). It, therefore, does not match the expectation of a cell with full extra-embryonic potential, and given this, we did not consider it a suitable candidate for a human yolk sac-like cell.

4. Chimera experiments are lacking controls.

What is the degree chimerism when Rset and hEPSC are not cultured in ACL? Given the very minor degree chimerism (3D and 3G) and the evidence of incomplete population-level differentiation of Rset and hEPSC in ACL (see above), the possibility remains that the authors are simply testing the already-proved hypothesis that Rset and hEPSC can chimerise extraembryonic endoderm in mouse embryos (Gafni et al., 2013; Yang et al., 2017).

Moreover, in Figure 3, the number of chimera embryos analyzed nor the number of experiments are not provided.

To answer this query, we carried out interspecies chimeras with Rset hPSCs and hEPSCs. This revealed a starkly different contribution profile to both ACL-treated populations, with Rset hPSCS and hEPSC contributing purely to the epiblast in 81% and 44% of all embryos (New Figure 3—figure supplement 2). Contribution purely to the epiblast did not occur at all for Rset-ACL and hESPC-ACL chimeras. Similarly, there was no example of contribution purely to the primitive endoderm for either hEPSC or Rset hPSCs. This demonstrates that the ability of hEPSC-ACL and Rset-ACL to colonise the primitive endoderm within interspecies chimeras is not an artefact of their previous respective pluripotent state.

The number of embryos and experiments can be found in the respective legends of each figure.

5. Which cell line is the most similar to postimplantation hypoblast? Still unclear.

A transcriptional comparison was performed in Figure 4. However, the same weaknesses detailed in Point 3 above also apply here. In short, the transcriptional differences shown do not compellingly support the authors' conclusions.

As described above, in this resubmitted manuscript, a new, more rigorous process was used to draw the same conclusions presented previously. Briefly, to identify markers of either pre- or post-implantation human hypoblast, we still utilized the FindMarkers function in Seurat and used those genes with a minimum Log2 fold change of 0.25, p-value of less than 0.05 (Wilcoxon test), and expressed in at least 10% of cell type of interest to define a gene signature. This identified 397 and 618 markers for the pre-implantation and the post-implantation hypoblast, respectively. All of these markers were then used to determine which of t2ilGo-Pre or Rset-ACL was the most similar to the post-implantation human yolk sac relative to the human pre-implantation extra-embryonic endoderm (primitive endoderm) using the previously described GSVA analysis (see point 1 and point 3).

A functional analysis was performed in Figure 4 Supp. 2 in postimplantation chimeras. However, only a single cell line was evaluated (only the cell line they claim to be the most postimplantation). Therefore, this experiment lacks appropriate controls. Additionally, it is unclear why the authors chose to mimic mouse postimplantation ex vivo, when the standard is to transfer the chimeras to recipient mice to observe actual postimplantation stages.

We agree that the gold standard of this experiment would be to perform embryo transfers. However, we do not have ethical approval to carry out transfers of mouse embryos containing human cells. We, therefore, have removed the post-implantation chimera data from the revised manuscript.

6. Evaluation of "cell fate" in Figure 5 and 6 is superficial.

Only a single pluripotency marker (Sox2) and a single mesendoderm marker (T) are analysed. Therefore, the results are still preliminary and conclusions weaker than they should be.

In these experiments, gene expression is analyzed primarily at the protein level by relative fluorescence intensity (RFI).

As previously shown, we have analysed a second pluripotency marker, NANOG (Figure 5—figure supplement 1H-K), demonstrating that YSLC conditioned medium is also able to counteract the downregulation of NANOG in hESCs when exposed to both BMP4 and WNT3a in 2D, just as is the case for SOX2. Similarly, the effect of YSLC conditioned medium on NANOG and OCT4 levels in 3D was also explored (Figure 7A and B).

In addition, we have now added qPCR analysis of further posterior epiblast markers, EOMES, SOX17, MIXL1, FOXA2, and GSC (New Figure 6G). This revealed a complementary result to that already observed at the protein level: that YSLC conditioned medium is able to inhibit the upregulation of posterior epiblast markers in hESCs.

As DAPI (or other nuclear marker) images are not shown, is RFI relative to DNA label? This should be clarified.

As outline in the ‘image analysis’ section of our Materials and methods (line 911) we do not normalise to a DNA label.

7. It is not clear how stable over time are YSLC when cultured in ACL?

We have provided new evidence that YSLC are stable over long term culture by demonstrating maintenance of their endodermal fate after 1 month (New Figure 1—figure supplement 3).

The Discussion should more clearly articulate the limitations of the YSLC model and that hEPSCs gave rise to a population of cells that bears a similarity to the extra-embryonic endoderm but may also contain a definitive endoderm- like subpopulation.

We have now added further discussion concerning hEPSC heterogeneity (lines 529-542). We have also now discussed at length the limitations of our model (lines 581-608), covering how human trophoblast cells must be incorporated into our model in 3D and how YSLCs 3D culture conditions must be optimised in order for this to happen. Moreover, we discuss how future studies benchmarking the anterior hypoblast in human embryos will be needed to determine whether the YSLCs capture specifically this subpopulation.

https://doi.org/10.7554/eLife.63930.sa2

Article and author information

Author details

  1. Kirsty ML Mackinlay

    Mammalian Embryo and Stem Cell Group, University of Cambridge, Department of Physiology, Development and Neuroscience, Cambridge, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6276-4274

  2. Bailey AT Weatherbee

    Mammalian Embryo and Stem Cell Group, University of Cambridge, Department of Physiology, Development and Neuroscience, Cambridge, United Kingdom
    Contribution
    Formal analysis, Investigation, Visualization, writing- review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6825-6278

  3. Viviane Souza Rosa

    1. Mammalian Embryo and Stem Cell Group, University of Cambridge, Department of Physiology, Development and Neuroscience, Cambridge, United Kingdom
    2. National Laboratory for Embryonic Stem Cells (LaNCE), Department of Genetics and Evolutionary Biology, Institute of Biosciences, University of São Paulo, São Paulo, Brazil
    3. MRC Laboratory of Molecular Biology, Cambridge Biomedical Campus, Cambridge, United Kingdom
    Contribution
    Data curation, Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared

  4. Charlotte E Handford

    1. Mammalian Embryo and Stem Cell Group, University of Cambridge, Department of Physiology, Development and Neuroscience, Cambridge, United Kingdom
    2. Centre for Trophoblast Research, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Investigation, Data curation
    Competing interests
    No competing interests declared

  5. George Hudson

    Mammalian Embryo and Stem Cell Group, University of Cambridge, Department of Physiology, Development and Neuroscience, Cambridge, United Kingdom
    Contribution
    Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2506-6965

  6. Tim Coorens

    Wellcome Sanger Institute, Cambridge, United Kingdom
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared

  7. Lygia V Pereira

    National Laboratory for Embryonic Stem Cells (LaNCE), Department of Genetics and Evolutionary Biology, Institute of Biosciences, University of São Paulo, São Paulo, Brazil
    Contribution
    Supervision
    Competing interests
    No competing interests declared

  8. Sam Behjati

    Wellcome Sanger Institute, Cambridge, United Kingdom
    Contribution
    Supervision
    Competing interests
    No competing interests declared

  9. Ludovic Vallier

    Wellcome – MRC Cambridge Stem Cell Institute, Cambridge Biomedical Campus, Cambridge, United Kingdom
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3848-2602

  10. Marta N Shahbazi

    1. Mammalian Embryo and Stem Cell Group, University of Cambridge, Department of Physiology, Development and Neuroscience, Cambridge, United Kingdom
    2. MRC Laboratory of Molecular Biology, Cambridge Biomedical Campus, Cambridge, United Kingdom
    Contribution
    Conceptualization, Resources, Supervision, Investigation, Methodology, Project administration, Writing - review and editing
    For correspondence
    mshahbazi@mrc-lmb.cam.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1599-5747

  11. Magdalena Zernicka-Goetz

    1. Mammalian Embryo and Stem Cell Group, University of Cambridge, Department of Physiology, Development and Neuroscience, Cambridge, United Kingdom
    2. Synthetic Mouse and Human Embryology Group, California Institute of Technology (Caltech), Division of Biology and Biological Engineering, Pasadena, United States
    Contribution
    Supervision, Writing - review and editing
    For correspondence
    mz205@cam.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7004-2471

Funding

Biotechnology and Biological Sciences Research Council (1943755)

  • Kirsty ML Mackinlay

Medical Research Council (MC_UP_1201/24)

  • Marta N Shahbazi

European Molecular Biology Laboratory

  • Marta N Shahbazi

Wellcome Trust (207415/Z/17/Z)

  • Magdalena Zernicka-Goetz

National Institutes of Health (HD100456-01A1)

  • Magdalena Zernicka-Goetz

European Research Council (669198)

  • Magdalena Zernicka-Goetz

National Institutes of Health (DP1 HD104575-01)

  • Magdalena Zernicka-Goetz

University of Cambridge

  • Charlotte E Handford

Gates Cambridge Trust

  • Bailey AT Weatherbee

European Molecular Biology Organization

  • Marta N Shahbazi

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The work in the MZG laboratory is supported by grants from the Wellcome Trust (207415/Z/17/Z), the ERC advanced grant (669198), the NIH R01 (HD100456-01A1) grant, the NIH Pioneer Award (DP1 HD104575-01), Open Philanthropy/Silicon Valley Community Foundation, Weston Havens Foundation, and Shurl and Kay Curci Foundation to MZG. KM is a recipient of PhD studentship funding from the BBSRC. BATW is a recipient of a PhD studentship funded by the Gates Cambridge Trust. CEH is the recipient of a PhD studentship funded by The Centre for Trophoblast Research (University of Cambridge). Work in the group of MNS is funded by the Medical Research Council (MRC, award number MC_UP_1201/24) and the European Molecular Biology Organisation (Advanced EMBO fellowship). This research was also supported by the Cambridge NIHR BRC Cell Phenotyping Hub, who we thank for their advice and support in flow cytometry/cell sorting/imaging.

Ethics

hESC experiments: The UK Stem Cell Bank Steering Committee approved all hESC experiments. All experiments comply with the UK code of Practise for the Use of Human Stem Cell Lines.

Mouse embryo work: All national and international guidelines were followed for mouse upkeep. Experiments were approved by the Home Office, reviewed by the University of Cambridge Animal Welfare and Ethical Review Body (AWERB), and were regulated by the Animals (Scientific Procedures) Act 1986 Amendment Regulations 2012. Animals were inspected daily and those that showed health concerns were culled by cervical dislocation.

Senior Editor

  1. Kathryn Song Eng Cheah, The University of Hong Kong, Hong Kong

Reviewing Editor

  1. Lilianna Solnica-Krezel, Washington University School of Medicine, United States

Reviewer

  1. Jacob H Hanna, Weizmann Institute of Science, Israel

Version history

  1. Received: October 10, 2020
  2. Accepted: August 3, 2021
  3. Version of Record published: August 17, 2021 (version 1)

Copyright

© 2021, Mackinlay et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 4,208
    Page views
  • 484
    Downloads
  • 10
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Kirsty ML Mackinlay
  2. Bailey AT Weatherbee
  3. Viviane Souza Rosa
  4. Charlotte E Handford
  5. George Hudson
  6. Tim Coorens
  7. Lygia V Pereira
  8. Sam Behjati
  9. Ludovic Vallier
  10. Marta N Shahbazi
  11. Magdalena Zernicka-Goetz
(2021)
An in vitro stem cell model of human epiblast and yolk sac interaction
eLife 10:e63930.
https://doi.org/10.7554/eLife.63930

Categories and tags

Research organisms

Further reading

    1. Cell Biology
    2. Microbiology and Infectious Disease

    Synchronization of oscillatory growth prepares fungal hyphae for fusion

    Valentin Wernet, Marius Kriegler ... Reinhard Fischer
    Research Article Updated

    Communication is crucial for organismic interactions, from bacteria, to fungi, to humans. Humans may use the visual sense to monitor the environment before starting acoustic interactions. In comparison, fungi, lacking a visual system, rely on a cell-to-cell dialogue based on secreted signaling molecules to coordinate cell fusion and establish hyphal networks. Within this dialogue, hyphae alternate between sending and receiving signals. This pattern can be visualized via the putative signaling protein Soft (SofT), and the mitogen-activated protein kinase MAK-2 (MakB) which are recruited in an alternating oscillatory manner to the respective cytoplasmic membrane or nuclei of interacting hyphae. Here, we show that signal oscillations already occur in single hyphae of Arthrobotrys flagrans in the absence of potential fusion partners (cell monologue). They were in the same phase as growth oscillations. In contrast to the anti-phasic oscillations observed during the cell dialogue, SofT and MakB displayed synchronized oscillations in phase during the monologue. Once two fusion partners came into each other’s vicinity, their oscillation frequencies slowed down (entrainment phase) and transit into anti-phasic synchronization of the two cells’ oscillations with frequencies of 104±28 s and 117±19 s, respectively. Single-cell oscillations, transient entrainment, and anti-phasic oscillations were reproduced by a mathematical model where nearby hyphae can absorb and secrete a limited molecular signaling component into a shared extracellular space. We show that intracellular Ca2+ concentrations oscillate in two approaching hyphae, and depletion of Ca2+ from the medium affected vesicle-driven extension of the hyphal tip, abolished the cell monologue and the anti-phasic synchronization of two hyphae. Our results suggest that single hyphae engage in a ‘monologue’ that may be used for exploration of the environment and can dynamically shift their extracellular signaling systems into a ‘dialogue’ to initiate hyphal fusion.

    1. Cell Biology
    2. Microbiology and Infectious Disease

    A CRISPR-based rapid DNA repositioning strategy and the early intranuclear life of HSV-1

    Juan Xiang, Chaoyang Fan ... Pei Xu
    Research Article Updated

    The relative positions of viral DNA genomes to the host intranuclear environment play critical roles in determining virus fate. Recent advances in the application of chromosome conformation capture-based sequencing analysis (3 C technologies) have revealed valuable aspects of the spatiotemporal interplay of viral genomes with host chromosomes. However, to elucidate the causal relationship between the subnuclear localization of viral genomes and the pathogenic outcome of an infection, manipulative tools are needed. Rapid repositioning of viral DNAs to specific subnuclear compartments amid infection is a powerful approach to synchronize and interrogate this dynamically changing process in space and time. Herein, we report an inducible CRISPR-based two-component platform that relocates extrachromosomal DNA pieces (5 kb to 170 kb) to the nuclear periphery in minutes (CRISPR-nuPin). Based on this strategy, investigations of herpes simplex virus 1 (HSV-1), a prototypical member of the human herpesvirus family, revealed unprecedently reported insights into the early intranuclear life of the pathogen: (I) Viral genomes tethered to the nuclear periphery upon entry, compared with those freely infecting the nucleus, were wrapped around histones with increased suppressive modifications and subjected to stronger transcriptional silencing and prominent growth inhibition. (II) Relocating HSV-1 genomes at 1 hr post infection significantly promoted the transcription of viral genes, termed an ‘Escaping’ effect. (III) Early accumulation of ICP0 was a sufficient but not necessary condition for ‘Escaping’. (IV) Subnuclear localization was only critical during early infection. Importantly, the CRISPR-nuPin tactic, in principle, is applicable to many other DNA viruses.

    1. Cell Biology

    Mitochondrial defects caused by PARL deficiency lead to arrested spermatogenesis and ferroptosis

    Enrico Radaelli, Charles-Antoine Assenmacher ... Marco Spinazzi
    Research Article Updated

    Impaired spermatogenesis and male infertility are common manifestations associated with mitochondrial diseases, yet the underlying mechanisms linking these conditions remain elusive. In this study, we demonstrate that mice deficient for the mitochondrial intra-membrane rhomboid protease PARL, a recently reported model of the mitochondrial encephalopathy Leigh syndrome, develop early testicular atrophy caused by a complete arrest of spermatogenesis during meiotic prophase I, followed by degeneration and death of arrested spermatocytes. This process is independent of neurodegeneration. Interestingly, genetic modifications of PINK1, PGAM5, and TTC19 – three major substrates of PARL with important roles in mitochondrial homeostasis – fail to reproduce or modify this severe phenotype, indicating that the spermatogenic arrest arises from distinct molecular pathways. We further observed severe abnormalities in mitochondrial ultrastructure in PARL-deficient spermatocytes, along with prominent electron transfer chain defects, disrupted coenzyme Q (CoQ) biosynthesis, and metabolic rewiring. These mitochondrial defects are associated with a germ cell-specific decrease in GPX4 expression leading arrested spermatocytes to ferroptosis – a regulated cell death modality characterized by uncontrolled lipid peroxidation. Our results suggest that mitochondrial defects induced by PARL depletion act as an initiating trigger for ferroptosis in primary spermatocytes through simultaneous effects on GPX4 and CoQ – two major inhibitors of ferroptosis. These findings shed new light on the potential role of ferroptosis in the pathogenesis of mitochondrial diseases and male infertility warranting further investigation.
