A novel motif of Rad51 serves as an interaction hub for recombination auxiliary factors

  1. Negar Afshar
  2. Bilge Argunhan  Is a corresponding author
  3. Maierdan Palihati
  4. Goki Taniguchi
  5. Hideo Tsubouchi
  6. Hiroshi Iwasaki  Is a corresponding author
  1. School of Life Science and Technology, Tokyo Institute of Technology, Japan
  2. Institute of Innovative Research, Tokyo Institute of Technology, Japan
Research Article
  • Cited 0
  • Views 967
  • Annotations
Cite this article as: eLife 2021;10:e64131 doi: 10.7554/eLife.64131

Abstract

Homologous recombination (HR) is essential for maintaining genome stability. Although Rad51 is the key protein that drives HR, multiple auxiliary factors interact with Rad51 to potentiate its activity. Here, we present an interdisciplinary characterization of the interactions between Rad51 and these factors. Through structural analysis, we identified an evolutionarily conserved acidic patch of Rad51. The neutralization of this patch completely abolished recombinational DNA repair due to defects in the recruitment of Rad51 to DNA damage sites. This acidic patch was found to be important for the interaction with Rad55-Rad57 and essential for the interaction with Rad52. Furthermore, biochemical reconstitutions demonstrated that neutralization of this acidic patch also impaired the interaction with Rad54, indicating that a single motif is important for the interaction with multiple auxiliary factors. We propose that this patch is a fundamental motif that facilitates interactions with auxiliary factors and is therefore essential for recombinational DNA repair.

eLife digest

The DNA molecule contains the chemical instructions necessary for life. Its physical integrity is therefore vital, yet it is also under constant threat from external and internal factors. As a result, organisms have evolved an arsenal of mechanisms to repair damaged DNA. For instance, when the two complementary strands that form the DNA molecule are broken at the same location, the cell triggers a mechanism known as homologous recombination.

A protein known as Rad51 orchestrates this process, helped by an array of other proteins that include Rad55-Rad57, Rad52, and Rad54. These physically bind to Rad51 and activate it in different ways. However, exactly how these interactions take place remained unclear.

To find out more, Afshar et al. examined models of the structure of Rad51, revealing that three of the protein’s building blocks create a prominent, negatively charged patch that could be important for DNA repair. Yeast cells were then genetically manipulated to produce a modified version of Rad51 in which the three building blocks were neutralised. These organisms were unable to repair their DNA. Further biochemical tests showed that the modified protein could no longer attach well to Rad55-Rad57 or Rad54, and could not stick to Rad52 at all. In fact, without its negatively charged patch, Rad51 could not find the ends of broken DNA strands, a process which is normally aided by Rad55-Rad57 and Rad52. Taken together, these results suggest that the helper proteins all interact with Rad51 in the same place, even though they play different roles.

Faulty DNA repair processes have been linked to devastating consequences such as cell death or cancer. Understanding the details of DNA repair in yeast can serve as a template for research in more complex organisms, opening the possibility of applications for human health.

Introduction

Exogenous factors such as ionizing radiation and genotoxic chemicals can cause DNA damage. However, endogenous processes such as DNA replication and cellular metabolism can also damage DNA (Lambert and Carr, 2013). A particularly severe form of DNA damage is a DNA double-strand break (DSB), in which a single normal chromosome is separated into two pathological chromosomes. Homologous recombination (HR) is a major mechanism responsible for accurately repairing DSBs. HR is also critically important for DNA replication (Ait Saada et al., 2018). Accordingly, defects in HR lead to genome instability, which drives human diseases such as cancer (Prakash et al., 2015).

During HR, the DNA ends that are exposed at a DSB are resected to form 3’ overhangs, which are immediately coated by the single-stranded DNA (ssDNA) binding protein RPA (Symington and Gautier, 2011). The RecA-family recombinase Rad51 then displaces RPA to form a helical nucleoprotein filament known as the presynaptic filament (Sun et al., 2020). This filament can locate a segment of double-stranded DNA (dsDNA) with substantial sequence similarity (i.e.,homology) to the ssDNA (Greene, 2016). Upon identifying a homologous region, the Rad51 filament invades the intact dsDNA, displacing the non-complementary strand and forming base pairs with the complementary strand. Within the context of this displacement loop (D-loop) recombination intermediate, the 3’-end of the invading strand can be extended by utilizing the complementary strand as a template for DNA synthesis, allowing for the recovery of lost genetic information (McVey et al., 2016). The D-loop can also be expanded by Rad51-driven DNA strand exchange, which increases the extent of base pairing between the two DNA molecules. Consequently, D-loops can be processed to form Holliday junctions, which may be resolved as either crossover or non-crossover products, or they may be disassembled prior to Holliday junction formation, resulting exclusively in non-crossover outcomes (Mehta and Haber, 2014).

As the entity capable of identifying homology and driving DNA strand exchange, Rad51 is integral to DNA repair by HR (Shinohara et al., 1992; Muris et al., 1993; Sung, 1994). However, Rad51 does not function alone in vivo. Several other proteins that are required for HR have been identified in the fission yeast Schizosaccharomyces pombe including Rad52, Rad54, the Rad51 paralogs Rad55-Rad57, Swi5-Sfr1, and the lesser studied Shu complex (Ostermann et al., 1993; Muris et al., 1996; Khasanov et al., 1999; Tsutsui et al., 2000; Akamatsu et al., 2003; Khasanov et al., 2004; Martín et al., 2006). These factors are mostly conserved in the budding yeast Saccharomyces cerevisiae despite the large evolutionary distance separating the two yeasts, although it should be noted that the S. cerevisiae homolog of Swi5-Sfr1 (Mei5-Sae3) is only involved in meiotic HR (San Filippo et al., 2008; Hoffman et al., 2015; Argunhan et al., 2017a). This suggests that the requirement for a diverse array of auxiliary factors to promote recombinational DNA repair has been conserved throughout evolution, highlighting its importance. However, our understanding of how auxiliary factors promote Rad51 activity remains incomplete, although they seem to perform largely non-overlapping roles (Zelensky et al., 2014).

Sfr1 was first identified in S. pombe as an interactor of Rad51 that forms a complex with Swi5 specifically involved in promoting Rad51-dependent DNA repair (Akamatsu et al., 2003). The Swi5-Sfr1 heterodimer stimulates DNA strand exchange by potentiating Rad51’s ATPase activity and stabilizing Rad51 filaments (Haruta et al., 2006; Kurokawa et al., 2008). In addition to being widely conserved among eukaryotes, the mechanisms through which Swi5-Sfr1 promotes HR appear to be highly similar in yeasts and mammals (Tsai et al., 2012; Su et al., 2014; Su et al., 2016; Argunhan et al., 2017a; Lu et al., 2018). The Rad51 paralogs Rad55-Rad57 are another group of evolutionarily conserved auxiliary factors. Rad55 and Rad57 were identified in S. pombe based on sequence homology and genetic screening, respectively (Khasanov et al., 1999; Tsutsui et al., 2000). Relatively little is known about the molecular function of Rad55-Rad57 due to the biochemical intractability of the complex, although much like Swi5-Sfr1, it is thought to be an obligate heterodimer. The biochemical analysis that has been performed with S. cerevisiae proteins suggests that Rad55-Rad57 promotes Rad51 filament formation on RPA-coated ssDNA and protects the Rad51 filament from disruption by the Srs2 anti-recombinase (Sung, 1997; Liu et al., 2011). This is consistent with cytological observations in both S. cerevisiae and S. pombe indicating that the number of DNA damage-induced Rad51 foci, which represent Rad51 filaments at sites of ongoing DNA repair, are reduced in the absence of Rad55/Rad57 (Gasior et al., 1998; Gasior et al., 2001; Akamatsu et al., 2007).

Among recombination auxiliary factors, the absence of Rad52 results in the most severe phenotype, with deletion mutants displaying DNA damage sensitivity exceeding the rad51∆ single mutant; this has been attributed to the absolute dependency of Rad51 on Rad52, as well as Rad51-independent functions of Rad52 (Doe et al., 2004). The rad54∆ mutant also shows severe DNA damage sensitivity that is indistinguishable from rad51∆ (Muris et al., 1997), highlighting the absolute requirement for Rad54 in Rad51-dependent DNA repair. By contrast, the rad57Δ and sfr1Δ mutants show only moderate sensitivity to DNA damage, while the rad57Δ sfr1Δ double mutant is as sensitive as the rad51Δ single mutant. Based on this additivity, it was proposed that Rad55-Rad57 and Swi5-Sfr1 comprise independent sub-pathways of HR that function in parallel to promote Rad51-dependent DNA repair (Akamatsu et al., 2003; Akamatsu et al., 2007), although recent evidence has evoked a re-examination of this model (Argunhan et al., 2020).

To learn more about the relationship between Rad51 and its auxiliary factors, we sought to identify regions of Rad51 that are important for interactions with auxiliary factors. This led to the identification of an evolutionarily conserved acidic patch comprised of three residues: E205, E206, and D209. Mutation of all three residues to Ala completely ablates Rad51-dependent DNA repair, as does a single charge-reversal mutation, indicating that the negative character of this patch is critical for DNA repair. Mechanistically, these defects in DNA repair stem from abrogation of the interaction with both Rad55-Rad57 and Rad52, leading to impaired recruitment of Rad51 to sites of DNA damage. Remarkably, biochemical reconstitutions indicate that neutralization of the acidic patch also impairs the interaction with Rad54, demonstrating that a single motif of Rad51 is important for its interaction with Rad55-Rad57, Rad52, and Rad54. We propose that this acidic patch of Rad51 comprises a fundamental motif that is essential for interactions with auxiliary factors and therefore recombinational DNA repair.

Results

E205, E206, and D209 comprise a protruding acidic patch (PAP) on the exterior of the Rad51 presynaptic filament

Several motifs important for the enzymatic activity of Rad51 are located in the highly conserved ATPase core domain, which is characterized by a β-sheet consisting of mixed parallel and antiparallel β-strands (Story et al., 1992; Pellegrini et al., 2002; Shin et al., 2003; Conway et al., 2004). These include the Walker A and B motifs, which are important for ATP binding and hydrolysis (Saraste et al., 1990; Story and Steitz, 1992), and two DNA binding sites: Site 1, which is comprised of Loop 1 and Loop 2, and Site 2 (Howard-Flanders et al., 1984; Story et al., 1992). Examination of a homology (i.e., computational) model of S. pombe Rad51 (SpRad51) revealed that the surface of these regions is enriched in positive charge, consistent with roles in the binding of ATP and DNA (Figure 1A, left). By contrast, mostly negatively charged regions were found on the opposite face of SpRad51, including a protruding acidic patch, which we refer to as the PAP hereafter (Figure 1A, right). The PAP is among the most negatively charged regions on the surface of SpRad51 (Figure 1—figure supplement 1A) and is situated on a short α-helix preceding the outermost β-strand of the central β-sheet (Figure 1B and Video 1). Three acidic residues were seen to project out from this α-helix: E205, E206, and D209 (Figure 1C,D and Video 2).

Figure 1 with 1 supplement see all

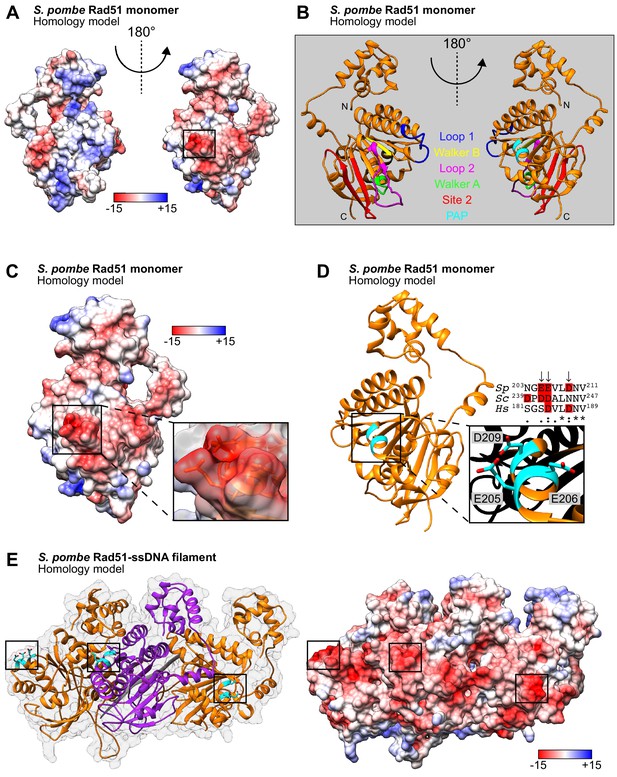

E205, E206, and D209 form a protruding acidic patch (PAP) on the exterior of the Rad51 presynaptic filament.

(A) Homology model of an SpRad51 monomer (residues 42–360). Surface representation colored according to Coulombic surface charge. The molecule on the left is rotated 180° to visualize the PAP on the right, with the region of interest squared. (B) Ribbon depiction of an SpRad51 monomer with relevant motifs highlighted. The molecules are oriented as in (A). (C) Surface representation colored according to Coulombic surface charge. The PAP is enlarged with a semi-transparent surface revealing residues E205, E206, and D209, which have their side-chains shown. (D) Ribbon depiction of SpRad51 with the α-helix containing the PAP enlarged to illustrate the respective positions of each residue (colored in cyan) with their side-chains revealed (O atoms in red). Sequence alignment shows the corresponding region in S. pombe, S. cerevisiae and H. sapiens (Sp, Sc, and Hs, respectively), with arrows indicating PAP residues in S. pombe and acidic residues highlighted in red. (E) Ribbon depiction of three SpRad51 monomers (alternating orange and purple) bound to ssDNA (9-mer poly-dT in gray) with a near-transparent surface for visualization (left). The side-chains of E205, E206, and D209 are revealed in cyan (O atoms in red) and their positions are squared. The surface is made opaque and colored according to Coulombic surface charge to demonstrate that the PAP constitutes dense, negatively charged regions on the exterior of the ssDNA filament (right). Numbers in the legends for (A,C,E) are in units of kcal/(mol•e).

Video 1
A model of the SpRad51 monomer with motifs labeled.

A homology model of the SpRad51 monomer is depicted in ribbon form and labeled as follows: N and C, N- and C-termini; L1 and L2, loop 1 and loop 2 of DNA binding site 1; A and B, Walker A and Walker B motifs; Site 2, DNA binding site 2. Residues E205, E206, and D209, which constitute the protruding acidic patch (PAP), are shown in cyan following 180° rotation of the model in the y-axis.

Video 2
Visualization of the protruding acidic patch (PAP) in monomer form.

A homology model of the SpRad51 monomer is depicted in ribbon form. The side-chains of residues E205, E206, and D209 are shown, intermittently highlighted in cyan (O atoms in red). The surface is made opaque and colored according to Coulombic surface charge to demonstrate that these residues constitute a dense negatively charged patch that we refer to as the PAP.

These residues were also examined in the context of a previously published homology model of the SpRad51 presynaptic filament (Ito et al., 2020) and found to form acidic patches constituting dense negatively charged regions on the exterior of the filament (Figure 1E and Video 3). The equivalent α-helix in the human Rad51 (HsRad51) presynaptic filament—the structure of which was determined by cryo-electron microscopy (Xu et al., 2017)—also had a negative surface charge (Figure 1—figure supplement 1B), as did the corresponding α-helix in the S. cerevisiae Rad51 (ScRad51) presynaptic filament (Figure 1—figure supplement 1C)—the structure of which was determined by X-ray crystallography (Conway et al., 2004). While E205 was replaced with a conservative Asp residue in ScRad51 and D209 was conserved in HsRad51, E206 is the only PAP residue that showed conservation in both ScRad51 and HsRad51 (Figure 1D). Thus, we initially focused on E206.

Video 3
Visualization of the protruding acidic patch (PAP) in filament form.

A homology model of the SpRad51-ssDNA filament. Ribbon depiction of three monomers (alternating orange and purple) bound to ssDNA (9-mer poly-dT in gray). The side-chains of residues E205, E206, and D209 are shown, intermittently highlighted in cyan. The surface is made opaque and colored according to Coulombic surface charge to demonstrate that these residues constitute dense negatively charged patches on the exterior of the ssDNA filament.

Rad51-E206A is specifically defective in the interaction with Rad55-Rad57

HR plays a particularly important role in the repair of ultraviolet light (UV)-induced DNA damage in S. pombe due to the existence of a UV damage endonuclease pathway (McCready et al., 2000). To examine whether E206 is important for DNA repair, it was mutated to Ala and a strain containing this mutation at the native locus was constructed. rad51-E206A showed the same resistance to UV-induced DNA damage as wild type in a clonogenic survival assay (Figure 2A), suggesting that this mutation does not affect the intrinsic ability of Rad51 to repair DNA.

Figure 2 with 1 supplement see all

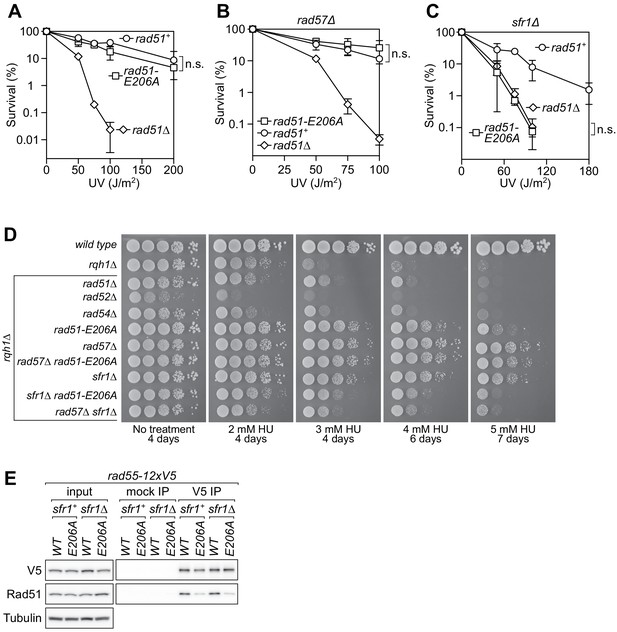

The rad51-E206A mutant is specifically defective in the interaction with Rad55-Rad57.

(A–C) Following acute UV irradiation, a clonogenic assay was employed to test the survival of rad51+, rad51-E206A, and rad51Δ in the wild-type background (A), the rad57Δ background (B), and the sfr1Δ background (C). Statistical significance at the highest dose of UV was assessed by unpaired two-tailed t-test. n.s., not significant (A, p=0.506; B, p=0.242; C, p=0.593). (D) Tenfold serial dilutions of the indicated strains were spotted onto standard media without treatment or containing hydroxyurea (HU). Following growth for the indicated time at 30°C, plates were imaged. (E) Soluble cell extracts treated with a benzonase-like nuclease were prepared from each strain under native conditions (input). Immunoprecipitation (IP) was then performed with mock (human IgG from non-immunized animal) or anti-V5 antibodies. Tubulin serves as a loading control. Data in (A–C) are means of three independent experiments and error bars depict standard deviation.

In the rad57∆/rad55∆ background, Rad51-mediated HR is reduced but not abolished, and this remaining recombinational DNA repair is dependent on Swi5-Sfr1. There is a similar reduction in recombinational DNA repair in the sfr1∆/swi5∆ background, where the remaining Rad51-mediated HR is dependent on Rad55-Rad57. However, the rad57∆ sfr1∆ double mutant displays a complete loss of Rad51-mediated DNA repair, phenocopying rad51∆. Thus, employing the rad57∆ and sfr1∆ backgrounds allows for the evaluation of DNA repair promoted by Swi5-Sfr1 and Rad55-Rad57, respectively (Akamatsu et al., 2003). The rad51-E206A rad57∆ strain was no more sensitive to UV than rad57∆ (Figure 2B), suggesting that Rad51-E206A is as proficient as wild-type Rad51 in Swi5-Sfr1–dependent DNA repair. By contrast, rad51-E206A was as sensitive as rad51∆ in the absence of Sfr1 (Figure 2C), indicating that the recombinational DNA repair promoted solely by Rad55-Rad57 is ablated by the Rad51-E206A mutation. The generality of these findings was confirmed by performing spot tests with several different genotoxins that induce replication fork stalling and a variety of lesions in DNA (Figure 2—figure supplement 1A–C).

The DNA damage sensitivity of sfr1∆ rad51-E206A is comparable in severity to rad51∆, which itself shows similar sensitivity to rad57∆ sfr1∆ and rad54∆ (Muris et al., 1997; Akamatsu et al., 2003). The rad52∆ mutant is even more sensitive to DNA damage, although this added sensitivity stems from Rad51-independent roles of Rad52 (Doe et al., 2004); a mutation that abolishes the interaction between Rad51 and Rad52 would be expected to phenocopy rad51∆, not rad52∆. Thus, it is possible that the DNA damage sensitivity associated with rad51-E206A, which manifests in the sfr1∆ background, reflects a defect in the interaction of Rad51 with Rad52 or Rad54, rather than with Rad55-Rad57. We sought to distinguish between these possibilities genetically. Rqh1 is a RecQ-family helicase (homologous to Sgs1 in S. cerevisiae and the BLM and WRN helicases in humans) that functions in S phase to prevent the accumulation of toxic recombination intermediates that arise during DNA replication (Murray et al., 1997; Stewart et al., 1997). Accordingly, rqh1∆ cells are sensitive to the ribonucleotide reductase inhibitor hydroxyurea (HU). It was previously shown that rad57∆ and sfr1∆ robustly suppress the HU sensitivity of rqh1∆ whereas rad52∆ and rad54∆ do not, presumably because the former mutations reduce HR while the latter mutations eliminate it completely (Hope et al., 2005). If Rad51-E206A is defective in the interaction with Rad55-Rad57 rather than Rad52/Rad54, then the rqh1∆ rad51-E206A strain should phenocopy rqh1∆ rad57∆ rather than rqh1∆ rad52∆/rad54∆. Consistently, rad51-E206A suppressed the HU sensitivity of rqh1∆ to almost the same degree as rad57∆ (Figure 2D). Furthermore, the suppression conferred by sfr1∆, which is dependent on Rad55-Rad57 (Hope et al., 2005), was ablated by rad51-E206A. By contrast, the suppression imparted by rad57∆ was epistatic to rad51-E206A, suggesting that they involve the same mechanism. At 5 mM HU, rad57∆ sfr1∆ could partially suppress rqh1∆ sensitivity, whereas rad51∆ and rad54∆ could not. Importantly, the sfr1∆ rad51-E206A strain was still similar to rad57∆ sfr1∆, strongly suggesting that the defect associated with rad51-E206A is related to Rad55-Rad57.

Immunoblotting experiments revealed that the level of Rad51-E206A was comparable to wild-type Rad51 (Figure 2—figure supplement 1D), indicating that the DNA repair defect of rad51-E206A is not caused by reduced protein stability. Previous yeast two-hybrid (Y2H) analysis suggested that Rad51 physically interacts with Rad55-Rad57 (Hays et al., 1995; Johnson and Symington, 1995; Tsutsui et al., 2001). Thus, a feasible explanation for the DNA damage sensitivity of rad51-E206A is that the E206A mutation disrupts the physical interaction between Rad51 and Rad55-Rad57. To test this, a sequence encoding 12 copies of the V5 epitope was fused to rad55+ at its native locus, yielding the rad55-12xV5 strain. This strain was as resistant to DNA damage as the untagged wild type (rad55+; Figure 2—figure supplement 1E), indicating that the tag does not interfere with the function of Rad55-Rad57 in DNA repair. In vivo co-immunoprecipitation (co-IP) experiments were performed in both sfr1+ and sfr1∆ backgrounds. While robust signal was observed for wild-type Rad51, substantially less Rad51-E206A was seen to co-IP with Rad55 (Figure 2E), indicating that the E206A mutation impairs Rad51–Rad55-Rad57 complex formation. The presence of Sfr1 did not have an effect on complex formation, irrespective of the E206A mutation. These results suggest that the DNA repair defect associated with rad51-E206A is related to impaired Rad51–Rad55-Rad57 complex formation and that the suppression of this DNA damage sensitivity by Swi5-Sfr1 is not through enhancing physical binding.

Rad51-E206A retains normal recombinase activity and can be stimulated by Swi5-Sfr1

Although E206 does not belong to a canonical motif involved in ATP hydrolysis or DNA binding, it remained formally possible that the E206A mutation impaired the enzymatic activity of Rad51. Rad51-E206A was therefore purified to homogeneity from Escherichia coli to investigate its biochemical properties (Figure 3—figure supplement 1).

Rad51-E206A shifted both ssDNA and dsDNA to a similar extent as wild-type Rad51 in electrophoretic mobility shift assays (EMSAs; Figure 3A,B), suggesting that the E206A mutation does not affect the ability of Rad51 to bind DNA. In addition to DNA binding, ATP hydrolysis by Rad51 is important for the DNA strand exchange reaction (Ito et al., 2018). Furthermore, Swi5-Sfr1 stimulates the ATPase activity of Rad51 (Haruta et al., 2006). We therefore examined whether Rad51-E206A is proficient for ATP hydrolysis, both with and without Swi5-Sfr1. In the absence of Swi5-Sfr1, the ATP turnover number (kcat) of both Rad51 and Rad51-E206A was ~0.2 min−1 (Figure 3C). The inclusion of Swi5-Sfr1 elicited an approximately twofold increase in ATP hydrolysis by both proteins, demonstrating that Rad51-E206A can hydrolyze ATP like wild type and is proficient for the ATPase stimulation imparted by Swi5-Sfr1.

Figure 3 with 1 supplement see all

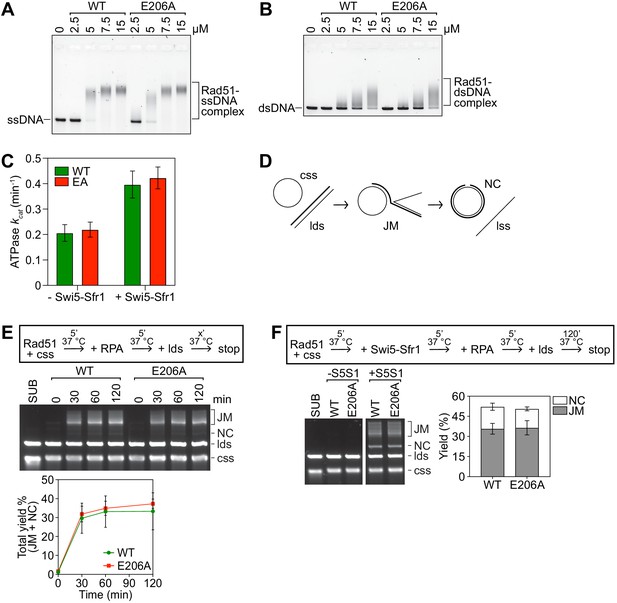

Rad51-E206A retains normal DNA binding and recombinase activity.

(A,B) The indicated concentrations of Rad51 (WT) or Rad51-E206A (E206A) were incubated with 30 micromolar nucleotide (µM nt) PhiX174 virion DNA (ssDNA; A) or 20 µM nt of linearized PhiX174 RF I DNA (dsDNA; B), protein-DNA complexes were crosslinked with glutaraldehyde and then resolved by agarose gel electrophoresis. (C) The ATPase activity of 5 µM Rad51 (WT) and Rad51-E206A (EA) was measured in the presence of ssDNA (10 µM nt), with or without Swi5-Sfr1 (0.5 µM), and kcat was calculated. (D) Schematic of the strand exchange assay with full-length DNA substrates (PhiX174 virion ssDNA and ApaLI-linearized PhiX174 RF I dsDNA). (E) Strand exchange reactions were conducted according to the scheme outlined above the gel. Rad51 (WT or E206A), 15 µM. RPA, 1 µM. cssDNA, 30 µM nt. ldsDNA, 20 µM nt. (F) Strand exchange reactions were conducted according to the scheme outlined above the gel. Rad51 (WT or E206A), 5 µM. Swi5-Sfr1 (S5S1), 0.5 µM. RPA, 1 µM. cssDNA, 10 µM nt. ldsDNA, 10 µM nt. Data in (C,E,F) are means of three independent experiments and error bars depict standard deviation.

Next, an assay with plasmid-sized DNA substrates was employed to examine the strand exchange activity of Rad51-E206A (Figure 3D). Rad51 drives the pairing of circular ssDNA (css) with homologous linear dsDNA (lds) to yield joint molecule intermediates (JMs). Following strand transfer over the length of the dsDNA substrate, JMs are converted into nicked-circular dsDNA molecules (NCs), which are the products in this assay. The different DNA species can be separated by agarose gel electrophoresis and visualized. Under our standard reaction conditions, wild-type Rad51 cannot promote JM or NC formation in the absence of auxiliary factors (Haruta et al., 2006; Kurokawa et al., 2008). However, when reaction conditions were modified by increasing the concentrations of Rad51 and DNA substrates, both Rad51 and Rad51-E206A were seen to drive the efficient pairing of css and lds to produce JMs in the absence of auxiliary factors (Figure 3E). This allowed us to evaluate whether the E206A mutation impaired the intrinsic strand exchange activity of Rad51. Although neither protein was able to drive the robust accumulation of NC, we nevertheless quantified the total yield (JM + NC) at each time point and found them to be comparable for both Rad51 and Rad51-E206A.

Our genetic analysis suggested that Rad51-E206A is proficient for the DNA repair promoted by Swi5-Sfr1. To corroborate these findings, strand exchange reactions were supplemented with Swi5-Sfr1. Note that under these standard assay conditions, which differ from those employed above, Rad51 alone cannot promote JM or NC formation, thus allowing us to better examine the effect of Swi5-Sfr1 (Haruta et al., 2006; Kurokawa et al., 2008). The inclusion of Swi5-Sfr1 efficiently stimulated both Rad51 and Rad51-E206A, with a similar accumulation of JMs and NC observed in both cases (Figure 3F). Taken together, these results indicate that Rad51-E206A retains intrinsic recombinase activity and a functional interaction with Swi5-Sfr1.

The PAP is essential for Rad51-dependent DNA repair

Our results with Rad51-E206A suggested that the PAP is required specifically for the interaction with Rad55-Rad57. We sought to test whether other mutations in the PAP also affect the interaction with Rad55-Rad57. Strains were constructed in which the rad51+ gene at its native locus was replaced with rad51-E205A, rad51-D209A, or rad51-EED (E205A, E206A, D209A). Structural models revealed that the negative surface charge of the PAP is completely neutralized by the EED mutation without affecting its protruding nature (Figure 4—figure supplement 1A,B).

The DNA damage sensitivity of these mutant strains was assessed by spot-test. Like rad51-E206A, the rad51-E205A strain did not show any DNA damage sensitivity in the presence of both Rad55-Rad57 and Swi5-Sfr1 (Figure 4A). By contrast, rad51-D209A showed marked sensitivity to DNA damage, although it was still significantly more resistant than rad51∆. Strikingly, the rad51-EED mutant was as sensitive to DNA damage as rad51∆. Since the E205A and E206A mutations alone did not sensitize cells to DNA damage, but combining them with the partially functional D209A completely incapacitated Rad51, we also examined the rad51-EE strain, in which both Glu residues are mutated to Ala. Unlike rad51-E205A and rad51-E206A, rad51-EE showed moderate sensitivity to DNA damage, although this was milder than the sensitivity of rad51-D209A. These results indicate that neutralization of the PAP completely abolishes Rad51-dependent DNA repair, and while all three residues are important, D209 plays a more prominent role than E205 and E206.

Figure 4 with 1 supplement see all

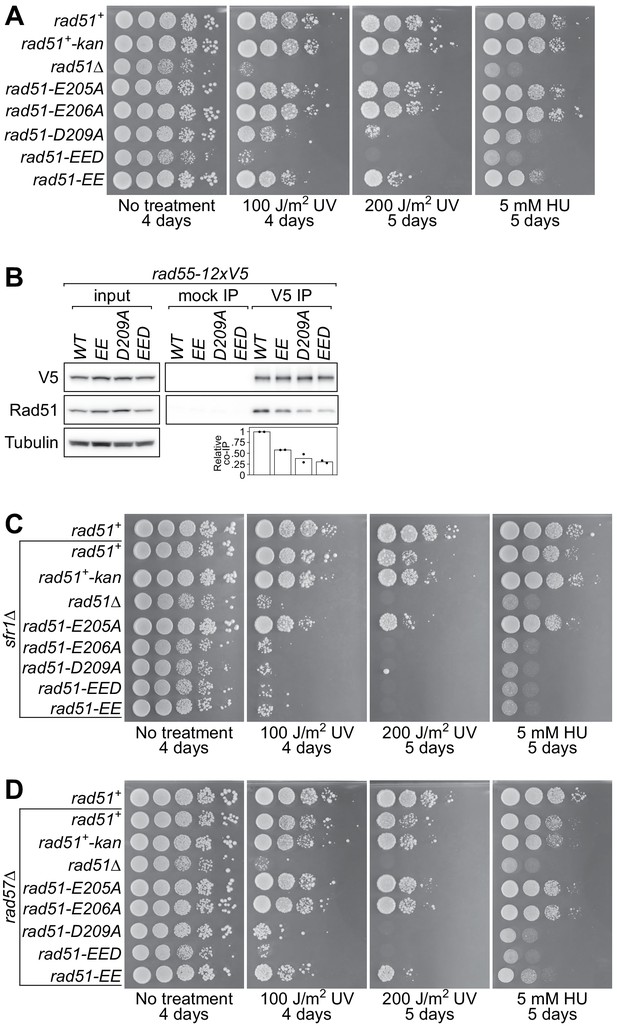

The PAP is essential for Rad51-dependent DNA repair.

(A,C,D) Tenfold serial dilutions of the indicated strains were spotted onto standard media with or without acute UV irradiation, or standard media containing 5 mM hydroxyurea (HU). Following growth at 30°C for the indicated time, plates were imaged. (B) Soluble cell extracts treated with a benzonase-like nuclease were prepared from each strain under native conditions (input). Immunoprecipitation (IP) was then performed with mock (human IgG from non-immunized animal) or anti-V5 antibodies. Tubulin serves as a loading control. For quantification, Rad51 signal was normalized to V5 signal and expressed relative to wild type. Data in (B) are the means of two independent biological replicates with individual values shown.

Because our data suggested that the E206A mutation impairs the interaction of Rad51 with Rad55-Rad57, in vivo co-IP experiments were performed to examine how other mutations in the PAP affect complex formation with Rad55-Rad57. A reduction in the amount of Rad51 that co-IPs with Rad55-12xV5 was observed in the rad51-EE, rad51-D209A, and rad51-EED strains (Figure 4B), and this reduction roughly correlated with the DNA damage sensitivity of the corresponding mutants. This result suggests that the DNA damage sensitivity of PAP mutants is partly due to reduced complex formation with Rad55-Rad57. However, given that some complex formation was still observed in the rad51-EED strain, we infer that the PAP is important but not essential for complex formation with Rad55-Rad57.

In contrast to what was observed in the presence of Sfr1, rad51-E205A showed mild DNA damage sensitivity in the sfr1∆ background (Figure 4C) and this modest difference became more obvious at higher doses of UV irradiation (Figure 4—figure supplement 1C). Both the rad51-EED and rad51-EE mutants showed comparable sensitivity to rad51∆ in this background, as was expected from the phenotype of rad51-E206A. Notably, the rad51-D209A strain was also as sensitive to DNA damage as rad51∆ in the absence of Sfr1. These results are consistent with the notion that the PAP is important for DNA repair promoted by Rad55-Rad57. However, because the DNA damage sensitivity of rad51-EED is similar to that of rad51∆ (Figure 4A), which clearly exceeds that of rad57∆, it seemed likely that the function of the PAP is not restricted to Rad55-Rad57–dependent DNA repair. To directly test if the PAP is involved in Rad55-Rad57–independent DNA repair, PAP mutants were introduced into the rad57∆ background. The rad51-E205A mutant was as resistant to DNA damage as rad51+ in the absence of Rad57, suggesting that Rad55-Rad57–independent DNA repair mechanisms are not impaired in this mutant (Figure 4D). By contrast, rad51-EE showed a modest increase in sensitivity compared to rad51+. rad51-D209A was even more sensitive than rad51-EE, although this sensitivity was still not as severe as rad51-EED and rad51∆. Consistently, rad51-EED and rad51∆ were the only strains among this set that showed a clear slow-growth phenotype (note the small colony size on the ‘No treatment’ plate in Figure 4D). The fact that the D209A and EE mutations further sensitized rad57∆ cells to DNA damage, combined with the severe sensitivity of rad51-EED, suggests that Rad55-Rad57–independent DNA repair is also impaired in these mutants. These results imply that the PAP is also relevant to the function of auxiliary factors other than Rad55-Rad57 (explored below).

If the negativity of the PAP is important for Rad51-dependent DNA repair, we reasoned that a charge-reversal mutation would be more disruptive than the Asp/Glu-to-Ala mutations employed thus far. The E205A and E206A mutations did not sensitize cells to DNA damage in the presence of both Rad55-Rad57 and Swi5-Sfr1 (Figure 4A). However, because E206 shows a higher degree of conservation than E205, it was mutated to Lys, yielding the rad51-E206K strain. In stark contrast to the rad51-E206A strain, rad51-E206K showed a clear slow-growth phenotype and was as sensitive to DNA damage as rad51∆ in the presence of both Rad55-Rad57 and Swi5-Sfr1 (Figure 4—figure supplement 1D), just like rad51-EED. Taken together, these results show that the negative character of the PAP is integral to recombinational DNA repair.

The PAP is crucial for the recruitment of Rad51 to DNA damage sites

To elucidate the mechanistic defects in DNA repair associated with neutralization of the PAP, previous immunostaining protocols for the visualization of Rad51 foci were adopted (Loidl and Lorenz, 2009; Argunhan et al., 2017b). Surface-spread nuclei were prepared from log-phase cultures, with or without prior UV irradiation, and immunostained with a polyclonal anti-Rad51 antibody (Figure 5A). Nuclei were then picked manually and foci were quantified by an automated approach using FIJI software (see Materials and methods for more details; Schindelin et al., 2012). Examples of nuclei scored by this method are shown in Figure 5B.

Figure 5 with 1 supplement see all

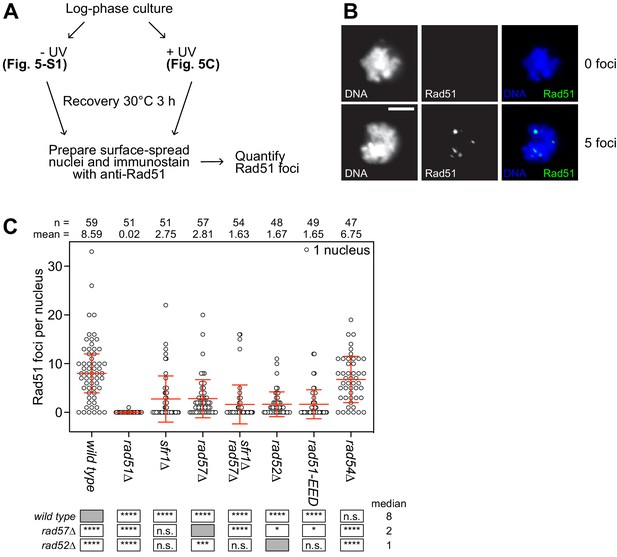

The PAP is critical for the recruitment of Rad51 to sites of DNA damage.

(A) Schematic of cytological analysis. (B) Representative images of UV-irradiated nuclear spreads containing 0 or 5 Rad51 foci. Scale bar, 5 µm. (C) The indicated strains were grown to log phase and cultures were split into two. One sub-culture was UV-irradiated (200 J/m2; shown here) and the other was not (shown in Figure 5—figure supplement 1). Following 3 hr of recovery, nuclei were surface-spread and immunostained with a polyclonal PVDF-purified anti-Rad51 antibody. The indicated number of nuclei were manually picked, images in the DAPI and Rad51 channels were captured, and semi-automated quantification of foci was performed using FIJI software. Bars depict the median and interquartile range. Mean number of foci are shown for each strain. Statistical analysis was by Wilcoxon ranked sum test with the indicated median values. n.s., not significant (p>0.05). * p<0.05. ***p<0.001. ****p<0.0001.

Figure 5—source data 1

Number of foci per nucleus following UV irradiation for Figure 5C.

https://cdn.elifesciences.org/articles/64131/elife-64131-fig5-data1-v1.xlsx

In the absence of UV irradiation, the vast majority of nuclei in all strains lacked Rad51 foci (Figure 5—figure supplement 1). By contrast, UV-irradiated nuclei contained substantially more Rad51 foci, and this was not seen in the rad51∆ strain, confirming the DNA damage-dependence and specificity of these cytological entities (Figure 5C). Nuclei from wild-type and rad52∆ strains formed an average of 8.6 and 1.7 foci, respectively, in close agreement with a previous report (Lorenz et al., 2009). As expected, both sfr1∆ and rad57∆ strains formed fewer foci than wild type, and rad57∆ sfr1∆ formed even fewer foci still (Akamatsu et al., 2007). Strikingly, nuclei from rad51-EED showed a drastic reduction in the number of foci, much like the rad57∆ sfr1∆ double mutant and the rad52∆ single mutant. These results indicate that the severe DNA damage sensitivity of rad51-EED stems from defects in the mechanisms promoting the recruitment of Rad51 to sites of DNA damage.

Rad51-EED retains intrinsic recombinase activity and can be stimulated by Swi5-Sfr1

The DNA damage sensitivity and impaired Rad51 recruitment phenotypes of rad51-EED are clearly more severe than rad57∆, pointing towards additional roles of the PAP beyond facilitating the interaction with Rad55-Rad57. This could reflect an impairment in the intrinsic activity of Rad51-EED. Alternatively, the EED mutation could impair the interaction with Swi5-Sfr1, since the phenotypes of rad51-EED are comparable to rad57∆ sfr1∆. To test these two possibilities, Rad51-EED was purified to homogeneity (Figure 6—figure supplement 1A).

Rad51-EED shifted ssDNA and dsDNA comparably to wild-type Rad51 in EMSAs (Figure 6—figure supplement 1B,C), suggesting that the EED mutation does not affect the ability of Rad51 to bind DNA. Because reaction products (NCs) were not observed in the assay that was previously employed to monitor the intrinsic strand exchange activity of Rad51 (Figure 3D,E), a shorter lds substrate was utilized with the reasoning that this might prove a less challenging substrate (Figure 6A). Both Rad51 and Rad51-E206A generated similar amounts of partial duplex molecules (PD), which are the reaction products in this assay (Figure 6B). Unexpectedly, Rad51-EED consistently displayed increased strand exchange activity. While the reason for this is unclear, these results at least indicate that neutralization of the PAP does not impair the intrinsic activity of Rad51.

Figure 6 with 1 supplement see all

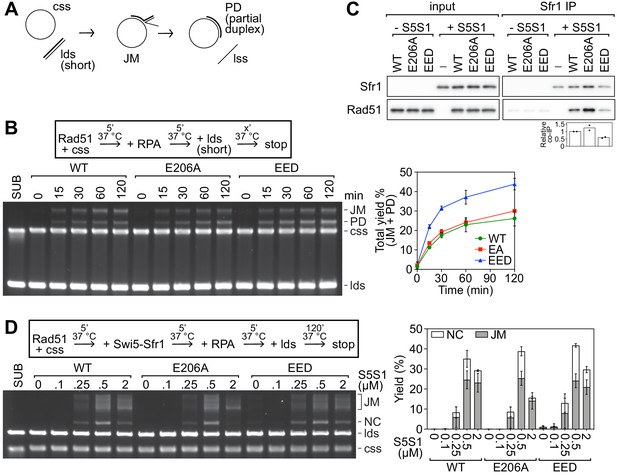

Neutralization of the PAP does not impair the intrinsic activity of Rad51 or the stimulation by Swi5-Sfr1.

(A) Schematic of the strand exchange assay with shortened DNA substrates (PhiX174 virion ssDNA and a 1.6 kb fragment of PhiX RF I dsDNA). (B) Strand exchange reactions were conducted according to the scheme outlined above the gel. Rad51 (WT, E206A, or EED), 15 µM. RPA, 1 µM. cssDNA, 30 µM nt. ldsDNA, 20 µM nt. (C) Purified Rad51 (WT, E206A, or EED) was incubated with purified Swi5-Sfr1 (or the equivalent volume of protein storage buffer) and subjected to immunoprecipitation with an anti-Sfr1 antibody. For quantification, Rad51 signal was normalized to Sfr1 signal and expressed relative to wild type. (D) Strand exchange reactions were conducted according to the scheme outlined above the gel. Rad51 (WT, E206A, or EED), 5 µM. Swi5-Sfr1 (S5S1), indicated. RPA, 1 µM. cssDNA, 10 µM nt. ldsDNA, 10 µM nt. Data in (B,D) are means of three independent experiments and error bars depict standard deviation. Data in (C) are the means of two independent experiments with individual values shown.

Figure 6—source data 1

Strand exchange yield (%) in Figure 6B,D and relative co-IP of Rad51 (%) for Figure 6C.

https://cdn.elifesciences.org/articles/64131/elife-64131-fig6-data1-v1.xlsx

If the EED mutation impairs the interaction with Swi5-Sfr1, then the binding of Swi5-Sfr1 to Rad51-EED should be abrogated. Co-IP experiments with purified proteins revealed reproducible differences in the amount of Rad51-E206A and Rad51-EED that co-IP’d with Sfr1, but these differences were relatively subtle (Figure 6C). Moreover, in our canonical strand exchange assay (Figure 3D), these differences in physical binding did not affect the stimulation of Rad51 by Swi5-Sfr1 (Figure 6D), suggesting that they are not of functional significance. We also examined the interaction of Swi5-Sfr1 with Rad51-E206K. Similarly to Rad51-EED, we saw a reproducible reduction in the co-IP of Rad51-E206K with Sfr1, but this difference is relatively subtle (less than twofold; Figure 6—figure supplement 1D). These results indicate that PAP mutations do not impair the potentiation of Rad51 by Swi5-Sfr1, leading us to conclude that the severe DNA damage sensitivity of the rad51-EED strain is unlikely to be due to a defect in the interaction with Swi5-Sfr1.

The PAP is important for the interaction of Rad51 with both Rad52 and Rad54

While a defect in the interaction with Rad54 could explain the severity of DNA damage sensitivity observed for rad51-EED, this is unlikely to be the cause of the sensitivity as rad54∆ is not defective in the recruitment of Rad51 to sites of DNA damage (Figure 5C). Thus, the remaining possibility that could account for the phenotypes of rad51-EED is that the EED mutation impairs the interaction of Rad51 with Rad52. To examine whether Rad51-Rad52 complex formation was affected by PAP mutations, in vivo co-IP experiments were performed. Comparable amounts of Rad52 were seen to co-IP with Rad51, Rad51-E206A, and Rad51-EE, whereas a clear reduction was observed for Rad51-D209A (Figure 7A). Strikingly, Rad52 was completely undetectable in the Rad51-EED immunoprecipitate, indicating that the EED mutation ablates Rad51-Rad52 complex formation in vivo. These results suggest that the exquisite DNA damage sensitivity of rad51-EED is due to defects in the interactions with both Rad55-Rad57 and Rad52. The identity of the band indicated as Rad52 was verified by using a rad52∆ strain (Figure 7—figure supplement 1A). To directly test whether the EED mutation disrupts the binding of Rad51 to Rad52, a co-IP experiment was conducted with purified proteins. Comparable amounts of Rad52 co-IP’d with Rad51 and Rad51-E206A (Figure 7B). By stark contrast, only background levels of Rad52 were seen to co-IP with Rad51-EED. Similar results were obtained in the reciprocal co-IP experiment (Figure 7—figure supplement 1B). These results clearly indicate that the PAP is essential for the Rad51-Rad52 interaction.

Figure 7 with 3 supplements see all

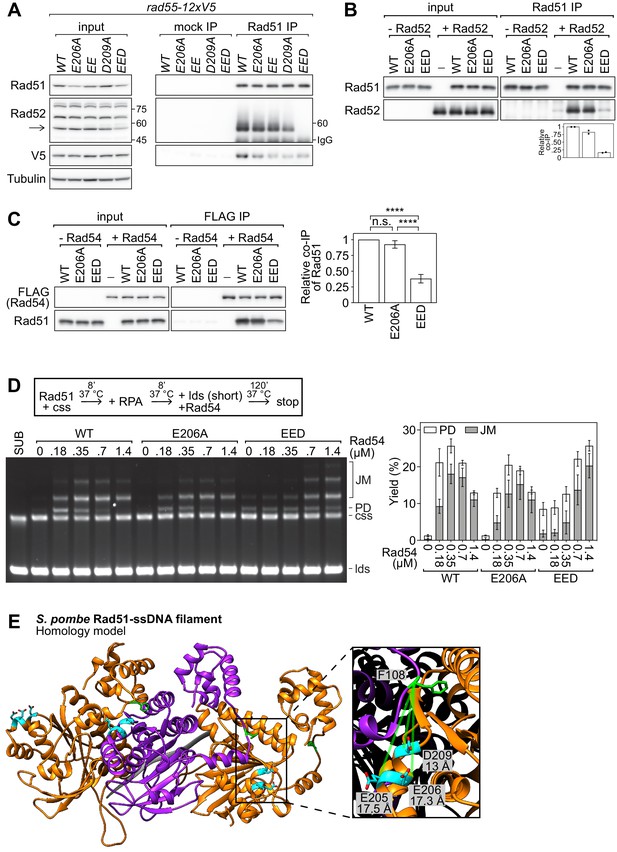

The PAP facilitates the interaction of Rad51 with Rad52 and Rad54.

(A) Soluble cell extracts treated with a benzonase-like nuclease were prepared from each strain under native conditions (input). Immunoprecipitation (IP) was then performed with mock (human IgG from non-immunized animal) or anti-Rad51 antibodies. Arrow denotes the Rad52 band (other bands were still observed in a rad52∆ strain, see Figure 7—figure supplement 1A) and numbers denote the position of the size markers in kDa. To ensure separation of Rad52 from the IgG heavy chain band, the IP samples were separated by 7% SDS-PAGE instead of the 12% SDS-PAGE employed for the input samples. As a result, the 45 kDa and 75 kDa bands of the size marker are not within the cropped area of the anti-Rad52 immunoblot for the IP sample. Tubulin serves as a loading control. (B) Purified Rad51 (WT, E206A, or EED) was incubated with purified Rad52 (or the equivalent volume of protein storage buffer) and subjected to immunoprecipitation with anti-Rad51 antibody. For quantification, Rad51 signal was normalized to Sfr1 signal and expressed relative to wild type. (C) Purified Rad51 (WT, E206A, or EED) was incubated with purified FLAG-Rad54 (or the equivalent volume of protein storage buffer) and subjected to immunoprecipitation with FLAG-agarose resin. For quantification, Rad51 signal was normalized to FLAG-Rad54 signal and expressed relative to wild type. Statistical significance was assessed by one-way ANOVA with Tukey’s multiple comparisons test. n.s., not significant (p=0.2538). ****p<0.0001. (D) Strand exchange reactions were conducted according to the scheme outlined above the gel. Rad51 (WT, E206A, or EED), 7 µM. Rad54, indicated. RPA, 0.7 µM. cssDNA, 7 µM nt. ldsDNA, 14 µM nt. (E) Ribbon depiction of three SpRad51 monomers (alternating orange and purple) bound to ssDNA (9-mer poly-dT in gray). Residues E205, E206, and D209 are colored in cyan with their side-chains shown (O atoms in red), and F108 is colored in green with its side-chain shown. The α-helix of the rightmost monomer containing E205, E206, and D209 is enlarged, along with the F108 residue of the central monomer, to illustrate the close proximity of these residues at the subunit interface. Dotted-green lines show the Cα-Cα distance between each residue and F108. The Rad51 filament is employed as a proxy to demonstrate that insertion of Phe in the FxxA motif of auxiliary factors could be facilitated by interactions with the PAP. Data in (B) are means of two independent experiments with individual values shown. Data in (C,D) are means of three independent experiments and error bars depict standard deviation.

Figure 7—source data 1

Relative co-IP of Rad52 and Rad51 in Figure 7B,C, and strand exchange yield (%) in Figure 7D.

https://cdn.elifesciences.org/articles/64131/elife-64131-fig7-data1-v1.xlsx

Our results demonstrated that the PAP is involved in the interaction of Rad51 with both Rad55-Rad57 and Rad52. We therefore considered the possibility that the PAP is commonly utilized by multiple auxiliary factors and sought to examine the interaction of Rad51 with Rad54. Unlike Rad55-Rad57 and Rad52, Rad54 functions primarily in the later stages of HR (Sugawara et al., 2003; Lisby et al., 2004). Defects in the recruitment of Rad51 to DNA damage sites—as seen in rad51-EED—would block downstream events, obscuring analysis of the Rad51-Rad54 interaction. To circumvent this, Rad54 with an N-terminal FLAG tag was purified to near-homogeneity from E. coli (Figure 7—figure supplement 1C) and its physical interaction with Rad51-EED was examined in vitro. Similar amounts of Rad51 and Rad51-E206A were seen to co-IP with Rad54, whereas an approximately threefold reduction in the co-IP of Rad51-EED was observed (Figure 7C). To examine whether this difference is of functional significance, strand exchange reactions were conducted under conditions where wild-type Rad51 alone did not produce JM or PD molecules (Rad51-EED nevertheless showed increased intrinsic strand exchange activity [Figure 7D], as expected from our previous experiments [Figure 6A,B]). Remarkably, the EED mutation rendered Rad51 less sensitive to the stimulatory effect of Rad54, with approximately fourfold more Rad54 required to achieve maximal activity. These results indicate that, in addition to facilitating the interaction of Rad51 with Rad55-Rad57 and Rad52, the PAP is also important for the interaction with Rad54.

Discussion

To understand more about the regulation of Rad51, we employed a structural approach to identify regions of Rad51 that are important for its interaction with auxiliary factors. This highlighted a protruding acidic patch, which we refer to as the PAP, comprised of residues E205, E206, and D209 on the exterior of the Rad51 filament (Figure 1). Genetic analysis strongly suggested that mutation of the most conserved residue in this patch (rad51-E206A) specifically impairs the interaction between Rad51 and Rad55-Rad57 without affecting the interaction with Swi5-Sfr1 (Figure 2), and this was bolstered by biochemical reconstitutions (Figure 3). Strikingly, mutation of all three PAP residues to Ala (rad51-EED) completely abolished recombinational DNA repair, leading to a phenotype more severe than rad57∆ (Figure 4). Mechanistically, the DNA damage sensitivity of rad51-EED was found to stem from defects in the recruitment of Rad51 to DNA damage sites (Figure 5). Biochemical reconstitutions suggested that Rad51-EED is not intrinsically defective and retains a functional interaction with Swi5-Sfr1 (Figure 6). Remarkably, the EED mutation was found to abrogate the interaction of Rad51 with Rad52 and impair the interaction with Rad54 (Figure 7). Our results indicate that the PAP, a novel motif of Rad51, is critically important for the interaction with Rad55-Rad57, Rad52, and Rad54. We propose that the PAP is a fundamental motif commonly utilized by recombination auxiliary factors to potentiate Rad51.

The PAP of Rad51 is an evolutionarily conserved motif that is integral to recombinational DNA repair

E205, E206, and D209 were found to form the PAP on the exterior of the Rad51-ssDNA filament (Figure 1A–C). Individual mutations within the PAP impaired DNA repair to differing extents. D209A had the highest penetrance, whereas E206A, and to a much lesser extent E205A, conferred sensitivity only in the sfr1∆ background, where DNA repair is strictly dependent on Rad55-Rad57 (Figure 4A and C and Figure 4—figure supplement 1C). These genetic data are consistent with the notion that the PAP is more relevant to the function of Rad55-Rad57 than Swi5-Sfr1. When both Glu residues were mutated to Ala (rad51-EE), moderate DNA damage sensitivity was observed even in the presence of both Rad55-Rad57 and Swi5-Sfr1; this synergism implies that the functions of E205 and E206 are related, and that the ability of Sfr1 to suppress the DNA damage sensitivity conferred by E206A is partially dependent on E205. Moreover, mutating all three residues to Ala (rad51-EED) completely abolished Rad51-dependent DNA repair. The additive effect of combining mutations suggests that the overall negativity of the PAP is important for its function. This is bolstered by the finding that the replacement of E206 with a positively charged Lys residue is highly disruptive, phenocopying the neutralization of all three residues via Ala mutations (Figure 4—figure supplement 1D). Thus, while all three residues are relevant to PAP function, there appears to be a hierarchy: D209A is more important than E206, which itself is more important than E205. This suggests that the closer a residue is to the C-terminal end of the α-helix (top of the helix in our structural models), the more important it is for PAP function (discussed below).

Negatively charged regions were seen in the equivalent α-helices of both ScRad51 and HsRad51 (Figure 1—figure supplement 1B,C), indicating structural conservation of the PAP. Furthermore, sequence alignments suggest that the PAP is widely conserved among eukaryotes, with residues E206 and D209 each showing conservation in seven-out-of-eight eukaryotic Rad51 orthologues (Figure 7—figure supplement 2A). Interestingly, examination of a structural model revealed conservation of the PAP in Dmc1, the meiosis-specific RecA-family recombinase (Figure 7—figure supplement 2B). The archaeal RadA polymer also exhibited substantial structural conservation of the PAP (Figure 7—figure supplement 2C). By contrast, this region showed poor sequence conservation in bacterial RecA, and although a short α-helix at the equivalent position appeared to exist in the RecA monomer (Figure 7—figure supplement 3A), a loop was seen instead in the RecA-ssDNA filament structure (Figure 7—figure supplement 3B). Furthermore, despite this region being negatively charged, this was partially due to the close proximity of residues E32 and D33 from the adjacent RecA monomer. We interpret these analyses to mean that the PAP is conserved in eukaryotic Rad51/Dmc1 and archaeal RadA, but not in bacterial RecA. While the mediator and ssDNA annealing activities of Rad52 are provided by RecFOR in bacteria, only eukaryotes and archaea also possess recombinase paralogs and Rad54 (Zelensky et al., 2014). We postulate that the PAP may have evolved in organisms where the RecA-family recombinase is potentiated by multiple distinct auxiliary factors. Consistently, it is notable that Dmc1 is subjected to extensive regulation by auxiliary factors: Swi5-Sfr1, Hop2-Mnd1, and Rdh54 simulate Dmc1 (Haruta et al., 2006; Chi et al., 2009; Tsubouchi et al., 2020); and Rad52 has been proposed to inhibit Dmc1 (Murayama et al., 2013).

The PAP plays a central role in the interaction of Rad51 with recombination auxiliary factors

The PAP-containing α-helix precedes a β-strand that is critically important for Rad51 polymerization (Pellegrini et al., 2002; Shin et al., 2003; Conway et al., 2004). This β-strand is involved in facilitating interactions with the FxxA consensus sequence within the inter-domain linker of the adjacent monomer (corresponding to 108FTTA111 in SpRad51). The Phe residue of the adjacent monomer inserts into a hydrophobic pocket above the β-strand, which stabilizes inter-subunit contacts. Because some auxiliary factors that contain the FxxA motif employ Rad51 mimicry to interact with Rad51, FxxA has been proposed to function as a Rad51 interaction motif (Pellegrini et al., 2002; Shin et al., 2003). Neither Swi5 nor Sfr1 contain the FxxA consensus sequence and we recently identified two non-FxxA sites within the intrinsically disordered N-terminal half of Sfr1 that are responsible for the binding of Swi5-Sfr1 to Rad51 (Argunhan et al., 2020). By contrast, both Rad57 (145FELA148) and Rad52 (17FNTA20 and 338FISA341) contain the FxxA consensus sequence, as does Rad54 (804FIRA807). Rad55 does not contain an FxxA motif, and notably, Y2H analysis suggested that Rad51 interacts with Rad57 but not Rad55 (Tsutsui et al., 2001). Furthermore, Y2H analysis mapped the minimal SpRad51-interacting domain of Rad52 to a C-terminal fragment (310-469) containing the 338FISA341 sequence (Kim et al., 2002), and mutation of the corresponding Phe residue to Ala in ScRad52 (F349A) completely abrogated its binding to Rad51 (Kagawa et al., 2014). Taken together, these observations strongly suggest that Rad52 employs the FxxA motif to bind Rad51.

Our results demonstrate that neutralization of the PAP impairs the interaction with Rad55-Rad57, Rad52, and Rad54, while the interaction with Swi5-Sfr1 is mostly unaffected (Figures 4B, 6C, D and 7A–D and Figure 7—figure supplement 1B). We cannot exclude the possibility that the PAP has some role in facilitating the interaction with Swi5-Sfr1, but a simple inference that can be drawn from these results is that the PAP is particularly important for auxiliary factors that employ Rad51 mimicry to modulate Rad51. The close proximity of the PAP to the Phe residue within the FxxA motif of the adjacent monomer—Cα-Cα distances for PAP residues and SpRad51-F108 are predicted to be 13.0 Å (D209), 17.3 Å (E206), and 17.5 Å (E205)—means it would be well-placed to influence interactions with auxiliary factors that employ Rad51 mimicry (Figure 7E). We speculate that this may be the mechanism through which the PAP exerts its effects on Rad51 potentiation. Since the negative charge of the PAP is important for recombinational DNA repair (Figure 4A and Figure 4—figure supplement 1D), it is likely that the PAP participates in electrostatic interactions that are important for the modulation of Rad51 by these auxiliary factors, which may utilize the PAP as a landing pad to facilitate FxxA insertion. We anticipate that a basic patch may exist that is close in three-dimensional space to the FxxA motif of each auxiliary factor, and this basic patch may be critically important for interacting with the PAP and facilitating the binding to Rad51. Interestingly, Y2H analysis by Kim et al., 2002 isolated several other mutations in SpRad51 (G177S, C179F, G282D, and L274P) that disrupt the interaction with Rad52, and these residues are also in reasonably close proximity to F108 (Figure 7—figure supplement 3C). Notably, the G177S and C179F mutations also impaired the interaction with Rad54. Moreover, the C179F mutation even abrogated the interaction with Rad57 and the self-association of Rad51. Given the close proximity of G177 and C179 to the PAP (Cα-Cα9–12 Å), it is possible that mutation of these residues affects PAP function and/or F108 insertion. These Y2H results are consistent with our proposal that multiple auxiliary factors interact with Rad51 via a mechanism involving the PAP.

PAP mutations impaired complex formation with Rad55-Rad57 in vivo (Figures 2E, 4B and 7A), but even in rad51-EED, complex formation was not completely abolished. By contrast, while formation of the Rad51-Rad52 complex was mostly unaffected by mutation of only the Glu residues within the PAP, the D209A mutation led to a marked reduction in complex formation (Figure 7A). Consistent with the notion that the PAP as a whole is important, the EED mutation completely abrogated Rad51-Rad52 complex formation. Co-IP experiments with purified proteins directly demonstrated that the interaction of Rad51 with both Rad52 and Rad54 is facilitated by the PAP (Figure 7B–D and Figure 7—figure supplement 1B). Performing such experiments with Rad55-Rad57 awaits the purification of this biochemically intractable complex.

If multiple auxiliary factors utilize the same motif to potentiate Rad51, they would be expected to compete for Rad51 binding. However, because auxiliary factors perform non-overlapping roles in HR, the requirement for binding Rad51 is likely to be temporally distinct, with Rad52 being the most upstream binding partner, followed by Rad55-Rad57, then Rad54 (Sugawara et al., 2003; Lisby et al., 2004). Furthermore, the Rad51 nucleoprotein filament contains as many PAP motifs as there are monomers in the filament, providing ample opportunities for auxiliary factors to bind Rad51 in a non-competitive manner. Notably, the PAP is important for interactions with auxiliary factors involved in both the early (Rad52 and Rad55-Rad57) and late (Rad54) stages of DNA strand exchange, indicating that the PAP is integral to the role of Rad51 in HR. Further research is needed to examine the temporospatial coordination of Rad51 binding, especially in light of the finding that some auxiliary factors such as Rad55-Rad57 and Swi5-Sfr1 interact with each other (Argunhan et al., 2020).

rad51-E206A uncovers insights into the interplay between Rad55-Rad57 and Swi5-Sfr1

Substantial genetic analysis suggests that the defects of rad51-E206A stem specifically from an impairment in the interaction with Rad55-Rad57. This is supported by biochemical analysis demonstrating that the intrinsic strand exchange activity of Rad51-E206A is comparable to wild type, and its interaction with Swi5-Sfr1, Rad52, and Rad54 is not grossly impaired. Interestingly, the rad51-E206A mutant was proficient for DNA repair in the presence of Sfr1, but completely defective in its absence (Figure 2A–C and Figure 2—figure supplement 1A–C). This suppression did not occur through enhancing Rad51–Rad55-Rad57 complex formation (Figure 2E), suggesting that Swi5-Sfr1 can functionally compensate for defects in the physical association of Rad51 with Rad55-Rad57. Swi5-Sfr1 may function in a contingency capacity for Rad55-Rad57 such that a moderate reduction in Rad51–Rad55-Rad57 complex formation does not affect DNA repair as long as Swi5-Sfr1 is present. Suppression of the DNA damage sensitivity associated with rad51-E206A by Sfr1 contradicts the commonly accepted model wherein Rad55-Rad57 and Swi5-Sfr1 comprise independent sub-pathways of HR (Akamatsu et al., 2003; Akamatsu et al., 2007). We recently showed that Rad55-Rad57 can suppress defects in the interaction between Swi5-Sfr1 and Rad51, and that Swi5-Sfr1 physically interacts with Rad55-Rad57 (Argunhan et al., 2020). Thus, there is increasing evidence to suggest that Rad55-Rad57 and Swi5-Sfr1, while capable of functioning independently of each other, collaboratively promote Rad51-dependent DNA repair.

In summation, we have characterized an acidic patch of Rad51 that comprises an evolutionarily conserved motif important for the interaction of Rad51 with its major auxiliary factors: the Rad51 paralogs Rad55-Rad57, Rad52, and Rad54. While this motif is essential for HR in S. pombe, the extent to which it is required in other organisms remains to be determined and will likely be a focal point of future research.

Materials and methods

Sequence alignments and structural models

Request a detailed protocol

Sequence alignments were prepared using Clustal Omega (UniProt identifiers are: S. pombe, P36601; S. cerevisiae, P25454; U. maydis, Q99133; C. elegans, G5EGG8; D. melanogaster, Q27297; G. gallus, P37383; M. musculus, Q08297; H. sapiens, Q06609). All structural depictions were prepared using UCSF Chimera (Pettersen et al., 2004). The Coulombic Surface Coloring feature in UCSF Chimera was employed to depict surface charge. The model of an SpRad51 monomer was generated by Phyre2 (intensive mode; Kelley et al., 2015) based on two known structures of ScRad51 (Conway et al., 2004; Chen et al., 2010), with Protein databank (PDB) identifiers 1SZP and 3LDA; and one known structure of HsRad51 (Short et al., 2016) with PDB identifier 5JZC. 46 residues (1–41 and 361–365) of the SpRad51 monomer were modeled ab initio and these low confidence regions were omitted from the model. The SpRad51-ssDNA filament model consisting of three monomers is a homology model that was described previously by Ito et al., 2020. This structure was previously deposited in the Biological Structure Model Archive (identification code BSM00017). The structure of Rad51-EED was analyzed by substituting E205, E206, and D209 to Ala through the Rotamer feature. The model of an SpDmc1 monomer was also generated by Phyre2 (intensive mode; Kelley et al., 2015) based on three known structures of RadA (Shin et al., 2003; Wu et al., 2004; Chen et al., 2007), with PDB identifiers 1PZN, 1T4G, and 2DFL; two known structures of ScRad51 (Conway et al., 2004; Chen et al., 2010), with PDB identifiers 1SZP and 3LDA; and one known structure of HsRad51 (Short et al., 2016) with PDB identifier 5JZC. Residues 1–14 were modeled ab initio and were therefore omitted from the model.

The HsRad51-ssDNA filament shown is the structure resolved by cryo-electron microscopy (Xu et al., 2017; PDB 5H1B), whereas the ScRad51-ssDNA filament shown is the structure solved by X-ray crystallography (Conway et al., 2004; PDB 1SZP, chains E and F). Note that ssDNA density is missing from the structure of the ScRad51-ssDNA filament model, despite the formation of crystals in the presence of ssDNA (Conway et al., 2004). The structure of the Pyrococcus furiosus RadA polymer was solved by X-ray crystallography (Shin et al., 2003; PDB 1PZN, chains G, A, and B). The RecA monomer (Story et al., 1992; PDB 2REB) and ssDNA filament (Chen et al., 2008; 3CMU) structures were solved by X-ray crystallography.

Schizosaccharomyces pombe strains

Request a detailed protocol

S. pombe strains used in this study are listed in the Key Resources Table. All strains are isogenic derivatives of strain YA119 (Akamatsu et al., 2003). For most assays, strains of the h minus mating type were employed (Msmt-0), except in Figure 1D (mat1PD17::LEU2). Standard media was used for growth (YES), selection (YES with drugs or EMM), and sporulation (SPA), as described previously (Hentges et al., 2005). All reasonable requests for strains will be fulfilled by the co-corresponding authors (B. Argunhan and H. Iwasaki).

Primers used in this study are listed in the Key Resources Table. In order to introduce the rad51-E206A mutation at the native rad51+ locus, plasmid p6 (pET11b-rad51+; Haruta et al., 2006) was amplified with mutagenic primers 398–400 and 399–405 to produce amplicons 1 and 2, respectively. Amplicon 3, containing the ADH1 terminator (TADH1) and kanMX6 cassette, was amplified from the C-terminal epitope tagging plasmid p51 (pFA6a-13xMYC-kanMX6) using primers 350–351. Regions upstream and downstream of the rad51+ locus were amplified with primers 409–412 and 417–419 to yield amplicons 4 and 5, respectively. All five amplicons were cloned onto the pBlueScript II SK (+) vector using the In-Fusion Cloning Kit (Takara) to generate plasmid pNA46. pNA46 was then cut with restriction enzymes MscI and XhoI (NEB) and the fragment containing rad51-E206A-TADH1-kanMX6 was gel extracted and transformed into strain NA310 (wild type). rad51-E205A, rad51-EE, rad51-D209A, rad51-EED, and rad51-E206K were made in exactly the same way using plasmids pBA144, pBA146, pBA145, pBA148, and pBA152, respectively. To generate the rad55-12xV5 strain, plasmid p85 (pNX3c-PK12; Amelina et al., 2016) was PCR-amplified with primers 200–201 and the wild-type strain (NA310) was transformed with this amplicon. All cloning and genetic manipulations were confirmed by DNA sequencing. Sequence alignments were prepared with Clustal Omega.

DNA damage sensitivity assays

Request a detailed protocol

A single colony was streaked as a patch onto a YES plate and grown at 30°C for 1–2 days. This patch was then resuspended in 2 mL of YES and grown with shaking at 30°C for ~24 hr. Cells were seeded into 2 mL of fresh YES (0.25 × 106 cells/mL for rad+; 0.5 × 106 cells/mL for rad-) and grown with shaking at 30°C until they reached log phase. For spot tests, cell density was adjusted to 2 × 107 cells/mL and tenfold serial dilutions were made. 5 µL of each dilution was spotted onto YES plates without drugs and YES plates containing DNA damaging agents. For UV treatment, a YES plate without drugs was UV-irradiated. Cells were incubated at 30°C or 21°C, as indicated. For clonogenic survival assays, cells were prepared as described above and spread onto YES plates, which were then exposed to acute UV irradiation of the specified dose. Colonies were counted after 3–4 days of incubation at 30°C and survival percentage was expressed relative to the number of colonies on the untreated plate. Statistical analysis was by unpaired two-tailed t-test using GraphPad Prism (version 8).

Extraction and detection of cellular proteins

Request a detailed protocol

A single colony was streaked as a patch on a YES plate and grown for 1–2 days at 30°C. This patch was resuspended in 2 mL of YES and grown with shaking at 30°C for 24 hr. Cells were seeded into 70 mL of fresh YES (0.15 × 106 cells/mL for rad+; 0.30 × 106 cells/mL for rad-) and grown in 500 mL baffled flasks with shaking at 30°C until they reached log phase. Cells were harvested and cell pellets were resuspended in 35 mL of sterile water and divided into two equal aliquots (±UV). +UV aliquots were transferred into a petri dish at a depth of ~0.5 cm and exposed to UV (200 J/m2), while -UV aliquots were mock treated. Each aliquot was then resuspended in 35 mL fresh YES and allowed to recover at 30°C for 3 hr with shaking. Cells were then harvested and treated as previously described (Argunhan et al., 2020). Briefly, 1 × 108 cells were resuspended in 1 mL of ice-cold water and mixed with 150 µL of 1.85 M NaOH 7.5% β-mercaptoethanol on ice for 15 min. 150 µL of 55% TCA was then added, followed by mixing and a further 10 min incubation on ice. Precipitated proteins were pelleted by sequential centrifugation (20000 g, 10 min, 2°C; then 20000 g, 1 min, 2°C). Pellets were resuspended in 100 µL of urea buffer (8 M urea, 5% SDS, 200 mM Tris-Cl pH 6.8, 1 mM EDTA, 0.01% BPB) freshly supplemented with 0.1 M DTT and 0.2 M Tris and dissolved on a thermomixer (65°C 10 min 1300 RPM). Proteins were then separated by SDS-PAGE and transferred to PVDF membranes. Antibodies against Rad51 (1:10,000; Argunhan et al., 2020) and Tubulin (1:10,000; Sigma T5168) were employed. Horseradish peroxidase (HRP)-conjugated secondary antibodies were purchased from GE Healthcare (mouse, 1:5,000, NA931; rabbit, 1:5,000, NA934) or Jackson Immunoresearch Labs (rat, 1:10000, 712-035-153).

In vivo immunoprecipitation (IP)

Request a detailed protocol

A single colony was resuspended in 20 mL YES and grown with shaking at 30°C (24 hr for rad+; 48 hr for rad-). Cells were seeded into 1 L of fresh YES (0.2 × 106 cells/mL for rad+; 0.4 × 106 cells/mL for rad-) in 5 L baffled flasks and grown with shaking at 30°C until they reached log phase. Cultures were then supplemented with 0.5 mM PMSF and harvested by centrifugation (6000 g, 15 min, 2°C), and pelleted cells were washed with 20 mL of yeast wash solution (50 mM HEPES [pH 7.5], 70 mM KOAc, 1 mM PMSF). Aliquots of 2 × 109 cells were pelleted, frozen in liquid nitrogen, and stored at −80°C until use. IP experiments were then carried out as previously described (Argunhan et al., 2017b). Briefly, a single cell pellet was resuspended in 400 µL of KA50 buffer (50 mM HEPES-KOH [pH 7.5], 50 mM KOAc, 5 mM MgOAc, 0.05% Igepal CA-630, 10% glycerol, 0.25 mM TCEP, 0.5 mM PMSF, 2x cOmplete protease inhibitor cocktail [Roche], 10 mM β-glycerophosphate, 10 mM NaF, 1 mM sodium orthovanadate) and mixed with an equal volume of glass beads (500 micron) on ice. Cells were then broken using a Yasui Kikai Multi-beads Shocker (2700 RPM, 30 s on/off, 12 cycles, 2°C). The lysate was recovered, and the glass beads were washed with 200 µL of KA50 buffer and combined with the lysate. The lysate was then treated with 250 units of TurboNuclease (Accelagen) for 30 min at 4°C with mixing. The lysate was then sequentially cleared (20,000 g, 10 min, 2°C; then 20,000 g, 5 min, 2°C), a sample was taken for immunoblotting (input) and mixed with an equal volume of 2x SDS loading buffer (120 mM Tris-HCl [pH 6.8], 4% SDS, 20% glycerol, 0.02% BPB, 200 mM DTT), and the remaining soluble cell extract was divided into three equal aliquots in protein Lo-Bind tubes (Eppendorf). Anti-V5 (mouse; MCA1360 Bio-Rad), anti-Rad51 (rabbit; Haruta et al., 2006), or ChromPure Human IgG (mock antibody; 009-000-003 Jackson Immunoresearch Laboratories) antibodies were premixed with Dynabeads Protein A (Thermo Fisher Scientific) and incubated with each aliquot of soluble cell extract with gentle mixing (3 hr, 4°C). Aqueous fractions were separated using a magnetic stand and the beads were briefly washed with buffer KA50 (300 µL, x3). The beads were then resuspended in 75 µL of 1x SDS loading buffer and proteins were eluted using a thermomixer (IP; 65°C 10 min 1300 RPM). Samples were separated by SDS-PAGE, transferred to PVDF membranes and detected with the following antibodies: anti-V5, mouse (1:10,000; Bio-Rad); anti-Rad51, rat (1:10,000; Argunhan et al., 2020); anti-Rad52, rabbit (1:5,000; Kurokawa et al., 2008); and anti-Tubulin, mouse (1:10,000, T5168 Sigma-Aldrich). HRP-conjugated secondary antibodies were purchased from GE Healthcare (mouse, 1:5000, NA931; rabbit, 1:5,000, NA934) or Jackson Immunoresearch Labs (rat, 1:10,000, 712-035-153). FIJI software (Schindelin et al., 2012) was used for quantification of in vivo IPs. Briefly, background subtraction was performed by the rolling ball method and the signal for IP’d and co-IP’d protein was quantified. The co-IP’d signal was then divided by the IP’d signal and expressed relative to wild type. Graphs were prepared using GraphPad Prism (version 8).

Protein purification

Request a detailed protocol

E. coli BL21 (DE3) RIPL strain was used for purification of S. pombe Rad51, RPA, Swi5-Sfr1, and Rad52. Rad51 (plasmid p6; pET11b-rad51+), Rad51-E206A (plasmid pNA42; pET11b-rad51-E206A), and Rad51-EED (plasmid pBA161; pET11b-rad51-E205A-E206A-D209A) were expressed with 1 mM IPTG at 18°C for ~14 hr and purified exactly as previously described (Kurokawa et al., 2008). Rad51 mutants behaved similarly to wild-type Rad51 throughout the purification process. S. pombe RPA was expressed from plasmid p69 (pET11b-ssb2-ssb3-ssb1) and Swi5-Sfr1 was expressed from plasmid p71 (pBKN220-sfr1-swi5) as for Rad51, and purified exactly as previously described (Haruta et al., 2006; Kurokawa et al., 2008). Rad52 was expressed from plasmid p76 (pET11b-rad52+) with 1 mM IPTG at 30°C for 3 hr and purified exactly as previously described (Kurokawa et al., 2008).

S. pombe Rad54 fused to an N-terminal tag—containing a hexahistidine tag, the Fh8 fusion partner (Costa et al., 2013), and a FLAG epitope, with a PreScission protease recognition site between the Fh8 and FLAG components (pBA110; pET15b-6xHis-Fh8-PreScission-1xFLAG-rad54+)—was expressed in 20 L of E. coli strain BL21 (DE3) Star at an OD of ~0.45 with 1 mM IPTG at 18°C for ~14 hr. Cells were harvested by centrifugation, washed with E. coli wash solution (50 mM Tris-Cl [pH 7.5], 150 mM NaCl, 1 mM PMSF), and stored at −80°C until required. Cell pellets (~53 g) were then resuspended in 250 mL of R buffer (20 mM Tris-Cl [pH 7.5], 10% glycerol, 1 mM EDTA) containing 500 mM NaCl, 5 mM MgOAc, 0.5 mM ATP, 2 mM imidazole, 1 mM DTT, 0.5 mM PMSF, and 0.01% igepal CA-630. Cells were then disrupted by sonication and the lysate was cleared by ultracentrifugation (70,000 g 1 hr 2°C). The clarified lysate was incubated with 10 mL of cOmplete His-Tag Purification Resin (Roche) with gentle mixing (1 hr 4°C). The resin was poured into a glass column (Bio-Rad Econo-column, 2.5 cm x 10 cm) and washed sequentially with the same buffer used for lysis (50 mL x4) and R buffer containing 500 mM NaCl, 5 mM imidazole, 1 mM DTT, and 0.5 mM PMSF (50 mL x8). Proteins were then eluted in R buffer containing 300 mM NaCl, 300 mM imidazole, and 0.5 mM TCEP (2 mL x4). Eluates were combined, supplemented with PreScission protease (GE Healthcare), and dialyzed against 1 L of the same buffer without imidazole (overnight 4°C). The protein sample was diluted in 2x volumes of R buffer containing 0.5 mM TCEP and applied to a 1 mL HiTrap Q column equilibrated with R buffer containing 100 mM NaCl and 0.5 mM TCEP. Rad54, which was found in the flow-through, was then applied to a 1 mL HiTrap Heparin column equilibrated with R buffer containing 100 mM NaCl and 0.5 mM TCEP. Proteins were then eluted with a linear gradient (20 mL 0.1–0.6 M NaCl). Peak fractions containing Rad54 were combined, diluted with 9x volumes of R buffer containing 0.5 mM TCEP, then applied to a 1 mL Resource S column equilibrated with R buffer containing 50 mM NaCl and 0.5 mM TCEP. Proteins were eluted with a linear gradient (20 mL 0.05–0.7M NaCl), then peak fractions were pooled and developed in a 16/60 Superdex 200 PG gel filtration column in R buffer containing 300 mM NaCl and 0.5 mM TCEP. Peak fractions were pooled, diluted with 2x volumes of R buffer containing 0.5 mM TCEP, and applied to a 1 mL Resource S column. Proteins were eluted with a linear gradient (40 mL 0.1–0.5 M NaCl). Rad54 eluted at ~220 mM NaCl and was subsequently concentrated using a Vivaspin six centrifugal concentrator (MWCO 30 kDa). The concentration was estimated by measuring the A280 with a molar extinction coefficient of 72530 M−1 cm−1. The concentrated protein was frozen in small aliquots using liquid nitrogen and stored at −80°C until required. The yield of highly purified Rad54 was ~0.5 mg. Chromatography columns were purchased from GE Healthcare.

Electrophoretic mobility shift assay (EMSA)

Request a detailed protocol

Rad51 (wild type, Rad51-E206A, or Rad51-EED) was incubated with 30 micromolar nucleotide (µM nt) of PhiX174 virion DNA or 20 µM nt of ApaLI-linearized PhiX RFI DNA in EMSA buffer (30 mM HEPES-KOH [pH 7.5], 150 mM KCl, 3 mM MgCl2, 2 mM ATP, 1 mM DTT, 5% glycerol). The 10 µL reaction was incubated at 37°C for 15 min. 1.1 µL of 2% glutaraldehyde was then added and incubation was continued for a further 5 min at 37°C. 2.5 µL of loading dye was added and 3 µL of the reaction was loaded onto a 0.8% agarose gel in TAE buffer (50 V 120 min). The gel was then stained with SYBR Gold (Thermo Fisher Scientific) and imaged using a LAS4000 mini (GE Healthcare).

ATPase assay

Request a detailed protocol

The ATPase assay was conducted exactly as previously described (Argunhan et al., 2020). Briefly, 5 µM of Rad51 or Rad51-E206A was mixed with 10 µM nt of PhiX174 virion DNA on ice in ATPase buffer (30 mM Tris-Cl [pH 7.5], 100 mM KCl, 3.5 mM MgCl2, 1 mM DTT, 5% glycerol), and either 0.5 µM Swi5-Sfr1 or the equivalent volume of protein storage buffer was added. Reactions were then initiated through the addition of 0.5 mM ATP and 10 µL aliquots were withdrawn at multiple timepoints spanning the initial reaction rate, immediately mixed with 2 µL of 120 mM EDTA and stored at room temperature. The concentration of inorganic phosphate was then measured with a commercial malachite green phosphate detection kit (BioAssay Systems) according to the manufacturer’s instructions.

Three-strand exchange assay

Request a detailed protocol

To examine the intrinsic strand exchange activity of Rad51, 15 µM of Rad51 (wild type, Rad51-E206A, or Rad51-EED) was incubated with 30 µM nt PhiX174 virion DNA (NEB) for 5 min at 37°C in strand exchange buffer (30 mM Tris-HCl [pH7.5], 1 mM DTT, 150 mM KCl, 3.5 mM MgCl2, 2 mM ATP, 8 mM phosphocreatine, 8 units/mL creatine phosphokinase and 2.5% glycerol). Next, 1 µM of RPA was added to the reaction and after a 5 min incubation, the reaction was initiated with 20 µM nt of PhiX RFI DNA (NEB) linearized with ApaLI. In the case of the shortened lds substrate, a 1.6 kb dsDNA fragment was employed instead, and this was prepared by digesting PhiX RFI DNA with both MfeI and XhoI. 10 µL was collected immediately after the addition of dsDNA (0 min) and the remaining reaction was then incubated at 37°C. 10 µL aliquots were subsequently withdrawn at the indicated timepoints (15, 30, 60, and 120 min). At each timepoint, samples were supplemented with 1 µL of psoralen (200 µg/mL) and subjected to psoralen-UV crosslinking to capture labile DNA structures. Reactions were then deproteinized through addition of 1.8 µL of stop solution (6.6 mg/mL proteinase K and 2.65% SDS) and incubation at 37°C for 30 min. 2.5 µL of loading dye (15% w/v Ficoll, 0.25% Bromophenol blue, 0.25% Xylene cyanol and 20 mM Tris [pH 7.5]) was added to the reactions, and following mixing, 4 µL of the reaction was loaded and resolved in a 0.8% agarose gel in TAE buffer (50 V 120 min). The gel was then stained with SYBR Gold (Thermo Fisher Scientific) and imaged using a LAS4000 mini (GE Healthcare).

In strand exchange assays containing Swi5-Sfr1, 5 µM of Rad51 (wild type, Rad51-E206A, or Rad51-EED) was incubated with 10 µM nt PhiX174 virion DNA (NEB) for 5 min at 37°C in strand exchange buffer (same as above except the total salt concentration was 100 mM KCl). Next, 0.5 µM of Swi5-Sfr1 (or the indicated concentration) was added and following a 5 min incubation at 37°C, 1 µM of RPA was included. After a further 5 min at 37°C, the reaction was initiated with 10 µM nt of PhiX RFI DNA (NEB) linearized with ApaLI and incubated for 120 min at 37°C. Subsequent procedures were carried out as described above.

In strand exchange assays containing Rad54, 7 µM of Rad51 (wild type, Rad51-E206A, or Rad51-EED) was incubated with 7 µM nt PhiX174 virion DNA (NEB) for 8 min at 37°C in strand exchange buffer (same as above except the total salt concentration was 100 mM KCl). Next, 0.7 µM RPA was added and incubation was continued at 37°C for 8 min. The reaction was then initiated with 14 µM nt of the shortened lds (described above) and immediately supplemented with the indicated concentration of Rad54. Incubation was continued for 120 min at 37°C. Subsequent procedures were carried out as described above.

Quantification was performed as previously described (Haruta et al., 2006) except that FIJI software was employed (Schindelin et al., 2012). Briefly, background was subtracted using the rolling ball method, the signal corresponding to lds, NC/PD, and (JM/1.5) in a given lane was summed and set equal to 100%, and the signal for NC/PD and/or JM was expressed as a percentage of this.

Immunofluorescence microscopy

Request a detailed protocol

Strains were cultured and treated (±UV) exactly as described in Extraction and detection of cellular proteins, and nuclear spreads were prepared as described (Loidl and Lorenz, 2009; Argunhan et al., 2017b) with minor modifications. 10 mL of cell culture (~1×108 cells) was harvested by centrifugation (2300 g 2 min), washed with 1 mL of 1 M sorbitol, and then resuspended in 1 mL of lysing solution (1 M sorbitol, 1 mM DTT, 0.2 mg/mL zymolyase, 12 mg/mL lysing enzyme [Sigma-Aldrich L1412]) and incubated at 30°C for 30 min with gentle mixing. Spheroplasts were washed with 1 mL of 1 M sorbitol-1xMES (100 mM 2-[N-morpholino] ethanesulfonic acid, 1 mM EDTA, 0.5 mM MgCl2), then resuspended with 100 µL of 1x MES premixed with 350 µL of 3.3% of paraformaldehyde and immediately spread onto glass slides. Once the slides had half-dried (~10 min), they were washed with Photo-Flo 200 Solution (1 mL x2; 146 4510 Kodak) and left to fully air-dry in the dark (~1 hr) before storing at −20°C. For immunostaining, the slides were first washed in a Coplin jar with PBS and blocked using PBS-5% BSA solution for 30 min at room temperature in a moisture chamber. 100 µL of PBS-5% BSA supplemented with affinity purified anti-Rad51 antibody (1:300, provided by Hiroshi Iwasaki) was spread onto the slides with a cover slip and incubated at 4°C overnight in a moisture chamber. Slides were washed with PBS (5 min x3) and subsequent steps were carried out with minimal exposure to ambient light. 100 µL of PBS-5% BSA supplemented with anti-rabbit Alexa fluor 488 antibody (1:300; A11034 Thermo Fisher Scientific) was spread onto the slide with a cover slip, followed by a 3 hr incubation in a moisture chamber at room temperature. Slides were then washed with PBS (5 min x3) and left to air-dry (~30 min). Mounting media (90% glycerol, 0.1xPBS, 1 mg/mL p-Phenylenediamine [Sigma P6001], 1 µg/mL 4’,6-diamidino-2-phenylindole [DAPI; Sigma D9542]) was added in a dropwise fashion onto each slide, spread with a coverslip, and then sealed. Images of nuclei were captured using a wide field fluorescent microscope (Nikon Eclipse 80i) with a 100x objective fitted with an sCMOS camera (C13440 Hamamatsu).

The number of foci for each spread nucleus was quantified using FIJI (Schindelin et al., 2012) according to the following procedure. Following the application of a Gaussian blur (sigma = 2) to the Rad51 (green) channel, the DAPI (blue) and Rad51 channels were subjected to Auto Thresholding (MaxEntropy) and Auto Local Thresholding (Bernsen, radius = 13), respectively. The Rad51 channel was then subjected to the Watershed and Ultimate Points processes, followed by the Find Maxima function. The DAPI channel was subjected to the Analyze Particles process (≥200 pixels2) to add the areas of nuclei to the Region-Of-Interest (ROI) Manager. These ROIs were then overlayed onto the Rad51 channel and the measure function of the ROI Manager was employed. The resulting RawIntDen value for each nucleus was then divided by 255 to yield the number of foci. A graph portraying the results was prepared using GraphPad Prism (version 8), which was also used for statistical analysis (Wilcoxon ranked sum test).

In vitro IP

Request a detailed protocol

Purified proteins (250 nM each) were mixed together on ice in IP buffer (30 mM Tris-Cl [pH 7.5], 150 mM NaCl, 3.5 mM MgCl2, 0.1% igepal CA-630, 0.25 mM TCEP, 1 mM ATP, 5% glycerol; input sample) and incubated at 30°C for 15 min. Reactions were then incubated on ice for 5 min and supplemented with either anti-FLAG M2 affinity agarose gel (Sigma-Aldrich) for IP of Rad54 or Dynabeads Protein A (ThermoFisher Scientific) preincubated with anti-Sfr1, anti-Rad51, or anti-Rad52 antibodies (Haruta et al., 2006; Kurokawa et al., 2008). Following mixing at 4°C for 1.5 hr, the beads were washed with IP buffer (400 µL x1) and eluted in 1x SDS loading buffer (IP sample). Proteins were then separated by SDS-PAGE and detected by immunoblotting with anti-Rad51 (rat 1:10,000; Argunhan et al., 2020), anti-Sfr1 (mouse 1:200; Argunhan et al., 2020), anti-FLAG (mouse 1:10,000; Sigma-Aldrich F3165), or anti-Rad52 (rabbit 1:10,000; Kurokawa et al., 2008) antibodies. FIJI software (Schindelin et al., 2012) was used for quantification of in vitro IPs. Briefly, background subtraction was performed by the rolling ball method and the signal for IP’d and co-IP’d protein was quantified. The co-IP’d signal was then divided by the IP’d signal and expressed relative to wild type. Graphs were prepared using GraphPad Prism (version 8).

Appendix 1

Appendix 1—key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Schizosaccharomyces pombe; Msmt-0Wild typeAkamatsu et al., 2003NA310leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51-E206A-kanMX6This studyNA211leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51::hphMX6This studyBA263leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51-E206A- kanMX6 rad57::hphMX6This studyNA253leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad57::hphMX6This studyBA268leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad57::hphMX6 rad51::natMX6This studyNA383leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0sfr1::kanMX6This studyNA138leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0sfr1::kanMX6 rad51::hphMX6This studyNA233leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51-E206A-kanMX6 sfr1::kanMX6This studyNA236leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2Wild typeThis studyBA396leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6This studyNA324leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6 rad51::hphMX6This studyNA394leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6 rad52::arg3This studyBA546leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6 rad54::ura4This studyBA548leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6 rad51-E206A-kanMX6This studyNA387leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6 rad57::hphMX6This studyNA396leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6 rad57::hphMX6 rad51-E206A-kanMX6This studyNA389leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6 sfr1::kanMX6This studyNA386leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6 sfr1::kanMX6 rad51-E206A-kanMX6This studyNA398leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; mat1PD17::LEU2rqh1::natMX6 rad57::hphMX6 sfr1::kanMX6This studyNA391leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad52::arg3Hiroshi Iwasaki (lab stock)BA481leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad54::ura4Hiroshi Iwasaki (lab stock)BA518leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51-E205A-E206A-D209A-kanMX6This studyBA499leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51+-kanMX6This studyNA209leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51-E205A-kanMX6This studyBA445leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51-D209A-kanMX6This studyBA493leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51-E205A-E206A-kanMX6This studyBA449leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55-12xV5-natMX6This studyBA172leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55-12xV5-natMX6 rad51-E206A-kanMX6This studyNA238leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55-12xV5-natMX6 sfr1::kanMX6This studyBA170leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55-12xV5-natMX6 rad51-E206A-kanMX6 sfr1::kanMX6This studyNA243leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55-12xV5-natMX6 rad51-E205A-E206A-kanMX6This studyBA529leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55-12xV5-natMX6 rad51 D209A-kanMX6This studyBA521leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55-12xV5-natMX6 rad51-E205A-E206A-D209A-kanMX6This studyBA523leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad57::hphMX6 rad51+-kanMX6This studyNA249leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad57::hphMX6 rad51-E205A-kanMX6This studyBA443leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad57::hphMX6 rad51-D209A-kanMX6This studyBA491leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad57::hphMX6 rad51-E205A-E206A-D209A-kanMX6This studyBA501leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad57::hphMX6 rad51-E205A-E206A-kanMX6This studyBA447leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0sfr1::kanMX6 rad51+-kanMX6This studyNA222leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0sfr1::natMX6 rad51-E205A-kanMX6This studyBA461leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0sfr1::natMX6 rad51-E206A-kanMX6This studyBA476leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0sfr1::natMX6 rad51-D209A-kanMX6This studyBA485leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0sfr1::nathMX6 rad51-E205A-E206A-kanMX6This studyBA463leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0sfr1::natMX6 rad51-E205A-E206A-D209A-kanMX6This studyBA497leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55::natMX6Argunhan et al., 2020BA150leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55-12xV5-natMX6This studyBA165leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad55::arg3 sfr1::kanMX6Argunhan et al., 2020BA126leu-1–32 ura4-D18 his3-D1 arg3-D1
S. pombe; Msmt-0rad51-E206K-kanMX6This studyBA552leu-1–32 ura4-D18 his3-D1 arg3-D1
AntibodyRat polyclonal anti-Rad51Argunhan et al., 20201:10,000
AntibodyMouse monoclonal anti-tubulinSigma-AldrichT51681:10,000
AntibodyMouse monoclonal anti-V5Bio-RadMCA13601:10,000
4 µL / IP
AntibodyRabbit polyclonal anti-Rad51Haruta et al., 200610 µL / IP
AntibodyChromPure Human IgG, whole molecule polyclonalJackson Immunoresearch Laboratories009-000-0030.336 µL / IP
AntibodyRabbit monoclonal
Alexa fluor 488
Thermo Fisher ScientificA110341:300
AntibodyMouse monoclonal anti-Sfr1Argunhan et al., 20201:200
AntibodyMouse monoclonal anti-FLAG-tagSigma-AldrichF31651:10,000
AntibodyRabbit polyclonal anti-Rad52Kurokawa et al., 20081:10,000
AntibodyAnti-mouse IgG (HRP-conjugated)GE HealthcareNA9311:5000
AntibodyAnti-rabbit IgG (HRP-conjugated)GE HealthcareNA9341:5000
AntibodyAnti-rat IgG (HRP-conjugated)Jackson Immunoresearch Laboratories712-035-1531:10,000
Recombinant DNA reagentPhiX174 virion DNA (ssDNA plasmid)NEBN3023L
Recombinant DNA reagentPhiX174 RF I DNA (dsDNA plasmid)NEBN3021L
Peptide, recombinant proteinS. pombe Rad51Kurokawa et al., 2008
Peptide, recombinant proteinS. pombe Rad51-E206AThis study
Peptide, recombinant proteinS. pombe Rad51 E205A-E206A-D209AThis study
Peptide, recombinant proteinS. pombe RPAHaruta et al., 2006
Peptide, recombinant proteinS. pombe Swi5-Sfr1Haruta et al., 2006
Peptide, recombinant proteinS. pombe Rad52Kurokawa et al., 2008
Peptide, recombinant proteinS. pombe Rad54This study
Commercial assay or kitAmicon Ultra-15, 10K MWCOMerckUFC901096
Commercial assay or kitDynabeads Protein AThermoFisher10002D
Commercial assay or kitImmunoStar Zeta chemiluminescence solutionFujiFilm Wako297–72403
Commercial assay or kitMalachite Green Phosphate Assay KitBioAssay SystemsPOMG-25H
Commercial assay or kitTurboNucleaseAccelagenN0103P
Commercial assay or kitLysing enzymeSigma-AldrichL1412
Commercial assay or kitIn-Fusion HD CloningTaKaRa639650
Chemical compound, drugATPSigma-AldrichA2383
Chemical compound, drugPhosphocreatine di(tris) saltSigma-AldrichP1937
Chemical compound, drugBio-Safe Coomassie StainBio-Rad1610786
Chemical compound, drugProteinase KTaKaRa9034
Chemical compound, drugCreatine KinaseSigma-Aldrich10127566001
Sequenced-based reagent398_FThis studyPCR primersCCTCTAGAAATAATTTTGTTTAACTTTAAGAAGGAGATATACATA
Sequenced-based reagent400_RThis studyPCR primersATCCAAAACTGCCTCACCATTTAAGCCATA
Sequenced-based reagent399_FThis studyPCR primersAATGGTGAGGCAGTTTTGGATAACGTTGCA
Sequenced-based reagent405_RThis studyPCR primersCTTTGTTAGCAGCCGGATCC
Sequenced-based reagent350_FThis studyPCR primersGATTGGAAATCGTAAGGATCCGCGAATTTCTTATGATTTATGATTTTTATT
Sequenced-based reagent351_RThis studyPCR primersATAGTAAGGAGTCCTCAGTATAGCGACCAGCATTC
Sequenced-based reagent409_FThis studyPCR primersCGGTATCGATAAGCTTGATATCCATAAGACTGAGGCAGAGGT
Sequenced-based reagent412_RThis studyPCR primersCTCTGTATCTGCCATTATAACTTGTTAAGCACGAAATTATCAC
Sequenced-based reagent417_FThis studyPCR primersCTGGTCGCTATACTGATTATTTTAGTATCGTTTCATTTTTATTTATTATTTTGCA
Sequenced-based reagent419_RThis studyPCR primersGCGGTGGCGGCCGCTCTAGAGCATGCTTGGAAGGCTTT
Sequenced-based reagent200_FThis studyPCR primersCTACTGGTATTCAGGATTATCAAAGTATTCCTACCAATAGCTCACAACGACGTAAGAGATCCATTTTGGAATGTGAGTCCCGGATCCCCGGGTTAATTAA
Sequenced-based reagent201_RThis studyPCR primersTAGGTATAATAAATTAATAGATATGGGCAAAACAACCATCACTATGCTAAAAAATTCGTAACTGAAGCCACCATTTTTACGAATTCGAGCTCGTTTAAAC
Software, algorithmFIJISchindelin et al., 2012
Software, algorithmPrism version 8GraphPad
OtherDAPI stainSigma-AldrichD9542(1 mg/mL)

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 2-7, Figure 5-figure supplement 1, and Figure 6-figure supplement 1D.

References

    1. Khasanov FK
    2. Savchenko GV
    3. Bashkirova EV
    4. Korolev VG
    5. Heyer WD
    6. Bashkirov VI
    (1999)
    A new recombinational DNA repair gene from Schizosaccharomyces pombe with homology to Escherichia coli RecA
    Genetics 152:1557–1572.
    1. Muris DF
    2. Vreeken K
    3. Carr AM
    4. Murray JM
    5. Smit C
    6. Lohman PH
    7. Pastink A
    (1996)
    Isolation of the Schizosaccharomyces pombe RAD54 homologue, rhp54+, a gene involved in the repair of radiation damage and replication fidelity
    Journal of Cell Science 109:73–81.
    1. Tsutsui Y
    2. Morishita T
    3. Iwasaki H
    4. Toh H
    5. Shinagawa H
    (2000)
    A recombination repair gene of Schizosaccharomyces pombe, rhp57, is a functional homolog of the Saccharomyces cerevisiae RAD57 gene and is phylogenetically related to the human XRCC3 gene
    Genetics 154:1451–1461.
    1. Tsutsui Y
    2. Khasanov FK
    3. Shinagawa H
    4. Iwasaki H
    5. Bashkirov VI
    (2001)
    Multiple interactions among the components of the recombinational DNA repair system in Schizosaccharomyces pombe
    Genetics 159:91–105.

Decision letter

  1. Wolf-Dietrich Heyer
    Reviewing Editor; University of California, Davis, United States
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States
  3. Wolf-Dietrich Heyer
    Reviewer; University of California, Davis, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This is an excellent contribution that identified an acidic patch as a key interaction site on fission yeast Rad51 that mediates the interactions with Rad52, Rad54, and the Rad55-Rad57 paralog complex. The combined genetic, biochemical, and cytological analysis of the mutants is both insightful and compelling. The authors can exclude a potential artifact that the interaction mutants affect protein structure/function in a more trivial manner. The insights have significant impact on the thinking how the Rad51-ssDNA filament coordinates the interactions with its key interaction partners, Rad52, Rad54, and Rad55-Rad57. In the revision the authors addressed all points in the critique and further strengthened an already strong contribution.

Decision letter after peer review:

Thank you for submitting your article "A novel motif of Rad51 serves as an interaction hub for recombination auxiliary factors" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Wolf-Dietrich Heyer as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Jessica Tyler as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

Summary:

This is an excellent contribution that identified an acidic patch as a key interaction site on fission yeast Rad51 that mediates the interactions with Rad52, Rad54, and the Rad55-Rad57 paralog complex. The study succeeds of identifying Rad51 interaction sites with these factors, where earlier studies in budding yeast failed. The combined genetic, biochemical, and cytological analysis of the mutants is both insightful and compelling. The authors can exclude a potential artifact that the interaction mutants affect protein structure/function in a more trivial manner. The insights will have significant impact on the thinking how the Rad51-ssDNA filament coordinates the interactions with its key interaction partners, Rad52, Rad54, and Rad55-Rad57. The manuscript stands on its own without further experimentation. Acceptance depends on the points listed below, which ask for clarifications and explanations. The authors may want to consider two points (#1, 2) about experimental controls that can be easily addressed.

Essential revisions:

1) Potential experimental addition: Figure 7A: Please show the immunoblot comparing wild type with rad52Δ to prove that the labeled band is indeed Rad52 protein.

2) Potential experimental addition: Figure 7C: Is the result of the reduced rad51-EED:Rad54 reproducible and significant? Quantitation of several independent experiments would be better here.

3) Are the molecular "models" (e.g., Figure 1) based on physical determination (X-ray crystallography or cryoEM, for example), or are they computational models based on other known structures? This should be clarified.

4) The use of rqh1Δ in Figure 2D should be explained. Is it more sensitive to HU than wt, and if so, why? Why does rad51Δ weakly, and rad51-E206A or sfr1Δ strongly, suppress that sensitivity? While this assay shows the deduced interactions of Rad51-E206A with Rad57 and Sfr1, knowing the basis of this assay would help.

5) It's unclear what part of Rad55-57 etc. binds to the PAP. Is there a "basic patch" on it? Is the FxxA motif thought to bind the PAP? If so, how? (I'd expect FxxA to bind a hydrophobic patch.) Similarly for Rad52 and Rad54.

6) Further explanation of the strand exchange assays (Figures 3, 6, and 7) would help. What is limiting in these assays (e.g., subsection “Rad51-E206A retains normal recombinase activity and can be stimulated by Swi5-Sfr1”)? Why do the results for Rad51-E206A in Figure 3E differ from those in Figure 3F? Why is the concentration of Rad51 (etc.) different in panels E and F of Figure 3?

7) Is the anti-Rad51 antibody (subsection “The PAP is crucial for the recruitment of Rad51 to DNA damage sites”) mono- or polyclonal? Does it bind the mutant Rad51-EED protein? Without knowing it binds the mutant, interpreting the data is hard.

8) In the subsection “Rad51-EED retains intrinsic recombinase activity and can be stimulated by Swi5-Sfr1”, does Rad51-E206K interfere with Swi5-Sfr1 binding or action? Perhaps PAP is important for that interaction, and this stronger mutation might block it.

9) In the subsection “The PAP plays a central role in the interaction of Rad51 with recombination auxiliary factors”, it says PAP is close to the Phe of FxxA, but later says 13 – 18 Angstroms. This does not seem "close," because it is about 1/3 of the distance across a Rad51 molecule. Is there evidence that amino acids interact over such a distance?

10) Which nuclease was used in the experiments in Figures 2, 4, and 7?

https://doi.org/10.7554/eLife.64131.sa1

Author response

Essential revisions:

1) Potential experimental addition: Figure 7A: Please show the immunoblot comparing wild type with rad52Δ to prove that the labeled band is indeed Rad52 protein.

This experiment has now been included as Figure 7—figure supplement 1A. The band that migrates slightly faster than the 60 kDa size marker is the only band that is not observed in the rad52∆ strain. The positions of relevant size markers have also been indicated in Figure 7A to allow a more meaningful comparison with this control experiment. A brief description of this has been added to the legend for Figure 7. Please note that the intensities of the nonspecific bands relative to Rad52 are slightly different in Figure 7A and Figure 7—figure supplement 1A. This is because the former is a sample of soluble protein extract whereas the latter is the whole-cell extract prepared by TCA precipitation. We have also seen that the relative intensities of these bands can vary depending on the extent of blocking.

2) Potential experimental addition: Figure 7C: Is the result of the reduced rad51-EED:Rad54 reproducible and significant? Quantitation of several independent experiments would be better here.

The Rad54-Rad51 co-IP experiment has now been performed in triplicate and quantified. As shown in Figure 7C, the reduced interaction observed for Rad51-EED is reproducible and statistically significant. By contrast, the interaction of Rad51-E206A with Rad54 is comparable to wild type. The description of these results has been updated (subsection “The PAP is important for the interaction of Rad51 with both Rad52 and Rad54”).

3) Are the molecular "models" (e.g., Figure 1) based on physical determination (X-ray crystallography or cryoEM, for example), or are they computational models based on other known structures? This should be clarified.

All molecular models of SpRad51 are homology (i.e., computational) models. This has now been clearly stated in the text (subsection “E205, E206, and D209 comprise a protruding acidic patch (PAP) on the exterior of the Rad51 presynaptic filament”). In addition, all figures containing molecular models now have a small annotation specifying whether the model is a homology model, derived from cryo-EM, or derived from X-ray crystallography. Further details are also available in the Materials and methods sections.

4) The use of rqh1Δ in Figure 2D should be explained. Is it more sensitive to HU than wt, and if so, why? Why does rad51Δ weakly, and rad51-E206A or sfr1Δ strongly, suppress that sensitivity? While this assay shows the deduced interactions of Rad51-E206A with Rad57 and Sfr1, knowing the basis of this assay would help.

Thank you for bringing this oversight to our attention. We have now included a more detailed explanation of the basis behind the rqh1∆ experiment, including two additional references (subsection “Rad51-E206A is specifically defective in the interaction with Rad55-Rad57”). Briefly, toxic HR intermediates can accumulate in the absence of Rqh1. Mutations that impair HR suppress the production of these intermediates to differing extents. Those that mildly impair HR (i.e., rad57∆, sfr1∆, rad51-E206A) strongly suppress the sensitivity to HU by reducing the formation of these toxic intermediates. While mutations that severely impair HR (i.e., rad51∆, rad52∆, rad54∆, rad57∆ sfr1∆) also reduce the formation of these toxic intermediates, they also abolish (or nearly abolish) HR itself, leading to HU sensitivity and reduced suppression of rqh1∆.

5) It's unclear what part of Rad55-57 etc. binds to the PAP. Is there a "basic patch" on it? Is the FxxA motif thought to bind the PAP? If so, how? (I'd expect FxxA to bind a hydrophobic patch.) Similarly for Rad52 and Rad54.

Evidently, the explanation of our model was inadequate. We apologise for the confusion this may have caused. We completely agree that the FxxA motif of each auxiliary factor would be expected to interact with a hydrophobic region. In fact, we expect that FxxA would insert into the same hydrophobic pocket employed by Rad51 itself. We did not mean to suggest that the PAP of Rad51 would bind to the FxxA motif of each auxiliary factor. Rather, we propose that a basic patch close to the FxxA motif of each auxiliary factor would bind to the PAP through electrostatic interactions, which would then facilitate the insertion of the FxxA motif of an auxiliary factor into the hydrophobic pocket of Rad51. This is also related to point (9). We employed the Rad51 filament model—in which the FxxA motif of one Rad51 monomer inserts into the hydrophobic pocket of the adjacent monomer—as a proxy for how we envision an auxiliary factor might bind to Rad51 via Rad51 mimicry (Figure 7E). When we stated that the PAP is in close proximity to the FxxA motif (13-18 Å), we did not mean that the PAP could directly interact with FxxA over such distances. Instead, we infer that the PAP is well-placed to bind positively charged regions that are close in 3D space to the FxxA motif of auxiliary factors. We speculate that the PAP functions as a landing pad, which perhaps facilitates the orientation of auxiliary factors or functions as a scaffold to promote FxxA insertion. We have now revised the relevant section of the Discussion and hope this has improved clarity.

Related to this, we also included a reference to a highly complementary paper with S. cerevisiae proteins showing that mutation of the Phe residue in the FxxA motif of Rad52 disrupts the interaction with Rad51 (Kagawa et al., 2014).

6) Further explanation of the strand exchange assays (Figures 3, 6, and 7) would help. What is limiting in these assays (e.g., subsection “Rad51-E206A retains normal recombinase activity and can be stimulated by Swi5-Sfr1”)? Why do the results for Rad51-E206A in Figure 3E differ from those in Figure 3F? Why is the concentration of Rad51 (etc.) different in panels E and F of Figure 3?

For each assay, we have now clearly stated that the conditions may differ between figures and have included an explanation of why we employed each condition (Results). Unlike ScRad51, SpRad51 does not efficiently promote JM/NC formation in the three-strand exchange assay even when the order-of-addition is favourable, making it difficult to compare the intrinsic strand exchange activity of wild-type Rad51 with mutants. We were able to partially overcome this problem by increasing the concentration of substrate (3x ssDNA, 3x Rad51, 2x dsDNA, x is relative to our standard reaction condition [Haruta et al., 2006; Kurokawa et al., 2008]; Figure 3E). We were later able to circumvent this problem entirely by utilizing a shorter dsDNA substrate (Figure 6B). In order to more clearly examine the effect of Swi5-Sfr1 (Figures 3F, 6D), we revert to the standard reaction condition in which Rad51 alone is unable to form JM/NC, as this provides a cleaner comparison between ± Swi5-Sfr1. For Rad54, we again employ a condition where wild-type Rad51 alone does not show any activity (Figure 7D). However, in this case, we modify the concentrations of substrate slightly since we have to employ the short dsDNA substrate (the full-length substrate yields high-molecular weight species that likely arise from a single ssDNA molecule engaging multiple dsDNA molecules, as previously reported with S. cerevisiae Rad54 [Petukhova et al., 1998; Solinger et al., 2001]).

7) Is the anti-Rad51 antibody (subsection “The PAP is crucial for the recruitment of Rad51 to DNA damage sites”) mono- or polyclonal? Does it bind the mutant Rad51-EED protein? Without knowing it binds the mutant, interpreting the data is hard.

The anti-Rad51 antibody is polyclonal, thus it is highly unlikely that three amino acid substitutions would significantly impact its affinity for Rad51. Consistent with this notion, we did not see a difference in the ability of the antibody to recognize purified Rad51-EED in immunoblotting experiments (e.g., Figure 6C).

8) In the subsection “Rad51-EED retains intrinsic recombinase activity and can be stimulated by Swi5-Sfr1”, does Rad51-E206K interfere with Swi5-Sfr1 binding or action? Perhaps PAP is important for that interaction, and this stronger mutation might block it.

We purified Rad51-E206K and examined the physical interaction with purified Swi5-Sfr1. Similar to Rad51-EED, we saw a reproducible reduction in the co-IP of Rad51-E206K with Swi5-Sfr1, but this reduction was relatively subtle (Figure 6—figure supplement 1D). A description of this result has been included in the revised manuscript (subsection “Rad51-EED retains intrinsic recombinase activity and can be stimulated by Swi5-Sfr1”).

9) In the subsection “The PAP plays a central role in the interaction of Rad51 with recombination auxiliary factors”, it says PAP is close to the Phe of FxxA, but later says 13 – 18 Angstroms. This does not seem "close," because it is about 1/3 of the distance across a Rad51 molecule. Is there evidence that amino acids interact over such a distance?

Please see our response to point (5) above.

10) Which nuclease was used in the experiments in Figures 2, 4, and 7?

The commercial name of the nuclease is described in the Materials and methods (TurboNuclease from Accelagen). This is a benzonase-like endonuclease that non-specifically targets both ssDNA and dsDNA. The manufacturer does not call it benzonase, probably for proprietary reasons, although it is essentially marketed as a cheaper alternative to benzonase. We have added the “benzonase-like” descriptor to each figure legend containing in vivo IP results.

https://doi.org/10.7554/eLife.64131.sa2

Article and author information

Author details

  1. Negar Afshar

    1. School of Life Science and Technology, Tokyo Institute of Technology, Tokyo, Japan
    2. Institute of Innovative Research, Tokyo Institute of Technology, Tokyo, Japan
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3448-6710
  2. Bilge Argunhan

    Institute of Innovative Research, Tokyo Institute of Technology, Tokyo, Japan
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    bargunhan@bio.titech.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6023-7654
  3. Maierdan Palihati

    1. School of Life Science and Technology, Tokyo Institute of Technology, Tokyo, Japan
    2. Institute of Innovative Research, Tokyo Institute of Technology, Tokyo, Japan
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
  4. Goki Taniguchi

    1. School of Life Science and Technology, Tokyo Institute of Technology, Tokyo, Japan
    2. Institute of Innovative Research, Tokyo Institute of Technology, Tokyo, Japan
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
  5. Hideo Tsubouchi

    1. School of Life Science and Technology, Tokyo Institute of Technology, Tokyo, Japan
    2. Institute of Innovative Research, Tokyo Institute of Technology, Tokyo, Japan
    Contribution
    Formal analysis, Supervision, Funding acquisition, Visualization, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0814-8432
  6. Hiroshi Iwasaki

    1. School of Life Science and Technology, Tokyo Institute of Technology, Tokyo, Japan
    2. Institute of Innovative Research, Tokyo Institute of Technology, Tokyo, Japan
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    hiwasaki@bio.titech.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0153-6873

Funding

Japan Society for the Promotion of Science (15H059749)

  • Hiroshi Iwasaki

Japan Society for the Promotion of Science (18H03985)

  • Hiroshi Iwasaki

Japan Society for the Promotion of Science (18H02371)

  • Hideo Tsubouchi

Japan Society for the Promotion of Science (17K15061)

  • Bilge Argunhan

Japan Society for the Promotion of Science (20K15713)

  • Bilge Argunhan

Japan Society for the Promotion of Science (17J04051)

  • Negar Afshar

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Yumiko Kurokawa and Yasuto Murayama for help with protein purification, biochemical reconstitutions, and critical reading of the manuscript. We also extend our gratitude to Hiroshi Kimura for support, as well as all members of our laboratory for discussions. This work was supported in part by Grants-in-Aid for Scientific Research on Innovative Areas (15H059749 to HI), for Scientific Research (A) (18H03985 to HI), for Scientific Research (B) (18H02371 to HT), for Young Scientists (B) (17K15061 to BA), for Early-Career Scientists (20K15713 to BA), and a Doctoral Course Fellowship DC2 (17J04051 to NA) from the Japan Society for the Promotion of Science (JSPS).

Senior Editor

  1. Jessica K Tyler, Weill Cornell Medicine, United States

Reviewing Editor

  1. Wolf-Dietrich Heyer, University of California, Davis, United States

Reviewer

  1. Wolf-Dietrich Heyer, University of California, Davis, United States

Publication history

  1. Received: October 18, 2020
  2. Accepted: December 26, 2020
  3. Version of Record published: January 25, 2021 (version 1)

Copyright

© 2021, Afshar et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 967
    Page views
  • 114
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    Alan Rodriguez Carvajal et al.
    Research Article

    The linear ubiquitin chain assembly complex (LUBAC) is the only known ubiquitin ligase for linear/Met1-linked ubiquitin chain formation. One of the LUBAC components, HOIL-1L, was recently shown to catalyse oxyester bond formation between ubiquitin and some substrates. However, oxyester bond formation in the context of LUBAC has not been directly observed. Here, we present the first 3D reconstruction of human LUBAC obtained by electron microscopy and report its generation of heterotypic ubiquitin chains containing linear linkages with oxyester-linked branches. We found that this event depends on HOIL-1L catalytic activity. By cross-linking mass spectrometry showing proximity between the catalytic RBR domains, a coordinated ubiquitin relay mechanism between the HOIP and HOIL-1L ligases is suggested. In mouse embryonic fibroblasts, these heterotypic chains were induced by TNF, which is reduced in cells expressing an HOIL-1L catalytic inactive mutant. In conclusion, we demonstrate that LUBAC assembles heterotypic ubiquitin chains by the concerted action of HOIP and HOIL-1L.

    1. Biochemistry and Chemical Biology
    Josep Rizo et al.
    Insight

    Two proteins called Sec17 and Sec18 may have a larger role in membrane fusion than is commonly assumed in textbook models.
