Major genetic discontinuity and novel toxigenic species in Clostridioides difficile taxonomy
- Medical, Molecular and Forensic Sciences, Murdoch University, Australia
- School of Biomedical Sciences, the University of Western Australia, Australia
- Department of Microbiology, Faculty of Medicine Siriraj Hospital, Mahidol University, Thailand
- Department of Pathology, University of Cape Town, South Africa
- Microbiota-Host Interactions and Clostridia Research Group, Facultad de Ciencias de la Vida, Universidad Andrés Bello, Chile
- Millenium Nucleus in the Biology of Intestinal Microbiota, Chile
- Department of Biology, Texas A&M University, United States
- School of Life Sciences and Department of Statistics, University of Warwick, United Kingdom
- Nuffield Department of Clinical Medicine, University of Oxford, National Institute for Health Research (NIHR) Oxford Biomedical Research Centre, John Radcliffe Hospital, United Kingdom
- Big Data Institute, Nuffield Department of Population Health, University of Oxford, National Institute for Health Research (NIHR) Oxford Biomedical Research Centre, John Radcliffe Hospital, United Kingdom
- Facultad de Microbiología & Centro de Investigación en Enfermedades Tropicales (CIET), Universidad de Costa Rica, Costa Rica
- Department of Microbiology, PathWest Laboratory Medicine, Queen Elizabeth II Medical Centre, Australia
- School of Medical and Health Sciences, Edith Cowan University, Australia
Figures

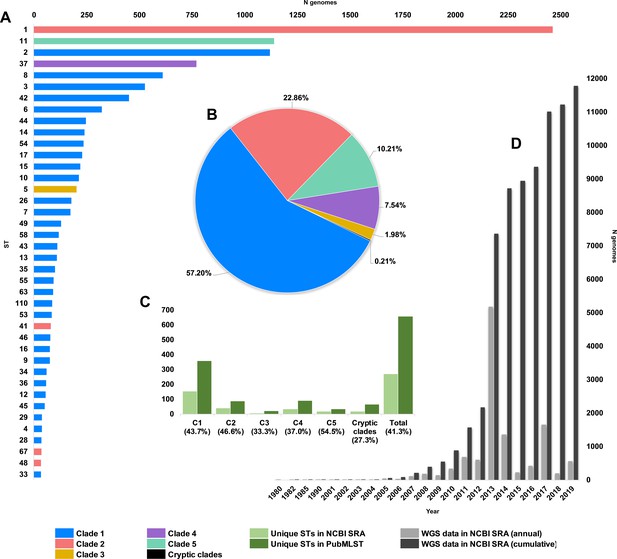

Figure 1
Composition of C. difficile genomes in the National Center for Biotechnology Information (NCBI) Sequence Read Archive (SRA).
Snapshot obtained 1 January 2020; 12,304 strains (taxid ID 1496). (A) Top 40 most prevalent sequence types (STs) in the NCBI SRA coloured by clade. (B) The proportion of genomes in SRA by clade. (C) Number/proportion of STs per clade found in the SRA/present in the PubMLST database. (D) Annual and cumulative deposition of C. difficile genome data in SRA.

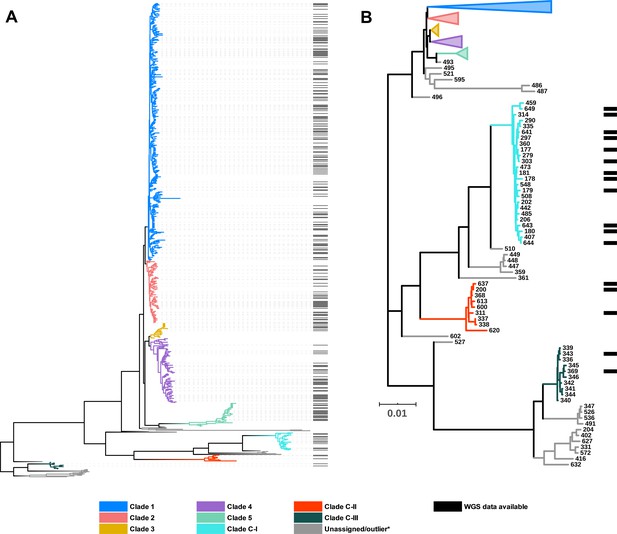

Figure 2
C. difficile population structure.
(A) Neighbor joining phylogeny of 659 aligned, concatenated, multilocus sequence-type (MLST) allele combinations coloured by current PubMLST clade assignment. Black bars indicate whole-genome sequencing (WGS) available for average nucleotide identity (ANI) analysis (n = 260). (B) A subset of the tree showing cryptic clades C-I, C-II, and C-III. Again, black bars indicate WGS available for ANI analysis (n = 17).

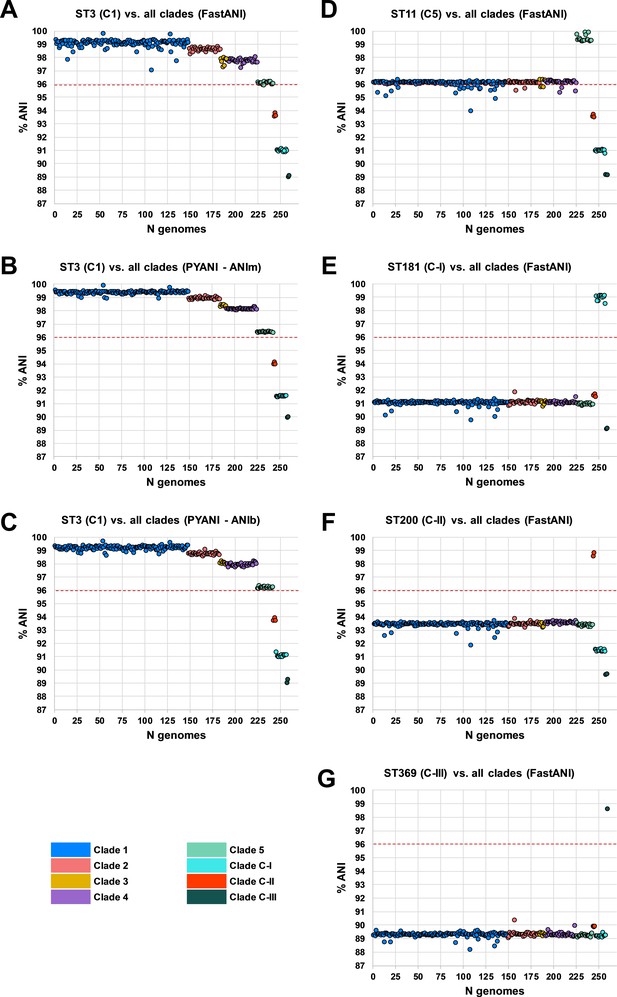

Figure 3
Species-wide average nucleotide identity (ANI) analysis.
Panels (A–C) show ANI plots for sequence type (ST)3 (C1) vs. all clades (260 STs) using FastANI, ANIm, and ANIb algorithms, respectively. Panels (D–G) show ANI plots for ST11 (C5), ST181 (C-I), ST200 (C-II), and ST369 (C-III) vs. all clades (260 STs), respectively. National Center for Biotechnology Information species demarcation of 96% indicated by red dashed line (Ciufo et al., 2018).

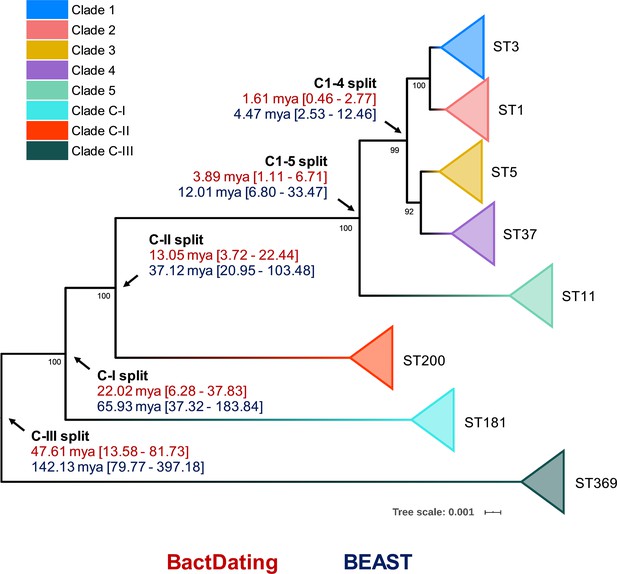

Figure 4
Bayesian analysis of species and clade divergence.
BactDating and BEAST estimates of the age of major C. difficile clades. Node dating ranges for both Bayesian approaches are transposed onto an maximum-likelihood phylogeny built from concatenated multi-locus sequence type (MLST) alleles of a dozen sequence types (STs) from each clade. Archetypal STs in each evolutionary clade are indicated. The tree is midpoint rooted, and bootstrap values are shown (all bootstrapping values of the cryptic clade branches are 100%). Scale bar indicates the number of substitutions per site. BactDating estimates the median time of the most recent common ancestor of C1–5 at 3.89 million years ago (mya) (95% credible interval [CI], 1.11–6.71 mya). Of the cryptic clades, C-II shared the most recent common ancestor with C1–5 (13.05 mya, 95% CI 3.72–22.44 mya), followed by C-I (22.02 mya, 95% CI 6.28–37.83 mya) and C-III (47.61 mya, 95% CI 13.58–81.73 mya). Comparative temporal estimates from BEAST show the same order of magnitude and support the same branching order (clades C1–5 [12.01 mya, 95% CI 6.80–33.47 mya]; C-II [37.12 mya, 95% CI 20.95–103.48 mya]; C-I [65.93 mya, 95% CI 37.32–183.84 mya]; C-III [142.13 mya, 95% CI 79.77–397.18 mya]).

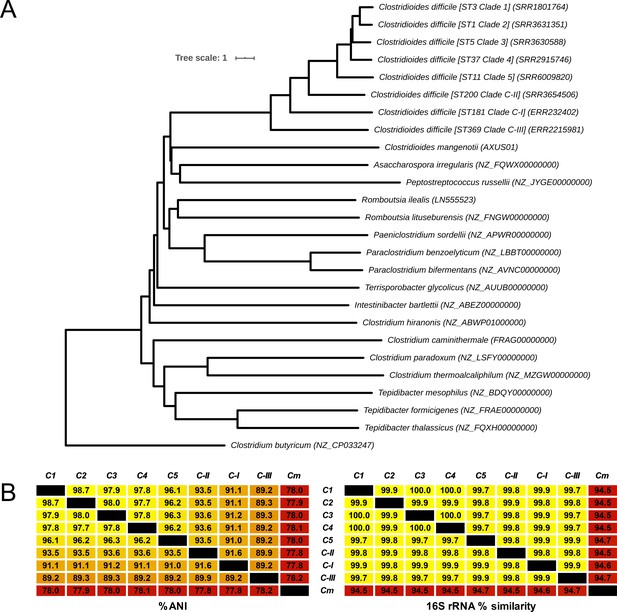

Figure 5
Revised taxonomy for the Peptostreptococcaceae.
(A) Average nucleotide identity (ANI)-based minimum evolution tree showing evolutionary relationship between 8 C. difficile ‘clades’ along with 17 members of the Peptostreptococcaceae (from Lawson et al., 2016) as well as Clostridium butyricum as the outgroup and type strain of the Clostridium genus senso stricto. To convert the ANI into a distance, its complement to 1 was taken. (B) Matrices showing pairwise ANI and 16S rRNA values for the eight C. difficile clades and C. mangenotii (Cm), the only other known member of Clostridioides.

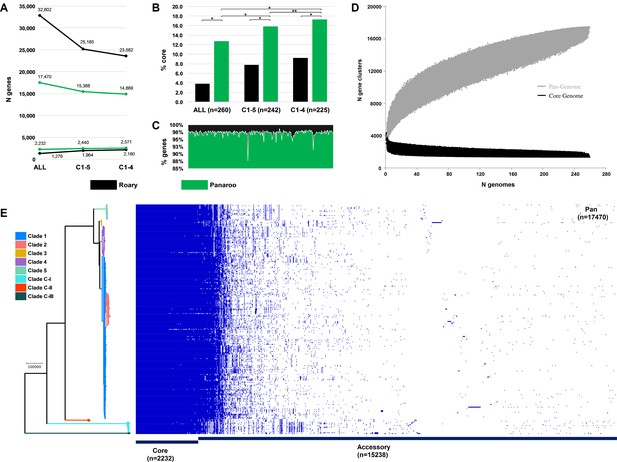

Figure 6
Clostridioides difficile species pangenome.
(A) Pan and core genome estimates for all 260 sequence types (STs), clades C1–4 (n = 242 STs) and clades C1–5 (n = 225 STs). (B) The difference in % core genome and pangenome sizes with Panaroo and Roary algorithms. * indicates χ2 p<0.00001 and ** indicates χ2 p=0.0008. (C) The proportion of retained genes per genome after polishing Prokka-annotated genomes with Panaroo. (D) The total number of genes in the pan (grey) and core (black) genomes is plotted as a function of the number of genomes sequentially added (n = 260). Following the definition of Tettelin et al., 2005., the C. difficile species pangenome showed characteristics of an ‘open’ pangenome. First, the pangenome increased in size exponentially with sampling of new genomes. At n = 260, the pangenome exceeded more than double the average number of genes found in a single C. difficile genome (~3700) and the curve was yet to reach a plateau or exponentially decay, indicating more sequenced strains are needed to capture the complete species gene repertoire. Second, the number of new ‘strain-specific’ genes did not converge to zero upon sequencing of additional strains, at n = 260, an average of 27 new genes were contributed to the gene pool. Finally, according to Heap’s law, α values of ≤1 are representative of open pangenome. Rarefaction analysis of our pangenome curve using a power-law regression model based on Heap’s law (Tettelin et al., 2005) showed the pangenome was predicted to be open (Bpan [≈ α (Tettelin et al., 2005) = 0.47], curve fit, r2 = 0.999). (E) Presence-absence variation (PAV) matrix for 260 C. difficile genomes is shown alongside a maximum-likelihood phylogeny built from a recombination-adjusted alignment of core genes from Panaroo (2232 genes, 2,606,142 sites).

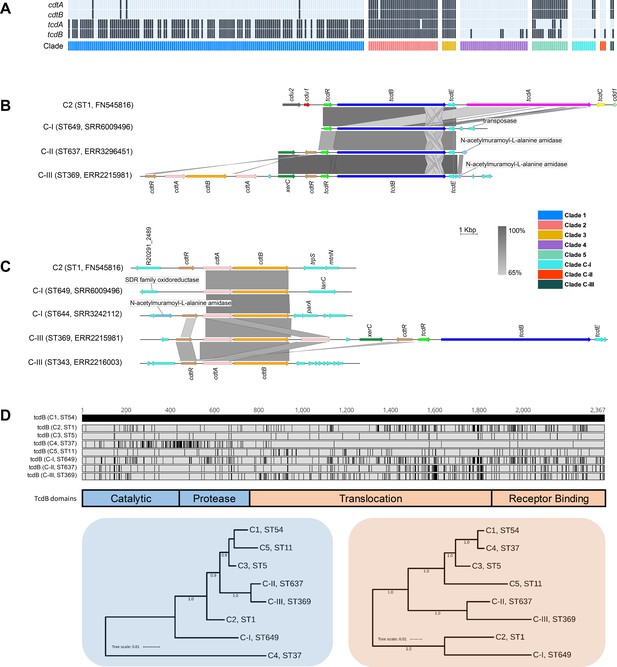

Figure 7
Toxin gene analysis.
(A) Distribution of toxin genes across C. difficile clades (n = 260 sequence types [STs]). Presence is indicated by black bars and absence by light blue bars. (B) Comparison of PaLoc architecture in the chromosome of strain R20291 (C2, ST1) and cognate chromosomal regions in genomes of cryptic STs 649 (C-I), 637 (C-II), and 369 (C-III). All three cryptic STs show atypical ‘monotoxin’ PaLoc structures, with the presence of syntenic tcdR, tcdB, and tcdE, and the absence of tcdA, tcdC, cdd1, and cdd2. ST369 genome ERR2215981 shows colocalisation of the PaLoc and CdtLoc, see below. (C) Comparison of CdtLoc architecture in the chromosome of strain R20291 (C2, ST1) and cognate chromosomal regions in genomes of cryptic STs 649/644 (C-I) and 343/369 (C-III). Several atypical CdtLoc features are observed; cdtR is absent in ST649, and an additional copy of cdtA is present in ST369, the latter comprising part of a CdtLoc colocated with the PaLoc. (D) Amino acid differences in TcdB among cryptic STs 649, 637, and 369 and reference strains from clades C1–5. Variations are shown as black lines relative to CD630 (C1, ST54). Phylogenies constructed from the catalytic and protease domains (in blue) and translocation and receptor-binding domains (in orange) of TcdB for the same eight STs included in (D). Scale bar shows the number of amino acid substitutions per site. Trees are midpoint rooted and supported by 500 bootstrap replicates.
Tables
Table 1
Whole-genome ANI analysis of cryptic clades vs. 25 Peptostreptococcaceae species from Lawson et al., 2016.
| Species | NCBI accession | ANI % | ||
|---|---|---|---|---|
| ST181 (C-I) | ST200 (C-II) | ST369 (C-III) | ||
| Clostridioides difficile (ST3) | AQWV00000000.1 | 91.11 | 93.54 | 89.30 |
| Asaccharospora irregularis | NZ_FQWX00000000 | 78.94 | 78.87 | 78.91 |
| Romboutsia lituseburensis | NZ_FNGW00000000.1 | 78.51 | 78.36 | 78.66 |
| Romboutsia ilealis | LN555523.1 | 78.45 | 78.54 | 78.44 |
| Paraclostridium benzoelyticum | NZ_LBBT00000000.1 | 77.92 | 77.71 | 78.14 |
| Paraclostridium bifermentans | NZ_AVNC00000000.1 | 77.89 | 77.89 | 78.06 |
| Clostridioides mangenotii | GCA_000687955.1 | 77.82 | 77.84 | 78.15 |
| Paeniclostridium sordellii | NZ_APWR00000000.1 | 77.73 | 77.59 | 77.86 |
| Clostridium hiranonis | NZ_ABWP01000000 | 77.52 | 77.42 | 77.59 |
| Terrisporobacter glycolicus | NZ_AUUB00000000.1 | 77.47 | 77.53 | 77.53 |
| Intestinibacter bartlettii | NZ_ABEZ00000000.2 | 77.29 | 77.52 | 77.48 |
| Clostridium paradoxum | NZ_LSFY00000000.1 | 76.60 | 76.65 | 76.93 |
| Clostridium thermoalcaliphilum | NZ_MZGW00000000.1 | 76.49 | 76.61 | 76.85 |
| Tepidibacter formicigenes | NZ_FRAE00000000.1 | 76.41 | 76.47 | 76.38 |
| Tepidibacter mesophilus | NZ_BDQY00000000.1 | 76.38 | 76.44 | 76.22 |
| Tepidibacter thalassicus | NZ_FQXH00000000.1 | 76.34 | 76.31 | 76.46 |
| Peptostreptococcus russellii | NZ_JYGE00000000.1 | 76.30 | 76.08 | 76.38 |
| Clostridium formicaceticum | NZ_CP020559.1 | 75.18 | 75.26 | 75.62 |
| Clostridium caminithermale | FRAG00000000 | 74.97 | 75.07 | 75.03 |
| Clostridium aceticum | NZ_JYHU00000000.1 | ≤70.00 | ≤70.00 | ≤70.00 |
| Clostridium litorale | FSRH01000000 | ≤70.00 | ≤70.00 | ≤70.00 |
| Eubacterium acidaminophilum | NZ_CP007452.1 | ≤70.00 | ≤70.00 | ≤70.00 |
| Filifactor alocis | NC_016630.1 | ≤70.00 | ≤70.00 | ≤70.00 |
| Peptostreptococcus anaerobius | ARMA01000000 | ≤70.00 | ≤70.00 | ≤70.00 |
| Peptostreptococcus stomatis | NZ_ADGQ00000000.1 | ≤70.00 | ≤70.00 | ≤70.00 |
| NCBI: National Center for Biotechnology Information; ANI: average nucleotide identity: ST: sequence type. | ||||
Table 2
Major clade-specific gene clusters identified by Pangenome-Wide Association Study (pan-GWAS).
| Protein | Gene | Clade specificity | Functional insights |
|---|---|---|---|
| Ethanolamine kinase | ETNK, EKI | Unique to C-III and is in addition to the highly conserved eut cluster found in all lineages. Has a unique composition and includes six additional genes that are not present in the traditional CD630 eut operon or any other non-C-III strains. | An alternative process for the breakdown of ethanolamine and its utilisation as a source of reduced nitrogen and carbon. |
| Agmatinase | speB | ||
| 1-propanol dehydrogenase | pduQ | ||
| Ethanolamine utilisation protein EutS | eutS | ||
| Ethanolamine utilisation protein EutP | eutP | ||
| Ethanolamine ammonia-lyase large subunit | eutB | ||
| Ethanolamine ammonia-lyase small subunit | eutC | ||
| Ethanolamine utilisation protein EutL | eutL | ||
| Ethanolamine utilisation protein EutM | eutM | ||
| Acetaldehyde dehydrogenase | E1.2.1.10 | ||
| Putative phosphotransacetylase | K15024 | ||
| Ethanolamine utilisation protein EutN | eutN | ||
| Ethanolamine utilisation protein EutQ | eutQ | ||
| TfoX/Sxy family protein | - | ||
| Iron complex transport system permease protein | ABC.FEV.P | Unique to C-III. | Multicomponent transport system with specificity for chelating heavy metal ions. |
| Iron complex transport system ATP-binding protein | ABC.FEV.A | ||
| Iron complex transport system substrate-binding protein | ABC.FEV.S | ||
| Hydrogenase nickel incorporation protein HypB | hypB | ||
| Putative ABC transport system ATP-binding protein | yxdL | ||
| Class I SAM-dependent methyltransferase | - | ||
| Peptide/nickel transport system substrate-binding protein | ABC.PE.S | ||
| Peptide/nickel transport system permease protein | ABC.PE.P | ||
| Peptide/nickel transport system permease protein | ABC.PE.P1 | ||
| Peptide/nickel transport system ATP-binding protein | ddpD | ||
| Oligopeptide transport system ATP-binding protein | oppF | ||
| Class I SAM-dependent methyltransferase | - | ||
| Heterodisulfide reductase subunit D (EC:1.8.98.1) | hdrD | Unique to C-III and is in addition to the highly conserved spermidine uptake cluster found in all other lineages. | Alternative spermidine uptake processes that may play a role in stress response to nutrient limitation. The additional cluster has homologs in Romboutsia, Paraclostridium, and Paeniclostridium spp. |
| CDP-L-myo-inositol myo-inositolphosphotransferase | dipps | ||
| Spermidine/putrescine transport system substrate-binding protein | ABC.SP.S | ||
| Spermidine/putrescine transport system permease protein | ABC.SP.P1 | ||
| Spermidine/putrescine transport system permease protein | ABC.SP.P | ||
| Spermidine/putrescine transport system ATP-binding protein | potA | ||
| Sigma-54-dependent transcriptional regulator | gfrR | Present in all lineages except C-I. Cluster found in a different genomic position in C-III. | Mannose-type PTS system essential for utilisation of fructosamines such as fructoselysine and glucoselysine, abundant components of rotting fruit and vegetable matter. |
| Fructoselysine/glucoselysine PTS system EIIB component | gfrB | ||
| Mannose PTS system EIIA component | manXa | ||
| Fructoselysine/glucoselysine PTS system EIIC component | gfrC | ||
| Fructoselysine/glucoselysine PTS system EIID component | gfrD | ||
| SIS domain-containing protein | - | ||
| Fur family transcriptional regulator, ferric uptake regulator | furB | Unique to C-II and C5. | Associated with EDTA resistance in E. coli, helping the bacteria survive in Zn-depleted environment. |
| Zinc transport system substrate-binding protein | znuA | ||
| Fe-S-binding protein | yeiR | ||
| Rrf2 family transcriptional regulator | - | ||
| Putative signalling protein | - | Unique to C-I and C5 STs 163, 280, and 386 | In E. coli, AbgAB proteins enable uptake and cleavage of the folate catabolite p-aminobenzoyl-glutamate, allowing the bacterium to survive on exogenous sources of folic acid. |
| Aminobenzoyl-glutamate utilisation protein B | abgB | ||
| MarR family transcriptional regulator | - |
Key resources table
Additional files
-
Supplementary file 1
Summary data: multi-locus sequence type, pangenome, taxonomy, genome-wide association study, toxins.
- https://cdn.elifesciences.org/articles/64325/elife-64325-supp1-v2.xlsx
-
Supplementary file 2
Tree file, global multi-locus sequence type.
- https://cdn.elifesciences.org/articles/64325/elife-64325-supp2-v2.nwk
-
Supplementary file 3
Tree file, BEAST.
- https://cdn.elifesciences.org/articles/64325/elife-64325-supp3-v2.tree
-
Supplementary file 4
Tree file, BactDating.
- https://cdn.elifesciences.org/articles/64325/elife-64325-supp4-v2.nex
-
Transparent reporting form
- https://cdn.elifesciences.org/articles/64325/elife-64325-transrepform-v2.pdf
