The causal role of auditory cortex in auditory working memory

  1. Liping Yu
  2. Jiawei Hu
  3. Chenlin Shi
  4. Li Zhou
  5. Maozhi Tian
  6. Jiping Zhang
  7. Jinghong Xu  Is a corresponding author
  1. Key Laboratory of Brain Functional Genomics (Ministry of Education and Shanghai), Key Laboratory of Adolescent Health Assessment and Exercise Intervention of Ministry of Education, and School of Life Sciences, East China Normal University, China
Research Article
Cite this article as: eLife 2021;10:e64457 doi: 10.7554/eLife.64457
7 figures, 1 table and 1 additional file

Figures

Figure 1 with 1 supplement
Auditory working memory task in head-fixed mice and behavioral performance.

(a) Diagram of the experimental setup. (b) Schematic for task design. For each trial, an auditory stimulus (3 kHz, or 12 kHz, 0.2 s) was presented as the sample, followed by a delay period of 1.5 s and a testing auditory stimulus (0.2 s), either matched or nonmatched to the sample. Mice were rewarded with water if they licked within a response window in the match trials. (c) Licking behavior in an example session and definition of the trial type. Colored areas correspond to the two auditory stimulus delivery periods, as indicated above. Each tick indicates one lick. Short horizontal lines indicate the trial types (blue: hit; orange: miss; green: correct rejection [CR]; magenta: false alarm [FA]). (d) The performance with varying delay duration (n = 5 mice). Mean ± s.e.m. (e) Mean hit, miss, CR, FA rates, and the performance of all mice (n = 13 mice) during neural recording sessions. Gray lines: individual mice; black: mean ± s.e.m. Hit + miss = 100%; CR + FA = 100%. See Figure 1—source data 1 for more details.

Figure 1—source data 1

Performance in the auditory working memory task.

https://cdn.elifesciences.org/articles/64457/elife-64457-fig1-data1-v2.xlsx
Figure 1—figure supplement 1

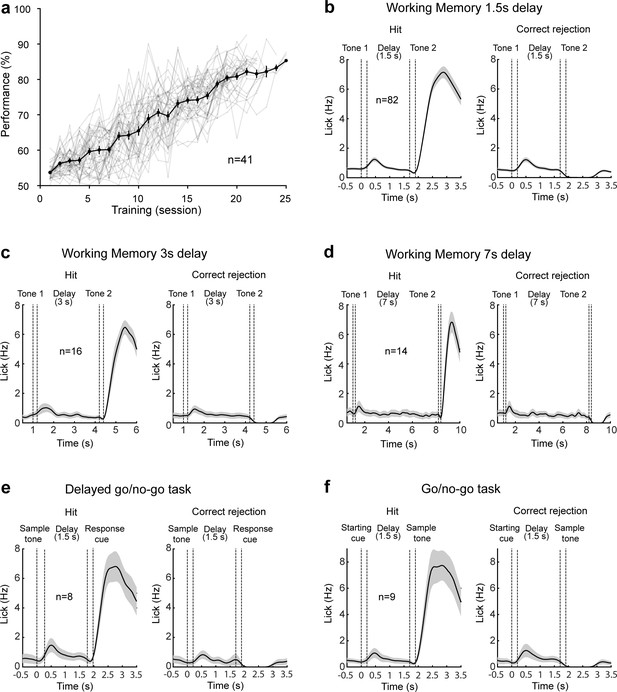

The learning process of the auditory working memory (WM) task and the licking behavior of well-trained mice.

(a) Performances of all mice while learning the auditory WM task of 1.5 s delay. (b–f) Averaged licking rate in hit (left) and correct rejection (right) trials of mice well trained for the WM task of 1.5 s delay (b), WM task of 3 s delay (c), WM task of 7 s delay (d), delayed go/no-go task (e), and go/no-go task (f).

Figure 2 with 1 supplement
Neural correlates of the auditory cortex activity in the auditory working memory (WM) task.

(a) Raster (top) and peri-stimulus time histograms (bottom) of an example neuron recorded during the WM behavior (left) and passive listening (right). Trials were sorted by auditory samples. The sample stimulus and test stimulus times are bounded by the vertical dotted lines. (b) Averaged population firing rates for neurons recorded during WM behavior (n = 287) and passive listening (n = 255). Shadows: s.e.m.; the black block on the top indicates the successive 100 ms bins with firing rate significantly different from baseline (500 ms before the beginning of sample) for neurons recorded during WM behavior. p<0.05, Wilcoxon rank-sum test. The black block below indicates significant bins for neurons recorded during passive listening. (c, d) Percentage of neurons with a significant difference in firing rate compared with baseline at different time points during WM behavior (c) and passive listening (d). (e, f) Averaged population firing rates for neurons recorded during WM behavior (e) and passive listening (f). Trials in which the sample stimulus was the preferred or nonpreferred, which varied for each neuron, are shown separately. (g) The average of receiver operating characteristic (ROC) values across populations, calculated in each 100 ms window, is plotted as a function of time for neurons recorded during WM behavior (magenta) and passive listening (orange). *p<0.05, **p<0.001, Wilcoxon rank-sum test. (h, i) Incidence of neurons with significant ROC values for each 100 ms epoch in WM behavior (h) and passive listening (i). p<0.05, permutation test.

Figure 2—figure supplement 1

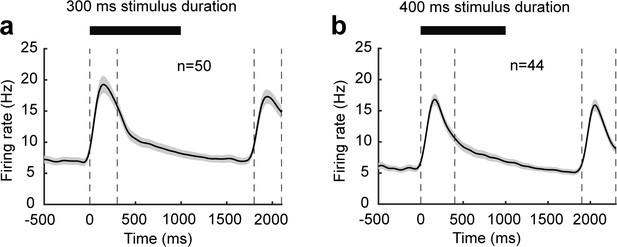

Neural correlates of the auditory cortex activity in the auditory working memory (WM) task with varied stimulus duration.

(a, b) Averaged population firing rates for neurons recorded during auditory WM behavior with the stimulus duration of 300 ms (a) and 400 ms (b). The black block on the top indicates the successive 100 ms bins with firing rate significantly different from baseline (500 ms before the beginning of sample), p<0.05, Wilcoxon rank-sum test.

Figure 3 with 1 supplement
Suppression of delay-period activity in auditory cortex (AC) by optogenetic inhibition of pyramidal neurons impaired auditory working memory (WM) performance.

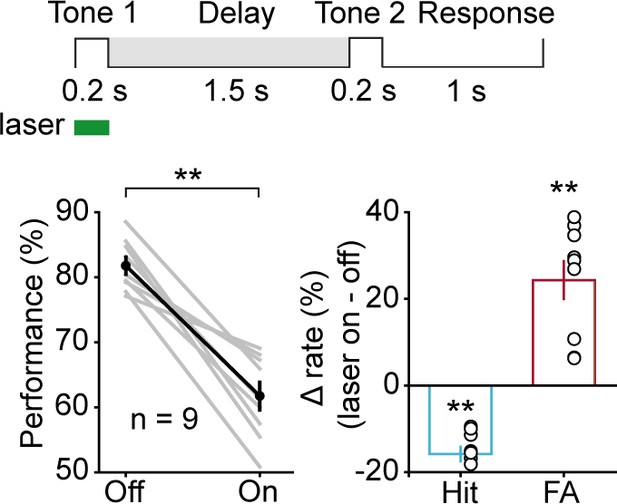

(a) Histology image showing the expression of AAV-CaMKIIα-eNpHR3.0-eYFP in AC. (b) Activity suppression efficiency revealed by optetrode recording in vivo. (c) Suppressing AC activity during the delay period of WM task decreased performance, with a substantial increase in false alarm (FA) rate and a small decrease in hit rate. Top: schematic of optogenetic stimulation during the delay period of WM task. The green rectangle indicates the period of inactivation. For the bottom panel, gray lines indicate individual mice; black indicates mean ± s.e.m. Circles indicate individual mice. *p<0.05, **p<0.001, t-test. (d) As in (c) with control virus injection. The photostimulation of AC with control virus injection during the delay period did not affect the behavior. N.S.: not significant. (e) Suppressing AC delay-period activity decreased the performance in the four tones auditory WM task with a decrease in FA rate and no change in hit rate. See Figure 3—source data 1 for more details.

Figure 3—source data 1

Effect of auditory cortex suppression on working memory behavior.

https://cdn.elifesciences.org/articles/64457/elife-64457-fig3-data1-v2.xlsx
Figure 3—figure supplement 1
Optogenetic suppression of auditory cortex during the stimulus epoch dramatically reduced the animals’ ability to perform the working memory task.
Temporal specificity of the effect of auditory cortex (AC) suppression.

(a) AC suppression during the delay period of 300–800 ms decreased the working memory (WM) behavioral performance, with an increase in false alarm (FA) rate and no change in hit rate. (b) AC suppression during the delay period of 800–1300 ms did not affect behavioral performance. (c–e) The WM behavioral change caused by AC suppression during the delay period of 300–550 ms (red; n = 8 mice), 550–800 ms (yellow; n = 8 mice), 800–1050 ms (green; n = 7 mice), and 1050–1300 ms (blue; n = 8 mice). The task structure is shown at the top. For the bottom panels, the horizontal extent of the colored bars indicates the period of inactivation. The vertical position indicates the average change in performance (c), hit rate (d), and FA rate (e) across mice induced by the corresponding period of AC suppression. Error bars show s.e.m. across mice. See Figure 4—source data 1 for more details.

Figure 4—source data 1

Effect of auditory cortex suppression during delay period of 300–800 ms and 800–1500 ms.

https://cdn.elifesciences.org/articles/64457/elife-64457-fig4-data1-v2.xlsx
Performance was impaired following optogenetic suppression of auditory cortex (AC) activity during the early delay period, with the delay duration of 3 s and 7 s.

(a, b) In working memory (WM) task with the delay duration of 3 s, AC suppression during the early delay period (300–800 ms) (a) but not later (800–2700 ms) (b) decreased the behavioral performance. (c, d) In WM task with the delay duration of 7 s, AC suppression during the delay period of 300–800 ms (c) but not 800–6700 ms (d) decreased the behavioral performance. See Figure 5—source data 1 for more details.

Figure 5—source data 1

Effect of auditory cortex suppression in working memory task with the delay duration of 3 s and 7 s.

https://cdn.elifesciences.org/articles/64457/elife-64457-fig5-data1-v2.xlsx
Active memory maintenance in auditory working memory (WM) task by the auditory cortex (AC) delay-period activity.

(a) Learning curve for the performance in the WM task with noise distractor (presented during 300–500 ms of the delay period). Note the drop of performance after inserting the noise distractor in the delay period on the first day. After 2 days of training, the performance data from the third day of the WM task with noise distractor was no worse than that in the simple WM task (the zeroth day). (b) Optogenetic suppression of AC during the early delay period after the distractor (500–800 ms) resulted in impairment in task performance.

Figure 6—source data 1

Effect of auditory cortex suppression in working memory task with noise distractor.

https://cdn.elifesciences.org/articles/64457/elife-64457-fig6-data1-v2.xlsx
Suppressing auditory cortex (AC) activity did not affect behavioral performance in the delayed go/no-go auditory discrimination task and go/no-go auditory discrimination task.

(a) Paradigm and behavioral performance for the delayed go/no-go auditory discrimination task experiments with suppressed AC activity. (b) As in (a) for the go/no-go auditory discrimination task. See Figure 6—source data 1 for more details.

Figure 7—source data 1

Effect of auditory cortex suppression in delayed go/no-go auditory discrimination task and go/no-go auditory discrimination task.

https://cdn.elifesciences.org/articles/64457/elife-64457-fig7-data1-v2.xlsx

Tables

Key resources table
Reagent type
(species) or
resource
DesignationSource
or reference
IdentifiersAdditional
information
Strain, strain background (Mus musculus)C57BL/6Slac Laboratory
Animal
N/A
OtherFormvar-Insulated
Nichrome Wire
A-M Systems761000
OtherHead-stage amplifierIntan TechnologyRHD2132
Software, algorithmMATLABMathWorksSCR-001622
