Abstract

The mature cerebellum controls motor skill precision and participates in other sophisticated brain functions that include learning, cognition, and speech. Different types of GABAergic and glutamatergic cerebellar neurons originate in temporal order from two progenitor niches, the ventricular zone and rhombic lip, which express the transcription factors Ptf1a and Atoh1, respectively. However, the molecular machinery required to specify the distinct neuronal types emanating from these progenitor zones is still unclear. Here, we uncover the transcription factor Olig3 as a major determinant in generating the earliest neuronal derivatives emanating from both progenitor zones in mice. In the rhombic lip, Olig3 regulates progenitor cell proliferation. In the ventricular zone, Olig3 safeguards Purkinje cell specification by curtailing the expression of Pax2, a transcription factor that suppresses the Purkinje cell differentiation program. Our work thus defines Olig3 as a key factor in early cerebellar development.

Introduction

The cerebellum develops from the dorsal aspect of rhombomere 1, a region known as the cerebellar anlage that in mice becomes apparent at embryonic (E) day 9.5 (Butts et al., 2014; Chizhikov et al., 2006; Millet et al., 1996; Morales and Hatten, 2006; Wingate and Hatten, 1999). This region contains two distinct germinal zones, the rhombic lip and the ventricular zone, that generate all glutamatergic and GABAergic cerebellar neurons, respectively (Alder et al., 1996; Hallonet et al., 1990; Wingate and Hatten, 1999; Zervas et al., 2004). Development of glutamatergic and GABAergic cerebellar neurons largely depends on the differential expression of two basic helix-loop-helix (bHLH) transcription factors: Atonal homolog one transcription factor (Atoh1) and Pancreas-specific transcription factor 1a (Ptf1a) (Gazit et al., 2004; Hoshino et al., 2005; Machold and Fishell, 2005; Millen et al., 2014; Wang et al., 2005; Yamada et al., 2014).

In the rhombic lip, Atoh1 directs the generation of three neuronal derivatives: (i) deep cerebellar nuclei (DCN) neurons (between E10.5 and E13.5), (ii) external granule layer (EGL) cells (between E13.5 and birth), which are the precursors of the internal granule layer cells that develop during early postnatal life, and (iii) unipolar brush cells (between E15.5 and the first days of postnatal life) (Ben-Arie et al., 1997; Englund et al., 2006; Fink, 2006; Gazit et al., 2004; Machold and Fishell, 2005; Machold et al., 2011; Sekerková et al., 2004; Yamada et al., 2014). In the ventricular zone, Ptf1a instructs the generation of Purkinje cells (between E11.5-E13.5) and all inhibitory interneurons, including Golgi, Stellate, and Basket cells (between E14.5 and birth). Inhibitory interneurons are characterized by the expression of the homeodomain transcription factor Pax2 (Hashimoto and Mikoshiba, 2003; Hoshino et al., 2005; Leto et al., 2006; Maricich and Herrup, 1999). Although the ablation of Atoh1 and Ptf1a severely impairs glutamatergic and GABAergic cerebellar neuron development (Ben-Arie et al., 1997; Hoshino et al., 2005; Jensen, 2004; Sellick et al., 2004), less is known about the molecular machinery required for the temporal specification of the different neuronal derivatives emerging from the two cerebellar neurogenic niches.

bHLH transcription factors are master regulators of progenitor cell differentiation during development and are critical players in neuron subtype specification in the nervous system (Atchley and Fitch, 1997; Baker and Brown, 2018; Ben-Arie et al., 2000; Bertrand et al., 2002; Dennis et al., 2019; Dokucu et al., 1996; Imayoshi and Kageyama, 2014; Jones, 2004; Mattar et al., 2008; Ross et al., 2003; Sommer et al., 1996). Among these factors, Oligodendrocyte factor 3 (Olig3) has been implicated in the specification of dorsally emerging neuron types in the hindbrain and spinal cord (Hernandez-Miranda et al., 2017b; Liu et al., 2008; Müller et al., 2005; Storm et al., 2009; Zechner et al., 2007). However, its molecular mechanisms and functions outside these regions have been less studied (Shiraishi et al., 2017; Vue et al., 2007). Although Olig3 expression was previously reported during cerebellar development, its function there has not yet been explored (Liu et al., 2010; Takebayashi et al., 2002).

In this study, we sought to identify bHLH factors that contribute to the development of distinct cerebellar neuron types. We report here that Olig3 is crucial for generating the earliest rhombic lip and ventricular zone neuronal derivatives. Our lineage-tracing studies illustrate that the majority of DCN neurons, EGL, granule cells, as well as Purkinje cells emerge from Olig3+ progenitor cells. In contrast, few inhibitory interneurons had a history of Olig3 expression. Ablation of Olig3 results in severe cerebellar hypoplasia. In particular, we show that in Olig3 mutant mice, most DCN neurons as well as half of the EGL cells, granule cells and Purkinje cells are not formed. In contrast, supernumerary inhibitory interneurons develop in Olig3 mutant animals. Mechanistically, we show that Olig3 cell-autonomously suppresses the development of inhibitory interneurons in the ventricular zone. Olig3 is first expressed in ventricular zone progenitor cells and transiently retained in newborn Purkinje cells to curtail the expression of Pax2, a gene that we found to suppress the Purkinje cell differentiation program. We also show that Olig3 and its close family member Olig2 specify complementary Purkinje cell populations. Altogether, our data provide new insights into the molecular machinery that secures the correct development of cerebellar neurons.

Results

Olig3 is expressed in rhombic lip and ventricular zone progenitor cells during early cerebellar development

About 130 bHLH transcription factors have been found in humans and 117 in mice (Skinner et al., 2010; Stevens et al., 2008). To identify candidate bHLH factors that contribute to the generation of early versus late derivatives from the rhombic lip and ventricular zone, we first analyzed the expression patterns of 110 bHLH transcription factors annotated in the Human Genome Organization (HuGO; https://www.genenames.org/data/genegroup/#!/group/420) throughout mouse cerebellar development using publically available data from the Allen Developing Mouse Brain Atlas (https://developingmouse.brain-map.org). We found that 51 bHLH genes were expressed during cerebellar development, of which 27 were seen in progenitor niches (rhombic lip, ventricular zone, and/or EGL), and the remainder in postmitotic regions (Figure 1A; Table 1 and Figure 1—figure supplement 1). In particular, 9/27 genes displayed differential spatial-temporal expression patterns in the rhombic lip (Atoh1 and Olig3 between E11.5-E13.5), EGL (Atoh1 and Neurod1 between E13.5-birth), and ventricular zone (Ptf1a, Ascl1, Olig3, and Olig2 between E11.5-E13.5; Ptf1a, Neurod6, Neurog1 and Neurog2 between E13.5-E18.5). The remaining (18/27) factors appeared to belong to either a common set of transcription factors expressed in all progenitor niches or they maintained their expression in a particular niche throughout cerebellar development (Table 1). Of particular interest was the expression pattern of Olig3, which has not been previously reported to have a function in cerebellar development. However, it is known to participate in the specification of defined hindbrain and spinal cord neurons (Hernandez-Miranda et al., 2017a; Liu et al., 2008; Müller et al., 2005; Storm et al., 2009; Zechner et al., 2007).

Figure 1 with 2 supplements see all

Download asset Open asset

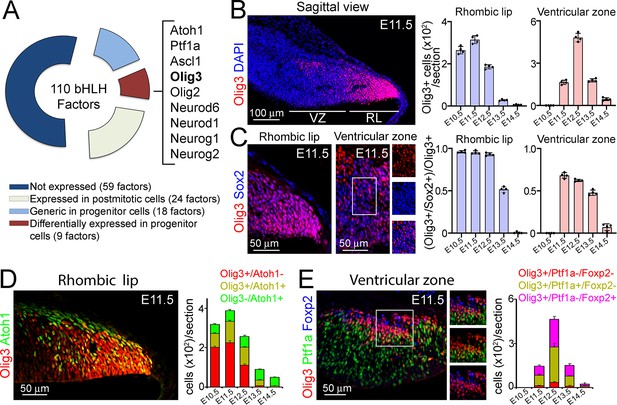

Olig3 marks rhombic lip and ventricular zone progenitor cells during early cerebellar development.

(A) Doughnut chart illustrating the expression of 110 bHLH transcription factors during cerebellar development. For details on individual gene names within each category please see Table 1. (B) Left, a sagittal section of the cerebellum stained against Olig3 (red) and counterstained with DAPI (blue) at E11.5. Right, quantification of Olig3+ cells in the rhombic lip (RL) and ventricular zone (VZ) between E10.5 and E14.5. See also Figure 1—figure supplement 2A. The rhombic lip and ventricular zone domains were defined in this study according to the expression of Atoh1 and Ptf1a, respectively (see Figure 1—figure supplement 2B). (C) Left, magnifications of the rhombic lip and ventricular zone of a sagittal cerebellar section stained against Olig3 (red) and Sox2 (blue) at E11.5. The boxed area displayed in the ventricular zone is illustrated to the right of the main photograph. Right, quantification of the proportion of Olig3+ cells co-expressing Sox2 between E10.5 and E14.5. Dots in the graphs represent the mean of individual analyzed animals. (D) Left, immunofluorescence characterization of rhombic lip progenitor cells stained against Olig3 (red) and Atoh1 (green) at E11.5. Right, quantification of the proportion of Olig3+ rhombic lip cells co-expressing Atoh1 between E10.5 and E14.5. (E) Left, immunofluorescence characterization of ventricular zone progenitor cells stained against Olig3 (red), Ptf1a (green), and the Purkinje cell marker Foxp2 (blue) at E11.5. The boxed area on the micrograph is illustrated to the right of the main photograph. Right, quantification of the proportion of Olig3+ ventricular zone cells co-expressing Ptf1a or Foxp2. The mean and SD are plotted in all graphs. n = 4 mice per age. Photomicrographs were acquired using the automatic tile scan modus (10% overlap between tiles) of the Zeiss LSM700 confocal microscope.

Figure 1—source data 1 Source data for Figure 1.: https://cdn.elifesciences.org/articles/64684/elife-64684-fig1-data1-v1.xlsx
Download elife-64684-fig1-data1-v1.xlsx

Table 1

Categorization of bHLH transcription factors expressed or not expressed during cerebellar development in mice.

bHLH factors expressed in cerebellar progenitor niches: Rhombic lip (RL), Ventricular zone (VZ) and/or external granule cell layer (EGL)
Gene name	Expressed in progenitors?	Developmental stage: embryonic (E) day
		E11.5	E13.5	E15.5	E17.5/E18.5
Ascl1	Yes	VZ	VZ	Weak in VZ	Not expressed
Atoh1	Yes	RL	RL and EGL	RL and EGL	RL and EGL
Hes1	Yes	Not expressed	RL and VZ	Not expressed	Not expressed
Hes5	Yes	RL and VZ	RL and VZ	RL and VZ	Postmitotic cells
Hes6	Yes	RL and VZ	RL, VZ and EGL	EGL	No data
Hes7	Yes	RL and VZ	Weak in RL, VZ	Weak in RL, VZ	Not expressed
Hey1	Yes	Not expressed	Not expressed	EGL	EGL
Hif1a	Yes	RL and VZ	Weak in RL, VZ	Not expressed	Not expressed
Id1	Yes	RL and VZ	In blood vessels	In blood vessels	In blood vessels
Id3	Yes	RL and VZ	RL, VZ and EGL	RL, VZ and EGL	EGL
Max	Yes	Weak in RL and VZ	Not expressed	Not expressed	Not expressed
Mxd3	Yes	RL and VZ	RL, VZ and EGL	EGL	EGL
Mxi1	Yes	Weak in RL and VZ	RL, VZ and EGL	RL, VZ and EGL	Weak in EGL
Mycl	Yes	RL and VZ	RL, VZ and EGL	EGL	EGL
Mycn	Yes	Strong in RL and VZ	Not expressed	Not expressed	Not expressed
Neurod1	Yes	Not expressed	Not expressed	Strong in EGL	Strong in EGL
Neurod6	Yes	Not expressed	Weak in VZ	VZ	Broad expression
Neurog1	Yes	Not expressed	VZ	Not expressed	Not expressed
Neurog2	Yes	Not expressed	Weak in VZ	Strong in VZ	Not expressed
Olig2	Yes	Weak in VZ	Strong in VZ	Postmitotic cells	Postmitotic cells
Olig3	Yes	RL and weak in VZ	RL and VZ	Not expressed	Not expressed
Ptf1a	Yes	Strong in VZ	Strong in VZ	Weak in VZ	Not expressed
Srebf1	Yes	Not expressed	RL, VZ and EGL	Weak in EGL	Not expressed
Srebf2	Yes	Weak in RL and VZ	RL and VZ	Postmitotic cells	Postmitotic cells
Tcf12	Yes	RL and VZ	RL, VZ and EGL	RL, VZ and EGL	RL, VZ and EGL
Tcf3	Yes	RL and VZ	RL, VZ and EGL	RL, VZ and EGL	RL, VZ and EGL
Tcf4	Yes	RL and VZ	RL, VZ and EGL	RL, VZ and EGL	RL, VZ and EGL

bHLH factors expressed in postmitotic cerebellar cells during development		bHLH factors not expressed in the cerebellum during development
Gene name:	Arntl, Arnt2, Bhlhe22, Clock, Epas1, Id2, id4, Mlx, Mnt, Mxd1, Mxd4, Myc, Ncoa1, Ncoa2, Neurod2, Neurog3, Nhlh1, Nhlh2, Npas3, Npas4, Olig1, Scx, Sim2, Usf1 and Usf2	Gene name:	Ahr, Ahrr, Arnt, Arntl2, Ascl2, Ascl3, Ascl4, Ascl5, Atoh7, Atoh8, Bhlha15, Bhlha9, Bhlhb9, Bhlhe23, Bhlhe40, Bhlhe41, Ferd3l, Figla, Hand1, Hand2, Helt, Hes2, Hes3, Hes4, Hey2, Heyl, Hif3a, Lyl1, Mesp1, Mesp2, Mitf, Mlxip, Mlxipl, Msc, Myf5, Myf6, Myod1, Myog, Ncoa3, Neurod4, Npas1, Npas2, Sim1, Sohlh1, Sohlh2, Tal1, Tal2, Tcf15, Tcf21, Tcf23, Tcf24, Tcfl5, Tfap4, Tfe3, Tfeb, Tfec, Twist1 and Twist2

Next, we characterized the expression of Olig3 during cerebellar development by immunofluorescence. In the rhombic lip, Olig3+ cells were abundant from E10.5 to E12.5, but their numbers declined by E13.5 and were rare by E14.5 (Figure 1B; Figure 1—figure supplement 2A,B). Almost all (>98%) Olig3+ rhombic lip cells co-expressed the progenitor marker Sox2 between E10.5 and E12.5, but this co-localization, as well as the total number of Olig3+ cells, declined by E13.5 (Figure 1C). In addition, most (>95%) proliferative BrdU+ cells in the rhombic lip co-expressed Olig3 (Figure 1—figure supplement 2C). Lastly, about 30% of Olig3+ cells in the rhombic lip expressed Atoh1 (Olig3+/Atoh1+ cells; Figure 1D). Thus, in the rhombic lip, Olig3+ cells are progenitors, and a third of them co-express Atoh1.

In the ventricular zone, Olig3+ cells were first seen at E11.5. Their numbers peaked by E12.5 and became rare by E14.5 (Figure 1B; Figure 1—figure supplement 2A,B). Most Olig3+ cells (59%) in the ventricular zone co-expressed the progenitor marker Sox2 at E11.5 and E12.5, but this co-localization, as well as the total number of Olig3+ cells, declined by E13.5 (Figure 1C). Furthermore, about one-third of the BrdU+ cells in the ventricular zone co-expressed Olig3 (Figure 1—figure supplement 2D). Lastly, 52% of the Olig3+ ventricular zone cells co-expressed Ptf1a, while 41% co-expressed the postmitotic Purkinje cell marker Foxp2 (Figure 1E). This indicates that whereas most Olig3+ cells in the ventricular zone are progenitors (Olig3+/Ptf1a+/Foxp2-), Olig3 is transiently retained in early-born Purkinje cells (Olig3+/Ptf1a-/Foxp2+). We conclude that Olig3 is expressed in rhombic lip and ventricular zone progenitor cells during the generation of their earliest neuronal derivatives.

Early derivatives from the rhombic lip and ventricular zone arise from Olig3+ progenitor cells

To obtain a complete picture of the distinct cerebellar neuron types arising from Olig3+ progenitor cells, we first carried out a long-term lineage tracing experiment. This experiment used a tamoxifen-inducible cre recombinase driven by Olig3 (Olig3^creERT2/+) and the fluorescent reporter Rosa26^lsl-tdT that expresses a cytoplasmic Tomato fluorescent protein upon cre-mediated recombination (see the genetic strategy in Figure 2—figure supplement 1A). Specifically, we induced tamoxifen recombination in Olig3^creERT2/+; Rosa26^lsl-tdT/+ mice at E10.5 and analyzed their brains by lightsheet microscopy at E19 (see Video 1). Three-dimensional reconstructions of recombined brains showed that Tomato+ cells were broadly distributed across the entire cerebellum of Olig3^creERT2/+; Rosa26^lsl-tdT/+ mice (Figure 2A–B; Figure 2—figure supplement 1A–A’’). In particular, we observed Tomato+ cells in the EGL, Purkinje cell layer, and dense groups of Tomato+ cells encompassing the three nuclei formed by DCN neurons: the nucleus dentatus, interpositus, and fastigii (Figure 2A–C). Closer inspection revealed that Tomato+ cells co-expressed Tbr1 (a marker of Fastigii DCN cells) and Brn2 (a marker of Interpositus and Dentatus DCN cells; Figure 2D). Thus, the distribution of cerebellar neurons with a history of Olig3 expression suggests that Olig3+ progenitor cells generate the earliest set of ventricular zone (Purkinje cells) and rhombic lip (DCN neurons) cerebellar derivatives, and also to the later arising EGL cells from the latter progenitor domain.

Figure 2 with 1 supplement see all

Download asset Open asset

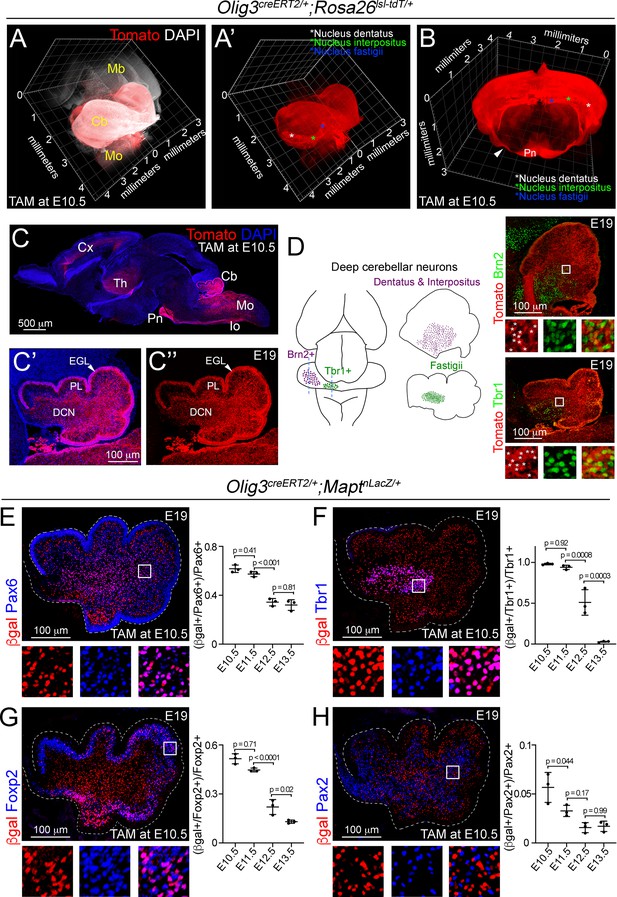

Lineage-tracing of cerebellar neurons arising from Olig3+ progenitor cells.

(**A–D**) Analysis of Tomato+ (red) cells in *Olig3^creERT2/+;Rosa26^lsl-tdT/+* mice that were recombined with tamoxifen (TAM) at E10.5 and imaged at E19. See Figure 2—figure supplement 1A and Video 1 for a description of the genetic strategy and a complete reconstruction of a recombined *Olig3^creERT2/+;Rosa26^lsl-tdT/+* brain. (**A, A’**) A sagittal three-dimensional reconstruction of the cerebellum. Tomato+ cells were broadly distributed across the cerebellum and densely packed in the DCN nuclei (asterisks in A’). (B) A coronal three-dimensional reconstruction of the cerebellum. DCN nuclei are marked with asterisks. The pontine nuclei (Pn) and their axons (arrowhead), which develop from Olig3+ progenitor cells in the medulla oblongata, are labeled with Tomato. (C) A sagittal section stained against Tomato and DAPI (blue). Other known Olig3 derivatives, such as the thalamus (Th) including its projections to the cortex (Cx), pontine nuclei (Pn), inferior olive (Io) and many neurons in the medulla oblongata (Mo) are marked with Tomato. A magnification of the cerebellum is displayed with (C’) or without (**C’’**) DAPI. The external granule cell layer (EGL), Purkinje cell layer (PL), and DCN neurons are labeled with Tomato. (D) Left, schematic display of DCN nuclei positive for Brn2 (dentatus and interpositus) and Tbr1 (fastigii). Right, sagittal cerebellar sections stained against Tomato and Brn2 or Tbr1 (green). The boxed areas are illustrated to the bottom of the main photographs displaying individual and merged fluorescent signals. Asterisks mark double positive cells. (**E–H**) Analysis of cerebellar neurons with a history of Olig3 (βgal+) expression. *Olig3^creERT2/+;Mapt^nLacZ/+* mice were recombined with tamoxifen (TAM) at different embryonic stages and analyzed at E19. See Figure 2—figure supplement 1B for a description of the experiment. Sagittal cerebellar sections from these mice were stained against βgal (red) and markers for the EGL and granule cells (Pax6, blue in E), DCN neurons (Tbr1, blue in F), Purkinje cells (Foxp2, blue in G), and inhibitory interneurons (Pax2, blue in H). Double-positive (βgal+/marker+) cells were quantified at E19. The boxed areas on the micrographs are illustrated to the bottom of the main photographs displaying individual and merged fluorescent signals. The mean and SD are plotted in all graphs, and the dots represent the mean of individual animals. n = 3 mice per age. Significance was obtained using one-way ANOVA followed by *post hoc* Tukey’s test, see Table 2 for statistical details. Photomicrographs were acquired using the automatic tile scan modus (10% overlap between tiles) of the Zeiss LSM700 confocal microscope. The main microphotograph displayed in G was mounted on a black frame to maintain figure panel proportions.

Figure 2—source data 1 Source data for Figure 2.: https://cdn.elifesciences.org/articles/64684/elife-64684-fig2-data1-v1.xlsx
Download elife-64684-fig2-data1-v1.xlsx

Video 1

Download asset

posterframe for video — Three-dimensional reconstruction of an E19 *Olig3^creERT2/+; Rosa26^lsl-tdT/+* mouse brain that was recombined at E10.5.

Red fluorescence represents the somas and axons of all cells with a history of Olig3 expression. See also Figure 2—figure supplement 1A.

We performed a second long-term lineage-tracing experiment to better define the temporal contribution of Olig3+ progenitor cells to specific cerebellar neuron types. In particular, we used Olig3^creERT2 and the reporter Mapt^nLacZ, which selectively expresses a nuclear β-galactosidase (βgal) protein upon cre-mediated recombination in postmitotic (Mapt+) neurons. We induced tamoxifen recombination in Olig3^creERT2/+;Mapt^nLacZ/+ mice at distinct embryonic stages from E10.5 to E13.5 and analyzed the cerebella of recombined mice at E19 (Figure 2—figure supplement 1B–C). As expected, we did not observe any βgal+ cells in the EGL, as this layer contains granule cell progenitors that do not express Mapt (arrowheads in Figure 2—figure supplement 1C). Both EGL and postmitotic granule cells express the transcription factor Pax6 (Fink, 2006; Yeung et al., 2016). We observed that the majority (62%) of Pax6+ postmitotic cells, outside the EGL, co-expressed βgal when recombination was induced at E10.5 or E11.5, but the proportion of Pax6+/βgal+ cells dropped when recombination was induced at later stages (Figure 2E). Furthermore, we found that most Tbr1+ (>99%) DCN neurons, Foxp2+ (51%) Purkinje cells, and Brn2+ (43%) DCN neurons co-expressed βgal when recombination was induced at E10.5 or E11.5, but the proportion of double-positive cells declined when recombination was induced at later stages (Figure 2F,G; Figure 2—figure supplement 1D). In contrast, few Pax2+ (6%) cells co-expressed βgal when recombination was induced at E10.5, and the number of double-positive cells was minimal when recombination was induced at later stages (Figure 2H). Unipolar brush cells (Tbr2+) were also observed to co-express βgal in recombined animals (Figure 2—figure supplement 1E). One should note that these cells derive from late rhombic lip progenitor cells at a time point (E15.5-birth) when Olig3 is no longer expressed, which indicates that these progenitor cells, like those in the EGL, had a history of Olig3 expression. We conclude that Olig3+ progenitor cells substantially contribute to the generation of the earliest derivatives of the ventricular zone (Purkinje cells) and rhombic lip (DCN neurons), and partially contribute to the later arising EGL cell population.

Cerebellar hypoplasia and loss of early-born cerebellar neurons in Olig3 mutant mice

We next analyzed the consequences of Olig3 ablation on cerebellar development. At birth (P0), the cerebella of Olig3 null (Olig3^-/^-) mutant mice were drastically reduced in volume when compared to control (Olig3^+/-) littermates (Figure 3A,B). The strongest reduction in volume was observed in the medial portion of the cerebella of Olig3 mutant mice (Figure 3—figure supplement 1A). Closer inspection of Olig3 mutant cerebella revealed that they had less folia than control littermates (Figure 3B). Thus, ablation of Olig3 results in severe cerebellar hypoplasia. Furthermore, the number of Tbr1+, Brn2+, Pax6+, and Foxp2+ neurons was greatly reduced in Olig3 mutant mice (Figure 3C–E; Figure 3—figure supplement 1B). In contrast, the number of Pax2+ inhibitory interneurons increased in mutant mice (Figure 3F). Late born derivatives from the rhombic lip, such as Tbr2+ unipolar brush cells, were correctly specified in Olig3 mutant mice (Figure 3—figure supplement 1C). Together these data show that Olig3 is critically involved in cerebellar development and the generation of DCN neurons, EGL cells (including their granule cell derivatives) and Purkinje cells.

Figure 3 with 3 supplements see all

Download asset Open asset

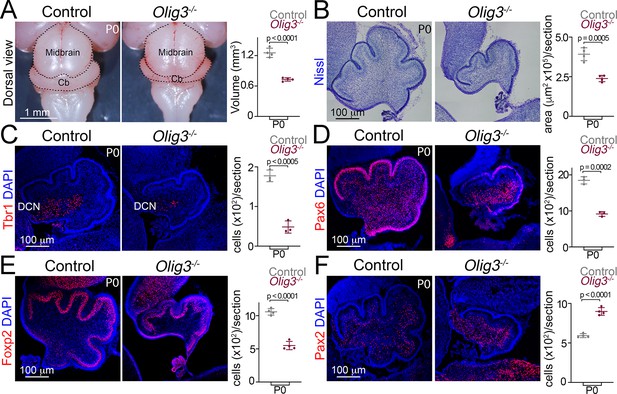

Severe cerebellar hypoplasia and neuronal loss in *Olig3* mutant mice.

(A) Left, dorsal views of control (*Olig3^+/-*) and *Olig3* mutant (*Olig3^-/-*) cerebella at birth (P0). Right, quantification of cerebellar volume in newborn control and *Olig3^-/-* mice. (B) Left, sagittal sections of newborn control and *Olig3^-/-* cerebella stained with Nissl. Right, quantification of cerebellar area in newborn control and *Olig3^-/-* mice. (**C–F**) Immunofluorescence characterization and quantification of Tbr1+ DCN neurons (C, in red), Pax6+ EGL and granule cells (D, in red), Foxp2+ Purkinje cells (E, in red) and Pax2+ inhibitory interneurons (F, in red) in newborn control and *Olig3^-/-* mice. All cerebellar sagittal sections were counterstained with DAPI (blue). The mean and SD are plotted in all graphs, and the dots represent the mean of individual animals. n = 4 mice per genotype in A, B, E, and F; n = 3 mice per genotype in C and D. Two-tailed t-tests were performed to determine statistical significance. See Table 2 for statistical details. Photographs in A and B were acquired with a conventional bright-field microscope and photomicrographs in C-F were acquired using the automatic tile scan modus (10% overlap between tiles) of the Zeiss LSM700 confocal microscope.

Figure 3—source data 1 Source data for Figure 3.: https://cdn.elifesciences.org/articles/64684/elife-64684-fig3-data1-v1.xlsx
Download elife-64684-fig3-data1-v1.xlsx

To define the developmental onset of the cerebellar deficiencies seen in Olig3 mutant mice, we carried out a short-term lineage-tracing experiment using a knock-in mouse strain that expresses GFP from the Olig3 locus (Olig3^GFP) (Müller et al., 2005). We compared control (Olig3^GFP/+) and Olig3 mutant (Olig3^GFP/GFP) mice at E13.5. In control mice at this stage, DCN neurons have already migrated away from the rhombic lip and accumulated in the nuclear transitory zone, EGL cells have formed their characteristic subpial layer, and Purkinje cells have completed their specification (Figure 3—figure supplement 2). Compared to control littermates, E13.5 Olig3 mutant mice showed a severe reduction in the number of DCN and EGL cells but no significant reduction in the number of Purkinje cells (Figure 3—figure supplement 2). Therefore, while the deficits observed in DCN neurons and EGL cells arise early during cerebellar development in Olig3 mutant mice, the reduction in Purkinje cell numbers occurs at a later developmental stage than E13.5 (see below).

We next analyzed whether Atoh1 and/or Ptf1a progenitor cell numbers changed in Olig3 mutant mice at early embryonic stages. Analysis of Olig3 mutant mice at E11.5 and E12.5 revealed reduced numbers of Atoh1+ cells in the rhombic lip, but no change in the number of Ptf1a+ cells in the ventricular zone (Figure 3—figure supplement 3A,B). We then asked whether the ablation of Olig3 might affect the proliferation of rhombic lip and ventricular zone progenitor cells and/or their viability. In the rhombic lip, the number of proliferative (BrdU+) cells was reduced in Olig3 mutant animals (Figure 3—figure supplement 3C). However, no change in the number of Tunel+ apoptotic bodies (puncta) were seen at any of the analyzed embryonic stages (Figure 3—figure supplement 3E). In the ventricular zone of Olig3 mutant animals neither the number of BrdU+ or Tunel+ apoptotic bodies changed (Figure 3—figure supplement 3D,E). Thus, the mutation of Olig3 impairs progenitor proliferation in the rhombic lip but not in the ventricular zone, illustrating that Olig3’s function in the ventricular zone differs from that in the rhombic lip.

Ablation of Olig3 misspecifies Purkinje cells that transform into inhibitory interneurons

We next compared the development of Foxp2+ Purkinje cells and Pax2+ inhibitory interneurons in Olig3 mutant mice. In wildtype and heterozygous Olig3^GFP/+ mice, Pax2+ cells first appeared at E13.5 in a rostral domain of the ventricular zone that lacked expression of Olig3, and by E14.5 occupied most of the ventricular zone (Figure 4A). The spread of Pax2+ cells from rostral to caudal coincided with the receding of Olig3+ cells (schematically displayed in Figure 4B). In sharp contrast to wildtype and heterozygous Olig3^GFP/+ mice, we found supernumerary Pax2+ cells in Olig3^GFP/GFP mutant mice from E13.5 to P0 (Figure 4C; Figure 4—figure supplements 1 and 2; quantified in Figure 4D). Many of the supernumerary Pax2+ cells co-expressed GFP at E13.5 and E14.5 (see magnifications in Figure 4C and Figure 4—figure supplement 2A). Thus, the ablation of Olig3 de-represses Pax2 in the early developing cerebellum.

Figure 4 with 2 supplements see all

Download asset Open asset

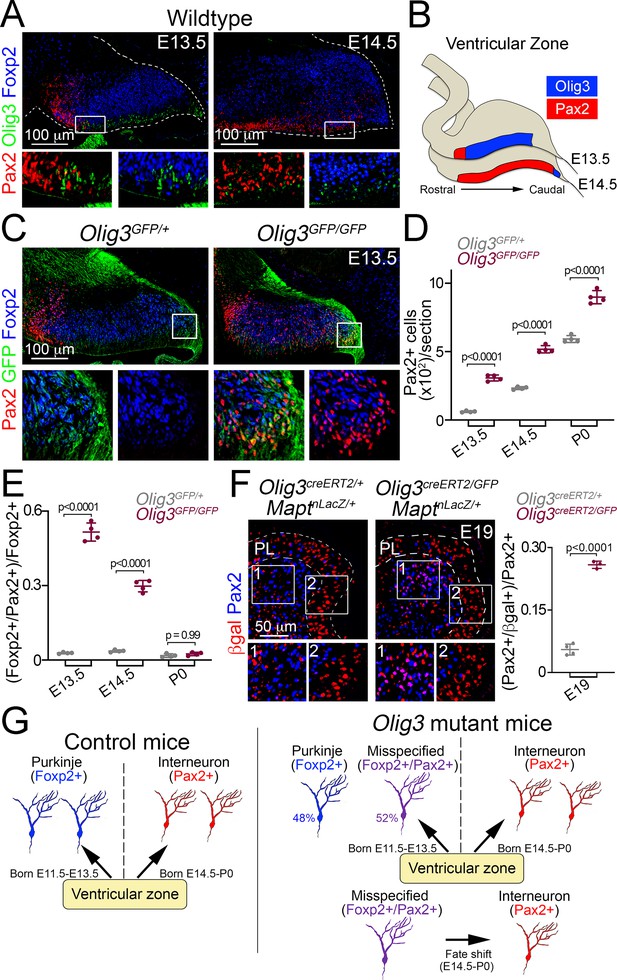

Ablation of *Olig3* misspecifies Purkinje cells which become inhibitory interneurons.

(A) Immunofluorescence characterization of Foxp2+ (blue) Purkinje cells, Pax2+ (red) inhibitory interneurons and Olig3+ (green) progenitor cells in wildtype mice at the indicated stages. Boxed areas are magnified underneath the main photographs. (B) Schema illustrating the development of Pax2+ inhibitory interneurons. At E13.5, inhibitory interneurons develop in a rostral domain of the ventricular zone that lacks Olig3 expression. At E14.5, Pax2+ cells span most of the ventricular zone as Olig3 expression becomes extinguished. (C) Immunofluorescence characterization of Foxp2+ (blue) Purkinje cells and Pax2+ (red) inhibitory interneurons in E13.5 control (*Olig3^GFP/+*) and *Olig3* mutant (*Olig3^GFP/GFP*) mice. All cerebellar sagittal sections were stained against GFP (green). Boxed areas are magnified underneath the main photographs. Note that GFP+ and Foxp2+ cells ectopically express Pax2 in *Olig3^GFP/GFP* mice. See Figure 4—figure supplement 1 for additional examples and magnifications illustrating the co-expression of Pax2 and Foxp2 in *Olig3^GFP/GFP* mice. (D) Quantification of Pax2+ cells in *Olig3^GFP/+* and *Olig3^GFP/GFP* mice at the indicated stages. (E) Quantification of the proportion of Foxp2+ Purkinje cells co-expressing Pax2+ in *Olig3^GFP/+* and *Olig3^GFP/GFP* mice at the indicated stages. (F) Immunofluorescence characterization and quantification of the proportion of Pax2+ (blue) inhibitory interneurons co-expressing βgal (red) in E19 control (*Olig3^creERT2/+;Mapt^nLacZ/+*) and *Olig3* mutant (*Olig3^creERT2/GFP;Mapt^nLacZ/+*) mice that were recombined at E10.5. (G) Schema illustrating the above findings. In control mice, the ventricular zone generates two sets of GABAergic neurons: Foxp2+ Purkinje cells (E11.5-E13.5) and Pax2+ inhibitory interneurons (E14.5- P0). In *Olig3* mutant mice, about half of the Foxp2+ cells are misspecified and co-expressed Pax2. These cells subsequently undergo a fate shift and transform into inhibitory interneurons. The mean and SD are plotted in all graphs, and the dots represent the mean of individual animals. n = 4 mice per genotype in D and E; n = 4 control mice and n = 3 *Olig3* mutant mice in F. Significance was determined using a one-way ANOVA followed by post hoc Tukey’s (in D and E) or two-tailed t-test (in F) analyses, see Table 2 for statistical details. Photomicrographs were acquired using the automatic tile scan modus (10% overlap between tiles) of the Zeiss spinning disk confocal microscope (in A and C) and the Zeiss LSM700 confocal microscope (in F).

Figure 4—source data 1 Source data for Figure 4.: https://cdn.elifesciences.org/articles/64684/elife-64684-fig4-data1-v1.xlsx
Download elife-64684-fig4-data1-v1.xlsx

Surprisingly at E13.5, most Foxp2+ cells (52%) co-expressed Pax2 in Olig3 mutant mice (Figure 4C, quantified in Figure 4E), vice versa, roughly 90% of the Pax2+ cells co-expressed Foxp2 (Figure 4—figure supplement 2B). Interestingly, the proportion of misspecified Foxp2+/Pax2+ (or Pax2+/Foxp2+) cells declined by E14.5 and became rare by P0 (quantified in Figure 4E and Figure 4—figure supplement 2B). The decrease of misspecified (Foxp2+/Pax2+) cells coincided with the increase of inhibitory (Foxp2-/Pax2+) interneurons seen in Olig3 mutant animals (compare Figure 4D and Figure 4E). We thus hypothesized that misspecified (Foxp2+/Pax2+) cells in Olig3 mutant animals might undergo a fate shift and adopt an inhibitory (Foxp2-/Pax2+) interneuron identity. To assess this hypothesis, we carried out a long-term lineage-tracing experiment using Olig3^creERT2 and the Mapt^nLacZ reporter in an Olig3 mutant background (Olig3^creERT2/GFP;Mapt^nLacZ/+ mice) and analyzed βgal expression in Pax2+ inhibitory interneurons. Tamoxifen recombination in Olig3^creERT2/GFP;Mapt^nLacZ/+ mice was induced at E10.5. We found an increase in the proportion of Pax2+/βgal+ cells in Olig3^creERT2/GFP;Mapt^nLacZ/+ mice when compared to Olig3^creERT2/+;Mapt^nLacZ/+ control littermates (Figure 4F). Notably, ectopic Pax2+/βgal+ cells in Olig3^creERT2/GFP;Mapt^nLacZ/+ mice not only adopt an inhibitory interneuron identity (Pax2 expression), but also intermingle with Pax2+/βgal- cells underneath the Purkinje cell layer at E19 (compare inserts 1 and 2 in Figure 4F). Taken together, we conclude that ablation of Olig3 in the ventricular zone results in the misspecification of Purkinje cells. These cells later change their fate and adopt an inhibitory interneuron identity (schematically displayed in Figure 4G).

Olig3 cell-autonomously curtails Pax2 expression to secure Purkinje cell differentiation

To experimentally assess whether Pax2 cell-autonomously suppresses Foxp2 expression to induce an inhibitory interneuron differentiation program, we electroporated in utero a Pax2-IRES-GFP-expressing vector in the ventricular zone of wildtype animals at E12.5. This is a timepoint during which Foxp2+ cells are abundant and Pax2+ cells are absent (see Figure 5A for a schematic display of the experimental conditions). Electroporated pCAG-Pax2-IRES-GFP (Pax2 overexpressing) and pCAG-GFP + Empty-IRES-GFP (control) embryos were analyzed at E14.5. In pCAG-Pax2-ires-GFP electroporated mice, no GFP+/Pax2+ cell co-expressed Foxp2, whereas in pCAG-GFP + Empty-IRES-GFP electroporated mice about 72% of the GFP+ cells were also Foxp2+ (Figure 5B). Calcium-binding proteins are characteristic of inhibitory interneurons in the central nervous system, among which we found Parvalbumin expression to coincide with the onset of cerebellar interneuron specification and to be virtually absent in Foxp2+ cells at E14.5 (Figure 5—figure supplement 1A). Next, we evaluated whether Pax2 electroporated cells acquire an inhibitory interneuron identity using the same conditions described above. In pCAG-Pax2-ires-GFP electroporated mice, a third of the Parvalbumin+ cells co-expressed GFP, whereas in pCAG-GFP + Empty-IRES-GFP electroporated mice about 4% of the GFP+ cells were also Parvalbumin+ (Figure 5—figure supplement 1B). We conclude that Pax2 is an efficient suppressor of Foxp2 expression and that its expression seems to induce a differentiation program characteristic of inhibitory interneurons.

Figure 5 with 2 supplements see all

Download asset Open asset

Olig3 cell-autonomously curtails *Pax2* expression to prevent the suppression of Foxp2 in newborn Purkinje cells.

(A) Strategy to force *Olig3* and *Pax2* expression in the ventricular zone of wildtype mouse embryos. Left, illustration of the electrode position required to target the ventricular zone. Middle top, schema illustrating the temporal expression of Olig3, and the generation of Purkinje cells and inhibitory interneurons. Middle bottom, *Pax2* and *Olig3* expressing vectors were electroporated at E12.5 and E14.0, respectively. Electroporated embryos were harvested at the indicated stages. Electroporated plasmids are shown. Right, a representative cerebellar section stained with GFP (green) and DAPI (blue) of an E14.5 mouse that was electroporated with control plasmids at E12.5. (B) Analysis of E14.5 wildtype mice that were electroporated at E12.5 with control (pCAG-GFP + Empty-IRES-GFP) or Pax2-overexpression (pCAG-Pax2-IRES-GFP) plasmids. Left, representative analyzed cells in the cerebellum of electroporated embryos that were stained against Pax2 (red), GFP (green), and Foxp2 (blue). Right, quantification of the proportion of GFP+ cells co-expressing Foxp2 in electroporated control (Pax2-; n = 3) and Pax2-overexpressing (Pax2+; n = 7) mice. (C) Analysis of E15.5 wildtype mice that were electroporated at E14.0 with control (pCAG-GFP + Empty-IRES-GFP) or Olig3-overexpression (pCAG-Olig3-IRES-GFP) plasmids. Left, representative analyzed cells in the cerebellum of electroporated embryos that were stained against Pax2 (red), GFP (green) and Olig3 (blue). Right, quantification of the proportion of GFP+ cells co-expressing Pax2 in electroporated control (Olig3-; n = 5) and Olig3-overexpressing (Olig3+; n = 5) mice. See Figure 5—figure supplement 2 for additional examples of electroporated cells. The mean and SD are plotted in all graphs, and the dots represent the mean of individual animals. Significance was determined using two-tailed t-tests, see Table 2 for statistical details. Photomicrographs were manually acquired using a Leica SPL confocal microscope.

Figure 5—source data 1 Source data for Figure 5.: https://cdn.elifesciences.org/articles/64684/elife-64684-fig5-data1-v1.xlsx
Download elife-64684-fig5-data1-v1.xlsx

To assess whether Olig3 cell-autonomously suppresses Pax2 expression, we forced the ectopic expression of Olig3 in the ventricular zone of wildtype mice at E14, a timepoint when Olig3 expression is almost absent and Pax2+ cells initiate their specification. Electroporated Olig3-IRES-GFP (Olig3 overexpressing) and pCAG-GFP + Empty-IRES-GFP (control) embryos were analyzed at E15.5. The proportion of GFP+ cells that co-expressed Pax2 was greatly reduced in the ventricular zone of Olig3-overexpressing embryos when compared to control electroporated mice (Figure 5C, Figure 5—figure supplement 2). Thus, expression of Olig3 is sufficient to cell-autonomously suppress Pax2 expression. We conclude that during early development, Olig3 in the ventricular zone suppresses Pax2 in newborn Purkinje cells to prevent their misspecification and secure their identity.

Olig3 and Olig2 specify complementary Purkinje cell populations

Our analysis of bHLH factors expressed throughout cerebellar development showed that in addition to Olig3 and Ptf1a, Ascl1 and Olig2 are also expressed in the ventricular zone during Purkinje cell generation (Table 1). While ablation of Ascl1 does not interfere with Purkinje cell development (Grimaldi et al., 2009; Sudarov et al., 2011), the exact role of Olig2 in the generation of GABAergic derivatives is unclear (Ju et al., 2016; Seto et al., 2014). In order to clarify the function of Olig2 we analyzed Olig2 null mutant mice and found a reduction in Purkinje cell numbers and a modest increase in inhibitory interneurons (Figure 6—figure supplement 1A,B). We next carried out a long-term lineage-tracing experiment using Olig2^cre and Mapt^nLacZ alleles (Olig2^cre/+;Mapt^nLacZ/+ mice) to determine the contribution of Olig2 to cerebellar GABAergic neurons. This showed that while roughly half of the Foxp2+ Purkinje cell population had a history of Olig2 expression, few inhibitory interneurons were generated from Olig2+ progenitors (Figure 6—figure supplement 1C). We thus conclude that the phenotypes of Olig3 and Olig2 mutant mice partially overlap (summarized in Figure 6A; Figure 6—figure supplement 1D).

Figure 6 with 1 supplement see all

Download asset Open asset

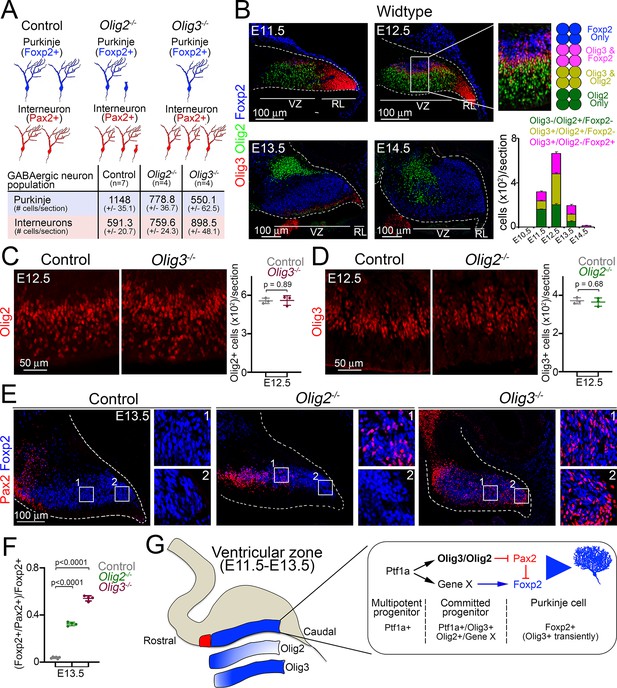

Complementary functions of Olig3 and Olig2 during Purkinje cell development.

(A) Schema and quantification of the phenotypes observed in *Olig2* and *Olig3* mutant mice with respect to the development of GABAergic cerebellar neurons. See also Figure 3E and F (*Olig3* mutant analysis) and Figure 6—figure supplement 1A and B. (*Olig2* mutant analysis). n numbers are indicated in the brackets. (B) Immunofluorescence characterization and quantification of Olig3+ (red), Olig2+ (green), and Foxp2+ (blue) cells in the ventricular zone at indicated embryonic stages (n = 4 mice per age). (C) Immunofluorescence characterization and quantification of Olig2+ (red) cells in the ventricular zone of *Olig3* (*Olig3^-/-*) mutant mice at E12.5 (n = 3 mice per genotype). See also Figure 6—figure supplement 1E (D) Immunofluorescence characterization and quantification of Olig3+ (red) cells in the ventricular zone of *Olig2* (*Olig2^-/-*) mutant mice at E12.5 (n = 3 mice per genotype). See also Figure 6—figure supplement 1F. (E) Immunofluorescence comparison of Foxp2+ (blue) Purkinje cells and Pax2+ (red) inhibitory neurons in control versus *Olig2^-/-* and *Olig3^-/-* mutant mice at E13.5. Numbered boxed areas are displayed to the right of the main photographs. (F) Quantification of the proportion of Foxp2+ cells co-expressing Pax2 in control (n = 6), *Olig2^-/-* (n = 4), and *Olig3^-/-* (n = 4) mutant mice at E13.5. (G) Schematic summary explaining the function of Olig3 and Olig2 in the ventricular zone during the specification of Purkinje cells. Induction of Olig3 and Olig2, in committed Ptf1a+ progenitor cells, curtails the expression of Pax2 to allow for the correct specification of Purkinje cells. Olig2 predominantly operates in the rostral ventricular zone, whereas Olig3 has a broader function and is transiently retained in newborn Purkinje cells. The suppression of Pax2 is critical for Purkinje cell development, as it can override the Purkinje cell differentiation program. The mean and SD are plotted in all graphs, and the dots represent the mean of individual animals. Significance was determined using a one-way ANOVA followed by post hoc Tukey (in F) or two-tailed t-test (in C and D) analyses, see Table 2 for statistical details. Photomicrographs were acquired using the automatic tile scan modus (10% overlap between tiles) of the Zeiss spinning disk confocal microscope (in C-E) and the Zeiss LSM700 confocal microscope (in B).

Figure 6—source data 1 Source data for Figure 6.: https://cdn.elifesciences.org/articles/64684/elife-64684-fig6-data1-v1.xlsx
Download elife-64684-fig6-data1-v1.xlsx

Olig3 and Olig2 are known to specify non-overlapping neuron populations during the development of the hindbrain and spinal cord (Takebayashi et al., 2002; Takebayashi et al., 2000). To determine whether Olig3 and Olig2 mark complementary ventricular zone progenitor cells that specify distinct Foxp2+ Purkinje cells, we stained the cerebella of E10.5-E14.5 wildtype embryos with antibodies against these two factors. We observed that roughly 58% of Olig3+ cells in the ventricular zone co-expressed Olig2 but not Foxp2, while the remaining 42% of the Olig3+ cells co-expressed Foxp2 but not Olig2 (Figure 6B). Notably, we observed no Olig3-/Olig2+ cells that co-expressed Foxp2, illustrating that differentiated Purkinje cells retain Olig3 but not Olig2 expression.

We then asked whether ablation of Olig3 might affect the expression of Olig2 in ventricular zone progenitors, and vice versa we assessed whether mutation of Olig2 might compromise the expression of Olig3. Mutation of Olig3 did not affect the expression of Olig2, and neither did mutation of Olig2 affect the expression of Olig3 in progenitor cells of the ventricular zone (Figure 6C and D; Figure 6—figure supplement 1E,F). These data demonstrate that the expression of Olig3 and Olig2 in ventricular zone progenitor cells is independent of the other factor. Next, we assessed whether mutation of Olig2 might also de-repress Pax2 in newborn Purkinje cells in a similar manner as the ablation of Olig3. Indeed, we observed numerous Foxp2+/Pax2+ misspecified cells in Olig2 mutant animals at E13.5 (Figure 6E, quantified in Figure 6F), but unlike in Olig3 mutant embryos, these cells were only located in the rostral-most part of the ventricular zone (compare insets in Figure 6E). These data demonstrate that Olig2 specifically suppresses Pax2 in rostrally generated Purkinje cells, while Olig3 has a broader function in the suppression of Pax2 in most of the Purkinje cell population. We therefore conclude that Olig3 and Olig2 complementarily contribute to the correct specification of Purkinje cells by curtailing the expression of Pax2 (schematically displayed in Figure 6G).

Discussion

bHLH transcription factors are highly conserved in evolution and function as principal regulators of cell differentiation and neuronal specification (Atchley and Fitch, 1997; Baker and Brown, 2018; Ben-Arie et al., 2000; Bertrand et al., 2002; Dennis et al., 2019; Dokucu et al., 1996; Jones, 2004; Sommer et al., 1996). In this study, we sought to identify bHLH factors that regulate the specification of distinct cerebellar neuron types. We report here that Olig3 is a key player in cerebellar development and the generation of its earliest neuronal derivatives. Ablation of Olig3 results in pronounced cerebellar hypoplasia at birth and the massive loss of DCN neurons, EGL cells including their granule cell derivatives, and Purkinje cells. These deficits are accompanied by an increase in the number of inhibitory interneurons. Our data illustrate that Olig3 regulates progenitor cell proliferation in the rhombic lip, whereas in the ventricular zone Olig3 cell-autonomously suppresses the development of inhibitory interneurons by curtailing the expression of Pax2. We demonstrate that Pax2 acts as an effective suppressor of the Purkinje cells differentiation program. In addition, we show that Olig3 and its close family member Olig2 specify complementary Purkinje cell populations.

Here, we show that Olig3 is critically involved in the generation of EGL cells as well as DCN neurons. Earlier studies revealed that these rhombic lip derivatives depend on Atoh1 for their development, as loss of Atoh1 results in the severe reduction of EGL cells and impairs the development of DCN neurons (Ben-Arie et al., 1997; Gazit et al., 2004; Jensen, 2004; Machold and Fishell, 2005; Machold et al., 2011; Wang et al., 2005; Yamada et al., 2014). Our long-term lineage-tracing studies demonstrated that most EGL and DCN cells have a history of Olig3 expression, ablation of which massively reduced their cell numbers. In the early rhombic lip (E10.5-E13.5), we found that most proliferative progenitor cells (Sox2+/BrdU+) co-expressed Olig3 and a third of them co-expressed Atoh1 (Olig3+/Atoh1+ cells). This temporal window overlaps with the generation of DCN cells (Fink, 2006; Sekerková et al., 2004; Wang et al., 2005; Yamada et al., 2014), which are the most reduced neuron type in Olig3 mutant mice (this study). Thus, Olig3 is essential for DCN neuron development. Ablation of Olig3 reduced the number of BrdU+ (proliferative) progenitor cells in the rhombic lip, and consequently decreased the number of Atoh1+ cells. This impairment led to smaller numbers of EGL cells and, therefore, to fewer differentiated granule cells. The severe loss of EGL cells and their granule cell derivatives seems to largely account for the pronounced cerebellar hypoplasia observed in Olig3 mutant mice, and has also been observed after the loss of EGL cells in other studies (Ben-Arie et al., 1997). One should note, however, that the reduced numbers of granule cells in Olig3 mutant mice might be mainly independent of Olig3 and due to the reduction of instructive signals emanating from Purkinje cells, which are severely affected in these mutant mice. Indeed, available evidence shows that Purkinje cells regulate EGL proliferation and the differentiation of granule cells via sonic hedgehog signaling (Dahmane and Ruiz i Altaba, 1999; Wallace, 1999; Wechsler-Reya and Scott, 1999).

During the development of rhombomeres 2–7, there exists a dorsal progenitor domain (called dA1) that also co-expresses Olig3 and Atoh1 (Hernandez-Miranda et al., 2017a; Liu et al., 2008; Storm et al., 2009). This domain generates the mossy fiber precerebellar (pontine, lateral reticular, external cuneate) nuclei. Like in the rhombic lip, ablation of Olig3 greatly reduces the number of Atoh1+ cells in this area and their derivatives (Liu et al., 2008; Storm et al., 2009). This phenomenon also occurs in the spinal cord when Olig3 is ablated (Müller et al., 2005). Thus, Olig3 has a conserved function in the proliferation of Atoh1+ progenitor cells.

We also show that the ablation of Olig3 results in the development of supernumerary inhibitory interneurons. Both Purkinje cells and inhibitory interneurons depend on Ptf1a for their development (Hashimoto and Mikoshiba, 2003; Hoshino et al., 2005; Leto et al., 2006; Yamada et al., 2014). We predominantly found expression of Olig3 in the ventricular zone between E11.5 and E13.5, the temporal window during which Purkinje cells are specified. In the ventricular zone, about half of the Olig3+ cells co-express Ptf1a, while the rest co-express the Purkinje cell marker Foxp2. This shows that Olig3 expression is initiated in progenitors and transiently retained in newborn Purkinje cells. Ablation of Olig3 neither impaired the number of Ptf1a+ cells nor their proliferation. Strikingly, around half of newborn Purkinje cells erroneously co-expressed Pax2 in Olig3 mutant mice at E13.5, illustrating that ablation of Olig3 misspecifies newborn Purkinje cells. In Olig3 mutant mice, the number of misspecified cells declined over time and became rare by P0. This decline correlated with a parallel increase in the number of inhibitory interneurons. Thus, the primary function of Olig3 in the ventricular zone is to secure the development of Purkinje cells by cell-autonomously suppressing an alternative program that specifies inhibitory interneurons. In this context, our functional data demonstrate that forced expression of Olig3, during the temporal generation of inhibitory interneurons, is sufficient to curtail Pax2 expression. Furthermore, our functional data demonstrate that Pax2 acts as an effective suppressor of Foxp2 and the Purkinje differentiation cell program. In agreement with our findings, it was previously shown that supernumerary inhibitory neurons become specified at the expense of excitatory neurons in the hindbrain and spinal cord of Olig3 mutant mice (Müller et al., 2005; Storm et al., 2009; Zechner et al., 2007). Interestingly, there is a unique progenitor domain in rhombomere 7 (called dA4) that co-expresses Olig3 and Ptf1a, which generates the pre-cerebellar climbing fiber neurons of the inferior olive (reviewed in Hernandez-Miranda et al., 2017a). In the absence of Olig3, inferior olive neurons and many spinal cord excitatory neurons seem to change their fate and erroneously adopt an inhibitory interneuron identity (Liu et al., 2008; Müller et al., 2005; Storm et al., 2009). This suggests that inhibitory interneurons are the default neuronal type generated from the brainstem, spinal cord and the ventricular zone of the cerebellum.

Based on short-term lineage-tracing experiments, Seto et al., 2014 postulated a ‘temporal identity transition’ model in which Olig2+ Purkinje cell progenitors transition into inhibitory interneuron progenitors (Seto et al., 2014). From this model, one would expect that inhibitory interneurons would have a history of Olig2 expression. In keeping with observations made by Ju et al., 2016, our long-term lineage-tracing experiments using Olig2^cre and Olig3^creERT2 mice showed that Pax2+ inhibitory interneurons rarely have a history of Olig2 or Olig3 expression. This casts doubt on the ‘temporal identity transition’ model as both factors are abundantly expressed in Ptf1a+ progenitors during the specification of Purkinje cells (this work and Seto et al., 2014). Our data unambiguously show that neither Olig2 nor Olig3 control the transition of early (Purkinje) to late (inhibitory interneuron) ventricular zone progenitor cells. Rather, our work demonstrates that these factors are essential for the correct specification of Purkinje cells by curtailing an inhibitory interneuron transcriptional program.

Development of the central nervous system is characterized by molecular ‘grids’ of combinatorial transcription factor expression that single out distinct progenitor domains. It is from here that the enormous diversity of neuron types is generated (reviewed in Alaynick et al., 2011; Hernandez-Miranda et al., 2017a; Hernández-Miranda et al., 2010; Jessell, 2000). Here, we show that cerebellar DCN neurons and internal granule cells develop from Olig3+/Atoh1+ rhombic lip progenitor cells, whereas Purkinje cells derive from Olig3+/Ptf1a+ ventricular zone progenitors. In the mature cerebellum, DCN neurons and granule cells receive input from brainstem precerebellar mossy fiber neurons that originate from progenitor cells that co-express Olig3 and Atoh1, whilst Purkinje cells receive input from climbing fiber neurons that emerge from progenitors that co-express Olig3 and Ptf1a (Liu et al., 2008; Storm et al., 2009). The question of how these progenitor cells, located at such distant positions, acquire similar molecular signatures to specify both targets and inputs that in turn form functional cerebellar circuits remains to be elucidated.

Materials and methods

Key resources table

Reagent type (species) or resource	Designation	Source or reference	Identifiers	Additional information
Strain, strain background (M. musculus)	Olig3^CreERT2	Storm et al., 2009.	RRID:MGI:3833734
Strain, strain background (M. musculus)	Olig3^GFP	Müller et al., 2005.
Strain, strain background (M. musculus)	Mapt^nLacZ	Hippenmeyer et al., 2005.	The Jackson Laboratory, Stock No: 021162
Strain, strain background (M. musculus)	Rosa26^lsl-tdT (Ai14)	Madisen et al., 2010.	The Jackson Laboratory, Stock No. 007908
Strain, strain background (M. musculus)	Olig2^Cre	Dessaud et al., 2007.
Antibody	Anti-β-gal (Chicken polyclonal)	Abcam	ab9361 RRID:AB_307210	(1:1,000)
Antibody	Anti-GFP (Chicken polyclonal)	Abcam	ab13970 RRID:AB_300798	(1:500)
Antibody	Anti-Brn2 (Goat polyclonal)	Abcam	ab101726 RRID:AB_10710183	(1:1,000)
Antibody	Anti-Foxp2 (Goat polyclonal)	Abcam	ab58599 RRID:AB_941649	(1:1,000)
Antibody	Anti-Olig3 (Guinea pig polyclonal)	Gift from T. Muller	Homemade	(1:5,000)
Antibody	Anti-Foxp2 (Rabbit polyclonal)	Abcam	ab16046 RRID:AB_2107107	(1:1,000)
Antibody	Anti-GFP (Rabbit polyclonal)	Abcam	ab290 RRID:AB_303395	(1:500)
Antibody	Anti-Pax2 (Rabbit monoclonal)	Abcam	EP3251 RRID:AB_1603338	(1:1,000)
Antibody	Anti-Sox2 (Rabbit polyclonal)	Abcam	ab97959 RRID:AB_2341193	(1:1,000)
Antibody	Anti-Tbr1 (Rabbit polyclonal)	Abcam	ab31940 RRID:AB_2200219	(1:1,000)
Antibody	Anti-Tbr2 (Rabbit polyclonal)	Abcam	ab23345 RRID:AB_778267	(1:1,000)
Antibody	Anti-Ptf1a (Rabbit polyclonal)	Gift from J. Johnson	Homemade	(1:5,000)
Antibody	Anti-Olig2 (Rabbit polyclonal)	Merck Millipore	AB9610 RRID:AB_570666	(1:1,000)
Antibody	Anti-Pax6 (Rabbit polyclonal)	Merck Millipore	AB2237 RRID:AB_1587367	(1:1,000)
Antibody	Anti-RFP (Rabbit polyclonal)	Rockland	600-401-379 RRID:AB_2209751	(1:500)
Antibody	Anti-Caspase-3 (Rabbit polyclonal)	R and D Systems	AF835 RRID:AB_2243952	(1:1,000)
Antibody	Anti-Parvalbumin (Rabbit polyclonal)	Swant	PV 27 RRID:AB_2631173	(1:3,000)
Antibody	Anti-Atoh1 (Rabbit polyclonal)	Gift from T. Jessell	Homemade	(1:10,000)
Antibody	Anti-BrdU (Rat monoclonal)	Abcam	ab6326 RRID:AB_305426	(1:2,000)
Antibody	Anti-GFP (Rat monoclonal)	Nacalai Tesque	GF090R RRID:AB_10013361	(1:2,000)
Antibody	Donkey anti-species Alexa Fluor488/568/647	Jackson ImmunoResearch	Various	(1:500)
Commercial Assay or kit	BrdU	Sigma-Aldrich	B5002-1G	16 mg/ml in 0.9% saline solution
Recombinant DNA reagent	pCAG-GFP	Addgene	Plasmid #11150 RRID:Addgene_11150
Recombinant DNA reagent	pCAG-Empty-IRES-GFP	This paper
Recombinant DNA reagent	pCAG-Olig3-IRES-GFP	This paper		vector: pCAG; cDNA fragment: mouse Olig3
Recombinant DNA reagent	pCAG-Pax2-IRES-GFP	This paper		vector: pCAG; cDNA fragment: mouse Pax2
Sequence-based reagent (M. musculus)	Mouse Olig3 forward primer	Olig3FW	PCR Primer	ATGAATTCTGATTCGAGC
Sequence-based reagent (M. musculus)	Mouse Olig3 reverse primer	Olig3RV	PCR Primer	TTAAACCTTATCGTCGTC
Sequence-based reagent (M. musculus)	Mouse Pax2 forward primer	Pax2FW	PCR Primer	ATGGATATGCACTGCAAAGCAG
Sequence-based reagent (M. musculus)	Mouse Pax2 reverse primer	Pax2RV	PCR Primer	GTGGCGGTCATAGGCAGC
Software, algorithm	GraphPad Prism	GraphPad Software	RRID:SCR_002798	Prism 8
Software, algorithm	Adobe Photoshop	Adobe	RRID:SCR_014199	Adobe Photoshop CS6
Software, algorithm	ImageJ	NIH	RRID:SCR_002285
Software, algorithm	Arivis Vision4D	Arivis	RRID:SCR_018000	Arivis Vision4D 3.2

Animals

All animal experimental procedures were done in accordance to the guidance and policies of the Charite Universitatsmedizin, Berlin, Germany; Max-Delbrück-Center for Molecular Medicine, Berlin, Germany; and the Institute of Neuroscience, Lobachevsky University of Nizhny Novgorod, Russian Federation. Mouse strains used for this study were: Olig3creERT2 (Storm et al., 2009), Olig3GFP (Müller et al., 2005), MaptnLacZ (Hippenmeyer et al., 2005), Rosa26lsl-tdT (Madisen et al., 2010), and Olig2cre (Dessaud et al., 2007). All strains were maintained in a mixed genetic background.

For tamoxifen treatment, pregnant dams were treated with tamoxifen (Sigma-Aldrich; 20 mg/ml dissolved in sunflower oil) as described previously (Hernandez-Miranda et al., 2017b; Storm et al., 2009). Tamoxifen delays labor in rodents and humans (Lizen et al., 2015). Therefore, offspring from tamoxifen-treated dams were delivered by caesarean section at E19.

Histology and cell quantifications

Request a detailed protocol

Immunofluorescence and tissue processing were performed as previously described (Hernández-Miranda et al., 2011). Briefly, mouse tissue (E10.5–P0) was fixed in 4% paraformaldehyde (PFA), made in phosphate buffered saline (PBS), for 3 hr at 4°C. After fixation, brains were cryoprotected overnight in 30% sucrose in PBS, embedded and frozen in Tissue-Tek OCT (Sakura Finetek), and sectioned at 20 μm using a cryostat. Sections were washed in PBS and blocked in PBS containing 5% normal goat serum (Sigma-Aldrich) (v/v) and 0.1% Triton X-100 (v/v) (Sigma-Aldrich) at room temperature for 1 hr. They were subsequently incubated in primary antibodies at room temperature overnight. After incubation in primary antibodies, sections were washed in PBS and then incubated in secondary antibodies for 2 hr at room temperature. Primary and secondary antibodies used in this study are displayed in the Key Resources Table. For a 45 min BrdU pulse labeling, BrdU (Sigma-Aldrich) was diluted to a concentration of 16 mg/ml in saline solution and injected intraperitoneally.

Cell quantifications were performed in a non-blind manner on non-consecutive 20-μm-thick brain sections encompassing the complete lateral-medial cerebellar axis. On average six to ten sections per animal were used for quantifications. E12.5 whole-mount embryos were analysed for β-gal activity with X-gal (0.6 mg/ml; Merck Millipore, B4252) in PBS buffer containing 4 mM potassium ferricyanide, 4 mM potassium ferrocyanide, 0.02% NP-40 and 2 mM MgCl2 as previously described (Comai and Tajbakhsh, 2014). For the estimation of the cerebellar volume and area, consecutive 20-μm-thick sagittal sections were collected encompassing the whole cerebellum and stained with Nissl. Roughly 32–35 sections of the cerebellum were obtained per animal (four animals/genotype). The area of every section was measured using ImageJ; NIH, version 1.34 n. Estimation of the total volume of the cerebellum was obtained by application of Cavalieri’s method (West, 2012). Fluorescence images were acquired using: (i) a Zeiss LSM 700 confocal microscope using the automatic tile scan modus (10% overlap between tiles) and assembled using ZEN2012, (ii) a Zeiss spinning disk confocal microscope using the automatic tile scan modus (10% overlap between tiles) and assembled using ZEN2012, and (iii) a Leica SPL confocal microscope. Photographs obtained with the Leica SPL confocal microscope were manually acquired and these were assembled using Image J. Unless otherwise specified all photomicrographs were acquired in a non-blind manner.

Brain clearing, lightsheet microscopy and analysis

Request a detailed protocol

Brains were cleared using the CUBIC protocol (Susaki et al., 2015). Briefly, brains were dissected and fixed overnight at 4°C in 4% paraformaldehyde made in PBS. After washing overnight in PBS, lipids were removed using Reagent-1 (25% urea, 25% Quadrol, 15% Triton X-100, 35% dH₂O) at 37°C until brains were transparent (4 days). The brains were then washed overnight at 4°C in PBS to remove Reagent-1 and then placed into Reagent-2 (25% urea, 50% sucrose, 10% triethanolamine, 15% dH₂O) at 37°C for refractive index matching (3 days). Once the brains were cleared, they were imaged using a Zeiss Lightsheet Z.1 microscope. 3D reconstruction, photos and videos were created with arivis Vision4D.

In utero electroporation

Request a detailed protocol

In utero electroporation was performed as previously described (Saito and Nakatsuji, 2001). Briefly, DNA plasmids were mixed with Fast Green and injected into the fourth ventricle of embryonic brains from outside the uterus with a glass micropipette. Holding the embryo in utero with forceps-type electrodes (NEPA GENE), 50 ms of 40 V electronic pulses were delivered five times at intervals of 950 ms with a square electroporator (Nepa Gene, CUY21). The plasmids used in this study are displayed in the Key Resource table. The primer sequences to clone to clone the mouse Olig3 (NM_053008.3) and Pax2 (NM_011037.5) genes are displayed in in the Key Resource table. The electroporated plasmid DNA mixtures were as follows: (i) for the control experiment, pCAG-GFP (0.5 mg ml⁻¹) + pCAG-Empty-IRES-GFP (0.5 mg ml⁻¹); (ii) for the Olig3 overexpression experiment, pCAG-Olig3-IRES-GFP (0.5 mg ml⁻¹); and (iii) for the Pax2 overexpression experiment, pCAG-Pax2-IRES-GFP (0.5 mg ml⁻¹).

Statistics

Statistical analyses were performed using Prism 8 (GraphPad). Data are plotted in scatter dot plots or column dot plots with means and standard deviations (SD) displayed. The statistical significance between group means was tested by one-way ANOVA, followed by Tukey’s post hoc test (for multiple- comparison tests), or two-tailed t-test (for pair comparison tests). Degrees of Freedom as well as F and t values are provided in Table 2. No statistical method was used to pre-determine the sample size. No randomization or blinding was used for in vivo studies.

Table 2

Description of the statistical analyses used in this study.

Fig.	N	Descriptive statistics	Test used	p Value	Degrees of freedom and F/t/z/R/ETC	Pos hoc analysis	Adjusted p value

2E	Three mice (E10.5) three mice (E11.5) three mice (E12.5) three mice (E13.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 67.20 F(DFn, DFd): 0.1441 (3, 8)	Tukey’s multiple comparative test	As indicated in the figure
2F	Three mice (E10.5) three mice (E11.5) three mice (E12.5) three mice (E13.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 93.57 F(DFn, DFd): 1.868 (3, 8)	Tukey’s multiple comparative test	As indicated in the figure
2G	Three mice (E10.5) three mice (E11.5) three mice (E12.5) three mice (E13.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 122.2 F(DFn, DFd): 1.096 (3, 8)	Tukey’s multiple comparative test	As indicated in the figure
2H	Three mice (E10.5) three mice (E11.5) three mice (E12.5) three mice (E13.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 13.65 F(DFn, DFd): 0.8851 (3, 8)	Tukey’s multiple comparative test	As indicated in the figure
3A	Four control mice four mutant mice	Mean and SD	Unpaired t-test (two-tailed)	<0.0001	t = 15.13; df = 6	-	-
3B	Four control mice four mutant mice	Mean and SD	Unpaired t-test (two-tailed)	0.0005	t = 6.742; df = 6	-	-
3C	Three control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	0.0005	t = 10.47; df = 4	-	-
3D	Three control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	0.0002	t = 13.45; df = 4	-	-
3E	Four control mice four mutant mice	Mean and SD	Unpaired t-test (two-tailed)	<0.0001	t = 16.89; df = 6	-	-
3F	Four control mice four mutant mice	Mean and SD	Unpaired t-test (two-tailed)	<0.0001	t = 11.26; df = 6	-	-
4D	Four control (E13.5) four mutant (E13.5) four control (E14.5) four mutant (E14.5) four control (P0) four mutant (P0)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 498.6 F(DFn, DFd): 1.252 (5, 18)	Tukey’s multiple comparative test	As indicated in the figure
4E	Four control (E13.5) four mutant (E13.5) four control (E14.5) four mutant (E14.5) four control (P0) four mutant (P0)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 514.2 F(DFn, DFd): 7.873 (5, 18)	Tukey’s multiple comparative test	As indicated in the figure
4F	Four control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	<0.0001	t = 22.92; df = 5	-	-
5B	Three control-OE mice 7 Pax2-OE mice	Mean and SD	Unpaired t-test (two-tailed)	<0.0001	t = 67.67; df = 8	-	-
5C	Five control-OE mice 5 Olig3-OE mice	Mean and SD	Unpaired t-test (two-tailed)	0.0001	t = 13.24; df = 8	-	-
6C	Three control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	0.8969	t = 0.1380; df = 4	-	-
6D	Three control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	0.6835	t = 0.4387; df = 4	-	-
6F	Four control 4 Olig3 mutant 4 Olig2 mutant	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 1416 F(DFn, DFd): 0.8767 (2, 11)	Tukey’s multiple comparative test	As indicated in the figure
2-fs 1C	Three mice (E10.5) three mice (E11.5) three mice (E12.5) three mice (E13.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 299.8 F(DFn, DFd): 0.3133 (3, 8)	Tukey’s multiple comparative test	As indicated in the figure
2-fs 1D	Three mice (E10.5) three mice (E11.5) three mice (E12.5) three mice (E13.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 100.9 F(DFn, DFd): 0.2601 (3, 8)	Tukey’s multiple comparative test	As indicated in the figure
2-fs 1E	Three mice (E10.5) three mice (E11.5) three mice (E12.5) three mice (E13.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 85.64 F(DFn, DFd): 0.08333 (3, 8)	Tukey’s multiple comparative test	As indicated in the figure
3-fs 1B	Three control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	0.0093	t = 4.707; df = 4	-	-
3-fs 1C	Three control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	0.2799	t = 1.249; df = 4	-	-
3-fs 2A	Three control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	<0.0001	t = 16.84; df = 4	-	-
3-fs 2B	Three control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	<0.0001	t = 17.51; df = 4	-	-
3-fs 2C	Three control mice three mutant mice	Mean and SD	Unpaired t-test (two-tailed)	0.0801	t = 2.331; df = 4	-	-
3-fs 3A	Four control (E11.5) four mutant (E11.5) four control (E12.5) four mutant (E12.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 139.7 F(DFn, DFd): 2.328 (3, 12)	Tukey’s multiple comparative test	As indicated in the figure
3-fs 3B	Three control (E11.5) four mutant (E11.5) four control (E12.5) four mutant (E12.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 118.9 F(DFn, DFd): 0.3083 (3, 11)	Tukey’s multiple comparative test	As indicated in the figure
3-fs 3C	Three control (E11.5) four mutant (E11.5) three control (E12.5) four mutant (E12.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 232.2 F(DFn, DFd): 0.4627 (3, 10)	Tukey’s multiple comparative test	As indicated in the figure
3-fs 3D	Four control (E11.5) four mutant (E11.5) four control (E12.5) four mutant (E12.5)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 156.3 F(DFn, DFd): 0.9549 (3, 12)	Tukey’s multiple comparative test	As indicated in the figure
3-fs 3E	Four control (E11.5) four mutant (E11.5) four control (E12.5) four mutant (E12.5)	Mean and SD	Ordinary one-way ANOVA	0.1739	F: 1.960 F(DFn, DFd): 0.4100 (3, 12)	Tukey’s multiple comparative test	As indicated in the figure
4-fs 2B	Four control (E13.5) four mutant (E13.5) four control (E14.5) four mutant (E14.5) four control (P0) four mutant (P0)	Mean and SD	Ordinary one-way ANOVA	<0.0001	F: 850.2 F(DFn, DFd): 3.630 (5, 18)	Tukey’s multiple comparative test	As indicated in the figure
5-fs 1B	Three control-OE mice 3 Pax2-OE mice	Mean and SD	Unpaired t-test (two-tailed)	<0.0001	t = 22.79; df = 4	-	-
6-fs 1A	Three control mice four mutant mice	Mean and SD	Unpaired t-test (two-tailed)	<0.0001	t = 12.82; df = 5	-	-
6-fs 1B	Three control mice four mutant mice	Mean and SD	Unpaired t-test (two-tailed)	0.0002	t = 10.1; df = 5	-	-

OE, overexpression; fs, figure supplement.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

(2011) SnapShot: spinal cord development
Cell 146:178.

https://doi.org/10.1016/j.cell.2011.06.038
- PubMed
- Google Scholar
1. Alder J
2. Cho NK
3. Hatten ME
(1996) Embryonic precursor cells from the rhombic lip are specified to a cerebellar granule neuron identity
Neuron 17:389–399.

https://doi.org/10.1016/S0896-6273(00)80172-5
- PubMed
- Google Scholar
1. Atchley WR
2. Fitch WM
(1997) A natural classification of the basic helix-loop-helix class of transcription factors
PNAS 94:5172–5176.

https://doi.org/10.1073/pnas.94.10.5172
- PubMed
- Google Scholar
1. Baker NE
2. Brown NL
(2018) All in the family: proneural bHLH genes and neuronal diversity
Development 145:dev159426.

https://doi.org/10.1242/dev.159426
- PubMed
- Google Scholar
1. Ben-Arie N
2. Bellen HJ
3. Armstrong DL
4. McCall AE
5. Gordadze PR
6. Guo Q
7. Matzuk MM
8. Zoghbi HY
(1997) Math1 is essential for genesis of cerebellar granule neurons
Nature 390:169–172.

https://doi.org/10.1038/36579
- PubMed
- Google Scholar
1. Ben-Arie N
2. Hassan BA
3. Bermingham NA
4. Malicki DM
5. Armstrong D
6. Matzuk M
7. Bellen HJ
8. Zoghbi HY
(2000)
Functional conservation of atonal and Math1 in the CNS and PNS

Development 127:1039–1048.
- PubMed
- Google Scholar
(2002) Proneural genes and the specification of neural cell types
Nature Reviews Neuroscience 3:517–530.

https://doi.org/10.1038/nrn874
- PubMed
- Google Scholar
(2014) Development of the cerebellum: simple steps to make a 'little brain'
Development 141:4031–4041.

https://doi.org/10.1242/dev.106559
- PubMed
- Google Scholar
(2006) The roof plate regulates cerebellar cell-type specification and proliferation
Development 133:2793–2804.

https://doi.org/10.1242/dev.02441
- PubMed
- Google Scholar
1. Comai G
2. Tajbakhsh S
(2014) Molecular and cellular regulation of skeletal myogenesis
Current Topics in Developmental Biology 110:1–73.

https://doi.org/10.1016/B978-0-12-405943-6.00001-4
- PubMed
- Google Scholar
1. Dahmane N
2. Ruiz i Altaba A
(1999)
Sonic hedgehog regulates the growth and patterning of the cerebellum

Development 126:3089–3100.
- PubMed
- Google Scholar
(2019) bHLH transcription factors in neural development, disease, and reprogramming
Brain Research 1705:48–65.

https://doi.org/10.1016/j.brainres.2018.03.013
- PubMed
- Google Scholar
1. Dessaud E
2. Yang LL
3. Hill K
4. Cox B
5. Ulloa F
6. Ribeiro A
7. Mynett A
8. Novitch BG
9. Briscoe J
(2007) Interpretation of the sonic hedgehog morphogen gradient by a temporal adaptation mechanism
Nature 450:717–720.

https://doi.org/10.1038/nature06347
- Google Scholar
(1996)
Atonal, rough and the resolution of proneural clusters in the developing Drosophila retina

Development 122:4139–4147.
- PubMed
- Google Scholar
1. Englund C
2. Kowalczyk T
3. Daza RA
4. Dagan A
5. Lau C
6. Rose MF
7. Hevner RF
(2006) Unipolar brush cells of the cerebellum are produced in the rhombic lip and migrate through developing white matter
Journal of Neuroscience 26:9184–9195.

https://doi.org/10.1523/JNEUROSCI.1610-06.2006
- PubMed
- Google Scholar
1. Fink AJ
(2006) Development of the deep cerebellar nuclei: transcription factors and cell migration from the rhombic lip
Journal of Neuroscience 26:3066–3076.

https://doi.org/10.1523/JNEUROSCI.5203-05.2006
- Google Scholar
(2004) Math1 controls cerebellar granule cell differentiation by regulating multiple components of the notch signaling pathway
Development 131:903–913.

https://doi.org/10.1242/dev.00982
- PubMed
- Google Scholar
1. Grimaldi P
2. Parras C
3. Guillemot F
4. Rossi F
5. Wassef M
(2009) Origins and control of the differentiation of inhibitory interneurons and Glia in the cerebellum
Developmental Biology 328:422–433.

https://doi.org/10.1016/j.ydbio.2009.02.008
- PubMed
- Google Scholar
(1990)
A new approach to the development of the cerebellum provided by the quail-chick marker system

Development 108:19–31.
- Google Scholar
1. Hashimoto M
2. Mikoshiba K
(2003) Mediolateral compartmentalization of the cerebellum is determined on the "birth date" of Purkinje cells
The Journal of Neuroscience 23:11342–11351.

https://doi.org/10.1523/JNEUROSCI.23-36-11342.2003
- PubMed
- Google Scholar
(2010) Molecules and mechanisms involved in the generation and migration of cortical interneurons
ASN Neuro 2:AN20090053.

https://doi.org/10.1042/AN20090053
- Google Scholar
(2011) Robo1 regulates semaphorin signaling to guide the migration of cortical interneurons through the ventral forebrain
Journal of Neuroscience 31:6174–6187.

https://doi.org/10.1523/JNEUROSCI.5464-10.2011
- PubMed
- Google Scholar
(2017a) The dorsal spinal cord and hindbrain: from developmental mechanisms to functional circuits
Developmental Biology 432:34–42.

https://doi.org/10.1016/j.ydbio.2016.10.008
- PubMed
- Google Scholar
(2017b) Genetic identification of a hindbrain nucleus essential for innate vocalization
PNAS 114:8095–8100.

https://doi.org/10.1073/pnas.1702893114
- PubMed
- Google Scholar
1. Hippenmeyer S
2. Vrieseling E
3. Sigrist M
4. Portmann T
5. Laengle C
6. Ladle DR
7. Arber S
(2005) A developmental switch in the response of DRG neurons to ETS transcription factor signaling
PLOS Biology 3:e159.

https://doi.org/10.1371/journal.pbio.0030159
- PubMed
- Google Scholar
1. Hoshino M
2. Nakamura S
3. Mori K
4. Kawauchi T
5. Terao M
6. Nishimura YV
7. Fukuda A
8. Fuse T
9. Matsuo N
10. Sone M
11. Watanabe M
12. Bito H
13. Terashima T
14. Wright CV
15. Kawaguchi Y
16. Nakao K
17. Nabeshima Y
(2005) Ptf1a, a bHLH transcriptional gene, defines GABAergic neuronal fates in cerebellum
Neuron 47:201–213.

https://doi.org/10.1016/j.neuron.2005.06.007
- PubMed
- Google Scholar
1. Imayoshi I
2. Kageyama R
(2014) bHLH factors in self-renewal, Multipotency, and fate choice of neural progenitor cells
Neuron 82:9–23.

https://doi.org/10.1016/j.neuron.2014.03.018
- PubMed
- Google Scholar
1. Jensen P
(2004) Analysis of cerebellar development in math1 null embryos and chimeras
Journal of Neuroscience 24:2202–2211.

https://doi.org/10.1523/JNEUROSCI.3427-03.2004
- Google Scholar
1. Jessell TM
(2000) Neuronal specification in the spinal cord: inductive signals and transcriptional codes
Nature Reviews Genetics 1:20–29.

https://doi.org/10.1038/35049541
- PubMed
- Google Scholar
1. Jones S
(2004) An overview of the basic helix-loop-helix proteins
Genome Biology 5:226.

https://doi.org/10.1186/gb-2004-5-6-226
- PubMed
- Google Scholar
1. Ju J
2. Liu Q
3. Zhang Y
4. Liu Y
5. Jiang M
6. Zhang L
7. He X
8. Peng C
9. Zheng T
10. Lu QR
11. Li H
(2016) Olig2 regulates purkinje cell generation in the early developing mouse cerebellum
Scientific Reports 6:30711.

https://doi.org/10.1038/srep30711
- PubMed
- Google Scholar
1. Leto K
2. Carletti B
3. Williams IM
4. Magrassi L
5. Rossi F
(2006) Different types of cerebellar GABAergic interneurons originate from a common pool of multipotent progenitor cells
Journal of Neuroscience 26:11682–11694.

https://doi.org/10.1523/JNEUROSCI.3656-06.2006
- PubMed
- Google Scholar
1. Liu Z
2. Li H
3. Hu X
4. Yu L
5. Liu H
6. Han R
7. Colella R
8. Mower GD
9. Chen Y
10. Qiu M
(2008) Control of precerebellar neuron development by Olig3 bHLH transcription factor
Journal of Neuroscience 28:10124–10133.

https://doi.org/10.1523/JNEUROSCI.3769-08.2008
- PubMed
- Google Scholar
1. Liu ZR
2. Shi M
3. Hu ZL
4. Zheng MH
5. Du F
6. Zhao G
7. Ding YQ
(2010) A refined map of early gene expression in the dorsal rhombomere 1 of mouse embryos
Brain Research Bulletin 82:74–82.

https://doi.org/10.1016/j.brainresbull.2010.02.010
- PubMed
- Google Scholar
1. Lizen B
2. Claus M
3. Jeannotte L
4. Rijli FM
5. Gofflot F
(2015) Perinatal induction of cre recombination with tamoxifen
Transgenic Research 24:1065–1077.

https://doi.org/10.1007/s11248-015-9905-5
- PubMed
- Google Scholar
(2011) Genes expressed in Atoh1 neuronal lineages arising from the r1/isthmus rhombic lip
Gene Expression Patterns 11:349–359.

https://doi.org/10.1016/j.gep.2011.03.007
- PubMed
- Google Scholar
1. Machold R
2. Fishell G
(2005) Math1 is expressed in temporally discrete pools of cerebellar rhombic-lip neural progenitors
Neuron 48:17–24.

https://doi.org/10.1016/j.neuron.2005.08.028
- PubMed
- Google Scholar
1. Madisen L
2. Zwingman TA
3. Sunkin SM
4. Oh SW
5. Zariwala HA
6. Gu H
7. Ng LL
8. Palmiter RD
9. Hawrylycz MJ
10. Jones AR
11. Lein ES
12. Zeng H
(2010) A robust and high-throughput cre reporting and characterization system for the whole mouse brain
Nature Neuroscience 13:133–140.

https://doi.org/10.1038/nn.2467
- PubMed
- Google Scholar
1. Maricich SM
2. Herrup K
(1999) Pax-2 expression defines a subset of GABAergic interneurons and their precursors in the developing murine cerebellum
Journal of Neurobiology 41:281–294.

https://doi.org/10.1002/(SICI)1097-4695(19991105)41:2<281::AID-NEU10>3.0.CO;2-5
- PubMed
- Google Scholar
1. Mattar P
2. Langevin LM
3. Markham K
4. Klenin N
5. Shivji S
6. Zinyk D
7. Schuurmans C
(2008) Basic helix-loop-helix transcription factors cooperate to specify a cortical projection neuron identity
Molecular and Cellular Biology 28:1456–1469.

https://doi.org/10.1128/MCB.01510-07
- PubMed
- Google Scholar
(2014) Transformation of the cerebellum into more ventral brainstem fates causes cerebellar agenesis in the absence of Ptf1a function
PNAS 111:E1777–E1786.

https://doi.org/10.1073/pnas.1315024111
- PubMed
- Google Scholar
(1996)
The caudal limit of Otx2 gene expression as a marker of the midbrain/hindbrain boundary: a study using in situ hybridisation and chick/quail homotopic grafts

Development 122:3785–3797.
- PubMed
- Google Scholar
1. Morales D
2. Hatten ME
(2006) Molecular markers of neuronal progenitors in the embryonic cerebellar anlage
Journal of Neuroscience 26:12226–12236.

https://doi.org/10.1523/JNEUROSCI.3493-06.2006
- PubMed
- Google Scholar
1. Müller T
2. Anlag K
3. Wildner H
4. Britsch S
5. Treier M
6. Birchmeier C
(2005) The bHLH factor Olig3 coordinates the specification of dorsal neurons in the spinal cord
Genes & Development 19:733–743.

https://doi.org/10.1101/gad.326105
- PubMed
- Google Scholar
(2003) Basic helix-loop-helix factors in cortical development
Neuron 39:13–25.

https://doi.org/10.1016/S0896-6273(03)00365-9
- PubMed
- Google Scholar
1. Saito T
2. Nakatsuji N
(2001) Efficient gene transfer into the embryonic mouse brain using in vivo electroporation
Developmental Biology 240:237–246.

https://doi.org/10.1006/dbio.2001.0439
- PubMed
- Google Scholar
(2004) Time of origin of unipolar brush cells in the rat cerebellum as observed by prenatal bromodeoxyuridine labeling
Neuroscience 127:845–858.

https://doi.org/10.1016/j.neuroscience.2004.05.050
- PubMed
- Google Scholar
(2004) Mutations in PTF1A cause pancreatic and cerebellar agenesis
Nature Genetics 36:1301–1305.

https://doi.org/10.1038/ng1475
- PubMed
- Google Scholar
1. Seto Y
2. Nakatani T
3. Masuyama N
4. Taya S
5. Kumai M
6. Minaki Y
7. Hamaguchi A
8. Inoue YU
9. Inoue T
10. Miyashita S
11. Fujiyama T
12. Yamada M
13. Chapman H
14. Campbell K
15. Magnuson MA
16. Wright CV
17. Kawaguchi Y
18. Ikenaka K
19. Takebayashi H
20. Ishiwata S
21. Ono Y
22. Hoshino M
(2014) Temporal identity transition from purkinje cell progenitors to GABAergic interneuron progenitors in the cerebellum
Nature Communications 5:3337.

https://doi.org/10.1038/ncomms4337
- PubMed
- Google Scholar
(2017) Generation of thalamic neurons from mouse embryonic stem cells
Development 144:1211–1220.

https://doi.org/10.1242/dev.144071
- PubMed
- Google Scholar
(2010) Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature
Differentiation 80:1–8.

https://doi.org/10.1016/j.diff.2010.02.003
- PubMed
- Google Scholar
(1996) Neurogenins, a novel family of atonal-related bHLH transcription factors, are putative mammalian neuronal determination genes that reveal progenitor cell heterogeneity in the developing CNS and PNS
Molecular and Cellular Neuroscience 8:221–241.

https://doi.org/10.1006/mcne.1996.0060
- PubMed
- Google Scholar
(2008) Phylogenetic and expression analysis of the basic helix-loop-helix transcription factor gene family: genomic approach to cellular differentiation
Differentiation 76:1006–1042.

https://doi.org/10.1111/j.1432-0436.2008.00285.x
- PubMed
- Google Scholar
1. Storm R
2. Cholewa-Waclaw J
3. Reuter K
4. Bröhl D
5. Sieber M
6. Treier M
7. Müller T
8. Birchmeier C
(2009) The bHLH transcription factor Olig3 marks the dorsal neuroepithelium of the hindbrain and is essential for the development of brainstem nuclei
Development 136:295–305.

https://doi.org/10.1242/dev.027193
- PubMed
- Google Scholar
(2011) Ascl1 genetics reveals insights into cerebellum local circuit assembly
Journal of Neuroscience 31:11055–11069.

https://doi.org/10.1523/JNEUROSCI.0479-11.2011
- PubMed
- Google Scholar
1. Susaki EA
2. Tainaka K
3. Perrin D
4. Yukinaga H
5. Kuno A
6. Ueda HR
(2015) Advanced CUBIC protocols for whole-brain and whole-body clearing and imaging
Nature Protocols 10:1709–1727.

https://doi.org/10.1038/nprot.2015.085
- PubMed
- Google Scholar
(2000) Dynamic expression of basic helix-loop-helix olig family members: implication of Olig2 in neuron and oligodendrocyte differentiation and identification of a new member, Olig3
Mechanisms of Development 99:143–148.

https://doi.org/10.1016/S0925-4773(00)00466-4
- PubMed
- Google Scholar
1. Takebayashi H
2. Ohtsuki T
3. Uchida T
4. Kawamoto S
5. Okubo K
6. Ikenaka K
7. Takeichi M
8. Chisaka O
9. Nabeshima Y
(2002) Non-overlapping expression of Olig3 and Olig2 in the embryonic neural tube
Mechanisms of Development 113:169–174.

https://doi.org/10.1016/S0925-4773(02)00021-7
- PubMed
- Google Scholar
1. Vue TY
2. Aaker J
3. Taniguchi A
4. Kazemzadeh C
5. Skidmore JM
6. Martin DM
7. Martin JF
8. Treier M
9. Nakagawa Y
(2007) Characterization of progenitor domains in the developing mouse thalamus
The Journal of Comparative Neurology 505:73–91.

https://doi.org/10.1002/cne.21467
- PubMed
- Google Scholar
1. Wallace VA
(1999) Purkinje-cell-derived sonic hedgehog regulates granule neuron precursor cell proliferation in the developing mouse cerebellum
Current Biology 9:445–448.

https://doi.org/10.1016/S0960-9822(99)80195-X
- PubMed
- Google Scholar
(2005) Math1 expression redefines the rhombic lip derivatives and reveals novel lineages within the brainstem and cerebellum
Neuron 48:31–43.

https://doi.org/10.1016/j.neuron.2005.08.024
- Google Scholar
1. Wechsler-Reya RJ
2. Scott MP
(1999) Control of neuronal precursor proliferation in the cerebellum by sonic hedgehog
Neuron 22:103–114.

https://doi.org/10.1016/S0896-6273(00)80682-0
- PubMed
- Google Scholar
1. West MJ
(2012) Estimating volume in biological structures
Cold Spring Harbor Protocols 2012:1129–1139.

https://doi.org/10.1101/pdb.top071787
- PubMed
- Google Scholar
1. Wingate RJ
2. Hatten ME
(1999)
The role of the rhombic lip in avian cerebellum development

Development 126:4395–4404.
- Google Scholar
1. Yamada M
2. Seto Y
3. Taya S
4. Owa T
5. Inoue YU
6. Inoue T
7. Kawaguchi Y
8. Nabeshima Y
9. Hoshino M
(2014) Specification of spatial identities of cerebellar neuron progenitors by ptf1a and atoh1 for proper production of GABAergic and glutamatergic neurons
The Journal of Neuroscience 34:4786–4800.

https://doi.org/10.1523/JNEUROSCI.2722-13.2014
- PubMed
- Google Scholar
1. Yeung J
2. Ha TJ
3. Swanson DJ
4. Goldowitz D
(2016) A novel and multivalent role of Pax6 in cerebellar development
Journal of Neuroscience 36:9057–9069.

https://doi.org/10.1523/JNEUROSCI.4385-15.2016
- PubMed
- Google Scholar
1. Zechner D
2. Müller T
3. Wende H
4. Walther I
5. Taketo MM
6. Crenshaw EB
7. Treier M
8. Birchmeier W
9. Birchmeier C
(2007) Bmp and wnt/beta-catenin signals control expression of the transcription factor Olig3 and the specification of spinal cord neurons
Developmental Biology 303:181–190.

https://doi.org/10.1016/j.ydbio.2006.10.045
- PubMed
- Google Scholar
1. Zervas M
2. Millet S
3. Ahn S
4. Joyner AL
(2004) Cell behaviors and genetic lineages of the mesencephalon and rhombomere 1
Neuron 43:345–357.

https://doi.org/10.1016/j.neuron.2004.07.010
- PubMed
- Google Scholar

Article and author information

Author details

Elijah D Lowenstein

Max-Delbrück-Centrum in the Helmholtz Association, Berlin, Germany

Contribution
Conceptualization, Formal analysis, Investigation, Visualization, Methodology, Writing - review and editing

Contributed equally with
Aleksandra Rusanova

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0003-3755-0818
Aleksandra Rusanova
1. Institute for Cell Biology and Neurobiology, Charité Universitätsmedizin Berlin, Berlin, Germany
2. Institute of Neuroscience, Lobachevsky University of Nizhny Novgorod, Nizhny Novgorod, Russian Federation
Contribution
Investigation, Visualization, Methodology

Contributed equally with
Elijah D Lowenstein

Competing interests
No competing interests declared
Jonas Stelzer

Institute for Cell Biology and Neurobiology, Charité Universitätsmedizin Berlin, Berlin, Germany

Contribution
Investigation, Visualization, Methodology

Competing interests
No competing interests declared
Marc Hernaiz-Llorens

Max-Delbrück-Centrum in the Helmholtz Association, Berlin, Germany

Contribution
Investigation

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0003-1052-9613
Adrian E Schroer

Institute for Cell Biology and Neurobiology, Charité Universitätsmedizin Berlin, Berlin, Germany

Contribution
Investigation

Competing interests
No competing interests declared
Ekaterina Epifanova
1. Institute for Cell Biology and Neurobiology, Charité Universitätsmedizin Berlin, Berlin, Germany
2. Institute of Neuroscience, Lobachevsky University of Nizhny Novgorod, Nizhny Novgorod, Russian Federation
Contribution
Methodology

Competing interests
No competing interests declared
Francesca Bladt

Max-Delbrück-Centrum in the Helmholtz Association, Berlin, Germany

Contribution
Investigation

Competing interests
No competing interests declared
Eser Göksu Isik

Institute for Cell Biology and Neurobiology, Charité Universitätsmedizin Berlin, Berlin, Germany

Contribution
Investigation, Visualization

Competing interests
No competing interests declared
Sven Buchert

Max-Delbrück-Centrum in the Helmholtz Association, Berlin, Germany

Contribution
Investigation

Competing interests
No competing interests declared
Shiqi Jia
1. Max-Delbrück-Centrum in the Helmholtz Association, Berlin, Germany
2. The First Affiliated Hospital of Jinan University, Guangzhou province, Guangzhou, China
Contribution
Investigation

Competing interests
No competing interests declared
Victor Tarabykin
1. Institute for Cell Biology and Neurobiology, Charité Universitätsmedizin Berlin, Berlin, Germany
2. Institute of Neuroscience, Lobachevsky University of Nizhny Novgorod, Nizhny Novgorod, Russian Federation
Contribution
Methodology, Visualization

Competing interests
No competing interests declared
Luis R Hernandez-Miranda
1. Max-Delbrück-Centrum in the Helmholtz Association, Berlin, Germany
2. Institute for Cell Biology and Neurobiology, Charité Universitätsmedizin Berlin, Berlin, Germany
Present address
Institute for Cell Biology and Neurobiology, Charité Universitätsmedizin Berlin, Berlin, Germany

Contribution
Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing

For correspondence
luis.hernandez-miranda@charite.de

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0002-0498-708X

Funding

Russian Science Foundation (19-14-00345)

Victor Tarabykin

Fritz Thyssen Stiftung (10.20.1.004MN)

Luis R Hernandez-Miranda

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Maarten Rikken and Fritz Rathjen for a critical reading of our manuscript. We are also grateful with Petra Stallerow and Claudia Päseler (at the Max-Delbrück-Center) as well as Koray Güner and Svetlana Tutukova (at the Charite Universitätsmedizin) for technical assistance. We also thank Prof. Carmen Birchmeier for providing us with Olig3^creERT2 and Olig3^GFP mouse strains.

Ethics

Animal experimentation: Animal experiments were approved by the local ethics committee LaGeSo (Landesamt für Gesundheit und Soziales) Berlin under animal experiment licenses G0026/14, and in accordance to the guidance and policies of the Charite Universitatsmedizin, Berlin, Germany; Max-Delbrück-Center for Molecular Medicine, Berlin, Germany; and the Institute of Neuroscience, Lobachevsky University of Nizhny Novgorod, Russian Federation.

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
