ATP and large signaling metabolites flux through caspase-activated Pannexin 1 channels

  1. Adishesh K Narahari  Is a corresponding author
  2. Alex JB Kreutzberger
  3. Pablo S Gaete
  4. Yu-Hsin Chiu
  5. Susan A Leonhardt
  6. Christopher B Medina
  7. Xueyao Jin
  8. Patrycja W Oleniacz
  9. Volker Kiessling
  10. Paula Q Barrett
  11. Kodi S Ravichandran
  12. Mark Yeager
  13. Jorge E Contreras
  14. Lukas K Tamm
  15. Douglas A Bayliss  Is a corresponding author
  1. Department of Pharmacology, University of Virginia, United States
  2. Department of Molecular Physiology and Biological Physics, University of Virginia, United States
  3. Department of Pharmacology, Physiology, and Neuroscience, Rutgers New Jersey Medical School, United States
  4. Department of Microbiology, Immunology, and Cancer Biology, University of Virginia, United States
Research Article
  • Cited 0
  • Views 760
  • Annotations
Cite this article as: eLife 2021;10:e64787 doi: 10.7554/eLife.64787

Abstract

Pannexin 1 (Panx1) is a membrane channel implicated in numerous physiological and pathophysiological processes via its ability to support release of ATP and other cellular metabolites for local intercellular signaling. However, to date, there has been no direct demonstration of large molecule permeation via the Panx1 channel itself, and thus the permselectivity of Panx1 for different molecules remains unknown. To address this, we expressed, purified, and reconstituted Panx1 into proteoliposomes and demonstrated that channel activation by caspase cleavage yields a dye-permeable pore that favors flux of anionic, large-molecule permeants (up to ~1 kDa). Large cationic molecules can also permeate the channel, albeit at a much lower rate. We further show that Panx1 channels provide a molecular pathway for flux of ATP and other anionic (glutamate) and cationic signaling metabolites (spermidine). These results verify large molecule permeation directly through caspase-activated Panx1 channels that can support their many physiological roles.

Introduction

Pannexin 1 (Panx1) is a widely expressed homo-heptameric membrane channel that plays a critical role in numerous physiological and pathophysiological processes. Among others, this includes cell clearance after apoptosis (Chekeni et al., 2010; Medina et al., 2020; Poon et al., 2014), blood pressure regulation (Billaud et al., 2011; Good et al., 2018a), stroke (Bargiotas et al., 2011; Good et al., 2018b; Thompson, 2015), and neuropathic pain (Bravo et al., 2014; Weaver et al., 2017; Zhang et al., 2015). Individual Panx1 subunits consist of a four-transmembrane α-helical bundle with a cytoplasmic loop between TM2 and TM3; the N- and C-termini also reside on the cytoplasmic surface (Baranova et al., 2004; Penuela et al., 2013). These channels are broadly similar to a subset of mammalian large-pore ion channels that include connexin gap junctions (Panchin et al., 2000), calcium homeostasis modulator 1 (CALHM1) (Siebert et al., 2013; Syrjanen et al., 2020), and SWELL1 (LRRC8) (Abascal and Zardoya, 2012; Deneka et al., 2018). Despite a conserved subunit topology, recent cryoEM structures revealed that these different channels exist in a variety of oligomeric states (from hexameric to undecameric) (Deng et al., 2020; Michalski et al., 2020). Of interest here, activation of these channels has been associated with both ionic current and large molecule permeation. In particular, channel activation is associated with release of metabolites (often ATP) that are critical for their roles in intercellular signaling (Bao et al., 2004; Chekeni et al., 2010; Lutter et al., 2017; Medina et al., 2020; Siebert et al., 2013; Taruno, 2018).

In the two decades since their discovery, much has been learned about the functional properties of Panx1 channels. Panx1 ionic currents have occasionally been detected under unstimulated conditions (Ma et al., 2012; Romanov et al., 2012; Ruan et al., 2020), but that basal activity does not appear to be associated with large molecule permeation (Romanov et al., 2012). By contrast, transmembrane permeation of large fluorescent dyes and ATP occurs when Panx1 is activated by various mechanisms (e.g., stretch, elevated external K+, ionotropic and metabotropic receptor signaling, and caspase-mediated cleavage at a C-terminal site) (Beckel et al., 2015; Chekeni et al., 2010; Chiu et al., 2017; Iglesias et al., 2008; Silverman et al., 2009; Weilinger et al., 2016). Among these, caspase-mediated activation is a well-characterized mechanism in which cleavage of the channel C-tails, as occurs during apoptosis or pyroptosis, is accompanied by uptake of dyes indicative of cell death (e.g., Yo-Pro-1 and To-Pro-3) and release of ATP and UTP that serve as ‘find-me’ signals to direct phagocytic clearance of cell corpses (Chekeni et al., 2010; Chiu et al., 2017; Poon et al., 2014; Qu et al., 2011; Yang et al., 2015). Moreover, Panx1 cleavage elicits efflux of additional metabolites from apoptotic cells, which function as local ‘good-bye’ signals with anti-inflammatory, wound healing, and cell proliferative actions (Medina et al., 2020). Notably, all studies to date have been performed using intact cells. Therefore, this previous work does not demonstrate that large molecule permeation occurs directly via the channel itself or exclude a secondary release mechanism. Moreover, recently available Panx1 channel structures from both intact (inactive) and caspase-cleaved (activated) channels reveal a central pore with an extracellular constriction that has a diameter of ~9 Å, which would appear to be too small to enable large molecule permeation (Deng et al., 2020; Jin et al., 2020; Michalski et al., 2020; Mou et al., 2020; Qu et al., 2020; Ruan et al., 2020). Thus, the ability of caspase-activated Panx1 to support metabolite release remains uncertain.

In this study, we developed a proteoliposome system for reconstitution of purified Panx1 and channel activation by caspase-mediated cleavage. By combining lipid bilayer electrophysiology, flow cytometry, total internal reflection fluorescence (TIRF) microscopy, and radioactive metabolite uptake assays, we characterized the large molecule permeation properties of cleavage-activated Panx1. We determined that the caspase-activated Panx1 channel forms a permeation pathway that favors anionic over cationic molecules and supports flux of ATP and other important signaling metabolites, such as glutamate and spermidine.

Results

For these studies, we used the Panx1 ortholog from Xenopus tropicalis (i.e., frog Panx1 and fPanx1) that has been examined in recent structural studies (Deng et al., 2020; Michalski et al., 2020).

Preparation of Panx1 proteoliposomes

An fPanx1-enhanced green fluorescent protein (eGFP) fusion construct, containing a thrombin cleavage site and a Strep-tag, was inserted into pFastBac for expression in Sf9 cells (Figure 1A) and purified by affinity chromatography and size-exclusion chromatography (SEC) (Figure 1—figure supplement 1A,B). Purified fPanx1-eGFP was incorporated into proteoliposomes that appeared in fractions 1–3 of a co-floatation assay on a Nycodenz density gradient (Figure 1B,C; Hernandez et al., 2012). When analyzed by negative-stain electron microscopy, we observed a normal distribution of circular proteoliposomes in projection images, with the expected mean diameter of 97.3 ± 22 nm (Figure 1D, Figure 1—figure supplement 1C). Panx1 cleavage by caspases is a prominent mechanism for channel activation. Therefore, we verified that purified fPanx1 incorporated into proteoliposomes was cleaved at the expected sites following overnight incubation with recombinant Caspase-3 (Casp3) (Figure 1E). Note that although the channel can be cleaved at multiple sites, cleavage at the C-terminal site is necessary and sufficient for channel activation (Chekeni et al., 2010; Chiu et al., 2017; Sandilos et al., 2012).

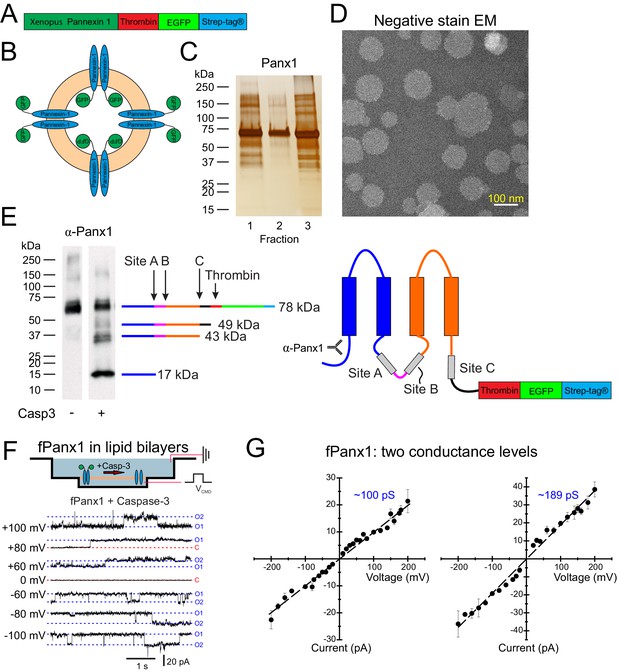

Figure 1 with 3 supplements see all
Liposome reconstitution and caspase cleavage-activation of purified Xenopus Pannexin 1 (fPanx1).

(A) Schematic of recombinant fPanx1 construct incorporating a thrombin cleavage site, (eGFP), and a Strep-Tag. (B) Schematic of proteoliposomes containing fPanx1-eGFP fusion proteins, in either orientation. (C) fPanx1-containing fractions from Nycodenz co-floatation assay (fractions 1–3, 20 μL each) were run on a polyacrylamide gel and analyzed by silver stain. (D) Negative stain electron microscopy image of fPanx1-eGFP proteoliposomes extruded at 100 nm shown at 29,000× magnification. (E) Western blot of fPanx1-eGFP from proteoliposomes after overnight incubation in the absence and presence of recombinant Caspase-3 (Casp3). The schematics illustrate the location of: caspase cleavage sites, N-terminally directed α-Panx1 antibody, and corresponding cleavage products. Note that residual thrombin from activating recombinant caspase cleaves at its cognate C-terminal site. (F) Upper: Schematic of fPanx1-eGFP embedded in bilayer in recording chambers in NanIon Orbit mini; only channels in the orientation shown are activated by recombinant Casp3 added to the chamber. Positions of recording and ground electrodes are depicted. Lower: Recordings of purified fPanx1 channels in planar lipid bilayers at the indicated voltages following activation by recombinant Casp3; current levels are indicated that correspond to closed (C) state and apparent openings of one or two channels (O1, O2). (G) Unitary current voltage relationships for caspase-activated fPanx1 show two different conductance states (N = 3 bilayers with each conductance level). Numerical data for conductance measurements from lipid bilayer recordings are presented in Figure 1—source data 1.

Figure 1—source data 1

Conductance measurements of Xenopus Pannexin 1 (fPanx1) in lipid bilayers.

https://cdn.elifesciences.org/articles/64787/elife-64787-fig1-data1-v2.xlsx

Properties of caspase-activated fPanx1 in cells and lipid bilayers

In recordings from transfected HEK293T cells, we found that fPanx1 was basally silent and could be activated by intracellular dialysis with Casp3 to generate whole cell currents with an outwardly-rectifying current–voltage profile (Figure 1—figure supplement 2A,B) similar to that observed with cleavage-activated human Panx1 (hPANX1) channels (Figure 1—figure supplement 2C; Chiu et al., 2017; Sandilos et al., 2012). These currents were blocked by the Panx1 inhibitor carbenoxolone (CBX). In addition, and also similar to hPANX1, single fPanx1 channels were silent in excised inside-out patches until activated by Casp3 (Chiu et al., 2017); the cleavage-activated channels were inhibited by CBX and displayed a unitary conductance of 91.4 ± 13.5 pS (N = 3, Figure 1—figure supplement 2D,E). Thus, whole cell and single channel properties of fPanx1 are essentially identical to hPANX1 after caspase activation (Chiu et al., 2017).

We next used lipid bilayer recordings to characterize single channel properties of purified fPanx1 after caspase cleavage. The purified channels were added to DPhPC (1,2-diphytanoyl-sn-glycero-3-phosphocholine, 4ME16:0 PC) lipid bilayers and Casp3 was added to the bath to activate those channels with their C-terminus facing the cis side of the chamber (Figure 1F). Prior to application of caspase, large ‘flickery’ currents were occasionally observed at extreme potentials (e.g., +140 mV; Figure 1—figure supplement 3A), and this often signified successful incorporation of fPanx1 into the bilayer. However, before caspase addition, fPanx1 channel activity was not observed at physiological potentials, even in a bath solution containing 200 mM K+ (Figure 1—figure supplement 3B). After caspase addition, channel currents with discrete openings and closings became apparent across a wide range of physiological voltages (Figure 1F, Figure 1—figure supplement 3B); this activity was not seen when caspase was applied to plain lipid bilayers (i.e., with no channel added; Figure 1—figure supplement 3C), indicating that measured currents reflected cleavage activation of the bilayer-incorporated fPanx1 channels.

The properties of caspase-activated fPanx1 channels in bilayers were similar, but not identical, to those of heterologously expressed recombinant fPanx1 channels recorded in mammalian cells (Figure 1—figure supplement 2D,E). The individual bilayers usually included multiple active channels that presented with either of two distinct conductance levels: one set had a unitary conductance of ~100 pS, similar to that recorded in mammalian cells, and the second displayed a larger unitary conductance of ~189 pS (Figure 1G). For both, the open channel I-V relationships were approximately ohmic (Figure 1G), unlike the outwardly-rectifying single channel conductance observed for recombinant caspase-activated Panx1 in mammalian cells (Chiu et al., 2017). These differences may be due to species variants and/or the fact that the bilayer recordings were obtained in symmetrical solutions across a non-native membrane composed of non-physiological lipids (e.g., without cholesterol, phosphatidylinositol 4,5-bisphosphate (PIP2), etc.). Nevertheless, the purified fPanx1 channel is clearly activated by caspase.

Panx1 forms a dye permeable pore

Caspase-mediated activation of Panx1 is associated with transmembrane flux of various metabolites and fluorescent dyes (Chekeni et al., 2010; Medina et al., 2020; Nielsen et al., 2020; Qu et al., 2011). Importantly, all previous experiments have been performed with Panx1 expressed in cells, either endogenously or heterologously. Therefore, a secondary mechanism of Panx1-dependent large molecule flux could not be excluded. To address this directly, we tested whether large molecule permeation can occur upon caspase cleavage-based activation of fPanx1 reconstituted in proteoliposomes (containing phosphatidylcholine, total brain lipid extract, cholesterol, and PIP2).

In a first set of studies, we examined whether caspase-cleaved fPanx1 is capable of forming a dye permeable pore. After overnight treatment with Casp3 (or buffer alone), liposomes were incubated with the anionic fluorescent dye, Sulforhodamine B (SR-B), and eluted through G25 spin columns for analysis on a fluorescence plate reader. Uptake of SR-B into liposomes was observed only when they contained fPanx1 and were treated with caspase. In addition, dye uptake was inhibited when caspase-treated fPanx1-containing proteoliposomes were treated with CBX before and during the dye incubation period (Figure 2—figure supplement 1).

To quantify this dye uptake, and verify that the dye was indeed associated with proteoliposomes containing fPanx1-GFP, we analyzed SR-B uptake in Casp3-treated and control proteoliposomes by ImageStream flow cytometry (Figure 2A). As depicted in the representative images (Figure 2B), SR-B was only observed in proteoliposomes that were treated with Casp3. A high GFP signal was present in the proteoliposomes that were not exposed to caspase, verifying the presence of GFP-tagged fPanx1 in those proteoliposomes that did not accumulate SR-B. Normalized frequency histograms of the mean fluorescence intensity (MFI) for GFP and SR-B quantify results from this exemplar experiment. Compared to untreated proteoliposomes, a larger fraction of Casp3-treated proteoliposomes contained SR-B (83.6% vs. 20.4%; Figure 2C) and at ~10-fold higher MFI levels. We found a concomitant, albeit modest, leftward shift in the GFP signal after caspase treatment, reflecting cleavage of the outward-facing fPanx1 C-tail (exposed to caspase) and the associated removal of the C-terminal GFP tag (Figure 2C); the retained GFP signal in the caspase-treated proteoliposomes may reflect uncut channels or channels with their GFP-tagged C-tails oriented into the proteoliposome. In multiple independent experiments and proteoliposome preparations, Casp3 treatment of fPanx1 proteoliposomes resulted in a decrease in GFP signal and a concomitant increase in SR-B signal (Figure 2D, Figure 2—figure supplement 2), indicating that caspase-cleaved fPanx1 channels generate a pore that is large enough for permeation of the SR-B dye.

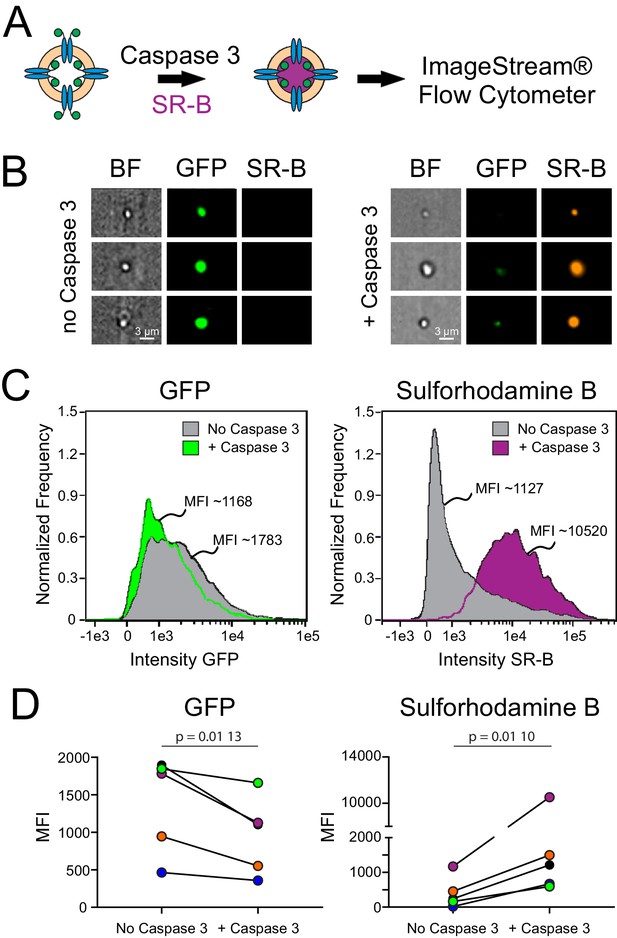

Figure 2 with 2 supplements see all
Dye uptake in caspase-treated Xenopus Pannexin 1 (fPanx1)-containing proteoliposomes.

(A) Proteoliposomes containing fPanx1were incubated overnight with recombinant Caspase-3 (Casp3) and for 3 hr with sulforhodamine B (SR-B) dye prior to analysis by ImageStream flow cytometry. (B) Representative images of liposomes treated with vehicle (left) or Casp3 (right) viewed by brightfield, or on channels for (GFP) and SR-B fluorescence. (C) Frequency distributions of fluorescence intensity show that proteoliposomes treated with recombinant Casp3 show a reduction in mean GFP intensity (left) and an increase in SR-B intensity (right), relative to vehicle treated proteoliposomes. (D) Mean fluorescence intensity (MFI) of GFP fluorescence (left) (p=0.0096) and SR-B fluorescence (right) (p=0.0104) before and after caspase treatment are shown with individual experiments depicted according to the color shown (N = 5). A paired t-test was performed. Numerical data for changes in GFP and SR-B MFI are presented in Figure 2—source data 1.

Figure 2—source data 1

Mean fluorescence intensity (MFI) of Xenopus Pannexin 1 (fPanx1) proteoliposomes before and after Caspase-3 treatment.

https://cdn.elifesciences.org/articles/64787/elife-64787-fig2-data1-v2.xlsx

Panx1 is an anion-preferring molecular sieve

We exploited the dye permeation properties of fPanx1 channels to develop a single-particle assay, in which TIRF microscopy was used to characterize the kinetics of dye flux and the charge/size determinants of fPanx1 permeants in proteoliposomes (Figure 3A; Farsi et al., 2016).

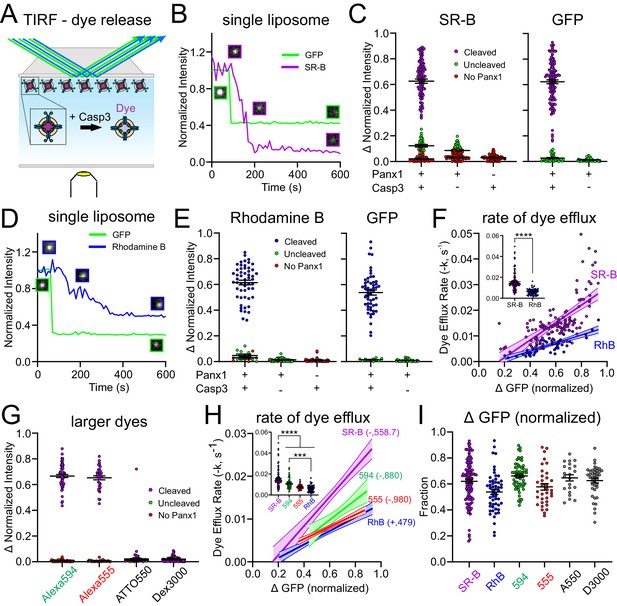

Figure 3 with 1 supplement see all
Xenopus Pannexin 1 (fPanx1) favors permeation of anionic dyes.

(A) Schematic of experimental design to assay dye release kinetics from caspase-treated fPanx1-containing proteoliposomes by total internal reflection fluorescence (TIRF) microscopy. (B) Example fluorescence intensity traces for sulforhodamine B (SR-B, anionic dye, 559 Da) and (GFP) (caspase cleavage) over time in proteoliposomes after caspase treatment. Sample images of the proteoliposome fluorescence at the different time points are also provided. (C) Steady-state change in normalized fluorescence intensity for SR-B (left) and GFP (right) from fPanx1-GFP-containing proteoliposomes treated with either Caspase-3 (Casp3) or vehicle, or from empty liposomes (no fPanx1-GFP) treated with Casp3. Data from fPanx1-containing proteoliposomes were grouped according to whether they showed a reduction in GFP fluorescence (cleaved) or no change in GFP fluorescence (<10%, uncleaved) (N = 5 (+)Panx 1 (+)Casp3, N = 5 (+)Panx1 (−)Casp3, N = 4 (−)Panx1 (+)Casp3). (D, E) Fluorescence intensity traces (D) and steady-state change in normalized fluorescence intensity (E) for Rhodamine B (RhB, cationic dye, 479 Da) and GFP, as described for (B, C) (N = 5 (+)Panx1 (+)Casp3, N = 3 (+)Panx1 (−)Casp3, N = 4 (−)Panx1 (+)Casp3). (F) Efflux rates for SR-B and RhB were determined from fits of mono-exponential to the fluorescence intensity decay curves for individual caspase-treated proteoliposomes and plotted relative to the change in GFP fluorescence (i.e., fPanx1 cleavage); overlaid regression lines are depicted (with 95% confidence interval; slopes were significantly different, p=0.0014). Inset shows dye efflux rates for individual liposomes. Individual liposome dye efflux rates were analyzed by a Mann–Whitney test (p<0.0001) (G) Steady-state change in normalized fluorescence intensity for Alexa594 (anionic, 880 Da), Alexa555 (anionic, 980 Da), ATTO550 (cationic, 1363 Da), and Dextran 3000 (anionic, 3000 Da) from fPanx-GFP-containing proteoliposomes treated with Casp3 (Alexa 594 N = 6, Alexa 555 N = 5, ATTO 550 N = 3, Dextran 3000 N = 5). (H) Efflux rates for the indicated dyes represented by associated regression lines (with 95% confidence interval), with pairwise comparison of slopes: SR-B vs. RhB (p=0.0014), SR-B vs. 594 (p=0.16), SR-B vs. 555 (p=0.0074), 594 vs. 555 (p=0.15), 594 vs. RhB (p=0.16), 555 vs. RhB (p=0.53). Inset shows dye efflux rates for individual liposomes (ANOVA: F3,267 = 36.18, p<0.0001; with Tukey’s multiple comparisons test: ****p<0.0001; ***p=0.0002). (I) Relative change (upper) and rate (lower) of GFP fluorescence in cleaved fPanx1-containing proteoliposomes filled with the indicated dyes. Numerical data for all dye release data and GFP cleavage are provided in Figure 3—source data 1.

Figure 3—source data 1

Total internal reflection fluorescence (TIRF) imaging of dye release from proteoliposomes.

https://cdn.elifesciences.org/articles/64787/elife-64787-fig3-data1-v2.xlsx

For these experiments, liposomes were pre-filled with SR-B and visualized by TIRF microscopy before and after the addition of Casp3 to the bath solution. For each liposome, we recorded changes in the fluorescence intensity of both GFP, representing fPanx1 C-tail channel cleavage, and SR-B, representing dye release from the proteoliposome (Figure 3B). In a prominent subset of fPanx1-containing proteoliposomes, both GFP and SR-B fluorescence decreased following Casp3 application (Figure 3B,C, purple). For other fPanx1-containing proteoliposomes, the GFP fluorescence was not reduced by Casp3, suggesting that the GFP-tagged fPanx1 C-tail was oriented into the proteoliposome and remained uncleaved; in those cases, the SR-B fluorescence was also unchanged (Figure 3C, green). Likewise, SR-B fluorescence was unaffected following Casp3 application in particles that were devoid of GFP fluorescence, likely representing liposomes that did not incorporate any fPanx1-GFP (Figure 3C, red). In other controls, SR-B fluorescence was retained in liposomes, either with or without GFP fluorescence (i.e., with or without fPanx1) when they were not exposed to Casp3; and SR-B fluorescence was also unaffected by Casp3 in liposomes that did not contain fPanx1 (i.e., empty liposomes) (Figure 3C). Thus, this TIRF-based assay verifies that caspase cleavage activation of fPanx1 elicits dye efflux from fPanx1-containing proteoliposomes.

The TIRF assay was also used to examine the kinetics of dye release from proteoliposomes, thereby enabling flux measurements between fluorescent dyes of different charge and size. To examine charge effects, we assessed the release of a cationic dye, Rhodamine B (RhB), which is slightly smaller than the anionic SR-B (480 Da vs. 559 Da; Figure 3—figure supplement 1). Like SR-B, RhB was released from proteoliposomes, and this release was also dependent on caspase-mediated cleavage of fPanx1 (Figure 3D,E). The rate of dye efflux, obtained from fits to mono-exponential decay curves of the fluorescent signal for each proteoliposome, was positively correlated with the fraction of fPanx1 cleavage (i.e., reduction in GFP fluorescence) for both SR-B and RhB dyes (Figure 3F). Notably, despite the smaller size of RhB, the efflux rate was significantly slower than for SR-B due to the cationic charge (Figure 3F).

To examine the effect of size on efflux rates, we tested two additional anionic fluorescent dyes of increasing size, Alexa 594 and Alexa 555 (880 Da and 980 Da, respectively; Figure 3G, Figure 3—figure supplement 1). These larger dyes permeated caspase-cleaved fPanx1 at rates substantially slower than the smaller SR-B (Figure 3H). Of note, however, despite being approximately two times larger, these anionic dyes transited the channel at rates comparable to the cationic dye RhB (Figure 3H). Finally, we also examined two larger dyes (ATTO 550 (+), 1363 Da; and Dextran 3000 (−), 3000 Da; Figure 3—figure supplement 1), and neither of those were able to permeate caspase-activated fPanx1 (Figure 3G). The permeation properties of these dyes were not related to the relative amounts of GFP cleavage, which were comparable in all cases (Figure 3I). Together, these data indicate that the channel favors anionic over cationic permeants and reveal that the pore size is sufficient to accommodate molecules up to 980 Da.

Panx1 is a conduit for anionic and cationic metabolites

Panx1 is commonly characterized as an ATP-release channel (Chekeni et al., 2010; Chiu et al., 2017; Chiu et al., 2018; Dahl, 2015; Medina et al., 2020; Taruno, 2018) and recent work provides compelling evidence that caspase cleavage-based activation of Panx1 can also lead to release of multiple additional metabolites (e.g., spermidine) that mediate important intercellular signaling processes (Medina et al., 2020). To test whether ATP and other metabolites permeate directly through caspase-activated fPanx1 channels, we developed a filtration-based assay for uptake of radiolabeled metabolites in proteoliposomes (Figure 4A). We performed this assay with select metabolites that have been proposed to permeate cleavage-activated fPanx1 (Medina et al., 2020), including anionic (α-[32P]ATP and [3H]-glutamate) and cationic ([3H]-spermidine) metabolites (Figure 4—figure supplement 1). Indeed, we found that uptake of α-[32P]ATP, [3H]-glutamate, and [3H]-spermidine into proteoliposomes required caspase-activated fPanx1; uptake was not observed when liposomes did not contain fPanx1 or when the channel was not activated by Casp3 (Figure 4B–D). We also tested whether ATP and spermidine could flux via caspase-activated Panx1 when included together in the same assay, rather than independently. Under these conditions, we again found uptake of both ATP and spermidine into caspase-cleaved Panx1-containing proteoliposomes, albeit at slightly lower levels (Figure 4—figure supplement 2). These data indicate that cleavage-activated fPanx1 itself is sufficient to form a membrane conduit capable of conducting ATP and other important signaling metabolites.

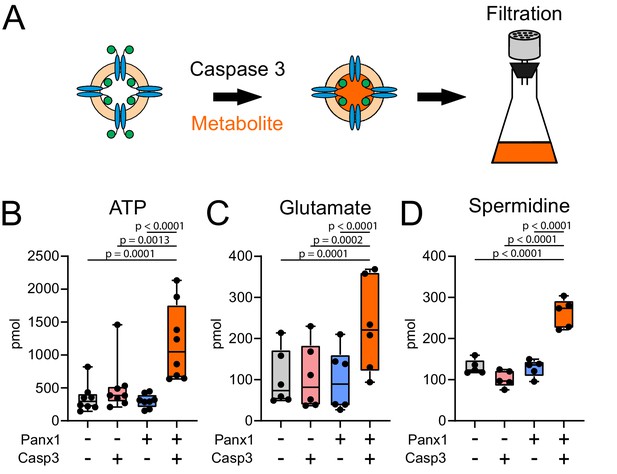

Figure 4 with 2 supplements see all
Caspase-cleaved Xenopus Pannexin 1 (fPanx1) is a conduit for metabolite release.

(A) Schematic depicting experimental design for treating fPanx1-containing proteoliposomes with recombinant Caspase-3 (Casp3) overnight at 4°C before incubation with 4 μCi each of α[32P]-ATP (B, 1 mM;~1:150000, hot:cold), [3H]-Glutamate (C, 0.8 mM;~1:2000), and [3H]-Spermidine (D, 8 µM;~1:24) for 3 hr and filtration using a Whatman GF/B filter. (B–D) Metabolites taken up by proteoliposomes under the indicated conditions for α[32P]-ATP (N = 8), [3H]-Glutamate (N = 6), and [3H]-Spermidine (N = 5); molar quantities should not be compared between compounds due to different assay conditions. A box plot with the box depicting the quartiles/median, and lines drawn to points outside 25th/75th percentiles are shown. By repeated-measures one-way ANOVA (ATP: F3,28 = 14.18, p<0.0001; Glutamate: F3,20 = 18.29, p<0.0001; Spermidine: F3,16 = 40.50, p<0.0001), with p-values provided from Tukey’s multiple comparisons tests. Numerical data for individual metabolite flux are shown in Figure 4—source data 1.

Discussion

Panx1 membrane channels are best known for their purported ability to support transmembrane flux of large molecules such as fluorescent dyes and, of more physiological relevance, metabolites and intercellular signaling molecules (e.g., most notably, ATP) (Chekeni et al., 2010; Chiu et al., 2017; Yang et al., 2015). The widespread acceptance of this idea is based on a wealth of data obtained from more intact systems, including those that implicated caspase-activated Panx1 as the likely transmembrane flux pathway for large molecule permeation (Chekeni et al., 2010; Chiu et al., 2017; Medina et al., 2020; Nielsen et al., 2020; Poon et al., 2014). In particular, the dye/metabolite permeation associated with apoptosis requires Panx1 expression, caspase activation, and an intact C-terminal caspase cleavage site; it is blocked by Panx1 channel inhibitors, indicating that ongoing channel activity is required (Chekeni et al., 2010; Chiu et al., 2017; Poon et al., 2014; Qu et al., 2011). This dye and metabolite permeation occurs not only during cell death, but is also observed when the channels are activated by C-terminal truncation independent of apoptosis (Chiu et al., 2017; Sandilos et al., 2012). In addition, ATP release and dye uptake closely parallel the quantized channel activation associated with individual subunit C-tail removal, further implicating the Panx1 channel as the permeation pathway for large molecules (Chiu et al., 2017). Despite this substantial body of evidence, this previous work was all based on experiments in intact cells, where secondary release mechanisms could not be excluded, and it has been suggested based on other channel properties (i.e., preferential anion selectivity and single channel conductance) that caspase-cleaved Panx1 is not compatible with large molecule permeation (Wang and Dahl, 2018). The present data demonstrate dye and metabolite permeation directly through purified Panx1 channels reconstituted in proteoliposomes to convincingly dispel this conflicting idea and clearly establish that dye/metabolite flux can indeed occur directly through caspase-activated Panx1 channels.

Channel properties of Panx1 channels in bilayers and cells

Similar to electrophysiological measurements of fPanx1 and hPANX1 recorded in inside-out patches from mammalian cells, we found that fPanx1 was silent in planar lipid bilayers until activated by caspase cleavage. In native cell membranes, caspase-cleaved hPANX1 and fPanx1 generate outwardly-rectifying currents with a single channel conductance of ~90 pS at depolarized potentials (Chiu et al., 2017). However, different conductance levels for channels attributed to Panx1 have been observed in various cell systems after different forms of activation, reportedly up to ~500 pS (Bao et al., 2004; reviewed in Chiu et al., 2018; Wang et al., 2014). Here, we observed two main, non-rectifying conductance levels from purified fPanx1 channels in bilayers after caspase activation (~100 pS; ~190 pS). In lipid bilayer recordings of purified hPANX1 reported during preparation of this work, Mou et al. detected a ~ 30 pS channel in E. coli polar lipid extract, although these recordings were in the absence of any specific form of activation and were not accompanied by open-closed transitions; the C-tail-cleaved channels, by contrast, yielded a number of extremely large open channel conductance states (i.e., 750 pS, 1.3 nS, and 1.8 nS; at +100 mV) (Mou et al., 2020). There have been other reports of constitutive Panx1 channel activity (i.e., in the absence of stimulation), and although these channels display a unitary conductance similar to that of channels stimulated by Casp3 cleavage (~70–80 pS), they do not appear to support ATP release (Ma et al., 2012; Romanov et al., 2012). It was recently proposed that a second permeation pathway, visible as a side tunnel in the structure of hPANX1, could support atomic ion flux through unstimulated and C-tail-intact channels in the absence of large molecule permeation (Ruan et al., 2020); this intriguing idea will need to be explored further (e.g., with single channel recordings of hPANX1 with intact C-termini). At this point, the mechanisms controlling basal and stimulated channel activity, and the factors that determine the vast range of reported Panx1 channel conductance levels, remain to be determined and may be related to any number of cell specific factors (e.g., channel-interacting proteins, different lipid composition in native cell membranes and bilayers).

A preference for anion versus cation selectivity

In ion substitution experiments, obvious shifts in reversal potential (Erev) were observed when Cl was exchanged with other negatively charged counterions (Ma et al., 2012; Michalski et al., 2020; Romanov et al., 2012; Ruan et al., 2020; Wang and Dahl, 2018). These shifts in Erev were strongly affected by mutations in R75, a positively charged residue next to W74, the narrowest pore constriction site identified in multiple recent structural reports (Deng et al., 2020; Michalski et al., 2020; Ruan et al., 2020). These results provide strong evidence for anion permeation through Panx1. By contrast, negligible changes in Erev accompany substitution with different positively charged counterions (Michalski et al., 2020; Ruan et al., 2020). On this basis, it has been inferred that the channel is exclusively anion-selective and impermeable to cations (Ma et al., 2012). Our data likewise reveal permeation of anionic dyes and signaling molecules (ATP, glutamate), with a clear preference for anionic over cationic dyes. However, we also detected flux through the channel of a positively charged dye (RhB) and metabolite (spermidine), indicating that cationic molecules can also traverse the channel. In addition, we observed simultaneous Panx1-mediated flux of both ATP and spermidine when assessed in combination. This supports the previous observation from apoptotic T cells that multiple important signaling metabolites can be released via caspase-activated channels in a complex milieu containing numerous permeants (Medina et al., 2020).

Permeant size considerations and pore architecture

Our data reveal a negative correlation between dye size and permeation rate – larger dyes were associated with slower permeation. Previous studies have predicted the maximum size of a Panx1 permeant to be less than 1270 Da (7-AAD) (Chiu et al., 2017; Poon et al., 2014) or 1500 Da (PEG 1500) (Wang et al., 2007). We found that Alexa555 (980 Da) could transit via the cleavage-activated Panx1 channel while ATTO550 (1363 Da) was unable to permeate. This confirms that the pore of the activated channel must be able to accommodate a molecule at least up to ~1 kDa.

A major breakthrough in the field was achieved with the recent determination of several high-resolution cryoEM structures of frog and human Panx1 by multiple groups (Deng et al., 2020; Jin et al., 2020; Michalski et al., 2020; Mou et al., 2020). The architecture and contours of the transmembrane pore were remarkably similar for all constructs analyzed, despite those including full length (presumably inactive) and C-terminal cleaved/truncated (presumably activated) (Deng et al., 2020; Michalski et al., 2020; Ruan et al., 2020). The narrowest pore constriction was formed by a ring of seven W74 residues on the extracellular surface of the channel, with a diameter of ~8–10 Å. This constriction appears to be too small to accommodate large dyes or even hydrated ATP, although this may be influenced by the shape and flexibility of the permeant molecule and/or the pore itself. Moreover, upon activation by cleavage (or truncation) at the C-terminal caspase site, Panx1 transitions between open and closed states (Chiu et al., 2017). Thus, the available structures may have captured the channel in a state that is ‘open’ for atomic ions but remains ‘closed’ for large molecules. The possibility of multiple open conformations or separate permeation pathways for ions and large molecules in both Panx1 channels and in CALHM1 channels have been proposed (Gaete et al., 2020; Nielsen et al., 2020; Ruan et al., 2020; Wang et al., 2014). If those distinct conformations exist, the dye/metabolite flux we present indicates that Panx1 cleavage by caspase is permissive for conformations that allow large molecule permeation, perhaps by removing a physical block to pore access while allowing open-closed transitions (Sandilos et al., 2012).

Summary

Examination of dye and metabolite flux through purified Panx1 channels reconstituted in proteoliposomes demonstrates directly that molecules up to ~1 kDa are capable of permeating caspase cleavage-activated fPanx1. Moreover, anionic and cationic metabolites and dyes can traverse caspase-activated Panx1 channels, albeit with a marked preference for anionic molecules. These data validate caspase-activated Panx1 as a direct conduit for release of ATP and other signaling molecules that facilitate immunologically silent cell clearance in the context of caspase-dependent cell death (apoptosis, pyroptosis) (Chekeni et al., 2010; Medina et al., 2020; Qu et al., 2011; Yang et al., 2015).

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Gene
(Xenopus tropicalis)
fPanx1GenBankNM_001130256.1
Gene
(Homo sapiens)
hPANX1GenBankNM_015368.4
Cell line (Spodoptera frugiperda)Sf9Expression Systems, Davis, CAParent cell line: IPLB-Sf-21-AE,
RRID:CVCL_0518
Clonal isolate derived from the parental cell line
Cell line (Homo sapiens)HEK293TATCCCRL-3216, RRID:CVCL_0063Negative for mycoplasma contamination at ATCC (obtained from Kodi Ravichandran lab)
Biological sample (Homo sapiens)Caspase-3Kang et al.
AntibodyAnti-human/mouse/rat Pannexin-1 (rabbit monoclonal)Cell Signaling TechnologyD9M1C, RRID:AB_280001671:1000 dilution
Chemical compound, drugBrain PCAvanti Polar Lipids840053
Chemical compound, drugBrain Total Lipid ExtractAvanti Polar Lipids131101
Chemical compound, drugBrain PI(4,5)P2Avanti Polar Lipids840046
Chemical compound, drugDPhPCAvanti Polar Lipids860337
Chemical compound, drugSulforhodamine-BSigma AldrichS1402
Chemical compound, drugRhodamine BSigma Aldrich83689
Chemical compound, drugDextran, Tetramethylrhodamine,3000 MW,ThermoFisher ScientificD3307
Chemical compound, drugAlexa 594 Carboxylic Acid, tris saltThermoFisher ScientificA33082
Chemical compound, drugAlexa 555 Carboxylic Acid, tris saltThermoFisher ScientificA33080
Chemical compound, drugATTO 550 PhallodinATTO-TECAD 550–8
Chemical compound, drugα-32P-ATPPerkinElmerBLU003H250UC
Chemical compound, drug3H-GlutamatePerkinElmerNET490250UC
Chemical compound, drug3H-SpermidinePerkinElmerNET522001MC
Software, algorithmLabViewKiessling et al.https://github.com/VolkerKirchheim/VK_TIRFsinglevesicleStep1Narahari, 2021; (copy archived at 'swh:1:rev:79a55c09884d1fd3f4965ef1d1bf8f102711d828')

Panx1 expression

Request a detailed protocol

A cDNA encoding Xenopus tropicalis Panx1 (fPanx1; Genscript-OXa25378, Accession NM_001130256.1) was inserted upstream of a thrombin protease cleavable linker (LVPRGS), enhanced green fluorescent protein (eGFP), and a Strep II epitope (WSHPQFEK) in a modified pFastBacI vector (Invitrogen, Carlsbad, CA) by In-Fusion cloning (Takara Bio USA, Inc, Mountain View, CA). Briefly, a PCR amplicon containing fPANX1 with a 5’ NotI and XhoI site at its 3’ end was prepared using Pfu DNA polymerase and inserted into a modified pFastBacI vector that contained a unique XhoI site upstream of the thrombin proteolytic site. The Strep II tag was fused in frame to the C-terminus of eGFP. The construct was verified by DNA sequencing.

The Bac-to-Bac expression system (Invitrogen, Carlsbad, CA) was used to generate baculovirus for expression in Spodoptera frugiperda (Sf9) insect cells. Recombinant fPanx1-eGFP baculovirus was used to infect Sf9 insect cells grown at 27°C to a density of 2 × 106 mL−1, at a multiplicity of infection (MOI) of ~3. Cells were collected 48 hr after infection by low-speed centrifugation at 2000 × g and stored at −80°C.

Panx1 protein purification

Request a detailed protocol

To isolate membrane-localized fPanx1-eGFP, Sf9 cell pellets were resuspended in low salt buffer (50 mM HEPES, pH 7.5, 50 mM NaCl, 0.5 mM EDTA, with protease inhibitor cocktails (Roche, Basel Switzerland) and lysed by Dounce homogenization (~30 strokes). Nucleic acids were digested by adding 2.5 mM MgCl2 and ~12.5 units of Benzonase (EMD Millipore, Burlington MA) per 1 mL lysate, with gentle stirring at 4°C for 10 min. Membranes were collected by ultracentrifugation at 100,000 × g and washed with stepwise Dounce homogenization again in low salt buffer and twice in high salt buffer (50 mM HEPES, pH 7.5, 1 M NaCl, 0.5 mM EDTA, with protease inhibitor cocktails). Pellets were isolated by ultracentrifugation at 100,000 × g between steps. Finally, membranes were resuspended (5 mL/g) in membrane freezing buffer (10 mM HEPES, pH 7.5, 20 mM KCl, 10 mM MgCl2, and 40% glycerol), flash frozen, and stored at −80°C.

The frozen membrane pellet was thawed and solubilized at 4°C for 3 hr with 1% (w/v) n-dodecyl-β-D-maltopyranoside (DDM; Anatrace, Maumee, OH) and 0.2% (w/v) cholesteryl hemisuccinate (CHS; Anatrace, Maumee, OH) in ~50 mL of buffer containing 50 mM HEPES, pH 7.5, 300 mM NaCl, 3 mM CaCl2, 2.5% glycerol and protease inhibitor cocktails. Insoluble material was removed by ultracentrifugation at 100,000 × g, and the supernatant was incubated with ~1.0 mL of Strep-Tactin Superflow Plus resin (QIAGEN, Hilden, Germany) overnight at 4°C. The resin was packed in an Econo-column (1.0 × 10 cm; Bio-Rad, Hercules, CA) and washed with low salt buffer (50 mM HEPES, pH 7.5, 300 mM NaCl, 3 mM CaCl2, and 0.2% DDM with 0.04% CHS) for 20 column volumes/wash, high salt buffer (50 mM HEPES, pH 7.5, 1 M NaCl, 3 mM CaCl2, and 0.05% DDM with 0.01% CHS), for 20 column volumes/wash, and eluted with 2.5 mM Desthiobiotin (Sigma-Aldrich, St. Louis, MO) in buffer (50 mM HEPES, pH 7.5, 500 mM NaCl, 3 mM CaCl2, and 0.02% DDM with 0.004% CHS). The eluted protein was concentrated to ~500 μL using an 100 kDa Amicon ultracel-100 centrifugal filter unit (EMD Millipore, Burlington MA). Preparative SEC was performed on a Superose 6 Increase 10/300 GL column (GE Healthcare, Chicago, IL) interfaced to an AKTA Purifier 10 FPLC system (GE Healthcare, Chicago, IL), equilibrated with buffer (50 mM HEPES, pH 7.5, 500 mM NaCl, 3 mM CaCl2, and 0.02% DDM with 0.004% CHS). Fractions containing fPanx1-eGFP were collected and the protein was concentrated to ~2–3 mg mL−1 using a 100 kDa Amicon ultracel-100 centrifugal filter unit and stored at 4°C for proteoliposome reconstitution, or snap frozen and stored at −80°C for lipid bilayer recordings.

Liposome preparation and reconstitution of Panx1

Request a detailed protocol

Liposomes were prepared from lipids of the following composition: 70% brain phosphatidylcholine (PC), 15% total brain lipid extract, 14% cholesterol, 1% phosphatidylinositol 4,5-bisphosphate (PIP2; all from Avanti Polar Lipids, Alabaster, AL), with 40 μL of methanol, dried under nitrogen flow with gentle agitation and then in a vacuum desiccator overnight. Dried lipids were resuspended in liposome buffer (20 mM Tris, 140 mM NaCl, pH 7.4), vortexed vigorously, incubated at room temperature for 45 min, and the lipid mixture was extruded at least 21 times through a LiposoFast-Basic extruder (Avestin Inc, Ottawa, Canada) with a 100 nm polycarbonate membrane. After extrusion, sodium cholate (3.9 mM final concentration) was added, and the solution was gently agitated for 3 hr. Purified detergent-solubilized fPanx1-eGFP (21.6 µM) was added in a 1:1000 protein:lipid molar ratio and gently agitated for 1 hr at room temperature. Following protein incubation, the proteoliposome-containing solution was transferred to 10 kDa dialysis cassettes (Slide-A-Lyzer; Thermo Scientific, Waltham, MA) and immersed in liposome buffer containing BioBeads (Bio-Rad, Hercules, CA) for detergent removal (5 L at 4°C, with gentle stirring), first for 5 hr and then overnight at 4°C with fresh BioBead-containing liposome buffer. Proteoliposomes were collected by 100,000 × g spin for 60 min at 4°C and resuspended to 1 mL with liposome buffer and utilized immediately or snap frozen in liposome buffer containing 200 mM sucrose. After snap freezing in liquid N2, liposomes were stored at −80°C until use. For dye uptake experiments, proteoliposomes were thawed at 4°C, diluted 10× in liposome buffer, spun at 100,000 × g, and resuspended to desired volume.

Liposomes for radiolabeled metabolite uptake were prepared as previously described (Johnson and Lee, 2015). Briefly, the dried lipid mixture described above was resuspended in liposome buffer (20 mM Tris, 140 mM NaCl, pH 7.4), incubated at room temperature for 45 min, vortexed vigorously, and sonicated in cycles of 1 min in a bath sonicator followed by 1 min on ice until the solution was clear. Liposomes were incubated with 3.9 mM Na Cholate (Sigma-Aldrich, St. Louis, MO) and rotated for 1 hr under nitrogen. After addition of fPanx1-eGFP (1:1000 protein:lipid molar ratio), the mixture was rotated for 2–3 hr at room temperature under nitrogen. The proteoliposome-containing solution was transferred to 10 kDa dialysis cassettes (Slide-A-Lyzer; Thermo Scientific, Waltham, MA) and immersed in liposome buffer containing BioBeads for detergent removal (5 L at 4°C, with gentle stirring), first for 5 hr and then overnight at 4°C with fresh BioBead-containing liposome buffer. Proteoliposomes were snap frozen in liquid N2 and stored at −80°C until use.

Nycodenz cofloatation assay

Request a detailed protocol

Nycodenz cofloatation was performed as previously described (Hernandez et al., 2012). Briefly, 50 μL proteoliposomes were mixed with 50 μL 80% w/v Nycodenz in liposome buffer. A 50 μL layer of 30% w/v Nycodez solution was applied on top of the liposome-Nycodenz mixture, and an additional 50 μL of liposome buffer layered on top. The density gradient was spun at 197,000 g for 90 min at 4°C in a TL-100 ultracentrifuge (TLS55 Rotor; Beckman-Coulter, Brea, CA). Upon completion, 20 μL fractions were collected and analyzed via SDS PAGE and silver staining.

Gel electrophoresis and silver staining

Request a detailed protocol

SDS PAGE gels (BioRad AnyKD Mini-PROTEAN TGX; BioRad, Hercules, CA) were run at 120 mV for 45 min and gels were fixed in 50 mL of 40% methanol solution containing 0.0185% formaldehyde, washed in DI water (2 × 5 min), immersed in 0.02% sodium thiosulfate solution (1 min), and washed again with in DI water (2 × 20 s). The gel was incubated in 50 mL of 0.1% silver nitrate solution for 10 min. The gel was quickly washed with 10 mL of DI water and then washed with 10 mL of thiosulfate developing solution (0.0185% formaldehyde, 28.3 mM sodium carbonate, and 0.0004% sodium thiosulfate). The gel was incubated in 50 mL of thiosulfate developing solution until bands were visualized. A volume of 2.5 mL of 2.3 M citric acid was added for 10 min to stop developing. The gel was washed with water and imaged.

Negative stain electron microscopy

Request a detailed protocol

For negative staining, 3.5 μL of proteoliposomes were applied to a glow-discharged, carbon-coated, 300-mesh, copper grid (Electron Microscopy Sciences, Hatfield, PA) and stained with 2% uranyl acetate (Adair and Yeager, 2007). Low-dose EM was performed at the Molecular Electron Microscopy Core facility at UVA using a Tecnai F20 electron microscope (FEI, Hillsboro, OR), operating at 120 kV. Images were recorded at a nominal magnification of 29,000× and a defocus of 3 μm using a 4 × 4 K charge-coupled device camera (UltraScan 4000; Gatan, Pleasanton, CA), corresponding to a pixel size of 3.7 Å on the specimen. Proteoliposome diameters were obtained using ImageJ (NIH, Bethesda, MD) from the average of two measurements per proteoliposome.

Casp3 purification

Request a detailed protocol

Recombinant Casp3 precursors were prepared as previously described (Kang et al., 2008). In brief, BL21(DE3) cells were transformed with the pro-Casp3 Δ28/175TS deletion in pET-22b (+) vector and treated with 1 mM IPTG (18°C, 18 hr). Cells were lysed using a microfluidizer, pro-Casp3 precursors were purified, and then activated by thrombin as previously described (Kang et al., 2008).

Western blotting

Request a detailed protocol

Proteoliposomes (25 μL, 1:1000 protein:lipid ratio) were incubated with purified Casp3 (6 μL, kcat = ~1.9 ± 0.1) and analyzed via SDS PAGE electrophoresis (BioRad AnyKD Mini-PROTEAN TGX; BioRad, Hercules, CA). Samples were transferred to 0.45 μM nitrocellulose membranes (Perkin Elmer), which were blocked for 1 hr at room temperature in 5% non-fat milk, 10 mM Tris, 150 mM NaCl, 0.1% Tween 20, pH 7.4 and then incubated overnight at 4°C with fPanx1 antibody (Rabbit mAb #91137, 1:1000; Cell Signaling Technology, Danvers, MA). After three washes in a Tris-based buffer (10 mM Tris, 150 mM NaCl, 0.1% Tween 20, pH 7.4), the membranes were incubated with horseradish peroxidase-conjugated secondary antibody (Na9340; 1:10000; Amersham, Little Chalfont, UK), and immunoreactive signals were detected by enhanced chemiluminescence (Western Lightning Plus-ECL; PerkinElmer, Waltham, MA) and visualized using Amersham Hyperfilm ECL (GE Healthcare, Chicago, IL).

Planar lipid bilayer recordings

Request a detailed protocol

Single-channel activity was evaluated in planar lipid bilayers using the Orbit mini system (Nanion Technologies, Munich, Germany). Briefly, Multi Electrode Cavity Array (MECA4) chips (Ionera, Freiburg, Germany) were filled with 150 μL of solution containing 200 mM KCl, 5 mM HEPES, and 0.2 mM EDTA; adjusted to pH 7.6. Lipid bilayers were formed by painting the chips with 10 mg/mL 1,2-diphytanoyl-sn-glycero-3-phosphocholine (DPhPC; Avanti Polar Lipids, Alabaster, AL) dissolved in octane. Purified fPanx1-eGFP (2–5 μL) was added at the cis (ground) side of the bilayer. After channel reconstitution, the current was recorded in a range of voltages (±200 mV). Activity at extreme potentials (>140 mV) was indicative of channel presence in the bilayer. Then, 2 μL of Casp3 (~0.4 mg/mL) was added to the cis side of the bilayer. After channel activation, Casp3 was gently washed out to keep symmetrical ionic composition on both sides of the bilayer. After treatment with caspase, the current was recorded again in a range of voltages (±200 mV). Recordings were performed at 20 kHz using Element Data Recorder 3.8.0 software and further analyzed with Clampfit 10 software (Axon Instruments, San Jose, CA). Measurements were performed at 37°C using a temperature control unit (Nanion Technologies, Munich, Germany).

Whole cell recordings

Request a detailed protocol

Whole cell voltage clamp recordings of fPanx1 and hPANX1 were performed in transiently transfected HEK293T cells (ATCC, Manassas, VA. Cells were authenticated originally by ATCC STR profiling and negative for mycoplasma at time of purchase), as described previously (Chiu et al., 2017). In short, expression plasmids for fPanx1-eGFP or hPANX-TEV and TEV protease (1:3) (Sandilos et al., 2012) were transfected into HEK293T cells using Lipofectamine 2000 (Thermo Fisher Scientific, Waltham, MA). After 16–18 hr, whole cell recordings were performed at room temperature using borosilicate glass micropipettes (Harvard Apparatus, Holliston, MA) that were pulled on a P-97 puller (Sutter Instrument Company, Novato, CA) to a resistance of 3–5 MΩ and coated with Sylgard 184 (Dow Corning Corporation, Midland, MI). Recordings were obtained with an Axopatch 200B amplifier, a Digidata 1322 A board, and Clampex software (all Molecular Devices, San Jose, CA) with a HEPES-bath solution composed of (mM): 140 NaCl, 3 KCl, 2 MgCl2, 2 CaCl2, 10 HEPES, and 10 glucose (pH 7.3) and an internal solution composed of (mM): 100 CsMeSO4, 30 TEACl, 4 NaCl, 1 MgCl2, 10 HEPES, 10 EGTA, 3 ATP-Mg, and 0.3 GTP-Tris (pH 7.3). Purified and activated Casp3 was added in the internal solution (2 µg/mL) to cleave and activate fPanx1-eGFP before bath application of CBX (50 µM). CBX-sensitive currents from fPanx1-eGFP or hPANX-TEV were obtained from ramp voltage commands, and normalized to the peak current to compare current–voltage relationships of fPanx1-eGFP and hPANX-TEV.

Single channel recordings

Request a detailed protocol

We examined single channel activity of caspase-activated fPanx1-GFP in transfected HEK293T cells (as above). For inside-out patch recordings, Sylgard-coated patch pipettes were pulled to a DC resistance of 7–10 MΩ and filled with the HEPES-bath solution. After seal formation (≥10 GΩ) and patch excision, the bath solution was exchanged to an inside-out solution containing 150 mM CsCl, 5 mM EGTA, 10 mM HEPES, and 1 mM MgCl2 (pH 7.3). Patches were held at +50 to +80 mV (Δ 10 mV), and only those patches that were silent initially after excision were used (i.e., those without native channel activities). Purified Casp3 was applied in the proximity of the patch to a final bath concentration of ~1–2 µg/mL. Stable steady-state channel activity was recorded ~5–10 min after Casp3 addition before switching to an inside-out bath solution containing CBX (50 μM). Channel amplitudes were obtained from all-points amplitude histograms at multiple patch potentials using Clampfit 10 (Molecular Devices).

ImageStream flow cytometry

Request a detailed protocol

Proteoliposomes (50 μL) were incubated in liposome buffer with Casp3 (75 µg/mL final) overnight at 4°C. SR-B dye was added to the reaction and incubated for 3 hr. The reaction was diluted to obtain a final SR-B concentration of 100 µM prior to flow cytometry analysis. The entire mixture was loaded on to an Amnis ImageStream MkII imaging flow cytometer (Luminex Corporation, Austin, TX). The 488 nm laser was used to capture eGFP signal and the 560 nm laser was used to capture Sulforhodamine-B. Amnis IDEAS was utilized for data processing. A decrease in GFP fluorescence was used to verify caspase-mediated fPanx1-GFP cleavage for experiments included in the statistical analysis.

Dye loading into proteoliposomes

Request a detailed protocol

Proteoliposomes were filled with dye as previously described (Karasawa et al., 2017). Briefly, fPanx1-containing proteoliposomes or empty liposomes (i.e., without fPanx1) were incubated with each dye: Sulforhodamine B, Rhodamine B, (all 1 mM; Sigma Aldrich, St. Louis, MO); Alexa 594 Carboxylic Acid, Alexa 555 Carboxylic Acid, Dextran Tetramethylrhodamine 3000 MW (all 1 mM; Thermo Fisher Scientific, Waltham, MA); ATTO 550 Phallodin (25 μM ATTO-TEC, Siegen, Germany), and loaded by three sequential freeze-thaw cycles in liquid N2 and room temperature water bath. After the final thaw, the mixture was extruded through a 100 nm extruder (T and T Scientific, Knoxville, TN). The proteoliposomes containing dye were eluted through a GE Healthcare PD MiniTrap column containing G-25 resin equilibrated with liposome buffer (GE Healthcare, Chicago, IL). The eluant was spun at 100,000 × g for 1 hr at 4°C. The proteoliposome/liposome pellet filled with dye was resuspended with cold liposome buffer.

TIRF microscopy and data analysis of TIRF

Request a detailed protocol

A Zeiss AxioObserver Z1 fluorescence microscope (Carl Zeiss, Oberkochen, Germany) with a 63× water immersion objective (N.A. = 0.95) and a prism-based illumination was utilized. The light sources for excitation were an OBIS 488 LX and an OBIS 561 LS laser (Coherent Inc, Santa Clara, CA). An OptoSplit (Andor, Belfast, Northern Ireland) was used to separate two spectral fluorescence bands with band pass filters BP525/50 and BP607/70 (Idex-Semrock, Rochester, NY). Images were acquired every 10 s with an EMCCD iXon DV887ESC-BV (Andor). Laser intensity, shutter, and camera were controlled by homemade software written in LabVIEW (National Instruments, Austin, TX). Custom chambers were filled with liposomes (1:1000 liposome:buffer dilution) and injected with Casp3 diluted in liposome buffer (to ~0.01 mg/mL).

Image series were analyzed by extracting the central pixel values from both spectral channels from regions of interests around each observed liposome by custom software written in LabVIEW (National Instruments; software has been made available: https://github.com/VolkerKirchheim/VK_TIRFsinglevesicleStep1) (copy archived at https://archive.softwareheritage.org/swh:1:rev:79a55c09884d1fd3f4965ef1d1bf8f102711d828/) (Kiessling, 2020; Kiessling et al., 2006). Efflux amounts were quantified by measuring the decrease of fluorescence intensity relative to the intensity before the onset of the decay and the background. Flux rates were determined by fitting mono exponential decay curves to the data starting at the onset of the decay over a range of 1200 s.

Bulk dye uptake assay

Request a detailed protocol

Proteoliposomes (50 µL) were incubated overnight with Casp3 (75 µg/mL) at 4°C in liposome buffer (20 mM Tris pH 7.4, 140 mM NaCl). Dye (1 mM SR-B) was added to the mixture (final volume 100 µL) and gently agitated at 4°C for 3 hr. CBX in liposome buffer was added to the liposome reaction (50 μM, in 200 μL final volume). The reaction was gently layered onto GE Healthcare PD MiniTrap columns containing G-25 resin pre-equilibrated with liposome buffer containing 100 μM CBX (GE Healthcare, Chicago, IL). The column was spun at 1000 × g for 1 min at 4°C. The eluted liposomes were read on a FlexStation 3 Multi-Mode Microplate Reader (excitation 565 nm, emission 586 nm) (Molecular Devices, San Jose, CA).

Metabolite uptake assay

Request a detailed protocol

As previously described (Johnson and Lee, 2015), frozen liposomes were thawed on ice and subjected to three freeze/thaw cycles using liquid N2 and a room temperature water bath. Following the third freeze/thaw cycle, liposomes were extruded through 1.0 µm polycarbonate membranes in a Mini-Extruder (Avanti Polar Lipids Inc, Alabaster, AL). Proteoliposomes (100 µL) were incubated overnight with Casp3 (~75 µg/mL) at 4°C in liposome buffer (20 mM Tris pH 7.4, 140 mM NaCl). We examined uptake of each of the potential permeants independently. For this, metabolites were added to caspase-treated proteoliposome mixtures to final concentrations of 1 mM ATP, 0.8 mM glutamate, 8 µM spermidine, together with 0.02 µCi/µL of 32P-ATP, 3H-Glutamate or 3H-Spermidine (200 µL final volume; all from PerkinElmer, Waltham, MA). Note that we used a 100-fold lower final concentration of spermidine to avoid potential disruption of the proteoliposomes (Creutz et al., 2012) and thus the hot:cold molar ratio for spermidine was ~100-fold greater than for glutamate. Following gentle agitation at room temperature for 3 hr, the radioactive mixture was diluted with ice cold liposome buffer containing unlabeled metabolite at the relevant final concentrations (to 1 mL) and filtered through a Whatman GF/B filter pre-equilibrated with liposome buffer containing unlabeled metabolite. The filter was washed three times with ice cold liposome buffer containing unlabeled metabolite, immersed in 5 mL of Ecoscint A (National Diagnostics, Atlanta, GA), and read with a LS6500 Multipurpose Scintillation Counter (Beckman Coulter, Brea, CA).

Chemical structures

Request a detailed protocol

All chemical structures were rendered in ChemDraw (Cambridgesoft, Cambridge, MA) with the base structures (carboxylic acids of Alexa 594 and Alexa 555) and the dextran conjugate of tetramethylrhodamine (Thermo Fisher Scientific; see Gebhardt et al., 2020); the precise site of the conjugate for these proprietary dyes was not provided and so the figures depict approximate structures. The chemical structure of ATTO 550 Phallodin was provided by ATTO-TEC.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    ATP release through pannexon channels
    1. G Dahl
    (2015)
    Philosophical Transactions of the Royal Society B: Biological Sciences 370:20140191.
    https://doi.org/10.1098/rstb.2014.0191
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
    ATP release channels
    1. A Taruno
    (2018)
    International Journal of Molecular Sciences 19:808.
    https://doi.org/10.3390/ijms19030808
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55

Decision letter

  1. Baron Chanda
    Reviewing Editor; Washington University in St. Louis, United States
  2. Kenton J Swartz
    Senior Editor; National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
  3. Baron Chanda
    Reviewer; Washington University in St. Louis, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Pannexins are membrane channels that are found in many cell types. It has been suggested that these channels when activated can transport ATP and other bulky metabolites. However, those studies cannot rule out the possibility that these ions flux through secondary pathways that are stimulated by the channel. Here, using a purified reconstituted system, the authors provide the most definitive evidence that Pannexin 1 when activated by caspase can flux large bulky metabolites such as ATP and spermidine. This study resolves a key question and has important physiological significance.

Decision letter after peer review:

Thank you for submitting your article "Caspase-activated Pannexin 1 channels favor anionic molecules and support flux of ATP and other signaling metabolites" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Baron Chanda as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by a Reviewing Editor and Kenton Swartz as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

Summary:

The manuscript by Narahari et al., reports comprehensive assessment of permeation properties of the frog Panx1 channel using liposomes reconstituted with purified fPanx1 proteins. In the past, much had been done using cell-based assay, however, there has not been any liposome based assays with purified protein. Such assays provide definitive characterization of the intrinsic functional properties of the protein. Here, the authors first conducted a lipid-bilayer electrophysiology by fusing the fPanx1 proteolipomes and clearly recapitulated caspase-3 cleavage dependent current formation. They also detected influxing of fluorescent dyes into the proteoliposomes and effluxing of fluorescent dyes from liposomes packaged from the proteoliposomes by TIRF microscopy (measurement of fluorescence decay from single proteoliposomes). The quality control of the experiments is excellent (e.g. verification of caspase cleavage, protein quality, detection of reconstitution, size estimation of proteoliposomes under electron microscopy, etc). This work represents the first solid case where Panx1 activity can be clearly measured using an in vitro liposome assay. Using these established assays, the authors assessed permeation of dyes with different sizes to measure pore sizes. Furthermore, the authors assessed uptake of tritiated ATP, glutamate, and spermidine to show that both cationic and anionic metabolites can permeate with higher selectivity to anionic metabolites. This work clearly addresses a key outstanding question in the field.

Essential revisions:

The authors have placed an excessive emphasis on differences in permeability of cationic vs. anionic molecules by including this in the titles, since only one direct quantitative comparison was made. The observed differences between SR-B over positively charged RhB, while consistent with small anion selectivity assessed previously by electrophysiology, represent only a partial characterization and might be also reflect other reasons. This can be easily addressed by rewording the title. Please see our suggestions below.

1) In Figure 1B, it is not clear from the single channel traces where the Closed state is in some of the traces in the right side. O1 is lined up right along with C in -80 and -100 mV traces.

2) Figure 1G, the inward and outward conductance appear displaced relative to each other almost implying that they have different selectivity. I am assuming that there is a trivial reason I am overlooking.

3) Figure 4. Related to the above point, it would be good for readers to have a sense of how much of the tritiated metabolites actually influxed into the proteoliposomes. For that reason, it is perhaps better to have Y-axis converted to “mole” not CPM.

4) Introduction. Citation for the first CALHM1 structure, Syrjanen,. Furukawa, (2020), and LRRC8 structure, Deneka et al., (2018), should be cited here.

5) Subsection “Preparation of Pannexin 1 Proteoliposomes”. Sf9 only minimally contain cholesterol/sterol. Could that affect functions of the purified Panx1? Alternatively, could the addition of cholesterol change conductance?

6) In Figure 2D, comparison between the left and right panels is not simple. Can the authors indicate studies in the same sets of vesicles using similar colors? Can they generate a graph that shows a comparison of the changes of GFP and SRB for each set?

7) Have the authors attempted an experiment like those in Figure 4 including both ATP and spermidine together (and separately counting 3H and 32P) to provide a direct comparison of the permeabilities of these two molecules?

8) It would be nice if the authors included a short section in the Discussion considering why other investigators have previously found some permeation through un-cleaved Panx1 channels.

9) Channel permeation does not depend only on the charge and mass of the permeant but also on its shape (second largest diameter). The authors might include a supplemental figure showing images of the size and shapes of the different permeants that they have tested. It could be briefly addressed in the Discussion.

10) Title: How about "ATP and bulky signaling metabolites can flux through Caspase activated Pannexin 1 channels" or something along those lines.

https://doi.org/10.7554/eLife.64787.sa1

Author response

Essential revisions:

The authors have placed an excessive emphasis on differences in permeability of cationic vs. anionic molecules by including this in the titles, since only one direct quantitative comparison was made. The observed differences between SR-B over positively charged RhB, while consistent with small anion selectivity assessed previously by electrophysiology, represent only a partial characterization and might be also reflect other reasons. This can be easily addressed by rewording the title. Please see our suggestions below.

We have re-worded the title according to the suggestion provided further below.

1) In Figure 1B, it is not clear from the single channel traces where the Closed state is in some of the traces in the right side. O1 is lined up right along with C in -80 and -100 mV traces.

Thank you for pointing out this oversight. The closed state for the recordings of caspase-treated Panx1 are now presented in Figure 1—figure supplement 3B.

2) Figure 1G, the inward and outward conductance appear displaced relative to each other almost implying that they have different selectivity. I am assuming that there is a trivial reason I am overlooking.

We have refitted the data across negative and positive potentials such that the line describing the slope conductance now passes through the origin. We have no reason to believe that the purified channel displays differential selectivity at positive or negative potentials.

3) Figure 4. Related to the above point, it would be good for readers to have a sense of how much of the tritiated metabolites actually influxed into the proteoliposomes. For that reason, it is perhaps better to have Y-axis converted to “mole” not CPM.

The Y-axis has now been converted to pmoles and not CPM. We also note in the figure legend that molar quantities should not be compared across compounds due to the different assay conditions. That is, we used 4 μCi of each metabolite in the assays, and thus the final concentrations and hot:cold ratios were different. In addition, we used spermidine at much lower final concentration due to its “detergent” properties (see Materials and methods).

4) Introduction. Citation for the first CALHM1 structure, Syrjanen,. Furukawa, (2020), and LRRC8 structure, Deneka et al., (2018), should be cited here.

These references have now been added.

5) Subsection “Preparation of Pannexin 1 Proteoliposomes”. Sf9 only minimally contain cholesterol/sterol. Could that affect functions of the purified Panx1? Alternatively, could the addition of cholesterol change conductance?

We reconstituted purified Panx1 into either cholesterol-containing proteoliposomes for flux assays or cholesterol-free lipid bilayers for planar lipid bilayer recordings.

Cholesterol/sterols can modulate channel activity in numerous ion channel families (Levitan, Singh and Rosenhouse-Dantsker, 2014), and thus it is possible that the absence of cholesterol could affect Panx1 channel activity in the bilayer recordings. The only other lipid bilayer recordings of the purified channel were obtained with hPANX1 in E. coli polar lipid extract (from Avanti), which is also devoid of cholesterol (Mou et al., 2020). In that case, Mou et al., recorded multiple single channel current amplitudes from caspase-cleaved hPANX1 channels that are much larger (even up to 1.8 nS) than we see in bilayers or cells (~100 pS). For our bilayer recordings, we also find an additional larger conductance level (~190 pS). At this point, the various factors that can influence these channel recordings, perhaps including cholesterol, remain to be determined.

We now specifically mention that the non-physiological lipids used for our bilayer recordings did not include cholesterol (or PIP2), and that this could have contributed to variations in channel properties (subsection “Pannexin 1 forms a dye permeable pore”). We also now note the composition of lipids in the proteoliposomes at the point where the flux assays are first described (subsection “Pannexin 1 forms a dye permeable pore”).

6) In Figure 2D, comparison between the left and right panels is not simple. Can the authors indicate studies in the same sets of vesicles using similar colors? Can they generate a graph that shows a comparison of the changes of GFP and SRB for each set?

We have now updated Figure 2D to be color coded by experiment. We have also added a supplemental graph (Figure 2—figure supplement 2A) that shows the changes in GFP and SRB for each of the experiments on a single graph. Finally, we have included the corresponding flow cytometry-style dot plots to show the caspase-evoked changes in GFP and SR-B for each of the individual experiments (Figure 2—figure supplement 2B-F).

7) Have the authors attempted an experiment like those in Figure 4 including both ATP and spermidine together (and separately counting 3H and 32P) to provide a direct comparison of the permeabilities of these two molecules?

Thank you for the suggestion. We have now performed experiments to measure ATP and spermidine flux simultaneously in the same experiment (Figure 4—figure supplement 2). In this combined experiment, we find uptake of both ATP and spermidine into the caspase-cleaved Panx1-containing proteoliposomes (subsection “Pannexin 1 is a conduit for anionic and cationic metabolites”). Thus, flux of one metabolite does not preclude flux of the other and, by comparison with Figure 4B,D, uptake appears to be blunted for both under these conditions (with perhaps a bigger effect on spermidine). We note here that this implies competition of these metabolites for the permeation pathway; it also suggests that the system is not at equilibrium. A kinetic analysis with more time points would be required to determine whether ATP is the preferential permeant in this assay.

8) It would be nice if the authors included a short section in the Discussion considering why other investigators have previously found some permeation through un-cleaved Panx1 channels.

We have now added a short Discussion section noting that some investigators have described permeation through unstimulated Panx1 channels (subsection “Channel properties of Panx1 channels in bilayers and cells”). Unfortunately, as elaborated at length in an earlier review (see Chiu et al., 2018), we do not have a satisfactory explanation for why some groups record such unstimulated channel activity. Thus, we cannot offer much by way of speculation in this regard. We now note that “the mechanisms controlling basal and stimulated channel activity, and the factors that determine the vast range of reported Panx1 channel conductance levels, remain to be determined” (subsection “Channel properties of Panx1 channels in bilayers and cells”).

For our part, we have only observed hPANX1 channel activity after some channel-activating mechanism (i.e., Casp3 cleavage or GPCR signaling) (Billaud et al., 2015; Chiu et al., 2017; Sandilos et al., 2012); the absence of any unstimulated activity also appears to be the case for fPanx1 channels, as demonstrated here. We have seen activity from unstimulated mouse Panx1 channels when they are expressed heterologously (e.g., Sandilos et al., 2012), as others have as well (e.g., Ma et al., 2012; Romanov et al., 2012). Notably, in expression systems those constitutively active mouse channels do not appear to release ATP (Romanov et al., 2012), whereas native mPanx1 channels do not appear to generate basal activity in mouse thymocytes even as caspase-mediated channel activation can provoke ATP release and dye uptake from those same cells (Chekeni et al., 2010; Qu et al., 2011).

Indeed, two important issues in this regard remain unresolved: (1) Do native channels display constitutive activity in the absence of stimulation? and (2) Is any such constitutive activity associated with large molecule permeation?

Recently, Ruan et al., suggested that a side tunnel they identified in the structure of hPANX1 could provide a constitutive atomic ion flux pathway through unstimulated and C-tail intact channels while not allowing large molecule permeation (Ruan et al., 2020). We now mention this possibility in the new discussion of basal channel activity (subsection “Channel properties of Panx1 channels in bilayers and cells”); we had earlier noted this idea when discussing potential separate pathways for atomic ions and large molecules (subsection “Permeant size considerations and pore architecture”).

9) Channel permeation does not depend only on the charge and mass of the permeant but also on its shape (second largest diameter). The authors might include a supplemental figure showing images of the size and shapes of the different permeants that they have tested. It could be briefly addressed in the Discussion.

We have now included a supplemental figure showing the chemical structures of each of the different dyes and metabolites tested in our study, along with their charge and molecular weight (Figure 3—figure supplement 1 and Figure 4—figure supplement 1).

We also now point out that permeation properties of the channel “may be influenced by the shape and flexibility of the permeant molecule and/or the pore itself” (subsection “Permeant size considerations and pore architecture”).

10) Title: How about "ATP and bulky signaling metabolites can flux through Caspase activated Pannexin 1 channels" or something along those lines.

Following this suggestion, we have re-titled the paper as: “ATP and large signaling metabolites flux through caspase-activated Pannexin 1 channels”

https://doi.org/10.7554/eLife.64787.sa2

Article and author information

Author details

  1. Adishesh K Narahari

    Department of Pharmacology, University of Virginia, Charlottesville, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    akn4uq@virginia.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8708-9161
  2. Alex JB Kreutzberger

    Department of Molecular Physiology and Biological Physics, University of Virginia, Charlottesville, United States
    Present address
    Department of Cell Biology, Harvard Medical School and Program in Cellular and Molecular Medicine, Boston Children’s Hospital, Boston, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Pablo S Gaete
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9774-115X
  3. Pablo S Gaete

    Department of Pharmacology, Physiology, and Neuroscience, Rutgers New Jersey Medical School, Newark, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Alex JB Kreutzberger
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3373-9138
  4. Yu-Hsin Chiu

    Department of Pharmacology, University of Virginia, Charlottesville, United States
    Present address
    Institute of Biotechnology and Department of Medical Science, National Tsing Hua University, Hsinchu, Taiwan
    Contribution
    Conceptualization, Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4730-8104
  5. Susan A Leonhardt

    Department of Molecular Physiology and Biological Physics, University of Virginia, Charlottesville, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Christopher B Medina

    Department of Microbiology, Immunology, and Cancer Biology, University of Virginia, Charlottesville, United States
    Present address
    Emory Vaccine Center and Department of Microbiology and Immunology, Emory University, Atlanta, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Xueyao Jin

    Department of Molecular Physiology and Biological Physics, University of Virginia, Charlottesville, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Patrycja W Oleniacz

    Department of Pharmacology, University of Virginia, Charlottesville, United States
    Contribution
    Conceptualization, Software, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  9. Volker Kiessling

    Department of Molecular Physiology and Biological Physics, University of Virginia, Charlottesville, United States
    Contribution
    Conceptualization, Resources, Software, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9388-5703
  10. Paula Q Barrett

    Department of Pharmacology, University of Virginia, Charlottesville, United States
    Contribution
    Resources, Supervision, Funding acquisition, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  11. Kodi S Ravichandran

    Department of Microbiology, Immunology, and Cancer Biology, University of Virginia, Charlottesville, United States
    Contribution
    Resources, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Mark Yeager

    Department of Molecular Physiology and Biological Physics, University of Virginia, Charlottesville, United States
    Contribution
    Resources, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
  13. Jorge E Contreras

    Department of Pharmacology, Physiology, and Neuroscience, Rutgers New Jersey Medical School, Newark, United States
    Contribution
    Resources, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9203-1602
  14. Lukas K Tamm

    Department of Molecular Physiology and Biological Physics, University of Virginia, Charlottesville, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Visualization, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1674-4464
  15. Douglas A Bayliss

    Department of Pharmacology, University of Virginia, Charlottesville, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    bayliss@virginia.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5630-2572

Funding

National Institutes of Health (P01 HL120840)

  • Kodi S Ravichandran
  • Mark Yeager
  • Douglas A Bayliss

National Institutes of Health (R01 HL138241)

  • Paula Q Barrett

National Institutes of Health (R01 GM099490)

  • Jorge E Contreras

National Institutes of Health (R01 HL48908)

  • Mark Yeager

National Institutes of Health (R01 GM138532)

  • Mark Yeager

National Institutes of Health (P01 GM072694)

  • Lukas K Tamm

National Institutes of Health (R01 GM051329)

  • Lukas K Tamm

National Institutes of Health (F30 CA236370)

  • Adishesh K Narahari

National Institutes of Health (T32 GM007055)

  • Adishesh K Narahari
  • Christopher B Medina

National Institutes of Health (T32 GM007267)

  • Adishesh K Narahari

University of Virginia (Whitfield-Randolph Scholarship)

  • Adishesh K Narahari

Ministry of Science and Technology, Taiwan (108-2320-B-007-007-MY2)

  • Yu-Hsin Chiu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by P01 HL120840 (KSR, DAB, MY); R01 HL138241 (PQB); R01 GM099490 (JEC); R01 GM138532 (MY); and R01 HL48908 (MY); and P01 GM072694 (LKT) and R01 GM051329 (LKT). AKN was supported by F30 CA236370, T32 GM007267, and the University of Virginia Whitfield-Randolph Scholarship, and AKN and CBM were supported by T32 GM007055. YHC was supported by MOST 108–2320-B-007–007-MY2. The authors are grateful for sample preparation by Sandra Poulos, liposome preparation advice from Raghavendar Reddy Sanganna Gari and Patrick Seelheim, helpful early advice on liposome bulk dye uptake assays from Joseph A Mindell (NINDS), and the University of Virginia flow cytometry core facility. The authors are grateful to Elizabeth Gonye, Keyong Li, and Yingtang Shi (Bayliss Laboratory) for helpful discussions and suggestions.

Senior Editor

  1. Kenton J Swartz, National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States

Reviewing Editor

  1. Baron Chanda, Washington University in St. Louis, United States

Reviewer

  1. Baron Chanda, Washington University in St. Louis, United States

Publication history

  1. Received: November 11, 2020
  2. Accepted: January 5, 2021
  3. Accepted Manuscript published: January 7, 2021 (version 1)
  4. Version of Record published: January 13, 2021 (version 2)

Copyright

© 2021, Narahari et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 760
    Page views
  • 178
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Salah A Baker et al.
    Research Article Updated

    Interstitial cells of Cajal (ICC) generate pacemaker activity responsible for phasic contractions in colonic segmentation and peristalsis. ICC along the submucosal border (ICC-SM) contribute to mixing and more complex patterns of colonic motility. We show the complex patterns of Ca2+ signaling in ICC-SM and the relationship between ICC-SM Ca2+ transients and activation of smooth muscle cells (SMCs) using optogenetic tools. ICC-SM displayed rhythmic firing of Ca2+transients ~ 15 cpm and paced adjacent SMCs. The majority of spontaneous activity occurred in regular Ca2+ transients clusters (CTCs) that propagated through the network. CTCs were organized and dependent upon Ca2+ entry through voltage-dependent Ca2+ conductances, L- and T-type Ca2+ channels. Removal of Ca2+ from the external solution abolished CTCs. Ca2+ release mechanisms reduced the duration and amplitude of Ca2+ transients but did not block CTCs. These data reveal how colonic pacemaker ICC-SM exhibit complex Ca2+-firing patterns and drive smooth muscle activity and overall colonic contractions.

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Manickam Gurusaran, Owen Richard Davies
    Research Article Updated

    The Linker of Nucleoskeleton and Cytoskeleton (LINC) complex mechanically couples cytoskeletal and nuclear components across the nuclear envelope to fulfil a myriad of cellular functions, including nuclear shape and positioning, hearing, and meiotic chromosome movements. The canonical model is that 3:3 interactions between SUN and KASH proteins underlie the nucleocytoskeletal linkages provided by the LINC complex. Here, we provide crystallographic and biophysical evidence that SUN-KASH is a constitutive 6:6 complex in which two constituent 3:3 complexes interact head-to-head. A common SUN-KASH topology is achieved through structurally diverse 6:6 interaction mechanisms by distinct KASH proteins, including zinc-coordination by Nesprin-4. The SUN-KASH 6:6 interface provides a molecular mechanism for the establishment of integrative and distributive connections between 3:3 structures within a branched LINC complex network. In this model, SUN-KASH 6:6 complexes act as nodes for force distribution and integration between adjacent SUN and KASH molecules, enabling the coordinated transduction of large forces across the nuclear envelope.
