Abstract

Abundant evidence supports the presence of at least three distinct types of thalamocortical (TC) neurons in the primate dorsal lateral geniculate nucleus (dLGN) of the thalamus, the brain region that conveys visual information from the retina to the primary visual cortex (V1). Different types of TC neurons in mice, humans, and macaques have distinct morphologies, distinct connectivity patterns, and convey different aspects of visual information to the cortex. To investigate the molecular underpinnings of these cell types, and how these relate to differences in dLGN between human, macaque, and mice, we profiled gene expression in single nuclei and cells using RNA-sequencing. These efforts identified four distinct types of TC neurons in the primate dLGN: magnocellular (M) neurons, parvocellular (P) neurons, and two types of koniocellular (K) neurons. Despite extensively documented morphological and physiological differences between M and P neurons, we identified few genes with significant differential expression between transcriptomic cell types corresponding to these two neuronal populations. Likewise, the dominant feature of TC neurons of the adult mouse dLGN is high transcriptomic similarity, with an axis of heterogeneity that aligns with core vs. shell portions of mouse dLGN. Together, these data show that transcriptomic differences between principal cell types in the mature mammalian dLGN are subtle relative to the observed differences in morphology and cortical projection targets. Finally, alignment of transcriptome profiles across species highlights expanded diversity of GABAergic neurons in primate versus mouse dLGN and homologous types of TC neurons in primates that are distinct from TC neurons in mouse.

Introduction

The dorsal lateral geniculate nucleus (dLGN/LGd) of the thalamus receives visual information from the retina and projects to the primary visual cortex (V1/VISp) (Jones, 2007) via excitatory thalamocortical (TC) projection neurons. In addition, the dLGN receives modulatory inputs from diverse structures including V1, thalamic reticular nucleus, and brainstem nuclei that play an important role in visual processing and spatial awareness (Saalmann and Kastner, 2011; Ling et al., 2015; Okigawa et al., 2021). dLGN also contains GABAergic interneurons, which tune visual responses by providing feedforward inhibition to TC neurons and have dual developmental origins (Jager et al., 2021) and variable electrophysiological properties (Leist et al., 2016).

In mammals with high visual acuity, including primates, carnivores, and some rodents (e.g., squirrel), dLGN is composed of three classes of TC neurons that are anatomically segregated into layers (Sherman, 2020). The three groups of TC neurons represent a well-documented example of distinct cell types that transmit parallel information streams in the central nervous system. In the non-human primate and cat, these cells differ dramatically in size, receive input from different types of retinal ganglion cells (RGCs), innervate different layers of V1, and respond preferentially to distinct features of visual stimuli (Livingstone and Hubel, 1988; Callaway, 2005). Magnocellular (M) TC neurons have large somata, receive input from rod photoreceptors, have larger receptive fields, provide higher contrast gain, and project to layer 4Cα of V1. In contrast, parvocellular (P) TC neurons receive input from cone photoreceptors, have smaller receptive fields, lower contrast gain, and project to layer 4Cβ of V1 (Reid and Shapley, 2002; Jeffries et al., 2014). The cell bodies of koniocellular (K) TC neurons reside in thin layers in between the M and P layers. At least some K neurons receive input from short-wavelength cones and project to layers 2–3 of V1 (Hendry and Reid, 2000). M, P, and K neurons express distinct marker genes in macaque, although M and P neurons are surprisingly similar based on bulk microarray profiling of dissected M and P layers (Murray et al., 2008).

Although macaque and human differ from mice in visual acuity and color vision, the structure of the visual system is broadly conserved across species (Huberman and Niell, 2011). Like in primates, RGCs provide convergent input to dLGN TC neurons in mice (Peng et al., 2019). The mouse dLGN is not clearly laminated but can be divided into two subregions – core and shell – that receive different retinal input and project to different layers of V1 (Román Rosón et al., 2019). Shell neurons preferentially receive input from direction-selective RGCs and project to layers 1–3 of V1, whereas core neurons mostly receive input from non-direction-selective RGCs and project to layer 4 (Cruz-Martín et al., 2014; Seabrook et al., 2017). In addition, based on their dendritic morphology, the dLGN neurons have been classified into X, Y, and W types (Krahe et al., 2011). The correspondence between projection targets and local dendritic morphology has not been established, and it is unknown whether transcriptomically distinct populations of TC neurons exist in mouse dLGN.

Recent advances in single-cell and single-nucleus RNA-sequencing (scRNA-seq and snRNA-seq) provide a powerful, complementary approach to anatomical studies to delineate and distinguish types of neurons on the basis of their genome-wide gene expression profiles (Darmanis et al., 2015; Zeisel et al., 2015; Tasic et al., 2016; Saunders et al., 2018; Tasic et al., 2018; Zeisel et al., 2018; Hodge et al., 2019; Bakken et al., 2020). These techniques can be used to examine the conserved and unique features of cell types in different species (La Manno et al., 2016; Hodge et al., 2019; Bakken et al., 2020; Krienen et al., 2020). For this study, we profiled single-nucleus (sn) or single-cell (sc) transcriptomes of dLGN of adult human, macaque, and mouse. For each species, we defined transcriptomic cell types and characterized their proportions, spatial distributions, and marker genes by sc/snRNA-seq. We also aligned RNA-seq data across species to determine the conservation of GABAergic interneuron types, correspondence of mouse core- and shell-enriched TC neurons to primate M, P, and K types, and primate specializations associated with their exceptional vision.

Results

Single-cell and -nucleus transcriptomic profiling

We used our previously described experimental approach (Tasic et al., 2016; Bakken et al., 2018; Tasic et al., 2018; Hodge et al., 2019; Figure 1, Materials and methods) to isolate and transcriptomically profile nuclei from macaque (Macaca nemestrina and Macaca fascicularis) and human dLGN, as well as cells from mouse dLGN. Nuclei were collected from microdissected anatomically defined regions: M or P layers of non-human primate dLGN; K, M, or P layers of human dLGN; and shell or core of mouse dLGN. We note that the microdissections are imperfect and likely include neighboring regions. This is especially evident for the K layers, which are very thin; their dissections inevitably included cells from neighboring M and P layers. Adjacent thalamic nuclei were also sampled, including ventral pulvinar from a single macaque donor, and lateral posterior (LP) and ventral lateral geniculate (LGv) nuclei from several mice. Single cells or nuclei were isolated by Fluorescence-Activated Cell Sorting (FACS) and enriched for neurons based on labeling with neuronal markers (NeuN in primates and tdTomato [tdT] in mouse). All single cells and nuclei were processed with SMART-seq v4 (Clontech) and Nextera XT (Illumina) and sequenced on HiSeq 2500 (Illumina). RNA-seq reads were aligned to corresponding genomes using the STAR aligner (Dobin et al., 2013). Gene expression was quantified as the sum of intronic and exonic reads per gene, normalized as counts per million (CPM), and log2-transformed as previously described (Tasic et al., 2018; Hodge et al., 2019). The Seurat v3 R package was used for clustering (Butler et al., 2018; Stuart et al., 2019) (Materials and methods). We report on 2003 macaque, 1209 human, and 2118 mouse QC-qualified single-cell and -nucleus transcriptomes with cluster-assigned identity (Figure 1—figure supplement 1A, Supplementary file 1). Samples were sequenced to a median depth of 1.3 million reads/nucleus for macaque, 2.4 million reads/nucleus for human, and 2.5 million reads/cell for mouse (Figure 1—figure supplement 1B). Median gene detection in macaque and human nuclei (~6000 and 6200, respectively) is lower than in mouse cells (~9000, respectively) (Figure 1—figure supplement 1C).

Figure 1 with 1 supplement see all
Download asset Open asset

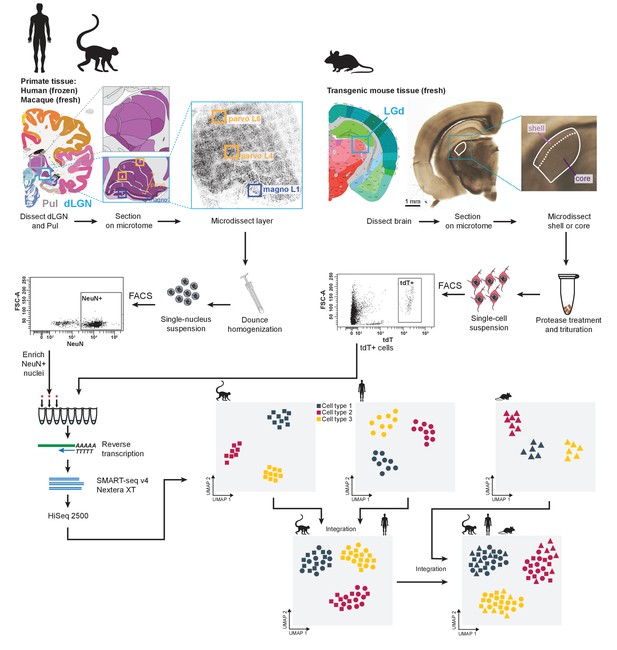

Experimental and data analysis workflow.

Dorsal lateral geniculate nucleus (dLGN) was dissected from postmortem human brain and acutely collected macaque and mouse brain according to the Allen Brain Atlas. Each sample was used to obtain single-cell or -nucleus suspensions. Individual cells or nuclei were sorted into eight-well strip PCR tubes by FACS and lysed. SMART-Seq v4 was used to reverse-transcribe and amplify full-length cDNAs. cDNAs were then tagmented by Nextera XT, PCR-amplified, and processed for Illumina sequencing. Initial clustering of single-cell or single-nucleus transcriptomes was performed independently for human, macaque and mouse. To further distinguish M and P types, the human data wereclustered with the macaque data. For cross-species comparison, macaque, human, and mouse data were co-clustered withSeurat v3.

Transcriptomic cell types in macaque dLGN and pulvinar

Single nuclei were isolated from three macaque donors across two species from dLGN and pulvinar. The nuclei were subjected to snRNA-seq, mapped to the Macaca mulatta genome, clustered with Seurat, and the relationship among clusters was explored in 2D-UMAP projections. This projection revealed heterogeneity within clusters that is driven by donor identity (Figure 2—figure supplement 1A). 1026–1438 genes were significantly differentially expressed (greater than twofold change, FDR < 0.01) between pairs of donors for glutamatergic neurons. Based on ontology enrichment analysis, these genes were associated with neuronal signaling and connectivity and not with metabolic or activity-dependent processes (Supplementary files 2 and 3).

To explore cell-type diversity shared across donors, we used the fastMNN implementation of Mutual Nearest Neighbors (MNN), which enables more accurate integration of imbalanced datasets compared to canonical correlation analysis (CCA) (Haghverdi et al., 2018; Figure 2—figure supplement 1B, Materials and methods). By removing donor-specific signatures, we defined nine shared neuronal types in macaque dLGN (Figure 2A, B, Figure 2—figure supplement 1C). We assigned cell-type identities based on known marker genes and dissection location (Figure 2—figure supplement 1D). The neuronal taxonomy has two major branches, GABAergic and glutamatergic (Figure 2A), that further branch into four and five types, respectively. We identified two distinct K types (Kap and Kp, Figure 2A) that express K-specific markers CAMK2A and PRKCG (Murray et al., 2008). The Kp-type selectively expresses PENK (Supplementary file 4). PENK-expressing cells are enriched in posterior K1 and K2 layers (Figure 2—figure supplement 1E).

Figure 2 with 1 supplement see all
Download asset Open asset

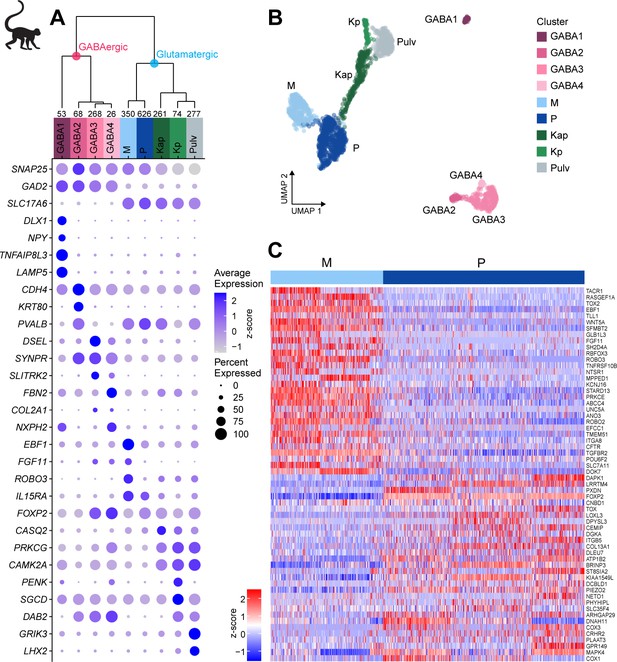

Neuronal cell-type taxonomy of macaque dorsal lateral geniculate nucleus (dLGN) and pulvinar by snRNA-seq.

(A) Top: Neuronal cell-type taxonomy based on median cluster gene expression of 2000 differentially expressed genes in 2003 nuclei from three donors across two macaque species. Known marker genes and dissection location were used to assign molecular cluster identity. Numbers of nuclei in each cluster are indicated at the bottom of the dendrogram. Bottom: gene expression dot plot showing the relative expression of marker genes (y-axis) across all clusters (x-axis). The color intensity of the dots represents the average expression level, whereas the size of the dot represents the proportion of cells expressing the gene. (B) UMAP representation of macaque dLGN neurons colored by cluster. (C) Heatmap of RNA-seq expression z-scores computed for the top 60 differentially expressed genes expressed (p adj<0.05, log2(fold change) > 1) between the M and P clusters. Each column in the heatmap is an individual nucleus.

The Pulv cluster corresponds to pulvinar TC neurons and expresses GRIK3 and LHX2 (Figure 2A, Supplementary file 4; Jones and Rubenstein, 2004). The M projection neurons express previously reported markers ABHD17A (FAM108A), BRD4, CRYAB, EEF1A2, IL15RA, KCNA1, NEFM, PPP2R2C, and SFRP2 (Murray et al., 2008), and P projection neurons express FOXP2 (Iwai et al., 2013) and TCF7L2 (Murray et al., 2008). We also identified many novel M and P markers that are shared across donors (Figure 2C).

Transcriptomic cell types in human dLGN

We define six neuronal and four non-neuronal types in human dLGN (Figure 3A, B, Figure 3—figure supplement 1A–C) by transcriptomically profiling individual nuclei isolated from three postmortem donors using the same methods as described above for macaque. The neuronal taxonomy has two major branches: GABAergic and glutamatergic, which further branch into three types each (Figure 3A). Based on the expression of glutamatergic markers and K-specific markers (CALB1, CAMK2A, and PRKCG, Figure 3A, Supplementary file 4), two K types, Kap and Kp, could be identified (Hendry and Reid, 2000; Murray et al., 2008). Similar to the K types identified in macaque, the PENK-expressing K type (Kp) is limited to posterior K1 and K2 layers (Figure 3—figure supplement 1D). The remaining glutamatergic nuclei belong to a single cluster to which we assign the MP projection neuron identity based on the following observations: (1) it is the most numerous glutamatergic type that expresses the known M/P marker gene PVALB (Figure 3A; Yan et al., 1996), (2) it does not express K markers CALB1, CAMK2A, and PRKCG, and (3) it contains cells derived from both M and P layer dissections (Figure 3—figure supplement 2A).

Figure 3 with 2 supplements see all
Download asset Open asset

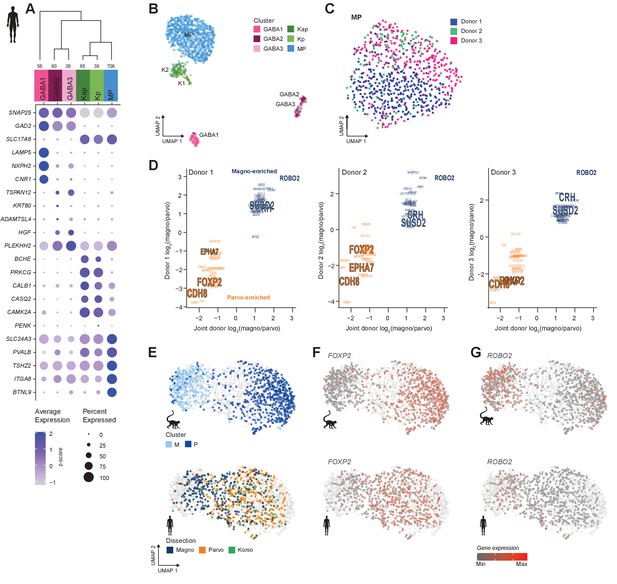

Neuronal cell-type taxonomy of human dorsal lateral geniculate nucleus (dLGN) by snRNA-seq.

(A) Top: Cell-type taxonomy based on median cluster gene expression of 2000 differentially expressed genes and 946 nuclei from three donors. Known marker genes were used for cluster identity assignment. Numbers of nuclei in each cluster are indicated at the bottom of the dendrogram. Bottom: gene expression dot plot showing the relative expression of marker genes (y-axis) across all clusters (x-axis). (B) UMAP representation of human dLGN neurons colored by cluster. (C) UMAP representation of neurons within the MP cluster, colored by donor. (D) 32 single-nucleus marker genes show consistent enrichment between M and P dissections in three donors. Select marker genes that are differentially expressed (p adj<0.05, log2(fold change) > 1) are highlighted. (E) UMAP representation of joint analysis of human MP and macaque M and P nuclei using canonical correlation analysis (CCA). The macaque nuclei are labeled based on cluster identity defined by the macaque snRNA-seq clusteranalysis, whereas the human nuclei within the MP cluster are labeled by dissection ROI. (F, G) UMAP representation, as in panel (G), showing expression of the P marker FOXP2 (F) or the M marker ROBO2 in the macaque and human MP clusters (G).

We detect donor-related heterogeneity in the human MP cluster (Figure 3C). This heterogeneity is unlikely due to sampling different subregions of dLGN across donors because we did not find any significantly differentially expressed genes between anterior and posterior dLGN dissected from individual donors (Figure 3—figure supplement 2B). 877–1324 genes were significantly differentially expressed genes between pairs of human donors and were associated with ribosomal processing rather than neuronal function (Supplementary files 2 and 3). 130 of these genes were reported as upregulated in postmortem versus acute neurosurgical tissue (Hodge et al., 2019). These results suggest that dLGN tissue had variable quality across human donors, which limited discrimination of M and P cell populations. We were able to directly compare donor effects on gene expression in dLGN and cortex because the same donor brains were sampled in this study and our published study on cortical middle temporal gyrus (Hodge et al., 2019). Interestingly, only 456 genes were differentially expressed between donors for the most variable glutamatergic subclass, L2/3 IT neurons. This represents 40% of the differences seen in dLGN excitatory neurons for the same donors. Many factors could contribute to regional differences in donor effects, including sensitivity to tissue processing, differential heterogeneity in cell states, or cell type-dependent effects of genetic background and environment.

Next, we looked for signatures of M and P types within individual donors. Among the MP nuclei from one donor, we observe a continuum of nuclei between M and P dissections (Figure 3—figure supplement 2C). To examine this continuum in more detail, we analyzed co-clustering matrices, which define how often nuclei are placed in the same cluster after 100 iterations of clustering. In all three donors, these co-clustering matrices show substructure within the MP type that corresponds to M and P dissections (Figure 3—figure supplement 2B). Examination of MP cells within each donor and comparison to joint donor signatures shows that many genes are consistently differentially expressed between M and P neurons (Figure 3D). We also confirmed expression of select marker genes in appropriate layers by RNA in situ hybridization (ISH) (Figure 3—figure supplement 2E, F), including newly discovered markers for M (CRH and SUSD2), P (EPHA7), or M and P (BTLN9) neurons.

The gene expression differences between glutamatergic neurons from M and P dissections in some of the human donors were subtle, but they were clearly observable in the macaque dataset (Figure 2D, Figure 3—figure supplement 2G). We therefore wondered if the MP continuum in human would align with the M and P cluster division in macaque. To investigate this possibility, we examined human nuclei and batch-corrected macaque nuclei together by employing CCA in Seurat v3. After the cross-species integration, the macaque M and P clusters remained well segregated, whereas the nuclei from the human MP cluster still formed a continuum. Encouragingly, the human MP continuum aligned with the macaque M and P clusters; that is, the human M-pole nuclei aligned with the macaque M cluster, and likewise, the human P-pole nuclei aligned with the macaque P cluster (Figure 3E). This alignment indicates that there is a shared signature between species in the M/P cell populations. FOXP2 is a robust marker of P neurons (Iwai et al., 2013) and is enriched in the macaque P cluster and overlapping nuclei in the human MP cluster (Figure 3F) compared to other nuclei. Likewise, ROBO2 is enriched in the macaque M cluster and overlapping human nuclei (Figure 3G). Despite the differences among donors, species, and nuclear quality, integration of transcriptomic data enabled us to identify a common axis of gene expression variation that is conserved among macaque and human and aligns with the previously defined M/P anatomical axis.

Transcriptomic cell types in mouse dLGN, LP, and LGv

To profile cells from mouse dLGN while examining the reported diversity in TC neurons (Krahe et al., 2011; Cruz-Martín et al., 2014), we performed dissections that enriched for core and shell regions of dLGN. As noted before for macaque and human tissue, the microdissections are imperfect and should be considered enrichments for dissected regions of interest. We identified 12 neuronal and 3 non-neuronal types from mouse dLGN dissections (Figure 4A, B, Figure 4—figure supplement 1A–C). The 12 neuronal types could be further divided into 9 GABAergic and 3 glutamatergic types. However, due to the small size of dLGN in mice, we suspected that some of these types likely originated from neighboring areas that could not be clearly separated by microdissections. Therefore, as controls, we also profiled single cells from nearby thalamic nuclei, LP, and LGv. To assign anatomical location to clusters, we identified differentially expressed genes selective to each cluster and then examined expression patterns of these marker genes in the Allen Brain Atlas RNA ISH data (Lein et al., 2007; Supplementary file 4). Based on these marker genes, we assigned three GABAergic types to dLGN, whereas the remaining GABAergic types were likely from adjacent thalamic nuclei, including LP, LGv, and the reticular thalamic nucleus (RT, Figure 4C). Based on the dissection area as well as the differentially expressed genes, all glutamatergic cells from dLGN belong to a single cluster ‘dLGN’ (Figure 4A–C, Figure 4—figure supplement 1D). Cells within this cluster are not homogeneous, with the major axis of gene expression variation corresponding to the core vs. shell anatomical axis (Figure 4D, Supplementary file 5). These expression differences do not appear to be activity-dependent since there was minimal overlap with genes recently reported to be up- or downregulated in response to visual stimuli in mouse dLGN relay neurons (Cheadle et al., 2018). To confirm this anatomical and gene expression heterogeneity in situ, we identified differentially expressed genes between cells isolated from shell and core of dLGN (Figure 4E) and validated expression of a subset of genes by multiplexed RNA ISH (Figure 4F, Figure 4—figure supplement 1E, F). We confirm our scRNA-seq findings that neurons in the shell express higher levels of Necab1 and Calb1, and neurons in the core more highly express Pvalb and Scnn1a. A small subset of neurons co-express Pvalb and Necab1, suggesting that there are ‘intermediate’ cells in dLGN that share shell- and core-like properties. In agreement with this finding, Calb1 protein has been previously reported to be more highly expressed in the dLGN shell compared to the core as measured by immunohistochemical labeling (Grubb and Thompson, 2004).

Figure 4 with 1 supplement see all
Download asset Open asset

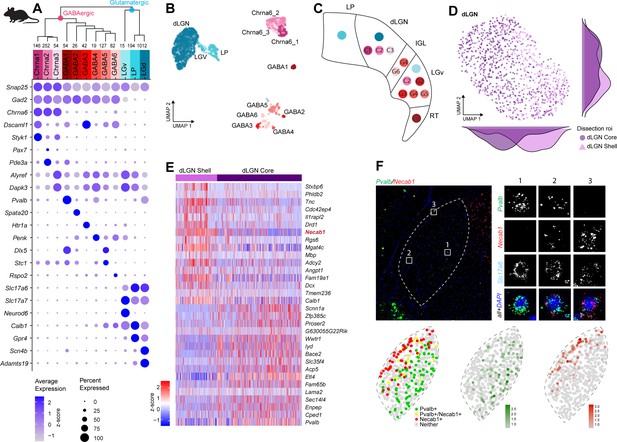

Neuronal cell-type taxonomy of mouse dorsal lateral geniculate nucleus (dLGN) and nearby regions by scRNA-seq.

(A) Top: hierarchical taxonomy based on median cluster gene expression of >2000 differentially expressed genes and 2020 cells. Known and newly discovered marker genes were used to assign molecular cluster identity. Bottom: gene expression dot plot showing the relative expression of marker genes (y-axis) across all clusters (x-axis). (B) UMAP representation of mouse dLGN neurons colored by cluster. (C) Schematic representation of the relevant thalamic nuclei in the mouse brain with colored dots representing cell types identified in this study. Based on cell-type-specific marker expression and using the Allen Brain Atlas in situ hybridization (ISH) data, the anatomical location of cell types could be determined. (D) UMAP representation of neurons from the dLGN cluster colored by dissection ROI. The density plot in the margin shows the distribution of cells dissected from mouse dLGN-core (dark purple) and mouse dLGN-shell (light purple) along the x- and y-axes. (E) Heatmap of RNA-seq expression z-scores computed for the top 30 differentially expressed genes expressed (p adj<0.05, log2(fold change) > 1) between cells obtained from dLGN shell and core dissections belonging to dLGN cluster. The gene highlighted in red is confirmed by ISH in panel F. Each column in the heatmap is an individual sample. (F) Confirmation of differential expression of Pvalb and Necab1 between shell and core of mouse dLGN by single-molecule fluorescence ISH by RNAscope.

Cross-species analysis of neuronal cell types in dLGN

To examine cross-species correspondence of transcriptomic cell types, we integrated the macaque and human snRNA-seq datasets with the mouse scRNA-seq dataset using CCA in Seurat v3 (Figure 5A–C) for a dataset of n = 4979 neurons. We included data from all thalamic nuclei to assess similarities of cell populations across regions and species. 2D-UMAP projections show extensive intermingling of GABAergic types across the three species and more separation between glutamatergic types (Figure 5B, C). To assess the correspondence, we generated an integrated taxonomy of the cell types (n = 17) identified by analysis of each species independently and compared this to the integrated clustering result (n = 10 cell types, Figure 5D). The integrated taxonomy has two major branches: GABAergic and glutamatergic. The integrated GABAergic class contains 16 species-specific types that map to 4 integrated types (Figure 5D, Figure 5—figure supplement 1A). Cluster 8 from the integrated taxonomy contains only cells from the mouse GABA1 type. This type represents highly distinct RT neurons (Figure 4B, C) that were not sampled in primates and were profiled in mice likely due to imperfect dissections. The mouse GABAergic types can be roughly divided into two groups based on the expression of key transcriptional regulators (Sox14, Lef1, Otx2, Nkx2-2, and Dlx5) that reflect their developmental origin in the midbrain (Sox14+) or forebrain (Sox14-) (Scholpp and Lumsden, 2010; Jager et al., 2021). All mouse GABAergic types in dLGN and some types in the ventrolateral geniculate nucleus (LGv) and the intergeniculate leaflet (IGL) express Sox14, which is consistent with previous reports (Sellers et al., 2014; Jager et al., 2016). Similarly, two macaque and two human GABAergic types express SOX14 and are homologous to the Chrna6/Sox14-expressing GABAergic dLGN types in mouse and form a distinct branch in the integrated taxonomy (Figure 5D). A second GABAergic branch includes the macaque GABA1 type, human GABA1 type, and mouse GABA2-6 types that are defined by expression of Npy, Nkx2-2, and Dlx1/2/5/6 (Figure 5—figure supplement 1B–D). Interestingly, the mouse GABA2-6 types are not found in dLGN but are located only in the adjacent thalamic nuclei; IGL, LGv, and LP (Figure 4C). In human, the forebrain-derived GABA1 type was validated to be localized to dLGN based on RNA ISH (Figure 5—figure supplement 1E) and represents ~40% of GABAergic neurons. In contrast, in the macaque, the forebrain-derived GABA1 type represents only ~15% of GABAergic neurons in dLGN (Figure 2A, Figure 5—figure supplement 1F). In summary, we identify two major groups of GABAergic neurons that have distinct embryonic origins and are conserved across species with different proportions in dLGN.

Figure 5 with 1 supplement see all
Download asset Open asset

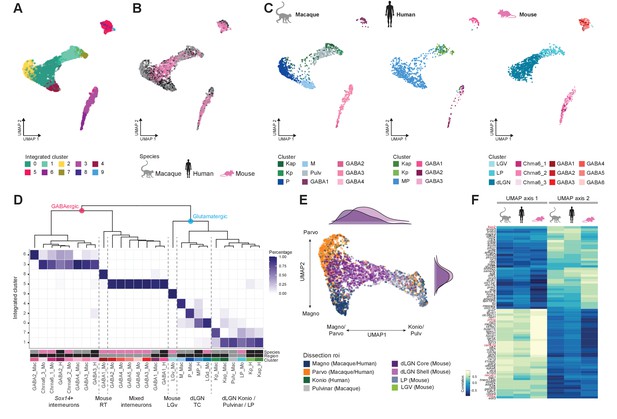

Cross-species integrative analysis.

(A–C) All 4978 neurons from macaque, human, and mouse were integrated using Seurat v3. UMAP representation of the integrative analysis colored by integrated cluster call (A), colored by species (B), or colored by species-independent cluster call (C). (D) Correspondence of species-specific clustering and integrative clustering. The heatmap illustrates the proportion of the species-specific cell types contributing to the integrated cluster. The region color bar indicates the location of cell types in dorsal lateral geniculate nucleus (dLGN) (black) or in adjacent thalamic nuclei (gray). (E) Representation of glutamatergic neurons selected from UMAP as represented in panels (A) and (B) colored by dissection ROI. The density plot in the margin shows the distribution of cells dissected from mouse dLGN-core (dark purple) and mouse dLGN-shell (light purple) along the x- and y-axes. (F) Heatmap showing the Spearman correlation coefficient of the gene expression along the UMAP axes represented in panel (C) per species. For each axis, the top 30 genes are shown.

Glutamatergic types did not align as clearly across species as GABAergic types, and mouse types were particularly distinct (Figure 5C, D). Homologies between macaque and human types, including K subtypes, were better resolved when mouse cells were excluded (Figure 5—figure supplement 1G). As expected, glutamatergic mouse LGv neurons clustered separately because this region was not sampled in primates. Transcriptomic signatures of mouse LP neurons resembled macaque inferior pulvinar neurons, located in what is considered the homologous structure in primates (Harting et al., 1972; Baldwin et al., 2017), as well as closely related K neurons. Like the integration of human and macaque data shown in Figure 3F, the human MP cells form a gradient along one axis with the macaque M and P types populating the distinct ends of that same gradient (Figure 5C–E). However, the mouse dLGN cluster variation not only aligns with this gradient of macaque and human M/P types, but rather spans both the continuum between the M and P types along UMAP axis 2 and the continuum between M/P and K/pulvinar/LP types on UMAP axis 1 (Figure 5E). Intriguingly, more shell- than core-dissected neurons from mouse dLGN resembled K/pulvinar neurons, consistent with reported similarities in their connectivity (Bickford et al., 2015). For each species, we correlated gene expression with position along these axes and found many genes with graded expression changes along both axes. There is clear conservation in the expression pattern of genes like ROBO2, FOXP2, and CAMK2A along UMAP axis 1, corresponding to the M/P to K/pulvinar difference (Figure 5F). These data show that despite conservation of cell types in the mature dLGN across species, there exist prominent differences in gene expression and cell-type proportions.

Discussion

We used unsupervised clustering to define transcriptomic cell types in a well-studied part of the mammalian thalamus, dLGN, for human, macaque, and mouse. We examined the correspondence of excitatory TC neurons to previously described morphological, connectional, and physiological differences (Hendry and Reid, 2000; Krahe et al., 2011; Cruz-Martín et al., 2014) and identified cell-type homologies across species.

We find that primate K neurons are transcriptomically clearly distinguishable from their M and P counterparts, consistent with previous results (reviewed in Hendry and Reid, 2000). Moreover, we identify two transcriptomic types of K neurons that may correspond to two populations reported in macaque that have distinct laminar distributions in dLGN and projection patterns in V1 (Casagrande et al., 2007). We also find that K neurons are more transcriptomically similar to inferior pulvinar neurons than to M or P neurons. This is consistent with their shared inputs from retina and superior colliculus and cortical projection targets (Huo et al., 2019) and supports a close functional relationship between K neurons and inferior pulvinar. M and P neurons are transcriptomically similar to each other in both macaque and human.

In contrast to primate, TC neurons in mouse dLGN cannot be grouped into discrete types based on gene expression, although many genes show graded expression differences between core and shell regions. Similar graded expression heterogeneity has been reported within and across many first- and higher-order thalamic nuclei (Phillips et al., 2019). Alignment of primate and mouse TC neurons revealed cell-type homologies between pulvinar and LP neurons, as expected. Mouse shell neurons aligned more with primate K neurons and core neurons aligned with M and P neurons, and some marker genes were conserved across species. Genes for calcium binding proteins were expressed in opposing gradients in TC neurons across mouse dLGN: Pvalb-expressing neurons were enriched in the core (and primate M and P neurons), Calb1- and Necab1-expressing neurons were enriched in the shell (and K neurons).

Our data revealed two homologous subclasses of GABAergic interneurons across species: Sox14-positive interneurons were present in dLGN in all species, and Sox14-negative interneurons were present in dLGN in human and macaque and only in thalamic nuclei adjacent to dLGN in mouse (Figures 4C and 5D). Thus, primate dLGN exhibits increased diversity of GABAergic interneurons compared to mouse, potentially contributing to enhanced visual information processing required for more complex visually guided behaviors in primates. These two interneuron subclasses have consistent developmental origins across primates and rodents; Sox14-positive GABAergic neurons originate from midbrain, and Sox14-negative GABAergic neurons originate from forebrain (Golding et al., 2014; Jager et al., 2021). Interestingly, Sox14-negative, Dlx1/2-positive interneurons are progressively more common in larger-brained primates, representing less than 10% of GABAergic cells in marmoset dLGN (Jager et al., 2021), 15% in macaque, and 40% in human. This dramatic expansion in human may also be driven by human-specific migration of these interneurons from the ganglionic eminences that has not been observed in non-human primates, rodents, or other mammals (Letinic and Rakic, 2001).

Strong donor-specific molecular signatures were found in macaque and human datasets and could have several causes. Donor effects may be driven by the greater genetic diversity of primate donors than inbred mice. Alternatively, there may be donor differences in cell state, although differentially expressed genes were not enriched for previously identified activity-dependent genes (Supplementary file 2). Donor effects are unlikely due to profiling single nuclei versus single cells because we have previously shown excellent correspondence between cell-type taxonomies derived from cortical cells and nuclei (Bakken et al., 2018). M and P neurons could be more easily distinguished in macaque than human likely due to the use of acute surgical tissue in macaque versus frozen tissue with an 18.5–25 hr postmortem interval in human. Interestingly, primate donor effects were more prominent among TC neurons than GABAergic neurons in dLGN or human neocortex (Hodge et al., 2019), suggesting that cell types have different biological variability or robustness to technical artifacts.

In adult mouse dLGN, three distinct neuronal types, X-, Y-, and W-like, can be identified based on their morphology but have similar electrophysiological properties (Krahe et al., 2011; Bickford et al., 2015). Based on the unsupervised clustering presented in this article, we did not identify distinct transcriptomic types that correspond to these previously described morphological cell types. Likewise, in macaque and human, M and P neurons have highly distinct morphologies, connections, and locations in the dLGN, yet are transcriptomically similar. Other groups have made similar observations where cell types can be clearly distinguished based only on some properties (Cadwell et al., 2016; Fuzik et al., 2016; Mayer et al., 2019). In two cases in the mouse cortex, neurons located within the same cortical area but with different cortico-cortical projection patterns display relatively subtle differences in transcriptomic profiles (Kim et al., 2020; Whitesell et al., 2021). One explanation for this apparent discrepancy is that genes that shape the morphology and connectivity of TC neurons are expressed transiently during development. Indeed, a recent single-cell RNA-seq study of postnatal development of mouse dLGN showed increased transcriptional heterogeneity between postnatal day (P)10 and P16 compared to adult (Kalish et al., 2018). These two timepoints flank the onset of visual experience at time of eye-opening, which typically occurs between P12 and P14, indicating that transcriptional heterogeneity may peak during synaptogenesis and synaptic partner matching (Hooks and Chen, 2006; Iwai et al., 2013). A similar phenomenon has been described in Drosophila where the transcriptomes of closely related types of projection neurons differ the most during circuit assembly and are highly similar in adult stage (Li et al., 2017; Kurmangaliyev et al., 2020; Özel et al., 2021). We speculate that maturing TC neurons during dLGN development may show more discrete transcriptomic signatures than we observe in the adult.

The discrepancy between the clear morphological, electrophysiological, and positional distinctions, on the one hand, and the more nuanced transcriptional differences among cell types, on the other hand, reinforces the notion that cell-type identification is best addressed by taking a multimodal approach. For example, heterogeneity among mouse cerebellar molecular layer interneurons could only be clarified by joint characterization of gene expression, morphology, and physiological properties (Kozareva et al., 2020). This study reported continuous variation in gene expression in the unipolar brush cells that corresponded to distinct electrophysiological but not morphological properties. Multi-modal methods, such as Patch-seq (Cadwell et al., 2016; Fuzik et al., 2016), can define cell types based on morphology, connectivity, firing patterns, and other attributes relevant to their function in neural circuits (Gouwens et al., 2020; Peng et al., 2020; Scala et al., 2020). In the future, a clearer definition of discrete and continuous heterogeneity in transcriptomic landscapes may be enabled by new and improved experimental and analytical methods, such as spatial transcriptomics, that can comprehensively sample RNA transcripts from cells in situ (Lein et al., 2017; Close et al., 2021) and that could be performed after measurements of other neuronal properties such as morphology or in vivo activity.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Mus musculus)Mouse: B6.Cg-Gt(ROSA)26Sortm14(CAG-tdTomato)Hze/J, Ai14(RCL-tdT)The Jackson LaboratoryRRID:IMSR_JAX:007914
Strain, strain background (Mus musculus)Mouse: B6J.Cg-Gad2tm2(cre)Zjh/MwarJ, Gad2-IRES-CreThe Jackson LaboratoryRRID:IMSR_JAX:028867
Strain, strain background (Mus musculus)Mouse: B6J.129S6(FVB)-Slc17a6tm2(cre)Lowl/MwarJ, Slc17a6-IRES-CreThe Jackson LaboratoryRRID:IMSR_JAX:028863
Strain, strain background (Mus musculus)Mouse: B6J.129S6(FVB)-Slc32a1tm2(cre)Lowl/MwarJ, Slc32a1-IRES-CreThe Jackson LaboratoryRRID:IMSR_JAX:028862
Strain, strain background (Mus musculus)Mouse: B6;129S-Snap25tm2.1(cre)Hze/J, Snap25-IRES2-CreThe Jackson LaboratoryRRID:IMSR_JAX:023525
Commercial assay or kitSMART-Seq v4 Ultra Low Input RNA Kit for SequencingTakara634894
Commercial assay or kitRNAscope Multiplex Fluorescent V2 AssayAdvanced Cell Diagnostics323100
Commercial assay or kitRNAscope 2.5 HD Duplex Assay KitAdvanced Cell Diagnostics322435
Software, algorithmSTAR 2.5.3PMID:23104886RRID:SCR_004463
Software, algorithmSeuratPMID:29608179PMID:29608179
Software, algorithmfastMNNPMID:29608177RRID:SCR_017351
Software, algorithmToppGenePMID:19465376RRID:SCR_005726

Overall procedures and data analysis

Request a detailed protocol

Full experimental and data processing procedures are available at the Allen Institute web site within a detailed white paper: http://help.brain-map.org/display/celltypes/Documentation?preview=/8323525/10813526/CellTypes_Transcriptomics_Overview.pdf. Below, we list specific aspects that pertain only to this study.

Mouse breeding and husbandry

Request a detailed protocol

All procedures were carried out in accordance with the Institutional Animal Care and Use Committee protocols 1508, 1510, and 1511 at the Allen Institute for Brain Science. Animals were provided food and water ad libitum and were maintained on a regular 12 hr day/night cycle at no more than five adult animals per cage. Animals were maintained on the C57BL/6J background. Experimental animals were heterozygous for the recombinase transgenes and the reporter transgenes. We utilized four Cre lines crossed to the tdT-expressing Cre reporter Ai14 (Madisen et al., 2010): one pan-neuronal (Snap25-IRES2-Cre) (Harris et al., 2014), one pan-glutamatergic (Slc17a6-IRES2-Cre) (Vong et al., 2011), and two pan-GABAergic lines (Gad2-IRES-Cre and Slc32a1-IRES-Cre) (Tong et al., 2008; Taniguchi et al., 2011). Tissues were dissected from eight different donors. To dissect core and shell regions from mouse dLGN, block-face images were captured during slicing at 250 µm intervals. Slices were transferred into dissection dishes containing chilled, oxygenated ACSF. Brightfield and fluorescent images of each slice before and after ROI dissection were taken from the dissecting scope. To guide anatomical targeting of core- and/or shell-enriched dissections, boundaries were identified by trained anatomists, comparing the block-face image and the slice image to a matched plane of the Allen Mouse Brain Common Coordinate Framework version 3 (CCFv3) ontology Wang et al., 2020.

Macaque tissue

Request a detailed protocol

The brain tissues of two adult M. nemestrina (southern pig-tailed macaque) and one M. fascicularis (crab-eating macaque) were obtained through the Tissue Distribution Program of the Washington National Primate Research Center and conformed to the guidelines provided by the US National Institutes of Health. All procedures were approved by the Institutional Animal Care and Use Committee of the University of Washington under protocol number 4277-01.

Human tissue

Request a detailed protocol

Postmortem adult human brain tissue from three donors was collected after obtaining permission from decedent next-of kin. Postmortem tissue collection was performed in accordance with the provisions of the United States Uniform Anatomical Gift Act of 2006 described in the California Health and Safety Code section 7150 (effective 1/1/2008) and other applicable state and federal laws and regulations. The Western Institutional Review Board reviewed tissue collection processes and determined that they did not constitute human subjects research requiring institutional review board (IRB) review. In general, 3–5 slices were sufficient to capture the targeted region of interest, allowing for expression analysis along the anterior/posterior axis.

Single-cell/-nucleus processing for sc/snRNA-seq

View detailed protocol

We used previously described procedures to perform single-cell and single-nucleus RNA-seq (Bakken et al., 2018; Tasic et al., 2018). In brief, cells and nuclei were isolated by FACS: macaque and human nuclei were stained with the neuronal marker NeuN and NeuN+ nuclei were sorted, whereas mouse cells were collected from several transgenic Cre-driver lines that preferentially label neuronal cells. We reverse-transcribed mRNA and amplified cDNA using Smart-seq V4 (Clontech), prepared sequencing libraries using Nextera XT (Illumina), and sequenced the libraries using HiSeq2500 (Illumina). We employed previously described quality control (QC) steps (Bakken et al., 2018; Tasic et al., 2018) to arrive to the final datasets (Figure 1—figure supplement 1).

Data processing and analysis

Request a detailed protocol

Processing of sequencing data was performed as described before (Bakken et al., 2018; Tasic et al., 2018; Hodge et al., 2019; Bakken et al., 2020). For mouse, raw read (fastq) files were aligned to the mm10 mouse genome sequence (Church et al., 2011) with the RefSeq transcriptome version GRCm38.p3 (current as of 01/15/2016) and updated by removing duplicate Entrez gene entries from the gtf reference file. For human, raw read files were aligned to the GRCh38 human genome sequence (Genome Reference Consortium, 2011) with the RefSeq transcriptome version GRCh38.p2 (current as of 4/13/2015) and likewise updated by removing duplicate Entrez gene entries from the gtf reference file. For analysis of transcriptomes of M. nemestrina (southern pig-tailed macaque) and M. fascicularis (crab-eating macaque), which are the species of macaque used for experiments, we used the genome assembly and annotation Mmul_10 of M. mulatta (rhesus macaque). Alignment to the genome was performed using STAR v2.5.3 (Dobin et al., 2013). Only uniquely aligned reads were used for gene quantification. The observed bimodal pattern in reads per cell for some of the mouse clusters is due to a higher rate of multiplexing, leading to lower sequencing depth, for one batch of cells (Figure 1—figure supplement 1B). This lower read depth, however, does not result in lower number of genes detected in these mouse cells (Figure 1—figure supplement 1C). Cells that met any one of the following criteria were removed from the dataset: <100,000 total reads, <1000 detected genes (counts per million > 0), <75% of reads aligned to genome, CG dinucleotide odds ratio > 0.5, or doublet score > 0.25.

Cells that passed quality control criteria were included in clustering analysis, which was performed using Seurat (Butler et al., 2018; Stuart et al., 2019). We first performed principal component analysis on the data matrix to construct a KNN graph using the FindNeighbors function in Seurat with k.param set to 20 and using the first 30 PCs. We then clustered the data using FindClusters in Seurat with the resolution parameter set to 0.2 for macaque and 0.4 for human and mouse datasets. The fastMNN implementation of the MNN method was used to correct for donor effects observed in the macaque dataset. Both CCA and fastMNN attempt PCA subspace alignment. The PCA axes with the highest variance can be lost when using CCA. In cases where cell types in different batches are extremely imbalanced, as is the case for macaque where neurons from pulvinar were collected from one donor, CCA might lead to incorrect alignment. The MNN procedure uses a different approach. It finds the nearest neighbors across batches. The difference between the paired cells is then used to infer the magnitude and direction of the batch effect across all PCA subspaces to correct the data. Clustering results from individual species were integrated by employing CCA in Seurat v3. The data was clustered using the first 10 PCs, k.param set to 8, and resolution set to 0.4. To determine robustness of cluster membership, the data was clustered a 100x using 80% of the cells . For every cell, the confidence score is calculated as the number of time it was classified to a particular cluster (Tasic et al., 2016).

Differential expression between clusters was calculated with the R package limma using default settings and log2(CPM + 1) expression or using the Seurat ‘FindAllMarkers’ function. Significantly differentially expressed genes were defined as having greater than twofold change and a Benjamini–Hochberg corrected p-value<0.05 (p<0.01 for donor comparisons). Gene expression distributions of nuclei or cells within a cluster were visualized using dot plots, where the color intensity of the dots represents the average expression level and the size of the dot represents the proportion of cells expressing the gene. Gene Ontology enrichment analysis was performed using ToppGene (https://toppgene.cchmc.org/enrichment.jsp).

RNA ISH

Request a detailed protocol

Single-molecule RNA ISH by RNAscope (Advanced Cell Diagnostics, Newark, CA) was performed as previously described (Tasic et al., 2018) using fluorescent kits for mouse tissue and duplex chromogenic kits for human tissue according to the manufacturer’s instructions.

Data availability

RNA-seq data has been deposited in GEO under accession number GSE182211. Processed count matrices from RNA-seq data are available at ALLEN Brain Map, URL: https://portal.brain-map.org/atlases-and-data/rnaseq/comparative-lgn. Raw sequencing files will be made available at NeMO, URL: https://assets.nemoarchive.org/dat-tfmg0va.

The following data sets were generated
    1. Bakken TE
    2. van Velthoven CT
    3. Menon V
    4. Tasic B
    (2021) NCBI Gene Expression Omnibus
    ID GSE182211. Single-cell RNA-seq uncovers shared and distinct axes of variation in dorsal LGN neurons in mice, non-human primates and humans.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE182211
    1. Bakken TE
    2. van Velthoven CTJ
    3. Menon V
    4. Tasic B
    (2021) NeMo archive
    ID nemo:dat-tfmg0va. Single-cell RNA-seq uncovers shared and distinct axes of variation in dorsal LGN neurons in mice, non-human primates and humans.
    https://assets.nemoarchive.org/dat-tfmg0va

References

  31. Book
    1. Jones EG
    (2007) The Thalamus
    Cambridge: Cambridge University Press.
    https://doi.org/10.1007/978-1-4615-1749-8
  63. Book
    1. Sherman SM
    (2020) The Lateral Geniculate Nucleus and Pulvinar
    In: Sherman S. M, editors. The Senses: A Comprehensive Reference. Academic Press. pp. 369–391.
    https://doi.org/10.1016/c2009-1-03845-3

Decision letter

  1. K VijayRaghavan
    Senior Editor; National Centre for Biological Sciences, Tata Institute of Fundamental Research, India
  2. Paola Bovolenta
    Reviewing Editor; CSIC-UAM, Spain
  3. Fenna Krienen
    Reviewer; Harvard Medical School, United States
  4. Tomomi Shimogori
    Reviewer; Centor for Brain Science, Japan
  5. Lucas Cheadle
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This study provides a comparative analysis of the cell variety present in the dorsal lateral geniculate nucleus (dLGN) of mice, non-human primates, and humans using single-cell/single-nucleus RNA-sequencing. The strong and creative bioinformatics analysis used in the study uncovers interesting and subtle cross species links between different types of neurons, providing an extensive characterization of this as yet understudied visual relay nucleus.

Decision letter after peer review:

Thank you for submitting your article "Single-cell RNAseq uncovers shared and distinct axes of variation in dLGN neurons in mice, non-human primates and humans" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and K VijayRaghavan as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Fenna Krienen (Reviewer #1); Tomomi Shimogori (Reviewer #2); Lucas Cheadle (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This manuscript provides a comparative analysis of the cell variety present in the dorsal lateral geniculate nucleus (dLGN) of mice, non-human primates, and humans using single-cell/single-nucleus RNA-sequencing (Smart-seq). The study identifies excitatory and inhibitory dLGN cell types in the three species and shows that the different subclasses of inhibitory neurons are relatively similar across species. In contrast, excitatory neurons appear to bear cross-species differences particularly between mouse and primates.

The study provides an extensive description of the dLGN neurons, an important visual relay nucleus that has been so far poorly studied. As such, these data are very welcomed and will likely attract the interest of researcher working in visual function and beyond. The strong and creative bioinformatics analysis has uncovered interesting and subtle cross species links between different types of neurons. Nevertheless, there a number of aspects that needs to be improved as listed below:

Essential revisions:

1) The introduction will benefit from a clearer explanation of why cross species comparison of dLGN neurons is important. Stating that this comparison has been performed because others have done so for other brain regions is simplistic. Better motivations could be underscored, i.e. species differences in visual system organization such as trichromacy or degree of binocular vision etc. Another motivation could be identifying whether there are discrete vs continuous differences across species related to main cell types. Other can be pointed out.

2) Although the authors have validated a few genes emerged from their analysis (Figures 4G and S4E), the study should include a more extensive and rigorous analysis of cell-type-specific gene expression in all species described either by FISH or ISH. Furthermore, data shown in Figure S3G should be better explained in the figure legend: it is difficult to understand if the cells in question fall into the mentioned magno and parvo cell classes. It may be also useful to compare their data with those of NHP LGN available at https://gene-atlas.brainminds.riken.jp/.

3) The data could be presented more effectively by reorganizing both text and figures with cross-species comparisons from the very beginning. For example, one could start with a figure that has the species-integrated clusters, including only the dLGN dissections, and then explore conservation and divergence of gene expression, proportions etc. In the present form, it is difficult to appreciate the main messages. Each species-specific paragraph contains details that are not directly comparable among species (e.g. connectivity, topography and cell size in humans/NHP, direction sensitivity and dendritic morphology in mouse). What is the main outstanding question: how (or whether) the mouse X, Y and W types map to the M, P and K types? Is the question different?

4) The UMAP projections in Figure 1 need to be labelled for clarity. Colours are not sufficient to interpret the data. This should be also revised for Figure 2-4.

5) The manuscript does not explain how the dLGN shell and the core regions have been dissected. This is important given that these regions are not as clearly distinct as the dLGN lamina in other species. Have the authors taken advantage of the fact that the shell receives input from specific RGCs? Have they used any specific line? Confidence in the dissection could be increased by using a fluorescent approach to selectively label the shell, for example by using a transgenic driver line (Cruz-Martin et al., 2014).

6) The columns in Table S2 need to be labelled to allow interpreting the data and understand statements such as that reported in lines 101 – 103 ("..differentially expressed genes between donors were related to neuronal signalling and connectivity etc..). How have the authors determined that these differentially expressed genes are not related to "activity-dependent effects"?

7) Line 206-207. The data are confusing: are GABA2-6 cell types found in both dLGN and adjacent nuclei in mouse but only in dLGN in primates? The beginning of the paragraph (line 187) seems to suggest that only dLGN datasets were included in the 3 species comparison but it is unclear if this is the case. A clearer cross-species analysis of equivalent regions could further clarify what is conserved in the dLGN proper vs what is shared or distinct in other nuclei.

8) Is PVALB barely expressed in macaque cell types? This is surprising and should be verified. Consistent with the human data (Figure 3), PV protein expression in macaques is detected in some interneurons and in M and P projection neurons (https://pubmed.ncbi.nlm.nih.gov/8885200/). There is a new rhesus macaque genome (Mmul_10) that could help resolving this question.

9) Parameters for clustering analysis (using CCA/Seurat) need to be described, because changes in parameters can change the clusters. Did the authors test if the species integration results hold if parameters are changed? Why GABAergic clusters are different in Figure 4B vs Figure S4A?

10) Figure S1. The data indicate that gene detection is higher for human and mouse than for macaque. However, macaque and human gene detection rates look similar in Figure S1. Can the lower gene detection in macaque be the results of sequencing coverage?

11) Data could be exploited more than what is currently done. For example, the results and discussion mention that DEGs are related to neuronal signalling and connectivity but not metabolic factors. The analysis leading to this conclusion should be shown. Are the two M. nemestrina more similar to each other than they are to the M. fascicularis, or are all 3 donors different from each other in similar ways? Also, is there evidence that there is a fresh vs frozen difference in quality or in the type of genes that are differentially expressed? Similarly it would be useful to describe further how the donor effect magnitudes were compared with previous analysis in Hodge et al. (line 244-245).

12) What do the author mean with "gene expression gradient"? Given that there is a clear anatomical border for each layer in human and monkey LGN, it is difficult to imagine that genes might be expressed in a gradient across layers. Lower magnification ISH image need to be provided to show the existence of a gradient of gene expression.

13) The discussion could be improved by discussing the main conclusions first were discussed first. Is the main point that neuronal types in dLGN that have been defined based on other criteria (morphology, ephys, connectivity) in all species are not very transcriptomically distinct?

https://doi.org/10.7554/eLife.64875.sa1

Author response

Essential revisions:

1) The introduction will benefit from a clearer explanation of why cross species comparison of dLGN neurons is important. Stating that this comparison has been performed because others have done so for other brain regions is simplistic. Better motivations could be underscored, i.e. species differences in visual system organization such as trichromacy or degree of binocular vision etc. Another motivation could be identifying whether there are discrete vs continuous differences across species related to main cell types. Other can be pointed out.

We thank the reviewers for this suggestion. We have revised the introduction extensively to better motivate the evolutionary comparisons between mouse and primate dLGN.

2) Although the authors have validated a few genes emerged from their analysis (Figures 4G and S4E), the study should include a more extensive and rigorous analysis of cell-type-specific gene expression in all species described either by FISH or ISH. Furthermore, data shown in Figure S3G should be better explained in the figure legend: it is difficult to understand if the cells in question fall into the mentioned magno and parvo cell classes. It may be also useful to compare their data with those of NHP LGN available at https://gene-atlas.brainminds.riken.jp/.

Based on the reviewers comment we have adjusted the legend for Figure 3—figure supplement 2E (previously Figure S3G) to improve the description of the marker genes used for ISH on human dLGN sections. Following the reviewer’s suggestion, we have compared the key markers identified in this study to expression in the marmoset atlas. Unfortunately, key markers, like BTNL9 or SUSD2, are either not present in the atlas or show no positive signal. We have now included more extensive ISH analysis of cell types in macaque and human dLGN. The snRNA-seq data identified two different K types in human and macaque dLGN. ISH analysis of PENK showed that at least one of the K types is not distributed evenly across the K layers (Figure 3—figure supplement 1D). We also confirmed the presence of GABAergic SOX14+ and SOX14‑ cell population in human and macaque dLGN (Figure 5—figure supplement 1E,F). Though we have not quantified the positive cells in the images taken, they do confirm the expansion of the SOX14- population in human dLGN as compared to macaque dLGN which is in line with previously published results (Jager et al., 2021).

3) The data could be presented more effectively by reorganizing both text and figures with cross-species comparisons from the very beginning. For example, one could start with a figure that has the species-integrated clusters, including only the dLGN dissections, and then explore conservation and divergence of gene expression, proportions etc. In the present form, it is difficult to appreciate the main messages. Each species-specific paragraph contains details that are not directly comparable among species (e.g. connectivity, topography and cell size in humans/NHP, direction sensitivity and dendritic morphology in mouse). What is the main outstanding question: how (or whether) the mouse X, Y and W types map to the M, P and K types? Is the question different?

We have updated the introduction to explain the order that we present the results and to motivate the cross-species comparisons. While the morphoelectric properties and connectivity of dLGN neurons have been extensively studied, less is known about their transcriptomic profiles. Therefore, we first characterize the transcriptomic diversity of cells for each species and relate those cell types to previously described cell populations. Then, we integrate data across species to determine the degree of conservation of cell types and gene expression gradients and primate specializations associated with their advanced vision.

4) The UMAP projections in Figure 1 need to be labelled for clarity. Colours are not sufficient to interpret the data. This should be also revised for Figure 2-4.

The schematic in Figure 1B outlines the experimental and data analysis procedures. The UMAP representations shown in panel 1B do not represent original data. To make highlight which datasets are used for integration and that the figure is a schematic representation, we have adjusted the UMAP in Figure 1B. We have added cluster labels to the UMAP representations in Figure 2-4 to make the plot easier to interpret.

5) The manuscript does not explain how the dLGN shell and the core regions have been dissected. This is important given that these regions are not as clearly distinct as the dLGN lamina in other species. Have the authors taken advantage of the fact that the shell receives input from specific RGCs? Have they used any specific line? Confidence in the dissection could be increased by using a fluorescent approach to selectively label the shell, for example by using a transgenic driver line (Cruz-Martin et al., 2014).

The core and shell regions from mouse dLGN have been dissected as follows; Block-face images were captured during slicing at 250 µm intervals. Slices were transferred into dissection dishes containing chilled, oxygenated ACSF.I. Brightfield and fluorescent images of each slice before and after ROI dissection were taken from the dissecting scope. To guide anatomical targeting of core and/or shell enriched dissections, boundaries were identified by trained anatomists, comparing the blockface image and the slice image to a matched plane of the Allen Mouse Brain Common Coordinate Framework version 3 (CCFv3) ontology (Wang et al., 2020). We have added this information to the Methods section of the manuscript and included an example of core and shell dissections in Author response image 1. We agree with the reviewer that using specific transgenic driver lines and/or retrograde tracing strategies to selectively label core or shell neurons could increase dissection confidence. However, the current approach still enables analysis of differential expression between putative core and shell neurons, albeit with reduced power to detect subtle differences, and we validate some of these genes using ISH. We agree with the authors that it will be important to further characterize the neurons that express core- and shell-enriched genes, including their dendritic morphology, electrical properties, and long-range connectivity.

Author response image 1
Download asset Open asset
Example image of core and shell enriched dLGN dissections.

6) The columns in Table S2 need to be labelled to allow interpreting the data and understand statements such as that reported in lines 101 – 103 ("..differentially expressed genes between donors were related to neuronal signalling and connectivity etc..). How have the authors determined that these differentially expressed genes are not related to "activity-dependent effects"?

In response to this comment and comment #11 we have adjusted Supplementary File 2, updated the analysis of donor-specific effects among glutamatergic neurons in human and macaque, and labelled the columns better to allow interpretation of the data. Furthermore, we have included a new Supplementary File 3 that displays the results of gene ontology enrichment analysis of the union of all donor DE genes. This analysis showed significant enrichment for mainly synaptic and axon projection terms. We compared 2495 differentially expressed genes between macaque donors in excitatory neurons to genes up- or down-regulated in dLGN excitatory neurons 8 hours after light exposure of dark-reared mice (Cheadle et al. 2018, Neuron). We found 33 up-regulated genes and 28 down-regulated genes overlapped, and this overlap was not statistically significant based on a hypergeometric test.

7) Line 206-207. The data are confusing: are GABA2-6 cell types found in both dLGN and adjacent nuclei in mouse but only in dLGN in primates? The beginning of the paragraph (line 187) seems to suggest that only dLGN datasets were included in the 3 species comparison but it is unclear if this is the case. A clearer cross-species analysis of equivalent regions could further clarify what is conserved in the dLGN proper vs what is shared or distinct in other nuclei.

We have clarified in the results that all neuronal data were integrated for cross-species comparisons. While we did not sample LGv in primates, we wanted to compare GABAergic neurons from these regions because it has been reported that these cells are distributed differently in the thalamus in primates versus mouse. Indeed, we found that Sox14-negative types that we identified in primate dLGN were not present in mouse dLGN but were found in adjacent nuclei. We also included pulvinar and LP relay neurons as a positive control for the integration since these regions have previously been identified as homologous.

8) Is PVALB barely expressed in macaque cell types? This is surprising and should be verified. Consistent with the human data (Figure 3), PV protein expression in macaques is detected in some interneurons and in M and P projection neurons (https://pubmed.ncbi.nlm.nih.gov/8885200/). There is a new rhesus macaque genome (Mmul_10) that could help resolving this question.

PVALB is expressed in macaque cell types. We thank the reviewer for asking this question as it led us to evaluate the violin plot, that was included in the previous version of the manuscript, was compressed due to a few cells with much higher PVALB expression. We have now changed the expression plots to gene expression dot plots displaying the median expression and proportion of cells expressing the gene. It must be noted that we do expect less robust detection of PVALB in the single nucleus RNA-seq data sets as the majority of PVALB transcripts are located in the cytosol (Bakken et al., 2018).

9) Parameters for clustering analysis (using CCA/Seurat) need to be described, because changes in parameters can change the clusters. Did the authors test if the species integration results hold if parameters are changed? Why GABAergic clusters are different in Figure 4B vs Figure S4A?

We have tested various integration parameters, the integration yielded similar cross-species mapping over a range of variable genes (1000-8000) and PCs (4-40) used for integration. In cases where integration starts to fail the species tend to overlap less (Author response image 2). We have not seen a case where the species integrated well, but the cell types mapped to different cell types than what we reported in the manuscript. We have added the parameters used for clustering to the Methods section of the manuscript.

Author response image 2
Download asset Open asset
Example of the effect of varying cluster parameters on integration of the different species.

10) Figure S1. The data indicate that gene detection is higher for human and mouse than for macaque. However, macaque and human gene detection rates look similar in Figure S1. Can the lower gene detection in macaque be the results of sequencing coverage?

We thank the reviewer for pointing out this discrepancy between the numbers stated in the text and the gene detection rates displayed in Figure 1—figure supplement 1C. In the initial calculations of the gene detection rates, the low-quality cells in the macaque dataset were included whereas the non-neuronal populations in the human dataset were excluded. We have recalculated the gene detection rates. In macaque nuclei the median number of genes detected is ~6,000, and in human nuclei the median number of genes detected is very comparable at ~6,200 genes.

11) Data could be exploited more than what is currently done. For example, the results and discussion mention that DEGs are related to neuronal signalling and connectivity but not metabolic factors. The analysis leading to this conclusion should be shown. Are the two M. nemestrina more similar to each other than they are to the M. fascicularis, or are all 3 donors different from each other in similar ways? Also, is there evidence that there is a fresh vs frozen difference in quality or in the type of genes that are differentially expressed? Similarly it would be useful to describe further how the donor effect magnitudes were compared with previous analysis in Hodge et al. (line 244-245).

We updated the analysis of donor-specific effects among glutamatergic neurons in human and macaque. We included two new SI Tables with the list of differentially expressed genes and enriched gene ontology categories and describe these findings in more detail in the results. For macaque, we compared gene expression of relay neurons (magno- and parvocellular) between each pair of 3 donors (2 females, 1 male) and identified >1000 significantly differentially expressed (>2-fold change; FDR < 0.01) genes. 34-46% of DE genes were shared between pairs of donors. As expected, the two male donors had fewer DE genes (n = 1026) than either male donor versus the female donor (n = 1302 and 1438 genes). The two M. nemestrina donors were female, and the M. fascicularis donor was male, and it is unclear which genes are differentially expressed due to sex versus species differences. A gene ontology enrichment analysis of the union of all donor DE genes showed significant enrichment for mainly synaptic and axon projection terms (see Supplementary File 3).

We repeated this analysis for each pair of 3 human donors (1 female, 2 male) and found 22-37% of DE genes were shared between donors. The two male donors had fewer DE genes (877) than either male donor versus the female donor (1192 and 1324 genes). In contrast to macaque, a GO analysis of all 2436 LGN DE genes across human donors revealed significantly enriched gene categories related to ribosomal processing rather than neuronal function. This suggests that LGN tissue quality is driving some of the expression differences between human donors and may explain why magno and parvo cell populations were difficult to discriminate in human.

130 of 695 genes that are differentially expressed between neurosurgical and post-mortem donor tissue in middle temporal gyrus (Hodge et al. 2019, ED Figure 2 and SI Table 1) are also differentially expressed between donors in LGN. These genes include many ribosomal genes up-regulated in post-mortem tissue. In Hodge et al., cortical tissue was collected from the same post-mortem human donors that were used in this study. Therefore, we directly compared the magnitude of differential expression in cortical excitatory neurons compared to LGN excitatory neurons using an MTG cluster with similar sampling to LGN (comparable results were seen for other clusters). 457 genes were significantly DE between donors among L2-enriched pyramidal neurons (LAMP5 LTK cluster, n = 809 nuclei), less than 20% of the differences seen in LGN magno/parvo neurons. Many factors could contribute to regional differences in donor effects, including sensitivity to tissue processing, dynamic ranges of cell states, or cell type-dependent effects of genetic background and environment.

12) What do the author mean with "gene expression gradient"? Given that there is a clear anatomical border for each layer in human and monkey LGN, it is difficult to imagine that genes might be expressed in a gradient across layers. Lower magnification ISH image need to be provided to show the existence of a gradient of gene expression.

We agree with the reviewers that this was an unexpected result given the clear anatomical borders between layers. We have restated “gene expression gradient” as a “continuum” of nuclei based on global gene expression profiles from magno and parvo dissections. This continuum was seen in human and not macaque, likely due to lower tissue quality as described in our new analysis of donor expression signatures. A few MC/PC marker genes, such as FOXP2, showed binary expression differences between magno and parvo cells. Other marker genes showed more variable expression, such as the 2 genes in Author response image 3 that are magnocellular-enriched in human (CRH and SUSD2). Both are highly expressed in magno cells, have lower expression in the “middle” parvocellular layers and then have higher expression in the “outer” parvo layers. EPHA7 (parvo-enriched) is shown for comparison and is off in magno and consistently expressed across parvo layers.

Author response image 3
Download asset Open asset
Example ISH panels showing the magnocellular-enriched genes CRH and SUSD2 with lower, but present expression in the parvocellular layer.

13) The discussion could be improved by discussing the main conclusions first were discussed first. Is the main point that neuronal types in dLGN that have been defined based on other criteria (morphology, ephys, connectivity) in all species are not very transcriptomically distinct?

In response to the reviewer’s comments, we have revised the discussion to better highlight the major findings of the paper. This includes highlighting that the transcriptional heterogeneity of thalamocortical neurons is more discrete in primates and more graded in mouse, mouse dLGN core neurons (putative X/Y) align with both M and P neurons and shell neurons (putative W) align with K neurons, and highlighting that the two broad classes of GABAergic types identified here are conserved, and proportions and spatial distributions have shifted dramatically in mouse, non-human primate, and human.

References:

Bakken, T.E., Hodge, R.D., Miller, J.A., Yao, Z., Nguyen, T.N., Aevermann, B., Barkan, E., Bertagnolli, D., Casper, T., Dee, N., et al. (2018). Single-nucleus and single-cell transcriptomes compared in matched cortical cell types. PLoS One 13, e0209648.

Cheadle, L., Tzeng, C.P., Kalish, B.T., Harmin, D.A., Rivera, S., Ling, E., Nagy, M.A., Hrvatin, S., Hu, L., Stroud, H., et al. (2018). Visual Experience-Dependent Expression of Fn14 Is Required for Retinogeniculate Refinement. Neuron 99, 525-539 e510.

Jager, P., Moore, G., Calpin, P., Durmishi, X., Salgarella, I., Menage, L., Kita, Y., Wang, Y., Kim, D.W., Blackshaw, S., et al. (2021). Dual midbrain and forebrain origins of thalamic inhibitory interneurons. eLife 10.

https://doi.org/10.7554/eLife.64875.sa2

Article and author information

Author details

  1. Trygve E Bakken

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Cindy TJ van Velthoven and Vilas Menon
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3373-7386

  2. Cindy TJ van Velthoven

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Data curation, Formal analysis, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Trygve E Bakken and Vilas Menon
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5120-4546

  3. Vilas Menon

    1. Allen Institute for Brain Science, Seattle, United States
    2. Department of Neurology, Columbia University Medical Center, New York, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Trygve E Bakken and Cindy TJ van Velthoven
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4096-8601

  4. Rebecca D Hodge

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Data curation, Formal analysis, Visualization, Methodology
    Competing interests
    No competing interests declared

  5. Zizhen Yao

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Data curation, Software, Formal analysis
    Competing interests
    No competing interests declared

  6. Thuc Nghi Nguyen

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Data curation, Formal analysis, Investigation, Visualization
    Competing interests
    No competing interests declared

  7. Lucas T Graybuck

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Resources, Data curation, Software
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8814-6818

  8. Gregory D Horwitz

    Washington National Primate Research Center and Department of Physiology and Biophysics, University of Washington, Seattle, United States
    Contribution
    Resources, Data curation, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5130-5259

  9. Darren Bertagnolli

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared

  10. Jeff Goldy

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared

  11. Anna Marie Yanny

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Formal analysis, Investigation, Visualization
    Competing interests
    No competing interests declared

  12. Emma Garren

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared

  13. Sheana Parry

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  14. Tamara Casper

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  15. Soraya I Shehata

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2909-064X

  16. Eliza R Barkan

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  17. Aaron Szafer

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared

  18. Boaz P Levi

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  19. Nick Dee

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared

  20. Kimberly A Smith

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  21. Susan M Sunkin

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Project administration
    Competing interests
    No competing interests declared

  22. Amy Bernard

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2540-1153

  23. John Phillips

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1080-7556

  24. Michael J Hawrylycz

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5741-8024

  25. Christof Koch

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared

  26. Gabe J Murphy

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Conceptualization, Data curation, Writing - original draft
    Competing interests
    No competing interests declared

  27. Ed Lein

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Supervision
    Competing interests
    No competing interests declared

  28. Hongkui Zeng

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Supervision, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0326-5878

  29. Bosiljka Tasic

    Allen Institute for Brain Science, Seattle, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Methodology, Writing - original draft, Writing - review and editing
    For correspondence
    bosiljkat@alleninstitute.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6861-4506

Funding

No external funding was received for this work.

Acknowledgements

We thank the In Vivo Sciences team at the Allen Institute for mouse husbandry, the Tissue Procurement, Tissue Processing, and Facilities teams for assistance with the transport and processing of postmortem and neurosurgical brain specimens, the Molecular Biology department for processing samples for single-cell RNA-sequencing, and the Washington National Primate Research Center for macaque tissue (P51 OD010425). This work was funded by the Allen Institute for Brain Science. We thank the Allen Institute founder, Paul G Allen, for his vision, encouragement, and support.

Ethics

Human subjects: Postmortem adult human brain tissue was collected after obtaining permission from decedent next-of kin. Postmortem tissue collection was performed in accordance with the provisions of the United States Uniform Anatomical Gift Act of 2006 described in the California Health and Safety Code section 7150 (effective 1/1/2008) and other applicable state and federal laws and regulations. The Western Institutional Review Board reviewed tissue collection processes and determined that they did not constitute human subjects research requiring institutional review board (IRB) review.

Animal experimentation: The brain tissues of two adult Maccaca nemestrina (southern pig-tailed macaque) and one Macaca fascicularis were obtained through the Tissue Distribution Program of the Washington National Primate Research Center and conformed to the guidelines provided by the US National Institutes of Health. All procedures were approved by the Institutional Animal Care and Use Committee of the University of Washington under protocol number 4167-01. All mouse procedures were carried out in accordance with Institutional Animal Care and Use Committee protocols 1508, 1510, and 1511 at the Allen Institute for Brain Science.

Senior Editor

  1. K VijayRaghavan, National Centre for Biological Sciences, Tata Institute of Fundamental Research, India

Reviewing Editor

  1. Paola Bovolenta, CSIC-UAM, Spain

Reviewers

  1. Fenna Krienen, Harvard Medical School, United States
  2. Tomomi Shimogori, Centor for Brain Science, Japan
  3. Lucas Cheadle

Publication history

  1. Preprint posted: November 6, 2020 (view preprint)
  2. Received: November 13, 2020
  3. Accepted: July 18, 2021
  4. Version of Record published: September 2, 2021 (version 1)

Copyright

© 2021, Bakken et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 6,509
    Page views
  • 528
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Trygve E Bakken
  2. Cindy TJ van Velthoven
  3. Vilas Menon
  4. Rebecca D Hodge
  5. Zizhen Yao
  6. Thuc Nghi Nguyen
  7. Lucas T Graybuck
  8. Gregory D Horwitz
  9. Darren Bertagnolli
  10. Jeff Goldy
  11. Anna Marie Yanny
  12. Emma Garren
  13. Sheana Parry
  14. Tamara Casper
  15. Soraya I Shehata
  16. Eliza R Barkan
  17. Aaron Szafer
  18. Boaz P Levi
  19. Nick Dee
  20. Kimberly A Smith
  21. Susan M Sunkin
  22. Amy Bernard
  23. John Phillips
  24. Michael J Hawrylycz
  25. Christof Koch
  26. Gabe J Murphy
  27. Ed Lein
  28. Hongkui Zeng
  29. Bosiljka Tasic
(2021)
Single-cell and single-nucleus RNA-seq uncovers shared and distinct axes of variation in dorsal LGN neurons in mice, non-human primates, and humans
eLife 10:e64875.
https://doi.org/10.7554/eLife.64875

Categories and tags

Research organisms

Further reading

    1. Physics of Living Systems
    2. Neuroscience

    How human runners regulate footsteps on uneven terrain

    Nihav Dhawale, Madhusudhan Venkadesan
    Research Article Updated

    Running stably on uneven natural terrain takes skillful control and was critical for human evolution. Even as runners circumnavigate hazardous obstacles such as steep drops, they must contend with uneven ground that is gentler but still destabilizing. We do not know how footsteps are guided based on the uneven topography of the ground and how those choices influence stability. Therefore, we studied human runners on trail-like undulating uneven terrain and measured their energetics, kinematics, ground forces, and stepping patterns. We find that runners do not selectively step on more level ground areas. Instead, the body’s mechanical response, mediated by the control of leg compliance, helps maintain stability without requiring precise regulation of footsteps. Furthermore, their overall kinematics and energy consumption on uneven terrain showed little change from flat ground. These findings may explain how runners remain stable on natural terrain while devoting attention to tasks besides guiding footsteps.

    1. Neuroscience

    Recurrent network interactions explain tectal response variability and experience-dependent behavior

    Asaph Zylbertal, Isaac H Bianco
    Research Article

    Response variability is an essential and universal feature of sensory processing and behavior. It arises from fluctuations in the internal state of the brain, which modulate how sensory information is represented and transformed to guide behavioral actions. In part, brain state is shaped by recent network activity, fed back through recurrent connections to modulate neuronal excitability. However, the degree to which these interactions influence response variability and the spatial and temporal scales across which they operate, are poorly understood. Here, we combined population recordings and modeling to gain insights into how neuronal activity modulates network state and thereby impacts visually evoked activity and behavior. First, we performed cellular-resolution calcium imaging of the optic tectum to monitor ongoing activity, the pattern of which is both a cause and consequence of changes in network state. We developed a minimal network model incorporating fast, short range, recurrent excitation and long-lasting, activity-dependent suppression that reproduced a hallmark property of tectal activity – intermittent bursting. We next used the model to estimate the excitability state of tectal neurons based on recent activity history and found that this explained a portion of the trial-to-trial variability in visually evoked responses, as well as spatially selective response adaptation. Moreover, these dynamics also predicted behavioral trends such as selective habituation of visually evoked prey-catching. Overall, we demonstrate that a simple recurrent interaction motif can be used to estimate the effect of activity upon the incidental state of a neural network and account for experience-dependent effects on sensory encoding and visually guided behavior.

    1. Developmental Biology
    2. Neuroscience

    Context-dependent requirement of G protein coupling for Latrophilin-2 in target selection of hippocampal axons

    Daniel T Pederick, Nicole A Perry-Hauser ... Liqun Luo
    Research Article

    The formation of neural circuits requires extensive interactions of cell-surface proteins to guide axons to their correct target neurons. Trans-cellular interactions of the adhesion G protein-coupled receptor latrophilin-2 (Lphn2) with its partner teneurin-3 instruct the precise assembly of hippocampal networks by reciprocal repulsion. Lphn2 acts as a repulsive receptor in distal CA1 neurons to direct their axons to proximal subiculum, and as a repulsive ligand in proximal subiculum to direct proximal CA1 axons to distal subiculum. It remains unclear if Lphn2-mediated intracellular signaling is required for its role in either context. Here, we show that Lphn2 couples to Gα12/13 in heterologous cells; this coupling is increased by constitutive exposure of the tethered agonist. Specific mutations of Lphn2's tethered agonist region disrupt its G protein coupling and autoproteolytic cleavage, whereas mutating the autoproteolytic cleavage site alone prevents cleavage but preserves a functional tethered agonist. Using an in vivo misexpression assay, we demonstrate that wild-type Lphn2 misdirects proximal CA1 axons to proximal subiculum and that Lphn2 tethered agonist activity is required for its role as a repulsive receptor in axons. By contrast, neither tethered agonist activity nor autoproteolysis was necessary for Lphn2's role as a repulsive ligand in the subiculum target neurons. Thus, tethered agonist activity is required for Lphn2-mediated neural circuit assembly in a context-dependent manner.
