Abstract

Local interneurons (LNs) mediate complex interactions within the antennal lobe, the primary olfactory system of insects, and the functional analog of the vertebrate olfactory bulb. In the cockroach Periplaneta americana, as in other insects, several types of LNs with distinctive physiological and morphological properties can be defined. Here, we combined whole-cell patch-clamp recordings and Ca2+ imaging of individual LNs to analyze the role of spiking and nonspiking LNs in inter- and intraglomerular signaling during olfactory information processing. Spiking GABAergic LNs reacted to odorant stimulation with a uniform rise in [Ca2+]i in the ramifications of all innervated glomeruli. In contrast, in nonspiking LNs, glomerular Ca2+ signals were odorant specific and varied between glomeruli, resulting in distinct, glomerulus-specific tuning curves. The cell type-specific differences in Ca2+ dynamics support the idea that spiking LNs play a primary role in interglomerular signaling, while they assign nonspiking LNs an essential role in intraglomerular signaling.

Introduction

Local interneurons (LNs) with markedly different functional phenotypes are crucial for odor information processing in the insect antennal lobe (AL). The AL is the first synaptic relay in the insect olfactory system, showing striking structural and functional similarities to the vertebrates' olfactory bulb. In many regards, the LNs in the AL are the functional equivalent of granule cells, but also periglomerular and short axon cells in the vertebrate olfactory bulb (Ennis et al., 2015; Shepherd et al., 2004). They help to structure the odor representation in the AL, ultimately shaping the tuning profiles of the olfactory projection (output) neurons.

Based on initial studies, LNs originally have been characterized as GABAergic and multiglomerular (Distler, 1989; Hoskins et al., 1986; Waldrop et al., 1987). Typically, they can generate Na+-driven action potentials (Chou et al., 2010; Christensen et al., 1993; Husch et al., 2009a; Seki et al., 2010) or Ca2+-driven spikelets (Laurent and Davidowitz, 1994). Accordingly, these neurons have been associated with inhibitory interglomerular signaling, that is, with mediating lateral inhibition to enhance contrast and to control timing and synchronization of neuronal activity (Assisi and Bazhenov, 2012; Assisi et al., 2011; Christensen et al., 1998; Fujiwara et al., 2014; Hong and Wilson, 2015; MacLeod and Laurent, 1996; Nagel and Wilson, 2016; Olsen and Wilson, 2008; Sachse and Galizia, 2002; Wilson, 2013). Subsequent studies showed that LNs can also synthesize other potential neurotransmitters and neuromodulators (Berg et al., 2007; Chou et al., 2010; Das et al., 2011; Distler, 1990; Fusca et al., 2013; Fusca et al., 2015; Neupert et al., 2012; Shang et al., 2007). In fact, they can be excitatory, distributing excitatory synaptic input to (projection) neurons in other glomeruli by chemical and electrical synapses (Assisi et al., 2012; Das et al., 2017; Huang et al., 2010; Olsen et al., 2007; Shang et al., 2007; Yaksi and Wilson, 2010).

Furthermore, nonspiking LNs with weak active membrane properties that do not generate Na+-driven action potentials have been described in both holo- and hemimetabolous insect species (Fuscà and Kloppenburg, 2021; Husch et al., 2009a; Husch et al., 2009b; Tabuchi et al., 2015). While their functional role for odor information processing is not clear yet, it is plausible to assume that they are functionally highly relevant since they have been found across different insect species.

In Periplaneta americana, two main LN types, each with distinct functional properties, have been identified: spiking type I LNs and nonspiking type II LNs (Fusca et al., 2013; Fuscà and Kloppenburg, 2021; Husch et al., 2009a; Husch et al., 2009b). Spiking type I LNs generate Na+-driven action potentials upon odor stimulation and have a multiglomerular branching pattern with ramifications in many, but not all, glomeruli. The density and pattern of ramifications vary between glomeruli from very dense to sparse, indicating a polarity with defined synaptic input and output regions. All type I LNs are GABAergic (Distler, 1989; Husch et al., 2009a). The nonspiking type II LNs do not have voltage-activated transient Na+ currents and cannot generate Na+-driven action potentials. They have comparatively large voltage-dependent Ca2+ conductances, which play a crucial role in mediating their active membrane properties (Fusca et al., 2013; Husch et al., 2009a; Husch et al., 2009b). Type II LNs consist of two main subtypes, type IIa and type IIb LNs. Type IIa LNs typically respond with complex, odor-specific patterns of excitation that can include periods of inhibition. Type IIa LNs can be further subdivided into type IIa1 and type IIa2. Type IIa1 LNs are cholinergic and can generate Ca2+-driven spikelets on top of odor-induced depolarizations (Fusca et al., 2013; Neupert et al., 2018). Type IIa2 LNs do not generate spikelets, and their primary transmitter is not known. Type IIb LNs have weak active membrane properties and respond to odor stimulation with sustained, relatively smooth depolarization. Their primary transmitter is unknown. All type II LNs are omniglomerular, with branches in virtually all glomeruli. The density and pattern of arborizations are similar in all glomeruli of a given type II LN but vary between different type II LNs (Husch et al., 2009a). In type IIa LNs, the ramifications are similar and evenly distributed over each glomerulus of an individual neuron. On the other hand, in type IIb neurons, the branches cover only parts of each glomerulus, often in a specific layer (Husch et al., 2009b).

Based on their functional and morphological properties, it can be hypothesized that nonspiking type II LNs are primarily involved in intraglomerular signaling since the graded changes in membrane potentials can only spread within the same or electrotonically close glomeruli, as was proposed for nonspiking LNs in the rabbit olfactory bulb (Bufler et al., 1992b).

This study’s rationale was based on the previously reported structural and functional differences between distinct LN types in the cockroach AL (Fusca et al., 2013; Fusca et al., 2015; Fuscà and Kloppenburg, 2021; Husch et al., 2009a; Husch et al., 2009b; Pippow et al., 2009). Spiking type I LNs are GABAergic, inhibitory, and innervate many but not all glomeruli. While some glomeruli are densely innervated, others are more sparsely or not at all innervated (Figure 1A). It has been considered that this reflects an organization with distinctive input and output glomeruli (Galizia and Kimmerle, 2004; Husch et al., 2009a; Wilson and Laurent, 2005). In this model, synaptic input is integrated and triggers action potential firing. The action potentials propagate to the innervated glomeruli and provide a defined glomeruli array with inhibitory synaptic input. Glomeruli can interact independently of their spatial and electrotonic distance. In this scenario, one would expect that odor-evoked glomerular Ca2+ signals are dominated by Ca2+ influx through voltage-gated channels that are activated by the action potentials. Thus, odor-induced Ca2+ signals should be detectable and comparable in all innervated glomeruli.

Branching patterns and odorant responses of spiking and nonspiking local interneurons.

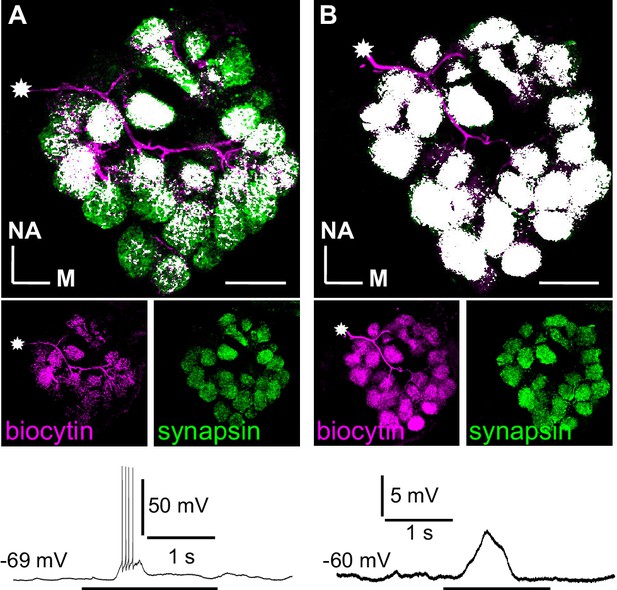

A spiking type I (A) and a nonspiking type II local interneuron (B) that were labeled with biocytin/streptavidin via the patch pipette. The glomeruli were visualized by synapsin-LIR. (A) Type I local interneuron. 13 µm stack of optical sections. The neuron innervates many but not all glomeruli and generates action potentials to an odorant stimulus (benzaldehyde). (B) Type II local interneuron. 15 µm stack of optical sections. The neuron innervated all glomeruli and responded to the odorant (benzaldehyde) with a graded depolarization. The stars mark the locations of the somata. Biocytin/streptavidin, magenta; synapsin-LIR, green; double-labeled pixels, white. NA: anterior, M: medial. Scale bars = 100 µm.

In contrast, nonspiking type II LNs have very similar branching patterns in all glomeruli (Figure 1B, Husch et al., 2009b), suggesting that both input and output can occur in every glomerulus. Due to the receptor and sensillum type-specific input configuration of the glomeruli in the AL (Fujimura et al., 1991; Watanabe et al., 2012), synaptic input during olfactory stimulation typically occurs only in a limited number of glomeruli (Sachse et al., 1999; Silbering et al., 2011). The resulting stimulus-evoked graded postsynaptic potentials can only spread within the same glomerulus or electrotonically nearby glomeruli. Since these neurons cannot generate Na+-driven action potentials, we hypothesize that the Ca2+ signals are dominated by odorant-evoked Ca2+ influx through excitatory ligand-gated channels (Oliveira et al., 2010).

This study investigated the role of spiking and nonspiking LNs for inter- and intraglomerular signaling during olfactory information processing. To this end, we combined whole-cell patch-clamp recordings with Ca2+ imaging to analyze the local Ca2+ dynamics of neurites in individual glomeruli as an indicator of signal processing in single LNs. The recordings were performed in the AL of the cockroach P. americana. This is an experimental system in which the olfactory system’s circuitry has been analyzed in great detail on the physiological (Bradler C et al., 2016; Ernst and Boeckh, 1983; Husch et al., 2009a; Husch et al., 2009b; Lemon, 1997, Lemon and Getz, 1998, Lemon and Getz, 2000; Nishino et al., 2012, Nishino et al., 2018; Paeger et al., 2017; Paoli et al., 2020; Pippow et al., 2009; Strausfeld and Li, 1999; Warren and Kloppenburg, 2014; Watanabe et al., 2017), biochemical (Distler, 1989; Distler, 1990; Fusca et al., 2013; Fusca et al., 2015; Neupert et al., 2012; Neupert et al., 2018), and structural/ ultrastructural levels (Distler and Boeckh, 1997a; Distler and Boeckh, 1997b; Distler et al., 1998; Malun, 1991a; Malun, 1991b; Malun et al., 1993; Nishino et al., 2015; Watanabe et al., 2010), thus contributing very successfully to understanding olfactory information processing principles.

Results

LNs of the insect AL are a heterogeneous group of neurons, consisting of different neuronal subpopulations with clearly defined, sometimes fundamentally different functional phenotypes. To study the role of spiking type I LNs and nonspiking type II LNs for inter- and intraglomerular signaling, we performed simultaneous whole-cell patch-clamp recordings and Ca2+ imaging in individual neurons. The investigated neuron was labeled with biocytin-streptavidin. This way, the cell types were unequivocally identified by their physiological and morphological characteristics. In the investigated LNs, we measured the intracellular Ca2+ dynamics of neurites during olfactory stimulation simultaneously in many individual glomeruli. To determine differences in the odor-induced Ca2+ signals between individual glomeruli, tuning curves were constructed from the odor-evoked glomerular Ca2+ signals by normalizing them to the maximum signal amplitude of each glomerulus. Overall, this study is based on 23 recordings of type I LNs and 18 recordings of type II LNs. For each recorded LN, between 9 and 25 distinct innervated glomeruli could be identified and individually imaged and analyzed. In the legends of Figure 2–5, we give the identifier of the analyzed neurons, which can be used to locate the respective data in Individual Neurons-Source data 1.

(LNI #24; LNII #1) Odorant-induced glomerular calcium signals are reproducible in type I (A, B) and type II local interneurons (LNs) (C, D).

(A, C) Transmitted light images of an investigated antennal lobes. The dotted lines mark the recorded glomeruli, and the insets show overlays of Ca2+ responses from three trials with the same odorant (hexanol). The gray bars mark the 500 ms odorant stimuli. (B, D) Areas under the curves of the Ca2+ signals that are shown in (A) and (C). The first 3 s after stimulus onset were analyzed. Hatched bars represent control signals to blank stimuli. AUC: area under the curve; Gl: glomerulus; VSG: ventrolateral somata group.

In the first set of experiments, we showed that the odor-induced Ca2+ dynamics were highly reproducible when the antennae were repeatedly stimulated with the same odorant (Figure 2). This is in line with previous electrophysiological studies, in which LNs responded very reproducibly to repeated olfactory stimulations (Husch et al., 2009a; Husch et al., 2009b; Olsen and Wilson, 2008). Hence, in subsequent experiments, we analyzed single-sweep optophysiological recordings rather than averaged data.

Uniform glomerular odor responses in spiking type I LNs

All recorded type I LNs displayed characteristic morphological features, that is, arborizations in multiple glomeruli with varying neurite densities between glomeruli (Figure 3). Electrophysiologically, type I LNs reacted to odor stimulation of the antennae with odorant-specific patterns of overshooting action potentials (Figure 3B). The glomerular Ca2+ signals were time-locked with the electrophysiological responses and matched the spike pattern of the electrophysiological recordings. While the absolute amplitudes of the Ca2+ signals during a given odorant varied between individual glomeruli, the time course and overall structure of the Ca2+ signals were very similar in all recorded glomeruli for a particular odorant (Figure 3B, Figure 3—figure supplement 1), resulting in identical tuning curves for all glomeruli of a given neuron (Figure 3C). Accordingly, tuning curves of all imaged glomeruli of a given neuron always correlated with coefficients of ~1, with a mean correlation coefficient across all investigated spiking LNs of r = 0.95 ± 0.06 (N = 16, Figure 3D–F).

Figure 3 with 1 supplement see all

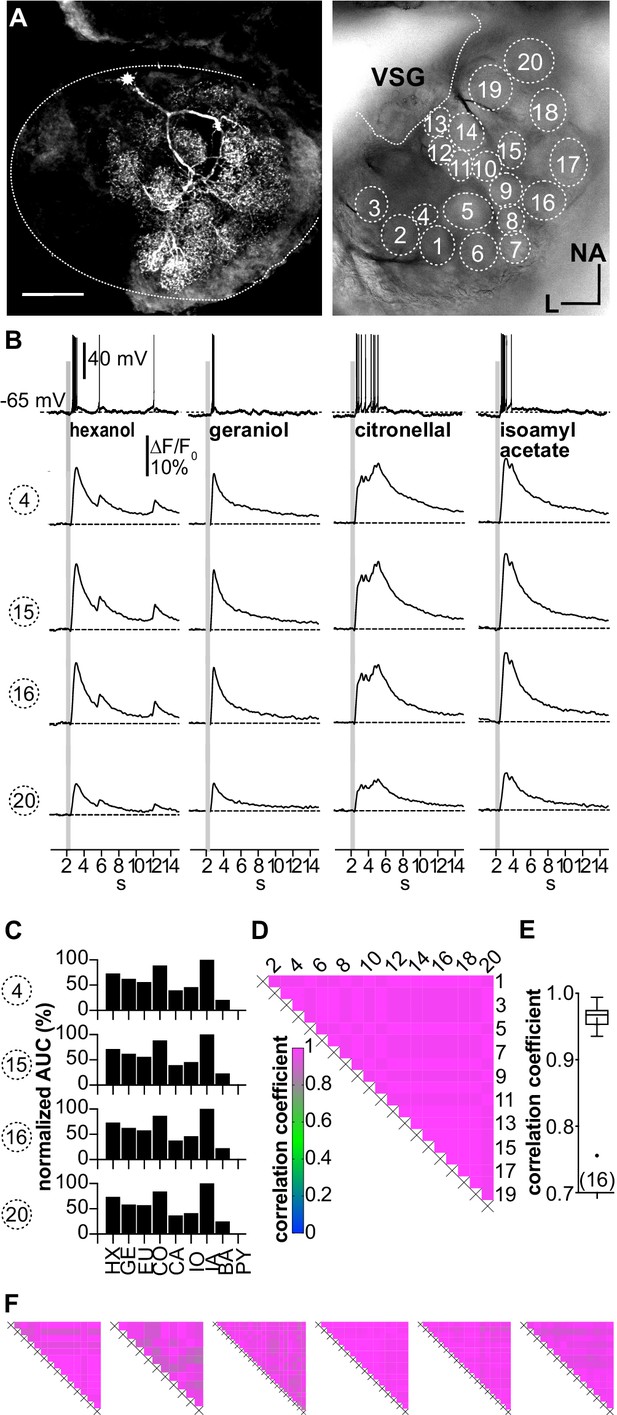

(A–D; LNI #1) Ca2+ imaging in type I local interneurons (LNs) shows uniform glomerular odor responses.

(A) Left: biocytin/streptavidin-labeled type I LN. The antennal lobe (AL) is outlined by the dotted line. The star marks the position of the soma. Scale bar: 100 µm. Right: transmitted light image of the same AL while the neuron was recorded. Orientation applies to both images. The outlined glomeruli mark the regions of interest (individual glomeruli) that were individually analyzed. (B) Electrophysiological responses to four odorants (top traces) and the corresponding Ca2+ dynamics of four glomeruli that are marked in (A). Gray bars represent the 500 ms odorant stimuli. The neuron responded to different odorants with odorant-specific spike trains. The time courses of the Ca2+ signals were similar in all glomeruli for a given odorant. (C) Tuning curves of glomerular responses. Areas under the curves of the odorant-evoked glomerular Ca2+ signals (first 3 s after stimulus onset) were calculated for a set of nine odorants and normalized to the maximum response in the respective glomerulus. Every glomerulus responded most strongly to isoamyl acetate and least to benzaldehyde. (D) Heatmap showing the correlations between the glomerular tuning curves of every imaged glomerulus. Numbers correspond to the glomeruli in (A). All tuning curves were well correlated with coefficients of ~1 (nonparametric Spearman correlation). (E) Mean correlation coefficient across all investigated type I LNs was 0.95 ± 0.06 (N = 16) N values are given in brackets. (F) Heatmaps of correlations between glomerular tuning curves from six additional type I LNs (LNI # 7, 8, 12, 14, 15, 18). HX: hexanol; GE: geraniol; EU: eugenol; CO: citronellal; CA: citral; IO: ionone; IA: isoamylacetate; BA: benzaldehyde; PY: pyrrolidine.

The large amplitude of the glomerular Ca2+ signals, their close match with the electrophysiological recordings, and their correlated dynamics suggest that the Ca2+ signals mainly reflect voltage-dependent Ca2+ influx induced by propagated action potentials. It seems likely that olfactory inputs from one or a few glomeruli are integrated and trigger action potentials that propagate to the innervated glomeruli, where they induce highly correlated voltage-activated Ca2+ signals.

Suppression of action potential firing in type I LNs decreases correlations of glomerular Ca2+ signals

To test whether the observed Ca2+ signals in type I LNs mainly reflect action potential-induced Ca2+ influx, we used two approaches to prevent the neurons from spiking. The neurons were hyperpolarized to membrane potentials between –80 mV and –100 mV (Figure 4A, top trace) or firing was suppressed by intracellularly blocking Na+ channels with QX-314. When the generation of action potentials is inhibited, the remaining Ca2+ signals should mainly reflect Ca2+ influx via ligand-gated channels (e.g., cholinergic receptors, Oliveira et al., 2010).

Figure 4 with 1 supplement see all
(A–C; LNI #1) Hyperpolarization below the action potential threshold and pharmacological block of action potential firing prevent the correlation between odorant-induced glomerular Ca2+ signals.

Data in (A–C) are taken from the same type I local interneuron (LN) as in Figure 3. (A) Electrophysiological responses to odorants (top traces) and corresponding Ca2+ dynamics in the same four glomeruli as shown in Figure 3. The neuron was hyperpolarized to prevent the generation of action potentials upon stimulation with odorants. Electrophysiologically, the neuron responded with odorant-specific graded depolarizations. The high correlation of the glomerular Ca2+ signals shown in Figure 3 was inhibited. (B) The tuning curves of the glomerular responses (for details, see Figure 3C) varied considerably, whereby the odorant that triggered the maximum Ca2+ signal in each individual glomerulus was different for each glomerulus. (C) Heatmap demonstrating the heterogeneous correlations between glomerular tuning curves. Numbers correspond to glomeruli in Figure 3A. Correlation coefficients ranged between 0 and 0.95 (median = 0.56). (D; LNI #19) Heatmap demonstrating the variable correlations between glomerular tuning curves of a neuron that was treated with the intracellular NaV channel blocker QX-314. Correlation coefficients ranged between 0.2 and 1 (median = 0.7). (E) Mean correlation coefficients of hyperpolarized (0.75 ± 0.19, N = 6, p=0.0073) and QX-314-treated (0.74 ± 0.26, N = 5, p=0.0142) type I LNs were significantly decreased compared to the control group (Kruskal–Wallis and Dunn’s multiple comparisons test). Hyperpolarized and QX-314-treated type I LNs were not significantly different (p>0.9999). *p<0.05, **p<0.01. N values are given in brackets. Abbreviations as in Figure 3F.

When action potential firing was prevented by hyperpolarization, odor stimulation still elicited Ca2+ signals in the glomeruli (Figure 4A). Besides a reduction in amplitude, the uniformity of the Ca2+ signals between different glomeruli disappeared. In turn, the tuning curves of the individual glomeruli became different from each other (Figure 4B, Figure 4—figure supplement 1). Quantitatively, this is reflected in the glomerulus-specific odorant responses and the diverse correlations between the glomerular tuning curves, resulting in a decreased mean correlation coefficient across all hyperpolarized type I LNs of r = 0.75 ± 0.19 (N = 6, Figure 4C–E). Similar results were obtained when action potential firing was suppressed by intracellularly blocking Na+ channels with QX-314 (r = 0.74 ± 0.26, N = 5, Figure 4D and E). Differences in mean correlation coefficients were significant between control and hyperpolarized type I LNs (p=0.0073) as well as between control and type I LNs that were treated with QX-314 (p=0.0142). Mean correlation coefficients of hyperpolarized and QX-314-treated type I LNs were not significantly different (p>0.999).

These experiments support the idea that the observed large Ca2+ signals are mediated mainly by voltage-gated Ca2+ channels, which are activated by the strong depolarizations of the action potentials propagating through the neuron into the innervated glomeruli. These large signals likely mask small local Ca2+ signals elicited by ligand-gated (postsynaptic) Ca2+ influx into the recorded neuron. Preventing the generation of action potentials selectively in the recorded neurons unmasked small local Ca2+ signals, which we interpret as solid evidence for localized excitatory input. Since we observed these signals in more than one glomerulus of a given neuron, we consider this to be physiological evidence that individual type I LNs receive excitatory input not only in one but in multiple glomeruli.

Taken together, our results are in line with the conception that type I LNs integrate and transform their synaptic input to action potential firing to provide inhibitory synaptic input (lateral inhibition) to neurons in a defined array of glomeruli (Assisi et al., 2011; Fujiwara et al., 2014; Hong and Wilson, 2015; Nagel and Wilson, 2016; Olsen and Wilson, 2008; Sachse and Galizia, 2002; Wilson, 2013). Our results also provide physiological evidence that an individual type I LN receives excitatory input not only in one but in several glomeruli, which is in line with previous structural- and ultrastructural studies that reported evidence for both pre- and postsynaptic profiles in individual glomeruli (Berck et al., 2016; Distler and Boeckh, 1997b; Mohamed et al., 2019).

Heterogeneous glomerular odor responses in nonspiking type II LN

In contrast to the uniform Ca2+ dynamics during odor stimulation in type I LNs, we observed highly heterogeneous Ca2+ dynamics between the individual glomeruli in most type II LNs (Figure 5). All recorded type II LNs had the cell type-specific morphology characterized by innervation of all glomeruli with similar neurite densities in all glomeruli of a given neuron (Figure 5A and E). All type II LNs typically responded with graded changes in membrane potential to olfactory stimulation, with type IIa1 LNs also able to generate Ca2+-driven spikelets (Figure 5B and F, top traces). The amplitudes of the corresponding Ca2+ signals were in the range of the signals of type I LNs after the suppression of their action potentials. While the electrophysiological responses to different odorants were similar in a given neuron, the corresponding glomerular Ca2+ signals were odor specific and varied between glomeruli, resulting in distinct, glomerulus-specific tuning curves (Figure 5C,G and Figure 5—figure supplement 1), which was also directly evident in a relatively low degree of correlation (Figure 5I; r = 0.56 ± 0.21, N = 18). However, the correlation between tuning curves of individual glomeruli in a given neuron differed among type II LNs. While in 11 out of 18 nonspiking LNs the majority of glomeruli was individually tuned, in the other 7 neurons, groups of similarly tuned glomeruli were found. This is shown in the heatmaps showing highly correlated Ca2+ signals in groups of glomeruli as well as glomeruli that were not correlated (Figure 5G, H and J, Figure 5—figure supplement 1B). Mechanistically, this could be caused by similar input to several glomeruli (Watanabe et al., 2012) or by coordinated activity, for example, via spikelets that were observed in a subtype of nonspiking neurons (type IIa1 LNs, Fusca et al., 2013).

Figure 5 with 1 supplement see all

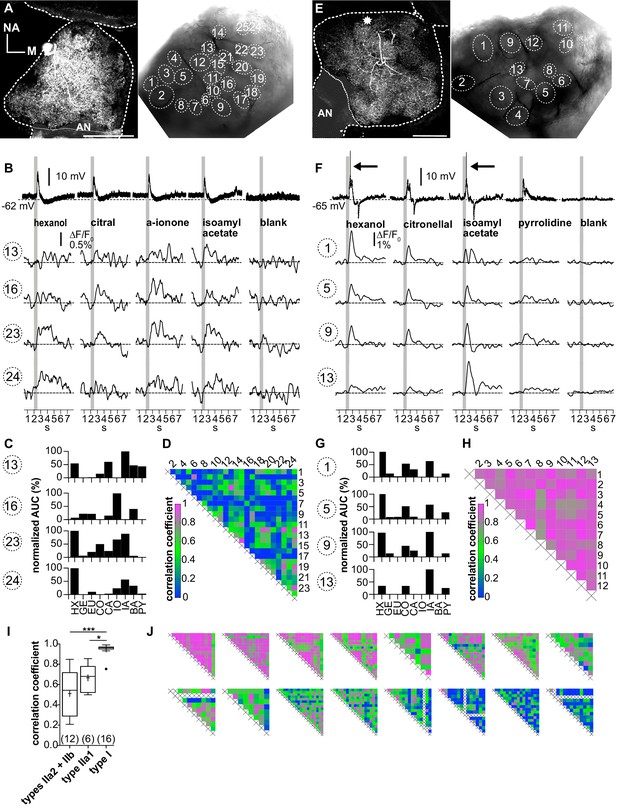

Ca2+ imaging of type II local interneurons (LNs) shows heterogeneous glomerular odorant responses.

Data from a type IIb (A–D, LNII #2) and a type IIa LN (E–H, LNII #3). (A, E) Left: biocytin/streptavidin stainings of the investigated type II LNs. The antennal lobes (ALs) are outlined by the dotted lines. The position of the soma in (E) is marked by the star. Scale bar: 100 µm. Right: transmitted light images of the same ALs during the experiment. Outlined glomeruli were marked as regions of interest and individually analyzed. The orientations of the left and right images are similar. (B, F) Electrophysiological responses to four odorants (top traces) with the corresponding Ca2+ dynamics of four glomeruli that are marked in the images shown in (A) and (E). Gray bars represent the 500 ms odorant stimuli. (B–D) Type IIb LN. (B) The neuron responded similarly to the different odorants with graded depolarizations that were followed by slow hyperpolarizations. The time course and amplitude of the corresponding Ca2+ signals varied in different glomeruli for the different odorants. (C) Tuning curves of glomerular Ca2+ signals (for details, see Figure 3C). The tuning curves of the different glomeruli varied considerably, while the maximum response was induced by different odorants in the different glomeruli. Some glomeruli were narrowly tuned (e.g., glomerulus 16); others were broadly tuned (e.g., glomerulus 23). (D) Heatmap showing the correlations between glomerular tuning curves of every imaged glomerulus. Numbers correspond to glomeruli shown in (A). Correlations between glomerular tuning curves were mostly low, with coefficients ranging between 0 and 0.97 (median = 0.23). (F–H) Type IIa LN. (F) The neuron responded similarly to different odorants with graded depolarizations that could include spikelets (e.g., hexanol, isoamylacetate, arrows mark the spikelets), whereas the time course and amplitude of the corresponding Ca2+ signals mostly varied between different glomeruli for different odorants. (G) Tuning curves of the glomerular Ca2+ signals shown in (F) (for details, see Figure 3C). Groups of glomeruli showed similar tuning curves (e.g., glomeruli 1, 5, and 9), while other glomeruli were individually tuned (e.g., glomerulus 13). (H) Heatmap showing correlations between glomerular tuning curves of every imaged glomerulus. Numbers correspond to the glomeruli marked in (E). Glomerular tuning curves correlated strongly in a subset of glomeruli, while the correlation was low between other glomeruli. Coefficients ranged between 0.72 and 0.98 (median = 0.87). (I) The mean correlation coefficient of spiking type I LNs (0.95 ± 0.06, N = 16) is significantly larger compared to nonspiking type IIa1 LNs that can generate spikelets (0.67 ± 0.12, N = 6, p=0.01) and (pooled) type IIa2 and type IIb LNs, which do not generate spikelets (0.51 ± 0.23, N = 12, p<0.001) (Kruskal–Wallis and Dunn’s multiple comparisons tests). Abbreviations as in Figure 3F. The mean correlation coefficient across all investigated type II LNs was 0.56 ± 0.21 (N = 18). *p<0.05, ***p<0.001. N values are given in brackets. (J) Heatmaps of correlations between glomerular tuning curves from all additional type II LNs in descending order of mean correlation coefficient (upper row: LN II # 5, 4, 1, 7, 6, 9, 8, 10; lower row: LN II # 14, 12, 11, 13, 15, 16, 17, 18). AN: antennal nerve, all other abbreviations as in Figure 3F.

Discussion

Processing of sensory input by networks of spiking and nonspiking interneurons is a common principle in both invertebrate and vertebrate sensory systems, for example, structuring the signal pathway from sensory neurons (tactile hairs) to intersegmental and motor neurons in the insect thoracic ganglion (Burrows, 1989; Pearson and Fourtner, 1975) and the mammalian olfactory bulb (Bufler et al., 1992a; Bufler et al., 1992b; Wellis and Scott, 1990) and retina (Diamond, 2017). Nevertheless, in many systems, the role of nonspiking neurons is not well understood.

LNs are key components of the insect olfactory system. They have fundamentally different functional phenotypes suggesting different tasks during odor information processing. To help elucidate mechanisms of odor processing on the level of individual LNs, this study assessed local Ca2+ dynamics in distinct functional compartments (ramifications in individual glomeruli) of spiking type I and nonspiking type II LNs during olfactory information processing. To this end, individual LNs were analyzed by combined whole-cell patch-clamp recordings and Ca2+ imaging. Local Ca2+ dynamics are likely to reflect the role of LNs in odor information processing, that is, for their potential role in intra- and interglomerular signaling, which depends crucially on signal propagation throughout individual LNs. In line with the electrophysiological properties, we found odorant-evoked Ca2+ signals that were homogeneous across the whole cell in spiking type I LNs and odor and glomerulus-specific Ca2+ signals in nonspiking type II LNs. This is also reflected in the highly correlated tuning curves in type I LNs and low correlations between tuning curves in type II LNs. In the following, we discuss whether and how this is consistent with previous studies, suggesting that spiking type I LNs play a role in lateral, interglomerular signaling and why this study assigns a role to nonspiking LNs in local, intraglomerular signaling.

Interglomerular signaling via spiking type I LNs

Processing of olfactory information in the AL involves complex interactions between the glomerular pathways and between different AL neurons. Previous studies in different insect species have suggested that GABAergic LNs can mediate lateral inhibition by providing inhibitory synaptic input to defined odor-specific arrays of glomeruli. This hypothesis agrees with the current study, where spiking type I LNs showed odorant-specific glomerular Ca2+ dynamics, which were always uniform in every imaged glomerulus as long as the generation of Na+-driven action potentials was not suppressed. Thus, it is plausible and likely that synaptic inputs to one or a few glomeruli are integrated and result in the firing of action potentials, which propagate to the neurites of all innervated glomeruli where they induce highly correlated voltage-activated Ca2+ signals. Since type I LNs express GABA-like immunoreactivity and provide inhibitory input to uPNs and other LNs in all innervated glomeruli (Distler, 1989; Distler and Boeckh, 1997b; Husch et al., 2009a; Warren and Kloppenburg, 2014), these neurons are likely part of an inhibitory network that mediates lateral inhibition and contrast enhancement (Sachse and Galizia, 2002; Wilson and Laurent, 2005). While the current study assigns a role to type I LNs in interglomerular signaling, it does not rule out the possibility that these neurons are also involved in intraglomerular signaling.

In this context, the experiments with suppressed action potential firing reveal an additional functional aspect of type I LNs. They indicate that the hypothesized polar organization of type I LNs with strictly defined (and separated) input and output glomeruli is not entirely correct. When type I LNs were prevented from spiking by hyperpolarization or intracellular block of Na+ channels, we observed distinct, glomeruli-specific Ca2+ dynamics during odor stimulation. It is likely that these signals originate from Ca2+ influx through Ca2+ permeable excitatory receptors such as cholinergic receptors, suggesting that each neuron can potentially receive excitatory olfactory input in many innervated glomerulus. This notion agrees with previous studies in the fly, which suggested that individual GABAergic LNs receive broad, but not uniform, spatial patterns of excitation by either OSNs or PNs (Wilson and Laurent, 2005).

Inter- and intraglomerular signaling via nonspiking type II LN

The nonspiking LNs that have been described in the AL of insects typically innervate all glomeruli (Husch et al., 2009a; Husch et al., 2009b; Tabuchi et al., 2015). In most of these neurons, we observed highly heterogeneous Ca2+ dynamics between the individual glomeruli resulting in distinct tuning curves for the individual glomeruli. These heterogeneous and glomerulus-specific Ca2+ dynamics imply that type II LNs have distinct functional domains that are (more or less) independent from each other. Accordingly, most nonspiking type II LNs might contribute to microcircuits within glomeruli and mediate intraglomerular signaling rather than interconnecting multiple glomeruli.

Intraglomerular circuits are known from the mouse or rat olfactory bulb (for review, see Ennis et al., 2015), where periglomerular, external tufted, and short axon cells interact to modulate the output of Mitral/Tufted cells (Aungst et al., 2003; Liu et al., 2016; Najac et al., 2015; Wachowiak and Shipley, 2006). Periglomerular cells are uniglomerular LNs that mediate intraglomerular synaptic signaling. Unlike periglomerular cells, cockroach type II LNs innervate all glomeruli. Still, as these LNs have only weak active membrane properties, postsynaptic potentials just spread within the same glomerulus. Therefore, these neurons could serve similar purposes, and few omniglomerular type II LNs could perform similar functions as many PG uniglomerular cells.

In addition, it is important to consider that nonspiking type II LNs are not a homogenous neuron population (Fusca et al., 2013; Husch et al., 2009b). In a subpopulation of type II LNs, we observed correlated Ca2+ dynamics in subsets of glomeruli. In principle, this could be caused by various mechanisms, including simultaneous input to multiple glomeruli or interglomerular signaling. Note that subpopulations of type II LNs responded to odorant stimulations with strong depolarizations, including spikelets, which apparently can propagate, at least to some extent, to a set of glomeruli. Since this subpopulation of nonspiking type II LNs (type IIa1 LNs) was previously shown to be cholinergic (Fusca et al., 2013; Neupert et al., 2018), they are likely excitatory. The intrinsic electrophysiological properties of the cholinergic type IIa LNs suggest that they might be part of an excitatory network, which activates neurons in specific sets of glomeruli. This hypothesis is in line with previous studies in the fruit fly, where excitatory LNs, while being multiglomerular, only activate specific glomeruli, thereby providing distinct arrays of glomeruli with excitatory input and distributing odor‐evoked activity over an ensemble of PNs (Das et al., 2017; Huang et al., 2010; Olsen et al., 2007; Root et al., 2007; Shang et al., 2007; reviewed in Wilson, 2013).

While type IIa1 are cholinergic and type II LNs generally express multiple neuropeptides (Fusca et al., 2015; Neupert et al., 2012; Neupert et al., 2018), the primary transmitter of most type II LNs is yet to be revealed. One candidate is glutamate, an inhibitory transmitter in the Drosophila AL (Liu and Wilson, 2013) and cockroach metathoracic motor neurons (Sattelle, 1992).

We conclude that in the cockroach AL sensory inputs are processed and computed in inter- and intraglomerular circuits, which are formed by spiking type I and nonspiking type II LNs.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Chemical compound, drugLidocaine N-ethyl chlorideAlomoneQX-314;#Q-150Channel blocker
Software, algorithmPrismGraphPadRRID:SCR_002798
Software, algorithmImageJhttps://imagej.net/software/fiji/RRID:SCR_003070
OtherOregon Green 488 BAPTA-1 hexapotassium saltThermo Fisher ScientificCat. # O6806Calcium indicator

Animals and materials

Request a detailed protocol

P. americana were reared in crowded colonies at 27°C under a 13:11 hr light/dark photoperiod regimen on a diet of dry rodent food, oatmeal, and water. The experiments were performed with adult males. Unless stated otherwise, all chemicals were obtained from Applichem (Darmstadt, Germany) or Sigma-Aldrich (Taufkirchen, Germany) and had the purity level ‘pro analysis.

Intact brain preparation

Request a detailed protocol

The brain preparation leaving the entire olfactory network intact has been described previously (Demmer and Kloppenburg, 2009; Husch et al., 2009a; Kloppenburg et al., 1999). Animals were anesthetized by CO2, placed in a custom-built holder, and the head was immobilized with tape (tesa ExtraPower Gewebeband, Tesa, Hamburg, Germany). The head capsule was opened by cutting a window between the two compound eyes and the antennae’s bases. The brain with its antennal nerves and attached antennae was dissected in extracellular saline (see below) and pinned in a Sylgard-coated (Dow Corning Corp., Midland, MI) recording chamber. To get access to the recording site, we desheathed parts of the AL using fine forceps, and preparations were enzymatically treated with a combination of papain (0.3 mg·ml–1, P4762, Sigma) and L-cysteine (1 mg·ml–1, 30090, Fluka) dissolved in extracellular saline (~3 min, room temperature [RT], ~24°C). For electrophysiological recordings, the somata of the AL neurons were visualized with a fixed stage upright microscope (AxioExaminer, Carl Zeiss, Jena, Germany) using a 20× water-immersion objective (20× W Apochromat, NA = 1) with a 4× magnification changer, and infrared differential interference contrast optics (Dodt and Zieglgänsberger, 1994).

Identification of AL neurons

Request a detailed protocol

The prerequisite to study the physiology of identified neurons is the unequivocal identification of neuron types. The identification was performed as described by Fusca et al., 2013. Briefly, AL neurons were first preidentified by the size and location of their somata. Recordings were performed under visual control from cell bodies in the ventrolateral somata group (VSG, Distler, 1989), where different neuron types are located in separated clusters. This preidentification has a high success rate for the major neuron types (>90%) and was verified in each case by the physiological and morphological characterization during and after the recording using the following criteria: two main LN types were identified by their distinctive physiological properties: (1) spiking type I LNs that generated Na+-driven action potentials upon odor stimulation and (2) nonspiking type II LNs, in which odor stimulation evoked depolarizations, but no Na+-driven action potentials (Husch et al., 2009a; Husch et al., 2009b). Type I LNs had arborizations in many, but not all, glomeruli. The density of processes varied between glomeruli of a given type I LNs. Type II LN had processes in all glomeruli. The density and distribution of arborizations were similar in all glomeruli of a given type II LN, but varied between different type II LN. Two subtypes (type IIa and type IIb) can be distinguished by the branch patterns within the glomeruli, the size and branch pattern of low-order neurites, odor responses, and active membrane properties (Husch et al., 2009b). Type IIa LNs had strong Ca2+-dependent active membrane properties and responded with odor-specific elaborate patterns of excitation and periods of inhibition. In a subset of the type IIa neurons, which are cholinergic (type IIa1, Fusca et al., 2013), the excitation included Ca2+-driven ‘spikelets’ riding on the depolarization. In contrast, type IIb LNs responded mostly with sustained, relatively smooth depolarizations.

Whole-cell recordings

Request a detailed protocol

Whole-cell recordings were performed at RT following the methods described by Hamill et al., 1981. Electrodes with tip resistances between 2 and 3 MΩ were fashioned from borosilicate glass (inner diameter 0.86 mm, outer diameter 1.5 mm, GB150-8P, Science Products, Hofheim, Germany) with a vertical pipette puller (PP-830 or PC-10, Narishige, Japan). Recording pipettes were filled with intracellular solution containing (in mM): 218 K-aspartate, 10 NaCl, 2 MgCl2, 10 HEPES, and 0.8 Oregon Green 488 BAPTA-1 hexapotassium salt (OGB1, O6806, Thermo Fisher Scientific, Waltham, MA) adjusted to pH 7.2 with KOH. In some experiments, 2 mM lidocaine N-ethyl chloride (QX-314, #Q-150, Alomone, Jerusalem, Israel) was added to the intracellular solution. During the experiments, if not stated otherwise, the cells were superfused constantly with extracellular solution containing (in mM): 185 NaCl, 4 KCl, 6 CaCl2, 2 MgCl2, 10 HEPES, 35 D-glucose. The solution was adjusted to pH 7.2 with NaOH.

Whole-cell current-clamp recordings were made with an EPC10 patch-clamp amplifier (HEKA-Elektronik, Lambrecht, Germany) controlled by the program Patchmaster (version 2.53, HEKA-Elektronik) running under Windows. The electrophysiological data were sampled at 10 kHz. The recordings were low-pass filtered at 2 kHz with a 4-pole Bessel-Filter. Compensation of the offset potential and capacitive currents was performed using the ‘automatic mode’ of the EPC10 amplifier. Whole-cell capacitance was determined by using the capacitance compensation (C-slow) of the amplifier. The liquid junction potential between intracellular and extracellular solution was also compensated (16.9 mV, calculated with Patcher’s-Power-Tools plug-in [https://www3.mpibpc.mpg.de/groups/neher/index.php?page=aboutppt] for Igor Pro 6 [Wavemetrics, Portland, Oregon]). Voltage errors due to series resistance (RS) were minimized using the RS-compensation of the EPC10. RS was compensated between 60% and 70% with a time constant (τ) of 10 µs.

Odor stimulation

Request a detailed protocol

To deliver the odorants, we used a continuous airflow system. Carbon-filtered, humidified air was guided across the antenna at a flow rate of ~2 l·min–1 (‘main airstream’) through a glass tube (inner diameter 10 mm) that was placed perpendicular to and within 20–30 mm distance of the antennae. To apply odorants, 5 ml of odorant-containing solutions (either pure or diluted in mineral oil; M8410, Sigma) were transferred into 100 ml glass vessels. Strips of filter paper in the odorant solution were used to facilitate evaporation. The concentration of each odorant was adjusted to match the vapor pressure of the odorant with the lowest value (eugenol). Dilutions were as follows: α-ionone 40.9% (I12409, Aldrich), ±citral 24.2% (C83007, Aldrich), 1-hexanol 2.4% (52830, Fluka), benzaldehyde (418099, Aldrich) 2.2%, citronellal 8.7% (C2513, Aldrich), eugenol 100% (E51791, Aldrich), geraniol 73.7% (48799, Fluka), isoamylacetate (112674, Aldrich) 13.7%, and pyrrolidine 0.035% (83241, Fluka). The headspace of pure mineral oil was the control stimulus (blank). During a 500 ms stimulus, ~17 ml of the vessel volume was injected into the main air stream. The solenoids were controlled by the D/A-interface of the EPC10 patch-clamp amplifier and the Patchmaster software. Odorant-containing air was quickly removed from the experimental setup with a vacuum funnel (inner diameter 3.5 cm) placed 5 cm behind the antennae. To allow for sensory recovery, consecutive odorant stimulations of the same preparation were performed after intervals of at least 60 s with non-odorant containing air.

Calcium imaging

Request a detailed protocol

Odor-evoked calcium dynamics were measured with the Ca2+ indicator OGB1 (see the intracellular solution), a single wavelength, high-affinity dye suitable to monitor fast intracellular Ca2+ signals. The imaging setup consisted of a Zeiss AxioCam/MRm CCD camera with a 1388 × 1040 chip and a Polychromator V (Till Photonics, Gräfelfing, Germany) that was coupled via an optical fiber into the Zeiss AxioExaminer upright microscope. The camera and polychromator were controlled by the software Zen pro, including the module ‘Physiology’ (2012 blue edition, Zeiss). After establishing the whole-cell configuration, neurons were held in current-clamp mode, and a hyperpolarizing current (~–200 pA) was injected for about 45–60 min to allow for dye loading. After loading, up to nine different odorants were applied as 500 ms pulses onto the ipsilateral antenna. Odor-induced Ca2+ transients in the OGB1-loaded neurons were monitored by images acquired at 488 nm excitation with 50 ms exposure time and a frame rate of ~18 Hz. The emitted fluorescence was detected through a 500–550 nm bandpass filter (BP525/50), and data were acquired using 5 × 5 on-chip binning. Images were recorded in arbitrary units (AU) and analyzed as 16-bit grayscale images.

Analysis of odor-evoked calcium signals

Request a detailed protocol

The analysis was performed offline using ImageJ (version 2.0.0-rc-64/1.51 s) and Prism 7 or 9 (GraphPad, CA). Amplitudes and kinetics of the Ca2+ signals were calculated as means (in AU) of individual innervated glomeruli, which were defined as the respective regions of interest (ROIs). ROIs were defined on transmitted light images of the investigated ALs. The Ca2+ signals are given as relative fluorescence changes (ΔF/F0). To correct for bleaching, biexponential fits to the time courses of the glomerular Ca2+ signals during the blank stimulus, which lacked the odorant-evoked Ca2+ influx, were used.

For statistical analysis of data obtained for the different cell types, nonparametric Kruskal–Wallis tests with Dunn’s multiple comparisons tests were performed in Prism 7 or 9. Correlation coefficients from matrices of glomerular tuning curves were calculated with a confidence interval of 95% and are given as nonparametric Spearman correlation r. For the heatmaps representing the correlation coefficients, negative r values were set to zero. A significance level of 0.05 was accepted for all tests. All calculated values are expressed as mean ± standard deviation. In the box plots, horizontal lines show the median of the data. The boxes indicate the 25th and 75th percentiles. The lower and upper whiskers were calculated according to the ‘Tukey’ method. *p<0.05, **p<0.01. ***p<0.001. N values are given in brackets. The numerical data for the box plots are given in the Source data for the respective figures. Individual data of each recorded neurons are given in Individual Neurons-Source data 1.

Single-cell and double-labeling and confocal microscopy

Request a detailed protocol

To label individual cells, 1% (w/v) biocytin (B4261, Sigma) was added to the pipette solution. After the electrophysiological recordings, the brains were fixed in Roti-Histofix (P0873, Carl Roth, Karlsruhe, Germany) overnight at 4°C. Subsequently, the brains were rinsed in 0.1 M phosphate buffered saline (PBS, 3 × 20 min and then for ~12 hr, RT). PBS contained (in mM) 72 Na2HPO4 × 2H2O, 28 NaH2PO4 × H2O, resulting in pH 7.2. To facilitate streptavidin penetration, the samples were treated with a commercially available collagenase/dispase mixture (1 mg·ml–1, 269638, Roche Diagnostics, Mannheim, Germany) and hyaluronidase (1 mg·ml–1, H3506, Sigma-Aldrich) in PBS (1 hr, 37 °C), rinsed in PBS (3 × 10 min, 4°C) and then preincubated in blocking solution, consisting of PBS containing 1% (w/v) Triton X-100 (A1388, AppliChem) and 10% (v/v) normal goat serum (S-1000, Vector Labs, Burlingame, CA) for 1 hr at RT. The brains were then incubated with Alexa 633 conjugated streptavidin (1:400, S21375, Invitrogen, Eugene, OR) in PBS supplemented with 10% (v/v) normal goat serum for ~12 hr at 4°C, rinsed in PBS (3 × 10 min, RT), dehydrated, cleared, and mounted in methylsalicylate.

In some preparations, we used immunohistochemistry to label synapsin to mark the glomeruli. After preincubation in blocking solution and before the streptavidin incubation, these brains were incubated for 5 days at 4°C with a monoclonal primary mouse antibody against the presynaptic vesicle protein synapsin I (3C11, supernatant; obtained from the Developmental Studies Hybridoma Bank, University of Iowa, RRID:AB_528479), diluted 1:50 in blocking solution. Subsequently, the brains were rinsed in PBS-1% Triton X-100 (2 × 2 hr, RT), incubated in Alexa 488 conjugated goat anti-mouse secondary antibody for 5 days at 4°C (1:200 in blocking solution, 115-545-062, Dianova, Hamburg, Germany) and rinsed in PBS-1% Triton X-100 (2 × 2 hr, RT) and PBS (3 × 10 min, RT). 3C11 (anti-SYNORF1) was deposited to the DSHB by Buchner, E. (DSHB Hybridoma Product 3C11 [anti SYNORF1, Klagges et al., 1996]).

Fluorescence images were captured with confocal microscopes equipped with Plan-Apochromat 10× (numerical aperture 0.45) and Plan-Apochromat 20× (numerical aperture 0.75) objectives (LSM 510, Zeiss) or with a 20× objective (SP8, Leica Microsystems, Wetzlar, Germany), respectively. Alexa 633 was excited at 633 nm, and emission was collected through a 650 nm long-pass filter. Alexa 488 was excited at 488 nm, and emission was collected through a 505–530 nm bandpass filter. Confocal images were adjusted for contrast and brightness and overlaid in ImageJ. The final figures were prepared in Affinity Designer (Serif, Nottingham, UK).

Data availability

Source data files are provided for Figures 2-5. An additional source data file associated with the whole article contains individual data for each recorded neuron.

References

    1. Bufler J
    2. Zufall F
    3. Franke C
    4. Hatt H
    (1992a)
    Patch-clamp recordings of spiking and nonspiking interneurons from rabbit olfactory bulb slices: Gaba- and other transmitter receptors
    Journal of Comparative Physiology 170:153–159.
    1. Bufler J
    2. Zufall F
    3. Franke C
    4. Hatt H
    (1992b)
    Patch-clamp recordings of spiking and nonspiking interneurons from rabbit olfactory bulb slices: membrane properties and ionic currents
    Journal of Comparative Physiology 170:145–152.
  1. Book
    1. Ennis M
    2. Puche AC
    3. Holy T
    4. Shipley MT
    (2015)
    Chapter 27 - The Olfactory System
    In: Paxinos G, editors. The Rat Nervous System (Fourth Edition). San Diego: Academic Press. pp. 761–803.
    1. Fujimura K
    2. Yokohari F
    3. Tateda H
    (1991)
    Classification of antennal olfactory receptors of the cockroach
    Periplaneta Americana L. Zoolog. Sci 8:243–255.
    1. Klagges BR
    2. Heimbeck G
    3. Godenschwege TA
    4. Hofbauer A
    5. Pflugfelder GO
    6. Reifegerste R
    7. Reisch D
    8. Schaupp M
    9. Buchner S
    10. Buchner E
    (1996)
    Invertebrate synapsins: a single gene codes for several isoforms in Drosophila
    The Journal of Neuroscience 16:3154–3165.
    1. Kloppenburg P
    2. Ferns D
    3. Mercer A
    (1999)
    Serotonin enhances central olfactory neuron responses to female sex pheromone in the male sphinx moth manduca sexta
    The Journal of Neuroscience 19:8172–8181.
    1. Lemon G
    (1997)
    Temporal resolution of general odor pulses by olfactory sensory neurons in American cockroaches
    The Journal of Experimental Biology 200:1809–1819.
  2. Book
    1. Shepherd GM
    2. Chen WR
    3. Greer CA
    (2004)
    The Synaptic Organization of the Brain
    Oxford University Press.

Decision letter

  1. Mani Ramaswami
    Reviewing Editor; Trinity College Dublin, Ireland
  2. Ronald L Calabrese
    Senior Editor; Emory University, United States
  3. Mani Ramaswami
    Reviewer; Trinity College Dublin, Ireland

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This study addresses the computational significance of different types of inhibitory local interneurons (LNs) in olfactory circuits, an interesting question of significant general interest. Using in vivo physiology and calcium imaging of odorant responses, the work provides direct experimental support for distinct roles for spiking and non-spiking LNs present in the antennal lobe of the cockroach Periplaneta Americana. The authors' overall conclusion is that in type I spiking LNs, odors evoke calcium signals globally and relatively uniformly across glomeruli in the antennal lobe and LN neurites in each glomerulus are broadly tuned to odor. In contrast, in type II nonspiking LNs, the authors report odor-specific patterns of calcium signals, with LN neurites in different glomeruli displaying distinct local odor tuning. These results have implications for how inhibitory systems work in other olfactory systems as well as other brain regions.

Decision letter after peer review:

Thank you for submitting your article "Task-specific roles of local interneurons for inter- and intraglomerular signaling in the insect antennal lobe." for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Mani Ramaswami as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Ronald Calabrese as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. A major issue that needs to be addressed pertains to the different amplitudes of calcium signals observed in non-spiking and spiking LNs. Strong signals are naturally expected to be more visible across planes and across glomeruli compared to weak ones – and so the concentration of odor stimuli needs to adjusted to better match the magnitude of calcium signals between cell types that are being directly compared. In its current form, it remains possible that the conclusion for global- versus odor-specific signals will not hold when average LN calcium activity is matched.

(Obviously two-photon imaging, which can provide better optical sectioning and alleviate biases introduced by out of plane signals would improve the study, but this would require easy access to such equipment)

2. The use of an odorant that is known to narrowly activate just one or two glomeruli based on OSN innervation patterns could potentially help to clarify the roles of intra- versus interglomerular inhibition in each LN type. if an odor elicits LN calcium signals in only a subset of glomeruli, it's hard to know if those signals arise from direct local input to those glomeruli (purely intraglomerular inhibition), or whether ORN input to one glomerulus is eliciting calcium signals in another glomerulus (selective interglomerular inhibition). This would most easily clarified by comparing glomerular patterns of ORN input and LN activation. Alternatively, by using a odor that is mostly selective for a single glomerulus, one could evaluate the degree of signal spread in the LN neurite arbor to determine if LN signals are locally confined to the input glomerulus, as would be expected if the LNs function in intraglomerular inhibition. Perhaps such could be identified from knowledge of the chemical ecology of the cockroach? If this is not done, the authors may hypothesize that a function of nonspiking LNs is intraglomerular inhibition, but cannot 100% rule out selective interglomerular inhibition (which is potentially even more interesting). Thus, the language should be tempered down and duly qualified to acknowledge this possibility. (This may serve the authors well down the line if selective interglomerular inhibition ends up also being involved)

3. The Results sections should also be enhanced to better clarify the hypotheses being tested and the likely interpretations of the observations.

https://doi.org/10.7554/eLife.65217.sa1

Author response

Essential revisions:

1. A major issue that needs to be addressed pertains to the different amplitudes of calcium signals observed in non-spiking and spiking LNs. Strong signals are naturally expected to be more visible across planes and across glomeruli compared to weak ones – and so the concentration of odor stimuli needs to adjusted to better match the magnitude of calcium signals between cell types that are being directly compared. In its current form, it remains possible that the conclusion for global- versus odor-specific signals will not hold when average LN calcium activity is matched.

(Obviously two-photon imaging, which can provide better optical sectioning and alleviate biases introduced by out of plane signals would improve the study, but this would require easy access to such equipment)

Thank you for allowing us to clarify this point. The reviewer comment implies that the different amplitudes of the Ca2+ signals indicate some technical-methodological deficiency (poorly chosen odor concentration). But in fact, this is a key finding of this study that is physiologically relevant and crucial for understanding the function of the neurons studied. These very differences in the Ca2+ signals are evidence of the different roles these neurons play in AL. The different signal amplitudes directly show the distinct physiology and Ca2+ sources that dominate the Ca2+ signals in type I and type II LNs. Accordingly, it is impractical to equalize the magnitude of Ca2+ signals under physiological conditions by adjusting the concentration of odor stimuli.

In the following, we address these issues in more detail:

1) Imaging Method

2) Odorant stimulation

3) Cell type-specific Ca2+ signals

1) Imaging Method:

Of course, we agree with the reviewer comment that out-of-focus and out-of-glomerulus fluorescence can potentially affect measurements, especially in widefield optical imaging in thick tissue. This issue was carefully addressed in initial experiments. In type I LNs, which innervate a subset of glomeruli, we detected fluorescence signals, which matched the spike pattern of the electrophysiological recordings 1:1, only in the innervated glomeruli. In the not innervated ROIs (glomeruli), we detected no or comparatively very little fluorescence, even in glomeruli directly adjacent to innervated glomeruli.

To illustrate this, (Author response image 1) shows measurements from an AL in which an uniglomerular projection neuron was investigated in a set of experiments that were not directly related to the current study. In this experiment, a train of action potential was induced by depolarizing current. The traces show the action potential induced fluorescent signals from the innervated glomerulus (glomerulus #1) and the directly adjacent glomeruli.

Author response image 1

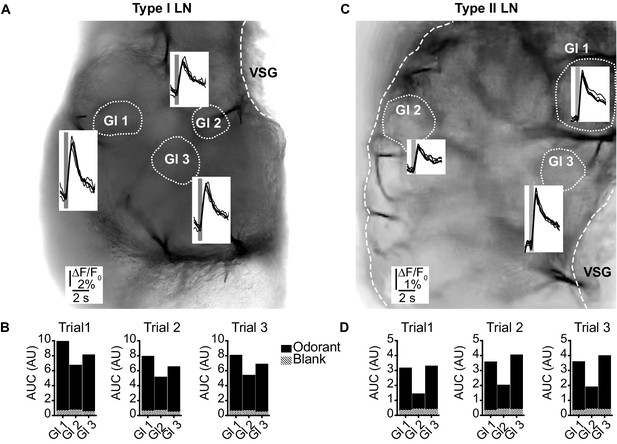

Simultaneous electrophysiological and optophysiological recordings of a uniglomerular projection using the ratiometric Ca2+ indicator fura-2.

The projection neuron has its arborization in glomerulus 1. The train of action potentials was induced with a depolarizing current pulse (grey bar).

These results do not entirely exclude that the large Ca2+ signals from the innervated LN glomeruli may include out-of-focus and out-of-glomerulus fluorescence, but they do show that the bulk of the signal is generated from the recorded neuron in the respective glomeruli.

2) Odorant Stimulation:

It is important to note that the odorant concentration cannot be varied freely. For these experiments, the odorant concentrations have to be within a 'physiologically meaningful' range, which means: On the one hand, they have to be high enough to induce a clear response in the projection neurons (the antennal lobe output). On the other hand, however, the concentration was not allowed to be so high that the ORNs were stimulated nonspecifically. These criteria were met with the used concentrations since they induced clear and odorant-specific activity in projection neurons.

3) Cell type-specific Ca2+ signals:

The differences in Ca2+ signals are described and discussed in some detail throughout the text (e.g., page 6, lines 119-136; page 9, lines 193-198; page 10-11, lines 226-235; page 14-15, line 309-333). Briefly: In spiking type I LNs, the observed large Ca2+ signals are mediated mainly by voltage-depended Ca2+ channels activated by the Na+-driven action potential's strong depolarization. These large Ca2+ signals mask smaller signals that originate, for example, from excitatory synaptic input (i.e., evoked by ligand-activated Ca2+ conductances). Preventing the firing of action potentials can unmask the ligand-activated signals, as shown in Figure 4.

In nonspiking type II LNs, the action potential-generated Ca2+ signals are absent; accordingly, the Ca2+ signals are much smaller. In our model, the comparatively small Ca2+ signals in type II LNs are mediated mainly by (synaptic) ligand-gated Ca2+ conductances, possibly with contributions from voltage-gated Ca2+ channels activated by the comparatively small depolarization (compared with type I LNs).

Accordingly, our main conclusion, that spiking LNs play a primary role in interglomerular signaling, while nonspiking LNs play an essential role in intraglomeular signaling, can be DIRECTLY inferred from the differences in odorant induced Ca2+ signals alone.

a) Type I LN: The large, simultaneous, and uniform Ca2+ signals in the innervated glomeruli of an individual type I LN clearly show that they are triggered in each glomerulus by the propagated action potentials, which conclusively shows lateral interglomerular signal propagation.

b) Type II LNs: In the type II LNs, we observed relatively small Ca2+ signals in single glomeruli or a small fraction of glomeruli of a given neuron. Importantly, the time course and amplitude of the Ca2+ signals varied between different glomeruli and different odors. Considering that type II LNs in principle, can generate large voltage-activated Ca2+ currents (larger that type I LNS; page 4, lines 82-86, Husch et al. 2009a,b; Fusca and Kloppenburg 2021), these data suggest that in type II LNs electrical or Ca2+ signals spread only within the same glomerulus; and laterally only to glomeruli that are electrotonically close to the odorant stimulated glomerulus.

Taken together, this means that our conclusions regarding inter- and intraglomerular signaling can be derived from the simultaneously recorded amplitudes and the dynamics of the membrane potential and Ca2+ signals alone. This also means that although the correlation analyses support this conclusion nicely, the actual conclusion does not ultimately depend on the correlation analysis. We had (tried to) expressed this with the wording, “Quantitatively, this is reflected in the glomerulus-specific odorant responses and the diverse correlation coefficiiants across…” (page 10, lines 216-217) and “ …This is also reflected in the highly correlated tuning curves in type I LNs and low correlations between tuning curves in type II LNs”(page 13, lines 293-295).

2. The use of an odorant that is known to narrowly activate just one or two glomeruli based on OSN innervation patterns could potentially help to clarify the roles of intra- versus interglomerular inhibition in each LN type. if an odor elicits LN calcium signals in only a subset of glomeruli, it's hard to know if those signals arise from direct local input to those glomeruli (purely intraglomerular inhibition), or whether ORN input to one glomerulus is eliciting calcium signals in another glomerulus (selective interglomerular inhibition). This would most easily clarified by comparing glomerular patterns of ORN input and LN activation. Alternatively, by using a odor that is mostly selective for a single glomerulus, one could evaluate the degree of signal spread in the LN neurite arbor to determine if LN signals are locally confined to the input glomerulus, as would be expected if the LNs function in intraglomerular inhibition. Perhaps such could be identified from knowledge of the chemical ecology of the cockroach? If this is not done, the authors may hypothesize that a function of nonspiking LNs is intraglomerular inhibition, but cannot 100% rule out selective interglomerular inhibition (which is potentially even more interesting). Thus, the language should be tempered down and duly qualified to acknowledge this possibility. (This may serve the authors well down the line if selective interglomerular inhibition ends up also being involved)

1) Not all nonspiking type II LNs are inhibitory (Fusca et al., 2013; Neupert et al., 2018; page 4, line 89-91; page 16, lines 365-367). Therefore, 'intra- or interglomerular signaling' seems more appropriate instead of 'intra- and interglomerular inhibition'.

2) While we appreciate this comment, we do not see how the suggested experiment can generate 'more conclusive' results, even if an odorant would be available, which "narrowly activates only one or two glomeruli". Glomerular pathways can interact via excitatory LNs (e.g., Das et al., 2017; Olsen et al., 2007; Shang et al., 2007; Yaksi and Wilson, 2010).

3) In contrast to what the reviewer comment implies, we have not ruled the possibility that type II LNs can mediate interglomerular signaling. Actually, this topic has already been discussed in some detail in the original version (page 12, lines 268-271; page 15-16, lines 338-374). This section, in fact, has a respective heading: "Inter- and intraglomerular signal transduction via nonspiking type II LNs" (page 15, line 338). As suggested in the reviewer comment, we have hypothesized intraglomerular signaling as an important task for type II LNs. In addition, we also have acknowledged and discussed in some detail that type II LNs also might be involved in interglomerular signaling. This is discussed especially with regard to the different subtypes of type II neurons (page 16, lines 358-374).

It is important to point out that the issue of intra- versus interglomerular signaling arises only in those experiments in which correlated excitation indeed occurs in multiple glomeruli. In 11 out of 18 type II LNs, we found 'very uncorrelated' (r=0.43±0.16, N=11) glomerular tuning curves. These experiments argue strongly for 'local excitation' with locally restricted intracellular signal propagation and support our interpretation that this group of neurons mediates intraglomerular signaling.

We agree with the reviewer that correlated excitation in multiple glomeruli can, in principle, be caused by direct (parallel) local input in a subset of glomeruli (pure intraglomerular signaling) or by interglomerular signaling. As mentioned above, both possibilities have been discussed in some detail in the original manuscript. In light of the reviewer comments, we have emphasized this point more and adjusted the wording to make it more clear that these alternative mechanisms may exist (page 16, lines 361-363).

3. The Results sections should also be enhanced to better clarify the hypotheses being tested and the likely interpretations of the observations.

We followed the reviewers' suggestions and tried to enhance the result section to clarify our hypotheses and interpretations of the data (page 7, line 157-159; page 9, lines 193-198; page 10, lines 226-235).

References:

Assisi, C., Stopfer, M., Bazhenov, M., 2011. Using the structure of inhibitory networks to unravel mechanisms of spatiotemporal patterning. Neuron 69, 373–386. https://doi.org/10.1016/j.neuron.2010.12.019

Das, S., Trona, F., Khallaf, M.A., Schuh, E., Knaden, M., Hansson, B.S., Sachse, S., 2017. Electrical synapses mediate synergism between pheromone and food odors in Drosophila melanogaster. Proc Natl Acad Sci U S A 114, E9962–E9971. https://doi.org/10.1073/pnas.1712706114

Fujiwara, T., Kazawa, T., Haupt, S.S., Kanzaki, R., 2014. Postsynaptic odorant concentration dependent inhibition controls temporal properties of spike responses of projection neurons in the moth antennal lobe. PLOS ONE 9, e89132. https://doi.org/10.1371/journal.pone.0089132

Fusca, D., Husch, A., Baumann, A., Kloppenburg, P., 2013. Choline acetyltransferase-like immunoreactivity in a physiologically distinct subtype of olfactory nonspiking local interneurons in the cockroach (Periplaneta americana). J Comp Neurol 521, 3556–3569. https://doi.org/10.1002/cne.23371

Fuscà, D., and Kloppenburg, P. (2021). Odor processing in the cockroach antennal lobe-the network components. Cell Tissue Res.

Hong, E.J., Wilson, R.I., 2015. Simultaneous encoding of odors by channels with diverse sensitivity to inhibition. Neuron 85, 573–589. https://doi.org/10.1016/j.neuron.2014.12.040

Husch, A., Paehler, M., Fusca, D., Paeger, L., Kloppenburg, P., 2009a. Calcium current diversity in physiologically different local interneuron types of the antennal lobe. J Neurosci 29, 716–726. https://doi.org/10.1523/JNEUROSCI.3677-08.2009

Husch, A., Paehler, M., Fusca, D., Paeger, L., Kloppenburg, P., 2009b. Distinct electrophysiological properties in subtypes of nonspiking olfactory local interneurons correlate with their cell type-specific Ca2+ current profiles. J Neurophysiol 102, 2834–2845. https://doi.org/10.1152/jn.00627.2009

Nagel, K.I., Wilson, R.I., 2016. Mechanisms Underlying Population Response Dynamics in Inhibitory Interneurons of the Drosophila Antennal Lobe. J Neurosci 36, 4325–4338. https://doi.org/10.1523/JNEUROSCI.3887-15.2016

Neupert, S., Fusca, D., Kloppenburg, P., Predel, R., 2018. Analysis of single neurons by perforated patch clamp recordings and MALDI-TOF mass spectrometry. ACS Chem Neurosci 9, 2089–2096.

Olsen, S.R., Bhandawat, V., Wilson, R.I., 2007. Excitatory interactions between olfactory processing channels in the Drosophila antennal lobe. Neuron 54, 89–103. https://doi.org/10.1016/j.neuron.2007.03.010

Olsen, S.R., Wilson, R.I., 2008. Lateral presynaptic inhibition mediates gain control in an olfactory circuit. Nature 452, 956–960. https://doi.org/10.1038/nature06864

Sachse, S., Galizia, C., 2002. Role of inhibition for temporal and spatial odor representation in olfactory output neurons: a calcium imaging study. J Neurophysiol. 87, 1106–17.

Shang, Y., Claridge-Chang, A., Sjulson, L., Pypaert, M., Miesenbock, G., 2007. Excitatory Local Circuits and Their Implications for Olfactory Processing in the Fly Antennal Lobe. Cell 128, 601–612.

Wilson, R.I., 2013. Early olfactory processing in Drosophila: mechanisms and principles. Annu Rev Neurosci 36, 217–241. https://doi.org/10.1146/annurev-neuro-062111-150533

Yaksi, E., Wilson, R.I., 2010. Electrical coupling between olfactory glomeruli. Neuron 67, 1034–1047. https://doi.org/10.1016/j.neuron.2010.08.041

https://doi.org/10.7554/eLife.65217.sa2

Article and author information

Author details

  1. Debora Fusca

    Biocenter, Institute for Zoology, and Cologne Excellence Cluster on Cellular Stress Responses in Aging-Associated Diseases (CECAD), University of Cologne, Cologne, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Writing - original draft, Writing - review and editing
    Competing interests
    none
  2. Peter Kloppenburg

    Biocenter, Institute for Zoology, and Cologne Excellence Cluster on Cellular Stress Responses in Aging-Associated Diseases (CECAD), University of Cologne, Cologne, Germany
    Contribution
    Conceptualization, Funding acquisition, Project administration, Resources, Writing - original draft, Writing - review and editing
    For correspondence
    peter.kloppenburg@uni-koeln.de
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4554-404X

Funding

Deutsche Forschungsgemeinschaft (EXC 2030-390661388)

  • Peter Kloppenburg

Deutsche Forschungsgemeinschaft (KL 762/6-1)

  • Peter Kloppenburg

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Helmut Wratil for his excellent technical assistance. The work in PK’s laboratory was supported by grants from the Deutsche Forschungsgemeinschaft (EXC 2030-390661388 and KL 762/6-1).

Senior Editor

  1. Ronald L Calabrese, Emory University, United States

Reviewing Editor

  1. Mani Ramaswami, Trinity College Dublin, Ireland

Reviewer

  1. Mani Ramaswami, Trinity College Dublin, Ireland

Publication history

  1. Received: November 26, 2020
  2. Preprint posted: November 27, 2020 (view preprint)
  3. Accepted: September 9, 2021
  4. Version of Record published: September 23, 2021 (version 1)

Copyright

© 2021, Fusca and Kloppenburg

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 212
    Page views
  • 33
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Julia Kuhn et al.
    Short Report

    Peripheral nerve injury-induced neuropathic pain is a chronic and debilitating condition characterized by mechanical hypersensitivity. We previously identified microglial activation via release of colony stimulating factor 1 (CSF1) from injured sensory neurons as a mechanism contributing to nerve injury-induced pain. Here we show that intrathecal administration of CSF1, even in the absence of injury, is sufficient to induce pain behavior, but only in male mice. Transcriptional profiling and morphologic analyses after intrathecal CSF1 showed robust immune activation in male but not female microglia. CSF1 also induced marked expansion of lymphocytes within the spinal cord meninges, with preferential expansion of regulatory T-cells (Tregs) in female mice. Consistent with the hypothesis that Tregs actively suppress microglial activation in females, Treg deficient (Foxp3DTR) female mice showed increased CSF1-induced microglial activation and pain hypersensitivity equivalent to males. We conclude that sexual dimorphism in the contribution of microglia to pain results from Treg-mediated suppression of microglial activation and pain hypersensitivity in female mice.

    1. Cell Biology
    2. Neuroscience
    Zhong-Jiao Jiang et al.
    Research Article Updated

    Transient receptor potential melastatin 7 (TRPM7) contributes to a variety of physiological and pathological processes in many tissues and cells. With a widespread distribution in the nervous system, TRPM7 is involved in animal behaviors and neuronal death induced by ischemia. However, the physiological role of TRPM7 in central nervous system (CNS) neuron remains unclear. Here, we identify endocytic defects in neuroendocrine cells and neurons from TRPM7 knockout (KO) mice, indicating a role of TRPM7 in synaptic vesicle endocytosis. Our experiments further pinpoint the importance of TRPM7 as an ion channel in synaptic vesicle endocytosis. Ca2+ imaging detects a defect in presynaptic Ca2+ dynamics in TRPM7 KO neuron, suggesting an importance of Ca2+ influx via TRPM7 in synaptic vesicle endocytosis. Moreover, the short-term depression is enhanced in both excitatory and inhibitory synaptic transmissions from TRPM7 KO mice. Taken together, our data suggests that Ca2+ influx via TRPM7 may be critical for short-term plasticity of synaptic strength by regulating synaptic vesicle endocytosis in neurons.
