Gating of the ATP-activated channel P2X2 has been shown to be dependent not only on [ATP] but also on membrane voltage, despite the absence of a canonical voltage-sensor domain. We aimed to investigate the structural rearrangements of rat P2X2 during ATP- and voltage-dependent gating, using a voltage-clamp fluorometry technique. We observed fast and linearly voltage-dependent fluorescence intensity (F) changes at Ala337 and Ile341 in the TM2 domain, which could be due to the electrochromic effect, reflecting the presence of a converged electric field. We also observed slow and voltage-dependent F changes at Ala337, which reflect structural rearrangements. Furthermore, we determined that the interaction between Ala337 in TM2 and Phe44 in TM1, which are in close proximity in the ATP-bound open state, is critical for activation. Taking these results together, we propose that the voltage dependence of the interaction within the converged electric field underlies the voltage-dependent gating.

Introduction

P2X2 is a member of the P2X receptor family, a ligand-gated cation channel that opens upon the binding of extracellular ATP (Brake et al., 1994; Valera et al., 1994). P2X receptors consist of seven sub-classes (P2X1–P2X7) that assemble to form trimeric homomers or heteromers (e.g., P2X2/P2X3) (Radford et al., 1997; North, 2002; Jiang et al., 2003a). Based on known crystal structures, P2X receptors have two transmembrane (TM) domains (TM1 and TM2), a large extracellular ligand binding loop (ECD), which is the location of the ATP binding site, and intracellular N- and C- termini (Kawate et al., 2009; Hattori and Gouaux, 2012; Mansoor et al., 2016; McCarthy et al., 2019).

P2X2 is mainly distributed in smooth muscle, the central nervous system (CNS), the retina, chromaffin cells, and autonomic and sensory ganglia (Burnstock, 2003). Recent studies have shown that the P2X2 receptor in hair cells and supporting cells has an important role in auditory transduction. A dominant negative polymorphism in human results in progressive hearing loss (Yan et al., 2013). Furthermore, P2X2 in the cochlea is involved in adaptation to elevated sound levels (Housley et al., 2013).

The P2X2 receptor has complex gating properties that consist of (1) [ATP]-dependent gating and (2) voltage-dependent gating. The latter is despite the absence of a canonical voltage sensor domain, in clear contrast to typical voltage-gated ion channels. In the presence of ATP, there is a gradual increase of inward current upon hyperpolarization. ATP shifts the conductance–voltage relationship toward depolarized potentials. Thus, activation of the P2X2 channel is voltage-dependent as well as [ATP]-dependent (Nakazawa et al., 1997; Zhou and Hume, 1998; Nakazawa and Ohno, 2005; Fujiwara et al., 2009; Keceli and Kubo, 2009). Previous studies have reported that this activation is indeed an intrinsic property of the channel (Nakazawa et al., 1997; Zhou and Hume, 1998; Fujiwara et al., 2009).

It is of interest to know how P2X2 has voltage-dependent gating despite the absence of a canonical VSD. Previous studies have extensively investigated the roles of amino acid residues in TM1 and TM2 during ATP-dependent gating and permeation (Haines et al., 2001; Jiang et al., 2001; Li et al., 2004; Khakh and Egan, 2005; Cao et al., 2007; Samways et al., 2008; Cao et al., 2009). In contrast, there is limited information about the roles of amino acid residues, particularly those within TM domains, in voltage-dependent gating. A previous study identified positively charged amino acid residues in the ATP binding pocket (K69, K71, R290, and K308; rP2X2 numbering) and aromatic amino acid residues in TM1 (Y43, F44, and Y47; rP2X2 numbering), which are critical for ATP- and voltage-dependent gating of the P2X2 receptor (Keceli and Kubo, 2009). However, those residues were not the only determinants of [ATP]- and voltage-dependent gating of the P2X2 receptor. The interpretation as to the mechanism is not yet straightforward and, thus, the key amino acid residue in the voltage sensing mechanism of the P2X2 receptor is yet to be discovered.

Moreover, the details of the structural rearrangements upon ATP binding in the pore region remain controversial. First, there are discrepancies between zfP2X4 structural data (Kawate et al., 2009; Hattori and Gouaux, 2012) and experimental data on P2X from metal bridging experiments, molecular dynamics simulations, and photo-switchable cross-linker experiments focusing on the TM domains (Kracun et al., 2010; Li et al., 2010; Heymann et al., 2013; Habermacher et al., 2016). Second, there are discrepancies between the crystal structures of the TM domains of zfP2X4 and hP2X3; hP2X3 has longer TM domains. Furthermore, the ATP-bound open state of hP2X3 and rP2X7 has a cytoplasmic cap that was not seen in the crystal structure of zfP2X4 (Kawate et al., 2009; Hattori and Gouaux, 2012; Mansoor et al., 2016; McCarthy et al., 2019). Thus, the present study aims at analyzing the structural rearrangements of the P2X2 receptor in (1) ATP- and (2) voltage-dependent gating, by voltage-clamp fluorometry (VCF), using a fluorescent unnatural amino acid (fUAA) as a probe.

The combination of fluorometry and voltage-clamp recording offers a powerful method for analyzing real-time conformational changes within the ion channel structure (Mannuzzu et al., 1996; Cha and Bezanilla, 1997; Pless and Lynch, 2008; Nakajo and Kubo, 2014; Talwar and Lynch, 2015). The use of an fUAA as a probe makes it possible to label any residue within the protein, including those in the lower TM and intracellular regions, which are not accessible by conventional VCF fluorophores, such as Alexa-488 maleimide (Kalstrup and Blunck, 2013; Sakata et al., 2016; Kalstrup and Blunck, 2018; Klippenstein et al., 2018). Moreover, direct incorporation of the fUAA increases the labeling efficiency and also prevents non-specific labeling (Kalstrup and Blunck, 2013; Sakata et al., 2016).

The fUAA used here, 3-(6-acetylnaphthalen-2-ylamino)−2-aminopropionic acid (Anap), was incorporated into the rP2X2 protein by using a nonsense suppression method, in which the tRNA Anap-CUA and tRNA-synthetase pair is used to introduce Anap at an amber nonsense codon mutation (Lee et al., 2009; Chatterjee et al., 2013; Klippenstein et al., 2018), as shown in Figure 1A. By performing VCF recording, using Anap as a fluorophore, we analyzed the structural dynamics of the P2X2 receptor undergoing complex gating. In the present study, we observed evidence of voltage-dependent conformational changes in the transmembrane regions. We also investigated the key amino acid residues in each TM region whose interaction might have major contributions to the ATP- and voltage-dependent gating of the P2X2 receptor.

Figure 1 with 3 supplements see all

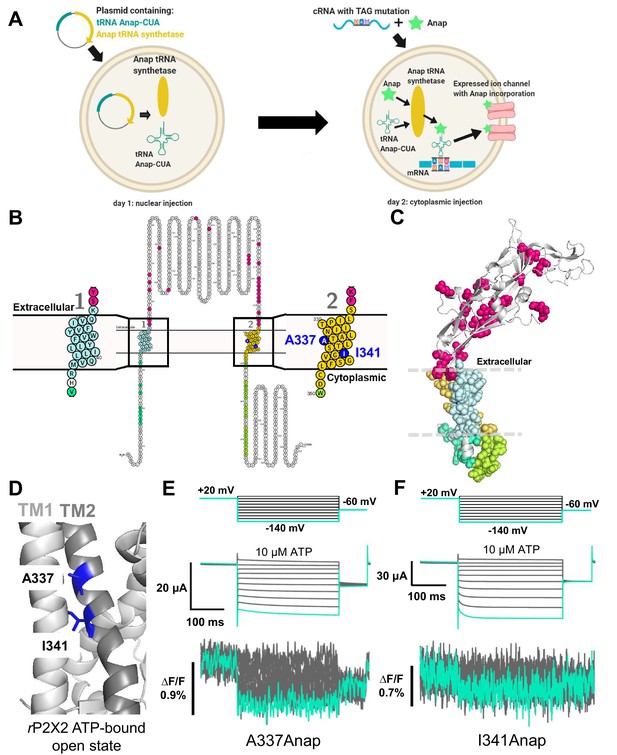

Fluorescence signal changes of Anap-incorporated P2X2 receptor evoked by ATP and voltage.

(A) A scheme depicting the principle of the direct incorporation of fUAA (Anap) into the ion channel protein. The plasmid containing tRNA Anap-CUA and tRNA synthase is injected into the nucleus of Xenopus laevis oocytes. On the following day, channel cRNA with a TAG mutation is co-injected with Anap into the cytoplasm of the oocytes. Anap-incorporated channel protein was expressed successfully after the optimum incubation period. (B, C) A scheme to visualize the Anap scanning regions by individual amino acid residue representation (B) and within the protein structure (C), respectively. Anap mutant scanning was done by introducing TAG mutation one at a time in all regions of the P2X2 receptor (a total of 96 positions), which include the N-terminus (eight positions, turquoise), TM2 (24 positions, yellow), extracellular domain (ECD, 25 positions, magenta), TM1 (20 positions, light blue), and C-terminus (19 positions, lime green). Voltage-dependent fluorescence changes of Anap were observed only at A337 and I341 in the TM2 domain (colored by dark blue). (D) The sites of the introduced TAG mutations, A337 and I341 in the TM2 domain, which gave voltage-evoked fluorescence changes. All of rP2X2 structure representations in (C) and (D) were based on homology modeling from the ATP-bound open state hP2X3 crystal structure data (PDB ID: 5SVK; Mansoor et al., 2016). (E, F) Representative current traces and fluorescence signal upon ATP and voltage application in Anap mutants (A337: ∆F/F = 0.5 ± 0.2% at 440 nm [n = 3]; I341: ∆F/F = 0.3 ± 0.2% at 440 nm [n = 3], respectively). Source data are provided in Figure 1—source data 1.

Figure 1—source data 1

Fluorescence signal changes of A337Anap and I341Anap evoked by ATP and voltage.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig1-data1-v2.xlsx

Results

Fluorescence signal changes of Anap-labeled P2X2 receptor evoked by ATP and voltage

As the P2X2 receptor does not have a canonical voltage-sensing domain (VSD), we performed Anap scanning by introducing TAG mutations one at a time in all regions of the P2X2 receptor, including the cytoplasmic N-terminus (eight positions), TM1 (20 positions), ECD, where the ATP binding site is located (25 positions), TM2 (24 positions), and cytoplasmic C-terminus (19 positions) (Figure 1B,C). The whole of TM1 and TM2 was scanned, as these are the transmembrane domains in which a non-canonical voltage sensor might be located.

Of the total of 96 positions of Anap mutants in the P2X2 receptor, many showed ATP-evoked fluorescence intensity (F) changes (∆F) (Supplementary file 1). As major and overall structural movement occurs upon the binding of ATP during the channel’s transition from closed to open state in the P2X receptor (Kawate et al., 2009; Hattori and Gouaux, 2012; Mansoor et al., 2016; McCarthy et al., 2019), the results accord well with the expectation that an ATP-evoked fluorescence change would be observed at many positions labeled by Anap.

In contrast, out of 96 mutants tested, only two produced fluorescence intensity changes in response to voltage steps (Figure 1E,F; Supplementary file 1). These two positions are in TM2: A337 (∆F/F = 0.5 ± 0.2% upon voltage change from +40 mV to −140 mV at 440 nm [n = 3], Figure 1D,E) and I341 (∆F/F = 0.3 ± 0.2% upon voltage change from +40 mV to −140 mV at 440 nm [n = 3], Figure 1D,F). ATP-evoked currents of both constructs were inhibited by the P2X2 receptor non-specific blockers, Suramin and PPADS (Figure 1—figure supplement 1), confirming that the currents are indeed P2X2 receptor currents. Voltage-dependent F changes could not be detected at other scanned positions in TM1, TM2, or other regions (Figure 1—figure supplements 2 and 3; Supplementary file 1).

Although Anap ∆F was observed in several mutants, there are two major concerns, as follows: (1) ∆F is close to the limit of detection because signal-to-noise ratio is low, making it hard to perform further analysis, for example, ∆F/F-V relationships. (2) The incidence of fluorescence change detection in each batch is also low, 14.3 ± 4.1% (n = 5–16) and 16.02 ± 0.6% (n = 6–13) for A337Anap and I341Anap, respectively. Three out of 13 batches showed F change for A337Anap and 2 out of 10 batches showed F change for I341Anap. Thus, at this point, further analysis to determine the structural rearrangements with which Anap ∆F is associated could not be performed.

SIK inhibitor treatment improved VCF optical signal in Anap labeled Ci-VSP and P2X2 receptor

To overcome the problems of small fluorescence changes and low incidence of successful detection of fluorescence changes, a small molecule kinase inhibitor, namely a Salt-inducible Kinase (SIK) Inhibitor (HG-9-91-01), was applied by injection into the oocytes, to decrease the intrinsic background fluorescence (Lee and Bezanilla, 2019). This inhibitor promotes UV-independent skin pigmentation, by increasing the production of melanin (Mujahid et al., 2017), resulting in a darker surface of the animal pole of the oocyte. As the intrinsic background fluorescence of the oocytes is decreased, the percentage of fluorescence change (∆F/F) is expected to increase.

Optimization of SIK inhibitor treatment in VCF experiments using Anap as fluorophore was achieved for the following conditions: (1) the concentration of SIK inhibitor giving the maximum decrease in intrinsic background fluorescence; (2) the location of the microinjection (nuclear or cytoplasmic) and the duration of incubation.

Voltage-sensing phosphatase (Ci-VSP) F401Anap (Sakata et al., 2016) was used as a positive control to obtain reproducible and distinct results (Figure 2A-E). Oocytes were pre-treated with two concentrations of SIK inhibitor (30 nM and 300 nM, reflecting the concentration of injected solution). 300 nM SIK application increased ∆F/F more than twice that of non-treated oocytes, whereas the application of 30 nM did not give a significant increase (∆F/F = 10.6% ± 2.5 at 500 nm [n = 6]; ∆F/F = 3.2% ± 0.8 [n = 8]; and ∆F/F = 6.4% ± 1.9 [n = 6], respectively, Figure 2A-D). This showed that 300 nM SIK inhibitor injected into the oocytes could decrease the intrinsic background fluorescence of the oocytes, thus increasing ∆F/F.

Figure 2 with 1 supplement see all

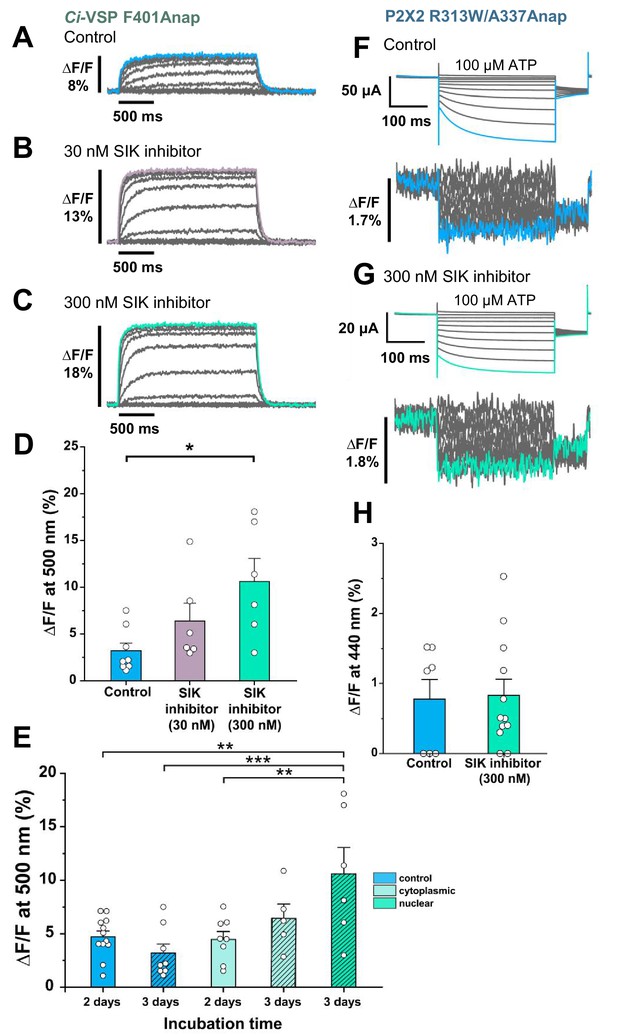

Effect of SIK inhibitor treatment in Anap-incorporated Ci-VSP and P2X2 receptor.

SIK inhibitor treatment improved the VCF optical signal. (A–C) Representative fluorescence signal of VCF recordings of Ci-VSP without SIK inhibitor treatment, with 30 nM, and with 300 nM SIK inhibitor treatment (∆F/F = 3.2% ± 0.8 at 500 nm [n = 8]; ∆F/F = 6.4% ± 1.9 [n = 6]; and ∆F/F = 10.6% ± 2.5 [n = 6], respectively). (D) Comparison of non-treated (control) group (n = 8), 30 nM (n = 6), and 300 nM SIK inhibitor application (n = 6); *p≤0.05, p=0.01639, one-way ANOVA with Tukey’s post-hoc test for 300 nM, compared to the control group. (E) Comparison of the incubation time and site of injection of SIK inhibitor treatment using 300 nM SIK inhibitor: control group, 2 days incubation (n = 12), control group, 3 days incubation (n = 8), SIK inhibitor treatment with cytoplasmic injection with 2 days incubation (n = 8), with cytoplasmic injection for 3 days (n = 5), with nuclear injection for 3 days (n = 6); **p≤0.01, ***p≤0.001, one-way ANOVA with Tukey’s post-hoc test. (F, G) Representative current traces and fluorescence signal of VCF recordings of P2X2 receptor (A337Anap/R313W) without SIK inhibitor treatment and with the application of 300 nM SIK inhibitor (∆F/F = 0.77% ± 0.3 at 440 nm [n = 7]; and ∆F/F = 0.83% ± 0.2 [n = 12], respectively). (H) A comparison of non-treated (control) group (n = 7) and 300 nM SIK inhibitor application (n = 12) (p=0.88107, two-sample t-test for 300 nM compared to the control group). All error bars are ± s.e.m. centered on the mean. Source data are provided in Figure 2—source data 1. Statistical analysis data are provided in Figure 2—source data 2, Figure 2—source data 3, and Figure 2—source data 4.

Figure 2—source data 1

Effect of SIK inhibitor treatment in Anap-incorporated Ci-VSP and P2X2 receptor.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig2-data1-v2.xlsx
Figure 2—source data 2

Statistical analysis to support graph in Figure 2D.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig2-data2-v2.pdf
Figure 2—source data 3

Statistical analysis to support graph in Figure 2E.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig2-data3-v2.pdf
Figure 2—source data 4

Statistical analysis to support graph in Figure 2H.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig2-data4-v2.pdf

Subsequently, a second series of optimization experiments was performed. In all of the following experiments, 300 nM SIK inhibitor was used. Control groups consisted of non-treated oocytes, which were incubated for either 2 or 3 days, resulting in ∆F/F = 4.7% ± 0.5 (n = 12) and ∆F/F = 3.2% ± 0.8 (n = 8), respectively.

The nuclear injection group, which was incubated for 3 days, had a larger ∆F/F than the other groups (∆F/F = 10.6% ± 2.5 at 500 nm; n = 6). The cytoplasmic injection groups, which were incubated for either 2 or 3 days, resulted in ∆F/F = 4.5% ± 0.7 (n = 8) and ∆F/F = 6.4% ± 1.3 (n = 5) respectively. These results suggest that the optimal conditions for SIK inhibitor treatment are nuclear injection with 300 nM SIK inhibitor and 3 days incubation (Figure 2E).

After the optimal concentration, injection method, and incubation period were determined for the Ci-VSP experiment, the SIK inhibitor was then applied to the P2X2 A337Anap/R313W mutant (Figure 2F,G). R313W is a mutation which decreases the basal current in the absence of ATP, and the details are described later in Figure 4 and Figure 4—figure supplement 1. 300 nM SIK inhibitor treatment did not make any significant difference, in terms of the percentage of the fluorescence change compared to the control group (∆F/F = 0.77% ± 0.3 at 440 nm [n = 7] and ∆F/F = 0.83% ± 0.2 at 440 nm [n = 12], respectively, Figure 2H). However, in the analysis of the incidence of detectable ∆F of Anap, the group treated with 300 nM SIK inhibitor showed a higher incidence than the control group (control = 57% [n = 7]; 300 nM SIK inhibitor application = 80% [n = 12]; Figure 2—figure supplement 1A, B). These results showed that in the case of P2X2, SIK inhibitor treatment improved the incidence of detectable ∆F/F. Therefore, we decided to use the SIK inhibitor in all of the following experiments.

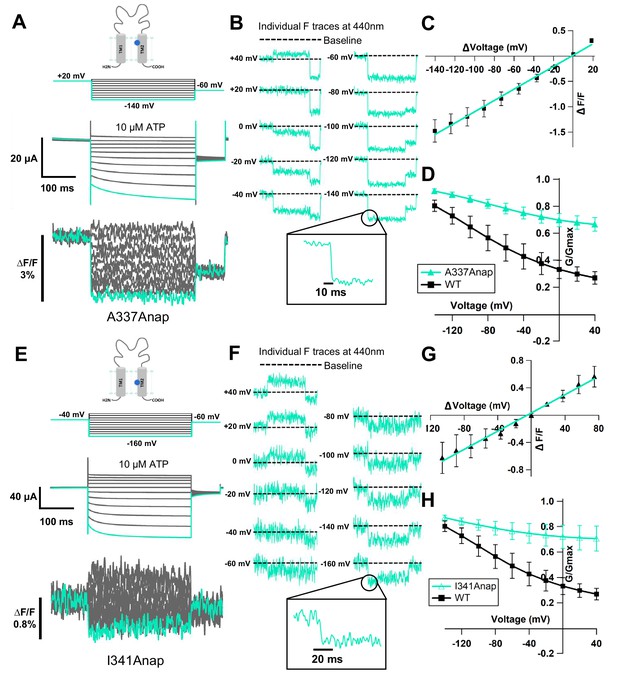

ATP- and voltage-evoked Anap fluorescence changes at A337 and I341 in TM2 exhibit fast kinetics and linear voltage dependence

Application of 300 nM SIK inhibitor increased the incidence of ∆F (68.8 ± 3.2% [n = 6–9] with inhibitor, vs. 14.3 ± 4.1% [n = 5–16] without inhibitor) in A337Anap, with an improved signal-to-noise ratio (∆F/F = 1.5% ± 0.2 at 440 nm [n = 8], Figure 3A). VCF recordings were performed by the application of 10 μM ATP and voltage step pulses from +40 mV to −140 mV, with a holding potential of +20 mV. Fluorescence intensity change occurred almost instantaneously, in less than 5 ms (Figure 3B). This showed that the kinetics of ∆F/F are very rapid and faster than the time course of voltage-dependent current activation. This also correlates well with the speed of the actual membrane potential change achieved by voltage clamp. Furthermore, the ∆F/F–V relationship of A337Anap showed a linear voltage dependence (y = 0.011x + 0.016; R² = 0.99 (n = 8), Figure 3C) in the voltage range used. These analyses of fluorescence changes at A337 indicated that the downward fluorescence change is not associated with protein conformational change. Rather, it is more likely related to an electrochromic effect.

Figure 3 with 1 supplement see all
Voltage-clamp fluorometry (VCF) of Anap-incorporated P2X2 receptor in the presence of 300 nM SIK inhibitor upon ATP and voltage stimuli.

The focused electric field converged at A337 and I341 in TM2, throughout P2X2 ATP- and voltage-dependent gating. (A) Representative current traces and fluorescence signal of VCF recordings at A337, with 300 nM SIK inhibitor treatment, in the presence of 10 µM ATP (∆F/F = 1.5% ± 0.2 at 440 nm; n = 8). (B) Individual fluorescence traces during each voltage step at 440 nm. Inset shows fluorescence changes exhibiting fast kinetics in ms range. (C) F-V relationship showed a linear voltage dependence. Each X-axis for F-V relationship is ∆V from the holding potential. (D) G-V relationship comparison between A337Anap (turquoise filled triangle) and wildtype (black filled square) for 10 µM ATP (n = 8). Normalization was done based on the maximum conductance in the same concentration of ATP (10 µM) for each construct. (E) Representative current traces and fluorescence signal of VCF recordings at I341, with 300 nM SIK inhibitor treatment, in the presence of 10 µM ATP (∆F/F = 0.6% ± 0.2 at 440 nm [n = 3]). (F) Individual fluorescence traces in each voltage step at 440 nm. Inset shows fluorescence changes also exhibiting fast kinetics in ms range. (G) F-V relationship showed a linear voltage dependence. Each X-axis for F-V relationship is ∆V from the holding potential. (H) G-V relationship comparison between I341Anap (turquoise open triangle) and wildtype (black filled square) for 10 µM ATP (n = 3). Normalization was done based on the maximum conductance in the same concentration of ATP (10 µM) for each construct. All error bars are ± s.e.m. centered on the mean. Source data are provided in Figure 3—source data 1.

Figure 3—source data 1

VCF of A337Anap and I341Anap in the presence of 300 nM SIK inhibitor upon ATP and voltage stimuli.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig3-data1-v2.xlsx

Electrochromic effect is a shift in the fluorophore emission spectrum due to the interaction between two components: the fluorophore electronic state and the local electric field (Bublitz and Boxer, 1997; Klymchenko and Demchenko, 2002; Dekel et al., 2012). It has two distinctive characteristics: (1) fast kinetics of fluorescent change (ΔFFast); (2) linear voltage dependence of the F-V relationship (Asamoah et al., 2003; Klymchenko et al., 2006). The electrochromic effect in some voltage-sensitive dyes is used to directly detect the change of membrane potential by attaching the dye to the cell membrane. If the fluorophore is directly attached in a site-specific manner within ion channels/receptors as shown by studies in the Shaker B K+ channel (Asamoah et al., 2003) and M2 muscarinic receptor (Dekel et al., 2012), the detection of electrochromic effect implies that there is a convergence of the electric field at the position where the fluorophore is attached. Thus, the observed fluorescence change at the position of A337 in the P2X2 receptor was explained to be due to the electrochromic effect, indicating that there is a focused electric field at A337 in the TM2 domain.

We noted that the G-V relationship for this mutant showed that a large fraction of the channel is already open, even at depolarized potentials, in 10 μM ATP, compared to wildtype (Figure 3D), because of the high density of the expressed channel, shown by a rather large current amplitude (>20 μA). A previous study showed that P2X2 channel properties are correlated with expression density (Fujiwara and Kubo, 2004). In the case of lower expression levels, A337Anap showed a wildtype-like phenotype. For the purpose of VCF experiments, however, a high expression level is needed to observe a detectable fluorescence change, and thus we needed to use oocytes with high expression, resulting in a lesser fraction of voltage-dependent activation. Nonetheless, we could still observe a weak voltage-dependent relaxation during hyperpolarization, and thus this fluorescence change still reflects an event occurring at or around the position of A337 when the receptor senses the change in membrane voltage.

Similarly, the application of 300 nM SIK inhibitor to I341Anap resulted in a clearer (∆F/F = 0.6% ± 0.2 at 440 nm [n = 3], Figure 3E) and more frequent Anap ∆F/F (38.1 ± 9.2%; n = 5–9), compared to that without SIK inhibitor application (16.02 ± 0.6%; n = 6–13) upon voltage step application in 10 µM ATP. The fluorescence intensity changes also occurred almost instantaneously, in less than 5 ms (Figure 3F). The ∆F/F–V relationship of I341Anap upon voltage step pulses in the presence of 10 μM of ATP, from +40 mV to −160 mV with a holding potential at −40 mV, also showed a linear voltage dependence (y = 0.007x + 0.03; R² = 0.99; n = 3, Figure 3G).

Thus, ∆F observed at the position of I341 in the TM2 domain also did not correlate with hyperpolarization-induced conformational change. The changes are likely to be due to a phenomenon similar to that observed at the position of A337, which is related to the electrochromic effect. The G-V relationship of this mutant in the presence of 10 μM ATP was not different from that of A337Anap, as shown in Figure 3H. Taking these results together, the observed fluorescence intensity changes at I341 and A337 in the TM2 domain are best explained by an electric field convergence close to both positions, which could be critical for the complex gating of the P2X2 receptor.

Since the Anap mutant scanning experiments were initially performed in the absence of an SIK inhibitor, there was a possibility that there were fluorescence changes which went undetected. Thus, we performed VCF recordings with SIK inhibitor treatment in some Anap mutants which had been screened before. The focus was on residues surrounding A337 and I341 in the TM1 and TM2 domains. In the re-screening experiments, we observed small ∆F at L334 and L338: L334Anap: ∆F/F = 0.38% ± 0.2 at 440 nm (n = 2), and L338Anap: ∆F/F = 0.26% ± 0.03 at 440 nm (n = 4), as shown in Figure 3—figure supplement 1. Moreover, the incidence of fluorescence change detection for L338Anap in three batches (20 cells in total) was 2/5, 0/5, and 2/10. For L334Anap it was 0/5, 0/10, and 2/6 in three batches (21 cells in total). These results suggest that the focused electric field might lie at TM2 from L334 down to I341, and that it is more strongly converged at A337 and I341, because the electrochromic signal at A337 and I341 was observed more frequently.

Fluorescence change of Anap at A337 upon voltage change was also observed in the absence of ATP and was [ATP]-dependent

To ensure that the fluorescence changes observed at A337 upon voltage change were not due to a change of ion flux, as in the case of the K2P K+ channel (Schewe et al., 2016), recording was performed in the absence of ATP. In the same cells, VCF recordings were performed by applying voltage steps in the absence of ATP and then in the presence of 10 μM ATP.

When the voltage steps were applied in the absence of ATP, fluorescence changes were observed (∆F/F = 1.9% ± 0.4 at 440 nm, n = 4, Figure 4A-C). The changes exhibited fast kinetics and a linear voltage dependence. ∆F/F in the absence of ATP was larger than that in the presence of 10 µM ATP (∆F/F = 0.7% ± 0.1 at 440 nm [n = 4] Figure 4A-C). However, the A337Anap mutant showed a high basal activity, even in the absence of ATP, when the expression level was high. As observed in the current traces in no ATP, some of the channels expressed were already open (Figure 4A). Thus, the ∆F in 0 ATP observed in the above experiments might just represent the ∆F in the open state. To record the ∆F in the closed state with little current in no ATP, an additional mutation was introduced, which suppresses the basal activity by stabilizing the closed state.

Figure 4 with 1 supplement see all

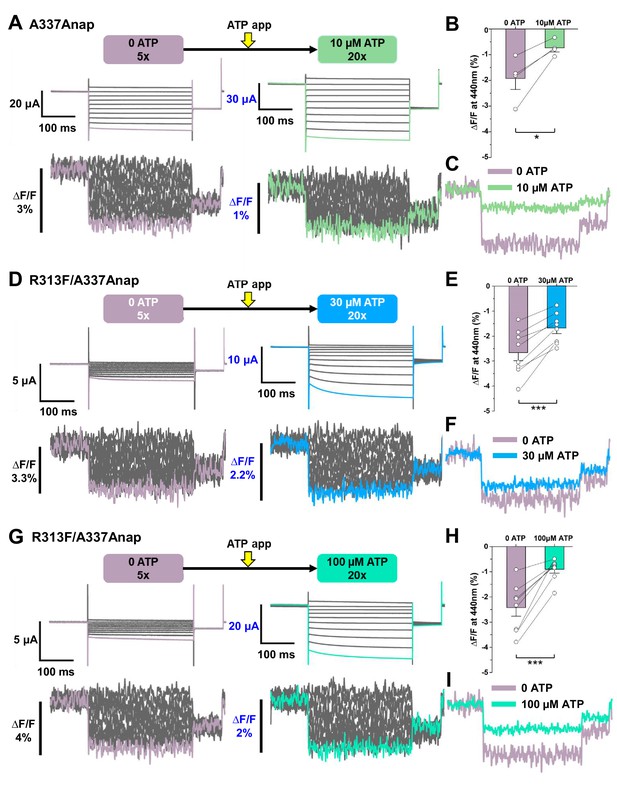

Voltage-clamp fluorometry (VCF) of Anap-labeled P2X2 at A337 in TM2 evoked by hyperpolarization in the absence and presence of ATP.

Anap fluorescence changes at A337 were observed even in the absence of ATP upon hyperpolarization. (A) Representative current traces and fluorescence signal of VCF recordings at A337 in the absence of ATP (∆F/F = 1.9% ± 0.4 at 440 nm (n = 4)) and in the presence of 10 µM ATP (∆F/F = 0.7% ± 0.1 at 440 nm (n = 4)), from the same cell. (B) Comparison of the fluorescence changes in the absence and in the presence of 10 µM ATP (*p≤0.05, p=0.02876, paired t-test; n = 4). (C) Superimposed fluorescence traces at −140 mV, in 0 ATP (light purple) and 10 µM ATP (light green), from the same cell. (D–I) An additional R313F mutation was introduced to lower the basal activity of A337Anap and stabilize the closed state. (D) Representative current traces and fluorescence signal of VCF recordings of A337/R313F in the absence of ATP (∆F/F = 2.6% ± 0.3 at 440 nm; n = 8) and in the presence of 30 µM ATP (∆F/F = 1.7% ± 0.2; n = 8) from the same cell. (E) Comparison of the fluorescence changes in the absence and in the presence of 30 µM ATP (***p≤0.001, p=0.00045, paired t-test; n = 8). (F) Superimposed fluorescence traces at −140 mV, in 0 ATP (light purple) and 30 µM ATP (blue), from the same cell. (G) Representative current traces and fluorescence signal of VCF recordings of A337/R313F in the absence of ATP (∆F/F = 2.4% ± 0.3 at 440 nm; n = 8) and in the presence of 100 µM ATP (∆F/F = 0.9% ± 0.1; n = 8). (H) Comparison of the fluorescence changes in the absence and in the presence of 100 µM ATP (***p≤0.001, p=0.0005, paired t-test; n = 8). (I) Superimposed fluorescence traces at −140 mV in 0 ATP (light purple) and 100 µM ATP (turquoise), from the same cell. All error bars are ± s.e.m. centered on the mean. Source data are provided in Figure 4—source data 1. Statistical analysis data are provided in Figure 4—source data 2, Figure 4—source data 3, and Figure 4—source data 4.

Figure 4—source data 1

VCF of Anap-labeled P2X2 at A337 evoked by hyperpolarization in the absence and presence of ATP.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig4-data1-v2.xlsx
Figure 4—source data 2

Statistical analysis to support graph in Figure 4B.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig4-data2-v2.pdf
Figure 4—source data 3

Statistical analysis to support graph in Figure 4E.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig4-data3-v2.pdf
Figure 4—source data 4

Statistical analysis to support graph in Figure 4H.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig4-data4-v2.pdf

The extracellular linker plays important roles in transmitting the signal from the ATP binding pocket (ECD domain) to the TM domains (Keceli and Kubo, 2014). It includes β−14, which directly links the ATP binding site with the TM2 domain. Mutation of the β−14 residue R313 to phenylalanine or tryptophan stabilized the closed state of the P2X2 receptor, as seen in the G-V relationship in 100 μM ATP (Figure 4—figure supplement 1A–D). This mutation was introduced into A337Anap (A337Anap/R313F or A337Anap/R313W) to determine whether the ∆F related to the focused electric field is present at A337, even when the channel is mostly closed in 0 ATP.

Results from VCF recording of both A337Anap/R313F (Figure 4D-I) and A337Anap/R313W (Figure 4—figure supplement 1F–K) confirmed that the focused electric field is present at A337 even when the channel is mostly closed. VCF recording in the absence of ATP for A337Anap/R313F showed a remarkable ∆F/F with mostly closed channels when voltage step pulses were applied (∆F/F = 2.6% ± 0.3 at 440 nm; n = 8; Figure 4D-F). 30 μM ATP application resulted in smaller ∆F/F than in 0 ATP (∆F/F = 1.7% ± 0.2 at 440 nm; n = 8; Figure 4D-F). These results confirmed that ∆F/F at the position of A337 is larger in the absence of ATP than in the presence of ATP. It was of interest to know whether or not the concentration of ATP affects ∆F/F at A337. Therefore, a higher concentration of ATP (100 μM) was used in a similar series of experiments. Fluorescence changes were again larger in the absence of ATP (∆F/F = 2.4% ± 0.3 at 440 nm; n = 8; Figure 4G-I) than in the presence of 100 μM ATP (∆F/F = 0.9% ± 0.1; n = 8; Figure 4G-I). ∆F/F was shown to become smaller with an increase in [ATP], by comparing ∆F/F in the presence of 30 μM and 100 μM ATP. Similar series of experiments were also performed using the A337Anap/R313W construct (Figure 4—figure supplement 1F–K), and similar phenotypes were observed.

Taken together, these results show that the ∆F/F at A337 is [ATP]-dependent and larger in the absence of ATP. The higher ∆F/F implies a stronger focused electric field in 0 ATP, but it is also possible that the difference comes from the difference in the environment of the fluorophore, as discussed later (Figure 6—figure supplement 1). In any case, it was shown that a ∆F/F and thus a focused electric field are present both in the absence and the presence of ATP.

Hyperpolarization-induced structural rearrangements were detected at and around A337 in TM2, upon the additional mutation of K308R

Upon ATP binding, the P2X receptor undergoes major structural rearrangements, which result in transitions from closed to open state, with remarkable alterations in three regions: the ATP binding site, the extracellular linker, which links ECD to TM domains, and the TM domains (Kawate et al., 2009; Hattori and Gouaux, 2012; Mansoor et al., 2016). There is a possibility that the P2X2 receptor could undergo relatively minor but important structural rearrangements in response to hyperpolarization of the membrane voltage, after the major structural rearrangements caused by the binding of ATP. A fraction of a slow ∆F and non-linear ∆F/F–V has not been detected so far. This might be due to suppression of voltage-dependent activation in high-expression oocytes, in which there is significant activity even at depolarized potentials (e.g., Figure 3D,H). Thus, an additional mutation which shows remarkable voltage-dependent activation, even in high expression conditions, is needed.

We then tested this possibility by introducing a K308R mutation into A337Anap. This charge-maintaining mutation, K308R, is shown to make the voltage-dependent activation more prominent, that is, it is least active at depolarized potentials, even in high-expression oocytes, and it also accelerates the activation kinetics of P2X2 upon voltage steps (Keceli and Kubo, 2009). K308 is a conserved residue located in the ATP binding site. It was shown to be important, not only for ATP binding (Ennion et al., 2000; Jiang et al., 2000; Roberts et al., 2006), but also for the conformational change associated with channel opening (Cao et al., 2007). If the voltage-dependent activation is more prominent, even in the high-expression cells for VCF experiments, there was a possibility that we might be able to detect ∆F associated with voltage-dependent gating.

VCF recording of K308R/A337Anap was performed in the presence of 300 µM ATP, while a voltage-step from +40 mV to −160 mV, with a holding potential of +20 mV, was applied. A high concentration of ATP was applied because K308R/A337Anap has a lower sensitivity to ATP. ATP-evoked current of K308/A337Anap was inhibited by both Suramin and PPADS, the P2X2 non-specific blockers, confirming that the current is indeed a P2X2 receptor current (Figure 5—figure supplement 1).

Hyperpolarization elicited fluorescence signals which consisted of two components, a very fast decrease (∆FFast/F) and a slow increase (∆FSlow/F) to steady state (∆FSteady-state/F) (Figure 5A,B). Plots of the F-V relationship at the end of the recording time interval (at the steady state) showed that F-V consisted of mixed components, a linear component and a non-linear component (Figure 5C). The presence of the two components suggests that they might result from two different mechanisms. The F-V relationship of ∆FFast/F showed a linear voltage dependence, which is similar to the F-V for A337Anap alone, which was generated from the electrochromic signal (Figure 3C, Figure 5D). In contrast, the F-V relationship of ∆FSlow/F showed a non-linear voltage dependence. The F-V and G-V relationships of the slow component overlap very well (Figure 5E), showing that the slow ∆F reflects the hyperpolarization-induced structural rearrangements that occur at and around the position of A337.

Figure 5 with 2 supplements see all

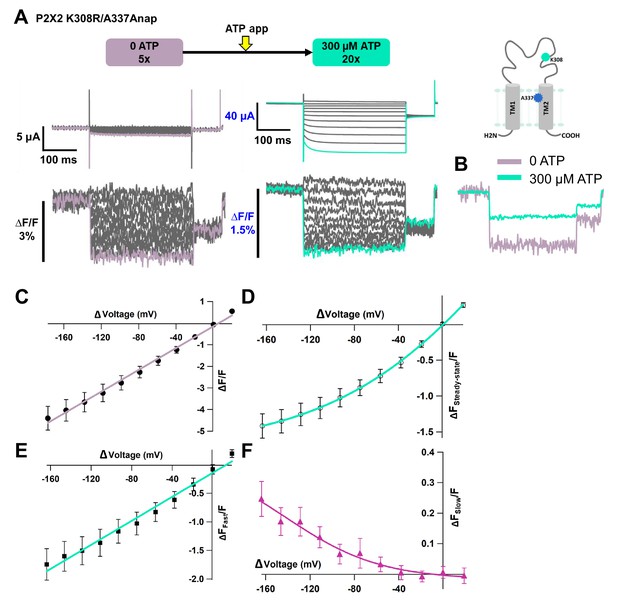

Voltage-clamp fluorometry (VCF) of Anap-labeled P2X2 at A337 in TM2 with the additional mutation of K308R evoked by hyperpolarization in the presence of ATP.

(A) Representative current traces and fluorescence signal of VCF recordings of K308R/A337Anap with 300 nM SIK inhibitor treatment in the presence of 300 µM ATP, from +40 mV to −160 mV with a holding potential of +20 mV (∆FSteady-state/F = 3.4% ± 0.3 at 440 nm, n = 8). (B) Individual fluorescence traces at each voltage step. Inset shows that the fluorescence signal of K308R/A337Anap consists of two components, instantaneous downward change (∆FFast/F) and slow upward change (∆FSlow/F). (C) F-V relationship of the mixed component (∆FSteady-state/F) was calculated from the last 50 ms of fluorescence signal. Component of ∆FSteady-state/F is shown in inset of (B). FSteady-state-V relationship shows that it consists of only a linear component at depolarized potentials, and there are mixed components at hyperpolarized potentials. (D) FFast-V relationship was taken from the first 5 ms of the fluorescence signal. FFast-V relationship showed almost linear voltage dependence (∆FFast/F = 3.9% ± 0.4 at 440 nm; n = 8). (E) Comparison of FSlow-V and G-V relationships. Purple filled triangle trace shows FSlow-V relationship extracted from the fluorescence traces depicted in inset (B), as shown by purple arrow, from the equation ∆Fsteady-state/F = ∆Ffast/F + ∆Fslow/F. Normalization was based on the maximum ∆Fslow/F (at −160 mV). Black filled square trace shows G-V relationship in the presence of 300 µM ATP. Normalization was based on the maximum conductance in the same concentration of ATP (300 µM). (F) Representative current traces and fluorescence signal of VCF recordings of K308R/A337Anap with 300 nM SIK inhibitor treatment, in the presence of 300 µM ATP, at more depolarized potentials from up to +80 mV to −160 mV, with a holding potential of +20 mV (∆FSteady-state/F = 4.1% ± 0.5 at 440 nm; n = 5). (G) Individual fluorescence traces at each depolarized voltage step and some hyperpolarized voltage steps. (H) FSteady-state-V relationship further confirms that it consists of a linear component and a slow component generated only upon hyperpolarization. (I) FFast-V relationship shows almost linear voltage dependence (∆FFast/F = 4.7% ± 0.5 at 440 nm; n = 5). (J) Comparison of FSlow-V and G-V relationships. Purple open triangle trace shows FSlow-V relationship extracted from the fluorescence traces depicted in (F). Normalization was based on the maximum ∆Fslow/F (at −160 mV). Black filled square trace shows G-V relationship in the presence of 300 µM ATP. Normalization was based on the maximum conductance in the same concentration of ATP (300 µM). All error bars are ± s.e.m. centered on the mean. (K) Side view structure of the position of K308 and A337 in the ATP-bound open state. Source data are provided in Figure 5—source data 1.

Figure 5—source data 1

VCF of K308R/A337Anap evoked by hyperpolarization in the presence of ATP.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig5-data1-v2.xlsx

It was of interest to see the correlation between [ATP] and the ∆FSlow/F in this study. We performed additional VCF recordings of K308R/A337Anap in the presence of 30 µM ATP (Figure 5—figure supplement 2A). In the presence of 30 µM ATP, hyperpolarization again elicited fluorescence signals which consist of two components, a very fast decrease (∆FFast/F) and a slow increase (∆FSlow/F) to steady state (∆FSteady-state/F) (Figure 5—figure supplement 2A). Plots of the F-V relationship at the end of the recording time interval (at the steady state) again showed that F-V consists of mixed components, a linear component, and a non-linear component (Figure 5—figure supplement 2B). The F-V relationship of ∆FFast/F again showed a linear voltage dependence (Figure 5—figure supplement 2C), and the F-V relationship of ∆FSlow/F showed a non-linear voltage dependence (Figure 5—figure supplement 2D), similar to the case in 300 µM ATP (Figure 5).

We were curious to know whether the time constant of ∆FSlow/F varied with [ATP]. We then analyzed the time constant of activation of the ∆FSlow/F in 30 µM ATP and 300 µM ATP. However, the analysis of the activation time constant of ∆FSlow could not be performed reliably, due to a small ∆FSlow component and noise which made it difficult to fit an exponential function. Nevertheless, the results of the analysis are shown in Figure 5—figure supplement 2E–2G. Current traces could be well fitted with a single exponential function (Figure 5—figure supplement 2E–F). However, as to the fluorescence traces, as shown in Figure 5—figure supplement 2E–F, ∆FSlow could be fitted at −160 mV but not reliably at −140 mV or −120 mV. The analysis for −160 mV showed that the time constant of the voltage-dependent ∆F varied with [ATP]. The time constant of voltage-dependent ∆F was significantly larger in the lower [ATP], as depicted in Figure 5—figure supplement 2G.

Next, we examined whether ∆FSlow is indeed generated only at hyperpolarized potentials, to obtain evidence of voltage-dependent structural rearrangements during P2X2 receptor complex gating. We performed VCF recordings by applying step pulses from +80 mV to −160 mV, with a holding potential of +20 mV. The F-V relationship in the steady state showed a mixed signal. This set of recordings showed that at more depolarized potentials the fluorescence signal consists only of a linear component (Figure 5F-H). Separation of the mixed fluorescence signal also resulted in a rapidly changing linear F-V for ∆FFast/F (Figure 5I) and a non-linear F-V for ∆FSlow/F (Figure 5J), with no slow component from +80 mV to 0 mV.

The results further confirm that the slow rise in K308R/A337Anap fluorescence signal reflects structural rearrangements at and around the position of A337 in response to changes in membrane voltage.

Fluorescence signal changes at A337Anap/K308R exhibited only the fast component in the absence of ATP and showed two components in the presence of ATP

We also examined whether the non-linear component of the K308R/A337Anap fluorescence signal was abolished in the absence of ATP. We performed VCF recordings of the same cell, by applying voltage steps in the absence of ATP and in the presence of 300 µM ATP. In the absence of ATP, the fluorescence signal consisted of only one component, the fast component (∆FFast/F, Figure 6A,B). The F-V relationship for ∆FFast/F was linear and is thought to be derived from the electrochromic phenomenon, showing that A337 is located in the focused electric field (Figure 6C).

Figure 6 with 1 supplement see all

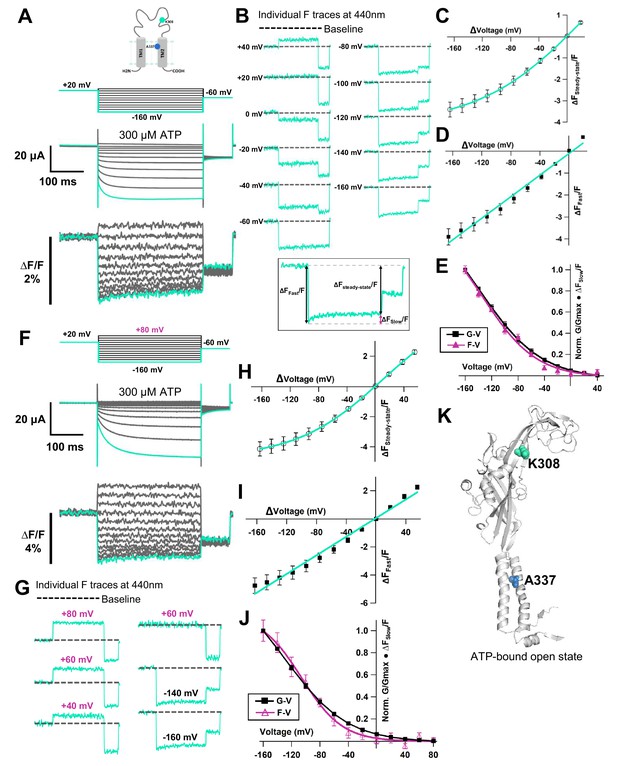

Voltage-clamp fluorometry (VCF) of Anap-labeled P2X2 at A337 in TM2 with the additional mutation of K308R, evoked by hyperpolarization in the absence and presence of ATP.

Fluorescence signal changes at K308R/A337Anap exhibited only a fast component in the absence of ATP and consisted of two components in the presence of ATP. (A) Representative current traces and fluorescence signal of VCF recordings of K308R/A337Anap in the absence of ATP (∆F/F = 4.4% ± 0.5 at 440 nm; n = 6) and in the presence of 300 µM ATP (∆FSteady-state/F = 1.4% ± 0.2; n = 6), from the same cell. (B) Superimposed fluorescence traces at −160 mV in 0 ATP (light purple) and 300 µM (turquoise). (C) F-V relationship, in the absence of ATP, taken from the last 100 ms of the fluorescence signals, shows a linear voltage dependence (R² = 0.99); therefore, it has only the fast component (∆FFast/F). (D) F-V relationship, in the presence of 300 µM ATP, taken from the last 50 ms (∆FSteady-state/F) of the fluorescence signals shows mixed components. (E–F) F-V relationship from two separate components of the fluorescence signal change, in the presence of 300 µM ATP. (E) FFast-V relationship (∆FFast/F = 1.7 ± 0.3 at 440 nm; n = 6) shows almost linear voltage dependence (R² = 0.98). (F) FSlow-V relationship (∆FSlow/F = 0.25 ± 0.05 at 440 nm; n = 6). The X-axis for the F-V relationship is ∆V from the holding potential. All error bars are ± s.e.m. centered on the mean. Source data are provided in Figure 6—source data 1.

Figure 6—source data 1

VCF of K308R/A337Anap evoked by hyperpolarization in the absence and presence of ATP.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig6-data1-v2.xlsx

Subsequently, when the voltage step pulses were applied in the presence of 300 µM ATP, the slow component could be observed (Figure 6A,B,D). The F-V relationship in the steady state showed a mixture of the two components (Figure 6D). Separation of this mixed component resulted in a linear F-V for the fast component (Figure 6E) and a non-linear F-V for the slow component (Figure 6F), which is consistent with the previous experiments. Taken together, these results further show that the slow component of the fluorescence intensity changes reflects structural rearrangements of the P2X2 receptor, which depend on both [ATP] and voltage.

Additionally, results consistent with Figure 4E,F,H, and I were also obtained in terms of the fluorescence intensity change of the fast component. ∆FFast/F in the absence of ATP was larger than in the presence of ATP (∆FFast/F = 4.4% ± 0.5 at 440 nm [n = 6] and ∆FFast/F = 1.7% ± 0.3 at 440 nm [n = 6]; Figure 6B). However, there was a concern that F itself significantly changed due to a difference in the environment surrounding A337Anap in the closed and open states. We performed experiments to address this by measuring the absolute F (output of the photomultiplier tube) in the absence and in the presence of ATP. Using the K308R/A337Anap construct, each recording was repeated five times, for averaging, in the same cell as shown in Figure 6—figure supplement 1. There was a slight reduction, not increase, in the F in the presence of ATP, which could be due to fluorescence bleaching (Figure 6—figure supplement 1A,B). Thus, a larger ∆F/F in the absence of ATP is thought not to be due to less F, and we concluded that ∆F/F was larger in the absence of ATP. The noise level is similar (Figure 6—figure supplement 1C), showing that the apparent larger noise level in 0 ATP (Figure 4C, F, and I; Figure 4—figure supplement 1H,K; Figure 6B) is not due to smaller F but due to a lower number of averaged traces.

A337 in TM2 might interact with F44 in TM1 to stabilize the open state of the P2X2 receptor

The electric field convergence at A337 and I341 and the voltage-dependent conformational changes at or around A337 could provide us with a clue to understand the mechanism of the complex gating of the P2X2 receptor. The existence of a strong electric field supports the possible location of a key residue which is responsible for voltage sensing (Asamoah et al., 2003; Dekel et al., 2012). Thus, various single amino acid mutations were introduced at the position of A337, and their electrophysiological properties were analyzed, focusing on the [ATP]- and voltage-dependent gating properties, to see whether or not this amino acid plays an important role in the P2X2 complex gating (Figure 7A,B).

Figure 7 with 1 supplement see all

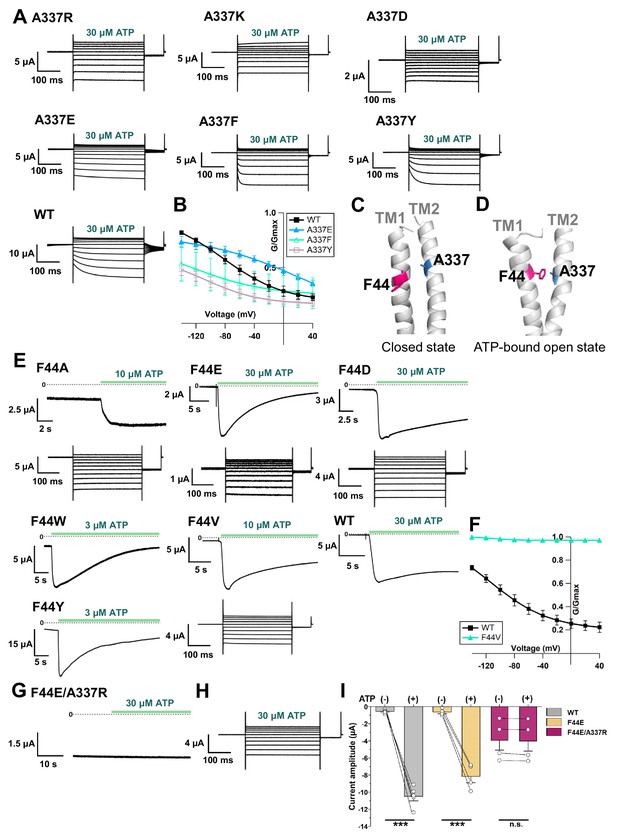

Effects of mutations at A337 in TM2 and F44 in TM1 on P2X2 receptor ATP- and voltage-dependent gating.

(A) Representative current traces of single amino acid mutants at the position of A337 in the presence of 30 µM ATP, in response to voltage step pulses from +40 mV to −140 mV, with a holding potential of −40 mV (A337R, A337K, A337D, A337E, A337F, A337Y, and WT, respectively). (B) Comparison of G-V relationships between WT (black filled square), A337E (blue filled triangle), A337F (turquoise open triangle), and A337Y (purple open square) for 30 µM ATP (n = 3), from tail current analysis at −60 mV. Normalization was based on the maximum conductance in the highest [ATP] (300 μM) for each construct. (C, D) Side view structure of the position of F44 (magenta) and A337 (blue) in the closed (C) and ATP-bound open (D) state, respectively. (E) Representative current traces of single amino acid mutants at the position of F44 upon application of various [ATP] (F44A, F44W, F44Y, F44E, F44D, and WT, respectively; n = 3–6 for each mutant). (F) G-V relationship comparison between WT (black filled square) and F44V (turquoise filled triangle) for 10 µM ATP (n = 3), showing that this mutant was equally active at all recorded voltages and was far less sensitive to voltage than wildtype. Normalization was based on the maximum conductance in the highest [ATP] (300 μM) for each construct. (G, H) Representative current traces of F44E/A337R upon ATP (G) and voltage (H) application. (I) Comparison of current amplitude of WT, F44E, and F44E/A337R before and after ATP application (***p≤0.001, p=0.00007 for WT, and p=0.00095 for F44E, paired t-test [n = 4–5]). All error bars are ± s.e.m. centered on the mean. Source data are provided in Figure 7—source data 1. Statistical analysis data are provided in Figure 7—source data 2.

Figure 7—source data 1

Effects of mutations at A337 in TM2 and F44 in TM1 on P2X2 receptor ATP- and voltage-dependent gating.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig7-data1-v2.xlsx
Figure 7—source data 2

Statistical analysis to support graph in Figure 7I.

https://cdn.elifesciences.org/articles/65822/elife-65822-fig7-data2-v2.pdf

Mutations to A337R, A337K, and A337D had severe effects. When the voltage step pulses were applied in 30 μM ATP, these mutants almost lacked voltage sensitivity. A337E, A337Y, and A337F showed voltage sensitivity with various activation kinetics. The most striking changes were observed in A337Y and A337F. The activation evoked by a voltage step was clearly different from wildtype, whereas the A337E mutation had a less severe effect (Figure 7A). G-V relationships in 30 μM ATP for mutants and wildtype were analyzed (Figure 7B). Normalization was based on the maximum conductance at the highest ATP concentration (300 μM) for each construct. Here we could also see that A337Y and A337F preferred to stay in the closed state. Thus, the alteration of activation kinetics and voltage dependence by mutation of A337 showed that this position is critical for the P2X2 receptor complex gating.

Next, we aimed to identify the counterpart in the TM1 domain with which A337 might have an interaction during complex gating. Based on the crystal structure data of hP2X3 in the closed and ATP-bound open states (PDB ID: 5SVJ, 5SVK, respectively) (Mansoor et al., 2016), homology modeling of rP2X2 showed that F44 in the TM1 domain rotates and moves towards A337 upon ATP binding (Figure 7C,D). Various single amino acid mutations were then introduced at F44, and the [ATP]- and voltage-dependent gating was analyzed (Figure 7E,F).

The F44A mutation strikingly changed the gating. It showed a relatively high basal current in the absence of ATP and further responded to ATP application. Voltage-dependent gating was also changed, as seen in the lack of tail current, showing that this mutant might have constitutive activity with rectified permeation properties. Mutation to positively charged residues (F44R, F44K) resulted in a non-functional channel and/or a very low expression level, as the recording on day four did not evoke any response to the highest concentration of ATP used in this study (300 μM). Mutation to negatively charged residues (F44E, F44D) and aromatic residues (F44Y, F44W) remarkably changed the ATP-evoked response (Figure 7E). All four mutants still opened upon the application of ATP, but current decay in the continuous presence of ATP appeared to be faster than wildtype.

F44 is conserved only in P2X2 and P2X3, within the P2X family. Other subtypes of P2X receptor, such as P2X1, P2X4, P2X6, and P2X7, except P2X5, have valine at the corresponding position (Kawate et al., 2009). Thus, the F44V mutation was also introduced. 10 μM of ATP could activate F44V but resulted in faster current decay than wildtype.

Voltage step pulses were applied during the course of current decay, because there was no clear steady state (Figure 7E). Nonetheless, the effect of the mutation at F44V on the voltage-dependent gating could still be observed. The G-V relationship of F44V in 10 μM ATP showed that this mutant was far less sensitive to voltage than wildtype (Figure 7F). Taken together, the results of the mutations introduced at position F44 showed that this residue is critical for the proper ATP- and voltage-dependent gating of the P2X2 receptor.

Additionally, as the single amino acid mutations at both A337 and F44 altered the gating of P2X2, it was of interest to determine whether the introduction of swapped mutations into A337/F44 would rescue the wildtype phenotype. The phenotype of F44A/A337F was similar to F44A, and the wildtype phenotype was not rescued (Figure 7—figure supplement 1). It is possible that an interaction between A337 and F44 could not be properly formed in the swapped mutant.

Next, an artificial electrostatic bridge was introduced between A337 and F44 to prove that the interaction between the two residues is critical in the ATP-bound open state. Various paired electrostatically charged residues were introduced into A337 and F44, in order to see if the artificial electrostatic bridge could be formed. The F44E/A337R pair showed constitutive activity. This double mutant was already open before ATP application and did not show any response to ATP (Figure 7G). When voltage step pulses were applied, this mutant lacked sensitivity to voltage, with a rectified permeation property, as seen by the total lack of tail currents (Figure 7H). Additionally, comparison of the current amplitude before and after ATP application showed that F44E/A337R was already open before ATP application (Figure 7I). The results showed that A337 in the TM2 domain might interact with F44 in TM1 to stabilize the open state of the P2X2 receptor.

Based on the results from VCF recording, mutagenesis experiments, and the homology modeling of rP2X2 in the open state upon ATP binding, it was shown that F44 moves into close proximity to the converged electric field at A337 and I341 (Figure 8A,B). In the presence of ATP, voltage-dependent conformational changes occur, possibly at or around the position of A337 and F44, giving influence to the interaction between A337 and F44, which is critical for stabilizing the open state. Results of this study show that the origin of the voltage-dependent gating of P2X2 in the presence of ATP is possibly the voltage dependence of the interaction between A337 and F44 within the converged electric field (Figure 8).

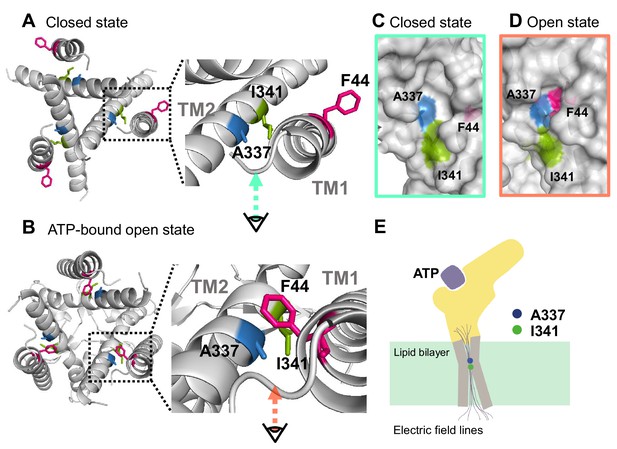

Proposed initiation mechanisms of P2X2 receptor complex gating.

(A, B) Top view structure of the P2X2 receptor in the closed (A) and ATP-bound open state (B). Depicted are the proposed initiation mechanisms of P2X2 receptor complex gating as follows. (1) The electric convergence at A337 and I341; (2) F44 moves toward A337 in the TM2 domain upon ATP binding; (3) hyperpolarization-induced structural rearrangements around A337 in TM2; (4) interaction between A337 and F44 in the ATP-bound open state is thought to be under the influence of the converged electric field. (C, D) Side view of the surface representation of the crevices in the converged electric field in the closed state (C) and ATP-bound open state (D). (E) A schematic illustration of the focused electric field at A337 and I341. The ion permeation pathway is not depicted in this scheme.

Discussion

The present study aims at defining the roles of the TM domains of the P2X2 receptor in complex gating by [ATP] and voltage, using VCF with a genetically incorporated fUAA probe (Anap) and mutagenesis. The following findings were obtained.

Detection of fast F changes with a linear voltage dependence at A337 and I341

We analyzed 96 mutants by VCF and detected a voltage-dependent ∆FFast/F at A337 and I341 in TM2. It was very fast and showed a linear voltage dependence within the voltage range under study. The change could be well interpreted to be due to an electrochromic effect, indicating that there is an electric field convergence at both positions, which are located adjacent to each other.

An electrochromic signal is an intrinsic property exhibited by voltage-sensitive fluorescent dyes or electrochromic probes to directly detect transmembrane potentials (Loew, 1982; Zhang et al., 1998). By standard use of electrochromic probes in a lipid bilayer, it is difficult to detect the electrical potential that directly acts on the voltage-sensing machinery of membrane proteins (Asamoah et al., 2003). This is because the local electric field at a certain position in the lipid bilayer is not steep enough. On the other hand, previous VCF studies on the Shaker K+ channel, using modified electrochromic probes (Asamoah et al., 2003), and on the M2 muscarinic receptor, using TMRM (Dekel et al., 2012), showed that an electrochromic signal could be observed when the fluorophore is directly attached to a specific position within the ion channel/receptor. These studies stated that this phenomenon did not report conformational changes of the protein at the site of fluorophore attachment, but rather implied that there is an electric field convergence if the electrochromic signal is observed only at positions adjacent to each other (Asamoah et al., 2003; Dekel et al., 2012). This observed electrochromic signal might indicate the possible location of a voltage sensor (Asamoah et al., 2003; Dekel et al., 2012). Further studies are certainly required to test this possibility.

An almost linear F-V relationship which might originate from the electrochromic signal was also reported from VCF studies in a canonical VSD-containing membrane protein called hTMEM266, labeled with MTS-TAMRA. The observed ∆FFast/F was, however, explained rather differently. Even though the ∆FFast/F was observed at most of the substituted positions located in the S3-S4 linker and the top of the S4 segment, it was stated that ∆FFast/F was not due to a direct electrochromic effect but instead was associated with rapid voltage-dependent conformational changes on a µs time scale (Papp et al., 2019). In the case of hTMEM266, it is difficult to surmise that the fast change detected at many positions is due to electrochromic effect, because it suggests an unlikely possibility that the electric field is converged at various positions. Conversely, in the P2X2 receptor, there were only two adjacent positions which exclusively showed clear ∆FFast/F and a linear F-V relationship.

In the hTMEM266 study, it was also a concern whether TAMRA-MTS could report an electrochromic signal, because there were not any previous findings to support this case. There were also no reports of electrochromic signals recorded using Anap as fluorophore. Anap has only been reported as an environmental sensitive fluorophore (Lee et al., 2009; Chatterjee et al., 2013). There are no reports that Anap is an electrochromic fluorophore, unlike the case of the modified fluorophore used in Shaker Kv studies, which has been reported to have electrochromic properties (Zhang et al., 1998; Asamoah et al., 2003). On the other hand, studies on the M2 muscarinic receptor did not discuss TMRM fluorophore properties, but still concluded that the observed fast F change with linear F-V originated from the electrochromic signal (Dekel et al., 2012). Even though other possibilities still remain, the most straightforward explanation to interpret the results observed in this study is that the very fast and linearly voltage-dependent fluorescence changes of Anap at A337 and I341 are associated not with the conformational changes of the P2X2 protein but presumably with the electrochromic signal. Consequently, the results show that there is an electric field convergence at these positions, which could give us a clue about the possible location of the voltage sensor in the P2X2 receptor.

We observed that ∆FFast/F changed with voltage in both the closed and ATP bound-open states, implying the presence of the focused electric field in both states at the position of A337. ∆FFast/F was larger in the absence than in the presence of ATP. One simple interpretation is that the focused electric field is stronger in the absence of ATP. However, as the environment of the fluorophore is different in the absence and presence of ATP, due to the difference in the crevice shape (Figure 8C,D), it is not possible to directly compare the strength of the focused electric field in the two states.

Some Cys accessibility studies were performed on the P2X2 receptor in the TM2 domain, to analyze the ATP-evoked gating mechanism (Li et al., 2008; Kracun et al., 2010; Li et al., 2010). A337 Cys mutants were first reported to be not modified by MTSET both in the presence or absence of ATP, indicating that this residue is not involved either in the pore lining region in the open state or in the gate of P2X2, unlike I341 Cys mutants, which were modified by MTSET (Li et al., 2008). Meanwhile in another study using Ag+, a smaller thiol-reactive ion with higher accessibility, A337C was modified both in the absence and presence of ATP, as well as I341C (Li et al., 2010). These results suggest that a narrow water phase penetrates down to these positions, which is consistent with the results in this study that there is a focused electric field at the position of A337 and I341.

Detection of slow F change with non-linear voltage dependence at A337 of K308R mutant

We obtained data supporting voltage-dependent conformational rearrangements occurring at or around the position of A337, by analyzing the mixed Anap fluorescence signal changes, which contain both ∆FFast/F and ∆FSlow/F, in the presence of an additional mutation of K308R in A337Anap. K308 is located in the ATP binding site and was reported to be important not only for ATP binding but also for the gating of the P2X2 receptor (Ennion et al., 2000; Jiang et al., 2000; Roberts et al., 2006; Cao et al., 2007). In VCF analysis, a high expression level is needed to detect ∆F successfully, because of the background fluorescence. However, high expression makes the P2X2 channel activate even in the absence of ATP and also even at depolarized potentials, that is, the G-V relationship is shifted to a depolarized potential, which makes the voltage-dependent activation upon hyperpolarization unclear. To overcome this problem, we introduced the K308R mutation, which shifts the G-V relationship in the hyperpolarized direction, with much reduced activity at depolarized potentials (Keceli and Kubo, 2009). By introducing the K308R mutation, we could observe voltage-dependent gating better and succeeded in recording the slow and voltage-dependent ∆F at A337 (Figure 5).

In addition, the ∆FSlow component was observed only at hyperpolarized potentials and in the presence of ATP (Figure 5F-J; Figure 6). Also, the FSlow-V and G-V overlapped well, showing that ∆FSlow reflects the hyperpolarization-induced structural rearrangements around the position of A337 (Figure 5E; Figure 5J). A337 in TM2 is indeed in the converged electric field, as shown by the linear F-V relationship of the ∆FFast component (Figure 5D). It is possible that the voltage-dependent ∆FSlow observed at A337 might not directly reflect the presumably very fast movement of the ‘voltage-sensor’ in response to the change in membrane voltage but might report the secondary structural rearrangements (Figure 5A,F, Figure 5—figure supplement 2, Figure 6A).

The electric field convergence takes place at residues located in TM2, as shown by the observed Anap fluorescence changes at A337 and I341 (Figure 3). Minor changes were also observed at L334 and L338 by follow-up experiments with SIK inhibitor, after the initial screening (Figure 3—figure supplement 1). Based on these results, the most frequently observed and the largest electrochromic signal was from A337. Voltage-dependent structural changes were also detected at or around A337. Although a possibility still remains that other residues are also involved but the changes were undetected due to technical limitations, all the results so far support the interpretation that the main focus for the voltage-sensing mechanism in the P2X2 receptor lies at or around A337.

Interaction between A337 in TM2 and F44 in TM1 in the converged electric field

The specific function of each transmembrane domain of the P2X receptor had been defined before the crystal structure was solved but the information as to the role of each TM in P2X2 voltage-dependent gating is limited. TM1 is shown to play a role in the binding-gating process, as mutations in this region alter the agonist selectivity and sensitivity of channel gating (Haines et al., 2001; Li et al., 2004; Stelmashenko et al., 2014). In contrast, TM2 plays an essential role in permeation (Nakazawa et al., 1998; Khakh and Egan, 2005) and gating (Li et al., 2008).

Mutations of A337 in the present study suggested that this position is critical for complex gating, as mutation to A337F and A337Y altered the channel gating as well as the activation kinetics upon the application of ATP and voltage (Figure 7A,B). The counterpart for A337 is most likely the F44 residue in TM1. Based on the homology modeling of P2X2, in the ATP-bound open state, F44 rotates and moves toward TM2, specifically into the proximity of A337 (Figure 7C,D). Mutagenesis at the position of F44 showed the importance of F44 to maintaining the open state in the presence of ATP (Figure 7E,F). Taken together, the results raised the possibility that F44 serves as a voltage sensor which has quadrupole moment due to its benzene ring (Dougherty, 1996). The aromatic side chain of F44 could have a permanent and non-spherical charge distribution (Dougherty, 1996) that is expected to respond to voltage changes in the converged electric field.

The artificial electrostatic bridge in the F44E/A337R mutant (Figure 7G-I) induced constitutive activity in the absence of ATP and at all recorded voltages, confirming the importance of the interaction for the maintenance of the activated state. As F44 possibly serves as the voltage sensor, this interaction, which takes place in the converged electric field, may be influenced by the change in membrane voltage. The structural rearrangement at F44 is of very high interest, but F44Anap was not functional, further showing the critical role of F44.

There are several types of voltage-sensing mechanism in membrane proteins (Bezanilla, 2008): (1) charged residues, as in the case of canonical voltage-gated ion channels (Jiang et al., 2003b; Swartz, 2008), (2) side-chains that have an intrinsic dipole moment, such as Tyr, as in the case of the M2 muscarinic receptor (Ben-Chaim et al., 2006; Navarro-Polanco et al., 2011; Dekel et al., 2012; Barchad-Avitzur et al., 2016), (3) the α-helix, with its intrinsic dipole moment, and (4) cavities within the protein structure, filled with free ions.

Based on our results, the interaction between A337 and F44 in the ATP-bound open state is under the influence of the converged electric field (Figure 8A-E), and the results of mutagenesis studies (Figure 7E,F) suggest that F44 might serve as a voltage-sensor due to its intrinsic quadrupole. The results also clearly demonstrate that there are voltage-dependent structural rearrangements in the proximity of A337 in TM2.

Our interpretation, based on this study, is that F44 possibly has a two-step voltage-dependent rearrangement, after moving into the proximity of A337 upon ATP application. (1) F44 quickly orients to A337 in the open state, which is stabilized better upon hyperpolarization. (2) The stabilization upon hyperpolarization, as the consequence of F44 voltage sensing, results in secondary structural rearrangements. The slow kinetics of fluorescence signal change at A337 (Figure 5, Figure 5—figure supplement 2, Figure 6) might be the result of the second step of the voltage sensing mechanism by F44. Further analysis of the structural dynamics at the position of F44 will help to elucidate the detailed mechanism of the complex gating of the P2X2 receptor.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Rattus norvegicus)Rattus norvegicus P2X2Brake et al., 1994
Gene (Ciona intestinalis)Ciona intestinalis voltage-sensing phosphatase (Ci-VSP)Sakata et al., 2016
Strain, strain background (Escherichia coli)XL1-BlueAgilent Technologies
Strain, strain background (Escherichia coli)TG1Clontech
Recombinant DNA reagentpAnap (plasmid)AddgenePlasmid #48696cDNA encoding the tRNA synthetase/Anap-CUA
Commercial assay or kitQuikChange II site-directed mutagenesisAgilent Technologies200524
Commercial assay or kitmMESSAGE T7 RNA transcription kitThermo Fisher ScientificAM1344
Commercial assay or kitmMESSAGE SP6 RNA transcription kitThermo Fisher ScientificAM1340
Chemical compound, drug0.15% tricaineSigma-Aldrich
Chemical compound, drugCollagenase type 1Sigma-Aldrich
Chemical compound, drugATP disodium saltSigma-Aldrich34369-07-8
Chemical compound, drugAnap sodium saltFutureChem ChemicalsFC-8101
Chemical compound, drugHG 9-91−01/SIK inhibitorMedChem Express1456858-58-4
Chemical compound, drugSuramin sodium saltSigma-Aldrich129-46-4
Chemical compound, drugPPADS tetrasodium saltSigma-AldrichP178
Software, algorithmIgor Pro 5.01WavemetricsRRID:SCR_000325
Software, algorithmPyMOL Molecular Graphics System ver. 2.3.0Schrodinger LLCRRID:SCR_000305
Software, algorithmOriginProOriginLabRRID:SCR_014212
Software, algorithmGraphPad Prism 9GraphPad Software, Inc.RRID:SCR_002798
Software, algorithmSWISS-MODELArnold et al., 2006; Biasini et al., 2014RRID:SCR_018123
Software, algorithmProtter protein visualizationOmasits et al., 2014https://wlab.ethz.ch/protter/start/
Software, algorithmBioRenderBioRender.comRRID:SCR_018361Figure 1A created with BioRender

Ethical approval

Request a detailed protocol

All animal experiments were approved by the Animal Care Committee of the National Institutes of Natural Sciences (NINS, Japan) and performed obeying its guidelines.

Molecular biology

Request a detailed protocol

Wild type (WT) Rattus norvegicus P2X2 (rP2X2) receptor cDNA (Brake et al., 1994) was subcloned into the BamH1 site of pGEMHE. TAG or any single amino acid mutation and/or double mutations were introduced using a Quikchange site-directed mutagenesis kit (Agilent Technologies). The introduced mutations were confirmed by DNA sequencing. The mMESSAGE T7 RNA transcription kit (Thermo Fisher Scientific) was used to transcribe WT and mutant rP2X2 cRNAs from plasmid cDNA linearized by Nhe1 restriction enzyme (Toyobo). The tRNA-synthetase/Anap-CUA encoding plasmid was obtained from Addgene. The salt form of fUAA Anap was used (Futurechem).

Ciona intestinalis voltage-sensing phosphatase (Ci-VSP) with a mutation in the gating loop of the phosphatase domain (F401Anap) was used as a positive control (Sakata et al., 2016). The mMESSAGE SP6 RNA transcription kit (Thermo Fisher Scientific) was used for cRNA transcription of Ci-VSP.

Preparation of Xenopus laevis oocytes

Request a detailed protocol

As an anesthetic agent, 0.15% tricaine (Sigma-Aldrich) was used for Xenopus laevis before surgical operation for isolation of oocytes. After the final collection, the frogs were humanely sacrificed by decapitation. Follicular membranes were removed from isolated oocytes by collagenase treatment (2 mg ml−1; type 1; Sigma-Aldrich) for 6.5 hr. Oocytes were then rinsed and stored in frog Ringer’s solution (88 mM NaCl, 1 mM KCl, 2.4 mM NaHCO3, 0.3 mM Ca(NO3)2, 0.41 mM CaCl2, 0.82 mM Mg2SO4, and 15 mM HEPES pH 7.6 with NaOH) containing 0.1% penicillin-streptomycin at 17°C.

Channel expression and electrophysiological recording of rP2X2

Request a detailed protocol

Xenopus oocytes injected with 0.5 ng of WT rP2X2 cRNA and incubated for 2 days at 17°C showed a high expression level phenotype of WT rP2X2 that has less voltage dependence than those of low expression level of P2X2 (I < 4.0 μA at −60 mV) (Fujiwara and Kubo, 2004). To achieve low expression level, oocytes were injected with 0.05 ng of WT rP2X2 cRNA and incubated for 1–2 days. For rP2X2 mutants, oocytes were injected with 0.5 ng–2.5 ng of cRNA and incubated for 1–3 days, depending on the desired expression level.

Voltage clamp for macroscopic current recording was performed with an amplifier (OC-725C; Warner Instruments), a digital-analogue analogue-digital converter (Digidata 1440, Molecular Devices), and pClamp10.3 software (Molecular Devices). In TEVC recording, borosilicate glass capillaries (World Precision Instruments) were used with a resistance of 0.2–0.5 MΩ when filled with 3 M KOAc and 10 mM KCl. P2X2 bath solution contained 95.6 mM NaCl, 1 mM MgCl2, 5 mM HEPES, and 2.4 mM NaOH at pH 7.35–7.45. Ca2+ was not included in the bath solution in order to avoid the inactivation of the receptor and secondary intracellular effects, for example, activation of Ca2+ dependent chloride channel currents, (Ding and Sachs, 2000).

ATP disodium salt (Sigma-Aldrich) was prepared in various concentrations (1 μM, 3 μM, 10 μM, 30 μM, 100 μM, 300 μM, 1 mM, and 3 mM) by dissolving it in the bath solution. For recording using step-pulse protocols, ATP was applied in two ways, depending on the purpose of the experiments and the phenotype of the mutants. (1) Direct application using a motorized pipette (Gilson pipetman), which was set to exchange the whole bath solution with a ligand-based solution. 2000 µL (five times larger than the bath volume) of ligand-based solution was applied. (2) Perfusion of a recording chamber using a perfusion system set (ISMATEC pump). In both cases, overflowed bath solution was continuously removed using a suction pipette by negative air pressure. Oocytes were held at −40 mV and voltage step pulses were applied in the range from +40 mV to −140 mV. For TEVC recordings with P2X2 non-specific blockers, oocytes were held at +20 mV, and voltage step pulses were applied in the range from +40 mV to −160 mV. 300 µM of Suramin sodium salt and 300 µM or 1 mM of PPADS tetrasodium salt (Sigma-Aldrich) was directly applied by motorized pipette. First, 10 or 300 µM ATP was applied to elicit the ATP-evoked current, and subsequently in the same cell, either suramin or PPADS was applied. Tail currents were recorded at −60 mV to measure conductance-voltage (G-V) relationships. Recordings were performed at room temperature (24 ± 2°C).

Expression of Anap-incorporated rP2X2 and Ci-VSP

Request a detailed protocol

For functional expression of channels with incorporated Anap, 1.25 ng of cDNA encoding the tRNA synthetase/Anap-CUA pair was injected into the nucleus of defolliculated Xenopus oocytes located in the center of the animal pole (Kalstrup and Blunck, 2013). Oocytes were then incubated for 24 hr at 17°C to allow tRNA transcription and synthetase expression. The subsequent step was performed with minimization of light exposure, which otherwise may have excited the fluorophore. Either 1.4–12.6 ng of rP2X2 cRNA or 8.2 ng of Ci-VSP cRNA in which the target site was mutated to a TAG codon, was co-injected with 23 nL of 1 mM Anap. Oocytes were incubated in frog Ringer’s solution (containing 0.1% penicillin-streptomycin) for 1–3 days (rP2X2) or 3–5 days (Ci-VSP) depending on the desired expression level. In the absence of either tRNA synthetase/Anap-CUA plasmid or fUAA Anap, no channel expression was detected in rP2X2 Anap mutants, confirming that functional channels were expressed only when they had successfully incorporated fUAA.

SIK inhibitor application

Request a detailed protocol

HG 9-91−01/SIK inhibitor (MedChem Express) was dissolved in DMSO to make a stock solution of 10 mM and kept as aliquots at −80°C. SIK inhibitor was diluted before use with RNase-free water (Otsuka) into certain concentrations for injection to oocytes. Various concentrations of SIK inhibitor were injected into oocyte nuclei to determine the most effective concentration to improve the optical recording of VCF-fUAA. SIK inhibitor was mixed and co-injected with either (1) tRNA synthetase/Anap-CUA plasmid (nuclear injection) or (2) cRNA+Anap (cytoplasmic injection). 300 nM was defined as the amount of the co-injected SIK inhibitor in the mixed solution. For instance, the actual concentration of SIK inhibitor is 600 nM for 1:1 mixture with 2.5 ng tRNA synthetase/Anap-CUA plasmid. As the volume of the oocyte nucleus is ~40 nL, and it can tolerate 15–20 nL of injected volume (Lin-Moshier and Marchant, 2018), the final concentration of SIK inhibitor inside the oocyte nucleus was ~150 nM.

First of all, Ci-VSP F401Anap was used to confirm reproducible effects in the initial optimization experiments. The most effective concentration of SIK inhibitor was determined to be 300 nM. Next, 300 nM of SIK inhibitor was co-injected into either the nucleus or cytoplasm of the oocytes, which were then incubated for different periods of time. This resulted in three test groups: (1) nuclear injection with 2 days incubation, (2) nuclear injection with 3 days incubation, and (3) cytoplasmic injection with 2 days incubation. Cytoplasmic injection needs concentration adjustment, since the volume of an oocyte is ~1 μL. To make the concentration inside the oocyte 150 nM, the injected concentration was 3 μM. Control groups consisted of non-treated oocytes, incubated for either 2 or 3 days.

A follow-up confirmation experiment was done using the P2X2 A337Anap/R313W mutant, after the optimum concentration, injection method, and incubation period were determined from the Ci-VSP experiment. 300 nM of SIK inhibitor was co-injected into the nucleus of the oocyte. Oocytes were then incubated for 2–3 days, after subsequent cytoplasmic co-injection of channel cRNA and Anap.

Voltage-clamp fluorometry (VCF) recording

Request a detailed protocol

Oocytes for VCF-fUAA recording needed to be shielded from light exposure. Oocytes were placed in a recording chamber with the animal pole facing upward. For ATP-evoked current recording, a gap-free protocol was applied, with the holding potential at −80 mV. ATP was applied by perfusion system as described above. For voltage-evoked current recording, oocytes were held at +20 mV or at −40 mV in some cases. The step pulses were applied from +40 mV to −140 mV, +40 mV to −160 mV, or +80 mV to – 160 mV.

Two recordings (ATP application and voltage application) were performed separately in different oocytes. VCF recordings in the absence and presence of ATP using voltage step pulses, for some mutants (A337Anap, R313F/A337Anap, R313W/A337Anap, and K308R/A337Anap), were performed in the same oocytes.

For voltage step application, ATP was applied directly. As bath volume was measured to be 600 µL, 20 µL ATP of 30 times higher concentration was applied directly to the bath solution. For Ci-VSP voltage-clamp recording, cells were clamped at −60 mV and the step pulses were applied from −80 mV to +160 mV every 3 s.

Fluorometric recordings were performed with an upright fluorescence microscope (Olympus BX51WI) equipped with a water immersion objective lens (Olympus XLUMPLAN FL 20x/1.00) to collect the emission light from the voltage-clamped oocytes. The light from a xenon arc lamp (L2194-01, Hamamatsu Photonics) was applied through a band-pass excitation filter (330–360 nm for Anap). In the case of the excitation of Anap to minimize photobleaching during ATP-application recording, the intensity of the excitation light was decreased to 1.5% with ND filters (U-25ND6 and U-25ND25 Olympus), whereas, for step-pulse recording, the intensity of the excitation light was decreased to 6% (U-25ND6 Olympus). Emitted light was passed through band pass emission filters (Brightline, Semrock) of 420–460 nm and 460–510 nm (Lee et al., 2009; Sakata et al., 2016). The emission signals were detected by two photomultipliers (H10722-110; Hamamatsu Photonics). The detected emission intensities were acquired by a Digidata 1332 (Axon Instruments) and Clampex 10.3 software (Molecular Devices) at 10 kHz for ATP application and 20 kHz for voltage application. In the case of Ci-VSP, the detected emission was acquired at 10 kHz. To improve the signal-to-noise ratio, VCF recording during step-pulse protocols was repeated 20 times for each sample for P2X2 in the presence of ATP, five times in the absence of ATP, and three times for Ci-VSP. Averaged data were used for data presentation and analysis.

Data analysis

Request a detailed protocol

Two electrode voltage-clamp data were analyzed using Clampfit 10.5 software (Molecular Devices) and Igor Pro 5.01 (Wavemetrics). Analyses of conductance-voltage (G-V) relationship of P2X2 were obtained from tail current recordings at −60 mV and fitted to a two-state Boltzmann equation using Clampfit:

(1) I=Imin+Imax-Imin1+eZFRTV-V12

where Imin and Imax are defined as the limits of the amplitudes in fittings, Z is defined as the effective charge, V1/2 is the voltage of half activation, F is Faraday’s constant, and T is temperature in Kelvin.

In the case of P2X2, normalized conductance-voltage (G-V) relationships were plotted using:

(2) G/Gmax=I/Imin=1-(1+eZF(V-V1/2)/RT)-1(1-Imax/Imin)

In the case of VCF data, the gradual decline of fluorescence recording traces due to photobleaching was compensated by subtracting the expected time-lapse decrease calculated from the trace’s bleaching rate (R) by assuming that the fluorescence is linear. Arithmetic operations were performed by Igor Pro 5.01 for ATP-evoked fluorescent signals.

(3) Compensateddata=RecordedFdata+Rpointnumber

In the case of fluorescence traces from voltage application for both P2X2 and Ci-VSP, arithmetic operations were performed by Clampfit.

(4) [Compensatedtrace]=[RecordedFtrace]×(1(R×[time]))

where [time] is the value of the point given by Clampfit. All the compensated traces were then normalized by setting each baseline level (F signal at −40 mV or at +20 mV depending on the holding potential) to be 1, to calculate the % F change (∆F/F; ∆F = F-160mV− Fbaseline; F = Fbaseline). The fraction of ∆FSlow/F was calculated from the equation:

(5) ΔFsteadystate/F=ΔFfast/F+ΔFslow;F=Fbaseline

The data were expressed as mean ± s.e.m. with n indicating the number of samples.

Statistical analysis

Request a detailed protocol

Statistical analysis was performed by either one-way ANOVA, two-sample t-test, or paired t-test. Following one-way ANOVA, Tukey’s post-hoc test was applied. The data were expressed as mean± s.e.m. with n indicating the number of samples. Values of p<0.05 were defined as statistically significant. *, **, ***, **** denote values of p<0.05, 0.01, 0.001, 0.0001, respectively. All the statistical analysis and the bar graphs were performed and generated either with OriginPro (OriginLab) or GraphPad Prism 9.

Three-dimensional structural modeling of rat P2X2

Request a detailed protocol

Homology modeling was performed using a web-based environment for protein structure homology modeling SWISS-MODEL (Arnold et al., 2006; Biasini et al., 2014), based upon the amino acid sequence of rP2X2 (NM_053656) and the crystal structure of hP2X3 (Protein Data Bank accession number 5SVJ and 5SVK for closed and ATP-bound open states, respectively) (Mansoor et al., 2016). All the structural data presented in this study were generated using PyMOL molecular graphics system ver. 2.3.0 (Schrodinger LLC). Protein visualization was generated using Protter (Omasits et al., 2014).

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figure 1, Figure 1—figure supplement 1, Figure 2, Figure 2—figure supplement 1, Figure 3, Figure 3—figure supplement 1, Figure 4, Figure 4—figure supplement 1, Figure 5, Figure 5—figure supplement 1, Figure 5—figure supplement 2, Figure 6, Figure 6—figure supplement 1, and Figure 7.

The following previously published data sets were used
    1. Mansoor SE
    2. Lu W
    3. Oosterheert W
    4. Shekhar M
    5. Tajkhorshid E
    6. Gouaux E
    (2016) RCSB Protein Data Bank
    ID 5SVJ. 5SVJ Crystal structure of the ATP-gated human P2X3 ion channel in the closed, apo state.
    1. Mansoor SE
    2. Lu W
    3. Oosterheert W
    4. Shekhar M
    5. Tajkhorshid E
    6. Gouaux E
    (2016) RCSB Protein Data Bank
    ID 5SVK. 5SVK Crystal structure of the ATP-gated human P2X3 ion channel in the ATP-bound, open state.
    1. Brake AJ
    2. Wagenbach MJ
    3. Julius D
    (1994) NCBI GenBank
    ID NM_053656.3. NM_053656 Amino acid sequence of rat P2X2.

References

Decision letter

  1. Baron Chanda
    Reviewing Editor; Washington University in St. Louis, United States
  2. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Mufeng Li
    Reviewer; National Insitute of Neurological Disorders and Strokes, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This study will be of broad interest to ion channel researchers interested in understanding the fundamental mechanisms of voltage-sensing. The researchers use a novel approach to determine the mechanism of voltage-sensing in a channel that lacks a canonical voltage-sensing domain.

Decision letter after peer review:

Thank you for submitting your article "Voltage-clamp fluorometry analysis of structural rearrangements of ATP-gated channel P2X2 upon hyperpolarization" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Baron Chanda as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Richard Aldrich as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Mufeng Li (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. In many instances, it is not clear whether the current is specific or non-specific oocyte currents. It is important that the authors use a specific blocker of P2X2 receptor to demonstrate that these are channel specific currents.

2. The current and fluorescence of all the positions listed in table 1 should be shown. At the very least, the authors should show for the positions where they were able to observe voltage-dependent fluorescence response.

3. The interaction between A337 and Phe 44 as a primary determinant of voltage-sensing is a bit confounding. None of them are charged and it is not clear what makes this interaction voltage-sensitive.

4. For electrochromic response, the strength of the local electric field can be estimated using the slope of linear Fluorescence voltage relationship. Is this slope dependent on the expression level?

5. Two related issues raised by two reviewers which should be addressed textually.

The non-canonical voltage sensor in P2X2 channels is an intriguing question. This study suggests a voltage dependent conformational rearrangement in TM2, which is a significant finding. Nevertheless, the voltage sensor for this to happen is not identified. F44 could serve as the voltage sensor with its aromatic dipole moment. However, if F44 is the voltage sensor the fluorescence changes at A337 should measure the movement of F44 in response of voltage directly. How fast should this movement be? Isn't the time course of the fluorescence decrease in Figure 5 and 6 too slow for this process? If the fluorescence decrease, in Figure 5 and 6, is due to a slow overall structural rearrangement as the consequence of F44 sensing voltage, what is the expected voltage dependence of the changes in dipole moment?

I am not convinced that "the main focus for the voltage-sensing mechanism in the P2X2 receptor lies at or around A337." (line 491-492) As the authors mentioned, the florescence changes at A337 and I341 are small and only occur in some oocytes tested, so it is possible that the changes at other residues went undetected. There is no flaw in the experimental design, but there are limitations imposed by the method and the behavior of the protein. P2X receptors are trimers, which means they have less fluorophores per channel compared to the tetramers or pentamers. In order to obtain decent fluorescence signal, channels were expressed at very high density in those experiments. Unfortunately, high channel density is known to diminish the voltage dependence of P2X receptor channels, making it difficult to detect voltage-dependent changes.

6. Another related issue raised by both reviewers.

Fluorescence changes at A337 were reduced by ATP (Figure 4). Since a higher ATP concentration is correlated with a larger current (Figure 4), fluorescence changes might be reduced by increases of currents. In Figure 5 and 6 the time dependent and non-linear fluorescence changes were accompanied by a time dependent current increase. In these experiments was the time dependent fluorescence decrease induced by the time dependent current increase, or the current increase was a result of the conformational change that was measured by the time dependent fluorescence decrease?

After a careful examination of the represented traces shown in figure 4 and figure 6, I am not sure one should directly compare the ΔF/F in the absence and presence of ATP to make the conclusion that "the focused electric field at the position of A337 is stronger in the absence of ATP than in the presence of ATP." (Line 491-492) The noise of the fluorescence signal is always noticeably smaller in the presence of ATP suggesting a possible change in the F. In the hP2X3 receptor closed state structure, residue equivalent to A337 is more than 5Å from that equivalent to F44 in TM1. This part of TM2 is separated from TM1 and Anap incorporated at A337might be surrounded by some lipids in the closed state. In the presence of ATP, when channel opens, this part of TM2 gets close to TM1, where A337 and F44 can interact. Anap incorporated at A337 could be shielded by TM1 in the open state. As one can imagine, those structural rearrangements during channel opening could very likely change the environment for Anap at A337. It would not be meaningful to directly compare ΔF/F recorded in different environment where the fluorophores have inconsistent behavior. I do understand VCF recording was repeated 20 times for each sample in the presence of ATP and only 5 times in the absence of ATP. The difference of noise could also result from the average of different number of traces. Either way, I would suggest the authors to address the difference.

7. The small size of the slow ΔF shown in figure 5 could potentially lead to inaccurate data analysis. It would be better if there are more evidence to support that the slow ΔF results from voltage dependent conformational change in the protein. As previously reported by the Kubo lab, the voltage dependent activation time constant varies with different ATP concentrations. It will be a great supporting evidence if the time constant of the slow fluorescence change vary with ATP concentration.

8. Why was I341 not studied further? If it is because of technical difficulties with small signals, then we cannot rule out its role in voltage sensing and it should be discussed. Additionally, previous findings from Kubo's lab have demonstrated that mutations at T339 and G342 can completely abolish the voltage dependence, suggesting possible involvement of those residues as well.

9. Please provide numbers for the readers to understand how many oocytes were tested and how many showed the change for the statement: "the incidence of fluorescence change detection is also low" (Line 120). The numbers should also be provided later when the authors talk about increase in the incidence of detectable ΔF/F after SIK inhibitor treatment.

10. Is there any correlation between the current size and the detectable ΔF/F? Is it because the channel density is too high for some oocytes to show any voltage dependent change?

11. There is no information about the dose-response of ATP activation for any of the construct tested. What is the rationale for choosing the concentrations used in the experiments?

12. It's shown on Supplementary Table I that no voltage-dependent F change was detected for any residue in TM1 but "n.d." was used to indicate the ATP evoked F change for six residues. What does "n.d." mean exactly and why couldn't it be determined?

https://doi.org/10.7554/eLife.65822.sa1

Author response

Essential revisions:

1. In many instances, it is not clear whether the current is specific or non-specific oocyte currents. It is important that the authors use a specific blocker of P2X2 receptor to demonstrate that these are channel specific currents.

Thank you for alerting us the need for validating this point. We agree with the reviewers that it is important to demonstrate that the currents evoked by ATP in this study are P2X2 channel specific currents. We have added data showing that ATP-evoked currents of the three most important constructs in this study, namely A337Anap, I341Anap and K308R/A337Anap, could be blocked by non-specific blockers of P2X2 receptor, Suramin and PPADS (Figure 1—figure supplement 1; Figure 5—figure supplement 1). The data confirmed that the ATP-evoked currents of these constructs were indeed P2X2 channel specific currents. We could not use a specific blocker of P2X2 (e.g., NF770 or PSB-10211), since they are not commercially available and it takes time to synthesize the specific blocker on demand.

We added sentences to the result section in the revised manuscript as follows:

“ATP-evoked currents of both constructs were inhibited by the P2X2 receptor non-specific blockers, Suramin and PPADS (Figure 1—figure supplement 1), confirming that the currents are indeed P2X2 receptor currents.”

“ATP-evoked current of K308/A337Anap was inhibited by both Suramin and PPADS, the P2X2 non-specific blockers, confirming that the current is indeed a P2X2 receptor current (Figure 5—figure supplement 1).”

2. The current and fluorescence of all the positions listed in table 1 should be shown. At the very least, the authors should show for the positions where they were able to observe voltage-dependent fluorescence response.

Thank you for this suggestion. The current and the fluorescence traces of the positions where we were able to observe voltage-dependent fluorescence response are previously shown in Figure 1 E, F in the manuscript (for A337Anap and I341Anap, respectively). We agree with the reviewers that it is important to show the readers recordings of current and fluorescence of Anap mutant scanning experiments. In the revised version of the manuscript, we added current and fluorescence recordings of some important positions listed in table 1. We covered all the transmembrane regions, as these regions are thought to be potentially important for the non-canonical voltage-sensing mechanism. The new figures are added as Figure 1—figure supplement 2 (for transmembrane 1 region) and Figure 1—figure supplement 3 (for transmembrane 2 region).

We added a sentence to the result section in the revised manuscript as follows:

“Voltage-dependent F changes could not be detected at other scanned positions in TM1, TM2 or other regions (Figure 1—figure supplement 2, 3; Supplementary file 1).”

3. The interaction between A337 and Phe 44 as a primary determinant of voltage-sensing is a bit confounding. None of them are charged and it is not clear what makes this interaction voltage-sensitive.

Thank you for this valuable comments. We agree that the way we explained about the interaction between A337 and F44 was rather vague. From the results of the artificial bridge formation experiments, we showed that the interaction between the A337 position and the F44 position stabilizes the open state of P2X2 receptor (Figure 7G-I). The way of writing that the interaction between A337 and F44 is the primary determinant for voltage-sensing was too strong. Thus, we revised the discussion to re-phrase our interpretation.

First, we previously assumed that this interaction could be voltage sensitive because F44 interacts with A337 in the focused electric field (Figure 3; Figure 7C, D; Figure 7G-I; Figure 8A, B). Second, the interpretation for the interaction between A337 and F44 is that the interaction might be a CH-π interaction which had been found to play an important role in the protein structure stability (Brandl et al., 2001). This correlates well with our experimental data showing that the interaction of A337 and F44 is important for stabilizing the open state of P2X2 receptor.

Voltage sensitivity itself is thought to come from F44 as phenylalanine has quadrupole moment from its aromatic (benzene) ring which resulted in a permanent and non-spherical charge distribution (Dougherty, 1996). Thus, we interpreted the results as follows. ATP binding makes F44 rotates and interacts with A337 in the focused electric field. And, as F44 possibility serves as the voltage sensor, this interaction may be influenced by the change in the membrane voltage.

We revised the Discussion section as follows:

“Taken together, the results raised the possibility that F44 serves as a voltage sensor which has quadrupole moment due to its benzene ring (Dougherty, 1996). The aromatic side chain of F44 could have a permanent and non-spherical charge distribution (Dougherty, 1996) that is expected to respond to voltage changes in the converged electric field.

The artificial electrostatic bridge in the F44E/A337R mutant (Figure 7G – I) induced constitutive activity in the absence of ATP and at all recorded voltages, confirming the importance of the interaction for the maintenance of the activated state. As F44 possibility serves as the voltage sensor, this interaction, which takes place in the converged electric field, may be influenced by the change in membrane voltage. The structural rearrangement at F44 is of very high interest, but F44Anap was not functional, further showing the critical role of F44.”

4. For electrochromic response, the strength of the local electric field can be estimated using the slope of linear Fluorescence voltage relationship. Is this slope dependent on the expression level?

It is true that the strength of the local electric field can be estimated using the slope of linear F-V relationship. However, to convert the electrochromic slope into an electric field strength, a calibration to determine the relative sensitivity between two dyes is needed in in-vitro reconstitution system (e.g., the first one is Anap which is incorporated at a specific site in the protein of interest, and the second one is electrochromic fluorescence dye located freely in the cell membrane). Therefore, it was not possible to solely use the slope of linear F-V relationship without the calibration which gives a correction factor. There is also another factor to be considered. It is the background fluorescence of the oocytes which differs from batch to batch. In the high protein expression case, the slope of VCF recording could look steeper, but this does not necessarily imply that the local electric field is stronger. The steeper slope could be due to a relatively lower level of background fluorescence. Even if the expression level is similarly high, if the background fluorescence is different, the observed slope of linear F-V relationship could appear to be different.

5. Two related issues raised by two reviewers which should be addressed textually.

The non-canonical voltage sensor in P2X2 channels is an intriguing question. This study suggests a voltage dependent conformational rearrangement in TM2, which is a significant finding. Nevertheless, the voltage sensor for this to happen is not identified. F44 could serve as the voltage sensor with its aromatic dipole moment. However, if F44 is the voltage sensor the fluorescence changes at A337 should measure the movement of F44 in response of voltage directly. How fast should this movement be? Isn't the time course of the fluorescence decrease in Figure 5 and 6 too slow for this process? If the fluorescence decrease, in Figure 5 and 6, is due to a slow overall structural rearrangement as the consequence of F44 sensing voltage, what is the expected voltage dependence of the changes in dipole moment?

We thank the reviewers for pointing out this vital point. Based on our main findings, there are voltage-dependent structural rearrangements in the proximity of A337 in TM2 (Figure 5). We understand that F44 could serve as the voltage sensor. As F44 rotates into the vicinity of A337 in the presence of ATP, this raised a possibility that F44 serves as voltage sensor by its quadrupole moment due to its benzene ring (Dougherty, 1996). Consequently, this makes the aromatic side chain of F44 to have a permanent and non-spherical charge distribution that is expected to respond to voltage changes in the converged electric field (Dougherty, 1996).

However, as the reviewers pointed out, we also noted that the voltage-dependent fluorescence changes observed at A337 might not necessarily report the presumably fast movement of F44 in response to the change in membrane voltage. As shown in Figure 5—figure supplement 2F, the activation speed of fluorescence in 300 µM was, similar to, not faster than that of the current. Please note that due to the large noise and small fluorescence signal, the trustable fitting for fluorescence traces could only be achieved in -160 mV.

Our interpretation is that F44 possibly has two-step voltage-dependent rearrangements after it underwent a conformational change to the proximity of A337 upon ATP application: (1) F44 quickly orients to A337 in the open state which is stabilized better upon hyperpolarization (2) The stabilization upon hyperpolarization as the consequence of F44 voltage sensing results in secondary structural rearrangements. The relatively slow kinetics of fluorescence signal change at A337 (Figure 5 and 6 in the manuscript) might be the result of the second step of voltage sensing mechanism by F44.

We therefore revised the discussion as follows.

“In addition, the ∆FSlow component was observed only at hyperpolarized potentials and in the presence of ATP (Figure 5F – J; Figure 6). Also, the FSlow – V and G-V overlapped well, showing that ∆FSlow reflects the hyperpolarization-induced structural rearrangements around the position of A337 (Figure 5E; Figure 5J). A337 in TM2 is indeed in the converged electric field, as shown by the linear F – V relationship of the ∆FFast component (Figure 5D). It is possible that the voltage-dependent ∆FSlow observed at A337 might not directly reflect the presumably very fast movement of the “voltage-sensor” in response to the change in membrane voltage but might report the secondary structural rearrangements (Figure 5A, F, Figure 5—figure supplement 2, Figure 6A).”

“Based on our results, the interaction between A337 and F44 in the ATP-bound open state is under the influence of the converged electric field (Figure 8A – E), and the results of mutagenesis studies (Figure 7E, F) suggest that F44 might serve as a voltage-sensor due to its intrinsic quadrupole. The results also clearly demonstrate that there are voltage-dependent structural rearrangements in the proximity of A337 in TM2.

Our interpretation, based on this study, is that F44 possibly has a two-step voltage-dependent rearrangement, after moving into the proximity of A337 upon ATP application. (1) F44 quickly orients to A337 in the open state, which is stabilized better upon hyperpolarization (2) The stabilization upon hyperpolarization, as the consequence of F44 voltage sensing, results in secondary structural rearrangements. The slow kinetics of fluorescence signal change at A337 (Figure 5, Figure 5—figure supplement 2, Figure 6) might be the result of the second step of the voltage sensing mechanism by F44. Further analysis of the structural dynamics at the position of F44 will help to elucidate the detailed mechanism of the complex gating of the P2X2 receptor.”

I am not convinced that "the main focus for the voltage-sensing mechanism in the P2X2 receptor lies at or around A337." (line 491-492) As the authors mentioned, the florescence changes at A337 and I341 are small and only occur in some oocytes tested, so it is possible that the changes at other residues went undetected. There is no flaw in the experimental design, but there are limitations imposed by the method and the behavior of the protein. P2X receptors are trimers, which means they have less fluorophores per channel compared to the tetramers or pentamers. In order to obtain decent fluorescence signal, channels were expressed at very high density in those experiments. Unfortunately, high channel density is known to diminish the voltage dependence of P2X receptor channels, making it difficult to detect voltage-dependent changes.

We would like to thank the reviewers for the critical comments. We realized that simply stating “the main focus for the voltage-sensing mechanism in the P2X2 receptor lies at or around A337.” in line 491-492 was too strong. It is necessary to mention the possibility that there might be other contributing residues whose fluorescent changes were undetected due to the limitation of the experimental technique we performed. i.e., we agree that there might be undetected electrochromic signals or slow component of fluorescence changes at other residues, and thus we revised the discussion as follows:

“The electric field convergence takes place at residues located in TM2, as shown by the observed Anap fluorescence changes at A337 and I341 (Figure 3). Minor changes were also observed at L334 and L338 by follow up experiments with SIK inhibitor, after the initial screening (Figure 3—figure supplement 1). Based on these results, the most frequently observed and the largest electrochromic signal was from A337. Voltage-dependent structural changes were also detected at or around A337. Although a possibility still remains that other residues are also involved but the changes were undetected due to technical limitations, all the results so far support the interpretation that the main focus for the voltage-sensing mechanism in the P2X2 receptor lies at or around A337.”

6. Another related issue raised by both reviewers.

Fluorescence changes at A337 were reduced by ATP (Figure 4). Since a higher ATP concentration is correlated with a larger current (Figure 4), fluorescence changes might be reduced by increases of currents. In Figure 5 and 6 the time dependent and non-linear fluorescence changes were accompanied by a time dependent current increase. In these experiments was the time dependent fluorescence decrease induced by the time dependent current increase, or the current increase was a result of the conformational change that was measured by the time dependent fluorescence decrease?

Thank you for pointing out another vital point in this study. To address this issue, we performed additional experiments by using NMDG-based solution in which current amplitude is reduced. By applying 300 µM ATP to an NMDG-based solution, we performed VCF experiment of K308R/A337Anap construct. After the application of 300 µM ATP, we observed Anap fluorescence signal changes when there was very small current, as shown in Author response image 1A. The results suggests that fluorescence (F) change was not the result of the current. However, in this set of experiment we could not observe a clear non-linear F change. This could probably due to the variation from batch to batch of the oocyte, i.e. if the background fluorescence is high it is hard to observe the non-linear F change.

Next, we performed a series of experiments in the same cell by using different bath solutions, as shown in Author response image 1B. The first one is ND98 and we then changed the solution to NMDG-based bath solution. Since the experiment was done in the same cell, to avoid an excessive fluorescence bleaching we repeated the recordings for averaging only 5 times for each of the condition. We applied 300µM ATP to the oocyte in ND98 solution. The non-linear F changes were observed with a significant ATP-evoked current. Then we changed the solution to NMDG-based solution while maintaining the ATP concentration and see if the non-linear F changes would still be observed even though there was less current flow. After changing the bath solution to NMDG, there was a significant reduction of the current, albeit the total reduction of the current could not be achieved. Although the current was significantly reduced, a non-linear F change could still be observed at a similar level. These results suggest that the non-linear F change is not the result of the current flow, but that the current flow is a result of the conformational changes shown by the presence of non-linear F change in NMDG solution.

We also performed the same series of experiments by using mannitol-based bath solution, instead of NMDG, to minimize the ionic current as shown in Author response image 1C. The non-linear F changes were observed with a significant ATP-evoked current in ND98 solution. Then we changed the solution to mannitol-based solution while maintaining the ATP concentration. Although there was a significant reduction of the current, a non-linear F change could still be observed. These results further confirmed that the non-linear F change is not the result of the current flow.

Author response image 1

After a careful examination of the represented traces shown in figure 4 and figure 6, I am not sure one should directly compare the ΔF/F in the absence and presence of ATP to make the conclusion that "the focused electric field at the position of A337 is stronger in the absence of ATP than in the presence of ATP." (Line 491-492) The noise of the fluorescence signal is always noticeably smaller in the presence of ATP suggesting a possible change in the F. In the hP2X3 receptor closed state structure, residue equivalent to A337 is more than 5Å from that equivalent to F44 in TM1. This part of TM2 is separated from TM1 and Anap incorporated at A337might be surrounded by some lipids in the closed state. In the presence of ATP, when channel opens, this part of TM2 gets close to TM1, where A337 and F44 can interact. Anap incorporated at A337 could be shielded by TM1 in the open state. As one can imagine, those structural rearrangements during channel opening could very likely change the environment for Anap at A337. It would not be meaningful to directly compare ΔF/F recorded in different environment where the fluorophores have inconsistent behavior. I do understand VCF recording was repeated 20 times for each sample in the presence of ATP and only 5 times in the absence of ATP. The difference of noise could also result from the average of different number of traces. Either way, I would suggest the authors to address the difference.

To address whether F intensity significantly changed due to the difference of the environment surrounding A337 in the closed and open state, we measured the F intensity in the absence and in the presence of ATP. This recording was performed in the same cell and each recording for averaging was repeated equally 5 times. The noise level is similar, showing that the apparent difference of the noise level in Figures 4 and 6 is due to the difference of the averaged numbers, as the reviewers pointed out. There was a slight reduction, not increase, in the F intensity in the presence of ATP, which could be due to the fluorescence bleaching, as shown in Figure 6—figure supplement 1. Thus, a larger ∆F/F in the absence of ATP is thought not to be due to smaller F intensity, showing fluorescence change is actually larger in the absence of ATP.

On the other hand, we agree with the reviewers that there is a possibility that the environment surrounding the fluorophore at A337 is different in the closed and open state. A homology structure model of P2X2 also supports that the crevices are different in the closed and open states. It is natural to assume that the environment of the fluorophore is different in the closed and open state (Figure 8C, D). Thus, we agree with the reviewers that we can’t simply conclude that larger fluorescence change means stronger focus electric field. The interpretation of this part is that the focused electric field is present both in the absence and presence of the ATP.

We have now added Figure 6—figure supplement 1 to the revised manuscript and revised the result and Discussion section as follows:

Results section:

“The changes exhibited fast kinetics and a linear voltage-dependence. ∆F/F in the absence of ATP was larger than that in the presence of 10 µM ATP (∆F/F = 0.7%±0.1 at 440 nm (n=4) Figure 4A – C).” We omitted the sentence (line 228-230 in the previous version of the manuscript): “Thus, the focused electric field at the position of A337 is stronger in the absence of ATP than in the presence of 10 μM ATP.”

“Thus, the ∆F in 0 ATP observed in the above experiments might just represent the ∆F in the open state.”

“This mutation was introduced into A337Anap (A337Anap/R313F or A337Anap/R313W) to determine whether the ∆F related to the focused electric field is present at A337, even when the channel is mostly closed in 0 ATP.”

“These results confirmed that ∆F/F at the position of A337 is larger in the absence of ATP than in the presence of ATP. It was of interest to know whether or not the concentration of ATP affects ∆F/F at A337

We revised sentences in Line 260-263 in the previous version of the manuscript:

From (original): “Taken together, these results show that the focused electric field at A337 is [ATP]-dependent and stronger in the absence of ATP, suggesting that the rotation of TM1 upon ATP binding (Figure 8) would tighten the space surrounding A337 making the electric field more converged.”

To: (Line 278-283)

“Taken together, these results show that the ∆F/F at A337 is [ATP]-dependent and larger in the absence of ATP. The higher ∆F/F implies stronger focused electric field in 0 ATP, but it is also possible that the difference comes from the difference of the environment of the fluorophore, as discussed later (Figure 6—figure supplement 1). In any case, it was shown that a ∆F/F and thus a focused electric field are present both in the absence and the presence of ATP.”

Line 374-388:

“Additionally, results consistent with Figure 4E, F, H, and I were also obtained in terms of the fluorescence intensity change of the fast component. ∆FFast/F in the absence of ATP was larger than in the presence of ATP (∆FFast/F=4.4%±0.5 at 440 nm, n=6 and ∆FFast/F=1.7%±0.3 at 440 nm, n=6; Figure 6B). However, there was a concern that F itself significantly changed due to a difference in the environment surrounding A337Anap in the closed and open states. We performed experiments to address this by measuring the absolute F (output of the photomultiplier tube) in the absence and in the presence of ATP. Using the K308R/A337Anap construct, each recording was repeated 5 times, for averaging, in the same cell as shown in Figure 6—figure supplement 1. There was a slight reduction, not increase, in the F in the presence of ATP, which could be due to fluorescence bleaching (Figure 6—figure supplement 1A, B). Thus, a larger ∆F/F in the absence of ATP is thought not to be due to less F, and we concluded that ∆F/F was larger in the absence of ATP. The noise level is similar (Figure 6—figure supplement 2C), showing that the apparent larger noise level in 0 ATP (Figure 4C, 4F, 4I; Figure 4—figure supplement 1H, K; Figure 6B) is not due to smaller F but due to a lower number of averaged traces.”

And the discussion was revised as follows:

Line 460 in the previous version of the manuscript, this sentence was omitted: “The focused electric field was more prominent in the absence of ATP”

Line 512-518 (in the previous manuscript started at Line 458-460):

“We observed that ∆FFast/F changed with voltage in both the closed and ATP bound-open states, implying the presence of the focused electric field in both states at the position of A337. ∆FFast/F was larger in the absence than in the presence of ATP. One simple interpretation is that the focused electric field is stronger in the absence of ATP. However, as the environment of the fluorophore is different in the absence and presence of ATP, due to the difference in the crevice shape (Figure 8C, D), it is not possible to directly compare the strength of the focused electric field in the two states.”

Revision for main figure 8:

We added Figure 8C, D in the revised manuscript (Figure 8), with the intention to make the reader understand that the crevices are different in the closed and open state which resulted in the difference of the focused electric field in both states.

7. The small size of the slow ΔF shown in figure 5 could potentially lead to inaccurate data analysis. It would be better if there are more evidence to support that the slow ΔF results from voltage dependent conformational change in the protein. As previously reported by the Kubo lab, the voltage dependent activation time constant varies with different ATP concentrations. It will be a great supporting evidence if the time constant of the slow fluorescence change vary with ATP concentration.

Thank you for this suggestion. It is also our interest to see the correlation between [ATP] concentration and F change in this study. We have performed VCF recordings of K308R/A337Anap in different [ATP] previously (30 µM; 100 µM; and 300 µM; data for 30 µM and 100 µM ATP was not shown in the manuscript). However, as the reviewer expressed a concern, the data analysis to compare the activation time constant of the slow F change could not be performed reliably, due to a small slow component F change and noise which made it difficult to fit an exponential function.

Nevertheless, the results of the analysis are shown in Figure 5—figure supplement 2E-2G. Current traces could be well-fitted with a single exponential function (Figure 5—figure supplement 2E-F). However, as to the fluorescence traces, as shown in the Figure 5—figure supplement 2E-F, the slow fraction of F change could be fitted at -160 mV but not reliably at -140 mV or -120 mV. The analysis for -160 mV showed that the time constant of the voltage-dependent F change varied with [ATP]. The time constant of voltage dependent F change was larger in the lower [ATP], as depicted in Figure 5—figure supplement 2G. Statistical analysis (unpaired student t-test) showed that the time constant was significantly larger in 30 µM ATP. The larger τ of ∆F/F that than of current at -160 mV in 30 µM ATP (Figure 5 —figure supplement 2E) is puzzling, but we didn’t pursue this point further because of the uncertainty of the fitting.

We have now added Figure 5—figure supplement 2 to the revised manuscript. And revised the result section as follows:

Results:

Line 324-345:

“It was of interest to see the correlation between [ATP] and the ∆FSlow/F in this study. We performed additional VCF recordings of K308R/A337Anap in the presence of 30 µM ATP (Figure 5—figure supplement 2A). In the presence of 30 µM ATP, hyperpolarization again elicited fluorescence signals which consist of two components, a very fast decrease (∆FFast/F) and a slow increase (∆FSlow/F) to steady-state (∆FSteady-state/F) (Figure 5—figure supplement 2A). Plots of the F-V relationship at the end of the recording time interval (at the steady-state) again showed that F-V consists of mixed components, a linear component and a non-linear component (Figure 5—figure supplement 2B). The F-V relationship of ∆FFast/F again showed a linear voltage-dependence (Figure 5—figure supplement 2C), and the F-V relationship of ∆FSlow/F showed a non-linear voltage-dependence (Figure 5—figure supplement 2D), similar to the case in 300 µM ATP (Figure 5).

We were curious to know whether the time constant of ∆FSlow/F varied with [ATP]. We then analyzed the time constant of activation of the ∆FSlow/F in 30 µM ATP and 300 µM ATP. However, the analysis of the activation time constant of ∆FSlow could not be performed reliably, due to a small ∆FSlow component and noise which made it difficult to fit an exponential function. Nevertheless, the results of the analysis are shown in Figure 5—figure supplement 2E-2G. Current traces could be well-fitted with a single exponential function (Figure 5—figure supplement 2E-F). However, as to the fluorescence traces, as shown in Figure 5—figure supplement 2E-F, ∆FSlow could be fitted at -160 mV but not reliably at -140 mV or -120 mV. The analysis for -160 mV showed that the time constant of the voltage-dependent ∆F varied with [ATP]. The time constant of voltage dependent ∆F was significantly larger in the lower [ATP], as depicted in Figure 5—figure supplement 2G.”

8. Why was I341 not studied further? If it is because of technical difficulties with small signals, then we cannot rule out its role in voltage sensing and it should be discussed. Additionally, previous findings from Kubo's lab have demonstrated that mutations at T339 and G342 can completely abolish the voltage dependence, suggesting possible involvement of those residues as well.

[I341] Thank you for addressing this concern. As the reviewer commented, I341 was indeed not studied further due to the technical difficulties with small signals. The ∆F/F was only 0.6%±0.2 at 440 nm with n=3 in Figure 3E even after the application of SIK inhibitor. We also performed the VCF recording in the additional mutation of K308R into I341Anap but the data was not shown in the manuscript due to the small signal which hindered the detailed analysis. Here we show the representative traces of the current and fluorescence from K308R/I341Anap in Author response image 2. F change at the steady-state was smaller compared to K308R/A337Anap (1.7±0.1 at 440nm (n=12) compared to 3.4%±0.3 at 440 nm (n=8)). The Fslow component was smaller than that in K308R/A337Anap making it hard to separate the two components. Nevertheless, the addition of K308R mutation also showed there is a minor F slow component detected at I341Anap. Since the component was very minor, we concluded that the main reporter for the voltage-dependent rearrangements of P2X2 receptor is at A337 and the main focus for the voltage-sensing mechanism could lie at the surrounding environment of A337.

Author response image 2

Secondly, we have also introduced several single amino acid mutations at I341 position. The results of mutations were not as dramatic as those at F44 or A337; as shown in Author response image 3.

Author response image 3

Nevertheless, we certainly agree with the reviewers’ comment that we cannot rule out the role of I341 in voltage-sensing since it also showed detectable but smaller F change. I341 was also shown to be modified by both MTSET and Ag+ (Li et al., 2008; Li et al., 2010), suggesting that a narrow water-phase penetrates down to I341. I341 might contribute to voltage-sensing mechanism as one of the focused electric fields where the voltage sensing by F44 takes place.We have now revised the manuscript as follows:

“A337 Cys mutants were first reported to be not modified by MTSET both in the presence or absence of ATP, indicating that this residue is not involved either in the pore lining region in the open state or in the gate of P2X2, unlike I341 Cys mutants, which were modified by MTSET (Li et al., 2008). Meanwhile in another study using Ag+, a smaller thiol-reactive ion with higher accessibility, A337C was modified both in the absence and presence of ATP, as well as I341C (Li et al., 2010). These results suggest that a narrow water-phase penetrates down to these positions, which is consistent with the results in this study that there is a focused electric field at the position of A337 and I341.”

[T339] In addition to that, for the previous findings from Kubo-Lab regarding the possible involvement of T339. We observed a very small upward fluorescence change (∆F/F=0.4%) in response to hyperpolarization at the time of the mutant screening but the change was only observed at -140mV, in 1 oocyte out of 5 oocytes tested (The incidence of fluorescence change detection in one batch = 20%). The two traces from different batch are shown in Author response image 4.

Author response image 4

We performed further extensive VCF recordings of T339Anap in total 12 batches of oocytes, but was not able to reproduce the result (The incidence of fluorescence change detection between batches was 16.7%). Therefore, it was stated that there was no observed ∆F in response to hyperpolarization in Supplementary Table 1 (Supplementary file 1 in the revised manuscript).Even though we were not able to reproduce the result, we cannot rule out the possible role of T339 in voltage sensing as the mutation to Anap could abolish the voltage-dependent current as well. On the other hand, if we look from the structural point of view, the side chain of T339 is facing to the pore of P2X2 since this is one of the pore lining residues. Therefore, even if T339 contributes to voltage sensing mechanism, we think that the contribution would be indirect.

We also introduced the mutation T339S which had been reported to make the channel constitutively active into K308R/A337Anap to see whether or not the slow component would be diminished. The phenotype of T339S/K308R/A337Anap didn’t resulted in a constitutively active mutant, as shown in Author response image 5, consistent with what had been reported before that K308R mutation diminished the spontaneous activity of T339S (Cao et al., 2007). By comparing with K308R/A337Anap mutant in the same batch, we found that the fluorescence change was significantly reduced by the addition of T339S in the similarly high expression density cells in the same batch. We also found that T339S might reduce the slow fraction of F change at K308R/A337Anap.

Author response image 5

[G342 and G344] The expression level of G342Anap was very low and F changes could not be detected as shown in the manuscript Figure 1—figure supplement 3O. It has been reported that the activation phase evoked by hyperpolarization would be mediated by the flexible G344 located in the middle of TM2 (Fujiwara et al., 2009). G344Anap still showed voltage dependence phenotype (Figure 1—figure supplement 3Q in the manuscript) but F change could not be observed even after the application of SIK inhibitor (data not shown).We also introduced the mutation of G344A on top of K308R/A337Anap. G344 is an important hinge which mediates the voltage-dependent activation phase, as reported in the previous study (Fujiwara et al., 2009) that the G344A mutation makes the channel constitutively active. We expected that G344A/K308R/A337Anap will show constitutive activity but the triple mutant responded normally upon ATP application, as shown in Author response image 6. Interestingly, in this construct the fluorescence change was observed even in the case of lower current density. F slow component was still remained.

Author response image 6

9. Please provide numbers for the readers to understand how many oocytes were tested and how many showed the change for the statement: "the incidence of fluorescence change detection is also low" (Line 120). The numbers should also be provided later when the authors talk about increase in the incidence of detectable ΔF/F after SIK inhibitor treatment.

Thank you for this suggestion. We have provided the numbers of how many oocytes were tested in the revised manuscript as follows:

“(1) ∆F is close to the limit of detection because signal to noise ratio is low, making it hard to perform further analysis e.g., ∆F/F-V relationships; (2) The incidence of fluorescence change detection in each batch is also low, 14.3±4.1% (n=5-16) and 16.02±0.6% (n=6-13) for A337Anap and I341Anap, respectively. Three out of 13 batches showed F change for A337Anap and 2 out of 10 batches showed F change for I341Anap.”

The detailed numbers of oocytes and batches tested are available in Figure 1—source data 1 (without SIK inhibitor treatment) and Figure 3—source data 1 (with SIK inhibitor treatment).

We have added this incidence of F change detection to the Results section when comparing directly the condition without SIK inhibitor treatment and with SIK inhibitor treatment in the same Anap mutant.

The revisions are as follows:

In A337Anap (Line 173-175):

“Application of 300 nM SIK inhibitor increased the incidence of ∆F (68.8±3.2% (n=6-9) with inhibitor, vs. 14.3±4.1% (n=5-16) without inhibitor) in A337Anap, with an improved signal-to-noise ratio (∆F/F = 1.5%±0.2 at 440 nm (n=8), Figure 3A).”

In I341Anap (Line 210-213):

“Similarly, the application of 300 nM SIK inhibitor to I341Anap resulted in a clearer (∆F/F = 0.6%±0.2 at 440 nm (n=3), Figure 3E) and more frequent Anap ∆F/F (38.1±9.2%; n=5-9), compared to that without SIK inhibitor application (16.02±0.6% (n=6-13)) upon voltage step application in 10 µM ATP.”

10. Is there any correlation between the current size and the detectable ΔF/F? Is it because the channel density is too high for some oocytes to show any voltage dependent change?

There is no clear-cut answer for addressing this matter because detected ΔF/F depends on many aspects. In principle, the smaller the current would be resulted in better ΔF/F because low density means better voltage-dependence at hyperpolarized potentials. However, ΔF/F also strongly depends on the endogenous background fluorescence. If the background fluorescence is relatively high, the ΔF/F could be masked. This is the reason why high expression is needed for successful detection. How high expression level is needed depends on how high the background fluorescence is. It varies from batch to batch and we cannot explicitly state the correlation of the current amplitude and ΔF/F.

11. There is no information about the dose-response of ATP activation for any of the construct tested. What is the rationale for choosing the concentrations used in the experiments?

For the Anap mutant screening experiments, low concentration of ATP (10 µM) was used since G-V will shift to the right as the [ATP] goes higher (Fujiwara et al., 2009). In some cases, the IC50 of P2X2 WT (30 µM) was also used. In special cases the saturating concentration of ATP for WT (100 µM or 300 µM) was used depending on the mutant’s phenotype.

In the case of K308R/A337Anap mutant, it was reported that K308R has a lower ATP sensitivity (Jiang et al., 2000; Cao et al., 2007; Keceli and Kubo, 2009). Therefore 300 µM ATP was used for this mutant.

12. It's shown on Supplementary Table I that no voltage-dependent F change was detected for any residue in TM1 but "n.d." was used to indicate the ATP evoked F change for six residues. What does "n.d." mean exactly and why couldn't it be determined?

Thank you for pointing this out. It is our mistake to mix up the meaning of n.d. for the indication of the ATP-evoked F change for six residues in TM1 as well as 10 residues in the extracellular linker with other n.d. indications on the table. The latter, which are mainly used in intracellular regions, stated that subsequent step of VCF recording could not be performed due to fast current decay.

On the other hand, n.d. indication in ATP-evoked F change in six residues at TM1 (and 10 residues in extracellular linker) simply means not determined / not performed. It is because the main focus of this study was not to observe ATP-evoked fluorescence change but to observe voltage-dependent changes. At the screening process the experiments to determine if there is ATP-evoked change was omitted.

To avoid any confusion, we revised the indication for the Supplementary Table 1 (Supplementary file 1 in the revised manuscript) as follows:

“Mutations were introduced one at a time into 96 positions within the extracellular domain (ECD) near the ATP-binding site and extracellular linker, transmembrane domains (TMs), intracellular N-terminal, and intracellular C-terminal. ATP application ranging from 10 µM, 30 µM, or 100 µM unless otherwise stated. (+) indicates there was either ATP-evoked fluorescence (F) signal change, voltage-evoked F change, ATP-evoked current (I) change, or voltage-evoked I change. (-) indicates negative results. (**) indicates mutants which have a very low expression level, so that the reliable VCF analysis could not be undertaken. (***) indicates fast current decay. (--) indicates that the subsequent recording could not be performed, as a result of fast current decay. (n.d.) indicates not determined.”

https://doi.org/10.7554/eLife.65822.sa2

Article and author information

Author details

  1. Rizki Tsari Andriani

    1. Division of Biophysics and Neurobiology, National Institute for Physiological Sciences, Aichi, Japan
    2. Department of Physiological Sciences, The Graduate University for Advanced Studies, School of Life Science, Kanagawa, Japan
    Contribution
    Conceptualization, Data curation, Formal analysis, Writing - original draft, Writing - review and editing
    For correspondence
    kiki@nips.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9242-469X
  2. Yoshihiro Kubo

    1. Division of Biophysics and Neurobiology, National Institute for Physiological Sciences, Aichi, Japan
    2. Department of Physiological Sciences, The Graduate University for Advanced Studies, School of Life Science, Kanagawa, Japan
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    ykubo@nips.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6707-0837

Funding

Japan Society for the Promotion of Science (KAKENHI 17H04021)

  • Yoshihiro Kubo

Japan Society for the Promotion of Science (KAKENHI 20H03424)

  • Yoshihiro Kubo

Daiko Foundation

  • Rizki Tsari Andriani

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Dr. Sakata S and Prof. Okamura Y (Osaka University, Graduate School of Medicine) for the guidance of VCF experiments, Dr. Shimomura T and all members in Kubo Laboratory for discussion, Ms. Naito C for technical support, and Dr. Collins A (Saba University, School of Medicine, Dutch Caribbean) for editing the manuscript.

Ethics

Animal experimentation: All animal experiments were approved by the Animal Care Committee of the National Institutes of Natural Sciences (NINS, Japan) and performed obeying its guidelines.

Senior Editor

  1. Richard W Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Baron Chanda, Washington University in St. Louis, United States

Reviewer

  1. Mufeng Li, National Insitute of Neurological Disorders and Strokes, United States

Publication history

  1. Received: December 16, 2020
  2. Accepted: May 18, 2021
  3. Accepted Manuscript published: May 19, 2021 (version 1)
  4. Version of Record published: June 7, 2021 (version 2)

Copyright

© 2021, Andriani and Kubo

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 484
    Page views
  • 92
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Physics of Living Systems
    2. Structural Biology and Molecular Biophysics
    Cameron Hill et al.
    Research Article

    Time-resolved X-ray diffraction from isolated fast-twitch muscles of the mouse was used to show how structural changes in the myosin-containing thick filaments contribute to the regulation of muscle contraction, extending the previous focus on regulation by the actin-containing thin filaments. This study shows that muscle activation involves the following sequence of structural changes: thin filament activation, disruption of the helical array of myosin motors characteristic of resting muscle, release of myosin motor domains from the folded conformation on the filament backbone, and actin attachment. Physiological force generation in the 'twitch' response of skeletal muscle to single action potential stimulation is limited by incomplete activation of the thick filament and the rapid inactivation of both filaments. Muscle relaxation after repetitive stimulation is accompanied by complete recovery of the folded motor conformation on the filament backbone but incomplete reformation of the helical array, revealing a structural basis for post-tetanic potentiation in isolated muscle.

    1. Structural Biology and Molecular Biophysics
    Bronwyn A Lucas et al.
    Tools and Resources

    For a more complete understanding of molecular mechanisms, it is important to study macromolecules and their assemblies in the broader context of the cell. This context can be visualized at nanometer resolution in three dimensions (3D) using electron cryo-tomography, which requires tilt series to be recorded and computationally aligned, currently limiting throughput. Additionally, the high-resolution signal preserved in the raw tomograms is currently limited by a number of technical difficulties, leading to an increased false-positive detection rate when using 3D template matching to find molecular complexes in tomograms. We have recently described a 2D template matching approach that addresses these issues by including high-resolution signal preserved in single-tilt images. A current limitation of this approach is the high computational cost that limits throughput. We describe here a GPU-accelerated implementation of 2D template matching in the image processing software cisTEM that allows for easy scaling and improves the accessibility of this approach. We apply 2D template matching to identify ribosomes in images of frozen-hydrated Mycoplasma pneumoniae cells with high precision and sensitivity, demonstrating that this is a versatile tool for in situ visual proteomics and in situ structure determination. We benchmark the results with 3D template matching of tomograms acquired on identical sample locations and identify strengths and weaknesses of both techniques, which offer complementary information about target localization and identity.
