Autism-associated SHANK3 missense point mutations impact conformational fluctuations and protein turnover at synapses

  1. Michael Bucher
  2. Stephan Niebling
  3. Yuhao Han
  4. Dmitry Molodenskiy
  5. Fatemeh Hassani Nia
  6. Hans-Jürgen Kreienkamp
  7. Dmitri Svergun
  8. Eunjoon Kim
  9. Alla S Kostyukova
  10. Michael R Kreutz  Is a corresponding author
  11. Marina Mikhaylova  Is a corresponding author
  1. AG Optobiology, Institute of Biology, Humboldt-University, Germany
  2. DFG Emmy Noether Guest Group 'Neuronal Protein Transport', Institute for Molecular Neurogenetics, Center for Molecular Neurobiology (ZMNH), University Medical Center Hamburg-Eppendorf (UKE), Germany
  3. RG Neuroplasticity, Leibniz-Institute for Neurobiology (LIN), Germany
  4. Molecular Biophysics and High-Throughput Crystallization, European Molecular Biology Laboratory (EMBL), Germany
  5. Structural Cell Biology of Viruses, Centre for Structural Systems Biology (CSSB) and Leibniz Institute for Experimental Virology, Germany
  6. European Molecular Biology Laboratory (EMBL) Hamburg Unit, DESY, Germany
  7. Institute of Human Genetics, Center for Obstetrics and Pediatrics, University Medical Center Hamburg-Eppendorf (UKE), Germany
  8. Center for Synaptic Brain Dysfunctions, Institute for Basic Science (IBS) and Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Republic of Korea
  9. The Gene and Linda Voiland School of Chemical Engineering and Bioengineering, Washington State University (WSU), United States
  10. Leibniz Group 'Dendritic Organelles and Synaptic Function', Center for Molecular Neurobiology (ZMNH), University Medical Center Hamburg-Eppendorf (UKE), Germany
  11. German Center for Neurodegenerative Diseases, Germany
  12. Center for Behavioral Brain Sciences, Germany
Research Article
  • Cited 0
  • Views 1,062
  • Annotations
Cite this article as: eLife 2021;10:e66165 doi: 10.7554/eLife.66165

Abstract

Members of the SH3- and ankyrin repeat (SHANK) protein family are considered as master scaffolds of the postsynaptic density of glutamatergic synapses. Several missense mutations within the canonical SHANK3 isoform have been proposed as causative for the development of autism spectrum disorders (ASDs). However, there is a surprising paucity of data linking missense mutation-induced changes in protein structure and dynamics to the occurrence of ASD-related synaptic phenotypes. In this proof-of-principle study, we focus on two ASD-associated point mutations, both located within the same domain of SHANK3 and demonstrate that both mutant proteins indeed show distinct changes in secondary and tertiary structure as well as higher conformational fluctuations. Local and distal structural disturbances result in altered synaptic targeting and changes of protein turnover at synaptic sites in rat primary hippocampal neurons.

Introduction

De novo and inherited point mutations contribute to several neuropsychiatric disorders and are common in genes that are responsible for synaptic function (Gratten et al., 2013; Hammer et al., 2015; Penzes et al., 2011). Currently, very little is known about how such missense mutations alter protein structure and conformational stability in a manner that might cause disease-related synaptic phenotypes. Establishing such structure-function relationships will contribute to a better understanding of pathogenic mechanisms in particular for autism spectrum disorder (ASD; Luo et al., 2018; Stefl et al., 2013).

SHANK3 is a multidomain synaptic scaffold protein most prominently expressed in the brain (Grabrucker et al., 2011). To date, multiple splice isoforms of SHANK3 with varying domain organization have been identified (Wang et al., 2014a). The SHANK3a isoform shows highest expression in the striatum and hippocampus and consists of five distinct domains plus an additional proline-rich cluster (Jiang and Ehlers, 2013; Wang et al., 2014b). These include the SHANK/ProSAP N-terminal (SPN) domain followed by the ankyrin repeat region (ARR), a Src homology 3 (SH3) domain, the PSD-95/DLG/ZO-1 (PDZ) domain, and the C-terminal sterile alpha motif (SAM). The SPN domain has been shown to interact with small GTPases of the Ras superfamily including R-Ras, H-Ras or Rap1, which are involved in the regulation of synaptic F-actin structure and dynamics and in postsynaptic signal transduction (Cai et al., 2020; Lilja et al., 2017). The ARR domain binds the cytoskeletal protein α-fodrin, an adhesive junction associated protein δ-catenin, and a component of a ubiquitin ligase complex, sharpin (Böckers et al., 2001; Lim et al., 2001; Hassani Nia et al., 2020). While the SH3 domain directly associates with the Ca2+ channel Cav1.3, the PDZ domain is involved in a direct interaction with synapse-associated protein 90/postsynaptic density-95-associated protein 1 (SAPAP1) or the GluA1 subunit of α-amino-3-hydroxy-5-methyl-4-isoxazole propionic acid (AMPA) receptors (Boeckers et al., 1999; Uchino et al., 2006). Between the PDZ domain and the C-terminal SAM domain, SHANK3 contains a proline-rich region harboring multiple protein interaction sites including those for homer1 and cortactin, which are relevant for linking of SHANK3 to other PSD scaffolds and the regulation of spinous actin dynamics (MacGillavry et al., 2016; Naisbitt et al., 1999; Tu et al., 1999). Finally, the SAM domain facilitates oligomerization of SHANK3 within the postsynaptic density (PSD) and is required for postsynaptic targeting (Baron et al., 2006; Boeckers et al., 2005). Thus, SHANK3 acts as ‘master organizer’ of the PSD via multiple protein interactions and the resulting indirect association with ionotropic glutamate receptors (Jiang and Ehlers, 2013; Zeng et al., 2018; Zhang et al., 2005) and is thus crucial for synaptic structure and function (Grabrucker et al., 2011; Monteiro and Feng, 2017).

Disruption of SHANK3 function has been linked to numerous neuropsychiatric and neurodevelopmental disorders (Durand et al., 2007; Gauthier et al., 2009). In fact, it is one of the few proteins with a clear genetic linkage to synaptic dysfunction in conditions like the Phelan-McDermid syndrome (PMS) and other ASDs disease states collectively coined as shankopathies (Guilmatre et al., 2014; Sala et al., 2015; Wang et al., 2014a). Pathogenic rearrangements in the SHANK3 gene result in either copy-number or coding-sequence variants, which have been shown to be of high clinical relevance (Boccuto et al., 2013; Leblond et al., 2014). While alterations in copy-number caused by gene deletions, ring chromosomes, unbalanced translocations or interstitial deletions have been studied extensively in several SHANK3 knockout mouse models (Bozdagi et al., 2010; Peixoto et al., 2016; Qin et al., 2018; Yi et al., 2016; Yoo et al., 2019), the impact of deleterious SHANK3 coding-sequence variants on protein structure and a corresponding synaptic phenotype is much less clear. Only one study reported the generation of a SHANK3 knock-in mouse line carrying the Q321R mutation identified in a human individual with ASD. Homozygous knock-in mice showed reduced levels of SHANK3a, suggesting an altered protein stability and the physiological and behavioral characterization revealed decreased neuronal excitability, repetitive and anxiety-like behavior, EEG patterns, and seizure susceptibility (Yoo et al., 2019). Single nucleotide deletions or insertions can lead to frameshifts, premature stop codons, or changes in splicing whereas more frequently occurring missense mutations could have an impact on the local or global protein structure (Hassani Nia and Kreienkamp, 2018).

The crystal structure for an N-terminal SHANK3 fragment comprising the SPN and ARR domain has recently become available (PDB 5G4X; Lilja et al., 2017). Two autism-related point mutations, R12C and L68P, have been described in patients and are located within this region (Hassani Nia and Kreienkamp, 2018) and therefore represent an attractive target for structural analysis. In previous work, the L68P mutation has been shown to alter G-protein signaling and integrin activation as well as to result in enhanced binding to protein ligands such as α-fodrin or sharpin, whereas the R12C mutation has been reported to have moderate effects on spine formation and synaptic transmission (Durand et al., 2012; Lilja et al., 2017; Mameza et al., 2013). The R12C mutation was originally identified in an autistic patient suffering from severe mental retardation and total absence of language, who inherited the mutation from his mother (Durand et al., 2007). The L68P mutation was transmitted by an epileptic father and was shown to result in language disorder and ASD in a female patient (Gauthier et al., 2009).

In this study, using a wide range of biophysical and cellular approaches we show that the ASD-associated point mutations R12C and L68P affect different levels of protein structure. While the R12C mutation confers increased secondary structure stability and reduces synaptic residing time of SHANK3, the L68P mutation results in partial unfolding with reduced tertiary structure stability and an increased number of dendritic SHANK3 clusters. Thus, subtle mutation-induced changes in tertiary structure come along with altered conformational fluctuations that will likely cause ASD-related synaptic phenotypes.

Results

SHANK3 L68P and R12C mutants show altered folding and complex topology

We first aimed to provide structural underpinnings that might be causally linked to the pathological role of the two inherited ASD-associated missense mutations located within the SPN domain of SHANK3 (Figure 1—figure supplement 1). To that end, we examined the low-resolution structure of a larger SHANK3 fragment covering amino acids 1 to 676 including the SPN, ARR, SH3, and PDZ domains in solution by small-angle X-ray scattering (SAXS). This method is especially powerful to analyze structural changes of large and conformationally flexible multidomain proteins in solution (Blanchet and Svergun, 2013). To purify each individual SHANK3(1-676) fragment (a wild type/WT, R12C-, and L68P-mutant), we fused an N-terminal His6-SUMO-tag to enable protein purification via Ni2+ affinity chromatography (Figure 1—figure supplement 2A). Eluted proteins were then further purified by size-exclusion chromatography (SEC, Figure 1A). Notably, for SAXS we did not cleave the tag in order to improve solubility and to allow for measurements over a broader concentration range. We found that both the WT and R12C mutant showed a linear dependence of the radius of gyration (Rg) on protein concentration. For the L68P mutant, Rg also increased with concentration but showed no linear dependency, which might indicate increased interparticle interactions due to partial unfolding (Figure 1B). Additionally, we observed an increase of the maximum particle diameter (Dmax) with increasing protein concentration from pair distance distribution functions (PDDFs), which were calculated from SAXS profiles measured for each His6-SUMO-SHANK3(1-676) variant at indicated concentrations (Figure 1—figure supplement 3B). An overview of principle parameters calculated from SAXS data is provided in Supplementary file 1.

Figure 1 with 5 supplements see all

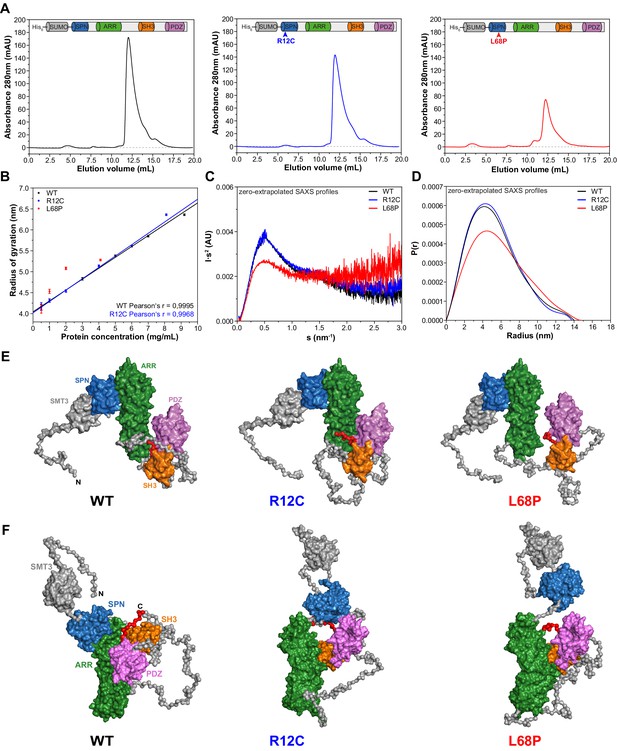

Small-angle X-ray scattering from ASD-associated SHANK3 mutants shows changes in protein folding and topology.

(A) Size-exclusion chromatograms of Ni2+-IDA pre-purified His6-SUMO-SHANK3(1-676) variants are shown (elution peak at ~12.0 mL). The individual elution peaks were used for SAXS. (B) Rg values derived from Guinier approximation in the range of sRg <1.3 of SAXS profiles measured at different protein concentrations. The WT and R12C mutant show a linear increase of Rg with protein concentration, which suggests the presence of attractive interparticle interactions. (C) Kratky plots from zero-extrapolated SAXS profiles of the WT and R12C mutant resemble the profile of a folded multidomain protein with flexible linkers, while the L68P mutant appears to be partially unfolded. (D) Distance distribution curves were computed with GNOM using zero-extrapolated SAXS profiles as input data. Particles were assumed to be arbitrary monodisperse. The curves indicate a maximum particle diameter (Dmax) of ~14–15 nm for monomeric SHANK3(1-676) without significant alterations due to ASD-associated mutations. (E) Rigid-body CORAL models of the SHANK3 complex topology in solution. High-resolution structures of individual SHANK3 fragments were fitted against zero-extrapolated SAXS profiles without assuming any higher order symmetry (space group P1). The SPN and ARR domains were treated as a single rigid body (PDB 5G4X). The models indicate distal effects of both mutations on the position of the SH3 domain (orange) and PDZ domain (magenta) relative to the ARR domain (green) as well as changes in the orientation of linker regions. (F) CORAL models of monomeric His6-SUMO-SHANK3(1-676) variants with split SPN/ARR domains, where the linker region has been replaced by flexible dummy residues, capture mutation-induced perturbations of the SPN/ARR domain interface. Perspectives of visualized structures were chosen to facilitate highest visibility of structural regions of interest. All acquired SAXS data including fits and models were deposited to SASBDB (WT: SASDLJ3, R12C: SASDLL3 and L68P: SASDLK3). SAXS = small-angle X-ray scattering, ASD = autism spectrum disorders, Rg = radius of gyration, WT = wild type, SPN = SHANK/ProSAP N-terminal, ARR = ankyrin repeat.

Taken together, these data suggest attractive interparticle interactions in solution independent of the SAM domain. To analyze whether His6-SUMO-SHANK3(1-676) variants could exist in an oligomeric form in solution even without the presence of the SAM domain, SAXS profiles measured for the highest and lowest protein concentration were merged and fitted with CORAL using a dimeric symmetry constraint. Interestingly, we found that all three SHANK3 variants can form dimers via their SH3 and PDZ domains in a 2 × 2 stoichiometry (Figure 1—figure supplement 4).

However, the fitted curve for the dimer deviates from experimental data in the very low angular range, suggesting the existence of a monomer-dimer equilibrium. Independently, OLIGOMER analysis of SAXS data indicated a linear decrease of the monomeric SHANK3 volume fraction with increasing concentration, thereby further corroborating a dynamic concentration-dependent monomer-dimer equilibrium (Figure 1—figure supplement 3C). While the R12C mutant did not show any significant changes in the dimeric protein complex topology compared to the WT, the relative orientation of the ARR domain was altered with respect to the [(SH3)-(PDZ)]2 cluster for the L68P mutant. This indirectly suggests that not only the SAM domain but also the SH3 and PDZ domains might be actively involved in the formation of an oligomeric SHANK3 scaffold in the PSD. Consequently, it would be of great value to obtain detailed information about the concentration of SHANK3 at the synapse as this would allow an estimation of the contribution of SH3 and PDZ domain-mediated dimerization in the spine.

To facilitate further structural analyses, however, these interparticle effects were removed by extrapolation to infinite dilution. Since the estimated monomeric SHANK3 volume fraction at zero concentration is close or equal to unity for all variants, zero-extrapolated SAXS profiles represent the monomeric state of His6-SUMO-SHANK3(1-676). For the WT and R12C mutant, Kratky plots generated from zero-extrapolated SAXS profiles had the shape of a folded multidomain protein with a flexible linker (Figure 1C). In contrast, the L68P mutant showed the characteristic shape of a partially unfolded protein. Furthermore, PDDFs revealed that both the WT and mutants exhibit monomeric Dmax values of ~14–15 nm, consistent with values obtained from low-concentration SAXS profiles (Figure 1D, Figure 1—figure supplement 3B). Finally, CORAL fitting of zero-extrapolated SAXS profiles without any symmetry constraint (space group P1) showed additional structural differences in the corresponding monomers (Figure 1E and F, Figure 1—figure supplement 5). Interestingly, for both mutants the modeled monomeric protein structure exhibited a change in the relative position of the SH3 and PDZ domains, which are in turn separated from the ARR domain by an intrinsically disordered region of 122 amino acids (Figure 1E). While, in the R12C mutant, the SH3 and PDZ domains seem to be connected to the ARR domain more strongly, the L68P mutant shows a decoupling of these domains. To additionally capture potential mutation-induced disruptions of the interface between the SPN and ARR domain, we performed CORAL fits, where the linker region of the SPN-ARR fragment (PDB: 5G4X, Lilja et al., 2017) has been replaced by flexible dummy residues (DRs). Expectedly, this resulted in an improvement of fits due to the increased degrees of freedom and revealed that the SPN domain is decoupled from the ARR domain in both mutants, indeed suggesting a disruptive effect of both mutations on the domain interface (Figure 1F). Collectively, the data indicate that the ASD-associated mutations R12C and L68P result in altered protein folding (L68P) and complex topology in solution.

The L68P mutation results in reduced tertiary structure stability

Since the SAXS data suggest changes in the tertiary structure of ASD-associated SHANK3 mutants, we tested this hypothesis with nano-differential scanning fluorimetry (nDSF; Alexander et al., 2014). To exclude a possible contribution of His6-SUMO to thermal transitions, we removed the tag by treatment with Sentrin-specific protease 2 (SenP2; Figure 1—figure supplement 2B and C) and obtained individual SHANK3(1-676) variants in sufficient purity for nDSF (Figure 2B). We monitored the thermal unfolding of purified SHANK3(1-676) variants label-free using intrinsic tryptophan fluorescence emission of the untagged protein (Figure 2A and B). To suppress precipitation of melted proteins, we added increasing concentrations of urea (0.25–2.0M) to the samples. Although aggregation was largely prevented by addition of 2.0M urea, protein precipitates were still visible after completing thermal denaturation runs, indicating the irreversibility of thermal unfolding, which is known for many large multidomain proteins (Strucksberg et al., 2007). Therefore, we compared the thermal transitions on a qualitative level and classified the complex melting behavior into three partially overlapping thermal transition zones (Tm1–Tm3; Figure 2C and E). Individual transition points have been identified by peak detection of first derivative curves, which were determined from the corresponding fluorescence ratio curves (F 350/330 nm vs. T; Figure 2D and E). Interestingly, we found only a single transition point for the R12C mutant in the absence of urea, while both the WT and L68P mutant showed multiple transitions (Figure 2E). However, upon titration with urea the L68P mutant clearly showed a strongly increased structural susceptibility as we observed a pronounced shift of transition zones 1 and 2 toward lower temperatures (~4–6°C in Tm1 and ~8°C in Tm2). This shift was essentially absent for the R12C mutant, which displayed transition temperatures very similar to the WT. To independently verify the reduced tertiary structure stability of the L68P mutant, we performed intrinsic tryptophan fluorescence spectroscopy measurements using His6-SUMO-SHANK3(1-676) variants, which have also been used for SAXS before. Consistently, fluorescence spectra showed a marked reduction in the peak intensity of fluorescence emission between 330 and 350 nm for the L68P mutant, indicative of partial unfolding (Figure 2—figure supplement 1). Furthermore, by extrinsic fluorescence emission spectroscopy we observed an approximately twofold increase in the peak fluorescence intensity of the dye 1-anilinonaphthalene-8-sulphonate (ANS) for the L68P mutant compared to WT and R12C (Figure 2—figure supplement 2). Since ANS becomes strongly fluorescent only upon binding to a hydrophobic environment, these measurements indicate an increased surface hydrophobicity of the L68P mutant. Collectively our data reveal that the L68P, but not the R12C mutation, reduces stability and results in perturbed tertiary structure.

Figure 2 with 2 supplements see all

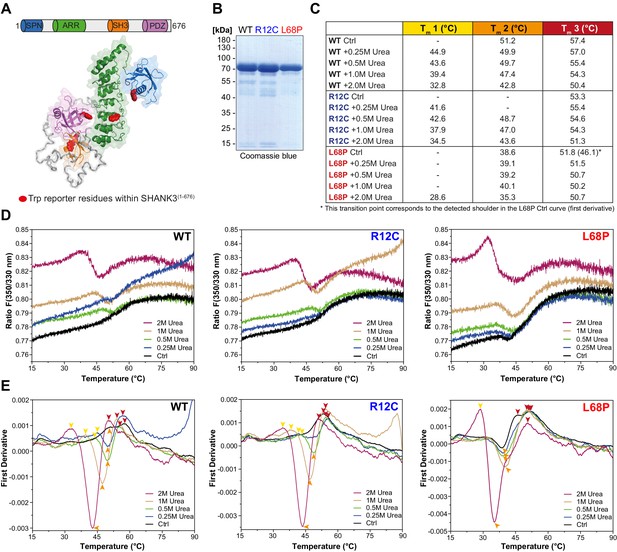

ASD-associated SHANK3 mutations differentially affect protein tertiary structure.

(A) Schematic representation of the SHANK3(1-676) fragment, which was used for nDSF measurements. Intrinsic tryptophan (Trp) reporter residues are highlighted in the structure, which was derived from SAXS data. (B) SDS-PAGE of Ni2+-NTA purified SHANK3(1-676) variants which were used for nDSF and CD spectroscopy. (C) Overview of detected melting points from peaks of first derivative curves (from E). Due to the complex melting behavior, melting was classified in three transition zones (Tm1Tm3) which are partially overlapping. (D) Label-free determination of thermal and chemical stability of purified SHANK3(1-676) variants by intrinsic fluorescence emission depicted as ratio of 350/330 nm as a function of temperature. Melting curves were acquired at a protein concentration of ~0.5 mg/mL, 50% excitation power and with a heating rate of 1°C/min. (E) First derivative analysis of melting curves shown in (D). Transition points are indicated with colored arrowheads (color-coded according to the transition zones) and shifted toward lower temperatures with increasing urea concentration, as expected. For the L68P mutant, considerably lower melting points are detected compared to the WT or R12C mutant, suggesting a reduced thermal stability of the tertiary structure. ASD = autism spectrum disorders, SAXS = small-angle X-ray scattering, WT = wild type.

Figure 2—source data 1

ASD-associated SHANK3 mutations differentially affect protein tertiary structure.

https://cdn.elifesciences.org/articles/66165/elife-66165-fig2-data1-v2.xlsx

The autism-related SHANK3 missense variants R12C and L68P show changes in secondary structure stability and unfolding cooperativity

To understand how the observed structural deviations from the WT protein such as partial unfolding, altered complex topology in solution, or reduced tertiary structure stability translate to the secondary structure level, we next performed far-ultraviolet circular dichroism (far-UV CD) spectroscopy and monitored both chemical and thermal unfolding of ASD-associated SHANK3 mutants. For direct comparison, identical protein preparations were used for nDSF (Figure 2B) and CD spectroscopy experiments. We initially conducted isothermal equilibrium chemical unfolding experiments using urea as denaturant and followed induced structural changes by measuring ellipticities at 222 nm, reporting on α-helical unfolding (Figure 3A). We then fitted the data to a two-state unfolding transition model using a linear extrapolation method (LEM) to obtain the free energy of unfolding (ΔGunfold) as a function of denaturant concentration. Interestingly, we found only subtle differences in the transition midpoint concentration of urea (ΔGunfold = 0 for urea concentration of 3.3 mol/L [WT], 3.4 mol/L [R12C], and 3.1 mol/L [L68P]) but observed a reduction in unfolding cooperativity of both mutants due to a reduced dependence of ΔGunfold on denaturant concentration (Figure 3B). This suggests a mutation-induced destabilization of the SHANK3 secondary structure, which is distinct from the observed tertiary structure perturbations. It has been reported that chemically and thermally denatured protein states may differ substantially. We, therefore, next aimed to complement our chemical unfolding experiments with thermal unfolding measurements (Narayan et al., 2019). We observed that the presence of 2.0M urea induced a strong reduction of transition temperatures detected by nDSF but almost no change in ellipticity at 222 nm (Figures 2E and 3A). Therefore, we acquired CD melting curves of SHANK3(1-676) variants in the presence of 2.0M urea from the same sample which was used for chemical unfolding. Strikingly, CD melting temperatures differed substantially from those observed by nDSF (~62–68 vs. ~29–51°C) and showed an increase in the thermal stability of the R12C mutant by approximately 6°C compared to the WT (Figure 3C). The L68P mutant, however, did not show an altered melting temperature compared to the WT. In line with this, limited trypsin proteolysis experiments suggest a mildly decreased proteolytic cleavability of the R12C mutant (Figure 3—figure supplement 1). Additionally, we did not detect significant discrepancies between the WT and both mutants in their far-UV CD spectra, suggesting that their secondary structure content is similar (Figure 3D). Overall, we observed thermally distinguishable secondary and tertiary structure unfolding as well as differential susceptibility of both mutants to either chemical or thermal perturbations. We conclude that both ASD-associated missense variants show changes in their stability and exhibit reduced chemical unfolding cooperativity.

Figure 3 with 2 supplements see all

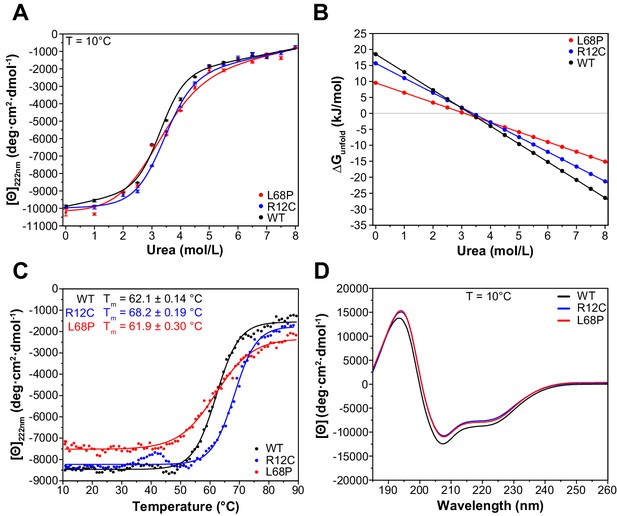

ASD-associated SHANK3 mutants show structural alterations at secondary structure level.

(A) Isothermal chemical unfolding curves with urea as denaturant are depicted (222 nm, 3 s/point, 25 µs sample period, three repeats, T = 10.0 ± 0.2°C, protein concentration ~0.15 mg/mL). The data has been fitted to a two-state unfolding transition model. Transition midpoints do not vary significantly but differences occur in the slopes of the corresponding folded and unfolded baselines. (B) Unfolding free energies are calculated from fitted parameters obtained in (A) using a linear free energy model. Both mutants show a reduced unfolding cooperativity and thermodynamic stability when unfolding is induced with urea. (C) Thermal unfolding curves have been acquired from samples measured in (B) in the presence of 2.0 M urea to prevent thermally induced protein aggregation preceding actual secondary structure melting (222 nm, 3 s/point, 25 µs sample period, 10–90°C T range, 1.0°C step size, 1.0°C/min stepped ramping with 30 s settling time and 0.5°C tolerance). Thermal unfolding curves reveal an increased secondary structure stability of the R12C mutant (dynode voltage = 370–400 V between 10 and 90°C). (D) Far-UV CD spectra of SHANK3(1-676) variants are shown in the range of 260–185 nm (0.5 nm step size, 3 s/point, 25 µs sample period, three repeats, T = 10.0 ± 0.2°C). Immediately before measurement, proteins have been buffer exchanged to 10 mM KH2PO4, 100 mM KF, 0.5 mM DTT, pH = 6.50. Differences between WT and mutant protein spectra are minor. ASD = autism spectrum disorders, WT = wild type.

Molecular dynamics simulations reveal reduced nanosecond peptide backbone dynamics of both mutants

We next aimed to gain further insights into the conformational dynamics of ASD-associated SHANK3 mutants at very high temporal resolution (Karplus and Kuriyan, 2005). Molecular dynamics simulations (MDS) provide a valuable link between protein structure and dynamics (Hollingsworth and Dror, 2018). Since both mutations are located within the SPN domain, we took advantage of the published crystal structure of an N-terminal SHANK3 fragment (PDB 5G4X; Lilja et al., 2017). To extensively sample the conformational space of SHANK3(1-346) WT, R12C, and L68P, we calculated 1000 ns MD trajectories for each variant. Thereby root mean square fluctuation (RMSF) analysis of Cα atoms revealed an increased conformational flexibility of mutants compared to the WT within the first 100 amino acid residues, corresponding to the SHANK3 SPN domain (Figure 4A). Surprisingly, however, root mean square deviation (RMSD) analysis showed that this increase in conformational dynamics seems to be unstable over time. While mutants exhibit higher dynamics during the first 300–400 ns, the WT undergoes a prominent switch after approximately 500 ns and further on consistently shows increased RMSDs compared to the mutants (Figure 4B). This switch is essentially absent in both mutants.

Figure 4 with 3 supplements see all

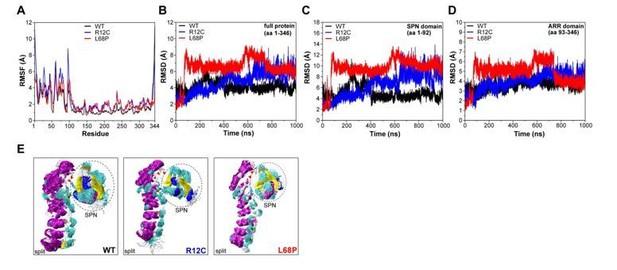

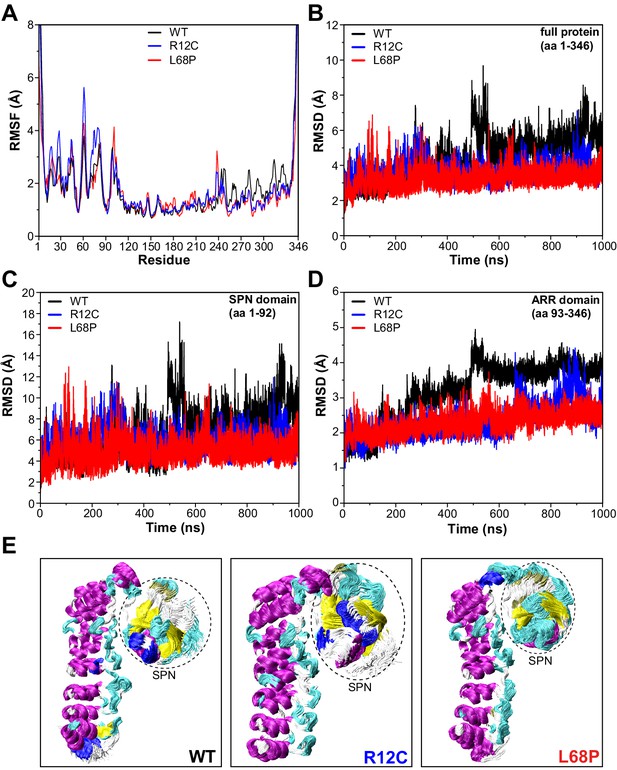

SHANK3 mutants show altered intra-domain conformational dynamics.

(A) Cα backbone RMSF calculated for the trajectories of the SHANK3(1-346) fragment (PDB: 5G4X) either as WT or carrying one of the ASD-associated mutations R12C (blue) or L68P (red) show increased fluctuations for both mutants predominantly within the first 100 residues of the protein possibly suggesting a local mutation-induced increase in protein backbone dynamics. (B) Cα backbone RMSD determined for the full protein (aa 1–346). Within the first 100ns both mutants tend to show slightly increased backbone dynamics. This effect inverts with extended sampling time and mutants show on average reduced conformational dynamics compared to the WT. (C) Cα backbone RMSD restricted to the SPN domain of SHANK3 (aa 1–92). The traces resemble those observed for the full protein (aa 1–346) but absolute RMSD values are considerably larger for the SPN domain. (D) Cα backbone RMSD restricted to the ARR domain of SHANK3 (aa 93–346). The WT protein shows a stepwise increase in RMSD over time possibly indicating switches between distinct conformational states. This behavior is largely missing in both mutants but is more prominent for the L68P variant. (E) Local hotspots of conformational dynamics can be seen within the SPN domain (encircled) from overlays of individual frames of the trajectory (every fifth frame loaded, overlay [beginning:step:end]=0:20:20002 resulting in 1000 frames). RMSF = root mean square fluctuation, WT = wild type, ASD = autism spectrum disorders, RMSD = root mean square deviation.

To address which domain might contribute to this conformational switch, we performed separate RMSD analyses for the SPN and ARR domains. Indeed, RMSD traces restricted to the SPN domain revealed the same pattern as observed for the whole protein, including a profound increase of RMSD at around 500 ns for the WT (Figure 4C). Additionally, this RMSD peak within the SPN domain was absent in both ASD mutants. On the opposite, the point mutations rather induced an increase in the number and amplitude of individual RMSD spikes, suggesting more pronounced structural oscillations of the SPN domain. Interestingly, also within the ARR domain, we observed conformational transitions of the WT as sequential stepwise RMSD increases (Figure 4D) and again, this behavior was absent in both mutant proteins (Figure 4—videos 13). Taken together, MDS identifies the SPN domain as a hotspot of conformational flexibility with higher fluctuations in both ASD-associated mutant proteins (Figure 4E). On average, however, both point mutations resulted in reduced backbone dynamics and a lack of discrete conformational transitions, which might be related to structurally regulated protein function.

SHANK3 mutants form a higher number of dendritic shaft synapses

We next asked whether any consequences will result from the structural perturbations in R12C and L68P SHANK3 mutations in cellular context. Therefore, we performed immunocytochemical labeling of endogenous homer and bassoon as excitatory postsynaptic and presynaptic markers, respectively, and analyzed their co-localization with endogenous SHANK3 (Figure 5A). We found that approximately 70% of homer-positive excitatory synapses contained SHANK3 while SHANK3-positive synapses co-localized with homer nearly to 100% (Figure 5B). Furthermore, approximately 80% of SHANK3 clusters had a bassoon-positive presynaptic contact. To analyze cellular consequences induced by SHANK3 missense mutations, we overexpressed full-length GFP-tagged SHANK3a variants, which is the most abundant isoform, in primary rat hippocampal neurons for less than 24 hr to prevent protein dosage-dependent effects as higher SHANK3 expression levels directly affect spine structure and function (Han et al., 2013; Roussignol et al., 2005). Consequently, spine density analysis showed that short-term expression of GFP-SHANK3 variants did not significantly alter spine numbers compared to a GFP-control (Figure 5C; Figure 5—figure supplement 1). However, neurons expressing the L68P mutant exhibited a significantly increased number of dendritic GFP-SHANK3 L68P clusters in the shaft compared to the WT, suggesting impaired localization to dendritic spines (Figure 5D). The R12C mutant showed the same, yet less pronounced trend. Line profile analyses of SHANK3 intensity distributions between spines and dendrites, however, revealed that spines contained on average approximately three times more GFP-SHANK3, independent of the genotype (Figure 5E). We thus asked whether these dendritic SHANK3 clusters are contacted by a presynaptic terminal by performing immunostaining for homer and bassoon (Figure 5H and I). Interestingly, we observed that approximately 48–54% of dendritic clusters of both SHANK3 mutants co-localize with bassoon (Figure 5F) and we found that approximately 32–34% of these dendritic SHANK3 clusters co-localize with homer (Figure 5G). Collectively, these data suggest that both mutations lead to an increased formation of dendritic clusters that are in part associated with shaft synapses.

Figure 5 with 1 supplement see all
Mutant SHANK3 variants form more clusters in dendritic shaft.

(A) Representative images of immunostained endogenous SHANK3 (red), homer or bassoon (green), and MAP2 (gray). (B) Quantification of the co-localization (SHANK3/bsn and bsn/SHANK3: n = 36 cells from two independent cultures; SHANK3/homer and homer/SHANK3: n = 36 cells from two independent cultures). Bars are showing the mean as well as individual data points. Approximately 72% of homer-positive spines are also SHANK3-positive, while ~93% of SHANK3-positive spines co-localize with homer. Additionally, ~79% of SHANK3-positive spines co-localize with the presynaptic marker bassoon. (C) Quantification of the total number of spines per 10 µm in primary rat hippocampal neurons overexpressing GFP-SHANK3FL variants for 16–18 hr (GFP: 15 cells from four independent cultures, WT: 14 cells from three independent cultures, R12C: 13 cells from four independent cultures, L68P: 13 cells from four independent cultures). Bars are showing the mean as well as individual data points. No significant differences in average spine numbers is found (Kruskal-Wallis ANOVA with Dunn’s post hoc test: p=0.59–1). (D) Analysis of SHANK3 cluster distribution in neurons overexpressing GFP-SHANK3FL variants (same dataset as in (C)). Bars are showing mean ± SEM. No significant effect of the R12C mutation on the relative distribution of SHANK3 clusters between spines and dendrites is found. The L68P mutation caused a significant increase in dendritic SHANK3 clusters (Kruskal-Wallis ANOVA with Dunn’s post hoc test: p(WT/R12C)=0.42; p(WT/L68P)=0.04 and p(R12C/L68P)=0.93 at p=95%). (E) Line profile analysis of the SHANK3 distribution between spines and dendrites (WT: 12 cells from four independent cultures, R12C: 11 cells from four independent cultures, L68P: 12 cells from five independent cultures). Bars are showing the mean as well as individual data points. No differences in the mean SHANK3 intensity ratio between spines and dendrites are found (one-way ANOVA with Bonferroni multiple comparisons test: p(WT/R12C)=1 and p(WT/L68P)=0.83 at p=95%). (F) Quantification of bassoon (bsn)/SHANK3 and SHANK3/bsn co-localization on dendritic clusters of neurons overexpressing GFP-SHANK3FL variants (WT: n = 11 cells from three independent cultures; R12C: n = 8 cells from three independent cultures; L68P: n = 10 cells from three independent cultures). No significant differences between genotypes are found (Kruskal-Wallis ANOVA with Dunn’s post hoc test: SHANK3/bsn co-localization: p(WT/R12C)=1; p(WT/L68P)=1; and p(R12C/L68P)=1 at p=95%; bsn/SHANK3 co-localization: p(WT/R12C)=1; p(WT/L68P)=1; and p(R12C/L68P)=1 at p=95%). Bars are showing the mean as well as individual data points per cell. (G) Quantification of homer/SHANK3 and SHANK3/homer co-localization on dendritic clusters of neurons overexpressing GFP-SHANK3FL variants (WT: n = 7 cells from two independent cultures; R12C: n = 12 cells from two independent cultures; L68P: n = 11 cells from two independent cultures). No significant differences between genotypes are found (Kruskal-Wallis ANOVA with Dunn’s post hoc test: SHANK3/homer co-localization: p(WT/R12C)=1; p(WT/L68P)=1; and p(R12C/L68P)=1 at p=95%; homer/SHANK3 co-localization: p(WT/R12C)=1; p(WT/L68P)=1; and p(R12C/L68P)=1 at p=95%). Bars are showing the mean as well as individual data points. (H) Representative images of GFP-SHANK3FL expressing neurons, co-stained for MAP2 and bassoon. The MAP2 signal was used as a mask to draw the outline of dendrites. Co-localization of GFP-SHANK3FL clusters with bassoon was analyzed within the MAP2 mask. (I) Representative images of GFP-SHANK3FL expressing neurons, co-stained for MAP2 and homer. Co-localization of GFP-SHANK3FL clusters with homer was analyzed within the MAP2 mask. WT = wild type.

Figure 5—source data 1

Colocalization of endogenous SHANK3 with bassoon and homer.

https://cdn.elifesciences.org/articles/66165/elife-66165-fig5-data1-v2.xlsx
Figure 5—source data 2

Quantification of SHANK3 clusters and spine numbers.

https://cdn.elifesciences.org/articles/66165/elife-66165-fig5-data2-v2.xlsx
Figure 5—source data 3

SHANK3 intensity ratio (spine vs. dendrite).

https://cdn.elifesciences.org/articles/66165/elife-66165-fig5-data3-v2.xlsx
Figure 5—source data 4

Colocalization of overexpressed SHANK3 variants with bassoon and homer.

https://cdn.elifesciences.org/articles/66165/elife-66165-fig5-data4-v2.xlsx

Synaptic turnover of SHANK3 and its interaction partner cortactin is affected by ASD-associated mutations of SHANK3

Mutation-induced alterations in SHANK3 structure and localization might also impact its ability to associate with synaptic binding partners. We therefore tested if SHANK3 mutants differentially interact with cortactin, homer1, or SAPAP1 (Boeckers et al., 1999; Naisbitt et al., 1999; Tu et al., 1999). To this end, we performed a set of co-immunoprecipitation (co-IP) experiments from HEK293 cells overexpressing both, a C-terminally RFP-tagged SHANK3FL variant (WT, R12C, or L68P) and one of the GFP-tagged binding partners. Interestingly, mutant SHANK3 variants showed no significant changes in binding to cortactin, homer, or SAPAP1 (Figure 6A–C). We next aimed to test, whether these mutations result in a perturbation of protein dynamics at the synapse. We employed fluorescence recovery after photobleaching (FRAP) of GFP-SHANK3FL variants (WT or mutant) or the interaction partners cortactin and homer1 in dendritic spines to address this question. Additionally, we tested the neuronal activity-dependence of GFP-SHANK3 turnover in dendritic spines by treatment with (+)-Bicuculline, which blocks GABAA receptor-mediated inhibitory currents and thus indirectly stimulates excitatory neurotransmission (Nowak et al., 1982). Strikingly, we found that the R12C, but not the L68P mutant, exhibited a strongly increased recovery, corresponding to a profound reduction in the synaptic residing time and thus increased turnover rate (Figure 7A and D). As expected, all tested GFP-SHANK3FL variants displayed a slower recovery upon bicuculline treatment, which might arise from activity-induced oligomerization of SHANK3 at the PSD (Grabrucker, 2014). The observed increase in synaptic turnover of R12C mutant is not a result of a mutation-induced enhancement of de novo protein synthesis as demonstrated by fluorescent non-canonical amino acid tagging (FUNCAT, Figure 7—figure supplement 1). When we analyzed the turnover of homer1 in the presence of ASD-associated SHANK3 mutants, we did not observe differences in the mobile fraction or recovery kinetics (Figure 7B and E). However, cortactin showed a significantly reduced mobile fraction in the presence of the L68P mutant (Figure 7C and F).

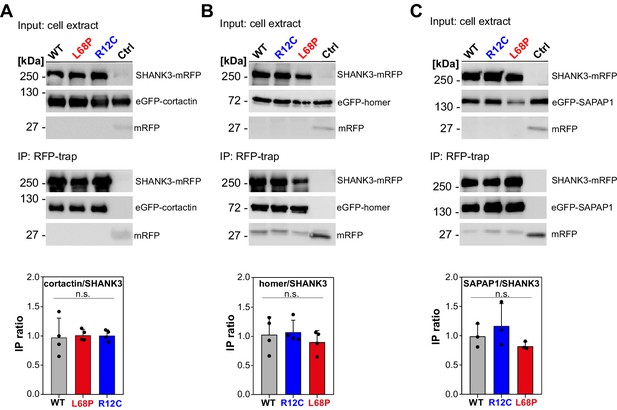

Mutant SHANK3 variants readily interact with cortactin, homer, and SAPAP1.

(A) A representative western blot from co-IP assays of SHANK3 and cortactin from HEK293 cells is shown (detection SHANK3: rat-α-mRFP, 1 s; detection cortactin: mouse-α-GFP, 1 s; n = 4 independent experiments). No difference in binding of cortactin to ASD-associated SHANK3 mutants can be detected compared to the WT (one-way ANOVA with Bonferroni multiple comparisons test: p(WT/R12C)=1, p(WT/L68P)=1, and p(R12C/L68P)=1 at p=95%). (B) Representative western blot from co-IPs of SHANK3 and homer (detection SHANK3: rat-α-mRFP, 1 s; detection homer: mouse-α-GFP, 1.5 s; n = 4 independent experiments). No difference in binding of homer to the tested SHANK3 mutants can be found compared to the WT (one-way ANOVA with Bonferroni multiple comparisons test: p(WT/R12C)=1, p(WT/L68P)=1, and p(R12C/L68P)=0.99 at p=95%). (C) Representative western blot from co-IPs of SHANK3 and SAPAP1 (detection SHANK3: rat-α-mRFP, 9 s; detection SAPAP1: mouse-α-GFP, 2 s; n = 3 independent experiments). No difference in binding of SAPAP1 to the SHANK3 mutants can be detected compared to the WT (one-way ANOVA with Bonferroni multiple comparisons test: p(WT/R12C)=1, p(WT/L68P)=1, and p(R12C/L68P)=0.41 at p=95%). co-IP = co-immunoprecipitation, WT = wild type, ASD = autism spectrum disorders.

Figure 7 with 1 supplement see all
Mutations of SHANK3 differentially affect the protein residing time in spines and dynamics of distinct interaction partners.

(A) Representative images of photobleached spines (488 nm) are shown at selected time points to illustrate the dynamics of GFP-SHANK3FL variants in primary rat hippocampal neurons. (B) Representative images of photobleached spines (561 nm) co-expressing homer1-tdTomato and GFP-SHANK3FL (WT, R12C, or L68P) are shown at selected timepoints during FRAP to illustrate the dynamics of homer1 in the presence of different SHANK3 variants. (C) Representative images of photobleached spines (561 nm) co-expressing mCherry-cortactin and GFP-SHANK3FL (WT, R12C, or L68P) are shown at selected timepoints during FRAP to illustrate the dynamics of cortactin in the presence of different SHANK3 variants. (D) FRAP curves demonstrating the dynamics of mutant SHANK3 in spines. The R12C mutant is displaying an increased recovery corresponding to a reduced residing time in spines (Kruskal-Wallis ANOVA with Dunn’s post hoc test; untreated: p(WT/R12C)<0.0001, p(R12C/L68P)<0.0001, and p(WT/L68P)=1; bic: p(WT/R12C)<0.0001, p(R12C/L68P)<0.0001, and p(WT/L68P)=1). All tested SHANK3 variants show a mildly decreased recovery after pharmacological stimulation with (+)-Bicucullin (5 min, 37°C, 5% CO2; data collected from three independent cultures for control curves and two independent cultures for (+)-Bicucullin stimulation). (E) FRAP curves showing the dynamics of homer1 in the presence of different GFP-SHANK3FL variants (WT, R12C, L68P). ASD-associated SHANK3 mutants cause no difference in the recovery of homer1 (Kruskal-Wallis ANOVA with Dunn’s post hoc test; p(WT/R12C)=1, p(R12C/L68P)=1, and p(WT/L68P)=1). (F) FRAP curves showing the dynamics of cortactin in the presence of different GFP-SHANK3FL variants (WT, R12C, L68P). Qualitatively, both SHANK3 mutants alter the recovery kinetics of cortactin. Additionally, the L68P mutant significantly reduces the mobile fraction of cortactin in spines (Kruskal-Wallis ANOVA with Dunn’s post hoc test; p(WT/R12C)=1, p(R12C/L68P)=0.0002, and p(WT/L68P)=0.0007). WT = wild type, FRAP = fluorescence recovery after photobleaching.

Figure 7—source data 1

FRAP of overexpressed SHANK3 variants under basal conditions.

https://cdn.elifesciences.org/articles/66165/elife-66165-fig7-data1-v2.xlsx
Figure 7—source data 2

FRAP of overexpressed SHANK3 variants upon stimulation with (+)-Bicuculline.

https://cdn.elifesciences.org/articles/66165/elife-66165-fig7-data2-v2.xlsx
Figure 7—source data 3

FRAP of overexpressed homer1.

https://cdn.elifesciences.org/articles/66165/elife-66165-fig7-data3-v2.xlsx
Figure 7—source data 4

FRAP of overexpressed cortactin.

https://cdn.elifesciences.org/articles/66165/elife-66165-fig7-data4-v2.xlsx

Additionally, the shape of the FRAP curve indicated a change of cortactin recovery kinetics in the presence of either mutant. Taken together, the FRAP experiments indicate altered diffusion dynamics of the SHANK3 R12C mutant in dendritic spines, corresponding to a reduced synaptic residing time. Also, cortactin shows faster recovery kinetics in the presence of the R12C mutant. Although the turnover of the SHANK3 L68P mutant in spines does not differ from the WT, the presence of the L68P mutant induces a reduction of cortactin recovery.

Discussion

ASD-associated SHANK3 missense variants exhibit distinguishable structural perturbations on secondary, tertiary, and quaternary structure level

The precise regulation of synaptic structure and function is crucial to maintain neuronal circuit integrity. Perturbation or dysregulation of synaptic proteins constitutes an integral part of many neurodevelopmental and neuropsychiatric diseases such as ASD (Durand et al., 2007; Kleijer et al., 2014). Although attempts have been made to converge existing data to a few common ASD pathways, the complexity of these pathways remains a challenge and is far from being fully understood (Luo et al., 2018). Due to the high frequency of mutations in the synaptic scaffolding protein SHANK3 (more than 1 in 50) in patients with ASD and intellectual disability, mutation screening of SHANK3 has been suggested for consideration in clinical practice (Leblond et al., 2014). Importantly, it has been emphasized previously that more than one pathogenic pathway downstream of SHANK3 is likely to exist and individual pathogenic processes related to synaptic organization and function have been described elsewhere (Durand et al., 2012; Mameza et al., 2013; Qin et al., 2018; Wang et al., 2020a). Therefore, it seems likely that individual ASD-associated pathogenic pathways related to SHANK3 are reflected by distinguishable structural perturbations elicited by distinct missense mutations. Hence, a precise understanding of SHANK3 missense mutation-induced structural changes as well as their associated pathogenic pathways should reveal disease-causing mechanisms but is largely missing. Bioinformatics studies suggested that functional consequences of missense mutations can be predicted based on structural features for the ASD- and cancer-associated protein phosphatase PTEN, as well as for voltage-gated sodium and calcium channels (Heyne et al., 2020; Smith et al., 2019a; Smith et al., 2019b). However, to our knowledge, studies correlating distinguishable structural perturbations of disease-relevant protein missense variants with an altered cellular phenotype are very limited (Post et al., 2020). In this work, we found that missense mutation-induced impairments of the structural integrity of SHANK3 serve as molecular starting point for higher-order pathogenic processes associated with ASD. Taken together, we demonstrate changes in synaptic turnover as exemplary consequence of ASD-associated missense mutations, indicating that structural impairments directly translate to cellular alterations.

R12C and L68P mutations result in altered conformational flexibility of SHANK3 on a nanosecond timescale

The description of the functional impact of protein missense mutation is incomplete if only a static structural picture is considered. Consequently, the evaluation of the pathogenic role of protein missense variants greatly benefits from analyses of changes in structural dynamics as a result to these point mutations (Ponzoni and Bahar, 2018). Here, we identified the SPN domain as a local hotspot of conformational dynamics and found that both ASD-associated missense mutations further increase conformational fluctuations within the SPN domain. Furthermore, we demonstrated a reduction of conformational dynamics within the ARR domain of SHANK3 due to the R12C and L68P mutation, which suggests the existence of more wide-ranging structural interactions affecting distal domains. Consistently, reconstruction of the L68P mutant His6-SUMO-SHANK3(1-676) complex topology from solution scattering data revealed a rearrangement of ARR domains compared to the WT complex (Figure 1F; Figure 1—figure supplement 4). Thus, local and distal structural disturbances in response to ASD-associated SHANK3 missense mutations were observed, which could explain changes in protein function not directly related to the immediate locus of amino acid substitution. Therefore, point mutations could impact overall 3D protein structure resulting in altered intra- and intermolecular interactions.

SHANK3 missense mutants exhibit altered localization and residing time at the synapse

As SHANK3 is critically involved in regulating synaptic structure and function, neurons are sensitive to altered gene dosage, which has been pointed out by several studies (Bozdagi et al., 2010; Durand et al., 2007; Wang et al., 2020b; Yi et al., 2016). Of note, albeit both mutations are located within the SPN domain, they had distinct effects on SHANK3 folding and residing time as well as localization at the synapse, suggesting that each point mutation might cause synaptic dysfunction by different mechanisms. Since autistic patients carrying the SHANK3 missense mutations studied here are heterozygous, the question arises whether these mutations render the protein dysfunctional and thereby reduce the minimum number of functional proteins that is necessary for normal synaptic transmission. A profound decrease in synaptic residing time of R12C SHANK3 mutant is likely to destabilize the synaptic SHANK3 pool and could thus elicit a haploinsufficiency-like phenotype.

Moreover, an increased synaptic turnover of the R12C mutant might also alter the localization and dynamics of some SHANK3 binding partners which can result in altered synaptic function. Interestingly, we observed that both mutants changed the recovery kinetics of cortactin, which is known to link dynamics of the PSD to rearrangements of the F-actin cytoskeleton via interaction with SHANK3 (MacGillavry et al., 2016). Cortactin can stabilize F-actin and promote the formation of branched actin filaments, thereby directly influencing plasticity and stability of dendritic spines. Temporal dynamics and the cortactin concentration at the synapse are highly regulated (Mikhaylova et al., 2018). Thus, SHANK3-induced deviations in cortactin turnover are likely to have consequences for dendritic spine organization and functions.

Furthermore, we found an increase in the number of dendritic SHANK3 clusters for the L68P mutation. About a half of these clusters represent synapses as they were opposed by a presynaptic terminal. Notably, only approximately one third of SHANK3-positive dendritic shaft clusters co-localize with homer independent of the tested SHANK3 variant, while this co-localization is close to 100% in dendritic spines. However, we observed no differences in mutant SHANK3-homer1 interactions nor detected any SHANK3 mutation-induced changes in the mobile fraction of homer1 in FRAP experiments. This suggests that other factors might contribute to the differential recruitment of homer1 to shaft and spine synapses.

In this scenario, structurally perturbed or destabilized proteins which are not removed by cellular protein quality control mechanisms will be incorporated into the PSD and result in changes of synaptic proteostasis, protein-protein interactions and signaling (Reim et al., 2017). Previous studies indicated that both gain- and loss-of-function with respect to interaction partners are likely to contribute to the pathogenicity of SHANK3 missense mutations. The L68P mutation for instance has been demonstrated to result in increased binding to ARR domain ligands such as sharpin or α-fodrin, whereas both the R12C and L68P mutation reduce binding to SPN domain ligands including the Ras superfamily (Lilja et al., 2017; Mameza et al., 2013). Unfortunately, the majority of SHANK3-associated mouse models used for the study of ASD are based on a full or partial knockout that will not resemble the structure-function relationships of the disease-causing mutations (Lee et al., 2015). Accordingly, a corresponding R12C or L68P mutant knock-in mouse line would be of great value to study such scenarios of ASD-associated pathogenic mechanisms in the future.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyGuinea pig polyclonal Shank3Synaptic Systems162304for ICC
(1:500)
AntibodyRabbit polyclonal Homer-1,2,3Synaptic Systems160103for ICC
(1:500)
AntibodyChicken polyclonal BassoonSynaptic Systems141016for ICC
(1:500)
AntibodyMouse monoclonal MAP2-AF488Merck MilliporeMAB3418Xfor ICC
(1:500)
AntibodyMouse monoclonal GFPCovanceMMS-118P-500for Western Blot (1:3000)
AntibodyRat monoclonal RFPChromotek5F8for Western Blot (1:1000)
AntibodyRabbit polyclonal IgG anti-chicken IgY (H + L)-Cy3Dianova303-165-003for ICC
(1:500)
AntibodyGoat polyclonal anti-rabbit IgG (H + L)-AF568Life TechnologiesA-11036for ICC
(1:500)
AntibodyGoat polyclonal anti-guinea pig IgG-STAR 635PAbberiorST635P-1006for ICC
(1:500)
AntibodyGoat polyclonal anti-rat IgG
(H + L)-HRP
Jackson ImmunoResearch112-035-062; RRID:AB_
2338133
for Western Blot (1:2500)
AntibodyGoat polyclonal anti-mouse IgG
(H + L)-HRP
Jackson ImmunoResearch115-035-003; RRID:AB_
10015289
for Western Blot (1:2500)
Strain, strain background (Escherichia coli)XL10 goldStratagene200314for plasmid DNA production; stock amplified in the lab
Strain, strain background (Escherichia coli)BL21(DE3)ThermoFisher ScientificK30001for protein purification; stock amplified in the lab
Strain, strain background (Escherichia coli)Stbl2Invitrogen10268–019obtained from Matthias Kneussel; stock amplified in the lab
Cell line (Homo- sapiens)Embryonic kidney (HEK 293T)ATCCCRL-3216; RRID:CVCL_0063for co-IP
Transfected construct (rat)pET-His6-SUMO-SHANK3(1-676) WTThis paperfor bacterial protein production; available from Hans-Jürgen Kreienkamp
Transfected construct (rat)pET-His6-SUMO-SHANK3(1-676) R12CThis paperfor bacterial protein production; available from Hans-Jürgen Kreienkamp
Transfected construct (rat)pET-His6-SUMO-SHANK3(1-676) L68PThis paperfor bacterial protein production; available from Hans-Jürgen Kreienkamp
Transfected construct (rat)pHAGE2-EF1a-EGFP-SHANK3FL WTThis paperfor transfection of primary hippocampal neurons; available from Hans-Jürgen Kreienkamp
Transfected construct (rat)pHAGE2-EF1a-EGFP-SHANK3FL R12CThis paperfor transfection of primary hippocampal neurons; available from Hans-Jürgen Kreienkamp
Transfected construct (rat)pHAGE2-EF1a-EGFP-SHANK3FL L68PThis paperfor transfection of primary hippocampal neurons; available from Hans-Jürgen Kreienkamp
Transfected construct (rat)pmRFP-N3-SHANK3FL WTdoi:10.1038/ncb3487for transfection of HEK293 cells and co-IP
Transfected construct (rat)pmRFP-N3-SHANK3FL R12Cdoi:10.1038/ncb3487for transfection of HEK293 cells and co-IP
Transfected construct (rat)pmRFP-N3-SHANK3FL L68Pdoi:10.1038/ncb3487for transfection of HEK293 cells and co-IP
Transfected construct (rat)pEGFP-C1-Homer1bThis paperfor transfection of HEK293 cells and co-IP; available from Hans-Jürgen Kreienkamp
Transfected construct (rat)pEGFP-C1-SAPAP1This paper (cDNA coding for rat SAPAP1 obtained from Stefan Kindler)for transfection of HEK293 cells and co-IP; available from Hans-Jürgen Kreienkamp
Transfected construct (human)pEGFP-C1-cortactinThis paperfor transfection of HEK293 cells and co-IP; available from Hans-Jürgen Kreienkamp
Transfected construct (mouse)mCherry-cortactin-C-12doi:10.1016/j.neuron.2018.01.046Addgene plasmid #55020for transfection of primary hippocampal neurons
Transfected construct (rat)pFUGW-f(syn)Homer1-tdTomato-WPREA gift from Christian RosenmundBL-1034for transfection of primary hippocampal neurons
Transfected constructpAAV-Syn-mRuby2doi:10.15252/embj.2018101183for transfection of primary hippocampal neurons
Transfected constructpMAX-GFPLonza BioscienceV4XP-3012for transfection of primary hippocampal neurons
Transfected construct (human)pETM11-T7-His6-SenP2EMBL Heidelbergfor recombinant protein tag removal
Peptide, recombinant proteinHis6-SUMO-SHANK3(1-676) WTThis paperpurified from BL21(DE3) using pET-His6-SUMO-SHANK3(1-676) WT
Peptide, recombinant proteinHis6-SUMO-SHANK3(1-676) R12CThis paperpurified from BL21(DE3) using pET-His6-SUMO-SHANK3(1-676) R12C
Peptide, recombinant proteinHis6-SUMO-SHANK3(1-676) L68PThis paperpurified from BL21(DE3) using pET-His6-SUMO-SHANK3(1-676) L68P
Peptide, recombinant proteinSHANK3(1-676) WTThis paperpurified from BL21(DE3), see protein purification methods
Peptide, recombinant proteinSHANK3(1-676) R12CThis paperpurified from BL21(DE3), see protein purification methods
Peptide, recombinant proteinSHANK3(1-676) L68PThis paperpurified from BL21(DE3), see protein purification methods
Peptide, recombinant proteinHis6-SenP2This paperpurified from BL21(DE3); for recombinant protein tag removal; see protein purification methods
Chemical compound, drugProfinity IMAC resin, Ni2+-chargedBio-Rad1560135for protein purification
Chemical compound, drugRFP-trap agaroseChromotekrta-20for co-IP
Chemical compound, drug(+)-BicucullineTocris Bioscience0130for treatment of hippocampal primary neurons
Chemical compound, drugTetrodotoxinTocris Bioscience1078for treatment of hippocampal primary neurons
Chemical compound, drugD-APVTocris Bioscience0106for treatment of hippocampal primary neurons
Chemical compound, drugLipofectamine 2000ThermoFisher Scientific11668019for transfection of primary hippocampal neurons
Chemical compound, drugTurboFect transfection reagentThermoFisher ScientificR0532for transfection of HEK293 cells
Commercial assay or kitBCA protein assayThermoFisher Scientific23250for determination of protein concentration
Commercial assay or kitPlasmid midi kitQiagen12145for purification of plasmid DNA
Commercial assay or kitWesternBright chemiluminescence substrateBiozym541003for western blot detection
Software, algorithmVMD 1.9.3doi:10.1016/0263-7855(96)00018-5for analysis and visualization of molecular graphics
Software, algorithmOrigin 2019bOriginLabfor graphing and data analysis
Software, algorithmPyMOL 2.3.4Schrödinger, Inc.for molecular visualization
Software, algorithmImageJ/FijiNIHfor image processing and analysis
Software, algorithmAdobe Illustrator 2021Adobe Inc.for graphing and visualization
Software, algorithmATSAS 3.0.1doi:10.1107/S1600576720013412for analysis of SAXS data
Software, algorithmSnapGeneGSL Biotech LLCfor plasmid cloning
Software, algorithmImage LabBio-Radfor processing and analysis of western blot images
Software, algorithmPOV-Ray 3.7Otherfor ray tracing of molecular graphics
Software, algorithmMATLABMathWorksfor SHANK3 intensity distribution analysis (Figure 5E)

Antibodies, expression constructs, bacterial strains, recombinant proteins, and other reagents are listed in the key resource table.

Protein expression and purification

Request a detailed protocol

For bacterial expression and purification of His6-SUMO-tagged SHANK3(1-676) variants, chemically competent E. coli BL21(DE3) cells were transformed with the corresponding pET vectors. Recombinant protein expression was induced at OD600 ~0.5 with 300 µM isopropyl-β-D-thiogalactopyranoside (IPTG) in the presence of kanamycin and was continued for 16–18 hr at 18°C. Importantly, all subsequent steps were performed either on ice or at 4°C to enhance protein stability. Bacteria were harvested and resuspended in the following buffer: 250 mM NaH2PO4, 250 mM NaCl, 0.5 mM DTT, 10 mM Imidazole, 1x Complete Protease Inhibitor Cocktail, pH = 6.5. Subsequently, bacterial lysis was performed by treatment with lysozyme followed by mild sonication, a freeze-thaw cycle and another sonication step. His6-tagged proteins were then captured from the lysate by Ni2+-IDA chromatography (Profinity IMAC resin, Bio-Rad) under gravity flow and washed with 35 mM Imidazole. For CD and nDSF measurements, protease inhibitors were removed prior to elution by additional washes with inhibitor-free washing buffer to facilitate SUMO-protease activity for recombinant tag removal. Batch elution was performed with 200 mM Imidazole. To this preparation the home-made SUMO protease His6-SenP2 was added to a final concentration of approximately 0.3 mg/mL and proteins were incubated for 2 hr at 4°C under gentle rotation for cleavage of the His6-SUMO tag. Following addition of Complete Protease Inhibitor Cocktail to inhibit any further proteolytic activity, the preparation was diluted to a final Imidazole concentration of approximately 30 mM and was loaded twice onto a freshly packed Ni2+-IDA column to remove both His6-SenP2 as well as the cleaved His6-SUMO tag. We noted that SHANK3(1-676) variants tend to aggregate and precipitate more easily at higher concentrations after removal of SUMO, possibly due to reduced protein solubility. We therefore kept protein concentrations lower compared to preparations where the tag has not been removed. Subsequently, dilute proteins were concentrated using Amicon Ultra 15 mL centrifugal filters (Merck Millipore, 10 kDa NMWCO) and subjected to single-step buffer exchange into SEC running buffer (see 'SAXS method') over a PD10 desalting column (GE Healthcare, Sephadex G-25 M matrix) under gravity flow. Eluted proteins were finally up-concentrated and stored on wet ice.

Size exclusion chromatography and small-angle X-ray scattering

Request a detailed protocol

For SAXS, bacterially expressed His6-SUMO-SHANK3(1-676) variants were pre-purified over Ni2+-IDA under gravity flow and eluted in 500–750 µL fractions with 250 mM NaH2PO4 (pH = 6.5), 250 mM NaCl, 0.5 mM DTT, 200 mM Imidazole, and 1x complete protease inhibitor cocktail (Merck Millipore). Subsequently, proteins were subjected to SEC at 4°C with a flow rate of 0.4 mL/min (running buffer 100 mM NaH2PO4, 100 mM NaCl, 0.5 mM DTT, pH = 6.5) using a Superdex 75 10/300 GL column (GE Healthcare). To establish a protein dilution series, individual SEC peak fractions were pooled and pre-concentrated with an Amicon Ultra 4 mL centrifugal filter (Merck Millipore, 30 kDa NMWCO). Subsequently, protein concentration was determined spectrophotometrically based on 280 nm absorption using SEC running buffer for blank subtraction. Subsequently, samples were accordingly diluted and measured in SEC running buffer.

SAXS measurements (I(s) vs. s with s[nm−1]=4πsin(θ)/λ and 2θ being the scattering angle) were performed at the EMBL-P12 bioSAXS beam line (PETRAIII, DESY, Hamburg) (Blanchet et al., 2015) under default operating conditions (10 keV, λ = 0.124 nm, Pilatus 2M detector with a distance of 3.0 m) at 10°C. Data was collected in the s-range of 0.0287–7.267 for 20 successive frames with an exposure time of 0.5 s per frame. Primary data processing included radial averaging, normalization, and buffer subtraction. Subsequently, data analysis was performed with the software package ATSAS 3.0.1 (Franke et al., 2017).

For experimental SAXS profiles, the radius of gyration was calculated using the Guinier approximation with automated detection of a suitable Guinier range by AUTORG (Petoukhov et al., 2007). The Rg values of the WT and R12C mutant variant of SHANK3 showed a linear concentration dependence so that subsequent analyses were performed on SAXS profiles, which were extrapolated to zero concentration. The real space pair-distance distribution functions (PDDFs, P(r) vs. r profiles) were approximated from the experimental scattering data via an indirect Fourier transform (IFT) procedure using the program GNOM (Svergun, 1992). Accordingly, the values for Rg and Dmax were determined by using automated criteria for the Lagrange parameter and Dmax. To model the topology of His6-SUMO-SHANK3(1-676) variants from crystallographic structures of individual domains, the program CORAL was used (Petoukhov et al., 2012). Thereby, the employed crystallographic structures (SMT3(aa 13–98): chain C from PDB 2EKE, SPN-ARR: PDB 5G4X, SH3: PDB 5O99, PDZ: PDB 5OVA) are rotated and translated with certain restrictions to minimize the discrepancy between the experimental and the computed (model-derived) SAXS profile (Duda et al., 2007; Lilja et al., 2017; Ponna et al., 2017; Ponna et al., 2018). Dimeric subunit structures were split into corresponding monomers before using them as input for CORAL. For zero-extrapolated SAXS profiles, no symmetry restrictions were used (P1 symmetry) to model the topology of monomeric His6-SUMO-SHANK3(1-676) variants, while P2 symmetry restrictions were employed for corresponding dimer models from SAXS data merged between highest and lowest concentrations. The atomic model of the SPN-ARR fragment was allowed to move freely while all other subunits were fixed. N- and C-termini as well as missing inter-domain linker regions were added to the crystallographic structures as dummy residues (DRs) based on the ORF of His6-SUMO-SHANK3(1-676) in the corresponding pET vector. To account for a potential mutation-induced disruption of the SPN/ARR domain interface, monomeric CORAL models were additionally created using a split SPN-ARR fragment, where the unstructured linker region (KRRVYAQNLI) has been replaced by the same number of DRs to allow flexible movement of both domains. The resulting structural models were visualized using PyMOL. SAXS data was deposited to SASBDB (WT: SASDLJ3, R12C: SASDLL3, and L68P: SASDLK3).

Circular dichroism spectroscopy

Request a detailed protocol

Circular dichroism spectroscopy of SHANK3(1-676) variants was performed on a Chirascan circular dichroism spectrometer (Applied Photophysics; Kelly et al., 2005). Before measurement of CD spectra, pre-concentrated proteins in SEC running buffer (approximately 1 mg/mL) were buffer exchanged into 10 mM KH2PO4, 100 mM KF, 0.5 mM DTT, pH = 6.5 using PD10 desalting columns under gravity flow. Protein concentration was adjusted to 2 µM and CD spectra were recorded in the wavelength range of 175–260 nm at 10°C in a 1 mm quartz cuvette (0.5 nm step size, 3 s/point, three repeats). Due to low signal-to-noise ratio (SNR) <185 nm, far-UV spectra were restricted to the spectral range between 260 and 185 nm (Figure 3—figure supplement 2). Subsequent data processing was done as described elsewhere (Greenfield, 2007c).

Equilibrium chemical unfolding was done as described elsewhere (Greenfield, 2007a) with few modifications. Briefly, concentrated protein stock solutions as described above were diluted to approximately 2 µM and mixed with 10 M urea in SEC running buffer to establish a urea concentration series for each SHANK3(1-676) variant. Samples including blank were incubated on ice for at least 30 min and ellipticity was subsequently measured at 222 nm and at 10°C (3 s/point, 25 µs sample period, three repeats). After each CD measurement, the sample was recovered for subsequent assessment of protein concentration by BCA assay. The data was averaged, corrected for buffer absorption, and converted to the mean residue ellipticity [θ] as described elsewhere (Greenfield, 2007c). Subsequently, equilibrium chemical unfolding data was fitted to a two-state unfolding transition model given by the following equation (Agashe and Udgaonkar, 1995):

yobs=yN0+mN[D]yU0mU[D]1+eΔG0+mG[D]RT+yU0+mU[D]

The parameters yN0, yU0 (intercepts), as well as mN and mU (slopes) were obtained separately by linear extrapolation of the corresponding native (N) and unfolded (U) baseline regions and were kept constant in the actual fitting procedure. Variable parameters obtained from the two-state unfolding transition fit were ΔG0 as well as the cooperativity parameter mG. The free energy of unfolding is then given by:

ΔGunfold=ΔG0+mG[D]

Since we observed by previous experiments (data not shown) that the tested SHANK3(1-676) variants start to aggregate upon thermal ramping before the actual onset of secondary structure melting, we acquired melting curves in the presence of a non-denaturing urea concentration (2 M), which was determined from equilibrium chemical unfolding. Thermal unfolding was conducted as described previously (Greenfield, 2007b) with few modifications. In brief, the identical ‘2 M urea’ sample was used, which was measured within the isothermal chemical unfolding series. CD data was acquired at 222 nm for 3 s/point with 25 µs sampling period over a temperature range of 10–90°C. Thereby, temperature changes were made in a stepped ramping mode with a heating rate of 1.0°C/min (1.0°C steps) and 30 s settling time (0.5°C tolerance). The actual sample temperature was monitored by a temperature sensor inside the sample and was used for further data processing. To determine the corresponding melting temperatures, the data was fitted to a Boltzmann model.

Nano differential scanning fluorimetry (nanoDSF)

Request a detailed protocol

Differential exposure or shielding of intrinsic tryptophan reporter residues was monitored as readout for changes in protein tertiary structure upon thermal ramping by nanoDSF. True label-free fluorescence measurements were performed on a Prometheus NT.48 nanoDSF instrument (NanoTemper Technologies, Munich, Germany) using nanoDSF grade standard capillaries (10 µL, NanoTemper Technologies). Experiments were set up and monitored with the software PR.ThermControl. Before actual measurements were performed, appropriate conditions were determined by discovery scans. Finally, measurements were conducted at 50% excitation power using a protein concentration of 0.5 mg/mL for each SHANK3(1-676) variant (initial F330nm > 5,000 fluorescence counts). Intrinsic tryptophan fluorescence emission was measured at 330 nm and 350 nm over a temperature range of 15–90°C with a heating rate of 1°C/min. Due to known attractive interparticle interactions and protein aggregation tendency from other experiments, proteins were also measured in the presence of 0.25–2.0 M urea. Nonetheless thermally induced unfolding was observed to be irreversible and accompanied with protein precipitation even in the presence of 2 M urea. F330 and F350 curves were blank subtracted and the ratio F(350/330 nm) was subsequently plotted against temperature. From these melting curves, the first derivatives were calculated and smoothed by a moving average with a window of 100 points. Transition points were finally determined by peak analysis of the corresponding first derivative curves.

Intrinsic tryptophan and extrinsic ANS fluorescence spectroscopy

Request a detailed protocol

Fluorescence spectroscopy was performed on a F-7000 fluorescence spectrophotometer (Hitachi) using Ni2+-IDA purified His6-SUMO-SHANK3(1-676) variants as described above. Prior to measurement, concentrated protein stock solutions were diluted to a final concentration of 2 µM in purification buffer. Measurements were conducted at room temperature in a standard 10 mm rectangular quartz cell. For intrinsic tryptophan fluorescence emission, a wavelength scan was performed from 300 to 400 nm with a scan speed of 240 nm/min at an excitation wavelength of 295 nm (5 nm excitation and emission slit, PMT voltage set to 700 V). Protein surface hydrophobicity was measured by titrating purified His6-SUMO-SHANK3(1-676) variants (2 µM) with 8-anilino-1-naphthalenesulfonic acid (ANS) in a concentration range of 10–100 µM. After equilibration at room temperature, ANS was excited at 365 nm and fluorescence was recorded between 400 and 700 nm with a scan speed of 240 nm/min. Finally, fluorescence spectra were Savitzky-Golay smoothed (third order, seven points window) and buffer subtracted.

Limited proteolysis

Request a detailed protocol

To test the conformational stability and accessibility of individual SHANK3(1-676) variants to the protease trypsin, limited proteolysis was performed by incubating proteins in a molar ratio of 200:1 with trypsin-EDTA (Gibco) at room temperature. To a 1 mg/mL (13.5 µM) solution of SHANK3(1-676) trypsin was added to a final concentration of 67 nM in a reaction volume of 120 µL. At each timepoint (0–60 min), 15 µL of the reaction mixture were removed and added to 15 µL of 95°C preheated 2x SDS sample buffer (125 mM Tris-HCl pH 6.8, 4% [w/v] SDS, 20% [v/v] glycerol, 10% [v/v] β-mercaptoethanol, 0.004% [w/v] bromophenol blue) to facilitate an immediate stop of the proteolytic reaction. Samples were boiled at 95°C for 5 min and subsequently separated by polyacrylamide gel electrophoresis on a 4–12% pre-cast NuPage Bis-Tris protein gel (ThermoFisher Scientific). Finally, proteins were stained by Coomassie brilliant blue (CBB). Analysis of lane profiles was done in ImageJ software (NIH).

Molecular dynamics simulations

Request a detailed protocol

MD simulations were performed with GROMACS 2018.4 using the Amber03 force field (Duan et al., 2003; Hess et al., 2008; Pronk et al., 2013). Initial coordinates were used from PDB 5G4X (Lilja et al., 2017). The single-point mutants R12C and L68P were created with UCSF Chimera (Pettersen et al., 2004). The peptides were solvated in a cubic box with periodic boundary conditions and a side length of ~110 Å (10 Å initial minimum distance of solute to all boundaries) comprising the peptide and ~43,000 H2O molecules and 2–3 chlorine ions to neutralize the protein charge. For all systems, the same molecular dynamics protocol was used. After a steepest descent energy minimization (convergence criteria 500,000 steps or maximum force <10 kJ mol−1 nm−1), two 100 ps equilibration MD runs were performed. The first one was performed in the constant particle number, volume, temperature ensemble (NVT; with modified Berendsen thermostat with velocity rescaling at 300 K and a 0.1 ps timestep; separate heat baths for peptide and solvent) and the second one in the constant particle number, pressure, temperature ensemble (NPT; Parrinello-Rahman pressure coupling at 1 bar with a compressibility of 4.5 × 10−5 bar−1 and a 2 ps time constant; Bussi et al., 2007; Nosé and Klein, 1983; Parrinello and Rahman, 1981). During each equilibration run, a position restraint potential with a force constant of 1000 kJ mol−1 nm−2 was added to all peptide atoms.

For MD simulations the leap-frog integrator was used with a time step of 2 fs. Coordinates were saved every 10 ps. The same temperature and pressure coupling schemes as applied for the equilibration runs were used for the subsequent MD simulations. All bonds to hydrogen atoms were constrained using the Linear Constrained Solver (LINCS) with an order of 4 and one iteration (Hess et al., 1997). A grid-based neighbor list with a threshold of 10 Å was used and updated every five steps (10 fs). The particle-mesh Ewald method was used for long-range electrostatic interactions above 10 Å with a fourth-order interpolation and a maximum spacing for the FFT grid of 1.6 Å (Darden et al., 1993; Essmann et al., 1995). Lennard-Jones interactions were cut-off above 10 Å. A long-range dispersion correction for energy and pressure was used to compensate for the Lennard-Jones interaction cut-off (Hess et al., 2008).

MD trajectories were visualized and analyzed using VMD 1.9.3 (Humphrey et al., 1996). Backbone RMSD and RMSF traces were calculated from every fifth frame using the inbuilt RMSD Trajectory Tool or a Tcl script, respectively.

Preparation of primary hippocampal neurons and transfection

Request a detailed protocol

Cultures of primary hippocampal neurons were prepared as described previously (van Bommel et al., 2019). Pregnant Wistar rats Crl:WI (Charles River; E18) were sacrificed and hippocampi were dissected from E18 embryos. Following 10 min of trypsin treatment at 37°C, hippocampi were physically dissociated and plated with a density of 30,000 cells/mL on 18 mm glass coverslips, which have been coated with poly-L-lysine (PLL). Cells were initially plated in DMEM supplemented with 10% (v/v) fetal bovine serum (FBS) as well as Penicillin/Streptomycin (PS). After one hour, the medium was exchanged with BrainPhys neuronal medium supplemented with SM1 and 0.5 mM glutamine. Neurons were grown and maintained at 37°C, 5% CO2, and 95% humidity. For transfection, both plasmid DNA and lipofectamine 2000 were diluted accordingly in blank BrainPhys neuronal medium, mixed (DNA/lipofectamine ratio 1:3), and incubated at room temperature for 40 min. In parallel, the neuronal growth medium was collected and replaced by BrainPhys medium supplemented with 0.5 mM glutamine. Subsequently, the transfection mix was added to the neurons for 1–1.5 hr before the medium was exchanged back to the conditioned medium. Expression periods were limited to <24 hr.

Immunostainings, spinning disk confocal microscopy, and image analysis

Request a detailed protocol

Cultured rat primary hippocampal neurons were fixed in 4% paraformaldehyde, 4% sucrose, in PBS for 10 min at room temperature. Subsequently, cells were washed three times with PBS and permeabilized in 0.2% Triton X-100 in PBS for 10 min. After three washes with PBS, neurons were incubated in blocking buffer (BB, 10% horse serum, 0.1% Triton X-100 in PBS) for 45 min at room temperature and subjected to antibody staining. Incubation with primary antibodies was done in BB at 4°C overnight. Following three washes in PBS, neurons were incubated with corresponding secondary antibodies in BB for 2 hr at room temperature. Finally, cells were washed three times in PBS and mounted on microscopy slides with Mowiol (Carl Roth; prepared according to manufacturer’s protocol including DABCO as antifading agent).

Spinning‐disk confocal microscopy was performed with a Nikon Eclipse Ti‐E microscope. The microscope was controlled by the VisiView software (VisitronSystems) and equipped with 488, 561 and 639 nm excitation lasers coupled to a CSU‐X1 spinning‐disk unit (Yokogawa) via a single‐mode fiber. Emission was collected through a quad‐band filter (Chroma, ZET 405/488/561/647 m) on an Orca flash 4.0LT CMOS camera (Hamamatsu). For fixed primary hippocampal neurons, Z-stack images were taken by using a 100x objective (Nikon, ApoTIRF 100×/1.49 oil). The pixel size was set as 65 nm2 and Z-stack interval was 0.3 µm.

All images were processed and analyzed using ImageJ. For co-localization analysis of either endogenous SHANK3 or overexpressed GFP-SHANK3FL variants (WT, R12C or L68P) with synaptic markers (homer and bassoon), the shape of the entire analyzed dendrite, including spines, was drawn based on MAP2 and synaptic marker staining by hand using the segmented line tool. Subsequently, the number of SHANK3, homer, bassoon as well as co-localized puncta was detected via the ComDet v.0.5.1 plugin. The fraction of co-localization was calculated by dividing the amount of co-localized puncta by the total number of SHANK3, homer and bassoon puncta, respectively.

For the quantification of spine density and SHANK3 clusters in neurons overexpressing GFP-SHANK3FL variants, mRuby2 was co-transfected in all three conditions as a volume marker. A construct expressing GFP was used as control to monitor the dosage-dependent effect of SHANK3 overexpression. The number of spines was counted using the multi-point tool based on the mRuby2 channel and normalized to a dendritic length of 10 µm.

The number of SHANK3 clusters in the dendrite (SHANK3den) as well as in spines (SHANK3spi) was quantified for each genotype using the multi-point tool. The fraction of SHANK3 clusters in dendrite versus spines was then calculated for each genotype by individually dividing SHANK3den and SHANK3spi by the total number of SHANK3 clusters.

For the fluorescence intensity analysis of SHANK3 clusters in dendrite and spines, a line profile covering the entire spine width was drawn based on the mRuby2 and SHANK3 channel. The line profile initiates at the head of a measured spine and terminates on its adjacent dendrite. Subsequently, the mean gray value was plotted along the line profile. Finally, detected peak values from the spine and dendrite region were divided by each other to calculate the ratio of SHANK3 cluster distribution.

Co-immunoprecipitation (co-IP) and western blotting

Request a detailed protocol

Proteins expressed in HEK 293 T cells were used for co-IP. HEK 293 T cells are regularly tested for mycoplasma contamination using PCR-based testing. The cell line is additionally verified periodically by morphological criteria and checked for the presence of the neomycin resistance gene. Cells are cultured for a maximum of 20 passages and then discarded.

HEK 293 T cells were co-transfected with C-terminally RFP-tagged Shank3FL constructs (WT, R12C, L68P) and constructs coding for GFP-tagged interaction partners (SAPAP1, homer1, or cortactin) using the TurboFect transfection reagent (ThermoFisher Scientific). The next day, cells were lysed in radioimmuno precipitation assay (RIPA) buffer (50 mM Tris-HCl pH 8.0, 150 mM NaCl, 1% (v/v) NP40, 0.5% (w/v) sodium deoxycholate, 5 mM EDTA, 0.1% (w/v) SDS), and centrifuged at 20,000 g for 20 min at 4°C. Subsequently, RFP-tagged proteins were immunoprecipitated from the supernatant using 20 μL of RFP-trap agarose matrix (Chromotek, Munich, Germany) for 2 hr at 4°C on a rotator. The agarose matrix was then collected by centrifugation at 1000 g for 2 min and washed five times with RIPA buffer, followed each time by centrifugation.

For western blotting, input (cell lysate) and precipitate samples were denatured in 1x Laemmli sample buffer (63 mM Tris-HCl pH 6.8, 10% [v/v] glycerol, 1.5% [w/v] SDS, 100 mM dithiothreitol and 0.01% [w/v] bromophenol blue) at 95°C, separated by SDS-PAGE at 100–180 V and transferred to a nitrocellulose membrane in transfer buffer (25 mM Tris, 192 mM glycine, 0.05% [w/v] SDS and 20% [v/v] methanol) at 100V for 100 min using a MINI PROTEAN II system (Bio-Rad). Membranes were subsequently blocked with 5% (w/v) milk powder in TBS-T (Tris buffered saline; 10 mM Tris-HCl pH 8.0, 150 mM NaCl, supplemented with 0.05% [v/v] Tween 20) and incubated with primary antibodies overnight at 4°C, followed by HRP-linked secondary antibodies at room temperature for 1 hr. After washing the membranes with TBS-T, chemiluminescence was detected using the WesternBright chemiluminescence substrate (Biozym, Hess. Oldendorf, Germany). Finally, membranes were scanned using a ChemiDoc MP imaging system (Bio-Rad) and images were processed and analyzed using the Image Lab software (Bio-Rad).

Fluorescence recovery after photobleaching (FRAP)

Request a detailed protocol

To measure SHANK3 dynamics in individual spines, cultures of primary rat hippocampal neurons were co-transfected at DIV14–16 with 1.8 µg of pHAGE2-EF1a-GFP-SHANK3FL (WT or carrying one of the studied mutations) and 0.5 µg of pAAV-mRuby2 for 16–18 hr to avoid morphological artifacts of SHANK3 overexpression. Live imaging and FRAP experiments were performed on the imaging system described above, using a 100x objective (CFI Apochromat TIRF 100XC oil, 1.49 NA). Imaging settings including FRAP were defined within the software VisiView (Visitron Systems, Puchheim, Germany). After five baseline images (16-bit, 65 nm2/px) taken with 5 s interval, photobleaching was achieved by scanning each ROI (individually selected spines) with 2 ms/pixel at 488 nm (50–70% laser power). Subsequently, 120 post-bleach images were acquired with 5 s interval. For stimulation of neuronal activity, cultures were incubated for 5 min at 5% CO2 and 37°C with a final concentration of 50 µM bicuculline prior to imaging. In the presence of bicuculline, live imaging and photobleaching was continued for a maximum of 45 min to avoid artifacts due to neuronal over-activation.

For measurement of SHANK3 interaction partner dynamics (cortactin, homer1), cultures of primary rat hippocampal neurons were co-transfected at DIV14-16 with 1.0 µg of pHAGE2-EF1a-GFP-SHANK3FL (WT or mutant) and 1.0 µg of either pFUGW-f(syn)homer1-tdTomato-WPRE or mCherry-cortactin for 16–18 hr. Live imaging and FRAP experiments were performed as described above, except for photobleaching, which was achieved by scanning each ROI with 3 ms/pixel at 561 nm (100% laser power).

Fluorescence values were obtained from each image using ImageJ. Therefore, ROIs were drawn on bleached spines, non-bleached control regions, and the background. Mean gray values were obtained for each frame by using the ‘plot z-axis profile’ function within ImageJ. Subsequently, FRAP traces for each spine were background subtracted, normalized to the non-bleached control, and scaled between 0 and 1. Statistical analysis of all imaging data was performed with the Origin 2019b software package.

Fluorescent non-canonical amino acid tagging (FUNCAT)

Request a detailed protocol

For direct in situ visualization of newly synthesized proteins in hippocampal primary neurons overexpressing GFP-SHANK3FL variants, FUNCAT was performed as previously described with few adaptations (Dieterich et al., 2010). Briefly, to account for the neuronal activity dependence of de novo protein synthesis, one group of transfected neurons (DIV 15–17, <24 hr of overexpression) was pharmacologically silenced by treatment with 1 µM tetrodotoxin (TTX) and 50 µM D-(-)-2-amino-5-phosphonopentanoic acid (D-APV) prior to metabolic labeling. Transfected neurons were then metabolically labeled by replacing the growth medium with methionine-free HibA medium (BrainBits LLC) for 20 min to deplete endogenous methionine. Subsequently, cells were incubated for 2–3 hr at 37°C, 5% CO2 in HibA medium supplemented either with 4 mM L-azidohomoalanine (AHA; Click Chemistry Tools) or 4 mM L-methionine as control. Subsequently, neurons were washed with cold PBS-MC (1 mM MgCl2, 0.1 mM CaCl2 in PBS, pH 7.4) on ice and fixed with 4% paraformaldehyde, 4% sucrose for 10 min in PBS at room temperature (RT; 20–25°C). Following three washing steps with PBS (pH 7.4), fixed cells were permeabilized with PBS containing 0.25% Triton X-100 for 10 min, washed again three times with PBS, and incubated with blocking solution (10% horse serum, 0.1% Triton X-100 in PBS) for 1 hr at RT. Blocked cells were finally washed three times with PSB (pH 7.8).

For click-labeling of the AHA-modified protein pool by copper-catalyzed azide-alkyne [3 + 2] cycloaddition (CuAAC), a reaction mix containing 200 µM Tris-[(1-benzyl-1H-1,2,3-triazol-4-yl)-methyl]-amine (TBTA), 500 µM Tris(2-carboxyethyl)phosphine hydrochloride (TCEP), 2 µM fluorescent alkyne tag (TAMRA-PEG4-alkyne), and 200 µM CuSO4 was prepared in PBS (pH 7.8). After each addition of a reagent, the reaction mix was vortexed for several seconds. Stock solutions for each reagent except TBTA were prepared in sterile water, TBTA was dissolved in DMSO. Hippocampal primary neurons were incubated with the reaction mix in a dark, humidified box overnight at RT with gentle agitation. Cells were subsequently washed three times with FUNCAT wash buffer (0.5 mM EDTA, 1% Tween-20 in PBS, pH 7.8) followed by two additional washes with PBS (pH 7.4).

Following click-labeling, neurons were immunostained for homer as described above to allow detection of labeled and unlabeled excitatory spines. Finally, labeled and immunostained cells were mounted on microscopy slides with Mowiol and imaged with spinning-disk confocal microscopy as described above. Analysis of synaptic TAMRA intensities was done in ImageJ and data were plotted and analyzed in Origin 2019b.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

The following data sets were generated
    1. Bucher M
    2. Molodenskiy D
    3. Svergun D
    (2021) SASBDB
    ID SASDLJ3. SASDLJ3 - SH3 and multiple ankyrin repeat domains protein 3 (wild type).
    1. Bucher M
    2. Molodenskiy D
    3. Svergun D
    (2021) SASBDB
    ID SASDLK3. SASDLK3 - SH3 and multiple ankyrin repeat domains protein 3 with a point mutation (L68P).
    1. Bucher M
    2. Molodenskiy D
    3. Svergun D
    (2021) SASBDB
    ID SASDLL3. SASDLL3 - SH3 and multiple ankyrin repeat domains protein 3 with a point mutation (R12C).

References

    1. Kelly SM
    2. Jess TJ
    3. Price NC
    (2005) How to study proteins by circular dichroism
    Biochimica Et Biophysica Acta (BBA) - Proteins and Proteomics 1751:119–139.
    https://doi.org/10.1016/j.bbapap.2005.06.005

Decision letter

  1. Inna Slutsky
    Reviewing Editor; Tel Aviv University, Israel
  2. Olga Boudker
    Senior Editor; Weill Cornell Medicine, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The post-synaptic protein SHANK3 has a critical role in the function of synapses and its dysfunctions, for example arising from missense mutations, is associated with neurological disorders. As often the case, the molecular principles underlying the exact role of such mutations on the structure and function of proteins, remains to be resolved experimentally. Missense mutations could impact on protein folding or stability and thus its availability, on protein structure or its dynamics, and on protein interactions, but their effects could be very subtle. The authors use an extensive set of biochemical, biophysical and cellular tools to show that two autism associated missense mutations in SHANK3 affect the structure, dynamics and its availability at the synapse in different ways and on different structural levels. These alterations modify protein folding, alter synaptic targeting and changes protein turnover at synaptic sites. This paper increases our knowledge about the relation between the molecular functional alteration in mutated SHANK3 and the pathogenesis of autism spectrum disorder associated with these mutations.

Decision letter after peer review:

Thank you for submitting your article "Autism associated SHANK3 missense point mutations impact conformational fluctuations and protein turnover at synapses" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Olga Boudker as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. The authors declare that only about 70% of glutamatergic spines will be affected by the two SHANK3 missense mutations. However, this is based on the staining of endogenous Shank3 and thus is depending on the efficiency of the antibodies used that might either recognize only some Shank3 splice variants or are not sufficiently strong to recognize spines containing an amount of Shank3 lower than the antibodies threshold sensitivity. Secondly, it's unclear whether these data have a real relevance related to the general neuronal function altered in ASD, 70% of glutamatergic spines are the majority of the spines. Thus it will be important to provide stronger evidence that Shank3 is absent in some spines or to eliminate the sentence that only 70% of glutamatergic spines will be affected by the two SHANK3 missense mutations.

2. Data presented in Figure 5 suggest that the mutations lead to an increased fraction of dendritic shaft SHANK3 clusters. However, it's not clear if these are or are not synaptic clusters. How much of these clusters colocalize with presynaptic markers? Do these dendritic SHANK3 clusters colocalize with Homer?

3. The following sentence: "…this study, we bridge structural data with the corresponding synaptic phenotype" is not fully correct. Indeed there is no data that molecularly links the structural data with all the synaptic altered phenotype. For example non of the structural data can explain the altered turnover of mutated Shank3. Thus it will be more correct to state that the described structural data potentially correlate with the altered synaptic phenotype but they can be totally independent. Alternatively, the authors should provide more data that demonstrate the direct links between the two types of observed sets of data. But this might not be the scope of the work.

4. The data that shows the increased synaptic turnover of the R12C mutant is interesting, but t will be more interesting if the authors demonstrate that Shank3 binding partners turnover is also alerted. It is possible for example to study the turnover of synaptic WT Shank or Homer in the presence of the R12C mutant?

5. Increased synaptic turnover of the R12C mutant might or might not depend on the altered interaction of the mutant with Shank3 principal protein partners like GKAP or Homer. Thus, with a set of immunoprecipitation experiments, it might be possible to study if the mutants interact with less affinity with GKAP or Homer.

6. Possibly the SPN-ARR interface is destabilized by the L68P mutation and the interface between these two domains is disrupted due to the L68P mutation, resulting in the increased flexibility as seen in the SAXS data. This should be tested in the CORAL modelling by treating the SPN and ARR domains as two separate rigid bodies, connected by flexible linker.

7. The flexibility in the proteins, as observed in the SAXS data, should caution the authors in interpreting their static CORAL models as is now discussed (e.g. lines 126-130 and lines 317-324). Perhaps the authors can focus their interpretation more on the additional flexibility for the L68P mutant observed in the SAXS data, which is striking and solid data, and less on the static CORAL models?

8. Figure 1C-F and Suppl. Figure 3B. Dmax is concentration dependent for all variants. How certain are the authors that the extrapolated data represents monomeric protein? For example, comparing the lowest concentration data for all variants, the Dmax is largest for the wt protein, while for the extrapolated data the wt protein has the shortest Dmax. In addition, the Dmax for the extrapolated data is larger than the Dmax for the lowest concentration data. If the extrapolated data represents a fraction of dimers, how does this influence the CORAL modelling?

9. The outcome of the molecular dynamics simulation may be different if the start structure is adjusted, i.e. if the simulation is done with a start model that has the two domains separated. This should be tested to confirm that the SPN-ARR interaction is not affected by the mutations.

10. The experimental study of disease related missense mutations on protein structure and stability is not new. See for examples doi.org/10.1074/jbc.M210019200 and 10.1371/journal.pone.0186110. Also, in SHANK3 another disease related missense mutation (R536W) has been investigated structurally doi.org/10.1111/jnc.14322. I would like to suggest that lines 299 and 300 are changed or removed to reflect this better. In addition, the "In a proof-of-principle study" in the abstract may be misleading taking this previous work into account.

11. It would strengthen the discussion if the authors could discuss the cellular readout reported here and by others more in the light of their results on the flexibility and stability of the mutants.

Reviewer #1:

In this paper, Bucher et al. demonstrate that two Shank3 ASD-associated point mutations show distinct changes in the secondary and tertiary structure of the scaffold protein as well as higher conformational fluctuations. These alterations modify protein folding, alter synaptic targeting and changes protein turnover at synaptic sites.

This is a very interesting paper that increases our knowledge about the relation between the molecular functional alteration in mutated SHANK3 and the pathogenesis of ASD associated with these mutations.

Most of the experiments are well presented and convincible performed. However, the following points should be addressed in order to improve the strength of the proposed findings.

1. The authors declare that only about 70% of glutamatergic spines will be affected by the two SHANK3 missense mutations. However, this is based on the staining of endogenous Shank3 and thus is depending on the efficiency of the antibodies used that might either recognize only some Shank3 splice variants or are not sufficiently strong to recognize spines containing an amount of Shank3 lower than the antibodies threshold sensitivity. Secondly, it's unclear whether these data have a real relevance related to the general neuronal function altered in ASD, 70% of glutamatergic spines are the majority of the spines. Thus it will be important to provide stronger evidence that Shank3 is absent in some spines or to eliminate the sentence that only 70% of glutamatergic spines will be affected by the two SHANK3 missense mutations.

2. Data presented in figure 5 suggest that the mutations lead to an increased fraction of dendritic shaft SHANK3 clusters. However, it's not clear if these are or are not synaptic clusters. How much of these clusters colocalize with presynaptic markers? Do these dendritic SHANK3 clusters colocalize with Homer?

3. The following sentence: "…this study, we bridge structural data with the corresponding synaptic phenotype" is not fully correct. Indeed there is no data that molecularly links the structural data with all the synaptic altered phenotype. For example non of the structural data can explain the altered turnover of mutated Shank3. Thus it will be more correct to state that the described structural data potentially correlate with the altered synaptic phenotype but they can be totally independent. Alternatively, the authors should provide more data that demonstrate the direct links between the two types of observed sets of data. But this might not be the scope of the work.

4. The data that shows the increased synaptic turnover of the R12C mutant is interesting, but t will be more interesting if the authors demonstrate that Shank3 binding partners turnover is also alerted. It is possible for example to study the turnover of synaptic WT Shank or Homer in the presence of the R12C mutant?

5. Increased synaptic turnover of the R12C mutant might or might not depend on the altered interaction of the mutant with Shank3 principal protein partners like GKAP or Homer. Thus, with a set of immunoprecipitation experiments, it might be possible to study if the mutants interact with less affinity with GKAP or Homer.

Reviewer #2:

The post-synaptic protein SHANK3 has a critical role in the function of synapses and its dysfunctions, for example arising from missense mutations, is associated with neurological disorders. As often the case, the molecular principles underlying the exact role of such mutations on the structure and function of proteins, remains to be resolved experimentally. Missense mutations could impact on protein folding or stability and thus its availability, on protein structure or its dynamics, and on protein interactions, but their effects could be very subtle. The authors use an extensive set of biochemical, biophysical and cellular tools to show that two missense mutations in SHANK3 affect the structure, dynamics and its availability at the synapse in different ways and on different structural levels.

The effect of the two mutants, R12C and L68P is investigated at different structural levels. SHANK3 is a multidomain protein in which several domains are connected by flexible linkers. This makes detailed structural studies on this protein challenging. Small angle X-ray scattering (SAXS) is very suited to obtain low-resolution structural data on such flexible proteins. The authors show that the L68P SHANK3 mutant, in the context of a construct consisting of residues 1-676 fused N-terminally to a SUMO domain, has more intrinsic flexibility, whereas the R12C mutant does not seem to be affected in its flexibility compared to wt SHANK3. By modelling, using previously reported high-resolution structural data for the individual domains SUMO, SH3 and PDZ and the combination SPN-ARR as one unit, and assuming flexible linkers between these rigid bodies, the additional flexibility in the L68P variant is attributed to the decoupling of the SH3 and PDZ domains from the ARR domain. This is surprising, as the mutation, L68P, is located in the SPN domain, near to the ARR domain but far away from the SH3 and PDZ domains in all the CORAL models. Possibly the SPN-ARR interface is destabilized by the L68P mutation and the interface between these two domains is disrupted due to the L68P mutation, resulting in the increased flexibility. While such an interpretation could perhaps also explain the data, this is not considered. In addition, the flexibility in the proteins, as observed in the SAXS data, should caution the interpretation of the static CORAL models. The increased flexibility of the L68P mutant is however striking and clear-cut from the data.

The molecular dynamics simulations using the SPN-ARR combination as a template do not reveal destabilization of this interface by the L68P mutation. However, this may be because the start model in the simulation already assumes that both domains are interacting. The outcome of the molecular dynamics simulation could be different if the start structure is adjusted, i.e. if the simulation is done with a start model that has the two domains separated. Such analysis may also help in supporting the modelling of the SAXS data.

The influence of the mutations on the thermal, chemical and proteolytic stability of the proteins is thoroughly probed by tryptophan and ANS fluorescence spectroscopy to reveal tertiary level changes, by circular dichroism to visualize secondary level changes and by limited proteolysis to reveal accessibility changes of proteolytic sites. The tryptophan fluorescence spectroscopy (nDSF) shows that the L68P mutant has reduced tertiary structure stability. It is however not straightforward to interpret the data due to multiple transition events and precipitation of unfolded proteins. The authors use urea and classification of the data in three temperature transition zones to tease out some information. But is not clear how reproducible this data is. The overall conclusion that the L68P mutant has reduced tertiary structural stability, and that the R12C mutant is not affected on this level is however supported by the data and is also verified by subsequent extrinsic fluorescence emission spectroscopy. Monitoring thermal unfolding at the secondary structure paints a different picture compared to the tertiary structures and indicates that the R12C mutant is more stable compared to the L68P and wt SHANK3. Also limited proteolysis indicates the R12C mutant is a bit more stable.

While the mutations do not seem to affect protein production, i.e. equal quantities are produced compared to wt when overexpressed in hippocampal neurons, the availability of the SHANK3 variants may differ. One of the two mutants, R12C, has an increased recovery in spines associated with a reduced residing time and, thus possibly, less synaptic SHANK3. The availability of the other mutant L68P, may be decreased as it seems to cluster more in dendrites, compared to wt protein. These are interesting findings and this altered availability may explain their association with autism spectrum disorder.

Both the cellular readouts, i.e. increased diffusion of R12C and increased clustering of L68P, may be the result of altered protein interactions. However, this is not looked at further experimentally in this work but has been previously reported and is clearly described in the introduction and discussion of this manuscript. In addition, it is not clear if the cellular findings reported here are related to the differential stabilities of the proteins, i.e. L68P SHANK3 less stable and R12C SHANK3 more stable, nor to the increased flexibility of L68P SHANK3. A more thorough discussion of the cellular readout reported here and by others in the light of the results on the flexibility and stability of the mutants would strengthen the discussion of the paper.

https://doi.org/10.7554/eLife.66165.sa1

Author response

Essential revisions:

1. The authors declare that only about 70% of glutamatergic spines will be affected by the two SHANK3 missense mutations. However, this is based on the staining of endogenous Shank3 and thus is depending on the efficiency of the antibodies used that might either recognize only some Shank3 splice variants or are not sufficiently strong to recognize spines containing an amount of Shank3 lower than the antibodies threshold sensitivity. Secondly, it's unclear whether these data have a real relevance related to the general neuronal function altered in ASD, 70% of glutamatergic spines are the majority of the spines. Thus it will be important to provide stronger evidence that Shank3 is absent in some spines or to eliminate the sentence that only 70% of glutamatergic spines will be affected by the two SHANK3 missense mutations.

We would like to thank the reviewers for this valuable comment. Indeed, considering the large number of Shank3 isoforms it is possible that the antibody does not recognize all of them. Therefore, the number might be higher than 70%. We rephrased the sentence stating that only 70% of glutamatergic spines will be affected by the two SHANK3 missense mutations and instead suggest now that it is the majority of spines.

2. Data presented in Figure 5 suggest that the mutations lead to an increased fraction of dendritic shaft SHANK3 clusters. However, it's not clear if these are or are not synaptic clusters. How much of these clusters colocalize with presynaptic markers? Do these dendritic SHANK3 clusters colocalize with Homer?

We think this is a very important point. To address this issue, we therefore performed additional experiments in rat hippocampal neurons, transfected with GFP-SHANK3FL (WT, R12C and L68P), fixed and stained for endogenous homer or bassoon as post- and presynaptic markers. We used MAP2 as a mask for the dendritic shaft and quantified the colocalization of dendritic SHANK3-clusters with homer and bassoon. Interestingly, we could see again that the L68P variant forms more clusters in the dendrite but without a difference in the fraction of synaptic clusters between genotypes. Thus, approximately 50% of clusters of both mutants and the WT were in apposition with a presynaptic terminal but only one third contained homer1, which is remarkably different as compared to spine synapses (almost 100%). However, since the L68P variant forms a higher absolute number of dendritic SHANK3clusters, an increased number of shaft synapses are present in each neuron. These data are included in Figure 5F-I (main manuscript). In the discussion we address that this analysis indirectly suggests that the composition of SHANK3-positive synapses might be different in shaft as compared to spine synapses.

3. The following sentence: "…this study, we bridge structural data with the corresponding synaptic phenotype" is not fully correct. Indeed there is no data that molecularly links the structural data with all the synaptic altered phenotype. For example non of the structural data can explain the altered turnover of mutated Shank3. Thus it will be more correct to state that the described structural data potentially correlate with the altered synaptic phenotype but they can be totally independent. Alternatively, the authors should provide more data that demonstrate the direct links between the two types of observed sets of data. But this might not be the scope of the work.

We agree with the reviewers and removed this statement. Instead we now state that “in this work we found that missense mutation-induced impairments of the structural integrity of SHANK3 serve as molecular starting point for higher order pathogenic processes associated with ASD”.

4. The data that shows the increased synaptic turnover of the R12C mutant is interesting, but t will be more interesting if the authors demonstrate that Shank3 binding partners turnover is also alerted. It is possible for example to study the turnover of synaptic WT Shank or Homer in the presence of the R12C mutant?

We performed this experiment and analyzed the turnover of two prominent interaction partners, homer1 and cortactin, in the presence of ASD-associated SHANK3 mutants. We found that the overall recovery and kinetics of homer1 was not changed upon overexpression of both mutants. However, mutations impacted the kinetics and overall synaptic turnover of cortactin, another binding partner of SHANK3 and a prominent synaptic actin-binding protein. This is a very interesting finding because it links ASD-associated SHANK3 mutations potentially to spinous actin dynamics (Macgillavry et al., 2016; Mikhaylova et al., 2018). The new data are included in Figure 7B, C, E and F (main manuscript).

5. Increased synaptic turnover of the R12C mutant might or might not depend on the altered interaction of the mutant with Shank3 principal protein partners like GKAP or Homer. Thus, with a set of immunoprecipitation experiments, it might be possible to study if the mutants interact with less affinity with GKAP or Homer.

We want to thank the reviewers for this suggestion. We performed coimmunoprecipitation experiments for SHANK3 mutants and major interaction partners, namely GKAP (SAPAP1), homer1 and cortactin and found no apparent differences in binding efficiency. These data are included Figure 6 (main manuscript). These findings also served as starting point for performing FRAP experiments requested in point #4 of Essential Revisions.

6. Possibly the SPN-ARR interface is destabilized by the L68P mutation and the interface between these two domains is disrupted due to the L68P mutation, resulting in the increased flexibility as seen in the SAXS data. This should be tested in the CORAL modelling by treating the SPN and ARR domains as two separate rigid bodies, connected by flexible linker.

To address the reviewer’s question we performed CORAL fits of zero-extrapolated SAXS data, where the linker region between the SPN- and ARR-domain has been replaced in silico with flexible dummy residues to capture potential disruptions of the interface. In this analysis we observed that the SPN-domain is decoupled from the ARR-domain in both mutants, suggesting a disruption of the domain interface (Figure 1F, main manuscript). However, we additionally performed a dedicated ensemble optimization method (EOM) to characterize protein flexibility numerically (see Author response image 1). Here we found no statistically significant differences between mutants and the WT. We therefore decided to not to include the data in the manuscript.

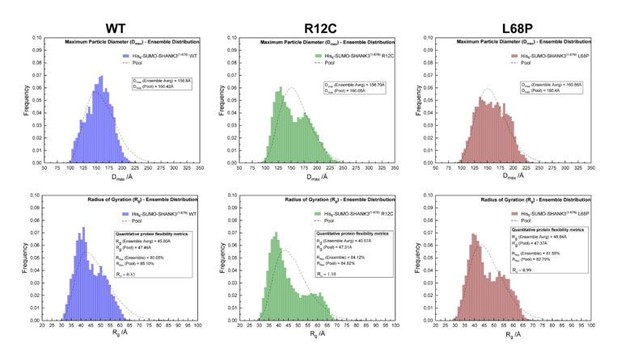

Author response image 1
SAXS EOM analysis of His6-SUMO-SHANK3(1-676) protein flexibility.

(from left to right)The ensemble distributions of the maximum particle diameter (Dmax) as well as the radius of gyration (Rg) are shown for His6SUMO-SHANK3(1-676) variants. Differences in the degree of flexibility (Rflex) of selected sub-ensembles between the WT and mutants are in the range of 1.5 – 4%, which is negligible.

7. The flexibility in the proteins, as observed in the SAXS data, should caution the authors in interpreting their static CORAL models as is now discussed (e.g. lines 126-130 and lines 317-324). Perhaps the authors can focus their interpretation more on the additional flexibility for the L68P mutant observed in the SAXS data, which is striking and solid data, and less on the static CORAL models?

While addressing point #6 of essential revisions, we found no significant differences in protein flexibility by EOM (please see Author response image 1). We are aware that a Kratky plot provides qualitative information on protein folding and flexibility. Based on the shape of the Kratky plot for the L68P mutant we conclude partial unfolding of the mutant which is further supported by CORAL analysis as well as intrinsic and extrinsic fluorescence spectroscopy data. We think, however, in this case folding and flexibility should be interpreted separately.

8. Figure 1C-F and Suppl. Figure 3B. Dmax is concentration dependent for all variants. How certain are the authors that the extrapolated data represents monomeric protein? For example, comparing the lowest concentration data for all variants, the Dmax is largest for the wt protein, while for the extrapolated data the wt protein has the shortest Dmax. In addition, the Dmax for the extrapolated data is larger than the Dmax for the lowest concentration data. If the extrapolated data represents a fraction of dimers, how does this influence the CORAL modelling?

We want to thank the reviewers for pointing this out. To address this question, we performed OLIGOMER-analysis of SAXS data spanning the entire measured concentration range including zero-extrapolated SAXS profiles to estimate the concentration-dependency of the monomeric SHANK3 volume fraction. We found that zero-extrapolated data indeed represents almost exclusively monomeric protein (Figure 1—figure supplement 3C). Therefore, dimers will not influence the CORAL modelling. Additionally, we repeated GNOM analysis of SAXS profiles measured at indicated concentrations to resolve the discrepancy between zeroextrapolated data and lowest measured concentrations. The new results are incorporated in Figure 1D (main manuscript) and Figure 1—figure supplement 3B.

9. The outcome of the molecular dynamics simulation may be different if the start structure is adjusted, i.e. if the simulation is done with a start model that has the two domains separated. This should be tested to confirm that the SPN-ARR interaction is not affected by the mutations.

For the MD simulations shown in the manuscript, we used the previously published SPN-ARR crystal structure (PDB: 5g4x, Lilja et al., 2017) as a start structure, where the SPNARR interaction was shown experimentally. Separating both domains would be an interesting way to study particular properties of the SPN-ARR interface. However, the biological significance of such a study would be very limited since the SPN- And ARR-domain are connected to each other by a linker region in nature. Nonetheless we were also interested in the outcome of such an experiment and performed the suggested MD simulations.

Author response image 2
Molecular dynamics simulations of split SPN-ARR domains.

(A) Cα backbone RMSF calculated for trajectories of the SHANK3(1-346) fragment (PDB: 5G4X), where the SPN- and ARR-domain have been split in silico in the linker region. Both mutants show increased fluctuations within the first 100 residues. (B) Cα backbone RMSD determined for the full protein (aa 1-346) with split SPN/ARR domains. Overall, ASD-associated mutants clearly show significantly increased backbone dynamics (C) Cα backbone RMSD restricted to the SPN domain of SHANK3 from “split” trajectories. If the two domains are separated, mutations within the SPN domain elicit a strong increase in backbone dynamics compared to the WT, which is absent if the SPN- and ARR-domain are connected by their linker (shown in (C)). Additionally, dynamics within the WT SPN domain appear lower if the domains are split. (D) Cα backbone RMSD restricted to the ARR domain of SHANK3 from “split” trajectories. Interestingly, under these conditions ASD-associated mutations also induce a distal increase in dynamics of the ARR domain. (E) Frame overlays are shown from trajectories where the SPN- and ARR-domain have been split (every fifth frame loaded, overlay (beginning:step:end) = 0:20:20002 resulting in 1000 frames).

We did not observe a significant divergence of both domains throughout the trajectory. Additionally, RMSF analysis of Cα atoms again showed increased fluctuations within the first 100 residues for both mutants (Author response image 2). However, we observed an increase of mutant RMSD values compared to the WT (Author response image 2). This effect was more pronounced for the L68P mutant, which showed a steep RMSD increase after ~100ns, potentially reflecting a mutation-induced perturbation of the SPN-ARR domain interface. The R12C mutant also exhibited increased RMSD values but showed a continuous near-linear RMSD increase rather than a spontaneous steep jump. Notably, R12C mutant RMSDs are higher than the WT only after ~500ns and are observed to be even lower than the WT before. Consistent with previous MD simulations, the SPN-domain alone showed identical RMSD patterns as the whole protein with slightly higher absolute values, confirming the SPN-domain as local hotspot of conformational dynamics (Author response image 2). We also found that both mutations were able to increase conformational dynamics also within the decoupled ARRdomain (Author response image 2). Since this increase in ARR-domain dynamics is absent for the WT, it could be that the mutation-carrying SPN-domain influences peptide backbone dynamics of the ARR-domain via non-covalent contacts.

However, we think these results are hard to interpret and should be taken with caution as they are derived from an artificially split system causing potentially non-native behavior and interactions which might not occur in the intact protein. Therefore, we suggest to exclude these results from the main manuscript to prevent confusion of readers. Apart from that, we already demonstrated by CORAL modelling of zero-extrapolated SAXS data that both ASD-associated mutations indeed disrupt the SPN-ARR interface (Figure 1C, main manuscript, see also Essential Revisions #6).

10. The experimental study of disease related missense mutations on protein structure and stability is not new. See for examples doi.org/10.1074/jbc.M210019200 and 10.1371/journal.pone.0186110. Also, in SHANK3 another disease related missense mutation (R536W) has been investigated structurally doi.org/10.1111/jnc.14322. I would like to suggest that lines 299 and 300 are changed or removed to reflect this better. In addition, the "In a proof-of-principle study" in the abstract may be misleading taking this previous work into account.

We are sorry for this misunderstanding. Of course our claim of novelty was not to show that missense mutations affect protein structure and stability. With proof-of-principal study we meant to link structural effects of disease-associated missense mutations in synaptic proteins with protein properties in their native cellular environment. Our study illustrates the value of deep structural analysis of select missense mutations at the level of molecular dynamics. Albeit both mutations investigated here, were located within the same domain, they had distinct effects on SHANK3 folding in vitro and kinetics at the synapse, suggesting that each new mutation needs to be studied individually and data cannot be directly extrapolated or generalized. We replaced the sentence “However, to our knowledge, distinguishable structural perturbations of disease-relevant protein missense variants have not yet been shown experimentally” (lines 299 and 300) with “However, to our knowledge, studies correlating distinguishable structural perturbations of disease-relevant protein missense variants with an altered cellular phenotype are very limited (Post et al., Nature Comm., 2020)”.

11. It would strengthen the discussion if the authors could discuss the cellular readout reported here and by others more in the light of their results on the flexibility and stability of the mutants.

In light of our new FRAP and co-IP results, we have re-written part of the discussion and included our interpretations on possible cellular outcomes of changed SHANK3 structure.

https://doi.org/10.7554/eLife.66165.sa2

Article and author information

Author details

  1. Michael Bucher

    1. AG Optobiology, Institute of Biology, Humboldt-University, Berlin, Germany
    2. DFG Emmy Noether Guest Group 'Neuronal Protein Transport', Institute for Molecular Neurogenetics, Center for Molecular Neurobiology (ZMNH), University Medical Center Hamburg-Eppendorf (UKE), Hamburg, Germany
    3. RG Neuroplasticity, Leibniz-Institute for Neurobiology (LIN), Magdeburg, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9296-121X
  2. Stephan Niebling

    Molecular Biophysics and High-Throughput Crystallization, European Molecular Biology Laboratory (EMBL), Hamburg, Germany
    Contribution
    Resources, Software, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Yuhao Han

    1. DFG Emmy Noether Guest Group 'Neuronal Protein Transport', Institute for Molecular Neurogenetics, Center for Molecular Neurobiology (ZMNH), University Medical Center Hamburg-Eppendorf (UKE), Hamburg, Germany
    2. Structural Cell Biology of Viruses, Centre for Structural Systems Biology (CSSB) and Leibniz Institute for Experimental Virology, Hamburg, Germany
    Contribution
    Formal analysis, Investigation, Visualization
    Competing interests
    No competing interests declared
  4. Dmitry Molodenskiy

    European Molecular Biology Laboratory (EMBL) Hamburg Unit, DESY, Hamburg, Germany
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5954-4294
  5. Fatemeh Hassani Nia

    Institute of Human Genetics, Center for Obstetrics and Pediatrics, University Medical Center Hamburg-Eppendorf (UKE), Hamburg, Germany
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Hans-Jürgen Kreienkamp

    Institute of Human Genetics, Center for Obstetrics and Pediatrics, University Medical Center Hamburg-Eppendorf (UKE), Hamburg, Germany
    Contribution
    Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8871-9970
  7. Dmitri Svergun

    European Molecular Biology Laboratory (EMBL) Hamburg Unit, DESY, Hamburg, Germany
    Contribution
    Methodology, Provided instrumentation for SAXS
    Competing interests
    No competing interests declared
  8. Eunjoon Kim

    Center for Synaptic Brain Dysfunctions, Institute for Basic Science (IBS) and Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, Republic of Korea
    Contribution
    Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
  9. Alla S Kostyukova

    1. DFG Emmy Noether Guest Group 'Neuronal Protein Transport', Institute for Molecular Neurogenetics, Center for Molecular Neurobiology (ZMNH), University Medical Center Hamburg-Eppendorf (UKE), Hamburg, Germany
    2. The Gene and Linda Voiland School of Chemical Engineering and Bioengineering, Washington State University (WSU), Pullman, United States
    Contribution
    Data curation, Supervision, Methodology
    Competing interests
    No competing interests declared
  10. Michael R Kreutz

    1. RG Neuroplasticity, Leibniz-Institute for Neurobiology (LIN), Magdeburg, Germany
    2. Leibniz Group 'Dendritic Organelles and Synaptic Function', Center for Molecular Neurobiology (ZMNH), University Medical Center Hamburg-Eppendorf (UKE), Hamburg, Germany
    3. German Center for Neurodegenerative Diseases, Magdeburg, Germany
    4. Center for Behavioral Brain Sciences, Magdeburg, Germany
    Contribution
    Conceptualization, Resources, Funding acquisition, Methodology, Writing - review and editing
    For correspondence
    michael.kreutz@zmnh.uni-hamburg.de
    Competing interests
    No competing interests declared
  11. Marina Mikhaylova

    1. AG Optobiology, Institute of Biology, Humboldt-University, Berlin, Germany
    2. DFG Emmy Noether Guest Group 'Neuronal Protein Transport', Institute for Molecular Neurogenetics, Center for Molecular Neurobiology (ZMNH), University Medical Center Hamburg-Eppendorf (UKE), Hamburg, Germany
    Contribution
    Conceptualization, Resources, Data curation, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    marina.mikhaylova@hu-berlin.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7646-1346

Funding

Deutsche Forschungsgemeinschaft (MI1923/1-2)

  • Marina Mikhaylova

Deutsche Forschungsgemeinschaft (FOR2419 TP2)

  • Marina Mikhaylova

Deutsche Forschungsgemeinschaft (EXC-2049-390688087)

  • Marina Mikhaylova

Leibniz-Gemeinschaft (Neurotranslation)

  • Eunjoon Kim
  • Michael R Kreutz
  • Marina Mikhaylova

Deutscher Akademischer Austauschdienst (Research Stays for University Academics and Scientists Award)

  • Alla S Kostyukova

University of Hamburg (LFF-FV76)

  • Marina Mikhaylova

Deutsche Forschungsgemeinschaft (FOR2419 TP3)

  • Michael R Kreutz

Deutsche Forschungsgemeinschaft (CRC 1436 Project A02)

  • Michael R Kreutz

Deutsche Forschungsgemeinschaft (RTG 2413 SynAge TP3 and TP4)

  • Michael R Kreutz

Deutsche Forschungsgemeinschaft (Kr1321/9-1)

  • Hans-Jürgen Kreienkamp

Bundesministerium für Bildung und Forschung (16QK10A (SAS-BSOFT))

  • Dmitry Molodenskiy

Deutsche Forschungsgemeinschaft (Kr1321/9-1)

  • Hans-Jürgen Kreienkamp

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Friederike Schröder for help with FUNCAT experiments, Dr. Rajeev Raman for help with fluorescence spectroscopy measurements, Dr. Maria Garcia Alai and Dr. Rob Meijers for the access to SPC facility EMBL Hamburg and for very helpful advice regarding experimental design and instruments operation. We thank Dr. Kim Remans (EMBL Heidelberg) for providing the pETM11-SenP2 plasmid and Dr. Thorsten Trimbuch from the Viral core facility (vcf.charite.de) for providing f(syn)Homer1-tdTomato-wpre plasmid (BL-1034/in a collaboration with DFG SFB1315 C01). We also thank Dr. Julia Bär, Dr. Maria Andres-Alonso, Dr. Katarzyna Grochowska, and Daniela Hacker for contributing to the preparation of primary rat hippocampal neuron cultures. Furthermore, we thank Dr. Jasper Grendel for help with analysis. This work was supported by the DAAD Research Stays for University Academics and Scientists Award to ASK; Leibniz Pakt für Forschung und Innovation 'Neurotranslation' to EJK, MRK and MM; the iNEXT MX/SAXS ES (PID: 5843), the Deutsche Forschungsgemeinschaft (DFG Emmy Noether Programme MI1923/1-2, FOR2419 TP2, and Excellence Strategy—EXC-2049–390688087), Hamburg Landesforschungsförderung LFF-FV76, Hertie Network of Excellence in Clinical Neuroscience and Excellence Strategy Program to MM, DFG FOR2419 TP3, DFG CRC 1436 Project A02, DFG RTG 2413 SynAge TP3 and 4 to MRK, DFG Kr1321/9-1 to HJK and Bundesministerium für Bildung und Forschung (BMBF) 16QK10A (SAS-BSOFT) to DM.

Ethics

Animal experimentation: All animal experiments were carried out in accordance with the European Communities Council Directive (2010/63/EU) and the Animal Welfare Law of the Federal Republic of Germany (Tierschutzgesetz der Bundesrepublik Deutschland, TierSchG) approved by the local authorities of the city-state Hamburg (Behörde für Gesundheit und Verbraucherschutz, Fachbereich Veterinärwesen) and the animal care committee of the University Medical Center Hamburg-Eppendorf.

Senior Editor

  1. Olga Boudker, Weill Cornell Medicine, United States

Reviewing Editor

  1. Inna Slutsky, Tel Aviv University, Israel

Publication history

  1. Received: December 30, 2020
  2. Accepted: May 1, 2021
  3. Accepted Manuscript published: May 4, 2021 (version 1)
  4. Version of Record published: June 1, 2021 (version 2)

Copyright

© 2021, Bucher et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,062
    Page views
  • 191
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Cornelius Schröder et al.
    Research Article Updated

    Many sensory systems use ribbon-type synapses to transmit their signals to downstream circuits. The properties of this synaptic transfer fundamentally dictate which aspects in the original stimulus will be accentuated or suppressed, thereby partially defining the detection limits of the circuit. Accordingly, sensory neurons have evolved a wide variety of ribbon geometries and vesicle pool properties to best support their diverse functional requirements. However, the need for diverse synaptic functions does not only arise across neuron types, but also within. Here we show that UV-cones, a single type of photoreceptor of the larval zebrafish eye, exhibit striking differences in their synaptic ultrastructure and consequent calcium to glutamate transfer function depending on their location in the eye. We arrive at this conclusion by combining serial section electron microscopy and simultaneous ‘dual-colour’ two-photon imaging of calcium and glutamate signals from the same synapse in vivo. We further use the functional dataset to fit a cascade-like model of the ribbon synapse with different vesicle pool sizes, transfer rates, and other synaptic properties. Exploiting recent developments in simulation-based inference, we obtain full posterior estimates for the parameters and compare these across different retinal regions. The model enables us to extrapolate to new stimuli and to systematically investigate different response behaviours of various ribbon configurations. We also provide an interactive, easy-to-use version of this model as an online tool. Overall, we show that already on the synaptic level of single-neuron types there exist highly specialised mechanisms which are advantageous for the encoding of different visual features.

    1. Neuroscience
    Azadeh HajiHosseini, Cendri A Hutcherson
    Research Article Updated

    How does regulatory focus alter attribute value construction (AVC) and evidence accumulation (EA)? We recorded electroencephalogram during food choices while participants responded naturally or regulated their choices by attending to health attributes or decreasing attention to taste attributes. Using a drift diffusion model, we predicted the time course of neural signals associated with AVC and EA. Results suggested that event-related potentials (ERPs) correlated with the time course of model-predicted taste-attribute signals, with no modulation by regulation. By contrast, suppression of frontal and occipital alpha power correlated with the time course of EA, tracked tastiness according to its goal relevance, and predicted individual variation in successful down-regulation of tastiness. Additionally, an earlier rise in frontal and occipital theta power represented food tastiness more strongly during regulation and predicted a weaker influence of food tastiness on behaviour. Our findings illuminate how regulation modifies the representation of attributes during the process of EA.
