Ciliary chemosensitivity is enhanced by cilium geometry and motility
Abstract
Cilia are hairlike organelles involved in both sensory functions and motility. We discuss the question of whether the location of chemical receptors on cilia provides an advantage in terms of sensitivity and whether motile sensory cilia have a further advantage. Using a simple advectiondiffusion model, we compute the capture rates of diffusive molecules on a cilium. Because of its geometry, a nonmotile cilium in a quiescent fluid has a capture rate equivalent to a circular absorbing region with ∼4× its surface area. When the cilium is exposed to an external shear flow, the equivalent surface area increases to ∼6×. Alternatively, if the cilium beats in a nonreciprocal way in an otherwise quiescent fluid, its capture rate increases with the beating frequency to the power of 1/3. Altogether, our results show that the protruding geometry of a cilium could be one of the reasons why so many receptors are located on cilia. They also point to the advantage of combining motility with chemical reception.
Introduction
Cilia are small hairlike organelles with a microtubulebased core structure that protrude from the cell surface. They are found on most eukaryotic cells (Nachury and Mick, 2019) and can be broadly classified into two categories: primary and motile. Primary cilia, of which there is only one on each cell, have primarily sensory functions (as receptors for chemical, mechanical, or other signals) (Zimmermann, 1898; Berbari et al., 2009; Hilgendorf et al., 2016; Spasic and Jacobs, 2017; Ferreira et al., 2019). Due to their shape and their role in signalling, they are often referred to as ‘the cell’s antenna’ (Marshall and Nonaka, 2006; Malicki and Johnson, 2017). Motile cilia, typically appearing in larger numbers (Brooks and Wallingford, 2014; Spassky and Meunier, 2017), move the surrounding fluid by beating in an asymmetric fashion (Golestanian et al., 2011; Gilpin et al., 2020), and often with some degree of coordination (Uchida and Golestanian, 2010; Elgeti and Gompper, 2013). They play a key role in a number of processes, including the swimming and feeding of microorganisms (Guasto et al., 2012; Lisicki et al., 2019), mucus clearance in airways (BustamanteMarin and Ostrowski, 2017), fluid transport in brain ventricles (Faubel et al., 2016), and egg transport in Fallopian tubes. However, there are exceptions to this classification. Primary cilia in the vertebrate leftright organiser are motile and drive a lateral fluid flow that triggers, through a mechanism that is not yet fully understood, a distinct signalling cascade determining the body laterality (Essner et al., 2002). There is also mounting evidence that motile cilia can have various sensory roles (Bloodgood, 2010), including chemical reception (Shah et al., 2009). Adversely, receptors localised on motile cilia, such as ACE2, can also act as entry points for viruses including SARSCoV2 (Lee et al., 2020). Some chemosensory systems, including vomeronasal (LeindersZufall et al., 2000) and olfactory neurons (Bhandawat et al., 2010) and marine sperm cells (Kaupp et al., 2003), are known to achieve a sensitivity high enough to detect a small number of molecules.
The sensitivity of a chemoreceptor is characterised by its binding affinity for the ligand, as well as its association/dissociation kinetics. If the timescale of ligand dissociation is longer than the timescale of the changes in ligand concentration, or if the ligands bind irreversibly, the sensitivity is determined by the binding rate alone. It has been shown that the theoretical limit of sensing accuracy is achieved when the receptors detect the frequency of binding events and when rebinding is excluded (Bialek and Setayeshgar, 2005; Endres and Wingreen, 2009) Because diffusion is fast on very short length scales, only 1% of the surface area of a cell or cilium needs to be covered in highaffinity receptors to obtain nearperfect adsorption (Berg and Purcell, 1977). Even if this condition is not satisfied, the membrane itself could nonspecifically bind the ligands with nearperfect efficacy, which then reach the receptors in a twostage process. In either of these cases, as long as there is no advection, the binding rates can be estimated using the theory of diffusionlimited reactions (Adam and Delbruck, 1968). This binding rate is known as the diffusion limit, and it has already been shown that flagelladriven swimming microorganisms can break the diffusion limit in order to increase their access to nutrients (Short et al., 2006).
The increasingly overlapping functions of sensory and motile cilia lead to the natural question about the advantage of placing receptors on a cilium, or in particular on a motile cilium. Because of its small volume, a cilium forms a compartment that facilitates efficient accumulation of second messengers (Marshall and Nonaka, 2006; Hilgendorf et al., 2016). Placing receptors on a protrusion, away from the flat surface, could have other advantages, like avoiding the effect of surface charges or the glycocalycx. It has also been suggested that the location of chemoreceptors on cilia exposes them to fluid that is better mixed (Marshall and Nonaka, 2006). A recent study suggests that the hydrodynamic interaction between motile and sensory cilia can enhance the sensitivity of the latter (Reiten et al., 2017). However, the question of how the geometry and motility of cilia affect their ability to capture and detect ligands has still remained largely unexplored.
In this paper, we investigate the theoretical limits on association rates of ligands on passive and motile cilia. In particular, we address the question of whether the elongated shape of a cilium and its motility can improve its chemosensory effectiveness. By using analytical arguments and numerical simulations, we show that the capture rate of a cilium is significantly higher than that of a receptor located on a flat epithelial surface. Motile cilia can further improve their chemosensitivity. Finally, we show that a cilium within an immotile bundle has a lower capture rate than an isolated cilium, but a higher one when the cilia are sufficiently motile.
Results
In this study, we calculate the secondorder rate constant for diffusive particle capture on a cilium. We discuss scenarios where the fluid and the cilium are at rest, where the fluid exhibits a shear flow, where the cilium is actively beating, and where a bundle of hydrodynamically interacting cilia absorbs particles.
We consider a perfectly absorbing cilium protruding from a nonabsorbing surface, in a fluid containing some chemical species with a concentration field $c$. Far from the cilium, the unperturbed concentration has a constant value $c}_{0$. The rate constant $k$ is defined such that
where $I$ is the capture rate, defined as the number of captured particles per unit time.
Since the aforementioned cilium is perfectly absorbing, we define an absorbing boundary condition such that the concentration of the chemical species is zero at every point on the cilium’s surface. We assume that the flat membrane surrounding the cilium does not absorb particles and it is therefore described with a reflecting boundary condition at $z=0$. The geometry and boundary conditions are illustrated in Figure 1.
Cilium in quiescent fluid

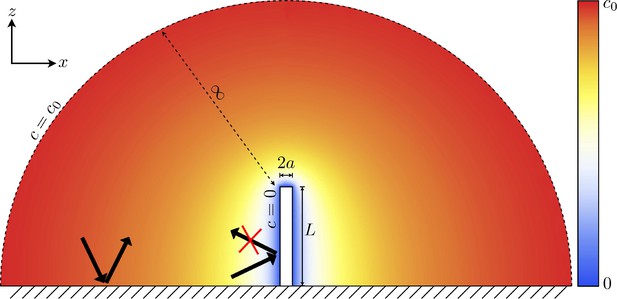

We consider a cilium (modelled as a cylinder next to a boundary at $z=0$) in a quiescent fluid, with the goal of determining its capture rate constant in the absence of advection. In the case where there is a steady state with no advection, the advectiondiffusion equation reduces to
where $D$ is the diffusion constant. The rate constant is determined by the integral of the current density $\mathbf{\mathbf{J}}$ over the surface, which follows from Fick’s law:
As we show in Appendix 1, the rate constant can be evaluated using an analogy between particle diffusion and electrostatics (Berg and Purcell, 1977). Up to a prefactor, the capture rate is determined by the selfcapacitance $C$ of a conducting body of the same shape as $k=DC/{\epsilon}_{0}$.
To determine the capture rate of a cilium embedded in a nonabsorbing surface, we first eliminate the reflective boundary condition at the surface by symmetrically extending the problem to a cylinder of length $2L$ in open space and considering $1/2$ of its capacitance. There is no closedform expression for the capacitance of a cylinder, so we loosely approximate this cylinder as a prolate spheroid with semimajor axis $L$ and semiminor axis $a$. Using its selfcapacitance in the limit $L\gg a$ (Snow, 1954), we find the rate constant:
This value agrees well with simulations: the ratio of the simulated to this analytical rate constant is 1.02.
The finding that the capture rate scales almost linearly with the length of the cilium can be compared to experimental data obtained on olfactory cilia from the nasal cavity of mouse, whose lengths in different regions vary from a few micrometers to tens of micrometers. Challis et al., 2015 have used patchclamp recordings on olfactory sensory neurons and measured the response to pulses of an odorant (eugenol or a mixture of 10 odorants), lasting $5400\mathrm{ms}$. Regions with different lengths show very different sensitivity thresholds, differing by an order of magnitude. The results are qualitatively consistent with the predicted length dependence of the capture rate.
To quantify the advantage of localising the receptors on a cilium, we compare it with a case where the receptors form a circular patch on a flat surface (Figure 2a). Again, we assume that the receptor patch has a perfectly absorbing surface, while the surface surrounding it is reflective. We determine the size of the patch needed to attain the same rate constant as the cilium. The rate constant for a circular patch on the reflective boundary can be found by applying the electrostatic analogy to the wellknown result for the selfcapacitance of a thin conducting disc of radius $R$ (Berg and Purcell, 1977):
We find that the patch has a much larger surface area than the cilium with the same rate constant. We can calculate this area ratio:

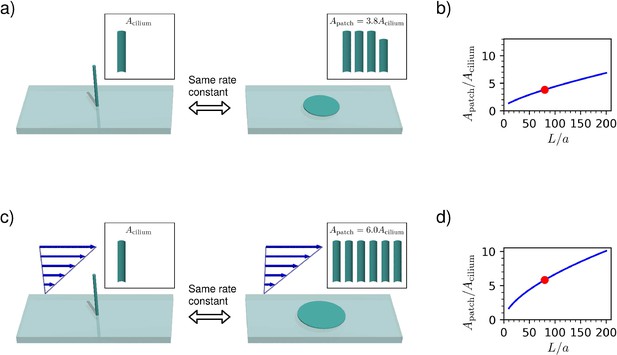

The area ratio as a function of the aspect ratio $L/a$ is shown in Figure 2b. For a typical cilium aspect ratio of $L/a=80$ (with $L=10\phantom{\rule{thinmathspace}{0ex}}\mu \mathrm{m}$, and $a=125\phantom{\rule{thinmathspace}{0ex}}\mathrm{n}\mathrm{m}$), this area ratio is 3.8, implying that the cilium is much more effective per unit area than a receptor on the surface of the cell. Olfactory cilia have a great variation of lengths, ranging from $2.5\mu \mathrm{m}$ to $100\mu \mathrm{m}$ (Challis et al., 2015; Williams et al., 2014). If we neglect the fact that long cilia are not straight, the calculated area ratio ranges from 2.7 to 18. Using an exact numerical result for the capacitance of a cylinder (Paffuti, 2018), the ratio becomes 4.5 for $L/a=80$. With the dimensions given above, the radius of the circular patch with the same capture rate is $R=3.4\phantom{\rule{thinmathspace}{0ex}}\mu \mathrm{m}$.
Cilium in shear flow
At the scale of cilia, the flow is characterised by a low Reynolds number, meaning that viscous forces dominate over inertia. The fluid motion is welldescribed by the Stokes equation, together with the incompressibility condition:
in which $\mathbf{\mathbf{u}}$ is the fluid velocity, η is the dynamic viscosity, and $p$ is the pressure. The concentration field of some chemical species suspended within this fluid is governed by the advectiondiffusion equation:
where $c$ is a function of both position and time.
The ratio of advection to diffusion is described by the dimensionless Péclet number. This is usually written as some characteristic flow speed multiplied by some characteristic length scale, all divided by the diffusion constant.
Because the cilium grows from a flat surface with a noslip boundary condition, the flow can be described as a uniform shear flow with the shear rate $\dot{\gamma}$. To estimate the capture rate constant of a cilium in a shear flow, we make use of the fact that the radius of the cylinder is much smaller than the length scale over which the shear flow varies. We therefore approximate the local rate density at any point on the cilium with that of an infinitely long cylinder in a uniform flow with velocity $v(z)=\dot{\gamma}z$. The capture rate per unit length is
where $\beta =2.50$ is a numerical constant (see Appendix 2 for derivation).
Now the total rate constant is obtained by integration over the cilium length
We take the characteristic velocity to be the speed of the cilium’s tip relative to the surrounding fluid, and hence the Péclet number for the extended cilium is
This expression for the rate once again shows a strong positive relationship between cilium length and sensitivity, as is known to be the case in real biological systems (Challis et al., 2015). The characteristic Péclet number for the crossover between the diffusive and the convective capture is of the order $\sim L/a\approx 80$.
Once again we determine the size of a circular surface patch offering an equivalent effectiveness to the cilium in a flow with the same shear rate (Figure 2c). The highPe rate constant for a patch in a shear flow is (Stone, 1989):
where ${\mathrm{Pe}}_{\text{patch}}\equiv \dot{\gamma}{R}^{2}/D$ and $\zeta =2.157$ is a purely numerical constant. We can calculate the ratio of the area of the equivalent patch to the area of the cilium for these highPe asymptotic results:
The area ratio is shown in Figure 2d and compared with the results in a quiescent fluid. For a typical cilium aspect ratio $L/a=80$ (with $L=10\phantom{\rule{thinmathspace}{0ex}}\mu \mathrm{m}$, and $a=125\phantom{\rule{thinmathspace}{0ex}}\mathrm{n}\mathrm{m}$), this area ratio is 6.0 – much larger than the area ratio in a quiescent fluid, which was 3.8. This means that a cilium is better per area than a patch at both low and high Péclet numbers, but the cilium excels when the Péclet number is large.
We additionally investigated the question how robust the results are if the receptors are localised to only one segment of the cilium. In a model, we assumed that of the total length $L$, the distal part $\nu L$ is absorbing, while the proximal $(1\nu )L$ is reflective. At high Péclet numbers, we can modify the integration limits in Equation (11) and obtain a theoretical capture rate ${k}_{\text{cilium}}(\nu )={k}_{\text{cilium}}\cdot (1(1\nu {)}^{4/3})$. The result is compared to simulations in Figure 2—figure supplement 1. A cilium with receptors over the distal 50% of its length therefore achieves 60% of the maximal capture rate.
Active pumping
A mounting collection of evidence suggests that both primary and motile cilia have sensory roles (Bloodgood, 2010). We are interested in the extent to which cilium motility can increase their ability to detect particles. To this end, we numerically simulate various different possible types of ciliary motion in otherwise quiescent fluids.

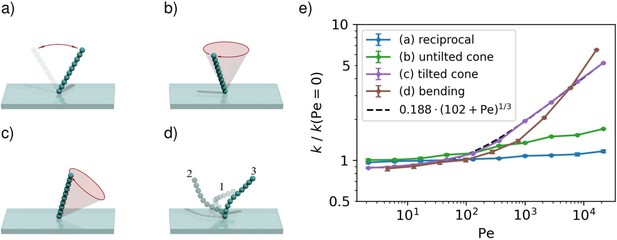

Because of the complex flow patterns and timedependent boundary conditions, the absorption by a beating cilium is not analytically tractable. Instead, we use numerical simulations to determine the rate constants. We consider four different active pumping scenarios: a purely reciprocally moving cilium, a cilium tracing out a cone around an axis perpendicular to the surface, a cilium tracing out a tilted cone, and a cilium with a trajectory that includes bending, to raise the pumping efficiency (all shown in their respective order in Figure 3a–d).
The rate constants in these scenarios, relative to that of a nonmoving cilium, are plotted in Figure 3e. Analogously to the cilium in a shear flow, we define the Péclet number using the maximum tip velocity during the cycle:
The reciprocally moving cilium (Figure 3a) displays almost no improvement over several orders of magnitude of the Péclet number. This is expected, because Purcell’s scallop theorem (Purcell, 1977) states that purely reciprocal motion does not create any net flow, so the particle intake is largely diffusive in nature. A minor increase of the rate constant with the Péclet number is caused by the local shear flow that facilitates absorption on the surface.
The cilium moving around a vertical cone (Figure 3b) induces a net rotational flow, but no inflow or outflow (by symmetry, the timeaveraged flow can only have a rotational component [Vilfan, 2012]). Nevertheless, the constant motion of the cilium through the fluid leads to a higher local capture efficiency. The rate constant therefore shows more improvement; over a few orders of magnitude of the Péclet number, the rate constant increases by a factor of two.
The tilted cone (Figure 3c) shows a much higher capture rate, which is unsurprising. When the cilium is near to the plane, the noslip boundary screens the flow, whereas when it is far from the plane, its pumping is unimpeded. This results in the cilium inducing a long range flow in one direction, characterised by a finite volume flow rate (Smith et al., 2008). The long range flow causes a constant intake that replenishes the depleted particles. At high Péclet numbers, the capture rate scales $k\sim {\mathrm{Pe}}^{1/3}$, which is the same dependence as in an external shearflow, although with a prefactor that is lower by a factor of ∼2. Locally, the relative flow around the cilium is the same whether a cilium is pivoting or resting in a shear flow. The pumping effect of the tilted cilium, on the other hand, provides sufficient inflow that the concentration around a cilium sees only a small depletion effect.
We finally simulated the capture process on a cilium exerting a realistic beating pattern, consisting of a stretched working stroke and a bent, sweeping recovery stroke (Figure 3d). The capture rate is close to that of the tilted cone, but surpasses it at very high Péclet numbers.
Collective active pumping

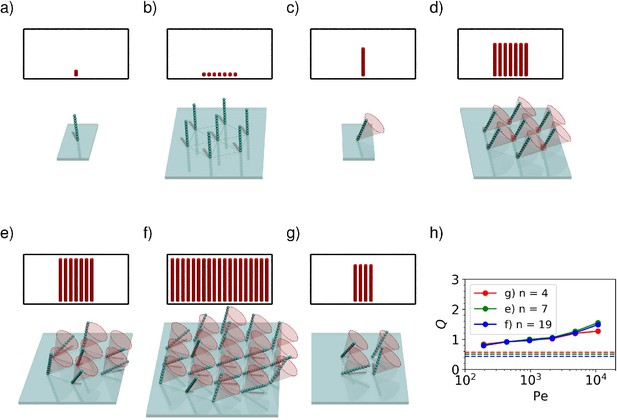

We consider seven cilia on a hexagonal centred lattice with lattice constant $0.95L$, with a view to understand how the presence of multiple cilia affects performance. We quantify the performance gain using a quantity $Q$, which we define as
which represents the fractional percilium improvement in rate constant compared to a single isolated cilium at the same Péclet number.
Using numerical simulations, we find that at zero Péclet number (Figure 4a–b), $Q\approx 0.5$, which means that the cilia locally deplete the concentration field, harming the percilium effectiveness; in a quiescent fluid, it is most efficient for cilia to stand far away from their neighbours.
However, when the cilia actively move (with each tracing out a tilted cone with a different randomlychosen phase lag compared to its neighbours, as in Figure 4e) the trend is reversed: we find that at $\mathrm{Pe}\approx 10000$, $Q\approx 1.53$, meaning that per cilium, the capture rate is around 50% higher in the collective when compared to an isolated cilium with the same Péclet number. We find that over the range of Péclet numbers simulated, the $Q$ increases monotonically with the Péclet number (Figure 4h).
When comparing these randomly chosen phases to a patch of cilia which beat in uniform, we find that cilia which beat in phase (Figure 4d) see an improvement over the stationary case with $Q\approx 1.16$, but are much less effective than the cilia patch that beats with random phases. The random phases give a higher volume flow, and complex hydrodynamic interactions between the randomlyphased cilia result in a slightly higher capture chance for any given particle. Similar levels of improvement are also seen for other arrangements of cilia forming a bundle, that is, ${N}_{\text{cilia}}=19$ on a hexagon (Figure 4f) or ${N}_{\text{cilia}}=4$ on a square (Figure 4g). Furthermore, an improvement of randomly beating over uniformlybeating cilia has been observed in previous work with finitesized particles (Ding and Kanso, 2015; Nawroth et al., 2017). The results suggest that mutual enhancement of capture rates is a robust phenomenon and does not depend on a specific geometry.
Discussion
Our results address a simple question: does the location of so many chemical receptors on cilia bring them an advantage in sensitivity? Besides the wellknown advantages of compartmentalisation, which facilitates the downstream signal processing, we show that the elongated shape of a cilium provides an advantage for the capture rate of molecules in the surrounding fluid. The advantages can be summarised as follows:
If neither the fluid nor the cilium move and the process of particle capture is purely diffusive, the elongated shape improves the capture rate of the cilium by giving it better access to the diffusing ligands. The length dependence of the capture rate has the sublinear form $k\sim L/\mathrm{log}L$. With typical parameters, the cilium achieves a capture rate equivalent to that of a circular patch of receptors on a flat surface with 4× the surface area of the cilium.
When a nonmoving cilium is exposed to a shear flow, the advantage increases, mainly because the tip of the cilium is exposed to higher flow velocities. The capture rate scales with $k\sim {L}^{4/3}$ and becomes equivalent to that of a surface patch with approximately 6× the surface area at high flow rates.
An actively beating cilium can achieve capture rates comparable to those by a passive cilium in a shear flow with the same relative tip velocity, but only if the beating is nonreciprocal, that is, if the cilium generates a long range directed flow. The capture rate can scale with the beating frequency to the power of 1/3 or higher.
Without motility, a bundle of sensory cilia achieves a capture rate per cilium that is lower than that of a single cilium, because of the locally depleted ligand concentration. However, the situation can become reversed if the cilia are beating: then each cilium benefits from the flow produced by the bundle as a whole, and the percilium capture rate can be significantly higher than in an isolated beating cilium. Cilia beating with random phases achieve significantly higher capture rates than when beating in synchrony.
Our results are based on a few assumptions. We assumed that the particles get absorbed and detected upon their first encounter of the cilia surface – an assumption that is justified if the receptors are covering the surface at a sufficient density (Berg and Purcell, 1977), or if the particles bind nonspecifically to the membrane of the cilium first. We also treat the particles as pointlike (their size only has an influence on their diffusivity), which is accurate for molecules up to the sizes of a protein and we do not expect a significant error even for small vesicles. The RotnePrager tensor approximation used to determine the flow fields does not exactly satisfy the noslip boundary condition on the surface of the cilium, especially at high Péclet numbers.

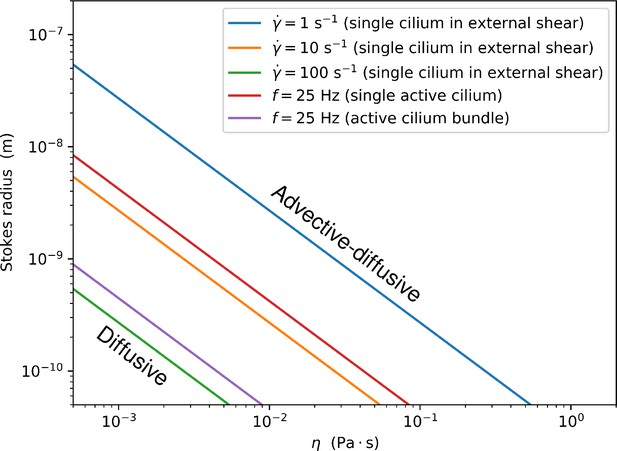

With the typical dimensions of a cilium ($L=10\mu \mathrm{m}$, $a=0.125\mu \mathrm{m}$) and a diffusion constant of a small molecule $D={10}^{9}\phantom{\rule{thinmathspace}{0ex}}{\mathrm{m}}^{2}{\mathrm{s}}^{1}$, we obtain ${k}_{\text{cilium}}=7{\mathrm{pM}}^{1}{\mathrm{s}}^{1}$. A chemosensory cilium working at the physical limit is therefore capable of detecting picomolar ligand concentrations on a timescale of seconds. Sensitivity thresholds in the subpicomolar range have been measured in some olfactory neurons (Frings and Lindemann, 1990; Zhang et al., 2013), indicating that some olfactory cilia work close to the theoretical sensitivity limit. If the cilia are embedded in mucus with a viscosity at least 3 orders of magnitude higher than water (Lai et al., 2009) (we disregard its viscoelastic nature here) and the molecule has a Stokes radius of a few nanometres, the diffusionlimited capture rate reduces to around ${k}_{\text{cilium}}=1{\mathrm{nM}}^{1}{\mathrm{s}}^{1}$.
In a shear flow with a typical shear rate of $\dot{\gamma}=10\phantom{\rule{thinmathspace}{0ex}}{\mathrm{s}}^{1}$, the Péclet number of a small molecule in water is of the order of $\mathrm{Pe}\approx 1$, where the capture rate still corresponds to the stationary case. However, with larger molecules and higher viscosities, the Péclet numbers can exceed 10^{4}, leading to a significant enhancement of the capture rate.
When the same cilium is beating with a frequency of $25\phantom{\rule{thinmathspace}{0ex}}\mathrm{H}\mathrm{z}$, the Péclet number is of the order ∼10, which is too small to have an effect on the capture rate. With larger molecules and higher viscosities, the Péclet numbers can be significantly higher. With a medium viscosity of $0.2\phantom{\rule{thinmathspace}{0ex}}\mathrm{P}\mathrm{a}\cdot \mathrm{s}$ (200 times the water viscosity) and a Stokes radius of $10\phantom{\rule{thinmathspace}{0ex}}\mathrm{n}\mathrm{m}$, it reaches 10^{5}, meaning that the motility accelerates the capture rate by one order of magnitude. For example, according to one hypothesis, motile cilia in the zebrafish leftright organizer (Kupffer’s vesicle) both generate flow and detect signalling particles, possibly extracellular vesicles (Ferreira et al., 2017; Ferreira et al., 2019) similar to the proposed ‘nodal vesicular parcels’ (Tanaka et al., 2005). With a cilium length of $L=6\mu \mathrm{m}$ and a particle radius of $a=100\mathrm{nm}$, we obtain $\mathrm{P}\mathrm{e}=1300$, showing that the capture rates can be several times higher than in a passive cilium. Figure 5 shows how the molecular Stokes radius affects the fluid viscosity required to break the diffusion limit for a few different scenarios. However, when the particle size becomes comparable to the cilium diameter, the approximation that treats them as point particles loses validity. Indeed, it has been shown that particle size can have a direct steric effect on the capture rate (Ding and Kanso, 2015). Furthermore, the capture process of large particles can depend on a competition between hydrodynamic and adhesive forces (Tripathi et al., 2013). Steric effects can even lead to particle enrichment in flow compartments (Nawroth et al., 2017).
We have thus proven that for individual isolated cilia the geometry of a cilium always means an advantage in chemical sensitivity over receptors covering the same area on a flat surface (assuming they act as perfect absorbers), whether in a quiescent or moving fluid. At high Péclet numbers, which are achieved in viscous fluids, with very large particles or in very strong flows, the advantage of a cilium increases further and even confers an advantage in chemosensitivity to cilium bundles over individual cilia. These advantages can work in concert with others, such as avoiding charged surfaces and glycocalix and the provision of a closed compartment on the inside. Further work might examine the extent to which motility benefits cilia in a fluid with bulk flow, or investigate the effect of metachronal waves on ciliary chemosensitivity. Finally, our results shed light on possible engineering applications for microfluidic sensing devices based on these ideas, for example using magnetic actuation (Vilfan et al., 2010; Meng et al., 2019; Matsunaga et al., 2019).
Materials and methods

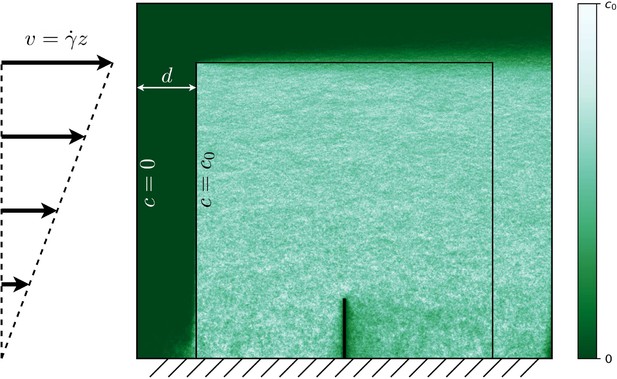

Numerically simulated point particles are injected into a finite system containing a motile cilium, and move around due to advection (resulting from the motion of the cilium) and diffusion, until they either escape from the system or are absorbed by the cilium. The proportion of particles which are captured is used to compute a rate constant.
Flow calculation
Request a detailed protocolThe hydrodynamics are computed using a modified RotnePrager mobility tensor $\mathbf{\mathbf{M}}$ that accounts for the noslip boundary. If there are $N$ spheres of equal radius $R$ in the simulation, each having a prescribed trajectory ${\mathbf{\mathbf{r}}}_{i}(t)$ and each acted upon by a force ${\mathbf{\mathbf{F}}}_{i}(t)$, then these forces must satisfy (Vilfan et al., 2010)
for every $i\in [1,N]$. Since every term except the forces is known, the forces can be determined numerically at a given $t$ by solving this set of simultaneous equations. Then the fluid velocity at any point $\mathbf{\mathbf{x}}$ can be determined by
In the simulations we used $N=20$ spheres, corresponding to an aspect ratio $L/a=40$. A somewhat lower value than in the analytical calculations was chosen to save computational time and also to compensate for the fact that a cylinder is replaced with a chain of spheres.
Injection
Request a detailed protocolWe require a particle injection procedure that satisfies the concentration boundary condition $c\to {c}_{0}$ far from the absorbing cilium. We achieve this by introducing two bounding boxes in the simulation: an inner and an outer box, separated by a thin distance $d$ (Figure 6). The particles are injected at the boundary of the inner box and absorbed at the outer box. The injection rate is calculated such that it corresponds to the advectivediffusive flux through the layer between the boxes if the concentration at the inner box is $c}_{0$. Because the flux through the boundary layer is much larger than the flux of particles absorbed inside the inner box, the method is suited to ensure a constant concentration boundary condition. The method is similar to a recent algorithm using a single boundary (RamírezPiscina, 2018), but uses a simpler injection function.
To calculate the injection current density, we solve the onedimensional steadystate advectiondiffusion equation
with the boundary conditions $c(0)=0$ and $c(d)={c}_{0}$. The solution is
By the application of Fick’s law, this leads to an expression for the current density through the inner box:
We assume that a test particle will take take much longer to reach the cilium than the characteristic time required for the flow to change, and hence we take $v=\u27e8\mathbf{u}(\mathbf{x},t)\cdot \hat{\mathbf{n}}{\u27e9}_{t}$, where $\hat{\mathbf{n}}$ is the inward pointing surface normal of the inner box. This function can then be used to probabilistically weight where particles are injected on the inner box.
Numerical integration
Request a detailed protocolThe test particle position is updated using an AdamsBashforthMilstein multistep numerical integration method in the presence of noise (Tocino and Senosiain, 2015):
Because the computation of the flow field $\mathbf{\mathbf{u}}$ (see Equation 18) is the most demanding step, it is advantageous over methods that require additional function evaluations per step. ${\xi}_{i}$ is a vector where each element is pseudorandomly generated Gaussian noise with standard deviation $\sqrt{2D\mathrm{\Delta}t}$ and mean of zero.
Rate evaluation
Request a detailed protocolWe finish each simulation run when the particle position reaches the cilium (capture), or the outer box (escape). At the end, the rate constant is determined as
where $I$ is the calculated total particle flux, obtained by integrating the flux density over the inner box, $I=\int j\phantom{\rule{thinmathspace}{0ex}}\mathrm{d}S$.
Numerical parameters
Request a detailed protocolFor all numerical simulations, we use a cilium consisting of 20 beads (thus giving a length to radius ratio $L/a=40$). For the conical and reciprocal motion (Figure 3a–c), we use an opening angle (between the cone axis and surface) of 30°, and for the titled conical motion (Figure 3c) the axis of the cone is tilted relative to the vertical by an angle of 55°.
In the collective regime, the parameters are the same, with the addition of a hexagon lattice constant of $0.95L$. The cones are tilted such that their axes are perpendicular to one chosen side of the hexagon (left to right in Figure 4df).
Appendix 1
Electrostatic analogy for the capture rate
In the following we explain the analogy between the capture rate of a diffusive particles and the selfcapacitance in electrostatics (Berg and Purcell, 1977). The diffusion equation reads
where $D$ is the diffusion constant and $c$ the particle concentration. The boundary conditions are $c={c}_{0}$ at infinity and $c=0$ at the particle surface. The diffusion equation is equivalent to the Laplace equation for sourcefree electrostatics, in which the electrostatic potential $\varphi $ obeys
If the surface of the body in the electrostatic case has a potential of ${V}_{0}$, the boundary conditions are equivalent as well. The rate constant is determined by the integral of the current density $\mathbf{\mathbf{J}}$ over the surface, which follows from Fick’s law:
In the electrostatic version of the problem, the equivalent expression for selfcapacitance is
where $q$ is the charge on the body. By analogy, the rate constant can be expressed as:
The electrostatic equivalence allows us to translate the calculation of the capture rates to a capacitance problem with a greater number of available solutions in the literature.
Appendix 2
Capture rate of a cylinder in flow
In the following, we calculate the capture rate of a cylinder, moving transversely through the flow at a high Péclet number. While defining the problem, one encounters the Stokes paradox, namely that the lateral mobility of an infinite cylinder at zero Reynolds number diverges. We avoid the problem by calculating the capture rate for a prescribed force density on the cylinder, which gives a welldefined nearfield flow. Later, we can use the well established resistive force theory to estimate the force density at a given local velocity. A further simplification we make is to swap the boundary conditions (Masoud and Stone, 2019), such that the cylinder emits particles, leading to a concentration c_{0} at its surface and 0 in the incoming fluid. We describe the flow around the cylinder with radius $a$ with the following stream function in cylindrical coordinates
where $f$ is the force per unit length. The unperturbed fluid is coming from the $\theta =0$ direction (Appendix 2—figure 1). The fluid velocity is determined as the curl of the stream function, e.g.:

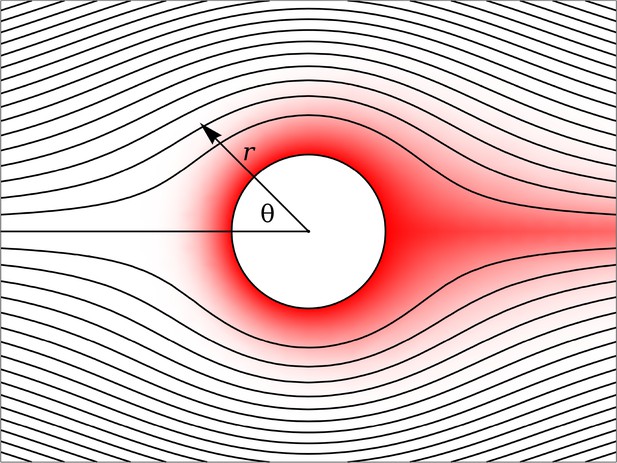

In the limit of a high Péclet number, the emitted particles stay in a thin boundary layer around the cylinder before escaping at $\theta =\pi $. We can therefore use the following approximation that only takes into account the leading order contribution to the stream function
In the following, we derive a partial differential equation for the particle flux $\mathrm{\Phi}(\theta )$ across a radial halfplane starting with radius $r$ at the angle θ, defined as
At a high Péclet number, advection dominates over diffusion, which only needs to be considered in the direction perpendicular to the stream lines, but not along. Due to flux conservation, the variation of Φ with the angle θ is caused by the diffusive transverse flux, driven by the concentration gradient
We finally arrive at the PDE for the particle flux
with the constant $A=8D\sqrt{\pi \eta /af}$. The boundary conditions are $\mathrm{\Phi}=0$ for $\theta =0$, reflecting zero flux at the inflow, while the fixed concentration at the surface, ${c}_{0}=1$, implies ${\partial \mathrm{\Phi}/\partial \psi }_{\psi =0}=1$. A transformation of variables $t=\int d\theta A\sqrt{\mathrm{sin}\theta}$ with $t(0)=0$ and $t(\pi )=\sqrt{8/\pi}\mathrm{\Gamma}{[3/4]}^{2}$ leads to
which has the solution
with
An example of a particle concentration $c$ resulting from this solution is shown in Appendix 2—figure 1. The emission rate (equivalent to capture rate) per unit length is given by twice the particle flux (for two sides of the cylinder):
A previous calculation that used a similar approach, but solved the PDE with an approximate function, rather than the exact solution derived here, gave the prefactor 1.63 when converted to our units (Friedlander, 1957).
Finally, we can use the resistive force theory to estimate the force density per unit length as $f={C}_{N}v\approx 1.3\pi \eta v$ and arrive at Equation (10) in the main text. The prefactor depends on the widthtolength ratio of the object and we used a value that gives a good result for typical ciliary dimensions (Vilfan, 2012).
Data availability
All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 3 and 4.

References

BookReduction of dimensionality in biological diffusion processesIn: Rich A, Davidson N, editors. Structural Chemistry and Molecular Biology. San Francisco: W.H. Freeman. pp. 198–215.

The primary cilium as a complex signaling centerCurrent Biology 19:R526–R535.https://doi.org/10.1016/j.cub.2009.05.025

Physics of chemoreceptionBiophysical Journal 20:193–219.https://doi.org/10.1016/S00063495(77)855446

Physical limits to biochemical signalingPNAS 102:10040–10045.https://doi.org/10.1073/pnas.0504321102

Sensory reception is an attribute of both primary cilia and motile ciliaJournal of Cell Science 123:505–509.https://doi.org/10.1242/jcs.066308

Cilia and mucociliary clearanceCold Spring Harbor Perspectives in Biology 9:a028241.https://doi.org/10.1101/cshperspect.a028241

Selective particle capture by asynchronously beating ciliaPhysics of Fluids 27:121902.https://doi.org/10.1063/1.4938558

Maximum likelihood and the single receptorPhysical Review Letters 103:158101.https://doi.org/10.1103/PhysRevLett.103.158101

The cilium as a force sensormyth versus realityJournal of Cell Science 132:jcs213496.https://doi.org/10.1242/jcs.213496

Single unit recording from olfactory ciliaBiophysical Journal 57:1091–1094.https://doi.org/10.1016/S00063495(90)826278

The multiscale physics of cilia and flagellaNature Reviews Physics 2:74–88.https://doi.org/10.1038/s4225401901290

Fluid mechanics of planktonic microorganismsAnnual Review of Fluid Mechanics 44:373–400.https://doi.org/10.1146/annurevfluid120710101156

The primary cilium as a cellular receiver: organizing ciliary GPCR signalingCurrent Opinion in Cell Biology 39:84–92.https://doi.org/10.1016/j.ceb.2016.02.008

The signal flow and motor response controling chemotaxis of sea urchin spermNature Cell Biology 5:109–117.https://doi.org/10.1038/ncb915

Micro and macrorheology of mucusAdvanced Drug Delivery Reviews 61:86–100.https://doi.org/10.1016/j.addr.2008.09.012

The cilium: cellular antenna and central processing unitTrends in Cell Biology 27:126–140.https://doi.org/10.1016/j.tcb.2016.08.002

Cilia: tuning in to the cell's antennaCurrent Biology 16:R604–R614.https://doi.org/10.1016/j.cub.2006.07.012

The reciprocal theorem in fluid dynamics and transport phenomenaJournal of Fluid Mechanics 879:P1.https://doi.org/10.1017/jfm.2019.553

Controlling collective rotational patterns of magnetic rotorsNature Communications 10:4696.https://doi.org/10.1038/s4146701912665w

Establishing and regulating the composition of cilia for signal transductionNature Reviews Molecular Cell Biology 20:389–405.https://doi.org/10.1038/s4158001901164

Fluid mechanics of nodal flow due to embryonic primary ciliaJournal of the Royal Society Interface 5:567–573.https://doi.org/10.1098/rsif.2007.1306

BookCircular of the Bureau of Standards No. 544: Formulas for Computing Capacitance and InductanceUS Government Printing Office.

Primary cilia: cell and molecular mechanosensors directing whole tissue functionSeminars in Cell & Developmental Biology 71:42–52.https://doi.org/10.1016/j.semcdb.2017.08.036

The development and functions of multiciliated epitheliaNature Reviews Molecular Cell Biology 18:423–436.https://doi.org/10.1038/nrm.2017.21

Heat/mass transfer from surface films to shear flows at arbitrary Peclet numbersPhysics of Fluids A: Fluid Dynamics 1:1112–1122.https://doi.org/10.1063/1.857335

Twostep Milstein schemes for stochastic differential equationsNumerical Algorithms 69:643–665.https://doi.org/10.1007/s1107501499189

Synchronization and collective dynamics in a carpet of microfluidic rotorsPhysical Review Letters 104:178103.https://doi.org/10.1103/PhysRevLett.104.178103

Generic flow profiles induced by a beating ciliumThe European Physical Journal E 35:72.https://doi.org/10.1140/epje/i2012120723

Ultrasensitive detection of amines by a trace amineassociated receptorJournal of Neuroscience 33:3228–3239.https://doi.org/10.1523/JNEUROSCI.429912.2013

Beiträge zur Kenntniss einiger Drüsen und EpithelienArchiv für Mikroskopische Anatomie 52:552–706.https://doi.org/10.1007/BF02975837
Decision letter

Raymond E GoldsteinReviewing Editor; University of Cambridge, United Kingdom

Aleksandra M WalczakSenior Editor; École Normale Supérieure, France
Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.
Acceptance summary:
The cilium is a conserved organelle found in most cell types, broadly classifiable as motile or primary cilia. For a long time, the function of the latter had been thought to be vestigial, until recent studies have revealed their importance for signalling. The authors suggest based on a theoretical model that the distinctive elongated shape of a cilium may be coupled to its sensory function.
Decision letter after peer review:
Thank you for submitting your article "Ciliary chemosensitivity is enhanced by cilium geometry and motility" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Aleksandra Walczak as the Senior Editor. The reviewers have opted to remain anonymous.
The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission. We note that while the reviewers are generally supportive of the work, they have raised a number of pointed questions about the relevance of the results to biology. These include (1) the lack of consideration of heterogeneity in receptor distribution (there are many reasons why cilia are slender – not just for sensing), (2) the very large Peclet numbers required for not much enhancement in performance, and (3) a lack of biological relevance in the case of motile bundles.
Reviewer #1 (Recommendations for the authors):
The problem is interesting and the approach is valid. I have the following comments and questions about the work:
1. The main research question "why are so many chemical receptors located on cilia" (Line 228) seems illposed. Perhaps the question can be rephrased in terms of the effect of cilia geometry and motility on capture rate, which is tractable and quantifiable.
2. I appreciate that the authors quantify the amount of increase in capture rates by a cilium at rest and in shear flow compared to a surface patch. However, it is not clear to me whether in Figure 2(a) the authors use the classic analytical solution for the single cilium or their numerical solution. It is also not clear whether the classic analytical solution for the single cilium in a fluid at rest accounts for the presence of the reflecting wall. Please clarify and include a comparison between the analytical solution and the numerical solution in the presence of the wall.
3. The study of the effect of motility on the cilium capture rate could be developed further beyond the three examples shown in Figure 3. For example, how does the capture rate depend, not only on Pe, but also on the beating profile of the cilium. But my major concern with this study is that it considers ranges of Pe that are not achievable by the motion of a single cilium. I think a detailed discussion of the ranges of flow speeds generated by the beating cilium is in order here.
4. I have a similar comment on the case of collective pumping. The study considers only a single configuration with 7 cilia. Why 7? And Why this configuration? Further the range of Pe numbers considered also seems unrealistic for ciliadriven flows. What ciliadriven speeds are observed in the current model? How do they compare to ciliadriven flows reported in other experimental and computational studies. A comparison of the range of Pe to existing ranges of ciliagenerated flow speeds would be very helpful here to gauge the validity of these large Pe.
5. I am particularly surprised by the author's claim that collective active pumping enhances capture rate. This is only true for extremely large Pe. The authors use Pe = 10000 to get 50% improvement in capture rate over cilia acting individually. This seems to suggest an unfavorable effect of hydrodynamic interactions among cilia for the purpose of chemical detection and seems to favor the hypothesis that solitary primary cilia are more suited for chemical detection.
6. Lines 252253: the idea that randomly beating cilia are more suited for sensing and particle capture is already presented in Ding and Kanso 2015 and Nawroth et al. 2017 and should be acknowledged here. Note that these two references are cited by the authors but their contribution to the hypothesis that randomlybeating cilia enhance capture is not properly described. Only the fact that they considered finite sized particles is mentioned in lines 281 and 284.
7. The numerical algorithm uses a finite Reynolds number Re = 0.2, which is close but not consistent with ciliadriven flows. At the cilium level, Re is of the order 10^{6} to 10^{4}.
8. Lines 272273 and lines 276277, the claim that Pe can exceed 10^{4} needs justification (see related comment above).
9. Paragraph 286306 is awkward. It is not clear what is its purpose. If it is a motivational example, it is not clear why it is at the end of the manuscript. If the results in the manuscript are directly relevant to shed light on this system or suggest experiments (I don't think so), it should be stated explicitly.
10. Lines 307309: I'm not sure if the series of examples considered in this manuscript constitute a proof that "the geometry of a cilium always means an advantage in chemical sensitivity over receptors on the epithelial surface, whether in a quiescent or moving fluid." This is true for the isolated cilium case but not straightforward to claim for interacting motile cilia.
11. In addition, it is my understanding that cilia also have receptors at their base. Please discuss.
Reviewer #2 (Recommendations for the authors):
1. In all cases considered by the authors, the capture rate of a cilium was comparable to a circular patch of larger (in some cases much larger) size, this costbenefit analysis does not take into account the energetic costs of building/sculpting an elongated structure in the first place, compared to simply populating an area of flat membrane with receptors. Can the authors comment on this? Ideally with supporting calculations.
2. Many of the rate constants and other quantifiers show a strong length dependence, so one should expect to see such a dependence in experiments. The authors cite Challis et al. 2015 a few times in passing (line 117, line 157 etc) – a more detailed explanation and discussion of the Challis et al. experiments and findings could be useful here (type of cilia, length, function etc). Are there any other experimental studies that could support this, e.g. in other organisms?
3. Generally, the enhancement in capture rate for active cilia increases with Peclet number, but the degree of enhancement does not seem to be very large – so a high Pe is needed for a real effect. Please clarify the range of biologically relevant Peclet numbers? The discussions around this seemed to be very scattered. Pe = 10000 seems rather high (line 217), especially as most sensory (but motile) cilia operate in much more quiescent conditions and/or are involved in sensing very small molecules such as neuropeptides not large vesicles.
4. In the case of collective ciliary pumping, the authors found that the percilium improvement is higher when the cilia are not beating synchronously… how can this be reconciled with the fact that motile cilia in such a bundle will tend to synchronize by hydrodynamic interactions? Doesn't this mean that such bundles of motile cilia are therefore unlikely to be for useful chemosensing?
5. What about the distribution of receptors on a cilium? At the moment the authors assume and make comparisons with respect to uniform distributions only, related to the perfect absorber assumption – surely the elongated shape also presents opportunities for heterogeneous localisation of receptors. For instance, it is known that some receptors are restricted to the base of cilia, whereas other receptor types to ciliary tips.
6. Do cilia operate near the chemosensory limit? It is often said that detection of chemical molecules occurs at the physical limit in the motility apparatus of bacteria, what is the evidence that is happening with cilia? A more indepth discussion with supporting numbers from the literature would be helpful.
https://doi.org/10.7554/eLife.66322.sa1Author response
Reviewer #1 (Recommendations for the authors):
The problem is interesting and the approach is valid. I have the following comments and questions about the work:
1. The main research question "why are so many chemical receptors located on cilia" (Line 228) seems illposed. Perhaps the question can be rephrased in terms of the effect of cilia geometry and motility on capture rate, which is tractable and quantifiable.
We agree that the question why something works the way it does is generally illposed in biology. We have reformulated the sentence as “does the location of so many chemical receptors on cilia bring them an advantage in sensitivity?”.
2. I appreciate that the authors quantify the amount of increase in capture rates by a cilium at rest and in shear flow compared to a surface patch. However, it is not clear to me whether in Figure 2(a) the authors use the classic analytical solution for the single cilium or their numerical solution.
Both numbers came from the analytical solution/approximation. However, based on the comment 7 (about the Reynolds number) we changed the analytical approximation. This also had some influence on the ratio, which is now 6. In the revised manuscript, we now state the source of the numbers clearly in the figure caption. We also compare the results against simulations (Figure 2, Suppl. 1).
It is also not clear whether the classic analytical solution for the single cilium in a fluid at rest accounts for the presence of the reflecting wall. Please clarify and include a comparison between the analytical solution and the numerical solution in the presence of the wall.
Yes, the analytical solution takes into account the reflecting boundary condition by expanding the space with a symmetric image. We now included the explanation: “First, we eliminate the reflective boundary condition at the surface by symmetrically extending the problem to a cylinder of length 2L in open space and considering 1/2 of its capacitance.”. A comparison with the static simulation result is now given in the sentence following Equation 4.
3. The study of the effect of motility on the cilium capture rate could be developed further beyond the three examples shown in Figure 3. For example, how does the capture rate depend, not only on Pe, but also on the beating profile of the cilium.
This is a very interesting proposition. We extended Figure 3 to include a beating pattern consisting of a straight working stroke and a sweeping recovery stroke (panel d). It performs very well at high Péclet numbers.
But my major concern with this study is that it considers ranges of Pe that are not achievable by the motion of a single cilium. I think a detailed discussion of the ranges of flow speeds generated by the beating cilium is in order here.
Cilia work in a range of different viscous and viscoelastic fluids. At the same time, the particles that are captured can range from small molecules to exosomes. We therefore expect a wide range of Péclet numbers, covering the full range of Péclet numbers discussed here. We have therefore included more example calculations into the manuscript.
4. I have a similar comment on the case of collective pumping. The study considers only a single configuration with 7 cilia. Why 7? And Why this configuration?
We considered 7 cilia arranged on a hexagon as a minimal example resembling a small ciliary bundle. The main message is that interaction with other cilia can enhance the capture rate on each of them. This finding is robust against details of the arrangement, as we now confirm by including other numbers (4 cilia on a square, 19 cilia on a hexagon; revised Figure 4 f,g), which all show the same trend.
Further the range of Pe numbers considered also seems unrealistic for ciliadriven flows. What ciliadriven speeds are observed in the current model? How do they compare to ciliadriven flows reported in other experimental and computational studies. A comparison of the range of Pe to existing ranges of ciliagenerated flow speeds would be very helpful here to gauge the validity of these large Pe.
Examples of achievable Péclet numbers are now given in the discussion. They can be very large in viscous media and/or with larger particles. In the example with the (still hypothetical) proposed mechanism in Kupffer’s vesicle, we estimate Pe=1300, meaning that the capture rates could be significantly enhanced by the ciliary motility.
5. I am particularly surprised by the author's claim that collective active pumping enhances capture rate. This is only true for extremely large Pe. The authors use Pe = 10000 to get 50% improvement in capture rate over cilia acting individually. This seems to suggest an unfavorable effect of hydrodynamic interactions among cilia for the purpose of chemical detection and seems to favor the hypothesis that solitary primary cilia are more suited for chemical detection.
The answer to this question depends on whether the readout is the capture rate per cilium or the sum of capture rates by the whole bundle. Even if the capture rate is slightly reduced per cilium, the total capture rate is still higher for the bundle. We consider the finding that hydrodynamic interactions enhance the sensing of individual cilia as interesting in its own right, but the advantage of a bundle does not stand or fall by it.
6. Lines 252253: the idea that randomly beating cilia are more suited for sensing and particle capture is already presented in Ding and Kanso 2015 and Nawroth et al. 2017 and should be acknowledged here. Note that these two references are cited by the authors but their contribution to the hypothesis that randomlybeating cilia enhance capture is not properly described. Only the fact that they considered finite sized particles is mentioned in lines 281 and 284.
We have now cited the finding from the references mentioned that randomly beating cilia have a higher capture rate in the Results section.
7. The numerical algorithm uses a finite Reynolds number Re = 0.2, which is close but not consistent with ciliadriven flows. At the cilium level, Re is of the order 10^{6} to 10^{4}.
We realize that this is a misunderstanding. All our numerical calculations were carried out at zero Reynolds number, as indicated by the use of the Stokes equation and the RotnePrager approximation. For the very specific problem of particle capture on a moving cylinder, we used the assumption Re=0.2 as a way to avoid the problem of the Stokes paradox when making the cylinder infinitely long. Namely, the mobility of a laterallymoving cylinder diverges with its length at zero Reynolds number, but stays finite in inertial flows. Even though this workaround is a common solution, we have rewritten our calculation to avoid assuming a finite Reynolds number and changed the resulting values appropriately. We did this by using a force density on the cilium obtained from the wellestablished resistive force theory and then determine the capture rate on an infinite cylinder with the same force density, thus avoiding the problem of the Stokes paradox. Surprisingly, we could not find an exact solution to the problem of particle capture (i.e., calculation of the Nusselt number) on a cylinder with a given force density in the limit of high Péclet numbers, even though the problem is analytically solvable. We are now showing the complete derivation as Appendix 2.
8. Lines 272273 and lines 276277, the claim that Pe can exceed 10^{4} needs justification (see related comment above).
Examples of achievable Péclet numbers are now given in the discussion.
9. Paragraph 286306 is awkward. It is not clear what is its purpose. If it is a motivational example, it is not clear why it is at the end of the manuscript. If the results in the manuscript are directly relevant to shed light on this system or suggest experiments (I don't think so), it should be stated explicitly.
We have greatly shortened the discussion of the leftright organizer and now use it as an example when discussing the Peclet numbers (which we estimate as 1300).
10. Lines 307309: I'm not sure if the series of examples considered in this manuscript constitute a proof that "the geometry of a cilium always means an advantage in chemical sensitivity over receptors on the epithelial surface, whether in a quiescent or moving fluid." This is true for the isolated cilium case but not straightforward to claim for interacting motile cilia.
We agree that a comparison between sensing on a motile cilium and on a passive patch is not straightforward and is not made in this manuscript, although we do show that motility always leads to a sensitivity advantage. In the revised version the sentence states more precisely that we show the advantage of the cilium geometry over a patch for individual cilia.
11. In addition, it is my understanding that cilia also have receptors at their base. Please discuss.
The distribution of receptors along cilia could also be related to their trafficking and ectocytosis, and it is also not clear whether the target molecules bind directly to the receptor, or first nonspecifically to the membrane. To our knowledge there is too little experimental evidence for any role of nonuniform receptor distribution.
From an esthetic point of view, Equations 3 and 5 seem unnecessary and this material could be moved to the methods section.
We agree with the Reviewer that the description of the electrostatic analogy interrupts the derivation. We have therefore moved all of it to a new Appendix 1.
Reviewer #2 (Recommendations for the authors):
1. In all cases considered by the authors, the capture rate of a cilium was comparable to a circular patch of larger (in some cases much larger) size, this costbenefit analysis does not take into account the energetic costs of building/sculpting an elongated structure in the first place, compared to simply populating an area of flat membrane with receptors. Can the authors comment on this? Ideally with supporting calculations.
We agree that the energetic cost of sensation and signal processing is a highly interesting topic. The surface patch with an equivalent capture rate often exceeds the available surface area. We therefore think that the relevant question is whether the increased sensitivity outweighs the cost, rather than the comparison between a cilium and a patch as such. Nevertheless, as our calculations primarily apply to higher organisms, the benefit is extremely difficult to estimate, and we also think that the cost of assembling and maintaining cilia, for example, for olfaction, is very small in the energy budget of the whole organism. We therefore think that any comparison would depend on too many uncertainties.
2. Many of the rate constants and other quantifiers show a strong length dependence, so one should expect to see such a dependence in experiments. The authors cite Challis et al. 2015 a few times in passing (line 117, line 157 etc) – a more detailed explanation and discussion of the Challis et al. experiments and findings could be useful here (type of cilia, length, function etc). Are there any other experimental studies that could support this, e.g. in other organisms?
In the revised manuscript, we expanded the discussion as suggested by the Reviewer. Unfortunately, we are not aware of any other publications on this question. We hope that our manuscript will provide some motivation for further studies.
3. Generally, the enhancement in capture rate for active cilia increases with Peclet number, but the degree of enhancement does not seem to be very large – so a high Pe is needed for a real effect. Please clarify the range of biologically relevant Peclet numbers? The discussions around this seemed to be very scattered. Pe = 10000 seems rather high (line 217), especially as most sensory (but motile) cilia operate in much more quiescent conditions and/or are involved in sensing very small molecules such as neuropeptides not large vesicles.
We now give examples of achievable Péclet numbers in the discussion.
4. In the case of collective ciliary pumping, the authors found that the percilium improvement is higher when the cilia are not beating synchronously… how can this be reconciled with the fact that motile cilia in such a bundle will tend to synchronize by hydrodynamic interactions? Doesn't this mean that such bundles of motile cilia are therefore unlikely to be for useful chemosensing?
Even when beating synchronously, a bundle of cilia reaches a somewhat higher capture rate per cilium than single beating cilium. The total rate is higher, in any case. Our main message is that the flow generated by other cilia enhances the capture rate on each of them, and that is the case in all scenarios we considered. The effect is stronger when the cilia beat out of phase, but it is present in other cases, too. Besides that, even if the capture rate per cilium only shows a slight increase, the bundle still has the advantage of containing many cilia. Coordination between cilia can have other advantages that are beyond our study.
5. What about the distribution of receptors on a cilium? At the moment the authors assume and make comparisons with respect to uniform distributions only, related to the perfect absorber assumption – surely the elongated shape also presents opportunities for heterogeneous localisation of receptors. For instance, it is known that some receptors are restricted to the base of cilia, whereas other receptor types to ciliary tips.
We now include numerical simulations that examine how localising sensors near the tip affects chemosensitivity. Specifically, we calculated the capture rate for cilia that are only absorbing on a fraction of 25%, 50% or 75% measured from the tip. The capture rates are naturally reduced, but less than the fraction of nonabsorbing cilium length. In our opinion the localization of receptors is difficult to interpret, because we do not know if the target molecules are captured directly by the receptor, or do they bind nonspecifically to the cilium membrane first.
6. Do cilia operate near the chemosensory limit? It is often said that detection of chemical molecules occurs at the physical limit in the motility apparatus of bacteria, what is the evidence that is happening with cilia? A more indepth discussion with supporting numbers from the literature would be helpful.
The estimate in our discussion shows that the detection threshold for a single cilium without flow can be in the subpicomolar range if the detection time is 1 second. The theoretical sensitivity further increases with the number of cilia and with flow, but decreases with medium viscosity and particle size. An exact quantitative comparison of sensitivities is difficult, but there are several studies that show sensitivities to concentrations (in the liquid phase) well below 1pM. We have now included two experimental references reporting singleneuron recordings with low thresholds: Frings and Lindemann (1990) and Zhang, Pacifico, Cawley, Feinstein and Bozza (2013).
