Presynaptic NMDA receptors facilitate short-term plasticity and BDNF release at hippocampal mossy fiber synapses

  1. Pablo J Lituma
  2. Hyung-Bae Kwon
  3. Karina Alviña
  4. Rafael Luján
  5. Pablo E Castillo  Is a corresponding author
  1. Dominick P. Purpura Department of Neuroscience, Albert Einstein College of Medicine, United States
  2. Instituto de Investigación en Discapacidades Neurológicas (IDINE), Facultad de Medicina, Universidad Castilla-La Mancha, Spain
  3. Department of Psychiatry and Behavioral Sciences, Albert Einstein College of Medicine, United States
Research Article
  • Cited 1
  • Views 1,116
  • Annotations
Cite this article as: eLife 2021;10:e66612 doi: 10.7554/eLife.66612

Abstract

Neurotransmitter release is a highly controlled process by which synapses can critically regulate information transfer within neural circuits. While presynaptic receptors – typically activated by neurotransmitters and modulated by neuromodulators – provide a powerful way of fine-tuning synaptic function, their contribution to activity-dependent changes in transmitter release remains poorly understood. Here, we report that presynaptic NMDA receptors (preNMDARs) at mossy fiber boutons in the rodent hippocampus can be activated by physiologically relevant patterns of activity and selectively enhance short-term synaptic plasticity at mossy fiber inputs onto CA3 pyramidal cells and mossy cells, but not onto inhibitory interneurons. Moreover, preNMDARs facilitate brain-derived neurotrophic factor release and contribute to presynaptic calcium rise. Taken together, our results indicate that by increasing presynaptic calcium, preNMDARs fine-tune mossy fiber neurotransmission and can control information transfer during dentate granule cell burst activity that normally occur in vivo.

Introduction

Neurotransmission is a dynamic and highly regulated process. The activation of ionotropic and metabotropic presynaptic autoreceptors provides a powerful way of fine-tuning neurotransmission via the facilitation or inhibition of neurotransmitter release (Burke and Bender, 2019; Engelman and MacDermott, 2004; Miller, 1998; Pinheiro and Mulle, 2008; Schicker et al., 2008). Due to their unique functional properties, including high calcium-permeability, slow kinetics and well-characterized role as coincidence detectors (Cull-Candy et al., 2001; Lau and Zukin, 2007; Paoletti et al., 2013; Traynelis et al., 2010), presynaptic NMDA receptors (preNMDARs) have received particular attention (Banerjee et al., 2016; Bouvier et al., 2015; Bouvier et al., 2018; Duguid, 2013; Duguid and Smart, 2009; Wong et al., 2021). Regulation of neurotransmitter release by NMDA autoreceptors in the brain was suggested three decades ago (Martin et al., 1991). Anatomical evidence for preNMDARs arose from an immunoelectron microscopy study revealing NMDARs at the mossy fiber giant bouton of the monkey hippocampus (Siegel et al., 1994), followed by functional studies in the entorhinal cortex, indicating that preNMDARs tonically increase spontaneous glutamate release and also facilitate evoked release in a frequency-dependent manner (Berretta and Jones, 1996; Woodhall et al., 2001). Since these early studies, although evidence for preNMDARs has accumulated throughout the brain (Banerjee et al., 2016; Bouvier et al., 2018; Duguid and Smart, 2009), the presence and functional relevance of preNMDARs at key synapses in the brain have been called into question (Carter and Jahr, 2016; Duguid, 2013).

Mossy fibers (mf) – the axons of dentate granule cells (GCs) – establish excitatory synapses onto proximal dendrites of CA3 pyramidal neurons, thereby conveying a major excitatory input to the hippocampus proper (Amaral et al., 2007; Henze et al., 2000). This synapse displays uniquely robust frequency facilitation both in vitro (Nicoll and Schmitz, 2005; Salin et al., 1996; Vyleta et al., 2016) and in vivo (Hagena and Manahan-Vaughan, 2010; Vandael et al., 2020). The molecular basis of this short-term plasticity is not fully understood but likely relies on diverse presynaptic mechanisms that increase glutamate release (Jackman and Regehr, 2017; Rebola et al., 2017). Short-term, use-dependent facilitation is believed to play a critical role in information transfer, circuit dynamics, and short-term memory (Abbott and Regehr, 2004; Jackman and Regehr, 2017; Klug et al., 2012). The mf-CA3 synapse can strongly drive the CA3 network during short bursts of presynaptic activity (Chamberland et al., 2018; Henze et al., 2002; Vyleta et al., 2016; Zucca et al., 2017), an effect that likely results from two key properties of this synapse, namely, its strong frequency facilitation and proximal dendritic localization. In addition to CA3 pyramidal neurons, mf axons establish synaptic connections with hilar mossy cells (MCs) and inhibitory interneurons (INs) (Amaral et al., 2007; Henze et al., 2000). These connections also display robust short-term plasticity (Lysetskiy et al., 2005; Toth et al., 2000), which may contribute significantly to information transfer and dynamic modulation of the dentate gyrus (DG)-CA3 circuit (Bischofberger et al., 2006; Evstratova and Tóth, 2014; Lawrence and McBain, 2003). Despite early evidence for preNMDARs at mf boutons (Siegel et al., 1994), whether these receptors modulate neurotransmission at mf synapses is unknown. Intriguingly, mfs contain one of the highest expression levels of brain-derived neurotrophic factor, BDNF (Conner et al., 1997). While preNMDARs were implicated in BDNF release at corticostriatal synapses (Park et al., 2014), whether putative preNMDARs impact BDNF release at mf synapses remains unexplored.

Here, to examine the potential presence and impact of preNMDARs at mf synapses, we utilized multiple approaches, including immunoelectron microscopy, selective pharmacology for NMDARs, a genetic knockout strategy to remove NMDARs from presynaptic GCs, two-photon imaging of BDNF release, and presynaptic Ca2+ signals in acute rodent hippocampal slices. Our findings indicate that preNMDARs contribute to mf short-term plasticity and promote BDNF release likely by increasing presynaptic Ca2+. Thus, preNMDARs at mfs may facilitate information transfer and provide an important point of regulation in the DG-CA3 circuit by modulating both glutamate and BDNF release.

Results

Electron microscopy reveals presynaptic NMDA receptors at mossy fiber terminals

To determine the potential localization of NMDA receptors at the mf terminals of the rodent hippocampus, we performed electron microscopy and post-embedding immunogold labeling in rats using a validated antibody for the obligatory subunit GluN1 (Petralia et al., 1994; Siegel et al., 1994; Takumi et al., 1999; Watanabe et al., 1998). Gold particles were detected in the main body of the postsynaptic density as well as presynaptic mf terminals (Figure 1A–C). GluN1 localized in mf boutons in a relatively high proportion to the active zone, as compared to associational–commissural (ac) synapse in the same CA3 pyramidal neuron (Figure 1D; mf, ~32% presynaptic particles; ac, <10% presynaptic particles; n = 3 animals). Similar quantification for AMPA receptors did not reveal presynaptic localization of these receptors in either mf or ac synapses (Figure 1—figure supplement 1; ~5% presynaptic particles, n = 3 animals). Together, these results provide anatomical evidence for preNMDARs at mf-CA3 synapses.

Figure 1 with 3 supplements see all

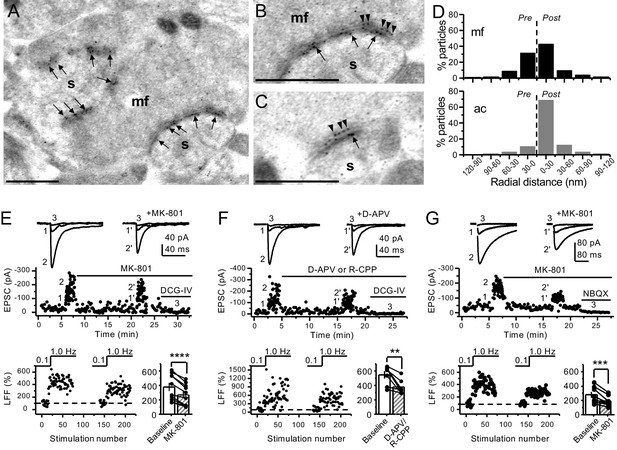

Anatomical and functional evidence for preNMDARs at mossy fiber synapses.

(A) Image of a mossy fiber (mf) giant bouton and postsynaptic spines (s). (B, C) Higher magnification of mf synapses. Arrows indicate postsynaptic GluN1, whereas arrowheads indicate presynaptic GluN1. Calibration bars: 500 nm. (D) Mossy fiber (mf) and associational–commissural (ac) synaptic GluN1 immuno-particle radial distribution (30 nm bins), mf: 34 synapses, 100 presynaptic particles; ac: 25 synapses, 24 presynaptic particles; three animals. (E) AMPAR-ESPCs were recorded at V= −70 mV in the presence of 0.5 µM LY303070 and 100 µM picrotoxin. Low-frequency facilitation (LFF), induced by stepping stimulation frequency from 0.1 to 1 Hz, was assessed before and after bath application of MK-801 (50 µM). MK-801 significantly reduced LFF (baseline 378 ± 57%, MK-801 270 ± 48%, n = 10 cells, nine animals; baseline vs MK-801, p=3.8×10−5, paired t-test). In all panels of this figure: representative traces (top), representative experiment (middle), and normalized LFF and summary plot (bottom). DCG-IV (1 µM) was applied at the end of all recordings to confirm mf-CA3 transmission. (F) D-APV (100 µM) or R-CPP (50 µM) application also reduced LFF (baseline 546 ± 50%, D-APV/R-CPP 380 ± 38%, n = 7 cells, five animals; baseline vs D-APV/R-CPP, p=0.00743, paired t-test). (G) KAR-EPSCs were recorded at V= −70 mV in the presence of 15 µM LY303070 and 100 µM picrotoxin. In addition, NMDAR-mediated transmission was blocked intracellularly by loading MK-801 (2 mM) in the patch-pipette. Bath application of MK-801 (50 µM) significantly reduced LFF (baseline 278 ± 40%, MK-801 195 ± 26% n = 8 cells, six animals; baseline vs MK-801, p=0.00259, paired t-test). Data are presented as mean ± s.e.m. **p<0.01; ***p<0.005; ****p<0.001.

Both NMDAR antagonism and genetic deletion from presynaptic GCs reduce mossy fiber low-frequency facilitation

Presynaptic short-term plasticity, in the form of low-frequency (~1 Hz) facilitation (LFF), is uniquely robust at the mf-CA3 synapse (Nicoll and Schmitz, 2005; Salin et al., 1996). To test a potential involvement of preNMDARs in LFF, we monitored AMPAR-mediated excitatory postsynaptic currents (EPSCs) from CA3 pyramidal neurons in acute rat hippocampal slices. Neurons were held at V= −70 mV to minimize postsynaptic NMDAR conductance, and mfs were focally stimulated with a bipolar electrode (theta glass pipette) placed in stratum lucidum ~100 µm from the recorded cell. LFF was induced by stepping the stimulation frequency from 0.1 Hz to 1 Hz for ~2 min in the presence of picrotoxin (100 µM) to block fast inhibitory synaptic transmission, and a low concentration of the AMPAR noncompetitive antagonist LY303070 (0.5 μM) to minimize CA3–CA3 recurrent activity (Kwon and Castillo, 2008). Bath application of the NMDAR irreversible open channel blocker MK-801 (50 μM) significantly reduced LFF (Figure 1E). In addition, the competitive NMDAR antagonists D-APV (100 µM) or R-CPP (50 µM) yielded a comparable reduction of facilitation (Figure 1F). To confirm that these synaptic responses were mediated by mfs, the mGluR2/3 agonist DCG-IV (1 µM) was applied at the end of all recordings (Kamiya et al., 1996). To control for stability, we performed interleaved experiments in the absence of NMDAR antagonists and found that LFF remained unchanged (Figure 1—figure supplement 2A). These findings indicate NMDAR antagonism reduces mf-CA3 short-term plasticity (LFF), suggesting that preNMDARs could contribute to this form of presynaptic plasticity.

The reduction in facilitation of AMPAR transmission could be due to dampening of CA3 recurrent activity by NMDAR antagonism (Henze et al., 2000; Kwon and Castillo, 2008; Nicoll and Schmitz, 2005). To discard this possibility, we repeated our experiments in a much less excitable network in which AMPAR-mediated synaptic transmission was selectively blocked by a high concentration of the noncompetitive antagonist LY303070 (15 μM) and monitored the kainate receptor (KAR)-mediated component of mf synaptic transmission (Castillo et al., 1997; Kwon and Castillo, 2008). In addition, 2 mM MK-801 was included in the intracellular recording solution to block postsynaptic NMDARs (Corlew et al., 2008Figure 1—figure supplement 3). To further ensure postsynaptic NMDAR blockade, we voltage-clamped the CA3 pyramidal neuron at −70 mV and waited until NMDAR-mediated transmission was eliminated and only KAR-EPSCs remained. Under these recording conditions, bath application of MK-801 (50 μM) also reduced LFF of KAR-mediated transmission (Figure 1G), whereas LFF remained unchanged in interleaved control experiments (Figure 1—figure supplement 2B). At the end of these recordings, 10 μM NBQX was applied to confirm KAR transmission (Figure 1G, Figure 1—figure supplement 2BCastillo et al., 1997; Kwon and Castillo, 2008). It is therefore unlikely that the reduction of LFF mediated by NMDAR antagonism could be explained by recurrent network activity, suggesting a direct effect on transmitter release.

To further support a role of preNMDARs in mf LFF, we took a genetic approach by conditionally removing NMDARs from GCs in Grin1 floxed mice. To this end, an AAV5-CaMKII-Cre-GFP virus was bilaterally injected in the DG to selectively delete Grin1 , whereas AAV5-CaMKII-eGFP was injected in littermates as a control at postnatal days 16–20 in both groups (Figure 2A). Two weeks after surgery, we prepared acute hippocampal slices and examined the efficacy of Grin1 deletion by analyzing NMDAR-mediated transmission in GFP+ GCs of Grin1-cKO and control mice. We confirmed that in contrast to control mice, no NMDAR-EPSCs were elicited by electrically stimulating medial perforant-path inputs in Grin1-cKO GCs voltage-clamped at +40 mV in the presence of 100 μM picrotoxin and 10 μM NBQX (Figure 2B). As expected, the NMDAR/AMPAR ratio was significantly reduced in Grin1-cKO mice compared to control (Figure 2C). Only acute slices that exhibited robust GFP fluorescence in the DG were tested for LFF of AMPAR transmission in CA3. We found that LFF was significantly reduced in Grin1-cKOs as compared to controls (Figure 2D), indicating that genetic removal of NMDARs from GCs recapitulated NMDAR antagonism (Figure 1E–G). Grin1 deletion did not affect basal transmitter release as indicated by a comparable paired-pulse ratio to control (Control: 2.5 ± 0.36, n = 13 cells; Grin1 cKO: 2.4 ± 0.31, n = 13 cells; U > 0.5, Mann–Whitney test). Collectively, our findings using two distinct approaches strongly suggest that NMDAR activation in GCs increases LFF of mf-CA3 synaptic transmission.

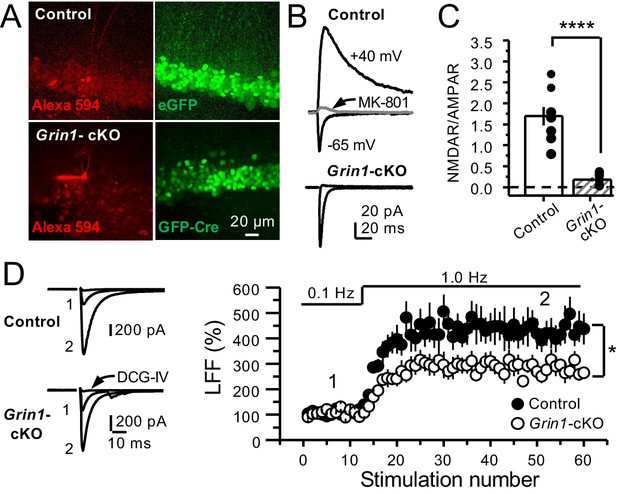

GluN1 deletion from GCs reduces mf-CA3 facilitation.

(A) Representative images showing GCs patch-loaded with Alexa 594 (35 µM) (left), and GFP expression in GCs (right). (B) Representative EPSCs recorded from control (GFP+) and Grin1-cKO (Cre-GFP+) GCs. Synaptic responses were elicited by activating medial perforant-path inputs. AMPAR-ESPCs were recorded at V= −65 mV in the presence of 100 µM picrotoxin, NMDAR-EPSCs were isolated with 10 µM NBQX and recorded at +40 mV. MK-801 (20 µM) was applied at the end of each recording. (C) Summary plot demonstrating that GluN1 deletion from GCs virtually abolished NMDAR-mediated transmission indicated by a strong reduction of NMDAR/AMPAR in Grin1-cKO GCs as compared to controls (control 1.61 ± 0.18, n = 9 cells, nine animals, Grin1-cKO 0.18 ± 0.04, n = 10 cells, 10 animals; control vs Grin1-cKO, p=9.2×10−6, unpaired t-test). (D) LFF was significantly reduced in GluN1-deficient animals (control, 430 ± 5%, n = 13 cells, 10 animals; Grin1-cKO, 291 ± 6%, n = 11 cells, 10 animals; p=0.0239, unpaired t-test). Representative traces (left) and summary plot (right). LFF was induced by stepping stimulation frequency from 0.1 to 1 Hz. DCG-IV (1 µM) was added at the end of each experiment. Data are presented as mean ± s.e.m. *p<0.05; ****p<0.001.

Reduced facilitation by NMDAR antagonism is independent of the GC somatodendritic compartment

Bath application of MK-801 could have blocked dendritic NMDARs in GCs and potentially affected transmitter release (Christie and Jahr, 2008; Duguid, 2013). To address this possibility, we repeated our experiments after performing a surgical cut in the granular layer of the DG in order to isolate mf axons from GCs (Figure 3—figure supplement 1A). Under these conditions, MK-801 bath application still reduced LFF (Figure 3A), and LFF was stable in control, acutely transected axons (Figure 3B). In addition, puffing D-APV (2 mM) in stratum lucidum near (~200 µm) the recorded neuron also reduced LFF (Figure 3C), whereas puffing artificial cerebrospinal fluid (ACSF) had no effect (Figure 3D). Lastly, in a set of control experiments, we confirmed that D-APV puffs were sufficient to transiently block NMDAR-mediated transmission in CA3, but not in DG (Figure 3—figure supplement 1B,C). Together, these results support the notion that LFF reduction was due to the blockade of preNMDARs but not somatodendritic NMDARs on GCs.

Figure 3 with 1 supplement see all

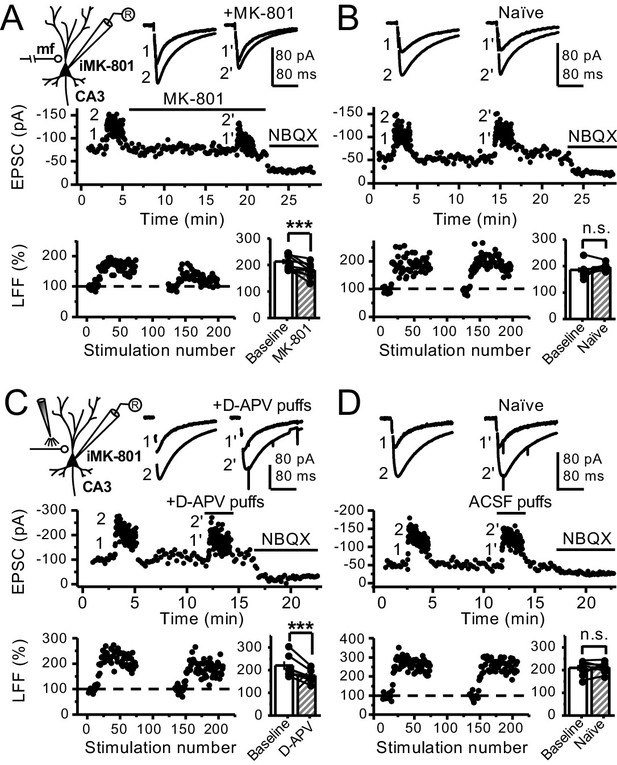

Reduced facilitation by NMDAR antagonism is independent of the GC somatodendritic compartment.

(A) KAR-EPSCs were recorded at V= −70 mV in the presence of 15 µM LY303070 and 100 µM picrotoxin. In addition, NMDAR-mediated transmission was blocked intracellularly by loading MK-801 (2 mM) in the patch-pipette. LFF of KAR-EPSCs was assessed as in Figure 1G but with transected mf axons (see Materials and methods). Bath application of MK-801 (50 µM) significantly reduced LFF (baseline 213 ± 9%, MK-801 181 ± 10%, n = 8 cells, seven animals; baseline vs MK-801, p=0.002, paired t-test). In all panels of this figure: recording arrangement (inset), representative traces (top), representative experiment (middle), normalized LFF and summary plot (bottom). (B) Stable LFF in transected, naïve slices (baseline 186 ± 10%, naïve 196 ± 5%, n = 8 cells, seven animals; baseline vs naïve, p=0.278, paired t-test). (C) LFF was induced before and during puff application of D-APV (2 mM) in stratum lucidum. This manipulation significantly reduced facilitation (baseline 220 ± 19%, D-APV puff 176 ± 11%, n = 7 cells, seven animals; baseline vs D-APV puff, p=0.003, paired t-test). (D) Stable LFF in acute slices during puff application of ACSF (baseline 210% ± 12, naïve 213% ± 9, n = 7 cells, seven animals; baseline vs naïve, p=0.778, paired t-test). NBQX (10 µM) was applied at the end of all recordings to confirm mf KAR transmission. Data are presented as mean ± s.e.m. ***p<0.005.

PreNMDARs boost information transfer by enhancing burst-induced facilitation at mossy fiber synapses

GCs in vivo typically fire in brief bursts (Diamantaki et al., 2016; GoodSmith et al., 2017; Henze et al., 2002; Pernía-Andrade and Jonas, 2014; Senzai and Buzsáki, 2017). To test whether preNMDARs contribute to synaptic facilitation that occurs during more physiological patterns of activity, mfs were activated with brief bursts (five stimuli, 25 Hz). We first took an optogenetic approach and used a Cre-dependent ChIEF virus to selectively light-activate mf-CA3 synapses in Grin1-cKO and control mice. Thus, animals were injected with a mix of AAV5-CaMKII-CreGFP+AAV DJ-FLEX-ChIEF-tdTomato viruses in the DG (Figure 4A). At least 4 weeks after surgery, acute slices were prepared and burst-induced facilitation of AMPAR-mediated transmission in CA3 was assessed (Figure 4B,C). Burst-induced facilitation, triggered by light stimulation and measured as the ratio of EPSCs elicited by the fifth and first pulse (P5/P1 ratio), was significantly reduced in Grin1-cKO animals as compared to controls. Because these bursts of activity can activate the CA3 network (Henze et al., 2000; Kwon and Castillo, 2008; Nicoll and Schmitz, 2005), we next monitored KAR-EPSCs under conditions of low excitability (as in Figure 1G). MK-801 bath application also reduced burst-induced facilitation, whereas facilitation remained unchanged in naïve slices (Figure 4D,E). In a separate set of experiments, we confirmed the reduction of MK-801 on burst-induced facilitation under more physiological recording conditions (Figure 4—figure supplement 1). Lastly, we tested whether preNMDARs, by facilitating glutamate release during bursting activity, could bring CA3 pyramidal neurons to threshold and trigger postsynaptic action potentials. To test this possibility, we monitored action potentials elicited by KAR-EPSPs (resting membrane potential −70 ± 2 mV) from CA3 pyramidal neurons intracellularly loaded with 2 mM MK-801. Under these recording conditions, MK-801 bath application significantly reduced the mean number of spikes per burst (Figure 4F). No changes in mean spikes per burst were observed in naïve slices over time (Figure 4G). Application of 10 μM NBQX at the end of these experiments confirmed that action potentials were induced by KAR-mediated synaptic responses. Consistent with these observations, MK-801 also reduced the mean number of spikes per burst when AMPAR-mediated action potentials were recorded from CA3 pyramidal neurons (Figure 4—figure supplement 2). In control experiments, we found that intracellular MK-801 effectively blocked postsynaptic NMDAR transmission during burst stimulation (Figure 4—figure supplement 3). Altogether, these results indicate that preNMDARs at mf-CA3 synapses can contribute to information transfer from the DG to CA3.

Figure 4 with 3 supplements see all
PreNMDARs contribute significantly to burst-induced facilitation and spike transfer.

(A) Representative images showing expression of GFP-Cre (left) and ChIEF-tdTomato (right) in the DG of control and Grin1-cKO animals. (B) Representative AMPAR-EPSCs from control (left) and Grin1-cKO (right) CA3 pyramidal neurons recorded at V= −65 mV and evoked by optical burst-stimulation (5 pulses at 25 Hz) of stratum lucidum. Blue arrows indicate light stimulation. (C) Summary plot of burst-induced facilitation measured as P5/P1 ratio of optical responses; facilitation was significantly reduced in Grin1-cKO animals as compared to control (Grin1-cKO 187 ± 16%, n = 12 cells, nine animals; control 255 ± 22%, n = 9 cells, eight animals; Grin1-cKO vs control, p=0.0167, unpaired t-test). (D) Burst stimulation induced KAR-EPSCs were isolated and recorded as described in Figure 3, bath application of MK-801 (50 µM) significantly reduced facilitation (baseline 601 ± 107%, MK-801 464 ± 84%, n = 13 cells, 10 animals; baseline vs MK-801, p=0.00042, paired t-test). In (D) and (E) of this figure: representative traces (left), representative experiment (middle), and summary plot (right). (E) Burst-induced facilitation was stable in interleaved, naïve slices (baseline 369 ± 45%, naïve 367 ± 48%, n = 9 cells, nine animals; p=0.863, paired t-test). (F) Bath application of MK-801 (50 µM) reduced KAR-mediated action potentials induced by burst-stimulation (baseline 0.93 ± 0.17, MK-801 0.46 ± 0.09, n = 6 cells, five animals; p=0.036, Wilcoxon signed-rank test). In (F) and (G) of this figure: representative traces (top), representative experiment and summary plot (bottom). (G) Stable KAR-mediated action potentials in interleaved naïve slices (baseline 0.76 ± 0.07, naïve 0.88 ± 0.1, n = 6 cells, five animals; p=0.2084, Wilcoxon signed-rank test). NBQX (10 µM) was applied at the end of all experiments in (D–G). Data are presented as mean ± s.e.m. *p<0.05; ****p<0.001.

PreNMDARs contribute to presynaptic calcium rise and can be activated by glutamate

PreNMDARs could facilitate glutamate and BDNF release by increasing presynaptic Ca2+ rise (Bouvier et al., 2016; Buchanan et al., 2012; Corlew et al., 2008; Park et al., 2014). To test this possibility at mf-CA3 synapses, we combined a conditional knockout strategy with Ca2+ imaging using two-photon laser scanning microscopy. We first deleted preNMDARs by injecting AAV5-CaMKII-mCherry-Cre virus in the DG of Grin1 floxed mice, and littermate animals injected with AAV5-CaMKII-mCherry virus served as control (Figure 5A). Two weeks after surgery, we confirmed the efficacy of Grin1 deletion by activating medial perforant-path inputs and monitoring NMDAR/AMPAR ratios in GCs of control and Grin1-cKO animals (Figure 5A). Virtually no NMDAR-EPSCs were detected at V= +40 mV in Grin1-cKO animals (Figure 5A). Acute slices that exhibited robust mCherry fluorescence in the DG were used for Ca2+ imaging experiments. To maximize our ability to detect preNMDAR-mediated Ca2+ signals, we used a recording solution that contained 0 mM Mg2+, 4 mM Ca2+, and 10 μM D-Serine (Carter and Jahr, 2016). GCs expressing mCherry were patch-loaded with 35 µM Alexa 594 (used as morphological dye) and 200 µM Fluo-5F, and mf axons were imaged and followed toward CA3 until giant boutons (white arrows) were identified (Figure 5B). We found that Ca2+ transients (CaTs) elicited by direct current injection in the GC soma (five action potentials, 25 Hz) were significantly smaller in Grin1-cKO animals as compared to control (Figure 5C–E). In addition, NMDAR antagonism with D-APV reduced presynaptic Ca2+ rise even under more physiological Mg+2 concentration in acute rat hippocampal slices (Figure 5—figure supplement 1). Thus, preNMDARs contribute significantly to presynaptic Ca2+ rise in mf boutons, and by this means likely facilitates synaptic transmission, although a potential contribution of Ca2+ rise-independent effects cannot be discarded.

Figure 5 with 1 supplement see all

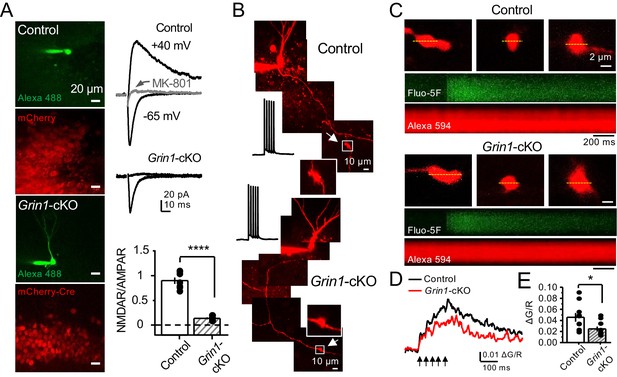

preNMDARs contribute to presynaptic Ca2+ rise.

(A) Representative images showing GCs patch-loaded with Alexa 488 (35 µM) to confirm expression of mCherry (bottom). Representative AMPAR-EPSCs recorded from control (top) or Grin1-cKO (middle) GCs. Synaptic responses were elicited by activating medial perforant-path inputs. AMPAR-ESPCs were recorded at V= −65 mV in the presence of 100 µM picrotoxin, NMDAR-EPSCs were isolated with 10 µM NBQX and recorded at +40 mV. MK-801 (20 µM) was applied at the end of each experiment. Summary plot (bottom) demonstrating that GluN1 deletion from GCs virtually abolished NMDAR-mediated transmission indicated by a strong reduction of NMDAR/AMPAR in Grin1-cKO granule cells as compared to controls (control 0.90 ± 0.17, n = 7 cells, six animals; Grin1-cKO 0.13 ± 0.05, n = 6 cells, six animals; control vs Grin1-cKO, p=3.81×10−7, unpaired t-test). (B) Representative control and Grin1-cKO GCs patch-loaded with Fluo-5F (200 µM) and Alexa 594 (35 µM). Arrows indicate the identification of a mf giant bouton, magnified images in white box. (C) Three representative mf boutons (top) and line scan image of calcium transients (CaTs) elicited by five action potentials at 25 Hz (middle, Fluo-5F) and morphological dye (bottom, Alexa 594), in Control and Grin1-cKO animals. Dotted line (yellow) indicates line scan location. Red Channel, Alexa 594; Green Channel, Fluo-5F. (D, E) Peak analysis of the fifth pulse ΔG/R revealed a significant reduction in Ca2+ rise of Grin1-cKO animals as compared to Control (control 0.046 ± 0.01, n = 10 boutons, three line scans per bouton, eight animals; Grin1-cKO 0.025 ± 0.004, n = 10 boutons, eight animals; control vs Grin1-cKO, U = 0.017, Mann–Whitney test). Arrows indicate mf activation. Data are presented as mean ± s.e.m. *U < 0.05; ****p<0.001.

Lastly, we sought to determine whether direct activation of preNMDARs could drive Ca2+ influx in mf giant boutons. To test this possibility, we elicited CaTs by two-photon glutamate uncaging (2PU) on mf boutons of control and Grin1-cKO animals (Figure 6A). As previously described, mCherry GCs were patch-loaded with Alexa 594 and Fluo-5F in a recording solution designed to maximize the detection of preNMDAR-mediated Ca2+ signals (as in Figure 5). We first confirmed that glutamate 2PU-induced CaTs in dendritic spine heads of GCs were strongly reduced in Grin1-cKO animals as compared to controls (Figure 6B,C). To verify that reduced Ca2+ signals (ΔG/R) were a result of Grin1 deletion and not differences in uncaging laser power, we performed a laser power intensity–response curve and found that Grin1-cKO animals exhibited reduced ΔG/R signals as compared to control regardless of laser power intensity (Figure 6—figure supplement 1). We next measured glutamate 2PU-induced CaTs in mf giant boutons (identified as in Figure 5B) and found that single uncaging pulses were insufficient to drive detectable CaTs in control boutons (Figure 6—figure supplement 2). However, a burst of 2PU stimulation (5 pulses, 25 Hz) induced CaTs in mf boutons of control but not in Grin1-cKO animals (Figure 6D,E). Additionally, CaTs elicited by 2PU stimulation were abolished by D-APV application (Figure 6—figure supplement 3). These findings indicate that brief bursts of glutamate 2PU, a manipulation that mimics endogenous release of glutamate during physiological patterns of activity, induces presynaptic Ca2+ influx in mf boutons by activating preNMDARs.

Figure 6 with 3 supplements see all
Uncaging glutamate induces Ca2+ rise in mossy fiber boutons.

(A) Representative images showing dendritic spines in GCs (left) and mf boutons (right), and the associated line scan image of calcium transients (CaTs) elicited by uncaging of MNI-glutamate (see Materials and methods), in control and Grin1-cKO animals. Blue dots indicate uncaging spots. Red channel, Alexa 594; Green channel, Fluo-5F. (B) Line scan analysis of CaTs measuring ΔG/R in dendritic spines when MNI-glutamate is uncaged in control or Grin1-cKO animals. Blue dots indicate location of two-photon uncaging (2PU) pulses. (C) Summary plot demonstrating a significant reduction in dendritic spine CaTs in Grin1-cKO as compared to Control (control 0.053 ± 0.01 ΔG/R, n = 6 dendritic spines, three line scans per spine, six animals; Grin1-cKO 0.004 ± 0.003 ΔG/R, n = 6 spines, three line scans per spine, six animals; ΔG/R control vs Grin1-cKO, p=0.00088, unpaired t-test). (D) Line scan analysis of CaTs measuring ΔG/R in mf boutons when MNI-glutamate is uncaged in control or Grin1-cKO animals. (E) Summary plot demonstrating significant CaTs in boutons of control as compared to Grin1-cKO (control 0.014 ± 0.005, n = 6 boutons, three line scans per bouton, six animals; Grin1-cKO −0.00012 ± −0.0006, n = 6 boutons, three line scans per bouton, six animals; control vs Grin1-cKO, p=0.015, unpaired t-test). Data are presented as mean ± s.e.m. *p<0.05; ****p<0.001.

PreNMDARs promote BDNF release from mossy fiber boutons

Previous work implicated preNMDARs in the release of BDNF at corticostriatal synapses following burst stimulation and presynaptic Ca2+ elevations (Park et al., 2014). Given the high expression levels of BDNF in mfs (Conner et al., 1997; Yan et al., 1997), we examined the potential role for preNMDARs in BDNF release from mf terminals. To this end, a Cre-dependent BDNF reporter (BDNF-pHluorin) was injected in Grin1-floxed and control animals. Littermate mice were injected with a mix of AAV5-CaMKII-mCherry-Cre + AAV-DJ-DIO-BDNF-pHluorin viruses in the DG (Figure 7A). At least 4 weeks after surgery, acute slices were prepared for two-photon laser microscopy to image mf boutons. After acquiring a stable baseline of BDNF-pHluorin signals, mfs were repetitively activated (see Materials and methods) (Figure 7B). BDNF-pHluorin signals were analyzed by measuring ΔF/F, where ΔF/F reductions indicate BDNF release (Park et al., 2014). We found that GluN1-deficient mf boutons showed a significant (~50%) impairment in BDNF release as compared to control (Figure 7C–D). Furthermore, using a more physiological pattern of burst stimulation, GluN1-lacking mf boutons still displayed altered BDNF release as compared to control (Figure 7—figure supplement 1). Taken together, our results suggest preNMDARs contribute significantly to BDNF release during repetitive or burst stimulation of mf synapses.

Figure 7 with 1 supplement see all

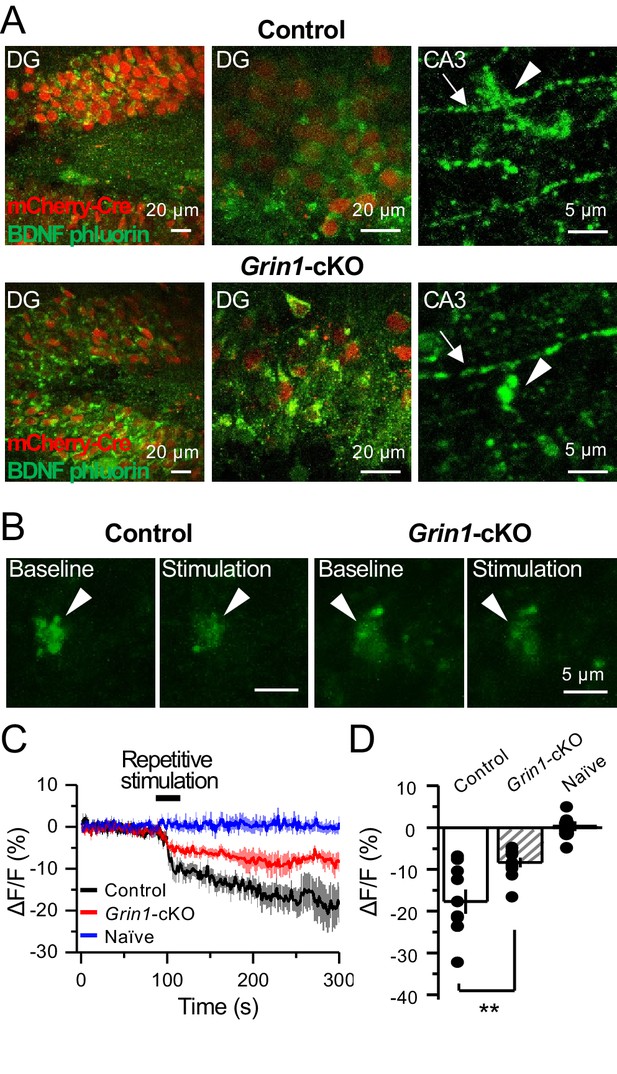

preNMDARs contribute significantly to BDNF release following repetitive activity.

(A) Representative images showing expression of BDNF-pHluorin in the DG and CA3 area (arrows indicate mf axon, arrowheads indicate mf boutons). Control images (top), Grin1-cKO images (bottom). (B) Representative images of BDNF-pHluorin signal intensity at baseline and after repetitive stimulation of mfs (125 pulses, 25 Hz, ×2). Control images (left), Grin1-cKO images (right), arrowhead indicates region of interest. (C) Time course of BDNF-pHluorin signal intensity measured as ΔF/F (%): control (black), Grin1-cKO (red), Naïve (blue). (D) Quantification of BDNF-pHluorin signal in (C) during the last 100 s reveals larger BDNF release in control animals as compared to Grin1-cKO (control −18% ± 3%, n = 9 slices, five animals; Grin1-cKO −8 ± 1%, n = 10 slices, five animals; Grin1-cKO vs control, p=0.00648, unpaired t-test). Data are presented as mean ± s.e.m. **p<0.01.

PreNMDAR-mediated regulation of mossy fiber synapses is input specific

In addition to providing a major excitatory input to the hippocampus proper, mf axons also synapse onto excitatory hilar MCs and inhibitory neurons in CA3 (Amaral et al., 2007; Henze et al., 2000; Lawrence and McBain, 2003). To test whether preNMDARs could also play a role at these synapses, we visually patched MCs and INs in acute rat hippocampal slices, loaded them with 35 µM Alexa 594 (Figure 8A) and 2 mM MK-801, and monitored AMPAR-EPSCs (Vh = −70 mV). Unlike mf-CA3 synapses, mf synapses onto CA3 INs in stratum lucidum do not express LFF, but can undergo burst-induced facilitation or depression (Toth et al., 2000). We found that MK-801 bath application had no effect on burst-induced facilitation or depression (Figure 8B), suggesting preNMDARs do not play a role at mf-IN synapses in CA3. Mf inputs onto hilar MCs undergo robust activity-dependent facilitation (Lysetskiy et al., 2005). Similar to mf-CA3 synapses, we found that MK-801 reduced LFF (Figure 8C). Stability experiments of mf transmission at CA3 INs or hilar MCs showed no significant differences (Figure 8—figure supplement 1). Taken together, our findings demonstrate that preNMDARs facilitate mf transmission onto excitatory neurons, but not onto inhibitory INs.

Figure 8 with 1 supplement see all

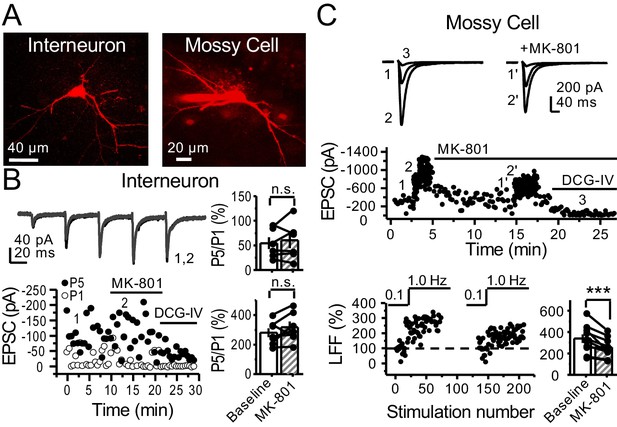

preNMDARs contribute to synaptic facilitation of mossy fiber inputs onto mossy cells, but not onto CA3 inhibitory interneurons.

(A) Representative images showing a CA3 IN and a hilar MC patch-loaded with Alexa 594 (35 µM) for morphological identification in acute rat hippocampal slices. (B) AMPAR-EPSCs were recorded from CA3 INs at V= −65 mV and burst stimulation was elicited by 5 pulses at 25 Hz, see traces (top). Representative experiment (bottom, left), and summary plots (right) showing bath application of MK-801 (50 µM) had no significant effect on depression (top, right) or facilitation (bottom, right) measured by P5/P1 ratio (baseline 54 ± 12%, MK-801 60 ± 16%, n = 6 cells; MK-801 vs baseline, p=0.675, Wilcoxon signed-rank test; baseline 281 ± 30%, MK-801 318 ± 37%, n = 7 cells; MK-801 vs baseline, p=0.178, paired t-test, five animals in each data set). (C) AMPAR-ESPCs were recorded at Vh = −70 mV from MCs, LFF was induced by stepping stimulation frequency from 0.1 to 1 Hz, see traces (top). Representative experiment (middle), normalized LFF and summary plot (bottom) indicating bath application of MK-801 (50 µM) reduced facilitation (baseline 339 ± 41%, MK-801 258 ± 29%, n = 10 cells, six animals; baseline vs MK-801, p=0.00152, paired t-test). DCG-IV (1 µM) was applied at the end of all experiments. Data are presented as mean ± s.e.m. ***p<0.005.

Discussion

In this study, we provide evidence that hippocampal mf boutons express preNMDARs whose activation fine-tunes mf synaptic function. Specifically, our results show that preNMDARs enhance mf short-term plasticity in a target cell-specific manner. By enhancing glutamate release onto excitatory neurons but not inhibitory INs, preNMDARs increase GC-CA3 spike transfer. Moreover, using two-photon Ca2+ imaging, we demonstrate that preNMDARs contribute to presynaptic Ca2+ rise in mf boutons. Lastly, upon repetitive activity, preNMDARs promote BDNF release from mf boutons. Taken together, our findings indicate that preNMDARs act as autoreceptors to boost both glutamate and BDNF release at mf synapses. By regulating information flow in the DG-CA3 circuit, preNMDARs may play a significant role in learning and memory.

Early studies using immunoperoxidase electron microscopy revealed NMDARs in presynaptic compartments in multiple brain areas (for a review, see Corlew et al., 2008). Subsequent studies that used immunogold electron microscopy, a more precise localization method, identified NMDARs on the presynaptic membrane in a number of brain structures, including neocortex (Fujisawa and Aoki, 2003; Larsen et al., 2011), hippocampus (Berg et al., 2013; Jourdain et al., 2007; McGuinness et al., 2010), and amygdala (Pickel et al., 2006). In agreement with these studies, and using a previously validated antibody (Siegel et al., 1994), we identified prominent presynaptic labeling of the obligatory subunit GluN1 in mf boutons (Figure 1A–D). Moreover, we found that these receptors are close to the active zone and therefore well positioned to modulate neurotransmitter release.

Previous work in the cerebellum and neocortex suggested that somatodendritic potentials generated by NMDARs could signal to nerve terminals and lead to presynaptic Ca2+ elevations (Christie and Jahr, 2008; Christie and Jahr, 2009). Thus, changes in neurotransmitter release resulting from NMDAR antagonism could be due to somatodendritic NMDARs but not necessarily preNMDARs residing on nerve terminals (Duguid, 2013). However, we showed that focal NMDAR antagonism far from the somatodendritic compartment and in transected axons still reduced short-term plasticity at mf synapses (Figure 3), making it extremely unlikely that somatodendritic NMDARs could explain our results. In further support of functional preNMDARs at mf boutons, we found that 2PU of glutamate induced Ca2+ rise in control, but not in GluN1-deficient boutons. Together, our findings strongly support the presence of functional preNMDARs facilitating neurotransmission at mf-CA3 synapses.

There is evidence that preNMDARs can operate as coincidence detectors at some synapses (Duguid, 2013; Wong et al., 2021). At the mf-CA3 synapse, we found that preNMDARs contribute to LFF (i.e. 1 s inter-stimulus interval). This observation is intriguing given that the presynaptic AP-mediated depolarization is likely absent by the time glutamate binds to preNMDARs. However, coincidence detection may not be an essential requirement for mf preNMDARs to modulate glutamate release. Of note, at resting membrane potential, the NMDAR conductance is not zero and the driving force for Ca2+ influx is high (Paoletti et al., 2013; Traynelis et al., 2010). It is also conceivable that mf preNMDARs exhibit low-voltage dependence, as it has been reported at other synapses (Wong et al., 2021). Remarkably, the somatodendritic compartment of GCs can generate sub-threshold depolarizations at mf terminals (a.k.a. excitatory presynaptic potentials) (Alle and Geiger, 2006). By alleviating the magnesium blockade, these potentials might reduce the need for coincidence detection and transiently boost the functional impact of mf preNMDARs.

While the presence of preNMDARs is downregulated during development both in neocortex (Corlew et al., 2007; Larsen et al., 2011) and in hippocampus (Mameli et al., 2005), we were able to detect functional preNMDARs in young adult rats (P17–P28) and mice (P30–P44), once mf connections are fully developed (Amaral and Dent, 1981). Functional preNMDARs have been identified in axonal growth cones of hippocampal and neocortical neurons, suggesting that these receptors are important for regulating early synapse formation (Gill et al., 2015; Wang et al., 2011). Because GCs undergo adult neurogenesis, and adult-born GCs establish new connections in the mature brain, preNMDARs could also play an important role at immature mf synapses and functional integration of new born GCs into the mature hippocampus (Toni and Schinder, 2015). Moreover, experience can modulate the expression and composition of preNMDARs in neocortex (Larsen et al., 2014), a possibility not investigated in our study.

The glutamate that activates preNMDARs may originate from the presynaptic terminal, the postsynaptic cell, nearby synapses or neighboring glial cells. Our results indicate that activation of preNMDARs at mf synapses requires activity-dependent release of glutamate that likely arises from mf boutons, although other sources cannot be discarded, including astrocytes. For instance, at medial entorhinal inputs to GCs, preNMDARs appear to be localized away from the presynaptic release sites and facing astrocytes, consistent with preNMDAR activation by gliotransmitters (Jourdain et al., 2007; Savtchouk et al., 2019). In contrast, at mf-CA3 synapses, we found that preNMDARs are adjacent to the release sites, suggesting a direct control on glutamate release from mf boutons.

The precise mechanism by which preNMDARs facilitate neurotransmitter release is poorly understood, but it may include Ca2+ influx through the receptor and depolarization of the presynaptic terminal with subsequent activation of voltage-gated Ca2+ channels (Banerjee et al., 2016; Corlew et al., 2008). In support of this mechanism is the high Ca2+ permeability of NMDARs (Paoletti et al., 2013; Rogers and Dani, 1995). Besides, presynaptic sub-threshold depolarization and subsequent activation of presynaptic voltage-gated Ca2+ channels is a common mechanism by which presynaptic ionotropic receptors facilitate neurotransmitter release (Engelman and MacDermott, 2004; Pinheiro and Mulle, 2008). PreNMDARs may also act in a metabotropic manner (Dore et al., 2016) and facilitate spontaneous transmitter release independent of Ca2+ influx (Abrahamsson et al., 2017). Our findings demonstrating that the open channel blocker MK-801 robustly reduced short-term plasticity at mf synapses support an ionotropic mechanism that involves Ca2+ influx through preNMDARs. A previous study failed to observe Ca2+ reductions in mf boutons by DL-APV (Liang et al., 2002). A combination of factors could account for this discrepancy with our study, including a stronger mf repetitive stimulation (20 pulses, 100 Hz), which may overcome a less potent NMDAR antagonism and/or the need for preNMDAR activity, as well as the use of a higher affinity Ca2+ indicator (Fura-2 AM) and a lower spatiotemporal resolution imaging approach. Nevertheless, in line with previous studies that detected presynaptic Ca2+ rises following local activation of NMDARs (e.g. NMDA or glutamate uncaging) in visual cortex (Buchanan et al., 2012) and cerebellum (Rossi et al., 2012), we provide direct evidence that preNMDAR activation by either repetitive activation of mfs or 2PU of glutamate increases presynaptic Ca2+ (Figures 5 and 6). Although the Ca2+ targets remain unidentified, these may include proteins of the release machinery, calcium-dependent protein kinases and phosphatases, and Ca2+ release from internal stores (Banerjee et al., 2016). In addition to facilitating evoked neurotransmitter release, preNMDARs can promote spontaneous neurotransmitter release as indicated by changes in miniature, action potential-independent activity (e.g. mEPSCs) (for recent reviews, see Banerjee et al., 2016; Kunz et al., 2013; Wong et al., 2021). A potential role for preNMDARs in spontaneous, action potential-independent release at mf synapses cannot be discarded.

Our results show that activation of preNMDARs by physiologically relevant patterns of presynaptic activity enhanced mf transmission and DG-CA3 information transfer (Figure 4). A previous study reported that NMDAR genetic deletion in GCs resulted in memory deficits (e.g. pattern separation) (McHugh et al., 2007). Although the mechanism is unclear, it could involve activity-dependent preNMDAR regulation of mf excitatory connections. We also found that preNMDARs facilitate neurotransmitter release in a target cell-specific manner. Like in neocortex (Larsen and Sjöström, 2015), such specificity strongly suggests that preNMDARs have distinct roles in controlling information flow in cortical microcircuits. Thus, preNMDAR facilitation of mf synapses onto glutamatergic neurons but not GABAergic INs (Figure 8) may fine-tune the CA3 circuit by increasing the excitatory/inhibitory balance.

Given the multiple signaling cascades known to regulate NMDARs (Lau and Zukin, 2007; Sanz-Clemente et al., 2013), preNMDARs at mf synapses may provide an important site of neuromodulatory control. PreNMDARs have been implicated in the induction of LTP and LTD at excitatory or inhibitory synapses in several brain areas (Banerjee et al., 2016; Wong et al., 2021). While most evidence, at least using robust induction protocols in vitro, indicates that long-term forms of presynaptic plasticity at mf synapses can occur in the absence of NMDAR activation (Castillo, 2012; Nicoll and Schmitz, 2005), our findings do not discard the possibility that preNMDARs could play a role in vivo during subtle presynaptic activities. As previously reported for corticostriatal LTP (Park et al., 2014), preNMDARs could regulate long-term synaptic plasticity by controlling BDNF release, which is consistent with BDNF-TrkB signaling being implicated in mf-CA3 LTP (Schildt et al., 2013). In addition, BDNF could facilitate glutamate release by enhancing NMDAR function at the presynapse, as previously suggested (Chen et al., 2014; Madara and Levine, 2008), although the precise mechanism(s) remain unclear. By potentiating mf-CA3 transmission, BDNF could also promote epileptic activity (McNamara and Scharfman, 2012). Lastly, dysregulation of NMDARs is commonly implicated in the pathophysiology of brain disorders such as schizophrenia, autism, and epilepsy (Lau and Zukin, 2007; Paoletti et al., 2013). PreNMDAR expression and function have been suggested to be altered in experimental models of disease, including neuropathic pain (Chen et al., 2019; Zeng et al., 2006) and epilepsy (Yang et al., 2006). At present, however, in vivo evidence for the involvement of preNMDARs in brain function and disease is rather indirect (Bouvier et al., 2015; Wong et al., 2021). The development of specific preNMDAR tools is required to determine the functional impact of these receptors in vivo.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Rattus norvegicus male and female)Rat: Sprague-DawleyCharles RiverStrain code: 400
Strain, strain background (Mus musculus, male and female)Mouse: Grin1fl/fl(B6.129S4-Grin1tm2Stl/J)Dr. Michael Higley/The Jackson LaboratoryRRID:IMSR_JAX005246
Strain, strain background (Mus musculus male and female)Mouse: C57Bl6/JCharles RiverStrain code: 027
Antibody(Include host species and clonality)
Mouse,
Monoclonal, anti-NMDAR1
MilliporeCat# MAB36310 μg/mL
AntibodyRabbit,
Polyclonal, anti-GluA1-4, (pan-AMPA)
Dr. Elek Molnar/Bristol UniversityGenerated by Dr. Elek Molnar10 μg/mL
AntibodyGoat anti-rabbit IgG conjugated gold particlesNanoprobes Inc#2003–0.5 ML(1:100)
Recombinant DNA reagentAAV5-CaMKII-GFP-CrePenn Vector CoreAV-5-PV2521Available on Addgene
Recombinant DNA reagentAAV5-CaMKII-eGFPPenn Vector CoreAV-5-PV1917Available on Addgene
Recombinant DNA reagentAAV5-CaMKII-mcherry-CreUNC Vector CoreSee websitehttps://wwwmed.unc.edu/genetherapy/vectorcore/in-stock-aav-vectors/
Recombinant DNA reagentAAV5-CaMKII-mcherryUNC Vector Core-Dr. Karl Deisseroth Control
Fluorophores
See websitehttps://wwwmed.unc.edu/genetherapy/vectorcore/in-stock-aav-vectors/
Recombinant DNA reagentAAV-DJ-flex-OChIEF-tdTomatoDr. Pascal Kaeser
PMID:29398114
Generated at UNC Vector CoreCustom Order
Recombinant DNA reagentAAV-DJ-DIO-BDNF-phluorinDr. Hyungju Park
PMID:25467984
Generated at UNC Vector CoreCustom Order
Chemical compound, drugKetamineMerialCat# 03661103001904
Chemical compound, drugXylazineCalierCat# 20100–003
Chemical compound, drugParaformaldehydeScharlauPA0095
Chemical compound, drugGlutaraldehydeElectron Microscopy SciencesCat# 16210
Chemical compound, drugPicric AcidPanreacCat# 141048.1609
Chemical compound, drugPhosphate BufferScharlauSO03321000
Chemical compound, drugHuman serum albuminSigmaMilliporeA-1653
Chemical compound, drugTBSTRIZMA BASESigmaMilliporeT1503
Trizma HClT3253
Chemical compound, drugTriton X-100SigmaMilliporeT8787
Chemical compound, drugPolyethylene glycolSigmaMillipore25322-68-3
Chemical compound, drugUranyl acetateElectron Microscopy SciencesCat# 22400
Chemical compound, drugReynold’s lead citrateElectron Microscopy Sciences#17800
Chemical compound, drugPicrotoxinSigmaMilliporeCat# P1675
Chemical compound, drugLY303070ABX Chemical Co.N/ACustom Order
Chemical compound, drugMK-801Tocris BioscienceCat# 0924
Chemical compound, drugDCG-IVTocris BioscienceCat# 0975
Chemical compound, drugD-APVTocris BioscienceCat# 0106
chemical compound, drugD-APVNIMH Chemical Synthesis ProgramN/A
Chemical compound, drugR-CPPTocris BioscienceCat# 0247
Chemical compound, drugNBQXCayman Chemical Co.Cat# 14914
Chemical compound, drugFluo5-F pentapotassium salt cell impermeantInvitrogen Molecular ProbesCat# F14221
Chemical compound, drugAlexa Fluor 594 HydrazideInvitrogen Molecular ProbesCat# A10438
Chemical compound, drugAlexa Fluor 488 HydrazideInvitrogen Molecular ProbesCat# A10436
Chemical compound, drugD-SerineTocris BioscienceCat# 0226
Chemical compound, drugMNI-caged-L-glutamateTocris BioscienceCat# 1490
Chemical compound, drugSucroseSigmaMilliporeCat# S9378
Chemical compound, drugKClSigmaMilliporeCat# P3911
Chemical compound, drugNaH2PO4SigmaMilliporeCat# S9638
Chemical compound, drugCaCl2SigmaMilliporeCat# C8106
Chemical compound, drugMgCl2SigmaMilliporeCat# M2670
Chemical compound, drugMgSO4SigmaMilliporeCat# M1880
Chemical compound, drugGlucoseSigmaMilliporeCat# G8270
Chemical compound, drugNaClSigmaMilliporeCat# S7653
Chemical compound, drugNaHCO3SigmaMilliporeCat# S6014
Chemical compound, drugCesium hydroxideSigmaMilliporeCat# 23204
Chemical compound, drugD-gluconic acidSigmaMilliporeCat# G1951
Chemical compound, drugEGTASigmaMilliporeCat# E4378
Chemical compound, drugHEPESSigmaMilliporeCat# H3375
Chemical compound, drugPotassium gluconateSigmaMilliporeCat# G4500
Chemical compound, drugMgATPSigmaMilliporeCat# A9187
Chemical compound, drugNa3GTPSigmaMilliporeCat# G0635
Chemical compound, drugNMDGSigmaMilliporeCat# M2004
Chemical compound, drugSodium ascorbateSigmaMilliporeCat# A4034
Chemical compound, drugThioureaSigmaMilliporeCat# T8656
Chemical compound, drugSodium pyruvateSigmaMilliporeCat# P2256
Chemical compound, drugKMeSO4SigmaMilliporeCat# 83000
Chemical compound, drugNa2ATPSigmaMilliporeCat# A2383
Chemical compound, drugNaGTPSigmaMilliporeCat# 51120
Chemical compound, drugSodium phosphocreatineSigmaMilliporeCat# P7936
Chemical compound, drugNH4ClSigmaMilliporeCat# A9434
Chemical compound, drugKOHEMD MilliporeCat# 109108
Chemical compound, drugHClFisher ChemicalCat# SA49
Software, algorithmIgorPro7Wavemetricshttps://www.wavemetrics.com/
Software, algorithmOrigin Pro 9Origin Labhttps://www.originlab.com/
Software, algorithmImageJImageJhttp://imagej.net/Welcome
Software, algorithmMulticlamp 700BMolecular Deviceshttps://www.moleculardevices.com/
Software, algorithmPrairie View 5.4Bruker Corp.https://www.pvupdate.blogspot.com/

Antibodies

A monoclonal antibody against GluN1 (clone 54.1 MAB363) was obtained from Millipore (Germany), and its specificity was characterized previously (Siegel et al., 1994). An affinity-purified polyclonal rabbit anti-GluA1-4 (pan-AMPA), corresponding to aa 724–781 of rat, was used and characterized previously (Nusser et al., 1998).

Immunohistochemistry for electron microscopy

Request a detailed protocol

Immunohistochemical reactions at the electron microscopic level were carried out using the post-embedding immunogold method as described earlier (Lujan et al., 1996). Briefly, animals (n = 3 rats) were anesthetized by intraperitoneal injection of ketamine-xylazine 1: 1 (0.1 mL/kg b.w.) and transcardially perfused with ice-cold fixative containing 4% paraformaldehyde, 0.1% glutaraldehyde, and 15% saturated picric acid solution in 0.1 M phosphate buffer (PB) for 15 min. Vibratome sections 500 μm thick were placed into 1 M sucrose solution in 0.1 M PB for 2 hr before they were slammed on a Leica EM CPC apparatus. Samples were dehydrated in methanol at −80°C and embedded by freeze-substitution (Leica EM AFS2) in Lowicryl HM 20 (Electron Microscopy Science, Hatfield, PA), followed by polymerization with UV light. Then, ultrathin 80-nm-thick sections from Lowicryl-embedded blocks of the hippocampus were picked up on coated nickel grids and incubated on drops of a blocking solution consisting of 2% human serum albumin in 0.05 M TBS and 0.03% Triton X-100. The grids were incubated with GluN1 or pan-AMPA antibodies (10 μg/mL in 0.05 M TBS and 0.03% Triton X-100 with 2% human serum albumin) at 28°C overnight. The grids were incubated on drops of goat anti-rabbit IgG conjugated to 10 nm colloidal gold particles (Nanoprobes Inc) in 2% human serum albumin and 0.5% polyethylene glycol in 0.05 M TBS and 0.03% Triton X-100. The grids were then washed in TBS and counterstained for electron microscopy with 1% aqueous uranyl acetate followed by Reynolds’s lead citrate. Ultrastructural analyses were performed in a JEOL-1010 electron microscope.

Hippocampal slice preparation

Request a detailed protocol

Animal handling followed an approved protocol by the Albert Einstein College of Medicine Institutional Animal Care and Use Committee in accordance with the National Institute of Health guidelines. Acute rat hippocampal slices (400 µm thick) were obtained from Sprague-Dawley rats, from postnatal day 17 (P17) to P28 of either sex. For procedures regarding transgenic mouse slice preparation, see below. The hippocampi were isolated and cut using a VT1200s microslicer (Leica Microsystems Co.) in a solution containing (in mM): 215 sucrose, 2.5 KCl, 26 NaHCO3, 1.6 NaH2PO4, 1 CaCl2, 4 MgCl2, 4 MgSO4, and 20 glucose. Acute slices were placed in a chamber containing a 1:1 mix of sucrose cutting solution and normal extracellular ACSF recording solution containing (in mM): 124 NaCl, 2.5 KCl, 26 NaHCO3, 1 NaH2PO4, 2.5 CaCl2, 1.3 MgSO4, and 10 glucose incubated in a warm-water bath at 33–34°C. The chamber was brought to room temperature for at least 15 min post-sectioning, and the 1:1 sucrose-ACSF solution was replaced by ACSF. All solutions were equilibrated with 95% O2 and 5% CO2 (pH 7.4). Slices were allowed to recover for at least 45 min in the ACSF solution before recording. For physiological Mg+2 and Ca+2 experiments, ACSF solutions were adjusted to (in mM): 1.2 MgSO4 and 1.2 CaCl2, and temperature was maintained at 35 ± 0.1°C in the submersion-type recording chamber heated by a temperature controller (TC-344B Dual Automatic Temperature Controller, Warner Instruments).

Electrophysiology

Request a detailed protocol

Electrophysiological recordings were performed at 26.0 ± 0.1°C (unless otherwise stated) in a submersion-type recording chamber perfused at 2 mL/min with normal ACSF supplemented with the GABAA receptor antagonist picrotoxin (100 µM) and the selective AMPA receptor (AMPAR) antagonist LY303070 at a low concentration (0.5 µM) to minimize CA3-CA3 recurrent activity, or at a high concentration (15 µM) to isolate KAR-EPSCs and KAR-EPSPs to assess monosynaptic mf transmission. Whole-cell recordings were made from CA3 pyramidal cells voltage-clamped at −70 mV using patch-type pipette electrodes (3–4 mΩ) containing (in mM): 131 cesium gluconate, 8 NaCl, 1 CaCl2, 10 EGTA, 10 glucose, 10 HEPES, and 2 MK-801 pH 7.25 (280–285 mOsm) unless specified otherwise. KOH was used to adjust pH. Series resistance (8–15 MΩ) was monitored throughout all experiments with a −5 mV, 80 ms voltage step, and cells that exhibited a series resistance change (>20%) were excluded from analysis. A stimulating bipolar electrode (theta glass, Warner Instruments) was filled with ACSF and placed in stratum lucidum to selectively activate mfs using a DS2A Isolated Voltage Stimulator (Digitimer Ltd.) with a 100 µs pulse width duration. AMPAR-EPSCs were recorded for a baseline period of 2 min, and LFF was induced by stepping the stimulation frequency from 0.1 to 1 Hz for 2 min. Facilitation was measured by taking a ratio of the mean EPSC during the steady-state, LFF period of activity and the 2-min baseline (EPSC1Hz/EPSC0.1Hz) before and after bath application of NMDAR antagonists.

To qualify for analysis, mf responses met three criteria: (1) The 20–80% rise time of the AMPAR-EPSC was less than 1 ms, (2) LFF was greater than 150%, (3) the AMPAR-EPSC displayed at least 70% sensitivity to the group 2/3 mGluR agonist, DCG-IV (1 µM). Isolated KAR-EPSCs were elicited by 2 pulses with a 5 ms inter-stimulus interval for LFF experiments. Baseline measurements were acquired at least 10 min after ‘break-in’ to achieve optimal intracellular blockade of postsynaptic NMDARs by MK-801 (2 mM) in the patch-pipette. To transect mf axons in acute slices, a 45° ophthalmic knife (Alcon Surgical) was used to make a diagonal cut across the hilus from the dorsal to ventral blades of the DG, and the subregion CA3b was targeted for patch-clamp recordings. For D-APV (2 mM) puff experiments, a puffer device (Toohey Company) was set to deliver two to three puffs of 100 ms duration at 3–4 psi during the 2 min of LFF activity. The puffer pipette was placed at least 200 µm away from the recording site, and both the puff pipette and hippocampal slice were positioned to follow the direction of the laminar perfusion flow in a low profile, submersion-type chamber (RC-26GLP, Warner Instruments). Burst-induced facilitation was elicited by 5 pulses at 25 Hz with a 0.03 Hz inter-trial interval for a baseline period of 10 min. Facilitation was measured by calculating the ratio of the mean KAR-EPSC peak of the fifth pulse to the first pulse (P5/P1) before and after bath application of MK-801 (50 µM). To study KAR induced action potentials, CA3 pyramidal cells were whole-cell patch-clamped with internal solution containing (in mM): 112 potassium gluconate, 17 KCl, 0.04 CaCl2, 0.1 EGTA, 10 HEPES, 10 NaCl, 2 MgATP, 0.2 Na3GTP, and 2 MK-801, pH 7.2 (280–285 mOsm). Current-clamped CA3 cells were held at −70 mV during burst stimulation of mfs (5 pulses at 25 Hz) to monitor evoked action potentials. Spike transfer was measured by quantifying mean number of spikes/burst for a 10 min period before and after bath application of MK-801 (50 µM). Robust sensitivity to the AMPAR/KAR selective antagonist NBQX (10 µM) confirmed KAR-EPSC responses. Similarly, CA3 pyramidal cells were kept in current-clamp mode for AMPAR-mediated action potential monitoring in the presence of LY303070 (0.5 µM) and picrotoxin (100 µM). AMPAR-mediated mf action potentials were confirmed by blockade of responses following application of DCG-IV (1 µM). Both hilar MCs and CA3 INs were visually patched-loaded with Alexa 594 (35 µM), and morphological identity was confirmed by two-photon laser microscopy at the end of experiments. MCs were voltage-clamped at −70 mV, and a bipolar electrode was placed in the DG to activate mf inputs. The data analysis and inclusion criteria used for mf experiments (described above) was also implemented for MC recordings. CA3 INs were voltage-clamped at −70 mV and burst stimulated, facilitation was assessed as previously mentioned. Both facilitating and depressing mf responses were included for analysis given the diversity of mf to CA3 IN transmission (Toth et al., 2000). Whole-cell voltage and current-clamp recordings were performed using an Axon MultiClamp 700B amplifier (Molecular Devices). Signals were filtered at 2 kHz and digitized at 5 kHz. Stimulation and acquisition were controlled with custom software (Igor Pro 7).

Transgenic animals

Request a detailed protocol

Grin1-floxed littermate mice of either sex (P16-20) were injected with 1 μL of AAV5-CaMKII-eGFP, AAV5-CaMKII-CreGFP, AAV5-CaMKII-mCherry, or AAV5-CaMKII-mCherry-Cre viruses at a rate of 0.12 μL/min at coordinates (−1.9 mm A/P, 1.1 mm M/L, 2.4 mm D/V) targeting the DG using a stereotaxic apparatus (Kopf Instruments). Two weeks post-surgery, mice were sacrificed for electrophysiology or Ca2+ imaging experiments. Mice were transcardially perfused with 20 mL of cold NMDG solution containing (in mM): 93 NMDG, 2.5 KCl, 1.25 NaH2PO4, 30 NaHCO3, 20 HEPES, 25 glucose, 5 sodium ascorbate, 2 Thiourea, 3 sodium pyruvate, 10 MgCl2, 0.5 CaCl2, brought to pH 7.35 with HCl. The hippocampi were isolated and cut using a VT1200s microslicer in cold NMDG solution. Acute mouse slices were placed in an incubation chamber containing normal ACSF solution that was kept in a warm-water bath at 33–34°C. All solutions were equilibrated with 95% O2 and 5% CO2 (pH 7.4). Post-sectioning, slices recovered at room temperature for at least 45 min prior to experiments. For NMDAR/AMPAR ratios, GCs were patch-clamped with the cesium internal solution previously mentioned containing either Alexa 594 (35 µM) for GFP+ cells (laser tuned to 830 nm/910 nm, respectively) or Alexa 488 (35 µM) for mCherry+ cells (laser tuned to 910 nm/780 nm, respectively). AMPAR-EPSCs were recorded at −65 mV in the presence of picrotoxin (100 µM) by placing a bipolar electrode near the medial perforant path and delivering a 100 μs pulse width duration using an Isoflex stimulating unit. AMPAR-EPSCs were acquired for at least 5 min followed by bath application of NBQX (10 µM) to isolate NMDAR-EPSCs. GCs were brought to +40 mV to alleviate magnesium block and record optimal NMDAR-EPSCs. NMDAR/AMPAR ratios were measured by taking the mean NMDAR-EPSC/AMPAR-EPSC for a 5 min period of each component. Only acute mouse slices with optimal GFP and mCherry reporter fluorescence (i.e. robust expression, ≥75% of DG fluorescence) were used for electrophysiology, and Ca2+ and BDNF imaging experiments. Grin1-floxed animals (The Jackson Laboratory) were kindly provided by Dr. Michael Higley (Yale University).

Optogenetics

Request a detailed protocol

Grin1 floxed and control mice of either sexes (P17–P20) were injected with a 1:2 mix of AAV5-CaMKII-CreGFP/AAV-DJ-FLEX-ChIEF-tdTomato viruses targeting the DG, using the same coordinates described above. At least 4 weeks post-surgery, acute hippocampal slices were prepared as previously described, and slices showing optimal GFP and tdTomato expression were used for electrophysiology experiments. Mf optical burst stimulation was elicited by using a Coherent 473 nm laser (4–8 mW) delivering 5 pulses at 25 Hz with a 1–2 ms pulse width duration. Facilitation was measured by taking a ratio of the mean AMPAR-EPSC peak of the fifth pulse to the first pulse (P5/P1) in control and Grin1-cKO animals.

Two-photon calcium imaging and MNI-glutamate uncaging

Request a detailed protocol

mCherry+ GCs were patch-loaded with an internal solution containing in (mM): 130 KMeSO4, 10 HEPES, 4 MgCl2, 4 Na2ATP, 0.4 NaGTP, 10 sodium phosphocreatine, 0.035 Alexa 594 (red morphological dye), and 0.2 Fluo-5F (green calcium indicator), 280–285 mOsm. KOH was used to adjust pH. GCs near the hilar border were avoided and GCs that exhibited adult-born GC electrophysiological properties were excluded from analysis. GCs were kept in voltage clamp configuration at −50 mV for at least 1 hr to allow the diffusion of dyes to mf boutons. Recordings were obtained in ACSF solution containing (in mM): 124 NaCl, 2.5 KCl, 26 NaHCO3, 1 NaH2PO4, 4 CaCl2, 0 MgSO4, 10 glucose, 0.01 NBQX, 0.1 picrotoxin, and 0.01 D-serine. Using an Ultima 2P laser scanning microscope (Bruker Corp) equipped with an Insight Deep See laser (Spectra Physics) tuned to 830 nm, the ‘red’ photomultiplier tube (PMT) was turned on and with minimal pockel power the red signal was used to identify the mf axon. With 512 × 512 pixel resolution, mf axons were followed for at least 200 µm from the DG toward CA3, until bouton structures were morphologically identified and measured (>3 μm in diameter). GCs were switched to current-clamp mode held at −70 mV and 1 ms current injections were used to elicit a burst of 5 action potentials at 25 Hz. Using line scan analysis software (PrairieView 5.4, Bruker Corp.), a line was drawn across the diameter of the bouton at a magnification of at least 16×. The ‘green’ PMT channel was turned on, and 1000 line scans were acquired in a 2 s period. Action potential induction was delayed for 400 ms to collect a baseline fluorescence time period. Calcium transients (CaTs) were acquired with a 1 min inter-trial-interval and analyzed using the ΔG/R calculation: (G − G0)/R. CaTs from control animals were compared to Grin1-cKO by taking the mean peak ΔG/R value for a 30 ms period of the fifth action potential. In similar fashion, CaT signals in acute rat hippocampal slices were acquired and tested for sensitivity to D-APV (100 µM) while adjusting ACSF MgS04 concentration to 1.3 mM and CaCl2 to 2.5 mM in the absence of NBQX.

For glutamate uncaging experiments, GCs that were mCherry+ were patch-loaded using the internal solution previously described, and a small volume (12 mL) of recirculated ACSF solution containing (in mM): 124 NaCl, 2.5 KCl, 26 NaHCO3, 1 NaH2PO4, 4 CaCl2, 0 MgSO4, 10 glucose, 2.5 MNI-glutamate, 0.01 NBQX, 0.1 picrotoxin, and 0.01 D-serine. A MaiTai HP laser (Spectra Physics) was tuned to 720 nm to optimally uncage glutamate and elicit CaTs in GC dendritic spines. Following the measurement of CaTs in GC spines, mf boutons were identified and to mimic bursting activity, five uncaging pulses (1 ms duration) were delivered at 25 Hz. The acquired CaTs in spines and boutons were analyzed using the ΔG/R calculation in control and Grin1-cKO animals. In a subset of control boutons, D-APV (100 µM) was applied to detect CaT sensitivity to NMDAR antagonism.

Two-photon BDNF-phluorin imaging

Request a detailed protocol

Grin1 floxed and control mice of both sexes (P16-20) were injected with a 1:2 mix of AAV5-CaMKII-mCherryCre/AAV-DJ-DIO-BDNF-phluorin viruses targeting the DG using the same coordinates as above. At least 4 weeks post-surgery, acute hippocampal slices were prepared as previously described, and slices showing optimal GFP and mCherry expression were taken for imaging sessions. For stimulation, a monopolar micropipette electrode was placed in the stratum lucidum at least 250 µm away from the imaging site. The Insight Deep See laser (Spectra Physics) was tuned to 880 nm, and the imaging site was selected by the appearance of fibers and bouton structures in the stratum lucidum. Using 512 × 512 pixel resolution identified boutons measuring at least 3 μm in diameter were selected as a region of interest (ROI) magnified to 4–6×, and a baseline acquisition of 100 consecutive images at 1 Hz using T-series software (PrairieView 5.4, Bruker Corp.) was acquired (Park et al., 2014). Following the baseline acquisition, a repetitive stimulation consisting of 125 pulses at 25 Hz was delivered 2×, triggering an acquisition of 200 consecutive images at 1 Hz. The fluorescence intensity of the bouton ROI was measured using ImageJ software to calculate ΔF/F of the BDNF-pHluorin signal. To verify reactivity of the ROI, an isosmotic solution of NH4Cl (50 mM) was added at the end of the imaging session as previously reported (Park et al., 2014). The same experimental and analysis procedure was implemented to measure BDNF release triggered by mf burst stimulation consisting of 5 pulses at 100 Hz, 50×, every 0.5 s.

Viruses

AAV5-CaMKII-eGFP and AAV5-CaMKII-CreGFP viruses were acquired from UPenn Vector Core. AAV5-CaMKII-mCherry and AAV5-CaMKII-mCherry-Cre were obtained from UNC Chapel Hill Vector Core. The AAV-DJ-FLEX-ChIEF-tdTomato and AAV-DJ-DIO-BDNF-phluorin viruses were custom ordered and obtained from UNC Chapel Hill Vector Core. The DNA of the ChIEF virus was a generous gift from Dr. Pascal Kaeser (Harvard University), and the DNA of the BDNF-pHluorin was kindly provided by Dr. Hyungju Park (Korea Brain Research Institute).

Chemicals and drugs

Request a detailed protocol

Picrotoxin and all chemicals used to prepare cutting, recording, and internal solutions were acquired from MilliporeSigma. All NMDAR antagonists (D-APV, MK-801, R-CPP), NMDAR agonist (D-serine), the group 2/3 mGluR agonist (DCG-IV), and MNI-glutamate for uncaging experiments were purchased from Tocris Bioscience. D-APV was also acquired from the NIMH Chemical Synthesis Drug Program. NBQX was purchased from Cayman Chemical Company. The noncompetitive AMPAR selective antagonist LY303070 was custom ordered from ABX Chemical Company. Alexa 594 morphological dye, Alexa 488, and the Ca2+ indicator Fluo-5F (Invitrogen) were purchased from ThermoFisher Scientific.

Statistical analysis and data acquisition

Request a detailed protocol

All data points from experiments were tested for normality using a Shapiro–Wilk test (p-value < 5% for a normal distribution). Statistical significance was determined if p-value < 0.05. Experiments with a normal distribution and an N > 7 cells were tested for statistical significance with a paired Student’s t-test. Experiments with N < 7 cells or skewed distributions were tested for statistical significance using a paired Wilcoxon signed-rank sum test. For experiments comparing control and Grin1-cKO animals, statistical significance was determined using unpaired t-test and Mann–Whitney test (U < 0.05). All statistical tests were performed using Origin Pro 9 (Origin Lab). Experimenters were blind to the identity of the virus injected in transgenic Grin1 floxed mice during the acquisition of data in CA3 electrophysiology and two-photon imaging. However, data analysis could not be performed blind in those experiments in which NMDAR/AMPAR ratios in GCs were examined in order to assess the efficiency of the cKO.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files.

References

  1. Book
    1. Duguid IC
    2. Smart TG
    (2009)
    Presynaptic NMDA Receptors
    In: Van Dongen A. M, editors. Biology of the NMDA Receptor. CRC Press/Taylor & Francis. pp. 1–14.
  2. Book
    1. McNamara JO
    2. Scharfman HE
    (2012) Temporal Lobe Epilepsy and the BDNF Receptor, TrkB
    In: Noebels M, Avoli M. A, Rogawski R. W, Olsen A. V, Delgado-Escueta A. V, editors. Jasper's Basic Mechanisms of the Epilepsies. Bethesda, MD: National Center for Biotechnology Information. pp. 1–52.
    https://doi.org/10.1111/j.1528-1167.2010.02832.x
    1. Miller RJ
    (1998) Presynaptic receptors
    Annual Review of Pharmacology and Toxicology 38:201–227.
    https://doi.org/10.1146/annurev.pharmtox.38.1.201
    1. Sanz-Clemente A
    2. Nicoll RA
    3. Roche KW
    (2013) Diversity in NMDA receptor composition: many regulators, many consequences
    The Neuroscientist: A Review Journal Bringing Neurobiology, Neurology and Psychiatry 19:62–75.
    https://doi.org/10.1177/1073858411435129

Decision letter

  1. Gary L Westbrook
    Senior Editor; Oregon Health and Science University, United States
  2. Katalin Toth
    Reviewing Editor; University of Ottawa, Canada
  3. Per Jesper Sjöström
    Reviewer; McGill University, Canada
  4. Kenneth A Pelkey
    Reviewer; Eunice Kennedy Shriver National Institute of Child Health and Human Development, National Institutes of Health, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This paper demonstrates functional presynaptic NMDA receptors at mossy fiber terminals in the hippocampus. Postsynaptic NMDA receptors are critically involved in learning and memory as coincidence detectors in Hebbian plasticity. Some studies, however, have reported that NMDA receptors may function in more unconventional manners. This paper provides strong evidence for presynaptic NMDA receptors at a specific subset of hippocampal mossy-fibre boutons. Electron microscopy, electrophysiology, optogenetics, calcium imaging, and genetic manipulation yield compelling evidence that supports the main conclusions.

Decision letter after peer review:

Thank you for submitting your article "Presynaptic NMDA receptors facilitate short-term plasticity and BDNF release at hippocampal mossy fiber synapses" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Gary Westbrook as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Per Jesper Sjöström (Reviewer #2); Kenneth A Pelkey (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Experimental:

Re-evaluation of the preNMDAR blockade effect on frequency facilitation under more physiological [Ca2+]o (1.2 mM) and temperature is essential given the precedents for unique modes of mossy fiber release with unique Ca2+ source dependencies at variable [Ca2+]o levels and temperatures. Since change in cleft glutamate concentration could impact how and when presynaptic receptors are activated, this new data would be important to establish the physiological relevance of the authors' findings.

While re-evaluation of the calcium imaging experiments in physiological temperature and divalent concentration is not required. Please, provide a thorough and careful discussion on the limitation of the experimental conditions used in this study.

2) Explanation:

The authors convincingly demonstrate the involvement of preNMDARs in both LFF and burst facilitation at mossy fiber synapses. While the proposed mechanism for preNMDAR activation during burst facilitation is fairly straightforward, it is less clear how the requirements for ionotropic NMDAR activation are met during low-frequency 1 Hz stimulation. Please, comment on how the glutamate from a presynaptic spike can activate preNMDARs at 1 Hz when the depolarization from that spike is gone. Although this could work at some higher frequency, when the subsequent spikes in a burst provide the necessary depolarization, it is not clear how this would work at 1 Hz.

The mechanism of relief for preNMDAR voltage dependent block needs to be thoroughly discussed (but not necessarily experimentally solved). MFB recordings reveal APs with sub ms half durations even following use dependent spike broadening, this duration makes it difficult to expect that the presynaptic spikes themselves can support depolarization of sufficient duration to relieve the block. These MFB spikes do exhibit ADPs that could sum but published traces (at 5Hz MFB APs) do not support significant summated depolarization of the ADPs within the terminal (Geiger and Jonas, Neuron 2000).

3) Clarification:

In the calcium imaging experiments signal-to-noise ratio appears to be poor on Figure 5, 6, S5 and S6, where responses are typically well below 5%. This is echoed by the fuzzy Fluo5-F example images, making conclusions drawn from the data not particularly strong. In some cases, perhaps the wrong images were shown? Maybe images did not render correctly in the PDF I look at? Please clarify.

Reviewer #1 (Recommendations for the authors):

1. The immunocytochemistry images are blurry; the synaptic vesicles are not clearly visible in the presynaptic terminal. It would be great to provide better quality illustrations for these experiments.

2. Optogenetic experiments shown in Figure 4A-C demonstrating a role for preNMDAR in short-term facilitation: The authors demonstrate that Grin1-cKO decreases P5/P1. The narrative suggests that this change should be attributed to a decrease in P5. However, in the example shown, P5 appears similar in control and in Grin1-cKO, while P1 appears to be increased in Grin1-cKO. Are there changes in basal release in Grin1-cKO animals?

3. From the images presented in Figure 5B, it is hard to evaluate where the boutons are recorded from.

4. For both uncaging and Ca2+ imaging experiments, data recorded in control mice is compared to data recorded in Grin1-cKO animals. Pharmacological blockade of NMDARs in the same boutons would provide more insight on the relative contribution of preNMDAR to presynaptic Ca2+ transients evoked by somatic APs or glutamate uncaging pulses.

5. Is there a special relationship between NMDAR and BDNF release? Or is it just that Grin1-cKO boutons experience a lower total Ca2+ influx during the MF stimulation paradigm?

Reviewer #2 (Recommendations for the authors):

This manuscript is succinct and well-written, making it a pleasure to read. A caveat of the study is that the imaging experiments presented appear to have very low signal:noise, preventing convincing conclusions to be drawn. In addition, while the BDNF finding is potentially important and supports the presence of preNMDARs, it seems to be largely disconnected from the rest of the story. Finally, it is not clear how preNMDAR autoreceptors can signal ionotropically at 1 Hz. These issues are elaborated in the points below. Nonetheless, these issues do not affect the overall conclusions of the paper, which is well-grounded with good experimental design and execution. We believe this paper should be highly suitable for publication in eLife after these points have been addressed.

1. BDNF: The finding that preNMDARs contribute to BDNF release is very intriguing. However, it seems to be just loosely linked to the rest of the story. Could this be tied in better somehow? In Figure 7, the authors elicit BDNF release through a repeated "burst" stimulation of 125 pulses at 25 Hz. I think the use of the word "burst" for this kind of sustained stimulation is misleading, especially in comparison with previous figures where burst stimulation consisted of 5 pulses. I also wonder why the authors used this form of stimulation, as opposed other stimulation protocols like TBS, which is both effective at eliciting BDNF release (Balkowiec and Katz, 2002) and more closely mimics GCs' sparse, bursting activity in vivo (Pernia-Andrade and Jonas, 2014). In Figure 7, if Grin1-cKO reduces BDNF release physiologically, one would expect the baseline BDNF-pHluorin signal to be significantly higher in the cKO compared to the control. Has this been compared?

2. Statistics and Controls: In Figure 8, unlike in previous figures, it is not shown whether controls were done to check for stability of responses over time, either in interneurons or hilar mossy cells. This is particularly missed in 8B, as s. lucidum interneurons can show synapse-type specific long-term plasticity that affects burst facilitation (Toth et al., 2000). The mixed responses shown in 8C may reflect the synaspe dichotomy shown by Toth et al., and it could be difficult to conclude about the role of preNMDARs at interneuron synapses without further exploration of these differences. The paired t-tests used throughout the paper provide a powerful internal comparison (Figure 1, S2, 3, 4, 8). However, as these experiments involves two rounds of LFF induction over time, drug treatment is not the only variable. Dialysis of cells after gaining whole-cell access, potential changes in efficacy of consecutive LFF induction and cell death after axotomy (Figure 3, S4), for example, can also have large influences on the results. Therefore, naive/solvent controls (like Figure S2, 3B, 3D, 4E, 4G) should have been done for each set of experiments and compared statistically with the drug treatment groups (i.e. After/before of control vs. after/before of drug treatment groups with one-way ANOVA or equivalent tests). N numbers were given in boutons/spines. It was unclear how many cells/slices/biological repeats were performed. The n=6-10 spines/boutons seem rather small. Please clarify.

3. Lines 265-266, this seems like an erroneous conclusion to me: "Thus, preNMDARs contribute significantly to presynaptic Ca2+ rise in mossy fiber boutons, and by this means facilitate synaptic transmission." Indirect action of preNMDARs on transmission is still a possibility, even if presynaptic calcium increases when preNMDARs are activated, no? That calcium goes up does not mean that this is how the preNMDARs act, it just means it is a possible route of action. Please clarify.

Reviewer #3 (Recommendations for the authors):

In this manuscript Lituma and colleagues describe a role for presynaptic NMDARs at hippocampal mossy fiber (MF) synapses in activity dependent short-term plasticity of release onto CA3 pyramid and mossy cell postsynaptic targets but not at MF-interneuron synapses. The combined use of electron microscopy, electrophysiological, optogenetic, calcium imaging, and genetic manipulation approaches expertly employed by the authors yields high quality compelling evidence in full support of the study's main conclusions. Overall, the investigation is well designed with a clear hypothesis, appropriate methodological considerations, and logical flow resulting in a well written manuscript that is sure to be of broad scientific interest. However, I do have three major points for consideration to improve the manuscript and further ensure the physiological relevance of the findings.

1) The methods state that all electrophysiological assays were performed at 26 degrees

Celsius. Hypothermic conditions can suppress transmitter uptake and promote glutamate pooling/spillover for activation of presynaptic receptors capable of modulating release that is not readily apparent at physiological temperatures (Min et al., 1998). It seems important therefore that the authors confirm the ability of presynaptic NMDARs to contribute to short term facilitation of MF-CA3 pyramid transmission at physiological temperatures.

2) The data fully support that presynaptic NMDARs have the capacity to contribute to presynaptic calcium transients (CaTs) and enhanced transmitter release. However, left undetermined is whether presynaptic NMDAR-mediated calcium events alone can promote vesicle fusion and release or if they can only enhance release over and above that initially triggered by CaTs from activation of voltage gated calcium channels (VGCCs). A potential role for presynaptic NMDARs in driving spontaneous action potential independent release at MF synapses is alluded to in the discussion. In recordings with intracellular MK-801 (with or without extracellular TTX) does subsequent NMDAR blockade alter spontaneous event frequency or is spontaneous frequency measurably reduced following loss of GRIN1 in granule cells? Of note on this subject combined blockade of P/Q- and N-type VGCCs appears to entirely eliminate MF-CA3 transmission probed with short train stimulation at comparable frequencies to the current study (Chamberland et al., 2020).

3) The presynaptic calcium imaging experiments provide convincing evidence for CaTs mediated by presynaptic NMDARs. However, the physiologically relevant capacity for similar NMDAR-mediated CaTs is hard to estimate as the imaging experiments were performed in the absence of magnesium. It would of interest to know if presynaptic NMDARs have unique magnesium sensitivity or if voltage-dependent block can be overcome during brief train stimulation.

https://doi.org/10.7554/eLife.66612.sa1

Author response

Essential revisions:

1) Experimental:

Re-evaluation of the preNMDAR blockade effect on frequency facilitation under more physiological [Ca2+]o (1.2 mM) and temperature is essential given the precedents for unique modes of mossy fiber release with unique Ca2+ source dependencies at variable [Ca2+]o levels and temperatures. Since change in cleft glutamate concentration could impact how and when presynaptic receptors are activated, this new data would be important to establish the physiological relevance of the authors' findings.

While re-evaluation of the calcium imaging experiments in physiological temperature and divalent concentration is not required. Please, provide a thorough and careful discussion on the limitation of the experimental conditions used in this study.

We thank the reviewers for raising this important point regarding physiological temperature and divalent concentration. We have performed new experiments at 35ºC and 1.2 mM Ca+2 and 1.2 mM Mg2+ extracellular concentration and present our findings in Figure 4—figure supplement 1. Under these more physiological experimental conditions, we show that preNMDARs contribute to burst-induced facilitation.

2) Explanation:

The authors convincingly demonstrate the involvement of preNMDARs in both LFF and burst facilitation at mossy fiber synapses. While the proposed mechanism for preNMDAR activation during burst facilitation is fairly straightforward, it is less clear how the requirements for ionotropic NMDAR activation are met during low-frequency 1 Hz stimulation. Please, comment on how the glutamate from a presynaptic spike can activate preNMDARs at 1 Hz when the depolarization from that spike is gone. Although this could work at some higher frequency, when the subsequent spikes in a burst provide the necessary depolarization, it is not clear how this would work at 1 Hz.

The mechanism of relief for preNMDAR voltage dependent block needs to be thoroughly discussed (but not necessarily experimentally solved). MFB recordings reveal APs with sub ms half durations even following use dependent spike broadening, this duration makes it difficult to expect that the presynaptic spikes themselves can support depolarization of sufficient duration to relieve the block. These MFB spikes do exhibit ADPs that could sum but published traces (at 5Hz MFB APs) do not support significant summated depolarization of the ADPs within the terminal (Geiger and Jonas, Neuron 2000).

We are pleased the reviewers note we convincingly demonstrate the involvement of preNMDARs in both LFF and burst facilitation in mossy fiber synapses. We also wondered about the mechanism underlying preNMDAR activation at 1 Hz. In our revised manuscript (Lines 367-378), we attempted an explanation as follows: “There is evidence that preNMDARs can operate as coincidence detectors at some synapses (Duguid, 2013; Wong et al., 2020). […] By alleviating the magnesium blockade, these potentials might reduce the need for coincidence detection and transiently boost the functional impact of mf preNMDARs.”

3) Clarification:

In the calcium imaging experiments signal-to-noise ratio appears to be poor on Figure 5, 6, S5 and S6, where responses are typically well below 5%. This is echoed by the fuzzy Fluo5-F example images, making conclusions drawn from the data not particularly strong. In some cases, perhaps the wrong images were shown? Maybe images did not render correctly in the PDF I look at? Please clarify.

We thank the reviewer for this observation. In response, we have replaced the images and ensured they render correctly in PDF format.

Reviewer #1 (Recommendations for the authors):

1. The immunocytochemistry images are blurry; the synaptic vesicles are not clearly visible in the presynaptic terminal. It would be great to provide better quality illustrations for these experiments.

Agreed. We have replaced the images with improved quality in Figure 1A-C.

2. Optogenetic experiments shown in Figure 4A-C demonstrating a role for preNMDAR in short-term facilitation: The authors demonstrate that Grin1-cKO decreases P5/P1. The narrative suggests that this change should be attributed to a decrease in P5. However, in the example shown, P5 appears similar in control and in Grin1-cKO, while P1 appears to be increased in Grin1-cKO. Are there changes in basal release in Grin1-cKO animals?

We provide more representative traces in Figure 4B. We found no significant differences in basal transmitter release, as indicated by a comparable paired-pulse ratio as stated in the manuscript (Line 201).

3. From the images presented in Figure 5B, it is hard to evaluate where the boutons are recorded from.

We thank the reviewer for this observation. We have replaced the images and provided clearer examples of boutons in Figure 5B.

4. For both uncaging and Ca2+ imaging experiments, data recorded in control mice is compared to data recorded in Grin1-cKO animals. Pharmacological blockade of NMDARs in the same boutons would provide more insight on the relative contribution of preNMDAR to presynaptic Ca2+ transients evoked by somatic APs or glutamate uncaging pulses.

We have performed the requested experiments and assessed CaTs evoked by somatic APs (Figure 5—figure supplement 1) and glutamate uncaging pulses (Figure 6—figure supplement 3) before and after NMDAR antagonism with D-APV.

5. Is there a special relationship between NMDAR and BDNF release? Or is it just that Grin1-cKO boutons experience a lower total Ca2+ influx during the MF stimulation paradigm?

The precise relationship between NMDAR and BDNF release remains poorly understood. A previous study suggested presynaptic Ca+2 influx via preNMDARs during repetitive stimulation, together with calcium released from internal stores, contributes to BDNF release at corticostriatal synapses (Park et al., Neuron 2014). While we have not measured Ca+2 influx during our MF stimulation paradigm, our observations are consistent with reductions in presynaptic Ca+2 influx underlying diminished BDNF release in Grin1-cKO boutons, and we do not discard the potential contribution of internal calcium stores.

Reviewer #2 (Recommendations for the authors):

This manuscript is succinct and well-written, making it a pleasure to read. A caveat of the study is that the imaging experiments presented appear to have very low signal:noise, preventing convincing conclusions to be drawn. In addition, while the BDNF finding is potentially important and supports the presence of preNMDARs, it seems to be largely disconnected from the rest of the story. Finally, it is not clear how preNMDAR autoreceptors can signal ionotropically at 1 Hz. These issues are elaborated in the points below. Nonetheless, these issues do not affect the overall conclusions of the paper, which is well-grounded with good experimental design and execution. We believe this paper should be highly suitable for publication in eLife after these points have been addressed.

1. BDNF: The finding that preNMDARs contribute to BDNF release is very intriguing. However, it seems to be just loosely linked to the rest of the story. Could this be tied in better somehow? In Figure 7, the authors elicit BDNF release through a repeated "burst" stimulation of 125 pulses at 25 Hz. I think the use of the word "burst" for this kind of sustained stimulation is misleading, especially in comparison with previous figures where burst stimulation consisted of 5 pulses. I also wonder why the authors used this form of stimulation, as opposed other stimulation protocols like TBS, which is both effective at eliciting BDNF release (Balkowiec and Katz, 2002) and more closely mimics GCs' sparse, bursting activity in vivo (Pernia-Andrade and Jonas, 2014).

The 125-pulse, 25 Hz stimulation protocol is commonly used to induce LTP at the mossy fiber to CA3 pyramidal cell synapse. Given that LTP at this synapse requires BDNF release, we decided to use this protocol first. We agree with the reviewer that TBS patterns of activity more closely mimic GC bursting activity in vivo. New experiments, now included in Figure 7—figure supplement 1, showed that BDNF release by more physiological burst stimulation is also reduced in the absence of preNMDARs.

In Figure 7, if Grin1-cKO reduces BDNF release physiologically, one would expect the baseline BDNF-pHluorin signal to be significantly higher in the cKO compared to the control. Has this been compared?

We have compared the baseline BDNF-pHluorin raw signals in Control and Grin1-cKO and found no significant difference (Control: 353.6 ± 72, n = 12 slices; Grin1-cKO: 286.6 ± 29, n = 10 slices; p = 0.435, unpaired t-test). Our findings suggest that preNMDARs facilitate BDNF release in an activity-dependent manner.

2. Statistics and Controls: In Figure 8, unlike in previous figures, it is not shown whether controls were done to check for stability of responses over time, either in interneurons or hilar mossy cells. This is particularly missed in 8B, as s. lucidum interneurons can show synapse-type specific long-term plasticity that affects burst facilitation (Toth et al., 2000). The mixed responses shown in 8C may reflect the synaspe dichotomy shown by Toth et al., and it could be difficult to conclude about the role of preNMDARs at interneuron synapses without further exploration of these differences.

We have added the stability experiments for CA3 interneurons and hilar mossy cells that we did not include in the original submission (see Figure 8—figure supplement 1). In response to the reviewer’s comment regarding facilitating and depressing CA3 inhibitory neurons, our data is now split into two groups i.e. facilitating and depressing synaptic inputs. NMDAR antagonism still had no effect on either population (Figure 8B).

The paired t-tests used throughout the paper provide a powerful internal comparison (Figure 1, S2, 3, 4, 8). However, as these experiments involves two rounds of LFF induction over time, drug treatment is not the only variable. Dialysis of cells after gaining whole-cell access, potential changes in efficacy of consecutive LFF induction and cell death after axotomy (Figure 3, S4), for example, can also have large influences on the results. Therefore, naive/solvent controls (like Figure S2, 3B, 3D, 4E, 4G) should have been done for each set of experiments and compared statistically with the drug treatment groups (i.e. After/before of control vs. after/before of drug treatment groups with one-way ANOVA or equivalent tests). N numbers were given in boutons/spines. It was unclear how many cells/slices/biological repeats were performed. The n=6-10 spines/boutons seem rather small. Please clarify.

The design of most of our experiments included internal controls. We understand this approach is one of the best ways to deal with variability across experiments. While running two consecutive rounds of LFF (with or without axotomy), could affect the magnitude of facilitation, we did not observe any significant change in naïve conditions.

We have revised the Figure Legends to clarify the number of animals, slices, cells, spines, or boutons.

Maintaining GCs patch-loaded for >1 hr while recirculating uncaging solutions were low yield experiments; 6 spines or 10 boutons were the highest numbers of experiments we could achieve to perform acceptable statistical analysis.

3. Lines 265-266, this seems like an erroneous conclusion to me: "Thus, preNMDARs contribute significantly to presynaptic Ca2+ rise in mossy fiber boutons, and by this means facilitate synaptic transmission." Indirect action of preNMDARs on transmission is still a possibility, even if presynaptic calcium increases when preNMDARs are activated, no? That calcium goes up does not mean that this is how the preNMDARs act, it just means it is a possible route of action. Please clarify.

We have no evidence for a preNMDAR-mediated, Ca2+ rise-independent effect on synaptic transmission. In any case, in response to the reviewer’s suggestion, we have modified the sentence as follows: “Thus, preNMDARs contribute significantly to presynaptic Ca2+ rise in mossy fiber boutons, and by this means likely facilitates synaptic transmission, although a potential contribution of Ca2+ rise-independent effects cannot be discarded.” (Lines 273-275).

Reviewer #3 (Recommendations for the authors):

In this manuscript Lituma and colleagues describe a role for presynaptic NMDARs at hippocampal mossy fiber (MF) synapses in activity dependent short-term plasticity of release onto CA3 pyramid and mossy cell postsynaptic targets but not at MF-interneuron synapses. The combined use of electron microscopy, electrophysiological, optogenetic, calcium imaging, and genetic manipulation approaches expertly employed by the authors yields high quality compelling evidence in full support of the study's main conclusions. Overall, the investigation is well designed with a clear hypothesis, appropriate methodological considerations, and logical flow resulting in a well written manuscript that is sure to be of broad scientific interest. However, I do have three major points for consideration to improve the manuscript and further ensure the physiological relevance of the findings.

1) The methods state that all electrophysiological assays were performed at 26 degrees

Celsius. Hypothermic conditions can suppress transmitter uptake and promote glutamate pooling/spillover for activation of presynaptic receptors capable of modulating release that is not readily apparent at physiological temperatures (Min et al., 1998). It seems important therefore that the authors confirm the ability of presynaptic NMDARs to contribute to short term facilitation of MF-CA3 pyramid transmission at physiological temperatures.

The reviewer raises an important point regarding physiological temperature and glutamate uptake. In response, we have performed new experiments at more physiological recording conditions: 35 ºC, and 1.2 mM Ca+2 and 1.2 mM Mg2+ extracellular concentrations. Our new results presented in Figure 4—figure supplement 1 confirm that preNMDARs contribute to short-term plasticity of mf to CA3 pyramidal cell synaptic transmission at a physiological temperature, and Ca2+ and Mg2+ extracellular concentrations.

2) The data fully support that presynaptic NMDARs have the capacity to contribute to presynaptic calcium transients (CaTs) and enhanced transmitter release. However, left undetermined is whether presynaptic NMDAR-mediated calcium events alone can promote vesicle fusion and release or if they can only enhance release over and above that initially triggered by CaTs from activation of voltage gated calcium channels (VGCCs). A potential role for presynaptic NMDARs in driving spontaneous action potential independent release at MF synapses is alluded to in the discussion. In recordings with intracellular MK-801 (with or without extracellular TTX) does subsequent NMDAR blockade alter spontaneous event frequency or is spontaneous frequency measurably reduced following loss of GRIN1 in granule cells? Of note on this subject combined blockade of P/Q- and N-type VGCCs appears to entirely eliminate MF-CA3 transmission probed with short train stimulation at comparable frequencies to the current study (Chamberland et al., 2020).

The reviewer raises another important question, namely, whether preNMDAR-mediated Ca+2 is sufficient to promote transmitter release. While we have no evidence for or against this possibility, direct demonstration likely requires uncaging NMDA onto identified presynaptic boutons in the presence of a cocktail of VGCC blockers. We did not pursue this avenue given the high cost and low benefit ratio of these experiments. As denoted by the reviewer, Chamberland et al., 2020 demonstrated P/Q and N-type VGCC blockade entirely eliminates MF-CA3 transmission –also reported in the Castillo et al., 1994 study. These studies strongly suggest that the bulk of presynaptic Ca2+ rise that triggers neurotransmitter release is mediated by VGCCs, suggesting that preNMDARs mainly play a regulatory role by boosting release.

As for a potential role of preNMDARs in facilitating spontaneous AP-independent release, elucidating such role is not straightforward given that mossy fiber inputs comprise a small fraction of the excitatory synapses impinging on a CA3 pyramidal neuron. As a result, a potential reduction in mEPSC activity by NMDAR antagonism (or genetic Grin1 removal from GCs) is likely to be lost in the background activity. In this context, it is worth noting that consistent with previous reports (Kamiya and Ozawa, J Physiol 1999; Kamiya et al., J Physiol 1996), we have evidence that the mGluR2/3 agonist DCG-IV (1-2 µM), which virtually abolishes evoked mossy fiber transmission, has a minimal effect on mEPSC activity in CA3 pyramidal cells. Thus, there are little reasons to believe that a significant reduction in mEPSC activity could be detected in CA3 pyramidal neurons following NMDAR antagonism.

3) The presynaptic calcium imaging experiments provide convincing evidence for CaTs mediated by presynaptic NMDARs. However, the physiologically relevant capacity for similar NMDAR-mediated CaTs is hard to estimate as the imaging experiments were performed in the absence of magnesium. It would of interest to know if presynaptic NMDARs have unique magnesium sensitivity or if voltage-dependent block can be overcome during brief train stimulation.

Our experiments were designed to demonstrate CaTs mediated by preNMDARs. In response to the reviewer’s comment regarding Mg2+ concentration and voltagedependent block, we performed new experiments under more physiological Mg2+ concentration. We found that NMDAR antagonism with D-APV also reduced presynaptic CaTs (Figure 5—figure supplement 1).

https://doi.org/10.7554/eLife.66612.sa2

Article and author information

Author details

  1. Pablo J Lituma

    Dominick P. Purpura Department of Neuroscience, Albert Einstein College of Medicine, Bronx, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8442-3622
  2. Hyung-Bae Kwon

    Dominick P. Purpura Department of Neuroscience, Albert Einstein College of Medicine, Bronx, United States
    Present address
    The Solomon H. Snyder Department of Neuroscience, John Hopkins University, School of Medicine, Baltimore, United States
    Contribution
    Conceptualization, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Karina Alviña

    Dominick P. Purpura Department of Neuroscience, Albert Einstein College of Medicine, Bronx, United States
    Present address
    Department of Neuroscience, University of Florida, Gainesville, United States
    Contribution
    Validation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Rafael Luján

    Instituto de Investigación en Discapacidades Neurológicas (IDINE), Facultad de Medicina, Universidad Castilla-La Mancha, Albacete, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Pablo E Castillo

    1. Dominick P. Purpura Department of Neuroscience, Albert Einstein College of Medicine, Bronx, United States
    2. Department of Psychiatry and Behavioral Sciences, Albert Einstein College of Medicine, Bronx, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    pablo.castillo@einsteinmed.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9834-1801

Funding

National Institutes of Health (R01 MH116673)

  • Pablo E Castillo

National Institutes of Health (R01 MH125772)

  • Pablo E Castillo

National Institutes of Health (R01 NS113600)

  • Pablo E Castillo

National Institutes of Health (F31 MH 109267)

  • Pablo J Lituma

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank all the Castillo lab members for invaluable discussions. We also thank Dr. Hyungju Park for his generous gift of the BDNF-phluorin DNA construct, Dr. Michael Higley for sharing Grin1 floxed mice, and Dr. Pascal Kaeser for his generous gift of the Cre-dependent ChIEF DNA construct. Funding sources: This work supported by the NIH (F31-MH109267 to PJL; R01 MH116673, R01MH125772, and R01 NS 113600 to PEC) and by the Spanish Ministerio de Economia y Competitividad (RTI2018-095812-B-I00) and Junta de Comunidades de Castillo-La Mancha (SBPLY/17/180501/000229) to RL.

Ethics

Animal experimentation: Animal handling followed a protocol approved by the Albert Einstein College of Medicine Institutional Animal Care and Use Committee (IACUC protocols 00001043, 00001047 and 00001053) in accordance with National Institute of Health guidelines.

Senior Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Reviewing Editor

  1. Katalin Toth, University of Ottawa, Canada

Reviewers

  1. Per Jesper Sjöström, McGill University, Canada
  2. Kenneth A Pelkey, Eunice Kennedy Shriver National Institute of Child Health and Human Development, National Institutes of Health, United States

Publication history

  1. Received: January 16, 2021
  2. Accepted: May 28, 2021
  3. Accepted Manuscript published: June 1, 2021 (version 1)
  4. Version of Record published: June 8, 2021 (version 2)
  5. Version of Record updated: June 10, 2021 (version 3)

Copyright

© 2021, Lituma et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,116
    Page views
  • 213
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Neuroscience
    Filip Sobczak et al.
    Research Article Updated

    Pupil dynamics serve as a physiological indicator of cognitive processes and arousal states of the brain across a diverse range of behavioral experiments. Pupil diameter changes reflect brain state fluctuations driven by neuromodulatory systems. Resting-state fMRI (rs-fMRI) has been used to identify global patterns of neuronal correlation with pupil diameter changes; however, the linkage between distinct brain state-dependent activation patterns of neuromodulatory nuclei with pupil dynamics remains to be explored. Here, we identified four clusters of trials with unique activity patterns related to pupil diameter changes in anesthetized rat brains. Going beyond the typical rs-fMRI correlation analysis with pupil dynamics, we decomposed spatiotemporal patterns of rs-fMRI with principal component analysis (PCA) and characterized the cluster-specific pupil–fMRI relationships by optimizing the PCA component weighting via decoding methods. This work shows that pupil dynamics are tightly coupled with different neuromodulatory centers in different trials, presenting a novel PCA-based decoding method to study the brain state-dependent pupil–fMRI relationship.

    1. Neuroscience
    Debora Fusca, Peter Kloppenburg
    Research Article

    Local interneurons (LNs) mediate complex interactions within the antennal lobe, the primary olfactory system of insects, and the functional analog of the vertebrate olfactory bulb. In the cockroach Periplaneta americana, as in other insects, several types of LNs with distinctive physiological and morphological properties can be defined. Here, we combined whole-cell patch-clamp recordings and Ca2+ imaging of individual LNs to analyze the role of spiking and nonspiking LNs in inter- and intraglomerular signaling during olfactory information processing. Spiking GABAergic LNs reacted to odorant stimulation with a uniform rise in [Ca2+]i in the ramifications of all innervated glomeruli. In contrast, in nonspiking LNs, glomerular Ca2+ signals were odorant specific and varied between glomeruli, resulting in distinct, glomerulus-specific tuning curves. The cell type-specific differences in Ca2+ dynamics support the idea that spiking LNs play a primary role in interglomerular signaling, while they assign nonspiking LNs an essential role in intraglomerular signaling.
