Rapid spread of a densovirus in a major crop pest following wide-scale adoption of Bt-cotton in China

  1. Yutao Xiao
  2. Wenjing Li
  3. Xianming Yang
  4. Pengjun Xu
  5. Minghui Jin
  6. He Yuan
  7. Weigang Zheng
  8. Mario Soberón
  9. Alejandra Bravo
  10. Kenneth Wilson
  11. Kongming Wu  Is a corresponding author
  1. The State Key Laboratory for Biology of Plant Disease and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, China
  2. Shenzhen Branch, Guangdong Laboratory of Lingnan Modern Agriculture, Genome Analysis Laboratory of the Ministry of Agriculture and Rural Affairs, Agricultural Genomics Institute at Shenzhen, Chinese Academy of Agricultural Sciences, China
  3. Institute of Plant Protection and Soil Fertility, Hubei Academy of Agricultural Sciences, China
  4. Tobacco Research Institute, Chinese Academy of Agricultural Sciences, China
  5. Lancaster Environment Centre, Lancaster University, United Kingdom
  6. Instituto de Biotecnología, Universidad Nacional Autónoma de México, United States
Research Article
  • Cited 1
  • Views 911
  • Annotations
Cite this article as: eLife 2021;10:e66913 doi: 10.7554/eLife.66913

Abstract

Bacillus thuringiensis (Bt) crops have been widely planted and the effects of Bt-crops on populations of the target and non-target insect pests have been well studied. However, the effects of Bt-crops exposure on microorganisms that interact with crop pests have not previously been quantified. Here, we use laboratory and field data to show that infection of Helicoverpa armigera with a densovirus (HaDV2) is associated with its enhanced growth and tolerance to Bt-cotton. Moreover, field monitoring showed a much higher incidence of cotton bollworm infection with HaDV2 in regions cultivated with Bt-cotton than in regions without it, with the rate of densovirus infection increasing with increasing use of Bt-cotton. RNA-seq suggested tolerance to both baculovirus and Cry1Ac were enhanced via the immune-related pathways. These findings suggest that exposure to Bt-crops has selected for beneficial interactions between the target pest and a mutualistic microorganism that enhances its performance on Bt-crops under field conditions.

Introduction

Transgenic crops expressing insecticidal Cry proteins from Bacillus thuringiensis bacteria, known as Bt-crops, have become important tools for the management of insect crop pests (Carrière et al., 2003; Cattaneo et al., 2006; Hutchison et al., 2010; Shelton et al., 2002; Tabashnik et al., 2010). Planting of Bt-crops effectively suppresses the targeted insects, decreasing insecticide use and promoting biocontrol services (Bravo et al., 2011; Carrière et al., 2003; Cattaneo et al., 2006; Hutchison et al., 2010; Lu et al., 2010; Lu et al., 2012; Shelton et al., 2002; Tabashnik et al., 2002; Wu, 2010; Wu et al., 2008). We have previously shown that the commercialization of transgenic Bt-cotton in China brought significant changes in the ecology of insects utilizing the crop (Lu et al., 2010; Swiatkiewicz et al., 2014; Wu et al., 2008). However, the effect of Bt-crops on other organisms, such as microbes, which could be playing important roles in the life cycle of insect populations, remains largely unknown.

Recently, we showed in laboratory trials that infection with a densovirus, Helicoverpa armigera densovirus-1 (HaDV2, named as HaDNV-1 previously, GenBank accession number: NC_015718), was associated with significantly enhanced tolerance of cotton bollworm, H. armigera, to a baculovirus (H. armigera nucleopolyhedrovirus, HaNPV) (Xu et al., 2014), and there was some suggestion that the densovirus also increased tolerance to Cry1Ac toxin in a Bt-susceptible strain of H. armigera (Xu et al., 2014; Xu et al., 2017aXu et al., 2017b). HaDV2 was found to be widespread in wild populations of H. armigera adults (>67% prevalence between 2008 and 2012) (Xu et al., 2014). The densovirus was mainly distributed in the fat body of the insect and could be both horizontally and vertically transmitted. Moreover, HaDV2-positive individuals showed faster development and higher fecundity than non-infected individuals. There was no evidence for a negative effect of HaDV2 infection on H. armigera in relation to other fitness-related traits, suggesting a possible mutualistic interaction between the cotton bollworm and HaDV2 (Xu et al., 2014).

Here, we further explore the interaction between H. armigera, HaDV2, and Bt-cotton, to establish its relevance to field populations and to test the hypothesis that the widespread adoption of Bt-cotton in China has selected for cotton bollworm carrying the densovirus. Laboratory experiments show that HaDV2 infection in both Cry1Ac-resistant and Cry1Ac-susceptible strains of cotton bollworm enhances larval tolerance to Bt and overall fitness. Field experiments indicate that H. armigera populations infected with HaDV2 also have a higher tolerance to Bt-cotton relative to those not infected with HaDV2. Moreover, field monitoring over a 10-year period indicates that the frequency of HaDV2-infected cotton bollworm is significantly higher in regions planted with Bt-cotton than in those areas where Bt-cotton is not grown, and that in Bt-cotton-growing areas, the prevalence of HaDV2 infection increases with time since Bt-cotton adoption and with the proportion of cotton that is grown which is transgenic. Further, we found that increased Bt tolerance is associated with activated immune pathways to HaDV2 infection. These results indicate that increased HaDV2 infection in cotton bollworm is correlated with the wide-scale adoption of Bt-cotton in China. Our data are consistent with the notion that exposure to Bt-crops selects for beneficial interactions between the target pest and a microorganism that enhances their fitness in response to Bt exposure under field conditions.

Results

HaDV2 infection increases Cry1Ac tolerance in H. armigera

Previous laboratory bioassays suggested that when a Cry1Ac-susceptible strain of H. armigera was infected with HaDV2, it increased its tolerance to the Cry1Ac toxin (Xu et al., 2014). To explore the generality of this finding, we first analyzed the effect of HaDV2 infection in different H. armigera populations that differ in their susceptibility to Cry1Ac due to different mechanisms of resistance. Two susceptible H. armigera strains infected with HaDV2 (96S and LF) both showed 1.5 times greater tolerance to Cry1Ac toxin, relative to their corresponding non-infected controls (Supplementary file 1a and b). In the case of the Cry1Ac-resistant strains (BtR, 96CAD, LFC2, LF5, LF60, LF120, and LF240), infection with HaDV2 again showed a significant increase in their tolerance relative to the corresponding strains without HaDV2 infection, ranging between 30% and 130% enhanced tolerance (Figure 1). The slope of the regression line is significantly greater than one (t-test: t=2.853, df=6, p=0.029), suggesting that the benefits of carrying HaDV2 may increase with increasing levels of Bt tolerance. Logistic regression confirmed that for a given strain of H. armigera, larvae harboring HaDV2 were significantly more tolerant to Cry1Ac (GLM: Strain: χ28=36.57, p<0.0001, log10 (Cry1Ac toxin concentration): χ21=848.16, p<0.0001; Strain*log10(Cry1Ac toxin concentration): χ28=97.30, p<0.0001; HaDV2-status: χ21=9.53, p=0.0020). However, there was no evidence that the benefits of hosting HaDV2 are affected by the tolerance level of the H. armigera strain, as reflected in the LC50 of the non-infected insects (χ21=0.06, p=0.80). At 8 days post-hatching, H. armigera larvae were significantly lighter (t=10.164, df=32, p<0.0001, n=17) and had lower HaDV2 viral loads in individuals feeding on diet containing Bt than the ones without Bt (t=4.527, df=32, p<0.0001, n=17), suggesting that Bt decreased the replication rate of HaDV2 by suppressing the growth of H. armigera larvae (Figure 1—figure supplement 1).

Figure 1 with 1 supplement see all

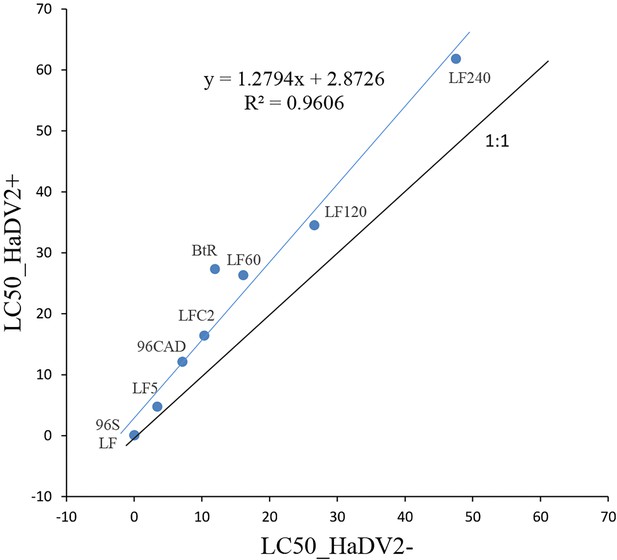

Relationship of different Helicoverpaarmigera strains’ LC50 with or without HaDV2 infection.

The x-axis is the LC50 of different strains (LF, 96S, LF5, LF60, LF120, LF240, LFC2, 96CAD, and BtR) without HaDV2 infection (HaDV2-negative); the y-axis is the LC50 of different strains (LF, 96S, LF5, LF60, LF120, LF240, LFC2, 96CAD, and BtR) with HaDV2 infection (HaDV2-positive). The regression line is described by the following equation: y=1.2794x+2.8726, R²=0.9606, F=11.99, df=1,7 (p<0.0085).

HaDV2 infection reduces the fitness cost of H. armigera associated with Cry1Ac-resistance evolution

To determine whether infection with HaDV2 reduces the costs associated with evolving resistance to Bt, a range of fitness traits (Supplementary file 1c) were measured in four strains of H. armigera that have different Bt-resistance levels (LF, LF5, LF60, and LF240) and were infected or not infected with HaDV2. Enhanced Bt-resistance in H. armigera LF, LF5, LF60, and LF240 strains was associated with lower larval survival rates, prolonged larval and pupal development (in both sexes), reduced pupal weight, lower adult emergence rate, and reduced fecundity and egg hatch rate; in contrast, sex ratio at emergence and the longevity of adults of both sexes were not influenced by the capacity to resist Cry1Ac toxin (Figure 2; Supplementary file 1c and d). When traits were combined to estimate the fundamental net reproductive rates of the four H. armigera strains, R0 (Wang et al., 2016), this revealed that in the absence of HaDV2 infection, the fitness of the most Bt-resistant strain (LF240) was around 40% of that of the most Bt-susceptible strain (LF), consistent with a large fitness cost of resistance (Figure 3); strains with intermediate levels of resistance (LF5 and LF60) suffered a lower cost of resistance (c. 30% reduction in fitness).

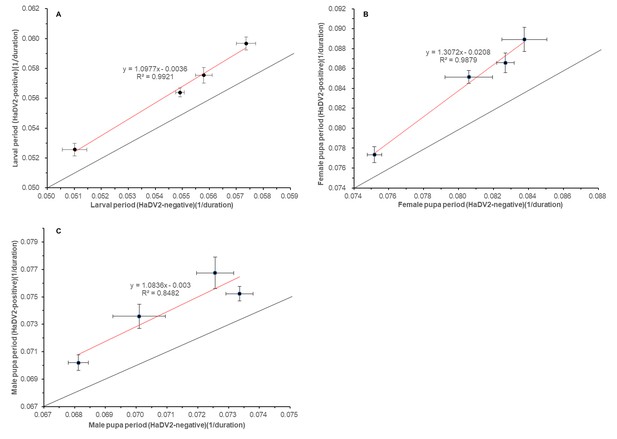

Relationship of different Helicoverpaarmigera strains’ larval (A), and pupal (B,C) with or without HaDV2 infection.

(A) The x-axis is the larval development rate (1/duration) of different strains (LF, LF5, LF60, and LF240) without HaDV2 infection (HaDV2-negative); the y-axis is the larval development rate (1/duration) of different strains (LF, LF5, LF60, and LF240) with HaDV2 infection (HaDV2-positive), y=1.0977x−0.0036, R²=0.9921, F=176.678, df=1.2, p=0.006. (B) The x-axis is the female pupal development rate (1/duration) of different strains (LF, LF5, LF60, and LF240) without HaDV2 infection (HaDV2-negative); the y-axis is the female pupa period (1/duration) of different strains (LF, LF5, LF60, and LF240) with HaDV2 infection (HaDV2-positive), y=1.3072x−0.0208, R²=0.9879, F=125.211, df=1.2, p=0.008. (C) The x-axis is the male pupa period (1/duration) of different strains (LF, LF5, LF60, and LF240) without HaDV2 infection (HaDV2-negative); the y-axis is the male pupa period (1/duration) of different strains (LF, LF5, LF60, and LF240) with HaDV2 infection (HaDV2-positive), y=1.0836x−0.003, R²=0.8482, F=7.581, df=1.2, p=0.110.

Figure 3 with 1 supplement see all

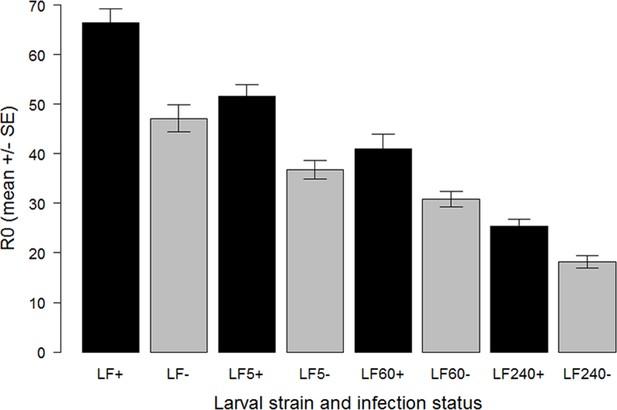

Effects of HaDV2 infection on the net reproductive rate (R0) in four Helicoverpaarmigera strains differing in their tolerance to Bt and not exposed to Cry1Ac toxin.

Mean R0 is calculated as the number of female offspring per female that reaches adulthood. The bars are bootstrapped standard errors.

Infection with HaDV2 rescued, or partially rescued, this fitness loss, in all four H. armigera strains showing a significant increase in R0 relative to their non-infected counterparts, averaging around 38% higher (paired t-test: t=4.831, df=3, p=0.017; Figure 3). Indeed, when infected with HaDV2, the R0 values of two of the three resistant strains (LF5 and LF60) were comparable to that of the non-infected susceptible (LF) strain (Figure 3).

To quantify the fitness cost associated with Cry1Ac-tolerance in the more realistic context of multiple plant defenses, the growth rate of the different strains of H. armigera larvae was also analyzed on Bt-cotton plant leaves. Larval weight after 9 days growth was significantly affected by the cotton variety (Bt or non-Bt) and by the HaDV2 infection-status (Supplementary file 1e and f), with larvae generally being heavier when fed with non-Bt-cotton than with Bt-cotton, and heavier for HaDV2-infected larvae than for larvae not infected with HaDV2; larvae were also heavier when they expressed lower levels of Bt-resistance, indicating that the cost of resistance is reflected in larval growth (Supplementary file 1e and f). None of the interactions between these three main effects explained any additional variation (model comparison with and without interaction terms: F=0.601, df=14, p=0.86), suggesting that the effects of host plant, H. armigera strain, and infection-status on larval growth were additive.

HaDV2 infection levels in field populations of H. armigera have increased over the adoption period of Bt-cotton

To determine if infection with HaDV2 could increase the performance of H. armigera when exposed to Bt-cotton in the field, we collected H. armigera moths from Xiajin (Shandong Province) and Anci (Hebei Province) in northern China, two locations where Bt-cotton has been widely planted over the last decade (An et al., 2015). Across two successive years, the prevalence of HaDV2 was extremely high (98% of 637 larvae in 2015; 97% of 180 larvae in 2016). Moreover, across both years, the relative average development rates (RADRs) (An et al., 2015) of individuals infected with HaDV2 were significantly higher than that of larvae not infected with the virus (0.62 vs. 0.52 in 2015; 0.61 vs. 0.53 in 2016) (linear model: infection status: F=28.80; df=1.815, p<0.0001; year: F=2.10, df=1.814, p=0.15; infection*year: F=0.57, df=1.813, p=0.57) (Figure 4).

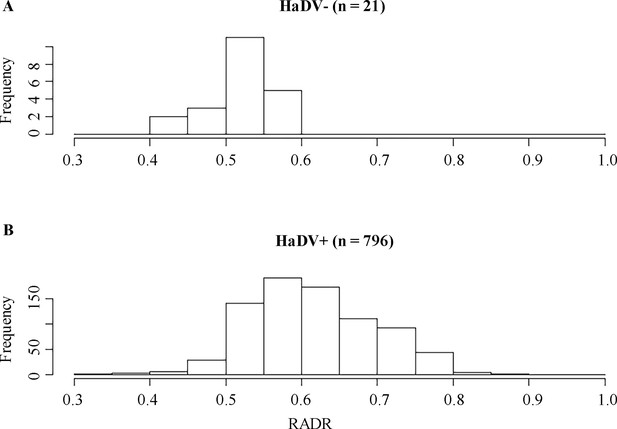

Frequency distributions for RADR scores for HaDV2 positive and negative insects.

The data were collected from field-collected insects from Xiajin and Anci in 2015 and 2016. RADR, relative average development rate.

Given the apparent selective advantage of HaDV2 infection for insects feeding on Bt-cotton, we predicted that over time we would observe an increase in HaDV2 infection rates in the field and that this would be associated with a temporal increase in average development rates for larvae feeding on Bt-cotton plants. As predicted, over the 10-year period between 2007 and 2016, at both Xiajin and Anci provinces, HaDV2 infection rates increased significantly over time (logistic regression: Xiajin: χ21=405.79, p<0.0001; Anci: χ21=325.21, p<0.0001) (Figure 5A and B). Associated with this, there was a significant temporal increase in larval development rates (RADR) at both locations (linear models: Xiajin: F=5.474, df=1.8, p=0.047; Anci: F=23.256, df=1.8, p=0.0047) (Figure 5C and D). Moreover, across the 10 years at both monitoring locations, there was a strong positive association between HaDV2 infection levels and RADRs, consistent with a possible causal relationship between these two temporal trends (linear models: Xiajin: F=23.826, df=1.9, P=0.001; Anci: F=13.676, df=1.9, P=0.006) (Figure 5E and F).

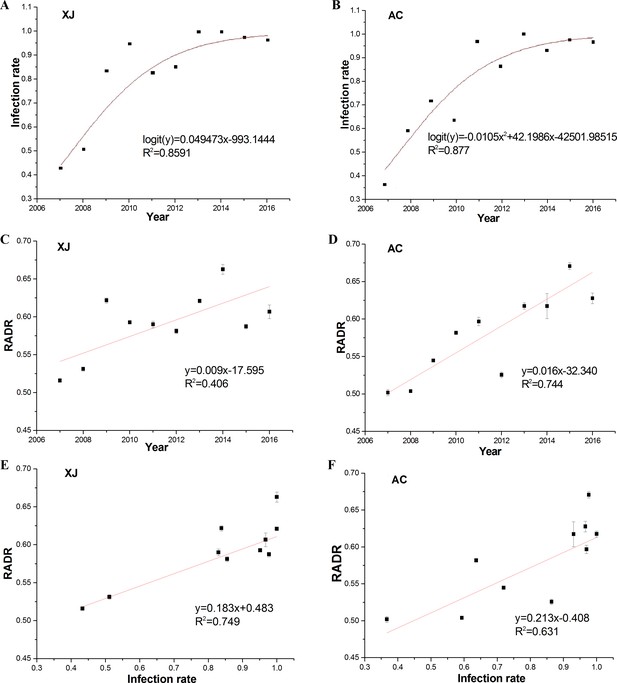

HaDV2 infection rate and RADR dynamics and their relationship for each year in the Xiajin and Anci populations during 2007–2016.

(A) Relation between HaDV2 infection rate of larvae in Xiajin populations and planting year of Bt-cotton. Logistic regression model of HaDV2 infection rate, logit (y) = 0.49473x−993.1444, R²=0.8591, χ2=405.79, df=1, p<0.0001. (B) Relation between HaDV2 infection rate of larvae in Anci populations and planting year of Bt-cotton. Logistic regression model of HaDV2 infection rate, logit (y) = −0.0105x2+42.1986x−42501.98515, R²=0.877, χ2=325.21, df=1, p<0.0001. (C) Relation between RADR of larvae in Xiajin populations and planting year of Bt-cotton. Linear model of RADR, y=0.009x−17.595, R²=0.406, F=5.474, df=1.8, p=0.047. (D) Relation between RADR of larvae in Anci populations and planting year of Bt-cotton. Linear model of RADR, y=0.016x−32.340, R2=0.744, F=23.256, df=1.8, P=0.001. (E) Relationship of larvae RADR in Xiajin population and HaDV2 infection rate during the years 2007–2016, each data point is a different year, in the Linear model of RADR, y=0.183x+0.438, R²=0.749, F=23.826, df=1.9, p=0.001. (F) Relationship of larvae RADR in Anci populations and HaDV2 infection rate during the years 2007–2016, each data point is a different year, in the Linear model of RADR, y=0.213+0.408, R²=0.625, F=13.676, df=1.9, p=0.006. The bars are the standard error of the mean RADR for the field-derived strains tested in each year. RADR, relative average development rate.

Across regions the HaDV2 infection rates increase with increasing exposure to Bt-cotton

To further test the association between H. armigera densovirus infection levels and the adoption of Bt-cotton, we monitored HaDV2 infection rates at 36 locations across 16 provinces during the period 2014–2016, including locations planted with transgenic Bt-cotton (29 monitoring points across 12 provinces) and locations where Bt-cotton has not been planted (9 monitoring points across 4 provinces) (Figure 6; Supplementary file 1g). Across all 3 years, HaDV2 infection levels in H. armigera were significantly higher at locations where Bt-cotton was planted (mean=82%) than in those where it was not (15%) (Figure 6—figure supplement 1) (logistic regression: crop (Bt vs. non-Bt): χ21=354.15, p<0.0001). There was also a significant year-by-crop interaction (χ21=24.13, p<0.0001) due to HaDV2 infection levels being uniformly high across the 3 years at sites growing Bt-cotton (81–90%), whereas infection levels gradually increased from 2014 to 2016 at non-Bt sites (12%, 16%, and 44%, respectively).

Figure 6 with 2 supplements see all

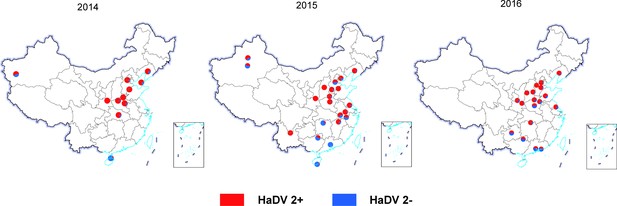

Distribution of HaDV2 in Helicoverpaarmigera from different populations.

The red proportion of circles refers to infected individuals, and the blue refers to non-infected individuals. There are significant differences in HaDV2 infection rates between the 29 Bt-cotton planting points and 7 non-Bt-cotton planting points (code: 12, 29, 30, 31, 32, 49, and 50). The sample information was summarized in Supplementary file 1g.

Moreover, across the provinces where Bt-cotton is grown, the mean prevalence of HaDV2 in H. armigera between 2014 and 2016 increased with the number of years since Bt-cotton was first introduced (χ21=173.59, p<0.0001) (Figure 7A and Figure 6—figure supplement 1) and also increased as the proportion of cotton that was transgenic increased (χ21=5.34, p=0.021) (Figure 7B). HaDV2 prevalence was not correlated with the proportional area of any of the other crops grown (χ21<1.310, p>0.25). Adding environmental variables to this minimal model, either singly or in combination, did not significantly improve the model fit (average rainfall: χ21=0.110, p=0.74; average temperature: χ21=0.155, p=0.69; average altitude: χ21=0.001, p=0.98; rainfall+temperature+altitude: χ23=0.572, p=0.90). These results are consistent with the notion that the benefits of HaDV2 infection are greatest for H. armigera exposed to Cry1Ac-producing cotton and that selection favoring HaDV2 infection increases the longer the insects are exposed to the Bt-cotton.

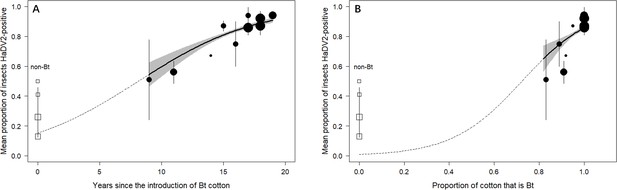

HaDV2 infection rate has increased significantly since Bt-cotton was first introduced and was positively related to the Bt adoption in all cotton areas.

(A) Temporal changes in the infection rate of HaDV2 since the introduction of Bt-cotton. (B) Changes in the infection rate of HaDV2 according to the proportion of Bt-cotton in all cotton. Each symbol represents an individual province sampled for densovirus over three years (2014–2016); the mean virus prevalence (± standard error) over those 3 years is shown. Symbol size reflects sampling effort and represents data from >1500 insects. Circles represent the 12 provinces where Bt-cotton is grown; squares are the 4 provinces where Bt-cotton is not grown. The solid line represents the logistic regression (± standard error, shaded zone) describing the relationship between virus prevalence and years since the introduction of Bt-cotton to a province for the 12 Bt-cotton-growing provinces only. The dashed line extrapolates this regression line to Year 0. The detailed information is summarized in supplementary file 1g and Figure 6—figure supplement 1.

HaDV2 infection activated the immune pathways in the cotton bollworm

To try to understand better the mechanisms increasing the Cry1Ac tolerance levels and enhanced fitness of HaDV2-infected insects, we conducted an RNA sequencing experiment (Supplementary file 1h).

The principal component analysis of the transcriptome with differentially expressed genes (DEGs) data clearly distinguished HaDV2-positive from HaDV2-negative individuals at three different time points: 24, 48, and less so at 72 hr after HaDV2 inoculation (Figure 8A,B,C). Taken together with the hierarchical clustering of these DEGs, these results suggest that the HaDV2 has a major effect on the gene expression profiles of their hosts.

Figure 8 with 1 supplement see all

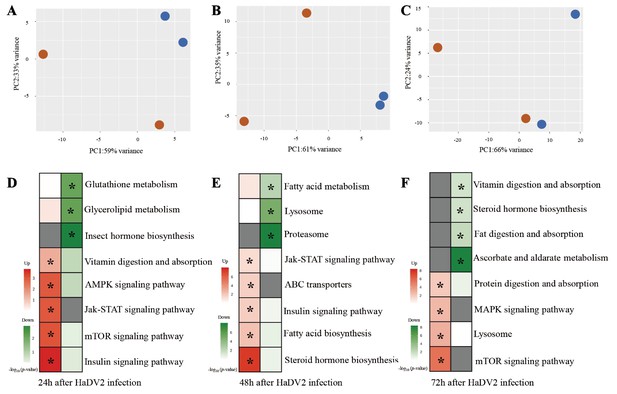

Transcriptome analysis of HaDV2-positive individuals compared to related HaDV2-negative individuals (HaDV2+ vs.HaDV2−) of Helicoverpaarmigera.

(A–C) PCA of global gene expression of DEGs at 24 (A), 48 (B), and 72 hr (C) after HaDV2 inoculation. Blue stands for HaDV2-positive samples and red stands for HaDV2-negative samples. (D–F) Heatmaps of –log10 p-values of KEGG pathways representing the upregulated and downregulated DEGs at 24 (D), 48 (E), and 72 hr (F). ‘*’ indicates the significantly enriched pathways (p<0.05). Red color shows upregulation pathways, green color shows downregulation pathways, gray color shows no value, the redder/greener the color, the lower p-values. DEG, differentially expressed gene; PCA, principal component analysis.

We performed pathway enrichment analysis on the DEGs, focusing particular attention on pathways related to the development and immune systems (Figure 8D,E,F). Genes in Jak-STAT immune signaling pathway, which are related to some antiviral and antibacterial mechanisms, were significantly enriched and upregulated in the HaDV2-infected larvae at 24 and 48 hr (Figure 8D,E and Figure 8—figure supplement 1A,B), but not at 72 hr (Figure 8F). Interestingly, genes in ABC transporters pathway at 48 hr (Figure 8—figure supplement 1C), the mitogen-activated protein kinase (MAPK) signaling and lysosome pathways at 72 hr (Figure 8—figure supplement 1D,E), which are related to antimicrobial immune response, are significantly enriched and upregulated (Figure 8E,F). Genes in pathways related to development were also significantly enriched, for example, insulin, the mammalian target of rapamycin (mTOR), AMP-activated protein kinase (AMPK) signaling, and the insect hormone biosynthesis pathways at 24 hr (Figure 8—figure supplement 1F,G,H,I), steroid hormone biosynthesis and insulin signaling pathways at 48 hr (Figure 8—figure supplement 1J,K), and the mTOR, protein digestion and absorption, and steroid hormone biosynthesis pathways at 72 hr. These results may help to explain why HaDV2-positive individuals developed more quickly than non-infected insects.

HaDV2 decreased the effect of Bt on H. armigera

There was a total of 1573 significant DEGs in HaDV2-negative insects after exposure to Cry1Ac (673 upregulated and 900 downregulated). We focused on DEGs and pathways related to Bt tolerance and immune systems. Seven ABC transporter genes, which are related to immunity, were differentially expressed (four upregulated and three downregulated) (Figure 9A); eight trypsin genes, which are related to the conversion of the protoxin to activated toxin, were differently expressed (six upregulated and two downregulated) (Figure 9B); two carboxylesterase genes, which are related to the detoxification of Bt by the insect, were upregulated; and two Bt toxin receptors genes, alkaline phosphatase (ALP) and aminopeptidase N (APN), which are related to Bt resistance, were downregulated (Figure 9C). Genes in the MAPK signaling pathway, which is related to antimicrobial immune response, was also significantly downregulated (Figure 9D).

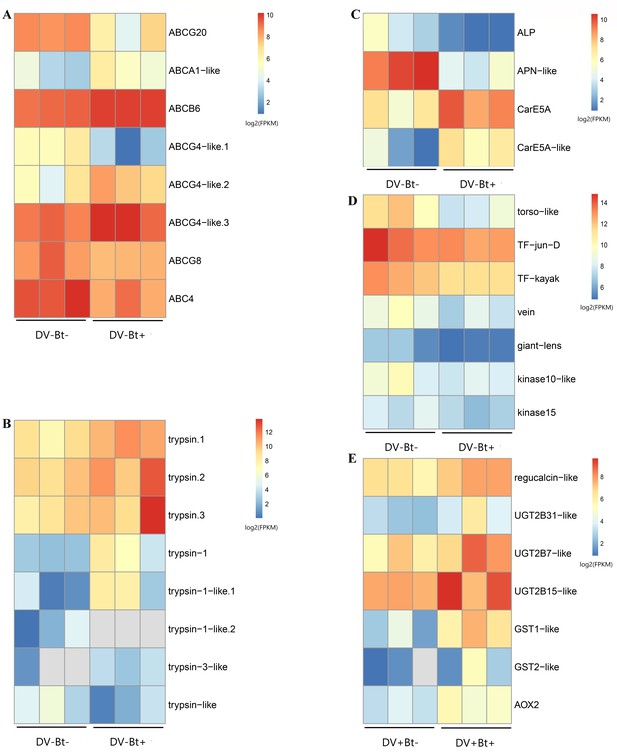

Transcriptome analysis of Helicoverpa armigera after HaDV2 infection and Cry1Ac exposure.

The quantity of DEGs with log2(FPKM) related to the expression of (A) the ABC transporters; (B) trypsin; (C) Bt receptors and carboxylesterase genes; (D) the MAPK signaling pathway; (E) the drug metabolism pathways. DV−=HaDV2-negative individuals, DV+=HaDV2-positive individuals. Bt−=larvae were fed on the artificial diet without Cry1Ac, Bt+=larvae were fed on the artificial diet containing 1 µg/mL Cry1Ac. Colors in log2(FPKM) indicate the gene expression levels, the hotter (redder) the color, the higher the gene expression level. The three columns represent three biological replicates. DEG, differentially expressed gene; MAPK, mitogen-activated protein kinase.

In contrast, there were only 249 significant DEGs in HaDV2-positive insects after exposure to Cry1Ac (165 upregulated and 84 downregulated). One trypsin gene was downregulated; genes in the ascorbate and aldarate metabolism pathway, which is related to carbohydrate metabolism were upregulated; genes in drug metabolism – cytochrome P450 pathway, metabolism of xenobiotics by cytochrome P450 pathway and drug metabolism – and other enzymes pathways, which are related to detoxification, were also upregulated (Figure 9E).

Discussion

Commercialization of transgenic Bt-crops has brought some significant benefits to farmers (Carrière et al., 2003; Cattaneo et al., 2006; Lu et al., 2012; Shelton et al., 2002; Wu et al., 2008). These Bt-plants successfully control target insect pests and have resulted in the reduced use of insecticides in the field (Bravo et al., 2011; Lu et al., 2012; Wu et al., 2008). Here, we show that HaDV2 infection enhances tolerance to Cry1Ac in both susceptible and resistant strains of H. armigera. We also show that there appears to have been a strong positive selection for HaDV2-infected H. armigera in populations exposed to Cry1Ac-cotton in the field, especially (but not exclusively) when this exposure has been for prolonged periods of time. Intensive monitoring in two provinces where Bt-cotton has been grown over a number of years showed a strong temporal increase in HaDV2 infection levels, from around 40% in 2007 to nearly 100% in 2016, with high levels of HaDV2 infection being associated with higher larval growth rates on Bt-cotton in the field. Indeed, at locations where Bt-cotton is not grown, H. armigera shows much lower rates of HaDV2 infection (12–44% vs. 81–90%), consistent with weaker selection for HaDV2-infected H. armigera in the absence of Bt-crops. Moreover, the prevalence of HaDV2 infection increased with the number of years since Bt-cotton was first introduced to a province and with the proportion of cotton grown that is transgenic, consistent with Bt-cotton being a key selection pressure. There were no significant relationships between HaDV2 prevalence and the proportional cover of any other main crops grown locally (cotton, rice, corn, wheat, beans, tubers, oil-producing crops, and vegetables) or with any of the environmental variables tested (rainfall, temperature, and altitude). Thus, our data suggest that the Cry1Ac-toxin selected for HaDV2-infected H. armigera following exposure to Bt-cotton and our RNA-Seq analysis suggests that the increased tolerance of HaDV2-infected insects is caused, in part at least, by the activation of a series of immune pathways and pathways that enhance development.

The emergence and rapid spread of a symbiont through a host population have been observed previously (Himler et al., 2011; Turelli and Hoffmann, 1991; Weeks et al., 2007). For example, the bacterial symbiont, Rickettsia sp. nr. bellii, swept through a population of invasive sweet potato whitefly, Bemisia tabaci, in just 6 years (Himler et al., 2011). Although we do not know when HaDV2 first infected H. armigera in China, in two areas where Bt-cotton is grown extensively, and where nearly 100% of all insects are currently infected with HaDV2, the prevalence of the densovirus was as low as 40% in 2007, when the earliest samples were collected (Figure 5). Moreover, extrapolation of the observed temporal trends (Figure 5A,B and Figure 7) would suggest that emergence of HaDV2 may have coincided with the introduction of Bt-cotton in China two decades ago. This apparently rapid spread is perhaps not surprising given the strong fitness benefits of carrying the densovirus (amounting to a ~40% increase in H. armigera R0) (Figure 3). Consistent with this, based on these estimated increases in R0, a simple population growth model (Himler et al., 2011) suggests that HaDV2 would go to near fixation in 20–30 generations in Bt-cotton-growing areas (Figure 3—figure supplement 1).

Rather than being a recent introduction to H. armigera in China, it is possible that the association between the HaDV2 and its host is more ancient, but that the increase in HaDV2 prevalence in recent years is because it has only recently evolved from a parasitic or commensal relationship into one that is more mutualistic (Weeks et al., 2007), perhaps under direct or indirect selection from Bt-cotton. Indeed, most of the densoviruses that have been studied thus far have tended to be at the parasitic end of the symbiotic spectrum and some of these have even been promoted as potential biological pesticides (El-Far et al., 2012). However, the observation that densoviruses tend to be parasitic in nature is likely biased by the fact that viruses with notable pathological effects on their hosts are more likely to be reported (Roossinck, 2011; Roossinck, 2015; Webster et al., 2015; Xu et al., 2020). With the advent of modern molecular methods, such as suppression subtractive hybridization and RNA-seq, it has become apparent that there are many ‘good viruses’ that have failed to be discovered due to their relatively benign, or even beneficial, effects on their hosts (Roossinck, 2011; Roossinck, 2015; Webster et al., 2015; Xu et al., 2020), including HaDV2 (Xu et al., 2014). Although there is an increasing number of studies suggesting that symbiotic microbes can impact an insect host’s ability to combat pathogens and parasites (Graham et al., 2012; Hedges et al., 2008; Oliver et al., 2003; Xu et al., 2020), as far as we are aware, this is the first field study to provide support for the notion that a symbiotic virus could protect a crop pest from Bt toxin.

Regardless of whether or not larvae are exposed to Cry1Ac, HaDV2 appears to enhance the fitness of both Bt-resistant and Bt-susceptible H. armigera (Xu et al., 2012; Figure 3). Theoretically, the infection rate should naturally increase in the H. armigera population both in Bt-cotton and non-Bt-cotton regions because of efficient transmission with horizontal and vertical modes and the mutualistic relationship between HaDV2 and its host, especially increasing its reproduction (Xu et al., 2014). We monitored HaDV2 infection rates at 38 locations across 16 provinces during the period 2014–2016. Indeed, our data showed that HaDV2 infection levels increased both in Bt-cotton and non-Bt-cotton areas. However, with the exception of samples from Changde (Hunan Province), the other 37 locations showed consistent trends that HaDV2 infection rates were significantly higher in Bt-cotton areas than in non-Bt-cotton areas. Previously, we also quantified the infection rate of HaDV2 in samples collected from Changde in 3 years (Xu et al., 2012). The final infection rate in samples from Changde in the 4 years was 45%, which is higher than the infection rate of samples from non-Bt-cotton planting regions (26%). Changde is located at the southernmost point of Bt-cotton-growing range, where the planted cotton included both non-Bt- and Bt-cotton and the fluctuation of HaDV2 infection rate in Changde might be due to both the lower pressure of Bt-cotton and the migration of H. armigera between Bt- and non-Bt-cotton-growing areas. Previously, we showed that there was evidence for a significant decline in HaDV2 prevalence from 2008 to 2012, especially in the migrating moths collected in Yantai (Beihuang Island), which is located in Bohai Sea between Bt- and non-Bt-cotton areas and where there were no resident populations of H. armigera (Feng et al., 2004; Feng et al., 2005; Feng et al., 2009; Xu et al., 2014). If we exclude the data from Yantai, however, there was no obvious temporal trend in HaDV2 prevalence between 2008 and 2012 (85%, 77%, 83%, 73%, and 75%, respectively). Other factors might also result in variation in HaDV2 infection rates. For example, there are four generations of H. armigera per year in northern China and the fourth generation overwinters as diapausing pupae, and if H. armigera grows too fast due to HaDV2 infection, it will overwinter at an inappropriate state which may lead to higher mortality of HaDV2-positive individuals (Mu et al., 1995; Zhang and Li, 2001).

The climate and crop structures of the locations where our samples were collected have been relatively constant over the last few decades and data analyses supported the notion that HaDV2 prevalence was not correlated with environmental variables or the areas of any other crops being grown. Using the PCR method, it is not possible to discount the possibility that HaDV2 was widespread in field populations of H. armigera as very low-titer covert infections, and that the higher incidence of virus in areas of Bt-cotton was due to the stress associated with larvae feeding on plants expressing Bt toxin. To test the hypothesis, using larvae with low dose of HaDV2 from single pair, we quantified the copy numbers of HaDV2 within the cotton bollworms feeding on artificial diets with or without Bt toxin. Interestingly, the results showed that feeding on the Bt toxin resulted in lower titers of HaDV2, which might be due to the Bt suppressing the growth of H. armigera larvae. These results suggest that the higher infection rate of HaDV2 might be due to lower mortality by higher Bt tolerance and the increased reproduction of the cotton bollworms with HaDV2 than those without. These findings support the notion that Bt-cotton has played an important role in increasing HaDV2 infection rates in field populations of H. armigera, and suggest the possibility that HaDV2 may threaten the future control of H. armigera by Bt.

We found some evidence to support this hypothesis from LC50-bioassays using synthetic diets containing Cry1Ac protoxin, with the benefits of hosting HaDV2 being greatest for the most Bt-resistant strains (Figure 1), suggesting synergistic effects of Bt-resistance and HaDV2 infection. However, laboratory trials using non-Bt- and Bt-cotton plants suggested that the relative fitness benefits of harboring HaDV2 were independent of exposure to Bt-cotton and of Bt-resistance levels (at least in terms of larval growth rates) (Supplementary file 1f). This is at odds with the observation that HaDV2 infection levels in the field are higher when populations are exposed to Bt-cotton for prolonged periods, and may indicate that LC50-bioassays are a more reliable measure of relative fitness than larval growth on Bt-cotton plants in the laboratory. Alternatively, it is possible that there are added benefits to HaDV2 infection for H. armigera exposed to Bt-cotton in the field that our laboratory bioassays cannot fully capture, such as the enhanced capacity to resist predators and parasitoids, or reduced exposure to chemical pesticides. In this latter regard, there may be parallels here with the increase in outbreaks of mirid bugs (Heteroptera: Miridae) following the wide-scale adoption of Bt-cotton in China and the subsequent reduction in pesticide application rate on crops (Lu et al., 2010; Zhang et al., 2018).

The evolution of tolerance to Bt-toxins could endanger the utility of this GM technology (Gahan et al., 2001, Gahan et al., 2007; Gahan et al., 2010; Heckel, 2012; Tabashnik, 2015Tabashnik et al., 2008; Tabashnik et al., 2013). However, as observed here, resistance to Cry toxins is often associated with significant fitness costs that are likely to delay the establishment of Bt-resistant populations under field conditions (Gassmann et al., 2009; Horikoshi et al., 2016; Liu et al., 2017; Raymond et al., 2005; Santos-Amaya et al., 2017). Interestingly, we show here that Bt-resistant strains with different resistance mechanisms, such as mutations affecting ABCC2 (strain LF60) or cadherin (strain 96CAD) (Liang et al., 2008; Xiao et al., 2014), incurred significantly reduced fitness costs when they were infected with HaDV2. The reduction of fitness costs by HaDV2 infection, especially increasing the reproduction of their hosts, could speed up the establishment of resistant populations. The Bt resistance induced by ABCC2 and cadherin is due to genomic heritable variation (Liang et al., 2008; Xiao et al., 2014), while the Bt tolerance induced by HaDV2 appears to be due to the regulation of immune and other pathways. ABCC2 and cadherin can directly mediate high levels of resistance to Bt toxin in H. armigera, but with significant fitness costs (e.g., lower reproduction) (Cao et al., 2014); however, HaDV2 infection could enhance host reproduction and tolerance to Cry1Ac in both susceptible and resistant strains of H. armigera, increasing larval survival rate. Susceptible strains infected with HaDV2 showed only 1.5 times greater tolerance to Cry1Ac toxin. In the case of the Cry1Ac-resistant strains, infection with HaDV2 again showed a significant increase in their resistance relative to the corresponding strains without HaDV2 infection, ranging between 30% and 130% enhanced resistance. Thus, a potential implication of these results is that the increased prevalence of HaDV2 infections under field conditions could impact the evolution of H. armigera populations resistant to Bt-cotton, which might decrease the control efficacy by Bt-cotton expressing Cry1Ac toxin and promote the development of novel strategies for H. armigera control.

The temporal increase in HaDV2 infection levels observed in Xiajin and Anci, two cotton-growing counties >300 km apart in north-east China, was associated with parallel temporal increases in relative growth rates (RADR) (Figure 5C,D). In a previous study of these two populations, the temporal increase in RADR between 2002 and 2014 was ascribed to evolved genetic resistance to Cry1Ac in H. armigera, despite the failure to identify the key genetic locus conferring resistance in these populations (An et al., 2015). The relatively strong correlation between the annual prevalence of HaDV2 in H. armigera and their mean annual RADR in each of these populations (Figure 5E,F) suggests that the putative increase in genetic resistance over this period may, at least in part, be due to the phenotypic expression of HaDV2 infection. The fact that the densovirus is mostly located in the insect’s fat body suggests that it may play a role in H. armigera development (Xu et al., 2014). Lepidopteran larvae tend to become more tolerant to pathogens and toxins as they age and grow, a phenomenon known as developmental resistance (Engelhard and Volkman, 1995). HaDV2-infected H. armigera not only accumulate more fat body than non-infected individuals, but they also grow faster and larger (Xu et al., 2012). Therefore, developmental resistance could provide a potential mechanism to explain the enhanced tolerance of densovirus-infected insects. HaDV2-infected larvae have more fat body than non-infected insects (Xu et al., 2014), and the fat body plays an important role in insect immunity as it is a major site for the production and secretion of antimicrobial peptides (Hoffmann, 2003; Lemaitre and Hoffmann, 2007), so immunological resistance is another potential mechanism by which HaDV2 may enhance resistance to both baculovirus and Cry1Ac.

To explore further the molecular interaction between the HaDV2 and its host, we performed an RNA-seq experiment using H. armigera larvae. Due to the observed effects of HaDV2 on its host, we focused on molecular pathways related to immunity and development (Jindra et al., 2013; Kingsolver and Hardy, 2012; Kingsolver et al., 2013; Lin and Smagghe, 2019; Shields, 2017). In H. armigera larvae at 24 and 48 hr, the Jak-STAT pathway was significantly enriched by upregulation in HaDV2-positive individuals. In fruit flies and mosquitoes, this pathway controls the expression of genes in response to infection with a range of viruses and bacteria, including Drosophila C virus, dengue virus, West Nile virus, Escherichia coli, and Micrococcus luteus (Barillas-Mury et al., 1999; Marques and Imler, 2016). The Jak-STAT pathway was not significantly enriched in larvae at 72 hr, however, pathways related to other antimicrobials were, for example, the lysosome and MAPK signaling pathways (Takano et al., 2019; Watts, 2012). Previously, we found that HaDV2-positive individuals developed faster than non-infected insects (Xu et al., 2014). Interestingly, the transcriptome data suggest that several pathways related to development are also significantly enriched, including the insect hormone synthesis, insulin, mTOR, and AMPK signaling pathways (Bland et al., 2010; Jindra et al., 2013; Lin and Smagghe, 2019; Saxton and Sabatini, 2017). We did not observe the differential expression of genes playing pivotal roles in Bt resistance of H. armigera, for example, cadherin, APN, and ALP (Chen et al., 2015; Gahan et al., 2001; Zhang et al., 2009), suggesting that HaDV2 may not enhance resistance to Bt using traditional molecular resistance pathways, though we did observe that the ABC transporter pathways, which has been reported to be associated with Bt-resistance (Bretschneider et al., 2016; Dermauw and Van Leeuwen, 2014), were significantly upregulated at 48 hr post challenge.

Generally, the mode of action of Bt toxins agrees that Bt protoxins are first converted to activated toxins by midgut proteases, then the toxins bind to the midgut receptors, for example, CAD, APN, and ALP, finally leading to insect death (Xiao and Wu, 2019). A change in any of these steps will lead to Bt resistance, such as mutations in genes for toxin activation, toxin-binding, and changes in insect immunity (Xiao et al., 2014; Zhang et al., 2009). To understand the responses of H. armigera to Bt toxins with or without HaDV2, we conducted RNA-seq after larvae had been exposed to Cry1Ac. In insects lacking HaDV2, Cry1Ac increased the activation of Bt protoxins by increasing the expression level of proteases, such as trypsin. In a defensive response to Cry1Ac, receptor genes of H. armigera, such as APN and ALP, were significantly downregulated to reduce the toxin-binding capacity. Carboxylesterase genes and most of ABC transporters genes were significantly upregulated to improve insect immunity, while other pathways related to antimicrobials, for example, MAPK signaling pathways, were significantly downregulated, reducing resistance to Bt toxin (Yang et al., 2020). In contrast, when H. armigera larvae were infected with HaDV2, these genes and pathways were generally not significantly enriched after Cry1Ac exposure: one trypsin gene was downregulated and some genes involved in drug metabolism were upregulated to increase the metabolism of xenobiotics, improving Bt tolerance. Through RNA-seq analysis, we did not find significant upregulation or downregulation of genes known to be related to typical Bt tolerance. Thus, it is difficult to perform further experiments, e.g. CRISPR. In spite of this, our data still support the notion that HaDV2 increased the Bt tolerance level of H. armigera via related immune mechanisms.

Whilst data from the field are inevitably correlational, when combined with the laboratory experiments, we feel that the most parsimonious explanation for the observations reported here is that HaDV2 directly or indirectly enhances tolerance of H. armigera to Bt in the field, probably via increasing larval growth rates and via priming of immune defenses. However, demonstrating causation conclusively in the field will prove difficult. One possibility would be to plant some Bt-cotton in areas that are currently Bt-free and to compare larval growth patterns and HaDV2 infection levels in neighboring Bt and non-Bt areas, mirroring the ‘natural’ field experiments we report here. As was found with the rapid spread of mutualistic Rickettsia in whiteflies (1–97% prevalence in just 6 years or around 80 field generations; Himler et al., 2011), we envisage that HaDV2 infection levels will eventually go to fixation (or close to it) in both Bt and non-Bt areas, due to the growth benefits associated harboring this mutualist, but that the time to get to this point will take longer in non-Bt areas, due to the lower fitness benefits. Likewise, we envisage that the spread of HaDV2 infection would slow down in Bt areas if Bt-cotton were to be replaced by conventional cotton or a GM variety that did not rely on Bt toxins. Another possibility would be to conduct laboratory evolution experiments using populations of H. armigera infected or not with HaDV2 growing on either Bt- or non-Bt-cotton over several generations. We envisage that HaDV2 infection levels would increase over time on both Bt- and non-Bt-cotton due to the fitness benefits of HaDV2 infection, but that the rate of spread would be faster on Bt-cotton. We also envisage that the fitness of H. armigera (R0 and cumulative population size after several generations) would be determined by the interaction between HaDV2 infected-status and cotton plant Bt-status. A similar experiment to this was conducted by Himler et al., 2011 for laboratory cages of whitefly populations infected with Rickettsia, who found that over five generations, the prevalence of Rickettsia increased from 14% in the parental generation to 40–70% on three different host plant species. Repeating such experiments with H. armigera is feasible but logistically much more difficult due to their much larger size. In summary, here, we report the rapid increase in the prevalence of a mutualistic virus in a major crop pest and show that its spread is greatest for field populations exposed to Bt-cotton for prolonged periods. Our findings support a novel mechanism by which insects may cope with changes in engineered host plant defenses, namely via infection with a mutualistic virus that enhances their tolerance to the toxins expressed by Bt-cotton crops. Our study has significant implications for understanding the co-evolution of host-pathogen-symbiont interactions. Although we show that HaDV2 increases the tolerance of its host to Bt, it is not feasible to manipulate HaDV2 infection status in the field in order to enhance the capacity of Bt to manage H. armigera because of the lack of suitable antivirals (against HaDV2) and because of the efficient vertical and horizontal transmission of this virius in the field.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Strain, strain background (Helicoverpa armigera)LFCollected from Langfang, Hebei Province, in 1998See Materials and methods, Laboratory strains
Strain, strain background (H. armigera)96SCollected from Xinxiang, Henan Province, in 1996,See Materials and methods, Laboratory strains
Strain, strain background (H. armigera)BtRCry1Ac-resistant strains selected from the susceptible strain on artificial dietsSee Materials and methods, Laboratory strains
Strain, strain background (H. armigera)96CADCry1Ac-resistant strains (with a cadherin mutation) selected from the susceptible strain on artificial dietsSee Materials and methods, Laboratory strains
Strain, strain background (H. armigera)LFC2Cry1Ac-resistant strains (with an ABCC2 mutation) selected from the susceptible strain on artificial dietsSee Materials and methods, Laboratory strains
Strain, strain background (H. armigera)LF5Cry1Ac-resistant strains selected from the susceptible strain on artificial dietsSee Materials and methods, Laboratory strains
Strain, strain background (H. armigera)LF30Cry1Ac-resistant strains selected from the susceptible strain on artificial dietsSee Materials and methods, Laboratory strains
Strain, strain background (H. armigera)LF60Cry1Ac-resistant strains selected from the susceptible strain on artificial dietsSee Materials and methods, Laboratory strains
Strain, strain background (H. armigera)LF120Cry1Ac-resistant strains selected from the susceptible strain on artificial dietsSee Materials and methods, Laboratory strains
Strain, strain background (H. armigera)LF240Cry1Ac-resistant strains selected from the susceptible strain on artificial dietsSee Materials and methods, Laboratory strains
Strain, strain background (H. armigera)Adult female bollworm mothsCollected from fieldSee Materials and methods, Collection of field strains
Biological sample (Helicoverpa armigera densovirus-1)HaDV2(Xu et al., 2014)
DOI: 10.1371/journal.ppat.1004490
See Materials and methods, HaDV2 preparation
Recombinant DNA reagentpEASY-T1 cloning vectorTransGen, Beijing, ChinaSee Materials and methods, Detection of HaDV2 in wild populations of H. armigera
Sequence-based reagentHaDV-F(Xu et al., 2014)
DOI: 10.1371/journal.ppat.1004490
GGATTGGCCTGGGAAATGAC
Sequence-based reagentHaDV-R(Xu et al., 2014)
DOI: 10.1371/journal.ppat.1004490
CGTTGTTTTTATATCCGAGG
Chemical compound, drugCry1AcDow AgroSciences (Indianapolis, IN)See Materials and methods, Bt toxins
Software, algorithmPOLO Plus LeOra SoftwarePOLO Plus LeOra Software, BerkeleyProbit analysis
Software, algorithmBLASTxBLASTxRRID:SCR_004870
Software, algorithmBowtieBowtie – 0.12.7RRID:SCR_005476
Software, algorithmRSEMRSEM – v1.1.17RRID:SCR_013027
Software, algorithmDEseq2DEseq2RRID:SCR_015687
Software, algorithmSPSSSPSSRRID:SCR_002865
Software, algorithmRADR(An et al., 2015)
Doi: org/10.1002/ps.3807
The relative average development rates

Bt toxins

Request a detailed protocol

Cry1Ac was obtained as a gift from Dow AgroSciences (Indianapolis, IN) in product formulation MVPII (20%). To avoid degradation, Cry1Ac protoxin was stored at −80°C. To exclude the possibility of a decline in protoxin potency over time, the susceptible strains (LF) were used as the internal control in different years (Cao et al., 2014).

Laboratory strains

Request a detailed protocol

Different H. armigera strains were used: two susceptible strains (LF and 96S) and eight Cry1Ac-resistant strains (BtR, 96CAD, LFC2, LF5, LF30, LF60, LF120, and LF240), with different resistance ratios due to different resistant mechanisms (Liang et al., 2008; Xiao et al., 2014). The Bt-susceptible strains, LF and 96S, were collected from Langfang, Hebei Province, in 1998, and Xinxiang, Henan Province, in 1996, respectively. They had been continuously cultured in the laboratory without exposure to Bt toxin. The resistant strains were selected from the susceptible strain on artificial diets (Cao et al., 2014; Liang et al., 2008); 96CAD (with a cadherin mutation) and LFC2 (with an ABCC2 mutation, unpublished) are two near-isogenic lines isolated from BtR and LF60 resistant strains, respectively (Xiao et al., 2017). All strains were reared on artificial diet. Rearing, selection, and bioassays were conducted at 25±1°C, photoperiod 14L:10D, and 75±10% relative humidity. To test whether the Bt could change the replication rate of HaDV2 in their hosts, newly hatched larvae from single pair matings, which both the parents and larvae were with low dose of HaDV2, fed on artificial diets with either Bt (0.5 µg/g) or without Bt and quantified larval growth and virus titers 8 days later using the qPCR method (Xu et al., 2014).

Collection of field strains

Request a detailed protocol

Adult female bollworm moths were collected from 1000 W light traps in two counties 360 km apart: Xiajin County, Shandong Province (with an intensive cotton planting area), and in Anci County, Hebei Province (with a multiple-crop farming system that includes cotton). The history of Bt-cotton deployment in the two locations during 2007–2013 has been reported previously (An et al., 2015). In the two counties, H. armigera female moths were trapped from June to October in all years, as previously reported (An et al., 2015).

HaDV2 preparation

Request a detailed protocol

HaDV2-containing liquid fluids were prepared as described previously (Xu et al., 2014). Briefly, the collected individual moths were ground in liquid nitrogen completely. About 10 mg of powder were transferred to a clean 1.5 mL tube and DNA was extracted. PCR reactions were undertaken to detect the presence of HaDV2 using specific primers, HaDV-F: GGATTGGCCTGGGAAATGAC and HaDV-R: CGTTGTTTTTATATCCGAGG. The remaining debris of HaDV2-positive individuals was transferred to 1 mL phosphate-buffered saline buffer on ice. The homogenate was centrifuged and the liquid supernatant was subsequently filtered with 0.22 µm membrane filter (Sigma-Aldrich). The HaDV2-containing filtered liquid (200 µL per tube) was collected and stored immediately at −80°C. Quantification of the virus was performed using the qPCR method (Xu et al., 2014).

Detection of HaDV2 in wild populations of H. armigera

Request a detailed protocol

Samples of larvae or adults were collected at 12 locations in 2014, 20 in 2015, and 18 in 2016 (Supplementary file 1g). Infection rates with HaDV-2 were determined using the PCR method described in Xu et al., 2012 and the virus detection limits were tested with DNA extracted from HaDV2-positive individuals and the plasmid generated with the fragments amplified with the primers for detection of HaDV2 and pEASY-T1 cloning vector (TransGen, Beijing, China). This showed that the detection limit for HaDV2 with PCR method was >61.85 copies/µL or 0.13 ng/µL DNA (Figure 6—figure supplement 2).

Bioassays

Request a detailed protocol

H. armigera strains were reared and assessed simultaneously for susceptibility to Cry1Ac, as previously reported (Liang et al., 2008). In brief, the susceptibility was evaluated by feeding H. armigera larvae with an artificial diet containing different concentrations of Cry1Ac toxin. Newly hatched larvae were first orally inoculated with either filtered-liquid containing HaDV2 or filtered-liquid from uninfected individuals. After that, they were placed in each treatment Petri dish for 2 days to ensure that larvae ingested the treated diet. They were then transferred individually on Cry1Ac-contaminated artificial diet in plastic wells (depth: 1.5 cm, vol. 3 mL) in 24-well plates. The plates were covered with a plastic lid to prevent escape and 72 larvae were tested per Cry1Ac concentration. After 7 days, the mortality was recorded and body mass of individuals that were still alive was measured. Both dead larvae and those with a body mass of less than 5 mg were recorded as dead. For each strain, the median lethal concentration (LC50) value was determined using a Probit analysis (POLO Plus LeOra Software, Berkeley) and the resistance level to Cry1Ac indicated by the resistance ratio was calculated with LC50 of the tested strains divided by the LC50 of the susceptible strain.

Assessment of fitness cost

Request a detailed protocol

To test the impact of HaDV2 infection on the fitness cost of its host, life-table parameters of the different strains were analyzed on artificial diet. The oral inoculation method was the same as previously described. Thirteen fitness components (life history parameters) were obtained with life-table techniques (Supplementary file 1c and 1d). The components considered were: (i) survival rate from the 1st to 5th larval instar (0–1), (ii) survival rate from the 5th instar to the pupal stage (0–1), (iii) duration of larval development (days), (iv) pupal weight (mg), (v) female pupal development period (days), (vi) male pupal development period (days), (vii) adult emergence rate (0–1), (viii) proportion of females (or sex ratio) (0–1), (ix) copulation rate (0–1), (x) female adult longevity (days), (xi) male adult longevity (days), (xii) fecundity (number of eggs laid), and (xiii) hatching rate (0–1). The net reproductive rate (R0) was calculated for each H. armigera strain (Cao et al., 2014) as R0=Nt+1/Nt, where Nt is the population size of the parent generation and Nt+1 is that of its next generation. When R0>1, it indicates a higher number of female offspring produced than that of the parental females. We used 30 larvae per repeat and three repeats for each treatment.

To analyze the fitness cost associated with Cry1Ac-resistance, the larval weight of the different strains was analyzed on Bt/non-Bt-cotton. Newly hatched larvae were first orally inoculated with either filtered-liquid containing HaDV2 or filtered-liquid from non-infected individuals. After that, they were placed in each treatment Petri dish for 2 days to ensure that larvae ingested the treated diet. They were then transferred individually onto Bt-cotton (Zhongmian 29) or non-Bt-cotton (Zhongmian 24) leaf in plastic wells in 24-well plates. After 9 days, the weight of individuals was measured. Each treatment had 48 larvae with three repeats.

Bioassay of F1 generation on Bt and non-Bt diets

Request a detailed protocol

To obtain F1 generation offspring of each of the laboratory strains, one virgin adult male and one virgin adult female were paired in a 250 mL clear plastic cup. Adult females collected from the field were placed individually into 250 mL clear plastic cups and covered with gauze to provide a substrate for egg laying. Eggs were collected on a daily basis. At larval hatch, 24 neonates from each female line were placed on non-Bt diet, and 24 neonates were placed on Cry1Ac-containing diet (1 μg of Cry1Ac/g diet). The concentration of Bt Cry1Ac protoxin was 1.0 μg/g diet. The composition of the diet was previously described (Chen et al., 2015). Rearing, selection, and bioassays were conducted at 27±2°C with a photoperiod of 14:10 h L:D and a relative humidity of 75±10%. Larvae were scored for the developmental stage after 6 days. Larval instar was determined on the basis of head capsule and body size.

Analyzing the effects of the HaDV2 on its hosts by transcriptome analysis

Request a detailed protocol

To determine the effect of HaDV2 on H. armigera at a transcriptomic level, we collected samples of the HaDV2-negative and HaDV2-positive individuals from single pairs of H. armigera and performed RNA-seq, using larvae at 24, 48, and 72 hr after hatching. Briefly, newly hatching larvae were fed on filtered liquid with/without HaDV2 as described previously (Xu et al., 2014). Samples were collected at 24, 48, and 72 hr and there were two groups of 30 individuals for each group per trial (Supplementary file 1h). The Trinity (v2.0.6) software (Grabherr et al., 2011) was used to assemble the clean reads with default parameters. BLASTx was performed to align the assembled contigs from Trinity to the database of NR, String, Swissprot, and KEGG for functional annotation. The e-value cutoff was set at 1E−5 for further analysis. For gene expression analysis, the reads from 12 libraries were mapped to the assembled contigs using Bowtie 0.12.7 (Langmead et al., 2009) with no more than two mismatches within the first 28 bp. The read counts accumulated on the contigs were normalized as fragments per kilobase of exon model per million mapped reads (FPKM) values (Trapnell et al., 2010). Quantitative analysis for each unigene was estimated using FPKM values by RSEM (v1.1.17) software (Li and Dewey, 2011) with default parameters. Then the R package DEseq2 (Love et al., 2014) was used to get the significantly differential expressed unigenes at different comparisons. The threshold to determine the significantly differential expressed unigenes was ‘fold change≥1.5 and the p<0.05’. The hierarchical clustering method was applied to analyze the expression pattern of significantly differentially expressed unigenes in different samples. Significantly enriched KEGG pathways were identified using the Fisher’s exact test (p<0.05) (Klopfenstein et al., 2018).

RNA sequence analysis

Request a detailed protocol

Offspring from a single uninfected breeding pair were reared to produce the N-strain (uninfected) laboratory culture. Neonate N-strain larvae were first orally inoculated with either filtered-liquid containing HaDV2 (108 copies/μL) or filtered-liquid from non-infected individuals (control). One hundred N-strain neonates were placed in each treatment Petri-dish for 2 days to ensure that larvae ingested the treated diet. They were then transferred to a 24-well plate (one individual per well: diameter=1.5 cm; height=2 cm) containing the artificial diet containing 1 µg/mL Cry1Ac toxins. After 48 hr, the larvae were collected and stored at −80°C for transcriptome sequencing. Twenty larvae were pooled together as a sample. A total of 12 samples were sequenced including three replications of four treatments (HaDV2-Bt−, HaDV2−Bt+, HaDV2+Bt−, and HaDV2+Bt+).

Quantification and statistical analysis

Request a detailed protocol

The RADRs were calculated according to An et al., 2015. In brief, the RADR for a line was calculated as the average body length rating of larvae from that line reared on the Bt diet divided by the average rating of larvae from that line reared on the non-Bt diet. Multivariate two-factor variance analysis was conducted with IBM SPSS 20. Student’s t-test or ANOVA with Tukey-test post hoc comparisons were used to determine the level of significance. Simple linear regression model was used to analyze the temporal trends of H. armigera, including RADR and HaDV2 infection rate, from 2007 to 2016. Simple linear regression model was also used to analyze the association relationship of RADR and HaDV2 infection rate in different years. Logistic regression, using the R statistical package (version 3.3.3) (R Development Core Team, 2017), was used to test the association between HaDV2 infection rate and environmental variables (rainfall and temperature) and altitude the proportional cover of the main crops (cotton, rice, corn, wheat, beans, tubers, oil-producing crops, and vegetables), the Bt status of the cotton crop, and the number of years since the introduction of Bt-cotton to a province (defined as the year in which Bt-cotton comprised at least 10% of the cotton grown in a province).

Data availability

RNA-seq data have been deposited in NCBI, see Supplementary file 8. All data generated or analysed during this study are included in the manuscript and supplementary file.

The following data sets were generated
    1. Xiao YT
    2. Li WJ
    3. Yang XM
    4. Xu PJ
    5. Jin MH
    6. Yuan H
    7. Zheng WG
    8. Soberón M
    9. Bravo A
    10. Wilson K
    11. Wu KM
    (2021) NCBI BioProject
    ID PRJNA638220. Rapid spread of a symbiotic virus in a major crop pest following wide-scale adoption of Bt-cotton in China.
    1. Xiao YT
    2. Li WJ
    3. Yang XM
    4. Xu PJ
    5. Jin MH
    6. Yuan H
    7. Zheng WG
    8. Soberón M
    9. Bravo A
    10. Wilson K
    11. Wu KM
    (2021) NCBI BioProject
    ID PRJNA638972. Rapid spread of a symbiotic virus in a major crop pest following wide-scale adoption of Bt-cotton in China.

References

    1. Mu J
    2. Cui L
    3. Chen T
    (1995)
    Testing biological constants of generation of the cotton bollworm, Heliothis armigera hubner, by the method of “thermal sums”
    Journal of Shandong Agricultural University 26:280–284.
  1. Book
    1. Shields VDC
    (2017)
    Insect physiology and ecology
    In: Rosales C, editors. Cellular and Molecular Mechanisms of Insect Immunity. London: IntechOpen. pp. 179–212.
    1. Zhang J
    2. Li Y
    (2001)
    Three climatic stages of cotton bollworm living through winter in Xinjiang
    Chinese Journal of Agrometeorology 22:44–47.

Decision letter

  1. David Heckel
    Reviewing Editor; MPI Chemical Ecology, Germany
  2. Detlef Weigel
    Senior Editor; Max Planck Institute for Developmental Biology, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Your work, which will be of interest to a broad audience interested in microbe-insect interactions and how they may affect adaptation to pesticides, nicely indicates that infection with a mutualistic virus can enhances fitness of a moth, and that selection pressure represented by transgenic crops may be driving the spread of mutualistic infections in moth populations.

Decision letter after peer review:

Thank you for submitting your article "Rapid spread of a symbiotic virus in a major crop pest following wide-scale adoption of Bt-cotton in China" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Detlef Weigel as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential Revisions:

1) Change the title to more precisely reflect the most certain conclusions of the study.

2) Clearly distinguish between resistance (the evolution of increased tolerance due to genetic changes in the pest population) and other mechanisms of increased tolerance (e.g. virus infection).

3) Provide the minimum detection limit for the densovirus, to ensure that latent infection is not missed.

4) In the Discussion, consider and evaluate an alternative hypothesis; that increased virus infection and increased tolerance of Bt cotton are parallel but independent responses to the stress of feeding on Bt cotton.

5) Redraw Figure 1 with the more appropriate units of LC50 rather than resistance ratio.

6) Clarify questions about the identity and uniqueness of the virus.

7) In the Discussion, use existing data to estimate the potential impact on reduction of pest control efficacy by Bt cotton due to densovirus infection in relevant cotton-growing areas of China; and compare this impact to estimated reduction in efficacy due to cadherin mutations and due to mutations in the ABC transporter.

8) In the Discussion, describe the ideal approach/dataset that would conclusively show that infection by the densovirus causes (not merely is associated with) the increased tolerance of Bt cotton, and evaluate this approach with respect to feasibility. Likewise evaluate the approaches presented in the manuscript relative to this ideal approach.

9) In the Discussion, discuss the feasibility or infeasibility of manipulating the virus infection status to increase the pest control efficacy by Bt cotton.

Reviewer #1:

Previous reports have provided evidence identifying infection of cotton bollworm with a densovirus as resulting in increased fitness. In the current manuscript, the relevance of this infection towards field resistance to transgenic Bt corn is evaluated by comparing its incidence between regions in China growing non-Bt versus Bt cotton. A clear correlation emerges with infection rates being higher in Bt versus non-Bt cotton growing areas, although its effect on resistance to Cry1Ac and Bt cotton is not as clear.

Strengths:

The manuscript presents evidence for the spread of densovirus infection in field bollworm populations, and that this spread seems to occur at a faster rate in areas of China where Bt cotton is grown versus non-Bt cotton areas.

Life table comparisons clearly show increased fitness in bollworms infected with the virus.

The study capitalizes on availability of an impressive collection of samples with distinct geographic and historic origin to address relevant evolutionary questions.

Weaknesses:

The suggested role for densovirus infection in resistance to Cry1Ac and Bt cotton is supported by association and the data presented does not necessarily support causation. In fact, the confidence intervals in all the comparisons from bioassays overlap substantially and the resulting resistance ratio is not a good estimate of any significant differences the infection may have on ability to survive Cry1Ac. Infection by a virus is expected to activate the immune system, so the larvae used in bioassays should be considered as "primed" and the slight reduction in susceptibility should not be considered as an effect of the virus itself.

The life table data clearly shows that fertility and fecundity are probably the most relevant aspects affecting fitness of infected insects. These differences in reproduction (even more than differences in larval growth) could explain why infection is rapidly spreading in the wild. However, most of the research and analyses are focused on the possibility that the viral infection may make the insects more able to survive Cry1Ac or Bt cotton. There are no conclusive data supporting this hypothesis in the current version, other than increased infection rates in Bt-cotton growing areas. This could be explained by effects on reproduction rather than enhanced survival.

Related to this aspect, there should be a more clear distinction between the densovirus increasing fitness versus increasing resistance, the data supports the former but is not so clear in the later.

It would be useful to provide a map detailing regions were moths were collected.

The putative effect of infection on susceptibility could be strengthened by comparing effects of treating the larvae with a non-pathogenic microbe other than the densovirus. One would expect a similar priming of the immune response, making the larva less susceptible to subsequent exposure to Cry1Ac.

The text may be misleading as written as in several statements suggests densovirus infection is related to resistance to Cry1Ac.Resistance is not due to the densovirus infection, but to other mechanisms.

More focus needs to be put on the effect of viral infection increasing reproductive output rather than larval growth. It is plausible that the former will have a more relevant role on the spread of infection. The observed higher frequency of infection in Bt cotton areas could be due to participation of infection in survival (as hypothesized) or may be a result of initial selection of individuals that were infected and subsequent spread due to higher reproductive output.

Reviewer #2:

The various pathogenic, parasitic, symbiotic, and mutualistic interactions between insects and the microbes they interact with represents a rich area of research. This study by Xiao et al. represents a very interesting example of such a relationship. Overall the study is well designed and executed. The approach they utilize to test their hypothesis is valid and they combined both laboratory and field collected insects to address the question. The RNAseq analysis also provides potential insights into possible mechanisms by which the virus HaDV2 enables enhanced resistance to Bt Cry1Ac. The RNAseq data also represent one of the minor issues. The authors focused on analyzing only development and immune systems, however, they do not report on any other significantly different changes in gene expression other than reporting that there were 1573 significant differences. The authors should at least provide some holistic analysis and report the data in the supplemental results. Focusing on development and immune systems is valid and rationally supported but a complete analysis should be presented. The relationship between H. armigera and HaDV2 is more a mutualistic relationship, thus, the authors should consider changing the titles of the manuscript and the supplementary data. This is an exciting study and is well written and will be of general interest to the field.

In this study Xiao et al., report on the association of an insect virus with the lepidopteran host Heliothis armigera and the development of increased resistance to the Bt toxin Cry1Ac in transgenic cotton. Previous studies from this group had shown that infection of H. armigera with the densovirus H. armigera densovirus-1 (HaDV2) enhanced resistance to baculovirus infections and potentially increased resistance to Cry1Ac with no detrimental impacts to fitness. In this study they test the hypothesis that the large adoption of transgenic Bt-cotton has selected for H. armigera infected with HaDV2. To test this they examined different H. armigera strains with and without HaDV2 and observed a significant increase in resistance in all strains. Previous studies has shown Bt resistance has fitness costs, they showed that resistant strains had improved reproductive rate if the strain was infected with HaDV2 apparently compensating for the fitness costs of resistance. Analysis of field collected larvae from Bt-cotton and non-Bt-cotton regions over the last 10 years showed a direct correlation with HaDV2 infection. To address the question of molecular basis for the enhanced resistance to Bt cotton when infected with HaDV2, resistant and non-resistant strains with or without HaDV2 infection were analysed by RNAseq. Differences in gene expression was bioinformatically analyzed. Focusing on biochemical pathways related to development and immune systems a number of pathways were identified which could account for the observed enhanced fitness of Bt resistant larvae. They conclude the selection of the this mutualistic virus has been selected for by the widespread use of Bt-cotton.

Additional guidance for Essential Revisions:

1) Title: The word "symbiotic" should be removed from the title. Since viruses are not free-living, they are symbiotic by definition (see for example the definitions in Roossinck 2011, which is cited). Whether the word "mutualistic" can be used in its place will depend on whether the authors can demonstrate a causal link between presence of the virus and greater fitness (not sufficiently shown in the current version). "Densovirus" should replace "virus" in the title.

2) Use of the word "resistance" must be confined to genetic changes in a population which increase its tolerance to an external stress as a result of previous exposure to that stress. "Resistance" cannot be used as a synonym for "tolerance". There is no evidence presented in the manuscript for H. armigera resistance to the granulovirus. When discussing the response of the insect to the virus, words like "tolerance", "virulence", or "susceptibility" must be used. If an individual insect's tolerance to virus infection increases as a result of feeding on Bt cotton, this is not resistance. Previous publications from this group also misused the word "resistance", but that is not a sufficient reason for its continued misuse here.

By the same token, any increase in an individual insect's tolerance to Bt cotton caused by exposure to the virus, or genes upregulated in response to the virus, is not resistance, and must not be referred to as such. "Enhanced resistance" or "increase in resistance level" may not be used. Instead, two components of tolerance should be discussed, one due to genetic resistance to Cry toxin caused by a specific mechanism (e.g. mutations in the cadherin or ABC transporter), and the other due to the difference between presence or absence of the virus.

3) Detection limit for latent virus: Has the virus actually spread, or has the stress of Bt cotton converted it from a universally-present latent form to an active form in some stressed individuals? A latent virus might be present in all individuals--can the authors rule out this possibility? The authors need to give the detection limit of their PCR technique, in term of virus genomes per single-copy gene per cell of the insect. The reference cited (Xu et al. 2014 PLoS Pathogens) describes the use of a standard curve for copy number estimation but does not describe the detection limit. The criterion for when a field-collected insect is declared not to harbor the virus must be explicitly stated here.

4) Parallel response to stress: Apart from the issue of latent viruses; the higher incidence of virus in areas of Bt cotton than non Bt-cotton, and the increase in virus incidence with the amount and proportion of Bt-cotton over time, could be partly or completely explained by increased stress on the insects feeding on Bt cotton, that weakens their defenses against the virus and allows the virus to increase within the insect. How can the authors rule this out? Even if this is only a partial explanation, how much of the higher incidence of virus could be explained by this factor, rather than a protective role of the virus against Bt toxin?

5) In Figure 1, the slope is dependent on which strain is chosen for the susceptible reference, and the labelling of the axes confounds the two components of tolerance. The figure should be redrawn with LC50 as the units on both axes. The scale may be either linear or logarithmic.

6) Uniqueness of the virus: Two abbreviations for the virus are used: HaDNV-1 and HaDV2; mostly HaDV2. The study by Xu et al. uses HaDNV-1. The GenBank record (HQ613271, cited by Xu et al. 2014) calls it "Helicoverpa armigera densovirus strain SDBH2010-1". Please provide enough information in the Supplement to remove any doubt about which virus is being discussed. Since the GenBank record names a specific strain, can we assume that there are many different strains infecting H. armigera in nature? This is also implied by the switch from -1 to -2 in the abbreviation. If there is an HaDV2, does that mean there is also a HaDV1? Which of them can be detected by the PCR method? Which of them are being counted in the increase?

7) Estimation of potential impact: This will require assumptions about the relationship between the reproductive rate and crop damage caused by the pest. Clearly state these assumptions, possibly using two or three different relationships, so that their robustness can be evaluated.

8) Ideal demonstration of causality: In the laboratory, this would involve infecting a virus-free strain of bollworm, and then curing the strain of the virus so that pre-infection, infection, and post-infection performance could be compared. Is this even possible in the laboratory? In the field?

9) Evidence was presented in earlier work that densovirus infection can reduce baculovirus infection. Does a latent or active baculovirus infection have any prospects to reverse the effect of densovirus on tolerance of Bt-cotton?

https://doi.org/10.7554/eLife.66913.sa1

Author response

Essential Revisions:

1) Change the title to more precisely reflect the most certain conclusions of the study.

We changed the title to “Rapid spread of a densovirus in a major crop pest following wide-scale adoption of Bt-cotton in China”.

2) Clearly distinguish between resistance (the evolution of increased tolerance due to genetic changes in the pest population) and other mechanisms of increased tolerance (e.g. virus infection).

We have adjusted several expressions in the article in order to better distinguish resistance and tolerance. (page 2, lines 31, 34; page 3, lines 56, 58, 71, 73; page 4 , lines 79, 87, 89, 93, 97, 98; page 5, lines 100, 102, 106, 109; page 6, line 137; page 9, line 209; page 10, line 239; page 11, line 261; page 12, line 280; page 16, line 383; page 17, line 422;page 18, line 426; page 19, line 473; page 20, lines 475, 477; page 21, lines 510).

3) Provide the minimum detection limit for the densovirus, to ensure that latent infection is not missed.

Accepted, we added the detection limit of PCR for HaDV2.

“the virus detection limits were tested with DNA extracted from HaDV2-positive individuals and the plasmid generated with the fragments amplified with the primers for detection of HaDV2 and pEASY-T1 cloning vector (TransGen, Beijing, China). This showed that the detection limit for HaDV2 with PCR method was > 61.85 copies/µL or 0.13 ng /µL DNA (Figure 6 —figure supplement 2).” (page 26, lines 569-574).

4) In the Discussion, consider and evaluate an alternative hypothesis; that increased virus infection and increased tolerance of Bt cotton are parallel but independent responses to the stress of feeding on Bt cotton.

Accepted, we provided additional experiment and added some discussion about the relationship between HaDV2 infection and the tolerance of Bt cotton as follows:

Methods: To test whether the Bt could change the replication rate of HaDV2 in their hosts, newly-hatched larvae from single pair matings, which both the parents and larvae were with low dose of HaDV2, fed on artificial diets with either Bt (0.5 µg/g) or without Bt and quantified larval growth and virus titres 8 days later using the qPCR method (Xu et al., 2014). (page 25, lines 538-542)

Results: At 8 days post-hatching, H. armigera larvae were significantly lighter (t = 10.164, d.f. = 32, P < 0.0001, n=17) and had lower HaDV2 viral loads in individuals feeding on diet containing Bt than the ones without Bt (t = 4.527, d.f. = 32, P < 0.0001, n=17), suggesting that Bt decreased the replication rate of HaDV2 by suppressing the growth of H. armigera larvae (Figure 1 —figure supplement 1). (page 5, lines 107-112).

Discussion: Using the PCR method, it is not possible to discount the possibility that HaDV2 was widespread in field populations of H. armigera as very low-titre covert infections, and that the higher incidence of virus in areas of Bt-cotton was due to the stress associated with larvae feeding on plants expressing Bt toxin. To test the hypothesis, using larvae with low dose of HaDV2 from single pair, we quantified the copy numbers of HaDV2 within the cotton bollworms feeding on artificial diets with or without Bt toxin. Interestingly, the results showed that feeding on the Bt toxin resulted in lower titres of HaDV2, which might be due to the Bt suppressing the growth of H. armigera larvae. These results suggest that the higher infection rate of HaDV2 might be due to lower mortality by higher Bt tolerance and the increased reproduction of the cotton bollworms with HaDV2 than those without. (page 15, lines 352-362).

5) Redraw Figure 1 with the more appropriate units of LC50 rather than resistance ratio.

Accepted. The figure 1 were redrew by LC50 of H. armigera strains with or without HaDV2 infection. (page 36, lines 940-945)

6) Clarify questions about the identity and uniqueness of the virus.

Accepted (Page 3, Line 54). HaDNV-1 and HaDV2 are pseudonyms for the same virus we found in Helicoverpa armigera. At the beginning, densovirus was abbreviated as “DNV” (Tijssen, et al., 1976). For distinguishing the densovirus with ambisense genome in H. armigera which was named as HaDNV (El-Far, et al., 2012), we named the densovirus we find as HaDNV-1 (Xu, et al., 2012; Xu, et al., 2014). However, the ICTV changed the abbreviation of densovirus as “DV” and named the HaDNV as HaDV1 in 2014 (Cotmore, et al., 2014). Accordingly, we changed HaDNV-1 to HaDV2 and using HaDV2 stand for the densovirus we found in newly published paper (Xu, et al., 2017a; Xu, et al., 2017b). We added the illustration (page 3, lines 54-55).

Cotmore SF, Agbandje-McKenna M, Chiorini JA, Mukha DV, Pintel DJ, Qiu J, Soderlund-Venermo M, Tattersall P, Tijssen P, Gatherer D, Davison AJ 2014. The family Parvoviridae. Arch Virol 159: 1239-1247. doi: 10.1007/s00705-013-1914-1

El-Far M, Szelei J, Yu Q, Fediere G, Bergoin M, Tijssen P 2012. Organization of the Ambisense Genome of the Helicoverpa armigera Densovirus. J Virol 86: 7024.

Tijssen P, van den Hurk J, Kurstak E 1976. Biochemical, biophysical, and biological properties of densonucleosis virus. I. Structural proteins. J Virol 17: 686-691.

Xu P, Cheng P, Liu Z, Li Y, Murphy RW, Wu K 2012. Complete genome sequence of a monosense densovirus infecting the cotton bollworm, Helicoverpa armigera. J Virol 86: 10909.

Xu P, Graham RI, Wilson K, Wu K 2017a. Structure and transcription of the Helicoverpa armigera densovirus (HaDV2) genome and its expression strategy in LD652 cells. Virol J 14: 23.

Xu P, Liu Y, Graham RI, Wilson K, Wu K 2014. Densovirus Is a Mutualistic Symbiont of a Global Crop Pest (Helicoverpa armigera) and Protects against a Baculovirus and Bt Biopesticide. PLoS Pathog 10: e1004490.

Xu P, Yuan H, Yang X, Graham RI, Liu K, Wu K 2017b. Structural proteins of Helicoverpa armigera densovirus 2 enhance transcription of viral genes through transactivation. Arch Virol 162: 1745-1750.

7) In the Discussion, use existing data to estimate the potential impact on reduction of pest control efficacy by Bt cotton due to densovirus infection in relevant cotton-growing areas of China; and compare this impact to estimated reduction in efficacy due to cadherin mutations and due to mutations in the ABC transporter.

Accepted. We added to the discussion. The Bt resistance induced by ABCC2 and cadherin is due to genomic heritable variation (Liang et al., 2008; Xiao et al., 2014), while the Bt tolerance induced by HaDV2 appears to be due to the regulation of immune and other pathways. ABCC2 and cadherin can directly mediate high levels of resistance to Bt toxin in H. armigera but with significant fitness costs (e.g. lower reproduction) (Cao et al., 2014), however, HaDV2 infection could enhance host reproduction and tolerance to Cry1Ac in both susceptible and resistant strains of H. armigera, increasing larval survival rate. (pages 16-17, lines 394-401).

8) In the Discussion, describe the ideal approach/dataset that would conclusively show that infection by the densovirus causes (not merely is associated with) the increased tolerance of Bt cotton, and evaluate this approach with respect to feasibility. Likewise evaluate the approaches presented in the manuscript relative to this ideal approach.

We have added a new section to the Discussion:

“Whilst data from the field are inevitably correlational, when combined with the laboratory experiments, we feel that the most parsimonious explanation for the observations reported here is that HaDV2 directly enhances tolerance of H. armigera to Bt in the field, probably via increasing larval growth rates and via priming of immune defences. Demonstrating causation conclusively in the field will prove difficult however. One possibility would be to plant some Bt cotton in areas that are currently Bt-free and to compare larval growth patterns and HaDV2 infection levels in neighbouring Bt and non-Bt areas, mirroring the ‘natural’ field experiments we report here. Even this approach, though, would not demonstrate causality conclusively. We envisage that HaDV2 infection levels will eventually go to fixation (or close to it) in both Bt- and non-Bt areas, due to the growth benefits associated harbouring this mutualist but that the time to get to this point will take longer in non-Bt areas, due to the lower fitness benefits. Likewise, we envisage that the spread of HaDV2 infection would slow down in Bt-areas if Bt-cotton were to be replaced by conventional cotton or a GM variety that did not rely on Bt toxins.” (pages 20, lines 470-493).

9) In the Discussion, discuss the feasibility or infeasibility of manipulating the virus infection status to increase the pest control efficacy by Bt cotton.

Accepted, we added the discussion as follows: “Although we show that HaDV2 increases the tolerance of its host to Bt, it is not feasible to manipulate HaDV2 infection status in the field in order to enhance the capacity of Bt to manage H. armigera because of the lack of suitable anti-virals (against HaDV2) and because of the efficient vertical and horizontal transmission of this virius in the field.” (pages 21, lines 512-516).

Reviewer #1:

Previous reports have provided evidence identifying infection of cotton bollworm with a densovirus as resulting in increased fitness. In the current manuscript, the relevance of this infection towards field resistance to transgenic Bt corn is evaluated by comparing its incidence between regions in China growing non-Bt versus Bt cotton. A clear correlation emerges with infection rates being higher in Bt versus non-Bt cotton growing areas, although its effect on resistance to Cry1Ac and Bt cotton is not as clear.

Strengths:

The manuscript presents evidence for the spread of densovirus infection in field bollworm populations, and that this spread seems to occur at a faster rate in areas of China where Bt cotton is grown versus non-Bt cotton areas.

Life table comparisons clearly show increased fitness in bollworms infected with the virus.

The study capitalizes on availability of an impressive collection of samples with distinct geographic and historic origin to address relevant evolutionary questions.

Weaknesses:

The suggested role for densovirus infection in resistance to Cry1Ac and Bt cotton is supported by association and the data presented does not necessarily support causation. In fact, the confidence intervals in all the comparisons from bioassays overlap substantially and the resulting resistance ratio is not a good estimate of any significant differences the infection may have on ability to survive Cry1Ac. Infection by a virus is expected to activate the immune system, so the larvae used in bioassays should be considered as "primed" and the slight reduction in susceptibility should not be considered as an effect of the virus itself.

The life table data clearly shows that fertility and fecundity are probably the most relevant aspects affecting fitness of infected insects. These differences in reproduction (even more than differences in larval growth) could explain why infection is rapidly spreading in the wild. However, most of the research and analyses are focused on the possibility that the viral infection may make the insects more able to survive Cry1Ac or Bt cotton. There are no conclusive data supporting this hypothesis in the current version, other than increased infection rates in Bt-cotton growing areas. This could be explained by effects on reproduction rather than enhanced survival.

Related to this aspect, there should be a more clear distinction between the densovirus increasing fitness versus increasing resistance, the data supports the former but is not so clear in the later.

It would be useful to provide a map detailing regions were moths were collected.

The putative effect of infection on susceptibility could be strengthened by comparing effects of treating the larvae with a non-pathogenic microbe other than the densovirus. One would expect a similar priming of the immune response, making the larva less suceptible to subsequent exposure to Cry1Ac.

Many thanks for the suggestions. That might be interesting and we also tried to construct strains of H. armigera with Wolbachia but we failed due to very low infection rate of Wolbachia in field populations of H. armigera. We didn’t find any other non-pathogenic microbes in field populations of H. armigera but if we do, the proposed experiment would be feasible.

The text may be misleading as written as in several statements suggests densovirus infection is related to resistance to Cry1Ac.Resistance is not due to the densovirus infection, but to other mechanisms.

Accepted. HaDV2 infection could increases the tolerance level of H. armigera to Cry1Ac toxin. But Resistance is not due to the HaDV2 infection. In order to avoid misleading readers, we have made necessary revisions to the relevant descriptions in the results and Discussion section of manuscript (e.g. adjusted several expressions to better distinguish resistance and tolerance). Please see details in the revised manuscript with tracking changes.

More focus needs to be put on the effect of viral infection increasing reproductive output rather than larval growth. It is plausible that the former will have a more relevant role on the spread of infection. The observed higher frequency of infection in Bt cotton areas could be due to participation of infection in survival (as hypothesized) or may be a result of initial selection of individuals that were infected and subsequent spread due to higher reproductive output.

We cannot be sure about the relative importance of increased growth, survival or reproduction in determining the spread of HaDV2 in H. armigera, but it is worth noting that the reproductive rate of HaDV2-positive individuals is ~20% greater than that of HaDV2-negative individuals and that survival from egg to adult is also ~20% higher for individuals carrying HaDV2, suggesting that both life-history traits contribute to the enhanced R0 of HaDV2-infected individuals.

Additional guidance for Essential Revisions:

1) Title: The word "symbiotic" should be removed from the title. Since viruses are not free-living, they are symbiotic by definition (see for example the definitions in Roossinck 2011, which is cited). Whether the word "mutualistic" can be used in its place will depend on whether the authors can demonstrate a causal link between presence of the virus and greater fitness (not sufficiently shown in the current version). "Densovirus" should replace "virus" in the title.

Accepted. We changed the title to “Rapid spread of a densovirus in a major crop pest following wide-scale adoption of Bt-cotton in China”.

2) Use of the word "resistance" must be confined to genetic changes in a population which increase its tolerance to an external stress as a result of previous exposure to that stress. "Resistance" cannot be used as a synonym for "tolerance". There is no evidence presented in the manuscript for H. armigera resistance to the granulovirus. When discussing the response of the insect to the virus, words like "tolerance", "virulence", or "susceptibility" must be used. If an individual insect's tolerance to virus infection increases as a result of feeding on Bt cotton, this is not resistance. Previous publications from this group also misused the word "resistance", but that is not a sufficient reason for its continued misuse here.

By the same token, any increase in an individual insect's tolerance to Bt cotton caused by exposure to the virus, or genes upregulated in response to the virus, is not resistance, and must not be referred to as such. "Enhanced resistance" or "increase in resistance level" may not be used. Instead, two components of tolerance should be discussed, one due to genetic resistance to Cry toxin caused by a specific mechanism (e.g. mutations in the cadherin or ABC transporter), and the other due to the difference between presence or absence of the virus.

Accepted. We changed “resistance” to “tolerance” and changed several descriptions in this paper in order to better distinguish resistance and tolerance (page 2, lines 31, 34; page 3, lines 56, 58, 71, 73; page 4 , lines 79, 87, 89, 93, 97, 98; page 5, lines 100, 102, 106, 109; page 6, line 137; page 9, line 209; page 10, line 239; page 11, line 261; page 12, line 280; page 16, line 383; page 17, line 422;page 18, line 426; page 19, line 473; page 20, lines 475, 477; page 21, lines 510).

3) Detection limit for latent virus: Has the virus actually spread, or has the stress of Bt cotton converted it from a universally-present latent form to an active form in some stressed individuals? A latent virus might be present in all individuals--can the authors rule out this possibility? The authors need to give the detection limit of their PCR technique, in term of virus genomes per single-copy gene per cell of the insect. The reference cited (Xu et al. 2014 PLoS Pathogens) describes the use of a standard curve for copy number estimation but does not describe the detection limit. The criterion for when a field-collected insect is declared not to harbor the virus must be explicitly stated here.

Accepted, please see the answer for Essential Revisions Question 3.

4) Parallel response to stress: Apart from the issue of latent viruses; the higher incidence of virus in areas of Bt cotton than non Bt-cotton, and the increase in virus incidence with the amount and proportion of Bt-cotton over time, could be partly or completely explained by increased stress on the insects feeding on Bt cotton, that weakens their defenses against the virus and allows the virus to increase within the insect. How can the authors rule this out? Even if this is only a partial explanation, how much of the higher incidence of virus could be explained by this factor, rather than a protective role of the virus against Bt toxin?

Accepted, Accepted, please see the answer for Essential Revisions Question 4.

5) In Figure 1, the slope is dependent on which strain is chosen for the susceptible reference, and the labelling of the axes confounds the two components of tolerance. The figure should be redrawn with LC50 as the units on both axes. The scale may be either linear or logarithmic.

Please see the answer for Essential Revisions Question 5.

6) Uniqueness of the virus: Two abbreviations for the virus are used: HaDNV-1 and HaDV2; mostly HaDV2. The study by Xu et al., uses HaDNV-1. The GenBank record (HQ613271, cited by Xu et al. 2014) calls it "Helicoverpa armigera densovirus strain SDBH2010-1". Please provide enough information in the Supplement to remove any doubt about which virus is being discussed. Since the GenBank record names a specific strain, can we assume that there are many different strains infecting H. armigera in nature? This is also implied by the switch from -1 to -2 in the abbreviation. If there is an HaDV2, does that mean there is also a HaDV1? Which of them can be detected by the PCR method? Which of them are being counted in the increase?

Accepted, please see the answer for Essential Revisions Question 6.

7) Estimation of potential impact: This will require assumptions about the relationship between the reproductive rate and crop damage caused by the pest. Clearly state these assumptions, possibly using two or three different relationships, so that their robustness can be evaluated.

Estimating the potential impact of HaDV2 and its interaction with Bt-cotton would probably require an extensive agronomic modelling exercise, which is beyond the scope of the present study, but it is worth noting that the estimated fundamental net reproductive rates, R0, for HaDV2-infected insects was around 40% higher than that of their non-infected counterparts, which probably sets an upper limit to the potential impact of HaDV2 infection. Following Himler (2011), a simple population growth model based on these R0 estimates suggests that HaDV2 would spread to close to fixation in Bt-cotton growing areas in 20-30 generations (Figure 3 —figure supplement 1) (page 12, lines 295-298).

8) Ideal demonstration of causality: In the laboratory, this would involve infecting a virus-free strain of bollworm, and then curing the strain of the virus so that pre-infection, infection, and post-infection performance could be compared. Is this even possible in the laboratory? In the field?

Right, we also tried to compare pre-infection (HaDV-), infection (HaDV2 infecting) and post-infection (HaDV2+) with samples collected at 24h, 48h and 72h after HaDV2 exposure. We conducted an RNA sequencing experiment may provide some answers to this question. The principal component analysis of the transcriptome with differentially expressed gene data clearly distinguished HaDV2-positive from -negative individuals at three different time points: 24 h, 48 h and less so at 72 h after HaDV2 inoculation, suggesting that the HaDV2 has a major effect on the gene expression profiles of their hosts. However, we thought our results only stand for pre-infection and post-infection. It’s difficult to determine the samples which were being infected by HaDV2. See pages 9-10, lines 212-234 for details.

9) Evidence was presented in earlier work that densovirus infection can reduce baculovirus infection. Does a latent or active baculovirus infection have any prospects to reverse the effect of densovirus on tolerance of Bt-cotton?

Many thanks for the suggestion. The covert infection of NPV was naturally occurred (Kemp et al., 2011; Murillo et al., 2011; Williams et al. 2017). It’s interested to run a novel investigation to determine whether latent or active baculovirus infection has any prospects to reverse the effect of HaDV2 on tolerance of Bt by series bioassays.

Kemp EM, Woodward DT, Cory JS 2011. Detection of single and mixed covert baculovirus infections in eastern spruce budworm, Choristoneura fumiferana populations. J Invertebr Pathol 107: 202-205.

Murillo R, Hussey MS, Possee RD 2011. Evidence for covert baculovirus infections in a Spodoptera exigua laboratory culture. J Gen Virol 92: 1061-1070.

Williams T, Virto C, Murillo R, Caballero P 2017. Covert Infection of Insects by Baculoviruses. Front Microbiol 8: 1337.

https://doi.org/10.7554/eLife.66913.sa2

Article and author information

Author details

  1. Yutao Xiao

    1. The State Key Laboratory for Biology of Plant Disease and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    2. Shenzhen Branch, Guangdong Laboratory of Lingnan Modern Agriculture, Genome Analysis Laboratory of the Ministry of Agriculture and Rural Affairs, Agricultural Genomics Institute at Shenzhen, Chinese Academy of Agricultural Sciences, Shenzhen, China
    Contribution
    Formal analysis, Validation, Methodology
    Contributed equally with
    Wenjing Li, Xianming Yang and Pengjun Xu
    Competing interests
    No competing interests declared
  2. Wenjing Li

    1. The State Key Laboratory for Biology of Plant Disease and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    2. Institute of Plant Protection and Soil Fertility, Hubei Academy of Agricultural Sciences, Wuhan, China
    Contribution
    Data curation, Investigation
    Contributed equally with
    Yutao Xiao, Xianming Yang and Pengjun Xu
    Competing interests
    No competing interests declared
  3. Xianming Yang

    The State Key Laboratory for Biology of Plant Disease and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    Contribution
    Resources, Formal analysis, Supervision
    Contributed equally with
    Yutao Xiao, Wenjing Li and Pengjun Xu
    Competing interests
    No competing interests declared
  4. Pengjun Xu

    1. Tobacco Research Institute, Chinese Academy of Agricultural Sciences, Qingdao, China
    2. Lancaster Environment Centre, Lancaster University, Lancaster, United Kingdom
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Yutao Xiao, Wenjing Li and Xianming Yang
    Competing interests
    No competing interests declared
  5. Minghui Jin

    Shenzhen Branch, Guangdong Laboratory of Lingnan Modern Agriculture, Genome Analysis Laboratory of the Ministry of Agriculture and Rural Affairs, Agricultural Genomics Institute at Shenzhen, Chinese Academy of Agricultural Sciences, Shenzhen, China
    Contribution
    Software, Methodology
    Competing interests
    No competing interests declared
  6. He Yuan

    Shenzhen Branch, Guangdong Laboratory of Lingnan Modern Agriculture, Genome Analysis Laboratory of the Ministry of Agriculture and Rural Affairs, Agricultural Genomics Institute at Shenzhen, Chinese Academy of Agricultural Sciences, Shenzhen, China
    Contribution
    Software, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
  7. Weigang Zheng

    Shenzhen Branch, Guangdong Laboratory of Lingnan Modern Agriculture, Genome Analysis Laboratory of the Ministry of Agriculture and Rural Affairs, Agricultural Genomics Institute at Shenzhen, Chinese Academy of Agricultural Sciences, Shenzhen, China
    Contribution
    Data curation, Software
    Competing interests
    No competing interests declared
  8. Mario Soberón

    Instituto de Biotecnología, Universidad Nacional Autónoma de México, Morelos, United States
    Contribution
    Resources, Methodology, Writing - original draft
    Competing interests
    coauthor of a patent on modified Bt toxins, "Suppression of Resistance in Insects to Bacillus thuringiensis Cry Toxins, Using Toxins that do not Require the Cadherin Receptor" (patent numbers: CA2690188A1, CN101730712A, EP2184293A2, EP2184293A4, EP2184293B1, WO2008150150A2, WO2008150150A3).
  9. Alejandra Bravo

    Instituto de Biotecnología, Universidad Nacional Autónoma de México, Morelos, United States
    Contribution
    Resources, Methodology, Writing - original draft
    Competing interests
    coauthor of a patent on modified Bt toxins, "Suppression of Resistance in Insects to Bacillus thuringiensis Cry Toxins, Using Toxins that do not Require the Cadherin Receptor" (patent numbers: CA2690188A1, CN101730712A, EP2184293A2, EP2184293A4, EP2184293B1, WO2008150150A2, WO2008150150A3).
  10. Kenneth Wilson

    1. Shenzhen Branch, Guangdong Laboratory of Lingnan Modern Agriculture, Genome Analysis Laboratory of the Ministry of Agriculture and Rural Affairs, Agricultural Genomics Institute at Shenzhen, Chinese Academy of Agricultural Sciences, Shenzhen, China
    2. Lancaster Environment Centre, Lancaster University, Lancaster, United Kingdom
    Contribution
    Data curation, Software, Funding acquisition, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5264-6522
  11. Kongming Wu

    The State Key Laboratory for Biology of Plant Disease and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    Contribution
    Resources, Supervision, Funding acquisition, Validation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    wukongming@caas.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3555-4292

Funding

The Key Project for Breeding Genetic Modified Organisms (2019ZX08012004)

  • Kongming Wu

The Key Project for Breeding Genetic Modified Organisms (2016ZX08012004)

  • Kongming Wu

Biotechnology and Biological Sciences Research Council (BB/L026821/1)

  • Kenneth Wilson

Research Councils UK (BB/P023444/1)

  • Kenneth Wilson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Bruce E Tabashnik (Department of Entomology, University of Arizona, USA) and Ling Wang (Institute of Plant Protection and Soil Fertility, Hubei Academy of Agricultural Sciences, China) for their comments on data analysis.

Senior Editor

  1. Detlef Weigel, Max Planck Institute for Developmental Biology, Germany

Reviewing Editor

  1. David Heckel, MPI Chemical Ecology, Germany

Publication history

  1. Received: January 26, 2021
  2. Preprint posted: February 10, 2021 (view preprint)
  3. Accepted: July 13, 2021
  4. Accepted Manuscript published: July 15, 2021 (version 1)
  5. Version of Record published: July 30, 2021 (version 2)

Copyright

© 2021, Xiao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 911
    Page views
  • 185
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Ecology
    Claudia Zeiträg, Ivo Jacobs
    Insight

    Eurasian jays fail to take into account the point of view and desire of other jays when hiding food they can eat later.

    1. Ecology
    2. Microbiology and Infectious Disease
    Matt Lloyd Jones et al.
    Research Article

    Common garden experiments that inoculate a standardised growth medium with synthetic microbial communities (i.e. constructed from individual isolates or using dilution cultures) suggest that the ability of the community to resist invasions by additional microbial taxa can be predicted by the overall community productivity (broadly defined as cumulative cell density and/or growth rate). However, to the best of our knowledge, no common garden study has yet investigated the relationship between microbial community composition and invasion resistance in microcosms whose compositional differences reflect natural, rather than laboratory-designed, variation. We conducted experimental invasions of two bacterial strains (Pseudomonas fluorescens and Pseudomonas putida) into laboratory microcosms inoculated with 680 different mixtures of bacteria derived from naturally occurring microbial communities collected in the field. Using 16S rRNA gene amplicon sequencing to characterise microcosm starting composition, and high-throughput assays of community phenotypes including productivity and invader survival, we determined that productivity is a key predictor of invasion resistance in natural microbial communities, substantially mediating the effect of composition on invasion resistance. The results suggest that similar general principles govern invasion in artificial and natural communities, and that factors affecting resident community productivity should be a focal point for future microbial invasion experiments.
