6-Phosphogluconate dehydrogenase (6PGD), a key checkpoint in reprogramming of regulatory T cells metabolism and function

  1. Saeed Daneshmandi  Is a corresponding author
  2. Teresa Cassel
  3. Richard M Higashi
  4. Teresa W-M Fan  Is a corresponding author
  5. Pankaj Seth  Is a corresponding author
  1. Department of Medicine, Beth Israel Deaconess Medical Center, Harvard Medical School, United States
  2. Division of Interdisciplinary Medicine, Beth Israel Deaconess Medical Center, Harvard Medical School, United States
  3. Center for Environmental and Systems Biochemistry, University of Kentucky, United States
Short Report
  • Cited 0
  • Views 211
  • Annotations
Cite this article as: eLife 2021;10:e67476 doi: 10.7554/eLife.67476

Abstract

Cellular metabolism has key roles in T cells differentiation and function. CD4+ T helper-1 (Th1), Th2, and Th17 subsets are highly glycolytic while regulatory T cells (Tregs) use glucose during expansion but rely on fatty acid oxidation for function. Upon uptake, glucose can enter pentose phosphate pathway (PPP) or be used in glycolysis. Here, we showed that blocking 6-phosphogluconate dehydrogenase (6PGD) in the oxidative PPP resulted in substantial reduction of Tregs suppressive function and shifts toward Th1, Th2, and Th17 phenotypes which led to the development of fetal inflammatory disorder in mice model. These in turn improved anti-tumor responses and worsened the outcomes of colitis model. Metabolically, 6PGD blocked Tregs showed improved glycolysis and enhanced non-oxidative PPP to support nucleotide biosynthesis. These results uncover critical role of 6PGD in modulating Tregs plasticity and function, which qualifies it as a novel metabolic checkpoint for immunotherapy applications.

Introduction

Regulatory T cells (Tregs) are distinct subsets of CD4+ T cells that limit inflammatory responses by suppressing self-reactive T cells to maintain balance between protective and excessive inflammation. Although lipid oxidation and the mevalonate pathway being considered key to their functions (Michalek et al., 2011; Timilshina et al., 2019), cellular metabolism in Tregs is an active area of investigation. Tregs depend on these pathways to maintain their suppressive functions, which are distinct from the high glycolytic signatures of conventional CD4+ effector subsets, Th1, Th2, and Th17 (Michalek et al., 2011). Although glycolysis is not major feature in Tregs, it is critical for Treg expansion (Pacella et al., 2018). Glucose (Glc) enters the cell via glucose transporter 1 (Glut1) and is metabolized to glucose 6-phosphate (G6P), which has alternative fates via glycolysis and as the entry point into the pentose phosphate pathway (PPP) (Figure 1—figure supplement 1).

The PPP, also known as the hexose monophosphate shunt or phosphogluconate pathway, comprises two interdependent branches: the oxidative branch and the non-oxidative branch. Oxidative PPP is composed of three essentially irreversible reactions in which the first is catalyzed by G6PD that converts G6P to 6-phosphogluconolactone (6PGL) while generating reduced nicotinamide adenine dinucleotide phosphate (NADPH). 6PGL then hydrolyzes to 6-phosphogluconate (6PG), which is oxidatively decarboxylated by 6-phosphogluconate dehydrogenase (6PGD), producing ribulose-5-phosphate and a second molecule of NADPH and (Figure 1—figure supplement 1A). Ribulose-5-phosphate is the precursor for ribose-5-phophate (R5P) and thence nucleotides, and NADPH is required both for reductive anabolism and for antioxidative defense.

Tregs are known to have high rates of lipid oxidation (Michalek et al., 2011), which would provoke antioxidant machinery which requires NADPH generated from PPP. We thus investigated the role of PPP in T CD4+ subsets. Our preliminary studies using inhibitors of the PPP enzymes indicated that the third enzyme in the oxidative PPP, 6PGD, has critical roles in modulating T cell functions.

To assess the role of 6PGD in modulating Treg function, we generated mice with flox targeted Pgd allele (Pgdfl/fl), which were crossed with Foxp3YPF-Cre mice to generate Pgdfl/flFoxp3YPF-Cre (thereafter Pgdfl/flFoxp3Cre). Interestingly, Pgdfl/flFoxp3Cre mice showed a distinct phenotype, namely spontaneous fatal autoimmunity and lower lifespan. Isolated Pgd-deficient Tregs had diminished suppressive functions both in vitro and in vivo. They also displayed shift in differentiation toward Th1, Th2, and Th17 CD4+ T cell subtypes. Stable isotope tracing studies on sorted Tregs revealed reprogrammed metabolic pathways consistent with the generation of these subsets. Our results for Tregs directly isolated from pro-inflammatory mice model and derived from naïve CD4+ T cells in vitro uncover a critical role of 6PGD in maintaining Tregs metabolism, phenotype, and function.

Results

PGD deficiency in Tregs induces spontaneous fatal autoimmunity

Our preliminary studies showed that pharmacological inhibitor of 6PGD (6-aminonicotinamide [6-AN]) but not G6PD inhibitor (dehydroepiandrosterone [DHEA]) enhances IFN-γ production by in vitro activated CD4+ T cells (Figure 1—figure supplement 1B), while DHEA but not 6-AN at 10 µM instigated poor T cells viability (Figure 1—figure supplement 1C). Based on these, we generated Pgdfl/fl mice (Figure 1—figure supplement 1D) and crossed with Cd4Cre mice (Figure 1—figure supplement 1F). An enhanced effector phenotype of T CD4+ subsets was observed in Pgdfl/flCd4Cre mice (Figure 1—figure supplement 1I-J) suggesting altered regulation of T cell differentiation and/or activation.

To specifically delete 6PGD in Tregs, Pgdfl/fl mice were crossed with Foxp3Cre mice (Figure 1—figure supplement 1G). In these mice, the Cre recombinase driven by the Foxp3 promoter will delete Pgd only in Tregs upon Foxp3 expression and YFP can be used as expression marker (Rubtsov et al., 2008). Pgd deletion in YFP expressing cells was verified by western blot, real-time PCR (Figure 1A–B, Figure 1—figure supplement 1E), and stable isotope-resolved metabolomics (SIRM) analysis . Notably, disruption of 6PGD in Tregs led to a profound inflammatory disorder while Pgdfl/flCd4Cre mice appeared normal (Figure 1—figure supplement 1K-L). Compared with Foxp3Cre (wild-type [WT]) controls at 20 days of age, Pgdfl/flFoxp3Cre mice exhibited a reduced body size and crusting of ears and eyelids (Figure 1C), enlargement of peripheral lymphoid organs (Figure 1D), and lymphoproliferation (Figure 1E) that was accompanied by a significantly shorter lifespan (Figure 1F). Lymphoproliferation was attributed to a higher frequency of CD4+ and CD8+ T cells in spleen (Figure 1G) with increased frequencies of CD44highCD62Llow effector/memory phenotype (Figure 1H), reduced frequencies of CD44lowCD62Lhigh naïve cells (Figure 1H), higher expressions of CD69 activation marker (Figure 1I), and enhanced production of IFN-γ (Figure 1J) in both CD4+ and CD8+ T cells. In these mice, CD8+ T cells also produced more granzyme-B and higher cytotoxic marker CD107a expression (Figure 1K). The titers of serum antibodies were much higher in Pgdfl/flFoxp3Cre than WT mice (Figure 1L). Moreover, Pgdfl/flFoxp3Cre mice had a significant increase in serum levels of IFN-γ, IL-17A, IL-4, and IL-5 (Figure 1M). Along with splenomegaly and lymphadenopathy in Pgdfl/flFoxp3Cre mice, there was an enhanced immune cell infiltration and tissue damage in main organs (Figure 1N). The development of observed fatal inflammatory disease in Pgdfl/flFoxp3Cre mice suggests a crucial role of 6PGD in modulating the function of Tregs. Such phenotype has also been reported in association with central signaling elements of metabolic reprogramming such as mechanistic target of rapamycin (mTOR) (Zeng et al., 2013) and liver kinase B1 (Yang et al., 2017).

Figure 1 with 1 supplement see all

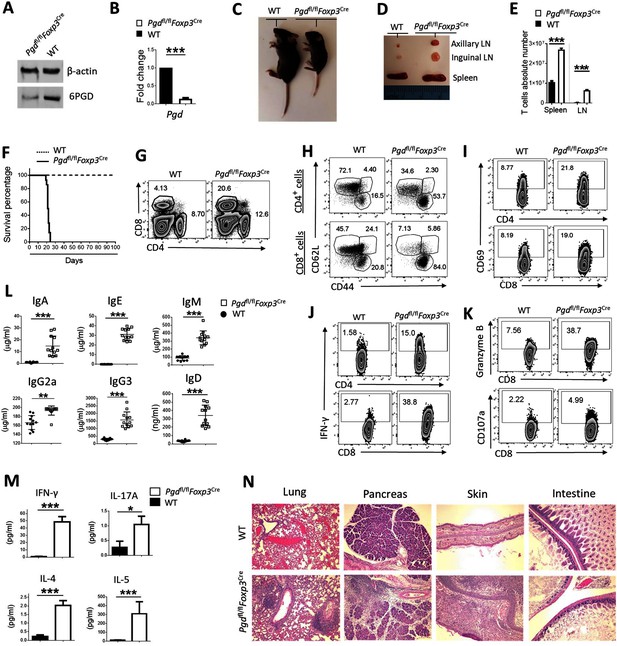

Deletion of 6-phosphogluconate dehydrogenase (6PGD) in regulatory T cells (Tregs) induces a fatal autoimmune phenotype.

(A–B) YFP+ cells were sorted from Pgd+/+Foxp3Cre (wild-type [WT]) and Pgdfl/flFoxp3Cre mice and deletion of Pgd was confirmed by western blot (A) and real-time PCR (B). (C) Representative image of 21-day-old WT and Pgdfl/flFoxp3Cre mice. (D) Representative image of lymphadenopathy in Pgdfl/flFoxp3Cre compared to WT mice. (E) T cells absolute number per spleen and peripheral lymph nodes (pLNs) of WT and Pgdfl/flFoxp3Cre mice are shown (N = 12 mice per group). (F) Survival curve of WT and Pgdfl/flFoxp3Cre mice. Representation of 15 mice per group. (G) Splenocytes from 20-day-old WT and Pgdfl/flFoxp3Cre mice were harvested and distribution of CD4+ versus CD8+ T cells were evaluated. (H) Deletion of 6PGD induces enhanced effector phenotype (CD44high CD62Llow) both in CD4+ T cells (top panel) and in CD8+ T cells (bottom panel) in 20-day-old Pgdfl/flFoxp3Cre compared to WT mice. (I) Both CD4+ and CD8+ T cells express higher levels of CD69 activation marker in Pgdfl/flFoxp3Cre compared to WT mice. (J) Splenocytes from 20-day-old WT and Pgdfl/flFoxp3Cre mice were stimulated with PMA (50 ng/ml)/ionomycin (1 μg/ml) plus GolgiPlug (1 μl/ml) for 4 hr and expression of IFN-γ was evaluated by flow cytometry. (K) Granzyme B (top panel) and CD107a degranulation activation marker (bottom panel) expression was assessed on splenocytes of 20-day-old WT and Pgdfl/flFoxp3Cre mice by flow cytometry. (L–M) Serum was collected from 20-day-old WT and Pgdfl/flFoxp3Cre mice and levels of serum antibodies (L) and IFN-γ, IL-17A, IL-4, and IL-5 (M) were detected as described in supplemental information. Results are representative of 12 mice per group. (N) Hematoxylin and eosin staining of lung: original magnification (X10), pancreas (X10), skin (X10), and intestine (X10) of WT and Pgdfl/flFoxp3Cre mice. *p < 0.05; **p < 0.01; ***p < 0.001.

Deletion of 6PGD in Tregs results in loss of their suppressive function

Based on the observed phenotype in Pgdfl/fl Foxp3Cre mice, we further evaluated specific phenotypic markers and suppressive functions of Tregs, which were either isolated from inflamed mice model or generated in vitro from naïve CD4+ T cells. The CD4+Foxp3+ cells in the spleen of 20-day-old Pgdfl/flFoxp3Cre mice were lower than the WT counterparts, both in number (Figure 2A) and in frequency of total CD4+ T cells (Figure 2B). The expression of CD98 (a subunit of the neutral amino acid transporter), CD71 (the transferrin receptor), and CD40L in these 6PGD-deficient Tregs was enhanced (Figure 2C). CD71 and CD98 are key nutrient receptors in Tregs that depend on mTORC1 (Kelly et al., 2007).

Figure 2 with 1 supplement see all

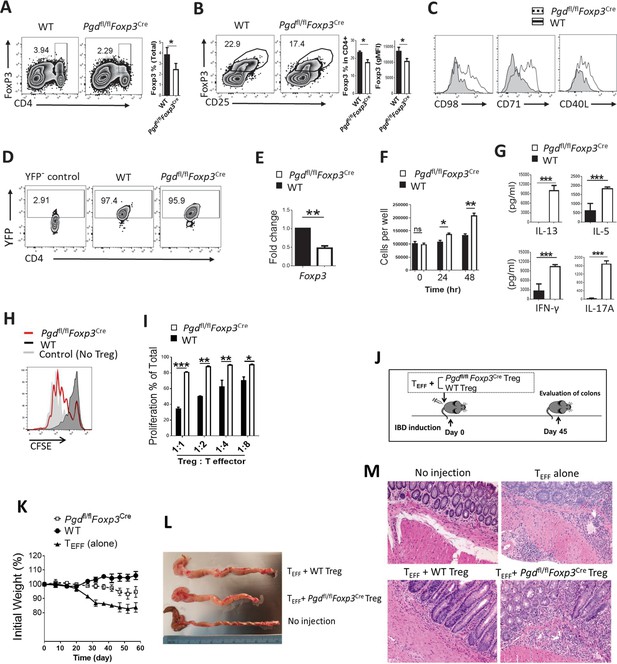

6-Phosphogluconate dehydrogenase (6PGD) blockade results in loss of suppressive function in regulatory T cells (Tregs).

(A–B) Frequency of CD4+Foxp3+ cells in spleen of 20-day-old Pgd+/+Foxp3Cre (wild type [WT]) was evaluated and demonstrated (A) in total cells or (B) in gated CD4+ T cells. Bar graphs show respective statistical differences for percentage of Foxp3+ cells and Foxp3 gMFI. (C) Expression of CD98, CD71, and CD40L on Tregs from WT and Pgdfl/flFoxp3Cre mice. (D–E) YFP+ cells were isolated from 20-day-old WT and Pgdfl/flFoxp3Cre mice. (D) Purified YFP+ cells are shown and (E) Foxp3 mRNA levels were evaluated by real-time PCR. (F) Isolated Tregs (YFP+) were cultured in vitro in presence of IL-2 (700 IU/ml) and anti-CD3/anti-CD28 coaled beads (Treg:beads ratio 1:3) and cells number was assessed at 24 and 48 hr time points. Results are representative of three independent experiments with N = 4. (G) Cytokine release in media as cultured in above culture condition. (H–I) Isolated Tregs (YFP+) from Pgdfl/flFoxp3Cre mice showed lower suppressive activity in suppression assay, as described in Materials and methods. Representative histogram of CFSE dilution pattern (Treg:Teff = 1:1 ratio) (H) and bar graph of T cell proliferation as a function of serial Treg:Teff ratios (I) are shown. Results are from three independent experiments with N = 4. (J) Tregs (YFP+) from WT and Pgdfl/flFoxp3Cre mice and T effector (CD4+CD45RBhigh) cells were isolated, mixed, and transferred to Rag1-/- mice as inflammatory bowel disease (IBD) model. Colons were evaluated 45 days after cells injection. (K) Weight change in IBD mouse model. (L) On day 45 post IBD induction Rag1-/- mice colon were measured for length and thickness. (M) Representative hematoxylin and eosin staining of Rag1-/- mice colon on day 45 after IBD induction. Results are from two independent experiments with N = 8 per group. *p < 0.05; **p < 0.01; ***p < 0.001.

Next, YFP+ (indicator of Foxp3 expression) cells (Rubtsov et al., 2008) were sorted from 20-day-old WT (Foxp3YFP-Cre) and Pgdfl/flFoxp3Cre mice and evaluated for phenotypic and functional properties. YFP+ sorted cells are demonstrated in Figure 2D. The level of Foxp3 transcript was lower in 6PGD-deficient cells evaluated by real-time PCR (Figure 2E), which is consistent with lower Foxp3 gMFI in these cells (Figure 2B). When culturing sorted YFP+ Tregs in vitro in the presence of IL-2 (700 IU/ml) and anti-CD3/anti-CD28 coated beads (Treg:beads ratio 1:3), higher number of cells were detected for 6PGD-deficient cells at both 24 and 48 hr time points (Figure 2F). This result showed that 6PGD deficiency was tolerable in Tregs and did not induce cell death in these cells. Evaluation of the culture media demonstrated significantly higher production of cytokines as markers for other CD4+ T helper subsets such as IFN-γ (Th1), IL-13 and IL-5 (Th2), and IL-17A (Th17) due to 6PGD blockade (Figure 2G). RNA sequencing (RNAseq) analysis of isolated Tregs from inflamed mice also demonstrated higher expression levels of Th1 (IFNg, Tbx21), Th2 (Il13, Il5, Il4 and Gata3), and Th17 (Il17a) marker genes in 6PGD-deficient Tregs, shown as heat map in Figure 2—figure supplement 1A and volcano plot in Figure 2—figure supplement 1B. RNAseq data were confirmed by real-time PCR for selected genes (Figure 2—figure supplement 1C) and flow cytometry (Figure 2—figure supplement 1D). It should be noted that although these shifts in gene expression are consequences of 6PGD blockade in Tregs, the resulting severe autoimmunity in mice with pro-inflammatory microenvironment should also be considered. Pro-inflammatory condition of mice could enhance or diminish some of these gene expression changes.

Although Foxp3 expression is a key marker of the Treg formation, additional metabolic and transcriptional regulations can orchestrate Treg plasticity (Shi and Chi, 2019). Pgd-deficient Tregs can be converted to Th1, Th2, and Th17 by modification of metabolic pathways. Notably, the Th2 markers IL13 and IL5 were among the most upregulated genes in Pgd deleted Tregs (Figure 2—figure supplement 1A-B), which points to Treg differentiation into Th2 type cells. These gene expression changes were consistent with significantly reduced suppressive capacity of Pgd-deficient versus WT Treg (Figure 2H–I), which was assayed by co-culturing the corresponding isolated YFP+ cells with CD4+CD45RBhigh effector cells in vitro, as described in supplemental information. Altered Treg function was along with enhancement of CD4+ T cells phenotype shift toward Th1, Th2, and Th17 cells subsets in Pgdfl/flFoxp3Cre mice (Figure 2—figure supplement 1E-G). Pro-inflammatory condition of mice could also contribute in the magnitude of these outcomes.

We also examined Tregs suppressive function in vivo using an inflammatory bowel disease (IBD) model (Figure 2J). YFP+ cells from WT and Pgdfl/flFoxp3Cre mice as well as WT CD4+ T effector (CD4+CD45RBhigh) cells were isolated, mixed, and transferred to Rag1-/- mice (Ostanin et al., 2009; Steinbach et al., 2015). Higher rate of weight loss was observed in Pgdfl/flFoxp3Cre group (Figure 2K) compared to WT. Colons were evaluated on day 45 post cells injection in the IBD model mice, 6PGD deficiency in Tregs led to shorter and thicker colons compared with no injection or injection with WT Treg (Figure 2L). Hematoxylin and eosin staining of colons demonstrated higher immune cell infiltration and destruction of colon structure (Figure 2M). Taken together these results confirm that 6PGD inhibition is associated with loss of Treg suppressive function, both in vitro and in vivo.

6PGD deficiency attenuates Treg suppressive function and induces potent anti-tumor responses

To confirm key observations from YFP+ sorted cells of Pgdfl/flFoxp3Cre mice that displayed inflammatory condition, we characterized changes in the molecular properties of WT Tregs induced by the small molecule inhibitor of 6PGD, 6-AN (Davis and Kauffman, 1987). We also examined the effect of 6PGD blockade in Tregs on tumor formation by tamoxifen treatment of Pgdfl/fl Foxp3EGFP-Cre-ERT2 mice (Figure 1—figure supplement 1H and Figure 3).

Figure 3 with 1 supplement see all

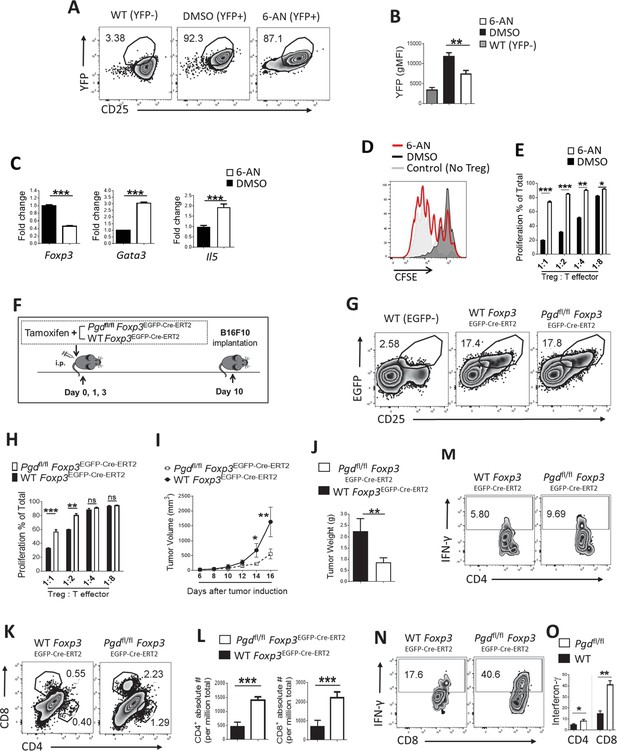

6-Phosphogluconate dehydrogenase (6PGD) blockade in regulatory T cells (Tregs) prevents their suppressive function and induces potent anti-tumor responses.

(A–B) Wild-type (WT) Foxp3Cre naïve CD4+ T cells (CD62Lhigh CD44low) were driven toward Tregs in vitro (as inducible Treg [iTreg]) along with treatment with 6-aminonicotinamide (6-AN) or vehicle DMSO and Treg drive efficacy was evaluated as CD25+YFP+ cells. YFP+ percentage in CD4+ T cells (A) and YFP gMFI (B) are demonstrated. (C) Real-time PCR analysis on derived Tregs demonstrate lower expression of Foxp3 transcription factor and higher expression of Gata3 transcription factor and IL-5 under treatment with 6-AN versus vehicle DMSO. (D–E) 6-AN treatment of driven Tregs demonstrate lower suppressive capacity evaluated in in vitro suppression assay. YFP+ cells were sorted for the suppression assay. (F) Tamoxifen treatment schedule and tumor induction by implanting B16F10 cells in Pgdfl/fl Foxp3EGFP-Cre-ERT2 and WT mice. (G) Flow cytometry analysis show the same frequency of Tregs (EGFP+) in CD4+ cells in spleen of both mouse groups 10 days post tamoxifen treatment. (H) Suppression assay on sorted EGFP+ Tregs as described in supplemental information. (I–J) 6PGD blockade in Tregs resulted in lower tumor volume (I) and tumor weight (J). (K–L) Tumor of the mouse models from (F) were evaluated for infiltration of both CD4+ and CD8+ T cells on day 16 post implantation, which were higher in 6PGD blocked mice, as shown by representative flowgram (K) and bar graphs (L). (M–O) Tumor infiltrating CD4+ (M) and CD8+ (N) T cells showed higher capacity of IFN-γ production on day 16. Results are from two independent experiments with N = 8 per group. *p < 0.05; **p < 0.01; ***p < 0.001.

First, we used WT Foxp3Cre naïve (CD62Lhigh CD44low) CD4+ T cells to generate Tregs in vitro (as inducible Tregs [iTregs]) in the polarization medium (IL-2+ TGF-β) plus 6-AN or vehicle DMSO. This medium effectively induced Foxp3 expression indicated by the YFP marker in both 6-AN and DMSO treatments (Figure 3A), with lower YFP gMFI in 6-AN treated cell (Figure 3B). Tregs generated under 6-AN treatment in vitro showed a lower level of Foxp3 (Figure 3C), but a higher level of Gata3 and IL5 (Figure 3C) expression. This difference in Foxp3/Gata3 expression in generated Tregs in vitro indicates altered Treg properties in 6PGD blocked cells. Tregs generated in the presence of 6-AN also showed diminished suppressive function in vitro (Figure 3D–E).

To control the timing of Pgd deletion in Tregs and evaluate Tregs suppressive function under controlled inflammation, we generated Pgdfl/flFoxp3EGFP-Cre-ERT2 mice by crossing Pgdfl/fl mice with Foxp3EGFP-Cre-ERT2 mice (Figure 1—figure supplement 1H). In these mice, expression of Cre in Foxp3 promoter is induced by tamoxifen treatment and EGFP can be used as a detection marker (Rubtsov et al., 2010). Suppressive function of targeted Tregs was evaluated in vitro and in vivo in a tumor model. In 6-week-old Pgdfl/flFoxp3EGFP-Cre-ERT2 mice, tamoxifen was injected on days 0, 1, and 3 to induce deletion of 6PGD in Tregs. To induce tumor formation, B16F10 melanoma cells were injected into the flank region of the mice on day 10 post tamoxifen treatment (Figure 3F). Although the tamoxifen induction does not induce deletion in 100% of Tregs in vivo, this model would induce sufficient 6PGD deletion in targeted Tregs to be tracked in vivo (Rubtsov et al., 2010). Foxp3 expression was detected by EGFP expression (CD4+CD25+EGFP+ cells in spleen) (Figure 3G). EGFP+ sorted cells showed reduced suppressive activity in vitro (Figure 3H), as seen in the YFP+ sorted cells from Pgdfl/fl Foxp3Cre mice (Figure 2H–I) or Tregs generated in presence of 6-AN (Figure 3D–E).

In the B16F10 tumor model, induced 6PGD deletion in Tregs resulted in reduced tumor growth (Figure 3I) and smaller final mass (Figure 3J) on day 16 post tumor induction. Assessing cell types in the tumor, we saw more CD8+ and CD4+ T cell infiltration (Figure 3K–L), along with higher IFN-γ production from both CD4+ (Figure 3M) and CD8+ (Figure 3N) T cells in Pgdfl/flFoxp3EGFP-Cre-ERT2 versus WT mice. Thus, in the tumor microenvironment, Tregs were altered by 6PGD blockade to unleash host anti-tumor responses. As such, 6PGD can serve as a metabolic checkpoint for immune activation by modulating Tregs activity, which is considered to be desirable (Wang et al., 2017; Pacella and Piconese, 2019).

6PGD function in Tregs is required for control of allergic (Th2) responses

Tregs are responsible for suppression of T subset effector responses but they also have the plasticity to convert into these subsets (Shi and Chi, 2019). A well-defined organ to follow Th2 responses control by Tregs is lung. In Pgdfl/flFoxp3Cre mice, significant Th2 (allergic) responses were evident in the lung (Figure 3—figure supplement 1). These included higher collagen deposits (Figure 3—figure supplement 1A, top panels), higher mucus accumulation (Figure 3—figure supplement 1A, bottom panels), and higher infiltration of T cells (both CD4+ and CD8+ cells) in the lung (Figure 3—figure supplement 1C) with enhanced production of Th2 markers such as IL-13 (Figure 3—figure supplement 1D), IL-5 (Figure 3—figure supplement 1F), and IL-4 (Figure 3—figure supplement 1H) by CD4+ T cells. The sorted YFP+ Tregs from 6PGD blocked mice also expressed lower levels of Foxp3 and higher levels of Gata3 transcription factors (Figure 3—figure supplement 1B). Moreover, the Th2 markers were higher in the spleen of the Pgdfl/flFoxp3Cre mice (Figure 3—figure supplement 1E,G,I).

High allergic responses in Pgdfl/fl Foxp3Cre mice was also evident with higher infiltration of eosinophils (CD11clow/- Siglect-F+) in the lung (Figure 3—figure supplement 1J; Stevens et al., 2007) and spleen (CD11b+ Siglect-F+) (Figure 3—figure supplement 1K; Hey et al., 2015). These allergic responses were accompanied by infiltration of CD11b+ Ly6G+ cells in the lung and spleen of Pgdfl/flFoxp3Cre mice (Figure 3—figure supplement 1L-M; Xue et al., 2020; Bronte et al., 2016).

Although the shift toward Th2 responses (Figures: 1M; Figure 2—figure supplement 1B-C; Figure 3—figure supplement 1; Figure 2G; and Figure 3C) was dominant in 6PGD-deficient Tregs, enhancement of Th1 and Th17 responses was also noted by higher IFN-γ and IL-17A in the serum (Figure 1M) and higher frequency of CD4+IFN-γ+ and CD4+IL-17A+ cells in the spleen (Figure 2—figure supplement 1E, G). Beside these enhanced Th1 and Th17 responses, YFP+ Tregs isolated from Pgdfl/fl Foxp3Cre mice showed elevated expression of Ifng, Tbx21, and Il17a genes (Figure 2—figure supplement 1A, C) and sorted Tregs cultured in vitro secreted higher amount of IFN-γ and IL-17A into media (Figure 2G).

In other reports, comparable patterns of Treg plasticity have been observed by blocking a key regulator of Tregs metabolism, mTOR. Mtorfl/flFoxp3Cre mice showed 10- to 15-fold increases of Th2 mediators while increases in Th1 and Th17 responses were 2- to 3-fold (Chapman et al., 2018).

6PGD blockade in Tregs induces metabolic reprogramming similar to that of T effector cells

Next, we examined metabolic shifts in the Tregs isolated from WT and Pgdfl/flFoxp3Cre mice. It should be noted that the pro-inflammatory microenvironment of the mice could contribute to Tregs metabolic reprogramming, beside the intrinsic effects of 6PGD. We first assessed glycolysis and mitochondrial respiration by measuring the extracellular acidification rate (ECAR) and oxygen consumption rate (OCR) (Figure 4A–B). Tregs isolated from Pgdfl/flFoxp3Cre mice showed significant increase in both basal and reserve capacity in ECAR (Figure 4A) and OCR (Figure 4B) compared to WT Tregs. We also evaluated Glc uptake and mitochondrial status by fluorescent dye staining (Figure 4C). Compared to WT Tregs, 6PGD-deficient Tregs had increased Glc uptake capacity determined by 2-NBDG uptake (Figure 4C). These cells also showed increase in mitochondrial potential (ΔΨm) as measured by TMRE (Figure 4C) without changes in the mitochondrial mass as examined by MitoTracker Deep Red FM (Figure 4C). Moreover, mitochondrial ROS (assessed by MitoSox Red) was enhanced in 6PGD blocked Tregs (Figure 4C). These results are consistent with the observed skew of the Tregs phenotype and markers toward conventional CD4+ T effector subsets (Michalek et al., 2011; Pacella et al., 2018).

Figure 4 with 3 supplements see all

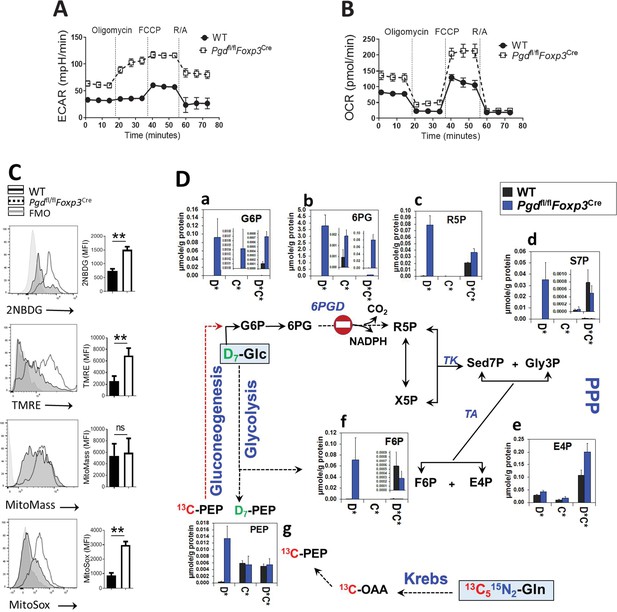

Blocking 6-phosphogluconate dehydrogenase (6PGD) in regulatory T cells (Tregs) induces reprogramming of glycolysis, mitochondrial respiration, and non-oxidative pentose phosphate pathway (PPP).

(A–B) Extracellular acidification and oxygen consumption analysis on YFP+ sorted cells from Pgdfl/fl Foxp3Cre and wild-type (WT) mice was performed using Seahorse XF24 metabolic analyzer as described in supplemental information. The extracellular acidification rate (ECAR) (A) and oxygen consumption rate (OCR) (B) are shown (N = 4). (C) YFP+ cells glucose (Glc) uptake capacity was determined by 2-NBDG uptake, mitochondrial potential (ΔΨm) by TMRE, mitochondrial mass by MitoTracker Deep Red FM and mitochondrial ROS by MitoSox Red. Results are representative of three independent experiments with N = 4 per group. (D) YFP+ cells were sorted from WT and Pgdfl/flFoxp3Cre mice and cultured in the presence of IL-2 (700 IU/ml) and anti-CD3/anti-CD28 coated beads (Treg:beads ratio 1:3) plus D7-Glc and 13C5,15N2-glutamine (Gln) for 48 hr. Isotope labeling patterns of metabolites of cell extracts were analyzed by IC-UHRMS. Data shown demonstrates D7-Glc and 13C5,15N2-Gln incorporation into the PPP metabolites via non-oxidative PPP and gluconeogenesis. Results were generated with N = 2. Legend in X-axis D* = sum of D1 to Dx or Glc-derived species; C* = sum of 13C1 to 13Cx or Gln-derived species; C*D* = sum of dual 13C1 to 13Cx and D1 to Dx or Glc and Gln-derived species; G6P, glucose-6-phosphate; 6PG, 6-phosphogluconate; R5P, ribose-5-phosphate; S7P, sedoheptulose-7-phosphate; Gly3P, glyceraldehyde-3-phosphate; X5P, xylulose-5-phosphate; E4P, erythrose-4-phosphate; F6P, fructose-6-phosphate; OAA, oxaloacetate; PEP, phosphoenolpyruvate.

During transition from naïve CD4+ T cells, Tregs switch from Glc utilization to other fuel sources such as fatty acids (Procaccini et al., 2016; Macintyre et al., 2014), which could help sustain their function in low Glc conditions such as in the tumor microenvironment. Glutamine (Gln) is an important fuel source for T cells that is consumed in mitochondria. However, it has been shown that deficiency of the glutamine transporter ASCT2 did not impact Tregs generation (Nakaya et al., 2014), which raises the question of the importance of Gln metabolism in Tregs.

Based on these observations, we tracked simultaneously Glc and Gln metabolism in WT and Pgdfl/flFoxp3Cre Tregs, both as direct isolates from mouse models with inflammatory disorder and also Tregs generated from naïve CD4+ T cells in vitro. In the first set, YFP+ Tregs were sorted from WT and Pgdfl/flFoxp3Cre mice and cultured in the presence of IL-2 (700 IU/ml) and anti-CD3/anti-CD28 coated beads (Treg:beads ratio 1:3) plus D7-Glc and 13C5,15N2-Gln for 48 hr. In the second set, naïve CD4+ from WT and Pgdfl/flFoxp3Cre mice were polarized with IL-2+ TGF-β for 4 days and the medium was changed to that containing D7-Glc + 13C5,15N2-Gln for the last 48 hr. Transformations of D7-Glc and 13C515N2-Gln in sorted Tregs into metabolites of PPP/gluconeogenesis (GNG) (Figure 4D), glycolysis (Figure 4—figure supplement 1A), Krebs cycle (Figure 4—figure supplement 1B), and the nucleotide synthesis pathway (Figure 4—figure supplement 1C) were determined by SIRM analysis. Shift in the same metabolic pathways examined in in vitro generated Tregs is presented in Figure 4—figure supplement 2 and Figure 4—figure supplement 3.

SIRM analysis showed higher buildup of D-labeled glycolytic intermediates (Figure 4—figure supplement 1A), which together with enhanced ECAR (Figure 4A) pointed to increased glycolytic capacity in 6PGD blocked Tregs. These cells also displayed increased levels of D and/or 13C-labeled Krebs cycle metabolites (Figure 4—figure supplement 1B), which together with the observed increased OCR and mitochondrial potential (Figure 4B–C) indicated elevated Krebs cycle activity. Notably, Gln served as the main fuel source for the Krebs cycle (Figure 4—figure supplement 1B), with Gln metabolism being significantly higher in 6PGD-deficient than WT Tregs. Enhanced Gln metabolism via the Krebs cycle led to increased αKG production (Figure 4—figure supplement 1B-F), which could serve as critical ‘metabolic signal’ for CD4+ T subset differentiation (Klysz et al., 2015). αKG level has been shown to control methylation of the Foxp3 gene locus resulting in a shift of balance between Treg/Th1 (Klysz et al., 2015) and Treg/Th17 (Xu et al., 2017). Whether such epigenetic metabolic mechanism is involved in skewing 6PGD blocked Tregs toward Teff subsets awaits further investigation.

6PGD deficiency in Tregs enhances non-oxidative PPP and GNG

SIRM analysis also showed that 6PGD-deficient Tregs extensively accumulated G6P and 6PG (Figure 4D–a and b), which confirmed effective blockade of oxidative PPP at 6PGD (Figure 4—figure supplement 1A). However, instead of depletion, this blockade led to enhanced accumulation of D and/or 13C-labeled R5P (Figure 4D–c), which are downstream products of the 6PGD reaction. Also D and/or 13C-labeled sedoheptulose-7-phosphate (S7P) (Figure 4D–d), erythrose-4-phosphate (Figure 4D–e), and fructose-6-phosphate (F6P) (Figure 4D–f) accumulated in 6PGD-deficient Tregs. These metabolites are all products of the non-oxidative PPP. These results point to enhanced non-oxidative PPP that results in elevated production of R5P from D7-Glc and 13C5,15N2-Gln (Figure 1—figure supplement 1A), despite the blockade at 6PGD. In turn, R5P generated fueled the enhanced biosynthesis of both pyrimidine and purine nucleotides (D, 13C, and 15N labeled species, Figure 4—figure supplement 1C) to fulfill the nucleotide demands of activated T cells.

It should be noted that enhanced incorporation of Gln derived carbon (C* or D*C*/C*NxDx scrambled species) into 6PG (C* and D*C* scrambled species, Figure 4D–b) and ATP/GTP (C*, D*C*, and C*NxDx, Figure 4—figure supplement 1C-m,l) in 6PGD-deficient Tregs are consistent with elevated GNG in these cells. This is because these 13C-labeled species can only be produced via the reaction sequence of glutaminolysis, the Krebs cycle, and GNG initiated by conversion of OAA to PEP via PEPCK, followed by the reversal of the glycolytic reactions. The latter produce 3-phosphoglycerate, glyceraldehyde-3-phosphate, F6P, and G6P, which can fuel both oxidative and non-oxidative PPP as well as serine biosynthesis-one carbon pathway to power purine biosynthesis (Figure 4—figure supplement 1A). Increased accumulation of 13C-G6P, together with that of D-G6P (Figure 4D–a) indicate enhanced activity of G6PD, the first rate-limiting and NADPH-producing enzyme of the oxidative branch of the PPP. This is expected to help compensate for the loss of NADPH production due to blocked 6PGD action. Overall, similar shifts of metabolic patterns in Tregs generated in vitro (iTregs in Figure 4—figure supplement 2 and Figure 4—figure supplement 3) as those sorted from mouse models were evident.

Discussion

In our pilot studies, we found that inhibition of G6PD led to reduced T cell survival with little changes in IFN-γ production (Figure 1—figure supplement 1B-C) but that of 6PGD resulted in higher T cell survival and T subsets activations (Figure 1—figure supplement 1B-C,I-J ). Our G6PD inhibitor study is consistent with a recent study, which showed that G6PD inhibition depleted NADPH and decreased inflammatory cytokine production by T cells (Ghergurovich et al., 2020). To better understand the role of 6PGD in T cells, we generated Pgdfl/flFoxp3Cre mice to examine the effect of 6GPD blockade on Tregs as central immune regulators. Interestingly, Pgdfl/flFoxp3Cre mice showed severe autoimmune disorders highlighting a critical role of 6PGD in Tregs function (Figure 1). Tregs isolated from Pgdfl/flFoxp3Cre mice showed reduced suppressive function in vitro and in vivo (Figure 2), which was accompanied by a shift of gene expression signatures and phenotype markers toward T CD4+ subsets of Th1, Th2, and Th17. Loss of suppressive function and plasticity toward conventional subsets was also reproduced by treatments with 6PGD small molecule inhibitor 6-AN (Figure 3).

Although Glc, but not Gln, contributes to Tregs differentiation and function (Pacella et al., 2018; Procaccini et al., 2016; Nakaya et al., 2014), Glc depletion by blocking the Glc transporter Glut1 did not alter the suppressive function of Tregs (Michalek et al., 2011; Macintyre et al., 2014). However, our study showed that the suppressive function of Tregs was modulated by altered Glc metabolism via the oxidative PPP, that is, 6PGD deficiency in Tregs resulting in significantly improved anti-tumor responses (Figure 3F–N) or changed IBD outcomes (Figure 2). This qualifies 6PGD as an immune checkpoint by modulating the Treg function while implicating the importance of Glc metabolism via the oxidative PPP in Treg activation.

As our knowledge of Glc and Gln metabolism in Tregs is limited, we tracked the metabolic fates of both fuel substrates with stable isotope tracers in 6PGD blocked versus WT Tregs. We found that blocking 6PGD in oxidative PPP shifted Glc flow into glycolysis and non-oxidative PPP to provide sufficient substrates (e.g. one-carbon metabolites and R5P) for fueling nucleotide biosynthesis (Figure 4 and Figure 4—figure supplement 1). This was also accompanied by enhanced Gln flow into GNG to power nucleobase synthesis and NADPH production, which can compensate for NADPH loss due to 6PGD blockade. These reprogrammed metabolic activities co-occurred with the shift of expression in phenotypic and functional markers toward conventional T CD4+ subsets. The importance of glycolytic shift on modulating Tregs fitness has been shown in previous studies (Watson et al., 2021; Zappasodi et al., 2021). Tregs in high Glc environment lose their fitness while upregulation of lactate metabolism is important for maintaining their suppressive phenotype (Watson et al., 2021). Also, the presence of Glc was shown to be a key factor in interfering Treg function under anti-CTLA-4 treatment (Zappasodi et al., 2021). Moreover, although glycolysis is key to supporting the energy and anabolic demands during Treg expansion (Pacella et al., 2018; De Rosa et al., 2015), further increase in glycolysis as a result of mTOR and c-Myc activation suppresses Treg generation (Kabat et al., 2016; Wei et al., 2016). Our metabolic fate analysis not only corroborates with glycolytic control of Treg functions but also reveals the role of 6PGD as a key regulator of Treg stability.

Although disruption of Gln uptake did not impact Treg function (Nakaya et al., 2014), enhanced Gln metabolism in 6PGD-deficient Tregs was evident and co-occurred with the shift from Treg to Th1 (Michalek et al., 2011; Klysz et al., 2015), Th2 (Michalek et al., 2011), or Th17 (Michalek et al., 2011; Xu et al., 2017) phenotypes. Increased Gln oxidation in the Krebs cycle promoted the synthesis of immunomodulatory metabolites such as αKG (Figure 4—figure supplement 1), which has been shown to signal Foxp3 suppression (Klysz et al., 2015; Xu et al., 2017). At the same time, diversion of Gln carbons for enhanced nucleotide synthesis would help meet the metabolic demand of the shift toward conventional T subsets. Thus, Gln metabolism could synergize with 6PGD deficiency in eliciting Treg plasticity toward immune activation. Further studies will be required to substantiate such metabolic mechanism.

In summary, we reported a critical role of 6PGD, the second rate-limiting enzyme of PPP, in skewing Tregs function and metabolism toward those of the Th1, Th2, and Th17 subsets. As such, 6PGD could be a novel metabolic target in clinical applications such as autoimmune disorders or cancer therapies.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyAnti-mouse CD3ε-PerCP (clone: 145–2 C11); (Armenian hamster monoclonal)BioLegendCat No#100326; RRID: AB_893317FACS (1:100)
AntibodyAnti-mouse CD4-APC (clone: GK1.5); (rat monoclonal)BioLegendCat No#100412; RRID: AB_312697FACS (1:100)
AntibodyAnti-mouse CD4-PE (clone: GK1.5); (rat monoclonal)BioLegendCat No#100408; RRID: AB_312693FACS (1:100)
AntibodyAnti-mouse CD4-Pacific Blue (clone: GK1.5); (rat monoclonal)BioLegendCat No#100428; RRID: AB_ 493,647FACS (1:100)
AntibodyAnti-mouse CD8a-FITC (clone: 53–6.7); (rat monoclonal)BioLegendCat No#100706; RRID: AB_312745FACS (1:100)
AntibodyAnti-mouse CD8a-Pacific Blue(clone: 53–6.7); (rat monoclonal)BioLegendCat No#100725; RRID: AB_493425FACS (1:100)
AntibodyAnti-mouse CD25-BV711 (clone: PC61); (rat monoclonal)BioLegendCat No#102049; RRID: AB_2564130FACS (1:100)
AntibodyAnti-mouse CD11b-Pacific Blue (clone: M1/70); (rat monoclonal)BioLegendCat No#101224; RRID: AB_755986FACS (1:100)
AntibodyAnti-mouse CD11c-PE-Cy7 (clone: N418); (Armenian hamster monoclonal)BioLegendCat No#117318; RRID: AB_493568FACS (1:100)
AntibodyAnti-mouse CD25-PE-Cy7 (clone: PC61); (rat monoclonal)BioLegendCat No#102016; RRID: AB_312865FACS (1:100)
AntibodyAnti-mouse CD40L-APC (clone: MR1); (Armenian hamster monoclonal)BioLegendCat No#106510; RRID: AB_2561561FACS (1:100)
AntibodyAnti-mouse CD44-PE-Cy7 (clone: IM7); (rat monoclonal)BioLegendCat No#103030; RRID: AB_830787FACS (1:100)
AntibodyAnti-mouse CD45.2-PE-Cy7 (clone: 104); (mouse monoclonal)BioLegendCat No#109830; RRID: AB_1186098FACS (1:100)
AntibodyAnti-mouse CD71-APC (clone: RI7217); (rat monoclonal)BioLegendCat No#113820; RRID: AB_2728135FACS (1:100)
AntibodyAnti-mouse CD98-PE-Cy7 (clone: RL388); (rat monoclonal)BioLegendCat No#128214; RRID: AB_2750547FACS (1:100)
AntibodyAnti-mouse CD45.2-PerCP (clone: 104); (mouse monoclonal)BioLegendCat No#109826; RRID: AB_893349FACS (1:100)
AntibodyAnti-mouse CD62L-Pacific Blue (clone: MEL-14); (rat monoclonal)BioLegendCat No#104424; RRID: AB_493380FACS (1:100)
AntibodyAnti-mouse CD69-PE (clone: H1.2F3); (Armenian hamster monoclonal)BioLegendCat No#104508; RRID: AB_313111FACS (1:100)
AntibodyAnti-mouse CD107a-APC-Cy7 (clone: 1D4B); (rat monoclonal)BioLegendCat No#121616; RRID: AB_10643268FACS (1:100)
AntibodyAnti-mouse Foxp3-PE (clone: MF-14); (rat monoclonal)BioLegendCat No#126404; RRID: AB_1089117FACS (1:100)
AntibodyAnti-mouse siglec-F (CD170)-APC (clone: S17007L); (rat monoclonal)BioLegendCat No#155508; RRID: AB_2750237FACS (1:100)
AntibodyAnti-mouse Ly6C-APC (clone: HK1.4); (rat monoclonal)BioLegendCat No#128016; RRID: AB_1732076FACS (1:100)
AntibodyAnti-mouse Ly6G-PE (clone: 1A8); (rat monoclonal)BioLegendCat No#127608; RRID: AB_1186099FACS (1:100)
AntibodyAnti-mouse IL-4-PE (clone: 11B11); (rat monoclonal)BioLegendCat No#504104; RRID: AB_315318FACS (1:100)
AntibodyAnti-mouse IL-5-APC (clone: TRFK5); (rat monoclonal)BioLegendCat No#504306; RRID: AB_315330FACS (1:100)
AntibodyAnti-mouse IL-13-PE (clone: eBio13A); (rat monoclonal)ThermoFisherCat No# 12-7133-82; RRID: AB_763559FACS (1:100)
AntibodyAnti-mouse IL-17A-PE (clone: eBio17B7); (rat monoclonal)ThermoFisherCat No#12-7177-81; RRID: AB_763582FACS (1:100)
AntibodyAnti-mouse IFN-γ-APC (clone: XMG1.2); (rat monoclonal)BioLegendCat No#505810; RRID: AB_315404FACS (1:100)
AntibodyAnti-mouse Granzyme B-PE (clone: NGZB); (rat monoclonal)ThermoFisherCat No#12-8898-82; RRID: AB_10870787FACS (1:100)
AntibodyAnti-mouse CD3ε-Purified (clone: 145–2 C11); (Armenian hamster monoclonal)BioLegendCat No#100340; RRID: AB_11149115Culture (1:1000)
AntibodyAnti-mouse CD28-Purified (clone: 37.51); (Syrian hamster monoclonal)BioLegendCat No#102116; RRID: AB_11147170Culture (1:1000)
AntibodyAnti-mouse 6PGD; (rabbit polyclonal)Sigma AldrichCat No#HPA031314; RRID: AB_10610278Western blot (1:1000)
AntibodyAnti-β-actin (D6A8); (rabbit monoclonal)Cell Signaling TechnologyCat No#8457; RRID: AB_10950489Western blot (1:1000)
Genetic reagent (species)Pgd TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4351372; Assay ID:Mm01263703_m1
Genetic reagent (species)Foxp3 TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID: Mm00475162_m1
Genetic reagent (species)Gata3 TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID:Mm00484683_m1
Genetic reagent (species)Il5 TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID:Mm00439646_m1
Genetic reagent (species)Il13 TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID: Mm00434204_m1
Genetic reagent (species)Ifng TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID: Mm01168134_m1
Genetic reagent (species)Tbet (Tbx21) TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No# 4331182; Assay ID: Mm00450960_m1
Genetic reagent (species)Il17a TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID: Mm00439618_m1
Genetic reagent (species)Icos TaqMan Assay probe (FAM-MGB)ThermoFisherCat No#4331182; Assay ID: Mm00497600_m1
Genetic reagent (species)Il4 TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID:Mm00445259_m1
Genetic reagentIl10 TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID: Mm00439614_m1
Genetic reagent (species)Batf3 TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID: Mm01318274_m1
Genetic reagent (species)Hey1 TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID: Mm00468865_m1
Genetic reagent (species)Bcl6 TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID: Mm00477633_m1
Genetic reagent (species)Gzb TaqMan Assay probe (FAM-MGB) (mouse)ThermoFisherCat No#4331182; Assay ID: Mm00442834_m1
Genetic reagent (species)18 S rRNA TaqMan Assay probe (VIC-MGB) (mouse)ThermoFisherCat No#4319413E
Cell line (species)B16-F10 (mouse)ATCCATCC CRL-6475; RRID:CVCL_0159
Chemical compound, drug6-Aminonicotinamide (6-AN)Sigma AldrichCat No#A68203
Chemical compound, drugTamoxifenSigma AldrichCat No#T5648-1G
Chemical compound, drugDehydroepiandrosterone (DHEA)Cayman ChemicalCat No#15728
Chemical compound, drugDimethyl sulfoxide (DMSO)Sigma AldrichCat No#D2438
Chemical compound, drugTetra-methylrhodamine ester (TMRE)ThermoFisherCat No#T669
Chemical compound, drugMitoSOX RedThermoFisherCat No#M36008
Chemical compound, drugMitoTracker Deep Red FMThermoFisherCat No#M22426
Chemical compound, drug2-NBD-glucose (2-NBDG)Cayman ChemicalCat No#11046
Chemical compound, drugD-GLUCOSE (1,2,3,4,5,6,6-D7, 97–98%)Cambridge Isotope laboratoriesCat No#DLM-2062-PK
Chemical compound, drug13C5,15N2-GlutamineCambridge Isotope laboratoriesCat No#CNLM-1275-H-PK
Chemical compound, drugFetal bovine serum, heat inactivatedThermoFisherCat No#16140071
Chemical compound, drugNuPAGE 4–12%, Bis-Tris, 1.5 mm, Mini Protein GelThermoFisherCat No#NP0335BOX
Chemical compound, drugNuPAGE MES SDS Running BufferThermoFisherCat No#NP0002
Chemical compound, drugRecombinant Mouse IL-2BioLegendCat No#575404
Chemical compound, drugRecombinant Mouse TGF-β1BioLegendCat No#763104
Commercial assay or kitMilliplex MAP Mouse Cytokine/Chemokine Magnetic Bead Panel – Premixed 32 PlexMilliporeCat No# MCYTMAG-70K-PX32
Commercial assay or kitMouse Ig Isotyping Array Q1RayBiotechCat No#QAM-ISO-1–2
Commercial assay or kitCellTrace CFSE Cell Proliferation KitThermoFisherCat No#C34554
Commercial assay or kitDynabeads Mouse T-Activator CD3/CD28ThermoFisherCat No#11456D
Commercial assay or kitFixation/Permeabilization Solution Kit with BD GolgiPlugBD BioscienceCat No#555028
Commercial assay or kiteBioscience Foxp3/ Transcription Factor Staining Buffer SetThermoFisherCat No#00-5523-00
Commercial assay or kitLIVE/DEAD Fixable Aqua Dead Cell Stain Kit (Aqua)ThermoFisherCat No#L34957
Commercial assay or kitEasySep Mouse CD4+ T Cell Isolation KitSTEMCELL TechnologiesCat No#19852RF
Commercial assay or kitEasySep Mouse Naïve CD4+ T Cell Isolation KitSTEMCELL TechnologiesCat No#19765
Commercial assay or kitEasySep Mouse CD4+ CD25+ Regulatory T Cell Isolation Kit IISTEMCELL TechnologiesCat No#18783
Commercial assay or kitRNeasy Mini KitQiagenCat No#74104
Commercial assay or kitSeahorse XF Cell Mito Stress Test KitAgilentCat No#103015–100
Commercial assay or kitPierce BCA Protein Assay KitThermoFisherCat No#23225
Genetic reagent(Mus musculus)Pgdfl/fl Foxp3YFP-CreThis paperN/A6PGD exon 5 floxed. Send reagent request to pseth@bidmc.harvard.edu
Genetic reagent(Mus musculus)C57BL/6 J (B6 CD45.2+)The Jackson LaboratoryStock No: 000664
Genetic reagent(Mus musculus)B6.SJL-Ptprca Pepcb/BoyJ (B6 CD45.1+)The Jackson LaboratoryStock No: 002014 | B6 Cd45.1
Genetic reagent(Mus musculus)B6.129S7-Rag1tm1Mom/JThe Jackson LaboratoryStock No: 002216
Genetic reagent(Mus musculus)B6.129(Cg)-Foxp3tm4(YFP/icre)Ayr/JThe Jackson LaboratoryStock No: 016959
Genetic reagent(Mus musculus)Foxp3tm9(EGFP/cre/ERT2)Ayr/JThe Jackson LaboratoryStock No: 016961
Software, algorithmFlowJo_V10FlowJohttps://www.flowjo.com/; RRID:SCR_008520
Software, algorithmGraphPad Prism_V6GraphPadhttps://www.graphpad.com/; RRID:SCR_002798

Cell line

Request a detailed protocol

B16-F10 cell line was obtained from ATCC (ATCC CRL-6475). The cell line was tested for Mycoplasma contamination.

Mice

Steps to generate of Pgdfl/flCd4Cre, Pgdfl/flFoxp3Cre, and Pgdfl/fl Foxp3EGFP-Cre-ERT2 mice are described in Figure 1—figure supplement 1. Verification of 6PGD deletion was done by PCR, western blot, and alteration in metabolite profile associated with the enzyme. Other mice used during experiments including C57BL/6 J (B6 CD45.2+), B6.SJL-Ptprca Pepcb/BoyJ (B6 CD45.1+), B6.129(Cg)-Foxp3tm4(YFP/icre)Ayr/J (Foxp3YFP-cre), Foxp3tm9(EGFP/cre/ERT2)Ayr/J (Foxp3eGFP-Cre-ERT2), and B6.129S7-Rag1tm1Mom/J (Rag1-/-) mice were purchased from Jackson Laboratories. All mice were kept in specific pathogen-free conditions prior to use. Animal work was done in accordance with the Institutional Animal Care and Use Committee of the University of BIDMC (Protocol number 040–2016).

Detection of cells markers by flow cytometry

Request a detailed protocol

Flow cytometry stainings were done on prepared cells. Cells from spleen and lymph nodes were obtained by tissue harvest, mechanically disintegration, passing through 70 μm cell strainer and then red blood cell lysis. Tumor infiltration cells were also prepared using the same steps with additional 30 min collagenase treatment at 37°C. Cultured cells and sorted cells just passed one step of wash with FACS buffer (PBS containing 1% FBS). Cells were suspended in FACS buffer and stained for surface markers for 30 min at 4°C. Aqua LIVE/DEAD Fixable Dead Cell Stain was used in all staining to distinguish dead cells. Intracellular staining for IL-4, IL-13, Il-5, IFN-γ, IL-17A, TGF-β, and granzyme B was performed with the Fixation/Permeabilization Solution Kit with BD GolgiPlug (BD Bioscience) according to the manufacturer’s protocol. To detect cytokines, cells were cultured in RMPI containing 10% FBS and were stimulated with PMA (50 ng/ml), ionomycin (1 μg/ml), and GolgiPlug (1 μl/ml) for 4 hr at 37C before starting the staining. For assessment of Foxp3, cells were stained intracellularly using the Foxp3/Transcription Factor Buffer Set (eBiosciences) following the manufacturer’s protocol. Glc uptake was analyzed by incubation of the cells with 20 μM 2-NBD-Glc (Cayman Chemical) for 30 min at 37°C. Cells were analyzed by a CytoFLEX LX (Beckman Coulter) cytometer and analysis was performed using FlowJo_V10 software. All antibodies are listed in the Key resources table.

Cell isolation by flow cytometry cell sorting

Request a detailed protocol

To obtain purified cells, single cells were first enriched by negative selection using EasySep Mouse CD4+ T cells isolation kit (STEMCELL Technologies) following manufacturer’s protocols. Then cells were stained for desired surface markers and sorted by flow cytometry. Surface markers for gating/sorting of each cell type included: naïve CD4+ T cells (CD4+ CD62Lhigh CD44low), YFP+ Tregs (CD4+ CD25+ YFP+), EFGP+ Tregs (CD4+ CD25+ EGFP+), and T effector cells (CD4+ CD45RBhigh). All the stainings were done at 4°C for 30 min and sorting was done by Becton Dickinson SORP FACSAria II (Beckman Coulter). Isolated cell phenotypes were confirmed by running again with flow cytometer (CytoFLEX LX, Beckman Coulter).

Cell culture and treatment

Naïve CD4+ T cell treatment with inhibitors

Request a detailed protocol

Naïve CD4+ T cells (CD4+ CD62Lhigh CD44low) were isolated and cultured in complete RPMI media containing 10% FBS and IL-2 (20 IU/ml) and treated with 6-AN (10 µM), DHEA (10 µM), or vehicle DMSO. Cells stimulation was done by adding soluble anti-CD3 (1 µg/ml) and soluble anti-CD28 (1 µg/ml). Cells were harvested and evaluated 4 days post culture.

Naïve CD4+ T cells polarization toward Tregs and treatment with 6-AN

Request a detailed protocol

To target 6PGD in vitro, naïve CD4+ T cells (CD4+ CD62Lhigh CD44low) were isolated and polarized to Tregs using IL-2 (50 IU/ml) and TGF-β1 (5 ng/ml). Stimulation was done by culturing the cells in plate coated antibodies. For coating anti-CD3 and anti-CD28 (2 µg/ml PBS each) were put on the plate and incubated 4 hr at 37°C and then washed twice with PBS. For inhibitor treatment 6-AN (10 µM) or vehicle DMSO was added.

Culture of YFP+ sorted cells

Request a detailed protocol

Isolated Tregs (CD4+ CD25+ YFP+) were cultured in vitro in presence of IL-2 (700 IU/ml) and anti-CD3/anti-CD28 coated beads (Treg:beads ratio 1:3) and cells number was assessed at 24 and 48 hr time points. Media was evaluated for cytokines production.

Suppression assay

Request a detailed protocol

Suppression assay was done on prepared Tregs as YFP+ sorted cells from 6PGD+/+Foxp3Cre (WT) and Pgdfl/flFoxp3Cre mice, EGFP+ sorted cells from Pgd+/+ Foxp3EGFP-Cre-ERT2 (WT) and Pgdfl/fl Foxp3EGFP-Cre-ERT2 mice, and also DMSO (control) and 6-AN derived Tregs. These cells express CD45.2 on their surface (B6 CD45.2+). To check suppressive capacity of prepared Tregs, the cells were mixed with WT CD45.1+ effector T cells (CD4+ CD45RBhigh) in different ratio and cultured in U shaped plate. The effecter cells were stained with CFSE (0.5 mM) for 30 min before culture. For optimized stimulation of effector cells, 2.5 × 105 irradiated (30 Gy) splenocytes from CD45.2+ mice (WT B6 CD45.2+) and soluble anti-CD3 (1 µg/ml) was added. After 72 hr of co-culture, amount of CFSE dilution was determined in CD4+ CD45.1+ effector cells using flow cytometer (CytoFLEX LX, Beckman Coulter).

RNA purification, RNAseq, and real-time quantitative PCR

Request a detailed protocol

Total RNA was extracted from YFP+ sorted cells with RNeasy Mini Kit (Qiagen) and RNA concentrations were determined using Nanodrop (Thermo Scientific). Total DNA-free RNA was used for mRNA isolation and library construction. Libraries were sequenced on an Illumina HISEQ 2500 (Illumina). Confirmation of RNAseq was done by examination of key representative genes by real-time quantitative PCR method using ABI 7300 Real-Time PCR system (Applied Biosystems). Used TaqMan probes are listed in the Key resources table. Expression of each gene was normalized to the housekeeping gene expression (18 S rRNA) as ΔCT = CT (gene X) – CT (18 S rRNA). The alteration between groups was calculated as fold change = 2^(ΔΔCT). ΔΔCT is: CT (gene X) – CT (gene X at baseline).

Bioenergetics analysis by Seahorse and mitochondrial activity

Request a detailed protocol

Prepared Tregs (YFP+ sorted cells) were seeded on Cell-Tak coated Seahorse XFe24 (Agilent) culture plates (0.8–1 × 106 cells/well) in assay media. The media was DMEM supplemented with 1% BSA and 25 mM Glc, 1 mM pyruvate, and 2 mM Gln. The ECAR and OCR were measured over 75 min. To obtain maximal respiratory and control values, cells were treated with oligomycin (1 μM), FCCP (1.5 μM), and rotenone/antimycin A (0.5 μM).

Mitochondrial activity also was examined by flow cytometry. For this, cells were stained with 200 nM MitoTracker Deep Red FM (ThermoFisher) for mitochondrial mass and 200 nM tetra-methylrhodamine ester (TMRE) (ThermoFisher) for mitochondrial membrane potential. Staining was done in FACS buffer (PBS containing 2% FBS) along with cell surface markers for 30 min at 37°C. To detect mitochondrial reactive oxygen species cells surface markers were added and then 5 μM MitoSOX Red (ThermoFisher) was added in last 10 min incubation at 37°C. Cells were analyzed by a CytoFLEX LX (Beckman Coulter) cytometer and analyzed by FlowJo_V10.

IBD model

Request a detailed protocol

To examine Tregs suppressive activities in vivo, the IBD model was used as described previously (Ostanin et al., 2009; Steinbach et al., 2015). In brief, YFP+ cells from WT and Pgdfl/fl Foxp3Cre mice and also CD4+ effector T cells (CD4+CD45RBhigh) from WT mice were sorted and mixed. Cells were resuspended to 4 × 106 cells/ml effector (CD45high) and 2 × 106 cells/ml Treg (YFP+). Total of 4 × 105 CD45high and 2 × 105 Treg was injected into each Rag1-/- (B6.129S7-Rag1tm1Mom/J) mice intra-peritoneally (i.p.). Control positive group was injection of effector cells alone and negative control group was Rag1-/- mice without injection. Disease progress was monitored by weight loss, change in stools form, and diarrhea. Colons length and thickness along with colon’s histochemistry were evaluated 45 days post cells injection.

SIRM analysis on Tregs

Request a detailed protocol

To trace Glc and Gln in Tregs, YFP+ sorted cells from WT and Pgdfl/flFoxp3Cre mice were cultured in presence of IL-2 (700 IU/ml) and anti-CD3/anti-CD28 coated beads (Treg:beads ratio 1:3) and D7-Glc plus 13C5,15N2-Gln for 48 hr. To prepare labeling media, Glc-free Gln-free RPMI medium was supplemented with 10% dialyzed FBS (Life Technologies), 20 mM HEPES, 0.05 mM 2-mercaptoethanol, and 1% penicillin-streptomycin. Isotope labeling patterns of metabolites of cell extracts were analyzed by Ion Chromatography-UltraHigh Resolution Mass Spectrometry. The procedures were followed as previously described (Fan et al., 2016b; Fan et al., 2016a).

Statistical analysis

Request a detailed protocol

All the statistical analyses were done using GraphPad Prism 6 (GraphPad) and Excel software. Difference between groups was analyzed using the Student’s t test (for two groups) or one-way ANOVA (for multiple groups), followed by the post hoc Tukey test. Differences in tumor growth was calculated by two-way ANOVA. Differences between groups were rated significant at values of p < 0.05. In the figures all data are shown as mean ± SEM and *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001.

Data availability

RNAseq data was deposited to NCBI BioSample (BioSample Accession # PRJNA706901).

The following data sets were generated
    1. Daneshmandi S
    2. Cassel T
    3. Higashi RH
    4. Fan TWM
    5. Seth P
    (2021) NCBI Sequence Read Archive
    ID PRJNA706901. 6-Phosphogluconate dehydrogenase (6PGD) a key checkpoint in reprogramming of Treg metabolism and function.

References

Decision letter

  1. Apurva Sarin
    Reviewing Editor; Institute for Stem Cell Science and Regenerative Medicine, India
  2. Satyajit Rath
    Senior Editor; Indian Institute of Science Education and Research (IISER), India
  3. Apurva Sarin
    Reviewer; Institute for Stem Cell Science and Regenerative Medicine, India
  4. Silvia Piconese
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The study by Daneshmandi et al, advances knowledge of immune-metabolism, describing a key role for the pentose phosphate pathway in the expression of the transcription factor Foxp3, and functional consequences in a cell type that regulates prolonged inflammation in the mammalian immune system. Using a combination of in vitro and in vivo analysis and multiple approaches, included the detailed analysis of metabolic pathways, the study identifies a metabolic checkpoint in immune cell differentiation and function. The study will be of interest to immunologists, cell biologists and those with interests in metabolic networks underpinning cellular differentiation and function.

Decision letter after peer review:

Thank you for submitting your article "6-Phosphogluconate dehydrogenase (6PGD) a key checkpoint in reprogramming of Treg metabolism and function" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Apurva Sarin as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Satyajit Rath as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Silvia Piconese (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Summary:

This study demonstrates that 6PGD, a rate-limiting enzyme in the oxidative pentose-phosphate pathway, modulates Treg metabolism and functions. Mice with a Treg-restricted 6PGD deficiency (either constitutive or inducible) spontaneously develop a multi-organ scurfy-like lethal disease, and succumb to early death, suggesting a loss of Treg cell immunosuppressive function. Treg cell frequency in these mice is apparently only slightly reduced and is mostly affected by a transcriptional reprogramming to resemble that of conventional T effector subsets, with Tregs presenting skewed metabolism toward glycolysis, Krebs cycle, and non-oxidative PPP. The study includes a description of disease phenotypes and cellular properties, which is supported by transcriptional analysis and detailed metabolite analysis at the cellular level. The precise mechanism through which 6PGD destabilizes Tregs remains to be elucidated. The core ideas of this manuscript are of interest in the area of Treg immunometabolism, which currently lags behind conventional CD4 and CD8 literature.

Daneshmandi et al. describe metabolic and functional consequences of blocking the oxidative pentose phosphate pathway (PPP) in Treg cells. While the core ideas of this manuscript are of interest in the area of Treg immunometabolism, there are substantial issues – outlined in the comments, that remain to be addressed.

Essential revisions:

1. Most experiments describing the Treg cell phenotype and function are in Foxp3Cre 6PGDfl/fl mice, which has significant systemic inflammation. This confounds Treg cell phenotypes that are presented (e.g., RNA-seq profile, in vitro suppression, ECAR, OCR, adoptive transfer). The Foxp3Cre 6PGDfl/fl system is appropriate for the in vivo profiling data of conventional CD4, CD8, and Treg cells, but not to conclude direct effects of 6PGD loss within Treg cells. The characterization of 6PGD deficient Treg cells should be undertaken in an inflammation-free system, using either mixed bone marrow chimera mice or an inducible-cre system (see the following comment). Alternatively, key analyses may be performed using Foxp3Cre/+ heterozygous females, only if they do not develop inflammation. Characterization of the Treg phenotype in an inflammation-free background is critical to support the main conclusion of the study.

2. The authors are advised to reassess the experiments using tamoxifen-inducible Foxp3-CreERT2 as the intricacies of this system appear to have been overlooked. Tamoxifen treatment does not induce Foxp3-EGFP expression in these mice as Foxp3-EGFP is expressed irrespective of tamoxifen (doi: 10.1126/science.1191996). Tamoxifen treatment will induce Cre-mediated gene deletion in Foxp3 expressing cells, but the cells are already EGFP+. In order to observe these cells, the mice must be crossed with a Rosa26-driven, stop-floxed fluorescent reporter mouse (e.g., YFP, available at jax.org/strain/006148), which will have fluorescent reporter expression only in the cells with successful Cre activation. The bulk EGFP+ cells contain a mixture of 6PGD+/+ and 6PGD-/- Treg cells. Furthermore, Foxp3-CreERT2 is a notoriously inefficient system for successful Cre activation, with only 50% or less of Treg cells actually having Cre-mediated gene deletion following tamoxifen treatment in vivo. If there are constraints on completing the experiment with the reporter as recommended, the data in its current form may be omitted from the study.

3. In the Results section, the sentence "As our preliminary studies showed that 6PGD but not G6PD blockade induces T cells activation (Figure 1—figure supplement 1 B-C). " is truncated. The preliminary data shown in suppl. Figure 1B-C indicates that a 6PGD pharmacological inhibitor enhances IFN-γ production by in vitro activated CD4 T cells, not that it "induces" T cell activation: the text should be corrected accordingly. In supplemental figure 1, the effects of DHEA on cell viability are noticeable. Any activation defects on the cells are likely a secondary consequence. Is it possible to use a lower dose to avoid so much cell death? In Figure 1G, the sentence "Lymphoproliferation was attributed to a higher number of CD4+ and CD8+ T cells in spleen/lymphoid organs should be corrected, since this figure shows frequencies and not counts. Further, Figure 1G only shows one plot, but it is from multiple organs according to the text. Are the other plots missing?

4. Regarding Treg frequency in Figure 2A, it is more informative to show the percentage of Foxp3+ in gated CD4 T cells, and also to show the gMFI of Foxp3 in gated Foxp3+ cells (it seems much lower in fl/fl mice; indeed this is confirmed by RT-PCR in Figure 2E). Is the difference between the two groups statistically significant? Statistics for frequencies and total numbers of Treg cells are missing. It is unclear why iTreg cells were used for figure 2C? A 50% reduction in Foxp3 gene expression, (Figure 2E), is substantial and seems incongruent with the claim of only a "slight decrease" in YFP MFI. Does direct Foxp3 staining and MFI quantification show the same result?

5. Figure 2—figure supplement 1D does not explain Treg plasticity since it refers to conventional effector T cell polarisation. The authors may consider removing this experiment from the manuscript. Figure 2—figure supplement 1 F-G-H presumably shows gated/sorted Foxp3+ cells: if this is the case, it needs to be clarified in the respective legend.

6. Figure 3B, and especially the meaning of the arrows, is unclear and may be omitted. Figure 3C shows substantial loss of Foxp3 gene expression with 6-AN treatment, but this does not appear to manifest in YFP expression as seen in Figure 3B. To check whether 6-AN affects iTreg polarization, the frequency of YFP+ cells and/or the gMFI of Foxp3-YFP should be assessed first in total CD4 T cells and not in gated YFP+ cells as apparently done here. In figure 3D-E, have YFP+ iTregs been sorted before assessing their suppressive function? In figure 3G, it is not clear what CONTROL means: is it the wild-type (not transgenic) mouse? The Treg gate looks very wide. Figure 3—figure supplement 1C is not mentioned in the text at the following point in the text: "higher infiltration of T cells (both CD4+ and CD8+ cells)". Regarding Figure 3—figure supplement 1L-M, are these cells MDSCs or rather pro-inflammatory neutrophils? Some more profiling is needed to identify these cells as MDSCs.

7. Reiterating an earlier point, the analysis of Figure 4 should be performed in Treg cells isolated from an inflammation-free system.

8. Statistical analysis is to be provided for data in Figures 3 and 4C

9. As a more general point, it should be clarified that data (and supporting bibliography) refer not to conventional T cells polarising into T helper subsets but to Tregs becoming unstable and gaining T helper-like features, which is a defined process.

10. The precise mechanism through which 6PGD destabilizes Tregs may be epigenetic (as mentioned in the discussion) as also metabolic (for instance related to a higher glucose capture). See for instance the two recent papers 10.1038/s41586-021-03326-4 and 10.1038/s41586-020-03045-2. The discussion could be integrated with some more hypotheses and speculations on the underlying mechanisms.

11. The manuscript would benefit from careful editing since several statements are not adequately supported by the data or by the quoted references.

Reviewer #1:

The authors employ chemical inhibition as well as genetic approaches to block 6PGD activity and report striking phenotypes of loss of immune-suppression in mice carrying a Treg-specific deletion. These phenotypes, which are characterized in considerable detail support an important role for the enzyme in Treg activation and homeostasis. The study includes description of disease phenotypes and cellular properties, which is supported by transcriptional analysis and detailed metabolite analysis at the cellular level. Mechanistic insights underpinning these outcomes and the regulation of 6PGD in the Treg lineage, however, remain to be addressed.

Reviewer #2:

This paper demonstrate that 6PGD, a rate-limiting enzyme in oxidative pentose-phosphate pathway (PPP), modulates Treg metabolism and functions. Indeed, mice with a Treg-restricted 6PGD deficiency (either constitutive or inducible) spontaneously develop a multi-organ scurfy-like lethal disease, characterised by less suppressive and unstable Tregs, which also have a skewed metabolism toward glycolysis, Krebs cycle and non-oxidative PPP.

The main strengths of the manuscript are (I) the original identification of a role for PPP in immune regulation, (ii) the high quantity and quality of data, spanning through several mouse models and validated through several methodologies (flow cytometry, functional assays, RNASeq, biochemistry, metabolic tracing, etc).

The precise mechanism through which 6PGD destabilises Tregs has not been fully elucidated here, and it may be epigenetic (as mentioned in the discussion) as well as metabolic (for instance related to a higher glucose capture, see for instance the two recent papers 10.1038/s41586-021-03326-4 and 10.1038/s41586-020-03045-2): the discussion could be integrated with some more hypotheses and speculations on the underlying mechanisms. The manuscript would also benefit from a careful revision, since several statements are not sufficiently supported by the data or by the quoted references.

Reviewer #3:

Mice with Treg cell specific 6PGD deficiency develop a severe lymphoproliferative disease and succumb to early death, suggesting a loss of Treg cell immunosuppressive function. Treg cell frequency in these mice is apparently only slightly reduced and is mostly affected by a transcriptional reprogramming to resemble that of conventional T effector subsets. The core ideas of this manuscript have a lot of potential in the area of Treg immunometabolism, which currently lags behind conventional CD4 and CD8 literature.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "6-Phosphogluconate dehydrogenase (6PGD) a key checkpoint in reprogramming of Treg metabolism and function" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Apurva Sarin as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Satyajit Rath as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

The revised manuscript addresses most earlier comments. The following essential modifications are required in the description of the results to address issues remaining in the study.

1. The early onset of systemic inflammation in mice with an ablation of 6PGD may modulate the analysis of cell intrinsic 6PGD dependencies, a limitation not ruled out in the study. This may be indicated in the description of results linked to Figure 2—figure supplement 1 and Figure 4 (metabolic reprogramming).

2. As indicated in reference PMID: 2738173, the phenotypic analysis may not be sufficient to identify cells as MDSCs. Since this is a not a typical context of MDSC expansion, such as cancer, but of lung inflammation, neutrophils may have also been recruited.

3. In experiments utilizing in vitro generated (induced) Tregs (iTregs), this must be explicitly stated in the description of the experiment in the text and accompanying legends.

https://doi.org/10.7554/eLife.67476.sa1

Author response

Essential revisions:

1. Most experiments describing the Treg cell phenotype and function are in Foxp3Cre 6PGDfl/fl mice, which has significant systemic inflammation. This confounds Treg cell phenotypes that are presented (e.g., RNA-seq profile, in vitro suppression, ECAR, OCR, adoptive transfer). The Foxp3Cre 6PGDfl/fl system is appropriate for the in vivo profiling data of conventional CD4, CD8, and Treg cells, but not to conclude direct effects of 6PGD loss within Treg cells. The characterization of 6PGD deficient Treg cells should be undertaken in an inflammation-free system, using either mixed bone marrow chimera mice or an inducible-cre system (see the following comment). Alternatively, key analyses may be performed using Foxp3Cre/+ heterozygous females, only if they do not develop inflammation. Characterization of the Treg phenotype in an inflammation-free background is critical to support the main conclusion of the study.

Response to the comment consists of two parts: (1) we evaluated the key observations of Tregs in inflammation free condition. (2) The goal of current paper is reporting observed phenotype and function and we aim to address the mechanism of action in future studies.

The main goal of current manuscript is to demonstrate the key role of 6PGD (the key enzyme in oxidative PPP) in modulating Treg function. We understand that there are questions unanswered, notably the mechanism of action and possible effects of inflammatory condition on the observed phenotype. However, to fully answer these questions is beyond the current scope. We have highlighted “inflammatory condition” throughout the manuscript to keep in mind that targeting 6PGD in Tregs comes along with systemic inflammation.

Suffice to say, we have examined the key findings in inflammation free conditions:

– We have generated Tregs from wild type (WT) naïve CD4+ T cells in the presence of 6PGD inhibitor (6-AN) and showed key findings as alteration of FoxP3/GATA3 expression, cytokine production shift and altered suppressive function (Figure 3A-E).

– We also showed comparable results in Tregs function (Figure 3H-O) using inducible FoxP3 mice (please see further details in response to comment 2) that provide inflammation free condition and the same inflammation baseline for both WT and 6PGD blocked Tregs.

– Furthermore, to evaluate metabolic shifts in Tregs in an inflammation free condition, we generated Tregs from naïve CD4+ T cells within 4 days in vitro (therefore there was no inflammatory environment) and tracked Glc and Gln metabolism which showed a similar pattern of shift as Tregs isolated from 6PGDfl/fl FoxP3Cre mice (please see added Figure 4 supplementary figure 2 and Figure 4 supplementary figure 3).

It should be noted that it is highly unlikely to generate inflammation free condition by Chimeric models of 6PGD deletion as it would need several weeks to develop chimera, while even 3 weeks of 6PGD blockade induces massive inflammation that kill the mice after birth. This is the reason why we took the in vitro approach. However, per the reviewer’s suggestion, the inducible FoxP3 Cre (tamoxifen-inducible Foxp3-CreERT2) is useful as we examined (Please see response to Comment 2).

2. The authors are advised to reassess the experiments using tamoxifen-inducible Foxp3-CreERT2 as the intricacies of this system appear to have been overlooked. Tamoxifen treatment does not induce Foxp3-EGFP expression in these mice as Foxp3-EGFP is expressed irrespective of tamoxifen (doi: 10.1126/science.1191996). Tamoxifen treatment will induce Cre-mediated gene deletion in Foxp3 expressing cells, but the cells are already EGFP+. In order to observe these cells, the mice must be crossed with a Rosa26-driven, stop-floxed fluorescent reporter mouse (e.g., YFP, available at jax.org/strain/006148), which will have fluorescent reporter expression only in the cells with successful Cre activation. The bulk EGFP+ cells contain a mixture of 6PGD+/+ and 6PGD-/- Treg cells. Furthermore, Foxp3-CreERT2 is a notoriously inefficient system for successful Cre activation, with only 50% or less of Treg cells actually having Cre-mediated gene deletion following tamoxifen treatment in vivo. If there are constraints on completing the experiment with the reporter as recommended, the data in its current form may be omitted from the study.

We have adopted the tamoxifen-inducible Foxp3-CreERT2 model for the “proof of concept” study, especially as a model for an inflammation free condition. Although the tamoxifen induction does not induce deletion in 100% of Tregs (possibly 50% based on the mentioned reference), it was sufficient to reduce tumor growth (i.e. reduced Treg suppressive function in vivo) and suppressive capacity in suppression assay in vitro. This is important in the context of Comment 1 discussion. The mentioned reference has very nicely shown that gene deletion (50%) only happened upon Tamoxifen induction, supporting “target specificity” and “inflammation free condition at baseline”. Our data indicate that 6PGD did not need to be deleted in 100% of Tregs to show significant phenotype. So, while we have not done the suggested improved experiment, the current data support our goal of defining 6PGD’s role in modulating Tregs function. We have added a statement in the result section to reflect the incomplete induction of FOXP3 deletion in the model used.

3. In the Results section, the sentence "As our preliminary studies showed that 6PGD but not G6PD blockade induces T cells activation (Figure 1—figure supplement 1 B-C). " is truncated. The preliminary data shown in suppl. Figure 1B-C indicates that a 6PGD pharmacological inhibitor enhances IFN-γ production by in vitro activated CD4 T cells, not that it "induces" T cell activation: the text should be corrected accordingly. In supplemental figure 1, the effects of DHEA on cell viability are noticeable. Any activation defects on the cells are likely a secondary consequence. Is it possible to use a lower dose to avoid so much cell death? In Figure 1G, the sentence "Lymphoproliferation was attributed to a higher number of CD4+ and CD8+ T cells in spleen/lymphoid organs should be corrected, since this figure shows frequencies and not counts. Further, Figure 1G only shows one plot, but it is from multiple organs according to the text. Are the other plots missing?

The sentence was corrected based on the comment to show enhanced IFN-γ production and not “induction of activation” in T cells.

The main point of supplemental figure 1B-C was to show noticeable effect of DHEA on activated T cells viability. While the same concentration of 6-AN and DHEA inhibitors (10 µM) were used, DHEA instigated poor T cells viability but not 6-AN. This shows the critical role of G6PD in cells viability and therefore its targeting is not tolerable by T cells. Meanwhile, blocking 6PGD was tolerable by the activated T cells and resulted in higher IFN-g production presumably by the induced metabolic shifts. This preliminary experiment provided the reason why we investigated 6PGD’s role in T cell activation. Text on page 4 was revised to substantiate this point.

For Figure 1G, the word “Count” was corrected for “Frequency”. (Count per organ is presented in Figure 1E). We have evaluated both lymph nodes and spleens for markers mentioned in Figure 1G-K. As both spleen and lymphnodes show similar pattern or responses, we presented splenocytes data as an example. We have revised the relevant Results text on page 5 accordingly. Moreover, the enlarged spleen and lymph node size shown in Figure 1D suggests lymphoproliferation in both spleen and lymph nodes.

4. Regarding Treg frequency in Figure 2A, it is more informative to show the percentage of Foxp3+ in gated CD4 T cells, and also to show the gMFI of Foxp3 in gated Foxp3+ cells (it seems much lower in fl/fl mice; indeed this is confirmed by RT-PCR in Figure 2E). Is the difference between the two groups statistically significant? Statistics for frequencies and total numbers of Treg cells are missing. It is unclear why iTreg cells were used for figure 2C? A 50% reduction in Foxp3 gene expression, (Figure 2E), is substantial and seems incongruent with the claim of only a "slight decrease" in YFP MFI. Does direct Foxp3 staining and MFI quantification show the same result?

We added the percentage of Foxp3+ in gated CD4 T cells in Figure 2A. We also added Figure 2B to show gMFI of Foxp3 in gated Foxp3+ cells. Statistical analysis for the two panels are provided to show significantly lower frequency of FoxP3+ T cells in 6PGDfl/fl FoxP3Cre group. Figure 2C (original) was eliminated to prevent confusion.

Decreased FoxP3 expression (Figure 2E) is consistent with lower levels of Foxp3 staining in CD4+ cells and gMFI quantifications (Figure 2A-B) in 6PGD blocked Tregs. This result was also reproduced when Tregs were generated with 6PGD inhibitor 6-AN, in vitro (Figure 3C). About 50% decrease in YFP+ cells is also evident in 6PGDfl/fl FoxP3Cre mice (Data not shown in paper; Please see Author response image 1) Please note that Figure 2D is representative of “Sorted YFP+ cells” that have been used in all YFP+ sorted experiment (e.g. Figure 2E-G and Figure 2—figure supplement 1 and Figure 4 and supplements). We revised the manuscript text on page 6 to clarify this.

Author response image 1
YFP expression in CD4+ gated cells from mice spleen.

5. Figure 2—figure supplement 1D does not explain Treg plasticity since it refers to conventional effector T cell polarisation. The authors may consider removing this experiment from the manuscript. Figure 2—figure supplement 1 F-G-H presumably shows gated/sorted Foxp3+ cells: if this is the case, it needs to be clarified in the respective legend.

We removed the Figure 2—figure supplement 1D. In case of Figure 2—figure supplement 1 F-G-H (original and E-F-G of revised figure) graphs show “Splenic CD4+ T cells” as mentioned in the figure legends. While 6PGD blocked Tregs show altered markers of CD4+ T subsets (revised Figure 2—figure supplement 1A-C and also Figure 2G and Figure 3C), E-G of revised figure 2—figure supplement 1 provide additional information regarding CD4+ T subsets and indicate general shift of CD4+ T cells toward Th1, Th2 and Th17 cells subsets in 6PGDfl/fl FoxP3Cre mice. Text was clarified in page 7.

6. Figure 3B, and especially the meaning of the arrows, is unclear and may be omitted. Figure 3C shows substantial loss of Foxp3 gene expression with 6-AN treatment, but this does not appear to manifest in YFP expression as seen in Figure 3B. To check whether 6-AN affects iTreg polarization, the frequency of YFP+ cells and/or the gMFI of Foxp3-YFP should be assessed first in total CD4 T cells and not in gated YFP+ cells as apparently done here. In figure 3D-E, have YFP+ iTregs been sorted before assessing their suppressive function? In figure 3G, it is not clear what CONTROL means: is it the wild-type (not transgenic) mouse? The Treg gate looks very wide. Figure 3—figure supplement 1C is not mentioned in the text at the following point in the text: "higher infiltration of T cells (both CD4+ and CD8+ cells)". Regarding Figure 3—figure supplement 1L-M, are these cells MDSCs or rather pro-inflammatory neutrophils? Some more profiling is needed to identify these cells as MDSCs.

We believe that the reviewer meant arrows in the schemes of Figure 3A (original) being unclear (as the Figure 3B was a flowcytometry graph). We have removed the figure 3A panel.

The original Figure 3B (now Figure 3A) shows the percentage of YFP+ cells. The YFP gMFI (gated on CD4+ cells) for respective treatments was determined and presented in bar graph as new Figure 3B. Lower YFP gMFI in 6-AN treated cells is akin to lower FoxP3 mRNA levels detected by Real-time PCR (Figure 3C).

In figure 3D-E, YFP+ iTregs have been sorted before assessing their suppressive function. We clarified this in the figure legend.

In figure 3G, “Control” is the wild type mice. These cells are used to determine autofluorescence baseline for eGFP expression. Graph label was changed from “Control (EGFP-)” to “WT (EGFP-)”. Gating was done based on the WT baseline.

Text was corrected on page 9 to cite Figure 3—figure supplement 1C after reporting "higher infiltration of T cells (both CD4+ and CD8+ cells) in the lung.

Figure 3—figure supplement 1L-M illustrated MDSCs accumulation in inflamed lungs, which is an additional marker along with other results to show uncontrolled allergic responses in lung of mice with 6PGD deletion in their Tregs. We used CD11b+Ly6G+ cells as marker of PMN MDSCs (ref to: PMID: 27381735 and PMID: 32549755). To investigate details of MDSCs properties upon 6PGD blockade is beyond the scope of this study.

7. Reiterating an earlier point, the analysis of Figure 4 should be performed in Treg cells isolated from an inflammation-free system.

To analyze Tergs metabolism in an inflammation-free system, we generated Tregs in vitro for the tracing study. Results are presented in Figure 4—figure supplement 2 and Figure 4—figure supplement 3. These results indicate a similar trend of metabolic shifts in 6PGD deficient Tregs isolated form 6PGDfl/fl FoxP3Cre mice and 6PGD deleted Tregs generated in vitro in the inflammation free environment.

8. Statistical analysis is to be provided for data in Figures 3 and 4C

Statistical analysis was done for the mentioned figures and bar graphs provided.

9. As a more general point, it should be clarified that data (and supporting bibliography) refer not to conventional T cells polarising into T helper subsets but to Tregs becoming unstable and gaining T helper-like features, which is a defined process.

Text was corrected on page 26 for the mentioned point.

10. The precise mechanism through which 6PGD destabilizes Tregs may be epigenetic (as mentioned in the discussion) as also metabolic (for instance related to a higher glucose capture). See for instance the two recent papers 10.1038/s41586-021-03326-4 and 10.1038/s41586-020-03045-2. The discussion could be integrated with some more hypotheses and speculations on the underlying mechanisms.

Discussion on page 14 was revised to discuss more potential mechanisms also referring the above references.

11. The manuscript would benefit from careful editing since several statements are not adequately supported by the data or by the quoted references.

We revised the text carefully to be sure that is representative of our results or the literature.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Essential revisions:

The revised manuscript addresses most earlier comments. The following essential modifications are required in the description of the results to address issues remaining in the study.

1. The early onset of systemic inflammation in mice with an ablation of 6PGD may modulate the analysis of cell intrinsic 6PGD dependencies, a limitation not ruled out in the study. This may be indicated in the description of results linked to Figure 2—figure supplement 1 and Figure 4 (metabolic reprogramming).

Text was modified to point out the limitation for the findings on Tregs isolated from pro-inflammatory mice. This include page 6 and 7 for Figure 2—figure supplement 1 and page 10 for Figure 4 (marked by track change).

2. As indicated in reference PMID: 2738173, the phenotypic analysis may not be sufficient to identify cells as MDSCs. Since this is a not a typical context of MDSC expansion, such as cancer, but of lung inflammation, neutrophils may have also been recruited.

We removed the “MDSC” from the text and figure legend and indicated only CD11b+ Ly6G+ cells along with the mentioned reference (page 10 and Figure 3—figure supplement 1 legends). These text changes were made as we did not delineate CD11b+ Ly6G+ cells to be MDSC or neutrophils, which is beyond the scope of current study.

3. In experiments utilizing in vitro generated (induced) Tregs (iTregs), this must be explicitly stated in the description of the experiment in the text and accompanying legends.

We clarified the text and figure legends for the Tregs generation in vitro, anywhere describing these cells. This includes, figure 3, Figure 4—figure supplement 2 and Figure 4—figure supplement 3 (text and figure legends).

https://doi.org/10.7554/eLife.67476.sa2

Article and author information

Author details

  1. Saeed Daneshmandi

    1. Department of Medicine, Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, United States
    2. Division of Interdisciplinary Medicine, Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Data curation, Experimental design and execution, Mouse models and immunological designs and analysis, Metabolic pathway interpretation, Formal analysis, Investigation, Methodology, Project administration, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    Daneshmandi2006@yahoo.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7817-3006
  2. Teresa Cassel

    Center for Environmental and Systems Biochemistry, University of Kentucky, Lexington, United States
    Contribution
    Data curation, Investigation, SIRM analyses
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1700-932X
  3. Richard M Higashi

    Center for Environmental and Systems Biochemistry, University of Kentucky, Lexington, United States
    Contribution
    Data curation, Investigation, SIRM design and analyses
    Competing interests
    No competing interests declared
  4. Teresa W-M Fan

    Center for Environmental and Systems Biochemistry, University of Kentucky, Lexington, United States
    Contribution
    Conceptualization, Contributed to SIRM experimental design and execution, Metabolic pathway interpretation, Data curation, Investigation, Methodology, Writing – review and editing
    For correspondence
    teresa.fan@uky.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7292-8938
  5. Pankaj Seth

    1. Department of Medicine, Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, United States
    2. Division of Interdisciplinary Medicine, Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Resources, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    sethpankaj829@gmail.com
    Competing interests
    No competing interests declared

Funding

Bayer Fund (2014-07-1112)

  • Pankaj Seth

NIH Office of the Director (1U24DK097215-01A1)

  • Teresa Fan

National Cancer Institute (P30CA177558)

  • Teresa Fan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by BIDMC seed funds to PS, 2014-07-1112 target grant from Bayer to PS, and a pilot grant to PS from 1U24DK097215-01A1 (to RMH and TWMF), and the Markey Cancer Center Redox and Metabolism Shared Resource Facility P30CA177558.

Ethics

Animal work was done in accordance with the Institutional Animal Care and Use Committee of Beth Israel Deaconess Medical Center.(Protocol number 040-2016).

Senior Editor

  1. Satyajit Rath, Indian Institute of Science Education and Research (IISER), India

Reviewing Editor

  1. Apurva Sarin, Institute for Stem Cell Science and Regenerative Medicine, India

Reviewers

  1. Apurva Sarin, Institute for Stem Cell Science and Regenerative Medicine, India
  2. Silvia Piconese

Publication history

  1. Received: February 12, 2021
  2. Accepted: October 17, 2021
  3. Version of Record published: October 28, 2021 (version 1)

Copyright

© 2021, Daneshmandi et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 211
    Page views
  • 48
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Natalya Pashkova et al.
    Research Article

    Attachment of ubiquitin (Ub) to cell surface proteins serves as a signal for internalization via clathrin-mediated endocytosis (CME). How ubiquitinated membrane proteins engage the internalization apparatus remains unclear. The internalization apparatus contains proteins such as Epsin and Eps15, which bind Ub, potentially acting as adaptors for Ub-based internalization signals. Here we show that additional components of the endocytic machinery including CALM, HIP1R, and Sla2 bind Ub via their N-terminal ANTH domain, a domain belonging to the superfamily of ENTH and VHS domains. Structural studies revealed that Ub binds with µM affinity to a unique C-terminal region within the ANTH domain not found in ENTH domains. Functional studies showed that combined loss of Ub-binding by ANTH-domain proteins and other Ub-binding domains within the yeast internalization apparatus caused defects in the Ub-dependent internalization of the GPCR Ste2 that was engineered to rely exclusively on Ub as an internalization signal. In contrast, these mutations had no effect on the internalization of Ste2 engineered to use an alternate Ub-independent internalization signal. These studies define new components of the internalization machinery that work collectively with Epsin and Eps15 to specify recognition of Ub as an internalization signal.

    1. Cell Biology
    Richa Sardana et al.
    Short Report

    Protein glycosylation in the Golgi is a sequential process that requires proper distribution of transmembrane glycosyltransferase enzymes in the appropriate Golgi compartments. Some of the cytosolic machinery required for the steady-state localization of some Golgi enzymes are known but existing models do not explain how many of these enzymes are localized. Here, we uncover the role of an integral membrane protein in yeast, Erd1, as a key facilitator of Golgi glycosyltransferase recycling by directly interacting with both the Golgi enzymes and the cytosolic receptor, Vps74. Loss of Erd1 function results in mislocalization of Golgi enzymes to the vacuole/lysosome. We present evidence that Erd1 forms an integral part of the recycling machinery and ensures productive recycling of several early Golgi enzymes. Our work provides new insights on how the localization of Golgi glycosyltransferases is spatially and temporally regulated, and is finely tuned to the cues of Golgi maturation.
