Injection with Toxoplasma gondii protein affects neuron health and survival

  1. Oscar A Mendez
  2. Emiliano Flores Machado
  3. Jing Lu
  4. Anita A Koshy  Is a corresponding author
  1. Graduate Interdisciplinary Program in Neuroscience, University of Arizona, United States
  2. BIO5 Institute, University of Arizona, United States
  3. College of Nursing, University of Arizona, United States
  4. Department of Immunobiology, University of Arizona, United States
  5. Department of Neurology, University of Arizona, United States
Research Article
  • Cited 0
  • Views 859
  • Annotations
Cite this article as: eLife 2021;10:e67681 doi: 10.7554/eLife.67681

Abstract

Toxoplasma gondii is an intracellular parasite that causes a long-term latent infection of neurons. Using a custom MATLAB-based mapping program in combination with a mouse model that allows us to permanently mark neurons injected with parasite proteins, we found that Toxoplasma-injected neurons (TINs) are heterogeneously distributed in the brain, primarily localizing to the cortex followed by the striatum. In addition, we determined that cortical TINs are commonly (>50%) excitatory neurons (FoxP2+) and that striatal TINs are often (>65%) medium spiny neurons (MSNs) (FoxP2+). By performing single neuron patch clamping on striatal TINs and neighboring uninfected MSNs, we discovered that TINs have highly aberrant electrophysiology. As approximately 90% of TINs will die by 8 weeks post-infection, this abnormal physiology suggests that injection with Toxoplasma protein—either directly or indirectly—affects neuronal health and survival. Collectively, these data offer the first insights into which neurons interact with Toxoplasma and how these interactions alter neuron physiology in vivo.

eLife digest

Toxoplasma gondii is an intracellular parasite that infects the brain. Whereas most microbial infections of the brain result in severe illness or death, Toxoplasma gondii infections are usually asymptomatic. This is because the parasite has evolved the ability to exist within the brain by dampening the immune response. The parasite can therefore asymptomatically co-exist with its host for years – or even an entire lifetime. The strategy has proved so successful that up to one third of the world’s population is now thought to be infected with Toxoplasma gondii.

While this persistence tends not to be a problem for most healthy individuals, dormant Toxoplasma gondii parasites can reactivate in individuals whose immune systems fail. This can result in life-threatening neurological disease. In pregnant women, Toxoplasma gondii parasites can also cross the placenta, which can trigger miscarriage or cause harmful disease in the newborn.

To develop treatments for these cases of symptomatic disease, we need to understand how the parasite hides from the immune system in asymptomatic individuals. Mendez et al. have therefore leveraged a mouse model in which neurons injected with Toxoplasma gondii proteins (Toxoplasma-injected neurons, or ‘TINs’) produce a green fluorescent protein. This enables the infected cells to be viewed under a microscope.

Examining the mouse brains revealed that most TINs were located in two specific regions: the cortex and the striatum. The cortex is the brain’s outer layer of tissue. The striatum is a structure deep within the brain that helps regulate movement and responses to rewards. Both the cortex and the striatum contain different types of neurons. The results revealed that the proteins from the parasite were spread roughly equally among the various cell types, rather than targeting a specific subtype of neuron.

Neurons close to TINs had slightly abnormal electrical activity, whereas the TINs themselves had highly abnormal activity. By eight weeks post-infection, however, the number of TINS had fallen by around 90%. This suggests that many neurons containing Toxoplasma protein are sick and dying, and that their altered electrical activity reflects this unhealthy state.

Understanding how Toxoplasma parasites persist in the brain has the potential to reveal new targets for treating symptomatic infections. It could even provide new possibilities for targeting the inflammation that drives many other neurological diseases. Harnessing this potential will require finding out why Toxoplasma gondii infects specific brain regions and why most neurons that directly interact with the parasite die.

Introduction

A select number of highly divergent microbes (e.g., measles virus, Toxoplasma gondii) naturally cause infections of neurons within the central nervous system (CNS). Most of these viruses cause debilitating disease or death, whereas alphaherpes viruses and the eukaryotic parasite Toxoplasma primarily establish persistent, relatively quiescent neuronal infections in the immunocompetent host (Dubey, 2009). While neuron-alphaherpes virus interactions have been studied for decades—leading to a mechanistic understanding of herpes virus latency in neurons and the development of novel tools for circuit tracing—our understanding of neuron-Toxoplasma interactions is just beginning (Ugolini, 1995; Wickersham et al., 2007).

Toxoplasma is a ubiquitous intracellular parasite that can infect a wide range of warm-blooded hosts, including birds, rodents, and humans. In most immunocompetent hosts, Toxoplasma establishes a long-term, asymptomatic infection in specific organs. In humans and rodents, the CNS is a major organ of persistence and is the organ most affected by symptomatic disease in immunocompromised patients (Remington and Cavanaugh, 1965; Luft and Remington, 1992; Dubey, 2009; Neu et al., 2015). Using a Cre-based mouse model in which host cells injected with Toxoplasma protein permanently express a green fluorescent protein (GFP), our group showed that Toxoplasma predominantly interacts with neurons, not glia, in vivo (Koshy et al., 2012; Cabral et al., 2016). In addition, we determined that neurons injected with Toxoplasma protein outnumber cysts by over 20-fold (Koshy et al., 2012), suggesting that far more neurons interact with Toxoplasma than are persistently infected.

Here, we continue to harness this Cre-based model to extend our understanding of the neuron-Toxoplasma interface. We leverage the high numbers of Toxoplasma-injected neurons (TINs) and the expression of GFP, which labels the full neuron, to carry out a systematic neuroanatomic mapping of TINs. These studies revealed that TINs are most commonly found within the cortex followed by the striatum and are rarely found in the cerebellum. Within the cortex and the striatum, we used immunofluorescent assays to determine if Toxoplasma preferentially interacts with specific neuron subtypes, finding instead that the lineage of TINs essentially mirrors regional neuron subtype abundance. Finally, we used single neuron patch clamping in ex vivo slices to compare the electrophysiology of striatal TINs to neighboring ‘bystander’ neurons (neurons within the same slice that were not injected with Toxoplasma proteins). These first-of-their-kind studies for any neurotropic microbe showed that TINs—but not bystander neurons—had dramatically altered electrophysiology. At 8 weeks post-infection (wpi), the number of TINs drops by approximately 90%, suggesting this abnormal physiology reflects an unhealthy cellular state. Collectively, these data offer the first insights into which neurons interact with Toxoplasma and how these interactions—either directly or indirectly—alter neuron physiology and survival in vivo.

Results

TINs are enriched in the cortex, irrespective of infecting Toxoplasma strain

Prior work in AIDS patients and rodents suggested that Toxoplasma does not evenly distribute across the brain (Post et al., 1983; Lang et al., 1989; Luft and Remington, 1992; Arendt et al., 1999; Porter and Sande, 1992; Strittmatter et al., 1992; Berenreiterová et al., 2011; Evans et al., 2014; Neu et al., 2015; Dubey et al., 2016). These studies have conflicting findings as to where Toxoplasma lesions or cysts (in rodent studies) are predominantly found, differences that might be driven by the small numbers of patients or rodents analyzed (Berenreiterová et al., 2011; Evans et al., 2014; Dubey et al., 2016; Boillat et al., 2020). Given these conflicting studies, we sought to neuroanatomically map the location of TINs, a population that includes both uninfected, injected neurons and actively infected neurons (Koshy et al., 2012). To accomplish this goal, we used our previously published semi-automated method (Mendez et al., 2018) which utilizes the Allen Institute Mouse Brain Atlas as a reference to quantify and map TINs quickly. This automation made it feasible to sample multiple brain sections per mouse across multiple cohorts of mice infected with either of two genetically distinct Toxoplasma strains (type II— Prugniaud, type III—CEP) that express a Toxoplasma:Cre fusion protein and mCherry (Koshy et al., 2010Koshy et al., 2012; Christian et al., 2014). For simplicity, from here forward, we will refer to these strains as II-Cre and III-Cre. We quantified TINs in 16–19 brain sections/mouse across 32 regions identified in the Allen Institute Mouse Brain Atlas. Data points were grouped into 12 major regions. For both II-Cre and III-Cre infected mice, the cortex contained the highest average number of TINs, followed by the striatum (Figure 1A,B; Figure 1—figure supplement 1). In general, III-Cre infected mice showed a higher overall number of TINs compared to II-Cre infected mice (average of 247.5 III-Cre versus 216.7 II-Cre). The increase in absolute numbers in III-Cre infected mice was most pronounced in the cortex (Figure 1A,B). Most other brain regions, including the cerebellum, contained relatively few TINs (Figure 1A,B).

Figure 1 with 2 supplements see all
Toxoplasma-injected neurons (TINs) show a predilection for the cortex at 3 weeks post-infection.

Cre-reporter mice were infected with II-Cre or III-Cre Toxoplasma parasites as indicated. Brains were harvested, sectioned, labeled, and quantified as previously described (Mendez et al., 2018). (A, B) Graphs of the absolute numbers of TINs mapped to 12 regions of the brain. (C, D) Graphs of TINs/region normalized to the size of the region. The dashed line is 1, the value at which the distribution of TINs would be considered proportional to the region size. Bars, mean ± SEM. N = 16–19/sections/mouse. Individual colors denote animals from individual cohorts, N = 4–12 mice/cohort for II-Cre infected mice, 2–11 mice/cohort for III-Cre infected mice. (C, D) *p=0.0170, **p=0.0021, ****p≤0.0001, one-sample t-test. p-Values for all regions are in Supplementary file 2. Mice were excluded from analyses if GFP+ cells were not above background rate of GFP+ cells in saline-injected Cre reporter mice or if identified as an outlier by ROUT outlier test, which exclude both Cohort 1 (red) III-Cre infected mice. Figure 1—figure supplement 1 includes all mice and uses all Allen Institute sections for normalization/enrichment index.

Figure 1—source data 1

Raw data for TINs count for II-Cre and III-Cre cohort 1 (Red).

https://cdn.elifesciences.org/articles/67681/elife-67681-fig1-data1-v3.xlsx
Figure 1—source data 2

Raw data for TINs count for II-Cre and III-Cre cohort 2 (Green).

https://cdn.elifesciences.org/articles/67681/elife-67681-fig1-data2-v3.xlsx
Figure 1—source data 3

Raw data for TINs count for II-Cre and III-Cre cohort 3 (Blue).

https://cdn.elifesciences.org/articles/67681/elife-67681-fig1-data3-v3.xlsx
Figure 1—source data 4

Raw data for 10 mice each for TINs count for II-Cre and III-Cre cohort 4 (Black).

https://cdn.elifesciences.org/articles/67681/elife-67681-fig1-data4-v3.xlsx
Figure 1—source data 5

Raw data for remaining mice for TINs count for II-Cre and III-Cre cohort 4 (Black).

https://cdn.elifesciences.org/articles/67681/elife-67681-fig1-data5-v3.xlsx

As the cortex and striatum encompass a large proportion of the brain, the high number of TINs in these areas might be driven by relative size. To test this possibility, we produced an enrichment index using the following equation: RtinTtinRsize, where Rtin is the TIN count for a given region (e.g., cortex), Ttin is the total TIN count from an individual mouse, and Rsize is the total area percentage of a specific region (e.g., % of brain that is cortex) (see Supplementary file 1 for area percentage for each brain region). Our method of sectioning does not allow us to collect the smaller sections of the cerebellum, therefore we only included the cerebellar areas from sections 10-16 of the Allen atlas for normalization (consistent with the regions of the cerebellum which were analyzed). To align our sections with the Allen Institute sections, we also excluded the olfactory bulb (Mendez et al., 2018). Even with these exclusions, 85% of the original Allen atlas area was used. If the number of TINs in a region is proportional to the size of that region, the normalization index will approximate 1, while regions enriched for TINs will have indices > 1, and regions relatively devoid of TINs will have indices < 1. Using this normalization, we determined that the cortex was the only region which was significantly enriched for TINs in both II-Cre and III-Cre infected mice (index score 1.4 ± 0.1 and 2.2 ± 0.2, respectively) (Figure 1C, D). For both groups of infected mice, within the cortex, the somatosensory, motor, and visual cortices had the highest enrichment score (Figure 1—figure supplement 2). Finally, two regions—the cerebellum and the white matter tracts—showed a significant lack of enrichment in both II-Cre and III-Cre infected mice (Figure 1C, D). The lack of TINs in white matter tracts is expected given that these tracts are primarily made up of neuron axons and thus have a paucity of neuron nuclei, the cellular component by which neurons are anatomically mapped. Supplementary file 2 has the full list of enrichment scores and statistical analysis for the 12 listed regions.

In summary, these data show that, irrespective of infecting Toxoplasma strain, TINs are commonly found in the cortex followed by the striatum and relatively rarely found in the cerebellum. While TINs localization in the striatum is consistent with its size, the enrichment of TINs in the cortex and lack of TINs in the cerebellum are not accounted for by the relative size of these regions.

TINs rarely co-localize with markers of inhibitory neurons

As the cortex and the striatum had the highest number of TINs, we decided to use these areas to determine if Toxoplasma targeted a specific neuron population. Neurons can be classified in many ways, including by neurotransmitter expression, physiology, and morphology. The simplest way is to classify neurons is as inhibitory or excitatory. Given that prior work suggested that Toxoplasma infection might specifically affect inhibitory neurons (Brooks et al., 2015), we first examined how often TINs co-localized with two common markers for inhibitory interneurons, calbindin and parvalbumin. We chose these makers rather than the pan-inhibitory marker glutamate decarboxylase (GAD) [GAD+ interneurons make up approximately 15–20% of all cortical neurons (Gentet et al., 2000; Lodato and Arlotta, 2015)] as GAD staining is altered in Toxoplasma-infected brain (Brooks et al., 2015; Carrillo et al., 2020). Fortunately, parvalbumin labels 40–50% of GAD+ interneurons and calbindin labels approximately 30% of GAD+ interneurons (Hof et al., 1999; Keller et al., 2019). To quantify how often TINs were calbindin or parvalbumin interneurons, we labeled brain sections with antibodies against either calbindin or parvalbumin, and with antibodies against NeuN, a pan-neuronal marker. These labeled sections were then imaged with confocal microscopy to identify TINs that co-stained with NeuN and either calbindin or parvalbumin. Within the cortex, irrespective of infecting strain, approximately 5% (4.8 ± 2.0% II-Cre, 3.9 ± 0.6% III-Cre) of TINs were calbindin+ (Figure 2A,B), while none were parvalbumin+ (Figure 2C,D). In the striatum, we observed that approximately 4% of II-Cre TINs were calbindin+ (4.4 ± 2.0%) and approximately 9% of III-Cre TINs were calbindin+ (9.4 ± 3.4%) (Figure 2E,F). As in the cortex, no TINs co-localized with parvalbumin+ neurons in the striatum (N = 6–65 TINs/mouse, four mice for II-Cre; N = 30 and 84 TINs/mouse, two mice for III-Cre).

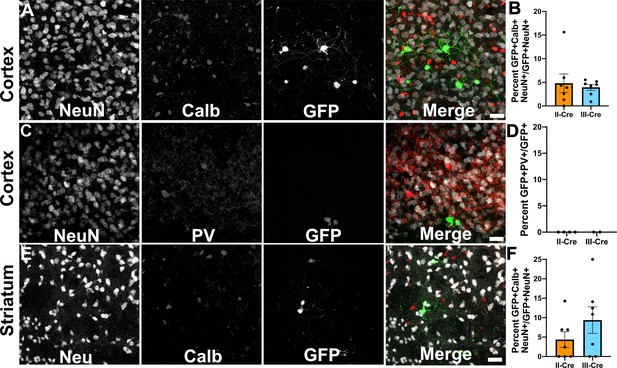

Toxoplasma-injected neurons (TINs) rarely co-localize with inhibitory interneurons.

Forty micron brain sections from II-Cre or III-Cre infected mice were stained with anti-NeuN antibodies and either anti-calbindin or anti-parvalbumin antibodies. Stained sections were then imaged by confocal microscopy to determine co-localization between TINs (GFP+) and calbindin (Calb) or parvalbumin (PV) staining. (A) Representative images of a cortical region from a section stained for Calb. (B) Quantification of the percentage of TINs that co-localized with Calb staining. (C) As in (A) except the images are of a cortical region stained for PV. (D) As in (B) except for PV quantification. (E) As in (A), but in the striatum. (F) As in (B) except for striatal Calb quantification. For (A, C, E) Merge images, gray = NeuN, red = Calb or PV, and green = GFP. N = 9 sections/mouse, seven mice/group for Calb, 2–4 mice/group for PV. (B, D, F) Bars, mean ± SEM. (B) For II-Cre infected mice, 24–127 TINs/mouse were analyzed; for III-Cre infected mice, 254–503 TINs/mouse were analyzed. (D) For II-Cre, 8–68 TINs/mouse, and for III-Cre, 281, 346 TINs/mouse were analyzed. (F) For II-Cre infected mice, 3–290 TINs/mouse were analyzed; for III-Cre infected mice, 21–214 TINs/mouse were analyzed. No significant differences were identified between groups, Student’s t-test.

These data suggest that Toxoplasma rarely interacts with or injects cortical or striatal interneurons, though we cannot exclude the possibility that Toxoplasma-injected interneurons die prior to the expression of GFP or that parasites primarily interact with interneurons that do not express parvalbumin or calbindin. Either scenario would limit our ability to detect these Toxoplasma-interneuron interactions. Within interneurons, Toxoplasma more commonly injects calbindin+ interneurons, not parvalbumin+ interneurons, an unexpected finding given the higher prevalence of parvalbumin+ interneurons.

TINs co-localize with FoxP2, a marker of cortical excitatory neurons and striatal MSNs

As only a small number of TINs co-localized with markers for inhibitory neurons, we next sought to determine if TINs co-localized with a marker for excitatory cortical neurons. For these studies, we selected the transcription factor FoxP2. FoxP2 is primarily expressed by glutamatergic/excitatory neurons within layer 6 of the mouse cortex, though some FoxP2+ excitatory neurons are also found in cortical layers IV and V (Arlotta et al., 2005; Lodato and Arlotta, 2015). FoxP2 expression also occurs in medium spiny neurons (MSNs) in the striatum, allowing us to use a single marker for both cortical and striatal studies (Ferland et al., 2003; Lai et al., 2003). We quantified how often TINs were FoxP2+ by labeling and imaging brain sections as above except now using antibodies directed against FoxP2. Within the cortex, irrespective of infecting Toxoplasma strain, approximately 58% (58.0 ± 3.8% II-Cre, 58.3 ± 2.3% III-Cre) of the analyzed TINs showed FoxP2 co-localization (Figure 3A,B). In the striatum, we found that approximately 68% (68.1 ± 7.2%) of analyzed II-Cre TINs and approximately 83% (83 ± 4.1%) of analyzed III-Cre TINs showed FoxP2 co-localization (Figure 3C,D).

Figure 3 with 2 supplements see all

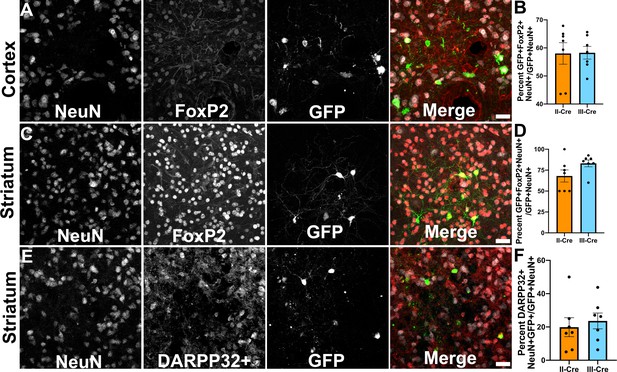

Toxoplasma-injected neurons (TINs) co-localize with FoxP2 and DARPP32 staining.

Brain sections from II-Cre or III-Cre infected mice were stained with anti-NeuN antibodies and anti-FoxP2 or anti-DARPP32 antibodies. DARPP32 staining was only done in the striatum. Stained sections were then analyzed by confocal microscopy to determine co-localization between TINs (GFP+) and FoxP2 or DARPP32 staining. (A) Representative image of a cortical region from a section stained as labeled. (B) Quantification of the percentage of TINs that co-localized with FoxP2 staining. (C) As in (A) except the images are of a striatal region. (D) As in (B) except for striatal TINs. (E) As in (C) except the tissue is stained with anti-DARPP32 antibodies (as labeled). (F) As in (D) except co-localization is between TINs and DARPP32 staining. (A, C, E) Merge images, gray = NeuN, red = FoxP2 or DARPP32, and green = GFP. Scale bar = 50 µm. (B, D, F) Bars, mean ± SEM. For (B, D, F) N = 9 sections/mouse, seven mice/group. (B) For II-Cre infected mice, a total of 24–127 TINs/mouse were analyzed; for III-Cre infected mice, 254–503 TINs/mouse were analyzed. (D) For II-Cre infected mice, a total of 28–68 TINs/mouse were analyzed; for III-Cre infected mice, 290–858 TINs/mouse were analyzed. (F) For II-Cre infected mice, 6–237 TINs/mouse were analyzed; for III-Cre infected mice, 16–198 TINs/mouse were analyzed. No significant differences were identified between groups, Student’s t-test.

Figure 3—source data 1

Raw numbers for quantification of DARPP32+ cells.

https://cdn.elifesciences.org/articles/67681/elife-67681-fig3-data1-v3.xlsx
Figure 3—source data 2

Raw numbers for quantification of FoxP2+ cells.

https://cdn.elifesciences.org/articles/67681/elife-67681-fig3-data2-v3.xlsx

This high rate of co-localization between striatal TINs and FoxP2 suggested that striatal TINs were MSNs, which would be expected given that 90–95% of neurons in the striatum are MSNs (Ouimet et al., 1984; Ouimet and Greengard, 1990). As the identification of striatal TINs as MSNs had important implications for pursuing electrophysiology studies, we sought to further confirm that striatal TINs were MSNs by determining the rate of co-localization between striatal TINs and DARPP32, another marker for MSNs (Ouimet et al., 1984; Ouimet and Greengard, 1990). We found that approximately 20% (19.9 ± 5.7%) of II-Cre striatal TINs and approximately 25% (23.6 ± 4.8%) of III-Cre striatal TINs co-localized with DARPP32+ staining (Figure 3E,F).

Given the relatively low percentage of TINs co-localizing with DARPP32 and prior work suggesting Toxoplasma infection alters protein localization and expression (Cekanaviciute et al., 2014; Brooks et al., 2015; David et al., 2016), we sought to determine how striatal FoxP2 and DARPP32 staining differed between uninfected and infected mice, and if this staining differed by proximity to TINs. To determine the abundance of FoxP2 and DARPP32 neurons near TINs, we re-analyzed the images used for Figure 3, this time quantifying the number of GFP- neurons (NeuN+ cells) that co-localized with FoxP2 or DARPP32. To determine the abundance of FoxP2 and DARPP32 neurons regardless of proximity to TINs, we generated new, randomly distributed images from a subset of stained sections used for Figure 3 and quantified the co-localization between GFP- neurons and FoxP2 or DARPP32. We found that the average number of FoxP2+ neurons in each image did not differ between images from either uninfected or infected mice, regardless of infecting Toxoplasma strain (Figure 3—figure supplement 1A); nor did the abundance vary in proximity to TINs (Figure 3—figure supplement 1B). The average number of DARPP32+ neurons in each image also did not differ between random images from uninfected or infected mice (Figure 3—figure supplement 1C). Conversely, in images taken in proximity to TINs, the number of DARPP32+ neurons showed a statistically significant decrease (Figure 3—figure supplement 1D). In addition, we noted that, on average, more striatal neurons were FoxP2+ than DARPP32+, even in uninfected mice (Figure 3—figure supplement 1A,C). To further test the possibility that FoxP2 identifies more striatal neurons than DARPP32, we stained tissues sections for both FoxP2 and DARPP32 and compared the co-localization between these proteins. Consistent with the findings in the single stains, only approximately 70% of FoxP2+ neurons stained for DARPP32 (69.6 ± 0.3% saline, 68.6 ± 0.6% II-Cre, 73.0 ± 4.0% III-Cre) (Figure 3—figure supplement 2A), while 99% (99.7 ± 0.0% saline, 99.8 ± 0.0% II-Cre, 99.8 ± 0.1% III-Cre) of DARPP32+ neurons stained for FoxP2 (Figure 3—figure supplement 2B).

These data suggest that striatal TINs are likely MSNs as they co-localize with markers of MSNs, especially FoxP2. The higher co-localization of TINs with FoxP2 versus DARPP32 is likely driven by the higher number of FoxP2+ neurons within the striatum as well as the sensitivity of DARPP32 expression/staining to disruption by infection or inflammation. Given that FoxP2 stains more striatal neurons than DARPP32, even in uninfected mice, FoxP2 may be a more sensitive marker for striatal MSNs than DARPP32.

Passive electrophysiologic properties of bystander MSNs are relatively stable

The identification of striatal TINs as co-localizing with markers for MSNs offered us an unusual opportunity. MSNs make up 90–95% of dorsal striatal neurons (Mensah and Deadwyler, 1974; Graveland and DiFiglia, 1985; Gerfen, 1992) and are highly characterized, including at the level of single cell electrophysiology in situ (i.e., patch clamping in ex vivo slices). Targeting such a well-characterized, high-frequency population would allow us to directly compare the electrophysiology of TINs and bystander neurons—striatal neurons in proximity to a TIN but not injected with Toxoplasma protein—as both groups of neurons would likely be MSNs. We reasoned that comparing the physiology of TINs and bystanders would allow us to determine the role of general inflammation in driving any changes we observed in TINs (i.e., if TINs and bystanders showed similar physiologic changes, then these changes are likely driven by the general inflammatory response to Toxoplasma, not from direct manipulation of TINs by Toxoplasma effector proteins). For these studies, we chose to record from III-Cre infected mice because the type III strain produces an higher frequency of TINs than the type II strain (Figure 1A), and because III-Cre TINs show higher rates of co-localization with the MSN marker FoxP2 (Figure 3F).

To ensure our capability to patch-clamp onto MSNs in ex vivo slices, we obtained thick brain slices from uninfected mice and performed patch clamping using a standard protocol (Nisenbaum et al., 1994; Suter et al., 1999; Haubensak et al., 2010; Wang et al., 2019). As expected, in uninfected mice, dorsal striatum neurons showed classical MSN electrophysiologic properties such as a hyperpolarized resting membrane potential of approximately −80 mV and a delayed first action potential (AP) (Figure 4A). In addition, when we filled a neuron showing the above characteristics and stained the section for DARPP32, we found the filled neuron co-localized with DARPP32 labeling (Figure 4B–D).

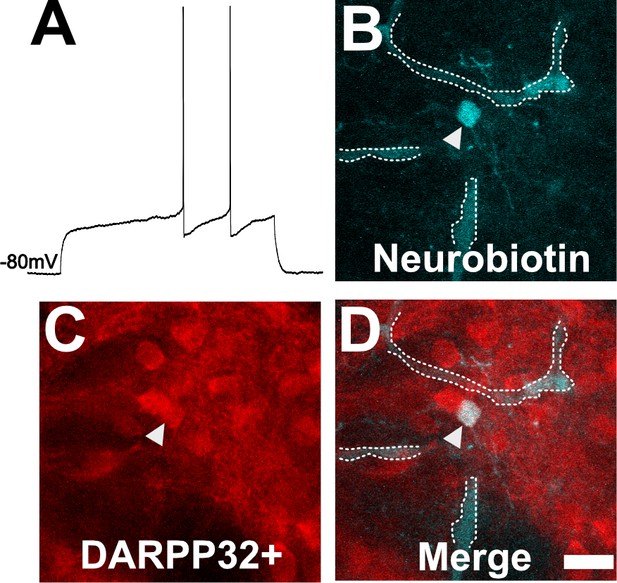

Neuron with electorphysiology of a medium spiny neuron (MSN) co-localizes with DARPP32 staining.

(A) Sample tracing from the shown neuron. Note the hyperpolarized resting membrane potential of −80 mV and the delayed time to the first action potential. (B) Image of patched neuron filled with neurobiotin. Arrowhead points to filled neuron. Dashed white line denotes biotin-filled blood vessels. (C) Image of DARPP32 staining. After recording and filling, the section was fixed and counter-labeled with anti-DARPP32 antibodies. (D) Merge of images B and C. (B–D) Section imaged on a Zeiss 880 confocal microscope. The shown images are a maximum projection of 12, 1 µm step images, from a 100 µm z-stack. Scale bar = 50 µm.

In infected mice, we electrophysiologically interrogated bystander MSNs and TINs, with bystander MSNs being approximately 30–100 µm from a TIN. Bystander MSNs had a resting membrane potential of −69.0 ± 1.2 mV, which is mildly depolarized compared to MSNs in uninfected mice (Figure 5A, Figure 5—figure supplement 1). Consistent with a depolarized resting membrane potential, bystander MSNs required fewer steps of injected current to reach the threshold to fire the first AP compared to MSNs in uninfected mice (12 ± 0.3 steps for bystanders and 13 ± 0.4 for MSNs in uninfected mice) (Figure 5—figure supplement 2). Besides these two properties, the following electrophysiologic properties were equivalent when comparing bystander MSNs to MSNs from uninfected mice: AP threshold, after hyperpolarization peak, AP amplitude, delay to first AP, and input resistance (Figure 5B–G).

Figure 5 with 2 supplements see all

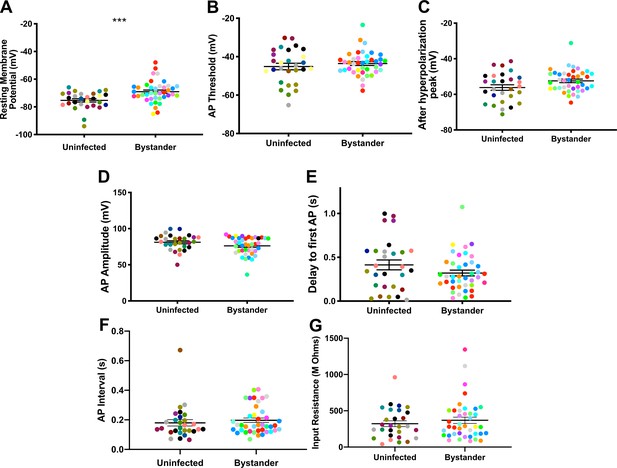

Bystander medium spiny neurons (MSNs) show similar electrophysiology as MSNs from uninfected mice.

(A) Graph of the resting membrane potential of whole cell patch clamped MSNs in uninfected mice (−74.9 ± 2.1 mV) and bystander MSNs in infected mice (−68.7 ± 4.0 mV). (B) Action potential (AP) threshold, (C) after hyperpolarization peak, (D) AP amplitude, (E) delay to first AP, (F) AP interval, and (G) input resistance in MSNs from uninfected mice and bystander MSNs in infected mice. Dots represent individual MSNs. Matching color dots denote cells from the same mouse. Uninfected MSNs, N = 28 cells recorded from 14 mice, 1–5 cells recorded/mouse. Bystander MSNs, N = 40 cells recorded from 18 mice, 1–5 cells recorded/mouse. Line, mean ± SEM. ***p=0.0007, Mann-Whitney U-test.

Figure 5—source data 1

Raw electrophysiology recording data for MSNs from uninfected mice and bystander MSNs and TINs from infected mice (source data for Figures 5 and 6A).

https://cdn.elifesciences.org/articles/67681/elife-67681-fig5-data1-v3.xlsx

These results indicate that though there is a mild change in the resting membrane potential of bystander MSNs during infection, the infected/inflammatory microenvironment at this time point causes relatively little change to neurons that have not directly interacted with Toxoplasma.

TINs show a highly depolarized membrane potential

We next evaluated TINs by following the same procedure as when we recorded from uninfected and bystander MSNs, except that we used the expression of GFP to identify the TIN (Figure 6—figure supplement 1). Unexpectedly, we were unable to properly patch onto most striatal TINs (i.e., we were unable to form a gigaseal). We were able to record from a total of 10 TINs, most of which had highly depolarized resting membrane potentials (−49.1 ± 4.5 mV) compared to either bystander or uninfected MSNs (Figure 6A). None of these TINs generated APs in response to the standard protocol, possibly because this highly depolarized membrane potential is too close to the threshold for firing an AP (~45 mV) in MSNs (Figure 5B). Several possibilities could most easily explain this highly depolarized membraned potential: (i) the patched GFP+ cells were not neurons, (ii) the patched cells were dead neurons, or (iii) the patched cells were unhealthy neurons. To distinguish between these possibilities, when possible, we hyperpolarized the patched TINs, followed by attempts to generate APs. For five TINs, after we applied between −20 and −180 pA of negative current, membrane potentials of −55 to −66 mV were observed. With this ‘normalization’ of the resting membrane potential, we found that TINs could generate APs (Figure 6B), definitively showing that they were neurons. Finally, to ensure the depolarized resting membrane potential of TINs was not due to fluorescent protein expression in the setting of inflammation, we recorded from YFP+ neurons in infected mice that constitutively express YFP in a subset of cortical neurons (Feng et al., 2000). In these mice, we found a range of resting membrane potentials that is typical of cortical neurons (Pangratz-Fuehrer and Hestrin, 2011; Oswald et al., 2013) and distinct from the physiologic abnormalities observed in TINs (Figure 6—figure supplement 2).

Figure 6 with 2 supplements see all

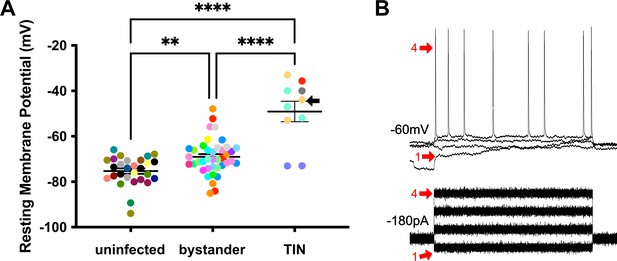

Unlike bystander neurons, Toxoplasma-injected neurons (TINs) have highly abnormal electrophysiology.

(A) Graph of the resting membrane potential of whole cell patch clamped medium spiny neurons (MSNs) in uninfected mice (−74.9 ± 2.1 mV) and bystander MSNs (−68.7 ± 4.0 mV) and TINs (−49.1 ± 4.5 mV) in infected mice. **p=0.0086, ****p=0.001, one-way ANOVA with Tukey’s post-test. For TINs, N = 10 cells recorded from six mice; uninfected and bystander described in Figure 5. Black arrow identifies TIN shown in (B). Lines, mean ± SEM. (B) Top: Example traces from TIN after hyperpolarization. Bottom: Visualization of a portion of the current injection protocol. The identified TIN was hyperpolarized to a resting membrane potential of −60 mV by the injection of −180 pA of current. The red arrow denotes a single hyperpolarized step. The numbers (1, 4) match the voltage measurement (tracings) with the steps of increasing current. Note that an action potential is finally generated at the fourth step of increasing current.

Given that such findings are consistent with the electrophysiology of sick or dying neurons (Lipton, 1999), we compared the total number of TINs in brain sections from mice infected with III-Cre parasites for 3 or 8 weeks. Consistent with the possibility that the electrophysiology reflects that TINs are sick/dying, brain sections from 8 wpi mice showed an approximately 90% reduction in the number of TINs compared to brain sections from three wpi mice (Figure 7).

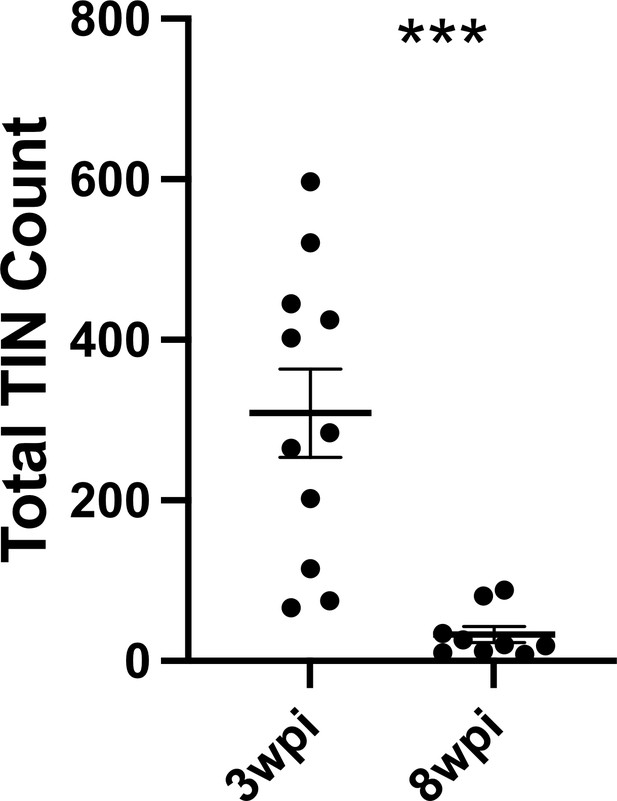

Number of Toxoplasma-injected neurons (TINs) decrease by 8 weeks post-infection (wpi).

Mice were infected and, at 3 or 8 wpi, analyzed as in Figure 1 except that total TINs numbers were quantified. Lines, mean ± SEM. ***p≤0.0001, Mann-Whitney U-test; 16–19 sections/mouse, N = 9–11 mice/time point.

Figure 7—source data 1

Raw data for quantification of TINs count at 3 and 8 wpi.

https://cdn.elifesciences.org/articles/67681/elife-67681-fig7-data1-v3.xlsx

Collectively, our data suggest that neurons that directly interact with Toxoplasma have highly aberrant electrophysiology and most will die over a relatively short period. On the other hand, bystander neurons, which are in a similar inflammatory environment, show relatively minor changes in terms of electrophysiology. Together, these data suggest that neuron pathology is extremely targeted, even in a highly inflammatory setting.

Discussion

In this study, we leveraged the Toxoplasma-Cre system to extend our understanding of neuron-Toxoplasma interactions. Across multiple cohorts of mice and using two genetically distinct Toxoplasma strains, our data show that TINs consistently localize to the cortex and striatum. For the cortex, the number of TINs is higher than would be expected even after accounting for the size of the cortex. Within the cortex and striatum, we found little evidence of Toxoplasma targeting a specific neuron subtype, as TINs co-localize with markers for highly abundant neurons in a region (e.g., MSNs in the striatum). Interestingly, when we used whole cell patch clamping in ex vivo slices to assess both striatal TINs and bystander MSNs, we found discrepant electrophysiology. Bystander MSNs showed mild changes in resting membrane potential and no changes in other passive firing properties, while TINs had highly depolarized resting membrane potentials and did not fire APs unless artificially hyperpolarized. These data suggest that TINs, but not bystanders, are unhealthy and potentially dying, a possibility confirmed by a drastic decrease in the number of TINs by 8 wpi. Together, these data offer an unprecedented look into the neuron-Toxoplasma interface, raising new questions about why the cortex is particularly vulnerable to Toxoplasma infection and the evolutionary advantage of the death of neurons injected with Toxoplasma protein.

One of the major advances of this work is how we mapped neuron-Toxoplasma interactions. Most previous studies have utilized a single Toxoplasma strain, relatively few animals (or more animals but relatively few sections/animal), and were limited to measuring cyst location. On the other hand, we mapped TINs, which outnumber cysts (Koshy et al., 2012) and show uniform distribution of GFP, allowing us to map neuron cell bodies/somas which is the traditional method for identifying neuron anatomic location. Furthermore, as our semi-automated method is relatively quick (Mendez et al., 2018), in total, we mapped a total of over 5000 TINs/Toxoplasma strain, using multiple cohorts of mice and >15 sections/mouse. These robust methods offer confidence that our findings are not unduly influenced by a single outlier mouse, a cohort effect, or insufficient sampling for a process that is highly heterogenous. Our findings are consistent with several aspects of the two most extensive cyst mapping studies (Berenreiterová et al., 2011; Boillat et al., 2020). All three studies found: (i) high levels of inter-mouse variability; (ii) identified the cortex—and especially the motor, somatosensory, visual cortical regions—as showing enrichment for Toxoplasma presence (TINs or cysts) even when accounting for region size; and (iii) determined that the cerebellum shows relatively little Toxoplasma presence, especially when accounting for size. These consistencies suggest that regional cyst burden is driven by differences in the number of neuron-parasite interactions, not by differences in regional innate immune responses as has been suggested for West Nile virus (WNV) infection (Cho et al., 2013). In addition, these regional differences are consistent with the largest studies in AIDS patients with toxoplasmic encephalitis, in which more lesions are identified in the cortex and the basal ganglia compared to the cerebellum (Porter and Sande, 1992; Arendt et al., 1999), highlighting the relevance of the mouse model to human disease. Currently, we do not know what drives these regional differences in tropism, though one possibility is differences in the transmissibility of Toxoplasma across the vasculature that supplies the cortex and striatum/basal ganglia versus the cerebellum (anterior versus posterior circulation, respectively), a possibility also suggested for WNV (Daniels et al., 2017).

A second advance in our study is the ability to identify the type of neuron injected by Toxoplasma. The finding that TINs are comprised of common neuron subtypes in the deep cortex and striatum (e.g., FoxP2+ neurons) suggests that Toxoplasma injects (and presumptively infects) in proportion to the neuron subtypes in a given region. One exception to this rule is the lack of TINs that also express parvalbumin. Parvalbumin-expressing neurons make up approximately 40–50% of the cortical GABAergic (inhibitory) neurons and are found in all deeper layers of the cortex, while calbindin-expressing neurons are less frequent, especially in layers IV-VI of the cortex (Hof et al., 1999; Tremblay et al., 2016). One possibility for the lack of parvalbumin+ TINs is a decrease or change in parvalbumin expression/location as seen for DARPP-32 (Figure 3—figure supplement 1) or GAD-67 (Brooks et al., 2015). Another more exciting possibility is that parvalbumin+ neurons have fewer interactions with Toxoplasma because they have a high concentration of perineural nets—extracellular matrix that surrounds different parts of the neuron (Baker et al., 2017)—blocking Toxoplasma’s ability to contact parvalbumin+ neurons. Another possibility is that parvalbumin+ neurons are highly sensitive to injection with Toxoplasma protein and rapidly die before expressing GFP and/or die prior to the time point at which we performed our studies. Future studies will define the factors that determine which neurons interact with parasites.

A final advance in this work is the electrophysiology comparing TINs and bystander neurons. To the best of our knowledge, these studies are the first in any neurotropic infection to compare the in situ electrophysiology between microbe-interacted (or infected) neurons versus those neurons in close proximity but without direct microbial interactions. The utility of comparing TINs and bystanders is to address what physiologic effects are driven by the general neuroinflammatory response versus those changes driven by neuron-parasite interactions. Given the relatively common understanding that microglia will strip synapses off infected and uninfected neurons in the inflamed brain (Vasek et al., 2016; Di Liberto et al., 2018), we found it remarkable that bystander MSNs physiology showed only minor changes compared to MSNs from uninfected mice while TINs showed highly abnormal electrophysiology (Figure 6). One possible explanation for the minimal changes seen in bystanders is that these neurons undergo compensatory mechanisms that allow them to avoid drastically changing, as a dramatic response would be detrimental to the local circuitry. Another possibility is that the effect of the neuroinflammatory response is confined to a small area near TINs, leaving these more distant bystanders relatively spared. Either explanation would preserve circuit function at a global level and allow for a relatively quick reversal of these physiologic changes once the inflammatory response subsides. Of note, while the physiology of the bystanders is relatively normal compared to TINs, this depolarized resting membrane potential is still abnormal and the decrease in required input current (Figure 6—figure supplement 2) suggests these neurons are mildly hyperexcitable. If similar changes also occur in other bystander neurons (e.g., cortical neurons) and in other CNS infections, they might explain why patients with active brain infections have an increased likelihood of seizing (Luft and Remington, 1992; Neu et al., 2015). These mild abnormalities might also summate across many bystander neurons to cause circuit level changes. While we did not test this possibility, such changes in the far more numerous bystanders—especially if the changes are reversible—could explain both the heterogeneity of behavioral changes seen in infected animals (Worth et al., 2014) and the relative lack of behavioral abnormalities observed in Toxoplasma-infected mice that have cleared both the infection and the immune response (McGovern et al., 2020).

TINs—which include actively infected neurons and uninfected, injected neurons (Figure 5—figure supplement 1)—show highly abnormal electrophysiology, only firing APs after artificial hyperpolarization. While we cannot distinguish between whether this abnormal physiology leads to neuron death or the sick state of these neurons drives the abnormal physiology (we favor the latter possibility), the discrepancy between the physiology of TINs and bystanders suggests that the root cause is specific to neurons injected with Toxoplasma protein. Such restricted changes could arise from direct manipulation of TINs by the injected parasite proteins or selective microglial/macrophage recognition and phagocytosis of TINs, consistent with what was observed in lymphocytic choriomeningitis virus infection (Di Liberto et al., 2018). Another possibility, as noted above, is that the immune response is tightly regulated and confined, such that the destruction leveled by this response is limited to a very small area around TINs. Such a possibility is consistent with prior work showing that partial abrogation of astrocytic TGF-β signaling led to de-regulation of the CNS immune response to Toxoplasma and higher levels of neuronal loss without changing the CNS parasite burden (Cekanaviciute et al., 2014). Future studies will determine what factors drive this abnormal physiology.

Finally, our finding of an approximately 90% decrease in TINs by 8 wpi suggests that we need to re-evaluate our understanding of how and why microbes persist in or even infect neurons. Microbes with the capability to infect multiple cell types are commonly found in neurons, not astrocytes (e.g., Toxoplasma, WNV, measles virus). This neuronal preference has been explained by the idea that—given the long-lived, relatively non-regenerative nature of neurons—neuron survival must be ensured at almost any cost. Thus, rather than initiating an immune response that might result in neuron death, neurons survive infection through non-cytolytic clearance of microbes (Binder and Griffin, 2001; Patterson et al., 2002; Samuel and Diamond, 2005; Miller et al., 2016) and/or pushing the infecting microbes to enter a latent state (Speck and Simmons, 1991; Ferguson and Hutchison, 1987; Tanaka et al., 2016). The death of TINs directly challenges this model, suggesting that the battle to persist in neurons is far more nuanced than previously recognized. For example, given that >90% of TINs are expected to be uninfected (Koshy et al., 2012), we would predict that many uninfected neurons are dying. What is the advantage of uninfected, parasite-manipulated neurons dying? One possibility is that these TINs are so abnormal (from either direct manipulation by parasites or because of neuron-immune cell interactions) that global brain function is better preserved with the removal of these neurons. Such a possibility is consistent with the altered gene expression identified in neurons that cleared an attenuated rabies virus infection (Gomme et al., 2012). Another possibility is that the death of TINs—both infected and uninfected—is essential for parasite control and perhaps the death of uninfected TINs is simply collateral damage. Or the death of uninfected TINs might divert immune attention from the rare, persistently infected neuron. Regardless of whether this death benefits the host or microbe (or both), based upon the data presented here and previously, we offer an alternative model for neuron-tropic microbes: neurons mount appropriate immune responses to both cytokines and infections such that persistent infection is a rare outcome, rather than a universal one. Limited data in a murine model of measles virus infection is consistent with this possibility (Miller et al., 2019), though future studies using other neurotropic pathogens will be required to definitively determine how universal this model is.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Strain, strain background (Toxoplasma gondii)Type II (Prugniaud)Koshy et al., 2012II-CreExpresses mCherry and Cre recombinase
Strain, strain background (Toxoplasma gondii)Type III (CEP)Christian et al., 2014III-CreExpresses mCherry and Cre recombinase
Strain, strain background (Mus musculus)Ai6 mouse, ZsGreen1Jackson LaboratoriesStock # 007906
RRID:IMSR_JAX:007906
Strain, strain background (Mus musculus)thy1-YFP-H mouseJackson LaboratoriesStock # 003782
RRID:IMSR_JAX:003782
AntibodyAnti-ZsGreen, (rabbit polyclonal)ClontechCat# 632474
RRID:AB_2491179
IHC (1:10,000)
AntibodyAnti-rabbit (goat polyclonal biotinylated conjugated)Vector LabsCat# BA-1000
RRID:AB_2313606
IHC (1:500)
AntibodyAnti-NeuN B-clone A60 (mouse biotin conjugated)MilliporeCat# MAB377
RRID:AB_177621
IF (1:500)
AntibodyAnti-calbindin, (rabbit polyclonal)Sigma-AldrichCat# C2724
RRID:AB_258818
IF (1:500)
AntibodyAnti-parvalbumin, (rabbit polyclonal)AbcamCat# ab11427
RRID:AB_298032
IF (1:1000)
AntibodyAnti-FoxP2, (rabbit polyclonal)AbcamCat# ab16046
RID:AB_2107107
IF (1:1000)
AntibodyAnti-DARPP32, (rabbit polyclonal)AbcamCat# ab40801
RRID:AB_731843
IF (1:500)
AntibodyAnti-rabbit IgG Alexa Fluor 568 (goat polyclonal)InvitrogenCat# A11011
RRID:AB_143157
IF (1:500)
AntibodyCy5 streptavidinInvitrogenCat# SA1011IF (1:500)
Commercial Assay or kitAvidin-biotin complex kitThermo Fisher ScientificCat# 32020
Commercial Assay or Kit3,3’-Diaminobenzidine (DAB) VectastainVector LabsSK-4100
RRID:AB_2336382
OtherNeurobiotinVector LabsSP1120
RRID:AB_2336606
0.6%
OtherDAPI stainInvitrogenD1306
RRID:AB_2629482
(1 µg/ml)
SoftwarepCLAMPMolecular Devicesv10.7
RRID:SCR_011323
SoftwarePrismGraphPadv9.1.0
RRID:SCR_002798
SoftwareMATLABMathWorksv2015a

Parasite maintenance

Request a detailed protocol

Parasites were maintained via serial passage through human foreskin fibroblasts using DMEM supplemented with 2 mM glutagro, 10% fetal bovine serum, and 100 IU/ml penicillin/100 μg/ml streptomycin. The type II (Prugniaud) and type III (CEP) strains used have been engineered to express mCherry and Cre recombinase and have been previously described (Koshy et al., 2012; Christian et al., 2014).

Mice

Most mice used in these studies are Cre-reporter mice that express GFP only after the cells have undergone Cre-mediated recombination (Madisen et al., 2010). For Figure 6—figure supplement 2 (recordings of YFP+ cortical neurons), thy1-YFP-H mice were used (Feng et al., 2000). Mice were originally purchased from Jackson Laboratories (stock # 007906 for Cre-reporter mice, stock # 003782 for thy1-YFP mice) and bred in the University of Arizona Animal Care Facilities.

Infections

Request a detailed protocol

Mice were infected at 2–3 months of age via intraperitoneal injection with freshly syringe-released parasites for Figures 1, 2, 3 and 7, and related figure supplements. Mice were inoculated with 10,000 freshly syringe-released parasites in 200 μl of USP-grade PBS for both II-Cre and III-Cre strains. To increase the reliability of electrophysiology studies (Figures 5 and 6, and related Figure 6—figure supplements 1 and 2), mice were infected at 5–6 weeks of age with III-Cre parasites only.

Tissue preparation

Request a detailed protocol

For the localization studies, at 3 wpi animals were sedated with a ketamine/xylazine cocktail, intracardially perfused with saline followed by 4% paraformaldehyde (PFA), after which brains were harvested. Sections were then prepared as previously described (Mendez et al., 2018). In brief, left and right brain hemispheres were isolated, drop-fixed in 4% PFA followed by cryopreservation in 30% sucrose. Forty-micron-thick sagittal sections were generated using a freezing sliding microtome (Microm HM 430). Sections were then stored as free-floating sections in cryoprotective media (0.05 M sodium phosphate buffer containing 30% glycerol and 30% ethylene glycol) until labeling procedure was to be done. Sections for localization studies (Figure 1, Figure 1—figure supplements 1 and 2) were sampled every 200 μm, while for co-localization studies (Figures 2 and 3, Figure 3—figure supplements 1 and 2), sections were sampled every 400 μm.

Immunohistochemistry

Request a detailed protocol

To ensure adhesion of tissue onto slides for localization studies, tissue was air-dried onto slides overnight then heated on a slide warmer for 40 min at 34°C. Then tissue was dehydrated using increasing then decreasing concentrations of 50%, 75%, 95%, and 100% ethanol. Slides were washed with TBS, peroxidase inactivated (3%H2O2/10% methanol), permeabilized (0.6% Triton X-100), blocked (1.5% BSA and 1.5% goat serum), and incubated with rabbit anti-ZsGreen (Clontech, Cat. No. 632474, 1:10,000) for 15–18 hr at room temperature. Next, slides were incubated in goat anti-rabbit polyclonal biotinylated conjugated antibody (Vector Labs, Cat. No. BA-1000, 1:500) for 2 hr, followed by incubation with avidin-biotin complex kit (Thermo Fischer Scientific, 32020) for 2 hr and visualization with a 3,3’-diaminobenzidine kit (Vectastain, Vector Labs, SK-4100). Sections were then counterstained with cresyl violet for Nissl labeling.

For co-localization studies, sections were labeled free-floating, 8–10 sections/mouse. Sections were washed with PBS, permeabilized with 0.3% Triton-X, then permeabilized and blocked with 0.3% Triton-X and 5% goat serum (Jackson Immuno). For primary antibodies, the following were incubated for 15–18 hr at 4°C in PBS with 0.3% Triton-X and 5% goat serum: mouse biotin conjugated anti-NeuN B-clone A60 (Millipore, MAB377, 1:500), rabbit anti-calbindin (Sigma-Aldrich, C2724, 1:500), rabbit anti-parvalbumin (Abcam, ab11427, 1:1000), rabbit anti-FoxP2 (Abcam, ab16046, 1:1000), rabbit anti-DARPP32 (Abcam, ab40801, 1:500). Following incubation in the appropriate antibody, sections were then incubated for 2 hr in the following secondaries: goat anti-rabbit IgG Alexa Fluor 568 (Invitrogen, A11011, 1:500), Cy5 streptavidin (Invitrogen, SA1011, 1:500), and all sections were counterstained with 4’,6-diamidino-2-phenylindole (DAPI) (Thermo Fisher Scientific, 1:1000).

For filled MSNs, sections were processed as discussed below. For staining, sections with filled MSNs were permeabilized with 0.6% Triton-X in PBS, then incubated with DARPP32 antibody in 5% goat serum, 0.6% Triton-X in PBS for 48 hr at 4°C. Sections were washed then incubated with Cy5 streptavidin (1:500) and goat anti-rabbit Alexa Fluor 568 (1:500) for 24 hr at 4°C.

Electrophysiology of MSNs

Request a detailed protocol

Mouse brain slice electrophysiology recording was performed as described (Suter et al., 1999; Nisenbaum et al., 1994; Dorris et al., 2014; Willett et al., 2016; Haubensak et al., 2010). Mice were sacrificed with CO2, after which the descending aorta was clamped and the mice were intracardially perfused with ice-cold oxygenated artificial cerebral spinal fluid (ACSF) containing 126 mM NaCl, 1.6 mM KCl, 1.2 mM NaH2PO4, 1.2 mM MgCl2, 2.4 mM CaCl2, 18 mM NaHCO3, 11 mM glucose. After the olfactory bulbs and the cerebellum were removed, the brain was transferred to a vibratome stage that contained ice-cold ACSF oxygenated with carbogen (95% O2 balanced with CO2); 200 μm coronal sections were then generated with the vibratome (Leica, VT1000S). Brain slices were immediately transferred to oxygenated NMDG-HEPES recovery solution (93 mM NMDG, 2.5 mM KCl, 1.2 mM NaH2PO4, 30 mM NaHCO3, 20 mM HEPES, 25 mM glucose, 5 mM sodium ascorbate, 2 mM thiourea, 3 mM sodium pyruvate, 10 mM MgSO4, 0.5 mM CaCl2, 300–310 mOsm, titrated with 10 N HCl to adjust pH to 7.3–7.4) and were allowed to recover for 15 min at 32–34°C. After the recovery portion, brain slices were then transferred to room temperature oxygenated ACSF for 1 hr. After the rest period, recordings were performed in a rig equipped with a MultiClamp 700B, a Digidata 1550A1 (Molecular Devices), and a fluorescent microscope (Olympus BX51) that was used to visualize sections and identify TINs. Patch pipettes were pulled with P-97 Sutter micropipette puller to achieve a resistance of 8–16 MΩ, after which they were filled with an intracellular solution (135 mM potassium gluconate, 5 mM EGTA, 0.5 mM CaCl2, 2 mM MgCl2, 10 mM HEPES, 2 mM MgATP, and 0.1 mM GTP, pH 7.3–7.4, 290–300 mOsm). Recording data were sampled at 10 kHz, filtered at 3 kHz, and analyzed (Molecular Devices, pCLAMP, 10.7). For bystander neurons and neurons in uninfected mice, the classification as an MSN was based on the firing pattern in response to the current injections as described previously (Schmidt and Perkel, 1998; Farries and Perkel, 2000; Luo et al., 2001; Ding and Perkel, 2002; Ding et al., 2003, Willett et al., 2016). For filling experiments, once data from a 200 μm section were recorded, the recorded neurons were filled with 0.6% neurobiotin (Vector Labs, SP1120). Filled sections were then stored in 4% PFA for 24 hr followed by cryopreservation in cryoprotective media until stained as described above.

Microscopy and quantification

Request a detailed protocol

Slides for localization data were imaged on a Leica DMI6000 with a motorized stage, using Leica Application Suite X (LAS X) at 10× magnification. Base background subtraction and white balance was maintained throughout individual cohorts. Image stitching was done automatically through LAS X with a 10% overlap and images stored as Leica image file format (lif). Lif images were then processed on a custom MATLAB code for image transformation onto the Allen Institute reference atlas, followed by semi-automated quantification, as described in Mendez et al., 2018. Animals were excluded due to having the same or fewer TINs compared to saline-injected animals (~15 TINs) and via ROUT outlier tests. Figure 1—figure supplement 1 has all mice included and includes 100% of the Allen atlas for the enrichment index. For co-localization studies, 8–10 sections/mouse were imaged. Images were captured on a Zeiss LSM880 inverted confocal microscope (Marley Microscopy Core, UA). Images were captured with a 20× objective, with 1× PMT zoom, all settings were the same across specific staining runs. Autofocus was used to capture a z-stack that would capture from edge-to-edge of the section.

Statistics

In Figure 1, Figure 1—figure supplement 2, data were analyzed with a one-sample t-test to compare the enrichment score to a value of 1, which would indicate a random distribution of TINs in a given region of the brain. For Figures 23 and associated figure supplements, the data were analyzed with an unpaired two-tailed t-test to test for differences between II-Cre and III-Cre infected groups. For Figure 5 and Figure 7, the data were analyzed with a Mann-Whitney U-test. Figure 5—figure supplement 2 was analyzed with an unpaired two-tailed t-test. Figure 6 was analyzed with a one-way ANOVA with Tukey’s post-test. All statistics were done via Prism statistical software (GraphPad v9.1.0).

Data availability

Data for Figures 1,2,3,5,6,7 is provided.

References

  1. Book
    1. Dubey J
    (2009)
    Toxoplasmosis of Animals and Humans (Second Edition)
    Parasites & Vectors CRC Press.
    1. Mensah P
    2. Deadwyler S
    (1974)
    The caudate nucleus of the rat: cell types and the demonstration of a commissural system
    Journal of Anatomy 117:281.

Decision letter

  1. Malcolm J McConville
    Reviewing Editor; The University of Melbourne, Australia
  2. Bavesh D Kana
    Senior Editor; University of the Witwatersrand, South Africa

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

In this study Mendez and colleagues map the distribution of Toxoplasma gondii in mouse brains, using a new imaging approach to detect neurons that have been injected with parasite proteins. Significant regional differences in parasite tropism, as well as selectivity for different neuronal subtypes were observed. Significantly, parasite-affected neurons exhibited severe defects in electrophysiology and may subsequently die, while neighboring uninfected neurons display only minor changes in physiology. These findings highlight the extent to which Toxoplasma interacts with neurons and suggest that even transient or aborted infections can lead to neuronal clearance. This paper will be of interest to those studying parasite infections and host-pathogen interactions.

Decision letter after peer review:

Thank you for submitting your article "Toxoplasma gondii injected neurons localize to the cortex and striatum and have altered firing" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Bavesh Kana as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. The reviewers suggested that the available data indicate that the TINs are dying and that the current title and major conclusions suggesting that they just exhibit abnormal electrophysiology is miss-leading. It is strongly recommended that the authors modify their conclusions (and title) regarding the state/fate of TINs unless additional experimental work can be provided to support the conclusion that the TINs have a distinct electrophysiological state.

2. The finding that bystander TINs had a detectable change in electrophysiology (compared to neurons in uninfected mice) was considered to be a significant finding. Could the authors comment or expand on the significance of the electrophysiological changes observed in the by-stander neurons in infected mice compared to neurons in uninfected mice.

3. Consider normalizing TIN numbers to host nuclei rather than tissue area in considering distribution across tissues.

4. Comment or provide information on the extent to which TINs correspond to successful versus aborted infections.

5. Expand discussion to relate these findings to broader implications for Toxo and other neurotropic infections – in particular, the prevailing view that neurons are long-lived reservoirs for pathogens.

Reviewer #1 (Recommendations for the authors):

1. Need to change how the data are normalized in Figure 1. But, in my opinion, these data are not necessary in this manuscript and could be removed.

2. The interpretation that inhibitory neurons are not injected is premature. At the very least, the authors need to acknowledge that these neurons may die rapidly following injection.

3. The authors' difficulty with patch-clamping the TINs suggest that the cells are inherently damaged, and this is confirmed by their finding that there are reduced numbers of TINs 8 weeks post infection. Thus, the electrophysiological changes the authors note in those TINs the authors could path-clamp may simply be due to changes in neuronal health rather than a specific impact on their excitability. While they attempted to address this in Figure 6B, it still remains possible that neuronal cell health is the issue. Perhaps the use of channel blockers coupled with more extensive electrophysiological analyses would help to clarify this issue.

4. This finding that TINs are unhealthy and/or die is not trivial nor pedantic and the authors should be encouraged to delve more into this. A minor comment here is how do the authors know that these changes are not simply due to GFP expression.

5. In this reviewer's opinion, the most significant data here are the changes in bystander cell resting membrane potential. But due to neuronal health issues, the authors should define whether this is a specific response to infection or if these neurons also have defects in neuronal health.

Reviewer #2 (Recommendations for the authors):

1. Figure 5 shows significance between neurons in uninfected mice and bystander neurons (Figure 5A). In Figure 6 this data is no longer significant – I'm presuming this is an error or if this data is different from Figure 5 then it needs to be explained. The electrophysiology of TINS does seem drastically different however the simplification of the bystander data may be missing important biology. The equivalent of Figure 5B-G is not shown. Because TINs required hyperpolarization to confirm their neuronal status and to measure anything, it is possible that the electrophysiology data alone is not able to detect more subtle differences in neuronal physiology such as a cell that is in a quiescent state? Immunohistochemistry for apoptotic or necrotic markers would be helpful and potentially revealing if combined with cyst markers?

2. If there are no real differences in TINs between Type II and III can conclusions be made about the cause of neuronal death – presumably it is not strain specific proteins?

3. There is constant speculation that Toxoplasma infection causes neurological disease. This work would definitely suggest that it is not a benign infection and has serious consequences. Although bold statements are not needed for good science there could be more links to the broader biology of neurotropic infections in the discussion as nicely alluded to in the introduction.

https://doi.org/10.7554/eLife.67681.sa1

Author response

Essential revisions:

1. The reviewers suggested that the available data indicate that the TINs are dying and that the current title and major conclusions suggesting that they just exhibit abnormal electrophysiology is miss-leading. It is strongly recommended that the authors modify their conclusions (and title) regarding the state/fate of TINs unless additional experimental work can be provided to support the conclusion that the TINs have a distinct electrophysiological state.

We appreciate this suggestion and have changed the title to: Injection with Toxoplasma gondii protein affects neuron health and survival. We hope this new title is acceptable.

2. The finding that bystander TINs had a detectable change in electrophysiology (compared to neurons in uninfected mice) was considered to be a significant finding. Could the authors comment or expand on the significance of the electrophysiological changes observed in the by-stander neurons in infected mice compared to neurons in uninfected mice.

We have amended our discussion to highlight that while the bystander physiology is relatively normal compared to TINs physiology, it is still abnormal. In addition, we have also included a new figure (Supp Figure 6) which shows an expected consequence of the depolarized nature of bystanders; they require less input current to trigger the first action potential. In the discussion, we have noted that such changes in other neurons (e.g., cortical neurons) might lead to an increase in seizures— which is seen in patients with symptomatic toxoplasmosis (ie. congenital and recrudescent infections)— or even the various behavioral changes observed in rodents. We have expanded our discussion to include such possibilities but have stressed that these findings are speculations that require further studies to confirm or negate.

3. Consider normalizing TIN numbers to host nuclei rather than tissue area in considering distribution across tissues.

We appreciate the Reviewer’s pointing out that neuron density may play a role in where we find TINs. For example, the limited number of neuron nuclei in/near white matter tracts is almost certainly what accounts for the “under enrichment” of TINs in white matter tracts (in a sense it is a nice built-in control that our system is working). We have noted this explanation in the results.

We also agree that neuron density could explain why TINs somas are enriched in deeper cortical layers and not in more superficial cortical layers. We will incorporate such considerations into future studies/analyses but feel that such re-analysis is beyond the scope of this paper for several reasons. First, prior T. gondii studies that have quantified cyst locations have used region size for normalization (Berenreiterova et al., 2011; Boillat et al., 2020). Thus, by using size ourselves, we could be consistent with these papers and draw connections to them. Second, for most of the major brain regions, relative size correlates with the number of TINs found in those regions, suggesting that size may adequately explain why a certain percentage of TINs is found in those regions (even without accounting for nuclei density). From a statistical standpoint, for both type II and type III infection, size does not correlate with the number of TINs for only two regions beyond the white matter tracts: the cortex and cerebellum. Given that the cerebellum is a relatively large brain region and has a high density of neurons in the granular layer— the lack of TINs here suggests that some unknown factor (such as difference in vascular permeability (Daniels et al., 2017)) rather than area size or neuron density accounts for the cerebellum’s relative resistance to infection. Third, unlike brain region size where the Allen Institute Mouse Brain Atlas is accepted as a standard, there is no accepted standard for neuron density, in part because counts vary widely (reviewed in Keller et al., 2018, Tables 1-4). Given the lack of standard counts, the most appropriate way to normalize would be to do our own counts of host nuclei in each region and ideally in both uninfected and infected mice. Counting host nuclei in infected tissue becomes complicated because of the infiltrating immune cells and dividing glia, an issue that cannot be solved by counting only neurons because of a loss of antigenicity for multiple neuron markers in inflamed brain tissue (Cekanaviciute et al., 2014; David et al., 2016). Pursuing such counts in uninfected tissue alone leads to a technical issue for us: when trying to count cells with high numbers using our program (Mendez, Potter et al., 2018), our processing system cannot not handle the workload (i.e., the program crashes). Thus, at this time, we feel that normalizing by size is an appropriate first step and will use the recommended normalization in subsequent work which will pursue defining the mechanisms that lead to enrichment of TINs in the cortex and a lack of TINs in the cerebellum.

4. Comment or provide information on the extent to which TINs correspond to successful versus aborted infections.

With the current Cre system, in vivo, we cannot distinguish between aborted invasion and invasion followed by intracellular killing of the parasite. In addition, as many cysts are in distal neuronal processes (Cabral, Tuladhar et al., 2016), we often cannot determine if a TIN is infected unless we do a full neuron reconstruction, which requires thick sections rather than the 40 micron sections we used for the immunohistochemical studies. For this reason, we do not make distinctions about infection status or how an uninfected but injected TIN arose. We clarified this issue in the text (i.e. TINs refers to both infected and uninfected, injected neurons) as well as included a new figure that more clearly explains this concept. In addition, we have noted that our prior work suggests that >90% of these TINs are not infected, which is consistent with our findings in thick sections where we have done whole neuron reconstructions (unpublished data.)

5. Expand discussion to relate these findings to broader implications for Toxo and other neurotropic infections – in particular, the prevailing view that neurons are long-lived reservoirs for pathogens.

We have expanded the final paragraphs of our discussion to address this concern. We hope we have adequately addressed the comment.

Reviewer #1 (Recommendations for the authors):

1. Need to change how the data are normalized in Figure 1. But, in my opinion, these data are not necessary in this manuscript and could be removed.

Please see our response to Essential revisions, point 3.

2. The interpretation that inhibitory neurons are not injected is premature. At the very least, the authors need to acknowledge that these neurons may die rapidly following injection.

We have included this language in the results and discussion of the revised manuscript.

3. The authors' difficulty with patch-clamping the TINs suggest that the cells are inherently damaged, and this is confirmed by their finding that there are reduced numbers of TINs 8 weeks post infection. Thus, the electrophysiological changes the authors note in those TINs the authors could path-clamp may simply be due to changes in neuronal health rather than a specific impact on their excitability. While they attempted to address this in Figure 6B, it still remains possible that neuronal cell health is the issue. Perhaps the use of channel blockers coupled with more extensive electrophysiological analyses would help to clarify this issue.

We have not pursued these studies but agree that future studies with CCB may be useful. As noted above, we have amended our language in the revised manuscript to more clearly define that we cannot say what is driving the ephys changes (neuron health vs. parasite manipulation vs. the immune response, etc).

4. This finding that TINs are unhealthy and/or die is not trivial nor pedantic and the authors should be encouraged to delve more into this. A minor comment here is how do the authors know that these changes are not simply due to GFP expression.

We do not think GFP expression is the issue for several reasons. Many people now identify specific neuron populations by fluorescent protein expression and such issues have not been noted. In addition, as we were concerned that inflammation plus fluorescent protein expression might cause an issue, we pursued patch-clamping of cortical neurons in infected thy1-YFP mice (Jax 003709; Feng et al., 2000). We did not find TINs-like electrophysiology abnormalities in the YFP+ cortical neurons (new Figure 6- supplemental figure 2).

5. In this reviewer's opinion, the most significant data here are the changes in bystander cell resting membrane potential. But due to neuronal health issues, the authors should define whether this is a specific response to infection or if these neurons also have defects in neuronal health.

This issue of bystander health is much more difficult to address because it is difficult to track bystanders over time. Several studies by different labs shed light on some of this complexity. Hermes et al., 2008 found no differences in neuronal density at 1 year post infection. Parlog et al., 2014 identified subtle region-specific differences on MRI and showed a mild amount of neuron degeneration (which might be TINs death or bystander death), but most neurons were intact. Of note, both referenced studies used a a type II T. gondii strain that is known to cause more inflammation and result in higher cyst numbers compared to the type II strain we used. For these reasons, it is unclear how well those studies would correlate to ours. Finally, while NeuN, MAP2, and β-III tubulin staining distinctly decreases in infected mice (Cekanaviciute et al., 2014, David et al., 2016), nissl staining suggests these neurons are still intact (David et al., 2016). This discrepancy between nissl staining and other neuron-specific antibodies in the setting of inflammation is consistent with the idea that neurons in the inflamed brain can lose some antigenicity— the significance of which we currently do not know. We continue to ponder ways in which to answer this important question.

Reviewer #2 (Recommendations for the authors):

1. Figure 5 shows significance between neurons in uninfected mice and bystander neurons (Figure 5A). In Figure 6 this data is no longer significant – I'm presuming this is an error or if this data is different from Figure 5 then it needs to be explained. The electrophysiology of TINS does seem drastically different however the simplification of the bystander data may be missing important biology. The equivalent of Figure 5B-G is not shown. Because TINs required hyperpolarization to confirm their neuronal status and to measure anything, it is possible that the electrophysiology data alone is not able to detect more subtle differences in neuronal physiology such as a cell that is in a quiescent state? Immunohistochemistry for apoptotic or necrotic markers would be helpful and potentially revealing if combined with cyst markers?

Thank you for catching that error; we have addressed it. Of note, given that Figure 5 and Figure 6 use different statistical tests (Figure 5 has 2 groups, Figure 6 has 3), the p-values are different.

In regard to the death of TINs, we are actively pursuing these studies (in a COVID delayed manner) but have nothing to report at this time in terms of cell death in relation to infection and/or the type of cell death the TINs are undergoing. Our preliminary data suggests TINs do not co-localize with staining for cleaved Caspase 3 but these data are too preliminary for publication. Staining for RIPK1 and MLKL are best described in cell culture and are affected by fixative (Samson et al., Cell Death and Differentiation 2021). Unfortunately, the fixative that works best (methanol), kills the GFP signal in such a way that even post-fixation anti-GFP (really antiZsGreen) antibodies (which work with PFA fixed tissue), no longer identify the GFP+ cells (we’ve tried). The RIPK3 antibody maybe a possibility but we have not started those experiments yet. Trying to antibody stain thick tissue (which is what would be needed to define if the TIN is infected or not) will then represent the next hurdle. In short, we are using multiple methods to try to address this question, but, currently, we have no reliable data to address the Reviewer’s comment.

2. If there are no real differences in TINs between Type II and III can conclusions be made about the cause of neuronal death – presumably it is not strain specific proteins?

As the Reviewer noted, as we see TINs decrease in both type II and type III infection (type II is anecdotal- we have not performed carefully matched studies with the type II parasites at this time), we do not think these outcomes are strain specific. We have not included this statement in our discussion because, like most journals, eLife prefers we not reference such anecdotal data.

3. There is constant speculation that Toxoplasma infection causes neurological disease. This work would definitely suggest that it is not a benign infection and has serious consequences. Although bold statements are not needed for good science there could be more links to the broader biology of neurotropic infections in the discussion as nicely alluded to in the introduction.

We appreciate the Reviewer’s thoughtful comments. While we agree that the loss of neurons would not be considered benign, an actual global/functional consequence of losing these neurons remains to be shown. As the consequences of Toxoplasma infection— especially in humans— has been overstated by the media compared to the data (please see Johnson, Koshy mBio 2020), we have refrained from making statements about the nature of this neuronal loss. We have expanded our discussion of how our data might relate to behavior changes in rodents (bystanders) and affect how we think about neurotropic infections. We hope the Reviewer will feel that we sufficiently “connected the dots” for how our findings have important and broad implications. Please also see our response to Essential revisions, points 2 and 5.

https://doi.org/10.7554/eLife.67681.sa2

Article and author information

Author details

  1. Oscar A Mendez

    Graduate Interdisciplinary Program in Neuroscience, University of Arizona, Tucson, United States
    Contribution
    Conceptualization, Software, Supervision, Funding acquisition, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Emiliano Flores Machado

    BIO5 Institute, University of Arizona, Tucson, United States
    Contribution
    Software, Formal analysis, Funding acquisition, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Jing Lu

    College of Nursing, University of Arizona, Tucson, United States
    Contribution
    Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Anita A Koshy

    1. BIO5 Institute, University of Arizona, Tucson, United States
    2. Department of Immunobiology, University of Arizona, Tucson, United States
    3. Department of Neurology, University of Arizona, Tucson, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing - review and editing
    For correspondence
    akoshy@arizona.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8705-3233

Funding

National Institute of Neurological Disorders and Stroke (F99 NS108514)

  • Oscar A Mendez

National Institute of Neurological Disorders and Stroke (R25 NS076437)

  • Emiliano Flores Machado

Arizona Biomedical Research Commission (ADHS14-082991)

  • Anita A Koshy

National Institute of Neurological Disorders and Stroke (R01 NS095994)

  • Anita A Koshy

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank the laboratory of Dr Haijiang Cai for the use of their electrophysiology equipment and initial training in electrophysiology. We would also like to thank Dr David Perkel for helpful discussions about the electrophysiology data. Additional thanks to Patricia Jansma and Doug Cromey for imaging training. Finally, thank you to the entire Koshy lab for helpful discussions.

Ethics

Animal experimentation: All mouse studies and breeding were carried out in accordance with the Public Health Service Policy on Human Care and Use of Laboratory Animals. The protocol was approved by the University of Arizona Institutional Animal Care and Use Committee. (#A-3248-01, protocol #12-391).

Senior Editor

  1. Bavesh D Kana, University of the Witwatersrand, South Africa

Reviewing Editor

  1. Malcolm J McConville, The University of Melbourne, Australia

Publication history

  1. Received: February 18, 2021
  2. Accepted: June 9, 2021
  3. Accepted Manuscript published: June 9, 2021 (version 1)
  4. Version of Record published: July 9, 2021 (version 2)
  5. Version of Record updated: July 27, 2021 (version 3)

Copyright

© 2021, Mendez et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 859
    Page views
  • 134
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Microbiology and Infectious Disease
    Sofiene Seef et al.
    Research Article Updated

    Myxococcus xanthus, a soil bacterium, predates collectively using motility to invade prey colonies. Prey lysis is mostly thought to rely on secreted factors, cocktails of antibiotics and enzymes, and direct contact with Myxococcus cells. In this study, we show that on surfaces the coupling of A-motility and contact-dependent killing is the central predatory mechanism driving effective prey colony invasion and consumption. At the molecular level, contact-dependent killing involves a newly discovered type IV filament-like machinery (Kil) that both promotes motility arrest and prey cell plasmolysis. In this process, Kil proteins assemble at the predator-prey contact site, suggesting that they allow tight contact with prey cells for their intoxication. Kil-like systems form a new class of Tad-like machineries in predatory bacteria, suggesting a conserved function in predator-prey interactions. This study further reveals a novel cell-cell interaction function for bacterial pili-like assemblages.

    1. Medicine
    2. Microbiology and Infectious Disease
    Alexander O Pasternak et al.
    Research Article Updated

    Background:

    It remains unclear whether combination antiretroviral therapy (ART) regimens differ in their ability to fully suppress human immunodeficiency virus (HIV) replication. Here, we report the results of two cross-sectional studies that compared levels of cell-associated (CA) HIV markers between individuals receiving suppressive ART containing either a non-nucleoside reverse transcriptase inhibitor (NNRTI) or a protease inhibitor (PI).

    Methods:

    CA HIV unspliced RNA and total HIV DNA were quantified in two cohorts (n = 100, n = 124) of individuals treated with triple ART regimens consisting of two nucleoside reverse transcriptase inhibitors (NRTIs) plus either an NNRTI or a PI. To compare CA HIV RNA and DNA levels between the regimens, we built multivariable models adjusting for age, gender, current and nadir CD4+ count, plasma viral load zenith, duration of virological suppression, NRTI backbone composition, low-level plasma HIV RNA detectability, and electronically measured adherence to ART.

    Results:

    In both cohorts, levels of CA HIV RNA and DNA strongly correlated (rho = 0.70 and rho = 0.54) and both markers were lower in NNRTI-treated than in PI-treated individuals. In the multivariable analysis, CA RNA in both cohorts remained significantly reduced in NNRTI-treated individuals (padj = 0.02 in both cohorts), with a similar but weaker association between the ART regimen and total HIV DNA (padj = 0.048 and padj = 0.10). No differences in CA HIV RNA or DNA levels were observed between individual NNRTIs or individual PIs, but CA HIV RNA was lower in individuals treated with either nevirapine or efavirenz, compared to PI-treated individuals.

    Conclusions:

    All current classes of antiretroviral drugs only prevent infection of new cells but do not inhibit HIV RNA transcription in long-lived reservoir cells. Therefore, these differences in CA HIV RNA and DNA levels by treatment regimen suggest that NNRTIs are more potent in suppressing HIV residual replication than PIs, which may result in a smaller viral reservoir size.

    Funding:

    This work was supported by ZonMw (09120011910035) and FP7 Health (305522).
