Single-cell transcriptome analysis defines heterogeneity of the murine pancreatic ductal tree

  1. Audrey M Hendley
  2. Arjun A Rao
  3. Laura Leonhardt
  4. Sudipta Ashe
  5. Jennifer A Smith
  6. Simone Giacometti
  7. Xianlu L Peng
  8. Honglin Jiang
  9. David I Berrios
  10. Mathias Pawlak
  11. Lucia Y Li
  12. Jonghyun Lee
  13. Eric A Collisson
  14. Mark S Anderson
  15. Gabriela K Fragiadakis
  16. Jen Jen Yeh
  17. Chun Jimmie Ye
  18. Grace E Kim
  19. Valerie M Weaver
  20. Matthias Hebrok  Is a corresponding author
  1. Diabetes Center, University of California, San Francisco, United States
  2. Center for Bioengineering and Tissue Regeneration, University of California, San Francisco, United States
  3. CoLabs, University of California, San Francisco, United States
  4. Bakar ImmunoX Initiative, University of California, San Francisco, United States
  5. Department of Pharmacology, University of North Carolina at Chapel Hill, United States
  6. Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, United States
  7. Division of Hematology and Oncology, Department of Medicine and Helen Diller Family Comprehensive Cancer Center, University of California, San Francisco, United States
  8. Evergrande Center for Immunologic Diseases, Harvard Medical School and Brigham and Women's Hospital, United States
  9. Department of Medicine, Division of Rheumatology, University of California, San Francisco, United States
  10. Department of Surgery, University of North Carolina at Chapel Hill, United States
  11. Parker Institute for Cancer Immunotherapy, United States
  12. Department of Pathology, University of California, San Francisco, United States
Research Article
  • Cited 0
  • Views 733
  • Annotations
Cite this article as: eLife 2021;10:e67776 doi: 10.7554/eLife.67776

Abstract

To study disease development, an inventory of an organ's cell types and understanding of physiologic function is paramount. Here, we performed single-cell RNA-sequencing to examine heterogeneity of murine pancreatic duct cells, pancreatobiliary cells, and intrapancreatic bile duct cells. We describe an epithelial-mesenchymal transitory axis in our three pancreatic duct subpopulations and identify osteopontin as a regulator of this fate decision as well as human duct cell dedifferentiation. Our results further identify functional heterogeneity within pancreatic duct subpopulations by elucidating a role for geminin in accumulation of DNA damage in the setting of chronic pancreatitis. Our findings implicate diverse functional roles for subpopulations of pancreatic duct cells in maintenance of duct cell identity and disease progression and establish a comprehensive road map of murine pancreatic duct cell, pancreatobiliary cell, and intrapancreatic bile duct cell homeostasis.

Introduction

Pancreatic duct cells, while a minority of the composition of the pancreas, play an integral role in secretion and transport of digestive fluid containing proenzymes synthesized by acinar cells, electrolytes, mucins, and bicarbonate. They can serve as a cell of origin for pancreatic ductal adenocarcinoma (PDA) (Bailey et al., 2016; Lee et al., 2019) and have been implicated in the pathophysiology of multiple other diseases including cystic fibrosis (Wilschanski and Novak, 2013) and pancreatitis (Apte et al., 1997).

Heterogeneity of a cell type becomes increasingly important in the context of disease and regeneration since different subpopulations can be the driving forces behind pathogenesis. The function of exocrine pancreatic cells is required for survival, yet these cells exhibit limited regenerative capabilities in response to injury. Chronic pancreatitis (CP) is a risk factor for pancreatic cancer. The underlying mechanisms for PDA progression in CP patients are incompletely understood and are likely multifactorial, including both genetic and environmental insults (Etemad and Whitcomb, 2001). Studies have shown that cytokines and reactive oxygen species generated during chronic inflammation can cause DNA damage. It has been hypothesized that pancreatic cells might acquire DNA damage in the protooncogene KRAS or tumor suppressor genes TP53 or CDKN2A, thereby accelerating malignant transformation (Whitcomb and Greer, 2009; Dhar et al., 2015). Thus, it is imperative to understand the mechanisms by which DNA damage occurs in the setting of CP. Duct obstruction is one cause of CP, and the ability of ductal cells to acquire DNA damage in the setting of CP is incompletely understood.

In this report, we conducted single-cell RNA-sequencing (scRNA-seq) on homeostatic murine pancreatic duct, intrapancreatic bile duct, and pancreatobiliary cells using a DBA+ lectin sorting strategy, and present a high-resolution atlas of these murine duct cells. By extensively comparing our subpopulations to previously reported mouse and human pancreatic duct subpopulations (Qadir et al., 2020; Baron et al., 2016; Grün et al., 2016), we both corroborate several previous findings and identify and validate novel duct cell heterogeneity with unique functional properties including roles for subpopulation markers in CP. Our findings suggest that multiple duct subpopulations retain progenitor capacity, which is influenced by expression of markers driving subpopulation identity.

Results

scRNA-seq identifies multiple pancreas cell types with DBA lectin sorting

Previously reported subpopulations of murine pancreatic duct cells were identified by single-cell analysis of pancreatic cells obtained using an islet isolation procedure; thus, exocrine duct cells were of low abundance (Baron et al., 2016). To circumvent this issue, we employed a DBA lectin sorting strategy that has been extensively used to isolate and characterize all murine pancreatic duct cell types (Beer et al., 2016; Reichert et al., 2013), to investigate murine duct heterogeneity. We isolated live DBA+ cells from the pancreata of four adult female C57BL/6J littermates and performed scRNA-seq on the pooled cells using the 10X Genomics platform (Figure 1A and Figure 1—figure supplement 1A). After filtering out doublets and low-quality cells (defined by low transcript counts), our dataset contained 6813 cells. Clustering analysis identified 16 distinct cell populations with an average of 5345 transcripts per cell and 1908 genes per cell (Figure 1B and Figure 1—source data 1). Significantly differentially expressed genes (DEGs) when comparing a cluster to all other clusters are listed in Figure 1—source data 2. Annotation of these 16 clusters was accomplished by analysis of known markers (Figure 1B–D). Our dataset comprises 2 populations of ductal cells, a cluster of endothelial cells, 1 cluster of fibroblasts, and 12 immune cell clusters. As expected, murine endocrine and acinar cells are not present in our dataset because they are not DBA+ cells. Gene and transcript counts for each cluster are shown in Figure 1—figure supplement 1B. We identified DBA+Collagen I+ fibroblasts and DBA+CD45+ immune cells by immunofluorescence (IF). CD31+ endothelial cells are not DBA+. Their presence in our dataset might be explained by the close juxtaposition of pancreatic duct cells with endothelial cells throughout the murine pancreas (Figure 1—figure supplement 1C).

Figure 1 with 1 supplement see all
Transcriptomic map of DBA+pancreatic cells.

(A) Schematic of experiment workflow. (B) The Uniform Manifold Approximation and Projection depicts murine pancreatic DBA+ cells obtained using the protocol. (C) A matrix plot shows average expression of ductal cell markers in all clusters, identifying clusters 0 and 8 as ductal cells. (D) Feature plots illustrate markers of various cell types including epithelial (Epcam), ductal (Krt19 and Sox9), CD45+ immune cells (Ptprc), endothelial cells (Pecam1), fibroblasts (Col1a1), endocrine cells (Chga), and acinar cells (Pnliprp1). We observed low-level expression of acinar cell markers uniformly across all clusters that is likely contaminating acinar cell mRNA.

Figure 1—source data 1

Number of cells and average number of genes and transcripts in all DBA+ clusters.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig1-data1-v2.xlsx
Figure 1—source data 2

Differentially expressed genes in all DBA+ clusters.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig1-data2-v2.xlsx

Subpopulations of ductal cells are characterized by unique gene signatures and regulation of pathways

To get a better understanding of duct cell heterogeneity, we generated an Uniform Manifold Approximation and Projection (UMAP) plot using all duct cells (clusters 0 and 8), which revealed six distinct ductal clusters. Annotation of each duct cluster was accomplished using DEGs, ingenuity pathways analysis (IPA) and upstream regulator analysis, and marker assessment in murine and human pancreas (Figure 2A–D, Figure 1—figure supplement 1D, E, Scheme 1, and Figure 2—source data 13). Gene and transcript counts for each cluster are shown in Figure 1—figure supplement 1F and Figure 2—source data 4. We observed variable expression of known ductal markers within clusters. Notably, fewer murine duct cells express the transcription factor Hnf1b when compared to Sox9. This observation is in contrast to a previous report demonstrating a similar prevalence of adult murine HNF1B+ and SOX9+ duct cells, which might be explained by different ductal cell isolation methods (Figure 1—figure supplement 1GRezanejad et al., 2018).

Figure 2 with 3 supplements see all
Transcriptomic map of DBA+pancreatic duct cells.

(A) Uniform Manifold Approximation and Projection (UMAP) depicts identity of clusters. (B) The dot plot shows the top five significantly differentially expressed genes (DEGs) with the highest fold change for each cluster. (C) Feature plots show expression of significantly DEGs for clusters 0, 1, 3, 4, and 5. Cluster 2 is characterized by lack of or low-level expression of significantly DEGs found in other clusters. (D) Ingenuity pathways analysis (IPA) results show the top eight deregulated pathways when comparing a cluster to all other clusters. The ratio line indicates the fraction of molecules significantly altered out of all molecules that map to the canonical pathway from within the IPA database. A positive z-score represents upregulation, and a negative z-score indicates downregulation of a pathway in that cluster when compared to all other clusters. A gray bar depicts significant overrepresentation of a pathway, the direction of which cannot yet be determined.

Figure 2—source data 1

Differentially expressed genes in all DBA+ duct clusters.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig2-data1-v2.xlsx
Figure 2—source data 2

Ingenuity pathways analysis results for all DBA+ duct clusters.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig2-data2-v2.xls
Figure 2—source data 3

Ingenuity pathways analysis upstream regulator analysis results for all DBA+ duct clusters.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig2-data3-v2.xls
Figure 2—source data 4

Number of cells and average number of genes and transcripts in all DBA+ duct clusters.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig2-data4-v2.xlsx
A word cloud depicts the top differentially expressed genes in each duct cluster.

Cluster 0 contains the most cells of all duct clusters in the dataset (Figure 2—source data 4). A gene that positively regulates Ras signaling Mmd2, the voltage-gated potassium channel protein encoded by Kcne3, as well as the ATP-binding cassette (ABC) transporter chloride channel protein encoded by Cftr, were significantly upregulated in cluster 0 when compared to all other ductal clusters (Figure 2C and Figure 2—source data 1). Notably, cluster 0 shows upregulation or activation of multiple genes whose alteration play important roles in the pathophysiology of human pancreatic diseases such as CFTR for hereditary CP (Raphael and Willingham, 2016) and TGFB2 and CTNNB1 for pancreatic cancer (Shen et al., 2017; Gordon et al., 2008; Heiser et al., 2008Figure 2—source data 1 and 3).

To validate gene expression patterns and determine the location of cluster 0 cells within the hierarchical pancreatic ductal tree (Reichert and Rustgi, 2011), we next examined expression of select significantly DEGs. Gmnn, an inhibitor of DNA replication, was expressed in both clusters 0 and 2, so we decided to examine histologically and were surprised to find rare GMNN protein expression, which was in contrast to the widespread RNA expression depicted by the feature plot (Figure 2—figure supplement 1A). After examining more than 1500 main pancreatic duct cells from five donors, we were unable to find a GMNN-positive cell, indicating very low or absent expression of GMNN in human main pancreatic ducts. Spp1, which encodes osteopontin, and Wfdc3, which are significantly DEGs in both clusters 0 and 2, show cytoplasmic protein expression in all mouse and human pancreatic duct types (Figure 2—figure supplement 1B, C and Supplementary file 1).

Cells in cluster 1 have significantly upregulated expression of the exosome biogenesis gene Rab27b as well as Ppp1r1b that encodes for a molecule with kinase and phosphatase inhibition activity (Figure 2A–C and Figure 2—source data 1). IPA results suggested an enrichment in molecules regulating Calcium Transport I (Figure 2D and Figure 2—source data 2). IPA upstream regulator analysis predicted an activated state for the transcriptional regulator Smarca4 and the two growth factors TGFB1 and GDF2 (Figure 2—source data 3). Intracellular calcium signaling in pancreatic duct cells is an important regulator of homeostatic bicarbonate secretion (Maléth and Hegyi, 2014). PPP1R1B, SMARCA4, and TGFB1 have well-described roles in the pathogenesis of pancreatic cancer (Roy et al., 2015; David et al., 2016; Tiwari et al., 2020). We observed expression of markers of cluster 1, Anxa3 and Pah, which are also DEGs in cluster 4, to have cytoplasmic protein expression in all mouse and human pancreatic duct types (Figure 2—figure supplement 2A, B and Supplementary file 1). Co-staining of CFTR, a marker of cluster 0, and ANXA3 shows both overlapping and non-overlapping patterns of expression in human intercalated ducts, validating the heterogeneity observed in our murine pancreatic duct dataset in human pancreatic duct cells (Figure 2—figure supplement 2C).

Cluster 2 is characterized by low level or lack of expression of multiple ductal cell markers (Cftr, Kcne3, Sparc, Mmd2, Krt7) found in other clusters (Figure 2B, C and Figure 1—figure supplement 1G). Cluster 2 has the lowest average expression of total genes and transcripts (Figure 1—figure supplement 1F and Figure 2—source data 4). We therefore posit that cluster 2 represents a stable, fairly transcriptionally and metabolically inactive duct cell subpopulation when compared to other duct clusters. Cluster 3 cells are located almost entirely within cluster 8 of the UMAP containing 16 DBA+ clusters (Figure 1—figure supplement 1E). This, along with high expression of genes regulating cilia biogenesis (Foxj1, Cfap44, Tuba1a), led to the identification of cluster 3 as intrapancreatic bile duct cells (Figure 2A–C and Figure 2—source data 1). Expression of cilia biogenesis genes is more prominent in intrapancreatic bile duct cells when compared to pancreatic duct cells (Figure 2—figure supplement 2D, Figure 2—source data 1, and data not shown).

Cells in cluster 4 have significantly higher expression of Tgfb3 and Dclk1 when compared to all other ductal clusters (Figure 2C and Figure 2—source data 1). DCLK1 labels tuft cells that are present in normal murine intrapancreatic bile ducts, pancreatobiliary ductal epithelium (DelGiorno et al., 2014), and rare normal murine pancreatic duct cells (Westphalen et al., 2016). YAP1, a transcriptional regulator essential for homeostasis of biliary duct cells (Pepe-Mooney et al., 2019), was predicted to be in an activated state by IPA upstream regulator analysis (Figure 2—source data 3). Cluster 4 also contained a small population (13 cells) of Dmbt1 and Ly6d-expressing cells previously identified in extrahepatic biliary epithelium (Pepe-Mooney et al., 2019Figure 2—figure supplement 3A). These 13 cells appeared as a small population separate from other cells in cluster 4 in the UMAP (Figure 2A). Similar to the IF validation reported for extrahepatic biliary epithelial cells (BECs) (Pepe-Mooney et al., 2019), our IF assessment of CXCL5, another marker of the Dmbt1 and Ly6d-expressing subpopulation, showed a greater abundance of these cells than what would be expected given the number identified in the clustering analysis (Rezanejad et al., 2018). It is possible that this cell type is sensitive to single-cell dissociation. Cells in cluster 4 are juxtaposed to pancreatic duct cells (clusters 0, 1, and 2) in the UMAP, suggesting transcriptional commonalities with pancreatic duct cells. In addition, Dmbt1 and Ly6d-expressing cells are present in cluster 4, suggesting a bile duct identity. Based on these shared features of bile and pancreas ducts, we postulate that cluster 4 contains pancreatobiliary duct cells.

Replicating duct cells are characterized by high expression of Mki67, Cenpf, and Cenpe and comprise 1.65% of all duct cells in our dataset (Figure 2A–C, Figure 2—figure supplement 2D, and Figure 2—source data 1). Consistent with previous reports (Moin et al., 2017; Butler et al., 2010), pancreatic duct cells are fairly mitotically inactive.

Summarily, our high-resolution single-cell analysis has identified the substructure of murine pancreatic duct cells and characterized pancreatobiliary and intrapancreatic bile duct cells.

Comparison of clusters defines heterogeneity within duct subpopulations

We next sought to determine the relationships between duct clusters by examining their similarities and differences. Dendrogram analysis, Pearson’s correlation, and DEGs revealed close relationships between clusters 0 and 2 as well as clusters 1 and 4 (Figure 3A, B and Figure 3—source data 1). Comparison of clusters 0 and 2 showed only nine significant DEGs, suggesting a shared core gene expression program (Figure 3C, D). Overrepresentation of molecules regulating the cell cycle was observed in cluster 0 when compared to cluster 2 (Figure 3E). The DEGs upregulated in cluster 0 promote duct cell function (Cftr, Tuba1a, Kcne3), suggesting that cluster 0 comprises workhorse pancreatic duct cells (Hayashi and Novak, 2013).

Figure 3 with 3 supplements see all

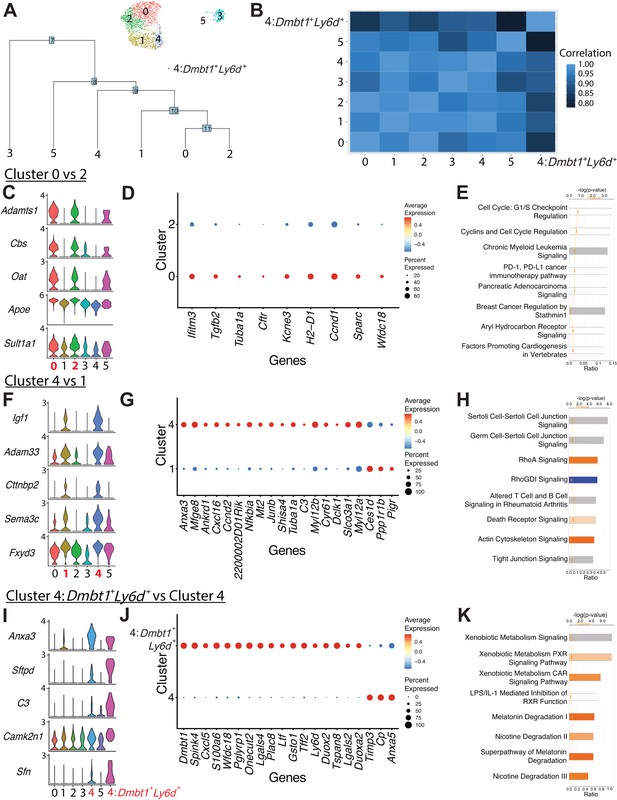

Comparison of ductal clusters 0 vs. 2, 4 vs. 1, and 4 vs. 4:Dmbt1+Ly6d+.

(A) The cluster dendrogram created using dims (used to define the cluster) shows the Euclidean relationships between clusters. The tree is calculated in the principal component analysis space. The genes used to define the tree were set as the variable features of the object. (B) Pearson’s correlation calculated using average gene expression is depicted. (C) Stacked violin plots show five differentially expressed genes (DEGs) sharing similar expression patterns in clusters 0 and 2. (D) The dot plot shows all nine DEGs found when comparing cluster 0 vs. 2. (E) The top eight altered pathways from ingenuity pathways analysis (IPA) comparing cluster 0 vs. 2 are depicted. (F) Stacked violin plots show five DEGs sharing similar expression patterns in clusters 4 and 1. (G) The dot plot shows the top 20 DEGs ranked by fold change when comparing cluster 4 vs. 1. (H) The top eight deregulated pathways from IPA comparing cluster 4 vs. 1 are depicted. (I) Stacked violin plots of five DEGs sharing similar expression patterns in clusters 4:Dmbt1+Ly6d+ and 4. (J) The dot plot shows the top 20 DEGs ranked by fold change when comparing clusters 4:Dmbt1+Ly6d+ and 4. (K) The top eight changed pathways from IPA comparing clusters 4:Dmbt1+Ly6d+ and 4 are depicted.

Figure 3—source data 1

Differentially expressed genes comparing duct cluster 0 vs. 2, duct cluster 4 vs. 1, and duct cluster 4-Dbmt1+Ly6d+ vs. 4.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig3-data1-v2.xlsx
Figure 3—source data 2

Ingenuity pathways analysis results comparing duct cluster 0 vs. 2, duct cluster 4 vs. 1, and duct cluster 4-Dbmt1+Ly6d+ vs. 4.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig3-data2-v2.xls
Figure 3—source data 3

Ingenuity pathways analysis upstream regulator analysis comparing duct cluster 0 vs. 2, duct cluster 4 vs. 1, and duct cluster 4-Dbmt1+Ly6d+ vs. 4.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig3-data3-v2.xls

When comparing pancreatobiliary cells of cluster 4 to pancreatic duct cells in cluster 1, one of the most striking differences is the enrichment in expression of genes regulating assembly of cell junctions including tight junctions, epithelial adherens junction signaling, regulation of actin-based motility by Rho, and actin cytoskeleton signaling. A strong network of stress fibers, comprising actin filaments, myosin II, and other proteins, that function in bearing tension, supporting cellular structure, and force generation may be important for pancreatobiliary cell function and maintenance (Figure 3F–H and Figure 3—source data 2 and 3Burridge and Wittchen, 2013; Tojkander et al., 2012). Cluster 4: Dmbt1+Ly6d+ cells are characterized by strong upregulation of pathways regulating xenobiotic metabolism when compared to all other cluster 4 cells, suggesting a prominent role for these cells in the bile acid and xenobiotic system (BAXS) (Figure 3I–K and Figure 3—source data 2 and 3Dubitzky et al., 2013). Comparison of intrapancreatic bile duct cells and pancreatobiliary cells showed many unique features of these populations including upregulation of EIF2 signaling in pancreatobiliary cells and upregulation of coronavirus pathogenesis pathway in intrapancreatic bile duct cells (Figure 2—figure supplement 3B–D and Figure 2—figure supplement 3—source data 13).

Pancreatobiliary cells express a gene signature enriched in several targets of the Hippo signaling pathway YAP

Two subpopulations of adult murine hepatic homeostatic BECs, A and B, have been previously described (Pepe-Mooney et al., 2019). To determine if these subpopulations are present in intrapancreatic bile duct (cluster 3) and pancreatobiliary cells (cluster 4), we aligned our dataset with an adult hepatic murine BEC scRNA-seq dataset comprising 2344 homeostatic BECs (Pepe-Mooney et al., 2019). Intrapancreatic bile duct and pancreatobiliary cells aligned well with hepatic BECs, with no apparent batch effect (Figure 3—figure supplement 1A). Intrapancreatic bile duct cells primarily cluster together with hepatic BECs expressing subpopulation B genes, and pancreatobiliary cells primarily cluster together with hepatic BECs expressing subpopulation A genes (Figure 3—figure supplement 1B–G and Figure 3—figure supplement 1—source data 1 and 2). The subpopulation A expression signature contains many genes significantly enriched as YAP targets, a signature that has been previously proposed to reflect a dynamic BEC state as opposed to defining a unique cell type (Pepe-Mooney et al., 2019).

Ductal subpopulations are conserved and evident during pancreas development

To investigate whether pancreas ductal subpopulations become evident during development, we analyzed 10X Genomics single-cell published datasets of epithelial-enriched pancreas cells at E12.5, E14.5, and E17.5 (Byrnes et al., 2018). We found distinct subpopulations of ductal cells that notably overlap in expression of key marker genes associated with adult pancreas ductal subpopulations (Figure 3—figure supplement 2A–L). As we expected, clear patterns of marker gene expression associated with adult clusters manifest at later stages of development (Figure 3—figure supplement 2D, H, L). Since the developmental biology samples were obtained from Swiss Webster mice, our results suggest the subpopulations of adult pancreas duct cells we describe in C57BL/6J mice are conserved.

DBA+ lectin murine pancreas sorting identifies previously missed ductal subpopulations

To determine the novelty of adult duct cell heterogeneity manifested using DBA+ lectin sorting of murine pancreas, we next compared our DBA+ murine pancreatic ductal clusters to previously reported subpopulations of mouse and human pancreas duct cells. Using inDrop and an islet isolation pancreas preparation, Baron et al., 2016 identified the substructure of mouse and human pancreatic duct cells (Baron et al., 2016). Two subpopulations of mouse pancreatic duct cells characterized by expression of Muc1 and Tff2 (subpopulation 1) and Cftr and Plat (subpopulation 2) were described. While Cftr expression is characteristic of our cluster 0 (Figure 2C), Muc1, Tff2, and Plat expression did not typify any murine DBA+ pancreatic duct subpopulation (Figure 3—figure supplement 2M). Two subpopulations were similarly described for human pancreas duct cells characterized by expression of (1) TFF1, TFF2, MUC1, MUC20, and PLAT and (2) CFTR and CD44. Tff1 is not expressed in murine DBA+ ductal cells (clusters 0–5). Cd44 is significantly upregulated in pancreatobiliary cells, and Muc20 as well as Tff2 are significantly upregulated in 4:Dmbt1+Lyd6+ cells (Figure 2—source data 1, Figure 3—source data 1, and Figure 3—figure supplement 2M, N). Dominic Grün et al., 2016 previously reported four subpopulations of human pancreatic duct cells characterized by expression of CEACAM6, FTH1, KRT19, and SPP1 using an islet isolation pancreas preparation and the CEL-seq protocol (Grün et al., 2016). While Spp1 is significantly upregulated in DBA+ pancreas duct clusters 0 and 2, Fth1 does not characterize any murine DBA+ pancreas duct population, and Krt19 is significantly upregulated in pancreatobiliary cells (Figure 2—source data 1, Figure 1—figure supplement 1G, and Figure 3—figure supplement 2O). CEACAM6 has no mouse homolog. The differences in pancreatic ductal subpopulation identification may be due to single-cell methodology (inDrop, CEL-seq, and 10X Genomics), pancreas preparation method (islet isolation vs. DBA+ lectin sorting), differences in ductal cell numbers analyzed, or potential differences between mouse and human duct cells.

Six subpopulations of human pancreatic duct cells have been described using the 10X Genomics platform based on sorting for BMPR1A/ALK3 (Qadir et al., 2020). Using AddModuleScore in Seurat, we calculated a score comparing each of our murine duct clusters to the human ALK3+ clusters (Figure 3—figure supplement 3A–FAlshetaiwi et al., 2020). Murine pancreatic duct clusters 0–2 had the highest scores when compared to human ALK3+ clusters 1 (OPN+stress/harboring progenitor-like cells) and 2 (TFF1+ activated/migrating progenitor cells). Murine pancreatobiliary cells (cluster 4) scored the highest when compared to the human ALK3+ cluster 3 (AKAP12+ small ducts). The human ALK3+ cluster 4 (WSB1+ centroacinar cells) did not distinguishably overlap with any DBA+ mouse pancreas ductal clusters. DBA is expressed in murine centroacinar/terminal ducts as early as 3 weeks of age (Stanger et al., 2005), thus these cells would be expected to be present in our dataset (Beer et al., 2016). Examination of expression of centroacinar/terminal ductal cell markers Hes1 (Kopinke et al., 2011), Aldh1a1 (Rovira et al., 2010), and Aldh1b1 (Mameishvili et al., 2019) in our dataset showed broad expression enriched in either clusters 0 and 2 (Hes1 and Aldh1b1) or clusters 1 and 4 (Aldh1a1), rather than a distinct subpopulation as is seen in the ALK3+ human scRNA-seq pancreas duct dataset. Aldh1a7 is negligibly expressed in murine duct clusters 0–5 (Figure 3—figure supplement 3G). Unlike in mouse DBA+ pancreas duct clusters, the human ALK3+ dataset contains two ducto-acinar subpopulations characterized by expression of genes enriched in acinar cells. To assess the presence of ducto-acinar cells in adult murine pancreas, we performed immunolabeling for markers of the ALK3+ human ducto-acinar clusters 5 (CPA1) and 6 (AMY2A and AMY2B). Although ducto-acinar cells, like centroacinar/terminal ductal cells, do not define a unique cluster in our DBA+ murine duct subpopulations, we identified DBA+CPA1+ and DBA+α-amylase+ ducto-acinar cells in adult murine pancreas (Figure 3—figure supplement 3H). Taken together, these data suggest that murine centroacinar/terminal ductal and ducto-acinar cells are largely transcriptionally homogenous with other murine duct cell types.

RaceID3/StemID2 suggest murine DBA+ duct cluster 0 and 2 cells are the most progenitor-like

Given the close relationships observed between DBA+ duct clusters 0 and 2 as well as 1 and 4, we next assessed differentiation potential using RaceID3/StemID2 to predict cell types, lineage trajectories, and stemness (Herman et al., 2018). Unsupervised clustering with RaceID3 generated 17 clusters. RaceID3 clusters with 10 cells or less were removed from subsequent analyses, and Seurat duct clusters 3 and 5 are not included in this analysis (Figure 4A, B). RaceID3 clusters with the highest StemID2 score correlate to cells present in Seurat duct clusters 0 and 2 (Figure 4C and Figure 5—figure supplement 1A, B). The variable StemID2 scores observed for cells within Seurat duct clusters 0, 1, 2, and 4 suggest distinct stages of differentiation or maturation. Consistent with previous literature, the pancreatic ductal cell progenitor niche is not restricted to a single cluster (Qadir et al., 2020).

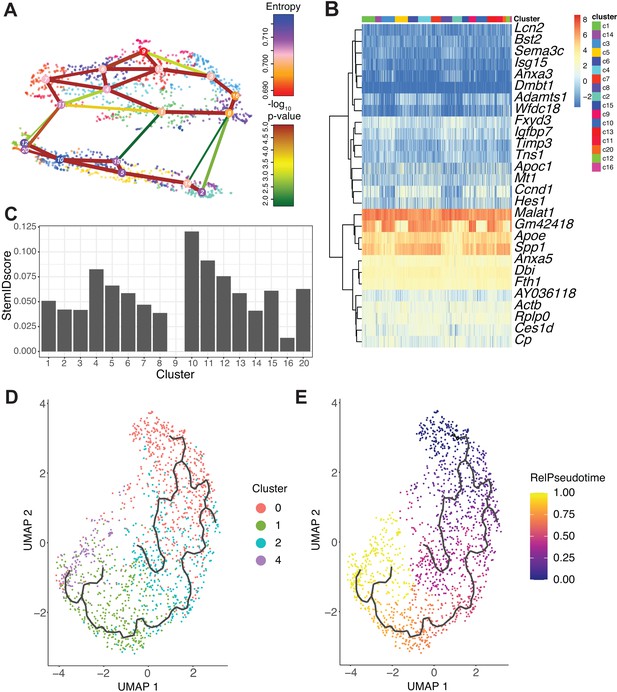

RaceID3/StemID2 predict clusters 0 and 2 have the highest progenitor potential.

(A) The lineage tree inferred by StemID2 is shown in the RaceID3 clusters. Node color represents the level of transcriptome entropy, edge color describes the level of significance, and edge width describes link score. (B) Heat map depicts expression of top five differentially expressed genes in RaceID3 clusters with false discovery rate < 0.01 and fold change > 1.2. (C) StemID2 scores for RaceID3 clusters are graphed. (D) Monocle 3 clustering of murine DBA+ duct clusters 0, 1, 2, and 4 is depicted. (E) Each cell’s relative pseudotime value is depicted that is a measurement of the distance between its position along the trajectory and the starting point (cluster 0).

Pseudotime ordering identifies an epithelial-mesenchymal transition (EMT) axis in pancreatic duct cells

To further examine the lineage relationships among pancreas duct subpopulations, we ordered cells in pseudotime based on their transcriptional similarity (Cao et al., 2019). Monocle 3 analysis suggested DBA+ duct clusters 3 and 5 were disconnected from the main pseudotime trajectory, so we focused our analysis on DBA+ duct clusters 0, 1, 2, and 4 (Figure 5—figure supplement 1C). Because RaceID3/StemID2 analysis suggested Seurat clusters 0 and 2 have the highest StemID scores, we started the pseudotime ordering beginning with cluster 0 as Seurat clusters 0 and 2 are juxtaposed in the Monocle 3 clustering (Figure 4D, E and Figure 5—figure supplement 1D).

In Monocle 3 analysis, genes with similar patterns of expression that vary over time across the pseudotime trajectory are coalesced into modules (Figure 5A). We performed IPA and upstream regulator analysis, a pairwise comparison, comparing select clusters within a module to analyze the gene expression changes along the pseudotime trajectory (Figure 5B–D and Figure 5—source data 13). Examination of pathways deregulated in modules 4 and 14 showed a shift in the molecules driving the xenobiotic metabolism CAR signaling pathway. The xenobiotic nuclear receptor CAR is an important sensor of physiologic toxins and plays a role in their removal (Timsit and Negishi, 2007). The genes highlighted in the xenobiotic metabolism CAR signaling pathway were Aldh1b1, Aldh1l1, Gstt2/Gstt2b, Hs6st2, and Ugt2b7 for clusters 0 and 2 and Aldh1a1, Fmo3, Gstm1, and Sod3 for cluster 1, suggesting that these clusters might respond differently when exposed to toxins or play heterogenous roles in endogenous toxin elimination (Figure 5B, C).

Figure 5 with 1 supplement see all

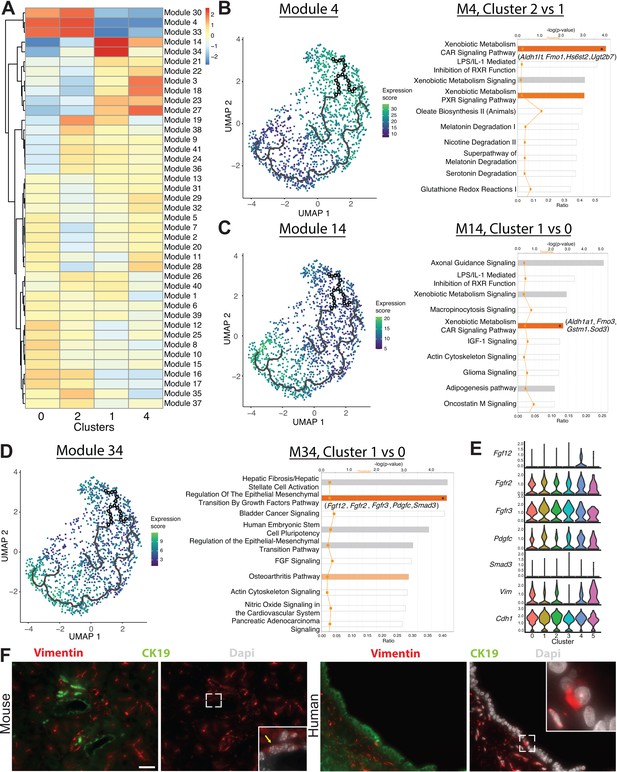

Monocle 3 analysis reveals an epithelial-mesenchymal axis in pancreatic duct cells.

(A) Expression changes of the modules generated by Monocle 3 analysis are shown for each cluster. (B–D) Expression of modules 4, 14, and 34 along with select ingenuity pathways analysis results of the top 10 deregulated pathways are shown. Genes in parenthesis are altered in the pathway containing an asterisk in the bar. (E) Stacked violin plots show expression of genes in the regulation of the epithelial-mesenchymal transition by growth factors pathway in DBA+ duct clusters 0–5. (F) Immunofluorescence depicts CK19+ vimentin+ copositive pancreatic duct cells in mouse (yellow arrow) and human. The main pancreatic duct is shown for humans. Scale bars are 50 µM.

Figure 5—source data 1

Ingenuity pathways analysis results comparing select modules in Monocle 3 analysis.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig5-data1-v2.xls
Figure 5—source data 2

Ingenuity pathways analysis upstream regulator analysis comparing select modules in Monocle 3 analysis.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig5-data2-v2.xls
Figure 5—source data 3

Log fold change analysis comparing select modules in Monocle 3 analysis.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig5-data3-v2.xlsx

Regulation of the epithelial-mesenchymal transition by growth factors pathway was upregulated in cluster 1 when compared to cluster 0 in module 34. Molecules altered in this pathway play variable roles in promoting the epithelial or mesenchymal state and include Fgf12, Fgfr2, Fgfr3, Pdgfc, and Smad3 (Figure 5D). When comparing clusters 0 and 1, examination of EMT markers Vim and Cdh1 showed a stronger probability of expression of Cdh1 in cluster 1 and a stronger probability of expression of Vim in cluster 0 (Figure 5E). Using IF, we detected vimentin+, SNAI1+, and fibronectin+ ductal cells in both mouse and human pancreas, providing evidence for this EMT axis (Figure 5F, Figure 5—figure supplement 1E, and data not shown).

Osteopontin is required for mature human pancreas duct cell identity

Our analysis thus far reveals multiple transcriptional programs expressed by murine pancreatic duct cells and predicts possible lineage relationships among them. Amidst the duct subpopulation markers, Spp1 and Anxa3 caught our eye due to their known roles in pancreatic cancer progression (Kolb et al., 2005; Adams et al., 2019; Wan et al., 2020); however, their functions in normal pancreatic duct epithelium have not been fully explored. Spp1, a marker of clusters 0 and 2, has been shown by us and others to mark a pancreas duct cell type enriched in progenitor capacity (Qadir et al., 2020; Kilic et al., 2006). Anxa3, a marker of clusters 1 and 4, inhibits phospholipase A2 and cleaves inositol 1,2-cyclic phosphate-generating inositol 1-phosphate in a calcium-dependent manner (Tait et al., 1993; Gerke and Moss, 2002). Gmnn expression is highly conserved and plays crucial roles in development biology, yet its function in normal pancreatic duct cells is incompletely understood (Kushwaha et al., 2016). Gmnn, a marker of cluster 0, acts to inhibit re-replication of DNA during DNA synthesis by inhibiting the prereplication complex (McGarry and Kirschner, 1998; Ballabeni et al., 2013). Understanding the function of a gene in normal physiology is central to dissecting its role in disease. To get a better understanding of the function of these subpopulation markers in normal human pancreatic duct cells, we next examined the consequences of their loss in the immortalized human pancreatic duct cell line HPDE6c7 (Ouyang et al., 2000). HPDE6c7 cells demonstrate several features of normal pancreatic duct epithelium including gene expression of MUC1, CA2, and KRT19 and have been used in many investigations as an in vitro model of ‘near normal’ human pancreatic duct cells (Ouyang et al., 2000; Furukawa et al., 1996; Qian et al., 2005; Lee et al., 2017). We generated and validated SPP1, GMNN, and ANXA3 knockout (KO) HPDE6c7 lines using CRISPR/Cas9 (Figure 6A–C). Strong, consistent phenotypes were observed among different KO lines for each gene despite some lines not demonstrating full loss of the protein (HPDE6c7 ANXA3 gRNA2 and HPDE6c7 SPP1 gRNAs 1–4). Cellular morphology was similar to the scrambled (scr) gRNA control (Suzuki et al., 2016) for every KO line except HPDE6c7 SPP1 gRNAs 1–4, which displayed a dramatic change in cellular morphology. HPDE6c7 SPP1 KO cells showed prominent filipodia and significantly increased proliferation when compared to the HPDE6c7 scr gRNA control, a phenotype suggestive of increased progenitor function (Figure 6D, E). The change in cellular morphology in HPDE6c7 SPP1 KO lines is accompanied by decreased duct function as measured by carbonic anhydrase activity (Figure 6F).

Figure 6 with 1 supplement see all

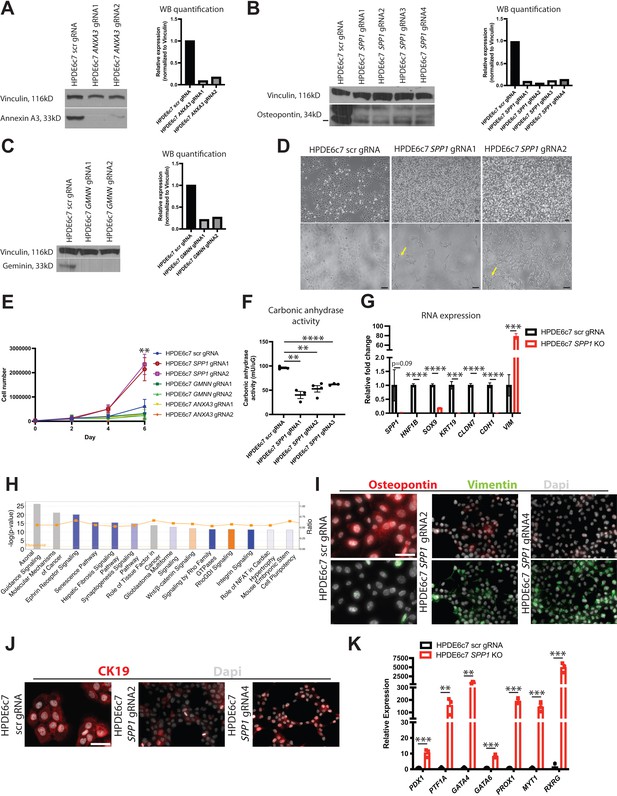

SPP1 loss promotes a progenitor-like state in human pancreatic duct cells.

(A–C) Western blot and quantification of western blot images shows expression of Annexin A3, osteopontin, and geminin in knockout (KO) HPDE6c7 lines and the control. (D) Brightfield images show changes in cellular morphology of HPDE6c7 SPP1 KO lines. Yellow arrows point to filipodia. Scale bars are 100 µm. (E) Cell counting demonstrates a significant increase in cell number at day 6 in HPDE6c7 SPP1 KO cells when compared to the HPDE6c7 scrambled (scr) gRNA control (p=0.0089 for HPDE6c7 SPP1 gRNA1 and p=0.0042 for HPDE6c7 SPP1 gRNA2). (F) Significantly decreased carbonic anhydrase activity is observed in HPDE6c7 SPP1 KO lines when compared to the control. (G) Relative fold changes calculated using rpm values of mesenchymal and duct markers are shown. Average counts (normalized to library size) for SPP1 are 84.0 ± 47.3 (scr) and 2.1 ± 0.4 (KO), HNF1B are 434.9 ± 24.8 (scr) and 0.5 ± 0.3 (KO), SOX9 are 1,617.0 ± 87.2 (scr) and 302.4 ± 35.3 (KO), KRT19 are 17,458.1 ± 2,367.2 (scr) and 60.7 ± 60.7 (KO), CLDN7 are 3,381.1 ± 222.9 (scr) and 17.6 ± 3.7 (KO), CDH1 are 8,995.8 ± 805.9 (scr) and 109.1 ± 29.0 (KO), and VIM are 84.1 ± 32.4 (scr) and 6,577.2 ± 513.7 (KO). (H) The top 14 deregulated pathways from ingenuity pathways analysis are shown comparing HPDE6c7 SPP1 KO vs. HPDE6c7 scr gRNA control. (I) Immunocytochemistry (ICC) demonstrated reduced osteopontin expression in HPDE6c7 gRNA2 and HPDE6c7 SPP1 gRNA4 when compared to HPDE6c7 scr gRNA. Vimentin ICC depicts organized intermediate filaments in HPDE6c7 SPP1 gRNA2 and HPDE6c7 SPP1 gRNA4 while HPDE6c7 scr gRNA cells show diffuse, light labeling. Scale bar is 50 µm. (J) CK19 ICC shows organized intermediate filaments in HPDE6c7 scr gRNA cells while HPDE6c7 SPP1 gRNA2 and HPDE6c7 SPP1 gRNA4 cells display punctate CK19 labeling, where present. Scale bar denotes 50 µm. (K) qPCR results of pancreatic progenitor markers are shown for HPDE6c7 scr gRNA control and HPDE6c7 SPP1 KO lines.

Figure 6—source data 1

Differentially expressed genes comparing HPDE6c7 SPP1 knockout vs. HPDE6c7 scrambled gRNA.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig6-data1-v2.xlsx
Figure 6—source data 2

Ingenuity pathways analysis results comparing HPDE6c7 SPP1 knockout vs. HPDE6c7 scrambled gRNA.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig6-data2-v2.xls
Figure 6—source data 3

Ingenuity pathways analysis upstream regulator analysis comparing HPDE6c7 SPP1 knockout vs. HPDE6c7 scrambled gRNA.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig6-data3-v2.xls
Figure 6—source data 4

Filtered normalized (to library size) counts for RNA-seq of HPDE6c7 scr gRNA and HPDE6c7 SPP1 knockout cell lines.

https://cdn.elifesciences.org/articles/67776/elife-67776-fig6-data4-v2.xlsx

To assess the changes in HPDE6c7 SPP1 KO lines on a molecular scale, we performed bulk RNA-sequencing on all four HPDE6c7 SPP1 KO lines and the HPDE6c7 scr gRNA control. A significant increase in markers associated with EMT (VIM, ZEB1, TWIST1, MMP2) was observed in HPDE6c7 SPP1 KO lines when compared to the control (Figure 6—source data 14, Figure 6G–H, and Figure 6—figure supplement 1A–C). Markers of mature duct cells (HNF1B, SOX9, KRT19) were significantly downregulated in HPDE6c7 SPP1 KO lines when compared to the control (Figure 6G, I, J and Figure 6—source data 1). Gene set enrichment analysis (GSEA) suggested positive enrichment of pathways that regulate embryogenesis (Hox genes and Notch signaling) and cell cycle regulation in HPDE6c7 SPP1 KO lines when compared to the HPDE6c7 scr gRNA control (Figure 6—figure supplement 1D–F). Additionally, qPCR analysis demonstrated a significant increase in pancreatic progenitor markers (Gu et al., 2004; Willmann et al., 2016) in HPDE6c7 SPP1 KO lines when compared to the HPDE6c7 scr gRNA control, supporting the notion that loss of OPN leads to a more immature, progenitor-like state (Figure 6K). Taken together, these results define unique functional properties for markers that characterize murine DBA+ pancreas duct cells and suggest that SPP1 is an essential regulator of human pancreatic duct cell maturation and function.

Transdifferentiation of pancreatic duct cells to endocrine cells at early postnatal stages and in pancreatic injury models has been suggested by several studies (Bonner-Weir et al., 2008; Kim and Lee, 2016). To query whether HPDE6c7 SPP1 KO progenitor-like, dedifferentiated duct cells harbor the capacity to redifferentiate to endocrine cells in vivo, we injected HPDE6c7 SPP1 KO cell lines and HPDE6c7 scr gRNA control cells subcutaneously into NSG mice (Figure 7A). After 5 days post-injection, α-amylase+ CK19+ double-positive cells were evident in HPDE6c7 scr gRNA control cells, but not in HPDE6c7 SPP1 KO cells (Figure 7B). This observation is consistent with the previously described ducto-acinar axis characteristic of human pancreatic duct cells (Qadir et al., 2020). We observed Neurogenin-3+SOX9+ copositive HPDE6c7 SPP1 KO cells, suggesting potential for differentiation towards the endocrine lineage (Figure 7C). We detected Synaptophysin+ Glucagon+ as well as Synaptophysin+ C-peptide+ double-positive HPDE6c7 SPP1 KO cells (Figure 7D, E). Expression of endocrine markers in subcutaneously injected HPDE6c7 scr gRNA cells was not observed at day 5 post-injection. A small subset of C-peptide+ HPDE6c7 SPP1 KO cells express both PDX1 and NKX6.1 (Figure 7E, F). Together, these data point to previously unappreciated roles for SPP1 in maintaining duct cell properties and preventing changes in cell identity.

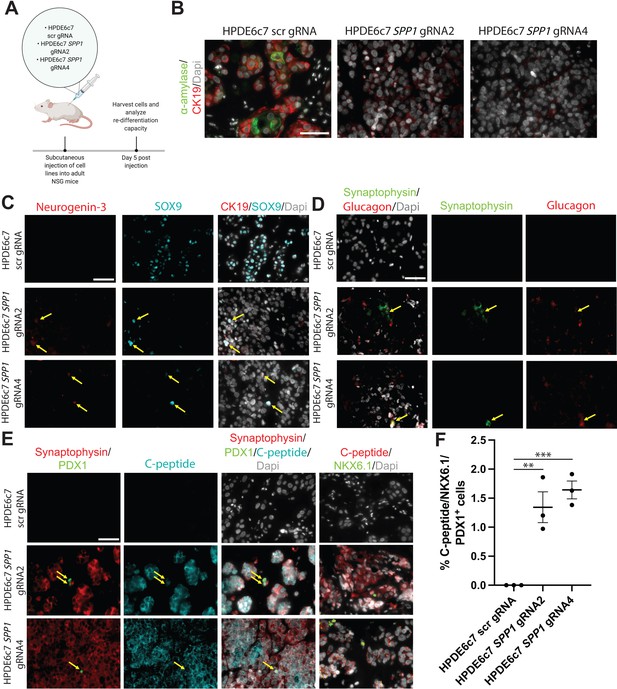

HPDE SPP1 knockout (KO) cells are capable of differentiating into cells with endocrine appearance, including cells exhibiting α- and β-like appearance, but not duct-like or acinar-like cells in vivo.

(A) Schematic of in vivo experiment. (B) Immunofluorescence (IF) shows CK19+ α-amylase+ double-positive HPDE6c7 scrambled (scr) gRNA cells. (C) IF depicts NGN3+ SOX9+ double-positive HPDE6c7 SPP1 KO cells (yellow arrows). (D) Synaptophysin+ Glucagon+ double-positive cells (yellow arrows) are detected in HPDE6c7 SPP1 KO cells. (E) C-peptide, synaptophysin, NKX6.1, and PDX1 expression are evident in HPDE6c7 SPP1 KO cells. C-peptide, synaptophysin, and PDX1 triple-positive cells are highlighted with yellow arrows. (F) The percentage of C-peptide+, NKX6.1+, and PDX1+ triple-positive cells for HPDE6c7 scr gRNA cells is 0, HPDE6c7 SPP1 gRNA2 is 1.343 ± 0.266, and HPDE6c7 SPP1 gRNA 4 cells is 1.642 ± 0.153. All scale bars in this figure are 50 µm.

Geminin safeguards against accumulation of DNA damage in mouse ductal cells in the setting of CP

One marker of the workhorse population of pancreatic duct cells Gmnn has previously been associated with chronic inflammatory diseases such as asthma (Garbacki et al., 2011). We therefore queried its role in pancreas inflammatory disease. Gmnn binds to CDT1 and inhibits DNA replication during the S phase. Geminin is a crucial regulator of genomic stability; its inhibition in multiple cancer cell lines leads to DNA re-replication and aneuploidy (Zhu and Depamphilis, 2009; Saxena and Dutta, 2005). To determine the requirement for Gmnn in normal homeostatic pancreatic duct cells, we generated a conditional Gmnn floxed allele and crossed the mouse to the Sox9-CreERT2 (Kopp et al., 2011) and Hnf1bCreERT2 (Solar et al., 2009) transgenic lines (Figure 8—figure supplement 1). Adult mice, between the ages of 7–9 weeks, were injected with tamoxifen to ablate Geminin in mouse pancreatic duct cells. Tamoxifen-injected Sox9-CreERT2Tg/wt; Gemininf/f, Sox9-CreERT2Tg/wt; Gemininf/wt, and Hnf1bCreERT2 Tg/wt; Gemininf/f mice displayed no histological abnormalities as assessed by hematoxylin and eosin (H&E) staining and no significant alterations in DNA damage as assessed by ATR and γ-H2AX IF up to 6 months post-tamoxifen injection (data not shown). We were unsurprised by these findings, given the low proliferation rate of murine pancreatic duct cells suggested by our single-cell data. Thus, Geminin may only be required in the context of pathologies characterized by increased proliferation in the pancreas such as pancreatitis or PDA (Salabat et al., 2008).

We examined proliferation in human pancreas duct cells in CP patients (N = 5 patients) and found a significant increase in geminin expression when compared to normal human pancreatic duct cells (N = 10 donors) (Figure 8A, B). Pancreatic duct ligation (PDL), an experimental technique that recapitulates features of human gallstone pancreatitis, results in an increase in proliferation of rat pancreatic duct cells (Githens, 1988; Walker and Pound, 1983). To investigate the role of Geminin in mouse pancreatic duct cells in the setting of CP, we performed PDL on Sox9-CreERT2Tg/wt; Gemininf/f, Sox9-CreERT2Tg/wt; Gemininf/wt, Hnf1bCreERT2 Tg/wt; Gemininf/f and littermate control mice (Figure 8C). As in the human setting, we also observed upregulation of Geminin in ductal epithelium in the control PDL mouse group (Figure 8D). Previously reported features of the PDL model were evident in our transgenic mice including replacement of parenchymal cells with adipose tissue, inflammation, and fibrosis (Aghdassi et al., 2011; Rastellini et al., 2015Figure 8—figure supplement 2A, B). Significant attenuation of Geminin expression was observed in Sox9-CreERT2Tg/wt; Gemininf/f, Sox9-CreERT2Tg/wt; Gemininf/wt, and Hnf1bCreERT2 Tg/wt; Gemininf/f mouse pancreatic duct cells when compared to controls (Figure 8D and Figure 8—figure supplement 3A). Homozygous Gmnn loss in SOX9+ pancreatic ductal cells promoted an acute increase in proliferation, as assessed by BrdU incorporation, at day 7, which became insignificant at day 30 (Figure 8—figure supplement 3B-E). No changes were observed in apoptosis for any model or time point when compared to controls as assessed by cleaved caspase-3 IF (data not shown). Examination of duct cell DNA damage by γ-H2AX IF showed significantly increased γ-H2AX foci in Sox9-CreERT2Tg/wt; Gemininf/f mice at day 7, an observation that was sustained at day 30 (Figure 8E–H). Assessment of DNA damage in Sox9-CreERT2Tg/wt; Gemininf/f, Sox9-CreERT2Tg/wt; Gemininf/wt, and Hnf1bCreERT2 Tg/wt; Gemininf/f mice by ATR IF showed no significant changes (data not shown). The lack of phenotypes observed in the Hnf1bCreERT2 Tg/wt; Gemininf/f model may be due to differences in recombination induced by the Sox9-CreERT2 and Hnf1bCreERT2 lines since fewer pancreatic duct cells express HNF1B (Figure 1—figure supplement 1G and Figure 8C). Taken together, these data suggest that Geminin is an important regulator of genomic stability in pancreatic ducta cells in the setting of CP.

Figure 8 with 3 supplements see all

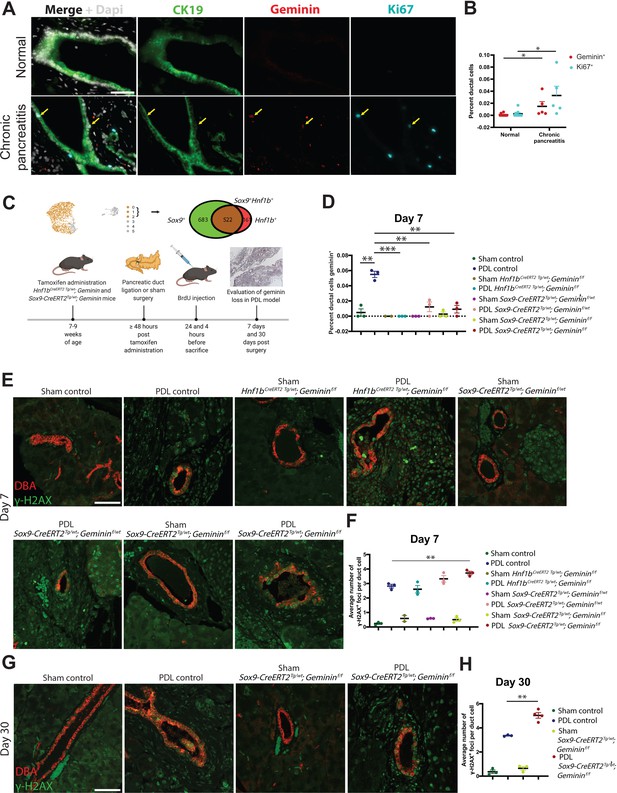

Geminin is a regulator of genomic stability in mouse pancreatic duct cells during chronic pancreatitis (CP).

(A, B) High-magnification immunofluorescence (IF)images and quantification show a significant increase in proliferation in pancreatic duct cells in CP patients when compared to normal human pancreatic duct cells. Yellow arrows point to Geminin+ Ki67+ copositive cells. (C) A schematic of tamoxifen and BrdU administration is shown. The Uniform Manifold Approximation and Projection depicts the pancreatic cells (clusters 0–2) that were analyzed in this experiment. The Venn diagram shows the number of cells in clusters 0–2 that are SOX9+, HNF1B+, and SOX9+HNF1B+ copositive. (D) Quantification of Geminin-positive ductal cells at day 7 in Sox9-CreERT2Tg/wt; Gemininf/f, Sox9-CreERT2Tg/wt; Gemininf/wt, Hnf1bCreERT2 Tg/wt; Gemininf/f and control mice is depicted. (E, F) Representative IF images and quantification of γ-H2AX-positive foci are shown at day 7 in the pancreatic duct ligation (PDL) transgenic models. (G, H) Representative IF images and quantification of γ-H2AX-positive foci are shown at day 30 in the Sox9-CreERT2Tg/wt; Gemininf/f and control PDL models. All scale bars in this figure are 50 µm.

Discussion

We present a single-cell transcriptional blueprint of murine pancreatic duct cells, intrapancreatic bile duct cells, and pancreatobiliary cells. Notably, our single-cell analysis indicated that endothelial cells, fibroblasts, and immune cells are also obtained using the DBA+ lectin sorting strategy (Reichert et al., 2013) and suggests that a subsequent ductal purification step is required to obtain pure pancreatic duct cells using this protocol. A static transcriptional picture in time has highlighted a very dynamic view of pancreas duct cell heterogeneity. Our study provokes reinterpretation of several previously published lineage tracing reports using ductal-specific Cre mouse lines and will help plan future lineage tracing studies.

Cluster 0 workhorse pancreatic duct cells comprise the largest pancreatic duct subpopulation identified. Although clusters 0 and 2 share many markers, we found compelling differences in metabolic states as manifested in part by an overall lower gene and transcript count for cluster 2. IPA suggested that subpopulations of pancreatic duct cells may use different predominant mechanisms for bicarbonate secretion such as CFTR (Ishiguro et al., 2009) for cluster 0 and calcium signaling for cluster 1 (Ishiguro et al., 2012). One notable difference between clusters 0 and 2 vs. 1 is the molecules that regulate the xenobiotic metabolism CAR signaling pathway. We observed expression of several genes, whose alteration contributes to PDA progression including Tgfb2 and Ctnnb1 in cluster 0 and Ppp1r1b, Smarca4, and Tgfb1 in cluster 1. IPA upstream regulator analysis of Monocle 3 module 14 predicted significant inhibition of Kras in cluster 1 when compared to cluster 0. Additionally, IPA upstream regulator analysis comparing cluster 2 vs. 0 in module 19 predicted activation of Myc and Mycn in cluster 2. These genes play central roles in homeostasis of pancreatic duct cells, and it is possible that distinct ductal cell subpopulations that are actively expressing these pathways may have different predispositions to PDA with mutations in these genes, heterogeneity which may also contribute to the development of different subtypes of PDA.

The role of Spp1 in homeostatic pancreatic duct cells has been elusive since Spp1 KO mice have no apparent pancreatic duct phenotypes (Kilic et al., 2006). We identified an EMT axis in pancreatic duct cells using Monocle 3 and validated this observation in mouse and human duct cells. Spp1 is one gatekeeper of this epithelial to mesenchymal transitory duct phenotype as manifested by loss of ductal markers, reduced duct function, and upregulation of EMT genes in HPDE6c7 SPP1 KO cells when compared to controls. Clusters 0 and 2, characterized by strong expression of Spp1, show the highest StemID2 scores. SPP1 KO HPDE6c7 cells display prominent filipodia and the highest proliferative capacity of all markers examined when compared to the control. Taken together, these phenotypes, along with upregulation of pathways regulating mammalian development (Notch signaling and Hox genes) manifested by GSEA, suggest that SPP1 loss promotes human duct cell dedifferentiation.

During pancreas development, the multipotent epithelial progenitors become increasingly compartmentalized into tip and trunk progenitors that give rise to acinar and endocrine/ductal cells, respectively (Zhou et al., 2007). Our data suggest that OPN-deficient HPDE6c7 cells dedifferentiate into a trunk, and not tip, progenitor-like cell and that redifferentiation of HPDE6c7 SPP1 KO cells to a human pancreatic duct or acinar cell lineage is not favored in vivo. These data underscore the requirement for OPN expression for mature human pancreas duct cell identity. It has been hypothesized that SPP1’s role in mature pancreatic duct cells is evident during pathogenesis. Several groups have already nicely shown that Spp1 plays important roles in pancreatic pathologies including PDA (Adams et al., 2019; Zhao et al., 2018). In human pancreas duct cells, the subpopulation characterized by SPP1 expression is described as ‘stress/harboring progenitor-like cells’ (Qadir et al., 2020). We observed significant deregulation of 14 cancer-related IPA pathways for which pathway directionality was known in HPDE6c7 SPP1 KO lines vs. HPDE6c7 scr gRNA controls. 13/14 of these cancer-related pathways, including pancreatic adenocarcinoma signaling, were in a direction suggestive that SPP1 loss protects against tumor progression in human pancreatic duct cells. These findings are in agreement with published studies suggesting that SPP1 loss ameliorates aggressiveness of pancreatic cancer cells (Kolb et al., 2005; Adams et al., 2019) and colon cancer cells (Zhao et al., 2018; Ishigamori et al., 2017).

The requirement for Geminin in the prevention of DNA re-replication initiation has been postulated to be when cells are stressed to divide quickly (Barry et al., 2012). We were unable to detect DNA damage with Geminin loss in homeostatic pancreatic duct cells, which may be due to the low proliferation rate of pancreatic duct cells and/or the presence of compensatory mechanisms with redundant function, such as ubiquitin-dependent degradation of CDT1 at the time of replication licensing (Arias and Walter, 2005; Kerns et al., 2007; Li and Blow, 2005; Maiorano et al., 2005). Compensatory mechanisms are not sufficient to rescue the effects of Geminin loss in pancreatic duct cells in the context of CP, the result of which is accumulation of sustained DNA damage evident by γ-H2AX, but not ATR labeling. It has been previously reported that ATR is activated in Geminin-depleted colon cancer cell lines (Lin and Dutta, 2007). Activation of the ATR-CHK1 pathway is not a major player in pancreatic duct cells in the setting of CP (Smith et al., 2010), suggesting that different mechanisms participate in sensing Geminin depletion-induced DNA damage in different experimental systems and tissues. While our limited functional analyses of the SPP1 and Gmnn mutant models provide important information regarding their function in pancreas duct cells, additional studies will be required to fully understand their roles in normal and disease pancreatic physiology.

Materials and methods

Preparation of pancreatic duct cells for single-cell analysis

Request a detailed protocol

Pancreata from four 9-week-old female C57BL/6J littermates (Jackson Labs, Stock 000664) were dissected, digested into single cells, and the DBA+ fraction obtained as previously described (Reichert et al., 2013). Subsequently, live DBA+ cells were isolated for scRNA-seq by excluding propidium iodide (Thermo Fisher Scientific, P3566)-positive single cells during FACS. scRNA-seq was performed by the Institute for Human Genetics Genomics Core Facility at University of California San Francisco (UCSF) using the 10X Genomics platform. Briefly, live, single, DBA+ pancreatic cells were loaded onto the microfluidic chip to generate single-cell GEMs (Gel Bead-In-Emulsions). Following cell lysis and unique barcode labeling, the cDNA library of 18,624 live pancreatic cells was generated using the Chromium Single Cell 3ʹ GEM, Library and Gel Bead Kit v2 (10X Genomics). The cDNA library was sequenced on one lane using an Illumina HiSeq 4000.

scRNA-seq data was generated on the 10X platform (10X Genomics, Pleasanton, CA) according to Single Cell 3′ protocol (v2 Chemistry) recommended by the manufacturer (Zheng et al., 2017). The Cell Ranger software pipeline (version 2.1.1) was used to demultiplex cellular barcodes, map reads to the genome and transcriptome using the STAR aligner, and produce a matrix of gene counts versus cells. Doublets were filtered by excluding cells having RNA counts > 30,000 and mitochondrial genes percentage >10% in addition to using Scrublet (Wolock et al., 2019). The R package Seurat (Satija et al., 2015) was used to process the unique molecular identifier count matrix and perform data normalization (gene expression measurements for each cell were normalized by total expression, and log-transformed), dimensionality reduction, clustering, duct cell isolation, and differential expression analyses. We identified three clusters enriched in genes from two different cell types including (1) acinar and T cell, (2) acinarand macrophage, and (3) acinar and duct cell. Because our dataset does not contain a population of acinar cells (they are not DBA+), doublet detector algorithms will not remove acinar cell doublets from our dataset. Based on this reasoning, we removed these clusters containing a high threshold level of expression of acinar cell genes.

Generation of Gmnn conditional floxed allele

Request a detailed protocol

The general strategy to achieve Cre recombinase-mediated conditional gene ablation was to flank exons 3 and 4 of Mus musculus Gmnn by loxP sites (Figure 8—figure supplement 1A). The arms of homology for the targeting construct were amplified from BAC clone RP23-92G13 by PCR with high-fidelity Taq polymerase. One primer contained a loxP site and a single SphI site, which was used to verify the presence of the loxP site associated with it. Finally, the selectable cassette CMV-hygro-TK was incorporated into the targeting vector. The selectable marker itself was flanked by two additional loxP sites generating a targeting vector containing three loxP sites. Such a strategy allows the generation of ES cells with both a KO allele and a conditional KO allele after Cre-mediated removal of the selection cassette in vitro. The targeting vector was sequenced to guarantee sequence fidelity of exons 3–4 and the proper unidirectional orientation of the three loxP sites. The complete left arm of homology was about 3,200 bp in length, and the right arm of homology was 2,100 bp in length.

V6.5 ES cells were electroporated (25 µF, 400V) with the three loxP sites-containing targeting construct, and hygromycin selection was performed to identify correctly targeted ES cells. Successfully targeted ES cells (3loxP) were identified with Southern blot (Figure 8—figure supplement 1B). These 3loxP ES cells were then electroporated with a Cre-expressing plasmid and counter-selected with ganciclovir. ES cells that contained either one loxP or two loxP sites, respectively, were identified by Southern blot (Figure 8—figure supplement 1C). An ES cell clone was chosen that carried the conditional KO allele (two loxP sites flanking exons 3 and 4) and was used for blastocyst injections to generate chimeric founder mice. Gmnnf/f mice displayed normal litter sizes. For routine genotyping of Gmnnf/f mice, the primers GCCTCGAACTCAGAAATCCA (primer A) and AACACAAAATTTGGCCTGCT (primer B) were used. To identify the deleted allele by PCR, primer C (TAGCCCGGACTACACAGAGG) can be used with primer A.

Southern blot

Request a detailed protocol

For Southern blotting of genomic DNA, samples were digested with SphI or Bsu36I restriction enzymes for at least 4 hours and separated on an 0.8% agarose gel. The DNA was transferred to a Hybond-XL membrane (GE-Healthcare) in a custom transfer setup. Before assembly, the agarose gel was treated for 15 min in depurination solution (21.5 ml 37% HCl in 1L H2O), briefly rinsed in H2O, and then soaked in denaturing solution (20 g NaOH pellets, 87.6 g NaCl in 1 l H2O) for 30 min. After transfer, the DNA was crosslinked to the membrane with UV light. The PCR-amplified external Southern blot probes were labeled with 32P using the Prime-It II Random Primer Labeling kit from Stratagene. After hybridization of the probe and washing of the membrane, Kodak MS film was exposed to it and subsequently developed.

Mice

NSG mice from Jackson Labs (Stock 005557) were used. The transgenic mouse strain Sox9-CreERT2 was obtained from Jackson Labs (Stock 018829), and Hnf1bCreERT2 has been previously described (Solar et al., 2009). Mice were maintained on a mixed genetic background. To induce Cre recombination, mice were injected with 6.7 mg tamoxifen (Actavis, NDC 0591-2473-30) via oral gavage three different days over the course of a week at 7–9 weeks of age. PDLs were performed as previously described (De Groef, 2015). BrdU (Sigma, B9285-1G) injections were performed 24 hours and 4 hours prior to dissection. 100,000 HPDE6c7 cells mixed 1:1 with media containing cells and growth factor reduced matrigel (Corning, 356231) in a total volume of 100 µl were injected subcutaneously into NSG mice. Mice were genotyped by PCR or Transnetyx. All animal studies were approved by the Institutional Animal Care and Use Committee at UCSF.

Histology/immunostaining

Request a detailed protocol

Tissues were fixed in Z-Fix (Anatech Ltd., 174), processed according to a standard protocol, and embedded in Paraplast Plus embedding agent for histology, with DMSO (VWR 15159–464).

For immunostaining, paraffin sections were deparaffinized, rehydrated, and antigen retrieval was performed, for all antibodies except BrdU, with Antigen Retrieval Citra (Biogenex, HK086-9K) using a heat-mediated microwave method. For immunostaining of BrdU, antigen retrieval was performed as previously described (Puri et al., 2018). For immunohistochemistry (IHC), endogenous peroxidase activity was blocked by incubation with 3% hydrogen peroxide (Fisher Scientific, H325-100) prior to antigen retrieval. Primary antibodies were incubated overnight at 4°C. Secondary antibodies were used at 4 µg/ml and incubated at room temperature (RT) for 1 hour (IHC) or 2 hours (IF). For IF, slides were mounted in ProLong Diamond Antifade Mountant with DAPI (Thermo Fisher, P36962). For IHC, Vectastain Elite ABC kit (Vector Laboratories, PK-6100) and DAB Peroxidase (HRP) Substrate kit (Vector Laboratories, SK-4100) were used. Primary antibodies used in this study are listed in Supplementary file 2. Secondary antibodies used in this study were obtained from Invitrogen, Jackson ImmunoResearch, and Biotium.

Immunostaining of cluster markers as well as the types of ducts within the ductal hierarchy tree were reviewed and classified by a board-certified pathologist. For expression analysis of selected markers in murine and human tissues, images shown are representative of at least three different donors or 9-week-old C57BL/6J mice. For quantification of BrdU, cleaved caspase-3, Geminin, Ki67, γ-H2AX, and ATR, at least 60 cells from three different ducts were analyzed. Quantification of γ-H2AX foci included duct cells with zero foci. For quantification of c-peptide/PDX1/NKX6.1 triple-positive cells, at least three images containing an average of 188 cells were counted from three technical replicates per cell line. Normal human tissue used in this study was obtained from research-consented human cadaver donors through UCSF’s Islet Production Core. Human pancreatic tissue specimens from five surgical resections from patients without pancreaticobiliary carcinoma or high-grade pancreatic intraepithelial neoplasia were obtained. The pancreatic histologic section demonstrated CP with loss of acinar parenchyma, resulting in atrophic lobules along with variable fibrosis and chronic inflammation (most had no to sparse lymphocytic inflammation).

Immunocytochemistry

Request a detailed protocol

Cells were grown on coverslips in six-well plates and fixed at RT for 15 min with 4% paraformaldehyde. Cells were permeabilized with permeabilization solution (0.1% w/v Saponin, 5% w/v BSA in PBS-/-). The primary antibody was incubated in permeabilization solution at 4°C overnight. After washing off unbound primary antibody with PBS-/-, the secondary antibody was incubated in permeabilization solution for 1 hour at RT. After washing off unbound secondary antibody with PBS-/-, cells were mounted using ProLong Diamond Antifade Mountant with DAPI (Thermo Fisher, P36962).

Flow cytometry

Request a detailed protocol

For analysis of cell surface markers (EPCAM), cells were resuspended in FACS buffer (1% FBS + 2 mM EDTA in PBS -Mg/-Ca), filtered in FACS tubes with a cell strainer cap, and spun at 1350 rpm for 3–5 min. The supernatant was discarded, and cells were resuspended in 100 µl of directly conjugated primary antibody diluted in FACS buffer and stained for 60 min at RT. Stained cells were washed with 2 ml FACS buffer and spun at 1350 rpm for 3–5 min. The supernatant was discarded and cells were resuspended in 250 µl FACS buffer containing 0.5 µg/ml DAPI immediately before analyzing on the flow cytometer.

For analysis of intracellular antigens, single-cell suspensions of cell lines were prepared. Cells were washed with PBS -Mg/-Ca, resuspended in 250 µl FACS buffer, and filtered in FACS tubes with a cell strainer cap. 2 ml 1X permeabilization buffer (Affymetrix eBiosciences, 00-8333-56) was added to cells, and cells were subsequently spun at 1500 rpm for 5 min. Supernatant was removed, and 100 µl primary antibody diluted in CAS-Block (Invitrogen, 00–8120) + 0.2% TritonX-100 was added to cells. Cells were stained overnight at 4°C. Subsequently, cells were washed with 3 ml 1X permeabilization buffer and spun at 1500 rpm for 5 min. The supernatant was discarded. If using directly conjugated primary antibodies, cells were resuspended in 250 µl FACS buffer and analyzed on the flow cytometer. If using unconjugated primary antibodies, 100 µl secondary antibody diluted in CAS-Block + 0.2% Triton X-100 was added to cells, and cells were incubated at 4°C for 50 min. Subsequently, 3 ml 1X permeabilization buffer was added to the cells, and cells were spun at 1500 rpm for 5 min. The supernatant was discarded. Cells were resuspended in 250 µl FACS buffer and analyzed on the flow cytometer.

RNA-seq and qPCR

Request a detailed protocol

RNA was isolated using the RNeasy Mini Kit (Qiagen, 74106) as per the manufacturer’s instructions. To obtain N = 3 for the HPDE6c7 scr gRNA control, RNA was isolated on three different days of subsequent passages. For qPCR, cDNA was prepared using the SuperScript III First Strand synthesis kit (Thermo Fisher Scientific, 18080085) using 500 ng of RNA and random hexamers. qPCR was performed using FastStart Universal SYBR Green mix (Sigma, 4913914001). RNA expression of target genes was normalized to GAPDH. qPCR primer sequences are included in Supplementary file 4.

For RNA-seq, a stranded mRNA library prep was prepared using PolyA capture and paired-end sequencing was performed by Novogene. 40 million reads were sequenced for each sample. Quality of raw FASTQ sequences was assessed using FASTQC. To process RNA-seq libraries, adaptor sequences were trimmed using Cutadapt version 1.14 (requiring a length >10 nucleotides after trimming) and quality-filtered by requiring all bases to have a minimum score of 20 (-m 20 -q 20). Only reads that passed the quality or length threshold on both strands were considered for mapping. Reads were aligned to the human genome GRCh38 (hg38) with the STAR Aligner (version 020201). Ensembl reference annotation version 89 was used to define gene models for mapping quantification. Uniquely mapped reads for each gene model were produced using STAR parameter ‘--quantMode GeneCounts.’ Differential expression analysis was performed in R using DESeq2 (v.1.16.0) with the default parameters, including the Cook’s distance treatment to remove outliers. The RNA-seq and scRNA-seq datasets were deposited to GEO (GEO accession #GSE159343).

Cell culture assays

Request a detailed protocol

HPDE6c7 cells (RRID:CVCL_0P38) were authenticated by ATCC and tested negative for mycoplasma using a kit from InvivoGen (rep-pt1). HPDE6c7 cells (Furukawa et al., 1996) were cultured in DMEM (Life Technologies 11995073), 10% FBS (Corning, 35011CV), 1X Penicillin:Streptomycin solution (Corning, 30-002-CI). For cell counting, 25,000 cells were seeded in a sterile six-well TC-treated plate (Corning, 353046). Values depicted for all cell culture experiments represent the average of at least three independent experiments.

For carbonic anhydrase activity assays, cell lysates were prepared using standard protocols and cell lysis buffer (Cell Signaling Technologies, 9803S) containing 100 mM PMSF, 1X cOmplete Protease Inhibitor Cocktail (Roche, 11697498001), and 1X PhosSTOP (Sigma Aldrich, 4906845001). Carbonic anhydrase activity was measured using the carbonic anhydrase activity assay kit (Biovision, K472-100). For normalization, equal amounts of protein (10 µg) per sample were used in the assay. Protein concentration was determined using the Pierce BCA Protein Assay Kit (Thermo Fisher Scientific, 23225).

Generation of stable knockout HPDE6c7 cell lines

Request a detailed protocol

For generation of stable knockouts, gRNAs were cloned into eSPCas-LentiCRISPR v2 (Genscript). gRNA sequences are included in Supplementary file 3. Each gRNA-containing plasmid was incorporated into lentivirus. HPDE6c7 cells were transduced with these lentiviruses, and cells expressing the gRNA-containing plasmid were selected for with puromycin. All cell culture experiments were performed using bulk transduced HPDE6c7 cells.

Western blotting

Request a detailed protocol

Cell lysates were prepared using standard protocols and RIPA buffer (Thermo Fisher Scientific, 89901) containing 100 mM PMSF, 1X cOmplete Protease Inhibitor Cocktail (Roche, 11697498001), and 1X PhosSTOP (Sigma Aldrich, 4906845001). PVDF membranes were incubated with primary antibodies overnight at 4°C. After RT incubation with the appropriate HRP-conjugated secondary antibody for 1 hour, membranes were developed using SuperSignal West Pico PLUS Chemiluminescent Substrate (Thermo Scientific, 34580).

Bioinformatics and statistical analysis

Request a detailed protocol

For cell culture studies, sample size was computed based on accepted scientific standards using a minimum of two CRISPR/Cas9-generated KO lines to control for off-target effects. For mouse experiments, sample size was computed based on the number of biological replicates required to obtain statistical significance. For Gmnn mouse model studies, mice with relevant genotypes were chosen randomly for PDL or control groups.

We used p≤0.05 as a cutoff for DEG inclusion for IPA and IPA upstream regulator analysis. Due to low cell number and high similarity, some comparisons did not yield an acceptable number of statistically significant DEGs (≤25), and we used a relaxed p≤0.1 as a cutoff for these in order to identify more targets. GSEA was performed on the identified DEGs with the GSEA software (version 3.0) in the pre-ranked mode, with the Reactome pathway dataset (version 7.2). For analysis of published single-cell developmental biology datasets, GSM3140915 (E12.5 SW), GSM3140916 (E14.5 SW), GSM3140917 (E17.5 1 SW), and GSM3140918 (E17.5 2 SW) were used. The two E17.5 datasets were from the same animal and were merged. Ductal clusters were identified by expression of marker genes Sox9, Krt19, and Epcam.

Data are presented as mean ± SEM and were analyzed in GraphPad Prism or Microsoft Office Excel. Statistical significance was assumed at a p or q value of ≤ 0.05. p or q values were calculated with a t-test. For interpretation of statistical t-test results, *=p or q value ≤ 0.05, **=p or q value ≤ 0.01, ***=p or q value ≤ 0.001, and ****=p or q value ≤ 0.0001. For all statistical analyses, outliers were identified and excluded using the Grubbs’ outlier test (alpha = 0.05) or ROUT (Q = 10%).

Data availability

Sequencing data have been deposited in GEO under accession code GSE159343.

The following data sets were generated
The following previously published data sets were used

References

    1. Apte MV
    2. Wilson JS
    3. Korsten MA
    (1997)
    Alcohol-related pancreatic damage: mechanisms and treatment
    Alcohol Health and Research World 21:13–20.
    1. Furukawa T
    2. Duguid WP
    3. Rosenberg L
    4. Viallet J
    5. Galloway DA
    6. Tsao MS
    (1996)
    Long-term culture and immortalization of epithelial cells from normal adult human pancreatic ducts transfected by the E6E7 gene of human papilloma virus 16
    The American Journal of Pathology 148:1763–1770.
    1. Ishiguro H
    2. Yamamoto A
    3. Nakakuki M
    4. Yi L
    5. Ishiguro M
    6. Yamaguchi M
    7. Kondo S
    8. Mochimaru Y
    (2012)
    Physiology and pathophysiology of bicarbonate secretion by pancreatic duct epithelium
    Nagoya Journal of Medical Science 74:1–18.
    1. Saxena S
    2. Dutta A
    (2005) Geminin-Cdt1 balance is critical for genetic stability
    Mutation Research/Fundamental and Molecular Mechanisms of Mutagenesis 569:111–121.
    https://doi.org/10.1016/j.mrfmmm.2004.05.026

Decision letter

  1. Lori Sussel
    Reviewing Editor; University of Colorado Anschutz Medical Campus, United States
  2. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

In this study, the authors present a high-resolution single-cell transcriptomic atlas of the pancreatic ductal tree. Their analysis unveils important heterogeneity within the pancreatic ductal populations and identifies unique cellular states. Overall, the results presented here suggest there are distinct functional roles for subpopulations of ductal cells in the maintenance of duct cell identity that could have broader implications for chronic pancreatic inflammation. Furthermore, the detailed analysis of the pancreatic subpopulations could also be relevant in the context of cancer biology and provides novel information that may help in elucidating the transition from pancreatitis to pancreatic cancer and/or different predispositions to cancer.

Decision letter after peer review:

Thank you for submitting your article "Single cell transcriptome analysis defines heterogeneity of the murine pancreatic ductal tree" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Didier Stainier as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. The extensive text describing the gene expression analyses and the different clusters should be streamlined to emphasize the take home message. This could be accompanied by a schematic figure that includes representative genes in each cluster. There should also be more limited "conclusions" made from the gene expression data; many of these are overstated.

2. Provide additional data to support the presence of an "EMT axis" or downplay this conclusion.

3. Provide rationale for choosing Anxa3, SPP1 and Geminin for further analysis and indicate why analysis Anxa3 wasn't pursued further. Also several other genes were mentioned in this section with reasoning as to why they weren't pursued further, but it isn't clear why they were chosen in the first place.

4. As indicated by reviewer 2, there are several parts of the text that should include rationale for the experiments. For instance, choice of cell line, etc.

5. Although a lot of effort went into generating the mutant models for functional analyses of SPP1 and Geminin, the analysis is incomplete. In their current form, the phenotypes of the different mutants show potential, but the analysis is still incomplete. The authors should acknowledge this and indicate that future experiments will be necessary to fully understand their roles.

6. The proliferation analysis of the KO HPDE lines is not convincing and the authors should provide cell counting over a time course.

7. Improve the IF staining as indicated by reviewer 3.

Reviewer #1 (Recommendations for the authors):

1. The extensive text describing the gene expression analyses and different clusters should be streamlined to emphasize the take home message. This could be accompanied by a schematic figure that includes representative genes in each cluster.

2. Provide additional data to support the presence of an "EMT axis" or downplay this conclusion.

3. Provide rationale for choosing Anxa3, SPP1 and Geminin for further analysis and indicate why analysis Anxa3 wasn't pursued further. Also several other genes were mentioned in this section with reasoning as to why they weren't pursued further, but it isn't clear why they were chosen in the first place.

4. Although a lot of effort went into generating the mutant models for functional analyses of SPP1 and Geminin, the analysis is incomplete seem to be added as an afterthought at the end of the study. In their current form, the phenotypes of the different mutants show potential, but the analysis is too incomplete and actually compromise the first half of the paper. The authors should either flesh out one of the studies or remove them from the paper.

5. The proliferation analysis of the KO HPDE lines is not convincing – the authors would need to provide cell counting over a time course.

6. Additional quantification for all of the experiments is required. For SPP, the number of Ngn3/Sox9 cells and endocrine cells formed vs exocrine. For Geminin, the percent of cells showing H2AX loci should be quantified.

Reviewer #2 (Recommendations for the authors):

1. The expression profile of Kcn3 and Sparc does not appear to correlate well with cluster 2 (figure 2C).

2. IPA analyses are presented selectively eg for cluster 2 arginine metabolism pathways are mentioned but not cysteine metabolism which shows stronger p-value. In any case, these are all speculations and as such they are not appropriate for main figures (figure 2D).

3. The authors suggest that cluster 5 of cycling cells represents cells of clusters 3 and 4 but the distance in the UMAP from cluster 4 and the poor Pearson correlation (figure 3B) do not support the relationship with cluster 4. Also the pseudo-temporal ordering suggested that clusters 3 and 5 are not related to the other clusters.

4. The authors write in the beginning of the 2nd paragraph in page 9 : 'Our analysis thus far has identified and validated multiple transcriptional programs.… ´. This is a clear over interpretation – bioinformatics analysis alone cannot validate transcriptional programs.

5. Functional analyses of some marker genes was undertaken using immortalized HPDE cells (page 9). Apart from the general concern for the validity of results using immortalized cell lines, it is not explained what is the rationale for selecting this particular cell line and why Anxa3 was selected. It is also not clear why they mention here that PAH and WFDC3 are not expressed in this cell line. If these genes are important should they not be analyzed in another context ?

6. It is mentioned that SPP1 knockout lines had prominent filopodia but this is not shown or commented upon – what does it mean ? There is evidence from the RNA Seq for EMT and it will be essential if the authors further establish that by immunofluorescence analyses.

7. The evidence for increased proliferation of SPP1 KO lines is not strong enough. The CGT assays detect endogenous ATP levels and such increase does not necessarily mean increased cell proliferation. Similarly, increased relative spheroid size does not mean much if it is accompanied by a reduction in the number of spheroids. Cell counts at successive passages would be necessary.

8. Even if there is increase in the proliferation rate of this transformed line as well as taking into account the RNA seq data, the conclusion that loss of SPP1 leads to a progenitor like state is not warranted. Nothing is mentioned on the expression at the transcript or protein level of established markers such as eg NKX6.1, PDX1, HNF3B etc. These are straightforward experiments to bolster the analysis.

9. The authors proceed with further analysis of two of the four knock out SPP1 lines. The criteria for selecting these two are not clear.

10. The authors attempt to document SPP1 downregulation, changes in Vimentin and CK19 expression by immunofluorescence (figure 6J, K). Controls (scr gRNA) are shown in different magnification than knock down lines. This makes it harder to document changes and it is questionable practice. I am not convinced by the claim for changes in SPP1 and Vimentin expression for either of the two lines. Regarding CK19, only one of the two stainings appears convincing. This is problematic particularly regarding SPP1 – this is supposed to be a nearly complete KO (figure 6B). It may be a matter of levels in which case IF is not appropriate. Flow cytometry profiles could resolve this.

11. The differentiation potential of SPP1 knocked out cells was then tested five days after subcutaneous transplantation by immunofluorescence. The Glucagon and Ngn3 stainings are not convincing. Also, whereas there appear to be several C-pep+ cells the NkX6.1+ and PDX1+ among them are very scarce. This would not be expected from a differentiation into genuine b cells.

12. Geminin is expressed in very few ductal cells even after PDL (0.05%, figure 8B). It is not explained what are the quantitated ´γ-H2AX+ foci´. Do these correspond to γ-H2AX +cells ? It should be stated clearly; what is the % of cells that are γ-H2AX+ ?

Reviewer #3 (Recommendations for the authors):

Few concerns that should be addressed are listed below:

– Some of immunofluorescence (IF) staining experiments could be optimized and replaced with better image qualities. For instance, in Figure 7E Pdx1+ cells are not visible in the transplanted HPDE cells stained for Synaptophysin/Pdx1/C-peptide. Similarly, in the IF on human pancreatic tissue (see Figure 8A) the distribution of Geminin is not clearly visible. The IF should be repeated and the images showing the individual channels should be included?

– The study reports some interesting observations on the pancreatobiliary and intrapancreatic bile duct cells. It would be helpful to include spatial characterization of these cells or a schematics to indicate the location of these populations. Are they only in the intrapancreatic bile common duct?

https://doi.org/10.7554/eLife.67776.sa1

Author response

Essential revisions:

1. The extensive text describing the gene expression analyses and the different clusters should be streamlined to emphasize the take home message. This could be accompanied by a schematic figure that includes representative genes in each cluster. There should also be more limited "conclusions" made from the gene expression data; many of these are overstated.

We agree with these comments and have reduced the description of the duct clusters as much as possible. We have retained the points we believe are important including those which are referenced in the Discussion section as well as remarks that necessarily reference the figure panels, datasets, and tables in chronological order. We retained a longer description of cluster 4 as we believe the points are important to annotate this population as pancreatobiliary cells. We have also provided additional data to support several bioinformatics analyses as detailed below. Additionally, we tried to modify the language regarding the bioinformatics analyses that is not supported with experiments to reflect speculation rather than conclusions. As requested, we have included a new schematic word cloud of the top differentially expressed genes in each duct cluster.

2. Provide additional data to support the presence of an "EMT axis" or downplay this conclusion.

We agree that the data supporting the EMT axis, which was limited to the CK19 and Vimentin co-IF in Figure 5F, could be strengthened. We examined additional EMT markers in human and mouse ductal cells and found heterogenous expression of SNAI1 and fibronectin in both mouse and human ductal cells. Fibronectin was scarce while SNAI1 expression was abundant in both mouse and human duct cells. Due to lack of space in the figures in this part of the manuscript to add additional data, we included images for only the human duct cells for SNAI1 and fibronectin co-IF in Figure 5—figure supplement 1E.

With regards to SPP1, a gatekeeper of the EMT axis, we have provided additional evidence for EMT in the HPDE6c7 SPP1 KO lines. We performed qPCR for epithelial and mesenchymal genes in HPDE6c7 SPP1 KO lines and the HPDE6c7 scr gRNA control and included this data in Figure 6—figure supplement 1A-B. IPA analysis data already included in Figure 6-source data 2 shows the Regulation of the Epithelial-Mesenchymal Transition Pathway is significantly enriched from the RNA-seq data of HPDE6c7 SPP1 KO lines vs. HPDE6c7 scr gRNA control. Additionally, we have added flow cytometry data of epithelial and mesenchymal markers for HPDE6c7 SPP1 KO lines and the HPDE6c7 scr gRNA control in Figure 6—figure supplement 1C.

3. Provide rationale for choosing Anxa3, SPP1 and Geminin for further analysis and indicate why analysis Anxa3 wasn't pursued further. Also several other genes were mentioned in this section with reasoning as to why they weren't pursued further, but it isn't clear why they were chosen in the first place.

We have added rationale for choosing Anxa3, Spp1, and Gmnn for further analysis in the section titled, “SPP1 is required for mature human pancreas duct cell identity.” Anxa3 was not pursued further because we wanted to focus our functional studies on the strongest phenotypes observed. Rationale for choosing Geminin to pursue in in vivo pancreatitis studies is provided under the section titled “Geminin safeguards against accumulation of DNA damage in mouse ductal cells in the setting of chronic pancreatitis” – “One marker of the workhorse population of pancreatic duct cells Gmnn has previously been associated with chronic inflammatory diseases such as asthma (59). We therefore queried its role in pancreas inflammatory disease.” We mentioned that PAH and WFDC3 were not expressed in HPDE6c7 cells as reasoning for not pursuing them further in functional studies because we examined these markers of duct subpopulations by IHC in Figure 2—figure supplement 1-2. We agree with the reviewer that it isn’t necessary to mention this because we don’t pursue these genes further and have removed this sentence.

4. As indicated by reviewer 2, there are several parts of the text that should include rationale for the experiments. For instance, choice of cell line, etc.

We have added rationale for choice of the HPDE6c7 cell line in the section entitled “SPP1 is required for mature human pancreas duct cell identity.”

5. Although a lot of effort went into generating the mutant models for functional analyses of SPP1 and Geminin, the analysis is incomplete. In their current form, the phenotypes of the different mutants show potential, but the analysis is still incomplete. The authors should acknowledge this and indicate that future experiments will be necessary to fully understand their roles.

We have acknowledged that our analysis of the SPP1 and Geminin mutants is incomplete and suggest that further experiments are required to fully understand their roles in the Discussion section.

6. The proliferation analysis of the KO HPDE lines is not convincing and the authors should provide cell counting over a time course.

Please see comment #7 from Reviewer #2.

7. Improve the IF staining as indicated by reviewer 3.

Please see comment #1 from Reviewer #3.

Reviewer #1 (Recommendations for the authors):

1. The extensive text describing the gene expression analyses and different clusters should be streamlined to emphasize the take home message. This could be accompanied by a schematic figure that includes representative genes in each cluster.

Please see comment #1 from Essential revisions.

2. Provide additional data to support the presence of an "EMT axis" or downplay this conclusion.

Please see comment #2 from Essential revisions.

3. Provide rationale for choosing Anxa3, SPP1 and Geminin for further analysis and indicate why analysis Anxa3 wasn't pursued further. Also several other genes were mentioned in this section with reasoning as to why they weren't pursued further, but it isn't clear why they were chosen in the first place.

Please see comment #3 from Essential revisions.

4. Although a lot of effort went into generating the mutant models for functional analyses of SPP1 and Geminin, the analysis is incomplete seem to be added as an afterthought at the end of the study. In their current form, the phenotypes of the different mutants show potential, but the analysis is too incomplete and actually compromise the first half of the paper. The authors should either flesh out one of the studies or remove them from the paper.

We followed the guidance from the editor and indicated in the Discussion section that further analyses are required to understand the roles of SPP1 and Geminin. The authors are open to removing the SPP1 study using NSG mice, the pancreatitis study of Geminin, or both from the paper if the editor and reviewers feel that the remaining data collectively constitute an improved article suitable for publication in eLife.

5. The proliferation analysis of the KO HPDE lines is not convincing – the authors would need to provide cell counting over a time course.

Please see comment #7 from Reviewer #2.

6. Additional quantification for all of the experiments is required. For SPP, the number of Ngn3/Sox9 cells and endocrine cells formed vs exocrine. For Geminin, the percent of cells showing H2AX loci should be quantified.

We understand and share the reviewer’s caution regarding the formation of cells with endocrine properties. We cautiously mention that a small subset of cells have an endocrine-like appearance demonstrating expression of NKX6.1, synaptophysin, PDX1, and c-peptide (Figure 7), while also noting that being able to demonstrate full transdifferentiation to mature endocrine cells would require functional and full transcriptome analyses that, due to the low number of such cells, are beyond the scope of this manuscript. We have included a quantification of the c-peptide/NKX6.1/PDX1 positive cells in Figure 7F that supports the notion of cells with endocrine potential forming while also indicating that these are rare events. The number of Ngn3/Sox9 cells is also quite rare as indicated in the IF pictures in Figure 7. Considering that we provide quantification of the more relevant c-peptide/NKX6.1/PDX1 positive cells, we just mention the equally rare nature of the NGN3/SOX9 cells without quantification. Additionally, with regards to quantification of γ-H2AX foci in Geminin mutant samples, please see comment #12 from Reviewer #2.

Reviewer #2 (Recommendations for the authors):

1. The expression profile of Kcn3 and Sparc does not appear to correlate well with cluster 2 (figure 2C).

We apologize for not describing the nature of Cluster 2 more clearly. Cluster 2 is characterized by low level or lack of expression of multiple ductal cell markers (Cftr, Kcne3, Sparc, Mmd2, Krt7) found in other clusters (Figure 2B-C and Figure 1—figure supplement 1G). Most markers in Cluster 2 are also present in Cluster 0 (please see Figure 3D). When comparing Clusters 0 vs 2, only 9 DEGs come up. None of these genes have an expression pattern specific for Cluster 2. Characterizing a cluster by lack of specific gene expression is something with precedent in the single cell sequencing field.

2. IPA analyses are presented selectively eg for cluster 2 arginine metabolism pathways are mentioned but not cysteine metabolism which shows stronger p-value. In any case, these are all speculations and as such they are not appropriate for main figures (figure 2D).

We acknowledge that the pathway analysis is not conclusive, but would argue that it provides important information regarding the diverse nature of the various clusters. Figure 2D shows the top 8 deregulated pathways when comparing a cluster to all other clusters using IPA. We have removed the mention of arginine metabolism for cluster 2 in the text, in an effort to streamline the extensive text describing the gene expression analyses and the different clusters as suggested by the editor and Reviewer #1.

3. The authors suggest that cluster 5 of cycling cells represents cells of clusters 3 and 4 but the distance in the UMAP from cluster 4 and the poor Pearson correlation (figure 3B) do not support the relationship with cluster 4. Also the pseudo-temporal ordering suggested that clusters 3 and 5 are not related to the other clusters.

We agree with the comment and have removed this suggestion in an effort to streamline the extensive text describing the gene expression analyses and the different clusters as also suggested by the editor and Reviewer #1.

4. The authors write in the beginning of the 2nd paragraph in page 9 : 'Our analysis thus far has identified and validated multiple transcriptional programs.… ´. This is a clear over interpretation – bioinformatics analysis alone cannot validate transcriptional programs.

By writing “our analysis thus far”, we are referring to both the bioinformatics analysis that identified the transcriptional programs as well as our IHC/IF validation of protein expression of several markers of these murine ductal subpopulations identified in our sc-RNA-seq dataset depicted in Figure 2—figure supplement 1-3. We have reworded this sentence.

5. Functional analyses of some marker genes was undertaken using immortalized HPDE cells (page 9). Apart from the general concern for the validity of results using immortalized cell lines, it is not explained what is the rationale for selecting this particular cell line and why Anxa3 was selected. It is also not clear why they mention here that PAH and WFDC3 are not expressed in this cell line. If these genes are important should they not be analyzed in another context ?

Please see comment #3 from Essential revisions.

6. It is mentioned that SPP1 knockout lines had prominent filopodia but this is not shown or commented upon – what does it mean ? There is evidence from the RNA Seq for EMT and it will be essential if the authors further establish that by immunofluorescence analyses.

The filipodia are evident in the higher magnification images in Figure 6D. We have added yellow arrows to make them clearly visible to the reader. In Figure 6E, we show increased proliferation in HPDE6c7 SPP1 KO cells when compared to HPDE6c7 scr gRNA cells. We mention filipodia in the manuscript because they are often prominent in migratory cells, serving as sensors of the environment and playing roles in cell migration and wound healing. The prominent filipodia in HPDE6c7 SPP1 KO cells hint at potentially enhanced migration, in addition to proliferation, and we plan to pursue follow up studies to better characterize the migratory features of these cell lines, which are out of the scope of this manuscript. Additionally, please see comment #2 from Essential revisions.

7. The evidence for increased proliferation of SPP1 KO lines is not strong enough. The CGT assays detect endogenous ATP levels and such increase does not necessarily mean increased cell proliferation. Similarly, increased relative spheroid size does not mean much if it is accompanied by a reduction in the number of spheroids. Cell counts at successive passages would be necessary.

We agree with the reviewer’s comment and have removed the CTG assays and spheroid data from the manuscript and replaced it with the requested cell counting experiment in Figure 6E. Additionally, many pathways involved in positive regulation of cell cycle signaling were identified in the GSEA analysis for HPDE6c7 SPP1 KO cell lines (Figure 6—figure supplement 1D).

8. Even if there is increase in the proliferation rate of this transformed line as well as taking into account the RNA seq data, the conclusion that loss of SPP1 leads to a progenitor like state is not warranted. Nothing is mentioned on the expression at the transcript or protein level of established markers such as eg NKX6.1, PDX1, HNF3B etc. These are straightforward experiments to bolster the analysis.

The reviewer brings up another important point. To strengthen our assessment of a progenitor-like state in HPDE6c7 SPP1 KO cell lines, we have performed qPCR for pancreatic progenitor markers Pdx1, Ptf1a, Gata4, Gata6, Prox1, Myt1, and Rxrg and added our analysis to Figure 6K. Towards support for a progenitor-like state for HPDE6c7 SPP1 KO cell lines, we also reference the GSEA analysis in Figure 6—figure supplement 1E-F.

9. The authors proceed with further analysis of two of the four knock out SPP1 lines. The criteria for selecting these two are not clear.

To avoid bias, the selection of HPDE6c7 SPP1 KO lines for experiments was random. All HPDE6c7 SPP1 KO lines display similar levels of SPP1 knockdown (Figure 6B) and similar levels of gene expression for all genes, according to the normalized counts file for the RNA-seq data. When 2 or 3 lines are selected randomly for experiments, they show similar results; thus, we believe this selection criteria is unbiased, and a valid approach.

10. The authors attempt to document SPP1 downregulation, changes in Vimentin and CK19 expression by immunofluorescence (figure 6J, K). Controls (scr gRNA) are shown in different magnification than knock down lines. This makes it harder to document changes and it is questionable practice. I am not convinced by the claim for changes in SPP1 and Vimentin expression for either of the two lines. Regarding CK19, only one of the two stainings appears convincing. This is problematic particularly regarding SPP1 – this is supposed to be a nearly complete KO (figure 6B). It may be a matter of levels in which case IF is not appropriate. Flow cytometry profiles could resolve this.

It is important to point out that controls and KO’s are shown in the same magnification. The HPDE6c7 SPP1 KO cell lines are smaller cells with a different morphology, as shown in Figure 6D. Knockdown of SPP1 in HPDE6c7 SPP1 KO cell lines is shown by WB in Figure 6B and normalized RNA-seq counts data in Figure 6G. We have replaced the Vimentin and OPN immunocytochemistry images in Figure 6I for the HPDE6c7 SPP1 KO cell lines with better quality images. We believe the issue with the previous images was autofluorescence. We have added flow cytometry profiles to Figure 6—figure supplement 1C, and removed one of the GSEA plots to make space for them.

11. The differentiation potential of SPP1 knocked out cells was then tested five days after subcutaneous transplantation by immunofluorescence. The Glucagon and Ngn3 stainings are not convincing. Also, whereas there appear to be several C-pep+ cells the NkX6.1+ and PDX1+ among them are very scarce. This would not be expected from a differentiation into genuine b cells.

Please see comment #6 from Reviewer #1.

12. Geminin is expressed in very few ductal cells even after PDL (0.05%, figure 8B). It is not explained what are the quantitated ´γ-H2AX+ foci´. Do these correspond to γ-H2AX +cells ? It should be stated clearly; what is the % of cells that are γ-H2AX+ ?

In the methods section under histology and immunostaining, we write, “For quantification of BrdU, cleaved caspase 3, Geminin, Ki67, γ-H2AX, and ATR, at least 60 cells from 3 different ducts were analyzed.” These 60 cells were not chosen based on any specific criteria. Quantification of γ-H2AX foci include duct cells with zero foci. We have added this to the methods section.

Reviewer #3 (Recommendations for the authors):

Few concerns that should be addressed are listed below:

– Some of immunofluorescence (IF) staining experiments could be optimized and replaced with better image qualities. For instance, in Figure 7E Pdx1+ cells are not visible in the transplanted HPDE cells stained for Synaptophysin/Pdx1/C-peptide. Similarly, in the IF on human pancreatic tissue (see Figure 8A) the distribution of Geminin is not clearly visible. The IF should be repeated and the images showing the individual channels should be included?

We have repeated the IF staining experiments for Figure 7E and Figure 8A and replaced most images. For Figure 7E Synaptophysin/Pdx1/C-peptide immunostaining, after repeating the IF staining, the images already in the figure for HPDE6c7 SPP1 gRNA6 remained the best quality images we were able to generate, and thus, we left these images in the panel. We have replaced the images for HPDE6c7 SPP1 gRNA8 to show an area with a higher cell density. To clarify the location of PDX1+, synaptophysin+, and c-peptide+ triple positive cells, we have included yellow arrows in the revised panel. HPDE6c7 scr gRNA cells are uniformly negative for PDX1, synaptophysin, and c-peptide.

– The study reports some interesting observations on the pancreatobiliary and intrapancreatic bile duct cells. It would be helpful to include spatial characterization of these cells or a schematics to indicate the location of these populations. Are they only in the intrapancreatic bile common duct?

We agree that spatial information regarding markers of the pancreatobiliary and intrapancreatic bile ducts is an important question. Our examination of markers characterizing these populations transcriptionally: Acetylated α tubulin (Tuba1a) for Cluster 3 (intrapancreatic bile duct cells) and CXCL5 for Cluster 4 (pancreatobiliary cells) showed positive cells in both pancreatobiliary and intrapancreatic bile ducts (Figure 2—figure supplement 2-3) in mouse and human. While Tuba1a is clearly enriched in cluster 3 (Figure 2-source data 1), the feature plot in Figure 2—figure supplement 2D depicts expression of Tuba1a also in cluster 4.

The markers we selected for evaluation of clusters 3 and 4 didn’t suggest a clear spatial distinguishment from intrapancreatic bile duct and pancreatobiliary cells. We cannot be certain of the spatial location of every cell in clusters 3 or 4 and thus, a schematic showing spatial location of these populations would require additional comprehensive marker assessment.

https://doi.org/10.7554/eLife.67776.sa2

Article and author information

Author details

  1. Audrey M Hendley

    1. Diabetes Center, University of California, San Francisco, San Francisco, United States
    2. Center for Bioengineering and Tissue Regeneration, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0289-2092
  2. Arjun A Rao

    1. CoLabs, University of California, San Francisco, San Francisco, United States
    2. Bakar ImmunoX Initiative, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Contributed equally with
    Laura Leonhardt and Sudipta Ashe
    Competing interests
    No competing interests declared
  3. Laura Leonhardt

    Diabetes Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Arjun A Rao and Sudipta Ashe
    Competing interests
    No competing interests declared
  4. Sudipta Ashe

    Diabetes Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Contributed equally with
    Arjun A Rao and Laura Leonhardt
    Competing interests
    No competing interests declared
  5. Jennifer A Smith

    Diabetes Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Simone Giacometti

    Diabetes Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Xianlu L Peng

    1. Department of Pharmacology, University of North Carolina at Chapel Hill, Chapel Hill, United States
    2. Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  8. Honglin Jiang

    Division of Hematology and Oncology, Department of Medicine and Helen Diller Family Comprehensive Cancer Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  9. David I Berrios

    Diabetes Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  10. Mathias Pawlak

    Evergrande Center for Immunologic Diseases, Harvard Medical School and Brigham and Women's Hospital, Boston, United States
    Contribution
    Conceptualization, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  11. Lucia Y Li

    Diabetes Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  12. Jonghyun Lee

    Diabetes Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  13. Eric A Collisson

    Division of Hematology and Oncology, Department of Medicine and Helen Diller Family Comprehensive Cancer Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Resources, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8037-9388
  14. Mark S Anderson

    Diabetes Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3093-4758
  15. Gabriela K Fragiadakis

    1. CoLabs, University of California, San Francisco, San Francisco, United States
    2. Bakar ImmunoX Initiative, University of California, San Francisco, San Francisco, United States
    3. Department of Medicine, Division of Rheumatology, University of California, San Francisco, San Francisco, United States
    Contribution
    Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
  16. Jen Jen Yeh

    1. Department of Pharmacology, University of North Carolina at Chapel Hill, Chapel Hill, United States
    2. Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, United States
    3. Department of Surgery, University of North Carolina at Chapel Hill, Chapel Hill, United States
    Contribution
    Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
  17. Chun Jimmie Ye

    Parker Institute for Cancer Immunotherapy, San Francisco, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Visualization, Writing - review and editing
    Competing interests
    No competing interests declared
  18. Grace E Kim

    Department of Pathology, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  19. Valerie M Weaver

    Center for Bioengineering and Tissue Regeneration, University of California, San Francisco, San Francisco, United States
    Contribution
    Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
  20. Matthias Hebrok

    Diabetes Center, University of California, San Francisco, San Francisco, United States
    Contribution
    Resources, Supervision, Funding acquisition, Writing - review and editing
    For correspondence
    Matthias.Hebrok@ucsf.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3833-8862

Funding

National Cancer Institute (F32 CA221114)

  • Audrey M Hendley

Hirshberg Foundation for Pancreatic Cancer Research (Seed Grant)

  • Audrey M Hendley

National Cancer Institute (R01 CA222862)

  • Eric A Collisson

National Cancer Institute (R01 CA172045)

  • Matthias Hebrok

Parker Institute for Cancer Immunotherapy (PICI Opportunity Grant)

  • Matthias Hebrok

UCSF Foundation (UCSF Bakar ImmunoX Initiative)

  • Arjun A Rao
  • Gabriela K Fragiadakis

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Christina S. Chung, Debbie Ngow, and Melissa Campbell for their indispensable help with mouse colony maintenance, genotyping, and technical assistance. The authors wish to acknowledge Luc Baeyens and Michael S. German for helpful intellectual discussions. Graphical illustrations were developed in part by Jimmy Chen using BioRender.com. The Gmnn floxed mouse strain was generated in Rudolf Jaenisch’s laboratory. The authors thank Audrey Parent for flow cytometry protocols and guidance. This work was supported by a Richard G. Klein Fellowship in Pancreas Development, Regeneration or Cancer (to AMH). AMH was additionally supported by F32 CA221114 and a Hirshberg Foundation for Pancreatic Cancer Research Seed Grant. AAR and GKF were supported by the UCSF Bakar ImmunoX Initiative. EAC was supported by R01 CA222862. Work in MH’s laboratory was supported by R01 CA172045 and a grant from the Parker Institute for Cancer Immunotherapy (PICI). MH owns stocks/stock options in Viacyte, Encellin, Thymmune, EndoCrine, and Minutia.He also serves as SAB member to Thymmune and Encellin and is co-founder, SAB member, and board member for EndoCrine and Minutia.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved Institutional Animal Care and Use Committee (IACUC) protocols (AN170192) of the University of California San Francisco.

Senior Editor

  1. Didier YR Stainier, Max Planck Institute for Heart and Lung Research, Germany

Reviewing Editor

  1. Lori Sussel, University of Colorado Anschutz Medical Campus, United States

Publication history

  1. Received: February 23, 2021
  2. Accepted: May 18, 2021
  3. Accepted Manuscript published: May 19, 2021 (version 1)
  4. Version of Record published: June 7, 2021 (version 2)

Copyright

© 2021, Hendley et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 733
    Page views
  • 140
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Genetics and Genomics
    Jiajia Ma et al.
    Research Article

    Epithelial tissues are primed to respond to insults by activating epithelial cell motility and rapid inflammation. Such responses are also elicited upon overexpression of the membrane bound protease, Matriptase, or mutation of its inhibitor, Hai1. Unrestricted Matriptase activity also predisposes to carcinoma. How Matriptase leads to these cellular outcomes is unknown. We demonstrate that zebrafish hai1a mutants show increased H2O2, NfkB signalling, and IP3R -mediated calcium flashes, and that these promote inflammation, but do not generate epithelial cell motility. In contrast, inhibition of the Gq subunit in hai1a mutants rescues both the inflammation and epithelial phenotypes, with the latter recapitulated by the DAG analogue, PMA. We demonstrate that hai1a has elevated MAPK pathway activity, inhibition of which rescues the epidermal defects. Finally, we identify RSK kinases as MAPK targets disrupting adherens junctions in hai1a mutants. Our work maps novel signalling cascades mediating the potent effects of Matriptase on epithelia, with implications for tissue damage response and carcinoma progression.

    1. Cell Biology
    Pavan Vedula et al.
    Research Article

    β- and γ-cytoplasmic actins are ubiquitously expressed in every cell type and are nearly identical at the amino acid level but play vastly different roles in vivo. Their essential roles in embryogenesis and mesenchymal cell migration critically depend on the nucleotide sequences of their genes, rather than their amino acid sequence, however it is unclear which gene elements underlie this effect. Here we address the specific role of the coding sequence in β- and γ-cytoplasmic actins' intracellular functions, using stable polyclonal populations of immortalized mouse embryonic fibroblasts with exogenously expressed actin isoforms and their 'codon-switched' variants. When targeted to the cell periphery using the β-actin 3′UTR, β-actin and γ-actin have differential effects on cell migration. These effects directly depend on the coding sequence. Single molecule measurements of actin isoform translation, combined with fluorescence recovery after photobleaching, demonstrate a pronounced difference in β- and γ-actins' translation elongation rates in cells, leading to changes in their dynamics at the focal adhesions, impairments in actin bundle formation, and reduced cell anchoring to the substrate during migration. Our results demonstrate that coding sequence-mediated differences in actin translation play a key role in cell migration.
