Abstract

Acoustic signals serve communication within and across species throughout the animal kingdom. Studying the genetics, evolution, and neurobiology of acoustic communication requires annotating acoustic signals: segmenting and identifying individual acoustic elements like syllables or sound pulses. To be useful, annotations need to be accurate, robust to noise, and fast.

We here introduce DeepAudioSegmenter (DAS), a method that annotates acoustic signals across species based on a deep-learning derived hierarchical presentation of sound. We demonstrate the accuracy, robustness, and speed of DAS using acoustic signals with diverse characteristics from insects, birds, and mammals. DAS comes with a graphical user interface for annotating song, training the network, and for generating and proofreading annotations. The method can be trained to annotate signals from new species with little manual annotation and can be combined with unsupervised methods to discover novel signal types. DAS annotates song with high throughput and low latency for experimental interventions in realtime. Overall, DAS is a universal, versatile, and accessible tool for annotating acoustic communication signals.

Introduction

Animals produce sounds to foster group cohesion (Haack et al., 1983; Janik and Slater, 1998; Chaverri et al., 2013), to signal the presence of food, friend, or foe (Cäsar et al., 2013; Clay et al., 2012), and to find and evaluate mating partners (Baker et al., 2019; Behr and von Helversen, 2004; Holy and Guo, 2005; Sangiamo et al., 2020). Studying acoustic communication not only provides insight into social interactions within and across species; it can also reveal the mechanisms driving complex behaviors: The genetics and evolution of signal production and recognition (Ding et al., 2016), the genes and circuits driving song learning (Kollmorgen et al., 2020), or the fast and precise sensorimotor transformations involved in vocal interactions (Coen et al., 2016; Cator et al., 2009; Fortune et al., 2011; Okobi et al., 2019). The first step in many studies of acoustic communication is song annotation: the segmentation and labeling of individual elements in a recording. Acoustic signals are diverse and range from the repetitive long-distance calling songs of crickets, grasshoppers, and anurans (Gerhardt and Huber, 2002), the dynamic and context-specific courtship songs of vinegar flies or rodents (Coen et al., 2014; Clemens et al., 2018; Neunuebel et al., 2015; Sangiamo et al., 2020), to the complex vocalizations produced by some birds and primates (Lipkind et al., 2013; Weiss et al., 2014; Landman et al., 2020).

This diversity in signal structure has spawned a zoo of annotation tools (Arthur et al., 2013; Coffey et al., 2019; Tachibana et al., 2020; Goffinet et al., 2021; Koumura and Okanoya, 2016; Cohen et al., 2020), but existing methods still face challenges: First, assessing vocal repertoires and their relation to behavioral and neural dynamics (Clemens et al., 2018; Coffey et al., 2019; Neunuebel et al., 2015; Fortune et al., 2011; Okobi et al., 2019) requires annotations to be complete and temporally precise even at low signal levels, but annotation can fail when signals are weak (Coffey et al., 2019; Stern et al., 2017). Second, analyses of large datasets and experimental interventions during behavior (Fortune et al., 2011; Okobi et al., 2019; Bath et al., 2014; Tschida and Mooney, 2012; Stowers et al., 2017) need annotations to be fast, but existing methods are often slow. Last, annotation methods should be flexible and adaptable (Ding et al., 2016Ding et al., 2019; Clemens et al., 2018; Clemens and Hennig, 2013), but existing methods often work only for restricted types of signals or adapting them to new signals requires tedious manual tuning (Clemens et al., 2018).

In brief, an accurate, fast, and flexible framework for annotating song across species is missing. A general framework would not only improve upon existing methods but would also facilitate the study of species for which automated methods do not yet exist. Deep neural networks have emerged as powerful and flexible tools for solving data annotation tasks relevant for neuroscience such as object recognition, pose tracking, or speech recognition (Krizhevsky et al., 2012; Graves and Jaitly, 2014; Mathis et al., 2018; Pereira et al., 2019; Graving et al., 2019). These methods are not only fast and accurate but also easily adapted to novel signals by non-experts since they only require annotated examples for learning. Recently, deep neural networks have also been used for annotating animal vocalizations (Oikarinen et al., 2019; Coffey et al., 2019; Cohen et al., 2020; Sainburg et al., 2020; Arthur et al., 2021; Goffinet et al., 2021).

We here present a new deep-learning-based framework for annotating acoustic signals, called Deep Audio Segmenter (DAS). We test the framework on a diverse set of recordings from insects, birds, and mammals, and show that DAS annotates song in single- and multi-channel recordings with high accuracy. The framework produces annotations with low latency on standard PCs and is therefore ideally suited for closed-loop applications. Small-to-moderate amounts of manual annotations suffice for adapting the method to a new species and annotation work can be simplified by combining DAS with unsupervised methods. We provide DAS as an open-source software package with a graphical user interface for manually annotating audio, training the network, and inferring and proofreading annotations. Integration into existing frameworks for signal analysis or experimental control is possible using a programmatic interface. The code and documentation for DAS are available at https://janclemenslab.org/das/.

Results

Architecture and working principle of DAS

Acoustic signals are defined by features on multiple timescales—the fast harmonic oscillations of the sound carrier (<10 ms), modulations of amplitude (AM) and frequency (FM) (10–100 ms), and the sequencing of different AM and FM patterns into bouts, syllables, or phrases (10–1000 ms). These patterns are typically made explicit using a hand-tuned pre-processing step based on time-resolved Fourier or wavelet transforms (Arthur et al., 2013; Van Segbroeck et al., 2017; Coffey et al., 2019; Oikarinen et al., 2019; Cohen et al., 2020). Most deep-learning-based methods then treat this pre-defined spectrogram as an image and use methods derived from computer vision to extract the AM and FM features relevant for annotation (Oikarinen et al., 2019; Coffey et al., 2019; Cohen et al., 2020). Recurrent units are sometimes used to track the sound features over time (Cohen et al., 2020). This approach can produce accurate annotations but has drawbacks: First, the spectrogram constitutes a strong and proven pre-processing step, but it is unsuitable for some signal types, like short pulsatile signals. Second, the pre-processing transform is typically tuned by hand and may therefore require expert knowledge for it to produce optimal results. Lastly, the recurrent units used in some methods (Cohen et al., 2020) excel at combining information over time to provide the context information necessary to annotate spectrally complex signals, but they can be hard to train and slow to run (Bai et al., 2018).

DAS solves these limitations in three ways: First, the pre-processing step is optional. This makes DAS more flexible, since signals for which a time-resolved Fourier transform is not appropriate—for instance, short pulsatile signals—can now also be processed. Second, the optional preprocessing step is integrated and optimized with the rest of the network. This removes the need to hand-tune this step and allows the network to learn a preprocessing that deviates from a time-resolved Fourier or wavelet transform if beneficial (Choi et al., 2017). Integrating the preprocessing into the network also increases inference speed due to the efficient implementation and hardware acceleration of deep-learning frameworks. Third and last, DAS learns a task-specific representation of sound features using temporal convolutional networks (TCNs) (Bai et al., 2018; van den Oord et al., 2016; Guirguis et al., 2021; Figure 1—figure supplement 1A–E). At the core of TCNs are so-called dilated convolutions (Yu and Koltun, 2016). In standard convolutions, short templates slide over the signal and return the similarity with the signal at every time point. In dilated convolutions, these templates have gaps, allowing to analyze features on longer timescales without requiring more parameters to specify the template. Stacking dilated convolutions with growing gap sizes results in a hierarchical, multi-scale representation of sound features, which is ideally suited for the hierarchical and harmonic structure of animal vocalizations.

The output of the deep neural network in DAS is a set of confidence scores for each audio sample, corresponding to the probability of each song type (Figure 1C). Annotation labels for the different song types are mutually exclusive and are produced by comparing the confidence score to a threshold or by choosing the most probable song type. Brief gaps in the annotations are closed and short spurious detections are removed to smoothen the annotation. For song types that are described as events, like the pulses in fly song (Figure 1A), the event times are extracted as local maxima that exceed a confidence threshold.

Figure 1 with 3 supplements see all
DAS performance for fly song.

(A) Fly song (black, top) with manual annotations of sine (blue) and pulse (red) song. The spectrogram (bottom) shows the signal’s frequency content over time (see color bar). (B) DAS builds a hierarchical presentation of song features relevant for annotation using a deep neural network. The network consists of three TCN blocks, which extract song features at multiple timescales. The output of the network is a confidence score for each sample and song type. (C) Confidence scores (top) for sine (blue) and pulse (red) for the signal in A. The confidence is transformed into annotation labels (bottom) based on a confidence threshold (0.5 for sine, 0.7 for pulse). Ground truth (bottom) from manual annotations shown for comparison. (D) Confusion matrix for pulse from the test data set. Color indicates the percentage (see color bar) and text labels indicate the number of pulses for each quadrant. All confusion matrices are normalized such that columns sum to 100%. The concentration of values along the diagonal indicates high annotation performance. (E) Precision-recall curve for pulse depicts the performance characteristics of DAS for different confidence thresholds (from 0 to 1, black arrow points in the direction of increasing threshold). Recall decreases and precision increases with the threshold. The closer the curve to the upper and right border, the better. The red circle corresponds to the performance of DAS for a threshold of 0.7. The black circle depicts the performance of FlySongSegmenter (FSS) and gray circles the performance of two human annotators. (F) Probability density function of temporal errors for all detected pulses (red shaded area), computed as the distance between each pulse annotated by DAS and the nearest manually annotated pulse. Lines depict the median temporal error for DAS (red line, 0.3 ms) and FSS (gray line, 0.1 ms). (G, H) Recall of DAS (red line) and FSS (gray line) as a function of the pulse carrier frequency (G) and signal-to-noise ratio (SNR) (H). Red shaded areas show the distributions of carrier frequencies (G) and SNRs (H) for all pulses. DAS outperforms FSS for all carrier frequencies and SNRs. (I) Same as in D but for sine. Color indicates the percentage (see color bar) and text labels indicate seconds of sine for each quadrant. (J) Same as in E but for sine. The blue circle depicts the performance for the confidence threshold of 0.5. (K) Distribution of temporal errors for all detected sine on- and offsets. Median temporal error is 12 ms for DAS (blue line) and 22 ms for FSS (gray line). (L, M) Recall for DAS (blue line) and FSS (gray line) as a function of sine duration (L) and SNR (M). Blue-shaded areas show the distributions of durations and SNRs for all sine songs. DAS outperforms FSS for all durations and SNRs.

DAS accurately annotates song from a diverse range of species

Fly courtship song

We first tested DAS on the courtship song of Drosophila melanogaster, which consists of two major modes (Figure 1A): The sine song, which corresponds to sustained oscillations with a species-specific carrier frequency (150 Hz), and two types of pulse song, which consists of trains of short (5–10 ms) pulses with carrier frequencies between 180 and 500 Hz, produced with a species-specific interval (35–45 ms in D. melanogaster). Males dynamically choose the song modes based on sensory feedback from the female (Coen et al., 2014; Clemens et al., 2018; Calhoun et al., 2019). Despite the relative simplicity of the individual song elements, an accurate annotation of fly song is challenging because of low signal-to-noise ratio (SNR): The song attenuates rapidly with distance (Bennet-Clark, 1998) and is highly directional (Morley et al., 2018), which can lead to weak signals if the male is far from the microphone (Figure 1A). Moreover, the interactions between the flies introduce pulsatile noise and complicate the accurate and complete annotation of the pulse song.

We first trained DAS to detect the pulse and the sine song recorded using a single microphone (data from Stern, 2014) and compared the performance of DAS to that of the current state-of-the-art in fly song segmentation, FlySongSegmenter (FSS) (Arthur et al., 2013; Coen et al., 2014; Clemens et al., 2018). Annotation performance was quantified using precision, the fraction of correct detections, and recall, the fraction of true song that is detected (Figure 1E,J, Figure 1—figure supplement 1F,G). We counted detected pulses within 10 ms of a true pulse as correct detections. Ten ms corresponds to 1/4th of the typical interval between pulses in a train and results are robust to the choice of this value (Figure 1—figure supplement 2A). DAS detects pulses with a high precision of 97% - only 3% of all detected pulses are false detections - and a high recall of 96% - it misses only 4% of all pulses. This is a substantial improvement in recall over FSS, which has slightly higher precision (99%) but misses 13% of all pulses (87% recall) (Figure 1D,E). In DAS, the balance between precision and recall can be controlled via the confidence threshold, which corresponds to the minimal confidence required for labeling a pulse (Figure 1C): Lowering this threshold from 0.7 to 0.5 yields a recall of 99% for pulse song with a modest reduction in precision to 95%. The performance gain of DAS over FSS for pulse stems from better recall at high frequencies (>400 Hz) and low SNR (Figure 1G,H). To assess DAS performance for sine song, we evaluated the sample-wise precision and recall. DAS has similar precision to FSS (92% vs 91%) but higher recall (98% vs. 91%) (Figure 1I,J). Recall is higher in particular for short sine songs (<100 ms) and at low SNR (<1.0) (Figure 1L,M). The performance boost for pulse and sine arises because DAS exploits context information, similar to how humans annotate song: For instance, DAS discriminates soft song pulses from pulsatile noise based on the pulse shape but also because song pulses occur in regular trains while noise pulses do not (Figure 1—figure supplement 2C). A comparison of DAS’ performance to that of human annotators reveals that our methods exceeds human-level performance for pulse and sine (Figure 1E,J, Table 1).

Table 1
Comparison to human annotators for fly song.

See also Figure 1E,J.

AnnotatorSine recall [%]Sine precision [%]Pulse recall [%]Pulse precision [%]
Human A89989993
Human B93919888
FSS91918799
DAS98929697

Temporally precise annotations are crucial, for instance when mapping sensorimotor transformations based on the timing of behavioral or neuronal responses relative to individual song elements (Coen et al., 2014; Srivastava et al., 2017; Long and Fee, 2008; Benichov and Vallentin, 2020). We therefore quantified the temporal error of the annotations produced by DAS. For pulse song, the temporal error was taken as the distance of each pulse annotated by DAS to the nearest true pulse. The median temporal error for pulse is 0.3 ms which is negligible compared to the average duration of a pulse (5–10 ms) or of a pulse interval (35–45 ms) (Deutsch et al., 2019). For sine song, the median temporal error for on- and offsets was 12 ms, which is almost half of that of FSS (22 ms). Sine song can have low SNR (Figure 1M) and fades in and out, making the precise identification of sine song boundaries difficult even for experienced manual annotators (see Figure 1A,C).

Recording song during naturalistic interactions in large behavioral chambers often requires multiple microphones (Coen et al., 2014; Neunuebel et al., 2015). To demonstrate that DAS can process multi-channel audio, we trained DAS to annotate recordings from a chamber tiled with nine microphones (Coen et al., 2014; Figure 1—figure supplement 3, Figure 1—figure supplement 1B). DAS processes multi-channel audio by using filters that take into account information from all channels simultaneously. As is the case for existing methods (Arthur et al., 2013), we achieved maximal performance by training separate networks for the pulse and for the sine song (Table 2). In multi-channel recordings, DAS annotates pulse song with 98% precision and 94% recall, and sine song with 97% precision and 93% recall, and matches the performance of FSS (FSS pulse precision/recall 99/92%, sine 95/93%) (Figure 1—figure supplement 3D–L). Annotations of multi-channel audio have high temporal precision for pulse (DAS 0.3 ms, FSS 0.1 ms) and sine (DAS 8 ms, FSS 15 ms) (Figure 1—figure supplement 3E,J). Overall, DAS performs better or as well as the current state-of-the-art method for annotating single and multi-channel recordings of fly song.

Table 2
Precision, recall, and temporal error of DAS.

Precision and recall values are sample-wise for all except fly pulse song, for which it is event-wise. The number of classes includes the ‘no song’ class. (p) Pulse, (s) Sine.

SpeciesTrainedClassesThresholdPrecision [%]Recall [%]Temporal error [ms]
Fly single channelPulse (p) and sine (s)30.797/92 (p/s)96/98 (p/s)0.3/12 (p/s)
Fly multi channelPulse (p)20.598940.3
Fly multi channelSine (s)20.597938
MouseFemale20.598990.3
Marmosetfive male-female pairs50.585914.4
Bengalese finchfour males49 (38 in test set)0.597970.3
Zebra finchone males70.598971.2

Mouse ultrasonic vocalizations

Mice produce ultrasonic vocalizations (USVs) in diverse social contexts ranging from courtship to aggression (Sangiamo et al., 2020; Warren et al., 2020; Neunuebel et al., 2015). We tested DAS using audio from an intruder assay, in which an anesthetized female was put into the home cage and the USVs produced by a resident female or male were recorded (Ivanenko et al., 2020). The female USVs from this assay typically consist of pure tones with weak harmonics and smooth frequency modulations that are often interrupted by frequency steps (Figure 2A,B). The male USVs are similar but also contain complex frequency modulations not produced by the females in this assay (Figure 2C,D). Recording noise from animal movement and interaction as well as the frequency steps often challenge spectral threshold-based annotation methods and tend to produce false positive syllables (Tachibana et al., 2020; Coffey et al., 2019). Moreover, weak signals often lead to missed syllables or imprecisely delimited syllables. We first trained and tested DAS on recordings of a female mouse interacting with an anesthetized female intruder (Figure 2A). DAS annotates the female USVs with excellent precision (98%) and recall (99%) (Figure 2E) and low median temporal error (0.3 ms) (Figure 2F). DAS is robust to noise: Even for weak signals (SNR 1/16) the recall is 90% (Figure 2G). These performance values are on par with that of methods specialized to annotate USVs (Tachibana et al., 2020; Coffey et al., 2019; Van Segbroeck et al., 2017) (see Table 3). USVs of female and male residents have similar characteristics (Figure 2A,B) and the female-trained DAS network also accurately annotated the male vocalizations (Figure 2H). Notably, even the male syllables with characteristics not seen in females in the paradigm were detected (Figure 2D). Overall, DAS accurately and robustly annotates mouse USVs and generalizes across sexes.

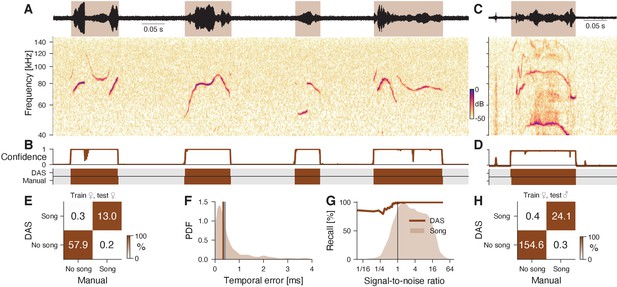

Figure 2 with 1 supplement see all
DAS performance for mouse ultrasonic vocalizations.

(A) Waveform (top) and spectrogram (bottom) of USVs produced by a female mouse in response to an anesthetized female intruder. Shaded areas (top) show manual annotations. (B) Confidence scores (top) and DAS and manual annotations (bottom) for the female USVs in A. Brief gaps in confidence are filled smooth annotations. (C) Example of male USVs with sex-specific characteristics produced in the same assay. (D) Confidence scores (top) and DAS and manual annotations (bottom) for the male USVs in C from a DAS network trained to detect female USVs. (E) Confusion matrix from a female-trained network for a test set of female USVs. Color indicates the percentage (see color bar) and text labels the seconds of song in each quadrant. (F) Distribution of temporal errors for syllable on- and offsets in female USVs. The median temporal error is 0.3 ms for DAS (brown line) and 0.4 ms for USVSEG Tachibana et al., 2020, a method developed to annotate mouse USVs (gray line). (G) Recall of the female-trained network (brown line) as a function of SNR. The brown shaded area represents the distribution of SNRs for all samples containing USVs. Recall is high even at low SNR. (H) Confusion matrix of the female-trained DAS network for a test set of male USVs (see C, D for examples). Color indicates the percentage (see color bar) and text labels the seconds of song in each quadrant.

Table 3
Comparison to alternative methods.

Methods used for comparisons: (1) Arthur et al., 2013, (2) Tachibana et al., 2020, (3) Oikarinen et al., 2019, (4) Cohen et al., 2020. (A,B) DAS was trained on 1825/15970 syllables which contained 4/7 of the call types from Oikarinen et al., 2019. (B) The method by Oikarinen et al., 2019 produces an annotation every 50 ms of the recording - since the on/offset can occur anywhere within the 50 ms, the expected error of the method by Oikarinen et al., 2019 is at least 12.5 ms. (C) The method by Oikarinen et al., 2019 annotates 60 minutes of recordings in 8 minutes. (D) Throughput assessed on the CPU, since the methods by Arthur et al., 2013 and Tachibana et al., 2020 do not run on a GPU. (E) Throughput assessed on the GPU. The methods by Cohen et al., 2020 and Oikarinen et al., 2019 use a GPU.

Precision [%]Recall [%]Jitter [ms]Throughput [s/s]
SpeciesDASOtherDASOtherDASOtherDASOther
Fly single (1)97/92 (p/s)99/9196/98 (p/s)87/910.3/12 (p/s)0.1/22154 (D)
Fly multi (1)989994920.30.18 (p)0.4 (p+s) (D)
Fly multi (1)979593938.015.08 (s)0.4 (p+s) (D)
Mouse (2)989899990.30.4124 (D)
Marmoset (3)9685 (A)9277 (A)4.412.5 (B)827.5 (C, E)
Bengalese finch (4)999999990.31.1155 (E)
Zebra finch (4)1001001001001.32.0185 (E)

Marmoset vocalizations

We next examined the robustness of annotations produced by DAS to noisy recordings and variable vocalization types, by training a network to annotate vocalization from pairs of marmosets (Landman et al., 2020). The recordings contain lots of background noises like faint calls from nearby animals, overdrive from very loud calls of the recorded animals, and large variability within syllable types (Figure 2—figure supplement 1A–D). Recently, a deep-learning-based method was shown to produce good performance (recall 77%, precision 85%, 12.5 ms temporal error) when trained on 16,000 syllables to recognize seven vocalization types (Oikarinen et al., 2019). We trained DAS on 1/9th of the data (1800 syllables) containing four of the seven vocalization types. Despite the noisy and variable vocalizations, DAS achieves high syllable-wise precision and recall (96%, 92%, (Figure 2—figure supplement 1E,F)). Note that DAS obtains this higher performance at millisecond resolution (temporal error 4.4 ms, Figure 2—figure supplement 1G), while the method by Oikarinen et al., 2019 only produces annotations with a resolution of 50 ms (Table 2).

Bird song

Bird song is highly diverse and can consist of large, individual-specific repertoires. The spectral complexity and large diversity of the song complicates the annotation of syllable types. Traditionally, syllable types are annotated based on statistics derived from the segmented syllable spectrogram. Recently, good annotation performance has been achieved with unsupervised methods (Sainburg et al., 2020; Goffinet et al., 2021) and deep neural networks (Koumura and Okanoya, 2016; Cohen et al., 2020). We first trained DAS to annotate the song from four male Bengalese finches (data and annotations from Nicholson et al., 2017). The network was then tested on a random subset of the recordings from all four individuals which contained 37 of the 48 syllable types from the training set (Figure 3A,B, Figure 3—figure supplement 1A,B). DAS annotates the bird song with high accuracy: Sample-wise precision and recall are 97% and syllable on- and offsets are detected with sub-millisecond precision (median temporal error 0.3 ms, Figure 3C). The types of 98.5% the syllables are correctly annotated, with only 0.3% false positives (noise annotated as a syllable), 0.2% false negatives (syllables annotated as noise), and 1% type confusions (Figure 3D, Figure 3—figure supplement 1C–D). This results in a low sequence error (corresponding to the minimal number of substitutions, deletions, or insertions required to transform the true sequence of syllables into the inferred one) of 0.012. Overall, DAS performs as well as specialized deep-learning-based methods for annotating bird song (Koumura and Okanoya, 2016; Cohen et al., 2020Table 2).

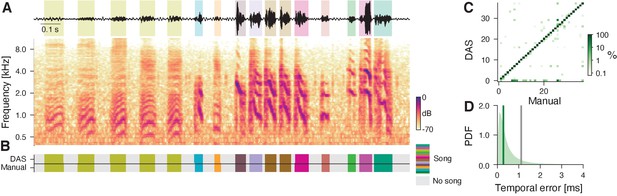

Figure 3 with 2 supplements see all
DAS performance for the song of Bengalese finches.

(A) Waveform (top) and spectrogram (bottom) of the song of a male Bengalese finch. Shaded areas (top) show manual annotations colored by syllable type. (B) DAS and manual annotation labels for the different syllable types in the recording in A (see color bar). DAS accurately annotates the syllable boundaries and types. (C) Confusion matrix for the different syllables in the test set. Color was log-scaled to make the rare annotation errors more apparent (see color bar). Rows depict the probability with which DAS annotated each syllable as any of the 37 types in the test dataset. The type of 98.5% of the syllables were correctly annotated, resulting in the concentration of probability mass along the main diagonal. (D) Distribution of temporal errors for the on- and offsets of all detected syllables (green-shaded area). The median temporal error is 0.3 ms for DAS (green line) and 1.1 ms for TweetyNet Cohen et al., 2020, a method developed to annotate bird song (gray line).

To further demonstrate the robustness of DAS, we trained a network to annotate song from Zebra finches. In Zebra finch males, individual renditions of a given syllable type tend to be more variable (Fitch et al., 2002). Moreover, the particular recordings used here (Goffinet et al., 2021) contain background noise from the bird’s movement. Despite the variability and noise, DAS annotates the six syllables from a male’s main motif with excellent precision and recall, and low temporal error, demonstrating that DAS is robust to song variability and recording noise (Figure 3—figure supplement 2).

In summary, DAS accurately and robustly annotates a wide range of signals—from the pulsatile song pulses of flies to the spectrally complex syllables of mammals and birds. DAS therefore constitutes a universal method for annotating acoustic signals that is as good as or better than methods specialized for particular types of signals (Table 2).

DAS is fast

To efficiently process large corpora of recordings and to be suitable for closed-loop applications, DAS needs to infer annotations quickly. We therefore assessed the throughput and latency of DAS. Throughput measures the rate at which DAS annotates song and high throughput means that large datasets are processed quickly. Across the five species tested here, DAS has a throughput of 8-82x realtime on a CPU and of 24-267x on a GPU (Figure 4A). This means that a 60 min recording is annotated in less than five minutes on a standard desktop PC and in less than 1.5 minutes using a GPU, making the annotation of large datasets feasible (Figure 4—figure supplement 1A–H). The differences in throughput arise from the different sample rates and network architectures: The marmoset network is fastest because of a relatively shallow architecture with only 2 TCN blocks and a low sampling rate (44.1 kHz). By contrast, the multi-channel Drosophila networks have the lowest throughput because of multi-channel inputs (9 channels at 10.0 kHz) and a comparatively deep architecture with four TCN blocks (Table 4).

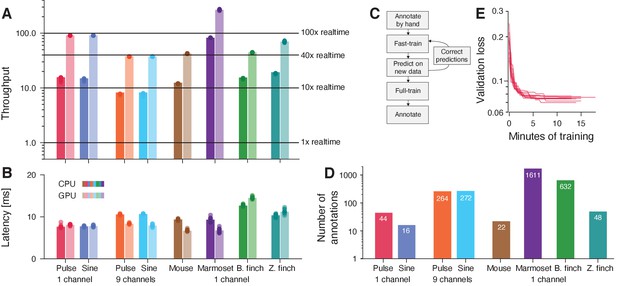

Figure 4 with 5 supplements see all
DAS annotates song with high throughput and low latency and requires little data.

(A, B) Throughput (A) and latency (B) of DAS (see also Figure 4—figure supplement 1). Throughput (A) was quantified as the amount of audio data in seconds annotated in one second of computation time. Horizontal lines in A indicate throughputs of 1, 10, 40, and 100. Throughput is >8x realtime on a CPU (dark shades) and >24x or more on a GPU (light shades). Latency (B) corresponds to the time it takes to annotate a single chunk of audio and is similar on a CPU (dark shades) and a GPU (light shades). Multi-channel audio from flies was processed using separate networks for pulse and sine. For estimating latency of fly song annotations, we used networks with 25 ms chunks, not the 410 ms chunks used in the original network (see Figure 1—figure supplement 2). (C) Flow diagram of the iterative protocol for fast training DAS. (D) Number of manual annotations required to reach 90% of the performance of DAS trained on the full data set shown in Figure 1, Figure 1—figure supplement 3, Figure 2, Figure 2—figure supplement 1, Figure 3, and Figure 3—figure supplement 2 (see also Figure 4—figure supplement 3). Performance was calculated as the F1 score, the geometric mean of precision and recall. For most tasks, DAS requires small to modest amounts of manual annotations. (E) Current best validation loss during training for fly pulse song recorded on a single channel for 10 different training runs (red lines, 18 min of training data). The network robustly converges to solutions with low loss after fewer than 15 min of training (40 epochs).

DAS can be combined with unsupervised methods for song classification.

(A) Low-dimensional representation obtained using the UMAP (McInnes and Healy, 2018) method of all pulse and sine song waveforms from Drosophila melanogaster annotated by DAS in a test data set. Data points correspond to individual waveforms and were clustered into three distinct types (colors) using the density-based method HDBSCAN (McInnes et al., 2017). (B, C) All waveforms (B) and cluster centroids (C) from A colored by the cluster assignment. Waveforms cluster into one sine (blue) and two pulse types with symmetrical (red, Pslow) and asymmetrical (orange, Pfast) shapes. (D, E) Low-dimensional representation of the spectrograms of mouse USVs (D) and mean spectrogram for each cluster in D (E). Individual syllables (points) form a continuous space without distinct clusters. Song parameters vary continuously within this space, and syllables can be grouped by the similarity of their spectral contours using k-means clustering. (F, G) Low-dimensional representation of the spectrograms of the calls from marmosets (F) and mean spectrogram for each cluster in F (G). Calls separate into distinct types and density-based clustering (colors) produces a classification of syllables that recovers the manual annotations (Figure 4—figure supplement 3G, homogeneity score 0.88, completeness score 0.57, v-score 0.69). Most types split into multiple clusters, reflecting the variability of the call types in marmosets. Colored bars on top of each spectrogram in G correspond to the colors for the individual clusters in F. The dashed line shows the boundary separating trills and twitters. (H, I) Low-dimensional representation of the spectrograms of the syllables from one Zebra finch male, mean spectrogram for each cluster in H (I, top), and example of each clustered syllable within the motif (I, bottom). Density-based clustering (colors) recovers the six syllable types forming the male’s motif. Colored bars on top of each spectrogram in I correspond to the colors for the individual clusters in H. (J, K) Low-dimensional representation of the spectrograms of the syllables from four Bengalese finch males (J) and mean spectrogram for each cluster in J (K). Syllables separate into distinct types and density-based clustering (colors) produces a classification of syllables that closely matches the manual annotations (homogeneity score 0.96, completeness score 0.89, v-score 0.92). X-axes of the average spectrograms for each cluster do not correspond to linear time, since the spectrograms of individual syllables were temporally log-rescaled and padded prior to clustering. This was done to reduce the impact of differences in duration between syllables.

A measure of speed crucial for closed-loop experiments is latency, which quantifies the time it takes to annotate a chunk of song and determines the delay for experimental feedback. Latencies are short, between 7 and 15 ms (Figure 4B, Figure 4—figure supplement 1I–P) on CPUs and GPUs. One network parameter impacting latency is the chunk size—the duration of audio processed at once—and we find that for fly song, latency can be optimized by reducing chunk size with a minimal impact on accuracy (Figure 4—figure supplement 2). The low latency of annotation makes DAS well suited for triggering realtime optogenetic or acoustic feedback upon the detection of specific vocalizations (Bath et al., 2014; Stowers et al., 2017).

We also compared the speed of DAS to that of other methods that were specifically developed to annotate the types of signals tested here. Since most existing methods are not suitable for estimating latency due to constraints in their design and interface, we only compared throughput. We find that DAS achieves 3x to 10x higher throughput than existing methods (Table 2). This has three main reasons: First, the relatively simple, purely convolutional architecture exploits the parallel processing capabilities of modern CPUs and GPUs. Second, Fourier or wavelet-like preprocessing steps are integrated into the network and profit from a fast implementation and hardware acceleration. Third, for multi-channel data, DAS combines information from all audio channels early, which increases throughput by reducing the data bandwidth.

Overall, DAS annotates audio with high throughput (>8x realtime) and low latency (<15 ms) and is faster than the alternative methods tested here. The high speed renders DAS suitable for annotating large corpora and for realtime applications without requiring specialized hardware.

DAS requires little manual annotation

To be practical, DAS should achieve high performance with little manual annotation effort. We find that DAS can be efficiently trained using an iterative protocol (Pereira et al., 2019, Figure 4C, Figure 4—figure supplement 4): Annotate a small set of recordings and train the network for a few epochs; then generate annotations on a larger set of recordings and correct these annotations. Repeat the predict-correct-train cycle on ever larger datasets until performance is satisfactory. To estimate the amount of manual annotations required to achieve high performance, we evaluated DAS trained on subsets of the full training data sets used above (Figure 4—figure supplement 3). We then took the number of manual annotations needed to reach 90% of the performance of DAS trained on the full data sets as an upper bound on the data requirements (Figure 4D). With a performance threshold of 90%, the resulting networks will produce sufficiently accurate annotations for creating a larger body of training data with few corrections. Performance was taken as the F1 score, the geometric mean of precision and recall. For single-channel recordings of fly song, fewer than 50 pulses and 20 sine songs are needed to reach 90% of the performance achieved with the full data set. For mouse vocalizations, DAS achieves 90% of its peak performance with fewer than 25 manually annotated syllables. Even for the six syllables from a zebra finch, DAS reaches the 90% threshold with only 48 manually annotated syllables (eight per type). Manually annotating such small amounts of song for flies, mice, or zebra finches takes less than 5 min. Likewise, for the song of Bengalese finches, 1–51 (median 8, mean 17) manual annotations are required per syllable type, with one outlier requiring 200 syllables (Figure 4—figure supplement 3C). Closer inspection reveals that the outlier results from an annotation error and consists of a mixture of three distinct syllable types (Figure 4—figure supplement 3D–F). Even with this outlier, only 626 manually annotated syllabes (424 without) are required in total to reach 90% of the test performance of a network trained on >3000 annotated syllables. Data requirements are higher for the multi-channel recordings of fly song (270 pulses and sine songs), and for the noisy and variable marmoset data (1610 annotations, 400 per type), but even in these cases, the iterative training protocol can reduce the manual annotation work.

Overall, DAS requires small to moderate amounts of data for reaching high performance. High throughput (Figure 4A) and small training data sets (Figure 4D) translate to short training times (Figure 4E). The single-channel data sets typically achieve 90% of the performance after less than 10 min of training on a GPU. Training on the full data sets typically finishes in fewer than five hours. Thus, DAS can be adapted to novel species in short time and with little manual annotation work.

DAS can be combined with unsupervised methods

DAS is a supervised annotation method: It discriminates syllable types that have been manually assigned different labels during training. By contrast, unsupervised methods can determine in unlabelled data whether syllables fall into distinct types and if so, classify the syllables (Tabler et al., 2017; Coffey et al., 2019; Clemens et al., 2018; Goffinet et al., 2021; Sainburg et al., 2020; Sangiamo et al., 2020; Arthur et al., 2021). While DAS does not require large amounts of manual annotations (Figure 4D), manual labeling of syllable types can be tedious when differences between syllable types are subtle (Clemens et al., 2018) or when repertoires are large (Sangiamo et al., 2020). In these cases, combining DAS with unsupervised methods facilitates annotation work. To demonstrate the power of this approach, we use common procedures for unsupervised classification, which consist of an initial preprocessing (e.g. into spectograms) and normalization (e.g. of amplitude) of the syllables, followed by dimensionality reduction and clustering (see Materials and methods) (Clemens et al., 2018; Sainburg et al., 2020; Sangiamo et al., 2020).

For fly song, DAS was trained to discriminate two major song modes, pulse and sine. However, Drosophila melanogaster males produce two distinct pulse types, termed Pslow and Pfast (Clemens et al., 2018), and unsupervised classification robustly discriminates the two pulse types as well as the sine song in the DAS annotations (Figure 5A–C). Mouse USVs do not fall into distinct types (Tabler et al., 2017; Goffinet et al., 2021; Sainburg et al., 2020). In this case, unsupervised clustering produces a low-dimensional representation that groups the syllables by the similarity of their spectrograms (Tabler et al., 2017; Coffey et al., 2019; Sangiamo et al., 2020, Figure 5D,E). For marmosets, unsupervised classification recovers the four manually defined call types (Figure 5F,G). However, most call types are split into multiple clusters, and the clusters for trills and twitters tend to separate poorly (Figure 4—figure supplement 3G), which reflects the large variability of the marmoset vocalizations. This contrasts with the song of Zebra finches, for which the unsupervised method produces a one-to-one mapping between manually defined and unsupervised syllable types (Goffinet et al., 2021; Sainburg et al., 2020; Figure 5H,I). For the song of Bengalese finches, the unsupervised classification recovers the manual labeling (Goffinet et al., 2021; Sainburg et al., 2020; Figure 5J,K) and reveals manual annotation errors: For instance, the song syllable that required >200 manual annotations to be annotated correctly by DAS is a mixture of three distinct syllable types (Figure 4—figure supplement 3C–F).

Overall, unsupervised methods simplify annotation work: DAS can be trained using annotations that do not discriminate between syllable types and the types can be determined post hoc. If distinct types have been established, DAS can be retrained to directly annotate these types using the labels produced by the unsupervised method as training data.

Discussion

We here present Deep Audio Segmenter (DAS), a method for annotating acoustic signals. DAS annotates song in single- and multi-channel recordings from flies (Figure 1, Figure 1—figure supplement 3), mammals ( Figure 2, Figure 2—figure supplement 1), and birds (Figs Figure 3, Figure 3—figure supplement 2) accurately, robustly, and quickly (Figure 4A,B). DAS performs as well as or better than existing methods that were designed for specific types of vocalizations (Koumura and Okanoya, 2016; Cohen et al., 2020; Tachibana et al., 2020; Coffey et al., 2019, Table 2). DAS performs excellently for signals recorded on single and multiple channels (Figure 1, Figure 1—figure supplement 3), with different noise levels, and with diverse characteristics. This suggests that DAS is a general method for accurately annotating signals from a wide range of recording setups and species.

Using a user-friendly graphical interface, our method can be optimized for new species without requiring expert knowledge and with little manual annotation work (Figure 4C–E). Network performance is robust to changes in the structural parameters of the network, like filter number and duration, or the network depth (Figure 4—figure supplement 5). Thus, the structural parameters do not need to be finely tuned to obtain a performant network for a new species. We have trained networks using a wide range of signal types (Table 4) and these networks constitute good starting points for adapting DAS to novel species. We provide additional advice for the design of novel networks in Methods. This makes the automatic annotation and analysis of large corpora of recordings from diverse species widely accessible.

Table 4
Structural parameters of the tested networks.
SpeciesRate [kHz]Chunk [samples]ChannelsSTFT downsampleSeparable conv.TCN stacksKernel size [samples]Kernel
Fly single channel10.040961--33232
Fly multi channel (pulse)10.020489-TCN blocks 1+243232
Fly multi channel (sine)10.020489-TCN blocks 1+243232
Mouse300.08192116x-21632
Marmoset44.18192116x-21632
Bengales finch32.01024116x-43264
Zebra finch32.02048116x-43264

We show that the annotation burden can be further reduced using unsupervised classification of syllable types, in particular for species with large or individual-specific repertoires (Figure 5, Clemens et al., 2018; Tabler et al., 2017; Coffey et al., 2019; Goffinet et al., 2021; Sainburg et al., 2020; Arthur et al., 2021). In the future, incorporating recent advances in the self-supervised or semi-supervised training of neural networks will likely further reduce data requirements (Mathis et al., 2021; Raghu et al., 2019; Devlin et al., 2019; Chen and He, 2020). These approaches use unlabeled data to produce networks with a general and rich representation of sound features that can then be fine-tuned for particular species or individuals using few annotated samples. DAS currently does not work well with recordings in which the signals produced by multiple animals overlap. In the future, DAS will be extended with methods for multi-speaker speech recognition to robustly annotate vocalizations from animal groups.

Lastly, the high inference speed (Figure 4A,B) allows integration of DAS in closed-loop systems in which song is detected and stimulus playback or optogenetic manipulation is triggered with low latency (Bath et al., 2014; Stowers et al., 2017). In combination with realtime pose tracking (Mathis et al., 2018; Pereira et al., 2019; Graving et al., 2019), DAS provides unique opportunities to tailor optogenetic manipulations to specific behavioral contexts, for instance to dissect the neural circuits underlying acoustic communication in interacting animals (Coen et al., 2014; Fortune et al., 2011; Okobi et al., 2019).

Materials and methods

Instructions for installing and using DAS can be found at https://janclemenslab.org/das. Code for the das python module is available at https://github.com/janclemenslab/das, code for the unsupervised methods is at https://github.com/janclemenslab/das_unsupervised. All fitted models (with example data and code) can be found at https://github.com/janclemenslab/das-menagerie.

We also provide instructions for training DAS using google colab, which provides a GPU-accelerated python environment. Colab removes the need to install GPU libraries: Annotations can be made locally in the GUI without a GPU and training and prediction are done on GPU-accelerated nodes in the cloud. See this notebook for details: http://janclemenslab.org/das/tutorials/colab.html.

Data sources

Request a detailed protocol

All data used for testing DAS were published previously. Sources for the original data sets, for the data and annotations used for training and testing, and for the fitted models are listed in Table 5. Single-channel recordings of Drosophila melanogaster (strain OregonR) males courting females were taken from Stern, 2014. The multi-channel data from Drosophila melanogaster (strain NM91) males courting females were recorded in a chamber tiled with nine microphones (Coen et al., 2014) and was previously published in Clemens et al., 2018. Annotations for fly song were seeded with FlySongSegmenter (Arthur et al., 2013; Coen et al., 2014) and then manually corrected. Recordings of mouse USVs were previously published in Ivanenko et al., 2020. The USVs were manually labeled using the DAS graphical interface. Marmoset recordings were taken from the data published with Landman et al., 2020. Since we required more precise delineation of the syllable boundaries than was provided in the published annotations, we manually fixed annotations for a subset of the data that then was used for training and testing. The network was trained and tested on a subset of four vocalization types (eks/trills/tsiks/twitters, N=603/828/115/868). The remaining vocalization types were excluded since they had 60 or fewer instances in our subset. To test DAS on bird songs, we used a publicly available, hand-labeled collection of song from four male Bengalese finches (Nicholson et al., 2017) and recordings of female-directed song from a male Zebra finch from Goffinet et al., 2021. For training and testing the Zebra finch network, we manually labeled 473 syllables of six types (320 s of recordings).

Table 5
Sources of all data used for testing DAS.

‘Data’ refers to the data used for DAS and to annotations that were either created from scratch or modified from the original annotations (deposited under https://data.goettingen-research-online.de/dataverse/das). ‘Original data’ refers to the recordings and annotations deposited by the authors of the original publication. ‘Model’ points to a directory with the model files as well as a small test data set and demo code for running the model (deposited under https://github.com/janclemenslab/das-menagerie).

DAS network

DAS is implemented in Keras (Chollet, 2015) and Tensorflow (Abadi et al., 2016). At its core, DAS consists of a stack of temporal convolutional blocks, which transform an input sequence of audio data into an output sequence of labels.

Inputs

Request a detailed protocol

DAS takes as input raw, single or multi-channel audio. Pre-processing of the audio using a wavelet or short-time Fourier transform (STFT) is optional and integrated into the network. DAS processes audio in overlapping chunks (Figure 1—figure supplement 1A–D). The chunking accelerates annotations since multiple samples are annotated in a single computational step. Edge effects are avoided by processing overlapping chunks and by discarding a number of samples at the chunk boundaries. The overlap depends on the number of layers and the duration of filters in the network.

STFT frontend

Request a detailed protocol

The trainable STFT frontend is an optional step and was implemented using kapre (Choi et al., 2017). Each frequency channel in the output of the frontend is the result of two, one-dimensional strided convolutions which are initialized with the real and the imaginary part of discrete Fourier transform kernels:

x(i,f)=τ=0T1x(is+τ)[cos(2πfτ/T)isin(2πfτ/T)]
y(i,f)=log10(x(i,f)2+x(i,f)2)

where f is the frequency, s is the stride, and T is the filter duration. The stride results in downsampling of the input by a factor s.

The STFT kernels are optimized with all other parameters of the network during training. The STFT frontend was used for mammal and bird signals, but not for fly song. In the mammal and bird networks, we used 33 STFT filter pairs with a duration T=64 samples and a stride s=16 samples. For mouse and bird song, the STFT frontend sped up training and inference, and had a small positive impact on performance. For fly song, the STFT frontend tended to reduce performance and was omitted.

Temporal convolutional blocks

Request a detailed protocol

Temporal convolutional network (TCN) blocks are central to DAS and produce a task-optimized hierarchical representation of sound features at high temporal resolution (Bai et al., 2018). Each TCN block consists of a stack of so-called residual blocks (Figure 1—figure supplement 1E, He et al., 2016):

A dilated convolutional layer filters the input with a number of kernels of a given duration: yi(t)=τ,γki(τ,γ)*x(t-aτ,γ), where ki(τ,γ) is the i th kernel, x(t,γ) is the input on channel γ at time t, yi(t) the output, and a the gap or skip size (Yu and Koltun, 2016). In old-fashioned convolution a=1. Increasing a allows the kernel to span a larger range of inputs with the same number of parameters and without a loss of output resolution. The number of parameters is further reduced for networks processing multi-channel audio, by using separable dilated convolutions in the first two TCN blocks (Mamalet and Garcia, 2012). In separable convolutions, the full two-dimensional k(τ,γ) convolution over times and channels is decomposed into two one-dimensional convolutions. First, a temporal convolution, kt(τ,1), is applied to each channel and then N channel convolutions, kγ(1,γ), combine information across channels. Instead of τ×γ parameters, the separable convolution only requires τ+N×γ parameters. Note that each temporal convolution is applied to each channel, leading to a sharing of filter parameters across channels. This makes explicit the intuition that some operations should be applied to all channels equally. We also tested an alternative implementation, in which individual channels were first processed separately by a single-channel TCN, the outputs of the TCN blocks for each channel were concatenated, and then fed into a stack of standard TCNs with full two-dimensional convolutions. While this architecture slightly increased performance it was also much slower and we therefore chose the architecture with separable convolutions. Architecture choice ultimately depends on speed and performance requirements of the annotation task.

A rectifying linear unit transmits only the positive inputs from the dilated convolutional layer by setting all negative inputs to 0: yi=max(0,yi).

A normalization layer rescales the inputs to have a maximum absolute value close to 1: yi/(max(|yi|)+10-5).

The output of the residual block, z(t), is then routed to two targets: First, it is added to the input: o(t)=x(t)+z(t) and fed into subsequent layers. Second, via so-called skip connections, the outputs of all residual blocks are linearly combined to produce the network's final output (van den Oord et al., 2016).

A single TCN block is composed of a stack of five residual blocks. Within a stack, the skip size a doubles - from one in the first to 25=16 in the final residual block of a stack. This exponential increase in the span of the filter τ*a allows the TCN block to produce a hierarchical representation of its inputs, from relatively low-level features on short timescales in early stacks to more derived features on longer timescales in late stacks. Finally, a full network consists of a stack of 2 to 4 TCN blocks, which extract ever more derived features (Figure 1—figure supplement 1A–D).

Output

Request a detailed protocol

The network returns a set of confidence scores—one for each song type (and for 'no song')—for each sample from a linear combination of the output of each residual block in the network, by using a single dense layer and a softmax activation function. Re-using information from all blocks via so-called skip connections ensures that downstream layers can discard information from upstream layers and facilitates the generation of specialized higher order presentations. If the input recording got downsampled by a STFT frontend, a final upsampling layer restores the confidence scores to the original audio rate by repeating values. The parameters of all used networks are listed in Table 4.

Choice of structural network parameters

Request a detailed protocol

DAS performance is relatively robust to the choice of structural network parameters like filter duration and number, or network depth (Figure 4—figure supplement 5). The networks tested here are good starting points for adapting DAS to your own data (Table 4). In our experience, a network with 32 filters, filter duration 32 samples, 3 TCN blocks, and a chunk duration of 2048 samples will produce good results for most signals. A STFT downsampling layer with 32 frequency bands and 16x downsampling should be included for most signals except when the signals have a pulsatile character. These parameters have been set as defaults when creating a new DAS network. Given that DAS trains quickly (Figure 4E), network structure can be optimized by training DAS networks over a grid of structural parameters, for instance to find the simplest network (in terms of the number of filters and TCN blocks) that saturates performance but has the shortest latency. We here provide additional guidelines for choosing a network’s key structural parameters:

The chunk duration corresponds to the length of audio the network processes in one step and constitutes an upper bound for the context available to the network. Choose chunks sufficiently long so that the network has access to key features of your signal. For instance, for fly song, we ensured that a single chunk encompasses several pulses in a train, so the network can learn to detect song pulses based on their regular occurrence in trains. Longer chunks relative to this timescale can reduce short false positive detections, for instance for fly sine song and for bird song. Given that increasing chunk duration does not increase the number of parameters for training, we recommend using long chunks unless low latency is of essence (see below).

Downsampling/STFT weakly affects performance but strongly accelerates convergence during training. This is because (A) the initialization with STFT filters is a good prior that reduces the number of epochs it takes to learn the optimal filters, and (B) the downsampling reduces the data bandwidth and thereby the time it takes to finish one training epoch. The overall increase in performance from adding the STFT layer is low because convolutional layers in the rest of the network can easily replicate the computations of the STFT layer. For short pulsatile signals or signals with low sampling rates, STFT and downsampling should be avoided since they can decrease performance due to the loss of temporal resolution.

The number of TCN blocks controls the network’s depth. A deeper network can extract more high-level features, though we found that even for the spectro-temporally complex song of Bengalese finches, deeper networks only weakly improved performance (Figure 4—figure supplement 5).

Multi-channel audio can be processed with multi-channel filters via full convolutions or with shared channel-wise filters via time-channel separable convolutions. This can be set on a per-TCN-block basis. We recommend to use separable convolutions in the first 1–2 layers, since basic feature extraction is typically the same for each channel. Later layers can then have full multi-channel filters to allow more complex combination of information across channels.

Real-time performance can be optimized by reducing networks complexity and chunk duration (Figure 4—figure supplement 2). We recommend starting with the default parameters suggested above and then benchmarking latency. If required, latency can then be further reduced by reducing chunk duration, the number and duration of filters, and the number of TCN blocks.

Training

Request a detailed protocol

Networks were trained using the categorical cross-entropy loss and the Adam optimizer (Kingma and Ba, 2015) with a batch size of 32. Prediction targets were generated from fully annotated recordings and one-hot-encoded: Segments were coded as binary vectors, with yi(t)=1 if a segment of type i occurred at time t, and yi(t)=0 otherwise. To encode uncertainty in the timing of fly song pulses, the pulses were represented as Gaussian bumps with a standard deviation of 1.6 ms. A 'no song' type was set to yno song(t)=1-iyi(t). That way, y corresponds to the probability of finding any of the annotated song types or no song. For bird song, short gaps (6.25 ms, 200 samples at 32 kHz) were introduced between adjacent syllables to aid the detection of syllable on- and offsets after inference. That way, syllable on- and offsets could be unequivocally detected as changes from ‘no song’ to any of the syllables. This reduced the amount of false positive on- and offsets from switches in the inferred label within a syllable.

Typically, multiple fully annotated recordings were combined in a data set. Each recording was split 80:10:10 into a training, validation, and test set. The validation and test data were randomly taken from the first, the middle or the last 10% of each recording. Given the uneven temporal distribution of call types in the marmoset recordings, we split the data 60:20:20 to ensure that each call type was well represented in each split. For all networks, training was set to stop after 400 epochs or earlier if the validation loss was not reduced for at least 20 epochs. Training typically stopped within 40–80 epochs depending on the dataset. The test set was only used after training, for evaluating the model performance.

Generation of annotations from the network output

Request a detailed protocol

The confidence scores produced by the model correspond to the sample-wise probability for each song type. To produce an annotation label for each sample, the confidence scores were further processed to extract event times and syllable segments. In the resulting annotations, song types are mutually exclusive, that is, each sample is labeled as containing a single song type even if song types overlap.

Event times for event-like song types like fly pulse song were determined based on local maxima in the confidence score, by setting a threshold value between 0 and 1 and a minimal distance between subsequent peaks (using peakutils, Negri and Vestri, 2017). For the pulse song of flies, we set a minimal distance of 10 ms and a threshold of 0.7 for single channel data (Figure 1) and 0.5 for multi-channel data (Figure 1—figure supplement 3).

For segment-like song types like fly sine song or the syllables of mouse, marmoset, and bird song, we first transformed the sample-wise probability into a sequence of labels using argmaxiy(i,t). The resulting annotation of segments was then smoothed by filling short gaps (flies 20 ms, mice 10 ms, marmosets and birds 5 ms) and removing very short detections (flies 20 ms, mice 5 ms, marmosets and birds 30 ms). These values were chosen based on the statistics of song found in the training data. Syllable on- and offsets were detected as changes from no-song to song and song to no-song, respectively. For bird and marmoset vocalizations, syllable labels were determined based on a majority vote, by calculating the mode of the sample-wise labels for each detected syllable.

Evaluation

DAS was evaluated on segments of recordings that were not used during training.

Events

Request a detailed protocol

For events—fly pulse song, or the on- and offsets of segments—we matched each true event with its nearest neighbor in the list of true events and counted as true positives only events within a specified distance from a true event. For the pulse song of flies as well as for the onsets and offsets of mouse, marmoset, and bird syllables, this distance was set to 10 ms. Results were robust to the specific choice of the distance threshold (Figure 1—figure supplement 2A). For the onsets and offsets of fly sine song and of the marmoset vocalizations, we set this distance to 40 ms, since these signals tended to fade in and out, making the delineation of exact boundaries difficult. False positive events were counted if the distance from a detected event to the nearest true event exceeded the distance threshold or if another detected event was closer to each true event within the distance threshold. If several detected pulses shared the same nearest true pulses, only the nearest of those was taken as a true positive, while the remaining detections were matched with other true pulses within the distance threshold or counted as false positives.

False negatives were counted as all true events without nearby detected events. For pulse, pseudo true negative events were estimated as the number of tolerance distances (2x tolerance distance) fitting into the recording, minus the number of pulses. These true negatives for pulse do not influence precision, recall, and F1-scores and are only used to fill the confusion matrices in Figure 1D,I and Figure 1—figure supplement 3C,H. Pulse and sine song were evaluated only up to the time of copulation.

Matching segment labels

Request a detailed protocol

For songs with only one syllable type, we compared the predicted and true labels for each sample to compute the confusion matrix (Figure 1—figure supplement 1F,G). In the case of multiple syllable types, the mode of the true and predicted labels for the samples of each detected syllable were compared. A true positive was counted if the mode of the true labels was the same for the samples covered by the detected syllable. Using the true syllables as reference produces similar results (Figure 2—figure supplement 1E,F and Figure 3—figure supplement 1D,E).

Performance scores

Request a detailed protocol

From the false negative (FN), false positive (FP), and true positive (TP) counts we extracted several scores: Precision (P)—the fraction of true positive out of all detections TP/(FP+TP)—and recall (R)—the fraction of true positives out of all positives TP/(TP+FN). The F1 score combines precision and recall via their geometric mean: 2×P×R/(P+R). For datasets with many different syllable types, we also used as a summary measure of performance the accuracy—the fraction of correctly labelled syllables: (TP+TN)/(TP+TN+FP+FN). For comparison with other studies, we additionally provide the error rate for the song of Bengalese finches, which is based on the Levenshtein edit distance and corresponds to the minimal number of inserts, deletions, and substitutions required to transform the sequence of true syllable labels into the sequence of predicted syllable labels normalized by the length of the true sequence (Koumura and Okanoya, 2016; Cohen et al., 2020).

Temporal precision

Request a detailed protocol

The temporal precision for events (pulses, syllable onsets and offsets) was calculated as the median absolute distance between all matched events.

Annotation errors for Bengalese finches

Request a detailed protocol

The network for annotating bird song was trained on all syllable types. We removed from the test data one syllable type with only a single instance in the test set (which was correctly classified), because the performance could not be assessed reliably based on a single instance. We also excluded as annotation error a syllable type that contained syllables of more than six distinct types.

Estimation of signal-to-noise ratio from audio recordings

To assess the robustness of annotation performance to noise, we assessed the recall of DAS for epochs with different signal-to-noise ratios (SNRs) for the fly and the mouse networks. Because of fundamental differences in the nature of the signals, SNR values were computed with different methods and are therefore not directly comparable across species.

Pulse

Request a detailed protocol

Pulse waveforms were 20 ms long and centered on the peak of the pulse energy. The root-mean square (RMS) amplitudes of the waveform margins (first and last 5 ms) and center (7.5–12.5 ms) were taken as noise and signal, respectively. RMS is defined as ix(i)2. For multi-channel recordings, the pulse waveform from the channel with the highest center RMS was chosen to calculate the SNR.

Sine

Request a detailed protocol

Signal was given by the RMS amplitudes of the recording during sine song. Noise is the RMS amplitude in the 200 ms before and after each sine song, with a 10 ms buffer. For instance, if a sine song ended at 1000 ms, the recording between 1010 and 1210 ms was taken as noise. From the 200 ms of noise, we excluded samples that were labeled as sine or pulse and included intervals between pulses. For multi-channel recordings, the SNR was calculated for the channel with the largest signal amplitude.

Mouse

Request a detailed protocol

We assumed an additive noise model: σtotal2=σsignal2+σnoise2 is the squared signal averaged over a window of 1 ms. Since noise variance changed little relative to the signal variance in our recordings, we can assume constant noise over time to calculate the signal strength: σsignal2=σtotal2-tσnoise2. The sample-wise SNR is then given by SNR(t)=σsignal(t)2/tσnoise2.

Speed benchmarks

Request a detailed protocol

Inference speed was assessed using throughput and latency. Throughput is the number of samples annotated per second and latency is the time it takes to annotate a single chunk. Throughput and latency depend on the chunk duration—the duration of a recording snippet processed by the network at once—and on the batch size—the number of chunks processed during one call. Larger batches maximize throughput by more effectively exploiting parallel computation in modern CPUs and GPUs and reducing overheads from data transfer to the GPU. This comes at the cost of higher latency, since results are available only after all chunks in a batch have been processed. Using small batch sizes and short chunks therefore reduces latency, since results are available earlier, but this comes at the cost of reduced throughput because of overhead from data transfer or under-utilized parallel compute resources. To assess throughput and latency, run times of model.predict were assessed for batch sizes ranging from 1 to 1024 (log spaced) with 10 repetitions for each batch size after an initial warmup run (Figure 4—figure supplement 1A–L). Results shown in the main text are from a batch size corresponding to 1 s of recording for throughput (Figure 4A) and a batch size of 1 for latency (Figure 4B, see also Figure 4—figure supplement 1). For fly song, latency was optimized by reducing the chunk size to 25.6 ms (Figure 4—figure supplement 2). Benchmarks were run on Windows 10, Tensorflow 2.1, with the network either running on a CPU (Intel i7-7770, 3.6 GHz) or on a GPU (GTX1050 Ti 4 GB RAM).

We also benchmarked the throughput of existing methods for comparison with DAS (Table 2). Since neither of the methods considered are designed to be used in ways in which latency can be fairly compared to that of DAS, we did not assess latency. The throughput values include all pre-processing steps (like calculation of a spectrogram) and comparisons to DAS were done using the same hardware (CPU for FSS and USVSEG, GPU for TweetyNet and Oikarinen et al., 2019). The throughput of FSS (Arthur et al., 2013; Coen et al., 2014) was tested using 400 s of single-channel and 9-channel recordings in Matlab2019a. USVSEG Tachibana et al., 2020 was tested on a 72 s recording in Matlab2019a. TweetyNet (Cohen et al., 2020) was tested using a set of 4 recordings (total duration 35 s). Throughput for TweetyNet was given by the combined runtimes of the pre-processing steps (calculating of spectrograms from raw audio and saving them as temporary files) and the inference steps (running the network on a GPU). For the previously published network for annotating marmoset calls (Oikarinen et al., 2019), we relied on published values for estimating throughput: A processing time of 8 min for a 60 min recording corresponds to a throughput of 7.5 s/s.

Data economy

Request a detailed protocol

For estimating the number of manual annotations required to obtain accurate annotations, we trained the networks using different fractions of the full training and validation sets (for instance, 0.001, 0.005, 0.01, 0.05, 0.1, 0.5, 1.0). Performance of all networks trained on the different subsets was evaluated on the full test sets. The number of manual annotations in each subset was determined after training from the training and validation sets. The number of annotations required to exceed 90% of the F1 score of a model trained on the full data sets was calculated based on a lowess fit (Cleveland, 1979) to the data points (Figure 4A,B).

Unsupervised classification

Request a detailed protocol

Segmented signals were clustered using unsupervised methods described previously in Clemens et al., 2018, Sainburg et al., 2020, and Sangiamo et al., 2020. First, signals were pre-processed: For fly song, pulse and sine waveforms of duration 15 ms were extracted from the recording, aligned to their peak energy, normalized to unit norm, and adjusted for sign (see Clemens et al., 2018 for details). For mouse, marmoset, and bird vocalizations, we adapted the procedures described in Sainburg et al., 2020: Noise was reduced in the bird song recordings using the noisereduce package (https://github.com/timsainb/noisereduce). For mouse and marmoset vocalizations, noise reduction tended to blur the spectral contours and was omitted. Then, syllable spectrograms were extracted from mel spectrograms of the recordings. The noise floor of the spectrogram at each frequency was estimated as the median spectrogram over time and each spectral band was then divided by the frequency-specific noise floor value. Finally, the spectrogram values were log-transformed and thresholded at zero for mice and two for marmosets and birds after visual inspection of the spectrograms to further remove background noise. To reduce differences in the duration of different syllables, all syllables were first log resized in time (scaling factor 8) and then padded with zeros to the duration of the longest syllable in the data set. Lastly, the frequency axis of the spectrograms for mouse syllables were aligned to the peak frequency, to make clustering robust to jitter in the frequency of the thin spectral contours (Sangiamo et al., 2020). The peak frequency of each mouse syllable was calculated from its time-averaged spectrogram, and only the 40 spectrogram frequencies around the peak frequency were retained.

The dimensionality of the pre-processed waveforms (fly) or spectrograms (mouse, marmoset, birds) was then reduced to two using the UMAP method (McInnes and Healy, 2018) (mindist = 0.5, 0.1 for marmosets to improve separation of clusters). Finally, signals were grouped using unsupervised clustering. For the fly, marmoset, and bird signals, the UMAP distribution revealed distinct groups of syllables and we used a density-based method to cluster the syllables (Campello et al., 2013, min_samples = 10, min_cluster_size = 20). For mouse USVs, no clusters were visible in the UMAP distribution and density-based clustering failed to identify distinct groups of syllables. Syllables were therefore split into 40 groups using k-means clustering.

Open source software used

Request a detailed protocol

Data availability

Any code and data used during this study is deposited at https://data.goettingen-research-online.de/dataverse/das and https://github.com/janclemenslab/das (copy archived at https://archive.softwareheritage.org/swh:1:rev:0cab8a136523bcfd18e419a2e5f516fce9aa4abf). All fitted models are deposited at https://github.com/janclemenslab/das-menagerie (copy archived at https://archive.softwareheritage.org/swh:1:rev:c41f87f8fd77ca122ca6f2dcc4676717526aaf24).

The following data sets were generated
The following previously published data sets were used
    1. Ivanenko A
    2. Watkins P
    3. Gerven MAJ
    4. Hammerschmidt K
    5. Englitz B
    (2020) Donders Repository
    ID di.dcn.DSC_620840_0003_891. Data from: Classifying sex and strain from mouse ultrasonic vocalizations using deep learning.
    1. Landman R
    (2017) Open Science Framework
    ID 10.17605/OSF.IO/PSWQD. Data from: Close range vocal interaction through trill calls in the common marmoset (Callithrix jacchus).
    1. Stern D
    (2014) Janelia
    ID sternlab/rawData.tar. Data from: Reported Drosophila courtship song rhythms are artifacts of data analysis.
    1. Goffinet J
    2. Brudner S
    3. Mooney R
    4. Pearson J
    (2021) Duke Digital Repository
    Data from: Low-dimensional learned feature spaces quantify individual and group differences in vocal repertoires.
    https://doi.org/10.7924/r4gq6zn8w
    1. Clemens J
    2. Coen P
    3. Roemschied FA
    4. Pereira TD
    5. Mazumder D
    6. Aldarondo DE
    7. Pacheco DA
    8. Murthy M
    (2018) Goettingen Research Online
    Data from: Discovery of a New Song Mode in Drosophila Reveals Hidden Structure in the Sensory and Neural Drivers of Behavior.
    https://doi.org/10.25625/8KAKHJ

References

    1. Bennet-Clark HC
    (1998) Size and scale effects as constraints in insect sound communication
    Philosophical Transactions of the Royal Society of London. Series B: Biological Sciences 353:407–419.
    https://doi.org/10.1098/rstb.1998.0219
  1. Book
    1. Campello R
    2. Moulavi D
    3. Sander J
    (2013) Density-Based Clustering Based on Hierarchical Density Estimates
    In: Moulavi D, editors. Advances in Knowledge Discovery and Data Mining. Heidelberg, Germany: Springer. pp. 160–172.
    https://doi.org/10.1007/978-3-030-75768-7
  2. Software
    1. Chollet F
    (2015) Keras
    Keras.
    1. Coffey KR
    2. Marx RG
    3. Neumaier JF
    (2019) DeepSqueak: a deep learning-based system for detection and analysis of ultrasonic vocalizations
    Neuropsychopharmacology : official publication of the American College of Neuropsychopharmacology 44:1–10.
    https://doi.org/10.1038/s41386-018-0303-6
  3. Book
    1. Haack B
    2. Markl H
    3. Ehret G
    (1983) Sound communication between parents and offspring
    In: Willott J. F, editors. The Auditory Psychobiology of the Mouse. Springfield, Illinois: CC Thomas. pp. 57–97.
    https://doi.org/10.18725/OPARU-1174
  4. Conference
    1. He K
    2. Zhang X
    3. Ren S
    4. Sun J
    (2016) Deep residual learning for image recognition
    2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR).
    https://doi.org/10.1109/CVPR.2016.90
  5. Book
    1. Kluyver T
    2. Ragan-Kelley B
    3. Pérez F
    4. Granger B
    5. Bussonnier M
    6. Frederic J
    7. Kelley K
    8. Hamrick J
    9. Grout J
    10. Corlay S
    11. Ivanov P
    12. Avila D
    13. Abdalla S
    14. Willing C
    15. development team J
    (2016)
    Jupyter notebooks - a publishing format for reproducible computational workflows
    In: Loizides F, Scmidt B, editors. Positioning and Power in Academic Publishing: Players, Agents and Agendas. Netherlands: IOS Press. pp. 87–90.
  6. Book
    1. Mamalet F
    2. Garcia C
    (2012) Simplifying ConvNets for Fast Learning
    In: Garcia C, editors. Artificial Neural Networks and Machine Learning – ICANN 2012. Heidelberg: Springer. pp. 58–65.
    https://doi.org/10.1007/978-3-642-33266-1_8
    1. Pedregosa F
    2. Varoquaux G
    3. Gramfort A
    4. Michel V
    5. Thirion B
    6. Grisel O
    7. Blondel M
    8. Prettenhofer P
    9. Weiss R
    10. Dubourg V
    11. Vanderplas J
    12. Passos A
    13. Cournapeau D
    14. Brucher M
    15. Perrot M
    16. Duchesnay É
    (2011)
    Scikit-learn: machine learning in python
    Journal of Machine Learning Research 12:2825–2830.

Decision letter

  1. Ronald L Calabrese
    Senior and Reviewing Editor; Emory University, United States
  2. SE Roian Egnor
    Reviewer; Janelia Research Campus, Howard Hughes Medical Institute, United States
  3. Todd Troyer
    Reviewer; UT San Antonio, United States

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This paper presents and evaluates a machine learning method for segmenting and annotating animal acoustic communication signals. The paper presents results from applying the method to signals from Drosophila, mice, marmosets, and songbirds, but the method should be useful for a broad range of researchers who record animal vocalizations. The method appears to be easily generalizable and has high throughput and modest training times.

Decision letter after peer review:

Thank you for submitting your article "Fast and accurate annotation of acoustic signals with deep neural networks" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Ronald Calabrese as the Senior and Reviewing Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Roian Egnor (Reviewer #1); Todd Troyer (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

There are two main concerns with this paper that all three reviewers shared in their own way. The reviews offer details of how to address these concerns.

1. The authors claim that the method compares favorably to other machine learning methods, but they only provide head-to-head performance comparisons for Drosophila songs. There are no direct comparisons against other methods for mouse ultrasonic or songbird vocalizations, nor is there a readable summary of performance numbers from the literature. This makes it difficult for the reader to assess the authors' claim that DeepSS is a significant advance over the state of the art.

2. The authors provide little discussion about optimizing network parameters for a given data set. If the software is to be useful for the non-expert, a broader discussion of considerations for setting parameters would be useful. How should one choose the stack number, or the size or number of kernels? Moreover, early in the paper DeepSS is claimed as a method that learns directly from the raw audio data, in contrast to methods that rely on Fourier or Wavelet transforms. Yet in the Methods section it is revealed that a short-term Fourier front-end was used for both the mouse and songbird data.

Reviewer #1 (Recommendations for the authors):

General comments:

This is a reasonable piece of software. Not super polished, but pretty straightforward. Once I got it installed (which was a little involved) it worked out of the box on raw mouse vocalizations. There could be a little more background on other methods/approaches and their strengths and weaknesses. In addition, I think more explanation about tuning parameters is necessary if the goal is for users without machine learning expertise to be able to use this.

I. Results

A. How good is it?

1. How fast is it?

a. How long to train?

Train time depends on the amount of data, but the ranges quotes (10 minutes to 5 hours) are quite reasonable. It works on reasonable hardware (I tested on a laptop with a GPU).

b. How long to classify?

Latency to classification is between 7-15ms, which is a little long for triggered optogenetics, but not bad, and certainly reasonable for acoustic feedback.

2. How accurate is it?

a. Accuracy is improved relative to Fly Song Segmenter, particularly in recall (Arthur et al., 2013; Coen et al., 2014).

Pulse song:

DeepSS precision: 97%, recall: 96%

FlySongSegmenter: precision: 99%, recall 87%.

Sine song:

DeepSS precision: 92%, recall: 98%

FlySongSegmenter: precision: 91%, recall: 91%.

b. One main concern I have is that all the signals described, with the exception of pulse song, are relatively simple tonally. Bengalese finch song is much less noisy than zebra finch song. Mouse vocalizations are quite tonal. How would this method work on acoustic signals with noise components, like zebra finches or some non-human primate signals? Some signals can have variable spectrotemporal structure based on the distortion due to increased intensity of the signal (see, for example, Fitch, Neubauer, and Hertzel, 2002).

W.Tecumseh Fitch, Jürgen Neubauer and Hanspeter Herzel (2002) "Calls out of chaos: the adaptive significance of nonlinear phenomena in mammalian vocal production" Animal Behaviour, 63: 407-418. doi:10.1006/anbe.2001.1912

B. How easy to use?

0. "our method can be optimized for new species without requiring expert knowledge and with little manual annotation work." There isn't a lot of explanation, either in the paper or in the associated documentation, of how to select network parameters for a new vocalization type. However, it does appear that small amounts of annotation are sufficient to train a reasonable classifier.

1. How much pre-processing of signals is necessary?

All the claims of the paper are based on pre-processed audio data, although they state, in the Methods section that preprocessing is not necessary. It's not clear how important this pre-processing is for achieving the kinds of accuracy observed. Certainly I would expect the speed to drop if high frequency signals like mouse vocalizations aren't downsampled. However, I tried it on raw, un-preprocessed mouse vocalizations, without downsampling and using very few training examples, and it worked quite well, only missing low signal-to-noise vocalizations.

C. How different from other things out there?

It would strengthen the paper to include some numbers on other mouse and birdsong methods, rather than simple and vague assertions "These performance values compare favorably to that of methods specialized to annotate USVs (Coffey et al., 2019; Tachibana et al., 2020; Van Segbroeck et al., 2017)." "Thus, DeepSS performs as well as or better than specialized deep learning-based methods for annotating bird song (Cohen et al., 2020; Koumura and Okanoya, 2016).

D. Miscellaneous comments

1. Interestingly, the song types don't appear to be mutually exclusive. One can have pulse song in the middle of sine song. That might be useful to be able to toggle…I can imagine cases where it would be nice to be able to label things that overlap, but in general if something is sine song, it can't be pulse song. And my assumption certainly was that song types would be mutually exclusive. Adding some explanation of that to the text/user's manual would be useful.

2. How information is combined across channels is aluded to several times but not described well in the body of the manuscript, though it is mentioned in the methods in vague terms:

"several channel convolutions, 𝑘𝛾(1, 𝛾), combine information across channels."

II. Usability

A. Getting it installed

Installing on Windows 10, was a bit involved if you were not already using python: Anaconda, python, tensorflow, CUDA libraries, create an account to download cuDNN, and update NVIDIA drivers.

However, it went OK until I hit this:

error:

File "…\miniconda3\envs\dss\lib\ctypes\__init__.py", line 373, in __init__

self._handle = _dlopen(self._name, mode)

FileNotFoundError: Could not find module '…\miniconda3\envs\dss\lib\site-packages\scipy\.libs\libbanded5x.3OIBJ6VWWPY6GDLEMSTXSIPCHHWASXGT.gfortran-win_amd64.dll' (or one of its dependencies). Try using the full path with constructor syntax.

rummaging around in Stackoverflow I found this (answer #4):

https://stackoverflow.com/questions/59330863/cant-import-dll-module-in-python

which was to edit ~\Miniconda3\envs\dss\lib\ctypes\ _init_.py to change winmode=None to winmode=0.

This worked, but did slow me down a fair bit. I'm not sure who the target audience is for this software, but it may be a bit much for the average biologist.

B. Using it

It wasn't clear to me what " complete annotation" meant: "Once you have completely annotated the song in the first 18 seconds of the tutorial recording…". Does this mean that all instances of pulse and sine song must be labeled? What are the consequences if this is not true?

I also wasn't clear how to know when it finished training and I could try predicting.

I was a bit confused by there being 2 menu headings called "DeepSS", one of which (the rightmost) has a Predict option and one of which doesn't. The first time through I used the leftmost DeepSS menu heading for Make dataset and Train, and it didn't work, the second time through I used the rightmost one and it did work (but this might have been user error).

III. General usability:

1. It would be nice if the oscillogram vertical axis didn't autoscale, it made it hard to recognize sine song when there were no pulses.

2. It would be nice to be able to change the playback rate, or the size of the jumps in the navigation bar at the bottom.

3. It was not very clear in the instructions how to fix errors and use those annotations to train again, although in the body of the text this is explicitly stated as important.

"We find that DeepSS can be efficiently trained using an iterative protocol (Pereira et al., 2018) (Figure 4C, S8): Annotate a small set of recordings and train the network for a few epochs; then generate annotations on a larger set of recordings and correct these annotations."

"Correct any prediction errors-add missing annotations, remove false positive annotations, adjust the timing of annotations."

4. The instructions for correcting could be more clear. It took a little fiddling to figure out I needed to switch to "add pulse_proposals" in order to remove a pulse proposal.

Reviewer #2 (Recommendations for the authors):

In general, I recommend publication after major revision.

Apart from my comments above, my excitement for this toolbox is a little bit hampered by a few aspects:

Regarding the comparisons to other tools, it would be great to compare (or at least discuss the performance of other recent tools on the bird and mouse dataset). Existing models are described as slow (Line 50), but no quantitative comparisons are given.

What are the human recall/precision for Figure 1 (compare to MARS, where a nice classifier vs. human comparison is given: https://www.biorxiv.org/content/10.1101/2020.07.26.222299v1). Is FSS a tunable algorithm and how was it tuned?

While the authors emphasize that the architecture does not require any pre-processing, they end up using the "optional" Short-time Fourier transform frontend for all, but the sine wave detection for flies (i.e. mice and bird). So I think this emphasis is ill advised.

In the end, the authors use different network parameters for all datasets (see Table S1A; with/without STFT, # stacks, kernel size…). This begs the question is this necessary. What happens if one trains the same architectures on the different datasets, does the performance suffer? -- I would suppose that is not the case, and with respect to the usability of this toolbox this seems to be an important question. I.e. how should users pick the architecture and hyperparameters?

Reviewer #3 (Recommendations for the authors):

The most important issue I had with the paper is that it provided the reader with little sense of DeepSS's performance relative to other software. The paper would be much better if other approaches were implemented on publicly available data sets and compared head-to-head.

The methods should state very clearly where the data sets used are available for download. While the authors may believe in DeepSS, other challengers will inevitably arise. These authors should be given the opportunity to report head-to-head performance against DeepSS on the same data.

The text references in the mouse section are to figure 3, but the relevant figure is now figure 2.

There are several places where the color scale used is useless, namely in the confusion matrices (Figure 1D, 1I, 2E, 2H, 3C and some supplemental figs). At these performance levels, color just indicates the correct vs. incorrect parts of the graph – relative shades of the heat map are not perceptible.

The birdsong confusion matrices are similarly uninformative, since all that is seen is a bunch of boxes along the diagonal. Worse yet, the discretization of the figure makes it appear that boxes along the diagonal have different sizes/offsets, suggesting structure where there is none. Showing marginals of the matrix like Figure S4E can be useful.

In Figure S4C, precision and recall are plotted whereas in S4E false positive and false negatives are plotted. Are both plots needed?

https://doi.org/10.7554/eLife.68837.sa1

Author response

Essential revisions:

There are two main concerns with this paper that all three reviewers shared in their own way. The reviews offer details of how to address these concerns.

1. The authors claim that the method compares favorably to other machine learning methods, but they only provide head-to-head performance comparisons for Drosophila songs. There are no direct comparisons against other methods for mouse ultrasonic or songbird vocalizations, nor is there a readable summary of performance numbers from the literature. This makes it difficult for the reader to assess the authors' claim that DeepSS is a significant advance over the state of the art.

We addressed this issue in two ways: By testing DAS on two more species and by directly comparing accuracy and speed of DAS to that of other methods.

First, we included two more species – Zebra finches and marmosets – to further demonstrate the versatility and robustness of DAS. Both species were suggested by Reviewer #1 because they produced more variable signals. Annotations for the marmoset calls are particularly challenging because of a lot of background noise in the recordings that we used. We find that DAS annotates signals from both species with high accuracy. The results of these tests are now discussed in two new sections Results and shown in two new Figure 2 —figure supplement 1 (marmoset) and Figure 3 —figure supplement 2 (zebra finch).

For the marmosets (Results, p6, l200):

“Marmoset vocalizations

We next examined the robustness of annotations produced by DAS to noisy recordings and variable vocalization types, by training a network to annotate vocalization from pairs of marmosets (Landman et al., 2020). The recordings contain lots of background noises like faint calls from nearby animals, overdrive from very loud calls of the recorded animals, and large variability within syllable types (Figure 2 —figure supplement 1A-D). Recently, a deep-learning based method was shown to produce good performance (recall 77%, precision 85%, 12.5 ms temporal error) when trained on 16000 syllables to recognize seven vocalization types (Oikarinen et al., 2019). We trained DAS on 1/9th of the data (1800 syllables) containing 4 of the 7 vocalization types. Despite the noisy and variable vocal- izations, DAS achieves high syllable-wise precision and recall (96%, 92%, (Figure 2 —figure supplement 1E, F)). Note that DAS obtains this higher performance at millisecond resolution (temporal error 4.4 ms, Figure 2 —figure supplement 1G), while the method by Oikarinen et al., (2019) only produces annotations with a resolution of 50 ms (Table 2).”

For the Zebra finches (Results, p7, l232):

“To further demonstrate the robustness of DAS, we trained a network to annotate song from Zebra finches. In Zebra finch males, Individual renditions of a given syllable type tend to be more variable (Fitch et al., 2002). Moreover, the particular recordings used here (Goffinet et al., 2021) contain background noise from the bird’s movement. Despite the variability and noise, DAS annotates the six syllables from a male’s main motif with excellent precision and recall, and low temporal error, demonstrating that DAS is robust to song variability and recording noise (Figure 3 —figure supplement 2).”

These two species are now also included in all analyses of the throughput and latency, of number of annotations required for training, and of the unsupervised classification of syllable types. With the inclusion of these two new species, we now demonstrate state-of-the-art performance for DAS using recordings from five different species with highly diverse signal structures and signal-to-noise ratios – including the pulse song of Drosophila, the spectrotemporally complex syllables of birds, and noisy recordings of the variable calls of marmosets. We are not aware of a single method with demonstrably good performance on such a diverse set of annotation tasks.

Second, we compared the annotation performance and speed of our method to those of existing state-of-the-art methods for all species tested. This confirms our statement in the original paper: that DAS performs as well as or better than existing, specialized methods. DAS performance for mouse (against USVSEG) and bird song (against TweetyNet) is on par with that of the state of the art. DAS outperforms the state of the art for marmoset (against the Deep Learning method from Oikarinen et al., (2019)) and fly song (against FlySongSegmenter). DAS has also 3x-20x higher throughput than these methods. Overall, this established DAS as a fast, accurate, and universal method for annotating acoustic signals.

We revised the wording throughout the manuscript to more accurately reflect the outcome of these comparisons. For instance, in the comparison with bird song we now state that our method “performs as well as” the state of the art.

We added a new paragraph, describing the results of the speed comparisons (Results, p8, l264):

“We also compared the speed of DAS to that of other methods that were specifically developed to annotate the types of signals tested here. Since most existing methods are not suitable for estimating latency due to constraints in their design and interface, we only compared throughput. We find that DAS achieves 3x to 10x higher throughput than existing methods (Table 2). This has three main reasons: First, the relatively simple, purely convolutional architecture exploits the parallel processing capabilities of modern CPUs and GPUs. Second, Fourier or wavelet-like preprocessing steps are integrated into the network and profit therefore from a fast implementation and hardware acceleration. Third, for multi-channel data, DAS combines information from all audio channels early, which increases throughput by reducing the data bandwidth.

Overall, DAS annotates audio with high throughput (>8x realtime) and low latency (<15 ms), and is faster than the alternative methods tested here. The high speed renders suitable for annotating large corpora and for realtime applications without requiring specialized hardware.”

2. The authors provide little discussion about optimizing network parameters for a given data set. If the software is to be useful for the non-expert, a broader discussion of considerations for setting parameters would be useful. How should one choose the stack number, or the size or number of kernels? Moreover, early in the paper DeepSS is claimed as a method that learns directly from the raw audio data, in contrast to methods that rely on Fourier or Wavelet transforms. Yet in the Methods section it is revealed that a short-term Fourier front-end was used for both the mouse and songbird data.

We addressed this issue in two ways: First, by demonstrating that performance is relatively robust to changes in network parameters. Second, by providing advice on how to choose network parameters in Methods.

First, we performed parameter sweeps for the networks trained on the song of flies and of Bengalese finches demonstrating that DAS performance is relatively robust to changes in individual network parameters, like the number of stacks, the number/duration of filters (new Figure 4 —figure supplement 5). This means that the exact choice of parameters is not crucial to obtain performant networks. The parameters of the networks tested in the manuscript serve as good starting points for fitting networks to new species.

Second, we added a new section to Methods in which we provide advice for choosing the structural parameters of the network for a new species. The results from the parameter sweeps and the new section in Methods are now referred to in Discussion (p11, l355):

“Network performance is robust to changes in the structural parameters of the network, like filter number and duration, or the network depth (Figure 4 —figure supplement 5). Thus, the structural parameters do not need to be finely tuned to obtain a performant network for a new species. We have trained networks using a wide range of signal types (Table 4) and these networks constitute good starting points for adapting DAS to novel species. We provide additional advice for the design of novel network in Methods.”

From Methods (new section on p15, l475):

“Choice of structural network parameters

DAS performance is relatively robust to the choice of structural network parameters like filter duration and number, or network depth (Figure 4 —figure supplement 5). […] If required, latency can then be further reduced by reducing chunk duration, the number and duration of filters, and the number of TCN blocks.”

Overall, this shows that DAS is easy to adapt to novel species: annotation performance does not crucially depend on the networks’ structural parameters, and that defaults given in the new section in Methods perform well across species in our experience.

Moreover, early in the paper DeepSS is claimed as a method that learns directly from the raw audio data, in contrast to methods that rely on Fourier or Wavelet transforms. Yet in the Methods section it is revealed that a short-term Fourier front-end was used for both the mouse and songbird data.

We agree that our wording was a misleading. In DAS, raw audio is provided as an input to the network, and a trainable downsampling layer which is initialized with STFT filters can be optionally added. This has several advantages

1. The downsampling can be omitted. This makes DAS more flexible, since it allows DAS to annotate signals for which an STFT-like transform is not appropriate (fly pulse song).

2. The downsampling is initialized with STFT filters but is then trained, removing the need to hand-tune this step and allowing the network to learn filters that greatly deviate from the initialization.

3. By integrating downsampling into the network, it profits from an efficient implementation and hardware acceleration, increasing throughout and reducing latency.

We have de-emphasized and clarified this point in the beginning of Results (p3, l95):

“… First, the pre-processing step is optional. This makes DAS more flexible, since signals for which a time-resolved Fourier transform is not appropriate—for instance, short pulsatile signals—can now also be processed. Second, the optional preprocessing step is integrated and optimized with the rest of the network. This removes the need to hand-tune this step and allows the network to learn a preprocessing that deviates from a time-resolved Fourier or wavelet transform if beneficial (Choi et al., 2017). Integrating the preprocessing into the network also increases inference speed due to the efficient implementation and hardware acceleration of deep-learning frameworks.”

And in Methods (p13, l414)

“DAS takes as input raw, single or multi-channel audio. Pre-processing of the audio using a Wavelet or short-time Fourier transform is optional and integrated into the network.”

Reviewer #1 (Recommendations for the authors):

This is a reasonable piece of software. Not super polished, but pretty straightforward. Once I got it installed (which was a little involved) it worked out of the box on raw mouse vocalizations. There could be a little more background on other methods/approaches and their strengths and weaknesses. In addition, I think more explanation about tuning parameters is necessary if the goal is for users without machine learning expertise to be able to use this.

We now discuss key architectural differences to existing approaches in Results (p2, l82):

“These [AM and FM] patterns are typically made explicit using a hand-tuned pre-processing step based on time-resolved Fourier or wavelet transforms (Arthur et al., 2013; Coffey et al., 2019; Cohen et al., 2020a; Oikarinen et al., 2019; Van Segbroeck et al., 2017). Most deep-learning based methods then treat this pre-defined spectrogram as an image and use methods derived from computer vision to extract the AM and FM features relevant for annotation (Coffey et al., 2019; Cohen et al., 2020a; Oikarinen et al., 2019). Recurrent units are sometimes used to track the sound features over time (Cohen et al., 2020a). This approach can produce accurate annotations but has drawbacks: First, the spectrogram constitutes a strong and proven pre-processing step, but it is unsuitable for some signal types, like short pulsatile signals. Second, the pre-processing transform is typically tuned by hand and may therefore require expert knowledge for it to produce optimal results. Lastly, the recurrent layers used in some methods (Cohen et al., 2020a) excel at combining information over time to provide the context information necessary to annotate spectrally complex signals, but they can be hard to train and slow to run (Bai et al., 2018).”

I. Results

A. How good is it?

1. How fast is it?

a. How long to train?

Train time depends on the amount of data, but the ranges quotes (10 minutes to 5 hours) are quite reasonable. It works on reasonable hardware (I tested on a laptop with a GPU).

b. How long to classify?

Latency to classification is between 7-15ms, which is a little long for triggered optogenetics, but not bad, and certainly reasonable for acoustic feedback.

2. How accurate is it?

a. Accuracy is improved relative to Fly Song Segmenter, particularly in recall (Arthur et al., 2013; Coen et al., 2014).

Pulse song:

DeepSS precision: 97%, recall: 96%

FlySongSegmenter: precision: 99%, recall 87%.

Sine song:

DeepSS precision: 92%, recall: 98%

FlySongSegmenter: precision: 91%, recall: 91%.

b. One main concern I have is that all the signals described, with the exception of pulse song, are relatively simple tonally. Bengalese finch song is much less noisy than zebra finch song. Mouse vocalizations are quite tonal. How would this method work on acoustic signals with noise components, like zebra finches or some non-human primate signals? Some signals can have variable spectrotemporal structure based on the distortion due to increased intensity of the signal (see, for example, Fitch, Neubauer, and Hertzel, 2002).

W.Tecumseh Fitch, Jürgen Neubauer and Hanspeter Herzel (2002) "Calls out of chaos: the adaptive significance of nonlinear phenomena in mammalian vocal production" Animal Behaviour, 63: 407-418. doi:10.1006/anbe.2001.1912

See Essential Revision #1 for details.

We tested DAS on signals from Zebra finches and marmosets. The marmoset recordings are particularly challenging due to high background noise. DAS annotates the signals from both species accurately: F1 score of 94% for marmosets (new Figure 2 —figure supplement 1, reproduced on page 3), and of 100% for the main motif of a Zebra finch (new Figure 3 —figure supplement 2, reproduced on page 4).

B. How easy to use?

0. "our method can be optimized for new species without requiring expert knowledge and with little manual annotation work." There isn't a lot of explanation, either in the paper or in the associated documentation, of how to select network parameters for a new vocalization type. However, it does appear that small amounts of annotation are sufficient to train a reasonable classifier.

See Essential Rev #2 for details.

Using a parameter sweep for the fly and Bengalese finch networks, we show that DAS performance is relatively robust to changes in individual parameters – so exact parameter values do not matter (Figure 4 —figure supplement 5, reproduced on page 7). We provide recommendations for parameter choice in a new section in Methods (p15, l475, reproduced on page 7).

1. How much pre-processing of signals is necessary?

All the claims of the paper are based on pre-processed audio data, although they state, in the Methods section that preprocessing is not necessary. It's not clear how important this pre-processing is for achieving the kinds of accuracy observed. Certainly I would expect the speed to drop if high frequency signals like mouse vocalizations aren't downsampled. However, I tried it on raw, un-preprocessed mouse vocalizations, without downsampling and using very few training examples, and it worked quite well, only missing low signal-to-noise vocalizations.

See Essential Rev #2.

We clarified the wording in the beginning of the Results section. We de-emphasized the misleading statement that no there is no pre-processing (Results, p3, l95, reproduced on page 9).

The pre-processing is not a manual step but an optional part of the network, which is recommended for most signals. It acts as a down-sampling layer, which is in essence a convolutional layer that is initialized with STFT filters. These filters are optimized during training. This abrogates the need for manually tuning the STFT parameters as in other methods. We did not use it for fly song, since (1) an STFT-like transform is not appropriate for the highly transient pulses in pulse song and (2) the audio rate was already low (10 kHz)–downsampling would have impaired temporal accuracy.

And yes, the pre-processing has only a small impact on performance (we observed this with mouse and bird song). We find that it accelerates convergence during training because the STFT filters are a good initialization and it accelerates inference because the downsampling reduces the bandwidth of the data processed in the network.

The above considerations are now included in our recommendation for choosing model parameters (Methods, p15, l495):

“Downsampling/STFT weakly affects performance but strongly accelerates convergence during training. This is because (A) the initialization with STFT filters is a good prior that reduces the number of epochs it takes to learn the optimal filters, and (B) the downsampling reduces the data bandwidth and thereby the time it takes to finish one training epoch. The overall increase in performance from adding the STFT layer is low because convolutional layers in the rest of the network can easily replicate the computations of the STFT layer. For short pulsatile signals or signals with low sampling rates, STFT and downsampling should be avoided since they can decrease performance due to the loss of temporal resolution.”

C. How different from other things out there?

It would strengthen the paper to include some numbers on other mouse and birdsong methods, rather than simple and vague assertions "These performance values compare favorably to that of methods specialized to annotate USVs (Coffey et al., 2019; Tachibana et al., 2020; Van Segbroeck et al., 2017)." "Thus, DeepSS performs as well as or better than specialized deep learning-based methods for annotating bird song (Cohen et al., 2020; Koumura and Okanoya, 2016).

See Essential Rev #1 for details (pages 1-6 of the reply).

See Essential Revisions #1 for details (pages 1-6 of the reply).

We now compared the accuracy and speed of DAS to that of other tools for mice (USVSEG), Bengalese and Zebra finches (TweetyNet), and marmosets (Oikarinen et al., 2019). DAS is as good as or better then these specialized methods, and between 3x and 20x faster. The comparisons are shown in a new Table 2 (reproduced on page 5).

We have also tested DAS on two more species – marmosets and Zebra finches. For both species, DAS performs excellently (F1 scores 94% for marmosets and 100% for Zebra finches). The two new figures and the two new sections from Results are reproduced on pages 2-4.

Our wording is now more accurate throughout, to reflect the outcome of these comparisons. For instance, when discussing our results on bird song (p7, l229):

“Thus, DAS performs as well as specialized deep learning-based methods for annotating bird song (Cohen et al., 2020a; Koumura and Okanoya, 2016) (Table 2).”

D. Miscellaneous comments

1. Interestingly, the song types don't appear to be mutually exclusive. One can have pulse song in the middle of sine song. That might be useful to be able to toggle…I can imagine cases where it would be nice to be able to label things that overlap, but in general if something is sine song, it can't be pulse song. And my assumption certainly was that song types would be mutually exclusive. Adding some explanation of that to the text/user's manual would be useful.

Yes, song types are mutually exclusive at the moment – we currently choose labels using an argmax operation over the confidence scores for each song type. In a future version one could detect overlapping song types by using an absolute threshold on the confidence scores or by training type-specific networks. We now make the fact that labels are mutually exclusive explicit

In Results (p3, l112):

“Annotation labels for the different song types are mutually exclusive and are produced by comparing the confidence score to a threshold or by choosing the most probable song type.”

And in Methods (p16, l538):

“In the resulting annotations, song types are mutually exclusive, that is, each sample is labelled as containing a single song type even if song types overlap.”

2. How information is combined across channels is aluded to several times but not described well in the body of the manuscript, though it is mentioned in the methods in vague terms:

"several channel convolutions, ky(1,y), combine information across channels."

This is learned by the network during training: Different audio channels are treated like different color channels are treated in vision-based networks – they are filtered by multi-channel filters and the filter weights determine how information is combined across channels. There is no manual step in which information is explicitly combined across channels. In addition to the technical description in the methods, this is now also stated in Results when describing the network multi-channel recordings of fly song (p5, l170):

“DAS processes multi-channel audio by using filters that take into account information from all channels simultaneously.”

II. Usability

A. Getting it installed

Installing on Windows 10, was a bit involved if you were not already using python: Anaconda, python, tensorflow, CUDA libraries, create an account to download cuDNN, and update NVIDIA drivers.

Indeed, getting a GPU accelerated version of tensorflow running is quite involved atm. Installing the CUDA and cuDNN libraries using conda is currently broken. Instead, we now provide instructions for training and inference on colab, which provides server-based GPU instances – see https://janclemenslab.org/das/tutorials/colab.html. This is now mentioned in methods: (p13, l386):

“We also provide instructions for training DAS using google colab, which provides a GPU-accelerated python environment for the network. Colab removes the need to install GPU libraries: Annotations can be made locally in the GUI without a GPU and training and predicting is done on fast GPU nodes in the cloud. See this notebook for more details: [http://janclemenslab.org/das/tutorials/colab.html].”

However, it went OK until I hit this:

error:

File "…\miniconda3\envs\dss\lib\ctypes\__init__.py", line 373, in __init__

self._handle = _dlopen(self._name, mode)

FileNotFoundError: Could not find module '…\miniconda3\envs\dss\lib\site-packages\scipy\.libs\libbanded5x.3OIBJ6VWWPY6GDLEMSTXSIPCHHWASXGT.gfortran-win_amd64.dll' (or one of its dependencies). Try using the full path with constructor syntax.

rummaging around in Stackoverflow I found this (answer #4):

https://stackoverflow.com/questions/59330863/cant-import-dll-module-in-python

which was to edit ~\Miniconda3\envs\dss\lib\ctypes\ _init_.py to change winmode=None to winmode=0.

This worked, but did slow me down a fair bit. I'm not sure who the target audience is for this software, but it may be a bit much for the average biologist.

Sorry about that. We test using CI on linux/OSX/windows and use the software in the lab on all three OSes without problems. We never encountered this particular issue. We have created a conda package (https://anaconda.org/ncb/das), which should make the installation of a set of inter-compatible packages more reliable.

B. Using it

It wasn't clear to me what " complete annotation" meant: "Once you have completely annotated the song in the first 18 seconds of the tutorial recording…". Does this mean that all instances of pulse and sine song must be labeled? What are the consequences if this is not true?

Yes, all instances in the segment must be annotated for training. Unlabelled instances would constitute false negatives in the training data and reduce performance.

This is now clarified as meaning “all pulses and sine song segments in this stretch of the recording” in the documentation.

I also wasn't clear how to know when it finished training and I could try predicting.

Training is now indicated using a dialog window in the GUI which will close once training is finished and prediction can start.

I was a bit confused by there being 2 menu headings called "DeepSS", one of which (the rightmost) has a Predict option and one of which doesn't. The first time through I used the leftmost DeepSS menu heading for Make dataset and Train, and it didn't work, the second time through I used the rightmost one and it did work (but this might have been user error).

This is now fixed.

III. General usability:

Thank you for testing the software so thoroughly and for the constructive feedback!

1. It would be nice if the oscillogram vertical axis didn't autoscale, it made it hard to recognize sine song when there were no pulses.

Sine can indeed be hard to detect when there are pulses or when there is low noise. In those cases, we use the spectrogram view to annotate sine. We will add manual vertical scaling to a future version of the software.

2. It would be nice to be able to change the playback rate, or the size of the jumps in the navigation bar at the bottom.

We added a scrollbar and a text field for entering the time to jump to for more easily navigating long recordings.

3. It was not very clear in the instructions how to fix errors and use those annotations to train again, although in the body of the text this is explicitly stated as important.

"We find that DeepSS can be efficiently trained using an iterative protocol (Pereira et al., 2018) (Figure 4C, S8): Annotate a small set of recordings and train the network for a few epochs; then generate annotations on a larger set of recordings and correct these annotations."

"Correct any prediction errors-add missing annotations, remove false positive annotations, adjust the timing of annotations."

The documentation now contains more information on how to do that:

https://janclemenslab.org/das/quickstart.html#proof-reading

4. The instructions for correcting could be more clear. It took a little fiddling to figure out I needed to switch to "add pulse_proposals" in order to remove a pulse proposal.

Thanks! We have updated the documentation accordingly:

https://janclemenslab.org/das/quickstart.html#proof-reading

Reviewer #2 (Recommendations for the authors):

In general, I recommend publication after major revision.

Apart from my comments above, my excitement for this toolbox is a little bit hampered by a few aspects:

Regarding the comparisons to other tools, it would be great to compare (or at least discuss the performance of other recent tools on the bird and mouse dataset). Existing models are described as slow (Line 50), but no quantitative comparisons are given.

See Essential Revisions #1 for details (pages 1-6 of the reply).

We now compared the accuracy and speed of DAS to that of other tools for mice (USVSEG), Bengalese and Zebra finches (TweetyNet), and marmosets (Oikarinen et al., 2019). DAS is as good as or better then these specialized methods, and between 3x and 20x faster. The comparisons are shown in a new Table 2 (reproduced on page 5).

We have also tested DAS on two more species – marmosets and Zebra finches. For both species, DAS performs excellently (F1 scores 94% for marmosets and 100% for Zebra finches). The two new figures and the two new sections from Results are reproduced on pages 2-4.

Our wording is now more accurate throughout, to reflect the outcome of these comparisons. For instance, when discussing our results on bird song (p7, l229):

“Thus, DAS performs as well as specialized deep learning-based methods for annotating bird song (Cohen et al., 2020a; Koumura and Okanoya, 2016) (Table 2). “

What are the human recall/precision for Figure 1 (compare to MARS, where a nice classifier vs. human comparison is given: https://www.biorxiv.org/content/10.1101/2020.07.26.222299v1).

To estimate human recall/precision, two humans annotated the test data for fly song. The results are presented in a new Table 3.

Discrepancies between human annotators arise largely in the boundaries of sine song (DAS also struggles with these) and whether isolated pulses are counted or not. DAS is as good as or better than FlySongSegmenter and human annotators. Human recall and precision are now marked in Figures 1E and J and addressed in Results (p5, l152):

“A comparison of DAS’ performance to that of human annotators reveals that our methods exceeds human-level performance for pulse and sine (Figure 1E, J, Table 3).”

Is FSS a tunable algorithm and how was it tuned?

We tested the version of FSS currently used by several labs (found at https://github.com/murthylab/MurthyLab_FlySongSegmenter). This version was hand-tuned for optimal performance for the single and multi-channel recordings used here and is used in several publications (Coen et al., 2014, 2016, Clemens et al., 2018).

While the authors emphasize that the architecture does not require any pre-processing, they end up using the "optional" Short-time Fourier transform frontend for all, but the sine wave detection for flies (i.e. mice and bird). So I think this emphasis is ill advised.

See Essential Revisions #2 for details (page 9 of the reply).

We now de-emphasize and clarify this point. The crucial difference to existing methods, in which the Short-time Fourier transform (STFT) is a mandatory and separate pre-processing step that is tuned manually, DAS makes this step optional, integrates it into the network, and optimizes the STFT filters with the rest network.

In the end, the authors use different network parameters for all datasets (see Table S1A; with/without STFT, # stacks, kernel size…). This begs the question is this necessary. What happens if one trains the same architectures on the different datasets, does the performance suffer? -- I would suppose that is not the case, and with respect to the usability of this toolbox this seems to be an important question. I.e. how should users pick the architecture and hyperparameters?

See Essential Revisions #2 for details (pages 6-8 of the reply).

We now demonstrate that DAS performance is fairly robust to changes in individual parameters (so exact parameter choices do not matter, Figure 4 —figure supplement 5), recommend default parameters that should produce performant networks for any type of signal and provide additional details on parameter choices (Methods p15, l475).

Reviewer #3 (Recommendations for the authors):

The most important issue I had with the paper is that it provided the reader with little sense of DeepSS's performance relative to other software. The paper would be much better if other approaches were implemented on publicly available data sets and compared head-to-head

See Essential Revisions #1 for details.

We now compared the accuracy and speed of DAS to that of other tools for mice (USVSEG), Bengalese and Zebra finches (TweetyNet), and marmosets (Oikarinen et al., 2019). DAS is as good as or better then these specialized methods, and between 3x and 20x faster. The comparisons are shown in a new Table 2 (reproduced on page 5).

We have also tested DAS on two more species – marmosets and Zebra finches. For both species, DAS performs excellently (F1 scores 94% for marmosets and 100% for Zebra finches). The two new figures and the two new sections from Results are reproduced on pages 2-4.

Our wording is now more accurate throughout, to reflect the outcome of these comparisons. For instance, when discussing our results on bird song (p7, l229):

“Thus, DAS performs as well as specialized deep learning-based methods for annotating bird song (Cohen et al., 2020a; Koumura and Okanoya, 2016) (Table 2).”

The methods should state very clearly where the data sets used are available for download. While the authors may believe in DeepSS, other challengers will inevitably arise. These authors should be given the opportunity to report head-to-head performance against DeepSS on the same data.

We do hope that others improve on our method! To aid direct performance comparisons, we deposited all data (audio and annotations) used for training and testing DAS here: https://data.goettingen-research-online.de/dataverse/das. In addition, we added a new Table 5 listing (1) all original data sources, (2) direct links to the data used by DAS for each species tested, and (3) links to the trained models including sample data and code for running the models (https://github.com/janclemenslab/das-menagerie).

The text references in the mouse section are to figure 3, but the relevant figure is now figure 2.

Thank you! We fixed all figure references.

There are several places where the color scale used is useless, namely in the confusion matrices (Figure 1D, 1I, 2E, 2H, 3C and some supplemental figs). At these performance levels, color just indicates the correct vs. incorrect parts of the graph – relative shades of the heat map are not perceptible.

We agree that the confusion matrices as shown are not very informative given the performance levels. We still prefer to use color instead of plain text tables to make the information indicated in the text labels of the confusion matrices more glanceable.

The birdsong confusion matrices are similarly uninformative, since all that is seen is a bunch of boxes along the diagonal. Worse yet, the discretization of the figure makes it appear that boxes along the diagonal have different sizes/offsets, suggesting structure where there is none. Showing marginals of the matrix like Figure S4E can be useful.

We now log-scaled the color code for the confusion matrix in Figure 3C and Figure 3 —figure supplement 1D (was S4D) to make annotations errors apparent. We also fixed the issue with the discretization of the figure.

In Figure S4C, precision and recall are plotted whereas in S4E false positive and false negatives are plotted. Are both plots needed?

Given that false positive and false negative rates are now more visible from the log-scaled confusion matrices in Figure 3 —figure supplement 1D, we removed panel S4E.

https://doi.org/10.7554/eLife.68837.sa2

Article and author information

Author details

  1. Elsa Steinfath

    1. European Neuroscience Institute - A Joint Initiative of the University Medical Center Göttingen and the Max-Planck-Society, Göttingen, Germany
    2. International Max Planck Research School and Göttingen Graduate School for Neurosciences, Biophysics, and Molecular Biosciences (GGNB) at the University of Göttingen, Göttingen, Germany
    Contribution
    Data curation, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8455-9092
  2. Adrian Palacios-Muñoz

    1. European Neuroscience Institute - A Joint Initiative of the University Medical Center Göttingen and the Max-Planck-Society, Göttingen, Germany
    2. International Max Planck Research School and Göttingen Graduate School for Neurosciences, Biophysics, and Molecular Biosciences (GGNB) at the University of Göttingen, Göttingen, Germany
    Contribution
    Data curation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9335-7767
  3. Julian R Rottschäfer

    1. European Neuroscience Institute - A Joint Initiative of the University Medical Center Göttingen and the Max-Planck-Society, Göttingen, Germany
    2. International Max Planck Research School and Göttingen Graduate School for Neurosciences, Biophysics, and Molecular Biosciences (GGNB) at the University of Göttingen, Göttingen, Germany
    Contribution
    Data curation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3741-8358
  4. Deniz Yuezak

    1. European Neuroscience Institute - A Joint Initiative of the University Medical Center Göttingen and the Max-Planck-Society, Göttingen, Germany
    2. International Max Planck Research School and Göttingen Graduate School for Neurosciences, Biophysics, and Molecular Biosciences (GGNB) at the University of Göttingen, Göttingen, Germany
    Contribution
    Data curation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Jan Clemens

    1. European Neuroscience Institute - A Joint Initiative of the University Medical Center Göttingen and the Max-Planck-Society, Göttingen, Germany
    2. Bernstein Center for Computational Neuroscience, Göttingen, Germany
    Contribution
    Conceptualization, Software, Funding acquisition, Visualization, Methodology, Writing - original draft, Project administration
    For correspondence
    clemensjan@gmail.com
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4200-8097

Funding

Deutsche Forschungsgemeinschaft (329518246)

  • Jan Clemens

Deutsche Forschungsgemeinschaft (430158535)

  • Jan Clemens

European Research Council (851210)

  • Jan Clemens

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Kurt Hammerschmidt for providing mouse data prior to publication. We thank Mala Murthy, David Stern, and all members of the Clemens lab for feedback on the manuscript.

This work was supported by the DFG through grants 329518246 (Emmy Noether) and 430158535 (SPP2205) and by the European Research Council (ERC) under the European Union's Horizon 2020 research and innovation programme (Starting Grant agreement No. 851210 NeuSoSen).

Senior and Reviewing Editor

  1. Ronald L Calabrese, Emory University, United States

Reviewers

  1. SE Roian Egnor, Janelia Research Campus, Howard Hughes Medical Institute, United States
  2. Todd Troyer, UT San Antonio, United States

Publication history

  1. Received: March 26, 2021
  2. Preprint posted: March 29, 2021 (view preprint)
  3. Accepted: October 4, 2021
  4. Version of Record published: November 1, 2021 (version 1)

Copyright

© 2021, Steinfath et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 387
    Page views
  • 48
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Rawan AlSubaie et al.
    Research Article Updated

    Projections from the basal amygdala (BA) to the ventral hippocampus (vH) are proposed to provide information about the rewarding or threatening nature of learned associations to support appropriate goal-directed and anxiety-like behaviour. Such behaviour occurs via the differential activity of multiple, parallel populations of pyramidal neurons in vH that project to distinct downstream targets, but the nature of BA input and how it connects with these populations is unclear. Using channelrhodopsin-2-assisted circuit mapping in mice, we show that BA input to vH consists of both excitatory and inhibitory projections. Excitatory input specifically targets BA- and nucleus accumbens-projecting vH neurons and avoids prefrontal cortex-projecting vH neurons, while inhibitory input preferentially targets BA-projecting neurons. Through this specific connectivity, BA inhibitory projections gate place-value associations by controlling the activity of nucleus accumbens-projecting vH neurons. Our results define a parallel excitatory and inhibitory projection from BA to vH that can support goal-directed behaviour.

    1. Cell Biology
    2. Neuroscience
    Angela Kim et al.
    Research Article Updated

    Insulin-induced hypoglycemia is a major treatment barrier in type-1 diabetes (T1D). Accordingly, it is important that we understand the mechanisms regulating the circulating levels of glucagon. Varying glucose over the range of concentrations that occur physiologically between the fed and fuel-deprived states (8 to 4 mM) has no significant effect on glucagon secretion in the perfused mouse pancreas or in isolated mouse islets (in vitro), and yet associates with dramatic increases in plasma glucagon. The identity of the systemic factor(s) that elevates circulating glucagon remains unknown. Here, we show that arginine-vasopressin (AVP), secreted from the posterior pituitary, stimulates glucagon secretion. Alpha-cells express high levels of the vasopressin 1b receptor (V1bR) gene (Avpr1b). Activation of AVP neurons in vivo increased circulating copeptin (the C-terminal segment of the AVP precursor peptide) and increased blood glucose; effects blocked by pharmacological antagonism of either the glucagon receptor or V1bR. AVP also mediates the stimulatory effects of hypoglycemia produced by exogenous insulin and 2-deoxy-D-glucose on glucagon secretion. We show that the A1/C1 neurons of the medulla oblongata drive AVP neuron activation in response to insulin-induced hypoglycemia. AVP injection increased cytoplasmic Ca2+ in alpha-cells (implanted into the anterior chamber of the eye) and glucagon release. Hypoglycemia also increases circulating levels of AVP/copeptin in humans and this hormone stimulates glucagon secretion from human islets. In patients with T1D, hypoglycemia failed to increase both copeptin and glucagon. These findings suggest that AVP is a physiological systemic regulator of glucagon secretion and that this mechanism becomes impaired in T1D.
