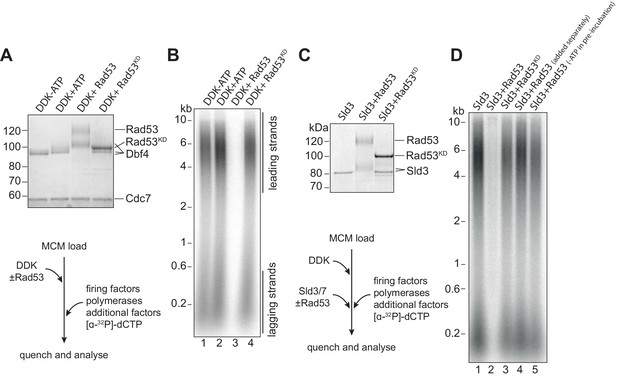

To understand in molecular detail how Rad53 regulates DNA replication, we have exploited the reconstitution of DNA replication with purified budding yeast proteins. In these experiments, the MCM double hexamers were assembled onto a 10.6 kb plasmid DNA template, then phosphorylated with Dbf4-dependent kinase (DDK), and finally firing factors, DNA polymerases, and accessory factors were added to initiate DNA replication. We followed replication progression by separating the products on alkaline agarose gels to visualise incorporation of radiolabelled dCTP. Rad53 inhibits late origin firing in vivo by phosphorylating two substrates: Dbf4 and Sld3 (Lopez-Mosqueda et al., 2010; Zegerman and Diffley, 2010). To determine if their phosphorylation directly inhibits their ability to promote replication, we pre-phosphorylated each individually with Rad53 and added them to replication reactions. To do this, we used Rad53 and the kinase-dead Rad53 mutant (K227A, D339A) purified after expression in E. coli. Rad53 expressed in E. coli is hyper-phosphorylated as previously shown (Gilbert et al., 2001), whilst the kinase dead mutant is not (Figure 1—figure supplement 1A). As shown in Figure 1A, pre-incubation of DDK with ATP caused a small shift in Dbf4 mobility in SDS-PAGE even in the absence of Rad53, presumably reflecting autophosphorylation (Francis et al., 2009; Kihara et al., 2000). However, there was a further shift of Dbf4 in the presence of wild-type Rad53, which was not seen with the kinase dead Rad53. Figure 1B shows that DDK pre-phosphorylated with Rad53 was unable to promote replication (lane 3), while pre-incubation of DDK with ATP alone (lane 2) or with ATP and the kinase-dead Rad53 mutant (lane 4) had no effect on replication. Whilst this work was in progress, Abd Wahab and Remus also found that Rad53 could directly inhibit DDK action at origins (Abd Wahab and Remus, 2020).

Figure 1 with 1 supplement see all

Download asset Open asset

Figure 1—source data 1

Original gel images for Figure 1.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig1-data1-v2.pdf

Download elife-69726-fig1-data1-v2.pdf

To test whether Rad53 also inhibited Sld3, we took a similar approach by pre-incubating Sld3/7 with Rad53 prior to addition to the replication reaction. Similar to DDK, pre-incubation of Sld3/7 with Rad53 and ATP resulted in reduced mobility of Sld3 in SDS-PAGE (Figure 1C) and inhibition of replication (Figure 1D, Figure 1—figure supplement 1B). This Rad53 inhibition of Sld3/7 was dependent on its kinase activity because the kinase-defective mutant did not inhibit replication (lane 3, Figure 1D) and because pre-incubation without ATP did not inhibit replication (lane 5, Figure 1D). Moreover, preincubation of Sld3/7 and Rad53 separately did not inhibit replication (lane 4, Figure 1D). This also shows that Rad53 does not inhibit replication initiation when added together with the firing factors: presumably, replication initiates before Rad53 has time to phosphorylate and inhibit Sld3 and DDK. Taken together, these results show that phosphorylation of DDK or Sld3/7 can block initiation, consistent with previous results in vivo (Lopez-Mosqueda et al., 2010; Zegerman and Diffley, 2010).

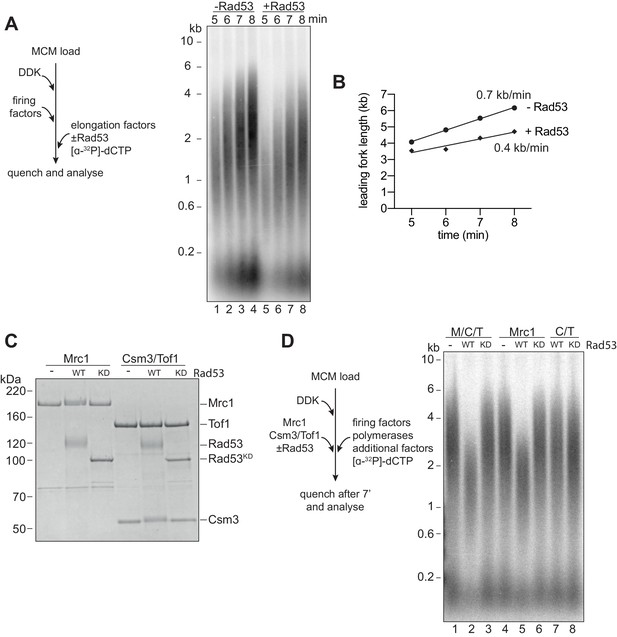

Next, we wanted to determine whether Rad53 could affect replication elongation. We pre-incubated the elongation factor mix (RPA, Ctf4, TopoI, Csm3/Tof1, Mrc1, Polɑ, and Mcm10) with Rad53 and ATP, then added this to reactions after MCM loading, DDK phosphorylation, and firing factor addition. We stopped the reactions at early time points so that any effects of elongation could be more easily seen by the size of the leading strand replication products. Figure 2A shows that the sizes of leading strand products were reduced after Rad53 phosphorylation. Figure 2B shows that these reductions correspond to a decrease in replication fork rate from about 0.7 kb/min to 0.4 kb/min.

Figure 2 with 1 supplement see all

Download asset Open asset

Figure 2—source data 1

Original gel images for Figure 2.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig2-data1-v2.pdf

Download elife-69726-fig2-data1-v2.pdf

Mrc1 and Csm3/Tof1 (M/C/T) are non-essential proteins known to directly stimulate replication fork rate (Lewis et al., 2017; Yeeles et al., 2017). Their inactivation by Rad53, therefore, could provide an explanation for the reduction in fork rate caused by Rad53. Indeed, both Mrc1 and Csm3 (but not Tof1) exhibited reduced mobility in SDS-PAGE after incubation with Rad53 but not Rad53^KD (Figure 2C), indicating that Rad53 can phosphorylate these proteins. When M/C/T were pre-incubated with wild-type Rad53, but not Rad53^KD, leading strand product size after 7 min of replication was decreased (Figure 2D). This leading strand product size was decreased when Mrc1 was incubated with Rad53 but not when Csm3/Tof1 was incubated with Rad53 (Figure 2D). These data indicate that phosphorylation of Mrc1 alone is sufficient to slow replication.

It has been suggested that Rad53 can inhibit one of its targets, DDK, by direct binding as well as by phosphorylation (Abd Wahab and Remus, 2020). We therefore asked whether we could detect stable interactions between Mrc1 and Rad53 by co-immunoprecipitation using the same buffer conditions used in the in vitro replication assay. After mixing Mrc1 and Csm3/Tof1, approximately equal amounts of Csm3/Tof1 and Mrc1 were detected in Mrc1 immunoprecipitates, consistent with the idea that Mrc1 forms a stable complex with Csm3/Tof1. Under these same conditions, however, little or no Rad53 or Rad53^KD was detected in Mrc1 immunoprecipitates (Figure 2—figure supplement 1A). This, together with the fact that Rad53^KD does not inhibit replication, suggests that phosphorylation of Mrc1 is likely to be most important for its inhibition.

Mrc1 has been shown to be phosphorylated by DDK kinase in fission yeast (Matsumoto et al., 2017). Figure 2—figure supplement 1B shows that the rate of replication in vitro was not affected after incubation of Mrc1 with either DDK or CDK together with ATP, suggesting that neither kinase can inhibit Mrc1 function in replication elongation.

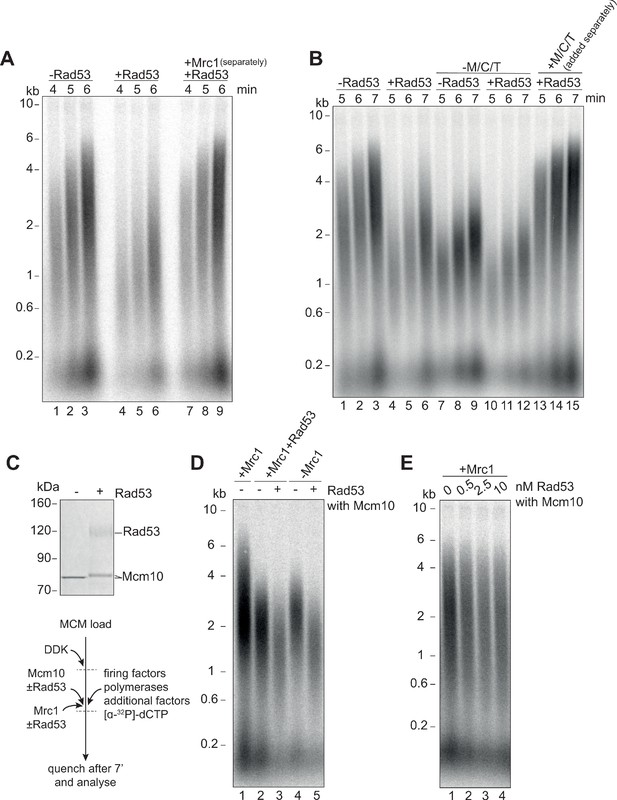

To determine whether phosphorylation of Mrc1 is necessary for Rad53 to slow replication, we pre-incubated all of the elongation factors, except Mrc1, with Rad53 prior to replication. Addition of Mrc1 separately completely rescued the reduction in replication speed by Rad53 (Figure 3A). Together with the previous experiments, we conclude that Rad53 phosphorylation of Mrc1 is necessary and sufficient to explain the slowing of replication rate by Rad53.

Figure 3

Download asset Open asset

Figure 3—source data 1

Original gel images for Figure 3A and B.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig3-data1-v2.pdf

Download elife-69726-fig3-data1-v2.pdf

Figure 3—source data 2

Original gel images for Figure 3C, D and E.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig3-data2-v2.pdf

Download elife-69726-fig3-data2-v2.pdf

It has recently been shown that Rad53 can inhibit the already slow rate of replication fork progression in the absence of M/C/T (Devbhandari and Remus, 2020), which led these authors to conclude that Rad53 inhibition of fork rate does not require M/C/T. To investigate this apparent discrepancy further, we pre-incubated the mixture of elongation factors lacking M/C/T (RPA, Ctf4, TopoI, Polɑ, and Mcm10) with Rad53. Consistent with this previous work (Devbhandari and Remus, 2020), the presence of Rad53 reduced replication rate in the absence of M/C/T (Figure 3B, compare lanes 7–9 with 10–12). However, when unphosphorylated M/C/T was added to the reaction separately from the pre-incubated elongation protein mix, replication speed was completely rescued to the rate seen in the absence of Rad53 (Figure 3B, lanes 13–15). From this we conclude that, in agreement with previous results, Rad53 can inhibit elongation via some target(s) other than M/C/T; however, this inhibition is only seen when unphosphorylated M/C/T is absent.

Mcm10 stimulates replication fork rate in the absence of Mrc1, but not in its presence (Langston et al., 2017; Lõoke et al., 2017), so inactivation of Mcm10 by Rad53 could explain our results. Incubation of Mcm10 with Rad53 reduced Mcm10 mobility in SDS-PAGE (Figure 3C) consistent with Rad53 phosphorylation of Mcm10. As shown in Figure 3D, incubation of Mcm10 with Rad53 reduced fork rate in the absence of Mrc1 (Figure 3D lanes 4 and 5) or in the presence of phosphorylated Mrc1 (Figure 3D lanes 2 and 3) but did not affect fork rate in the presence of unphosphorylated Mrc1 (Figure 3E). Interestingly, whilst pre-phosphorylation of Mcm10 with Rad53 affects its ability to accelerate fork rate, it did not inhibit replication initiation, suggesting that these functions of Mcm10 are separable.

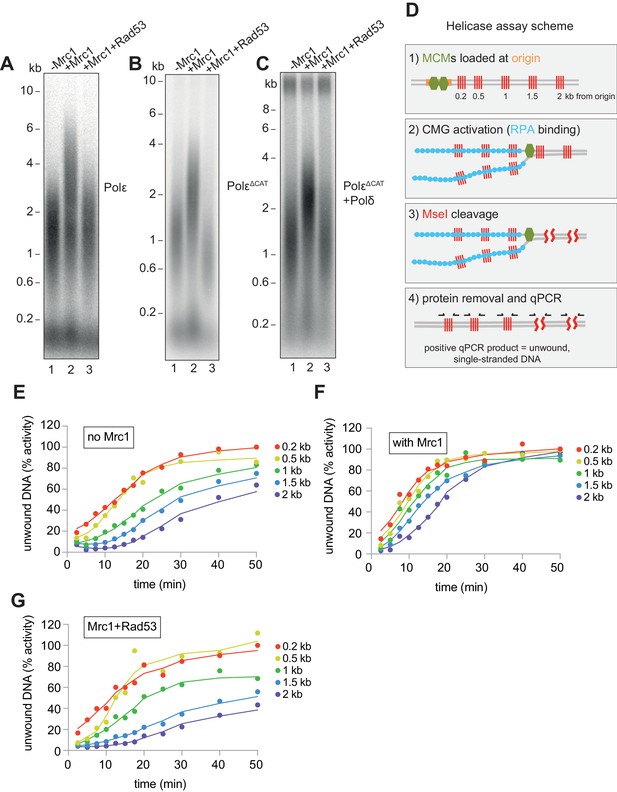

How Mrc1 supports fast replication speed is not well understood. Mrc1 has many contacts with Polε (Lou et al., 2008), and Mrc1 stimulates DNA replication when Polε is synthesising the leading strand (Figure 4A and Yeeles et al., 2017). Mrc1 could, therefore, directly stimulate DNA synthesis by Polε (Zhang et al., 2018). We tested this idea by using a truncation of the catalytic domain of Polε (Yeeles et al., 2017; Zhou et al., 2017), which supports CMG formation but does not synthesise DNA. In these reactions, Polɑ is the only DNA polymerase, and Mrc1 still stimulates replication rate (Figure 4B). In addition, Mrc1 can stimulate DNA replication when Polδ is synthesising the leading strand (Figure 4C and Yeeles et al., 2017). Further, Rad53 inhibits Mrc1 stimulation of replication rate in all three conditions (Figure 4A–C). Therefore, Mrc1 can stimulate DNA synthesis regardless of which DNA polymerase is synthesising the leading strand. Moreover, Rad53 prevents Mrc1 stimulation regardless of which polymerase is synthesising the leading strand.

Figure 4 with 1 supplement see all

Download asset Open asset

Figure 4—source data 1

Original gel images for Figure 4A and B.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig4-data1-v2.pdf

Download elife-69726-fig4-data1-v2.pdf

Figure 4—source data 2

Original gel images for Figure 4C.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig4-data2-v2.pdf

Download elife-69726-fig4-data2-v2.pdf

Figure 4—source data 3

Source data for Figure 4E, F and G.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig4-data3-v2.xlsx

Download elife-69726-fig4-data3-v2.xlsx

We next asked if Mrc1 can directly stimulate the activity of the CMG helicase. Using the appearance of an underwound form of circular plasmid (form U*) as a measure of CMG helicase activity, Devbhandari and Remus have recently shown that more U* product is generated in reactions containing M/C/T than in reactions lacking M/C/T (Devbhandari and Remus, 2020). This could indicate that M/C/T stimulates the rate of unwinding by CMG, or that M/C/T increases the ultimate extent of unwinding, or both. To distinguish these possibilities, we developed a new and quantitative assay to measure CMG activity (Figure 4D). Unwinding of double stranded DNA renders it resistant to cleavage by restriction endonucleases. The fraction of double- and single-stranded DNA can then be determined using qPCR with primers flanking restriction sites (Zierhut and Diffley, 2008). We constructed a linear DNA template with an origin of replication near one end and cassettes containing four tandem MseI restriction enzyme sites at 200 bp, 500 bp, 1000 bp, 1500 bp, and 2000 bp from the origin (Figure 4D). After loading the MCMs specifically at the origin (Figure 4—figure supplement 1), firing factors were added to form and activate CMG. Then, MseI restriction enzyme was added at indicated times for 3 min to cleave double-stranded DNA. The amount of unwound DNA is then measure by qPCR with primers flanking each of the cassettes. Using this assay, we found that ssDNA accumulated with time at each of the MseI sites, with a delay for distant sites from the origin reflecting time before CMG reached these sites (Figure 4E). We extracted from this data a rate of CMG helicase activity of ~79 bp/min (95% confidence interval, 71–88 bp/min). When we included Mrc1 in the reactions, ssDNA accumulated faster reflecting a CMG helicase rate of ~135 bp/min (95% confidence interval, 118–151 bp/min) (Figure 4F). This data shows that Mrc1 can directly increase the rate of CMG helicase unwinding. When we incubated Mrc1 with Rad53 prior to addition to the helicase reaction, ssDNA accumulated at a rate similar to the -Mrc1 reactions (Figure 4G), indicating that Rad53 inhibits Mrc1’s ability to stimulate the CMG helicase.

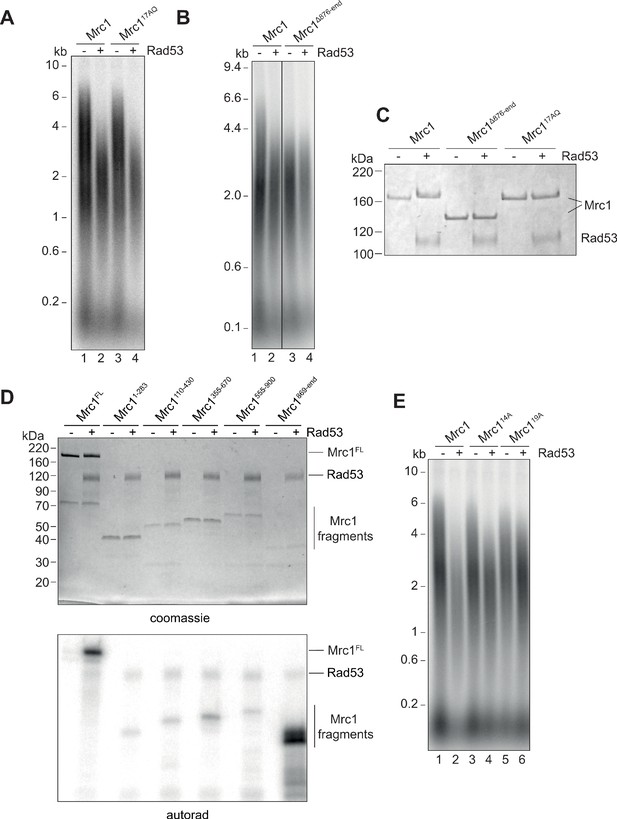

To understand how Rad53 regulates replication in vitro and in vivo, we undertook a mutational analysis of Mrc1 phosphorylation sites. The mutant Mrc1^17AQ protein, which cannot be phosphorylated by Mec1 (Osborn and Elledge, 2003), supported normal replication speed and was inhibited by Rad53 just as the wild-type Mrc1 indicating that the Rad53 phosphorylation sites regulating Mrc1 activity in fork rate do not overlap the Mrc1 phosphorylation sites involved in signal transduction from Mec1 (Figure 5A). We note that the mobility of the Mrc1^17AQ protein in SDS-PAGE was not reduced after incubation with Rad53 (Figure 5C), suggesting that Rad53 can phosphorylate at least one of these 17 S/T-Q sites despite the site/s not being relevant for Rad53-dependent inhibition.

Figure 5 with 1 supplement see all

Download asset Open asset

Figure 5—source data 1

Original gel images for Figure 5A, B and C.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig5-data1-v2.pdf

Download elife-69726-fig5-data1-v2.pdf

Figure 5—source data 2

Original gel images for Figure 5D and E.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig5-data2-v2.pdf

Download elife-69726-fig5-data2-v2.pdf

Deletion of the C-terminus of Mrc1, which has been implicated in regulating S-phase progression in vivo, slowed replication rate in vitro, and was not further inhibited by incubation with Rad53 (Figure 5B). Furthermore, the mobility of the Mrc1 truncation mutant was not reduced in SDS-PAGE after incubation with Rad53 (Figure 5C). These results suggest that the C-terminal region of Mrc1 is important for its function in regulating fork rate, and key Rad53 phosphorylation sites regulating this function may lie in this region.

Rad53 phosphorylation sites cannot be reliably predicted by primary amino acid sequence, so we took three unbiased approaches to identify the sites in Mrc1 that can be phosphorylated by Rad53 in vitro. First, we expressed and purified five overlapping protein fragments of Mrc1 and incubated each in vitro with Rad53 and γ³²P-ATP. As shown in Figure 5D, the fragment containing the last 228 amino acids of Mrc1, which includes the region required for fork rate stimulation (Figure 5A), was the best substrate for Rad53 in vitro. Second, we incubated Rad53 and γ³²P-ATP with a peptide array on which the entire Mrc1 protein sequence was ‘printed’ as overlapping 20-mer peptides (Figure 5—figure supplement 1A). Many of the peptides that were phosphorylated by Rad53 in this experiment also mapped to the C-terminus of Mrc1. Lastly, we used mass spectrometry to identify amino acids specifically phosphorylated by Rad53 (Figure 5—figure supplement 1B). Consistent with the peptide array and fragment analysis, many of the phosphorylated residues were in the C-terminus of Mrc1.

We used this information to generate a non-phosphorylatable Mrc1 mutant in which serine and threonine residues were changed to alanine: such a mutant should promote faster replication after incubation with Rad53 than wild-type Mrc1. As shown in Figure 5E, we were able to generate mutants (Mrc1^14A and Mrc1^19A) that indeed exhibited faster replication than wild-type Mrc1 after Rad53 phosphorylation (compare lanes 2, 4, and 6). Unfortunately, these mutants — especially Mrc1^19A — did not stimulate replication to the rate of unphosphorylated wild-type Mrc1 (compare lanes 1, 4, and 6). This is likely due, in part, to the fact that these mutants exhibited defects in promoting faster replication in the absence of Rad53 indicating that they are not completely functional (compare lanes 1, 3, and 5). Moreover, even Mrc1^19A was still inhibited slightly by incubation with Rad53 (compare lanes 5 and 6), suggesting that additional sites not mutated in this construct can still be phosphorylated by Rad53 and inhibit Mrc1 function. Cells expressing MRC1^19A as the sole copy of MRC1 were not sensitive to the replication stress agent hydroxyurea (HU) (Figure 5—figure supplement 1C). Another mutant, Mrc1^41A in which all the serines and threonines within the fragment 5 of Figure 5D were mutated to alanines was even more defective than the other mutants in the absence of Rad53 but was not further inhibited by Rad53 (Figure 5—figure supplement 1D). Thus, we were unable to generate an Mrc1 mutant with wild type function when unphosphorylated and completely resistant to inhibition by Rad53 phosphorylation.

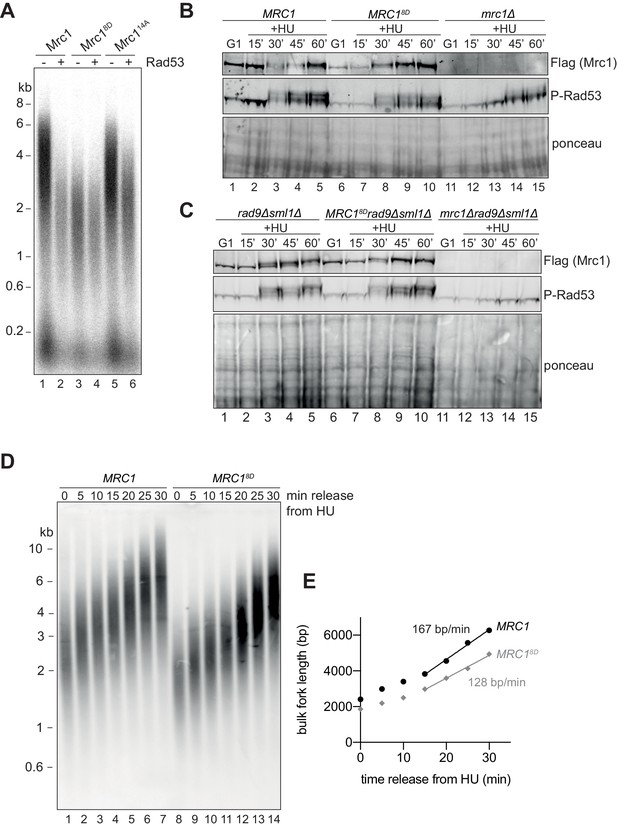

As an alternative approach, we generated an Mrc1 mutant in which potential phosphorylation sites were replaced with aspartate, mimicking the negative charge of phosphate: such a mutant is predicted to be unable to promote faster replication even in the absence of Rad53. Indeed, a mutant in which eight serine/threonine Rad53 phosphorylation sites were changed to aspartate (Mrc1^8D) was unable to stimulate replication even in the absence of Rad53 (Figure 6A). These eight sites are a subset of the residues mutated in Mrc1^14A mutant that still retains near wild-type activity when not incubated with Rad53 (Figure 6A). This suggests that the inactivation seen in Mrc1^8D is not simply a consequence of changing essential serine or threonine residues. Three of the residues mutated in Mrc1^8D (S911, S918, and S920) were identified in a phosphoproteomics screen of MMS-treated cells (Lanz et al., 2021), and another phosphoproteomics screen identified nearby residues that were dependent on the presence of Rad53 (Lao et al., 2018), suggesting that some of the sites in the Mrc1^8D mutant are relevant to Rad53 activity in vivo.

Figure 6

Download asset Open asset

Figure 6—source data 1

Original gel images for Figure 6.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig6-data1-v2.pdf

Download elife-69726-fig6-data1-v2.pdf

Cells harbouring MRC1^8D as the only copy of MRC1 were able to activate Rad53, evidenced by Rad53 hyperphosphorylation, at the same time and to the same extent as MRC1⁺ cells after release from a G1 arrest into HU, whilst mrc1∆ cells exhibited a reduced and delayed Rad53 activation (Figure 6B), consistent with previously published results (Alcasabas et al., 2001). To rule out any contribution of the other mediator in Rad53 activation, Rad9, we repeated this experiment with strains in which RAD9 was also deleted. As shown in Figure 6C, the MRC1^8D mutant supported Rad53 phosphorylation at the same time and to the same extent as wild-type MRC1, even in the rad9∆ background (compare lanes 2–5, with lanes 7–10), whilst the mrc1∆, rad9∆ double mutant was completely defective in Rad53 phosphorylation (lanes 12–15). mrc1Δ rad9Δ mutants are inviable (Alcasabas et al., 2001) and in this experiment were maintained by deletion of SML1; however, the MRC1^8D rad9Δ double mutants were viable without deletion of SML1. Taken together, these results indicate that Mrc1^8D can still signal from stalled replication forks, suggesting that the protein is stable in vivo (also seen in the Mrc1 immunoblots in Figure 6B,C) and maintains at least some interactions with the replisome in vivo.

To determine whether replication forks are slowed by the MRC1^8D mutations in vivo, we performed a pulse-chase experiment. Briefly, cells expressing the human nucleoside transporter, hENT, and the Drosophila melanogaster deoxyribonucleoside kinase, DmdNK, (Segurado and Diffley, 2008; Vernis, 2003) from galactose-inducible promoters were first arrested in G1, then released into medium containing BrdU and HU to label and synchronise the replication forks from early-firing origins. Cells were then released into medium containing thymidine and lacking both HU and BrdU to allow elongation to resume and to prevent any further labelling with BrdU. Replication products were visualised after alkaline agarose gel electrophoresis and immunoblotting with an anti-BrdU antibody. Figure 6D,E shows that the MRC1^8D mutant cells had shorter replication intermediates in HU and these intermediates were extended at a ~25% slower rate (Figure 6D,E) than MRC1⁺ cells. The overall replication rate in MRC1⁺ cells was slower than fork rates previously determined in budding yeast (Hodgson et al., 2007; Sekedat et al., 2010) probably because these cells were grown in galactose-containing medium at a reduced temperature (25°C). These results indicate that the MRC1^8D mutant promotes slower fork rates than wild type MRC1 in vivo as well as in vitro.

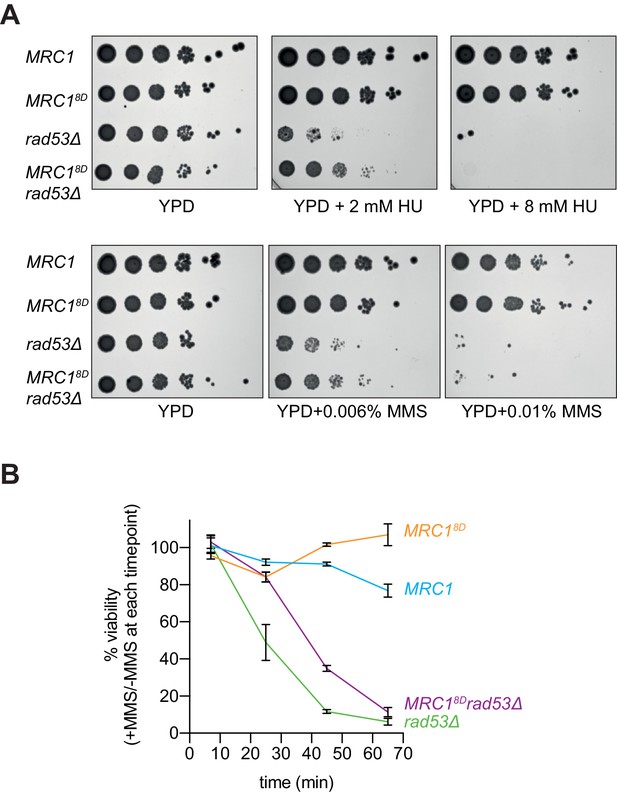

If one of the functions of Rad53 is to slow replication after replication stress, then the MRC1^8D mutant might make rad53Δ sml1Δ cells more resistant to replication stress. Indeed, MRC1^8D rad53Δ sml1Δ cells showed some improvement in survival, compared to rad53Δ sml1Δ cells when chronically exposed to low concentrations of either HU (2 mM) or MMS (0.006%), although they did not promote additional survival to higher concentrations (8 mM HU and 0.01% MMS) (Figure 7A). Similar results were obtained with two freshly germinated spores of each genotype (Figure 7—figure supplement 1) arguing that the suppression seen was not a result of suppressor mutations, which accumulate readily in rad53Δ sml1Δ cells (Gómez-González et al., 2019). MRC1^8D also promoted increased survival in rad53Δ sml1Δ cells to acute exposure to higher concentration of MMS (0.02%) relative to MRC1 wild type (Figure 7B). These data show that MRC1^8D can partially rescue the sensitivity of rad53Δ sml1Δ cells in response to chronic and acute replication stress, suggesting that slowing replication forks may be part of Rad53’s role in protecting replication forks during the replication checkpoint.

Figure 7 with 1 supplement see all

Download asset Open asset

Figure 7—source data 1

Original plate images for Figure 7A.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig7-data1-v2.pdf

Download elife-69726-fig7-data1-v2.pdf

Figure 7—source data 2

Source data for Figure 7B.

https://cdn.elifesciences.org/articles/69726/elife-69726-fig7-data2-v2.xlsx

Download elife-69726-fig7-data2-v2.xlsx

See Table 1 for summary of protein purification strategies. All replication proteins were purified as in Yeeles et al., 2015; Yeeles et al., 2017 and Polε^exo- was purified as in Goswami et al., 2018. Rad53 was expressed and purified as in Deegan et al., 2016; Gilbert et al., 2001 with an additional gel filtration step at the end in the following buffer: 25 mM HEPES-KOH, 0.02% NP-40-S, 10% glycerol, and 300 mM NaCl.

Replication reactions were essentially performed as in Yeeles et al., 2017. Reaction buffer contained: 25 mM HEPES-KOH (pH 7.6), 100 mM potassium glutamate or sodium acetate, 10 mM magnesium acetate, 2 mM DTT, 0.02% NP-40-S, and 5 mM ATP. Experiments were all performed in a thermomixer at 30°C and 1250 rpm. For experiments where proteins were preincubated with Rad53, samples were incubated with 5 mM ATP in reaction buffer for 15–30 min. MCM loading was performed in a master mix of 5 ul per sample with 40 nM ORC, 40 nM Cdc6, and 60 nM MCM-Cdt1 on 4 nM of 10.6 kb plasmid DNA with ARS1 origin. After 20 min, DDK was added to 40–50 nM and further incubated for 10 min. The reaction volume was then doubled with a protein mix and nucleotide mix to give the final concentration of: 20–80 nM Cdc45, 30 nM Dpb11, 20 nM Polε, 20 nM GINS, 15–20 nM CDK, 100 nM RPA, 20 nM Ctf4, 10 nM TopoI, 20 nM Csm3/Tof1, 20 nM Mrc1, 20–60 nM Polɑ, 20–25 nM Sld3/7, 20 nM Mcm10, 20–50 nM Sld2, 200 µM CTP, 200 µM GTP, 200 µM UTP, 80 µM dCTP, 80 µM dGTP, 80 µM dTTP, 80 µM dATP, and 33–50 nM ɑ³²P-dCTP. In Figures 4C, 20 nM PCNA, 20 nM RFC, and 20 nM Polδ, were also added in the last step. Reactions were then stopped by the addition of EDTA, processed over Illustra MicroSpin G-50 columns, separated on alkaline agarose gels, fixed in 5% trichloroacetic acid, dried, exposed to phosphor screens, and scanned using a Typhoon phosphorimager.

Four-step replication reactions (Figures 2A, 3A and B) were modified from the three-step reactions above. Following DDK incubation, firing factors were added for 10 min prior to the addition of the remaining proteins and nucleotide mix.

Quantification of signal was performed using FIJI software. Image signal was linearised with ‘linearise gel data’ plug-in. Distance was then calibrated to base pair length using the base pair ladder with an exponential fit. Each lane was fit with a smooth line using Prism 8, then the leading fork length was defined as the position where the signal was 20% the maximum signal of the lane.

For Figures 1A, C, 2C, 3C and 5C, Rad53 was incubated at equimolar ratio to target protein with 5 mM ATP for 15 min prior to separation on SDS-PAGE and coomassie stain. For Figure 5D, Rad53 was incubated with target protein with 0.2 mM ATP and 0.2 µCi/µl γ³²P-ATP for 15 min, processed over Illustra MicroSpin G-50 columns, separated on SDS-PAGE, coomassie stained, dried, exposed to phosphor screens, and scanned using a Typhoon phosphorimager.

Peptide arrays were synthesised on an Intavis ResPep SLi automated synthesiser (Intavis Bioanalytical Instruments AG, Cologne, Germany). The peptides were synthesised using FMOC for temporary α-amino group protection. Protecting groups used were Pbf for arginine, OtBu for glutamic acid and aspartic acid, Trt for asparagine, glutamine, histidine, and cysteine, tBu for serine, threonine and tyrosine, and Boc for lysine and tryptophan. Each amino acid was coupled by activating its carboxylic acid group with DIC in the presence of HOBT. Individual aliquots of amino acids were spotted on to a cellulose membrane which has been derivatised to have 8 to 10 ethylene glycol spacers between the cellulose and an amino group. Synthesis was accomplished by cycles of coupling of amino acids, washing then removal of the temporary α-amino protecting group by piperidine followed by more washing. Once the required number of cycles of coupling and deprotection and washing had been completed, the membranes were treated with a solution of 20 ml containing 95% TFA, 3% TIS, and 2% water for 4 hr. Following this treatment, membranes were washed four times with DCM, four times with ethanol, and twice with water to remove side chain protecting groups and TFA salts and once again with ethanol for easier drying. Just prior to kinase assay, membranes were washed extensively in reaction buffer, then incubated with 80 nM Rad53, 10 µM ATP, and 0.02 µCi/µl γ³²P-ATP. Membranes were then washed with 1 M NaCl, 1% SDS, and 0.5% phosphoric acid prior to exposure to phosphor screens, and scanned using a Typhoon phosphorimager.

The CMG helicase assays were performed with a 5 kb template containing an efficient artificial origin (Coster and Diffley, 2017) and cassettes of 4 MseI restriction cleavage sites (see Table 2 and CMG helicase assay template sequence below), which was linearised with ScaI. MCM loading specifically at the origin was done as follows (and visualised with replication reaction in Figure 4—figure supplement 1): 5 min incubation of 10 nM DNA, 40 nM Orc, 5 mM ATP, 80 mM NaCl, in replication buffer at 30C and 1250 rpm. Then 40 nM Cdc6 and 60 nM MCM-Cdt1 are added for an additional 10 min followed by passing over a G-50 illustra micro-spin column pre-equilibrated in replication buffer to remove NaCl. ATP and 50 nM DDK are then added for 10 min, then the reaction volume is doubled with a final concentration of: 40–80 nM Cdc45, 30 nM Dpb11, 20 nM Polε^exo- (D290A, E292A), 20 nM GINS, 15 nM CDK, 20 nM Csm3/Tof1, 20 nM Mrc1, 20–30 nM Sld3/7, 20 nM Mcm10, 20–50 nM Sld2, and 350 nM RPA. At each time point, 2.5 µl of reaction was added to a tube containing 5 µl replication buffer and 1 µl MseI (NEB) for 3 min, and then the reaction was quenched with the addition of EDTA. Samples were then deproteinated with SDS and proteinase K followed by column clean-up (QIAquick PCR purification kit) according to manufacturer’s instructions. The final elution was done with 300 µl 10 mM Tris pH 8. Then qPCR was performed in triplicate using 4 µl sample in 8–9 µl reaction with FastStart Universal SYBR Green Master Mix (Roche) and primers flanking each MseI cassette (Table 2).

The raw data was first averaged over the triplicate qPCR reactions, then normalised to the average of the control qPCR reactions of each sample using primers that anneal to the template away from the MseI cleavage sites. The time-course curve for each site (bp from origin) was then fit with a spline and normalised to the unwound DNA in the last timepoint of the closest site (200 bp from origin). The unwinding rate was then calculated by integrating the spline and averaging over the last three sites (1000, 1500, and 2000 bp from origin).

AGTACTCAACCAAGTCATTCTGAGAATAGTGTATGCGGCGACCGAGTTGCTCTTGCCCGGCGTCAATACGGGATAATACCGCGCCACATAGCAGGACTTTAAAAGTGCTCATCATTGGAAAACGTTCTTCGGGGCGAAAACTCTCAAGGATCTTACCGCTGTTGAGATCCAGTTCGATGTAACCCACTCGTGCACCCAACTGATCTTCAGCATCTTTTACTTTCACCAGCGTTTCTGGGTGAGCAAAAACAGGAAGGCAAAATGCCGCAAAAAAGGGAATAAGGGCGACACGGAAATGTTGAATACTCATACTCTTCCTTTTTCAATATTATTGAAGCATTTATCAGGGTTATTGTCTCATGAGCGGATACATATTTGAATGTATTTAGGGGAATAAACAAATAGGGGTTCCGCGCACATTTCCCCGAAAAGTGCCACCTGACGTCTAAGAAACCATTATTATCATGACATTGGCCTATAAAAATAGGCGTATCACGAGGCCCTTTCGTCTCGCGCGTTTCGGTGATGACGGTGAAAACCTCTGACACATGCAGCTCCCGGAGACGGTCACAGCTTGTCTGTAAGCGGATGCCGGGAGCAGACAAGCCCGTCAGGGCGCGTCAGCGGGTGTTGGCGGGTGTCGGGGCTGGCTTAACTATGCGGCATCAGAGCAGATTGTACTGAGAGTGCACCATATGCGGTGTGAAATACCGCACAGATGCGTAAGGAGAAAATACCGCATCAGGCGCCATTCGCCATTCAGGCTGCGCAACTGTTGGGAAGGGCGATCGGTGCGGGCCTCTTCGCTATTACGCCAGCTGGCGAAAGGGGGATGTGCTGCAAGGCGATTAAGTTGGGTAACGCCAGGGTTTTCCCAGTCACGACGTTGTAAAACGACGGCCAGTGAATTCCTCGATTTTTTTATGTTTAGTTTCGCGGACGACGGTTTCGAGGTGGCGGTCTGGACCACGCCGGAGAGCGTCGAAGCGGAGGCGGTGTTCGCCGAGATCGGCTCGCGCAAAGCCGAGTTGAGCGAACTAAACATAAAAATACAGCATCAGATGGTAGGCCTCCTGGCGCCGCACCGGCCTCAGCATCCGGTACCTCAGCTGGCCACATCACTGTCTTTCTTATGACGGTACTACCGGTGTTCACTGCACCAAGGTAACACTCATTAAATTAAGGTTAAATTAATCTACACAATTCTCTTTTGCTATTGGTACCGGATTCTCCAGCTCTGACTTCAGCGTCTCTGAAGGAATCTTTGCAGGTGCTTACGCTTACTACCTAAACTACAATGGTGTTGTCGCTACTAGTGCCGCTTCTTCAACCACTGGATCTGGTCCTAGGGCTTCGGTCCGCCCCTACTTCAGCGCCATTCGCCATTCAGGCTGCGCAACTGTTGGGAAGGGCGATCGGTGCGGGCCTCTTCGCTATTACGCCAGCTGGCGAAAGGGGGATGTGCTGCAATTCGGTTAAGTTAAGTTAAGGTTAAAGAAGCTAACGCCAGGGTTTTCCCAGTCACGATTCGGTGCTTCCGTTACCGGTTCAACTGCTTCCACTTCATGGGCTACTTTTTGGACCGGAACGGCTGGTACTATCGGCCTGGTATCATCCTTTACCGAAGCAACATCTGTTTACACTACAACACTAGACCAAGCACAGTCGTAGTTTCTTGTTCAGAGATGACTCCAATGGTAACGTCTATACCATTACCACAATCATTAAGTTAAATTAAGTTAATCAAACCGTTCCATGCTCATCCACTACCGCCACTATTACTTCTTGTGATGAAACTGGATGTCACGTTAGTACATCAACCGGTGCTGTTGTAACTGAAACCGTTTCTTCCAAGGCATACACAACTGCCAAAGTAACTCGTTGTGACGCCAATCAGCTTGTCTGTAAGCGGATGCCGGGAGCAGACAAGCCCGTCAGGGCGCGTCAGCGGGTGTTGGCGGGTGTCGGGGCATGGTTAAAGTTAACTTAAATTAAGGTACGCGGCATCAGAGCAGATTGTACTGAGAGTGCACCATATGCGGTGTGAAATACCGCACAGATGCGTAGGCTCAATGTAACTTAGCCACTGTCAATTGGGAATGTTCCAGGGATTCATGGACAACAACTGCAACTGGAGTATCATACACCACTGTCACCGTAACCCACTGTGACGACAATGGCTGTAACACCAAGACTAAGCTCCTGAAGCTACCACCACAACTATCGCCCACCAGGACCACCGTCACCTTTAGTGATGACAATGAAGGTAAGACCTTGGGTGAGTCTGGTCCAGCGGAGGGCCACTACTGTTTCTCCAAAGACATACACCACCGCTACTGTTACTCAGGGGGATAAAAATGCCTGCCTCACCAAGACTGTCACTTCTGAATGTCCTGAAGAAACTTCAGCAACTACTACTGTCACTTCTGAGGGTTCTAAAGCAACCTCATTGAGTCGACGCGGGGGCGACGATTAACCTTAACGTTAAGTTAAGCTAGCACGACTACGCATCCCTCTGACTACTTCTCGGGGTGGGACTATACTGGTACCGATACGGGCTGTGATGACAACGATGTGTAGAACTGGGACAATCAGATCTGAGGCCCCTGAAGCCACAACGGGTACTGTTTCTAACAACAGATACAACATGGAGGGCCAACATTGTCACAATAGAAGCTCCGCCAGAAACAGTAGAAACTTCAGAAACCAGTGCTGCCCCTAAGGACATACACTACTGCCACTGGTTACTCAATGGTTTAGAGGGTGGTTGCCACGTCAAGATAATCACCTCTAAAATACCTGAAGCTACTTCAACCGTCACGGGTGCTTCTCCAAAACGGCCTTACATAGCCGGATACAGTGACTTTGACAGGTTTGCGGGGCACAGCAATGACTTGCATAGCTGCGTGCGGGGGAAGGAACTCTTGCGTCTCACTGCCCGCTTTCCAGTCGGGAAACCTGTCGTGCCATTATGGTTAACTTAAGTTAATTTAAGCTATCGGCCAACGCGCGGGGAGAGGCGGTTTGCGTATTGGGCGCTCTTCCGCTTCCTCGCTCAGTGAGTATCTCTGCTTGACGACCCCTTGGCGCAGAGGTGCTGGCCGCGTGCTAAGTTGAAGCGGCTGCACTGCTGCAAGGTCCGTCACGGAGGCGTCGGACCGGCAGGAGCACTAGCCCATCGACCCGTACGGGAACACTCTATATCGCTCTCGGACGGACATTCTGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTTGGCGTAATCATGGTCATAGCTGTTTCCTGTGTGAAATTGTTATCCGCTCACAATTCCACACAACATACGAGCCGGAAGCATAAAGTGTAAAGCCTGGGGTGCCTAATGAGTGAGCTAACTCACATTAATTGCGTTGCGCTCACTGCCCGCTTTCCAGTCGGGAAACCTGTCGTGCCAGCTGCATTAATGAATCGGCCAACGCGCGGGGAGAGGCGGTTTGCGTATTGGGCGCTCTTCCGCTTCCTCGCTCACTGACTCGCTGCGCTCGGTCGTTCGGCTGCGGCGAGCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTGGAAATGAAGTTTTAAATCAATCTAAAGTATATATGAGTAAACTTGGTCTGACAGTTACCAATGCTTAATCAGTGAGGCACCTATCTCAGCGATCTGTCTATTTCGTTCATCCATAGTTGCCTGACTCCCCGTCGTGTAGATAACTACGATACGGGAGGGCTTACCATCTGGCCCCAGTGCTGCAATGATACCGCGAGACCCACGCTCACCGGCTCCAGATTTATCAGCAATAAACCAGCCAGCCGGAAGGGCCGAGCGCAGAAGTGGTCCTGCAACTTTATCCGCCTCCATCCAGTCTATTAATTGTTGCCGGGAAGCTAGAGTAAGTAGTTCGCCAGTTAATAGTTTGCGCAACGTTGTTGCCATTGCTACAGGCATCGTGGTGTCACGCTCGTCGTTTGGTATGGCTTCATTCAGCTCCGGTTCCCAACGATCAAGGCGAGTTACATGATCCCCCATGTTGTGCAAAAAAGCGGTTAGCTCCTTCGGTCCTCCGATCGTTGTCAGAAGTAAGTTGGCCGCAGTGTTATCACTCATGGTTATGGCAGCACTGCATAATTCTCTTACTGTCATGCCATCCGTAAGATGCTTTTCTGTGACTGGTG.

Log-phase yeast cultures in YPD were diluted to OD₆₀₀ 0.5 and arrested with 20 µg/ml of alpha-factor for 2–3 hr at 25°C. Cells were washed two times with YPD and then resuspended in YPD + 200 mM HU. Cells were then harvested at the indicated times, and protein was extracted with 10% trichloroacetic acid. Extracts were then processed by 3–8% Tris-acetate SDS-PAGE, transferred to nitrocellulose, and immunoblotted with anti-Flag (M2 mouse monoclonal) and anti-Rad53 (Abcam, ab104232, rabbit polyclonal) antibodies.

Log-phase yeast cultures in YP-raffinose were centrifuged and resuspended in YP-galactose to OD₆₀₀ 0.3 and arrested with 20 µg/ml of ɑ-factor for 3 hr at 25°C. Cells were washed two times with YPG and then resuspended in YPG + 200 mM HU + 200 μg/ml BrdU. After 1 hr, cells were washed two times with YPG and then resuspended in YPG + 2 mM thymidine. Cells were harvested at the indicated times, and DNA was extracted with phenol-chloroform. DNA was run on a 0.8% alkaline agarose gel, then alkaline transferred to a positively charged nylon membrane with the VacuGene XL Vacuum Blotting System (Amersham), and immunoblotted with anti-BrdU antibody (BD, 347580, mouse monoclonal).

Yeast strains are listed in Table 3. Plasmids are listed in Table 4. RAD53^K227A,K339A was constructed by PCR with mutated oligos on pET21b-RAD53 (Gilbert et al., 2001). Mrc1 fragments were made by PCR from genomic DNA and cloned into pET21b vector with NheI and XhoI. pAWM16, pVP14, pAWM35, pAWM15, pAWM17, and pAWM18 were derived from the original plasmid yJY17 with the codon-optimised sequence of MRC1 (Yeeles et al., 2017) and modified with Gibson assembly methods, and then transformed into the his3 locus by cleaving with NheI. pAWM25 contained the C-terminal portion of MRC1^19A (starting from base pair 1395) and the 3xFLAG tag between the BamHI and NotI sites of pRS40N and then was cut with Blp1 to modify the already integrated codon-optimised MRC1 at the his3 locus. pVP14 (MRC1^17AQ) contains all S/T residues followed by Q sites mutated to A as in Osborn and Elledge, 2003. pAWM15 (MRC1^14A) contains the following mutations: S911A, S918A, S920A, T952A, S957A, T996A, T997A, S1006A, S1033A, T1036A, S1039A, S1040A, S1043A, T1045A. pAWM25 (MRC1^19A) contains the following mutations: T882A, S911A, S918A, S920A, S924A, T932A, T952A, S957A, S958A, T996A, S997A, S1006A, S1010A, S1033A, T1036A, S1039A, S1040A, S1043A, T1045A. pAWM18 (Mrc1^41A) contains the following mutations: T882A, S911A, S918A, S920A, S924A, T932A, S937A, T952A, S957A, S958A, S961A, T963A, S965A, T967A, S969A, T970A, T971A, S972A, T974A, T977A, T996A, S997A, S1006A, S1010A, S1013A, T1015A, T1027A, S1033A, T1036A, S1039A, S1040A, S1043A, T1045A, T1050A, T1060A, T1063A, T1079A, T1081A, S1083A, S1089A, S1093A. pAWM17 (Mrc1^8D) contains the following mutations: S911D, S918D, S920D, T952D, S957D, T996D, S997D, S1006D. pAWM47 and pAWM48 contained base pairs 1424–3288 of MRC1 between XhoI and BamHI and 127 bp of the 3’ UTR of MRC1 between BamHI and NotI. The 3xFLAG tag was added with flanking BamHI sites, and the plasmids were integrated into yeast after cutting with XbaI. The template used in the CMG helicase assay was made by modifying a plasmid with a pBlueScript vector and contained a synthetic origin with either two ORC binding sites 70 bp apart (pAWM36) or no ORC binding sites (pAWM37) (Coster and Diffley, 2017) and a synthetic fragment from GeneArt (Thermofisher) that contained the tandem MseI sites. See full pAWM36 plasmid sequence below. The hENT and dmdNK constructs were crossed from strains from Segurado and Diffley, 2008.

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

We thank A Alidoust, N Patel, and D Patel in the Structural Biology Laboratory for yeast protein expression. We thank D Joshi in the Peptide Chemistry Laboratory for generating the Mrc1 peptide arrays and D Frith in the Proteomics Laboratory for processing mass spectrometry samples. We thank V Posse for providing Mrc1^17AQ protein. We thank V Posse, A Bertolin, B Canal, and all members of the Diffley group for stimulating discussions and advice. This work was supported by the Francis Crick Institute, which receives its core funding from Cancer Research UK (FC001066), the UK Medical Research Council (FC001066), and the Wellcome Trust (FC001066). This work was also funded by an EMBO Long-Term Fellowship (ALTF 1259–2016 to AWM), Wellcome Trust Senior Investigator Awards (106252/Z/14/Z and 219527/Z/19/Z to JFXD), and a European Research Council Advanced Grant (669424-CHROMOREP to JFXD). For the purpose of Open Access, the author has applied a CC BY public copyright licence to any Author Accepted Manuscript version arising from this submission.
