Systematic morphological and morphometric analysis of identified olfactory receptor neurons in Drosophila melanogaster

  1. Cesar Nava Gonzales
  2. Quintyn McKaughan
  3. Eric A Bushong
  4. Kalyani Cauwenberghs
  5. Renny Ng
  6. Matthew Madany
  7. Mark H Ellisman
  8. Chih-Ying Su  Is a corresponding author
  1. Neurobiology Section, Division of Biological Sciences, University of California, San Diego, United States
  2. National Center for Microscopy and Imaging Research, Center for Research in Biological Systems, University of California, San Diego, United States
Research Article
  • Cited 1
  • Views 874
  • Annotations
Cite this article as: eLife 2021;10:e69896 doi: 10.7554/eLife.69896

Abstract

The biophysical properties of sensory neurons are influenced by their morphometric and morphological features, whose precise measurements require high-quality volume electron microscopy (EM). However, systematic surveys of nanoscale characteristics for identified neurons are scarce. Here, we characterize the morphology of Drosophila olfactory receptor neurons (ORNs) across the majority of genetically identified sensory hairs. By analyzing serial block-face electron microscopy images of cryofixed antennal tissues, we compile an extensive morphometric data set based on 122 reconstructed 3D models for 33 of the 40 identified antennal ORN types. Additionally, we observe multiple novel features—including extracellular vacuoles within sensillum lumen, intricate dendritic branching, mitochondria enrichment in select ORNs, novel sensillum types, and empty sensilla containing no neurons—which raise new questions pertinent to cell biology and sensory neurobiology. Our systematic survey is critical for future investigations into how the size and shape of sensory neurons influence their responses, sensitivity, and circuit function.

Introduction

Most insect species, including agricultural pests and disease vectors, rely on olfaction to guide critical behaviors including foraging, feeding, mating, egg-laying, and aggression (Kim et al., 2017). Odor detection begins with the olfactory organs, the antenna and maxillary palp, which are covered with sensory hairs, or sensilla, that encapsulate the dendrites of olfactory receptor neurons (ORNs). In Drosophila melanogaster, olfactory sensilla fall into four morphological classes—basiconic, coeloconic, intermediate, and trichoid—which are distinguished by their length, size, shape, and cuticular pore arrangement (Shanbhag et al., 1999). Notably, ORNs housed in different sensillum classes have distinct dendritic branching patterns and odor tuning properties. The outer dendritic segments of basiconic and intermediate ORNs display multiple branches, whereas the outer dendrites of coeloconic and trichoid neurons are typically unbranched (Shanbhag et al., 1999). While basiconic ORNs respond to a wide range of odorants, trichoid neurons respond predominantly to pheromones, and most coeloconic neurons are selectively tuned to amines and carboxylic acids (Dweck et al., 2015; Hallem and Carlson, 2006; Lin et al., 2016; Silbering et al., 2011; van der Goes van Naters and Carlson, 2007; Yao et al., 2005). The link between sensillum class, dendritic branching pattern, and odor tuning property suggests that the morphological features of sensilla and ORNs likely influence olfactory function. However, testing this possibility requires a systematic survey of these morphological features at nanoscales for neurons whose receptors have been identified and whose odor response profiles have been characterized.

The majority of antennal sensilla house multiple ORNs. Each neuron is assigned a designation indicating the host sensillum and its relative extracellular spike amplitude among grouped neurons. Typically two and up to four ORNs are compartmentalized in a sensillum in stereotyped combinations—whereby a neuron expressing a particular receptor is always paired with a neighboring neuron that expresses another specific receptor (Benton et al., 2009; Couto et al., 2005; Fishilevich and Vosshall, 2005; Hallem and Carlson, 2006; Hallem et al., 2004). For example, the Or59b receptor is expressed in the ab2A neuron, which is located in the antennal basiconic sensillum of type 2, while the ‘A’ indicates that its spike amplitude is greater than that of the neighboring ab2B neuron, which invariably expresses the Or85a receptor (Hallem et al., 2004). Interestingly, deleting or substituting the tuning receptor for an ORN does not alter its characteristic spike amplitude (Dobritsa, van der Goes van Naters and Carlson, 2007; Hallem et al., 2004), suggesting that spike amplitude is a feature independent of receptor identity. The genetically predetermined pairing of neurons implies functional significance for this arrangement.

Indeed, ORNs housed in the same sensillum can inhibit each other by means of direct electrical interaction, termed ephaptic coupling, which can also modulate fruitfly behavior in response to odor mixtures (Su et al., 2012; Zhang et al., 2019). Strikingly, in most sensillum types, lateral inhibition is asymmetric between compartmentalized ORNs: the large-spike neuron is not only capable of exerting greater ephaptic influence but is also less susceptible to ephaptic inhibition by its small-spike neighbors. Mechanistically, this functional disparity arises from the size difference between grouped neurons. The large-spike ORN has a larger soma than its small-spike neighbor(s); this feature is translated into a smaller input resistance for the ‘A’ neuron, thus accounting for its dominance in ephaptic interaction (Zhang et al., 2019). These findings indicate a causal relationship between an ORN’s morphometric features and its circuit function. Taken together, these observations highlight the necessity and value of a systematic morphometric survey of genetically identified ORNs.

Pioneering transmission electron microscopy (TEM) studies of high-pressure frozen and freeze-substituted (i.e., cryofixed) antennal tissues have provided a high-quality morphological atlas of Drosophila ORNs (Shanbhag et al., 1999; Shanbhag et al., 2000). However, for morphometric analysis, the utility of this atlas is limited because the 3D structure and molecular identity of ORNs are undefined. Taking advantage of the CryoChem method, which we have previously developed to permit high-quality ultrastructural preservation of cryofixed and genetically labeled samples for volume EM (Tsang et al., 2018), we have acquired serial block-face scanning electron microscopy (SBEM) images of antennal tissues in which select ORNs expressed a membrane-tethered EM marker (APEX2-mCD8GFP or APEX2-ORCO) (Tsang et al., 2018; Zhang et al., 2019). In a previous study, we focused our analysis on the soma of labeled ORNs and their co-compartmentalized neuronal partners in five sensillum types (Zhang et al., 2019). Yet, in addition to the APEX2-labeled hairs, each SBEM data set contains many other sensilla, whose identity can be determined by cross-referencing the sensillum morphology and the number of its compartmentalized ORNs (Benton et al., 2009; Couto et al., 2005; Fishilevich and Vosshall, 2005; Grabe et al., 2016; Lin and Potter, 2015; Shanbhag et al., 1999, Shanbhag et al., 2000). For example, among the three large basiconic sensillum types, ab1 can be identified without genetic labeling because the sensillum houses four neurons, whereas ab2 and ab3 both house two ORNs. Moreover, within a known sensillum, the ‘A’ or ‘B’ ORN can be distinguished according to the soma size. That is, the spike amplitude ratio between grouped neurons reflects their soma size differential (Zhang et al., 2019). Thus, the cellular identities of ORNs can be determined for many unlabeled neurons in our SBEM data sets (see Table 1—source data 1 for details).

Table 1
Morphometric information on identified olfactory sensilla of Drosophila melanogaster.

Values are means ± s.e.m. Empty sensilla which do not house any neurons are denoted by (0). abx: novel basiconic sensillum, and the numbers of compartmentalized neurons are indicated in parentheses. Detailed information regarding how individual sensilla were identified and their respective source data sets can be found in the Table 1—source data 1 and Figure 1—source data 1 files.

Sensillum typeLength (μm)Surface area (μm2)Cuticle volume (μm3)Lumen volume (μm3)
Trichoid
T121.29±0.35 (n=19)103.33±1.6344.70±0.7522.74±0.41
T221.94±0.41 (n=10)116.75±1.7555.73±0.9628.19±1.03
T320.64±0.27 (n=21)112.94±1.3955.58±0.8528.45±0.51
T(0)22.13 (n=1)103.6047.9824.38
Intermediate
ai212.70±0.19 (n=20)55.26±1.0221.92±0.5011.08±0.26
ai310.97±0.12 (n=20)52.49±1.1221.38±0.6611.83±0.25
Basiconic
ab110.80±0.16 (n=5)70.70±0.5539.49±2.1228.18±2.38
ab210.33±0.30 (n=4)62.86±3.6332.28±2.8223.18±1.87
ab311.92±0.27 (n=7)77.06±3.6638.72±1.4730.03±1.07
abx(3)10.37±0.11 (n=2)71.48±2.3836.49±0.0623.79±0.34
ab411.31±0.15 (n=7)63.28±2.9827.84±1.8717.41±1.84
ab58.84±0.19 (n=8)36.85±0.6813.49±0.306.85±0.22
abx(1)8.84±0.16 (n=3)42.25±1.4816.18±1.778.68±1.44
abx(0)9.00 (n=1)39.0015.097.30
Coeloconic
ac16.19±0.17 (n=18)32.40±1.3613.51±0.730.44±0.04
ac25.68±0.06 (n=3)21.59±1.338.98±0.330.40±0.03
ac3II5.39±0.13 (n=8)25.16±0.599.86±0.420.82±0.04
ac44.89 (n=1)26.529.140.32

Here, we conduct a systematic morphological and morphometric analysis of identified Drosophila ORNs. By segmenting SBEM images, we reconstruct 3D structures for neurons housed in 13 of the 19 genetically defined antennal sensillum types (Benton et al., 2009; Lin and Potter, 2015), covering all four morphological classes: the basiconic (ab1–5), coeloconic (ac1–4), intermediate (ai2 and ai3), and trichoid sensilla (at1 and at4) from a total of 158 reconstructed 3D sensillum models. Furthermore, based on 122 reconstructed 3D ORN models, we perform morphometric analysis for 33 of the 40 identified antennal ORN types (Task and Lin, 2021), as well as for 4 novel neuronal types. Our high-resolution survey uncovers multiple novel features, including extracellular vacuoles in the sensillum lumen, mitochondria-enriched inner dendritic enlargement, empty sensilla which house no ORNs, and two hitherto uncharacterized basiconic sensillum types. We also show that the outer dendritic branching pattern is much more intricate than previously appreciated. The information provided here defines new questions about how the size and shape of sensory neurons influence their responses, sensitivity, and circuit function, and sets the stage for future investigations into the molecular and cellular mechanisms underlying diverse ORN morphologies.

Results and discussion

We began with a detailed survey of the SBEM images we had previously generated using female antennal tissues (Zhang et al., 2019). Individual data sets, acquired from different flies and named on the basis of the APEX2-expressing ORNs, included numerous sensory hairs in addition to the sensilla that housed labeled neurons (Figure 1A). In agreement with the characteristic topographical distribution of sensilla on the antenna (de Bruyne et al., 2001; Grabe et al., 2016; Shanbhag et al., 1999), the four morphological sensillum classes were unevenly represented in our eight SBEM data sets (Figure 1B,C). A total of 541 sensilla were sampled from these data sets, comparable to the total number of sensilla on an antenna (Shanbhag et al., 1999). Among the whole sensilla which were sampled in their entirety, we identified 37 basiconic, 30 coeloconic, 40 intermediate, and 51 trichoid sensilla based on their distinctive morphological features (Shanbhag et al., 1999). Briefly, the cuticle of basiconic, intermediate, and trichoid sensilla is decorated with numerous pores which serve as passages for odorants. The pores of basiconic sensilla are arranged in characteristic arrays, whereas those of trichoid and intermediate sensilla appear to scatter irregularly on the cuticular surface. The trichoid and intermediate sensilla are further recognized by their cylindrical, thickened bases, termed the ‘basal drum’ (Figure 1D). In contrast, the cuticle of the coeloconic sensilla does not contain any pores but instead consists of multiple cuticular fingers (Figure 1D), between which numerous spoke channels allow odorants access to ORNs (Shanbhag et al., 1999).

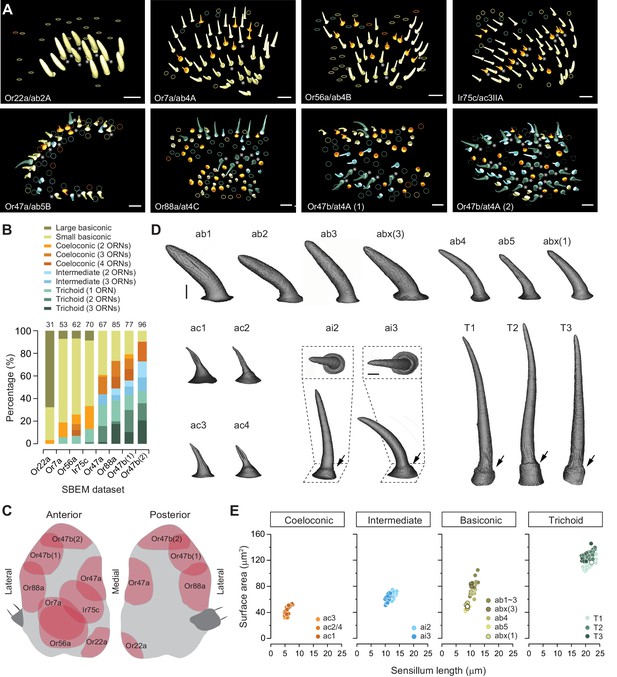

Different sensillum classes and their distribution across SBEM data sets.

(A) SBEM data sets analyzed in this study, named according to the genetically labeled ORNs (lower left corner, the receptor, and ORN identity are indicated). The 3D models of the cuticles are shown for basiconic (yellow), coeloconic (orange), intermediate (light blue), and trichoid sensilla (teal). Asterisks indicate the sensilla containing genetically labeled ORNs. Circles indicate partially sampled sensilla. The data sets are arranged approximately along the proximal-medial to distal-lateral axis on the anterior face of an antenna. Scale bars: 10 μm. (B) Percentage of different sensillum classes in individual data sets. The total numbers of sampled sensilla are indicated above the graph. (C) Illustration of antennal regions covered by individual SBEM data sets. (D) Isosurface images of identified sensillum types. Large basiconic: ab1, ab2, ab3, and abx(3); thin basiconic: ab4; and small basiconic: ab5 and abx(1). Coeloconic: ac1, ac2, ac3, and ac4. Intermediate: ai2 and ai3; insets: top-down perspective. Trichoid: T1, T2, and T3. Arrows indicate the basal drum. Scale bars: 2 μm. (E) Different sensillum classes exhibit distinctive morphometric features. The surface area for completely segmented sensillum cuticle is plotted as a function of sensillum length. Empty circles indicate the sensilla which do not house any ORNs. ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

For the completely sampled sensilla, we reconstructed their 3D models and performed morphometric analysis. Within a morphological class, sensillum identity was determined by the number of enclosed neurons and by genetic labeling when this information was available. Of note, the distribution of individual sensillum types on the antenna follows a characteristic topographical pattern (de Bruyne et al., 2001; Grabe et al., 2016; Shanbhag et al., 1999). Therefore, for an unlabeled sensillum, its proximity to the labeled sensillum type may further aid its identification (see Large basiconic sensillum section below). For basiconic sensilla, we identified all three large basiconic sensilla (ab1, ab2, and ab3), one thin basiconic (ab4), and one small basiconic sensillum (ab5). Unexpectedly, we also found two novel types of basiconic sensilla: one large basiconic housing three neurons, which we termed abx(3), and the other, a small basiconic housing only one neuron, which we termed abx(1). For the other three morphological sensillum classes, all of the reported subtypes were identified, including four coeloconic, two intermediate, and three trichoid sensilla (Figure 1D).

We further measured the length, surface area, cuticular, and lumen volumes of these identified sensilla (Table 1). The coeloconic sensilla are the shortest (5–8 μm), followed by the ab5 small basiconic (8–10 μm). The intermediate, thin, and large basiconic sensilla are of similar length (10–14 μm), while the trichoid sensilla are the longest (19–24 μm) (Figure 1E). In the remainder of this article, we focus on individual sensillum types, describe their identification, and provide morphological and morphometric information for their neurons (see Source data files for detailed information).

Trichoid sensilla

T1 sensillum

Distinctly among trichoids, the T1 sensillum houses only a single neuron expressing the Or67d receptor that responds to the male fly pheromone, cVA (Couto et al., 2005; Kurtovic et al., 2007; Shanbhag et al., 1999; Ha and Smith, 2006; van der Goes van Naters and Carlson, 2007). The ORN soma is located approximately 8–16 μm beneath the antennal surface (Figure 2A and Figure 2—figure supplement 1), with an average size of 47 μm3 (Table 2). The dendrite is divided into the inner and outer segments by the ciliary constriction (Figure 2A; Shanbhag et al., 1999). Situated entirely beneath the antennal surface, the inner dendritic segment is ensheathed by the thecogen cell, which is itself enveloped by the trichogen processes and then further surrounded by the tormogen cell (Figures 2A7 and 8). The inner dendrite exhibits a wider diameter (0.75–1.5 μm) than the outer dendrite (~0.3 μm), which extends into the sensillum lumen with a slight taper (Figure 2A) or with a markedly flattened distal segment (Figure 2—figure supplement 1A and Video 1). Although the T1 outer dendrite is believed to be typically unbranched (Shanbhag et al., 1999), we observed that among the four segmented T1 ORNs, one exhibits three branches and another six (Figure 2—figure supplement 1B,C and Video 1). In both cases, the dendrites began branching approximately halfway through the dendritic length inside the lumen, with secondary branching occurring further along distally (Figure 2—figure supplement 1B,C). The outer dendrite typically extends to the tip of the sensillum (Figure 2—figure supplement 1), but some terminate before reaching the endpoint (Figure 2A).

Figure 2 with 1 supplement see all

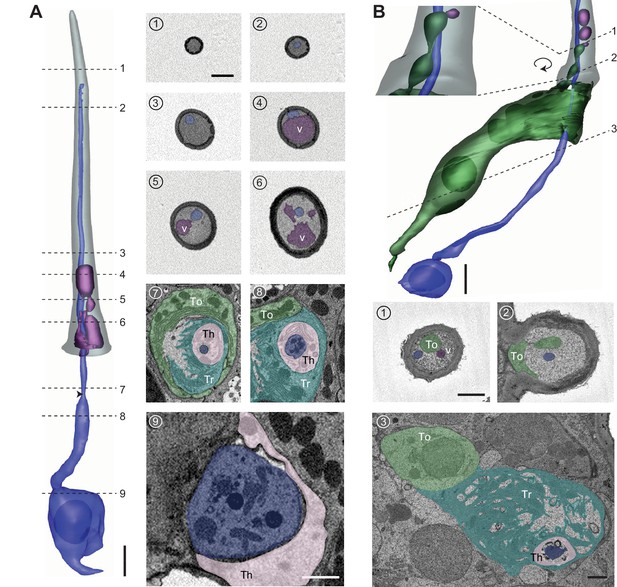

T1 trichoid sensillum.

(A) 3D model and SBEM images of a representative T1 sensillum. ORN (pseudocolored in blue), vacuoles (aubergine), and sensillum cuticle (gray) are shown. Dashed lines indicate positions of the corresponding SBEM images on the right: (1) luminal space devoid of ORN dendrite; (2–3) outer dendrite; (4–6) outer dendrite and vacuole structures; (7) ciliary constriction (arrow head), which demarcates the inner and outer dendritic segments; (8) inner dendrite; and (9) ORN soma. Three types of auxiliary cells were observed beneath the antennal surface: thecogen (Th), trichogen (Tr), and tormogen (To). (B) A partial 3D model and SBEM images of another T1 sensillum. ORN (blue), vacuoles (aubergine), and tormogen cell (green) are shown. Inset: magnified and rotated view, highlighting the bulbous protrusion from the tormogen cell. Dashed lines indicate positions of the corresponding SBEM images below: (1) vacuole in close proximity to the tormogen protrusion; (2) tormogen cell and its protrusion; and (3) tormogen soma, trichogen, and thecogen processes, and ORN dendrite. Scale bars: 2 μm for 3D models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images unless indicated otherwise. ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

Table 2
Morphometric information on identified ORNs of Drosophila melanogaster.

ORN identity is indicated by the sensillum type, relative spike amplitude (A, B, C, or D), odor-tuning receptor, and glomerular projection. Values are means ± s.e.m. Mitochondria analysis was performed for select ORN types. abx: novel basiconic sensillum, and the numbers of compartmentalized neurons are indicated in parentheses. * Information is available for one model. # Typical ac1 neurons. NA: information is not available because of incomplete sampling or segmentation. The odor response profiles for many of the characterized ORNs can be found in the DoOR database (http://neuro.uni-konstanz.de/DoOR/default.html).

ORN identitySomaInner dendriteOuter dendrite
Volume (μm3)Surface area (μm2)Volume (μm3)Surface area (μm2)Mitochondria numberVolume (μm3)Surface area (μm2)Branch number
T1
(n=4)
A (Or67d) (DA1)47.44±0.9579.21±2.255.08±0.2031.80±2.14NA2.58±0.2136.70±3.932.75±1.18
T2 (at4)
(n=4)
A (Or47b) (VA1v)63.42±5.4192.70±4.546.50±0.2037.62±1.42NA2.40±0.2126.98±1.571.00±0.00
B (Or88a) (VA1d)34.90±1.0465.07±1.444.50±0.6129.70±2.44NA1.00±0.0519.99±1.272.00±0.41
T3 (at4) (n=8)A (Or47b) (VA1v)67.10±3.75100.19±4.097.28±0.4639.04±2.84NA2.75±0.3830.55±2.851.57±0.27
B (Or65a) (DL3)26.15±1.1854.01±1.653.57±0.6026.53±2.72NA1.02±0.3313.46±1.641.25±0.25
C (Or88a) (VA1d)44.35±3.6383.73±4.776.10±0.5737.23±2.92NA1.59±0.4423.47±2.851.50±0.38
ai2
(n=3)
A (Or83c) (DC3)47.96±2.9578.43±2.857.23±0.3029.28±1.77NA2.92±0.1741.85±2.447.67±1.76
B (Or23a) (DA3)30.22±2.0662.92±0.683.07±0.0819.69±1.85NA0.64±0.0713.18±1.633.33±0.33
ai3
(n=2)
A (Or19a) (DC1)64.05±2.45108.63±6.888.78±0.8431.71±3.96NA2.51±0.1235.85±2.1516.00±2.00
B (Or2a) (DA4m)43.65± 1.3078.26±3.496.26±1.0031.16±5.55NA1.46±0.0929.08±2.2915.5±0.50
C (Or43a) (DA4l)36.72±5.2171.48±5.454.44±1.1622.66±5.21NA1.03±0.1419.08±2.299.00±0.00
ab1
(n=2)
A(Or42b) (DM1)69.96±4.14117.76±1.5519.39±4.6363.22±7.02123.50±14.50NANANA
B (Or92a) (VA2)60.96±4.1198.22±3.8921.15±0.8370.57±11.4081.50±21.50NANANA
C (Gr21a/63a) (V)52.10±1.00105.23±0.486.73±0.6329.84±1.2026.00±2.00NANANA
D (Or10a) (DL1)28.03±1.6961.00±1.172.83±0.0119.92±1.539.00±3.00NANANA
abx(3)
(n=3)
A59.20±5.98125.35±5.3817.49±6.1774.81±9.04NANANANA
B53.79±2.83126.34±8.4118.41±2.6889.24±23.85NANANANA
C43.71±0.88109.37±13.375.90±0.0243.71±3.72NANANANA
ab2
(n=1)
A (Or59b) (DM4)93.69131.2820.0163.011259.8275.42312
B (Or85a) (DM5)34.4068.893.3226.7360.4913.781
ab3
(n=5)
A (Or22a) (DM2)50.35±2.4298.27±3.7413.42±1.1765.64±5.3375*6.15*144.73*83*
B (Or85b) (VM5d)32.97±1.4987.30±6.683.69±0.4226.92±3.4614*1.95*39.55*19*
ab4
(n=3)
A (Or7a) (VM5v)73.44±3.38101.94±3.109.44±0.6332.60±2.9162.33±6.013.90±0.4279.89±18.3446.67±20.79
B (Or56a) (DA2)35.22±1.1267.72±4.013.63±0.4518.89±2.4917.67±4.481.65±0.4030.79±3.7412.67±4.10
ab5
(n=4)
A (Or82a) (VA6)31.21±1.1661.53±3.023.77±0.3419.79±2.05NA0.98±0.0527.25±2.1839.25±8.78
B (Or47a) (DM3)41.11±3.7072.45±4.731.77±0.4514.70±2.17NA0.82±0.1623.77±4.7744.75±12.38
abx(1)
(n=3)
A38.42*89.88*7.00±0.7436.09±3.8538.50±1.501.28±0.0220.94±2.756.00±3.00
ac1#
(n=4)
A (Rh50/Amt) (VM6)23.20±0.5546.98±0.921.38±0.089.96±0.874.75±0.480.62±0.047.95±0.431.00±0.00
B (Ir92a) (VM1)11.56±0.4032.02±1.290.84±0.018.47±0.273.50±0.960.13±0.013.72±0.151.00±0.00
C (Ir31a or 75d) (VL2p or VL1)9.62±0.3326.03±0.620.54±0.035.29±0.201.50±0.500.13±0.013.83±0.111.00±0.00
D (Ir31a or 75d) (VL2p or VL1)7.92±0.3525.08±1.500.67±0.048.54±0.922.25±0.630.20±0.014.65±0.131.00±0.00
ac2
(n=3)
A (Ir75a) (DP1l)26.69±1.4864.46±4.813.08±1.0020.41±5.89NA0.36±0.027.36±0.321.00±0.00
B (Ir75d or Ir41a) (VL1 or VC5)24.05±0.8154.33±1.482.07± 0.0614.87±0.85NA0.48±0.058.59±0.341.00±0.00
C (Ir75d or Ir41a) (VL1 or VC5)15.42±0.5840.32±4.121.55±0.2211.54±1.36NA0.26±0.056.41±0.731.00±0.00
ac3II
(n=4)
A (Ir75c) (DL2)41.27±5.6599.52±6.223.75±0.3626.53±1.84NA0.91±0.0712.18±0.491.25±0.25
B (Or35a) (VC3)23.49±1.3060.44±3.703.02±0.4324.96±2.47NA0.59±0.1111.01±1.153.00±0.71
ac4
(n=1)
A (Ir84a) (VL2a)38.3064.621.9911.76NA0.245.171.00
B (Ir75d) (VL1)31.9959.072.7215.89NA0.477.441.00
C (76a) (VM4)17.9239.601.6210.65NA0.255.011.00
Video 1
3D models of T1 olfactory receptor neurons.

Color codes are as indicated in Figure 2.

Besides the dendritic branches, we observed free, extracellular membrane-bound structures within the lumen in 4 of the 19 analyzed T1 sensilla (21%) (see Table 1—source data 1 for details). These membranous structures, which we referred to as vacuoles, were predominantly found in the proximal region of the sensillum (Figure 2A-4-6). They vary considerably in size (0.2–2.0 μm in diameter) and do not appear to have a regular shape (Figure 2A). In some cases, the vacuole occupied nearly an entire segment of the lumen, reducing the ORN dendrite to the margin (Figures 2A4). Although their functional significance remains to be determined, the extracellular vacuoles are likely derived from the tormogen auxiliary cell. In one T1 sensillum, we found that its tormogen cell extended a bulbous protrusion into the lumen, resembling the process of membrane budding (Figure 2B). Immediately adjacent to the bulbous protrusion was a small vacuole (Figure 2B). The close proximity between these two structures suggests that the free vacuoles within the lumen may have originated from the tormogen cell.

T2 and T3 sensilla

In addition to T1, we identified the other two trichoid sensillum types—T2 and T3—containing two and three neurons, respectively (Shanbhag et al., 1999; Figure 1). All trichoid sensilla are similar in length (19–24 μm), but T1 is distinctively narrower than T2 or T3 with smaller sensillum surface area and volume (Figure 1C,D and Table 1). In contrast, T2 and T3 cannot be distinguished externally from their morphological or morphometric features (Figure 1C,D and Table 1). On the basis of recent molecular and functional studies, T3 likely corresponds to the at4 sensillum, which houses three pheromone-sensing neurons: the Or47b (at4A), Or65a (at4B), and Or88a ORNs (at4C) (Couto et al., 2005; Dweck et al., 2015; Lin et al., 2016; van der Goes van Naters and Carlson, 2007). However, the molecular identity for T2 neurons remains hitherto unknown. Unexpectedly, in the data sets in which Or47b ORNs were genetically marked (Or47b-GAL4>10XUAS-myc-APEX2-Orco), we identified labeled neurons in both T2 and T3 sensilla (Figure 3A,B). Similarly, in the Or88a data set (Or88a-GAL4>10XUAS-myc-APEX2-Orco), labeled neurons were found in both T2 and T3 sensilla (Figure 3—figure supplement 1). Taken together, these results indicate that Or47b and Or88a ORNs are the shared constituents for T2 and T3.

Figure 3 with 2 supplements see all

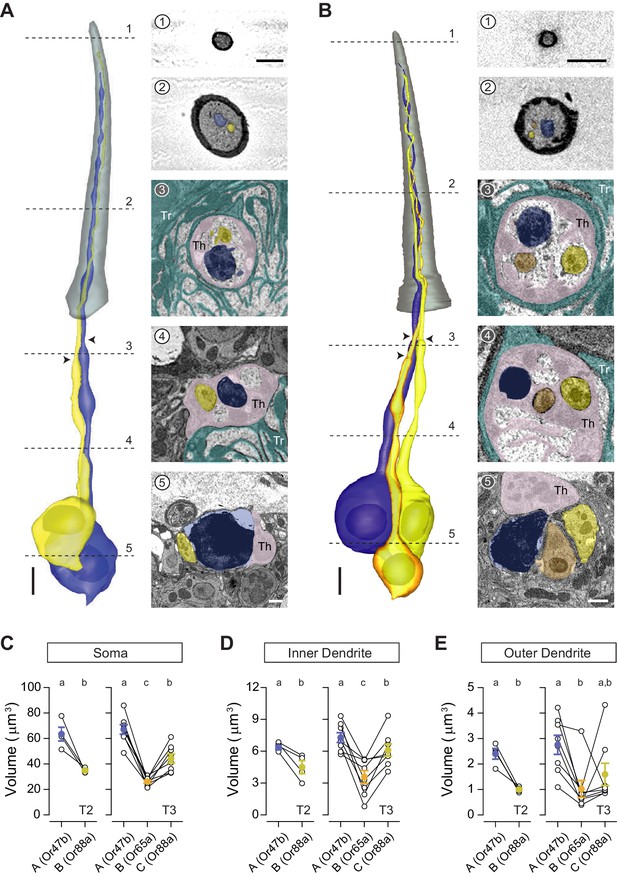

T2 and T3 trichoid sensilla.

3D models and SBEM images of a representative T2 (A) or T3 sensillum (B). Images were acquired from transgenic flies in which Or47b ORNs were engineered to express APEX2 (Or47b-GAL4>10XUAS-myc-APEX2-Orco) and labeled with diaminobenzidine (DAB, darker staining). (A) T2 houses two ORNs: the larger neuron is DAB-labeled and pseudocolored in blue, whereas the unlabeled, smaller neighbor is pseudocolored in yellow. (B) T3 houses three ORNs of different sizes: large (DAB-labeled and pseudocolored in blue), medium (yellow), and small (orange). Dashed lines indicate positions of the corresponding SBEM images on the right. Arrow heads indicate ciliary constrictions. Th: thecogen; Tr: trichogen; and To: tormogen. Scale bars: 2 μm for 3D models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images unless indicated otherwise. (C–E) Volumes of the soma (C), inner (D), and outer dendrites (E) of T2 or T3 ORNs. Lines connect data points from neurons housed in the same sensillum, mean± s.e.m. n=4 for T2, and n=8 for T3. Significant differences (p<0.05) are indicated by different letters; paired t-test for comparison between neighboring neurons, and unpaired t-test for comparison between non-grouped neurons. ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

In both sensillum types, the at4A/Or47b ORN is the largest cell among compartmentalized neurons, measuring approximately 65 μm3 in soma volume. In comparison, the at4C/Or88a soma is smaller, averaging 35 μm3 in T2 and 44 μm3 in T3. Although the Or65a ORN was previously designated as at4B without clear evidence for its intermediate spike amplitude, its soma is in fact the smallest among the three at4 ORNs, averaging only 26 μm3 (Figure 3C and Table 2). As with soma size, the average inner and outer dendritic volumes are both greatest for at4A/Or47b neurons, followed by at4C/Or88a, and then at4B/Or65a ORNs (Figure 3D,E). However, compared to soma size, a greater variability was observed for dendritic volumes. For example, in one T3 sensillum, the at4B/Or65a outer dendrite was larger than that of the neighboring at4C/Or88a neuron; in other instances, the at4C/Or88a dendritic volume was greater than that of at4A/Or47b (Figure 3E).

Similar to the T1 neurons, the inner dendritic segments of T2 or T3 ORNs are insulated from one another by thecogen processes (Figures 3A-3 and 4 and Figures 3B-3 and 4). The outer dendrites of some T2 and T3 ORNs also exhibit a small number of branches: among 12 pairs of segmented neurons, three Or47b ORNs display two or three dendritic branches, and five Or88a neurons have two to four branches. In comparison, only one of the eight segmented Or65a ORNs exhibit branched outer dendrites (Table 2 and Table 2—source data 1 for details). Also similar to T1 neurons, the outer dendritic morphology of T2 and T3 neurons are typically cylindrical with a gradual taper toward the tip, while some neurons have portions of their outer dendritic segments flattened like a rippled ribbon (Figure 3—figure supplement 2A,B and Video 2). Notably, we observed ring-shaped outer dendritic profiles in the cross-section images of some unbranched Or47b ORNs; 3D reconstruction reveals that these profiles correspond to dendritic regions with a hollow center (Figure 3—figure supplement 2C,D). In one neuron, the hollowed region was short, observed in the mid-section of the outer dendrite (Figure 3—figure supplement 2C). In another neuron, the hollowed section was considerably longer, exceeding 1/3 of the outer dendritic length, and was found in the distal segment of the dendrite (Figure 3—figure supplement 2D). Their variable position and length suggest that this dendritic structure is dynamic, possibly reflecting the process of dendritic branching. Finally, as with T1 sensilla, we observed extracellular vacuoles in the proximal regions of the sensillum lumen in 27% of the analyzed T2 sensilla and in 29% of T3 sensilla (see Table 1—source data 1 for details).

Video 2
3D models of T2 and T3 olfactory receptor neurons.

Color codes are as indicated in Figure 3.

Coeloconic sensilla

Conical in shape, the coeloconic sensilla are the shortest antennal sensilla, ranging from 4.8 to 7.6 μm long (Figure 1C,D). Unlike other olfactory sensilla, the cuticle of the coeloconic sensilla contains no pores and instead consists of closely apposed cuticular fingers, between which longitudinal grooves permit odorants to enter the inner sensillum lumen through interspersed spoke channels (Shanbhag et al., 1999). The number of cuticular fingers ranges from 5 to 9, and does not correlate with sensillum types (see Table 1—source data 1 for details). The cuticle is double-walled, wherein the inner cuticular cylinder lines the inner lumen, the volume of which is the smallest among antennal sensilla (0.3–1.0 μm3) (Table 1). Extracellular vacuoles were not typically observed within the small luminal volumes, as vacuoles were found only in 6 of the 90 analyzed coeloconic sensilla (7%) (see Table 1—source data 1 for details). The inner sensillum lumen encapsulates only a short distal segment of the outer dendrite (2–3 μm), while approximately 75% of the outer dendritic length is beneath the antennal surface. In addition, the coeloconic outer dendrites typically terminate before reaching the sensillum tip (Figure 4 and Video 3).

Figure 4 with 1 supplement see all

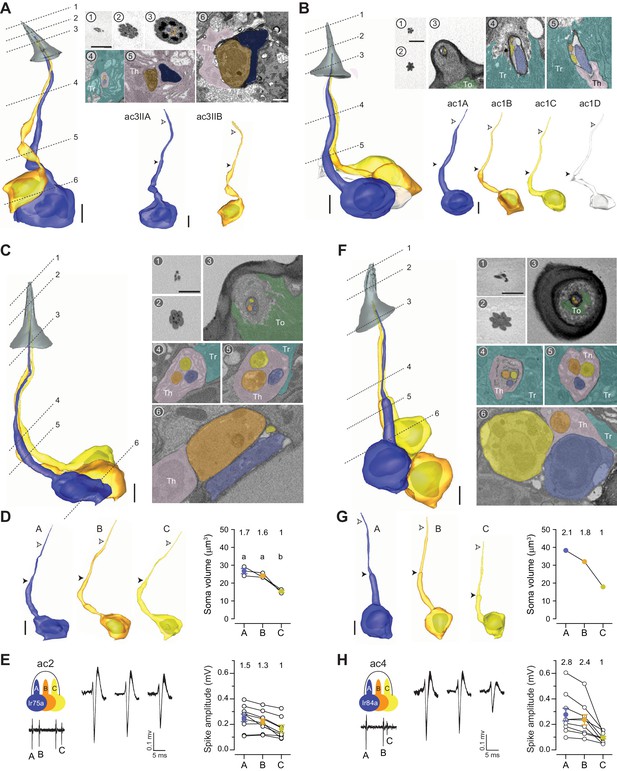

Coeloconic sensilla.

(A) 3D model and SBEM images of a representative ac3 sensillum. The ac3A ORNs were engineered to express APEX2 (Ir75c-GAL4>10XUAS-myc-APEX2-Orco) and labeled with DAB (darker staining). ORNs are pseudocolored to indicate neuronal identity: ac3A (blue) and ac3B (orange). Dashed lines indicate positions of the corresponding SBEM images. Filled arrow heads: ciliary constriction; empty arrow heads: sensillum base position. Th: thecogen; Tr: trichogen; and To: tormogen. (B) A representative ac1 sensillum. The four ORNs are pseudocolored based on their relative soma size in descending order: blue, orange, yellow, and white. (C) A representative ac2 sensillum. The three ORNs are pseudocolored based on their relative soma size in descending order: blue, orange, and yellow. (D) 3D models for individual ac2 neurons as shown in (C) and their respective soma volumes. Lines connect data points from neurons housed in the same sensillum, mean± s.e.m. n=3. The soma volume ratio is indicated above the graph. Significant differences (p<0.05) are indicated by different letters; paired t-test for comparison between neighboring neurons. (E) Extracellular spike amplitudes of grouped ac2 ORNs. Left: Average spike waveforms are shown for individual neurons. Line width indicates s.e.m. Right: Spike amplitude comparison. Each data point represents the average spike amplitude of an ORN based on its spontaneous activity. Lines connect data points from neighboring neurons. Colored dots denote average spike amplitudes, mean± s.e.m. n=9. Spike amplitude ratio is indicated above the graph. (F–H) As in (C–E), except that images are shown for an ac4 sensillum. Scale bars: 2 μm for 3D models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images unless indicated otherwise. DAB, diaminobenzidine; ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

Video 3
3D models of ac1–ac4 olfactory receptor neurons.

Color codes are as indicated in Figure 4.

ac3 sensillum

Based on the number of compartmentalized neurons, the coeloconic sensilla are classified into three types that house two, three, or four ORNs. Among the two-neuron coeloconic sensilla, ac3I and ac3II are distinguished by genetic labeling. While the Or35a receptor is common to the B neurons in both types (Yao et al., 2005), the ac3IA neuron expresses the Ir75b receptor, whereas ac3IIA expresses Ir75c (Prieto-Godino et al., 2017). Here, we focused our analysis on the ac3II neurons identified from the Ir75c-labeled data set. The ac3II sensilla share similar external morphometric features as other coeloconic sensilla. However, they have the largest inner sensillum lumen, averaging 0.82 μm3, as opposed to 0.32–0.44 μm3 for other coeloconics (Table 1). Toward the distal end of the sensillum, ac3II has a flower-shaped cross-section profile due to its round cuticular fingers (Figure 4A). Inside the sensillum, the soma, inner, and outer dendrites of ac3IIA are consistently larger than those of ac3IIB (Figure 4A and Table 2). Among four pairs of segmented ac3II neurons, one ac3A has two dendritic branches, while all ac3B neurons have branched outer dendrites (2–5 branches, Table 2 and Video 3).

ac1 sensillum

A recent study shows that the ac1 sensillum compartmentalizes four neurons, including an ORN that expresses the ammonium transporter Amt as an ammonia receptor (Vulpe et al., 2021). The other three ac1 neurons express the Ir92, Ir31a, and Ir75d receptors, respectively (Benton et al., 2009). Compared to the ac3 sensillum, ac1’s cuticular fingers have a sharper edge, giving rise to its star-shaped cross-section profile (Figure 4B). The somatic volume of ac1A is nearly twice as large (~23 μm3) as ac1B (~12 μm3), which is in turn larger than ac1C (~10 μm3) and ac1D (~8 μm3) (Figure 4B, Figure 4—figure supplement 1A, and Table 2). Interestingly, the rank order for inner dendritic volume is A>B>D>C, whereas for the outer dendritic volume it is A>D>B=C (Figure 4—figure supplement 1B,C). With respect to their dendritic morphology, all ac1 neurons have unbranched outer dendrites (Table 2). Of note, among the five groups of segmented ac1 neurons, one ‘A’ neuron exhibited a considerably enlarged inner dendrite (Figure 4—figure supplement 1 and Video 3). The inner dendrite of this atypical neuron contained 24 mitochondria, as opposed to 4–6 for other ac1A neurons (see Table 2—source data 1 for details). Although the functional significance of this inner dendritic enlargement remains unclear, it will be interesting to determine whether this atypical feature reflects an ongoing dynamic cellular event or marks a distinctive group of neurons in an ac1 sensillum subtype.

ac2 and ac4 sensilla

We identified two types of coeloconic sensilla that house three ORNs, which likely correspond to the ac2 and ac4 sensilla (Benton et al., 2009). The ac2 ORNs express the Ir75a, Ir41a, and Ir75d receptors, while the ac4 neurons express the Ir84a, Ir75d, and Ir76a receptors, respectively (Benton et al., 2009; Silbering et al., 2011). We distinguished these two sensillum types based on their relative ORN soma size. Among the two sensillum populations, one compartmentalizes neurons whose soma sizes have ratios of 1.7:1.6: 1 (Figure 4C,D), close to the spike amplitude ratio for the ac2 neurons (Figure 4E). In comparison, the other sensillum type houses ORNs whose soma size ratio is 2.1:1.8:1 (Figure 4F,G), likely corresponding to ac4, which has a larger A-to-C spike ratio than ac2 (Figure 4E,H). Apart from relative ORN soma size, the two sensilla can be further differentiated by their external morphology. The cuticular fingers are rounder for ac2 than for ac4, such that the cross-section profile has an appearance of a flower for ac2, as opposed to a star for ac4 (Figure 4C and F). As with the ac1 neurons, the outer dendrites for ac2/ac4 ORNs are unbranched (Table 2 and Video 3).

Intermediate sensilla

The intermediate sensilla share similar cuticular morphology with trichoid sensilla (Figure 1A,B), but their length is shorter than that of trichoids (Figure 1D and Table 1). The intermediate sensilla also display the basal drum at the sensillum base which, although not as prominent as the trichoid counterpart, can be recognized in isosurface reconstructions (Figure 1C) or by the thick cuticular walls in SBEM sections (Figure 5A). Another distinctive feature for intermediate sensilla is the darkly stained lumen which contrasts with the light luminal staining in the basiconic and trichoid sensilla from the same SBEM data set (Figure 5A).

Figure 5 with 1 supplement see all

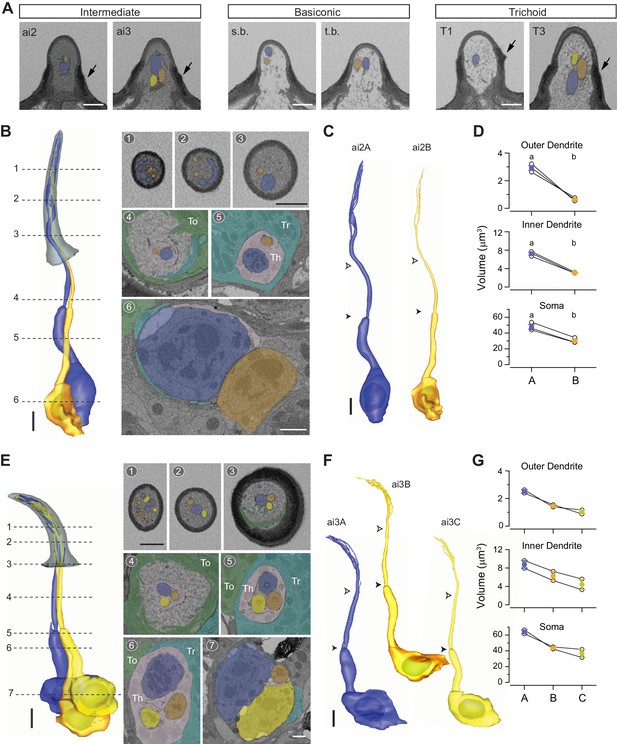

Intermediate sensilla.

(A) SBEM images of representative intermediate, basiconic, and trichoid sensilla sampled from the same data set. Intermediate sensilla display higher luminal density than the other two sensillum types. Arrows: basal drum; s.b. small basiconic; and t.b. thin basiconic. (B) 3D model and SBEM images of a representative ai2 sensillum. ORNs are pseudocolored to indicate neuronal identity: ai2A (blue) and ai2B (orange). Dashed lines indicate positions of the corresponding SBEM images. Th: thecogen; Tr: trichogen; and To: tormogen. (C) 3D models for individual ai2 neurons as shown in (B). Filled arrow heads: ciliary constriction; empty arrow heads: sensillum base position. (D) Volumes of the soma, inner, and outer dendrites of compartmentalized ai2 neurons. Lines connect data points from neurons housed in the same sensillum, mean± s.e.m. n=3. Significant differences (p<0.05) are indicated by different letters; paired t-test for comparison between neighboring neurons. (E–G) As in (B–D), except that images are shown for a representative ai3 sensillum. ORNs are pseudocolored to indicate neuronal identity: ai3A (blue), ai3B (orange), and ai3C (yellow). n=2. Scale bars: 2 μm for 3D models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images unless indicated otherwise. ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

In agreement with an earlier TEM study (Shanbhag et al., 1999), we also identified two populations of intermediate sensilla that house either two or three neurons, likely corresponding to the ai2 and ai3 sensilla, respectively. The ai2 ORNs express the Or83c (ai2A) and Or23a (ai2B) receptors, while the ai3 neurons express the Or19a (ai3A), Or2a (ai3B), and Or43a receptors (ai3C) (Dweck et al., 2013; Lin and Potter, 2015; Ronderos et al., 2014). On average, ai2 is ~3 μm longer than ai3 (Figure 1D and Table 1). For the ai2 sensillum, the A neuron soma is approximately 50% larger than the neighboring B neuron, and the size differential is greater for the inner dendritic segment, and still greater for the outer dendritic segment (Figure 5B-D and Table 2). All segmented ai2 neurons exhibit branched outer dendrites (Figure 5B, Figure 5—figure supplement 1, and Video 4) with branches numbering from 5 to 11 for ai2A and 3 to 4 for ai2B (Table 2). Of note, striking morphological variability was observed for ai2A dendrites. While the majority of branches are cylindrical with a gradual taper toward the tip, we found one that was flattened like a ribbon which spiraled upwards (Figure 5—figure supplement 1A). In another ai2A, the flattened region was observed in the unbranched segment of outer dendrite, which then gave rise to multiple cylindrical and some flattened sub-branches (Figure 5—figure supplement 1B). As for the ai3 sensilla, a similar size difference was observed for their grouped neurons: the ‘A’ neuron exhibits the largest soma, inner, and outer dendrites, and is followed by the neighboring ai3B and then ai3C neurons (Figure 5E-G). As with ai2, all analyzed ai3 neurons have branched outer dendrites (Table 2 and Video 4). Finally, extracellular vacuoles were observed in the lumen among 21% and 56% of the analyzed ai2 and ai3 sensilla, respectively.

Video 4
3D models of ai2 and ai3 olfactory receptor neurons.

Color codes are as indicated in Figure 5.

Large basiconic sensilla ab1 sensillum

Characteristic of this basiconic subtype is the large, club-shaped cuticular apparatus which has a rounded tip and a slight narrowing at the base (Figure 1C). Large basiconic sensilla range from 10 to 13 μm in length (Figure 1D and Table 1). Among large basiconics, ab1 is unique because it houses not two but four neurons (Figure 6A,B), which express the Or42b (ab1A), Or92a (ab1B), Gr21a/Gr63a (ab1C), and Or10 receptors (ab1D) (Couto et al., 2005; de Bruyne et al., 2001; Hallem et al., 2004; Jones et al., 2007; Kwon et al., 2007). Compartmentalized ab1 neurons have distinctive sizes, with the soma volumes in the ratio of 2.5:2.2:1.9:1, following the rank order A≥B>C>D (Figure 6C). Interestingly, ab1C, which senses CO2 (de Bruyne et al., 2001; Jones et al., 2007; Kwon et al., 2007), exhibits multiple membranous protrusions that resemble neuronal processes extending from the basolateral side of the soma (Figure 6B, arrows). Because of this unique feature, ab1C soma has the second largest surface area among the four grouped neurons (A>C>B>D), despite its relatively small soma volume (Table 2).

ab1 and ab2 large basiconic sensilla.

(A) A partial 3D model and sample SBEM images of a representative ab1 sensillum. ORNs are pseudocolored to indicate neuronal identity: ab1A (blue), ab1B (orange), ab1C (yellow), and ab1D (white). Dashed planes indicate positions of the corresponding SBEM images. Among the auxiliary cells, only thecogen is indicated (Th) because the identity for trichogen or tormogen cannot be unambiguously determined. (B) 3D models for individual ab1 neurons as shown in (A). Filled arrow heads: ciliary constriction. Arrow: membranous protrusion. (C) Volumes of the soma, inner, and outer dendrites of compartmentalized ab1 neurons. (D) The number and total volume of mitochondria in the inner dendritic segments of ab1 neurons. Lines connect data points from neurons housed in the same sensillum, mean± s.e.m. n=2. The volume or number ratio is indicated above each graph. (E, F) As in (A, B), except that a complete 3D model of an ab2 sensillum is shown. Filled arrow heads: ciliary constriction; empty arrow heads: sensillum base position. Inset: magnified and rotated view, highlighting the inner dendritic membranous protrusions. (G) Morphometric comparison of ab2A and ab2B neurons. The volume or number ratio is indicated above each graph. Scale bars: 2 μm for 3D models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images unless indicated otherwise. ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

More interestingly still, both ab1A and ab1B display markedly enlarged inner dendritic segments such that the size differential of ab1 neurons is even greater for this region—with a volumetric ratio of 6.8:7.5:2.4:1 (Figure 6B,C). As with the atypical ac1A (Figure 4—figure supplement 1), these inner dendritic enlargements contain numerous mitochondria (Figure 6A,B), with an average number of 124 for ab1A and 82 for ab1B (Figure 6D and Table 2). In comparison, the neighboring small-spike ‘C’ and ‘D’ neurons contain an average of 26 and 9 mitochondria, respectively (Figure 6D, Table 2 and Video 5). The disparity in mitochondrial number is also reflected in total mitochondrial volume (Figure 6D). We note that in vertebrate ORNs, mitochondria play a direct role in regulating cytosolic Ca2+ response profiles and thereby ensure a broad dynamic range for the neurons’ spike responses (Fluegge et al., 2012). Although it is unclear whether mitochondria play a similar role in insect olfactory signaling, a recent study shows that odor-induced Ca2+ signals in Drosophila ORNs are shaped by mitochondria (Lucke et al., 2020). Therefore, it will be interesting to investigate the functional significance of this striking mitochondrial disparity between grouped ORNs in future research.

Video 5
3D models of ab1–ab3 and abx(3) large basiconic neurons.

Color codes are as indicated in Figures 6 and 7.

ab2 and ab3 sensilla

Among the two large basiconic sensilla that house two neurons, we distinguished ab2 from ab3 by its lack of DAB staining in the Or22a data set, in which ab3A was genetically labeled by APEX2. Apart from the Or22a data set, an ab2 sensillum was identified in the Or7a data set on the basis of its proximity to the labeled ab4 sensilla, because ab3 is not found in the same topographical region as ab4 (de Bruyne et al., 2001). The ab2 and ab3 receptors are Or59b (ab2A), Or85a (ab2B), Or22a (ab3A), and Or85b (ab3B) (Dobritsa et al., 2003; Hallem et al., 2004). On average, the cuticular volume of ab2 (~32 μm3) is smaller than that of the genetically identified ab3 (~39 μm3) (Table 1). Among the four ab2 sensilla found in our data sets, we were able to segment a pair of ab2 ORNs in their entirety (Figure 6E,F and Video 5). In agreement with ab2’s large A/B spike amplitude ratio (Zhang et al., 2019), the soma size differential is notably high for the two neurons (2.7:1) (Figure 6G, top left panel). Of note, ab2A but not ab2B displays a bulbous inner dendritic enlargement and numerous long membranous protrusions (Figure 6E inset), which further widens the size disparity between the two neurons for this region (6:1) (Figure 6G, top right panel). As with the large-spike ab1 neurons, the ab2A inner dendritic enlargement contains over 100 mitochondria, markedly more numerous and with a greater total volume than ab2B (Figure 6G, middle panels, and Table 2). Moreover, an even greater disparity was observed in the outer dendritic segments: ab2A exhibits 312 dendritic branches while ab2B has only one (Figure 6G, bottom panels).

With respect to the ab3 large basiconic sensilla, four pairs of ORNs were identified and partially segmented from the Or22a-labeled data set in which the ab3A neurons were marked genetically. Additionally, we segmented a pair of ab3 neurons in their entirety from another data set (Figure 7A,B and Video 5), in which the ab3 sensillum was identified on the basis of its characteristic morphometric features (Table 1). Morphometric analysis of the soma and inner dendrite revealed a marked size difference between ab3A and ab3B (Figure 7C), as described in our previous work (Zhang et al., 2019). As with ab2A, the inner dendrite of ab3A also contains numerous mitochondria and displays several long membranous protrusions (Figure 7A,B). Similar to the other large basiconic neurons, the inner dendritic size disparity for grouped ab3 neurons (3.6:1) is greater than the somatic size difference (1.5:1) (Figure 7C). The outer dendritic disparity for ab3 neurons is less striking when compared to ab2 ORNs; the completely segmented ab3A and ab3B exhibit 83 and 19 dendritic branches, respectively (Table 2).

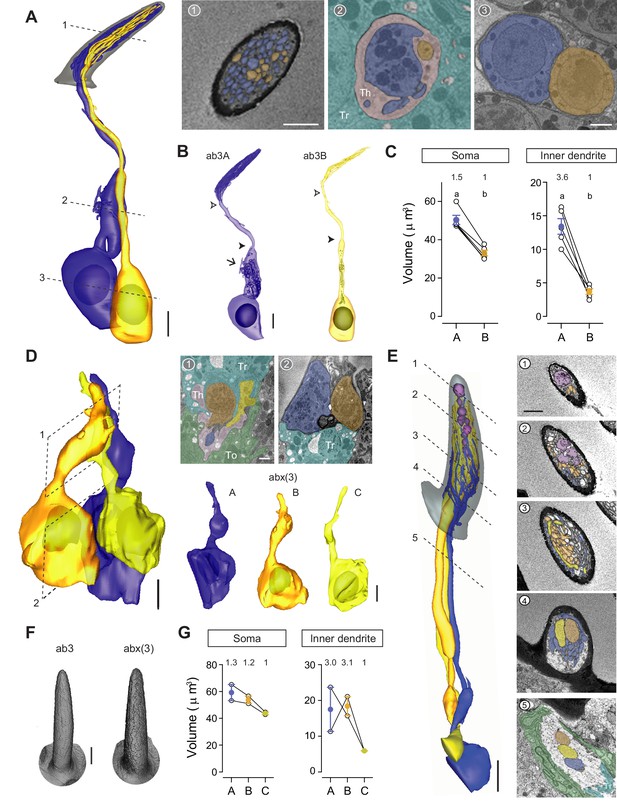

ab3 and abx(3) large basiconic sensilla.

(A) 3D model and sample SBEM images of an ab3 sensillum. ORNs are pseudocolored to indicate neuronal identity: ab3A (blue) and ab3B (orange). Dashed lines indicate positions of the corresponding SBEM images. Th: thecogen; Tr: trichogen; and To: tormogen. (B) 3D models for individual ab3 neurons as shown in (A). Filled arrow head: ciliary constriction; empty arrow head: sensillum base position. Arrow: membranous protrusions. (C) Volumes of the soma and inner dendrites of grouped ab3 neurons. Lines connect data points from individual neurons housed in the same sensillum, mean± s.e.m. n=5. The volume ratio is indicated above each graph. Significant differences (p<0.05) are indicated by different letters; paired t-test for comparison between neighboring neurons. (D, E) Partial 3D models and sample SBEM images of different abx(3) sensilla. ORNs are pseudocolored to indicate neuronal identity: abx(3)A (blue), abx(3)B (orange), and abx(3)C (yellow). Dashed planes or lines indicate positions of the corresponding SBEM images. (D) Partial soma and inner dendritic models, and (E) partial outer dendritic models. The identity for some dendritic branches cannot be unambiguously determined and are thus not pseudocolored. (F) Isosurface images of ab3 and abx(3) sensilla. (G) Volumes of the soma and inner dendrites of grouped abx(3) neurons. Lines connect data points from neurons housed in the same sensillum, mean± s.e.m. n=2. The volume ratio is indicated above each graph. Scale bars: 2 μm for 3D models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images from the same sensillum unless indicated otherwise. ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

Novel large basiconic sensillum housing three ORNs

In addition to the three known large basiconic sensilla (ab1–ab3), we identified a novel type that houses three ORNs (Figure 7D,E). As shown in the isosurface images and 3D models, this novel sensillum, which we termed abx(3), and the ab3 sensillum are indistinguishable based on their exterior morphological and morphometric features (Figure 7F and Table 1). Although we were unable to segment the abx(3) ORNs in their entirety, partial 3D reconstruction of the soma/inner dendrite or the outer dendrites was performed for different groups of abx(3) neurons (Figure 7D,E and Video 5). Compared to other compartmentalized large basiconic ORNs, the soma size disparity among the abx(3) neurons is less pronounced, with a ratio of 1.3:1.2:1 (Figure 7G). Nevertheless, a marked inner dendritic size difference was observed (3.0:3.1:1) (Figure 7G), because both A and B neurons but not the C neuron exhibit mitochondria-enriched enlargement (Figure 7D). We note that the size similarity between abx(3)A and abx(3)B neurons is reminiscent of that between ab1A and ab1B (Figure 6C), raising the possibility that abx(3) represents a subset of ab1 sensilla lacking the ab1D neuron. If so, it will be interesting to determine whether abx(3)C also corresponds to ab1C, given the lack of membranous protrusions in abx(3)C (Figure 7D). We note it is also possible that abx(3) represents an ab3 subset, or instead houses three uncharacterized orphan ORNs whose receptors have not yet been reported.

With respect to the outer dendrites of abx(3) neurons, oblique section angles prevented the reliable assignment of neuronal identity to every dendritic branch (Figure 7E). Nevertheless, the segmented portion was sufficient to reveal some interesting features. Notably, the outer dendrite of abx(3)A started branching extensively near the sensillum base, well before branching was observed in the neighboring B or C neurons (Figure 7E). Finally, extracellular vacuoles were found in the distal lumen (Figure 7E), in contrast to the vacuoles in the trichoid or intermediate sensilla, which were predominately located near the sensillum base. Future research may be directed to determine whether the location of vacuoles influences their function. We also note that more than 90% of the examined large basiconic sensilla exhibit vacuoles, making them the most prominent sensillum type to display these extracellular membranous structures.

Thin and small basiconic sensilla ab4 sensillum

All seven molecularly defined thin and small basiconic sensillum types (ab4–ab10) house two ORNs (Couto et al., 2005). We therefore focused our analysis on the genetically labeled ab4 and ab5 sensilla, which express Or7a (ab4A), Or56a (ab4B), Or82a (ab5A), and Or47a (ab5B) as odor-tuning receptors (Hallem et al., 2004; Stensmyr et al., 2012). Matching the description of a thin basiconic (Shanbhag et al., 1999), the ab4 sensillum is similar to the large basiconics in length (~11 μm) but with a more slender profile (Figure 1C,D and Table 1). Three pairs of ab4 neurons, including their elaborate dendritic branches, were completely segmented (Figure 8A-C and Video 6). Compartmentalized ab4 ORNs also have distinctive sizes, with the soma volume in the ratio of 2.1:1 (Figure 8D). Although the inner dendrite of ab4A is similarly enlarged and enriched with mitochondria (Figure 8B), the enlargement is less pronounced: ab4A’s inner dendritic volume is ~9 μm3 as opposed to ~20 μm3 for ab1A or ab2A (Table 2). As such, the inner dendritic volume ratio for ab4A and ab4B is 2.6:1, which is close to the somatic size differential (Figure 8D). A similar volume difference was also observed in the outer dendrites (2.4:1) (Figure 8D).

Figure 8 with 1 supplement see all

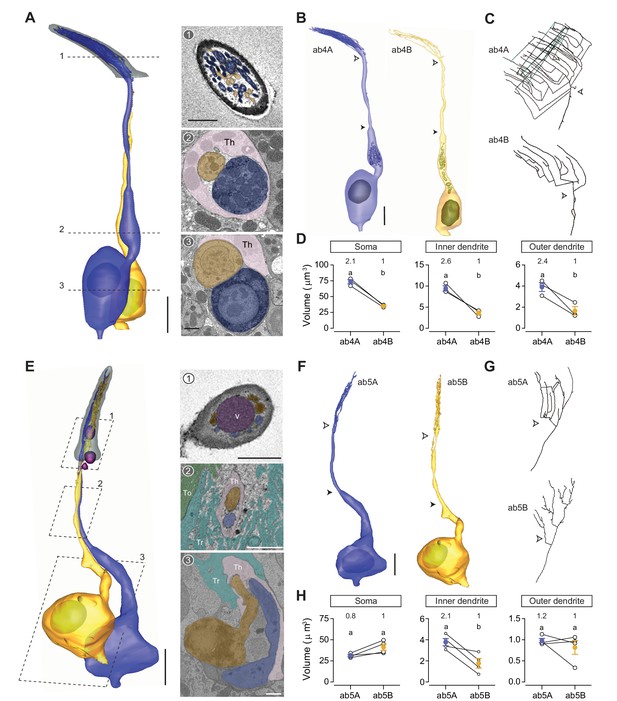

ab4 thin basiconic sensillum and ab5 small basiconic sensillum.

(A) 3D model and sample SBEM images of a representative ab4 sensillum. The ab4A ORNs were engineered to express APEX2 (Or7a-GAL4>10XUAS-myc-APEX2-Orco) and labeled with DAB (darker staining). ORNs are pseudocolored to indicate neuronal identity: ab4A (blue) and ab4B (orange). Dashed lines indicate positions of the corresponding SBEM images on the right. (B) 3D models for individual ab4 neurons as shown in (A). Filled arrow heads: ciliary constriction; empty arrow heads: sensillum base position. (C) 2D projections of ab4A or ab4B outer dendritic branches. (D) Morphometric comparison of ab4A and ab4B neurons. Lines connect data points from neurons housed in the same sensillum, mean± s.e.m. n=3. The volume ratio is indicated above each graph. (E–H) As in (A–D), except that ab5 is featured. The ab5B ORNs were engineered to express APEX2 (Or47a-GAL4>10XUAS-myc-APEX2-Orco) and labeled with DAB (darker staining). Four pairs of ab5 neurons were analyzed for morphometrics. Significant differences (p<0.05) are indicated by different letters; paired t-test for comparison between neighboring neurons. Th: thecogen; Tr: trichogen; and To: tormogen. Scale bars: 2 μm for 3D models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images unless indicated otherwise. DAB, diaminobenzidine; ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

Video 6
3D models of ab4, ab5, and abx(1) small basiconic neurons.

Color codes are as indicated in Figure 8.

In addition to morphometric analysis, we examined the branching pattern of ab4 outer dendrites and found it to be strikingly complex, contrary to the simple paintbrush model proposed on the basis of TEM longitudinal-section images of a sensillum, whereby all basiconic dendritic branches appear to share a common diverging point (Shanbhag et al., 1999). Instead in ab4A, we observed multiple branching points. A primary branch can bifurcate several times, giving rise to numerous secondary branches that in turn can give rise to tertiary, quaternary, or even higher-order branches. Moreover, some high-order branches can converge with others to form lateral connections (Figure 8C, top panel). In other instances, a branch can diverge into two sub-branches which then merge back into one (Video 7). In comparison to ab4A, the dendritic branching pattern of ab4B is less elaborate, with a smaller number of branches and a lower degree of branching (Figure 8C, bottom panel). Despite their varying complexity, the ab4A and ab4B outer dendrites start branching at similar positions near the sensillum base (Figure 8A-C).

Video 7
SBEM images and 3D model of a subset of ab4A outer dendrites, demonstrating diverging and converging branches.

The images were from Or7a-labeled data set. SBEM, serial block-face scanning electron microscopy.

ab5 sensillum

Among antennal olfactory sensilla, ab5 is unique because its compartmentalized ORNs have similar extracellular spike amplitudes and morphometric features (Zhang et al., 2019). The average length of an ab5 sensillum is ~9 μm (Figure 1C,D and Table 1), matching the description of a small basiconic sensillum (Shanbhag et al., 1999). We segmented four pairs of ab5 neurons in their entirety (Figure 8E-G and Video 6). As described in our previous study (Zhang et al., 2019), grouped ab5 ORNs have similar soma volumes, but the inner dendrite of ab5A is larger than that of ab5B because of the mitochondria-rich enlargement (Figure 8H and Table 2). Nevertheless, no significant difference in the outer dendritic volume was observed between paired ab5 neurons (Figure 8H). With respect to the ab5 outer dendritic branching pattern, it is similar to ab4 neurons by exhibiting multiple diverging points and high degrees of branching. The outer dendrites of grouped ab5 neurons also begin branching at similar positions near the sensillum base (Figure 8G). Finally, we note that approximately 70% of the examined thin and small basiconic sensilla exhibit extracellular vacuoles in the sensillum lumen (Figure 8E), suggesting that this structure is also common to this sensillum class.

Novel small basiconic sensillum housing one ORN

Although most small basiconics house two ORNs, we unexpectedly identified a novel type that houses only one ORN (Figure 8—figure supplement 1 and Video 6). We found three such sensilla, which we termed abx(1), in multiple SBEM data sets. As shown in the isosurface images and sensillum 3D models, abx(1) is similar to ab5 in length (~9 μm), characteristic of small basiconics (Shanbhag et al., 1999) but with a wider cuticular profile (Figure 8—figure supplement 1A and Table 1). Based on one complete and two partial 3D models, the neuron exhibits a slight inner dendritic enlargement and a small number of dendritic branches (Figure 8—figure supplement 1B and Table 2). In future research, it will be interesting to determine the receptor, ligands, and functional role for the singly housed abx(1) neuron.

Empty sensilla

Among the 541 antennal sensilla sampled in this study, we were surprised to find two hairs that did not contain any ORNs. Such ‘empty sensilla’ have never been reported before. One is a trichoid sensillum identified from an Or47b-labeled data set (Figure 9A). Based on its cuticular morphometric features, the empty trichoid—named T(0)—likely belonged to the T1 subtype (Table 1 and Figure 1D). Devoid of any neurons, the empty trichoid also did not contain any intact auxiliary cells; only remnants of what appeared to be tormogen processes were observed near the sensillum base (Figure 9A). The second empty sensillum is a small basiconic found in the Or7a-labeled data set (designated as abx(0), Figure 9B and Table 1). Interestingly, and unlike the empty trichoid, all three auxiliary cells were present and morphologically indistinguishable from those found in adjacent sensilla containing ORNs (Figure 9C). While the biological significance of empty sensilla remains to be determined, it is possible that they represent a small fraction of antennal olfactory hairs whose neurons have undergone apoptosis in the process of neuronal turnover (Fernández-Hernández and Hu, 2020).

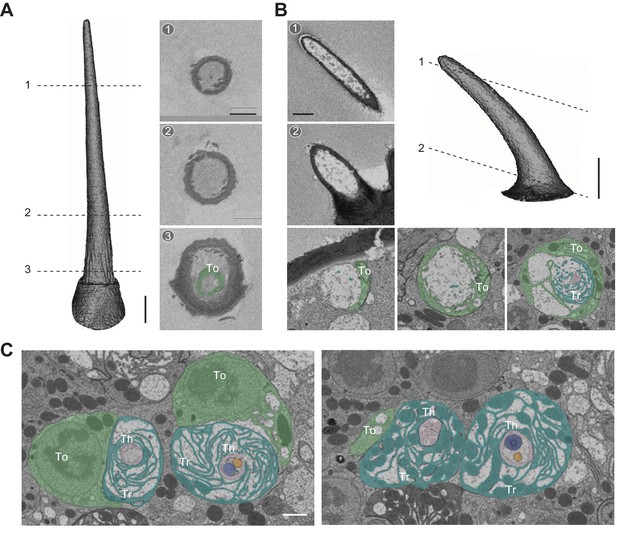

Empty sensillum.

Isosurface and SBEM images of an empty T1 (A) or an empty small basiconic sensillum (B). Dashed lines indicate positions of the corresponding SBEM images. (C) SBEM images showing the three auxiliary cells associated with the empty small basiconic as shown in (B) or with a neighboring small basiconic containing two neurons. ORNs are pseudocolored in blue (A neuron) or orange (B neuron). The left image is closer to the antennal surface than the right image. Th: thecogen; Tr: trichogen; and To: tormogen. Scale bars: 2 μm for isosurface models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images unless indicated otherwise. ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

Olfactory auxiliary cells

In addition to the sensilla and ORNs described in previous sections, we segmented two groups of auxiliary cells and reconstructed their 3D models. Auxiliary cells support olfactory function by insulating ORN soma and inner dendrites, maintaining transepithelial potential, expressing ion transporters, and secreting odorant-binding proteins and odorant degrading enzymes into the sensillum lymph (Kaissling, 1986; Larter et al., 2016; Leal, 2013; Menuz et al., 2014; Shanbhag et al., 2001; Shanbhag et al., 2000; Sun et al., 2018). We note that the ultrastructure of these cells has been described in detail through high-quality TEM images (Shanbhag et al., 2000). Therefore, our objective was to illustrate their positions in 3D space in relation to other auxiliary cells, their associated ORNs, and the sensillum apparatus. Most olfactory sensilla contain three auxiliary cells, except for the coeloconic class which has four (Shanbhag et al., 2000). In the following sections, we featured the auxiliary cells for ab4 and ac3 to represent these two possible cellular arrangements.

Auxiliary trio

The three auxiliary cell types are the thecogen, trichogen, and tormogen cells (Shanbhag et al., 2000). Among them, the thecogen is situated most deeply beneath the antennal surface, and forms a sleeve enveloping parts of the ORN soma, inner dendrite, and proximal portion of the outer dendrite (Figure 10A-C and Video 8). The plasma membrane of thecogen cell is typically smooth but can form microvilli or microlamellae in regions where the auxiliary cell ensheathes the inner dendrites (e.g., Figure 10C; Figures 3B-4 and Figures 6A-1). The nucleus of the auxiliary cell is at a similar level as the ORN soma such that thecogen cells are often found adjacent to the cell body of neurons (e.g., Figure 10A-C; Figures 2A-9, Figures 3A-5 and B-5).

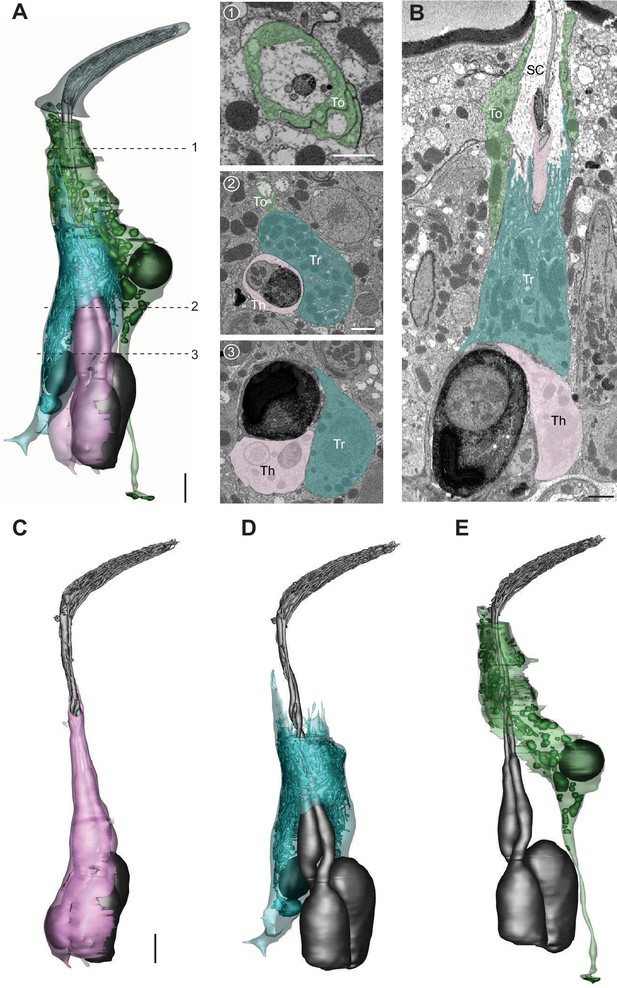

The three auxiliary cells for a basiconic sensillum.

(A) 3D model and SBEM images of a representative ab4 sensillum, highlighting its three auxiliary cells. Images were taken from the Or7a-labeled data set. Cells are pseudocolored to indicate identities: ORNs (gray), thecogen cell (pink), trichogen cell (turquoise), and tormogen cell (green). Dashed lines indicate positions of the corresponding SBEM images. (B) IMOD software-rendered SBEM image of a longitudinal sensillum section. Th: thecogen; Tr: trichogen; To: tormogen; and SC: sensillum lymph cavity. (C–E) 3D models of individual auxiliary cells as shown in (A): thecogen (C), trichogen (D), and tormogen (E). Scale bars: 2 μm for 3D models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images unless indicated otherwise. ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

Video 8
3D models of ab4 and ac3 auxiliary cells.

Color codes are as indicated in Figures 10 and 11. Detailed information regarding individual 3D models shown in the videos can be found in the ‘Table 2—source data 1' file.

The distal region of the thecogen cell—where it envelops the inner dendrites—is in turn enwrapped by the trichogen cell. The apical surface of the trichogen cell forms extensive, elaborate microvilli and microlamellae that border the sensillum-lymph cavity (Figure 10A,B and D). Also characteristic of the thecogen cell are its abundant mitochondria and numerous tubular membrane invaginations (Figure 10A,B and D). The nucleus of the trichogen cell is located slightly distal to that of the thecogen cell at the level of proximal inner dendrite (Figure 10A and Video 8).

Moving toward the antennal surface, a small portion of the apical thecogen cell is further enveloped by the tormogen cell, which occupies the most distal and peripheral position of the auxiliary trio. Similar to the trichogen cell, the apical surface of the tormogen cell forms microvilli and microlamellae bordering the sensillum lymph cavity (Figure 10A,B and E). However, the tormogen processes are less numerous and elaborate. In turn, these processes surround the subcuticular segment of outer dendrites and terminate more distally near the sensillum base or occasionally into the sensillum lumen (e.g., Figure 10A,B; Figures 2B and 5E). Moreover, in lieu of tubular invaginations, the tormogen cell displays an abundance of large, interconnected vesicles which open into the extracellular space (Figure 10E). The tormogen nucleus is situated at the level of dendritic ciliary constriction. The basal region of the tormogen cell is distinctive in that it extends a long, stalk-like protrusion that terminates below the level of ORN soma (Figure 10E and Video 8).

Auxiliary quartet

Focusing on ac3, we segmented its four auxiliary cells, which have been reported to include one thecogen, one trichogen, and two tormogen cells (Shanbhag et al., 2000). Similar to the cellular arrangement described above, the coeloconic thecogen is the innermost cell located at the bottom of the quartet, ensheathing parts of ORN soma, inner dendrite, and the proximal portion of outer dendrite (Figure 11A-C and Video 8). The apical thecogen region is likewise enveloped by trichogen processes, whose elaborate microvilli and microlamellae surround the proximal outer dendrites. Compared to the basiconic trichogen cell, the invaginations of coeloconic trichogen appear less tubular but are rather vesicle-like (Figure 11D). In addition, the coeloconic trichogen nucleus is located more distally, at or above the level of ciliary constriction. Interestingly, we identified two trichogen cells instead of one based on their similar morphological features, including elaborate microlamellae, the position of their apical surface, and the lack of tormogen’s stalk-like protrusion (Figure 11B,D). This observation indicates that the coeloconic auxiliary quartet is in fact composed of one thecogen, one tormogen, and two trichogen cells. Finally, the coeloconic tormogen cell bears a strong resemblance to its basiconic counterpart. Both surround the subcuticular portion of outer dendrites with their apical processes, terminate their processes near the sensillum base, and extend a long, stalk-like basal protrusion (Figure 11E and Video 8). In future research, it will be interesting to determine whether the two coeloconic trichogen cells are functionally distinct, and how the morphological characteristics of individual auxiliary cells subserve function.

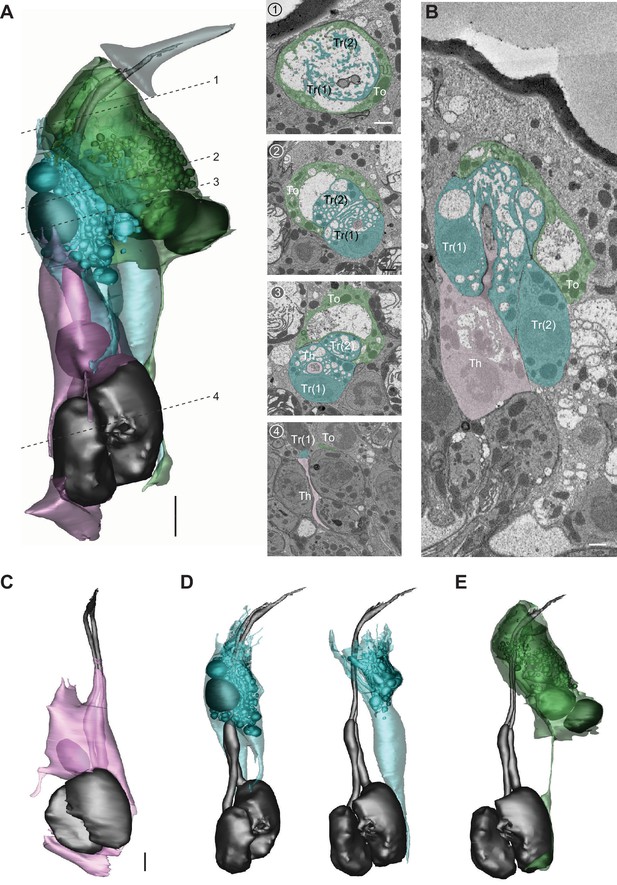

The four auxiliary cells for a coeloconic sensillum.

(A) 3D model and SBEM images of a representative ac3 sensillum, highlighting its four auxiliary cells. Cells are pseudocolored to indicate identities: ORNs (gray), thecogen cell (pink), trichogen cell (turquoise), and tormogen cell (green). Dashed lines indicate positions of the corresponding SBEM images. (B) IMOD software-rendered SBEM image of a longitudinal sensillum section. Th: thecogen; Tr: trichogen; and To: tormogen. (C–E) 3D models of individual auxiliary cells as shown in (A): thecogen cell (C), trichogen cells, Tr(1) and Tr(2) (D), and tormogen cell (E). Scale bars: 2 μm for 3D models and 1 μm for SBEM images. The scale bar in the first image panel also pertains to other images unless indicated otherwise. ORN, olfactory receptor neuron; SBEM, serial block-face scanning electron microscopy.

Concluding remarks

We have presented a systematic morphological and morphometric analysis based on SBEM data sets of cryofixed Drosophila antennal tissues. In addition to providing nanoscale measurements of 33 identified ORN types and their corresponding sensillum apparatus, our analysis reveals several novel features of olfactory sensilla, including extracellular vacuoles, empty sensilla, and two previously uncharacterized basiconic sensillum types. Additionally, we find that not all at4 sensilla house three neurons; a subset contains only two ORNs. For most ORN types, neurons expressing the same receptor can display marked variability in their dendritic branching and morphology, suggesting that these features are not entirely genetically predetermined but are instead dynamically regulated. Moreover, contrary to the previously proposed paintbrush model, the basiconic outer dendrites exhibit a highly intricate branching pattern: diverging points are numerous, and branches can bifurcate or converge with others. Within basiconic sensilla, the large-spike ORNs selectively exhibit enlarged inner dendrites which are enriched with mitochondria. Furthermore, a remarkable morphological disparity is observed between compartmentalized ab2 neurons; the large-spike ‘A’ neuron sprouts more than 300 dendritic branches occupying nearly the entire sensillum lumen, whereas the neighboring ‘B’ neuron has only one unbranched outer dendrite.

These observations raise many interesting questions. For example, what is the functional significance of the extracellular vacuoles commonly found in the basiconic lumen? Does the mitochondria-enriched inner dendritic enlargement influence olfactory response properties? What molecules regulate the diverse outer dendritic morphology? Does the surface area disparity between neighboring neurons (e.g., ab2A vs. ab2B) or between neuronal types (e.g., ab2A vs. ac3A) contribute to differences in olfactory sensitivity? What are the molecular identities for neurons housed in the two novel basiconic sensilla? Do the empty sensilla represent snapshots of neuronal turnover and adult neurogenesis? Why are the coeloconic neurons supported by not one but two trichogen cells? In addition to raising new questions, the rich morphological and morphometric information provided here lays the foundation for future biophysical studies and computational modeling to determine the impact of neuronal size and shape on sensory responses, as well as on ephaptic coupling between compartmentalized neurons.

Materials and methods

SBEM data sets

Request a detailed protocol

The SBEM data sets were generated previously (Tsang et al., 2018; Zhang et al., 2019), except for the Or7a-labeled data set. Briefly, 6–8-day-old females were cold anesthetized and their antennae removed. Following isolation of the third antennal segment, the sample was subjected to high-pressure freezing, freeze-substitution, rehydration, DAB labeling, en bloc heavy metal staining, dehydration, and resin infiltration. The flies expressed membrane-tethered APEX2 (10xUAS-myc-APEX2-Orco or 10xUAS-mCD8GFP-APEX2) in select ORNs under the control of specific OrX- or Ir-X GAL4 drivers as described (Tsang et al., 2018; Zhang et al., 2019). Following microcomputed X-ray tomography to determine the position and proper orientation of the resin-embedded specimens, samples were mounted on aluminum pins with conductive silver epoxy and sputter coated with gold-palladium for SBEM imaging with a Gemini SEM (Zeiss) equipped with a 3View block-face unit or a Merlin SEM (Zeiss) equipped with a 3View2XP and OnPoint backscatter detector. Detailed information regarding the image acquisition parameters can be found in the Figure 1—source data 1 file. The SBEM image volumes are available in the Cell Image Library (http://www.cellimagelibrary.org/home). The accession numbers are CIL:54606 (Or22a/ab3A-labeled volume); CIL:54614 (Or7a/ab4A-labeled volume); CIL:54610 (Or56a/ab4B-labeled volume); CIL:54611 (Ir75c/ac3AII-labeled volume); CIL:54612 (Or47a/ab5B-labeled volume); CIL:54607 and CIL:54608 (Or47b/at4A-labeled volumes); and CIL:54609 (Or88a/at4C-labeled volume).

Isosurface models

Request a detailed protocol

Sensillum isosurface models were generated with the IMOD software (https://bio3d.colorado.edu/imod/) (Kremer et al., 1996) using the ‘Isosurface’ function. Briefly, the ‘bounding box parameters’ were set to mark the regions of interest, thereby defining the subvolumes for isosurface rendering. Threshold values were manually adjusted based on image quality.

Image segmentation

Request a detailed protocol

Segmentation was performed manually using the IMOD software. The ‘drawing tools’ function was used to trace and outline the structure of interest through serial sections of SBEM images. Surface models were generated using ‘imodmesh’ functions to connect closed contours whereby defined contours were connected with those directly above and below them. Further information on ‘imodmesh’ and meshing parameters can be found in the IMOD User’s Guide (https://bio3d.colorado.edu/imod/doc/man/imodmesh.html). The cell body, inner dendrite, and individual outer dendritic branches were segmented as independent objects to allow for further morphometric analysis of these different cellular regions. In cases where the same structure occupied separate areas on a single SBEM section (e.g., looping or bending of a dendrite), the different parts of the same structure were segmented as different objects to allow their respective centroids to be extracted separately, thus ensuring accurate length measurement (see below).

Morphometric analysis

Request a detailed protocol

The sensillum cuticle, ORN soma, inner, and outer dendritic segments were analyzed as separate objects. The inner and outer dendrites were demarcated by the ciliary constriction (Shanbhag et al., 2000). The ‘imodinfo’ function was used to extract morphometric data from surface models. We applied the ‘-c’ option in the line command to determine volume and surface area for each region. Further information on ‘imodinfo’ can be found in the IMOD User’s Guide (https://bio3d.colorado.edu/imod/doc/man/imodinfo.html). For branched outer dendrites, the volume and surface area for the entire outer dendritic region were calculated by summing the volume or surface area of individual branches.

To determine the length of a sensillum, the 3D model was first smoothed using the IMOD function ‘smoothsurf’. Centroid values for contours bounding the surface mesh were then extracted using the line command ‘imodinfo’ and the ‘-e’ option. In the cases where the sectioning angle was oblique to the sensillum, the position of the centroid was visually verified or manually edited. Subsequently, the length of a sensillum was determined by summing the distances between sequential centroids.

Skeletonization

Request a detailed protocol

The 3D models were converted to vrml2 files using the IMOD command ‘imod2vrml2’, imported into Amira software (2020.2 version; Thermo Fisher Scientific), and then scanned to a binary image volume such that every pixel of the model was indicated in white while the background in black. The AutoSkeleton module was used to skeletonize the binary image volume. These skeletons, in swc format, were imported into neuTube software (https://www.neutracing.com/) to allow branches to be manually spread out onto a 2D plane. Briefly, a primary branch and all its downstream branches were first selected to allow all the branches to be edited and moved as a group. This process was repeated for secondary, tertiary, and higher-order branches until overlap between branches was minimized.

The positions of ciliary constrictions and sensillum bases on the skeletons were determined by superimposing the spread-out skeletons on the original 3D model contours in swc format. First, the original contour skeleton was obtained by (1) extracting the coordinates of the points in the contours with the IMOD command ‘model2point’; (2) converting the file to the csv format; (3) importing the csv file into R, and (4) connecting the points of each contour. Subsequently, the spread-out skeleton was imported into R and superimposed with the contour skeleton using the R package NeuroAnatomy Toolbox (Gregory S X E Jefferis and Jefferis and Manton, 2017; https://natverse.org/nat/). The combined skeleton and contours were exported in the swc format to be processed in neuTube where the ciliary constrictions and sensillum bases were manually annotated. The contour skeleton was then removed using NeuroAnatomy Toolbox to allow the annotated spread-out skeleton to be exported in neuTube for final image display.

Statistics

All values were presented as mean± s.e.m. Paired two-tailed t-tests were performed for morphometric comparisons between ORNs housed in the same sensillum. Unpaired two-tailed t-tests were performed for comparisons between non-neighboring neurons. P<0.05 was taken as statistically significant.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files. Source data files have been provided for Table 1, Table 2 and Individual datasets. The SBEM image volumes are available in the Cell Image Library (http://www.cellimagelibrary.org/home). The accession numbers are CIL:54606 (Or22a/ab3A-labeled volume); CIL:54614 (Or7a/ab4A-labeled volume); CIL:54610 (Or56a/ab4B-labeled volume); CIL:54611 (Ir75c/ac3AII-labeled volume); CIL:54612 (Or47a/ab5B-labeled volume); CIL:54607 and CIL:54608 (Or47b/at4A-labeled volumes); CIL:54609 (Or88a/at4C-labeled volume).

The following data sets were generated

References

    1. Shanbhag SR
    2. Muller B
    3. Steinbrecht RA
    (1999)
    Atlas of olfactory organs of Drosophila Melanogaster 1. types, external organization, innervation and distribution of olfactory sensilla
    International Journal of Insect Morphology and Embryology 28:377–397.

Decision letter

  1. Albert Cardona
    Reviewing Editor; University of Cambridge, United Kingdom
  2. Piali Sengupta
    Senior Editor; Brandeis University, United States
  3. Jürgen Rybak
    Reviewer; Max Planck Institute for Chemical Ecology, Germany

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

The editors and reviewers were impressed by the breath and depth of the work, which will serve as the basis for future studies on the function, development and evolution of sensory sensilla of the fruit fly's antennae. We were very pleased that your data set was deposited into a public repository (Cell Image Library), which is key to elevate your findings to the status of a reference in the field, enabling others to build on your work in the best scientific tradition.

Decision letter after peer review:

Thank you for submitting your article "Systematic morphological and morphometric analysis of identified olfactory receptor neurons in Drosophila melanogaster" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Piali Sengupta as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Jürgen Rybak (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Please clarify and detail how the identification of each sensilla was done. Please also be careful to avoid circular arguments regarding the identification of a sensillum and the use of that very set of characteristics for identification also for the comparative analysis across sensilla.

2) Please clarify how the data will be publicized and distributed. This data set is exceptional and enables further either follow up studies or orthogonal studies on a variety of aspects of sensilla morphology and its relationship to function.

3) Please attempt to address the detailed comments listed by the reviewers, as these capture a number of small issues whose resolution will only strengthen and clarify your beautiful findings.

Reviewer #2 (Recommendations for the authors):

Generally, given the descriptive nature of the manuscript, it would be good to include when possible graphs showing correlations between the identified morphological features and published functional data. I think this could add to the interpretation of their findings and give further insights.

I find the discussion could be improved by adding ideas on the possible functional implications of some of their key findings. For example, for the role of mitochondria and membranous protrusions.

Do the authors think that the basal vacuoles in trichoid sensilla are the same type as those distal in large basiconic sensilla? A discussion on these in the Discussion section would be welcomed.

The description of the auxiliary cells is a bit dry and for those with little knowledge on the presumed or demonstrated function of auxiliary cells difficult to interpret. I would recommend adding a bit of background on auxiliary cells and discuss the possible implications of their findings in the discussion.

Finally, as mentioned above, I would like to insist that given the focus of the manuscript, it is key that the authors provide a better description for the ways in which sensilla were identified, and discuss any drawbacks of their approach. This would include the suggested schematics in Figure 1 showing from which region in the antenna the datasets were collected. Furthermore, I think it is important to include in the figure legends and/or methods information on the dataset of origin for each of the sensilla used for their analysis.

Reviewer #3 (Recommendations for the authors):

General comments to text and figures

– The extensive dataset potentially allows to study in more detail the ultrastructure and other cellular features of the ORNs, and its support cells. Therefore, it would be very valuable to make available the full SBEM datasets for the neuroscience community in an open repository, e.g.(https://github.com/). Suggestions on implementation software (e.g. https://github.com/catmaid/CATMAID) would be very helpful.

– Provide a more comprehensive table with respect to your identified sensilla/ORN types.

– How large is the variability of location of (identified sensilla) on the antenna?

– Throughout the text, please give always the number, (n=), consistently for the number of ORN/sensilla to avoid cross-reading. For the non-specialized reader parts of your results are had to follow.

– Is ciliary constriction a generic feature in all sensilla?

– The thecogen cell, which is itself enveloped by the trichogen processes and then further surrounded by the tormogen cell. Please, provide a proper introduction, and discussion on these cell types. Does your study provide more insight into their function see, also, Larter, N. K., et al.,(2016). "Organization and function of Drosophila odorant binding proteins." eLife 5: e20242.

– The inner dendrite of a atypical neuron ac1 contained 24 mitochondria. Is this a single observation found in one neuron? You described mito-enriched inner dendrites in other ORN types: are there structural correlations to other parts of the dendrite or might is simply a plasticity based change?

Please, give a summary statement of the outcome of your statistical analysis: how much variability, how much generic, features do you find for the different ORN classes. Is soma size correlated with the dendritic branching in the outer dendrite?

– Abstract

– state the number of sensilla studied here

Introduction

– introduce the cell types thecogen, tormogen trichogen, use citations, what are the possible roles of these supporting cells?

– 1st para dendritic branching pattern? are these known from one of the authors cited above?

– there is evidence that centrifugal cells might modulates ORN response properties. Did you find morphological correlates of electrical or chemical synapses in your dataset? For example, the antenna is innervated by a large centrifugal aminergic neuron in other insect species (Schroter et al., 2007). Wang, J. W. (2012). Presynaptic modulation of early olfactory processing 10.1002/dneu.20936 Jung, J. W., Kim, (2013). Neuromodulation of Olfactory …..the American Cockroach, Periplaneta americana.

– page 4: 33 ORN types out of how many types of sensilla?

– page 4, 541 sensilla how many for each sensilla type out of 541 sensilla? Are these sampled from one female Drosophila antenna, or did you use several specimen. In Keesey (2019) the total number of sensilla are reported as to app. 400?

– page 4/5- characteristic topographical distribution: please refer in the text to Figure 1a and specify, in detail of how you determined the relative position of the sensillum of interest. see also my comments for Figure 1.

– sensillum identity? Criteria for the identification of non-genetically labeled and identified sensilla should be explained in more detail.

page 6 but some terminate before reaching the endpoint (Figure 2A), what is the diameter of the dendrite? do you mean branch, branch versus dendrite!!

page 6: provide larger image of the vacuoles., what lumen is inner or outer dendrite.

page 7: the info on T2 is insufficient ….

page 9: dendrite is unbranched?

Method

– Explain technical terms, and the technical workflow, so that the non-specialized reader can follow.

– More details on SBEM methodology, how is the quality of DAB labelling – is the DAB staining cytoplasmic, or membrane-bound – what resolution you used for sectioning?

– How did you perform the visualization of pores across the sensillum surface, from the EM images, or did you perform a SEM scan beforehand.

– Is imod an open software – specify the version of Amira.

– Isosurface is not suited for volume measure, how was the surface model generated and smoothed?

– Morphometry: how did you created the surface models, explain imodinfo..

Centroid values are a skeleton tool?

– Ball-and stick model?

Results

In general: for the text on different sensilla types in each sub-chapter, I suggest to always mention the corresponding ORN receptor name (and vice versa), for the convenience and less cross reading. Even though the data are summarized in Table 1 the non-specialized reader is not used to the terminology.

For example page 12, ab4 sensillum, the two ab4 neuron, ab4A and B should be named, and indicated, as Or7a and Or56a, respectively. Same for the legends.

– Is there always an positive correlation of soma size with dendritic arborization of the respective ORN?

Discussion

Please, discuss and cite the relevant literature related your novel findings in more detail. how the size and shape of sensory neurons influence their responses, sensitivity and circuit function of ORNs?

– New receptors found, e.g. ABx. Give suggestions of how can these be identified (in situ hybridization?)

– Some OSNs express more than one receptor. see the work by the Potter lab: Task (2020) Widespread Polymodal Chemosensory Receptor Expression in Drosophila Olfactory Neurons 2020.11.07.355651 for discussion discussed in this context.

The ORN in ab4b expresses two receptors: Or56a that respond specifically to goesomin and Or33a that no one could identify its ligand yet.

– How often did you find extracellular vacuoles within the sensilla lumen, in how many sensilla types they occur?

– Intricate dendritic branching in the outer dendrite ab4A neuron: Figure 8C, and text

In the 2D projection dendritic arbors seems to be fused, that contradicts neuron dichotomy morphology. Is this a simple crossover, or a dendritic tiling shown, here? as described in Drosophila larva Grueber (2002).:Tiling of the Drosophila epidermis Development, 129(12), see Figure 2B, here. Does the dendritic morphology correlates with arrangement or number of pores in the respective sensillum.

– Empty sensilla containing no neurons, are they described before?

Could this phenomen due to a cell turnover, or apoptosis? using P-MARCM Fernández-Hernández (2020). Reported a 3% turnover of ORNs.

Concluding remarks

Discuss in more detail your question with the literature what is known. Are empty cells reported before? How your data relate to other studies on the antenna.e.g. Keesey (2019) Inverse location https://www.nature.com/articles/s41467-019-09087-z, for the distribution of sensilla on the antenna.

Figures

– Figure 1A: the distribution on Apex labelled flies (false color?). Did you sample from the anterior / posterior side of the antenna? Please give an orientation, and a relative position of the sampled sensilla, e.g. location of arista, sacculus, and funiculus border (for an nice example, see e.g. Grabe (2016) Figure 1B).

– 1B: the columns are show the number of identified sensilla, I suggest, to Indicate in Figure 1 A with stars the labelled versus non-labeled sensilla,

– In Figure 1 you gave an overview of datasets used in the study. Please, indicate: how large is your dataset, i.e 123 ORNs, relative to the total number of sensilla (Keesey 2019) reported app. 400 sensilla in total for Drosophila m. Also: are your samples randomly chosen across the antenna.Is there a distinct pattern of how are sensilla types are distributed across the antenna for certain sensilla types ?

– Figure 2 the extracellular vacuole (in teal) is shown in dark blue in 2B (3)? I suggest to use another color for the vacuoles for better understanding of the 3D structure.

– Table 2 (main text): I suggest to provide more details for the identified ORN, to compare with previous datasets, or data repositories (such as DoOR) and to allow for more cross-references found in the literature: – OR co-receptor, – corresponding glomerulus in the antennal lobe, – functional response according to DoOR

In the DoOR database (http://neuro.uni-konstanz.de/DoOR/default.html ), for example, the ab4 sensillum hosing Or7A receptor (ab4A neuron), and the Or56a co-expressed with Or33Aa. The latter is not listed in your table.

Supplementary

Su_28-04-2021-RA-eLife-69896_Source_Data_File excel Table

In general: provide an explanation and an list of all abbreviation used in these excel files. There are partly hard to understand.

– ORN Morphometric: I do not understand the terminology of column 2.

– T3 model: why you present data three soma sizes: A,B,C, but listing only two ORN types in the first column ? same for AC1 model.

– It took me a while to figure out that the first column 'just' indicates the dataset (genetically labelled with Apex) without any other reference to the following columns identity of ORN, and labelled with A,B, or C.

I suggest to present, here, and in the tables where you report 'branching' and 'mitochondria' the ORN type in brackets, as you do in the Summary Table.

Videos: Please, prepare an extra sheet, word-file to provide a detailed description for each video.

https://doi.org/10.7554/eLife.69896.sa1

Author response

Essential revisions:

1) Please clarify and detail how the identification of each sensilla was done. Please also be careful to avoid circular arguments regarding the identification of a sensillum and the use of that very set of characteristics for identification also for the comparative analysis across sensilla.

We thank the editor and reviewers for raising this point, in particular regarding the distinction between ab2 and ab3 sensilla. In the Results, we have now clarified that “Among the two large basiconic sensilla that house two neurons, we distinguished ab2 from ab3 by its lack of DAB staining in the Or22a dataset, in which ab3A was genetically labeled by APEX2. Apart from the Or22a dataset, an ab2 sensillum was identified in the Or7a dataset on the basis of its proximity to the labeled ab4 sensilla, because ab3 is not found in the same topographical region as ab4 (de Bruyne et al., 2001).”

We have also indicated how each sensillum type was identified in the revised Source Data for Table 1.

2) Please clarify how the data will be publicized and distributed. This data set is exceptional and enables further either follow up studies or orthogonal studies on a variety of aspects of sensilla morphology and its relationship to function.

We thank the editor and reviewers for raising this critical point. All eight SBEM image volumes described in this study have been deposited in the Cell Image Library (http://www.cellimagelibrary.org/home). The accession numbers are provided in the revised “SBEM datasets” under the Materials and methods section.

3) Please attempt to address the detailed comments listed by the reviewers, as these capture a number of small issues whose resolution will only strengthen and clarify your beautiful findings.

We appreciate the opportunity to improve the clarity of our manuscript. Please see below a summary of the key revisions.

– We have included a new panel (Figure 1C) to illustrate the antennal regions covered by individual SBEM volumes.

– We have expanded Table 1 to include the mitochondria number and glomerular projection information.

– The vacuole color has been changed from teal to aubergine to better distinguish this structure from others.

– We have added the statistical analysis results for morphometric comparison in the figure legends.

– We have provided background information regarding the function of olfactory auxiliary cells.

– We have provided a new Source Data file which details the image acquisition parameters for individual datasets. In the same file, we also indicated the identity of individual sensilla identified in each dataset.

– We have expanded the previous two Source Data files to provide additional information requested by the reviewers, including the sensillum identification criteria, 3D models shown in the main figures and videos, and spike amplitude ratios.

– We have provided a more detailed description of the methods used in our study, including the links to different features we employed with the IMOD software.

Reviewer #2 (Recommendations for the authors):

Generally, given the descriptive nature of the manuscript, it would be good to include when possible graphs showing correlations between the identified morphological features and published functional data. I think this could add to the interpretation of their findings and give further insights.

We thank the reviewer for the suggestion. We wish to clarify that the odor response profile of an ORN is predominantly determined by the receptor expressed in the neuron (Hallem et al., Cell, 2004), which is independent of whether the neuron is a large- or small-spike ORN. By extension, the odor response profile is independent of the neuron’s morphometric features. It is therefore of limited usefulness to search for any correlation between ORNs’ morphological features and odor response properties.

However, we have incorporated the reviewer’s suggestion by revising the text to include key ligands for certain ORNs that respond to ethologically salient odors. In addition, we have added the following sentence in the revised Table 2 legend: “The odor response profiles for many of the characterized ORNs can be found in the DoOR database (http://neuro.uni-konstanz.de/DoOR/default.html)” such that readers who are curious about the functional data can easily find the information.

I find the discussion could be improved by adding ideas on the possible functional implications of some of their key findings. For example, for the role of mitochondria and membranous protrusions.

We thank the reviewer for the suggestion. As the reviewer pointed out, our study is descriptive in nature, aiming to provide an extensive morphological and morphometric dataset for identified Drosophila ORNs. We hope our findings will stimulate future investigations into the developmental mechanism and functional significance of the rich diversity in ORN size and shape. As such, we prefer to highlight the multitude of intriguing questions, instead of speculating on the answers in our concluding remarks.

Nevertheless, we agree with the reviewer that we could provide more information on mitochondria function in olfactory signaling. In the revised Results, we have now included “We note that in vertebrate ORNs, mitochondria play a direct role in regulating cytosolic ca2+ response profile and thereby ensure a broad dynamic range for the neurons’ spike responses (Fluegge et al., 2012). Although it is unclear whether mitochondria play a similar role in insect olfactory signaling, a recent study shows that odor-induced ca2+ signals in Drosophila ORNs are shaped by mitochondria (Lucke, Kaltofen, Hansson, and Wicher, 2020). Therefore, it will be interesting to investigate the functional significance of this striking mitochondrial disparity between grouped ORNs in future research” under the “Large Basiconic Sensilla” section.

Do the authors think that the basal vacuoles in trichoid sensilla are the same type as those distal in large basiconic sensilla? A discussion on these in the Discussion section would be welcomed.

We thank the reviewer for the careful reading of our manuscript. In this study, we define vacuoles as extracellular membranous structures found in the sensillum lumen. In this context, we do not distinguish vacuoles found in different sensillum types. We have, however, incorporated the reviewer’s comment by adding this sentence:

“Future research may be directed to determine whether the location of vacuoles influences their function.”

The description of the auxiliary cells is a bit dry and for those with little knowledge on the presumed or demonstrated function of auxiliary cells difficult to interpret. I would recommend adding a bit of background on auxiliary cells and discuss the possible implications of their findings in the discussion.

We thank the reviewer for the excellent suggestion. We have now provided background information on olfactory auxiliary cells in the revised Results, which reads “Auxiliary cells support olfactory function by insulating ORN soma and inner dendrites, maintaining transepithelial potential, expressing ion transporters, and secreting odorant binding proteins and odorant degrading enzymes into the sensillum lymph (Kaissling, 1986; Larter, Sun, and Carlson, 2016; Leal, 2013; Menuz, Larter, Park, and Carlson, 2014; Shanbhag et al., 2001, 2000; Sun, Xiao, Carlson, and Carlson, 2018)”.

We have also included the sentence “In future research, it will be interesting to determine whether the two coeloconic trichogen cells are functionally distinct, and how the morphological characteristics of individual auxiliary cells subserve function” at the end of the Olfactory Auxiliary Cells section.

Finally, as mentioned above, I would like to insist that given the focus of the manuscript, it is key that the authors provide a better description for the ways in which sensilla were identified, and discuss any drawbacks of their approach. This would include the suggested schematics in Figure 1 showing from which region in the antenna the datasets were collected. Furthermore, I think it is important to include in the figure legends and/or methods information on the dataset of origin for each of the sensilla used for their analysis.

We thank the reviewer for the helpful suggestions. We have added the suggested schematics in Figure 1 illustrating the regions covered by individual SBEM volumes. Further, we have now provided detailed information regarding how each sensillum was identified in the text and indicated its source dataset in the Source Data for Table 1. In addition, in the Source Data for Table 2, we have also indicated the 3D ORN models shown in the main and supplementary Figures.

Reviewer #3 (Recommendations for the authors):

General comments to text and figures

– The extensive dataset potentially allows to study in more detail the ultrastructure and other cellular features of the ORNs, and its support cells. Therefore, it would be very valuable to make available the full SBEM datasets for the neuroscience community in an open repository, e.g.(https://github.com/). Suggestions on implementation software (e.g. https://github.com/catmaid/CATMAID) would be very helpful.

We thank the reviewer for raising this critical point. All eight SBEM image volumes described in this study have been deposited in the Cell Image Library (http://www.cellimagelibrary.org/home). We have also provided the accession numbers in the revised “SBEM datasets” under the Materials and methods section.

–Provide a more comprehensive table with respect to your identified sensilla/ORN types.

As suggested, we have included ORN glomerulus projection as an additional identifier in Table 2. The revised legend now includes:

“ORN identity is indicated by the sensillum type, relative spike amplitude (A, B, C or D), odor-tuning receptor, and glomerular projection.”

– How large is the variability of location of (identified sensilla) on the antenna?

We wish to clarify that our study focuses on the nanoscale morphological and morphometric features of sensilla and ORNs, instead of the distribution of sensilla on the antenna, which have been thoroughly described in multiple studies. We note that each SBEM volume sampled a specific portion of the antenna covering the APEX2-labeled sensilla (Figure 1C), making it difficult to precisely determine its relative antenna location or orientation. Therefore, we cannot comment on the variability of sensilla location among different SBEM datasets.

– Throughout the text, please give always the number, (n=), consistently for the number of ORN/sensilla to avoid cross-reading. For the non-specialized reader parts of your results are had to follow.

We thank the reviewer for the suggestion. The numbers of the 3D models are available in the corresponding figure legends, as well as in Table 2.

– Is ciliary constriction a generic feature in all sensilla?

Yes, ciliary constriction is a characteristic feature of insect ORNs. This constriction demarcates the inner and outer dendrites. We have also added the reference (Shanbhag et al., 1999) in the revised text.

– The thecogen cell, which is itself enveloped by the trichogen processes and then further surrounded by the tormogen cell. Please, provide a proper introduction, and discussion on these cell types. Does your study provide more insight into their function see, also, Larter, N. K., et al.,(2016). "Organization and function of Drosophila odorant binding proteins." eLife 5: e20242.

We thank the reviewer for the excellent suggestion. We have now provided background information on olfactory auxiliary cells in the revised Results, which reads:

“Auxiliary cells support olfactory function by insulating ORN soma and inner dendrites, maintaining transepithelial potential, expressing ion transporters, and secreting odorant binding proteins and odorant degrading enzymes into the sensillum lymph (Kaissling, 1986; Larter, Sun, and Carlson, 2016; Leal, 2013; Menuz, Larter, Park, and Carlson, 2014; Shanbhag et al., 2001, 2000; Sun, Xiao, Carlson, and Carlson, 2018)”.

We have also included the sentence:

“In future research, it will be interesting to determine whether the two coeloconic trichogen cells are functionally distinctive, and how the morphological characteristics of individual auxiliary cells subserve function.”

at the end of the Olfactory auxiliary Cells section.

– The inner dendrite of a atypical neuron ac1 contained 24 mitochondria. Is this a single observation found in one neuron?

Yes, this is a single observation as indicated in the text and Supplementary figure.

You described mito-enriched inner dendrites in other ORN types: are there structural correlations to other parts of the dendrite or might is simply a plasticity based change?

The reviewer raised an interesting question. However, given that our method does not allow us to image the same ORNs longitudinally over time, it is difficult for us to determine whether the feature is plastic or not.

Please, give a summary statement of the outcome of your statistical analysis: how much variability, how much generic, features do you find for the different ORN classes. Is soma size correlated with the dendritic branching in the outer dendrite?

We thank the reviewer for the suggestion. We have now included statistical analysis results in the figure legends when the information is available.

Regarding soma size and dendritic branching, it is unclear whether the two features are correlated. Dendritic arborization depends primarily on the ORN morphological class. As described in our manuscript, for a given ORN type (T1 for example), we observed noticeable variability in dendritic arborization pattern among T1 ORNs despite their similar soma size.

– Abstract

– state the number of sensilla studied here

In consideration of the abstract word limit, we instead provided this information in the last paragraph of the Introduction. A total of 158 3D sensillum models were reconstructed for this study. Detailed information can also be found in the beginning of the Results section:

“Among the whole sensilla, we identified 37 basiconic, 30 coeloconic, 40 intermediate and 51 trichoid sensilla based on their distinctive morphological features”.

Introduction

– introduce the cell types thecogen, tormogen trichogen, use citations, what are the possible roles of these supporting cells?

We thank the reviewer for the excellent suggestion. We have now provided background information on olfactory auxiliary cells in the revised Results, which reads:

“Auxiliary cells support olfactory function by insulating ORN soma and inner dendrites, maintaining transepithelial potential, expressing ion transporters, and secreting odorant binding proteins and odorant degrading enzymes into the sensillum lymph (Kaissling, 1986; Larter, Sun, and Carlson, 2016; Leal, 2013; Menuz, Larter, Park, and Carlson, 2014; Shanbhag et al., 2001, 2000; Sun, Xiao, Carlson, and Carlson, 2018)”.

– 1st para dendritic branching pattern? are these known from one of the authors cited above?

We apologize that our writing was not clear to the reviewer. We have indicated that “…we examined the branching pattern of ab4 outer dendrites and found it to be strikingly complex, contrary to the simple paintbrush model proposed on the basis of TEM longitudinal-section images of a sensillum, whereby all basiconic dendritic branches share a common diverging point (Shanbhag et al., 1999)

– There is evidence that centrifugal cells might modulates ORN response properties. Did you find morphological correlates of electrical or chemical synapses in your dataset? For example, the antenna is innervated by a large centrifugal aminergic neuron in other insect species (Schroter et al., 2007). Wang, J. W. (2012). Presynaptic modulation of early olfactory processing 10.1002/dneu.20936 Jung, J. W., Kim, (2013). Neuromodulation of Olfactory …..the American Cockroach, Periplaneta americana

We thank the reviewer for raising this interesting point. However, we wish to clarify that our study concerns only the antenna and does not cover the antennal lobe, the only location where presynaptic modulation of ORN axon terminals can occur.

To answer the reviewer’s question, we did not observe any synaptic structures in our SBEM datasets, consistent with the previous findings based on high-resolution TEM images of cryofixed Drosophila antenna (Shanbhag et al., 2000).

– page 4: 33 ORN types out of how many types of sensilla?

The information can be found in the last paragraph of Introduction:

“we reconstruct 3D structures for neurons housed in 13 of the 19 genetically defined antennal sensillum types”.

– Page 4, 541 sensilla how many for each sensilla type out of 541 sensilla? Are these sampled from one female Drosophila antenna, or did you use several specimen. In Keesey (2019) the total number of sensilla are reported as to app. 400?

We are sorry that our writing was not clear to the reviewer. We have now clarified this confusion in the revised Results

“Individual datasets, acquired from different flies and named on the basis of the APEX2-expressing ORNs, included numerous sensory hairs in addition to the sensilla that housed labeled neurons (Figure 1A). In agreement with the characteristic topographical distribution of sensilla on the antenna (de Bruyne, Foster, and Carlson, 2001; Grabe et al., 2016; Shanbhag et al., 1999), the four morphological sensillum classes were unevenly represented in our eight SBEM datasets (Figure 1B,C). A total of 541 sensilla were sampled from these datasets, comparable to the total number of sensilla on an antenna (Shanbhag et al., 1999). Among the whole sensilla, we identified 37 basiconic, 30 coeloconic, 40 intermediate and 51 trichoid sensilla based on their distinctive morphological features (Shanbhag et al., 1999).”

– Page 4/5- characteristic topographical distribution: please refer in the text to Figure 1a and specify, in detail of how you determined the relative position of the sensillum of interest. see also my comments for Figure 1.

We wish to clarify that our study focuses on the nanoscale morphological and morphometric features of sensilla and ORNs, instead of the distribution of sensilla on the antenna. Each SBEM volume sampled a specific portion of the antenna covering the APEX2-labeled sensilla, making it difficult to precisely determine its relative antenna location and orientation.

However, we note that we did not notice any major difference in the sensillum distribution pattern between our datasets and published results, as shown in Figure 1A.

– Sensillum identity ? Criteria for the identification of non-genetically labeled and identified sensilla should be explained in more detail.

As suggested, we have indicated how each sensillum type was identified in the revised text and Source Data for Table 1.

Page 6 but some terminate before reaching the endpoint (Figure 2A), what is the diameter of the dendrite? do you mean branch, branch versus dendrite!!

We are sorry for the confusion. “Branch” referred to dendritic branch.

Page 6: provide larger image of the vacuoles.,

Please see Figure 2B for an enlarged image of the vacuoles.

what lumen is inner or outer dendrite.

Page 7: the info on T2 is insufficient ….

Page 9: dendrite is unbranched?

We are sorry but we do not understand these questions.

Method

– Explain technical terms, and the technical workflow, so that the non-specialized reader can follow.

This information can be found in the “SBEM datasets” section:

“Following isolation of the third antennal segment the sample was subjected to high-pressure freezing, freeze-substitution, rehydration, DAB labeling, en bloc heavy metal staining, dehydration, and resin infiltration.”

– More details on SBEM methodology, how is the quality of DAB labelling – is the DAB staining cytoplasmic, or membrane-bound – what resolution you used for sectioning?

DAB staining is membrane-bound. We have now revised the section to read:

“The flies expressed membrane-tethered APEX2 (10xUAS-myc-APEX2-Orco or 10xUAS-mCD8GFP-APEX2) in select ORNs under the control of specific OrX- or Ir-X GAL4 drivers as described (Tsang et al., 2018; Zhang et al., 2019).”

Detailed information of the methodology is available in a standalone method paper, which we published in 2018 (Tsang et al., eLife, 2018).

To address the reviewer’s question about resolution, we have provided a new “Source Data for Figure 1” file to detail imaging acquisition parameters.

– how did you perform the visualization of pores across the sensillum surface, from the EM images, or did you perform a SEM scan beforehand.

No, we did not perform SEM imaging for this study. In certain datasets, we could visualize pores on the sensillum surface via performing isosurface reconstruction using IMOD. This information is also available in the Figure 1 legend.

– Is imod an open software – specify the version of Amira.

Yes, we have now included the link for software download (https://bio3d.colorado.edu/imod/) in the revised Methods.

– Isosurface is not suited for volume measure, how was the surface model generated and smoothed?

The reviewer is correct that isosurface is not suited for volume measurement. However, we did not measure sensillum morphometrics based on isosurface images. Instead, sensillum volumes were determined based on the 3D models using the “imodinfo” function in IMOD, as indicated in the “Morphometric analysis” section.

The sensillum 3D surface images were generated using the “Isosurface” function in IMOD instead. This information is available in the “Isosurface models” section.

We have also explained in greater detail how surface models were generated “Surface models were generated using “imodmesh” functions to connect closed contours whereby defined contours were connected with those directly above and below them. Further information on “imodmesh” and meshing parameters can be found in the IMOD User’s Guide (https://bio3d.colorado.edu/imod/doc/man/imodmesh.html).”

– Morphometry: how did you created the surface models, explain imodinfo..

To address the reviewer’s comment, we have expounded on this point in the methods section, including:

“The ‘drawing tools’ plugin was used to trace and outline the structure of interest through serial section of SBEM images. Surface models were generated using ‘imodmesh’ functions to connect adjacent closed contours. Further information on ‘imodmesh’ and meshing parameters can be found in the IMOD User’s Guide (https://bio3d.colorado.edu/imod/doc/man/imodmesh.html)”.

Imodinfo is an IMOD function that allows for extraction of various morphometric data from surface models. Different line-command options extract different data, such as: mesh volume, mesh surface area, and centroid values. To make this clear, we have included in the methods, “The ‘imodinfo’ function was used to extract morphometric data from surface models. We applied option ‘-c’ in the line-command to determine volume and surface area for each region. Further information on ‘imodinfo’ and meshing parameters can be found in the IMOD User’s Guide (https://bio3d.colorado.edu/imod/doc/man/imodinfo.html)”.

Centroid values are a skeleton tool?

Centroid values were extracted using the IMOD function “imodinfo”. Centroid values represent the center of mass for contours bounding the surface models. Further information on ‘imodinfo’ and meshing parameters can be found in the IMOD User’s Guide (https://bio3d.colorado.edu/imod/doc/man/imodinfo.html).

– Ball-and stick model?

Results

In general: for the text on different sensilla types in each sub-chapter, I suggest to always mention the corresponding ORN receptor name (and vice versa), for the convenience and less cross reading. Even though the data are summarized in Table 1 the non-specialized reader is not used to the terminology.

For example page 12, ab4 sensillum, the two ab4 neuron, ab4A and B should be named, and indicated, as Or7a and Or56a, respectively. Same for the legends.

Per reviewer’s suggestion, we have now provided the receptor information in the main text for all previously characterized ORNs.

– Is there always an positive correlation of soma size with dendritic arborization of the respective ORN?

Regarding soma size and dendritic branching, it is unclear whether the two features are correlated. Dendritic arborization depends primarily on the ORN morphological class. As described in our manuscript, for a given ORN type (T1 for example), we observed noticeable variability in dendritic arborization pattern among T1 ORNs despite their similar soma size.

Discussion

Please, discuss and cite the relevant literature related your novel findings in more detail. how the size and shape of sensory neurons influence their responses, sensitivity and circuit function of ORNs?

We apologize that our writing was not clear to the reviewer. We have indicated that:

“Indeed, ORNs housed in the same sensillum can inhibit each other by means of direct electrical interaction, termed ephaptic coupling, which can also modulate fruitfly behavior in response to odor mixtures (Su, Menuz, Reisert, and Carlson, 2012; Zhang et al., 2019). Strikingly, in most sensillum types, lateral inhibition is asymmetric between compartmentalized ORNs: the large-spike neuron is not only capable of exerting greater ephaptic influence but is also less susceptible to ephaptic inhibition by its small-spike neighbors. Mechanistically, this functional disparity arises from the size difference between grouped neurons. The large-spike ORN has a larger soma than its small-spike neighbor(s); this feature is translated into a smaller input resistance for the “A” neuron, thus accounting for its dominance in ephaptic interaction (Zhang et al., 2019).”

Other than influencing the strength of ORN ephaptic coupling, how these morphological and morphometric features contribute to sensory function remains an open question.

– New receptors found, e.g. ABx. Give suggestions of how can the be identified (in situ hybridization)?

We are not certain whether in situ hybridization alone will be able to identify the receptors expressed in the neurons of the novel abx(1) or abx(3) sensilla given that their identification likely requires TEM or SBEM examination.

– Some OSNs express more than one receptor. see the work by the Potter lab: Task (2020) Widespread Polymodal Chemosensory Receptor Expression in Drosophila Olfactory Neurons 2020.11.07.355651 for discussion discussed in this context.

Although the multiplicity of receptors expressed in individual insect ORNs raises intriguing questions, this information is not directly related to our study. It has been shown that deleting or substituting the tuning OR in an ORN does not change its spike amplitude (Dobritsa et al., Neuron, 2003; Hallem et al., Cell, 2004), which by extension suggests that the receptor does not influence the morphometric feature of an ORN. To explicitly demonstrate this point, we have now provided the information in the revised Introduction “Interestingly, deleting or substituting the tuning receptor for an ORN does not alter its characteristic spike amplitude (Dobritsa, van der Goes van Naters, Warr, Steinbrecht, and Carlson, 2003; Hallem et al., 2004), suggesting that this feature is independent of the receptor identity.”

The ORN in ab4b expresses two receptors: Or56a that respond specifically to goesomin and Or33a that no one could identify its ligand yet.

For clarity, we prefer to use only the tuning receptors to indicate ORN identity without mentioning other co-expressed receptors of unknown function.

– How often did you find extracellular vacuoles within the sensilla lumen, in how many sensilla types they occur?

We thank the reviewer for raising this question. We have now provided detailed information about vacuoles in individual sensilla in the revised Source Data for Table 1.

– Intricate dendritic branching in the outer dendrite ab4A neuron: Figure 8C, and text

In the 2D projection dendritic arbors seems to be fused, that contradicts neuron dichotomy morphology. Is this a simple crossover, or a dendritic tiling shown, here? as described in Drosophila larva Grueber (2002).:Tiling of the Drosophila epidermis Development, 129(12), see Figure 2B, here. Does the dendritic morphology correlates with arrangement or number of pores in the respective sensillum.

We thank the reviewer for highlighting the novelty of our findings. No, what was described in Figure 8C was not tilting or crossover, as highlighted in Video 7.

Our analysis does not extend to the pore arrangement or numbers. Therefore, we are not able to determine whether there is any correlation between dendritic branching pattern and sensillum cuticular features.

– Empty sensilla containing no neurons, are they described before?

No, they have never been described before, which is why we consider the identification of empty sensilla a novel finding. To clarify the confusion, we have explicitly stated “Such empty sensilla have never been reported before” in the revised text.

Could this phenomen due to a cell turnover, or apoptosis? using P-MARCM Fernández-Hernández (2020). Reported a 3% turnover of ORNs.

We apologize that our writing was not clear to the reviewer. We have already referenced the paper in our original submission, and speculated that empty sensilla may represent a snapshot of ORN turnover. The sentence can be found at the end of the paragraph:

“While the biological significance of empty sensilla remains to be determined, it is possible that they represent a small fraction of antennal olfactory hairs whose neurons have undergone apoptosis in the process of neuronal turnover (Fernández-Hernández, Hu, and Bonaguidi, 2020).”

Concluding remarks

Discuss in more detail your question with the literature what is known. Are empty cells reported before?

No, they have never been described before, which is why we consider the identification of empty sensilla a novel finding. To clarify the confusion, we have explicitly stated “Such empty sensilla have never been reported before” in the revised text.

How your data relate to other studies on the antenna.e.g. Keesey (2019) Inverse location https://www.nature.com/articles/s41467-019-09087-z, for the distribution of sensilla on the antenna.

We wish to clarify that our study focuses on the nanoscale morphological and morphometric features of sensilla and ORNs, instead of the distribution of sensilla on the antenna. Each SBEM volume sampled a specific portion of the antenna covering the majority of APEX2-labeled sensilla, making it difficult to precisely determine its relative antenna location. Therefore, we do not feel comfortable drawing direct comparison to other studies regarding the distribution of sensilla on the antenna.

We did not reference Keesey (2019) because our study concerns only one sensory modality in only one Drosophila species. However, we did reference other studies describing the sensillum distribution in an antenna “(de Bruyne, Foster, and Carlson, 2001; Grabe et al., 2016; Shanbhag et al., 1999)”.

Figures

– Figure 1A: the distribution on Apex labelled flies (false color?). Did you sample from the anterior / posterior side of the antenna? Please give an orientation, and a relative position of the sampled sensilla, e.g. location of arista, sacculus, and funiculus border (for an nice example, see e.g. Grabe (2016) Figure 1B).

– 1B: the columns are show the number of identified sensilla, I suggest, to Indicate in Figure 1 A with stars the labelled versus non-labeled sensilla,

As suggested, we have now indicated APEX2-labeled sensilla in Figure 1A.

– In Figure 1 you gave an overview of datasets used in the study. Please, indicate: how large is your dataset, i.e 123 ORNs, relative to the total number of sensilla (Keesey 2019) reported app. 400 sensilla in total for Drosophila m. Also: are your samples randomly chosen across the antenna.Is there a distinct pattern of how are sensilla types are distributed across the antenna for certain sensilla types?

We have indicated the number of sensilla identified in each dataset in Figure 1B. To further address the reviewer’s comment, we have provided the requested information in a new Source Data file for Figure 1.

We wish to clarify that each dataset sampled a specific portion of the antenna. The imaged region was determined by the labeled sensilla, and is therefore not randomly selected.

– Figure 2 the extracellular vacuole (in teal) is shown in dark blue in 2B (3)? I suggest to use another color for the vacuoles for better understanding of the 3D structure.

We thank the reviewer for the excellent suggestion. To better distinguish vacuoles from other structures in our figures, we have changed the vacuole color from teal to aubergine.

– Table 2 (main text): I suggest to provide more details for the identified ORN, to compare with previous datasets, or data repositories (such as DoOR) and to allow for more cross-references found in the literature: – OR co-receptor, – corresponding glomerulus in the antennal lobe, – functional response according to DoOR

In the DoOR database (http://neuro.uni-konstanz.de/DoOR/default.html ), for example, the ab4 sensillum hosing Or7A receptor (ab4A neuron), and the Or56a co-expressed with Or33Aa. The latter is not listed in your table.

As suggested, we have included ORN glomerulus projection as an additional identifier. The revised legend now includes: “ORN identity is indicated by the sensillum type, relative spike amplitude (A, B, C or D), odor-tuning receptor, and glomerular projection.”

For clarity, and in consideration of the large information load, we focus on our own morphometric data in Table 2. For the same reasons, we also focus on the tuning receptors as a key ORN identifier without mentioning other co-expressed receptors of unknown function.

Furthermore, we wish to clarify that the odor response profile of an ORN is predominantly determined by the tuning receptor expressed in the neuron (Hallem et al., Cell, 2004), which is independent of whether the neuron is a large- or small-spike ORN. By extension, the odor response profile is independent of the neuron’s morphometric features. It is therefore of limited usefulness to search for any correlation between ORNs’ morphological features and odor response properties.

However, we have incorporated the reviewer’s suggestion by revising the text to include key ligands for ORNs that respond to ethologically salient odors. We have also included the following sentence in the revised Table 2 legend “The odor response profiles for many of the characterized ORNs can be found in the DoOR database (http://neuro.uni-konstanz.de/DoOR/default.html)” such that readers who are curious about the functional data can easily find the information.

Supplementary

Su_28-04-2021-RA-eLife-69896_Source_Data_File excel Table

In general: provide an explanation and an list of all abbreviation used in these excel files. There are partly hard to understand.

– ORN Morphometric: I do not understand the terminology of column 2

We are sorry for the confusion. The second column refers to the sensillum identity. In the revision, we have provided a clearer definition for all abbreviations and terms in the Source Data for Table 2.

– T3 model: why you present data three soma sizes: A,B,C, but listing only two ORN types in the first column ? same for AC1 model

We are sorry that we do not understand what the reviewer referred to. The first column indicates the dataset identity, and the second column refers to the sensillum identity.

– It took me a while to figure out that the first column 'just' indicates the dataset (genetically labelled with Apex) without any other reference to the following columns identity of ORN , and labelled with A,B, or C.

I suggest to present, here, and in the tables where you report 'branching' and 'mitochondria' the ORN type in brackets, as you do in the Summary Table.

We are sorry for the confusion. In the revision, we have provided a clearer definition for all abbreviations and terms in the Source Data for Table 2.

Videos: Please, prepare an extra sheet, word-file to provide a detailed description for each video

We thank the reviewer for the suggestion. We have now provided detailed information for each 3D model shown in the videos in the Source Data for Table 2 and Source Data for Figure 1. The video legend now includes “Detailed information regarding individual 3D models shown in the videos can be found in the “Source Data for Table 2” file.”

https://doi.org/10.7554/eLife.69896.sa2

Article and author information

Author details

  1. Cesar Nava Gonzales

    Neurobiology Section, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology
    Contributed equally with
    Quintyn McKaughan
    Competing interests
    No competing interests declared
  2. Quintyn McKaughan

    Neurobiology Section, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Cesar Nava Gonzales
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6611-6530
  3. Eric A Bushong

    National Center for Microscopy and Imaging Research, Center for Research in Biological Systems, University of California, San Diego, San Diego, United States
    Contribution
    Software, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Kalyani Cauwenberghs

    Neurobiology Section, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Contribution
    Software, Formal analysis, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Renny Ng

    Neurobiology Section, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Contribution
    Investigation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Matthew Madany

    National Center for Microscopy and Imaging Research, Center for Research in Biological Systems, University of California, San Diego, San Diego, United States
    Contribution
    Software, Methodology
    Competing interests
    No competing interests declared
  7. Mark H Ellisman

    National Center for Microscopy and Imaging Research, Center for Research in Biological Systems, University of California, San Diego, San Diego, United States
    Contribution
    Resources, Funding acquisition
    Competing interests
    No competing interests declared
  8. Chih-Ying Su

    Neurobiology Section, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    c8su@ucsd.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0005-1890

Funding

National Institute on Deafness and Other Communication Disorders (R01DC016466)

  • Chih-Ying Su

National Institute on Deafness and Other Communication Disorders (R01DC015519)

  • Chih-Ying Su

National Institute on Deafness and Other Communication Disorders (R21DC108912)

  • Chih-Ying Su

National Institute of Neurological Disorders and Stroke (U24NS120055)

  • Mark H Ellisman

National Institute of General Medical Sciences (R24GM137200)

  • Mark H Ellisman

National Institute of General Medical Sciences (R01GM082949)

  • Mark H Ellisman

National Science Foundation (NSF2014862-UTA20-000890)

  • Mark H Ellisman

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Tin Ki Tsang for help with generating SBEM data sets, Isabel Nguyen, Andrea Nguyen, Alexandra Macaraeg, Valorie Gonzalez, and Kaitlyn Chu for assistance in image segmentation, and Larry Squire for comments on the manuscript. This study was supported by NIH grants R01DC016466, R01DC015519, and R21DC108912 (C-YS); U24NS120055, R24GM137200, and R01GM082949 (MHE). The authors dedicate this study to Prof. Dr. RA Steinbrecht, whose landmark papers have profoundly influenced our research.

Senior Editor

  1. Piali Sengupta, Brandeis University, United States

Reviewing Editor

  1. Albert Cardona, University of Cambridge, United Kingdom

Reviewer

  1. Jürgen Rybak, Max Planck Institute for Chemical Ecology, Germany

Publication history

  1. Preprint posted: April 29, 2021 (view preprint)
  2. Received: April 29, 2021
  3. Accepted: August 20, 2021
  4. Accepted Manuscript published: August 23, 2021 (version 1)
  5. Version of Record published: September 1, 2021 (version 2)

Copyright

© 2021, Nava Gonzales et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 874
    Page views
  • 179
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Debora Fusca, Peter Kloppenburg
    Research Article

    Local interneurons (LNs) mediate complex interactions within the antennal lobe, the primary olfactory system of insects, and the functional analog of the vertebrate olfactory bulb. In the cockroach Periplaneta americana, as in other insects, several types of LNs with distinctive physiological and morphological properties can be defined. Here, we combined whole-cell patch-clamp recordings and Ca2+ imaging of individual LNs to analyze the role of spiking and nonspiking LNs in inter- and intraglomerular signaling during olfactory information processing. Spiking GABAergic LNs reacted to odorant stimulation with a uniform rise in [Ca2+]i in the ramifications of all innervated glomeruli. In contrast, in nonspiking LNs, glomerular Ca2+ signals were odorant specific and varied between glomeruli, resulting in distinct, glomerulus-specific tuning curves. The cell type-specific differences in Ca2+ dynamics support the idea that spiking LNs play a primary role in interglomerular signaling, while they assign nonspiking LNs an essential role in intraglomerular signaling.

    1. Neuroscience
    Wanhui Sheng et al.
    Research Article Updated

    Hypothalamic oxytocinergic magnocellular neurons have a fascinating ability to release peptide from both their axon terminals and from their dendrites. Existing data indicates that the relationship between somatic activity and dendritic release is not constant, but the mechanisms through which this relationship can be modulated are not completely understood. Here, we use a combination of electrical and optical recording techniques to quantify activity-induced calcium influx in proximal vs. distal dendrites of oxytocinergic magnocellular neurons located in the paraventricular nucleus of the hypothalamus (OT-MCNs). Results reveal that the dendrites of OT-MCNs are weak conductors of somatic voltage changes; however, activity-induced dendritic calcium influx can be robustly regulated by both osmosensitive and non-osmosensitive ion channels located along the dendritic membrane. Overall, this study reveals that dendritic conductivity is a dynamic and endogenously regulated feature of OT-MCNs that is likely to have substantial functional impact on central oxytocin release.
