STIM1-dependent peripheral coupling governs the contractility of vascular smooth muscle cells

  1. Vivek Krishnan
  2. Sher Ali
  3. Albert L Gonzales
  4. Pratish Thakore
  5. Caoimhin S Griffin
  6. Evan Yamasaki
  7. Michael G Alvarado
  8. Martin T Johnson
  9. Mohamed Trebak
  10. Scott Earley  Is a corresponding author
  1. Department of Pharmacology, Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, United States
  2. Department of Physiology and Cell Biology, Center for Molecular and Cellular Signaling 18 in the Cardiovascular System, University of Nevada, United States
  3. Department of Cellular and Molecular Physiology, Penn State Cancer Institute, Penn State University, United States
  4. Department of Pharmacology and Chemical Biology, and Vascular Medicine Institute, University of Pittsburgh, United States

Abstract

Peripheral coupling between the sarcoplasmic reticulum (SR) and plasma membrane (PM) forms signaling complexes that regulate the membrane potential and contractility of vascular smooth muscle cells (VSMCs). The mechanisms responsible for these membrane interactions are poorly understood. In many cells, STIM1 (stromal interaction molecule 1), a single-transmembrane-domain protein that resides in the endoplasmic reticulum (ER), transiently moves to ER-PM junctions in response to depletion of ER Ca2+ stores and initiates store-operated Ca2+ entry (SOCE). Fully differentiated VSMCs express STIM1 but exhibit only marginal SOCE activity. We hypothesized that STIM1 is constitutively active in contractile VSMCs and maintains peripheral coupling. In support of this concept, we found that the number and size of SR-PM interacting sites were decreased, and SR-dependent Ca2+-signaling processes were disrupted in freshly isolated cerebral artery SMCs from tamoxifen-inducible, SMC-specific STIM1-knockout (Stim1-smKO) mice. VSMCs from Stim1-smKO mice also exhibited a reduction in nanoscale colocalization between Ca2+-release sites on the SR and Ca2+-activated ion channels on the PM, accompanied by diminished channel activity. Stim1-smKO mice were hypotensive, and resistance arteries isolated from them displayed blunted contractility. These data suggest that STIM1 – independent of SR Ca2+ store depletion – is critically important for stable peripheral coupling in contractile VSMCs.

Introduction

Subcellular Ca2+-signaling microdomains formed by interactions between the sarcoplasmic reticulum (SR) and the plasma membrane (PM) are vital for many physiological processes, including regulation of the contractility of vascular smooth muscle cells (VSMCs) (Nelson et al., 1995; Gonzales et al., 2014). Ca2+ signals that occupy these compartments are typified by Ca2+ sparks – large-amplitude Ca2+ transients that reflect optically detected Ca2+ ions released into the cytosol from the SR through clusters of type 2 ryanodine receptors (RyR2s). Ca2+ sparks activate clusters of large-conductance Ca2+-activated K+ (BK) channels on the PM, generating transient, macroscopic outward K+ currents that hyperpolarize the PM (Nelson et al., 1995; Mironneau et al., 1996; ZhuGe et al., 1999). A complementary Ca2+-signaling pathway that causes VSMC membrane depolarization and elevated contractility is formed by interactions between inositol 1,4,5-trisphosphate receptors (IP3Rs) on the SR and monovalent cation-selective, Ca2+-activated TRPM4 (transient receptor potential melastatin 4) channels on the PM. Ca2+ released from the SR through IP3Rs activates Na+ influx through TRPM4, causing depolarization of the PM and increased VSMC contractility (Gonzales et al., 2014; Gonzales et al., 2010b). The close association of the SR and PM creates subcellular compartments where the local Ca2+ ion concentration can reach the micromolar range required for activation of BK and TRPM4 channels under physiological conditions (Zhuge et al., 2002). In nonexcitable cells, endoplasmic reticulum (ER)-PM junctions and associated proteins have been well characterized (Chang et al., 2017; Chen et al., 2019). In contrast, SR-PM junctional areas of VSMCs and the essential proteins that mediate these interactions remain poorly understood.

The ER-PM junctions of nonexcitable cells are highly specialized hubs for ion channel signaling cascades. These spaces are the sites of one of the most ubiquitous receptor-regulated Ca2+ entry pathways in such cells, termed store-operated Ca2+ entry (SOCE), which is mediated by the ER-resident Ca2+-sensing protein STIM1 (stromal interaction molecule 1) and Ca2+-selective channels of the Orai group on the PM (Michaelis et al., 2015; Mercer et al., 2006; Kwon et al., 2017; Prakriya and Lewis, 2015; Emrich et al., 2022). STIM1 is a single-pass transmembrane ER/SR protein that possesses a low-affinity Ca2+-sensing EF-hand facing the lumen of the ER/SR (Michaelis et al., 2015; Abdullaev et al., 2008; Berry et al., 2011; Chin-Smith et al., 2014; Correll et al., 2015; Jones et al., 2008; Klejman et al., 2009; Koh et al., 2009; López et al., 2008; Lu et al., 2010; Lu et al., 2008; Lyfenko and Dirksen, 2008; Numaga-Tomita and Putney, 2013; Nurbaeva et al., 2015; Onodera et al., 2013; Peel et al., 2006; Takahashi et al., 2007; Wissenbach et al., 2007; Zhang et al., 2007; Zhou et al., 2015). Following Ca2+ store depletion by IP3-producing receptor agonists, STIM1 acquires an extended conformation and migrates to ER-PM junctions, exposing a cytosolic STIM-Orai-activating region that physically traps and activates Orai channels on the PM (Michaelis et al., 2015; Mercer et al., 2006; Abdullaev et al., 2008; Koh et al., 2009; Lyfenko and Dirksen, 2008; Nurbaeva et al., 2015; Peel et al., 2006; Zhang et al., 2007; Zhou et al., 2015; Perni et al., 2015; Soboloff et al., 2006; Spassova et al., 2006; Stathopulos et al., 2013; Zhou et al., 2013). The other STIM protein family member, STIM2, is structurally similar to STIM1. Fully differentiated VSMCs from systemic arteries express STIM1 but not STIM2 and do not exhibit detectable SOCE or its biophysical manifestation, the Ca2+ release-activated Ca2+ (CRAC) current (Bisaillon et al., 2010; Potier et al., 2009; Fernandez et al., 2015). Many species express IP3Rs but lack STIM and Orai proteins, suggesting that receptor-evoked Ca2+ signaling is not always complemented by the operation of STIM and Orai mechanisms (Collins and Meyer, 2011). Evolutionary evidence indicates that Orai appeared before STIM, implying that STIM might have arisen to support the function of ER-PM junctions and only subsequently co-opted an existing Orai for SOCE (Collins and Meyer, 2011). Additional accumulating evidence indicates that, in addition to its role in SOCE, mammalian STIM1 protein serves as an essential regulator of several other ion channels and signaling pathways. STIM1 both positively and negatively regulates the function of L-type voltage-gated Ca2+ channels (Cav1.2) (Harraz and Altier, 2014), transient receptor potential canonical (TRPC) channels (Worley et al., 2007), and arachidonate-regulated Ca2+ (ARC) channels (Mignen et al., 2007). It has also been reported to regulate the function of Ca2+ pumps, such as the SR/ER Ca2+ ATPase (SERCA) and PM Ca2+ ATPase (PMCA), as well as several cAMP-producing adenylyl cyclases at the PM (Lee et al., 2014; Ritchie et al., 2012; Martin et al., 2009; Motiani et al., 2018).

In this study, we investigated the role of STIM1 in the formation of stable peripheral coupling sites in native, contractile SMCs from cerebral arteries. We show that STIM1 knockout disrupts the functional coupling of Ca2+ release sites on the SR with Ca2+-dependent ion channels on the PM. We further show that this function of STIM1 is independent of Orai1 channel activity and SR Ca2+ store depletion and acts to sustain subcellular Ca2+-signaling pathways that are essential for the regulation of VSMC contractility.

Results

Stim1-smKO mice lack STIM1 protein expression in VSMCs

Mice with loxP sites flanking exon 2 of the Stim1 gene (Stim1fl/fl mice) were crossed with myosin heavy chain 11 Myh11CreERT2 mice (Chappell et al., 2016; Wirth et al., 2008), generating Myh11CreERT2: Stim1fl/wt mice, in which Myh11 promoter-driven Cre expression is induced by injection of tamoxifen. Heterozygous Myh11CreERT2: Stim1fl/wt mice were then intercrossed, yielding tamoxifen-inducible Myh11CreERT2: Stim1fl/fl mice. Cre-recombinase expression was induced in male Myh11CreERT2: Stim1fl/fl mice by daily intraperitoneal injection of tamoxifen (100 µL, 10 mg/mL) for 5 days, beginning at 4–6 weeks of age to generate SMC-specific Stim1 knockout mice (Stim1-smKO). Controls for all experiments consisted of Myh11CreERT2: Stim1fl/fl mice injected with sunflower oil, the vehicle for tamoxifen. Mice were used for experiments 1 week after the final injection. The Wes capillary electrophoresis immunoassay-based protein detection system was used for qualitative and quantitative assessment of STIM1 protein in smooth muscle tissues from Stim1-smKO and control mice. STIM1 protein was readily detected as a single band in cerebral artery, mesenteric artery, aortic, colonic, and bladder smooth muscle isolated from control mice but was virtually undetectable in smooth muscle isolated from Stim1-smKO mice (Figure 1A). STIM1 protein levels normalized to total protein (Figure 1—figure supplement 1A) were significantly lower in cerebral artery, aortic, colonic, and bladder smooth muscle from Stim1-smKO mice compared with controls (Figure 1A). In contrast, STIM1 protein expression was detected at similar levels in whole brains from both control and Stim1-smKO mice (Figure 1A), reflecting STIM1 expression in brain cells apart from VSMCs. Tamoxifen injection had no effect on STIM1 protein levels in Myh11CreERT2: Stim1wt/wt mice (Figure 1—figure supplement 1B–G).

Figure 1 with 3 supplements see all

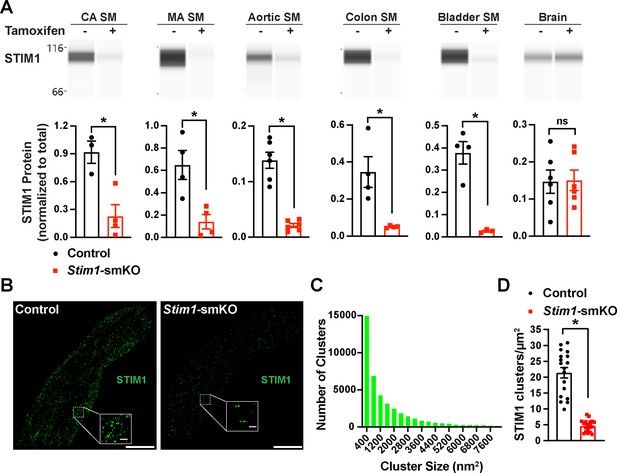

Inducible smooth muscle cell (SMC)-specific Stim1 knockout.

(A) Representative Wes protein capillary electrophoresis experiments, presented as Western blots, showing STIM1 protein expression levels in smooth muscle tissues and brains of control and Stim1-smKO mice. Summary data showing densitometric analyses of STIM1 protein expression in cerebral artery smooth muscle (CA SM), mesenteric artery smooth muscle (MA SM), aortic smooth muscle, colonic smooth muscle, bladder smooth muscle, and brain, normalized to total protein (n = 3–6 mice/group; *p<0.05, unpaired t-test). ns, not significant. (B) Representative epifluorescence superresolution localization maps of isolated cerebral artery SMCs from control and Stim1-smKO mice immunolabeled for STIM1. Insets: enlarged areas highlighted by the white squares in the main panels. Scale bars: 3 µm (main panels) and 250 nm (inset panels). (C) Distribution plot of the surface areas of individual STIM1 clusters in cerebral artery SMCs isolated from control mice (n = 42,726 clusters from 18 cells from three mice). (D) STIM1 cluster density in cerebral artery SMCs isolated from control and Stim1-smKO mice (n = 18 cells from three mice/group; *p<0.05, unpaired t-test).

Figure 1—source data 1

Individual data points and analysis summaries for datasets shown in Figure 1.

https://cdn.elifesciences.org/articles/70278/elife-70278-fig1-data1-v2.xlsx

In further studies, single SMCs from cerebral arteries isolated from control and Stim1-smKO mice were enzymatically dispersed, immunolabeled with an anti-STIM1 primary antibody, and imaged using a ground state depletion followed by individual molecule return (GSDIM) superresolution microscopy system in epifluorescence (Figure 1B) and total internal reflection fluorescence (TIRF) (Figure 1—figure supplement 2A) modes. We previously showed that our GSDIM system has a lateral resolution of 20–40 nm (Pritchard et al., 2019; Thakore, 2020). TIRF-mode GSDIM detects fluorophores at or near the PM to a depth of approximately 150 nm.

VSMCs from control mice exhibited punctate STIM1 protein clusters (Figure 1B). Frequency analyses revealed that the sizes of these clusters were exponentially distributed, with a majority of clusters (~95%) ranging in area between 400 and 7600 nm2 (mean = 2135 ± 21 nm2; median = 800 nm2) (Figure 1C). STIM1 cluster density and size were significantly reduced in VSMCs isolated from Stim1-smKO mice (Figure 1D, Figure 1—figure supplement 2B and C). In addition, the number of GSDIM events detected in VSMCs isolated from Stim1-smKO mice was comparable to background levels observed in cells from control mice immunolabeled with secondary antibody only, providing further evidence of effective STIM1 knockdown (Figure 1—figure supplement 2D and E). Taken together, these data demonstrate selective, tamoxifen-inducible SMC-specific knockout of STIM1 expression in Stim1-smKO mice.

In many cells, depletion of ER/SR Ca2+ stores causes STIM1 to form large clusters and initiate SOCE. Here, we examined the effects of the SERCA pump inhibitor thapsigargin on STIM1 clusters in VSMCs from control mice using TIRF-mode GSDIM. This treatment had no effect on the density or size of STIM1 protein clusters at the PM (Figure 1—figure supplement 3A–C). In addition, we compared SOCE between cultured, proliferative cerebral artery VSMCs and native, contractile VSMCs. We found that proliferative VSMCs exhibit robust SOCE, whereas SOCE is virtually undetectable in contractile VSMCs (Figure 1—figure supplement 3D and E). These data indicate that in contractile VSMCs STIM1 cluster size and density are unaffected by the depletion of SR Ca2+ and that SOCE is absent from these cells.

PM and SR coupling is diminished in VSMCs from Stim1-smKO mice

To investigate how STIM1 knockout affects PM and SR interactions, we costained native SMCs isolated from cerebral arteries of control and Stim1-smKO mice with Cell-Mask Deep Red and ER-Tracker Green to label the PM and SR, respectively, as described in our prior publications (Pritchard et al., 2019; Pritchard et al., 2017). Using live-cell structured illumination microscopy (SIM), we acquired Z-stack images of PM- and SR-labeled VSMCs as 0.25 µm slices. We then reconstructed the 3D surfaces of the PM and SR from these images (Figure 2A), also generating a third surface indicating the sites of colocalization between the PM and SR (Figure 2A, Videos 1 and 2). The mean volume of the PM did not differ between Stim1-smKO and control mice, but the volume of the SR was smaller in cells isolated from Stim1-smKO mice (Figure 2B and C). The reduction in SR volume is likely due to the peripheral SR pulling away from the PM. The overall PM-SR colocalization was significantly reduced in VSMCs from Stim1-smKO mice compared with controls (Figure 2D). As shown in representative image galleries of individual colocalization sites (Figure 2E and F), the majority of PM-SR coupling sites in cells from both groups formed spherical surfaces, but some of the larger structures exhibited an elongated morphology. Frequency analyses showed that the volume of individual colocalization sites in cells from both groups exhibited an exponential distribution (Figure 2G). In addition, the number of coupling sites per unit volume and mean volume of individual sites were smaller in cells from Stim1-smKO mice compared with those from controls (Figure 2H and I). These data indicate that STIM1 maintains contact between the peripheral SR and PM, and interactions between the PM and SR are decreased by Stim1 knockout in VSMCs.

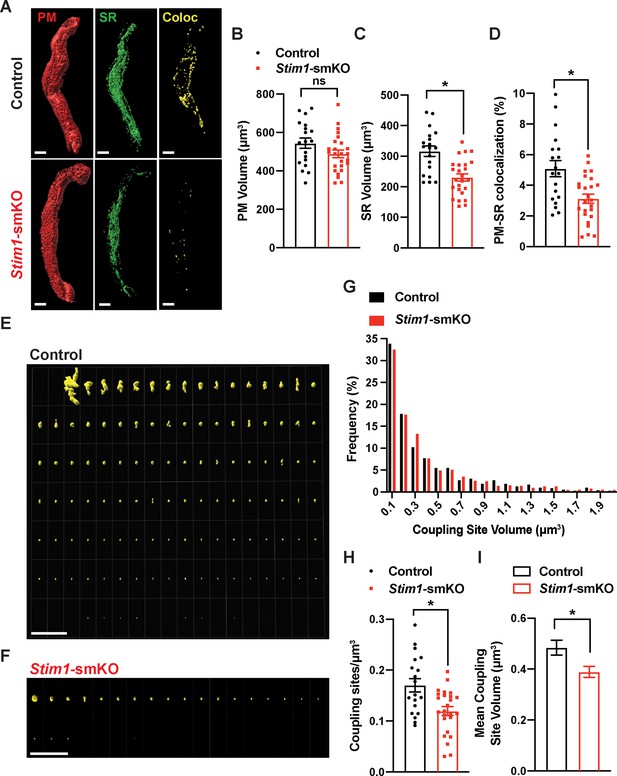

Stim1 knockout decreases the density and area of plasma membrane-sarcoplasmic reticulum (PM-SR) coupling sites.

(A) Representative 3D surface reconstructions of cerebral artery smooth muscle cells (SMCs) isolated from control and Stim1-smKO mice labeled with PM (red) and SR (green) dyes and imaged using structured illumination microscopy (SIM). Representations of colocalizing PM and SR surfaces (yellow), generated from surface reconstructions. Scale bar: 5 µm. (B, C) PM and SR volumes and (D) PM-SR colocalization (%) in cells from control and Stim1-smKO mice. (E, F) Ensemble images of all PM-SR colocalization sites in single cells from the control and Stim1-smKO mice shown in panel (A). Scale bar: 10 µm. (G) Frequency distribution of the volumes of individual PM-SR colocalization sites in VSMCs isolated from control and Stim1-smKO mice. (H) Densities and (I) mean volumes of individual coupling sites in VSMCs from control and Stim1-smKO mice. Data are for 1736 colocalization sites in 19 cells from six mice for control and 1484 colocalization sites in 25 cells from seven mice for Stim1-smKO (*p<0.05, unpaired t-test). ns, not significant.

Figure 2—source data 1

Individual data points and analysis summaries for datasets shown in Figure 2.

https://cdn.elifesciences.org/articles/70278/elife-70278-fig2-data1-v2.xlsx
Video 1
Plasma membrane-sarcoplasmic reticulum (PM-SR) interactions in a cerebral artery smooth muscle cell (SMC) isolated from a control mouse.

Animated representation of a SIM image series reconstructed and rendered in 3D. The PM is shown in red and made transparent for better visualization; the SR is shown in green, and colocalized areas are shown in yellow.

Video 2
Plasma membrane-sarcoplasmic reticulum (PM-SR) interactions in a cerebral artery smooth muscle cell (SMC) isolated from a Stim1-smKO mouse.

Animated representation of a SIM image series reconstructed and rendered in 3D. The PM is shown in red and made transparent for better visualization; the SR is shown in green, and areas of colocalization are shown in yellow.

Stim1 knockout decreases the colocalization of BK and RyR2 protein clusters

BK channels on the PM of VSMCs are functionally coupled with RyR2s on the SR (Nelson et al., 1995). Therefore, we investigated how Stim1 knockout affects the nanoscale structure of BK-RyR2 signaling complexes using GSDIM superresolution microscopy. Freshly isolated VSMCs from Stim1-smKO and control mice were co-immunolabeled for RyR2 and the BK channel pore-forming subunit BKα and imaged using GSDIM in epifluorescence illumination mode. The resulting superresolution localization maps (Figure 3A, leftmost panels) showed that both proteins were present as defined clusters in VSMCs. Using an object-based analysis (OBA) approach (Bolte and Cordelières, 2006; Lachmanovich et al., 2003) as described in previous publications (Pritchard et al., 2019; Thakore, 2020; Pritchard et al., 2017; Griffin et al., 2020; Pritchard et al., 2018), we generated new maps of RyR2 clusters that overlapped at the resolution limit of our microscope system (~20–40 nm) with the centroid of each BK cluster and BK clusters that coincided with the centroid of each RyR2 cluster (Supplementary file 1). These two maps were then merged to reveal colocalized RyR2-BK channel protein clusters in VSMCs from both groups of animals that were below the resolution of our GSDIM system (Figure 3A, middle and rightmost panels). Particle analysis of these clusters showed that the density of individual BK protein clusters (number of clusters per unit area) was similar for both groups of animals (Figure 3B), whereas the density of individual RyR2 clusters was lower in VSMCs from Stim1-smKO mice compared with controls (Figure 3C). In both groups, the sizes of individual BK channel and RyR2 clusters followed an exponential distribution (Figure 3B and C). The mean size of individual BK clusters was smaller in VSMCs from Stim1-smKO mice compared with those from controls (Figure 3B); in contrast, the mean size of RyR2 clusters was slightly larger in cells from Stim1-smKO mice (Figure 3C). In terms of colocalization, this analysis showed a significant reduction in the density of colocalized BK-RyR2 protein clusters in VSMCs from Stim1-smKO mice compared with controls (Figure 3D). The mean size of colocalizing clusters from Stim1-smKO mice was smaller compared with those from control mice (Figure 3D), and the sizes of BK-RyR2 colocalization sites in cerebral artery SMCs from both groups exhibited an exponential distribution (Figure 3D).

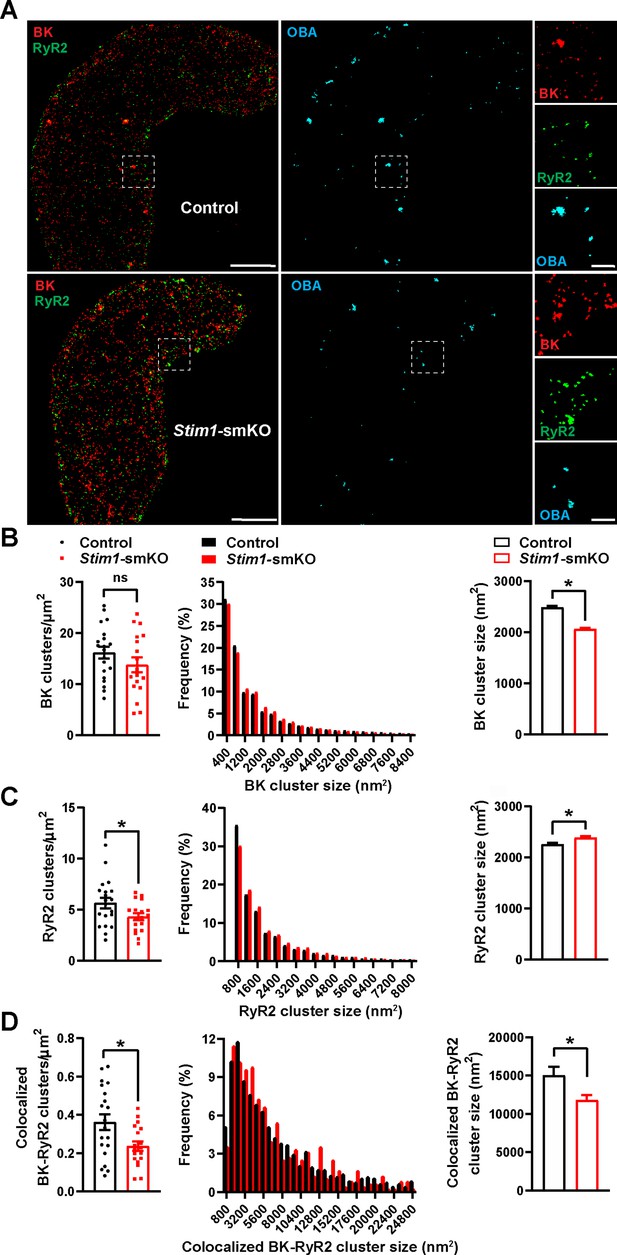

Stim1 knockout decreases colocalization of BK and RyR2 protein clusters.

(A) Epifluorescence-mode superresolution localization maps of freshly isolated vascular smooth muscle cells (VSMCs) from control and Stim1-smKO mice immunolabeled for BK (red) and RyR2 (green). Colocalized BK and RyR2 clusters were identified by object-based analysis (OBA) and mapped (cyan). Scale bar: 3 µm. Panels to the right show enlarged areas of the original superresolution maps indicated by the white boxes. Scale bar: 500 nm. (B) Summary data showing the density (clusters per unit area), frequency distribution of sizes, and mean size of BK channel clusters. (C) Summary data showing the density, frequency distribution of sizes, and mean size of RyR2 clusters. (D) Summary data showing the density, frequency distribution of sizes, and mean size of colocalizing BK and RyR2 clusters, identified using OBA. For density data, n = 20 cells from three mice for controls and n = 18 cells from three mice for Stim1-smKO mice. For frequency distribution and mean cluster size data: control, n = 44,340 BK channel clusters, n = 15,193 RyR2 clusters, and n = 1054 colocalizing clusters; Stim1-smKO: n = 30,552 BK channel clusters, n = 9702 RyR2 clusters, and n = 547 colocalizing clusters (*p<0.05, unpaired t-test). ns, not significant.

Figure 3—source data 1

Individual data points and analysis summaries for datasets shown in Figure 3.

https://cdn.elifesciences.org/articles/70278/elife-70278-fig3-data1-v2.xlsx

Stim1 knockout decreases the colocalization of TRPM4 and IP3R protein clusters

TRPM4 channels on the PM are functionally coupled with IP3Rs on the SR (Gonzales et al., 2014). Therefore, we also investigated how interactions between PM TRPM4 channels and SR IP3Rs were altered by Stim1 knockout. Freshly isolated VSMCs from control and Stim1-smKO mice were co-immunolabeled for TRPM4 and IP3R and imaged using GSDIM in epifluorescence illumination mode. The resulting GSDIM localization maps showed that these proteins are present as discrete clusters in cells (Figure 4A, leftmost panels).

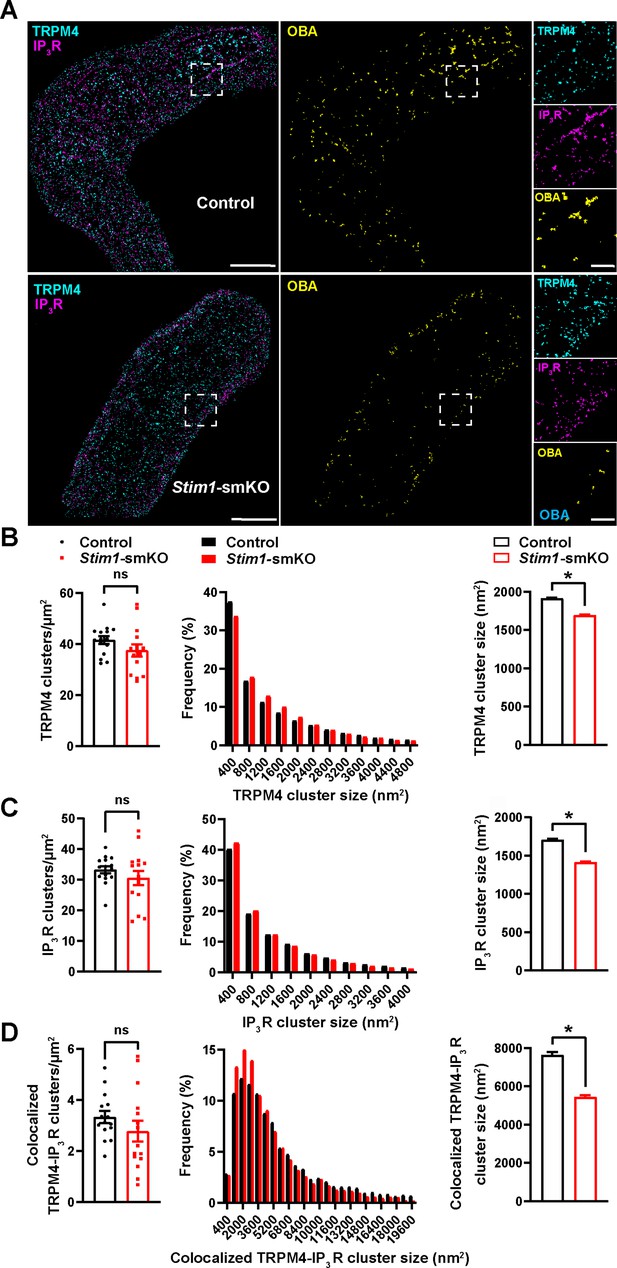

Stim1 knockout decreases colocalization of TRPM4 and IP3R protein clusters.

(A) Epifluorescence-mode superresolution localization maps of freshly isolated vascular smooth muscle cells (VSMCs) from control and Stim1-smKO mice immunolabeled for TRPM4 (cyan) and IP3R (magenta). Colocalized TRPM4 and IP3R clusters were identified by object-based analysis (OBA) and mapped (yellow). Scale bar: 3 µm. Panels to the right show enlarged areas of the original superresolution maps indicated by white boxes. Scale bar: 500 nm. (B) Summary data showing the density (clusters per unit area), frequency distribution of sizes, and mean size of TRPM4 channel protein clusters. (C) Summary data showing the density, frequency distribution of sizes, and mean size of IP3R clusters. (D) Summary data showing the density, frequency distribution of sizes, and mean size of colocalizing TRPM4 and IP3R clusters, identified using OBA. For density data, n = 15 cells from three mice for both control and Stim1-smKO mice. For frequency distribution and mean cluster size data: control, n = 64,292 TRPM4 channel clusters, n = 51,728 IP3R clusters, and n = 5164 colocalizing clusters; Stim1-smKO mice, n = 56,771 TRPM4 channel clusters, n = 45,717 IP3R, and n = 3981 colocalizing clusters (*p<0.05, unpaired t-test). ns, not significant.

Figure 4—source data 1

Individual data points and analysis summaries for datasets shown in Figure 4.

https://cdn.elifesciences.org/articles/70278/elife-70278-fig4-data1-v2.xlsx

We next used OBA to identify and map individual and colocalized TRPM4 and IP3R protein clusters (Figure 4A, middle and rightmost panels; Supplementary file 1). This analysis showed that the densities of individual TRPM4 and IP3R clusters were similar in both groups (Figure 4B and C) and that their sizes were exponentially distributed (Figure 4B and C). The mean sizes of individual TRPM4 and IP3R clusters were smaller in VSMCs from Stim1-smKO mice compared with those from controls (Figure 4B and C). The density of colocalized TRPM4-IP3R cluster sites did not differ between groups (Figure 4D), but the sizes of these colocalized clusters were smaller in cells from Stim1-smKO mice compared with those from controls (Figure 4D). Like individual clusters, colocalized clusters exhibited an exponential distribution (Figure 4D).

STIM1 colocalizes with BK and TRPM4 channels

To determine the location of STIM1 clusters relative to BK and TRPM4 channel clusters at the PM, we imaged VSMCs from control mice that had been coimmunolabeled for BK and STIM1 (Figure 5A) or TRPM4 and STIM1 (Figure 5B) using TIRF-GSDIM. The frequency of colocalization of BK and STIM1 clusters and TRPM4 and STIM1 clusters was determined using OBA and mapped (Figure 5A and B). For comparison, new maps were generated from each original superresolution map that replicated the density and cluster size distribution, but a random location was assigned to each protein cluster. We then performed OBA for the simulated random distribution and compared the colocalization frequency of the original maps with the colocalization frequency of their randomized counterparts. The fraction of colocalized clusters in the original maps was greater than its randomized counterpart for every cell (Figure 5C and D). These data show that BK and STIM1 (Figure 5C) and TRPM4 and STIM1 (Figure 5D) colocalized more frequently than predicted if the distribution of protein clusters was random, suggesting a mechanistic basis of interaction.

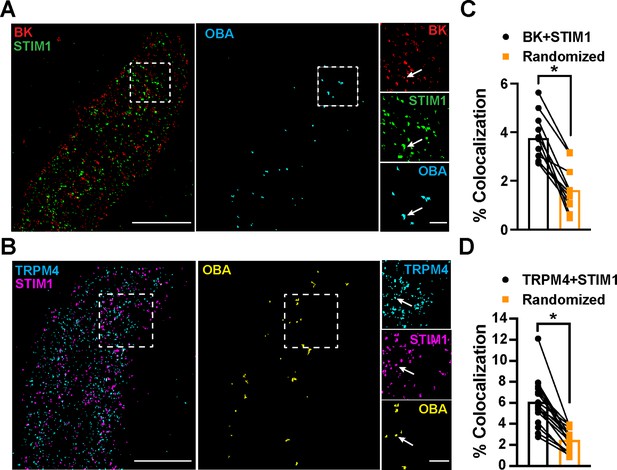

STIM1 colocalizes with BK and TRPM4.

(A) Total internal reflection fluorescence (TIRF)-mode superresolution localization maps of freshly isolated vascular smooth muscle cells (VSMCs) from control mice immunolabeled for BK (red) and STIM1 (green). Colocalized BK and STIM1 clusters were identified by object-based analysis (OBA) and mapped (cyan). Scale bar: 3 µm. Panels to the right show enlarged areas of the original superresolution maps indicated by the white boxes. Arrows show examples of colocalizing clusters. Scale bar: 500 nm. (B) TIRF-mode superresolution localization maps of freshly isolated VSMCs from control mice immunolabeled for TRPM4 (cyan) and STIM1 (magenta). Colocalized TRPM4 and STIM1 clusters were identified by OBA and mapped (yellow). Scale bar: 2 µm. Panels to the right show enlarged areas of the original superresolution maps indicated by the white boxes. Arrows show examples of colocalizing clusters. Scale bar: 500 nm. (C) Colocalization frequency of BK and STIM1 clusters in imaged cells compared to colocalization frequency of BK and STIM1 clusters in randomized maps generated from respective cells. n = 11 cells from four mice (*p<0.05, paired t-test). (D) Colocalization frequency of TRPM4 and STIM1 clusters in imaged cells compared to colocalization frequency of TRPM4 and STIM1 clusters in randomized maps generated from respective imaged cells (n = 11 cells from four mice; *p<0.05, paired t-test).

Figure 5—source data 1

Individual data points and analysis summaries for datasets shown in Figure 5.

https://cdn.elifesciences.org/articles/70278/elife-70278-fig5-data1-v2.xlsx

Stim1 knockout alters the properties of Ca2+ sparks

To investigate how Stim1 knockout alters fundamental Ca2+-signaling mechanisms, we loaded freshly isolated VSMCs with the Ca2+-sensitive fluorophore Fluo-4 AM and imaged them using live-cell, high-speed, high-resolution spinning-disk confocal microscopy. Spontaneous Ca2+ sparks were present in cerebral artery SMCs from both control (Figure 6A, Video 3) and Stim1-smKO (Figure 6B, Video 4) mice. The frequency of Ca2+ spark events did not differ between groups (Figure 6C and D). However, the mean amplitude of Ca2+ spark events was significantly greater in VSMCs isolated from Stim1-smKO mice compared with those from controls (Figure 6E). Further analyses revealed that spatial spreads, durations, and decay times of individual Ca2+ spark events were significantly greater in VSMCs isolated from Stim1-smKO mice compared with those taken from control mice, but rise times did not differ (Figure 6F–I). To investigate the effects of Stim1 knockout on total SR Ca2+ store load, we applied a bolus of caffeine (10 mM) to Fluo-4 AM-loaded VSMCs isolated from control and Stim1-smKO mice. The peak amplitude of caffeine-evoked global increases in cytosolic [Ca2+] did not differ between groups (Figure 6J), indicating that Stim1 knockout did not alter total SR [Ca2+]. Therefore, alterations in the properties of Ca2+ sparks associated with the knockout of Stim1 are not the result of changes in SR Ca2+ load.

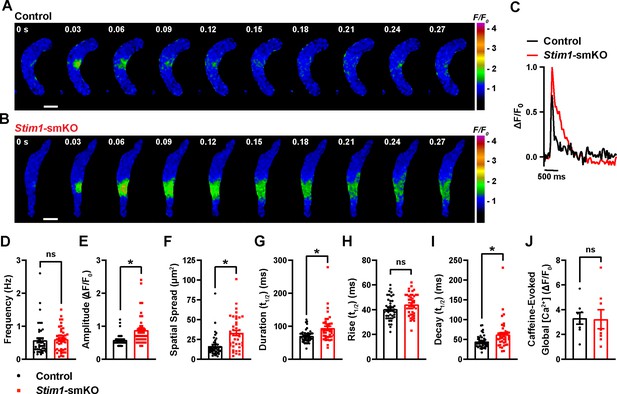

Stim1 knockout alters Ca2+ spark properties.

(A, B) Representative time-course images of cerebral artery smooth muscle cells (SMCs) isolated from a control (A) or Stim1-smKO (B) mouse exhibiting Ca2+ spark events, presented as changes in fractional fluorescence (F/F0). The elapsed time of the event is shown in seconds (s). Scale bar: 10 µm. (C) Representative traces of Ca2+ spark events in cerebral artery SMCs isolated from a control (black trace) or Stim1-smKO (red trace) mice presented as changes in fractional fluorescence (ΔF/F0) vs. time. (D–I) Summary data showing Ca2+ spark frequency (D), amplitude (E), spatial spread (F), event duration (G), rise time (H), and decay time (I) in vascular smooth muscle cells (VSMCs) isolated from control and Stim1-smKO mice (control, n = 43 spark sites in 18 cells from four mice; Stim1-smKO, n = 41 spark sites in 19 cells from four mice; *p<0.05, unpaired t-test). ns, not significant. (J) Summary data showing caffeine (10 mM)-evoked changes in global Ca2+ in cerebral artery SMCs isolated from control and Stim1-smKO mice (control, n = 8 cells from four mice; Stim1-smKO, n = 8 cells from four mice, unpaired t-test). ns, not significant.

Figure 6—source data 1

Individual data points and analysis summaries for datasets shown in Figure 6.

https://cdn.elifesciences.org/articles/70278/elife-70278-fig6-data1-v2.xlsx
Video 3
Representative movie showing spontaneous Ca2+ sparks in a cerebral artery smooth muscle cell (SMC) isolated from a control mouse.
Video 4
Representative movie showing spontaneous Ca2+ sparks in a cerebral artery smooth muscle cell (SMC) isolated from a Stim1-smKO mouse.

Stim1 knockout diminishes physiological BK and TRPM4 channel activity

We next used patch-clamp electrophysiology to investigate how knockout of Stim1 affects the activity of BK and TRPM4 channels in VSMCs. When Ca2+ sparks activate clusters of BK channels at the PM, they generate macroscopic K+ currents termed spontaneous transient outward currents (STOCs) (Nelson et al., 1995). Here, we recorded STOCs over a range of membrane potentials using the amphotericin B perforated patch-clamp configuration, which allows the membrane potential to be controlled without disrupting intracellular Ca2+-signaling pathways (Pritchard et al., 2019; Pritchard et al., 2017). The frequencies and amplitudes of STOCs were lower in VSMCs from Stim1-smKO mice compared with those from controls at all membrane potentials greater than –60 mV (Figure 7A–C). We measured whole-cell BK channel currents to determine if diminished STOC activity was attributable to a decrease in the total number of BK channels available for activation at the PM. Cerebral artery SMCs isolated from Stim1-smKO and control mice were patch-clamped in the conventional whole-cell configuration, and whole-cell K+ currents were recorded during the application of voltage ramps. Using the selective BK blocker paxilline to isolate BK channel currents, we found that whole-cell BK current amplitude did not differ between VSMCs from control and Stim1-smKO mice (Figure 7D and E), indicating that the number of BK channels available for activation and their functionality was not altered by Stim1 knockout. Stim1 knockout did not alter mRNA levels of BK α- or β1-subunits or RyR2s in cerebral arteries (Figure 7—figure supplement 1A). In addition, the potent and selective Orai1 blocker Synta66 (Zhang et al., 2020) had no effect on STOC amplitude or frequency (Figure 7—figure supplement 1B–D). These findings indicate that diminished STOC activity following knockout of Stim1 is not due to changes in BK and RyR2 expression and that CRAC channel activity is not required for the generation of STOCs.

Figure 7 with 2 supplements see all

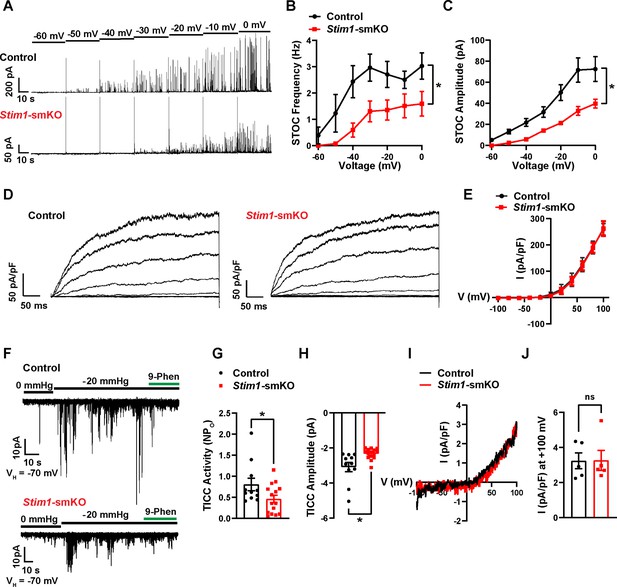

Stim1 knockout diminishes physiological BK and TRPM4 channel activity.

(A) Representative traces of spontaneous transient outward currents (STOCs) in cerebral artery smooth muscle cells (SMCs) from control and Stim1-smKO mice, recorded by perforated patch-clamp electrophysiology over a range of membrane potentials (−60 to 0 mV). (B, C) Summary data showing STOC frequency (B) and amplitude (C) (control, n = 13 cells from four animals; Stim1-smKO, n = 17 cells from five mice; *p<0.05, two-way ANOVA). (D) Representative traces of paxilline (1 μM)-sensitive BK currents in cerebral artery SMCs from control and Stim1-smKO mice, recorded by patch-clamping in conventional whole-cell mode during a series of command voltage steps (−100 to +100 mV). (E) Summary data for whole-cell BK currents (control, n = 6 cells from three mice; Stim1-smKO, n = 7 cells from three mice; two-way ANOVA). (F) Representative traces of TRPM4 currents in cerebral artery SMCs from control and Stim1-smKO mice voltage-clamped at –70 mV, recorded using perforated patch-clamp electrophysiology. TRPM4 currents were evoked as transient inward cation currents (TICCs) by application of negative pressure (–20 mmHg) through the patch pipette and were blocked by bath application of 9-phenanthrol (9-phen; 30 μM). (G) Summary data showing TICC activity as TRPM4 channel open probability (NPo) and (H) TICC amplitude in control (n = 12 cells from five mice) and Stim1-smKO (n = 15 cells from five mice) mice (*p<0.05, unpaired t-test). (I) Representative conventional whole-cell patch-clamp recordings of 9-phenanthrol–sensitive TRPM4 currents in cerebral artery SMCs from control and Stim1-smKO mice. Currents were activated by free Ca2+ (200 µM), included in the patch pipette solution, and were recorded using a ramp protocol from –100 to 100 mV from a holding potential of –60 mV. (J) Summary of whole-cell TRPM4 current density at +100 mV (control, n = 5 cells from three mice; Stim1-smKO, n = 5 cells from three mice, unpaired t-test). ns, not significant.

Figure 7—source data 1

Individual data points and analysis summaries for datasets shown in Figure 7.

https://cdn.elifesciences.org/articles/70278/elife-70278-fig7-data1-v2.xlsx

TRPM4 is a Ca2+-activated, monovalent cation-selective channel that is impermeable to divalent cations (Launay et al., 2002). At membrane potentials in the physiological range for VSMCs (−70 to –30 mV), TRPM4 channels conduct inward Na+ currents that depolarize the PM in response to increases in intraluminal pressure and receptor-dependent vasoconstrictor agonists (Earley et al., 2007; Gonzales et al., 2010a). Under native conditions, TRPM4 channels are activated by Ca2+ released from the SR through IP3Rs, generating transient inward cation currents (TICCs) (Gonzales et al., 2014). To determine the effects of STIM1 knockout on TRPM4 activity, we recorded TICCs using the amphotericin B perforated patch-clamp configuration (Gonzales et al., 2010a). In agreement with previous reports (Gonzales et al., 2010b; Gonzales et al., 2010a), we found that TICC activity in VSMCs from control mice was increased following application of negative pressure (–20 mmHg) through the patch pipette to stretch the PM, an effect that was attenuated by the selective TRPM4 blocker, 9-phenanthrol (Figure 7F). TICC activity and amplitude in VSMCs isolated from Stim1-smKO mice were significantly reduced compared with controls (Figure 7F–H). To determine if these differences were attributable to changes in TRPM4 channel function or availability, we activated TRPM4 currents in VSMCs from Stim1-smKO and control mice using an internal solution containing 200 µM free Ca2+ and compared whole-cell TRPM4 currents in both groups by patch-clamping VSMCs in the conventional whole-cell configuration (Amarouch et al., 2013). The TRPM4-sensitive component of the current was isolated by applying 9-phenanthrol. We found that whole-cell TRPM4 current amplitudes did not differ between VSMCs from control and Stim1-smKO mice (Figure 7I and J), suggesting that the number of TRPM4 channels available for activation at the PM was not altered by Stim1 knockout. Stim1 knockout did not alter mRNA levels of TRPM4 subunits or any of the IP3R subtypes (1, 2, or 3) in cerebral arteries (Figure 7—figure supplement 2A). In addition, blockade of Orai1 had no effect on TICC activity (Figure 7—figure supplement 2B and C). These findings suggest that diminished TICC activity following knockout of Stim1 is not due to diminished expression of TRPM4 or IP3Rs, and that generation of TICCs is independent of Orai1 channel activity.

The contractility of resistance arteries from Stim1-smKO mice is blunted

Knockout of Stim1 in VSMCs decreased the activity of BK and TRPM4 channels under physiological recording conditions. These channels have opposing effects on VSMC membrane potential, contractility, and arterial diameter, with BK channels causing dilation (Nelson et al., 1995) and TRPM4 channels causing constriction (Earley et al., 2004). Thus, the overall functional impact of deficient channel activity is not immediately apparent. Therefore, to investigate the net consequences of Stim1 knockout on arterial contractile function, we employed a series of ex vivo pressure myography experiments. Constrictions of intact cerebral pial arteries in response to a depolarizing concentration (60 mM) of extracellular KCl did not differ between groups (Figure 8A), suggesting that knocking out Stim1 in cerebral artery SMCs did not grossly alter voltage-dependent Ca2+ influx or underlying contractile processes. Contractile responses to increases in intraluminal pressure (myogenic vasoconstriction) were evaluated by measuring steady-state luminal diameter at intraluminal pressures over a range of 5–140 mmHg in the presence (active response) and absence (passive response) of extracellular Ca2+. Myogenic tone, calculated by normalizing active constriction to passive dilation, was significantly lower in cerebral arteries from Stim1-smKO mice compared with those from controls (Figure 8B and C). Contractile responses to the synthetic thromboxane A2 receptor agonist U46619 were also significantly blunted in cerebral arteries from Stim1-smKO mice compared with those from vehicle-treated controls (Figure 8D and E). These data demonstrate that the ability of cerebral arteries from Stim1-smKO mice to contract in response to physiological stimuli is impaired. Additional investigations using third-order mesenteric arteries yielded similar findings (Figure 8F–J), indicating widespread vascular dysfunction in Stim1-smKO mice.

Figure 8 with 1 supplement see all

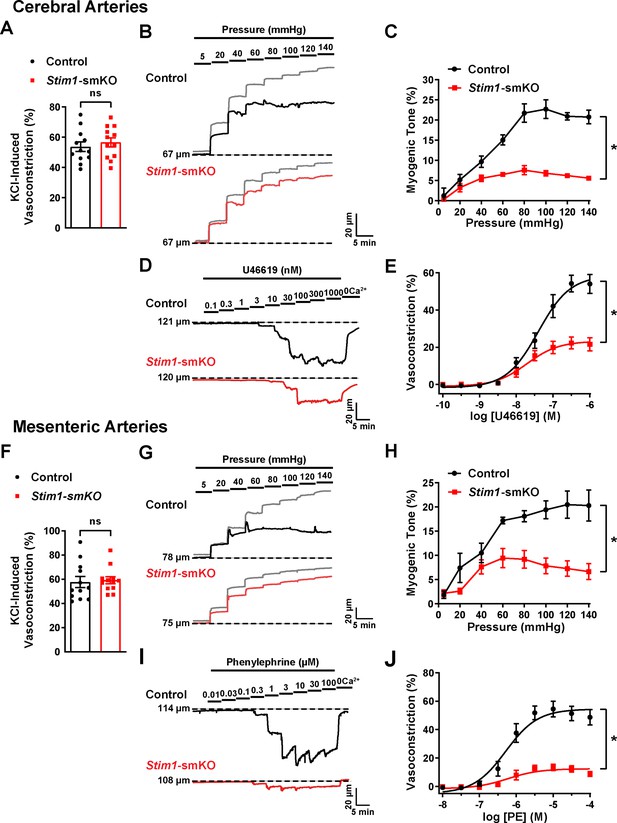

Resistance arteries from Stim1-smKO mice are dysfunctional.

(A) Summary data showing vasoconstriction of cerebral pial arteries isolated from control and Stim1-smKO mice in response to 60 mM KCl (n = 12 vessels from six mice for both groups, unpaired t-test). ns, not significant. (B) Representative traces showing changes in luminal diameter over a range of intraluminal pressures (5–140 mmHg) in cerebral pial arteries isolated from control (black trace) and Stim1-smKO (red) mice. Gray traces represent passive responses (Ca2+-free solution) to changes in intraluminal pressure for each artery. (C) Summary data showing myogenic reactivity as a function of intraluminal pressure (n = 6 vessels from three mice for each group; *p<0.05, two-way ANOVA). (D) Representative traces showing changes in luminal diameter in response to a range of concentrations (0.1–1,000 nM) of the vasoconstrictor agonist U46619 in cerebral arteries isolated from control (black trace) and Stim1-smKO (red trace) mice. (E) Summary data showing vasoconstriction as a function of U46619 concentration (n = 6 vessels from three mice for each group; *p<0.05, two-way ANOVA). (F) Summary data showing vasoconstriction of third-order mesenteric arteries isolated from control and Stim1-smKO mice in response to 60 mM KCl (n = 12 vessels from six mice for both groups, unpaired t-test). ns, not significant. (G) Representative traces showing changes in luminal diameter over a range of intraluminal pressures (5–140 mmHg) in third-order mesenteric arteries isolated from control (black trace) and Stim1-smKO (red) mice. Gray traces represent passive responses to changes in intraluminal pressure for each artery. (H) Summary data for myogenic reactivity as a function of intraluminal pressure (n = 6 vessels from three mice for each group, *p<0.05, two-way ANOVA). (I) Representative traces showing changes in luminal diameter in response to a range of concentrations (0.01–100 μM) of the vasoconstrictor agonist phenylephrine (PE) in third-order mesenteric arteries isolated from control (black trace) and Stim1-smKO (red trace) mice. (J) Summary data for vasoconstriction as a function of PE concentration, presented as means ± SEM (n = 6 vessels from three mice for each group; *p<0.05, two-way ANOVA).

Figure 8—source data 1

Individual data points and analysis summaries for datasets shown in Figure 8.

https://cdn.elifesciences.org/articles/70278/elife-70278-fig8-data1-v2.xlsx

Further experiments investigated the effects of the BK channel inhibitor paxilline and the TRPM4 channel inhibitor 9-phenanthrol on vasoconstriction of cerebral arteries isolated from control and Stim1-smKO mice. We found that paxilline increased myogenic tone in cerebral arteries isolated from control mice, whereas this treatment had little effect on cerebral arteries from Stim1-smKO mice (Figure 8—figure supplement 1A and B). These findings are consistent with the patch-clamp electrophysiology data indicating low levels of BK channel activity in VSMCs from Stim1-smKO mice. Treatment with 9-phenanthrol abolished the myogenic tone of cerebral arteries from control mice but had little effect on cerebral arteries from Stim1-smKO mice (Figure 8—figure supplement 1C and D ), in agreement with the patch-clamp electrophysiology studies that found low levels of TICC activity in VSMCs from Stim1-smKO mice.

We also found that Synta66 had no effect on KCl-induced vasoconstriction or myogenic tone of cerebral arteries from control mice, indicating that these responses are independent of Orai1 channel activity (Figure 8—figure supplement 1E–G).

Stim1-smKO mice are hypotensive

Age-matched Myh11CreERT2: Stim1fl/fl mice were surgically implanted with radio telemetry transmitters as previously described (Li et al., 2014). After a recovery period (14 days), systolic and diastolic blood pressure (BP), heart rate (HR), and locomotor activity levels were recorded for 48 hr before tamoxifen injection (control). Systolic and diastolic BP, HR, and activity levels were again recorded for 48 hr, beginning 1 week after completing the tamoxifen injection protocol (Stim1-smKO). Normal diurnal variations were observed for all parameters (Figure 9). The mean systolic BP of Stim1-smKO mice was lower than that of control mice during both day and night cycles (Figure 9A), whereas diastolic BP did not differ between groups (Figure 9B). Mean arterial pressure (MAP) (Figure 9C) was lower in Stim1-smKO mice compared with controls at night and tends to be lower during the day (p=0.056). The pulse pressure of Stim1-smKO mice was lower than that of control mice during both day and night cycles (Figure 9D). HR (Figure 9E), and locomotor activity (Figure 9F) did not differ between groups. Vehicle injection did not affect BP, HR, or locomotor activity (Figure 9—figure supplement 1). These data indicate that acute knockout of Stim1 in VSMCs lowers BP, probably due to diminished arterial contractility and decreased total peripheral resistance.

Figure 9 with 1 supplement see all

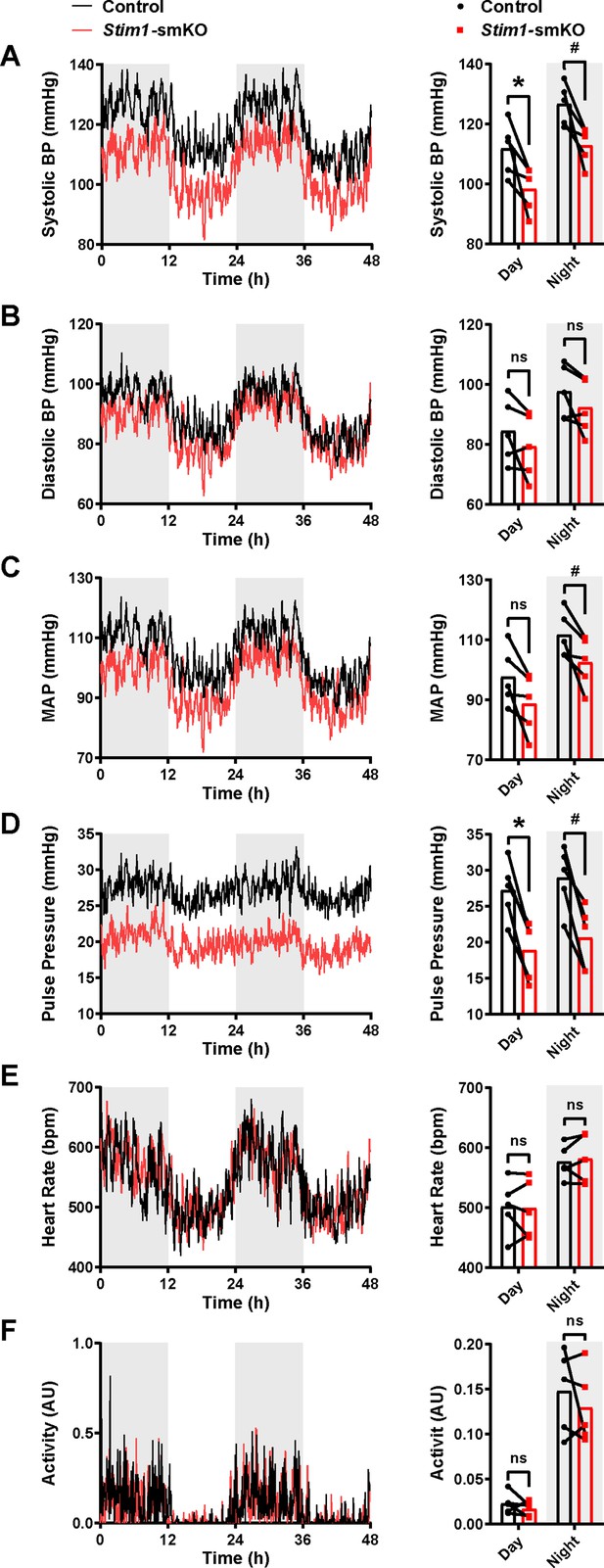

Stim1-smKO mice are hypotensive.

(A) Systolic blood pressure (BP) (mmHg) over 48 hr in conscious, radio telemeter-implanted Myh11CreERT2: Stim1fl/fl mice before (control) and after (Stim1-smKO) tamoxifen injection. Shaded regions depict night cycles (n = 5 for both groups; *p<0.05 vs. control day, #p<0.05 vs. control night, paired t-test). (B) Diastolic BP measurements for control and Stim1-smKO mice (n = 5 for both groups, paired t-test). ns, not significant. (C) Mean arterial pressure (MAP) for control and Stim1-smKO mice (n = 5 for both groups, #p<0.05 vs. control night, paired t-test). ns, not significant. (D) Pulse pressure for control and Stim1-smKO mice (n = 5 for both groups; *p<0.05 vs. control day, #p<0.05 vs. control night, paired t-test). (E) Heart rate (HR) for control and Stim1-smKO mice (n = 5 for both groups, paired t-test). ns, not significant. (F) Locomotor activity (arbitrary units [AU]) for control and Stim1-smKO mice (n = 5 for both groups, paired t-test). ns, not significant. 48 hr recordings are shown as means; bar graphs are shown as means ± SEM.

Figure 9—source data 1

Individual data points and analysis summaries for datasets shown in Figure 9.

https://cdn.elifesciences.org/articles/70278/elife-70278-fig9-data1-v2.xlsx

Discussion

Junctional membrane complexes formed by close interactions of the ER/SR with the PM are critical signaling hubs that regulate homeostatic and adaptive processes in nearly every cell type. The canonical function of STIM1 is to enable SOCE via Orai channels, but mounting evidence suggests that the protein has additional, SOCE-independent functions. Here, we show that STIM1 is crucial for fostering SR-PM junctions and functional coupling between SR and PM ion channels that control VSMC contractility. In support of this concept, we found that the number and sizes of SR/PM coupling sites were significantly reduced in VSMCs from Stim1-smKO mice. Stim1 knockout also altered the nanoscale architecture of ion channels in Ca2+-signaling complexes, transformed the properties of Ca2+ sparks, and diminished BK and TRPM4 channel activity under physiological recording conditions. BK and TRPM4 channel activity and vasoconstrictor responsiveness were not altered by selective inhibition of Orai1. Resistance arteries isolated from Stim1-smKO mice exhibited blunted responses to vasoconstrictor stimuli, and animals became hypotensive following acute knockout of Stim1 in smooth muscle. These findings collectively demonstrate that in contractile VSMCs STIM1 expression is necessary for the functional coupling of Ca2+ release sites on the SR and Ca2+-activated ion channels on the PM in a manner independent of Orai1, Ca2+ store depletion, and SOCE. Loss of functional coupling in VSMCs following Stim1 knockout has profound consequences, disrupting arterial function and BP regulation.

The SR-PM signaling domains of VSMCs are less orderly compared with those in cardiac and skeletal muscle cells and remain incompletely characterized. SR-PM junctions within the transverse (T) tubules of cardiomyocytes and skeletal muscle cells have regular, repeating structures that are formed, in part, by cytoskeletal elements and proteins of the junctophilin (Beavers et al., 2014; Landstrom et al., 2014; Takeshima et al., 2000) and triadin (Knudson et al., 1993; Marty, 2015) families. In VSMCs, which lack T-tubules, SR-PM interactions occur at peripheral coupling sites that form throughout the periphery with no apparent distribution pattern. Our research team has previously identified vital roles for microtubule networks (Pritchard et al., 2017) and junctophilin 2 (JPH2) (Pritchard et al., 2019) in the formation of peripheral coupling sites in VSMCs. Here, we found that knockout of Stim1 in VSMCs with intact SR Ca2+ stores reduced the number and sizes of SR-PM colocalization sites. Why is STIM1 active under these conditions? A simple explanation is that resting SR [Ca2+] in fully differentiated, contractile VSMCs is sufficiently low to trigger constitutive activation of STIM1. This concept is supported by a report by Luik et al., 2008, who showed that the half-maximal concentration (K1/2) of ER Ca2+ for the activation of ICRAC in Jurkat T cells is 169 μM and the K1/2 for redistribution of STIM1 to the PM is 187 μM. These data are in close agreement with another study, which reported that the K1/2 of ER Ca2+ for redistribution of STIM1 in HeLa cells was 210 μM and that for maximum redistribution was 150 μM (Brandman et al., 2007). Few studies have reported SR [Ca2+] measurements in native, contractile VSMCs. Using the low-affinity ratiometric Ca2+ indicator, mag-fura-2, one well-controlled study estimated that resting SR [Ca2+] in contractile SMCs was ~110 μM (ZhuGe et al., 1999). Under these conditions, STIM1 is expected to be in a fully active configuration that is also supported by our data where thapsigargin failed to increase the number or size of STIM1 puncta in contractile VSMCs. It is also possible that regional SR [Ca2+] levels near active Ca2+-release sites (RyRs and IP3R) are lower than global SR [Ca2+], which could further stimulate STIM1 activity at these sites and reinforce junctional coupling. Thus, we put forward the concept that STIM1 is in an active state in quiescent contractile smooth muscle and is necessary for forming Ca2+-signaling complexes that are vital for contractile function. Our data further imply that, as VSMCs transition to a proliferative phenotype during the development of disease states associated with vascular remodeling, SR Ca2+ levels increase, leading to STIM1 inactivation, loss of stable peripheral coupling, and acquisition of SOCE activity (Zhang et al., 2011).

It would be useful to define the molecular composition of microdomains formed by the interactions of the SR and PM in VSMCs. However, we cannot image SR and PM dyes in native cells using GSDIM because the high laser levels and long exposure times required for this technique bleach the dyes. The SIM mode of our LLS instrument is ideal for imaging the dyes (due to low bleaching) but lacks the resolution of the GSDIM system needed for the nanoscale detection of protein clusters. Consequently, we cannot simultaneously image the sites of membrane interaction and protein clusters. An examination of our superresolution maps suggests that all protein clusters are uniformly distributed – there are no apparent sights of enrichment. Therefore, it seems likely that the ion channel content of the SR:PM interacting domains does not significantly differ from regions of the PM that do not interact with the SR.

Ion channel proteins in the membranes of excitable cells form discreet clusters whose sizes are exponentially distributed, a phenomenon that has been suggested to occur through stochastic self-assembly (Sato et al., 2019). Here, we found that acute knockout of STIM1 in VSMCs reduced the mean sizes of BK, TRPM4, and IP3R protein clusters and slightly increased the mean size of RyR2 protein clusters. According to the stochastic model proposed by Sato et al., 2019, the steady-state size of membrane protein clusters is limited by the probability of removal from the PM through recycling or degradation processes, with larger clusters having a higher likelihood of removal. Thus, the smaller size of BK, TRPM4, and IP3R clusters following STIM1 knockout is likely a consequence of an increase in the rate of channel removal from the membrane. STIM1 knockout also caused a reduction in the SR volume as it retracts from the PM, suggesting that STIM1 is necessary for maintaining contact between the peripheral SR and PM. Accordingly, we propose that by maintaining a connection between the peripheral SR and PM, STIM1 increases the dwell time of BK, TRPM4, and IP3Rs proteins in the membrane, allowing larger clusters to form. This could be the result of direct protein-protein interactions. For example, previous studies have provided evidence of direct interactions between STIM1 and IP3Rs (Béliveau et al., 2014; Sampieri et al., 2018), and our data show that STIM1 interacts with BK and TRPM4 at the nanoscale, potentially influencing cluster formation. However, our data show that the majority of BK and TRPM4 protein clusters do not colocalize with STIM1. It is more likely that the intact peripheral SR partially protects membrane proteins from endocytic and/or recycling cascades, allowing larger clusters to form before they are removed. Loss of the peripheral SR following STOM1 knockdown removes this defense, decreasing the dwell time of proteins in the PM, resulting in smaller clusters.

Knockout of Stim1 in VSMCs significantly impacted Ca2+ signaling, ion channel activity, vascular contractility, and the regulation of BP. We purport that these outcomes result from nanoscale disruptions in cellular architecture. Ca2+ sparks occur within microdomains formed by SR/PM junctional sites. An increase in the distance between the two membranes will enlarge the area of the microdomains. This likely explains the observed increase in the spatial spread of Ca2+ sparks when STIM1 is knocked out. An enlargement of the microdomains also increases the distance between the source of the Ca2+ spark and the SERCA and PMCA pumps and Na/Ca2+ exchangers, which remove Ca2+ from the cytosol (Bautista and Lewis, 2004; Blaustein and Lederer, 1999; Shmigol et al., 1999), potentially contributing to prolonged decay and increased amplitude seen in cells from Stim1-smKO mice. Thus, the compromised structural integrity of subcellular Ca2+-signaling microdomains formed by interactions of the PM and SR likely accounts for the altered properties of Ca2+ sparks associated with STIM1 knockout. Decreased nanoscale colocalization of BK with RyR2 and TRPM4 with IP3Rs manifested as diminished Ca2+-dependent activity of BK and TRPM4 channels (STOCs and TICCs), reflecting a loss in the functional coupling of Ca2+-release sites on the SR and ion channels on the PM. The smaller sizes of BK and TRPM4 protein clusters on the PM following Stim1 knockdown may also reduce BK and TRPM4 channel currents. At the intact blood vessel level, the diminished TRPM4 and BK channel activity resulted in impaired contractility in response to physiological stimuli. This finding is interesting because our prior studies investigating the role of microtubular structures (Pritchard et al., 2017) and JPH2 Pritchard et al., 2019 in maintaining peripheral coupling in VSMCs showed that disruption of PM-SR interactions caused cerebral arteries to become hypercontractile. In these studies, arterial hypercontractility resulted from interruption of the BK-RyR2 signaling pathway, which hyperpolarizes the VSMC membrane and balances the depolarizing and contractile influences of the TRPM4-IP3R cascade. Stim1 knockout, in contrast, affected both pathways, indicating that STIM1 influences peripheral coupling in a manner that differs from that of the microtubule network and JPH2 and further suggesting heterogeneity in the formation of junctional membrane complexes in VSMCs. Diminished arterial contractility following Stim1 knockout resulted in a drop in arterial BP, probably due to decreased total peripheral resistance. This finding differs from previous reports by other groups showing that, although myogenic tone and phenylephrine-induced vasoconstriction were blunted in mesenteric arteries from a constitutive SMC-specific STIM1-knockout model, resting BP was not affected in this model (Kassan et al., 2015; Kassan et al., 2016; Pichavaram et al., 2018). This difference is likely due to elevated levels of circulating catecholamines, which increase HR and cardiac output and thereby compensate for diminished vascular resistance (Pichavaram et al., 2018).

In summary, our data demonstrate a vital role for STIM1 in the maintenance of critical Ca2+-signaling microdomains in contractile VSMCs that is independent of SR Ca2+ store depletion. Disruptions in cellular architecture at the nanoscale level associated with the loss of STIM1 resulted in arterial dysfunction and impaired BP regulation, highlighting the essential nature of Ca2+-signaling complexes formed by SR-PM interactions in cardiovascular control.

Materials and methods

Animals

All animal studies were performed in accordance with guidelines of the Institutional Animal Care and Use Committee (IACUC) of the University of Nevada, Reno. Mice were housed in cages on a 12 hr/12 hr day-night cycle with ad libitum access to food (standard chow) and water. All transgenic mouse strains were obtained from The Jackson Laboratory (Bar Harbor, ME). Mice with loxP sites flanking exon 2 of the Stim1 gene (Stim1fl/fl mice) were crossed with myosin heavy chain 11 Myh11CreERT2 mice (Chappell et al., 2016; Wirth et al., 2008), generating Myh11CreERT2: Stim1fl/wt mice. Heterozygous Myh11CreERT2: Stim1fl/wt mice were then intercrossed, yielding Myh11CreERT2: Stim1fl/fl mice.

Induction of STIM1 knockout

Request a detailed protocol

Male Myh11CreERT2: Stim1fl/fl mice were intraperitoneally injected at 4–6 weeks of age with 100 μL of a 10 mg/mL tamoxifen solution once daily for 5 days to produce Stim1-smKO mice. Mice were used for experiments 1 week after the final injection. Littermate Myh11CreERT2: Stim1fl/fl mice injected with the vehicle for tamoxifen (sunflower oil) were used as controls for all experiments.

Wes capillary electrophoresis

Request a detailed protocol

Tissues isolated from mice were homogenized in ice-cold RIPA buffer (25 mM Tris pH 7.6, 150 mM NaCl, 1% Igepal CA-630, 1% sodium deoxycholate, 0.1% SDS) with protease inhibitor cocktail (Cell Biolabs, Inc, San Diego, CA) using a mechanical homogenizer followed by sonication. The resulting homogenate was centrifuged at 14,000 rpm for 20 min at 4°C, and the supernatant containing proteins was collected. Protein concentration was quantified with a BCA protein assay kit (Thermo Scientific, Waltham, MA) by absorbance spectroscopy using a 96-well plate reader. Proteins were then resolved by capillary electrophoresis using the Wes system (ProteinSimple, San Jose, CA) and probed with an anti-STIM1 primary antibody (S6072; Sigma-Aldrich, St. Louis, MO). Total protein expression was quantified using the Total Protein Detection Module for Wes from ProteinSimple, which utilizes biotin labeling of all proteins that are then detected using Streptavidin-HRP chemiluminescence. Bands were analyzed using Compass for SW (ProteinSimple). STIM1 band intensities were normalized to the total protein band intensities of the respective samples.

SMC isolation

Request a detailed protocol

Mice were euthanized by decapitation and exsanguination under isoflurane anesthesia. Cerebral pial arteries were isolated carefully in ice-cold Mg2+-containing physiological salt solution (Mg2+-PSS; 5 mM KCl, 140 mM NaCl, 2 mM MgCl2, 10 mM HEPES, and 10 mM glucose; pH 7.4, adjusted with NaOH) and then incubated in an enzyme cocktail containing 1 mg/mL papain (Worthington Biochemical Corp., Lakewood, NJ), 1 mg/mL dithiothreitol (DTT; Sigma-Aldrich), and 10 mg/mL bovine serum albumin (BSA; Sigma-Aldrich) for 12 min at 37°C. The arteries were then washed three times with Mg2+-PSS and incubated in 1 mg/mL collagenase type II (Worthington) in Mg2+-PSS for 14 min. The arteries were washed three times with Mg2+-PSS and then dissociated into single cells by triturating with a fire-polished glass Pasteur pipette.

SOCE

Request a detailed protocol

Contractile and proliferative VSMCs were allowed to attach to glass coverslips overnight, and coverslips were then mounted to a Teflon chamber and incubated with 4 µM Fura-2 AM in complete media at 37°C for 45 min. Loading solution included 0.1% of Pluronic F-127 to facilitate Fura-2 AM loading. Cells were then washed with a HEPES-buffered salt solution (HBSS) containing 140 mM NaCl, 4.7 mM KCl, 1.13 mM MgCl2, 10 mM HEPES, 2.0 mM CaCl2, and 10 mM glucose (pH 7.4 adjusted by NaOH). Cells were then incubated for 10 min in HBSS at room temperature before recordings. Coverslips were then mounted to Nikon TS100 inverted microscope equipped with a 20× Fluor objective and 0.75 numerical aperture. Fura-2 AM was alternately excited at 340 and 380 nm, and fluorescent emission was captured at 510 nm. Fluorescence from multiple cells (Mercer et al., 2006; Kwon et al., 2017; Prakriya and Lewis, 2015; Emrich et al., 2022; Abdullaev et al., 2008; Berry et al., 2011; Chin-Smith et al., 2014; Correll et al., 2015; Jones et al., 2008; Klejman et al., 2009; Koh et al., 2009; López et al., 2008; Lu et al., 2010; Lu et al., 2008; Lyfenko and Dirksen, 2008; Numaga-Tomita and Putney, 2013; Nurbaeva et al., 2015; Onodera et al., 2013; Peel et al., 2006; Takahashi et al., 2007; Wissenbach et al., 2007; Zhang et al., 2007; Zhou et al., 2015; Perni et al., 2015; Soboloff et al., 2006; Spassova et al., 2006) were recorded and analyzed with a digital fluorescence imaging system (InCytim2, Intracellular Imaging, Cincinnati, OH). The fluorescence ratio at 340 and to 380 was obtained for each pixel. Thapsigargin at a final concentration of 2 µM was suspended in HBSS. Mean data are reported as the peak F340/F380 ratio.

Visualization of PM-SR colocalization sites using SIM

Request a detailed protocol

Cerebral pial artery SMCs were allowed to adhere onto poly-L-lysine-coated round coverslips (5 mm diameter) during a 30 min incubation at 37°C with the SR stain, ER-Tracker Green (Thermo Fisher Scientific; diluted 1:1000 in Mg2+-PSS). After incubation, ER-Tracker Green was removed, and the PM stain Cell-Mask Deep Red (Thermo Fisher Scientific; diluted 1:1000 in Mg2+-PSS) was added, and cells were incubated for 5 min at 37°C. Cell-Mask Deep Red was then removed, and cells were washed with Mg2+-PSS and imaged using a lattice light-sheet microscope (LLSM; Intelligent Imaging Innovations, Inc, Denver, CO) (Chen et al., 2014). Coverslips with stained cells were mounted onto a sample holder and placed in the LLSM bath, immersed in Mg2+-PSS. Imaging was performed in SR-SIM mode, set to 100 ms exposures. For each cell, 200 Z-steps were collected at a step size of 0.25 µm. Imaging was limited to no more than 30 min for each coverslip to prevent artifacts caused by internalization of the PM dye. Surface reconstruction and colocalization analyses of PM and SR were performed using Imaris v9.8 (Bitplane, Zurich, Switzerland) image analysis software. The Surface-Surface coloc plug-in was used to visualize areas of the PM and SR that colocalized to form coupling sites. PM-SR colocalization percentage was calculated by dividing the total PM-SR colocalization site volume by PM volume and multiplying by 100. Using fluorescent beads, we determined that for the SIM modality of the LLS the resolution for 642 nm wavelength (used for PM labeling) is 250–335 nm and the resolution for 488 nm wavelength (used for SR labeling) is 225–295 nm.

GSDIM superresolution microscopy

Request a detailed protocol

GSDIM was performed as described previously (Pritchard et al., 2019; Thakore, 2020; Pritchard et al., 2017; Griffin et al., 2020; Pritchard et al., 2018). For epifluorescence imaging, freshly isolated cerebral pial artery SMCs were allowed to adhere onto poly-L-lysine-coated glass coverslips for 30 min. For TIRF imaging, the coverslips were first cleaned by sonicating in 5 N NaOH for 45 min and then sonicated for another 45 min in deionized water before adding freshly isolated cerebral pial artery SMCs. The cells were then fixed for 20 min with 2% paraformaldehyde, quenched with 0.4 mg/mL NaBH4, and permeabilized with 0.1% Triton X-100. Cells were then blocked with 50% SEABLOCK blocking buffer (Thermo Fisher Scientific) for 2 hr and incubated overnight at 4°C with primary antibody (anti-STIM1- [4916], Cell Signaling Technologies, Danvers, MA; anti-STIM1 [610954], BD Biosciences, Franklin Lakes, NJ; anti-BKα1- [APC-021], Alomone Labs, Jerusalem, Israel; anti-RyR2- [MA3-916], Thermo Fisher Scientific; anti-TRPM4- (ABIN572220); https://antibodies-online.com, Limerick, PA; anti-IP3R- (ab5804), Abcam, Cambridge, UK) diluted in PBS containing 20% SEABLOCK, 1% BSA, and 0.05% Triton X-100. Cells were washed three times with 1× PBS after each step. After overnight incubation, unbound primary antibody was removed by washing four times with 20% SEABLOCK, after which cells were incubated with secondary antibodies (Alexa Fluor 647- or Alexa Fluor 568-conjugated goat anti-rabbit, goat anti-mouse, donkey anti-goat, or donkey anti-rabbit as appropriate) at room temperature for 2 hr in the dark. After washing with 1× PBS, coverslip-plated cells were mounted onto glass depression slides in a thiol-based photo-switching imaging buffer consisting of 50 mM Tris/10 mM NaCl (pH 8), 10% glucose, 10 mM mercaptoethylamine, 0.48 mg/mL glucose oxidase, and 58 μg/mL catalase. Coverslips were sealed to depression slides with Twinsil dental glue (Picodent, Wipperfurth, Germany) to exclude oxygen and prevent rapid oxidation of the imaging buffer. Superresolution images were acquired in epifluorescence or TIRF mode using a GSDIM imaging system (Leica, Wetzlar, Germany) equipped with an oil-immersion 160× HCX Plan-Apochromat (NA 1.47) objective, an electron-multiplying charge-coupled device camera (EMCCD; iXon3 897; Andor Technology, Belfast, UK), and 500 mW, 532- and 642 nm laser lines. Localization maps were constructed from images acquired at 100 Hz for 25,000 frames using Leica LAX software. Post-acquisition image analyses of cluster size distribution were performed using binary masks of images in NIH ImageJ software. OBA was used to establish colocalization of proteins of interest in superresolution localization maps.

Object-based colocalization analysis

Request a detailed protocol

OBA was used to establish the colocalization of BK channels with RyR2 and TRPM4 channels with IP3R in superresolution localization maps. We used NIH ImageJ software with the JACoP colocalization analysis plug-in (Bolte and Cordelières, 2006; Lachmanovich et al., 2003). The JACoP plug-in was used to split the two channels representing fluorophores detected by Alexa Fluor 568 or Alexa Fluor 647. Contiguous objects in both channels were identified by systematically inspecting the neighboring eight pixels (in 2D) of a reference pixel. All adjacent pixels with intensities above a user-defined threshold limit were considered part of the same structure as the reference pixel and were segmented as individual objects. The superresolution localization maps were previously thresholded by the detection algorithm incorporated into the LAX software used for image acquisition. Therefore, the threshold level in JACoP was set to 1 (nearly the minimum) for all images. After thresholding, centroids (defined as the single-pixel geometric centers of the specified objects) were determined for each object. Clusters in the other wavelength within 20 nm (resolution limit of our GSDIM system) of the centroid were considered ‘colocalized.’ The percentage of colocalizing clusters was calculated as the number of colocalizing clusters as a percentage divided by the total number of clusters detected. This method of colocalization analysis can overcome artifacts caused due to uneven fluorescence intensities and is appropriate to use when the analyzed objects in question are small and punctate like the protein clusters in our images (Lachmanovich et al., 2003). For comparison, new maps were generated from each original superresolution map using JACoP that replicated the density and cluster size distribution, but the location of each protein cluster was assigned to a random site. We then performed OBA for the simulated random distribution and compared the colocalization frequency of the original maps with the colocalization frequency of their randomized counterparts.

Patch-clamp electrophysiology

Request a detailed protocol

Freshly isolated cerebral artery SMCs were transferred to the recording chamber and allowed to adhere to glass coverslips at room temperature for 20 min. Recording electrodes (3–4 MΩ) were pulled on a model P-87 micropipette puller (Sutter Instruments, Novado, CA) and polished using a MF-830 MicroForge (Narishige Scientific Instruments Laboratories, Long Island, NY). STOCs and TICCs were recorded in Ca2+-containing PSS (134 mM NaCl, 6 mM KCl, 1 mM MgCl2, 2 mM CaCl2, 10 mM HEPES, and 10 mM glucose; pH 7.4, adjusted with NaOH). The patch pipette solution contained 110 mM K-aspartate, 1 mM MgCl2, 30 mM KCl, 10 mM NaCl, 10 mM HEPES, and 5 μM EGTA (pH 7.2, adjusted with NaOH). Amphotericin B (200 µM), prepared on the day of the experiment, was included in the pipette solution to perforate the membrane. Currents were recorded using an Axopatch 200B amplifier equipped with an Axon CV 203BU headstage (Molecular Devices) for all experiments. Currents were filtered at 1 kHz, digitized at 40 kHz, and stored for subsequent analysis. Clampex and Clampfit (version 10.2; Molecular Devices) were used for data acquisition and analysis, respectively. For STOCs, cells were clamped at a membrane potential manually spanning a range from –60 mV to 0 mV. STOCs were defined as events >10 pA, and their frequency was calculated by dividing the number of events by the time between the first and last event. The potential contribution of Orai1 channels to STOCs was assessed by applying Synta66 (10 µM) to the bath solution, while STOCs were recorded at a physiological membrane potential (–40 mV). Whole-cell K+ currents were recorded using a step protocol (−100 to +100 mV in 20 mV steps for 500 ms) from a holding potential of −80 mV. Whole-cell BK currents were calculated by current subtraction following administration of the selective BK channel blocker paxilline (1 μM). Current-voltage (I–V) plots were generated using currents averaged over the last 50 ms of each voltage step. The bathing solution contained 134 mM NaCl, 6 mM KCl, 10 mM HEPES, 10 mM glucose, 2 mM CaCl2, and 1 mM MgCl2; pH 7.4 (NaOH). The pipette solution contained 140 mM KCl, 1.9 mM MgCl2, 75 μM Ca2+, 10 mM HEPES, 0.1 mM EGTA, and 2 mM Na2ATP; pH 7.2 (KOH).

TICCs, induced by membrane stretch delivered by applying negative pressure (20 mmHg) through the recording electrode using a Clampex controlled pressure clamp HSPC-1 device (ALA Scientific Instruments Inc, Farmingdale, NY, USA), were recorded from cells clamped at a membrane potential of –70 mV. TICC activity was calculated as the sum of the open channel probability (NPo) of multiple 1.75 pA open states (Gonzales et al., 2010b). The contribution of Orai1 channels to TICCs activity was assessed by applying Synta66 (10 µM) in the bath solution after activating TICCs through membrane stretch. Conventional whole-cell TRPM4 currents were recorded using ramp protocol consisting of a 400 ms increasing ramp from –100 to +100 mV ending with 300 ms step at +100 mV from a holding potential of –60 mV. A new ramp was applied every 2 s. TRPM4 whole-cell currents were recorded in a bath solution consisting of (in mM) 156 NaCl, 1.5 CaCl2, 10 glucose, 10 HEPES, and 10 TEA-Cl; pH 7.4 (NaOH). The patch pipette solution contained (in mM) 156 CsCl, 8 NaCl, 1 MgCl2 10 mM HEPES; pH 7.4 (NaOH) and 200 µM free [Ca2+], adjusted with an appropriate amount of CaCl2 and EGTA as calculated using Max-Chelator software.

Quantitative droplet digital PCR

Request a detailed protocol

Total RNA was extracted from arteries by homogenization in TRIzol reagent (Invitrogen, Carlsbad, CA), followed by purification using a Direct-zol RNA microprep kit (Zymo Research, Irvine, CA), DNase I treatment (Thermo Fisher Scientific), and reverse transcription into cDNA using qScript cDNA Supermix (Quanta Biosciences, Gaithersburg, MD). Quantitative droplet digital PCR (ddPCR) was performed using QX200 ddPCR EvaGreen Supermix (Bio-Rad, Hercules, CA), custom-designed primers (Supplementary file 2), and cDNA templates. Generated droplet emulsions were amplified using a C1000 Touch Thermal Cycler (Bio-Rad), and the fluorescence intensity of individual droplets was measured using a QX200 Droplet Reader (Bio-Rad) running QuantaSoft (version 1.7.4; Bio-Rad). Analysis was performed using QuantaSoft Analysis Pro (version 1.0.596; Bio-Rad).

Imaging of Ca2+ sparks

Request a detailed protocol

A liquid suspension (~0.2 mL) of freshly isolated VSMCs was placed in a recording chamber (RC-26GLP, Warner Instruments, Hamden, CT) and allowed to adhere to glass coverslips for 20 min at room temperature. VSMCs were then loaded with the Ca2+-sensitive fluorophore, Fluo-4 AM (1 µM; Molecular Probes), in the dark for 20 min at room temperature in Mg2+-PSS. Cells were subsequently washed three times with Ca2+-containing PSS and incubated at room temperature for 20 min in the dark to allow sufficient time for Fluo-4 de-esterification. Images were acquired using an iXon 897 EMCCD camera (Andor; 16 × 16 µm pixel size) coupled to a spinning-disk confocal head (CSU-X1; Yokogawa), with a 100× oil-immersion objective (Olympus; NA 1.45) at an acquisition rate of 33 frames per second (fps). Custom software (SparkAn; https://github.com/vesselman/SparkAn) (Dabertrand et al., 2012) provided by Dr. Adrian D. Bonev (University of Vermont) was used to analyze the properties of Ca2+ sparks. The threshold for Ca2+ spark detection was defined as local increases in fluorescence ≥0.2 ΔF/F0.

Pressure myography

Request a detailed protocol

Pressure myography experiments were conducted using current guidelines (Wenceslau et al., 2021). Cerebral pial and third-order mesenteric arteries were carefully isolated in ice-cold Mg2+-PSS. Each artery was then cannulated and mounted in an arteriography chamber and superfused with oxygenated (21% O2/6% CO2/73% N2) Ca2+-PSS (119 mM NaCl2, 4.7 mM KCl, 21 mM NaCO3, 1.18 mM KH2PO4, 1.17 mM MgSO4, 0.026 mM EDTA, 1.8 mM CaCl2, and 4 mM glucose) at 37°C and allowed to stabilize for 15 min. Each artery was then pressurized to 110 mmHg using a pressure servo controller (Living Systems Instruments, St. Albans City, VT). Any kinks or bends were gently straightened out, the pressure was reduced to 5 mmHg, and the artery was allowed to stabilize for 15 min. The viability of each artery was assessed by measuring the response to high extracellular [K+] PSS (made isotonic by adjusting the [NaCl], 60 mM KCl, 63.7 mM NaCl). Arteries that contracted less than 10% were excluded from further investigation.

Myogenic tone was assessed by raising the intraluminal pressure from 5 mmHg to 140 mmHg in 20 mmHg increments, with the artery maintained at each pressure increment for 5 min (active response). The artery was then superfused for 15 min at 5 mmHg intraluminal pressure with Ca2+-free PSS supplemented with EGTA (2 mM) and the voltage-dependent Ca2+ channel blocker diltiazem (10 μM), followed by application of pressure increments from 5 mmHg to 140 mmHg (passive response). The artery lumen diameter was recorded using edge-detection software (IonOptix, Westwood, MA). Myogenic reactivity at each intraluminal pressure was calculated as [1 – (Active diameter/Passive Diameter)] × 100. The contribution of Orai1 channels to myogenic tone was assessed by treating vessels with Synta66 (10 µM) in the superfusing bath. The effects of BK and TRPM4 channel inhibition on myogenic tone were assessed in vessels pressurized to 60 mmHg. Tone was allowed to develop before administering paxilline (1 µM) in the superfusing bath to inhibit BK channels or 9-phenanthrol (30 µM) to inhibit TRPM4 channels.

In separate arteries, the contractile response to the thromboxane A2 receptor agonist U46619 and α1-adrenergic receptor agonist phenylephrine was assessed in cerebral and mesenteric arteries, respectively. Arteries were pressurized to 20 mmHg to prevent the development of myogenic tone. Cumulative concentration-response curves were produced by adding U46619 (0.01–1000 nM) or phenylephrine (0.001–100 µM) to the superfusing bath solution. Arteries were maintained at each concentration for 5 min or until a steady-state diameter was reached before adding the next concentration. Following the addition of the final concentration, arteries were bathed in Ca2+-free PSS to obtain the passive diameter. Contraction was calculated at each concentration as vasoconstriction (%) = [(lumen diameter at constriction − lumen diameter at baseline)/passive lumen diameter] × 100.

In vivo radiotelemetry

Request a detailed protocol

Stim1-smKO mice were initially anesthetized using 4–5% isoflurane carried in 100% O2 (flushed at 1 L/min), after which anesthesia was maintained by adjusting isoflurane to 1.5–2%; preoperative analgesia was provided by subcutaneous injection of 50 µg/kg buprenorphine (ZooPharm, Windsor, CO). The neck was shaved and then sterilized with iodine. Under aseptic conditions, an incision (~1 cm) was made to separate the oblique and tracheal muscles and expose the left common carotid artery. The catheter of a radio telemetry transmitter (PA-C10; Data Science International, Harvard Bioscience, Inc, Minneapolis, MN) was surgically implanted in the left common carotid artery and secured using nonabsorbable silk suture threads. The body of the transmitter was embedded in a subcutaneous skin pocket under the right arm. After a 14-day recovery period, baseline BP, HR, and locomotor activity were recorded in conscious mice for 48 hr using Ponemah 6.4 software (Data Science International). Parameters were measured for 20 s every 5 min. Mice were then injected with either vehicle or tamoxifen using the protocol described above; after 7 days following the final injection, baseline BP readings, HR, and locomotor activity were re-recorded in conscious mice for 48 hr.

Chemicals

Unless specified otherwise, all chemicals used were obtained from Sigma-Aldrich.

Statistical analysis

Request a detailed protocol

All data are expressed as means ± standard error of the mean (SEM) unless specified otherwise. Statistical analyses were performed using paired or unpaired Student’s t-test, or analysis of variance (ANOVA), as appropriate. A p-value <0.05 was considered to indicate statistically significant differences. GraphPad Prism v9.3 (GraphPad Software, Inc, USA) was used for statistical analyses and graphical presentations.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Genetic reagent (Mus musculus)C57BL/6J; wild typeJackson LaboratoryStrain# 000664; RRID:IMSR_JAX:000664
Genetic reagent (M. musculus)Stim1fl/flJackson LaboratoryStrain# 023350; RRID:IMSR_JAX:023350
Genetic reagent (M. musculus)Myh11Cre; Myh11Cre/ERT2Jackson LaboratoryStrain# 019079; RRID:IMSR_JAX:019079
AntibodyAnti-Stim1 (rabbit polyclonal)Sigma-AldrichCat# S6072; RRID:AB_1079008(1:1000)
AntibodyAnti-Stim1 (rabbit polyclonal)Cell Signaling TechnologiesCat# 4916;
RRID:AB_2271287
(1:100)
AntibodyAnti-Stim1 (mouse monoclonal)BD BiosciencesCat# 610954;
RRID:AB_398267
(1:50)
AntibodyAnti-BKα1 (rabbit polyclonal)Alomone LabsCat# APC-021;
RRID:AB_2313725
(1:100)
AntibodyAnti-RyR2 (mouse monoclonal)Thermo Fisher ScientificCat# MA3-916;
RRID:AB_2183054
(1:50)
AntibodyAnti-TRPM4 (goat polyclonal)https://Antibodies-online.comCat# ABIN572220; RRID:AB_10787216(1:400)
AntibodyAnti-IP3R (rabbit polyclonal)AbcamCat# ab5804;
RRID:AB_305124
(1:200)
AntibodyAlexa Fluor 647-conjugated anti-mouse IgG (goat polyclonal)Thermo Fisher ScientificCat# A-21236;
RRID:AB_2535805
(1:1000)
AntibodyAlexa Fluor 532- conjugated anti-rabbit IgG (goat polyclonal)Thermo Fisher ScientificCat# A-11009;
RRID:AB_2534076
(1:1000)
AntibodyAlexa Fluor 647- conjugated anti-goat IgG (donkey polyclonal)AbcamCat# ab150131;
RRID:AB_2732857
(1:1000)
AntibodyAlexa Fluor 568- conjugated anti-rabbit IgG (donkey polyclonal)Thermo Fisher ScientificCat# A10042;
RRID:AB_2534017
(1:1000)
OtherER-Tracker GreenThermo Fisher ScientificCat# E34251(1:1000)
OtherCell-Mask Deep RedThermo Fisher ScientificCat# C10046(1:1000)
OtherFluo-4 AMThermo Fisher ScientificCat# F142011 µM
OtherFura-2 AMThermo Fisher ScientificCat# F12214 µM
Chemical compound, drugTamoxifenSigma-AldrichCat# T5648
Chemical compound, drugTriton X-100Sigma-AldrichCAS# 9036-19-5
Chemical compound, drugSEABLOCKThermo Fisher ScientificCat# 37527
Chemical compound, drugCysteamine hydrochlorideSigma-AldrichCAS# 156-57-0
Chemical compound, drugTwinsilPicodentCat# 1300 5000
Chemical compound, drugTRIzolThermo Fisher ScientificCat# 15596026
Chemical compound, drugSynta66Sigma-AldrichCat# SML1949
Chemical compound, drugPaxillineSigma-AldrichCat# P2928
Chemical compound, drug9-PhenanthrolSigma-AldrichCat# 211281
Peptide, recombinant proteinPapainWorthington Biochemical CorporationCat# LS003119
Peptide, recombinant proteinCollagenase type 2Worthington Biochemical CorporationCat# LS004202
Peptide, recombinant proteinGlucose oxidaseSigma-AldrichCat# G2133
Peptide, recombinant proteinCatalaseSigma-AldrichCat# C40
Commercial assay or kit5X RIPA buffer with Protease Inhibitor CocktailCell BiolabsCat# AKR-190
Commercial assay or kitBCA Protein Assay KitThermo Fisher ScientificCat# 23225
Commercial assay or kit12–230 kDa Separation moduleProteinSimpleCat# SM-W004
Commercial assay or kitAnti-Rabbit Detection ModuleProteinSimpleCat# DM-001
Commercial assay or kitTotal Protein Detection ModuleProteinSimpleCat# DM-TP01
Commercial assay or kitDirect-zol RNA microprep kitZymo ResearchCat# R2060
Commercial assay or kitqScript cDNA SupermixQuanta BiosciencesCat# 95047
Commercial assay or kitQX200 ddPCR EvaGreen SupermixBio-RadCat# 186-4033
Software, algorithmCompass for SW softwareProteinSimplehttps://www.proteinsimple.com/compass/downloads
Software, algorithmImaris softwareBitplane/Oxford Instrumentshttps://imaris.oxinst.com/packages; RRID:SCR_007370
Software, algorithmLeica Application Suite X softwareLeicahttps://www.leica-microsystems.com/products/microscope-software/details/product/leica-las-x-ls/RRID:SCR_013673
Software, algorithmImageJ softwareNational Institutes of Healthhttps://imagej.net/;RRID:SCR_003070
Software, algorithmpClamp softwareMolecular Devices, LLChttp://www.moleculardevices.com/products/software/pclamp.html;RRID:SCR_011323
Software, algorithmSparkAn custom softwareDr. Adrian Bonev and Dr. Mark Nelson; PMID:22095728N/ASoftware used to analyze Ca2+ spark events kindly provided by Dr. Adrian Bonev and Dr. Mark Nelson from the University of Vermont
Software, algorithmIonWizard softwareIonOptix, LLChttps://www.ionoptix.com/products/software/ionwizard-core-and-analysis/
Software, algorithmPonemah softwareData Science Internationalhttps://www.datasci.com/products/software/ponemah;RRID:SCR_017107
Software, algorithmGraphPad Prism SoftwareGraphPad Software, Inchttps://www.graphpad.com/;RRID:SCR_002798

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files. All source data files and blots images have been provided.

References

    1. Knudson CM
    2. Stang KK
    3. Moomaw CR
    4. Slaughter CA
    5. Campbell KP
    (1993)
    Primary structure and topological analysis of a skeletal muscle-specific junctional sarcoplasmic reticulum glycoprotein (triadin)
    The Journal of Biological Chemistry 268:12646–12654.

Decision letter

  1. Murali Prakriya
    Reviewing Editor; Northwestern University, United States
  2. Kenton J Swartz
    Senior Editor; National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Peripheral Coupling Sites Formed by STIM1 Govern the Contractility of Vascular Smooth Muscle Cells" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Kenton Swartz as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

All three reviewers expressed considerable interest in the work. However, they identified important essential revisions that will be needed to support the main conclusions. These revisions could be addressed via a combination of a moderate number of new experiments and text changes:

1. Where is STIM1 clustered relative to other channels? Are the channel clusters measured located at SR-PM junctions. And how does the channel cluster intensity of affected by the STIM1 KO? This very important question can be addressed using imaging approaches already employed in the study.

2. Examine STOCs and TICCs and vasoconstriction using pharmacological tools for BK, TRPM4, Ry2R2 and/or IP3Rs to determine if reduced vasoconstriction in STIM1 knockout arteries is due to modified activity of the same ion channels identified by patch-clamp. This will help link the myography data to the observed changes in channel clusters.

3. How are changes in spark properties linked to alterations in STOCs and TICCs? This is more ambitious but can be addressed by localizing and the quantifying the abundance of CaV, SERCA, PMCA, NCX and by monitoring sparks evoked by depolarization. This would help connect changes in spark generation to the altered currents that are observed.

4. Is the role of STIM1 really independent of Orai and SOCE? Test for effects of CRAC channel blockers (BTP2, CM4620) on sparks, STOCs, TICCs, muscle tone in vitro. Also examine if the localization of STIM1 changes with store depletion.

In addition, there are a numbers of text revisions and clarifications which should be addressed, as described below in the individual reviewer comments.

Reviewer #1:

Krishnan and colleagues investigate the role of STIM1 in regulating several aspects of differentiated smooth muscle cell (SMC) function and cell biology relating to the SR-PM junctions and the role of SR-mediated calcium and contractile events. Using isolated smooth muscle cells from the cerebral arteries of control and STIM1 sm-KO mice, the study finds that several key aspects of the anatomy of the plasma membrane-SR contact sites are altered with functional consequences. STIM1 KO SMCs have decreased density and area of PM-SR contact sites, and co-localization of BK channels-RyR2 clusters, TRPM4-IP3R1 protein clusters, and diminished Ca2+ spark and STOCs. These defects are manifested in impaired vasoconstriction when challenged with the agonist, U46619, especially following a train of stimulation pulses. The findings on first glance seem to be consistent with a model wherein STIM1 does not necessarily regulate the beat-to-beat contraction of smooth muscle, but instead its role is more apparent in responses to a train of stimulation pulses that requires refilling of ER Ca2+ stores and which could be impaired in the absence of STIM1.

Strengths of the manuscript:

The manuscript makes several novel and physiologically relevant observations: the number and size of SR/PM coupling sites is significantly reduced in VSMCs from Stim1-smKO mice, loss of STIM1 alters the microarchitecture of ion channels contained within Ca2+-signaling complexes including BK-RyR2 and TRPM4-IP3R complexes, and these changes together alter the properties of Ca2+ sparks and reduce BK and TRPM4 channel activity under physiological recording conditions. Consistent with these changes in cell physiology, measurements of contractility reveal that the smooth muscle lacking STIM1 shows impaired contractility and low blood pressure. All together, these are interesting, novel, and physiologically relevant results with potential clinical relevance.

Weaknesses:

The main weakness of the study relates to two conclusions that don't seem to be supported by any compelling data in the study: (i) that STIM1 functions independently of SR Ca2+ stores, and (ii) that STIM1 is constitutively active. The authors use these contentions to advance the idea that STIM1 regulates smooth muscle physiology via a mechanism distinct from its role in regulating the well-established SOCE, but this conclusion is needlessly speculative.

– It is really unclear why the authors conclude that the function of STIM1 is independent of its role in regulating SOCE and, moreover, is independent of the SR calcium concentration. These parameters were not measured directly in the present study. In order to support this claim, the study should directly measure the ER Ca to determine whether or not stores are not constitutively depleted. Otherwise, this speculation should be removed.

– The finding that store release is comparable between STIM1-smKO and WT SMCs in response to a single challenge of caffeine (Figure 5I) is insufficient evidence that stores are unaffected by ablating STIM1 expression. What happens to SR calcium stores under conditions of more physiological, repetitive stimulation, for example during a pulse train with caffeine or even U46619? The role of STIM1 may not be apparent following stimulation with a single stimulus, but may become more apparent with challenged with a repetitive pulses that may activate SOCE in order to sustain smooth muscle function during pulsatile contractions.

– The authors put forth the concept that STIM1 is STIM1 is constitutively active. This concept needs further testing, for example by assessing whether STIM1 localization changes following direct store depletion.

Comments for the authors:

1) Examine SOCE in the STIM1 KO cells generated within the study. This is a simple and essential control necessary to assess SOCE levels in differentiated SMCs, and if detected, confirm that the STIM1 KO mice generated in the current study lose SOCE.

2) Assess SR calcium levels in response to repetitive challenges with a GPCR agonist that will causes repetitive SR Ca2+ release mimicking Ca2+ release events during pulsatile arterial smooth muscle contractions. Is SR Ca2+ store content maintained in the STIM1 KO SMCs under these conditions?

3) Assess the stability of STIM1 clusters in resting and store depleted (thapsigargin) treated cells to determine if STIM1 localization is altered by store depletion as seen in non-excitable cells. The relationship of the STIM1 clusters shown in Figure 1 should also be compared to BK and RyR2 clusters found in Figure 2.

Reviewer #2:

Fully differentiated, contractile smooth muscle cells express STIM1, but exhibit only minimal store-operated calcium entry (SOCE), a process that is known to be activated by STIM1. The authors aim to identify physiological functions of STIM1 that are independent of SOCE has been achieved in this manuscript.

The Methods used are broad, integrated and include innovative approaches, such as super-resolution microscopy and inducible, conditional knockout mice. The authors have achieved their aim and the conclusions are, in general, supported by the results. This manuscript will have an impact in the field and should stimulate new research in the fields of calcium signaling and vascular biology.

1. The terminology used for the mice should be modified. According to the text on page 5, "SMC-specific Stim1-knockout (Stim1-smKO) mice" are mice that have not yet received tamoxifen. Mice that have not yet received tamoxifen are Cre-positive Stim1fl/fl mice, not Stim1 knockouts. The same paragraph also denotes Stim1-smKO mice injected with sunflower oil as controls. These mice should not be referred to as Stim1-smKO mice as the Stim1 gene would not have been modified by sunflower oil.

2. Mice used for experimentation are young, at between 6 and 8 weeks of age. What is the reason juvenile mice were used for this study, rather than adults?

3. Figure 1A and Supplementary Figure 1. The mean data show that residual STIM1 is present in tissues of the tamoxifen-injected Cre-positive mice, but no bands can be seen on the Western blots. Can the images be improved so that protein bands can be seen in all knockout lanes? The STIM1 blot from brain looks different in the control and STIM1 knockout and may not be representative. The legend for Supplementary Figure 1A indicates that the corresponding Western blots are total protein. What probe or marker was used to label all proteins? The Methods do not appear to provide this information. Please add a molecular weight marker on Figure 1A. Maybe I am missing something, but it is not clear how STIM1 protein can be between 0.1 and 0.9 of total protein if data are normalized to total protein on a scale of 0 to 1.0. This suggests that STIM1 is up to 90 % of total protein and in some cases, individual data points are more than 1.0 of total protein.

4. How does the size of the fluorescent clusters in the Stim1-smKO cells compare to those in the control cells? Are they similar or different?

5. It would be useful to state what percentage of BK clusters overlap with RyR2 clusters and vice versa in control and Stim1-smKO cells. The same question applies to IP3R and TRPM4 clusters. Please provide these data.

6. If epifluorescence was used to measure cluster colocalization, how do you know if two proteins are colocalized at, or nearby, the surface? Could both proteins be located intracellularly? Please include a discussion of why you think the density of RyR2 clusters and the size of BK, TRPM4 and IP3R clusters are lower, whereas the size of RyR2 clusters is larger in the Stim1-smKO cells. Why would a change in the distance between the SR and plasma membranes in response to STIM1 knockout alter cluster properties in this manner?

7. In Figure 2, why was volume used to calculate PM and SR membranes, rather than surface area? How were PM and SR volumes calculated? What criteria were used to establish that the plasma and SR membranes colocalized? Why are the colocalization sites spherical? Wouldn't you expect that the close apposition of two membranes appear as sheets?

8. It is unusual that the mean amplitude of calcium sparks, when expressed as F/F0, is less than 1 (Figure 5D). If F0 is 1, calcium spark amplitudes should be higher than 1. Figure 5 would benefit from traces showing individual or average traces of calcium sparks that illustrate the amplitude and kinetic differences described in control and Stim1-smKO cells.

9. The authors (page 13) state that the effect of STIM1 knockout on BK and TRPM4 channel activity would produce opposing effects on arterial contractility. Myography is performed to address this question, leading to the observation that STIM1 knockout attenuates vasoconstriction. However, no link to altered BK and TRPM4 channel activity is investigated, which would close the loop introduced by the authors here. For example, experiments could be performed to examine if reduced vasoconstriction in STIM1 knockout arteries is due to attenuated IP3R and TRPM4 activity.

10. What is the resolution of the lightsheet imaging system used for the PM-SR colocalization experiments?

11. Please provide references where it was shown that SERCA, the PMCA and Na+/Ca2+ exchangers alter Ca2+ spark spread and decay in smooth muscle cells as you write in the Discussion on page 18.

12. Effects of STIM1 knockout are studied, but the cellular location and mechanism of STIM1 in control smooth muscle cells is not shown. The authors could provide evidence, or at least discuss in more detail, where STIM1 is located and how they consider STIM1 maintains close spatial proximity of the plasma and sarcoplasmic reticulum membranes. Is STIM1 located where the two membranes are closely opposed? Is STIM1 nearby RyR, IP3R, BK or TRPM4 channels? Does STIM bind to another PM-located protein? Could that be L-type Ca2+ channels, TRP channels or other proteins previously shown to be regulated by STIM1?

Reviewer #3:

In this paper, Krishnan et al. examine the functional effects of a targeted knock out of STIM1 in vascular smooth muscle cells (VSMCs). Unlike most cells, differentiated VSMCs express very little store-operated calcium entry (SOCE), but the authors demonstrate that knocking out STIM1, the ER Ca2+ sensor for SOCE, has a significant impact on the generation of Ca2+ sparks and local BK and TRPM4 channel activation, leading to a loss of myogenic tone and hypotension in intact animals. These results are ascribed to a reduction in the number and size of sarcoplasmic reticulum (SR)- plasma membrane (PM) junctions rather than a loss of SOCE. Thus, this study reveals important functions of STIM1 in VSMCs that may be independent of coupling to Orai1 and activation of SOCE. These results add to a growing list of STIM1 functions beyond SOCE that includes regulation of voltage-gated Ca2+ channels, Ca2+ ATPases, and adenylate cyclase.

On the whole, the experiments were very carefully done and well presented, and the results are clear and convincing. The breadth of the study is also impressive, ranging from super-resolution imaging of junctions, channel localization and co-clustering in single VSMCs, to single-cell measurements of Ca2+ sparks and the transient currents they produce, to measurements of the myogenic response in isolated cerebral and mesenteric arteries, and culminating in hypotension in intact animals. The effects on transient currents through BK (STOCs) and TRPM4 channels (TICCs) could explain the effects on myogenic tone and blood pressure, in line with the current understanding of how local coupling between RyR2 and BK channels, and IP3R and TRPM4 channels control VSMC contractile behavior. These results will be of interest to researchers studying calcium signaling mechanisms and cardiovascular physiology.

The main uncertainty in the paper is mechanistically how knockout of STIM1 causes the observed effects on SR-PM junctions, Ca2+ sparks and local activation of BK and TRPM4 channels leading to reduced myogenic response and hypotension. Does STIM1 play a direct role in forming junctions, e.g., through binding of its polybasic domain to negatively charged phospholipids in the PM, or a supporting role where STIM1 binds to microtubules that extend SR tubules towards the PM? It is also unclear whether the observed reduction of coupling sites can explain the altered Ca2+ spark characteristics and downstream effects on STOCs and TICCs as proposed by the authors. Changes in channel clustering after STIM1 knockout were not entirely consistent with changes in coupling site density, and it is also possible that STIM1 helps channels to accumulate at junctions. Finally, the possibility that STIM1 may signal through activation of Orai1 and SOCE should be considered. Although differentiated VSMCs express very little STIM1 and Orai1, this study demonstrates that the amount of STIM1 is nevertheless functionally important, and local activation of Orai1 may be able to influence SR Ca2+ content or BK or TRPM4 channel activity.

Comments for the authors:

1. The title of the paper states "Peripheral Coupling Sites Formed by STIM1 Govern the Contractility of Vascular Smooth Muscle Cells," but there is no evidence that STIM1 actually forms the sites. How is STIM1 involved? Does STIM1 play a direct role; e.g., a tethering function due to interaction of its polybasic domain with PIP2 in the PM or by promoting SR extension towards the PM by binding to EB1 on the tips of microtubules? Or is it indirect – perhaps reducing the overall amount of SR (Figure 2) reduces the density of SR-PM contacts as a simple mass-action effect. In the absence of any experimental evidence for a direct role, the title and conclusions should be toned down, and these possibilities should be discussed.

2. The effects of STIM1 KO on spark characteristics, BK and TRPM4 activation (STOCs and TICCs), myogenic tone, and blood pressure are clear and convincing. The major question is, how does the loss of STIM1 lead to these effects? The authors propose that the effects arise from a loss of peripheral coupling sites, but the data are not entirely consistent on this point. For example, changes in junction number and size do not always go hand in hand with channel cluster numbers and size. Despite significant reduction of SR-PM coupling site density (Figure 2), there is no change in BK, TRPM4, or IP3R cluster density (Figure 3B, 4B, 4C). Similarly, there is no change in RyR2 cluster size (Figure 3C) even though junctions are smaller. These results do not fit neatly with the idea that changes in junction density and size are responsible for the functional effects on VSMC contractility.

3. STIM1 KO significantly alters spark characteristics, but it is hard to imagine that the increased amplitude, duration, and decay time constant all result simply from a modest decline in the number and volume of SR-PM contacts. Why are they bigger and spread further after STIM1 KO? Also, are the altered spark characteristics consistent with STOC and TICC characteristics? One might expect a lengthening of STOC/TICC events given the increased duration of the sparks.

4. One possibility that should be considered is that some of the effects of STIM1 result from opening Orai1 channels at SR-PM junctions. A small amount of STIM1 and Orai1 were detected in VSMCs by Potier et al. (ref 37). Such activity might be detectable locally but not at a global level, yet could affect local SR Ca2+ content or activity of BK or TRPM4 channels. This could be tested by measuring the effects of Orai1 inhibitors on constitutive Ca2+ influx, sparks, and STOCs and TICCs.

5. Another possibility is that STIM1 influences the accumulation of channels at SR-PM junctions. Do clusters of STIM1 colocalize with clusters of BK and TRPM4? Does STIM1 KO affect the number of channels at junctions? This will contribute to the size of the local STOC and TICC signals.

6. It is unclear what proportion of the detected channel clusters are actually located at junctions. GSDIM was performed in epifluorescence mode, which implies that signals were collected throughout the cell thickness, not necessarily near the PM. Cluster densities for the channels differ: BK (15/µm2), RyR2 (4-6/µm2), TRPM4 (40/µm2), and IP3R clusters (30/µm2) and are much higher than the density of colocalized clusters (BK-RyR2 are 0.3/µm2, and IP3R-TRPM4 are 3/µm2). It seems likely that most of these clusters are actually not associated with junctions. If the clusters are not at junctions, then the quantification of cluster density cannot be related to the frequency of STOCs or TICCs.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Peripheral Coupling Sites Formed by STIM1 Govern the Contractility of Vascular Smooth Muscle Cells" for further consideration by eLife. Your revised article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Kenton Swartz as the Senior Editor, and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

(1) The manuscript does not actually show that STIM1 is present at the SR-PM junctions that are the focus of the paper. Rather, the data in Figure 2 only shows that there is an overall decrease in the number of SR-PM junctions in the STIM1 KO. In the absence of direct proof that STIM1 is located at the junctions, the idea that STIM1 drives the formation of the SR-PM contacts is speculative. Therefore, the title and the discussion of the paper should reflect this point as indicated by reviewers 1 and 3.

(2) This point was previously raised. The fraction of BK (and TRPM4 channels) that are actually co-localized with STIM1 is really quite small to begin with. This is readily apparent in the co-localization images of Figure 5 – most BK and TRPM4 channels don't cluster with STIM1. Authors must explain explicitly the relationship between channel clusters and coupling sites in the text. See also comments by reviewers 1 and 3 on this issue.

(3) Figure 2 clearly shows that the volume of the SR is strongly diminished in the STIM1 KO. It seems natural to expect then that as the volume of the SR declines and it pulls away from the membrane, SR-PM contacts will also go down. This issue was raised in the previous review. Does this decrease in SR volume alone not account for the observed decline in SR-PM contacts? This question needs to be explicitly addressed in the manuscript with a well-rounded discussion of what the data actually show.

Reviewer #1:

Reviewers have addressed my previous comments well and the paper is much improved.

I do have two further points that would need addressing:

– First, nowhere in the paper is there data showing that STIM1 is actually present at the peripheral ER-PM sites. I agree that the data showing that STIM1 KO decreases interactions between the PM and SR are in VSMCs is strong and convincing. But the paper strongly implies that STIM1 forms ("fosters") these contacts. Can the authors show that STIM1 labelling is present at the SR-PM contact sites? In the absence of this data, the conclusion that STIM1 is crucial for "fostering SR-PM coupling" is indirect and in the worst case, could be entirely incidental.

– Figure 5: The co-localization of STIM1 with BK (and TRPM4) is actually pretty hard to see and less than compelling. Arrows should be used on the BK and TRPM4 panels to precisely denote which BK clusters are co-localized with which STIM1 clusters. I also don't understand the statements indicating that "BK and TRPM4 colocalize with STIM1 more frequently than would be predicted if the proteins are randomly distributed". How was the random distribution modelled? How many channels? What is the area of the membrane? How was cluster formation modelled/induced in the random distribution model? With sufficient numbers of BK and STIM1 proteins, one would expect that random distribution may even cause co-localization of the observed numbers of BK and STIM1 proteins. These important details that are crucial to understanding whether co-localization is mechanistically driven are missing.

Reviewer #2:

The manuscript has been significantly improved.

Reviewer #3:

The authors have done a good job of addressing the comments and the manuscript has been improved. There are only a few remaining concerns that I would like the authors to address.

1. As for the question of whether channel clusters are present at SR-PM junctions, the authors should explain more clearly in the text what fraction of the clusters are likely to reside at these sites. See my comment on point #2, below.

4. Good – looks like there really isn't any contribution from SOCE. In Figure 1—figure supplement 3E, please state how the comparative SOCE response was measured – peak 340/380 ratio, or the slopes from the data in D?

My review:

1. My comment on the title did not dispute the effect of STIM1 KO on the number of peripheral coupling sites. The problem is that the wording suggests that STIM1 plays a direct role in forming these sites, and that is still to my knowledge an unanswered question in the field. Elsewhere in the paper the authors state that STIM1 maintains coupling, or is important for stable coupling, which is accurate. However, the title implies STIM1 acts in the formation of junctions, and without more mechanistic studies this is still an open question. I would suggest rewording the title to make it more accurate – perhaps referring to these sites as STIM1-dependent rather than STIM1-formed.

2. My comment relates to the lack of correspondence between channel clusters and coupling sites. As I stated, STIM1 KO greatly reduces coupling site density, but does not change BK, TRPM4 or IP3R cluster density. In addition, coupling sites are 0.17/µm2 in WT, but clusters are much more prevalent: 16/µm2 for BK, 40/µm2 for TRPM4, 32 for IP3R. This 100x difference indicates that many of the channel clusters are not associated with an identified coupling site, and probably for this reason the number is not grossly affected by loss of coupling sites. This conclusion is supported by the data of Figure 5, where only a small fraction of BK and TRPM4 channels colocalize with STIM1 puncta (indicating SR-PM junctions). It would be helpful to explain explicitly the relationship between channel clusters and coupling sites in the text. I may be missing something, but I do not understand how stochastic self-assembly in the rebuttal explains how loss of STIM1 affects cluster size. It is hard for me to imagine that given the very small fraction of channel clusters associated with SR-PM junctions (~5%) in WT cells, how the observed reduction in SR-PM coupling sites could lead to a measurable cell-wide decrease in the size of clusters as the authors suggest.

https://doi.org/10.7554/eLife.70278.sa1

Author response

Essential revisions:

All three reviewers expressed considerable interest in the work. However, they identified important essential revisions that will be needed to support the main conclusions. These revisions could be addressed via a combination of a moderate number of new experiments and text changes:

1. Where is STIM1 clustered relative to other channels? Are the channel clusters measured located at SR-PM junctions. And how does the channel cluster intensity of affected by the STIM1 KO? This very important question can be addressed using imaging approaches already employed in the study.

We performed several new experiments to address this set of concerns. We utilized the TIRF modality of our GSDIM system to image STIM1 protein clusters in VSMCs. This method detects protein clusters at or near the plasma membrane, to a depth of ~ 150 nm. These data show that STIM1 protein clusters are present at the plasma membrane, and that these clusters were significantly reduced in size and density in VSMCs from Stim1-smKO mice (Figure 1—figure supplement 2). We also imaged VSMCs coimmunolabeled with BK and STIM1 or TRPM4 and STIM1 using TIRF-mode GSDIM, and analyzed the data using object-based analysis (OBA) (Figure 5). These data show that BK and TRPM4 colocalize with STIM1 more frequently than would be predicted if the proteins are randomly distributed, providing evidence that the channels form nanoscale complexes with STIM1 at or near the plasma membrane.

Our data also show that STIM1 knockout does not change the density of BK and TRPM4 channel clusters (Figures 3B and 4B). However, STIM1 knockout is associated with reduced size of BK and TRPM4 channel clusters (Figures 3B and 4B), suggesting that STIM1 may be involved with the formation of protein clusters on the plasma membrane. Stochastic self-assembly is a currently accepted model of protein cluster formation at the plasma membrane (1). Briefly, data from this paper show that protein clusters within the plasma membrane grow in size over time, and the probability of removal of protein clusters from the membrane also increases over time. The net result is an exponential distribution of protein cluster sizes, matching the findings reported by multiple laboratories. In this context, a reasonable interpretation of our data is that when STIM1 is present, the removal of BK and TRPM4 channel clusters from the membrane is slower, allowing them to grow to larger sizes. Knockout of STIM1 removes this protective effect and BK and TRPM4 channels are removed more quickly, at a smaller size. We envision that coupling between the SR and plasma membrane slows the removal of protein clusters from the membrane.

2. Examine STOCs and TICCs and vasoconstriction using pharmacological tools for BK, TRPM4, Ry2R2 and/or IP3Rs to determine if reduced vasoconstriction in STIM1 knockout arteries is due to modified activity of the same ion channels identified by patch-clamp. This will help link the myography data to the observed changes in channel clusters.

We performed the suggested experiments and have added new data showing the effects of the BK channel inhibitor paxilline and the TRPM4 channel inhibitor 9-phenanthrol on vasoconstriction of cerebral arteries isolated from control and Stim1-smKO mice (Figure 8—figure supplement 1). As expected, we observed that myogenic tone increased in response to paxilline treatment in cerebral arteries isolated from control mice. Cerebral arteries from Stim1-smKO mice have little basal myogenic tone and showed only very slight increase in myogenic tone with paxilline treatment, indicating that these vessels have very little BK channel activity. As we have previously reported (2), 9-phenathrol treatment resulted in the loss of myogenic tone of cerebral arteries from control mice (Figure 8—figure supplement 1). Cerebral arteries from Stim1-smKO mice have very little basal tone and exhibited only a slight dilation in response to 9-phenathrol treatment, suggesting that these vessels have very little TRPM4 activity. Together, these data link the patch-clamp and pressure myography data.

3. How are changes in spark properties linked to alterations in STOCs and TICCs ? This is more ambitious but can be addressed by localizing and the quantifying the abundance of CaV, SERCA, PMCA, NCX and by monitoring sparks evoked by depolarization. This would help connect changes in spark generation to the altered currents that are observed.

The experiments proposed by the reviewers to localize and quantify the abundance of CaV, SERCA, PMCA, NCX in control and STIM1 knockout mice are fascinating, but would require a massive effort over several months and greatly increase the length of this already robust manuscript. We plan to investigate these questions in a follow-up study.

The changes in Ca2+ spark properties associated with STIM1 knockout are not the primary cause of the loss of STOC and TICC frequency. Our model indicates that STOC and TICC activity is diminished by the knockout of STIM1 because the functional coupling of BK and TRPM4 channels on the plasma membrane and RyR2s and IP3Rs on the SR is lost. Functional coupling is lost because peripheral coupling between the membranes is disrupted.

We propose that disruption of peripheral coupling between the SR and PM is also responsible for altering the properties of Ca2+ sparks. Ca2+ sparks are produced within microdomains that are formed by the close association of the SR and plasma membrane. Separation of the two membranes enlarges the area of these Ca2+ signaling microdomains, leading to the observed increase in spatial spread. Enlargement of the microdomains also increases the distance between the source of the Ca2+ spark and the SERCA and PMCA pumps and Na/Ca2+ exchangers which remove Ca2+ from the cytosol (3-5), leading to prolonged decay and increased amplitude. We have attempted to clarify these concepts in the revised manuscript.

4. Is the role of STIM1 really independent of Orai and SOCE? Test for effects of CRAC channel blockers (BTP2, CM4620) on sparks, STOCs, TICCs, muscle tone in vitro. Also examine if the localization of STIM1 changes with store depletion.

Several studies in various vascular beds showed that SOCE and CRAC channel activity are undetectable in contractile VSMCs from systemic arteries. Nevertheless, we used the more selective Orai1 channel blocker Synta66 to address the reviewer’s question. Synta66 had no effect on STOCs or TICCs in patch-clamp clamp experiments (Figure 7—figure supplements 1 and 2) or on myogenic tone in pressure myography experiments (Figure 8—figure supplement 1). We also imaged STIM1 clusters in cerebral artery SMCs after thapsigargin treatment using GSDIM-TIRF and found no increase in STIM1 cluster density or size compared to vehicle-treated cells (Figure 1—figure supplement 3). In addition, in agreement with prior studies (6, 7), we provide new data showing that only trivial levels of SOCE can be evoked in native, contractile SMCs from cerebral arteries when compared with proliferative cerebral artery SMCs (Figure 1—figure supplement 3). Together, these data demonstrate that STIM1's function in contractile SMCs is independent of Orai1 and SOCE.

In addition, there are a numbers of text revisions and clarifications which should be addressed, as described below in the individual reviewer comments.

Reviewer #1:

[…] Comments for the authors:

1) Examine SOCE in the STIM1 KO cells generated within the study. This is a simple and essential control necessary to assess SOCE levels in differentiated SMCs, and if detected, confirm that the STIM1 KO mice generated in the current study lose SOCE.

We performed SOCE experiments in proliferative and fully differentiated contractile cerebral artery SMCs. In agreement with prior studies (6, 7), we found that proliferative SMCs exhibited robust SOCE whereas contractile SMCs had almost none (Figure 1 —figure supplement 3).

2) Assess SR calcium levels in response to repetitive challenges with a GPCR agonist that will causes repetitive SR Ca2+ release mimicking Ca2+ release events during pulsatile arterial smooth muscle contractions. Is SR Ca2+ store content maintained in the STIM1 KO SMCs under these conditions?

We attempted to assess SR Ca2+ levels in response to repeated applications of U46619 – a thromboxane A2 receptor vasoconstrictor agonist – but the native contractile SMCs used for these studies maximally contracted in response to this treatment, and were very slow to relax. This generated imaging artifacts, rendering the experiments infeasible. To address the reviewer's concerns, we provide references to a prior study showing that STIM1 knockdown/knockout does not significantly alter resting ER Ca2+ levels (8-10). Thus, our finding that STIM1 knockout does not alter SR Ca2+ levels is in agreement with the prior literature.

3) Assess the stability of STIM1 clusters in resting and store depleted (thapsigargin) treated cells to determine if STIM1 localization is altered by store depletion as seen in non-excitable cells. The relationship of the STIM1 clusters shown in Figure 1 should also be compared to BK and RyR2 clusters found in Figure 2.

We performed these experiments and found that depletion of SR Ca2+ stores using thapsigargin did not change STIM1 protein cluster size or density (Figure 1—figure supplement 3). In addition, we imaged co-immunolabeled VSMCs using TIRF-mode GSDIM and found that STIM1 colocalized with BK and TRPM4 channels at the plasma membrane more frequently than would be predicted by random distribution, suggesting that STIM1 forms nanoscale complexes with these channels (Figure 5).

Reviewer #2:

[…] 1. The terminology used for the mice should be modified. According to the text on page 5, "SMC-specific Stim1-knockout (Stim1-smKO) mice" are mice that have not yet received tamoxifen. Mice that have not yet received tamoxifen are Cre-positive Stim1fl/fl mice, not Stim1 knockouts. The same paragraph also denotes Stim1-smKO mice injected with sunflower oil as controls. These mice should not be referred to as Stim1-smKO mice as the Stim1 gene would not have been modified by sunflower oil.

We agree, and have changed the description to clarify that Myh11Cre-Stim1fl/fl mice injected with tamoxifen are referred to as Stim1-smKO mice and Myh11Cre-Stim1fl/fl mice injected with vehicle (sunflower oil) are referred to as control mice.

2. Mice used for experimentation are young, at between 6 and 8 weeks of age. What is the reason juvenile mice were used for this study, rather than adults?

Based on existing guidelines and studies using tamoxifen-induced activation of Cre recombinase in smooth muscle (11-14), the optimum age for tamoxifen injection to induce Cre recombinase activity via i.p. injections at a dose which minimizes other side effects is between 4 to 6 weeks old. The maximum Cre recombinase activity is then observed to be at 7 days after the final injection, which is why the mice are between 6 and 8 weeks old when we use them for experimentation.

3. Figure 1A and Supplementary Figure 1. The mean data show that residual STIM1 is present in tissues of the tamoxifen-injected Cre-positive mice, but no bands can be seen on the Western blots. Can the images be improved so that protein bands can be seen in all knockout lanes? The STIM1 blot from brain looks different in the control and STIM1 knockout and may not be representative. The legend for Supplementary Figure 1A indicates that the corresponding Western blots are total protein. What probe or marker was used to label all proteins? The Methods do not appear to provide this information. Please add a molecular weight marker on Figure 1A. Maybe I am missing something, but it is not clear how STIM1 protein can be between 0.1 and 0.9 of total protein if data are normalized to total protein on a scale of 0 to 1.0. This suggests that STIM1 is up to 90 % of total protein and in some cases, individual data points are more than 1.0 of total protein.

Please note, as stated in the methods section, we used Wes capillary electrophoresis and not Western blot for immunodetection of STIM1. The images shown in our manuscript are a graphical representation of the chromatograms produced by the Wes system. This is currently the standard way of presenting the data. We have improved the quality of these images to show faint STIM1 bands in the knockout lanes and added a better representative blot for the brain samples. We have also added a molecular weight marker to Figure 1A. For labeling total protein, we use the Total Protein Detection Module for Wes from Proteinsimple. It utilizes biotin labeling of all proteins in the lanes which are then detected using streptavidin-HRP chemiluminescence, whereas the STIM1 band is detected by immunolabeling with Anti-Stim1 antibody. In other words, the ratio of STIM1 band density to total protein band density does not indicate the fraction of STIM1 that makes up total protein. We have added this information to the methods section.

4. How does the size of the fluorescent clusters in the Stim1-smKO cells compare to those in the control cells? Are they similar or different?

The size and density of the STIM1 fluorescent clusters is significantly smaller in VSMCs from Stim1-smKO mice compared with controls (Figure 1 and Figure 1—figure supplement 2).

5. It would be useful to state what percentage of BK clusters overlap with RyR2 clusters and vice versa in control and Stim1-smKO cells. The same question applies to IP3R and TRPM4 clusters. Please provide these data.

The data requested are shown in Table S1.

6. If epifluorescence was used to measure cluster colocalization, how do you know if two proteins are colocalized at, or nearby, the surface? Could both proteins be located intracellularly? Please include a discussion of why you think the density of RyR2 clusters and the size of BK, TRPM4 and IP3R clusters are lower, whereas the size of RyR2 clusters is larger in the Stim1-smKO cells. Why would a change in the distance between the SR and plasma membranes in response to STIM1 knockout alter cluster properties in this manner?

We used the epifluorescence mode for our initial superresolution imaging experiments because we wanted to detect membrane proteins (BK and TRPM4) and intracellular proteins (RyR2, IP3Rs, and STIM1). This approach has been supplemented with TIRF-mode images in the revised manuscript (Figure 1—figure supplement 2, Figure 5).

Effects of STIM1 knockout on protein cluster sizes – Stochastic self-assembly is a currently accepted model of protein cluster formation at the plasma membrane (1). Briefly, data from this paper show that protein clusters within the plasma membrane grow in size over time, and the probability of removal of protein clusters from the membrane also increases over time. The net result is an exponential distribution of protein cluster sizes, matching the findings reported by multiple laboratories. In this context, a reasonable interpretation of our data is that when STIM1 is present, the removal of BK and TRPM4 channel clusters from the membrane is slower, allowing them to grow to larger sizes. Knockout of STIM1 removes this protective effect and BK and TRPM4 channels are removed more quickly, at a smaller size. We envision that coupling between the SR and plasma membrane slows the removal of protein clusters from the membrane. As for IP3R and RyR2 clusters, very little is known about protein cluster formation in the SR membrane. We expect that a conceptual framework for this process will emerge in the near future.

7. In Figure 2, why was volume used to calculate PM and SR membranes, rather than surface area? How were PM and SR volumes calculated? What criteria were used to establish that the plasma and SR membranes colocalized? Why are the colocalization sites spherical? Wouldn't you expect that the close apposition of two membranes appear as sheets?

We collected 3D images of the SR and PM of SMCs using the SIM modality of our lattice lightsheet microscope (Figure 2). Co-localization was defined as areas where SR and PM voxels (i.e., pixels in 3D) exist in the same space at the resolution limit of our system. The lateral resolution limit for these experiments is on the order of 300 nm and the smallest volume of interaction that can be resolved under these conditions is approximately 300 x 300 x 300 nm or 0.027 μm3. We are not aware of any other study that has investigated the shape of SR/PM interactions in 3D throughout entire native SMCs cells at this level of resolution and we did not know what to expect. The data show that SR/PM colocalizing sites formed well-defined 3D structures that were either irregular ellipsoid or roughly spherical. We therefore reported the volume of these 3D structures. We agree that in 2D representations, the two membranes would appear as sheets (as is the case for TEM experiments) and interactions would properly be quantified as area rather than volume.

8. It is unusual that the mean amplitude of calcium sparks, when expressed as F/F0, is less than 1 (Figure 5D). If F0 is 1, calcium spark amplitudes should be higher than 1. Figure 5 would benefit from traces showing individual or average traces of calcium sparks that illustrate the amplitude and kinetic differences described in control and Stim1-smKO cells.

The amplitudes of Ca2+ sparks are expressed as ΔF/F0 rather than F/F0. Therefore, amplitudes are less than 1. Representative traces have been added to Figure 6 of the revised manuscript.

9. The authors (page 13) state that the effect of STIM1 knockout on BK and TRPM4 channel activity would produce opposing effects on arterial contractility. Myography is performed to address this question, leading to the observation that STIM1 knockout attenuates vasoconstriction. However, no link to altered BK and TRPM4 channel activity is investigated, which would close the loop introduced by the authors here. For example, experiments could be performed to examine if reduced vasoconstriction in STIM1 knockout arteries is due to attenuated IP3R and TRPM4 activity.

To address the reviewer's question, we investigated the effect of pharmacological inhibitors of BK and TRPM4 on contractility of arteries isolated from Stim1-smKO mice. Although the basal tone was reduced significantly in the arteries from knockout mice, the BK inhibitor paxilline induced vasodilation and the TRPM4 inhibitor 9-phenanthrol induced vasoconstriction, indicating that the remaining channels which are still coupled with RyR2 and IP3R retain their function (Figure 8—figure supplement 1).

10. What is the resolution of the lightsheet imaging system used for the PM-SR colocalization experiments?

Using fluorescent beads, we determined that for the SIM modality of the LLS the resolution for 642 nm wavelength (used for PM labeling) is 250 to 335 nm and the resolution for 488 nm wavelength (used for SR labeling), is 225 to 295 nm.

11. Please provide references where it was shown that SERCA, the PMCA and Na+/Ca2+ exchangers alter Ca2+ spark spread and decay in smooth muscle cells as you write in the Discussion on page 18.

To clarify, we propose that disruption of peripheral coupling between the SR and PM is also responsible for altering the properties of Ca2+ sparks. SERCA, PMCA and Na+/Ca2+ exchangers are all well-known ca2+ sinks which help maintain Ca2+ levels intracellularly (3-5). We think the disruption of peripheral coupling between the SR and PM and the Ca2+ signaling microdomains within these coupling sites leads to a loss of proximity between the Ca2+ spark sources and the Ca2+ sinks leading to altered Ca2+ spark spread and decay.

12. Effects of STIM1 knockout are studied, but the cellular location and mechanism of STIM1 in control smooth muscle cells is not shown. The authors could provide evidence, or at least discuss in more detail, where STIM1 is located and how they consider STIM1 maintains close spatial proximity of the plasma and sarcoplasmic reticulum membranes. Is STIM1 located where the two membranes are closely opposed? Is STIM1 nearby RyR, IP3R, BK or TRPM4 channels? Does STIM bind to another PM-located protein? Could that be L-type Ca2+ channels, TRP channels or other proteins previously shown to be regulated by STIM1?

New data were added to the revised manuscript to address these questions. Using the TIRF modality of our GSDIM system, we detected STIM1 clusters at or near the cell membrane (penetration ~150 nm) in in VSMCs from control animals (Figure 1—figure supplement 2). We also used GSDIM-TIRF to show that STIM1 colocalizes with BK and TRPM4 protein clusters at or near the plasma membrane in cells from control mice (Figure 5). Previous studies have also shown that STIM1 interacts with RyR2 (15), IP3R (16) and directly with the plasma membrane via cholesterol binding domains (17). Thus, STIM1 likely interacts with multiple proteins found at peripheral coupling sites, and directly with the plasma membrane. Future studies will explore these mechanisms in detail.

Reviewer #3:[…] Comments for the authors:

1. The title of the paper states "Peripheral Coupling Sites Formed by STIM1 Govern the Contractility of Vascular Smooth Muscle Cells," but there is no evidence that STIM1 actually forms the sites. How is STIM1 involved? Does STIM1 play a direct role; e.g., a tethering function due to interaction of its polybasic domain with PIP2 in the PM or by promoting SR extension towards the PM by binding to EB1 on the tips of microtubules? Or is it indirect – perhaps reducing the overall amount of SR (Figure 2) reduces the density of SR-PM contacts as a simple mass-action effect. In the absence of any experimental evidence for a direct role, the title and conclusions should be toned down, and these possibilities should be discussed.

The canonical function of STIM1 is the formation of peripheral coupling sites during store depletion, and a wealth of evidence supports this concept. Our data clearly show that knocking out STIM1 in SMCs reduces the area of interactions between the SR and PM (Figure 2). We define such interactions as "peripheral coupling sites". Therefore, our data show that STIM1 expression is needed to maintain normal levels of peripheral coupling in native contractile SMCs. Further, our data also show that knockout of STIM1 reduces the contractility of isolated cerebral arteries. In other words, our data show a direct link between STIM1 expression, peripheral coupling, and SMC contractility. Accordingly, while we agree with the reviewer that additional studies are required to determine exactly how STIM1 regulates these coupling sites, we contend that our title accurately describes the major findings and conclusions of the manuscript. The detailed biochemical and molecular dissection of STIM1 function suggested by the reviewer is a very exciting approach but is likely not feasible using native (non-cultured) VSMCs and would greatly expand the scope of the current study. We hope to pursue these questions in the future.

2. The effects of STIM1 KO on spark characteristics, BK and TRPM4 activation (STOCs and TICCs), myogenic tone, and blood pressure are clear and convincing. The major question is, how does the loss of STIM1 lead to these effects? The authors propose that the effects arise from a loss of peripheral coupling sites, but the data are not entirely consistent on this point. For example, changes in junction number and size do not always go hand in hand with channel cluster numbers and size. Despite significant reduction of SR-PM coupling site density (Figure 2), there is no change in BK, TRPM4, or IP3R cluster density (Figure 3B, 4B, 4C). Similarly, there is no change in RyR2 cluster size (Figure 3C) even though junctions are smaller. These results do not fit neatly with the idea that changes in junction density and size are responsible for the functional effects on VSMC contractility.

Our data show that STIM1 knockout reduces the size of BK and TRPM4 protein cluster size at the plasma membrane. Stochastic self-assembly is a currently accepted model of protein cluster formation at the plasma membrane (1). Briefly, this model states that protein clusters within the plasma membrane grow in size over time, and the probability of removal of these clusters from the membrane also increases over time. The net result is an exponential distribution of protein cluster size, matching the findings reported by multiple laboratories. Applying this model, a reasonable interpretation of our data is that when STIM1 is present, the removal of BK and TRPM4 channel clusters from the membrane is slower, allowing them to grow to larger sizes. Knockout of STIM1 removes this protective effect and BK and TRPM4 channels are removed more quickly, at a smaller size. We envision that coupling between the SR and plasma membrane slows the removal from the membrane, but this needs experimental verification. As for IP3R and RyR2 clusters, very little is known about protein cluster formation in the SR membrane. We expect that a conceptual framework will emerge in the future.

3. STIM1 KO significantly alters spark characteristics, but it is hard to imagine that the increased amplitude, duration, and decay time constant all result simply from a modest decline in the number and volume of SR-PM contacts. Why are they bigger and spread further after STIM1 KO? Also, are the altered spark characteristics consistent with STOC and TICC characteristics? One might expect a lengthening of STOC/TICC events given the increased duration of the sparks.

Our interpretation of these data is that disruption of peripheral coupling between the SR and PM enlarges the area of Ca2+ signaling microdomains, leading to the observed increase in spatial spread. Enlargement of the microdomains increases the distance between source of the Ca2+ spark and SERCA, PMCA, and Na+/Ca2+ exchangers which remove Ca2+ from the cytosol (3-5), leading to prolonged decay. We observed a reduction in STOC frequency as well as amplitude despite the increase in Ca2+ spark amplitude, duration and decay time which further supports our idea that there is a loss of functional coupling between RyR2 and BK channels in the absence of STIM1.

4. One possibility that should be considered is that some of the effects of STIM1 result from opening Orai1 channels at SR-PM junctions. A small amount of STIM1 and Orai1 were detected in VSMCs by Potier et al. (ref 37). Such activity might be detectable locally but not at a global level, yet could affect local SR Ca2+ content or activity of BK or TRPM4 channels. This could be tested by measuring the effects of Orai1 inhibitors on constitutive Ca2+ influx, sparks, and STOCs and TICCs.

We investigated the effects of Synta66, a more selective and potent Orai1 inhibitor compared with BTP2, on STOCs and TICCs in VSMCs (Figure 7—figure supplements 1 and 2) and myogenic reactivity in isolated cerebral arteries (Figure 8—figure supplement 1). We did not observe any effect of Synta66 on STOCs, TICCs, or vasoconstriction, indicating that these are independent of Orai1 activity.

5. Another possibility is that STIM1 influences the accumulation of channels at SR-PM junctions. Do clusters of STIM1 colocalize with clusters of BK and TRPM4? Does STIM1 KO affect the number of channels at junctions? This will contribute to the size of the local STOC and TICC signals.

Using the TIRF modality of our GSDIM system, we found that STIM1 colocalized with both BK and TRPM4 at or near the plasma membrane (Figures 5). We did not observe any differences in BK or TRPM4 channel density in VSMCs from Stim1-smKO mice compared to controls (Figures 3B and 4B). In addition, we found that STIM1 knockout did not alter whole-cell BK and TRPM4 current density (Figure 7E and I), providing evidence that STIM1 deficit does not alter the amount of channel protein available for activation at the plasma membrane. We also show that STIM1 knockout did not alter mRNA levels of BKα and β subunits (Figure 7—figure supplement 1) or TRPM4 (Figure 7—figure supplement 2).

6. It is unclear what proportion of the detected channel clusters are actually located at junctions. GSDIM was performed in epifluorescence mode, which implies that signals were collected throughout the cell thickness, not necessarily near the PM. Cluster densities for the channels differ: BK (15/µm2), RyR2 (4-6/µm2), TRPM4 (40/µm2), and IP3R clusters (30/µm2) and are much higher than the density of colocalized clusters (BK-RyR2 are 0.3/µm2, and IP3R-TRPM4 are 3/µm2). It seems likely that most of these clusters are actually not associated with junctions. If the clusters are not at junctions, then the quantification of cluster density cannot be related to the frequency of STOCs or TICCs.

Our data show that knockout of STIM1 does not alter the density of BK or TRPM4 channel clusters (Figure 3B and 4B) and we make no strong claim that changes in cluster density affect STOC or TICC currents. Instead, we claim that STOC and TICC activity is impaired by knockout of STIM1 because the microdomains that encompass the Ca2+ signals necessary for the activation of these channels are compromised. Our data (Figure 2) showing that interactions between the SR and PM are disrupted support this conclusion.

References:1. Sato D, Hernandez-Hernandez G, Matsumoto C, Tajada S, Moreno CM, Dixon RE, et al. A stochastic model of ion channel cluster formation in the plasma membrane. J Gen Physiol. 2019;151(9):1116-34.2. Gonzales AL, Garcia ZI, Amberg GC, Earley S. Pharmacological inhibition of TRPM4 hyperpolarizes vascular smooth muscle. Am J Physiol Cell Physiol. 2010;299(5):C1195-C202.3. Bautista DM, Lewis RS. Modulation of plasma membrane calcium-ATPase activity by local calcium microdomains near CRAC channels in human T cells. J Physiol. 2004;556(Pt 3):805-17.4. Blaustein MP, Lederer WJ. Sodium/calcium exchange: its physiological implications. Physiological reviews. 1999;79(3):763-854.5. Shmigol AV, Eisner DA, Wray S. The role of the sarcoplasmic reticulum as a Ca2+ sink in rat uterine smooth muscle cells. J Physiol. 1999;520 Pt 1(Pt 1):153-63.6. Fernandez RA, Wan J, Song S, Smith KA, Gu Y, Tauseef M, et al. Upregulated expression of STIM2, TRPC6, and Orai2 contributes to the transition of pulmonary arterial smooth muscle cells from a contractile to proliferative phenotype. Am J Physiol Cell Physiol. 2015;308(8):C581-93.7. Potier M, Gonzalez JC, Motiani RK, Abdullaev IF, Bisaillon JM, Singer HA, et al. Evidence for STIM1- and Orai1-dependent store-operated calcium influx through ICRAC in vascular smooth muscle cells: role in proliferation and migration. Faseb j. 2009;23(8):2425-37.8. Jousset H, Frieden M, Demaurex N. STIM1 knockdown reveals that store-operated Ca2+ channels located close to sarco/endoplasmic Ca2+ ATPases (SERCA) pumps silently refill the endoplasmic reticulum. J Biol Chem. 2007;282(15):11456-64.9. Emrich SM, Yoast RE, Xin P, Arige V, Wagner LE, Hempel N, et al. Omnitemporal choreographies of all five STIM/Orai and IP(3)Rs underlie the complexity of mammalian Ca(2+) signaling. Cell reports. 2021;34(9):108760.10. Zheng S, Zhou L, Ma G, Zhang T, Liu J, Li J, et al. Calcium store refilling and STIM activation in STIM- and Orai-deficient cell lines. Pflugers Archiv : European journal of physiology. 2018;470(10):1555-67.11. Feil S, Valtcheva N, Feil R. Inducible Cre mice. Methods in molecular biology (Clifton, NJ). 2009;530:343-63.12. Herring BP, Hoggatt AM, Burlak C, Offermanns S. Previously differentiated medial vascular smooth muscle cells contribute to neointima formation following vascular injury. Vascular cell. 2014;6:21.13. Kühbandner S, Brummer S, Metzger D, Chambon P, Hofmann F, Feil R. Temporally controlled somatic mutagenesis in smooth muscle. Genesis (New York, NY : 2000). 2000;28(1):15-22.14. Wirth A, Benyó Z, Lukasova M, Leutgeb B, Wettschureck N, Gorbey S, et al. G12-G13-LARG-mediated signaling in vascular smooth muscle is required for salt-induced hypertension. Nat Med. 2008;14(1):64-8.15. Thakur P, Dadsetan S, Fomina AF. Bidirectional coupling between ryanodine receptors and Ca2+ release-activated Ca2+ (CRAC) channel machinery sustains store-operated Ca2+ entry in human T lymphocytes. J Biol Chem. 2012;287(44):37233-44.16. Sampieri A, Santoyo K, Asanov A, Vaca L. Association of the IP3R to STIM1 provides a reduced intraluminal calcium microenvironment, resulting in enhanced store-operated calcium entry. Sci Rep. 2018;8(1):13252.17. Pacheco J, Dominguez L, Bohórquez-Hernández A, Asanov A, Vaca L. A cholesterol-binding domain in STIM1 modulates STIM1-Orai1 physical and functional interactions. Sci Rep. 2016;6:29634.18. Lewis AH, Grandl J. Mechanical sensitivity of Piezo1 ion channels can be tuned by cellular membrane tension. eLife. 2015;4.19. Gonzales AL, Yang Y, Sullivan MN, Sanders L, Dabertrand F, Hill-Eubanks DC, et al. A PLCgamma1-dependent, force-sensitive signaling network in the myogenic constriction of cerebral arteries. Sci Signal. 2014;7(327):ra49.20. Pires PW, Ko E-A, Pritchard HAT, Rudokas M, Yamasaki E, Earley S. The angiotensin II receptor type 1b is the primary sensor of intraluminal pressure in cerebral artery smooth muscle cells. J Physiol. 2017;595(14):4735-53.21. Gonzales AL, Amberg GC, Earley S. Ca2+ release from the sarcoplasmic reticulum is required for sustained TRPM4 activity in cerebral artery smooth muscle cells. Am J Physiol Cell Physiol. 2010;299(2):C279-C88.22. Gonzales AL, Earley S. Endogenous cytosolic Ca(2+) buffering is necessary for TRPM4 activity in cerebral artery smooth muscle cells. Cell Calcium. 2012;51(1):82-93.23. Lachmanovich E, Shvartsman DE, Malka Y, Botvin C, Henis YI, Weiss AM. Co-localization analysis of complex formation among membrane proteins by computerized fluorescence microscopy: application to immunofluorescence co-patching studies. Journal of microscopy. 2003;212(Pt 2):122-31.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

(1) The manuscript does not actually show that STIM1 is present at the SR-PM junctions that are the focus of the paper. Rather, the data in Figure 2 only shows that there is an overall decrease in the number of SR-PM junctions in the STIM1 KO. In the absence of direct proof that STIM1 is located at the junctions, the idea that STIM1 drives the formation of the SR-PM contacts is speculative. Therefore, the title and the discussion of the paper should reflect this point as indicated by reviewers 1 and 3.

We have modified the manuscript's title and altered our discussion of this topic throughout the manuscript as recommended. (Line 113, line 406-410, line 437, line 524).

(2) This point was previously raised. The fraction of BK (and TRPM4 channels) that are actually co-localized with STIM1 is really quite small to begin with. This is readily apparent in the co-localization images of Figure 5 – most BK and TRPM4 channels don't cluster with STIM1. Authors must explain explicitly the relationship between channel clusters and coupling sites in the text. See also comments by reviewers 1 and 3 on this issue.

We cannot image SR and PM dyes in native SMCs using GSDIM because the high laser levels and long exposure times required for this technique completely bleach the dyes. The SIM mode of our LLS instrument is ideal for the imaging of the dyes due to low bleaching but lacks the resolution of the GSDIM system needed for the detection of protein clusters. Consequently, we cannot simultaneously image the sites of membrane interaction and protein clusters. We acknowledge this technical limitation in the revised manuscript. In addition, we provide an explicit explanation of the relationship between channel clusters and coupling sites based on our data (line 442). We have also clarified how the colocalization data shown in Figure 5 were analyzed (Line 251, line 657).

(3) Figure 2 clearly shows that the volume of the SR is strongly diminished in the STIM1 KO. It seems natural to expect then that as the volume of the SR declines and it pulls away from the membrane, SR-PM contacts will also go down. This issue was raised in the previous review. Does this decrease in SR volume alone not account for the observed decline in SR-PM contacts? This question needs to be explicitly addressed in the manuscript with a well-rounded discussion of what the data actually show.

We are in complete agreement – when STIM1 is knocked out in SMC, the SR volume is reduced because the peripheral SR retracts, diminishing SR-PM coupling. These data indicate that STIM1 is involved in maintaining contact between the peripheral SR and the PM necessary for membrane coupling. We explicitly discuss this issue in the revised manuscript. (Line 181, line 191, line 462-483).

Reviewer #1:

Reviewers have addressed my previous comments well and the paper is much improved.

I do have two further points that would need addressing:

– First, nowhere in the paper is there data showing that STIM1 is actually present at the peripheral ER-PM sites. I agree that the data showing that STIM1 KO decreases interactions between the PM and SR are in VSMCs is strong and convincing. But the paper strongly implies that STIM1 forms ("fosters") these contacts. Can the authors show that STIM1 labelling is present at the SR-PM contact sites? In the absence of this data, the conclusion that STIM1 is crucial for "fostering SR-PM coupling" is indirect and in the worst case, could be entirely incidental.

The proposed experiment is a great idea. However, we cannot image SR and PM dyes in native SMCs using GSDIM because high laser levels and long exposure times required for this technique completely bleach the dyes. The SIM mode of our LLS instrument is ideal for the imaging of the dyes (low bleaching) but lacks the resolution of the GSDIM system needed for the detection of protein clusters. Consequently, we cannot simultaneously image the sites of membrane interaction and protein clusters. This technical limitation is acknowledged in the revised manuscript (Line 442). To further address the reviewer's concerns, we've altered the manuscript's title and discussion in several places throughout the manuscript.

– Figure 5: The co-localization of STIM1 with BK (and TRPM4) is actually pretty hard to see and less than compelling. Arrows should be used on the BK and TRPM4 panels to precisely denote which BK clusters are co-localized with which STIM1 clusters. I also don't understand the statements indicating that "BK and TRPM4 colocalize with STIM1 more frequently than would be predicted if the proteins are randomly distributed". How was the random distribution modelled? How many channels? What is the area of the membrane? How was cluster formation modelled/induced in the random distribution model? With sufficient numbers of BK and STIM1 proteins, one would expect that random distribution may even cause co-localization of the observed numbers of BK and STIM1 proteins. These important details that are crucial to understanding whether co-localization is mechanistically driven are missing.

Arrows have been added to Figure 5 to show examples of colocalized clusters. In addition, A more detailed description of the colocalization analysis methods has been added to the revised manuscript (Line 251, line 657).

Reviewer #3:

The authors have done a good job of addressing the comments and the manuscript has been improved. There are only a few remaining concerns that I would like the authors to address.

1. As for the question of whether channel clusters are present at SR-PM junctions, the authors should explain more clearly in the text what fraction of the clusters are likely to reside at these sites. See my comment on point #2, below.

Please see our response to similar comments from the editor and reviewer 1.

4. Good – looks like there really isn't any contribution from SOCE. In Figure 1—figure supplement 3E, please state how the comparative SOCE response was measured – peak 340/380 ratio, or the slopes from the data in D?

The data reported in Figure 1 —figure supplement 3E are the peak F340/F380 ratio. We have added this information to the revised manuscript. (Methods, line 580; Figure 1—figure supplement 3 legend; line 1163).

My review:

1. My comment on the title did not dispute the effect of STIM1 KO on the number of peripheral coupling sites. The problem is that the wording suggests that STIM1 plays a direct role in forming these sites, and that is still to my knowledge an unanswered question in the field. Elsewhere in the paper the authors state that STIM1 maintains coupling, or is important for stable coupling, which is accurate. However, the title implies STIM1 acts in the formation of junctions, and without more mechanistic studies this is still an open question. I would suggest rewording the title to make it more accurate – perhaps referring to these sites as STIM1-dependent rather than STIM1-formed.

We have modified the title as suggested.

2. My comment relates to the lack of correspondence between channel clusters and coupling sites. As I stated, STIM1 KO greatly reduces coupling site density, but does not change BK, TRPM4 or IP3R cluster density. In addition, coupling sites are 0.17/µm2 in WT, but clusters are much more prevalent: 16/µm2 for BK, 40/µm2 for TRPM4, 32 for IP3R. This 100x difference indicates that many of the channel clusters are not associated with an identified coupling site, and probably for this reason the number is not grossly affected by loss of coupling sites. This conclusion is supported by the data of Figure 5, where only a small fraction of BK and TRPM4 channels colocalize with STIM1 puncta (indicating SR-PM junctions). It would be helpful to explain explicitly the relationship between channel clusters and coupling sites in the text. I may be missing something, but I do not understand how stochastic self-assembly in the rebuttal explains how loss of STIM1 affects cluster size. It is hard for me to imagine that given the very small fraction of channel clusters associated with SR-PM junctions (~5%) in WT cells, how the observed reduction in SR-PM coupling sites could lead to a measurable cell-wide decrease in the size of clusters as the authors suggest.

We agree with your comment – our data indicate that channel clusters are uniformly distributed throughout the membrane and are not enriched at coupling sites. We explicitly discuss this in the revised manuscript (Line 442).

As for how the loss of STIM1 affects protein cluster size- superresolution imaging data from many laboratories demonstrates that all (or almost all) proteins form clusters in membrane with an exponential cluster size distribution. Stochastic self-assembly is a currently accepted theoretical model that accounts for this, and it is backed by rigorous experimental evidence. When asked by the reviewers to explain why we unexpectedly saw a reduction in protein cluster sizes in STIM1 knockout mice, we utilized this model to interpret our data. We agree that loss of coupling sites alone cannot explain the effects on channel clusters distributed throughout the membrane and not present in coupling sites. However, our data show that the entire peripheral SR is no longer associated with the PM following STIM1 knockout. Based on these observations, we put forth the concept that the peripheral SR prolongs the dwell time of channel proteins in the membrane, allowing them to grow to a larger size. STIM1 knockout detaches the peripheral SR from PM, removing its protection against recycling pathways. This effect decreases membrane dwell time and reduces cluster size. The revised manuscript explicitly discusses the potential impact of the peripheral SR in membrane protein cluster size regulation (Lines 462-483).

https://doi.org/10.7554/eLife.70278.sa2

Article and author information

Author details

  1. Vivek Krishnan

    Department of Pharmacology, Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, Reno, United States
    Contribution
    Formal analysis, Investigation, Methodology, Project administration, Writing - original draft, Writing - review and editing
    Contributed equally with
    Sher Ali, Albert L Gonzales and Pratish Thakore
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5064-4910
  2. Sher Ali

    Department of Pharmacology, Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, Reno, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing - original draft
    Contributed equally with
    Vivek Krishnan, Albert L Gonzales and Pratish Thakore
    Competing interests
    No competing interests declared
  3. Albert L Gonzales

    Department of Physiology and Cell Biology, Center for Molecular and Cellular Signaling 18 in the Cardiovascular System, University of Nevada, Reno, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Vivek Krishnan, Sher Ali and Pratish Thakore
    Competing interests
    No competing interests declared
  4. Pratish Thakore

    Department of Pharmacology, Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, Reno, United States
    Contribution
    Formal analysis, Investigation, Methodology, Visualization, Writing - review and editing
    Contributed equally with
    Vivek Krishnan, Sher Ali and Albert L Gonzales
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2086-5453
  5. Caoimhin S Griffin

    Department of Pharmacology, Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, Reno, United States
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Evan Yamasaki

    Department of Pharmacology, Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, Reno, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Michael G Alvarado

    Department of Pharmacology, Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, Reno, United States
    Contribution
    Formal analysis, Methodology, Visualization
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3489-9021
  8. Martin T Johnson

    Department of Cellular and Molecular Physiology, Penn State Cancer Institute, Penn State University, Reno, United States
    Contribution
    Methodology, Resources
    Competing interests
    No competing interests declared
  9. Mohamed Trebak

    1. Department of Cellular and Molecular Physiology, Penn State Cancer Institute, Penn State University, Reno, United States
    2. Department of Pharmacology and Chemical Biology, and Vascular Medicine Institute, University of Pittsburgh, Pittsburgh, United States
    Contribution
    Conceptualization, Funding acquisition, Resources, Supervision, Writing - original draft, Writing - review and editing
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6759-864X
  10. Scott Earley

    Department of Pharmacology, Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, Reno, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Writing - original draft, Writing - review and editing
    For correspondence
    searley@med.unr.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9560-2941

Funding

National Heart, Lung, and Blood Institute (R35HL155008)

  • Scott Earley

National Heart, Lung, and Blood Institute (R01HL137852)

  • Scott Earley

National Heart, Lung, and Blood Institute (R01HL091905)

  • Scott Earley

National Heart, Lung, and Blood Institute (R01HL139585)

  • Scott Earley

National Heart, Lung, and Blood Institute (R01HL122770)

  • Scott Earley

National Heart, Lung, and Blood Institute (R01HL146054)

  • Scott Earley

National Institute of Neurological Disorders and Stroke (RF1NS110044)

  • Scott Earley

National Institute of Neurological Disorders and Stroke (R61NS115132)

  • Scott Earley

National Institute of General Medical Sciences (P20GM130459)

  • Scott Earley

National Heart, Lung, and Blood Institute (R35HL150778)

  • Mohamed Trebak

National Heart, Lung, and Blood Institute (K01HL138215)

  • Albert L Gonzales

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This study was supported by grants from the National Institutes of Health (NHLBI R35HL155008, R01HL137852, R01HL091905, R01HL139585, R01HL122770, R01HL146054, NINDS RF1NS110044, R61NS115132, and NIGMS P20GM130459 to SE; NHLBI R35HL150778 to MT; NHLBI K01HL138215 to ALG). The Transgenic Genotyping and Phenotyping Core at the COBRE Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, Reno, is maintained by a grant from NIH/NIGMS (P20GM130459 Sub#5451). The High Spatial and Temporal Resolution Imaging Core at the COBRE Center for Molecular and Cellular Signaling in the Cardiovascular System, University of Nevada, Reno, is maintained by a grant from NIH/NIGMS (P20GM130459 Sub#5452).

Ethics

All animal studies were performed in strict accordance with the guidelines of the Institutional Animal Care and Use Committee (IACUC) of the University of Nevada, Reno, and in accordance with the approved protocol 20-06-2020. All surgery was performed under isoflurane anesthesia, and every effort was made to minimize suffering, including preoperative analgesia provided by subcutaneous injection of 50 µ ;g/kg buprenorphine.

Senior Editor

  1. Kenton J Swartz, National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States

Reviewing Editor

  1. Murali Prakriya, Northwestern University, United States

Publication history

  1. Received: May 12, 2021
  2. Preprint posted: May 26, 2021 (view preprint)
  3. Accepted: February 10, 2022
  4. Accepted Manuscript published: February 11, 2022 (version 1)
  5. Version of Record published: March 24, 2022 (version 2)

Copyright

© 2022, Krishnan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 739
    Page views
  • 131
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Vivek Krishnan
  2. Sher Ali
  3. Albert L Gonzales
  4. Pratish Thakore
  5. Caoimhin S Griffin
  6. Evan Yamasaki
  7. Michael G Alvarado
  8. Martin T Johnson
  9. Mohamed Trebak
  10. Scott Earley
(2022)
STIM1-dependent peripheral coupling governs the contractility of vascular smooth muscle cells
eLife 11:e70278.
https://doi.org/10.7554/eLife.70278
  1. Further reading

Further reading

    1. Structural Biology and Molecular Biophysics
    Maicon Landim-Vieira et al.
    Research Article Updated

    Phosphorylation and acetylation of sarcomeric proteins are important for fine-tuning myocardial contractility. Here, we used bottom-up proteomics and label-free quantification to identify novel post-translational modifications (PTMs) on β-myosin heavy chain (β-MHC) in normal and failing human heart tissues. We report six acetylated lysines and two phosphorylated residues: K34-Ac, K58-Ac, S210-P, K213-Ac, T215-P, K429-Ac, K951-Ac, and K1195-Ac. K951-Ac was significantly reduced in both ischemic and nonischemic failing hearts compared to nondiseased hearts. Molecular dynamics (MD) simulations show that K951-Ac may impact stability of thick filament tail interactions and ultimately myosin head positioning. K58-Ac altered the solvent-exposed SH3 domain surface – known for protein–protein interactions – but did not appreciably change motor domain conformation or dynamics under conditions studied. Together, K213-Ac/T215-P altered loop 1’s structure and dynamics – known to regulate ADP-release, ATPase activity, and sliding velocity. Our study suggests that β-MHC acetylation levels may be influenced more by the PTM location than the type of heart disease since less protected acetylation sites are reduced in both heart failure groups. Additionally, these PTMs have potential to modulate interactions between β-MHC and other regulatory sarcomeric proteins, ADP-release rate of myosin, flexibility of the S2 region, and cardiac myofilament contractility in normal and failing hearts.

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Atefeh Rafiei et al.
    Research Article Updated

    Doublecortin (DCX) is a microtubule (MT)-associated protein that regulates MT structure and function during neuronal development and mutations in DCX lead to a spectrum of neurological disorders. The structural properties of MT-bound DCX that explain these disorders are incompletely determined. Here, we describe the molecular architecture of the DCX–MT complex through an integrative modeling approach that combines data from X-ray crystallography, cryo-electron microscopy, and a high-fidelity chemical crosslinking method. We demonstrate that DCX interacts with MTs through its N-terminal domain and induces a lattice-dependent self-association involving the C-terminal structured domain and its disordered tail, in a conformation that favors an open, domain-swapped state. The networked state can accommodate multiple different attachment points on the MT lattice, all of which orient the C-terminal tails away from the lattice. As numerous disease mutations cluster in the C-terminus, and regulatory phosphorylations cluster in its tail, our study shows that lattice-driven self-assembly is an important property of DCX.
