Hematodinium sp. infection does not drive collateral disease contraction in a crustacean host
Abstract
Host, pathogen, and environment are determinants of the disease triangle, the latter being a key driver of disease outcomes and persistence within a community. The dinoflagellate genus Hematodinium is detrimental to crustaceans globally – considered to suppress the innate defences of hosts, making them more susceptible to co-infections. Evidence supporting immune suppression is largely anecdotal and sourced from diffuse accounts of compromised decapods. We used a population of shore crabs (Carcinus maenas), where Hematodinium sp. is endemic, to determine the extent of collateral infections across two distinct environments (open-water, semi-closed dock). Using a multi-resource approach (PCR, histology, haematology, population genetics, eDNA), we identified 162 Hematodinium-positive crabs and size/sex-matched these to 162 Hematodinium-free crabs out of 1191 analysed. Crabs were interrogated for known additional disease-causing agents; haplosporidians, microsporidians, mikrocytids, Vibrio spp., fungi, Sacculina, trematodes, and haemolymph bacterial loads. We found no significant differences in occurrence, severity, or composition of collateral infections between Hematodinium-positive and Hematodinium-free crabs at either site, but crucially, we recorded site-restricted blends of pathogens. We found no gross signs of host cell immune reactivity towards Hematodinium in the presence or absence of other pathogens. We contend Hematodinium sp. is not the proximal driver of co-infections in shore crabs, which suggests an evolutionary drive towards latency in this environmentally plastic host.
Editor's evaluation
Davies et al. present a large-scale field survey of infection status in crabs. Hematodinium sp., a dinoflagellate parasite that impacts crustacean fisheries worldwide. Hematodinium sp., previously thought to render crabs more susceptible to other infectious agents via immunosuppression, was not found to be associated with collateral infections with other disease agents. This study, instead, presents a new framework for Hematodinium-crab interactions; latency of the infection and absence of host immune response may drive the endemic status of Hematodinium sp. infections in crustaceans.
https://doi.org/10.7554/eLife.70356.sa0Introduction
Host-parasite interactions are intimate and complex – the host cannot afford to overreact and risk immediate costs such as metabolic derangement (or self-reactivity) and longer-term fitness costs, yet must maintain adequate defences to fight, and recover from, parasitic insult. Likewise, parasites tend not to be hypervirulent as acute damage compromises the host and minimises reproductive and transmission potential – so there is a broad drive towards immune-evasion for all major groups of parasites (sometimes referred to as the immune-evasion hypothesis; reviewed by Schmid-Hempel, 2009). Dinoflagellates of the genus Hematodinium include at least three parasitic species, H. perezi, H. australis, and Hematodinium sp., which target a myriad of crustacean hosts, as far south as Australia (Gornik et al., 2013) and as far north as Greenland (Eigemann et al., 2010). Epizootics of Hematodinium spp. can devastate localised communities, fishery and aquaculture industries with langoustines, shrimp, and blue crabs representing some of the >40 known susceptible marine beasties (Albalat et al., 2016; Albalat et al., 2012; Davies et al., 2019a; Li et al., 2013; Messick and Shields, 2000; Rowley et al., 2015; Shields et al., 2003; Small, 2012; Small et al., 2012; Small et al., 2006; Smith et al., 2015; Stentiford et al., 2001; Stentiford and Shields, 2005; Wilhelm and Mialhe, 1996). Signs of infection include carapace and blood (haemolymph) discolouration from the aggressive proliferation of parasite morphotypes within the liquid and solid (hepatopancreas) tissues, and lethargy caused by metabolic exhaustion (e.g., hypoproteinaemia). The advanced colonisation of the haemolymph leads to a severe decline in the number of circulating immune cells (i.e., total haemocyte counts) and regional tissue necrosis (e.g., muscle) – conditions that are likely to be fatal (Rowley et al., 2015). It is the conspicuous lack of host reactivity – cellular innate immunity – that is most intriguing about this host-pathogen antibiosis. Little direct evidence supports the reported view that Hematodinium spp. suppress the crustacean immune defences, thereby enabling the parasite to despoil its host of resources. Furthermore, direct suppression of the host’s defences would leave it vulnerable to other infectious or opportunistic agents, leading to micro-scale competition with the dinoflagellate. Several studies have characterised so-called co-infections of Hematodinium-positive crustaceans, including bacterial septicaemia and ciliates in tanner crabs (Chionoecetes bairdi; Love et al., 1993; Meyers et al., 1987), and yeast-like mycosis in edible (Cancer pagurus; Smith et al., 2013) and velvet swimming crabs (Necora puber; Stentiford et al., 2003). These co-infections elicit an immune response – leading to haemocyte-directed nodulation and melanisation events (revealed by haematology and histopathology) – but during events, Hematodinium are not targeted. Such observations suggest an immune-evasion strategy at least at the cellular level, rather than immune suppression. Conversely, Li et al., 2019; Li et al., 2015a; Li et al., 2015b presented evidence for immune activation of the Japanese blue crab (Portunus trituberculatus) containing H. perezi based on measurements of immune gene levels (mRNAs), differential protein expression in the hepatopancreas, and some enzymatic activities (e.g., phenoloxidase). These data are valuable as there are few studies on the interaction between Hematodinium spp. and crustacean innate immunity; however, no Hematodinium-derived effectors were identified.
Co-infection, whereby a single individual or species is host to multiple infections (microbes or micro/macro-parasites) is commonly observed in both terrestrial and aquatic ecosystems. Characterising the drivers of these co-infections is pertinent to both the distribution of the parasite population and in commercially and ecologically important species. In open-water fisheries and aquaculture, co-infections may be more prevalent due to a large variety of environmental reservoirs and high densities, respectively. Recently, we investigated the potential role of non-commercial, common shore crabs (Carcinus maenas) as potential reservoirs of disease, notably Hematodinium spp. (Davies et al., 2019a), as they are co-located with many high-value shellfish, for example, edible crabs. During our initial survey, we noted the presence of several disease conditions in addition to that caused by Hematodinium sp., such as the parasitic barnacle Sacculina carcini (Rowley et al., 2020).
Herein, we investigated the pervasive hypothesis that Hematodinium spp. leaves the host more susceptible to disease, with broad implications to both parasite and host evolutionary ecology. We looked for the presence of a diverse selection of known pathogens as agents of co-infections in equal numbers of Hematodinium-positive shore crabs and Hematodinium-free controls using haematology, histology (gill, hepatopancreas), and molecular diagnostics (PCR). Haplosporidians, microsporidians, mikrocytids, Vibrio spp., fungal species, S. carcini, paramyxids, trematodes, and bacterial counts (colony-forming units [CFUs]) were studied in crabs and water across two distinct locations to account for the putative influence of environment (e.g., habitat type) on parasite presence/diversity (Davies et al., 2020c; Davies et al., 2019b). To complement the latter, we probed environmental DNA (eDNA) from the surrounding waters of infected crabs to assess the spatial and temporal ecology of target parasites.
Results
Are there distinct populations of C. maenas at the two study sites?
Overall, 1191 crabs were sampled across the year-long survey, 603 from the Dock and 588 from the Pier (Davies et al., 2019a). Of these crabs, 13.6% were Hematodinium-positive via PCR alone, with 9.3% confirmed clinical infections using molecular and tissue diagnostics. The population analysed for the present study comprised 324 crabs; 162 Hematodinium-positive and 162 size/sex-matched Hematodinium-free ‘controls’ as determined by haematology, hepatopancreas and gill histology, and PCR. To establish whether crabs at either site represented distinct populations, we assessed the nucleotide diversity of the mitochondrial cytochrome c oxidase I subunit (COI) gene from 93 crabs collected for the February 2018 screen (n = 48/Pier; n = 45/Dock) using a 588 bp fragment as recommended by Roman, 2004. These 93 crabs formed part of the 1191 crabs assessed for disease.
Crabs sampled from the Dock and Pier locations yielded 18 and 19 haplotypes, respectively (GenBank accession numbers MT547783-MT547812). In total, 72 COI haplotypes were identified among the 320 individual nucleotide sequences (481 bp in length) of C. maenas (Figure 1). Eight haplotypes observed in the Dock location were unique to this site (i.e., private haplotypes), and 10 private haplotypes were observed in the Pier location. Seven haplotypes were shared between the Dock and Pier locations. Globally, the most common C. maenas haplotype (i.e., haplotype h1 shown in yellow in Figure 1) was also the most common haplotype observed in the Dock (frequency of 0.33) and Pier (frequency of 0.31) locations. For all locations, haplotype diversity (Hd) ranged from 0 to 0.933 and nucleotide diversity (π) from 0 to 0.0067 (Appendix 1—table 1). A similar genetic diversity (i.e., number of haplotypes, Hd and π) was observed between the Dock and Pier locations (Appendix 1—table 2). Significant pairwise genetic differentiation (Fst estimates between 0.604 and 0.902) was observed between European off-shelf locations (located in Iceland and Faroe Islands) and all western/northern locations (Appendix 1—table 2). Pairwise comparison between sites within the western/northern locations revealed low Fst values, and the large majority were non-significant (p>0.05). No significant Fst value was observed between the Dock and Pier locations, indicating that the crabs from the two sites were genetically similar (Appendix 1—table 2).

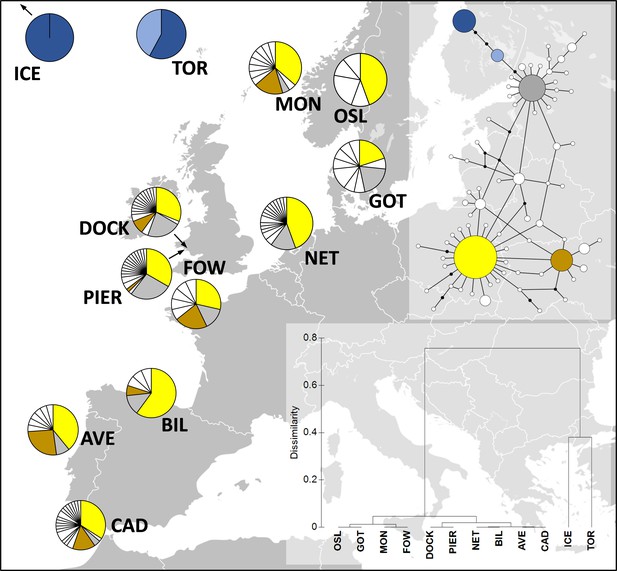

Distribution of Carcinus maenas haplotypes observed in the present study (Dock and Pier).
At the top-right corner, a median joining haplotype network of C. maenas COI sequences is shown. The size of the circles of the haplotype network corresponds to haplotype frequency, and each connection represents a single-nucleotide difference. The more common haplotypes are shown in yellow (h1), brown (h6), grey (h10), dark blue (h13), and light blue (h29). The less common haplotypes are shown in white. At the bottom-right corner, a dendrogram of hierarchical clustering based on Fst values is displayed. Additional sequences were retrieved from Darling et al., 2008; ICE, Seltjarnarnes Iceland; TOR, Torshavn, Faroe Islands; MON, Mongstadt, Norway; OSL, Oslo, Norway; GOT, Goteborg, Sweden; NET, Den Helder, the Netherlands; FOW, Fowey, England; BIL, Bilbao, Spain; AVE, Aveiro, Portugal; CAD, Cádiz, Spain.
Are Hematodinium parasites infecting crabs at the two study sites genetically distinct?
No genetic differentiation (Fst = 0.004, p=0.161) was observed between the two locations. 70 ITS-1 haplotypes were identified among the 102 individual nucleotide sequences (218–229 bp in length) of Hematodinium sp. (Appendix 1—table 3). In total, 31 and 41 haplotypes were observed in the Pier and Dock locations, respectively (Appendix 1—figure 1). Only two haplotypes were shared between the two locations, and the most common haplotype was present at a frequency of 0.29 in the Pier and 0.23 in the Dock. A high genetic diversity was observed in both locations with a nucleotide diversity of 0.0130 and 0.0274 in the Pier and Dock, respectively.
Does the presence of Hematodinium leave crabs more susceptible to collateral infections?
Across both locations, 24.7% (40/162) of Hematodinium-positive crabs had one or more co-infections (Figures 2 and 3). In terms of Hematodinium-free crabs, 23.5% (38/162) had one or more infection. In the Dock and Pier locations, 27.6% (24/87) and 21.3% (16/75) of Hematodinium-positive crabs were co-infected, with 20.7% (18/87) and 26.7% (20/75) of the Hematodinium-free crabs, respectively, testing positive for these notable diseases (Figure 2). There were no significant differences between the number of disease agents between Hematodinium-positive and Hematodinium-free crabs, regardless of location (p=0.8967 overall, p=0.3759 Dock, p=0.5667 Pier, Fisher’s exact test, two-sided, Figure 2a–c). In the Dock location, three out of eight co-infections were observed in crabs (Vibrio spp., microsporidians, and S. carcini, Figure 2e, Figure 3); and in the Pier location, four out of eight co-infections were observed (Vibrio spp., Haplosporidium sp., trematode parasites, and fungal species, Figure 2f, Figure 3). Overall, the Hematodinium load quantified from the liquid tissue using haemocytometry – number of parasites per mL haemolymph – correlated positively (p<0.0001) with the severity of infection in the gill and hepatopancreas graded 0–4 from histopathology (Supplementary file 1).

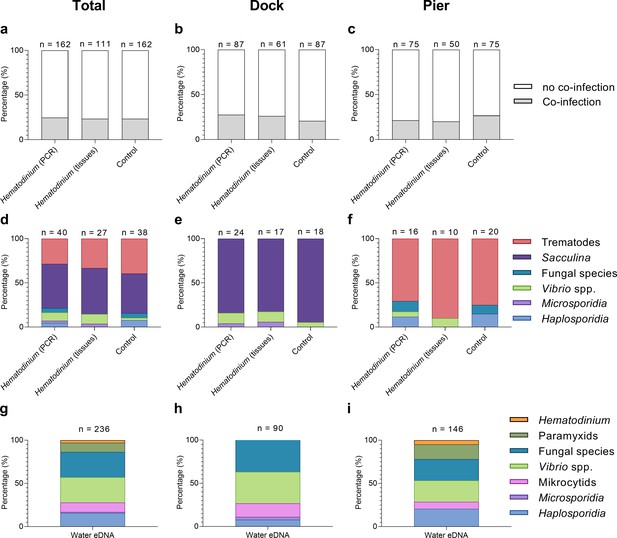

Percentage of Hematodinium-positive and Hematodinium-free (‘control’) crabs with and without collateral infections.
Total population (a), Dock (b), and Pier (c) locations. Composition of co-infection(s) from those crabs which had one or more co-infections in Hematodinium-positive and control crabs in the total population (d), Dock (e), and Pier (f) locations and composition of infections, including Hematodinium, from seawater eDNA in total. (g) Dock (h) and Pier (i) locations from three filter membranes per month over 12 months. Note: trematode and Sacculina carcini presence were not tested for in eDNA samples but via histological examination of crab tissues only. In panels (a–f), crabs are represented by those testing positive for Hematodinium sp. via ‘PCR’ alone (n = 162) which includes subclinical levels of disease, and via liquid/solid ‘tissue’ examination (n = 111), that is, crabs showing subclinical levels of disease are excluded (middle bars).

Diseases of shore crabs, Carcinus maenas, collected from the two reference locations.
(a, b) Dinoflagellate parasite, Hematodinium (arrows), found in the haemolymph (a) and gonadal tissue (b). Scale bars = 10 µm. (c) Co-infected crab with the parasitic barnacle, Sacculina carcini (arrowheads) and Hematodinium (He), in the hepatopancreas. Hepatopancreatic tubules (T). Scale bar = 100 µm. (d) Encysted digenean trematode parasites in the hepatopancreas. Scale bar = 100 µm. (e) Haplosporidium carcini infection showing uninucleate forms (arrows) in the haemolymph. Scale bar = 10 µm. (f) Acute co-infection of the crab haemolymph; Hematodinium (arrows) and multiple yeast like fungi. Scale bar = 10 µm. (g) Colony-forming units (CFUs) log transformed [Y = log(y + 1)] of cultivable bacteria in haemolymph of C. maenas in the presence and absence of Hematodinium per location. Values represent mean + 95% CI, * denotes significant difference (p≤0.05).
In terms of eDNA, we were unable to test molecularly for the presence of Sacculina or trematode parasites, but the remaining co-infections (six out of six) were all detected in the water (Figure 2g); with five out of six in the Docks (haplosporidians, microsporidians, mikrocytids, Vibrio spp., and fungal species; Figure 2h, Figure 3) and five out of six in the Pier; haplosporidians, paramyxids, mikrocytids, Vibrio spp., and fungal species (Figure 2i, Figure 3).
What factors are associated with collateral infections?
Models were run using Hematodinium sp. as the response variable to determine any associations between Hematodinium presence and co-infections (Sacculina, trematodes, haplosporidians, microsporidians, Vibrio spp., and fungal species); however, no co-infection revealed a significant relationship with Hematodinium sp. in the dataset overall, nor when separated by site (Supplementary file 2—table 1, models S4–S6; Supplementary file 2—table 2, models S7–S11). The number of bacterial CFUs was significantly higher in the haemolymph of Hematodinium-affected crabs compared to Hematodinium-free crabs, and in the Dock location only (Figure 3g; Mann–Whitney U = 2899, p=0.0276 two-tailed).
Models were also run using the presence of one or more collateral infections as the response variable against biometric data. Model 1, the reduced model, revealed that size (carapace width [CW]) was associated with the presence of one or more co-infections (Table 1, model 1). Smaller crabs were significantly more likely to display co-infections compared to those that were ‘disease-free’ (p=0.0137, mean ± SEM: 46.26 ± 1.16 vs. 49.80 ± 0.67 mm, respectively; Figure 4a). Hematodinium presence, location, season, sex, crab colour, fouling (presence of epibionts), limb loss, and bacterial CFU number did not have a significant effect (Figure 4e and i; Supplementary file 2—table 1, model S1).
Binomial logistic regression models (reduced from the full models, Supplementary file 2—table 1: model S6) testing the effects of biometric and environmental predictor variables on the overall presence of one or more co-infections.
Model | Predictor variable | Estimate (slope) | SE | p-Value |
---|---|---|---|---|
Model 1 | ||||
CoInfect1 ~ CW + LimbLoss | CW | –0.03368 | 0.01366 | 0.0137* |
Limb loss | –0.53384 | 0.33121 | 0.1070. | |
df = 320 | ||||
AIC: 352.13 | ||||
Model 2 | ||||
CoInfect1HEMAT ~ CW + Colour | CW | –0.03928 | 0.01905 | 0.0392* |
+ LimbLoss | Colour (orange) | –1.36238 | 0.66462 | 0.0404* |
Colour (yellow) | 0.39885 | 0.43242 | 0.3563 | |
df = 157 | Limb loss | –1.37492 | 0.57801 | 0.0174* |
AIC: 168.19 |
-
AIC = Akaike information criterion.
-
SE = standard error; CW = carapace width.
-
Statistically significant *p≤0.05.

Significant factors associated with the presence of one or more co-infections.

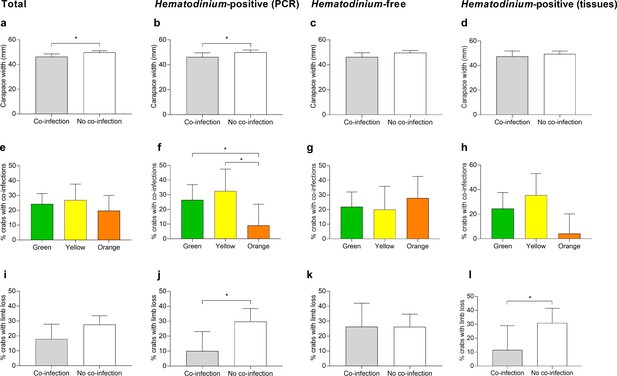

Carapace width (mm) of C. maenas presenting co-infections and those without in the total population (a), Hematodinium-positive by PCR (b), Hematodinium-free ‘controls’ (c), and Hematodinium-positive by haemolymph (tissue) inspection (d). Percentage of C. maenas presenting one or more of the co-infections according to crab colour in the total population (e), Hematodinium-positive by PCR (f), Hematodinium-free ‘controls’ (g), and Hematodinium-positive by tissue inspection (h), and percentage of C. maenas presenting loss of one or more limbs of the total population (i), Hematodinium-positive by PCR (j), Hematodinium-free ‘controls’ (k), and Hematodinium-positive by tissue inspection (l). Values represent mean + 95% CI, * denotes significant difference (p≤0.05).
Model 2, the reduced model using only Hematodinium-positive crabs and the presence of one or more co-infections as the response variable, revealed that size (CW), crab colour, and limb loss are all associated with the presence of one or more co-infections in the crabs (Table 1, model 2). Smaller crabs were significantly more likely to display co-infections (p=0.0392, mean ± SEM: 46.20 ± 1.66 vs. 49.93 ± 0.96 mm, respectively; Figure 4b). Orange crabs were significantly less likely than green or yellow crabs to display co-infections (p=0.0404; Figure 4f), and those crabs which suffered the loss of one or more limbs were 2.4-fold less likely to present a co-infection than those which had not lost limbs (p=0.0174, 11.9 vs. 28.57%, respectively; Figure 4j). Location, season, sex, fouling (presence of epibionts), and bacterial CFU number did not have a significant effect on the presence of co-infections in Hematodinium-positive crabs (Supplementary file 2—table 1, model S2).
Using only control (Hematodinium-free) crabs and the presence of a ‘co-infection’ as the response variable produced no reduced model as the input variables, location, season, size (CW), sex, crab colour, fouling (presence of epibionts), limb loss, and CFU did not have any discernible effect (Figure 4c, g and k; Supplementary file 2—table 1, model S3).
Re-running models but restricting the crabs to those with clinical infections (n = 111) – that is, removing those that tested positive for Hematodinium sp. via PCR alone (n = 51) – did not yield any contradictory outcomes to those described above. Limb loss was the single variable associated significantly with co-infection detection in crabs with clinical levels of Hematodinium sp. (Figure 4d, h and l). Crucially, additional models looking at the intensity of Hematodinium sp. infection (no. parasites per mL haemolymph) rather than simply yes/no did not contribute significantly to the occurrence of one or more co-infection in crabs overall (p=0.335) or at either site (Pier, p=0.332, and Dock, p=0.822; Supplementary file 2—table 2, models S12–S14).
Does location influence disease profiles in C. maenas?
In total, 80 individuals belonging to six co-infections were analysed across 78 hosts (Source data 1). There was no apparent significant effect of Hematodinium sp. presence (F = 0.6453, p=0.533) on co-infection number, but a significant effect of location (F = 94.281, p=0.001) on community structure. The non-metric multidimensional (nMDS) 2D ordination plots showed great overlap in the parasite community composition of Hematodinium-infected and Hematodinium-free crabs (Figure 5a) but varied greatly according to Dock and Pier locations (Figure 5b). When crabs with subclinical levels of Hematodinium sp. infection were restricted from the analysis – that is, those with PCR signals alone – the overall trends were recapitulated (Supplementary file 3). Permutational multivariate analysis of variance (PERMANOVA) comparing the co-infection community composition between Hematodinium (via haemolymph quantitation)-infected and control (Hematodinium free) crabs yielded R2 = 0.00914, therefore ~0.1% of the variation in distances is explained by the grouping of controls vs. Hematodinium (p=0.482; Supplementary file 3) in contrast to location yielding R2 = 0.53818 (or nearly 54% of the variation in distances is explained by the grouping of Docks vs. Pier, p=0.001; Supplementary file 3). Therefore, whether or not a crab had a subclinical or progressive Hematodinium sp. infection did not make a difference in the composition of associated/collateral pathogens. Rather, co-infection community structure was determined by location, differing between the Dock and Pier. The differences between Dock and Pier locations were mostly driven by the presence of Sacculina, this being found exclusively in the Docks, as well as trematode parasites, haplosporidians, and fungal species, all of which were more abundant in the Pier location.

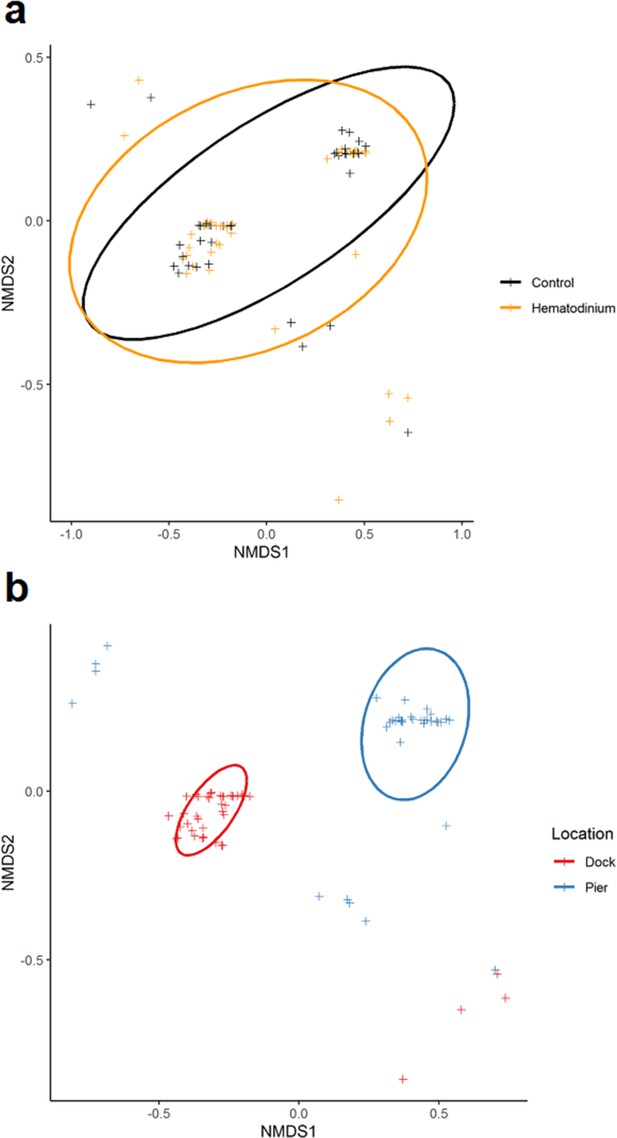

Non-metric multidimensional (nMDS) ordinations of parasite (co-infection) community structure.
(a) nMDS ordination co-infection/parasite (haplosporidians, microsporidians, Vibrio spp., fungal species, Sacculina carcini, and trematodes) community structure in crabs that were Hematodinium sp. positive (orange) and Hematodinium sp. free (black – control). (b) nMDS ordination co-infection/parasite (haplosporidians, microsporidians, Vibrio spp., fungal species, S. carcini, and trematodes) community structure in crabs from the Dock (red) and Pier (blue) locations. Analyses were done using square-root transformation of species’ abundances and Bray–Curtis similarity. Each point denotes an individual crab with one or more co-infections.
Temperature measurements recorded during the year-long disease survey were similar between the Pier and Dock locations (paired t-test, wo-sided; p=0.5329), 13.3°C ± 1.5°C and 13.6°C ± 1.6°C, respectively. Differences in salinity levels between the Pier (30.5 ± 0.9 PSU) and Dock (28.9 ± 0.6 PSU) were subtle but statistically significant (Wilcoxon, matched pairs; p=0.0425).
Does the crab cellular immune system respond to Hematodinium sp.?
We found no evidence of crab haemocyte reactivity towards Hematodinium sp. in the absence or presence of other disease-causing agents (n = 162; Figure 6) either by observing haemolymph freshly withdrawn from the haemocoel using phase contrast microscopy (Figure 6a) or tissue histopathology (e.g., gills and hepatopancreas). Ostensibly, crab haemocytes recognised and responded to other pathogens (Figure 6b) and damaged host tissues (Figure 6c), regardless of Hematodinium sp. presence. In fact, even when haemocytes infiltrated tissues in large numbers, the resident Hematodinium sp. were not caught up in the ensheathment process (Figure 6d).

Interaction between Hematodinium and cellular defences of the shore crab, Carcinus maenas.
(a). Phase-contrast micrograph of living cells including Hematodinium trophonts (He) and host’s haemocytes (H). Note the lack of contact and interaction between the trophonts and these immune cells. (b) Host reaction in a crab with co-infection with Hematodinium and the rhizocephalan parasite, Sacculina carcini, with ensheathment by haemocytes (HS) around rootlets of S. carcini (SAC) in the hepatopancreas. Note that the trophonts of Hematodinium (unlabelled arrows) escape incorporation into the sheath around the rhizocephalan. (c) Infiltration and encapsulation of necrotic tissue (NT) in the hepatopancreas of a crab with a severe Hematodinium infection. Note that despite large numbers of this parasite in the adjacent tissues (out of shot) they do not become enmeshed within the large haemocyte sheath (HS). (d) Cellular response of haemocyte ensheathment (HS) around unknown debris. Note the large numbers of Hematodinium (unlabelled arrows) in the surrounding connective tissue but not within the haemocyte sheath. Scale bars = 50 µm.
Additionally, we performed in vitro phagocytosis assays using Hematodinium sp. isolated from a heavily infected donor crab and haemocytes from apparent disease-free crabs (n = 6). There were no gross or discernible signs of haemocyte-driven phagocytosis, degranulation, or capsule/nodule formation over the 2 hr period.
Discussion
Hematodinium-decapod antibiosis
Hematodinium spp. outbreaks can wreak havoc on blue crab populations in the USA (Messick, 1994; Messick and Shields, 2000; Shields et al., 2003), cultured decapods in China (Huang et al., 2021; Li et al., 2021; Coates and Rowley, 2022), and represent a persistent scourge on langoustine fisheries in Scotland (Albalat et al., 2016; Albalat et al., 2012). Although the infectivity and pathobiology of Hematodinium spp. in these hosts are well characterised (Small et al., 2006), outside of commercial settings, their role(s) as ecological regulators of crustacean populations are largely overlooked. To address this knowledge gap, we examined whether Hematodinium sp. infection is a determinant of co-infection health-related decline in the non-commercial shore crab C. maenas across two sites (semi-closed Dock vs. open-water Pier). Davies et al., 2019a recognised a 13.6% prevalence of Hematodinium sp. among these crabs using targeted PCR and reported that no significant differences in the spatial or temporal profiles of the disease between the two sites existed. Using these samples, we probed beyond Hematodinium sp. for the presence and diversity of known macro- and microparasites among crabs (e.g., S. carcini and haplosporidians, respectively) and the surrounding waters of either location using eDNA. In the host, we identified six out of the eight alternative diseases – four via both molecular and histopathology screening, and a further two via the latter technique. Data from crabs and eDNA attributed the variation in collateral infection composition to location, and not to the presence of Hematodinium sp. Strikingly, we found no evidence to suggest that Hematodinium-positive animals were more likely to harbour any one of the disease targets when compared to those diagnosed Hematodinium-free (Figure 2). This outcome is the same across, and within, both sites and is independent of the severity of Hematodinium sp. presence. When samples were decoupled from Hematodinium sp. data, site-restricted blends of parasites were obvious (Table 2, Figure 2). For example, Hematodinium-positive crabs from the Dock contained significantly higher levels of cultivable bacterial CFUs in the haemolymph when compared to Hematodinium-free animals, but this was not the case at the Pier, or when both sites were combined (Figure 3). The parasitic castrator, S. carcini, was found exclusively in the Dock site and those crabs specifically contained very high levels of CFUs, which we determined previously to be pathognomonic of S. carcini infection (and not Hematodinium sp.) in this species (Rowley et al., 2020).
Detection of pathogens and parasites across sites.
Pathogen | C. maenas | Seawater eDNA | ||
---|---|---|---|---|
Dock | Pier | Dock | Pier | |
Haplosporidia | ✗ | ✓ | ✓ | ✓ |
Microsporidia | ✓ | ✗ | ✓ | ✗ |
Mikrocytids | ✗ | ✗ | ✓ | ✓ |
Paramyxids | ✗ | ✗ | ✗ | ✓ |
Vibrio spp. | ✓ | ✓ | ✓ | ✓ |
Fungal species | ✗ | ✓ | ✓ | ✓ |
Trematode parasites | ✗ | ✓ | NA | NA |
Sacculina sp. | ✓ | ✗ | NA | NA |
Several articles, including the expansive review by Stentiford and Shields, 2005, postulate that Hematodinium spp. suppression of the immune response of their crustacean hosts is the most likely explanation for developing co-occurring secondary/opportunistic infections, including septicaemia and ciliate infections in tanner crabs (C. bairdi; Love et al., 1993; Meyers et al., 1987) and yeast-like infections in edible crabs (C. pagurus), velvet swimming crabs (N. puber), and shore crabs (C. maenas; Smith et al., 2013; Stentiford et al., 2003). Crabs are compromised to a certain extent by the presence of Hematodinium spp., and as the infection progresses, the host’s tissues and resources are replaced with the accumulating dinoflagellate burden, yet there is no mechanistic evidence to suggest that the parasite is directly suppressing the immune system. Animals can be weakened in the absence of immunosuppression. Li et al., 2019 describe differential protein expression in the hepatopancreas of the gazami crab P. trituberculatus when parasitised by H. perezi in laboratory settings, including the ‘downregulation’ of factors associated with broad-spectrum pathogen recognition. The authors contend that this is evidence of immune suppression – unfortunately, no Hematodinium-derived factors have been identified. Regardless of whether Hematodinium spp. suppress and/or evade immunity, our data reveal that the crab host is not at an increased risk of contracting another infection.
Based on these data, it is possible that Hematodinium sp. is an immune evader in shore crabs as its presence did not provoke cellular immunity or increase the likelihood of other diseases becoming established. Stentiford et al., 2003 and Stentiford and Shields, 2005 do note that there was surprisingly little evidence of host reactivity towards Hematodinium in crabs co-infected with yeast-like microbes. Mycosis is a rare event in the shore crabs studied here (<0.3%; Davies et al., 2020b). Two crabs were harbouring both yeast-like and Hematodinium sp. microbes, but haemocyte-derived nodulation and phagocytosis were restricted to the fungus alone.
Phagocytosis and encapsulation/nodule formation (a process where haemocytes wall off would-be colonisers) are the main cellular immune responses in invertebrates (Ratcliffe et al., 1985; Coates et al., 2022). Direct observation of live haemocytes revealed that even in cases where there are large numbers of free Hematodinium in circulation the haemocytes failed to recognise these as foreign. Similarly, nodules and capsules seen histologically in the tissues of Hematodinium-positive crabs did not contain such parasites, suggesting an active mechanism to avoid accidental incorporation into these defensive structures, perhaps molecular mimicry or concealment of surface ligands in a similar manner to entomopathogenic fungi in insect systems (reviewed by Butt et al., 2016). Preliminary laboratory-based studies have revealed that C. pagurus with modest Hematodinium infections cleared bacteria with similar dynamics to those free from such infections (Smith and Rowley, 2015), implying that alleged immune suppression by Hematodinium has no effect on susceptibility to unrelated infections at least in early-mid phase. Late infections by Hematodinium cause a marked reduction in defensive cells in circulation (Smith and Rowley, 2015), and these authors ascribed this to a side effect of metabolic exhaustion rather than targeted inhibition of haematopoiesis. Conversely, Li et al., 2015a; Li et al., 2015b presented evidence for parasite detection (immune recognition) and immune suppression in the P. trituberculatus containing Hematodinium sp., based on measurements of candidate immune gene expression (mRNAs) and some enzymatic activities linked to defence (e.g., phenoloxidase). Regarding these studies, it is noteworthy that the selected immune genes were not expressed/suppressed consistently across the 8-day experimental period, there was a lack of correlation between haemograms and enzymic activities (no distinction between active and total phenoloxidase activities), protein levels were not quantitated so it is unclear if increased mRNAs led to more protein, and the mode of crab inoculation itself is likely to induce at least a localised inflammatory response. Subsequently, the authors suggested that P. trituberculatus recognise the presence of Hematodinium sp. and employ oxidising/nitrosative radicals (O2- and NO) and miRNAs to thwart the parasite (Li et al., 2018; Li et al., 2016). From our data, we cannot rule out the possibility that humoral (soluble)-mediated defences are involved in anti-Hematodinium immunity.
Our study showed that the presence of one or more collateral infections overall (regardless of Hematodinium sp. presence or not) was characterised by the size of the animal. We also determined CW (size), colouration, and limb loss to be significant predictor variables for detecting one or more co-infections in Hematodinium-positive crabs (Table 1, Figure 4), but not in Hematodinium-free crabs. The fact that autotomised crabs (i.e., those with missing limbs) are less likely to develop co-infections is intriguing – suggesting the damage/trauma may temporarily ‘prime’ the immune system. There is some evidence that autotomy and ablation initiate stress responses in another crab, Eriocheir sinensis, linked to differential haemocyte counts (Yang et al., 2018). Size alone – smaller CW – was the common predictor variable for co-infection occurrence among all crabs screened. This is to be expected as juvenile crustaceans are known to be at higher risk of contracting disease when compared to their older counterparts (Ashby and Bruns, 2018). Larger crustaceans have longer moult increments (therefore moult less often) than smaller, younger individuals (Castro and Angell, 2000), giving more time for co-infections to manifest. Indeed, it is postulated that Hematodinium zoospores use the soft cuticle found in newly moulted crabs as a portal of entry to the haemocoel. Injury or breaching of the cuticle can act as a portal of entry for microparasites (Davies et al., 2015; Coates et al., 2022).
Co-infection incidence or composition did not follow established seasonal patterns associated with Hematodinium dynamics in this host (Supplementary file 2—table 1) – high severity and low prevalence in the winter, followed by low severity and high prevalence in the spring (Davies et al., 2019a). No temporal patterns of collateral infection cases were found in either Hematodinium-positive or Hematodinium-free animals. In addition, we found no evidence of genetic differentiation between crabs – and their resident Hematodinium ecotypes – sampled from the Dock and Pier, with both locations exhibiting similar genetic heterogeneity (Figure 1, Appendix 1—Tables 1–3, Appendix 1—figure 1). The lack of substantive genetic diversity of host and Hematodinium between the sites is unlikely to account for the different disease profiles recorded, as such; the evidence implies that disease contraction in shore crabs depends on their environment.
Environment-driven contraction of disease
Environmental conditions of the sites tend to differ – most likely due to the hydrology of a semi-enclosed Dock vs. an open-water Pier. As part of our sampling regime, we recorded temperature and salinity, while temperature did not differ significantly between each site over the 12-month screen, salinity did. Changes in such environmental factors, as well as pH, nitrogenous wastes, and xenobiotics, can influence both host and pathogen, and the incidence of disease (reviewed by Coates and Söderhäll, 2021). Nonetheless, both experimental sites have similar incidence of Hematodinium sp. infections as well as comparable temporal dynamics of the parasite life cycle (Davies et al., 2019a). The life history of this parasite involves direct transmission of disease resulting from moribund crabs releasing motile zoospores into the water column to infect other susceptible crustaceans (Stentiford and Shields, 2005), and there is no known non-crustacean reservoir of this disease. The Mumbles Pier location supported a higher diversity of disease in terms of eDNA as well as within the crabs themselves, notably, two new species of Haplosporidia (Davies et al., 2020a). Studies of historical data in Swansea Bay, where the Mumbles Pier location is based, reveal persistence of benthic fauna associations as a heavily modified waterbody bearing the ‘historical scars’ of nearby heavy industry and limited sewage treatment (Callaway, 2016). Despite this, the area surrounding Mumbles Pier showed a significantly higher species richness in benthic fauna than other locations across the Bay (Callaway, 2016). There are few studies on species or biodiversity in the Prince of Wales Dock, but anecdotal observations suggest a sludge-like benthic environment with a large community of C. maenas and mussels, Mytilus edulis, compared with the much more diverse Pier (Callaway, 2016; Powell-Jennings and Callaway, 2018).
The profile of other microbes/parasites differed between the two sites – notably with S. carcini in the Dock and trematode infestations at the Pier. A possible explanation of the differences in these diseases between the open-water site (Pier at Mumbles Head) and semi-enclosed dock site relates to the presence of reservoirs and/or alternate hosts of disease as well as physical properties. For example, the unidentified digenean trematode parasites seen in the hepatopancreas of crabs take the form of encysted metacercarial stages (Figure 3d). Trematodes have multi-host life cycles, and predation of infected crabs by sea birds results in this definitive host becoming infected, subsequently releasing infective stages in their faeces that infect various littorinid molluscs as the first intermediate host (Blakeslee et al., 2015). Presumably, the putative absence of grazing littorinids in the semi-enclosed Dock breaks the infection cycle despite the presence of both shore crabs and sea birds in this site. The limited water flow in the Dock site probably favours the transmission of S. carcini (water may stagnate and permit parasites to accumulate), whereas the tidal flow at Mumbles reduces the chance of infectious stages contacting uninfected crabs.
Concluding remarks
Species of the parasitic dinoflagellate genus Hematodinium represent a substantive, yet often overlooked, threat to populations of commercially important crustaceans globally. Our work described herein takes a major step forward in our understanding of crab-Hematodinium antibiosis.
Pre-existing Hematodinium sp. infection is not a determinant for collateral disease contraction in shore crabs. No significant differences were detected with respect to ‘co-infection’ levels between Hematodinium-positive vs. Hematodinium-free crabs overall, or at either geographically close site. Clear site-specific blends of parasites were found in the hosts, regardless of Hematodinium presence/absence, and in the surrounding waters. Herein, binomial logistic regression models revealed CW (small), and not season or sex, as a significant predictor variable of co-infections overall. This contrasts with our previous study (Davies et al., 2019a) in which we determined seasonality and sex, but not size, as the overall key predictor variables of Hematodinium sp. in crabs. If Hematodinium was a determinant for co-infections, we should see a seasonal pattern, or sex bias, but we do not. Crucially, the severity of Hematodinium sp. colonisation of tissues – either solid or liquid – is not attributed to collateral infections either. Therefore, we contest that co-infection occurrence is decoupled from Hematodinium sp., with location being the main determinant (habitat or surrounding diversity; Davies et al., 2019b, Davies et al., 2020c).
We did not observe immune cell reactivity in vitro or in vivo – phagocytosis, encapsulation, or melanisation – towards Hematodinium sp. in crabs in the absence and presence of other disease-causing agents or damaged tissue. If Hematodinium sp. was supressing the immune system of crabs, we would expect to see more alternative opportunistic infections (we do not) and/or a reduced capacity of the host to react to other agents (we do not). Haemocyte-driven responses remain intact in early infections, but never target Hematodinium. We consider Hematodinium sp. to be a candidate immune evader of shore crab cellular defences. This does not rule out a potential immune-suppression mechanism at the molecular level.
Materials and methods
Sample collection
Request a detailed protocolThe study took place off the South Wales coast, UK, at two distinct locations described in Davies et al., 2019a. The first location, a semi-closed Prince of Wales Dock, Swansea, and the second, intertidal Mumbles Pier (referred to forthwith as Dock and Pier). For 12 months from November 2017 to October 2018, the shore crab population (n = 1191) and seawater for environmental DNA analysis were surveyed at both locations. On each sampling day, water temperature and salinity were recorded using a YSI 650 MDS multi-parameter display system. A minimum of 48 crabs per site per month were surveyed to achieve >80% desired statistical power (α = 0.05, two-sided test). Laboratory regime, water filtration (2 L water [three technical replicates = 6 L] per location per month using an initial 200 µm nylon mesh followed by 0.45 µm PVDF [Durapore] membrane), histopathology, and DNA extraction/quantification followed the procedures of Davies et al., 2019a. Environmental (water) samples were collected alongside crabs at the Dock location and via boat for the Pier. In addition, the present study included quantification of bacterial CFUs, which were determined by spreading 200 µL 1:1 haemolymph:sterile 3% NaCl solution (w/v) onto tryptone soya agar (TSA) plates supplemented with 2% NaCl (two technical replicates were performed per biological replicate). Plates were incubated at 25°C for 48 hr and CFUs counted. The bacterial load of the haemolymph is expressed as CFUs/mL.
PCR-based approaches and sequencing conditions
Request a detailed protocolAll PCR reactions were carried out in 25 μL total reaction volumes using 2X Master Mix (New England Biolabs), oligonucleotide primers synthesised by Eurofins (Ebersberg, Germany), 1 μL DNA (ca. 50–200 ng for haemolymph and 3–80 ng for water eDNA), and performed on a Bio-Rad T100 PCR thermal cycler. Products derived from PCR were visualised on a 2% agarose/TBE gel with GreenSafe premium nucleic acid stain (NZYTech, Portugal). For primary diagnostics, general Hematodinium primers targeting a highly variable 18S rRNA gene region (Hemat-F-1487 and Hemat-R- 1654; Supplementary file 2—table 1) were used to verify the presence of any Hematodinium (see Davies et al., 2019a for full details). Proceeding this, a control group of equal number, size/sex/location-matched Hematodinium-free crabs (n = 162) were chosen, and both groups were subjected to a series of targeted PCRs to determine the presence of haplosporidians, microsporidians, mikrocytids, paramyxids, Vibrio spp., and fungal species (Appendix 2—table 1). Positive amplicons were purified using HT ExoSAP-IT Fast High-Throughput PCR Product Cleanup (Thermo Fisher Scientific, UK) following the manufacturer’s instructions, quantified using the Qubit dsDNA High Sensitivity Kit and Fluorometer (Invitrogen, USA), and sequenced using Sanger’s method by Eurofins.
All sequences have been deposited in the GenBank database under the accession numbers MN846355–MN846359 (from C. maenas haemolymph DNA) and MT334463–MT334513 (seawater eDNA) for haplosporidians (Davies et al., 2020a); MN985606–MN985608 (seawater eDNA) and MN985609 (C. maenas haemolymph DNA) for microsporidians, MN985610–MN985644 (seawater eDNA) for paramyxids, MT000071–MT000098 (seawater eDNA) for mikrocytids and MT000100–MT000103 (C. maenas haemolymph DNA) and MT000104–MT000107 (seawater eDNA) for fungal species. Sequences for Vibrio spp. (<150 bp in length) were deposited in the NCBI short read archive (SRA) under accession numbers SAMN14133753 to SAMN14133757 (C. maenas haemolymph DNA) and SAMN14133758- SAMN14133765 (seawater eDNA; see Supplementary file 4 for complete information).
Population (genetic) analyses
Request a detailed protocolThe COI gene was amplified from crab DNA from crabs gathered in February 2018 across both survey sites (n = 100 in total, i.e., n = 50 per site) using oligonucleotides from Roman, 2004 (Appendix 2—table 1). PCR reactions were carried out as described above (25 μL total volume, Q5 hot start high fidelity 2X master mix [New England Biolabs], oligonucleotide primers synthesised by Eurofins, 1 μL DNA [ca. 50–200 ng], and visualised on a 2% agarose/TBE gel). Amplicons were purified as above and sequenced using Sanger’s method by Source BioScience (Nottingham, UK). Chromatograms of the nucleotide sequences were analysed using BioEdit version 7.0.9.0 (Hall, 1999). Sequences were aligned and trimmed using BioEdit, resulting in 93 COI sequences (n = 48 for the Pier location; n = 45 for the Dock location) with 481 bp (yielding 37 haplotypes; GenBank accession numbers MT547783-MT547812). Additionally, we included in our analyses 227 COI sequences of C. maenas from Darling et al., 2008 (GenBank accession numbers FJ159008, FJ159010, FJ159012-13, FJ159015-18, FJ159020-21, FJ159023, FJ159025-36, FJ159039-44, FJ159047-52, FJ159057, FJ159059-64, FJ159069-80, FJ159084, and FJ159085) across 10 locations (see Appendix 1 for details). ARLEQUIN (version 3.11) was used to calculate the number of haplotypes, haplotype diversity, and nucleotide diversity (Excoffier et al., 2006; Excoffier and Lischer, 2010). Pairwise genetic differentiation (Fst) values using 10,000 permutations were calculated among the 12 locations using ARLEQUIN. A median joining network (Bandelt et al., 1999) using the 293 C. maenas COI nucleotide sequences was constructed using PopART version 1.7 (Leigh and Bryant, 2015). To visualise the genetic similarities between locations, a hierarchical clustering analysis based on Fst values with 500 random starts was performed using PRIMER v6 (Clarke and Gorley, 2006).
Hematodinium sp. nucleotide sequences (partial coverage of the ITS1 region) from infected crabs (n = 162; GenBank MN057783–MN057918) (Davies et al., 2019a) representing both the Pier (open) and Dock (semi-closed) locations were reassessed for genetic diversity. Sequences were inspected manually, trimmed, aligned, and those with undetermined (ambiguous) nucleotides were removed using BioEdit. In total, 102 Hematodinium sp. nucleotide sequences between 218 and 229 bp in length (n = 49 for the Pier location; n = 53 for the Dock location) were analysed using ARLEQUIN (taking into account insertions/deletions) as described above for C. maenas COI sequences.
Tissue histology and microscopy
Request a detailed protocolHaemolymph preparations from all 324 crabs were assessed for the presence of parasites and pathogens, and putative (host) cellular responses (e.g., phagocytosis). To accomplish this, haemolymph was rapidly withdrawn from the haemocoel of each crab using a 22-gauge hypodermic needle inserted into a walking leg, placed on glass slides, and examined using phase-contrast microscopy. If the sample appeared to contain parasites, a further 25 µL of fresh haemolymph was fixed 1:1 with 5% formaldehyde (v/v) in 3% NaCl (w/v) and placed on an improved Neubauer haemocytometer where Hematodinium morphotypes were quantified (i.e., number of parasites per mL).
In July 2021, we collected an additional 58 crabs from the Dock area, extracted haemolymph, and screened for Hematodinium sp. as described above. For the parasitised crabs (n = 9), we maintained the haemolymph ex vivo for up to 75 min to inspect haemocyte behaviour microscopically. In a further experiment, we isolated haemocytes from six healthy (Hematodinium-free) crabs (n = 3 males, n = 3 females). Haemolymph was removed and diluted 1:1 into anticoagulant (3% NaCl, 100 mM dextrose, 47 mM citric acid, 10 mM EDTA, pH 4.6) adapted from Söderhäll and Smith, 1983, centrifuged at 500 × g at 4°C for 5 min, resuspended in phagocytosis assay buffer (3% NaCl, 20 mM HEPES, pH 7.5, 10 mM CaCl2, 10 mM MgCl2, 5 mM KCl2, and 10 mM NaHCO3; Coates et al., 2012), before being seeded into individual wells of a sterile culture plate containing Hematodinium isolated from an infected donor crab (following Smith and Rowley, 2015). Assays were run for 2 hr at room temperature and terminated by the addition of 2.5% formaldehyde (v/v).
Tissue histology was used as the secondary tool after PCR, to screen all 324 crabs to estimate the severity of, and potential immune responses to, Hematodinium sp. or any collateral infection (e.g., phagocytosis, melanisation, haemocyte aggregation). Histology took place according to the methods described in Davies et al., 2019a. Briefly, gills and hepatopancreas/gonad were excised and fixed in Davidson’s seawater fixative for 24 hr prior to their storage in 70% ethanol. Samples were processed using a Shandon automated tissue processor (Thermo Fisher Scientific, Altrincham, UK) prior to wax embedding. Blocks were cut at 5–7 µm thickness using an RM2245 microtome (Leica, Wetzlar, Germany), and sections were mounted onto glass slides using albumin-glycerol. All slides were stained with Cole’s haematoxylin and eosin prior to inspection using an Olympus BX41 microscope. The gills and hepatopancreas/gonads of Hematodinium-positive crabs were graded (0–4) according to severity of infection following the criteria established by Smith et al., 2015. Briefly, a score of 0 indicates no visible infection (i.e., subclinical) despite being PCR positive, whereas a score of 4 indicates tissue replete with parasites (and few, if any, haemocytes visible).
Statistical analyses
Request a detailed protocolBinomial logistic regression models with Logit link functions (following Bernoulli distributions) were used (‘MASS’ package) to determine whether specific predictor variables had a significant effect on the probability of finding crabs testing positive for Hematodinium presence in the crab populations sampled. Models were run using Hematodinium-positive crabs determined via PCR alone (n = 162), and Hematodinium-positive crabs quantified by haemolymph screening via phase-contrast microscopy, gill/hepatopancreas via histology, and PCR (n = 111, i.e., visibly clinically infected crabs). The information theoretic approach was used for model selection and assessment of performance (Richards, 2005). Initial models are herein referred to as the full models. Once selected, each non-significant predictor variable from the full models was sequentially removed using the drop1 function to produce final models with increased predictive power, herein referred to as the reduced models. The drop1 function compares the initial full model with the same model minus the least significant predictor variable. If the reduced model is significantly different from the initial full model (in the case of binomial response variables, a chi-squared test is used to compare the residual sum of squares of both models), then the removed predictor variable is kept out of the new, reduced model (Table 1). This process continues hierarchically until a final reduced model is produced (Zuur et al., 2009). Full models included the input variables: Hematodinium (presence of parasite, 0 or 1 – based on PCR and microscopic diagnostics), location (Dock or Pier), season (winter [Dec ’17, Jan ’18, Feb ’18], spring [Mar ’18, Apr ’18, May ’18], summer [Jun ’18, Jul ’18, Aug ’18], autumn [Sept ’18, Oct ’18, Nov ’17]), CW (continuous number), sex (male or female), carapace colour (green, yellow, or orange), fouling (presence of epibionts, 0 or 1), and limb loss (0 or 1; for all full models, see Supplementary file 2—table 1). Additionally, linear regression was applied to the quantitative Hematodinium data to determine whether there was a relationship between the number of parasites visible in the liquid (haemolymph) tissue and the solid (gill, hepatopancreas) tissues of affected crabs (n = 108).
To explore the effects of location (Pier or Dock) and Hematodinium (0 or 1 – based on PCR and microscopic diagnostics) on the co-infection assemblage structure (based on abundances of individual infections), multivariate analysis of community composition was used. First, those crabs which suffered from one or more co-infections were subsampled (n = 78) and an unconstrained PERMANOVA was run using the ‘adonis’ analysis (‘vegan’ package). This analysis was based on Bray–Curtis dissimilarities and 999 permutations. PERMANOVA is non-parametric, based on dissimilarities, and uses permutation to compute an F-statistic (pseudo-F). nMDS scaling using the Bray–Curtis measure on a square-root transformation of the abundance data was also used to visualise differences in community composition between groups. This transformation retains the quantitative information while down-weighing the importance of the highly abundant infections (Clarke, 1993).
Bacterial CFU numbers and haemocyte counts were log transformed [Y = log(y + 1)], and following testing for normality, a Mann–Whitney test (unpaired) was performed to compare ranks between Hematodinium-positive vs. Hematodinium-free crabs, and infections within Hematodinium-positive/free crabs. All logistic models and composition analysis were run in RStudio version 1.2.1335 (2009–2019 RStudio, Inc) using R version 3.6.1. All other statistics (tests of normality, transformations, and t-tests or non-parametric equivalent) as well as graphics were produced using GraphPad Prism v8 for Windows (GraphPad Software, La Jolla, CA).
Appendix 1
Genetic diversity indices of C. maenas COI sequences (481 bp).
Location | Code | N | H | P | Hd (SD) | π (SD) |
---|---|---|---|---|---|---|
Seltjarnarnes, Iceland | ICE | 18 | 1 | 0 | 0 | 0 |
Torshavn, Faroe Islands | TOR | 19 | 2 | 1 | 0.515 (0.052) | 0.0032 (0.0022) |
Mongstad, Norway | MON | 22 | 12 | 5 | 0.853 (0.065) | 0.0044 (0.0028) |
Oslo, Norway | OSL | 9 | 5 | 1 | 0.806 (0.120) | 0.0067 (0.0043) |
Goteborg, Sweden | GOT | 15 | 10 | 3 | 0.933 (0.045) | 0.0067 (0.0041) |
Den Helder, the Netherlands | NET | 45 | 17 | 7 | 0.784 (0.059) | 0.0043 (0.0027) |
Dock, Swansea, UK | DOCK | 45 | 18 | 8 | 0.855 (0.038) | 0.0042 (0.0027) |
Mumbles Pier, UK | PIER | 48 | 19 | 10 | 0.823 (0.041) | 0.0039 (0.0025) |
Fowey, England | FOW | 14 | 8 | 3 | 0.890 (0.060) | 0.0047 (0.0031) |
Bilbao, Spain | BIL | 15 | 6 | 3 | 0.648 (0.134) | 0.0031 (0.0022) |
Aveiro, Portugal | AVE | 23 | 9 | 3 | 0.795 (0.065) | 0.0037 (0.0025) |
Cádiz, Spain | CAD | 47 | 21 | 12 | 0.864 (0.042) | 0.0039 (0.0025) |
-
N = number of individuals analysed; H = number of haplotypes; P = private haplotypes; Hd (SD) = haplotype diversity (standard deviation); π (SD), nucleotide diversity (standard deviation).
Pairwise genetic differentiation (Fst) of C. maenas samples estimated using COI sequence data.
1 ICE | 2 TOR | 3 MON | 4 OSL | 5 GOT | 6 NET | 7 DOCK | 8 PIER | 9 FOW | 10 BIL | 11 AVE | 12 CAD | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | 0.381 | 0.000 | ||||||||||
3 | 0.839 | 0.688 | 0.000 | |||||||||
4 | 0.859 | 0.670 | 0.022 | 0.000 | ||||||||
5 | 0.789 | 0.604 | 0.013 | –0.024 | 0.000 | |||||||
6. | 0.802 | 0.678 | 0.019 | 0.064 | 0.038 | 0.000 | ||||||
7 | 0.797 | 0.666 | 0.028 | 0.083 | 0.016 | 0.001 | 0.000 | |||||
8 | 0.805 | 0.675 | 0.070 | 0.123 | 0.045 | 0.010 | –0.006 | 0.000 | ||||
9 | 0.857 | 0.675 | –0.016 | 0.015 | –0.018 | –0.019 | –0.012 | 0.003 | 0.000 | |||
10 | 0.902 | 0.730 | 0.054 | 0.118 | 0.067 | –0.018 | 0.006 | 0.007 | 0.012 | 0.000 | ||
11 | 0.859 | 0.710 | –0.006 | 0.068 | 0.040 | –0.013 | 0.001 | 0.027 | –0.011 | –0.012 | 0.000 | |
12 | 0.821 | 0.710 | 0.032 | 0.108 | 0.103 | 0.005 | 0.042 | 0.057 | 0.016 | –0.009 | –0.006 | 0.000 |
-
Values in bold are statistically significant (p<0.05).
Genetic diversity indices of Hematodinium sp.
ITS-1 sequences from infected C. maenas collected in the Swansea Dock and in the Mumbles Pier during winter, spring, summer, and autumn.
Location | Season | n | h | Hd (SD) | π (SD) |
---|---|---|---|---|---|
Pier | Winter | 8 | 3 | 0.464 (0.200) | 0.0305 (0.0182) |
Spring | 20 | 15 | 0.958 (0.033) | 0.0180 (0.0105) | |
Summer | 13 | 11 | 0.961 (0.050) | 0.0201 (0.0123) | |
Autumn | 8 | 8 | 1.000 (0.0625) | 0.0191 (0.0120) | |
Total | 49 | 31 | 0.917 (0.0343) | 0.0199 (0.0109) | |
Dock | Winter | 13 | 9 | 0.872 (0.091) | 0.0322 (0.0181) |
Spring | 14 | 11 | 0.934 (0.061) | 0.0261 (0.0149) | |
Summer | 15 | 15 | 1.000 (0.024) | 0.0289 (0.0162) | |
Autumn | 11 | 10 | 0.982 (0.046) | 0.0274 (0.0159) | |
Total | 53 | 41 | 0.951 (0.025) | 0.0274 (0.0146) | |
Both sites | Overall | 102 | 70 | 0.935 (0.021) | 0.0228 (0.0122) |
-
n = number of individuals analysed; h = number of haplotypes; P = private haplotypes; Hd (SD) = haplotype diversity (standard deviation); π (SD), nucleotide diversity (standard deviation).

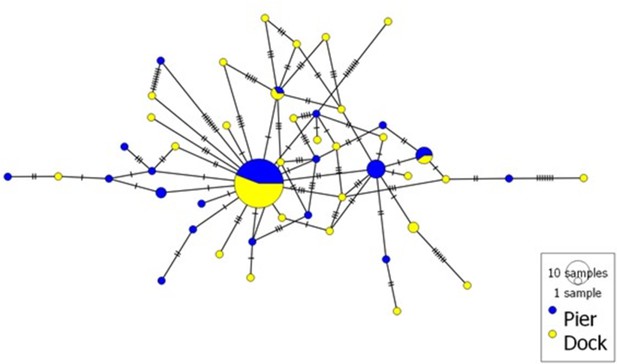

Haplotype network of partial ITS region (252 bp) from Hematodinium species infecting shore crabs.
In total, 102 Hematodinium sequences from two sites (n = 49/Pier; n = 53/Dock) were analysed. The size of each circle depicted is proportional to the frequency of a haplotype within the dataset. The network was visualised using POPART (Leigh and Bryant, 2015).
Appendix 2
Forward (Fwd) and reverse (Rev) primer sequences used for the amplification of pathogens from C. maenas and host DNA, by PCR.
Each PCR run included initial denaturation and final extension steps, according to the first and final temperatures, respectively, noted in the thermocycler settings.
Target pathogen (Reference) | Primers | Cycling conditions | |||
---|---|---|---|---|---|
Dir. | Name | Sequence (5'–3') | Final conc. (µM) | Temp (°C) | Time | Cycles | |
Hematodinium sp. (Gruebl et al., 2002) | For, HematF1487: | 0.5 | 94 | 10 min | 30 |
CCTGGCTCGATAGAGTTG | 94 | 15 s | |||
Rev, HematR1654: | 54 | 15 s | |||
GGCTGCCGTCCGAATTATTCAC | 72 | 30 s | |||
[Amplicon size, 187 bp] | 72 | 10 min | |||
Fungi (Gardes and Bruns, 1993; White et al., 1990) | For, ITS1F: | 0.4 | 95 | 2 min | 30 |
CTTGGTCATTTAGAGGAAGTAA | 95 | 30 s | |||
Rev, ITS2: | 55 | 30 s | |||
GCTGCGTTCTTCATCGATGC | 72 | 1 min | |||
[Amplicon size, 320 bp] | 72 | 10 min | |||
Haplosporidia spp. (round 1) (Hartikainen et al., 2014a ) | For, C5fHap: | 1 | 95 | 5 min | 30 |
GTAGTCCCARCYATAACBATGTC | 95 | 30 s | |||
Rev, Sb1n: | 65 | 45 s | |||
GATCCHTCYGCAGGTTCACCTACG | 72 | 1 min | |||
[Amplicon size, NA bp] | 72 | 10 min | |||
Haplosporidia spp. (round 2) (Hartikainen et al., 2014a) | For, V5fHapl: | 1 | 95 | 5 min | 30 |
GGACTCRGGGGGAAGTATGCT | 95 | 30 s | |||
Rev, Sb2nHap: | 65 | 45 s | |||
CCTTGTTACGACTTBTYCTTCCTC | 72 | 1 min | |||
[Amplicon size, 650 bp] | 72 | 10 min | |||
Mikrocytids (round 1) (Hartikainen et al., 2014b) | For, mik451F: | 0.5 | 95 | 5 min | 30 |
GCCGAGAYGGTTAAWGAGCCTCCT | 95 | 30 s | |||
Rev, mik1511R: | 64 | 45 s | |||
CCTATTCAGCGCGCTCTGTTGAGA | 72 | 1 min | |||
[Amplicon size, 967 bp] | 72 | 10 min | |||
Mikrocytids (round 2) (Hartikainen et al., 2014b) | For, mik868F: | 0.5 | 95 | 5 min | 30 |
GGACTACCAGWGGCGAAAGCGCCT | 95 | 30 s | |||
Rev, mik1340R: | 62 | 45 s | |||
TGCATCACGGACCTACCTTWGACC | 72 | 1 min | |||
[Amplicon size, 481 bp] | 72 | 10 min | |||
Vibrio spp. (Thompson et al., 2004; Vezzulli et al., 2012) | For, 567 F: | 0.5 | 94 | 10 min | 30 |
GGCGTAAAGCGCATGCAGGT | 94 | 30 s | |||
Rev, 680 R: | 58 | 30 s | |||
GAAATTCTACCCCCCTCTACAG | 72 | 1 min | |||
[Amplicon size, 113 bp] | 72 | 10 min | |||
Microsporidia (Fedorko et al., 1995; Stentiford et al., 2018) | For, CTMicrosp-G: | 0.5 | 94 | 5 min | 35 |
CACCAGGTTGATTCTGCCTGAC | 94 | 30 s | |||
Rev, Microsp1342r: | 63 | 30 s | |||
ACGGGCGGTGTGTACAAAGAACAG | 72 | 90 s | |||
[Amplicon size, 1100–1300 bp] | 72 | 10 min | |||
Paramyxid (round 1) (Ward et al., 2016 ) | For, Para1+ fN: | 1 | 95 | 3 min | 42 |
GCGAGGGGTAAAATCTGAT | 95 | 30 s | |||
Rev, ParaGENrDBn: | 67 | 1 min | |||
GTGTACAAAGGACAGGGACT | 72 | 1 min | |||
[Amplicon size, NA bp] | 72 | 5 min | |||
Paramyxid (round 2) (Ward et al., 2016) | For, Para3+ fN: | 1 | 95 | 3 min | 42 |
GGCTTCTGGGAGATTACGG | 95 | 30 s | |||
Rev, Para2+ rN: | 62 | 1 min | |||
TCGATCCCRACTGRGCC | 75 | 1 min | |||
[Amplicon size, 450 bp] | 75 | 5 min | |||
Cytochrome c oxidase I (COI) gene (Roman and Palumbi, 2004) | For, Cm_F: | 0.5 | 94 | 2 min | 30 |
GCTTGAGCTGGCATAGTAGG | 94 | 1 min | |||
Rev, Cm_R: | 50 | 1 min | |||
GAATGAGGTGTTTAGATTTCG | 72 | 1 min | |||
[Amplicon size, 588 bp] | 72 | 10 min |
Data availability
Sequencing data have been deposited in GenBank under accession codes numbers MN846355 - MN846359 (from C. maenas haemolymph DNA) and MT334463 - MT334513 (seawater eDNA) for haplosporidia (Davies et al., 2020a); MN985606 - MN985608 (seawater eDNA) and MN985609 (C. maenas haemolymph DNA) for microsporidia, MN985610 - MN985644 (seawater eDNA) for paramyxids, MT000071 - MT000098 (seawater eDNA) for mikrocytids and MT000100 - MT000103 (C. maenas haemolymph DNA) and MT000104 - MT000107 (seawater eDNA) for fungal species. Sequences for Vibrio spp. (<150 bp in length) were deposited in the NCBI short read archive (SRA) under accession numbers SAMN14133753 to SAMN14133757 (C. maenas haemolymph DNA) and SAMN14133758- SAMN14133765 (seawater eDNA; see supplementary files for complete information). All source files (code, data, supporting information) are available immediately, and have been submitted alongside the manuscript.
-
NCBI BioProjectID PRJNA607439. Vibrio spp. in Carcinus maenas.
References
-
Hematodinium sp. infection in Norway lobster Nephrops norvegicus and its effects on meat qualityDiseases of Aquatic Organisms 100:105–112.https://doi.org/10.3354/dao02500
-
Physiological condition, short-term survival, and predator avoidance behavior of discarded Norway lobsters (Nephrops norvegicus)Journal of Shellfish Research 35:1053–1065.https://doi.org/10.2983/035.035.0428
-
The evolution of juvenile susceptibility to infectious diseaseProceedings Biological Sciences 285:20180844.https://doi.org/10.1098/rspb.2018.0844
-
Median-joining networks for inferring intraspecific phylogeniesMolecular Biology and Evolution 16:37–48.https://doi.org/10.1093/oxfordjournals.molbev.a026036
-
Entomopathogenic fungi: New insights into host-pathogen interactionsAdvances in Genetics 94:307–364.https://doi.org/10.1016/bs.adgen.2016.01.006
-
Prevalence and progression of shell disease in American lobster, Homarus americanus, from Rhode Island waters and the offshore canyonsJournal of Shellfish Research 19:691–700.
-
SoftwarePRIMER v6: Prim V6 User Manual/TutorialPRIMER.
-
Phagocytic activity of Limulus polyphemus amebocytes in vitroJournal of Invertebrate Pathology 111:205–210.https://doi.org/10.1016/j.jip.2012.08.002
-
The stress-immunity axis in shellfishJournal of Invertebrate Pathology 186:107492.https://doi.org/10.1016/j.jip.2020.107492
-
Emerging diseases and epizootics in crabs under cultivationFrontiers in Marine Science 8:e809759.https://doi.org/10.3389/fmars.2021.809759
-
BookHost Defences of Invertebrates to Pathogens and Parasites’ in Invertebrate PathologyUnited Kingdom: Oxford University Press.
-
Effects of population density and body size on disease ecology of the European lobster in a temperate marine conservation zoneICES Journal of Marine Science 72:i128–i138.https://doi.org/10.1093/icesjms/fsu237
-
Mycosis is a disease state encountered rarely in shore crabs, Carcinus maenasPathogens (Basel, Switzerland) 9:462.https://doi.org/10.3390/pathogens9060462
-
BookAn integrated software package for population genetics data analysisComput Mol Popul Genet Lab.
-
Identification of microsporidia in stool specimens by using PCR and restriction endonucleasesJournal of Clinical Microbiology 33:1739–1741.https://doi.org/10.1128/jcm.33.7.1739-1741.1995
-
Development of an 18S rRNA gene-targeted PCR-based diagnostic for the blue crab parasite Hematodinium spDiseases of Aquatic Organisms 49:61–70.https://doi.org/10.3354/dao049061
-
BookBioEdit : a user-friendly biological sequence alignment editor and analysis program for Windows 95 / 98 / NTNucleic Acids Symp Ser.
-
Transmission pattern of the parasitic dinoflagellate Hematodinium perezi in polyculture ponds of coastal ChinaAquaculture (Amsterdam, Netherlands) 538:736549.https://doi.org/10.1016/j.aquaculture.2021.736549
-
POPART: Full-feature software for haplotype network constructionMethods in Ecology and Evolution 1:12410.https://doi.org/10.1111/2041-210X.12410
-
Early transcriptional response to the parasitic dinoflagellate Hematodinium in hepatopancreas of Portunus trituberculatusJournal of Invertebrate Pathology 130:28–36.https://doi.org/10.1016/j.jip.2015.06.005
-
Differential expression of microRNAs in Portunus trituberculatus in response to Hematodinium parasitesFish & Shellfish Immunology 83:134–139.https://doi.org/10.1016/j.fsi.2018.09.011
-
The parasitic dinoflagellate Hematodinium infects multiple crustaceans in the polyculture systems of Shandong Province, ChinaJournal of Invertebrate Pathology 178:107523.https://doi.org/10.1016/j.jip.2020.107523
-
Bitter crab disease: a fatal dinoflagellate infection and marketing problem for Alaskan Tanner crabs Chionoecetes bairdiDiseases of Aquatic Organisms 3:195–216.https://doi.org/10.3354/dao003195
-
The invasive, non-native slipper limpet Crepidula fornicata is poorly adapted to sediment burialMarine Pollution Bulletin 130:95–104.https://doi.org/10.1016/j.marpolbul.2018.03.006
-
Invertebrate immunity: Basic concepts and recent advancesInternational Review of Cytology 97:183–350.https://doi.org/10.1016/S0074-7696(08)62351-7
-
Prevalence and histopathology of the parasitic barnacle, Sacculina carcini in shore crabs, Carcinus maenasJournal of Invertebrate Pathology 171:107338.https://doi.org/10.1016/j.jip.2020.107338
-
Immune defence, parasite evasion strategies and their relevance for “macroscopic phenomena” such as virulencePhilosophical Transactions of the Royal Society of London. Series B, Biological Sciences 364:85–98.https://doi.org/10.1098/rstb.2008.0157
-
Aspects of the pathophysiology of blue crabs, Callinectes sapidus, infected with the parasitic dinoflagellate Hematodinium pereziBull Mar Sci 72:519–535.
-
Molecular detection of Hematodinium spp. in Norway lobster Nephrops norvegicus and other crustaceansDiseases of Aquatic Organisms 69:185–195.https://doi.org/10.3354/dao069185
-
Effects of experimental infection of juvenile edible crabs Cancer pagurus with the parasitic dinoflagellate Hematodinium spJournal of Shellfish Research 34:511–519.https://doi.org/10.2983/035.034.0236
-
Separation of the haemocyte populations of Carcinus maenas and other marine decapods, and prophenoloxidase distributionDevelopmental and Comparative Immunology 7:229–239.https://doi.org/10.1016/0145-305x(83)90004-6
-
The relationship of Hematodinium infection prevalence in a Scottish Nephrops norvegicus population to season, moulting and sexICES Journal of Marine Science 58:814–823.https://doi.org/10.1006/jmsc.2001.1072
-
A review of the parasitic dinoflagellates Hematodinium species and Hematodinium-like infections in marine crustaceansDiseases of Aquatic Organisms 66:47–70.https://doi.org/10.3354/dao066047
-
Evidence for trophic transfer of Inodosporus octospora and Ovipleistophora arlo n. spMicrosporidia) between Crustacean and Fish Hosts. Parasitology 145:1105–1117.https://doi.org/10.1017/S0031182017002256
-
Diversity and dynamics of a north atlantic coastal Vibrio communityApplied and Environmental Microbiology 70:4103–4110.https://doi.org/10.1128/AEM.70.7.4103-4110.2004
-
BookAmplification and direct sequencing of fungal ribosomal RNA genes for phylogeneticsIn: White TJ, editors. PCR Protocols and Applications - A Laboratory Manual. Academic Press. pp. 315–322.
-
Dinoflagellate infection associated with the decline of Necora puber crab populations in FranceDiseases of Aquatic Organisms 26:213–219.https://doi.org/10.3354/dao026213
-
Cellular and biochemical parameters following autotomy and ablation-mediated cheliped loss in the Chinese mitten crab, Eriocheir sinensisDevelopmental and Comparative Immunology 81:33–43.https://doi.org/10.1016/j.dci.2017.11.003
-
BookMixed effects models and extensions in ecology with R GLM and GAM for Absence–Presence and Proportional DataIn: Zuur AF, editors. Mixed Effects Models and Extensions in Ecology with R. Springer. pp. 245–248.https://doi.org/10.1007/978-0-387-87458-6
Decision letter
-
Irene SalinasReviewing Editor; University of New Mexico, United States
-
Carla V RothlinSenior Editor; Yale School of Medicine, United States
-
José Fernández RobledoReviewer; Bigelow Laboratory for Ocean Sciences, United States
-
Irene SalinasReviewer; University of New Mexico, United States
Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.
Decision letter after peer review:
Thank you for submitting your article "Environment, rather than Hematodinium parasitization, determines collateral disease contraction in a crustacean host" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Irene Salinas as the Reviewing Editor and Reviewer #3, and the evaluation has been overseen by Carla Rothlin as the Senior Editor.
The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.
Essential revisions:
Reviewers agreed that additional experiments are essential to support the main conclusions of this work.
1) Present quantitative Hematodinium pathogen loads using molecular techniques (i.e qPCR) that complement the histological diagnostic. qPCR may be carried in out in a subset of samples if not all of them are available for molecular diagnosis. The new data should be then analyzed in the context of presence of co-infections.
2) The immune evasion hypothesis is not supported by the data presented in the manuscript. Thus, validation or further support for the immune evasion hypothesis is necessary to strengthen the data shown in Figure 6. Additional experiments needs to be quantitative. For instance, authors may perform time series experiments of phagocytosis assays in vitro with different life stages of the parasite. These assays should be accompanied by the necessary quantification of these experiments. Additionally, a time course study infecting naive crabs with the parasite and following the immune response over time (humoral and cellular) needs to be included in order to rule out that the host mounts immune responses against Hematodinium sp.. These experiments will shed light to the currently unknown immune response to this parasite. An elegant way to further substantiate these findings would be to perform proteomics of hemolymph samples from uninfected and infected crabs over time.
Reviewer #1 (Recommendations for the authors):
Overall, I think the authors made a solid effort to test their hypothesis; however, I believe data is needed to prove or disprove it. I think the discussion and the second conclusion could be accordingly modified.
Reviewer #2 (Recommendations for the authors):
1. Lines 320-323: Although there were no significant differences between the number of disease-agents between Hematodinium-positive and Hematodinium-free crabs, irrespective of the two locations examined, regardless of location, the p value is clone to 0.9. It appears is a trend in the difference in pathogen prevalence between Hematodinium-positive and Hematodinium-free crabs. A metagenomic analysis (targeting microbial pathogens of crab) might reveal a significant difference between the two population that could be reveled when the two populations are screened for a targeted set of pathogens by PCR. This could eb a serious limitation of this sort of study, as PCR-based diagnosis is focused on a set of pathogens than providing a global view of pathogen prevalence in a population. The fact that the number of bacterial CFUs was significantly higher in the haemolymph of Hematodinium-affected crabs compared to Hematodinium-free crabs in at least one of the two locations elude to the fact that in combination with yet unknown factor (biotic or abiotic), Hematodinium infection perhaps modulate host defense.
2. Lines 462-465: Is it possible that Hematodinium is not passively evading host response, instead produce pathogen encoded effectors that shut down pathogen recognition. So it is more of an active process than a passive evasion by the parasite? In that event, the conclusion made in this manuscript will not be accurate. A large-scale metagenomic study looking into the transcriptome profiles of Hematodinium-infected and healthy shore crab can unequivocally address if there is any global gene expression changes induced by the parasite that manifest in an apparent immune invasion (but in reality an active host immune suppression approach used by the pathogen).
3. Lines 573-578: These observations further elude to the fact that the apparent immune evasion is actually a very active process employed by the pathogen not a passive process at all, as one might speculate from this manuscript.
4. Looked into equal number of Hematodinium-positive crabs and size/sex-matched these to Hematodinium-free crabs (N=162) out of 1,191 analysed. What were the basis of selecting these 162 samples? Was there only 162 animals out of 1191 infected with Hematodinium, and if so what was the basis of selecting presumably 162 healthy animals. This is important because any bias in selection will modulate the downstream analyses and conclusions made.
5. The authors also looked into environmental DNA (eDNA) from the surrounding waters of infected crabs to assess the spatial and temporal ecology of different pathogens. Did the authors collect samples at different time throughout the grow-out period and when crabs are not cultured? T is not apparent from the information presented here.
6. In the abstract, lines 29-31, the authors mentioned about multi-resource approach in screening samples (N=162). But in the method section, they describe determining population diversity looking into 100 animals in total (50 animals in each of the wo sites examined).
Reviewer #3 (Recommendations for the authors):
This work has a lot of merit for several reasons, including the importance of the topic, the lack of studies in this area and the large data set from a wide geographical range.
My main issues are the lack of adequate tools and approaches to ascertain the claims and conclusions of the manuscript.
My main criticisms are:
– Lack of quantitative data to evaluate Hematodinium parasite loads. Currently, the authors only provide yes or no using histological diagnosis. For many reasons, having a molecular and quantitative (or semi-quantitative) diagnostic tool would greatly improve the manuscript and help reach much more solid conclusions.
– Immunological assays: the data provided to support the immune evasion hypothesis is very weak and again not quantitative. The fact that the parasites are not seen to be engulfed in ex vivo assays when mixed with healthy hemocytes or that encapsulated Hematodinium cannot be observed in histological sections is not quantitative and requires further investigation and validation. Specifically, regarding phagocytosis:
– It is known that phagocytosis is dependent on the size of the target particle. Thus, the fact that authors did not observe engulfment of parasites in their assays by light microscope does not rule out that phagocytosis of other life stages of the parasite does occur. Further, in a real infection scenario, host-derived factors induced by infection such as complement and cytokines may be critical for the phagocytosis of the parasite and these conditions were not evaluated in this study.
– Immune evasion of cellular immune responses does not mean that, at the molecular level, the parasite triggers host immune responses. Again, this aspect is not measured in this study and therefore the immune evasion theory seems premature in my opinion. A way to strengthen this aspect could be proteomic analysis of hemolymph from control and infected individuals.
– The evidence of lack of encapsulation is based on histological examination which may miss different life stages of the parasite and does not include any immunohistochemistry using anti-Hematodinium specific antibodies. Ideally, the IHC would detect all life stages of the parasite to draw conclusive evidence. I am not sure if these tools are available or not. Alternatively, in situ hybridization would be a very helpful too. The authors just claim that these crabs are still able to encapsulate other agents (but not Hematodinium) and show one image of debris surrounded by hemocytes. In order to support these claims, an experimental infection of healthy crabs with the parasite needs to be performed and the immune response quantified over time using the adequate controls and tools.
Overall, refinement of the diagnostic tools and immunological assays is necessary. Otherwise, the data set used for this study is invaluable and can help us learn more about marine epidemics.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for resubmitting your work entitled "Environment, rather than Hematodinium parasitization, determines collateral disease contraction in a crustacean host" for further consideration by eLife. Your revised article has been reviewed by 2 peer reviewers and the evaluation has been overseen by Carla Rothlin as the Senior Editor, and a Reviewing Editor.
The manuscript has been improved but there are some remaining issues that need to be addressed. Please find below the list of points to be addressed in your revision:
– Title: The reviewers and the Reviewing editor consider that the title of the manuscript is premature considering there is not enough environmental factors/ host immunity analyzed to justify that environment is the only driving factor for collateral infection. It is certainly tempting to speculate environment as the driving factor considering lack of pathogen driven factor influencing susceptibility (albeit based on the parameters analyzed). The authors might consider a title more on the empirical evidence they found, e.g. Hematodinium infection does not drive collateral infection.
– The observation that a crab that has suffered limb loss is 2.4-fold less likely to present a co-infection is intriguing. Would that mean that trauma due to limb loss may stimulate the immune system to repair/re-grow and at the same time keep at bay co-infections? Please include in the discussion.
https://doi.org/10.7554/eLife.70356.sa1Author response
Essential revisions:
Reviewers agreed that additional experiments are essential to support the main conclusions of this work.
1) Present quantitative Hematodinium pathogen loads using molecular techniques (i.e qPCR) that complement the histological diagnostic. qPCR may be carried in out in a subset of samples if not all of them are available for molecular diagnosis. The new data should be then analyzed in the context of presence of co-infections.
We have now incorporated quantitative Hematodinium data. In our original submission, we presented prevalence data that discriminated between Hematodinium-positive crabs (n = 162) and Hematodinium-negative crabs (n = 162) based on targeted PCR alone. Rather than use qPCR – due to the absence of sufficient molecular information to ensure single-copy gene targets per genome for Hematodinium spp. and the diversity of ecotypes presented in our study – we have incorporated count data (actual number of parasites per mL haemolymph) from the original liquid tissue screens using haemocytometry, and grade data (0-4) from solid (gill and hepatopancreas) tissues assessed using histology.
We have analysed these data in the context of co-infection presence. Indeed, when we restricted the Hematodinium-positive crabs to n = 111 based on individuals that were positive for the parasite in all three diagnostic methods across key tissues (haemolymph via haemocytometry and PCR, and gill/hepatopancreas via histology), and re-ran all our analyses/models, the outcomes did not yield contradictory conclusions. Hematodinium-positive crabs are no more likely to contain co-infections when compared to Hematodinium-negative crabs, AND, location remains the determining factor for collateral infections (pathogen) among crabs.
2) The immune evasion hypothesis is not supported by the data presented in the manuscript. Thus, validation or further support for the immune evasion hypothesis is necessary to strengthen the data shown in Figure 6. Additional experiments needs to be quantitative. For instance, authors may perform time series experiments of phagocytosis assays in vitro with different life stages of the parasite. These assays should be accompanied by the necessary quantification of these experiments. Additionally, a time course study infecting naive crabs with the parasite and following the immune response over time (humoral and cellular) needs to be included in order to rule out that the host mounts immune responses against Hematodinium sp.. These experiments will shed light to the currently unknown immune response to this parasite. An elegant way to further substantiate these findings would be to perform proteomics of hemolymph samples from uninfected and infected crabs over time.
We accept the need to be more circumspect regarding the presentation/interpretation of our data, but the assay was quantitative and assessed haemocyte (immune cell) reactivity beyond phagocytosis, i.e., encapsulation. Several slides of freshly withdrawn haemolymph and processed gill/hepatopancreas were inspected via microscopy, which amounts to a minimum of 486 slides for the 162 Hematodinium-positive samples. Per crab, 1 slide of freshly withdrawn haemolymph, and 4-5 slides of multi-tissue histology were viewed, graded (according to Smith et al., 2015) and photographed. These showed conclusively that there is/was no evidence of cellular host reactivity to the Hematodinium morphotypes.
In July 2021, we screened a further 58 crabs for Hematodinium. For the positive animals (n = 9), we maintained the haemolymph ex vivo for up to 75 minutes. No discernible haemocyte response to the parasites was observed. In a separate experiment, we separated haemocytes from six healthy (Hematodinium-free) crabs and incubated them in vitro with Hematodinium isolated from an infected donor crab (following Smith and Rowley, 2015, and Coates et al., 2012) in wells of a microplate for 2 hours. Again, no haemocyte reactivity to these parasites was observed.
In a previous study concerning another species of crab (Cancer pagurus), Smith and Rowley (2015) infected crabs with 1 x105 trophonts of Hematodinium sp. and monitored crab health, including haemocyte (immune cells) over 1 year. No phagocytosis or encapsulation of Hematodinium was observed, and mortality events after 90 days in both Hematodinium-positive and Hematodinium-negative crabs could be attributed to a range of other parasites, including bacteria and mikrocytids – agents that we have targeted systematically in our current study.
We are looking to investigate proteomic signatures from Hematodinium-positive versus Hematodinium-free shore crabs, but we cannot perform that analysis on the animals used in this current study as the haemolymph was spent for bacterial CFU screening, Hematodinium and haemocyte enumeration, and DNA extraction for PCR diagnostics.
Reviewer #1 (Recommendations for the authors):
Overall, I think the authors made a solid effort to test their hypothesis; however, I believe data is needed to prove or disprove it. I think the discussion and the second conclusion could be accordingly modified.
We thank Reviewer 1 for their time and insight. We have already answered the comment on data analyses. We have revised the discussion and conclusion to reflect the comments from this referee, and the more cautious interpretation of our study.
Reviewer #2 (Recommendations for the authors):
1. Lines 320-323: Although there were no significant differences between the number of disease-agents between Hematodinium-positive and Hematodinium-free crabs, irrespective of the two locations examined, regardless of location, the p value is clone to 0.9. It appears is a trend in the difference in pathogen prevalence between Hematodinium-positive and Hematodinium-free crabs. A metagenomic analysis (targeting microbial pathogens of crab) might reveal a significant difference between the two population that could be reveled when the two populations are screened for a targeted set of pathogens by PCR. This could eb a serious limitation of this sort of study, as PCR-based diagnosis is focused on a set of pathogens than providing a global view of pathogen prevalence in a population. The fact that the number of bacterial CFUs was significantly higher in the haemolymph of Hematodinium-affected crabs compared to Hematodinium-free crabs in at least one of the two locations elude to the fact that in combination with yet unknown factor (biotic or abiotic), Hematodinium infection perhaps modulate host defense.
The P-values reported here are not from correlative analysis. There is no trend to suggest pathogen load differences/diversity between Hematodinium-positive versus Hematodinium-negative crabs. The study was not limited to PCR alone but covered disease histologically and via microscopic examination of haemolymph (approaches that have determined the presence/absence of haplosporidians, fungi, trematodes and S. carcini in shore crabs and were cited throughout our text).
The reviewer is correct in that performing a metagenomic approach would likely reveal a more complex pathobiont and symbiont profile of the crabs, but would not change the overall conclusion of our study that Hematodinium parasitisation does not increase a crabs’ likelihood of contracting additional diseases. This was the main aim of our study, and addresses a misconception of Hematodinium infection dynamics in the literature.
Crabs from the docks do contain higher CFU counts but this is attributed to the presence of S. carcini infection. Indeed, we cited our published article in which S. carcini-positive crabs contain significantly higher CFUs when compared to S. carcini-free crabs. Although Figure 3g displays this data clearly, when running our Binomial Logistic Regression models (Table1 and Supplementary Data), CFUs did not come out as a significant predictor variable.
2. Lines 462-465: Is it possible that Hematodinium is not passively evading host response, instead produce pathogen encoded effectors that shut down pathogen recognition. So it is more of an active process than a passive evasion by the parasite? In that event, the conclusion made in this manuscript will not be accurate. A large-scale metagenomic study looking into the transcriptome profiles of Hematodinium-infected and healthy shore crab can unequivocally address if there is any global gene expression changes induced by the parasite that manifest in an apparent immune invasion (but in reality an active host immune suppression approach used by the pathogen).
This is an interesting point. We do not suggest in our manuscript that Hematodinium is passively evading the immune response – rather we consider Hematodinium is perhaps disguising itself in a manner (but we do not speculate further – experimental work is on-going). If it was actively producing effectors that shut down recognition – this is immune suppression, and we would expect to see higher susceptibility to infection (we don’t), and a reduced host response to other infectious agents (again, we don’t). We are in the process of looking at proteomic responses – but another group has looked at Hematodinium in an alternative host and did not identify Hematodinium-derived factors, yet did identify differentially protein expression in the hepatopancreas of parasitised versus non-parasitised portunid crabs (Li et al., 2019 – cited in our paper).
3. Lines 573-578: These observations further elude to the fact that the apparent immune evasion is actually a very active process employed by the pathogen not a passive process at all, as one might speculate from this manuscript.
Immune evasion is not a passive process, and we do not suggest this in our paper (the word passive is never mentioned). Many parasites, including pathogenic fungi, can shield their surface ligands from pathogen recognition receptors and opsonins – thereby avoiding an immune response without the need to suppress it. Our revised manuscript is more cautious in this regard.
4. Looked into equal number of Hematodinium-positive crabs and size/sex-matched these to Hematodinium-free crabs (N=162) out of 1,191 analysed. What were the basis of selecting these 162 samples? Was there only 162 animals out of 1191 infected with Hematodinium, and if so what was the basis of selecting presumably 162 healthy animals. This is important because any bias in selection will modulate the downstream analyses and conclusions made.
We have expanded upon this in our text. 1,191 animals were screened across 12 months. 162 tested positive for Hematodinium via PCR, and were also assessed microscopically/histologically. Of the remaining ~1000 Hematodinium-negative crabs, 162 were matched based on size, location and sex, and were also further processed histologically. This approach ensured parity.
5. The authors also looked into environmental DNA (eDNA) from the surrounding waters of infected crabs to assess the spatial and temporal ecology of different pathogens. Did the authors collect samples at different time throughout the grow-out period and when crabs are not cultured? T is not apparent from the information presented here.
These crabs are not cultured. The sample sites in Swansea Bay are from natural populations with no anthropogenic intervention for cultivation, or known commercial activity. eDNA samples were collected on the same sampling days as crabs.
6. In the abstract, lines 29-31, the authors mentioned about multi-resource approach in screening samples (N=162). But in the method section, they describe determining population diversity looking into 100 animals in total (50 animals in each of the wo sites examined).
We apologise for any unintentional confusion. 1191 crabs were screened across two sites for 1 year. 162 animals that tested positive for Hematodinium, plus 162 matched Hematodinium negative crabs were processed for ‘collateral infections’ to test our main hypothesis. A sub sample (n = 100) of the 1191 crabs were processed for genetic population diversity between the two locations.
Reviewer #3 (Recommendations for the authors):
As mentioned earlier, this work has a lot of merit for several reasons, including the importance of the topic, the lack of studies in this area and the large data set from a wide geographical range.
My main issues are the lack of adequate tools and approaches to ascertain the claims and conclusions of the manuscript.
My main criticisms are:
– Lack of quantitative data to evaluate Hematodinium parasite loads. Currently, the authors only provide yes or no using histological diagnosis. For many reasons, having a molecular and quantitative (or semi-quantitative) diagnostic tool would greatly improve the manuscript and help reach much more solid conclusions.
This is not entirely accurate – the presence/absence of Hematodinium was first assessed via haemolymph microscopic inspection, followed by PCR-based diagnosis to account for any sub-clinical presence. If positive via PCR (n = 162), crabs were further assessed via multi-tissue histology. In the revised text, we have added the actual number of Hematodinium recorded (parasite load per mL) of the haemolymph, and the grade of infection (0 – 4) for both gill and hepatopancreas (methods have been published previously and cited in our main text).
– Immunological assays: the data provided to support the immune evasion hypothesis is very weak and again not quantitative. The fact that the parasites are not seen to be engulfed in ex vivo assays when mixed with healthy hemocytes or that encapsulated Hematodinium cannot be observed in histological sections is not quantitative and requires further investigation and validation. Specifically, regarding phagocytosis:
Admittedly, we should have been more circumspect in our conclusions, however, our approach was at least semi-quantitative. Several thousand slides were inspected, and no gross cellular responses were recorded. To reinforce this point, we performed two additional ‘proof of concept studies’ (described above).
– It is known that phagocytosis is dependent on the size of the target particle. Thus, the fact that authors did not observe engulfment of parasites in their assays by light microscope does not rule out that phagocytosis of other life stages of the parasite does occur.
This is, of course, an important point. The trophont morphotypes visibly infecting the crabs do not induce immune reactivity at least at the cellular level. Perhaps a smaller life stage is phagocytosed – we did not observe internalised Hematodinium in any of our diagnostics, and to the best of our knowledge, there is no mention of any other life stage phagocytosed by a marine invertebrate in the available literature.
This is experimentally problematic due to a lack of long term established cultures of this parasite, and none exist for those infecting shore crabs (to the best of our knowledge). We have experience of infection trials using an alternative decapod from the same region – Cancer pagurus. Crabs infected with 1 x105 trophonts (morphotype universally observed infecting crustaceans) and monitored over a 1 year study, did not show haemocyte-based immune reactivity (melanisation, phagocytosis, encapsulation, or nodule formation; Rowley and Smith, 2015).
Further, in a real infection scenario, host-derived factors induced by infection such as complement and cytokines may be critical for the phagocytosis of the parasite and these conditions were not evaluated in this study.
We did not measure cytokine-like or complement-like factors in our study.
– Immune evasion of cellular immune responses does not mean that, at the molecular level, the parasite triggers host immune responses. Again, this aspect is not measured in this study and therefore the immune evasion theory seems premature in my opinion. A way to strengthen this aspect could be proteomic analysis of hemolymph from control and infected individuals.
We appreciate the reviewer’s insight on this matter, and we should have been more circumspect in our interpretation/writing. We are working on the hypothesis that the parasite avoids detection due to cell surface changes. This is an on-going line of work.
We have begun some proteomic work on the Hematodinium-crab system but it will not be relevant to this current paper, as the available crab material has been fully processed already, and was not the overall aim of our study.
– The evidence of lack of encapsulation is based on histological examination which may miss different life stages of the parasite and does not include any immunohistochemistry using anti-Hematodinium specific antibodies. Ideally, the IHC would detect all life stages of the parasite to draw conclusive evidence. I am not sure if these tools are available or not. Alternatively, in situ hybridization would be a very helpful too. The authors just claim that these crabs are still able to encapsulate other agents (but not Hematodinium) and show one image of debris surrounded by hemocytes. In order to support these claims, an experimental infection of healthy crabs with the parasite needs to be performed and the immune response quantified over time using the adequate controls and tools.
We would very much like to be in a position to perform such work, but as the reviewer can appreciate, these tools are not developed for this system (and this extends to the majority of work on marine invertebrate systems).
The panel of host responses in the absence/presence of other agents in addition to Hematodinium represents pertinent examples. Even in the presence of tissue damage and/or intact pathogens, the host does not respond to Hematodinium when responding to other stimuli that share the same mechanisms of recognition. Again, we have been more circumspect in the revision.
Overall, refinement of the diagnostic tools and immunological assays is necessary. Otherwise, the data set used for this study is invaluable and can help us learn more about marine epidemics.
We are grateful to reviewer 3 for their thoughtful examination of our text.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
The manuscript has been improved but there are some remaining issues that need to be addressed. Please find below the list of points to be addressed in your revision:
– Title: The reviewers and the Reviewing editor consider that the title of the manuscript is premature considering there is not enough environmental factors/ host immunity analyzed to justify that environment is the only driving factor for collateral infection. It is certainly tempting to speculate environment as the driving factor considering lack of pathogen driven factor influencing susceptibility (albeit based on the parameters analyzed). The authors might consider a title more on the empirical evidence they found, e.g. Hematodinium infection does not drive collateral infection.
We have revised our title. ‘Hematodinium sp. infection does not drive collateral disease contraction in a crustacean host’.
– The observation that a crab that has suffered limb loss is 2.4-fold less likely to present a co-infection is intriguing. Would that mean that trauma due to limb loss may stimulate the immune system to repair/re-grow and at the same time keep at bay co-infections? Please include in the discussion.
This is a very interesting point, and we have considered this previously. Limb loss or damage could temporarily ‘prime’ the immune system of an invertebrate like the shore crab, but at this stage, we are reluctant to speculate further.
There is some evidence that autotomy initiates a stress response in crabs (e.g., Eriocheir sinensis; Yang et al. 2018). We added a statement, and the corresponding reference, to the discussion.
https://doi.org/10.7554/eLife.70356.sa2Article and author information
Author details
Funding
Interreg (BlueFish)
- Charlotte E Davies
- Jessica E Thomas
- Sophie H Malkin
- Frederico M Batista
- Andrew F Rowley
- Christopher J Coates
Biotechnology and Biological Sciences Research Council (BB/P017215/1)
- Andrew F Rowley
- Christopher J Coates
Swansea University
- Christopher J Coates
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
This study was part-funded by the European Regional Development fund through the Ireland Wales Cooperation Programme, BLUEFISH, awarded to CJC and AFR. AFR was also part-funded by the BBSRC/NERC ARCH UK Aquaculture Initiative (BB/P017215/1), and start-up funds from Swansea University assigned to CJC were used to supplement this study. The authors thank Mr. Peter Crocombe, Ms. Charlotte Bryan, Ms. Jenna Haslam, and Ms. Emma Quinn, and boat skippers, Mr. Keith Naylor, Mr. Max Robinson, and Mr. Barry Thomas, for assistance in the laboratory and field, respectively.
Ethics
Although work on non-cephalopod invertebrates was not regulated by the Home Office or UK legislation at the time of this study, screening C. maenas for pathogens and parasites was approved by the College of Science (Swansea University) research ethics committee (SU-ethics-310118/478).
Senior Editor
- Carla V Rothlin, Yale School of Medicine, United States
Reviewing Editor
- Irene Salinas, University of New Mexico, United States
Reviewers
- José Fernández Robledo, Bigelow Laboratory for Ocean Sciences, United States
- Irene Salinas, University of New Mexico, United States
Version history
- Received: May 14, 2021
- Preprint posted: May 27, 2021 (view preprint)
- Accepted: February 8, 2022
- Version of Record published: February 18, 2022 (version 1)
Copyright
© 2022, Davies et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 697
- Page views
-
- 144
- Downloads
-
- 3
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Ecology
- Plant Biology
Global agro-biodiversity has resulted from processes of plant migration and agricultural adoption. Although critically affecting current diversity, crop diffusion from Classical antiquity to the Middle Ages is poorly researched, overshadowed by studies on that of prehistoric periods. A new archaeobotanical dataset from three Negev Highland desert sites demonstrates the first millennium CE&'s significance for long-term agricultural change in southwest Asia. This enables evaluation of the 'Islamic Green Revolution' (IGR) thesis compared to 'Roman Agricultural Diffusion' (RAD), and both versus crop diffusion during and since the Neolithic. Among the finds, some of the earliest aubergine (Solanum melongena) seeds in the Levant represent the proposed IGR. Several other identified economic plants, including two unprecedented in Levantine archaeobotany-jujube (Ziziphus jujuba/mauritiana) and white lupine (Lupinus albus)-implicate RAD as the greater force for crop migrations. Altogether the evidence supports a gradualist model for Holocene-wide crop diffusion, within which the first millennium CE contributed more to global agricultural diversity than any earlier period.
-
- Ecology
- Evolutionary Biology
Temperature determines the geographical distribution of organisms and affects the outbreak and damage of pests. Insects seasonal polyphenism is a successful strategy adopted by some species to adapt the changeable external environment. Cacopsylla chinensis (Yang & Li) showed two seasonal morphotypes, summer-form and winter-form, with significant differences in morphological characteristics. Low temperature is the key environmental factor to induce its transition from summer-form to winter-form. However, the detailed molecular mechanism remains unknown. Here, we firstly confirmed that low temperature of 10 °C induced the transition from summer-form to winter-form by affecting the cuticle thickness and chitin content. Subsequently, we demonstrated that CcTRPM functions as a temperature receptor to regulate this transition. In addition, miR-252 was identified to mediate the expression of CcTRPM to involve in this morphological transition. Finally, we found CcTre1 and CcCHS1, two rate-limiting enzymes of insect chitin biosyntheis, act as the critical down-stream signal of CcTRPM in mediating this behavioral transition. Taken together, our results revealed that a signal transduction cascade mediates the seasonal polyphenism in C. chinensis. These findings not only lay a solid foundation for fully clarifying the ecological adaptation mechanism of C. chinensis outbreak, but also broaden our understanding about insect polymorphism.
