Double-μPeriscope, a tool for multilayer optical recordings, optogenetic stimulations or both

  1. Mototaka Suzuki  Is a corresponding author
  2. Jaan Aru
  3. Matthew E Larkum
  1. Institute of Biology, Humboldt University of Berlin, Germany
  2. Institute of Computer Science, University of Tartu, Estonia

Abstract

Intelligent behavior and cognitive functions in mammals depend on cortical microcircuits made up of a variety of excitatory and inhibitory cells that form a forest-like complex across six layers. Mechanistic understanding of cortical microcircuits requires both manipulation and monitoring of multiple layers and interactions between them. However, existing techniques are limited as to simultaneous monitoring and stimulation at different depths without damaging a large volume of cortical tissue. Here, we present a relatively simple and versatile method for delivering light to any two cortical layers simultaneously. The method uses a tiny optical probe consisting of two microprisms mounted on a single shaft. We demonstrate the versatility of the probe in three sets of experiments: first, two distinct cortical layers were optogenetically and independently manipulated; second, one layer was stimulated while the activity of another layer was monitored; third, the activity of thalamic axons distributed in two distinct cortical layers was simultaneously monitored in awake mice. Its simple-design, versatility, small-size, and low-cost allow the probe to be applied widely to address important biological questions.

Editor's evaluation

This Tools and Resources article details an innovative method for simultaneously stimulating and imaging two cortical layers in tandem while causing minimal damage to brain tissue. The method substantially builds on existing methods in several ways, while still pinpointing the limitations of existing methods that are overcome in this new approach. Three well-described sets of experiments demonstrate the method's reliability and versatility, and highlight its promise in tackling big questions about cortical microcircuit functions.

https://doi.org/10.7554/eLife.72894.sa0

Introduction

Despite over half a century of intense investigation, we still do not understand the role of layers in the complicated microcircuitry of the cortex (Adesnik and Naka, 2018). Over the last decade optogenetic manipulation – either activation or inhibition – of specific cells (Nagel et al., 2003; Boyden et al., 2005) has been established as a powerful method to examine the causal relationship between the specific cell type and the network activity, cognitive functions or animal behavior (Deisseroth, 2015). Multichannel electrical recording is the most widely used approach to measure the neural responses to optogenetic stimulation. This approach is preferred over the optical approaches available (e.g., two-photon imaging) because of the relative ease of use and lower costs. The problem with this approach, however, is that extracellular signals represent the summation of the activity of all structures (dendrites, axons, and cell bodies) from all cell types surrounding each electrode; even worse, extracellular activity is usually very complex in vivo, particularly in the awake brain (Buzsáki, 2006). It is extremely difficult to explain why and how every single pattern of extracellular activities is generated. Polysynaptic activations can also occur through local and long-range connections. It is therefore necessary to consider feedback projections with various delays, which makes it further difficult to disentangle distinct contributions of different neuronal structures to extracellular signals.

One approach to overcome this problem is to use two-photon microscopy and all-optical approach with two light sources – one for optogenetic stimulation and the other for imaging – and visualize how stimulation of specific cell-type evokes responses in surrounding neurons (Packer et al., 2015). Though most approaches are either limited in range (i.e., the total depth) or speed, recently developed methods permit optogenetic stimulation or calcium imaging of ~50 neurons that are arbitrarily distributed in three-dimensional space (Pégard et al., 2017; Geiller et al., 2020) as well as fast volumetric cortex-wide two-photon imaging at cellular resolution (Demas et al., 2021; Prevedel et al., 2016). Imaging across different cortical depths (z-axis) is more difficult to implement than the more conventional xy scanning.

More invasive approaches using a large (1 mm) prism covering all cortical layers would allow simultaneous imaging to neurons across layers (Chia and Levene, 2009; Andermann et al., 2013); however, the significant damage caused by 1 mm prism insertion into the cortical tissue must be considered. Substantial bleeding during surgery is unavoidable and a significant number of cells are killed or damaged by the procedure (Andermann et al., 2013), suggesting the possibility that repairing and rewiring processes take place, even if the animal survives the injury. Since the repairing process may significantly alter the local and long-range connections between survived neurons, the imaged neuronal network may no longer function in a way the normal healthy network did before the operation. Moreover, this approach typically requires chronic surgery involving a substantial delay between the surgery and recordings. Less invasive approaches use a single tapered fiber that has multiple windows (Pisanello et al., 2014) or micro-LED probes (Cao et al., 2013; McAlinden et al., 2015; Kim et al., 2020); however, they are only capable of optogenetic stimulation and do not permit calcium fluorescence imaging.

A relatively standard approach is the insertion of an endoscope that with the aid of a right-angled microprism can deliver light to and receive light from a single cortical layer simultaneously (Suzuki and Larkum, 2017; Suzuki and Larkum, 2020). To take advantage of the ease and flexibility of the single endoscope approach while allowing the probing of multiple layers, we developed a double-μPeriscope that is capable of optogenetic stimulation, fluorescence imaging or both of two separate cortical layers (Figure 1a, b). Each μPeriscope consists of a 0.10 mm × 0.10 mm or 0.18 mm × 0.18 mm micro right-angled prism, a custom-designed gradient-index (GRIN) lens, and a multimode optical fiber. To examine the focal light delivery from each μPeriscope, we stimulated two compartments of cortical layer 5 (L5) pyramidal neurons by inserting the double-μPeriscope with the lower one in cortical L5 and the upper one in layer 1 (L1) (Figure 1c). We expressed light-sensitive ion channels, channelrhodopsin 2 (ChR2) (Nagel et al., 2003; Boyden et al., 2005) and yellow fluorescent protein (YFP) in L5 pyramidal neurons (Figure 1d). A double-μPeriscope allowed us to address a wide range of neurobiological problems, three of which are described below.

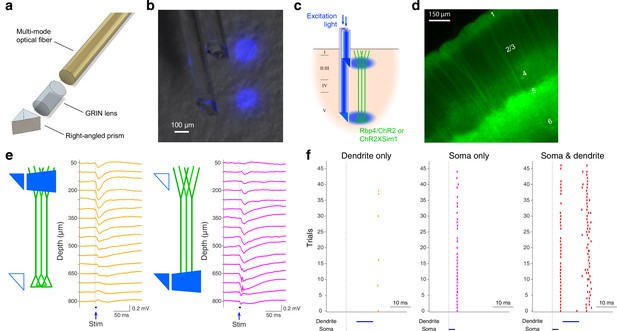

The design and functionality of double-μPeriscope.

(a) An exploded view of an individual μPeriscope. (b) A photomicrograph of the double-μPeriscope with two blue light spots. (c) Schematic diagram of the experiment. Rbp4-Cre mice virally expressing channelrhodopsin 2 (ChR2) or mice in Sim1-Cre line crossed with ChR2 reporter line (Ai32) were used. (d) A photomicrograph of the cortical slice where layer 5 (L5) pyramidal neurons express ChR2 and yellow fluorescent protein (YFP). (e) Evoked potentials by dendritic stimulation (left) versus somatic stimulation (right). (f) Somatic action potentials (APs) evoked by dendritic stimulation only (left), somatic stimulation only (middle) and both (right). Vertical ticks denote APs.

Results

First, a previous in vitro study showed that combined stimulation of cell body and distal apical dendrites within a close time window induces a large, regenerative, long-lasting calcium plateau potential that evokes a burst somatic action potentials (APs) (Larkum et al., 1999) – a phenomenon referred to as ‘backpropagation-activated calcium spike firing’ or BAC firing. However, due to technical difficulties, it remains unknown whether and under what conditions BAC firing occurs in vivo. The double-μPeriscope, in combination with electrophysiological recordings from L5 allowed us to directly examine this question in vivo for the first time. To express ChR2 in L5 pyramidal neurons, a transgenic mouse line Sim1-KJ18-Cre × Ai32 was used. In agreement with the previous in vitro data, somatic L5 stimulation preceding dendritic L1 stimulation in vivo under anesthesia evoked more prominent deflections of the local field potential (Figure 1e) and more APs (Figure 1f), compared to the stimulation of either somatic or distal dendritic compartment alone. This result suggests that the backpropagating AP-induced Ca2+ spike firing does occur also in vivo. This finding highlights the benefits of the double-μPeriscope.

The same double-μPeriscope is capable of studying the interaction between cell classes in different layers. As an example, we examined the effect of optogenetic stimulation of cortical layer 2/3 (L2/3) on L5 (Figure 2a) by expressing ChR2 and YFP in L2/3 pyramidal cells in the primary motor cortex (Figure 2b) through combined use of a transgenic mouse line Rasgrf2-2A-dCre with Cre-dependent adeno-associated virus vector with CaMKIIα promotor. The upper μPeriscope stimulated ChR2-expressing L2/3 pyramidal cells while the lower μPeriscope measured the calcium fluorescence in L5 where a cell-permeable synthetic calcium indicator (Cal-590 AM) was preinjected. In agreement with the recent study in primary somatosensory area using a different approach (electrophysiological recordings) (Pluta et al., 2019), the net effect of L2/3 stimulation onto L5 turned out to be inhibitory in the motor cortex (Figure 2c, d). This result suggests that the L2/3-to-L5 inhibition might be a general principle across the cortex in contrast to the prevailing textbook assumption that L2/3-to-L5 projections are excitatory (Douglas and Martin, 2004). The previous study suggested that somatostatin-positive interneurons are likely to be responsible for the translaminar inhibition in the somatosensory cortex (Pluta et al., 2019); whether the same mechanism mediates the translaminar inhibition in the primary motor cortex needs more investigations that are beyond the scope of this technical report.

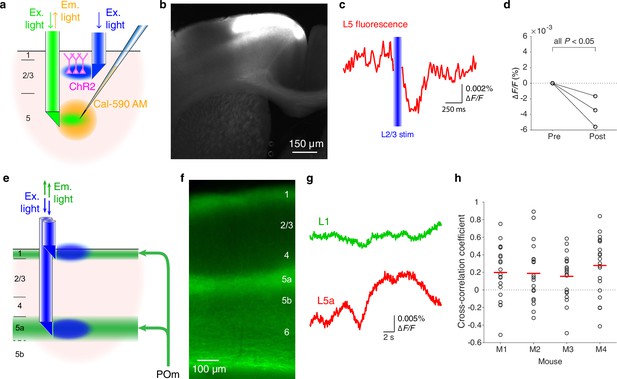

Additional functionalities of double-μPeriscope.

(a) Schematic diagram of the experiment that combines optogenetic stimulation and calcium fluorescence imaging. (b) A photomicrograph of cortical slice where L2/3 pyramidal cells express channelrhodopsin 2 (ChR2) and yellow fluorescent protein (YFP) in the primary motor cortex. (c) Fluorescence change in L5 caused by L2/3 stimulation. The trace is the average over 20 measurements. (d) Summary of data from Rasgrf2-2A-dCre mice where the fluorescence reduction in L5 after optogenetic stimulation of L2/3 was statistically significant (n = 3 mice, 20 measurements in each mouse, all p < 0.05, two-tailed Student’s t-test). (e) Schematic diagram of the experiment where population fluorescence of thalamic axons distributed in cortical layers 1 and 5a was simultaneously measured. (f) A photomicrograph of cortical slice where axonal terminals from POm are densely distributed in cortical layers 1 and 5a. (g) Example traces of simultaneously measured fluorescence in cortical layers 1 (green) and 5a (red). (h) Summary of cross-correlation coefficients obtained from four Gpr26-cre mice. An open circle indicates a pair of simultaneous measurements of axonal activities in layers 1 and 5a. Red line indicates the mean of 20 measurements in each mouse. Ex, excitation; Em, emission.

Lastly, we demonstrate that a double-μPeriscope can be applied for simultaneous fluorescence imaging of axonal terminals distributed at two depths (Figure 2e). Compared to cell bodies and dendrites, two-photon imaging of axonal activities at deep layers is still challenging (Broussard et al., 2018), even at a single focal plane, let alone fast sequential imaging at multiple depths. The posteromedial thalamic nucleus (POm) sends axons to cortical layers 1 and 5a in the primary somatosensory area (Figure 2f; Wimmer et al., 2010); however, it is unknown whether the activities of these two axonal pathways are same or different. This is important for ascertaining if the POm delivers the same or different information to these different layers which in turn is important for describing the functional role of higher-order thalamic input to the cortex. Using the double-μPeriscope we measured the axonal activities in cortical layers 1 and 5a simultaneously (Figure 2e) in the awake head-fixed mice undergoing whisker stimulation. A genetic calcium indicator GCaMP6s (Chen et al., 2013) was expressed in POm using a transgenic mouse line Gpr26-cre (Gong et al., 2007) and a Cre-dependent adeno-associated virus vector encoding GCaMP6s. We found that the axonal activities in layers 1 and 5a are surprisingly variable; they are clearly uncorrelated in some trials but highly correlated in others (Figure 2g, h). The cross-correlation analysis confirmed this variability, although the mean coefficient was lower than 0.3 in all four mice (Figure 2h), suggesting the possibility that POm neurons deliver different types of information to layers 1 and 5a. Though further studies are necessary to explain the large variability of axonal activity in layers 1 and 5a, this new tool will contribute to our understanding of these important thalamocortical pathways and their role in neural computations and cognition (Mease et al., 2016; Audette et al., 2018; Aru et al., 2019; Aru et al., 2020). These three sets of preliminary experiments demonstrate that the new tool provides us with a new approach for addressing previously intractable important neurobiological problems.

Discussion

Multiple bare optical fibers with a flat end have been used to image multiple brain regions (Kim et al., 2016; Sych et al., 2019). However, this approach is suitable if the target brain areas are sufficiently separate (>1 mm), but as shown in the three sets of experiments, our method has significant advantages to investigate more close (<1 mm) structures such as cortical layers in the rodent cortex. Optical fibers with a flat end would need higher pressure and therefore damage the cortical tissue upon insertion. In contrast, the sharp edge of microprism allows us to smoothly insert the probe with significantly less damage. Moreover, layer-specific activation/imaging with a downward oriented light beam from a bare optical fiber is problematic; in principle it is possible to calibrate the light power to optimize the signal from a single layer versus the layers below, but in practice this is always an approximation and it is impossible to be sure in any given preparation exactly how much signal is derived from the desired layer versus the others. Furthermore, it involves reducing the power of the excitation light considerably which leads to signal-to-noise issues.

Previous studies used an electric lens combined with two-photon microscopy (Grewe et al., 2011; Beaulieu-Laroche et al., 2019; Francioni et al., 2019) to measure the cellular activities at two depths. The limitations of this approach are (1) that imaging is not simultaneous because the electric shift of focal plane takes time for shifting and stabilization; and (2) that the maximum distance of shift is 500 μm; therefore, the distance between two structures under study must be within this range. A related issue is that imaging deeper structures needs more laser power. Therefore, even if the lens is capable of shifting the focal plane by a larger distance (than 500 μm), the excitation light must be rapidly switched between high and low power in perfect synchronization with the electrical shift of focal plane, which is technically and financially challenging in most laboratories. Besides, deep subcortical structures cannot be imaged with this approach unless a substantial amount of overlaying cortical tissue is surgically removed (Dombeck et al., 2010). The double-μPeriscope we show here does not have these limitations because the distance between two μPeriscopes can be freely adjusted, and imaging is simultaneous no matter how distant the two μPeriscopes are. Deep subcortical structures can also be imaged or optogenetically stimulated with the double-μPeriscope without substantial damage of cortical tissue.

Importantly, the cost to setup the imaging system with a double-μPeriscope is an order of magnitude less expensive. The reason for the significantly lower cost is that it requires only tiny prisms, GRIN lenses and a high sensitivity scientific camera as the main components. Given ever-improving scientific cameras and lowering costs of micro-optics that can now be 3D printed (Gissibl et al., 2016), approaches using micro-optics such as presented here are likely to be more appealing for many laboratories. We demonstrated its versatility through three sets of experiments where a double-μPeriscope can be used for either optogenetic stimulation, calcium fluorescence imaging, or both of two closely separate cortical layers. The present version of double-μPeriscope uses single-core multimode fiber; therefore, it is impossible to visualize subcellular structures in the imaged layer. However, a commercially available multicore optical fiber bundle would allow this if spatial resolution is required in other applications.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Genetic reagent (Mus musculus)Short: Sim1-KJ18-
CreTg(Sim1-cre)KJ18Gsat
Gerfen et al., 2013RRID:MMRRC_031742-UCD
Genetic reagent (Mus musculus)Short: Ai32Ai32(RCL-ChR2(H134R)/EYFP)Madisen et al., 2012RRID:Addgene_34880
Genetic reagent (Mus musculus)Short: Rasgrf2-2A-dCreB6;129S-Rasgrf2tm1(cre/folA)Hze/JHarris et al., 2014RRID:JAX 022864
Genetic reagent (Mus musculus)Short: Gpr26-CreTg(Gpr26-cre) KO250Gsat/MmucdGong et al., 2007RRID:MMRRC_033032-UCD
Recombinant DNA reagentAAV9.CaMKII.
Flex.hChR2(H134R)-YFP.WPRE3
Charité vector coren/a
Recombinant DNA reagentAAV1.Syn.Flex.
GCaMP6s.
WPRE.SV40
AddgeneRRID:Addgene_100845
Chemical compound, drugCal-590 AMAAT Bioquest20,510
Chemical compound, drugTrimethoprimSigma-AldrichT7883
Software, algorithmMatlabMathworksRRID:SCR_001622

Animal models

Request a detailed protocol

Three transgenic mouse lines, Sim1-KJ18-Cre (Tg(Sim1-cre)KJ18Gsat) (Gerfen et al., 2013) × Ai32 (Ai32(RCL-ChR2(H134R)/EYFP)) (Madisen et al., 2012), Rasgrf2-2A-dCre (B6;129S-Rasgrf2tm1(cre/folA)Hze/J) and Gpr26-Cre (Tg(Gpr26- cre)KO250Gsat/Mmucd) were used in this study. The age of studied mice was P40–70. Both male and female mice were used. No food or water restriction was imposed. All studied mice were in good health. Mice were housed in single-sex groups in plastic cages with disposable bedding on a 12 hr light/dark cycle with food and water available ad libitum. Experiments were done during both dark and light phase. All procedures were approved and conducted in accordance with the guidelines given by the veterinary office of Landesamt für Gesundheit und Soziales Berlin (registration number G0278/16).

Virus injection

Request a detailed protocol

Rasgraf2-2A-dCre and Gpr26-Cre mice were initially anesthetized with Isoflurane (1–2.5% in O2 vol/vol, Abbott) before ketamine/xylazine anesthesia (75/10 mg/kg of body weight, respectively) was administered intraperitoneally. Lidocaine (1% wt/vol, Braun) was injected around the surgical site. Body temperature was maintained at ~36°C by a heating pad and the depth of anesthesia was monitored throughout the virus injection. Once anesthetized, the head was stabilized in a stereotaxic instrument (SR-5R, Narishige, Tokyo). The skull was exposed by a skin incision and a small hole (~0.5 × 0.5 mm2) was made above the primary motor cortex (1.0 mm anterior to bregma and 1.2 mm from midline) of Rasgraf2-2A-dCre mice or the POm (1.8 mm posterior to bregma and 1.25 mm from midline) of Gpr26-Cre mice. AAV9.CaMKII.Flex.hChR2(H134R)-YFP.WPRE3 (Charité Vector Core) or AAV1.Syn.Flex.GCaMP6s.WPRE.SV40 (Addgene #100845) was injected to Rasgrf2-2A-dCre or Gpr26-Cre mice, respectively. Each construct was backloaded into a glass micropipette (Drummond) and was slowly injected (at 20 ml/min, total amount 40–50 nl). The pipette remained there for another 2–5 min after injection. The skin was sutured after retracting the pipette. Rasgrf2-2A-dCre mice were subsequently injected with trimethoprim (TMP, 150 mg/g of body weight) intraperitoneally.

Fabrication of double-μPeriscope

Request a detailed protocol

As described earlier (Suzuki and Larkum, 2017), single μPeriscopes were assembled in-house with a 0.10 × 0.10 mm2 or 0.18 × 0.18 mm2 micro right-angled prism (Edmund Optics), a 100 μm core multimode optical fiber (NA 0.22, Edmund Optics) and a custom-designed Grin lens (NA 0.2, Grin Tech) using a UV curable adhesive (Noland). Optical properties of single μPeriscope were characterized previously (Suzuki and Larkum, 2017).

The two μPeriscopes were precisely aligned with a specific distance between the two prisms and glued with a UV curable adhesive (Noland). Alternatively, two μPeriscopes were not glued but individually manipulated by two stereotaxic micromanipulators (SM-15R, Narishige).

Extracellular recordings

Request a detailed protocol

Animals were initially anesthetized by isoflurane (1–2% in O2, vol/vol, Abbott) before urethane anesthesia (0.05 mg/kg of body weight) was administered intraperitoneally. Lidocaine (1%, wt/vol, Braun) was injected around the surgical site. Body temperature was maintained at ~36°C by a heating pad and the depth of anesthesia was monitored throughout experiment. Once anesthetized, the head was stabilized in the stereotaxic instrument and the skull was exposed by a skin incision. A ~1.0 × 1.0 mm2 craniotomy was made above the primary somatosensory (barrel) cortex and the dura matter was removed. The area was kept moist with rat ringer for the entire experiment (135 mM NaCl, 5.4 mM KCl, 1.8 mM CaCl2, 1 mM MgCl2, 5 mM HEPES(4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid)). A linear array of 16 electrodes (NeuroNexus, A1 × 16-3 mm-50-177-A16) or a glass pipette was perpendicularly inserted into the area such that the uppermost electrode was positioned at 50 μm below the pia. Electrical activity was bandpass-filtered at 1–9 kHz, digitized at 10 kHz, amplified by ERP-27 system and Cheetah software (Neuralynx).

Optogenetic stimulation with a double-μPeriscope

Request a detailed protocol

The end of each optical fiber was coupled with a blue LED (peak wavelength 470 nm, Cree or Thorlabs). The timing and intensity of optical stimulation through each μPeriscope were controlled by Power1401 and Spike two software (CED) and synchronized with the neural recording system or fluorescence imaging via TTL signals. The light intensity was 12 mW/mm2 and the duration was 20 ms. Surgical preparation is same as described in the section ‘Extracellular recordings’. A double-μPeriscope was slowly inserted into the somatosensory cortex such that the upper μPeriscope stimulated the distal apical dendrites (50–150 μm deep from pia) and the lower one stimulated the perisomatic region of L5 pyramidal neurons (500–700 μm deep from pia).

Calcium imaging with a double-μPeriscope

Request a detailed protocol

The imaging setup consisted of a double-μPeriscope, an LED (peak wavelength 470 nm, Thorlabs), an excitation filter (480/30 bandpass, Chroma), an emission filter (535/40 bandpass, Chroma), a dichroic mirror (cutoff wavelength: 505 nm, Chroma), an 80 × 80 pixel high-speed CCD camera with frame rate of 125 Hz and 14-bit digitization (Redshirt Imaging), a 10× infinity corrected objective (58-372, Edmund Optics), and a tube lens (Optem, RL091301-1). Surgical preparation is same as described in the section ‘Extracellular recordings’. An aluminum head implant was fixed to the skull of the mouse with dental cement and the mice were habituated to head-fixation and whisker deflection by a piezo element before imaging. A double- μPeriscope was slowly inserted into the barrel cortex such that the upper μPeriscope covered L1 (0–100 μm deep from pia) and the lower μPeriscope covered L5a (450–550 μm deep from pia). ΔF/F was calculated as (FF0)/F0, where F is the fluorescence intensity at any time point and F0 is the average intensity over the prestimulus period of 320 ms. If ΔF/F is calculated as (FF0)/(F0Fb) where Fb is the background fluorescence measured from a region away from the optical fiber, the scale bar in Figure 2g is equal to ~0.2% ΔF/F.

Calcium imaging combined with optogenetic stimulation

Request a detailed protocol

The imaging setup is same as described in the section ‘Calcium imaging with a double-μPeriscope’ except an LED (peak wavelength 565 nm, Thorlabs), an excitation filter (555/20 bandpass, AHF), an emission filter (605/55 bandpass, AHF) and a dichroic mirror (cutoff wavelength: 565 nm, AHF). Surgical preparation is same as described in the section ‘Extracellular recordings’. An aluminum head implant was fixed to the skull of the mouse with dental cement and the mice were habituated to head-fixation before imaging. A double-μPeriscope was slowly inserted into the motor cortex so that the upper μPeriscope covered L2/3 (150–300 μm deep from pia) and the lower μPeriscope covered L5 (500–700 μm deep from pia). The calcium indicator Cal-590 AM (AAT Bioquest) was backloaded into a micropipette (Drummond) and slowly injected (at 20 nl/min, total 40–50 nl) to L5 (~600 μm below pia) of the primary motor cortex 1.5–2 hr before imaging experiments. The pipette remained there for at least 5 min after injection. ΔF/F was calculated in the same way as described in the section ‘Calcium imaging with a double-μPeriscope’.

Data analysis and statistical methods

Request a detailed protocol

Analyses were conducted using Matlab (Mathworks). Significance was determined by two-tailed, paired Student’s t-test at a significance level of 0.05. The statistical test was chosen based on the data distribution using histogram. No statistical method was used to predetermine sample sizes, but our sample sizes are those generally employed in the field. We did not exclude any animal for data analysis. The variance was generally similar between groups under comparison. No blinding/randomization was performed.

Data availability

Source data for Figures 1 & 2 are deposited in Dryad under DOI:https://doi.org/10.5061/dryad.crjdfn34z.

The following data sets were generated
    1. Suzuki M
    2. Aru J
    3. Larkum ME
    (2021) Dryad Digital Repository
    Double-Periscope: a tool for multi-layer optical recordings, optogenetic stimulations or both.
    https://doi.org/10.5061/dryad.crjdfn34z

References

Decision letter

  1. Ilona C Grunwald Kadow
    Reviewing Editor; Technical University of Munich, Germany
  2. Tirin Moore
    Senior Editor; Stanford University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Double-µPeriscope: a tool for multi-layer optical recordings, optogenetic stimulations or both" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Tirin Moore as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission. As you will see from the detailed reviews, both reviewers agree that the described method is useful to the community. Nevertheless, they also note that the degree of innovation needs to be clarified before a final decision can be reached.

Essential revisions:

1. In fiber photometry, several papers and methods using multiple fibers to capture signals at multiple brain regions simultaneously have been published. For instance, see Kim C. et. al, "Simultaneous fast measurement of circuit dynamics at multiple sites across the mammalian brain" (2016) or Sych Y. et. al, "High-density multi-fiber photometry for studying large-scale brain circuit dynamics" (2019). In these papers, 5~48 regions are imaged simultaneously. These studies should be acknowledged and your method should be compared to these previous papers.

2. Adding a prism towards the end of the fiber is certainly an innovation, and enables layer specific imaging. However, as fiber photometry essentially measures the local population signal, even without the prism, layer specific signals could be measured, provided that the tip of the fiber lands on the appropriate layer and the excitation power is appropriate. Therefore, please provide additional information on how large or how local the brain region that each fiber tip can capture is. Furthermore, please relate this to the excitation power, fiber NA, etc. to better describe how your method improves or extends previous methods.

Reviewer #1:

The goal of this Tools and Resources article was to present a new method for optogenetic stimulation and optical imaging at the same time in two different cortical layers in vivo, and through 3 sets of experiments, highlight the promise and wide applicability of this method.

The method itself presents an elegant solution to several outstanding drawbacks among the many recent innovations in these lines of methodology, including high expense, lack of specificity and excessive brain tissue damage. The paper provides what I believe to be a fair account of the capabilities and limitations of existing methods and a clear description of how the new method builds on and overcomes these.

The three sets of experiments work well because they demonstrate reliability and feasibility in replicating previous findings from older techniques such as the phenomenon of 'backpropagation-activated calcium spike firing' and net inhibitory influence of layer 2/3 cells on layer 5 cells, while also extending beyond those findings by verifying that some effects generalise to other areas than previous observations – the layer 2/3-5 interaction previously seen in primary somatosensory is here extended to motor cortex – and uncovering interesting phenomena that are relatively unexplored to date – the great variability in the degree of mirroring of activity in two layers receiving axonal input from the same thalamic area.

The method presents exciting possibilities for the fine-grained study of cortical microcircuits and how they enable perception and cognition and relate to behaviour. The simplicity and low cost of the solution opens it up to a wider range of laboratories globally, and its low-profile imprint on the cortex ensures that it most likely reflects activity of normal, intact, rather than damaged, cortical tissue.

Comments for the authors:

A general comment is that the paper is very fast-paced and could, if possible, be fleshed out to a more deliberate pace, especially in pinpointing why the drawbacks of existing methods are really a problem, emphasising the importance and tantalising nature of the research questions addressed by the 3 sets of experiments, and in walking the reader through the figures.

To take examples:

– In the brief preamble to the 3rd experiment, it is stated that POm sends axons to layers 1 and 5a in S1, but it's unknown whether the activity of these pathways are the same or different. How MIGHT they be different and what would be the significance of that?

– At the end of the first paragraph in the introduction you could spell out more what is wrong with activity being complex – is it hard to disentangle distinct contributions from different neuronal structures? And what is bad about polysynaptic activations, and is this a problem caused by the extracellular signal recording (which by then has become the subject of the paragraph) or by the optogenetic stimulation? It will be obvious to some but not to a general audience. Similarly, what is bad about repairing and rewiring processes taking place? It's implicit for many readers but for the sake of a few more words you could spell out that this thwarts the measurement of representative, normal activity in the intact cortex.

Please state what a GRIN lens is.

The figure captions are extremely brief and could be expanded a little to guide the reader more in what to appreciate from each panel and to explain more of the labels and structures in the panels, even if it means slight repetition with the main text. For example, the acronyms in Figure 1 c could be explained, some further orientation could be provided for the photomicrograph in fig1d (e.g. indicate where the cortical surface is, and the layers), say what "Ex. Light" and "Em. Light" mean, etc. Even if most neuroscientists can figure it out, there is no harm in making it fully accessible to as wide an audience as possible.

On page 2 'this hypothesis' is referred to but none was stated.

What does it mean that the "spatial resolution of imaged structure is unavailable"?

It would be helpful, since there are so many experimental procedures, if the different sections in the methods were linked to specific results shown in the main paper, e.g. one heading could be "Extracellular recordings (Figure 1e)"

Reviewer #2:

This manuscript reported a new approach to conduct neural activity imaging and manipulation in two different cortical layers. Two periscopes, each constructed from a micro-prism, a GRIN lens and a multi-mode fiber, could be inserted to the brain at different depths, and each can either perform imaging or optogenetics. The authors demonstrated a few applications: stimulation of L5 soma and superficial layer dendrites to evoke backpropagating action potential; optogenetically stimulating cells in L2/3 and observing response in L5 to investigate interaction between cells in two different layers; and simultaneously recording axon terminals from posteromedial thalamic nucleus at two different depths in cortex. This works combines the ideas of fiber photometry to access deep layers and using microprism to turn the optical field of view by 90 deg.

Major strengths

• Using microprism to perform layer specific imaging or optogenetics.

• Low cost

• Demonstrations of a few applications that require layer specific imaging and optogenetics.

Major weakness

• As this is an inherently a variation of fiber photometry, there is a lack of cellular resolution and there is tissue damage.

• Innovation is modest, as it is an incremental improvement of fiber photometry. Some of the applications may be performed through regular fiber photometry as well.

• There is a lack of details on the optical setup and characterization of the periscope, i.e. how to choose the fiber, GRIN lens; optical throughput etc.

Overall, this research provides a new method to image/manipulate the neural activity of two different cortical layers. However, more details are needed on the optical setup and characterization of the periscope. The innovation of this work is modest.

Comments for the authors:

1. The df/f in Figure 2c and Figure 2g is very small. Does this represent a limitation or it is nature of the ensemble signal?

2. The assessment of two-photon microscope should be more fair. There have been various techniques in two-photon microscope that can image multiple depths together, and the depth range could be very large.

3. The lack of spatial resolution needs to be discussed and addressed as a limitation.

https://doi.org/10.7554/eLife.72894.sa1

Author response

Essential revisions:

1. In fiber photometry, several papers and methods using multiple fibers to capture signals at multiple brain regions simultaneously have been published. For instance, see Kim C. et. al, "Simultaneous fast measurement of circuit dynamics at multiple sites across the mammalian brain" (2016) or Sych Y. et. al, "High-density multi-fiber photometry for studying large-scale brain circuit dynamics" (2019). In these papers, 5~48 regions are imaged simultaneously. These studies should be acknowledged and your method should be compared to these previous papers.

We thank the reviewers and editors for this suggestion. Now we cite both papers in the Discussion and describe the advantages and target applications of our method. Bare optical fibers used in the above-mentioned papers are suitable if the target brain areas are sufficiently separate (> 1 mm), but our method has significant advantages to investigate more closely separate (< 1 mm) structures such as cortical layers in the rodent cortex. If one repeated the three experiments we described in the manuscript with two bare optical fibers, it would damage the cortical tissue more severely, would need to precisely calibrate the light power, and would be extremely difficult to get good signals.

2. Adding a prism towards the end of the fiber is certainly an innovation, and enables layer specific imaging. However, as fiber photometry essentially measures the local population signal, even without the prism, layer specific signals could be measured, provided that the tip of the fiber lands on the appropriate layer and the excitation power is appropriate. Therefore, please provide additional information on how large or how local the brain region that each fiber tip can capture is. Furthermore, please relate this to the excitation power, fiber NA, etc. to better describe how your method improves or extends previous methods.

Optical fibers with a flat end used in the above-mentioned papers would need higher pressure and therefore damage the cortical tissue upon insertion. In contrast, the sharp edge of microprism allows us to smoothly insert the probe with significantly less damage. On top of the damage, layer-specific activation/imaging with a downward oriented light beam is problematic; in principle it is possible to calibrate the light power to optimize the signal from a single layer versus the layers below, but in practice this is always an approximation and it is impossible to be sure in any given preparation exactly how much signal is derived from the desired layer versus the others. Furthermore, it involves reducing the power of the excitation light considerably which leads to signal-to-noise issues. We are unaware of any previous study that underwent these processes and claimed layer-specific activation/imaging with bare optical fibers only, implying that the approach is not fruitful. We have added a comment about these issues into the “Discussion”.

In addition to the micro-prism, the custom-designed gradient-index (GRIN) lens plays a key role in our method; it collimates light so that the optical stimulation is focal (i.e., light does not spread), as shown and calibrated in our earlier publication in 2017 (Figure 1b in http://doi.org/10.1038/s41467-01700282-4). If it were not for the GRIN lens, the light spreads (e.g., if fiber NA=0.22, acceptance angle=~25.4 deg) and is therefore less specific. As suggested by the reviewer, more detailed information (excitation power, NA etc) is now provided in “Methods”.

Reviewer #1:

[…] A general comment is that the paper is very fast-paced and could, if possible, be fleshed out to a more deliberate pace, especially in pinpointing why the drawbacks of existing methods are really a problem, emphasising the importance and tantalising nature of the research questions addressed by the 3 sets of experiments, and in walking the reader through the figures.

Thank you for this suggestion. We have now added a considerable amount of new text to the introduction and discussion, highlighted some aspects of the research questions and better incorporated the explanation of figures into the text.

To take examples:

– In the brief preamble to the 3rd experiment, it is stated that POm sends axons to layers 1 and 5a in S1, but it's unknown whether the activity of these pathways are the same or different. How MIGHT they be different and what would be the significance of that?

An implicitly-held yet prevailing assumption is that two axonal terminals are collateral (i.e., branching axons from same cells). However, due to technical difficulties, this assumption has never been directly tested. Surprisingly, our data obtained with the new tool appear to challenge the assumption. This result would imply that higher-order thalamus sends different information to layer 1 and layer 5a, a result that would actually be consistent with our recent finding that the coupling across the apical axis of deep pyramidal neurons is controlled by higher-order thalamus due to metabotropic receptor activation approximately in layer 5a (Suzuki and Larkum, 2020; Aru et al., 2020). The result, if thoroughly confirmed, would be important and possibly astonishing for many neuroscientists. Although confirming the finding requires a lot more experiments, which are out of the scope of this “Tools and Resources” paper, the point we would like to make here is that such an inexpensive tool allows us to directly examine long-unexplored assumptions in the brain of awake behaving animals. We elaborate on this point in the manuscript.

– At the end of the first paragraph in the introduction you could spell out more what is wrong with activity being complex – is it hard to disentangle distinct contributions from different neuronal structures? And what is bad about polysynaptic activations, and is this a problem caused by the extracellular signal recording (which by then has become the subject of the paragraph) or by the optogenetic stimulation? It will be obvious to some but not to a general audience. Similarly, what is bad about repairing and rewiring processes taking place? It's implicit for many readers but for the sake of a few more words you could spell out that this thwarts the measurement of representative, normal activity in the intact cortex.

We thank Reviewer #1 for these suggestions. We now better explain these in “Introduction”.

Please state what a GRIN lens is.

We now explain the acronym (gradient-index lens).

The figure captions are extremely brief and could be expanded a little to guide the reader more in what to appreciate from each panel and to explain more of the labels and structures in the panels, even if it means slight repetition with the main text. For example, the acronyms in Figure 1 c could be explained, some further orientation could be provided for the photomicrograph in fig1d (e.g. indicate where the cortical surface is, and the layers), say what "Ex. Light" and "Em. Light" mean, etc. Even if most neuroscientists can figure it out, there is no harm in making it fully accessible to as wide an audience as possible.

We have now expanded the figure captions and explained the acronyms.

On page 2 'this hypothesis' is referred to but none was stated.

We rephrased the sentence.

What does it mean that the "spatial resolution of imaged structure is unavailable"?

We meant that since in the present design each µPeriscope uses one multi-mode optical fiber, the signal we get is the summation of fluorescence from all stimulated structures (e.g., cell bodies, dendrites) in a specific layer. In applications that need to visualize subcellular structures, a high density bundle fiber can be used. We rephrased the corresponding sentence.

It would be helpful, since there are so many experimental procedures, if the different sections in the methods were linked to specific results shown in the main paper, e.g. one heading could be "Extracellular recordings (Figure 1e)"

We linked methods subsections to the corresponding figure panels as the reviewer suggested.

Reviewer #2:

[…] 1. The df/f in Figure 2c and Figure 2g is very small. Does this represent a limitation or it is nature of the ensemble signal?

This does not represent a limitation. Figure 2g shows clear traces of axonal calcium signal in each layer on a single trial. The small ΔF/F value is due to a deliberately simplified method to calculate ΔF/F; as described in “Materials and methods” section, “ΔF/F was calculated as (F–F0)/F0, where F is the fluorescence intensity at any time point and F0 is the average intensity over the pre-stimulus period of 320 ms.” Since each pixel value is 14-bit, ΔF/F becomes very small with this method. If ΔF/F is calculated as (F-F0)/(F0-Fb) where Fb is the background fluorescence measured from a region away from the optical fiber, the scale bar in Figure 2g becomes ~0.2% ΔF/F. Therefore, ΔF/F greatly changes depending on the calculation method. To help readers understand the small ΔF/F values, we explained the reason in “Materials and methods”. We thank Reviewer #2 for pointing this out.

2. The assessment of two-photon microscope should be more fair. There have been various techniques in two-photon microscope that can image multiple depths together, and the depth range could be very large.

Now we additionally cite papers reporting the development of fast scanning methods by spatiotemporal multiplexing of excitation light. However, due to technical difficulties and expensiveness, few laboratories can easily replicate such systems. Additionally, we would like to note that two-photon imaging of axonal activities is still challenging, even at a single focal plane (see https://doi.org/10.1038/s41593-018-0211-4), especially if the depth is > 500 µm. Therefore, fast axonal imaging at multiple depths is even more challenging. Our approach that inserts a micro-optical probe can reliably measure the axonal activity (Figure 2g) with a commercially available CCD or CMOS camera which is an order of magnitude less expensive.

3. The lack of spatial resolution needs to be discussed and addressed as a limitation.

The three experiments we presented did not need spatial resolution, but when necessary, using a high density optical fiber bundle would provide spatial subcellular resolution. We rephrased the corresponding sentence in “Discussion”.

We thank the 2 reviewers and editors for all these constructive comments that have significantly improved our manuscript.

https://doi.org/10.7554/eLife.72894.sa2
