Transferrin receptor 1-mediated iron uptake regulates bone mass in mice via osteoclast mitochondria and cytoskeleton

  1. Bhaba K Das
  2. Lei Wang
  3. Toshifumi Fujiwara
  4. Jian Zhou
  5. Nukhet Aykin-Burns
  6. Kimberly J Krager
  7. Renny Lan
  8. Samuel G Mackintosh
  9. Ricky Edmondson
  10. Michael L Jennings
  11. Xiaofang Wang
  12. Jian Q Feng
  13. Tomasa Barrientos
  14. Jyoti Gogoi
  15. Aarthi Kannan
  16. Ling Gao
  17. Weirong Xing
  18. Subburaman Mohan  Is a corresponding author
  19. Haibo Zhao  Is a corresponding author
  1. Southern California Institute for Research and Education, United States
  2. Department of Orthopedics, The Third People’s Hospital of Hefei, Third Clinical College, Anhui Medical University, China
  3. Center for Osteoporosis and Metabolic Bone Diseases, Division of Endocrinology, Department of Internal Medicine, University of Arkansas for Medical Sciences, United States
  4. Department of Orthopedic Surgery, Kyushu University Hospital, Japan
  5. Department of Orthopedics, First Affiliated Hospital, Anhui Medical University, China
  6. Division of Radiation Health, Department of Pharmaceutical Sciences, University of Arkansas for Medical Sciences, United States
  7. Department of Pediatrics, University of Arkansas for Medical Sciences, United States
  8. Department of Biochemistry and Molecular Biology, University of Arkansas for Medical Sciences, United States
  9. Department of Physiology and Cell Biology, University of Arkansas for Medical Sciences, United States
  10. Department of Biomedical Sciences, Texas A&M University, United States
  11. Department of Orthopedics, Duke University, United States
  12. Division of Dermatology, Department of medicine, Long Beach VA Healthcare System, United States
  13. Musculoskeletal Disease Center, VA Loma Linda Healthcare System, United States

Abstract

Increased intracellular iron spurs mitochondrial biogenesis and respiration to satisfy high-energy demand during osteoclast differentiation and bone-resorbing activities. Transferrin receptor 1 (Tfr1) mediates cellular iron uptake through endocytosis of iron-loaded transferrin, and its expression increases during osteoclast differentiation. Nonetheless, the precise functions of Tfr1 and Tfr1-mediated iron uptake in osteoclast biology and skeletal homeostasis remain incompletely understood. To investigate the role of Tfr1 in osteoclast lineage cells in vivo and in vitro, we crossed Tfrc (encoding Tfr1)-floxed mice with Lyz2 (LysM)-Cre and Cathepsin K (Ctsk)-Cre mice to generate Tfrc conditional knockout mice in myeloid osteoclast precursors (Tfr1ΔLysM) or differentiated osteoclasts (Tfr1ΔCtsk), respectively. Skeletal phenotyping by µCT and histology unveiled a significant increase in trabecular bone mass with normal osteoclast number in long bones of 10-week-old young and 6-month-old adult female but not male Tfr1ΔLysM mice. Although high trabecular bone volume in long bones was observed in both male and female Tfr1ΔCtsk mice, this phenotype was more pronounced in female knockout mice. Consistent with this gender-dependent phenomena, estrogen deficiency induced by ovariectomy decreased trabecular bone mass in Tfr1ΔLysM mice. Mechanistically, disruption of Tfr1 expression attenuated mitochondrial metabolism and cytoskeletal organization in mature osteoclasts in vitro by attenuating mitochondrial respiration and activation of the Src-Rac1-WAVE regulatory complex axis, respectively, leading to decreased bone resorption with little impact on osteoclast differentiation. These results indicate that Tfr1-mediated iron uptake is specifically required for osteoclast function and is indispensable for bone remodeling in a gender-dependent manner.

Editor's evaluation

The current work addresses an important unknown in bone homeostasis, aiming to understand the mechanism of iron-mediated effects on bone, and presents findings of novel significance that are of interest to basic iron biologists, bone biologists, experts in mitochondrial respiration, and endocrinologists. The authors specifically focus on the role of iron deficiency via TFR1 loss in osteoclastogenesis and osteoclast function, demonstrating that cell-selective loss of TFR1 in mature osteoclasts (using Ctsk-Cre mice) leads to decreased osteoclast function and increased bone volume in long bones, especially in female mice, without influencing osteoclastogenesis. In vitro studies confirm an actin cytoskeletal defect and defect in bone resorption in TFR1 null osteoclasts, both partially rescued by heme but not NTBI. Together, these findings contribute to the knowledge in the field, supporting a hypothesis that iron delivered via TF-TFR1 (or heme iron) is essential for osteoclast function.

https://doi.org/10.7554/eLife.73539.sa0

Introduction

Bone mass and structure in adults are maintained by constant bone remodeling with balanced bone formation by osteoblasts and bone resorption by osteoclasts (Zaidi, 2007; Siddiqui and Partridge, 2016). Under pathological conditions, however, excessive bone resorption caused by either increased number or exaggerated activities of osteoclasts leads to bone loss which is a hallmark of many metabolic bone diseases such as osteoporosis, rheumatoid arthritis, Paget’s disease of bone, periodontal disease, and tumor bone metastasis (Mbalaviele et al., 2017; Novack and Teitelbaum, 2008). Osteoclasts are multinucleated cells formed by fusion of mononuclear precursors that are differentiated from the monocyte/macrophage lineage of hematopoietic cells. This process is triggered by two indispensable cytokines M-CSF (macrophage colony-stimulating factor) and RANKL (receptor activator of NF-κB ligand) (Walker, 1975; Xiao et al., 2017; Boyle et al., 2003; Nakashima et al., 2012). Upon attachment to bone, osteoclasts organize their actin cytoskeleton to form actin-rings that seal the resorptive microenvironment (Väänänen et al., 2000; Teitelbaum, 2011). The dissolution of bone minerals and digestion of organic bone matrix mainly type I collagen are executed by hydrochloric acid and acidic hydrolase cathepsin K, respectively (Zhao, 2012; Fujiwara et al., 2016). Both osteoclast formation and bone-resorbing activity of mature osteoclasts demand high energy. However, the pathways and molecular mechanisms regulating osteoclast energy metabolism in osteoclasts remain largely unknown.

Both glycolysis and mitochondrial oxidative phosphorylation (OXPHOS) increase during osteoclast differentiation (Kubatzky et al., 2018; Arnett and Orriss, 2018; Kim et al., 2007; Indo et al., 2013; Li et al., 2020a). Osteoclasts contain numerous mitochondria (Ch’uan, 1931; Holtrop and King, 1977). The mitochondrial respiratory complex I and the key mitochondria transcriptional regulator PGC-1β (peroxisome proliferator-activated receptor γ coactivator 1β) are crucial for osteoclast differentiation (Jin et al., 2014; Ishii et al., 2009). Mitochondrial ROS (reactive oxygen species) stimulates osteoclast differentiation (Srinivasan et al., 2010; Kim et al., 2013; Kim et al., 2017). On the contrary, it has been reported that decreased mitochondrial biogenesis and activity by PGC-1β deletion in osteoclast lineage cells disrupt osteoclast cytoskeletal organization and function but not osteoclastogenesis (Zhang et al., 2018). Loss of G-protein Gα13 in osteoclast progenitors promotes mitochondrial respiration and cytoskeleton organization but has little effects on osteoclastogenesis in cultures and in mice (Nakano et al., 2019). Heretofore, the mechanisms by which energy metabolism regulates osteoclast differentiation and function remain unclear.

Iron is a nutritional element that plays a fundamental role in mitochondrial metabolism and the biosynthesis of heme and Fe-S clusters which are critical components of the mitochondrial respiratory complexes (Figure 1—figure supplement 1A and Xu et al., 2013). Both systemic and cellular iron homeostasis play a pivotal role in bone remodeling (Balogh et al., 2018). Osteoporosis and pathological bone fractures are commonly associated with the hereditary iron-overload disease hemochromatosis and the acquired iron-overload conditions in treatment of thalassemia and sickle cell disease (Almeida and Roberts, 2005; Fung et al., 2008; Dede et al., 2016; Jandl et al., 2020). Moreover, increased bone resorption and/or decreased bone formation have been observed in genetic mouse models of iron overload diseases and in mice fed with excessive iron (Tsay et al., 2010; Guggenbuhl et al., 2011; Xiao et al., 2015). In contrast to iron overload, much less is known about the influence of iron deficiency on bone cells and bone homeostasis. Severe iron deficiency impairs both bone resorption and bone formation and causes osteopenia in rats (Katsumata et al., 2009; Diaz-Castro et al., 2012), whereas iron chelation inhibits osteoclastogenesis and bone resorption in vitro and in vivo and attenuates estrogen deficiency induced bone loss in mice (Ishii et al., 2009; Guo et al., 2015).

There are two transferrin (Tf) receptors (Tfrs) in mammalian cells (Kawabata, 2019). Transferrin receptor 1 (Tfr1), encoded by Tfrc gene, is ubiquitously expressed with high affinity to Fe3+-loaded holo-Tf. Germline deletion of Tfrc in mice leads to early embryonic lethality due to severe defects in erythroid and neuronal development (Levy et al., 1999). A missense mutation in TFRC causes combined immunodeficiency in human (Jabara et al., 2016). The tissue-specific deletion of Tfrc gene in neurons, skeletal muscles, cardiomyocytes, hematopoietic stem cells, and adipocytes in mice disrupts cellular iron homeostasis and causes severe metabolic defects in these tissues (Matak et al., 2016; Barrientos et al., 2015; Xu et al., 2015; Wang et al., 2020; Li et al., 2020b). In contrast to Tfr1, Tfr2 has lower affinity to holo-Tf and is predominantly expressed in liver and erythroid precursor cells (Kawabata, 2019). Mutations of TFR2 in human and germline or hepatocyte-specific deletion of Tfr2 in mice cause type 3 hemochromatosis (Camaschella et al., 2000; Fleming et al., 2002). More recently, Tfr2 has been reported to regulate osteoblastic bone formation and bone mass in mice, independent of its function in iron homeostasis (Rauner et al., 2019). Nevertheless, the cell autonomous functions of Tfr1 and Tfr2 in osteoclast lineage cells remain unknown.

To elucidate the role of Tfr1 and Tfr1-mediated iron uptake in osteoclast lineage cells, we generated Tfrc conditional knockout mice in myeloid osteoclast precursors and differentiated osteoclasts by crossing Tfrc-flox mice with Lyz2-Cre and Ctsk-Cre mice, respectively, and used them for comprehensive skeletal phenotyping in vivo and mechanistic studies in vitro.

Results

Tfr1-mediated iron uptake is the major route for iron acquiring in murine osteoclasts

Mammalian cells acquire iron through the uptake of Tf, heme, ferritins, and by non-transferrin bound iron (NTBI) (Figure 1—figure supplement 1B; Pantopoulos et al., 2012). In Tf-dependent pathway, holo-Tf binds to Tfrs on cell surface, and the complex is then internalized via endocytosis. Fe3+ is released from Tf in endosomes and is reduced to ferrous iron (Fe2+) by the STEAP (six-transmembrane epithelial antigen of the prostate) family of metaloreductases before being transported to the cytoplasm via DMT1 (divalent metal transporter 1) (Gammella et al., 2017). Cellular iron that is not utilized is either stored in ferritins or is exported via ferroportin (FPN) (Donovan et al., 2006; Hentze et al., 2010). In this study, we first set out to determine which of the four cellular iron uptake pathways operate in osteoclasts. For this purpose, we quantified the mRNA level of genes encoding the major transporters along each iron acquiring pathway (Figure 1—figure supplement 1B) by real-time PCR in three different stages of murine osteoclast lineage cells: bone marrow monocytes (BMM), mononuclear osteoclast precursors, and multinucleated mature osteoclasts. By this assay, we observed that the expression of genes participated in Tf/Tfr-mediated iron uptake: Tfrc, Tfr2, and Slc11a2 (encoding Dmt1) were upregulated in mature osteoclasts (Figure 1A). We have previously reported that Steap4 is highly expressed in mature osteoclasts and plays an important role in cellular iron homeostasis in osteoclasts in vitro (Zhou et al., 2013). Together, all key mediators of Tf-dependent iron uptake pathway are upregulated during osteoclast differentiation. In contrast, the mRNA expression of Slc39a14 (encoding Zip14, a transporter mediating cellular iron entrance via NTBI) was decreased during osteoclast differentiation. The expression of Slc46a1, which encodes the heme transporter Hcp1, was slightly increased in mature osteoclasts. The mRNA level of Flvcr2, which encodes another heme transporter, was low and did not change during osteoclast differentiation (Figure 1A). The mRNAs of Timd2 and Scara5, which encode two plasma membrane transporters of ferritin, were undetectable in osteoclast lineage cells (data not shown).

Figure 1 with 1 supplement see all
Tfr1 is a major transferrin transporter and regulates cellular iron homeostasis in osteoclasts.

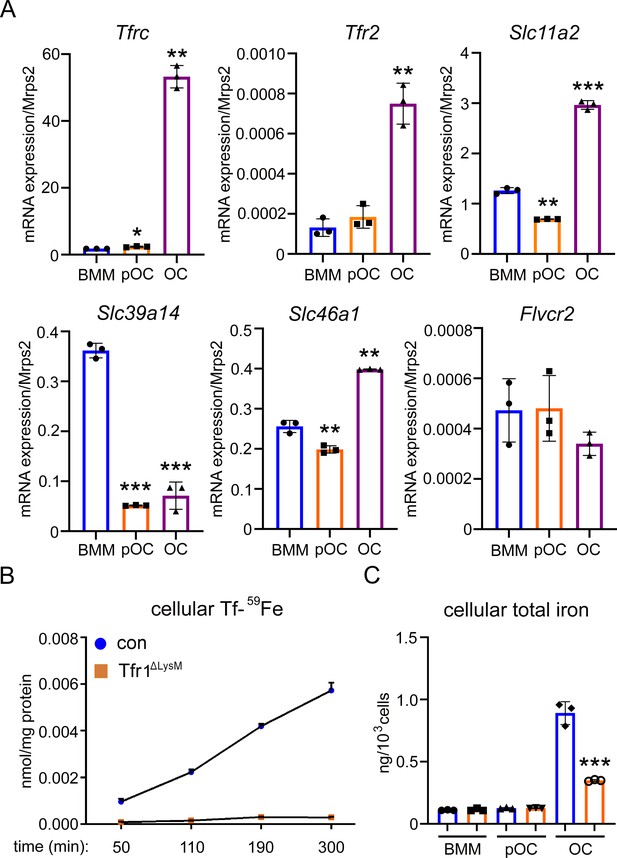

(A) Detection of mRNA expression of genes involved in iron uptake and export pathways in bone marrow monocytes (BMM), mononuclear pre-osteoclasts (pOC), and mature osteoclasts (OC) by real-time quantitative PCR. Tfrc encodes Tfr1; Slc11a1 encodes Dmt1 (divalent metal ion transporter 1); Slc39a14 encodes Zip14; Slc46a1 encodes heme transporter Hcp1; Flvcr2 encodes Flvcr2 heme transporter 2. (B) Measurement of 59Fe-labeled transferrin (Tf-59Fe) uptake in control (con) and Tfr1 myeloid conditional knockout (Tfr1ΔLysM) osteoclasts by a gamma counter. (C) Measurement of intracellular total iron by a colorimetric iron assay kit in control and Tfr1-deficient osteoclast lineage cells. The data are presented as mean ± SD. n=3. * p<0.05, ** p<0.01, and *** p<0.001 vs BMM (A) and vs control OC (C) by one-way ANOVA and Student’s t-test.

Figure 1—source data 1

Tfr1 is a major transferrin transporter and regulates cellular iron homeostasis in osteoclasts.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig1-data1-v2.xlsx

Although both Tfrc and Tfr2 mRNA expression increase during osteoclastogenesis, the level of Tfr2 mRNA was much lower than that of Tfrc (Figure 1A). Moreover, deletion of Tfr1 completely eliminated the uptake of Tf-59Fe in mature osteoclasts, indicating that Tfr1 is the predominant receptor for Tf-uptake in osteoclasts (Figure 1B). Despite the previous finding that Tfr2-deletion in monocytes has no effects on iron homeostasis (Rishi et al., 2016), the role of Tfr2 in osteoclast iron uptake and function in vitro and in vivo needs to be further investigated in future. There was a dramatic increase in cellular iron concentration in mature osteoclasts compared to monocytes and pre-osteoclasts. Loss of Tfr1 in osteoclasts led to a >50% decrease in total intracellular iron content (Figure 1C), suggesting that Tf-dependent iron uptake contributes remarkably to iron acquirement in mature osteoclasts. We and others have previously found that the mRNA expression of Slc40a1 (encoding Fpn, the only iron exporter identified so far in mammalian cells) decreases during osteoclast differentiation (Gu et al., 2015; Wang et al., 2018) and loss of Fpn in myeloid osteoclast precursors increases cellular iron and stimulates osteoclastogenesis in vitro and in vivo (Wang et al., 2018). Therefore, by transcriptional upregulation of Tf-dependent iron uptake pathway and concomitant downregulation of iron exporter Fpn, osteoclasts augment their cellular iron level to meet high energy demand during osteoclast differentiation and bone resorption. Nevertheless, the role of Tfr1 and Tf-dependent iron uptake in osteoclast biology and bone remodeling has not been elucidated using genetically modified mouse models.

Loss of Tfr1 in myeloid osteoclast precursors increases trabecular bone mass of long bones prominently in adult female mice

The Tfrc germline deletion mice are embryonically lethal (Levy et al., 1999). To elucidate the role of Tfr1 in osteoclast differentiation and bone resorption during post-natal bone modeling and remodeling, we generated Tfrc myeloid conditional knockout mice on C57BL6/J background by crossing Tfrc-flox mice, in which the exons 3–6 of murine Tfrc gene were flanked by two loxP sites (Chen et al., 2015), with Lyz2 (LysM)-Cre mice. Our pilot study demonstrated that the skeletal phenotypes of three lines of control mice: Tfrcflox/flox;Lyz2+/+, Tfrc+/+;Lyz2Cre/Cre, and Tfrc+/+;Lyz2+/+ male and female mice were indistinguishable (Figure 2—figure supplement 1). We also noticed that single allele of Lyz2-Cre (Tfrcflox/flox;Lyz2Cre/+) only led to partial deletion of Tfr1 in osteoclast lineage cells, whereas two copies of Lyz2-Cre (Tfrcflox/flox;Lyz2Cre/Cre) completely eliminated Tfr1 in osteoclasts detected by western blotting (see Figure 4C). Moreover, trabecular bone mass and structure in Tfrcflox/flox;Lyz2Cre/+ mice evaluated by µCT were similar to their gender-matched littermate control mice (Figure 2—figure supplement 2). Therefore, we used Tfrcflox/flox;+/+ and Tfrcflox/flox;Lyz2Cre/Cre mice as control and Tfr1 myeloid conditional knockout (Tfr1ΔlysM) mice, respectively, for further in vivo and in vitro studies.

Both male and female Tfr1ΔlysM mice were born at expected Mendelian ratio and developed normally with similar body size and weight compared to their littermate controls at 3 weeks, 10 weeks, and 6 months ages (data not shown). The serum levels of total iron and iron-regulating hormone hepcidin as well as the number of red blood cells in circulation of male and female Tfr1ΔlysM mice were similar compared to their respective controls (Figure 2—figure supplement 3), indicating that loss of Tfr1 in myeloid lineage cells has no effects on systemic iron homeostasis and erythropoiesis.

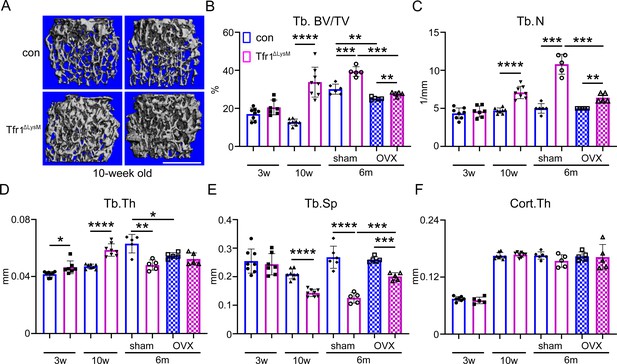

The µCT analysis of distal femurs isolated from 3-week-old control, and Tfr1ΔlysM mice revealed that loss of Tfr1 in osteoclast myeloid precursor cells at pre-pubertal age led to a mild increase in trabecular bone mass (bone volume/tissue volume [BV/TV]), trabecular number (Tb.N), and a decrease in trabecular spacing (Tb.Sp) in male Tfr1ΔlysM mice compared to gender matched control mice. Only a slight increase in trabecular thickness (Tb.Th) was observed in pre-pubertal female Tfr1ΔlysM mice compared to control mice (Figure 2 and Figure 2—figure supplement 4). At 10-week post-pubertal age, however, trabecular BV/TV (>twofold), Tb.N, and Tb.Th were increased while Tb.Sp was deceased in the distal femurs of female Tfr1ΔlysM mice compared to controls. The increased trabecular bone mass phenotype in female Tfr1ΔlysM mice was retained at 6 months of age (Figure 2A-E). There was no difference in any of the above trabecular bone parameters between control and Tfr1ΔlysM male mice at either 10 weeks or 6 months age (Figure 2—figure supplement 4A–4E). The trabecular bone mass was significantly higher in male control mice after puberty. Since increased trabecular bone volume only occurred in Tfr1-deficient female mice, the trabecular bone mass of Tfr1ΔlysM female mice at 10 week and 6 month of ages was similar to age-matched control as well as Tfr1ΔlysM male mice. No changes in the cortical bone thickness (Cort.Th) were detected by µCT in the mid-shaft of femurs of both male and female Tfr1ΔlysM mice at all three ages compared to their respective controls (Figure 2F and Figure 2—figure supplement 4F). The µCT analysis of tibias showed similar trabecular bone mass increase in female but not male Tfr1ΔlysM mice (data not shown). By contrast, a moderate increase in trabecular bone mass of vertebral bones was observed in 6-month-old, but not 10-week-old, Tfr1ΔlysM female mice (Figure 2—figure supplement 5). Again, the vertebral bone mass of 6-month-old control and Tfr1ΔlysM male mice was indistinguishable (data not shown). Taken together, these results indicate that the effects of Tfr1-deletion in osteoclast precursor cells on trabecular bone mass in post-pubertal and adult mice are gender- and site-dependent. To determine if loss of Tfr1 in osteoclasts affects ovariectomy (OVX)-induced bone loss, control and Tfr1ΔLysM female mice at 4.5 months of age were ovariectomized to mimic human post-menopausal osteoporosis and skeletal phenotype was determined at 6 months of age. While OVX induced bone loss in Tfr1ΔLysM mice, the trabecular bone mass of Tfr1ΔLysM mice was significantly higher than control mice after OVX.

Figure 2 with 9 supplements see all
Tfr1 myeloid conditional knockout female mice develop normally and display increased trabecular bone mass in femurs at 10-week-old and 6-month-old ages.

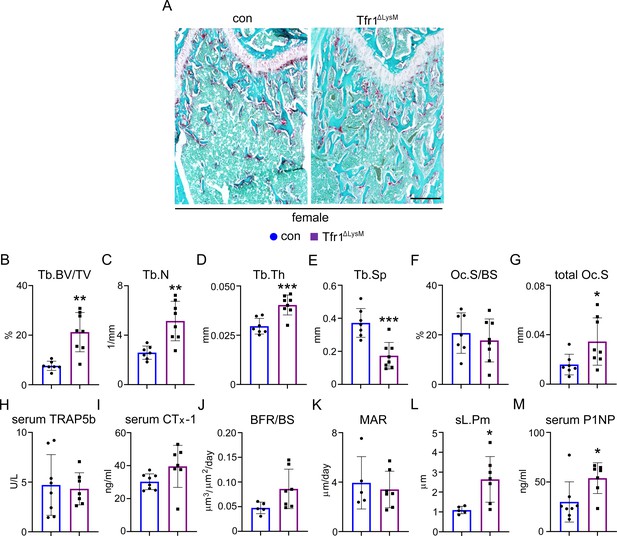

(A) Representative µCT images of distal femurs of 10-week-old female control (con) and Tfr1ΔLysM mice. scale bar = 1 mm. (B– F) µCT analysis of trabecular and cortical bone mass and structure of distal femurs isolated from three different ages of female con and Tfr1ΔLysM mice. Tb: trabecular bone; BV/TV: bone volume/tissue volume; Tb.N: trabecular number; Tb.Th: trabecular thickness; Tb.Sp: trabecular spacing; Cort.Th: cortical bone thickness. The data are presented as mean ± SD. n=5–13. * p<0.05; ** p<0.01; *** p<0.001; **** <0.0001 by one-way ANOVA.

Figure 2—source data 1

Tfr1 myeloid conditional knockout female mice develop normally and display increased trabecular bone mass in femurs at 10-week-old and 6-month-old ages.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig2-data1-v2.xlsx

To determine the cellular processes that contribute to increased trabecular bone mass caused by deletion of Tfr1 in myeloid cells in mice, we performed histology and histomorphometry analysis of distal femurs from 10-week-old male and female Tfr1ΔlysM mice and their corresponding controls. Consistent with the µCT data, fast green and TRAP (tartrate-resistant acid phosphatase) staining of decalcified paraffin-embedded sections (Figure 3A and Figure 3—figure supplement 1A) demonstrated increased trabecular mass, Tb.N, Tb.Th, and decreased Tb.Sp in female but not male Tfr1ΔlysM mice compared to their control littermates (Figure 3B-E and Figure 3—figure supplement 1B–1E). While the TRAP stained osteoclast surface adjusted by bone surface (Oc.S/BS), a histological parameter for osteoclast density, was the same in Tfr1ΔlysM mice of both genders as in control mice (Figure 3F and Figure 3—figure supplement 1F), the total Oc.S which reflects the number of osteoclasts was increased in female Tfr1ΔlysM but not male mice due to expanded trabecular bone mass in female knockout mice (Figure 3G and Figure 3—figure supplement 1G). The increased number of osteoclasts in distal femurs of Tfr1ΔlysM female mice compared to control female mice was further supported by a >twofold higher level of mRNAs of osteoclast marker genes, Acp5 (encoding TRAP) as measured by quantitative PCR (qPCR) (Figure 3—figure supplement 2). However, serum levels of bone resorption markers, TRAP5b and CTx-I, were similar between the control and Tfr1 deficient female mice (Figure 3H-I and Figure 3—figure supplement 1H–1I), thus reflecting a likely decrease in the activity of individual osteoclasts in female Tfr1ΔlysM mice in vivo. Further experiments are needed to confirm this assertion.

Figure 3 with 3 supplements see all
Loss of Tfr1 in myeloid osteoclast precursors has no impacts on osteoclast number and bone formation in 10-week-old female mice.

(A) Images of fast green and TRAP staining (scale bar = 200 μm) and (B–G) histomorphometric analysis of the metaphysis of decalcified distal femur histological sections of 10-week-old female control (con) and Tfr1ΔLysM mice. (H), (I), and (M) quantitative measurements of serum markers for bone resorption and bone formation by ELISA. (J–L) Dynamic histomorphometry analysis of tetracycline-labeled sections from undecalcified distal femurs. Tb: trabecular bone; BV/TV: bone volume/tissue volume; Tb.N: trabecular number; Tb.Th: trabecular thickness; Tb.Sp: trabecular spacing; Oc.S/BS: osteoclast surface/bone surface; BFR: bone formation rate; MAR: mineral apposition rate; sL.Pm: single tetracycline labeled surface. The data are presented as mean ± SD. n=5–13. * p<0.05, ** p<0.01, and *** p<0.001 vs con by one-way ANOVA.

Figure 3—source data 1

Loss of Tfr1 in myeloid osteoclast precursors has no impacts on osteoclast number and bone formation in 10-week-old female mice.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig3-data1-v2.xlsx

Since osteoclast-mediated bone resorption and osteoblast-mediated bone formation are coupled and regulated from each other, we also examined bone formation activities of osteoblasts in control and Tfr1ΔlysM mice by dynamic bone histomorphometry analysis of tetracycline-labeled plastic-embedded tissue sections. As shown in Figure 3J-K and Figure 3—figure supplement 1J–1K, bone formation rate and osteoblast mineral apposition rate in trabecular bone were similar between control and Tfr1ΔlysM male and female mice. The single tetracycline-labeled surface (sL.Pm) in female but not male Tfr1ΔlysM mice was higher than their control mice, likely due to increased trabecular bone mass/surface (Figure 3L and Figure 3—figure supplement 1L). The increased serum level of P1NP (Figure 3M and Figure 3—figure supplement 1M), a systemic bone formation marker, in female but not male Tfr1ΔlysM mice may be caused by increased trabecular bone and total number of osteoblasts in these mice. Accordingly, expression level osteoblast marker gene Runx2 was increased in the distal femurs of Tfr1ΔlysM female mice relative to their controls (Figure 3—figure supplement 2). Based on what is known about osteoclast-mediated coupling of bone formation, one would predict that the reduced osteoclast activity in Tfr1ΔLysM mice should reduce bone formation. By contrast, the increased serum PINP (Procollagen 1 N-Terminal Propeptide) levels and Runx2 expression in these mice suggest increased bone formation. Thus, we do not have an explanation at present if the increased bone formation is a direct consequence of inhibition of osteoclast activity or by some other mechanisms. Further studies are needed to address this issue.

Deletion of Tfr1 in cathepsin K-Cre expressing differentiated osteoclasts increases trabecular bone mass of long bones in both male and female mice

To determine the role of Tfr1 in differentiated osteoclasts during bone remodeling, we crossed Tfrc-flox mice with Ctsk-Cre knock-in mice, a Cre-driver that has been extensively used to disrupt genes of interest in differentiated osteoclasts (Fujiwara et al., 2016; Wang et al., 2018; Nakamura et al., 2007). The progeny of Tfrc+/+;CtskCre/+ and Tfrcflox/flox;CtskCre/+ congenic mice on a C57BL6/129 mixed background was used as control and osteoclast conditional knockout (Tfr1ΔCTSK) mice, respectively. Both male and female Tfr1ΔCTSK mice were born and developed normally. The body size and weight of 10-week-old male and female Tfr1ΔCTSK mice were similar to their littermate gender matched control mice (data not shown). The µCT examination of distal femurs uncovered a more than twofold increase of trabecular BV/TV with increased Tb.N, thickness, and decreased Tb.Sp in both male and female Tfr1ΔCTSK mice compared to their littermate controls (Figure 2—figure supplement 6A–6E). A slight increase in Cort.Th was only observed in female Tfr1ΔCTSK mice (Figure 2—figure supplement 6F). Similar to Tfr1ΔlysM mice, loss of Tfr1 in differentiated osteoclasts had little effects on trabecular bone mass and structure except an increase in Tb.Th in vertebral bones of male and female Tfr1ΔCTSK mice (Figure 2—figure supplement 7).

Histology and histomorphometry analysis of paraffin-embedded, TRAP-stained femoral sections demonstrated dramatic increase in trabecular BV/TV in both male and female Tfr1ΔCTSK mice relative to their control mice (Figure 3—figure supplement 3A and B). These data are consistent with the µCT results shown in Figure 2—figure supplement 6. The number of TRAP-positive osteoclasts per bone perimeter as well as the percentage of osteoclast-covered bone surface in Tfr1ΔCTSK mice of either genders were not different from their respective control mice (Figure 3—figure supplement 3C–3D). These results indicate that loss of Tfr1 in Ctsk-Cre expressing osteoclasts increases trabecular bone mass but has no effects on osteoclastogenesis in vivo.

Tfr1-mediated iron uptake plays an important role in mature osteoclast actin cytoskeletal organization and bone resorption in vitro

To further identify the cellular and molecular mechanisms by which Tfr1 and Tfr1-mediated iron uptake regulate osteoclasts, we isolated bone marrow cells from female and male control and Tfr1ΔlysM mice and cultured them with M-CSF plus RANKL for 4 days to induce osteoclast differentiation in vitro. The total number of TRAP+ multinucleated osteoclasts (with ≥3 nuclei per cell) in Tfr1ΔlysM cultures of both genders was not different from their respective controls. However, the Tfr1-deficient female and male osteoclasts displayed a dramatic defect in mature osteoclast spreading (Figure 4 and Figure 4—figure supplement 1A). To further corroborate the effects of Tfr1-deletion on osteoclast differentiation, we measured the mRNA expression of the osteoclast marker genes Acp5, Ctsk, the master transcription factor of osteoclast differentiation Nfatc1, and the osteoclast fusion regulator Dcstamp (encoding DC-Stamp) in female control and Tfr1ΔlysM BMM, mononuclear pre-osteoclasts, and multinucleated mature osteoclasts by qPCR. As shown in Figure 4B, the mRNA levels of Acp5, Nfatc1, and Dcstamp in Tfr1ΔlysM in osteoclast precursors as well as mature osteoclasts were similar to those of respective control cells. The mRNA expression of Ctsk in Tfr1ΔlysM pre-osteoclasts and mature osteoclasts was slightly higher than in control cells.

Figure 4 with 1 supplement see all

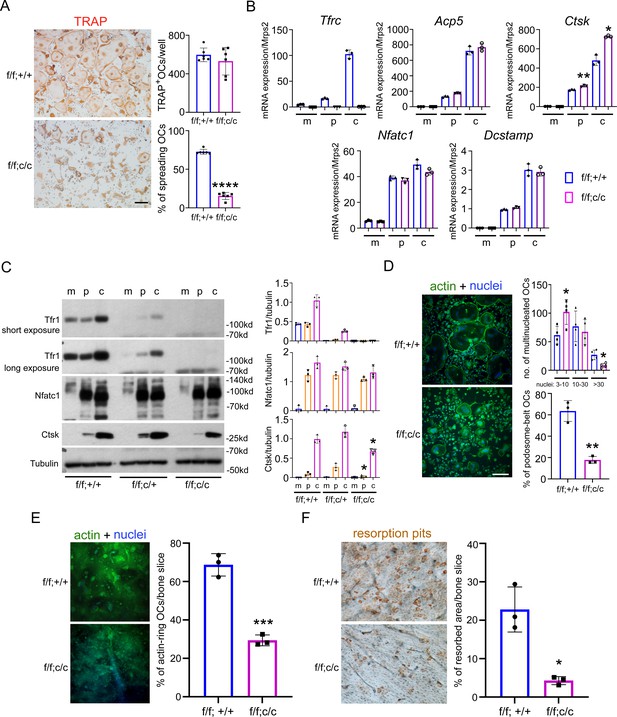

Deletion of Tfr1 in osteoclast myeloid precursors has no effects on osteoclast differentiation but attenuates cytoskeleton organization and bone resorption in mature osteoclasts cultured from female mice.

(A) TRAP staining (scale bar = 10 μm) and quantification of numbers of total and spreading osteoclasts (OCs) cultured on plastic 24-well dishes. n=6. (B) Quantitative PCR detection of the mRNA expression of Tfr1 and osteoclast marker genes relative to the mitochondrial gene Mrps2. Tfrc, encoding Tfr1; Acp5, encoding TRAP; Ctsk, encoding Cathepsin K; Nfatc1, encoding NFATc1; Dcstamp, encoding DC-Stamp. n=3. (C) The protein level of Tfr1 and osteoclast markers, NFATc1 and Cathepsin K (Ctsk), in bone marrow monocytes (m), mono-nuclear pre-osteoclasts (p), and mature osteoclasts (c) was detected by western blotting and quantified by densitometry using the NIH ImageJ software. Tubulin served as loading control. n=3. (D) The actin filaments and nuclear were stained by Alexa-488 conjugated Phalloidin and Hoechst 33258, respectively, in osteoclasts cultured on glass coverslips (scale bar = 10 μm). The number of osteoclasts with different nuclei and the percentage of spreading osteoclasts with the peripheral distributed podosome-belt were counted. n=3–4. (E) The actin filaments and nuclear were stained by Alexa-488 conjugated Phalloidin and Hoechst 33342, respectively, in osteoclasts cultured on cortical bovine bone slices (scale bar = 10 μm). The total number of osteoclasts and the number of osteoclasts with actin-ring were counted, and the percentage of active osteoclasts per bone slices was calculated. n=3. (F) Resorption pits were stained by horseradish peroxidase conjugated wheat-germ agglutinin (scale bar = 20 μm). The percentage of resorbed area per bone slice was calculated using the NIH ImageJ software. The data are presented as mean ± SD. n=3. * p<0.05; ** p<0.01; *** p<0.001;**** p<0.0001 vs control (f/f;+/+) by one-way ANOVA and Student’s t-test.

Figure 4—source data 1

Deletion of Tfr1 in osteoclast myeloid precursors has no effects on osteoclast differentiation but attenuates cytoskeleton organization and bone resorption in mature osteoclasts cultured from female mice.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig4-data1-v2.xlsx
Figure 4—source data 2

Immunoblotting for Figure 4C.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig4-data2-v2.tif

Next, we examined the protein levels of Tfr1, Nfatc1, and Ctsk in control and Tfr1-deficient osteoclast lineage cells by immunoblotting and quantified the specific bands of these osteoclast markers by densitometry using NIH Image J software. As demonstrated in Figure 4C and Figure 4—figure supplement 1B, deletion of Tfr1 by two copies of Lyz2-Cre (f/f;c/c) in both female and male osteoclast lineage cells had no effects on the protein level of Nfatc1 in osteoclast precursor and mature cells, whereas the level of CtsK in Tfr1ΔlysM pre- and mature-osteoclasts was slightly decreased compared to control (f/f;+/+) and Tfr1 heterozygous (f/f;c/+) osteoclasts. The decreased Ctsk protein level in Tfr1ΔlysM osteoclasts might contribute to impaired bone resorption in these cells as shown in Figure 4F. To characterize at which stage the Tfr1-deletion affects Ctsk expression and osteoclastogenesis, we counted the number of osteoclasts with 3–10, 10–30, and >30 nuclei cultured from female mice, respectively. As shown in the upper-right panel of Figure 4D, the number of osteoclasts with 3–10 nuclei in Tfr1ΔlysM culture was higher than control. While there was no difference in the number of osteoclasts with 10–30 nuclei between control and Tfr1ΔlysM cultures, the number of large osteoclasts with >30 nuclei in Tfr1ΔlysM culture was lower than control. However, the mRNA expression of osteoclast fusion gene, Dcstamp, was similar in control and Tfr1ΔlysM osteoclasts. The exact mechanism(s) of decreased fusion in the late stage of osteoclastogenesis in Tfr1ΔlysM cultures need further investigation in future.

Since actin cytoskeleton organization plays an essential role in osteoclast spreading and the formation of podosome-belts in osteoclasts cultured on plastic dishes and actin-rings in osteoclasts cultured on bone matrix, we then stained actin filaments with Alexa-488 conjugated Phalloidin in control and Tfr1-deficient female and male osteoclasts cultured on plastic and bone. While the podosome-belts and actin-rings formed normally in control osteoclasts, these actin-based structures were dysregulated in Tfr1-deficient female and male osteoclasts (Figure 4D-E and Figure 4—figure supplement 1C–1D). Since formation of actin-rings is a hallmark of osteoclast activation and function, these results indicate that loss of Tfr1 in osteoclast suppresses osteoclast function. Supporting this hypothesis, we found that Tfr1-deficient osteoclasts resorbed less bone than controls as revealed by the resorption-pit staining on cortical bovine bone slices (Figure 4F and Figure 4—figure supplement 1E). Tfr1 ΔCtsk osteoclasts displayed similar in vitro phenotype as Tfr1ΔlysM osteoclasts (data not shown).

Besides regulating iron-uptake, Tfr1 also plays non-canonical roles in regulation of intestinal epithelial homeostasis and mitochondrial morphology and function (Chen et al., 2015; Senyilmaz et al., 2015). To determine whether the defects in cytoskeleton organization and resorptive function of Tfr1-deficient osteoclasts were caused by low intracellular iron content, we treated control and Tfr1ΔlysM osteoclast cultures with increased doses of hemin (ferric chloride heme) and ferric ammonium citrate (FAC), which are transported into cells via heme transporters Hcp1 (encoded by Slc46a1) and NTBI transporter Zip14 (encoded by Slc39a14), respectively (Figure 1—figure supplement 1). While 10 µM of hemin slightly stimulated osteoclast spreading, cytoskeleton organization, and bone resorption in control osteoclasts, hemin dose-dependently increased the number of spreading osteoclasts in Tfr1-deficient osteoclasts (Figure 5A). In contrast, FAC had no effects on control or Tfr1-deficient osteoclasts (Figure 5B). At 10 µM concentration, hemin significantly rescued the cytoskeleton organization and bone resorption defects of Tfr1-depleted osteoclasts (Figure 5C-E). These results also suggest that heme-uptake, but not NTBI and ferritin pathways, is an alternative iron acquiring route in osteoclasts in the absence of Tfr1. Therefore, both our in vivo and in vitro findings unveil a critical role of Tfr1-mediated cellular iron homeostasis in osteoclast activation/function. It should be noted that even high concentration (10 μM) of hemin can only partially rescue the defects in osteoclast spreading and cytoskeleton organization (Figure 5A, C and D), indicating that osteoclasts have limited alternative iron acquisition pathways in the absence of Tfr1 as in other cells.

High dose of hemin but not ferric ammonium citrate rescues the phenotypes of Tfr1-deficient osteoclasts.

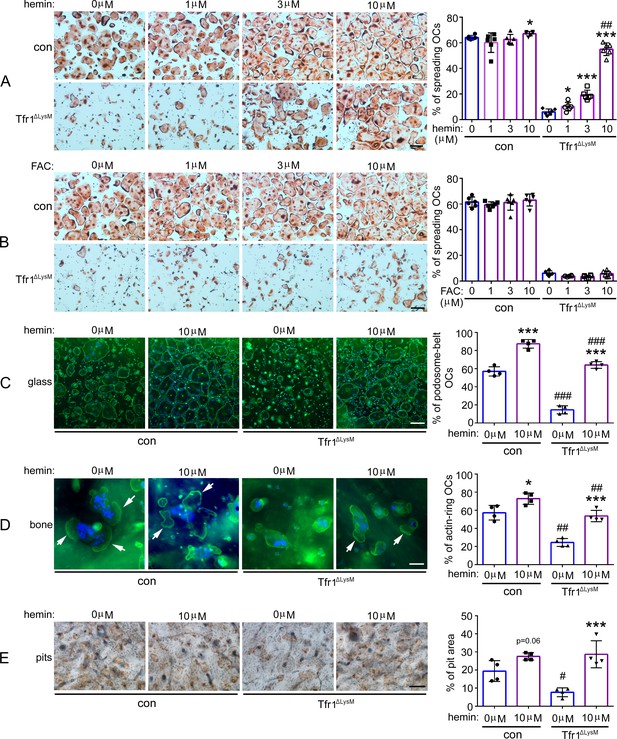

(A) and (B) TRAP staining and quantification of the number of spreading osteoclasts in control (con) and Tfr1ΔLysM osteoclast cultures. n=6. scale bar = 10 μm. (C) and (D) Staining of actin filaments and nuclear and quantification of the number of podosome-belt and actin-ring osteoclasts cultured on glass coverslips and bone slices, respectively. n=4. scale bar = 10 μm. (E) Resorption pit staining in con and Tfr1ΔLysM cultures. Scale bar = 20 μm. The data are presented as mean ± SD. n=4. * p<0.05 and *** p<0.001 vs vehicle-treated cells; # p<0.05, ## p<0.01, and ### p<0.001 vs vehicle- or 10 μM hemin-treated control cells, respectively, by one-way ANOVA.

Figure 5—source data 1

High dose of hemin but not ferric ammonium citrate rescues the phenotypes of Tfr1-deficient osteoclasts.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig5-data1-v2.xlsx

Depletion of Tfr1 in osteoclast lineage cells attenuates mitochondrial biogenesis, ROS production, and OXPHOS predominantly in mature osteoclasts

To determine which intracellular pathways are most affected by loss of Tfr1 in osteoclast lineage cells, we did quantitative proteomic analysis to identify proteins that are up- or downregulated in Tfr1-deficient BMM, mononuclear osteoclast precursors, and multinucleated mature osteoclasts. The heatmaps were generated using the ‘heatmap’ function in the R-package (Figure 6A). By a 1.2-log2fold cut-off, we found that a total of 135, 497, and 2562 proteins were influenced by loss of Tfr1 in monocytes, pre-osteoclasts, and mature osteoclasts, respectively (Supplementary files 1–3). The abundance of proteins involved in Tf-dependent iron uptake pathway, including Tfr1, Steap3/4, and DMT1, was all decreased in Tfr1-deficient cells (Supplementary files 1–3). The greater number of affected proteins in mature osteoclasts correlated with a high level of Tfr1 and Tfr1-mediated iron uptake in osteoclasts (Figure 1). By Ingenuity pathway analysis (IPA) analysis, we identified that the mitochondrial OXPHOS pathway and sirtuin signaling pathway were the most significantly down- and upregulated pathways in mature osteoclasts, respectively (Figure 6B and Supplementary file 4). Among the mitochondrial proteins affected by loss of Tfr1 and Tf-dependent iron uptake in osteoclasts, the levels of proteins functioning in mitochondrial respiratory complex I to complex III decreased, whereas the proteins participating in complex V, that lack heme and Fe-S clusters (Figure 1—figure supplement 1), were increased probably by a compensate mechanism. The proteins in the complex IV were not affected by iron-deficiency (Figure 6C and Supplementary file 4). To consolidate the finding from quantitative proteomic results that cellular iron regulates the components of mitochondrial respiration chain, we did immunoblotting to detect the changes of mitochondrial respiratory complexes in control and Tfr1ΔlysM monocytes and mature osteoclasts treated with either vehicle or 10 μM hemin using a cocktail of antibodies recognizing the representative components of mitochondrial respiratory complexes I–V. As shown in Figure 6D and Figure 6—figure supplement 1, there was an obvious decrease in the mitochondrial complexes II and III in Tfr1ΔlysM monocytes and osteoclasts compared to corresponding control cells. Hemin stimulated the mitochondrial complexes I and II in control and complexes I to IV in Tfr1ΔlysM osteoclasts, indicating that Tfr1-mediated iron uptake plays an important role in osteoclast mitochondrial OXPHOS pathway. Although Figure 6D provides complementary evidence for proteomic data shown in Figure 6B, C, it should be pointed out that the antibody cocktail used in this immunoblotting contains antibodies against only one component of each of five mitochondrial respiratory complexes. Thus, the result of Figure 6D could not reflect the complete changes of mitochondria in Tfr1-deficient osteoclast lineage cells.

Figure 6 with 1 supplement see all

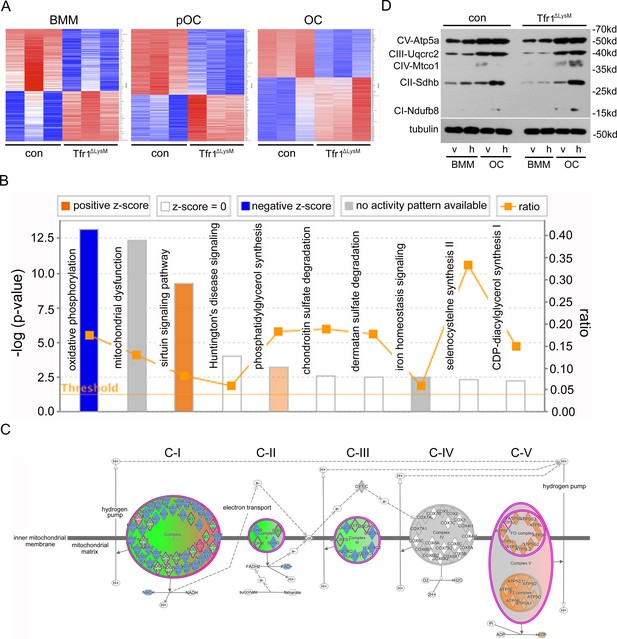

The mitochondrial oxidative phosphorylation is mostly affected by Tfr1-deficiency in mature osteoclasts.

(A) Heatmaps of proteins that are differentially regulated in control (con) and Tfr1ΔLysM bone marrow monocytes (BMM), mononuclear pre-osteoclasts (pOC), and mature osteoclasts (OC) identified by quantitative proteomics. (B) The signaling pathways that are affected by Tfr1-deficiency in mature osteoclasts identified by Ingenuity pathway analysis (IPA). (C) The changes of proteins along the mitochondrial respiration chain that are regulated by Tfr1 in mature osteoclasts. C-I to C-V: mitochondrial respiratory complex-I to complex-V. (D) Western blotting detection of the components of mitochondrial respiratory C-I to C-V in vehicle and 10 μM hemin treated con and Tfr1ΔLysM BMM and OCs.

To further characterize how iron-deficiency modulates mitochondrial biogenesis and metabolism in osteoclast lineage cells, we first stained the control and Tfr1ΔlysM osteoclast lineage cells with fluorescence-labeled Mito Tracker. Manual quantification of Mito Tracker fluorescent intensity of individual cells showed a small decrease in mitochondrial mass in Tfr1-deficient mature osteoclasts but not in monocytes and pre-osteoclasts (Figure 7A). Next, we examined the mitochondrion-derived ROS by MitoSOX-staining of control and Tfr1ΔlysM cultured cells. As demonstrated in Figure 7B, loss of Tfr1 significantly decreased mitochondrial ROS production in monocytes and osteoclasts which was more pronounced in mature OCs. Insufficient iron in Tfr1ΔlysM mature osteoclasts also resulted in a mild decrease in mitochondrial membrane potential (Figure 7C).

Loss of Tfr1 inhibits mitochondrial mass, reactive oxygen species (ROS) production, and membrane potential in mature osteoclasts.

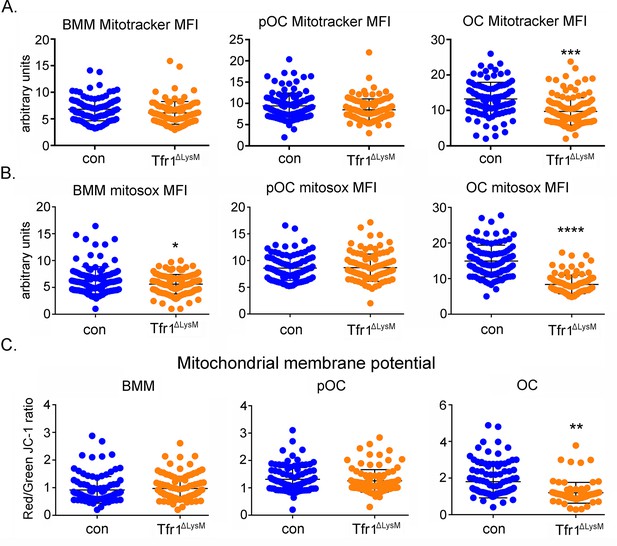

(A) Quantification of mitochondrial mass by Mito Tracker green staining in control (con) and Tfr1ΔLysM bone marrow monocytes (BMM), mononuclear pre-osteoclasts (pOC), and mature osteoclasts (OC). (B) Measurement of mitochondria-derived ROS by Mitosox staining in con and Tfr1-deficient osteoclast lineage cells. (C) Measurement of mitochondrial membrane potential by JC-1 cationic carbocyanine dye staining in con and cKO osteoclast lineage cells. The data are presented as mean ± SD. n=25–50. ** p<0.01, *** p<0.001, and **** p<0.0001 vs con by unpaired Student’s t-test. MFI: mean fluorescent intensity per cell in arbitrary units.

Figure 7—source data 1

Loss of Tfr1 inhibits mitochondrial mass, reactive oxygen species (ROS) production, and membrane potential in mature osteoclasts.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig7-data1-v2.xlsx

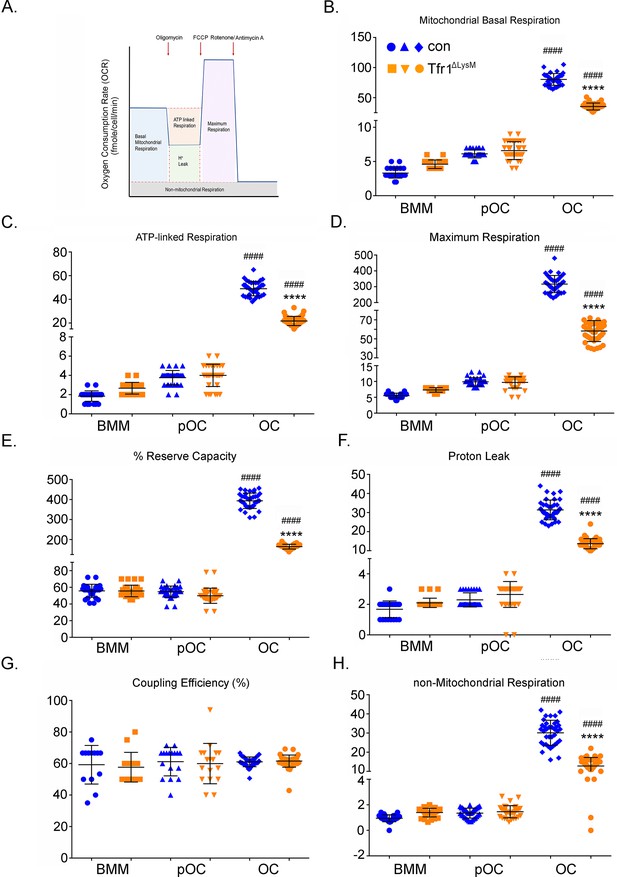

Lastly, we measured mitochondrial respiration using the Seahorse Extracellular Flux Analyzer in control and Tfr1-deficient osteoclast lineage cells isolated. As depicted in Figure 8A, the basal mitochondrial respiration is the direct measure of oxygen consumption rate (OCR) attributed to the mitochondrial electron transport chain (ETC). The maximum respiration is induced by incubating cells with the uncoupler, carbonyl cyanide 4-(trifluoromethoxy)phenylhydrazone (FCCP). The ATP-linked respiration is measured by exposing cells to oligomycin, an inhibitor of ATP synthase complex V. The non-mitochondrial respiration, which is the remaining OCR when the ETC activity is completely abolished by a mixture of rotenone/antimycin A. This parameter reflects the portion of cellular respiration by oxygen-consuming enzymes such as NADPH (nicotinamide adenine dinucleotide phosphate) oxidases, heme oxygenases, and/or lipoxygenases. The residual OCR after inhibition by oligomycin is the measure of the protons pumped through ETC, which consumes oxygen without generating any ATP (due to inhibited ATP synthase activity by the drug) and is referred to the H+ leak. As shown in Figure 8B–H, all these mitochondrial respiratory parameters increased dramatically in control and TfR1-null mature osteoclasts compared to their respective precursors. However, there were >twofold decreases of these measures in Tfr1-deficient mature osteoclasts relative to control osteoclasts. Furthermore, we calculated the reserve respiratory capacity, which is the difference between the maximum and basal respiration that can be utilized in the event of a sudden energy demand in cells. We reported this as a percentage for each group of cells by using the formula of ([maximum OCR - basal OCR]/maximum OCR ×100). Again, the reserve respiratory capacity in Tfr1-null osteoclasts was greatly reduced when compared to control cells (Figure 8E). By contrast, there was no difference in the coupling efficiency (the ratio of ATP-linked OCR to basal OCR) of control and Tfr1ΔlysM osteoclast lineage cells (Figure 8G).

Tfr1-deletion in osteoclast lineage cells impairs mitochondrial and non-mitochondrial respirations in mature osteoclasts.

(A) A graphic illustration of oxygen consumption measured by a Seahorse Extracellular Flux analyzer. FCCP: carbonyl cyanide p-trifluoro-methoxyphenyl hydrazone, a synthetic mitochondrial uncoupler. (B–H) Different fractions of mitochondrial and non-mitochondrial respirations per cell of control (blue) and Tfr1ΔLysM (orange) bone marrow monocytes (BMM), mononuclear pre-osteoclasts (pOC), and mature osteoclasts (OC). The data are presented as mean ± SD. n=15-30. #### p<0.0001 vs BMM and pOC; **** p<0.0001 vs control OC by unpaired Student’s t-test.

Figure 8—source data 1

Tfr1-deletion in osteoclast lineage cells impairs mitochondrial and non-mitochondrial respirations in mature osteoclasts.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig8-data1-v2.xlsx

TfR1-mediated iron uptake modulates osteoclast actin cytoskeleton through the WAVE regulatory complex (WRC)

To identify the mechanisms by which cellular iron and energy metabolism regulate osteoclast cytoskeleton, we turned to analyze the level of key osteoclast cytoskeleton regulating proteins (Blangy et al., 2020) in Tfr1-deficient osteoclast lineage cells relative to their control cells in our quantitative proteomic data bases (Supplementary files 1–3). More cytoskeleton proteins in mature osteoclasts were affected by Tfr1-dificiency than those in osteoclast precursors (Supplementary file 5). Among them, 25 cytoskeleton proteins were downregulated, whereas 17 proteins were upregulated by more than 1.2-log2fold in Tfr1-dificient osteoclasts compared to control cells. 15 osteoclast cytoskeleton-regulatory proteins remained the same between control and Tfr1-dificient osteoclasts. IPA analysis of the cytoskeleton-regulating pathways affected by Tfr1-deficiency in osteoclasts (Figure 9A) unveiled that the protein level of several molecules involved in activation of β3-integrin pathway, which is critical for osteoclast cytoskeleton organization and bone resorption (Teitelbaum, 2011), was decreased in Tfr1-null osteoclasts including β3-integrin (Itgb3), c-Src, Rap1a/b, Rap2b, Rapgef1, and Rap1gds (Supplementary file 5). A few actin-bundling and regulating proteins such as myosin heavy chain 14, α-actinin 1 and 4 (Actn1 and Actn4), and filamin A (Flna) were also downregulated in Tfr1-depleted osteoclasts. The branching and polymerization of filamentous actin in eukaryotic cells is mediated by the Arp2/3 complex which is controlled by the WRC. Mammalian WRC contains five subunits of Cyfip1/2, Hem1/2 (encoded by Nckap1l and Nckap1, respectively), Abi1/2/3, HSPC300, and WAVE1/2/3 (Rottner et al., 2021). The WRC is activated by the small GTPases Rac1 and Arf1 through their direct binding to Cyfip1/2 and Hem1/2. Strikingly, 12 out of 25 downregulated cytoskeletal proteins in Tfr1-null osteoclasts (Supplementary file 5) are the components of the Rac1/Arf-WRC-Arp2/3 axis. These data indicate that Tfr1-mediated iron uptake regulates osteoclast actin cytoskeleton organization, at least in part, through modulating the stability of the WRC-Arp2/3 actin-regulating module.

Figure 9 with 1 supplement see all
Loss of Tfr1 in osteoclasts inhibits the macrophage colony-stimulating factor (M-CSF) stimulated activation of c-Src and Rac1, and overexpression of Hem1 partially recuses the cytoskeletal organization defect in Tfr1-null osteoclasts.

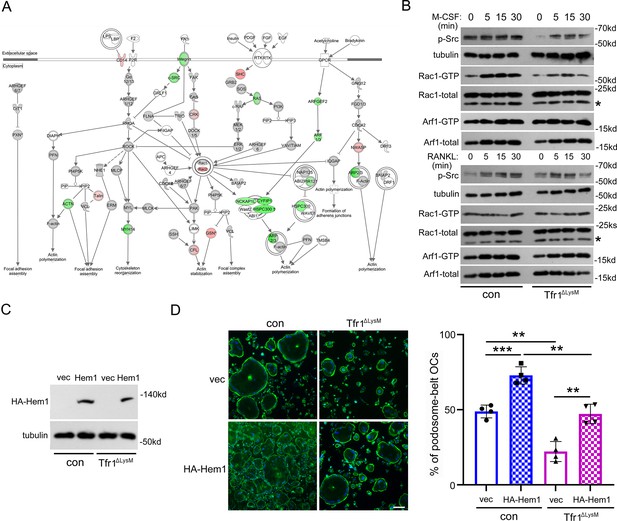

(A) A schematic map of cytoskeletal pathways generated by Ingenuity pathway analysis (IPA). The downregulated proteins are shown in green and upregulated proteins are marked in red orange. (B) Western blotting detection of M-CSF and receptor activator of NF-κB ligand (RANKL) induced phosphorylation of c-Src and the GTP-bound (active) form of small GTPase Rac1 and Arf1 in con and Tfr1ΔLysM osteoclasts. The stars indicate unspecific bands. (C) Detection of HA-tagged Hem1 (encoded by Nckap1l) by western blotting in retroviral transduced con and Tfr1ΔLysM bone marrow monocytes expressing empty vector (vec) and recombinant Hem1. Tubulin served as loading control. (D) The staining of actin filaments and nuclear in osteoclasts cultured on glass coverslips and quantification of the number of osteoclasts with podosome-belt. scale bar = 10 μm. The data are presented as mean ± SD. n=4. ** p<0.01 and *** p<0.001 by one-way ANOVA.

Figure 9—source data 1

Loss of Tfr1 in osteoclasts inhibits the macrophage colony-stimulating factor (M-CSF) stimulated activation of c-Src and Rac1 and overexpression of Hem1 partially recuses the cytoskeletal organization defect in Tfr1-null osteoclasts.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig9-data1-v2.xlsx
Figure 9—source data 2

Immunoblotting for Figure 9B.

https://cdn.elifesciences.org/articles/73539/elife-73539-fig9-data2-v2.tif

To identify the mechanisms by which Tfr1 regulates osteoclast WRC complex and cytoskeleton, we examined the activation (phosphorylation) of protein tyrosine kinase c-Src which plays a pivotal role in osteoclast cytoskeleton organization downstream of integrin and M-CSF as well as RANKL signaling pathways in control and Tfr1ΔlysM osteoclasts stimulated by M-CSF and RANKL. We also assayed the activation of small GTPases Rac1 and Arf1 that are upstream stimulators of the WRC complex in responses to M-CSF and RANKL in control and Tfr1ΔlysM osteoclasts using GST-pulldown kits from Thermo-Fisher Scientific Inc. As shown in Figure 9B and Figure 9—figure supplement 1, while both M-CSF and RANKL activated c-Src in control and Tfr1ΔlysM osteoclasts, the level of active (phosphorylated) c-Src in M-CSF, but not RANKL, stimulated Tfr1ΔlysM osteoclasts was lower than control cells at all time points. Similarly, M-CSF induced Rac1 activation in form of Rac1-GTP was attenuated in Tfr1ΔlysM osteoclasts compared to control cells at all time points, whereas RANKL did not arise Rac1-GTP level in control and Tfr1ΔlysM osteoclasts. In regard to Arf1, M-CSF stimulation slightly decreased Arf1-GTP in both control and Tfr1ΔlysM osteoclasts. The level of Arf1-GTP in Tfr1ΔlysM osteoclasts was higher than control cells after starvation and 5 min of M-CSF stimulation. RANKL induced a mild decrease of Arf1-GTP in control osteoclasts and a little increase of Arf1-GTP in Tfr1ΔlysM osteoclasts verse control cells after 30 min of RANKL incubation, although the Arf1-GTP was lower in starved and 15 min stimulated Tfr1ΔlysM osteoclasts than control cells. These results indicate that loss of Tfr1 in osteoclasts influences M-CSF-mediated activation of the Src-Rac1-WRC axis, leading to disorganized cytoskeleton and compromised bone resorption.

To test whether overexpression of the components of WRC complex can rescue the cytoskeleton defect in Tfr1ΔlysM osteoclasts, we constructed a recombinant retroviral vector expressing murine Hem1. After retroviral transduction in control and Tfr1-deleting BMM, we confirmed the expression of recombinant Hem1 by western blotting (Figure 9C). The overexpression of Hem1 enhanced the number of activated osteoclasts in control osteoclasts and partially rescued the cytoskeletal defect in Tfr1ΔlysM osteoclasts (Figure 9D), suggesting that the other component(s) of the WRC complex or distinct pathways might also be involved in the Tfr1-mediated regulation of osteoclast cytoskeleton.

Discussion

Loss of Tfr1 in osteoclast lineage cells results in >50% decrease in the total intracellular iron content in mature osteoclasts, whereas the iron levels in monocytes and pre-osteoclasts are not affected by Tfr1-deficiency (Figure 1). Since the heme transporter Hcp1 is upregulated during osteoclast differentiation and the fact that hemin but not FAC (absorbed through NTBI) is able to partially rescue the Tfr1-deficient osteoclast phenotypes (Figure 5), the residual cellular iron in Tfr1-deficient osteoclasts could be obtained through uptake of heme. Given that the key molecules involved in Tf-dependent and heme-dependent iron uptake pathway are significantly upregulated during osteoclast differentiation and that the expressions of NTBI iron transporter Zip14 and ferritin transporter (Scara-5 and Tim-2) are either decreased in osteoclasts or undetectable in osteoclast lineage cells (Figure 1A and data not shown), these results indicate that mature osteoclasts acquire extracellular iron largely through uptake of Tf and heme.

Although iron chelation by desferrioxamine has been shown to inhibit osteoclasts and prevent bone loss in ovariectomized mice (Ishii et al., 2009) and in a mouse model of Alzheimer’s disease (Guo et al.), the intrinsic functions of Tfr1 and Tfr1-mediated iron uptake in osteoclast lineage cells in vivo have not been investigated using genetically modified mouse models. To fill in this knowledge gap, we have generated two lines of Tfrc conditional knockout mice in which the Tfr1 expression is disrupted in Lyz2-Cre expressing myeloid osteoclast precursors and Ctsk-Cre expressing differentiated osteoclasts, respectively. The μCT analysis of control and Tfr1ΔlysM mice at three different ages ranging from the pre-pubertal 3-week-old to the post-pubertal 10-week-old and the adult 6-month-old has unveiled a significant increase in trabecular bone mass in post-pubertal and adult female, but not male, Tfr1ΔlysM mice compared to their age- and gender-matched control mice (Figure 2 and Figure 2—figure supplement 4). Although the significant increase of trabecular bone mass was observed in both genders of 10-week-old Tfr1ΔCtsk mice, this phenotype is more pronounced in female knockout mice (Figure 2—figure supplement 6). These results indicate that the accrual of trabecular bone mass in Tfr1-deficient mice is gender-dependent. The exact mechanisms underlying the gender difference in the trabecular bone phenotype of mice upon the Tfr1-deficiency in osteoclasts are unknown and need further investigation since sex as a biological variable in mice and humans has been increasingly appreciated (Bhargava et al., 2021). A similar finding has been recently reported in Slc2a1 (encoding the glucose transporter protein type 1, Glut1) myeloid conditional knockout mice (Li et al., 2020a). While Glut1-deficient BMM cultured from both male and female knockout mice have similar degree of blunted osteoclast differentiation in vitro, deletion of Slc2a1 in Lyz2-Cre expressing myeloid cells in mice inhibits osteoclastogenesis and leads to increased trabecular bone mass in female but not male mice.

Estrogen has been reported to regulate systemic and cellular iron homeostasis by inhibiting the expression of hepcidin, a liver-derived iron regulating hormone that binds to and induces degradation of iron exporter Fpn (Hou et al., 2012; Yang et al., 2012; Ikeda et al., 2012); however, the levels of serum hepcidin and total iron are similar in control and Tfr1ΔlysM male and female mice (Figure 2—figure supplement 3) excluding this possible mechanism. On the other hand, our in vitro supplemental experiment has demonstrated that 17-β estradiol inhibits the mRNA expression of Tfrc in mature osteoclasts and synergistically with Tfr1-deficiency attenuates the mRNA expression of mt-Co1 (encoding the mitochondrial cytochrome c oxidase subunit I, mt-Co1), whereas dihydrotestosterone has no effects on Tfr1, Fpn, and mt-Co1 expression in osteoclast lineage cells (Figure 2—figure supplement 8). This finding is consistent with our recent published work that estrogen attenuates mitochondrial OXPHOS and ATP production in osteoclasts (Kim et al., 2020). The tissue- and bone cell type-specific sex differences in mitochondria and the underlying mechanisms in skeletons in both mice and humans need further investigation as recently reported in adipose tissue (Chella Krishnan et al., 2021).

It is well established that estrogen-mediated mechanisms play a key role in mediating bone accretion during pubertal growth period. During this developmental period, estrogen is known to exert an anabolic effect on osteoblast besides its well-established role in inhibiting osteoclast functions. However, the loss of estrogen as seen during menopause or due to ovariectomy in adults leads to bone loss primarily due to increased bone resorption. The increased trabecular bone volume of Tfr1ΔLysM mice is evident at the post-pubertal age of 10 weeks but is not different at the pre-pubertal age of 3 weeks (Figure 2), thus suggesting that the skeletal phenotype gets manifested during pubertal and post-pubertal growth periods. While loss of Tfr1 does not affect estrogen deficiency-induced bone loss, the trabecular bone mass of Tfr1ΔLysM mice is persistently higher than control mice after OVX. The issue of whether the skeletal phenotype in 10-week-old Tfr1ΔLysM mice is dependent on pubertal increase in estrogen remains to be evaluated by performing OVX at pre-pubertal age of 3 weeks in future.

Both Lyz2-Cre and Ctsk-Cre mice are commonly used to conditionally delete the floxed genes at different stages of osteoclast lineage cells (Dallas et al., 2018). While the Lyz2-Cre deletes genes in monocytes of osteoclast precursor cells, it also targets other myeloid cells such as neutrophils and dendritic cells (Abram et al., 2014). Although Nfatc1-deletion by Mx1-Cre attenuates osteoclastogenesis and bone resorption in mice, Nfatc1ΔlysM mice displayed no osteoclast and bone phenotypes (Aliprantis et al., 2008), suggesting that the deletion efficiency of Lyz2-Cre is weaker than Mx1-Cre and is allele-dependent (Dallas et al., 2018 and Clausen et al., 1999). The Ctsk-Cre, especially the Ctsk-Cre knock-in line, has been reported to delete genes at the late stages of differentiated osteoclasts (Nakamura et al., 2007). It should be noticed that the Ctsk-Cre has been reported to cause gene-disruption in mesenchymal progenitor cells including periosteal cells and osteoblasts (Yang et al., 2013 and Ruiz et al., 2016). Thus, the differences of skeletal phenotypes between Tfr1ΔlysM and Tfr1ΔCtsk mice might be caused by the in vivo efficacy and the specificity of targeting cells of these two Cre mouse lines.

The high bone mass observed in Tfr1ΔlysM and Tfr1ΔCtsk mice is more dramatic in the appendicular skeleton (femurs and tibias) (Figure 2 and Figure 2—figure supplement 6) than the axial skeleton (vertebras) (Figure 2—figure supplements 5 and 7). The trabecular bone is more vulnerable to Tfr1-deficiency than the cortical bone. The exact explanation(s) for distinct effects of Tfr1-deficiency on different sites and compartments of bone are not available. Our qPCR result demonstrated that deletion efficiency of Tfr1 gene, Tfrc, in vertebra is less than femurs (Figure 2—figure supplement 9). It is also likely that the different physical properties, remodeling rate, microenvironment, and the heterogeneous osteoclast subtypes in the distinct sites and compartments of bone may contribute to these site- and compartment-specific phenotypes which have been reported in other genetically modified mouse models (Cruz Grecco Teixeira et al., 2016 and Sato et al., 2020).

In this study, we have demonstrated that energy metabolism regulated by Tf11-mediated iron uptake is specifically indispensable for osteoclast activation and function but has little influence on osteoclast differentiation. In contrast, Ishii et al., 2009 have reported that in vitro knockdown of Tfr1 expression in BMM by short-hairpin RNA (shRNA) inhibits osteoclast differentiation. This discrepant finding might be caused by the off-target effects of Tfr1 shRNA on expression of genes essential for osteoclast differentiation or by the distinct effects of short-term Tfr1 downregulation by shRNA vs long-term genetic deletion of Tfr1 on osteoclast lineage cells. In support of our finding, it has been recently reported that deletion of mitochondria coactivator PGC-1β in myeloid osteoclast precursor cells by Lyz2-Cre diminishes mitochondrial biogenesis and function in osteoclasts, leading to cytoskeletal disorganization and bone resorption retardation with normal osteoclasts differentiation (Zhang et al., 2018). In this study, the PGC-1β-stimulated osteoclast cytoskeleton activation is identified to be mediated by GIT1 (G protein coupled receptor kinase 2 interacting protein 1) which has been reported to regulates osteoclast function and bone mass (Menon et al., 2010 and Jones and Katan, 2007). Another report by Nakano et al. has shown that deletion of G-protein Gα13 in myeloid cells augments mitochondrial biogenesis and metabolism in osteoclasts. The gain-of-function of mitochondrial pathway induced by Gα13-deletion in osteoclasts promotes actin cytoskeleton dynamic and bone resorption via activation of cytoskeleton regulators c-Src, Pyk2, and RhoA-Rock2. Again, Gα13-deletion in osteoclast lineage cells has minimum effects on osteoclastogenesis in vivo and in vitro (Nakano et al., 2019). Intriguingly, we have unveiled that Tfr1-mediated iron uptake regulates osteoclast cytoskeleton probably via a distinct mechanism. The level of GIT1, Rac1, Cdc42, and Rock2 remains unchanged in Tfr1-null osteoclasts (Supplementary file 5). However, the activation of c-Src-Rac1-WRC axis by M-CSF is attenuated and mostly downregulated in the absence of Tfr1, indicating that Tfr1 modulates osteoclast cytoskeleton through promoting the stability of WRC complex. In supporting of this premise, overexpression of Hem1 (also known as Nckap1l) partially rescues the cytoskeletal defects in Tfr1-deficient osteoclasts (Figure 9).

In summary, we have provided evidence demonstrating that Tfr1-mediated iron uptake is a major iron acquisition pathway in osteoclast lineage cells that differentially regulates trabecular bone remodeling in perpendicular and axial bones of female and male mice. The increased intracellular iron facilitated by Tfr1 is specifically required for osteoclast mitochondrial energy metabolism and cytoskeletal organization.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain and strain background
(Mus musculus)
Tfrc-floxDr. Nancy C Andrews129Sv
Strain and strain background
(Mus musculus)
Tfrc-floxZhao LabC57BL6/J
Strain and strain background
(Mus musculus)
Lyz2-CreThe Jackson Laboratorycat#004781C57BL6/J
Strain and strain background
(Mus musculus)
Ctsk-CreDr. Takashi NakamuraC57BL6/J
Otheralpha-MEMMilliporeSigmaM0644cell culture medium
OtherBlasticidinMilliporeSigma203,350Antibiotics (2 μg/ml)
OtherDMEMMilliporeSigmaD-5648cell culture medium
OtherFetal bovine serum (FBS)Hyclonecell culture (10%)
Other10× penicillin-streptomycin- l-glutamineMilliporeSigmaG1146Antibiotics (1×)
Other10× trypsin/EDTAThermo-Fisher Scientific15400–054Antibiotics (1×)
Chemical compound and drugMouse apo-transferrinMilliporeSigmaT0523
Chemical compound and drugDihydrotestosteroneMilliporeSigmaD-07310–8 M
Chemical compound and drugEstrodiolMilliporeSigmaE225710–8 M
Chemical compound and drugferric ammonium citrate (FAC)MilliporeSigmaF5879
Chemical compound and drugFe59 ferric chloridePerkinElmer Inc
Chemical compound and drugHeminMilliporeSigmaH9039
Chemical compound and drugSodium bicarbonateMilliporeSigmaS5761
OtherAlbuminMilliporeSigmaA7906Blocking reagent (0.20% in PBS)
OtherAlexa Fluro-488 PhalloidinThermo-Fisher ScientificA12379Filament actin staining (1:400)
OtherGlycerolMilliporeSigmaG5516mounting reagent (80% in PBS)
OtherHoechst 33,342Thermo-Fisher ScientificH3570Nuclei staining (1:4,000 in PBS)
OtherParaformaldehydeMilliporeSigmaP6148immunofluorescent staining (4% in PBS)
OtherTriton X-100MilliporeSigmaT-9284immunofluorescent staining (0.1%)
OtherNaK tartrateMilliporeSigmaS6170TRAP staining
OtherNaphthol AS-BI
(phosphoric acid solution)
MilliporeSigma1,802TRAP staining
Other3,3’-diaminobenzidine
(DAB) tablets
MilliporeSigmaD-5905pit staining
Other30% H2O2MilliporeSigma216,763pit staining
OtherPeroxidase-conjugated WGA
(wheat germ agglutinin) lectin
MilliporeSigmaL-7017pit staining (20 μg/ml)
OthercOmplete EDTA-free protease inhibitor cocktailMilliporeSigma4693159001protease inhibitor
OtherEnhanced chemiluminescent detection reagents (ECL)MilliporeSigmaWBKLS0100immunoblotting
OtherPolyvinylidene difluoride membrane (PVDF)MilliporeSigmaIPVH00010immunoblotting
OtherRIPA bufferMilliporeSigmaR-0278cell lysate
AntibodyMouse monoclonal anti-cathepsin K (clone 182–12 G5)MilliporeSigmaMAB33241:2000
AntibodyMouse monoclonal anti-HA.11 (clone 16B12)Biolegend901,5131:5000
AntibodyMouse monoclonal anti-Tfr1 (clone H68.4)Thermo-Fisher Scientific13–68001:500
AntibodyMouse monoclonal anti-tubulin (clone DM1A)MilliporeSigmaT90261:3000
AntibodyMouse monoclonal Total OXPHOS Antibody CocktailAbcamab1104131:1000
AntibodyGoat polyclonal HRP-anti-mouse secondary antibodyCell Signaling Technology7,0761:5000
AntibodyGoat polyclonal HRP-anti-rabbit secondary antibodyCell Signaling Technology7,0741:5000
Commercial assay or kitHigh-capacity cDNA reverse transcription kitThermo-Fisher Scientific4368813
Commercial assay or kitRNeasy mini kitQiagen74,104
Commercial assay or kitSerum TRAcP-5bImmunodiagnostic SystemsSB-TR103
Commercial assay or kitRatLaps (CTx-I) EIAImmunodiagnostic SystemsAC-06F1
Commercial assay or kitRat/mouse PINP EIAImmunodiagnostic SystemsAC-33F1
Commercial assay or kitHepcidin Murine-Complete ELISA KitIntrinsic LifesciencesHMC-001
Commercial assay or kitPointe Scientific Iron/TIBC ReagentsFisherscientific23-666-320
Commercial assay or kitIron Assay KitAbcamab83366
Commercial assay or kitActive Arf1 pull-down and detection kitThermo-Fisher Scientific16,121
Commercial assay or kitActive Rac1 pull-down and detection kitThermo-Fisher Scientific16,118
Commercial assay or kitTMTsixplex isobaric Mass Tagging kitThermo-Fisher Scientific90,064
OtherMitoTracker Green fluorescenceThermo-Fisher ScientificM7514Mitochondrial assay reagent
OtherMitoSOX RedThermo-Fisher ScientificM36008Mitochondrial assay reagent
OtherJC-1 DyeThermo-Fisher ScientificT3168Mitochondrial assay reagent
Recombinant DNA reagentMurine Nckap1lDharmacon IncMMM1013-202769283cDNA template
Commercial assay or kitTransIT-LT1Mirus Bio LLCMIR2300DNA transfection reagent
Commercial assay or kitAcp5Thermo-Fisher ScientificMm00475698_m1Quantitative PCR (qPCR) primer
Commercial assay or kitCtskThermo-Fisher ScientificMm00484039_m1qPCR primer
Commercial assay or kitmt-Cox1Thermo-Fisher ScientificMm00432648_m1qPCR primer
Commercial assay or kitDcstampThermo-Fisher ScientificMm04209236_m1qPCR primer
Commercial assay or kitNfatc1Thermo-Fisher ScientificMm00479445_m1qPCR primer
Commercial assay or kitMfsd7cThermo-Fisher ScientificMm01302920_m1qPCR primer
Commercial assay or kitMrps2Thermo-Fisher ScientificMm00475529_m1qPCR primer
Commercial assay or kitRunx2Thermo-Fisher ScientificMm00501584_m1qPCR primer
Commercial assay or kitSlc11a2Thermo-Fisher ScientificMm00435363_m1qPCR primer
Commercial assay or kitSlc39a14Thermo-Fisher ScientificMm01317439_m1qPCR primer
Commercial assay or kitSlc40a1Thermo-Fisher ScientificMm01254822_m1qPCR primer
Commercial assay or kitSlc46a1Thermo-Fisher ScientificMm00546630_m1qPCR primer
Commercial assay or kitTfrcThermo-Fisher ScientificMm00441941_m1qPCR primer
Commercial assay or kitTfr2Thermo-Fisher ScientificMm00443703_m1qPCR primer

The animal work follows the ARRIVE guidelines. All the in vivo and in vitro experiments were performed and analyzed in double-blinded manner.

Mice and genotyping

Request a detailed protocol

Tfrc-flox congenic mice on a 129Sv background were kindly provided by Dr. Nancy C Andrews (Duke University). Tfrc-flox mice on a homogeneous C57BL/6 background were generated by backcrossing 129Sv Tfr1-flox mice with C57BL/6 mice for more than 10 generations. Lyz2-Cre mice on a C57BL/6 background (B6.129P2tm1/cre, stock number 004781) were purchased from The Jackson Laboratory (Bar Harbor, ME, USA). Ctsk-Cre congenic mice on a C57BL/6 background were obtained from Dr. Takashi Nakamura (Keio University, Tokyo, Japan). The primers and PCR protocols for genotyping Tfrc-flox and Lyz2-Cre mice followed those provided by The Jackson Laboratory. The following primers for genotyping Ctsk-Cre mice were used: P1N (5’-CCTAATTATTCCTTCCGCCAGGATG-3’), P2N (5’-CCAGGTTATGGGCAGAGATTTGCTT-3’), and P3N (5’-CACCGGCATCAACGTTTTCTTTTCG-3’). In vivo analyses of skeletal phenotypes were performed on F2 mice of mixed and homogeneous backgrounds.

Reagents and antibodies

Request a detailed protocol

See Key resources table.

Micro computed tomography

Request a detailed protocol

The left femurs, tibias, and L4 vertebrae were cleaned of soft tissues and fixed in 4% paraformaldehyde in PBS for overnight at 4°C. After washing with PBS for three times, the bones were stored in PBS with 0.02% sodium azide. The bones were loaded into a 12.3 mm diameter scanning tube and were imaged in a μCT (model μCT40, Scanco Medical). We integrated the scans into 3-D voxel images (1024×1024 pixel matrices for each individual planar stack) and used a Gaussian filter (sigma = 0.8 and support = 1) to reduce signal noise. A threshold of 200 was applied to all scans, at medium resolution (E = 55 kVp, I = 145 μA, and integration time = 200 ms).

Histology and bone histomorphometry

Request a detailed protocol

The left femurs were embedded undecalcified in methyl methacrylate. The dynamic histomorphometric examination of trabecular bone formation was done on 5 μm longitudinal sections with a digitizer tablet (OsteoMetrics, Inc, Decatur, GA, USA) interfaced to a Zeiss Axioscope (Carl Zeiss, Thornwood, NY, USA) with a drawing tube attachment. The right femurs fixed and decalcified in 14% EDTA for 7–10 days. The bones were embedded in paraffin before obtaining 5 μm longitudinal sections. After removal of paraffin and rehydration, sections were stained for TRAP activity and counter-stained with fast green, and osteoclasts were enumerated on the trabecular bone surface using Osteomeasure histomorphometric software (OsteoMetrics, Inc, Decatur, GA, USA).

Serum TRAcP-5b, CTx-I, and PINP ELISA

Request a detailed protocol

Blood was collected retro-orbitally under inhalation of a 2% isoflurane/oxygen mix anesthesia immediately prior to sacrifice. Serum was obtained by centrifugation of blood in a MiniCollect tube (catalog no. 450472, Greiner Bio-one GmbH, Austria). The serum levels of TRAcP-5b, CTx-I, and PINP were measured by a mouse TRAP (TRAcP 5b) kit (SB-TR103), RatLaps (CTx-I) EIA (AC-06F1), and rat/mouse PINP EIA kit (AC-33F1) from Immunodiagnostic Systems following their instructions.

Serum hepcidin ELISA and serum total iron measurement

Request a detailed protocol

The serum level of hepcidin in control and Tfr1ΔLysM mice was assayed by the Hepcidin Murine-Complete ELISA Kit from Intrinsic Lifesciences (La Jolla, CA, USA). The serum total iron concentration was measured using a Poine Scientific Iron kit.

Ovariectomy

Request a detailed protocol

The 4.5-month-old control and Tfr1ΔLysM female mice were anesthetized by a 0.5% isoflurane/oxygen mix and underwent bilateral OVX using the dorsal approach. The sham-operated mice had the ovaries exteriorized but not removed. Uterine weight was determined at sacrifice to verify the successful removal of the ovaries. 6 weeks after operation, mice were sacrificed, and femurs were isolated and fixed by 4% paraformaldehyde/PBS overnight before scanned by μCT.

In vitro osteoclast cultures

Request a detailed protocol

Whole bone marrow was extracted from tibia and femurs of 6- to 8-week-old control and conditional knockout male and female mice. Red blood cells were lysed in buffer (150 mM NH4Cl, 10 mM KNCO3, 0.1 mM EDTA, and pH 7.4) for 5 min at room temperature. 5×106 bone marrow cells were plated onto a 100 mm petri-dish and cultured in α–10 medium (α-MEM, 10% heat-inactivated fetal bovine serum [FBS], 1×PSG, penicillin-streptomycin-glutamine) containing 1/10 volume of CMG 14–12 (conditioned medium supernatant containing recombinant M-CSF at 1 μg/ml) for 4–5 days. BMM were lifted by 1×trypsin/EDTA and replated at density of 160/mm2 onto tissue culture plates or dishes with 1/100 vol of CMG 14–12 culture supernatant along for monocytes or cultured with 1/100 vol of CMG 14–12 culture supernatant plus 100 ng/ml of recombinant RANKL for 2 and 4 days to generate mononuclear pre-osteoclasts and mature osteoclasts, respectively.

Retroviral transduction

Request a detailed protocol

A total of 3 μg of pMX (mammalian expression) retroviral vector or recombinant pMX vector expressing HA-tagged murine Hem1 was transfected into Plat E retroviral packing cells using TransIT-LT1 transfection reagent. Virus supernatants were collected at 48 hr after transfection. 5×106 bone marrow cells isolated from Tfr1 myeloid conditional knockout mice were plated onto a 100 mm petri-dish and cultured in α–10 medium (α-MEM, 10% heat-inactivated FBS, 1×PSG) containing 1/10 volume of CMG 14–12 supernatant for two days. BMM were transduced with viruses for 24 hr in α–10 medium containing 1/10 volume of CMG 14–12 supernatant and 20 μg/ml of protamine. Cells were then lifted by 1×trypsin/EDTA and replated at 2×106 density onto a 100 mm petri-dish. The positively transduced cells were selected in α–10 medium containing M-CSF and 1.5 μg/ml of blasticidin for 3 days.

TRAP staining

Request a detailed protocol

Osteoclasts cultured on 48-well tissue culture plate were fixed with 4% paraformaldehyde/PBS for 20 min at room temperature. After washing with PBS for 5 min twice, TRAP was stained with NaK tartrate and naphthol AS-BI phosphoric acid. Photomicrographs were taken with a stereomicroscope with a digital camera (Discovery V12 and AxioCam; Carl Zeiss, Inc). The number of osteoclasts with more than three nuclei was counted and analyzed by GraphPad Prism 6 in a double-blinded manner.

Resorption pit staining

Request a detailed protocol

Mature osteoclasts grown on cortical bovine bone slices were fixed with 4% paraformaldehyde/PBS for 20 min. After washing in PBS for 5 min twice, cells were removed from bone slices with a soft brush. The slices were then incubated with 20 µg/ml peroxidase-conjugated wheat germ agglutinin lectin for 60 min at room temperature. After washing in PBS twice, bone chips were incubated with 0.52 mg/ml 3,3_-diaminobenzidine and 0.03% H2O2 for 30 min. Samples were mounted with 80% glycerol/PBS and photographed with Zeiss AxioPlan2 microscope equipped with an Olympus DP73 digital camera. The resorbed area/bone slice was quantified by ImageJ software (National Institutes of Health), and the percentage of pit area vs that of the whole bone slice was calculated and analyzed by GraphPad Prism 6.

Fluorescent staining of actin filaments and nuclei

Request a detailed protocol

Osteoclasts cultured on glass coverslips or bone slices were fixed with 4% paraformaldehyde in PBS for 20 min and permeabilized with 0.1% Triton X-100/PBS for 10 min at room temperature. The filament actin and nuclei were labeled by Alexa-488 conjugated Phalloidin (1:100 from a 1 mg/ml stock) and Hoechst 33,342 (1:4000 from a 10 mg/ml stock), respectively, for 15 min at room temperature. After two times 5-min wash with PBS, samples were mounted with 80% glycerol/PBS and photographed under a Zeiss AxioImager Z1 fluorescent microscope equipped with Zeiss AxioCam MRm monochromatic and MR5c color cameras with a set of fluorescent filters. The percentage of active osteoclasts (podosome-belt bearing osteoclasts on glass coverslips and actin-ring bearing osteoclasts on bone slices) out of total osteoclasts was calculated and analyzed by GraphPad Prism 6.

RNA isolation and real-time qPCR

Request a detailed protocol

Total RNA was purified using RNeasy mini kit (Qiagen) according to the manufacture’s protocol. First-strand cDNAs were synthesized from 0.5 to 1 μg of total RNA using the High-Capacity cDNA Reverse Transcription kits (Thermo-Fisher Scientific) following the manufacturer’s instructions. TaqMan real-time qPCR was performed using the primers from Thermo-Fisher Scientific (Key resources table). Samples were amplified using the StepOnePlus real-time PCR system (Life Technologies) with an initial denaturation at 95°C for 10 min, followed by 40 cycles of 95°C for 15 s and 60°C for 1 min. The relative cDNA amount was calculated by normalizing to that of the mitochondrial gene Mrps2, which is steadily expressed in both BMM and osteoclasts, using the ΔCt method.

Immunoblotting

Request a detailed protocol

Cells were washed with ice-cold PBS twice and lysed in 1× RIPA buffer containing cOmplete Mini EDTA-free protease inhibitor cocktail. After incubation on ice for 30 min, cell lysates were clarified by centrifugation at 14,000 rpm for 15 min at 4°C. 10–30 μg of total protein was subjected to 8 or 10% SDS-PAGE gels and transferred electrophoretically onto polyvinylidene difluoride membrane by a semi-dry blotting system (Bio-Rad). The membrane was blocked in 5% fat-free milk/Tris-buffered saline for 1 hr and incubated with primary antibodies at 4°C overnight followed by horseradish peroxidase conjugated secondary antibodies. After rinsing three times with Tris-buffered saline containing 0.1% Tween 20, the membrane was incubated with enhanced chemiluminescent for 5 min.

59Fe-transferrin uptake and colorimetric total cellular iron measurement

Request a detailed protocol

Mouse apo-transferrin was labeled with 59Fe and gel-filtered on a Sephadex G-50 column. For Tf-dependent 59Fe influx measurements, 25 µg of 59Fe-labeled Tf was added to each well of a 6-well plate with 3 ml of medium and incubated in a CO2 incubator (37°C, 5% CO2) with rotation at 80 rpm. At various times after adding labeled Tf, the medium was aspirated, and cells were washed gently three times with 2 ml of cold PBS. Wells were extracted with 1 ml of 0.1 N NaOH; radioactivity was determined on a 0.5 ml aliquot by a gamma counter. Protein was determined on 25 µl of the extract.

To measure cellular iron, cells cultured in 6-well plates were collected in 50 µl of the Iron Assay Buffer provided in an Iron Assay kit (Abcam) and were homogenized with pellet pestles associated with a motor. The cells lysates were centrifuged at 15,000 rpm for 10 min. The supernatants proceeded to measure the total iron (Fe2+ and Fe3+) concentration following the manufacturer’s protocol.

Quantitative proteomic and mass-spectrometry

Request a detailed protocol

Cells were harvested and lysed in 2% SDS lysis buffer. A total of 100 µg of proteins in each cell lysate was reduced, alkylated, and digested using filter-aided sample preparation. Tryptic peptides were cleaned by solid phase extraction (SPE), normalized and labeled using a TMTsixplex isobaric Mass Tagging kit. The labeled peptides were cleaned by SPE and mixed. The mixed peptides from each cell culture were separated into 36 fractions on a 100 × 1.0 mm Acquity BEH C18 column (Waters) using an UltiMate 3000 UHPLC system (Thermo-Fisher Scientific) with a 40 min gradient from 99:1 to 60:40 buffer A:B (Buffer A contains 0.5% acetonitrile and 10 mM ammonium hydroxide). Buffer B contains 10 mM ammonium hydroxide in acetonitrile ratio under basic (pH 10) conditions and then consolidated into 13 super-fractions.

Each super-fraction was then further separated by reverse phase XSelect CSH C18 2.5 mm resin (Waters) on an in-line 150 × 0.075 mm column using an UltiMate 3000 RSLCnano system (Thermo). Peptides were eluted using a 60 min gradient from 97:3 to 60:40 buffer A:B ratio. Here, buffer A contains 0.1% formic acid and 0.5% acetonitrile, and buffer B contains 0.1% formic acid and 99.9% acetonitrile. Eluted peptides were ionized by electrospray (2.15 kV) followed by mass spectrometric analysis on an Orbitrap Fusion Lumos mass spectrometer (Thermo) using multi-notch MS3 parameters. The mass spectrometry data were acquired using the FTMS (fourier transform mass spectrometer) analyzer in top-speed profile mode at a resolution of 120,000 over a range of 375–1500 m/z. Following CID activation with normalized collision energy of 35.0, MS/MS data were acquired using the ion trap analyzer in centroid mode and normal mass range. Using synchronous precursor selection, up to 10 MS/MS precursors were selected for HCD activation with normalized collision energy of 65.0, followed by acquisition of MS3 reporter ion data using the FTMS analyzer in profile mode at a resolution of 50,000 over a range of 100–500 m/z.

Proteins were identified and reporter ions quantified by searching the UniprotKB Mouse database using MaxQuant (version 1.6.10.43, Max Planck Institute) with a parent ion tolerance of 3 ppm, a fragment ion tolerance of 0.5 Da, a reporter ion tolerance of 0.001 Da, trypsin/P enzyme with two missed cleavages, variable modifications including oxidation on M and acetyl on protein N-term, and fixed modification of carbamidomethyl on C. Protein identifications were accepted if they could be established with less than 1.0% false discovery. Proteins identified only by modified peptides were removed. Protein probabilities were assigned by the Protein Prophet algorithm. TMT MS3 reporter ion intensity values were analyzed for changes in total protein.

Mitochondrial mass, ROS production, and membrane potential measurements

Request a detailed protocol

Mitochondrial content, mitochondria-derived ROS, and mitochondrial membrane potential were measured using MitoTracker Green fluorescence, MitoSOX Red Mitochondrial Superoxide Indicator, and JC-1 Dye from Thermo-Fisher Scientific, respectively, using fluorescence microscopy. Briefly, cells cultured onto glass-bottom imaging dishes were incubated with MitoTracker Green (50 nM), MitoSOX (5 µM), or JC-1 (5 µg/ml), respectively, for 15 min at 37°C. The probes were then washed off, and cells were examined under fluorescent microscope. The epifluorescent images of five randomly chosen areas per group (control or knockout) were taken in a blinded fashion. Each area had between 5 and 10 cells. The images were analyzed with Image J software also in a blinded fashion. The fluorescent intensities of cells were individually measured, and the results were presented as mean fluorescent intensity per cell in arbitrary units.

Seahorse mitochondrial flux analysis

Request a detailed protocol

BMM were plated in wells of Seahorse XF96 cell culture plates. The cells were cultured with 10 ng/ml M-CSF alone or 10 ng/ml M-CSF plus 100 ng/ml recombinant RANKL for 2 days to generate monocytes and pre-osteoclasts or 4 days for mature osteoclasts. On the day of respiratory function measurements, the media in the wells were changed to unbuffered Dulbecco’s modified Eagle’s medium supplemented with 4 mM glutamate and incubated in a non-CO2 incubator for 1 hr at 37°C. Three baseline measurements were acquired before injection of mitochondrial inhibitors or uncouplers. OCR measurements were taken after sequential addition of oligomycin (10 µM), FCCP (5 µM), and rotenone/antimycin A mixture (10 µM). OCRs were calculated by the Seahorse XF-96 software and represent an average of three measurements on 18–24 different wells. The rate of measured oxygen consumption was reported as fmol of O2 consumed per min per cell.

Rac1 and Arf1 activation assay

Request a detailed protocol

BMM obtained from the control and Tfr1ΔLysM mice were cultured with M-CSF and RANKL for 3 days to generate pre-osteoclasts. The cells were then under serum and cytokine starvation for 6 hr before stimulated with 50 ng/ml M-CSF and 100 ng/ml RANKL, respectively. The activation of small GTPases Rac1 and Arf1 was assayed by GST-pull down assay kits from Thermo-Fisher Scientific Inc.

Statistics

Based on power analysis using SD and the population variance estimated from our previous studies and reports by others, the required sample size of mice for α=0.05 (two-sided) and a power of 0.95 is ≥6 animals per group. The in vivo biological replicates are defined as an individual mouse for each experiment. All in vitro data were representatives of individual biological replicates from independent experiments and not technical replicates (repeated measurements of the same sample). For all graphs, data are represented as the mean ± SD. For comparison of two groups, data were analyzed using a two-tailed Student’s t-test. For comparison of more than two groups, data were analyzed using one-way ANOVA, and the Bonferroni procedure was used for Tukey comparison. For all statistical tests, the analysis was performed using Prism 6 (GraphPad Software, La Jolla, CA), and a p value of less than 0.05 was considered significant.

Study approval

Request a detailed protocol

All animal protocols and procedures used in animal studies were approved by the Institutional Animal Care and Use Committees of the University of Arkansas for Medical Sciences, Long Beach VA Healthcare System, and Loma Linda VA Healthcare System (IACUC #1,685 and #1774). The protocols for generation and use of recombinant DNAs and retroviruses were approved by Institutional Biosafety Committee of Long Beach VA Healthcare System (approval #1774).

Data availability

All data generated or analysed during this study are included in the manuscript and supporting file.

References

Decision letter

  1. Yelena Ginzburg
    Reviewing Editor; Icahn School of Medicine at Mount Sinai, United States
  2. Mone Zaidi
    Senior Editor; Icahn School of Medicine at Mount Sinai, United States
  3. Nathan J Pavlos
    Reviewer; University of Western Australia, Australia

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Transferrin receptor 1-mediated iron uptake regulates bone mass in mice via osteoclast mitochondria and cytoskeleton" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen Mone Zaidi as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Nathan J Pavlos (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

The reviewers found significant merit in the work. However, the evaluation identified sufficient weaknesses that prevent publication of this work in the present form. The main shortcomings of the presented work include the relatively underdeveloped in vitro data which does not convincingly support the conclusions; the concern that the mouse models result in decreased Ctsk expression which may along at least in part explain the phenotype; the potential of evaluation in an ovarectomized mice and / or mice at different ages to extend the translational potential and underlying mechanism of these findings, respectively; and some degree of evaluation of systemic iron metabolism and erythropoiesis. Specifically, the in vitro data can be extended to more fully explore osteoclastogenesis and in vivo data by experimentally addressing the observed gender disparity and specificity of effect in the trabecular region of long bones.

Reviewer #1 (Recommendations for the authors):

Some additional questions and clarifications are delineated below.

1. It is unclear why only or mostly female osteoclast-selective TFR1-null mice exhibit a more robust phenotype, with increased bone mass in long bones. The authors discuss this point in the Discussion section but the proposed experiment, to evaluate whether hepcidin expression is altered in the liver or hepcidin concentration changes in the serum and IHC using anti-FPN1 antibody in osteoclasts or at least cellular iron concentration would be useful to corroborate the hypothesis of estrogen-mediated changes in the hepcidin:ferroportin axis. Do osteoclasts even express FPN1 to make such a hypothesis viable? There is some data on testosterone and hepcidin regulation (Latour Hepatology 2014) that may be worth mentioning or discussing in the setting of the authors hypothesis about differential gender-related results. Finally, are the differences between male and female mice significant in Figure 2? Are these differences in the expected range for male and female mice?

2. It is similarly unclear why only long bones but not vertebrae reveal these differences. Can the authors speculate and discuss this point in the Discussion section?

3. The authors suggest that they have effectively excluded an effect from TFR2 on osteoclast function. However, this is inaccurate and needs to be communicated differently. At best, the authors have confirmed what has long been understood that TFR2 serves as an iron sensor rather than importer of iron. This should be restated in all mention of TFR2 in the manuscript. Furthermore, Rauner et al. published an important manuscript looking at the role of TFR2 in bone, demonstrating that TFR2 competes with BMPR for binding BMP2 and TFR2:BMP binding is enhanced in the presence of Fe-TF, together suggesting that presence of iron may favor bone resorption in the presence of TFR2. Something akin to this would benefit the readership and should be included in the manuscript as it pertains to the data on TFR1 here.

4. Figure 1, Y axis on mRNA expression panels is unclear what the control is. Typically, expectation is of change from baseline (1) in control. Minor: panel for Flvcr2 is missing from legend.

5. Figure 1 B, what mechanism leads to some cellular iron in TFR1 fl/LysM Cre OC cells? This may be the reason that the results on differentiation are not seen in the current work relative to Ishii et al. 2009. Please explain and include in the Discussion.

6. Figure 3 A-E is redundant and can be moved to the Supplement. In general, the data on LysM-cre mice is distracting and does not provide substantive contributing information to the main point. Consider moving all LysM-cre data to the supplement to better focus the manuscript.

7. Figure 3G, the difference in female mice is driven by 3 mice with elevated values; are these 3 mice in any way different from the others? Are they outliers?

8. Figure 3 states that there is no impact on osteoclast number and bone resorption in mice but while BFR is unchanged in Figure 3J, serum P1NP is increased. How do the authors reconcile this confusing result?

9. Given the number of figures, it would be worthwhile to consolidate and reorganize to move some additional elements into the supplementary figures. For example, there is no reason in the mind of the reviewer to include both male and female samples in vitro. Especially since there are no visible differences, please move one gender to the supplement.

10. Figure 6 title suggests that there are no differences in markers of differentiation, e.g. Nfatc1 and Ctsk, but both of these appear to be decreased in f/f;c/c samples, both female but especially male (especially since tubulin appears greater in those samples). Please provide the quantification here.

11. Figue 12B and 12C do not include control cells with and without Hem1 overexpression. This is important since the mechanism may be completely different and yet additive to yield the observed results. Please edit.

12. The Introduction is too long and unfocused. Please edit.

13. The first half of the Discussion is a restating of the results and needs to be re-written to further extend the interpretation of the results without restating them.

Reviewer #2 (Recommendations for the authors):

This is a well-written study that examines the role of transferrin receptor 1 in osteoclast function and bone remodelling. The importance of iron homeostasis in bone turnover has gained momentum in recent years, most notably the role of transferrin receptor 2 in osteoblasts (Rauner et al., Nat Med 2019), however the physiological significance of iron and the mechanism(s) responsible for its uptake in osteoclasts remains poorly understood. As such, the present study detailing the physiological role of Tfr1 in osteoclasts would likely be of considerable interest to the field, complementing existing studies in osteoblasts, but also reconciling the physiological contribution of cellular iron handling on the other side of the bone remodelling equation. The strengths of this study lie the multiple osteoclast-specific mouse lines generated to interrogate the role of Tfr1 in both osteoclast-lineage cells and mature osteoclasts along with the suite of complementary cell biological, biochemical and proteomic analyses used to dissect its contribution in osteoclasts. Nonetheless, there remain some weaknesses, particularly concerning the expressivity of the bone phenotype and mechanistic link between Tfr1 and the cytoskeleton that should be considered to strengthen the overall resolve of the conclusions drawn.

I have the following comments:

1. The studies conducted on LysoM-Cre mice appear to be well-executed and carefully controlled. The skeletal phenotype is however complex, being restricted to trabeculae of the long bones of female mice, but not the axial skeleton (e.g. vertebrae) at 10-weeks of age. The authors rationalise that the unexpected sexual dimorphism is associated with an intersection between estrogen and iron export, which is reasonable, but they do not offer experimental evidence to support this. Further, the skeletal phenotyping is limited to a single time-point i.e. 10-weeks of age. As such, it would be beneficial if the authors could provide data in older animals to show whether the bone phenotype becomes more pronounced or resolves with age. It would also be useful for the reader if the authors could offer some explanation for the observed site-specific differences in the Discussion e.g. potential differences in osteoclast heterogeneity etc.

2. Although widely employed as a Cre-transgenic mouse line to conditionally delete target genes in mature osteoclasts there are some caveats that should be considered to avoid over-interpretation of data arising from the cathespin K (Ctsk)-Cre lines. Foremost, this cre-line is known to result in the loss one allele of Ctsk owing to partial replacement the Ctsk locus with Cre in the targeting cassette (Dallas et a., Genetics 2018). Thus, endogenous Ctsk expression is reduced. Considering that deficiency and mutations in Ctsk lead to high bone mass phenotype (Saftig et al., 1997) together with findings that Cstk K-Cre can also lead to unexpected germline deletion of genes (e.g. Winkeler et al., PLos 2012), any data arising from these mice need to be interpreted with a degree of caution. The authors have rightly attempted to control for this using littermates mice on heterozygous KI (Ctsk-Cre/+), which is appropriate although these mice are on a mice mixed background C57BL6/129 which can complicate skeletal phenotypes. Overall, these underlying complexities may account, in part, for the discrepancies observed between the LysoM and Ctsk-cre males and females, with Ctsk-Cre leading to a more pronounced phenotype. As a minimum, these limitations need to be acknowledged and discussed. A minor oversight- for Figure 4B is that the mice sexes are unlabelled in the reconstructed uCT scans.

3. The in vitro data concerning the potential effects of Tfr1-deficiency on osteoclast different and mitochondrial metabolism are extensive and overall support the conclusion drawn. On the other hand the mechanism linking Tfr1 regulation of the osteoclast cytoskeleton remains largely descriptive and thus is comparatively underdeveloped. While the quantitative proteomics data goes some way to lend support to the notion that loss of Tfr1 leads to a global dysregulation of downstream Tfr1-associated protein pathways including those involved with cytoskeletal signalling/organization, the extent and diversity of proteins affected in osteoclasts >2000 proteins is remarkable. Can the authors please clarify how they arrived at the 1.2-fold threshold for these data. Does the 1.2-fold represent an arbitrary cut-off or does it reflect >1.2 Log2Fold, p<0.05? To validate these proteomic data the authors hone in on hem1 (a component of the Wave regulatory complex, WRC) and show that it partly restores the cytoskeletal spreading defect in Tfr1-deficient osteoclasts. This finding is interesting but would be bolstered by confirmation of a disruption of additional components of the WRC or downstream components such as Arf2/3 which has an established role in OC cytoskeletal organization in osteoclasts (Hurst et al., JBMR 2009). Considering the well-established roles of B3-integrin, c-SRC and Pyk2 in osteoclasts, it would be valuable to corroborate/or discount their direct involvement in these spreading and cytoskeletal defects by independently assessing their expression levels immunoanalytically in Tfr1-deficient osteoclasts.

Reviewer #3 (Recommendations for the authors):

1. The authors state that Tfr1 does not inhibit osteoclast differentiation, but just spreading and resorption. I do not agree with this statement. By "spreading", do the authors mean "fusion"? I believe in any case that this is part of the differentiation process to a fully mature osteoclast. Also, even though it is stated that osteoclasts have been counted as TRAP-positive and with more than 3 nuclei, I know from experience that it is tricky to identify the nuclei just using TRAP staining, especially in such small cells as presented in Suppl. Figure 9A. I believe it may be more accurate to assess the number of osteoclasts in this case with so many small ones using IF and DAPI staining for the nuclei. Using that, the authors could also count how many osteoclasts have e.g. 3-10 or 10-50 nuclei (giving insights into the fusion process). Finally, I believe more markers for osteoclasts could be used to address this point of fusion/spreading, such as DC-STAMP, SWAP70, or CTSK. In Suppl. Figure 9, e.g., it looks like CtsK expression is reduced in the Tfr1;Lysm-cre mice, although the WB is a bit over-exposed, so it is hard to tell… quantification would be helpful.

2. It appears that the appendicular skeleton is more affected than the axial skeleton. Did the authors check the expression of Tfr1 in e.g. femoral vs. vertebral bone using immunohistochemistry? Is there a difference in expression pattern that may explain the altered susceptibility of the sites to Tfr1 deletion? Similarly, it would be interesting to check Tfr1 in trabecular vs. cortical bone – as those also seem to be differentially affected.

3. Along those lines, is the expression of Tfr1 in osteoclasts (bone) lower in young animals compared to adult ones? Could that explain the more severe effects of iron deficiency in adult mice compared to the 3-week-old ones?

4. The increase in BV/TV in female 10-week-old mice is quite strong (especially in the Ctsk-cre mice). Did the authors detect extramedullary hematopoiesis? Are those mice iron deficient also in the liver? How is their systemic iron levels?

5. The lack of osteoclast function during Tfr1-deficiency would be beneficial in a more clinical context in e.g. ameliorating bone loss via ovariectomy. I think performing such an experiment (with the Tfr1;Ctsk-cre mice) would add more clinical benefit to the paper.

6. How do the authors explain that Tfr1 deficiency in osteoclast precursors has less effects than using the Ctsk-cre mice? I would assume that using the Lysm-cre, all osteoclasts – also the later stages – are affected, whereas in the Ctsk-cre, only the mature ones are. Thus, I am not sure why the Lysm-cre don´t also show a stronger effect.

7. Figure 4: to me, it actually looks like there are fewer osteoclasts in the cKO mice… the number of mice is not that high for histology, which tends to have high standard deviations. Did the authors also check the BFR in those mice? Was it also a bit increased, like in the Lysm-cre mice?

8. A WB should be shown validating the reduction of OXPHOS complex I-V expression. Similarly, it would be good to show a verification of other key proteins involved in cytoskeletal reorganization that were identified in the proteomic studies.

9. It is not clear to me how Mitotracker/Mitosox MFI and mitochondrial membrane potential were quantified? Why are there so many dots? How many cells and/or mitochondria were quantified? Was the MFI of each individual cell measured? Please add more details.

10. The link between Tfr1 and cytoskeleton organization is not quite clear. Is that connection e.g. iron-dependent and/or dependent on non-canonical functions of Tfr1? If iron-dependent, how does iron affect the regulation of WRC/Arp2/3 complex?

11. I personally think that Suppl. Figure 1 should be included into the main figures as it shows the first mechanistic part. I would rather suggest to potentially combine Figure 1+3 and/or 2+4 (or put parts of them into the supplement).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Transferrin receptor 1-mediated iron uptake regulates bone mass in mice via osteoclast mitochondria and cytoskeleton" for further consideration by eLife. Your revised article has been evaluated by Mone Zaidi (Senior Editor) and a Reviewing Editor.

While the authors have added a substantive amount of work to significantly improve this manuscript, there are some remaining issues that need to be addressed, still a few places that need further explanation, a few pieces of data that do not evidently communicate what the authors claim:

1) While Ctsk mRNA expression is increased in Tfr1f/f Cre+ mice, protein concentration is decreased. This is unclear and presumptively, the focus is on the protein concentration. It is unclear what this means in total but the authors state that this indicates that Tfr1 deletion in osteoclasts has minimum effect on osteoclast differentiation. This needs to be clarified further in the results and Discussion sections.

2) Tfr1 loss appears to increase the number of osteoclasts with fewer nuclei and decreased fusion. The authors state that this impacts osteoclast function (decreased) rather than number or differentiation. This is fine as they show good evidence of decreased osteoclast functional endpoints. However, later in the manuscript, osteoblast data is also alluded to but not presented, noting only increased serum P1NP and Runx2 expression (Figure 3 – suppl Figure 2) and a comment suggesting that the phenotype in Tfr1f/f;Lyz2-Cre mice therefore maybe the consequence of altered osteoblast function. The response to Reviewer 1, point #8 is thus confusing and requires further clarification. Perhaps the authors are stating that the altered osteoclast function leads to an altered ability of the osteoclasts to suppress osteoblasts? This should be made clear in the discussion at least as speculation if the data cannot be shown fully. Response to Reviewer 2 point #4 is confusing with circular logic along the same lines.

3) Figure 6D needs a quantification. The authors state that Tfr1 loss results in decreased energy metabolism but there is no obvious evidence of this in osteoclasts in this figure (maybe BMM are bit more decreased in Tfr1-/- cells). Therefore, it is erroneous to state that is is restored by hemin as there is no evidence of a defect or visually appreciable differences relative to control in any of the wells. Please clarify.

4) While OVX Tfr1f/f;LysMCre mice exhibit a persistent difference from OVX control, the authors state that the phenotype observed in non-OVX mice is estrogen dependent (page 9, line 227). This is conceptually inaccurate in my understanding as if it were estrogen dependent, the difference would be abrogated after OVX which it is not. It in fact supports the opposite conclusion, that the phenotype is NOT estrogen dependent. Please clarify in discussion.

5) Figure 9C and 9D demonstrate the effect of Hem1 overexpression. The authors note "rescue" but this is only partial and a more appropriate conclusion would be that other mechanisms of iron delivery can reverse, at least partially, the effect of iron restriction induced by Tfr1 loss.

6) Unclear if there is a difference between 10uM hemin in control vs. Tfr1-/- cells in Figure 5A, 5C, and 5D. A preserved difference would suggest that there is incomplete rescue even at the highest hemin dose because osteoclasts may not have every option for iron import available in other cells. This is important to expand in the Discussion section.

7) Figure 9B requires quantification to corroborate the assertions made by the authors.

https://doi.org/10.7554/eLife.73539.sa1

Author response

Essential revisions:

The reviewers found significant merit in the work. However, the evaluation identified sufficient weaknesses that prevent publication of this work in the present form. The main shortcomings of the presented work include:

1) The relatively underdeveloped in vitro data which does not convincingly support the conclusions.

To further support our conclusion that loss of Tfr1 in osteoclast lineage cells has little effects on differentiation but attenuates cytoskeleton organization and inhibits activation/function of mature osteoclasts, we performed the following extended in vitro experiments. The new data are included in new Figure 4, Figure 6, and Figure 9.

i. qPCR detection of mRNA expression of osteoclast marker genes, including Acp5 (encoding TRAP), Ctsk (encoding Cathepsin K), Nfatc1 (encoding osteoclast master transcription factor Nfatc1), and Dcstamp (encoding osteoclast fusion regulator DC-Stamp), in control and Tfr1ΔlysM bone marrow monocytes, pre-osteoclasts, and mature osteoclasts. As shown in Figure 4B, the mRNA levels of Acp5, NFATc1, and dcstamp in Tfr1ΔlysM osteoclast precursor and mature cells were similar to those of respective control cells. The mRNA expression of Ctsk in Tfr1ΔlysM pre-osteoclasts and mature osteoclasts was slightly higher than that in control cells. These results indicate that deletion of Tfr1 in osteoclast myeloid precursors has minimum effects on osteoclast differentiation as indicated in Figure 4A.

ii. We repeated western blotting for Nfatc1 and Cathepsin K and quantified the specific bands of these osteoclast markers by densitometry using NIH Image J software. As demonstrated in the right panels of Figure 4C and Figure 4—figure supplement 1B, deletion of Tfr1 had no effects on the protein level of Nfatc1 in osteoclast precursor and mature cells, whereas the level of Cathepsin K in Tfr1ΔlysM pre- and mature-osteoclasts was slightly decreased compared to control and Tfr1-f/f;c/+ osteoclasts.

iii. We counted the number of osteoclasts with 3-10, 10-30, and >30 nuclei, respectively. As shown in Figure 4D, the number of osteoclasts with 3-10 nuclei in Tfr1ΔlysM culture was higher than control and there was no difference in the number of osteoclasts with 10-30 nuclei between control and Tfr1ΔlysM cultures. Only the number of osteoclasts with > 30 nuclei in Tfr1ΔlysM culture was lower than control although the mRNA expression of osteoclast fusion gene Dcstamp was similar in control and Tfr1ΔlysM osteoclasts. The exact mechanism(s) of decreased fusion in the late stage of osteoclastogenesis in Tfr1ΔlysM culture need further investigation in future.

iv. To consolidate the finding from quantitative proteomic results that cellular iron regulates the components of mitochondrial respiration chain, we did immuno-blotting to detect the changes of mitochondrial respiratory complexes in control and Tfr1ΔlysM monocytes and mature osteoclasts treated with either vehicle or 10μM hemin using a cocktail of antibodies recognizing the representative components of mitochondrial respiratory complex I-V. As shown in Figure 6D, there was an obvious decrease in the mitochondrial complex II and III in Tfr1ΔlysM monocytes and hemin stimulated the mitochondrial complex I and II in control and Tfr1ΔlysM osteoclasts, indicating that Tfr1-mediated iron uptake plays an important role in mitochondrial oxidative phosphorylation pathway.

v. To identify the mechanisms by which Tfr1 regulates osteoclast WRC complex and cytoskeleton, we examined the activation (phosphorylation) of protein tyrosine kinase c-Src which plays a pivotal role in osteoclast cytoskeleton organization downstream of integrin and M-CSF as well as RANKL signaling pathways in control and Tfr1ΔlysM osteoclasts. We also assayed the activation of small GTPases Rac1 and Arf1 that are upstream stimulators of WAVE-regulating complex (WRC) in responses to M-CSF and RANKL in control and Tfr1ΔlysM osteoclasts using GST-pulldown kits from Thermo-Fisher Scientific Inc. As shown in Figure 9B, we found that the phosphorylation of c-Src and the GTP-bound (active form) of Rac1, but not GTP-bound Arf1, stimulated by M-CSF were declined in Tfr1ΔlysM osteoclasts. In contrast, Tfr1-deficiency had little effects on RANKL-activated c-Src, Rac1, and Arf1 in osteoclasts.

vi. We repeated the Hem1 overexpression experiment with proper controls suggested by the reviewers. As demonstrated in Figure 9C and 9D, overexpression of HA-tagged Hem1 enhanced the number of activated osteoclasts in control culture and rescued the cytoskeletal defect in Tfr1ΔlysM osteoclasts.

2) The concern that the mouse models result in decreased Ctsk expression which may along at least in part explain the phenotype;

As shown in Figure 4B and 4C, although the mRNA expression of Ctsk in Tfr1ΔlysM pre-osteoclasts and mature osteoclasts detected by qPCR was slightly higher than that in control cells, the quantification of western blots demonstrated that the levels of Ctsk protein in Tfr1ΔlysM pre- and mature-osteoclasts were slightly decreased compared to control cells. This decreased Ctsk expression might contribute attenuated bone resorption in Tfr1ΔlysM osteoclasts. It should be pointed out that Ctsk heterozygous mice had no defects in osteoclast function (Gowen, et al., JBMR 1999). The phenotypes of osteoclasts in vitro and skeletal homeostasis in Tfr1ΔlysM mice are mainly resulted from the decreased energy metabolism and defect in cytoskeleton organization in Tfr1ΔlysM osteoclasts.

3) The potential of evaluation in an ovarectomized mice and / or mice at different ages to extend the translational potential and underlying mechanism of these findings, respectively.

In addition to 10 weeks old post-pubertal mice, we have examined the skeletal phenotypes of 3-weeks-old pre-pubertal and 6 months old sham and ovariectomized control and Tfr1-flox;LysM-Cre mice by μCT. These data are presented in Figure 2 and Figure 2—figure supplement 4-5. The results are incorporated in the third paragraph on page 8-9. The possible mechanisms are discussed in the second paragraphs on pages 20-21.

4) Some degree of evaluation of systemic iron metabolism and erythropoiesis.

We have measured the serum levels of total iron and iron-regulating hormone hepcidin. In addition, we have counted the number of red blood cells in peripheral blood from both male and female control and Tfr1-flox;LysM-Cre mice. These data are presented in the Figure 2—figure supplement 3. The results have been added in the second paragraph on page 8, which demonstrate that loss of Tfr1 in myeloid lineage cells has no effects on systemic iron homeostasis and erythropoiesis.

5) Specifically, the in vitro data can be extended to more fully explore osteoclastogenesis and in vivo data by experimentally addressing the observed gender disparity and specificity of effect in the trabecular region of long bones.

See specific point-by point responses below to individual reviewer’s critiques related to this issue.

Reviewer #1 (Recommendations for the authors):

Some additional questions and clarifications are delineated below.

1. It is unclear why only or mostly female osteoclast-selective TFR1-null mice exhibit a more robust phenotype, with increased bone mass in long bones. The authors discuss this point in the Discussion section but the proposed experiment, to evaluate whether hepcidin expression is altered in the liver or hepcidin concentration changes in the serum and IHC using anti-FPN1 antibody in osteoclasts or at least cellular iron concentration would be useful to corroborate the hypothesis of estrogen-mediated changes in the hepcidin:ferroportin axis. Do osteoclasts even express FPN1 to make such a hypothesis viable? There is some data on testosterone and hepcidin regulation (Latour Hepatology 2014) that may be worth mentioning or discussing in the setting of the authors hypothesis about differential gender-related results. Finally, are the differences between male and female mice significant in Figure 2? Are these differences in the expected range for male and female mice?

The serum levels of iron and hepcidin in 10-week-old male and female control and Tfrc-flox; Lyz2-Cre mice are similar (see Figure 2—figure supplement 3). It is well known that the trabecular bone mass of male mice is higher than their age-matched female mice in the adults. Since Tfr1-deficiency results in significant increase in trabecular bone mass solely in female but not male mice, there is no difference of bone mass between female Tfrc-flox;Lyz2-Cre mice and male Tfrc-flox;Lyz2-Cre as well as male control mice. This phenomenon has been added on page 9.

2. It is similarly unclear why only long bones but not vertebrae reveal these differences. Can the authors speculate and discuss this point in the Discussion section?

Mouse genetic studies have clearly established that the genetic regulation of peak bone mass development is skeletal site dependent. Thus, it is not surprising that Tfr1 deficiency exerts different effects on the skeletal phenotype of long bones versus vertebra. These differences are discussed in the context of what is known in the literature on osteoclast heterogeneity and genetic regulation of bone development at these two sites on pages 22-23. Our qPCR result demonstrated that deletion efficiency of Tfr1 gene, Tfrc, in vertebra is less potent than femurs (Figure 2—figure supplement 9).

3. The authors suggest that they have effectively excluded an effect from TFR2 on osteoclast function. However, this is inaccurate and needs to be communicated differently. At best, the authors have confirmed what has long been understood that TFR2 serves as an iron sensor rather than importer of iron. This should be restated in all mention of TFR2 in the manuscript. Furthermore, Rauner et al. published an important manuscript looking at the role of TFR2 in bone, demonstrating that TFR2 competes with BMPR for binding BMP2 and TFR2:BMP binding is enhanced in the presence of Fe-TF, together suggesting that presence of iron may favor bone resorption in the presence of TFR2. Something akin to this would benefit the readership and should be included in the manuscript as it pertains to the data on TFR1 here.

We agree. Although the results in Figure 1B indicate that Tfr1-mediated iron uptake is a major route for iron acquisition in osteoclasts, we did not have direct evidence regarding the effects of Tfr2 on osteoclast iron uptake and function. The statement of “The role of Tfr2 in osteoclast iron uptake and function needs to be further elucidated in the future” has been added in the second paragraph on page 7.

4. Figure 1, Y axis on mRNA expression panels is unclear what the control is. Typically, expectation is of change from baseline (1) in control. Minor: panel for Flvcr2 is missing from legend.

The information has been added in Figure 1A and its legend.

5. Figure 1 B, what mechanism leads to some cellular iron in TFR1 fl/LysM Cre OC cells? This may be the reason that the results on differentiation are not seen in the current work relative to Ishii et al. 2009. Please explain and include in the Discussion.

The residual cellular iron in Tfr1-deficient osteoclasts may be obtained through uptake of heme because the heme transporter Hcp1 is up-regulated during osteoclast differentiation and the fact that hemin but not ferric ammonium citrate (FAC, which is absorbed through NTBI) is able to rescue the Tfr1-deficient osteoclast phenotypes (Figure 5). While Ishii et al. reported that knockdown of Tfr1 expression in bone marrow monocytes by short-hairpin RNA (shRNA) inhibits osteoclast differentiation and transferrin promotes osteoclastogenesis in vitro, the treatment of mice with iron chelator has no effects on osteoclast number in vivo. Iron chelator inhibits iron effect totally and not specifically to Tfr1. The use of mice with conditional deletion of Tfr1 gene specifically in osteoclasts to investigate the role of Tfr1 mediated iron transport function in osteoclasts has not been done previously. The information has been added on page 23.

6. Figure 3 A-E is redundant and can be moved to the Supplement. In general, the data on LysM-cre mice is distracting and does not provide substantive contributing information to the main point. Consider moving all LysM-cre data to the supplement to better focus the manuscript.

Please see our response to General Comment #1, both the Lyz2-Cre and Ctsk-Cre models have advantages and disadvantages. Since Lyz2-Cre is relatively more specific than Ctsk-Cre in gene-deletion in osteoclast lineage cells (see the reference in Yang W et al., Nature, 2013), we moved Tfrc-flox;Ctsk-Cre results to the Figure 2—figure supplement 6-7 and Figure 3—figure supplement 1/3.

7. Figure 3G, the difference in female mice is driven by 3 mice with elevated values; are these 3 mice in any way different from the others? Are they outliers?

Since the other histological parameters of these three mice (See the Figure 3 source data file) are not quite different from other mice, we think that the data in Figure 3G reflects the high variation in in vivo data. We decide to keep the data of these three mice.

8. Figure 3 states that there is no impact on osteoclast number and bone resorption in mice but while BFR is unchanged in Figure 3J, serum P1NP is increased. How do the authors reconcile this confusing result?

The calculation of BFR in Osteomeasure software is normalized to bone surface (BS). Since there is a significant increase in trabecular bone mass (also in BS) in Tfrc-flox;Lyz2-Cre female mice, the total level of P1NP (procollagen type 1 N-terminal propeptide, a specific marker of type 1 collagen deposition during bone formation) is up in these mice. This is supported by increased mRNA level of osteoblast transcription factor Runx2 in Tfrc-flox;Lyz2-Cre female mice (Figure 3—figure supplement 2). See also the reply in #14 of Reviewer 3.

9. Given the number of figures, it would be worthwhile to consolidate and reorganize to move some additional elements into the supplementary figures. For example, there is no reason in the mind of the reviewer to include both male and female samples in vitro. Especially since there are no visible differences, please move one gender to the supplement.

We moved all the male in vitro and in vivo results to the Supplemental Figures. The male osteoclasts have similar phenotypes to female cells in vitro. Thus, the differences of in vivo phenotypes between male and females are resulted from the distinct effects of sex hormones on osteoclasts in vivo.

10. Figure 6 title suggests that there are no differences in markers of differentiation, e.g. Nfatc1 and Ctsk, but both of these appear to be decreased in f/f;c/c samples, both female but especially male (especially since tubulin appears greater in those samples). Please provide the quantification here.

During the revision of this manuscript, we examined the mRNA expression of osteoclast marker genes by qPCR in control and Tfr1ΔlysM osteoclast lineage cells. As shown in Figure 4B, the mRNA levels of Acp5, Nfatc1, and dcstamp in Tfr1ΔlysM osteoclast precursor and mature cells were similar to those of respective control cells. The mRNA expression of Ctsk in Tfr1ΔlysM pre-osteoclasts and mature osteoclasts was even higher than that in control cells. We also quantified the western blots of Nfatc1 and Ctsk. Deletion of Tfr1 in both male and female mice had no effects on the protein level of Nfatc1 in osteoclast precursor and mature cells, whereas the level of Ctsk in Tfr1ΔlysM pre- and mature-osteoclasts was slightly decreased compared to control and Tfr1-f/f;c/+ osteoclasts (the right panels in Figure 4C and Figure 4—figure supplement 1B).

11. Figure 12B and 12C do not include control cells with and without Hem1 overexpression. This is important since the mechanism may be completely different and yet additive to yield the observed results. Please edit.

Please see our response to General Comment #4.

12. The Introduction is too long and unfocused. Please edit.

The Introduction has been shortened.

13. The first half of the Discussion is a restating of the results and needs to be re-written to further extend the interpretation of the results without restating them.

We have revised the discussion to reduce redundancy with the Results section.

Reviewer #2 (Recommendations for the authors):

This is a well-written study that examines the role of transferrin receptor 1 in osteoclast function and bone remodelling. The importance of iron homeostasis in bone turnover has gained momentum in recent years, most notably the role of transferrin receptor 2 in osteoblasts (Rauner et al., Nat Med 2019), however the physiological significance of iron and the mechanism(s) responsible for its uptake in osteoclasts remains poorly understood. As such, the present study detailing the physiological role of Tfr1 in osteoclasts would likely be of considerable interest to the field, complementing existing studies in osteoblasts, but also reconciling the physiological contribution of cellular iron handling on the other side of the bone remodelling equation. The strengths of this study lie the multiple osteoclast-specific mouse lines generated to interrogate the role of Tfr1 in both osteoclast-lineage cells and mature osteoclasts along with the suite of complementary cell biological, biochemical and proteomic analyses used to dissect its contribution in osteoclasts. Nonetheless, there remain some weaknesses, particularly concerning the expressivity of the bone phenotype and mechanistic link between Tfr1 and the cytoskeleton that should be considered to strengthen the overall resolve of the conclusions drawn.

I have the following comments:

1. The studies conducted on LysoM-Cre mice appear to be well-executed and carefully controlled. The skeletal phenotype is however complex, being restricted to trabeculae of the long bones of female mice, but not the axial skeleton (e.g. vertebrae) at 10-weeks of age. The authors rationalise that the unexpected sexual dimorphism is associated with an intersection between estrogen and iron export, which is reasonable, but they do not offer experimental evidence to support this. Further, the skeletal phenotyping is limited to a single time-point i.e. 10-weeks of age. As such, it would be beneficial if the authors could provide data in older animals to show whether the bone phenotype becomes more pronounced or resolves with age. It would also be useful for the reader if the authors could offer some explanation for the observed site-specific differences in the Discussion e.g. potential differences in osteoclast heterogeneity etc.

See the reply to #3 in Essential Revisions and the results in new Figure 2 and supplemental Figures 5-6. The explanations for the different phenotypes in trabecular verse cortical bone compartments and in long bone versus vertebra are discussed in the third paragraph on page 22.

2. Although widely employed as a Cre-transgenic mouse line to conditionally delete target genes in mature osteoclasts there are some caveats that should be considered to avoid over-interpretation of data arising from the cathespin K (Ctsk)-Cre lines. Foremost, this cre-line is known to result in the loss one allele of Ctsk owing to partial replacement the Ctsk locus with Cre in the targeting cassette (Dallas et a., Genetics 2018). Thus, endogenous Ctsk expression is reduced. Considering that deficiency and mutations in Ctsk lead to high bone mass phenotype (Saftig et al., 1997) together with findings that Cstk K-Cre can also lead to unexpected germline deletion of genes (e.g. Winkeler et al., PLos 2012), any data arising from these mice need to be interpreted with a degree of caution. The authors have rightly attempted to control for this using littermates mice on heterozygous KI (Ctsk-Cre/+), which is appropriate although these mice are on a mice mixed background C57BL6/129 which can complicate skeletal phenotypes. Overall, these underlying complexities may account, in part, for the discrepancies observed between the LysoM and Ctsk-cre males and females, with Ctsk-Cre leading to a more pronounced phenotype. As a minimum, these limitations need to be acknowledged and discussed. A minor oversight- for Figure 4B is that the mice sexes are unlabelled in the reconstructed uCT scans.

The advantages and disadvantages of Lyz2(LysM)-Cre and Ctsk-Cre models and the possible explanations for the different phenotypes between the Lyz2-Cre and Ctsk-Cre males and females have been added in and discussed in the second paragraph on page 22. See also the reply to the #1 of General Comments of Reviewer 1.

3. The in vitro data concerning the potential effects of Tfr1-deficiency on osteoclast different and mitochondrial metabolism are extensive and overall support the conclusion drawn. On the other hand the mechanism linking Tfr1 regulation of the osteoclast cytoskeleton remains largely descriptive and thus is comparatively underdeveloped. While the quantitative proteomics data goes some way to lend support to the notion that loss of Tfr1 leads to a global dysregulation of downstream Tfr1-associated protein pathways including those involved with cytoskeletal signalling/organization, the extent and diversity of proteins affected in osteoclasts >2000 proteins is remarkable. Can the authors please clarify how they arrived at the 1.2-fold threshold for these data. Does the 1.2-fold represent an arbitrary cut-off or does it reflect >1.2 Log2Fold, p<0.05? To validate these proteomic data the authors hone in on hem1 (a component of the Wave regulatory complex, WRC) and show that it partly restores the cytoskeletal spreading defect in Tfr1-deficient osteoclasts. This finding is interesting but would be bolstered by confirmation of a disruption of additional components of the WRC or downstream components such as Arf2/3 which has an established role in OC cytoskeletal organization in osteoclasts (Hurst et al., JBMR 2009). Considering the well-established roles of B3-integrin, c-SRC and Pyk2 in osteoclasts, it would be valuable to corroborate/or discount their direct involvement in these spreading and cytoskeletal defects by independently assessing their expression levels immunoanalytically in Tfr1-deficient osteoclasts.

The advantages and disadvantages of Lyz2(LysM)-Cre and Ctsk-Cre models and the possible explanations for the different phenotypes between the Lyz2-Cre and Ctsk-Cre males and females have been added in and discussed in the second paragraph on page 22. See also the reply to the #1 of General Comments of Reviewer 1.

Reviewer #3 (Recommendations for the authors):

1. The authors state that Tfr1 does not inhibit osteoclast differentiation, but just spreading and resorption. I do not agree with this statement. By "spreading", do the authors mean "fusion"? I believe in any case that this is part of the differentiation process to a fully mature osteoclast. Also, even though it is stated that osteoclasts have been counted as TRAP-positive and with more than 3 nuclei, I know from experience that it is tricky to identify the nuclei just using TRAP staining, especially in such small cells as presented in Suppl. Figure 9A. I believe it may be more accurate to assess the number of osteoclasts in this case with so many small ones using IF and DAPI staining for the nuclei. Using that, the authors could also count how many osteoclasts have e.g. 3-10 or 10-50 nuclei (giving insights into the fusion process). Finally, I believe more markers for osteoclasts could be used to address this point of fusion/spreading, such as DC-STAMP, SWAP70, or CTSK. In Suppl. Figure 9, e.g., it looks like CtsK expression is reduced in the Tfr1;Lysm-cre mice, although the WB is a bit over-exposed, so it is hard to tell… quantification would be helpful.

The word “spreading” is often used to describe the cellular process in which the morphology of multinucleated osteoclasts changes from the irregular-shaped status characterized by scattered distribution of podosomes to a round-shaped status featured by the peripherally localized podosome-belt when osteoclasts are cultured on glass coverslips or plastic culture dishes. Thus, the spreading process in osteoclasts is regulated by cytoskeleton organization. The defects in osteoclast spreading are associated with decreased osteoclast activation and bone resorption. The reviewer’s point is correct that the “fusion” is a part of osteoclast differentiation process where mononuclear osteoclast precursor cells are fused to form multinucleated osteoclasts. This process is regulated by osteoclast fusion genes including DC-Stamp induced by RANKL and Nfatc1.

In response to the reviewer suggestion, we have now quantitatively measured the mRNA expression of osteoclast marker genes in control and Tfr1ΔlysM osteoclast precursor and mature cells. As shown in Figure 4B, the mRNA levels of Acp5, Nfatc1, and Dcstamp in Tfr1ΔlysM osteoclast precursor and mature cells were similar to those of respective control cells. The mRNA expression of Ctsk in Tfr1ΔlysM pre-osteoclasts and mature osteoclasts was slightly higher than that in control cells. These results indicate that deletion of Tfr1 in osteoclast myeloid precursors has minimum effects on osteoclast differentiation as we observed in Figure 4A (see also the reply in #i of Essential Revisions #1).

Per the reviewer’s suggestion, we counted the number of osteoclasts with 3-10, 10-30, and >30 nuclei, respectively. As shown in Figure 4D, the number of osteoclasts with 3-10 nuclei in Tfr1ΔlysM culture was higher than control and there was no difference in the number of osteoclasts with 10-30 nuclei between control and Tfr1ΔlysM cultures. Only the number of osteoclasts with > 30 nuclei in Tfr1ΔlysM culture was lower than control although the mRNA expression of osteoclast fusion gene Dcstamp was similar in control and Tfr1ΔlysM osteoclasts. The exact mechanism(s) of decreased fusion in the late stage of osteoclastogenesis in Tfr1ΔlysM culture need further investigation in future.

The suppl Figure 9 was in our previous but not in this submission. Instead, we repeated western blotting for Nfatc1 and Ctsk and quantified the specific bands of these osteoclast markers by densitometry using NIH Image J software. As demonstrated in the right panels of Figure 4C and Figure 4—figure supplement 1B, deletion of Tfr1 had no effects on the protein level of Nfatc1 in male and female osteoclast precursor and mature cells, whereas the level of Ctsk in Tfr1ΔlysM pre- and mature-osteoclasts was slightly decreased compared to control and Tfr1-f/f;c/+ osteoclasts in both gender. This slight decrease in Ctsk protein level in Tfr1ΔlysM osteoclasts might be caused by the fewer number of large osteoclasts with > 30 nuclei in Tfr1ΔlysM culture than in control.

2. It appears that the appendicular skeleton is more affected than the axial skeleton. Did the authors check the expression of Tfr1 in e.g. femoral vs. vertebral bone using immunohistochemistry? Is there a difference in expression pattern that may explain the altered susceptibility of the sites to Tfr1 deletion? Similarly, it would be interesting to check Tfr1 in trabecular vs. cortical bone – as those also seem to be differentially affected.

As discussed on page 22, the exact explanation(s) for distinct effects of Tfr1-deficiency on the appendicular vs axial bones and the trabecular vs cortical bones are not available. Unfortunately, the anti-Tfr1 antibody we used in Figure 4A does not work for immunohistochemistry. By qPCR, we demonstrated that the deletion efficiency of Tfr1 gene, Tfrc, in vertebra is less than femurs (Figure 2—figure supplement 9).

3. Along those lines, is the expression of Tfr1 in osteoclasts (bone) lower in young animals compared to adult ones? Could that explain the more severe effects of iron deficiency in adult mice compared to the 3-week-old ones?

As mentioned above, we could not answer this question because the anti-Tfr1 antibody does not work for immunohistochemistry on EDTA-decalcified, paraffin-embedded bone tissue sections.

4. The increase in BV/TV in female 10-week-old mice is quite strong (especially in the Ctsk-cre mice). Did the authors detect extramedullary hematopoiesis? Are those mice iron deficient also in the liver? How is their systemic iron levels?

See the reply for #4 in Essential Revisions. Loss of Tfr1 in osteoclasts has no effects on systemic iron homeostasis and erythropoiesis as detected by serum iron and peripheral blood RBC count. There is no splenomegaly in Tfr1ΔLysM and Tfr1ΔCtsk mice (data not shown). Serum hepcidin, a liver-derived iron-regulating hormone, levels are similar between control and Tfr1-deficient mice, thus suggesting that there is no iron deficiency in liver. However, we have not measured liver iron level in mice with disruption of Tfr1 in osteoclasts.

5. The lack of osteoclast function during Tfr1-deficiency would be beneficial in a more clinical context in e.g. ameliorating bone loss via ovariectomy. I think performing such an experiment (with the Tfr1;Ctsk-cre mice) would add more clinical benefit to the paper.

When the lab moved to California in 2018, we discontinued the Tfrc-flox;Ctsk-Cre strain. We performed OVX on 4.5-monthold control and Tfr1ΔLysM female mice. After 6-week post OVX, the mice were sacrificed, and trabecular bone mass and cortical bone thickness were measured by μCT. As shown in Figure 2, estrogen deficiency resulted in decreased trabecular bone in both female control and Tfr1ΔlysM mice, indicating that Tfr1 in osteoclasts does not influence bone loss in OVX mice. This finding is discussed on page 20-21.

6. How do the authors explain that Tfr1 deficiency in osteoclast precursors has less effects than using the Ctsk-cre mice? I would assume that using the Lysm-cre, all osteoclasts – also the later stages – are affected, whereas in the Ctsk-cre, only the mature ones are. Thus, I am not sure why the Lysm-cre don´t also show a stronger effect.

The distinct effects of Tfr1-deficiency by Lyz2-Cre and Ctsk-Cre may be due to the different in vivo efficiency of these two Cre lines and may also be caused by the off-target effects of the Cre drivers as mentioned in the reply for the #1 critic in General Comments of Reviewer 1.

7. Figure 4: to me, it actually looks like there are fewer osteoclasts in the cKO mice… the number of mice is not that high for histology, which tends to have high standard deviations. Did the authors also check the BFR in those mice? Was it also a bit increased, like in the Lysm-cre mice?

The number of osteoclasts in control and Tfr1ΔCtsk mice is the same. The staining in cKO mice was faint by unknown reason. We only did histology in decalcified, paraffin-embedded bone sections for TRAP staining. We did not do tetracycline-labeling in these mice.

8. A WB should be shown validating the reduction of OXPHOS complex I-V expression. Similarly, it would be good to show a verification of other key proteins involved in cytoskeletal reorganization that were identified in the proteomic studies.

See Figure 6B and the reply in #iv of Essential Revisions above. We had difficulties in finding antibodies with high specificity and affinity against the components of WRC complex by western blotting. Instead, we found that the M-CSF stimulated activation of c-Src and Rac1, which are upstream regulators of WRC complex, were decreased in Tfr1ΔlysM osteoclasts (Figure 9B). See the reply in #v of Essential Revisions above and in #10 below.

9. It is not clear to me how Mitotracker/Mitosox MFI and mitochondrial membrane potential were quantified? Why are there so many dots? How many cells and/or mitochondria were quantified? Was the MFI of each individual cell measured? Please add more details.

Please see “Mitochondrial mass, ROS production, and membrane potential measurements” in the Materials and methods section for detailed methodology. The following information has been added (See grey highlights on page 32).

The epifluorescent images of 10-15 randomly chosen areas per group (control or knockout) were taken in a blinded fashion. Each area had between 7-15 cells. The images were analyzed with Image J software also in a blinded fashion. The fluorescent intensities of cells were individually measured, and the results were presented as mean fluorescent intensity (MFI) per cell in arbitrary units.

10. The link between Tfr1 and cytoskeleton organization is not quite clear. Is that connection e.g. iron-dependent and/or dependent on non-canonical functions of Tfr1? If iron-dependent, how does iron affect the regulation of WRC/Arp2/3 complex?

As shown in Figure 5C and 5D, 10μM hemin (ferric chloride heme), which provides iron through the alternative heme uptake in the absence of Tfr1, rescued the cytoskeleton organization defects (podosome-belt formation in osteoclasts cultured on glass coverslips and the actin-ring formation in osteoclasts cultured on bovine cortical bone slices, see also Figure 4D and 4E) in Tfr1ΔlysM osteoclasts. These results indicate that Tfr1-mediated cellular iron homeostasis regulates osteoclast cytoskeleton organization although we don’t have evidence whether the non-canonical functions of Tfr1 participates this process at the moment. To identify the mechanisms by which Tfr1-mediated iron uptake regulates WRC/Arp2/3 complex, we turned to its upstream activators, the small GTPases Rac1/Arf1 and the protein tyrosine kinase c-Src which plays a central role in activating Rac1 and osteoclast cytoskeleton stimulated by the integrins, M-CSF as well as RANKL. As shown in Figure 9B, we found that the phosphorylation (activation) of c-Src and the GTP-bound (active form) of Rac1 but not GTP-bound Arf1 stimulated by M-CSF were declined in Tfr1ΔlysM osteoclasts. In contrast, Tfr1-deficiency had little effects on RANKL-activated c-Src, Rac1, and Arf1 in osteoclasts.

11. I personally think that Suppl. Figure 1 should be included into the main figures as it shows the first mechanistic part. I would rather suggest to potentially combine Figure 1+3 and/or 2+4 (or put parts of them into the supplement).

The Supplemental Figure 1 has been changed to Figure 1. The previous Figure 1 and Figure 2 are now Figure 2 and Figure 3, respectively. We moved previous Figure 3 and Figure 4 into the supplemental Figures. They are now Figure 2—figure supplement 6 and Figure 3—figure supplement 3, respectively.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

While the authors have added a substantive amount of work to significantly improve this manuscript, there are some remaining issues that need to be addressed, still a few places that need further explanation, a few pieces of data that do not evidently communicate what the authors claim:

1) While Ctsk mRNA expression is increased in Tfr1f/f Cre+ mice, protein concentration is decreased. This is unclear and presumptively, the focus is on the protein concentration. It is unclear what this means in total but the authors state that this indicates that Tfr1 deletion in osteoclasts has minimum effect on osteoclast differentiation. This needs to be clarified further in the results and Discussion sections.

We apologize for lack of clarity on the Ctsk mRNA expression and protein data. Cathepsin k is a well-accepted marker of osteoclast activity. Thus, our data on the reduced CTSK protein levels in Tfr1ΔLysM mice suggest reduced osteoclast activity. The result and conclusion have been revised on page 12 and page 13.

2) Tfr1 loss appears to increase the number of osteoclasts with fewer nuclei and decreased fusion. The authors state that this impacts osteoclast function (decreased) rather than number or differentiation. This is fine as they show good evidence of decreased osteoclast functional endpoints. However, later in the manuscript, osteoblast data is also alluded to but not presented, noting only increased serum P1NP and Runx2 expression (Figure 3 – suppl Figure 2) and a comment suggesting that the phenotype in Tfr1f/f;Lyz2-Cre mice therefore maybe the consequence of altered osteoblast function. The response to Reviewer 1, point #8 is thus confusing and requires further clarification. Perhaps the authors are stating that the altered osteoclast function leads to an altered ability of the osteoclasts to suppress osteoblasts? This should be made clear in the discussion at least as speculation if the data cannot be shown fully. Response to Reviewer 2 point #4 is confusing with circular logic along the same lines.

We apologize for not clearly stating the osteoclast-osteoblast connection to the observed skeletal phenotype. Loss of Tfr1 expression in osteoclasts lead to decreased osteoclast function as shown by reduced CTSK protein levels and osteoclast functional data. Based on what is known about osteoclast-mediated coupling of bone formation, one would predict that the reduced osteoclast activity in Tfr1f/f Cre+ mice should reduce bone formation. By contrast, the increased serum PINP levels and Runx2 expression in these mice suggest increased bone formation. Thus, we don’t have an explanation at present if the increased bone formation is a direct consequence of inhibition of osteoclast activity or by some other mechanisms. Further studies are needed to address this issue.

3) Figure 6D needs a quantification. The authors state that Tfr1 loss results in decreased energy metabolism but there is no obvious evidence of this in osteoclasts in this figure (maybe BMM are bit more decreased in Tfr1-/- cells). Therefore, it is erroneous to state that is is restored by hemin as there is no evidence of a defect or visually appreciable differences relative to control in any of the wells. Please clarify.

Quantitative data of Figure 6D is added as Figure 6—figure supplement 1. The results are revised based on this quantification. Although Figure 6D provides complementary evidence for proteomic data (shown in Figure 6B and 6C) by simultaneously demonstrating the changes of mitochondrial respiratory complexes in vehicle and hemin treated control and Tfr1ΔLysM bone marrow monocytes and osteoclasts, it should point out that the antibody cocktail used in this immunoblotting contains antibodies against only one component of each of five mitochondrial respiratory complexes as indicated in Figure 6D. Thus, the result of Figure 6D could not reflect complete changes of mitochondria in Tfr1-deficient osteoclast lineage cells. This limitation of the assay has been added on page 16. We agree that Figure 6 does not provide strong evidence to support the conclusion that loss of Tfr1 in osteoclasts attenuates energy metabolism. This conclusion is removed to Figure 8.

4) While OVX Tfr1f/f;LysMCre mice exhibit a persistent difference from OVX control, the authors state that the phenotype observed in non-OVX mice is estrogen dependent (page 9, line 227). This is conceptually inaccurate in my understanding as if it were estrogen dependent, the difference would be abrogated after OVX which it is not. It in fact supports the opposite conclusion, that the phenotype is NOT estrogen dependent. Please clarify in discussion.

We agree that the OVX data in Figure 2 could not fully support the conclusion that the high trabecular bone mass phenotype in Tfr1ΔLysM mice is estrogen dependent though showing obvious gender-dependent difference. We revised the results and conclusion in the contest of what we know about estrogen regulation of bone modeling and remodeling during development and in adulthood in the Results and Discussion sections on page 9 and page 23, respectively. It is now well established that estrogen-mediated mechanisms play a key role in mediating bone accretion during pubertal growth period. During this developmental period, estrogen is known to exert an anabolic effect on osteoblast besides its well-established role in inhibiting osteoclast functions. However, the loss of estrogen as seen during menopause or due to ovariectomy in adults lead to bone loss primarily due to increased bone resorption. As shown in Figure 2, trabecular bone volume of Tfr1ΔLysM mice was increased at the post-pubertal age of 10 weeks but was not different at the prepubertal age of 3 weeks, thus suggesting that the skeletal phenotype gets manifested during pubertal and post-pubertal growth periods. To determine if loss of Tfr1 in osteoclasts affects OVX-induced bone loss, control and Tfr1ΔLysM mice at 4.5-month of age were ovariectomized to mimic human postmenopausal osteoporosis and skeletal phenotype was determined at 6 months of age. While OVX induced bone loss in Tfr1ΔLysM mice, the trabecular bone mass of Tfr1ΔLysM mice was significantly higher than control mice after OVX. While these data suggest that loss of Tfr1 does not affect estrogen deficiency-induced bone loss, the issue of whether the skeletal phenotype in 10-week-old Tfr1ΔLysM mice is dependent on pubertal increase in estrogen remains to be evaluated by performing OVX at prepubertal age of 3 weeks in future.

5) Figure 9C and 9D demonstrate the effect of Hem1 overexpression. The authors note "rescue" but this is only partial and a more appropriate conclusion would be that other mechanisms of iron delivery can reverse, at least partially, the effect of iron restriction induced by Tfr1 loss.

We agree. We have revised the conclusion to indicate that the rescue is partial and suggest that the other component(s) of the WRC complex or distinct pathways might also be involved in the Tfr1-mediated regulation of osteoclast cytoskeleton in the first paragraph on page 20.

6) Unclear if there is a difference between 10uM hemin in control vs. Tfr1-/- cells in Figure 5A, 5C, and 5D. A preserved difference would suggest that there is incomplete rescue even at the highest hemin dose because osteoclasts may not have every option for iron import available in other cells. This is important to expand in the Discussion section.

We agree. We have added the statistical analysis results of 10uM hemin-treated control vs. Tfr1ΔLysM cultures in Figure 5A, 5C, and 5D. We have revised the conclusion to indicate that the rescue is partial and there are limited alternative iron acquisition pathways in osteoclasts as in other cells in the first paragraph on page 15.

7) Figure 9B requires quantification to corroborate the assertions made by the authors.

Quantitative data is added as Figure 9—figure supplement 1, and the results and conclusion are revised based on the quantitation in the first and second paragraphs on page 19.
