Reciprocal inhibition is a building block in many sensory and motor circuits. We studied the features that underly robustness in reciprocally inhibitory two neuron circuits. We used the dynamic clamp to create reciprocally inhibitory circuits from pharmacologically isolated neurons of the crab stomatogastric ganglion by injecting artificial graded synaptic (I_Syn) and hyperpolarization-activated inward (I_H) currents. There is a continuum of mechanisms in circuits that generate antiphase oscillations, with ‘release’ and ‘escape’ mechanisms at the extremes, and mixed mode oscillations between these extremes. In release, the active neuron primarily controls the off/on transitions. In escape, the inhibited neuron controls the transitions. We characterized the robustness of escape and release circuits to alterations in circuit parameters, temperature, and neuromodulation. We found that escape circuits rely on tight correlations between synaptic and H conductances to generate bursting but are resilient to temperature increase. Release circuits are robust to variations in synaptic and H conductances but fragile to temperature increase. The modulatory current (I_MI) restores oscillations in release circuits but has little effect in escape circuits. Perturbations can alter the balance of escape and release mechanisms and can create mixed mode oscillations. We conclude that the same perturbation can have dramatically different effects depending on the circuits’ mechanism of operation that may not be observable from basal circuit activity.

Editor's evaluation

Morozova et al., describe potential mechanisms contributing to the flexibility of burst patterns and dynamic responses to perturbations within an isolated reciprocally inhibitory circuit derived from the stomatogastric ganglion of the crab. The authors use the dynamic clamp approach to study the interactions between pharmacologically isolated, intrinsically silent gastric mill neurons. The authors demonstrate that the mechanisms of oscillation of the half-center networks are not fixed and shift to favor a release or escape mechanism depending on the synaptic threshold, IH conductance, and synaptic conductance. They also show that the different mechanisms of oscillation are differentially sensitive to neuromodulation and temperature changes. This is a fundamentally important study because reciprocally organized networks are ubiquitous and found virtually in every organism.

https://doi.org/10.7554/eLife.74363.sa0

Introduction

Reciprocal inhibition is ubiquitous in nervous systems, where it has many functions in sensory, motor, and cortical systems. Reciprocal inhibition between individual neurons or groups of neurons is the ‘building block’ of most half-center oscillators that generate antiphase and multiphase activity patterns (Arbas and Calabrese, 1987a; Arbas and Calabrese, 1987b; Brown, 1997; Calabrese, 1998; Getting, 1989; Marder and Calabrese, 1996; Perkel and Mulloney, 1974; Sakurai and Katz, 2016; Satterlie, 1985; Soffe et al., 2001; Zang et al., 2020). Due to their well-defined output, small reciprocally inhibitory circuits provide an excellent platform for investigating the resilience of circuits to internal and environmental challenges.

Theoretical studies have described two fundamentally different mechanisms of antiphase oscillations in half-center circuits: ‘release’ and ‘escape’ (Skinner et al., 1994; Wang and Rinzel, 1992). In the release mode the active cell falls below its synaptic threshold, thus, releasing the inhibited cell. In escape, the inhibited cell depolarizes above its synaptic threshold, thus, terminating the firing of the active cell. Whether the oscillator exhibits the escape or release mechanism depends on the position of the synaptic threshold within the slow-wave envelope of the membrane potential oscillation (Skinner et al., 1994; Wang and Rinzel, 1992). Many factors affect neuronal membrane potential and the synaptic threshold, including neuromodulators, temperature, and changes in the composition of the extracellular fluid. Perturbations can alter the balance of escape and release mechanisms and can create mixed mode oscillations. Although it is known that half-center oscillators can operate with a mixed mechanism (Angstadt and Calabrese, 1989; Angstadt and Calabrese, 1991; Calabrese et al., 2016; Hill et al., 2001), these have been less studied than oscillators in the pure release or pure escape mechanisms. Here, we also look at the increased or decreased resilience of oscillators operating in a mixed regime.

Some of the theoretical predictions of how oscillations are generated and controlled in reciprocally inhibitory circuits were tested in biological neurons in the crab stomatogastric ganglion (STG) by Sharp et al., 1996 and Grashow et al., 2009, and in the leech heartbeat circuit (Olypher et al., 2006; Sorensen et al., 2004). These authors used the dynamic clamp, which utilizes a real-time computer interface to simulate nonlinear voltage-dependent synaptic and intrinsic currents in biological cells. Sharp et al., 1996 studied the effects of varying computer-generated parameters on the circuit output and confirmed theoretical predictions that the switch in the mechanism of oscillations in a biological network is possible by shifting the synaptic threshold. Grashow et al., 2009 extended their work by studying the effects of the neuromodulators, oxotremorine and serotonin, on the dynamic clamp created half-center networks. They observed a substantial variability in individual circuit responses to neuromodulation. Sorensen et al., 2004 and Olypher et al., 2006 studied the regulation of rhythmic bursting in a hybrid system of leech heartbeat interneurons by intrinsic currents, such as the H current and low-threshold Ca²⁺ current.

Most theoretical studies on half-center oscillators were done with two identical neurons (Daun et al., 2009; Nadim et al., 1995; Skinner et al., 1994; Wang and Rinzel, 1992; Zhang and Lewis, 2013) with the notable exception of Onasch and Gjorgjieva, 2020. In some biological systems, half-center oscillators are formed between pairs of neurons that are ostensibly ‘identical’ or are copies of the same neuron type, such as, in the leech heartbeat system or sea slug escape swimming central-pattern generators (CPGs) (Katz, 2016; Marder and Calabrese, 1996; Sakurai and Katz, 2016). That said, even when biological half-center oscillators are formed from the reciprocal inhibition of two neurons of the same cell type, there is always some variability between the two neurons. Reciprocal inhibition between different classes of neurons can also be crucial for the operation of central pattern generating or other circuits, such as in the stomatogastric ganglion (Bartos et al., 1999; Blitz and Nusbaum, 2011; Marder and Bucher, 2007; Marder and Calabrese, 1996). In this case, there is no presumption that the intrinsic properties of the two neurons are identical. In this paper, we exploit the biological variability between the neurons we study to examine the robustness of the half-center oscillator on the extent of asymmetry between the two neurons used to form the half-center oscillator.

Robustness can be simply defined as a system’s ability to maintain its characteristic functional properties despite perturbation. That said, in each particular system studied it can be challenging to articulate which features are central to robustness. In some instances, one might consider robustness in terms of whether the system is insensitive to perturbations that might result in qualitative state changes. In other contexts, one might be interested to determine how insensitive a particular feature is to a perturbation. In this manuscript, we sometimes examine the likelihood that a perturbation will result in an entirely new circuit state. At other times, we will be asking questions about the relationship of a perturbation for specific circuit features, such as frequency, duty cycle, or number of spikes per burst. But in all cases, we are trying to capture whether a perturbation is likely to alter the qualitative function of the circuit and/or change its state.

Individual neurons and the circuits they form can show a high level of degeneracy in their intrinsic and synaptic properties (Goaillard and Marder, 2021; Sharp et al., 1996, Calabrese, 2021; Prinz et al., 2004). Previous studies demonstrated that neuronal networks with similar underlying parameters that generate similar behavior can respond differently to perturbations (Alonso and Marder, 2020; Prinz et al., 2004; Tang et al., 2012). We performed dynamic clamp experiments of half-center oscillators with similar underlying parameters but different oscillatory mechanisms using temperature and neuromodulation as perturbations to address some of the following questions: Are circuits with different underlying mechanisms of oscillation equally robust to intrinsic and environmental perturbations? What are the factors that play a key role in immediate circuit resilience against perturbations? What role does the dynamical mechanism of oscillation play in the circuit responses to neuromodulation? How does asymmetry between the units forming a half-center oscillator affect the output of the circuit?

Results

The output of reciprocally inhibitory neurons is shaped by their intrinsic and synaptic properties

To explore the interactions between intrinsic and synaptic parameters underlying variability in circuit behaviors and differential robustness to perturbations, we used the dynamic clamp to build half-center oscillator circuits using pharmacologically isolated gastric mill (GM) neurons of the stomatogastric ganglion (STG) of the crab Cancer borealis (Figure 1A, Materials and methods). Half-center circuits were formed by connecting two neurons via artificial reciprocal inhibitory synapses and by adding hyperpolarization-activated inward (H) currents, following the methods described in Sharp et al., 1996. Activation curves for the synaptic and H currents are shown in Figure 1B.

Figure 1

Download asset Open asset

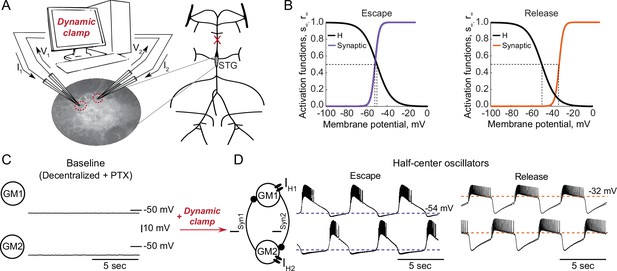

Experimental set-up.

(A) Half-center oscillator circuits are built by connecting two gastric mill (GM) neurons from the stomatogastric ganglion (STG) of the crab *Cancer borealis* via artificial reciprocal inhibitory synapses ( $I_{S y n}$ ) and by adding an artificial hyperpolarization-activated inward current ( $I_{H}$ ) in two-electrode dynamic-clamp mode using RTXI. The membrane potentials of the neurons ( $V_{1}, V_{2}$ ) are digitized and passed to a computer to calculate the currents ( $I_{1}, I_{2}$ ), which are then converted to analogue signals and injected into the appropriate neurons. (B) Activation curves of the dynamic clamp generated H current and synaptic current. Shift in the synaptic activation curve switches the mechanism of oscillations between escape (left graph, purple curve) and release (right graph, orange curve). (C) At baseline, synaptically isolated GM neurons are silent with a resting membrane potential between –65 and –55 mV. (D) When coupled via the dynamic clamp, the neurons generate an alternating bursting pattern of activity (half-center oscillator). Representative half-center oscillator traces with escape mechanism are shown on the left and with release mechanism on the right. Synaptic thresholds are indicated by the horizontal dashed lines. In the circuit diagram, filled circles indicate inhibitory synapses.

GM neurons are silent in the absence of modulatory and synaptic inputs (Figure 1C) and fire tonically when depolarized. When coupled together via reciprocal inhibitory connections and with addition of H current via dynamic clamp they can generate an antiphase bursting pattern of activity (Figure 1D). There are two fundamental mechanisms of antiphase bursting in these circuits – ‘release’ and ‘escape’ (Wang and Rinzel, 1992; Skinner et al., 1994). The mechanism of oscillation depends on the position of the synaptic threshold within the slow-wave envelope of the membrane potential oscillations. Thresholds that are close to the most hyperpolarized portion of the slow-wave generate an escape mechanism, while high synaptic thresholds that are close to the top of the slow-wave envelope lead to a release mechanism (Figure 1D). In escape mode, the transition between on and off states is graded, because at the hyperpolarized synaptic thresholds, synaptic activation is nearly saturated at depolarized voltages, and provides very little contribution to the synaptic current. In release mode, on-off transitions largely depend on spike-mediated transmission, because the synaptic threshold is at the very top of the slow-wave depolarization. Thus, in release, spike amplitude and frequency play a key role in determining the properties of oscillation. By shifting the synaptic activation curve via dynamic clamp, we change the mechanism of oscillation between escape and release (Figure 1B).

Characteristics of half-center oscillator output depend on the mechanism of oscillation

We investigated the dependence of the output of half-center oscillator circuits on the synaptic threshold while fixing the synaptic and H conductances (g_Syn = 200 nS, g_H = 300 nS). In each experiment we varied the synaptic threshold from –54 to –28 mV in 2 mV steps (N = 16, Figure 2A). We then characterized how physiologically relevant properties of the circuit output, for example, the cycle frequency, amplitude of oscillations, duty cycle, spike frequency and number of spikes per burst depend on the synaptic threshold (Figure 2B). Because of the inherent intrinsic differences in the biological neurons that comprise the half-centers, the same value of synaptic threshold does not necessarily generate the same mechanism of oscillation across preparations, as the relative position of the threshold within the slow-wave and the excitability of the neurons define the mechanism of oscillation. Thus, to quantitatively characterize the mechanism of oscillation across preparations and quantify the changes in the mechanism, we introduce a measure called Escape to Release Quotient (ERQ). This allowed us to characterize changes in the mechanism of oscillation in response to perturbations or changes in circuit parameters. We defined ERQ with the following equation:

E R Q = \frac{\bar{V_{M}} - V_{t h}}{\bar{V_{M}}}

Figure 2

Download asset Open asset

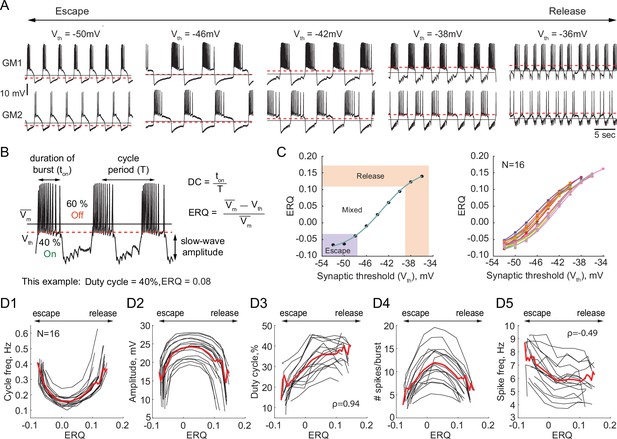

Dependence of the characteristics of half-center oscillator output on the mechanism of oscillation.

(A) Representative intracellular recordings of GM neurons coupled via the dynamic clamp to form a half-center oscillator for different synaptic thresholds (V_th). Red dashed lines correspond to the synaptic thresholds, black solid lines correspond to the mean membrane potentials ( $\bar{V_{M}}$ ). Depolarization of the synaptic threshold switches the mechanism of oscillations from escape to release passing through a mixture of mechanisms. (B) Half-center oscillator activity characteristics measured in this study, such as cycle period (frequency), slow-wave amplitude and duty cycle (DC) are indicated on the example GM neuron trace. Escape to Release Quotient (ERQ) is calculated based on the mean membrane potential and the synaptic threshold as shown. (C) ERQ as a function of the synaptic threshold for a single preparation (left) and multiple preparations (N = 16, right). Relationship between the ERQ and the synaptic threshold is sigmoidal as shown by the fit curve (cyan). Left hand ERQ plot is from the experiment shown in (A) (D1) Cycle frequency vs ERQ. (D2) Slow-wave amplitude vs ERQ. (D3) Duty cycle vs ERQ. (D4) Number of spikes per burst vs ERQ. (D5) Spike frequency vs ERQ. Black lines are individual experiments (N = 16), red lines represent means across all the experiments.

$\bar{V_{M}}$ is a mean membrane potential averaged across both neurons in a circuit and $V_{t h}$ is the synaptic threshold.

The left panel of Figure 2C shows that the relationship between the synaptic threshold and ERQ is well fit by a sigmoidal function ( $R^{2} = 0.998$ ). At the top of the sigmoid (above 0.11 in Figure 2C) the circuits are in a release mechanism. At the bottom of the sigmoid (below –0.033 in Figure 2C) the circuits are in an escape mechanism. The threshold ERQ values for release and escape were defined based on the maximum and minimum of the second derivative of the sigmoid functions that were fit to ERQ vs V_th data for each experiment. The ERQ threshold for escape is -0.038 ± 0.008, while the ERQ threshold for release is 0.105 ± 0.012. The near-linear portion of the sigmoidal curve corresponds to a mixture of the mechanisms. The mixed regime demonstrates characteristics of both mechanisms with various balances between the mechanisms depending on the relative position of the threshold within the slow-wave envelope. The right panel in Figure 2C shows the dependence of the ERQ on the synaptic threshold across 16 preparations.

The cycle frequency shows a U-shaped relation as a function of the ERQ (Figure 2D1), as also seen in Sharp et al., 1996. The slow-wave amplitude shows an inverted U-shaped dependence on the ERQ and is inversely correlated with the cycle frequency (Figure 2D2, Pearson correlation coefficient $r = - 0.9$ ). The duty cycle (the burst duration divided by the cycle period) increases as the mechanism of oscillations changes from escape to release (Figure 2D3, $ρ = 0.94, p < 0.001,$ Spearman rank correlation test). The difference in the duty cycle of circuits with different mechanisms can be explained by the difference in the magnitudes of the synaptic current. Because the synaptic threshold in escape is significantly more hyperpolarized relative to the release case, the magnitude of the synaptic current in a postsynaptic cell during its active phase is larger in the escape mechanism than in release, causing a steep hyperpolarization of the membrane potential below the neuron’s spike threshold. The number of spikes per burst also shows an inverted U-shaped dependence on ERQ (Figure 2D4). The spike frequency decreases as the mechanism of oscillation changes from escape to release (Figure 2, $ρ = - 0.49, p < 0.001,$ Spearman rank correlation test). The higher spike frequency in escape mode is caused by a strong rebound current.

Circuit output as a function of synaptic and H conductances in escape vs release

We investigated the dependence of the output of reciprocally inhibitory circuits on their synaptic (g_Syn) and H (g_H) conductances. In each experiment, we varied g_Syn and g_H from 150 nS to 1,050 nS in steps, mapping combinations of these parameters to characteristics of the output of the circuits operating with escape or release mechanisms. The mechanism of oscillation for each map was determined based on the ERQ thresholds of -0.038 for escape and 0.105 for release that we established earlier. For the escape mechanism, the synaptic thresholds were between –54 and –50 mV across experiments. Variability in the synaptic thresholds for the escape mechanism comes from the variability in the resting membrane potentials of the neurons across preparations. For the release mechanism, synaptic thresholds were between –38 and –30 mV across experiments. Variability in the synaptic thresholds for the release mechanism comes from both the differences in the resting membrane potentials and the intrinsic excitability properties of the cells, such as spike thresholds, number of spikes per burst, and spike frequencies.

Figure 3 summarizes pooled data from 20 experiments. Circuits operating in either release or escape produce stable alternating bursting which is distributed differently in the synaptic and H conductance space (Figure 3A). The gray scale in Figure 3A shows the fraction of bursting circuits operating with escape (left panel, N = 10) and release (right panel, N = 10) mechanisms at each g_H-g_Syn parameter set. There are more circuits that generate half-center activity in release than in escape across these parameters. The synaptic and H currents must be tightly correlated to produce robust bursting in escape, but not in release mode. These findings suggest that half-center oscillators with a release mechanism are more robust to changes in either synaptic or H conductances, in terms of preserving their characteristic functional circuit state, compared to half-centers with an escape mechanism. In addition, these results provide a potential explanation of the across-preparation variability in conductance sets leading to stable bursting in reciprocally inhibitory circuits with a fixed synaptic threshold observed by Grashow et al., 2009.

Figure 3 with 1 supplement see all

Download asset Open asset

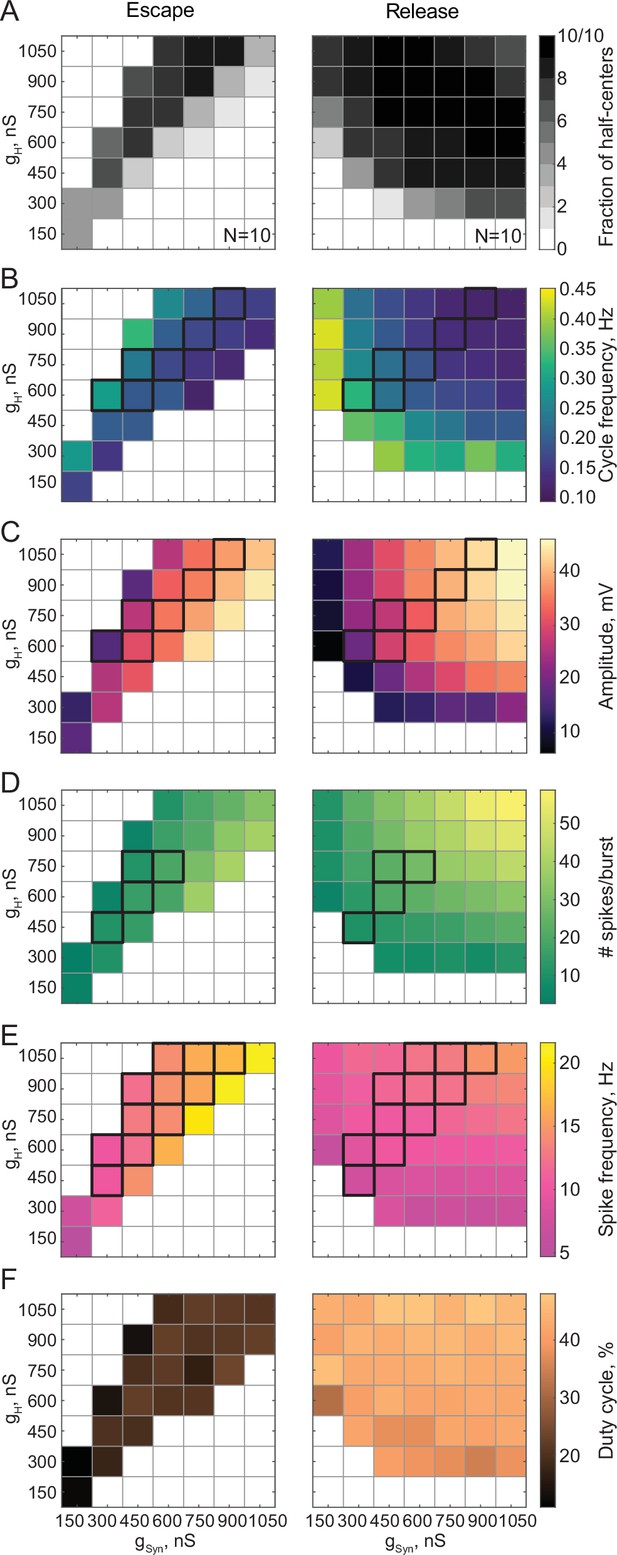

Maps of network output as a function of the synaptic and H conductances (g_Syn, g_H) for circuits with escape and release mechanisms.

(A) Distribution of half-center oscillators in g_Syn-g_H parameter space. Gray scale shows the fraction of preparations that formed half-center oscillators for each g_Syn-g_H parameter combination within the map (N = 10 for each mechanism). White space corresponds to parameters sets for which no oscillators exist. (B) Dependence of the mean half-center oscillator cycle frequency on g_Syn and g_H across 10 preparations for each mechanism. (C) Dependence of the mean slow-wave amplitude on g_Syn and g_H. (D) Dependence of the mean number of spikes per burst on g_Syn and g_H. (E) Dependence of the mean spike frequency on g_Syn and g_H. (F) Dependence of the mean duty cycle on g_Syn and g_H. In panels B-E, g_Syn-g_H parameter sets for which circuit output characteristics were not significantly different between release and escape are indicated by black boxes (Wilcoxon rank-sum test, p > 0.05). Figure 3—figure supplement 1. Dependence of the mean duty cycle of the circuits in escape, calculated based on time above synaptic threshold, on g_Syn and g_H.

Figure 3B–F characterizes the dependence of cycle frequency, oscillation amplitude, duty cycle, spike frequency and the number of spikes per burst on synaptic and H conductances. Increase in H current decreases the cycle frequency of the circuits in release (Figure 3B, right panel), but increases the cycle frequency in escape (Figure 3B, left panel). In escape, increasing the H conductance helps the inhibited neuron depolarize above the synaptic threshold faster, thus increasing the oscillation frequency. In release, increasing the H conductance prolongs the active phase of an uninhibited neuron, thus decreasing the frequency of oscillation. In both cases, the oscillation frequency decreases with the increase in inhibitory synaptic conductance (Figure 3B). The slow-wave amplitude (Figure 3C), number of spikes per burst (Figure 3D) and spike frequency (Figure 3E) decrease in the escape circuits but increase in the release circuits when H conductance is increased. The duty cycle is relatively independent of variations in synaptic and H conductances in either release or escape cases (Figure 3F, Figure 3—figure supplement 1). For all sets of g_Syn and g_H, the duty cycles of the escape half-center oscillators are significantly lower than the duty cycles of the release half-center oscillators ( $19.5 \pm 3.6 %$ in escape vs $42.4 \pm 3.3 %$ in release, * $p < 0.001$ , Wilcoxon rank-sum test).

For a range of g_H-g_Syn parameter sets, the characteristics of the output of half-center oscillators with escape and release mechanisms are not statistically different (Figure 3B–E, indicated by the black boxes, Wilcoxon rank-sum test, p > 0.05). Thus, similar circuit function can be produced by both escape and release mechanisms for the same values of synaptic and H conductances, although the duty cycles are more disparate than other measures of circuit performance. Importantly, if the mechanism is not known a priori, it is practically impossible to identify it only based on baseline spike output (e.g. in extracellular recordings) without perturbing the system.

Circuits operating in a mixture of mechanisms

In some biological systems, half-center oscillators rely on a mixture of escape and release mechanisms to generate alternating bursting patterns of activity (Angstadt and Calabrese, 1989; Angstadt and Calabrese, 1991; Calabrese et al., 2016; Hill et al., 2001). Neuromodulators can shift the synaptic threshold, thus affecting the mechanism of oscillation in the circuit (Li et al., 2018). We explored how the oscillatory mechanism and characteristics of the circuit output mapped onto g_Syn-g_H parameter space change as we changed the synaptic threshold. There can be a continuum of mechanistic interactions in half-center oscillator circuits, weighted by different mechanisms, with synaptic escape and release mechanisms at the extremes of this continuum. Figure 4 shows the transformation of the g_Syn-g_H maps of the network output and oscillatory mechanisms by moving the synaptic threshold from –50 mV to –30 mV in 5 mV steps. The mechanism of oscillation for each scenario was determined based on the ERQ thresholds of -0.038 for escape and 0.105 for release that we established earlier. The mechanism of oscillation is independent of g_Syn and g_H for the extreme cases of the hyperpolarized synaptic thresholds generating an escape mechanism (Figure 4C and D, left panel) and depolarized synaptic thresholds generating a release mechanism (Figure 4C and D right panel). Nonetheless, the mechanism is sensitive to the changes g_Syn and g_H for the intermediate values of the synaptic threshold, as evident by the substantial change in ERQ with g_Syn and g_H (Figure 4A, C and D middle panels).

Figure 4 with 1 supplement see all

Download asset Open asset

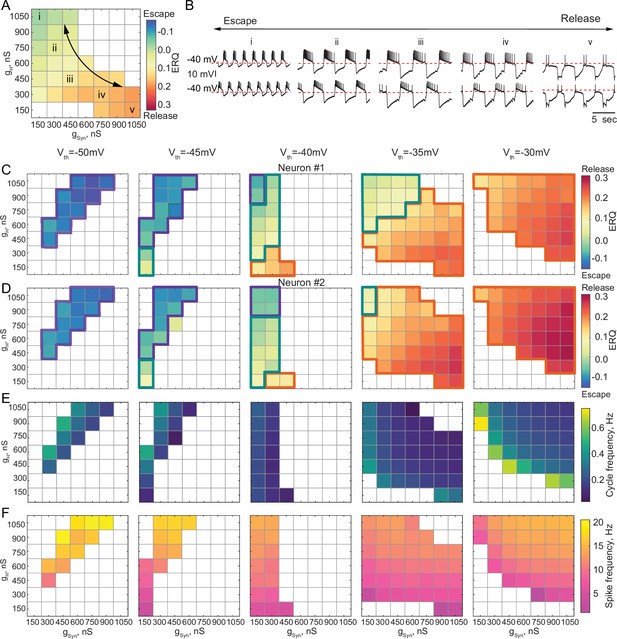

Dependence of the oscillation mechanism and half-center activity characteristics on the synaptic and H conductances for different synaptic thresholds.

(A) ERQ as a function of synaptic and H conductances with a synaptic threshold of –40 mV in a single preparation. Mechanism of oscillation is sensitive to the changes in synaptic and H conductances at V_th=-40 mV: an increase in g_Syn together with a decrease in g_H switches the mechanism of oscillation from escape (top left corner in the map) to release (bottom right corner in the map). (B) Representative intracellular recordings of GM neurons coupled via the dynamic clamp corresponding to values of g_Syn and g_H indicated in the parameter map (A) by roman numerals. (C) Dependence of ERQ on g_Syn and g_H for the synaptic thresholds of –50 mV, –45 mV, –40 mV, –35 mV, and –30 mV for one of the neurons in a circuit in a single preparation. Colored borders outline the regions of parameter space corresponding to different mechanisms of oscillation (escape-purple, release-orange or mixed-cyan). (D) Same as (C) but for the other neuron in a circuit. ERQ is relatively insensitive to changes in g_Syn and g_H in pure escape (left map) and pure release (right map) cases, but sensitive to g_Syn and g_H for intermediate thresholds (middle maps) similar to the experiment shown in panel (A). (E) Dependence of the half-center oscillator cycle frequency on g_Syn and g_H for different synaptic thresholds. (F) Dependence of the spike frequency on g_Syn and g_H for different synaptic thresholds.

Figure 4A&B depicts the ERQ and representative half-center voltage traces as a function of g_syn and g_H with a synaptic threshold of –40 mV. This network is in a mixture of escape and release for a wide range of g_syn and g_H The left-hand map illustrates a smooth transition in the balance of the mechanisms of oscillation as a function of changes in g_Syn and g_H. The electrophysiological traces to the right illustrate the activity patterns at different map locations (Figure 4B). Increasing g_H and decreasing g_Syn biases the balance toward escape, while decreasing g_H and increasing g_Syn biases the mechanism towards release. Changing the mechanism of oscillation ultimately influences how the circuit will respond to stimuli and perturbations.

Theoretical studies have found that stable bursting is produced when the synaptic threshold is within the slow wave envelope of the membrane potential oscillations for circuits with graded synaptic transmission (Skinner et al., 1994). Thus, it might appear beneficial for the circuit to have a synaptic threshold in the middle, far from both the top and bottom of the slow wave. However, we observed that for the intermediate values of the synaptic thresholds (V_th=−45, –40, –35 mV, middle maps in Figure 4C and D), bursting is less regular (Figure 4—figure supplement 1A) and more asymmetric (Figure 4—figure supplement 1B). For the intermediate synaptic threshold of –40 mV, bursting exists for a small set of g_Syn-g_H on the edge of the map, corresponding to weak synaptic coupling. This is because biological neurons, even of the same type, are never perfectly identical with respect to their intrinsic properties. Thus, the balance between the mechanisms is slightly different in the two cells, leading to situations when one of the cells does not have enough depolarizing drive to escape from inhibition, thus preventing the transition between the states. To illustrate the asymmetry in the activity, we calculated the ERQ values for the two neurons in a circuit independently and showed the associated mechanisms of oscillation. The ERQ values are slightly different between the neurons, indicating that neurons are making on-off transitions using different mechanisms for some combinations of synaptic and H conductances at intermediate values of the synaptic threshold (Figure 4C and D, colored outlines). For the extreme values of the synaptic thresholds both neurons operate with the same mechanism, either escape at –50 mV or release at –30 mV, despite the small differences in the ERQ values, resulting in more robust oscillations. Only a small subset of g_Syn-g_H parameters allows for a smooth transition from one mechanism to another without losing alternating activity.

We characterized the dependence of cycle frequency, spike frequency, slow-wave amplitude, number of spikes per burst and duty cycle on synaptic and H conductances for different values of synaptic thresholds (Figure 4E and F, Figure 4—figure supplement 1C,D,E). For the synaptic threshold of –40 mV, the cycle frequency is independent of the change in H conductance (Figure 4E middle panel). The spike frequency increases with the increase in both g_Syn-g_H for all the values of the synaptic thresholds (Figure 4F).

Besides alternating bursting pattern of activity, reciprocally inhibitory circuits can produce a rich array of other outputs, depending on the underlying parameters. We classified the activity patterns of reciprocally inhibitory circuits as either silent, asymmetric, irregular spiking, antiphase bursting or antiphase spiking for each set of g_Syn-g_H and each value of the synaptic threshold (Figure 4—figure supplement 1F, see Materials and methods for the description of the classification algorithm). In the case of the escape mechanism, the circuits are typically silent or asymmetric for the parameter sets off the diagonal in the map (Figure 4—figure supplement 1F left panels). In contrast, in the case of release, the circuits typically show either antiphase or irregular spiking pattern of activity for low values of g_Syn and g_H, on the border with antiphase bursting (Figure 4—figure supplement 1F right panel). For high values of g_Syn and g_H, the circuit either shows antiphase bursting or asymmetric spiking (Figure 4—figure supplement 1F right panels), with one neuron constantly inhibiting the other one, depending on the asymmetry of neuronal intrinsic properties. The number of networks showing asymmetric firing pattern of activity is dominant on the g_Syn-g_H map with the intermediate value of the synaptic threshold (V_th=-40 mV), uncovering the differences in the intrinsic properties of the half-center neurons (Figure 4—figure supplement 1F middle panel). This analysis allows us to predict how the activity pattern of reciprocally inhibitory circuits will change with the change of synaptic and H conductances, depending on the mechanism of oscillation.

Effect of temperature on half-center oscillator circuits with temperature-independent synaptic and H currents

Rhythmic circuits, especially central pattern generators, must be robust to a wide range of global perturbations. Temperature is a natural and nontrivial perturbation that affects all biological processes to various degrees. We assessed the response of reciprocally inhibitory circuits relying on different mechanisms of oscillation to temperature changes. The dynamic clamp allowed us to study temperature-induced changes in the circuit output while isolating the effects of temperature on the synaptic and H currents from its effects on the cell-intrinsic currents. We built half-center oscillators with escape and release mechanisms and increased temperature in a smooth ramp from 10°C to 20°C (Figure 5A: release, 5B: escape). These temperatures were chosen based on the temperatures that C. borealis experiences in the wild. In the first sets of experiments, we intentionally kept the artificial synaptic and H currents temperature-independent to explore the role of temperature-induced changes in the intrinsic properties of the cells on the circuit output (case 1).

Figure 5 with 1 supplement see all

Download asset Open asset

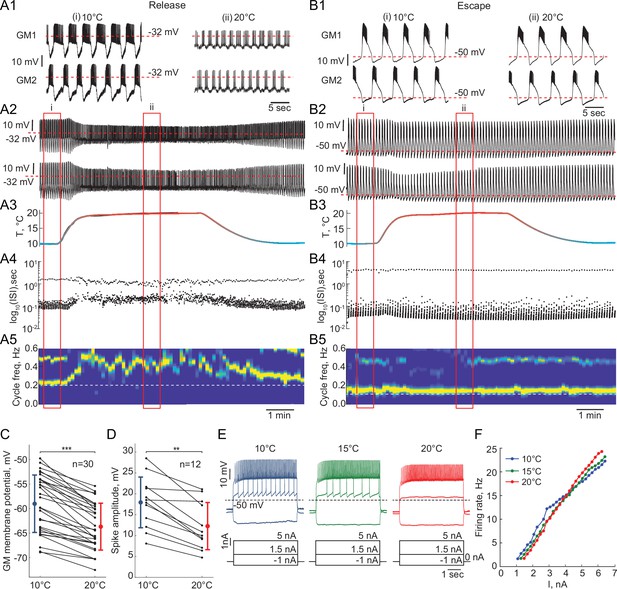

Response of reciprocally inhibitory circuits with release and escape mechanisms and temperature-independent artificial synaptic and H currents to an increase in temperature.

(A1) 25 second segments of the activity of a half-center circuit with a release mechanism at 10°C and 20°C. (A2) Voltage traces of a half-center oscillator network in release during the increase in temperature for the entire representative experiment. (A3) Saline temperature. (A4) Inter spike intervals (ISI) of GM1 neuron during an increase in temperature plotted on a log scale. (A5) Spectrogram of the GM1 voltage trace, showing an increase in oscillation frequency at high temperature. Color code represents the power spectral density, with yellow representing the maximum power and blue the minimum power. Low-frequency band with the strongest power corresponds to the fundamental frequency of the periodic signal; secondary band at higher frequency corresponds to its 2f harmonic. (**B1-5**) Same as (**A1-5**) for a half-center oscillator circuit with an escape mechanism. (C) GM resting membrane potentials at 10°C and 20°C. for all the recorded neurons (n = 30). Each line corresponds to one neuron, colored circles and lines correspond to means ± standard deviation. Membrane potential of GM neurons is significantly more hyperpolarized at 20°C relative to 10°C (-59.0 ± 5.9 mV at 10°C vs -63.7 ± 4.8 mV at 20°C, *** p<0.0001, Wilcoxon signed rank test). (D) GM spike amplitudes at 10°C and 20°C measured at –40 mV in response to a current step for all the neurons (n = 12). The amplitude of GM spikes is significantly smaller at 20°C than at 10°C (17.9 ± 6.1 mV at 10°C vs 12.3 ± 5.6 mV at 20°C, *** p=0.0005, Wilcoxon signed rank test). (E) Representative voltage traces from a single GM neuron in response to current steps recorded at 10°C (blue), 15°C (green) and 20°C (red). (F) Frequency-current (f-I) relationships at 10°C (blue), 15°C (green) and 20°C (red) of the neuron from the representative experiment in panel (E).

Reciprocally inhibitory circuits with a release mechanism become less robust as the temperature increases, as evident by a significant reduction in the slow-wave amplitude and increase in irregularity in the cycle frequency (Figure 5A). Figure 5—figure supplement 1 illustrates an increase in the Coefficient of Variation of cycle frequency (* $p = 0.01$ , Wilcoxon signed rank test) and spike frequency (* $p = 0.03$ , Wilcoxon signed rank test) of circuits in release at higher temperatures. 9/15 release circuits lost oscillations when the temperature was increased by 10°C from 10°C to 20°C. The cycle frequency of these circuits significantly increases with an increase in temperature despite no changes in the properties of synaptic or H currents (Figure 5A1,A5). On the other hand, circuits with an escape mechanism are extremely robust to an increase in temperature (Figure 5). The cycle frequency of these circuits is remarkably stable during the changes in temperature (Figure 5B4-5, Figure 5—figure supplement 1).

Effect of temperature on the intrinsic properties of GM neurons

To explain the observed changes in the circuit output on the basis of the changes in temperature, we characterized the intrinsic properties of the GM neurons in response to changes in temperature. We measured the mean resting membrane potential of GM neurons and their responses to current steps at temperatures between 10°C and 20°C. The membrane potential of GM neurons significantly hyperpolarized as temperature was increased from 10°C to 20°C (Figure 5C, n = 30, * $p < 0.001$ , Wilcoxon signed rank test). This alters the relative position of the synaptic threshold within the envelope of membrane potential oscillation that defines the oscillation mechanism.

Spike amplitude, measured when the neurons were depolarized to –40 mV, decreased significantly with the increase in temperature from 10°C to 20°C (Figure 5D, n = 12, * $p < 0.001$ , Wilcoxon signed rank test). This decrease in the spike amplitude decreases the robustness of half-center oscillators in a release mechanism, increasing the likelihood of a transition to a silent state, because at depolarized synaptic thresholds, the spikes provide a major contribution to the accumulation of synaptic current. In line with this, when spikes were blocked by TTX, the range of stable alternating activity was significantly reduced and dominated by synaptic escape (Sharp et al., 1996). Finally, we measured frequency-current (f-I) relationships (n = 13) and voltage-current relationships (V-I, n = 9) of GM neurons between 10°C and 20°C. Figure 5E shows representative voltage traces from a single GM neuron in response to current steps at 10°C, 15°C and 20°C. More current was needed to initiate spiking in GM neurons at higher temperatures (Figure 5F). The f-I curves became steeper at higher temperatures (Figure 5F, n = 13, 3.8 ± 1.6 Hz/nA at 10°C vs 4.8 ± 1.8 Hz/nA at 20°C, * $p = 0.013$ , Wilcoxon signed rank test). There was no significant difference in the input resistance of GM neurons, measured by injecting negative current steps, at 10°C and at 20°C (n = 10, $p = 0.32$ , Wilcoxon signed rank test). The changes in the intrinsic properties of GM neurons with temperature, that is hyperpolarization of membrane potential and decrease in the spike amplitude, are similar to previously reported changes in other neurons, including locust flight neurons (Xu and Robertson, 1994; Xu and Robertson, 1996), and C. borealis Lateral Gastric (LG) neurons (Städele et al., 2015).

Taken together, a combination of two factors: a relative depolarization of the synaptic threshold due to membrane potential hyperpolarization and a decrease in the spike amplitude, causes a loss of oscillations in the circuits with a release mechanism at high temperatures. At higher temperatures, the synaptic threshold becomes more depolarized than the top of the envelope of membrane potential oscillations, so that the transition between the active and inhibited states is governed by spiking activity (Figure 5A). In turn, a decrease in the spike amplitude leads to a decrease in the amplitude of the synaptic current, smaller hyperpolarization of a postsynaptic neuron, and, thus, smaller activation of H current in the postsynaptic neuron, decreasing the robustness of the oscillations. The difference in robustness of the circuits with a release mechanism is partially due to the individual variability in the sensitivity of the intrinsic properties of GM neurons to temperature changes.

While circuits with an escape mechanism that are comprised of neurons with similar intrinsic properties remain robust to an increase in temperature (Figure 5B), circuits comprised of the neurons with substantially different intrinsic excitability properties often ‘crash’ when the temperature increases. In the intrinsic escape mechanism, the ability of the neuron to depolarize above synaptic threshold and escape the inhibition relies on its intrinsic excitability. If one of the neurons is much less excitable than the other neuron it will be constantly suppressed by the more excitable neuron, not allowing the transition between the states to occur.

The role of temperature-dependence of synapses and H current in the behavior and robustness of reciprocally inhibitory circuits

To study the effect of temperature-dependence in the parameters of the synaptic and H currents on the circuit responses to temperature, we implemented the temperature-dependence (1) only in synaptic and H conductances (case 2), (2) in both conductances and activation rates of the synaptic and H currents (case 3). Figure 6 illustrates the behavior of representative escape and release circuits in response to gradual temperature increases in all the cases, including the case of temperature-insensitive synaptic and H currents for a comparison (right panels of Figure 6). The top panels of Figure 7 show the percent change in cycle and spike frequencies of the representative circuits from Figure 6. The bottom panels of Figure 7 show a summary of the effects of increasing temperature on multiple characteristics of circuit outputs across all experimental conditions (N = 33). The case of temperature-independent synapses and H current (case 1) is described in detail in the previous section and is summarized in Figure 7 along with the other cases. All statistical tests, significance analyses, number of circuits/neurons and other relevant information for data comparison are provided in Supplementary file 1a-1h.

Figure 6

Download asset Open asset

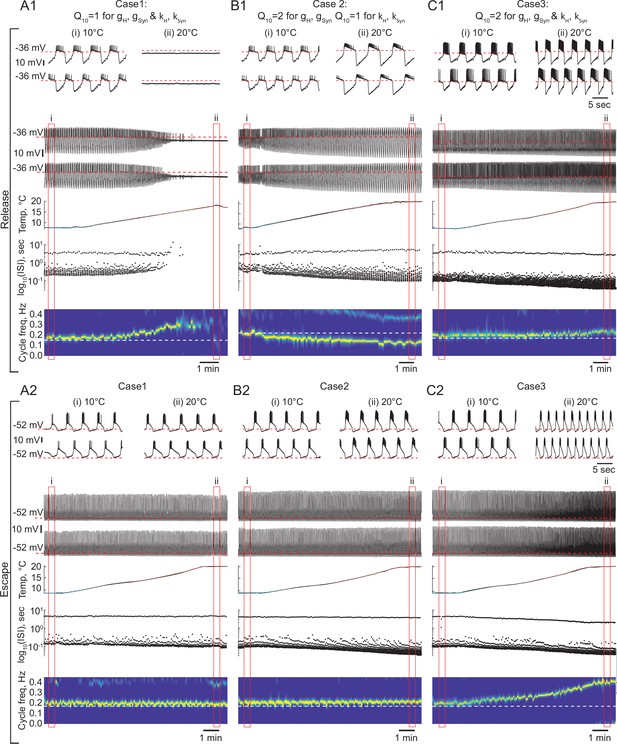

The role of temperature dependence in the synaptic and H currents in the response of the circuits with release and escape mechanisms to changes in temperature.

(A1) Representative example of the behavior of a half-center oscillator in release in case of temperature-independent synaptic and H conductances and activation rates of these currents (g_H, g_Syn, k_H, K_Syn Q₁₀ = 1). Figure follows the same format as Figure 5A–B. (A2) Same condition as in (A1) for a circuit in escape. (B1) Representative example of the behavior of a half-center oscillator in release in case of temperature-dependence of the synaptic and H conductances with a Q₁₀ = 2 and temperature-independent activation rates (k_H, K_Syn Q₁₀ = 1). (B2) Same condition as in (B1) for a circuit in escape. (C1) Representative example of the behavior of a half-center oscillator in release in case of temperature-dependence of the synaptic and H conductances and activation rates with a Q₁₀ = 2. (C2) Same condition as in (C1) for a circuit in escape.

Figure 7 with 1 supplement see all

Download asset Open asset

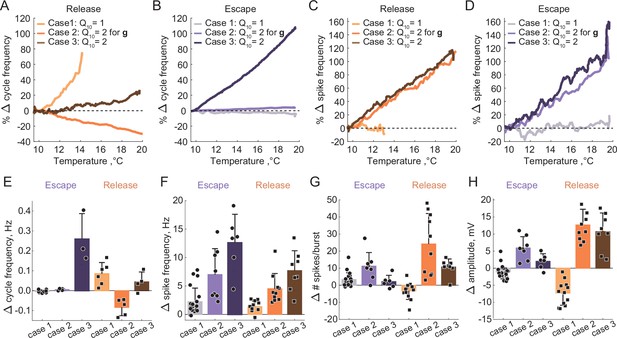

Summary of the effects of temperature on the characteristics of half-center oscillators with escape and release mechanisms and different temperature-dependences in the synaptic and H currents.

(A) Percent change in cycle frequency of the release circuits shown in Figure 6 with an increase in temperature from 10°C to 20°C. (B) Percent change in cycle frequency of the escape circuits shown in Figure 6 with an increase in temperature from 10°C to 20°C. (C) Percent change in spike frequency of the release circuits in Figure 6 with an increase in temperature from 10°C to 20°C. (D) Percent change in spike frequency of the escape circuits in Figure 6 with an increase in temperature from 10°C to 20°C. (E) Change in cycle frequency with an increase in temperature from 10°C to 20°C across all experimental conditions (N = 33). (F) Change in spike frequency across all experimental conditions. (G) Change in number of spikes per burst across all experimental conditions. (H) Change in slow-wave amplitude across all experimental conditions. Case 1: $Q_{10} = 1$ for the conductances and the activation rates of the synaptic and H currents; Case 2: $Q_{10} = 2$ for the conductances and $Q_{10} = 1$ for the activation rates of the synaptic and H currents; Case 3: $Q_{10} = 2$ for the conductances and the activation rates of the synaptic and H currents.

Case 2: $Q_{10} = 2$ for the conductances and $Q_{10} = 1$ for the activation rates of the synaptic and H currents

We set the $Q_{10}$ , a metric describing the ratio of rates of a biological process at two temperatures separated by 10°C, to two for the conductances of the synaptic and H currents (Figure 6B1 release, 6B2 escape). $Q_{10} = 2$ is a typical value for experimentally measured $Q_{10}$ s in STG neurons (Tang et al., 2010). Temperature driven increases in the conductances of the synaptic and H currents increase the amplitude of oscillations, thus, making the circuits with a release mechanism more robust in terms of maintaining its functional oscillatory state (Figure 6B1 voltage traces, Figure 7). The cycle frequency of the circuits with a release mechanism decreases with an increase in temperature (Figure 6B1 spectrogram, Figure 7), driven by the increases in both conductances in accordance with the findings shown in the right panel of Figure 3B. Temperature-dependence in the synaptic and H conductances makes circuits with a release mechanism more robust to an increase in temperature, by increasing the amplitude of oscillations.

The cycle frequency of the circuits with an escape mechanism remains constant over the whole temperature range (Figure 6B2 spectrogram, Figure 7B and E), similar to the case of temperature-independent synapses and H current. Temperature-induced increases in the synaptic and H conductances counteract each other in the case of the escape mechanism as illustrated in the left panel of Figure 3B, (i.e. the frequency is conserved along the diagonal of g_H-g_Syn map). The spike frequency and number of spikes per burst of the circuits with either release or escape mechanisms significantly increase from 10°C to 20°C (Figure 7C, D and H).

Case 3: $Q_{10} = 2$ for the conductances and the activation rates of the synaptic and H currents

We next implemented temperature-dependence in both the conductances and activation rates of the synaptic and H currents by setting these $Q_{10} s$ to 2. Both escape and release circuits maintained their oscillations as the temperature was increased in this case, due to the increase in the amplitude of the oscillations and faster transitions between the on-off states (Figure 6C1 release, C2 escape). Although both circuits were bursting during the entire temperature range, there was a significant difference in the frequency responses of the escape and release circuits. Across all experiments, the cycle frequency of the circuit with a release mechanism did not significantly change over 10°C (Figure 6C1 spectrogram, Figure 7, Supplementary file 1a and b), while the cycle frequency of the circuits with an escape mechanism increased dramatically (Figure 6C2 spectrogram, Figure 7, Supplementary file 1a and b). In release, an increase in cycle frequency governed by changes in the intrinsic properties of the neurons and by an increase in the activation rates of synaptic and H currents was counteracted by a decrease in cycle frequency governed by an increase in synaptic and H conductances. The combination of these processes keeps the cycle frequency of release circuits nearly constant throughout the temperature ramp. In escape, an increase in cycle frequency is mostly driven by an increase of the activation rate of H current, because H current is causing the rebound. The spike frequency and the oscillation amplitude of circuit with either release or escape mechanisms significantly increased over $10 ℃$ °C, similar to the case of $Q_{10} = 2$ for conductances only (Figure 7C, D and F, Supplementary file 1a and b). The number of spikes per burst of the escape circuits did not significantly change with the increase in temperature, unlike in the release circuits (Figure 7G, Supplementary file 1a and b).

Characteristics of the circuit output are differently sensitive to temperature increase depending on the mechanism of oscillation and $Q_{10} s$ of the synaptic and ionic currents. The duty cycle was relatively independent of variations in temperature in all the cases (Supplementary file 1a and b). To assess whether temperature affects the mechanism of oscillation we calculated the ERQ values at 10°C and 20°C for different $Q_{10}$ cases (Supplementary file 1a). The ERQ did not significantly change for the release circuits (case 1: 0.13 ± 0.06 at 10°C, 0.14 ± 0.05 at 20°C, $p = 0.136$ ; case2: 0.16 ± 0.07 at 10°C, 0.15 ± 0.08 at 20°C, $p = 0.286$ ; case 3: 0.14 ± 0.07 at 10°C, 0.14 ± 0.08 at 20°C, $p = 0.575$ , Wilcoxon signed rank test). The ERQ became significantly more positive for the escape circuits with temperature-independent synaptic and H currents, indicating the change in the mechanism of oscillation toward release with the increase in temperature (case 1: -0.09 ± 0.03 at 10°C, -0.07 ± 0.04 at 20°C, ** $p = 0.009$ ; case 2: -0.07 ± 0.03 at 10°C, -0.09 ± 0.03 at 20°C, * $p = 0.017$ ; case 3: -0.08 ± 0.05 at 10°C, -0.10 ± 0.04 at 20°C, $p = 0.173$ , Wilcoxon signed rank test). An example of the change in the mechanism of oscillation from a mixture of intrinsic escape and synaptic release at 10°C all the way to a pure release mechanism at 20°C is shown in Figure 7—figure supplement 1. During the transition, the half-center exhibited characteristics of both mechanisms with various balances between the mechanistic interactions at different temperatures. The cycle frequency remained constant for a wide range of temperatures until the on-off transitions in the circuit were dominated by the synaptic release mechanism (Figure 7—figure supplement 1F).

Effect of a neuromodulatory current on the robustness of circuits with release and escape mechanisms

A number of neurotransmitters and peptides converge on an inward current with the same voltage dependence, known as I_MI (Swensen and Marder, 2000; Swensen and Marder, 2001). To explore the effect of I_MI on reciprocally inhibitory circuits with different mechanisms of oscillation, we injected artificial I_MI via the dynamic clamp into both neurons comprising half-center oscillators (Figure 8A). We then varied the synaptic threshold to alter the mechanism. Figure 8B illustrates representative recordings of a half-center oscillator at three different synaptic thresholds corresponding to escape, mixture, and release mechanisms in control (black traces) and with the addition of I_MI (blue traces). We calculated the frequency of oscillations as a function of the synaptic threshold in control and with the addition of I_MI (g_MI = 150 nS). Figure 8C shows this relationship for the representative experiment in panel B. Artificially injected I_MI produced no effect on the cycle frequency of escape circuits, while I_MI decreased the cycle frequency of the circuits with a mixture of mechanisms or in release. Addition of I_MI increased the robustness of circuits with a release mechanism, increasing the amplitude of oscillations (Figure 8B, right most traces) and expanding the range of synaptic thresholds producing stable antiphase bursting pattern of activity (Figure 8C). At the same time, I_MI made oscillations less stable and irregular for circuits operating with a mixture of mechanisms, as evident by the increase in the CV of cycle frequency with addition of I_MI (Figure 8—figure supplement 1, 0.06 ± 0.02 in control vs 0.13 ± 0.08 with I_MI, * p = 0.04, paired-sample Wilcoxon rank test) I_MI amplified the asymmetry between the units comprising the circuit (Figure 8B middle traces, Figure 8—figure supplement 1B), and increased the standard deviation of the cycle frequency and elicited break in the central region of the cycle frequency curve corresponding to a mixed regime (Figure 8C). In the cases when the neurons had similar number of spikes per burst in control conditions, addition of I_MI did not destabilize the circuits with the mixture of mechanisms. In the cases when the neurons had substantially different numbers of spikes in control, I_MI amplified this difference (Figure 8—figure supplement 1B).

Figure 8 with 1 supplement see all

Download asset Open asset

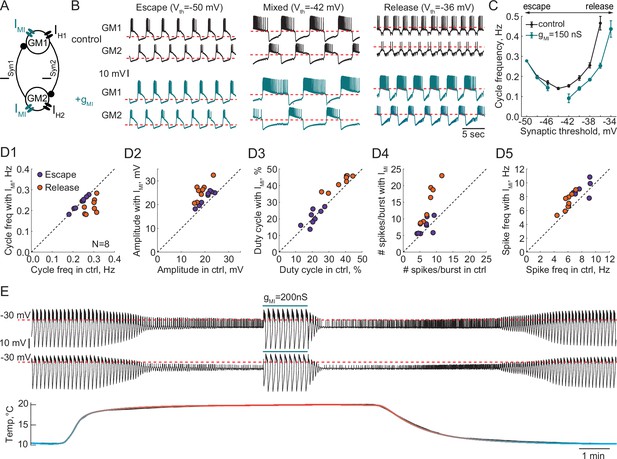

Effect of a modulatory current (I_MI) on the behavior of reciprocally inhibitory circuits with different oscillatory mechanisms.

(A) A schematic representation of a reciprocally inhibitory circuit with a dynamic clamp modulatory current (I_MI). (B) Representative traces of a half-center oscillator for different synaptic thresholds in control (black) and with the addition of I_MI (g_MI = 150 nS, blue). (C) Oscillation frequency of the circuit in panel B as a function of the synaptic threshold in control (black) and with the addition of I_MI (blue). (D) Characterizing the half-center oscillator output in escape and release with the addition of I_MI (N = 8). (D1) Cycle frequency (Escape: 0.236 ± 0.033 Hz in control vs 0.237 ± 0.032 Hz with I_MI, n.s. p = 0.38, paired-sample t-test; Release: 0.289 ± 0.026 Hz in control vs 0.22 ± 0.036 Hz with I_MI, *** p = 0.0003, paired-sample t-test). (D2) Slow-wave amplitude (Escape: 20.5 ± 2.8 mV in control vs 23.0 ± 2.9 mV with I_MI, *** p < 0.0001, paired-sample t-test; Release: 18.4 ± 2.5 mV in control vs 25.7 ± 3.8 mV with I_MI, *** p < 0.0001, paired-sample t-test). Amplitude increase in release is significantly larger than in escape, *p = 0.02, paired-sample t-test. (D3) Duty cycle (Escape: 20.8 ± 4.3% in control vs 21.1 ± 4.9% with I_MI, n.s. p = 0.8, paired-sample t-test; Release: 37.3 ± 6.5% in control vs 42.2 ± 4.3% with I_MI, *p = 0.002, paired-sample t-test). (D4) Number of spikes per burst (Escape: 6.7 ± 1.9 in control vs 7.6 ± 2.3 with I_MI, n.s. p = 0.2, paired-sample t-test; Release: 7.6 ± 2.2 in control vs 14.4 ± 5.7 with I_MI, ** p = 0.001, paired-sample t-test). (D5) Spike frequency (Escape: 7.8 ± 1.2 Hz in control vs 8.7 ± 1.3 Hz with I_MI, * p = 0.029, paired-sample t-test; Release: 6.0 ± 0.8 Hz in control vs 7.2 ± 1.3 Hz with I_MI, ** p = 0.001, paired-sample t-test). (E) I_MI restores the oscillations in the circuit with a release mechanism that stopped oscillating at high temperature. Example voltage traces of a half-center oscillator circuit in release during an increase in temperature from 10°C to 20°C. In this example, synaptic and H conductances and activation rates are temperature-independent.

We quantified the change in cycle frequency, oscillation amplitude, duty cycle, spike frequency and number of spikes per burst across both neurons in circuits with the addition of modulatory current (N = 8, Figure 8D1-D5). All statistical tests and significance analyses of these data are provided in the legend of Figure 8. The cycle frequency of escape circuits did not change with the addition of I_MI but significantly decreased in release circuits (Figure 8D1). I_MI increased the amplitude of oscillations in both modes, with a significantly larger increase in release (Figure 8D2), making the oscillations more robust in terms of maintaining its functional oscillatory state. The duty cycle of the circuits in escape was statistically invariant to modulation, while there was a small but statistically significant increase in the duty cycle of the circuits in release (Figure 8D3). The number of spikes per burst significantly increased with I_MI in release but not escape (Figure 8D4). Finally, I_MI produced a small but statistically significant increase in the frequency of the spikes within bursts for both types of circuits (Figure 8D5). Overall, across all the characteristics, circuits with a release mechanism were significantly more sensitive to a modulatory current than circuits with an escape mechanism.

These observations suggest that the same type of modulation can produce different effects on the output of a circuit depending on the underlying mechanism of oscillation, and can make a circuit more or less susceptible to subsequent perturbations, potentially changing its sensitivity to pharmacological agents. For example, I_MI increases the robustness of the circuit perturbed by an increase in temperature by preserving the oscillations (Figure 8E). In 4/4 preparations, I_MI restored the antiphase oscillations in release circuits at high temperature, by depolarizing the neurons over the synaptic threshold and increasing the amplitude of oscillations. This is similar to the neuromodulatory rescue of the temperature-induced cessation of the gastric mill rhythm (Städele et al., 2015). This could be one of the mechanisms by which neuromodulators help maintaining a circuit’s functional state at different temperatures.

Discussion

One of the most difficult problems facing systems neuroscience is to determine the mechanisms that generate a given circuit output. The present work is designed to provide some fundamental insights into that problem, by studying a purposefully simple rhythmic circuit. Because some of the circuit parameters are constructed with the dynamic clamp, and are therefore known, we have been able to gain insight into how circuits that appear similar in function can respond differently to the same perturbations. In dynamic clamp hybrid circuits, we have access to some of the hidden variables that define the dynamical mechanisms governing circuit behavior. At the same time, we have not sacrificed the complexity of the biological neurons. This allowed us to study how the interaction between biophysical and dynamical properties of these neural circuits define their robustness, by capturing how likely a perturbation is to alter the circuit’s qualitative function and/or change its state. The findings of this paper have implications for understanding animal-to-animal variability in circuit responses to various stressors and modulators.

There is a continuum of mechanistic interactions that produce the oscillatory transitions in the circuit, with pure synaptic escape and release on the ends of this continuum. A mixture of mechanisms is likely common in biological circuits, for example, in systems relying on both graded and spike-mediated transmission, such as in the leech heartbeat oscillator (Angstadt and Calabrese, 1989; Angstadt and Calabrese, 1991; Calabrese et al., 2016). However, the mechanism of oscillation in a given circuit is not a constant but can be altered by perturbations, modulators and/or changes in the circuit parameters. To quantitatively characterize the mechanism of oscillation and the degree to which it is affected by perturbations, we introduced a measure called the Escape to Release Quotient (ERQ). The ERQ quantifies the position of the synaptic threshold relative to the mean membrane potential of each neuron in the circuit. This measure is useful in defining the mechanism of oscillation because the position of the synaptic threshold within the membrane potential envelope, as well as the intrinsic properties of the neurons define the mechanism of oscillation (Skinner et al., 1994; Sharp et al., 1996). However, identifying the exact mechanism of oscillatory transitions is a difficult problem, because it requires knowing all of the underlying currents. Because some of the currents are computer-generated, we can describe their contributions to the transitions. In the mixed regime, on-off transitions are associated with a buildup of the H current in the inhibited cell, and a decay in the synaptic current. Decay in the synaptic current is associated with hyperpolarization of the membrane potential of the active cell. The degree to which changes in the synaptic and H currents contribute to the transitions depends on the position of the synaptic threshold within the slow wave.

The problem of identifying the mechanism of oscillation becomes more complicated if the neurons comprising the circuits are asymmetrical with respect to their intrinsic properties. In this case, the oscillatory transitions in each neuron can occur with different balances of mechanistic operations, and the mean ERQ value calculated across both neurons in the circuit does not accurately describe the mechanism of oscillation. This means that if the two neurons are appreciably different from each other, the ERQ must be calculated independently for each neuron to uncover the differences in their mechanisms. Finally, due to inherent intrinsic variability of the biological neurons that comprise the half-centers, the same parameters, i.e. the same value of the synaptic threshold, do not necessarily generate the same mechanism of oscillation across circuits. Thus, the ERQ, while an instructive measure is not a perfect way to characterize the complex mixtures of mechanisms, especially when the two biological neurons are different.

Unperturbed half-center circuits with escape and release mechanisms can have very similar characteristics, including burst and spike frequencies. Thus, if the mechanism is not known a priori, it is challenging to identify the underlying mechanisms of circuit function from the baseline spiking activity. One way to reveal hidden differences in the mechanism underlying circuit dynamics is by perturbing them. We showed that reciprocally inhibitory circuits with different underlying oscillation mechanisms are not equally robust to perturbations. Particularly, circuits in release mode are robust to variations in synaptic and H conductances, in terms of preserving their qualitative state, but sensitive to an increase in temperature and modulation. In contrast, the circuits in escape rely on tight correlations between synaptic and H conductances to generate bursting but are resilient to increases in temperature and modulation.

Previous computational studies showed that half-center oscillators relying on either release or escape mechanisms differentially respond to synaptic inputs and current pulses (Hill et al., 2001; Nadim et al., 1995; Olsen et al., 1995; Zhang and Lewis, 2013). Daun et al., 2009 used model neurons with or without persistent sodium current to form half-center oscillators. When asymmetric noise was injected into only one of the neurons, half-centers operating in escape had a larger range of oscillation period than did circuits with release or a mixture of mechanisms (Daun et al., 2009). Additionally, half-centers built with two Morris-Lecar model neurons have significantly different phase response properties and phase locking dynamics depending on whether they operate in escape or release (Zhang and Lewis, 2013).

Oscillations in the leech heartbeat model rely on both graded and spike-mediated synaptic transmission and contain elements of both escape and release modes (Hill et al., 2001; Nadim et al., 1995; Olsen et al., 1995). The release mechanism in this model is caused by inactivation of slow calcium current, while the escape mechanism is promoted by activation of H current. Increase in H conductance decreases the duration of the inhibited phase and increases the frequency of oscillations (Olsen et al., 1995). There is no single parameter in the leech heartbeat model that corresponds to a synaptic threshold, such as is implemented in this study. However, the maximal conductance of slow calcium current to some extent is comparable to the synaptic threshold, where higher conductances correspond to more hyperpolarized synaptic thresholds (Olsen et al., 1995). The interaction between the low-threshold ionic currents and the synaptic currents determines whether the escape or release mechanism is prevalent. Model half-center circuits are typically built with two identical neurons, although experimental data suggest that the conductance values and intrinsic properties of neurons even of the same type can differ significantly (Doloc-Mihu and Calabrese, 2014; Goldman et al., 2001; Marder and Goaillard, 2006; Prinz et al., 2003; Prinz et al., 2004; Roffman et al., 2012; Schulz et al., 2006; Schulz et al., 2007; Srikanth and Narayanan, 2015; Swensen and Bean, 2005; Temporal et al., 2012; Tobin et al., 2009; Tran et al., 2019). The studies in which the dynamic clamp is used to create half-center circuits from biological neurons profit from natural cell-to-cell and animal-to-animal variability to investigate circuit responses to stressors and modulators. Sorensen et al., 2004 and Olypher et al., 2006 built asymmetries into the circuit by unilateral variations of the parameters and found that despite the asymmetries and animal-to-animal variability in the underlying conductances, hybrid half-center oscillators built out of leech heartbeat interneurons were remarkably balanced. Interestingly, increasing asymmetries between the units did not destabilize the half-center oscillators. One possible explanation for the stability of the leech half-centers despite their asymmetries is that the individual neurons making up the half-center show distinct oscillatory properties that could aid in the stabilization. In contrast, the GM neurons from the crab STG are not intrinsically oscillatory but are silent or tonically spiking in the absence of their synaptic inputs. This may therefore make these circuits more sensitive to the asymmetries in the neurons forming the half-center.

Grashow et al., 2009 found that either serotonin or oxotremorine (a muscarinic receptor agonist) increased the oscillation frequency of half-center oscillator circuits built with GM neurons and made alternating bursting more robust by extending the parameter range over which bursting exists. However, there was a substantial variability in individual responses of half-center circuits to neuromodulation, with a few circuits showing ‘anomalous’ decreases in cycle frequency in the presence of modulators. We speculate that some of the variability in Grashow et al., 2009 may have been due to the differences in underlying mechanisms of oscillations across the circuits and the degree of asymmetry between the units comprising the circuit. We show that the same neuromodulatory current can either have no effect on a same circuit if operating in escape, destabilize the circuits if operating in mixed mode or expand the range of parameters producing stable bursting in a circuit if operating in release (Figure 8, Figure 8—figure supplement 1). Thus, knowing the dynamical mechanism involved in generating the circuit output is crucial for understanding the circuit responses to stimuli.

A similar variability in the response to a neuromodulator is seen in the crustacean gastric mill rhythm. This rhythm is generated by a half-center oscillator and can be elicited by multiple mechanisms (Powell et al., 2021b). Stimulation of the MCN1 projection neuron or bath-applying the peptide CabPK result in gastric mill rhythms with similar output patterns (Powell et al., 2021b). Despite the similarity of their baseline activity patterns, these rhythms rely on participation of different neurons and respond differently to hormone CCAP, which is known to activate I_MI (Swensen and Marder, 2000; Swensen and Marder, 2001). CCAP slows down MCN1-generated rhythm but, in contrast, speeds up CabPK-generated rhythm (Kirby and Nusbaum, 2007; Powell et al., 2021b). We propose that the MCN1 rhythm might operate in release, while CabPK-rhythm operates in escape. Thus, different modulators can elicit different dynamical mechanisms of rhythm generation. In support of this hypothesis, it has been reported that similar gastric mill rhythms, which are generated by a stimulation of disparate neuromodulatory pathways, have different temperature sensitivity (Powell et al., 2021a; Städele et al., 2015). A modest temperature increase of 3°C abolishes the MCN1-rhythm (Städele et al., 2015), in contrast, the VCN-rhythm is temperature-robust over a wide range of temperatures, between 7°C and 25°C (Powell et al., 2021a). We propose that the difference in temperature sensitivity between the two versions of the gastric mill rhythm could be explained by the differences in their dynamical mechanisms of oscillation.

Many studies found significant correlations between the conductances of voltage-dependent currents in both invertebrates and vertebrates (Amendola et al., 2012; Calabrese et al., 2011; Goaillard et al., 2009; Khorkova and Golowasch, 2007; Schulz et al., 2006; Schulz et al., 2007). It has been argued that reliable circuit output and resilience to perturbations are enhanced by the conductance correlations, rather than by the particular values of individual parameters (Olypher and Calabrese, 2007; Onasch and Gjorgjieva, 2020; Tobin et al., 2009; Zhao and Golowasch, 2012). In line with this, we found that synaptic and H conductances are positively correlated in the circuits with escape mechanisms (Figure 3A), contributing to the robustness of these circuits to variations in temperature. Changes in the synaptic and H conductances with temperature counteract each other keeping the oscillation frequency of escape circuits with temperature-independent activation-rates constant for a wide range of temperatures (Figure 6B2).

Because temperature differentially affects many nonlinear processes shaping circuit output, it is nontrivial for a circuit to maintain its function over a wide range of temperatures. Despite that, many neuronal circuits, including the pyloric and half-center driven gastric mill circuits of crustaceans, are temperature compensated and function over an extended physiological temperature range (Haddad and Marder, 2018; Kushinsky et al., 2019; Powell et al., 2021a; Soofi et al., 2014; Tang et al., 2010; Tang et al., 2012). Complicating the situation, circuit susceptibility to temperature changes is strongly influenced by the modulatory environment (Haddad and Marder, 2018; Soofi and Prinz, 2015; Städele et al., 2015). Obtaining insights into the mechanisms that underly acute temperature resilience is difficult. Temperature is a particularly difficult perturbation to model in biologically plausible circuits because there are many free parameters to set, as temperature affects both the conductances and activation rates of the currents, making it a highly unconstrained problem. Because it is difficult to measure the temperature dependence of all of the currents in a given cell type (Tang et al., 2010), most modeling studies (Alonso and Marder, 2020; Caplan et al., 2014; O’Leary and Marder, 2016; Rinberg et al., 2013) employ $Q_{10}$ values that are only partially based on measured values. In simplified models it is possible to study the dynamical mechanisms of robustness and characterize bifurcations as a function of temperature (Rinberg et al., 2013), but many biophysical details are lost. In contrast, in the hybrid neural-computer dynamic clamp circuits studied in this paper, we can control the dynamical mechanisms governing circuit behavior and temperature-dependence in the computer-generated parameters, without making any assumptions about the temperature dependence of the intrinsic currents of the neurons. Thus, we benefit from not having to over-simplify the effects of temperature on the biological neurons.

It is as of yet unclear whether circuits that depend on one or another dynamical mechanism for operation are intrinsically more resilient to all perturbations, or whether robustness is determined idiosyncratically for each circuit configuration and perturbation. The present study illustrates how nontrivial it is to explain circuit function on the basis of basal firing pattern alone. The dynamical mechanisms underlying half-center oscillator transitions are well defined in modeling studies that reveal the underlying interactions between hidden state variables and voltage-dependent synaptic and intrinsic currents. While theoretical studies provide mechanistic insight, it can be quite difficult to establish how those mechanisms are instantiated in biological neurons. Moreover, virtually all previous computational studies in half-centers were done with identical neurons, and in no case will two or more biological neurons even of the same cell type, be identical. The dynamic clamp studies here provide access to some of the fundamental dynamical mechanisms important for generation of antiphase oscillations, while retaining the intrinsic ‘features’ of the biological neurons. In conventional current clamp experiments the investigator does not have a continuous access to state variables of the currents, while in the dynamical clamp experiments state variables of the computer-generated currents are readily accessible. A fundamental conclusion of this work is that very nuanced changes in circuit mechanism can profoundly alter circuit stability in response to perturbations and inputs. Thus, a challenge for the future will be developing new methods to extract dynamical mechanisms underlying circuit function from biological circuits while they are in operation.

Materials and methods

Key resources table

Reagent type (species) or resource	Designation	Source or reference	Identifiers
Biological sample(Jonah Crabs)	Cancer borealis (Jonah Crabs)Adult Male	Commercial Lobster (Boston, MA)	NCBI:txid39395
Chemical compound, drug	Picrotoxin (PTX)	Sigma-Aldrich
Chemical compound, drug	Tetrodotoxin (TTX)	Alamone labs	T-550
Software, algorithm	Dynamic clamp	Real-Time eXperiment Interface (RTXI) software versions 1.4 and 2.2	http://rtxi.org/
Software, algorithm	pClamp version 10.5	Molecular Devices, San Jose	https://www.moleculardevices.com/products/axon-patch-clamp-system/acquisition-and-analysis-software/pclamp-software-suiteRRID: SCR_011323
Software, algorithm	MATLAB R2020a	MathWorks	https://www.mathworks.com/products/matlab.html
Software, algorithm	IBM SPSS Statistics 24	IBM	RRID:SCR_002865
Software, algorithm	Adobe Illustrator 2020	Adobe	https://www.adobe.com/products/illustrator.html

Animals and experimental methods

Adult male Jonah Crabs, Cancer borealis, (N = 43) were obtained from Commercial Lobster (Boston, MA) and maintained in artificial seawater at 10°C–12°C in a 12 hr light/dark cycle. On average, animals were acclimated at this temperature for 1 week before use. Prior to dissection, animals were placed on ice for at least 30 min. Dissections were performed as previously described (Gutierrez and Grashow, 2009). In short, the stomach was dissected from the animal and the intact stomatogastric nervous system (STNS) was removed from the stomach including the commissural ganglia, esophageal ganglion and stomatogastric ganglion (STG) with connecting motor nerves. The STNS was pinned in a Sylgard-coated (Dow Corning) dish and continuously superfused with saline. Saline was composed of 440 mM NaCl, 11 mM KCl, 26 mM MgCl₂, 13 mM CaCl₂, 11 mM Trizma base, 5 mM maleic acid, pH 7.4–7.5 at 23°C (~7.7–7.8 pH at 11°C).

Electrophysiology

Request a detailed protocol

Intracellular recordings from the somata of gastric mill (GM) neurons were made using two-electrode current clamp in the desheathed STG with 10–20 MΩ sharp glass microelectrodes filled with 0.6 M K₂SO4 and 20 mM KCl solution (Figure 1A). Intracellular signals were amplified with an Axoclamp 900 A amplifier (Molecular Devices, San Jose). Extracellular nerve recordings were made by building wells around nerves using a mixture of Vaseline and mineral oil and placing stainless-steel pin electrodes within the wells to monitor spiking activity. Extracellular nerve recordings were amplified using model 3500 extracellular amplifiers (A-M Systems). Data were acquired using a Digidata 1,440 digitizer (Molecular Devices, San Jose) and pClamp data acquisition software (Molecular Devices, San Jose, version 10.5) and Real-Time eXperiment Interface (RTXI) software (http://rtxi.org/) version 2.2 or 1.4. Recordings were done with a sampling frequency of 10 kHz. For identification of GM neurons, somatic intracellular recordings were matched to action potentials on the dorsal gastric nerve (dgn), and/or the anterior lateral nerve (aln).

For the process of blocking descending modulatory inputs to the STG, a Vaseline well was built around the exposed portion of the stn. Propagation of axonal signaling, and, thus, neuromodulatory release, was blocked from upstream ganglia by replacing saline in the Vaseline well with 10^–7M tetrodotoxin (TTX) in a 750 mM sucrose solution. 10^–5M Picrotoxin (PTX) was used to block inhibitory glutamatergic synapses (Marder and Eisen, 1984). Preparations were allowed to stabilize after decentralization and PTX application for at least 1 hr prior to building a reciprocally inhibitory circuit via dynamic clamp.

Dynamic clamp

Request a detailed protocol

To create the half-center oscillator circuits, artificial reciprocal inhibitory synaptic currents (I_Syn) and hyperpolarization-activated inward currents (I_H) were added via the dynamic clamp, following the methods described in Sharp et al., 1996; Figure 1. Simulation of voltage-dependent currents in real time was done using Real-Time eXperimental Interface (RTXI 2.2 or 1.4) (http://rtxi.org/) (Patel et al., 2017). Custom RTXI modules were written using the programming language C++.

The synaptic current is given by the following expression:

I_{s y n} = g_{s y n} \cdot s (V_{p r e}) \cdot (V_{p o s t} - E_{s y n}), (1 - s_{\infty}) \frac{d s}{d t} = \frac{s_{\infty} - s}{τ_{s y n}}

where $V_{p r e}$ and $V_{p o s t}$ are presynaptic and postsynaptic voltages, $s$ is the synaptic gating varible, $s_{\infty}$ is the steady-state synaptic activation, given by a sigmoidal function $s_{\infty} = \frac{1}{1 + e^{\frac{V - V_{t h}}{V_{s l o p e}}}}$ (Figure 1B, purple and orange curves).

The hyperpolariztion-activated inward current is described in Buchholtz et al., 1992:

I_{H} = g_{H} \cdot r (V_{p o s t}) \cdot (V_{p o s t} - E_{H}), \frac{d r}{d t} = \frac{r_{\infty} - r}{τ_{H}},

where $r$ is the gating varible of H current, $r_{\infty}$ is the steady-state activation, given by a sigmoidal function $r_{\infty} = \frac{1}{1 + e^{\frac{V - V_{1 / 2}}{S_{r}}}}$ (Figure 1B, black curve), $τ_{r}$ is the voltage-dependent time constant given by $τ_{H} = \frac{τ_{H 0}}{1 + e^{\frac{V - V_{τ_{r}}}{{S τ}_{r}}}}$ .

In a subset of experiments, we simulated inward neuromodulatory current ( $I_{M I}$ ) via dynamic clamp (Swensen and Marder, 2001):

I_{M I} = g_{M I} \cdot m \cdot (V_{p o s t} - E_{M I}), \frac{d m}{d t} = \frac{m_{\infty} - m}{τ_{m}},

where $m$ is the gating varible of neuromodulatory current, $m_{\infty}$ is the steady-state activation, given by a sigmoidal function $m_{\infty} = \frac{1}{1 + e^{\frac{V - V_{{M I}_{1 / 2}}}{S_{M I}}}}$ .

Parameter values of the currents injected in both neurons were the same to preserve the symmetry and are given in Table 1. Since the artificial currents injected into both neurons had the same parameter values, to create stable half-center oscillators, neurons used to comprised the oscillator had to have similar resting membrane potentials and intrinsic excitability. Thus, in the sunset of experiments, when the two GM neurons had very different resting membrane potentials at baseline, the membrane potential were brought to the same range of $\pm 5 m V$ by either injecting a small amout of positive constant current or negative leak current to a more hyperpolarized cell.

Table 1

Parameter values for the dynamic clamp.

Parameter	Value	Description
Synaptic current ( $I_{s y n}$ )
$g_{s y n}$	Varied from 150 to 1,050 nS	Maximal conductance of synaptic current
$E_{s y n}$	–80 mV	Reversal potential of synaptic current
$V_{t h}$	Varied from –28 to –54 mV	Synaptic threshold voltage
$τ_{s y n}$	50 or 100 msec	Synaptic time constant
$V_{s l o p e}$	–2 mV	Slope factor of synaptic activation function
Hyperpolarization-activated inward current ( $I_{H}$ )
$g_{H}$	Varied from 150 to 1,050 nS	Maximal conductance of H current
$E_{H}$	–10 mV	Reversal potential of H current
$V_{1 / 2}$	–50 mV	Half-maximal activation voltage of H current
$s_{r}$	7 mV	Slope factor of H current activation function
$τ_{H 0}$	2000 or 3000 msec	Time constant of H current
$V_{τ_{r}}$	–110 mV	Half-maximal voltage of H current time constant
$s_{τ_{r}}$	–13 mV	Slope factor of H current time constant
Neuromodulatory inward current ( $I_{M I}$ )
$g_{M I}$	100, 150 or 200 nS	Maximal conductance of neuromodulatory current
$E_{M I}$	–20 mV	Reversal potential of neuromodulatory current
$V_{{M I}_{1 / 2}}$	–21 mV	Half-maximal activation voltage of $I_{M I}$
$τ_{m}$	4 msec	Time constant of neuromodulatory current
$s_{M I}$	–8 mV	Slope factor of $I_{M I}$ activation function

Temperature experiments

Request a detailed protocol

Temperature of the superfusing saline was controlled using either a waveform generator (RIGOL, DG1022 series) or Arduino connected to a temperature controller (model CL-100, Warner Instruments) and altered during each experiment using a Peltier device and thermocouple (SC-20 and TA-29, Warner Instruments). We performed three types of temperature experiments. In the first set of experiments the temperature was changed in one big step from 10°C to 20°C in 1 min, held at 20°C for 2–10 min and brought back to 10°C in one step (N = 13). In the second set of temperature experiments, the waveform generator or Arduino were programmed to change temperature from 10°C to 20°C in 2°C/min steps (N = 5). Each temperature step was held for 6 min during which synaptic threshold was changed via RTXI from –50 mV to –30 mV in 5 mV/min steps to explore the effect of temperature on half-center oscillator circuits with different oscillatory mechanisms. In the final set of temperature experiments, the waveform generator or Arduino was programmed to generate a smooth temperature ramp from 10°C to 20°C over 10–20 minutes (N = 22). Temperature was then held for 2–5 min at 20°C and gradually brought back to 10°C in a symmetric ramp. For a subset of temperature experiments (N = 15) inward neuromodulatory current I_MI was simulated via dynamic clamp in both GM neurons at either 10°C, 20°C or both temperatures.

For the escape mechanism, the synaptic thresholds were between –54 and -52 mV. Small variability in the synaptic thresholds comes from the variability in the resting membrane potentials of the neurons across preparations (Figure 5C). For the release mechanism, synaptic thresholds were between –44 and –32 mV. Variability in the synaptic thresholds for release mechanism comes from both the differences in the resting membrane potentials and the intrinsic excitability of the cells, such as spike threshold (Figure 5D) number of spikes per burst and spike frequency. Further, due to significant variability in the intrinsic excitability between the cells across the preparations, there was a significant variability in the maximal conductances of the synaptic and H currents across the experiments. The maximal conductances for the synaptic current and H currents varied between 200 and 900 nS across experiments.

Temperature dependence of the conductances and time constants of the currents generated with the dynamic clamp were implemented in the following way:

$g_{s y n} = g_{s y n 0} \cdot Q_{10}^{\frac{T - T_{0}}{10}}$ , $g_{H} = g_{H 0} \cdot Q_{10}^{\frac{T - T_{0}}{10}}$ , $τ_{s y n} = \frac{τ_{s y n 0}}{Q_{10}^{\frac{T - T_{0}}{10}}}$ , $τ_{H} = \frac{τ_{H 0}}{Q_{10}^{\frac{T - T_{0}}{10}}}$ , where $T$ is the saline temperature and $T_{0} = 10 ℃$ is a reference temperature. $Q_{10}$ , a metric describing the rate of change of a biological process due to increase in temperature by 10°C, was set to either one or 2, according to experimentally measured $Q_{10} s$ in STG neurons (Tang et al., 2010).

Quantification and statistical analysis

Spike detection

Request a detailed protocol

Spikes were detected using local maxima detection algorithm in MATLAB, using a threshold of –40 mV and a peak prominence (height of the peak above the reference level) of 2. Prior to running local maxima algorithm voltage traces were smoothed using moving average filter with 10 data points for calculating smoothed value to reduce the noise in the traces.

Burst detection

Request a detailed protocol

For an accurate detection of the bursts we used two methods: based on the spiking activity and based on the slow wave, as in most cases circuits exhibited prominent slow wave during alternating bursting.

Burst detection based on the spiking activity

Request a detailed protocol

Bursts were identified as discrete events consisting of a sequence of spikes with burst onset defined by two consecutive spikes within an interval less than mean interspike interval ( $\bar{I S I}$ ) in a trace with set parameters, and burst termination defined by an $I S I$ greater than $\bar{I S I} + 300 m s e c$ . Duty cycle ( $D C$ ) was calculated as the burst duration divided by the cycle period (Figure 2B). Spike frequency was calculated as mean frequency of spikes within bursts.

Burst detection based on the slow wave

Request a detailed protocol

Traces were low pass filtered to 1 Hz and smoothed using moving average filter with 100 data point windows. Then slow-wave peaks of membrane potential oscillations were detected using local maxima detection algorithm, with a threshold of mean value of filtered membrane potential ( $\bar{V_{M_{f i l t e r e d}}}$ ) + 2.5 mV and a peak prominence of 3. Slow-wave dips were detected using the same algorithm for the inverted filtered traces. Slow-wave amplitude of membrane potential oscillation were calculated as the difference between peak and dip values. Cycle frequency of bursting circuits was calculated as an inverse of oscillation period determined by thresholding the filtered traces. Threshold was set to half the amplitude of the slow wave.

We manually inspected the traces to ensure the accuracy of burst and spike identification.

Classification of a circuit activity patterns

Request a detailed protocol

Similar to Grashow et al., 2009, we classified the activity patterns of reciprocally inhibitory circuits into silent, asymmetric, irregular spiking and antiphase bursting (or half-center oscillations). To refine classification, we also added a 5th category, antiphase spiking (Figure 4—figure supplement 1).

Activity pattern was classified as silent if both neurons fired less than 5 spikes in 1 min. If only one of the cells fired more than 5 spikes in 1 min, the activity pattern was classified as asymmetric. If both cells were spiking, the pattern was classified as either irregular spiking, antiphase spiking or bursting. To distinguish these activity patterns, we calculated a measurement of burst exclusion, $χ_{n e t w o r k}$ , described in Grashow et al., 2009. This measure ranges from –1 (simultaneous bursts) to +1 (alternating bursts).

We determined active time intervals for each cell: if the neurons were bursting, the active time intervals were defined as the time from the first to the last spike in the burst. Otherwise the active time intervals were defined as ¼ the average interspike interval and centered on each spike. We then calculated the total active time for each cell, $t_{c e l l 1}$ and $t_{c e l l 2}$ as a sum of the active times of each respective cell, and the overlap time (when both cells were active) for the circuit, $O_{n e t w o r k}$ . We then compared $O_{n e t w o r k}$ to the overlap times that would be expected for uncorrelated circuits, $O_{r a n d o m}$ , and the minimum possible overlap time, $O_{m i n}$ .

O_{m i n} = {\begin{matrix} T_{t r i a l} - t_{c e l l 1} - t_{c e l l 2} i f t_{c e l l 1} + t_{c e l l 2} > T_{t r i a l} \\ 0 o t h e r w i s e \end{matrix}}

O_{r a n d o m} = {\begin{matrix} min (t_{c e l l 1}, t_{c e l l 2}) - \frac{1}{2} [T_{t r i a l} - m a x (t_{c e l l 1}, t_{c e l l 2})] i f t_{c e l l 1} + t_{c e l l 2} > T_{t r i a l} \\ \frac{min {(t_{c e l l 1}, t_{c e l l 2})}^{2}}{2 [T_{t r i a l} - m a x (t_{c e l l 1}, t_{c e l l 2})]} o t h e r w i s e \end{matrix}}

$T_{t r i a l}$ is the total active time of the network, calculated as $T_{t r i a l} = t_{c e l l 1} + t_{c e l l 2} - O_{n e t w o r k}$ .

From this, we calculated the exclusion factor $χ_{n e t w o r k}$ as

χ_{n e t w o r k} = \frac{O_{r a n d o m} - O_{n e t w o r k}}{O_{r a n d o m} - O_{m i n}}

Circuits with both active cells were categorized as antiphase bursters (or half-center oscillators) if $χ_{n e t w o r k} \geq 0.1$ and were characterized as spiking otherwise.

Finally, to determine whether the network exhibited antiphase spiking activity, we calculated percent of single spikes in bursts. If the percent of single spikes in bursts was more than 80%, we characterized the activity pattern of these circuits as antiphase spiking.

Spectral analysis (Figures 5, 6, Figure 7-figure supplement 1)

Request a detailed protocol

Spectrograms for the temperature experiments were calculated using the Burg, 1967 method for estimation of the power spectral density in each time window. The Burg method fits the autoregressive (AR) model of a specified order p in the time series by minimizing the sum of squares of the residuals. The fast-Fourier transform (FFT) spectrum is estimated using the previously calculated AR coefficients. This method is characterized by higher resolution in the frequency domain than traditional FFT spectral analysis, especially for a relatively short time window (Buttkus, 2000). We used the following parameters for the spectral estimation: data window of 3.2 s, 50% overlap to calculate the spectrogram, and number of estimated AR coefficients p = (window/4) + 1. Before calculating the power spectrum, voltage traces were low-pass filtered at 2 Hz using a six-order Butterworth filter and down-sampled.

Statistics

To determine whether the duty cycle and spike frequency significantly increased/decreased with ERQ respectively, we measured the Spearman rank correlation coefficient ( $ρ$ ) between the mean values of these characteristic and ERQ (Figure 2D). The Spearman correlation coefficient measures the strength and direction of correlation between two variables. $ρ = 1$ indicates that the two variables are a perfect monotonic function of each other.

To determine the g_H-g_Syn conductances sets that produce statistically similar characteristics of the output of half-centers with escape and release mechanisms we performed Wilcoxon rank-sum test for each set of g_H-g_Syn conductances (Figure 3B–F). Significance level was set to 0.05. The conductance sets producing the circuit output characteristics that were not significantly different ( $p > 0.05$ ) are indicated by the red boxes in Figure 3.

To determine whether the GM neurons’ resting membrane potentials, spike amplitudes and input resistances were significantly different at 10°C and 20°C we performed paired-sample Wilcoxon signed rank test (Figure 5C and D). To calculate the slopes of f-I curves we used a near-linear portion of the f-I curves at low injected currents. To determine whether the slopes are significantly different at 10°C and 20°C we performed paired-sample Wilcoxon signed rank test. The results of the statistical test can be found in the text and the legend of Figure 5.

To determine whether the Coefficients of Variation of cycle and spike frequencies in escape and release circuits were different at 10°C and 20°C we performed paired-sample Wilcoxon signed rank test (Figure 5—figure supplement 1).

To determine whether the characteristics of the output of half-centers with different oscillatory mechanisms and Q₁₀s were significantly different between 10°C and 20°C we performed paired-sample Wilcoxon singed rank test (Figure 6F). Significance level was set to 0.05. The results of the statistical test can be found in Supplementary file 1b and in the text. To determine whether the changes in characteristics with an increase in temperature were significantly different between the circuits with release and escape mechanisms and different temperature-dependences we performed one-way ANOVA with Tuckey post-hoc using IBM SPSS Statistics 24. The results of one-way ANOVA can be found in Supplementary file 1c-1h.

To determine whether the characteristics of the circuit output were significantly different after the addition of the neuromodulatory current we performed paired-sample t-test (Figure 8D1-5). Significance level was set to 0.05. The results of the statistical test can be found in the legend of Figure 8.

To determine whether the Coefficient of Variation of cycle frequency of the circuits operating with different mechanisms was significantly different in control and with addition of the neuromodulatory current, we performed paired-sample Wilcoxon signed rank test (Figure 8—figure supplement 1). Significance level was set to 0.05.

Data and code availability

Request a detailed protocol

Data have been deposited at Zenodo and is publically available at https://zenodo.org/record/5504612 (DOI: 10.5281/zenodo.5504612).

Custom RTXI modules are available on GitHub (https://github.com/eomorozova/half_center_oscillator_rtxi_module, copy archived at swh:1:rev:d42be99960f2a73057a14483ed051ec326b96fcb, Morozova, 2022a).

All the analysis scripts are available on GitHub (https://github.com/eomorozova/hco-analysis, copy archived at swh:1:rev:2df3ea4a3cfdfb98bb2740655239c5e0dc3e1dd5, Morozova, 2022b).

Any additional information required to reanalyze the data should be directed to Ekaterina Morozova (morozova.e.o@gmail.com).

Data availability

Data as been deposited at Zenodo (https://doi.org/10.5281/zenodo.5504612).

The following data sets were generated

(2022) Zenodo
Reciprocally inhibitory circuits with distinct mechanisms are differentially robust to perturbation and modulation.
https://doi.org/10.5281/zenodo.5504612

References

1. Alonso LM
2. Marder E
(2020) Temperature compensation in a small rhythmic circuit
eLife 9:e55470.
https://doi.org/10.7554/eLife.55470
- PubMed
- Google Scholar
(2012) Ca2+/cAMP-sensitive covariation of I(A) and I(H) voltage dependences tunes rebound firing in dopaminergic neurons
The Journal of Neuroscience 32:2166–2181.
https://doi.org/10.1523/JNEUROSCI.5297-11.2012
- PubMed
- Google Scholar
1. Angstadt JD
2. Calabrese RL
(1989) A hyperpolarization-activated inward current in heart interneurons of the medicinal leech
The Journal of Neuroscience 9:2846–2857.
https://doi.org/10.1523/JNEUROSCI.09-08-02846.1989
- PubMed
- Google Scholar
1. Angstadt JD
2. Calabrese RL
(1991)
Calcium currents and graded synaptic transmission between heart interneurons of the leech

The Journal of Neuroscience 11:746–759.
- PubMed
- Google Scholar
1. Arbas EA
2. Calabrese RL
(1987a)
Ionic conductances underlying the activity of interneurons that control heartbeat in the medicinal leech

The Journal of Neuroscience 7:3945–3952.
- PubMed
- Google Scholar
1. Arbas EA
2. Calabrese RL
(1987b)
Slow oscillations of membrane potential in interneurons that control heartbeat in the medicinal leech

The Journal of Neuroscience 7:3953–3960.
- PubMed
- Google Scholar
1. Bartos M
2. Manor Y
3. Nadim F
4. Marder E
5. Nusbaum MP
(1999)
Coordination of fast and slow rhythmic neuronal circuits

The Journal of Neuroscience 19:6650–6660.
- PubMed
- Google Scholar
1. Blitz DM
2. Nusbaum MP
(2011) Neural circuit flexibility in a small sensorimotor system
Current Opinion in Neurobiology 21:544–552.
https://doi.org/10.1016/j.conb.2011.05.019
- PubMed
- Google Scholar
1. Brown TG
(1997) The intrinsic factors in the act of progression in the mammal
Proceedings of the Royal Society of London. Series B, Containing Papers of a Biological Character 84:308–319.
https://doi.org/10.1098/rspb.1911.0077
- Google Scholar
(1992) Mathematical model of an identified stomatogastric ganglion neuron
Journal of Neurophysiology 67:332–340.
https://doi.org/10.1152/jn.1992.67.2.332
- PubMed
- Google Scholar
Book
1. Burg JP
(1967)
Maximum Entropy Spectral Analysis

Oklahoma City: Society of Exploration Geophysics.
- Google Scholar
Book
1. Buttkus B
(2000) Spectral Analysis and Filter Theory in Applied Geophysics
Berlin, Heidelberg: Springer.
https://doi.org/10.1007/978-3-642-57016-2
- Google Scholar
1. Calabrese RL
(1998) Cellular, synaptic, network, and modulatory mechanisms involved in rhythm generation
Current Opinion in Neurobiology 8:710–717.
https://doi.org/10.1016/s0959-4388(98)80112-8
- PubMed
- Google Scholar
(2011) Coping with variability in small neuronal networks
Integrative and Comparative Biology 51:845–855.
https://doi.org/10.1093/icb/icr074
- PubMed
- Google Scholar
(2016) The neural control of heartbeat in invertebrates
Current Opinion in Neurobiology 41:68–77.
https://doi.org/10.1016/j.conb.2016.08.004
- PubMed
- Google Scholar
1. Calabrese RL
(2021) Neuronal networks: Degeneracy unleashed
Current Biology 31:R1439–R1441.
https://doi.org/10.1016/j.cub.2021.09.023
- PubMed
- Google Scholar
(2014) Many parameter sets in a multicompartment model oscillator are robust to temperature perturbations
The Journal of Neuroscience 34:4963–4975.
https://doi.org/10.1523/JNEUROSCI.0280-14.2014
- PubMed
- Google Scholar
1. Daun S
2. Rubin JE
3. Rybak IA
(2009) Control of oscillation periods and phase durations in half-center central pattern generators: a comparative mechanistic analysis
Journal of Computational Neuroscience 27:3–36.
https://doi.org/10.1007/s10827-008-0124-4
- PubMed
- Google Scholar
1. Doloc-Mihu A
2. Calabrese RL
(2014) Identifying crucial parameter correlations maintaining bursting activity
PLOS Computational Biology 10:e1003678.
https://doi.org/10.1371/journal.pcbi.1003678
- PubMed
- Google Scholar
1. Getting PA
(1989) Emerging principles governing the operation of neural networks
Annual Review of Neuroscience 12:185–204.
https://doi.org/10.1146/annurev.ne.12.030189.001153
- PubMed
- Google Scholar
(2009) Functional consequences of animal-to-animal variation in circuit parameters
Nature Neuroscience 12:1424–1430.
https://doi.org/10.1038/nn.2404
- PubMed
- Google Scholar
1. Goaillard JM
2. Marder E
(2021) Ion Channel Degeneracy, Variability, and Covariation in Neuron and Circuit Resilience
Annual Review of Neuroscience 44:335–357.
https://doi.org/10.1146/annurev-neuro-092920-121538
- PubMed
- Google Scholar
(2001) Global structure, robustness, and modulation of neuronal models
The Journal of Neuroscience 21:5229–5238.
https://doi.org/10.1523/JNEUROSCI.21-14-05229.2001
- PubMed
- Google Scholar
(2009) Reliable neuromodulation from circuits with variable underlying structure
PNAS 106:11742–11746.
https://doi.org/10.1073/pnas.0905614106
- PubMed
- Google Scholar
1. Gutierrez GJ
2. Grashow RG
(2009) Cancer borealis stomatogastric nervous system dissection
Journal of Visualized Experiments 4:1207.
https://doi.org/10.3791/1207
- PubMed
- Google Scholar
1. Haddad SA
2. Marder E
(2018) Circuit Robustness to Temperature Perturbation Is Altered by Neuromodulators
Neuron 100:609–623.
https://doi.org/10.1016/j.neuron.2018.08.035
- PubMed
- Google Scholar
1. Hill AAV
2. Lu J
3. Masino MA
4. Olsen OH
5. Calabrese RL
(2001) A model of a segmental oscillator in the leech heartbeat neuronal network
Journal of Computational Neuroscience 10:281–302.
https://doi.org/10.1023/A:1011216131638
- Google Scholar
1. Katz PS
(2016) Evolution of central pattern generators and rhythmic behaviours
Philosophical Transactions of the Royal Society B 371:20150057.
https://doi.org/10.1098/rstb.2015.0057
- PubMed
- Google Scholar
1. Khorkova O
2. Golowasch J
(2007) Neuromodulators, Not Activity, Control Coordinated Expression of Ionic Currents
Journal of Neuroscience 27:8709–8718.
https://doi.org/10.1523/JNEUROSCI.1274-07.2007
- PubMed
- Google Scholar
1. Kirby MS
2. Nusbaum MP
(2007) Peptide hormone modulation of a neuronally modulated motor circuit
Journal of Neurophysiology 98:3206–3220.
https://doi.org/10.1152/jn.00795.2006
- PubMed
- Google Scholar
(2019) In vivo effects of temperature on the heart and pyloric rhythms in the crab Cancer borealis
The Journal of Experimental Biology 222:jeb199190.
https://doi.org/10.1242/jeb.199190
- Google Scholar
1. Li X
2. Bucher D
3. Nadim F
(2018) Distinct Co-Modulation Rules of Synapses and Voltage-Gated Currents Coordinate Interactions of Multiple Neuromodulators
The Journal of Neuroscience 38:8549–8562.
https://doi.org/10.1523/JNEUROSCI.1117-18.2018
- PubMed
- Google Scholar
1. Marder E
2. Eisen JS
(1984) Transmitter identification of pyloric neurons: electrically coupled neurons use different transmitters
Journal of Neurophysiology 51:1345–1361.
https://doi.org/10.1152/jn.1984.51.6.1345
- PubMed
- Google Scholar
1. Marder E
2. Calabrese RL
(1996) Principles of rhythmic motor pattern generation
Physiological Reviews 76:687–717.
https://doi.org/10.1152/physrev.1996.76.3.687
- PubMed
- Google Scholar
1. Marder E
2. Goaillard JM
(2006) Variability, compensation and homeostasis in neuron and network function
Nature Reviews Neuroscience 7:563–574.
https://doi.org/10.1038/nrn1949
- PubMed
- Google Scholar
1. Marder E
2. Bucher D
(2007) Understanding circuit dynamics using the stomatogastric nervous system of lobsters and crabs
Annual Review of Physiology 69:291–316.
https://doi.org/10.1146/annurev.physiol.69.031905.161516
- PubMed
- Google Scholar
Software
1. Morozova E
(2022a) half_center_oscillator_rtxi_module., version swh:1:rev:d42be99960f2a73057a14483ed051ec326b96fcb
Software Heritage..

https://archive.softwareheritage.org/swh:1:dir:f69d47d2b40e9e0760bcf3fbbca32ab27bc1a772;origin=https://github.com/eomorozova/half_center_oscillator_rtxi_module;visit=swh:1:snp:11d671838e394601be9a99cafa35a6dd48118b7c;anchor=swh:1:rev:d42be99960f2a73057a14483ed051ec326b96fcb
Software
1. Morozova E
(2022b) hco-analysis., version swh:1:rev:2df3ea4a3cfdfb98bb2740655239c5e0dc3e1dd5
Software Heritage..

https://archive.softwareheritage.org/swh:1:dir:cecf56702323a74a6f79d464545ee7970b282d1b;origin=https://github.com/eomorozova/hco-analysis;visit=swh:1:snp:209d005ceb46c86170b7a3af7aec05ad46eef7b7;anchor=swh:1:rev:2df3ea4a3cfdfb98bb2740655239c5e0dc3e1dd5
(1995) Modeling the leech heartbeat elemental oscillator. I. Interactions of intrinsic and synaptic currents
Journal of Computational Neuroscience 2:215–235.
https://doi.org/10.1007/BF00961435
- PubMed
- Google Scholar
(1995) Modeling the leech heartbeat elemental oscillator. II. Exploring the parameter space
Journal of Computational Neuroscience 2:237–257.
https://doi.org/10.1007/BF00961436
- PubMed
- Google Scholar
(2006) Hybrid systems analysis of the control of burst duration by low-voltage-activated calcium current in leech heart interneurons
Journal of Neurophysiology 96:2857–2867.
https://doi.org/10.1152/jn.00582.2006
- PubMed
- Google Scholar
1. Olypher AV
2. Calabrese RL
(2007) Using constraints on neuronal activity to reveal compensatory changes in neuronal parameters
Journal of Neurophysiology 98:3749–3758.
https://doi.org/10.1152/jn.00842.2007
- PubMed
- Google Scholar
1. Onasch S
2. Gjorgjieva J
(2020) Circuit Stability to Perturbations Reveals Hidden Variability in the Balance of Intrinsic and Synaptic Conductances
The Journal of Neuroscience 40:3186–3202.
https://doi.org/10.1523/JNEUROSCI.0985-19.2020
- PubMed
- Google Scholar
1. O’Leary T
2. Marder E
(2016) Temperature-Robust Neural Function from Activity-Dependent Ion Channel Regulation
Current Biology 26:2935–2941.
https://doi.org/10.1016/j.cub.2016.08.061
- PubMed
- Google Scholar
1. Patel YA
2. George A
3. Dorval AD
4. White JA
5. Christini DJ
6. Butera RJ
(2017) Hard real-time closed-loop electrophysiology with the Real-Time eXperiment Interface (RTXI)
PLOS Computational Biology 13:e1005430.
https://doi.org/10.1371/journal.pcbi.1005430
- PubMed
- Google Scholar
1. Perkel DH
2. Mulloney B
(1974) Motor pattern production in reciprocally inhibitory neurons exhibiting postinhibitory rebound
Science (New York, N.Y.) 185:181–183.
https://doi.org/10.1126/science.185.4146.181
- PubMed
- Google Scholar
(2021a) Coupling between fast and slow oscillator circuits in Cancer borealis is temperature-compensated
eLife 10:e60454.
https://doi.org/10.7554/eLife.60454
- PubMed
- Google Scholar
(2021b) Perturbation-specific responses by two neural circuits generating similar activity patterns
Current Biology 31:4831–4838.
https://doi.org/10.1016/j.cub.2021.08.042
- Google Scholar
(2003) Alternative to hand-tuning conductance-based models: construction and analysis of databases of model neurons
Journal of Neurophysiology 90:3998–4015.
https://doi.org/10.1152/jn.00641.2003
- PubMed
- Google Scholar
(2004) Similar network activity from disparate circuit parameters
Nature Neuroscience 7:1345–1352.
https://doi.org/10.1038/nn1352
- PubMed
- Google Scholar
(2013) The effects of temperature on the stability of a neuronal oscillator
PLOS Computational Biology 9:e1002857.
https://doi.org/10.1371/journal.pcbi.1002857
- PubMed
- Google Scholar
(2012) Animal-to-animal variability of connection strength in the leech heartbeat central pattern generator
Journal of Neurophysiology 107:1681–1693.
https://doi.org/10.1152/jn.00903.2011
- PubMed
- Google Scholar
1. Sakurai A
2. Katz PS
(2016) The central pattern generator underlying swimming in Dendronotus iris: a simple half-center network oscillator with a twist
Journal of Neurophysiology 116:1728–1742.
https://doi.org/10.1152/jn.00150.2016
- PubMed
- Google Scholar
1. Satterlie RA
(1985) Reciprocal Inhibition and Postinhibitory Rebound Produce Reverberation in a Locomotor Pattern Generator
Science 229:402–404.
https://doi.org/10.1126/science.229.4711.402
- PubMed
- Google Scholar
(2006) Variable channel expression in identified single and electrically coupled neurons in different animals
Nature Neuroscience 9:356–362.
https://doi.org/10.1038/nn1639
- PubMed
- Google Scholar
(2007) Quantitative expression profiling of identified neurons reveals cell-specific constraints on highly variable levels of gene expression
PNAS 104:13187–13191.
https://doi.org/10.1073/pnas.0705827104
- PubMed
- Google Scholar
(1996) Mechanisms of oscillation in dynamic clamp constructed two-cell half-center circuits
Journal of Neurophysiology 76:867–883.
https://doi.org/10.1152/jn.1996.76.2.867
- PubMed
- Google Scholar
(1994) Mechanisms for oscillation and frequency control in reciprocally inhibitory model neural networks
Journal of Computational Neuroscience 1:69–87.
https://doi.org/10.1007/BF00962719
- PubMed
- Google Scholar
(2001) Functional projection distances of spinal interneurons mediating reciprocal inhibition during swimming in Xenopus tadpoles
The European Journal of Neuroscience 13:617–627.
https://doi.org/10.1046/j.1460-9568.2001.01419.x
- PubMed
- Google Scholar
1. Soofi W
2. Goeritz ML
3. Kispersky TJ
4. Prinz AA
5. Marder E
6. Stein W
(2014) Phase maintenance in a rhythmic motor pattern during temperature changes in vivo
Journal of Neurophysiology 111:2603–2613.
https://doi.org/10.1152/jn.00906.2013
- PubMed
- Google Scholar
1. Soofi W
2. Prinz AA
(2015) Differential effects of conductances on the phase resetting curve of a bursting neuronal oscillator
Journal of Computational Neuroscience 38:539–558.
https://doi.org/10.1007/s10827-015-0553-9
- PubMed
- Google Scholar
(2004) Using a hybrid neural system to reveal regulation of neuronal network activity by an intrinsic current
The Journal of Neuroscience 24:5427–5438.
https://doi.org/10.1523/JNEUROSCI.4449-03.2004
- PubMed
- Google Scholar
1. Srikanth S
2. Narayanan R
(2015) Variability in State-Dependent Plasticity of Intrinsic Properties during Cell-Autonomous Self-Regulation of Calcium Homeostasis in Hippocampal Model Neurons
ENeuro 2:ENEURO.0053-15.2015.
https://doi.org/10.1523/ENEURO.0053-15.2015
- PubMed
- Google Scholar
(2015) Neuromodulation to the Rescue: Compensation of Temperature-Induced Breakdown of Rhythmic Motor Patterns via Extrinsic Neuromodulatory Input
PLOS Biology 13:e1002265.
https://doi.org/10.1371/journal.pbio.1002265
- PubMed
- Google Scholar
1. Swensen AM
2. Marder E
(2000)
Multiple peptides converge to activate the same voltage-dependent current in a central pattern-generating circuit

The Journal of Neuroscience 20:6752–6759.
- PubMed
- Google Scholar
1. Swensen AM
2. Marder E
(2001) Modulators with convergent cellular actions elicit distinct circuit outputs
The Journal of Neuroscience 21:4050–4058.
https://doi.org/10.1523/JNEUROSCI.21-11-04050.2001
- PubMed
- Google Scholar
1. Swensen AM
2. Bean BP
(2005) Robustness of burst firing in dissociated purkinje neurons with acute or long-term reductions in sodium conductance
The Journal of Neuroscience 25:3509–3520.
https://doi.org/10.1523/JNEUROSCI.3929-04.2005
- PubMed
- Google Scholar
1. Tang LS
2. Goeritz ML
3. Caplan JS
4. Taylor AL
5. Fisek M
6. Marder E
(2010) Precise temperature compensation of phase in a rhythmic motor pattern
PLOS Biology 8:e1000469.
https://doi.org/10.1371/journal.pbio.1000469
- PubMed
- Google Scholar
1. Tang LS
2. Taylor AL
3. Rinberg A
4. Marder E
(2012) Robustness of a rhythmic circuit to short- and long-term temperature changes
The Journal of Neuroscience 32:10075–10085.
https://doi.org/10.1523/JNEUROSCI.1443-12.2012
- PubMed
- Google Scholar
1. Temporal S
2. Desai M
3. Khorkova O
4. Varghese G
5. Dai A
6. Schulz DJ
7. Golowasch J
(2012) Neuromodulation independently determines correlated channel expression and conductance levels in motor neurons of the stomatogastric ganglion
Journal of Neurophysiology 107:718–727.
https://doi.org/10.1152/jn.00622.2011
- PubMed
- Google Scholar
(2009) Correlations in ion channel mRNA in rhythmically active neurons
PLOS ONE 4:e6742.
https://doi.org/10.1371/journal.pone.0006742
- PubMed
- Google Scholar
1. Tran T
2. Unal CT
3. Severin D
4. Zaborszky L
5. Rotstein HG
6. Kirkwood A
7. Golowasch J
(2019) Ionic current correlations are ubiquitous across phyla
Scientific Reports 9:1687.
https://doi.org/10.1038/s41598-018-38405-6
- PubMed
- Google Scholar
1. Wang XJ
2. Rinzel J
(1992) Alternating and Synchronous Rhythms in Reciprocally Inhibitory Model Neurons
Neural Computation 4:84–97.
https://doi.org/10.1162/neco.1992.4.1.84
- Google Scholar
1. Xu H
2. Robertson RM
(1994) Effects of temperature on properties of flight neurons in the locust
Journal of Comparative Physiology A 175:193–202.
https://doi.org/10.1007/BF00215115
- PubMed
- Google Scholar
1. Xu H
2. Robertson RM
(1996) Neural parameters contributing to temperature compensation in the flight CPG of the locust, Locusta migratoria
Brain Research 734:213–222.
https://doi.org/10.1016/0006-8993(96)00635-X
- PubMed
- Google Scholar
(2020) Firing rate-dependent phase responses of Purkinje cells support transient oscillations
eLife 9:e60692.
https://doi.org/10.7554/eLife.60692
- PubMed
- Google Scholar
1. Zhang C
2. Lewis TJ
(2013) Phase response properties of half-center oscillators
Journal of Computational Neuroscience 35:55–74.
https://doi.org/10.1007/s10827-013-0440-1
- PubMed
- Google Scholar
1. Zhao S
2. Golowasch J
(2012) Ionic current correlations underlie the global tuning of large numbers of neuronal activity attributes
The Journal of Neuroscience 32:13380–13388.
https://doi.org/10.1523/JNEUROSCI.6500-11.2012
- PubMed
- Google Scholar

Decision letter

Ronald L Calabrese

Senior and Reviewing Editor; Emory University, United States
Ronald L Calabrese

Reviewer; Emory University, United States
Paul Katz

Reviewer; University of Massachusetts Amherst, United States
Jan Marino Ramirez

Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Reciprocally inhibitory circuits operating with distinct mechanisms are differently robust to perturbation and modulation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Ronald Calabrese as the Senior Editor and Reviewer #1. The following individuals involved in review of your submission have agreed to reveal their identity: Paul Katz (Reviewer #2); Jan Marino Ramirez (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. Address concerns about the operational definition of robustness in the paper.

2. Clarify with new analyses questions about rhythm variability.

3. If conclusions are based on single or a few exemplars then either support them more fully with analyses of pooled data or scale back on the conclusions.

Reviewer #1:

This is a very careful and systematic hybrid system analysis of the mechanism underlying alternating bursting in mutually inhibitory neurons or half-center oscillators (HCOs). By clever use of dynamic clamp, the authors create HCOs between non-connected living neurons (from the crab stomatogastric ganglion) of the same type by adding artificial synapses and h-current. This hybrid system allows them to manipulate synaptic threshold as a control variable to engage different oscillatory mechanisms escape and release, which are based on a theoretical understanding of HCO operation. They also have control of synaptic and h-current conductance and dynamics (activation-deactivation) and manipulate these variables or as proxies for changes in temperature of circuit operation. Using the synaptic threshold control variable to set escape or release mode they discern difference of these manipulations on burst characteristics in escape vs release modes. In separate experiments, they also add a modulatory current (similar to a persistent Na current) in dynamic clamp and explore it effects on HCOs in escape and release modes. The end result is a thorough analysis of how oscillator mechanism in an HCO, a basic circuit building block, affects circuit responses to perturbation and modulation.

The experiments are well performed, and a deep and rich data set is generated that is appropriately analyzed. The findings are significant for all interested in oscillatory network function and its resilience to perturbation and modulation.

Concerns:

Robustness is often mentioned but is not precisely defined. Operationally robustness seems in this paper to stand for robustness to (1) activity regime change under parameter variation, (2) stability of burst characteristics with parameter variation, and (3) slow-wave amplitude, spiking strength (spike frequency), and symmetry of bursting. These are three very different things and should be clearly differentiated in the text so that when robustness is mentioned, the type of robustness is made clear. Perhaps robustness should be limited to the first, activity regime, and some other terms used for the other two.

On several occasion in the text the authors refer to irregularity in bursting of the hybrid HCOs, but this is not quantified beyond displaying exemplars that seem to have irregular bursting. Pooled data should be analyzed in the different modes and manipulations and analyzed for statistical difference in the CoV of cycle frequency (or period) and burst duration. Similarly, the authors cite changes in symmetry in bursting in exemplars but do not present pooled quantitative data in support of the claim, just visual inspection of exemplars.

In the stomatogastric networks, synaptic transmission is largely graded (based on release mediated by the slow wave of oscillation) and not so much spike-mediated, so it is reasonable that synaptic threshold should be a control variable in this system. Moreover, spikes, recorded in the cell bodies are not reflective of their amplitude at the SIZ. In other system transmission can be largely mediated by spikes. At the beginning of the paper (Figure 1), it is clear that release mode in their hybrid HCOs depends on spike-mediated transmission because synaptic threshold is above the slow-wave depolarization, thus spike frequency is a key feature determining the mechanism of oscillation. However, in escape mode the transmission is purely graded because synaptic threshold is so low that transmission is saturated by the slow-wave depolarization and spikes contribute little if anything, thus spike frequency is immaterial to the mechanism of oscillation. This situation should be addressed at the beginning of the paper in reference to Figure 1. How this spike-mediated vs. graded balance plays out in the mixed mechanism modes remains to be explored.

In Figure 1C, the authors show convincingly that there is a vast landscape where their hybrid HCO operate in a mixed mechanistic mode somewhere between escape and release corresponding to synaptic thresholds in the middle range. This mixed mode is addressed only with a single exemplar in Figure 8B as a case for how modulation affects mixed mode circuits. The Discussion should reflect plainly that this mixed mode is likely common in biological circuits and may go hand-in-hand with significant reliance on spike-mediated transmission.

The authors state "The modulatory current (IMI) restores oscillations in release circuits but has little effect in escape circuits." but this is supported by a single exemplar (Figure 8E) and no pooled data is presented.

1. Lines 130-131: make clear that h-current must also be added by dynamic clamp.

2. Line 158: the definition of VM-bar is not clear. I was confused by this in Figure 1B. My expectation from Methods is that with proper filtering at 1Hz that spikes would be eliminated (Does your filter integrate? This would seem problematic for calculating ERQ. What is the filter? Simple RC?) and then the smoothing would leave a slow wave that peaks near the dashed red line, so VM-bar would be slightly below the dashed red line. Please indicate VM-bar on each exemplar trace of Figure 1A and rationalize VM-bar determination explicitly.

3. Line 203: In the exemplar records shown in Figure 2 A, GM2 has a very low spike frequency in the escape mode and higher in mixed.

4. As synaptic threshold becomes more positive the importance of spike-mediated transmission appears to become more important. Are all releases in this system using purely spike mediate transmission as suggested by Figure 2 A and C?

5. Lines 220-223: Can you state explicitly what criteria you applied to determine to designate escape vs. release (ERQ?) for analysis, and especially how synaptic threshold varied among the HCOs within each group? This is especially important given this last sentence of this paragraph.

6. Lines 228-231: Can you provide data in support of these conclusions? Quantify h-current at the point of transition, for example? If such data are not available, these conclusions could be scaled back a bit.

8. Line 236: Figure 4A and B?

9. Lines 263-271: I am very confused by this paragraph. Remind the reader of the ERQ criteria for escape and release. (a) Are the extremes i and v escape and release both mixed?? "The ERQ threshold for escape is −0.038 {plus minus} 0.008, while the ERQ threshold for release is 0.105 {plus minus} 0.012." It is hard to tell from the color code of Figure 2A whether these criteria are ever met. (b) How is the mechanism changing? Can you state that explicitly? I interpret that the extremes of your HCO hybrid system as being escape and release with reality sitting in the middle, which is mixed. Are you postulating distinct mixed mechanisms? Can you define them? (c) I think that you are saying that the balance between release promoting ionic currents and escape promoting ionic currents are changing but you do not define these currents. In the mixed regime, one should speak about ionic currents if one is to speak of mechanism.

10. Lines 289-291: What about systems that rely on spike-mediated transmission?

11. Line 294: In what sense is bursting less regular? Can you define the criteria and present numerical data? Maybe Coefficient of Variation of the cycle period or frequency?

12. Lines 296-301: Can you provide evidence for these conclusions by analyzing each cell separately for ERQ? Are you saying that in mixed mode that one cell is escaping, and one is being released? What exactly are you thinking here?

13. Line 312: STAR methods?

14: Lines 320-323: Asymmetry in activity does not require asymmetry in excitability. You could have bistability or a (possibly even artifactual) difference in baseline membrane potential despite your attempts to equalize them with injected current. This statement requires more evidence to be firm.

15. Lines 327-341: What values were chosen for gh and gSyn in each case (escape vs release)? Are these the same throughout all experiments???? How about Vth, is this the same across experiments for each case?

16. Line 344: Can you quantify this irregularity as CoV? I see an exemplar that seems more variable but also a lot faster (higher frequency). Are there pooled data to support claims on cycle frequency and its variability?

17. Lines 346-348: Is this surprising? The exemplar is dependent solely on spike-mediated transmission and so is susceptible to changes in spiking.

18. Lines 385-388: This seems an understatement. This system at elevated Vth is operating in spike-mediated transmission mode and so spikes and spike frequency are all important.

19. Lines 394-395: I don't see this in the data. I see a distinct crossover at around 4 nA – 15Hz. Can you quantify slopes? Is there pooled data to support this conclusion?

20. Lines 402-411: You are here recognizing the distinct difference between HCOs that operate with graded vs spike-mediated inhibition. This should be thoroughly aired in relation to Figure 1; don't wait till here.

21. Lines 411-413: Can you support this conclusion with data?

22. Lines 418-421: There are real difference between a slow wave HCO intrinsic excitability and a spiking HCO. For one a weakly regenerative current like a INaP can lead to weak rebound, but robust spiking supporting an HCO based on spikes. I suspect in the case Figure 5B1 that you either have a very long lingering h-current or a LT relatively slowly inactivating Ca current that is fully inactivated when Vth is more positive and inhibition weaker. You do not measure rebound in the GM neurons.

23. Figure 6: I find the logic of this figure unclear. The purpose is to study the effect of temperature on the hybrid HCOs in different oscillation modes. So, you present HCOs with the added h and synaptic conductances at standard temperature for a comparison group (Panel A), but then Panel B is simply to illustrate changes associated with changes in h and synaptic conductances at a different temperature, and finally in Panel C you explore a simulated change in temperature. I understand why you have Panel B included (to parse mechanism) but shouldn't the order be ACB?

24. Lines 451-453: Do you have data to support this conclusion?

25. Line 456: '…temperature-independent synapse…' This is getting confusing. It is temperature insensitive h-current and synapses; please make it clear.

26. Line 460: '…release or escape…'

27. Lines 479-480: Here it would be good to remind the reader that the deactivation rate is as important as the activation rate and that in fact they are two sides of the same coin. From Methods I think you just changed Tau0s (2X or 1.5X) (τH0 2000 or 3000 msec, τsyn 50 or 100 msec) with temperature so both activation and deactivation are affected. I suggest that you plot the Taus of the synapses and the h-current on the plots of Figure 1B. You do provide the equations in Methods, but I think a visualization would help.

28. Lines 486-489: Any data to support these conclusions? Change activations rates without affecting deactivation?

29. Lines 491-492: Can you provide more evidence in support here? I would like to know what is causing the rebound in the GM neurons before I can fully accept this conclusion. If the rebound is due to lingering h, maybe emphasize the deactivation.

30. Lines 518-521: Please put the numbers here in the text, at least for the Q10 g and k case. The Table is pretty tough to isolate on.

31. Lines 521-525, Figure S2: This exemplar in Figure S2 is not convincingly escape at 10 C. Pure escape should transition to the depolarized state when threshold is reached. This is a good place for me to comment on the ERQ criterion for designating escape and release. I appreciate the need for an automatable algorithm to designate escape vs. release but I have two caveats. (1) Classically escape is designated by transition when the inhibited cell reaches synaptic threshold (or maybe in spike-mediated transmission spiking threshold) and release is designated by transition when the depolarized cell crosses the synaptic threshold (or stops spiking). The case in Figure S2 clearly violates this classical designation. (2) ERQ is determined by averaging across the two neurons in the HCO, this hides asymmetries and allows for the two cells to have different mechanism, e.g., one escape and one mixed. ERQs must be calculated independently for the two neurons if you wish to reveal asymmetries.

32. Lines 547-550: Only one prep is illustrated in Figure 8C. Is the CoV of bursting in mixed mode different across pooled data to support this statement?

33. Line 590: '…vastly…'

34. Lines 593-597: Only one prep is illustrated in Figure 8E. Are there pooled data that can support this conclusion?

35. Lines 650-653: Because asymmetry is not directly assessed in this paper this conclusion should be scaled back.

36. Lines 653-656: Only one prep is assessed in mixed mode, so this statement should be scaled back.

37. Lines 687-689: Please be careful here and designate modes precisely and state exactly what you mean by stable cycle frequency. Does this mean regularity of bursting or period constancy? Ditto for living preparations with intact networks. Line 693: does temperature compensation in intact STG networks involve a constant period of just constant phase?

38. Lines 626-628: Are there modeling studies involving more realistic neurons specifically ones that spike and use spike-mediated transmission.

Reviewer #2:

This manuscript provides a very detailed and thorough examination of an important issue in neural circuit research, namely how the mechanisms underlying neural activity relate to robustness in the face of perturbations. It examines the simplest neural circuit possible, one involving just two neurons that reciprocally inhibit each other, which is capable of producing rhythmic alternating activity. The research shows that there is a continuum of mechanisms based on synaptic and membrane properties of the two neurons that can generate a robust output. At one end of the continuum, each neuron escapes from the inhibition of the other. At the other end, each neuron releases the other from inhibition. In the middle, both mechanisms contribute to generation of rhythmic activity. The effects that perturbations such as temperature and neuromodulators have on the circuit depend upon where the mechanism of oscillation lies along this continuum.

This paper has several important strengths:

It uses dynamic clamp technique to artificially couple two real neurons and provide them with a membrane conductance that they don't normally have. This is a powerful technique that merges experimental and theoretical neuroscience because the researchers are able to systematically alter parameter values such as synaptic strength and ionic conductance that are not feasible to modify biologically. Yet they are also monitoring the activity of real neurons.

The manuscript thoroughly represents the results and convincingly demonstrates how release and escape mechanisms are differentially affected by perturbations. The method of data visualization is very effect at summarizing complex results.

An important conclusion drawn from the results is that half-center oscillators using a release mechanism are more robust to variations in synaptic and membrane conductance.

Another important conclusion is that the same circuit can produce a similar output using different mechanisms and that it is not possible to know which mechanism is used without looking at the effect of perturbation.

I would encourage the authors to not start the abstract with a question, but rather use a standard topic sentence that gets right to the problem.

The introduction could be firmed up more. For example, the sentence "Lateral inhibition is important in many sensory systems, and reciprocal inhibition between individual neurons or groups of neurons is the 'building block' of many half-center oscillators that generate antiphase and multiphase activity patterns." Is a run-on referring to lateral inhibition in sensory systems and then going into detail about reciprocal inhibition in HCOs. The concluding sentence of the introductory paragraph does not follow from the content of the paragraph.

Figure 3A. If I understand this correctly, 10 models were made with each of the 49 combinations of gH and gSyn. The percentages then are going to limited to 0,10,20,30,40…100%. To make that clear, change the continuous gray scale "%oscillators" to the 10 discrete gray values (as was done in Figure S1A). That will provide the reader with more information about the values. Same with Figure 3F.

Figure 3C, the red boxes are nearly invisible and I imagine that Figure 3D is not color-blind friendly.

Figure S1A, I found the colors difficult to distinguish. The trends did not pop out at me.

Figure 7 refers to 'cases' that are also in Figure 6, but not referred to as cases. It took me a while to recognize that they were the same. It would be helpful to label case 1, case 2, and case 3 in Figure 6 A1, B1, C1 and in Figure 7 A-D in the Figure It would also help to refer the cases in the text for consistency such as line 438, Case 2 and line 475 Case 3.

Also, recognizing color equivalence in Figure 7 A-F lines and E-H boxes is really hard. I think it's because the box plots have a contrast-enhancing black border. I'm starting to think that I may be color-impaired.

Line 546-550: "I-MI made oscillations less stable and irregular for circuits operating with a mixture of mechanisms." Stating "This is obvious…" is not an explanation; although it may be obvious to the authors, it needs to be explained to the readers.

Regarding the 2nd point, "an increase in the standard deviation of the cycle frequency", I don't see documentation of this; the error bars in Figure 8C are larger at the release end of the graph than in the middle.

Reviewer #3:

The authors demonstrate that the mechanisms of switching between components of the reciprocally organized half-center network are not fixed and may shift to favor a release or escape mechanism depending on factors such as the synaptic threshold, Ih conductance, and synaptic conductance. This is a fundamentally important study because reciprocally organized networks are ubiquitous and found virtually in every organism.

This study leads to the important conclusion that a given rhythmic output alone does not reveal the underlying rhythmogenic mechanisms. A rhythmic output is not based on one "fixed" mechanism, but on the interplay between different rhythmogenic modes. Moreover, because of this interplay it is impossible to predict how this network will respond to perturbations.

The study is an important reminder that even a small two neuron network with a well defined, extremely simple "connectome" is strikingly flexible and complex: an important lessons for those aspiring to obtain complete connectomes in mammals in the hope to reveal the secrets of the brain.

The authors use the dynamic clamp approach to study the interactions between pharmacologically isolated, intrinsically silent gastric mill neurons, an approach pioneered by Andrew Sharp in the 1990's. Because of individual differences in the intrinsic properties from neuron to neuron, which is very characteristic for numerous networks, the authors introduce the escape to release quotient (ERQ) to be able to pool the responses of different neurons and demonstrate that changing the synaptic threshold can transform the network in a sigmoid manner from one dependent on an escape to one relying on the release mechanisms. Additionally, the authors demonstrate a network favoring a release mediated mechanism of switching responds differently to perturbation and modulation in H-current and synaptic conductances, compared to a network favoring an escape mechanism, despite similar patterns at rest. This is a fascinating finding, since a given rhythmic output alone does not reveal whether it is favoring one or the other switching mechanism and therefore also does not reveal how it will respond to perturbation. The differences can be striking: increasing an Ih current can lead to an increase or decrease in frequency, which could explain why blockade of the Ih current may yield inconsistent results. Similarly, bursting can be more or less regular dependent on the synaptic threshold. Overall, the manuscript is very comprehensive, and elegantly mechanistic. Because the dynamic clamp approach allows the investigators to carefully dissect the contributions of each of these cellular parameters it serves as a fundamental framework for understanding rhythmogenesis in general, which has always been the strength of the stomatogastric ganglion. Additionally, the difficulty in performing these elegant studies should be commended. It is striking how flexible and complex a simple two-neuron network can be: take that for those believing that a complete connectome will reveal the secrets of the brain. But it is also an important reminder that it is impossible to explain network functions based on characterizing firing patterns alone.

https://doi.org/10.7554/eLife.74363.sa1

Author response

Essential revisions:

1. Address concerns about the operational definition of robustness in the paper.

Defining robustness is nontrivial. We added a full paragraph to the Introduction (lines 103-114) describing how we define circuit robustness and challenges associated with establishing which features are central to robustness. We revisited instances in the paper, in which we refer to robustness, and clarified whenever possible whether we are talking about the change in the qualitative state of the circuit and/or sensitivity of certain features of the circuit output that might bring the circuit closer to the transition to another qualitative state.

2. Clarify with new analyses questions about rhythm variability.

We performed additional analyses to quantify irregularity of the circuit rhythms at baseline, during temperature changes and with the addition of a neuromodulatory current. We calculated the Coefficient of Variation (CV) of the cycle frequency and spike frequency of the circuits in release and escape at low and high temperatures. We also quantified irregularity and asymmetry of circuits operating with a mixture of mechanisms in control and in the presence of a neuromodulatory current, by calculating the CV of cycle frequency and a difference in burst durations between neurons. These data are included as supplements to Figures 4, 5 and 8.

3. If conclusions are based on single or a few exemplars then either support them more fully with analyses of pooled data or scale back on the conclusions.

We supported these conclusions by performing additional analyses of the pooled data and by providing more examples to support our claims. These data are included in the text and in the supplementary figures.

Reviewer #1:

This is a very careful and systematic hybrid system analysis of the mechanism underlying alternating bursting in mutually inhibitory neurons or half-center oscillators (HCOs). By clever use of dynamic clamp, the authors create HCOs between non-connected living neurons (from the crab stomatogastric ganglion) of the same type by adding artificial synapses and h-current. This hybrid system allows them to manipulate synaptic threshold as a control variable to engage different oscillatory mechanisms escape and release, which are based on a theoretical understanding of HCO operation. They also have control of synaptic and h-current conductance and dynamics (activation-deactivation) and manipulate these variables or as proxies for changes in temperature of circuit operation. Using the synaptic threshold control variable to set escape or release mode they discern difference of these manipulations on burst characteristics in escape vs release modes. In separate experiments, they also add a modulatory current (similar to a persistent Na current) in dynamic clamp and explore it effects on HCOs in escape and release modes. The end result is a thorough analysis of how oscillator mechanism in an HCO, a basic circuit building block, affects circuit responses to perturbation and modulation.

The experiments are well performed, and a deep and rich data set is generated that is appropriately analyzed. The findings are significant for all interested in oscillatory network function and its resilience to perturbation and modulation.

Concerns:

Robustness is often mentioned but is not precisely defined. Operationally robustness seems in this paper to stand for robustness to (1) activity regime change under parameter variation, (2) stability of burst characteristics with parameter variation, and (3) slow-wave amplitude, spiking strength (spike frequency), and symmetry of bursting. These are three very different things and should be clearly differentiated in the text so that when robustness is mentioned, the type of robustness is made clear. Perhaps robustness should be limited to the first, activity regime, and some other terms used for the other two.

We added a full paragraph to the Introduction (lines 103-114) describing how we define circuit robustness and challenges associated with establishing which features are central to robustness. We revisited instances in the paper, in which we refer to robustness, and clarified whether we are talking about the change in the qualitative state of the circuit and/or sensitivity of certain features of the circuit output that might bring the circuit closer to the transition to another qualitative state.

On several occasion in the text the authors refer to irregularity in bursting of the hybrid HCOs, but this is not quantified beyond displaying exemplars that seem to have irregular bursting. Pooled data should be analyzed in the different modes and manipulations and analyzed for statistical difference in the CoV of cycle frequency (or period) and burst duration. Similarly, the authors cite changes in symmetry in bursting in exemplars but do not present pooled quantitative data in support of the claim, just visual inspection of exemplars.

As suggested, we analyzed pooled data for irregularity and asymmetry in different modes and conditions and presented these data in supplementary figures to Figures 4, 5 and 8. Particularly, we quantified the irregularity of the rhythms by calculating the CV of cycle frequency of the circuits operating with different mechanisms (Figure 4 —figure supplement 1A). We calculated the CV of cycle and spike frequencies of escape and release circuits at different temperatures (Figure 5 —figure supplement 1). Finally, we calculated the CV of cycle frequency of circuits operating with a mixture of mechanisms in control and with addition of the neuromodulatory current (Figure 8 —figure supplement 1A).

To quantify the asymmetry in bursting in different conditions, we calculated the difference in the burst durations between neurons in the circuits with different synaptic thresholds (Figure 4 —figure supplement 1B), ERQ values for each neuron independently (Figure 4 C,D, Figure 7 —figure supplement 1), and the difference in the number of spikes per burst between neurons in a circuit in control and with the addition of I_MI (Figure 8 —figure supplement 1B).

In the stomatogastric networks, synaptic transmission is largely graded (based on release mediated by the slow wave of oscillation) and not so much spike-mediated, so it is reasonable that synaptic threshold should be a control variable in this system. Moreover, spikes, recorded in the cell bodies are not reflective of their amplitude at the SIZ. In other system transmission can be largely mediated by spikes. At the beginning of the paper (Figure 1), it is clear that release mode in their hybrid HCOs depends on spike-mediated transmission because synaptic threshold is above the slow-wave depolarization, thus spike frequency is a key feature determining the mechanism of oscillation. However, in escape mode the transmission is purely graded because synaptic threshold is so low that transmission is saturated by the slow-wave depolarization and spikes contribute little if anything, thus spike frequency is immaterial to the mechanism of oscillation. This situation should be addressed at the beginning of the paper in reference to Figure 1. How this spike-mediated vs. graded balance plays out in the mixed mechanism modes remains to be explored.

We added a description of graded vs spike-mediated transmission in escape and release modes to the beginning of the Results section (lines 173-179).

In Figure 1C, the authors show convincingly that there is a vast landscape where their hybrid HCO operate in a mixed mechanistic mode somewhere between escape and release corresponding to synaptic thresholds in the middle range. This mixed mode is addressed only with a single exemplar in Figure 8B as a case for how modulation affects mixed mode circuits. The Discussion should reflect plainly that this mixed mode is likely common in biological circuits and may go hand-in-hand with significant reliance on spike-mediated transmission.

We added a paragraph to the Discussion section reflecting that a mixture of mechanisms is common in biological systems and discussing that there is a continuum of mechanisms that can exist in rhythmic circuits (lines 722-743). We show in the paper that the balance of the mechanistic operations is sensitive to parameter variations and perturbations and can be biased towards one or the other mechanism on the vast landscape between escape and release.

In this paper we mostly focused on describing the behavior of the system operating at the extremes of this continuum, the synaptic escape and release mechanisms, because they are more identifiable mechanisms. However, we do describe the properties of the circuits operating in mixed modes and the transition in the mechanisms at multiple instances. Figure 2 shows how characteristics of the circuits change as they transition through the mixtures of mechanisms. Figure 4 shows how output characteristics of the circuits operating in a mixed mode depend on the changes in conductances. We also added the analysis of the pooled data from the circuits operating in the mixture of mechanisms in the presence of I_MI and added these data to the supplement of Figure 8.

The authors state "The modulatory current (IMI) restores oscillations in release circuits but has little effect in escape circuits." but this is supported by a single exemplar (Figure 8E) and no pooled data is presented.

We performed 4 experiments, in which oscillations of the circuits with a release mechanism were lost at high temperature and restored by adding I_MI to both neurons. We added a statement to the text of the manuscript that the oscillations were restored in 4/4 circuits with the addition of I_MI (line 699). We have provided a single example trace in the paper, because the effect of I_MI was consistent across all the preparations. We provide additional examples of I_MI rescue in response to the question #35.

1. Lines 130-131: make clear that h-current must also be added by dynamic clamp.

We added a line saying that we added H current via dynamic clamp to generate alternating bursting pattern of activity.

2. Line 158: the definition of VM-bar is not clear. I was confused by this in Figure 1B. My expectation from Methods is that with proper filtering at 1Hz that spikes would be eliminated (Does your filter integrate? This would seem problematic for calculating ERQ. What is the filter? Simple RC?) and then the smoothing would leave a slow wave that peaks near the dashed red line, so VM-bar would be slightly below the dashed red line. Please indicate VM-bar on each exemplar trace of Figure 1A and rationalize VM-bar determination explicitly.

VM-bar stands for the mean membrane potential of the neurons. For the ERQ calculations, the traces are not filtered, because, as you mentioned, that would be problematic considering the fact that spikes significantly contribute to switching behavior for more depolarized synaptic thresholds.

We only apply the filter for burst detection, spectral analysis, and quantification of the slow wave amplitude. The filter we use is a six-order low-pass Butterworth filter as described in the spectral analysis section of the Methods and Materials.

We apologize for the confusion caused by using the same notation of for both raw and filtered traces, we changed the notation of the mean membrane potential of the filtered traces to VM-bar_filtered.

We indicated on each exemplar trace in Figure 2A with solid black lines.

3. Line 203: In the exemplar records shown in Figure 2 A, GM2 has a very low spike frequency in the escape mode and higher in mixed.

The exemplar trace has many features that represent typical behavior; however, the GM2 neuron has very few spikes per burst and as this comment suggests, a lower spike frequency in escape than in a mixed mode. The data shown in this trace also appears as a black line in Figure 2 D5, which shows the dependence of spike frequency on ERQ for each individual experiment. However, on average as shown by the red line, spike frequency within burst decreases as the mechanism of oscillations changes from escape to release ( Spearman rank correlation test).

4. As synaptic threshold becomes more positive the importance of spike-mediated transmission appears to become more important. Are all releases in this system using purely spike mediate transmission as suggested by Figure 2 A and C?

That is correct, the more depolarized the synaptic threshold, the larger the contribution of spikes to the synaptic current. We added a small paragraph to lines 173-179 describing this phenomenon. However, because the synaptic activation function is not a step function, but a steep sigmoid function, which more realistically describes synaptic transmission, the synaptic current starts to activate at the membrane potentials below the synaptic threshold. Skinner et al., 1994 investigated the dependence of the mechanism of oscillation on the steepness of the synaptic threshold. They found that if the oscillations are further from the relaxation type, the transition between the mechanisms becomes less sharp. That being said, at the ends of the continuum, where circuits operate with a synaptic escape or release mechanisms, the behavior of the biological circuits closely resembles the theoretical escape or release scenarios.

In Author response image 1 we are including an example plot showing synaptic activation in escape and release modes. In escape mode the synaptic activation function is saturated at the spikes, and the spikes have virtually no contribution to the synaptic current. In release, synaptic activation mostly relies on spikes, but there is also some contribution from the slow wave, which makes on-off transitions more robust.

Author response image 1

Download asset Open asset

5. Lines 220-223: Can you state explicitly what criteria you applied to determine to designate escape vs. release (ERQ?) for analysis, and especially how synaptic threshold varied among the HCOs within each group? This is especially important given this last sentence of this paragraph.

We added a paragraph describing how the synaptic thresholds varied among half-centers in escape and release and the ERQ criteria used for determining the mechanisms in each case (lines 254-263). Particularly, the mechanism of oscillation was determined based on the ERQ thresholds of -0.038 for escape and 0.105 for release that we calculated based on the experiments shown in Figure 2. The ERQ values corresponding to the same mechanism vary depending on the values of the maximal conductances. Threshold ERQ values of -0.038 for escape and 0.105 for release correspond to gH=300nS and gSyn=200nS, which typically are the lowest conductance combination resulting in stable oscillations. Higher values for conductances correspond to more negative ERQ values in case of escape and more positive ERQ values in case of release, meaning that the threshold values obtained for the lowest conductance combinations can be used for most networks examined in our study.

6. Lines 228-231: Can you provide data in support of these conclusions? Quantify h-current at the point of transition, for example? If such data are not available, these conclusions could be scaled back a bit.

To support our conclusion that an increase in H-conductance decreases the oscillation frequency in release by prolonging the active phase of the oscillations and increases the frequency in escape by helping the neuron cross the synaptic threshold faster, in Author response image 2 we are providing sample voltage traces in release and escape at two different values of H-conductance. The traces show a prolongation of the active phase of oscillation with the increase in H-conductance in release. In escape, increase in H-conductance leads to a faster depolarization of the inhibited neuron above the synaptic threshold. Maps on the right show the dependence of the frequency of oscillations on the maximal value of H-conductance in release and escape in a single preparation.

Author response image 2

Download asset Open asset

7. Lines 236-238: If I understand Methods correctly, your definition of duty cycle is not appropriate for most or all of the designated escape circuits. In escape and near escape, synaptic transmission occurs while the cell still depolarized above synaptic threshold but is not spiking. Better to define duty cycle as time above threshold/cycle period; you are discussing the rhythm generating function here not the motor outflow.As suggested, we calculate the duty cycle as time above the synaptic threshold. In the case of release, the original calculation is based on the duration of spiking holds, because the synaptic threshold is close to the top of the slow wave and spiking plays a major role in switching behavior. In the case of escape, we calculate the duty cycle based on the slow wave, in additional to the original analysis based on spikes. We are including this analysis as a supplementary figure to figure 3. The mean duty cycle of the circuits in escape, calculated based on the slow-wave, is .

8. Line 236: Figure 4A and B?

Do you mean line 263? We changed it to Figure 4A and B.

9. Lines 263-271: I am very confused by this paragraph. Remind the reader of the ERQ criteria for escape and release.

We added a sentence reminding the readers of the ERQ criteria we used to determine the mechanism of oscillation (lines 315-317).

a) Are the extremes i and v escape and release both mixed?? "The ERQ threshold for escape is −0.038 {plus minus} 0.008, while the ERQ threshold for release is 0.105 {plus minus} 0.012." It is hard to tell from the color code of Figure 2A whether these criteria are ever met.

In the experiment shown in Figure 4A, the circuit operates in a mixed mode in the upper-left region of the parameter space and release mode in the lower-right region. In the experiment shown in Figure 4C,D, the circuit spans the entire range of mechanisms from escape to release in the (gH, gSyn) parameter space corresponding to the synaptic threshold of -40 mV. We outlined the regions in the parameter space corresponding to different mechanisms of oscillation (release, escape or mixed), determined based on the ERQ criteria for circuits with different synaptic thresholds.

b) How is the mechanism changing? Can you state that explicitly? I interpret that the extremes of your HCO hybrid system as being escape and release with reality sitting in the middle, which is mixed. Are you postulating distinct mixed mechanisms? Can you define them?

We added a clarifying sentence to lines 309-312, stating that there is a continuum of mechanistic interactions in the hybrid half-center oscillators weighted differently by the mixtures of escape and release mechanisms, with the synaptic escape and release lying at the ends of the continuum. We also added two paragraphs to the Discussion section talking about the mixtures of mechanisms, ERQ measure and the difficulties associated with identifying exactly which mechanisms are involved (lines 722-743). The asymmetry in the intrinsic excitability and resting membrane potentials of the cells in a circuit adds complexity to a precise identification of the mechanism of oscillations, because asymmetry can result in two cells making on-off transitions with slightly different balances in the mechanistic interactions. To illustrate that this can be the case, we calculated the ERQ values for the two cells independently and showed the associated mechanisms of oscillation in the maps (Figure 4C,D).

c) I think that you are saying that the balance between release promoting ionic currents and escape promoting ionic currents are changing but you do not define these currents. In the mixed regime, one should speak about ionic currents if one is to speak of mechanism.

We added a few sentences to the Discussion section describing the ionic currents involved in the on-off transitions in the mixture of mechanism (lines 736-743). At the intermediate synaptic thresholds, on-off transitions are caused by a buildup of the H current in the inhibited cell, and a decay in the synaptic current. Decay in the synaptic current is associated with the hyperpolarization of the membrane potential of the active cell caused by the decay of the H current and an increase in the synaptic current of the inhibited neuron. The degree to which changes in the synaptic and H currents contribute to the transitions depend on the position of the synaptic threshold within the slow wave.

10. Lines 289-291: What about systems that rely on spike-mediated transmission?

This statement refers to the models with graded synapses. We specified this in the text (line 354). The presence of action potentials and/or spike-mediated transmission extends the range of synaptic thresholds over which oscillations can occur.

11. Line 294: In what sense is bursting less regular? Can you define the criteria and present numerical data? Maybe Coefficient of Variation of the cycle period or frequency?

As suggested, we calculated the Coefficient of Variation of the cycle frequency for all the synaptic thresholds and combinations of the synaptic and H conductances. These data are included as a Figure 4 —figure supplement 1A. Mean CV for the intermediate values of the synaptic thresholds (middle maps) is higher than for the extreme thresholds corresponding to the escape and release cases (left most and right most maps).

12. Lines 296-301: Can you provide evidence for these conclusions by analyzing each cell separately for ERQ? Are you saying that in mixed mode that one cell is escaping, and one is being released? What exactly are you thinking here?

As suggested, we calculated the ERQ for each cell individually and included these data in Figure 4C,D instead of the maps showing the mean ERQ calculated across two neurons. We also added a paragraph discussing the differences in ERQ values and mechanisms of transitions between the neurons (lines 365-374). In the case of the asymmetric oscillations the two cells make on-off transitions with slightly different balances in the mechanistic interactions: escape, when the synaptic threshold is close to the bottom of oscillation (typically associated with low synaptic conductance and high H conductance) and release, when the synaptic threshold is close to the top of the oscillations (typically associated with high synaptic conductance and low H conductance). Identifying exactly the mechanistic interactions requires knowing all the underlying currents.

We included paragraphs to the Discussion section talking about the ionic current involved in the transitions and talking about the challenges in identifying the exact mechanistic interactions in the mixed regime (lines 722-756).

13. Line 312: STAR methods?

Fixed

14: Lines 320-323: Asymmetry in activity does not require asymmetry in excitability. You could have bistability or a (possibly even artifactual) difference in baseline membrane potential despite your attempts to equalize them with injected current. This statement requires more evidence to be firm.

We meant that asymmetry in oscillations can result from asymmetry in intrinsic properties of neurons, including the differences in baseline membrane potentials. We fixed the phrasing in the text. We agree that bistability can be one of the reasons for asymmetry, however, we are confident that in our case asymmetry in oscillations resulted from the asymmetry in excitability and resting membrane potentials between the cells. In our experiments we repeated some of the same combinations of gH and gSyn, resulting in different initial conditions, always obtaining the same type of asymmetry with one neuron is dominating over the other. To further support our claim, we calculated the difference in the burst durations between the neurons for different combinations of synaptic and H conductances as a measure of asymmetry and included this analysis as Figure 4 —figure supplement 1B.

15. Lines 327-341: What values were chosen for gh and gSyn in each case (escape vs release)? Are these the same throughout all experiments???? How about Vth, is this the same across experiments for each case?

We added a paragraph to the methods section describing the maximal conductances for the synaptic and H currents and the values of the synaptic thresholds that were used across preparations and mechanisms (lines 1042-1052). We also discussed where the variability in the synaptic thresholds and conductance values comes from.

For the escape mechanism, the synaptic thresholds were between -54 and -52 mV. Small variability in the synaptic thresholds comes from the variability in the resting membrane potentials of the neurons across preparations (Figure 5C). For the release mechanism, synaptic thresholds were between -44 and -32 mV. Variability in the synaptic thresholds for release mechanism comes from both the differences in the resting membrane potentials and the intrinsic excitability of the cells, such as spike threshold (Figure 5D) number of spikes per burst and spike frequency, since, as you pointed out, in release, the transitions more heavily rely on spike-mediated transmission.

There was a larger variability in the maximal conductances used across temperature experiments due to a significant variability in the excitability of the cells comprising the circuits across preparations. gSyn varied between 200 and 900 nS and gH varied between 300 and 900 nS. More excitable neurons generated oscillations at lower values of the artificial conductances. Generally, the values of the maximal conductances were chosen as the lowest values resulting in stable oscillations at 10^oC.

It is practically impossible to generate the same mechanism for the same values of conductances and synaptic thresholds across preparations due to biological variability. That is one of reasons we introduced the ERQ in this paper.

16. Line 344: Can you quantify this irregularity as CoV? I see an exemplar that seems more variable but also a lot faster (higher frequency). Are there pooled data to support claims on cycle frequency and its variability?

As suggested, we quantified the irregularity of the rhythms by calculating the CV of cycle frequency and spike frequency of the circuits in release and escape at low and high temperatures. The CV of cycle and spike frequencies of release, but not escape, circuits are significantly higher at higher temperatures. These data are added to the paper as a supplementary figure to Figure 5 and to the text (lines 422-425). For this analysis we included the circuits with a release mechanism that stopped oscillating before the temperature reached 20^oC. Thus, in some cases, the properties of the circuit output were analyzed at temperatures below 20^oC, when the circuits were still producing antiphase oscillations.

17. Lines 346-348: Is this surprising? The exemplar is dependent solely on spike-mediated transmission and so is susceptible to changes in spiking.

This is not surprising, significant reduction in the spike amplitude and hyperpolarization of the membrane potential of the neurons causes the circuits with release mechanism to be more susceptible to an increase in temperature, as discussed in the “Effect of temperature on the intrinsic properties of GM neurons” section.

18. Lines 385-388: This seems an understatement. This system at elevated Vth is operating in spike-mediated transmission mode and so spikes and spike frequency are all important.

We changed the phrasing to stress the role of spikes in switching behavior in the case of depolarized synaptic thresholds (line 471).

19. Lines 394-395: I don't see this in the data. I see a distinct crossover at around 4 nA – 15Hz. Can you quantify slopes? Is there pooled data to support this conclusion?

We calculated the slopes of all the f-I curves (N=13) at 10^oC and 20^oC and plotted the values on the unity line plot. We included the statistics for the slopes to the text (lines 479-480). For this analysis we used a near-linear portion of the f-I curves at low injected currents. We added a paragraph to the Methods section describing the slope calculations and the stats we performed (lines 1150-1153). In Author response image 3 we are also including an example of f-I curves at 10^oC and 20^oC from a different experiment.

Author response image 3

Download asset Open asset

20. Lines 402-411: You are here recognizing the distinct difference between HCOs that operate with graded vs spike-mediated inhibition. This should be thoroughly aired in relation to Figure 1; don't wait till here.

We added a paragraph describing graded vs spike-mediated transmission in escape and release modes in the beginning of the Results section (lines 173-179).

21. Lines 411-413: Can you support this conclusion with data?

Circuits with a release mechanism are sensitive to temperature increase, because it causes membrane potential hyperpolarization and reduction in spike amplitude. Thus, the degree to which temperature affects these characteristics will affect the degree of sensitivity of release circuits to temperature. In Figure 5C-F we show that there is a large variability in the intrinsic properties of GM neurons, as well as variability in sensitivity of these properties to temperature, as can be seen from the slopes of the lines in Figure 5C,D.

22. Lines 418-421: There are real difference between a slow wave HCO intrinsic excitability and a spiking HCO. For one a weakly regenerative current like a INaP can lead to weak rebound, but robust spiking supporting an HCO based on spikes. I suspect in the case Figure 5B1 that you either have a very long lingering h-current or a LT relatively slowly inactivating Ca current that is fully inactivated when Vth is more positive and inhibition weaker. You do not measure rebound in the GM neurons.

Artificial H current causes the rebound in GM neurons. If one of the neurons is much less excitable (has significantly lower input resistance) than the other neuron, H current might not produce enough depolarization in a less excitable cell to cross the synaptic threshold and escape the inhibition of a more excitable cell.

23. Figure 6: I find the logic of this figure unclear. The purpose is to study the effect of temperature on the hybrid HCOs in different oscillation modes. So, you present HCOs with the added h and synaptic conductances at standard temperature for a comparison group (Panel A), but then Panel B is simply to illustrate changes associated with changes in h and synaptic conductances at a different temperature, and finally in Panel C you explore a simulated change in temperature. I understand why you have Panel B included (to parse mechanism) but shouldn't the order be ACB?

The logic is as follows – we introduce temperature dependence in the computer-generated currents one by one to parse the mechanism of temperature induced changes in the circuit output. First, temperature-independent currents (panel A), second, we implemented the temperature dependence in the conductances only (panel B), third, we implemented the temperature dependence in both conductances and activation rates to see how changes in the activation rates change the frequency responses of the circuits (panel C).

24. Lines 451-453: Do you have data to support this conclusion?

In a few experiments, neurons with substantially different excitability properties produced asymmetric oscillations at low temperature. In case of temperature-dependent artificial conductances, the asymmetry was amplified as temperature was increased, resulting in the cessation of oscillations at high temperatures. However, we do not have enough data to make a strong conclusion regarding unstable oscillations, thus, we removed this sentence from the text.

25. Line 456: '…temperature-independent synapse…' This is getting confusing. It is temperature insensitive h-current and synapses; please make it clear.

Fixed

26. Line 460: '…release or escape…'

Fixed

27. Lines 479-480: Here it would be good to remind the reader that the deactivation rate is as important as the activation rate and that in fact they are two sides of the same coin. From Methods I think you just changed Tau0s (2X or 1.5X) (τH0 2000 or 3000 msec, τsyn 50 or 100 msec) with temperature so both activation and deactivation are affected. I suggest that you plot the Taus of the synapses and the h-current on the plots of Figure 1B. You do provide the equations in Methods, but I think a visualization would help.

Activation (deactivation) rate of the synaptic current does not depend on the membrane potential. Activation (deactivation) rate of H current does not significantly change in the operational range of membrane potentials of half-centers in our study, thus, we decided to omit the activation rates plot from Figure 1. We are including the plot in Author response image 4 for your reference.

Author response image 4

Download asset Open asset

28. Lines 486-489: Any data to support these conclusions? Change activations rates without affecting deactivation?

This conclusion follows from combining three observations: (1) increase in the oscillation frequency in the case of temperature-independent synapses and H current (Figures 6A, 7A,E); (2) decrease in the oscillation frequency in the case of temperature-dependence in the conductance of the synaptic and H currents (Figures 6B, 7A,E); (3) increase in the oscillation frequency with the decrease in activation (deactivation) rates of the synaptic and H currents (Sharp et al., 1996, Figure 7; data from our experiments). Increase in the oscillation frequency in the first case results from the changes in the intrinsic properties of the neurons, illustrated in Figure 5 – hyperpolarization of the membrane potential and a reduction in the spike amplitude, causing a decrease in synaptic and, consequently, H current. Decrease in the oscillation frequency in the second case with the increase in synaptic and H conductance is shown and discussed in Figure 3. Acting together, these changes counteract each other, and can result in a nearly constant oscillation frequency when the temperature is increased.

29. Lines 491-492: Can you provide more evidence in support here? I would like to know what is causing the rebound in the GM neurons before I can fully accept this conclusion. If the rebound is due to lingering h, maybe emphasize the deactivation.

The rebound is caused by the activation of H current. We added a sentence clarifying it (line 580).

30. Lines 518-521: Please put the numbers here in the text, at least for the Q10 g and k case. The Table is pretty tough to isolate on.

We put the ERQ values for release and escape circuits at 10^oC and 20^oC and p-values for all the Q10 cases in the text (lines 609-617).

31. Lines 521-525, Figure S2: This exemplar in Figure S2 is not convincingly escape at 10 C. Pure escape should transition to the depolarized state when threshold is reached. This is a good place for me to comment on the ERQ criterion for designating escape and release. I appreciate the need for an automatable algorithm to designate escape vs. release but I have two caveats. (1) Classically escape is designated by transition when the inhibited cell reaches synaptic threshold (or maybe in spike-mediated transmission spiking threshold) and release is designated by transition when the depolarized cell crosses the synaptic threshold (or stops spiking). The case in Figure S2 clearly violates this classical designation. (2) ERQ is determined by averaging across the two neurons in the HCO, this hides asymmetries and allows for the two cells to have different mechanism, e.g., one escape and one mixed. ERQs must be calculated independently for the two neurons if you wish to reveal asymmetries.

You are right, the case in Figure S2 (now Figure 7 —figure supplement 1) it is not a pure synaptic escape mechanism at 10^oC, the mechanism is likely an intrinsic escape mechanism or a mixture of the intrinsic escape and synaptic release, because the synaptic threshold is closer to the bottom of the slow wave, but the transition does not happen at the synaptic threshold as it would in the case of synaptic escape and there is a decay in the synaptic current allowing the neuron to be released from inhibition.

Further, as you pointed out, the neurons shown in the figure are different with respect to their membrane potentials and excitability properties, resulting in the on-off transitions in these neurons being governed by different balances of mechanistic interactions at lower temperature. We calculated the ERQ for each neuron independently to uncover the differences in the mechanisms between the cells and updated Figure 7 —figure supplement 1. We altered the text to describe the mechanism of oscillation more accurately based on the new ERQ analysis (lines 617-620). The new analysis, however, did not alter the main message we were trying to convey with this figure, illustrating that temperature can alter the mechanism of oscillation. The ERQ of both neurons changed significantly when the temperature was increased.

We also added paragraphs to the Discussion section describing the caveats of the ERQ measure and the difficulties associated with identifying exactly which mechanisms are involved in oscillation generation when neurons are asymmetric (lines 722-743).

32. Lines 547-550: Only one prep is illustrated in Figure 8C. Is the CoV of bursting in mixed mode different across pooled data to support this statement?

We calculated CV of cycle frequency of all the circuits in escape, mixture and release mechanisms in control and with addition of I_MI. We included these data in Figure 8 —figure supplement 1. The mechanism of oscillation in each case was determined based on the ERQ thresholds calculated using the maximum and minimum of the second derivative of the sigmoid functions that were fit to ERQ vs V_th data, as described in lines 223-226. There was a significant increase in the CV of cycle frequency of the circuits operating in mixed mode with I_MI relative to control. We included the stats in the text (lines 644-646). Here, we are also including several more examples of the voltage traces showing and increase in irregularity of bursting and asymmetry between the cells with the addition of I_MI.

33. Line 590: '…vastly…'

We deleted “vasty”

34. Lines 593-597: Only one prep is illustrated in Figure 8E. Are there pooled data that can support this conclusion?

We performed 4 experiments, in which oscillations of the circuits were lost at high temperature and restored by adding I_MI to both neurons. We specified in the text of the manuscript that the oscillations were restored in 4/4 circuits with the addition of I_MI (line 699). We have provided a single example trace in the paper, because the effect of I_MI was consistent across all the preparations. Here, we provide more examples of I_MI rescue. Red bars indicate when I_MI was added.

35. Lines 650-653: Because asymmetry is not directly assessed in this paper this conclusion should be scaled back.

In new analyses we assessed the asymmetry by calculating the difference in the burst durations between the two neurons in the circuit in different modes and for different combinations of synaptic and H conductances (Figure 4 —figure supplement 1B). We also calculated the ERQ values for the two cells independently to show the differences in the on-off transitions between the neurons (Figure 4C,D). Further, we calculated the differences in the number of spikes per burst between the neurons in circuits in control and with addition of I_MI (Figure 8 —figure supplement 1B). In the cases when the neurons had similar number of spikes per burst in control conditions, addition of I_MI did not destabilize the circuits with the mixture of mechanisms. In the cases when the neurons had substantially different numbers of spikes in control, I_MI amplified this difference (lines 650-653). Based on this finding, we conclude that not just the mechanisms of oscillations but also the degree of asymmetry between the units influences the way reciprocally inhibitory circuits will respond to modulation.

36. Lines 653-656: Only one prep is assessed in mixed mode, so this statement should be scaled back.

In the new analysis we assessed the irregularity and asymmetry between the cells in all the experiments in the mixture of mechanisms to support this conclusion (Figure 8 —figure supplement 1).

37. Lines 687-689: Please be careful here and designate modes precisely and state exactly what you mean by stable cycle frequency. Does this mean regularity of bursting or period constancy? Ditto for living preparations with intact networks.

Synaptic and H-conductances work against each other in escape circuits, maintaining the oscillation period constant throughout a wide range of temperatures. This observation is also illustrated in Figure 3B. We changed the phrasing of this sentence in the text clarifying the conditions when this holds true (lines 856-858).

Line 693: does temperature compensation in intact STG networks involve a constant period of just constant phase?

Temperature compensation in STG networks involve constant phase but not constant period (Tang et al., 2010, Powell et al., 2021). Cycle frequency of both pyloric and gastric STG circuits increases with temperature.

38. Lines 626-628: Are there modeling studies involving more realistic neurons specifically ones that spike and use spike-mediated transmission.

Thank you for reminding us of the modeling studies describing the systems that rely on both graded and spike-mediated transmission and contain elements of both escape and release modes. We discuss these models and regulation of oscillations in these models by parameter variations in lines 779-791.

Reviewer #2:

This manuscript provides a very detailed and thorough examination of an important issue in neural circuit research, namely how the mechanisms underlying neural activity relate to robustness in the face of perturbations. It examines the simplest neural circuit possible, one involving just two neurons that reciprocally inhibit each other, which is capable of producing rhythmic alternating activity. The research shows that there is a continuum of mechanisms based on synaptic and membrane properties of the two neurons that can generate a robust output. At one end of the continuum, each neuron escapes from the inhibition of the other. At the other end, each neuron releases the other from inhibition. In the middle, both mechanisms contribute to generation of rhythmic activity. The effects that perturbations such as temperature and neuromodulators have on the circuit depend upon where the mechanism of oscillation lies along this continuum.

This paper has several important strengths:

It uses dynamic clamp technique to artificially couple two real neurons and provide them with a membrane conductance that they don't normally have. This is a powerful technique that merges experimental and theoretical neuroscience because the researchers are able to systematically alter parameter values such as synaptic strength and ionic conductance that are not feasible to modify biologically. Yet they are also monitoring the activity of real neurons.

The manuscript thoroughly represents the results and convincingly demonstrates how release and escape mechanisms are differentially affected by perturbations. The method of data visualization is very effect at summarizing complex results.

An important conclusion drawn from the results is that half-center oscillators using a release mechanism are more robust to variations in synaptic and membrane conductance.

Another important conclusion is that the same circuit can produce a similar output using different mechanisms and that it is not possible to know which mechanism is used without looking at the effect of perturbation.

I would encourage the authors to not start the abstract with a question, but rather use a standard topic sentence that gets right to the problem.

We rewrote the abstract and removed the question.

The introduction could be firmed up more. For example, the sentence "Lateral inhibition is important in many sensory systems, and reciprocal inhibition between individual neurons or groups of neurons is the 'building block' of many half-center oscillators that generate antiphase and multiphase activity patterns." Is a run-on referring to lateral inhibition in sensory systems and then going into detail about reciprocal inhibition in HCOs. The concluding sentence of the introductory paragraph does not follow from the content of the paragraph.

We rewrote and reorganized much of the Introduction to have a better flow of ideas and to address the review questions, such as defining circuit robustness.

Figure 3A. If I understand this correctly, 10 models were made with each of the 49 combinations of gH and gSyn. The percentages then are going to limited to 0,10,20,30,40…100%. To make that clear, change the continuous gray scale "%oscillators" to the 10 discrete gray values (as was done in Figure S1A). That will provide the reader with more information about the values. Same with Figure 3F.

We changed the continuous gray scale "%oscillators" to the 10 discrete gray values.

Figure 3C, the red boxes are nearly invisible and I imagine that Figure 3D is not color-blind friendly.

We changed the color of the red boxes to black and increased the line thickness for better visibility. We used a color blind simulator to transform the figures to simulate different types of colorblindness, and the color gradient is visible in different color blindness conditions.

Figure S1A, I found the colors difficult to distinguish. The trends did not pop out at me.

We changed the brightness of the colors in Figure S1D (now Figure 4—figure supplement 1F) to be more distinguishable.

Figure 7 refers to 'cases' that are also in Figure 6, but not referred to as cases. It took me a while to recognize that they were the same. It would be helpful to label case 1, case 2, and case 3 in Figure 6 A1, B1, C1 and in Figure 7 A-D in the Figure It would also help to refer the cases in the text for consistency such as line 438, Case 2 and line 475 Case 3.

As suggested, we labeled case1, 2 and 3 in Figure 6 and Figure 7 A-D. We also referred to the cases 1, 2 and 3 in the text (lines 419, 511, 512, 520, 524, 561, 610-617).

Also, recognizing color equivalence in Figure 7 A-F lines and E-H boxes is really hard. I think it's because the box plots have a contrast-enhancing black border. I'm starting to think that I may be color-impaired.

Thank you for pointing out this inconsistency. The opacity of the colors in panels A-D and E-H was different, making the colors look different. We fixed the colors and removed the black boarders in bar plots so that the color equivalence is easier to recognize.

Line 546-550: "I-MI made oscillations less stable and irregular for circuits operating with a mixture of mechanisms." Stating "This is obvious…" is not an explanation; although it may be obvious to the authors, it needs to be explained to the readers.

Regarding the 2nd point, "an increase in the standard deviation of the cycle frequency", I don't see documentation of this; the error bars in Figure 8C are larger at the release end of the graph than in the middle.

We meant that I_MI destabilizes the circuit by amplifying the asymmetry between the units. We changed the phrasing in the text (lines 646-653). We calculated the CV of cycle frequency of circuits in control and with addition of I_MI and added these data to Figure 8 —figure supplement 1. There was a significant increase in the CV of cycle frequency of the circuits operating in mixed mode with I_MI relative to control. We included the stats in the text (lines 644-646). To assess asymmetry, we calculated the difference in the number of spikes per burst between the neurons in half-centers in control and with addition of I_MI (Figure 8 —figure supplement 1B). 3/8 preparations did not oscillate at intermediate synaptic thresholds when I_MI was added, exhibiting the extreme case of asymmetry when one of the neurons was suppressing the other one the whole time. In 3/5 circuits that remained bursting the was a higher different in the number of spikes per burst between the neurons in circuits with a mixture of mechanisms (Figure 8 —figure supplement). Overall, the effect of I_MI on irregularity and asymmetry of oscillations is very variable and depends on many factors, including how symmetric the oscillations are in control condition.

https://doi.org/10.7554/eLife.74363.sa2

Article and author information

Author details

Ekaterina Morozova

Volen Center and Department of Biology, Brandeis University, Waltham, United States

Contribution
Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Software, Validation, Visualization, Writing - original draft, Writing – review and editing

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0001-9131-7756
Peter Newstein
1. Volen Center and Department of Biology, Brandeis University, Waltham, United States
2. Biology Department, University of Oregon, Eugene, United States
Contribution
Data curation, Formal analysis, Investigation, Project administration, Writing – review and editing

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0003-2966-783X
Eve Marder

Volen Center and Department of Biology, Brandeis University, Waltham, United States

Contribution
Conceptualization, Funding acquisition, Methodology, Resources, Supervision, Writing – review and editing

For correspondence
marder@brandeis.edu

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0001-9632-5448

Funding

National Institutes of Health (2 R01 MH046742)

Eve Marder

Swartz Foundation

Ekaterina Morozova

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Support: NIH National Institute of Health grant 2 R01 MH046742, and the Swartz Foundation (EOM).

Senior and Reviewing Editor

Ronald L Calabrese, Emory University, United States

Reviewers

Ronald L Calabrese, Emory University, United States
Paul Katz, University of Massachusetts Amherst, United States
Jan Marino Ramirez

Publication history

Preprint posted: September 19, 2021 (view preprint)
Received: September 30, 2021
Accepted: January 26, 2022
Accepted Manuscript published: February 1, 2022 (version 1)
Version of Record published: February 28, 2022 (version 2)

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

1,069

Page views
165

Downloads
4

Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Mendeley

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Ekaterina Morozova
Peter Newstein
Eve Marder

(2022)

Reciprocally inhibitory circuits operating with distinct mechanisms are differently robust to perturbation and modulation

eLife 11:e74363.

https://doi.org/10.7554/eLife.74363

Categories and tags

Research organism

Cancer borealis

Share this article

Cite this article

Experimental set-up.

Dependence of the characteristics of half-center oscillator output on the mechanism of oscillation.

Maps of network output as a function of the synaptic and H conductances (gSyn, gH) for circuits with escape and release mechanisms.

Dependence of the oscillation mechanism and half-center activity characteristics on the synaptic and H conductances for different synaptic thresholds.

Response of reciprocally inhibitory circuits with release and escape mechanisms and temperature-independent artificial synaptic and H currents to an increase in temperature.

The role of temperature dependence in the synaptic and H currents in the response of the circuits with release and escape mechanisms to changes in temperature.

Summary of the effects of temperature on the characteristics of half-center oscillators with escape and release mechanisms and different temperature-dependences in the synaptic and H currents.

Effect of a modulatory current (IMI) on the behavior of reciprocally inhibitory circuits with different oscillatory mechanisms.

Parameter values for the dynamic clamp.

Author details

Ekaterina Morozova

Contribution

Competing interests

Peter Newstein

Contribution

Competing interests

Eve Marder

Contribution

For correspondence

Competing interests

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Categories and tags

Research organism

Further reading

Maps of network output as a function of the synaptic and H conductances (g_Syn, g_H) for circuits with escape and release mechanisms.

Effect of a modulatory current (I_MI) on the behavior of reciprocally inhibitory circuits with different oscillatory mechanisms.
