Abstract

Bacterial biofilms are communities of bacteria usually attached to solid strata and often differentiated into complex structures. Communication across biofilms has been shown to involve chemical signaling and, more recently, electrical signaling in Gram-positive biofilms. We report for the first time, community-level synchronized membrane potential dynamics in three-dimensional Escherichia coli biofilms. Two hyperpolarization events are observed in response to light stress. The first requires mechanically sensitive ion channels (MscK, MscL, and MscS) and the second needs the Kch-potassium channel. The channels mediated both local spiking of single E. coli biofilms and long-range coordinated electrical signaling in E. coli biofilms. The electrical phenomena are explained using Hodgkin-Huxley and 3D fire-diffuse-fire agent-based models. These data demonstrate that electrical wavefronts based on potassium ions are a mechanism by which signaling occurs in Gram-negative biofilms and as such may represent a conserved mechanism for communication across biofilms.

Introduction

Dense microbial communities attached to surfaces are classified as biofilms (Kassinger and van Hoek, 2020). Biofilms account for ~80% of chronic infections and are costly to eradicate in medical applications (Sharma et al., 2016). Bacteria in biofilms have recently been found to modulate their membrane potentials similar to excitable eukaryotic cells (Liu et al., 2017; Whitehead et al., 2001). Potassium ion-channel-linked electrical signaling was first characterized in Gram-positive Bacillus subtilis biofilms (Prindle et al., 2015). It enables communication in bacterial biofilms due to the transmission of potassium wavefronts in the local environment of the biofilm. The potassium wavefront occurs in both centripetal and centrifugal varieties (Blee et al., 2019) and emerges spontaneously after the biofilm has grown to a critical size (Coombes, 2001). Photodynamic therapy using blue light causes a process of stage-dependent cell dispersal in biofilms and membrane hyperpolarization (Blee et al., 2020). Such therapy has thus been investigated in detail for the treatment of topical infections (Kharkwal et al., 2011; Cieplik et al., 2018).

Membrane potential dynamics in prokaryotes are orchestrated using ion-channels. Gating of these channels can be controlled by voltage changes, heat, light stress, metabolic stress, mechanical stress, and chemical agents (Prindle et al., 2015; Bruni et al., 2017; Martinac et al., 2008; MacKinnon, 2004; Yang et al., 2020). In B. subtilis biofilms, only the potassium ion channel, YugO, has been directly linked to electrical signaling (Prindle et al., 2015).

To date, robust ion-channel-mediated signaling in biofilms of Gram-negative bacteria has not been described. Gram-negative bacterial biofilms have higher resistance to antimicrobial molecules than Gram-positive bacterial biofilms (Mishra et al., 2020; Bruni and Kralj, 2020). Although voltage-related spiking dynamics have been observed in single E. coli cells (Bruni and Kralj, 2020; Kralj et al., 2011), only second long stochastic transients have been measured with no distinct coordination between intercellular spikes.

The Kch potassium ion channel in E. coli was discovered in E. coli by Milkman, 1994 using comparative genetic techniques. The current consensus is that Kch is a voltage-gated ion channel, although the evidence is slightly indirect (Kuo et al., 2003; Beagle and Lockless, 2021). The current study provides additional evidence for the voltage-gated nature of the Kch channel in E. coli and indicates a physiological role for the ion channel.

We studied three-dimensional ion-channel-mediated signaling in E. coli biofilms. We found that under light stress, E. coli hyperpolarize twice in response to continued light radiation. We hypothesize that the first peak is when E. coli first register the presence of an external stressor in their vicinity and appears to be mediated by mechanosensitive (MS) ion channels. The depolarization and subsequent second peak that occurs in response to continued stimulation corresponds to a habituation phenomenon and is dependent on the Kch potassium-gated channel. On the basis of these data, we devised models (Hodgkin-Huxley and 3D fire-diffuse-fire agent-based models) that explain ion-channel-mediated signaling in E. coli biofilms. The work provides a novel outlook on the emergent electrophysiology of bacterial biofilms.

Results

Blue light triggers electrical spiking in single E. coli cells

We exposed E. coli (DH5α) to a blue LED (Figure 1A). Single sparse cells are defined as those with no neighboring cells within 10 µm. We monitored the membrane potential dynamics with the cationic fluorescent dye, Thioflavin (ThT; Biancalana and Koide, 2010). ThT is a Nernstian voltage indicator Plásek and Sigler, 1996 which accumulates because bacterial cells have negative potentials (Blee et al., 2020; Stratford et al., 2019; Humphries et al., 2017). We observed a cell-wide rise in the intensity of fluorescence, a period of quiescence followed by a slow increase in intensity which persisted until the end of the 60-min experiments (Figure 1B, Video 1). Applying the blue light for different time periods and over different timescales yielded no change in the number of peaks (Appendix 1—figure 1A). We confirmed that this spike profile existed in other E. coli strains (E. coli BW25113, Appendix 1—figure 1B) and was also detectable when E. coli cells were grown in Minimal (M9) media (Appendix 1—figure 1C).

Figure 1

Download asset Open asset

Single-cell DH5α *E. coli* exhibit membrane potential dynamics in response to 440 nm blue light stress.

(A) Image of a sparse single cell containing ThT imaged in the microfluidic device (Scale bar: 10 µm). (B) Normalized fluorescence intensities of ion-transients for sparse cells (n=206) as a function of time after stimulation. Each curve describes a single cell. The curve depicting the mean membrane potential dynamics is shown in black. (C) Representative image of microclustered cells containing ThT in the microfluidic device. (D) Fluorescent intensity of ion-transients for cells in microclusters as a function of time after stimulation. Each curve describes a single cell. The curve depicting the mean membrane potential dynamics is shown in black. (E) Time to first spike histogram for sparse cells (n=206, Sparse cells in orange) and cells in microclusters (n=272, microclustered cells in blue, cells recovered from 15 clusters). The number of spiking events is shown as a function of time to the first spike. (F) Growth curves (in a semi-log coordinates) for *E. coli* (measured via OD₆₀₀) as a function of time in the presence and absence of ThT. All data were from at least three experimental replicates. Light stress was applied for 60 min. The scale bars for all the images are 10 µm.

Video 1

Download asset

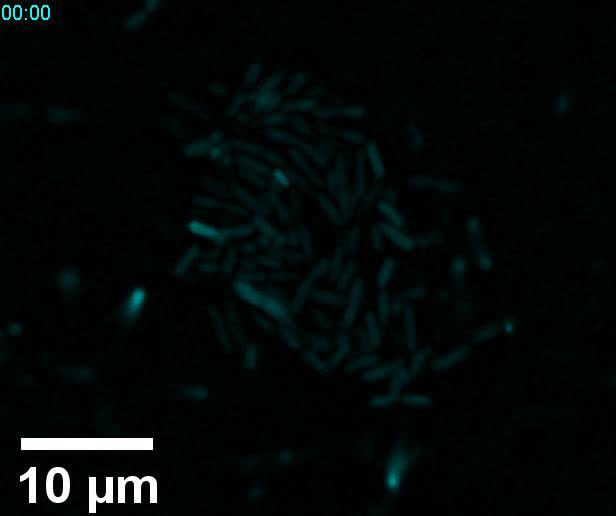

posterframe for video — Fluorescence microscopy images of ThT in sparse single *E. coli* cells irradiated with blue light.

We observed similar spiking dynamics when we employed the lipophilic cationic cell permeant membrane potential dye, tetramethyl rhodamine methyl ester (TMRM; Appendix 1—figure 1D). We then tested if the observed dynamics is related to the membrane potential or autofluorescence. We used carbonyl cyanide m-chlorophenyl hydrazone (CCCP) which rapidly quenches membrane potential related dynamics in E. coli (Yang et al., 2020; Kralj et al., 2011; Perry et al., 2011). When CCCP was added, we observed a fast efflux of ions in all cells and no spiking dynamics (Appendix 1—figure 1E), confirming that the observed dynamics is membrane potential related.

Two groups have challenged the use of ThT Mancini et al., 2020 and similar voltage sensitive fluorophores (DiSc3) in bacteria (Buttress et al., 2022; Appendix). These authors assume bacteria are unexcitable cells, whereas we provide evidence for excitability, invalidating their claims.

Membrane potential dynamics depend on the intercellular distance

We hypothesized that the time-to-first peak latency of cells in dense microclusters of E. coli could differ from that of sparse single E. coli cells. A microcluster is defined as a cell community in which intercellular distances do not exceed two cellular diameters (Figure 1C). We applied the same light stimuli as before to E. coli DH5α microclusters. We observed a rapid rise in intensity, a decay and subsequently a persisting second peak (Figure 1D, Video 2). The analysis of time-to-first peak latencies in sparse and microclustered cells showed that the average time-to-first peak was 7.34 ± 10.89 ± 4.44 min (mean ± SD ± SE) and 3.24 ± 1.77 ± 0.53 min (mean ± SD ± SE; Figure 1E), respectively. The membrane potential dynamics of single cells showed more variability in spikes and less synchrony in the phases of the first spikes than those in microclusters (Figure 1B and D). This suggests that random electrical signaling in E. coli synchronizes as the cells become clustered. We would expect that mutual shielding from the light at higher cell densities should decrease the irradiance that cells experience which should increase the reaction time of the bacteria, however, in our experiments the opposite is observed. We also confirmed that 10 µM of ThT does not affect the growth of the E. coli strains used in the experiment (Figure 1F).

Video 2

Download asset

Emergence of synchronized global wavefronts in E. coli biofilms

A microfluidic chamber (Appendix 1—figure 2A and B, Microfluidic section in Methods) was used to explore the growth of E. coli from single cells into biofilms (Figure 2A, Appendix 1—figure 3A; Prindle et al., 2015; Blee et al., 2020). We exposed our mature biofilm to blue light. We observed a spontaneous rapid rise in spikes within cells in the center of the biofilm while cells at the periphery remained significantly less bright (Figure 2A and B, Video 3). The ion-channel-mediated wavefronts moved from the center of the biofilm to the edges. At this point, the whole biofilm had an equal level of fluorescence intensity. The wavefronts then rapidly collapsed from the edges to the center of the biofilm. Once the wavefront reached the center, the whole system engaged in a period of quiescence and remained dark even in the presence of the continued external light stimulation. After a few minutes of inactivity, the wavefront reemerged from the center of the biofilm and slowly reached the periphery of the biofilm. After reaching the edges for the second time, the hyperpolarization persisted, and the entire biofilm remained bright and showed no noticeable change in response to the continued presence of the external stimuli. The latency of the first peak was 2.73 ± 0.85 ± 0.15 min (mean ± SD ± SE). This was a much smaller period than that of cells in microclusters and sparse cells (Figure 1B and D, Appendix 1—figure 3B). Furthermore, the variability of the latency (SD) was much lower.

Figure 2

Download asset Open asset

Synchronized ion-channel-mediated wavefronts in *E. coli* biofilm.

(A) Representative fluorescence microscopy image as a function of time (1–62 min). Robust global wavefronts can be seen in an *E. coli* biofilm with ThT. The scale bars for all the images are 10 µm. (B) Global averaged intensity wavefront trace obtained from a 2D section of a biofilm as a function of time (mean ± SD for 30 biofilms from at least three experiments). (C) Globally averaged ion-channel-mediated dynamics in *E. coli* biofilms for different sized biofilms (68–277 µm). ThT intensity is shown as a function of time.

Video 3

Download asset

Biofilms of different shapes and sizes were grown and we observed similar intensity profiles for all the biofilms (Figure 2C). The peaks of the spiking profiles in all the biofilms (Figure 2C) show that the amplitude of the action potentials does not depend on biofilm density or areal coverage of the biofilm. Consequently, we focused our analyses on time-related properties of the wavefront profiles. Action potentials in eukaryotic organisms are stereotyped events; therefore, the time-dependent properties of the spikes carry the information about the amplitudes of external stimuli (Buzsáki, 2009). The intensity profile of different biofilms across several experiments shows that the wavefront dynamics is robust once the biofilm has an appreciable size (Figure 2C). These data provide evidence that coordinated signaling directs ion-channel-mediated wavefronts in E. coli biofilms. This data suggests that E. coli biofilms use electrical signaling to coordinate long-range responses to light stress.

Voltage-gated Kch potassium channels mediate ion-channel electrical oscillations in E. coli

We hypothesized that the potassium channel, Kch (Milkman, 1994), mediates the ion-channel membrane potential dynamics in E. coli. This ion channel (Figure 3A) helps E. coli to survive environmental stress (Loukin et al., 2005), but its deletion does not impede the development of E. coli from single cells into biofilms (Loukin et al., 2005; Kuo et al., 2005). Kch had not been previously linked to action potentials and electrical signaling in E. coli biofilms (Kuo et al., 2003; Beagle and Lockless, 2021).

Figure 3

Download asset Open asset

Voltage-gated Kch potassium channel mediates ion channel membrane potential dynamics in *E. coli*.

(A) Schematic diagram showing the deletion of the voltage-gated *Kch* channel in *E. coli*. (B) ThT fluorescence shown as a function of time of irradiation. Deletion of *Kch* inactivates the second peak in *single cell E. coli* DH5α. Data is a mean from 52 single cells from three experimental replicates per time point for DH5α ∆*kch* mutant (black) plotted against the wildtype *single cell E. coli* DH5α (blue). (C) Deletion of *kch* also inactivates the second peak in *E. coli biofilms*. Data is shown for global membrane potential dynamics for biofilms grown from *E. coli* DH5α ∆*kch* mutant (black) and wildtype DH5α (blue).

We applied light stimulation to a ∆kch mutant of strain BW25113 from the Keio collection Baba et al., 2006 and saw a fast burst of membrane hyperpolarization identical to the wild-type, but there was a plateau that remained for the whole duration of the experiment (Appendix 1—figure 3C, Video 4). There was no repolarization or slow rise to the second peak seen in the wildtype (Figure 1B and D). This suggests that the K⁺ ion channel Kch plays a role in the refractoriness and habituation of the dynamics but does not control the initial hyperpolarization event. Using P1-phage transduction, we moved the kch mutation into strain DH5α and confirmed the phenotype with the first peak but no second peak (Figure 3B and C, Video 4). These data showed that Kch potassium ion channels are important for electrical signaling in E. coli in the presence of blue light stress.

Video 4

Download asset

To validate the importance of the Kch channel in the membrane potential dynamics of E. coli, we complemented the kch mutation by introducing a plasmid that carries a cloned functional kch gene into strain ∆kch-DH5α. The kch complemented strain displayed the same membrane potential dynamics (Appendix 1—figure 3D) observed in the wildtype (Figure 1B and D). However, the quiescence period in our kch complemented strain was reduced compared with the wildtype, presumably due to an increased degree of expression of the kch gene on a multi-copy plasmid.

Blue light influences ion-channel-mediated membrane potential events in E. coli

To investigate the effect of irradiance on ion-channel-mediated signaling, biofilms were exposed to blue LED light at different irradiances (Figure 4A). For all the irradiances, we observed a first peak in the ThT fluorescence (Figure 4A). The time to the first peak decreased as the light irradiance was increased (Figure 4B). The fast burst of hyperpolarization and repolarization only occurred above the threshold of 15.99 µW/mm². For irradiances above this threshold, the dynamics exhibited progressively faster hyperpolarization to the second peak with increased light, which was not observed for irradiances below the threshold.

Figure 4

Download asset Open asset

Blue light influences ion-channel-mediated membrane potential events in *E. coli*.

(A) ThT intensity as a function of time when irradiated with different powers of 440 nm light. The time to the second excitation peak is dependent on the power. All subsequent experiments were done at the irradiance value of 15.99 µW/mm². (B) Time to first spike plotted as a function of irradiance. Blue-light irradiance affects the time to the first peak in *E. coli* biofilm. (C) Measurement of extracellular potassium changes for regions close to biofilms as a function of time using fluorescence microscopy. (D) LiveDead Assay using the accumulation of propidium iodide in cells (1) DH5α (n=1842) (2) DH5α ∆*kch* mutant (n=1008). (E) Comparison between PI-positive cells for the DH5α and the DH5α ∆*kch* mutant. Statistical significance was calculated using the Student’s t-test, p≤0.05. (F) ThT fluorescence intensity as a function of time for cells in the presence of a ROS scavenger. *E. coli* cells employ ion-channel-mediated dynamics to manage ROS-induced stress linked to light irradiation. Data was obtained from not less than three experiments.

We thereafter examined the extracellular changes in the potassium ion, K⁺ ions, within regions close to biofilms. We used the yellow-green fluorescent potassium (K⁺) indicator, ION potassium Green-4 (IPG-4), which can track changes in extracellular concentrations of potassium. We observed a sharp rise, a quiescence period and then a plateau similar to that of the ThT dynamics (Figure 4C). This suggests that K⁺ ions play a vital role in the observed membrane potential dynamics of the biofilm.

We validated our model with a LiveDead assay on the wildtype E. coli DH5α and a DH5α ∆kch mutant. Viable cells were monitored using propidium iodide (PI; Methods). Damaged cells appear red and we observed that 1.7% of cells stained red after 60 min of light exposure for the DH5α Figure 4D (1) and 7.6% for the DH5α ∆kch mutant (Figure 4D) (2). Student t-test showed that blue light stress damage to the kch-mutant is significant when compared with the DH5α (Figure 4E). This data shows that wildtype DH5α cells which engage in full membrane potential dynamics better withstand the light stress and have lower lethal damage.

We used the ROS scavenger, catalase, to accelerate the removal of ROS. After the addition of the catalase, cells only registered the presence of the light (via the first peak), but aborted the process of repolarization, so the second hyperpolarization event does not occur (Figure 4F, Video 5). This demonstrates that the ion-channel-mediated membrane potential dynamics is a light stress relief process.

Video 5

Download asset

Development of a Hodgkin-Huxley model for the observed membrane potential dynamics

Our data provide evidence that E. coli manages light stress through well-controlled modulation of its membrane potential dynamics. The light-induced ion-channel-mediated dynamics present at the single cell level become more coordinated at the biofilm level (Videos 1 and 3).

To understand the biophysical mechanism of the ion channel opening for a single cell, we developed an electrophysiological model. Our Hodgkin-Huxley conductance model predicts that the membrane potential dynamics in E. coli biofilms are due to cooperative signaling between two distinct positively charged ion channels (Q and Kch) whose conductivities are voltage gated. We propose that the dynamics causes a process of long-range electrical communication of light stress in the E. coli biofilm. We also propose that the source of the photooxidative stress was due to increasing reactive oxygen species (ROS) in the vicinity of cells which gradually builds up as the light stress persists.

We predicted that the ion-channels activate and deactivate differently under the light stress (Figure 5A, B). Ion channel Q activates faster than the Kch channel, but deactivates slower than the Kch channel. Hence, while the Q channel activation dynamics is more pronounced for the sharp spike of the first peak, the Kch channel controls its subsequent decay. After the first action potential, the Q channel inactivates and contributes minimally to the dynamics. The Kch ion channel then controls the slow refractoriness and plateau which persists for a longer period in the presence of constant light stress (Figure 5B). This prediction supports our results from the deletion of the Kch ion channel from E. coli strains (Figure 3).

Figure 5

Download asset Open asset

Model of ion-channel-mediated membrane potential in *E. coli*, predictions and experimental validation.

(A) Schematic diagram of the conductance model and its predictions. The model consists of two ion-channel gates. The first channel (bronze, Q) is unknown. The second channel is the potassium channel, Kch (yellow). At the onset regime 0, both ion channels are closed. Exposure to light stress results in a rapid opening of the Q channel, which has a faster-opening gating variable than the Kch channel (regime I). The Q channel has little contribution to the repolarization event, hence the overlap of regimes I and II. (B) In the Hodgkin Huxley type conductance model the current changes are modulated by the two ion channels (Q and *Kch*) and the leakage channel (L). (C) The predicted ThT fluorescence intensity as a function of time for the Hodgkin Huxley model. Our Hodgkin Huxley model correctly reproduces the *E. coli* membrane potential dynamics for the wildtype (blue) and kch-mutants (black). The wildtype has two hyperpolarization events. (D) Fluorescence intensity from our microscopy experiments with ThT as a function of time for the wildtype (blue) and *Kch*-mutants (black).

Our two ion-channel electrophysiological model correctly produced the same profile (Figure 5C) as the experimental data (Figure 5D). This model also predicts that the two spikes perform different roles in E. coli. The first spike registers the presence of light stress in the environment, while the second spike modulates the light stress by keeping the cell dynamics robust to the intensity of the external light stress. This mode of signaling is like a specialized type of electrical signaling in neurons called habituation (Figure 6A and B). Sensory neurons can engage in signal habituation to remain unresponsive to an external unwanted signal in the environment and still engage in control of other stimuli (Herman, 2013; Avery et al., 2021; Wu et al., 2020). The model also predicts that the opening of the ion channels creates an increased concentration level of the extracellular ions which subsequently results in the depolarization of neighboring cells (Yang et al., 2020; Martinez Corral et al., 2019; Liu et al., 2017).

Figure 6

Download asset Open asset

Role of mechananosensitive channels in the first hyperpolarization event in *E. coli*.

(A) A generic diagram for the membrane voltage during neuronal habituation to a constant stimulus e.g light stress (Avery et al., 2021; Wu et al., 2020). (B) An illustrative diagram of membrane potential dynamics of our experiment as a function of time which is a mirror image of the ThT dynamics for comparison with (A). (C) Membrane potential dynamics for MS mutants of the wildtype, *E. coli* strain BW25113. (D) Membrane potential dynamics for MS mutants of the wildtype, *E. coli* DH5α.

We hypothesized that E. coli not only modulates the light-induced stress but also handles the increase of the ROS by adjusting the profile of the membrane potential dynamics. We therefore varied the ROS stress production coefficient at different levels of light in the model. We observed a noticeable change in the membrane potential dynamics. With reduced ROS, the first spike became sharper and the quiescent time lasted longer than previously, with the second peak occurring at much higher intensities of light. With increased ROS, the first spike lasted less than 30 s and the second spike plateau rose to a much higher fluorescence value. This result agrees with our hypothesis and further authenticates the involvement of two channels in the membrane potential dynamics of E. coli.

Mechanosensitive ion channels (MS) are vital for the first hyperpolarization event in E. coli

We hypothesized that the first hyperpolarization event is linked to the voltage-gated calcium channels (VGGCs), so we introduced the fluorescent calcium sensor, GCAM6f Bruni and Kralj, 2020 on a plasmid into the wildtype DH5α strain. When exposed to light stimulation, the spike events observed were consistent with stress-induced signaling of the VGCCs (Bruni et al., 2017; Bruni and Kralj, 2020). However, the calcium transients imply that the VGGCs (Appendix 1—figure 3E) do not play a role in the first peak of the E. coli strain under light stress (Figures 1B, D, 2B).

The MS ion channels help maintain cell turgidity and are also sensitive to stress-related voltage changes (Li et al., 2002; Booth, 2014; Haswell et al., 2011; Martinac et al., 2008; van den Berg et al., 2016). We tested whether the MS ion channels in E. coli, MscK, MscL and MscS, play a role in the first spike of the membrane potential dynamics (Figures 1B, D, 2B). We exposed the mutant strains, ∆MscK, ∆MscS, and ∆MscL of the wildtype, E. coli BW25113 (Figure 6C), to light stimulation and observed no spike dynamics typically observed with the wildtype cells (Figures 1B, D, 2B). Using P1-phage transduction, we transferred the MS channel mutations into the strain DH5α and confirmed the phenotype (Figure 6D).

Anomalous ion-channel-mediated wavefronts propagate light stress signals in 3D E. coli biofilms

We developed a 3D agent-based fire-diffuse-fire model (ABFDF) using BSim (Gorochowski et al., 2012). No analytical solutions are known for the FDF model in 3D, so simulations using agent-based models were needed. In our simulated 3D spherical biofilm (Figure 7A), we observed global membrane potential dynamics (Figure 7B, Video 6) that are like our experimental data (Figure 2B).

Figure 7

Download asset Open asset

Agent-based fire-diffuse-fire model (ABFDF) and experimental validation of anomalous ion-channel-mediated wave propagation in three-dimensional *E. coli* biofilm.

(A) 3D spherical biofilm in a fluid-filled environment simulated using BSim. (B) ABFDF global electrical signaling wavefront profile averaged over a three-dimensional biofilm. The ThT intensity is predicted as a function of time. (C) Plot of the square radial distance of the wavefront ( $R^{2}$ ) against time and fit with a power law, $R {(t)}^{2} = R_{c}^{2} + b t^{γ}$ . For the first peak’s (1) centrifugal motion: $γ = 1.21 \pm 0.12$ and (2) centripetal motion: $γ = 2.26 \pm 0.31$ from ABFDF simulation data. (D) Representative confocal fluorescence image for a sessile 3D biofilm containing ThT (Scale bar =20 µm). (E) Plot of $R^{2}$ against time fit with a power law, $R {(t)}^{2} = R_{c}^{2} + b t^{γ}$ for the first peak’s (1) centrifugal motion: $γ = 1.22 \pm 0.15$ and (2) centripetal motion: $γ = 2.43 \pm 0.08$ from the experimental data.

Video 6

Download asset

To understand the nature of the wavefront motion in the two phases of the first peak (outward followed by inward motion), the relationship between the radial distance and the time was determined. Figure 7C shows the square radial displacement versus time. Data were fitted with power laws,

R {(t)}^{2} = R_{c}^{2} + b t^{γ},

where $R {(t)}^{2}$ is the square radial distance of the wavefront, $R_{c}$ is the critical biofilm size for wavefront initiation, $t$ is the time, $b$ is a constant and $γ$ is the anomalous exponent. The exponent $γ$ describes whether the wave motion is diffusive $(γ = 1)$ , subdiffusive $(γ < 1)$ , superdiffusive subballistic $(1 < γ < 2)$ , ballistic $(γ = 2)$ or super-ballistic $(γ > 2)$ (Alves et al., 2016; Woringer et al., 2020).

All ABFDF simulations produced superdiffusive subballistic behavior for the wavefront from the core to the periphery (centrifugal wave) $(γ = 1.21 \pm 0.12)$ , whereas the periphery to the core (centripetal wave) was super-ballistic $(γ = 2.26 \pm 0.31)$ (Figure 7C).

We experimentally tested these simulation findings using confocal microscopy and ThT. We grew a three-dimensional biofilm (126 µm x 172 µm x 31.8 µm) and exposed it to blue light (Figure 7D). A timelapse of the sagittal section of the three-dimensional biofilm (Appendix 1—figure 4A) reveals membrane potential dynamic akin to the 2D sections through the biofilms (Figure 2A). The spatiotemporal membrane potential dynamics of the 3D biofilm (Appendix 1—figure 4B, Video 7) was similar to our simulation results (Figure 6B).

Video 7

Download asset

Wavefronts propagating in three-dimensional systems emanating from a point source have a curved geometry (Keener and Sneyd, 2009). We tested if the ion-channel wave propagates along the z-axis, adopting the z-plane analysis scheme (Wussling and Salz, 1996; Lipp and Niggli, 1993; Wier and Blatter, 1991). Our experimental data (Figure 7E) showed that the centrifugal wave is superdiffusive subballistic ( $γ = 1.22 \pm 0.15$ ), while the wave motion for the centripetal wave is super-ballistic ( $γ = 2.43 \pm 0.08$ ), in reasonable agreement with simulation. Furthermore, the results confirm that curvature affects the motion of the wavefronts (Nagy Ungvarai et al., 1992). Blee and co-workers (Blee et al., 2019) previously observed a superdiffusive wave motion for both the centrifugal ( $γ = 1.42 \pm 0.06$ ) and centripetal phases ( $γ = 1.79 \pm 0.03$ ) of the potassium wavefront in 2D B. subtilis biofilm. The centripetal wavefronts appear to travel faster than the centrifugal wavefronts.

Using $e q n 1$ we calculated the critical size for wave initiation in 3D E. coli biofilms from the experiments to be 4.71±0.98 µm. This is reasonably close to the value predicted from our ABFDF model, 6.17±1.84 µm. 3D E. coli biofilms, therefore, need to develop a densely packed biofilm above the critical radius for a robust synchronized ion-channel-mediated wavefront to propagate in the system. This contrasts with 2D B subtilis biofilms which need to grow up to 350 µm for a wavefront to emerge in the system (Prindle et al., 2015; Martinez-Corral et al., 2018; Liu et al., 2015). Therefore, our model predicts the transport properties of the wavefront, the patterns of global excitation and the critical radius for wavefront propagation in biofilms (Table 1).

Table 1

Fit constants for Equation 1 to results from the ABFDF and experimental data.

Constants	Symbol	Centrifugal wavefrontModel	Centripetal wavefrontModel	Centrifugal wavefrontExperiment	Centripetal wavefrontExperiment
The anomalous exponent	γ	1.21 ± 0.12	2.26 ± 0.31	1.22 ± 0.15	2.43 ± 0.08
The critical biofilm size	R_c	6.17 ± 1.84 µm	–	4.71 ± 0.98 µm	–

As expected, we observed a slow decrease of velocity as the wavefront spread from the core towards the periphery that is predicted by the Eikonal approximation. For the velocity of the wavefront that travels back to the core, we observed a decrease and subsequently a sharp increase at distances close to the core of the biofilm (Figure 8A and B). This unexpected behavior may be linked to the heterogeneity of microclusters within the bacterial biofilms. A nonlinear relationship is also observed between the wavefront velocity and curvature for centrifugal and centripetal wavefronts (Appendix 1—figure 5A, B and C).

Figure 8

Download asset Open asset

Nonlinear propagation of ion-channel-mediated wave in 3D *E. coli* biofilms.

(A) Nonlinear relationship between propagation velocity of the wavefront and the time for (1) centrifugal wave and (2) centripetal wave of the first peak. (B) Nonlinear relationship between propagation velocity of the wavefront and the radial distance for (1) centrifugal wave and (2) centripetal wave of the first peak.

Discussion

E. coli biofilms synchronize ion-channel-mediated electrical signaling when under external light stress. The process of communicating the stress becomes faster as the intercellular distance decreases and it results in robust wavefront dynamics in which bacteria take turns to spike in a coordinated manner.

Our experimental data reveals that ion-channel-mediated wavefronts exist in 3D E. coli biofilms. 3D wavefronts exhibit anomalous diffusive behavior, which was well described by our 3D ABFDF model. The mode of propagation of the wavefronts was like that described for B. subtilis under nutrient stress (Prindle et al., 2015). However, noticeable differences are in the frequency of oscillations, the latency, the dimensionality of the system, and the number of spikes (two hyperpolarization events with E. coli).

Although Kch was the first potassium channel to experience detailed structural work in E. coli Milkman, 1994, it has never been linked to membrane potential dynamics. Our findings establish that the Kch channel plays an important role in E. coli membrane potential dynamics. Specifically, the channels control the refractoriness and second peak of the membrane potential. These phases of the dynamics were correlated with light stress modulation in E. coli biofilm. We therefore predict that light-based E. coli biofilm treatments should be more effective if coupled with Kch targeting modalities.

Both of the two models developed, the Hodgkin-Huxley (HH) model and the fire-diffuse-fire agent-based model, provided new physical insights to understand photodynamic therapy. The HH model satisfactorily describes the globally averaged dynamics of the membrane potential in response to blue light and indicated a minimal model containing at least two ion channels (Q and Kch) was necessary to describe the double spiking response to blue light irradiation. The fire-diffuse-fire agent-based model could quantify the anomalous dynamics of the wavefront and predicted the critical biofilm radius needed for wavefronts to propagate. Anomalous dynamics of wavefronts are not predicted by classical analytic solutions to reaction-diffusion equations and are thus a substantial advantage of the agent-based modeling approach we followed Keener and Sneyd, 2009. Future extensions of the theoretical models will be to predict the form of the wavefronts as they propagate in more complex geometries, for example through mushroom-shaped biofilms and around microchannels which are known to occur with E. coli biofilms (Rooney et al., 2020). Research on cardiac infarctions have extensively studied the effects of dead non-signaling tissue on propagating electrochemical wavefronts Keener and Sneyd, 2009 to understand the effects of drug treatments on the pumping of the diseased heart. It would be interesting to consider the analogous system for electrical signaling in biofilms, for example biofilms with defect structures due to inanimate inclusions or mixed species biofilms.

Our data shows that the unknown ion channel (Q) is not connected to calcium dynamics, but it is connected with the MS ion channels that work in tandem to propagate the initial spike in E. coli under light stress. Minimally the model predicts Q=MscK × MscL ×MscS, but the full dependence is probably more complex. The initial spike is key to registering the presence of the light stress. More work is needed to unravel the detailed molecular mechanism linking the MS channels and light stress gating in E. coli, but the data demonstrate a role for MS channels beyond osmo-protection.

When bacterial cells experience light-based stimulation, they experience stress which can be cytotoxic (Wilson and Patterson, 2008; Abana et al., 2017) due to the production of ROS. The accumulation of ROS leads to deleterious oxidative stress that damages molecules (Wilson and Patterson, 2008; Mittler, 2002). The propagation of action potentials in the presence of changing irradiance suggests that the stimulus strength is encoded in the response of the biofilms. The membrane potential dynamics also suggest a link between the duration of the stimulus, the oxidative stress due to the strength of the irradiance and the gating of the ion channels that modulate the dynamics.

The unresponsive nature of E. coli after the second hyperpolarization event and its marked plateau voltage is reminiscent of the phenomenon of signal habituation in neurons (Levitan and Kaczmarek, 2002). Neurons discriminate between external stimuli by observing a sustained decrement in response to a constant external stimulus (Herman, 2013; Avery et al., 2021; Wu et al., 2020). E. coli biofilms mostly switch to a viable, but non-culturable phenotype when exposed to either pulsed or constant blue-light therapy (Abana et al., 2017; Kim et al., 2018; Marasini et al., 2021). We suggest that the habituation after light stress registration could be involved.

Our work shows that the ion-channel mediated long-range electrical membrane potential in E. coli biofilms help them to withstand light stress. We believe that our findings will provide a good framework for more detailed optogenetic studies of membrane potential signaling in E. coli biofilms and help inform photodynamic therapies to combat problematic biofilm infections.

Recent work indicates that waves of hyperpolarization also occur across biofilms of Neisseria gonorrhoeae Hennes et al., 2023; another example of electrophysiological phenomena in medically relevant biofilms. The signaling wavefronts were thought to be due to diffusion of ROS rather than the potassium ions observed with E. coli biofilms, but genetic experiments with ion channel mutants to clarify this issue were not performed. The N. gonorrhoeae study used an analytic reaction-diffusion model to describe the signaling phenomena. We have presented much better quantitative agreement of our model with the propagating wavefronts in E. coli biofilms using reaction-diffusion equations combined with agent-based modeling, for example the ABM FDF model is able to predict the anomalous dynamics of the wavefronts and the critical biofilm size for propagation of the wavefront. Such agent-based modeling should be applied to N. gonorrhoeae biofilms in the future due to the better handling of geometric constraints in the models.

The electrophysiological properties of bacteria is a rapidly evolving area (Benarroch and Asally, 2020). Connecting the membrane potential to photodynamic therapy implies that there will be synergistic effects of externally applied electric fields and blue light on bacterial infections. Thus, conducting dressings could be combined with blue light to improve the efficacy of wound treatments (Yu et al., 2021). Furthermore, recent experiments have connected antibiotic activity to fluctuating membrane potentials with E. coli (Jin, 2023). This in turn implies that synergistic effects will occur between blue light and antibiotic treatment, for example more cationic antibiotics will be absorbed by cells that hyperpolarize in response to blue light and the performance of the antibiotics will be modulated by ion channel activity.

Methods

Bacterial strains

The bacterial strains and the media recipes used in this study are listed in the Appendix 1—table 4. All experiments were performed with the DH5α and BW25113 strains of E. coli. All other strains were derived from these two and are listed in Table 1, Methods. When genes were moved by transduction into DH5α, the resulting mutations were sequenced to confirm authenticity and that the strains did not have any additional mutations.

Dyes and concentrations

ThT was used at a final working concentration of 10 µM for both LB and M9 media. This is the concentration that did not inhibit bacterial cell growth or influence the voltage flux in previous experiments (Prindle et al., 2015; Blee et al., 2020; Liu et al., 2017). Fresh ThT was made up on the day of each experiment and added to the media containing the cells.

To measure extracellular potassium, the IPG-4 AM was converted to its membrane impermeable form. This was achieved by dissolving the dye in 250 µl DMSO and subsequent addition of 0.1 M KOH.

CCCP and TMRM were used at the final concentrations of 100 µM and 100 nM, respectively. Propidium iodide (PI) was used at a final concentration of 1 µg/ml.

Microfluidics setup and experimental design

All microfluidic experiments were performed with IBIDI uncoated glass bottom µ-Slide VI^0.5 flow cells (Thistle Scientific, UK) which have dimensions of $17 m m \times 3.8 m m \times 0.54 m m$ for the length, width, and height, respectively (Appendix 1—figure 1A and B). The system yielded successful growth for all E. coli strains and allowed high-resolution microscopy images to be taken. Single cells and microclusters were also cultured in this system. The microfluidic components and software are listed in Appendix 1—table 4.

Growth media (LB or M9) contained in a 20 ml syringe (BD Emerald, UK) were delivered to the microfluidic wells by an Aladdin NE-1002 Programmable Syringe Pump (World Precision Instruments, UK). The media was replenished at intervals throughout the experiment. A C-Flex laboratory tubing with I.D. x O.D. 1/32 in. x 3/32 in (Sigma-Aldrich) and Elbow Luer connector male (Thistle Scientific, UK) completed the microfluidic setup. A 0.22 µm filter was installed at the syringe hub before attaching the syringe needle 0.8 × 40 mm to maintain sterility and reduce the number of air bubbles. Exchangeable components of the microfluidic setup were used only once. Experiments were conducted in more than one channel at a time for data replicates. Prior to the start of the experiments, the flow cell chambers were primed with appropriate media to achieve faster cell attachment. The microscope and all the components of the microfluidic setup were confined within the custom-built Perspex microscope chamber which was maintained at $37^{o} C$ using an Air-THERM ATX (World Precision Instrument Ltd.).

For single cell experiments, cells were left static in the microfluidic chamber for 2 hr for cells to attach to the substrate. The media was then delivered at flow rates of 3 µL/min and subsequently maintained at 5 µL/min to remove unattached cells from the system. After 1 hr of media flow, data were only collected for cells that were attached to the substrate. For biofilms, the system was left static 2–3 hr on the microscope after loading to allow the cells attach. Media flow was initiated at the rate of 5–6 µL/min and maintained for a further $\approx$ 12 hr (see Time-lapse Microscopy section).

Cell culture and growth conditions

Single cell culture

Cells were streaked onto an Agar plate from $- 80^{o} C$ glycerol stocks a day prior to the experiment and incubated at $37^{o} C$ overnight. The following day, 10 ml of Luria Broth (LB) in a glass universal was inoculated with one colony of the required E. coli strain. The inoculum was then incubated overnight in a shaking incubator at 200 rpm at $37^{o} C$ . The next day, $10 μ l$ of the inoculum was transferred to a fresh 10 ml LB and incubated in a shaking incubator at 200 rpm at $37^{o} C$ for 4.5 hours or $O D_{600} \approx 0.8$ . The optical density of the cells was measured using a spectrometer (JENWAY, Cole-Parmer UK). $10 μ M$ ThT was added to the inoculum and left static for 20 min. $200 μ l$ of the cell suspensions were then seeded into the required chambers of the microfluidic device. The microfluidic device was mounted on the microscope after attaching the other microfluidic components, such as tubes and tube connectors. The instrument was left static for 2 hr to allow for cell attachment before the media was delivered under flow. To sustain the growth temperature at $37^{o} C$ , a custom-built Perspex microscope chamber heated using an Air-THERM ATX (World Precision Instrument Ltd.) was employed. The salts for the M9 media are listed in Appendix 1—table 4. Data were collected for both sparse cells and cells existing within microclusters. The single cell experiments were done in Luria Broth (LB) media and replicated in Minimal media M9; Appendix 1—figure 1C to demonstrate independence on the exact media used.

For the LiveDead Assay, the same protocol was followed. However, before seeding the well with 200 µL of the inoculum, 10 µL (1 µg/mL of the stock solution) of PI was added to the 10 ml universal containing cells and ThT.

For the combined CCCP experiments, the same protocol was also followed. 100 µM of CCCP was pipetted into the universal containing inoculum and ThT. This was left for 50 min, then 200 µL of the suspension was transferred into the wells and cells were exposed to blue light stress.

Biofilm growth

The E. coli DH5α strain was chosen based on its ability to adhere to surfaces and to grow into biofilms (Huang et al., 1994; Soleimani et al., 2013; Jayaraman et al., 1997). Biofilms were grown in one of the chambers of the microfluidic devices (triplicates with control experiments). Single cell E. coli was cultured as described in section (I). 200 µL of bacteria culture suspensions with ThT were added and then loaded in the flow cell to initiate biofilm formation. The setup was left static for 2 hr within the microscope chamber before the media flow was initiated at a rate of 5–6 µL/min for a further 12 hr. Under sterile and constant media flow (explained in the Microfluidic section) to produce optimal growth conditions, mature sessile biofilms were observed. Our protocol was optimized to obtain mature sessile DH5α biofilm after 15 hr. The growth temperature was maintained at $37^{o} C$ using a custom-built Perspex microscope chamber heated using an Air-THERM ATX (World Precision Instrument Ltd.). Media replacement was done within the microscope chamber to maintain sterility and avoid air bubbles.

Time-lapse microscopy and image acquisition

Fluorescence microscopy was performed with an Olympus IX83 inverted microscope (Klaus Decon Vision) using Blue Lumencor LED excitation (illumination), a 60 x (NA 1.42 Plan Apo N) oil immersion objective and the CFP filter set (Chroma [89000]). Time-lapse fluorescence images were taken with a Retiga R6 CCD camera [Q-imaging]. ThT fluorescence was measured in the CFP channel using an excitation filter (Ex) 440/20 nm and an emission filter (Em) 482/25. PI fluorescence was measured with the Ex 575/20 nm and Em 641/75 nm. Images were taken every 1 min with an exposure time of 50 ms and camera gain of 3. Prior to setting up the microfluidic apparatus on the microscope, the chamber was maintained at $37^{o} C$ for at least 3 hr. Image acquisition on the PC was carried out using the MetaMorph software (Molecular devices). This microscope and the settings were used for all observations on single cells and 2D biofilms. The settings were varied for the irradiance experiment (see section on Irradiance measurement below). Images in Appendix 1—figure 1A were obtained at different time scales (every 10 s) for comparison. The pump was turned off before the image acquisition to minimize image drift and vibrations.

Fluorescence confocal 3D image stacks for the 3D biofilm were acquired using a CSU-X1 spinning disc confocal (Yokagowa) on a Zeiss Axio-Observer Z1 microscope with a 63 x/ 1.40 Plan-Apochromat objective, Evolve EMCCD camera (Photometrics) and motorised XYZ stage (ASI). A 445 nm laser line was used for ThT excitation. The 445 nm laser was controlled using an AOTF through the Laserstack (Intelligent Imaging Innovations (3I)) allowing for rapid ‘shuttering’ of the laser and attenuation of the laser power. Slidebook software (3I) was used to capture images every 1 min with 100 ms exposures. Movies were analysed in Slidebook, ImageJ and Imaris (bitplane) software.

Image and data analyses

ImageJ (National Institute of Health), MATLAB, BiofilmQ and Imaris (bitplane) software were used for image analysis. Data analyses and plots were done with Python, BiofilmQ and GraphPad (Prism). Python and Scipy package were used for mathematical modeling. Model curve fits were done with Python Scipy package and OriginPro.

Single cells

Single cell image analysis was conducted using ImageJ (National Institute of Health). Background subtraction was done using the ‘ImageJ rolling ball’ background plugin with radii of 8–11 µm. This was influenced by experimental conditions, for example media. An ImageJ custom script was used for drift correction. Data were plotted with standard deviations for the error bars. Data were normalized in python for final plotting.

For LiveDead assay experiments we used the imageJ plugin ‘cell counter’ to identify and count cells. Only cells that are hyperpolarized were counted in the experiment as live and only cells that appeared red after the experimental duration were counted as dead. Time to first peak analysis was done by measuring the individual times for each single cell to experience the first hyperpolarization event.

Biofilms

To overcome the challenges of diversity in structure and size of the biofilms obtained in our experiments, we conducted image analysis of mature sessile biofilms with BiofilmQ. BiofilmQ is a high-throughput MATLAB-based image processing and analysis software designed for spatiotemporal studies of both 2D and 3D biofilms. A detailed description of BiofilmQ can be found Hartmann et al., 2021. It has been used in a number of recent of recent investigations of biofilm (Wucher et al., 2021; Díaz-Pascual et al., 2019). We were able to accurately obtain membrane potential dynamics of biofilms by tracking ThT traces within the entire biofilm (2D and 3D confocal stacks) using this software.

To ensure data reproducibility, we describe the individual steps in our analysis. The confocal image stacks were first prepared and registered before segmentation. Image preparation included colony separation to identify the preferred microcolonies within the ROI and image alignment was used to correct image drift over time. Image segmentation was then carried out to separate cells from the background. Specifically, image cropping was done to tag the microcolonies, this was followed by denoising of the image using convolutions. We opted not to use the top Hart filter because in our biofilms the cells overlap each other. A filter kernel value of Bruni and Kralj, 2020; Prindle et al., 2015 was employed for the convolution. This value of the filter kernel was used for all our data analysis. It was sufficient to only slightly blur the images and significantly reduce the image noise. To complete the segmentation process, we used the Otsu thresholding method. The sensitivity of the thresholding was set to 1 for all the biofilm analysis. We opted not to dissect the biofilm, since we were interested in the global membrane potential dynamics and ion-channel waves in the biofilms. These steps ensured reproducibility of our analysis across all the biofilms.

To verify the accuracy of this software, we also measured the temporal dynamics of the membrane potential by tracking the global ThT fluorescence of biofilms using ImageJ. To obtain ThT curves in imageJ, we used the ‘plot-Z axis’ function on the imageJ image analysis toolbox. This has been used in previous research work to successfully track the biofilm ThT fluorescence (Prindle et al., 2015; Blee et al., 2019). We confirmed that BiofilmQ was efficient for our data analysis.

The optical sections for the velocity measurements were obtained with a combination of both the BiofilmQ and IMARIS software. Radial distances of biofilm volumes from the substrate to the core of the biofilm were made with both BiofilmQ and IMARIS. The choice of the appropriate optical sections perpendicular to the z-slices were also made by the combination of both software.

440 nm and 445 nm light stimulation

E. coli cells and biofilms were treated with blue light using an Olympus IX83 440 nm-LED and 445 nm laser line. The cells were exposed to the light every 1 min. Experiments were performed with at least three biological replicates.

Irradiance measurements

Irradiance experiments were conducted with the Olympus IX83 440 nm-LED. Therefore, the irradiance was varied to ascertain the effect of the light stimulation on the membrane potential dynamics of E. coli. A Newport power/energy meter (Newport Corporation Irvine US) was used for the irradiance measurements. The power of the 440 nm light was varied by adjusting the percentage light illumination via the CFP light, for example 175 of the 255CFP that corresponds to $2.43 μ W$ as measured with the power meter. Uniform illumination of the sample ROI was always maintained via Köhler illumination.

To determine the irradiance, we first measured the power of the LED light at the sample plane in $m W$ . The diameter of field of the view (FOV) was then calculated by dividing the objective lens field number (FN) by its magnification. For the Klaus 60 x lens, the FN is $26.5 m m$ . The value of the diameter of the FOV was then used to calculate the area of field of view in ${m m}^{2}$ . Finally, the irradiance $(I)$ is given by

I = \frac{P o w e r}{A r e a} .

The irradiance value of $15.99 μ W / m m^{2}$ was used for all the other experiments except when the irradiance was specifically varied (Figure 2D).

Bacterial strain availability

Strains and further information should also be directed to the lead contact, Thomas Waigh (t.a.waigh@manchester.ac.uk).

Appendix 1

Appendix 1—figure 1

Download asset Open asset

Control experiments for ThT fluorescence in *E. coli*.

(A) ThT fluorescence as a function of time shows the *E. coli* membrane potential dynamics under light stress with images collected every 10 s. (B) ThT fluorescence as a function of time shows the membrane potential dynamics for both wildtype *E. coli* strains, DH5α (red) and *E. coli* BW25113 (black) (Data: mean ± SD). (C) ThT fluorescence as a function of time shows the membrane potential dynamics of *E. coli* in M9 media. The light stress was applied continuously each minute for 1 hr with images collected every minute. (D) TMRM and ThT fluorescence as a function of time with *E. coli*. The cationic dye, TMRM is used to confirm the membrane potential dynamics with ThT. (E) ThT fluorescence as a function of time. CCCP quenches membrane potential dynamics. CCCP was added to cell suspension and left for 50 min before exposure to blue light stress.

Appendix 1—figure 2

Download asset Open asset

Schematic of the IBIDI flow cells used for all the experiments.

(A) IBIDI uncoated glass bottom µ-Slide VI^0.5 showing the inlet and outlet openings. The 0.54 mm depth enabled growth of biofilms in 3D. (B) IBIDI uncoated glass bottom µ-Slide VI^0.5 with six identical wells for the growth of *E. coli* biofilms.

Appendix 1—figure 3

Download asset Open asset

ThT fluorescence in *E. coli* biofilms.

(A) Representative fluorescence image of a mature sessile biofilm labeled with ThT. The scale bar is 10 µm. (B) ThT fluorescence as a function of time for sparse cells, clustered cells and biofilms. First peak latency is much shorter in *E. coli* biofilms than in single cells and microclusters. (C) ThT fluorescence shown as a function of time of irradiation. Deletion of Kch inactivates the second peak in *single cell E. coli* BW25113 ∆*kch*-mutants. Data is a mean from three experimental replicates per time point for *E. coli* BW25113 ∆*kch*-mutants (black) and BW25113 (blue). (D) Membrane potential dynamics of kch-complemented DH5α. (E) Calcium flux in single cells DH5α under light stress.

Appendix 1—figure 4

Download asset Open asset

Confocal microscopy experiments with ThT in *E. coli* biofilms.

(A) Timelapse of the sagittal section of the three-dimensional *E. coli* biofilm obtained using the confocal microscope. (B) Representative global ThT intensity membrane potential dynamics trace as a function of time obtained from a 3D DH5α *E. coli* biofilm. The scale bars for all the image are 8 µm.

Appendix 1—figure 5

Download asset Open asset

Relationships between velocity and curvature for the wavefronts.

(A) (1) Relation between the wavefront velocity and average curvature from the experimental data for the centrifugal wavefront. (A) (2) Nonlinear relationship between the wavefront velocity and average curvature for the centripetal wavefront. (B) Exponential fit for stage I of the centripetal wavefront travel as shown in (A 2). (C) Exponential fit for stage II of the centripetal wavefront travel shown in (A 2).

Mathematical model of membrane dynamics in single cell E. coli

We formulated a conductance model to explain the membrane potential dynamics in single E. coli cells. Our biophysical model is of the type originally used by Hodgkin and Huxley to explain excitability in squid axons (Hodgkin and Huxeley, 1952). We extended a version of this model which was previously used to study metabolic stress in B. subtilis biofilm Prindle et al., 2015, Blee et al., 2020,

C \frac{d V}{d t} = - g_{Q} z^{4} (V - V_{Q}) - g_{K c h} n^{4} (V - V_{K c h}) - g_{L} (V - V_{L}),

where $g_{Q}$ , $g_{K c h}$ , and $g_{L}$ represent the conductance of the Q⁺, K⁺ and the leak channel, respectively. $V_{q}$ , $V_{K c h}$ , and $V_{L}$ represents the Nernst potentials for the Q⁺ , K⁺ and the leak ions, respectively. $C$ is the membrane capacitance.

We assumed that both of the positively charged ion channels (Q and Kch) have four subunits which are their four activation gates. The variable z represents the gating variable for the $Q^{+}$ channels. The fraction of time the $Q^{+}$ channel is open can then be represented by

\frac{d z}{d t} = α (S) (1 - z) - β_{z} .

The $Q^{+}$ channel opening rate $α (S)$ depends on the accumulation of the light induced stress. This stress is related to the levels of ROS. $β_{z}$ represents the rate at which open channels close.

The ion channel gating variable n incorporates the fraction of time the potassium channel $K c h$ is open. It has the relation

\frac{d n}{d t} = α (S) (1 - n) - β_{n} .

where $α (S)$ stands for the opening rate for the K⁺ and depends on the light-induced ROS stress. Blee et al., 2020, has already shown that blue-light raises the level of ROS and causes the ion-channels to open.

The stress dependency of $α (S)$ can be further described as

α (S) = \frac{α_{0} S^{r}}{S_{t h}^{r} + S^{r}}

where $S_{t h}$ is the threshold stress value for ion channel opening. $r$ is the cooperativity factor and $α_{0}$ is the maximal opening rate.

Motivated by the description of neuronal excitability Hodgkin and Huxeley, 1952 and the works on bacterial signaling dynamics Prindle et al., 2015; Blee et al., 2020, we assumed that the ROS-induced stress induced by blue-light irradiation is related to the action potential in E. coli cells,

\frac{d s}{d t} = \frac{\propto_{s} (V_{t h} - V)}{e x p (\frac{V_{t h} - V}{σ} - 1)} - γ_{s} S .

The term $\frac{\propto_{s} (V_{t h} - V)}{e x p (\frac{V_{t h} - V}{σ} - 1)}$ is a threshold non-linear function of the E. coli cell membrane hyperpolarization, $α_{s}$ is the stress production constant and $γ_{s}$ is the stress decay rate. We assume that the functions $α_{s}$ and $γ_{s}$ have a strong link to the gating of the ion channels.

Following Prindle et al., 2015, we assumed that the reversal potential increases linearly with the excess extracellular positively charged ion concentration and the relationship between the extracellular ion concentration and the reversal potential can be stated as

\frac{d E}{d t} = F_{g_{Q}} z^{4} (V - V_{Q}) + F_{g_{k}} n^{4} (V - V_{K}) - γ_{e} E

where $E$ represent the extracellular ion concentration. The first and second term on the right-hand-side expresses the link between the extracellular q⁺ and K⁺ ions, and the membrane potential. $F_{g_{Q}}$ and $F_{g_{k}}$ incorporates capacitance of the membrane to each of the ion channels.

Following Prindle, we represent the inverse relationship between the ThT concentration and the efflux of the positively charged ions (hyperpolarization) by a linear function,

\frac{d H}{d t} = α_{t} (V_{0} - V) - γ_{t} H .

The ThT decay rate is represented by $γ_{t}$ and $α_{t}$ is the ThT uptake rate coefficient. $V$ is the membrane potential at a instant of time while $V_{0}$ is the membrane potential in the absence of the ROS (the resting potential).

Agent-based fire-diffuse-fire model

The fire-diffuse-fire (FDF) model was previously developed to study intracellular calcium dynamics in living cells (Dawson et al., 1999; Keener and Sneyd, 2009). In the model, once an individual cell at a particular site in the biofilm reaches a threshold concentration $c^{*}$ , the cells fires, releasing a given concentration $σ$ of the $C^{+}$ ions. $C^{+}$ incorporates both unknown ions and potassium ions ${(K}^{+)}$ involved in our spike initiation and propagation in E. coli biofilms. A $C^{+}$ wavefront propagates within cells in the biofilm due to progressive firing of neighboring cells due to $C^{+}$ release close by.

The FDF model is based on a type of reaction-diffusion equation and can be written in three dimensions as

\frac{\partial C}{\partial t} = D_{C} \nabla^{2} C + σ \sum_{i} δ (\hat{r} - r_{i}) δ (t - t_{i}),

where $C$ is the chemical field concentration, $D_{C}$ is the diffusion coefficient of the ions, $σ$ is the fixed amount of chemical $C$ , r_i are the positions of the release sites, $t_{i}$ is the time the chemical attains threshold value $c^{*}$ at the $i^{t h}$ release site and $δ$ is the Dirac delta.

This original formulation of the FDF model does not include a decay term and results in the dynamics of the ion rising monotonically (Coombes, 2001). To correctly reflect findings in our experiment, we include a decay term, $- ϑ C$ , which allows for refractoriness of the system.

\frac{\partial C}{\partial t} = D_{C} \nabla^{2} C - ϑ C + σ \sum_{i} δ (\hat{r} - r_{i}) δ (t - t_{i}) .

The first term $D_{C} \nabla^{2} C$ on the right-hand-term represent the diffusion term, while the remaining term on the right-hand-side, $- ϑ C + σ \sum_{i} \partial (\hat{r} - r_{i}) \partial (t - t_{i})$ are the reaction terms. $ϑ$ is the ion decay rate.

The solution of Equation A9 in one dimension for bacteria placed on a perfect lattice $b$ is

C_{i} (x, t) = σ \frac{H (t - t_{i})}{\sqrt{4 π D_{C} (t - t_{i})}} e x p (- \frac{{(x - i b)}^{2}}{4 D (t - t_{i})} - ϑ (t - t_{i}))

where $H (t - t_{i})$ is the Heaviside function so the cells at the $i^{t h}$ position only fires at the time $t_{i}$ . $C_{i} (x, t)$ is the ion concentration for the individual cell (cell $i$ ).

For all cells along the x-axis, we have

C (x, t) = \sum_{i} σ \frac{H (t - t_{i})}{\sqrt{4 π D_{C} (t - t_{i})}} e x p (- \frac{{(x - i b)}^{2}}{4 D (t - t_{i})} - ϑ (t - t_{i})),

where

C (x, t) = \sum_{i} C_{i} (x, t) .

Suppose we assume that cells at definite location, say $i = N, N - 1,$ have spiked at definite times $t_{N} > t_{N} - 1 > \dots$ , it is expected that they could only spike again at a time $t_{N + 1}$ . This time $t_{N + 1}$ is determined by when the field concentration $C$ , at time $t_{N + 1}$ reaches the threshold value $q^{*}$ . Therefore, we expect a steady wave to propagate only when the neighboring cells exhibit a constant time difference, $τ = t_{i} - t_{i - 1}$ , between their firing. This time constant becomes a solution of the equation

\frac{c^{*} b}{σ} = \sum_{n = 1}^{\infty} \frac{1}{\sqrt{4 π n ρ}} e x p (\frac{- n}{4 ρ} - η^{2} n),

where $ρ = \frac{D_{C} τ}{b^{2}}$ and $η^{2} = \frac{ϑ b^{2}}{D_{C}}$ are both dimensionless. A wave propagates when $\frac{c^{*} b}{σ} < 1$ . The velocity $ν$ of the propagating wave can then be obtained from $\frac{b}{τ}$ .

While exact solution of this 1D form of the FDF model with regularly placed bacteria can be obtained as shown, we used agent-based modeling to solve this model in three-dimensions with heterogeneously placed bacteria i.e. solve Equation A9. We had used the FDF model to successfully model electrical signaling in 2D growing biofilm (Blee et al., 2019). We adopted and applied the conditions and rules of this FDF model in our agent-based modeling of three-dimensional biofilm. A key extension was incorporating it in the agent-based modeling tool, BSim, to simulate electrical signaling in three-dimensional biofilms.

BSim is an open-source customizable Java based agent-based modeling software. It is specifically built to incorporate the effects of complex spatial environmental features and community heterogeneity (Gorochowski et al., 2012). We modeled the microfluidic device as a three-dimensional fluid in a rectangular environment. We implemented the biologically relevant parameters and field constants (see Appendix 1—table 1) to obtain similar ion-channel mediated waves to those observed in three-dimensional biofilms. The positively charged ions $Q^{+,}$ were described via their diffusion coefficients.

A BSim environment is built as an octree which also controls the spread of the chemical in the $x, y, z$ space. A Bsim environment, 64 × 64 × 64 microns in size with fixed boundaries was created (Figure 7A). A spherical biofilm of radius 32 μm containing ~6000 cells was implemented. The signaling ions chemical has a diffusivity and decay rate of 0.02 μm²/s and 7 × 10^-3 molecules^-1, respectively.

The ion diffusion inside the BSim space was calculated according to Fick’s law of diffusion,

\frac{\partial C}{\partial t} = D \nabla^{2} C,

where $C$ is the ion concentration in the field and $D$ is the diffusion coefficient of the ions. Java constructors were used to initialize the fields of ion concentration and control their diffusivity and decay rate.

Appendix 1—table 1

Parameters for the Mathematical modeling of membrane potential dynamics in E. coli.

Parameter	Description	Value	Units
$g_{K}$	Potassium channel conductance	90	min⁻¹
$g_{L}$	Leak channel conductance	0.2	min⁻¹
$g_{q}$	$q$ channel conductance	5	min⁻¹
$V_{K}$	Nernst Potential for Potassium	−94	mV
$V_{q}$	Nernst potential for $q$ channel	−200	mV
$V_{L}$	Nernst potential for leak channel	−156	mV
$S_{t h}$	Stress threshold for opening of ion channels	0.04	μM
$V_{t h}$	Voltage threshold for stress production	−150	mV
	Maximum rate of channel opening	2	min⁻¹
$b 0$	Channel opening rate decay constant	1.3	min⁻¹
$r$	Cooperativity parameter for ion channels	1	–
$σ$	Stress threshold sharpness coefficient	0.2	mV
$y_{e}$	Extracellular ion relaxation rate	10	min⁻¹
$d l$	Leak slope coefficient	8	mV/mM
$d_{q}$	$q$ channel slope coefficient	2	mV/mM
$d_{K}$	Potassium channel slope coefficient	1	mV/mM
$α_{s}$	Stress production slope coefficient	0.001	μM/ (minmV)
$α_{t}$	ThT uptake rate coefficient	0.4	μM/ (minmV)
$γ_{s}$	Stress decay rate	0.1	min⁻¹
$γ_{t}$	ThT decay rate	4	min⁻¹
$F$	Membrane capacitance	5.6	mM/mV

Appendix 1—table 2

Parameters used for the agent-based Fire-diffuse-fire model in the three-dimensional E. coli biofilm.

Field and model parameters	Symbols	Values
Diffusion coefficient	Dc	0.1 μm²
Simulation time step	Ts	1 sec
Total time of simulation for the 2 peaks	ts	3660 sec
Total time of simulation for the first peak	ts	720 sec
Size of fluid-filled environment	Sb	64 μm × 64 μm × 64 μm
Fixed amount of chemical added	σ	5 × 10⁹ μm⁻³
Threshold concentration to fire	c	10³ μm⁻³
Decay rate (for refractoriness)	υ	7 × 10⁻³ molecules⁻¹

Appendix 1—table 3

Fit constants for the centrifugal and centripetal wavefronts from experimental data.

Fit constants for the centrifugal wavefront	Values
$V_{0}$	0.23 ± 0.04
$A$	0.010 ± 0.008
$z$	0.020 ± 0.002
Fit constants for the centripetal wavefront – Stage I
$V_{0}$	0.074 ± 0.001
$A$	–
$z$	0.018 ±0.002
Fit constants for the centripetal wavefront – Stage II
$V_{0}$	0.075 ± 0.003
$A$	–
$z$	−0.02 ± 0.01

Appendix 1—table 4

Media recipe, bacterial strains, software, and microfluidic components.

Media	Recipe
Luria Broth (LB)	10 g/l NaCl, 5 g/l yeast extract, 10 g/l Tryptone. Distilled water to 1 L
LB agar	10 g/l NaCl, 5 g/l yeast extract, 10 g/l Tryptone, 15 g/l agar.
Minimal Media (M9) (1 L)	M9 salts (64 g/l Na₂HPO₄·7 _H20, 15 g/l KH₂PO₄, 2.5 g/l NaCl, 5.0 g NH₄Cl), 1 M CaCl₂, 1 M MgSO₄, 10% Arginine, 20% of glucose
Experimental Models: Organisms/Strains
E. coli DH5α	Ian Robert’s lab
E. coli DH5α (∆Kch)	This study
E. coli DH5α (∆MscK)	This study
E. coli DH5α (∆MscL)	This study
E. coli DH5α (∆MscS)	This study
E. coli BW25113 (JW1242-1)	Keio Collection Baba et al., 2006
E. coli BW25113 (∆Kch)	Keio Collection Baba et al., 2006
E. coli BW25113 (∆MscL)	Keio Collection Baba et al., 2006
E. coli BW25113 (∆MscS)	Keio Collection Baba et al., 2006
E. coli BW25113 (∆MscK)	Keio Collection Baba et al., 2006
Reagent or Resource	Source	IdentifierDENTIFIER
Propidium Iodide (PI)	Thermo Fisher Scientific	Cat #: P1304MP
Thioflavin T (ThT)	Sigma-Aldrich	Cat #: T3516
Carbonyl cyanide 3-chlorophenylhydrazone (CCCP)	Sigma-Aldrich	Cat #: C2759
ION Potassium Green–4 (IPG-4) AM	ION Biosciences	https://ionbiosciences.com/product/ipg-4-am/
Tetramethylrhodamine methyl ester perchlorate (TMRM)	Sigma-Aldrich	Cat No: T5428
pkLL11-GCaMP6f bb100	A gift from Joel Kralj	Addgene plasmid #158983
Software and AlgorithmsHartmann et al., 2021; Schindelin et al., 2012
ImageJ Fiji	Schindelin et al., 2012	https://fiji.sc/
Python (Anaconda)	Python	https://anaconda.org/ContinuumIO
MATLAB	MATLAB	https://uk.mathworks.com /products/matlab.html
BiofilmQ	Hartmann et al., 2021	https://drescherlab.org/data/biofilmQ/ docs/usage/installation.html
OriginPro	https://www.originlab.com/origin	https://www.originlab.com/origin
IMARIS	https://imaris.oxinst.com/	https://imaris.oxinst.com/
Microfluidics
IBIDI flow cell	Thistle Scientific	Cat #: 80607
IBIDI Elbow Luer Connector Male	Thistle Scientific	Cat #: 10802
C-Flex laboratory tubing with I.D. x O.D. 1/32 in. x 3/32 in	Sigma-Aldrich	Cat #: T8413-25FT.

Data availability

The python software for the Hodgkin-Huxley simulations can be found at https://github.com/VictorCDCM/HH (copy archived at Carneiro da Cunha Martorelli, 2025a). The Java/Eclipse code for the agent based fire-diffuse-fire model can be found at https://github.com/VictorCDCM/FDF (copy archived at Carneiro da Cunha Martorelli, 2025b). More data is available in the University of Manchester PhD thesis of Dr. Emmanuel U Akabuogu (Akabuogu, 2024). Further, raw and analysed data (7GB) that support the findings of this study are available at https://data.mendeley.com/datasets/6knr855zx5/1.

The following data sets were generated

(2025) Mendeley Data
Emergence of ion-channel mediated electrical oscillations in Escherichia coli biofilms.

https://doi.org/10.17632/6knr855zx5.1

References

1. Abana CM
2. Brannon JR
3. Ebbott RA
4. Dunigan TL
5. Guckes KR
6. Fuseini H
7. Powers J
8. Rogers BR
9. Hadjifrangiskou M
(2017) Characterization of blue light irradiation effects on pathogenic and nonpathogenic Escherichia coli
MicrobiologyOpen 6:1–10.

https://doi.org/10.1002/mbo3.466
- PubMed
- Google Scholar
Thesis
1. Akabuogu EU
(2024) Electrical signalling and the neuronal-like behaviour of Escherichia coli biofilms
University of Manchester.

https://research.manchester.ac.uk/en/studentTheses/electrical-signalling-and-the-neuronal-like-behaviour-of-escheric
- Google Scholar
(2016) Characterization of diffusion processes: Normal and anomalous regimes
Physica A 447:392–401.

https://doi.org/10.1016/j.physa.2015.12.049
- Google Scholar
(2021) Stable habituation deficits in the early stage of psychosis: a 2-year follow-up study
Translational Psychiatry 11:20.

https://doi.org/10.1038/s41398-020-01167-9
- PubMed
- Google Scholar
1. Baba T
2. Ara T
3. Hasegawa M
4. Takai Y
5. Okumura Y
6. Baba M
7. Datsenko KA
8. Tomita M
9. Wanner BL
10. Mori H
(2006) Construction of Escherichia coli K-12 in-frame, single-gene knockout mutants: the Keio collection
Molecular Systems Biology 2:1–10.

https://doi.org/10.1038/msb4100050
- PubMed
- Google Scholar
1. Beagle SD
2. Lockless SW
(2021) Unappreciated roles for K+ channels in bacterial physiology
Trends in Microbiology 29:942–950.

https://doi.org/10.1016/j.tim.2020.11.005
- Google Scholar
1. Benarroch JM
2. Asally M
(2020) The microbiologist’s guide to membrane potential dynamics
Trends in Microbiology 28:304–314.

https://doi.org/10.1016/j.tim.2019.12.008
- PubMed
- Google Scholar
1. Biancalana M
2. Koide S
(2010) Molecular mechanism of Thioflavin-T binding to amyloid fibrils
Biochimica et Biophysica Acta 1804:1405–1412.

https://doi.org/10.1016/j.bbapap.2010.04.001
- PubMed
- Google Scholar
(2019) Spatial propagation of electrical signals in circular biofilms: a combined experimental and agent-based fire-diffuse-fire study
Physical Review. E 100:052401.

https://doi.org/10.1103/PhysRevE.100.052401
- PubMed
- Google Scholar
(2020) Membrane potentials, oxidative stress and the dispersal response of bacterial biofilms to 405 nm light
Physical Biology 17:1–10.

https://doi.org/10.1088/1478-3975/ab759a
- PubMed
- Google Scholar
1. Booth IR
(2014) Bacterial mechanosensitive channels: progress towards an understanding of their roles in cell physiology
Current Opinion in Microbiology 18:16–22.

https://doi.org/10.1016/j.mib.2014.01.005
- PubMed
- Google Scholar
1. Bruni GN
2. Weekley RA
3. Dodd BJT
4. Kralj JM
(2017) Voltage-gated calcium flux mediates Escherichia coli mechanosensation
PNAS 114:9445–9450.

https://doi.org/10.1073/pnas.1703084114
- PubMed
- Google Scholar
1. Bruni GN
2. Kralj JM
(2020) Membrane voltage dysregulation driven by metabolic dysfunction underlies bactericidal activity of aminoglycosides
eLife 9:e58706.

https://doi.org/10.7554/eLife.58706
- PubMed
- Google Scholar
1. Buttress JA
2. Halte M
3. Te Winkel JD
4. Erhardt M
5. Popp PF
6. Strahl H
(2022) A guide for membrane potential measurements in Gram-negative bacteria using voltage-sensitive dyes
Microbiology 168:001227.

https://doi.org/10.1099/mic.0.001227
- PubMed
- Google Scholar
Book
1. Buzsáki G
(2009)
Rhythms of the Brain

UK: Oxford University Press.
- Google Scholar
Software
1. Carneiro da Cunha Martorelli V
(2025a) HH, version swh:1:rev:f47848de8cd7930549793bd17c89f8885a9930ce
Software Heritage.

https://archive.softwareheritage.org/swh:1:dir:0d2f2dee40290184c707a9ba1fa117ee55f59688;origin=https://github.com/VictorCDCM/HH;visit=swh:1:snp:bc6fc875273f4b95f0ce7d5d508f93e71445f3a4;anchor=swh:1:rev:f47848de8cd7930549793bd17c89f8885a9930ce
Software
1. Carneiro da Cunha Martorelli V
(2025b) FDF, version swh:1:rev:1098901885b3bcd32500a622dadc64a21937a139
Software Heritage.

https://archive.softwareheritage.org/swh:1:dir:581da1be20ad37d479b96a4bcf1915d2dcb0da98;origin=https://github.com/VictorCDCM/FDF;visit=swh:1:snp:1dd326c5c2411afda7dc1d2805589e87c89230ab;anchor=swh:1:rev:1098901885b3bcd32500a622dadc64a21937a139
1. Cieplik F
2. Deng D
3. Crielaard W
4. Buchalla W
5. Hellwig E
6. Al-Ahmad A
7. Maisch T
(2018) Antimicrobial photodynamic therapy - what we know and what we don’t
Critical Reviews in Microbiology 44:571–589.

https://doi.org/10.1080/1040841X.2018.1467876
- PubMed
- Google Scholar
1. Coombes S
(2001) The effect of ion pumps on the speed of travelling waves in the fire-diffuse-fire model of Ca2+ release
Bulletin of Mathematical Biology 63:1–20.

https://doi.org/10.1006/bulm.2000.0193
- PubMed
- Google Scholar
(1999) Fire-diffuse-fire model of dynamics of intracellular calcium waves
PNAS 96:6060–6063.

https://doi.org/10.1073/pnas.96.11.6060
- PubMed
- Google Scholar
1. Díaz-Pascual F
2. Hartmann R
3. Lempp M
4. Vidakovic L
5. Song B
6. Jeckel H
7. Thormann KM
8. Yildiz FH
9. Dunkel J
10. Link H
11. Nadell CD
12. Drescher K
(2019) Breakdown of Vibrio cholerae biofilm architecture induced by antibiotics disrupts community barrier function
Nature Microbiology 4:2136–2145.

https://doi.org/10.1038/s41564-019-0579-2
- PubMed
- Google Scholar
(2012) BSim: an agent-based tool for modeling bacterial populations in systems and synthetic biology
PLOS ONE 7:e42790.

https://doi.org/10.1371/journal.pone.0042790
- PubMed
- Google Scholar
1. Hartmann R
2. Jeckel H
3. Jelli E
4. Singh PK
5. Vaidya S
6. Bayer M
7. Rode DKH
8. Vidakovic L
9. Díaz-Pascual F
10. Fong JCN
11. Dragoš A
12. Lamprecht O
13. Thöming JG
14. Netter N
15. Häussler S
16. Nadell CD
17. Sourjik V
18. Kovács ÁT
19. Yildiz FH
20. Drescher K
(2021) Quantitative image analysis of microbial communities with BiofilmQ
Nature Microbiology 6:151–156.

https://doi.org/10.1038/s41564-020-00817-4
- PubMed
- Google Scholar
(2011) Mechanosensitive channels: what can they do and how do they do it?
Structure 19:1356–1369.

https://doi.org/10.1016/j.str.2011.09.005
- PubMed
- Google Scholar
1. Hennes M
2. Bender N
3. Cronenberg T
4. Welker A
5. Maier B
(2023) Collective polarization dynamics in bacterial colonies signify the occurrence of distinct subpopulations
PLOS Biology 21:e3001960.

https://doi.org/10.1371/journal.pbio.3001960
- PubMed
- Google Scholar
1. Herman JP
(2013) Neural control of chronic stress adaptation
Frontiers in Behavioral Neuroscience 7:61.

https://doi.org/10.3389/fnbeh.2013.00061
- PubMed
- Google Scholar
1. Hodgkin AL
2. Huxeley AF
(1952) A quantitative description of membrane current and its application to conduction and excitation in nerve
The Journal of Physiology 117:500–544.

https://doi.org/10.1113/jphysiol.1952.sp004764
- PubMed
- Google Scholar
(1994) Effects of medium carbon-to-nitrogen ratio on biofilm formation and plasmid stability
Biotechnology and Bioengineering 44:329–336.

https://doi.org/10.1002/bit.260440310
- PubMed
- Google Scholar
1. Humphries J
2. Xiong L
3. Liu J
4. Prindle A
5. Yuan F
6. Arjes HA
7. Tsimring L
8. Süel GM
(2017) Species-independent attraction to biofilms through electrical signaling
Cell 168:200–209.

https://doi.org/10.1016/j.cell.2016.12.014
- PubMed
- Google Scholar
(1997) Corrosion inhibition by aerobic biofilms on SAE 1018 steel
Applied Microbiology and Biotechnology 47:62–68.

https://doi.org/10.1007/s002530050889
- Google Scholar
1. Jin X
(2023) Sensitive bacterial Vm sensors revealed the excitability of bacterial Vm and its role in antibiotic tolerance
PNAS 120:e2208348120.

https://doi.org/10.1101/2022.06.02.494477
- Google Scholar
1. Kassinger SJ
2. van Hoek ML
(2020) Biofilm architecture: An emerging synthetic biology target
Synthetic and Systems Biotechnology 5:1–10.

https://doi.org/10.1016/j.synbio.2020.01.001
- PubMed
- Google Scholar
Book
1. Keener J
2. Sneyd J
(2009)
Wave propagation in higher dimensions

In: Keener J, editors. Mathematical Physiology I: Cellular Physiology. New York, NY: Springer. pp. 257–262.
- Google Scholar
1. Kharkwal GB
2. Sharma SK
3. Huang YY
4. Dai T
5. Hamblin MR
(2011) Photodynamic therapy for infections: clinical applications
Lasers in Surgery and Medicine 43:755–767.

https://doi.org/10.1002/lsm.21080
- PubMed
- Google Scholar
1. Kim JS
2. Chowdhury N
3. Yamasaki R
4. Wood TK
(2018) Viable but non-culturable and persistence describe the same bacterial stress state
Environmental Microbiology 20:2038–2048.

https://doi.org/10.1111/1462-2920.14075
- PubMed
- Google Scholar
(2011) Electrical spiking in Escherichia coli probed with a fluorescent voltage-indicating protein
Science 333:345–348.

https://doi.org/10.1126/science.1204763
- Google Scholar
1. Kuo MMC
2. Saimi Y
3. Kung C
(2003) Gain-of-function mutations indicate that Escherichia coli Kch forms a functional K+ conduit in vivo
The EMBO Journal 22:4049–4058.

https://doi.org/10.1093/emboj/cdg409
- PubMed
- Google Scholar
1. Kuo MMC
2. Haynes WJ
3. Loukin SH
4. Kung C
5. Saimi Y
(2005) Prokaryotic K(+) channels: from crystal structures to diversity
FEMS Microbiology Reviews 29:961–985.

https://doi.org/10.1016/j.femsre.2005.03.003
- PubMed
- Google Scholar
1. Levitan IB
2. Kaczmarek LK
(2002)
Neuron: Cell and Molecular Biology

489–528, Learning and memory, Neuron: Cell and Molecular Biology, Oxford University Press, 10.1093/med/9780199773893.003.0019.
- Google Scholar
1. Li Y
2. Moe PC
3. Chandrasekaran S
4. Booth IR
5. Blount P
(2002) Ionic regulation of MscK, a mechanosensitive channel from Escherichia coli
The EMBO Journal 21:5323–5330.

https://doi.org/10.1093/emboj/cdf537
- PubMed
- Google Scholar
1. Lipp P
2. Niggli E
(1993) Microscopic spiral waves reveal positive feedback in subcellular calcium signaling
Biophysical Journal 65:2272–2276.

https://doi.org/10.1016/S0006-3495(93)81316-X
- PubMed
- Google Scholar
1. Liu J
2. Prindle A
3. Humphries J
4. Gabalda-Sagarra M
5. Asally M
6. Lee DD
7. Ly S
8. Garcia-Ojalvo J
9. Süel GM
(2015) Metabolic co-dependence gives rise to collective oscillations within biofilms
Nature 523:550–554.

https://doi.org/10.1038/nature14660
- PubMed
- Google Scholar
(2017) Coupling between distant biofilms and emergence of nutrient time-sharing
Science 356:638–642.

https://doi.org/10.1126/science.aah4204
- PubMed
- Google Scholar
1. Loukin SH
2. Kuo MM-C
3. Zhou X-L
4. Haynes WJ
5. Kung C
6. Saimi Y
(2005) Microbial K+ channels
The Journal of General Physiology 125:521–527.

https://doi.org/10.1085/jgp.200509261
- PubMed
- Google Scholar
1. MacKinnon R
(2004) Potassium channels and the atomic basis of selective ion conduction
Bioscience Reports 24:75–100.

https://doi.org/10.1007/s10540-004-7190-2
- Google Scholar
1. Mancini L
2. Terradot G
3. Tian T
4. Pu Y
5. Li Y
6. Lo C-J
7. Bai F
8. Pilizota T
(2020) A general workflow for characterization of nernstian dyes and their effects on bacterial physiology
Biophysical Journal 118:4–14.

https://doi.org/10.1016/j.bpj.2019.10.030
- PubMed
- Google Scholar
(2021) Can microorganisms develop resistance against light based anti-infective agents?
Advanced Drug Delivery Reviews 175:113822.

https://doi.org/10.1016/j.addr.2021.05.032
- PubMed
- Google Scholar
(2008) Ion channels in microbes
Physiological Reviews 88:1449–1490.

https://doi.org/10.1152/physrev.00005.2008
- PubMed
- Google Scholar
(2018) Bistable emergence of oscillations in growing Bacillus subtilis biofilms
PNAS 115:E8333–E8340.

https://doi.org/10.1073/pnas.1805004115
- PubMed
- Google Scholar
(2019) Metabolic basis of brain-like electrical signalling in bacterial communities
Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 374:20180382.

https://doi.org/10.1098/rstb.2018.0382
- PubMed
- Google Scholar
1. Milkman R
(1994) An Escherichia coli homologue of eukaryotic potassium channel proteins
PNAS 91:3510–3514.

https://doi.org/10.1073/pnas.91.9.3510
- PubMed
- Google Scholar
1. Mishra R
2. Panda AK
3. De Mandal S
4. Shakeel M
5. Bisht SS
6. Khan J
(2020) Natural anti-biofilm agents: strategies to control biofilm-forming pathogens
Frontiers in Microbiology 11:2640–2663.

https://doi.org/10.3389/fmicb.2020.566325
- Google Scholar
1. Mittler R
(2002) Oxidative stress, antioxidants and stress tolerance
Trends in Plant Science 7:405–410.

https://doi.org/10.1016/s1360-1385(02)02312-9
- PubMed
- Google Scholar
(1992) The role of curvature and pulse width for transition to unstable wave fronts in the Belousov–Zhabotinsky reaction
The Journal of Chemical Physics 97:1004–1009.

https://doi.org/10.1063/1.463279
- Google Scholar
1. Perry SW
2. Norman JP
3. Barbieri J
4. Brown EB
5. Gelbard HA
(2011) Mitochondrial membrane potential probes and the proton gradient: a practical usage guide
BioTechniques 50:98–115.

https://doi.org/10.2144/000113610
- PubMed
- Google Scholar
1. Plásek J
2. Sigler K
(1996) Slow fluorescent indicators of membrane potential: a survey of different approaches to probe response analysis
Journal of Photochemistry and Photobiology. B, Biology 33:101–124.

https://doi.org/10.1016/1011-1344(96)07283-1
- PubMed
- Google Scholar
1. Prindle A
2. Liu J
3. Asally M
4. Ly S
5. Garcia-Ojalvo J
6. Süel GM
(2015) Ion channels enable electrical communication in bacterial communities
Nature 527:59–63.

https://doi.org/10.1038/nature15709
- PubMed
- Google Scholar
(2020) Intra-colony channels in E. coli function as a nutrient uptake system
The ISME Journal 14:2461–2473.

https://doi.org/10.1038/s41396-020-0700-9
- PubMed
- Google Scholar
1. Schindelin J
2. Arganda-Carreras I
3. Frise E
4. Kaynig V
5. Longair M
6. Pietzsch T
7. Preibisch S
8. Rueden C
9. Saalfeld S
10. Schmid B
11. Tinevez J-Y
12. White DJ
13. Hartenstein V
14. Eliceiri K
15. Tomancak P
16. Cardona A
(2012) Fiji: an open-source platform for biological-image analysis
Nature Methods 9:676–682.

https://doi.org/10.1038/nmeth.2019
- Google Scholar
1. Sharma G
2. Sharma S
3. Sharma P
4. Chandola D
5. Dang S
6. Gupta S
7. Gabrani R
(2016) Escherichia coli biofilm: development and therapeutic strategies
Journal of Applied Microbiology 121:309–319.

https://doi.org/10.1111/jam.13078
- PubMed
- Google Scholar
(2013) Growth and characterization of Escherichia coli DH5α biofilm on concrete surfaces as a protective layer against microbiologically influenced concrete deterioration (MICD)
Applied Microbiology and Biotechnology 97:1093–1102.

https://doi.org/10.1007/s00253-012-4379-3
- PubMed
- Google Scholar
(2019) Electrically induced bacterial membrane-potential dynamics correspond to cellular proliferation capacity
PNAS 116:9552–9557.

https://doi.org/10.1073/pnas.1901788116
- PubMed
- Google Scholar
(2016) On the mobility, membrane location and functionality of mechanosensitive channels in Escherichia coli
Scientific Reports 6:1–11.

https://doi.org/10.1038/srep32709
- Google Scholar
(2001) Quorum-sensing in Gram-negative bacteria
FEMS Microbiology Reviews 25:365–404.

https://doi.org/10.1111/j.1574-6976.2001.tb00583.x
- PubMed
- Google Scholar
1. Wier WG
2. Blatter LA
(1991) Ca(2+)-oscillations and Ca(2+)-waves in mammalian cardiac and vascular smooth muscle cells
Cell Calcium 12:241–254.

https://doi.org/10.1016/0143-4160(91)90024-9
- PubMed
- Google Scholar
1. Wilson BC
2. Patterson MS
(2008) The physics, biophysics and technology of photodynamic therapy
Physics in Medicine and Biology 53:R61–R109.

https://doi.org/10.1088/0031-9155/53/9/R01
- PubMed
- Google Scholar
1. Woringer M
2. Izeddin I
3. Favard C
4. Berry H
(2020) Anomalous subdiffusion in living cells: bridging the gap between experiments and realistic models through collaborative challenges
Frontiers in Physics 8:134–143.

https://doi.org/10.3389/fphy.2020.00134
- Google Scholar
1. Wu Z
2. Lu J
3. Shi T
4. Zhao X
5. Zhang X
6. Yang Y
7. Wu F
8. Li Y
9. Liu Q
10. Liu M
(2020) A habituation sensory nervous system with memristors
Advanced Materials 32:e2004398.

https://doi.org/10.1002/adma.202004398
- PubMed
- Google Scholar
(2021) Bacterial predation transforms the landscape and community assembly of biofilms
Current Biology 31:2643–2651.

https://doi.org/10.1016/j.cub.2021.03.036
- PubMed
- Google Scholar
1. Wussling MHP
2. Salz H
(1996) Nonlinear propagation of spherical calcium waves in rat cardiac myocytes
Biophysical Journal 70:1144–1153.

https://doi.org/10.1016/S0006-3495(96)79715-1
- PubMed
- Google Scholar
(2020) Encoding membrane-potential-based memory within a microbial community
Cell Systems 10:417–423.

https://doi.org/10.1016/j.cels.2020.04.002
- PubMed
- Google Scholar
1. Yu R
2. Zhang H
3. Guo B
(2021) Conductive biomaterials as bioactive wound dressing for wound healing and skin tissue engineering
Nano-Micro Letters 14:1.

https://doi.org/10.1007/s40820-021-00751-y
- PubMed
- Google Scholar

Article and author information

Author details

Emmanuel Akabuogu
1. Division of Infection, Lydia Becker Institute of Immunology and Inflammation, School of Biological Sciences, University of Manchester, Manchester, United Kingdom
2. Biological Physics, Department of Physics and Astronomy, University of Manchester, Manchester, United Kingdom
Contribution
Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing – original draft, Writing – review and editing

Competing interests
No competing interests declared
Victor Carneiro da Cunha Martorelli
1. Division of Infection, Lydia Becker Institute of Immunology and Inflammation, School of Biological Sciences, University of Manchester, Manchester, United Kingdom
2. Biological Physics, Department of Physics and Astronomy, University of Manchester, Manchester, United Kingdom
Contribution
Software, Formal analysis, Validation, Visualization, Methodology

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0001-5787-3142
Rok Krašovec

Division of Evolution, Infection and Genomics, School of Biological Sciences, Faculty of Biology, Medicine and Health University of Manchester, Manchester, United Kingdom

Contribution
Conceptualization, Formal analysis, Supervision, Funding acquisition, Methodology, Project administration

Competing interests
No competing interests declared
Ian S Roberts

Division of Infection, Lydia Becker Institute of Immunology and Inflammation, School of Biological Sciences, University of Manchester, Manchester, United Kingdom

Contribution
Conceptualization, Resources, Formal analysis, Supervision, Visualization, Methodology, Project administration, Writing – review and editing

For correspondence
i.s.roberts@manchester.ac.uk

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0002-0662-0214
Thomas A Waigh

Biological Physics, Department of Physics and Astronomy, University of Manchester, Manchester, United Kingdom

Contribution
Conceptualization, Software, Formal analysis, Supervision, Funding acquisition, Methodology, Writing – original draft, Project administration, Writing – review and editing

For correspondence
t.a.waigh@manchester.ac.uk

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0002-7084-559X

Funding

TETFund Nigeria

Emmanuel Akabuogu

UK Research and Innovation (Future Leaders Fellowship MR/T021225/1)

Rok Krašovec

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

EA would like to thank Marie Goldrick for her assistance. EA would like to thank the Knut Drescher group for useful discussions on the use of BiofilmQ EA would like to thank Johanna Blee, Raveen Tank, Emma Layton and Dan Han for useful discussions. The authors would like to thank the Prindle group for providing their code. Special thanks goes to Peter March, Roger Meadows and Steven Marsden for their help with the microscopy. The Bioimaging Facility microscopes used in this study were purchased with grants from the BBSRC, Welcome Trust and the University of Manchester Strategic Fund. RK is supported by the UKRI Future Leaders fellowship (MR/T021225/1). The authors would like to thank TETFund Nigeria and Abia State University Nigeria for EA’s PhD scholarship.

Version history

Sent for peer review: September 20, 2023
Preprint posted: September 29, 2023
Reviewed Preprint version 1: March 7, 2024
Reviewed Preprint version 2: August 8, 2024
Version of Record published: March 21, 2025

Cite all versions

You can cite all versions using the DOI https://doi.org/10.7554/eLife.92525. This DOI represents all versions, and will always resolve to the latest one.

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

746

views
42

downloads
2

citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Article PDF

Open citations (links to open the citations from this article in various online reference manager services)

Mendeley

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Emmanuel Akabuogu
Victor Carneiro da Cunha Martorelli
Rok Krašovec
Ian S Roberts
Thomas A Waigh

(2025)

Emergence of ion-channel-mediated electrical oscillations in Escherichia coli biofilms

eLife 13:RP92525.

https://doi.org/10.7554/eLife.92525.3

Categories and tags

Research organism

E. coli

Share this article

Cite this article

Single-cell DH5α E. coli exhibit membrane potential dynamics in response to 440 nm blue light stress.

Fluorescence microscopy images of ThT in sparse single E. coli cells irradiated with blue light.

Fluorescence microscopy images of ThT in E coli microclusters irradiated with blue light.

Synchronized ion-channel-mediated wavefronts in E. coli biofilm.

Fluorescence microscopy images of ThT in an E. coli biofilm irradiated with blue light.

Voltage-gated Kch potassium channel mediates ion channel membrane potential dynamics in E. coli.

Fluorescence microscopy images of ThT in knockdown mutants of voltage-gated Kch-potassium channel in E. coli irradiated with blue light.

Blue light influences ion-channel-mediated membrane potential events in E. coli.

Fluorescence microscopy images of ThT in an E. coli biofilm irradiated with blue light in the presence of ROS scavenger, catalase.

Model of ion-channel-mediated membrane potential in E. coli, predictions and experimental validation.

Role of mechananosensitive channels in the first hyperpolarization event in E. coli.

Agent-based fire-diffuse-fire model (ABFDF) and experimental validation of anomalous ion-channel-mediated wave propagation in three-dimensional E. coli biofilm.

3D simulation of electrical signalling in bacterial biofilms via the fire-diffuse-fire agent based model.

3D confocal fluorescence microscopy images of ThT in an E. coli biofilm irradiated with blue light.

Fit constants for Equation 1 to results from the ABFDF and experimental data.

Nonlinear propagation of ion-channel-mediated wave in 3D E. coli biofilms.

Control experiments for ThT fluorescence in E. coli.

Schematic of the IBIDI flow cells used for all the experiments.

ThT fluorescence in E. coli biofilms.

Confocal microscopy experiments with ThT in E. coli biofilms.

Relationships between velocity and curvature for the wavefronts.

Parameters for the Mathematical modeling of membrane potential dynamics in E. coli.

Parameters used for the agent-based Fire-diffuse-fire model in the three-dimensional E. coli biofilm.

Fit constants for the centrifugal and centripetal wavefronts from experimental data.

Media recipe, bacterial strains, software, and microfluidic components.

Author details

Emmanuel Akabuogu

Contribution

Competing interests

Victor Carneiro da Cunha Martorelli

Contribution

Competing interests

Rok Krašovec

Contribution

Competing interests

Ian S Roberts

Contribution

For correspondence

Competing interests

Thomas A Waigh

Contribution

For correspondence

Competing interests

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Categories and tags

Research organism

Further reading
