Changing the responses of cortical neurons from sub- to suprathreshold using single spikes in vivo

  1. Verena Pawlak
  2. David S Greenberg
  3. Henning Sprekeler
  4. Wulfram Gerstner
  5. Jason ND Kerr Is a corresponding author
  1. Max Planck Institute for Biological Cybernetics, Germany
  2. Brain Mind Institute, Ecole Polytechnique Federale de Lausanne, Switzerland
  3. Bernstein Center for Computational Neuroscience, Germany
Research Article
Cited
9
Views
2,417
Comments
0
Cite as: eLife 2013;2:e00012 doi: 10.7554/eLife.00012

Abstract

Action Potential (APs) patterns of sensory cortex neurons encode a variety of stimulus features, but how can a neuron change the feature to which it responds? Here, we show that in vivo a spike-timing-dependent plasticity (STDP) protocol—consisting of pairing a postsynaptic AP with visually driven presynaptic inputs—modifies a neurons' AP-response in a bidirectional way that depends on the relative AP-timing during pairing. Whereas postsynaptic APs repeatedly following presynaptic activation can convert subthreshold into suprathreshold responses, APs repeatedly preceding presynaptic activation reduce AP responses to visual stimulation. These changes were paralleled by restructuring of the neurons response to surround stimulus locations and membrane-potential time-course. Computational simulations could reproduce the observed subthreshold voltage changes only when presynaptic temporal jitter was included. Together this shows that STDP rules can modify output patterns of sensory neurons and the timing of single-APs plays a crucial role in sensory coding and plasticity.

https://doi.org/10.7554/eLife.00012.001

eLife digest

Nerve cells, called neurons, are one of the core components of the brain and form complex networks by connecting to other neurons via long, thin ‘wire-like’ processes called axons. Axons can extend across the brain, enabling neurons to form connections—or synapses—with thousands of others. It is through these complex networks that incoming information from sensory organs, such as the eye, is propagated through the brain and encoded.

The basic unit of communication between neurons is the action potential, often called a ‘spike’, which propagates along the network of axons and, through a chemical process at synapses, communicates with the postsynaptic neurons that the axon is connected to. These action potentials excite the neuron that they arrive at, and this excitatory process can generate a new action potential that then propagates along the axon to excite additional target neurons. In the visual areas of the cortex, neurons respond with action potentials when they ‘recognize’ a particular feature in a scene—a process called tuning. How a neuron becomes tuned to certain features in the world and not to others is unclear, as are the rules that enable a neuron to change what it is tuned to. What is clear, however, is that to understand this process is to understand the basis of sensory perception.

Memory storage and formation is thought to occur at synapses. The efficiency of signal transmission between neurons can increase or decrease over time, and this process is often referred to as synaptic plasticity. But for these synaptic changes to be transmitted to target neurons, the changes must alter the number of action potentials. Although it has been shown in vitro that the efficiency of synaptic transmission—that is the strength of the synapse—can be altered by changing the order in which the pre- and postsynaptic cells are activated (referred to as ‘Spike-timing-dependent plasticity’), this has never been shown to have an effect on the number of action potentials generated in a single neuron in vivo. It is therefore unknown whether this process is functionally relevant.

Now Pawlak et al. report that spike-timing-dependent plasticity in the visual cortex of anaesthetized rats can change the spiking of neurons in the visual cortex. They used a visual stimulus (a bar flashed up for half a second) to activate a presynaptic cell, and triggered a single action potential in the postsynaptic cell a very short time later. By repeatedly activating the cells in this way, they increased the strength of the synaptic connection between the two neurons. After a small number of these pairing activations, presenting the visual stimulus alone to the presynaptic cell was enough to trigger an action potential (a suprathreshold response) in the postsynaptic neuron—even though this was not the case prior to the pairing.

This study shows that timing rules known to change the strength of synaptic connections—and proposed to underlie learning and memory—have functional relevance in vivo, and that the timing of single action potentials can change the functional status of a cortical neuron.

https://doi.org/10.7554/eLife.00012.002

Introduction

The formation of sensory percepts in the mammalian cortex is thought to involve the propagation of action potentials through populations of connected neurons in response to sensory stimulation (Hebb, 1949; Harris, 2005). Rules that dictate changes in the strength, or efficacy, of these connections rely on persistent correlated activity between the connected neurons (for recent review, see Abraham, 2008). For these changes in synaptic efficacy to be functional and recognized by the down-stream neurons targeted by the axon, the changes need to influence AP patterns. Plasticity induction involving precisely timed action-potentials, known as spike-timing-dependent plasticity (Markram et al., 1997; Bi and Poo, 1998), has been suggested as a candidate mechanism to determine which stimulus driven inputs are strengthened and weakened (out of the many possible sensory driven inputs). What makes STDP rules so appealing for modification of synaptic strength in the cortex is that the low numbers of APs and low repetition frequencies used to induce plastic changes in STDP protocols (Feldman, 2012) are consistent with low AP firing rates observed in awake freely moving animals exploring a novel environment (Lee et al., 2006; Sawinski et al., 2009). In addition, cortical neurons are capable of AP-responses that are temporally precise over multiple trials (Bair and Koch, 1996; Marsalek et al., 1997; Tchumatchenko et al., 2011), similar to the precision typically used during STDP pairing protocols (for recent review see, Feldman, 2012). Lastly, most modeling studies of synaptic plasticity using STDP rules assume that synaptic modification leads to changes in spiking (Gerstner et al., 1996; Song and Abbott, 2001) with a recent study suggesting that STDP underlies sensory map plasticity in the young and adult cortex (Young et al., 2007). However, evidence for single-neuron STDP in vivo remains scarce and confined to subthreshold changes (Meliza and Dan, 2006; Jacob et al., 2007) and remains controversial (Lisman and Spruston, 2005, 2010; Fregnac et al., 2010; Shouval et al., 2010). While extracellular studies have suggested STDP can modify spiking patterns in anesthetized (Fu et al., 2002) and freely moving animals (Celikel et al., 2004), this evidence remains difficult to interpret without information on single-cell membrane potential dynamics.

The visual cortex is perfectly suited to study STDP since visual cortex neuronal responses and receptive fields are known to be highly plastic (Gilbert, 1998), and sensory maps can undergo plastic changes with experience (Daw and Wyatt, 1976; Li et al., 2008) or after removal of visual input (Wiesel and Hubel, 1963; Kaas et al., 1990; Gilbert and Wiesel, 1992). Finally during visual stimulation, the action potential output for many visual cortex neurons is tuned to specific locations in the visual field and to specific stimulus features (Hubel and Wiesel, 1959), even though each neuron receives synaptic inputs corresponding to surrounding locations or many different stimulus features (Ferster, 1986; Jia et al., 2010). Together these conditions make a perfect system to test whether STDP rules can, with a few tens of spikes, reliably change a subtreshold responding neuron into a neuron responding to the same stimulus with APs and change a neuron's visually driven AP patterns in a timing dependent manner.

Results

We addressed these questions by pairing precisely timed postsynaptic spikes to presynaptic inputs arising from visual stimulation. We used STDP protocols similar to those previously applied in vivo (Meliza and Dan, 2006), but with the difference that all ongoing membrane potential voltage fluctuations and spiking at the cell soma were measured and taken into account when presenting the stimulus, since large membrane potential fluctuations (Cowan and Wilson, 1994) can alter a neuron's spiking responses (Petersen et al., 2003; Sachdev et al., 2004) and ongoing spiking may influence plasticity outcome (Sjostrom et al., 2001). We targeted whole-cell recordings (Margrie et al., 2003) to Layer 2/3 (L2/3) neurons in the binocular primary visual cortex (n = 58 rats) using intrinsic imaging followed by two-photon microscopy as using stereotaxic coordinates alone can be inaccurate (Slotnick and Brown, 1980; Kline and Reid, 1984). All neurons (n = 71, yielding 72 data points, see ‘Materials and methods’) were identified as L2/3 pyramidal neurons, based on firing pattern, location below the pia and morphology after post hoc histological staining. For visual stimulation, a bar was flashed (500 ms) (Figure 1A) every 3–4 s at one of four non-overlapping spatial positions (Figure 1B). To measure ongoing spiking and membrane potential fluctuations, and to reduce variance and maximize consistency in the evoked responses (Petersen et al., 2003; Sachdev et al., 2004), we recorded in current clamp mode and always presented stimuli after the membrane potential had transitioned from an up-state into a down-state (Figure 1C), during which far fewer spontaneous synaptic inputs occur (Waters and Helmchen 2006).

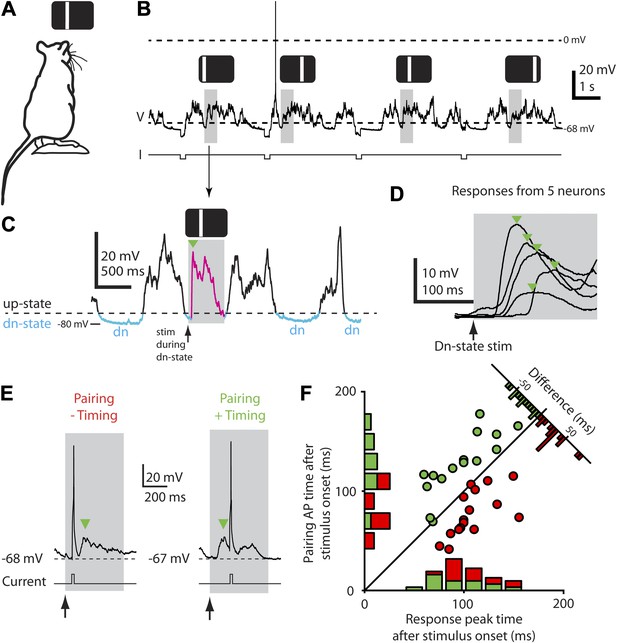

Down-state triggering of visual stimuli and timing of evoked responses and spikes during the STDP protocol.

(A) Flashed vertical bars were presented to an anesthetized rat from a stimulus screen. (B) Continuous whole-cell current-clamp recording with down-state triggered visual stimulus presentations (grey boxes) and hyperpolarizing step currents (−100 pA) to estimate input resistance. Flashed vertical bars were presented in one of four different positions across the stimulus screen. (C) Detailed view of whole-cell current-clamp recording of a voltage response (magenta, green arrow marks initial peak) to a 500 ms (grey box) flashed bar presented only during down-states (period marked in blue, dashed line indicates threshold used for online down-state detection). (D) Average membrane potential responses (green arrows indicate initial response peaks) to flashed bar stimulus for five different neurons. (E) Pairing consisted of injecting depolarizing current into the postsynaptic neuron to elicit a single AP timed to occur either before (left, ‘−Timing’) or after (right, ‘+Timing’) the response peak (green arrow). (F) Scatter plot showing timing of evoked APs for each recording vs timing of initial response peak (n = 32). Time 0 denotes stimulus onset. Histograms show the number of neurons with positive timing and negative timing.

https://doi.org/10.7554/eLife.00012.003

All four stimulus positions evoked either subthreshold or suprathreshold responses, consistent with the broad receptive fields of neurons in younger rats (Fagiolini et al., 1994). Mean subthreshold responses reached an initial peak 50–150 ms after stimulus onset, then decayed to a trough within 100–200 ms (Figure 1D), though considerable variability (Hirsch et al., 2002) was observed in the peak time, response shape, and amplitude across neurons (Figure 1D). After a stable baseline period (9.0 ± 1.3 min, 32.4 ± 1.9 presentations of each stimulus, n = 32 recordings), we applied an STDP induction protocol by pairing single-APs, evoked by brief depolarizing current pulses, with visual stimulation at only one of the four stimulus positions (42.0 ± 1.5 pairing trials, 1.3 ± 0.16 APs/trial, n = 32, Figure 1E). Since each neuron's response time was different, the timing of the pairing spikes was individually chosen for each neuron to occur either before (‘negative timing inductions’, n = 17, example in Figure 1E, left) or after the initial peak (‘positive timing inductions’, n = 15, example in Figure 1E, right). As a result, by taking all recordings together based on whether the pairing spike was delivered before (red, negative timing) or after (green, positive timing) the initial peak, the time of pairing spikes ranged from 82 ms before the response peak to 62 ms after (Figure 1F). After pairing, we again recorded the neuron's responses to stimuli at each of the four positions without injecting current pulses (51.9 ± 3.6 presentations of each stimulus over 31.8 ± 2.4 min, starting 1.0 ± 0.4 min after the last paired stimulus, n = 32, Figure 2A). Responses at the paired position were changed, with the direction of the change strongly dependent on the whether the pairing spike appeared before or after the response peak (Figure 2B,C). As expected (for review see, Bi and Poo, 2001) in neurons that received negative timing inductions the peak voltage amplitude significantly decreased by 26.4 ± 4.6% (n = 17) or 3.5 ± 0.7 mV (Figure 2C, p<0.0001), while positive timing inductions increased the peak voltage amplitude by 22.5 ± 8.7 % (n = 15) or 1.4 ± 0.6 mV (Figure 2C, p=0.025). The difference between what was observed here compared to previous in vitro (Bi and Poo, 2001) and in vivo studies (Fregnac et al., 2010) was that although the direction of the plasticity observed in responses to visual stimulation depended on spike timing, the largest initial peak changes were not around t = 0 but were scattered from 0–50 ms on either side of t = 0.

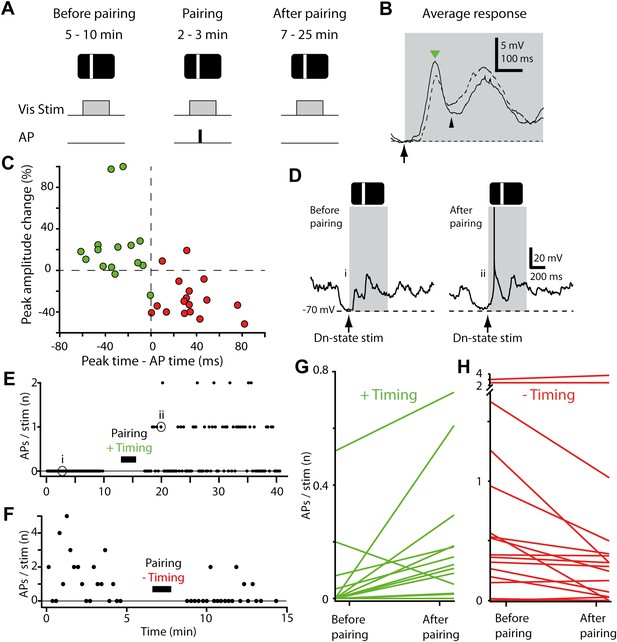

STDP converts subthreshold responses to visual stimuli into suprathreshold responses.

(A) Time course of the experiment. Before the pairing, responses to visual stimulation were recorded, during the pairing, visual stimulation was paired with APs evoked by brief current injection (repeated 40 times), followed by recording of visual responses. (B) Average membrane potential responses to stimulus presentation at the pairing position, before (dashed line) and after pairing (black line). The portion of the response before the pairing APs are potentiated, while the portion after is depressed. Small black arrow indicates timing of pairing APs. (C) Scatter plot showing the change in peak amplitude vs the time difference between the pairing APs relative to the peak. Delivering APs before the peak (red circles) decreases the peak amplitude, while delivering them after increases it (green circles). (D) Subthreshold membrane potential response to flashed bar (grey box) before pairing with a postsynaptic spike after the initial peak (positive timing), and suprathreshold response to same flashed bar stimulus after pairing. (E) Number of APs evoked per visual stimulus before and after pairing, for the neuron shown in (D). (F) Number of APs evoked per visual stimulus before and after pairing, for a neuron that received a negative timing protocol (postsynaptic spike before the initial peak). (G) Average number of APs evoked per stimulus before pairing compared to after pairing for all neurons with positive timing induction (n = 15). (H) Average number of APs evoked per stimulus before pairing compared to after pairing for all neurons with negative timing induction (n = 17).

https://doi.org/10.7554/eLife.00012.004

The small changes in membrane potential observed here and in other studies raise the issue of whether the observed plasticity is sufficient to modify spiking responses in the postsynaptic neuron. Synaptic plasticity of a given neuron's inputs is functionally effective only if it alters neuronal spiking, so that information is passed on to downstream synaptic targets. To link STDP to changes in spiking at the single cell level, we therefore tested whether a sensory-driven but subthreshold-responding neuron (Figure 2D, left) could be changed through STDP induction into a suprathreshold-responding neuron (Figure 2D, right). In most neurons that received positive timing inductions sensory-evoked spiking rates increased after the pairing protocol (Figure 2E). Specifically, of the 15 neurons tested, 11 showed an increase in the average number of APs evoked by stimulus presentation, 1 showed a decrease, and 3 never discharged a stimulus-evoked AP (Figure 2G). Strikingly, in eight neurons the paired stimulus evoked spiking only after induction, that is over 50% transitioned from non-spiking to spiking. Over the 15 neurons tested, an additional 0.11 ± 0.06 APs per stimulus were observed for the paired stimulus position after induction (p=0.01, initial response 0.06 ± 0.04 APs per stimulus). In four cases increases in AP firing were significant at the single-neuron level (p<0.05), despite the modest numbers of stimulus presentation trials and low firing rates (see ‘Materials and methods’).

We next tested whether the STDP protocol could decrease the sensory-evoked spiking rates using negative timing inductions, in which pairing spikes occurred before the initial peak. For this to occur, we identified a stimulus position that evoked spiking in the recorded neuron (successful in 15 out of 17 recordings, 0.84 ± 0.23 APs per stimulus), and then proceeded to pair spiking with stimulus presentation at this position. After pairing, the average number of APs evoked by stimulus presentation decreased (0.18 ± 0.10 APs per stimulus after induction, p=0.04, n = 15). Of these 15 neurons 12 showed a decrease in spiking and 3 an increase after induction (Figure 2H). These changes were statistically significant at the single-neuron level (p<0.05) in four cases, all of which showed a decrease in spiking. Together this shows that an STDP protocol that induces small bidirectional changes in the membrane potential can both increase and decrease stimulus-evoked spiking depending on the relative timing of the single pairing spikes.

These changes in spiking responses observed after STDP induction could not be accounted for by neurons becoming more depolarized (down-state membrane potential −64.8 ± 1.5 mV before vs −64.2± 1.5 mV after, p=0.61, n = 32) or by input resistance changes (323 ± 39 MΩ before vs 419 ± 54 MΩ after, p=0.16), and neither depolarization nor input resistance changes were correlated with changes in spiking (p>0.05). In a control group, where visual stimuli were presented but no APs were paired, stimulus-driven spiking rates in the second half of the recording were not significantly different from the first half (p=0.20, four neurons with four positions each), indicating that the increase in spiking was due to the STDP protocol. Finally, we note that increases in AP firing at the paired position for positive timing inductions remained significant even after removing the two neurons exhibiting the greatest increases (p=0.036, n = 13). Together, these results provide a robust demonstration that repeated pairing of a single AP to a visual stimulus ∼40 times can initiate spiking responses in non-spiking neurons and can increase or diminish existing spiking responses. This is consistent with an STDP-driven change in functional status and provides experimental validation that STDP could provide a plasticity mechanism for changing receptive fields (Young et al., 2007).

We next measured whether induced spiking changes also extended within the receptive field to non-paired stimulus positions (Figure 3A). For positive timing experiments, we observed diverse changes in the spiking responses measured at non-paired positions as spiking elicited at positions directly adjacent to the paired position (±1) increased in some neurons (Figure 3B–D) but decreased in others (Figure 3E), and the position eliciting the maximum response often changed after pairing (Figure 3D,E). Compared to the average 0.11 ± 0.05 additional APs per stimulus evoked at the pairing position after induction, stimulus positions immediately adjacent to the pairing position also showed an increase nearly as large (0.10 ± 0.05 APs per stimulus, p=0.02, n = 15). This increase in AP firing diminished for more distant positions (Figure 3G) and was no longer significant for stimulus positions not immediately adjacent to the paired position (p>0.05). In negative timing experiments, changes in AP firing were not significant at any non-paired positions (p>0.05).

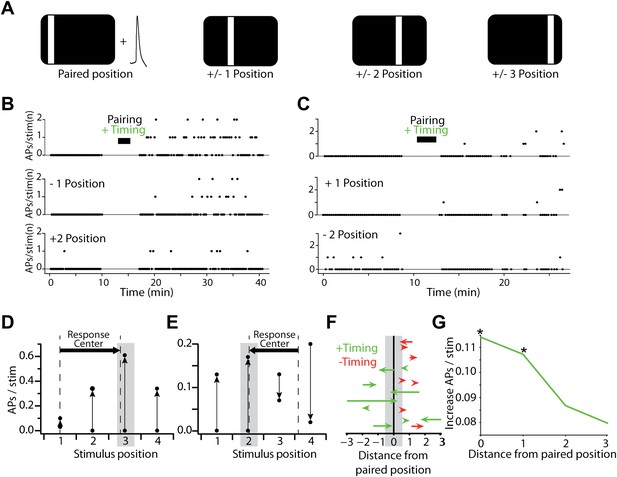

Changes in sensory-evoked spiking are stimulus-specific and lead to spatial reorganization of neurons' stimulus responses.

(A) Stimulus-AP pairing was performed for a single stimulus position, but responses to neighboring and more distant positions were also measured before and after the pairing phase of the experiment. (B) Number of APs evoked per visual stimulus before and after pairing with positive timing. Stimulus-evoked spiking is shown for the paired position (upper), a neighboring position (center) and a more distant position (lower). The increase in stimulus-evoked spiking is greatest at the paired position, and the size of the change decays with distance. (C) As in (B), but showing an example where the paired position displays an increase in firing (upper) while a more distant position displays a decrease (lower). (D) Rates of spiking evoked by sensory stimulation in the recording shown in (B), before and after pairing (paired position marked by grey box); vertical arrows indicate direction of the change from before to after pairing. Dashed vertical lines indicate the suprathreshold stimulus response center before and after pairing, which shifted from position 1.00 to 2.86. (E) As in (D), but for the recording shown in (C), where a more distant position decreased its rate of stimulus-evoked spiking; response center shifted from 3.62 to 2.06. (F) Shifts in the suprathreshold stimulus response center after the pairing. Each arrow indicates the response center positions before and after pairing for a single experiment with positive (green) or negative timing (red). Vertical positions of arrows are arbitrary. Note that suprathreshold response center shifts could not be calculated for some recordings with insufficient spiking (see ‘Materials and methods’). Positive timing experiments display a shift toward the paired position. (G) Increase in stimulus-evoked spiking for neurons receiving positive timing inductions, as a function of distance from the paired position. Asterisks indicate significance at the p<0.05 level (Wilcoxon rank sum test).

https://doi.org/10.7554/eLife.00012.005

We further examined whether these changes displayed any common pattern, and might admit some simple description. To test this we considered neurons' spiking responses as functions of stimulus position, and calculated the ‘stimulus response centers’ of these functions in the space of stimulus positions (Figure 3D,E, dashed lines). Stimulus response centers were calculated as weighted averages of the four stimulus positions, with each position weighted by the rate of stimulus-evoked spiking. This analysis showed a simple but robust trend in the positive timing experiments: after stimulus-AP pairing, the stimulus response center moved toward the pairing position (Figure 3F). The shift in the suprathreshold response center was strongly correlated with the difference between pairing position and the response center before pairing (R = 0.81, p=0.008). For the negative timing inductions the majority of response centers moved away from the pairing position, but these changes were small and the trend was not significant (p=0.70).

We next examined whether the shifts in response centers observed for suprathreshold responses were also reflected in subthreshold responses. Subthreshold response centers, calculated by weighting each position by the peak amplitude, also shifted toward the pairing position for positive timings, albeit much less robustly than the suprathreshold shifts (R = 0.53, p=0.04, Figure 4A–C). As with the suprathreshold response centers, for negative timings subthreshold response centers tended to move away from the paired position, but these changes were too small to be significant (p>0.05, Figure 4C). This consistency between the suprathreshold and the subthreshold response center changes brought about by an STDP induction protocol shows that plasticity of stimulus responses was timing-specific and spatially structured, with transfer to neighboring regions of the receptive field. These results show that STDP protocols induce a rearrangement of the sub- and suprathreshold receptive field structure, especially for positive timing protocols.

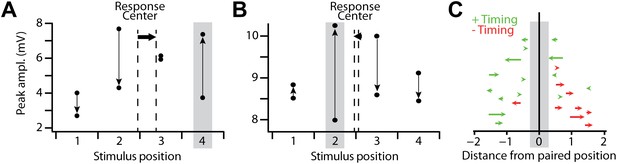

Spatial reorganization of subthreshold responses.

(A) Mean amplitude of the subthreshold response peak in a single recording with a positive timing induction, for all stimulus positions before and after pairing. Grey box indicates the pairing position, vertical arrows indicate the direction of the change from before to after pairing, and dashed vertical lines the subthreshold stimulus response center before and after pairing, which shifted from position 2.44 to 2.89 (horizontal arrow). (B) As in (A), but for a recording in which subthreshold responses at the pairing position transitioned from weakest of the four positions to strongest after pairing; response center shifted from 2.55 to 2.46. (C) Shifts in the subthreshold stimulus response center after stimulus-AP pairing, for positive timing inductions (green) and negative timing inductions (red). Each arrow indicates the response center positions before and after pairing for a single experiment with positive (green) or negative timing (red). Vertical positions of arrows are arbitrary.

https://doi.org/10.7554/eLife.00012.006

A key difference between the present study and previous in vitro STDP experiments (Bi and Poo, 1998), where activation of presynaptic inputs is temporally precise and brief, is that in vivo during sensory stimulation cortical L2/3 neurons receive a more complex and longer-lasting synaptic input barrage (Figures 1D, 2B) with variable timing of individual inputs (Fagiolini et al., 1994; Niell and Stryker, 2008). Despite this in vivo variability, traditional STDP rules dictate that inputs consistently arriving before the pairing spike should be potentiated and increase the response amplitude before the spike, while those arriving consistently after should be depressed and reduce the response amplitude after the spike. Finally, if each response is, on average, made up of the same synaptic inputs occurring in the same relative temporal order, then the stimulus-AP pairing should not simply change the peak amplitude, but rather induce a complex change that varies continuously over the time course of the subthreshold response relative to the pairing spike (Figure 5A, same data as Figure 2B). We therefore calculated the time course of changes in the subthreshold response relative to the time of the pairing spike for all neurons (positive and negative timing inductions, n = 32, Figure 5B, grey lines). Thus, in contrast to traditional STDP analysis where a neuron provides only a single data point on a graph of time difference vs response change (Figure 2C), both potentiation and depression occur for each neuron as a continuous function of time that on average is biphasic (Figure 5B, black line) with an increase before the spike (maximum increase 0.84 mV at 64.5 ms before, p=0.04) and a decrease thereafter (maximum decrease 1.4 mV at 43.5 ms after, p=0.01). This showed that STDP protocols in vivo can simultaneously induce potentiation and depression in the membrane potential of the same neuron (Figure 2B). Changes in membrane potential were strongest at the paired position, with similarly shaped but smaller changes at adjacent positions consistent with overlap in synaptic inputs, and nondescript changes at more distant positions (Figure 5C). While the shape of these membrane potential changes was qualitatively similar to the biphasic STDP curve observed in vitro (Markram et al., 1997; Bi and Poo, 1998), the positive and negative peaks were temporally further away from the pairing spike and shape of the curve were much broader in vivo.

Figure 5 with 3 supplements see all

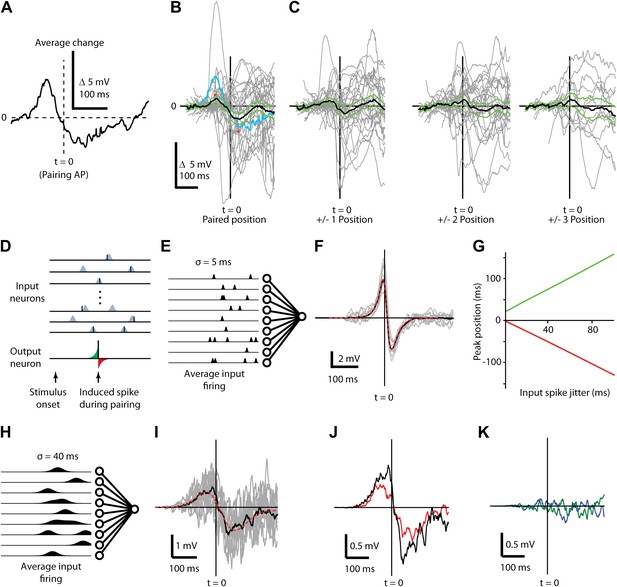

Changes in subthreshold responses after STDP induction display temporally broad peaks consistent with pre-synaptic jitter.

(A) Average difference between before and after pairing membrane potential time course in response to visual stimulation at the paired position for a single neuron, aligned to the time of the pairing spike (dashed vertical line, t = 0). (B) Average (black) difference between before and after pairing membrane potential response to visual stimulation, as a function of time difference from the pairing spike. Individual neurons are shown in grey, green lines indicate SEM and the example neuron from (A) is shown in blue. (C) As in (B), but for non-paired stimulus positions adjacent to the paired position (left) and more distant positions (center, right). (D) Structure of the computational model showing that for each stimulus 400 presynaptic neurons were activated, providing input to a single postsynaptic neuron. Input spikes had a Gaussian probability distribution around target firing times. During pairing, a single postsynaptic spike (bottom) is induced at a predetermined time and input weights are increased if an input spike arrives at the respective synapse just before the induced spike (green area) and decreased if an input spike occurs just after the induced spike (red area). (E) Schematic showing mean firing rates over time for input neurons with σ = 5 ms used for calculating F. (F) Average difference in membrane potential when the input spike precision is ∼5 ms (individual simulations grey, mean red) compared to a theoretical curve. (G) Timing of the positive (green) and negative (red) peaks of the membrane potential change relative to the induced postsynaptic spike as a function of the jitter in input spike timing. (H) Schematic showing mean firing rates over time for input neurons with σ = 40 ms used for calculating I. (I) Average difference in membrane potential when the input spike precision is ∼40 ms. (J) Transfer of plasticity to a neighboring stimulus position when a subpopulation of synapses and timing are shared (red) compared to membrane potential difference from (I, black). (K) Transfer of plasticity to a neighboring stimulus position when a subpopulation of synapses are shared but timing is not (blue), and when no synapses are shared (green).

https://doi.org/10.7554/eLife.00012.007

We hypothesized that this peak shift and broadening effect results from variable timing of synaptic inputs from L4 and L2/3 (Fagiolini et al., 1994; Niell and Stryker, 2008), since potentiating or depressing an input with more variable jitter in the timing will potentially affect a greater range of the subthreshold stimulus response. To test this, we built an STDP model with a plasticity rule (Gerstner et al., 1996; Song et al., 2000) consistent with previous in vitro studies (Figure 5D–K) to examine STDP effects for various presynaptic activity patterns (Figure 5E,H). The membrane voltage in the neuron model is the sum of excitatory postsynaptic potentials (EPSPs), each described as a double exponential with rise time 2 ms and decay time 10 ms. Amplitudes of EPSPs were chosen from an exponential distribution with mean amplitude of 2 mV. With this set of parameters and 400 presynaptic inputs, the summed EPSPs had amplitudes and time courses similar to those measured in the experiment. Since the model was designed to describe experiments where spiking is induced artificially by the experimenter, firing is not an intrinsic property of the model but firing times were set ‘by hand’ at the target times designated for current injection by the experimental protocol (Figure 5D). Modeling each input's stimulus response as fixed and temporally precise produced membrane potential changes similar to those reported for in vitro STDP timing curves (Figure 5F). However, introducing jitter into the presynaptic activity (Figure 5G) caused the positive and negative peaks of the change in membrane potential to broaden and become more distant from the pairing spike with increasing jitter (Figure 5G). With a presynaptic jitter of 40 ms the model produced a biphasic change in the mean membrane potential (Figure 5H,I) that closely resembled the in vivo experimental results (Figure 5B), with a maximal potentiation 50 ms before and maximal depression 74 ms after the postsynaptic spike. The model also reproduced partial transfer of STDP effects to neighboring stimulus positions (Figure 5J, red) in a spike timing dependent manner (Figure 5K) and given the assumption that a subset of presynaptic neurons respond with similar spiking patterns for multiple stimulus positions. These modeling results show that the membrane potential changes observed in vivo are broader than those observed in vitro and that the broader time course can be explained by variably-timed inputs (but see Lin et al., 2003; Froemke et al., 2005; Zhang et al., 2009 for alternative sources of broader STDP windows). Additionally, the slight transfer of changes in synaptic strength from one stimulus position to the next within a receptive field can be explained by partial overlap of the inputs activated by different stimuli as previously suggested (Meliza and Dan, 2006).

Discussion

Our results demonstrate that an STDP protocol using less than 50 paired APs can convert a neuron's visually evoked responses from non-spiking to spiking, can increase and diminish existing spiking responses, and can induce a rearrangement of the neurons sub- and suprathreshold responses to stimuli presented at locations surrounding the paired location. Our current findings extend our knowledge about STDP-induced subthreshold changes in vivo (Meliza and Dan, 2006; Jacob et al., 2007) to the suprathreshold domain. Our study also provides a bridge between the changes in spiking observed across many neurons' receptives fields after alteration of sensory input for example through retinal lesions (Wiesel and Hubel, 1963; Kaas et al., 1990; Gilbert and Wiesel, 1992) and subtle changes in subthreshold responses induced by STDP at the single neuron level both in vitro (Magee and Johnston, 1997; Markram et al., 1997; Bi and Poo, 1998) and in vivo (Meliza and Dan, 2006; Jacob et al., 2007). Such a connection between receptive field plasticity, rearrangement of a neuron's tuning properties and STDP has been suggested by theoretical studies (Song and Abbott, 2001; Young et al., 2007), but to date has not been shown experimentally. As the rates of AP activity used in the pairing protocols was similar to activity reported for upper cortical layer populations in the visual cortex of both headfixed awake (Greenberg et al., 2008) and freely exploring rodents (Sawinski et al., 2009), this form of plasticity could represent a more general plasticity principle that relies on low firing rates and is central to individual neurons joining or leaving cell-assemblies, as proposed by Donald Hebb (Hebb, 1949).

In the present study we manipulated the timing of spikes relative to an avalanche of stimulus-triggered presynaptic events and observed significant changes in the firing properties of the postsynaptic neuron. In other words, we focused on manifestations of Hebbian plasticity that depended upon spike timing. We cannot exclude, however, that purely subthreshold manipulation of the postsynaptic voltage could have caused similar, or even stronger effects of Hebbian plasticity (Lisman and Spruston, 2005, 2010; Fregnac et al., 2010; Shouval et al., 2010). While STDP highlights the timing-dependence on a millisecond time scale, Hebbian synaptic plasticity also manifests itself in experimental protocols manipulating firing rates and postsynaptic voltage (Artola et al., 1990; Sjostrom et al., 2001). In fact, previous models assuming that Hebbian synaptic plasticity depends critically on postsynaptic voltage, have allowed general theories of plasticity with both rate- and timing-dependent plasticity as special cases (Clopath et al., 2010). Optimality theories of STDP developed over the last 10 years, have proposed that the fundamental reason why pre-before-post induces LTP is to strengthen the causal link between input and output. Thus, the optimal timing between pre- and post should be related to the rise time or width of the PSP caused by the presynaptic input (Pfister et al., 2006; Bohte and Mozer, 2007; Toyoizumi et al., 2007; Parra et al., 2009; Hennequin et al., 2010; Pool and Mato, 2011). There is no similar optimality theory as to why synaptic depression should be spike-triggered, as unspecific forms of depression of synapses (not temporally linked to the output spike) would work just as well from a theoretical point of view (Pfister et al., 2006; Bohte and Mozer, 2007; Toyoizumi et al., 2007; Hennequin et al., 2010; Pool and Mato, 2011). What our study proposes is that timing based post-before-pre LTD (negative timing) is a robust mechanism for manipulating neuronal spiking responses along with the previously proposed pre-before post LTP (positive timing) (Gerstner et al., 1996; Song and Abbott, 2001).

The present study shows a robust timing effect for the change in voltage of the initial peak, where negative timing protocols produced decreased synaptic efficacy and positive timing protocols resulted in an increased synaptic efficacy, similar to that seen in vitro. What is not consistent with previous in vitro STDP studies, where synaptic efficacy changes were derived from post-synaptic potentials, is our reported lack of dependence of the peak changes on the milisecond timescale. From in vitro studies it would be expected that a pre- before post pairing with a delay during pairing of around 40 ms would produce almost no change and a pre- before post with a delay of around 2 ms would produce the most change (Bi and Poo, 1998). Our reported initial peak changes were not at t = 0 but were seen for a diverse range of timings within a time range of ∼100 ms (Figure 2C). We suggest that this discrepancy with previous studies (also see Fregnac et al., 2010) is due to the complexity of in vivo responses to visual stimulation which are made up of an avalanche of both inhibitory and excitatory synaptic events (Hirsch et al., 1998; Okun and Lampl, 2008). It is therefore an oversimplification to capture such complex responses by measuring only the peak of the initial response. Here we measured the evoked voltage across the entire time course of the response and aligned the voltage changes around the timing of pairing APs. With this approach we were able to show a very robust timing dependence, not just of an isolated synaptic input, but of the integrated inputs made up of multiple synaptic events (Figure 5A–C). The peak response of this voltage change was not always at t = 0 as would have been expected from in vitro experimental studies (Markram et al., 1997; Bi and Poo, 1998; Froemke et al., 2005) and assumed in STDP timing models. We found peak response changes at about 30–50 ms before and after the pairing spike. Our model suggests that this discrepancy is due to the very precise pre-synaptic timing during the pairing protocol from one trial to the next used in in vitro STDP studies which is contrary to the variable L4 and L2/3 visual response latencies found in vivo (Fagiolini et al., 1994; Niell and Stryker, 2008). In our STDP model, variability of input timing alone was sufficient to explain this broadening effect in our data compared to that expected from in vitro STDP studies.

The absolute voltage changes brought about by STDP in our study were on the order of 2 mV, yet such a change was sufficient to significantly alter the stimulus evoked spiking probability. Hence, our study suggests that small voltage changes have a dramatic effect on spiking output. We can only speculate on the mechanism because the dependence of spike generation on synaptically driven depolarizations is very complex (Shu et al., 2007), and somewhat unknown. This is especially the case in vivo (Hasenstaub et al., 2007) where combinations of various non-linear currents over the sub-threshold voltage range are present (Waters and Helmchen, 2006) and the spatial location of active synaptic inputs during evoked sensory stimulation (Varga et al., 2011) are not known. Despite these in vivo uncertainties, complex membrane-potential waveforms at the soma in vitro can reliably generate spikes (Mainen and Sejnowski, 1995) and recent simulations paired with experiments (Tchumatchenko et al., 2011) show that cortical pyramidal neurons can rapidly and reliably change firing rates in response to very small changes in somatic depolarization and hyperpolarization (twofold spiking difference induced with a 40 pA current injection).

In the current study we show that spike-timing-dependent plasticity rules using very few pairing APs can turn a neuron that hitherto did not emit a spike in response to a visual stimulus into one that frequently spikes, while pairing APs with a different timing can reduce established spiking. We propose that this is a fundamental mechanism by which neurons join and leave cell-assemblies (Wallace and Kerr, 2010) as previously proposed (Hebb, 1949) in which very few precisely timed spikes select specific temporal synaptic sequences for long-term storage from the many that are activated during a sensory learning process. Since these spikes will be transmitted to hundreds of other downstream neurons, such a change in tuning has direct implications for the function of neuronal circuits in which the respective neuron is embedded.

Materials and methods

Animal preparation

All experimental procedures were performed according to the animal welfare guidelines of the Max Planck Society. Male Lister Hooded rats at postnatal day 23–28 were anesthetized with urethane (1.6–2 g/kg body weight, i.p.). Supplementary doses of urethane (10% of original dose) were administered as required to maintain anesthetic depth at a level where paw withdrawal and corneal reflexes were absent. The general anesthesia depth during all recordings were identified as stage III-3 based on lack of whisker movement and tail response, and the frequency spectrum of electrocorticogram (ECG) signals (Kubicki and Rieger, 1968; Friedberg et al., 1999). Body temperature was monitored throughout the experiment with a thermal probe and maintained at 37°C. The animal skull was exposed and cleaned and a metal plate was attached with dental acrylic cement. A craniotomy and a dural opening were made above the left cortex (2.5 mm anterior lambda, 4.2 mm lateral from the midline). The exposed cortex was superfused with Normal Rat Ringer's (NRR) solution (in mM): 135 NaCl, 5.4 KCl, 5 HEPES, 1 MgCl2 and 1.8 CaCl2 (pH 7.2) (Kerr et al., 2005). Astrocytes were labeled with sulforhodamine 101 (Nimmerjahn et al., 2004). The craniotomy was filled with agarose (type III-A, 1% in NRR) and covered with an immobilized glass coverslip.

Intrinsic optical imaging

The animal's eyes were covered with cotton pads and NRR during the surgery until immediately before the imaging session. The part of primary visual cortex responding to visual stimuli presented directly in front of the animal's nose was determined using intrinsic optical imaging (Grinvald et al., 1986). The cortical surface was illuminated with red light (630-nm interference filter) while presenting moving gratings (see below) to both eyes. Reflectance images were acquired with a Cascade CCD camera (type 512B; Photometrics, Tucson, AZ, USA) equipped with a lens pair of a 135-mm and a 50-mm focal length objective (NA 0.46, 2.7× magnification) using custom software written in Labview (National Instruments, Austin, TX, USA). Briefly, individual trials were 6 s long (100 ms frame duration), with 2 s prestimulus time and 4 s stimulus time. Typically, ‘blank’ trials were alternated with stimulus presentation trials and a total of 40 trials comprised one imaging block. Imaging blocks were conducted for two different stimulus types: bars (white on black background, individual bar 2.4° wide) moving (at 11°/s) vertically and horizontally. Care was taken to shield the optical system from stimulus light. The surface blood vessel pattern was imaged for reference using green illumination (546 nm).

Two-photon imaging

Two-photon imaging was performed using a custom-built two-photon laser-scanning microscope (excitation wavelength 872 nm, Ti:Sapphire laser model Mai Tai HP; Spectra-Physics, Newport, RI, USA). Fluorescence images were acquired as described before (Kerr et al., 2005).

Electrophysiology

An ECG was recorded with the tip of a 500-µm-diameter Teflon-coated silver wire placed against the pial surface in one corner of the craniotomy. A reference electrode was placed over the cerebellum through a small hole in the occipital bone. Electrocorticogram signals were acquired with a custom-built AC-coupled amplifier (input impedance 1 MΩ, bandwidth 0.1 Hz to 8 kHz). The animal's eyes were covered with cotton pads soaked with NRR until shortly before establishing whole-cell recordings. To establish whole-cell configuration in vivo, neurons were visualized as dark spots in the sulforhodamine 101 counterstain using two-photon fluorescence imaging (Kerr et al., 2005) and approached with a patch pipette. In a few cases, in which for example surface blood vessels prevented sufficiently clear visualization of single neurons in the targeted area, the ‘blind’ patch technique (Margrie et al., 2003) was used to establish whole-cell configuration. Altogether, in vivo whole-cell recordings from 71 neurons (n = 58 rats) were established. In four recordings no STDP induction protocol was applied (see below), in 66 recordings exactly one STDP induction protocol was applied, and in one extraordinarily long recording (2 hr 17 min) two STDP induction protocols were applied (spaced more than 1 hr apart). Thus, the presented data set consists of n = 72 data points. Recorded neurons were located in primary visual cortex in L2/3, 169 ± 3 µm below the pial surface (range 112–225 μm, median = 170 μm; lower quartile = 150 μm; upper quartile = 186 μm) and within the responsive area identified with intrinsic optical imaging (see above, diameter of targeted area was approximately 850 µM around the center of the spot generated by intrinsic imaging). Since the location of this area was very consistent across animals in a set of initial experiments (n = 58 rats, with not all initial experiments yielding data points), intrinsic imaging was performed only in this initial set of experiments and in the following experiments, neurons were targeted stereotactically in this location. Only recordings from neurons that showed firing properties characteristic of pyramidal neurons were included, whereas fast-spiking neurons were excluded. Patch pipettes (5–9 MΩ) contained (in mM): 135 K-gluconate, 10 HEPES, 10 phosphocreatine-Na, 4 KCl, 4 ATP-Mg, 0.3 GTP-Na, 0.02 Alexa Fluor 594, and 0.2% biocytin (pH 7.2, 310 mOsm). Membrane potential was recorded using an Axoclamp 2B amplifier (Molecular Devices, Sunnyvale, CA, USA). Input resistance was estimated by application of current steps (−100 pA, 200 ms). Data was digitized at 31.5 kHz using a CED Power 1401 data acquisition board (CED; Cambridge Electronic Design, Cambridge, United Kingdom).

Visual stimuli during electrophysiology

Visual stimuli (500 ms flashed bars, white against a black background) were triggered by the membrane potential entering a down-state (Kerr and Plenz, 2002) (trigger for visual stimuli was typically ∼60 ms from down-state onset). These flashed bars (horizontal or vertical bars) were presented in 1 of 4 alternating locations on an Iiyama (Vision Master Pro 21, Tokyo, Japan, refresh rate 60 kHz) CRT monitor (1600 × 1200 pixels) placed 34 cm away from the animal's nose spanning 60.9° in width and 48° in height of the visual field. Bars were non-overlapping and either 15.2° wide and 48° high (vertical bars) or 60.9° wide and 12° high (horizontal bars). In some experiments (8 out of the overall 72 recordings) a higher initial stimulus-evoked spiking rate was achieved using a stimulus size that spanned 20.3° in width and 16° in height of the visual field resulting in initial presentation of stimuli in 9 non-overlapping positions on the screen. In all experiments, stimulation was repeated approximately every 3–4 s, while the exact inter-stimulus interval depended on the specific down-state onset. This resulted in an inter-stimulus interval of 3.7 ± 0.1 s before pairing and 3.9 ± 0.1 s during pairing (p=0.9).

STDP induction protocol

The STDP induction protocol was performed using custom-written routines running in Spike2 (CED; Cambridge Electronic Design) and Matlab (Mathworks, Natick, MA, USA). Before the STDP induction protocol, stable membrane potential responses were recorded for each of the four stimulus positions. Next, a stimulus position that evoked a robust and fast-onset response was selected and the average initial peak time after stimulus onset for the selected stimulus position was calculated. Then, this visual stimulus was paired with one or a few APs evoked by injection of a step current (15 ms, 1010 ± 102 pA). The time of the evoked AP was chosen so that the AP occurred within a few tens of milliseconds either before (negative timing) or after (positive timing) the time of the initial response peak. Pairing was repeated around 40 times every 3–4 s. After pairing, the visual stimuli in each of the four stimulus positions were presented for as long as the whole-cell recording lasted, with rejection of trials that did not meet the criteria for inclusion into analysis (see section ‘Analysis and statistics’ below). Subsequent analysis of the chosen pairing positions revealed that for both positive and negative timing experiments, the position selected for pairing ranged from the strongest to the weakest in evoked spiking responses. Overall the selection of the pairing position was not biased toward or away from the positions with the strongest pre-pairing suprathreshold responses, in that the rank of stimulus-evoked spiking at the pairing position tended neither toward first nor last among the four stimulus positions (median not significantly different from 2.5; p=0.29, n = 15 for positive timing; p=0.61, n = 17 for negative timing, Wilcoxon signed rank tests).

Histochemistry

Rats were perfused transcardially with phosphate buffer (pH 7.2) followed by 4% paraformaldehyde in phosphate buffer. The cortex was cut coronally in 100 or 150 μm microtome sections. Biocytin-filled neurons were visualized with the avidin–biotin–horseradish peroxidase reaction (Vectastain Elite ABC kit; Vector Laboratories, Burlingame, CA, USA).

Chemicals

Chemicals were obtained from Sigma (St. Louis, MO, USA) with the exception of Alexa Fluor 594 Na-hydrazide (Invitrogen, Carlsbad, CA, USA).

Analysis and statistics

Membrane potential recordings were analyzed using custom written routines running in Matlab (Mathworks) and Igor (WaveMetrics, Lake Oswego, OR, USA). The down-state membrane potential preceding each stimulus was calculated as mean across a 60–70 ms ‘baseline window’ before the onset of the stimulus-evoked response. The peak amplitude of each stimulus-evoked subthreshold response was calculated by determining the maximum voltage from the end of the baseline window to the end of a ‘peak window’, and subtracting from this the preceding down-state potential (Figure 1C). The peak window for each recording was determined by examining the subthreshold response averaged over all stimuli, and choosing the window to contain the first major peak in the average response (initial peak). For analysis of subthreshold stimulus-evoked responses, membrane potential responses to individual stimulus presentations were included only when they displayed no spiking from 50 ms before stimulus onset to 200 ms after and when the membrane potential remained in the down-state until the start of the response. Recordings were accepted when the amplitude of subthreshold stimulus-evoked responses before the STDP induction protocol was stable and when the resting membrane potential did not change by more than 8% during the course of the recording. For calculating the time course of membrane potential changes relative to the pairing spike (Figure 5A–C), we calculated the time of each neuron's pairing spikes relative to the stimulus as the maximum of a Gaussian filtered (σ = 10 ms) peristimulus time histogram (PSTH) of APs evoked by current injection during pairing. Stimulus response centers were calculated as weighted averages using the formula: C=(1i4iRi)/(1i4Ri), where Ri denotes the response at position i: the mean number of APs evoked by stimulus presentation for suprathreshold response centers, and the mean peak amplitude of the membrane potential response for subthreshold response centers. Suprathreshold response centers were calculated for neurons with the four stimulus positions arranged in a line and at least two stimulus-evoked APs before and after pairing (n = 9 neurons for positive timing, 7 for negative timing). For positive timing experiments, the total number of observed stimulus-evoked APs at the pairing position was 1.4 ± 0.9 total APs observed before induction and 9.7 ± 4.2 after (mean ± SEM across neurons, n = 15), yielding 0.06 ± 0.04 APs per stimulus before induction and 0.17 ± 0.06 after over 29.4 ± 2.1 trials before induction and 61.3 ± 9.4 after. Negative timing experiments with initial spiking yielded 29.5 ± 12.3 total APs before induction (n = 15) and 18.1 ± 6.8 after (n = 15), yielding 0.84 ± 0.23 APs per stimulus before induction and 0.66 ± 0.27 after over 36.6 ± 7.7 trials before induction and 38.4 ± 7.6 after. One-tailed t-tests were used to determine significance of sub- and suprathreshold stimulus responses at the population level, with the direction of the expected change dictated by the STDP rule. One-tailed Wilcoxon rank sum tests were used to examine individual neurons' changes in stimulus-evoked AP firing after STDP induction. Two-tailed t-tests were used to determine population wide changes in peak height and AP firing after STDP induction. The significance of average changes in the mean PSP at fixed timings before and after the pairing spike was calculated by applying one-tailed t-tests to mean voltages over time windows 60–65 ms before or 37.5–42.5 ms after the pairing spike. All other statistical evaluations of increases and decreases were two-tailed Wilcoxon rank sum tests. T-tests were used to examine association between. All reported values are mean ± SEM unless otherwise stated.

STDP model

Neuron model

We simulated a single postsynaptic neuron whose membrane potential V(t) integrates input spikes by summing the excitatory postsynaptic potentials (EPSPs) evoked by the arrival of spikes at N different synapses:

(1) V(t)=i=1Nfwiε(ttif),

where tif is the time when the f-th spike arrives at synapse i and wi are synapse strengths. The EPSP shape was ε(t)=exp(t/τdecay)exp(t/τrise) with τrise = 2 ms and τdecay = 10 ms. Initial synapse strengths were exponentially distributed, with a mean of 2 mV chosen to reproduce the membrane potential response amplitudes observed in experimental data. The postsynaptic neuron spiked only during pairing, and at a fixed time tpost after every stimulus.

Plasticity

We used a simple STDP model (Gerstner et al., 1996; Song et al., 2000) where each input spike changes the synaptic strength according to a function W:

(2) Δwi=fW(tposttif)

We used the biphasic window function

(3) W(Δt)=A(+)θ(Δt)eΔt/τ(+)A()θ(Δt)eΔt/τ(),

where θ(t) = 1 for t > 0 and 0 otherwise, τ(+) = τ(−) = 20 ms, A(+) = 0.2 and A(−) = 0.2 for results shown in the main text and the range 0.16 ≤ A(−) ≤ 0.24 is explored in Figure 5—figure supplement 3.

Input spike patterns

We modeled the spiking of presynaptic neurons according to three types of activity patterns:

Time varying firing rates

Input spikes occur at random times and are generated with a time-dependent firing rate ρi(t) = riρ(t), which has the same time course ρ(t) for all input neurons, but different scaling factors ri drawn from an exponential distribution (Baddeley et al., 1997) with mean 0.25. ρ(t) is 0 until 300 ms after stimulus onset, then rises to a maximum and slowly decays (Figure 5—figure supplement 1D):

(4) ρ(1)(t>300 ms)=ρ0(1et300 ms20 ms)et300 ms3 s,

with ρ0 = 5 Hz. In mathematical terms, presynaptic spike trains are independent inhomogeneous Poisson processes.

Patterned spike timing

Before modeling the input spikes for any stimulus presentations, a template spike train is generated separately for each presynaptic neuron using equation 4. The actual input spike times for a single stimulus presentation are generated by jittering the spike times in each template with Gaussian noise of mean 0 and variance σ2. Thus spike arrival times vary across stimulus presentations with σ controlling temporal precision. To account for unreliability in presynaptic spiking and synaptic release, each input spike crosses the synapse with probability 1/4. For these activity patterns, the mean firing rate follows a different time course for each synapse and consists of one or several Gaussian peaks (Figure 5D–I)

(5) ρi(t)=14fGσ2(tt)if,

where GV is the probability density function for a Gaussian with mean 0 and variance V. The EPSPs generated at different synapses sum up to a membrane potential response with amplitude and shape similar to those observed for the time varying firing rate patterns described by equation 4 (Figure 5—figure supplement 2A–C). The sole difference is a broadening of the response onset due to the spike jitter.

Activity wave

A brief barrage of input spikes occurs shortly after stimulus onset (Figure 5—figure supplement 1E):

(6) ρ(2)(t>300 ms)=Cri(t300 ms)2et300 ms20 ms,

where the neuron-specific amplitudes are again drawn from an exponential distribution and C is chosen so that peak firing rates are 20 Hz. The main difference from the time varying firing rate case is that inputs become active for a much shorter duration.

Stimulus tuning of presynaptic neurons

Stimulation at position s activates 400 synapses in the range 1 ≤ i − 400(1 − κ)(s − 1) ≤ 400, where κ defines the overlap between groups of synapses activated by different stimuli. We examined patterned spike timing inputs with 40 ms jitter for three cases: i) no synaptic overlap between stimuli (κ = 0, green trace in Figure 5K), ii) overlapping synaptic activations (κ = 0.5) but no shared timing, with all neurons changing their templates spike trains depending on the stimulus (blue trace in Figure 5K) and iii) shared synapses and shared timing, with neurons keeping the same templates for all stimuli (red trace in Figure 5K).

Simulation protocol

The simulations follow a protocol similar to the experiments. We first estimated the membrane potential response before pairing by averaging over 20 stimulus presentations for each stimulus position, followed by 30 pairing trials for a single stimulus position. For time varying firing rates and patterned spike timing, the time of postsynaptic pairing spikes tpost was either 350 ms after stimulus onset (50 ms after membrane potential response onset, n = 9 simulations) or 400 ms after stimulus onset (100 ms after membrane potential response onset, n = 15) after the onset of the membrane potential response. For the activity wave input patterns tpost was 20 or 80 ms after response onset. These early and late values for tpost were chosen to occur before and after the peak of the response, and the number of neurons simulated for each case was matched to experimental data. The membrane potential response after pairing was estimated by averaging over 80 trials. The simulation results plotted in the main text (Figure 5) were performed with patterned spike timing inputs. These plots show the difference between the membrane potential response before and after pairing for single neurons and in a population average, aligned to the time of the postsynaptic spike.

References

  1. 1
    Metaplasticity: tuning synapses and networks for plasticity
    1. WC Abraham
    (2008)
    Nat Rev Neurosci 9:387.
  2. 2
    Different voltage-dependent thresholds for inducing long-term depression and long-term potentiation in slices of rat visual cortex
    1. A Artola
    2. S Brocher
    3. W Singer
    (1990)
    Nature 347:69–72.
  3. 3
    Responses of neurons in primary and inferior temporal visual cortices to natural scenes
    1. R Baddeley
    2. LF Abbott
    3. MC Booth
    4. F Sengpiel
    5. T Freeman
    6. EA Wakeman
    et al. (1997)
    Proc Biol Sci 264:1775–1783.
  4. 4
    Temporal precision of spike trains in extrastriate cortex of the behaving macaque monkey
    1. W Bair
    2. C Koch
    (1996)
    Neural Comput 8:1185–1202.
  5. 5
    Synaptic modification by correlated activity: Hebb's postulate revisited
    1. G Bi
    2. M Poo
    (2001)
    Annu Rev Neurosci 24:139–166.
  6. 6
    Synaptic modifications in cultured hippocampal neurons: dependence on spike timing, synaptic strength, and postsynaptic cell type
    1. GQ Bi
    2. MM Poo
    (1998)
    J Neurosci 18:10464–10472.
  7. 7
    Reducing the variability of neural responses: a computational theory of spike-timing-dependent plasticity
    1. SM Bohte
    2. MC Mozer
    (2007)
    Neural Comput 19:371–403.
  8. 8
    Modulation of spike timing by sensory deprivation during induction of cortical map plasticity
    1. T Celikel
    2. VA Szostak
    3. DE Feldman
    (2004)
    Nat Neurosci 7:534–541.
  9. 9
    Connectivity reflects coding: a model of voltage-based STDP with homeostasis
    1. C Clopath
    2. L Busing
    3. E Vasilaki
    4. W Gerstner
    (2010)
    Nat Neurosci 13:344–352.
  10. 10
    Spontaneous firing patterns and axonal projections of single corticostriatal neurons in the rat medial agranular cortex
    1. RL Cowan
    2. CJ Wilson
    (1994)
    J Neurophysiol 71:17–32.
  11. 11
    Kittens reared in a unidirectional environment: evidence for a critical period
    1. NW Daw
    2. HJ Wyatt
    (1976)
    J Physiol 257:155–170.
  12. 12
    Functional postnatal development of the rat primary visual cortex and the role of visual experience: dark rearing and monocular deprivation
    1. M Fagiolini
    2. T Pizzorusso
    3. N Berardi
    4. L Domenici
    5. L Maffei
    (1994)
    Vision Res 34:709–720.
  13. 13
    The spike-timing dependence of plasticity
    1. DE Feldman
    (2012)
    Neuron 75:556–571.
  14. 14
    Orientation selectivity of synaptic potentials in neurons of cat primary visual cortex
    1. D Ferster
    (1986)
    J Neurosci 6:1284–1301.
  15. 15
    A Re-examination of Hebbian-covariance rules and spike timing-dependent plasticity in cat visual cortex in vivo
    1. Y Fregnac
    2. M Pananceau
    3. A Rene
    4. N Huguet
    5. O Marre
    6. M Levy
    et al. (2010)
    Front Synaptic Neurosci 2:147.
  16. 16
    Modulation of receptive field properties of thalamic somatosensory neurons by the depth of anesthesia
    1. MH Friedberg
    2. SM Lee
    3. FF Ebner
    (1999)
    J Neurophysiol 81:2243–2252.
  17. 17
    Spike-timing-dependent synaptic plasticity depends on dendritic location
    1. RC Froemke
    2. MM Poo
    3. Y Dan
    (2005)
    Nature 434:221–225.
  18. 18
    Temporal specificity in the cortical plasticity of visual space representation
    1. YX Fu
    2. K Djupsund
    3. H Gao
    4. B Hayden
    5. K Shen
    6. Y Dan
    (2002)
    Science 296:1999–2003.
  19. 19
    A neuronal learning rule for sub-millisecond temporal coding
    1. W Gerstner
    2. R Kempter
    3. JL van Hemmen
    4. H Wagner
    (1996)
    Nature 383:76–81.
  20. 20
    Adult cortical dynamics
    1. CD Gilbert
    (1998)
    Physiol Rev 78:467–485.
  21. 21
    Receptive field dynamics in adult primary visual cortex
    1. CD Gilbert
    2. TN Wiesel
    (1992)
    Nature 356:150–152.
  22. 22
    Population imaging of ongoing neuronal activity in the visual cortex of awake rats
    1. DS Greenberg
    2. AR Houweling
    3. JN Kerr
    (2008)
    Nat Neurosci 11:749–751.
  23. 23
    Functional architecture of cortex revealed by optical imaging of intrinsic signals
    1. A Grinvald
    2. E Lieke
    3. RD Frostig
    4. CD Gilbert
    5. TN Wiesel
    (1986)
    Nature 324:361–364.
  24. 24
    Neural signatures of cell assembly organization
    1. KD Harris
    (2005)
    Nat Rev Neurosci 6:399–407.
  25. 25
    State changes rapidly modulate cortical neuronal responsiveness
    1. A Hasenstaub
    2. RN Sachdev
    3. DA McCormick
    (2007)
    J Neurosci 27:9607–9622.
  26. 26
    The organization of behavior. A neuropsychological theory
    1. DO Hebb
    (1949)
    New York: John Wiley & Sons, Inc.
  27. 27
    STDP in adaptive neurons gives close-to-optimal information transmission
    1. G Hennequin
    2. W Gerstner
    3. JP Pfister
    (2010)
    Front Comput Neurosci 4:143.
  28. 28
    Synaptic integration in striate cortical simple cells
    1. JA Hirsch
    2. JM Alonso
    3. RC Reid
    4. LM Martinez
    (1998)
    J Neurosci 18:9517–9528.
  29. 29
    Synaptic physiology of the flow of information in the cat's visual cortex in vivo
    1. JA Hirsch
    2. LM Martinez
    3. JM Alonso
    4. K Desai
    5. C Pillai
    6. C Pierre
    (2002)
    J Physiol 540:335–350.
  30. 30
    Receptive fields of single neurones in the cat's striate cortex
    1. DH Hubel
    2. TN Wiesel
    (1959)
    J Physiol 148:574–591.
  31. 31
    Spike timing-dependent synaptic depression in the in vivo barrel cortex of the rat
    1. V Jacob
    2. DJ Brasier
    3. I Erchova
    4. D Feldman
    5. DE Shulz
    (2007)
    J Neurosci 27:1271–1284.
  32. 32
    Dendritic organization of sensory input to cortical neurons in vivo
    1. H Jia
    2. NL Rochefort
    3. X Chen
    4. A Konnerth
    (2010)
    Nature 464:1307–1312.
  33. 33
    Reorganization of retinotopic cortical maps in adult mammals after lesions of the retina
    1. JH Kaas
    2. LA Krubitzer
    3. YM Chino
    4. AL Langston
    5. EH Polley
    6. N Blair
    (1990)
    Science 248:229–231.
  34. 34
    Imaging input and output of neocortical networks in vivo
    1. JN Kerr
    2. D Greenberg
    3. F Helmchen
    (2005)
    Proc Natl Acad Sci USA 102:14063–14068.
  35. 35
    Dendritic calcium encodes striatal neuron output during up-states
    1. JN Kerr
    2. D Plenz
    (2002)
    J Neurosci 22:1499–1512.
  36. 36
    Variability of bregma in 300 gram Long-Evans and Sprague-Dawley rats
    1. J Kline
    2. KH Reid
    (1984)
    Physiol Behav 33:301–303.
  37. 37
    The EEG during acute intoxication with hypnotics
    1. S Kubicki
    2. H Rieger
    (1968)
    Electroencephalogr Clin Neurophysiol 25:94.
  38. 38
    Whole-cell recordings in freely moving rats
    1. AK Lee
    2. ID Manns
    3. B Sakmann
    4. M Brecht
    (2006)
    Neuron 51:399–407.
  39. 39
    Experience with moving visual stimuli drives the early development of cortical direction selectivity
    1. Y Li
    2. SD Van Hooser
    3. M Mazurek
    4. LE White
    5. D Fitzpatrick
    (2008)
    Nature 456:952–956.
  40. 40
    Enhancement of associative long-term potentiation by activation of beta-adrenergic receptors at CA1 synapses in rat hippocampal slices
    1. YW Lin
    2. MY Min
    3. TH Chiu
    4. HW Yang
    (2003)
    J Neurosci 23:4173–4181.
  41. 41
    Postsynaptic depolarization requirements for LTP and LTD: a critique of spike timing-dependent plasticity
    1. J Lisman
    2. N Spruston
    (2005)
    Nat Neurosci 8:839–841.
  42. 42
    Questions about STDP as a general model of synaptic plasticity
    1. J Lisman
    2. N Spruston
    (2010)
    Front Synaptic Neurosci 2:140.
  43. 43
    A synaptically controlled, associative signal for Hebbian plasticity in hippocampal neurons
    1. JC Magee
    2. D Johnston
    (1997)
    Science 275:209–213.
  44. 44
    Reliability of spike timing in neocortical neurons
    1. ZF Mainen
    2. TJ Sejnowski
    (1995)
    Science 268:1503–1506.
  45. 45
    Targeted whole-cell recordings in the mammalian brain in vivo
    1. TW Margrie
    2. AH Meyer
    3. A Caputi
    4. H Monyer
    5. MT Hasan
    6. AT Schaefer
    et al. (2003)
    Neuron 39:911–918.
  46. 46
    Regulation of synaptic efficacy by coincidence of postsynaptic APs and EPSPs
    1. H Markram
    2. J Lubke
    3. M Frotscher
    4. B Sakmann
    (1997)
    Science 275:213–215.
  47. 47
    On the relationship between synaptic input and spike output jitter in individual neurons
    1. P Marsalek
    2. C Koch
    3. J Maunsell
    (1997)
    Proc Natl Acad Sci USA 94:735–740.
  48. 48
    Receptive-field modification in rat visual cortex induced by paired visual stimulation and single-cell spiking
    1. CD Meliza
    2. Y Dan
    (2006)
    Neuron 49:183–189.
  49. 49
    Highly selective receptive fields in mouse visual cortex
    1. CM Niell
    2. MP Stryker
    (2008)
    J Neurosci 28:7520–7536.
  50. 50
    Sulforhodamine 101 as a specific marker of astroglia in the neocortex in vivo
    1. A Nimmerjahn
    2. F Kirchhoff
    3. JN Kerr
    4. F Helmchen
    (2004)
    Nat Methods 1:31–37.
  51. 51
    Instantaneous correlation of excitation and inhibition during ongoing and sensory-evoked activities
    1. M Okun
    2. I Lampl
    (2008)
    Nat Neurosci 11:535–537.
  52. 52
    On the maximization of information flow between spiking neurons
    1. LC Parra
    2. JM Beck
    3. AJ Bell
    (2009)
    Neural Comput 21:2991–3009.
  53. 53
    Interaction of sensory responses with spontaneous depolarization in layer 2/3 barrel cortex
    1. CC Petersen
    2. TT Hahn
    3. M Mehta
    4. A Grinvald
    5. B Sakmann
    (2003)
    Proc Natl Acad Sci USA 100:13638–13643.
  54. 54
    Optimal spike-timing-dependent plasticity for precise action potential firing in supervised learning
    1. JP Pfister
    2. T Toyoizumi
    3. D Barber
    4. W Gerstner
    (2006)
    Neural Comput 18:1318–1348.
  55. 55
    Spike-timing-dependent plasticity and reliability optimization: the role of neuron dynamics
    1. RR Pool
    2. G Mato
    (2011)
    Neural Comput 23:1768–1789.
  56. 56
    Effect of subthreshold up and down states on the whisker-evoked response in somatosensory cortex
    1. RN Sachdev
    2. FF Ebner
    3. CJ Wilson
    (2004)
    J Neurophysiol 92:3511–3521.
  57. 57
    Visually evoked activity in cortical cells imaged in freely moving animals
    1. J Sawinski
    2. DJ Wallace
    3. DS Greenberg
    4. S Grossmann
    5. W Denk
    6. JN Kerr
    (2009)
    Proc Natl Acad Sci USA 106:19557–19562.
  58. 58
    Spike timing dependent plasticity: a consequence of more fundamental learning rules
    1. HZ Shouval
    2. SS Wang
    3. GM Wittenberg
    (2010)
    Front Comput Neurosci 4:1–13.
  59. 59
    Properties of action-potential initiation in neocortical pyramidal cells: evidence from whole cell axon recordings
    1. Y Shu
    2. A Duque
    3. Y Yu
    4. B Haider
    5. DA McCormick
    (2007)
    J Neurophysiol 97:746–760.
  60. 60
    Rate, timing, and cooperativity jointly determine cortical synaptic plasticity
    1. PJ Sjostrom
    2. GG Turrigiano
    3. SB Nelson
    (2001)
    Neuron 32:1149–1164.
  61. 61
    Variability in the stereotaxic position of cerebral points in the albino rat
    1. BM Slotnick
    2. DL Brown
    (1980)
    Brain Res Bull 5:135–139.
  62. 62
    Cortical development and remapping through spike timing-dependent plasticity
    1. S Song
    2. LF Abbott
    (2001)
    Neuron 32:339–350.
  63. 63
    Competitive Hebbian learning through spike-timing-dependent synaptic plasticity
    1. S Song
    2. KD Miller
    3. LF Abbott
    (2000)
    Nat Neurosci 3:919–926.
  64. 64
    Ultrafast population encoding by cortical neurons
    1. T Tchumatchenko
    2. A Malyshev
    3. F Wolf
    4. M Volgushev
    (2011)
    J Neurosci 31:12171–12179.
  65. 65
    Optimality model of unsupervised spike-timing-dependent plasticity: synaptic memory and weight distribution
    1. T Toyoizumi
    2. JP Pfister
    3. K Aihara
    4. W Gerstner
    (2007)
    Neural Comput 19:639–671.
  66. 66
    Dendritic coding of multiple sensory inputs in single cortical neurons in vivo
    1. Z Varga
    2. H Jia
    3. B Sakmann
    4. A Konnerth
    (2011)
    Proc Natl Acad Sci USA 108:15420–15425.
  67. 67
    Chasing the cell assembly
    1. DJ Wallace
    2. JN Kerr
    (2010)
    Curr Opin Neurobiol 20:296–305.
  68. 68
    Background synaptic activity is sparse in neocortex
    1. J Waters
    2. F Helmchen
    (2006)
    J Neurosci 26:8267–8277.
  69. 69
    Single-cell responses in striate cortex of kittens deprived of vision in one eye
    1. TN Wiesel
    2. DH Hubel
    (1963)
    J Neurophysiol 26:1003–1017.
  70. 70
    Cortical reorganization consistent with spike timing-but not correlation-dependent plasticity
    1. JM Young
    2. WJ Waleszczyk
    3. C Wang
    4. MB Calford
    5. B Dreher
    6. K Obermayer
    (2007)
    Nat Neurosci 10:887–895.
  71. 71
    Gain in sensitivity and loss in temporal contrast of STDP by dopaminergic modulation at hippocampal synapses
    1. JC Zhang
    2. PM Lau
    3. GQ Bi
    (2009)
    Proc Natl Acad Sci USA 106:13028–13033.

Decision letter

  1. Michael Häusser
    Reviewing Editor; University College London, United Kingdom

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for choosing to send your work entitled “Spike-timing dependent plasticity (STDP) changes responses of cortical neurons from sub- to suprathreshold in vivo” for consideration at eLife. Your article has been evaluated by a Senior Editor and 3 reviewers, one of whom is a member of eLife's Board of Reviewing Editors.

The Reviewing Editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing Editor has assembled the following comments based on the reviewers' reports. Overall our view is that new experiments, while desirable, are not absolutely essential for the revision; however, new analysis, modeling, and revision will be required.

1. There appears to be a major discrepancy between the effect of plasticity on the subthreshold and suprathreshold responses. The changes in the subthreshold responses are quite small: for example, in Figure 2B the change in EPSP is at most 2mV, as well as in Figure 2C, the most positive pairing except two outliers show less than 20% change. Citing from the text “positive timing inductions increased the peak voltage amplitude by 21.9 ± 9.0 % (n = 15) or 1.3 ± 0.6 m”. However, in contrast the resulting change in spike probability per stimulus is huge. For positive pairing you get an increase from 0.06 sp/stim to 1.8 sp/stim (this is more than 200%). It is difficult to reconcile these two findings. The conclusion should be that the cell subthreshold response is very close to threshold such that an addition of ∼1.3 mV on average will make a 200% change in spiking probability. It would be very helpful to know not only how many cells were recorded but also how many stimulations and how many spikes were recorded. You give statistics in terms of number of neurons, but to have a reliable estimate of 0.06 spikes/stim one needs to have many stimuli, and it would be good to know how many you have recorded. From the figures, e.g. Figure 3C it looks as if there is sometimes only a single spike response in some of the conditions. The authors seem to provide evidence against the possibility that a change in Rin or depolarisation would account for it. We are not convinced that they make a very convincing case here, because they provide average data, and so it could be that on average the change in Rin is small, but that there is a good correlation between neurons that show a change in firing rate and neurons that show a change in Rin. The transition from EPSP to spike is nonlinear so the small change in Rin or in depolarisation is just as good as a candidate as a small change in EPSP size. The fact that a sham control did not show anything could be because the STDP protocol does change something, but maybe not what the authors propose. The authors therefore need to supply more analysis and provide an explanation (e.g., using modelling) how a 20% change in EPSP peak size can lead to a 200% in spike probability.

2. Related to the previous point, a surprising finding is that the LTD protocol strongly affects subthreshold peak amplitudes (in fact, the effect is more robust as compared to the LTP protocol, -32.4% vs +21.9%), but it does not seem to affect spiking output, whereas the LTP paradigm does. Perhaps this is caused by the large spread and not-normal distribution of baseline spiking within the cell population that was used for the LTD protocol, and perhaps by the relatively low number of cells. Here the authors should have probably aimed for applying the protocol to robustly spiking neurons only. Clearly, a decrease in spiking will be hard to detect in cells that barely spike to start with. Right now the data look more like a negative control for the LTP experiments. As the paper does not further address this finding, we think the authors should more clearly discuss this and analyze the data to address this apparent discrepancy – e.g., why could the experiments be inconclusive; or, if the authors believe the experiments are conclusive, what would then be the functional/behavioral relevance of LTD?

3. It seems that the effects of STDP on sub and suprathreshold activity were analyzed independently. The authors must have information on a possible relationship within cells. Does LTD/LTP paradigm affect the gain and threshold of the neuronal input – output function? (e.g., see Carvalho and Buonomano, Neuron, 2009)?

4. No negative control experiments are provided in the text or figures (at least regarding subthreshold activity). Is LTP/LTD really dependent on spike pairing? In other words, could the effect depend on just depolarization instead? Similarly, since the pairing was performed at different positions there is likely a great variability in pre-pairing PSP peak amplitudes. The authors may want to check whether or not the success rate or level of STDP related to pre-peak amplitudes, and provide a scatterplot of pre vs post pairing EPSP amplitudes.

5. The relevance of Figure 4 is unclear. There are no statistics provided – are the results in Figure 4C significant or not? In Figure 4C, we are told there are shifts, but what are these shifts and what do they signify? Why is this “spatial reorganization” (this and other figures)? The Distance from Paired Position: is that the same as the Position from Paired Position and the Distance from Pairing Position (Figure 3)? Is this really a true distance because it is in a part of the RF? In the text the authors use this figure to essentially describe a general, qualitative phenomenon for which the statistics are not provided, and then they elaborate on it as if it is proven. Either the authors should use statistical tests to confirm the significance of the results; or they should provide more data; or they should remove this part of the paper.

6. The neuromodulation results (Figure 6) are not obviously related to the rest of the study, and the experiments are of lower impact and quality than those in the rest of the paper. Although the role of neuromodulation in learning and synaptic plasticity is important, the link with the rest of the paper is not well explained, and Figure 6 therefore seems out of context. What does the reader learn from the contents of Figure 6 that is critical to their understanding of the other results? To know that STDP rules change the tuning cortical neuron spiking, why does the reader need to learn about the need for cholinergic neuromodulation in particular? Moreover, the biological relevance of cholinergic blockade is unclear – i.e., why does in vivo plasticity require cholinergic neuromodulation, when in vitro plasticity clearly does not (e.g., Markram et al Science 1997; Froemke Nature 2002; Feldman Neuron 2000; Sjostrom et al Neuron 2001 to provide few examples). Given these concerns, we recommend removing these results and the corresponding figure from the paper as it currently does not significantly strengthen the manuscript.

7. The authors use the STDP model as the explanation for why they observe this increase before APs (LTP window) and a decrease after (LTD window). But as the authors do not test the LTD window experimentally, this decrease may in principle be due to something else, such as increase in inhibition, a change in I_H, or some other intrinsic conductance. In general, the authors have pushed very strongly the idea that STDP in particular (as opposed to classical Hebbian LTP/LTD) underlies the phenomenology. Certainly the results are consistent with STDP, but they do not demonstrate definitively that STDP definitively underlies the plasticity. For example, Blum and Abbott's Neural Comput 1996 paper was based on classical Hebbian learning, yet has in hindsight been reinterpreted as supporting STDP, but already the Hebbian postulate itself specifies the need for temporal order and temporal asymmetry in in learning rules: cell A has to repeatedly and persistently fire before cell B. And the LTD could in principle be due to Gunther Stent's LTD. So why do we need STDP to explain this? The fact that Pawlak et al use a single spike to induce plasticity does not necessarily mean this is STDP; it just means a single postsynaptic spike is enough. The alternative possibilities need to be acknowledged and discussed more thoroughly.

https://doi.org/10.7554/eLife.00012.011

Author response

Overall our view is that new experiments, while desirable, are not absolutely essential for the revision; however, new analysis, modeling, and revision will be required.

We thank the reviewers and reviewing editor for supplying a clear and constructive review of our manuscript. We have addressed the concerns by performing additional experiments and carrying out further analysis. Although the editors did not recommend experiments, we felt that the reviewers raised some very good points that could be addressed experimentally. This combined with new analysis, and a rewritten introduction and discussion, now allows the manuscript to make clearer and stronger statements. With the new experiments, we now show that STDP rules in vivo can convert a neuron's visually evoked responses from non-spiking to spiking, can increase and diminish existing spiking responses, and can induce a rearrangement of the neurons sub- and suprathreshold responses to stimuli presented at locations surrounding the paired location. We have rewritten most of the introduction to realign the findings more towards a general plasticity rule. We have also rewritten almost the entire discussion to address reviewers' questions. Using the reviewers' comments we have tightened up the argument and logical flow.

1. There appears to be a major discrepancy between the effect of plasticity on the subthreshold and suprathreshold responses. The changes in the subthreshold responses are quite small: for example, in Figure 2B the change in EPSP is at most 2mV, as well as in Figure 2C, the most positive pairing except two outliers show less than 20% change. Citing from the text “positive timing inductions increased the peak voltage amplitude by 21.9 ± 9.0 % (n = 15) or 1.3 ± 0.6 m”. However, in contrast the resulting change in spike probability per stimulus is huge. For positive pairing you get an increase from 0.06 sp/stim to 1.8 sp/stim (this is more than 200%). It is difficult to reconcile these two findings. The conclusion should be that the cell subthreshold response is very close to threshold such that an addition of ∼1.3 mV on average will make a 200% change in spiking probability.

This is a good point, but we do not think there is a discrepancy between these findings as it is not clear what voltage changes would be expected at the soma to change spiking. Relating synaptically derived voltage changes at the soma to the binary output spiking changes is very complex and somewhat unknown, especially in vivo due to the combinations of various non-linear currents over the sub-threshold voltage range and the spatial location of the evoked synaptic inputs relative to the soma in vivo during visual stimulation. Given the non-linear rectification of the current-voltage relationship near threshold, the strong attenuation of synaptic events recorded at the soma, and the variable spike threshold recorded at the soma, it is not clear to us what the expected voltage changes at the soma should be to elicit spiking changes in the neuron. We have now addressed this in the discussion, results, and introduction.

In addition, with our new experiments we now show that with negative timing stimulus evoked spiking responses decrease compared to pre-paring periods. This was also associated with a small hyperpolarizing change in the membrane potential of the same magnitude as the depolarizing change associated with the positive paring protocol. In some respects this is the driving force of the question: whether the small changes in membrane potential brought about by STDP protocols can lead to functional changes at the spiking level.

It would be very helpful to know not only how many cells were recorded but also how many stimulations and how many spikes were recorded. You give statistics in terms of number of neurons, but to have a reliable estimate of 0.06 spikes/stim one needs to have many stimuli, and it would be good to know how many you have recorded. From the figures, e.g. Figure 3C it looks as if there is sometimes only a single spike response in some of the conditions.

We have added more information about the number of presented stimuli and stimulus-evoked APs as suggested. While the significant increases in spiking at the population level for positive (LTP) and negative (LTP) timings remain statistically valid regardless of the number of stimulus presentations and spikes available, we agree that an analysis that takes into account the amount of data available for each neuron is desirable as well. We have therefore included significance tests for individual neurons, revealing that 4 neurons for positive timings and another 4 for negative timings show significant changes in AP firing. Together, these findings show that our sampling is sufficient to detect changes in AP firing.

The authors seem to provide evidence against the possibility that a change in Rin or depolarisation would account for it. We are not convinced that they make a very convincing case here, because they provide average data, and so it could be that on average the change in Rin is small, but that there is a good correlation between neurons that show a change in firing rate and neurons that show a change in Rin.

We have performed the analysis as suggested revealing that neither changes in Rin nor changes in resting membrane potential are correlated to changes in stimulus evoked AP-firing.

The transition from EPSP to spike is nonlinear so the small change in Rin or in depolarisation is just as good as a candidate as a small change in EPSP size. The fact that a sham control did not show anything could be because the STDP protocol does change something, but maybe not what the authors propose. The authors therefore need to supply more analysis and provide an explanation (e.g., using modelling) how a 20% change in EPSP peak size can lead to a 200% in spike probability.

Recent evidence (Tchumatchenko, Malyshev et al. 2011) has shown that cortical pyramidal neurons are able to rapidly and reliably change firing rates in response to very small changes in depolarization (2-fold spiking difference induced with a 40pA current injection) and hyperpolarization. Relating synaptically derived voltage changes at the soma to the binary output spiking changes is very complex, and somewhat unknown, especially in vivo due to the combinations of various non-linear currents over the sub-threshold voltage range (Waters and Helmchen 2006) and spatial complexity of evoked synaptic inputs in vivo during visual stimulation. Given the non-linear rectification of the current-voltage relationship near threshold, the strong attenuation of synaptic events recorded at the soma, the precision with which neurons can follow complex membrane-potential waveforms at the soma to reliably generate spikes (Mainen and Sejnowski 1995) and finally, the variable spike threshold recorded at the soma (Azouz and Gray 2000), it is not clear to us what the expected voltage changes at the soma should be to elicit spiking changes in the neuron. We also note that the observed increase in spiking displayed stimulus specificity (Figure 3G), but this would not be observed if the increase were merely due to changes in Rin or resting membrane potential.

2. Related to the previous point, a surprising finding is that the LTD protocol strongly affects subthreshold peak amplitudes (in fact, the effect is more robust as compared to the LTP protocol, -32.4% vs +21.9%), but it does not seem to affect spiking output, whereas the LTP paradigm does. Perhaps this is caused by the large spread and not-normal distribution of baseline spiking within the cell population that was used for the LTD protocol, and perhaps by the relatively low number of cells. Here the authors should have probably aimed for applying the protocol to robustly spiking neurons only. Clearly, a decrease in spiking will be hard to detect in cells that barely spike to start with. Right now the data look more like a negative control for the LTP experiments. As the paper does not further address this finding, we think the authors should more clearly discuss this and analyze the data to address this apparent discrepancy – e.g., why could the experiments be inconclusive; or, if the authors believe the experiments are conclusive, what would then be the functional/behavioral relevance of LTD?

In our minds this was a very serious concern and undermined the strength of the study; in fact, this concern was the driving force behind performing new experiments. What we did not want was a finding that was based on low numbers of recordings, and wrong for this reason. With this in mind we added additional experiments and now show that STDP rules can both increase and decrease stimulus evoked AP firing. All figures have been updated to reflect this finding.

3. It seems that the effects of STDP on sub and suprathreshold activity were analyzed independently. The authors must have information on a possible relationship within cells.

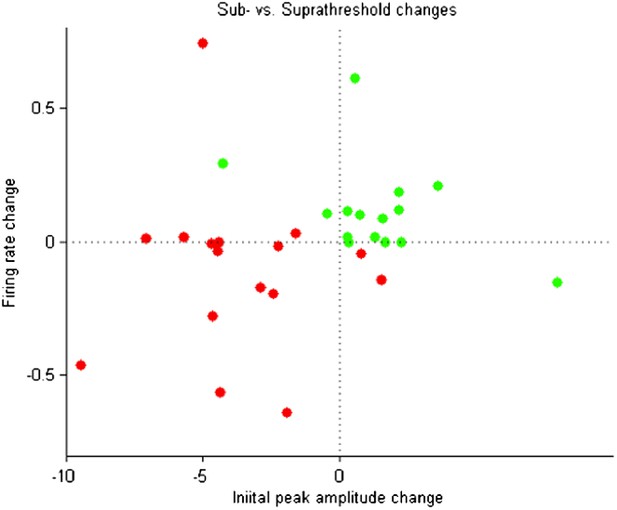

No significant correlation was observed between subthreshold and suprathreshold changes at the pairing position (see the following scatter plot: Author response image 1). Correlation was not significant (p > 0.05, t-tests) when considering positive timing experiments, negative timing experiments, or all experiments. A clear relationship between subthreshold and suprathreshold changes was not expected, however.

Does LTD/LTP paradigm affect the gain and threshold of the neuronal input – output function? (e.g., see Carvalho and Buonomano, Neuron, 2009)?

While estimating the effect of plasticity change on the I/O relationship would of course be of great interest, we feel that it would be another study in itself and without having available the careful in vitro manipulations that were available to Carvalho and Buonomano (2009) for our in vivo study, we would not be able to add new or insightful data to the present study. One of the key features of the Carvalho and Buonomano (2009) study was that they were able to manipulate neuronal properties using pharmacology and isolate certain currents and voltages that they later implemented in their models. The accuracy needed to do this correctly is not afforded in vivo, yet, and would be a tour-de-force technically.

4. No negative control experiments are provided in the text or figures (at least regarding subthreshold activity). Is LTP/LTD really dependent on spike pairing? In other words, could the effect depend on just depolarization instead?

Both the spiking responses and the sub-threshold responses to visual stimulation over extended periods of time do not significantly change – either decreasing or increasing – without the addition of deliberately placed pairing spikes. It is not spikes alone, but the pairing of the spike with the visual stimulation evoked pre-synaptic avalanche. The on-going spiking, that is not associated with the stimulus, does not produce the same predictable changes in either sub- or suprathreshold voltage responses.

Regarding the back-propagating APs vs. sharp brief depolarization of the soma without generating the back-propagating AP, it is hard to imagine that the depolarizing current would spread far from the recording site (soma) into the dendrites and, ultimately the spines activated from the visual stimulation.

Similarly, since the pairing was performed at different positions there is likely a great variability in pre-pairing PSP peak amplitudes. The authors may want to check whether or not the success rate or level of STDP related to pre-peak amplitudes, and provide a scatterplot of pre vs post pairing EPSP amplitudes.

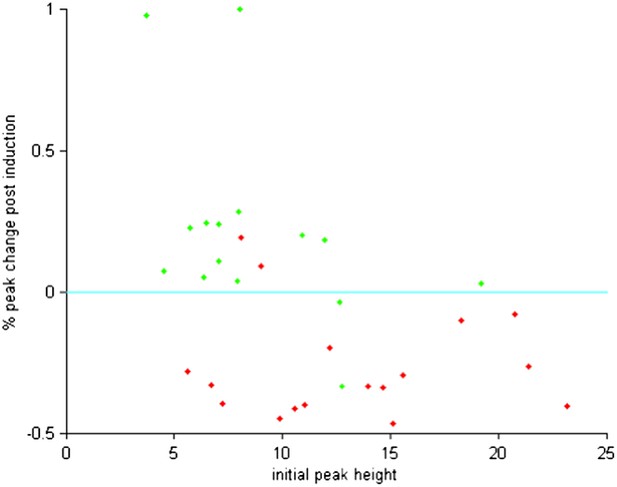

The percentage changes in peak amplitude we observed at the pairing position were not correlated with the initial peak amplitude before pairing for either positive or negative timing experiments (p > 0.05, t-tests). As shown here (Author response image 2), while variability across experiments was observed for both positive and negative timing experiments, the amplitude of these changes was not determined by the initial peak height.

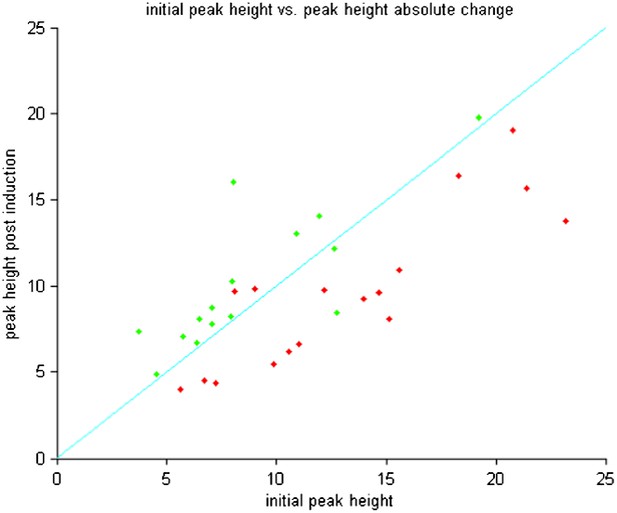

The suggested scatter plot of peak amplitudes before and after plasticity induction reveals (shown below: Author response image 3) reveals the same lack of dependence.

Thus the plasticity effects observed are not restricted to neurons with large or small initial peaks.

5. The relevance of Figure 4 is unclear. There are no statistics provided – are the results in Figure 4C significant or not? In Figure 4C, we are told there are shifts, but what are these shifts and what do they signify?

There are appropriate statistics provided. We have tested the significance by examining the correlation between the shift in the response center and the distance from the response center to the induction position. Positive timing experiments showed a significant tendency for the response center to move toward the pairing position, while negative timing experiments did not show any significant trend. In the revised manuscript, the statistical analysis of suprathreshold response center shifts now appears as such: “Stimulus response centers were calculated as weighted averages of the four stimulus positions…”

Statistical analysis of subthreshold response center shifts now appears as such: “… We next examined whether the shifts in response centers observed for suprathreshold responses were also reflected in subthreshold responses…”

Why is this “spatial reorganization” (this and other figures)?

The response center describes the dependence of sub- or suprathreshold responses on the spatial positioning of the stimulus on a screen in front of the animal, taking into account responses to stimuli at all positions. Thus a shift in the response center reflects changes in the relative amplitude of sub- or suprathreshold responses across the space of locations used for stimulus presentation, a process we referred to as spatial reorganization.

The Distance from Paired Position: is that the same as the Position from Paired Position and the Distance from Pairing Position (Figure 3)?

We have corrected this instance of inconsistent terminology, and normalized the nomenclature used to describe sensory stimulation throughout the paper. We now use the phrase “distance from paired position”.

Is this really a true distance because it is in a part of the RF? In the text the authors use this figure to essentially describe a general, qualitative phenomenon for which the statistics are not provided, and then they elaborate on it as if it is proven. Either the authors should use statistical tests to confirm the significance of the results; or they should provide more data; or they should remove this part of the paper.

This was never used to quantify a qualitative measure, as the strength of the effect (R value) as well as the significance (P value) have been quantified. What we clearly show is the rearrangement neuronal responses based on STDP rules and the spatial dependence of these response both at the supra and subthreshold level.

6. The neuromodulation results (Figure 6) are not obviously related to the rest of the study, and the experiments are of lower impact and quality than those in the rest of the paper. Although the role of neuromodulation in learning and synaptic plasticity is important, the link with the rest of the paper is not well explained, and Figure 6 therefore seems out of context. […] Given these concerns, we recommend removing these results and the corresponding figure from the paper as it currently does not significantly strengthen the manuscript.

We have followed these suggestions and removed the text and figures describing neuromodulatory effects from the manuscript.

7. The authors use the STDP model as the explanation for why they observe this increase before APs (LTP window) and a decrease after (LTD window). But as the authors do not test the LTD window experimentally, this decrease may in principle be due to something else, such as increase in inhibition, a change in I_H, or some other intrinsic conductance. […] The alternative possibilities need to be acknowledged and discussed more thoroughly.

We thank the reviewers for this comment and we have devoted a paragraph of our discussion to this point.

https://doi.org/10.7554/eLife.00012.012

Article and author information

Author details

  1. Verena Pawlak

    Network Imaging Group, Max Planck Institute for Biological Cybernetics, Tübingen, Germany
    Contribution
    VP, Performed all in vivo experiments and histology, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors have declared that no competing interests exist
  2. David S Greenberg

    Network Imaging Group, Max Planck Institute for Biological Cybernetics, Tübingen, Germany
    Contribution
    DSG, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors have declared that no competing interests exist
  3. Henning Sprekeler

    School of Computer and Communication Sciences and School of Life Sciences, Brain Mind Institute, Ecole Polytechnique Federale de Lausanne, Lausanne, Switzerland
    Contribution
    HS, Devised model and performed simulations
    Competing interests
    The authors have declared that no competing interests exist
  4. Wulfram Gerstner

    1. School of Computer and Communication Sciences and School of Life Sciences, Brain Mind Institute, Ecole Polytechnique Federale de Lausanne, Lausanne, Switzerland
    2. Bernstein Center for Computational Neuroscience, Tübingen, Germany
    Contribution
    WG, Devised model and performed simulations
    Competing interests
    The authors have declared that no competing interests exist
  5. Jason ND Kerr

    1. Network Imaging Group, Max Planck Institute for Biological Cybernetics, Tübingen, Germany
    2. Bernstein Center for Computational Neuroscience, Tübingen, Germany
    Contribution
    JNDK, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    jason@tuebingen.mpg.de
    Competing interests
    The authors have declared that no competing interests exist

Funding

Max Planck Society

  • Verena Pawlak
  • David S Greenberg
  • Jason ND Kerr

Brain-i-nets

  • Henning Sprekeler
  • Wulfram Gerstner

Bernstein Center for Computational Neuroscience, Tübingen, Germany (BMBF; FKZ: 01GQ1002)

  • Wulfram Gerstner
  • Jason ND Kerr

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank W Denk, R Froemke and Y Groemping for comments on an earlier version of this manuscript. We would also like to thank D Wallace for help with visual stimulation parameters and intrinsic imaging, J Sawinski for help with microscope modification, and N Logothetis for support.

Ethics

Animal experimentation: All surgical procedures and experiments were conducted according to the German federal animal welfare guidelines and were approved by the animal ethics committee responsible for Tübingen, Germany (Regierungspraesidium Tübingen) under protocol numbers 3/07 and 5/09. Animals were deeply anaesthetized with Urethane (1.6–2 mg/kg), with the depth of anesthesia maintained throughout the course of the experiment with supplementary doses as required. Every attempt was made to ensure minimum discomfort to the animals at all times.

Reviewing Editor

  1. Michael Häusser, Reviewing Editor, University College London, United Kingdom

Publication history

  1. Received: May 4, 2012
  2. Accepted: November 29, 2012
  3. Version of Record published: January 22, 2013 (version 1)

Copyright

© 2013, Pawlak et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,417
    Page views
  • 352
    Downloads
  • 9
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Benjamin Pasquereau, Robert S Turner
    Research Article Updated
