ABC transporter functions as a pacemaker for sequestration of plant glucosides in leaf beetles

  1. Anja S Strauss  Is a corresponding author
  2. Sven Peters
  3. Wilhelm Boland
  4. Antje Burse  Is a corresponding author
  1. Max Planck Institute for Chemical Ecology, Germany
  2. University Hospital Jena, Germany


Plant-herbivore interactions dominate the planet’s terrestrial ecology. When it comes to host–plant specialization, insects are among the most versatile evolutionary innovators, able to disarm multiple chemical plant defenses. Sequestration is a widespread strategy to detoxify noxious metabolites, frequently for the insect’s own benefit against predation. In this study, we describe the broad-spectrum ATP-binding cassette transporter CpMRP of the poplar leaf beetle, Chrysomela populi as the first candidate involved in the sequestration of phytochemicals in insects. CpMRP acts in the defensive glands of the larvae as a pacemaker for the irreversible shuttling of pre-selected metabolites from the hemolymph into defensive secretions. Silencing CpMRP in vivo creates a defenseless phenotype, indicating its role in the secretion process is crucial. In the defensive glands of related leaf beetle species, we identified sequences similar to CpMRP and assume therefore that exocrine gland-based defensive strategies, evolved by these insects to repel their enemies, rely on ABC transporters as a key element.

eLife digest

For millions of years, plant feeding insects have been locked in an arms race with the plants they consume. Plants have evolved defensive strategies such as the ability to produce noxious chemicals that deter insects, while many insects have evolved the means to thwart this defense and even turn it to their own advantage. The larvae of the poplar leaf beetle, Chrysomela populi, sequester toxic plant compounds in specialized glands on their backs and use these compounds to defend themselves against predators. The glands are lined with chemically inert chitin, the substance that makes up the insect exoskeleton, and the deterrent chemicals are released whenever the insect is threatened.

Now, Strauss et al. have identified a key transport protein used by the larvae to move toxic plant compounds to these glands. This transport protein belongs to a family of membrane proteins called ABC transporters, which help to shuttle substances out of cells or into cell organelles using energy produced by the hydrolysis of ATP molecules. The gene for this transporter is expressed in the glands of the leaf beetles at levels 7,000 times higher than elsewhere in the larvae.

Larvae that lack a functional version of the transporter gene continue to grow, but are unable to defend themselves against predators. Similar genes are found in other species of leaf beetle, suggesting that this type of transporter has been retained throughout evolution. Moreover, the transporter is not specific to a particular plant toxin; this enables leaf beetles to eat many different types of plants and boosts their chances of survival should a previous food source disappear.


For millions of years, insects have relied on plants as a food source. To impede herbivory, plants have developed several morphological and biochemical traits; one of those is based on toxic secondary metabolite production. Insects, in turn, have evolved ingenious detoxification strategies, including the process of sequestration, to overcome the chemical plant defenses (Sorensen and Dearing, 2006; Li et al., 2007; Opitz and Muller, 2009; Boeckler et al., 2011; Winde and Wittstock, 2011; Dobler et al., 2012). These counter-mechanisms thereby affect the ecology and evolution of plants (Ehrlich and Raven, 1964; Agrawal et al., 2012; Hare, 2012). The phenomenon of sequestration involves the uptake, transfer, and concentration of occasionally modified phytochemicals into the hemolymph, cuticle, specialized tissues or glands. Numerous species from almost all insect orders have evolved the ability to sequester chemicals (Duffey, 1980; Nishida, 2002; Opitz and Muller, 2009). Frequently the sequestered toxins are used by insects for their own defense, as is the case in leaf beetles (Chrysomelidae) (Meinwald et al., 1977; Pasteels et al., 1990; Gillespie et al., 2003). Up to now, the most comprehensive knowledge of sequestration processes has been obtained from juveniles of the leaf beetles belonging to the taxon Chrysomelina (Soetens et al., 1998; Termonia et al., 2001). The chemical defenses of these larvae are made up of compounds that are either sequestered from their host plants or synthesized de novo. Regardless of their origin, these compounds are transferred into nine pairs of specialized exocrine glands that are found on the back of the larvae (Hinton, 1951; Pasteels and Rowell-Rahier, 1991; Pasteels, 1993). According to morphological studies, each defensive gland is composed of a number of enlarged secretory cells, which are in turn connected to a chitin-coated reservoir. The secretory cells are always accompanied by two canal cells that form a cuticular canal, which connects the secretory cell with the reservoir (Noirot and Quennedy, 1974). When disturbed, the juvenile beetles evert their glandular reservoirs and present droplets of secretions.

In Chrysomelina larvae, all compounds reaching the glandular reservoir via the hemolymph are glucosides that are converted enzymatically into the biologically active form within the reservoir (Pasteels et al., 1990). Thus, the glands also secrete enzymes for the final metabolic conversion of precursors into defensive compounds in the reservoir. The ability to sequester plant glucosides is considered an energy-saving, monotypic adaptation within Chrysomelina (Figure 1B), given the phylogenetic evidence that this process evolved from an ancestral autogenous biosynthesis of deterrent monoterpenes (iridoids) (Termonia et al., 2001).

Glandular tissue-specific transcript level of cpmrp and its homologous sequences.

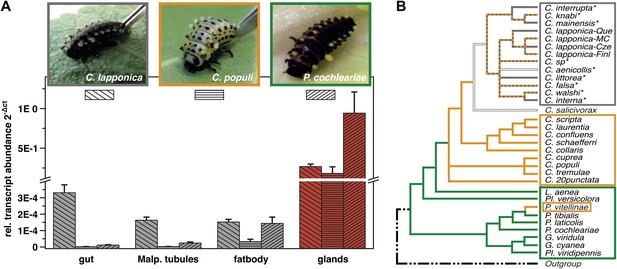

(A) Relative transcript abundance of cpmrp (C. populi) and its homologous sequences from C. lapponica and P. cochleariae in different larval tissues (n = 3–4, mean ± SD) assigned to (B) their phylogenetic group and chemical defense strategies based on maximum parsimony reconstruction (according to Termonia et al., 2001). Green, autogenous group of monoterpene iridoid producers; orange, obligate-sequestering group; gray, interrupta group with mixed metabolism that evolved the biosynthesis of butyrate-esters.

The poplar leaf beetle Chrysomela populi, is an example of an obligate-sequestering species, and its larvae incorporate the phenolglucoside salicin from the leaves of their salicaceaous food plants (Pasteels et al., 1983; Kuhn et al., 2004). In the reservoir of their defensive glands, the salicin is then metabolized into the volatile deterrent salicylaldehyde (Michalski et al., 2008). Additionally, in Chrysomela lapponica several glucosidically bound alcohols are simultaneously imported, resulting in a diversity of compounds, especially of esters, in the exudate of the larvae (Hilker and Schulz, 1994; Schulz et al., 1997; Kirsch et al., 2011; Tolzin-Banasch et al., 2011). Physiological studies on de novo iridoid-producing, salicin sequestering, and ester-producing larvae using thioglucosides have indicated a complex influx–efflux transport network that guides the plant-derived glucosides through the insect body (Discher et al., 2009; Kuhn et al., 2004). Presumed intestinal carriers in the gut epithelial cells allow a broad spectrum of secondary metabolites to enter the hemolymph, a process that is accompanied by a similar non-selective excretion via the Malpighian tubules. Furthermore, thioglucosides are being selectively accumulated, up to 500-fold, into the reservoir from a hemolymph pool, suggesting an active transport system is at work (Feld et al., 2001; Kuhn et al., 2004). By employing the obligate salicin sequestering species C. populi, we focus on deciphering the transport processes involved in the sequestration of glucosides in the defensive glands of chrysomelid larvae.

The active ATP binding cassette (ABC) transporters are well-known key-components of various detoxification mechanisms in all phyla of life (Sipos and Kuchler, 2006; Leprohon et al., 2011; Holland, 2011; Broehan et al., 2013). In eukaryotes, they translocate a wide variety of compounds from the cytoplasm to the extracellular space or to intracellular compartments. Their role in the sequestration of plant secondary metabolites in insect herbivores, however, has not yet been investigated (Karnaky et al., 2000; Sorensen and Dearing, 2006).

Here we identify CpMRP as a class C-ABC transporter in the defensive glands of C. populi. We demonstrate CpMRPs transport activity for plant-derived glucoside precursors. In the absence of CpMRP, larvae of C. populi develop normally but lack defensive secretions that assign a key role for CpMRP in the process of sequestration of salicin. We also describe a sequestration model in which ABC transporters play a key role and discuss their general relevance in exocrine glands of Chrysomelina species.

Results and discussion

Screening of expression levels of transcript sequences encoding ABC transporter motifs revealed a putative candidate, referred to here as CpMRP. It displayed an exceptionally high transcript level in the glandular tissue, exceeding that in the gut and Malpighian tubules by more than 7000-fold (Figure 1A).

Among all known and functionally characterized ABC transporters, the deduced amino acid sequence of cpmrp, which contained 1331 residues (154.9 kDa), shares the highest sequence similarity of 61% (41% sequence identity) to the human homologous multidrug resistance-associated protein MRP4 (ABC subfamily C) (Lee et al., 1998). The predicted protein of CpMRP from C. populi possesses the typical structural elements of ABC transporters (Zolnerciks et al., 2011); these consist of four domains: two TMDs (transmembrane domains), harboring six proposed transmembrane spans and two NBDs (nucleotide-binding domains), containing Walker A and B boxes (sequences GPVGAGKS and VYLMD, respectively), separated by an ABC signature motif (sequence LSGGQRARINLARAI). Additionally, we conducted a 3D structure modeling of CpMRP (Figure 2D) to support the conclusions of the sequence alignment and to illustrate the localization of characteristic sequence motifs. Both sequence alignment and structure modeling suggest that the newly identified protein CpMRP is very likely an ABC transporter.

Silencing effect and 3D-structure model of CpMRP.

(A and B) Production of defensive secretions is disrupted in CpMRP knockdown L3 larvae (B) compared to the phenotype of the control larvae (A). (C) Drawing of dissected glandular tissue of C. populi according to Hinton, 1951 with relaxed reservoir in contrast to the everted reservoir in insets of (A) and (B). (D) 3D-model of CpMRP, embedded in a lipid bilayer, illustrating its probable correct global topology based on I-TASSER (TM-score of 0.52 ± 0.15; C-score: −1,57) and the localization of characteristic sequence motifs.

In the ancestral de novo iridoid-producing species Phaedon cochleariae, we have identified a sequence with 86% amino acid identity to CpMRP and in the more derived species C. lapponica we identified a homolog of CpMRP sharing 93.7% amino acid identity. Both the sequences share the same transcription pattern like CpMRP, being highly expressed in the larval glands only (Figure 1A). Altogether this suggests that there is a highly conserved ABC transporter among Chrysomelina species that has an important ecological role. Given the uniform architecture and morphology of the defensive system (Hinton, 1951; Noirot and Quennedy, 1974) in Chrysomelina larvae, we expect functional similarities on the molecular level. We focus in our study on CpMRP as representative of an obligate-sequestering species among Chrysomelina.

To verify whether the transcript abundance of cpmrp is also reflected in the protein level of the defensive glands, we carried out immunohistochemical localization. The staining of full-body sections from juvenile C. populi showed that CpMRP was exclusively localized in the defensive glands (Figure 3—figure supplement 1). In more detail, CpMRP was present neither in the canal-forming cells (Figure 3A—C1, C2) nor in the canal itself (Figure 3Bb—Cc) but, rather in the secretory cells (Figure 3A). Intriguingly, mapping CpMRP at subcellular magnification provided evidence for the exclusive localization within the secretory cells attached to the reservoir. The intracellular distribution of CpMRP resembles a hollow sphere with a distinct reticular pattern (arrows in Figure 3C, Figure 3E, Videos 1 and 2). Its intracellular presence in vesicular and reticular structures (Figure 3Bc) was corroborated by its co-localization with Bodipy-stained intracellular membranes (Figure 3C,D). Starting at the outside of the secretory cell, CpMRP was not detected in the basal lamina or in the adjacent basal infoldings (∼5 µm) (indicated with Bi in Figure 3Ba,C). Instead, directly after the basal infoldings, we observed a sharp transition to a spherical zone of about 2–5 µm; here, we noted the most dense CpMRP presence within the entire cell (Figure 3A–C [inset arrow] and Figure 2D). Moreover, according to vacuolar esterase activity, demonstrated by CDCFDA staining (Pringle et al., 1989), the subcellular localization of CpMRP (Figure 3F,G [inset arrow]) correlates with cellular storage compartments (Figure 3A–E).

Figure 3 with 1 supplement see all
Localization of CpMRP in secretory cells of C. populi.

(AG) High-magnification optical sections through secretory cells. (AE) Immunohistochemical staining of CpMRP (green) in fixed secretory cells. CpMRP staining was confined to intracellular Bodipy-stained membrane structures and displayed a distinct reticular pattern. (B) Extracted cutouts of (A and C) optical section through the nucleus, (D) optical section above the nucleus of the secretory cell, (E) 3D stack displaying CpMRPs primarily spherical distribution. (F and G) CDCFDA staining for vacuolar esterase activity (green) in live cells. A multitude of vacuoles are present that vary in their enzyme content. Bi = basal infoldings, C1 and C2 = canal cells, Cc = cuticular canal, Mv = microvilli, Nc1, Nc2 = nucleus of canal cells, Nep = nuclei of epithelium cells, Re = extracellular room, V = vacuole, Blue, nuclear staining; Red, Bodipy-stained intracellular membrane; Magenta, false color-coded autofluorescence. Scale bars, 20 µm or 5 µm (insets).
Video 1
3D representation of CpMRP localization within a secretory cell.

Exterior view of a secretory cell of C. populi based on immunohistochemical staining (green, CpMRP; blue, nuclei stain). The z-stack was acquired with a resolution of x = 0.146 µm; y = 0.146 µm and z = 0.500 µm. The smallest dimension of the depicted secretory cell is about 100 µm.
Video 2
3D representation of CpMRP localization within a secretory cell.

Interior view of Video 1. The camera is centrally positioned within the nucleus and rotates within the plane of the first frame of Video 1, initially pointing to the area between the nuclei of the two canal cells.

Employing RNA interference (RNAi) to verify CpMRP’s relevance for salicin sequestration in vivo, we were able to demonstrate its key role in the secretion of defensive compounds. By comparing developmental traits among C. populi larvae after injecting cpmrp-dsRNA or gfp-dsRNA as a control, we found that silencing cpmrp had no influence on larval growth (Figure 4A). However, about 10 days post-injection, the cpmrp knockdown larvae completely lost their ability to respond to stimulation with droplets of defensive secretion (Figures 4B and 2B). The secretions began to diminish at day 8. On the basis of transcript abundance, cpmrp mRNA was reduced to a basal level of 15–20% within 2–3 days and persisted until the larvae pupated (Figure 4C). Figure 4D summarizes the immunohistochemical analysis of CpMRP expression in the secretory cells. At day 3 post-injection, both the cpmrp knocked-down and control secretory cells displayed a similar pattern of CpMRP distribution (Figure 4Da,b). At later time points, however, the CpMRP expression in the RNAi group was strongly reduced in comparison to the gfp control (Figure 4Dc—f), which is in agreement with Western blot analysis (Figure 4—figure supplement 1). CpMRP decayed exponentially to a relatively low basal level with a half-life of about 1 day, suggesting a degradation of CpMRP that is linearly proportional to its concentration (Figure 4—figure supplement 2). This proportionality has already been reported in human hepatocytes (Pereg et al., 2010; Popov et al., 2010; Nakagawa et al., 2011). Compared to a half-life of 5 days for the ABC transporters MDR1 and MDR2 reported in hepatocytes (Kipp and Arias, 2002), the rate of CpMRP turnover seems relatively high. Qualitative microscopic observations showed that secretory cells tended to increase the size of storage compartments, presumably vacuoles, of the CpMRP knockdown larvae.

Figure 4 with 4 supplements see all
Timeline of different CpMRP knockdown effects.

(AD) C. populi larvae development following CpMRP knockdown by dsRNA injection into the larval hemocoel (d 0). CpMRP knockdown effects; red/(D a, c, e) were compared to the gfp-injected control larvae; black/(D b, d, f) at different developmental stages. (A) Larval fitness (body mass) was not influenced by CpMRP knockdown (n > 10, mean ± SD). (B) CpMRP knockdown larvae lack defensive secretions 10 days after dsRNA injection (n > 10, mean ± SD). (C) Transcriptional level of cpmrp inside the glands (each time point contains n = 3 (biological replicates), mean ± SD). (D) CpMRP protein level decreased after dsRNA injection—Green, CpMRP; Blue, nuclear stain. Scale bars, 20 µm; pIx = x days post dsRNA-injection. Asterisks represent significant differences in cpmrp-silenced larvae compared to gfp-injected control larvae (*p≤0.05, ***p≤0.001).

Our transport studies in Xenopus laevis oocytes revealed that CpMRP is a transporter for salicin (Figure 5A), the naturally sequestered host–plant precursor of C. populi. In order to test the selectivity of CpMRP, we chose a mixture of glucosides among plant precursors and non-precursor glucosides for comparative transport assays (Figure 5C,D). We applied an equimolar mixture of salicin (1), 8-hydroxygeraniol-O-glucoside (2), the early precursor of the iridoid monoterpene pathway found in P. cochleariae and phenylethyl-S-glucoside (3) that represents a substrate mimicking an O-glucoside sequestered by C. lapponica. This mixture was tested in feeding and hemolymph injection experiments on C. populi and revealed the specific transport of salicin to the reservoir (Discher et al., 2009). However, CpMRP did not discriminate significantly between the substrates. For phenylethyl-S-glucoside and thiosalicin (6) the transport activity of CpMRP was slightly reduced compared to salicin (Figure 5C,D). Moreover, the sugar moiety of the substrates (comparing salicin and its galactoside analogue (4) (Figure 5D), further significantly lowered the transport activity of CpMRP, which is consistent with previous data obtained by feeding experiments (Kuhn et al., 2004). Based on the apparent Km of 5.8 (mM) for salicin, CpMRP (Figure 5B) seems to be a low-affinity transporter. From our comparative transport assays we assume that CpMRP functions as low-affinity glucoside transporter with a broad glucoside spectrum.

Salicin transport activity of CpMRP in Xenopus laevis oocytes.

(AD) Transport activity was determined by quantifying the substrate efflux in the oocyte incubation medium of cpmrp-RNA compared to water-injected control oocytes via HPLC-MS. (A) Time course of CpMRP-dependent salicin efflux after the injection of 5 nmol salicin (incubation time: 1 hr, n = 5, mean ± SD). Red, CpMRP-expressing oocytes; Black, water-injected control. (B) Concentration dependence of CpMRP-mediated salicin transport (red); water-injected control in black (n = 5, mean ± SD, #: apparent, encircled data point: not detectable). (C) Comparative transport assays of CpMRP activity with a substrate mixture (salicin (1), 8-hydroxygeraniol-O-glucoside (2) and phenylethyl-S-glucoside (3)). Open bar, transport activity of CpMRP-expressing oocytes. Crosshatched bar, transport activity water-injected control oocytes. (D) Comparative transport assays of CpMRP salicin transport activity to thiosalicin (5) and its galactoside analogue (4) and thiosalicin (incubation time: 1 hr, n = 10, mean ± SD). Asterisks represent significant differences among indicated substrates (*p≤0.05, **p≤0.01). Encircled data points represent undetectable concentrations.

Taken together, these data support a sequestration model inside the secretory cells of C. populi in which CpMRP plays a key role as a pacemaker (Figure 6). We assume that within the described zone of highest CpMRP density (Figure 3A,B,D), salicin is trapped in storage vesicles as soon as it enters the secretory cells. The constant vesicular accumulation of plant glucoside precursors and further irreversible translocation into the reservoir keeps the glucoside concentration low inside the secretory cell. By this fact, we suggest a first filter for specific glucosides (salicin, in the case of C. populi) at the hemolymph-exposed plasma membrane of the secretory cell, which might depend on a gradient-driven, energy-independent transporter. Accordingly, CpMRP does not just dictate the transport rate of this transporter in the plasma membrane, rather, it determines the effectiveness and energy coupling of the entire sequestration process as a pacemaker.

CpMRPs pacemaker function and sequestration model.

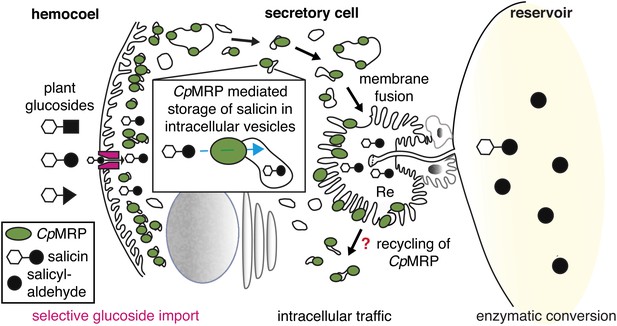

Schematic view of our sequestration model through a secretory cell (see Figure 2C: overview of the defensive system, secretory cells are indicated in red). Different plant glucosides (black triangles, circles and squares joined to a glucose molecule indicated by a white hexagon) circulate in the hemocoel. CpMRP dictates (pacemaker function) the transport rate of a still unknown selective, maybe gradient-driven transporter (magenta) for salicin in the plasma membrane by a constant accumulation of salicin in intracellular vesicles. These vesicles are tracked via exocytosis to the reservoir where the enzymatic conversion of salicin to salicylaldehyde takes place.

Figure 6 further illustrates the fate of storage compartments. The apical part facing the lumen of the gland is a brush border membrane where storage vesicles are secreted via exocytosis (Noirot and Quennedy, 1974). It is invaginated and forms an extracellular room that is connected to the reservoir by the canal. The well-known structure of exocrine glands gives hints at exocytic processes on the basis of a microvilli membrane. That CpMRP is present in the microvilli membrane (Figure 3Bc), indicates that this is where the exocytosis of CpMRP-containing storage vesicles takes place. After excreting the glucoside, CpMRP is most likely recycled to recover the protein in the dense packaging zone of storage vesicles/vacuoles.


In the present study, we show that CpMRP is required to maintain defensive secretion in C. populi. Our results demonstrate that cpmrp-silenced larvae are defenseless because they lack defensive secretions. Functionally, CpMRP is a transporter for plant derived glucoside precursors present in storage compartments as well as in the microvilli membrane of the secretory cell. Therefore, our results have led us to propose a functional model of sequestration based on CpMRP as the key element (Figure 6). The identification of transporter sequences highly similar to CpMRP in the larval glands of other Chrysomelina species (P. cochleariae and C. lapponica) strongly implies that broad-spectrum ABC transporters involved in the sequestration of plant-derived metabolites are commonly present in the defense mechanism among Chrysomelina.

These results, together with our published data, lead us to conclude that the sequestration of plant glucosides in Chrysomelina larvae is the result of the presence of several barriers with various degrees of selectivity: (1) those controlling the non-selective uptake of plant-derived glucosides from the gut lumen into the hemolymph and their excretion by the Malpighian tubules (together these barriers are relevant for nutrition), (2) those controlling the selective transfer from the hemolymph into the secretory cells and (3) those controlling the secretion into the reservoir where the broad-spectrum ABC transporter acts as a pacemaker. This functional arrangement of a non-selective and a selective transporter in the defensive system seems to be common to many different leaf beetles (Discher et al., 2009). This peculiar import system also facilitates the occasional host plant shifts of leaf beetles caused by parasite pressure (Agosta et al., 2010). After the shift to a new host plant only the selective transport element needs to adjust to the new metabolites; all other transport elements may remain unchanged due to their broad substrate tolerance. This assumption is supported by the observation of CpMRP homologs in different leaf beetles and beyond (Tribolium Genome Sequencing Consortium, 2008); however, none of them has been functionally characterized or localized as yet. The identification of CpMRP as a non-selective pacemaker involved in the sequestration of plant-derived glucosides highlights how insects counter plant chemical defenses to evolve new functions for the plant-derived toxins as allomones.
