Transgressions of compartment boundaries and cell reprogramming during regeneration in Drosophila

  1. Salvador C Herrera
  2. Ginés Morata  Is a corresponding author
  1. Universidad Autónoma de Madrid, Spain
Research Article
  • Cited 12
  • Views 1,502
  • Annotations
Cite as: eLife 2014;3:e01831 doi: 10.7554/eLife.01831

Abstract

Animals have developed mechanisms to reconstruct lost or damaged tissues. To regenerate those tissues the cells implicated have to undergo developmental reprogramming. The imaginal discs of Drosophila are subdivided into distinct compartments, which derive from different genetic programs. This feature makes them a convenient system to study reprogramming during regeneration. We find that massive damage inflicted to the posterior or the dorsal compartment of the wing disc causes a transient breakdown of compartment boundaries, which are quickly reconstructed. The cells involved in the reconstruction often modify their original identity, visualized by changes in the expression of developmental genes like engrailed or cubitus interruptus. This reprogramming is mediated by up regulation of the JNK pathway and transient debilitation of the epigenetic control mechanism. Our results also show that the local developmental context plays a role in the acquisition of new cell identities: cells expressing engrailed induce engrailed expression in neighbor cells.

https://doi.org/10.7554/eLife.01831.001

eLife digest

When cells or tissues are damaged, animals can often regenerate the affected tissues. In an effort to identify the genes and mechanisms that are involved in this regeneration process, researchers often perform experiments on relatively simple organisms or systems. These experiments frequently involve the amputation of specific cells or organs so the researchers can observe and manipulate the events that occur during the subsequent regeneration.

One such model organism is the fruit-fly Drosophila. Inside the Drosophila larva are structures called imaginal discs, which are precursors to parts of the outer cuticle of the adult fly. Each imaginal disc contains two main boundaries, dividing it into anterior/posterior and dorsal/ventral compartments: posterior cells, for example, express a gene called engrailed to produce the relevant protein, whereas anterior cells do not; likewise, the gene apterous is expressed in dorsal cells but not ventral cells. These genes, engrailed and apterous, are the key factors that determine the developmental features–and hence the identity—of the posterior and the dorsal cells respectively.

Herrera and Morata investigated how cells regenerate when parts of the imaginal disc are destroyed, using a genetic technique that causes high levels of programmed cell death in either the posterior or the dorsal compartments of the disc.

Destroying most of the cells in either of these compartments in the imaginal disc leads to a temporary breakdown of the corresponding boundary, which is then rapidly reconstructed. During this reconstruction process, some of the imaginal disc cells are reprogrammed: for example, if the cells in the posterior compartment are destroyed, some anterior cells take on a posterior identity. This reprogramming occurs because the cell destruction disrupts the way that the expression of genes such as engrailed and apterous is controlled by other genes.

Neighboring cells can also control gene expression, and therefore cell identity. Cells that express engrailed, for example, cause their neighbors to express engrailed too. This process is likely to involve group interactions that might help the distinct compartments in the imaginal disc to form by ensuring that adjacent cells develop in the same way. Similar processes may also occur as part of the normal development of organisms.

https://doi.org/10.7554/eLife.01831.002

Introduction

Regeneration is a classical problem in developmental biology. The cells involved have to undergo a developmental reprogramming so that they acquire the new cell identities necessary to regenerate a lost organ or a damaged tissue. In the classical example of the regeneration of an amputated amphibian limb (Kragl et al., 2009), proximal cells have to generate new cells with different—distal—identity. Very little is known about the phenomena and mechanisms behind this developmental reprogramming. We are investigating this problem using the compartments of Drosophila imaginal discs as a model system for regeneration.

The subdivision into lineage blocks, termed compartments, is a principal feature of the organization of the body of Drosophila (Garcia-Bellido et al., 1973; Morata & Lawrence, 1977). The earliest compartmentalization event is established during embryogenesis (Lawrence & Morata, 1977) and separates anterior (A) and posterior (P) compartments in each segment. The A/P boundaries in the different body segments not only separate the original lineage blocks of the fly; they also are topological landmarks to delimit Hox genes expression (Lawrence, 1992).

Since the initial establishment of the A/P boundary, the P compartments acquire expression of the engrailed (en) gene, which determines anterior or posterior identity within each segment: the ‘on’ state specifies posterior whereas the ‘off’ state specifies anterior identity. This early lineage segregation is preserved for the rest of the development in all larval and adult structures. In the imaginal discs (the precursors of the adult cuticular structures) en remains expressed in the P compartments (Brower, 1986) and is also required to maintain the A/P border (Morata and Lawrence, 1975). The absence of en function in the A compartment allows anterior cells to activate the Hh pathway and subsequently the cubitus interruptus (ci) gene, a marker of A compartment identity (Orenic et al., 1990).

The expression of en is regulated epigenetically. It is kept in off (silenced) state in the A compartments through the activity of the Polycomb-G genes (Pc-G) (Busturia and Morata, 1988), whereas the trithorax-G genes (trx-G) maintain en in on state in P compartments (Breen et al., 1995).

In addition to the A/P boundary, there is in the wing disc another lineage border, separating the dorsal (D) and the ventral (V) compartments. This boundary appears during larval development (Garcia-Bellido et al., 1973) and is dependent on the activity of the gene apterous (ap), which confers dorsal identity (Diaz-Benjumea and Cohen, 1993).

The A/P and the D/V borders not only separate cells with different identities in the wing disc; they also function as developmental organizers of the imaginal discs. The posterior compartment cells secrete the Hedgehog (Hh) morphogen that activates the decapentaplegic (dpp) gene in the anterior cells close to the border, from where the Dpp signal diffuses to the two compartments and controls their growth and pattern (Lawrence and Struhl, 1996). The Wg signal emanating from the D/V border also has a major patterning function in the wing disc (Irvine and Vogt, 1997).

It follows that the establishment and maintenance of the A/P and D/V boundaries are critical factors in the development of the wing disc and that major alterations of these boundaries would grossly interfere with normal pattern and growth. Therefore, it is expected that regenerative processes incorporate mechanisms to ensure the restoration of these borders in damaged discs. The possibility of collapse and subsequent restoration of the A/P border during regeneration in the wing disc was suggested by Szabad et al. (1979), although recent reports (Bergantinos et al., 2010; Smith-Bolton et al., 2009) have failed to observe lineage transgressions after massive damage to the disc.

We are investigating the regenerative response of imaginal discs to the ablation of specific compartments, and especially how the stability of compartment boundaries is maintained. Our results indicate that ablation of the P or the D compartment causes a transient collapse of the A/P or the D/V boundaries, which are very quickly reconstructed. During the reconstruction process some cells are reprogrammed and change their original compartmental identity. We provide evidence that the identity changes are associated with gain of activity of the JNK pathway and with relaxation of the epigenetic control by the Pc-G and trx-G genes. In addition, we suggest that the identity changes observed are induced by a novel mechanism by which isolated cells acquire the identity of their neighbours.

Results

Experimental design

In the experiments to induce massive damage to specific compartments, equivalent to ablation, we have utilized the Gal4/UAS/Gal80TS method (see ‘Materials and methods’ for details) to force high levels of apoptosis in specific domains (Bergantinos et al., 2010; Smith-Bolton et al., 2009; Herrera et al., 2013). The temperature-sensitive Gal4 suppressor Gal80 allows temporal manipulation of Gal4 activity. In these experiments a temperature shift from 17 to 29°C causes a loss of Gal80 function, which now permits the activity of the Gal4 driver. In turn, Gal4 activates the UAS-hid and UAS-Flp transgenes (Figure 1—figure supplement 1).

The activation of UAS-hid with the hh-Gal4 driver causes massive apoptosis in the P compartment. In addition, the high levels of Flipase generated by the UAS-flp transgene induce recombination in the act>stop>lacZ cassette, with the result that the cells of the original P compartment become indelibly marked with the activity of the lacZ gene, which encodes the ßGal protein. Under our experimental conditions (48 hr of continuous Flp activity) all the cells of the P compartment acquire the ßGal label (Figure 1A,B). We refer to these cells as the ‘Hh lineage’. This is an important point because we consider the ßGal label as the indicator of the compartmental provenance of the cells.

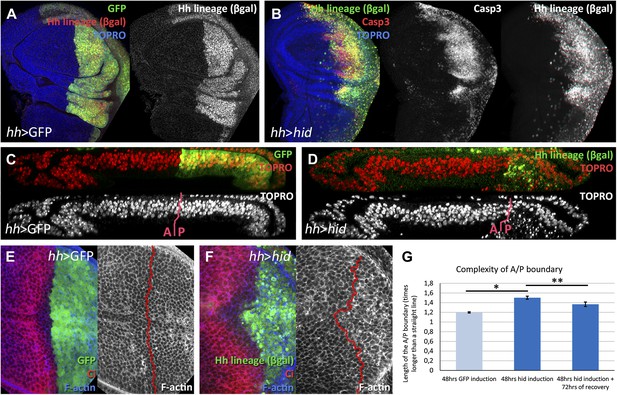

Figure 1 with 1 supplement see all
Ablation of the posterior compartment.

Wing imaginal discs after 48 hr of induction of GFP (A, C and E, controls) or hid (B, D and F). Note that in both cases the βgal lineage label is acquired by all the posterior cells (A and B). The disc in B shows high levels of apoptosis, indicated by Caspase3 activity. (C and D) Cross-sections of wing discs perpendicular to the A/P border at the level of the wing pouch. The peripodial membrane is on top, the columnar epithelium on the bottom. Anterior compartment at the left, posterior at the right. There is a marked reduction of the size of P compartment in which hid is expressed (D). The epithelium is much thinner than in control disc (C), indicating a big reduction of cell number due to the ablation (compare the number of nuclei in the right part of C and D). (EG) Shape of the A/P border after 48 hr of GFP (E) or hid (F) induction. In the later this border becomes wiggly and inter-digitized, a feature quantified in panel G. By allowing 72 hr of recovery this effect is partially recovered (third bar in panel G). Bars represent S.E.M., n>15 in each genotype and time point, *p<0.01, **p<0.05. See also Figure 1—figure supplement 1.

https://doi.org/10.7554/eLife.01831.003

To ablate the dorsal compartment and to track the lineage of the dorsal compartment cells, we have followed a similar strategy, but using the ap-Gal4 line, which is expressed specifically in the dorsal wing compartment.

Regenerative response during and after ablation of the posterior compartment of the wing disc

We describe in detail the results obtained ablating the P compartment. After 48 hr of hid activity, the great majority of P compartment cells in the disc are dead or are dying (Figure 1B). We estimate that about 70% of the cells die and as a result the size of the compartment is greatly reduced (compare Figure 1C,D). However, in spite of the massive cell death in the P compartment, there is clear, although highly irregular (Figure 1E–G), boundary separating anterior and posterior cells, outlined by the anterior compartment marker Ci. After allowing 72 hr of recovery at 17°C, the damaged P compartment is completely regenerated: it exhibits normal size and shape and an almost normal A/P border.

We have studied by clonal analysis the growth of the A and P compartments during and after the ablation period. The size of clones in the A and P compartment during the ablation period is similar (Figure 2A–D), although the P compartment clones have probably grown more since some of their cells must have died due to Hid activity. The proliferative response to the ablation becomes evident during the recovery time (Figure 2E–H): clones in the P compartment are about 3 times bigger than those in the A compartment. These additional divisions restore the full size of the compartment. This result also illustrates the independent size regulation of the two compartments (Martin and Morata, 2006); once the A/P border is re-established the two compartments grow autonomously.

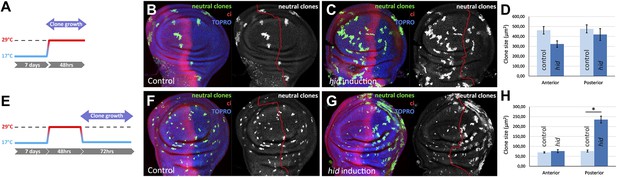

Clonal analysis of growth in discs in which the P compartment has been ablated.

(AD) GFP-labeled clones only allowed growing during the ablation period. The clones were induced at the beginning of the ablation and the discs fixed at the end of it. Control disc (B) a hid-induced disc (C) and clone size quantification (D) are shown. Note the absence of major differences in clone size between control discs and hid-induced in both compartments. (EH) Clones induced at the end of the ablation period and scored after 72 hr of recovery period at 17°C (see diagram E). Again, a control disc (F), a hid-induced disc (G), and quantification (H) are shown. Note in G that the clones in the P compartment are much bigger than those in the A compartment of the ablated discs and those of the P compartment in controls (F). Bars represent S.E.M., n>25 in each genotype and time point, *p<0.001.

https://doi.org/10.7554/eLife.01831.005

Transgression of the A/P and D/V compartment boundaries during regeneration

Next, we examined if the ablation of the P or the D compartment affect the stability of the A/P or the D/V border. Our experimental system permits distinguishing the compartmental origin of the cells. Those of the P or D compartment are labeled by lacZ (ßgal) activity, whereas the A or V compartment cells are labeled by the lack of it.

In the majority of discs in which the P compartment is ablated (22 out of 31), we find that cells from the A compartment have contributed to the regenerated P compartment. The transgressing cells are of anterior origin, as indicated by the lack of ßGal staining, but now belong to the P compartment, as showed by the lost the Ci anterior marker (Figure 3A) and the gain of en expression (Figure 3—figure supplement 1A). These lineage violations are not observed in control discs. There was the possibility, however, that in the experimental discs the ßGal label of the P compartment might not be as precise as in the controls, leaving some cells unmarked that could be interpreted as of anterior origin. But under that hypothesis these unmarked cells should appear anywhere in the P compartment. We find that the transgressions localize to the proximity of the A/P border (Figure 3—figure supplement 2), which argues strongly against that possibility.

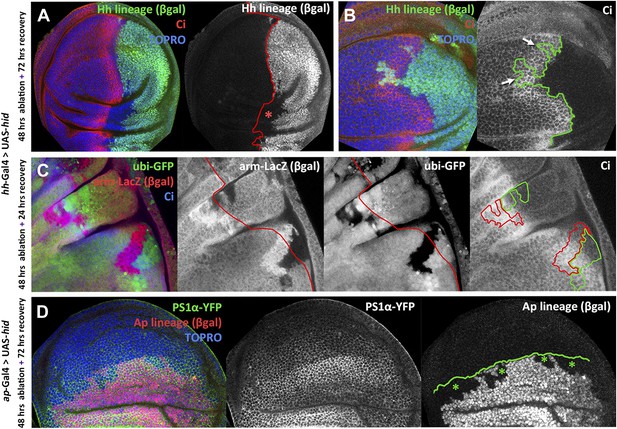

Figure 3 with 2 supplements see all
Transgressions of the A/P and the D/V border caused by ablation of the P or the D compartment.

(A and B) Wing discs after 48 hr of Hid treatment followed by 72 hr of recovery. The original Hh lineage is labeled by ßgal (green), the A compartment is marked with an anti-Ci antibody (red) and the nuclei with Topro (blue). (A) Note the presence of groups of cells (asterisk) originated in the anterior compartment (they lack the βgal label) but that have lost Ci activity, indicating that they have lost anterior identity. (B) The unexpected finding that cells from the P compartment–they are part of the Hh lineage–can penetrate in the A compartment and to acquire anterior identity, as demonstrated by the Ci marker (arrows) (C) Portion of a disc in which the P compartment has been ablated, containing two sets of ‘twin’ clones labeled with GFP-green/LacZ ßgal (see ‘Materials and methods’ for details). The clones were initiated at the beginning of the ablation of the P compartment and fixed 24 hr after the end of ablation. In those panels the A/P borderline is blue and the twin clones delineated in red or green. Note that the two cases the clones cross over the A/P line. (D) Wing disc after 48 hr of Hid induction in the dorsal compartment followed by 72 additional hours of recovery. Note the presence of groups of cells (asterisks) that in spite of their ventral origin (lack of dorsal lineage βgal label) now present dorsal markers as the mew Integrin (PS1α). See also Figure 3—figure supplements 1 and 2.

https://doi.org/10.7554/eLife.01831.006

In addition, we unexpectedly find that surviving cells from the ablated P compartment may also contribute to the A compartment: cells of posterior provenance, labeled with ßGal, frequently penetrate (13 transgressions in a sample of 31 discs) into the A compartment and acquire anterior identity, visualized by ci activity (Figure 3B and Figure 3—figure supplement 2). Since the A compartment was not in need of reconstruction, this observation indicates that the transgressions are caused by a transient collapse of the A/P boundary, which affects the two compartments. It is worth mentioning that the A/P transgressions have occurred during the ablation period, as they are found in discs fixed at the end of it, without recovery time (Figure 3—figure supplement 1A, see also Figure 4E–E′′). This is a significant observation because it suggests that the restoration of the A/P border is immediate and concomitant with the ablation. The lineage violations are not specific to the UAS-hid transgene; we have made similar observations using other pro-apoptotic genes (Figure 3—figure supplement 1B).

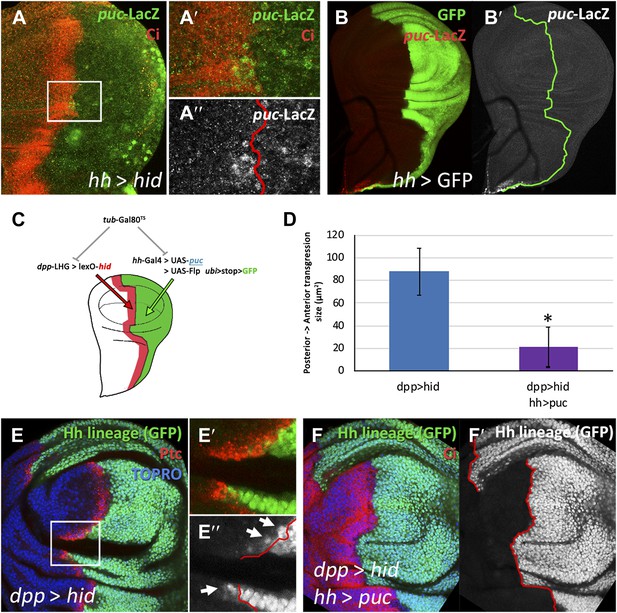

Involvement of the JNK pathway in the transgression of the A/P boundary during regeneration.

(AA′′) Wing disc and magnification showing activation of puc-LacZ (green) after ablation of the P compartment. The A/P boundary is outlined by Ci (red) label. Note that some anterior cells contain LacZ expression. The puc–lacZ staining is not particularly strong in the P compartment because it is located predominantly on the basal side of the disc, where the dying cells accumulate. (B and B′) Control non-ablated disc showing absence of puc-LacZ activity, except in the stalk region where it is normally expressed. The panel C illustrates the experiment designed to test the requirement for JNK activity for crossing the A/P boundary during regeneration. After removing repression by Gal80TS the dpp-LHG line forces hid activity in the dpp domain (red), located just anterior to the A/P line. At the same time the posterior compartment cells lose the potential to gain JNK activity due to puc over-expression. The results are illustrated in DF′. Cells of posterior origin (green) can penetrate in the A compartment if they can activate JNK (EE′′), but are unable to do so if JNK activation is prevented by puc over-expression. Quantitative data are shown in D. Bars represent S.E.M., n = 15 in each genotype, *p<0.05.

https://doi.org/10.7554/eLife.01831.009

To reinforce the conclusion for the preceding experiments that the A/P border is transgressed during regeneration of the P compartment, we also performed an experiment of clonal analysis. The idea was that if the A/P border had collapsed during ablation some marked clones induced before or at the time of collapse should include anterior and posterior cells. We generated ‘twin clones’ such that we labeled the progeny of the two cells resulting from mitotic recombination events (see ‘Materials and methods’). The clones were generated at the beginning of the ablation period and fixed the discs at different times after the end. As illustrated in Figure 3C, we found numerous cases of clones crossing over the A/P border (10 cases of crossing in 16 discs examined). These transgressions do not appear in discs of the same genotype in which the P compartment is not ablated.

A loss of lineage restriction was also observed in the D/V compartment boundary after ablation of the D compartment. As in the experiment to assay the A/P boundary, we can follow the lineage of the D compartments by labeling the cells with the UAS-Flipase system (see ‘Materials and methods’ and Figure 1—figure supplement 1). We find that cells of ventral provenance appear integrated in the regenerated D compartment (Figure 3D). The change of identity is visualized by the acquisition by these cells of PS1α integrin, a marker of dorsal cells (Gotwals et al., 1994).

JNK pathway activity is required for the A/P boundary transgressions

There is evidence that JNK signaling is involved in in situ regeneration in imaginal discs (Bergantinos et al., 2010; Herrera et al., 2013; Worley et al., 2012) and also in transdetermination of transplanted discs (Lee et al., 2005). Moreover, a recent report (Gettings et al., 2010) indicates that JNK activity is required for the change of en expression and subsequent crossing of the A/P border by some cells during dorsal closure in Drosophila embryos. Therefore, we have examined whether it plays a role in the lineage transgressions we observe. We had previously noticed that JNK is up regulated in the P compartments of ablated hh > hid discs, as shown by the activation of the puc-LacZ marker, which is not normally expressed in the wing pouch (Figure 4B,B′). This was expected because Hid induces JNK (Shlevkov and Morata, 2012), but we also find anterior compartment cells near the A/P border that express the puc-LacZ marker (Figure 4A–A′′).

We designed a special experiment combining the lexA/lexO (Yagi et al., 2010) and the Gal4/UAS binary systems to examine the involvement of JNK in the A/P lineage transgressions. The rationale was to induce massive cell death in the region of the A compartment close to the A/P border, and at the same time to prevent activation of JNK in the P compartment (Figure 4C, details in ‘Materials and methods’). In discs of genotype dpp-LHG>LexO-hid hh-Gal4>UAS-puc Gal80TS the 17 to 29ºC temperature shift causes ablation of the Dpp domain in the A compartment and at the same time prevents JNK activation in the P compartment due to the over-expression of the negative regulator puc (Martin-Blanco et al., 1998). In control dpp-LHG>LexO-hid Gal80TS discs the shift causes ablation of the Dpp domain but JNK activity is not prevented. The results are illustrated in Figure 4D–F. In the experimental discs, the transgressions are greatly reduced, clearly indicating a requirement for JNK function. This experiment also shows that A/P transgressions also occur after damage to the A compartment, even if only a portion of the compartment is affected.

Alteration of the Pc-G and trx-G activities during ablation

The preceding experiments establish that after massive damage to the A, P or the D compartment the lineage boundaries collapse but are quickly restored. During the process some cells change their original identity, indicating that those cells have undergone a reprogramming process that modifies the expression of identity genes, en, ci, ap, etc, activating some and repressing others. In support of this, we observe that after ablation of the dorsal compartment (in ap>hid discs, Figure 5—figure supplement 2) the expression of engrailed in the dorsal part of the posterior compartment is lower than in the corresponding region in the ventral compartment.

The functional state of Drosophila identity genes, i.e., their active or silencing mode, is controlled by the genes of the Polycomb (Pc-G) or trithorax groups (trx-G) (Kennison and Tamkun, 1988; Lewis, 1978). The Pc-G genes are responsible for keeping in off state (silencing) the genes inappropriate for a particular identity, whereas the trx-G genes maintain the activity of identity-specific genes. Therefore, we checked whether the identity changes observed during the reconstruction of compartment boundaries are associated with alterations of the activity of the Pc-G and the trx-G genes. It is known that the Pc-G and trx-G genes control en expression in the A and P compartments (Busturia and Morata, 1988; Breen et al., 1995).

We have measured the boundary transgressions after damage to P compartments of discs containing only one dose of Polycomb (Pc3/+) or trithorax (trxE2/+) in comparison with controls containing normal doses of the genes. The results indicate an involvement of the Pc-G and trx-G genes (Figure 5A–G): in Pc3/+ discs, the number and size of lineage transgressions is greatly increased with respect to controls, whereas in trxE2/+ discs there are very few lineage transgressions.

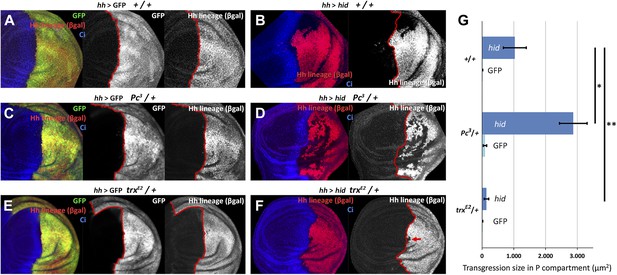

Figure 5 with 2 supplements see all
Changes in epigenetic regulation during A/P boundary reconstruction.

Comparison of the size of transgressions after Hid treatment found in discs containing normal doses of Polycomb (Pc) or of trithorax (trx) (A, control with GFP treatment, B experimental), with those in discs containing one dose of Pc (C, control, D experimental) or of trx (E, control, F experimental). Note the significant increase in transgressions size in Pc3/+ background and the reduction in trxE2/+ background (a small transgression is indicated with an arrow in F). Panel G shows the quantification of the transgressions size in the three genotypes, each with respect to its own control. Bars represent S.E.M., n>15 in each genotype, *p<0.01, **p<0.05. See also Figure 5—figure supplements 1 and 2.

https://doi.org/10.7554/eLife.01831.010

We have screened the expression during regeneration of several Pc-G and trx-G genes and of some epigenetic markers (Figure 5—figure supplement 1). The QF line ET40 (Potter et al., 2010) is an insertion of the QF transcription factor in the Posterior sex combs (Psc) gene, a member of the Pc-G. In Psc-QF>QUAS-mtdTomato discs in which the P compartment is ablated there is a clear down regulation of Psc activity (Figure 5—figure supplement 1A,B). We also find an increase in the levels of tri-methylation of H3K4, a mark of active chromatin (Schubeler et al., 2004) (Figure 5—figure supplement 1C,D). In both cases, the modifications affect the entire posterior compartment and the region of the A compartment close to the A/P border.

Taking everything together the preceding results strongly suggest that the changes of identity during regeneration are associated with temporal relaxation of the epigenetic control of compartment identity. We conjecture that as a result cells in the neighborhood of the A/P (or D/V) boundary may lose some of their developmental constraints, thus descending to a kind of ‘naive’ (undetermined) state.

A mechanism of en induction by neighbor cells

During the reconstruction of the boundaries some cells acquire a new compartmental identity, different from the original one. This implies the novo activation of identity genes. We speculated about the possibility of an induction mechanism by neighbor cells. That is, a cell in a naive state could be induced by its neighbors to express the same identity gene. The reason behind this speculation was the realization that identity changes observed appear to be influenced by the local developmental context, that is, the cells may change from anterior to posterior, but keep the overall wing identity. This suggested that the local developmental environment could play a role in determining the acquisition of the new identity. There is a recent observation (Garaulet et al., 2008) that dorsal compartment cells expressing en appear to induce the en-LacZ reporter in ventral cells located in their vicinity.

We designed two experiments to check whether A compartment cells might be induced to express the posterior identity gene en by the influence of neighbor cells expressing the gene. The first experiment consisted of filling the anterior wing compartment almost entirely with GFP-marked clones of cells expressing en, but leaving a few islands of unmarked anterior cells without exogenous en activity. We find that these unmarked cells often activate the endogenous en gene, as indicated by the expression of the en-lacZ insert (Figure 6C–E′′) and also by the presence of the En protein (Figure 6—figure supplement 1A–B′′). The gain of en activity is associated with down regulation of the A compartment markers Ci and Ptc (Figure 6D′′,E′′, Figure 6—figure supplement 1C–D′′). Significantly, this activation only occurs in discs densely populated by en-expressing clones; it does not appear if there are few clones (Figure 6A–B′′). It suggests that the induction process requires the receiving cells to be largely surrounded by inducing cells. This experiment was also performed at 17°C, a temperature at which the Gal4 system is less active and therefore the levels of en over-expression in the clones are lower. The result (Figure 6—figure supplement 2) is that en is also non-autonomously activated under these conditions.

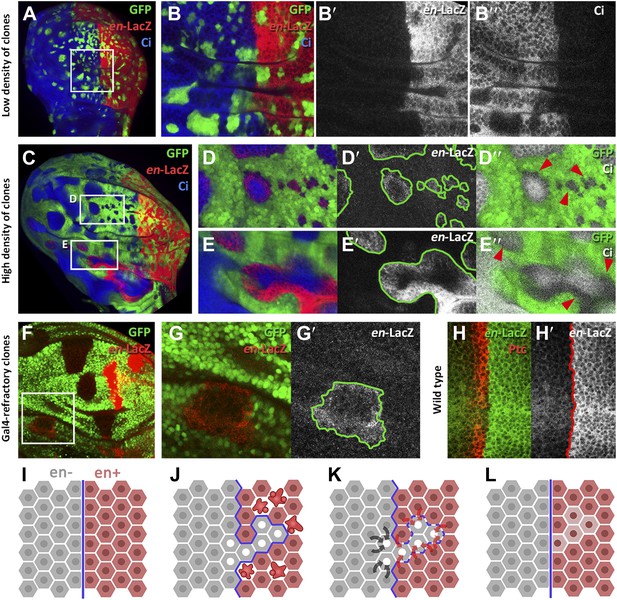

Figure 6 with 2 supplements see all
Induction of en activity by en-expressing neighbors.

(AE′) Clones of cells over-expressing engrailed and GFP were generated 48 hr before puparium formation. The clones of interest are those located in the A compartment. In A compartments with low density of en-expressing clones (A, BB′′) there is no induction of the en-lacZ reporter in anterior cells, nor there is alteration of Ci levels. However, when the disc is filled with en-expressing clones (C and magnifications in DE′′) anterior cells in contact with en-expressing clones acquire en-LacZ activity, while Ci protein levels decrease (D′′ and E′′). (FG′) Disc with Gal80-expressing clones (refractory to Gal4) in the anterior compartment surrounded by cells over-expressing en-LacZ (red) and GFP driven by the act-Gal4 line (see ‘Materials and methods’ for details). The clones show en activity, visualized by en-LacZ (G). (H and H′) High magnification of the A/P border in a control disc doubly stained for Patch, a marker of the A compartment that delineates the A/P border, and en-LacZ. Note that there is no extension of en activity beyond the boundary. (IL) Scheme of our proposal of the ‘induced by neighbors’ model of en activation during the regeneration of the A/P boundary. Before cell death induction (I) the A and P compartments are separated by a normal straight A/P border. (J) During the cell killing the border collapses due to changes of identity of cells. This allows some intermingling before it is reconstructed; cells of anterior provenance may be surrounded by cells of posterior identity, which induce activity of the endogenous en gene of the anterior cells (K). Once new the identities are established, the differential affinities of the A and P cells contribute to form a new A/P boundary (L). See also Figure 6—figure supplements 1 and 2.

https://doi.org/10.7554/eLife.01831.013

The second experiment consisted of generating clones of cells that are refractory to Gal4 in a field of Gal4-driven en-expressing cells (see ‘Materials and methods’). Clones in the anterior compartment expressing the Gal4-suppressor Gal80 are surrounded by cells with high levels of en activity driven by the act-Gal4 line. In these clones, we also observe induction of endogenous en activity (Figure 6F–G′).

We believe that the phenomenon of en induction it is not due to the Hedgehog -mediated late activation of en in the anterior cells close to the A/P border (Blair, 1992), because the en-lacZ insert line we use in these experiments does not show this effect (Figure 6H,H′). Furthermore, as noted above, we only observe en induction in discs densely populated by en-expressing clones; in discs with fewer clones it does not occur (compare A–B′′ and C–D′′ panels in Figure 6). The Hh-mediated activation would not depend on clone density.

Discussion

The results reported bear on the regenerative response of the wing disc to ablation of the posterior or the dorsal compartment. Compartments are independent lineage blocks and express different genetic/developmental programs (Lawrence, 1992). Since the majority of our experiments concern the response of the P compartment, we restrict the discussion to those, although we are confident the conclusions also apply to the D compartment.

We find that the P compartment fully regenerates after a massive damage that kills the majority of the cells. There is a proliferative response aimed to restore the normal size of the compartment (Figure 2). This response is easily visualized during post-ablation time (Figure 2E–H), although it may start during the ablation: the fact that clones in the P compartment, which is under ablation, grow as much as those in the control A compartment (Figure 2A–D) suggests that they perform more cell divisions. The autonomous proliferative response of the A and P compartment provides further evidence to the proposal that A and P compartments are units of growth control (Martin and Morata, 2006).

One unexpected result is that the ablation of one compartment, be it the P or the D compartment, results in a transient collapse of the A/P or the D/V boundary. Cells of anterior origin can penetrate into the P compartment (Figure 3A) and vice versa, cells of posterior origin can penetrate into the A compartment (Figure 3B). The latter result is significant because the A compartment was undamaged and therefore the penetration of cells of posterior provenance cannot be due to a repair mechanism.

Possibly, the collapse of the boundary results from a transient loss (or debilitation) of the identity of cells in the P compartment (Figure 5—figure supplement 2) and likely some anterior cells close to the border (Figure 5—figure supplement 1). As a consequence posterior cells can mix with juxtaposing anterior cells, in effect eliminating the boundary.

We believe the behavior of the posterior cells derives from a diminution of en activity, responsible for posterior identity and for maintaining the A/P border (Morata and Lawrence, 1975). In turn, it appears to be caused by two factors: attenuation of the control exerted by the Pc-G and trx-G genes (Figure 5), and up regulation of the JNK pathway (Figure 4A). These two pathways are known to be involved in controlling en activity (Busturia and Morata, 1988; Breen et al., 1995; Gettings et al., 2010).

We observe that the collapse of the boundary is followed by a very rapid reconstruction. The fact that there is a functional A/P border after 48 hr of ablation and without allowing time for recovery (Figure 3—figure supplement 1A, also Figure 4E), strongly suggests an immediate re-establishment. The reconstruction must result from the acquisition of new anterior or posterior identities by the cells close to the border.

We believe that the mechanism behind this reprogramming is the phenomenon of gene induction by neighbors that we report here (Figure 6A–H′): islands of anterior cells in which en is originally inactive are induced to activate the gene when surrounded by en-expressing cells. This phenomenon provides an explanation for the changes of identity observed in the proximity of the A/P border of regenerating discs that we outline in Figure 6I–L. In the developmental context of the wing disc, the cells around the A/P border only have the option of being en-on or en-off, depending on the active genotype of surrounding cells.

This non-autonomous induction may also have general implications about how major genetic/developmental decisions occur during development. In Drosophila many developmental decisions are taken collectively by small groups of cells: the compartmental subdivisions occur in groups of cells (Garcia-Bellido et al., 1973). Similarly, the phenomenon of ‘transdetermination’ in which cells change their original segmental determination in transplantation experiments (Gehring, 1967), is not a clonal but a collective decision. These examples are cases of group decisions, in which the local context plays a role. These group interactions to generate a coherent pattern of developmental resemble the ‘community effect’ described by John Gurdon years ago (Gurdon, 1988).

One could speculate that induction by neighbors may be part of a group decision process during normal development. The initial activation of en during embryogenesis is induced by the transcription factors eve and ftz (DiNardo et al., 1988). It is possible that not all the cells respond similarly to Eve or Ftz—it is known that the initial en expression is inhomogeneous (DiNardo et al., 1985). The secondary induction via the local context would ensure the coherent activation of engrailed in the entire group. There is a recent report suggesting the possibility that the En protein may act as a short-range signal (Layalle et al., 2011). It raises the possibility that the En product itself may activate en non-autonomously.

Materials and methods

Drosophila strains

The Drosophila stocks used were hh-Gal4 (Tanimoto et al., 2000); ap-Gal4 (Calleja et al., 1996); ET-40 (named in the text as Psc-QF) and QUAS-mtdTomato (Potter et al., 2010); dpp-LHG-86Fb (Yagi et al., 2010); lexO-hid (a kind gift of Ainhoa Pérez-Garijo and Hermann Steller); puc-lacZ line (pucE69) and UAS-puc14C line (Martin-Blanco et al., 1998); act-Gal4, UAS-GFP, UAS-hid7 (named in the text as UAS-hid), UAS-Flp, UAS-LacZ, tub-Gal80TS, arm-LacZ FRT80B and ubi-GFP FRT80B (Bloomington Drosophila Stock Center); UAS-en (Guillen et al., 1995); hs-Flp112 and act>stop>lacZ (Struhl and Basler, 1993); ubiP63E>stop>GFP (Evans et al., 2009); tubP>stop>Gal80 (Bohm et al., 2010); mew-YFP (named in the text as PS1α-YFP, Kyoto Stock Center CPTI-001678); Pc3 (Lewis, 1978); trxE2 (Kennison and Tamkun, 1988). In the experiments using the Gal4/UAS system the general rule was to use only two UAS transgenes. This was to avoid the possibility of titrating the amount of Gal4 protein available for the UAS vectors.

Induction of massive cell death in the posterior and in the dorsal wing compartments

We have used a cell killing method very similar to that previously described (Bergantinos et al., 2010; Smith-Bolton et al., 2009; Herrera et al., 2013). For ablation of posterior compartments, we used the genotypes UAS-hid tub-Gal80TS/+; hh-Gal4/act>stop>lacZ UAS-Flp (experimental) and UAS-GFP tub-Gal80TS/+; hh-Gal4/act>stop>lacZ UAS-Flp (control). To ablate dorsal compartment the hh-Gal4 insertion was substituted by an ap-gal4 line. The tub-Gal80TS vector suppresses Gal4 activity at 17°C, but it is ineffective at 29°C thus allowing to manipulate Gal4 activity by shifting temperature between 17°C and 29°C.

Larvae were cultured at 17°C by 7 days (Figure 1—figure supplement 1A). At this point (approximately the transition between second and third instar), the temperature of the cultures was raised to 29°C, thus inactivating the Gal80TS. There are two consequences of this: (1) an induction of hid overexpression, which induces massive apoptosis; (2) induction of Flipase recombinase, which in turn drives recombination of the act>stop>lacZ cassette, thus labeling all the cells of the Gal4 domain with indelible activity of the LacZ marker, which encodes the ßgal protein (Figure 1—figure supplement 1B). After 48 hr of ablation treatment, the cultures were returned to 17°C, activating again the Gal80TS repressor thus allowing the recovery of the tissue. In the regenerated structure, we can distinguish the cells that belonged to the original domain (ßgal positive) from those cells originated in other compartment (ßgal negative) (Figure 1—figure supplement 1C).

Inducing cell death in the Dpp domain while blocking JNK activity in the posterior compartment

We used larvae of genotypes ubiP63E>stop>GFP, tub-Gal80TS/ UAS-Flp, UAS-puc; dpp-LHG, hh-Gal4/ lexO-hid (experimental) and ubiP63E>stop>GFP, tub-Gal80TS/ UAS-Flp; dpp-LHG, hh-Gal4/ lexO-hid (control).

In these genotypes hid is overexpressed in the Dpp domain, the anterior region close to the A/P border, while puc (only present in the experimental genotype) and Flipase are overexpressed in the hh domain (posterior compartment). The Flipase in turn induces recombination of the ubiP63E>stop>GFP casette, thus labeling the posterior compartment lineage. The tub-Gal80TS vector suppresses both LHG and Gal4 activity at 17°C. Larvae were cultured at 17°C for 7 days and then the temperature was raised to 29°C to inactivate Gal80TS for 2 days. In this experiment, the transgressions were scored at the end of this ablation period.

Measurement of transgressions

We have measured the size of transgression size as the total surface, measured in µm2, of a patch of cells with a compartmental identity (activity of genes as en or ci) different from its lineage origin (e.g. Hh lineage-negative/Ci-negative or Hh lineage-positive/Ci-positive).

Clonal analysis

To induce neutral clones in posterior compartment-ablated discs, we heat-shocked (12 min 37°C) larvae of genotype hs-Flp; UAS-hid tub-Gal80TS/+; hh-Gal4/ ubiP63E>stop>GFP. As controls we induced clones in hs-Flp; UAS-hid tub-Gal80TS/+; ubiP63E>stop>GFP/+ larvae in which there is no Hid activation. To analyze clonal growth during the ablation period, the heat-shock was delivered at the beginning of the ablation period and the discs were fixed after 48 hr, at the end of ablation. To analyze the growth during the recovery period the heat shock was delivered at the end of Hid treatment and the discs were fixed after 72 hr.

To analyze in detail the transgression of the A/P boundary by clones generated either in the A or the P compartment we used a ‘twin clones’ method, marking the two cellular progenies of a mitotic recombination event. We generated the double LacZ clones and double GFP twins in the genotype hs-Flp112; UAS-hid tub-Gal80TS/+; ubi-GFP FRT80B hh-Gal4/arm-LacZ FRT80B. The clones were induced by heat-shock (10 min 37°C) at the beginning of the Hid treatment. Discs were fixed after 48 hr of Hid induction and 24 additional hours of recovery period.

Generating clones of engrailed-expressing cells in the anterior compartment

To generate marked clones over-expressing engrailed we used the construction act>CD2 y+>Gal4 (in the following act>stop>Gal4) (Ito et al., 1997). In discs of genotype yw hs-Flp; act>stop>Gal4 UAS-GFP/en-LacZ; UAS-en/+ a long heat shock of 30 min gave rise to a very large number of en-expressing clones that are labeled with GFP. For low density clones induction, we used 10 min heat shocks. We co-expressed these genes with UAS-GFP for labeling the clones. We detected the endogenous engrailed gene activity thanks to the insertion en-LacZ (ryxho25) (Hama et al., 1990).

Generating clones refractory to Gal4

The genotype used was yw hs-Flp act-Gal4 UAS-GFP; tub-Gal80TS/en-LacZ; tubP>stop>Gal80/UAS-en. In this genotype, a temperature shift from 17°C to 29°C removes the activity of the thermo-sensitive form of Gal80 thus allowing activation of the UAS-en transgene in all the cells of the disc (the act-Gal4 line confers ubiquitous expression), except in the clones resulting from recombination of the tubP>stop>Gal80 cassette. These clones were induced by a heat shock prior to the temperature shift and contain the normal form of the Gal80 protein. The larvae were cultured at 17°C and the heat shock (12 min at 37°C) was administrated 7 days after egg lying. After 24 additional hours at 17°C, the larvae were shifted to 29°C and the discs were fixed 2 days later.

Immunostaining and data analysis

Immunostaining was performed as described previously (Shlevkov and Morata, 2012). Images were captured with Leica TCS SPE and Zeiss LSM510 Vertical confocal microscopes. Images were processed with Fiji-ImageJ and Adobe Photoshop CS4 software using Student’s t for significance tests. Statistical analyses were performed with Microsoft Excel software. The following primary antibodies were used: rabbit anti-Caspase 3 (Roche, Basilea, Switzerland) 1:50; mouse anti-ß-Galactosidase (Promega, Madison, WI); rat anti-Cubitus interruptus (2A1; Hybridoma Bank, Iowa City, IA) 1:25; mouse anti-Engrailed (4D9; Hybridoma Bank) 1:50; mouse anti-Patched (Apa-1; Hybridoma Bank) 1:50; rabbit anti-H3K4me3 (07-473; Millipore, Billerica, MA) 1:50. Fluorescently labeled secondary antibodies (Molecular Probes, Eugene, OR) were used in a 1:200 dilution. TO-PRO3 (Invitrogen, Carlsbad, CA) was used in a 1:600 dilution to label nuclei; Phalloidin-Cy5 (65906; Sigma, St. Louis, MO) was used in a 1:200 dilution to label the F-actin network (thus the cell membranes).

References

  1. 1
  2. 2
    Engrailed expression in the anterior lineage compartment of the developing wing blade of Drosophila
    1. SS Blair
    (1992)
    Development 115:21–33.
  3. 3
  4. 4
  5. 5
    Engrailed gene expression in Drosophila imaginal discs
    1. DL Brower
    (1986)
    The EMBO Journal 5:2649–2656.
  6. 6
    Ectopic expression of homeotic genes caused by the elimination of the Polycomb gene in Drosophila imaginal epidermis
    1. A Busturia
    2. G Morata
    (1988)
    Development 104:713–720.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    Developmental compartmentalisation of the wing disk of Drosophila
    1. A Garcia-Bellido
    2. P Ripoll
    3. G Morata
    (1973)
    Nature New Biology 245:251–253.
  14. 14
  15. 15
  16. 16
    Drosophila integrins and their ligands
    1. PJ Gotwals
    2. SE Paine-Saunders
    3. KA Stark
    4. RO Hynes
    (1994)
    Current Opinion in Cell Biology 6:734–739.
  17. 17
    The function of engrailed and the specification of Drosophila wing pattern
    1. I Guillen
    2. JL Mullor
    3. J Capdevila
    4. E Sanchez-Herrero
    5. G Morata
    6. I Guerrero
    (1995)
    Development 121:3447–3456.
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    The Drosophila mushroom body is a quadruple structure of clonal units each of which contains a virtually identical set of neurones and glial cells
    1. K Ito
    2. W Awano
    3. K Suzuki
    4. Y Hiromi
    5. D Yamamoto
    (1997)
    Development 124:761–771.
  23. 23
    Dosage-dependent modifiers of polycomb and antennapedia mutations in Drosophila
    1. JA Kennison
    2. JW Tamkun
    (1988)
    Proceedings of the National Academy of Sciences of the United States of America 85:8136–8140.
    https://doi.org/10.1073/pnas.85.21.8136
  24. 24
  25. 25
    The making of a fly
    1. PA Lawrence
    (1992)
    Oxford, UK: Blackwell Scientific Publications.
  26. 26
  27. 27
    Morphogens, compartments, and pattern: lessons from drosophila?
    1. PA Lawrence
    2. G Struhl
    (1996)
    Cell 85:951–961.
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
    Regeneration and compartments in Drosophila
    1. J Szabad
    2. P Simpson
    3. R Nothiger
    (1979)
    Journal of Embryology and Experimental Morphology 49:229–241.
  42. 42
  43. 43
  44. 44
    Refined LexA transactivators and their use in combination with the Drosophila Gal4 system
    1. R Yagi
    2. F Mayer
    3. K Basler
    (2010)
    Proceedings of the National Academy of Sciences of the United States of America 107:16166–16171.
    https://doi.org/10.1073/pnas.1005957107

Decision letter

  1. Matthew Freeman
    Reviewing Editor; University of Oxford, United Kingdom

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Transgressions of compartment boundaries and cell reprogramming during regeneration in Drosophila” for consideration at eLife. Your article has been favorably evaluated by a Senior editor and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before reaching this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

The three reviewers agree that this paper is potentially appropriate for eLife but that it does need substantial work to make it acceptable. The overriding issue that needs addressing is to make more solid and convincing the main conclusion of the paper, that there is a breakdown of compartmental boundaries that allows transgression of anterior and posterior cells. The current conclusions are interesting but somewhat superficial in places and there is a clear consensus that additional rigor is needed before it can be accepted. Specific concerns agreed by the three reviewers follow.

1) Much of the data would be interpreted differently if the b-gal genetic marker is not as precise as claimed. If 100 % of P cells are not βgal marked, then the unlabeled clones in the P compartment might not have crossed from the anterior. To exclude the possibility that the label-negative cells arise not from transgression from the healthy compartment but from a few cells that did not undergo excision of the stop cassette, the authors could mark healthy cells (in this case A cells) with the Lac-Z marker in the following genotype: dpp-LexA LexOp-Flp act>>LacZ hh-Gal4 tub-gal80ts UAS-hid. Slightly more difficult to explain, but not impossible, is the presence of marked clones in the A compartment: perhaps the dying cells induce occasional ectopic Flp expression in neighboring A cells? The controls support their model, but it is very hard to rule out that the Hid genetic manipulation might affect the normally precise control of Flp activity and/or Gal4 expression under Hh control. The twin clone experiment is harder to explain away, and perhaps is the best evidence for a breakdown of the boundary, but this is not given as much prominence as the main Hh driven βgal approach. The one example shown is at a fold, and may therefore be atypical.

2) In Figure 2G, the number of clones is much too high, preventing rigorous size assessment. Is this figure representative of the pictures used to generate the data tabulated in Figure 2H?

3) It appears that transgression can occur either from the disrupted to the healthy compartment (as in Figure 3B) or from the healthy to the disrupted (as in Figure 3A). If both phenomena are observed, what are their relative frequencies and what are the factors that affect directionality?

4) Another issue concerns the location along the boundary where transgressions occur. Transgressions are shown at various places along the boundary. An example of disrupted-to-healthy transgression is shown in the middle of the pouch (Figure 3B). The twin clones are shown in the prospective notum and in a few key experiments, transgressions appear to occur preferentially at an epithelial fold. It also appears that JNK upregulation occurs specifically near folds. Transgression at these various locations seem to differ morphologically and it is not clear that they are equivalent. Therefore, it is necessary to define which types of transgression are analyzed in the different genetic backgrounds (at folds or not; towards the disrupted compartment or away from it).

5) The effect of Pc3/+ on the rate of transgression into the disrupted compartment is impressive. So much so that it needs to be further substantiated (e.g., by labeling the cells of the healthy compartment as suggested above). Moreover, according to the graph (Figure 6C), +/+ discs should look like an intermediate between panels A and B. This is not apparent from Figure 3A and B.

6) In Figure 5, the authors analyze transgression size in a heterozygous background of Pc3/+ or trxE2/+. They claim that the transgression size in the P compartment is altered because of changes in the epigenetic control mechanisms related to reprogramming. However, the hedgehog gene itself is under control of epigenetic regulation (Maurange and Paro, 2002), raising the possibility that the alterations in transgression size might be due to higher or lower activities of hh-GAL4 (and hence expression of hid). This could be tested by monitoring the activity of hh-Gal4 in the different genetic backgrounds using a reporter (e.g., UAS-GFP).

7) Unlike much of the rest of the data, Figures 5D-G, are not very clear. The changes in Psc and H3K4 expression could be shown in a way that makes it easier for the reader to judge the extent of the changes.

8) In Figure 6, the authors test whether en-expressing cells can induce en-lacZ expression in neighboring cells. They show that this is indeed the case for cells in the anterior compartment. In the posterior compartment, where en-lacZ is normally active, however, en-lacZ is apparently repressed in clones of cells expressing Engrailed (panel B'). This raises concerns about the physiological relevance of the expression level of Engrailed in the clones and thus the validity of the conclusion. The authors could lower expression levels by using an expression system independent of the highly active Gal4/UAS system, by reducing the temperature (the Gal4 system is less active at 18C), or by co-expressing Gal80ts. Furthermore, as the authors acknowledge, engrailed normally becomes active in the A compartment at late stages of discs development. They suggest that this is not true for en-lacZ. They conclude therefore that non-autonomous engrailed expression represents a true fate change (A to P). However, the nature of the en-lacZ allele is not specified. This is important because at least one en-lacz line (known as xho25 en-lacZ) is upregulated in the A compartment (Blair 1992). Therefore the conclusion that engrailed is activated in a non-autonomous manner needs further evidence, perhaps with higher quality anti-En staining and a demonstration that Ptc expression is suppressed in these cells.

https://doi.org/10.7554/eLife.01831.016

Author response

The overriding issue that needs addressing is to make more solid and convincing the main conclusion of the paper, that there is a breakdown of compartmental boundaries that allows transgression of anterior and posterior cells. The current conclusions are interesting but somewhat superficial in places and there is a clear consensus that additional rigor is needed before it can be accepted. Specific concerns agreed by the three reviewers follow.

We agree that this is a major point of the paper and therefore has to be demonstrated beyond doubt. We paid special attention to the various reviewers’ comments and suggestions about this issue.

1) Much of the data would be interpreted differently if the b-gal genetic marker is not as precise as claimed. If 100 % of P cells are not βgal marked, then the unlabeled clones in the P compartment might not have crossed from the anterior.

Although in principle it was possible that not all the P compartment cells were marked with ßgal, we are fully confident it is not the case for the following reasons:

A) We find that in the control discs (overexpressing GFP in the P compartment cells instead of overexpressing Hid) all the P compartment cells are labelled – no exception to this.

B) If it so happened that some P compartment cells in the experimental discs were not labelled with ßgal, the unlabelled cells should appear anywhere in the P compartment.

We have plotted the position in the disc of all the transgressions, both from A to P and from P to A and have also included the transgressions found in the Pc3/+ experiment. It is obvious from the figure that the transgressions localize in the neighbourhood of the A/P border. This argues very strongly against the incomplete label hypothesis. We discuss this possibility in the revised version and are incorporating the image in the new Figure 3–figure supplement 2.

To exclude the possibility that the label-negative cells arise not from transgression from the healthy compartment but from a few cells that did not undergo excision of the stop cassette, the authors could mark healthy cells (in this case A cells) with the Lac-Z marker in the following genotype: dpp-LexA LexOp-Flp act>>LacZ hh-Gal4 tub-gal80ts UAS-hid.

Although the argument in the preceding paragraph argues very strongly against the possibility put forward by the reviewers, we seriously considered performing the experiment they suggested. The experiment is in principle a good one, but unfortunately it does not work. This is because the dpp-LexA line is not only expressed in the A compartment just anterior to the A/P border, but it is also expressed in the hinge region of the P compartment and in some spots elsewhere. As a consequence we are bound to find posterior cells labelled with lacZ. For the reviewers’ information we include an image of a wing disc of genotype dpp-LexA>LexO-GFP that shows GFP label in the P compartment (Author response image 1).

Author response image 1

Nevertheless, you should note that in the paper we report an experiment that is a way similar to that suggested by the reviewers; in dpp-LexA/lexO-hid hh-Gal4 UAS-Flp ubi>>GFP we kill anterior cells and label healthy posterior cells marked with GFP (Figure 4E-E”). We find that posterior cells penetrate into the A compartment and express the GFP marker. In this case the expression of the dpp-LexA line in the proximal region of the P compartment should not have an effect on the results.

Slightly more difficult to explain, but not impossible, is the presence of marked clones in the A compartment: perhaps the dying cells induce occasional ectopic Flp expression in neighboring A cells? The controls support their model, but it is very hard to rule out that the Hid genetic manipulation might affect the normally precise control of Flp activity and/or Gal4 expression under Hh control.

The reviewers suggest the possibility that the label of anterior cells with the posterior marker lacZ (Figure 3B) is not due to penetration of P cells into the A compartment, but to a transient hh expression in A cells (induced by dying posterior cells) that drives Flp and presumably also transforms them into P identity. But then these newly transformed P cells would have to change again to re-acquire anterior identity. The induction of successive changes of identity seems to us to be very unlikely.

The twin clone experiment is harder to explain away, and perhaps is the best evidence for a breakdown of the boundary, but this is not given as much prominence as the main Hh driven βgal approach. The one example shown is at a fold, and may therefore be atypical.

In the revised version we have modified the text to give more emphasis to these results. We selected the disc for Figure 3 because it makes a very good case for transgression. It is not frequent to have two pairs of twin clones in the same disc, both crossing the A/P border. Only one pair is close to a fold but not the other. For the reviewers’ information we are including some additional images showing other clones that are not associated with folds (Author response image 2).

Author response image 2

2) In Figure 2G, the number of clones is much too high, preventing rigorous size assessment. Is this figure representative of the pictures used to generate the data tabulated in Figure 2H?

We used the disc with many clones in Figure 2G because it very clearly shows, just at a glance, the difference in size between anterior and posterior clones, but for the quantification we utilized discs with fewer clones, like those shown in the new Figure 2, that we have modified to include a typical case of a disc from the experiment

3) It appears that transgression can occur either from the disrupted to the healthy compartment (as in Figure 3B) or from the healthy to the disrupted (as in Figure 3A). If both phenomena are observed, what are their relative frequencies and what are the factors that affect directionality?

We now include the number of cases of A to P and of P to A transgressions. The latter is clearly smaller, likely due to the fact that the number of P cells is smaller after the Hid treatment.

Concerning the factors responsible for the directionality, we discuss this issue in the Discussion section. Our argument is that there is a collapse of the A/P border due to a transient slackening of the epigenetic control exerted by the Pc-G and trx-G genes. As a result many cells of either anterior or posterior origin descend to a “naïve” identity and can mix. Due to the reprogramming during the reconstruction of the border, some cells acquire an identity different from the original one. The result is that we can observe transgressions from A to P and conversely from P to A.

4) Another issue concerns the location along the boundary where transgressions occur. Transgressions are shown at various places along the boundary. An example of disrupted-to-healthy transgression is shown in the middle of the pouch (Figure 3B). The twin clones are shown in the prospective notum and in a few key experiments, transgressions appear to occur preferentially at an epithelial fold. It also appears that JNK upregulation occurs specifically near folds. Transgression at these various locations seem to differ morphologically and it is not clear that they are equivalent. Therefore, it is necessary to define which types of transgression are analyzed in the different genetic backgrounds (at folds or not; towards the disrupted compartment or away from it).

In the new Figure 3–figure supplement 2, we show a plot of all the transgressions we have found and although there seems to be some preference for the A to P transgressions to occur close to the folding between the wing pouch and hinge, the fact is that they can occur anywhere in the disc. Curiously, the P to A transgressions show a different positional pattern. We observe upregulation of JNK in anterior cells anywhere along the A/P border – no indication of preference for folds.

5) The effect of Pc3/+ on the rate of transgression into the disrupted compartment is impressive. So much so that it needs to be further substantiated (e.g., by labeling the cells of the healthy compartment as suggested above). Moreover, according to the graph (Figure 6C), +/+ discs should look like an intermediate between panels A and B. This is not apparent from Figure 3A and B.

As we mention above the experiment proposed by the reviewers would not work in practice because of the unanticipated expression of the dpp-LexA line in the P compartment.

As the reviewer says that transgressions in +/+ should be an intermediate between Pc3/+ and trxE2/+.. We have modified Figure 5 to show that it is indeed the case

6) In Figure 5, the authors analyze transgression size in a heterozygous background of Pc3/+ or trxE2/+. They claim that the transgression size in the P compartment is altered because of changes in the epigenetic control mechanisms related to reprogramming. However, the hedgehog gene itself is under control of epigenetic regulation (Maurange and Paro, 2002), raising the possibility that the alterations in transgression size might be due to higher or lower activities of hh-GAL4 (and hence expression of hid). This could be tested by monitoring the activity of hh-Gal4 in the different genetic backgrounds using a reporter (e.g., UAS-GFP).

The reviewers raise an interesting point about possible alterations in the activity of the hh-Gal4 line (and consequently in Hid activity) in heterozygous background for Pc3/+ or trxE2/+. It could result in changes in the number and size of the transgressions just due to this fact.

We have monitored hh-Gal4 activity in Pc3/+ and trxE2/+ discs by examining UAS-GFP levels – shown in the new Figure 5. We cannot detect any difference with wt controls. Also, the levels of caspase activity in the UAS-hid experiments appear to be the same for the three genotypes

7) Unlike much of the rest of the data, Figures 5D-G, are not very clear. The changes in Psc and H3K4 expression could be shown in a way that makes it easier for the reader to judge the extent of the changes.

In the revised version we have moved the results in the original Figure 5D-G to Figure 5–figure supplement 1. We present the alterations of Psc and H3K4 levels after Hid treatment in three different discs in each case. We hope the reviewer is convinced that Psc is down regulated in the vicinity of the A/P border and that the levels of H3K4 are elevated in the P compartment and also in some cells just anterior to the border

8) In Figure 6, the authors test whether en-expressing cells can induce en-lacZ expression in neighboring cells. They show that this is indeed the case for cells in the anterior compartment. In the posterior compartment, where en-lacZ is normally active, however, en-lacZ is apparently repressed in clones of cells expressing Engrailed (panel B').

The repression of engrailed in the posterior compartment by clones of en-expressing cells was expected. This phenomenon was reported some years ago in Garaulet et al. Development 135:3219 (2008). The engrailed gene, like Ubx, possesses a mechanism of negative auto-regulation that appears to function when the local levels are too high.

This raises concerns about the physiological relevance of the expression level of Engrailed in the clones and thus the validity of the conclusion. The authors could lower expression levels by using an expression system independent of the highly active Gal4/UAS system, by reducing the temperature (the Gal4 system is less active at 18C), or by co-expressing Gal80ts.

Following the suggestion by the reviewers we have repeated the experiment of en overexpression at 17 ºC. The result is that engrailed is also induced at this temperature. It is now indicated in the text and shown in the new Figure 6–figure supplement 2.

Furthermore, as the authors acknowledge, engrailed normally becomes active in the A compartment at late stages of discs development. They suggest that this is not true for en-lacZ. They conclude therefore that non-autonomous engrailed expression represents a true fate change (A to P). However, the nature of the en-lacZ allele is not specified. This is important because at least one en-lacz line (known as xho25 en-lacZ) is upregulated in the A compartment (Blair 1992). Therefore the conclusion that engrailed is activated in a non-autonomous manner needs further evidence, perhaps with higher quality anti-En staining and a demonstration that Ptc expression is suppressed in these cells.

We were concerned about the possibility that the engrailed activity in anterior cells we find might correspond to that that normally appears in late stages of the wing disc, reported by Blair. We have in many instances observed this late expression of engrailed using the anti-En antibody.

However, the en-lacZ line we have used does not show this effect. This line is indeed ryxho25 en-lacZ, originally reported by Hama et al. 1990, and where Blair reported en up regulation in the A compartment. But, in our control experiments we never find en expression in the A compartment. As shown in Figure 6H, double staining for Ptc and lacZ in the disc indicates that en expression is strictly limited to posterior cells and abuts with Ptc expression in anterior cells.

We were not the only ones who failed to observe this activity – a recent paper by Landsberg et al. Current Biol 19:1950 (2009) also failed to see it. The reviewers may examine Figure 1A of the latter paper showing a high magnification picture of a region of the wing disc; en expression in ryxho25 en-lacZ is strictly limited to posterior cells. We have re-read the 1992 Development paper by Blair. The evidence for anterior en expression in ryxho25 en-lacZ is shown in Figure 5A where one can see some local lacZ staining anterior to the A/P line. We suspect it might be an artefact generated by the staining in the peripodial membrane.

Also, as we argue in the paper, the non-autonomous induction of engrailed appears only when the en-expressing clones cover most of the A compartment (Figure 6C-E”). When there are fewer clones (Figure 6A-B”) engrailed is not induced. This would not be expected if the non-autonomous en activity were due to the Hh-dependant induction in late development reported by Blair.

In addition, we have tried to satisfy the reviewers with better anti-En staining (Figure 6–figure supplement 1 A-B”) and by showing that Ptc is down regulated in anterior cells gaining engrailed non-autonomously (Figure 6–figure supplement 1 C-D”). These results are now described in the text.

https://doi.org/10.7554/eLife.01831.017

Article and author information

Author details

  1. Salvador C Herrera

    Centro de Biología Molecular Severo Ochoa, Universidad Autónoma de Madrid, Madrid, Spain
    Contribution
    SCH, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Ginés Morata

    Centro de Biología Molecular Severo Ochoa, Universidad Autónoma de Madrid, Madrid, Spain
    Contribution
    GM, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    gmorata@cbm.uam.es
    Competing interests
    The authors declare that no competing interests exist.

Funding

Human Frontier Science Program (RPG0016/2010-C104)

  • Ginés Morata

Ministerio de Economia y Competitividad of Spain (BFU2008-03196)

  • Ginés Morata

JAE-Predoc fellowship - Ministerio de Economía y Competitividad of Spain

  • Salvador C Herrera

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank U Banerjee, G Struhl, B Zhang, A Pérez-Garijo for fly stocks, Ernesto Sánchez-Herrero and Michael Levine for helpful discussions and comments on the manuscript.

Reviewing Editor

  1. Matthew Freeman, Reviewing Editor, University of Oxford, United Kingdom

Publication history

  1. Received: November 5, 2013
  2. Accepted: March 11, 2014
  3. Version of Record published: April 22, 2014 (version 1)

Copyright

© 2014, Herrera and Morata

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,502
    Page views
  • 163
    Downloads
  • 12
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology and Stem Cells
    Takuya Akiyama et al.
    Short Report Updated
    1. Developmental Biology and Stem Cells
    Laura Lleras Forero et al.
    Research Article Updated
