Structure of bacterial cytoplasmic chemoreceptor arrays and implications for chemotactic signaling

  1. Ariane Briegel
  2. Mark S Ladinsky
  3. Catherine Oikonomou
  4. Christopher W Jones
  5. Michael J Harris
  6. Daniel J Fowler
  7. Yi-Wei Chang
  8. Lynmarie K Thompson
  9. Judith P Armitage
  10. Grant J Jensen Is a corresponding author
  1. California Institute of Technology, United States
  2. Howard Hughes Medical Institute, United States
  3. University of Oxford, United Kingdom
  4. University of Massachusetts, United States
Research Article
Cited
23
Views
1,807
Comments
0
Cite as: eLife 2014;3:e02151 doi: 10.7554/eLife.02151

Abstract

Most motile bacteria sense and respond to their environment through a transmembrane chemoreceptor array whose structure and function have been well-studied, but many species also contain an additional cluster of chemoreceptors in their cytoplasm. Although the cytoplasmic cluster is essential for normal chemotaxis in some organisms, its structure and function remain unknown. Here we use electron cryotomography to image the cytoplasmic chemoreceptor cluster in Rhodobacter sphaeroides and Vibrio cholerae. We show that just like transmembrane arrays, cytoplasmic clusters contain trimers-of-receptor-dimers organized in 12-nm hexagonal arrays. In contrast to transmembrane arrays, however, cytoplasmic clusters comprise two CheA/CheW baseplates sandwiching two opposed receptor arrays. We further show that cytoplasmic fragments of normally transmembrane E. coli chemoreceptors form similar sandwiched structures in the presence of molecular crowding agents. Together these results suggest that the 12-nm hexagonal architecture is fundamentally important and that sandwiching and crowding can replace the stabilizing effect of the membrane.

https://doi.org/10.7554/eLife.02151.001

eLife digest

Many bacteria swim through water by rotating tiny hair-like structures called flagella. In E. coli, if all the flagella on the surface of a bacterium rotate in a counterclockwise fashion, then it will swim in a particular direction, but if the flagella all rotate in an clockwise fashion, then the bacterium will stop swimming and start to tumble.

Bacteria use a combination of swimming and tumbling in order to move towards or away from certain chemicals. For example, a bacterium is able to move towards a source of nutrients because it is constantly evaluating its environment and will swim forward for longer periods of time when it recognizes the concentration of the nutrient is increasing. And if it senses that the nutrient concentration is decreasing, it will tumble in an effort to move in a different direction.

Many bacteria, such as E. coli, rely on proteins in their cell membrane called chemoreceptors to sense specific chemicals and then send signals that tell the flagella how to rotate. These transmembrane receptors and their role in chemotaxis—that is, movement towards or away from specific chemicals in the environment—have been widely studied. However, other bacteria also have chemoreceptors in the cytoplasm inside the bacterial cell, and much less is known about these.

Now, Briegel et al. have examined the cytoplasmic chemoreceptors of two unrelated bacteria, R. sphaeroides and V. cholera, and found that the cytoplasmic chemoreceptors arrange themselves in hexagonal arrays, similar to the way that transmembrane chemoreceptors are arranged. However, the cytoplasmic chemoreceptors arrange themselves in a two-layer sandwich-like structure, whereas the transmembrane chemoreceptors are arranged in just one layer. The next step is to understand how chemical binding causes these arrays to send their signals to the motor. A complete understanding of this signaling system may ultimately allow scientists to re-engineer it to draw bacteria to targets of medical or environmental interest, such as cancer cells or contaminated soils.

https://doi.org/10.7554/eLife.02151.002

Introduction

Bacteria sense and respond to their environment through a chemotactic system that translates ligand binding (stimulus) into preferential flagellar rotation (response), leading to either running in a favorable direction or tumbling to find a more favorable direction (Hazelbauer et al., 2008). Briefly, ligands bind to the periplasmic domains of the methyl-accepting chemotaxis proteins (MCPs), either directly (Milburn et al., 1991; Englert et al., 2010) or via periplasmic binding proteins (Tam and Saier, 1993). This results in conformational changes that traverse the length of the MCP, through one or more HAMP (histidine kinases, adenyl cyclases, MCPs, and some phosphatases) domains and the cytoplasmic coiled-coil signaling domain to either activate or inactivate a histidine kinase, CheA, bound at the distal tip (Wadhams and Armitage, 2004; Kentner and Sourjik, 2006; Hazelbauer et al., 2008).

The bacterial chemotactic system is best understood in Escherichia coli, where system components are located in a single operon (Silverman and Simon, 1976). In E. coli, CheA is a 5-domain (P1-P5) protein that functions as a homodimer. When activated by the MCP in unfavorable environments, CheA undergoes autophosphorylation and then transfers the phosphoryl group to one of two response regulators. One of these, CheY, binds the flagellar motor when phosphorylated, switching the motor’s direction from clockwise to counter-clockwise and thus increasing the frequency of tumbling to find a more favorable direction (Turner et al., 2000). The other response regulator, CheB, is a methylesterase whose activity is stimulated by phosphorylation. Its activity is opposed by the constitutively active methyltransferase CheR and the balance of these two activities determines the methylation state of specific glutamate residues in the MCPs. These methylations confer adaptation on the system, modulating its response based on recent environmental conditions (Kleene et al., 1979; Toews et al., 1979; Lupas and Stock, 1989).

In E. coli, MCPs associate into trimers of dimers that span the inner membrane (Kim et al., 1999; Studdert and Parkinson, 2004) and complex with CheA and the coupling protein CheW (Figure 1A). This results in hexagonally packed trimers-of-receptor-dimers surrounding a ring of alternating CheA P5 domains and CheW. Neighboring rings are linked together by CheA P3 dimerization domains to form extended hexagonal lattices – the so-called transmembrane chemoreceptor arrays (Briegel et al., 2012; Liu et al., 2012). The architecture of these membrane-bound chemoreceptor arrays is not specific to E. coli, indeed it is universal among bacteria (Briegel et al., 2009). The architecture of these arrays is likely key to the high sensitivity, wide dynamic range, cooperativity, and feedback control of this system (Duke and Bray, 1999; Li and Weis, 2000; Gestwicki and Kiessling, 2002; Sourjik and Berg, 2002, 2004; Li and Hazelbauer, 2005; Endres and Wingreen, 2006).

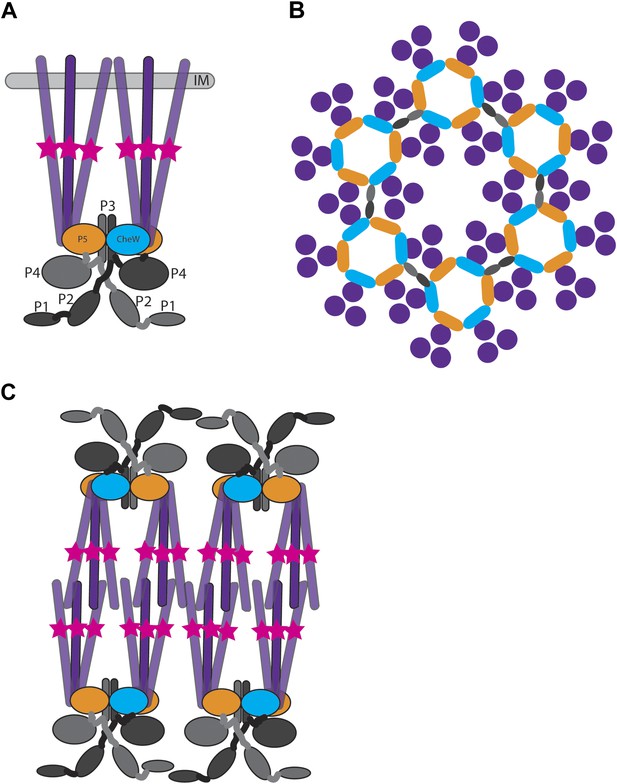

Structure of membrane-bound and cytoplasmic receptor complexes.

(A) Schematic showing the topology of receptor-trimers-of-dimers (purple), CheA (domains P1–P4 light gray/dark gray indicating domains in each CheA monomer, domain P5 orange), and CheW (blue) in membrane-bound arrays. The methylation region of each receptor dimer is indicated by a pink star. IM = inner membrane. (B) Top-view of the arrangement of the array components showing the interaction sites between the receptors, CheA and CheW, colored as in (A). (C) Schematic showing the topology of receptor, CheA, and CheW complexes in cytoplasmic arrays, colored as in (A). Cytoplasmic chemoreceptors assemble into two hexagonally packed arrays interacting at their presumably ligand-binding tips.

https://doi.org/10.7554/eLife.02151.003

Besides the single chemosensory operon encoding components of the transmembrane array, exemplified by E. coli, many bacteria contain additional chemotaxis operons, whose products are less well understood. The best-studied case is Rhodobacter sphaeroides, in which there are three operons, two of which are essential for normal chemotaxis in laboratory conditions. One of these operons, CheOp2, encodes components of the chemotaxis array associated with the transmembrane MCPs. The other, CheOp3, encodes components of a cytoplasmic chemotaxis cluster including CheB, CheR, CheY, CheW, two atypical CheA proteins (CheA3 and CheA4) (Porter et al., 2008), and a soluble chemoreceptor, TlpT. Each of the CheA proteins in the cluster lacks canonical domains compared to E. coli CheA: CheA3 contains only the P1 and P5 domains separated by a 794 amino acid sequence of unknown structure, whereas CheA4 lacks the P1 and P2 domains. CheA4 can transfer phosphoryl groups to P1 of CheA3 (Porter et al., 2008). Both CheA3 and CheA4 are required for chemotaxis (Wadhams et al., 2003; Porter et al., 2008). A second MCP homolog lacking any transmembrane domain, TlpC, is encoded in CheOp2. Fluorescent fusions of both TlpT and TlpC localize to a single cytoplasmic focus at mid-cell, which divides and is segregated during cell division (Wadhams et al., 2002, 2003). CheA3 and CheA4, along with CheW4 and a CheR, also localize to this cytoplasmic cluster (Wadhams et al., 2003). CheW4 and TlpT are required to form the cluster, and the positioning of the cluster depends on the ParA homolog PpfA, which is encoded next to TlpT in CheOp3 (Thompson et al., 2006). PpfA is a chromosome-associated ParA-like ATPase and controls the localization and segregation of the cytoplasmic cluster through an interaction with the N-terminus of TlpT, which is thought to stimulate the ATPase activity of PpfA in a ParB-like manner (Roberts et al., 2012). Sequence analysis of TlpT suggests that the 567 amino acid protein forms a classical MCP coiled-coil structure (Alexander and Zhulin, 2007). The 580 amino acid TlpC lacks significant homology to the canonical MCP structure and lacks a recognizable HAMP domain or methylation region.

Cytoplasmic chemoreceptors are not unique to R. sphaeroides. The genomes of many bacterial species encode MCP homologs lacking transmembrane domains (Ulrich and Zhulin, 2010; Wuichet and Zhulin, 2010). However, the organization and precise function of these cytoplasmic chemoreceptor clusters remain unknown. In the case of R. sphaeroides, it has been speculated that cytoplasmic MCPs modulate chemotactic response based on the current metabolic state of the cell (Armitage and Schmitt, 1997; Porter et al., 2008), while the inputs of cytoplasmic receptors in other organisms such as Vibrio cholerae are less clear.

In the case of E. coli transmembrane arrays, the membrane is thought to be important for proper assembly and function (Miller and Falke, 2004; Draheim et al., 2006; Amin and Hazelbauer, 2012). We were therefore interested in how cytoplasmic receptors cluster in the absence of organizing membrane. We used tomography of freeze-substituted, plastic-embedded sections; immunoelectron microscopy; electron cryotomography (ECT) of both intact cells and cryosections (Gan and Jensen, 2012); and correlated cryogenic fluorescence light microscopy and ECT (cryo-FLM/ECT) to characterize the structure of cytoplasmic chemoreceptor clusters in two bacteria: R. sphaeroides and V. cholerae. We also report the ability of normally transmembrane chemoreceptors from E. coli to form cytoplasmic-like arrays in the absence of a membrane.

Results

R. sphaeroides cells overexpressing cytoplasmic chemoreceptor array components exhibit large, curved structures

We initially tried to image cytoplasmic chemoreceptor arrays in intact R. sphaeroides by ECT. Unfortunately, we found that the size and cytoplasmic density of this species limits the achievable resolution in tomograms of intact cells, and we could not resolve the cytoplasmic clusters. To circumvent this problem, we employed two approaches that allowed us to view sections of the otherwise thick samples: cryosectioning vitreously frozen cells and room temperature sectioning of high-pressure frozen, freeze-substituted cells.

Tomographic reconstructions of cryosections of R. sphaeroides cells (containing the chemotaxis protein TlpC tagged with GFP to aid in future identification) revealed curved, double-layered structures that might correspond to cytoplasmic clusters (Figure 2A,B), but they were small and difficult to differentiate from the complex environment. To gain confidence in our identification, we used a strain in which some cytoplasmic chemotaxis components are overexpressed. This strain exhibited chemotaxis in swim plate assays, indicating that the limited overexpression did not significantly impair chemotactic function. By fluorescence light microscopy (FLM), short cells contained single fluorescent foci and long cells two foci, as expected (Wadhams et al., 2002). In tomograms of cryosections of these cells, we observed similar structures to those seen in WT cells but with greater length, appearing in cross-section as a curved, double-layered sandwich approximately 27 nm wide (measured from density peak-to-peak; Figure 2C–E).

Tomography of R. sphaeroides cryosections reveals cytoplasmic clusters.

Tomographic slices of cryosections through R. sphaeroides cells expressing TlpC-GFP at wild-type (A and B) or overexpressed (CE) levels. (A) Tomographic slice of a cell expressing TlpC-GFP, revealing a potential cytoplasmic chemoreceptor array (black arrows), pseudo-colored red in (B). (CE) Cryosections of cells overexpressing cytoplasmic chemoreceptor components, including TlpC-GFP, contain similar structures to those observed under WT expression conditions: two curved layers approximately 27 nm apart (brackets), with perpendicular striations between them (black arrowheads).

https://doi.org/10.7554/eLife.02151.004

It was difficult to identify the location of the structure in the cryosections, so we turned to a technique that would allow us to place the structure in the context of the whole cell. In tomograms of high-pressure frozen, freeze-substituted cells, we again observed extended, double-layered structures (Figure 3). Cross-sections through the structures revealed two curved layers with perpendicular striations connecting them. The positions of the structures in the cells were consistent with FLM observations (Thompson et al., 2006), strengthening our confidence in the identification of the cytoplasmic array. We did occasionally see multiple clusters at these positions, consistent with fluorescence results in cells overexpressing these proteins.

Tomography of cytoplasmic clusters in freeze-substituted R. sphaeroides.

Dual-axis tomographic reconstruction of high-pressure frozen, freeze-substituted cells reveals cytoplasmic clusters in most cells. Clusters appear as partially circular structures, typically located near storage granules. (A) Reconstruction of a longitudinally sectioned cell showing a single cluster. Inset: high-magnification detail of the cluster in a single, 6.7-nm tomographic slice. Scale bar 50 nm. (B) Cell containing two cytoplasmic clusters located next to storage granules. Inset: high-magnification detail of one cluster. (C) Model (blue) superimposed over the tomogram shown in B, highlighting the clusters. Scale bars 200 nm.

https://doi.org/10.7554/eLife.02151.005

Immunogold labeling and correlated FLM/ECT confirm structures are cytoplasmic chemoreceptor arrays

To check whether the structures we observed contained the cytoplasmic chemotaxis protein TlpC, we performed immunogold labeling of the GFP tag in our sections. In this technique, gold-conjugated anti-GFP antibodies recognize and bind epitopes on the surface of the section, which is subsequently imaged by tomography. We consistently observed gold labeling of the curved structures described above, and tomography of the volume beneath the label confirmed the structural details seen in cryosections (n = 17 cells, example shown in Figure 4), indicating that these structures are indeed cytoplasmic chemoreceptor arrays.

Identification of cytoplasmic clusters in R. sphaeroides by tomography of immunolabeled, negatively stained sections.

Sections were immunolabeled with antibodies against GFP and gold-conjugated secondary antibodies. (AC) Three examples of immunolabeled cells (left) and corresponding tomographic slices (right). Clusters (black arrowheads) were typically labeled by 1–3 gold particles (red arrows), depending on the amount of antigen present on the section surface. The heavily labeled cluster in (C) is likely oriented en face and near the section surface, allowing for access to a larger number of GFP antigens. Scale bars 200 nm.

https://doi.org/10.7554/eLife.02151.006

To corroborate this identification, we used correlated cryo-FLM/ECT. Since whole R. sphaeroides cells are too thick and dense to image by ECT with high resolution, we flattened them by gentle lysis. However, unlike transmembrane receptors that remain well-organized following cell lysis (Briegel et al., 2009, 2012, 2013), fluorescent foci were not observed after lysis, indicating disruption of the cytoplasmic receptor cluster. We reasoned that in the absence of membrane, the density of the cytoplasm might play an important role in stabilizing cytoplasmic clusters. We therefore added molecular crowding agents, either polyethylene glycol (PEG-8000) or polyvinylpirrolidone (PVP), to the lysis protocol and used this approach to image an R. sphaeroides strain overexpressing the cytoplasmic chemoreceptor TlpT fused to YFP. We observed preservation of TlpT-YFP signals by FLM after lysis (Figure 5A–C). We then froze lysed cells on an EM grid and localized a single TlpT-YFP signal by cryo-FLM, then imaged the indicated location at high resolution by ECT. We observed that the fluorescence signal corresponded to the structure previously identified (Figure 5D–F), further verifying that these are indeed cytoplasmic chemoreceptor arrays containing TlpT.

Correlative cryo-FLM/ECT of R. spheroides cytoplasmic arrays.

(A–C) Molecular crowding preserves cytoplasmic chemoreceptor clusters during lysis. Overlay of phase contrast and TlpT-YFP fluorescence images of R. sphaeroides cells of strain JPA1558OE before (A) and after lysis either in the absence (B) or presence (C) of 10% PVP. (DF) Correlative cryo-FLM/ECT identifies a cytoplasmic array. (D) Overlay of fluorescent signal from TlpT-YFP (yellow) and a low magnification cryo-EM image of the same lysed cell. (E) Overlay of TlpT-YFP fluorescent signal (yellow) and a cross-section of a reconstructed tomogram corresponding to the same region, identifying the structure of a cytoplasmic chemoreceptor array. (F) An enlarged view of the cytoplasmic array reveals a partial ring consisting of two layers of chemoreceptors. Scale bar 100 nm. (G–J) Receptor packing is identical in R. sphaeroides cytoplasmic and transmembrane arrays. (G) Top view through one of the two layers of the array imaged in DF and corresponding power spectrum (H) reveal a hexagonal receptor arrangement with center-to-center spacing of 12 nm. Scale bar 25 nm; power spectrum not to scale. (I) Top view through a membrane-bound chemoreceptor array and corresponding power spectrum (J) reveal hexagonal packing identical to that of the cytoplasmic array shown in (GH). Scale bar 25 nm; power spectrum not to scale. (KL) Additional examples of cytoplasmic chemoreceptor arrays (brackets with arrowheads) in tomograms of R. sphaeroides cells lysed with molecular crowding agents added. Distance between baseplates is approximately 30 nm. Scale bars 100 nm.

https://doi.org/10.7554/eLife.02151.007

Hexagonal receptor arrangement is conserved between cytoplasmic and transmembrane arrays

We compared the structure of the cytoplasmic chemoreceptor cluster identified by correlated cryo-FLM/ECT to that of a transmembrane receptor cluster in the same cell. Interestingly, the arrangement and packing of the receptors was identical in both cases: a hexagonal lattice with center-to-center spacing of 12 nm when viewed from above (Figure 5G–J). In the transmembrane array, this receptor lattice is associated with a single baseplate, whereas in the cytoplasmic array, there are two, one on either side, approximately 30 nm apart. Unfortunately, due to the tight curvature, we could only confirm the hexagonal order of one of the two layers of the cytoplasmic array.

ECT of V. cholerae reveals double-baseplate architecture of cytoplasmic arrays

As discussed above, due to the substantial density and thickness of R. sphaeroides cells, we were unable to identify cytoplasmic chemoreceptor arrays in intact cells. To obtain higher resolution information from intact cells, we turned to V. cholerae, which is also predicted to contain cytoplasmic chemoreceptors and flattens significantly during freezing for cryo-EM, yielding a thinner sample. By ECT of whole V. cholerae cells, we observed cytoplasmic chemoreceptor clusters with the same architecture as those in R. sphaeroides, though lacking curvature (Figure 6). The improved resolution in the thinner cells allowed us to clearly distinguish two hexagonal arrays of trimers-of-receptor-dimers sandwiched between two baseplates, 35 nm apart (Figure 6). The kinase-binding regions of the receptors were highly ordered, with decreasing order toward the center, as previously observed for transmembrane chemoreceptor arrays.

In vivo architecture of the V. cholerae cytoplasmic array.

Left: side view of a membrane-bound chemoreceptor array (MA) and a cytoplasmic chemoreceptor array (CA). The cytoplasmic array is composed of two parallel CheA/W baseplates approximately 35 nm apart. The chemoreceptors are sandwiched between the two baseplates and are hexagonally packed with a 12 nm center-to-center spacing. Right: top views of the receptor packing close to the CheA/CheW baseplate on either side and corresponding power spectra (top insets), as well as sixfold symmetrized subvolume averages (bottom insets) reveal that the hexagonal arrangement of the receptors is identical to that of the membrane bound array described previously (Briegel et al., 2009). Scale bars 50 nm. CA, Cytoplasmic chemoreceptor array; MA, membrane-bound chemoreceptor array; IM, inner membrane; OM, outer membrane. Power spectra not to scale.

https://doi.org/10.7554/eLife.02151.008

Transmembrane E. coli chemoreceptors can form cytoplasmic-like arrays in the absence of membrane

We observed a striking similarity between the cytoplasmic arrays in R. sphaeroides and V. cholerae and an in vitro chemoreceptor preparation from E. coli. We purified a cytoplasmic fragment of the aspartate-sensing Tar receptor, as well as CheA and CheW, from E. coli (Montefusco et al., 2007; Fowler et al., 2010) and assembled complexes in vitro using these components, with CheA and CheW present in excess. The mixture of purified proteins also contained the molecular crowding agents PEG-8000 and trehalose to simulate cytoplasmic conditions. Once formed, the complexes activated the kinase as effectively as when assembled on vesicles (Fowler et al., 2010). Using ECT, we observed extended arrays with identical architecture to that of the in vivo cytoplasmic clusters described above: two baseplates, approximately 31 nm apart, flank two hexagonal lattices of chemoreceptor trimers with 12 nm center-to-center spacing (Figure 7). The receptors from the two sides interact at their methylation tips. Again, as we observed for transmembrane chemoreceptors, the kinase-binding tips were well ordered, with decreasing order towards the middle of the sandwich.

E. coli Tar chemoreceptors lacking transmembrane regions can form cytoplasmic-like arrays in the presence of CheA, CheW, and a molecular crowding agent.

Tomographic slice showing cytoplasmic fragments of Tar forming extended arrays in the presence of CheA, CheW, and molecular crowding agents. These arrays closely resemble the cytoplasmic chemoreceptor arrays seen in V. cholerae (Figure 6). Side-view (black arrowheads) reveals two flat, parallel CheA/W baseplates spaced approximately 31 nm apart. Top views of the chemoreceptors close to the baseplates (white arrows) reveal a well-ordered, hexagonal arrangement with a center-to-center spacing of 12 nm. Enlarged subvolume average (inset) confirms that the packing is identical to that of in vivo arrays. Scale bar 100 nm.

https://doi.org/10.7554/eLife.02151.009

Curvature of R. sphaeroides cytoplasmic arrays is an intrinsic property

The most striking difference between the cytoplasmic arrays in R. sphaeroides and V. cholerae was the curvature observed in the former. In all cases observed, cytoplasmic V. cholerae arrays and arrays formed in vitro from E. coli cytoplasmic receptor fragments were flat, while those of R. sphaeroides exhibited kinks and regions of high curvature, even forming full rings in some cases. We wondered if this curvature may be induced by interactions between the fluorophores rather than being a property of the arrays themselves, as tags are known to introduce such artifacts (e.g., Swulius and Jensen, 2012). To test this, we performed tomography of high-pressure frozen, freeze-substituted cells overexpressing untagged components of the cytoplasmic cluster. We observed structures identical to those observed in the tagged strains (Figure 8A), indicating that curvature is not an artifact induced by attached fluorophores.

R. sphaeroides cytoplasmic arrays are inherently curved.

(A) Tomographic slice of a high-pressure frozen, freeze-substituted cell overexpressing native, untagged components of the cytoplasmic chemoreceptor cluster. Arrowheads indicate curved array. (B) Tomographic slice of a similarly treated cell lacking the partitioning protein PpfA. Arrowheads indicate curved cytoplasmic array. Scale bars 200 nm.

https://doi.org/10.7554/eLife.02151.010

Cytoplasmic arrays in R. sphaeroides are segregated by a ParA homolog, PpfA, which associates with the N-terminus of TlpT and with the chromosomal DNA. To test whether this interaction imposes curvature on the cytoplasmic array, we similarly imaged cells lacking PpfA. Again, we observed structures with similar curvature, indicating that this is an intrinsic property of the array, not affected by the segregation machinery (Figure 8B).

Discussion

Over half of all genomes sequenced of motile bacteria have more than one putative chemosensory pathway and many of these encode putative soluble chemoreceptors (Wuichet and Zhulin, 2010). In this study, we describe the structure of cytoplasmic chemoreceptor arrays in two distantly related bacterial species, R. sphaeroides and V. cholerae. Notably, cytoplasmic arrays in both species display a hexagonal arrangement of receptor-trimers-of-dimers, with 12 nm center-to-center spacing that is identical to that of transmembrane chemoreceptor arrays, suggesting a fundamental utility for this architecture. Whereas the transmembrane array is embedded in the membrane with a CheA/W baseplate at the receptors’ membrane-distal tips and ligand-binding domains in the periplasm, the cytoplasmic arrays assemble as a sandwich, with two CheA/W baseplates flanking two sheets of MCPs that interact in the middle, presumably at their ligand-binding domains (Figure 1C). No membrane is associated with these arrays. The identity of the outer baseplates as CheA/W is supported by our observation of the same structure in in vitro preparations from E. coli, where only three proteins are present: receptor fragments, CheA, and CheW. The similarity of the array organization in membrane-bound and cytoplasmic clusters suggests a common organizational theme, in which either the membrane or the crowded environment of the cytoplasm provides necessary stability to the conserved architecture of a 12 nm hexagonal array of receptor-trimers-of-dimers.

Interestingly, while transmembrane arrays remain intact upon cell lysis, presumably due to the stabilizing effect of the membrane, cytoplasmic arrays fall apart unless molecular crowding agents are added. This suggests that cellular crowding contributes to the stability of the array and may be an important factor in assembly of these, and likely other, cellular structures (Ellis, 2001; Zhou et al., 2008; Zhou, 2013). We observe the same requirement for molecular crowding (mimicking the cellular environment) in our in vitro preparation from E. coli. This supports the idea that chemoreceptor interactions can be enhanced by membrane binding (Shrout et al., 2003), but in the absence of a membrane, this can be achieved by molecular crowding and sandwiching (Fowler et al., 2010).

The hexagonal order of the R. sphaeroides and V. cholerae cytoplasmic arrays, with 12 nm center-to-center spacing, is identical to the arrangement of transmembrane chemoreceptor arrays in other bacteria (Briegel et al., 2009), as well as to arrays formed from cytoplasmic fragments of E. coli receptors. This indicates that the atypical R. sphaeroides CheA homologs (CheA3 and CheA4), despite their sequence anomalies, assemble in a similar fashion to canonical CheA proteins, including the three CheA homologs found in V. cholerae (Ulrich and Zhulin, 2010). From what is known in other organisms, R. sphaeroides CheA3 and CheA4 likely intercalate into CheA/W rings with their P5 domains (Briegel et al., 2012; Liu et al., 2012; Li et al., 2013; Natale et al., 2013). This packing would position both atypical CheA homologs in close proximity to each other, thereby facilitating phosphotransfer from the P4 domain of CheA4 to the P1 domain of CheA3.

The most striking difference between cytoplasmic chemoreceptor arrays in R. sphaeroides and V. cholerae is their curvature. In our observations, all cytoplasmic V. cholerae arrays and arrays formed in vitro from E. coli cytoplasmic receptor fragments were flat, while those of R. sphaeroides exhibited kinks and regions of high curvature, even forming full rings in some cases. This indicates that curvature may not affect performance unduly, with functioning arrays found in linear, concave, and convex conformations. However, there may be an upper limit of curvature tolerance. The discontinuities we observe in cytoplasmic arrays may result from ‘breaking’ of the CheA/W baseplate on one side under conditions of extreme curvature.

In transmembrane arrays, ligand-binding domains are located in the periplasm. In cytoplasmic arrays, we assume that these domains are located in the middle of the sandwich. This configuration is unlikely to inhibit access to signaling molecules as the receptor arrangement is much more porous than the outer membrane, which extracellular ligands need to cross in order to bind transmembrane arrays. The signaling implications of this arrangement remain unclear, but it is intriguing to think that ligand binding in the middle of the sandwich could result in CheA activation in both baseplates, facilitating amplification.

Materials and methods

Strains and growth conditions

Strains used in this study are listed in Table 1. R. sphaeroides strains were cultured in succinate medium (Sistrom, 1960) supplemented with 25 µg/ml kanamycin and 30 µM IPTG (to induce expression of plasmid-borne FliA from pIND [Ind et al., 2009]) at 30°C with shaking. V. cholerae strains were cultured in LB media at 37°C with shaking. V. cholerae cells were then mixed 1:1 with another bacterial species grown in Ca-HEPES buffer (25 mM HEPES, 2 mM CaCl2 at pH 7.6) and grown for an additional 16 hr at 30°C with shaking.

Table 1

Strains used in this study

https://doi.org/10.7554/eLife.02151.011
StrainRelevant genotypeSource
JPA543WS8N TlpC-GFPWadhams et al., 2002
JPA543OETlpC-GFP pIND-FliAThis study
JPA1558OETlpT-YFP pIND-FliAThis study
WS8NOEpIND-FliAThis study
JPA1330OEΔppfA TlpC-GFP pIND-FliAThis study
MKW1383N16961 ΔctxAB::kanMatthew Waldor

Light microscopy

Cells were immobilized on agarose pads and imaged using a Nikon Eclipse 90i microscope (Nikon Instruments Inc., Melville, NY) using a 100× oil immersion lens and images were recorded on a Coolsnap HQ2 camera (Photometrics, Tuscon, AZ) operated using the Metamorph software (Molecular Devices, Chicago, IL).

Vitreous cryosectioning

Vitreous cryosections were prepared as previously described (Ladinsky et al., 2006; Ladinsky, 2010). Briefly, R. sphaeroides cells were pelleted and resuspended in ∼100 μl of 50% dextran in SUX buffer then rapidly-frozen in a BalTec HPM-010 high-pressure freezer (Leica Microsystems, Vienna) using dome-shaped brass planchettes, then stored in liquid nitrogen. Once opened under liquid nitrogen, the sample-containing planchette was placed in a FC6/UC6 cryoultramicrotome equipped with a model M micromanipulator (Leica Microsystems). Blockfaces were trimmed with a diamond trimming knife and sections were cut with a 25° Cryo-Platform knife (Diatome-US) at −145°C. Ribbons of sections (130 nm) were transferred to carbon-coated, 200-mesh copper grids (Electron Microscopy Sciences) and stored in liquid nitrogen.

Electron cryotomography

20 µl cell culture was mixed with pelleted 100 µl colloidal gold solution, BSA treated to avoid aggregation (Iancu et al., 2007). 3 µl of this cell-gold mixture was then applied to R2/2 copper Quantifoil grids (Quantifoil Micro Tools). After blotting away excess liquid using a Vitrobot (FEI), the sample was plunge-frozen in a liquid ethane-propane mixture (Iancu et al., 2007; Tivol et al., 2008). Images were collected using either an FEI G2 (FEI Company, Hillsboro, OR) 300 kV field emission gun electron microscope or an FEI TITAN Krios (FEI Company, Hillsboro, OR) 300 kV field emission gun with an image corrector for lens aberration correction. Both microscopes were equipped with Gatan image filters (Gatan, Pleasanton, CA) and K2 Summit counting electron detector cameras (Gatan, Pleasanton, CA). Data were collected using the UCSFtomo software (Zheng et al., 2007) using cumulative electron doses of ∼160 e/A2 or less for each individual tilt-series. The images were CTF corrected, aligned, and reconstructed using weighted back projection using the IMOD software package (Kremer et al., 1996). SIRT reconstructions were calculated using TOMO3D (Agulleiro and Fernandez, 2011). Subvolume averaging and symmetrizing were done using PEET (Nicastro et al., 2006).

High-pressure freezing and freeze-substitution

R. sphaeroides cells were grown at 30°C to stationary phase in SUX buffer, centrifuged and the pellets resuspended in SUX buffer +10% Ficoll (70 kD; Sigma). The cells were centrifuged gently and the supernatant was removed. Packed cells were placed in aluminum or brass planchettes (#39201, Ted Pella, Inc.) and high-pressure frozen as described above. Frozen samples in closed planchettes were transferred under liquid nitrogen to cryogenic vials (Nalge Nunc International, Rochester NY) containing 2% OsO4, 0.05% uranyl acetate in acetone. Vials were placed in an AFS freeze-substitution machine (Leica Microsystems) and processed at −90°C for 72 hr, warmed over 10 hr to −20°C and further processed at that temperature for 24 hr. The samples were brought to room temperature, rinsed four times with acetone, removed from the planchettes and infiltrated with Epon-Araldite epoxy resin (Electron Microscopy Sciences, Hatfield PA). Samples were placed in embedding molds and polymerized at 60°C for 24 hr.

Electron tomography of plastic-embedded cells

Embedded pellets of R. sphaeroides cells were serially sectioned with an EM-UC6 ultramicrotome (Leica Microsystems) using a diamond knife (Diatome-US, Hatfield PA). Thick (350 nm) sections were placed on Formvar-coated, copper-rhodium 1-mm slot grids (Electron Microscopy Sciences) and stained with 3% aqueous uranyl acetate and lead citrate. Colloidal gold particles (10 nm) were placed on both surfaces of the grid to serve as fiducial markers for image alignment. Grids were placed in a model 2040 dual-axis tomography holder (Fischione Instruments, Export PA) and imaged with a Tecnai TF30ST-FEG transmission electron microscope (FEI) at 300 keV. Dual-axis tilt-series were acquired automatically using the SerialEM software package (Mastronarde, 2005). Samples were tilted ± 60° and imaged at 1° intervals about orthogonal axes. Images were recorded digitally with an UltraScan 994 1000XP camera (Gatan, Inc. Pleasanton CA). Tomographic data was subsequently processed, analyzed, and modeled using the IMOD software package (Kremer et al., 1996).

Immunoelectron microscopy

R. sphaeroides cells were cultured to stationary phase as described above. TlpC-GFP signal was verified by fluorescence microscopy. The cells were pelleted, the supernatant was removed and the pellet was resuspended in 10% paraformaldehyde, 5% sucrose in SUX buffer. The cells were pelleted again and the supernatant was replaced with fresh fixative without disturbing the pellet. The cells were fixed overnight at 4°C. The samples were brought to room temperature, the fixative was removed and the pellets were infiltrated into 2.1M sucrose in PBS over the course of 1 day, with the sucrose solution changed at 1-hr intervals. The pellets were transferred to aluminum sectioning stubs and rapidly frozen in liquid nitrogen.

Semi-thin (90 nm) cryosections were cut at −110°C with a FC6/UC6 cryoultramicrotome (Leica Microsystems) using a Cryo-Immuno diamond knife (Diatome-US). Cryosections were picked up in a drop of 2.3M sucrose in PBS and transferred to Formvar-coated, carbon-coated, glow-discharged 100-mesh copper-rhodium grids. Sections were incubated for 30’ with 10% calf serum in PBS to block nonspecific antibody binding sites, then labeled with a monoclonal antibody against GFP (Rockland Immunochemicals, Inc. Gilbertsville PA) diluted in 5% calf serum in PBS, followed by a colloidal gold (15 nm) conjugated anti-mouse secondary antibody (BBI International, Grand Forks ND). After labeling, the sections were negatively stained with 1% uranyl acetate and stabilized with 1% methylcellulose. Immunolabeled sections were imaged with a Tecnai T12 electron microscope at 120 keV. Tomographic tilt-series were acquired and analyzed as described above.

R. sphaeroides cell lysis

Mid-log phase cells of strain JPA1558 were collected by centrifugation and resuspended in crowding buffer (20% sucrose, 7% PEG-8000, 4% trehalose, 25 mM Tris–HCl, pH 7.0) with 2 mg/ml lysozyme, then incubated for 15 min at room temperature. Following addition of 2 mM MgCl2, 250 µM CaCl2, and 1 mg/ml DNase I, cells were incubated for 30 min at 37°C, collected by centrifugation and resuspended in crowding buffer for imaging. Identical results were obtained with a different crowding agent, replacing the PEG-8000 and trehalose with 10% PVP and treating the cells as before.

Correlative cryo-FLM/ECT

Cells of strain JPA1558 were lysed as described above and plunge-frozen on copper EM finder grids (Quantifoil Micro Tools), loaded into a cryo-FLM stage (FEI company) and imaged on a Nikon 90Ti inverted microscope (Nikon Instruments Inc., Melville, NY) using a 60x ELWD air objective lens and a Neo 5.5 sCMOS camera (Andor Technology, South Windsor, USA) using the NIS Elements software (Nikon Instruments Inc., Melville, NY). The grid was then transferred to the cryo-EM and tilt series were recorded from the same cells imaged by FLM previously. The grid was kept below −150°C at all times during the imaging process.

Purification and assembly of E. coli chemotaxis components

Cytoplasmic fragments of the Tar receptor (CF4Q), CheW, CheA, and CheY were expressed and purified as previously described (Fowler et al., 2010). The Tar fragments contained methylation-mimicking glutamine residues at the four major sites of receptor methylation. Protein purity was assessed with SDS-PAGE analysis, and protein concentrations were determined using a BCA assay (Thermo Fisher Scientific). PEG 8000 (Fluka) and D-(+)-trehalose (Sigma–Aldrich) were prepared as 40% (wt/vol) stock solutions in deionized water and passed through a 0.22-μm syringe filter prior to use. A modified kinase buffer (50 mM potassium phosphate, 50 mM KCl, 5 mM MgCl2, pH 7.5) was used for sample preparation.

Formation and characterization of kinase-active ternary complexes followed published methods (Fowler et al., 2010; Mudiyanselage et al., 2013), further specified as follows. PEG-mediated CF4Q complexes were prepared by incubating 50 μM CF4Q, 20 μM CheW, and 12 μM CheA with final concentrations of 7.5% wt/vol PEG 8000 and 4% wt/vol trehalose. CF4Q was added last to minimize CF-promoted aggregation (Montefusco et al., 2007) and samples were incubated overnight at 25°C in a circulating water bath and subjected to an enzyme-coupled assay and gel-based cosedimentation assay to check for phosphorylation activity and ternary complex formation. Kinase activity of PEG-mediated CF4Q complexes was similar to that observed for complexes assembled via binding to vesicles.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
    Heightened sensitivity of a lattice of membrane receptors
    1. TAJ Duke
    2. D Bray
    (1999)
    Proceedings of the National Academy of Sciences of the United States of America 96:10104–10108.
    https://doi.org/10.1073/pnas.96.18.10104
  10. 10
  11. 11
    Precise adaptation in bacterial chemotaxis through “assistance neighborhoods”
    1. RG Endres
    2. NS Wingreen
    (2006)
    Proceedings of the National Academy of Sciences of the United States of America 103:13040–13044.
    https://doi.org/10.1073/pnas.0603101103
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    Covalent modification regulates ligand binding to receptor complexes in the chemosensory system of Escherichia coli
    1. G Li
    2. RM Weis
    (2000)
    Cell 100:357–365.
  27. 27
  28. 28
  29. 29
  30. 30
    Phosphorylation of an N-terminal regulatory domain activates the CheB methylesterase in bacterial chemotaxis
    1. A Lupas
    2. J Stock
    (1989)
    The Journal of Biological Chemistry 264:17337–17342.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    Receptor sensitivity in bacterial chemotaxis
    1. V Sourjik
    2. H Berg
    (2002)
    Proceedings of the National Academy of Sciences of the United States of America 99:123–127.
    https://doi.org/10.1073/pnas.011589998
  43. 43
  44. 44
    Crosslinking snapshots of bacterial chemoreceptor squads
    1. CA Studdert
    2. JS Parkinson
    (2004)
    Proceedings of the National Academy of Sciences of the United States of America 101:2117–2122.
    https://doi.org/10.1073/pnas.0308622100
  45. 45
  46. 46
    Structural, functional, and evolutionary relationships among extracellular solute-binding receptors of bacteria
    1. R Tam
    2. MHJ Saier
    (1993)
    Microbiological Reviews 57:320–346.
  47. 47
    The positioning of cytolasmic protein clusters in bacteria
    1. SR Thompson
    2. GH Wadhams
    3. JP Armitage
    (2006)
    Proceedings of the National Academy of Sciences of the United States of America 103:8209–8214.
    https://doi.org/10.1073/pnas.0600919103
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58

Decision letter

  1. Jodi Nunnari
    Reviewing Editor; University of California, Davis, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Structure of bacterial cytoplasmic chemoreceptor arrays and implications for chemotactic signaling” for consideration at eLife. Your article has been favorably evaluated by a Senior editor, a Reviewing editor, and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the reviewers discussed their comments before we reached this decision, and the Reviewing editor has summarized the critical concerns that will need to be addressed in a revised manuscript.

The consensus is that the structural analysis of bacterial chemoreceptor arrays in the manuscript represents a significant advance in understanding bacterial chemosensing and chemotaxis mechanism. However, the main conclusions of the manuscript would be significantly strengthened by experiments directed at imaging native R. sphaeroides arrays and/or confirming the identity of the cholera structures by immuno-EM. The reviewers have also requested that you revise the text of your manuscript to include previous electron cryo-tomography work on bacterial chemotaxis receptor arrays with associated citations. In addition, there are several excellent suggestions made by Reviewer 3 for organizational and text revisions that would improve the clarity of the manuscript.

Reviewer #2:

This is a well conceived and written study that represents a fundamental new contribution to the field of bacterial chemosensing and chemotaxis. The ECT structural characterization of cytoplasmic chemotaxis arrays is novel and highly significant. Certainly the work is worthy of publication in a top journal.

This reviewer can see only two significant issues worth considering:

1) The MS suggests that the planar organization of polar and cytoplasmic complexes is dominated by the CheA/W base plate. However, the fact that naked receptors form hexagonal arrays (zippers) suggests that the receptors have an intrinsic propensity to form hexagonal arrays, perhaps by providing hydrophobic binding sites arranged on the outside of the trimer with the proper symmetry for hexagonal assemblies. It is likely an oversimplification to say that the array organization is provided primarily by the base plate – the structure of the receptor trimer of dimers is essential too.

2) If possible, it would be nice to include images of native R. sphaeroides arrays, in order to confirm the hypothesis that the observed curvature of the GFP-fusion arrays is due to the non-native GFP component. Perhaps these native arrays could be visualized by FLM/ECT in the lysed cell system using a non-hydrolyzable, fluorescent ATP derivative or an anti-Che antibody. However, this could be beyond the scope of the current MS.

Reviewer #3:

1) The authors describe the architecture of cytosolic chemoreceptors in R. sphaeroides, and also present some structural data from the cytosolic chemoreceptor of V. cholera in vivo and purified E. coli Tar chemoreceptors lacking transmembrane regions. Interestingly, the authors show that these structures, previously demonstrated to localize to discrete foci in cells, all share a common back-to-back architecture of hexagonally packed arrays. They propose that the (periplasmic, in membrane-bound arrays) ligand binding domains are thus minimally exposed to the cytosol. Through the finding that soluble domains of E. coli receptors form a similar structure, the authors argue that it may represent a default, low-energy configuration of chemoreceptor arrays rather than a specific evolutionary adaptation. However, the biological significance of this architecture is not discussed. Moreover, the interesting finding that the R. sphaeroides structure is curved is clouded by the lack of data from wild-type cells – the authors acknowledge this curvature may be due to the fluorescent proteins fusions.

2) The initial description of receptor topology is somewhat confusing. Would a diagram be helpful? Some detailed information about the domains may not be necessary.

3) What new information does Figure 2 add? It is helpful to have an orthogonal technique, but perhaps this could be combined with Figure 1.

4) The claim is made, based on Figure 2, that the receptors are localized to the 1/4 and 3/4 positions. This should be backed up by quantification, and the mentioned similarity to light microscopy appropriately cited.

5) One novel aspect of the R. sphaeroides chemoreceptor arrays is that they appear to be curved (though, as already mentioned, the exact nature of this curvature was not clear to me until later in the manuscript). The authors mention that the observed curvature may be due to the fluorescent protein tag. Imaging WT cells would obviously resolve this issue and would strengthen the manuscript considerably. While data they present from other species suggests that the formation of arrays can occur without a FP tag, the possibility that array formation is mediated by this tag remains.

6) What is the biological significance of arrays in general, and the cytoplasmic ones in particular? While large portions are devoted to structural details, the functional significance of these details is lacking.

https://doi.org/10.7554/eLife.02151.012

Author response

The consensus is that the structural analysis of bacterial chemoreceptor arrays in the manuscript represents a significant advance in understanding bacterial chemosensing and chemotaxis mechanism. However, the main conclusions of the manuscript would be significantly strengthened by experiments directed at imaging native R. sphaeroides arrays and/or confirming the identity of the cholera structures by immuno-EM. The reviewers have also requested that you revise the text of your manuscript to include previous electron cryo-tomography work on bacterial chemotaxis receptor arrays with associated citations. In addition, there are several excellent suggestions made by reviewer 3 for organizational and text revisions that would improve the clarity of the manuscript.

We wish to thank both the editors and the reviewers for excellent comments and suggestions on our manuscript.

Imaging native R. sphaeroides arrays is very challenging – the structures are very rare and only part of each cell is captured in a cryosection. We did, however, share the reviewers’ concern that the fluorescent tags we used to facilitate identification by correlative cryo-FLM/ECT could introduce artifacts. Therefore, we have added tomography of R. sphaeroides overexpressing native, untagged chemotaxis components (new Figure 8). The cytoplasmic arrays observed in this strain were indistinguishable from those imaged previously, showing that the curvature of the array is not an artifact of fluorophore-tagging.

We didn’t confirm the identity of the V. cholera structures by immuno-EM because we don’t know which of the multiple chemoreceptors lacking predicted transmembrane regions in the genome are found in the clusters, and we don’t have an appropriate antibody. However, we feel that it is unnecessary due to the striking conservation of the array architecture with trimer-of-receptor- dimers at the vertices of a 12 nm hexagonal lattice, a conformation that is universally conserved among bacterial transmembrane arrays (Briegel et al, 2009). Also, we observe an identical arrangement of two hexagonally packed arrays sandwiched between CheA/CheW baseplates in the complexes formed by normally transmembrane E. coli receptor fragments.

We have included all relevant citations to our previous ECT work on chemoreceptor arrays. We have incorporated the text revisions suggested by Reviewer 3.

In addition, we have also added another experiment demonstrating that the ParA homolog PpfA, responsible for segregating the cytoplasmic clusters, does not induce curvature of the R. sphaeroides arrays.

Reviewer #2:

This is a well conceived and written study that represents a fundamental new contribution to the field of bacterial chemosensing and chemotaxis. The ECT structural characterization of cytoplasmic chemotaxis arrays is novel and highly significant. Certainly the work is worthy of publication in a top journal.

This reviewer can see only two significant issues worth considering:

1) The MS suggests that the planar organization of polar and cytoplasmic complexes is dominated by the CheA/W base plate. However, the fact that naked receptors form hexagonal arrays (zippers) suggests that the receptors have an intrinsic propensity to form hexagonal arrays, perhaps by providing hydrophobic binding sites arranged on the outside of the trimer with the proper symmetry for hexagonal assemblies. It is likely an oversimplification to say that the array organization is provided primarily by the base platethe structure of the receptor trimer of dimers is essential too.

Thank you. We agree that the basic structure of trimers-of-receptor-dimers is fundamental and we have included the following sentence in the text: “The similarity of the array organization in membrane-bound and cytoplasmic clusters suggests a common organizational theme, in which either the membrane or the crowded environment of the cytoplasm provides necessary stability to the conserved architecture of a 12 nm hexagonal array of receptor-trimers-of-dimers.”

2) If possible, it would be nice to include images of native R. sphaeroides arrays, in order to confirm the hypothesis that the observed curvature of the GFP-fusion arrays is due to the non-native GFP component. Perhaps these native arrays could be visualized by FLM/ECT in the lysed cell system using a non-hydrolyzable, fluorescent ATP derivative or an anti-Che antibody. However, this could be beyond the scope of the current MS.

We have included electron tomography of untagged R. sphaeroides arrays, confirming that the curvature of the array is not an artifact induced by fluorophore tagging.

Reviewer #3:

1) The authors describe the architecture of cytosolic chemoreceptors in R. sphaeroides, and also present some structural data from the cytosolic chemoreceptor of V. cholera in vivo and purified E. coli Tar chemoreceptors lacking transmembrane regions. Interestingly, the authors show that these structures, previously demonstrated to localize to discrete foci in cells, all share a common back-to-back architecture of hexagonally packed arrays. They propose that the (periplasmic, in membrane-bound arrays) ligand binding domains are thus minimally exposed to the cytosol. Through the finding that soluble domains of E. coli receptors form a similar structure, the authors argue that it may represent a default, low-energy configuration of chemoreceptor arrays rather than a specific evolutionary adaptation. However, the biological significance of this architecture is not discussed. Moreover, the interesting finding that the R. sphaeroides structure is curved is clouded by the lack of data from wild-type cellsthe authors acknowledge this curvature may be due to the fluorescent proteins fusions.

To clarify, we didn’t mean to propose that the ligand-binding domains are minimally exposed to the cytosol. Rather, we propose that this configuration is unlikely to inhibit access to signaling molecules as the receptor arrangement is much more porous than the outer membrane, which extracellular ligands need to cross in order to bind transmembrane arrays. To further clarify, we didn’t mean our text to suggest that this structure represents a default, non-evolved configuration. Rather, because we observe it both in cytoplasmic clusters and in soluble, normally transmembrane receptors from E. coli, we think this represents a fundamentally conserved architecture that has been evolved to optimize signaling properties. We have added electron tomography of untagged arrays, confirming that the curvature is not an artifact of fluorescent fusions.

2) The initial description of receptor topology is somewhat confusing. Would a diagram be helpful? Some detailed information about the domains may not be necessary.

We have added a diagram of the receptor topology in both membrane-bound and soluble chemoreceptor arrays in the new Figure 1. We have also taken out the overly detailed description of the kinase domains, as suggested.

3) What new information does Figure 2 add? It is helpful to have an orthogonal technique, but perhaps this could be combined with Figure 1.

The images of the embedded samples shown in the old figure 2 (now Figure 3) portray a greater percentage of the overall cell, thereby lending better spatial localization information of the cytoplasmic clusters. Since the clusters are relatively small and have low contrast, reducing these panels to fit them into Figure 1 will make them too difficult to interpret. Additionally, we have added new data (Figure 8), showing that the curved architecture of the Rhodobacter cytoplasmic clusters is neither an artifact of fluorophore tagging nor a result of the ParA homolog PpfA. These experiments were done using the same technique as used for the sample shown in the old Figure 2 (now Figure 3) and are therefore directly comparable.

For these reasons, we would like to keep the figure as a separate figure. We have added the following sentence to the text: “It was difficult to identify the location of the structure in the cryosections, so we turned to a technique that would allow us to place the structure in the context of the whole cell. [...] The positions of the structures in the cells were consistent with FLM observations (Thompson et al., 2006) strengthening our confidence in the identification of the cytoplasmic array.”

4) The claim is made, based on Figure 2, that the receptors are localized to the 1/4 and 3/4 positions. This should be backed up by quantification, and the mentioned similarity to light microscopy appropriately cited.

Due to the necessarily low numbers of cells imaged, we don’t feel justified in making a quantitative claim here. Accordingly, we have scaled back our claim in the text and added references as suggested.

5) One novel aspect of the R. sphaeroides chemoreceptor arrays is that they appear to be curved (though, as already mentioned, the exact nature of this curvature was not clear to me until later in the manuscript). The authors mention that the observed curvature may be due to the fluorescent protein tag. Imaging WT cells would obviously resolve this issue and would strengthen the manuscript considerably. While data they present from other species suggests that the formation of arrays can occur without a FP tag, the possibility that array formation is mediated by this tag remains.

We have added electron tomography of untagged arrays, confirming that the array structure we observe is not an artifact of fluorescent fusions.

6) What is the biological significance of arrays in general, and the cytoplasmic ones in particular? While large portions are devoted to structural details, the functional significance of these details is lacking.

The full biological significance of cytoplasmic arrays remains unclear. As we discuss in the text, over half of all genomes sequenced of motile bacteria have more than one putative chemosensory pathway and many of these encode putative soluble chemoreceptors (Wuichet & Zhulin, 2010). In the case of R. sphaeroides, in which the cytoplasmic cluster is essential for normal chemotaxis, it has been speculated that cytoplasmic MCPs modulate chemotactic response based on the current metabolic state of the cell (Armitage & Schmitt, 1997; Porter et al., 2008), while the inputs of cytoplasmic receptors in other organisms such as Vibrio cholerae are still unclear. The results shown here and elsewhere reveal that the highly conserved 12 nm hexagonal array of receptor-trimers-of-dimers is a characteristic of both cytoplasmic and membrane-bound chemoreceptor arrays, and thus is likely key to the high sensitivity, wide dynamic range, cooperativity, and feedback control of this system (Duke & Bray, 1999; Li & Weis, 2000; Gestwicki & Kiessling, 2002; Sourjik & Berg, 2002; Sourjik & Berg, 2004; Li & Hazelbauer, 2005; Endres & Wingreen, 2006). We have added this to the text.

https://doi.org/10.7554/eLife.02151.013

Article and author information

Author details

  1. Ariane Briegel

    1. Division of Biology and Biological Engineering, California Institute of Technology, Pasadena, United States
    Contribution
    AB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Mark S Ladinsky

    1. Division of Biology and Biological Engineering, California Institute of Technology, Pasadena, United States
    Contribution
    MSL, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Catherine Oikonomou

    1. Howard Hughes Medical Institute, Pasadena, United States
    Contribution
    CO, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Christopher W Jones

    1. Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Contribution
    CWJ, Conception and design, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  5. Michael J Harris

    1. Department of Chemistry, University of Massachusetts, Amherst, United States
    Contribution
    MJH, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  6. Daniel J Fowler

    1. Department of Chemistry, University of Massachusetts, Amherst, United States
    Present address
    1. Department of Molecular Physiology and Biophysics, University of Vermont, Burlington, United States
    Contribution
    DJF, Conception and design, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  7. Yi-Wei Chang

    1. Howard Hughes Medical Institute, Pasadena, United States
    Contribution
    Y-WC, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  8. Lynmarie K Thompson

    1. Department of Chemistry, University of Massachusetts, Amherst, United States
    Contribution
    LKT, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  9. Judith P Armitage

    1. Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Contribution
    JPA, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  10. Grant J Jensen

    1. Division of Biology and Biological Engineering, California Institute of Technology, Pasadena, United States
    2. Howard Hughes Medical Institute, Pasadena, United States
    Contribution
    GJJ, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    1. jensen@caltech.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Institute of General Medical Sciences (GM101425)

  • Ariane Briegel
  • Grant J Jensen

Howard Hughes Medical Institute

  • Catherine Oikonomou
  • Yi-Wei Chang
  • Grant J Jensen

National Institutes of Health (R01-GM085288)

  • Lynmarie K Thompson

Biotechnology and Biological Sciences Research Council

  • Christopher W Jones
  • Judith P Armitage

Nikon

  • Christopher W Jones
  • Judith P Armitage

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors wish to thank Lee Rettberg and Audrey Huang for experimental help, and Dr Matthew Waldor for kindly providing strain MKW1383. Special thanks to Drs Zhiheng Yu and Jason de la Cruz for microscopy support at HHMI Janelia Farms. JPA and CWJ thank BBSRC and Nikon for funding. This work was additionally supported by NIH grant R01-GM085288 to LKT and NIGMS grant GM101425 to GJJ.

Reviewing Editor

  1. Jodi Nunnari, Reviewing Editor, University of California, Davis, United States

Publication history

  1. Received: December 21, 2013
  2. Accepted: February 20, 2014
  3. Version of Record published: March 25, 2014 (version 1)

Copyright

© 2014, Briegel et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,807
    Page views
  • 240
    Downloads
  • 23
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology and Stem Cells
    Cyrille Ramond et al.
    Research Article
