Periodic DNA patrolling underlies diverse functions of Pif1 on R-loops and G-rich DNA

  1. Ruobo Zhou
  2. Jichuan Zhang
  3. Matthew L Bochman
  4. Virginia A Zakian
  5. Taekjip Ha  Is a corresponding author
  1. University of Illinois at Urbana-Champaign, United States
  2. Princeton University, United States
  3. Howard Hughes Medical Institute, University of Illinois at Urbana-Champaign, United States
Research Article
  • Cited 55
  • Views 3,097
  • Annotations
Cite this article as: eLife 2014;3:e02190 doi: 10.7554/eLife.02190

Abstract

Pif1 family helicases are conserved from bacteria to humans. Here, we report a novel DNA patrolling activity which may underlie Pif1’s diverse functions: a Pif1 monomer preferentially anchors itself to a 3′-tailed DNA junction and periodically reel in the 3′ tail with a step size of one nucleotide, extruding a loop. This periodic patrolling activity is used to unfold an intramolecular G-quadruplex (G4) structure on every encounter, and is sufficient to unwind RNA-DNA heteroduplex but not duplex DNA. Instead of leaving after G4 unwinding, allowing it to refold, or going beyond to unwind duplex DNA, Pif1 repeatedly unwinds G4 DNA, keeping it unfolded. Pif1-induced unfolding of G4 occurs in three discrete steps, one strand at a time, and is powerful enough to overcome G4-stabilizing drugs. The periodic patrolling activity may keep Pif1 at its site of in vivo action in displacing telomerase, resolving R-loops, and keeping G4 unfolded during replication, recombination and repair.

https://doi.org/10.7554/eLife.02190.001

eLife digest

Helicases are enzymes that are best known for their ability to separate the two strands of DNA that make up the famous double-helix structure. Many important processes within cells—including the expression of genes as proteins, and the replication of DNA before cell division—rely on DNA molecules being separated in this way. However, these enzymes can perform many other roles that help maintain the integrity of a cell’s DNA.

The genetic code is written using four DNA bases—called A, C, G and T—and if a stretch of DNA contains lots of G bases, then one of the strands can loop back upon itself three times to form a structure known as a ‘G-quadruplex’. These structures can prevent the expression of genes, and slow the replication of DNA. However, a helicase called Pif1 can unwind G-quadruplexes to allow these activities to continue. This helicase is found in many organisms, from bacteria to humans, and carries out multiple functions for a cell. However, the exact mechanisms underlying these activities are unknown.

Now, Zhou et al. have used biophysical techniques to reveal that individual Pif1 proteins bind to single-stranded overhangs at one end of a DNA molecule. Pif1 also binds to forks in DNA where the double helix separates into two single strands. And once Pif1 has bound to the DNA, it works to ‘reel in’ the overhang or a single strand, one base at a time. This activity can unwind a G-quadruplex, and individual Pif1 proteins will patrol DNA to keep this structures unwound without unraveling the double helix itself. Separating the two strands of DNA actually needs multiple Pif1 proteins to join and work together.

As it patrols, Pif1 also displaces other proteins from DNA and removes unusual, and potentially harmful, structures in DNA (such as RNA molecules that have displaced one of the strands of DNA double helix). The next challenge will be to address important questions that remain unanswered including: how does Pif1 recognize DNA structures and change its activity; and how does it coordinate with other proteins that target the same structures?

https://doi.org/10.7554/eLife.02190.002

Introduction

Approximately, 1% of eukaryotic genes encode DNA or RNA helicases. These enzymes function in nearly all aspects of nucleic acid metabolism in living organisms (Singleton et al., 2007; Lohman et al., 2008). Although helicases were originally recognized as enzymes that catalyze the strand separation of double-stranded nucleic acids, it is now evident that helicases, as defined by a series of characteristic sequence motifs, may have additional functions aside from unwinding duplexes, including protein displacement from DNA and RNA, the unwinding of G-quadruplex (G4) structures, remodelling of chromatin and ribonucleoprotein complexes, promotion of Holliday junction branch migration and the catalysis of a range of nucleic acid conformational changes (Singleton et al., 2007; Lohman et al., 2008; Pyle, 2008; Paeschke et al., 2013).

The Pif1 DNA helicase is an example of a multi-functional helicase. The Pif1 helicase family is a group of 5′→3′ directed, ATP-dependent, super-family (SF) 1B helicases that are evolutionarily conserved from bacteria to humans (Bochman et al., 2010; Paeschke et al., 2013). The Saccharomyces cerevisiae Pif1 helicase (Pif1), the prototypical member of the Pif1 helicase family, plays critical roles in inhibiting telomerase activity at telomeres and double-stranded DNA breaks (DSBs), processing Okazaki fragments, promoting break-induced replication, maintaining mitochondrial DNA, and preventing replication pausing and DSBs at G-quadruplex (G4) motifs (Boule and Zakian, 2006; Bochman et al., 2010; Lopes et al., 2011; Paeschke et al., 2011, 2013; Wilson et al., 2013). However, the molecular mechanisms responsible for these diverse Pif1 functions remain elusive. For example, Pif1 is known to unwind RNA/DNA hybrids better than dsDNA but its mechanistic basis is unknown (Boule and Zakian, 2007). In addition, how Pif1 may selectively function on certain DNA structures such as stalled replication forks or G4 structures is unclear.

Here, we show that a Pif1 monomer is preferentially recruited to 3′ ss-dsDNA junctions and induces repetitive DNA looping that is tightly coupled to its translocation activity powered by its ATPase. This periodic DNA patrolling activity of a Pif1 monomer can be used to unwind RNA–DNA hybrids in its path but not DNA–DNA duplexes because DNA unwinding requires the cooperation of multiple Pif1 monomers. Furthermore, we show that a Pif1 monomer has the capacity to unwind an intramolecular G4 structure in its patrolling path with near unity yield. This novel activity would keep the enzyme at its site of in vivo action in displacing telomerase from 3′ ssDNA ends (Boule et al., 2005), resolving biologically relevant ‘R-loops’ (Aguilera and Garcia-Muse, 2012), and keeping G4 DNA sequences unfolded during DNA replication, recombination and repair (Paeschke et al., 2011; Wilson et al., 2013).

Results

A Pif1 monomer scans 3′ ssDNA overhang periodically

We employed single-molecule (sm)FRET assays with total internal reflection (TIR) fluorescence microscopy (Roy et al., 2008) to study the ATP-dependent 5′ to 3′ ssDNA translocation activity of Saccharomyces cerevisiae Pif1 (Galletto and Tomko, 2013). We first measured the binding constant (KD) of Pif1 to a partial duplex (pd) DNA with a 3′ 40-nt Poly(dT) overhang (Figure 1A). The donor (Cy3) and the acceptor (Cy5) were attached to the overhang separated by 16 nt so that a relatively high FRET efficiency (EFRET) of ∼0.58 was observed (Figure 1B) due to the high flexibility of ssDNA (Murphy et al., 2004). Upon addition of Pif1, a new population with EFRET = 0.37 appeared because protein binding stretches ssDNA (Yang et al., 2013). Half of the DNA was occupied by Pif1 at 7 ± 2 nM Pif1 concentration after 2-min incubation, and Pif1 dissociation was minimal 30 min after washing out unbound proteins (Figure 1—figure supplement 1). Unless specified otherwise, all experiments were performed in the absence of free proteins after 2-min pre-incubation with 10 nM Pif1 followed by wash (referred to as ‘monomer condition’).

Figure 1 with 3 supplements see all

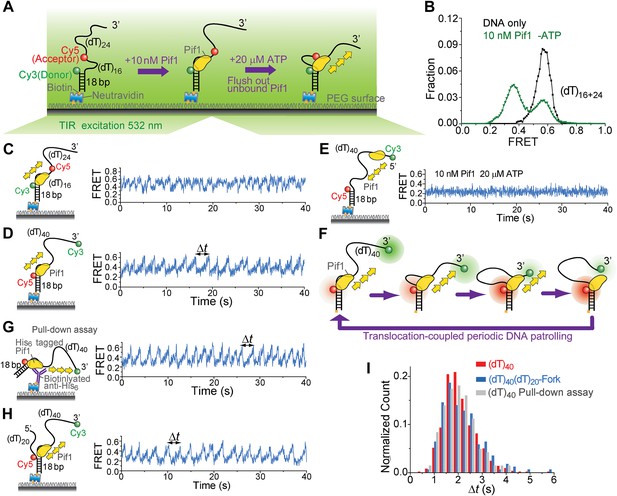

Periodic DNA patrolling by a Pif1 monomer.

(A) A schematic representation of reaction steps for smFRET measurements under the monomer condition. (B) smFRET histograms obtained before and after adding 10 nM Pif1 in the absence of ATP. Peaks centered at EFRET = 0.58 and 0.37 were observed represent 0 and 1 Pif1 molecules binding to DNA, respectively. (C and D), smFRET-time traces showing repetitive translocation of a Pif1 monomer on (dT)40. The labeling positions of Cy3 and Cy5 differ in (C) vs (D). (E) smFRET-time trace for a DNA substrate containing a 5′ Poly(dT) ssDNA overhang (referred to as (dT)40-5′) showing no sawtooth pattern. 10 nM Pif1 and 20 μM ATP were added. (F) A schematic representation of the repetitive looping model. A Pif1 monomer remains bound at the 3′ ss-dsDNA junction and reels in the 3′ ssDNA overhang. (G) A smFRET-time trace showing repetitive translocation of a surface-immobilized Pif1 monomer on non-biotinylated (dT)40. (H) smFRET-time trace showing repetitive looping by a Pif1 monomer on a forked DNA substrate. (I) Histograms of the time interval of repetition (Δt).

https://doi.org/10.7554/eLife.02190.003

When ATP was added, the smFRET histogram became broader (Figure 1—figure supplement 1A), and smFRET-time traces exhibited periodic fluctuations between EFRET = 0.37 and 0.58 (Figure 1C), likely due to Pif1 translocation on and off the 16-nt segment separating the fluorophores. When we repositioned the fluorophores near the two ends of the (dT)40 region (the construct is referred to as (dT)40), smFRET-time traces showed a periodic sawtooth-shaped pattern where FRET gradually increases until it abruptly drops to a low level and repeats the process many times (Figure 1D). Observation of the sawtooth pattern required both Pif1 and ATP (Figure 1—figure supplement 2), and the sawtooth pattern was not observed with a 5′ overhang (Figure 1E). We hypothesized that Pif1 remains anchored to the 3′ ss-dsDNA junction while translocating on and reeling in the 3′ overhang, extruding a ssDNA loop (Figure 1F). To test this hypothesis, we used the fact that Cy3 gets brighter when a protein is in close proximity (Fischer et al., 2004; Hwang et al., 2011). A sawtooth pattern was observed when Cy3 was placed at the 3′ ssDNA end but not at the ss-dsDNA junction, supporting the model that Pif1 approaches the 3′ end while remaining anchored to the junction (Figure 1—figure supplement 3). To ascertain the monomeric state of Pif1, Pif1 was pulled down to the surface (Jain et al., 2011) using an antibody against the Histidine6-tag (Figure 1G). Pif1 pulled-down in this way should maintain its monomeric state in solution (Lahaye et al., 1993; Barranco-Medina and Galletto, 2010). The same sawtooth patterns were observed when 5 nM (dT)40 was added with ATP (Figure 1G), indicating that a Pif1 monomer is responsible for the observed repetitive DNA looping that we term here as ‘periodic patrolling’. The presence of a 5′ overhang in addition to the 3′ overhang did not inhibit periodic patrolling (Figure 1H). The histograms of the patrolling period, Δt, were nearly identical among all three schemes (>50 molecules each; Figure 1I), yielding an average patrolling period τ = 2.1 ± 0.1 s.

DNA translocation properties

Pif1 monomers are ATP-dependent translocases on ssDNA with 5′ to 3′ directionality (Galletto and Tomko, 2013). Periodic patrolling slowed down as we lowered [ATP] from 500 to 5 μM (Figure 2A). Plotting the inverse of τ vs [ATP] and fitting to the Michaelis–Menten equation, we obtained KM = 110 ± 17 μM (Figure 2B). We examined Pif1’s periodic patrolling on 3′ Poly(dT) overhangs of varying lengths (N = 32, 40, 56, and 72 nt; referred to as (dT)N) at a fixed [ATP] (20 μM) and found that τ increased linearly with the overhang length (Figure 2C,D), showing that the patrolling is indeed coupled to ssDNA translocation with a speed of 13 ± 2 nt/s at 20 μM ATP, corresponding to 85 ± 13 nt/s at saturated [ATP], consistent with previous ensemble studies (Galletto and Tomko, 2013; Ramanagoudr-Bhojappa et al., 2013).

Figure 2 with 1 supplement see all

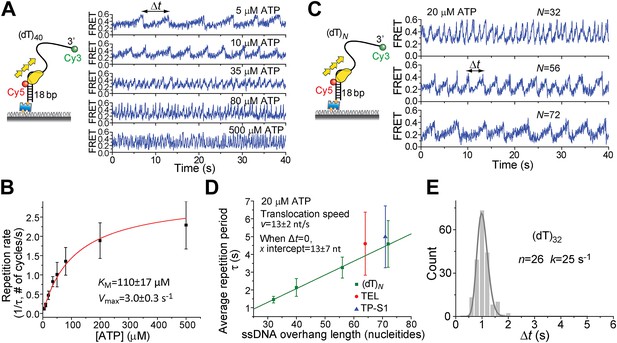

ATP and ssDNA length dependence of the repetition period and step size determination.

(A) smFRET time traces showing Pif1 repetitive looping on (dT)40 at varying ATP concentrations. (B) Michaelis–Menten fit of repetition rate (1/τ) vs ATP concentration. Error bars denote SD. Errors in the fit results are shown in SEM. (C) smFRET time traces of repetitive looping on (dT)N at 20 μM ATP. To obtain the average translocation speed, v, we examined RL with pdDNA containing 3′ Poly(dT) overhangs of varying lengths (N = 32, 40, 56, and 72 nt; referred to as (dT)N). (D) Average repetition period, τ, vs 3′ ssDNA overhang length. The error bar denotes SD. Errors in the fit result are SEM. (E) Δt histogram obtained from a single Pif1 monomer showing 190 repetitive looping events on (dT)32. The solid line is a fit to the Г-distribution.

https://doi.org/10.7554/eLife.02190.007

To determine the kinetic step size for Pif1 translocation, we assumed that Pif1 takes n hidden irreversible Poissonian steps with identical rate k in each cycle of duration Δt. A Δt histogram obtained from a single Pif1 that showed hundreds of cycles on (dT)32 was fit with the Г-distribution, (Δt)n−1exp(−k·Δt) (Figure 2E) (Park et al., 2010). The fit yielded n = 26 ± 3, k = 25 ± 3 s−1 for one molecule of (dT)32, suggesting 26 or more steps required to translocate over 32 nt, which supports a 1-nt step size. There is variation of Pif1 translocation speed among different Pif1 molecules, but a 1-nt step size could be consistently determined (Figure 2—figure supplement 1). Related to our findings, a recent ensemble study proposed a 1-bp step size of dsDNA unwinding by Pif1 (Ramanagoudr-Bhojappa et al., 2013).

A Pif1 monomer unwinds RNA–DNA hybrids but not dsDNA

It has been proposed that Pif1 inhibits telomerase activity by unwinding the RNA–DNA hybrid formed between telomerase RNA and the 3′ end of telomeric DNA (Boule et al., 2005; Boule and Zakian, 2007) and that Pif1 removes R-loops, that is, RNA–DNA hybrids that occur naturally during replication and transcription (Boule and Zakian, 2007; Aguilera and Garcia-Muse, 2012). Whether a monomer or dimer of SF1/SF2 helicases is responsible for nucleic acid unwinding has been a subject of debate (Singleton et al., 2007; Lohman et al., 2008), so we asked if a patrolling Pif1 monomer can unwind dsDNA or RNA–DNA hybrids. We designed gapped substrates by placing an additional 31-bp DNA–DNA or RNA–DNA duplex next to the 3′ end of the (dT)40 substrate (referred to as DD31 and RD31, respectively; Figure 3A). If Pif1 fully unwinds the duplex during its periodic patrolling, the Cy3-labeled strand should be released from the surface, resulting in a decrease of the number of Cy3 spots over time. DD31 unwinding was not detectable under the monomer condition but was observed at 100 nM Pif1, likely due to multiple Pif1 proteins acting in concert (Figure 3A). In contrast, efficient unwinding of RD31 was detected under both conditions (Figure 3A). Under the monomer condition, unwinding curves for RD31 can be fit to a single exponential function, yielding the unwinding times tunwind = 6.3 ± 0.9 and 1.6 ± 0.2 min at 20 μM and 1 mM ATP, respectively (Figure 3—figure supplement 1C). smFRET-time traces taken under the monomer condition showed that Pif1 performs periodic patrolling on both DD31 and RD31 (Figure 3B, Figure 3—figure supplement 1A) with an average period of τ = 2.4 ± 0.1 s at 20 μM ATP (Figure 3C, Figure 3—figure supplement 1A). Our data hence suggest that a Pif1 monomer takes about 200 cycles on average (= 6.3 min/2.4 s) to unwind the 31 bp RNA–DNA hybrid, whereas dsDNA unwinding requires the cooperation of multiple Pif1 monomers or protein oligomerization on DNA. At 100 nM Pif1, FRET fluctuations became irregular (Figure 3B), likely due to the binding of multiple Pif1 monomers to the gapped substrate at this Pif1 concentration. The dsDNA unwinding speed previously reported was much higher (∼0.3 s for unwinding 16 bp dsDNA) (Ramanagoudr-Bhojappa et al., 2013), either because they pre-assembled a functional helicase unit on the DNA before adding ATP to start the reaction or in that study, or due to a limited processivity of dsDNA unwinding by a Pif1 oligomer.

Figure 3 with 1 supplement see all
Periodic DNA patrolling of a Pif1 monomer can unwind RNA-DNA hybrids but not dsDNA.

(A) Unwinding curves for DD31 (top) and RD31 (bottom) obtained under different conditions. (B) A smFRET time trace of RD31 obtained under the monomer condition shows Pif1 repetitive looping (top) and a smFRET time trace of RD31 obtained at 100 nM Pif1 shows irregular FRET fluctuations (bottom). (C) Δt histograms for Pif1 periodic patrolling on (dT)40, DD31, and RD31.

https://doi.org/10.7554/eLife.02190.009

3′-single-stranded/duplex DNA junctions are preferential loading sites for Pif1 monomers

In a gapped DNA substrate, both 3′- and 5′-ss-dsDNA junctions are present for Pif1 loading. To determine Pif1’s preferential binding site on a gapped substrate, we used two labeling schemes: (1) (dT)32+18-S1: FRET probes were attached to the middle and 5′ end of the gap region; (2) (dT)32+18-S2: the probes were attached to the middle and 3′ end of the gap region so that FRET reports on Pif1 binding to the respective ssDNA segments. At 10 nM Pif1, a FRET decrease was observed only for (dT)32+18-S1, whereas at 100 nM Pif1, FRET decreased for both schemes (Figure 4), indicating that Pif1 prefers to load at 3′-ss-dsDNA junctions and in agreement with our observation that at 100 nM Pif1, binding of multiple Pif1 monomers to a gapped substrate abolishes the regular sawtooth pattern (Figure 3B, Figure 3—figure supplement 1C).

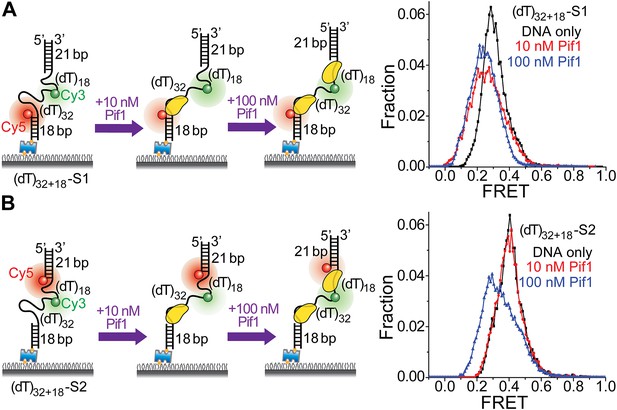

Pif1 monomers are preferentially recruited to 3′ ss-dsDNA junctions.

(A and B) Schematic representations of reaction steps to identify the preferential Pif1 binding site to a gapped DNA substrate. The two gapped DNA substrates used ((dT)32+18-S1 and (dT)32+18-S2) only differ in Cy5 labeling position. smFRET histograms were determined at different Pif1 concentrations.

https://doi.org/10.7554/eLife.02190.011

Periodic patrolling by a Pif1 monomer unwinds G4 DNA structures and keep them unfolded

Pif1 is also a potent unwinder of G-quadruplexes (G4s) (Paeschke et al., 2011), which are held together by noncanonical Hoogsteen G–G base pairs and stabilized by monovalent cations (Huppert, 2008). Intramolecular G4 motifs (four runs of ‘GGG’, with loops of 1–25 nt between them of any sequence) are prevalent in eukaryotic genomes (gene promoter regions, telomeres, etc) (Bochman et al., 2012), and G4 formation may slow replication and regulate transcription (Paeschke et al., 2011; Bochman et al., 2012). Growing evidence indicates that G4 structures indeed form in vivo (Lipps and Rhodes, 2009; Paeschke et al., 2011, 2013; Biffi et al., 2013).

To test whether a patrolling Pif1 monomer can unwind intramolecular G4 DNA, we placed a 31-nt standard G4 sequence (termed TP) from the mouse immunoglobulin locus (Paeschke et al., 2013) at the 3′ end of the (dT)40 region (referred to as TP-S1; Figure 5A). Cy3 and Cy5 were placed at the two ends of TP so that a folded G4 structure would yield high FRET. As a control, we replaced the 31-nt TP sequence with Poly(dT) of the same length (Figure 5B). We confirmed G4 formation by performing K+ titration (Figure 5—figure supplement 1). In 5 mM Mg2+ and 60 mM K+, TP-S1 gave a single population of EFRET = ∼0.75 for the folded G4 structure in contrast to the control that gave EFRET = ∼0.3 (Figure 5A,B). Addition of 10 nM Pif1 alone did not alter the smFRET histogram of TP-S1 (Figure 5A), suggesting Pif1 cannot unwind G4 in the absence of ATP, when K+ is present.

Figure 5 with 7 supplements see all

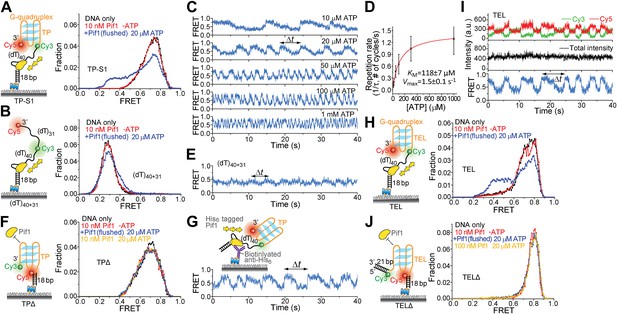

Periodic DNA patrolling of a Pif1 monomer can unwind G4 structures.

(A and B) smFRET histograms of TP-S1 (A) and (dT)40+31 (B) obtained under different conditions. (C) A smFRET time trace showing Pif1 repetitive unwinding on TP-S1 at varying ATP concentrations. (D) Michaelis–Menten fit of the repetition rate (1/τ) vs ATP concentration. Error bars denote SD. Errors in the fit results are SEM. (E) A smFRET time trace showing Pif1 periodic patrolling on (dT)40+31. EFRET changes periodically between ∼0.3 and 0.4, likely due to Pif1 translocation on and off the (dT)31 segment separating Cy3 and Cy5. (F) smFRET histograms for a DNA substrate devoid of the (dT)40 region (referred to as TPΔ) obtained under different conditions. The G4 structure is not unwound when the ssDNA region is absent, likely due to lack of Pif1 loading. (G) A smFRET time trace showing repetitive G4 unwinding of a surface-immobilized Pif1 monomer on non-biotinylated TP-S1. (H and I) smFRET histrograms (H) and time traces (I) of TEL. (J) smFRET histograms of TELΔ obtained under different conditions.

https://doi.org/10.7554/eLife.02190.012

Upon addition of ATP, a lower FRET species appeared, indicating G4 unwinding. Remarkably, smFRET-time traces showed a periodic G4 unwinding pattern. In each unwinding cycle (Δt), EFRET starts at ∼0.75 and slowly decreases to ∼0.3, followed by an abrupt increase back to 0.75 (Figure 5C). For a modified labeling scheme of placing Cy3 at 3′ end of TP sequence and Cy5 at 3′ ss-dsDNA junction (TP-S2; Figure 5—figure supplement 2B), smFRET-time traces resembled the sawtooth patterns seen for (dT)N, indicating that before unwinding G4, a Pif1 monomer patrols the (dT)40 region. The observation indicates that Pif1 unwinds G4 with near unity yield on each encounter. The average period of the unwinding pattern, τ, depends on [ATP] with a KM of 118 ± 7 μM (Figure 5C,D, Figure 5—figure supplement 2A) and is close to the average patrolling period of Pif1 on a 3′ Poly(dT) overhang of the same overhang length (71 nt; Figure 2D). The same periodic unwinding pattern was observed with pulled down monomeric Pif1 molecules (Figure 5G). The (dT)40 region is necessary for G4 unwinding in K+ solution (Figure 5F) but not in Na+ solution (Figure 5—figure supplement 3), indicating that the G4 structure is easier to be unwound in Na+ than in K+. In Na+ solution, addition of 10 nM Pif1 led to the unwinding of the G4 structure without an adjacent ssDNA region, even in the absence of ATP (Figure 5—figure supplement 3A), suggesting that Pif1 binding alone may unfold TP G4 in Na+. This is consistent with the known order of cations’ ability to stabilize G4: K+>Na+>Li+ (Simonsson, 2001), further confirming that the secondary structure formed by TP sequence is indeed G4.

We next tested another well-studied G4 sequence from human telomeres (Ying et al., 2003; Lee et al., 2005) by replacing TP with A(GGGTTA)3GGGTT (referred to as TEL). K+ and Na+ titrations with and without Mg2+ indicated that Mg2+ facilitates TEL G4 formation both in K+ and Na+ (Figure 5—figure supplement 4). Similar smFRET histograms (Figure 5H) and periodic unwinding time traces (Figure 5I) were obtained, implying that the periodic G4 unwinding by a Pif1 monomer may be general and not specific to sub-species of G4 structures. Similar to the observations for TP, deletion of the ssDNA region at the 5′ end of TEL (Figure 5J) inhibited Pif1 loading and G4 unwinding in K+. The inhibitory effect remained in Na+ but was largely reduced in Li+ (Figure 5—figure supplement 3C), likely due to the inability of Li+ to stabilize TEL G4.

Addition of a 21-bp DNA duplex next to the 3′ end of TEL (Figure 5—figure supplement 5) did not affect the periodic G4 unwinding, indicating that even though a Pif1 monomer repetitively unwinds G4 DNA with a very high yield, it does not go beyond it to unwind dsDNA. This intrinsic activity of a Pif1 monomer would be useful in keeping G4 DNA unfolded until other DNA metabolic enzymes can take over without causing the side effect of uncontrolled dsDNA unwinding.

G4 unwinding activity is specific to Pif1

To test if the periodic patrolling activity alone is sufficient to unwind G4, we analyzed the Bacillus stearothermophilus PcrA, which also exhibits periodic DNA patrolling but with reverse translocation directionality (Park et al., 2010). We designed new versions of (dT)40 and TEL with reverse polarity (Figure 6A,B). Under monomer conditions (1 nM PcrA) (Park et al., 2010), PcrA showed robust periodic patrolling, but no G4 unwinding was detected (Figure 6C,D). Even at 100 nM, PcrA efficiently unwound dsDNA (Figure 6E), but efficient G4 unwinding was not detected. These data suggest that having the periodic patrolling activity per se is not sufficient for G4 unwinding, and robust G4 unwinding is a specific property of Pif1.

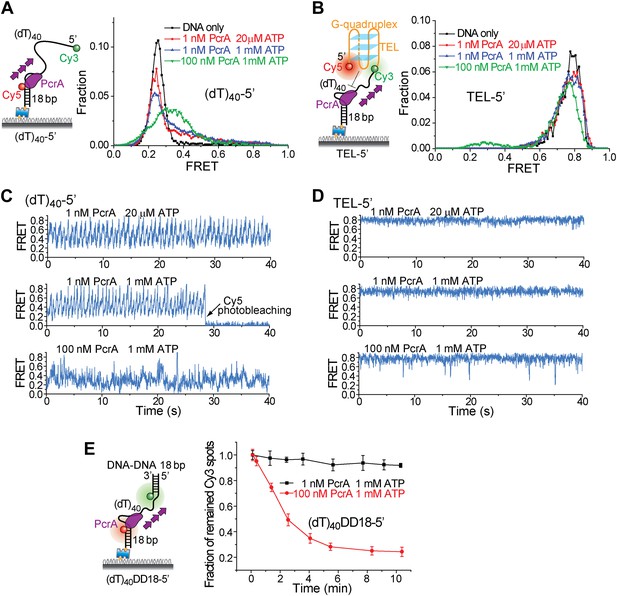

Periodic DNA patrolling of a PcrA monomer cannot unwind G4 structures.

(A) smFRET histograms of (dT)40-5′ obtained for DNA only or at 1 or 100 nM PcrA (ATP was added). (B) smFRET histograms of TEL-5′ obtained for DNA only or at 1 or 100 nM PcrA (ATP was added). (C) Single molecule time traces showing PcrA dynamics on (dT)40-5′ obtained at 1 or 100 nM PcrA. When 1 nM PcrA was added, periodic sawtooth patterns were observed for periodic DNA patrolling by a PcrA monomer as previously demonstrated (Park et al., 2010). However, when 100 nM PcrA was added, the sawtooth patterns were disrupted, and only irregular FRET dynamics were observed, indicating the binding of multiple PcrA monomers per DNA or protein oligomerization. (D) Single molecule time traces of TEL-5′ obtained under the same conditions as in (C). No efficient G4 unwinding was observed. (E) The dsDNA unwinding activity at 1 and 100 nM PcrA. At 1 nM PcrA, no efficient unwinding was observed in 10 min at 1 nM PcrA, whereas efficient unwinding was observed at 100 nM PcrA.

https://doi.org/10.7554/eLife.02190.020

A Pif1 monomer unwinds G4 DNA in three discrete steps

Upon close examination of the G4 unwinding phase, we noticed that the FRET decrease occurs in three discrete steps (Figure 7A). We determined the average EFRET values and dwell times of each step (Δt1, Δt2, Δt3 and Δt4) using an unbiased step-finding algorithm (Kerssemakers et al., 2006) (Figure 7B). The distributions of average EFRET values of the steps thus identified (100–200 molecules each) revealed four peaks, showing that G4 unwinding indeed occurs in three steps (Figure 7C, Figure 5—figure supplement 5D). The highest FRET state was assigned to the folded G4 DNA and the lowest FRET state to the fully unfolded state. The two additional FRET states likely represent partially folded states (G-hairpin and G-triplex), as previously proposed based on ensemble kinetic and simulation studies (Mashimo et al., 2010; Zhang and Balasubramanian, 2012) (Figure 7D). The dwell time histogram of each FRET state exhibits a Г-distribution (Figure 7E, Figure 5—figure supplement 6), suggesting that Pif1 reels in DNA in multiple 1-nt steps before the next strand is unraveled and so on. The refolding occurred rapidly with a single rate-limiting step (∼0.2 s refolding time, see the Δt5 histogram) even for the TP sequence with 7 nt of intervening ssDNA between G repeats (Mashimo et al., 2010; Zhang and Balasubramanian, 2012), and the subsequent three-step unfolding events by Pif1 indicate that the G4 structure is indeed reestablished rapidly. Instead of resolving a G4 structure once and leaving the DNA, which would allow the intramolecular G4 structure to form again, Pif1 stays in proximity and continually resolves the G4 DNA using its periodic patrolling activity.

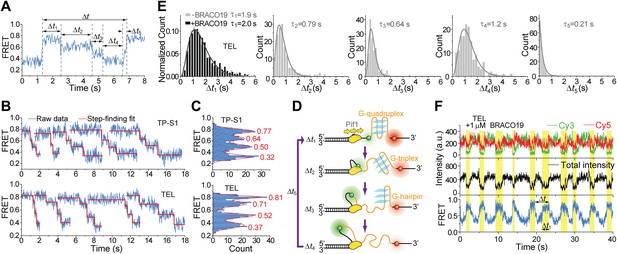

Pif1 unwinds G4 in three discrete steps.

(A) A representative unwinding cycle showing a stepwise pattern for G4 unwinding followed by fast G4 refolding. The dwell times of different parts of the cycle, Δt1, Δt2, Δt3, Δt4 and Δt5, are indicated. (B) The average EFRET values and dwell times at each step were determined by an automated step-finding algorithm (red). (C) Distributions of the average EFRET values determined from many unwinding cycles collected from 100 to 200 molecules. (D) A proposed model for G4 unwinding involving two intermediates. (E) Dwell time histograms of each unwinding step and histogram of G4 refolding time Δt5 (gray). A histogram of Δt1 (F) obtained in the presence of BRACO19 is shown in black. Solid lines are Г-distribution fits. (F) Single molecule time traces showing repetitive G4 winding by a Pif1 monomer in the presence of BRACO19. The total fluorescence intensity of Cy3 and Cy5 fluctuates periodically between two levels, and the low intensity level (yellow regions, Δt1) coincides well with the folded G4 state.

https://doi.org/10.7554/eLife.02190.021

Finally, we found that Pif1’s patrolling activity is strong enough to unwind G4 structures stabilized by a small compound, BRACO19 (De Cian et al., 2007). smFRET-time traces of TEL (Figure 7F) and of TP-S1 (Figure 5—figure supplement 2C, Figure 5—figure supplement 7) showed periodic unwinding patterns in the presence of 1 μM BRACO19 with a nearly identical τ value (∼4.7 s; Figure 5—figure supplement 7) to what was obtained without BRACO19. Periodic fluctuations of the total fluorescence intensity caused by fluorescence quenching by BRACO19 confirmed the binding of the compound to G4 (Figure 5—figure supplement 2D, Figure 7E).

Discussion

Our study establishes a novel DNA patrolling activity by a Pif1 monomer. We discovered that monomeric Pif1 is preferentially recruited to 3′-ss-dsDNA junctions and reels in ssDNA while staying at the junction, repeatedly looping out a ssDNA segment. This periodic behavior is ATP dependent and tightly coupled to Pif1’s translocase activity. Previous single-molecule studies have shown that B. stearothermophilus PcrA and Escherichia coli UvrD, two bacterial SF 1A helicases, are both preferentially recruited to 5′-ss-dsDNA junctions and exhibit similar activities with reverse translocation directionality (i.e., 3′→5′) (Park et al., 2010; Tomko et al., 2010). In addition, we showed that Pif1′s patrolling activity persists in forked and gapped DNA substrates containing a 3′-ss-dsDNA junction, raising the possibility that it may happen when Pif1 binds to various types of DNA intermediates during DNA replication, repair, and recombination where a 3′-ss-dsDNA junction is present.

Figure 8 illustrates several possible biological contexts in which Pif1′s periodic patrolling activity may play important roles (Figure 8). First, the patrolling activity of a Pif1 monomer can be used to unwind ‘R-loops’ (RNA-DNA hybrids) (Figure 8A). Growing evidence indicates that R-loops occur much more frequently during replication and transcription than previously foreseen, and persistent R-loop formation in cells is a potential source of genome instability including mutations, recombination, chromosomal rearrangements, and chromosome loss (Aguilera and Garcia-Muse, 2012). We showed that a Pif1 monomer can utilize its patrolling activity to remove the RNA strand from 31-bp RNA–DNA hybrids through ∼200 cycles (and fewer cycles may be needed for shorter heteroduplexes). In contrast, dsDNA unwinding required the cooperation of multiple Pif1 monomers. Therefore, it is possible that Pif1’s periodic patrolling activity contributes to the cell’s ability to remove deleterious R-loops. Second, periodic patrolling may be responsible for Pif1’s telomerase removal activity from 3′ ssDNA ends found at telomeres or DSBs (Boule et al., 2005) (Figure 8B). Many previous studies show that the translocation activity of monomeric helicases can help displace proteins from DNA (Lohman et al., 2008). In fact, PcrA utilizes periodic patrolling activity to dismantle potentially deleterious RecA filaments from 5′ ssDNA ends (Park et al., 2010). As it has been proposed that Pif1 inhibits telomerase by unwinding the RNA–DNA hybrid formed between the telomerase RNA and the telomeric DNA end (Boule and Zakian, 2007), Pif1’s periodic patrolling activity, which is capable of unwinding RNA–DNA heteroduplexes, may be responsible for the Pif1-mediated telomerase inhibition at 3′ ssDNA ends. Third, periodic patrolling can be used to keep G4 DNA unfolded at transcription bubble (Figure 8A), at DSBs or telomeres (Figure 8C) or on the lagging and/or leading strand during replication (Figure 8D,E). We showed that periodic patrolling by a Pif1 monomer can unwind intramolecular G4 DNA structures at every patrolling cycle. Because, as shown here, an unwound G4 DNA refolds immediately (∼0.2 s), the periodic patrolling activity of Pif1 due to its anchoring at the junction is critical to ensure that G4 structures are kept resolved. In gapped DNA substrates, the patrolling activity can keep G4 sequences unfolded in the ssDNA gap while leaving the flanking dsDNA regions intact. This intrinsic property of a Pif1 monomer would suppress G4 formation until other DNA metabolic enzymes take over without causing the side effect of uncontrolled dsDNA unwinding.

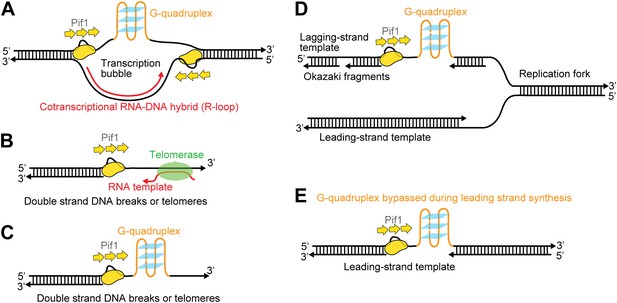

Possible cellular sites for the patrolling activity of a Pif1 monomer.

The periodic patrolling activity may keep Pif1 at its site of in vivo action in resolving biologically relevant ‘R-loops’ (A), displacing telomerase from 3′ ssDNA ends at telomeres or DSBs (B), unwinding G4 structures on the 3′ ssDNA tails at telomeres or DSBs (C), and unwinding G4 structures on the lagging and/or leading strands during DNA replication (D and E).

https://doi.org/10.7554/eLife.02190.022

Additionally, our results provide an example in which separation of helicase function can be achieved by the assembly state. Many SF1 and SF2 helicases, including PcrA and UvrD, display limited dsDNA unwinding activity as monomers, and their helicase activity can be greatly enhanced through self-assembly or interactions with accessory proteins (Singleton et al., 2007; Lohman et al., 2008). Our data suggest that the monomeric form of Pif1 is able to unwind RNA–DNA heteroduplexes and G4 structures, whereas dsDNA unwinding requires the binding of multiple Pif1 molecules per DNA substrate. As a result, DNA binding-induced enzyme oligomerization (Barranco-Medina and Galletto, 2010) and/or interactions with accessory proteins might play a role in regulating the translocation vs helicase activity of Pif1.

Thus far, more than 20 helicases have been shown to bind and/or unwind G4 structures in vitro, among which Pif1 displays the highest specificity in G4 unwinding (Paeschke et al., 2013). We have for the first time resolved the intermediates for G4 unwinding by a helicase. The three discrete steps observed are likely due to unraveling of G4 DNA one strand at a time (Figure 7D), which indicates that the G4 unwinding by Pif1 is tightly coupled to its translocation activity. It has been shown that the stabilization energy of a Hoogsteen GG base pair is comparable to that of AT base pair (Mashimo and Sugiyama, 2007), and that the lifetime of G-triplex and G-hairpin could be as long as 0.1–1 s, consistent with our observations (Li et al., 2013). In addition, we also showed that a G4 stabilizing compound, BRACO19, cannot inhibit Pif1-mediated G4 unwinding.

In conclusion, our study provides the mechanistic details on how Pif1 may achieve its distinct in vivo functions at the molecular level. The periodic patrolling activity by its monomeric form may keep the enzyme at its sites of in vivo action in displacing telomerase from 3′ ssDNA ends, resolving biologically relevant ‘R-loops’, and keeping G4 DNA sequences unfolded during DNA replication, recombination and repair. The inability of a Pif1 monomer to display dsDNA unwinding activity might be important for preventing Pif1 monomers from unwinding dsDNA after the Pif1 monomer has displaced proteins, removed RNA strands or resolved G4 structures from within a ssDNA gap.

Materials and methods

DNA/RNA sequences and annealing procedures

Partial duplex (pd) DNA substrates with a 3′ Poly(dT) ssDNA overhang

  1. 5′-/Cy3/GCC TCG CTG CCG TCG CCA/biotin/-3′

  2. 5′-TGG CGA CGG CAG CGA GGC (T)15/iAmMC6T/(T)24-3′

  3. 5′-/Cy5/GCC TCG CTG CCG TCG CCA/biotin/-3′

  4. 5′-TGG CGA CGG CAG CGA GGC (T)N/Cy3/-3′, where N = 21, 32, 40, 56, 72

  5. 5′-GCC TCG CTG CCG TCG CCA/biotin/-3′

  6. 5′-TGG CGA CGG CAG CGA GGC (T)39/iAmMC6T/(T)31/3AmMO/-3′

  7. 5′-/Cy5/GCC TCG CTG CCG TCG CCA-3′

Forked DNA substrates

  1. 5′-(dT)19/iAmMC6T//GCC TCG CTG CCG TCG CCA/biotin/-3′

  2. 5′-TGG CGA CGG CAG CGA GGC (T)40/Cy3/-3′

Gapped substrates

  1. 5′-/Cy5/GCC TCG CTG CCG TCG CCA/biotin/-3′

  2. 5′-TGG CGA CGG CAG CGA GGC (T)40 GCA CTC GGA TCA CCA TGG CGG ACT CTC TGC T-3′

  3. 5′-AGC AGA GAG TCC GCC ATG GTG ATC CGA GTG C /Cy3/-3′

  4. 5′-/Cy3/AGC AGA GAG TCC GCC ATG GTG ATC CGA GTG C-3′

  5. 5′-AGC AGA GAG UCC GCC AUG GUG AUC CGA GUG C /Cy3/-3′ (RNA)

  6. 5′-TGG CGA CGG CAG CGA GGC (T)31/iAmMC6T/(T)18 CAC CAT GGC GGA CTC TCT GCT-3′

  7. 5′-AGC AGA GAG TCC GCC ATG GTG/3AmMO/-3′

  8. 5′-GCC TCG CTG CCG TCG CCA/biotin/-3′

  9. 5′-TGG CGA CGG CAG CGA GGC (T)20 CAC CAT GGC GGA CTC TCT GCT-3′

Intramolecular G4 substrates (for Pif1)

  1. 5′-GCC TCG CTG CCG TCG CCA/biotin/-3′

  2. 5′-TGG CGA CGG CAG CGA GGC (T)39/iAmMC6T/GGG GGA GCT GGG GTA GAT GGG AAT GTG AGG G/3AmMO/-3′

  3. 5′-TGG CGA CGG CAG CGA GGC AAA GGG GGA GCT GGG GTA GAT GGG AAT GTG AGG G AAA/Cy3/-3′

  4. 5′-TGG CGA CGG CAG CGA GGC (T)39/iAmMC6T/A GGG TTA GGG TTA GGG TTA GGG TT/3AmMO/-3′

  5. 5′-TGG CGA CGG CAG CGA GGC (T)37/iAmMC6T/A GGG TTA GGG TTA GGG TTA GGG TCA CCA TGG CGG ACT CTC TGC T-3′

  6. 5′-TGG CGA CGG CAG CGA GGC/iAmMC6T/A GGG TTA GGG TTA GGG TTA GGG TCA CCA TGG CGG ACT CTC TGC T-3′

  7. 5′-AGC AGA GAG TCC GCC ATG GTG/3AmMO/-3′

pdDNA substrates with a 5′ Poly(dT) ssDNA overhang

  1. 5′-/biotin/TGG CGA CGG CAG CGA GGC/Cy5/-3′

  2. 5′-/Cy3/(dT)40 GCC TCG CTG CCG TCG CCA-3′

Gapped substrates (for PcrA)

  1. 5′-/biotin/TAC TCG CGC CGT CGC TCC G/Cy5/-3′

  2. 5′-TGG CGA CGG CAG CGA GGC (T)40 CGG AGC GAC GGC GCG AGT-3′

  3. 5′-/Cy3/GCC TCG CTG CCG TCG CCA-3′

Intramolecular G4 substrates (for PcrA)

  1. 5′-/biotin/TGG CGA CGG CAG CGA GGC/Cy5/-3′

  2. 5′-/5AmMC6/TA GGG TTA GGG TTA GGG TTA GGG/iAmMC6T/(T)39 GCC TCG CTG CCG TCG CCA-3′

DNA strands were purchased from Integrated DNA Technologics, Coralville, IA. The TP sequence is bold, and the TEL sequence is underlined. The amine-modified thymine (/iAmMC6T/), 3′ amino-modification (/3AmMO/), and 5′ amino-modification (/5AmMC6/) shown in the sequence enable the oligonucleotides to be labeled with the monofunctional NHS ester form of Cy3 or Cy5 dye (GE Healthcare, Piscataway, NJ). /Cy3/ and /Cy5/ represent Cy3 and Cy5 dyes, respectively, linked to the DNA backbone using phosphoramidite chemistry. The substrates were annealed by mixing ∼5 μM of each strand in 10 mM Tris:HCl (pH 8.0) and 200 mM KCl, followed by slow cooling from 90°C to room temperature for ∼2 hr.

Protein expression and purification

The S. cerevisiae Pif1 was purified as previously reported (Boule et al., 2005). The B. stearothermophilus PcrA was purified as previously described (Niedziela-Majka et al., 2007; Park et al., 2010).

Sample preparation and data acquisition

All smFRET experiments were performed with total internal reflection fluorescence (TIRF) microscopy (Roy et al., 2008) at 22 ± 1°C in imaging buffer composed of 20 mM Tris:HCl (pH 7.5), 5 mM MgCl2, 60 mM KCl, 0.1 mg/ml BSA, 1 mM DTT, 2% (vol/vol) glycerol, and an oxygen scavenging system (0.5% wt/vol glucose, 3 mM Trolox, 165 U/ml glucose oxidase, and 2170 U/ml catalase) unless specified otherwise. Cy3-Cy5 labeled pdDNA substrates (50–100 pM) were immobilized on a quartz slide surface coated with polyethyleneglycol (mPEG-SC, Laysan Bio, Arab, AL) in order to eliminate nonspecific surface adsorption of proteins (Ha et al., 2002; Roy et al., 2008). Surface immobilization was mediated by biotin–Neutravidin interactions between biotinylated DNA, Neutravidin (Thermo Scientific, Newington, NH), and biotinylated polymer (Bio-PEG-SC, Laysan Bio, Arab, AL). To ensure no more than one Pif1 monomer is loaded per DNA (i.e., under monomer conditions), 10 nM Pif1 was incubated with the surface-immobilized DNA for 2 min, and excess unbound proteins were then flushed out from the sample chamber using five chamber volumes of imaging buffer. Next, imaging buffer devoid of proteins was added with 20 μM ATP (unless specified otherwise) into the chamber. Finally, the Cy3/Cy5 fluorescence intensities from single DNA molecules were recorded with 30-ms time resolution. For some experiments, ATP was added together with proteins into the chamber for data acquisition after immobilizing the DNA substrates. In the pull-down assays, Histidine6-tagged Pif1 was pulled down to the surface using an antibody against the Histidine6-tag following the procedure described previously (Jain et al., 2011). To study the unwinding of dsDNA or RNA–DNA hybrids, gapped substrates were immobilized on the PEG surface, and the mean Cy3 spot count per image (imaging area = ∼2500 μm2) was then determined from images taken from 5–10 different slide regions at different times after introducing ATP.

Single-molecule data analysis

Apparent FRET efficiency was calculated from the fluorescence intensities of the donor (ID) and acceptor (IA) using the formula EFRET = IA/(IA + ID). The background and the cross-talk between the donor and acceptor were considered as previously described (Roy et al., 2008). Analysis of individual FRET-time traces was performed using Origin or programs written in Matlab. Single molecule FRET histograms were generated by averaging for the time period of 0.15 s from ∼10,000 DNA molecules. The time period Pif1 takes for one cycle of looping, Δt, was determined by visually picking the moments when EFRET reaches its maximum value (i.e., the peaks) in the single molecule FRET-time traces showing periodic sawtooth or wave patterns. The time period Pif1 takes for one cycle of G4 unwinding, Δt, was also determined by visually picking the moments when EFRET recovers to the EFRET value that represents folded G4 structures (Figure 5A). The Δt histograms were generated by collecting Δt from >50 molecules. To quantify the stepwise patterns observed in single molecule FRET-time traces for G4 unwinding, average EFRET values and the dwell time of each unwinding step were determined using the automated step-finding method used in previous single molecule FRET studies (Kerssemakers et al., 2006; Myong et al., 2007; Lee et al., 2012).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    PIF1 DNA helicase from Saccharomyces cerevisiae. Biochemical characterization of the enzyme
    1. A Lahaye
    2. S Leterme
    3. F Foury
    (1993)
    The Journal of Biological Chemistry 268:26155–26161.
  19. 19
  20. 20
    Extreme conformational diversity in human telomeric DNA
    1. JY Lee
    2. B Okumus
    3. DS Kim
    4. T Ha
    (2005)
    Proceedings of the National Academy of Sciences of the United States of America 102:18938–18943.
    https://doi.org/10.1073/pnas.0506144102
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
    Folding pathways of human telomeric hybrid G-quadruplex structure
    1. T Mashimo
    2. H Sugiyama
    (2007)
    Nucleic Acids Symposium Series [nucleic Acids Symposium Series (2004)] 51:239–240.
    https://doi.org/10.1093/nass/nrm120
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44

Decision letter

  1. Johannes Walter
    Reviewing Editor; Harvard Medical School, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Periodic DNA patrolling underlies diverse functions of Pif1 on R-loops and G-rich DNA” for consideration at eLife. Your article has been favorably evaluated by a Senior editor and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before reaching this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission. Please consider each of these points, and provide either a response with additional experimental data or a detailed reasoning that addresses the issue in question.

This manuscript describes single-molecule fluorescence experiments that visualize the activity of the Pif1 DNA helicase. The authors show that it patrols ssDNA by translocating in a 5'-3'-directed fashion away from a ds-ssDNA junction in a cyclic manner. While doing so, it is able to efficiently unwind RNA–DNA hybrids and G4 quadruplex structures. The data are very convincing and their analyses rigorous. The level of kinetic detail obtained with these experiments is remarkable. The following points raised by the reviewers should be addressed in a revised manuscript and cover letter.

Reviewer 1 specific comments:

1) It would be nice to add a figure to illustrate how Pif1 might remove G4 structures in a cellular context. G4s are most likely to form on the lagging strand template, which is rendered temporarily single stranded during DNA replication. Pif1 might patrol from the 5' end of one Okazaki fragment towards a downstream G4 structure, thereby allowing completion of the next Okazaki fragment whose 3' end will have collided with the G4 from the other side.

2) Supplementary figure 3B requires a no-protein control to show that when Cy3 is placed near the ssDNA-dsDNA junction, protein-induced fluorescence enhancement can be observed. Without this, the absence of periodic increases in Cy3 fluorescence cannot be interpreted as stable binding of Pif1 at the junction.

3) The experiment in Figure 3A should be repeated with the Cy3 label placed on the 5' end of the oligo, where it is unlikely to interfere with DNA unwinding.

4) When patrolling on the DD31 and RD31 substrates, Pif1 does not seem to release abruptly (Figure 3B), in contrast to the behavior on substrates presented in Figures 1 and 2. Can the authors explain this?

5) It was not entirely clear to me how the experiment in Figure 7B shows that the efficiency of unwinding is 100 %. How does this experiment show unwinding at all?

6). In the main text (Figure 6, bottom), the purpose of the experiment presented in Supplementary Figure 8 was not well explained.

Reviewer 2 specific comments:

1) Supplementary figure 1 is confusing in terms of the presence of ATP. Supplementary figure 1A is described in the text as a broadened FRET histogram in the presence of ATP, but the 7.2 nM derived from Supplementary figure 1B (and used in main Figure 1B) is discussed in the paragraph before, suggesting that this value is obtained in the absence of ATP. The authors should be more explicit about the conditions used for the various figures.

2) The authors determine the equilibrium dissociation constant in the absence of ATP to be 7.2 nM and the dissociation rate to be less than (30 minutes)-1. These two values suggest an on-rate constant of 7x104 m-1s-1. The experiments are performed by incubating the DNA constructs for 2 minutes with 10 nM of Pif1. However, these numbers suggest that less than 10 % of the DNA substrates will be bound. This value is inconsistent with Figures 1B and 3C (and other figures), which suggest an occupancy close to 100 %. The authors should explain this issue.

3) In Figure 2E, the authors show a histogram of cycle times that they fit with a gamma distribution to obtain the number of steps in each cycle. However, with such large numbers of steps, the gamma distribution becomes very narrow (as the data indeed show) and its width starts to become dominated by the error in determining the cycle time. The authors should provide a rigorous treatment of this error and show that the width of the distribution is truly dominated by the spread in cycling times.

4) In Figure 5C, the authors show the cycling time in the presence of a G4 quadruplex. The authors point out that the transition to highFRET values corresponds to the refolding of the quadruplex. Doesn't that mean that the time needed for the G4 sequence to refold is included in the measured cycling time and that the actual cycling time may be shorter?

5) The data showing the intermediate steps in unwinding a quadruplex are quite remarkable. However, this reviewer is surprised by the observation that upon unwinding the first few stretches of the quadruplex, the remaining structure is still stable enough for subsequent unwinding a second or so later. The authors should comment on this point and particularly address whether the existing information on folding energetics and kinetics would allow such a prolonged stability of the partial structures.

Reviewer 3 specific comments:

1) There are discrepancies with reported literature that is not properly addressed in the paper. While the DNA patrolling translocation speeds on dT tails are consistent with recently reported speeds from ensemble studies (Galletto 2013; Ramanagoudr-Bhojappa 2013), the DNA/DNA unwinding rates are in disagreement with the recent report (Ramanagoudr-Bhojappa 2013). For RNA/DNA Pif1 takes about 2 min at saturating ATP to unwind 31 bp and on DNA/DNA it requires very high Pif1 and much longer times. This is puzzling because Ramanagoudr-Bhojappa 2013 showed that 16 bp DNA/DNA is unwound in 0.3 s, with an overhang of 7T that would bind one Pif1 and the rates of translocation on single stranded DNA are the same as the rates of DNA/DNA unwinding abut 70 base pairs per second. The authors need to provide an explanation for this discrepancy between their slow rates and published fast rates of unwinding.

2) Is the patrolling activity simply a consequence of having a DNA end (end of dT overhang)? Such structures would not be present in the cell raising the question of its physiological relevance.

3) There is a lack of discussion on how this activity obtained under the specific conditions used in this assay would be physiologically relevant. Pif1 initiates in all the experiments at the 3'-ss-dsDNA junction. This raises two questions, firstly, whether Pif1's translocation properties are a consequence of starting at such a junction, in other words, does Pif1 translocate in the same way in the absence of such a junction? And secondly, where would such ends be present in the genome to initiate Pif's patrolling activity?

https://doi.org/10.7554/eLife.02190.023

Author response

Reviewer 1 specific comments:

1) It would be nice to add a figure to illustrate how Pif1 might remove G4 structures in a cellular context. G4s are most likely to form on the lagging strand template, which is rendered temporarily single stranded during DNA replication. Pif1 might patrol from the 5' end of one Okazaki fragment towards a downstream G4 structure, thereby allowing completion of the next Okazaki fragment whose 3' end will have collided with the G4 from the other side.

We have prepared a figure (new Figure 8) according to the reviewer’s suggestion, where we summarize several possible cellular sites for the Pif1’s patrolling activity. Pif1 may use its patrolling activity to help remove G4 structures, telomerase, and R-loops.

2) Supplementary figure 3B requires a no-protein control to show that when Cy3 is placed near the ssDNA-dsDNA junction, protein-induced fluorescence enhancement can be observed. Without this, the absence of periodic increases in Cy3 fluorescence cannot be interpreted as stable binding of Pif1 at the junction.

We have added a no-protein control for Figure S3B (new Figure 1–figure supplement 3). We compared the average Cy3 intensity before and after adding 10 nM Pif1. Cy3 intensity increased by ∼20 % upon the addition of 10 nM Pif1, indicating Pif1 indeed binds.

3) The experiment in Figure 3A should be repeated with the Cy3 label placed on the 5' end of the oligo, where it is unlikely to interfere with DNA unwinding.

We have repeated the experiment in Figure 3A (new Figure 3–figure supplement 1) and obtained the same result.

4) When patrolling on the DD31 and RD31 substrates, Pif1 does not seem to release abruptly (Figure 3B), in contrast to the behavior on substrates presented in Figures 1 and 2. Can the authors explain this?

The Cy3 labeling position on DD31 and RD31 is different from that of the DNA substrates used in Figures 1 and 2. In Figures 1 and 2, Cy3 is attached to the very end of the Poly(dT) tail, whereas Cy3 is attached to a stranded complementary to the tail. When Pif1 is approaching the ss-dsDNA junction, the angle between the ssDNA region and the distal dsDNA may change (see the Author response image 1 below).

Author response image 1

5) It was not entirely clear to me how the experiment in Figure 7B shows that the efficiency of unwinding is 100 %. How does this experiment show unwinding at all?

This is because the Supplementary Figure 7B (new Figure 5–figure supplement 2B) shows that periodic patrolling occurs on the same DNA structure, indicating that each patrolling cycle results in G4 unwinding that we show in Figures 5A and C. We reworded the sentence to make this point clearer.

6). In the main text (Figure 6, bottom), the purpose of the experiment presented in Supplementary Figure 8 was not well explained.

The purpose was to further confirm that the G4 structure forms under our solution condition. Although we did observe high FRET value for TP-S1 and TEL, some secondary ssDNA structures other than G4 structures can also explain the high FRET value. Because G4 formation is known to depend on the monovalent cations and the order of cations’ ability to stabilize the G4 sturcture is: K+>Na+>Li+, we argue that if we could observe the G4 stabilization in the same order (K+>Na+>Li+), the secondary structure which yielded high FRET is very likely the G4 structure. We have revised our text accordingly.

Reviewer 2 specific comments:

1) Supplementary figure 1 is confusing in terms of the presence of ATP. Supplementary figure 1A is described in the text as a broadened FRET histogram in the presence of ATP, but the 7.2 nM derived from Supplementary figure 1B (and used in main Figure 1B) is discussed in the paragraph before, suggesting that this value is obtained in the absence of ATP. The authors should be more explicit about the conditions used for the various figures.

We have added a more detailed description to Figure 1 and Figure 1–figure supplement 1 to clarify the ATP concentrations we used for each figure.

2) The authors determine the equilibrium dissociation constant in the absence of ATP to be 7.2 nM and the dissociation rate to be less than (30 minutes)-1. These two values suggest an on-rate constant of 7x104 m-1s-1. The experiments are performed by incubating the DNA constructs for 2 minutes with 10 nM of Pif1. However, these numbers suggest that less than 10 % of the DNA substrates will be bound. This value is inconsistent with Figures 1B and 3C (and other figures), which suggest an occupancy close to 100 %. The authors should explain this issue.

This is a good point. We think we actually overestimated the equilibrium dissociation constant (KD). In fact, 7 nM was derived from the single molecule (sm) FRET histograms shown in Figure 1–figure supplement 1A, and the smFRET histogram at each Pif1 concentration was obtained after 2 min incubation with Pif1. In other words, the measurements were done before the system achieved the equilibrium. The true KD value should be smaller than 7 nM. We have removed the mention of KD in the revised manuscript. We revised the first paragraph in the Results section.

3) In Figure 2E, the authors show a histogram of cycle times that they fit with a gamma distribution to obtain the number of steps in each cycle. However, with such large numbers of steps, the gamma distribution becomes very narrow (as the data indeed show) and its width starts to become dominated by the error in determining the cycle time. The authors should provide a rigorous treatment of this error and show that the width of the distribution is truly dominated by the spread in cycling times.

The reviewer is correct in that errors in determining the Δt values would broaden the Δt histogram. However, such broadening effect would result in the underestimation of the n value ((Δt)n-1exp(–k·Δt)) because lower n values generally correspond to broader distributions in the gamma distribution. This is probably why we obtained n=26±3 for 32 steps on (dT)32 (26 is smaller than 32). An underestimation of n would result in overestimation of the step size. In our case, the step size estimated by diving 32 nt by 26 steps is 1.2 nt per step, and considering the likelihood of overestimation due to errors, the true step size must be 1 nt. If the kinetic step were 2 nt, for example, the broadening effect would have resulted in a n value of less than 16 for (dT)32 which was not the case. We have revised the text to clarify this point.

4) In Figure 5C, the authors show the cycling time in the presence of a G4 quadruplex. The authors point out that the transition to highFRET values corresponds to the refolding of the quadruplex. Doesn't that mean that the time needed for the G4 sequence to refold is included in the measured cycling time and that the actual cycling time may be shorter?

Yes, we agree with the reviewer. The time needed for the G4 sequence to refold is indeed included in the measured cycling time (Δt). In Figures 7A and 7E, we further divided Δt into five portions: Δt1, Δt2, Δt3, Δt4, and Δt5, in which Δt5 represents the G4 refolding time.

5) The data showing the intermediate steps in unwinding a quadruplex are quite remarkable. However, this reviewer is surprised by the observation that upon unwinding the first few stretches of the quadruplex, the remaining structure is still stable enough for subsequent unwinding a second or so later. The authors should comment on this point and particularly address whether the existing information on folding energetics and kinetics would allow such a prolonged stability of the partial structures.

1) Previous MD simulation results have suggested G-hairpin and G-triplex are two relatively stable intermediates along the G4 folding pathway (Mashimo et al. 2010 J Am Chem Soc 132(42):14910-14918). It was found that the stabilization energy of a Hoogsteen GG base pair was less than that of a GC base pair but is comparable to that of AT base pair (Mashimo et al. 2007 Nucleic Acids Symp Ser (Oxf) (51) 239-240. 2) The lifetime of G-triplex and G-hairpin could be as long as 0.1–1 seconds, according to previous experiments. For example, previous optical tweezers experiments have identified G-triplex as a stable intermediate Li et al. 2013 J Am Chem Soc 135(17):6423-6426: when 32 pN was applied to the two ends of a G4 sequence, the lifetimes of the fully folded state and the G-triplex state were 0.54 s and 0.52 s, respectively. Another example is the unwinding of a small DNA hairpin by a protein migrating along the DNA strand (Roy et al. 2009 Nature 461(7267):1092-1097). The small hairpin only consists of 7 bp stem and 3 nt loop and an intermediate state with a lifetime of ∼0.90 sec was observed along the unwinding pathway. Given that GG base pairs have comparable stabilization energy, one would expect a comparably long lifetime for G-hairpins. We have revised the text to clarify this point.

Reviewer 3 specific comments:

1) There are discrepancies with reported literature that is not properly addressed in the paper. While the DNA patrolling translocation speeds on dT tails are consistent with recently reported speeds from ensemble studies (Galletto 2013; Ramanagoudr-Bhojappa 2013), the DNA/DNA unwinding rates are in disagreement with the recent report (Ramanagoudr-Bhojappa 2013). For RNA/DNA Pif1 takes about 2 min at saturating ATP to unwind 31 bp and on DNA/DNA it requires very high Pif1 and much longer times. This is puzzling because Ramanagoudr-Bhojappa 2013 showed that 16 bp DNA/DNA is unwound in 0.3 s, with an overhang of 7T that would bind one Pif1 and the rates of translocation on single stranded DNA are the same as the rates of DNA/DNA unwinding abut 70 base pairs per second. The authors need to provide an explanation for this discrepancy between their slow rates and published fast rates of unwinding.

The discrepancy is most likely due to the difference in assembly state and the way the experiments were performed. In Ramanagoudr-Bhojappa et al., 200 nM Pif1 was pre-incubated with 2 nM DNA before initiating the unwinding reaction by introducing ATP. In contrast, we added 10 or 100 nM Pif1 together with ATP to the DNA-immobilized sample chamber. There are two possible reasons that may lead to the apparent discrepancy: 1) It was not clear how many Pif1 monomers were loaded per DNA molecule in Ramanagoudr-Bhojappa et al., and in fact it is quite likely that more than one Pif1 monomers were loaded per DNA molecule which would lead to efficient unwinding of DNA-DNA duplexes. Under our conditions, we know from the single molecule time traces that at 10 nM Pif1, only one Pif1 monomer is loaded (no unwinding observed) and 100 nM Pif1 results in multiple Pif1 loading per DNA (unwinding observed). 2) In Figure 3A, the rate-limiting step there for unwinding reaction was the second Pif1 monomer binding to DNA. As a result, 100 nM Pif1 took several minutes to unwind DNA-DNA duplexes at 1 mM ATP. However, in Ramanagoudr-Bhojappa et al., which pre-assembled the helicase on the DNA the 0.3 sec did not include the binding time of Pif1 at all. Another possibility is a limited processivity of DNA unwinding by Pif1 oligomer. It may unwind 16 bp rapidly whereas 31 bp may require multiple attempts, hence slower. We added the following sentence to the manuscript: “The dsDNA unwinding speed previously reported was much higher (∼ 0.3 second for unwinding 16 bp dsDNA) (Ramanagoudr-Bhojappa et al. 2013) either because the helicase was preassembled on the DNA before introducing ATP in that study, or due to a limited processivity of dsDNA unwinding by Pif1 oligomer.”

2) Is the patrolling activity simply a consequence of having a DNA end (end of dT overhang)? Such structures would not be present in the cell raising the question of its physiological relevance.

We don’t think so. Pif1’s patrolling activity was observed not only on partial DNA duplexes containing a 3’ DNA overhang but also on gapped DNA substrates (Figure 3) and Y-shaped DNA substrates (Figure 1H) that do not have a free ssDNA end. In addition, the partial DNA duplexes containing a 3’ DNA overhang should indeed be present in cells. For example, telomeres and double stranded DNA breaks both contain such a 3’ ssDNA end (see new Figure 8 that we added in response to Reviewer 1). Furthermore, we showed that Pif1 uses its patrolling activity to remove RNA/DNA hybrids (i.e., R-loops) and G4 structures, two physiological relevant structures present in vivo. The presence of R-loops and G4 structures, if not resolved in a timely manner, would result in genome instability including replication pauses, mutations, recombination, chromosomal rearrangements and chromosome loss (Aguilera and Garcia-Muse 2012 Mol Cell 46(2):115-124, Paeschke et al. 2011 Cell 145(5):678-691, Paeschke et al., 2013 Nature 497:458-462).

3) There is a lack of discussion on how this activity obtained under the specific conditions used in this assay would be physiologically relevant. Pif1 initiates in all the experiments at the 3'-ss-dsDNA junction. This raises two questions, firstly, whether Pif1's translocation properties are a consequence of starting at such a junction, in other words, does Pif1 translocate in the same way in the absence of such a junction? And secondly, where would such ends be present in the genome to initiate Pif's patrolling activity?

The presence of a 3'-ss-dsDNA junction is not a prerequisite for Pif1 to start translocation along ssDNA, because Pif1 translocation was detected when such a junction is absent (Galletto and Tomko 2013 Nucleic Acids Res) 8. 3'-ss-dsDNA junctions are present in many DNA intermediates during replication, transcription and recombination, as well as in telomeres (see new Figure 8). Therefore, the patrolling activity we report in this manuscript could take part in many scenarios where the 3’-ss-dsDNA junctions are present.

https://doi.org/10.7554/eLife.02190.024

Article and author information

Author details

  1. Ruobo Zhou

    Center for the Physics of Living Cells, Department of Physics, University of Illinois at Urbana-Champaign, Urbana, United States
    Present address
    Department of Chemistry and Chemical Biology, Harvard University, Cambridge, United States
    Contribution
    RZ, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Jichuan Zhang

    1. Center for the Physics of Living Cells, Department of Physics, University of Illinois at Urbana-Champaign, Urbana, United States
    2. Materials Science and Engineering, University of Illinois at Urbana-Champaign, Urbana, United States
    Contribution
    JZ, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Matthew L Bochman

    Department of Molecular Biology, Princeton University, Princeton, United States
    Present address
    Molecular and Cellular Biochemistry Department, Indiana University, Bloomington, United States
    Contribution
    MLB, Expressed and purified Pif1 protein, Conception and design, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Virginia A Zakian

    Department of Molecular Biology, Princeton University, Princeton, United States
    Contribution
    VAZ, Conception and design, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Taekjip Ha

    1. Center for the Physics of Living Cells, Department of Physics, University of Illinois at Urbana-Champaign, Urbana, United States
    2. Howard Hughes Medical Institute, University of Illinois at Urbana-Champaign, Urbana, United States
    Contribution
    TH, Conception and design, Drafting or revising the article
    For correspondence
    tjha@illinois.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Institutes of Health (GM065367)

  • Ruobo Zhou
  • Jichuan Zhang
  • Taekjip Ha

National Institutes of Health (GM26938)

  • Virginia A Zakian

National Science Foundation (0822613)

  • Ruobo Zhou
  • Taekjip Ha

American Cancer Society (PF-10-145-01-DMC)

  • Matthew L Bochman

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank J Park for a generous gift of purified PcrA, and S Myong for a generous gift of BRACO19. We thank T Lohman for carefully reading the manuscript and commenting on it. These studies were supported by grants from the National Institutes of Health (GM065367 to T.H. and GM26938 to VZ), the National Science Foundation (0822613 to TH) and the American Cancer Society (PF-10-145-01-DMC to MB). TH is an employee of the Howard Hughes Medical Institute.

Reviewing Editor

  1. Johannes Walter, Harvard Medical School, United States

Publication history

  1. Received: January 2, 2014
  2. Accepted: March 17, 2014
  3. Version of Record published: April 29, 2014 (version 1)

Copyright

© 2014, Zhou et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,097
    Page views
  • 244
    Downloads
  • 55
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Neuroscience
    2. Structural Biology and Molecular Biophysics
    Feng Zhang et al.
    Research Article
    1. Structural Biology and Molecular Biophysics
    Benoît Arragain et al.
    Short Report
