Bacterial autolysins trim cell surface peptidoglycan to prevent detection by the Drosophila innate immune system

  1. Magda Luciana Atilano
  2. Pedro Matos Pereira
  3. Filipa Vaz
  4. Maria João Catalão
  5. Patricia Reed
  6. Inês Ramos Grilo
  7. Rita Gonçalves Sobral
  8. Petros Ligoxygakis
  9. Mariana Gomes Pinho
  10. Sérgio Raposo Filipe  Is a corresponding author
  1. Instituto de Tecnologia Química e Biológica, Universidade Nova de Lisboa (ITQB-UNL), Portugal
  2. University of Oxford, United Kingdom
  3. Centro de Recursos Microbiologicos (CREM), Faculdade de Ciências e Tecnologia, Universidade Nova de Lisboa, Portugal
Research Article
  • Cited 12
  • Views 2,696
  • Annotations
Cite as: eLife 2014;3:e02277 doi: 10.7554/eLife.02277

Abstract

Bacteria have to avoid recognition by the host immune system in order to establish a successful infection. Peptidoglycan, the principal constituent of virtually all bacterial surfaces, is a specific molecular signature recognized by dedicated host receptors, present in animals and plants, which trigger an immune response. Here we report that autolysins from Gram-positive pathogenic bacteria, enzymes capable of hydrolyzing peptidoglycan, have a major role in concealing this inflammatory molecule from Drosophila peptidoglycan recognition proteins (PGRPs). We show that autolysins trim the outermost peptidoglycan fragments and that in their absence bacterial virulence is impaired, as PGRPs can directly recognize leftover peptidoglycan extending beyond the external layers of bacterial proteins and polysaccharides. The activity of autolysins is not restricted to the producer cells but can also alter the surface of neighboring bacteria, facilitating the survival of the entire population in the infected host.

https://doi.org/10.7554/eLife.02277.001

eLife digest

While most bacteria are harmless, some can cause diseases as varied as food poisoning and meningitis, so our immune system has developed various ways of detecting and eliminating bacteria and other pathogens. Receptor proteins belonging to the immune system detect molecules that give away the presence of the bacteria and trigger an immune response targeted at the invading pathogen.

Peptidoglycan is one telltale molecule that betrays the presence of bacteria. Peptidoglycan is found in the bacterial cell wall, and for many years it was assumed that the immune system detected stray fragments of peptidoglycan that were accidentally shed by the bacteria. However, it was later shown that the immune system could, under certain conditions, detect peptidoglycan when it is still part of the cell wall. This raised an interesting question: do bacteria use other methods to stop peptidoglycan being detected by the immune system?

Now, Atilano, Pereira et al. have found that enzymes called autolysins can conceal bacteria from the receptor proteins that detect peptidoglycan. These enzymes are needed to break the bonds within the peptidoglycan present in the rigid bacterial cell wall to allow the bacteria to grow and divide. ‘Knocking out’ the genes for autolysins allowed the receptor proteins from the fruit fly, Drosophila, to bind to the bacteria; however, the mutant bacteria were able to evade the immune system after they had been treated with the purified enzymes.

Atilano, Pereira et al. suggest that the autolysins trim the exposed ends of the peptidoglycan molecules on the surface of the cell wall, which could otherwise be detected by the host. The experiments also show that bacterial pathogens—including a strain of MRSA—with mutations that knock out autolysin activity trigger a stronger immune response in fruit flies, and are therefore less able to infect this host. Autolysins also help to conceal Streptococcus pneumoniae—a bacterial pathogen that is a common cause of pneumonia and infant deaths in developing countries—from detection by fruit flies.

The findings of Atilano, Pereira et al. highlight how bacteria employ a number of ways to evade detection. If similar behavior is observed when bacteria infect humans, autolysins could represent a new drug target for the treatment of bacterial diseases.

https://doi.org/10.7554/eLife.02277.002

Introduction

Peptidoglycan (PGN) is a macromolecule composed of long glycan strands, cross-linked by short peptides, which surrounds most bacterial cells and forms a load-bearing mesh that sustains their shape. Enlargement and remodeling of the PGN mesh during bacterial growth and division requires not only the synthesis of new material, catalyzed by penicillin-binding proteins (PBPs), but also PGN hydrolysis to allow insertion of new material, carried out by PGN autolysins (Vollmer et al., 2008).

Despite its essential role, PGN may also be viewed as an ‘Achilles heel’ of bacteria during infection, as different hosts have specialized receptors that recognize PGN as a pathogen-associated molecular pattern (PAMP) and initiate an inflammatory response to eliminate invading bacteria. Examples of these receptors include LysM proteins in plants (Willmann et al., 2011), intracellular NOD-like receptors (NLRs) and Toll-like receptors (TLRs) in mammals (Chaput and Boneca, 2007), and peptidoglycan recognition proteins (PGRPs) in insects and mammals (Dziarski and Gupta, 2006).

PGRPs, originally isolated due to their high affinity to PGN (Kang et al., 1998), are used by Drosophila flies to distinguish between Gram-negative and Gram-positive bacteria, directly at the level of PGN detection. This is achieved through specific PGRPs: PGRP-LC specifically recognizes DAP-type PGN, usually found in Gram-negative bacteria and Gram-positive bacilli, and activates the Imd pathway (Leulier et al., 2003), while PGRP-SA recognizes lysine-type PGN, which surrounds most Gram-positive bacteria, and activates the Toll pathway (Lemaitre and Hoffmann, 2007). Activation of either pathway results in a series of multiple defense reactions that include the production and secretion of antimicrobial peptides into the hemolymph of flies (Lemaitre and Hoffmann, 2007). In mammals, PGRPs can act as antibacterial agents due to their bactericidal and/or bacteriostatic activity, mediated by PGN hydrolytic activity (e.g. PGLYRP-2 [Dziarski and Gupta, 2006]) or by the binding of PGRPs to targets on the bacterial cell surface, which causes the activation of specific bacterial two-component systems, resulting in bacteria killing through a mechanism that includes membrane depolarization and production of hydroxyl radicals (Kashyap et al., 2011).

Bacterial PGN is concealed by an outer membrane in Gram-negative bacteria, or by layers of proteins and glycopolymers in Gram-positive bacteria. It is therefore usually assumed that an infected organism only recognizes PGN in the form of fragments released into the surrounding medium by the activity of different bacterial or host enzymes (Nigro et al., 2008). However, it has been recently shown that PGRP-SA can directly bind PGN at the bacterial surface in conditions such as the absence of wall teichoic acids (WTAs) (Atilano et al., 2011). Therefore, it is possible that bacteria may have developed different strategies to prevent host receptors from binding PGN on the bacterial surface, thus avoiding detection by the host innate immune system.

In order to look for molecules with a role in preventing bacterial recognition by the host, we used PGRP-SA, a host receptor circulating in the hemolymph of Drosophila melanogaster, to test if specific proteins involved in the metabolism of bacterial cell wall were required to conceal the PGN at the surface of the Gram-positive pathogenic bacterium Staphylococcus aureus. We have identified the major autolysin Atl as an essential protein for concealing the bacterial PGN at the cell surface from host detection.

Results

PGN hydrolytic enzymatic activities encoded by the atl gene are required to conceal S. aureus from Drosophila PGN receptor PGRP-SA

In order to identify factors that Gram-positive bacteria use to conceal their PGN present at the bacterial cell surface from host recognition, we have constructed S. aureus null mutants lacking non-essential genes involved in PGN metabolism and determined the ability of a fluorescent derivative of PGRP-SA (mCherry_PGRP-SA) to bind to their surfaces (Figure 1). Specifically, we tested mutants constructed in NCTC8325-4 S. aureus strain, expressing altered levels of autolysins (ΔarlR), lacking the major autolysin (Δatl) or factors that modulate autolysin activity (ΔfmtA), producing non-O-acetylated peptidoglycan with increased susceptibility to lysozyme (Δoat), or producing altered WTAs lacking attached β-O-GlcNAc (ΔtarS) or D-alanyl residues (ΔdltA). A mutant lacking the major autolysin Atl, a PGN hydrolase, was identified as the most severely impaired in its ability to avoid recognition by mCherry_PGRP-SA.

Staphylococcus aureus cells lacking the major autolysin Atl are better recognized by mCherry_PGRP-SA.

Exponentially growing bacteria from the parental NCTC8325-4 (NCTC), and its mutant strains lacking genes involved in cell wall metabolism (see main text for details) were incubated with mCherry_PGRP-SA in 96-well plates. Cells were pelleted by centrifugation and unbound protein was washed with PBS. mCherry_PGRP-SA bound to each bacterial strain was quantified using a fluorescent image analyzer (n≥ 10 wells for each strain). Results are shown as the median with 25% and 75% inter-quartile range. The dashed line represents the median value obtained when bacteria were absent. Statistically significant differences (p<0.001, indicated by asterisks) were observed only between mCherry_PGRP-SA binding to the parental strain and mutants NCTCΔtagO and NCTCΔatl. mCherry_PGRP-SA binding to bacterial cells was also imaged by fluorescence microscopy. The top panels show phase-contrast images of bacteria (white scale bar represents 1 µm) and the bottom panels show the mCherry_PGRP-SA binding to their surface. Binding of the protein was observed for NCTCΔtagO and NCTCΔatl, with the later exhibiting the highest binding.

https://doi.org/10.7554/eLife.02277.003

PGN modifications, namely the attachment of teichoic acids or the degree of PGN polymerization (defined as the ratio between the amount of polymerized muropeptides and the amount of monomeric muropeptides present in the PGN macromolecule), have been previously associated with changes in the recognition of S. aureus PGN by host receptors (Filipe et al., 2005; Atilano et al., 2011). However, an S. aureus atl null mutant produces a PGN with a muropeptide composition similar to the parental strain (Figure 2A), that is, it shows no increase in the amount of polymerized muropeptides, which were previously reported to be better inducers of an innate immune response than monomeric muropeptides (Filipe et al., 2005). Moreover, the S. aureus atl null mutant produces WTAs (Figure 2B), indicating that the mechanism to conceal PGN dependent on the presence of atl is new, and different from that previously reported for a WTA mutant (Atilano et al., 2011). In agreement, the simultaneous deletion of tagO and atl had a synergistic effect on exposing the surface PGN to host recognition (Figure 2C).

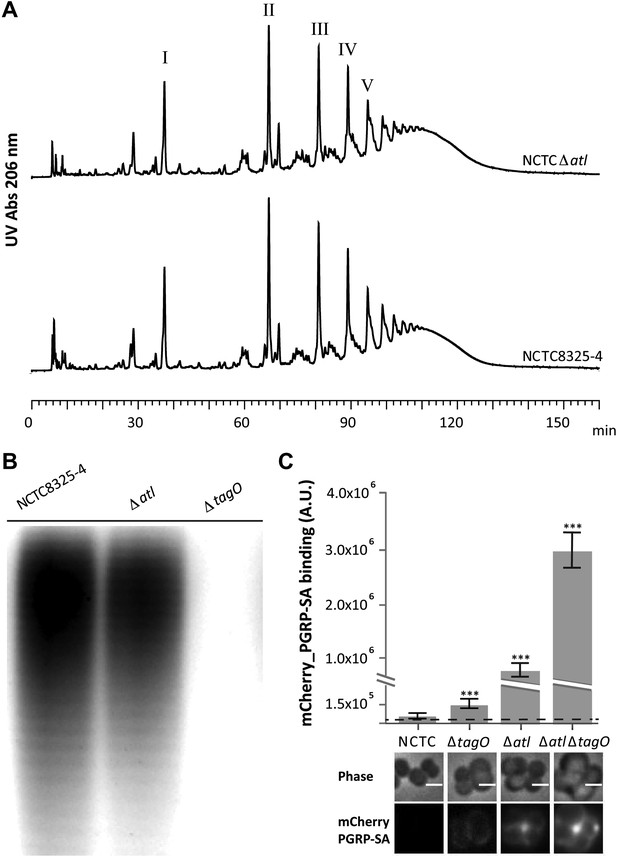

Better recognition of Staphylococcus aureus NCTCΔatl by PGRP-SA is not mediated by alterations in peptidoglycan muropeptide composition or lack of wall teichoic acids production.

(A) Staphylococcus aureus NCTCΔatl mutant has a similar peptidoglycan (PGN) muropeptide composition to the parental strain NCTC8325-4, as seen by HPLC analysis of mutanolysin-digested PGN. Roman numerals I to V indicate muropeptide species form monomers to pentamers, respectively. (B) NCTCΔatl mutant produces wall teichoic acids (WTAs), as shown by PAGE analysis of surface WTAs from NCTC8325-4, NCTCΔatl, and NCTCΔtagO (which lacks WTAs). (C) Deletion of both the tagO and atl genes had a synergistic effect on PGN exposure to the host receptor PGRP-SA, indicating independent mechanisms of WTA and Atl in PGN concealment. S. aureus parental strain NCTC8325-4 and mutant strains NCTCΔtagO, NCTCΔatl, and NCTCΔatlΔtagO were incubated with mCherry_PGRP-SA in 96-well plates. The average amount of mCherry_PGRP-SA bound to bacteria in each well was quantified using a fluorescent image analyzer (n = 10 wells, for each strain), and is represented as the median with 25% and 75% inter-quartile range. The dashed line represents the median value obtained with control samples (no bacteria added). Statistically significant differences (p<0.001) are indicated by asterisks and were observed between mCherry_PGRP-SA binding to the parental strain and each mutant as well as between mutants. mCherry_PGRP-SA binding to the cells was also confirmed by fluorescence microscopy (bottom). Gray panels show phase-contrast images of bacterial cells (white scale bar represents 1 μm) and black panels show mCherry_PGRP-SA binding.

https://doi.org/10.7554/eLife.02277.004

The atl gene encodes a polypeptide that is cleaved into two proteins capable of digesting PGN: an amidase (AM), which cleaves the amide bond between peptides and glycans, and a glucosaminidase (GL), which cleaves glycan strands (Figure 3A). To determine which one of these activities was required for the role of Atl in PGN concealment, we constructed S. aureus strains expressing, from the atl native chromosomal locus, Atl mutants with impaired amidase activity (AMH265A [Bose et al., 2012]), glucosaminidase activity (GLE1128A [Bose et al., 2012]), or both (AtlH265A/E1128A double mutant) and confirmed the absence of the expected hydrolytic activity in a zymogram (Figure 3B).

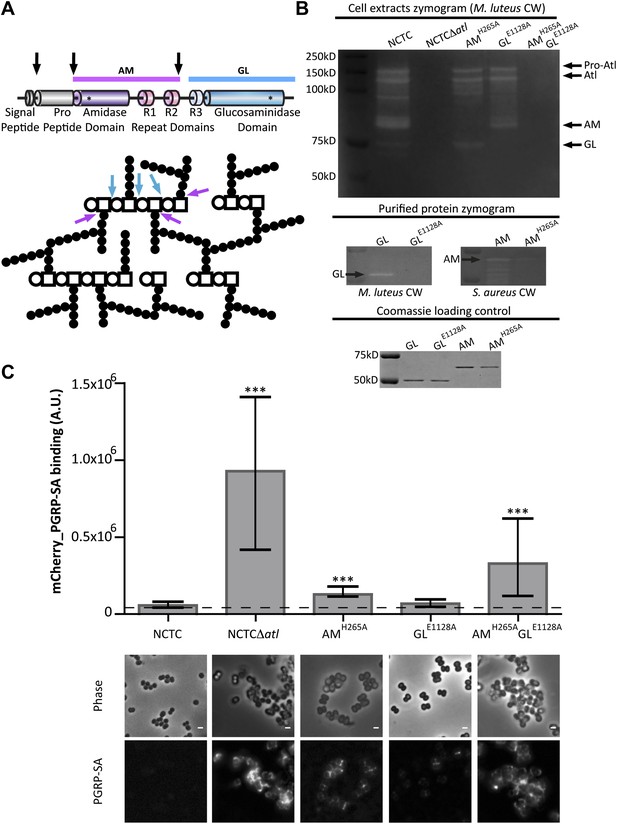

Amidase and glucosaminidase activities limit mCherry_PGRP-SA binding to the bacterial cell surface.

(A) Representation of the post-translational cleavage (black arrows) of the atl encoded protein. The processed amidase (AM, purple arrow) releases peptidoglycan (PGN) stem peptides by cutting the bond between the stem peptides (black circles) and the N-acetylmuramic acid residue (open square). The glucosaminidase (GL, blue arrow) releases muropeptides by cutting the glycosidic linkage between N-acetylmuramic acid (open square) and N-acetylglucosamine (open circle). For simplicity, only some examples of AM and GL cleavage sites are indicated by arrows. (B) Zymogram analysis of the activity of autolysins extracted from different Staphylococcus aureus atl mutant strains expressing inactive amidase (AMH265A), inactive glucosaminidase (GLE1128A), or both (AMH265A GLE1128A). Top: Cells were harvested at mid-exponential phase, and protein extracts were prepared and run in an SDS–PAGE gel containing Micrococcus luteus cell walls. PGN hydrolytic activity is seen as clear bands in the stained gel and showed that S. aureus encoding mutant proteins AM or GM were lacking only the expected activity. Middle: A similar analysis was carried out with purified proteins AM, GL, and their inactive forms, AMH265A and GLE1128A, respectively, showing that mutant proteins were not active. Bottom: SDS–PAGE of the protein samples loaded into the zymograms confirmed that similar amount of proteins were used. (C) S. aureus parental and atl mutant strains were incubated for mCherry_PGRP-SA in 96-well plates. mCherry_PGRP-SA bound to each bacterial strain is represented as the median with 25% and 75% inter-quartile range (n = 50 wells). A significant increase of mCherry_PGRP-SA binding, relative to the parental strain, was observed with S. aureus mutants expressing AMH265A and AMH265A GLE1128A (p<0.0001), but not the GLE1128A mutant. mCherry_PGRP-SA binding to S. aureus parental and atl mutant strains was also confirmed by fluorescence microscopy. Gray panels are phase-contrast images of bacterial cells (white scale bar represents 1 μm) and black panels show mCherry_PGRP-SA binding.

https://doi.org/10.7554/eLife.02277.005

When the atl mutants were incubated with mCherry-PGRP-SA, both the mutant having only glucosaminidase activity (AMH265A mutant) and the mutant having only amidase activity (GLE1128A mutant) were still able to avoid strong PGRP-SA binding, indicating that either amidase or glucosaminidase enzymatic activity was sufficient to impair recognition of S. aureus by PGRP-SA (Figure 3C). Only when both activities were absent (AtlH265A/E1128A double mutant) was mCherry-PGRP-SA capable of easily recognizing the bacterial cell surface (Figure 3C,D), albeit to lower levels than those observed for the atl null mutant. This difference may be due to residual amidase or glucosaminidase activity in the S. aureus AtlH265A/E1128A double mutant, not detectable in a zymogram.

The proposed role for the amidase and glucosaminidase activities in concealing bacteria was confirmed using purified enzymes. Pre-incubation of S. aureus atl null mutant cells with either AM or GL (approximately 0.4 μM) completely abolished mCherry_PGRP-SA binding to the bacterial surface (Figure 4A). When both enzymes were added simultaneously to the atl null mutant cells, lower concentrations of each enzyme (<0.02 μM) were sufficient to conceal bacteria from the host immune receptor (Figure 4B). This is in agreement with the synergy in PGRP-SA binding observed for the S. aureus AtlH265A/E1128 double mutant (Figure 2C).

Combination of purified staphylococcal AM and GL completely abolishes binding of mCherry_PGRP-SA to the surface Staphylococcus aureus atl null mutant cells.

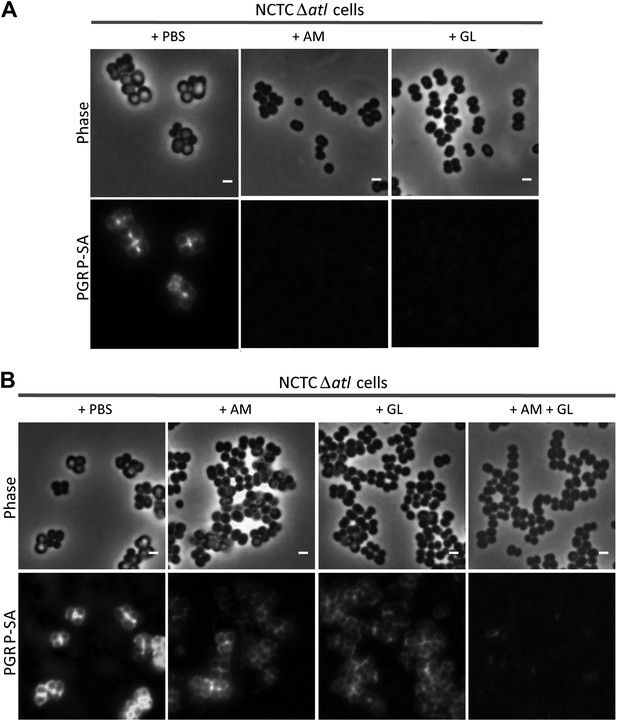

(A) mCherry_PGRP-SA binding to NCTCΔatl bacteria pre-incubated with purified AM and GL (0.37 µM and 0.44 µM, respectively) showed that both enzymes can impair binding of mCherry_PGRP-SA to the cell surface. PBS was used as negative control. (B) The use of lower concentrations of purified AM and GL in combination, to treat NCTCΔatl Staphylococcus aureus cells (final concentrations of 7.9 nM and 18.7 nM, respectively) was more effective than the single use of AM (final concentration of 7.9 nM) or GL (final concentration of 18.7 nM) in preventing binding of mCherry-PGRP-SA to the surface of NCTCΔatl. Gray panels are phase-contrast images of bacterial cells (white scale bar represents 1 μm) and black panels show mCherry_PGRP-SA binding.

https://doi.org/10.7554/eLife.02277.006

We then questioned if the mechanism used by autolysins to conceal PGN at the bacterial surface was dependent on their lytic activity. An alternative hypothesis could be that amidases, or other proteins capable of binding PGN, prevented binding of PGRP-SA by competing for the same PGN substrate, given that the structural fold of PGRPs closely resembles the fold of amidases (Zoll et al., 2010). To distinguish between the two hypotheses, we first incubated S. aureus atl null mutant cells with purified AM or with GL, and then washed them thoroughly to ensure complete removal of the proteins (Figure 5). This procedure did not increase recognition by PGRP-SA, showing that the activity of the autolysins, and not their physical presence, was required for protection.

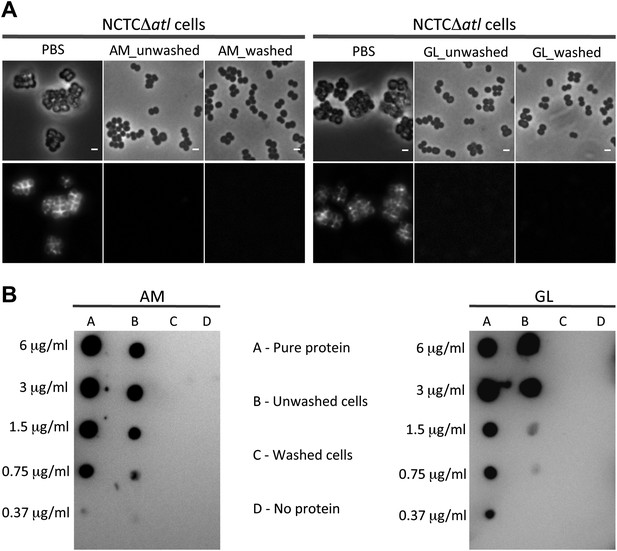

Activity, and not the presence of the Atl products, is required to avoid bacterial surface recognition by mCherry_PGRP-SA.

(A) NCTCΔatl cells were incubated with purified staphylococcal AM, GL, or PBS (negative control) and were either washed to clear these proteins from the cell surface, or unwashed to keep the proteins attached. Bacterial cells were then labeled with mCherry_PGRP-SA and imaged by fluorescence microscopy. In both cases (washed and unwashed), mCherry_PGRP-SA was unable to bind S. aureus NCTCΔatl cells, showing that the physical presence of the enzyme is not required for this effect. Gray panels are phase-contrast images of bacterial cells (white scale bar corresponds to 1 µm) and black panels are fluorescence microscopy images showing binding of mCherry_PGRP-SA to the surface of bacteria. (B) To confirm that AM (left) and GL (right) were absent from the washed samples, a dot-blot assay using anti-His antibody, which recognizes the His-tagged AM and GL enzymes, was performed before the addition of mCherry_PGRP-SA. Washed cells (lanes C) showed no presence of protein, whereas in unwashed cells (lanes B) the presence of each individual lytic enzyme was detected (detection limit for AM and GL is lower than 0.37 µg/ml, as seen in lanes A, which corresponds to the pure protein loaded onto the membrane at different concentrations). A sample of cells to which no protein was added was used as a negative control (lanes D).

https://doi.org/10.7554/eLife.02277.007

Trimming of the bacterial cell surface by Atl PGN hydrolytic activities restores the ability of S. aureus atl mutant bacteria to kill infected Drosophila

The results described above show that amidase or glucosaminidase activities can efficiently protect S. aureus cells from direct recognition by the Drosophila PGN receptor PGRP-SA. Does this protection confer an advantage to S. aureus cells during infection in the Drosophila model? Indeed, Tabuchi et al. have previously shown that S. aureus atl mutants are impaired in their virulence (Tabuchi et al., 2010). We have confirmed that the atl mutant used in this work, when compared to the parental S. aureus strain NCTC8325-4, was also severely impaired in its ability to kill wild type Drosophila, both the 25174 strain, recently established from wild caught flies (Mackay et al., 2012), as well as the yw strain, which is the parental lineage used to generate the PGRP seml mutant (Michel et al., 2001; Figure 6A,B). Furthermore, the atl mutant triggered a stronger induction of drosomycin expression (frequently used as a read-out for Toll activity) when normalized for the same number of infecting bacteria (Figure 6C,D). Importantly, our data showed that survival of Drosophila infected with an S. aureus atl mutant was dependent upon the presence of a functional PGRP-SA (Figure 6E). Furthermore, these mutant bacteria were capable of propagating similarly to the parental S. aureus strain in flies that lacked a functional PGRP-SA (Figure 6F), showing that impaired virulence is not due to a lower proliferation rate of the atl mutant.

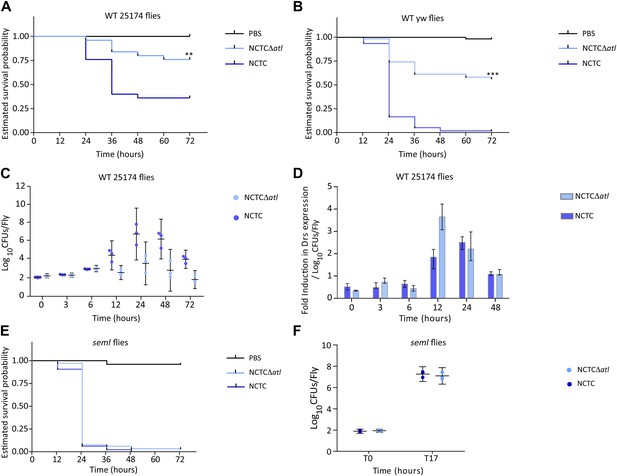

PGRP-SA is required to control infection by a Staphylococcus aureus mutant lacking the major autolysin Atl.

(A) Estimated survival curves of wild type (WT) 25174 flies infected with Atl producer NCTC8325-4 and NCTCΔatl strains were statistically different (p<0.005) and are indicated by asterisks. Absence of Atl activity in the S. aureus Δatl mutant resulted in bacteria that have a decreased ability to kill WT flies. Survival of infected flies (n = 75) was monitored at 12 h intervals for 3 days. (B) Estimated survival curves of WT yw flies, the parental lineage used to construct the peptidoglycan recognition protein (PGRP) seml mutant used in this study, were also produced as described above and gave similar results (p<0.0001, indicated by asterisks). (C) The number of bacteria harvested from infected flies at different time points after infection, during survival assays, was determined by plating in S. aureus growth medium and counting CFUs. (D) Drosomycin (Drs) expression was determined by qPCR at different time points after infection and is shown after normalization for the number of infecting bacteria present in flies (panel C). A stronger induction of drosomycin expression was observed in flies injected with NCTCΔatl bacteria, 12 h after infection. (E) PGRP-SA mutant flies succumbed equally well to infection by NCTC832-4 and NCTCΔatl bacteria (p>0.05), showing that in the absence of a functional PGRP-SA, NCTCΔatl bacteria can proliferate and kill the infected host. (F) Similar numbers of NCTC832-4 and NCTCΔatl bacteria were present in PGRP-SA mutant flies 17 h after infection (T17), confirming that the atl mutant proliferated as well as the parental bacterial strain in seml flies.

https://doi.org/10.7554/eLife.02277.008

Two, non-mutually exclusive, hypotheses can explain the decreased virulence of the atl mutant. (1) S. aureus wild type bacteria produce amidases that cleave the stem peptide moiety of soluble PGN fragments. Given that stem peptides are required for binding of PGRPs to PGN, amidase activity would therefore reduce the inflammatory activity of the soluble PGN. In contrast, the atl mutant would release intact muropeptides, easily detected by PGRP-SA, and therefore would be unable to evade detection by the innate immune system. (2) Amidases produced by S. aureus wild type bacteria would shave and remove the most accessible PGN fragments at the surface of bacteria, eliminating the binding sites for PGRPs. As the atl mutant does not produce the Atl amidase, it would have extending PGN fragments at its surface, which would be easily detected by PGRP-SA, inducing an immune response.

If the first hypothesis is correct, inactivation of the amidase activity, but not of the glucosaminidase (which cleaves the glycans and therefore releases intact, inflammatory PGN fragments), should result in decreased virulence. Alternatively, if the second hypothesis is mainly correct, inactivation of either the amidase or the glucosaminidase activity should result in decreased virulence, as both activities can remove fragments of detectable PGN (containing peptides) from the bacterial surface. We therefore tested the virulence of bacteria with either impaired amidase activity (AMH265A) or impaired glucosaminidase activity (GLE1128A) and observed that both had a reduced ability to kill flies (Figure 7A) in accordance with the second hypothesis. Moreover, injection of seml Drosophila with atl mutant bacteria pre-coated with mCherry_PGRP-SA resulted in increased fly survival (Figure 7B), again favoring a role for PGRP-SA in the recognition of PGN directly at the bacterial surface. Nevertheless, the amount of PGRP-SA present at the surface of the injected bacteria may not have been sufficient to result in full complementation of the ability of seml flies to survive infection. This is in accordance with the hypothesis that a continuous and high expression of PGRP-SA during the entire infection process is required to ensure survival of the infected host (De Gregorio et al., 2001).

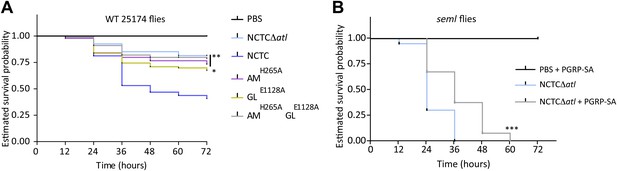

Lack of either Atl amidase or glucosaminidase activity, which leads to different types of released peptidoglycan fragments, results in decreased virulence of Staphylococcus aureus.

(A) Estimated survival curves of wild type (WT) 25174 flies infected with atl mutant strains impaired in amidase activity (AMH265A), glucosaminidase activity (GLE1128A), or both (AMH265AGLE1128A), were statistically different (p<0.05) from survival curves of flies infected with the Atl producer NCTC8325-4 strain, but not with the NCTCΔatl strain. Statistically significant differences (*p=0.01 and **p<0.001) are indicated by asterisks and were observed between the estimated survival curve of flies infected with the parental bacteria strain NCTC8325-4 and each survival curve of flies infected with the different atl mutant strains. WT 25174 flies infected with the different atl mutant strains succumbed in a similar manner (p>0.05). (B) Estimated survival curve of PGRP-SA seml mutant flies infected with NCTCΔatl bacteria pre-coated with mCherry-PGRP-SA showed that direct binding of the peptidoglycan (PGN) host receptor to the surface resulted in an increase of resistance of seml mutant flies to bacterial infection. Statistically significant differences (p<0.0001) are indicated by asterisks and were observed between the two estimated survival curves.

https://doi.org/10.7554/eLife.02277.009

Amidase and glucosaminidase activities trim the bacterial cell surface of neighboring bacteria and prevent bacterial recognition by Drosophila PGN receptor PGRP-SA

Secreted autolysins not only bind to bacterial cell surfaces but they can also be found in the growth medium (Pasztor et al., 2010). This raises an interesting hypothesis: can secreted bacterial autolysins protect neighboring bacteria? If this was true, autolysin producers could in theory protect an entire bacterial population from recognition by the host. To test this hypothesis we collected and filtered the supernatant from a culture of S. aureus parental strain NCTC8325-4 (Atl producer) and incubated S. aureus atl null mutant cells in this medium for 30 min. The atl-encoded proteins secreted into the supernatant by the parental strain were capable of modifying the surface of the atl null mutant cells, consequently abolishing their recognition by PGRP-SA (Figure 8A,B). This was not observed when supernatant from a culture of S. aureus atl null mutant was used (Figure 8A,B), showing that atl products (and not other secreted PGN hydrolases) are responsible for PGN concealment.

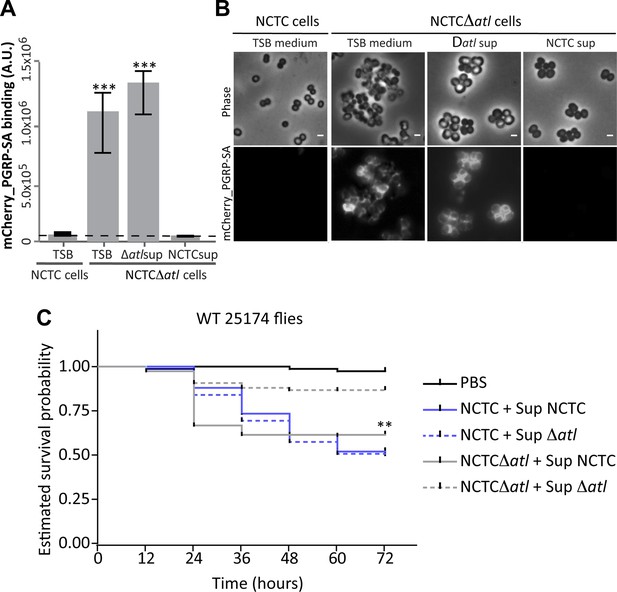

Atl products secreted by Staphylococcus aureus cells protect atl null mutant cells from PGRP-SA recognition and allow S. aureus to establish a successful infection in Drosophila.

(A) NCTCΔatl Staphylococcus aureus cells were incubated with TSB medium (control) or with supernatants (sterilized by filtration) from cultures of NCTC8325-4 (NCTCsup, containing atl encoded products) or NCTCΔatlatlsup) strains. After washing with PBS, cells were mixed with mCherry_PGRP-SA in 96-well plates. Binding of the protein to the cells was determined as described in Figure 1. mCherry_PGRP-SA binding to NCTCΔatl cells pre-incubated with supernatant from Atl producer strain NCTC8325-4 was 100-fold lower than to the same cells pre-incubated with supernatant from a culture of NCTCΔatl mutant. The dashed line represents the median value obtained with no bacteria. Statistically significant differences (p<0.001) are indicated by asterisks. (B) Similar results were observed by fluorescence microscopy of NCTCΔatl S. aureus cells incubated with filtered supernatants from NCTC8325-4 or NCTCΔatl cells (TSB medium was used as negative control) and subsequently labeled with mCherry_PGRP-SA. Only the supernatant from Atl producer NCTC8325-4 modified the surface of NCTCΔatl cells and limited mCherry_PGRP-SA binding. The top panels are phase-contrast images of bacterial cells (white scale bar represents 1 µm) and the bottom panels show the mCherry_PGRP-SA binding to the bacterial surface. (C) Estimated survival curves for wild type Drosophila infected with S. aureus NCTC8325-4 and NCTCΔatl strains that were pre-incubated with bacteria-free supernatant from overnight cultures of each of the S. aureus strains. Flies were infected with approximately 100 S. aureus CFUs and fly survival was assessed every 12 h over 3 days. As expected, survival curves for flies infected with NCTC8325-4 bacteria pre-incubated with both supernatants were statistically indistinguishable (p>0.05). Treatment of NCTCΔatl cells with both supernatants resulted in distinct survival curves (p<0.001, indicated by asterisks), showing that NCTCΔatl cells recover the ability to kill flies if pre-incubated with supernatant from a culture of the Atl producer NCTC8325-4 strain.

https://doi.org/10.7554/eLife.02277.010

Importantly, we observed that atl mutants regained the ability to kill flies if pre-treated with a supernatant from a culture of the Atl producer NCTC8325-4 but not if pre-treated with supernatant from a culture of the atl mutant (Figure 8C).

Moreover, previously bound PGRP-SA could be removed by autolysin activity present in the medium, as seen by time-lapse microscopy of S. aureus atl null mutant cells initially covered by bound mCherry_PGRP-SA and then incubated with supernatant containing amidase and glucosaminidase enzymes (Figure 9).

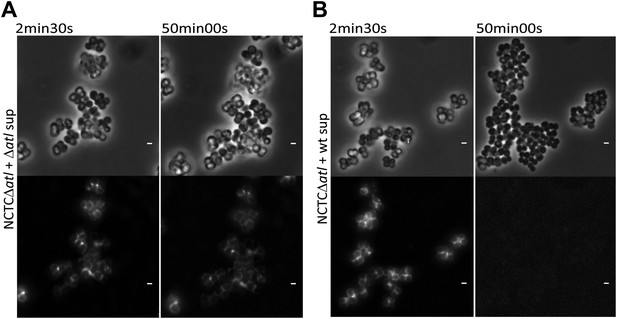

Time-lapse microscopy showing that atl encoded proteins can mediate release of mCherry_PGRP-SA previously bound to the surface of atl null mutant Staphylococcus aureus cells.

NCTCΔatl cells, labeled with mCherry-PGRP-SA, were placed on top of a thin layer of agarose containing filter-sterilized supernatant of cultures of NCTCΔatl mutant (A, Video 1) or NCTC8325-4 parental strain (B, Video 2), and observed by fluorescence microscopy in a time-lapse experiment. The supernatant from the Atl producer parental strain (B), in contrast to the supernatant from the atl null mutant (A), triggered the release of mCherry-PGRP-SA previously attached to the bacterial cell surface. Gray panels are phase-contrast images of bacterial cells (white scale bar corresponds to 1 µm) and black panels are fluorescence microscopy images showing binding of mCherry_PGRP-SA to the surface of bacteria.

https://doi.org/10.7554/eLife.02277.011
Video 1
https://doi.org/10.7554/eLife.02277.012
Video 2
https://doi.org/10.7554/eLife.02277.013

Together, these data suggest that the autolysins encoded by atl can protect not only the producer cells but also a population of invading bacteria from detection by the immune system during infection, enabling it to kill the infected host.

Role of autolysins in evasion from host PGN receptor is conserved in highly virulent CA-MRSA S. aureus and in Streptococcus pneumoniae

The S. aureus strain used in this work, NCTC8325-4, is susceptible to most antibiotics and has limited interest from a clinical point of view. We therefore tested if the role of atl-encoded enzymes in making PGN inaccessible to the host was conserved in other strains, namely in methicillin-resistant S. aureus (MRSA) strains. MRSA strains are a leading cause of bacterial infections in hospitals and an important cause of community-acquired (CA) bacterial infections in the United States. MW2 is a particularly virulent MRSA strain that caused the earliest reported cases of CA-MRSA infection in the United States (Chambers and Deleo, 2009). Deletion of the atl gene in MW2 led to higher binding of mCherry_PGRP-SA, that is, to improved recognition of the bacterial surface (Figure 10A). More importantly, MW2Δatl cells were severely impaired in virulence, as demonstrated by the decreased capacity to kill Drosophila (Figure 10B).

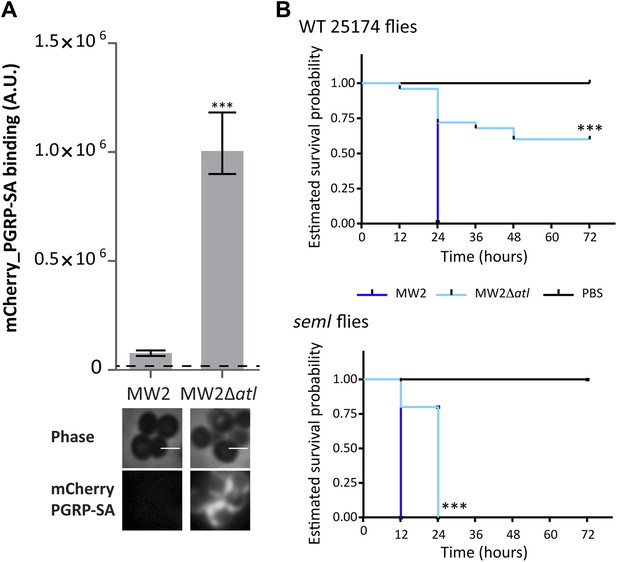

Atl encoded proteins are required to conceal CA-MRSA virulent strains from the Drosophila immune system.

(A) Staphylococcus aureus CA-MRSA MW2 strain and its atl null mutant, MW2Δatl, were incubated with mCherry_PGRP-SA in 96-well plates. The average amount of mCherry_PGRP-SA bound to bacteria in each well was quantified using a fluorescent image analyzer (n = 10 wells, for each strain), and is represented as the median with 25% and 75% inter-quartile range. The dashed line represents the median value obtained with control sample (no bacteria added). mCherry_PGRP-SA binding to MW2 cells was significantly different (p<0.05, indicated by asterisks) from the binding to MW2Δatl. mCherry_PGRP-SA binding to the bacterial cell surface of MW2 and MW2Δatl bacteria was also confirmed by fluorescence microscopy (bottom). Gray panels are phase-contrast images of bacterial cells (white scale bar corresponds to 1 μm) and black panels show mCherry_PGRP-SA binding. (B) Estimated survival curves for wild type (WT) and PGRP-SA deficient (seml) flies infected with S. aureus MW2 and MW2Δatl. MW2Δatl is impaired in its ability to kill WT flies, showing that lack of Atl strongly reduces MW2 pathogenicity. PGRP-SA deficient flies are killed in less than 24 h by both S. aureus strains, showing that flies control MW2Δatl infection in a PGRP-SA dependent manner. Statistically significant differences (p<0.0001) are indicated by asterisks and were observed between the two estimated survival curves.

https://doi.org/10.7554/eLife.02277.014

The fact that PGN sensing is an evolutionarily conserved recognition mechanism in innate immunity, suggests that the strategy used by S. aureus to conceal PGN from the host could be effective across different animal phyla and even used by other bacteria. We therefore tested if we could observe this phenomenon in another Gram-positive pathogenic bacteria, namely Streptococcus pneumoniae, a frequent cause of pneumonia in developed countries and a major cause of infant mortality by septicemia in developing countries (Kadioglu et al., 2008). Lack of LytA, the major amidase of S. pneumoniae, resulted in bacteria that were better recognized by mCherry_PGRP-SA, a phenotype that was reversed when LytA was expressed from a plasmid (Figure 11A). Interestingly, it is possible that autolysins can participate in inter-species protection, as S. pneumoniae LytA, an amidase that releases PGN stem peptides, and Streptomyces globisporus mutanolysin, a commercially available muramidase that releases muropeptides, were capable of protecting S. aureus atl null mutant cells from PGRP-SA recognition (Figure 11B).

LytA activity can prevent Streptococcus pneumoniae and Staphylococcus aureus recognition by mCherry_PGRP-SA.

(A) Streptococcus pneumoniae parental strain R36A, a lytA null mutant (R36AΔlytA), and a complemented strain, expressing LytA from a replicative plasmid (R36AΔlytAplytA), were incubated with mCherry_PGRP-SA in 96-well plates. The average amount of mCherry_PGRP-SA bound to bacteria in each well was quantified using a fluorescent image analyzer (n = 10 wells, for each strain), and is represented as the median with 25% and 75% inter-quartile range. The dashed line represents the median value obtained with control sample (no bacteria added). mCherry_PGRP-SA binding to R36AΔlytA was significantly higher (p<0.05, indicated by asterisks) than that observed for the parental strain or R36AΔlytAplytA strain, showing that deletion of the lytA gene in S. pneumoniae increases surface recognition by mCherry_PGRP-SA. Binding of mCherry_PGRP-SA to S. pneumoniae cells was also imaged using fluorescence microscopy (bottom). Gray panels are phase-contrast images of bacterial cells (white scale bar represents 1 µm) and black panels show the mCherry_PGRP-SA binding to bacteria. (B) S. aureus NCTCΔatl cells were incubated with purified pneumococcal amidase (LytA) or with the commercially available mutanolysin, a muramidase from Streptomyces globisporus capable of degrading peptidoglycan into its muropeptide components. Bacterial cells were washed to clear these proteins from the cell surface, labeled with mCherry_PGRP-SA, and imaged by fluorescence microscopy, which showed that both pneumococcal LytA amidase and mutanolysin can prevent detection of NCTCΔatl S. aureus cells by mCherry_PGRP-SA.

https://doi.org/10.7554/eLife.02277.015

These results suggest a general role for autolysins, such as amidases, in protecting bacteria from host recognition.

Discussion

We propose that bacteria have evolved various independent mechanisms to prevent direct recognition by PGN host receptors. We have previously shown that the presence of glycopolymers, such as WTAs, at the bacterial surface contributes to S. aureus evasion from the Drosophila innate immune system (Atilano et al., 2011). We now show that Atl also protects bacteria from host recognition but by a different mechanism, given that simultaneous deletion of tagO (essential for teichoic acid biosynthesis) and atl had a synergistic effect on exposing the surface PGN to host recognition, when compared to individual deletion of each of these genes, as shown in Figure 2C. This new role for Atl is in accordance with previous reports that have shown in the Drosophila infection model that S. aureus atl mutants are impaired in their virulence (Tabuchi et al., 2010).

Bacterial autolysins, or murein hydrolases, are present in most bacteria and have been recognized as important players in bacterial metabolism. Autolysins are required, among other roles, to cleave the pre-existing PGN structure so that new PGN subunits are incorporated during synthesis, to ensure daughter cell separation after complete bacterial division or to prompt antibiotic-induced lysis of bacterial cells (Vollmer et al., 2008; Uehara and Bernhardt, 2011). Autolysins have also been recognized as important virulence factors, as they may act as adhesins (Hell et al., 1998) or be required for biofilm formation (Vollmer et al., 2008; Uehara and Bernhardt, 2011).

The new role for Atl uncovered in this work was surprising, since it has been previously suggested that PGN fragments, released by host enzymes capable of degrading PGN or shed by dividing bacteria during the course of infection, may facilitate host recognition in the context of both NOD receptors and insect PGRPs (Nigro et al., 2008). However, we have now shown that it is precisely this autolysin-mediated ‘trimming’ of PGN (which presumably releases PGN fragments) that renders S. aureus inaccessible to the host.

Direct recognition of PGN seems less likely to play a role in mammalian cells, where PGN is recognized by the intracellular pattern-recognition NOD factors, or in the recognition of Gram-negative bacteria, whose PGN is concealed by the outer membrane, by the Drosophila innate immune system.

We propose that a major mechanism of Gram-positive bacteria recognition in innate immunity is the direct binding of PGRPs to PGN on whole bacteria, which have dedicated proteins, namely amidases or glucosamidases, to trim exposed fragments of PGN. These fragments may extend beyond the teichoic acids layer and, through their removal, bacteria avoid their own recognition and possibly that of their neighbors, by the host innate immune system. Therefore, targeting bacterial autolysins in order to prevent their activity may constitute a new approach to decrease bacterial virulence and potentiate the effectiveness of the host immune system.

Materials and methods

Bacterial strains and growth conditions

All bacterial strains used in this study are listed in Supplementary file 1. Escherichia coli strains were grown in Luria–Bertani broth (LB; Difco, France) or Luria–Bertani agar (LA; Difco) medium at 37°C with aeration. When needed, the antibiotics ampicillin (Amp; Sigma-Aldrich, Germany) and erythromycin (Ery; Sigma-Aldrich) were added at a final concentration of 100 µg/ml, and kanamycin (Km; Sigma-Aldrich) was added at a final concentration of 30 µg/ml. Lactococcus lactis LL108 strain was grown in M17 broth (Difco), supplemented with sucrose (0.5 M) and glucose (0.5% wt/vol) at 30°C without aeration. Erythromycin was used when required at 100 µg/ml. S. aureus strains were grown at 30°C with aeration in tryptic soy broth (TSB; Difco) or on tryptic soy agar (TSA; Difco). Medium was supplemented when required with Ery at 10 µg/ml and/or 5-bromo-4-chloro-3-indolyl β-D-galactopyranoside (X-Gal; Apollo Scientific, UK) at 100 µg/ml. S. pneumoniae was grown in C + Y medium at 37°C, without aeration, or on TSA plates supplemented with 5% vol/vol sheep blood (Probiológica, Portugal). Tetracycline (Sigma-Aldrich) and Ery were used, when required, at 1 µg/ml and 0.25 µg/ml, respectively.

Fly strains

Isogenic Drosophila Bloomington #25174 and #6599 (yw) were used as wild type flies. PGRP_SAseml flies were used as a PGRP-SA mutant background (Michel et al., 2001). Stocks were raised on standard cornmeal-agar medium at 25°C.

Construction of S. aureus and S. pneumoniae mutants

All plasmids used in this study are listed in Supplementary file 1 and the sequences of the primers used are listed in Supplementary file 2.

The S. aureus oatA and fmtA null mutants were constructed using the integrative vector pORI280 (Leenhouts et al., 1996). To delete the oatA gene from the genome of S. aureus NCTC8325-4 we amplified two 1.3 Kb DNA fragments from NCTC8325-4 chromosomal DNA, corresponding to the upstream (primers P1_oatA and P2_oatA) and downstream (primers P3_oatA and P4_oatA) regions of the oatA gene. The upstream fragment was digested with BamHI and NcoI and cloned into pORI280. The downstream PCR fragment was digested with NcoI and BglII and then cloned into the previous plasmid, which already contained the upstream fragment, producing the plasmid pΔoatA. To delete the fmtA gene, we amplified two DNA fragments of approximately 0.9 Kb from S. aureus NCTC8325-4 chromosomal DNA, corresponding to the upstream (primers P5_fmtA and P6_fmtA) and downstream (primers P7_fmtA and P8_fmtA) regions of the fmtA gene. These fragments were joined by overlap PCR using primers P5_fmtA and P8_fmtA. The resulting PCR product was digested with BamHI and BglII, and cloned in the pORI280 plasmid, producing the plasmid pΔfmtA. Plasmids pΔoatA and pΔfmtA were sequenced and electroporated into the transformable RN4220 strain at 30°C (using Ery selection) as previously described (Veiga and Pinho, 2009). The plasmids were then transduced to NCTC8325-4 using the phage 80α. The resulting strains, carrying the plasmids integrated into the chromosome, were grown in liquid media, without antibiotic and at 37°C, for several generations to allow for loss of the plasmid and, consequently, of the lacZ and erm genes. Different dilutions of the cultures were plated on TSA plates containing X-Gal (without Ery) and incubated at 37°C overnight. White colonies were isolated and their sensitivity to erythromycin was confirmed. Absence of the oatA and fmtA genes (NCTCΔoatA and NCTCΔfmtA) was shown by PCR and confirmed by sequence analysis of the amplified DNA fragment.

All other S. aureus null mutants described were constructed using the thermosensitive vector pMAD (Arnaud et al., 2004). In order to generate the arlR null mutant, 0.8 Kb PCR fragments of the upstream and downstream regions of the arlR gene were amplified from chromosomal DNA of NCTC8325-4, using primer pairs P9_arlR/P10_arlR and P11_arlR/P12_arlR. The two PCR products were joined in an overlap PCR reaction using the primers P9_arlR/P12_arlR. The resulting product was digested with NcoI and BglII and cloned into pMAD, giving rise to the pΔarlR plasmid.

To delete the atl gene, the pΔatl plasmid was constructed by amplifying 1 Kb fragments from the downstream and upstream regions of the atl gene, using the primer pairs P13_atl/P14_atl and P15_atl/P16_atl. These two fragments were joined by overlap PCR using the primers P13_atl and P16_atl, and the obtained PCR product was digested with BglII and EcoRI and cloned into the pMAD vector, giving rise to the pΔatl plasmid.

To delete the tarS gene, we amplified by PCR two DNA fragments of approximately 0.6 Kb, corresponding to the upstream (primers P17_tarS/P18_tarS) and downstream (primers P19_tarS/P20_tarS) regions of the tarS gene. The two fragments were joined by overlap PCR, using primers P17_tarS and P20_tarS. The resulting PCR product was digested with BglII and NcoI and cloned into pMAD vector, producing the plasmid pΔtarS.

To delete the dltA gene, two 0.55 Kb DNA fragments were amplified by PCR from the genome of S. aureus NCTC8325-4, corresponding to the upstream (primers P25_dltA/P26_dltA) and downstream (primers P27_dltA/P28_dltA) regions of the dltA gene. The two fragments were joined by overlap PCR using primers P25_dltA and P28_dltA, and the resulting PCR product was digested with BglII and EcoRI and cloned into the pMAD vector, producing the plasmid pΔdltA.

The pΔarlR, pΔatl, pΔtarS, and pΔdltA plasmids were sequenced and electroporated into S. aureus RN4220 strain at 30°C (using Ery selection) and then transduced to NCTC8325-4 using phage 80α. Insertion and excision of the plasmids for deletion of the genes (arlR, atl, tarS, and dltA) from the NCTC8325-4 chromosome was completed as previously described (Arnaud et al., 2004), with the exception of the NCTCΔdltA strain where the last step was performed at 30°C due to the thermosensitive nature of cells lacking the dltA gene. All gene deletions were confirmed by PCR and the resulting strains were named NCTCΔarlR, NCTCΔatl, NCTCΔtarS, and NCTCΔdltA.

To make a NCTCΔatlΔtagO double mutant, the pΔtagO plasmid (Atilano et al., 2010) was transduced into the NCTCΔatl strain using phage 80α, at 30°C due to the thermosensitive nature of cells lacking the tagO gene. The double mutant was identified among the white colonies sensitive to Ery, by PCR and DNA sequencing, as described above.

The point mutants in the Atl amidase (AM) and Atl glucosaminidase (GL) domains were constructed by site-directed mutagenesis. To inactivate the AM domain, the conserved amino acid H265 was exchanged for an alanine (H265A mutation). To inactivate the GL domain, the amino acid residue E1128 was mutated to an alanine (E1128A mutation). To generate the H265A mutation, a 794 bp region upstream from the codon encoding H265 (primers P29_AtlAM and P30_AtlAM) and a 1070 bp region downstream from the codon encoding H265 (primers P31_AtlAM and P32_AtlAM) were amplified from NCTC8325-4 genomic DNA by PCR. Joining of the up and downstream regions by overlap PCR (primers P29_AtlAM and P32_AtlAM) resulted in the amplification of the DNA fragment encoding the mutated Atl amidase domain, which was cloned into the pMAD vector, using BamHI and EcoRI restriction enzymes, to construct plasmid pAMH265A. A similar approach was used to generate the Atl point mutation in the Atl glucosaminidase (GL) domain. Briefly, a 659 bp fragment upstream of the codon encoding E1128 (primers P33_AtlGL and P34_AtlGL) and a 680 bp fragment downstream of the codon encoding E1128 (primers P35_AtlGL and P36_AtlGL) were amplified by PCR. The two fragments were joined by overlap PCR using primers P33_AtlGL and P36_AtlGL, digested and cloned into the EcoRI/BamHI sites of the pMAD vector, yielding plasmid pGLE1128A. After sequencing, plasmids pAMH265A and pGLE1128A were electroporated into RN4220 and then transduced into NCTC8325-4. Insertion into and excision from the chromosome generated S. aureus point mutants in the amidase and glucosaminidase domains. The strains carrying the Atl mutations were verified by sequencing and were named AMH265A and GLE1128A. A double mutant, named AtlH265A/E1128A, mutated in both the amidase and glucosaminidase domains, was constructed by phage transduction of plasmid pGL1128 into the AMH265A strain, followed by insertion into and excision from the chromosome, as described above.

The S. pneumoniae lytA null mutant strain was constructed in the background of R36A strain, using the integrative vector pORI280. To delete the lytA gene, we amplified two 1.0 Kb DNA fragments from R36A chromosomal DNA, corresponding to the upstream (primers P41_LytA and P42_LytA) and downstream (primers P43_LytA and P44_LytA) regions of the lytA gene. The two fragments were then joined by overlap PCR using primers P41_LytA and P44_LytA. The PCR product was digested with BamHI and EcoRI and cloned into plasmid pORI280, producing the plasmid pΔlytA. This plasmid was propagated in L. lactis and purified before being transformed into the unencapsulated S. pneumoniae R36A strain. The R36AΔlytA strain was obtained by insertion and excision of the plasmid into the chromosome, as previously described (Leenhouts et al., 1996). For the construction of a plasmid expressing LytA (plytA), the lytA gene from S. pneumoniae R36A genome was amplified with primers P45_LytA and P46_LytA, digested with NheI and BglII, and cloned into plasmid pBCSLF001 (Henriques et al., 2011).

Construction of recombinant plasmids for AM and GL protein expression

A 3177 bp fragment of the atl gene, missing the pro-peptide sequence, was amplified by PCR using genomic DNA of S. aureus strain COL with primers Pexp1 and Pexp4, which included BamHI and SalI restriction sites. The DNA fragment was purified, digested with the respective restriction enzymes, and cloned into pET28a(+) plasmid (Novagen, Merck Millipore, UK) using E. coli DH5α, yielding pET-AMR1R2R3GL.

To construct a plasmid expressing the AM recombinant protein, plasmid pET-AMR1R2R3GL was used as the template for site-directed mutagenesis using primers Pexp_stop1 and Pexp_stop2, to change codon 775 from AAA (Lys) to TAA (stop codon) resulting in pET-AMR1R2.

To construct a plasmid expressing the GL recombinant protein, primers Pexp2 and Pexp4 with BamHI and SalI restriction sites, were used to amplify a 1446 bp sequence encoding for the GL domain of Atl, using COL genomic DNA as the template. The DNA fragment was purified, digested with the respective restriction enzymes, and cloned into pET28a(+) plasmid using E. coli DH5α, yielding pET-R3GL.

To construct a plasmid expressing protein AMH265A, pET-AMR1R2 was used as the template for site-directed mutagenesis using primers Pexp_H265A1 and Pexp_H265A2, to change codon 265 from GTA (His) to GCA (Ala). A plasmid expressing protein GLE1128A was constructed similarly, using pET-R3GL as the template for directed mutagenesis with primers Pexp_E1228A1 and Pexp_E1228A2, changing codon GAA (Glu) to GCA (Ala). The amplified plasmids were digested with DpnI prior to transformation into E. coli DH5α, resulting in pET-AMH265A and pET-GLE1228A.

The recombinant plasmids (Supplementary file 1) were confirmed by restriction analysis and sequencing and used to transform E. coli BL21(DE3) strain for protein expression.

Protein purification

A functional mCherry-tagged derivative of PGRP-SA protein, mCherry-PGRP-SA, was expressed in E. coli and purified using a cobalt affinity resin (Clontech) as previously described (Atilano et al., 2011).

The AM and GL proteins were expressed as N-terminal 6×His-tag fusion proteins. Expression of the recombinant proteins was performed using an auto-induction based expression method. Cells were grown for 18 h at 37°C with shaking, harvested, and resuspended in 1/10 vol of purification lysis buffer (50 mM NaH2PO4, 10 mM imidazole, 300 mM NaCl, pH 8.0) containing 10 U/ml of benzonase nuclease (Novagen, Merck Millipore) and Complete-Mini Protease Inhibitor Cocktail (Roche, Switzerland). After cell disruption, the lysates were cleared. The recombinant proteins were soluble and therefore present in the supernatant.

Protein purification was performed using Ni-NTA agarose columns (Qiagen, Germany) under native conditions, according to the manufacturer’s instructions. The recombinant proteins were eluted with purification elution buffer (50 mM NaH2PO4, 250 mM imidazole, 300 mM NaCl, pH 8.0). The expression and purification yields were monitored by SDS–PAGE. The most concentrated elution fractions were dialyzed for 16 h in a 3500 MWCO SnakeSkin (Pierce Biotechnology, Rockford, IL) at 4°C, against 100 mM Tris, pH 7.5.

For the purification of S. pneumoniae LytA amidase, E. coli BL21(DE3) cells were transformed with the plasmid pGL100 (Garcia et al., 1987) and incubated overnight at 37°C, with vigorous shaking, in LB supplemented with 100 μg/ml ampicillin and 2% lactose. Cells were harvested by centrifugation, resuspended in 20 mM sodium phosphate buffer, pH 6.9, and broken by sonication. Clarified lysate was applied to DEAE-cellulose resin and incubated at 4°C for 1 h with stirring. Bound protein was washed five times with 20 mM sodium phosphate buffer containing 1.5 M NaCl, then eluted in the same buffer containing 2% choline. Protein was dialyzed against 20 mM sodium phosphate buffer, pH 6.9 to remove the choline and aliquots were stored at −20°C.

mCherry_PGRP-SA binding to bacteria

To quantify mCherry_PGRP-SA binding to bacterial cells, cultures were grown to mid-exponential phase (OD600 nm 0.5), centrifuged, and resuspended in TSB to an OD of 2.5.

Approximately 100 µl of each culture was placed into wells of a 96-well plate and harvested at room temperature (RT) for 5 min at 3600×g. Cells were washed and then resuspended in 100 µl of sterile PBS (pH 6). mCherry_PGRP-SA was added to each well at a final concentration of 60 µg/ml, followed by incubation for 5 min at RT. Cells were then harvested and washed with PBS. The fluorescent signal of the mCherry_PGRP-SA was detected using a 532 nm laser in a Fuji FLA-5100 reader (FUJIFILM Life Science) and the fluorescence intensity of each well was determined using ImageJ software (Abràmoff et al., 2004).

To image the mCherry_PGRP-SA binding to bacterial cell surface by fluorescence microscopy, cells were treated as previously described (Atilano et al., 2011), except that mCherry_PGRP-SA was added to a final concentration of ≈300 µg/ml, in a reaction volume of 200 µl. After labeling, bacterial cells were centrifuged, washed twice with 200 µl of PBS, resuspended in 20 µl of PBS, and observed by fluorescence microscopy.

Preparation of crude autolytic enzyme extracts and zymographic analysis

Preparation and analysis of crude autolytic enzyme extracts from Staphylococcus aureus is described in detail at Bio-protocol (Vaz and Filipe, 2015). Crude autolytic enzyme extracts were prepared from S. aureus cultures grown in TSB to OD600 0.3 at 30°C. The cells were harvested by centrifugation (7000 rpm, 15 min at 4°C), and the cell pellet was washed in 15 ml of ice-cold 50 mM Tris–HCl (pH 7.5), 150 mM NaCl. Cells were resuspended in SDS 4% (500 ml) and incubated for 30 min at 25°C with stirring. Zymographic analysis of the proteins’ peptidoglycan hydrolytic activities was performed as described earlier (Heilmann et al., 1997). Briefly, crude cell lysates or pure proteins isolated as described above were separated by SDS–PAGE on a polyacrylamide gel (10% acrylamide/0.2% bisacrylamide) containing inactivated Micrococcus luteus or S. aureus cells (recovered at mid-exponential phase, washed with water, and heat inactivated by autoclaving at 121°C for 15 min) as a substrate in the resolving gel. Equal amounts of crude extracts (50 μg) or purified proteins (200 ng), quantified in a Nanodrop ND-1000 spectrophotometer (Thermo Scientific, Wilmington, NC), were loaded in the gel. After electrophoresis, gels were washed in deionized H2O for 15 min at RT, and then incubated in renaturation buffer (0.1% Triton X-100, 10 mM CaCl2, 10 mM MgCl2, 50 mM Tris–HCl, pH 7.5) at 37°C with gentle agitation. The zymogram was stained in methylene blue solution (1% methylene blue in KOH 0.01%) for 3 min and destained in water until bands with peptidoglycan hydrolytic activity were observed as clear zones in the opaque gel.

WTA analysis

WTAs were extracted by alkaline hydrolysis from overnight cultures, analyzed by native PAGE, and visualized by combined alcian blue/silver staining, as previously described (Atilano et al., 2010).

Peptidoglycan purification and analysis

Mutanolysin (Sigma)-digested peptidoglycan was prepared from NCTC8325-4 and NCTCΔatl S. aureus strains as previously described (Filipe et al., 2005). The released muropeptides were reduced with sodium borohydride and separated by HPLC on a C18 column (ODS-Hypersyl, 5 μm, 4.6×250 mm; Thermo Scientific) at a flow rate of 0.5 ml/min for 160 min with a gradient from 5% to 30% (vol/vol) methanol in 100 mM NaH2PO4, pH 2.0. The eluted muropeptides were detected by their UV absorption at 206 nm, and their abundance was estimated by calculating the percentage of the integrated area of each peak relative to the total area of the muropeptide peaks, using Shimadzu LC Solution software.

Effect of secreted Atl products on PGRP-SA binding to the surface of bacterial cells

Cell-free supernatants from the S. aureus NCTCΔatl mutant and its parental strain NCTC8325-4 were obtained by harvesting overnight cultures at 10,000×g for 10 min at 4°C, and filtering the supernatants through a 0.22 µm filter (Merck Millipore). Sterility was confirmed by plating the supernatants on TSA plates at 30°C. To image the effect of the secreted Atl products on the PGRP-SA binding, exponentially growing NCTCΔatl and NCTC8325-4 cells (500 µl at OD 0.5) were incubated with the previously isolated cell-free supernatants (500 μl) for 30 min at 30°C. Cells were then washed twice with cold PBS, incubated with mCherry_PGRP-SA, and imaged by fluorescence microscopy.

To quantify mCherry_PGRP-SA binding to the parental and the atl null mutant S. aureus cells pre-treated with secreted Atl products, the cultures were grown to mid-exponential phase (OD ∼0.5), centrifuged, and resuspended in TSB to an OD of ∼2.5. A 100 µl volume of each culture was placed into the wells of a 96-well plate and harvested at RT, 5 min at 3600×g. Cells were washed once with 100 µl of PBS and then resuspended in 100 µl of cell-free supernatants (prepared as described above). After 30 min of incubation at 30°C, the cells were washed twice with 100 µl of PBS. Quantification of mCherry_PGRP-SA binding was done as described above.

Effect of the activities of AM amidase, GL glucosaminidase, LytA amidase, and mutanolysin muramidase on mCherry_PGRP-SA binding to the S. aureus bacterial surface

AM (15.6 and 390.1 nM), GL (18.7 and 467.4 nM), AM plus GL (15.6 and 18.7 nM, respectively), LytA (3.5 nM), and mutanolysin (108.7 nM) were added to 200 µl of PBS-washed NCTCΔatl cells collected during exponential growth (500 µl at OD 0.5). After 30 min incubation at 30°C, cells were washed twice with cold PBS, incubated with mCherry_PGRP-SA as described before, and imaged by fluorescent microscopy.

Dot-blot analysis of AM and GL bound to S. aureus cells

To determine the relative amount of AM and GL still associated with the bacterial cells following the treatment with these two enzymes, cells were treated with AM and GL as described above and washed three times with PBS (control pellets without the enzymes, without washing, or without cells were used). Samples were serially diluted 1:2 to concentrations ranging from 6 µg/ml (undiluted) to 0.37 µg/ml (lowest dilution), and 2 µl were spotted onto a polyvinylidene difluoride (PVDF) membrane (GE Healthcare Life Sciences) and immunostained with specific anti-His mouse antibodies. Washed, unwashed, and control bacterial cells were also labeled with mCherry_PGRP-SA as described above and observed by fluorescence microscopy.

Fluorescence microscopy and image acquisition

Bacterial cells samples (2 µl) incubated with fluorescent tagged mCherry_PGRP-SA were placed on a thin layer of 1% agarose (Bio-Rad) in PBS. For time-lapse microscopy experiments, 2 µl of NCTCΔatl culture, pre-labeled with mCherry-PGRP-SA, were placed on a thin layer of 0.6% agarose containing filtered supernatants of either NCTC8325-4 or NCTCΔatl cells. After 2.5 min, phase contrast and fluorescence images were taken every 30 s for 20.5 min and a final image was acquired after 50 min of incubation. Imaging was performed using a Leica DM 6000B microscope equipped with an iXonEM + EMCCD camera (Andor Technologies), using Metamorph software (Meta Imaging series 7.5). Images were analyzed using ImageJ software (Abràmoff et al., 2004).

Fly survival

Overnight cultures of bacteria (10 ml) were washed and resuspended in PBS so that their final OD600 was 0.350. Healthy looking adult female flies (n = 25), 2–4 days old, were injected in the thorax with 32 nl of a bacterial cell suspension (approximately 100 CFUs) or with PBS, using a nanoinjector (Nanoject II; Drummond Scientific, Broomall, PA), and fly survival was determined as previously described (Atilano et al., 2011). In the fly survival assay for the pathogenicity rescue of atl null mutants, 100 μl of each bacterial cell suspension were incubated with cell-free supernatants of wild type or Δatl mutants (prepared as described above) for 30 min at 30°C. Treated bacterial cells were washed twice, resuspended in an equal volume of PBS and further diluted so that approximately 100 CFUs would be injected per fly. Each experiment was performed in triplicate, on different days. Following injection, flies were kept at 30°C and survival assessed every 12 h over a period of 3 days. Since the trends in survival were the same for each sample of a triplicate (i.e., survival curves were positioned similarly, relative to one another), the three independent biological repeats were combined (n = 75) and estimates of survival curves were plotted.

Fly survival was also tested using PGRP-SA pre-coated S. aureus cells. For that purpose, overnight NCTCΔatl bacterial cells were washed and resuspended in PBS (200 μl; OD600 0.350) and pre-coated with mCherry_PGRP-SA at 300 μg/ml for 5 min at 4°C. Cells were washed once and resuspended in an equal volume of ice-cold PBS. PBS suspensions with non-coated atl cells or containing only mCherry_PGRP-SA (300 μg/ml) were used as experiment controls. Controls and samples were further diluted in PBS (1:250) and used to infect PGRP-SA deficient flies as described above.

The bacterial load per insect during infection was assessed as previously described (Atilano et al., 2011). Six female flies were homogenized in 1000 μl TSB with a micropestle device (VWR, Radnor, PA) until pieces of tissue were no longer visible. Homogenate samples (50 μl) underwent a 10-fold dilution series from 1× to 1/100,000× before being spread onto TSB agar plates and onto mannitol salt agar. The number of CFUs was scored after 24 h at 30°C. Triplicate assays were performed.

Measurements of Drs expression levels

Total RNA was extracted from homogenized female flies (n = 6) using the Total RNA Purification Plus Kit (Norgen, Canada) according to the manufacturers’ instructions. A Maxima First Strand cDNA Synthesis Kit (Thermo Scientific) was used to produce cDNA. The total RNA (500 ng) was mixed with 5× reaction mix buffer (4 μl), Maxima enzyme mix (2 μl), and RNase-free dH2O to a final volume of 20 μl. cDNA was synthesized in a T100 Thermal Cycler (Bio-Rad) and stored at −20°C. Drosomycin (FlyBase annotation symbol: CG10810) and tbp (FlyBase annotation symbol: CG9874) expression levels were measured using primer pairs: Drs (+) and Drs (−); Tbp (+) and Tbp (−). The housekeeping gene tbp (Matta et al., 2011) was used as a control to normalize the expression of the Drs gene. qPCR reactions were performed using the SensiFast SYBR No-ROX Kit (Bioline, UK) as outlined in the manufacturer’s instructions, in a Rotor-Gene Q real-time PCR cycler with a 72-well rotor (Qiagen). Negative controls had an equivalent amount of total RNA or no cDNA template. Three biological repeats were performed per time point. Gene expression was calculated on the basis of the comparative threshold cycle (CT) value (Schmittgen and Livak, 2008). Levels of gene expression in all groups were shown as a ratio to the control group value.

Statistical data analysis

Data for the mCherry_PGRP-SA binding to bacteria assays (n = 10–50) was non-normal but with equal variance, and therefore a non-parametric Kruskal–Wallis test followed by Dunn’s multiple comparison was applied. Estimated survival curves were constructed from the raw data sets and the log-rank (Mantel–Cox) test used to determine statistical significance between the curves. For clarity, 95% confidence intervals have been omitted from the graphs.

When the bacterial CFU numbers in fly survival assays did not present a normal distribution (Lilliefors test, p<0.05), log10 transformation was used. Repeated measures two-way ANOVA was used to analyze significant differences over time and between bacterial strains. Bonferroni post-tests were used to locate the time points where mean values were statistically separable between the two bacterial strains.

Analysis for qPCR data showed that the data followed a normal distribution (Lilliefors test, p>0.1) and had equal variance (Levene’s test, p>0.1). Thus, mean values were plotted with 95% confidence and repeated measures two-way ANOVA was used to look for significant differences between bacterial wild type strain and atl null mutant over time. Bonferroni post-tests were used to locate the time points where mean values were statistically separable between the two bacterial strains.

All data were plotted and analyzed using GraphPad Prism 6 (GraphPad Software).

References

  1. 1
    Image processing with ImageJ
    1. MD Abràmoff
    2. PJ Magalhães
    3. SJ Ram
    (2004)
    Biophotonics International 11:36–42.
  2. 2
  3. 3
  4. 4
    Wall teichoic acids of Staphylococcus aureus limit recognition by the Drosophila peptidoglycan recognition protein-SA to promote pathogenicity
    1. ML Atilano
    2. J Yates
    3. M Glittenberg
    4. SR Filipe
    5. P Ligoxygakis
    (2011)
    PLOS Pathogens 7:e1002421.
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34

Decision letter

  1. Roberto Kolter
    Reviewing Editor; Harvard Medical School, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The two decision letters after peer review are shown below.]

Thank you for choosing to send your work entitled “Bacterial autolysins trim cell surface peptidoglycan to prevent detection by the Drosophila innate immune system” for consideration at eLife. Your full submission has been evaluated by a Senior editor and 3 peer reviewers. One of them was Roberto Kolter, who is a member of our Board of Reviewing Editors. One of two remaining reviewers was Bruno Lamaitre. The third wished to remain anonymous. They reached their consensus decision after discussions amongst them.

In short, they have decided to reject the submission in its present form. They felt that there was still significant amount of experimental work to be done to fully support your interpretation that the autolysin Atl is serving to mask S. aureus and S. pneumonia from Drosophila's innate immune system.

However, they felt that if the additional work would indeed support this main tenet of your conclusions it would be of great interest. Thus, they would be willing to consider a new submission. Specifically, these are the key experiments that they saw lacking in the current work:

1) Complement PGRP-SA null flies with an atl mutant strain pre-coated with PGRP-SA.

2) Use sub-inhibitory concentrations of mutanolysin to trim the outer layer of peptidoglycan and then determine if that abolishes PGRP-SA binding to the atl mutant

3) Infect with a heat-killed atl mutant to determine if that protects the flies from infection with wild-type.

4) Check that the AM or GL mutated proteins are indeed deficient for the enzymatic activity.

5) The levels of Toll pathway activity should be monitored upon injection of wt and atl mutant

6) The persistence of the wt and atl S. aureus should be monitored over time

7) Performing survival experiments using the yw DD as a wild-type fly or use appropriate control

Reviewer 1 (Roberto Kolter):

In general I liked the “bottom line” results of this paper: that an autolysin has the unexpected function of “trimming” peptidoglycan part that would otherwise be exposed on the cell surface. In this way, the cell can better evade the fly's innate immunity. The authors not only show the effect of autolysin mutants on binding by purified fly protein, they also work with purified autolysin and fragments. Importantly, they show effect on adult flies and they extend the findings to Streptococcus. From the perspective of an outsider (I am no expert in cell wall nor innate immunity) these results do appear to have wide implications. However, I did find that the paper could use some polishing in the written style.

Reviewer 2:

Atilano et al present an elegant study on the role of autolysins in escaping innate immune response. The authors extend their observations from their model organism Staphylococcus aureus to Streptococcus pneumonia and present a model for their results. The model proposes that autolysins trim the exposed peptidoglycan to remove any potential binding sites for innate immune receptors of the PGRP family, in this particular case, PGRP-SA. The authors conclude that it is rather binding to the exposed peptidoglycan than detection of release peptidoglycan that is important for host response. I do not agree with their conclusion and model. The authors can only conclude that autolytic activities such as amidases are important for innate immune escape (not novel) but not on the structural nature of the peptidoglycan relevant for detection in vivo (soluble versus surface attached). PGRPs such as PGRP-SA require the stem peptide for detection. Hence, amidase activities are bound to reduce the biological activity of the peptidoglycan, both of the attached as the release one. Amidase treated peptidoglycan or peptidoglycan fragments are no longer ligands for PGRP-SA due to the absolute requirement of both the stem peptide and the sugar backbone for binding. In fact, the Drosophila produces also amidases to dampen the biological activity of circulating peptidoglycan such as PGRP-LB. To conclude that it is PGRP-SA binding to the outer layers of the peptidoglycan rather soluble circulating peptidoglycan fragments that are important for innate immune detection by PGRP-SA, the authors should perform a series of experiments:

First, the authors should functionally complement PGRP-SA null flies with atl mutant strain pre-coated with PGRP-SA. The authors would have to demonstrate that the same amount of circulating recombinant PGRP-SA is unable to initiate alone a host response and that none of the pre-coated PGRP-SA is released into circulation from the bacterial surface during the period of the experiment. Otherwise, the authors should moderate their conclusions on the nature of the peptidoglycan that is important for PGRP-SA mediate response.

Second, if their model is correct, the trimming of the outer layers of the peptidoglycan by sub-inhibitory concentrations of mutanolysin should abolish PGRP-SA binding to the atl mutant without affecting the biological activity of the released peptidoglycan. The supernatants should induce a PGRP-SA-dependent host response, while the atl mutant would see its virulence restored in vivo because it would not be able to bind circulating PGRP-SA on its surface.

Third, if surface binding alone is important, then co-infection of lethal doses of the wild type S. aureus strain should be countered by the host response triggered by co-administration of the heat-killed atl mutant. The heat-killed alt mutant should recruit to the surface PGRP-SA triggering a host response able to coop with the wild type strain. By definition, heat-killed atl mutant should not release circulating peptidoglycan at all.

Fourth, the authors should confirm that the mutations introduced in Atl to inactivate the amidase and the glucosaminidase activity do indeed abolish their activity (zymogram assay for example). More importantly, the authors must provide evidence that these mutations do not create overall protein misfolding in which case the authors can not conclude that it is the two activities that are required, only the entire protein. Atl has the R1, R2 and R3 domains that besides mediating Atl binding to the bacteria cell surface, they mediate also interactions with matrix proteins or biofilm formation, among other properties. If the protein fold is maintained, these properties that are independent of the enzymatic activity should not change.

Reviewer 3:

Staphylococcus aureus is a highly pathogenic bacterium to many hosts including Drosophila and mammals. The Filipe group analyzes the mechanism allowing this bacterium to be hidden from pattern-recognition detection. They have previously shown that teichoic acid protects S. aureus from being detected by PGRP-SA, a secreted pattern-recognition receptor of Drosophila that interacts with peptidoglycan. In this study Atilano et al. report the identification of one gene, atl, encoding an autolysin that reduces the binding of PGRP-SA to S. aureus. They also show that the S. aureus atl mutant is less virulent towards Drosophila in vivo (as previously reported by another paper, Tabuchi et al.). They also show that both teichoic acid and Atl synergistically reduce the immunogenicity of S. aureus. Based on their data, they propose a model in which the autolysin Atl trims peptidoglycans, reducing its exposure to secreted pattern-recognition receptors. To my knowledge, this work uncovers a new mechanism for autolysin in preventing the detection of Gram-positive bacteria by host peptidoglycan sensors. The paper is a very interesting and contains many striking results. However, it still lacks critical experiments to clearly establish that Atl affects Toll activation by S. aureus in vivo.

1) The authors claim that Atl trims peptidoglycan (PGN) from bacterial surfaces but do not provide any direct evidence for that. They even say that PGN from the atl mutant does not differ from wild-type PGN. Is there a way of monitoring PGN exposed at the bacterial surface? If not, I might be a bit more cautious in the wording saying that their data are compatible with a model in which Atl trims PGN, thereby reducing PGRP recognition.

2) In vivo analysis

This is a key aspect of the paper. All the previous experiments nicely show that Atl contributes to conceal PGN from PGRP-SA binding. This is however not fully unexpected because Atl has PGN hydrolysis activity. The important point is therefore to know if Atl does indeed contribute to conceal S. aureus from Toll activation in vivo. More work should be performed to substantiate this point by adding the following experiments:

- Experiments in Figure 8 show that Atl contributes to S. aureus virulence but they do not show if this is linked to a higher activation of the Toll pathway. The levels of Toll pathway activity should be monitored upon injection of wt and atl S. aureus. (It is possible that the effect on PGRP-SA is masked by the activation of the psh pathway by proteases released from S. aureus. In this case, Toll pathway activity should be monitored in psh mutants upon injection wt and atl S. aureus.) Those experiences are easy to perform.

- The persistence of the wt and atl S. aureus (at 2-3 times points) should be monitored. This will tell us whether the lower pathogenicity correlates with a lower proliferation rate of the bacterium. This experiment is also essential to understand how Atl influences Toll pathway activity (point 2b)

3) Results concerning the synergistic action of TagO and Atl should be moved to the Results section rather than briefly mentioned in the Discussion. Survival analysis of flies infected with simple and double mutants could be presented as well as persistence and Toll pathway activation.

4) To my knowledge, PGRP-SA (seml) is a mutation that was generated in the yw, DD background. Therefore, I question the notion that the wild-type strain used in the study (Isogenic Drosophila Bloomington#25174) is isogenic to the PGRP-SA mutant stock. If I am right, I would recommend performing survival experiments using the yw DD as a wild-type. Note that the use of the yw background is far from being ideal (the y mutation tends to make flies more susceptible to infection). Ideally, survival should be performed in y+,w+ background (easy to do by comparing wild-type with ywDD,PGRP-SA/Def(PGRP-SA).

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled “Bacterial autolysins trim cell surface peptidoglycan to prevent detection by the Drosophila innate immune system” for further consideration at eLife. Your revised article has been favorably evaluated by a Senior editor, a member of the Board of Reviewing Editors (Roberto Kolter) and 2 Reviewers. The manuscript is much improved but there are some remaining issues that need to be addressed before acceptance.

1) Authors were asked to perform the trimming assay with mutanolysin. The authors indicate this was done and worked just like Atl. This is an important result to support their model but they decided to leave it out of the manuscript. The reviewers feel the result should be included in the manuscript.

2) There might be many reasons for the heat-killed experiment not working and that Toll activation alone might not be sufficient. Indeed, phagocytosis might be more important than Toll activation and antimicrobial peptide production. Thus, binding of PGRP-SA would be essential and the wild-type S. aureus would still escape. However, the Toll activation should be restored. Is that the case?

3) The authors have indicated that they have performed statistical analysis of their experiments and added it to the figure legends. In some figures, indeed, the statistics is immediately apparent with the presence of asterisks. However, in all the fly experiments, this information is difficult to find. The authors should add the same information in the figures for the fly experiments. In particular, Figure 7B is of importance because if the model is correct the addition of PGRP-SA to alt mutants should restore survival. There is an increased survival in time but not in absolute numbers. I could not find in the text if this difference is statistically significant or not. Importantly, the addition of PGRP-SA does not restore fly survival to the levels of the parental background (Figure 6B). First, the authors should indicate whether it is statistically different or not and comment on the eventual (or not if not significantly different) partial complementation.

4) It would have been better to extend the persistence analysis in Figure 5F (as in Figure 5A). The effect of the atl deficiency on Drosomycin activation is modest and observed only at the 12 h time point. Why? A possible explanation is that S. aureus can also activate the Toll pathway by the protease route and that PGRP-SA is not be only important for Toll pathway activation but also for inducing the melanization cascade (see first figure of the Bishoff PGRP-SD paper). Would it be possible to analyze the effect of Atl in S. aureus that do not divide? It is true that these experiments are not easy to perform. If this is the case, that fact should at least be discussed.

https://doi.org/10.7554/eLife.02277.018

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

1) Complement PGRP-SA null flies with an atl mutant strain pre-coated with PGRP-SA.

Successfully done: see Answer 3.

2) Use sub-inhibitory concentrations of mutanolysin to trim the outer layer of peptidoglycan and then determine if that abolishes PGRP-SA binding to the atl mutant

Successfully done: see Answer 4.

3) Infect with a heat-killed atl mutant to determine if that protects the flies from infection with wild-type.

Done, but the presence of heat killed did not protect flies from infection with wild type.

See explanation in Answer 5 and alternative experiment described in Answer 2.

4) Check that the AM or GL mutated proteins are indeed deficient for the enzymatic activity.

Successfully done: see Answer 6.

5) The levels of Toll pathway activity should be monitored upon injection of wt and atl mutant.

Successfully done: see Answer 8.

6) The persistence of the wt and atl S. aureus should be monitored over time.

Successfully done: see Answer 9.

7) Performing survival experiments using the yw DD as a wild-type fly or use appropriate control.

Successfully done: see Answer 11.

Reviewer 1 (Roberto Kolter):

In general I liked the “bottom line” results of this paper: that an autolysin has the unexpected function of “trimming” peptidoglycan part that would otherwise be exposed on the cell surface. In this way, the cell can better evade the fly's innate immunity. The authors not only show the effect of autolysin mutants on binding by purified fly protein, they also work with purified autolysin and fragments. Importantly, they show effect on adult flies and they extend the findings to Streptococcus. From the perspective of an outsider (I am no expert in cell wall nor innate immunity) these results do appear to have wide implications. However, I did find that the paper could use some polishing in the written style.

Answer 1. All suggested changes were made in the manuscript.

Reviewer 2:

Atilano et al present an elegant study on the role of autolysins in escaping innate immune response. The authors extend their observations from their model organism Staphylococcus aureus to Streptococcus pneumonia and present a model for their results. The model proposes that autolysins trim the exposed peptidoglycan to remove any potential binding sites for innate immune receptors of the PGRP family, in this particular case, PGRP-SA. The authors conclude that it is rather binding to the exposed peptidoglycan than detection of release peptidoglycan that is important for host response. I do not agree with their conclusion and model. The authors can only conclude that autolytic activities such as amidases are important for innate immune escape (not novel) but not on the structural nature of the peptidoglycan relevant for detection in vivo (soluble versus surface attached). PGRPs such as PGRP-SA require the stem peptide for detection. Hence, amidase activities are bound to reduce the biological activity of the peptidoglycan, both of the attached as the release one. Amidase treated peptidoglycan or peptidoglycan fragments are no longer ligands for PGRP-SA due to the absolute requirement of both the stem peptide and the sugar backbone for binding. In fact, the Drosophila produces also amidases to dampen the biological activity of circulating peptidoglycan such as PGRP-LB.

Answer 2. We thank the reviewer for making an important point regarding two possible mechanisms for the role of Atl, which indeed were valid and we had not addressed in the original manuscript.

The second paragraph in the Results section entitled “Trimming of the bacterial cell surface by Atl PGN hydrolytic activities recovers the ability of S. aureus atl mutant bacteria to kill infected Drosophila” now clearly state two non-mutually exclusive hypotheses for the decreased virulence of the atl mutant:

Hypothesis 1: S. aureus wild type bacteria produce amidase that cleaves the stem peptide moiety of soluble PGN fragments, which is required for binding of PGRPs to PGN, therefore reducing the inflammatory activity of the soluble PGN. However, the atl mutant would release intact muropeptides, easily detected by PGRP-SA, and therefore would be unable to evade detection by the innate immune system;

Hypothesis 2: S. aureus wild type bacteria shave and remove accessible PGN fragments at the surface of bacteria, eliminating the binding sites for PGRPs. However, the atl mutant would have extending PGN fragments at its surface, which would be easily detected by PGRP-SA, inducing an immune response.

We performed the experiments suggested by the reviewer (see below) to address this question, but we also tried to come up with a more direct way of distinguishing the two hypotheses. We reasoned that if the first hypothesis was predominantly correct, inactivation of the amidase activity, but not of the glucosaminidase (which cleaves the glycans and therefore releases intact, inflammatory PGN fragments), should result in decreased virulence. Alternatively, if the second hypothesis was predominantly correct, as favored in our manuscript, inactivation of either the amidase or the glucosaminidase activity should result in decreased virulence, as both activities shave detectable PGN (containing peptides) from the bacteria surface.

We therefore infected flies with bacteria with impaired amidase activity (AMH265A) or impaired glucosaminidase activity (GLE1128A) and observed that both were impaired in their ability to kill flies, similarly to the atl null mutant, in accordance with the second hypothesis (Figure 7A). Although the effect of Atl on soluble PGN fragments may have a role, we think this experiment clearly supports our original model.

To conclude that it is PGRP-SA binding to the outer layers of the peptidoglycan rather soluble circulating peptidoglycan fragments that are important for innate immune detection by PGRP-SA, the authors should perform a series of experiments:

First, the authors should functionally complement PGRP-SA null flies with atl mutant strain pre-coated with PGRP-SA. The authors would have to demonstrate that the same amount of circulating recombinant PGRP-SA is unable to initiate alone a host response and that none of the pre-coated PGRP-SA is released into circulation from the bacterial surface during the period of the experiment. Otherwise, the authors should moderate their conclusions on the nature of the peptidoglycan that is important for PGRP-SA mediate response.

Answer 3. As suggested, we have complemented PGRP-SA null flies with the atl mutant strain pre-coated with PGRP-SA. In accordance to the reviewer prediction, seml flies infected with these pre-coated bacteria were capable of resisting better the bacterial infection, when compared with flies infected with PGRP-SA uncoated bacteria, as shown in Figure 7B. Although we know that PGRP-SA stays bound to the surface (see timelapse in Figure 9), we cannot determine the amount of the pre-coated PGRP-SA released into the haemolymph during the time of the experiment.

Second, if their model is correct, the trimming of the outer layers of the peptidoglycan by sub-inhibitory concentrations of mutanolysin should abolish PGRP-SA binding to the atl mutant without affecting the biological activity of the released peptidoglycan. The supernatants should induce a PGRP-SA-dependent host response, while the atl mutant would see its virulence restored in vivo because it would not be able to bind circulating PGRP-SA on its surface.

Answer 4. As suggested we have used mutanolysin to shave surface peptidoglycan. As expected PGRP-SA was unable to bind bacterial atl mutant cells treated with mutanolysin. Given the large number of figures already included in the manuscript, we did not include these results, as mutanolysin has the same activity as glucosaminidase, whose effect is shown Figure 4.

Third, if surface binding alone is important, then co-infection of lethal doses of the wild type S. aureus strain should be countered by the host response triggered by co-administration of the heat-killed atl mutant. The heat-killed alt mutant should recruit to the surface PGRP-SA triggering a host response able to coop with the wild type strain. By definition, heat-killed atl mutant should not release circulating peptidoglycan at all.

Answer 5. We have done the suggested experiment but co-administration of wild type bacteria and heat-killed atl mutant cells, did not have an observed effect. A possibility is that PGRP-SA binding to a specific bacterium, not just the activation of the Toll pathway, is required for its elimination by the innate immune response.

Fourth, the authors should confirm that the mutations introduced in Atl to inactivate the amidase and the glucosaminidase activity do indeed abolish their activity (zymogram assay for example). More importantly, the authors must provide evidence that these mutations do not create overall protein misfolding in which case the authors can not conclude that it is the two activities that are required, only the entire protein. Atl has the R1, R2 and R3 domains that besides mediating Atl binding to the bacteria cell surface, they mediate also interactions with matrix proteins or biofilm formation, among other properties. If the protein fold is maintained, these properties that are independent of the enzymatic activity should not change.

Answer 6. We have performed the suggested zymogram and shown that mutations introduced in Atl to inactivate the amidase and the glucosaminidase activity do indeed abolish only the targeted activity, as seen in Figure 3B.

Reviewer 3:

Staphylococcus aureus is a highly pathogenic bacterium to many hosts including Drosophila and mammals. The Filipe group analyzes the mechanism allowing this bacterium to be hidden from pattern-recognition detection. They have previously shown that teichoic acid protects S. aureus from being detected by PGRP-SA, a secreted pattern-recognition receptor of Drosophila that interacts with peptidoglycan. In this study Atilano et al. report the identification of one gene, atl, encoding an autolysin that reduces the binding of PGRP-SA to S. aureus. They also show that the S. aureus atl mutant is less virulent towards Drosophila in vivo (as previously reported by another paper, Tabuchi et al.). They also show that both teichoic acid and Atl synergistically reduce the immunogenicity of S. aureus. Based on their data, they propose a model in which the autolysin Atl trims peptidoglycans, reducing its exposure to secreted pattern-recognition receptors. To my knowledge, this work uncovers a new mechanism for autolysin in preventing the detection of Gram-positive bacteria by host peptidoglycan sensors. The paper is a very interesting and contains many striking results. However, it still lacks critical experiments to clearly establish that Atl affects Toll activation by S. aureus in vivo.

1) The authors claim that Atl trims peptidoglycan (PGN) from bacterial surfaces but do not provide any direct evidence for that. They even say that PGN from the atl mutant does not differ from wild-type PGN. Is there a way of monitoring PGN exposed at the bacterial surface? If not, I might be a bit more cautious in the wording saying that their data are compatible with a model in which Atl trims PGN, thereby reducing PGRP recognition.

Answer 7. We cannot directly monitor PGN exposed at the bacterial surface. As suggested by the reviewer, we have rephrase the text that stated that PGN from atl mutants does not differ from wild-type PGN in order to highlight that they had the same muropeptide PGN composition (second paragraph of the Results section) and that Atl presumably release PGN fragments (final paragraph of the section entitled “Trimming of the bacterial cell surface by Atl PGN hydrolytic activities recovers the ability of S. aureus atl mutant bacteria to kill infected Drosophila”.

2) In vivo analysis

This is a key aspect of the paper. All the previous experiments nicely show that Atl contributes to conceal PGN from PGRP-SA binding. This is however not fully unexpected because Atl has PGN hydrolysis activity. The important point is therefore to know if Atl does indeed contribute to conceal S. aureus from Toll activation in vivo. More work should be performed to substantiate this point by adding the following experiments:

- Experiments in Figure 8 show that Atl contributes to S. aureus virulence but they do not show if this is linked to a higher activation of the Toll pathway. The levels of Toll pathway activity should be monitored upon injection of wt and atl S. aureus. (It is possible that the effect on PGRP-SA is masked by the activation of the psh pathway by proteases released from S. aureus. In this case, Toll pathway activity should be monitored in psh mutants upon injection wt and atl S. aureus.) Those experiences are easy to perform.

Answer 8. We have monitored the levels of the Toll pathway using drosomycin expression as a reporter. When the level of drosomycin expression was normalized for the number of bacteria present in infected flies at each particular time point, the activation of the drosomycin expression was higher for the atl mutant than for the wild type S. aureus strain at 12 h post-infection (Figures 6C and D).

- The persistence of the wt and atl S. aureus (at 2-3 times points) should be monitored. This will tell us whether the lower pathogenicity correlates with a lower proliferation rate of the bacterium. This experiment is also essential to understand how Atl influences Toll pathway activity (point 2b).

Answer 9. We have monitored the persistence of wt and atl S. aureus strains in the seml flies and found identical number of the two bacterial strains (Figure 6F), showing that the atl mutant is able to grow well in Drosophila flies. Even when injected into wild type flies, the atl S. aureus cells are able to grow as well as the wild type during the initial period of infection (6 h), before the activation of drosomycin is observed and atl mutant bacteria start being eliminated by the immune system (Figure 6C)

3) Results concerning the synergistic action of TagO and Atl should be moved to the Results section rather than briefly mentioned in the Discussion. Survival analysis of flies infected with simple and double mutants could be presented as well as persistence and Toll pathway activation.

Answer 10. As requested, we have moved the results of the synergistic action of TagO and Atl to the results (new panel Figure 2C). These experiments aimed only at showing that the role of Atl in PGRP-SA binding was different from that of TagO. We did not aim to characterize an Atl TagO double mutant in this manuscript and for that reason we did not include new data on the double mutant.

4) To my knowledge, PGRP-SA (seml) is a mutation that was generated in the yw, DD background. Therefore, I question the notion that the wild-type strain used in the study (Isogenic Drosophila Bloomington#25174) is isogenic to the PGRP-SA mutant stock. If I am right, I would recommend performing survival experiments using the yw DD as a wild-type. Note that the use of the yw background is far from being ideal (the y mutation tends to make flies more susceptible to infection). Ideally, survival should be performed in y+,w+ background (easy to do by comparing wild-type with ywDD,PGRP-SA/Def(PGRP-SA)

Answer 11. As requested, we have performed the survival experiments using yw (Bloomington#6599) background. The results were similar to the ones previously obtained with the Bloomington#25174 and are shown in Figure 6B.

[Editors’ note: the author responses to the re-review follow.]

1) Authors were asked to perform the trimming assay with mutanolysin. The authors indicate this was done and worked just like Atl. This is an important result to support their model but they decided to leave it out of the manuscript. The reviewers feel the result should be included in the manuscript.

These results are now shown in Figure 11B and these experiments are referred in the manuscript (at the end of the Results section).

2) There might be many reasons for the heat-killed experiment not working and that Toll activation alone might not be sufficient. Indeed, phagocytosis might be more important than Toll activation and antimicrobial peptide production. Thus, binding of PGRP-SA would be essential and the wild-type S. aureus would still escape. However, the Toll activation should be restored. Is that the case?

The reviewer had initially asked us to test the following whether: “co-infection of lethal doses of the wild type S. aureus strain should be countered by the host response triggered by coadministration of the heat-killed atl mutant”.

Therefore the experiment done was co-infecting wt flies with wt S. aureus mixed with heat killed atl mutants cells. Given that the flies were wt, the Toll pathway was intact from the beginning. Given that wt S. aureus cells were injected, activation of the Toll pathways was expected and observed as shown in Figure 6.

Nevertheless, we agree with the reviewer that there might indeed be multiple reasons why the heat-killed experiment did not work. As mentioned by the reviewer one other such factor is phagocytosis. However, there is no link between PGRP-SA and phagocytosis as shown by Dominique Ferrandon and colleagues (Nehme et al PLoS One 6, e14743, 2011). We also don´t think opsonisation is happening here. In our PLoS Pathogens paper (Atilano et al 2011, PLoS Pathog 7, e1002421) we described how during host defence against another S. aureus mutant (TagO) that binds more PGRP-SA, bacterial killing by the host is dependent on PGRP-SA but not on Toll/NF-kB. This shows that as long as there is good access to peptidoglycan for PGRP-SA to bind around the cell surface of the bacterium, bacteria can be eliminated quickly and so Toll signalling is dispensable. Evidence from other insects (especially the very detailed work on the beetle Tenebrio molitor by the Lee lab over a number of years – for a very nice review of their work see Park et al Adv Exp Med Biol 708, p163, 2010) point towards the assembly of a “killing” complex that has to do with melanisation, an insect-specific response resembling complement activation. Ligoxygakis and Atilano are actively pursuing this line of research but we believe that it is beyond the scope of the present study.

3) The authors have indicated that they have performed statistical analysis of their experiments and added it to the figure legends. In some figures, indeed, the statistics is immediately apparent with the presence of asterisks. However, in all the fly experiments, this information is difficult to find. The authors should add the same information in the figures for the fly experiments. In particular, Figure 7B is of importance because if the model is correct the addition of PGRP-SA to alt mutants should restore survival. There is an increased survival in time but not in absolute numbers. I could not find in the text if this difference is statistically significant or not. Importantly, the addition of PGRP-SA does not restore fly survival to the levels of the parental background (Figure 6B). First, the authors should indicate whether it is statistically different or not and comment on the eventual (or not if not significantly different) partial complementation.

The requested information was introduced in Figures 6, 7, 8 and 10, which now show asterisks to indicate curves whose difference to wt is statistically significant. This information is also detailed in the corresponding legends

A comment on the partial complementation was introduced in the last paragraph of the Results section entitled “Trimming of the bacterial cell surface by Atl PGN hydrolytic activities recovers the ability of S. aureus atl mutant bacteria to kill infected Drosophila”.

4) It would have been better to extend the persistence analysis in Figure 5F (as in Figure 5A). The effect of the atl deficiency on Drosomycin activation is modest and observed only at the 12 h time point. Why? A possible explanation is that S. aureus can also activate the Toll pathway by the protease route and that PGRP-SA is not be only important for Toll pathway activation but also for inducing the melanization cascade (see first figure of the Bishoff PGRP-SD paper). Would it be possible to analyze the effect of Atl in S. aureus that do not divide? It is true that these experiments are not easy to perform. If this is the case, that fact should at least be discussed.

The persistent analysis in Figure 5F was not extended because the flies died. As mentioned above we also believe that melanisation plays a role but that is beyond the scope of this paper as are the experiments proposed in relation to S. aureus non-dividing mutants. However, we have discussed the point on melanisation extensively in Atilano et al 2011, PLoS Pathog 7, e1002421. Wild type S. aureus may activate Toll via the protease route. However, host killing of the atl (this work) and TagO (Atilano et al 2011, PLoS Pathog 7, e1002421) mutants is PGRP-SA dependent but Toll-independent. The point we want to make is not about host killing of wild type S. aureus. The point we want to explore by generating these bacterial mutants is how host defense changes when the bacterial surface is changing. This reveals not only the requirement for concealing pathogen-associated molecules from the host but also how the host might compensate when bacteria try to evade recognition.

https://doi.org/10.7554/eLife.02277.019

Article and author information

Author details

  1. Magda Luciana Atilano

    1. Laboratory of Bacterial Cell Surfaces and Pathogenesis, Instituto de Tecnologia Química e Biológica, Universidade Nova de Lisboa (ITQB-UNL), Oeiras, Portugal
    2. Genes and Development Laboratory, Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Contribution
    MLA, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Contributed equally with
    Pedro Matos Pereira
    Competing interests
    The authors declare that no competing interests exist.
  2. Pedro Matos Pereira

    Laboratory of Bacterial Cell Biology, Instituto de Tecnologia Química e Biológica, Universidade Nova de Lisboa (ITQB-UNL), Oeiras, Portugal
    Contribution
    PMP, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Contributed equally with
    Magda Luciana Atilano
    Competing interests
    The authors declare that no competing interests exist.
  3. Filipa Vaz

    Laboratory of Bacterial Cell Surfaces and Pathogenesis, Instituto de Tecnologia Química e Biológica, Universidade Nova de Lisboa (ITQB-UNL), Oeiras, Portugal
    Contribution
    FV, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  4. Maria João Catalão

    Laboratory of Bacterial Cell Surfaces and Pathogenesis, Instituto de Tecnologia Química e Biológica, Universidade Nova de Lisboa (ITQB-UNL), Oeiras, Portugal
    Contribution
    MJC, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  5. Patricia Reed

    Laboratory of Bacterial Cell Biology, Instituto de Tecnologia Química e Biológica, Universidade Nova de Lisboa (ITQB-UNL), Oeiras, Portugal
    Contribution
    PR, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  6. Inês Ramos Grilo

    Laboratory of Molecular Genetics, Instituto de Tecnologia Química e Biológica, Universidade Nova de Lisboa (ITQB-UNL), Oeiras, Portugal
    Contribution
    IRG, Acquisition of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  7. Rita Gonçalves Sobral

    Departamento de Ciências da Vida, Centro de Recursos Microbiologicos (CREM), Faculdade de Ciências e Tecnologia, Universidade Nova de Lisboa, Caparica, Portugal
    Contribution
    RGS, Acquisition of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  8. Petros Ligoxygakis

    Genes and Development Laboratory, Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Contribution
    PL, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  9. Mariana Gomes Pinho

    Laboratory of Bacterial Cell Biology, Instituto de Tecnologia Química e Biológica, Universidade Nova de Lisboa (ITQB-UNL), Oeiras, Portugal
    Contribution
    MGP, Conception and design, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  10. Sérgio Raposo Filipe

    Laboratory of Bacterial Cell Surfaces and Pathogenesis, Instituto de Tecnologia Química e Biológica, Universidade Nova de Lisboa (ITQB-UNL), Oeiras, Portugal
    Contribution
    SRF, Conception and design, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    For correspondence
    sfilipe@itqb.unl.pt
    Competing interests
    The authors declare that no competing interests exist.

Funding

Fundação para a Ciência e Tecnologia (PTDC/SAU-IMU/111806/2009)

  • Sérgio Raposo Filipe

Wellcome Trust (WT087680)

  • Petros Ligoxygakis

European Research Council (ERC-2012-StG-310987)

  • Mariana Gomes Pinho

Fundação para a Ciência e Tecnologia (PTDC/BIA-MIC/111817/2009)

  • Sérgio Raposo Filipe

Fundação para a Ciência e Tecnologia (PTDC/BIA-BCM/099152/2008)

  • Mariana Gomes Pinho

Fundação para a Ciência e Tecnologia (PTDC/BIA-MIC/101375/2008)

  • Rita Gonçalves Sobral

Fundação para a Ciência e Tecnologia (PEst-OE/EQB/LA0004/2011)

  • Mariana Gomes Pinho
  • Sérgio Raposo Filipe

Fundação para a Ciência e Tecnologia (Fellowship SFRH/BD/28440/2006)

  • Magda Luciana Atilano

Fundação para a Ciência e Tecnologia (Fellowship SFRH/BD/41119/2007)

  • Pedro Matos Pereira

Fundação para a Ciência e Tecnologia (Fellowship SFRH/BD/78748/2011)

  • Filipa Vaz

Fundação para a Ciência e Tecnologia (Fellowship SFRH/BD/77758/2011)

  • Maria João Catalão

Fundação para a Ciência e Tecnologia (Fellowship SFRH/BD/23812/2005)

  • Patricia Reed

Fundação para a Ciência e Tecnologia (Fellowship SFRH/BD/70162/2010)

  • Inês Ramos Grilo

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This study was funded by Fundação para a Ciência e Tecnologia (FCT), Lisbon, Portugal, through research grants PTDC/SAU-IMU/111806/2009 and PTDC/BIA-MIC/111817/2009 (SRF), PTDC/BIA-BCM/099152/2008 (MGP), PTDC/BIA-MIC/101375/2008 (RGS) and PEst-OE/EQB/LA0004/2011. Wellcome Trust funded grant WT087680 (PL). ERC funded grant ERC-2012-StG-310987 (MGP). MLA, PMP, FV, MJC, PR, and IRG were supported by FCT fellowships SFRH/BD/28440/2006, SFRH/BD/41119/2007, SFRH/BD/78748/2011, SFRH/BPD/77758/2011, SFRH/BPD/23812/2005, and SFRH/BD/70162/2010, respectively.

Reviewing Editor

  1. Roberto Kolter, Reviewing Editor, Harvard Medical School, United States

Publication history

  1. Received: January 10, 2014
  2. Accepted: February 20, 2014
  3. Version of Record published: April 1, 2014 (version 1)
  4. Version of Record updated: June 2, 2017 (version 2)

Copyright

© 2014, Atilano et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,696
    Page views
  • 223
    Downloads
  • 12
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Immunology and Inflammation
    Bronwen R Burton et al.
    Short Report Updated
    1. Immunology and Inflammation
    2. Microbiology and Infectious Disease
    Jonas Klinkhammer et al.
    Research Article Updated
