SETD2 is required for DNA double-strand break repair and activation of the p53-mediated checkpoint

  1. Sílvia Carvalho
  2. Alexandra C Vítor
  3. Sreerama C Sridhara
  4. Filipa B Martins
  5. Ana C Raposo
  6. Joana MP Desterro
  7. João Ferreira
  8. Sérgio F de Almeida  Is a corresponding author
  1. Instituto de Medicina Molecular, Faculdade de Medicina da Universidade de Lisboa, Portugal
Research Article
  • Cited 76
  • Views 3,956
  • Annotations
Cite as: eLife 2014;3:e02482 doi: 10.7554/eLife.02482

Abstract

Histone modifications establish the chromatin states that coordinate the DNA damage response. In this study, we show that SETD2, the enzyme that trimethylates histone H3 lysine 36 (H3K36me3), is required for ATM activation upon DNA double-strand breaks (DSBs). Moreover, we find that SETD2 is necessary for homologous recombination repair of DSBs by promoting the formation of RAD51 presynaptic filaments. In agreement, SETD2-mutant clear cell renal cell carcinoma (ccRCC) cells displayed impaired DNA damage signaling. However, despite the persistence of DNA lesions, SETD2-deficient cells failed to activate p53, a master guardian of the genome rarely mutated in ccRCC and showed decreased cell survival after DNA damage. We propose that this novel SETD2-dependent role provides a chromatin bookmarking instrument that facilitates signaling and repair of DSBs. In ccRCC, loss of SETD2 may afford an alternative mechanism for the inactivation of the p53-mediated checkpoint without the need for additional genetic mutations in TP53.

https://doi.org/10.7554/eLife.02482.001

eLife digest

Normal wear and tear, exposure to chemicals, and ultraviolet light can all damage DNA, so cells rely on a range of sensors and mechanisms to detect and repair damaged DNA. Cells also package DNA molecules inside structures called histones to protect them against damage.

Double-strand breaks—one of the most serious forms of DNA damage—are detected by an enzyme called ATM, and can be repaired in two ways. Bringing the broken strands back together is an obvious method, but it is also error prone. Using templates to generate new DNA to repair the damage is less prone to error, but it can only happen at certain times of the cell cycle.

Some cancers are linked to the faulty repair of double-strand breaks. Moreover, a type of kidney cancer called clear cell renal carcinoma is linked to a lack of activity by a protein called p53, even in individuals who don't have mutations in the gene for this protein. However, many people with this type of cancer have mutations in the gene for a protein called SETD2.

To investigate the links between SETD2 and DNA repair, Carvalho et al. compared cells with and without mutations in the gene for SETD2. It emerged that SETD2 must be present for DNA repair to take place: the SETD2 modifies the histones so that they can recruit the enzymes that repair the DNA via the template approach (which is relatively error free). SETD2 may be particularly important for repairing damage to genes without introducing errors.

Carvalho et al. also show that mutations in SETD2 are sufficient to inactivate p53. The gene for this protein, which impedes the proliferation of cells with genomic aberrations, such as double-strand breaks, is mutated in most cancers. Overall the results help to illustrate how histone modifications and the DNA damage repair mechanisms and checkpoints work in concert to suppress cancer.

https://doi.org/10.7554/eLife.02482.002

Introduction

DNA double-strand breaks (DSBs) are the most catastrophic form of DNA damage and pose great threat to genome stability. The major sensor of DSBs is ataxia telangiectasia mutated (ATM) kinase, which is critical for the initial steps of the DNA damage response (DDR). In response to DSBs, ATM phosphorylates and regulates the activity of several substrates involved in DNA repair, such as p53-binding protein 1 (53BP1) and histone H2AX (Matsuoka et al., 2007). To effectively repair a DSB, mammalian cells can choose from two different DDR pathways: nonhomologous end-joining (NHEJ) and homologous recombination (HR) (Chapman et al., 2012). During NHEJ, the broken DNA ends are blocked from 5′ end resection and held in close proximity by the Ku70-Ku80 heterodimer (Ku) (Lieber, 2010). HR is initiated when the 5′ DNA ends are resected by nucleases and helicases, generating two 3′ single-stranded DNA overhangs coated with phosphorylated replication protein A (RPA) that drives the formation of a RAD51 filament prior to strand invasion (Chapman et al., 2012). In contrast to NHEJ, which promotes direct ligation of the DSB ends in an error-prone manner and is available throughout the cell cycle, HR employs homologous sequences available after DNA replication as templates for error-free DNA repair (San Filippo et al., 2008). Both pathways proceed through a cascade of events whereby DNA damage sensors, transducers, and effectors detect and rejoin the broken DNA ends (Harper and Elledge, 2007). All these events take place within the relatively restricted environment of chromatin, the nucleoprotein complex of histones and DNA assembled into nucleosomes. DNA damage challenges chromatin integrity by eliciting the destabilization and reorganization of its structure (Soria et al., 2012). Conversely, a strictly regulated set of post-translational modifications of the histones N-terminal tails regulates the recruitment and activation of DDR factors (Greenberg, 2011). The most studied response of histones to DNA damage is the phosphorylation of the histone variant H2AX, which serves as a molecular beacon that signals the presence of DNA damage (Rogakou et al., 1998). Phosphorylated H2AX (γH2AX) arises within minutes after DNA damage and has a key role in the recruitment of multiple DDR factors to the repair centers (Lukas et al., 2011). In addition to γH2AX, other histone modifications have been shown to play key roles during the DDR, illustrating the importance of a thorough characterization of the chromatin landscape of a DNA lesion. We have recently shown that the histone methyltransferase SETD2 (also termed KMT3 or HYPB), which is responsible for all H3K36 trimethylation, but not H3K36 mono- or dimethylation (Edmunds et al., 2008), acts as a determinant of chromatin integrity by regulating nucleosome dynamics during transcription (Carvalho et al., 2013). A role of H3K36me3 in maintaining chromatin integrity was recently disclosed by the finding that the DNA mismatch repair (MMR) protein MutSα binds H3K36me3 and that SETD2 is necessary for human DNA MMR, a mechanism that corrects mismatches generated during DNA replication (Li et al., 2013). Nevertheless, whether SETD2 impinges on the cell's ability to cope with DNA DSBs is not yet known. In this study, we investigate the role of SETD2 on the cellular response to DNA DSBs. Our findings identify a novel role of this histone methyltransferase in rendering cells competent to repair DSBs. We demonstrate using powerful reporter assays that SETD2 is necessary for the DDR and that depletion of SETD2 impairs ATM activation and leads to delayed recruitment of 53BP1 to sites of DSBs. Our data further reveal that SETD2 is required for the recruitment of RAD51 to resected DNA 5′ ends and SETD2-depleted cells show reduced homology-directed repair of DSBs.

SETD2 mutations were recently found in several cancers, such as clear cell renal cell carcinoma (ccRCC) (Dalgliesh et al., 2010; Duns et al., 2010; Varela et al., 2011; Zhang et al., 2012; Fontebasso et al., 2013; Joseph et al., 2014). In ccRCC, the p53-mediated cell cycle checkpoint is frequently inactivated despite the fact that the TP53 tumor suppressor gene is rarely mutated (Gurova et al., 2004; Dalgliesh et al., 2010; Sato et al., 2013). This puzzling observation suggests that the p53 signaling in ccRCC might be repressed by an alternative mechanism. Herein, we further investigated whether the role of SETD2 in the DDR extends to the regulation of the p53-mediated checkpoint. We show that ccRCC cells carrying inactivating mutations on SETD2 phenocopy the impaired DDR observed in SETD2 RNAi-depleted human cells. Importantly, SETD2 inactivation severed the p53-dependent cell cycle checkpoint despite the persistence of unrepaired DNA lesions in ccRCC cells. We propose that this unprecedented role of SETD2 in the DDR constitutes a novel tumor suppressor mechanism that could explain the high frequency of SETD2 mutations found in several cancers and may provide an alternative mechanism for evasion of the p53-mediated checkpoint in TP53 wt ccRCC cells.

Results

SETD2 is necessary for the recruitment and activation of early DDR factors

To assay how SETD2 impinges on the cellular response to chemically induced DSBs, we monitored the DDR by measuring the dynamics of phosphorylation of the major DSB sensor ATM. Human Osteosarcoma (U2OS) cells were challenged with three different DNA-damaging agents: the topoisomerase II inhibitor etoposide, which is known to induce a large amount of DSBs (Burden et al., 1996) and the radiomimetic dsDNA-cleaving agents neocarzinostatin (NCS) (Goldberg, 1987) and phleomycin (Moore, 1988). We depleted SETD2 mRNA by RNA interference (RNAi) using three different synthetic small interfering RNA duplexes, which resulted in a global loss of the H3K36me3 histone mark that persisted throughout the entire chase periods following the DNA damage (Figure 1A–C). As a control, we used the GL2 duplex, which targets firefly luciferase (Elbashir et al., 2001). In control cells, the levels of H3K36me3 remained constant during the DDR and were undistinguishable from those of undamaged cells, suggesting that this histone mark is not amplified following the DSBs (Figure 1A–C). Analysis of the phosphorylation levels of ATM revealed that the DDR was promptly activated upon induction of DSBs with the three compounds (Figure 1). ATM phosphorylation (pATM) peaked at the early time points after each treatment in control cells (Figure 1A–C). In contrast, SETD2-depleted cells revealed a significant impairment in DNA damage signaling as revealed by decreased pATM levels detected upon treatment with each of the three drugs (Figure 1A–C). In agreement with impaired ATM activation, the phosphorylation levels of its downstream substrates H2AX and 53BP1 decreased in SETD2-depleted cells following treatment with NCS or, more appreciably, etoposide (Figure 1A,B). In DSBs induced by phleomycin, depletion of SETD2 had only a very mild impact on phosphorylation of 53BP1 or H2AX (Figure 1C) suggesting that either the remaining pATM is sufficient to transduce the DNA damage signaling or that alternative ATM-independent pathways operate in phleomycin-induced DSBs.

SETD2 is necessary for ATM activation during the DNA damage response.

Control and SETD2 RNAi-depleted U2OS cells were challenged with etoposide (A), NCS (B) or phleomycin (C) and chased in fresh media during the indicated time points. Western blot analysis was performed with antibodies against the indicated proteins. Molecular weight markers (KDa) are shown on the left of each blot. Data are from one representative experiment of at least three independent experiments performed with similar results.

https://doi.org/10.7554/eLife.02482.003

To directly visualize how does ablation of SETD2 impinge on 53BP1 nucleation at sites of DNA damage, we tracked 53BP1-GFP fusion proteins in live-cells upon induction of DSBs with a 405 nm laser (Figure 2A). In control cells, 53BP1-GFP was recruited to damaged chromatin within 2 min after laser micro-irradiation and was retained at the sites of damage during the 15 min of live-cell recording. In contrast, recruitment of 53BP1-GFP to irradiated chromatin was significantly delayed in SETD2-depleted cells (Figure 2A). Importantly, SETD2 RNAi had no appreciable effects on the total cellular levels of 53BP1-GFP (Figure 2B).

Figure 2 with 1 supplement see all
SETD2 promotes 53BP1 recruitment to DNA damage sites.

(A) 53BP1-GFP transfected U2OS cells were damaged by laser irradiation of the indicated nuclear region. The dynamics of 53BP1-GFP during the DNA damage response on control and SETD2-depleted cells was monitored by live cell imaging for 15 min after laser irradiation. One representative experiment from over 50 individual cells recorded is shown. (B) Control and SETD2 RNAi-depleted U2OS cells were transfected with a 53BP1-GFP expression plasmid. Western blot analysis was performed with antibodies against GFP (to detect 53BP1-GFP), H3K36me3, total histone H3, and α-tubulin. Molecular weight markers (KDa) are shown on the left. (C) SETD2-GFP transfected U2OS cells were lysed and processed for western blot with antibodies against GFP (to reveal SETD2-GFP), H3K36me3 and α-tubulin. Molecular weight markers (KDa) are shown on the left. (D) Live-cell images of SETD2-GFP dynamics were recorded upon laser-induced DNA damage of the indicated nuclear region of U2OS cells during 15 min (E) H3K36me3 was immunoprecipitated from MNase-digested U2OS cell extracts and each of the four nucleosomal histones was detected by immunoblotting of the SDS-PAGE resolved complexes. (F) Nuclear co-immunoprecipitations before and 6 hr after NCS treatment were performed on U2OS cells using the indicated antibodies (I.P.: 53BP1 and H3K36me3). The Input lane represents total cell lysates and (−) denotes the negative control immunoprecipitation (beads only). Purified complexes were resolved by SDS-PAGE and blotted with antibodies against γH2AX or H3K36me3.

https://doi.org/10.7554/eLife.02482.004

We then investigated whether SETD2 is actively recruited to DSB sites. For that, we engineered a SETD2-GFP fusion protein and tracked it in live cells upon laser-induced DNA damage (Figure 2C,D). In agreement with the lack of fluctuations of the H3K36me3 levels following DSBs (Figure 1A), SETD2-GFP did not accumulate at the laser micro-irradiated regions (Figure 2D).

Since we did not find any evidence for de novo histone H3K36 trimethylation during the DDR, we inspected if H3K36me3 is present at the nucleosomes adjacent to the sites of DSBs. In order to have single-nucleosome resolution, U2OS nuclei extracts were digested with micrococcal nuclease (MNase). Analysis of the MNase-digested extracts revealed that the majority of the DNA fragments were approximately 150 bp, which is consistent with the length of mono-nucleosomal DNA (Figure 2—figure supplement 1). Furthermore, each of the four nucleosomal histones was detected in H3K36me3 pull downs, indicating that isolated nucleosomes remained intact (Figure 2E). 53BP1 and H3K36me3 were immunopurified from the mono-nucleosome preparations, and the complexes were immunobloted with antibodies against γH2AX and H3K36me3 (Figure 2F). In control (i.e., undamaged) cells, γH2AX was neither detected in the input sample (total cell lysates) nor in any of the two pull-downs (Figure 2F). Upon treatment with NCS a robust signal for γH2AX was observed in the input lane and in the samples immunopurified with antibodies against 53BP1 or H3K36me3, indicating the activation of the DDR (Figure 2F). These data reveal that both 53BP1 and H3K36me3 are present in the same nucleosomes that acquire γH2AX upon DNA damage. Moreover, 53BP1 was detected in complexes immunoprecipitated with the H3K36me3 antibody upon induction of DSBs (Figure 2F). This suggests that H3K36me3 decorates at least a fraction of the nucleosomes to which 53BP1 binds. Altogether, these findings further support the view that H3K36me3 contributes to the establishment of the chromatin state that coordinates the recruitment and activation of DDR factors, even though SETD2 is not actively recruited to DNA damage sites.

SETD2 is required for RAD51 recruitment during homologous recombination repair

The binding of 53BP1 to damaged chromatin tilts the balance between the DNA repair pathways towards NHEJ by preventing 5′ end resection of the broken DNA ends (Bouwman et al., 2010; Bunting et al., 2010; Chapman et al., 2012). We therefore investigated whether SETD2 depletion favors DNA 5′ end resection and repair of DSBs by HR. To this end, we quantified the DNA in the vicinity of a DSB created by the I-SceI nuclease using the DR-GFP reporter assay (Pierce et al., 1999; Moynahan and Jasin, 2010). Upon depletion of SETD2 by RNAi, the amount of DNA measured by quantitative real-time PCR at 250 bp, 300 bp, 350 bp and 2200 bp apart from the I-SceI site was only 53%, 62%, 57%, and 71%, respectively, of the DNA levels present in control cells (Figure 3A). These data reveal that ablation of SETD2 leads to persistent DNA 5′ end resection of DSBs. In agreement, phosphorylation of RPA (pRPA), an event that is directly linked to efficient DNA 5′ end resection (Sartori et al., 2007), was detected in SETD2-depleted cells within the first hour after DNA damage with NCS and reached equilibrium after 6 to 8 hr, when its levels were similar to control cells (Figure 3B). Following DNA damage, the recruitment of RPA to DNA repair centers is revealed by the formation of repair-associated foci, a process that can be visualized by immunofluorescence (Figure 3C). At 8 hr after NCS treatment, widespread RPA foci were observed in the nuclei of both control and SETD2 RNAi cells, suggesting that recruitment of RPA to DNA lesion sites is independent of SETD2 activity. As expected, RPA foci were visible only in cyclin A-positive cells that are in S or G2 phase of the cell cycle (Figure 3C).

SETD2-independent DNA 5′ end resection and RPA recruitment to DSBs.

(A) Direct measurement of DNA 5′ end resection at the I-SceI site of the GFP gene in control and SETD2-depleted U2OS DR-GFP cells. The percentage of non-resected DNA at 250 bp, 300 bp, 350 bp, and 2200 bp from the I-SceI restriction site is shown. The percentage of DNA at each location was set to 100% in control cells. Means and standard deviations from five independent experiments using two distinct siRNAs targeting SETD2 are shown. (B) Control and SETD2 RNAi-depleted U2OS cells were challenged with NCS during 30 min and chased in fresh media during the indicated time points. Western blot analysis was performed with antibodies against pRPA and total RPA. Molecular weight markers (KDa) are shown on the left. (C) Immunofluorescence of control and SETD2 RNAi depleted U2OS cells before and 8 hr after NCS treatment was performed with antibodies against RPA and cyclin A. Dapi was added to the mounting medium to stain the DNA. Scale bars: 5 μm. The graph shows the percentage of cells with more than 20 RPA foci. A minimum of 400 cells on each of three independent experiments was scored.

https://doi.org/10.7554/eLife.02482.006

The HR-mediated repair of DSBs requires the recruitment of different DNA-repair factors including BRCA1 to the site of damage. BRCA1 cooperates with Mre11–Rad50–Nbs1 (MRN) complex and C-terminal binding protein interacting protein (CtIP) to catalyze 5′ to 3′ DNA resection of the broken DNA ends (Chapman et al., 2012). Upon NCS treatment, abundant BRCA1 foci were formed in control and SETD2-depleted cells that stained positively for cyclin A (Figure 4A). This result is consistent with the SETD2-independent DNA 5′ end resection and suggests that BRCA1 recruitment to DSBs is largely unaffected by SETD2 depletion (Figure 4A).

SETD2 promotes RAD51 recruitment to DSBs during DNA repair.

Immunofluorescence of control and SETD2 RNAi-depleted U2OS cells before and 8 hr after NCS treatment was performed with antibodies against BRCA1 (A) or RAD51 (B). Cyclin A staining was performed in parallel. Dapi was added to the mounting medium to stain the DNA. Scale bars: 5 μm. The graphs represent the average and standard deviations of the percentage of cells with BRCA1 or RAD51 foci after NCS treatment. A minimum of 500 cells from each of three individual experiments was scored for each experimental condition.

https://doi.org/10.7554/eLife.02482.007

BRCA1-mediated DNA 5′ end resection and phosphorylation of RPA precede the formation of RAD51 filaments on the DNA single-stranded 3′ overhangs that promote the search for homologous DNA sequences and strand exchange (Wyman and Kanaar, 2006). We then inspected the recruitment of RAD51 to broken DNA ends on control and SETD2-depleted cells. RAD51 foci were detected on cells that were in S or G2 phase, as revealed by the positive staining of cyclin A (Figure 4B). Notably, RAD51 was recruited to DSBs in a SETD2-dependent manner. Upon SETD2 RNAi-depletion, the percentage of U2OS cells with ≥5 foci at 8 hr and 24 hr post-NCS treatment (17% and 30%, respectively) was significantly reduced in comparison to control cells (36% and 46%) (Figure 4B). These data establish a presynaptic role of SETD2 that promotes the recruitment of RAD51 to resected DNA ends.

To directly evaluate the impact of this SETD2-dependent role on the efficiency of HR, we depleted SETD2 from U2OS cells stably expressing the DR-GFP reporter. The DR-GFP reporter allows homology-directed repair to be scored by flow cytometry owing to the correction of an inactive GFP gene through HR-dependent gene conversion (Figure 5) (Pierce et al., 1999; Moynahan and Jasin, 2010). Ectopic expression of I-SceI in DR-GFP reporter cells led to an average cutting efficiency of the I-SceI restriction site located on the inactive GFP gene of 35% (control cells) and 33% (SETD2 RNAi). In agreement with the impaired RAD51 recruitment, SETD2-depleted cells exhibited a strong reduction (∼50%) in HR without detectable differences in the cell cycle progression (Figure 5A,B).

SETD2 is required for homologous recombination DNA repair.

(A) The efficiency of homologous recombination in control and SETD2 RNAi-depleted cells was investigated by measuring the fraction of GFP + cells in the U2OS DR-GFP reporter assay. Means and standard deviations from five independent experiments using two distinct siRNAs targeting SETD2 are shown. (B) Cell cycle progression of control and SETD2-depleted U2OS DR-GFP cells was obtained by flow cytometry analysis of propidium iodide staining.

https://doi.org/10.7554/eLife.02482.008

ccRCC cells with SETD2 inactivating mutations display impaired DDR

A high frequency of SETD2 mutations was recently disclosed in several cancers, of which clear cell renal cell carcinoma (ccRCC) shows the highest SETD2 mutation rate (Dalgliesh et al., 2010; Varela et al., 2011). Our present findings suggest that impaired DDR proficiency constitutes a hallmark of SETD2 mutant cancers and could reveal a novel mechanism through which SETD2 suppresses tumor development and growth. To further test this view, we inspected the DDR in ccRCC cell lines containing inactivating mutations in SETD2 that result in a strong reduction of H3K36me3 levels (Figure 6A) (Duns et al., 2010). Notably, induction of DSBs in the ccRCC cells resulted in activation of the DDR in a SETD2-dependent manner. Two different SETD2 wild-type (wt) cell lines (RCC-JW and Caki-2) responded to DNA damage with the rapid formation of γH2AX foci and ATM phosphorylation within the first 30 min of the DDR (Figure 6B–D). In contrast, DNA repair was significantly impaired in two SETD2 mutant ccRCC cell lines (RCC-MF and RCC-FG2) as revealed by the lack of γH2AX foci and ATM phosphorylation upon induction of DSBs (Figure 6B–D). These data recapitulate the phenotype of SETD2 RNAi-depleted U2OS cells and suggest that defects in the DDR are a hallmark of cancer cells with SETD2 mutations. We then attempted to perform a genetic complementation experiment with our SETD2-GFP transgene to rescue the SETD2 mutant phenotype. However, despite our efforts, we were not able to obtain a SETD2 mutant ccRCC cell population expressing the transgene. One possibility is that loss of SETD2 function in the mutant ccRCC cells feeds a cellular proliferation mechanism that if disrupted upon transfection of the wt SETD2-GFP decreases cell viability. Nevertheless, we consistently observed a similar phenotype of impaired DDR in 4 different ccRCC cell lines (RCC-ER; -FG2; -AB; -MF) carrying inactivating mutations in distinct regions of SETD2 (Duns et al., 2010). Amongst the SETD2 mutant cell lines, RCC-FG2 had the lowest levels of H3K36me3 and showed the strongest impairment in the DDR signaling as revealed by the lack of detectable pATM and γH2AX (Figure 6D). We shall note that RCC-JW cells carry a missense mutation on SETD2 exon 3, which does not interfere with the methyltransferase activity of the enzyme, and for this reason, we classified them as SETD2 wt (Figure 6C) (Duns et al., 2010). In fact, concerning the DDR, RCC-JW cells behaved equally to two additional SETD2 wt ccRCC cell lines (Caki-1 and Caki-2) that were also used on our experiments.

ccRCC cells with inactivating mutations on SETD2 show impaired DNA damage signalling.

The H3K36me3 levels of SETD2 wt and mutant ccRCC cells were inspected with an antibody against H3K36me3 by immunofluorescence (A). (B) Immunofluorescence of SETD2 wt and mutant ccRCC cells before and 30 min after etoposide treatment for 15 min was performed with an antibody against γH2AX. Dapi was added to the mounting medium to stain the DNA. Scale bars: 5 μm. (C and D) Two SETD2 wt (RCC-JW and Caki-2) and two SETD2 mutant (RCC-MF and RCC-FG2) cell lines were challenged with etoposide during 15 min and chased in fresh media during the indicated time points. Western blot analysis was performed with antibodies against the indicated proteins. Molecular weight markers (KDa) are shown on the left.

https://doi.org/10.7554/eLife.02482.009

To investigate if alternative DDR pathways were able to efficiently repair the DSBs in the SETD2 mutant cells, we measured the kinetics of DNA repair in ccRCC cells using comet assays (Figure 7). Chemical induction of DSBs yielded a similar degree of DNA damage in both SETD2 wt and mutant ccRCC cells, as revealed by the comparable fraction of DNA that migrated away from the nuclei and was detected in the comets tails immediately after etoposide treatment (Figure 7). However, these cells differed in their ability to repair the chemically induced DSBs. The amount of fragmented DNA decreased 35% after 3 hr and 45% after 6 hr in the wt cells, which compared to a maximum of 27% reduction observed in mutant cells 6 hr after DNA damage (Figure 7). These results were recapitulated with an additional set of SETD2 wt and mutant ccRCC cells, which repaired 49% (Caki-2) and 31% (RCC-FG2) of the DNA damage in 6 hr (Figure 7—figure supplement 1). These findings reveal that the impaired DDR observed in SETD2 mutant cells translates into a massive failure to repair DSBs, which is likely to impact severely on genomic stability and may sustain the tumorigenic phenotype.

Figure 7 with 1 supplement see all
Repair of double-strand breaks is compromised in SETD2 mutant ccRCC cells.

The amount of DNA damage immediately after induction of DSBs with etoposide and 3 and 6 hr after treatment was estimated by comet assay on SETD2 wt and mutant ccRCC cells. Graphs depict the % of DNA in the tail of each individual comet. The horizontal solid lines represent the mean and 95% confidence intervals. At least 70 individual comets were analyzed for each time point.

https://doi.org/10.7554/eLife.02482.010

Inactivation of SETD2 severs the p53-mediated checkpoint despite persistent DNA damage

In circumstances where DNA damage reaches an irreversible stage, specific cell cycle checkpoints are in place to prevent catastrophic cell cycle progression (Kastan and Bartek, 2004; Sperka et al., 2012). The DNA damage checkpoints employ sensor proteins, such as ATM, to detect DNA damage and to initiate signal transduction cascades that activate p53 and inactivate cyclin-dependent kinases causing inhibition of cell cycle progression (Sancar et al., 2004). The tumor suppressor p53 is a direct substrate of ATM kinase (Canman et al., 1998) and is a master effector of the DNA damage cell cycle checkpoints (Sperka et al., 2012). Under normal conditions, p53 protein levels are low owing to MDM2-mediated ubiquitylation and proteasomal degradation. Upon DNA damage, p53-phosphorylation inhibits its interaction with MDM2, resulting in p53 stabilization (Shieh et al., 1997; Banin et al., 1998). We therefore evaluated both p53 phosphorylation and its total protein levels in response to DNA damage. The two SETD2 wt ccRCC cell lines (RCC-JW and Caki-2) responded to DSBs with p53 phosphorylation and increased total p53 protein levels 2 hr after initiating the DDR (Figure 8A). In contrast, despite the persistent DNA damage caused by the impaired DDR, SETD2 mutant ccRCC cells (RCC-MF and RCC-FG2) evaded the cell cycle checkpoint as revealed by the low levels of p53 phosphorylation and unnoticeable change of its total protein levels (Figure 8A). Activation of the p53 checkpoint leads to increased gene expression levels of several downstream targets including CDKN1A, also known as p21 (Sperka et al., 2012). Indeed, p21 protein levels rose significantly 2 hr after DNA damage in SETD2 wt cells, but not in their mutant counterparts (Figure 8A). To exclude the contribution of SETD2-independent mechanisms due to the different genetic backgrounds of the SETD2 wt and mutant cells, we measured p53 checkpoint activation in SETD2 RNAi cells upon treatment with etoposide, NCS or phleomycin (Figure 8B–D). SETD2 RNAi-depleted ccRCC cells phenocopied the severed p53 cell cycle checkpoint observed in SETD2 mutant ccRCC cells. In response to each of the three DNA-damaging agents, control cells increased the total levels of p53 and p21, whereas SETD2-depleted cells failed to activate p53 (Figure 8B–D).

SETD2 is required for p53 activation following DNA damage.

(A) SETD2 wt and mutant ccRCC cells were challenged with etoposide during 15 min and chased in fresh media during the indicated time points. Western blot analysis was performed with antibodies against the proteins indicated on the right. SETD2 wt ccRCC cells were depleted for SETD2 by RNAi, treated with etoposide (B), NCS (C) or phleomycin (D) during the indicated periods of time and chased in fresh media. Western blot analysis was performed with antibodies against the proteins indicated on the right. Molecular weight markers (KDa) are shown on the left. Data are from one representative experiments of a total of three independent experiments performed with similar results.

https://doi.org/10.7554/eLife.02482.012

To further examine whether SETD2 is necessary for DNA damage-induced cell-cycle checkpoints, we performed flow cytometry-based cell-cycle profiling analyses in control and SETD2 RNAi depleted U2OS cells. Cells were treated with phleomycin to activate G1/S and G2/M DNA damage checkpoints. After phleomycin treatment, 49% (8 hr) and 46% (12 hr) of control cells were arrested at G1 phase and 34% (8 hr) and 38% (12 hr) stayed in G2 phase (Figure 9A). In contrast, only 42% (8 hr) and 34% (12 hr) of cells were arrested in G1 phase, whereas 41% (8 hr) and 48% (12 hr) were at G2 phase upon SETD2 depletion. These results suggest that SETD2 depletion leads to a defective G1/S cell-cycle arrest, which is in agreement with the deficient activation of p53.

SETD2 regulates the p53-dependent cell-cycle checkpoint and cell survival following DNA damage.

(A) Control and SETD2 RNAi-depleted cells were treated with 40 μM of phleomycin to induce cell-cycle checkpoints. Cells were harvested at 0, 8, or 12 hr after treatment, fixed and stained with propidium iodide, and analyzed by flow cytometry. Graphs show means and standard deviations of the percentage of cells at each phase of the cell cycle. Data are from four individual experiments. (B) Control and SETD2 RNAi-depleted cells were treated with phleomycin at indicated concentrations and clonogenic survival was measured 10 days after treatment. Means and standard deviations from 6 individual cell cultures treated with each drug concentration are shown.

https://doi.org/10.7554/eLife.02482.013

To investigate whether SETD2 affects the cell survival rate in response to DNA damage, we depleted U2OS cells for SETD2 by RNAi and tested their capacity for clonogenic survival after phleomycin treatment (Figure 9B). 10 days after DNA damage, the colony-forming capacity of control cells was significantly higher than SETD2-depleted cells. This result suggests that SETD2 is a determinant of cell survival after DNA damage.

Combined, these data point to a novel role of SETD2 that can explain the puzzling observation that ccRCC often evade the p53 cell-cycle checkpoint despite a very low frequency of TP53 mutations (Gurova et al., 2004; Dalgliesh et al., 2010; Sato et al., 2013).

Discussion

In this study, by focusing on the pathways that repair DSBs upon RNAi depletion of SETD2, we reveal that this histone methyltransferase is necessary for the DDR. We show that SETD2 is required for the activation of ATM following DNA damage. In agreement with the impaired ATM activation, spreading of γH2AX and 53BP1 phosphorylation was greatly compromised in SETD2-depleted cells treated with NCS or etoposide, but only marginally affected in DSBs induced by phleomycin. These findings suggest that the DNA damage signaling may follow multiple pathways with different requirements for H3K36me3 and can result in phosphorylation of H2AX and 53BP1 independently of ATM activation. In fact, ionizing radiation-induced H2AX phosphorylation and recruitment of 53BP1 to DSBs can be carried out by ATM and DNA-dependent protein kinase (DNA-PK) in a redundant manner (Stiff et al., 2004). Moreover, ataxia telangiectasia and Rad3-related protein (ATR) can also phosphorylate many of the ATM substrates, including H2AX (Ward and Chen, 2001).

53BP1 nucleation at DNA-damaged chromatin plays an important role in favoring DNA repair by NHEJ (Bouwman et al., 2010; Bunting et al., 2010; Chapman et al., 2012). In agreement, we found that induction of DSBs resulted in a significant impairment of the 53BP1 recruitment and increased DNA 5′ end resection in SETD2-depleted cells. However, the increased resection did not reflect increased efficiency of HR repair. Instead, persistent DNA 5′ end resection is likely due to the roadblock in the HR pathway that is created by the failure of RAD51 binding to the single-stranded DNA. Indeed, this defect in presynaptic filament formation on the resected DNA resulted in a 50% reduction in the efficiency of gene conversion of the DR-GFP HR reporter. Exonuclease-mediated resection of DNA ends is known to promote phosphorylation of RPA and to orchestrate an ATM-to-ATR switch at DNA breaks (Shiotani and Zou, 2009). This switch in the main DNA damage sensor provides a reasonable explanation for the RPA phosphorylation and the proficient RPA recruitment to DSBs despite the impaired ATM activation in SETD2-depleted cells. Alternatively, ATM-independent RPA phosphorylation can also be achieved through the activity of DNA-PK (Shao et al., 1999; Anantha et al., 2007).

Lens-epithelium-derived growth factor p75 splice variant (LEDGF) is an H3K36me3-binding protein that promotes the HR repair of DSBs (Daugaard et al., 2012). Depletion of LEDGF impairs the recruitment of CtIP and the subsequent DNA 5′ end resection of DSBs. While defects in LEDGF recruitment to DSBs may account for the impaired HR phenotype that we report in SETD2 deficient cells, our data supports an extended LEDGF-independent role of SETD2 in the repair of DSBs by HR. Our findings that DNA 5′ end resection and RPA foci formation are not severely compromised in SETD2-depleted cells disclose a specific presynaptic role for SETD2 that is necessary for the recruitment of RAD51 to single-stranded DNA. One possibility is that H3K36me3 defines a local chromatin state that favors the recruitment of RAD51 to DSBs and successful HR repair. This could be achieved by the FACT histone chaperone upon recruitment to H3K36me3-marked nucleosomes (Carvalho et al., 2013). In agreement with this view, depletion of the FACT subunit SPT16 results in a major impairment of HR (Kari et al., 2011; Oliveira et al., 2014). FACT is required to recruit the ubiquitin ligase RNF20, which in turn facilitates RAD51 accumulation at DSBs (Oliveira et al., 2014). The view that changes in chromatin dynamics may affect RAD51 function is not completely unexpected as illustrated by the role of the histone acetyltransferase 1 (HAT1) in RAD51 during HR (Yang et al., 2013). HAT1 promotes acetylation of histone H4, as well as incorporation of histone variant H3.3 at DSBs and facilitates RAD51 recruitment and efficient HR repair. Nevertheless, the major impact of SETD2 on RNA polymerase II transcription and pre-mRNA processing that others and we have previously described (reviewed in de Almeida and Carmo-Fonseca, 2014) discloses the alternative possibility that the impaired formation of RAD51 filaments and HR may result from disrupted gene expression of key DNA repair factors. Hence, additional studies are needed to fully elucidate the mechanistic basis of the SETD2 impact on the DDR.

Unlike all histone modifications found to promote the DDR, previous studies (Pei et al., 2011) and our data show no evidence of increased H3K36me3 levels at the DNA damage sites or of a DDR-dependent recruitment of SETD2 to DSBs. These findings disclose an unprecedented role for a histone-modifying enzyme in priming intact chromatin for the response to DNA damage. A model that emphasizes the regulation of the H3K36me3 accessibility as a major determinant of the DDR can be envisaged. According to this view, the conformational changes that occur after a DSB may cause exposure of H3K36me3 marks previously written by SETD2 in intact chromatin, for instance during transcription by RNA polymerase II or replication. In fact, a careful inspection of the nucleosome structure reveals that lysine 36 on the N-terminal tail of histone H3 does not protrude from the nucleosome core. Instead, this lysine is hidden by the DNA double strand that wraps the histone octameric core (Luger et al., 1997). This sheltered location was first described three decades ago, when Crane–Robinson et al. investigated the accessibility of the histone-terminal domains to proteases. Their experiments revealed that while the first 26 N-terminal residues of histone H3 were greatly sensitive to trypsin digestion, H3K36 was resistant to the enzyme (Bohm et al., 1981). According to this ‘break and access model’ DNA damage exposes H3K36me3, which then contributes together with a set of well-defined histone modifications to the orchestration of the chromatin landscape that drives the initial recruitment and activation of DDR factors, such as ATM.

The role of H3K36me3 in promoting repair of DSBs by HR may be particularly relevant at coding regions, where the introduction of genomic aberrations is likely to have deleterious consequences. Therefore, in these regions the choice between error-prone NHEJ and the more reliable HR pathway is of utmost importance. In fact, most H3K36me3 is found at actively transcribed chromatin where it signals the recruitment of the histone chaperone FACT to reassemble nucleosomes in the wake of RNA polymerase II elongation (Carvalho et al., 2013). Should a DSB amputate a coding region, exposure of H3K36me3 previously deposited by SETD2 traveling with the transcriptional machinery may promote DNA repair by HR and would guarantee the integrity of the genetic information.

From all cancers on which SETD2 mutations have been reported, ccRCC shows the highest mutation rate (Dalgliesh et al., 2010; Varela et al., 2011). Our present findings reveal that SETD2 mutant ccRCC cells have impaired DDR signaling which leads to inefficient repair of DNA damage. However, the p53-dependent cell cycle checkpoint is not activated in SETD2-deficient cells despite the persistence of DNA damage. Depletion of SETD2 abrogates p53 activation, and leads to eviction of the G1/S checkpoint upon DNA damage. In addition to the defects in the DNA damage signaling that we found in SETD2-depleted cells, which could extend to improper p53 activation, it is also possible that SETD2 impinges directly on p53 activity and activation of its downstream targets through direct protein–protein interactions (Xie et al., 2008). Furthermore, in the absence of SETD2, the capacity for clonogenic survival following DNA damage is significantly reduced. These findings integrate SETD2 into the p53 regulatory network and provide a reasonable explanation for the intriguing observation that inactivation of this master regulator of cell cycle checkpoints in ccRCC is rarely caused by mutations in TP53 (Gurova et al., 2004; Dalgliesh et al., 2010; Sato et al., 2013).

A plethora of recent studies have revealed that mutation rates and genomic instabilities in cancer are directly related to aberrant histone modifications and chromatin organization, underscoring the importance of the histone code in maintaining genome stability (Lukas et al., 2011; Papamichos-Chronakis and Peterson, 2013). CcRCC is an example of a cancer, where a high rate of genomic alterations occurs in parallel to inactivating mutations and deletions of histone modifiers, such as SETD2 (Cancer Genome Atlas Research, 2013; Sato et al., 2013). The present study provides a functional link between these two events extending our understanding of the impact of altered chromatin states on the mechanisms that maintain genome integrity. Although it is now evident that alterations in histone modifications are a hallmark of most cancers, it is still unclear whether these changes are drivers or passengers of tumorigenesis (Waldmann and Schneider, 2013). Our findings endorse the classification of SETD2 as a tumor suppressor and place inactivating mutations in this histone modifier at the peak of a harmful cascade of events that may ultimately drive malignant cell transformation and tumor development.

Materials and methods

Cell culture and drug treatments

Human osteosarcoma (U2OS) cells (ATCC) and the ccRCC cells RCC-JW, Caki-2, RCC-MF and RCC-FG2 (Duns et al., 2010) (Cell Line Services Eppelheim, Germany) were grown as monolayers in Dulbecco's modified Eagle medium–DMEM (Invitrogen, Carlsbad, CA), supplemented with 10% (vol/vol) FBS, 1% (vol/vol) nonessential amino acids, 1% (vol/vol) L-glutamine, and 100U/ml penicillin-streptomycin, and maintained at 37°C in a humidified atmosphere containing 5% CO2. To induce DNA damage, cells were treated with 50 μM etoposide (Sigma, St Louis, MI) for 15 min, 250 ng/ml neocarzinostatin (NCS) (Sigma) for 30 min or 40 μM phleomycin (Sigma) for 30 min, washed and harvested immediately after the treatment and at the indicated time-points.

RNA interference

SETD2 RNAi was achieved using three different synthetic siRNA duplexes targeting SETD2 (Eurogentec, Seraing, Belgium) (Carvalho et al., 2013). In each experiment, at least two different siRNAs were used resulting in similar knockdown efficiencies. siRNAs targeting the firefly luciferase (GL2) were used as controls (Eurogentec) (Elbashir et al., 2001). Cells were reverse transfected with 10 μM siRNAs using OptiMEM (Invitrogen) and Lipofectamine RNAiMAX (Invitrogen), according to the manufacturer's instructions. 24 hr after the first transfection, cells were re-transfected with the same siRNA duplexes and transfection reagents and harvested on the following day.

SETD2-GFP plasmid construction

The SETD2 cDNA was cloned into the pEGFP-C1 vector (Clontech, Mountain View, CA) in a ligation reaction containing two fragments. A fragment containing 5257 bp from the 3′ end of SETD2 was obtained by digestion of pCR-XL-TOPO-SETD2 (clone 40125713; Thermo Scientific, Waltham, MA) with SpeI and PstI. A fragment containing the 5′ end of SETD2 was obtained by PCR amplification of pCR-XL-TOPO-SETD2 using primers containing BglII and SpeI restriction sites. The PCR product was digested with BglII and SpeI restriction enzymes and purified. Both fragments were co-inserted in BglII/PstI digested pEGFP-C1 vector. This construct was confirmed by DNA sequencing.

Immunofluorescence

U2OS cells grown on coverslips were fixed with 3.7% paraformaldehyde for 10 min at room temperature. The cells were then permeabilized with 0.5% Triton X-100/PBS for 10 min. Incubation with primary antibodies against γH2AX (phosphoSer139; 05–636, Millipore, Billerica, MA), total RPA32 (ab2175; Abcam, Cambridge, UK), BRCA1 (sc-6954; Santa Cruz Biotechnology, Dallas, TX), RAD51 (ab213; Abcam), or cyclin A (sc-751; Santa Cruz Biotechnology) was followed by incubation with fluorochrome-conjugated (Alexa Fluor 488 and 594) antibodies (Jackson Immunoresearch, West Grove, PA). All the washing steps were done with PBS containing 0.05% (vol/vol) Tween 20. The samples were mounted in Vectashield (H-1000; Vector Laboratories, Burlingame, CA) with 4'-6-diamidino-2-phenylindole (Dapi) (09542; Sigma) to stain the DNA. A Zeiss LSM 710 (Carl Zeiss, Oberkochen, Germany) confocal microscope was used to visualize the cells with a 63x/1.4 oil immersion or a 40x objective.

Western blot

Whole cell protein extracts were prepared by cell lysis with SDS-PAGE buffer (80 mM Tris-HCL pH 6.8, 16% glicerol, 4.5% SDS, 450 mM DTT, 0.01% bromophenol blue) with 200U/ml benzonase (Sigma) and 50 µM MgCl2 and boiling for 5 min. Equal amounts of protein extracts were resolved by SDS-polyacrylamide gel electrophoresis (SDS-PAGE) and transferred to a nitrocellulose membrane. Immunoblotting was performed with antibodies against the following proteins: H3K36me3 (ab9050; Abcam), histone H3 (ab1791; Abcam), phospho-53BP1 (phosphoSer1778; No.2675, Cell Signaling, Danvers, MA), phospho-ATM (phosphoS1981; No.200-301-400s, Rockland, Gilbertsville, PA), total ATM (PC116; Millipore), total RPA32 (ab2175; Abcam), phospho-RPA32 (phosphoSer4/Ser8; A300-245A, Bethyl, Montgomery, TX), α-Tubulin (T5168; Sigma); γH2AX (phosphoSer139; 05-636, Millipore); Histone H2B (ab1790; Abcam); GFP (11814460001; Roche, Basel, Switzerland); total p53 (sc-263; Santa Cruz); phospho-p53 (phosphoSer15; ab38497, Abcam); p21 (sc-397; Santa Cruz).

Laser-induced DNA damage

Laser-induced DSBs were generated using a confocal microscope (LSM 510 Meta, Carl Zeiss) equipped with a 37°C heating chamber (Pecon, Erbach, Germany) and a 405 nm diode laser focused through a 63x/1.4 oil immersion objective. We performed one iteration at a laser output of 100%. To follow the dynamics of GFP-tagged 53BP1 (53BP1-GFP, a kind gift from Dr Jiri Lukas, Danish Cancer Society, Copenhagen, Denmark) or SETD2-GFP during the DDR, live-cell images were recorded during 15 min after laser-irradiation. Control or SETD2-depleted U2OS cells were transfected with expression plasmids for 53BP1-GFP or SETD2-GFP using Lipofectamine 2000 (Invitrogen) according to the manufacturers's protocol.

Nuclear co-immunoprecipitation

Briefly, nuclear extracts and further MNase digestion was performed as described earlier (Carvalho et al., 2013) with minor changes. Cells were lysed in ice-cold NP-40 buffer (10 mM Tris–HCl [pH 7.4], 10 mM NaCl, 3 mM MgCl2, 0.5% Nonidet P-40, 0.15 mM spermine, and 0.5 mM spermidine) and isolated nuclei were washed and resuspended in MNase digestion buffer (10 mM Tris–HCl [pH 7.4], 15 mM NaCl, 60 mM KCl, 0.15 mM spermine, and 0.5 mM spermidine) and sonicated with a single pulse of 15 s at 50% intensity using a Soniprep 150 (Sanyo, Moriguchi, Japan). Nuclei were digested enzymatically with 60U MNase (Thermo Scientific) at 4°C for 60 min. MNase stop buffer (100 mM EDTA and 10 mM EGTA [pH 7.5]) was used to stop the reaction and samples were pre-cleared using Protein G Dynabeads (Life Technologies, Carlsbad, CA) at 4°C for 45 min. All buffers were supplemented with protease and phosphatase inhibitors (Roche). Samples were incubated with 3 μg of either anti-53BP1 (ab87097; Abcam) or anti-H3K36me3 (ab9050; Abcam) antibodies overnight at 4°C. The protein complexes were pulled down using Protein G Dynabeads, washed six times in IP buffer (200 mM NaCl, 16.7 mM Tris pH 8.1, 1.1% TritonX-100, 1.2 mM EDTA, 0.01% SDS) and resolved by SDS-PAGE before immunoblotting with antibodies against: γH2AX (phosphoSer139; 05-636, Milipore) and anti-H3K36me3 (ab9050; Abcam). 1/10th of the total cell lysate was used as input samples.

Homologous recombination reporter assay

The U2OS DR-GFP cells were a kind gift of Dr Maria Jasin from the Memorial Sloan-Kettering, USA. To assess HR efficiency, U2OS DR-GFP cells were seeded in a six-well plate and reverse transfected with the I-SceI expression plasmid (pCBA-SceI; 26477; Addgene, Cambridge, MA) using Lipofectamine 2000 (Invitrogen), according to the manufacturers's protocol. The cells were maintained for 24 hr at 37°C in a humidified atmosphere containing 5% CO2. After 24 hr, siRNAs targeting either firefly luciferase (GL2) or SETD2 were transfected using Lipofectamine RNAiMAX (Invitrogen). 48 hr after RNAi (and 72 hr after I-SceI transfection) cells were harvested and subjected to flow cytometry analysis (FACS Calibur; BD Biosciences, San Jose, CA) with a minimum of 20,000 events acquired. The enzyme cutting efficiency (35% on control cells and 33% on SETD2-depleted cells) was determined by real-time quantitative PCR (RT-qPCR) with primers flanking the I-SceI cleavage site on the GFP reporter gene. The amount of DNA was estimated as follows: 2^(Ct reference–Ct sample), where Ct reference and Ct sample are mean threshold cycles of RT-qPCR done in duplicate from GAPDH (reference) and the DNA flanking the I-SceI site (sample). Non-transfected cells were used as a reference to calculate the percentage of cutting upon I-SceI transfection. Primers are detailed in Table 1. The percentage of GFP+ cells was estimated using FlowJo (TreeStar, Ashland, OR).

Table 1

Sequence of primers used in this study

https://doi.org/10.7554/eLife.02482.014
Gene NamePrimer designationPrimer sequence
I-SceI FlankFlank_FwGAG CAG GAA CCT GAG GAG
Flank_RvGCC GTA GGT ATT ACC CTG
I-SceI 250bp250bp_FwCAT GCC CGA AGG CTA CGT
250bp_RvCGG CGC GGG TCT TGT A
I-SceI 300bp300bp_FwCTT CTT CAA GGA CGA CGG C
300bp_RvGTA GTT GTA CTC CAG CTT GTG
I-SceI 350bp350bp_FwCTA CAG CTC CTG GGC AAC
350bp_RvCTT CGG CAC CTT TCT CTT C
I-SceI 2200bp2200bp_FwCGC GAC GTC TGT CGA GAA G
2200bp_RvGCC GAT GCA AAG TGC CGA TA
GAPDHGAPDH_FwGAA GGT GGA GGT CGG AGT C
GAPDH_RvGAA GAT GGT GAT GGG ATT TC

Cell cycle analysis and survival assays

The nuclear DNA content was estimated by flow cytometry analysis of cells stained with propidium iodide (PI). Briefly, cultured cells were collected by trypsinization and fixed by drop wise addition of ice-cold 50% ethanol with gentle vortexing. After placing the samples 24 hr on ice, RNase was added to a final concentration of 50 μg/ml and incubated for 30 min at 37°C. Following addition of PI (100 μg/ml), 80,000 events were acquired on a FACS Calibur (BD Biosciences) and the DNA content analyzed with FlowJo (TreeStar). For analysis of cell cycle checkpoints, control or SETD2-depleted U2OS cells were treated with 40 μM phleomycin for 30 min, washed and cultured in fresh medium for 8 and 12 hr before flow cytometry analysis of the cell cycle progression. For analysis of clonogenic survival, cells were reverse-transfected with SETD2 and control (GL2) siRNAs, seeded in 10-cm dishes (1000 cells/dish) and 2 days later treated for 30 min with phleomycin at various concentrations. Cells were then cultured for 10 days and individual colonies counted upon staining with crystal violet.

Direct measurement of DNA 5′ end resection

The extent of DNA 5′ end resection was analyzed by RT-qPCR analysis of the DNA surrounding the I-SceI site of the GFP gene integrated in the U2OS cells (U2OS DR-GFP reporter) transfected with the I-SceI expression plasmid. Primers flanking the I-SceI site and four regions located approximately 250 bp, 300 bp, 350 bp and 2200 bp away from this site were used. The housekeeping gene GAPDH was used as a genomic DNA control. RT-qPCR was performed in the ViiA Real Time PCR (Applied Biosystems, Foster City, CA) using Power SYBR Green PCR Master Mix (Applied Biosystems). The percentage of digestion was estimated as follows: 2^(Ct reference–Ct sample), where Ct reference and Ct sample are mean threshold cycles of RT-qPCR done in duplicate on DNA samples from GAPDH (reference) and the DNA regions surrounding the I-SceI site (sample). The amount of DNA was corrected for the I-SceI digestion efficiency by normalizing the data against the amount of DNA flanking the restriction site. All primer sequences are presented in Table 1.

Comet assays

DNA double-strand breaks in SETD2 wt or mutant ccRCC cells were detected by neutral comet assay using the CometAssay kit (Trevigen, Gaithersburg, MD) according to the manufacturer's instructions. A Zeiss Axiovert 200M (Carl Zeiss) microscope equipped with a 20x objective was used to visualize cells. The amount of DNA damage was estimated by measuring the percentage of fluorescence in the comet's tail using the CometScore analysis software.

Statistical analysis

Where indicated, data were subjected to a two-tailed Student's t-test to resolve statistical significance.

References

  1. 1
  2. 2
  3. 3
    Proteolytic digestion studies of chromatin core-histone structure. Identification of the limit peptides of histones H3 and H4
    1. L Bohm
    2. G Briand
    3. P Sautiere
    4. C Crane-Robinson
    (1981)
    European Journal of Biochemistry/FEBS 119:67–74.
  4. 4
  5. 5
  6. 6
    Topoisomerase II.etoposide interactions direct the formation of drug-induced enzyme-DNA cleavage complexes
    1. DA Burden
    2. PS Kingma
    3. SJ Froelich-Ammon
    4. MA Bjornsti
    5. MW Patchan
    6. RB Thompson
    7. N Osheroff
    (1996)
    The Journal of Biological Chemistry 271:29238–29244.
  7. 7
    Comprehensive molecular characterization of clear cell renal cell carcinoma
    1. Cancer Genome Atlas Research N
    (2013)
    Nature 499:43–49.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    Reciprocal regulatory links between cotranscriptional splicing and chromatin
    1. SF de Almeida
    2. M Carmo-Fonseca
    (2014)
    Seminars in Cell & Developmental Biology, pii: S1084–S9521(14)00038-X, 10.1016/j.semcdb.2014.03.010, epub ahead of print.
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    Internucleosomal cleavage and chromosomal degradation by bleomycin and phleomycin in yeast
    1. CW Moore
    (1988)
    Cancer Research 23:6837–6843.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53

Decision letter

  1. Joaquin M Espinosa
    Reviewing Editor; Howard Hughes Medical Institute, University of Colorado, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “SETD2 is required for DNA double-strand break repair and activation of the p53-mediated checkpoint” for consideration at eLife. Your article has been favorably evaluated by a Senior editor and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

In this interesting paper, Carvalho et al report a novel role for the lysine methyl-transferase SETD2 in the DNA damage response (DDR). They demonstrate that SETD2 depletion impairs several key signaling events downstream of DNA double-stranded breaks, including phosphorylation of ATM, H2A.X and 53BP1, recruitment of 53BP1 to sites of DNA damage, and formation of Rad51 foci, but not RPA recruitment. Depletion of SETD2 also produces a defect in DNA repair via homologous recombination (HR) and a defect in p53 activation after DNA damage. These findings are also reproduced in clear cell renal carcinoma cell lines carrying SETD2 mutations. The reviewers found these findings to be of high impact and significant, because loss-of-function mutations in SETD2 have been recently documented in various malignancies, suggesting that SETD2 is a bona fide tumor suppressor. The findings in this report may explain, at least in part, how SETD2 suppresses tumor growth.

However, the reviewers discussed how the mechanistic aspects of the paper could have been more developed. In particular, the reviewers noted the difficulty in dissecting direct effects (i.e., SETD2 acting at the sites of DNA damage via H3K36 methylation) versus indirect SETD2 action (i.e., via transcriptional effects). In the end, the reviewers agreed that the paper would merit publication in a high impact journal such as eLife by including additional experiments and controls that would significantly strengthen the main conclusions, even if further mechanistic insight was not provided.

Therefore, the major concerns that will have to be addressed for this manuscript to be considered for publication are:

1) A key conclusion in the manuscript, stated in the title, is that SETD2 is involved in the 'p53 activation checkpoint'. However, this is based merely on p53 and p21 Western blots. Although p53 and p21 levels are lower in SETD2 deficient cells, no work is performed on the checkpoint itself so the title of the figure is misleading and overstated. A direct measurement of the G1 checkpoint should be performed with and without SETD2 to strengthen this statement. Cells can be damaged with IR (or phleo, bleo if not available) followed by a time course using FACS analysis to measure DNA content and G1 arrested cells. siControl and siSETD2 cells can be compared to see if indeed depletion of SETD2 affects the p53-dependent checkpoint at the level of the cell cycle as reported by the authors. In addition, clonogenic DNA damage sensitivity assays with these agents would help show that these defects observed in SETD2 defective cells actually have some biological consequence. As a suggestion, Etoposide should not be used as this response is dependent on TOP2, which might be altered in SETD2 depleted cells. Although this could be interesting, the results would be indirect and these experiments are suggested to look at direct effects of SETD2 upon DNA damage on the p53 checkpoint (see point 2).

2) Many of the key experiments inducing DNA double-stranded breaks were done with etoposide, a topoisomerase II inhibitor (such as phospho-H2AX formation). Since TOP2 is involved in transcription, it is important to repeat these experiments with other agents that cause double-stranded breaks by other mechanisms, such as neocarcinostatin (NCS), and ionizing radiation (IR, or a radiomimetic drug such as phleomycin or bleomycin). To what the degree the defects in DNA damage-induced signaling observed in SETD2-depleted cells can be reproduced with these other agents? More specifically, the reviewers would like to know if other signaling events, such as ATM, H2A.X, 53BP1 and p53 activation are also impaired in SETD2-depleted cells after treatment with these other agents.

3) Figure 4A does not provide enough information for the results to be judged. Information about what time point this data represents and what the cutting efficiency is should be provided. Additionally, in Figure 4C, all cells show similar amounts of RPA after NCS. G1 cells should not show RPA similarly to S/G2 cells since NHEJ is the more prominent DNA repair pathway. Are all of these cells in S/G2? No cell cycle analysis beyond a FACS profile is provided and since resection, DNA repair and DNA damage signaling are regulated throughout the cell cycle, a more careful analysis is warranted. This can be accomplished by using Cyclin A staining in the IF analysis to indicate S/G2 cells and G1 cells that will lack Cyclin A staining. No information is provided for why RAD51, but not RPA, are defective in SETD2 deficient cells. Could the authors discuss a possible mechanism? LEDGF has been shown to bind transcription marks including H3K36me3 and be involved in DNA repair (Daugaard et al. NSMB, 2012) but how SETD2 relates to this work is not discussed. Can you detect defects in CTIP, BRCA1 and/or LEDGF recruitment to damage sites in the absence of SETD2? This data would allow a deeper understanding of what aspect of HR are regulated by SETD2.

4) The immunofluorescence-based DNA damage assays such in Figure1B (γH2AX) and Figure3C (RPA) should be performed in a quantitative manner, similar to that of Figure 3D.

5) The experiments attempted to address the if K36me3 is present at the nucleosomes adjacent to DSBs (Figure 2E) are problematic in several aspects:

a) To prepare mono-nucleosomes, the common nuclease of choice is MNase. However, the authors used DNase I, which efficiently cleave nucleosomal DNA at minor grooves, and Benzonase, which is even less proven enzyme to specifically digest linker DNA. More importantly, the nuclei DNA digestion pattern indicated a potential over-digestion (DNA fragment is smaller than 147bp), and there is no evidence that nucleosomes remain intact. This experiment should be repeated with MNase.

b) H2A, H2B and H4 western should be included in nucleosome pull-down when H3 antibodies are used.

c) In control cells (Left), when comparing IP to the input, K36me3 IP seems to put down K4me2 more efficiently than K36me3. This result would suggest that K4me2 co-occupies almost completely with K36me3, which is NOT consistent with numerous mass-spec studies and genome-wide analysis. The authors should elaborate on this result.

6) To rule out indirect transcriptional effect caused by Setd2 knockdown, the authors settled to merely analyze the published RNA-seq data in Set2 depleted cells. However, this is not a correct analysis for this purpose. Gene expression comparison should have been done between WT and Setd2-KD cells under DNA damage induced conditions. This analysis should be done in WT and Setd2-KD cells under DNA damage induced conditions or removed from the manuscript entirely. If the authors decide to remove this section, they should acknowledge in the text the possibility of indirect SETD2 action via undefined transcriptional effects.

7) The “Break & access model” proposed by authors in the Discussion section makes no sense to the reviewer for the following reasons:

a) Recombinant Setd2 homologs in human, Drosophila, and yeast all show stronger activity toward nucleosomal substrates than histones; b) The works from the Briggs' lab (Du et al 2008 G&D and 2010 JBC) clearly showed that H2A surface is required for Set2-mediated K36me3; c) Based on the structure, the removal of H2A/H2B bears no influence on “disclose H3K36 substrates for Setd2-dependent trimethylation”. Please modify the model to more accurately depict the results obtained and the current state of knowledge.

Experiments using clear cell renal carcinoma cell lines involve only one of each wild type SETD2 versus mutant SETD2. Given that these cell lines are not isogenic, it is imperative to reproduce the key findings in Figures 5, 6 and 7 in at least one other pair of wild type and mutant SET2D.

https://doi.org/10.7554/eLife.02482.015

Author response

1) A key conclusion in the manuscript, stated in the title, is that SETD2 is involved in the 'p53 activation checkpoint'. However, this is based merely on p53 and p21 Western blots. Although p53 and p21 levels are lower in SETD2 deficient cells, no work is performed on the checkpoint itself so the title of the figure is misleading and overstated. A direct measurement of the G1 checkpoint should be performed with and without SETD2 to strengthen this statement. Cells can be damaged with IR (or phleo, bleo if not available) followed by a time course using FACS analysis to measure DNA content and G1 arrested cells. siControl and siSETD2 cells can be compared to see if indeed depletion of SETD2 affects the p53-dependent checkpoint at the level of the cell cycle as reported by the authors. In addition, clonogenic DNA damage sensitivity assays with these agents would help show that these defects observed in SETD2 defective cells actually have some biological consequence. As a suggestion, Etoposide should not be used as this response is dependent on TOP2, which might be altered in SETD2 depleted cells. Although this could be interesting, the results would be indirect and these experiments are suggested to look at direct effects of SETD2 upon DNA damage on the p53 checkpoint (see point 2).

The reviewers make a valid point and we agree that the data presented in the original submission were insufficient. Following the reviewers’ request, we now provide direct measurements of the G1/S checkpoint upon DNA damage with phleomycin (Figure 9A). These additional data support our conclusion that depletion of SETD2 affects the p53-dependent checkpoint at the level of the cell cycle. In addition, we analyzed the clonogenic survival of SETD2-depleted cells treated with phleomycin as requested by the reviewers (Figure 9B). These experiments revealed that this histone methyltransferase increases the cell survival rate in response to DNA damage.

2) Many of the key experiments inducing DNA double-stranded breaks were done with etoposide, a topoisomerase II inhibitor (such as phospho-H2AX formation). Since TOP2 is involved in transcription, it is important to repeat these experiments with other agents that cause double-stranded breaks by other mechanisms, such as neocarcinostatin (NCS), and ionizing radiation (IR, or a radiomimetic drug such as phleomycin or bleomycin). To what the degree the defects in DNA damage-induced signaling observed in SETD2-depleted cells can be reproduced with these other agents? More specifically, the reviewers would like to know if other signaling events, such as ATM, H2A.X, 53BP1 and p53 activation are also impaired in SETD2-depleted cells after treatment with these other agents.

Following the reviewers’ suggestion the revised manuscript now includes data obtained upon DNA damage with NCS and phleomycin (Figures 1 and 8). These new data show that:

a) Defects in the DNA damage signaling are observed in SETD2-depleted cells independently of the DNA damaging drug, as revealed by the impaired ATM activation (Figure 1A, B and C).

Upon induction of double-strand breaks with etoposide or NCS, H2AX and 53BP1 were phosphorylated in a SETD2-dependent manner, contrasting with the predominant SETD2-independent phosphorylation observed after treatment with phleomycin (Figure 1A, B and C). These differences are discussed in the manuscript. In light of these new findings, we decided to remove the γH2AX immunofluorescence staining originally shown on Figure 1B, as this does not seem to represent a general effect of SETD2 on the DDR. Instead, the DNA damage signaling appears to follow multiple pathways with different requirements for H3K36me3 that can lead to phosphorylation of H2AX and 53BP1 independently of ATM activation.

b) Activation of p53 in response to etoposide, NCS or phleomycin was consistently affected by depletion of SETD2 (Figure 8B, C and D).

These data confirm that DNA damage signaling and p53 activation are compromised in SETD2-depleted cells and suggest that alternative mechanisms may drive SETD2-independent H2AX and 53BP1 phosphorylation in response to phleomycin-induced DSBs.

3) Figure 4A does not provide enough information for the results to be judged. Information about what time point this data represents and what the cutting efficiency is should be provided.

We now provide additional information related with the data shown on Figure 4A (Figure 5A in the revised manuscript) in the “results” and “materials and methods” sections. The experiment was performed 72h after transfection of I-SceI. The cutting efficiency of the enzyme was 35% (control cells) and 33% (SETD2-depleted cells).

Additionally, in Figure 4C, all cells show similar amounts of RPA after NCS. G1 cells should not show RPA similarly to S/G2 cells since NHEJ is the more prominent DNA repair pathway. Are all of these cells in S/G2? No cell cycle analysis beyond a FACS profile is provided and since resection, DNA repair and DNA damage signaling are regulated throughout the cell cycle, a more careful analysis is warranted. This can be accomplished by using Cyclin A staining in the IF analysis to indicate S/G2 cells and G1 cells that will lack Cyclin A staining.

We thank the reviewers for this additional control. We have repeated the RPA immunofluorescence using Cyclin A staining in parallel. These new data is shown on Figure 3C and shows that only Cyclin A-positive cells have RPA foci upon DNA damage. Moreover, we have also repeated the RAD51 immunofluorescence with Cyclin A co-staining (Figure 4B).

No information is provided for why RAD51, but not RPA, are defective in SETD2 deficient cells. Could the authors discuss a possible mechanism? LEDGF has been shown to bind transcription marks including H3K36me3 and be involved in DNA repair (Daugaard et al. NSMB, 2012) but how SETD2 relates to this work is not discussed. Can you detect defects in CTIP, BRCA1 and/or LEDGF recruitment to damage sites in the absence of SETD2? This data would allow a deeper understanding of what aspect of HR are regulated by SETD2.

We now discuss a possible mechanism that can sustain the defect in RAD51 recruitment to DSBs in SETD2-depleted cells despite the lack of apparent alterations on RPA phosphorylation and foci formation. The proposed mechanism involves the recruitment of the histone chaperone FACT by H3K36me3 that in turn promotes the formation of RAD51 filaments on resected DNA ends (see Discussion). Moreover, we provide an integrated view of our novel findings with the role of LEDGF in HR repair. While LEDGF may contribute to the aberrant DDR phenotype that we observe in SETD2-depleted cells, we reason that a novel, LEDGF-independent role of SETD2 is necessary for RAD51 recruitment and HR repair. Following the suggestion made by the reviewers, we analyzed BRCA1 recruitment to DSBs by immunofluorescence (Figure 5A). These new data show that formation of BRCA1 foci in response to NCS is not affected by depletion of SETD2, thus supporting our conclusion that SETD2 plays a presynaptic role that is necessary for the recruitment of RAD51 to DSBs.

4) The immunofluorescence-based DNA damage assays such in Figure1B (γH2AX) and Figure3C (RPA) should be performed in a quantitative manner, similar to that of Figure 3D.

We now include these data on Figure 3C and on the new BRCA1 immunofluorescence (Figure 4A). Figure 1B was removed from the revised manuscript (see response to point #2).

5) The experiments attempted to address the if K36me3 is present at the nucleosomes adjacent to DSBs (Figure 2E) are problematic in several aspects:

a) To prepare mono-nucleosomes, the common nuclease of choice is MNase. However, the authors used DNase I, which efficiently cleave nucleosomal DNA at minor grooves, and Benzonase, which is even less proven enzyme to specifically digest linker DNA. More importantly, the nuclei DNA digestion pattern indicated a potential over-digestion (DNA fragment is smaller than 147bp), and there is no evidence that nucleosomes remain intact. This experiment should be repeated with MNase.

b) H2A, H2B and H4 western should be included in nucleosome pull-down when H3 antibodies are used.

Following the reviewers’ suggestion we performed the co-immunoprecipitations with MNase-digested extracts. Our protocol yielded intact nucleosomes as revealed by the length of the DNA fragments (Figure 2–figure supplement 1) and by the western blot of the individual histones (Figure 2E).

c) In control cells (Left), when comparing IP to the input, K36me3 IP seems to put down K4me2 more efficiently than K36me3. This result would suggest that K4me2 co-occupies almost completely with K36me3, which is NOT consistent with numerous mass-spec studies and genome-wide analysis. The authors should elaborate on this result.

To clarify the issue raised by the reviewers, we performed the H3K36me3/H3K4me2 co-immunoprecipitations on MNase-digested extracts. These new data (see Author response image 1) now shows a very mild co-immunoprecipitation of the modified histones in control cells, which is consistent with the previous analysis mentioned by the reviewer. As we had reported in the original submission, H3K4me2 failed to co-purify with 53BP1. Since we think that the additional information provided by this result is very limited, we have decided to remove the H3K4me2 blot from the revised manuscript.

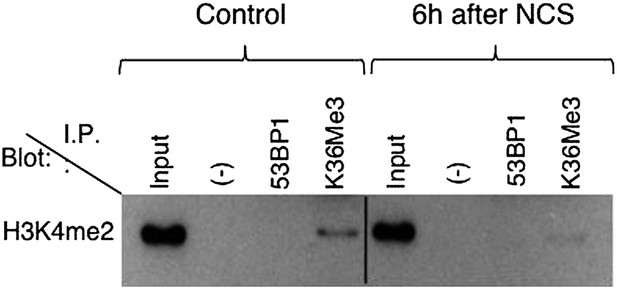

Author response image 1

Co-immunoprecipitation of 53BP1 and H3K36me3 with H3K4me2. The experimental details are outlined in the manuscript. The H3K4me2 antibody was from Abcam (ab32356).

6) To rule out indirect transcriptional effect caused by Setd2 knockdown, the authors settled to merely analyze the published RNA-seq data in Set2 depleted cells. However, this is not a correct analysis for this purpose. Gene expression comparison should have been done between WT and Setd2-KD cells under DNA damage induced conditions. This analysis should be done in WT and Setd2-KD cells under DNA damage induced conditions or removed from the manuscript entirely. If the authors decide to remove this section, they should acknowledge in the text the possibility of indirect SETD2 action via undefined transcriptional effects.

Given the excessive amount of time that we need to perform de novo RNA-seq and data analysis, we have decided to remove the RNA-seq analysis from the manuscript. As requested by the reviewers, we acknowledge the possibility of indirect transcriptional effects caused by SETD2 knockdown (see Discussion).

7) The “Break & access model” proposed by authors in the Discussion section makes no sense to the reviewer for the following reasons:

a) Recombinant Setd2 homologs in human, Drosophila, and yeast all show stronger activity toward nucleosomal substrates than histones; b) The works from the Briggs' lab (Du et al 2008 G&D and 2010 JBC) clearly showed that H2A surface is required for Set2-mediated K36me3; c) Based on the structure, the removal of H2A/H2B bears no influence on “disclose H3K36 substrates for Setd2-dependent trimethylation”. Please modify the model to more accurately depict the results obtained and the current state of knowledge.

We thank the reviewer for this valuable input on our model. We now provide a more careful explanation of the “break and access model” taking into account the data referred to by the reviewer.

Experiments using clear cell renal carcinoma cell lines involve only one of each wild type SETD2 versus mutant SETD2. Given that these cell lines are not isogenic, it is imperative to reproduce the key findings in figures 5, 6 and 7 in at least one other pair of wild type and mutant SET2D.

We included new data obtained with another pair of ccRCC cells (SETD2 wt and mutant) (Figure 6D, Figure 8A and Figure 7–figure supplement 1). The results obtained support the original findings that SETD2 mutant ccRCC cells have impaired DNA damage signaling, DNA repair and p53 checkpoint activation.

https://doi.org/10.7554/eLife.02482.016

Article and author information

Author details

  1. Sílvia Carvalho

    Instituto de Medicina Molecular, Faculdade de Medicina da Universidade de Lisboa, Lisboa, Portugal
    Contribution
    SC, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Alexandra C Vítor
    Competing interests
    The authors declare that no competing interests exist.
  2. Alexandra C Vítor

    Instituto de Medicina Molecular, Faculdade de Medicina da Universidade de Lisboa, Lisboa, Portugal
    Contribution
    ACV, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Sílvia Carvalho
    Competing interests
    The authors declare that no competing interests exist.
  3. Sreerama C Sridhara

    Instituto de Medicina Molecular, Faculdade de Medicina da Universidade de Lisboa, Lisboa, Portugal
    Contribution
    SCS, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Filipa B Martins

    Instituto de Medicina Molecular, Faculdade de Medicina da Universidade de Lisboa, Lisboa, Portugal
    Contribution
    FBM, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Ana C Raposo

    Instituto de Medicina Molecular, Faculdade de Medicina da Universidade de Lisboa, Lisboa, Portugal
    Contribution
    ACR, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Joana MP Desterro

    Instituto de Medicina Molecular, Faculdade de Medicina da Universidade de Lisboa, Lisboa, Portugal
    Contribution
    JMPD, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  7. João Ferreira

    Instituto de Medicina Molecular, Faculdade de Medicina da Universidade de Lisboa, Lisboa, Portugal
    Contribution
    JF, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  8. Sérgio F de Almeida

    Instituto de Medicina Molecular, Faculdade de Medicina da Universidade de Lisboa, Lisboa, Portugal
    Contribution
    SFA, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    sergioalmeida@medicina.ulisboa.pt
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-7774-1355

Funding

Fundação para a Ciência e Tecnologia, Portugal (PTDC-BIA-BCM-111451-2009)

  • Sérgio F de Almeida

Fundação para a Ciência e Tecnologia, Portugal (PTDC/BIM-ONC/0384-2012)

  • Sérgio F de Almeida

Marie Curie Initial Training Network (RNPnet) (PITN-GA-2011-289007)

  • Sreerama C Sridhara

Fundação para a Ciência e Tecnologia (SFRH/BD/52232/2013)

  • Alexandra C Vítor

Fundação Calouste Gulbenkian (96526/2009)

  • João Ferreira

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank our colleagues Dr Maria Carmo-Fonseca and Dr Miguel Godinho-Ferreira for critical comments and suggestions. We thank Ana Rita Grosso, Ana Luísa Caetano, Mafalda Matos, Sérgio Marinho, and Pedro Pereira for technical assistance. We are grateful to Dr Maria Jasin and Dr Jiri Lukas for kindly providing the U2OS DR-GFP cells and 53BP1-GFP expression plasmid, respectively. We also thank the Bioimaging and Flow Cytometry facilities of the IMM for technical assistance. This work was supported by grants from Fundação para a Ciência e Tecnologia (FCT), Portugal (PTDC-BIA-BCM-111451-2009 and PTDC/BIM-ONC/0384-2012 to SFdA). ACV is a Lisbon BioMed PhD fellow funded by FCT (SFRH/BD/52232/2013). SCS is supported by RNPnet, a Marie Curie Initial Training Network (PITN-GA-2011-289007). JF receives support from a Gulbenkian Foundation grant (96526/2009). SFdeA is the recipient of a FCT Investigator award.

Reviewing Editor

  1. Joaquin M Espinosa, Reviewing Editor, Howard Hughes Medical Institute, University of Colorado, United States

Publication history

  1. Received: February 6, 2014
  2. Accepted: April 30, 2014
  3. Accepted Manuscript published: May 6, 2014 (version 1)
  4. Version of Record published: June 3, 2014 (version 2)

Copyright

© 2014, Carvalho et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,956
    Page views
  • 635
    Downloads
  • 76
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Developmental Biology
    Emilia Dimitrova et al.
    Research Article Updated
    1. Cell Biology
    2. Chromosomes and Gene Expression
    Zaijun Ma et al.
    Research Article Updated
