Abstract

Malaria inflicts an enormous burden on global human health. The emergence of parasite resistance to front-line drugs has prompted a renewed focus on the repositioning of clinically approved drugs as potential anti-malarial therapies. Antibiotics that inhibit protein translation are promising candidates for repositioning. We have solved the cryo-EM structure of the cytoplasmic ribosome from the human malaria parasite, Plasmodium falciparum, in complex with emetine at 3.2 Å resolution. Emetine is an anti-protozoan drug used in the treatment of ameobiasis that also displays potent anti-malarial activity. Emetine interacts with the E-site of the ribosomal small subunit and shares a similar binding site with the antibiotic pactamycin, thereby delivering its therapeutic effect by blocking mRNA/tRNA translocation. As the first cryo-EM structure that visualizes an antibiotic bound to any ribosome at atomic resolution, this establishes cryo-EM as a powerful tool for screening and guiding the design of drugs that target parasite translation machinery.

https://doi.org/10.7554/eLife.03080.001

eLife digest

Each year, malaria kills more than 600,000 people, mostly children younger than 5 years old. Humans who have been bitten by mosquitoes infected with malaria-causing parasites become ill as the parasites rapidly multiply in blood cells. Although there are several drugs that are currently used to treat malaria, the parasites are rapidly developing resistance to them, setting off an urgent hunt for new malaria drugs.

Developing new antimalarial medications from scratch is likely to take decades—too long to combat the current public health threat posed by emerging strains of drug-resistant parasites. To speed up the process, scientists are investigating whether drugs developed for other illnesses may also act as therapies for malaria, either when used alone or in combination with existing malaria drugs.

Certain antibiotics—including one called emetine—have already shown promise as antimalarial drugs. These antibiotics prevent the parasites from multiplying by interfering with the ribosome—the part of a cell that builds new proteins. However, humans become ill after taking emetine for long periods because it also blocks the production of human proteins.

Tweaking emetine so that it acts only against the production of parasite proteins would make it a safer malaria treatment. To do this, scientists must first map the precise interactions between the drug and the ribosomes in parasites. Wong et al. have now used a technique called cryo-electron microscopy to examine the ribosome of the most virulent form of malaria parasite. This technique uses very cold temperatures to rapidly freeze molecules, allowing scientists to look at molecular-level details without distorting the structure of the molecule—a problem sometimes encountered in other techniques.

The images of the parasitic ribosome taken by Wong, Bai, Brown et al. show that emetine binds to the end of the ribosome where the instructions for how to assemble amino acids into a protein are copied from strands of RNA. In addition, the images revealed features of the parasitic ribosome that are not found in the human form. Drug makers could exploit these features to improve emetine so that it more specifically targets the production of proteins by the parasite and is less toxic to humans.

https://doi.org/10.7554/eLife.03080.002

Introduction

Malaria is responsible for an estimated 627,000 annual deaths worldwide, with the majority of victims being children under 5 years of age (WHO, 2012). At present there is no licensed malaria vaccine and parasites have developed resistance to all front-line anti-malarial drugs. As such, there is an urgent need for novel therapeutics that can be used as monotherapies or as partner drugs for combinatorial regimes (Kremsner and Krishna, 2004). An alternative to novel candidates is the repurposing or repositioning of clinically approved drugs that can be used in combination with known anti-malarials, such as chloroquine, antifolates, and artemisinin, to increase their useable lifespan by reducing resistance (Grimberg and Mehlotra, 2011).

The etiological agents for malaria are a family of unicellular protozoan pathogens of the genus Plasmodium. The parasite has a complex two-host lifecycle with a sexual stage occurring in the mosquito vector and an asexual stage in the human host. It is during the asexual blood stage that disease symptoms in humans first appear, including those associated with severe malaria, and it is often at this stage that the need for clinical intervention becomes apparent (Miller et al., 2002). Much of malaria pathology is the result of exponential growth of the parasite within erythrocytes, and given the critical role that protein synthesis plays in this, the translational machinery is an attractive drug target.

Protein translation in the parasite is focused on three centers (Jackson et al., 2011): the cytoplasmic ribosome, responsible for the vast majority of protein synthesis, and organellar ribosomes of the mitochondrion and non-photosynthetic plastid, termed the apicoplast (McFadden et al., 1996). In addition, and unusually for a eukaryotic cell, Plasmodium species have two distinct types of cytoplasmic ribosome that differ in their ribosomal RNA (rRNA) composition. These are expressed at different stages of the lifecycle, one predominantly in the mosquito vector and the other in the mammalian host, with evidence that both can occur simultaneously for limited periods (Waters et al., 1989).

Antibiotics known to target the apicoplast ribosome, such as the macrolide azithromycin, demonstrate a delayed-death effect, whereby treated parasites die in the second generation of drug exposure, and therefore have slow clinical onset (Dahl and Rosenthal, 2007 ; Goodman et al., 2007 ). However, because anti-malarial treatment at the blood-stage requires rapid intervention, we focused on the dominant, blood stage-specific cytoplasmic ribosome from the most virulent form of Plasmodium, P. falciparum (Pf80S) (Waters et al., 1989), as inhibition of cytosolic translation would be expected to be direct and fast-acting. Pf80S is both a candidate for development of novel therapeutics that target specific differences between itself and its counterpart in the human cytosol, and also for repurposing of anti-protozoan inhibitors, such as emetine (Matthews et al., 2013).

In this present study, we solved the structure of Pf80S–emetine complex at 3.2 Å resolution and built a fully-refined all-atom model. This represents, to our knowledge, the first structure of an entire eukaryotic ribosome at atomic resolution solved by electron cryo-microscopy (cryo-EM). Pf80S has a broad distribution of Pf-specific elements across its surface, with particularly long rRNA expansion segments (ESs) in the small subunit. The atomic structure of Pf80S in complex with emetine reveals the molecular basis of this clinically relevant anti-protozoan translation inhibitor. In doing so, we establish cryo-EM as a powerful tool for structure-based drug design.

Results

Cytoplasmic ribosomes were isolated from the 3D7 strain of P. falciparum parasites maintained in human erythrocytes (Figure 1A,B). Limitations in parasite culture volume, yielding ∼1010 parasitized red blood cells and low yield of sample material (1 g of parasites yielded 0.35 mg Pf80S), precluded an ability to crystallize Pf80S to solve the structure by conventional X-ray crystallography. We therefore exploited recent advances in direct electron detection and statistical image processing (Bai et al., 2013; Allegretti et al., 2014) to determine the structure by cryo-EM at an overall resolution of 3.2 Å (Figure 1C–E, Figure 1—figure supplement 1).

Figure 1 with 1 supplement see all

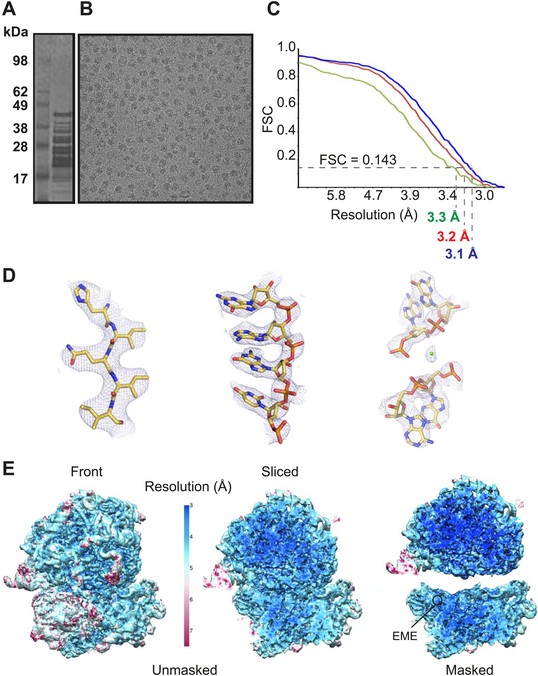

Cryo-EM data and processing.

(A) Sucrose gradient purification of Pf80S ribosomes. (B) Representative electron micrograph showing Pf80S particles. (C) Fourier Shell Correlation (FSC) curves indicating the overall resolutions of unmasked (red), Pf40S masked (green) and Pf60S masked (blue) reconstructions of the Pf80S–emetine complex. (D) Representative density with built models of a β-strand with well-resolved side chains (left), an RNA segment with separated bases (middle), and a magnesium ion (green sphere) that is coordinated by RNA backbone phosphates. (E) Density maps colored according to local resolution for the unmasked Pf80S (left) and masked Pf40S and Pf60S subunits (right).

https://doi.org/10.7554/eLife.03080.003

Protein side chains and RNA bases were clearly resolved in our maps (Figure 1D). The use of model building and refinement tools that were adapted from X-ray crystallography (Amunts et al., 2014) led to a near-complete atomic model with excellent geometrical properties (Figure 2A,B; Table 1). The ribosome model comprises the large (Pf60S) and small subunit (Pf40S) with a total of 74 proteins (Tables 2 and 3) as well as the 5S, 5.8S, 18S, and 28S rRNAs and a tRNA bound at the E-site. The head region of Pf40S has weaker density than the rest of the ribosome due to the inherent flexibility at the neck (centered around h28). This meant that eS31, located in the beak of the 40S head (Rabl et al., 2011), could not be positioned accurately, and has therefore been omitted from the final model. Using base-pair information extracted directly from the atomic model it was possible to revise secondary structure diagrams for P. falciparum rRNA (Figure 2—figure supplements 1–3), facilitating comparison with rRNA of other species.

Figure 2 with 3 supplements see all

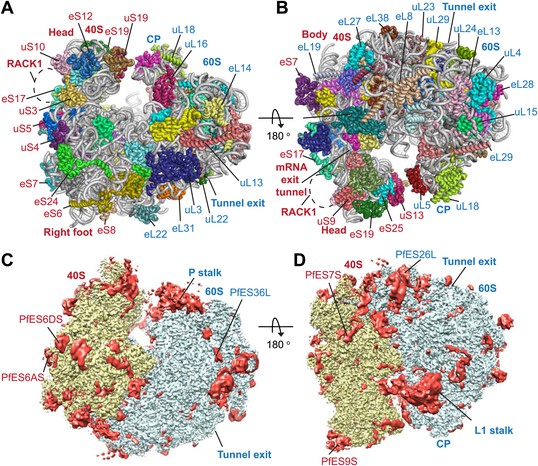

Structure of the Pf80S ribosome.

Overview of Pf80S atomic model showing views facing (A) tRNA entry side and (B) tRNA exit side. rRNAs are shown in gray, proteins numbered according to Ban et al. (2014). (C and D) Pf40S and Pf60S subunits are colored in yellow and blue respectively. Flexible regions are shown in red and at a resolution of 6 Å. Pf-specific expansion segments (ESs) relative to human ribosomes are labeled. Their numbering is as described for the human cytoplasmic ribosome (Anger et al., 2013).

https://doi.org/10.7554/eLife.03080.005
Table 1

Refinement and model statistics

https://doi.org/10.7554/eLife.03080.009
Pf80S–emetine
Data collection
 Particles105,247
 Pixel size (Å)1.34
 Defocus range (μm)0.8–3.8
 Voltage (kV)300
 Electron dose (e Å−2)20
Pf60SPf40S
Model composition
 Non-hydrogen atoms124,50968,858
 Protein residues6,2444,106
 RNA bases3,4601,682
 Ligands (Zn2+/Mg2+/emetine)5/163/01/67/1
Refinement
 Resolution used for refinement (Å)3.13.3
 Map sharpening B-factor (Å2)−60.3−79.9
 Average B factor (Å2)113.1143.2
 Rfactor*0.22940.257
 Fourier Shell Correlation0.860.854
Rms deviations
 Bonds (Å)0.0060.007
 Angles (°)1.201.29
Validation (proteins)
 Molprobity score2.45 (96th percentile)2.73 (95th percentile)
 Clashscore, all atoms3.65 (100th percentile)4.23 (100th percentile)
 Good rotamers (%)90.086.0
Ramachandran plot
 Favored (%)90.485.4
 Outliers (%)2.44.2
Validation (RNA)
 Correct sugar puckers (%)97.397.5
 Good backbone conformations (%)71.170.0
  1. *

    Rfactor = Σ||Fobs| − ||Fcalc|/Σ|Fobs|.

  2. FSCoverall = Σ(Nshell FSCshell)/Σ(Nshell), where FSCshell is the FSC in a given shell, Nshell is the number of ‘structure factors’ in the shell. FSCshell = Σ(Fmodel FEM)/(√(Σ(|F|2model)) √(Σ(F2EM)).

Table 2

Ribosomal proteins of the Pf40S subunit

https://doi.org/10.7554/eLife.03080.010
Protein namesUniprot IDPlasmoDB IDChain IDBuilt residuesExtensions compared to humanTotal number of residues
eS1RS3A_PLAF7PF3D7_0322900B24–233245–262262
uS2RSSA_PLAF7PF3D7_1026800C10–204263
uS3Q8IKH8_PLAF7PF3D7_1465900D4–39; 65–78; 97–193; 207–216221
uS4Q8I3R0_PLAF7PF3D7_0520000E2–186189
eS4Q8IIU8_PLAF7PF3D7_1105400F2–258261
uS5Q8IL02_PLAF7PF3D7_1447000G39–262272
eS6Q8IDR9_PLAF7PF3D7_1342000H1–160; 170–213249–306306
uS7Q8IBN5_PLAF7PF3D7_0721600I7–118; 128–195195
eS7Q8IET7_PLAF7PF3D7_1302800J3–190194
uS8O77395_PLAF7PF3D7_0316800K2–130130
eS8Q8IM10_PLAF7PF3D7_1408600L5–120; 161–213; 216–218154–163218
uS9Q8IAX5_PLAF7PF3D7_0813900M6–143144
uS10Q8IK02_PLAF7PF3D7_1003500N21–118118
eS10Q8IBQ5_PLAF7PF3D7_0719700O11–89137
uS11Q8I3U6_PLAF7PF3D7_0516200P25–151151
uS12O97248_PLAF7PF3D7_0306900Q2–145145
eS12RS12_PLAF7PF3D7_0307100R22–78; 85–100; 111–13510–16141
uS13Q8IIA2_PLAF7PF3D7_1126200S12–139156
uS14C0H4K8_PLAF7PF3D7_0705700T7–5454
uS15Q8IDB0_PLAF7PF3D7_1358800U3–151151
uS17O77381_PLAF7PF3D7_0317600V6–25; 36–161161
eS17Q8I502_PLAF7PF3D7_1242700W3–83; 97–110137
uS19C0H5C2_PLAF7PF3D7_1317800X21–95; 103–123145
eS19Q8IFP2_PLAF7PF3D7_0422400Y15–1681–19170
eS21Q8IHS5_PLAF7PF3D7_1144000Z11–8282
eS24Q8I3R6_PLAF7PF3D7_051940013–122133
eS25Q8ILN8_PLAF7PF3D7_1421200235–42; 58–84; 97–102105
eS26O96258_PLAF7PF3D7_021780032–96107
eS27Q8IEN2_PLAF7PF3D7_130830047–8282
eS28Q8IKL9_PLAF7PF3D7_146130052–29; 37–6667
eS30RS30_PLAF7PF3D7_021920066–4858
eS31Q8IM64_PLAF7PF3D7_1402500Not built149
Table 3

Ribosomal proteins of the Pf60S subunit

https://doi.org/10.7554/eLife.03080.011
Protein namesUniprot IDPlasmoDB IDChain IDBuilt residuesExtensions compared to humanTotal number of residues
uL2Q8I3T9_PLAF7PF3D7_0516900D2–248260
uL3Q8IJC6_PLAF7PF3D7_1027800E2–381386
uL4Q8I431_PLAF7PF3D7_0507100F6–395373–411411
uL5Q8IBQ6_PLAF7PF3D7_0719600G8–51; 64–85; 92–106; 124–166173
uL6Q8IE85_PLAF7PF3D7_1323100H2–186190
eL6Q8IDV1_PLAF7PF3D7_1338200I9–151; 158–221110–118; 139–143; 174–182221
eL8Q8ILL2_PLAF7PF3D7_1424400J40–46; 54–131; 147–28311–24;279–283283
uL13Q8IJZ7_PLAF7PF3D7_1004000K1–201202
eL13Q8IAX6_PLAF7PF3D7_0814000L2–212134–141; 168–174215
uL14Q8IE09_PLAF7PF3D7_1331800M8–139139
eL14Q8ILE8_PLAF7PF3D7_1431700N5–1501–18165
uL15C6KT23_PLAF7PF3D7_0618300O2–148148
eL15C0H4A6_PLAF7PF3D7_0415900P2–205205
uL16Q8ILV2_PLAF7PF3D7_1414300Q2–101; 118–206219
uL18Q8ILL3_PLAF7PF3D7_1424100R5–126; 141–185; 189–250; 271–293294
eL18C0H5G3_PLAF7PF3D7_1341200U5–184184
eL19C6KSY6_PLAF7PF3D7_0614500T2–182182
eL20Q8IDS6_PLAF7PF3D7_1341200S2–187184
eL21Q8ILK3_PLAF7PF3D7_1426000V4–158161
uL22Q8IDI5_PLAF7PF3D7_1351400W4–154; 197–215203
eL22Q8IB51_PLAF7PF3D7_0821700X40–1364–18; 34–38139
uL23Q8IE82_PLAF7PF3D7_1323400Y88–18813–34; 57–67190
uL24O77364_PLAF7PF3D7_0312800Z2–122126
eL24Q8IEM3_PLAF7PF3D7_130910008–69162
eL27Q8IKM5_PLAF7PF3D7_146070012–126;132–146146
eL28Q8IHU0_PLAF7PF3D7_114250022–69; 77–82; 86–98; 103–119127
uL29Q8IIB4_PLAF7PF3D7_112490033–121124
eL29C6S3J6_PLAF7PF3D7_146030042–6767
uL30O97250_PLAF7PF3D7_0307200535–257257
eL30Q8IJK8_PLAF7PF3D7_101940068–105108
eL31Q8I463_PLAF7PF3D7_0503800715–88; 95–116120
eL32Q8I3B0_PLAF7PF3D7_090390082–126131
eL33Q8IHT9_PLAF7PF3D7_1142600935–1371–35140
eL34Q8IBY4_PLAF7PF3D7_0710600a2–107150
eL36Q8I713_PLAF7PF3D7_1109900b2–27; 38–1065–10112
eL37C0H4L5_PLAF7PF3D7_0706400c2–9092
eL38Q8II62_PLAF7PF3D7_1130100d2–31; 36–7787
eL39C0H4H3_PLAF7PF3D7_0611700e2–30; 38–5151
eL40Q8ID50_PLAF7PF3D7_1365900f1–5152
eL41C6S3G4_PLAF7PF3D7_1144300g3–391–1439
eL43RL37A_PLAF7PF3D7_0210100.1h2–8696
eL44RL44_PLAF7PF3D7_0304400i2–96104

Currently, high resolution structures of eukaryotic ribosomes have been solved using X-ray crystallography and are limited to just three structures; the individual subunits from a ciliated protozoan, Tetrahymena thermophila (Klinge et al., 2011; Rabl et al., 2011), and the complete 80S ribosome from the yeast Saccharomyces cerevisiae (Ben-Shem et al., 2011). These models have been used to interpret lower resolution structures solved by cryo-EM of other species including the yeast Kluyveromyces lactis (Fernandez et al., 2014), Drosophila melanogaster (Anger et al., 2013), Trypanosoma brucei (Hashem et al., 2013), as well as human ribosomes (Anger et al., 2013) and provide the basis of the nomenclature used for describing the structures.

To examine overall architectural differences, we compared the model of Pf80S to yeast 80S (Ben-Shem et al., 2011). Perhaps the largest difference is the absence of RACK1 (Figure 1A,B), which associates with the head of the 40S in the vicinity of the mRNA exit channel (Sengupta et al., 2004; Rabl et al., 2011) and has been identified in all eukaryotic ribosome structures solved to-date. RACK1 serves as a signaling scaffold that can recruit other proteins to the ribosome and may link the ribosome with signal transduction pathways, thus allowing translation regulation in response to stimuli. It has also been proposed that RACK1 promotes the docking of ribosomes at sites where local translation is required (Nilsson et al., 2004).

PfRACK1 is conserved with its human homolog with an identity of 60%. The binding site on the ribosome, which comprises eS17, uS3, and 18S rRNA helices h39 and h40 (Figure 1A,B), also appears highly conserved (Rabl et al., 2011). However, the C-terminus of uS3 is not resolved in our structure and probably only becomes ordered upon binding RACK1. The absence of PfRACK1 as an integral member of the small subunit indicates either a different mode of interaction between the ribosome and PfRACK1 in Plasmodium compared to humans, or that under the culturing conditions used PfRACK1 is not expressed, or expressed in a form that does not interact with the ribosome. In yeast, RACK1 has been shown to be present in both a ribosome- and a non-ribosome-bound form dependent on growth conditions (Baum et al., 2004). If the interaction between PfRACK1 and the Pf40S is weaker than in other organisms, the possibility that PfRACK1 dissociated during purification and grid preparation cannot be discounted.

The yeast 80S structure was also solved in the presence of STM1, a translation repressor protein, that binds to the head region of the 40S and blocks mRNA entry and binding of tRNA to the A- and P-sites (Rabl et al., 2011). The human and D. melanogaster structures also co-purified with an STM1-like protein (SERBP1 and VIG2 respectively) (Anger et al., 2013). Pf80S is not bound by a suppressor molecule, as also observed for the T. brucei structure (Hashem et al., 2013), and hence reflects a ribosome capable of active translation.

Pf80S co-purifies with a tRNA bound to the E-site. Although the density is not well resolved, presumably as a result of low and mixed occupancy, it could be interpreted by positioning a model of tRNAMet. The presence of tRNA helps to partially stabilise the L1 stalk near the elbow of the tRNA, however the stalk remains considerably flexible and is averaged out of the high-resolution reconstruction.

Perhaps due to the absence of RACK1 and/or STM1 or the presence of an E-site tRNA, the head of Pf40S adopts an orientation with respect to the body that is different to the yeast structure, with uS11 at the beak of the small subunit displaced by more than 10 Å. The root mean square deviation (RMSD) of the two small subunits is 2.9 Å2, however if the head and body are superimposed independently this improves to 1.0 Å2 and 1.5 Å2 respectively. The structure of Pf60S superimposes with the yeast 60S with a RMSD of 1.6 Å2. The largest morphological differences in this subunit result from a cluster of rRNA helices (ES7AL, ES15L, and ES7CL) protruding at the solvent side.

Given the potential of Pf80S as a drug target, we sought to describe its detailed structure in comparison to its direct counterpart in the human cytoplasm, where a 4.8 Å cryo-EM 80S structure represents the highest resolution solved to-date (Anger et al., 2013). Therefore, all protein extensions and rRNA expansion segments (ESs) are annotated on the basis of comparison with human ribosomes. While the core of the Pf80S and human ribosome are conserved, the periphery of the ribosomes differs extensively in the nature and length of rRNA ESs and protein extensions. The constraints on rRNA expansion appear to be fewer than on protein extension, as rRNA contributes greater to the mass difference between species.

Compared to human ribosomes, P. falciparum typically has shorter ESs, some of which are entirely absent in the large subunit (ES7D-HL, ES9AL, ES10L, ES20L, ES30L) (Table 4). The functions, if any, of many of these ESs are not well known. ES7E, which is highly conserved in vertebrates, is implicated in selenoprotein synthesis by binding the SBP2 protein that specifically recruits the selenocysteine-specific tRNA and elongation factor (Kossinova et al., 2014). While P. falciparum does utilize selenocysteine, it is incorporated into very few proteins (Lobanov et al., 2006) and there is no homolog of SBP2, providing a possible explanation for why ES7E is not present in Plasmodium.

Table 4

Comparison of ESs in Pf80S and human cytoplasmic ribosomes

https://doi.org/10.7554/eLife.03080.012
rRNAESHelixComparison between Pf80S and human ribosomes
18SES2SShorter loop in Pf80S
ES3SAConserved
BTruncated in Pf80S
ES13SConserved
ES6SAExpanded in Pf80S
BTruncated in Pf80S
CConserved
DExpanded in Pf80S
EConserved
ES7SExpanded in Pf80S
ES14SConserved
ES9SExpanded in Pf80S
ES10SExpanded in Pf80S
ES12SHelix truncated in Pf80S
28SES3LConserved
ES4LConserved
ES5LConserved
ES7LATruncated in Pf80S
BTruncated. Loop in Pf80S forms a novel interaction with eL14
B1Pf-specific ES
CPresent
D–HAbsent from Pf80S
ES8LH28Expanded in Pf80S
ES9LAAbsent in Pf80S
H30Conserved
H31Conserved
ES10LAbsent in Pf80S
ES12LExpanded in Pf80S
ES15LATruncated in Pf80S
ES19LTruncated in Pf80S
ES20LAAbsent in Pf80S
BConserved in Pf80S
ES26LExpanded in Pf80S
ES27LA–CNot present in Pf80S model, predicted divergence between Pf and human cytoplasmic ribosomes
ES30LAbsent in Pf80S
ES31LAConserved
BExpanded in Pf80S
CConserved
ES34LPf-specific ES
ES36LPf-specific ES
ES39LAConserved; preceding loop in Pf80S forms a short helix (3 base pairs) with the 5′ end of the 5.8S rRNA
BConserved
ES41LConserved

The largest Pf-specific ESs are concentrated in the 18S rRNA, with ES6S and ES9S being particularly extended (Figure 2C,D; Figure 2—figure supplement 1). These ESs, like those described in both the human (Anger et al., 2013) and Trypanosoma brucei (Hashem et al., 2013) ribosome structures, are highly flexible and, in our structure, are only partly visible using a map filtered at 6 Å (Figure 2C,D). We have therefore not included these sections in our atomic model. ES10S is located at the top of the 40S head and has been partially built.

P. falciparum ribosomes resemble those of T. brucei in that both have large ES6S and ES7S, although these are slightly larger in T. brucei (Hashem et al., 2013). ES6S is in contact with ribosomal components that form part of the mRNA entry and exit sites and was therefore suggested as being involved in translation initiation (Jenner et al., 2012). Recently, ES6/7S have been implicated in binding of the conserved translation initiation factor eIF3 based on superposition with a mammalian 43S complex (Hashem et al., 2013). Almost 90 nucleotides of ES6AS are averaged out of our high-resolution reconstruction indicating this stalk is highly flexible, perhaps acting in a manner similar to the P stalk (known as the L7/L12 stalk in prokaryotes) by recruiting factors necessary for translation (in this case eIF3). The other large ES of the 18S rRNA, ES9S, is positioned at the head of the 40S. Given both the intrinsic mobility of the head and presumably the ES itself, there is no density for this ∼150 nucleotide Pf-specific element and the role it plays remains unclear.

The sites of Pf-specific elements are broadly distributed across the solvent-accessible surface of the ribosome, although the region surrounding the exit tunnel is conserved (Klinge et al., 2011) and undecorated with ESs and protein extensions (Figure 2C,D). The subunit interface and eukaryotic-specific bridges, which in addition to having structural roles help transmit information to coordinate activity during translation (Ben-Shem et al., 2011), are generally highly conserved in Pf80S. There are a couple of examples of stabilizing interactions that are not observed in human ribosomes. Firstly, eL41, the smallest ribosomal protein, bridges the two subunits (Ben-Shem et al., 2011) and has a 14-residue Pf-specific N-terminal extension that reaches into a pocket formed by 18S rRNA of the small subunit and tightly anchors the protein (Figure 3A). Secondly, an additional small bridge (∼200 Å2) is formed between the platform of Pf40S and the region around the L1 stalk by the C-terminal helix extension of eL8 interacting with the C-terminal helix of eS1 (Figure 3B).

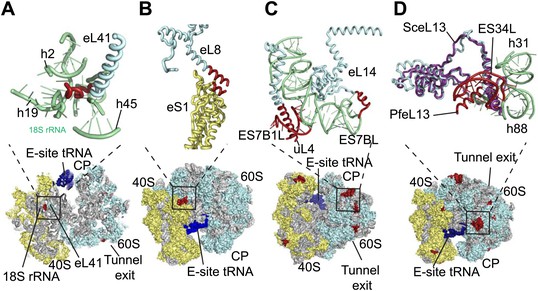

Details of Pf-specific protein extensions and rRNA ESs near the (A and B) subunit interface (C) P stalk and (D) the L1 stalk.

Pf-specific elements are shown in red.

https://doi.org/10.7554/eLife.03080.013

Further ordered Pf-specific elements are concentrated near the L1 and P stalks of Pf60S. Directly above the P stalk, the Pf-specific ES7B1L forms a diverted part of ES7CL that is stabilized by several electrostatic interactions with a C-terminal helix extension of uL4 (Figure 3C). Towards the back of the P-stalk, the C-terminal helix extension of eL14 caps the stem loop of ES7BL (Figure 3C). On the opposite side of the ribosome, near the E-site tRNA, the Pf-specific stem loop ES34L is positioned directly above the L1 stalk (Figure 3D). This ES appears to have caused a 60° rotation of the C-terminal helix of eL13 relative to its position in human ribosomes (Figure 3D). The tip of the helix is displaced by ∼28 Å away from the L1 stalk and now stabilizes the interaction between ES34L and the loop of h22. Since the L1 stalk is required for coordinating the movement of tRNAs and the P stalk is required for coordinating the movement of translation factors during the various steps of protein synthesis (Gonzalo and Reboud, 2003), the expanded mass around the stalks of Pf80S may have functional implications for translation in P. falciparum.

The ability to determine atomic-resolution structures of Pf80S provides a platform for investigating the action of anti-malarial therapeutics that target the ribosome. The clinically used, broad-spectrum eukaryotic translation inhibitor emetine (Figure 4A) (Grollman, 1968), has been reported to act as a translocation inhibitor targeting the ribosome (Jimenez et al., 1977; Dinos et al., 2004), although its precise mode of action is unknown. Emetine is a natural product alkaloid from the plant Carapichea ipecacuanha, and an approved medicine for the treatment of amoebiasis (Goodwin et al., 1948). Although its toxicity associated with chronic usage in humans has limited its clinical use against malaria in its current formulation (Dempsey and Salem, 1966), emetine does demonstrate potent antimalarial activity with a 50% inhibitory concentration (IC50) of 47 nM against the blood stage of multidrug resistant strains of P. falciparum (Matthews et al., 2013). Moreover, the immediate therapeutic effect it offers by rapid killing of blood stage parasites may warrant re-consideration of the use of emetine or its derivatives for short periods during acute malaria infection (James, 1985).

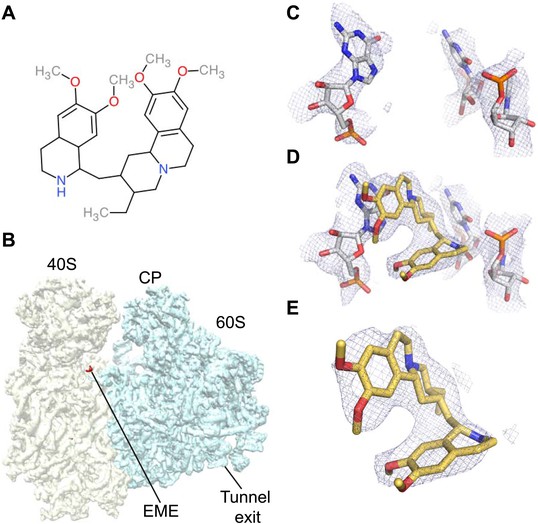

Emetine binds to the E-site of the Pf40S subunit.

(A) 2D chemical structure of emetine. (B) A 4.5 Å filtered difference map (red density) at 5 standard deviation overlaid with the Pf80S map filtered at 6 Å (blue and yellow for Pf60S and Pf40S respectively), showing the emetine density at the E-site of the Pf40S. The emetine binding site in (C) empty and (D) emetine-bound structures, with (E) density for emetine alone at 3.2 Å.

https://doi.org/10.7554/eLife.03080.014

Incubation of purified Pf80S with a 1 mM emetine solution prior to cryo-EM grid preparation, led to a 3.2 Å resolution structure of the complex. Using soft masking, the resolution for the large subunit improved to 3.1 Å, with the small subunit at 3.3 Å (Figure 1C). A difference map was calculated from the reconstructions with and without emetine and showed a single, continuous feature near the E-site of Pf40S with a shape and size congruent with a single emetine molecule when thresholded at 5 standard deviations, and with a maximum value of 11 standard deviations (Figure 4B). At this position in our map, the density provided sufficient detail to confidently model the emetine molecule (Figure 4C–E). The emetine binding pocket is formed at the interface between 18S rRNA helices 23, 24, 45, and the C-terminus of uS11 (Figure 5A). Comparison with the unliganded map showed that binding of emetine does not induce changes to the pocket (Figure 4C,D). The benzo[a]quinolizine ring of emetine mimics a base-stacking interaction with G973 of h23 and its ethyl group forms a hydrophobic interaction with C1075 and C1076 of h24, whereas the isoquinoline ring is stacked against the C-terminal Leu151 of uS11 (Figure 5B,C). The interaction is stabilized by a hydrogen bond formed between the NH group of the isoquinoline ring in emetine and an oxygen atom on the backbone of U2061 of h45 (Figure 5B,C). Although there is no high-resolution structure of the human cytoplasmic ribosome, comparison of the emetine binding site in Pf80S with the equivalent region in the 4.8 Å human structure (Anger et al., 2013) revealed that each of the core binding elements are conserved (Figure 5—figure supplement 1) indicating that emetine likely binds to the cytoplasmic host ribosomes in the same way, potentially accounting for the observed cytotoxicity in humans.

Figure 5 with 1 supplement see all

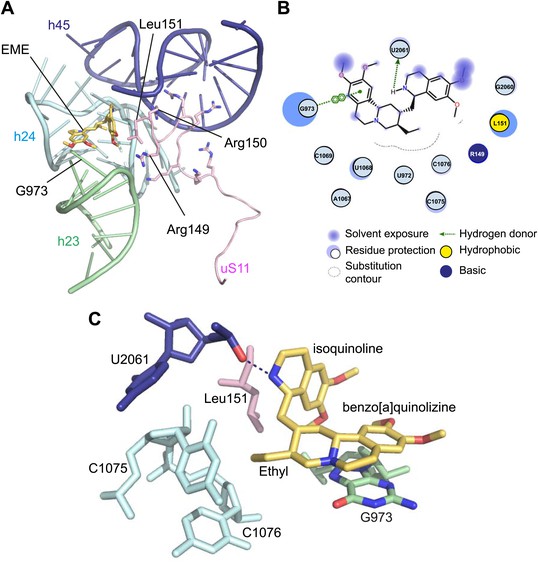

Molecular details of the emetine–ribosome interaction.

(A) Overview of emetine at the binding interface formed by the three conserved rRNA helices and uS11. h23 is in green, h24 in cyan, h45 in blue, uS11 in pink, and emetine in yellow. (B) 2D representation showing the interaction of emetine with binding residues. Substitution contour represents potential space for chemical modification of emetine. (C) Residues in physical contact with emetine. Hydrogen bond is indicated as dashes.

https://doi.org/10.7554/eLife.03080.015

The identified binding site is consistent with mutations of Arg149 and Arg150 of uS11 in Chinese hamster ovary (CHO) cells that have been found to confer resistance to emetine (Madjar et al., 1982). At the emetine-binding pocket, h24 is sandwiched between the apexes of h23 and h45. The C-terminus of uS11 adopts a long coil with seven basic residues (residues 141–151; RKKSGRRGRRL), which form electrostatic interactions with the phosphate backbones of h45, h23 and h24, thereby stabilizing the conformation of this coil together with the 18S rRNA (Figure 5A). This would explain the molecular basis for resistance whereby mutations of the C-terminal arginine residues of uS11 destabilize h23 and h45, disrupting the binding pocket.

The mode of binding of emetine resembles the way in which pactamycin, previously thought to be a unique class of antibiotic, binds to the bacterial 30S (Brodersen et al., 2000). In both structures the guanine base at the tip of h23 (G973 in Pf; G693 in bacteria) forms a stacking interaction with the hydrophobic rings of either compound. Moreover, the two cytosine bases of h24 (C1075 and 1076 in Pf; C795 and 796 in bacteria) are each involved in drug binding (Brodersen et al., 2000; Figure 6). The hydrogen bond to the backbone of h45 and the hydrophobic interaction with Leu151 of uS11 are specific to the Pf80S–emetine interaction. In the 30S-pactamycin complex, the last base of the E-site codon of the mRNA was displaced 12.5 Å compared to the native path of mRNA (Brodersen et al., 2000) thereby blocking mRNA/tRNA entry into the E-site during the translocation step of protein synthesis (Dinos et al., 2004). Based on these structures, emetine appears to elicit its inhibitory effect by the same mechanism as pactamycin.

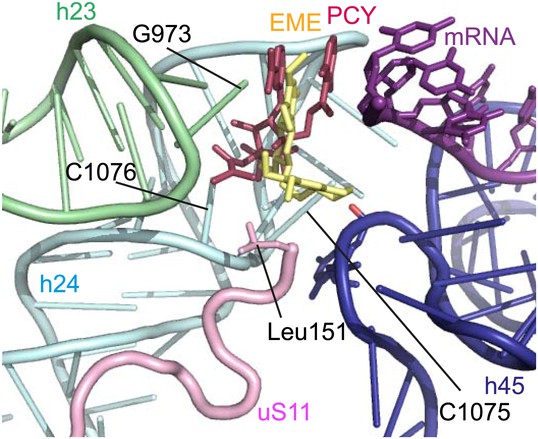

Comparison with pactamycin.

Superposition of emetine and pactamycin at the Pf40S emetine binding pocket. Emetine and pactamycin are shown in yellow and red respectively.

https://doi.org/10.7554/eLife.03080.017

Discussion

The resolution revolution in cryo-EM (Kühlbrandt, 2014) is the product of a new generation of sensors that detect electrons directly (without first converting to light) and have improved quantum efficiencies. These cameras are fast enough to follow beam-induced movement of the particles caused by irradiation with electrons. Statistical movie processing can compensate for this movement allowing for structures to be solved at atomic precision. We have harnessed these technological advances to determine the first structure of a ribosome from a parasite at atomic resolution. Previously, structures of eukaryotic cytosolic 80S ribosomes at a similar resolution had only been possible using X-ray crystallography (Ben-Shem et al., 2011). From the reconstruction of Pf80S–emetine complex at 3.2 Å, we determined a stereochemically accurate all-atom model using recent developments in model building, refinement, and validation (Amunts et al., 2014).

The structure of Pf80S further demonstrates the diversity of ribosome structures among eukaryotes, especially in terms of the location and nature of ESs at the periphery, while maintaining a conserved core. The observation of Pf-specific features could serve as the basis for exploring their functional relevance as an essential, first step towards finding efficacious and clinically safe anti-malarial drugs. An alternative to drug development against Pf-specific ribosomal elements is the repurposing of existing antibiotics as anti-malarials. By determining the structure of Pf80S in both a liganded and unliganded state, we were able to locate the binding site of the anti-protozoan inhibitor, emetine, using an unbiased difference map. That emetine and pactamycin share a binding pocket in eukaryotic ribosomes could not be predicted based on the chemical structures of the drug molecules only. Pactamycin itself has been shown to have potent antiprotozoal activity against both drug-susceptible and drug-resistant strains of P. falciparum (Otoguro et al., 2010). Chemical modifications to pactamycin have yielded analogs that maintain antimalarial activity but with reduced cytotoxicity against mammalian cells (Lu et al., 2011). Similarly, an emetine derivative, dehydroemetine, which differs by the presence of a double bond next to the ethyl group of benzo[a]quinolizine ring, exhibits less toxic effects than the parental compound while maintaining anti-parasitic properties (Dempsey and Salem, 1966; Chintana et al., 1986). This suggests that compounds targeting the emetine/pactamycin binding site are amenable to optimization, potentially leading to drugs more suited to clinical use. The Pf80S–emetine structure reveals an edge centered on the ethyl group of the molecule that could be subjected to modification to increase the affinity of emetine for the binding pocket (Figure 5B, labelled as the ‘contour edge’). Although based on the similarity with the binding site in humans it is unlikely that emetine can be structurally modified to not bind the mammalian system, as demonstrated in the case of dehydroemetine modifications can reduce its cytotoxicity. Although the mechanism for such reduced cytotoxicity mediated by pactamycin and emetine analogs is not known, it may be possible that these derived compounds selectively target tumor/parasite cells that are rapidly dividing, whereby protein synthesis is more sensitive to drug action in these cells. As in the case of antibiotics repurposed as antitumor agents, there is a clinical role for eukaryotic antibiotics that target systems with differential rates of translation provided usage is carefully directed. In malaria, eukaryotic antibiotics, such as emetine, could be used in combination with the slow-acting, but more specific apicoplast-targeting antibiotics (Dahl and Rosenthal, 2007).

This work demonstrates the power of contemporary cryo-EM for drug discovery. A drug, with a previously unknown binding site, can be visualized inside a macromolecular complex that is almost 10,000 times larger in molecular weight and at a level of detail comparable to that obtained by X-ray crystallography. By avoiding the need for crystallization one of the bottlenecks of solving a structure is bypassed. It allows structures to be solved from very small sample quantities, with sample heterogeneity improved through image processing. As such, cryo-EM is of particular use for solving the structures of macromolecules in their native state, isolated from pathogenic organisms where culturing large quantities is not possible.

In summary, our cryo-EM analyses reveal the first structure of a ribosome from a parasite at atomic resolution, along with detailed insights into the molecular basis of a known anti-protozoan translation inhibitor. Finally, it demonstrates that cryo-EM offers an attractive route towards the development of new compounds that target macromolecules by facilitating structure–activity relationships in otherwise intractable biological systems.

Materials and methods

Parasite culture and ribosome purification

Wild-type 3D7 strain of P. falciparum parasites were maintained in human erythrocytes (blood group O) at a hematocrit of 4% with 10% Albumax. Saponin lysed parasite pellets were incubated with lysis buffer (20 mM Hepes, pH 7.4, 250 mM KCl, 25 mM Mg(CH3COO)2, 0.15% Triton, 5 mM 2-mecaptoethanol) at 4°C for 1 hr. Ribosomes were purified by ultracentrifugation initially with a sucrose cushion (20 mM Hepes pH 7.4, 1.1 M sucrose, 40 mM KCH3COO, 10 mM NH4CH3COO, 10 mM Mg(CH3COO)2, and 5 mM 2-mecaptoethanol) followed by a 10–40% sucrose gradient separation step using the same buffer.

Electron microscopy

Aliquots of 3 μl of purified Pf80S at a concentration of ∼160 nM (∼0.5 mg/ml) were incubated for 30 s on glow-discharged holey carbon grids (Quantifoil R1.2/1.3), on which a home-made continuous carbon film (estimated to be ∼30 Å thick) had previously been deposited. Grids were blotted for 2.5 s and flash frozen in liquid ethane using an FEI Vitrobot. For the empty Pf80S sample, grids were transferred to an FEI Titan Krios electron microscope that was operated at 300 kV. Images were recorded manually during two non-consecutive days on a back-thinned FEI Falcon II detector at a calibrated magnification of 135,922 (yielding a pixel size of 1.03 Å). Defocus values in the final data set ranged from 0.7 to 3.9 µm.

To prepare the Pf80S–emetine sample, purified Pf80S at 160 nM was incubated with a 1 mM solution of emetine in 20 mM Hepes pH7.4, 40 mM KCH3COO, 10 mM NH4CH3COO, 10 mM Mg(CH3COO)2, and 5 mM 2-mecaptoethanol for 15 min at 25°C prior to blotting and freezing as described above. Pf80S–emetine grids were transferred to an FEI Tecnai Polara electron microscope that was operated at 300 kV. Images were recorded manually during two non-consecutive days on a back-thinned FEI Falcon II detector at a calibrated magnification of 104,478 (yielding a pixel size of 1.34 Å). Defocus values in the final data set ranged from 0.8 to 3.8 µm.

During the data collection sessions of both samples, all images that showed signs of significant astigmatism or drift were discarded. An in-house built system was used to intercept the videos frames from the detector at a rate of 17 s−1 for the Krios and 16 s−1 for the Polara microscope.

Image processing

We used RELION (version 1.3-beta) for automated selection of 126,727 particles from 1310 micrographs for the empty Pf80S sample; and 158,212 particles from 1081 micrographs for the Pf80S–emetine sample. Contrast transfer function parameters were estimated using CTFFIND3 (Mindell and Grigorieff, 2003). All 2D and 3D classifications and refinements were performed using RELION (Scheres, 2012). To discard bad particles, we used a single round of reference-free 2D class averaging with 100 classes for both data sets, and a single round of 3D classification with four classes for the Pf80S–emetine data set. The final refinement for the empty Pf80S and Pf80S–emetine sample contained 72,293 and 105,247 particles, respectively. A 60 Å low-pass filtered cryo-EM reconstruction of the yeast cytoplasmic 80S ribosome (EMDB-2275 [Ben-Shem et al., 2010]) was used as an initial model for the 3D refinement.

For the correction of beam-induced movements, we used statistical movie processing as described previously (Bai et al., 2013), with running averages of five movie frames, and a standard deviation of 1 pixel for the translational alignment. To further increase the accuracy of the movement correction, we used the beta version of RELION-1.3 to fit linear tracks through the optimal translations for all running averages, and included neighboring particles on the micrograph in these fits. In addition, we employed a resolution and dose-dependent model for the radiation damage, where each frame is weighted with a different B-factor as was estimated from single-frame reconstructions. These procedures yielded maps with an overall resolution of 3.4 Å for the empty Pf80S and 3.2 Å for Pf80S–emetine.

Reported resolutions are based on the gold-standard FSC = 0.143 criterion (Chen et al., 2013) and were corrected for the effects of a soft mask on the FSC curve using high-resolution noise substitution (Chen et al., 2013). Soft masks were made by converting atomic models into density maps, binarizing those, and adding cosine-shaped edges. Prior to visualization, all density maps were corrected for the modulation transfer function (MTF) of the detector, and then sharpened by applying a negative B-factor (Table 1) that was estimated using automated procedures (Rosenthal and Henderson, 2003).

In order to locate emetine in the Pf80S–emetine reconstruction, we calculated a difference map between the reconstructions of empty Pf80S and Pf80S–emetine. To this purpose, the two MTF-corrected and B-factor sharpened maps were aligned with respect to each other using the ‘Fit in Map’ functionality in UCSF Chimera (Pettersen et al., 2004 ), and the empty Pf80S map was re-interpolated on the Cartesian grid of the Pf80S–emetine map prior to subtraction of the maps in RELION. For visualization purposes, the resulting difference map was low-pass filtered at 4.5 Å and the threshold was set at 5 standard deviations as calculated within the area of the Pf80S ribosome (Figure 4B). At this threshold, only one continuous U-shaped feature was visible. The highest difference density inside this feature extended to 11 standard deviations in the difference map.

Local resolution variations in all reconstructions were estimated using ResMap (Kucukelbir et al., 2014). Presumably due to unresolved structural heterogeneity the local resolution in the small ribosomal subunit was typically worse than in the large ribosomal subunit. Therefore, for the Pf80S–emetine structure, we performed two additional ‘focussed’ refinements, where we masked out the large or the small subunit at every iteration. This gave rise to two maps (Figure 1E) with improved density for either the small subunit (at an overall resolution of 3.3 Å) or the large ribosomal subunit (at an overall resolution of 3.1 Å), and these maps were used for the refinement of the atomic model as described below.

Model building and refinement

Ribosomal protein sequences from the 3D7 strain of P. falciparum were taken from PlasmoDB (The Plasmodium Genome Database Collaborative, 2001) and used as template sequences to obtain homology models generated from I-TASSER (Roy et al., 2010). Homology models were fitted into the reconstructed map of Pf80S using Chimera (Pettersen et al., 2004). Each protein was then subjected to a jiggle-fit and extensively rebuilt with sidechains placed into the map density using Coot v.0.8 (Emsley et al., 2010). The sequences of the Pf80S rRNAs were obtained from PlasmoDB (The Plasmodium Genome Database Collaborative, 2001) and aligned using Clustal Omega (Sievers et al., 2011) with the rRNA sequences extracted from the Saccharomyces cerevisae (Sc) 80S structure (PDB ID: 3U5B and 3U5D) (Ben-Shem et al., 2011). Conserved regions without insertions or deletions were extracted from the yeast structure, mutated and renumbered. These conserved sections were then connected by de novo building of RNA. The complete rRNA was then manually rebuilt in Coot to optimize the fit to density. Building was aided by secondary structure predictions downloaded from the Comparative RNA Website (Cannone et al., 2002).

The model was refined using REFMAC v.5.8, which was modified for structures determined by cryo-EM (Murshudov et al., 2011; Amunts et al., 2014). The Pf80S atomic model was refined as separate 60S and 40S subunits in the two maps that were obtained for either subunit in the focused refinements of the cryo-EM reconstructions. Structure factors for the (Fourier-space) refinement in REFMAC were obtained by cutting out sections of the corresponding maps with a 3 Å radius from the center of each atom in the model, and structure factor phases were not altered during refinement.

Throughout refinement, reference and secondary structure restraints were applied to the ribosomal proteins using the Sc80S structure as a reference model (Nicholls et al., 2012). Base pair and parallelization restraints obtained using LIBG were also applied throughout refinement (Amunts et al., 2014). The stereochemistry of the rRNA model was further improved using the ERRASER-PHENIX pipeline (Chou et al., 2013). Ramachandran restraints were not applied during refinement to preserve backbone dihedral angles for validation.

The R-factor and average overall Fourier shell correlation were monitored during refinement (Table 1) and the final model was validated using MolProbity (Chen et al., 2010). For cross-validation against over-fitting, we randomly displaced the atoms of our final model (with an RMSD of 0.5 Å) and performed a fully restrained refinement against a map that was reconstructed from only one of the two independent halves of the data that were used in our gold-standard FSC procedure. We then calculated FSC curves between the resulting model and the half-map against which it had been refined (FSCwork), as well as the FSC curve between that model and the other half-map (FSCtest). The observation that the FSCwork and FSCtest curves nearly overlap demonstrates the absence of overfitting of the model (Figure 1—figure supplement 1).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    In vitro studies on the sensitivity of local Entamoeba histolytica to anti-amoebic drugs
    1. T Chintana
    2. P Sucharit
    3. V Mahakittikun
    4. C Siripanth
    5. W Suphadtanaphongs
    (1986)
    The Southeast Asian Journal of Tropical Medicine and Public Health 17:591–594.
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    Features and development of Coot
    1. P Emsley
    2. B Lohkamp
    3. WG Scott
    4. K Cowtan
    (2010)
    Acta Crystallographica Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Inhibitors of protein biosynthesis. V. Effects of emetine on protein and nucleic acid biosynthesis in HeLa cells
    1. AP Grollman
    (1968)
    The Journal of Biological Chemistry 243:4089–4094.
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
    Low-resolution refinement tools in REFMAC5
    1. RA Nicholls
    2. F Long
    3. GN Murshudov
    (2012)
    Acta Crystallographica Section D, Biological Crystallography 68:404–417.
    https://doi.org/10.1107/S090744491105606X
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    WHO (2012) world malaria report 2012
    1. WHO
    (2012)
    WHO.

Decision letter

  1. Werner Kühlbrandt
    Reviewing Editor; Max Planck Institute of Biophysics, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Cryo-EM structure of the Plasmodium falciparum 80S ribosome bound to the anti-protozoan drug emetine” for consideration at eLife. Your article has been favorably evaluated by John Kuriyan (Senior editor) and 3 reviewers, one of whom, Werner Kühlbrandt, is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

All three reviewers agree that this is exciting, important, and innovative work that should be published in eLife as soon as possible. Two of the reviewers ask for a more detailed description and a more comprehensive comparison of this new structure with the few available structures of eukaryotic ribosomes, which is reasonable given the importance of the work. However, none of them have substantive concerns, so no major revisions are required.

Minor comments:

Reviewer #1:

1) For future reference it would be interesting to know how much material (in terms mg of purified 80S ribosomes) was available, and from roughly how much starting material (in terms of wet weight of cells) it was isolated.

2) For ease of comparison, please provide the concentration of the ribosome solution used for grid preparation in mg/ml, rather than only in terms of molarity.

3) Why is the resolution of the emetin complex significantly higher than that of the empty ribosome, even though the pixel size was larger? Is this fully explained by the larger number of particles averaged?

4) The tunnel exit should be labelled in Figure 2.

Reviewer #2:

1) The resolution is presented as 3.2A in the last paragraph of the Introduction and 3.4A in the first paragraph of the Results section. The authors need to correct or clarify these two apparently competing statements.

2) In the third paragraph of the Results section, a description of ESs refers to Figure 1C-D. Should this be Figure 2C-D?

3) In the fifth paragraph of the Results section: By “unmodified” are the authors meaning to indicate that this region is conserved?

4) Figure 3A. Is the protein shown in this panel eL41? If so, a label or mention in the legend should be added. Also, it is not clear which rRNA is being shown – is it 18S?

5) It would be helpful in Figure 3 and elsewhere to have an overall view of the 40S, 60S or 80S to orient the reader to the location of the detailed structures shown in the figures.

6) In the fifth paragraph of the Results: Should “Figure 3C” be Figure 3B? What is meant by the “P stalk”? Lastly, “Since the P and L1-stalks are required for coordinating movement of translation factors...” I am not aware of such a function for the L1 stalk.

7) In the Discussion section: What exactly is the “contour along one edge”? It was hard to tell from Figure 5B what was meant.

8) In general, it would be interesting to see more details of the comparison between this structure and the yeast 80S structure. For example, are they identical, apart from the phylogenetic variations? Are there any interesting conformational changes? What is the rmsd difference between residues in the conserved core? The paper is a bit disappointing in this regard, considering that this is the second structure for a complete eukaryotic ribosome.

Reviewer #3:

1) The authors should explicitly mention which compounds are currently used as front line drugs and cite a review.

2) Helices in the rRNA are labeled with abbreviations “H##”, also RNA nucleotides are named according to the convention “N##”, both of these abbreviations can cause confusion with single letter amino acid codes also used throughout - this should be changed to avoid ambiguity.

3) The structure of the P. falciparium ribosome is poorly described; it is critical to comment on how the basic architecture deviates (or not) from the crystal structures of previously solved eukaryotic ribosomes, Rabl et al 2011, Klinge et al 2011 and Ben-Shem et al 2011, based on which coordinates the T. burucei and the human ribosome has been modeled: otherwise talking about the core structure remains largely unreferenced (eL41 observed in Ben-Shem et al, polypeptide exit tunnel in Klinge et al, description of the architecture of the 40S subunit Rabl et al, etc...). The subsequent comparison with human ribosomes makes sense, as is.

4) Modifications to pactamycin led to compounds that maintain their antimalarial activity but with reduced toxicity. Can the authors comment on the possible mechanistic reasons for this observation?

5) Figure 2 – the orientation of the 80S is unusual, the authors should use an orientation that places the two subunits next to each other with the active site and the decoding center oriented up, nascent polypeptide exit tunnel down. This will facilitate comparison with other ribosome structures. Same applies in Figure 4.

6) The authors have used a currently unreleased version of Relion (1.3-beta) that includes some modifications. Typically, if modifications of previously published methods and software are used in a publication, the authors should describe it in detail and the program made available.

7) The 2D and 3D classification should be described in more detail (number of classes, particles per class).

8) The generation of masks for the focused refinement should be described in more detail.

https://doi.org/10.7554/eLife.03080.018

Author response

Minor comments:

Reviewer #1:

1) For future reference it would be interesting to know how much material (in terms mg of purified 80S ribosomes) was available, and from roughly how much starting material (in terms of wet weight of cells) it was isolated.

We have now stated in the main text how many mg of ribosomes were yielded per gram of parasite.

2) For ease of comparison, please provide the concentration of the ribosome solution used for grid preparation in mg/ml, rather than only in terms of molarity.

We have now included the ribosome concentration in mg/ml.

3) Why is the resolution of the emetin complex significantly higher than that of the empty ribosome, even though the pixel size was larger? Is this fully explained by the larger number of particles averaged?

Pixel size is not the limiting factor in our reconstructions. The DQE of the Falcon-II camera is (nearly) flat out to ∼75% of Nyquist. Apparently, there is at least one other, as yet unidentified, bottleneck that restricts resolution before using a smaller pixel.

4) The tunnel exit should be labelled in Figure 2.

We have labelled the tunnel exit in Figure 2.

Reviewer #2:

1) The resolution is presented as 3.2A in the last paragraph of the Introduction and 3.4A in the first paragraph of the Results section. The authors need to correct or clarify these two apparently competing statements.

We have altered the text to clarify that the resolution of Pf80S in the absence of emetine was 3.4 Å, but reached 3.2 Å when emetine was present.

2) In the third paragraph of the Results section, a description of ESs refers to Figure 1C-D. Should this be Figure 2C-D?

We have altered the figure reference.

3) In the fifth paragraph of the Results section: By “unmodified” are the authors meaning to indicate that this region is conserved?

We have changed ‘unmodified’ to ‘conserved’.

4) Figure 3A. Is the protein shown in this panel eL41? If so, a label or mention in the legend should be added. Also, it is not clear which rRNA is being shown – is it 18S?

The figure has been altered to improve the labelling.

5) It would be helpful in Figure 3 and elsewhere to have an overall view of the 40S, 60S or 80S to orient the reader to the location of the detailed structures shown in the figures.

We have added overall views of Pf80S to clearly indicate the positions of the detailed features.

6) In the fifth paragraph of the Results: Should “Figure 3C” be Figure 3B? What is meant by the “P stalk”? Lastly, “Since the P and L1-stalks are required for coordinating movement of translation factors...” I am not aware of such a function for the L1 stalk.

Yes! We have corrected the figure reference.

The P stalk is equivalent to the L7/L12 stalk in prokaryotes and is a lateral protuberance from the ribosome involved in the recruitment of translation factors. This is now stated in the text.

The L1 stalk is involved in coordinating movement of tRNAs during translocation (Trabuco, et al. (2010) J. Mol. Biol., 402(4):741-760). However, to avoid confusion with protein translation factors we have revised this sentence.

7) In the Discussion section: What exactly is the “contour along one edge”? It was hard to tell from Figure 5B what was meant.

In the emetine molecule there is an edge centred on the ethyl group and closest to the ribosome that could potentially be modified to improve the contacts with the ribosome. This is referred to as the ‘substitution contour’ in Figure 5B. We have modified the text to make this clearer.

8) In general, it would be interesting to see more details of the comparison between this structure and the yeast 80S structure. For example, are they identical, apart from the phylogenetic variations? Are there any interesting conformational changes? What is the rmsd difference between residues in the conserved core? The paper is a bit disappointing in this regard, considering that this is the second structure for a complete eukaryotic ribosome.

We have now added a substantial discussion of the comparison between the Plasmodium and yeast 80S structures focusing particularly on the composition of the two ribosomes and morphological differences in the quaternary structure. This includes a discussion of the absence of RACK1 and a suppressor protein and the inclusion of a tRNA bound at the E-site. We have calculated the RMSD for the conserved cores of the large and small subunits and for the head and body of the small subunit separately. We have also added additional differences between Pf80S and the human ribosome, notably the observation of an additional bridge between the platform of the 40S and eL8 in the large subunit.

Reviewer #3:

1) The authors should explicitly mention which compounds are currently used as front line drugs and cite a review.

We have added the identities of some of the most commonly used anti-malarials that are described in the reference ‘Grimberg BT, Mehlotra RK. Expanding the Antimalarial Drug Arsenal–Now, But How? Pharmaceuticals (Basel). 2011 May 1;4(5):681-712’.

2) Helices in the rRNA are labeled with abbreviations “H##”, also RNA nucleotides are named according to the convention “N##”, both of these abbreviations can cause confusion with single letter amino acid codes also used throughout – this should be changed to avoid ambiguity.

As recommended, we have altered the nomenclature used for labelling rRNA helices from H## to h##. We have also switched to using three-letter amino acid codes in the text.

3) The structure of the P. falciparium ribosome is poorly described; it is critical to comment on how the basic architecture deviates (or not) from the crystal structures of previously solved eukaryotic ribosomes, Rabl et al 2011, Klinge et al 2011 and Ben-Shem et al 2011, based on which coordinates the T. burucei and the human ribosome has been modeled: otherwise talking about the core structure remains largely unreferenced (eL41 observed in Ben-Shem et al, polypeptide exit tunnel in Klinge et al, description of the architecture of the 40S subunit Rabl et al, etc...). The subsequent comparison with human ribosomes makes sense, as is.

As described in the response to reviewer 2, we have now added a description of how Pf80S differs in architecture to the yeast 80S. The features of the core structure have now been referenced accordingly.

4) Modifications to pactamycin led to compounds that maintain their antimalarial activity but with reduced toxicity. Can the authors comment on the possible mechanistic reasons for this observation?

We have now commented possible mechanistic reasons for this observation in the Discussion.

5) Figure 2 – the orientation of the 80S is unusual, the authors should use an orientation that places the two subunits next to each other with the active site and the decoding center oriented up, nascent polypeptide exit tunnel down. This will facilitate comparison with other ribosome structures. Same applies in Figure 4.

We have re-oriented the ribosome in all the relevant figures.

6) The authors have used a currently unreleased version of Relion (1.3-beta) that includes some modifications. Typically, if modifications of previously published methods and software are used in a publication, the authors should describe it in detail and the program made available.

The main features of the new algorithms are described in the Methods section. A more technical description will be presented in a dedicated paper that is currently in preparation. As we have done with all our software in the past, relion-1.3 will be made available as open-source to the community. The stable 1.3-release is planned in 1-2 months, pending updated documentation and final testing.

7) The 2D and 3D classification should be described in more detail (number of classes, particles per class).

We have added to the Material and methods section a sentence describing how many rounds of 2D and 3D classification were performed for both data sets, and how many classes were used in each case.

8) The generation of masks for the focused refinement should be described in more detail.

An explanation of how the masks were generated has been added to the Materials and methods section.

https://doi.org/10.7554/eLife.03080.019

Article and author information

Author details

  1. Wilson Wong

    1. Division of Infection and Immunity, Walter and Eliza Hall Institute of Medical Research, Melbourne, Australia
    2. Department of Medical Biology, University of Melbourne, Melbourne, Australia
    Contribution
    WW, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Xiao-chen Bai and Alan Brown
    Competing interests
    The authors declare that no competing interests exist.
  2. Xiao-chen Bai

    Structural Studies, Medical Research Council Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    X-B, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Wilson Wong and Alan Brown
    Competing interests
    The authors declare that no competing interests exist.
  3. Alan Brown

    Structural Studies, Medical Research Council Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    AB, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Wilson Wong and Xiao-chen Bai
    Competing interests
    The authors declare that no competing interests exist.
  4. Israel S Fernandez

    Structural Studies, Medical Research Council Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    ISF, Ribosome purification, Approval of final manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  5. Eric Hanssen

    Electron Microscopy Unit, Bio21 Molecular Science and Biotechnology Institute, University of Melbourne, Melbourne, Australia
    Contribution
    EH, Conducted preliminary negative stain and cryo-EM data collection, Approval of final manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  6. Melanie Condron

    1. Division of Infection and Immunity, Walter and Eliza Hall Institute of Medical Research, Melbourne, Australia
    2. Department of Medical Biology, University of Melbourne, Melbourne, Australia
    Contribution
    MC, Prepared parasite lysates for ribosome purification, Approval of final manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  7. Yan Hong Tan

    1. Division of Infection and Immunity, Walter and Eliza Hall Institute of Medical Research, Melbourne, Australia
    2. Department of Medical Biology, University of Melbourne, Melbourne, Australia
    Contribution
    YHT, Prepared parasite lysates for ribosome purification, Approval of final manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  8. Jake Baum

    1. Division of Infection and Immunity, Walter and Eliza Hall Institute of Medical Research, Melbourne, Australia
    2. Department of Medical Biology, University of Melbourne, Melbourne, Australia
    Present address
    Department of Life Sciences, Imperial College London, London, United Kingdom
    Contribution
    JB, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    jake.baum@imperial.ac.uk
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-0275-352X
  9. Sjors HW Scheres

    Structural Studies, Medical Research Council Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    SHWS, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    scheres@mrc-lmb.cam.ac.uk
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Health and Medical Research Council (APP1024678, APP1053801)

  • Wilson Wong
  • Melanie Condron
  • Yan Hong Tan
  • Jake Baum

Human Frontier Science Program (RGY007½011)

  • Yan Hong Tan
  • Jake Baum

Medical Research Council (MC_UP_A025_1013, MC_U105184332)

  • Xiao-chen Bai
  • Alan Brown
  • Israel S Fernandez
  • Sjors HW Scheres

OzeMalar

  • Wilson Wong

Wellcome Trust (WT096570, 100993/Z/13/Z)

  • Alan Brown
  • Israel S Fernandez
  • Jake Baum

Department of Industry, Innovation, Science, Research and Tertiary Education, Australian Government (FT100100112)

  • Wilson Wong
  • Jake Baum

Australian Research Council (FT100100112)

  • Wilson Wong
  • Jake Baum

Victorian State Government Operational Infrastructure Support

  • Jake Baum

European Commission (EU FP7 Marie Curie)

  • Xiao-chen Bai

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank S Ralph, B Sleebs, D Wilson, E Zuccala, G McFadden, A Cowman, J Rayner, A Ruecker, M Delves, R Sinden, S Chen, C Savva, J Grimmett, T Darling, G Murshudov, and P Emsley for helpful discussions and experimental assistance; and V Ramakrishnan for comments on the manuscript.

Reviewing Editor

  1. Werner Kühlbrandt, Reviewing Editor, Max Planck Institute of Biophysics, Germany

Publication history

  1. Received: April 14, 2014
  2. Accepted: June 6, 2014
  3. Accepted Manuscript published: June 9, 2014 (version 1)
  4. Version of Record published: July 8, 2014 (version 2)

Copyright

© 2014, Wong et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 8,927
    Page views
  • 702
    Downloads
  • 69
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Uday K Jagadisan, Neeraj J Gandhi
    Research Article Updated
