Nutritional control of body size through FoxO-Ultraspiracle mediated ecdysone biosynthesis

  1. Takashi Koyama  Is a corresponding author
  2. Marisa A Rodrigues
  3. Alekos Athanasiadis
  4. Alexander W Shingleton
  5. Christen K Mirth  Is a corresponding author
  1. Instituto Gulbenkian de Ciência, Portugal
  2. Lake Forest College, United States
  3. Michigan State University, United States
Research Article
  • Cited 44
  • Views 2,542
  • Annotations
Cite as: eLife 2014;3:e03091 doi: 10.7554/eLife.03091

Abstract

Despite their fundamental importance for body size regulation, the mechanisms that stop growth are poorly understood. In Drosophila melanogaster, growth ceases in response to a peak of the molting hormone ecdysone that coincides with a nutrition-dependent checkpoint, critical weight. Previous studies indicate that insulin/insulin-like growth factor signaling (IIS)/Target of Rapamycin (TOR) signaling in the prothoracic glands (PGs) regulates ecdysone biosynthesis and critical weight. Here we elucidate a mechanism through which this occurs. We show that Forkhead Box class O (FoxO), a negative regulator of IIS/TOR, directly interacts with Ultraspiracle (Usp), part of the ecdysone receptor. While overexpressing FoxO in the PGs delays ecdysone biosynthesis and critical weight, disrupting FoxO–Usp binding reduces these delays. Further, feeding ecdysone to larvae eliminates the effects of critical weight. Thus, nutrition controls ecdysone biosynthesis partially via FoxO–Usp prior to critical weight, ensuring that growth only stops once larvae have achieved a target nutritional status.

https://doi.org/10.7554/eLife.03091.001

eLife digest

The development of many of an animal's traits and characteristics are sensitive to the conditions of its environment. The conditions experienced early on in life, in particular, can alter how an animal grows and develops. The availability of food during development, for example, affects the final body size of many animals—including the larvae of fruit flies, which must reach a so-called ‘critical weight’ before they can change into adults.

A hormone called ecdysone controls when a larva turns into an adult insect. This hormone's levels peak when a fruit fly larva has reached its critical weight, and this peak triggers a cascade of events that ultimately will cause the larva to stop growing and to change into an adult fly. A signaling pathway involving insulin is also known to help regulate body size in response to nutrition. But it was unclear how the timing, and size, of the ecdysone peak is altered to match the larva's diet—and how the insulin-related pathway exerts its effect on body size.

Now, Koyama et al. have found a molecular link between this signaling pathway and the ecdysone hormone that can explain how nutrition can regulate the growth of the flies. First, Koyama et al. found that the ecdysone peak is delayed when young fruit fly larvae were starved before they had reached the critical weight. On the other hand, feeding these starved larvae the ecdysone hormone prevented this delay; and many of these larvae developed into underweight adults that were about three-quarters the size of a typical fully-grown adult.

The ecdysone hormone is made by cells within certain glands in the larvae. Koyama et al. also found that a protein called FoxO, which inhibits the insulin-related pathway, is transported out of the nuclei of these gland cells when growing larvae gain weight. But when larvae that had not reached their critical weight were starved, the FoxO protein was kept within the cell nuclei. Koyama et al. found that, in the nucleus, the FoxO protein blocks the production of ecdysone by interacting with a protein that forms part of the ecdysone receptor. This protein complex delays the expression of genes that are involved in making the hormone. When larvae were fed, the FoxO protein began to leave the nucleus, which allowed ecdysone production to resume.

Future studies could now test whether FoxO controls other traits that are affected by the insect's diet (such as lifespan), and if growth-related hormones in other animals are affected by a similar mechanism.

https://doi.org/10.7554/eLife.03091.002

Introduction

Environmental conditions mould the developmental programs of many organisms to produce dramatic differences in body size and shape, in developmental time and in pigmentation patterns (Beldade et al., 2011). In insects, environmental cues often mediate their effects by regulating the timing and amount of hormone biosynthesis at specific points in development (Koyama et al., 2013). These changes in hormone production have been associated with a wide variety of environmentally induced changes in morphology, including the dramatic reshaping of the body in honeybee castes and seasonal wing pattern polyphenisms in butterflies (Beldade et al., 2011; Koyama et al., 2013). Understanding the molecular underpinnings through which environmental conditions modify hormone production would provide valuable insight into our understanding of developmental plasticity.

Larvae of the fruit fly, Drosophila melanogaster, provide a tractable model to address this question. Drosophila larvae regulate their body size and developmental timing in response to nutritional conditions, similar to many other animals (Shingleton, 2011). Early in the third (final) larval instar (L3), a small peak of the steroid hormone ecdysone has been proposed to induce a developmental transition known as critical weight (Mirth and Riddiford, 2007; Mirth and Shingleton, 2012). The critical weight ecdysone peak responds to both environmental cues and internal developmental processes. Environmental cues including nutrition, temperature and oxygen levels affect the timing of the critical weight ecdysone peak (Caldwell et al., 2005; Colombani et al., 2005; Mirth et al., 2005; Callier et al., 2013; Ghosh et al., 2013). In addition, the neuropeptide important for inducing all ecdysone peaks, prothoracicotropic hormone (PTTH), stimulates ecdysone biosynthesis at critical weight (McBrayer et al., 2007; Ou et al., 2011). The combination of environmental and developmental regulation of this ecdysone peak ensures that developmental timing can be altered with changes in environmental conditions (Gibbens et al., 2011; Mirth and Shingleton, 2012).

Critical weight itself determines the duration of the growth period, and therefore final body size, in response to environmental conditions including nutrition (Beadle et al., 1938; Nijhout and Williams, 1974b; Mirth et al., 2005; Shingleton et al., 2005; Stieper et al., 2008). Before larvae reach critical weight, starvation delays the onset of metamorphosis. After critical weight, larvae initiate metamorphosis without any developmental delay even when starved. Feeding ecdysone to larvae with genetically-induced delays in critical weight rescues the timing of the onset of metamorphosis (Stieper et al., 2008; Parker and Shingleton, 2011).

Nutrition regulates size in organisms ranging from flies to humans via the insulin/insulin-like growth factor signaling (IIS)/Target of Rapamycin (TOR) signaling pathway (Grewal, 2009). The IIS/TOR pathway controls body size by regulating growth rate, and also by regulating the timing of critical weight to determine the duration of the growth period (Nijhout, 2003). At critical weight, the IIS/TOR pathway acts directly on the glands that synthesize ecdysone, the prothoracic glands (PGs), to alter the timing of the expression of several cytochrome P450 (CYP450) genes necessary for ecdysone biosynthesis (Colombani et al., 2005; Layalle et al., 2008). Increasing IIS/TOR activity in the PGs causes precocious ecdysone biosynthesis, precocious critical weight transitions, precocious metamorphosis and dramatic reductions in body size (Caldwell et al., 2005; Colombani et al., 2005; Mirth et al., 2005; Layalle et al., 2008). Reducing IIS/TOR activity in the PGs induces the opposite effects. However, the mechanisms through which the IIS/TOR pathway mediates these effects have been unclear.

Under well-fed conditions, insulin-like peptides (ILPs) are secreted into the insect blood or hemolymph (Masumura et al., 2000; Ikeya et al., 2002; Rulifson et al., 2002; Geminard et al., 2009). By binding to the Insulin Receptor (InR), ILPs activate IIS/TOR signaling in the target tissues (Brogiolo et al., 2001; Ikeya et al., 2002). Activating IIS/TOR signaling regulates a series of phosphokinases, including Akt. Akt, in turn, phosphorylates a negative regulator of growth, Forkhead Box class O transcription factor (FoxO), displacing it from the nucleus to the cytoplasm (Junger et al., 2003). In starved larvae, FoxO localizes in the nucleus where it acts on its targets, such as 4E-binding protein (4E-BP, also known as Thor), to suppress cell growth and division (Puig et al., 2003).

In mammalian cells, FoxO binds to several nuclear hormone receptors (NHRs), such as constitutive androstane receptor (CAR) and pregnane X receptor (PXR), to regulate CYP450 expression (Kodama et al., 2004). The functional ecdysone receptor is composed of two NHRs, Ecdysone Receptor (EcR) and Ultraspiracle (Usp). Since many CYP450 enzymes are involved in ecdysone biosynthesis (Gilbert et al., 2002), this led us to the hypothesis that the effect of IIS/TOR signaling on ecdysone biosynthesis is mediated by the interaction between FoxO and either EcR or Usp.

Here, we provide definitive evidence that critical weight results from the small nutrition-sensitive ecdysone peak early in the L3. Further, we report that IIS/TOR regulates the timing of ecdysone biosynthesis at critical weight via a novel mechanism, the direct association of FoxO and Usp. With these findings, we have constructed a detailed model of the molecular mechanisms underlying environmentally-sensitive ecdysone biosynthesis during critical weight, an event that ultimately determines the duration of the growth period and accordingly final body size.

Results

Starvation delays ecdysone biosynthesis and critical weight

Previous studies have shown that activating IIS/TOR signaling in the PGs induces early critical weight transitions, precocious ecdysone biosynthesis at wandering, and precocious metamorphosis (Caldwell et al., 2005; Colombani et al., 2005; Mirth et al., 2005; Layalle et al., 2008). This has led authors to propose that the small pulse of ecdysone early in the L3 (Warren et al., 2006) is nutrition-sensitive and induces critical weight in Drosophila (Mirth and Riddiford, 2007; Koyama et al., 2013; Mirth et al., 2014). However, these studies have not measured ecdysone concentrations with sufficient resolution early in the instar to show that ecdysone biosynthesis was delayed in starved pre-critical weight larvae. Therefore, we first examined whether this early ecdysone peak is delayed in starved larvae. In accordance with our hypothesis, we found that the small ecdysone peak that occurs around 10 hr after L3 ecdysis (AL3E) in well-fed larvae is suppressed in starved larvae, at least until 18 hr AL3E (Figure 1A). Thus, the timing of this early peak is indeed sensitive to nutrition.

Figure 1 with 1 supplement see all

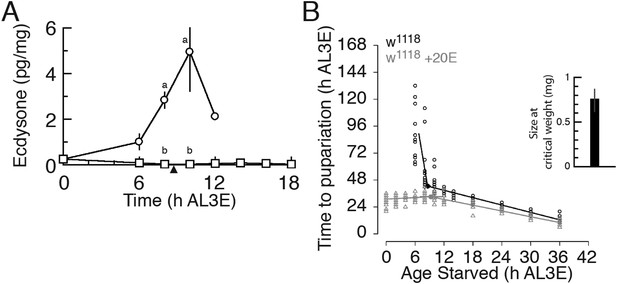

Nutrition regulates the timing of the critical weight ecdysone peak and exogenous ecdysone eliminates developmental delays in pre-critical weight larvae.

(A) Nutrition is necessary to induce a small ecdysone peak at the early L3. We used 30–38 w[1118] larvae for each sample and three biologically independent samples for each time point. Each point indicates the mean ecdysone concentration ± SEM. Points sharing the same letter indicate the mean concentration at the time ±2 hr are statistically indistinguishable from one another; points that differ in letters are significantly different (p < 0.05). The arrowhead along the x axes indicates the age at which w[1118] larvae reached critical weight from Figure 1B. (B) Exogenous ecdysone administration throughout the L3 eliminates developmental delay in starved, pre-critical weight w[1118] larvae. The larvae were continuously fed a fly medium containing 0.15 mg/g 20E or transferred at given time points on to a starvation medium (1% agar) containing the same concentration of 20E. Inset shows the weight ±95% confidence intervals at which larvae reach critical weight. The age and size at which larvae reach critical weight was determined using breakpoint analysis and means and ±95% confidence intervals were calculated from 1000 bootstrap datasets.

https://doi.org/10.7554/eLife.03091.003

Next we reasoned that if this early peak of ecdysone induced critical weight, feeding ecdysone to starved, pre-critical weight larvae should eliminate the delay in their development. To determine when wild type larvae reach critical weight, we starved carefully staged larvae of defined age classes on non-nutritive agar and measured the time it takes for them to reach pupariation from the onset of starvation. A hallmark of critical weight is that before it is attained starvation delays the onset of metamorphosis (Beadle et al., 1938; Nijhout and Williams, 1974b; Mirth et al., 2005; Shingleton et al., 2005; Stieper et al., 2008), whereas after critical weight larvae metamorphose early when starved. We estimate the age at critical weight using breakpoint analysis, which fits a bi-segmental linear regression to the relationship between age at starvation and time to pupariation, and calculates the age at critical weight as the inflection point where this relationship changes (Stieper et al., 2008; Ghosh et al., 2013; Testa et al., 2013). We then use the linear relationship between larval weight and larval age to convert the age at which larvae reach critical weight to the size at which larvae reach critical weight (Figure 1—figure supplement 1B). Finally, we repeated the analysis on 1000 bootstrap datasets to generate 95% confidence intervals for the age and size of larvae when they reach critical weight. Data and scripts for the analysis of size and age at critical weight, including the growth rate data, for all genotypes and treatments are available from the Dryad Digital Repository: http://dx.doi.org/10.5061/dryad.75940 (Koyama et al., 2014).

Wild type larvae reached critical weight at 8.66 hr AL3E (Figure 1B, Supplementary file 1), correlating with the time when well-fed, wild type larvae show a peak of ecdysone (Figure 1A). When we added the active form of ecdysone, 20-hydroxyecdysone (20E), to the medium even the youngest larvae no longer delayed their onset of metamorphosis when starved (Figure 1B). Instead, larvae starved on 20E-supplemented agar between the ages 0–8 hr AL3E pupariated 32 hr after the onset of starvation (Supplementary file 1). Finally, larvae fed 20E-supplemented fly medium throughout the L3 were more than 25% smaller than control larvae (Figure 1—figure supplement 1A). These results demonstrate that this early peak of ecdysone is nutrition sensitive and that it induces critical weight.

The IIS/TOR and ecdysone pathways interact via FoxO–Usp association

We next sought to understand how nutrition regulated the timing of the critical weight ecdysone peak. We hypothesized that IIS/TOR signaling controlled the timing of this ecdysone peak, and therefore critical weight, via FoxO. We reasoned that if FoxO was involved in regulating ecdysone biosynthesis, FoxO would be present in the PG nuclei immediately after the molt to the L3 and would become progressively excluded from the nucleus as the larvae fed and approached critical weight. We found that FoxO was localized primarily in the nuclei of the PG cells of newly ecdysed L3 larvae (0 hr AL3E) (Figure 2A). As the larvae fed, FoxO was gradually transported out of the nuclei into the cytoplasm. At 5 hr AL3E, FoxO appeared evenly dispersed inside the PG cells (Figure 2B). By 10 hr AL3E, immediately after critical weight (Figure 1B), FoxO was mostly localized in cytoplasm of fed larvae (Figure 2C,D). Thus, FoxO appears to be progressively transported out of the nucleus as larvae approached critical weight.

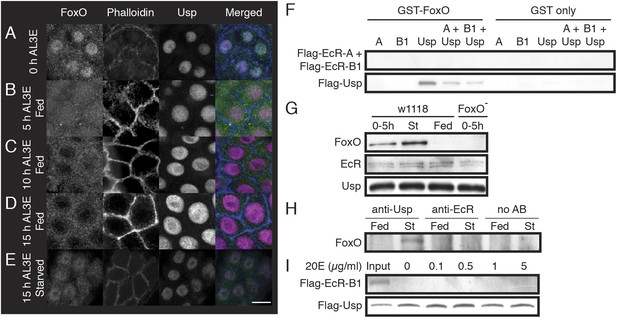

FoxO co-localizes with Usp in the PGs of pre-critical weight larvae and FoxO binds to Usp.

(AE) FoxO progressively moved out of the nuclei and into the cytoplasm of the PG cells in response to nutrition. PGs from w[1118] larvae at the onset of the L3 (A), fed for 5 (B), 10 (C) and 15 hr (D) or starved for 15 hr (E) were immunostained for FoxO, Usp and phalloidin. The scale bar is 10 µm. (F) GST-pulldown shows that FoxO binds to Usp but not to EcR. (G) FoxO associates with Usp before larvae reach critical weight but does not affect EcR–Usp association. Newly molted w[1118] larvae (0–5 hr AL3E) were either protein-starved (St) on 20% sucrose solution or fed on a standard fly medium (Fed) for additional 24 hr, and then the anterior halves of larvae without the fat body and salivary glands were used for protein extraction. We also examined pre-critical weight FoxO mutant (FoxO Δ94/Df(3R)Exel8159) larvae (0–5 hr) as a negative control. Precipitation was performed using the anti-Usp antibody. (H) Usp but not EcR associates with FoxO in co-immunoprecipitation assays using anti-Usp and anti-EcR antibodies. No AB indicates the no-antibody control. Protein extracts were prepared as in (G). (I) Presence of 20E neither changes FoxO–Usp binding properties nor induces FoxO–EcR association in a GST-pulldown assay.

https://doi.org/10.7554/eLife.03091.005

For FoxO to regulate ecdysone biosynthesis in a nutrition-dependent manner, we would expect that it would remain in the nucleus in starved, pre-critical weight larvae. In larvae starved from 0–15 hr AL3E, FoxO remained in the nuclei of the PG cells (Figure 2E). In contrast, FoxO was found primarily in the cytoplasm in fed controls. Taken together, the localization of FoxO suggests that it could be involved in regulating ecdysone biosynthesis at critical weight.

Since FoxO associates with NHRs to regulate CYP450 gene expression in mammalian cells, we hypothesized that FoxO could associate with either EcR or Usp to regulate the nutrition-sensitive ecdysone peak by regulating the expression of CYP450 ecdysone biosynthesis genes. Using GST-pulldown assays, we found that FoxO bound to Usp but not to EcR in vitro (Figure 2F). Co-immunoprecipitation experiments using larval extracts showed that FoxO bound to Usp only in pre-critical weight or starved larvae, but not in well-fed post-critical weight larvae (Figure 2G,H). FoxO neither bound to EcR, nor did it impede EcR/Usp binding in starved larvae (Figure 2G,H). This suggests that FoxO could interact with Usp to regulate the critical weight ecdysone peak, and further that this interaction is unlikely to interfere with EcR/Usp function.

Because in vertebrates FoxO-NHR interactions sometimes change in the presence of hormones (Schuur et al., 2001; Li et al., 2003; Kodama et al., 2004), we tested whether 20E altered FoxO/Usp binding or induced FoxO/EcR binding. The presence of 20E neither changed the binding properties of the FoxO–Usp interaction nor induced a FoxO–EcR association (Figure 2I).

Both FoxO and Usp regulate critical weight

If FoxO/Usp interactions regulate ecdysone biosynthesis at critical weight, we would expect that altering the expression of FoxO or Usp in the PGs would change both the size and the age at which larvae reach critical weight. We used Phantom (Phm)-Gal4, a Gal4 driver specific for the PG cells, to overexpress FoxO in the PGs. These larvae attained critical weight at larger sizes and 10 hr later than in controls (Figure 3A). Overexpressing Usp in the PGs did not produce any significant difference in either the size or the age at which critical weight was achieved (Figure 3B). Overexpressing both FoxO and Usp in the PGs resulted in larvae that reached critical weight more than 13 hr later and about 1 mg larger than control larvae (Figure 3C). Further, the size of these larvae at critical weight was significantly larger than when either FoxO or Usp was overexpressed in the PGs alone (Figure 3D). These data suggest that both FoxO and Usp regulate the timing of critical weight.

Figure 3 with 1 supplement see all

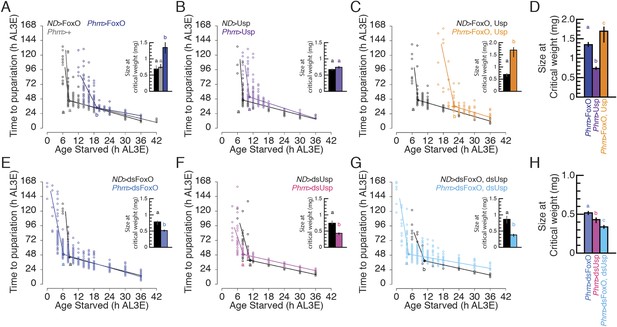

Manipulating FoxO and/or Usp in the PGs changes the timing of critical weight.

(AC) Age at which animals are starved in relation to the time to pupariation from the onset of starvation for Phm>FoxO (A), Phm>Usp (B), Phm>FoxO, Usp (C) animals and their parental controls (Phm>+ and no driver, ND). (D) Critical weight was compared when either or both FoxO and/or Usp were overexpressed in the PGs. (EG) Age at which animals are starved in relation to the time to pupariation from the onset of starvation for Phm>dsFoxO (E), Phm>dsUsp (F), and Phm>dsFoxO, dsUsp (G) and their parental controls. (H) Critical weight was compared when either or both FoxO and/or Usp were knocked down in the PGs. Insets show the size at critical weight ±95% confidence intervals. The age at which larvae reached critical weight ±95% confidence intervals was determined by breakpoint analysis. Points or columns sharing the same letter indicate the groups that are statistically indistinguishable from one another; points or columns that differ in letters are significantly different (Permutation Test, p < 0.05).

https://doi.org/10.7554/eLife.03091.006

In contrast, knocking down either FoxO or Usp alone in the PGs reduced the size but not the age at critical weight (Figure 3E or Figure 3F, respectively). When we simultaneously knocked down both FoxO and Usp in the PGs, larvae reached critical weight significantly earlier at smaller sizes (Figure 3G) than knocking down either FoxO or Usp alone (Figure 3H). These knock down experiments corroborate our results from our FoxO and Usp overexpression experiments and provide further evidence that both FoxO and Usp suppress ecdysone biosynthesis.

Because critical weight is a key determinant of final body size, we also weighed pharate adults as a proxy of final adult size. Overexpressing either FoxO or Usp in the PGs significantly increased body size compared to parental controls (Figure 3—figure supplement 1A). In addition, females that overexpressed both FoxO and Usp together in the PGs had significantly larger body sizes than those overexpressing either FoxO or Usp alone (Figure 3—figure supplement 1A, ANOVA interaction term, p = 0.045). Knocking down Usp resulted in a significant decrease in body size (Figure 3—figure supplement 1B). Knocking down FoxO caused a slight, but significant decrease in body size in males but not in females. However, knocking down both Usp and FoxO in the PGs dramatically reduced body size (Figure 3—figure supplement 1B,C). These results demonstrate that altering the size and timing of critical weight, by manipulating expression of FoxO and Usp, has definitive effects on final adult body size.

FoxO and Usp regulate phantom, disembodied and e74B gene expression

Our data show that the earliest ecdysone peak in the L3 regulates critical weight and that FoxO and Usp alter the timing of this transition. To confirm that FoxO and Usp regulate critical weight by controlling the timing of ecdysone biosynthesis, we examined the expression of two CYP450 ecdysone biosynthetic genes, phm and disembodied (dib), known to be sensitive to IIS/TOR signaling (Colombani et al., 2005; Layalle et al., 2008), in larvae with altered FoxO and Usp expression. In addition, we quantified the expression of an ecdysone response gene, e74B (eip74ef isoform B), which tracks the early effects of ecdysone signaling (Caldwell et al., 2005; Colombani et al., 2005; Layalle et al., 2008) in these larvae. In the parental controls, both phm and dib increased in expression around 8 hr AL3E, shortly before the critical weight ecdysone peak (Figure 4A,B,D,E). E74B expression peaks around 12 hr in parental controls, after the critical weight ecdysone peak (Figure 4C,F). When both FoxO and Usp were overexpressed in the PGs, the increase in phm and dib expression was delayed (Figure 4A,B) and e74B expression remained low up to 20 hr AL3E (Figure 4C). In contrast, when we knocked down FoxO and Usp, both phm and dib expression levels were high immediately after the molt to the L3 (Figure 4D,E) and e74B expression was nearly undetectable at ecdysis but increased rapidly thereafter (Figure 4F). Taken together, these results suggest that alterations in FoxO and Usp affect the timing of ecdysone biosynthesis at critical weight.

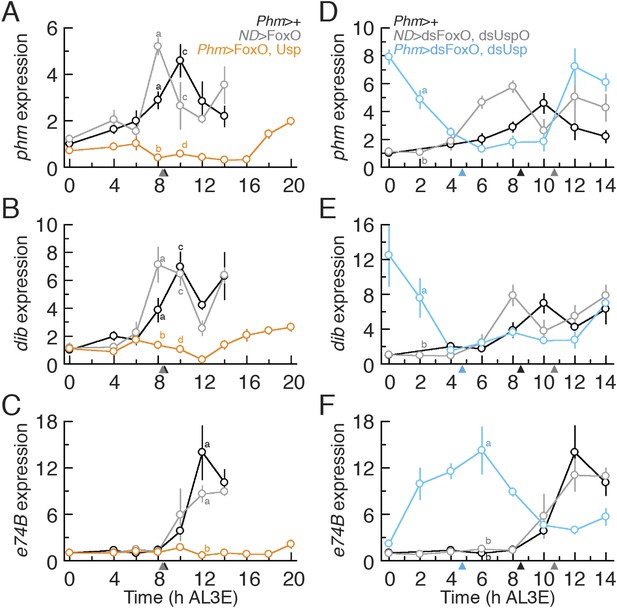

Altering FoxO and Usp expression also alters phm, dib and e74B expression.

(AC) Relative phm (A), dib (B) and e74B (C) mRNA expression in Phm>FoxO, Usp animals were quantified by quantitative PCR. (DF) Relative phm (D), dib (E) and e74B (F) mRNA expression in Phm>dsFoxO, dsUsp animals were quantified by qPCR. We normalized the values using an internal control, RpL3. Then, we standardized the expression level of each gene by fixing the values at 0 hr in Phm>+ animals as 1 in all figures. We used 4–6 larvae for each sample and three biologically independent samples for each time point. Each point indicates the relative mean expression ± SEM. Points sharing the same letter indicate the mean expression at the time ±2 hr are statistically indistinguishable from one another; points that differ in letters are significantly different (p < 0.05). Arrowheads along the x axes indicate the age at which each genotype reached critical weight from Figure 3A,C,G.

https://doi.org/10.7554/eLife.03091.008

Identifying the binding sites for FoxO–Usp interactions

Although our results suggest that both FoxO and Usp act in the PGs to regulate the timing of critical weight ecdysone peak, thereby mediating the timing of critical weight, they do not allow us to distinguish whether FoxO and Usp regulate ecdysone biosynthesis independently or together via the FoxO/Usp complex. To discern between these two possibilities, we developed a genetic tool to manipulate the FoxO–Usp interaction.

First, we identified the Usp binding site in the FoxO protein using GST-pulldown assays. We created overlapping GST-tagged FoxO fragments and, using increasingly smaller overlapping fragments, we narrowed down the Usp binding region to a 35 amino acid region overlapping with 5 amino acids in the C-terminal end of the forkhead (DNA binding) domain (Figure 5A). This motif is well conserved across arthropod species including ticks and water fleas, but is not conserved in FoxO proteins in other ecdysozoans or vertebrates (Figure 5—figure supplement 1). Interestingly, this Usp binding motif is different from the well-known ‘LXXLL’-type NHR binding motif identified in vertebrates (Heery et al., 1997). Next, we identified eighteen candidate amino acids by comparing the crystal structure of mammalian FoxO3a to the Drosophila FoxO sequence (Tsai et al., 2007) and selecting residues that occupied positions permissive for protein–protein interactions. We mutated each of these to alanine. At least 4 of the 18 amino acid residues appeared to be involved in FoxO–Usp binding (residues W172, N175, R202 and K204). When we introduced these single point mutations into the full length FoxO protein, they showed only mild reductions in FoxO–Usp binding (Figure 5A). We then tested four double–mutant combinations (W172-R202, W172-K204, N175-R202, and N175-K204) all of which were sufficient to dramatically reduce FoxO–Usp interactions (Figure 5A). Two of these double–mutant combinations partially reduced the FoxO activity (W172-R202 and W172-K204) (Figure 5—figure supplement 2C,D), as determined by the expression of known FoxO targets InR and 4E-BP (Puig et al., 2003). Because our aim was to disrupt FoxO–Usp binding, but not FoxO function, these were excluded from further analyses. The remaining two double–mutant combinations (N175-R202 or FoxO NR, and N175-K204 or FoxO NK) showed normal translocation to the nucleus (Figure 5—figure supplement 2A,B) and did not affect FoxO's ability to regulate InR and 4E-BP promoter activities (Figure 5—figure supplement 2C,D, respectively).

Figure 5 with 3 supplements see all

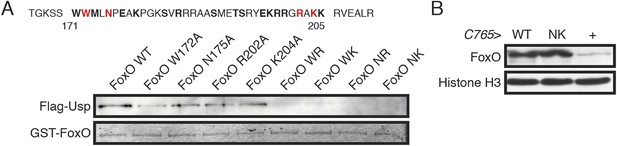

The Usp binding site in FoxO protein was identified and FoxO NK mutation showed reduced binding affinity to Usp.

(A) Point mutations were induced in the FoxO protein at site of the amino acids indicated in bold. Point mutations indicated in red showed reduced binding affinity to Usp. For a loading control, we used Coomassie Brilliant Blue staining to detect GST-FoxO fusion protein. (B) UAS FoxO and UAS FoxO NK transgenes show similar expression levels. We overexpressed either FoxO or FoxO NK using C765-Gal4. The wing discs were dissected from early white prepupae. We used C765>+ as a parental control, and Histone H3 as a loading control.

https://doi.org/10.7554/eLife.03091.009

Finally, we tested whether FoxO NR and FoxO NK retained the ability to suppress tissue growth. We placed the wild type FoxO, FoxO NR and FoxO NK constructs under the control of a UAS promoter and inserted them into the fly genome, using targeted integration (Groth et al., 2004) to control for positional effects of the transgenes. All three constructs have the same genetic background and differ only in the two amino acids mutated to interfere with FoxO–Usp binding. We then drove expression of the FoxO, FoxO NR and FoxO NK in the wings, using the C765- and MS1096-Gal4 drivers, and in the eyes, using the eyeless (Ey)- and GMR-Gal4 drivers. For all drivers, overexpression of FoxO and FoxO NK reduced organ size to a similar degree (Figure 5—figure supplement 3). FoxO NR showed milder reductions in tissue size (Figure 5—figure supplement 3), therefore in subsequent experiments we used FoxO NK. We confirmed that both FoxO and FoxO NK expressed FoxO protein at the same level (Figure 5B). Taken together, FoxO NK showed reduced FoxO–Usp affinity, but maintained Usp-independent FoxO function.

The FoxO/Usp complex suppresses critical weight

To explore whether FoxO and Usp regulate critical weight independently or together as a complex, we drove expression of FoxO NK in the PGs of developing larvae and compared them with larvae expressing wild type FoxO in the PGs. Larvae that overexpressed FoxO NK in their PGs reached critical weight earlier and at smaller sizes than those that overexpressed wild type FoxO, albeit later than the parental controls (Figure 6A). Thus, impeding FoxO–Usp binding reduced the delay in critical weight induced by FoxO overexpression. Similarly, pupae in which FoxO NK was overexpressed in the PGs were significantly smaller than pupae that overexpressed wild type FoxO, although they were still larger than pupae from the parental controls (Figure 6—figure supplement 1A).

Figure 6 with 2 supplements see all

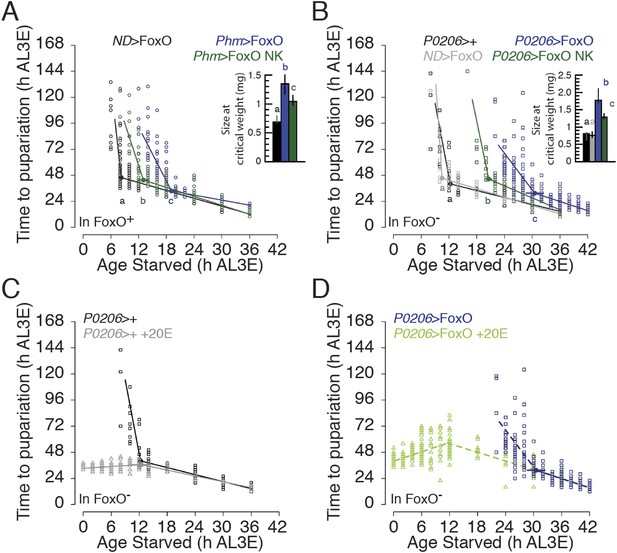

Interfering FoxO–Usp association changes the timing of critical weight.

(A and B) Age at which animals are starved in relation to the time to pupariation from the onset of starvation for Phm>FoxO and Phm>FoxO NK in the FoxO wild type background (A), and P0206>FoxO and P0206>FoxO NK in the FoxO mutant background (B) and their parental controls. (C and D) Feeding ecdysone throughout the L3 eliminates developmental delay in P0206>+ (C) and in P0206>FoxO (D), FoxO mutant larvae. The larvae were continuously fed 0.15 mg/g 20E as described in Figure 1. Data for ND>FoxO and Phm>FoxO in A and for the non-20E-treated data in C and D were re-plotted from Figure 3A and Figure 6B, respectively. Insets show the size at critical weight (mg) ±95% confidence intervals. The age at which larvae reach critical weight ±95% confidence intervals was determined by breakpoint analysis. Points or columns sharing the same letters indicate the groups that are statistically indistinguishable from one another; points or columns that differ in letters are significantly different (Permutation Test, p < 0.05).

https://doi.org/10.7554/eLife.03091.013

Because FoxO alters developmental timing via its effects in other tissues, like the fat body (Colombani et al., 2005), we eliminated effects of the endogenous gene by overexpressing FoxO in the PGs of FoxO null mutant larvae (FoxO Δ94/Df(3R)Exel8159) (Slack et al., 2011). When we used the Phm-Gal4 driver to overexpress FoxO in the PGs of FoxO null animals, most larvae did not survive to the L3. To circumvent this problem, we used P0206-Gal4, which expresses Gal4 moderately in the PGs (Mirth et al., 2005). Since P0206-Gal4 driver expresses Gal4 in other tissues such as the oenocytes and corpora allata, we tested the effects of overexpressing FoxO in these other tissues. To do this, we compared the duration of the L3 and final body size when overexpressing FoxO in the ring gland, oenocytes and corpora allata, using P0206-Gal4, in the oenocytes alone, using PromE(800)-Gal4 (Billeter et al., 2009), and in the corpora allata alone, using Aug21-Gal4 (Mirth et al., 2005) all in the FoxO null mutant background. We found that overexpressing FoxO in the oenocytes and corpora allata does not affect the duration of the L3. In contrast, overexpressing FoxO in the ring glands using P0206-Gal4 prolonged the duration of the L3 compared to parental controls (Figure 6—figure supplement 2A). Further, overexpressing FoxO in the oenocytes and corpora allata did not affect final body size, whereas overexpressing FoxO using P0206-Gal4 increased body size (Figure 6—figure supplement 2B). Taken together, our data suggest that FoxO overexpression in the oenocytes and corpora allata had no measurable effect on growth rate or the duration of the L3. Thus, we conclude that developmental delay and size increase induced by overexpressing FoxO using P0206-Gal4 is due to the functions of FoxO in the PGs.

Similar to what we found in the FoxO wild type background, FoxO null larvae that overexpressed FoxO NK in their PGs reached critical weight earlier and at smaller sizes than larvae that overexpressed wild type FoxO in their PGs (Figure 6B). Further, we confirmed that overexpressing both FoxO NK and Usp in the PGs of FoxO null mutant larvae did not alter the age and size at critical weight (Figure 6—figure supplement 2C) nor did it alter final body size when compared to overexpressing FoxO NK alone (Figure 6—figure supplement 2D). These results suggest that Usp does not affect the timing of critical weight on its own and that critical weight is regulated, at least in part, by FoxO/Usp.

Feeding ecdysone is sufficient to eliminate the developmental delays induced by FoxO overexpression in the PGs

We next tested whether exogenous ecdysone could rescue the delay in critical weight induced by the FoxO/Usp complex. To do this, we assessed critical weight in P0206>FoxO, FoxO null larvae and the P0206>+, FoxO null parental controls on medium supplemented with 20E. We found that adding 20E to the medium altered the relationship between age at starvation and time to the onset of metamorphosis in both genotypes (Figure 6D). In the parental controls, larvae starved before 12 hr AL3E on ecdysone-supplemented agar did not delay the onset of metamorphosis, pupariating 36 hr after starvation (Figure 6C, Supplementary file 1). When we starved P0206>FoxO, FoxO null larvae on 20E supplemented agar, time to pupariation increased with age of starvation from 0–12 hr AL3E, with larvae showing a maximum time to pupariation of 57 hr (Supplementary file 1) at 12 hr AL3E, then decreased thereafter. This suggests that (1) 20E administration eliminated the strong delays in time to metamorphosis seen in pre-critical weight P0206>FoxO, FoxO null larvae and (2) FoxO overexpression in the PGs has additional stage-specific effects on the time to pupariation after the critical weight ecdysone peak and this effect is nutrition-sensitive.

In addition to the effects we observed on developmental time, we found that both P0206>FoxO, FoxO null and P0206, FoxO null parental control animals were significantly smaller when they were continuously fed 20E-supplemented normal fly medium when compared to animals reared on normal fly medium alone (Figure 6—figure supplement 1C,D). These data demonstrate that altering the timing of critical weight, by exogenous ecdysone administration, impacts final adult size.

The FoxO/Usp complex suppresses ecdysone biosynthesis

The goal of this study was to uncover the molecular mechanism through which nutrition regulates ecdysone synthesis at critical weight. Our results show that FoxO and Usp interact to regulate critical weight and suggest that this interaction alters the timing of the ecdysone peak. To definitively test whether the FoxO/Usp complex regulates ecdysone biosynthesis at critical weight, we examined whether the FoxO/Usp complex altered the timing of phm and dib mRNA expression, the timing of e74B expression and finally the timing of the ecdysone peak itself.

The expression of both phm and dib mRNA peaked shortly before critical weight in the parental controls (Figure 7A,B and Figure 7—figure supplement 1A–C). However, P0206>FoxO, FoxO null larvae showed significant delays in this peak (Figure 7B,D). Overexpressing FoxO NK in the PGs reduced the delays induced by FoxO overexpression (Figure 7B,D). Similarly in the wild type background, phm and dib expression was upregulated significantly earlier when FoxO NK was expressed in the PGs than when FoxO was overexpressed in this tissue (Figure 7—figure supplement 1A,B).

Figure 7 with 1 supplement see all

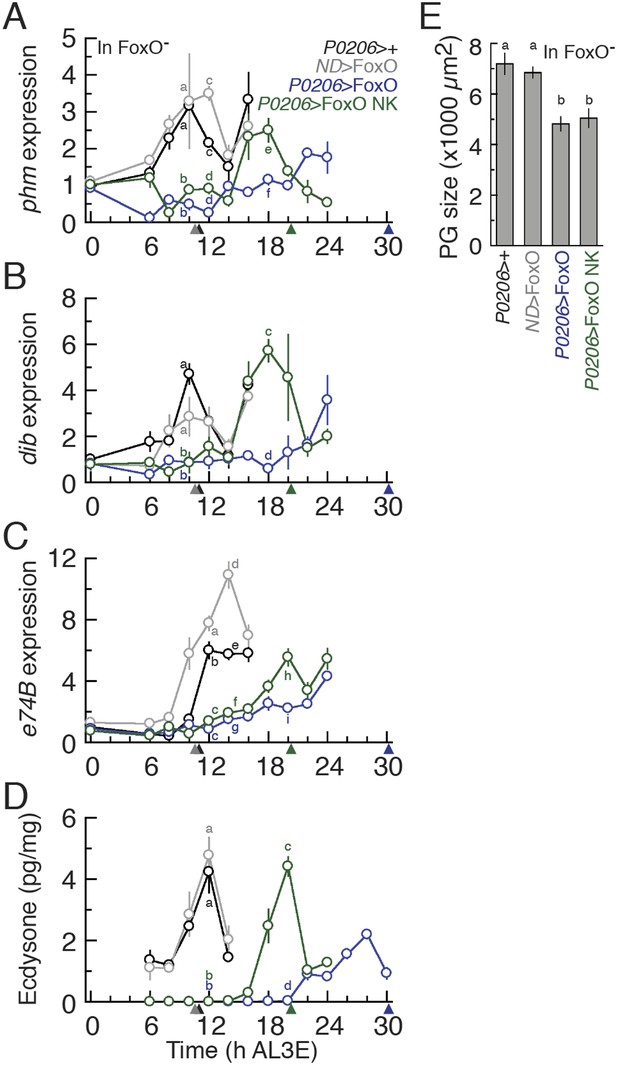

The FoxO/Usp complex suppresses critical weight through inhibiting ecdysone biosynthesis in the PGs.

(AC) Relative phm (A), dib (B), and the ecdysone response gene e74B mRNA expression (C) in the FoxO mutant backgrounds were quantified by qPCR. We normalized the values by an internal control, ribosomal protein large subunit 3 (RpL3). Then, we standardized the expression level of each gene by fixing the values at 0 hr in P0206>+ animals as 1. We used 5–6 larvae for each sample and three biologically independent samples for each time point. Each point indicates the relative mean expression ± SEM. Points sharing the same letters indicate the mean expression at the time ±2 hr are statistically indistinguishable from one another; points that differ in letters are significantly different (p < 0.05). (D) The FoxO/Usp complex suppresses ecdysone biosynthesis during critical weight period in larvae with FoxO mutant backgrounds. We used 32–46 larvae for each sample and three biologically independent samples for each time point. Each point indicates the mean ecdysone concentration ± SEM. Points sharing the same letter indicate the mean concentration at the time ±2 hr are statistically indistinguishable from one another; points that differ in letters are significantly different (p < 0.05). Arrowheads along the x axes indicate the age at which each genotype reached critical weight from Figure 6B. (E) Overexpressing FoxO or FoxO NK equally reduces the PG size of the FoxO null mutant larvae. The PGs were dissected at 24 hr AL3E and stained with phalloidin. After photographing, these areas were quantified using the ImageJ. Each bar indicates the mean area ± SEM. N = 7–10. Columns sharing the same letter indicate the groups that are statistically indistinguishable from one another; columns that differ in letters are significantly different (p < 0.05).

https://doi.org/10.7554/eLife.03091.016

Even if we observe alterations in ecdysone biosynthesis gene expression, this does not necessarily mean that ecdysone biosynthesis is affected when we manipulate FoxO expression in the PGs. To assess if overexpressing FoxO in the PGs affected ecdysone signaling, we examined the expression of e74B. In the parental control larvae, e74B mRNA expression was up-regulated around 12 hr AL3E, shortly after critical weight (Figure 7C, Figure 7—figure supplement 1C). Overexpressing FoxO in the PGs delayed the up-regulation of e74B in both the FoxO mutant and wild type backgrounds (Figure 7C, Figure 7—figure supplement 1C). Finally, interfering with FoxO/Usp complexes, by overexpressing FoxO NK, in the PGs reduced this delay in both the FoxO mutant and wild type backgrounds (Figure 7C, Figure 7—figure supplement 1C). Thus, FoxO/Usp complex plays a role in regulating the dynamics of ecdysone signaling at critical weight.

Finally, to show that the FoxO/Usp complex regulates ecdysone biosynthesis at critical weight, we measured ecdysone concentrations in larvae that expressed either FoxO or FoxO NK in their PGs from 6 hr AL3E until the nutrition-dependent critical weight ecdysone peak. Overexpressing FoxO in the PGs of FoxO mutant larvae induced a significant delay in the critical weight ecdysone peak (Figure 7D). In addition, the maximum concentration of this peak was approximately 50% lower than the critical weight ecdysone peak in parental controls. The critical weight ecdysone peak occurred significantly earlier in P0206>FoxO NK larvae than in P0206>FoxO larvae. This difference in the timing of the critical weight ecdysone peak was not due to differences in the effects between FoxO and FoxO NK on PG size. Overexpressing either FoxO or FoxO NK induced indistinguishable reductions in PG size (Figure 7E). Taken together our results show that FoxO acts to control the timing of ecdysone biosynthesis via the FoxO/Usp complex, but also via Usp-independent mechanisms.

Discussion

Environmental conditions influence developmental processes by affecting hormone synthesis in many organisms. These interactions form the basis of developmental plasticity, and can act to resize and reshape the whole animal. Although environmental effects on hormone synthesis have been identified as a mechanism underlying plasticity in many insects, what causes hormones to become environmentally-sensitive was poorly understood. Here, we demonstrated that FoxO associates with Usp to regulate nutrition-sensitive ecdysone biosynthesis. Our work uncovers a novel mechanism that allows hormone biosynthesis to become environmentally-sensitive at key developmental events, in this case to control plasticity in body size.

The FoxO/Usp complex regulates critical weight by regulating ecdysone biosynthesis

Increasing IIS/TOR activity in the PGs induces precocious critical weight and reducing its activity in the PGs prolongs this transition (Caldwell et al., 2005; Colombani et al., 2005; Mirth et al., 2005; Layalle et al., 2008). Because IIS/TOR signaling positively regulates the expression of CYP450 ecdysone biosynthetic genes, phm and dib (Colombani et al., 2005; Layalle et al., 2008), we previously hypothesized that IIS/TOR exerted these effects by regulating the timing of the small peak of ecdysone that coincides with critical weight (Mirth and Riddiford, 2007; Mirth and Shingleton, 2012).

Our data both tested this hypothesis and identified a novel interaction between the IIS/TOR and ecdysone signaling pathways. We have found that interactions between FoxO and Usp regulate ecdysone biosynthesis, critical weight and body size. This allows us to propose a model for nutrition-sensitive ecdysone biosynthesis during critical weight (Figure 8). During the molt to the L3, larvae undergo a period of starvation while they expel their mouthparts (Park et al., 2002, 2003). As a consequence, IIS/TOR signaling activity in the PGs is reduced and FoxO remains in the nucleus and forms a complex with Usp. The FoxO/Usp complex suppresses ecdysone biosynthesis at least in part by repressing transcription of phm and dib, although we do not know whether this repression is direct. Once larvae start feeding, increasing IIS/TOR activity in the PGs results in the phosphorylation of FoxO, causing the dissociation FoxO/Usp complexes as FoxO moves out of the nucleus. This progressive dissociation of FoxO/Usp complexes results in a gradual rise in ecdysone biosynthesis. Once ecdysone reaches a threshold, it triggers critical weight. Afterwards, the time to metamorphosis is set and can no longer be delayed by starvation. For other ecdysone peaks, a negative feedback loop induced by ecdysone signaling itself down-regulates ecdysone biosynthesis (Sakurai and Williams, 1989; Takaki and Sakurai, 2003; Moeller et al., 2013). We expect that negative feedback by ecdysone results in the decline in ecdysone biosynthesis after the critical weight peak.

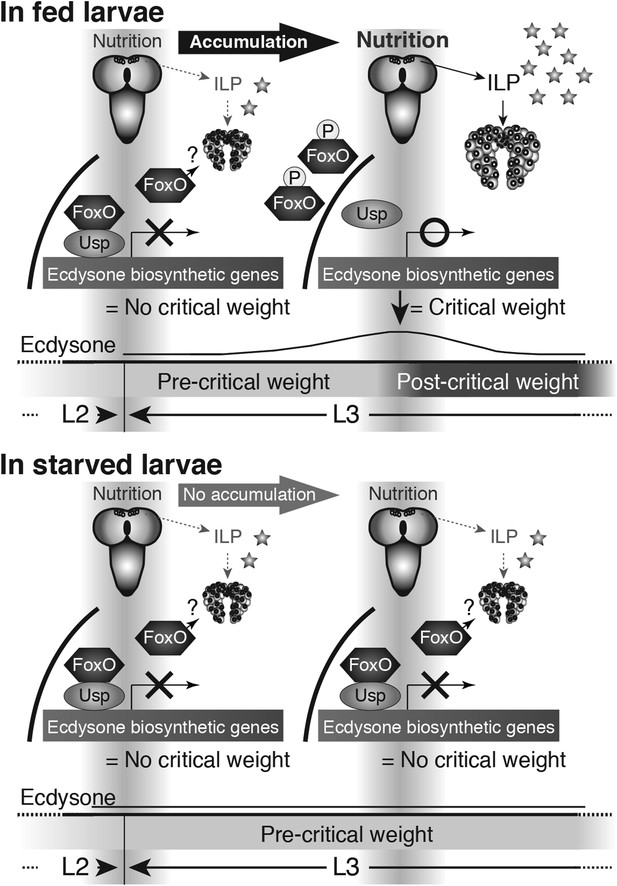

Proposed model: Nutrition regulates ecdysone biosynthesis during critical weight through FoxO/Usp.

At the onset of the L3 (left), IIS/TOR signaling is reduced in the PG cells and the FoxO/Usp complex suppresses ecdysone biosynthesis either directly, as drawn, or indirectly. As the larvae feed, FoxO becomes phosphorylated and transported out of the nucleus, thereby dissociating FoxO/Usp complexes. As a result, ecdysone biosynthesis becomes derepressed (upper right). After critical weight, ecdysone reduces its own biosynthesis through a negative-feedback loop. In starved conditions, the IIS/TOR signaling activity in the PGs remains low, thereby unphosphorylated FoxO remains inside of nuclei forming complexes with Usp (lower right). This inhibits ecdysone biosynthetic gene expression, thereby repressing ecdysone biosynthesis and delaying metamorphosis. FoxO on its own or with an unknown partner(s) may also regulate ecdysone biosynthesis.

https://doi.org/10.7554/eLife.03091.018

In contrast, when larvae are starved before attaining critical weight, FoxO remains in the nucleus. In these larvae, the FoxO/Usp complex suppresses ecdysone biosynthesis and delays critical weight. Consequentially, the onset of metamorphosis is delayed. This work uncovers a mechanism that allows IIS/TOR signaling to control ecdysone biosynthesis, providing an elegant means for nutrition to regulate body size.

Other regulators of ecdysone biosynthesis

Although the ecdysone peak at critical weight is environmentally-sensitive, many other peaks that occur throughout the larval period show less plasticity in response to environmental cues. Ecdysone biosynthesis is also regulated by a developmental neuropeptide, prothoracicotropic hormone (PTTH). Several extrinsic and intrinsic stimuli affect PTTH secretion, such as photoperiod, oxygen concentrations, signals released from damaged imaginal discs, and the sesquiterpenoid ‘status quo’ hormone juvenile hormone (Truman, 1972; Nijhout and Williams, 1974a, 1974b; McBrayer et al., 2007; Halme et al., 2010; Callier and Nijhout, 2011; Colombani et al., 2012; Garelli et al., 2012; Mirth and Shingleton, 2012). Activating downstream targets of PTTH signaling in the PGs accelerates the onset of metamorphosis (Caldwell et al., 2005) and ablating the PTTH-producing cells delays critical weight (McBrayer et al., 2007; Rewitz et al., 2009). Further, without PTTH the ecdysone peak that stimulates wandering behavior, where the larvae emerge from the food to begin metamorphosis, is dramatically delayed (McBrayer et al., 2007; Rewitz et al., 2009; Gibbens et al., 2011). Thus in contrast to IIS/TOR signaling whose major effects are to control the critical weight ecdysone peak, PTTH regulates all ecdysone peaks. Why particular ecdysone peaks are more sensitive to IIS/TOR signaling is unclear, however understanding the mechanisms underlying this differential sensitivity may be key to understanding developmental plasticity.

Usp-independent effects of FoxO on ecdysone biosynthesis

FoxO also regulates the critical weight ecdysone peak independently of Usp; overexpressing FoxO NK in the PGs still induces delays in ecdysone biosynthesis and critical weight, even if these delays are more moderate than those induced by wild type FoxO. Thus, our data suggest that FoxO plays additional roles in regulating ecdysone biosynthesis, either on its own or through interaction with other binding partners.

The effects of starvation on ecdysone biosynthesis do not appear to be the same for all stages of development. Even though starvation causes a delay in development before attaining critical weight, once they reach critical weight, starvation induces moderate acceleration in the time to metamorphosis (Mirth et al., 2005; Stieper et al., 2008). This suggests that reducing IIS/TOR signaling induces a mild acceleration of ecdysone biosynthesis at later stages of the L3 development. How IIS/TOR activity regulates ecdysone biosynthesis differently depending on the stage of development is unclear, but it may result from interaction of alternate FoxO binding partners.

FoxO-NHR complexes and steroid hormone signaling

Our findings have broad implications for our understanding of the mechanisms of size regulation and the development of other environmentally-sensitive traits. In other insects, traits such as seasonal wing morphs in butterflies (Koch and Bückmann, 1987; Koch et al., 1996; Oostra et al., 2011) or horn length in male dung beetles (Emlen and Nijhout, 1999) arise from differential regulation of ecdysone biosynthesis (Koyama et al., 2013). Horn length in dung beetles is highly nutrition-dependent, with small, poorly-fed males bearing small horns and large, well-fed males having disproportionately larger horns (Emlen, 1994, 1997). Small-horned males have a characteristic peak of ecdysone in their final instar absent in their well-fed, larger conspecifics (Emlen and Nijhout, 1999, 2001). Our data propose a mechanism through which nutrition, via FoxO–Usp interactions, might regulate this peak (Koyama et al., 2013).

FoxO is also known to form complexes with many vertebrate NHRs, including thyroid hormone (Zhao et al., 2001), androgen (Li et al., 2003; Fan et al., 2007) and estrogen receptors (Schuur et al., 2001). The steroid sex hormones, such as testosterone and estrogen, are important for initiating puberty and the development of adult characters in humans. In girls, reaching a body mass of 48 kg determines the timing of first menses (Frisch and Revelle, 1970; Freedman et al., 2003; Gluckman and Hanson, 2006; Ahmed et al., 2009). Obese girls reach this mass faster, resulting in earlier onset of puberty (Freedman et al., 2003; Gluckman and Hanson, 2006; Ahmed et al., 2009) possibly due to higher levels of insulin signaling (Codner and Cassorla, 2009; Lee et al., 2011; Lombardo et al., 2009; von Berghes et al., 2011). These findings suggest that IIS/TOR activity regulates the production of the steroid sex hormones to regulate developmental timing in vertebrates. Furthermore, two mammalian NHRs, CAR and PXR, associate with FoxO1 to regulate the expression of the CYP450 enzymes (Kodama et al., 2004). The similarity in the roles of FoxO/NHR complexes between mammals and insects provides a testable model that FoxO-NHR complexes regulate environmentally-sensitive development in a wide range of organisms.

Materials and methods

Drosophila Strains

Wild type FoxO and FoxO NK were amplified by RT-PCR using cDNA made from whole body extract of post-feeding (wandering) w[1118] larvae. After sequencing, the constructs were inserted into pUAST attB vector using EcoRI and KpnI whose recognition sites are included on the primers, then integrated on the second chromosome by site-directed insertion using the phiC31 integrase and an attP landing site carrying recipient line, y[1] w[1118]; PBac{y[+]-attP-9A} VK00018 (Bloomington Drosophila Stock Center #9736) (Groth et al., 2004). w; UAS Usp 26A3 line was a gift from Dr Michael O'Connor (University of Minnesota). We used FoxO Δ94, a gift from Dr Linda Partridge (University College London), with the deficiency line, w[1118]; Df(3R)Exel8159/TM6B, Tb[1] (#7976; Bloomington) as our FoxO null mutant. We obtained the PromE(800)-Gal4 (also known as Oe-Gal4) line from Dr Carlos Ribeiro (Champalimaud Centre for the Unknown). For Usp and FoxO knock down experiments, we used y[1] v[1]; P{y[+t7.7] v[+t1.8] = TRiP.JF02546}attP2 (#27258; Bloomington) as UAS double-stranded (ds) Usp and Vienna Drosophila RNAi Center 107786 as UAS dsFoxO.

Larval rearing conditions, growth curves, critical weight, and pharate adult weight

Egg collections were performed on normal food plates and larvae were reared at controlled densities without additional yeast (about 200 eggs/60 mm diameter normal fly medium plate). Newly molted L3 larvae were collected every 2 hr. Collected larvae were raised in a normal cornmeal/molasses medium without additional yeast until the appropriate time point. For starvation treatments, we used 1% non-nutritional agar. To determine the duration of the L3, pupariation time was observed every 2 hr until all treated larvae pupariated or died. We defined pupariation as cessation of movement with evaginated spiracles. All treatments were performed at 25°C under constant light to avoid the effect of circadian rhythm on PTTH secretion. To analyze critical weight, we used a breakpoint analyses as previously described (Stieper et al., 2008; Ghosh et al., 2013; Testa et al., 2013). We constructed growth curves by weighing larvae across a range of defined ages. We then starved larvae of different age classes on non-nutritive agar media and measured the time it took for them to reach pupariation from the onset of starvation, checking for pupariation every 2 hr. We converted the time at which larvae reached critical weight to size using linear regression models from the growth curves.

For ecdysone feeding experiments, we added 0.15 mg of 20E (SciTech Chemicals, Dejvice-Hanspaulka, Czech Republic) to 1 g of normal fly medium or starvation medium (1% non-nutritive agar). After 20E was added, the media were well mixed and spun down a day before use. To measure time to pupariation from the onset of starvation, larvae were collected as above in 2 hr intervals from the molt. They were then transferred to 20E-supplemented fly medium until they reached the desired age for transfer to 20E-supplemented agar.

As a proxy for adult body size, we individually weighed pharate adults. Pharate adults, which were about 6–14 hr before eclosion, were collected from vials, carefully cleaned off using distilled water and a paint brush, and then dried for 15 min on paper towels. Once dry, pharate adults were individually weighed on an ultra-microbalance (Sartorius, SE2). We observed the presence or absence of male specific sex combs through pupal cases under a stereoscope to distinguish males from females.

Ecdysone quantification

Concentrations of 20E were quantified using a 20-Hydroxyecdysone EIA kit (Cayman Chemicals). Carefully staged larvae were washed in distilled water twice, briefly dried on paper towels, weighed and flash-frozen on dry ice. Larvae were preserved in three-times their volume of ice cold methanol and kept at −80°C until use. Ecdysone extraction was performed as previously described (Mirth et al., 2005). Concentrations of 20E were quantified according to the manufacturer's instructions.

GST-pulldown assays, western blot analysis and co-immunoprecipitation assays

Entire coding regions of Drosophila foxo, ecr-A, ecr-B1 and usp cDNAs were isolated by RT-PCR using cDNA made from w[1118] wandering larvae. For ecr-A, ecr-B1 and usp RT-PCR, forward primers were designed for gene specific sequences with a Flag-tag sequence on the 5′-end and reverse primers were designed for gene specific sequences including native stop codons. To create point mutation constructs, we designed primers containing point mutation(s) and performed standard site-directed mutagenesis methods with minor modifications. GST-tagged protein was purified by Glutathione Sepharose 4B (GE Healthcare). Flag-tagged protein was detected by the anti-Flag M2 monoclonal antibody (1:1000, Sigma). For co-immunoprecipitation assays, we used 500 µg of larval protein or cell extract, the AB11 (anti-Usp monoclonal antibody) [gifts from Drs Sho Sakurai (Kanazawa University) and Lynn M Riddiford (Janelia Farm Research Campus, HHMI)] and DDA2.7 (anti-EcR monoclonal antibody, Developmental Studies Hybridoma Bank). For western blots, the antibodies we used were: anti-Usp (1:1000, AB11), anti-EcR (1:5000, DDA2.7), anti-FoxO (1:1000) (Puig et al., 2003) and anti-Histone H3 (1:1000, Cell Signaling).

Immunocytochemistry

Immunocytochemistry was performed using standard methods as described previously (Mirth et al., 2009). The antibodies we used were: anti-Usp (1:100, AB11), anti-FoxO (1:1000) and anti-HA (1:100, Covance). For nuclei and actin staining, we used DAPI (Invitrogen) and Phalloidin (Sigma), respectively.

Quantitative PCR (qPCR)

Total RNA was extracted from entire larval bodies using TRIzol (Invitrogen). After DNase treatment, total RNA concentration was quantified and 1 µg total RNA was converted to cDNA using oligo dT primers and reverse transcriptase. qPCR was performed using SYBR Green PCR Master Mix (Applied Biosystems) and ABI 7900HT (Applied Biosystems). Primers are listed in Supplementary file 2.

Cell culture, transfection and luciferase assays

The Dmel cell line was used for all cell culture experiments. Cells were cultured in the Express Five SMF medium (Gibco) without any serum, insulin or additives, unless mentioned. Transfection was performed using FuGENE HD Transfection Reagent (Roche), according to the manufacturer's instructions. For insulin treatment, transfected cells were re-suspended 66 hr after transfection, and split into two groups. 10 µg/ml bovine insulin (Sigma) was added into the medium of one of these groups. Cells were kept for additional 6 hr at 25°C. Luciferase assays were performed using the Luciferase Assay System (Promega), according to the manufacturer's instructions. To transfect equal amount of plasmid between all treatments, we used bacterial ampicillin resistance gene (ampr). InR- and 4E-BP-luciferase constructs were made according to previous study (Puig et al., 2003). Briefly, we designed restriction enzyme site-attached primers (Supplementary file 3) and amplified these promoter regions by PCR using w[1118] genomic DNA. After sequencing, we digested these fragments by NotI and BamHI and inserted into modified pAc5-V5-His B vector (Invitrogen).

Data availability

Data for pharate adult weight for males and females, critical weight, growth rates, qPCR and ecdysone quantifications are deposited in Dryad (doi:10.5061/dryad.75940) (Koyama et al., 2014). In addition, we have uploaded the scripts to generate the breakpoint plots, calculate critical size from the growth curves and to perform the permutation tests.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
    Data from: nutritional control of body size through FoxO-Ultraspiracle mediated ecdysone biosynthesis
    1. T Koyama
    2. MA Rodrigues
    3. A Athanasiadis
    4. AW Shingleton
    5. CK Mirth
    (2014)
    Dryad Digital Repository, 10.5061/dryad.75940.
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    Control of moulting and metamorphosis in the tobacco hornworm, Manduca sexta (L.): cessation of juvenile hormone secretion as a trigger for pupation
    1. HF Nijhout
    2. CM Williams
    (1974a)
    The Journal of Experimental Biology 61:493–501.
  51. 51
    Control of moulting and metamorphosis in the tobacco hornworm, Manduca sexta (L.): growth of the last-instar larva and the decision to pupate
    1. HF Nijhout
    2. CM Williams
    (1974b)
    The Journal of Experimental Biology 61:481–491.
  52. 52
  53. 53
  54. 54
  55. 55
    Deletion of the ecdysis-triggering hormone gene leads to lethal ecdysis deficiency
    1. Y Park
    2. V Filippov
    3. SS Gill
    4. ME Adams
    (2002)
    Development 129:493–503.
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
    Mechanisms of life history evolution: the genetics and physiology of life history traits and trade-offs
    1. AW Shingleton
    (2011)
    Mechanisms of life history evolution: the genetics and physiology of life history traits and trade-offs, Oxford, Oxford University Press.
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    Physiology of insect rhythms. 1. Circadian organization of endocrine events underlying molting cycle of larval tobacco hornworms
    1. JW Truman
    (1972)
    Journal of Experimental Biology 57:805–820.
  69. 69
  70. 70
  71. 71
  72. 72

Decision letter

  1. Helen McNeill
    Reviewing Editor; The Samuel Lunenfeld Research Institute, Canada

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Nutritional Control of Body Size Plasticity through FoxO-Ultraspiracle Mediated Ecdysone Biosynthesis” for consideration at eLife. Your article has been favorably evaluated by Ian Baldwin (Senior editor), a Reviewing editor, and 3 reviewers.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

Overall, all of the reviewers felt that the manuscript was interesting, largely well done, and addressed the important issue of the achievement of “critical weight”. The proposal that FoxO binds to Usp to form a novel complex to inhibit a peak of ecdysone, thus regulating the critical weight transition is intriguing, and in general the experiments demonstrating FoxO's involvement in CW are convincing. However the reviewers agreed that additional experiments were needed to support the main conclusions of the manuscript.

1) Show that FOXO and Usp interact in Co-IPs in fed wildtype L3 larvae. In Figure 1, it is shown that FoxO binds Usp in Co-IPs of extracts from starved but not fed larvae. For this interaction to be relevant to the regulation of the critical weight transition, the authors need to show that the dFoxO-Usp interaction also occurs in fed early L3 larvae (pre-critical weight). While the GST pulldowns with recombinant proteins in Figures 1 and 5 provide convincing evidence that FoxO and Usp have the potential to bind in vitro, the westerns are less convincing. The westerns show a weak Co-IPed band above the background smear that we are told corresponds to FoxO in . Given that demonstrating this point is so essential for the main conclusion of the paper about a molecular FoxO-Usp interaction, further controls need to be shown. One suggestion is to show that the FoxO band (co-IPed from larval extracts with anti-Usp) present in wild type animals is missing in FoxO null mutants.

2) Demonstrate the effects of feeding ecdysone at precritical weight times. If the model is correct then one would expect that feeding 20E just after ecdysis to L3 will lead to a smaller critical weight and precocious metamorphosis.

3) Concerns were raised about the specificity of the Gal4 drivers used. The P0206 driver used as a driver to express UAS-FoxO in the PG is also expressed in the CA and in oenocytes, which are known to regulate larval growth. The reviewers felt that it was important to use other drivers (Aug21 for the CA and the oenocyte 'specific” driver PromE-GAL4 from Joel Levine) as additional controls. Although the P0206-GAL4 driver has been used in similar studies of critical weight, the authors note that phm-GAL4 driven expression of UAS-FoxO is lethal in FoxO mutants but not in control animals. This observation may indicate that the presence of FoxO in the peripheral tissues of control animals is modifying the phenotypic effects of PG-specific FoxO over-expression. Although the authors suggest that animals expressing P0206-FoxO are viable due to the moderate levels of FoxO expression, these animals could be surviving due to the presence of FoxO in oenocytes. Therefore, the observations described in Figure 4A and Figure 6 could result from FoxO activity in either the oenocytes and not the PG or a synergistic interaction between these two tissues. The authors may address these problems with two simple experiments. Does oenocyte-specific expression of UAS-FoxO in a FoxO mutant delay the onset of pupariation? And, if so, is this delay 20E dependent? Finally, both of these Figures lack the necessary P0206-GAL4 negative control.

4) The authors' interpretations of the in vivo effects of UAS-FoxO NK (Figure 4 onwards) as a way of specifically impeding the FoxO-Usp interaction are not necessarily correct. The experiments have been done very thoroughly (and often sensibly using a FoxO null background) but the main result is that the effects of UAS-FoxO NK upon critical age/weight, pupal weight, gene expression (e74B, dib, phm) and ecdysone tend to be INTERMEDIATE between controls and UAS-FoxO animals. This indicates that, at best, the FoxO-Usp interaction only makes a partial contribution towards the overall FoxO activity relevant to ecdysone gene repression. At worst, if general FoxO functions are compromised in the NK protein then the authors would not be demonstrating any specific in vivo role for Usp-FoxO interactions, simply that partially reducing the general activity of FoxO gives a hypomorphic phenotype. Therefore, the authors should examine the effects of FoxONK overexpression while simultaneously over expressing Usp. If the complex is truly important then coexpression of foxONK together with Usp should look just like foxONK. If however, Usp coexpression still augments the delay to critical weight, the result is more consistent for a role of Usp in CW determination that is independent of complex formation.

Additional comments:

Reviewer #1:

1) The presence of ecdysone receptor (EcR) is shown to reduce the Usp-FoxO interaction in vitro (Figure 1F) but there is no follow up of the in vivo functional significance of EcR in this context. This issue is left hanging and so adds little to the paper. At present, the reader is left wondering whether or not EcR directly regulates ecdysone biosynthetic gene expression in the prothoracic gland and whether or not this regulation is antagonized by FoxO. Addressing this may add significant extra mechanism to the model.

2) Is there any functional relevance for a well-fed larva of dFoxO/Usp repression of ecdysone biosynthesis and its release near critical age? Loss of dFoxO activity is known to have no obvious effect on the final size/viability of adult flies from well-fed larvae (MA Junger et al. 2003). Moreover, FoxO overexpression only delays the small L3 ecdysone peak rather than abolishing it.

3) The present manuscript will be almost impenetrable for readers outside the immediate field and, even for insiders, it will be challenging in places. For example, many Results sections finish with a raw result and a figure citation but they would benefit from one sentence of interpretation/conclusion. Also, the figures and legends need clarifying in several places such as, for Figure 4, when (and when not) FoxO null mutant backgrounds are being used in an experiment (better indicated on the figure itself).

4) It will be confusing to readers that phm and dib expression often peak only after critical weight is attained in controls and in some genetic manipulations (e.g. Figure 3). Moreover, the order of the phm expression peaks for the three genotypes in Figure 3D and E doesn't match the order in which their critical weights are attained. How is this observed sequence of events compatible with the model in Figure 7? This finding needs addressing as it casts doubts upon whether increased mRNAs of ecdysone biosynthetic genes are really the trigger for critical weight.

Reviewer #2:

I have a minor comment regarding Figure 2D. The authors state that critical weight in Phm>FoxO, Usp animals is significantly increased compared with Phm>FoxO animals. This is unclear based on the bar graph, even with the 95% confidence intervals. Providing these values in the figure legend would provide a more convincing argument.

Reviewer #3:

It is unclear how the authors determine CW. The plots they provide in Figures 2 and 4 are time to pupation verses time at which starvation is imposed. How are 'weights' determined from this type of plot? It would seem to me that they need to show a standardization plot in which weight gain is linear with respect to developmental time. I assume that they have done this, but the method to determine CW should be better described in either the figure legend or the methods.

The authors play up the fact that they have discovered a key regulator of the small ecdysone peak that is associated with CW. In this regard, I was surprised that the authors never mention a recent paper from the King-Jones lab (Ou Q, Magico A, King-Jones K.PLoS Biol. 2011 Sep;9(9):e1001160.) which showed that PTTH also regulates the small ecdysone peak through effects on the nuclear localization of the NHR HR4. Since HR4 is proposed to negatively regulate biosynthetic enzymes prior to CW just like the FoxO/Usp complex proposed here, it would seem to me that this warrants significant mention. Are these two processes related or coordinated? Does HNR4 associate with FoxO? It would seem that at some level they have to be and this should be discussed.

Lastly, In Manduca and to some extent in Drosophila, there is data suggesting that limiting oxygen is the key to determination of critical weight. Once again there is no discussion of this point.

https://doi.org/10.7554/eLife.03091.022

Author response

1) Show that FOXO and Usp interact in Co-IPs in fed wildtype L3 larvae. In Figure 1, it is shown that FoxO binds Usp in Co-IPs of extracts from starved but not fed larvae. For this interaction to be relevant to the regulation of the critical weight transition, the authors need to show that the dFoxO-Usp interaction also occurs in fed early L3 larvae (pre-critical weight). While the GST pulldowns with recombinant proteins in Figures 1 and 5 provide convincing evidence that FoxO and Usp have the potential to bind in vitro, the westerns are less convincing. The westerns show a weak Co-IPed band above the background smear that we are told corresponds to FoxO in . Given that demonstrating this point is so essential for the main conclusion of the paper about a molecular FoxO-Usp interaction, further controls need to be shown. One suggestion is to show that the FoxO band (co-IPed from larval extracts with anti-Usp) present in wild type animals is missing in FoxO null mutants.

We have performed a new Co-IP experiment examining FoxO-Usp interactions in: 1) fed pre-critical weight wild-type larvae (0-5 h AL3E), 2) fed pre-critical weight FoxO null larvae, 2) starved pre-critical weight wild-type larvae and 4) fed, post-critical weight, wild-type larvae. This experiment is now in Figure 2G. This experiment shows that FoxO and Usp do indeed form complexes in fed pre-critical weight larvae as well as in protein-starved, pre-critical weight larvae. In contrast, we do not see FoxO-Usp complexes in FoxO mutant larvae and fed, post-critical weight larvae.

2) Demonstrate the effects of feeding ecdysone at precritical weight times. If the model is correct then one would expect that feeding 20E just after ecdysis to L3 will lead to a smaller critical weight and precocious metamorphosis.

We have created a new Figure (now Figure 1) showing that starving larvae on 20E-supplemented agar eliminated the developmental delays seen in pre-critical weight larvae (Figure 1B). We also found that larvae fed 20E supplemented fly media become smaller in size (Figure 1–figure supplement 1). In addition, we quantified ecdysone concentrations in starved and fed wild-type larvae (Figure 1A). We found that in starved larvae ecdysone concentrations remain low for the first 18 hours after the moult. In fed larvae, ecdysone concentrations peak at 10 hours after the moult. These data demonstrate that the ecdysone peak itself is suppressed in starved pre-critical weight larvae and that feeding ecdysone to pre-critical weight larvae is sufficient to rescue the developmental delays induced by starvation. We hope this new data will make the experiments that follow easier to understand.

3) Concerns were raised about the specificity of the Gal4 drivers used. The P0206 driver used as a driver to express UAS-FoxO in the PG is also expressed in the CA and in oenocytes, which are known to regulate larval growth. The reviewers felt that it was important to use other drivers (Aug21 for the CA and the oenocyte 'specific” driver PromE-GAL4 from Joel Levine) as additional controls. Although the P0206-GAL4 driver has been used in similar studies of critical weight, the authors note that phm-GAL4 driven expression of UAS-FoxO is lethal in FoxO mutants but not in control animals. This observation may indicate that the presence of FoxO in the peripheral tissues of control animals is modifying the phenotypic effects of PG-specific FoxO over-expression. Although the authors suggest that animals expressing P0206-FoxO are viable due to the moderate levels of FoxO expression, these animals could be surviving due to the presence of FoxO in oenocytes. Therefore, the observations described in Figure 4A and Figure 6 could result from FoxO activity in either the oenocytes and not the PG or a synergistic interaction between these two tissues. The authors may address these problems with two simple experiments. Does oenocyte-specific expression of UAS-FoxO in a FoxO mutant delay the onset of pupariation? And, if so, is this delay 20E dependent? Finally, both of these Figures lack the necessary P0206-GAL4 negative control.

We have used both Aug21- and PromE(800)-Gal4 to drive FoxO expression in the CA and oenocytes of FoxO mutant animals (Figure 6–figure supplement 2). We found neither developmental time nor final body size affected in these animals.

We’ve added the P0206>+ control to Figure 6C. In Figure 7, the P0206>+ control is in black.

4) The authors' interpretations of the in vivo effects of UAS-FoxO NK (Figure 4 onwards) as a way of specifically impeding the FoxO-Usp interaction are not necessarily correct. The experiments have been done very thoroughly (and often sensibly using a FoxO null background) but the main result is that the effects of UAS-FoxO NK upon critical age/weight, pupal weight, gene expression (e74B, dib, phm) and ecdysone tend to be INTERMEDIATE between controls and UAS-FoxO animals. This indicates that, at best, the FoxO-Usp interaction only makes a partial contribution towards the overall FoxO activity relevant to ecdysone gene repression. At worst, if general FoxO functions are compromised in the NK protein then the authors would not be demonstrating any specific in vivo role for Usp-FoxO interactions, simply that partially reducing the general activity of FoxO gives a hypomorphic phenotype. Therefore, the authors should examine the effects of FoxONK overexpression while simultaneously over expressing Usp. If the complex is truly important then coexpression of foxONK together with Usp should look just like foxONK. If however, Usp coexpression still augments the delay to critical weight, the result is more consistent for a role of Usp in CW determination that is independent of complex formation.

We agree with the reviewers that if FoxO NK is a weak hypomorph of FoxO, this would explain the intermediate phenotype. In the first version of this manuscript, we addressed whether FoxO NK may simply be a hypomorph of FoxO through several means. First, we found that FoxO NK induced the expression of known FoxO target, InR and 4E-BP, to the same levels as FoxO. Secondly, we explored whether FoxO NK overexpression reduced the size of tissues to the same extent as FoxO. FoxO NK significantly reduced the size of wings, and eyes, although not as much as FoxO. Importantly, FoxO NK and FoxO both reduced the size of the prothoracic gland to the same extent.

Further, because overexpressing Usp in the prothoracic gland on its own did not significantly change either CW or critical age, we concluded that Usp did not play an independent role in CW. However, overexpressing both FoxO NK and Usp would provide better evidence that Usp is not acting on its own to regulate CW. We found that co-overexpressing Usp and FoxO NK did not affect the size and the age at critical weight (Figure 6—figure supplement 2C). Furthermore, we did not see significant difference in body size between P0206>FoxO NK animals and P0206>FoxO NK, Usp animals (Figure 6—figure supplement 2D). Therefore, we concluded that FoxO NK bears proper Usp-independent transcriptional activity with strongly reduced FoxO-Usp affinity.

Additional comments: Reviewer #1: 1) The presence of ecdysone receptor (EcR) is shown to reduce the Usp-FoxO interaction in vitro (Figure 1F) but there is no follow up of the in vivo functional significance of EcR in this context. This issue is left hanging and so adds little to the paper. At present, the reader is left wondering whether or not EcR directly regulates ecdysone biosynthetic gene expression in the prothoracic gland and whether or not this regulation is antagonized by FoxO. Addressing this may add significant extra mechanism to the model.

In the in vitro method (GST-pulldown), we used standardized quantities of FoxO, Usp and EcR protein that are not adjusted to the physiological levels. Our in vitro results show that FoxO and EcR can compete for Usp binding in principle. However in vivo, our co-IP results show that this is unlikely to be the case. We see high levels of Usp in the co-IP overall, and in starved larvae FoxO-Usp binding does not qualitatively diminish the amount of EcR-Usp binding (Figure 2G).

2) Is there any functional relevance for a well-fed larva of dFoxO/Usp repression of ecdysone biosynthesis and its release near critical age? Loss of dFoxO activity is known to have no obvious effect on the final size/viability of adult flies from well-fed larvae (MA Junger et al. 2003). Moreover, FoxO overexpression only delays the small L3 ecdysone peak rather than abolishing it.

Our new co-IP experiment shows that FoxO and Usp make complexes in fed, pre-critical weight larvae (Figure 2G), suggesting that even in fed larvae the complex regulates the timing of the ecdysone pulse. Starving larvae does not abolish critical weight, but rather delays it. Thus this peak is sensitive to, but not dependent on, nutrition. In this way, nutrition, via FoxO/Usp, can tune the timing of the ecdysone peak at critical weight, thereby ensuring optimal growth for the available environment.

3) The present manuscript will be almost impenetrable for readers outside the immediate field and, even for insiders, it will be challenging in places. For example, many Results sections finish with a raw result and a figure citation but they would benefit from one sentence of interpretation/conclusion. Also, the figures and legends need clarifying in several places such as, for Figure 4, when (and when not) FoxO null mutant backgrounds are being used in an experiment (better indicated on the figure itself).

Thank you for your feedback, we’ve worked hard to clarify the text and make the results and figure legends more accessible to a broader audience.

4) It will be confusing to readers that phm and dib expression often peak only after critical weight is attained in controls and in some genetic manipulations (e.g. Figure 3). Moreover, the order of the phm expression peaks for the three genotypes in Figure 3D and E doesn't match the order in which their critical weights are attained. How is this observed sequence of events compatible with the model in Figure 7? This finding needs addressing as it casts doubts upon whether increased mRNAs of ecdysone biosynthetic genes are really the trigger for critical weight.

At 0 h AL3E, phm and dib are already high in the phm>dsFoxO, dsUsp. We presume that this early expression is sufficient to drive ecdysone synthesis and cause premature CW transition. Thus the peaks match the order in which CW is attained in the three genotypes. The increases in phm and dib that occur later in this genotype is presumably the Sgs peak. We have clarified this in the text.

Reviewer #2: I have a minor comment regarding Figure 2D. The authors state that critical weight in Phm>FoxO, Usp animals is significantly increased compared with Phm>FoxO animals. This is unclear based on the bar graph, even with the 95% confidence intervals. Providing these values in the figure legend would provide a more convincing argument.

The error bars for this graph were incorrect. We’ve changed this and also provided a supplementary table with the values for age and size at weight for all genotypes (Supplementary file 3).

Reviewer #3: It is unclear how the authors determine CW. The plots they provide in Figures 2 and 4 are time to pupation verses time at which starvation is imposed. How are 'weights' determined from this type of plot? It would seem to me that they need to show a standardization plot in which weight gain is linear with respect to developmental time. I assume that they have done this, but the method to determine CW should be better described in either the figure legend or the methods.

You are absolutely right, we omitted both a script in the Dryad folder and a clear explanation of how we determine size at CW. To clarify how CW is determined, we have included a complete description of the methodology stating that we first construct growth rate plots for each genotype (weight over age) and use linear regression to calculate the size at CW from the age at which larvae reach CW. We have included a new figure supplement for Figure 1 with the growth curve for wild type (w1118) larvae (Figure 1–figure supplement 1B), and the growth data and scripts for all remaining genotypes in Dryad.

The authors play up the fact that they have discovered a key regulator of the small ecdysone peak that is associated with CW. In this regard, I was surprised that the authors never mention a recent paper from the King-Jones lab (Ou Q, Magico A, King-Jones K.PLoS Biol. 2011 Sep;9(9):e1001160.) which showed that PTTH also regulates the small ecdysone peak through effects on the nuclear localization of the NHR HR4. Since HR4 is proposed to negatively regulate biosynthetic enzymes prior to CW just like the FoxO/Usp complex proposed here, it would seem to me that this warrants significant mention. Are these two processes related or coordinated? Does HNR4 associate with FoxO? It would seem that at some level they have to be and this should be discussed.

Yes, you are right, this was an oversight. We are focusing on how environmental cues regulate the CW pulse, but should not neglect the lovely work from the O’Connor and King-Jones labs on this subject.

We have added these references in the introduction, and expanded our discussion to discuss the relative roles of insulin/TOR versus PTTH (via DHR4).

Lastly, In Manduca and to some extent in Drosophila, there is data suggesting that limiting oxygen is the key to determination of critical weight. Once again there is no discussion of this point.

We have added this to our text.

https://doi.org/10.7554/eLife.03091.023

Article and author information

Author details

  1. Takashi Koyama

    Development, Evolution and the Environment Laboratory, Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    TK, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    tkoyama@igc.gulbenkian.pt
    Competing interests
    The authors declare that no competing interests exist.
  2. Marisa A Rodrigues

    Development, Evolution and the Environment Laboratory, Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    MAR, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Alekos Athanasiadis

    Protein-Nucleic Acids Interactions Laboratory, Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    AA, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Alexander W Shingleton

    1. Department of Biology, Lake Forest College, Lake Forest, United States
    2. Department of Zoology, Michigan State University, East Lansing, United States
    Contribution
    AWS, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Christen K Mirth

    Development, Evolution and the Environment Laboratory, Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    CKM, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    christen@igc.gulbenkian.pt
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-9765-4021

Funding

Fundação para a Ciência e a Tecnologia (SFRH/BPD/74313/2010)

  • Takashi Koyama

Calouste Gulbenkian Foundation

  • Christen K Mirth

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs Sho Sakurai (Kanazawa University) and Lynn M Riddiford (Janelia Farm Research Campus, HHMI) for the anti-Usp monoclonal antibody, Dr Michael B O'Connor (University of Minnesota) for UAS Usp flies, Dr Linda Partridge (University College London) for FoxO Δ94 flies and Dr Carlos Ribeiro (Champalimaud Centre for the Unknown) for PromE(800)-Gal4 flies. We also thank Drs Michael B O'Connor, Lynn M Riddiford, Florence Janody, Élio Sucena, Patrícia Beldade, Catarina Brás-Pereira and the Mirth lab members (Instituto Gulbenkian de Ciência) for critical discussions and comments on the manuscript. This work was funded by the Fundação Calouste Gulbenkian to CKM and by the Fundação para a Ciênica e a Tecnologia to TK (SFRH/BPD/74313/2010).

Reviewing Editor

  1. Helen McNeill, Reviewing Editor, The Samuel Lunenfeld Research Institute, Canada

Publication history

  1. Received: April 15, 2014
  2. Accepted: October 18, 2014
  3. Version of Record published: November 25, 2014 (version 1)

Copyright

© 2014, Koyama et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,542
    Page views
  • 438
    Downloads
  • 44
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology and Stem Cells
    Yu Hsuan Carol Yang et al.
    Research Article
    1. Cell Biology
    2. Developmental Biology and Stem Cells
    Girish R Mali et al.
    Research Article
