DNA binding polarity, dimerization, and ATPase ring remodeling in the CMG helicase of the eukaryotic replisome

  1. Alessandro Costa  Is a corresponding author
  2. Ludovic Renault
  3. Paolo Swuec
  4. Tatjana Petojevic
  5. James J Pesavento
  6. Ivar Ilves
  7. Kirsty MacLellan-Gibson
  8. Roland A Fleck
  9. Michael R Botchan  Is a corresponding author
  10. James M Berger  Is a corresponding author
  1. London Research Institute, Cancer Research UK, United Kingdom
  2. National Institute for Biological Standards and Control, United Kingdom
  3. University of California, Berkeley, United States
  4. University of Tartu, Estonia
  5. Johns Hopkins University School of Medicine, United States
Research Article
  • Cited 90
  • Views 4,246
  • Annotations
Cite this article as: eLife 2014;3:e03273 doi: 10.7554/eLife.03273

Abstract

The Cdc45/Mcm2-7/GINS (CMG) helicase separates DNA strands during replication in eukaryotes. How the CMG is assembled and engages DNA substrates remains unclear. Using electron microscopy, we have determined the structure of the CMG in the presence of ATPγS and a DNA duplex bearing a 3′ single-stranded tail. The structure shows that the MCM subunits of the CMG bind preferentially to single-stranded DNA, establishes the polarity by which DNA enters into the Mcm2-7 pore, and explains how Cdc45 helps prevent DNA from dissociating from the helicase. The Mcm2-7 subcomplex forms a cracked-ring, right-handed spiral when DNA and nucleotide are bound, revealing unexpected congruencies between the CMG and both bacterial DnaB helicases and the AAA+ motor of the eukaryotic proteasome. The existence of a subpopulation of dimeric CMGs establishes the subunit register of Mcm2-7 double hexamers and together with the spiral form highlights how Mcm2-7 transitions through different conformational and assembly states as it matures into a functional helicase.

https://doi.org/10.7554/eLife.03273.001

eLife digest

Before a cell divides, it must duplicate its DNA so that each new cell inherits its own copy of the genome. To do this, the DNA double helix must be unwound so that the two individual strands of DNA can serve as templates for making new DNA molecules. Unwinding begins when two helicase complexes, termed the Mcm2-7 rings, are loaded together onto the DNA.

At first, the two Mcm2-7 rings encircle the double-stranded DNA and remain bound together in an inactive form. Activating the Mcm2-7 rings requires the binding of five other proteins to each ring, which forms two larger complexes called CMG helicases. When the CMG helicases form, the two DNA strands separate and an individual Mcm2-7 ring ends up encircling each of the single DNA strands. However, how an activated CMG complex is assembled, and how it binds to and unwinds DNA, is not fully understood.

Now, Costa et al. have determined the three-dimensional structure of the fruit fly CMG helicase bound to a DNA double helix with a single-stranded overhang at one end. The activated Mcm2-7 ring binds to the overhang, which confirms previous findings indicating that the activated helicase prefers single-stranded over double-stranded DNA. The structure also shows that, as a CMG helicase slides along the single-stranded DNA towards the double-stranded DNA, it is the ring complex's ‘motor domains’ that lead the way, while its DNA-binding domains trail behind.

Costa et al. also found that disrupting some of the interactions between two of the five proteins that bind to the Mcm2-7 ring either prevented the replicative helicase from forming or made it unstable. Furthermore, it was revealed that one of these two proteins—called Cdc45—was ideally placed to capture the strand of DNA that might be accidentally released from the Mcm2-7 ring. It was also discovered that when the complex is bound to DNA, the motor domains of the Mcm2-7 complex change shape from a flat ring to a spiral structure; the DNA-binding domains, however, remain in a flat ring. Costa et al. note that this structure is similar to that adopted by many viral and bacterial helicases, and that it even shares many features with the molecular machinery that breaks down unneeded or damaged proteins inside cells.

Finally, Costa et al. were able to image a structure composed of two CMG complexes bound together. This reveals the relative orientation of the two Mcm2-7 rings before they separate and move in opposite directions to unravel the DNA. The findings of Costa et al., combined with previous structural work in this field, demonstrate that the Mcm2-7 helicase complex can adopt many different shapes as it is assembled on DNA and activated to support DNA replication.

https://doi.org/10.7554/eLife.03273.002

Introduction

The faithful copying of DNA requires the correct spatial and temporal assembly of replication machineries at specific chromosomal loci known as origins. In eukaryotes, origins are licensed for replication by recruitment of the Mcm2-7 complex, a ring-shaped helicase that serves as the principal unwinding activity for separating parental DNA strands (Blow, 1993; Bochman and Schwacha, 2008; Costa et al., 2011; Lyubimov et al., 2012). Mcm2-7 is initially loaded around duplex DNA as an inactive double hexamer by the origin recognition complex (ORC), Cdc6, and Cdt1 in the G1 phase of the cell cycle (Evrin et al., 2009; Remus et al., 2009), forming a stable intermediate known as the pre-replicative complex (pre-RC, Diffley et al., 1994; Donovan et al., 1997; Maiorano et al., 2000; Sun et al., 2013; Yanagi et al., 2002). Upon entry into S phase, Mcm2-7 associates with the GINS complex and Cdc45 generating an 11-member assembly termed the CMG (Kanemaki et al., 2003; Gambus et al., 2006; Moyer et al., 2006; Pacek et al., 2006; Ilves et al., 2010). GINS/Cdc45 assembly is dependent on the CDK kinase (Zegerman and Diffley, 2007), while post-translational modification of Mcm subunits 2, 4, and 6 by the Cdc7/Dbf4 kinase (DDK) further contributes to CMG activation (Labib, 2010; Sheu and Stillman, 2010). Following the assembly of replicative polymerases and replisomal scaffolding factors (Gambus et al., 2009; Muramatsu et al., 2010), the two CMG particles split apart into discrete complexes that have been proposed to each encircle a single DNA strand during translocation (Yardimci et al., 2010; Boos et al., 2012).

At present, multiple aspects of the Mcm2-7 loading and activation cycle remain poorly understood. Although the six homologous subunits of one Mcm2-7 complex are known to pair with a second Mcm2-7 complex through their N-terminal domains in the context of a double-hexamer (Evrin et al., 2009; Remus et al., 2009), the precise register by which these subunits interact with each other across the two rings is not known. How DDK phosphorylation of the Mcm2, Mcm6, and Mcm4 N-termini (Labib, 2010), or how a DDK-bypass mutation in the N-terminus of either Mcm4 (Sheu and Stillman, 2010) or Mcm5 (Jackson et al., 1993), might aid in the switch from an inactive Mcm2-7 double hexamer state to a functional CMG is similarly unclear, particularly as Mcm4 is spatially segregated from Mcm2 and Mcm5 (Costa et al., 2011).

During unwinding and fork progression, the CMG translocates 3′→5′ along DNA. How the various components of the CMG engage nucleic acid strands during this process has remained ill-defined. Cdc45 has recently been shown to contain a RecJ exonuclease domain that can bind DNA but that is catalytically inactive (Petojevic et al., unpublished data, as well as Sanchez-Pulido and Ponting, 2011; Krastanova et al., 2012; Szambowska et al., 2014). Whether or how the Cdc45 RecJ fold might bind single DNA strands formed in the context of the CMG has not been established. Conflicting models likewise exist for how Mcm2-7 engages substrate DNAs as it moves 3′→5′ during strand separation, with biochemical data from archaeal MCMs and phylogenetic relationships to superfamily III (SFIII) helicases (such as the SV40 Large T antigen and the papillomavirus E1 protein) predicting mutually exclusive binding orientations (McGeoch et al., 2005; Enemark and Joshua-Tor, 2006; Rothenberg et al., 2007; Lee et al., 2014).

To begin to understand several extant questions surrounding how the CMG is formed and operates at molecular level, we have determined structure of the full-length complex from Drosophila melanogaster in the presence of a 3′-tailed DNA duplex and the non-hydrolyzable ATP analog, ATPγS, using negative-stain electron microscopy and single-particle reconstruction methods. The structure establishes that: 1) the CMG preferentially associates with single-stranded DNAs over double-stranded substrates, 2) the C-terminal ATPase domains of Mcm2-7 form the leading edge of the motor as it advances on a duplex, and 3) the RecJ domain of Cdc45 is oriented to favor the capture of DNA segments that might accidently escape the Mcm2-7 pore. Comparison of the new structure with a previously-determined apo CMG model (Costa et al., 2011) shows that the Mcm2-7 ATPase domains of the complex transition from a planar, open ring into a closed, right-handed spiral in the presence of both DNA and nucleotide. Analysis of this state alongside other ring-ATPases shows that the MCM spiral is most similar to that adopted by the bacterial DnaB helicase upon engaging single-stranded DNA (Itsathitphaisarn et al., 2012), and that the GINS•Cdc45 complex bridges the junction between the ends of the spiral in a manner similar to that by which the Rpn1 accessory subunit spans a spiral Rpt1-6 ATPase assembly in the eukaryotic proteasome (Lander et al., 2012). Interestingly, examination of a subpopulation of CMG dimers present in our EM data shows how two Mcm2-7 complexes associate within a double hexamer and suggests that this dimerized state persists during CMG formation, prior to separation during fork progression (Ilves et al., 2010; Yardimci et al., 2010). Collectively, our observations establish that Mcm2-7 unwinds DNA using an approach distinct from that of superfamily III helicases and highlight several new Mcm2-7 ring configurations and assembly states accessed by the motor during the initiation of DNA replication.

Results and discussion

Determination of a higher-resolution CMG model

In a previous study, we determined the medium-resolution (28 Å) structures of the Drosophila melanogaster CMG helicase in both an apo state and bound to a non-hydrolyzable ATP analog (Costa et al., 2011). Though sufficient for mapping individual subunits within the CMG, both models revealed a planar structure for Mcm2-7, with GINS and Cdc45 spanning a gap that appeared between Mcm2 and Mcm5 when nucleotide was omitted. Since insights into where DNA might bind to the CMG or how binding might potentially alter the structure of complex were unclear, we set out to trap and image a prospective translocation intermediate of the CMG using 3D single-particle electron microscopy. A purified solution of the CMG was first mixed with a 20 bp duplex DNA substrate bearing a single-stranded 3′-dT(40) tail and passed over a sizing column in the presence of the non-hydrolyzable ATP analog, ATPγS, to form a ternary complex. The complex did not behave well during cryo-preservation attempts using holey-carbon EM grids, so samples were instead deposited onto continuous carbon grids and exposed to uranyl formate for negative staining. A total of 29,913 particles were selected from EM micrographs acquired with JADAS automated data collection software (JEOL, Zhang et al., 2009) on a JEM2100 electron microscope. Following particle picking and 2D averaging, a 3D model was generated by projection matching using a low-pass filtered (60 Å), free-hand test-validated, nucleotide-bound structure of the CMG as a starting model (‘Materials and methods’; Rosenthal and Henderson, 2003; Lyubimov et al., 2012).

CMG particles imaged with DNA and ATPγS turned out to be quite uniform, permitting structure determination to a higher resolution than that obtained previously (18 Å vs 28 Å resolution, Figure 1—figure supplement 1). The resultant model (Figure 1A) in turn allowed for a more accurate fitting of the Mcm2-7 and GINS subunits (Figure 1B,C), revealing several new features. For instance, the location of Psf1 C-terminus, which was previously not visible, was now clearly evident, and could be readily fit to a recently-published full-length structure of Psf1 from an archaeal ortholog (Oyama et al., 2011; Figure 1C). Flexing within the Mcm2-7 ring was also apparent with the C-terminal lobes of different MCM subunits displaying markedly distinct degrees of movement with respect to their associated N-terminal regions (Figure 1D,E). Asymmetric positioning between the two tiers of an MCM ring has not been reported previously, demonstrating that these elements are conformationally independent of each other to some extent in the presence of DNA substrates.

Figure 1 with 1 supplement see all

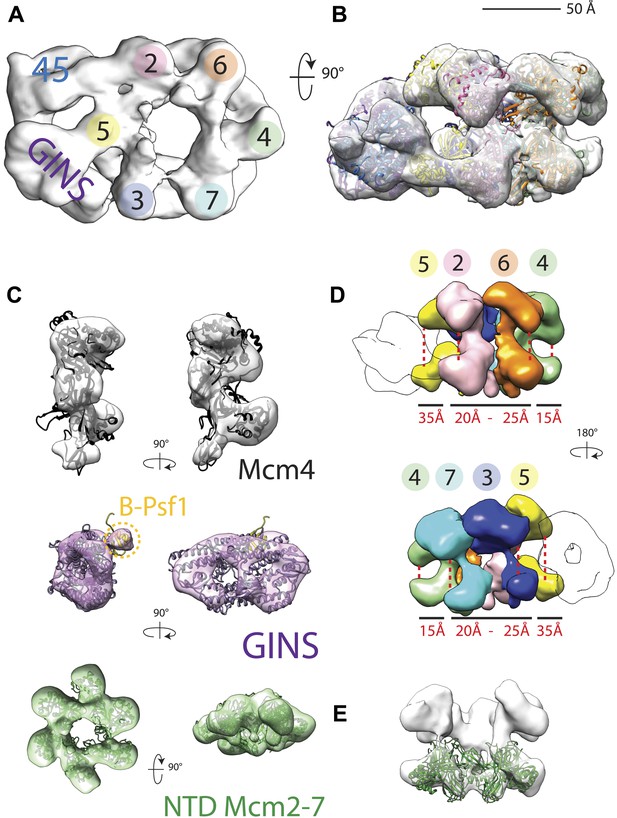

18 Å resolution of a CMG–DNA–ATPγS complex.

(A) Top-down view (N-terminal MCM face) of the CMG highlighting subunit positions. (B) Docking of homology models into the assembly. (C) Docked structures into segmented density for: top—a near-full-length, archaeal MCM monomer Mcm4 (PDB ID 3F9V); middle—the GINS complex (PDB ID 2Q9Q and 3ANW, ‘Materials and methods’); bottom—the archaeal Mcm N-terminal domain hexamer (PDB ID 1LTL and 2VL6, ‘Materials and methods’). (D) The N- and C-terminal domains of Mcm2-7 (colors) differentially flex around the helicase ring, with GINS–Cdc45 (white) wedging open Mcm5 in particular. (E) The N-terminal domains of Mcm2-7 are relatively planar, and are fit best by a hexameric, DNA-free structure of the archaeal MCM NTDs, indicating the observed intra-subunit flexing derives from ATPase domain movement.

https://doi.org/10.7554/eLife.03273.003

The CMG advances on duplex DNA from the C-terminal, ATPase side of Mcm2-7

The increase in resolution obtained for the CMG in the presence of DNA provided initial, support evidence for nucleic acid binding to the complex. More concrete evidence for DNA association was apparent in electron density maps generated for the CMG, which showed a rod-shaped feature jutting away from the C-terminal face of Mcm subunits 2 and 5 (Figure 2A)—this feature is absent in DNA-free 3D reconstructions of the CMG (Costa et al., 2011). Because negative-stains are non-ideal for visualizing nucleic acids (Grob et al., 2012), we further assessed DNA binding by biotin-labeling the duplex end of the oligonucleotide, mixing the CMG–DNA samples with streptavidin, and collecting new single-particle EM data. Inspection of the resultant 2D class averages from this approach revealed clear additional density compared to the unlabeled CMG–DNA particles (Figure 2B), demonstrating that the tailed substrate indeed associates with the complex particles. Given the electron density features seen for the DNA and the distance the streptavidin ‘pointer’ resides from the complex, the EM data show that the CMG binds to the single-stranded end of the 3′-tailed DNA substrate, corroborating biochemical data indicating that the complex preferentially associates with and translocates along single-stranded DNA over duplex substrates (Ilves et al., 2010; Fu et al., 2011).

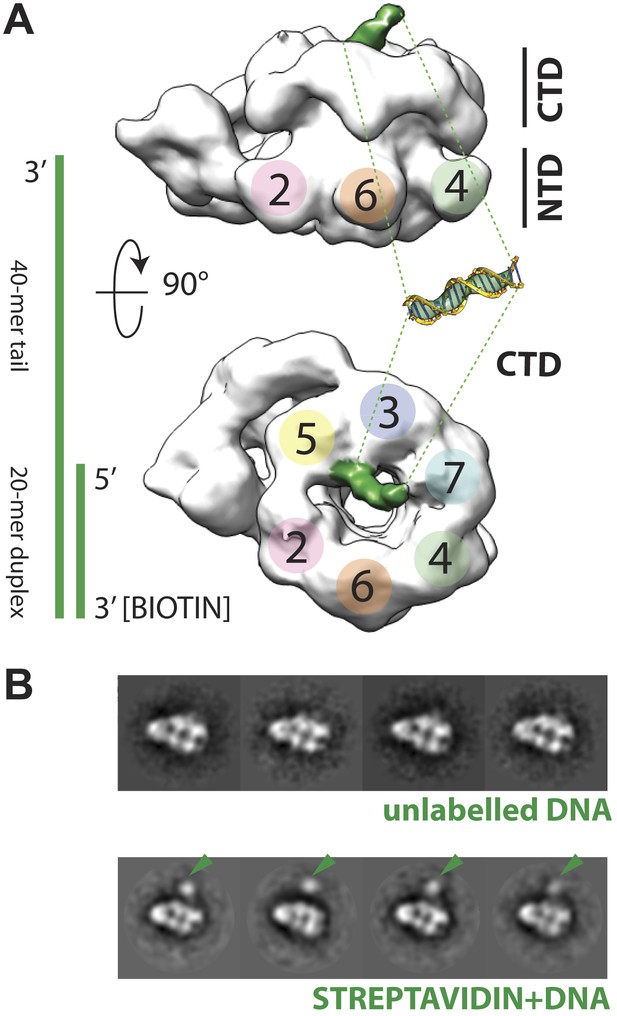

Polarity of DNA binding by the CMG.

(A) Observed experimental density seen at low contours reveals a rod-shaped extension (green) of comparable length to that expected for a 20mer DNA duplex that extends from the Mcm C-terminal motor domain. This feature is absent in DNA-free CMG reconstructions (Costa et al., 2011). A schematic of the relative single- and double-stranded DNA regions of the substrate used for the present studies is shown at left. (B) Comparison of DNA–CMG class averages with and without streptavidin-labeling clearly marks the duplex end of the 3′-tailed duplex substrate. Note how the streptavidin density sits at a distance from the body of the CMG, indicating that the majority of the duplex region of the substrate is not bound by the CMG.

https://doi.org/10.7554/eLife.03273.005

The ability to visualize not only DNA binding to the CMG but also the position of the duplex end with respect to the particle, resolves a key question concerning the polarity by which MCM helicases engage a presumptive translocation strand. MCMs and viral SF3 helicases, such as SV40 LTag and the papilloma virus E1 protein, are both AAA+ ATPases (Neuwald et al., 1999). This relationship, coupled with shared ability of MCMs and SF3 enzymes to translocate along DNA in a 3′→5′ direction (Kelman et al., 1999; Chong et al., 2000; Bochman and Schwacha, 2008; Moyer et al., 2006), has suggested that members of two helicase families might operate by a common translocation mechanism. However, studies of E1 and archaeal MCMs bound to DNA substrates have yielded conflicting data concerning the direction by which DNA threads through the helicase pore. In E1, the 3′ end of DNA has been observed by X-ray crystallography to lie proximal to the C-terminal motor domains of the helicase (Enemark and Joshua-Tor, 2006). By contrast, based on FRET measurements between a dye-labeled DNA/MCM pair, the converse has been reported for Sulfolobus solfataricus MCM (McGeoch et al., 2005; Rothenberg et al., 2007). In the new CMG structure, the streptavidin appended to the duplex DNA end can be clearly seen to localize next to the C-terminal, AAA+ domain face of the particle (Figure 2B). This finding not only demonstrates that a DNA segment bound by an MCM runs from the N-terminal collar to the ATPase motor region in a 3′ to 5′ direction, but also indicates that MCM and SF3 helicases bind substrates with opposing polarities.

The RecJ domain of Cdc45 is poised to assist in the capture of DNA that might escape the Mcm2/5 gate

When the structure of the CMG was first reported, the fold of the associated Cdc45 subunit was unknown. As a consequence, although the general location of Cdc45 could be identified in both apo and ATP-bound forms of the CMG, the orientation and role of this subunit was left unresolved (Costa et al., 2011). Recently, however, the N-terminus of Cdc45 was shown to belong to the RecJ family of ssDNA exonucleases (Sanchez-Pulido and Ponting, 2011). Interestingly, within this grouping, Cdc45 belongs to an offshoot branch that can still bind DNA, but that also possesses natural amino acid substitutions which would appear to inactivate any native hydrolase functions (Krastanova et al., 2012).

To understand how the RecJ fold of Cdc45 interfaces with Mcm2-7 and GINS, we built a homology model for DmCdc45 based on Thermus thermophilus RecJ and docked it into the higher-resolution, DNA-bound CMG reconstruction. The catalytic core and DNA tracking domain of the homology model fit unambiguously into only one region of the Cdc45 density (Figure 3A), leaving only a single, unaccounted for region (most likely corresponding to the C-terminal segment of Cdc45 outside the defunct exonuclease core, or possibly to the N-terminal extension present in Mcm2) that interdigitates between the N-terminal ‘A-domains’ of Mcm5 and Mcm2 (Figure 3B, Figure 3—figure supplement 1). Notably, in placing the Cdc45 RecJ domain, we found that this element appeared to contact the now-apparent C-terminal ‘B-domain’ of Psf1 (Figure 3A). To test whether this interaction might be real or fortuitous, we subjected the Psf1 B-domain surface to site-directed mutagenesis and tested the ability of the mutant subunits to support binding to both Mcm2-7 and Cdc45 (‘Materials and methods’). Ablation of either the Psf1 B-domain region (residues 185–202) or Cdc45 N-terminal region (residues 1–99) prevented CMG formation under the conditions used to purify the intact assembly (Figure 3—figure supplement 2). Likewise, while point mutations were unable to disrupt CMG formation as judged by co-immunoprecipitation, a quadruple Psf1 mutant (E190A/L192A/V193A/R194A) proved unable to interact with Cdc45. Together, these data indicate that the Cdc45–Psf1 interaction evident from the EM data plays a critical role in CMG formation and/or stability.

Figure 3 with 2 supplements see all

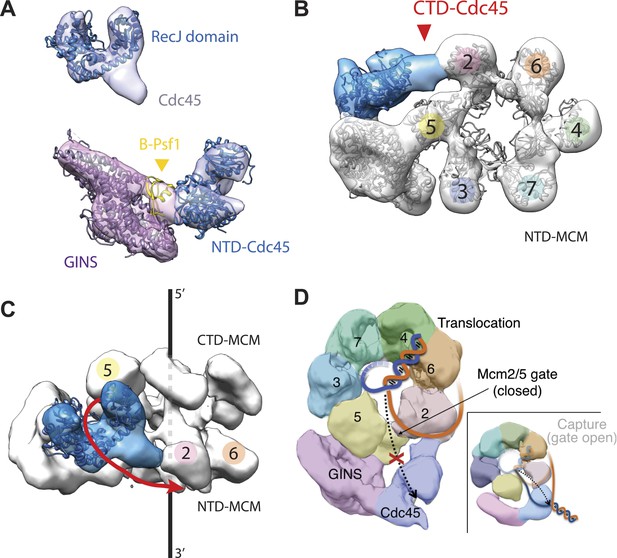

Cdc45 is positioned to permit trapping of single-stranded DNA.

(A) Top—Segmented electron density corresponding to Cdc45. A prominent horseshoe-shaped region fits well to the catalytic core of the homologous RecJ exonuclease (PDB ID 1IR6). Bottom—Docked models of RecJ and full-length GINS (generated using an archaeal Psf1 homolog, PDB IDs 2Q9Q and 3ANW) into DNA-bound CMG reconstructions highlight a previously unobserved interaction between the B-domain of Psf1 and the exonuclease-like domain of Cdc45. (B) An extension of the Cdc45 RecJ-like region contacts and interdigitates between the A-domains of the Mcm2 and Mcm5 N-terminal regions. (C) The Mcm2-7 central channel (black line) and the Cdc45 DNA tracking groove (red arrow) are offset by ∼90°. (D) Schematic showing how the single-stranded DNA-binding groove of the Cdc45 RecJ-like domain could facilitate the capture of a leading strand segment if the Mcm5-2 DNA gate were to transiently open.

https://doi.org/10.7554/eLife.03273.006

In previous apo and ATP-bound models of the CMG, the particle was seen to transition from a conformation in which the Mcm2/5 interface was open to one in which it was closed (Costa et al., 2011). This transition in turn pinched off the large single channel that ran through the particle into two smaller channels, sealing the interior of Mcm2-7 away from the inner surface of GINS–Cdc45. In the DNA-bound model, the CMG still exhibits two channels; however, docking of the Cdc45 RecJ domain shows that its exonuclease/DNA-tracking groove is offset by 90° with respect to the central axis of the Mcm2-7 pore (Figure 3C). This orientation indicates that, were Cdc45 to bind DNA in a manner similar to RecJ, it would be poised to capture the leading DNA strand that might escape from Mcm5-2 gate (Figure 3D). Consistent with this idea, cross-linking data in work to be published elsewhere (Petojevic et al.) show both that Cdc45 engages the leading strand of a fork substrate only in the absence of nucleotide and that this interaction is ablated by the mutation of residues suggested by the model to be important for DNA binding.

DNA and nucleotide remodel the Mcm2-7 AAA+ ATPase subunits into a right-handed spiral

How ATP-dependent physical movements within hexameric helicases are coupled to DNA binding and unwinding has long been a central question in the field (Singleton et al., 2007; Enemark and Joshua-Tor, 2008; Lyubimov et al., 2011). Notably, when comparing the new DNA-bound CMG model to the prior substrate-free state, we found that the AAA+ ATPase ring is no longer flat, but instead adopts a clear right-handed spiral (Figure 4A,B). This change in conformation does not propagate into the N-terminal domains, which maintain a roughly planar character (Figure 1E), but is instead offset by the variable flexing seen for the C-terminal domains in different positions around the ring (Figure 1D). The observed asymmetry between the two MCM tiers indicates that the N-terminal domains form a relatively stable collar that likely helps to coordinate and restrain movements of the associated C-terminal ATPase regions.

Global comparison of the DNA-bound Mcm2-7 region of the CMG with other hexameric helicases and ATPases.

(A) Cut-away view (removing Mcm5) of the Mcm2-7 central channel highlights a spiral organization for the Mcm2-6-4-7-3 AAA+ ATPase regions. Colored spheres demarcate the approximate center of mass for AAA+ pore loops as derived from the docking of MCM AAA+ domain as shown in Figure 1B. (B) Top-down view (from the N-terminal face) of MCM AAA+ domains docked into the DNA-bound CMG reconstruction showing the existence of a right-handed spiral. The CMG density has been removed for clarity. (C) In the presence of a single-stranded DNA, bacterial DnaB can adopt a right-handed spiral with a moderately-wide pore (PDB ID 4ESV, Itsathitphaisarn et al., 2012). (D) The E1 helicase assembles into a right-handed spiral with a relatively narrow pore (PDB ID 2GXA, Enemark and Joshua-Tor, 2006). (E) Comparison of the AAA+ ring of the eukaryotic proteasome with Mcm2-7 region of the DNA- and ATPγS-bound CMG. The non-ATPase subunit Rpn1 binds to the side of the Rpt1-6 hetero-hexamer, wedging itself between the N-terminal and C-terminal tiers of the ATPase ring and helping to promote the formation of a right-handed ATPase domain spiral. Similar architectural features are apparent within the DNA–ATPγS–CMG complex, where GINS–Cdc45 occupy an analogous position.

https://doi.org/10.7554/eLife.03273.009

Closer analysis of the AAA+ spiral reveals several features that have important implications for the action of MCM subunits during DNA unwinding. First, the largest inter-subunit shifts within the Mcm2-7 ring, which occur between Mcm subunits 2 and 5, also correspond to the point where the GINS–Cdc45 complex docks against the helicase. Inspection of the DNA-bound model reveals that GINS–Cdc45 does not simply straddle the Mcm2/5 interface, but that portions of the accessory subunits actually wedge themselves between the N- and C-terminal tiers of the Mcm2-7 ring (Figure 1D). This action widens the exterior groove between the MCM N- and C-terminal domains at their points-of-contact with GINS–Cdc45, and is offset by a concomitant narrowing of the groove on the exterior MCM face opposite the GINS–Cdc45 binding site (i.e., Mcm4, Figure 1D). The structural consequences resulting from GINS–Cdc45 binding suggests that these accessory subunits not only play a role in blocking access through the Mcm2/5 gate, as has been seen previously (Costa et al., 2011), but that they also help stabilize a spiral configuration of ATPase centers when DNA is present. Since the mutation of active site residues at the Mcm2/5 interface ablates helicase activity (Bochman et al., 2008; Ilves et al., 2010), it is likely that the spiral state observed here, which positionally offsets the ATP-binding site of Mcm5 from the arginine-finger residue of Mcm2, inter-converts with another conformation in which the Mcm2/5 interface is remodeled to form a catalytically functional ATPase center during the translocation cycle. Hence, a need for GINS–Cdc45 in preventing DNA from escaping Mcm2-7 would likely be infrequent and limited to instances when the Mcm2/5 gate accidentally opens for an extended period of time, such as at a roadblock created by other nucleoprotein complexes or DNA damage.

A second unexpected feature of the DNA-bound CMG complex is that the spiral is more pronounced than that seen in SF3 helicases, and instead more closely approximating the spiral evinced by a RecA-family helicase, DnaB, in the presence of DNA (Figure 4B–D). The width of the Mcm2-7 central channel (as measured from homology models of the motor domains docked into the EM density) is likewise significantly larger (∼30–35 Å) compared to E1 (∼14 Å), and more closely approaches that of DnaB (∼22 Å). Interestingly, in E1 and DnaB the difference in channel diameter and subunit rise between the two proteins sculpts the DNA substrate bound by each helicase into a single-stranded helix whose relative pitches differ significantly; these geometric differences allow each subunit of DnaB to engage two nucleotides of DNA (Itsathitphaisarn et al., 2012), whereas E1 binds only a single nucleotide per protomer (Enemark and Joshua-Tor, 2006). The similarity of the Mcm2-7 spiral to DnaB raises the interesting possibility that the helicase might translocate with a step-size greater than one nucleotide per ATP consumed; consistent with this notion, a recent study has shown that the MCM N-terminal DNA-binding collar of Pyrococcus furiosus binds four nucleotides per subunit (Froelich et al., 2014).

A third notable attribute of the ternary DNA–CMG–ATPγS model is that several structural features of the complex turn out to be most similar not to replicative helicases, but to a completely orthogonal system, namely, the regulatory subcomplex of the eukaryotic proteasome. The proteasome consists of several discrete subcomplexes including a heterohexameric unfoldase region, termed the ‘base’, which (like the CMG) contains six homologous AAA+ ATPase subunits (Rpt1-6) (Forster et al., 2013). Recent cryo-EM studies have imaged the complete 26S yeast proteasome bound to ATP at ∼9 Å resolution showing that the AAA+ subunits of the base also form a right-handed spiral (Lander et al., 2012). Comparison of proteasome spiral with that seen here for the CMG shows that these regions of the two systems exhibit a surprisingly similar global architecture (Figure 4E). Moreover, the proteasome also contains an accessory subunit (Rpn1) that—as observed here for GINS–Cdc45 in the context of the CMG—wedges itself between a subset of ATPase and OB-fold domains present in Rpt1-6 (Lander et al., 2012; Figure 4E). The structural congruencies exhibited between the CMG and proteasome ATPase subcomplexes suggest that, even though the substrates for the two systems differ greatly, both motors may share certain commonalities in how ATP turnover is coupled to movements that promote translocation. Such a similarity could underlie both the pronounced asymmetry of the CMG and proteasome ATPase rings, and the relatively high degree of tolerance shown by both systems toward active-site mutations within certain subunits (Moreau et al., 2007; Ilves et al., 2010; Beckwith et al., 2013).

Identification of a dimeric CMG configuration

Although the CMG has been observed to operate as a discrete single complex during replication (Yardimci et al., 2010), the loading of the Mcm2-7 hexamer onto DNA by ORC, Cdc6, and Cdt1 during initiation results in the transient formation of a catalytically inactive, head-to-head double hexamer intermediate (Evrin et al., 2009; Remus et al., 2009). The MCM N-terminal domains have been shown to comprise the dimer interface of the double hexamer (Fletcher et al., 2003; Costa et al., 2006; Remus et al., 2009), and create a critical target site for the Dbf4-dependent Cdc7 protein kinase DDK (Labib, 2010; Sheu and Stillman, 2006, 2010); phosphorylation of the N-terminal tails of Mcm2/4/6 alters the configuration of the Mcm2-7 complex, but does not directly promote Mcm2-7 dissociation (On et al., 2014).

At present, it is unclear how the Mcm2, Mcm4, and Mcm6 subunits are aligned with respect to one another in the Mcm2-7 double hexamer. However, in the course of our studies, we found a new configuration of the CMG that sheds light on this issue. In particular, a small (∼5%) but consistent population of CMG particles was seen to form a clear dimeric species that adopts a distinctive head-to-head configuration through its MCM N-terminal regions, and which consistently orients the GINS–Cdc45 subcomplex toward opposing sides of the two ring (Figure 5A). The abundance and uniformity of CMG dimers, which were noted in several independent preparations, suggests that these particles represent a naturally occurring state of the assembly.

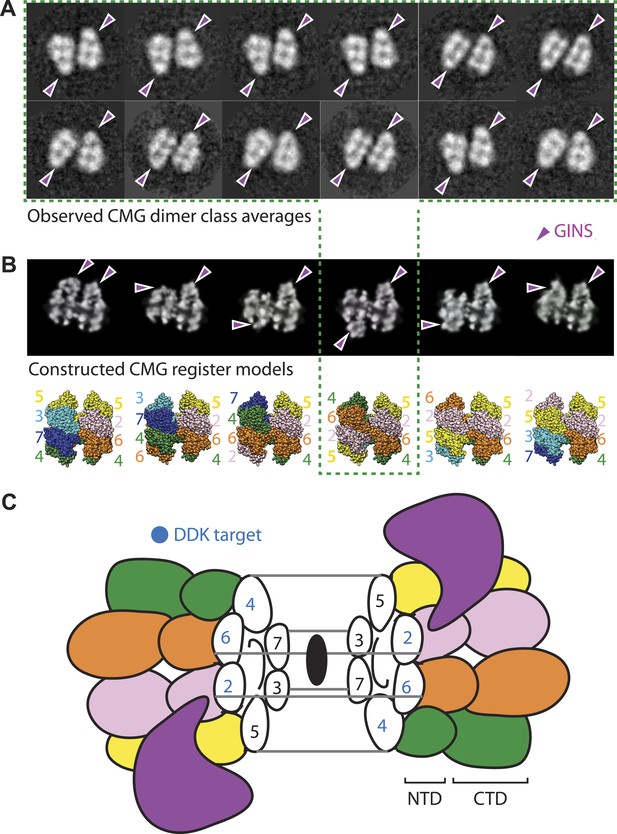

The CMG can form head-to-head dimers that establish the interactions between Mcm2-7 double hexamers.

(A) Experimentally observed 2D class averages showing that the CMG forms a defined double-hexamer in which the GINS-Cdc45 subcomplex is rotationally offset toward opposite sides of the Mcm2-7 rings. Arrowheads mark the position of GINS/Cdc45. The structure of the archaeal N-terminal double hexamer is shown to depict the six possible Mcm2-7 registers that were tested. The class averages show that the interface between the N-terminal collars can partially crack open in some instances, suggesting that this region is somewhat unstable when the CMG is bound to ssDNA. (B) Computationally derived 2D projections of double-hexameric 3D CMG models in which Mcm2-7 N-terminal domain dimers (modeled on an archaeal Mcm crystal structure of this region, PDB ID 1LTL) have been manually offset by distinct rotational registers. The reference-free class averages best resemble a model in which Mcm5 from ring 1 juxtaposes with Mcm4 from ring 2, although our data cannot formally rule out a configuration where Mcm4 might juxtapose with Mcm3 or Mcm2 (although in these configurations the two Mcm2/5 gates would still remain misaligned). Arrowheads mark the position of GINS/Cdc45. (C) Cartoon representation of the Mcm2-7 double ring register formed in head-to-head dimers of the CMG.

https://doi.org/10.7554/eLife.03273.010

The observed organization of the CMG dimers has several implications for the formation and function of the helicase. For example, the 180° offset of GINS and Cdc45 present in the dimer places each Mcm2/5 gate on the opposite sides of the complex, facing away from each other (Figure 5B,C). During origin melting, this configuration would allow a single DNA strand to escape each Mcm2-7 hexamer without steric interference from its partner CMG, enabling particle separation and the formation of two independent replication forks. The organization of the CMG dimer also indicates that the N-terminal regions of Mcm2 and Mcm5 of one hexamer associate in trans with the N-terminal regions of Mcm6 and Mcm4 of the partner hexamer. Such an interaction would help explain why Mcm4 and GINS have been seen to interact in pulldown studies (Ilves et al., 2010), even though the two factors map to distal positions of the CMG in the context of a monomer (Costa et al., 2011). Finally, the observed arrangement suggests that the ability of DDK to activate Mcm2-7 by phosphorylation of Mcm4, 2, and 6 (Labib, 2010) (as well as the ability of the Bob1 mutation in Mcm5 to bypass the requirement for DDK [Jackson et al., 1993]) could result from a destabilization of the CMG dimer contacts that are symmetrically apposed across the N-terminal collar (Figure 5C). Altogether, our data establish that the two Mcm2/5 gates of a double hexamer are spatially segregated from each other and indicate that separation of Mcm2-7 double hexamers occurs subsequent to CMG formation. Such a mechanism is consistent with recent findings showing that the phosphorylation by DDK is insufficient to promote the separation of Mcm2-7 double hexamers on its own (On et al., 2014).

The existence of a dimeric CMG state, coupled with prior views of Mcm2-7 and the DNA-bound conformation of the Mcm2-7 ATPase domains seen here, highlights the innate plasticity of the MCM ring and the means by which different factors help remodel the helicase to support appropriate loading and activation during the initiation of DNA replication (Figure 6). Biochemical studies using Saccharomyces cerevisiae proteins first showed that Mcm2-7 on its own possesses a natural discontinuity—the ‘Mcm2/5 gate’—through which DNA can enter and exit the helicase pore (Bochman and Schwacha, 2007). Structural studies have corroborated this observation, additionally showing that metazoan Mcm2-7 rings preferentially assume a left-handed lock-washer shape and that ATP alone is incapable of fully inducing ring closure (Costa et al., 2011; Lyubimov et al., 2012). Following the action of ORC, Cdc6, and Cdt1, two Mcm2-7 hexamers become locked into a planarized co-joined ring (Evrin et al., 2009; Remus et al., 2009); in the presence of GINS, Cdc45, and single-stranded DNA, the Mcm2-7 ATPase domains shift again, but now into a right-handed spiral conformation (Figure 4). Thus, Mcm2-7 undergoes a chiral-flip in architectural state as it matures into a functional helicase with loading, activation, and DNA binding all appearing to participate in these transitions.

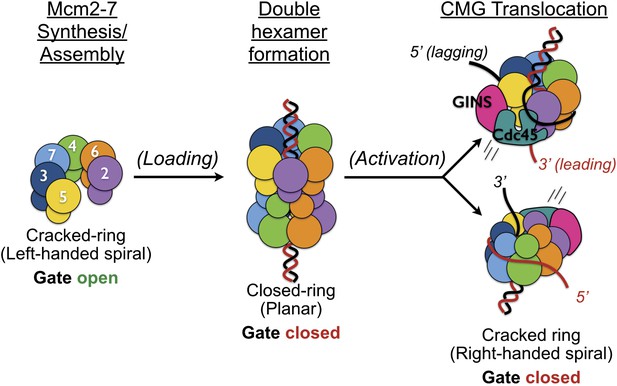

Overview of Mcm2-7 organization, remodeling, and gate status during initiation and CMG formation.

Following synthesis and assembly, the isolated metazoan Mcm2-7 motor forms an inactive left-handed spiral, irrespective of nucleotide state, with a discontinuity between Mcm5 and Mcm2. The action of ORC, Cdc6 and Cdt1 results in the loading of a planar, head-to-head Mcm2-7 double hexamer onto a duplex DNA in which the Mcm2/5 gates are closed. Following loading, Dpb11-Sld2-Sld3 (11-2-3) chaperone GINS and Cdc45 onto the Mcm2-7 double hexamer and along with DDK promoted phosphorylation events, help promote both DNA melting, CMG formation and replication fork separation. Structural analysis of dimeric CMG particles (Figure 5) indicates that the Mcm2/5 gates are localized on the opposing sides of the dodecameric Mcm2-7 complex and that CMG formation precedes separation of the double hexamer.

https://doi.org/10.7554/eLife.03273.011

Why might Mcm2-7 traverse through such disparate intermediates? One possibility is that Mcm2-7 initially assembles into an inactive conformation to prevent inadvertently triggering aberrant replication events. An alternative possibility, not necessarily incompatible with the first, is that Mcm2-7 might transition through different forms as a means to promote the melting of duplex replication origins. Interestingly, an important attribute of some of the states adopted by Mcm2-7 is the existence of a breach or subunit offset in the ATPase ring between the Mcm2 and Mcm5 subunits. Given the topological barrier that extended DNA segments present to encirclement by toroidal proteins, it is notable that two MCM-associated factors—Cdt1 and GINS–Cdc45—both appear to occlude the Mcm2/5 interface (Costa et al., 2011; Sun et al., 2013). Hence, controlled access through the Mcm2/5 gate appears useful not only for regulating DNA access into a preformed Mcm2-7 hexamer (Bochman and Schwacha, 2007), but also for preventing accidental DNA egress in the apo state and at stalled forks (Petojevic et al., unpublished data).

Concluding remarks

The structure of the eukaryotic CMG complex bound to nucleotide and a 3′-tailed DNA substrate helps resolve many outstanding questions surrounding the mechanism by which this key replication assembly forms and operates. The structure reveals that the RecJ domain of Cdc45, which recent data have found to bind to escaped leading strand substrates (Petojevic et al., unpublished data), takes up a position on the CMG that would aid in capturing a DNA segment that might escape from the Mcm2-7 pore. Our EM data show that the nucleotide-loaded CMG orients on single-stranded DNA such that the 3′ end enters first through the C-terminal AAA+ domains of Mcm2-7, consistent with prior biochemical data indicating that archaeal MCMs move along DNA with the opposite polarity as superfamily III helicases (McGeoch and Bell, 2005; Rothenberg et al., 2007). The binding of DNA to the CMG also induces the formation of a right-handed spiral in the MCM ATPase domains whose overall structure more closely mimics bacterial RecA-family replicative helicases than its viral AAA+ cousins, and whose relative arrangement of AAA+ domains and accessory subunits is mirrored by the regulatory subcomplex of the eukaryotic proteasome (Lander et al., 2012). Finally, we find that the CMG can form head-to-head dimers in which the two Mcm2/5 gates are fully offset from each other, helping to fill in key gaps concerning the higher-order organization of the Mcm2-7 double hexamer and how the CMG matures from this state into two single particles that encircle complementary single strands. Future studies will be needed to definitively establish the full paths of the leading- and lagging-strand DNA bound to the CMG and the extent to which the disparate AAA+ and RecA-family ring-translocases share or diverge in coupling ATP turnover to specific subunit movements that drive substrate translocation.

Materials and methods

Cloning and construction of baculoviruses

Request a detailed protocol

Baculoviruses were constructed as previously described (Ilves et al., 2010). Briefly, the MCM3 gene was tagged with FLAG epitope at the amino terminus through 5′ PCR oligonucleotides that inserted the epitope in frame. Mcm2, Mcm3, Mcm4, Mcm5, Psf1, Psf2, and Psf3 cDNAs were inserted between EcoRI and SpeI restriction sites of the pFastBac1 vector. The cDNA of Mcm6 and Mcm7 was inserted between BamHI and SpeI sites, and Cdc45 and Sld5 cDNA between EcoRI and Xba restriction sites. These vector templates were used for generation of CMG mutants through PCR based mutagenesis. Sequencing was used to verify the entire protein coding regions of all generated pFastBac1 constructs. Specific deletion mutants of either the Psf1 C-terminus or Cdc45 N-terminus included Psf11−139, Psf11−170, Psf11−176, Psf11−184, and Cdc45Δ1−99. C-terminal deletions were constructed by introducing stop codons after the desired residue and by removing any remaining C-terminal sequences present from the original cDNA clone. N-terminal deletions were constructed by the removal of the pertinent cDNA regions and by introducing a start (ATG) codon in front of the desired residue. The same restriction enzyme sites as described above were used to subclone all truncation constructs into the pFastBac1 vector. To target the Psf1–Cdc45 interface, alanine substitutions in the C-terminus of Psf1 were introduced individually or in parallel into for Glu190, Leu192, Val193, and Arg194 by site-directed mutagenesis.

Nucleoprotein complex preparation

Request a detailed protocol

The CMG complex was purified as previously described (Ilves et al., 2010), but with the following changes. Briefly, after co-infection with 11 distinct baculoviruses, proteins were expressed for 72 hr in Hi5 cells (Invitrogen, Carlsbad, CA) by culturing in 500-ml spinner flasks and co-infecting at 1.2^106 cells/ml density. Cells were lysed by hypotonic shock combined with one freeze–thaw cycle and Dounce homogenization. The lysate was clarified by centrifugation, and the protein complex was immunoaffinity purified over anti-flag (M2) antibody-conjugated agarose beads (Sigma, St. Louis, MO) to bind a FLAG-tag on Mcm3. To isolate the fully intact CMG from incomplete complexes, the protein preparation was passed over a Mono S HR 5/5 ion exchange column, followed by a Mono Q HR 5/5 ion exchange chromatography using an ÄKTA Purifier (GE Healthcare, Piscataway, NJ). Peak fractions were collected and then both further purified and concentrated using a Mono Q PC 1.6/5 column coupled to a Pharmacia SMART system. The purified material was dialyzed into a buffer containing 25 mM HEPES (pH 7.6), 50 mM sodium acetate, 10 mM magnesium acetate, and 1 mM DTT. The final protein concentration as measured by the Bradford protein assay was 1.2 mg/ml.

Oligonucleotides used for nucleoprotein complex reconstitution were synthesized by Integrated DNA Technology and shipped as lyophilized pellets. Oligo ‘LEAD60’ contained the sequence 5′–GGG-CAC-TTG-ATC-GGC-CAA-CCT-T39–3′, while ‘3BTNLAG20’ contained the sequence 5′–GGT-TGG-CCG-ATC-AAG-TGC-CC–biotin–3′. The oligonucleotides were dissolved in the CMG buffer and quantified by A260. For annealing, LEAD60 and 3BTNLAG20 were mixed in equimolar amounts, briefly heated to 95°C and slow-cooled to 4°C. Previous work has shown that the ATPγS binds to a duplex-DNA substrate containing a 40mer 3′ single-stranded DNA tail (Ilves et al., 2010). To form helicase/DNA complexes, 10 nmol of concentrated CMG were mixed with the annealed DNA with a 1.2 molar excess of nucleic acid in CMG buffer plus 0.1 mM ATPγS. After incubation at room temperature for 30 min, the sample was passed over a Superose 6 PC 3.2/30 gel filtration column using an ETTAN micropurification system (GE Healthcare). A 50-μl fraction containing the center of the nucleoprotein elution peak was collected and immediately used for negative stain grid preparation, either with or without co-incubation with 1.2-fold molar excess of streptavidin.

Negative stain grid preparation

Request a detailed protocol

EM grids were prepared by floating a thin layer of continuous carbon over a 400-mesh copper grid (Electron Microscopy Sciences, Hatfield, PA) using a custom-made carbon-floating device. Four microliters (∼40 ng) of the CMG–DNA or CMG–DNA–Streptavidin complex were then applied onto freshly glow-discharged grids for 30 s. The grids were laid on top of 75-μl drops of a fresh 2% (wt/vol) uranyl formate solution and stirred for five consecutive 10-s staining steps. The staining solution was then blotted dry and the grids were stored.

Electron microscopy

Request a detailed protocol

Nucleoprotein particles were imaged using a JEM-2100 LaB6 electron microscope (JEOL, Japan) operated at 200 kV. Images were recorded at a nominal magnification of 50,000× on a Ultrascan 4k × 4k CCD camera (Gatan, Pleasanton, CA), resulting in a 2.14 Å pixel size at the specimen level. The JEOL Automated Data Acquisition System (JADAS, Zhang et al., 2009) was used to automatically collect low-dose images with a 0.5 to 3.5 µm defocus at around 35 electrons per Å2. In addition, manual data collection was performed under the same imaging conditions. In total, 579 micrographs were collected for the non-labelled and 436 micrographs for the labeled nucleoprotein complex.

Image processing and atomic docking

Request a detailed protocol

Particles were semi-automatically picked and phase flipped using the EMAN2 package, version 2.05 (Tang et al., 2007). Reference free two-dimensional class-sums were obtained using RELION, version 1.2 (Scheres, 2012), except for the streptavidin-DNA-bound CMG complex that was processed using Imagic (van Heel et al., 1996) and the rotation and classification protocol implemented in Costa et al. (2011). Working with the ADP(BeF3) bound CMG as a starting model (Costa et al., 2011), multi-model three-dimensional refinement was performed with an iterative projection-matching and back-projection protocol that employs libraries from the EMAN2 and SPARX software packages (Hohn et al., 2007; Tang et al., 2007) or, in a parallel effort, using three-dimensional classification and refinement routines as implemented in RELION (Scheres, 2012). Refinement of the starting models began using an angular increment of 15°, progressing down to 2° with EMAN2/SPARX, and default parameters in RELION 1.2 (7.5° angular sampling, 5 pixel search range, and 1 pixel search step). The two approaches yielded virtually identical results (Figure 1—figure supplement 1) with the best structure containing 7,409 particles (obtained with EMAN2/SPARX and shown in all figures). The resolution was estimated by the ‘gold-standard’ Fourier Shell Correlation approach implemented in RELION (Scheres, 2012). 3D-maps were segmented using the Segger program (Pintilie and Chiu, 2012) in UCSF Chimera (Pettersen et al., 2004). The Chimera ‘Fit in Map’ option was used for rigid-body fitting of crystal structures and to generate all surface renderings included in the figures (Pettersen et al., 2004). The full-length Psf1 protein was modelled by superposing the Thermococcus kodakaraensis GINS51 (PDB entry 3ANW) onto the human Psf1 structure. The N-terminal Mcm2-7 collar was modelled by superposing protomers of the Methanothermobacter thermautotrophicus MCM (PDB entry 1LTL) or the Sulfolobus solfataricus MCM (PDB entry 2VL6) onto the isolated oligomerization subdomain of the M. thermautotrophicus MCM. The two structures exhibit markedly distinct configurations in their N-terminal α-helical region (subdomain A), with the S. solfataricus MCM region matching best to the N-terminal domain configuration of Mcm4 and Mcm5. The atomic model of the near full-length S. solfataricus MCM (PDB entry 3F9V) was found to fit the entire Mcm4 electron density region, whereas slight rigid body transformations of the MCM AAA+ domain relative to the N-terminal region were allowed to best fit the electron density of Mcms 2, 3, 5, 6, and 7. A homology model based on the bacterial RecJ (PDB entry 1IR6) was used for docking of Cdc45. The EM map has been deposited in the 3D-EM database (www.emdatabank.org) with accession code EMD-2772.

Data availability

The following previously published data sets were used

References

    1. Jackson AL
    2. Pahl PM
    3. Harrison K
    4. Rosamond J
    5. Sclafani RA
    (1993)
    Cell cycle regulation of the yeast Cdc7 protein kinase by association with the Dbf4 protein
    Molecular and Cellular Biology 13:2899–2908.
    1. Neuwald AF
    2. Aravind L
    3. Spouge JL
    4. Koonin EV
    (1999)
    AAA+: a class of chaperone-like ATPases associated with the assembly, operation, and disassembly of protein complexes
    Genome Research 9:27–43.

Decision letter

  1. Stephen C Kowalczykowski
    Reviewing Editor; University of California, Davis, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “DNA binding polarity, dimerization, and ATPase ring remodeling in the Cdc45-MCM-GINS replicative helicase” for consideration at eLife. Your article has been favorably evaluated by James Manley (Senior editor) and 2 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

Overall, the experiments are well executed the data are sound and the main conclusions are justified. However, neither the inference regarding the ssDNA path (on Cdc45) nor the final model (in terms of conformational changes during the loading and translocation) are fully supported by the data. These issues can be addressed provided that the authors can address the following major points; additional experimentation is likely not required:

1) Relationship of ssDNA binding to Mcm subunits. Figure 2A shows a very specific structure in which DNA is uniquely in contact with the Mcm5 subunit. The basis for this figure is EM reconstructions of the CMG complex with bound DNA that contains a streptavidin tag. As ssDNA is poorly visualized under EM, the streptavidin marks the location of the DNA in the complex. However, 1) the class averages in Figure 2B show the streptavidin at a considerable distance from the CMG complex, making assignment of a specific DNA-binding MCM subunit difficult, and 2) as nearly as this reviewer can tell, there is nothing in the text that specifically identifies Mcm5 as the sole DNA binding subunit. Explain: is Figure 2A a structural summary or artistic license?

2) Thresholding/filtering issues. A major point in the paper is the physical interaction between CDC45 and Mcm5, in which the N terminus of CDC45 is proposed to essentially pry apart the N and C-terminal domains of Mcm5 (Figure 1D). There are several technical problems with this conclusion. Although varying the thresholding (presumably through Chimera) is a useful way to emphasize various features, in Figure 1D it is so extensive that the N and C-terminal domains of Mcm5 are completely separated from one another, a feature not demonstrated by other CMG structures presented in this paper. In general, the thresholding level should generate an enclosed volume consistent with the calculated molecular weight of the component proteins: was this done? When 2 structures are being compared, the levels of thresholding and filtering should be the same in each structure.

3) In addition, the interpretation that CDC45 pries apart the N and C-terminus of Mcm5 largely depends upon how the various masses within the structure were segmented – what part of the density belongs to Mcm5 and what part actually belongs to CDC45? This question has an additional problem insofar as the region of CDC45 that likely interacts with Mcm5 is not highly conserved and the authors were unable to generate a homology model for it. Moreover, the software used for segmentation that sets the subunit boundaries (likely the Segger tool in Chimera) requires a very high-resolution structure to give reliable results without computational validation (< 10 angstroms). Although for transmission EM the structures in this manuscript are excellent, it seems a little optimistic that the authors have enough resolution to accurately validate these boundaries visually. There are computational methods available to provide proper validation of their results (http://ncmi.bcm.edu/ncmi/software/segger/docs_fitting_scores).

4) The figures are confusing and should be improved. Specifically:

A) In all the figures, top and side views should be kept in similar orientations whenever possible for clarity.

B) Figure 3 and Figure 6 are inconsistent in terms of leading strand and lagging strand positions relative to Mcm subunits.

C) Figure 3D suggests a rocking motion (rotation) between the CMG and the duplex DNA. This is not supported by data here. It is quite possible that the leading strand could slip out to the outer channel formed by GINS and Cdc45 without altering the relative orientation between duplex DNA and the CMG. Furthermore, the conformation when the leading strand is captured by Cdc45 is different from that shown here. This figure should be altered to reflect this.

D) Figure 5 suggests the exact register of the CMG dimer based on 2D class averages. Although it is plausible, there are no experimental data to confirm this and Models 3 or 5 cannot be completely dismissed. Furthermore, Figure 5A suggest there might be some flexibility in the dimer arrangement as not all the class averages display the same tight packing. This part of the Results/discussions should be tuned down.

E) Figure 6. Translocation step. The interactions of GINS and Cdc45 with Mcm are different in the two complexes. Please check polarity! The earlier steps neither are unclear nor supported by data here so should be omitted. Furthermore, since Mcm2-7 likely act sequentially, different subunits will have different nucleotide bound states at a given time. ATP-gS state presented here therefore might not reflect the functional state during translocation. It is also unclear what triggers gate open/close. How does the Cdt1-Orc complex (which induces the gate being blocked) enable dsDNA loading? What is the defining factor that leads to DNA melting and gate opening/strand separation? These are not addressed here and therefore Figure 6 should be modified to only reflect major conclusions here. The leading strand and lacking strand as well as their directionality should be labelled.

5) Methods: how many particles contributed to the final reconstruction? How were the streptavidin-labelled data processed? Is a 3D reconstruction obtained (since 436 micrographs were collected)?

6) Significance: the author argued that the need for GINS/Cdc45 in preventing DNA from escaping Mcm2-7 would likely to be minimal. This raises the question of the significance of the additional roles proposed in this paper (to capture the “escaped” leading strand). Please reconcile.

https://doi.org/10.7554/eLife.03273.012

Author response

1) Relationship of ssDNA binding to Mcm subunits. Figure 2A shows a very specific structure in which DNA is uniquely in contact with the Mcm5 subunit. The basis for this figure is EM reconstructions of the CMG complex with bound DNA that contains a streptavidin tag. As ssDNA is poorly visualized under EM, the streptavidin marks the location of the DNA in the complex. However, 1) the class averages in Figure 2B show the streptavidin at a considerable distance from the CMG complex, making assignment of a specific DNA-binding MCM subunit difficult, and 2) as nearly as this reviewer can tell, there is nothing in the text that specifically identifies Mcm5 as the sole DNA binding subunit. Explain - is Figure 2A a structural summary or artistic license?

We thank the reviewers for identifying a passage that was unclear in the figure legends. What is shown in Figure 2A is indeed density from the 3DEM experiment. The caption to Figure 2 has been modified to clarify this point. The rod-like density on top of the AAA+ Mcm tier had never been seen before in apo or ATPγS-bound CMG particles and we assign it to DNA because: i) the size and shape of the density is compatible with a 20mer duplex DNA stretch, and ii) the overall orientation of the duplex DNA end is confirmed by streptavidin labeling (which further allows us to localize the duplex end toward the C-terminal face of the Mcm ring). Regarding whether Mcm5 is the sole DNA-contacting subunit at the fork nexus, we have removed mention of this possibility in the text to avoid overinterpreting our data.

2) Thresholding/filtering issues. A major point in the paper is the physical interaction between CDC45 and Mcm5, in which the N terminus of CDC45 is proposed to essentially pry apart the N and C-terminal domains of Mcm5 (Figure 1D). There are several technical problems with this conclusion. Although varying the thresholding (presumably through Chimera) is a useful way to emphasize various features, in Figure 1D it is so extensive that the N and C-terminal domains of Mcm5 are completely separated from one another, a feature not demonstrated by other CMG structures presented in this paper. In general, the thresholding level should generate an enclosed volume consistent with the calculated molecular weight of the component proteins: was this done? When 2 structures are being compared, the levels of thresholding and filtering should be the same in each structure.

We thank the reviewers for touching on an important point and apologize if we might have inadvertently created any confusion around this issue; however, it is the combined action of the GINS•Cdc45 complex that appears to wedge apart the Mcm5 N- and C-terminal regions. Insofar as thresholding, all of the renderings mentioned above have indeed been prepared to consistently account for the molecular weight of the full CMG complex, with the exception of Figure 3–figure supplement 1 (where a slightly higher threshold highlights the Cdc45CTD-MCM contact) and Figure 2A (where a lower threshold was used to visualize the region assigned to duplex DNA – negative staining of nucleic acids generally results in “thinner” densities than what one would get with cryo-electron microscopy, which is why the threshold was lowered in this instance). Using the constant threshold shown in the primary figures, the separation of Mcm5 N- and C-terminal domains is apparent in all CMG renderings. For example, the CMG side-view shown in Figure 4E highlights the N-terminal and C-terminal-AAA+ domains separation of Mcm5 as in Figure 1D. A similar separation of the N- and C-terminal domains of Mcm5 is likewise present in Figure 3C; this splaying is only unapparent because Cdc45 is rendered opaque, occluding the view of Mcm5.

3) In addition, the interpretation that CDC45 pries apart the N and C-terminus of Mcm5 largely depends upon how the various masses within the structure were segmented – what part of the density belongs to Mcm5 and what part actually belongs to CDC45? This question has an additional problem insofar as the region of CDC45 that likely interacts with Mcm5 is not highly conserved and the authors were unable to generate a homology model for it. Moreover, the software used for segmentation that sets the subunit boundaries (likely the Segger tool in Chimera) requires a very high-resolution structure to give reliable results without computational validation (< 10 angstroms). Although for transmission EM the structures in this manuscript are excellent, it seems a little optimistic that the authors have enough resolution to accurately validate these boundaries visually. There are computational methods available to provide proper validation of their results (http://ncmi.bcm.edu/ncmi/software/segger/docs_fitting_scores).

We thank the referees for the advice on segmentation. We agree that we did not include sufficient data to explain the rationale for our assignment of the C-terminal domain of Cdc45. We have now included a comparison between the N-terminal view of the isolated Drosophila melanogaster Mcm2-7 (as published in Lyubimov, et al. PNAS 2012) and the bottom view of the DNA-bound CMG (now included as Figure 3–figure supplement 1). This comparison shows that no density is appended to either the N-terminal helical domain of Mcm5 or Mcm2 in the isolated Mcm2-7 complex. This result led us to conclude that the density seen to interdigitate between Mcm5 and Mcm2 likely corresponds to the otherwise unaccountable C-terminal domain of Cdc45. However, we acknowledge that it is possible that the extreme N-terminus of Mcm2 (which is thought to be unstructured) might instead become ordered to occupy this region upon Cdc45 binding. We have modified the main text to account for this possibility.

4) The figures are confusing and should be improved. Specifically:

A) In all the figures, top and side views should be kept in similar orientations whenever possible for clarity.

All pertinent views have been rotated.

B) Figure 3 and Figure 6 are inconsistent in terms of leading strand and lagging strand positions relative to Mcm subunits.

We thank the referees for catching this mistake and have modified Figure 6 accordingly.

C) Figure 3D suggests a rocking motion (rotation) between the CMG and the duplex DNA. This is not supported by data here. It is quite possible that the leading strand could slip out to the outer channel formed by GINS and Cdc45 without altering the relative orientation between duplex DNA and the CMG. Furthermore, the conformation when the leading strand is captured by Cdc45 is different from that shown here. This figure should be altered to reflect this.

We agree – Figure 3D has been reworked to clarify these issues.

D) Figure 5 suggests the exact register of the CMG dimer based on 2D class averages. Although it is plausible, there are no experimental data to confirm this and Models 3 or 5 cannot be completely dismissed. Furthermore, Figure 5A suggest there might be some flexibility in the dimer arrangement as not all the class averages display the same tight packing. This part of the Results/discussions should be tuned down.

The text and caption to Figure 5 have been modified to present the more nuanced view suggested by the referees. The flexibility evident in the dimer is also now mentioned.

E) Figure 6. Translocation step. The interactions of GINS and Cdc45 with Mcm are different in the two complexes. Please check polarity! The earlier steps neither are unclear nor supported by data here so should be omitted. Furthermore, since Mcm2-7 likely act sequentially, different subunits will have different nucleotide bound states at a given time. ATP-gS state presented here therefore might not reflect the functional state during translocation. It is also unclear what triggers gate open/close. How does the Cdt1-Orc complex (which induces the gate being blocked) enable dsDNA loading? What is the defining factor that leads to DNA melting and gate opening/strand separation? These are not addressed here and therefore Figure 6 should be modified to only reflect major conclusions here. The leading strand and lacking strand as well as their directionality should be labelled.

We would like to thank the reviewers for helping us get this complex figure right. We have modified the model to focus on the data presented in this paper and in other paper that have directly commented on the ring status of Mcm2-7. The leading and lagging strands and their directionality, along with GINS•Cdc45 and Mcm2-7 interactions, have been adjusted and are now more clearly labeled.

5) Methods: how many particles contributed to the final reconstruction? How were the streptavidin-labelled data processed? Is a 3D reconstruction obtained (since 436 micrographs were collected)?

The Methods have been amended to address these questions. A 3D structure of the streptavidin-labeled complex was indeed generated (see below); however, owing the positional mobility of the streptavidin, the reconstruction is no more informative than the reference-free class averages. Accordingly, we show the analysis here for the reviewers, but have elected not to include it in the manuscript. We can add this figure as supplemental data if the referees feel it important to do so.

Author response image 1

6) Significance: the author argued that the need for GINS/Cdc45 in preventing DNA from escaping Mcm2-7 would likely to be minimal. This raises the question of the significance of the additional roles proposed in this paper (to capture the “escaped” leading strand). Please reconcile.

We apologize for failing to frame this issue more clearly, which was likely compounded by the confusion surrounding Figure 3D (which has now been reworked). In stating that the need for Cdc45 in preventing DNA escape is minimal, we should have said that we expect the frequency with which Cdc45 would be called upon to capture an escaped leading strand to be low. The rationale for this statement is because once bound to both ATP and DNA for translocation, it seems likely that the Mcm2/5 gate would open relatively infrequently (except, perhaps during fork stalling); however, whenever the gate does open, Cdc45 would be present to prevent DNA escape. We have modified the text to better highlight this distinction.

https://doi.org/10.7554/eLife.03273.013
