Mechanical design principles of a mitotic spindle

  1. Jonathan J Ward
  2. Hélio Roque
  3. Claude Antony
  4. François Nédélec Is a corresponding author
  1. European Molecular Biology Laboratory, Germany
  2. University of Oxford, United Kingdom
  3. Institut Génétique Biologie Moléculaire Cellulaire, France
Research Article
Cited
9
Views
2,281
Comments
0
Cite as: eLife 2014;3:e03398 doi: 10.7554/eLife.03398

Abstract

An organised spindle is crucial to the fidelity of chromosome segregation, but the relationship between spindle structure and function is not well understood in any cell type. The anaphase B spindle in fission yeast has a slender morphology and must elongate against compressive forces. This ‘pushing’ mode of chromosome transport renders the spindle susceptible to breakage, as observed in cells with a variety of defects. Here we perform electron tomographic analyses of the spindle, which suggest that it organises a limited supply of structural components to increase its compressive strength. Structural integrity is maintained throughout the spindle's fourfold elongation by organising microtubules into a rigid transverse array, preserving correct microtubule number and dynamically rescaling microtubule length.

https://doi.org/10.7554/eLife.03398.001

eLife digest

Before a cell divides to form two new cells, it duplicates its entire set of chromosomes. These chromosomes need to be equally distributed between the new cells—if cells receive too many or too few chromosomes, it can cause developmental defects or cancer.

In cells that have a nucleus, a structure called the mitotic spindle ensures that chromosomes are partitioned equally between the dividing cells. The spindle consists of long, thin protein fibers called microtubules, which grow from small structures known as centrosomes that are present on either side of a cell. While some of the microtubules from each centrosome overlap in the middle of the spindle in a region called the spindle midzone, another set of microtubules attaches to the chromosomes, allowing the spindle to pull each of the chromosomes in a pair in opposite directions.

The size and shape of the mitotic spindle varies widely between different species, and how the structure of the spindle helps it to do its job was unclear. However, it is known that the spindle has to be strong and fairly rigid in order to separate the chromosomes.

Ward, Roque et al. studied the chromosome separation process in a species of yeast that has unusually consistent growth and cell division rates in different cells. In a technique called electron tomography, an electron microscope took images of the spindle from many different angles, and these images were combined computationally to produce a three-dimensional structure of the entire spindle.

Ward, Roque et al. observe that the number and length of microtubule fibers in the spindle is the same in each yeast cell. The spindle also has a striking geometric pattern. In the spindle midzone, microtubules are ordered into a highly regular square-packed array, while the rest of the spindle contains microtubules arranged hexagonally. This hexagonal arrangement maximizes the interactions between a microtubule and its neighbors, which makes the spindle stronger and prevents it from buckling under the physical forces that act on it. Engineers have incorporated this type of design in man-made structures for decades. A future challenge is to explain how the properties of the spindle components have been tuned to be able to always assemble into a structure with such reliable properties.

https://doi.org/10.7554/eLife.03398.002

Introduction

It has long been proposed that the morphology of organisms could reflect both evolutionary design principles and underlying physical laws (Thompson, 1942). The organelle responsible for faithful segregation of the genome in eukaryotic cells, known as the mitotic spindle, exhibits tremendous morphological diversity between different cell types (Walczak and Heald, 2008; Glotzer, 2009; Wühr et al., 2009; Goshima and Scholey, 2010). Although the mitotic spindle has been studied intensively for more than a century (Mitchison and Salmon, 2001), our understanding of the mechanisms that give rise to the remarkable precision of eukaryotic chromosome segregation remains incomplete.

A challenge facing mechanistic studies of the mitotic spindle is its inherent complexity, with a large number of essential protein components (Walczak and Heald, 2008; Glotzer, 2009) and an intricate, extended structure with many details that cannot be visualised by light microscopy (McDonald et al., 1992; Mastronarde et al., 1993). This complexity is compounded by the substantial morphological and temporal variability that often exists between different cells of the same type. Another complication is that the spindle is usually involved in performing multiple interrelated functions in the cell at any one time. During prometaphase, for example, the spindle must simultaneously capture mitotic chromosomes and form a bipolar structure (Walczak and Heald, 2008; Glotzer, 2009). We chose the anaphase B spindle in fission yeast as a model system to address the relationship between spindle form and function as it circumvents many of these conceptual difficulties.

The first advantage of studying mitosis in Schizosaccharomyces pombe is that the rate of elongation and the timing of each mitotic stage are highly consistent in different cells (Mallavarapu et al., 1999; Fu et al., 2009). This enables the dynamics of mitosis to be related directly to the comprehensive, nano-scale reconstructions of the spindle architecture that can be acquired using electron tomography. A second advantage is that anaphase B spindle elongation represents a clearly defined morphogenetic transition that is driven by outward sliding of overlapping microtubules by plus-end directed molecular motors located at its centre (Tolić-Nørrelykke, Sacconi, et al., 2004b; Khodjakov et al., 2004; Fu et al., 2009; Glotzer, 2009). Microtubule minus-ends are static and remain anchored at the spindle pole body, whilst growth of inter-polar microtubules at their plus-ends is coordinated with outward sliding to maintain an overlap at the spindle centre (Mallavarapu et al., 1999).

A final key advantage of studying the anaphase B spindle is that the forces to which it is subjected have a well-defined directionality. Spindle severance experiments have revealed that spindle elongation is powered by internal forces, and resisted by external compressive loads (Tolić-Nørrelykke, Sacconi, et al., 2004b; Khodjakov et al., 2004). These external loads can compromise the fidelity of chromosome segregation, as it has been observed that buckling of the spindle followed by its breakage is a common failure mode for cells that have defects in chromosome condensation, the nuclear envelope or in the organisation of spindle microtubules (Courtheoux et al., 2009; Khmelinskii et al., 2009; Yam et al., 2011; Petrova et al., 2013).

In this study, we reconstruct the architecture of wild-type fission yeast spindles using electron tomography (ET) (Höög et al., 2007; Roque et al., 2010). This technique has several advantages (Soto et al., 1994) over the serial-section electron microscopy method that was used previously to determine the structures of spindles in cdc25.22 fission yeast and budding yeast cells (Ding et al., 1993; Winey et al., 1995). We use the analyses of the EM spindle reconstructions to build computational models of the spindle. These models imply that the fission yeast spindle architectures organise a limited supply of structural components to increase their resistance to compressive forces, thus demonstrating a direct link between the morphology of a mitotic spindle and its function. We also investigate the effects of external mechanical reinforcement (Pickett-Heaps et al., 1997; Mitchison et al., 2005; Brangwynne et al., 2006) on the forces that the spindle can bear during its elongation.

Results

Electron tomographic reconstructions of wild-type Fission Yeast Spindles

We began by using the very uniform mitotic progression of cells containing GFP-labelled tubulin (Figure 1A; Video 1, 2) to assign ET reconstructions to a specific time during mitosis. Our ET reconstructions confirmed that the spindle is composed of two opposing arrays of pole-nucleated microtubules that interdigitate at the spindle midzone (Figure 1B; Videos 3–5). A similar gross spindle organisation was observed in previous serial-section reconstructions of cdc25.22 fission yeast cells (Ding et al., 1993) and the related budding yeast spindle (Winey et al., 1995).

Figure 1 with 1 supplement see all

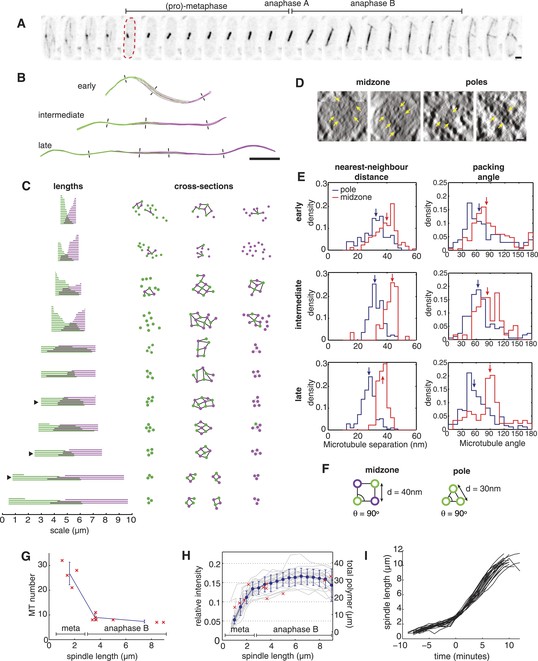

The Architecture and Dynamics of the Fission Yeast Spindle.

(A) Fission yeast cell expressing GFP-labelled tubulin. The dashed red line shows cell outline at mitotic entry. Interval between frames = 1 min, scale bar = 0.5 μm. (B) ET reconstructions of three anaphase B spindles. Microtubules are coloured according to the pole from which they originate. Dashes represent the approximate locations of the cross-sections shown in C. (C) Longitudinal and transverse spindle architecture. Diagrams on the left show the contour length and number of microtubules within each spindle. Black arrowheads mark the three anaphase B spindles depicted in B. Circle-and-stick diagrams on the right represent cross-sections near to the poles and midzone of each spindle. Microtubule radii are drawn to scale. Black lines are drawn between neighbouring anti-parallel microtubules. (D) Raw electron tomographic images of second-longest anaphase B spindle shown in C. Microtubules are marked by yellow arrows. Scale bar = 25 nm. (E) Histograms of nearest-neighbour microtubule distances and packing angles for the three spindles shown in panel B. Blue lines represent histograms for the polar regions of the spindle and red lines the midzone. Coloured arrows mark the median of each distribution. The midzone is defined as the region of microtubule overlap that contains at least two microtubules from each pole. Kolmogorov–Smirnov tests were used to determine the probability that distributions for the polar and midzone regions were drawn from the same parent. All of the comparisons, shown here, have a p-value <10−4. (F) Schematic representation of microtubule angle and distance distributions at the poles and midzone of the spindle. (G) Number of spindle microtubules with respect to pole-to-pole spindle length Ls. The blue error bars summarise results for spindles divided into metaphase (Ls < 2.5 μm), early anaphase B (2.5 < Ls < 4 μm), and late anaphase B (Ls > 4 μm) stages. (H) Estimates of the ratio of fluorescent tubulin incorporated into the spindle for twenty mitotic cells (grey curves) with mean and standard deviations shown in blue. The red crosses indicate the total length of microtubules polymerised within each ET spindle. (I) Elongation profile for twenty wild-type spindles obtained from automatic tracking of SPBs. The traces are aligned temporally by defining time-zero as the frame at which spindles first reach a length of 3 μm.

https://doi.org/10.7554/eLife.03398.003
Video 1
Spindle formation and elongation in fission yeast.

Frames are shown at intervals of 1 min. The green channel shows maximum intensity projections of cells expressing GFP-tubulin (SV40:GFP-Atb2), with the magenta channel showing SPBs labelled with Cut12-tdTomato. The cut12-tdTomato images were processed using a deconvolution algorithm.

https://doi.org/10.7554/eLife.03398.005
Video 2
Summed intensity projections of GFP-tubulin in mitotic fission yeast cell augmented with tracking and segmentation results.

The cell outline is shown in magenta. The magenta circles represent tracking of the SPBs from the cut12-tdTomato channel (not shown). These are used to define the green box, which is used to compute spindle intensity. Tracking of the spindle intensity is ceased after the spindle elongates beyond 9 μm. At later stages of elongation more pronounced buckling of the spindle is observed, and microtubules begin to be nucleated in the vicinity of the cytokinetic ring.

https://doi.org/10.7554/eLife.03398.006
Video 3
Electron Tomogram (ET) reconstruction of short anaphase B spindle.

from Figure 1B, top. Scale bar = 0.5 μm.

https://doi.org/10.7554/eLife.03398.007
Video 4
Electron Tomogram (ET) reconstruction of intermediate length anaphase B spindle.

from Figure 1B, middle. Scale bar = 0.5 μm.

https://doi.org/10.7554/eLife.03398.008
Video 5
Electron Tomogram (ET) reconstruction of long anaphase B spindle.

from Figure 1B, bottom. Scale bar = 0.5 μm.

https://doi.org/10.7554/eLife.03398.009

In order to obtain estimates of the spindle's cross-sectional (or transverse) organisation that are independent of any spindle distortions (Figure 1B; see subsequent discussion), we developed a new algorithm, termed Isotropic Fibre Tracking Analysis (IFTA). This procedure enabled us to determine the spindles' contour length and to investigate the transverse organisation of microtubules (‘Materials and methods’). A visualisation of the IFTA results (Figure 1C) reveals that microtubules at the spindle midzone form arrays with a degree of square-packed order from late metaphase onwards. We frequently observe square arrays containing a 3 × 3 ‘checkerboard’ arrangement of microtubules at the midzone of spindles from the end of metaphase and early in anaphase B, whilst all of the later spindles contain at least four microtubules arranged as the vertices of a square. The polar regions of the spindle are loosely packed in metaphase but become more tightly packed in anaphase B, where we observe three microtubules arranged in an equilateral triangle motif in all of the reconstructed spindles.

An inspection of the raw tomographic images (Figure 1D) reveals good agreement with the results of IFTA, and also shows that thin filaments of electron density that bridge the spaces between microtubules are present at both the midzone and the flanking regions. An analysis of the lengths of microtubules with respect to the spindle's contour length (Figure 1C) shows that the microtubule overlap spans across the spindle in metaphase. In anaphase B, the midzone occupies the central portion of the spindle with a symmetric width of around 2 μm.

Statistical analyses of IFTA results from anaphase B spindles (Figure 1E) confirm the square-packed character (θ ∼ 90°) with a large spanning distance (d ∼ 40 nm) at the spindle midzone. Conversely, denser packing (d ∼ 30 nm) with hexagonal character (θ ∼ 60°) is present in the regions that flank the midzone (Figure 1F). The square packing suggests that the microtubules are bundled in an anti-parallel orientation at the spindle midzone (Ding et al., 1993; Janson et al., 2007); whilst hexagonal packing in the regions closer to the spindle poles is indicative of microtubules being bundled in parallel (McDonald et al., 1979).

A prominent feature of the ET reconstructions is the relatively small number of constituent microtubules. The ET shows that the spindle contains around thirty microtubules during metaphase, and that this number is reduced dramatically by kinetochore-fibre depolymerisation in anaphase A (Figure 1G). Upon entry into anaphase B, the spindle is constructed from only ten microtubules, which are then lost progressively from the spindle until only six remain prior to its disassembly. Concomitant with the changes in microtubule number, the total microtubule length polymerised within the spindle peaks at around 30 μm at the end of metaphase, but then remains roughly constant in anaphase B as the spindle length increases by a factor of four (Figure 1H). This result was confirmed by live-cell imaging, which indicated that the intensity of the GFP-labelled tubulin incorporated into the spindle also plateaus shortly after the metaphase-to-anaphase transition (Figure 1H; Figure 1—figure supplement 1; Videos 1 and 2). This analysis also affirmed the highly stereotypic spindle elongation profile in fission yeast cells (Figure 1I).

The close agreement between the live-cell imaging and static ET enabled us to estimate the critical and total concentration of tubulin subunits in fission yeast cells by calibrating the fluorescent intensity measurements to the total tubulin polymerised in ET reconstructions of the spindle (Table 1). This technique yields an estimate for the tubulin concentration (4.3 ± 0.8 μM) that is a factor of five lower than in metazoan cells (Gard and Kirschner, 1987), and is in good agreement with mass spectrometry estimates of the abundance of tubulin isoforms (Marguerat et al., 2012). Since all microtubule dynamics occur at the plus-tips of spindle microtubules during anaphase B (Mallavarapu et al., 1999), the conservation of polymer mass suggests that microtubule depolymerisation and recycling of tubulin subunits into the free pool (Walker et al., 1988) may be required for growth of the surviving interpolar microtubules, as suggested by previous EM reconstructions of fission yeast cells containing the cdc25.22 mutation (Ding et al., 1993). Interestingly, cells from the cdc25.22 genetic background are enlarged upon entry into mitosis (West et al., 2001), and can be compared with the wild-type spindle to provide insight into how the spindle's architecture is altered by increases in cytoplasmic volume.

Table 1

Measurements for calculation of critical and absolute tubulin concentration in fission yeast

https://doi.org/10.7554/eLife.03398.010
Cell dimensions
RadiusRc = 1.6 ± 0.1 μmMaximal cell diameter/2 (Foethke et al., 2009)
LengthLc = 14.3 ± 0.9 μmDistance between cell tips at mitotic entry (Martin and Berthelot-Grosjean, 2009; Moseley et al., 2009)
VolumeVc = 2πRc3.(Lc/2Rc−1/3) Vc = 106.4 ± 13.4 μm3Assumes cell is sphero-cylindrical
Spindle properties
Steady-state polymer27.1 ± 4.2 μmSum of all the microtubule's length. This study
α/β-tubulin heterodimers(4.4 ± 0.6) × 104 dimersEach MT has 13-protofilaments with a length of 8 nm (Howard, 2001)
Relative intensity0.16 ± 0.02Mean fluorescent intensity ratio of spindles longer than 4 μm
Tubulin dimer concentration
Abundance(20.0 ± 4.0) × 104Number of dimers in the cell
Free pool3.61 ± 0.68 μMCorresponds to the critical concentration of MT assembly
Polymerized pool0.68 ± 0.13 μM
Total concentration4.30 ± 0.81 μM

The earlier spindle reconstructions of spindles in cdc25.22 cells were performed using serial-section electron microscopy (Ding et al., 1993), which involves sectioning fixed cells in a particular orientation, imaging each section using transmission electron microscopy and then recording the transverse microtubule positions (Soto et al., 1994). These two-dimensional slices are then registered and used to approximate the full three-dimensional object. The main disadvantage of this technique is that movements of the microtubules perpendicular to the imaging plane cannot be fully accounted for, which can cause straightening of microtubules during the registration step. The technique provides accurate estimates of microtubule length and transverse organisation in linear microtubule bundles, but it may be impossible to track strongly curved microtubules, which, by definition, have an orientation that varies along their length. These difficulties are largely overcome by electron tomography where the sample is imaged at numerous orientations (i.e. a tilt series) with respect to the imaging plane (Soto et al., 1994).

An interesting feature of the tomographic spindle reconstructions of wild-type cells is the curvature that is present in all of the anaphase B spindles (Figure 1B). These deflections are more pronounced in the early anaphase B spindles, where they appear to be inconsistent with the linear spindle morphology that can be observed in cells via light microscopy (Mallavarapu et al., 1999; Tolić-Nørrelykke, Sacconi, et al., 2004b; Khodjakov et al., 2004). This suggests that the deflections are caused partially or entirely by the standard preparation methods for electron tomography (Giddings et al., 2001; Höög and Antony, 2007; Buser, 2010), and that native spindles have a straighter morphology. In the absence of further confirmation of the degree of microtubule curvature in live cells; we developed the IFTA algorithm to trace the path of the spindle in three dimensions. This enabled us to computationally straighten the spindle, and to infer the microtubule arrangements in the plane perpendicular to the spindle's main axis, independently of any spindle curvature. Together with the microtubule lengths, this corrected information was used in the subsequent analyses.

The organisation of the spindle in wild-type cells resembles the serial-section reconstructions of cdc25.22 fission yeast spindles in many respects (Ding et al., 1993), but there are also several notable differences. In both genetic backgrounds, the spindle is highly symmetric from late metaphase onwards with an almost identical number of microtubules nucleated from each spindle pole (Figure 1C). The total length of tubulin polymerised in spindle microtubules also appears to remain constant throughout anaphase B, in both conditions, which is accommodated by a gradual reduction in microtubule numbers. The most striking difference is that cdc25.22 spindles contain around twice the quantity of polymerised tubulin. The likely cause for this discrepancy is the cdc25.22 mutation, which causes the allele of the mitotic phosphatase cdc25p to be inactivated by high temperature (Russell and Nurse, 1986). The cdc25.22 allele is hypomorphic under the permissive temperatures used by Ding et al., and consequently cells divide at lengths that are around twice that of wild-type cells (Hagan et al., 1990). This suggests that the increased quantity of polymerised tubulin in cdc25.22 mutant cells arises from the increased cytoplasmic volume and the corresponding twofold increase in the abundance of tubulin and other spindle assembly factors.

Other differences between the wild-type and cdc25.22 spindles are associated with the transverse organisation of microtubules. In particular, we have observed that, in wild-type cells, the square-packed organisation with a regular 40 nm centre-to-centre microtubule separation is established during metaphase whereas spindles from the same stage in the cdc25.22 mutants appear to have a less ordered midzone architecture (Ding et al., 1993). Square packing is present at the midzone of anaphase B spindles in both genetic backgrounds, but the tight hexagonal packing nearer the poles of anaphase B spindles was not observed in cdc25.22 mutant cells, where a more variable transverse architecture was present. These two differences could be explained by the spindle morphology being perturbed by the increased microtubule polymer in cdc25.22 fission yeast cells or the technical differences in the electron microscopy.

Effects of spindle architecture on its response to compressive forces

The ordered wild-type spindle architecture, the well-defined forces to which it is subjected (Tolić-Nørrelykke, Sacconi, et al., 2004b; Khodjakov et al., 2004) and the limited quantity of tubulin subunits that appear to be available for its assembly prompted us to investigate the mechanical properties of the complex assembly of microtubules that form the spindle. The mechanical response of slender elastic beams under compression can be described using the Euler-Bernoulli beam theory (Landau and Lifshitz, 1986), which states that a beam will remain straight if subjected to forces below a certain threshold but will buckle if the critical force is exceeded. The critical force depends on the length of the beam, the elastic properties of the constituent material (specifically, its Young's modulus, E) and the beam's cross-section (Figure 2). The Young's modulus is a measure of the stiffness of a particular material. Intuitively, it can be thought of as the constant that relates the degree of contraction (or strain) in a block of material to the pressure (or stress) exerted on its ends.

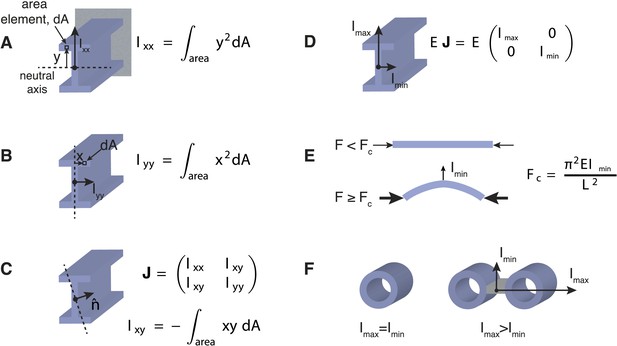

Effects of Transverse Organisation on the Critical Force of Prismatic Beams.

(A) The Ι-beam is a structural element that is commonly used in civil engineering. If the beam is clamped in a horizontal position at the end furthest from view (grey rectangle), and a transverse force is applied at the other end (in this case upwards), then the beam's resistance is defined by the scalar transverse stiffness, EIxx, which is the product of the Young's modulus, E, and the area moment of inertia, Ixx. The area moment of inertia can be computed by dividing the cross-section into area elements, dA, and multiplying each area by the square of their distance, y, from the neutral axis (dotted line). A sum or integration of this quantity can then be used to compute the area moment of inertia, Ixx. The neutral axis is perpendicular to the applied force and passes through the centre-of-mass of the beam's cross-section. Intuitively, an increased stiffness can be achieved by placing the beam's material as far from the neutral axis as possible. This property is the rationale behind the design of the I-beam, which typically bears loads in the direction given by Ixx. (B) A similar calculation to A can be used to calculate the beam's stiffness in an orthogonal direction. It is usually the case that Ixx > Iyy for Ι-beam designs. (C) The generalised response of a beam to forces in an arbitrary direction, denoted by the unit vector n, can be represented by the area moment of inertia tensor, J, with entries Ixx, Iyy, Ixy. The tensor, J, is a matrix quantity that relates the direction of the applied force to the beam's deflection (Landau et al., 1986). For a general tensor matrix, there exist two orthogonal vectors (known as eigenvectors) that represent the directions of the beam's maximal and minimal stiffness. (D) The eigenvectors or principal axes of the Ι-beam point along the x and y-axes. (E) Under purely compressive forces a prismatic beam with length, L, will buckle in the direction of the most compliant principal axis, which defines the critical force, Fc, for beams of this type. (F) Beams with a mechanically isotropic transverse organisation, such as microtubules, have a scalar stiffness tensor (Imin = Imax) and degenerate principal axes. The ratio Imax/Imin ≥ 1 can be used to quantify the beam's degree of anisotropy. The ratio is one for mechanically isotropic structures such as a single microtubule or a bundle of 4 microtubules arranged in a 2 × 2 square motif.

https://doi.org/10.7554/eLife.03398.011

The influence of the cross-section on the beam's response to simple loads can be summarised by two orthogonal vectors associated with the scalar values Imin and Imax (Figure 2A–D). These principal axes define the direction of the beam's maximal and minimal resistance to bending forces. In civil engineering, anisotropic structures such as the I-beam are typically used as horizontal supports with the stiffer axis oriented in the same direction as the major load to which the beam is subjected (Gere and Goodno, 2012). However, under purely compressive forces beams with a constant cross-section will typically buckle in the direction of the most compliant principal axis (Figure 2E), and thus the minimal transverse stiffness, Imin, determines the critical force for beams of this type. It is for these reasons that the columns used as vertical supports in buildings, and perhaps also microtubules themselves, have rotational symmetry and an isotropic bending resistance (Howard, 2001; Gere and Goodno, 2012).

We first considered how the transverse stiffness increases with microtubule number for idealised hexagonal and square arrays (Figure 2F and Figure 3A,B). In these models, we assume that microtubules are hollow, elastic cylinders, and that cross-linkers form fixed attachments to the microtubule surface (Figure 3A). We initially assume that the cross-linkers contribute a negligible density to the area moment of inertia tensor (w = 0 in Figure 3A) (Claessens et al., 2006). All stiffness estimates are normalised to the flexural rigidity of a single, 13-protofilament microtubule.

Figure 3 with 1 supplement see all

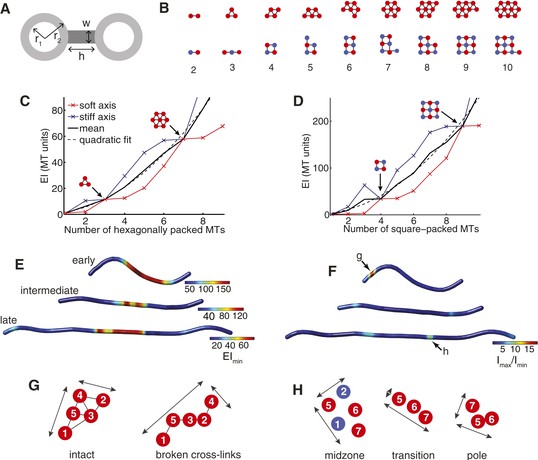

The Cross-Sectional Microtubule Organisation Enhances the Spindle's Transverse Stiffness.

(A) Schematic representation of a pair of bundled microtubules. Microtubules are modelled as hollow cylinders that are linked by rectangular support elements with identical material properties. In all moment of inertia calculations we used r1 = 7.5 nm and r2 = 12.5 nm. (B) Transverse organisation of idealised hexagonal and square-packed arrays of microtubules as additional fibres are added. (C, D) Eigenvalues of the stiffness tensor for idealised hexagonal and square-packed microtubule arrays. Results are shown for centre-to-centre separations (equal to h+2 r2) that match those obtained from ET reconstructions. These are 30 nm and 40 nm for hexagonal (polar) and square (midzone) arrays, respectively. The blue and red curves show the small and large eigenvalues of the stiffness tensor. Black arrows represent microtubule organisations with degenerate eigenvalues and isotropic stiffness. The solid black curves show the mean of the large and small eigenvalues, and the dashed black curves a quadratic fit to the mean stiffness. The y-axis (labelled as MT units) shows the stiffness of the bundle divided by the stiffness of one microtubule. (E) Minimal transverse stiffness, EImin, for three anaphase B spindles with identical units to C, D. (F) Stiffness anisotropy ratio, Imax/Imin, color-coded over the ET spindle reconstructions. Arrows mark the positions of the regions shown in G and H. (G) An apparent loss of cross-linker integrity at the pole of the spindle is a cause of stiffness anisotropy. Microtubules are drawn to scale, and are numbered consistently between slices. Arrows show the approximate extent of the bundle in two orthogonal directions. The two sections are separated by a distance of 240 nm along the spindle axis. (H) Transverse sections showing stiffness anisotropy at the transition from the square-packed crystalline phase to hexagonal phase. Each slice is separated by an axial distance of 200 nm.

https://doi.org/10.7554/eLife.03398.012

This analysis shows that the beam's minimal transverse stiffness contains peaks corresponding to specific microtubule numbers and organisations (Figure 3C,D). These structural motifs have far higher minimal transverse stiffness than arrays containing one fewer microtubule, and almost identical minimal stiffness to arrays that contain an additional microtubule. For example, removing a single microtubule from the 2 × 2 square motif in Figure 3D reduces the minimal transverse stiffness by ∼1100% while the addition of a further microtubule only gives rise to an increase of ∼3%. These large increases in the minimal stiffness correspond to mechanically isotropic organisations, where Imin = Imax.

Although the cellular abundances of midzone proteins, such as ase1p and klp9p, are ∼30-fold lower than the tubulin isoforms (Marguerat et al., 2012), these proteins have a high molecular weight and a very high local concentration at the spindle midzone in anaphase B (Fu et al., 2009). We modelled the effects of these proteins by assuming they have identical material properties to microtubules and form dense bridges in the regions of overlap. The uncertainty in the cross-linker density is then modelled by varying the width, w, of the connections between microtubules (Figure 3A). This analysis confirms that peaks in the minimal transverse stiffness are present irrespective of the cross-linker density, and are therefore associated with the geometry of square and hexagonal arrays (Figure 3—figure supplement 1). The structural motifs, such as the triangular motif, the 2 × 2 square motif and the 3 × 3 square motif that are observed in late metaphase and early anaphase B, thus appear to represent features that increase the spindle's stiffness and the force that it can tolerate before buckling.

A notable feature of the stiffness of the idealised arrays, shown in Figure 3C,D, is that the mean stiffness increases more rapidly for the square-packed than for the hexagonal bundles. This leads, for example, to four hexagonally-packed microtubules having a mean stiffness of ∼21EIMT compared with the 2 × 2 motif's stiffness of ∼34EIMT. This effect has two causes with the first being the intrinsically higher hexagonal packing density, which is 2/√3 times greater than equivalent square packing. The second cause is the wider bridging distance between cross-linked microtubules at the midzone compared with the polar regions of the spindle (Figure 1E,F). Both of these effects tend to increase the separation between each microtubule centre and the bundle's neutral axis and thus increase the transverse stiffness of the midzone. Since, the bridging distance between microtubules is set by the span of the cross-linking molecules, selection for increased bundle stiffness could be one of the explanations for the relatively large size of the major classes of microtubule motors within the spindle (Carter et al., 2011; Scholey et al., 2014).

We next applied the transverse stiffness tensor calculations (with w = 0) to the cross-sections of ET-reconstructed fission yeast spindles. This calculation can be used to estimate the minimal transverse stiffness (Figure 3E), and the anisotropy ratio, Imax/Imin (Figure 3F) of the three exemplary spindles marked with arrows in Figure 1C. These maps illustrate the decrease in the transverse stiffness that is associated with elongation of the anaphase B spindle. This effect is caused by the conservation of polymer mass, which is maintained by completely depolymerising a sub-set of the interpolar microtubules from the elongating spindle. This reduction in microtubule numbers, in turn, leads to the decrease in the spindle's transverse stiffness (Figure 3C,D). We also observed that the square-packed architecture, larger number of microtubules and increased bridging distance between cross-linked microtubules at the spindle midzone result in a greater transverse stiffness than in the polar regions for all phases of spindle elongation (Figure 3E).

The estimates of the spindle's transverse anisotropy ratio reveal that all of the anaphase B spindles have low mechanical anisotropy throughout their extent apart from localised stretches (Figure 3F). These regions may be associated with local loss of cross-linker integrity in early anaphase B spindles, where recruitment of anaphase-specific microtubule bundling factors is likely to be incomplete, and at the transitions from square to hexagonal microtubule packing arrangements in later spindles (Figure 3G,H). The narrow width of these transitional regions (also known as phase boundaries) thus appears to enable fission yeast spindles to establish mechanically isotropic microtubule organisations, throughout most of their extent.

Remarkably, inspection of anaphase B spindles from cdc25.22 mutant fission yeast cells (Ding et al., 1993) and budding yeast (Winey et al., 1995) indicate that they also contain similar structural microtubule motifs. The enlarged cytoplasmic volumes and greater polymer mass in cdc25.22 cells (Ding et al., 1993) leads to spindles that retain the nine microtubules at the spindle midzone in a 3 × 3 configuration late into anaphase B. Conversely, late anaphase B spindles in budding yeast contain around 20 μm of polymer, and are often arranged with two long microtubules emanating from each pole (Winey et al., 1995), and a 2 × 2 square-packed array in the central spindle. This suggests that the mechanisms of spindle assembly that give rise to mechanically isotropic arrangements are conserved in other yeast species, and are adaptable to the increased abundance of tubulin in enlarged fission yeast cells.

Estimating the Effective Stiffness of the spindle and its resistance to primary-mode buckling

As the spindle's cross-sections have striking geometric properties that appear to enhance its mechanical properties, an open question concerns whether the length and number of spindle microtubules also increase the critical force that the structure can tolerate before buckling. Since the Euler-Bernoulli beam theory only applies to prismatic beams with a constant transverse organisation, it is also unclear whether the local design rules for microtubule packing endow the non-prismatic spindles with high critical forces (Landau et al., 1986; Gere and Goodno, 2012). To address these questions, we constructed a simplified computational model of each anaphase B spindle using the Cytosim simulation software (Nedelec and Foethke, 2007). The model spindles were then subjected to increasing compressive loads to induce buckling, which then enabled us to calculate the effective stiffness EIeff of the structure, using the relation EIeff = Fc(Ls/π)2, where Ls is the spindle length. In each simulation, the computational model incorporates the microtubule lengths determined by electron microscopy and many of S. pombe spindle's known biophysical properties (Table 2).

Table 2

Physical and numerical constants for simulations of spindle stiffness

https://doi.org/10.7554/eLife.03398.014
DescriptionValueNotes
Global
kBT0.0042 pN.μmThermal energy at T = 27°C
Viscosity1 pN pN.s.μm−2Viscosity of fission yeast cytoplasm (Tolić-Nørrelykke, Munteanu, et al., 2004a)
Time step0.001 sSimulations with smaller time-steps produce similar results
Microtubules
Segmentation0.1 μm
Flexural rigidity20 pN.μm2This is EIMT (Gittes et al., 1993)
Steric radius30 nmMicrotubule outer radius + Debye length
Steric stiffness200 pN.μm−1per microtubule segment
Midzone width2.5 μm(Loïodice et al., 2005; Yamashita et al., 2005)
Spindle Pole Bodies
Radius60 nmObserved from ET
Depth100 nmObserved from ET
Stiffness 11000 pN.μm−1Appropriate for (Khodjakov et al., 2004) (Tolić-Nørrelykke, Sacconi, et al., 2004b) (Toya et al., 2007)
Stiffness 220 pN.μm−1Appropriate for (Kalinina et al., 2013)
Cross-linkers
Number300Less than abundance of ase1p (∼900 dimers/cell) and klp9p (∼1300 dimers/cell) (Marguerat et al., 2012). Larger numbers do not alter simulation results
Bridging length50 nmApproximate centre-to-centre distance of microtubules bundled by Map65 proteins (Subramanian et al., 2010).
Link stiffness1000 pN.μm−1Force is Hookean with a non-zero resting length (Howard, 2001)

In most eukaryotes, the anaphase midzone is defined by the localisation of the anti-parallel bundling protein, ase1p (Glotzer, 2009), which binds strongly to the spindle at anaphase onset and occupies a region at the spindle's centre. In fission yeast, the midzone has a width that is approximately constant throughout anaphase B (Loïodice et al., 2005; Yamashita et al., 2005; Janson et al., 2007), which was reproduced in the simulations of each spindle by confining cross-linkers with specificity for anti-parallel microtubules to a cylindrical region at the spindle centre with the same constant width, Lm = 2.5 μm. For simplicity, the model does not include binding of cross-linkers to regions flanking the midzone.

After initialising a bipolar spindle with the correct gross organisation (Figure 4A,B; Video 6), the rate with which cross-linkers detach from the microtubule lattice was set to zero to approximate the slow turnover of midzone proteins (Schuyler et al., 2003; Loïodice et al., 2005; Fu et al., 2009). The poles were then subjected to a linearly increasing force to probe the spindle's elastic response. Simulation results for the longest fission yeast spindle, after subjecting it to forces that increase at different rates, are shown in Figure 4C. These numerical experiments indicate that the simulated spindle withstands the increasing force until a threshold is reached and buckling occurs. All of the stochastic simulations were initialised in the same state and behaved identically until a force is applied. However, there are substantial differences in the peak force that can be sustained before the spindle buckles. This transient effect is a known signature of the buckling instability, and becomes more pronounced as spindles are compressed more rapidly. It is for this reason that the estimates of the critical force of the spindle architectures were determined by averaging the force in the final 50 s of the simulation when the system is in equilibrium. The responses from computational models of wild-type spindles, compressed at the same rate (Figure 4D), shows that the critical force decreases with spindle length.

Figure 4 with 1 supplement see all

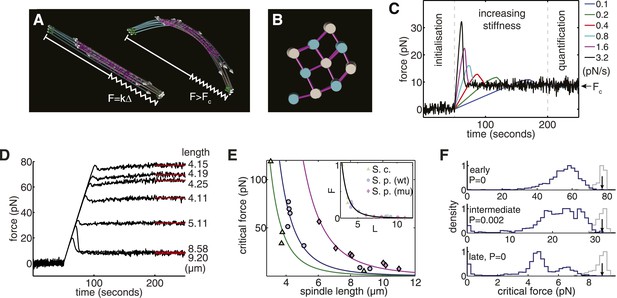

Computational Reconstructions of the Spindle can be used to Estimate its Effective Stiffness.

(A) Computational reconstruction of an early anaphase B spindle before and after the critical force is exceeded. The spindles are subjected to compression by attaching a spring between the spindle poles. The elastic constant is then increased to probe the spindle's response to force. (B) Stochastic initialisation conditions can reproduce the 3 × 3 organisation at the midzone of a spindle in early anaphase B. Microtubules are depicted with a diameter of 25 nm. (C) Model response of the longest fission yeast spindle to forces that increase at different rates. The SPBs are held at the spindles' contour separation for the first 50 s of the simulation, when cross-linkers are allowed to form attachments between the two halves of the bipolar spindle. At t = 50 s, the elastic constant of the spring connecting the two SPBs is then set to zero and its resting length reduced to Δ = 1 μm less than the SPB's resting separation. The elastic constant is then increased linearly over the subsequent 150 s of the simulation to exert progressively larger force on the spindle. Each colour, represented in the legend, denotes a different force increase in units of pNs−1. The spindles bear the increasing compressive loads until a threshold is reached and the force decays before plateauing at the equilibrium (critical) force, Fc. In the final 50 s of the simulation (marked quantification), the spring constant of the elastic element connecting the SPBs is maintained at its maximal value, and the critical force quantified by averaging the force-response profile. (D) Response of fission yeast spindle models to compressive forces. The contour length of each spindle is noted in the right-hand column. Curves show the median critical force from N = 100 stochastic simulations. (E) Dependence of critical force on spindle length for models of w.t. S. pombe, cdc25.22 S. pombe and Saccharomyces cerevisiae anaphase B spindles. Each point indicates the median critical force calculated from N = 100 simulations. Curves show Fc = ALs−4 fits to the simulation results, where the only fit parameter is the pre-factor, A. Inset shows normalised force Fc/A = Ls−4 for all spindle types. This rescaling highlights the universality of the relationship between spindle length and critical force. (F) Comparison of the critical force of fission yeast spindles (grey histograms, N = 100) with a null statistical model (blue histograms, N = 103). p-values refer to the probability that a random spindle has a critical force greater than the median wild-type spindle.

https://doi.org/10.7554/eLife.03398.015
Video 6
Simulation of Spindle Subjected to Compressive Forces.

In the first 50 s of the simulation, the force exerted on the poles of the spindle is zero, and cross-linkers are allowed to bind and unbind from the microtubule lattice to form attachments between the two halves of the bipolar spindle. After 50 s the force on the spindle increases linearly until buckling is induced (Figure 4C,D).

https://doi.org/10.7554/eLife.03398.017

A comparison of the critical forces for all of the simulations of ET-reconstructed spindles shows that it scales as Fc ∝ Ls−4 with spindle length (Figure 4E). This fourth-order dependence has a contribution from the beam theory, Fc ∝ EIeffLs−2, and another contribution from the conserved polymer mass (Figure 1H). The polymer mass conservation gives rise to a quadratic decay in the spindles' effective transverse stiffness (EIeff ∝ Ls−2, see ‘Materials and Methods’). This adverse scaling law suggests that the combination of a pushing mode of force generation with recycling of tubulin subunits and telescopic extension acts to severely limit the forces that can be generated by a spindle architecture of this type.

We next considered whether the number and length of microtubules within each spindle maximise the spindles' critical force. This was addressed by constructing a model to sample alternative spindle architectures with the same polymer mass as wild-type spindles. In this model, the number of microtubules nucleated at each pole is sampled from a stochastic process and the total polymer is distributed randomly between the nucleated microtubules. This comparison reveals that the wild-type fission yeast spindles are substantially stronger than the random model (Figure 4F); a property that also applies to the cdc25.22 and the majority of budding yeast spindles (Figure 4—figure supplement 1). This analysis also indicates that alternative spindle architectures with a larger critical force occur infrequently under this null model, and suggests that the lengths of wild-type microtubules are regulated to increase the spindle's effective stiffness.

The number of interpolar microtubules is regulated precisely in the anaphase B spindle

To gain insight into the origin of the high critical force of wild-type spindles, we investigated alternative architectures that are expected to have the highest resistance to compressive forces. In spindles where anti-parallel cross-linkers are confined to a region at the spindle centre, microtubules that are too short to reach the midzone cannot form associations with a partner from the opposing SPB (Figure 5A). These microtubules make only a small contribution to the stiffness of the structure, and represent an inefficient use of the fixed length of polymerised tubulin, LT, that is available for building the spindle. The span of a microtubule that projects beyond the midzone region also makes an inefficient contribution to the spindle's stiffness. Maximally efficient overlap at the spindle midzone can thus be achieved by ensuring that all microtubules terminate at the furthest edge of the midzone, and have a uniform length, LMT = (Ls + Lm)/2, where Ls is the spindle length, and Lm the length of the overlap (Figure 5B). The conservation of polymer mass then gives the following equation for the number of microtubules, NMMO, that are present in these maximal midzone-overlap (MMO) spindle architectures

NMMO=2LTLs+Lm
Figure 5 with 1 supplement see all
Fission Yeast Spindles Scale Microtubule Lengths and Number for Maximal Overlap at the Spindle Midzone.

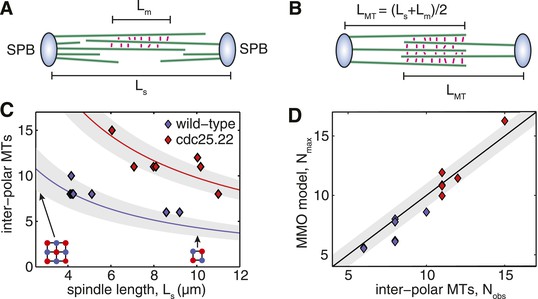

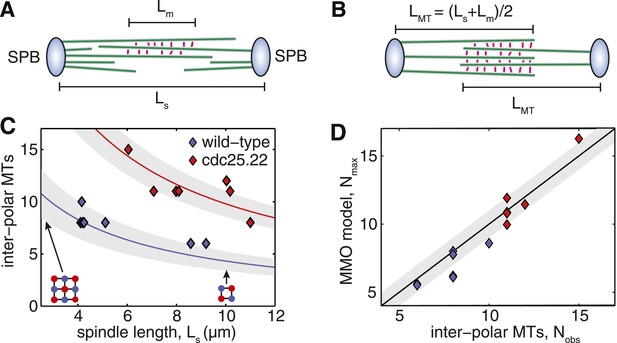

(A) Schematic representation of a fission yeast spindle of length Ls. Green lines represent microtubules and magenta lines anti-parallel cross-linkers, which bind to the midzone region of width Lm. Blue shaded ellipses represent the spindle pole bodies (SPBs). (B) Maximal anti-parallel bundling of microtubules at the spindle midzone is achieved if microtubules have a monodisperse length LMT = (Ls + Lm)/2. (C) Number of interpolar microtubules in wild-type and cdc25.22 mutant fission yeast cells with respect to spindle length (blue and red diamonds, respectively). Trend lines show theoretical calculation of microtubule number in MMO spindle architecture based on the spindle length, Ls, and average total polymer, LT. For wild-type cells LT = 27.1 S.D. 4.2 μm (blue curve with standard deviation represented by grey shaded area) whilst for cdc25.22 cells LT = 61.2 S.D. 7.8 μm (red curve). (D) Comparison of interpolar microtubule number with predictions of the MMO model. The black line shows trend for exact agreement with grey bars representing 1 microtubule deviation.

https://doi.org/10.7554/eLife.03398.018

Simulations probing the force-response of MMO spindles reveal critical forces that are, on average, only 8% higher than those measured for reconstructed wild-type and cdc25.22 spindles (Figure 5—figure supplement 1). This suggests that fission yeast cells exert precise global control on microtubule number and length.

A comparison of the observed number of interpolar microtubules in wild-type spindles, Nobs, with the theoretical prediction from equation 1 (Figure 5C, blue curve) confirms that microtubule numbers are under precise control in fission yeast. This curve also indicates that the midzone width and total length of polymerised tubulin in wild-type cells enable the spindle to conform to the first 3 × 3 midzone organisation at the start of anaphase B where spindle-derived forces must remove residual catenation between the chromosome arms (Renshaw et al., 2010; Petrova et al., 2013) and remodel the nuclear envelope (Yam et al., 2011). The 2 × 2 motif can also be maintained throughout spindle elongation up to lengths of around 10 μm (Figure 5C), which coincides with the length at which GFP-tubulin spindles are observed to begin disassembly (Figure 1A; Videos 1, 2).

Remarkably, the theoretical curve for microtubule number in cdc25.22 spindles containing around twice the mass of polymerised tubulin (Figure 5C, red curve), is also in very close agreement with observed number of interpolar microtubules. A direct comparison between Nobs and NMMO for wild-type and cdc25.22 spindles (Figure 5D) reveals that all but four of the fourteen spindles deviate from the theoretical model by less than a single microtubule, thus indicating precise scaling of microtubule number to changes in spindle length and the availability of polymerised tubulin.

Elastic reinforcement may increase the forces that the spindle can sustain

Whilst microtubule number and length appear to be regulated precisely in the fission yeast spindle, the critical force of the longer spindles, at around 10 pN (Figure 4E,F), is relatively small compared with other intracellular forces. For example, whilst this force exceeds the viscous drag on daughter nuclei in wild-type cells (see ‘Materials and methods’) it is comparable to the force generated by two kinesin motors (Gittes et al., 1996; Visscher et al., 1999). The late anaphase B spindle would therefore appear to have an inefficient architecture for generating forces to segregate lagging or concatenated chromosomes (Pidoux et al., 2000; Courtheoux et al., 2009; Petrova et al., 2013). We therefore investigated whether external reinforcement (Brangwynne et al., 2006) of the spindle might lead to an increase in the forces that the interpolar microtubules can support under these conditions.

In simulations of the spindle, exceeding the critical forces leads to the spindle being buckled into a shape with a single maximum, which we refer to as primary-mode buckling (Figure 4A). Whilst this behaviour is predicted by the Euler-Bernoulli beam theory (Landau et al., 1986), the theory also predicts that the beam can buckle with shorter wavelengths. However, since these higher-order modes (i.e. with two or more maxima) occur at higher critical forces (and energy) than buckling in the primary mode, they are expected to relax into the primary mode over longer time scales. It has, however, been shown, using experiments on cells and macroscopic analogues (Brangwynne et al., 2006), that laterally reinforcing microtubules with a dense elastic meshwork can lead to stable buckling over much shorter wavelengths. For microtubules subjected to an elastic confinement, the critical force that can be supported is (Brangwynne et al., 2006)

fc=8π2EIλ2

which is similar in form to the classical Euler-Bernoulli formula but, in this case, the critical force depends on the buckling wavelength, λ, rather than the length of the beam. The buckling wavelength is determined by the transverse stiffness of the fibre and a parameter, α, which measures the strength of the elastic confinement

λ=2π(EIα)1/4

We investigated this effect by imposing an elastic confinement on the spindles from early, intermediate and late stages of elongation (Figure 6A–C; Videos 7–9). As before, the spindles were subjected to increasing compressive loads until they underwent buckling. A visualisation of the shape adopted by the shortest anaphase B (Figure 6A) reveals that its profile transitions from buckling in the primary mode when unreinforced (α = 0) to second-order buckling for an elastic confinement α = 40 Pa, with intermediate configurations containing both components (α = 20 Pa). A similar transition occurs for longer spindles (Figure 6B,C) but with lower elastic confinement.

Elastic Reinforcement Enhances the Compressive Loads that can be Borne by the Spindle.

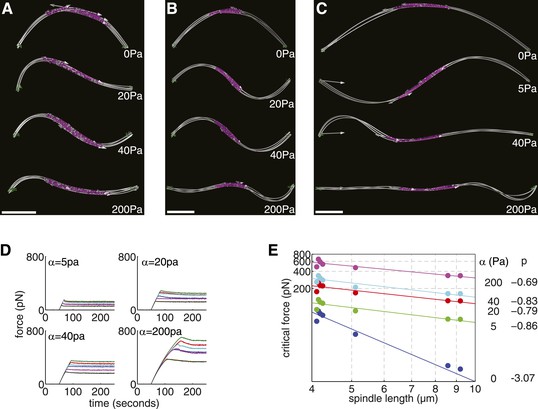

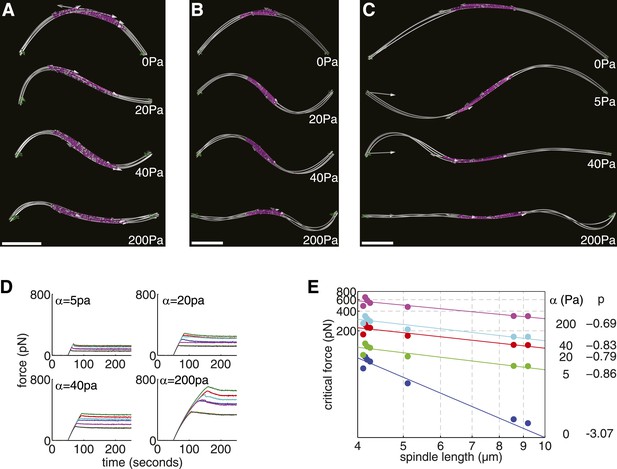

(AC) Equilibrium shapes adopted by exemplary anaphase B spindles after the critical force is exceeded. The degree of lateral reinforcement, α, is shown alongside each simulation. Scale bars = 1 μm. (D) Force-response of reconstructed anaphase B spindles (median critical force calculated from the results of 50 stochastic simulations). (E) Relationship between the critical force of laterally reinforced spindles and their length. Lines reflect power law fits Fc = ALp, with exponent, p, shown to the right of each curve.

https://doi.org/10.7554/eLife.03398.020
Video 7
Simulation of Short, Intermediate and Long Example Spindles Subjected to Compressive Forces with Differing Degrees of Lateral Reinforcement.

Scale is set by the size of the enclosing cell, which measures 11 μm in length between the opposite cell tips. From the image at the top downwards, the spindles are subjected to increasing confinement with α = 0, 20, 40, 200 Pa, respectively for the short and intermediate length spindles. For the longest spindle, α = 0, 5, 40, 200 Pa.

https://doi.org/10.7554/eLife.03398.021
Video 8
Simulation of Short, Intermediate and Long Example Spindles Subjected to Compressive Forces with Differing Degrees of Lateral Reinforcement.

Scale is set by the size of the enclosing cell, which measures 11 μm in length between the opposite cell tips. From the image at the top downwards, the spindles are subjected to increasing confinement with α = 0, 20, 40, 200 Pa, respectively for the short and intermediate length spindles. For the longest spindle, α = 0, 5, 40, 200 Pa.

https://doi.org/10.7554/eLife.03398.022
Video 9
Simulation of Short, Intermediate and Long Example Spindles Subjected to Compressive Forces with Differing Degrees of Lateral Reinforcement.

Scale is set by the size of the enclosing cell, which measures 11 μm in length between the opposite cell tips. From the image at the top downwards, the spindles are subjected to increasing confinement with α = 0, 20, 40, 200 Pa, respectively for the short and intermediate length spindles. For the longest spindle, α = 0, 5, 40, 200 Pa.

https://doi.org/10.7554/eLife.03398.023

A comparison of the force-response curves for all of the simulated wild-type spindle architectures (Figure 6D) shows that the critical force that can be withstood increases with greater elastic confinement. This effect is most dramatic for the longest anaphase B spindles where large elastic confinements can increase the critical forces by around two orders of magnitude. This effect is caused by the critical force of laterally reinforced spindles decreasing much more slowly with increasing spindle length (Figure 6E). These results are in good agreement with the theory for reinforced elastic rods (Brangwynne et al., 2006), which predicts a critical force, FcEI. In the case of the spindle, this leads to a Fc ∝ Ls−1 dependence, which is caused by the reduction in the effective transverse stiffness (EIeff ∝ Ls−2) that occurs as a consequence of spindle elongation. These results suggest that a small degree of lateral reinforcement, compared with the ∼1 kPa found in interphase mammalian cells (Brangwynne et al., 2006), could greatly increase the forces that the anaphase B spindle can sustain. The scaling law relating the critical force to the length of a reinforced spindle could also facilitate its elongation in enlarged fission yeast cells.

Discussion

The design of structures that maximise strength given certain material constraints is a class of problem that appears commonly in mechanical engineering. This study has shown that yeast cells have evolved a spindle architecture that incorporates similar design principles to those used in man-made machines. These features may have evolved to overcome constraints on the abundance and material properties of proteins that form the spindle.

Material properties of the spindle

In the case of the yeast spindle, the relatively high abundance of midzone proteins (Fu et al., 2009; Marguerat et al., 2012) and the force-resistant, non-slip binding of kinesin molecules to the microtubule lattice (Gittes et al., 1996; Visscher et al., 1999) suggest that the spindle is densely cross-linked at the midzone. Furthermore, the dramatic remodelling of the spindle's transverse architecture at the boundary between the midzone and flanking regions of the spindle (Figure 3G,H) further suggests that the cross-linkers that bind to the polar regions also form rigid bridges between pairs of microtubules. Finally, the slow but uniform rate of spindle elongation (Figure 1I) suggests that the midzone-bound motors operate in a regime that is far from their stall force. In simulations of the anaphase B spindle, introducing a sufficient number of crosslinkers leads to reduced movement of the filaments at the overlap zone, and causes this part of the spindle to behave elastically (Claessens et al., 2006).

An important distinction between the spindle and macroscopic machines is that it must self-organise from local interactions between protein components that are many orders of magnitude smaller in size. This necessitates the use of chemical and physical properties of these proteins to generate a particular microtubule organisation. The key feature that endows the yeast spindle with rigidity is the crystalline microtubule architecture that is present throughout its extent, and which takes the form of hexagonal packing in the polar regions of the spindle and square-packing at the spindle midzone.

The advantage of crystals over more disordered microtubule packing arrangements is that the number of interactions between a microtubule and its neighbours is increased (Figure 7A). This increased connectivity enhances the spindle's stiffness by ensuring that transverse rearrangements of microtubules that lead to bundle warping are prevented, and that the structural integrity of the bundle is thus maintained. Arranging the crystalline units in each cross-section with rotational symmetry enhances the minimal transverse stiffness still further. This combination produces stiff microtubule arrays with isotropic responses to force; similarly to the designs for load-bearing columns used in civil engineering since antiquity (Thompson, 1942; Gere and Goodno, 2012).

Spindle Resistance To Compressive Forces.

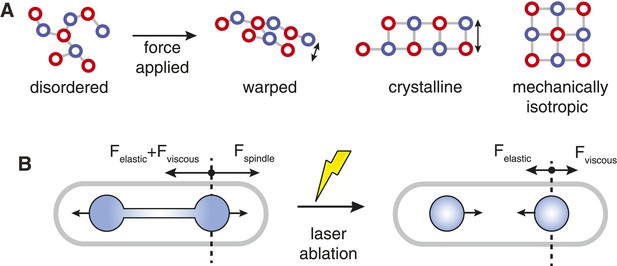

(A) Applying compressive force to a sparsely connected microtubule bundle leads to warping. This increases bundle anisotropy and leads to a reduction in the critical force. In a crystalline microtubule array, microtubules can associate with a larger number of neighbouring microtubules. This constrains microtubule movement and increases the transverse stiffness. Arranging the crystal unit cells with rotational symmetry leads to architectures with an isotropic resistance to bending forces and an increased minimal transverse stiffness. (B) In late anaphase B, the forces driving spindle elongation are balanced by the viscoelastic response of the cytoplasm and an elastic force. After ablation of the spindle midzone, this elastic force is opposed by the viscous drag.

https://doi.org/10.7554/eLife.03398.024

Similar bundle design principles have also been observed in horseshoe sperm acrosomes, which are long, finger-like actin projections that enable the sperm cell to penetrate the 30 μm thick jelly coat that surrounds the egg (Schmid et al., 2004; Shin et al., 2004). These dense, highly cross-linked, crystalline actin bundles are likely to have been selected for resistance to compressive forces (Schmid et al., 2004), and the composite structure has a Young's modulus that is similar to that of the constituent actin filaments (Shin et al., 2004). The convergent evolution of a crystalline architecture in cytoskeletal bundles that resist compressive forces may be one factor that has led to the distinct transverse arrangements that are observed in different populations of spindle microtubules (McDonald et al., 1979, 1992; Mastronarde et al., 1993) and may reflect the relative contributions of tensile and compressive forces in each system (Wühr et al., 2009; Goshima and Scholey, 2010).

Two additional features of yeast spindles that also make contributions to their high critical forces are the control of microtubule length and number. We have provided evidence that the regulation of these properties enables the fission yeast spindle to use the available microtubule polymer to form specific square-packed midzone motifs at critical points during mitosis (Figure 1C; Figure 5C). This property also applies, albeit less precisely, to the budding yeast spindle, where a lower midzone width (Lm ≈ 2 μm, (Schuyler et al., 2003)) enables the reduced quantity of polymerised tubulin (LT = 17.9 ± 6.5, (Winey et al., 1995)) to be used to form 3 × 3 square-packed motifs at the onset of anaphase, and to maintain 2 × 2 motifs up to a length of around 8 μm. It remains to be seen whether a similar pattern, with coevolution between microtubule polymer mass, midzone width and final spindle extension, is present in other ascomycete yeast species with a similar spindle organisation (Horio and Oakley, 2005; Roca et al., 2010). It will also be interesting to investigate how motors (Fu et al., 2009), cross-linking molecules (Janson et al., 2007) and regulators of microtubule stability (Bratman and Chang, 2007) collaborate to form cytoskeletal bundles with this remarkable degree of precision.

A surprising feature of the spindle is that the regulation of its architecture is maintained in enlarged cdc25.22 cells. This suggests that the mechanisms of spindle assembly can adapt its morphology to changes in cell size. This adaptive control may be required to enable the fully elongated spindle to reach the cell poles in fission yeast cells of variable size (Hagan et al., 1990). This is a property that fission yeast shares with metazoan embryos, which contain spindles that are observed to scale in size with cytoplasmic volume during early development (Good et al., 2013; Hazel et al., 2013). However, the evolutionary pressure that has led to this property being selected in unicellular yeast cells is less obvious. One possible explanation is that the spindle has evolved to be robust to natural variations in the size of the cell at mitotic entry (Martin and Berthelot-Grosjean, 2009; Moseley et al., 2009) or noise in the abundance of different spindle assembly factors (Kaern et al., 2005). Another possibility is that spindle scaling has been selected to respond to differentiation of yeast cells into the alternate forms that occur during mating or hyphal growth (Niki, 2014).

Spindle design principles and the generation of force

A vital consideration in the design of engineered systems is tolerance, which specifies the range of performance that is required from a component or device. In studies of spermatocyte spindles and related systems (Nicklas, 1988), it was found that the maximal force that can be exerted on chromosomes is typically several orders of magnitude larger than that required to overcome viscous drag from the surrounding cytoplasm. The forces that are applied to chromosomes are likely to vary according to the phase of mitosis and the state of the attachments between kinetochores and the spindle. However, direct measurements of these forces have only been possible in a small number of cell types (Nicklas, 1983).

In vitro studies of purified budding yeast kinetochores (Akiyoshi et al., 2010) found that the tensile force exerted on a single microtubule influences the life-time of its association with the kinetochore. The most long-lived kinetochore-microtubule attachments take place under loads of around 5 pN, with weaker or stronger forces leading to increased rates of detachment (Akiyoshi et al., 2010). This behaviour is consistent with the in vivo regulation of kinetochore attachments, where tension is used to detect chromosomes that are properly bi-oriented on the metaphase spindle (Bouck et al., 2008; Tanaka, 2010). As the positions of the 16 kinetochore pairs in budding yeast are highly consistent during metaphase (Joglekar et al., 2009), when microtubule attachments are at their most long-lived (Tanaka, 2010), this suggests that the total tensile force on the budding yeast spindle could be around 80 pN at the end of metaphase.

Fission yeast spindles have complex centromeres, which more closely resemble those of higher eukaryotes (Malik and Henikoff, 2009), with around three microtubules occupying each kinetochore (Ding et al., 1993) compared with the single microtubule in budding yeast (Tanaka, 2010). The coordination between microtubules within composite kinetochore-fibres is currently unknown but extrapolating the in vitro estimates from budding yeast to the three chromosomes in fission yeast would suggest a force in the range of ∼50 pN. This value is well below the critical force of unsupported early anaphase spindles, and suggests that shorter, stiffer metaphase spindles (Figure 1C) can easily generate the required forces without external mechanical reinforcement.

The forces that are exerted on the anaphase B spindle have a well-defined directionality (Tolić-Nørrelykke, Sacconi, et al., 2004b; Khodjakov et al., 2004), but their magnitude at the critical early stages of elongation is unknown due to the complex organisation of chromatin around the spindle (Stephens et al., 2013) and the need for re-modelling of the nuclear envelope (Yam et al., 2011). However, in later anaphase B, after the nuclear envelope splits into a ‘dumb-bell’ morphology, the major external loads opposing spindle elongation are likely to arise from cytoplasmic resistance to the movement of daughter nuclei (Lim et al., 2007). A rough estimate for the compressive forces acting on the spindle at this stage of mitosis can thus be estimated by treating the cytoplasm as a viscoelastic fluid.

The viscous drag exerted on the poles of the spindle can be calculated using various properties of the fission yeast cell (Foethke et al., 2009)(Table 3), whilst the relaxation of nuclei in ablated spindles (Khodjakov et al., 2004) can be used to determine the relative magnitude of the viscous and elastic forces (Figure 7B). The final estimate for the total resistive force acting on the poles of the elongating spindle is subject to a large degree of uncertainty, but is of the same order of magnitude (∼1–10 pN) as the critical force of longer anaphase B spindles. This suggests that the wild-type spindle can support the drag forces that resist its elongation under normal conditions. However, the spindle may be subjected to larger forces if chromosomes are concatenated or are not properly bi-oriented in metaphase (Pidoux et al., 2000; Courtheoux et al., 2009; Petrova et al., 2013).

Table 3

Estimates of forces resisting spindle elongation

https://doi.org/10.7554/eLife.03398.025
DescriptionVariableValueNotes
Cell radiusrcell1.6 μm(Foethke et al., 2009)
Daughter nuclei radiusrnucleus0.8–1.0 μmThis study (ET estimate)−21/3 × radius of interphase nucleus (Foethke et al., 2009)
Cytoplasmic viscosityηcell1 pN.s.μm−2(Tolić-Nørrelykke, Munteanu, et al., 2004a)
Spindle pole separation speedvs0.9 μm.min−1This study
Drag coefficientγ25-110 pN.μm−1.sSee ‘Materials and methods’
Relaxation timeτ = γ/k9.7 sExponential fit to collapse of long spindle
(Khodjakov et al., 2004), Figure 7B
Equilibrium positionx01.4 μmSecond fit parameter
Drag forceFv = γ.vs/20.2–0.8 pN
Elastic forceFe = x0.γ/ τ3–16 pNThis force is dramatically decreased after the nucleus adopts a dumbbell configuration
Total forceFe + Fv4–17 pN

Under increased loads, the klp9p motors that bind to the spindle midzone (Visscher et al., 1999; Fu et al., 2009; Marguerat et al., 2012) could theoretically generate up to ∼103 pN, while each depolymerising microtubule, of which there are around nine in fission yeast cells during anaphase A (Ding et al., 1993), can produce a maximal force of ∼40 pN (Grishchuk et al., 2005). A possible mechanism to ensure tolerance of the anaphase B spindle against chromosome segregation errors would be to externally reinforce the spindle with an elastic material (Mitchison et al., 2005; Brangwynne et al., 2006). It remains to be determined whether the anaphase B spindle is reinforced, but candidates for providing this mechanical support have been identified and include actin, which is required for accurate chromosome segregation in fission yeast (Gachet et al., 2001; Meadows and Millar, 2008), the nuclear envelope (Lim et al., 2007; Yam et al., 2011) and mitotic chromosomes themselves, which surround the interpolar microtubule axis of yeast spindles (Stephens et al., 2013).

Whilst this study has provided evidence that the architecture of the beam-like fission yeast spindle is sculpted for the generation of pushing forces, a more general question concerns why this linear morphology was selected in yeast cells compared with the more conventional ellipsoid spindles observed in metazoans and many other eukaryotes. One possible functional explanation for the change in spindle morphology is that fungal cells have evolved a stiff polysaccharide cell wall that encloses the plasma membrane (Bowman and Free, 2006). This innovation could then have reduced the cell's dependence on the cytoskeleton for providing motility and structural support, and enabled reduced expression of the tubulin and actin isoforms (Pollard et al., 2000; Marguerat et al., 2012). In yeast cells with a small cytoplasmic volume, the beam-like spindle morphology may have been selected to segregate chromosomes with reduced use of structural components and their associated metabolic cost to the cell. In this respect, the yeast spindle is indeed remarkably efficient, as chromosomes are transported over similar distances to those in many somatic mammalian cell types (Goshima and Scholey, 2010), but with a structure that has a 1000-fold smaller volume.

The mitotic spindle displays a diversity of sizes and shapes across different cell types. We have identified structural features of the fission yeast spindle that enable it to use a small quantity of raw material to exert large forces that drive the segregation of chromosomes. This represents a first step towards an understanding of the relationship between the mechanisms of force generation and the architecture of the cell division machinery in eukaryotic cells.

Materials and methods

Microscope and yeast culture

Standard S pombe genetic and molecular biology techniques, including media, were used as described in the ‘Nurse Lab Manual’ (Roque et al., 2010). Cells were grown and imaged in minimal medium EMM2 supplemented with amino acids where necessary (final concentration of 250 mg/l). For image acquisition, cells were collected and placed in a 35 mm glass-bottom culture dish (MatTek Corp., Ashland, MA, USA) coated with lectin (from Bandeiraea simplicifolia, Sigma L2380). Cells were further immobilised with a 2% agarose/EMM2-coated coverslip, which was attached to the glass-bottom dish using VALAP. The partially sealed coverslip was submerged in liquid EMM2 media to prevent drying and deoxygenation of the growth media.

Confocal images were obtained with a Carl Zeiss Axiovert 200 M microscope equipped with a PerkinElmer RS Dual spinning disc system. The Argon Krypton line laser was used at wavelength of 488 nm for GFP signal detection. Images were collected using a 63× oil immersion objective (Plan-Apochromat, NA 1.4) coupled to a Hamamatsu C9100-50 EMCCD camera (Hamamatsu, Japan) with a pixel size of 8 μm. The microscope was controlled with the Ultraview acquisition software (Perkin Elmer, Foster City, CA US). All experiments were performed inside a climate control box (EMBL, Heidelberg, Germany) at a constant temperature of 28°C. Live-cell imaging of fission yeast spindles was carried out using spinning disk confocal microscopy from 15 focal planes separated by a distance of 0.5 μm, a set-up similar to that used to quantify the cellular abundance of proteins localised to the cytokinetic ring in fission yeast (Wu and Pollard, 2005).

Segmentation and tracking of live-cell images

A maximum likelihood image deconvolution algorithm was applied to the images to improve the signal-to-noise ratio of both the tubulin fluorescent marker (Bratman and Chang, 2007) and the spindle pole body (SPB) marked with cut12-tdTomato (Samejima et al., 2010). After deconvolution, maximum-intensity projections of the SPB marker and summed-projections of the GFP-tubulin marker were used to track the poles of the spindle and to segment the cytoplasmic volume, respectively, but were not used to quantify the intensity of either the spindle or cytoplasm. The segmentation of the cells was performed using a three-dimensional region-growing algorithm (Gonzalez, 2010). A seed-point in the cellular background was selected and propagated to the entire image stack, using a threshold of 30% of the mean region intensity as the voxel inclusion criterion. Erosion and dilation operations were then used to remove isolated bright pixels and smooth the cellular outlines. Apart from deconvolution, all analyses of images were carried out using Matlab (The MathWorks inc.). Scripts for performing image analysis are provided in Source Code 1.

The tracking of SPB positions was performed using the μ-Track image analysis package (Jaqaman et al., 2008). The splitting of a single SPB into two distinct and persistent tracks was used to identify mitotic events in a field of asynchronously dividing cells. Each mitotic event was then mapped to a single segmented cell that was used in subsequent analyses. The background signal was estimated by fitting a histogram to the pixel intensities in each field of view. The background signal was subtracted from the pixel intensity measurements to obtain an absolute estimate of fluorescent intensity. For each cell in mitosis, the background-corrected pixel intensity was integrated over the cytoplasmic volume to obtain a measurement of the total fluorescent intensity within the cell. Large reductions in the integrated cellular intensity were used to diagnose cells that moved significantly during the acquisition period. All acquired cells were also checked by manual inspection of the images augmented with the segmentation and tracking results.

The intensity of GFP-labelled spindle was determined by considering a rectangular window centred on the spindle with a length defined by the positions of the two SPBs. The width of the window was 1.02 microns (8 pixels), which is sufficient to collect the light diffracted by the objective lens (λ ≈ 200 nm). Increasing the width of the window to as much as 1.53 microns did not lead to a qualitative change in the results. Pixel intensity values within the window were determined by linear interpolation to account for rotation and translation of the pixel positions with respect to the sensor array. These intensity values were corrected for the local cytoplasmic fluorescent intensity, and summed to obtain an estimate of the fraction of the cellular fluorescence that is associated with spindle microtubules.

In order to calibrate the spindle intensities to the tubulin polymerised in microtubules, the polymer within each ET spindle was compared to the intensities of the mitotic cells where pole-to-pole length matches that of the ET spindle most closely (Figure 1—figure supplement 1). This relationship was fit with a linear function a.x + b. The small value of b, and the relatively high coefficient of determination support a linear scaling relationship between fluorescent intensity and polymer mass. Estimates of polymer mass obtained using electron tomography and live-cell imaging indicate that the tubulin within the spindle plateaus in early anaphase. This implies that the transverse density of microtubules within the anaphase B spindle decreases linearly with the length. Since, the transverse spindle width is below the resolving power of conventional epifluorescence microscopy, a useful proxy for tubulin density is the spindle's average fluorescent intensity, which indeed declines linearly with spindle length during anaphase B (Figure 1A).

The correspondence between fluorescent tubulin intensity and the mass of tubulin polymerised in the spindle can also be used to calculate the abundance and critical concentration of tubulin subunits within the fission yeast cell (Table 1). This calculation uses the well-defined structure of microtubules (Howard, 2001) to estimate the total number of tubulin subunits within the spindle. The intensity ratio between GFP-labelled tubulin in the spindle and cytoplasm can then be used to extrapolate this quantity to the abundance of tubulin subunits in the cytoplasm. Finally, the regular spherocylindrical shape of fission yeast cells, with a uniform radius and a well-defined length upon entry into mitosis, enables accurate estimates of the intracellular volume and thus concentration to be obtained. The estimates of tubulin abundance are in good agreement with mass-spectrometry studies (Marguerat et al., 2012), and yield an estimate for the critical tubulin concentration in fission yeast that is around 25% lower than the 4.9 ± 1.6 μM measured from in vitro tubulin polymerisation experiments (Walker et al., 1988; Janson and Dogterom, 2004).

Sample preparation for electron tomography, acquisition and Processing

Yeast samples were prepared as in (Roque et al., 2010). Briefly, log yeast cultures were high pressure frozen using an EMPATC 2 (Leica Microsystems, Wetzlar, Germany) and fixed by freeze substitution with 0.1% dehydrated glutaraldehyde, 0.25% uranyl acetate and 0.01% osmium tretraoxide in dry-acetone. Freeze substitution was performed at −90°C for 56 hr after which the temperature was raised to −45°C in steps of 5°C/hr. Several washes of 15 m in dry-acetone were followed by lowicryl resin infiltration at −45°C in graded steps of 3:1, 1:1, 1:3 acetone:HM20 resin (EMS, cat. 14,340) for 1 hr each followed by 3 steps of 2 hr in 100% HM20 resin. After 100% HM20 over-night, fresh resin was added and polymerisation by UV light initiated while the samples were at −45°C and carried on while the samples were raised to 20°C in steps of 5°C/hr. The samples were then kept for 24 hr more at 20°C under UV light. Tilt-series of relevant areas were acquired from ±60° at 1° intervals in a Tecnai F30/F20/T12 (FEI, Oregon USA) at the magnification of 15,500×/14,500×/11,000×, respectively using the SerialEM software. Tilt-series were reconstructed, joined in the cases where spindles spanned several adjacent subsections, and tracked manually using the software package IMOD (Kremer et al., 1996).

In the electron tomograms, microtubules appear as cylindrical tubes with a diameter of around 18 nm compared with the 25 nm expected for 13-protofilament microtubules. The microtubule shrinkage is caused by the freeze-substitution methods used to fix the cells, but other aspects of the microtubule structure appeared unperturbed. All measurements were thus scaled uniformly by γ = 25/18 to obtain more accurate estimates of the spindles' physical properties.

Geometric analysis of electron tomograms

The granularity of the isotropic fibre tracking analysis (IFTA) solution is controlled by a single parameter, Rs, which specifies the separation of neighbouring coordinates that define the axis of the spindle in three-dimensions. This parameter is set to 200 nm for tracking anaphase B spindles in fission yeast and at 100 nm for computing the histograms of nearest-neighbour distances and microtubule packing angles. The IFTA algorithm proceeds by first detecting the pole with largest number of microtubule minus-ends that lie within the threshold distance, Rs. The centre-of-mass of these ends is used as the first point defining the spindle. A sphere with a radius, Rs, is then centred at the pole, and used to detect the positions where microtubules intersect the ball's surface. A constrained optimisation calculation is then used to determine the point lying on the sphere's surface that minimises the mean-squared distance from the microtubule crossings. This point is selected as the second position in the three-dimensional interpolation of the spindle axis whilst microtubule coordinates that lie within the sphere are masked. This procedure is repeated until the spindle coordinates reach the opposite spindle pole. The transverse organisation of the spindle is then determined by detecting the positions where microtubules intersect a plane halfway between and perpendicular to the points that define the spindle axis.

Quantifying Microtubule organisation and the Transverse Stiffness of spindle

The calculation of the transverse stiffness is made by assuming that microtubules are uniform, hollow cylinders and that the cross-linkers are rectangular support elements with identical material properties. The parameters are taken from the known dimensions of microtubules and the microtubule numbers and organisation determined in this study. For a slender, elastic beam with length, L, constructed from a material with Young's modulus E, the compressive force that can be sustained before buckling is given by F = π2EI/L2, provided that the two ends of the beam are allowed to pivot freely (Landau et al., 1986), as is likely to be the case for the fission yeast spindle (Tolić-Nørrelykke, Sacconi, et al., 2004b; Kalinina et al., 2013). Alternative boundary conditions lead the critical force to be altered by a multiplicative constant. The third property of the beam that determines the critical force is the area moment of inertia (Figure 2).

The contribution that a single microtubule with its centre a distance, y, from the neutral axis makes to the bundle's area moment of inertia in the y-direction, Ixx, is given by the following equation

(2) Ixx=area(y+rsinθ)2dA=r1r2[y2+r2sin2θ+2yrsinθ]rdrdθ=πy2(r22r12)+π4(r24r14)=y2AMT+IMT

where r is a radial coordinate representing distance from the microtubule axis, and r2 and r1 are the outer and inner radii of the cylindrical microtubule. The term AMT is the microtubule cross-sectional area and IMT is the (isotropic) moment of inertia of a single microtubule about its axis. A symmetric expression exists for the moment of inertia in the x-direction, and the product moment of inertia Ixy, is given by

(3) Ixy=area(y+rsinθ)(x+rcosθ)dA=πxy(r22r12)=xyAMT

The components of the moment of inertia tensor can be obtained by summing the contributions of individual microtubules. The position of the neutral axis about which the bundle of microtubules will undergo bending is given by the centre of mass of the microtubule centres, which gives the following expression for a bundle containing N microtubules with centres at (xi, yi) with a mean positions (x¯, y¯) in the plane perpendicular to the bundle

(4) Ixx=NIMT+AMTi=1N(yiy¯)2Ixy=AMTi=1N(yiy¯)(xix¯)

The formula for the area moment of inertia tensor, J, can thus be written compactly in matrix notation as

(5) J=(IxxIxyIxyIyy)=N[IMTI2+AMT(tr(Σ)I2Σ)]

where Ι2 is the 2 × 2 identity matrix, tr(.) refers to the matrix trace operator and Σ is the covariance matrix of the microtubule centres in the xy-plane.

A similar expression can be obtained for a composite beam containing microtubules and cross-linkers, if it is assumed that the cross-linkers are rectangular support elements (with a width, w, and a height, h) and the same material properties as microtubules. However, since the rectangular cross-linkers, themselves, have an anisotropic area moment of inertia, the first term in equation must also take into account the orientation, θ, of each cross-linker, which we define with respect to the y-axis as

(6) Jlinker(θ)=(wh12)(h2cos2θ+w2sin2θ(w2h2)sinθcosθ(w2h2)sinθcosθh2sin2θ+w2cos2θ)

Effect of polymer mass conservation on the Spindle's Transverse Stiffness

The effect that polymer mass conservation has on the spindle's stiffness can be investigated by treating the spindle as a solid, homogeneous cylinder. If the volume of the cylinder, V, is held constant, to model the conservation of polymer mass, then the cylindrical beam becomes thinner as it elongates. The relationship between cylinder radius, rc, and its length, Ls, (rc=V/πLs) and the fourth-order scaling of transverse stiffness with beam radius, EIrc4 (Landau et al., 1986) then lead to the EILs−2 scaling of transverse stiffness with length.

This scaling relation is consistent with the MMO model (Figure 5), which posits that the number of microtubules in a cross-section should be approximately LT/(Ls + Lm), because the transverse stiffness, EI, depends quadratically on the number of microtubules in a cross-section (Figure 3C,D).

Computational models of yeast spindles

The response of the spindle to compressive forces was investigated using the cytoskeletal modelling software Cytosim, which solves the over-damped Langevin equations of cytoskeletal filaments using an implicit numerical integration scheme (Nedelec and Foethke, 2007). The code was compiled and run on the EMBL High Performance Computing cluster, with jobs submitted to the Platform LSF scheduler using custom Python scripts. Simulation results were analysed using Matlab (The MathWorks inc.).

The simulations were designed to reproduce the morphology and biophysical characteristics of each spindle sufficiently closely to estimate the spindle's critical force. The SPBs were modelled as cylindrical elastic solids, associated with a scalar drag coefficient. Each microtubule was connected to the SPB by a pair of Hookean springs. The first of these was coupled to the minus-end of the microtubule, and was given a large elastic constant to model the high resistance of wild-type SPBs to pushing forces (Toya et al., 2007). The steric exclusion between microtubules was implemented using a one-sided quadratic potential with a minimum at the steric radius of 30 nm (Loughlin et al., 2010).

Estimating the critical force of ET-reconstructed spindle architectures

The number and length of microtubules in the models of spindles from wild-type fission yeast cells were determined directly from ET reconstructions, whilst the SPB separation (or spindle length) was set to the IFTA-derived contour length between the poles of the ET spindle. The lengths of microtubules in budding yeast and cdc25.22 fission yeast cells were measured from the line representations of each spindle in the respective publications (Ding et al., 1993; Winey et al., 1995). The budding yeast spindles contain short microtubules (with lengths less than 0.5 μm) that are likely to represent kinetochore fibres that were not fully depolymerised during anaphase A. These fibres are unlikely to contribute to the structural integrity of the spindle, and account for a small proportion (7.8 ± 4.7%, (S. D.)) of the total polymerised tubulin. These microtubules were therefore neglected in the spindle models. Two of the budding yeast spindles also contain pole-to-pole microtubules that cannot be unambiguously assigned to a specific spindle pole. In the first spindle (numbered 12 in Winey et al.) the two pole-to-pole microtubules are assigned symmetrically to each SPB. The second spindle (numbered 14 in Winey et al.) contains a single pole-to-pole microtubule that is assigned to the SPB with the lowest number of long nucleated microtubules.

Having determined the spindle length, the number of microtubules and their lengths, the positions of the microtubule minus-ends at each SPB are set by sampling a random position on the circular face of each SPB using a Monte Carlo method. Rejection sampling was first used to sample the area on the disk's surface with uniform probability. The Euclidean distance between a candidate point and the other microtubules was determined, and the point was only accepted if its separation was greater than the twice the steric radius of each microtubule. This process was repeated until the SPB was populated with the correct number of microtubules. This procedure set the position of the microtubule minus-ends with respect to the SPB, with the position of plus-ends and the transverse organisation of microtubules at the midzone determined by simulating cross-linker attachment and detachment from the microtubule lattice. The SPBs were confined to the x-axis throughout the simulation to aid visualisation.

The simulation of microtubule organisation at the spindle midzone was performed using cross-linkers that only bind to pairs of anti-parallel microtubules (Janson et al., 2007). The cross-linkers were also confined to cylindrical region with a total length of 2.5 μm at the centre of the spindle, to approximate the width of the midzone in yeast cells (Loïodice et al., 2005; Yamashita et al., 2005). When bound to a pair of microtubules, cross-linkers behave as elastic bridging elements that set the centre-to-centre between pairs of microtubules at 50 nm. The stiffness of the cross-linkers is consistent with the known Young's modulus of the alpha-helical class of proteins to which the dimeric kinesins and Map65 proteins belong. The microtubules were also subjected to weak (20 Pa) centring forces to prevent rotational diffusion of the microtubules away from the spindle axis and thus ensure that cross-links were formed between the two halves of the bipolar spindle.

Throughout the initialisation of spindle architecture, the SPBs were connected to each other by a stiff spring with the same resting length as the spindle to prevent the SPB separation being altered by diffusion. After simulating the spindle for fifty seconds, almost all of the cross-linkers are bound to the midzone and the two halves of the spindle are strongly connected. Under these conditions, the cross-linkers are capable of forming the idealised square-packed arrays observed in yeast spindles, albeit with lower efficiency than we observe in electron tomogram reconstructions of wild-type spindles (data not shown). Upon completion of the initialisation step, the rate with which cross-linkers detach from the microtubule lattice was set to zero in order to probe the spindles' elastic response to increasing forces. This was effected by decreasing instantaneously the resting length of the spring connecting the two SPBs by 1 μm, and then linearly increasing the spring constant from a starting value of zero to a maximum of 240 pNμm−1 over the remaining 150 s of the simulation. The stiffness of the elastic element was maintained at the maximal value for a further 50 s, during which time the critical force on the spindle was determined. This was carried out by averaging the forces borne by the elastic element connecting the pair of SPBs. In simulations of spindles with elastic reinforcement, each microtubule model point was confined by an elastic potential with a given degree of stiffness (Figure 6A–D). The stiffness of the spring compressing the spindle poles was also increased to a maximum value of 1500 pNμm−1 to ensure that the critical force was exceeded, but all other simulation parameters were identical. Simulation parameters are provided in Table 2.

Sampling Microtubule number and length using null statistical models

The simulations of the null models of spindle architecture were identical to those used to determine the critical force of wild-type spindles, except that microtubule length and number were sampled from probability distributions. The objective of this procedure was to sample a large number of alternative spindle morphologies to investigate the degree to which wild-type spindles are mechanically optimal. In constructing the null statistical models, the number of microtubules emanating from each SPB was sampled from a Poisson distribution with a mean equal to that observed in the wild-type spindle with the same length. The lengths of the microtubules in each random model were determined by randomly partitioning the total polymer present in the wild-type spindle between the NMT microtubules. In cases where the length of a sampled microtubule exceeded the spindle length, the microtubule was truncated to the length of the spindle with the remaining polymer used to set the length of one or more additional microtubules that were assigned to one of the two SPBs at random. This procedure increased slightly the average number of microtubules in the random spindles but ensured that the overall polymer mass was conserved. At SPBs that contained in excess of six microtubules, the radius of the circular face of the SPB was increased so that its area increased linearly with microtubule number, and that the density of microtubules on the surface of the SPB was constant.

Estimating the forces on the anaphase B spindle

The viscous drag on the fission yeast nucleus is substantially larger than is predicted by Stokes' law due to the narrow separation between the nuclear envelope and the enclosing cell wall (Foethke et al., 2009). The equation for translational motility of the nucleus in the cell geometry can be approximated as

γ=9π22ηcellrnucleus4ϵ5/2

where ε=(rcell−rnucleus )/rnucleus is the cell clearance. A description of the other variables is shown in Table 3.

After ablation of the spindle midzone, the forces acting on the daughter nuclei are

Fviscous=Felasticγdxdt=kx

which has a solution, x(t) = x0 . e(−t/τ), where τ = γ/k represents the characteristic time for the spindle to reach equilibrium, and x0 is the initial displacement. An exponential fit to the relaxation data provides values for these variables, which can then also be combined to give a rough estimate of the total force resisting spindle elongation (Table 3).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Mechanics of Materials
    1. J Gere
    2. B Goodno
    (2012)
    Cengage Learning.
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
    Digital image processing using MATLAB
    1. RC Gonzalez
    (2010)
    Tata McGraw-Hill Education.
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
    Mechanics of Motor Proteins and the Cytoskeleton
    1. J Howard
    (2001)
    Sinauer associates incorporated.
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
    Theory of elasticity, Volume 7 (3rd edition)
    1. LD Landau
    2. EM Lifshitz
    (1986)
    Oxford: Butterworth.
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    The forces that move chromosomes in mitosis
    1. RB Nicklas
    (1988)
    Annual Review of Biophysics and Biophysical Chemistry 17:431–449.
    https://doi.org/10.1146/annurev.bb.17.060188.002243
  57. 57
  58. 58
  59. 59
  60. 60
    Live analysis of lagging chromosomes during anaphase and their effect on spindle elongation rate in fission yeast
    1. AL Pidoux
    2. S Uzawa
    3. PE Perry
    4. WZ Cande
    5. RC Allshire
    (2000)
    Journal of Cell Science 113:4177–4191.
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
    On growth and form
    1. DW Thompson
    (1942)
    On growth and form.
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87

Decision letter

  1. Frank Jülicher
    Reviewing Editor; Max Planck Institute for the Physics of Complex Systems, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Mechanical optimality and scaling in the design of the mitotic spindle” for consideration at eLife. Your article has been favorably evaluated by Richard Losick (Senior editor) and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

This interesting paper combines computer simulations and electron tomography to understand spindle mechanics. This is a very important topic, and the approach that the authors use is novel and exciting.

While EM structures of yeast spindles have been discussed before (Ding et al., J Cell Biol, 1993), the present work uses EM tomography, which is an important improvement. Also, the combination of mechanical models with EM data is novel and interesting. However, in the manuscript, it is not carefully explained what was known before and what the new contribution of the present work is. This needs to be better clarified.

Another more serious problem with the present manuscript is that it is, in many points, unclear and very difficult to read, in particular when it comes to the analysis of compressive strength. The main text is insufficient to understand key arguments. Repeatedly the terms “ideal” and “optimal” and “stereotyped” are used but are quite unclear. When following the referrals to figure captions and methods, it is often difficult to find some of the information needed. The figure captions in general are not fully satisfactory. All of these weaknesses of the presentation make the paper hard to read.

Below is a list of points that the authors should address in order to improve the manuscript.

1) The authors repeatedly state that the spindle is well ordered and has a stereotyped structure. I do not understand how Figure 1 supports those claims. Figure 1D shows that spindles with similar lengths have very different cross-sections, different degrees of microtubule overlap, and even different microtubule lengths. Thus, the spindles do not seem “stereotyped” to me. The cross-sections also look quite disordered, and Figure 1E shows very broad distribution of packing angles, thus, it seems to me that the spindles are not well ordered. It would be helpful if the authors tried to quantify the degree of order and the extent to which the spindles are stereotyped, perhaps by measuring a 2D crystalline order parameter.

2) In the Results section, the authors describe simulations comparing the buckling resistance of spindles with geometries measured from tomography to the buckling resistance of randomly generated arrays. This is a very interesting methodology. However, the conclusion that “This analysis also indicates that alternative spindle architectures with greater buckling resistance than is observed in wild-type cells do not appear to exist, and that the natural spindle architecture may be close to optimal” is still problematic, because it could depend on the null model that the authors chose. An alternative null model would be to generate random bundles of microtubules that would be expected to form with unregulated, non-specific crosslinkers. It would be very interesting for the authors to perform such simulations to test if there is really something special about the arrangement of microtubules in the spindle, or if the same resistance to buckling would result from unregulated crosslinked arrays of microtubules.

3) The tomography data in 1B shows that these three representative spindles have bends (this is most dramatic for the “early” spindle, but the bends are present in all the spindles). Since the spindles are already bent to some extent, then forces on the poles cannot cause a buckling (which would only occur from a starting straight configuration), but additional forces could cause further bending. Given this, the relevance of studying how a simulated straight spindle would buckle is unclear. It would be helpful for the authors to explain their reasoning in studying buckling. It would also be helpful for the authors to comment on the observed bending of the spindle in the tomograms and explain how it relates to their studies of the mechanics of bending of spindles.

4) The authors suggest that compressive strength is maximized. However, it does not become clear whether an optimal strength is needed to withstand the compressive forces during anaphase B. What is the compressive strength needed for the task? How many individual microtubules would be needed to withstand the compressive forces that arise? There is a discussion of this subject in the Discussion section, but it is unclear to me. 10 pN at the poles seem very small, and I do not understand why this “suggests that the precise regulation of spindle architecture (Figure 3E) is essential for the spindle to exceed the required buckling tolerance in late anaphase B.” A clearer and more thorough discussion would be good. Also, the text following this sentence is unclear.

5) I do not understand the sentence: “This property is associated with the geometry of square and hexagonal arrays and applies to intact bundles irrespective of the cross-linker density” (in the Results section). I also do not see how Figure 2–figure supplement 1 should help to provide clarification. Where is cross-linker density defined and discussed?

6) The authors use the terms “transverse stiffness”, “buckling resistance”, “compressive strength”, “compressive force… before buckling”, and it is not clear to me if they all mean the same or if they refer to slightly different properties. It would be useful to have clear definitions of these terms and to clarify their relationship. Also, the use of “transverse stiffness” is confusing to me, as there are different transverse stiffnesses, and the authors seem only to refer to the minimal value. Switching from one term to another in the text is confusing as the reader is not sure whether a different spindle property is meant.

In this context, the following sentence, in the Results section, is completely unclear to me: “We also observed that the square-packed architecture, larger number of microtubules and increased microtubule separation at the spindle midzone result in a greater transverse stiffness than in the polar regions for all phases of spindle elongation.” To which figure does this statement refer?

7) Most mechanical arguments of the paper seem to rely on homogeneous elastic material properties. However, I did not find a discussion of this simplification and whether, in the case of microtubule bundles, this is a good simplification.

8) The sentence in the Results section, “Finally, we determined the buckling resistance of spindle architectures that maximise microtubule overlap at the stiff, square-packed spindle midzone, and are thus expected to possess optimal compressive strength”, is unclear.

How is overlap maximized? Does it mean overlap along the whole length? What does optimal mean? What is optimized under what conditions? Why is optimal put in “quotes”?

9) The repeated use of the terms “optimal” or “ideal” is unclear. It sounds like an exaggeration and the reader is left in the dark as to what exactly is meant.

10) In Materials and methods (“Quantifying microtubule organisation and the transverse stiffness of spindle”), when the buckling force F is introduced, the equation given corresponds to a beam with constant cross-section along the beam. This should be clarified. As the spindles in the present work do not have constant cross section, it would be useful to discuss in which way the simple law F=pi EI/L^2 is affected if cross-sections are not constant. This point could be used to motivate the numerical work discussed in the Results.

11) This paragraph, in the Results section, is unclear: “A comparison of the observed number of interpolar microtubules…” What does “precise scaling” mean here? What quantity is “scaling”? I also do not understand the following sentence in the same paragraph: “The theory also indicates that…”

https://doi.org/10.7554/eLife.03398.027

Author response

As the reviewers mention in several of their comments, it is correct that any demonstration of spindle optimality is contingent on the model that is used, which, for a system as complex as the spindle, is always necessarily a simplification. We have therefore altered the tone of the article, so that we instead focus on the mechanical properties of the spindle that are likely to enhance its ability to generate force rather than on its optimality per se. This relatively small change in emphasis has involved changing the paper’s title and abstract but also resolves many of the major and minor criticisms identified by the reviewers. We have also revised the text extensively to improve both its clarity and precision, using a more precise terminology throughout.

Our revised manuscript includes two additional figures that respond to specific comments made by the reviewers. The first of these presents a more detailed description of the calculations of spindle stiffness. This is intended to provide the reader with a more intuitive picture of how the architecture of the spindle influences its mechanics. Although this information is provided as a figure, it could perhaps be better incorporated into the text as an explanatory “box” of the type found in review articles. We would be happy to receive guidance from the editorial team on this matter, considering that the necessary changes can easily be implemented by us. The second figure was added in response to one of the reviewers’ comments concerning the magnitude of the force that can be sustained by the spindle. This figure explores the effect of external elastic reinforcement on the forces that the wild-type spindle can support during its elongation.

As mentioned in the letter above, we have made extensive changes to the manuscript to improve its clarity and justify its major findings more carefully. We have also removed shorthand descriptions, such as “ideal”, “optimal” and other similar jargon wherever possible.

The contribution from Ding et al. is now referenced in the Introduction. The description of our wild-type electron tomograms now includes a comparison with the earlier serial-section reconstructions of cdc25.22 spindles (see “Similarities and differences between wild-type and cdc25.22 fission yeast spindle reconstructions”, in Results). The later theoretical sections of the paper explore the mechanical properties of both wild-type and cdc25.22 mutant spindle architectures, and provide novel insights into the organization of the spindle in both cell types. Comparisons of these two architectures provide insight into how the fission yeast spindle adapts to changes in cytoplasmic volume.

1) The authors repeatedly state that the spindle is well ordered and has a stereotyped structure. I do not understand how Figure 1 supports those claims. Figure 1D shows that spindles with similar lengths have very different cross-sections, different degrees of microtubule overlap, and even different microtubule lengths. Thus, the spindles do not seem “stereotyped” to me.

Indeed, the degree to which the spindles can be considered “stereotyped” is a somewhat subjective question that was not fully justified in the original manuscript. We have addressed this comment toning down the discussion of spindle “stereotypes” and instead draw attention to the regular features of the spindle that we do observe, such as the remarkable mirror symmetry between the poles in terms of microtubule number and length, and the structural motifs (2x2 square arrays at the midzone and triangles at the spindle poles) that are present in all of the anaphase B spindles. The later analyses of microtubule numbers and lengths, which should now be much more accessible to the reader, provide further evidence that these aspects of the spindle’s architecture are also under precise control.

The cross-sections also look quite disordered, and Figure 1E shows very broad distribution of packing angles, thus, it seems to me that the spindles are not well ordered. It would be helpful if the authors tried to quantify the degree of order and the extent to which the spindles are stereotyped, perhaps by measuring a 2D crystalline order parameter.

The nearest-neighbor approach has been used extensively for measuring distances and packing angles (Ding et al., 1993; Winey et al., 1995; McDonald et al., 1992), but does have several limitations. The most notable of these is associated with the angle measurements, which are defined with respect to the two nearest MTs. These triplets of MTs are not necessarily all from the same crystalline unit cell, which leads to a less uniform distribution of packing angles (and distances) being measured for the spindle. This effect partly explains the broad distribution of packing angles that are present, particularly in the earlier spindles. We agree that the transverse organization of cytoskeletal arrays is an area worthy of future study that would certainly benefit from the application of techniques from solid-state physics, but these techniques are relatively involved. We also feel that this quantitation would not provide a great deal of additional insight beyond the simple and intuitive nearest-neighbor method, and is therefore beyond the scope of this paper.

2) In the Results section, the authors describe simulations comparing the buckling resistance of spindles with geometries measured from tomography to the buckling resistance of randomly generated arrays. This is a very interesting methodology. However, the conclusion that “This analysis also indicates that alternative spindle architectures with greater buckling resistance than is observed in wild-type cells do not appear to exist, and that the natural spindle architecture may be close to optimal” is still problematic, because it could depend on the null model that the authors chose. An alternative null model would be to generate random bundles of microtubules that would be expected to form with unregulated, non-specific crosslinkers. It would be very interesting for the authors to perform such simulations to test if there is really something special about the arrangement of microtubules in the spindle, or if the same resistance to buckling would result from unregulated crosslinked arrays of microtubules.

This is an interesting suggestion, as the impact of cross-linker specificity on the organization of the spindle is currently unknown. It is also correct that the number of potential spindle organizations that could possibly exist is far larger than has been probed in the current study. However, these architectures are likely to be subject to other constraints on how they are formed and mediate elongation that cannot be probed using the simulation methodology that is described in the paper. The simulations were designed to approximate the organization of the spindle at a particular stage of its elongation without needing to simulate its progression through the earlier stages of mitosis. It is unclear whether the alternative architectures could ever be realized in vivo. We have responded to this comment by qualifying the discussion of this result more carefully. We have also amended the text to clarify the most important conclusion of this figure, which is to motivate and support the subsequent model of a maximal midzone-overlap (MMO) spindle architecture (this analysis also indicates that alternative spindle architectures with a larger critical force occur infrequently under this null model, and suggests that the lengths of wild-type microtubules are regulated to increase the spindle’s effective stiffness).

3) The tomography data in 1B shows that these three representative spindles have bends (this is most dramatic for the “early” spindle, but the bends are present in all the spindles). Since the spindles are already bent to some extent, then forces on the poles cannot cause a buckling (which would only occur from a starting straight configuration), but additional forces could cause further bending. Given this, the relevance of studying how a simulated straight spindle would buckle is unclear. It would be helpful for the authors to explain their reasoning in studying buckling. It would also be helpful for the authors to comment on the observed bending of the spindle in the tomograms and explain how it relates to their studies of the mechanics of bending of spindles.

The bends in the spindle are an interesting feature of the electron tomographic reconstructions, and are indeed present in all of the anaphase B spindles. These deflections are more pronounced in the early anaphase B spindles, where they appear to be inconsistent with the linear spindle morphology that can be observed in living cells via light microscopy. As the reviewer also rightly suggests, it is unclear how a buckled spindle could elongate at such a uniform rate in the presence of variable resistive forces. These two lines of evidence suggest that the deflections are caused partially or entirely by the standard preparation of the cell for electron tomography and that the native spindles have a straighter morphology. Live-cell imaging studies suggest that the spindles in living cells are close to straight but that pathologically large compressive forces in mutant cells can lead to buckling and the eventual breakage of anaphase B spindles. These observations provide the rationale for studying the critical force of a spindle that is initially in a straight configuration.

It is likely that curved microtubules were also present in reconstructions of the cdc25.22 spindles, but due to the limitations of serial-section microscopy, these may have been artificially straightened or may have been impossible to reconstruct fully. Electron tomography remains the best technique that is available for studying cellular volumes of the size of the yeast spindle at high resolution. The advantage of ET over serial-section EM is that the full three-dimensional organization of the spindle can be recovered, whilst any distortions of the spindle can be corrected using the IFTA algorithm. This approach thus allows us to obtain spindle reconstructions across the full range of lengths that characterize anaphase B spindle elongation.

We have addressed this comment by discussing the deflections of the spindles observed with EM, including these arguments in “Similarities and differences between wild-type and cdc25.22 fission yeast spindle reconstructions”, in the Results section.

4) The authors suggest that compressive strength is maximized. However, it does not become clear whether an optimal strength is needed to withstand the compressive forces during anaphase B. What is the compressive strength needed for the task? How many individual microtubules would be needed to withstand the compressive forces that arise? There is a discussion of this subject in the Discussion section, but it is unclear to me. 10 pN at the poles seem very small, and I do not understand why this “suggests that the precise regulation of spindle architecture (Figure 3E) is essential for the spindle to exceed the required buckling tolerance in late anaphase B.” A clearer and more thorough discussion would be good. Also, the text following this sentence is unclear.

We have introduced several paragraphs to the Discussion (“Spindle design principles and the generation of force”) that present estimates of the magnitude of the force on kinetochore microtubules in metaphase and in anaphase. These estimates suggest that the critical force of the metaphase spindle is greater than the force it is likely to bear during this phase of mitosis. Our calculations also suggest that the later anaphase B spindles can support the drag forces from the elongating nuclei. However, as the reviewer points out, this force seems intuitively relatively small, for example compared with the combined forces that the kinetochores could produce. We have thus introduced an additional figure, which shows that external mechanical reinforcement of the spindle could increase the force that the interpolar microtubules can support (in Results, “Elastic reinforcement may increase the forces that the spindle can sustain”). We have also added a corresponding paragraph to the Discussion (“However, the spindle may be subjected to larger forces…”) outlining the cellular mechanisms that could give rise to spindle reinforcement, and its significance for mitosis in fission yeast cells.

5) I do not understand the sentence: “This property is associated with the geometry of square and hexagonal arrays and applies to intact bundles irrespective of the cross-linker density”, in the Results section. I also do not see how Figure 2–figure supplement 1 should help to provide clarification. Where is cross-linker density defined and discussed?

In the original manuscript, this information was split between the Methods section and the main text, and admittedly was difficult to follow. We modeled increases in cross-linker density by increasing the width of the rectangular support elements between the microtubules. These calculations show that the plateaus in the “minimal transverse stiffness” (see below) are present whether the spindle is sparsely or densely cross-linked. We have amended the Results and Methods sections, in addition to the content and caption of the revised Figure 3 to explain this point more clearly.

6) The authors use the terms “transverse stiffness”, “buckling resistance”, “compressive strength”, “compressive force… before buckling”, and it is not clear to me if they all mean the same or if they refer to slightly different properties. It would be useful to have clear definitions of these terms and to clarify their relationship. Also, the use of “transverse stiffness” is confusing to me, as there are different transverse stiffnesses, and the authors seem only to refer to the minimal value. Switching from one term to another in the text is confusing as the reader is not sure whether a different spindle property is meant.

Apart from the Abstract, where we feel the more general and intuitive “compressive strength” is appropriate, we now use “critical force” consistently throughout the text, as this is the most accurate of the available terms. The new Figure 2 explains the concept of transverse stiffness as a 2D tensor in greater detail. For beams with a constant cross-section, the only quantity that contributes to the beams’ critical force is the small eigenvalue of the stiffness tensor, which we now refer to as “minimal transverse stiffness” to distinguish it from the tensor quantity.

In this context, the following sentence, in the Results section, is completely unclear to me: “We also observed that the square-packed architecture, larger number of microtubules and increased microtubule separation at the spindle midzone result in a greater transverse stiffness than in the polar regions for all phases of spindle elongation.” To which figure does this statement refer?

We have amended the text to refer to the relevant Figure 3E. In the paragraph (“A notable feature of the stiffness of the idealised arrays…”), we now explain that the three properties that lead to the midzone having a greater stiffness than the pole regions include increased microtubule number, the lower intrinsic packing density of square arrays and the increased bridging distance between neighboring microtubules.

7) Most mechanical arguments of the paper seem to rely on homogeneous elastic material properties. However, I did not find a discussion of this simplification and whether, in the case of microtubule bundles, this is a good simplification.

We have added several paragraphs to the Discussion (“Material properties of the spindle”) that describe the conditions that lead to cross-linked cytoskeletal bundles behaving elastically, as is assumed in the calculations presented in Figure 3. The results of the numerical simulations, which are presented in subsequent figures, are not dependent on this assumption, as our algorithm considers each spindle as a composite structure that is not homogeneous. We, however, also provide arguments that the properties of the yeast spindle, in particular its slow dynamics, crystalline architecture and high abundance of crosslinkers, implies that the elastic assumption is a reasonable first approximation for this system.

8) The sentence in the Results section, “Finally, we determined the buckling resistance of spindle architectures that maximise microtubule overlap at the stiff, square-packed spindle midzone, and are thus expected to possess optimal compressive strength”, is unclear.

How is overlap maximized? Does it mean overlap along the whole length? What does optimal mean? What is optimized under what conditions? Why is optimal put in “quotes”?

The rationale for this model of spindle organization is now explained in greater detail in the manuscript (the overlap length is maximized, under two constraints: the total polymer mass LT is given, and the pole-to-pole distance Ls is fixed). We have also added a diagram to Figure 5 (panels A and B) that explains how the overlap is maximised, given the constraints on polymer mass and the width of the midzone. As mentioned previously, we have significantly cut the jargon from the paper with a particular focus on any terms in “quotes”. In this case, we describe the spindle architecture in detail and refer to it as a maximal midzone-overlap (MMO) model, which is both precise and does not exaggerate its significance.

9) The repeated use of the terms “optimal” or “ideal” is unclear. It sounds like an exaggeration and the reader is left in the dark as to what exactly is meant.

We agree that the use of “optimal” and “ideal” as shorthand descriptions of different aspects of the spindle organization is a little vague, and we have tried to reduce the amount of jargon that is used in the paper as much as possible. In the revised manuscript, we now refer collectively to the triangular arrangement of microtubules at the poles of the spindle, and the 2x2 and 3x3 square arrays of microtubules at the midzone, as “structural motifs”. This term is both precise and does not imply anything for the structural motifs’ potential utility (see reply to major points 6 and 8).

10) In Materials and methods (“Quantifying microtubule organisation and the transverse stiffness of spindle”), when the buckling force F is introduced, the equation given corresponds to a beam with constant cross-section along the beam. This should be clarified. As the spindles in the present work do not have constant cross section, it would be useful to discuss in which way the simple law F=pi EI/L^2 is affected if cross-sections are not constant. This point could be used to motivate the numerical work discussed in the Results.

We have clarified the discussion of how the transverse stiffness influences a beam’s critical force in Figures 2 and 3. The expanded discussion of the stiffness tensor now explains how the anisotropy of a beam leads to deviations from simple, 1-dimensional buckling. We also note that the behavior of beams that do not have a constant cross-section is complex, which provides a valid justification for using simulations. We finally provide a more coherent link between the numerical simulations and the simple Euler-Bernoulli formula by computing the spindle’s effective stiffness Eeff I, from the critical forces measured in the simulation of the non-homogeneous spindles. This makes it clear to the reader that, although the two approaches differ greatly in their realism and complexity, they are in good agreement on how the spindle’s critical force scales with increasing pole separation.

11) This paragraph, in the Results section, is unclear: “A comparison of the observed number of interpolar microtubules…” What does “precise scaling” mean here? What quantity is “scaling”? I also do not understand the following sentence in the same paragraph: “The theory also indicates that…”

These two potential sources of confusion have largely been resolved by the changes made in response to major comment 8. We also have substantially expanded the caption of Figure 5 and the discussion of theoretical models of a maximally overlapping spindle to explain these results and their consequences more clearly.

https://doi.org/10.7554/eLife.03398.028

Article and author information

Author details

  1. Jonathan J Ward

    1. Cell Biology and Biophysics Unit, European Molecular Biology Laboratory, Heidelberg, Germany
    Contribution
    JJW, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Hélio Roque
    Competing interests
    The authors declare that no competing interests exist.
  2. Hélio Roque

    1. Cell Biology and Biophysics Unit, European Molecular Biology Laboratory, Heidelberg, Germany
    2. Sir William Dunn School of Pathology, University of Oxford, Oxford, United Kingdom
    Contribution
    HR, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Jonathan J Ward
    Competing interests
    The authors declare that no competing interests exist.
  3. Claude Antony

    1. Cell Biology and Biophysics Unit, European Molecular Biology Laboratory, Heidelberg, Germany
    2. Department of Integrated Structural Biology, UMR7104, Institut Génétique Biologie Moléculaire Cellulaire, Illkirch, France
    Contribution
    CA, Conception and design, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. François Nédélec

    1. Cell Biology and Biophysics Unit, European Molecular Biology Laboratory, Heidelberg, Germany
    Contribution
    FN, Conception and design, Drafting or revising the article
    For correspondence
    1. nedelec@embl.de
    Competing interests
    The authors declare that no competing interests exist.

Funding

European Commission (241548 and 258068)

  • Jonathan J Ward

Volkswagen Foundation (I/83 942)

  • Jonathan J Ward

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Phong Tran for help in initiating the project. We thank Ken Sawin and Fred Chang for providing yeast strains, and Damian Brunner and members of his lab for yeast strains and technical help. We thank Carl Zeiss and PerkinElmer for continuous support of the EMBL Advanced Light Microscopy Facility. We would like to thank our colleagues Jan Ellenberg, Darren Gilmour, Marko Kaksonen, Robert Mahen, Marcel Janson and Jordan Raff for critical reading of the manuscript. Research in the Nedelec lab is supported by BioMS and the European Commission Seventh Framework Programme (FP7/2007-2013) under grant agreements no. 241548. and no. 258068. JJW acknowledges financial support from the VW foundation within the program; Computational Soft Matter and Biophysics (Grant No. I/83 942).

Reviewing Editor

  1. Frank Jülicher, Reviewing Editor, Max Planck Institute for the Physics of Complex Systems, Germany

Publication history

  1. Received: May 16, 2014
  2. Accepted: December 17, 2014
  3. Accepted Manuscript published: December 18, 2014 (version 1)
  4. Version of Record published: January 14, 2015 (version 2)

Copyright

© 2014, Ward et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,281
    Page views
  • 211
    Downloads
  • 9
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology and Stem Cells
    Cyrille Ramond et al.
    Research Article
