Mutations in the cystic fibrosis transmembrane conductance regulator (CFTR) cause recurring bacterial infection in CF patients' lungs. However, the severity of CF lung disease correlates poorly with genotype. Antibiotic treatment helps dramatically prolong patients' life. The lung disease generally determines prognosis and causes most morbidity and mortality; early control of infections is thus critical. Staphylococcus aureus is a main cause of early infection in CF lungs. It secretes sphingomyelinase (SMase) C that can suppress CFTR activity. SMase C also inhibits voltage-gated K+ channels in lymphocytes; inhibition of these channels causes immunosuppression. SMase C's pathogenicity is further illustrated by the demonstration that once Bacillus anthracis is engineered to express high levels of SMase C, the resulting mutant can evade the host immunity elicited by a live vaccine because additional pathogenic mechanisms are created. By screening a chemical library, we find that the natural product tannic acid is an SMase C antidote.https://doi.org/10.7554/eLife.03683.001
Cystic fibrosis is an inherited disease that mainly affects the lungs and the intestine. It is caused by defective copies of a protein called CFTR, which normally allows chloride ions to flow in and out of cells through the cell membrane. The activity of the CFTR protein is important for transferring fluid in and out of cells, and the dysfunctional CTFR protein causes the cells lining the lungs and the intestine to produce thick mucus. This leads to problems with breathing and absorbing nutrients, and makes the lungs of people with cystic fibrosis more susceptible to infections.
Recurring lung infections aggravate the symptoms of cystic fibrosis and worsen the predicted outcome for sufferers. A common skin bacterium, called Staphylococcus aureus, is one of the first to colonize the lungs of young cystic fibrosis patients. This pathogen releases an enzyme that can further reduce any residual activity of the defective CTFR protein. The enzyme—called sphingomyelinase C (or SMase C for short)—also interferes with the function of another protein that allows potassium ions to flow out of immune cells. This effect in turn reduces the body's ability to fight the infection.
Now Ramu et al. have found, by using cells grown in a laboratory, that the enzyme released by the bacteria would remain active long after the bacteria had been killed. This finding suggests that a combination therapy of antibiotics that kill the bacteria and a drug that inhibits the enzyme function may greatly improve treatments for cystic fibrosis.
Ramu et al. then tested a collection of over 2000 edible naturally-occurring chemicals and drugs, which are already approved for use in humans, to see if any could counteract the activity of the enzyme. A single natural chemical called tannic acid was shown to prevent both the negative effects on CTFR and those on the potassium channel protein.
Other pathogenic bacteria also produce an SMase C enzyme and Ramu et al. showed that tannic acid can also interfere with the anthrax bacterium's enzyme. This suggests that treatment with tannic acid may improve the outcome in a number of bacterial infections. Further experimental work is now needed to establish whether tannic acid can alleviate the symptoms of infectious disease in animal models.https://doi.org/10.7554/eLife.03683.002
The cystic fibrosis transmembrane conductance regulator (CFTR) Cl− channel is activated when its regulatory (R) domain is phosphorylated by cyclic AMP-dependent protein kinase A (PKA) (Tabcharani et al., 1991). Mutations of CFTR cause CF disease that involves multiple organs (Knowles et al., 1983; Kerem et al., 1989; Riordan et al., 1989; Rommens et al., 1989). In the lungs of CF patients, defective CFTR leads to production of thick mucus that obstructs airways and thus predisposes the patients to recurring bacterial infection. Although CF disease originates from genetically defective CFTR protein, the severity of CF lung disease is not well correlated with genotype. The CF lung pathology is not fundamentally different from those of many other types of chronic pulmonary infectious and inflammatory diseases. Aggressive antibiotic treatment and supportive measures have prolonged the median life span of patients from 5 to 37 years (The Cystic Fibrosis Foundation, 2004). These observations underscore the profound impact of infections on progression and severity of CF lung disease. Given that the lung disease generally determines CF patients' prognosis and causes ∼90% of their morbidity and mortality, it is extremely important to effectively control or mitigate lung infections in the early stages of CF disease.
Staphylococcus aureus is a main cause of early infection in the lungs of CF patients (The Cystic Fibrosis Foundation, 2008). Most S. aureus strains, including methicillin-resistant S. aureus (MRSA), secrete the pathogenic factor sphingomyelinase (SMase) C, which cleaves sphingomyelin into phosphocholine and ceramide (Doery et al., 1963) (upper panel, Figure 1A). Our group has previously discovered that SMase C hydrolysis of sphingomyelin surrounding CFTR protein profoundly suppresses CFTR activity (Ramu et al., 2007). Thus, bacteria can further diminish critical residual CFTR activity in CF patients, worsening the negative impact of mutations. By inhibiting CFTR, SMase C-producing bacteria can also create a temporary condition, analogous to CFTR deficiency, in non-CF patients with lung infection. Additionally, compounding this already very serious problem, SMase C strongly inhibits the activity of Kv1.3 voltage-gated K+ (Kv) channels of lymphocytes (Xu et al., 2008). Inhibition of these channels is well known to cause immunosuppression (Chandy et al., 2004).
SMase C's pathogenicity is further illustrated by the disturbing characteristics reported for a genetically engineered Bacillus anthracis mutant. Natural B. anthracis, against which the live STI-1 (Sanitary Technical Institute, USSR) vaccine provides effective protection, produces little SMase C due to a ‘defective’ regulatory gene. However, once B. anthracis is engineered to express high levels of SMase C, the resulting mutant not only remains lethal but also evades the host immunity elicited by the live vaccine because additional pathogenic mechanisms are generated (Pomerantsev et al., 1997). Thus, it is important to find effective means to counteract the SMase C action.
Experimentally, the CFTR channels are often activated by boosting the concentration of intracellular cAMP with a combination of the adenylate cyclase activator forskolin and the phosphodiesterase inhibitor isobutylmethylxanthine (IBMX) (Csanady et al., 2000). Figure 1B shows current of CFTR heterologously expressed in a Xenopus oocyte bathed in a forskolin- and IBMX-containing solution. Following exposure to extracellular SMase C from S. aureus, the CFTR current was markedly diminished in a time-dependent manner (Figure 1C–E). To investigate whether SMase C also suppresses native CFTR current, we tested the enzyme's effect on CFTR current in Calu-3 cells (a lung epithelial cell line commonly used in CFTR research) after activating their CFTR channels with forskolin and IBMX (Figure 1F–H). As in oocytes, SMase C suppressed CFTR current in Calu-3 cells (Figure 1G–I), a result confirming that this SMase C effect on CFTR activity is not unique to the oocyte heterologous expression system.

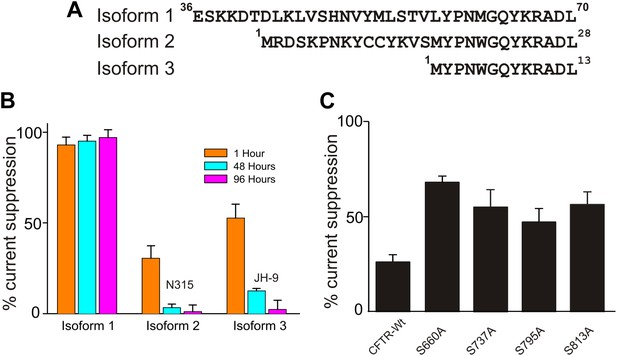

Individual strains of a given bacterium species may be expected to secrete different isoforms of SMase C. We compared three isoforms from S. aureus to learn their behaviors (Figure 2A; only isoform #1 was used elsewhere). All three recombinant isoforms suppressed CFTR current albeit with differing specific activity (Figure 2B). Two isoforms lost activity over 96 hr, and one retained full activity; all three isoforms exhibited measurable activity for at least 48 hr. It follows that secreted SMase C can remain active for a considerable time following death of the bacteria. Thus, while antibiotics remain critical in combating the infection, an effective means to counteract SMase C action would be important in limiting the negative impact of the bacterial infection on the host.
We previously found that at levels beyond that required to achieve maximal CFTR activation, PKA's catalytic subunit significantly lessens suppression of CFTR current by SMase C (Ramu et al., 2007). This observation suggests that SMase C modifying the head group chemistry of sphingomyelin molecules surrounding CFTR makes activation of CFTR more energetically difficult, and this SMase C action can be markedly overcome by ‘over-phosphorylating’ the channel's R-domain until all four sites are phosphorylated. This hypothesis implies that mutant CFTR channels with individual key phosphorylation sites ablated would suffer more pronounced suppression by SMase C at these ‘supersaturating’ levels of PKA's catalytic subunit. To test this prediction, we replaced each of the four phosphorylation sites, one at a time, with alanine and examined SMase C's effect on these single-mutant channels. As a control, we showed that in the presence of a supersaturating level of PKA's catalytic subunit, SMase C suppressed only 25% of the wild-type CFTR current (Figure 2C). In contrast and as predicted, under the same experimental condition, SMase C suppressed 40–65% of the mutants' currents. A second corollary of our hypothesis is that a β adrenergic receptor agonist should alleviate the SMase C-caused suppression of CFTR current by boosting intracellular cAMP. In fact, β receptor agonists are routinely used as bronchodilators in patients suffering from pulmonary infectious and inflammatory diseases. Thus, application of β receptor agonists would not be contraindicated in cases of infection by SMase C-positive bacteria and likely be beneficial. However, given that a β receptor agonist unlikely causes overphosphorylation of the R domain, it may only modestly counteract the SMase C-dependent suppression of CFTR current.

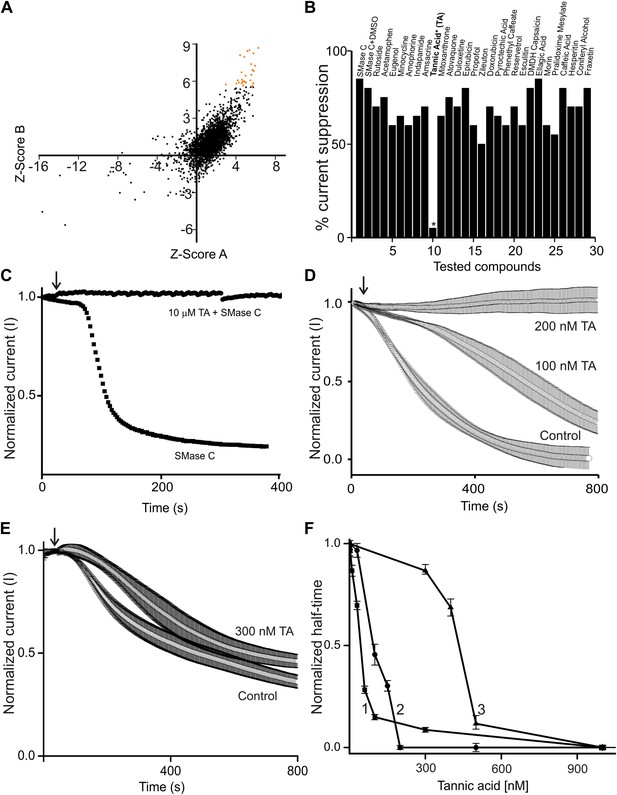

To develop a clinically suitable drug from scratch is difficult and costly. One shortcut is to find novel medical benefits in already approved drugs or edible natural products. As such, we screened a chemical library (Spectrum 2000) consisting of approved drugs and natural products, each at 10 µM concentration. We employed a fluorescence-based assay (Amplex Red) involving a series of coupled enzymatic reactions. Figure 3A is a correlation plot of the Z scores obtained from two repeated screens. A positive result suggests an antagonizing effect of the tested compound on SMase C or on one or more of the coupled reactions. The 27 compounds with higher Z scores were then examined electrophysiologically for their antagonistic effects on SMase C (Figure 3B). We found that, of those 27 compounds at 10 µM, only tannic acid exhibited a clear SMase C-antagonizing effect (Figure 3B,C). Tannic acid was just as effective at concentrations down to 200 nM (Figure 3D). Furthermore, we found that it also antagonized SMase C of B. anthracis (Figure 4A–C).
Tannic acid is known to interact with many other proteins with apparent Kd or EC50 between 8 µM and 150 mM (Gabbott, 2008). Consequently, high concentrations of tannic acid (5–50 mM) are often used to fix cells in EM studies (Hayat, 1981; Afzelius, 1992; Bozzola and Russell, 1992). To our knowledge, a EC50 range of 50–100 nM observed in our study is by far the lowest concentration range at which tannic acid is found to bind effectively to a protein and/or to produce a meaningful biological effect (Figure 3F). Although tannic acid has been reported to bind to the choline group of phosphatidylcholine (PC), it does not appear to antagonize SMase C activity by binding to PC and thereby preventing SMase C from accessing sphingomyelin because tannic acid binds to PC only at much higher concentrations than what is required to antagonize SMase C activity (Kalina and Pease, 1977; Simon et al., 1994). Furthermore, the EC50 (∼50 nM) of tannic acid for antagonizing the SMase C-catalyzed sphingomyelin hydrolysis in a biochemical reaction (involving no PC) is comparable to its EC50 (∼100 nM) for antagonizing SMase C suppression of CFTR activity in a biological membrane (Figure 3F).

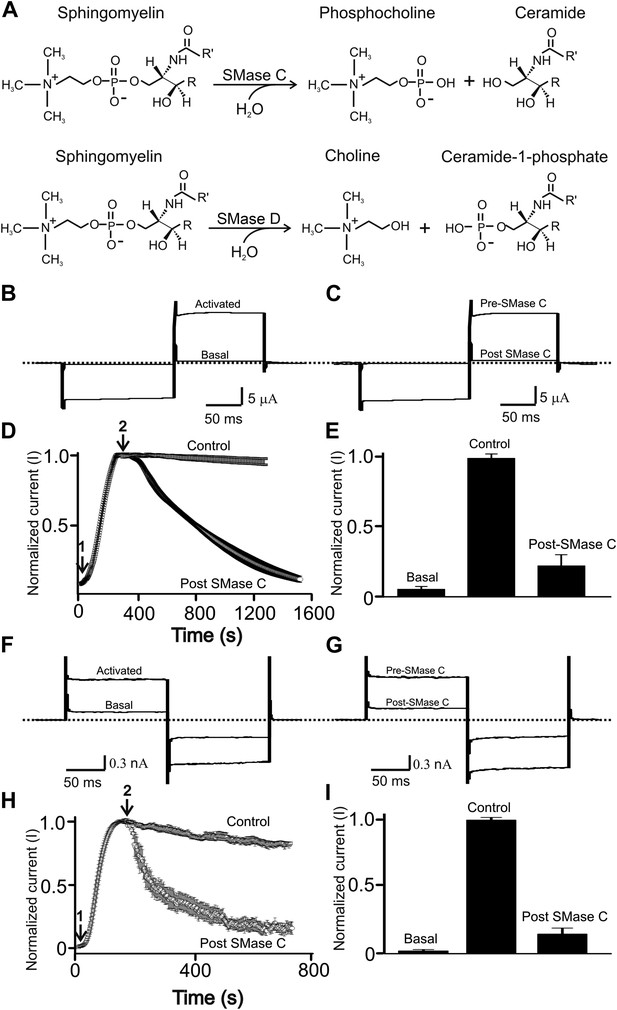

To assess the relative specificity of tannic acid's antagonizing effect on SMase C, we tested tannic acid against bacterial SMase D. Like SMase C, SMase D specifically hydrolyzes sphingomyelin (bottom panel, Figure 1A). However, unlike SMase C, SMase D removes only the choline group rather than the entire phosphocholine head group from sphingomyelin, leaving ceramide-1-phosphate instead of ceramide behind in the membrane. Our group previously showed that SMase D also suppresses CFTR activity (Ramu et al., 2007). Here, we show that tannic acid at 300 nM slightly slowed down SMase D suppression of CFTR activity (Figure 3E). In contrast, as shown above, tannic acid at 200 nM essentially eliminated SMase C suppression of CFTR activity (Figure 3D). Thus, tannic acid antagonizes SMase C and SMase D with differing potency (Figure 3F).
In lymphocytes, Kv1.3 channels help maintain a sufficiently negative resting membrane potential to sustain an adequate driving force for Ca2+ entry which acts as a key signal to activate lymphocytes (DeCoursey et al., 1984; Matteson and Deutsch, 1984; Cahalan and Chandy, 2009). Consequently, inhibition of Kv1.3 channels causes immunosuppression, a finding that has stimulated the development of inhibitors of Kv1.3 as effective immunosuppressants to treat autoimmune diseases (Chandy et al., 2004). On this backdrop, we previously showed that SMase C, by removing the phosphoryl head group of sphingomyelin molecules around Kv1.3 channels, profoundly diminishes these channels' activity (Xu et al., 2008). The underlying mechanism is that removal of the negatively charged phosphoryl group makes it energetically more difficult for positively charged voltage sensors to transition to the activated state. Here, we find that tannic acid can also effectively counteract suppression of Kv1.3 activity by SMase C (Figure 4D–F).
As illustrated above, we have shown that tannic acid is an antidote to SMase C. It is a readily available and inexpensive natural product, widely and abundantly used in the food industry. The US Food and Drug Administration terms it Generally Recognized As Safe (GRAS) (FDA, 2013). The use of tannic acid to treat various diseases was reported as early as 1850 (Alison, 1850; Allegrini and Costantini, 2012), for example in the treatment of human diarrhea. Recently reported clinical doses are 0.5–1 g (Bian et al., 2009), giving an estimated concentration in human body fluids of 8–16 µM, or 40–80 times higher than required to antagonize SMase C action. We suggest that tannic acid be considered in attempts to protect against B. anthracis mutants engineered to over-express SMase C, in the unfortunate event of an outbreak, or to lessen the harm caused by natural SMase C-positive bacteria including MRSA, in both CF and non-CF patients.
The CFTR and PKA-C cDNAs were subcloned in the pGEMHE plasmid (Liman et al., 1992). Mutant CFTR cDNAs were obtained through PCR-based mutagenesis and confirmed by DNA sequencing. The cRNAs were synthesized with T3 or T7 polymerase using the corresponding linearized cDNAs as templates. Channel currents were recorded from whole oocytes previously injected with the corresponding cRNAs and stored at 18°C, using a two-electrode voltage clamp amplifier (OC-725C; Warner, Hamden, CT), filtered at 5 kHz and sampled at 50 kHz using a Digidata 1322 interfaced to a PC. The resistance of electrodes filled with 3 M KCl was 0.2–0.3 MΩ. Molecular Devices pClamp 8 software was used for amplifier control and data acquisition. Unless specified otherwise, the bath solution contained (in mM): 95 NaCl, 5 KCl, 0.3 CaCl2, 1 MgCl2 and 10 HEPES; pH was adjusted to 7.6 with NaOH. CFTR current from the Calu-3 cell line was recorded in the whole cell configuration with a patch-clamp amplifier (200B; Axopatch), filtered at 5 kHz and sampled at 50 kHz using a Digidata 1322 interfaced to a PC. Electrodes were fire polished (2–4 MΩ) and coated with beeswax. Capacitance and series resistance were electronically compensated. Molecular Devices pClamp 8 software was used for amplifier control and data acquisition. The bath solution contained (in mM) 145 NaCl, 5 KCl, 0.3 CaCl2, 1 MgCl2, 10 HEPES (pH 7.30 adjusted with NaOH) and the electrode solution contained (in mM) 140 KCl, 10 EGTA, 1 CaCl2, 1 MgCl2, 10 HEPES (pH 7.30 adjusted with KOH). SMases were manually added to the recording chamber to test their effects.
The cDNAs of SMase C were produced with PCR, primed with a pair of oligonucleotides corresponding to the 5ʹ or 3ʹ translated regions against the genomic DNA isolated from B. anthracis and S. aureus (isoform 1, accession number AAB32218; isoform 2, BAB43091 and isoform 3, ZP_01242591), respectively. To produce recombinant SMases C and D, Escherichia coli BL21 (DE3) cells were transformed with the respective cDNAs cloned into pET30 vector (Novagen, San Diego, CA), grown in LB medium to ∼0.6 OD at 600 nm, and induced with 1 mM IPTG for 2 hr. The bacteria were harvested, resuspended, and sonicated. The resulting samples were loaded onto a cobalt affinity column and eluted by stepping the imidazole concentration from 50 to 500 mM (all SMase proteins contain N- and C-terminal His tags). The imidazole was later removed by dialysis.
We screened the Spectrum 2000 compound library with Amplex red assay which is based on the following coupled reactions. First, sphingomyelinase hydrolyzes sphingomyelin, yielding ceramide and phosphocholine. Second, an alkaline phosphatase hydrolyses phosphocholine, yielding choline. Third, choline is oxidized by choline oxidase to betaine and H2O2. Finally, H2O2, in the presence of horseradish peroxidase, reacts with Amplex Red reagent in a 1:1 stoichiometry to generate the highly fluorescent product, resorufin. Resorufin has absorption and fluorescence emission maxima of approximately 571 nm and 585 nm, respectively. During the screen, individual wells of a PerkinElmer OptiPlateTM-384 HB black plate containing Spectrum 2320 compounds (each at 10 μM) dissolved in DMSO were added with 20 μl of a mixture containing sphingomyelin (100 μM), alkaline phosphatase (16 U/ml), choline oxidase (0.4 U/ml), horseradish peroxidase (4 U/ml), Amplex red (100 μM), and triton X (0.4%) (Amplex red sphingomyelinase assay kit A12220; Invitrogen, Grand Island, NY), using a Bio Tek microdispenser (Janus Automated Workstation, PerkinElmer, Waltham, MA). To start the enzymatic reaction, 20 μl of a solution containing SaSMase (30 nM) was dispensed into individual wells. For chemical library screening, SMase C activity was quantified from the intensity ratio of fluorescence excited at 570 nm and detected at 590 nm in the presence and absence (DMSO only) of tested compounds whereas it was quantified by monitoring absorbance at 570 nm in the tannic acid dose–response study.
Section staining for electron microscopy using tannic acid as a mordant: a simple method for visualization of glycogen and collagenMicroscopy Research and Technique 21:65–72.https://doi.org/10.1002/jemt.1070210110
On the use and administration of tannic acid in various diseasesLondon Journal of Medicine 2:1–9.https://doi.org/10.1136/bmj.s2-2.13.1
Gelatine tannate for the treatment of acute diarrhoea in adultsJournal of Gastrointestinal and Digestive System 2:110.https://doi.org/10.4172/2161-069X.1000110
Electron microscopy: principles and techniques for biologistsJones and Bartlett.
The functional network of ion channels in T lymphocytesImmunological Reviews 231:59–87.https://doi.org/10.1111/j.1600-065X.2009.00816.x
K+ channels as targets for specific immunomodulationTrends in Pharmacological Sciences 25:280–289.https://doi.org/10.1016/j.tips.2004.03.010
Severed channels probe regulation of gating of cystic fibrosis transmembrane conductance regulator by its cytoplasmic domainsThe Journal of General Physiology 116:477–500.https://doi.org/10.1085/jgp.116.3.477
Food and drugs21.
Principles and applications of thermal analysisBlackwell Publication Limited.
Fixation for electron microscopyLondon: Academic press.
Inhibition of CFTR Cl- channel function caused by enzymatic hydrolysis of sphingomyelinProceedings of the National Academy of Sciences of USA 104:6448–6453.https://doi.org/10.1073/pnas.0701354104
Patient registry annual data reportBethesda, M.D.
Annual reportBethesda, M.D.
Richard AldrichReviewing Editor; The University of Texas at Austin, United States
eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.
Thank you for sending your work entitled “Means to counteract suppression of CFTR and Kv1.3 channels by the bacterial pathogenic factor sphingomyelinase C” for consideration at eLife. Your article has been favorably evaluated by Vivek Malhotra (Senior editor) and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.
The following individuals responsible for the peer review of your submission have agreed to reveal their identity: Richard Aldrich (Reviewing editor); Chris Miller and David Gadsby (peer reviewers).
The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.
This interesting research extends the Lu lab's idiosyncratic approach to understanding, and ameliorating, the disease cystic fibrosis (CF). Mainstream CF research largely aims to correct defective folding and trafficking of the CFTR channel and to boost function of residual CFTR, so improving the flow of Cl- ions, and consequently water, across the critical epithelia of the lung and pancreatic and vas deferens ducts. Most CF morbidity and mortality results from bacterial colonization of dehydrated mucus in the lung and subsequent bacterial infections. The Lu lab has shown that snipping of the phosphocholine headgroup from sphingomyelin by secreted bacterial sphingomyelinase C (SMase C) diminishes Cl- current through adjacent CFTR channels as well as K+ current through lymphocyte Kv channels required for the immune response. Arguing that this two-pronged assault by bacterial SMase C in the lung contributes importantly to both CF and non-CF lung disease, the Lu lab report here their search for a small-molecule inhibitor of SMase C that included screening a library of 2,000 approved drugs and natural products. They found a promising candidate, tannic acid, active below 200 nM.
The work is characteristically novel, thorough, and convincingly written, and it warrants presentation to a broad audience. The final sentence of the paper lays down a challenge to the clinical CF community: “We suggest that tannic acid be considered in attempts....to lessen the harm caused by natural SMase C-positive bacteria including MRSA, in both CF and non-CF patients”. Prominent publication of this statement is important.
An additional important implication is that tannic acid could be used for treatment for engineered anthrax variants that are resistant to available vaccines.
The study might be faulted for the authors' explicit intent to eschew any biological studies of infection. But we consider this reasonable in light of their apparent purpose: to get the basic result known to the wider clinical world, so that proper biological studies can be carried out by those in a position to do them.
The following points need to be adequately addressed before the paper can be accepted for publication:
1) One glaring absence here is a proper biochemical tannic acid-inhibition curve for isolated SMase. That is far more pertinent than some of the other results reported here, such as ruling out PC as substrate.
2) The authors address the question of whether prevention of SMase C hydrolysis of sphingomyelin by tannic acid might result exclusively from tannic acid binding to the phosphocholine moiety of PC and then sterically impeding access of SMase C to nearby sphingomyelin. They apply PC-specific PLC to cleave phosphocholine from PC, and show that this application neither precludes SMase C diminution of Kv1.3 (as they also previously found for Shaker channels), nor prevents tannic acid from inhibiting that action of SMase. The problem is that the authors' interpretation of these observations requires that the PC-PLC removed the phosphocholine from PC in the oocyte membranes, and yet there is no evidence here (and little in Xu et al., 2008) that the PC-PLC was active. BSA would be expected to yield identical results. These negative results cry out for a positive control.https://doi.org/10.7554/eLife.03683.007
- Yajamana Ramu
- Yanping Xu
- Hyeon-Gyu Shin
- Zhe Lu
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
We thank D Gadsby for CFTR cDNA in the pGEMHE vector, S Billington for SMase D cDNA, D Schultz and S Hodwadekar for advice and technical assistance, and P De Weer for critical review of the manuscript. Small molecule screening assay was performed in the Molecular Screening Facility of the Wistar Institute. Z Lu is an Investigator of the Howard Hughes Medical Institute.
